Page 1

LCD Digital Colour TV

Operating Instructions

KDL-52W4500

KDL-46W4500

KDL-40W4500

KDL-40E4500

Page 2

Introduction

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

Trademark information

is a registered trademark of the DVB

Project

DLNA and DLNA CERTIFIED are trademarks and/or service marks o f Digital Living Network Alliance.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and HighDefinition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

“BRAVIA” and are trademarks of Sony Corporation.

“XMB” and “xross media bar” are trademarks of Sony Corporation and Sony Computer Entertainment Inc.

Notes for Australia model

This product is ENERGY RATING qualified in the “Home” mode. ENERGY RATING is a program designed to promote energy efficient products and practices.

• When the TV is initially set up, it is designed to meet ENERGY RATING requirements while maintaining optimum picture quality.

• Changes to certain features, settin gs, and functionalities of this TV (e.g. TV Guide, Picture/Sound, Eco-Setting) can slightly change the power consumption.

Depending upon such changed settings (e.g. “Shop” mode), the power consumption may vary which possibly could exceed the stated energy rating.

To reset the TV to ENERGY RATING qualified settings, select “Home” mode from the initial set-up procedure in “Factory Settings” under the “Set-up” menu.

IMPORTANT INFORMATION

If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television.

• Only using furniture that can safely support the television.

• Ensuring the television is not overhanging the edge of the supporting furniture.

• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.

• Not standing the televisions on cloth or other materials placed between the television and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television or its controls.

s The illustrations used in this manual

are of the KDL-40W4500 unless otherwise stated.

Notes for New Zealand model

Your BRAVIA TV is ENERGY STAR qualified in the Home mode.

• When the TV is initially set up, it is designed to meet ENERGY STAR requirements.

• Changes to certain features, settings, and functionalities of this TV (i.e. TV Guide, Picture/Sound, Light Sensor, Power Savings) can slightly change the power consumption. Depending upon such changed settings, the power consumption may increase which possibly could exceed the limits required for ENERGY STAR qualification.

Page 3

Table of Contents

Start-up Guide 4

Safety Information ............................................................................................................................9

Precautions .....................................................................................................................................10

Remote Control and TV Controls/Indicators ................................................................................11

Watching TV

Watching TV ....................................................................................................................................15

Using the Digital Electronic Programme Guide (EPG) (Australian model only) ..............17

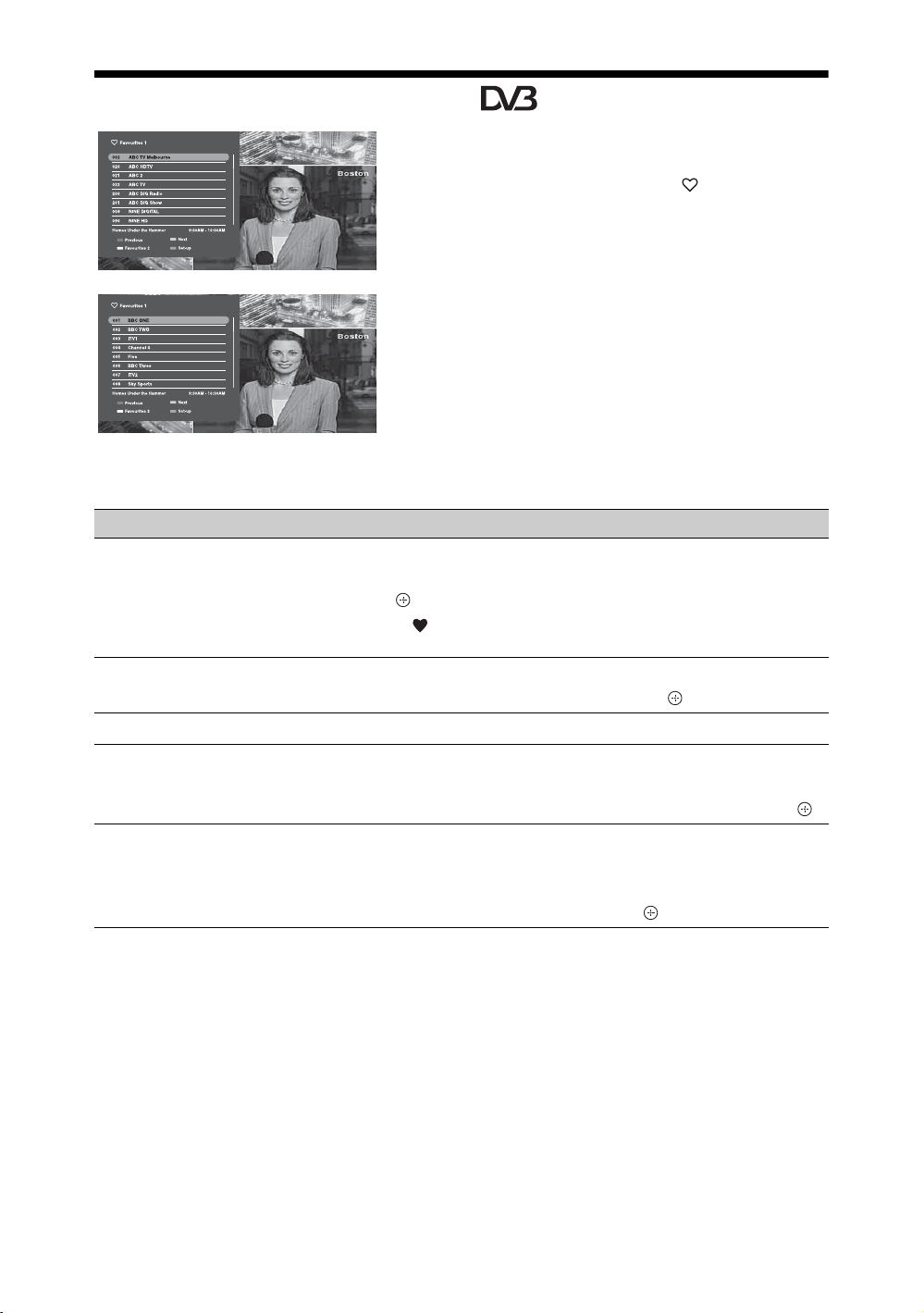

Using the Digital Favourite List ............................................................................................18

Using Optional Equipment

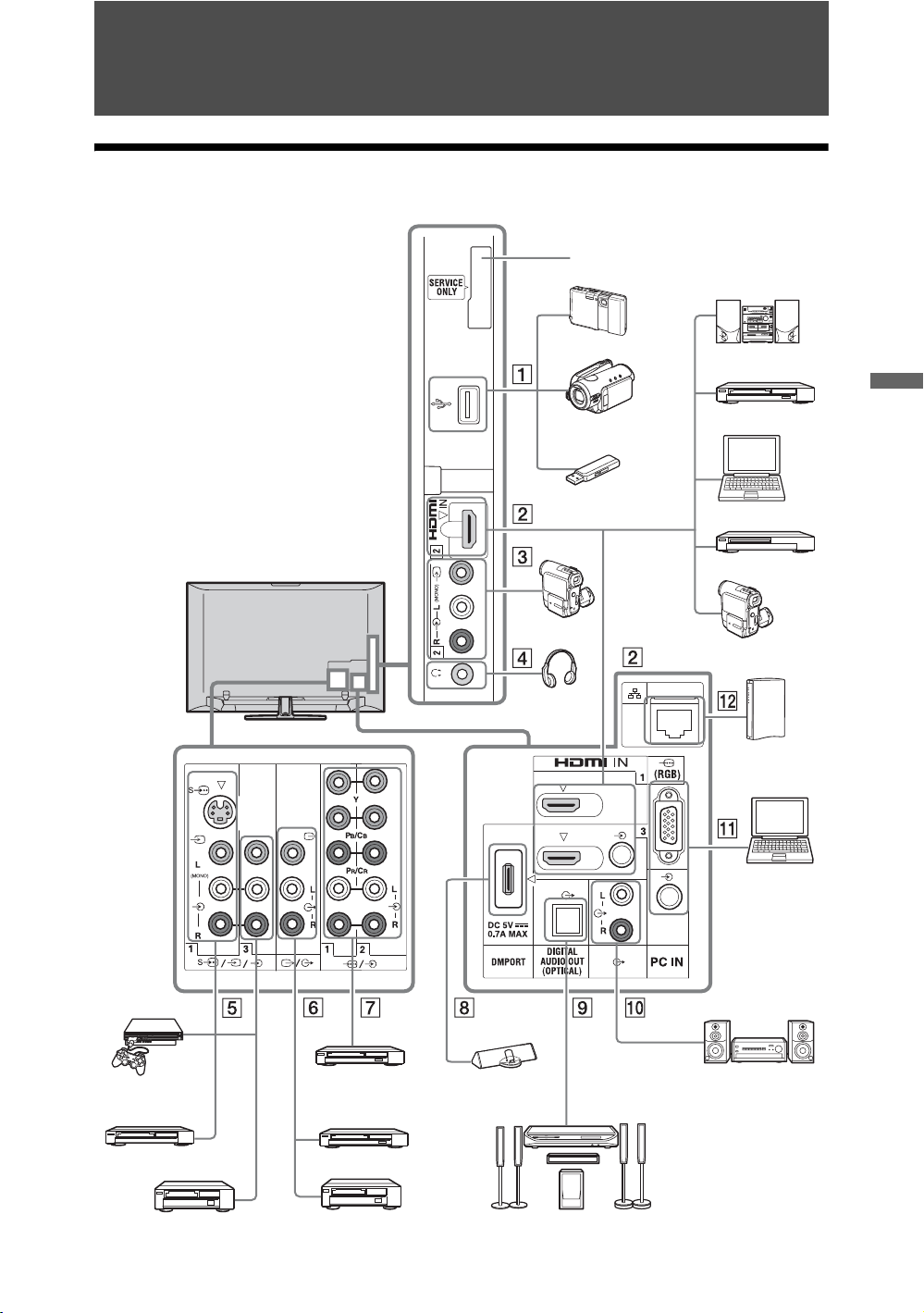

Connecting Optional Equipment ...................................................................................................19

Viewing Pictures from Connected Equipment .............................................................................22

Playing back Photo/Music via USB ...............................................................................................23

Using BRAVIA Sync (Control for HDMI)........................................................................................25

Using Home Network Features

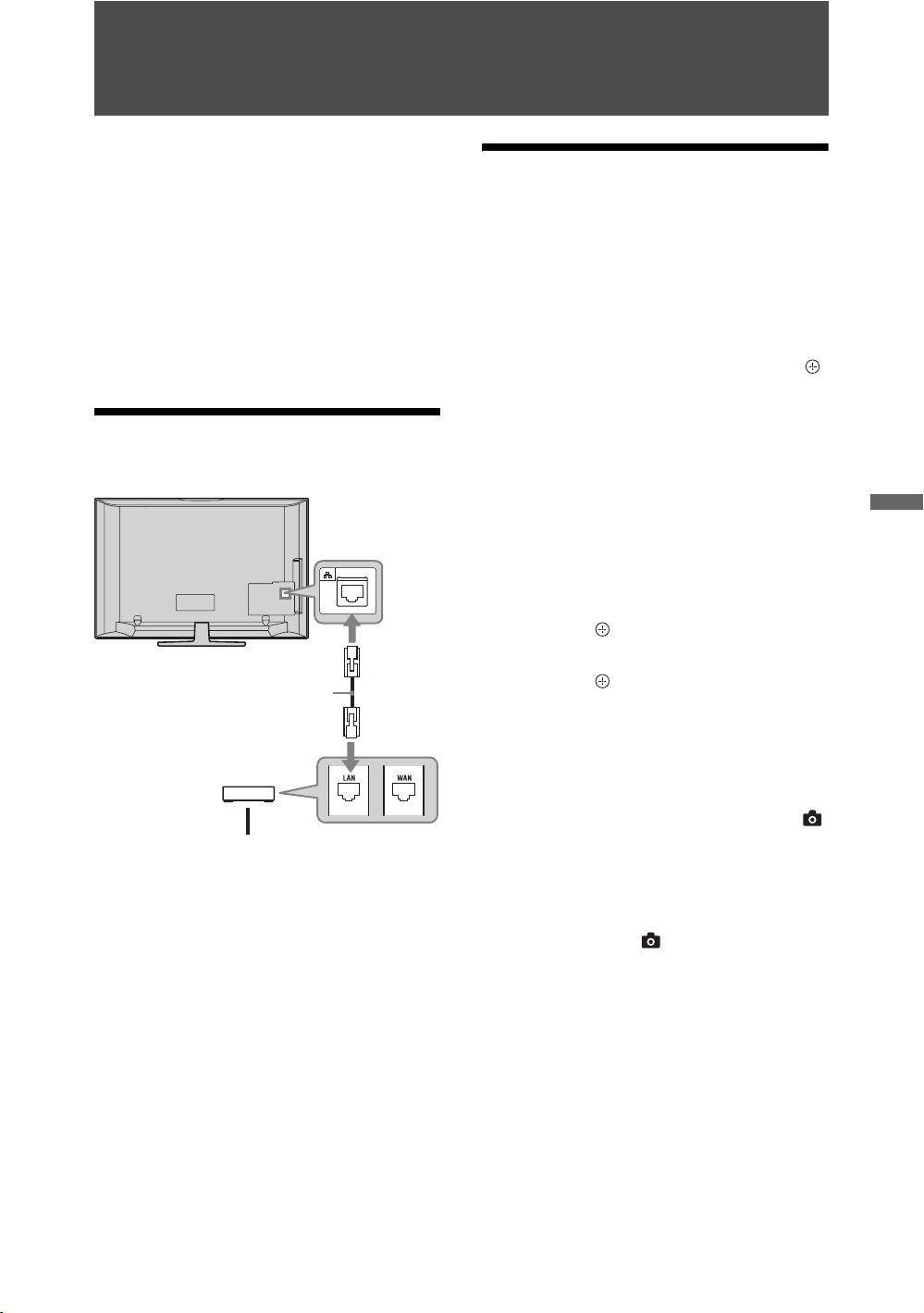

Connecting to the Network ............................................................................................................27

Enjoying Photo/Music Files via the Network................................................................................27

Checking the Network Connection................................................................................................29

Adjusting the Server Display Settings..........................................................................................29

Using MENU Functions

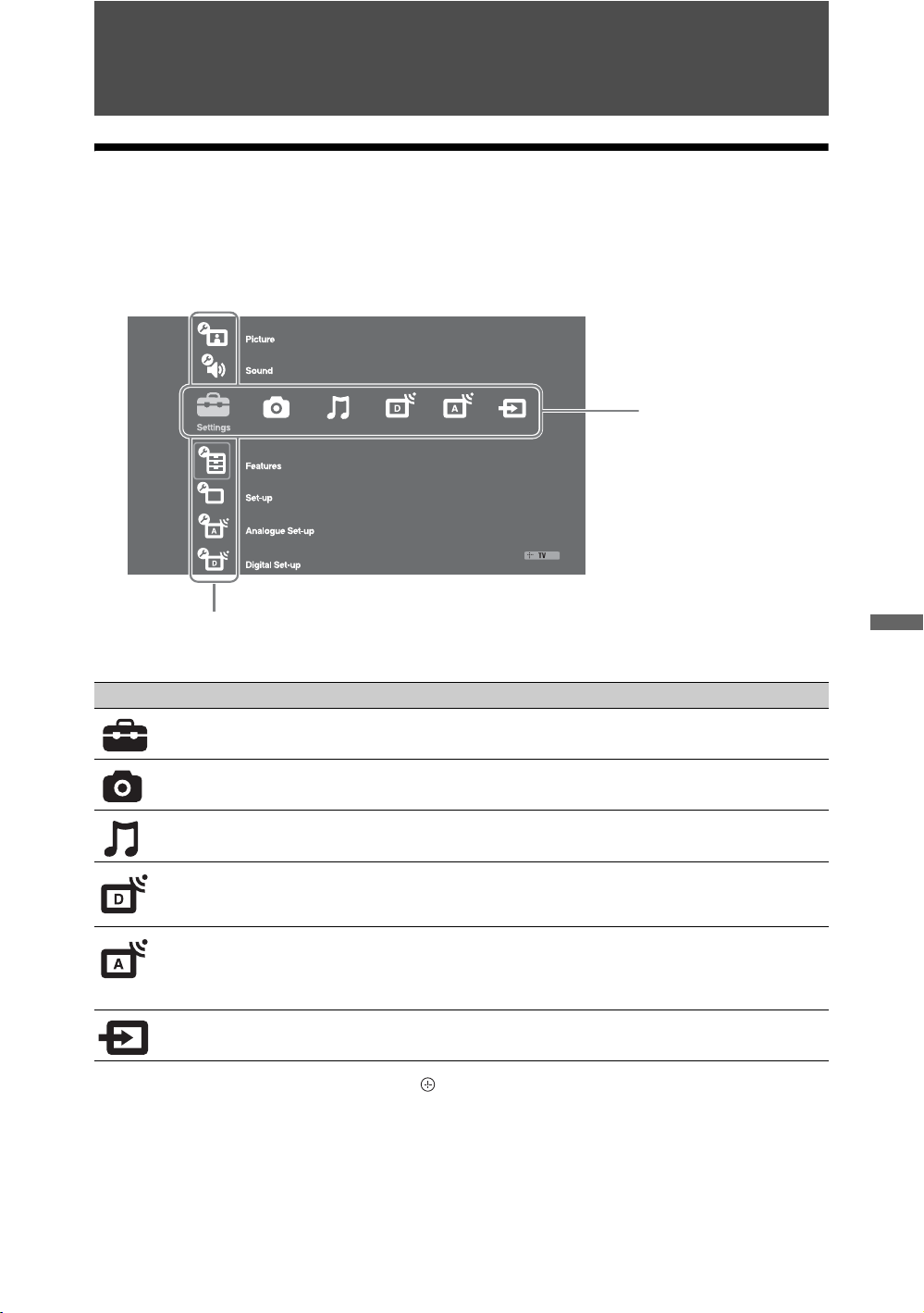

Navigating through TV Home Menu on XMB™ ............................................................................31

TV Settings Menu............................................................................................................................32

Additional Information

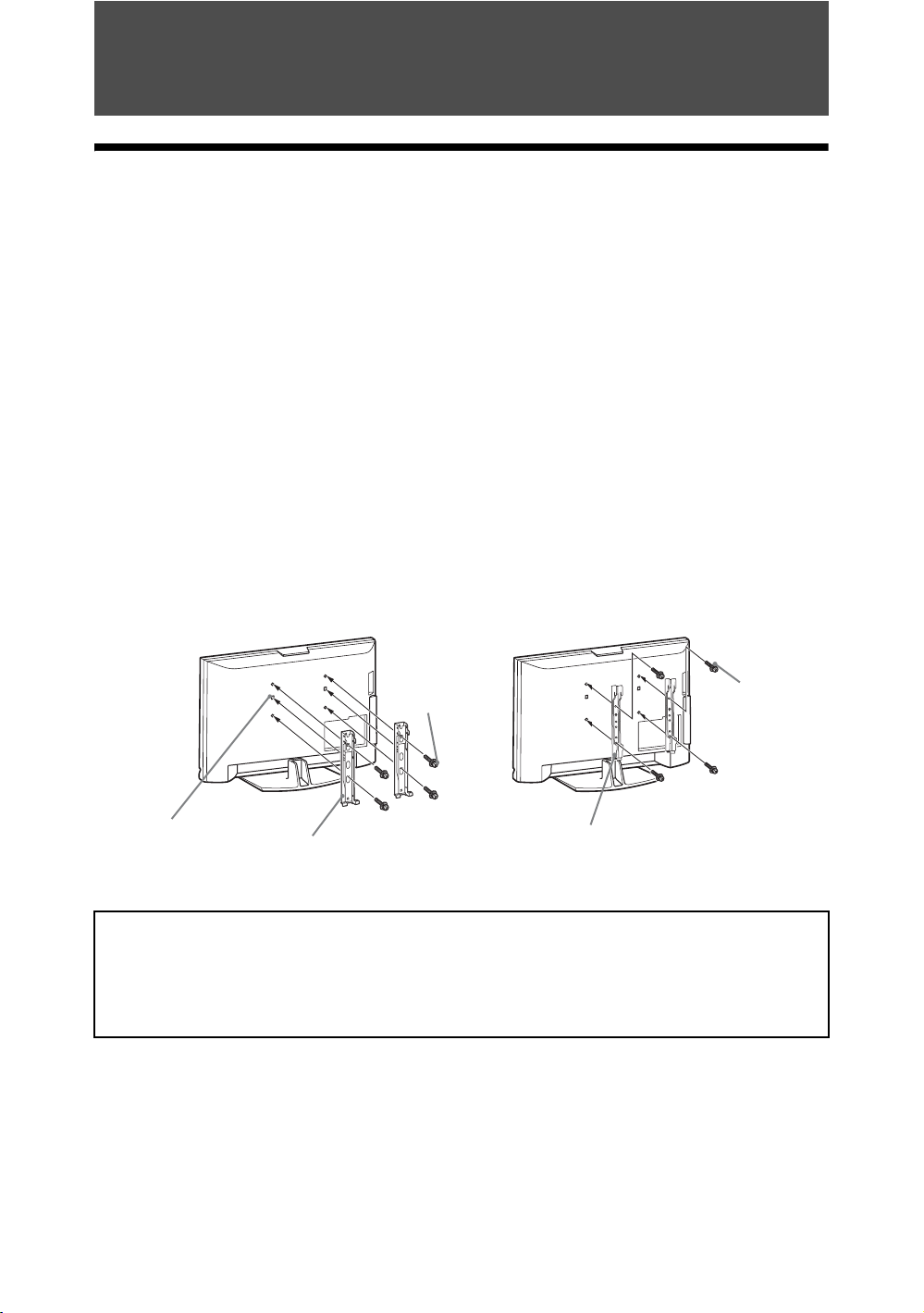

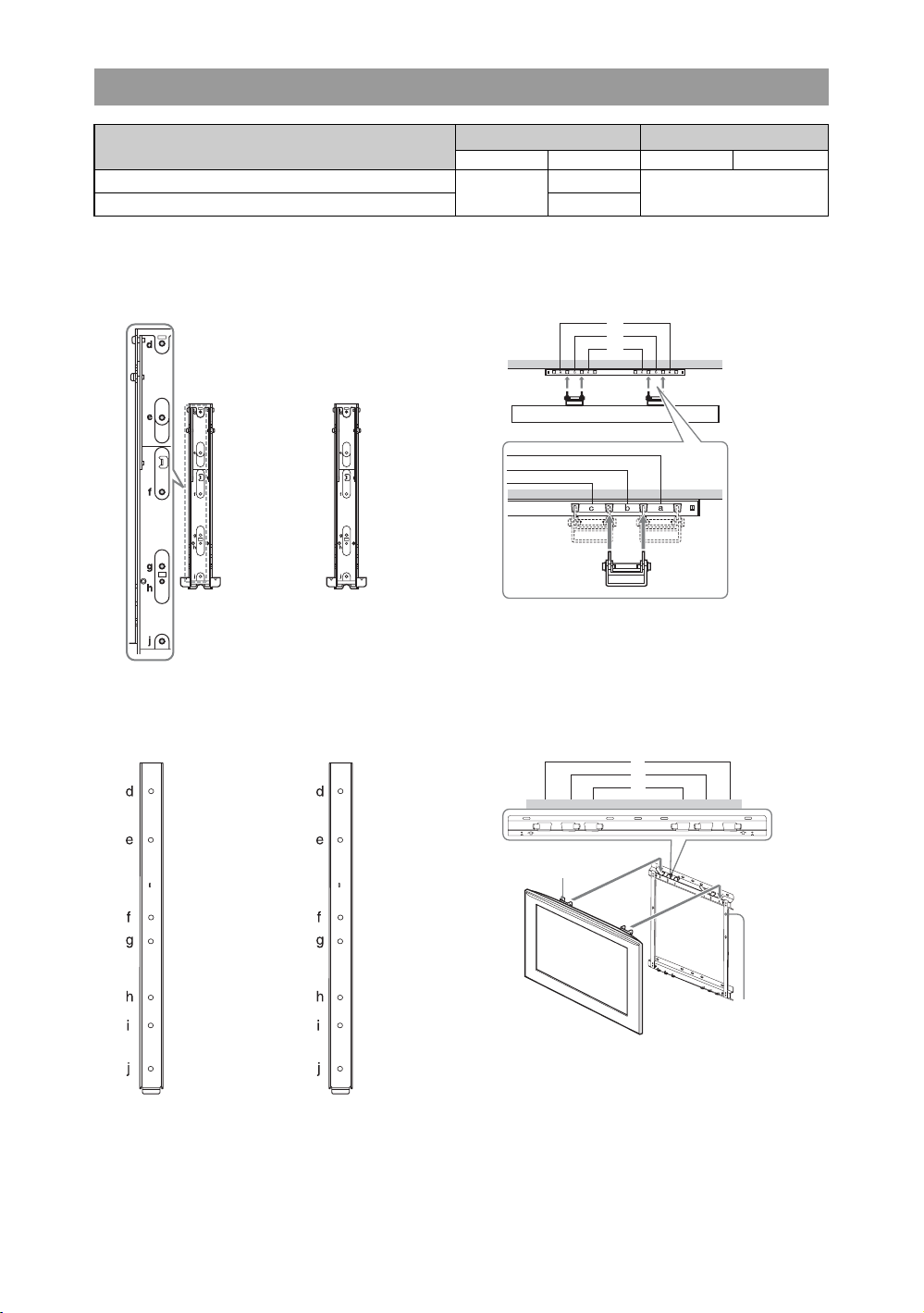

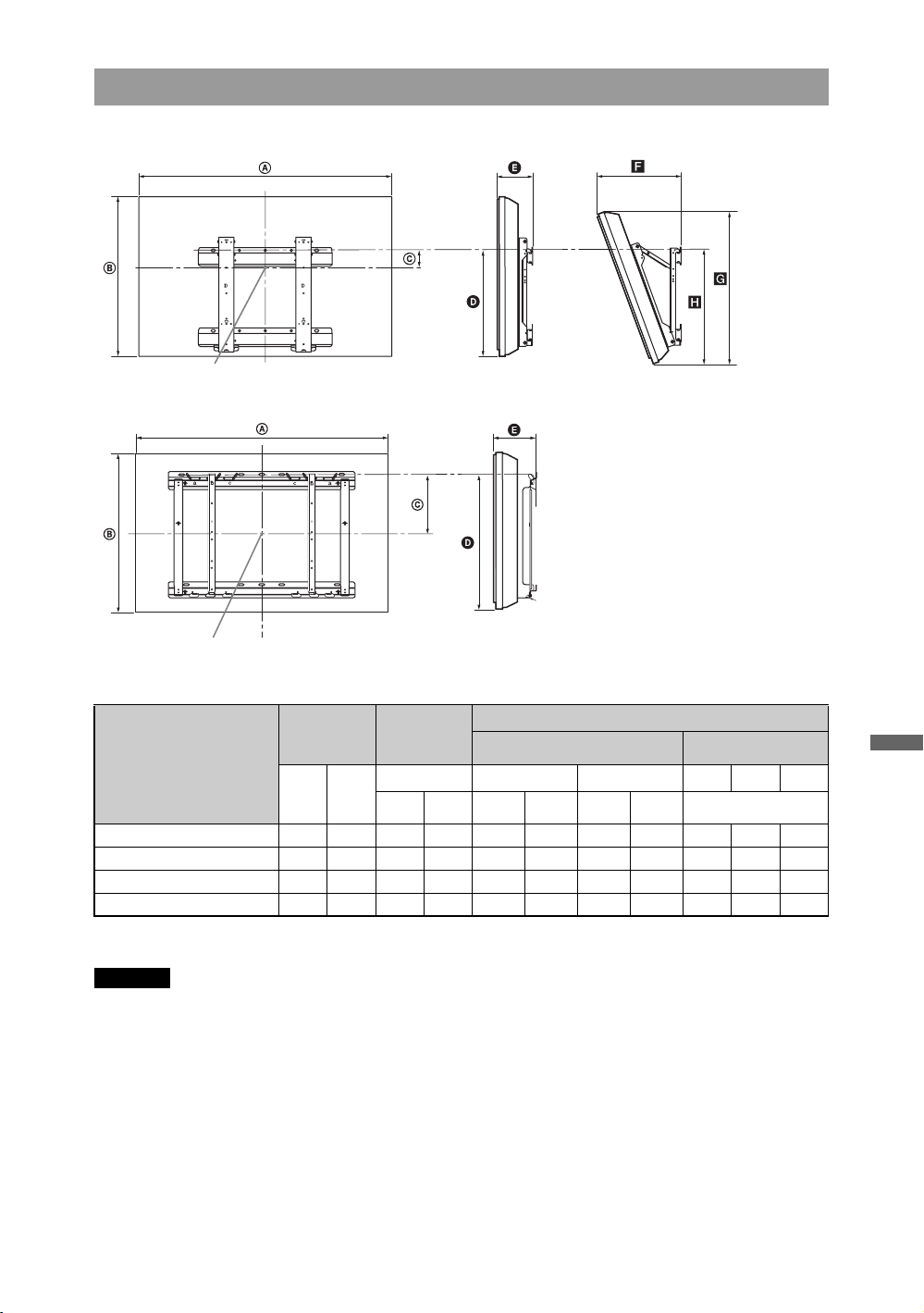

Installing the Accessories (Wall-Mount Bracket).........................................................................44

Specifications..................................................................................................................................47

Troubleshooting..............................................................................................................................49

: for digital channels only

Before operating the TV, please read “Safety Information” (page 9). Retain this manual for future reference.

Page 4

Start-up Guide

1: Checking the accessories

AC power cord (1)

Stand (1) and screws (4) (KDL-46W4500/40W4500/ 40E4500 only)

Remote (1)

Size AA batteries (R6 type) (2)

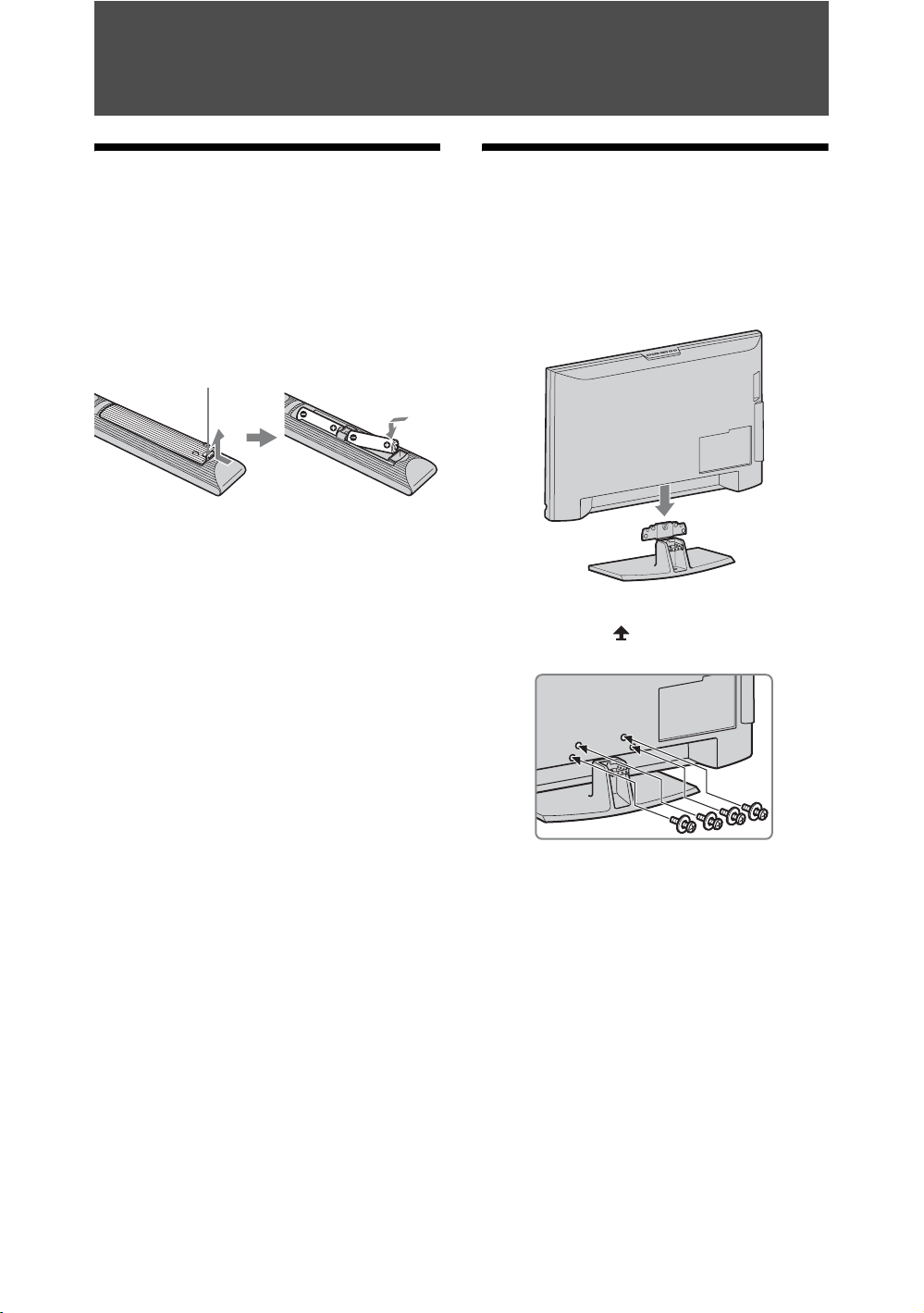

To insert batteries into the remote

Push and lift the cover to open.

• Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or mix old and new batteries.

• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.

• Handle the remote with care. Do not drop or step on it, or spill liquid of any kind onto it.

• Do not place the remote in a location near a heat source, a place subject to direct sunlight, or a damp room.

2: Attaching the stand (for KDL-46W4500/40W4500/ 40E4500)

1 Place the TV onto the stand by aligning

the screw hole alignment lines over the stand as shown.

2 Fix the TV to the stand according to the

arrow marks that guide the screw holes using the supplied screws.

• This TV is very heavy, so two or more people should place the TV on the stand.

• If using an electric screwdriver, set the tightening torque at approximately 1.5N·m (15kgf·cm).

• When installing the TV onto the wall, follow step 1 to prevent the TV panel from falling over.

Page 5

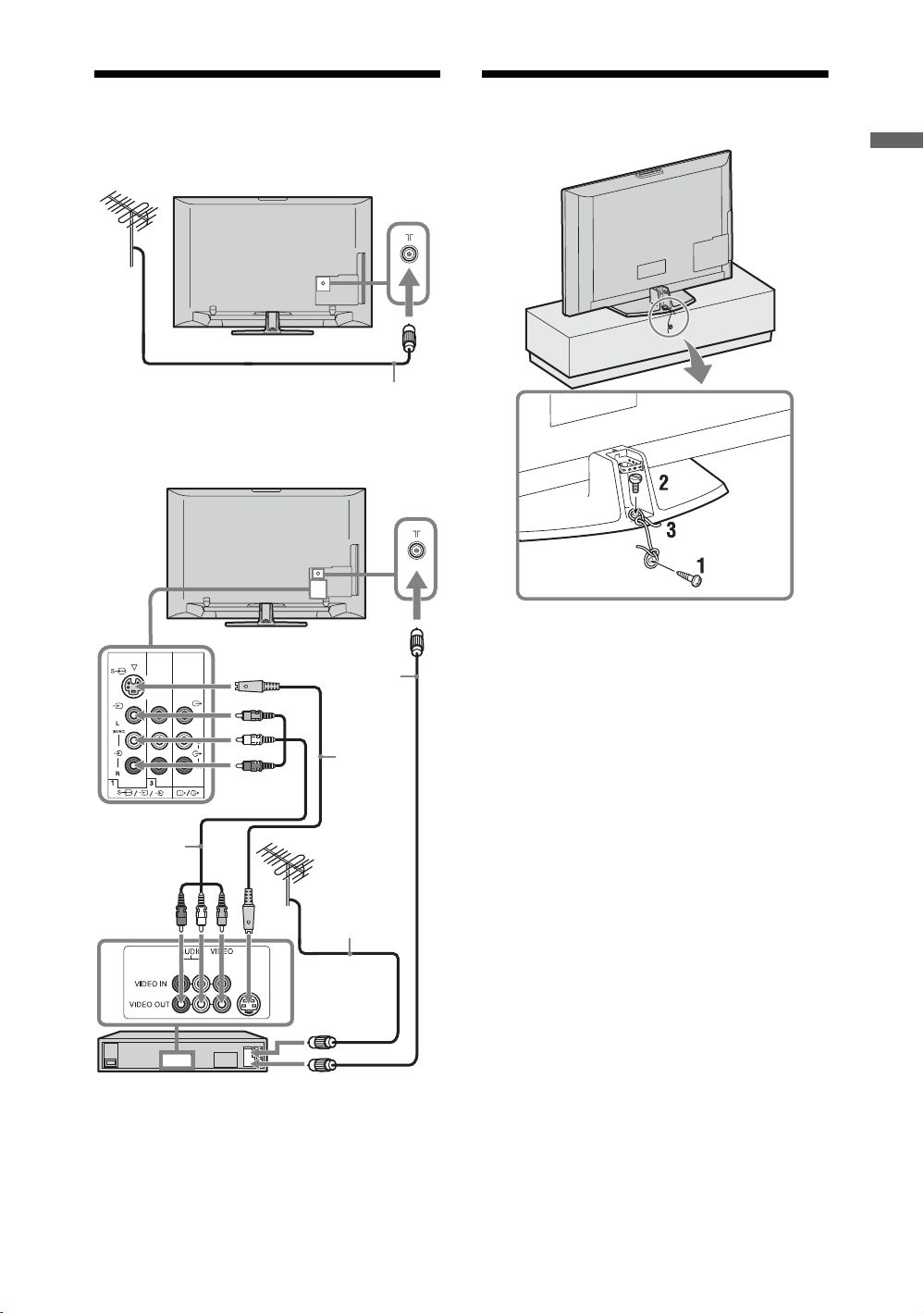

3: Connecting an antenna/ VCR

Connecting an antenna

Antenna cable (not supplied)

Connecting an antenna and VCR

Antenna cable (not supplied)

S-Video cable (not supplied)

4: Preventing the TV from toppling over

Start-up Guide

1 Install a wood screw (4 mm in diameter,

not supplied) in the TV stand.

2 Install a machine screw (M6 × 12, not

supplied) into the screw hole of the TV.

3 Tie the wood screw and the machine

screw with a strong cord (not supplied).

AV cable (not supplied)

Antenna cable (not supplied)

VCR

• When connecting an antenna cable (not supplied), an adaptor (not supplied) may be required.

Page 6

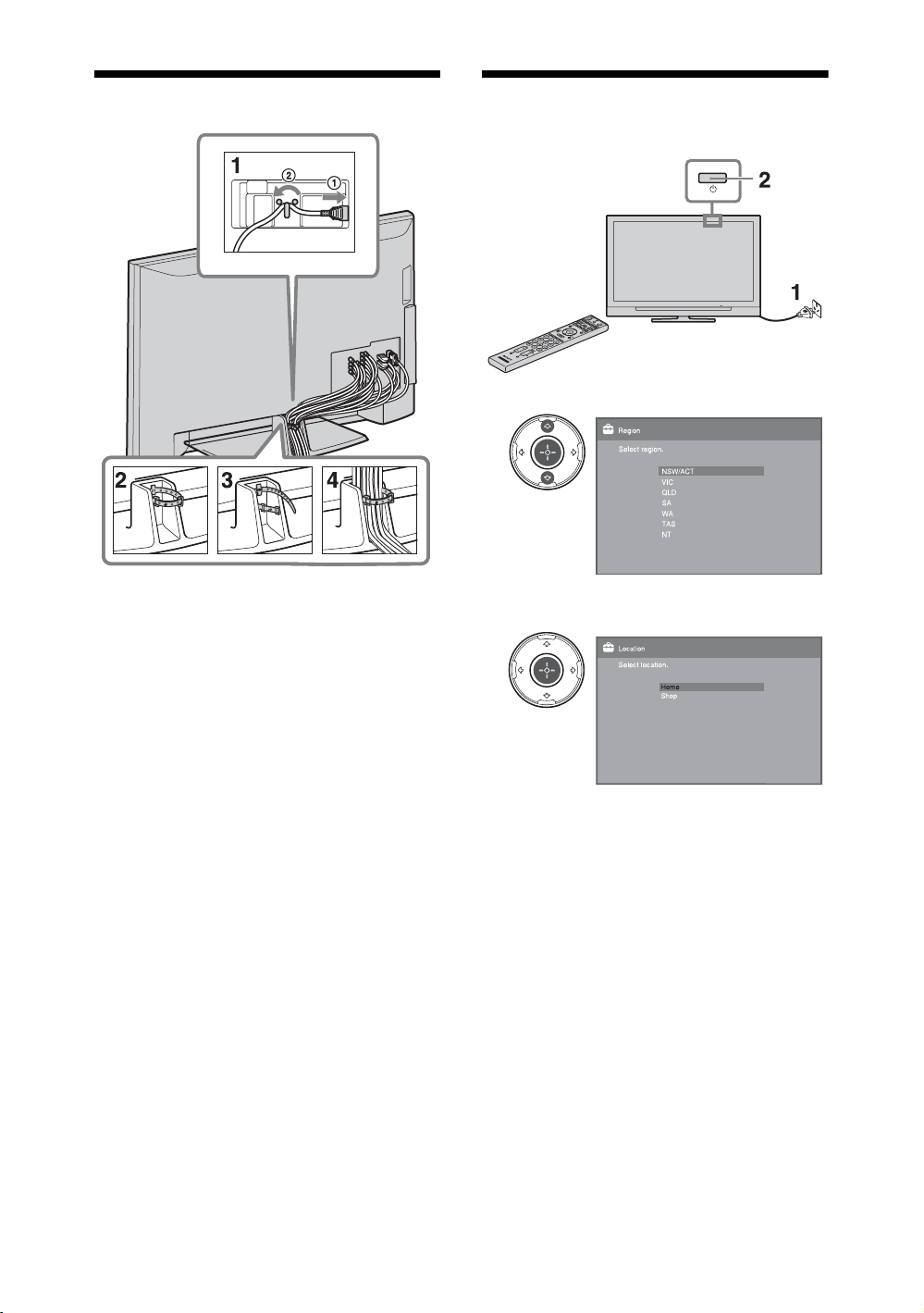

5: Bundling the cables

6: Performing the initial set-up

• Do not bundle the AC power cord together with other cables.

(Australian model only)

Select “Home” for the best TV settings to use the TV in the home.

• “Home” mode optimises the picture recommended for normal home use and is energy efficient. “Shop” mode optimises the picture for store display.

• Setting your TV to “Shop” mode may

exceed the stated energy rating. Select “Home” mode to meet ENERGY RATING requirements while maintaining optimum picture quality.

• The illustration in this step may differ from that of the actual display.

Page 7

Start-up Guide

Select “Yes” to enable the system update (page 42).

Make sure that the antenna is connected. The TV starts searching for all available digital channels, followed by all available analogue channels. This may take some time, so do not press any buttons on the TV or remote while proceeding.

If you want to change the order of analogue channels, follow the steps in “Programme Sorting” on page 39. If your TV cannot receive digital broadcasts, the “Clock Set” menu appears on the screen (page 36).

Select “Yes” to display this menu again next time, otherwise select “No”.

When using the control for HDMI function, select “Yes” to enable control for compatible HDMI devices.

Page 8

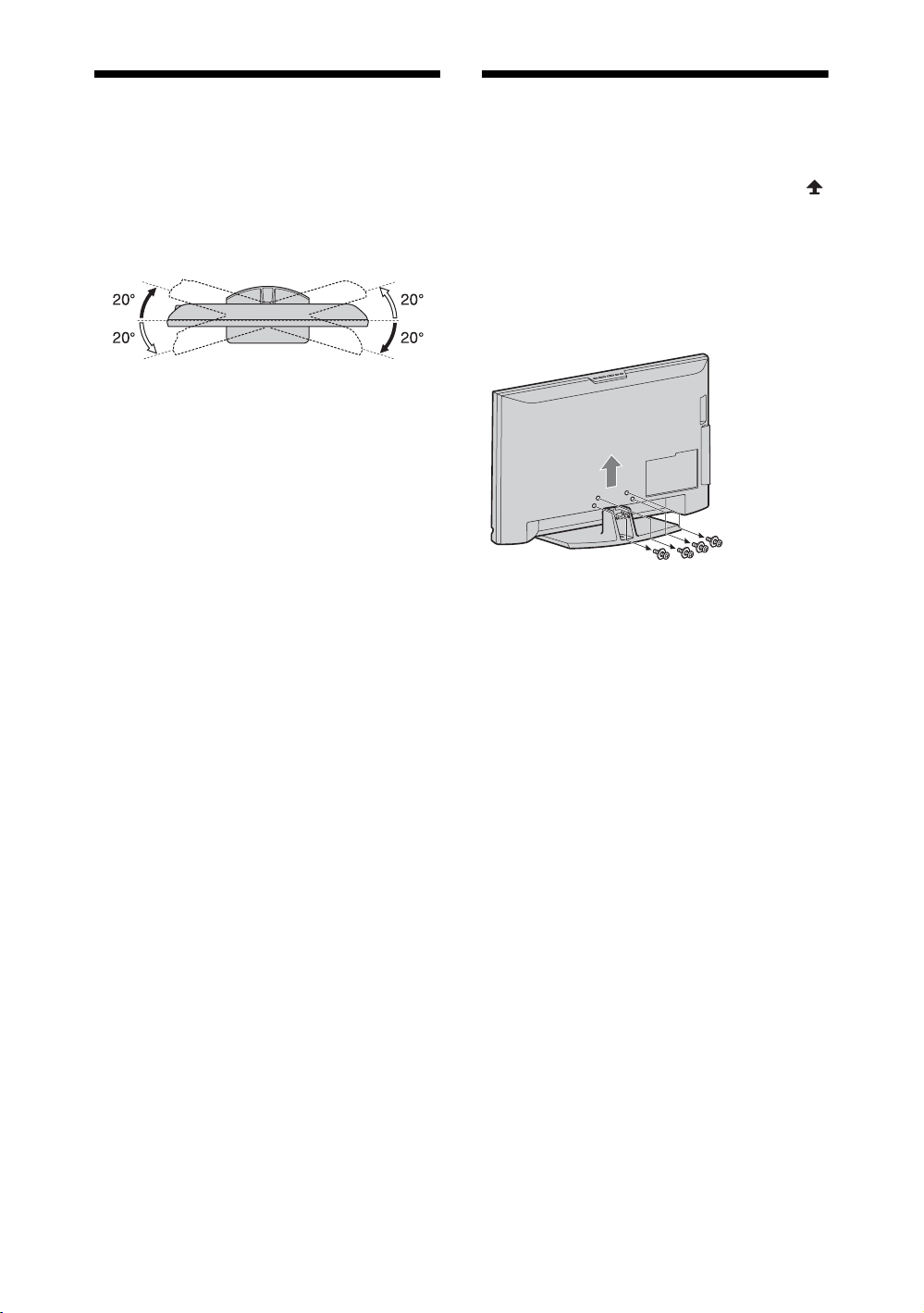

Adjusting the viewing angle of the TV

Detaching the Table-Top Stand from the TV

This TV can be adjusted within the angles shown below.

Adjust the angle left and right (swivel)

Top view

Front

• Remove the screws guided by the arrow marks of the TV.

• Do not remove the Table-Top Stand for any reason other than listed below. – To wall-mount the TV. – To put the TV in the carton at time of purchase

(KDL-46W4500/KDL-40W4500/KDL40E4500 only).

Page 9

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries.

Installation

s The TV set should be installed near an easily accessible AC

power outlet.

s Place the TV set on a stable, level surface to avoid it from

falling down and cause personal injury or damage to the TV.

s Only qualified service personnel should carry out wall

installations.

s For safety reasons, it is strongly recommended that you use

Sony accessories, including: – Wall-mount bracket SU-WL500 – Wall-mount bracket SU-WL50B

s Be sure to use the screws supplied with the Wall-mount bracket

when attaching the mounting hooks to the TV set. The supplied screws are designed so that they are 8 mm to 12 mm in length when measured from the attaching surface of the mounting hook. The diameter and length of the screws differ depending on the Wall-mount bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

8 mm - 12 mm

Screw (supplied with the Wall-mount bracket)

Mounting Hook

Hook attachment on rear of TV set

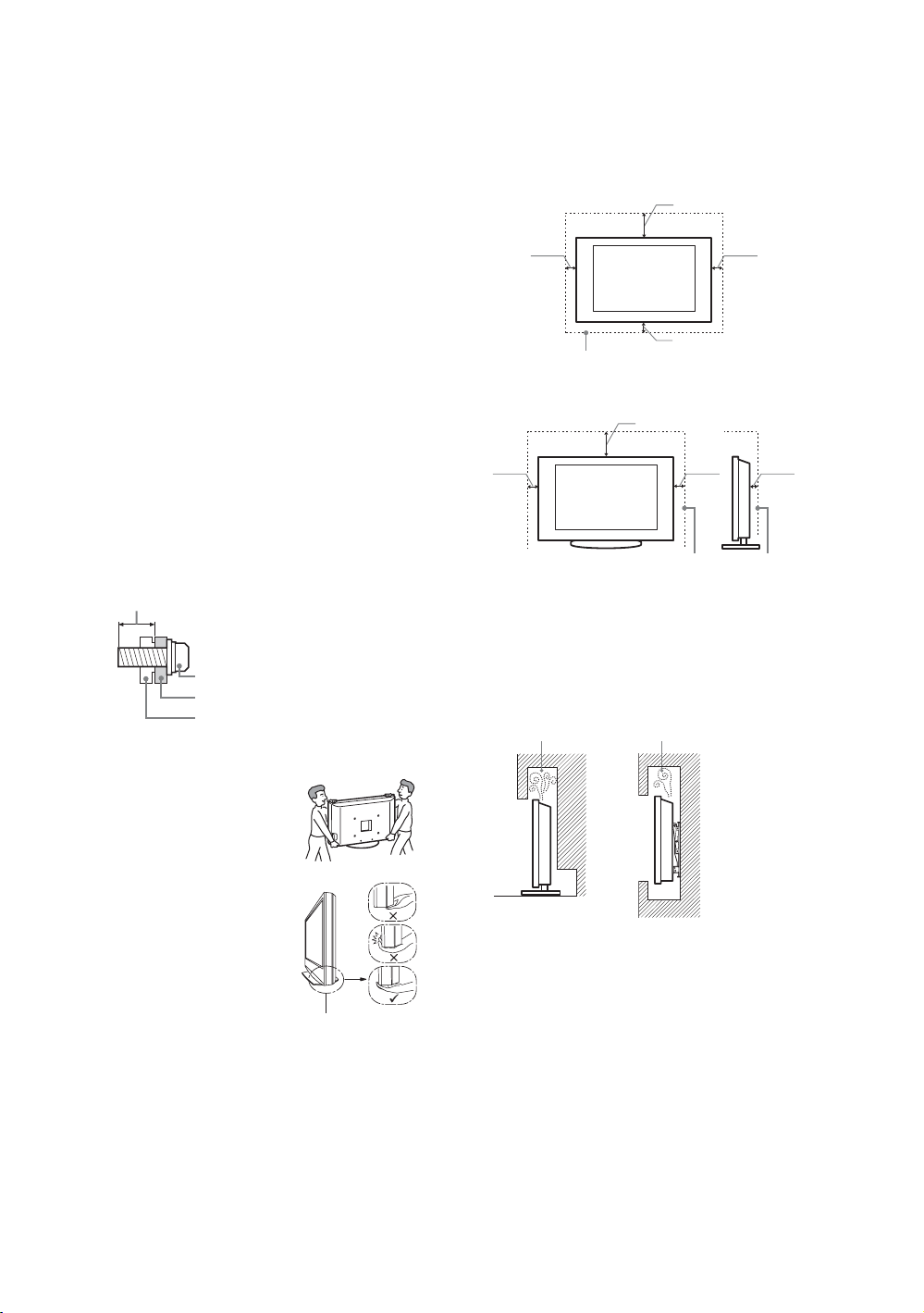

Ventilation

s Never cover the ventilation holes or insert anything in the

cabinet.

s Leave space around the TV set as shown below. s It is strongly recommended that you use a Sony wall-mount

bracket in order to provide adequate air-circulation.

Installed on the wall

30 cm

10 cm

Leave at least this space around the set.

10 cm

Installed with stand

30 cm

10 cm 10 cm

Leave at least this space around the set.

s To ensure proper ventilation and prevent the collection of dirt

or dust: – Do not lay the TV set flat, install upside down, backwards,

or sideways. – Do not place the TV set on a shelf, rug, bed or in a closet. – Do not cover the TV set with a cloth, such as curtains, or

items such as newspapers, etc. – Do not install the TV set as shown below.

Air circulation is blocked.

6 cm

Transporting

s Before transporting the TV set,

disconnect all cables.

s Two or three people are needed

to transport a large TV set.

s When transporting the TV set

by hand, hold it as shown on the right. Do not put stress on the LCD panel and the frame around the screen.

s When lifting or moving the TV

set, hold it firmly from the bottom.

s When transporting the TV set,

do not subject it to jolts or excessive vibration.

s When transporting the TV set

for repairs or when moving, pack it using the original carton and packing material.

Be sure to hold the bottom of the panel, not the front part.

Wall Wall

AC power cord

Handle the AC power cord and outlet as follows in order to avoid any risk of fire, electrical shock or damage and/or injuries:

– Use only Sony supplied AC power cords, not those of other

brands.

– Insert the plug fully into the AC power outlet. – Operate the TV set on a 220 – 240 V AC supply only. – When wiring cables, be sure to unplug the AC power cord for

your safety and take care not to catch your feet on the cables.

– Disconnect the AC power cord from the AC power outlet before

working on or moving the TV set.

– Keep the AC power cord away from heat sources. – Unplug the AC power plug and clean it regularly. If the plug is

covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

(Continued)

Page 10

Notes

s Do not use the supplied AC power cord on any other equipment. s Do not pinch, bend, or twist the AC power cord excessively.

The core conductors may be exposed or broken.

s Do not modify the AC power cord. s Do not put anything heavy on the AC power cord. s Do not pull on the AC power cord itself when disc onnecting the

AC power cord.

s Do not connect too many appliances to the same AC power

outlet.

s Do not use a poor fitting AC power outlet.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries.

Location:

Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.

Environment:

Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

Situation:

Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from AC power outlet and antenna during lightning storms.

Broken pieces:

s Do not throw anything at the TV set. The screen glass may

break by the impact and cause serious injury.

s If the surface of the TV set cracks, do not touch it until you have

unplugged the AC power cord. Otherwise electric shock may result.

When not in use

s If you will not be using the TV set for several days, the TV set

should be disconnected from the AC power for environmental and safety reasons.

s As the TV set is not disconnected from the AC power when the

TV set is just turned off, pul l the plug from the AC power outlet to disconnect the TV set completely.

s However, some TV sets may have features that require the TV

set to be left in standby to work correctly.

For children

s Do not allow children to climb on the TV set. s Keep small accessories out of the reach of children, so that they

are not mistakenly swallowed.

If the following problems occur...

Turn off the TV set and unplug the AC power cord immediately if

any of the following problems occur.

Ask your dealer or Sony service centre to have it checked by qualified service personnel.

When:

– AC power cord is damaged. – Poor fitting of AC power outlet. – TV set is damaged by being dropped, hit or having something

thrown at it.

– Any liquid or solid object falls through openings in the cabinet.

Precautions

Viewing the TV

s View the TV in moderate light, as viewing the TV in poor light

or during long period of time, strains your eyes.

s When using headphones, adjust the volume so as to avoid

excessive levels, as hearing damage may result.

LCD Screen

s Although the LCD screen is made with high-precision

technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.

s Do not push or scratch the front filter, or place objects on top of

this TV set. The image may be uneven or the LCD screen may be damaged.

s If this TV set is used in a cold place, a smear may occur in the

picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

s Ghosting may occur when still pictures are displayed

continuously. It may disappear after a few moments.

s The screen and cabinet get warm when this TV set is in use.

This is not a malfunction.

s The LCD screen contains a small amount of liquid crystal.

Mercury is sometimes contained depending on the kind of fluorescent tubes. Follow your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/ cabinet of the TV set

Be sure to unplug the AC power cord connected to the TV set from AC power outlet before cleaning.

To avoid material degradation or screen coating degradation, observe the following precautions.

s To remove dust from the screen surface/cabinet, wipe gently

with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.

s Never use any type of abrasive pad, alkaline/acid cleaner,

scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.

s Periodic vacuuming of the ventilation openings is

recommended to ensure to proper ventilation.

s When adjusting the angle of the TV set, move it slowly so as to

prevent the TV set from moving or slipping off from its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol is on the remote control.

Page 11

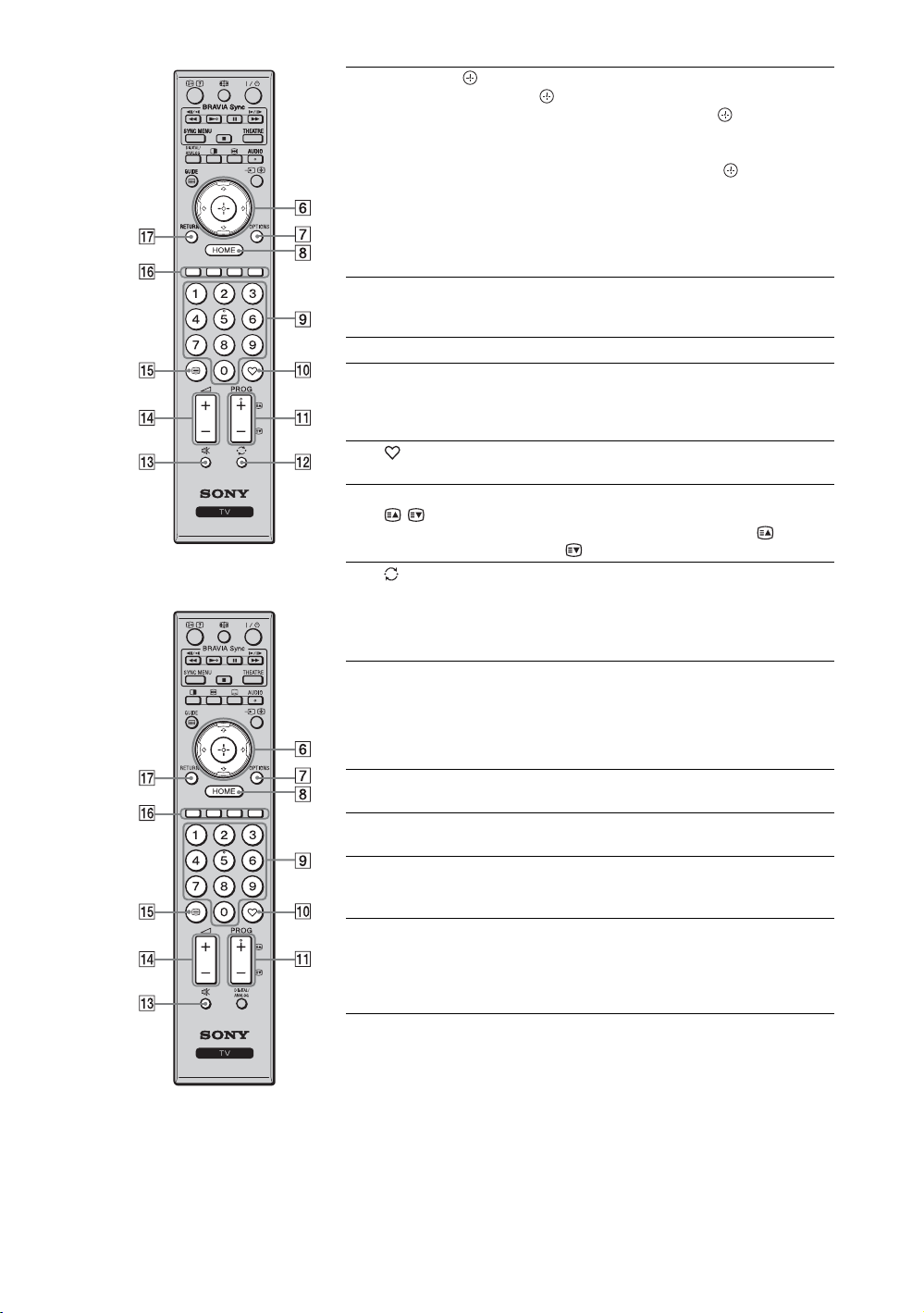

Remote Control and TV Controls/Indicators

Remote control and TV controls

Buttons on the TV will work the same as those on the remote control.

*In TV menu, these buttons will work as F/f/G/g/.

•The number 5, N, PROG + and AUDIO buttons have a tactile dot.

Use the tactile dots as a reference when operating the TV.

(Australian model)

(New Zealand model)

Button Description

1 "/1

— TV standby

2 1

— Power

3 — Picture

freeze

Press to turn the TV on and off from standby mode.

Press to turn the TV on or off.

• To disconnect the TV completely, turn off the TV, then unplug the AC power cord from the AC power.

Press to freeze the TV picture. The frozen picture is displayed in full size, and a moving picture is displayed in the small screen. To remove the small screen, press once. To return to single picture mode, press again.

• This function is not available for a PC input source.

4 AUDIO In analogue mode: Press to change the dual sound

5 /

— Input select/Text hold

mode (page 34). In digital mode: Press to change the language to be used for the programme currently being viewed (page 41).

In TV mode: Press to display a list of equipment connected to the TV (page 22). In Text mode: Press to hold the current page.

(Continued)

Page 12

(Australian model)

6 F/f/G/g/ Press F/f/G/g to move the on-screen cursor.

Press to select/confirm the highlighted item. When playing a photo file: Press to pause/start a slideshow. Press F/G to select the previous file. Press f/g to select the next file. When playing a music file: Press to pause/ start the playback. Press and hold G/g to fast forward/fast reverse, then release the button at the point where you want to resume playback. Press F to start playback from the beginning of the current file. Press f to go to the next file.

7 OPTIONS Enables you to access various viewing options

and change/make adjustments according to the source and wide mode.

8 HOME Press to display the TV Home menu (page 31). 9 Number

buttons

In TV mode: Press to select channels. For channel numbers 10 and above, press the next digit quickly. In Text mode: Press to enter a page number.

— Favourite

qa PROG +/–/

Press to display the Digital Favourite List that you have specified (page 18).

In TV mode: Press to select the next (+) or previous (–) channel. In Text mode: Press to select the next ( ) or previous ( ) page.

— Previous

Press to return to the channel that was last viewed (for more than five seconds).

channel

(Australian model only)

qd % — Mute Press to mute the sound. Press again to restore the

sound.

• In standby mode, if you want to turn on the TV without sound, press this button.

qf 2 +/–

Press to adjust the volume.

— Volume

qg /

Press to display text information (page 15).

— Text

qh Coloured

buttons

When the coloured buttons are available, an operation guide appears on the screen. Follow the operation guide to perform a selected operation.

qj RETURN Press to return to the previous screen of the

displayed menu. When playing a photo/music file: Press to stop the playback. (The display returns to the file or folder list.)

(New Zealand model)

Page 13

BRAVIA Sync

HOME

THEATRE

AUDIO

OPTIONS

SYNC MENU

DIGITAL/ ANALOG

GUIDE

RETURN

(Australian model)

qk GUIDE /

— EPG

ql DIGITAL/

ANALOG

— Twin Picture/PIP

wa /

— Info/Text reveal

— Wide Mode

— Subtitle setting

(New Zealand model only)

wf BRAVIA

Sync

Press to display the Digital Electronic Programme Guide (EPG). For Australian model, see page 17. For New Zealand model, EPG is available as an interactive service if provided by a broadcaster.

Switches between digital and analogue modes.

Displays two pictures simultaneously (page 22,

23).

In digital mode: Displays details of the current and next programme one by one. In analogue mode:

Displays information. Press once to display the current channel number and screen mode. Press again to display clock information. Press a third time to remove the display from the screen.

In Text mode (page 15): Reveals hidden information (e.g. answers to a quiz).

Press to change the Wide Mode (page 16).

Press to display the subtitles. “Subtitle Setting” must be set to “Basic” or “For Hard Of Hearing” (page 41) (in digital mode only).

m/N/X/M/x: You can operate the BRAVIA Sync-compatible equipment or DIGITAL MEDIA PORT-compatible equipment that is connected to the TV.

SYNC MENU: Displays the menu of connected HDMI equipment. While viewing other input screens or TV programmes, “HDMI Device Selection” is displayed when the button is pressed.

THEATRE: You can set Theatre Mode on or off. When Theatre Mode is set to on, the optimum audio output (if the TV is connected with an audio system using an HDMI cable) and picture quality for film-based contents are automatically set.

• If you turn the TV off, Theatre Mode is also

turned off.

(New Zealand model)

• Control for HDMI (BRAVIA Sync) is only

available with the connected Sony equipment that has the BRAVIA Sync logo or is compatible with control for HDMI.

(Continued)

Page 14

Indicators

KDL-52W4500/46W4500/40W4500: KDL-40E4500:

Indicator Description

1 Light sensor Do not put anything over the sensor, as its function may be affected (page 34). 2 — Picture

Off / Timer

3 1 — Standby Lights up in red when the TV is in standby mode. 4 " — Power Lights up in green when the TV is on. 5 Remote control

sensor

Lights up in green when you select “Picture Off” (page 34). Lights up in orange when you set the timer (page 17, 36).

Receives IR signals from the remote. Do not put anything over the sensor. The sensor may not operate properly.

• Make sure that the TV is completely turned off before unplugging the AC power cord. Unplugging the AC power cord while the TV is turned on may cause the indicator to remain lit or may cause the TV to malfunction.

About the operation guide on the TV screen

Operation Guide Example: Press or RETURN (see 6 on page 12 or qj on page 12).

The operation guide provides help on how to operate the TV using the remote, and is displayed at the bottom of the screen. Use the remote buttons shown on the operation guide.

Page 15

Watching TV

BRAVIA Sync

SYNC MENU

GUIDE

THEATRE

AUDIO

SYNC MENU

GUIDE

BRAVIA Sync

THEATRE

AUDIO

3 Press the number buttons or PROG +/– to

select a TV channel.

To select channel numbers 10 and above using the number buttons, enter the next digit quickly. To select a digital programme using the Digital Electronic Programme Guide (EPG), see page 17 (Australian model only). In digital mode, an information banner appears briefly. Each time you press

/ , the banner changes cyclically as follows: Current programme information t Next programme information t No banner The following icons may be indicated on the banner.

Watching TV

RETURN

(Australian model) (New Zealand model)

1 Press 1 on the TV to turn on the TV.

When the TV is in standby mode (the 1 (standby) indicator on the TV front panel is red), press "/1 on the remote to turn on the TV.

2 Press DIGITAL/ANALOG to switch

between digital and analogue modes.

The available channels vary depending on the mode.

: Interactive service is available

(Digital Text) (New Zealand model

only) : Radio service : Scrambled/Subscription service

: Subtitles available

: Subtitles available for the hearing

impaired

: Multiple audio languages available

: Parental Lock

: Parental rating

To access Text

Press /. Each time you press /, the display changes cyclically as follows: Tex t t Text over the TV picture (mix mode) t No Text (exit the Text service) To select a page, press the number buttons or

/. To hold a page, press To reveal hidden information, press

• When four coloured items appear at the bottom of

the Text page, you can access pages quickly and easily (Fast Text). Press the corresponding coloured button to access the page.

• Interactive service may be available if provided by

a broadcaster (New Zealand model only).

/ .

(Continued)

Page 16

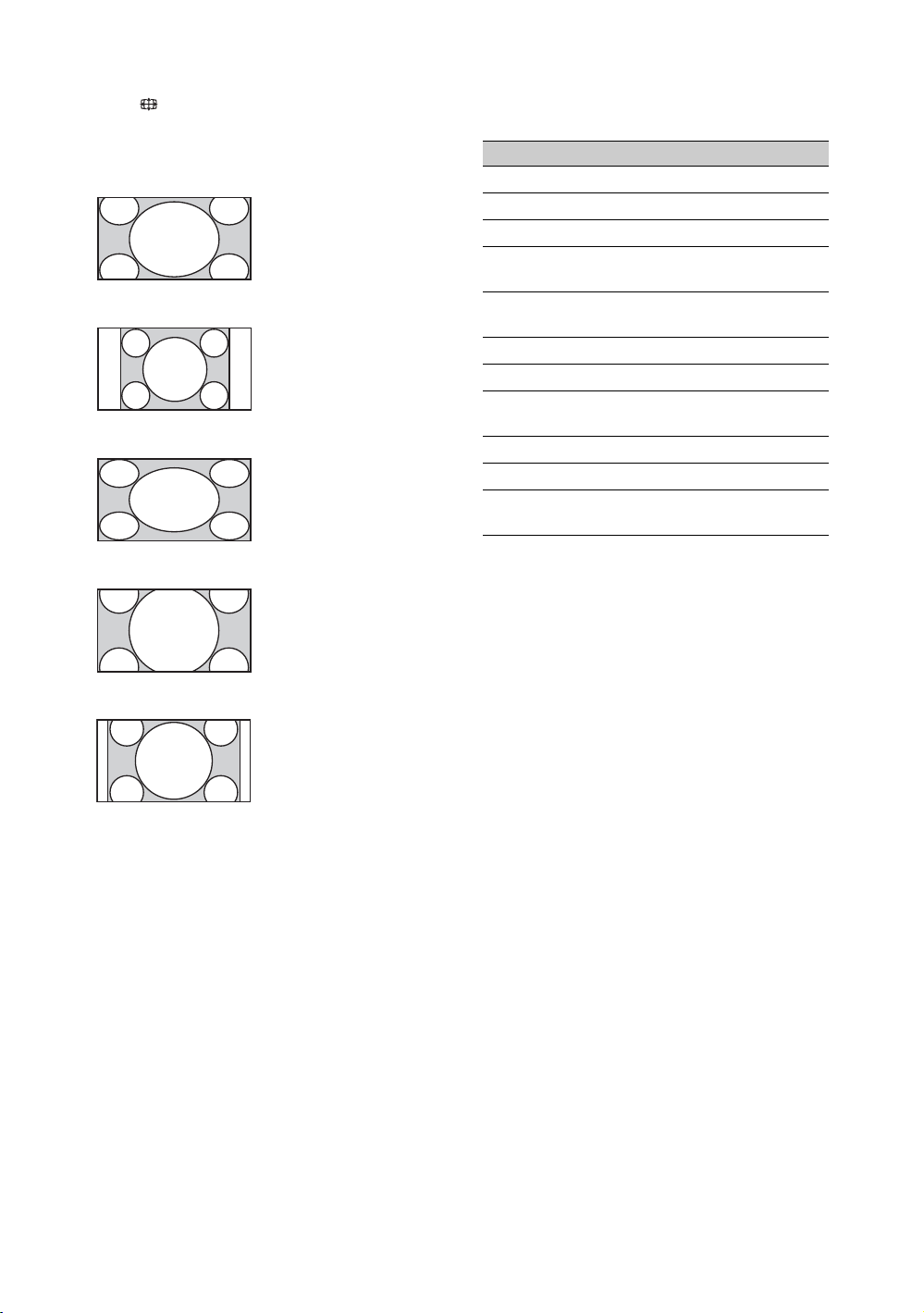

To change the Wide Mode manually

Press repeatedly to select the desired Wide Mode.

Wide Zoom*

Enlarges the centre portion of the picture. The left and right edges of the picture are stretched to fill the 16:9 screen.

Normal

Displays the 4:3 picture in its original size. Side bars are shown to fill the 16:9 screen.

Full

Stretches the 4:3 picture horizontally, to fill the 16:9 screen.

Zoom*

Displays the cinemasc opic (letter box format) picture in the correct proportion.

Using the Options menu

Press OPTIONS to display the following options when viewing a TV programme.

Option Description

Picture Mode See page 32.

Sound Mode See page 33.

Surround See page 33.

Intelligent Picture (in analogue mode only)

MPEG Noise Reduction

Speaker See page 38.

Motionflow See page 35.

Subtitle Setting (in digital mode only)

Sleep Timer See page 36.

Power Saving See page 34.

System Information (in digital mode only)

See page 39.

See page 33.

See page 41.

See page 42.

14:9*

Displays the 14:9 picture in the correct proportion. As a result, side bars are shown on the screen.

* Parts of the top and bottom of the picture may be cut off.

You can adjust the vertical position of the picture. Press F/f to move the picture up or down (e.g. to read subtitles).

• When you select “Wide Zoom”, some characters and/or letters at the top and the bottom of the picture may not be visible. In such a case, adjust “Vertical Size” in the “Screen Settings” menu (page 37).

• When “Auto Wide” (page 37) is set to “On”, the TV automatically selects the best mode to suit the input from an external equipment.

• If 720p, 1080i or 1080p source pictures are displayed with black borders on the screen edges, select “Wide Zoom” or “Zoom” to adjust the pictures.

Page 17

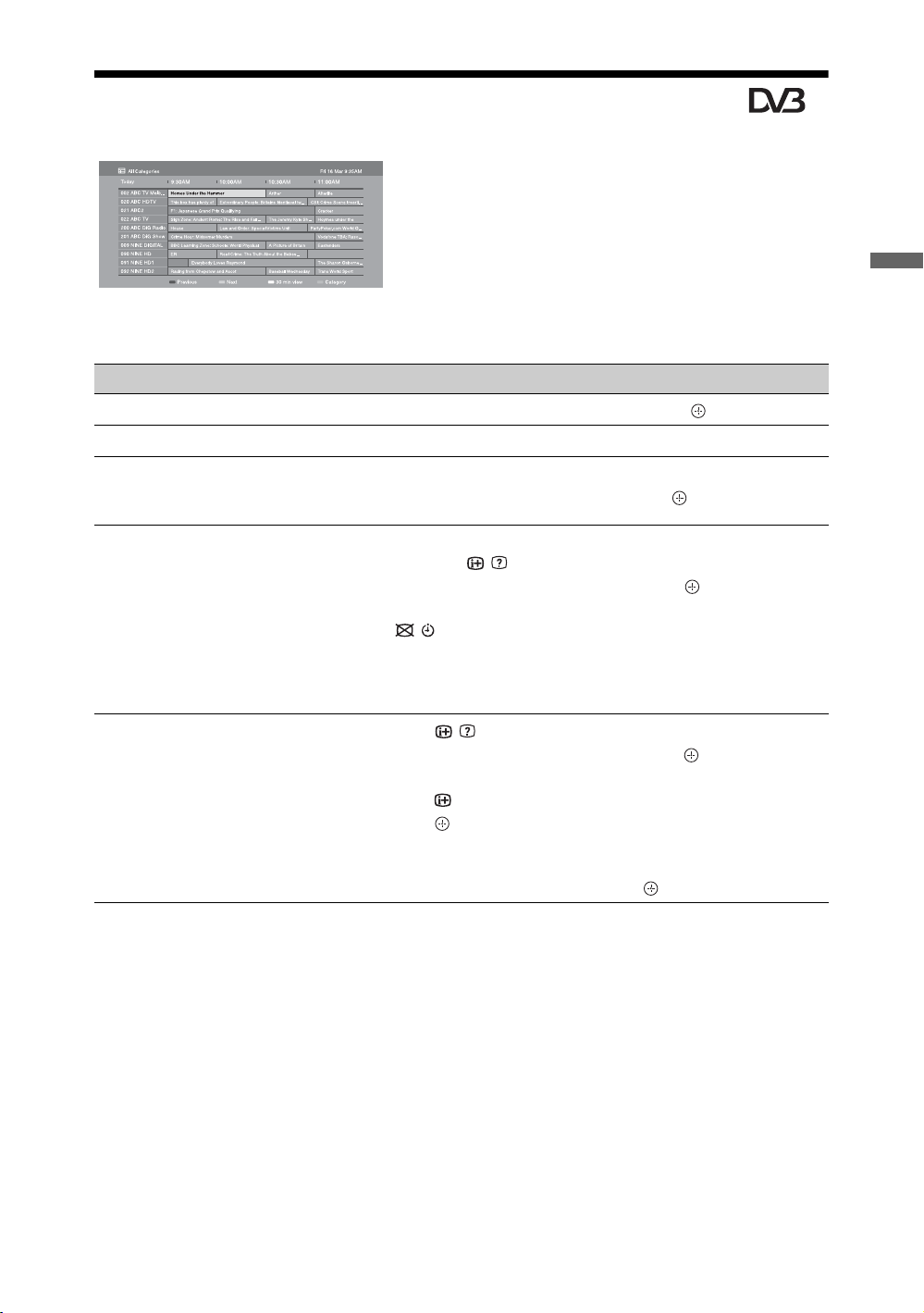

Using the Digital Electronic Programme Guide (EPG) * (Australian model only)

1 In digital mode, press GUIDE. 2 Perform the desired operation as shown in

the following table or displayed on the screen.

* This function may not be available in some regions.

Digital Electronic Programme Guide (EPG)

To Do this

View a programme Press F/f/G/g to select a programme, then press .

Turn off the EPG Press GUIDE.

Watching TV

Sort programme information by category – Category list

Set a programme to be displayed automatically on the screen when it starts – Reminder

Cancel a reminder – Timer list

1 Press the blue button. 2 Press F/f to select a category, then press .

1 Press F/f/G/g to select a future programme you want to display,

then press / .

2 Press F/f to select “Reminder”, then press .

A c symbol appears next to the programme’s information. The

indicator on the TV front panel lights up in orange.

• If you switch the TV to standby mode, the TV will automatically turn on when the programme starts.

1 Press / . 2 Press F/f to select “Timer list”, then press . 3 Press F/f to select the programme you want to cancel, then

press .

4 Press to select “Cancel Timer”.

A display appears to confirm that you want to cancel the programme.

5 Press G/g to select “Yes”, then press .

Page 18

Using the Digital Favourite List *

You can specify up to four of your favourite channel lists.

1 In digital mode, press . 2 Perform the desired operation as shown in

the following table or displayed on the

(Australian model)

(New Zealand model)

Digital Favourite List

To Do this

Create a Favourite list for the first time

1 Press the yellow button to select the Favourite list. 2 Press F/f/G/g to select the channel you want to add, then press

A symbol appears next to channels that you have stored in the Favourite list.

screen.

* This function may not be available in some regions.

Watch a channel

1 Press the yellow button to select a Favourite list. 2 Press F/f to select a channel, then press .

Turn off the Favourite list Press RETURN.

Add or remove channels in a Favourite list

1 Press the blue button. 2 Press the yellow button to select the Favourite list to edit. 3 Press F/f to select the channel to add or remove, then press .

Remove all channels from a Favourite list

1 Press the blue button. 2 Press the yellow button to select the Favourite list to edit. 3 Press the blue button. 4 Press G/g to select “Yes”, then press .

Page 19

Using Optional Equipment

Connecting Optional Equipment

You can connect a wide range of optional equipment to your TV.

For service use only

Digital still camera

Camcorder

USB storage media

Camcorder

Headphones

Audio system

DVD player

PC (HDMI-output)

Blu-ray disc player

Camcorder

Broadband router

Using Optional Equipment

Video game equipment

DVD player

VCR

DVD player with component output

DVD recorder

VCR

DIGITAL MEDIA PORT adaptor

Hi-Fi audio equipment

Home theatre system with digital input

(Continued)

Page 20

Connect to Input symbol on

screen

1 USB You can enjoy photo/music files stored in a Sony digital still

2 HDMI IN 2

HDMI IN 1 or 3

HDMI 2 HDMI 1 or HDMI 3

Description

camera or camcorder through a USB cable or USB storage device on your TV (page 23).

The digital video and audio signals are input from the equipment. In addition, when you connect the equipment that is compatible with control for HDMI, communication with the connected equipment is supported. Refer to page 38 to set up this communication. If the equipment has a DVI jack, connect the DVI jack to the HDMI IN 3 jack through a DVI - HDMI adaptor interface (not supplied), and connect the equipment’s audio out jack to the audio in jack in the HDMI IN 3 jacks.

• The HDMI jacks only support the following video inputs: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 1080/24p.

• Be sure to use only an authorised HDMI cable bearing the HDMI logo. We recommend that you use a Sony HDMI cable (high speed type).

• When connecting an audio system with HDMI jack, be sure to also connect to the audio output jacks to listen to the sound from the TV on audio system.

3 2, and 2 Video 2 If you connect mono equipment, connect to the 2 L jack. 4 i Headphones You can listen to sound from the TV on headphones. 5 1 or 1 or

3, and 1 or 3

6 / Use to record the analogue video and sound from TV to a

Video 1 or Video 3

To avoid picture noise, do not connect the camcorder to the video jack 1 and the S video jack 1 at the same time. If you connect mono equipment, connect to the L(MONO) jack 1 or 3.

DVD recorder or VCR. To turn off the sound of the TV speakers, set “Speaker” to “Audio System” (page 38). If you connect mono equipment, connect to the L jack .

• The monitor output jacks cannot support HD/DVD, HDMI and PC signals source pictures, also digital audio signal for sound.

7 / 1 or 2 HD/DVD 1 or

HD/DVD 2

8 DMPORT DMPORT You can play audio or video (optional cable required) of a

For better picture quality, component connection is recommended if your DVD player has a component video output.

portable audio player that is connected to the TV using a DIGITAL MEDIA PORT (DMPORT) adaptor. Depending on the connected DIGITAL MEDIA PORT adaptor, you can operate the connected equipment using the TV as follows;

– Using the remote of the TV: F/f/G/g, , RETURN, N/

x/X/m/M.

– Using the Options menu function: Press OPTIONS, and select

“Control Panel” or “Device Control (Menu)”.

• Do not connect or disconnect a DIGITAL MEDIA PORT adaptor while the TV is turned on.

• The connected equipment is not powered when the TV is turned off or in standby mode.

Page 21

Connect to Input symbol on

screen

9 DIGITAL

Description

Use an optical audio cable (not supplied).

AUDIO OUT (OPTICAL)

0 You can listen to the sound from the TV on Hi-Fi audio

equipment. To turn off the sound of the TV speakers, set “Speaker” to “Audio System” (page 38).

qa PC IN

PC Use a PC cable (not supplied).

(RGB)/

qs You can enjoy contents stored in DLNA-compatible devices

via a network (page 27).

Using Optional Equipment

Page 22

Viewing Pictures from Connected Equipment

Turn on the connected equipment, then press

/ to display a list of connected

equipment. Press F/f to select the desired input source, then press . The highlighted item is automatically selected if you do not perform any operation for two seconds after pressing F/f. If you have set an input source to “Skip” in the “Video Labels” menu (page 37), that input source does not appear in the list.

Option Description

Control Panel (in DIGITAL MEDIA PORT mode only)

Device Control (in HDMI mode only)

See page 20.

See page 25.

To view two pictures simultaneously – Twin Picture

You can view two pictures (external input and TV programme) on the screen simultaneously. Connect an optional equipment (page 19), and make sure that images from the equipment appear on the screen (page 22).

For a USB device

See page 23.

For a Network device

See page 27.

• To return to normal TV mode, press DIGITAL/ ANALOG.

Using the Options menu

Press OPTIONS to display the following options when viewing pictures from connected equipment.

Option Description

Picture Mode (except PC input mode)

Display Mode (in PC input mode only)

Sound Mode See page 33.

Surround See page 33.

MPEG Noise Reduction (except PC input mode)

Speaker See page 38.

Motionflow See page 35.

Auto Adjustment (in PC input mode only)

Horizontal Shift (in PC input mode only)

Sleep Timer (except PC input mode)

Power Saving See page 34.

Device Control (Menu) (in DIGITAL MEDIA PORT mode only)

See page 32.

See page 33.

See page 37.

See page 36.

See page 20.

• This function is not available for a PC input or DIGITAL MEDIA PORT input.

• You cannot change the size of the pictures.

• The analogue TV video in the TV programme picture will not appear while displaying Video 1, Video 2 or Video 3 in the external input picture.

1 Press . 2 Press the number buttons or PROG +/– to

select the TV channel.

To return to single picture mode

Press RETURN.

• The highlighted picture is audible. You can switch the audible picture by pressing G/g.

Page 23

To view two pictures simultaneously – PIP (Picture in Picture)

You can view two pictures (PC input and TV programme) on the screen simultaneously. Connect a PC (page 19), and make sure that images from the PC appear on the screen.

• “Power Management” (page 37) is not available in PIP mode.

1 Press .

The picture from the connected PC is displayed in full size, and the TV programme is displayed in the small screen. You can use F/f/G/g to change the position of the TV programme screen.

2 Press the number buttons or PROG +/– to

select a TV channel.

To return to single picture mode

Press RETURN.

• You can switch the audible picture by selecting “Audio Swap” from the Options menu.

Playing back Photo/Music via USB

You can enjoy photo/music files stored in a Sony digital still camera or camcorder through a USB cable or USB storage device on your TV.

1 Connect a supported USB device to the

TV.

2 Press HOME. 3 Press G/g to select “Photo” or “Music”. 4 Press F/f to select a USB device, then

press .

In “Music”, “List View” appears. In “Photo”, “Thumbnail View” appears. You can switch the view mode between “List View” and “Thumbnail View” by pressing the yellow button.

5 Press F/f/G/g to select a file or folder,

then press .

When you select a folder, select a file, then press . Playback starts.

Using Optional Equipment

Photo Playback Auto Start

The TV automatically starts photo playback when the TV is turned on and a digital still camera or other device storing photo files is connected to the USB port and then turned on (page 34).

(Photo) Available OPTIONS

Option Description

Picture Mode See page 32.

Sound Mode See page 33.

Surround See page 33.

Cropping Crops a photograph.

Show Options Allows you to set

Photo Set-up Sets how playback

repeat/shuffle for photo playback.

should be performed and what effects to use during slideshows.

(Continued)

Page 24

Option Description

Rotate and Save Rotates and saves

Speaker See page 38.

Picture Frame Image

Information Displays information

unprotected files.

Allows you to select a photograph to be displayed as a picture Frame.

about the device, folders, and files.

(Music) Available OPTIONS

Option Description

Sound Mode See page 33.

Surround See page 33.

Add to Slideshow Registers the

background music to be played during a slideshow using (Photo).

Omit from Slideshow

Playback Options Allows music options to

Speaker See page 38.

Information Displays information

Cancels the registered background music.

be set for repeat, shuffle, or regular playback.

about the device, folders, and files.

• Picture quality may appear coarse when using (Photo) because images may be enlarged depending on the file. Also, images may not fill the entire screen depending on the image size and aspect ratio.

• Some photo files may take some time to be displayed when using (Photo).

• While the TV is accessing the data on the USB device, observe the following: – Do not turn off the TV or connected USB

device. – Do not disconnect the USB cable. – Do not remove the USB device. The data on the USB device may be damaged.

• Sony will not be held liable for any damage to, or loss of, data on the recording media due to a malfunction of any connected devices or the TV.

• Playback does not start automatically if the TV is turned on after connecting the digital still camera or other device to the USB port.

• USB playback is supported for the following photo file formats: – JPEG (JPEG format files with the extension

“.jpg” and conforming to DCF 2.0 or Exif 2.21)

– RAW (ARW/ARW 2.0 format files with the

extension “.arw”. For preview only.)

• USB playback is supported for the following music file formats: – MP3 (files with the extension “.mp3” that have

not been copyrighted)

• When you connect a Sony digital still camera, set the camera’s USB connection mode to Auto or “Mass Storage”. For more information about USB connection mode, refer to the instructions supplied with your digital camera.

• USB Photo Viewer supports FAT12, FAT16 and FAT32 file systems.

• Depending on the exact file specifications, some files, including those modified on a PC, cannot be played even if the file format is supported.

• The file name and folder name support only English.

• Check the website below for updated information about compatible USB devices. http://www.sony-asia.com/bravia/flash.html

To display a photograph — Picture Frame

You can display a photograph on the screen for a selected period of time. After that period, the TV automatically switches itself into standby mode.

1 Select a photograph.

You can select a photograph from the connected USB device or preset picture folder. For details on selecting a photograph, see page 23.

2 Press OPTIONS while the selected

photograph is displayed, then press F/f to select “Picture Frame Image” and press

3 Press RETURN repeatedly to return to

the Home Menu.

4 Press F/f/G/g to select “Photo”, then

select “Picture Frame” and press .

The TV is switched to Picture Frame mode, and the selected photograph is displayed on the screen.

Page 25

To set the duration of displaying a photograph

Press OPTIONS, then select “Duration” and press . Then, select the duration, and press . The counter appears on the screen.

To return to the XMB™

Press RETURN.

• If the photograph is selected from a USB device, it must remain connected to the TV.

• If “Sleep Timer” is activated, the TV automatically will switch into standby mode.

Using BRAVIA Sync (Control for HDMI)

The control for HDMI function enables the TV to communicate with the connected equipment that is compatible with the function, using HDMI CEC (Consumer Electronics Control). For example, by connecting Sony equipment that is compatible with control for HDMI (with HDMI cables), you can control them together. Be sure to connect the equipment correctly, and make the necessary settings.

Control for HDMI

• Automatically turns the connected equipment off when you switch the TV to standby mode using the remote.

• Automatically turns the TV on and switches the input to the connected equipment when the equipment starts to play.

• If you turn on a connected audio system while the TV is on, the sound output switches from the TV speaker to the audio system.

• Adjusts the volume (2 +/–) and mutes the sound (%) of a connected audio system.

• You can operate the connected Sony equipment that has the BRAVIA Sync logo by the TV remote by pressing:

– N/x/X/m/M to operate the connected

equipment directly.

– SYNC MENU to display the menu of the connected

HDMI equipment on the screen. After displaying the menu, you can operate the menu screen by using F/f/G/g and .

– OPTIONS to display “Device Control”, then select

options from “Menu”, “Options”, and “Content List” to operate the equipment.

– Refer to the instruction manual of the equipment for

available control.

Using Optional Equipment

(Continued)

Page 26

To connect the equipment that is compatible with control for HDMI

Connect the compatible equipment and the TV with an HDMI cable. When connecting an audio system, be sure to also connect the DIGITAL AUDIO OUT (OPTICAL) jack of the TV and the audio system using an optical audio cable. For details, see page 19.

To make the control for HDMI settings

The control for HDMI settings must be set on both the TV side and connected equipment side. See “HDMI Set-up” on page 38 for the TV side settings. For settings on the connected equipment, refer to the operating instructions for that equipment.

Page 27

Using Home Network Features

With this TV, you can enjoy contents stored in DLNA-compatible devices on the home network. Devices that store and provide contents, such as photo/music files, are called “server”. The TV receives the photo/music files from the server via the network, and you can enjoy them on the TV even in other rooms. To enjoy the home network, a DLNAcompatible device (VAIO, Cyber-shot, etc.) is necessary as a server.

Connecting to the Network

Network cable (not supplied)

Enjoying Photo/Music Files via the Network

You can enjoy photo/music files on the server easily by selecting an icon on the Home Menu of the TV.

1 Press HOME. 2 Press G/g to select “Photo” or “Music”. 3 Press F/f to select a server, then press .

In “Music”, “List View” appears. In “Photo”, “Thumbnail View” appears. You can switch the view mode between “List View” and “Thumbnail View” by pressing the yellow button.

When the server cannot be found

See “Checking the Network Connection” (page 29) and “Adjusting the Server Display Settings” (page 29).

4 Press F/f/G/g to select a file or folder,

then press .

When you select a folder, select a file, then press . Playback starts.

Using Home Network Features

Broadband router

To network devices

• Depending on the network device, it may be

necessary to register the TV with the network device.

• Picture quality may appear coarse when using

(Photo) because images may be enlarged depending on the file. Also, images may not fill the entire screen depending on the image size and aspect ratio.

• Some photo files may take some time to be

displayed when using (Photo).

• The file name and folder name support only

English.

• To play files that are received from a network

device, they need to conform to one of the following file formats. – Still images: JPEG format – Music: MP3 format or linear PCM format Depending on the network device, the file format may be converted before transfer. In such cases, the file format resulting after conversion is used for playback. For details, see the instruction manual for the network device being used. Even files conforming to one of the file formats given above cannot be played in some cases.

(Continued)

Page 28

To enjoy photographs and music on the TV screen by operating devices – Renderer

Renderer is a feature for playing photo files and music files stored in network devices (digital still cameras, mobile phones, etc.) on the TV by operating the controller device in question. To use this feature, a renderercompatible device such as a digital still camera or mobile phone is required as the controller. Refer as well to the instruction manual supplied with the controller.

1 Set “Renderer Function”, “Renderer

Access Control” and “Renderer Set-up” in “Network Settings” if necessary (page 43).

2 Play the file selected using the controller

on the TV.

The file is played on the TV over the connected network. Use the controller or TV’s remote to perform operations during playback.

(Music) Available OPTIONS

Option Description

Sound Mode See page 33.

Surround See page 33.

Add to Slideshow Registers the background

music to be played during a slideshow using (Photo).

Omit from Slideshow Cancels the registered

background music.

Playback Options Allows music options to

be set for repeat, shuffle, or regular playback.

Speaker See page 38.

Information Displays information

about the device, folder, and files.

(Photo) Available OPTIONS

Option Description

Picture Mode See page 32.

Sound Mode See page 33.

Surround See page 33.

Cropping Crops a photograph.

Show Options Allows you to set repeat/

Photo Set-up Sets how playback should

Rotate Rotates files.

Speaker See page 38.

Information Displays information

shuffle for photo playback.

be performed and what effects to use during slideshows.

about the device, folders, and files.

Page 29

Checking the Network Connection

Adjusting the Server Display Settings

Enter the respective (alphanumeric) values for your router. The items that need to be set may differ, depending on the Internet service provider or the router. For details, refer to the instruction manuals that have been provided by your Internet service provider or supplied with the router.

1 Press HOME. 2 Press G to select “Settings”. 3 Press F/f to select “Network Settings”,

then press .

4 Select “Network”, then press . 5 Select “IP Address Settings”, then press

6 Select an item, and press .

When you select “DHCP”

Go to step 7.

When you select “Manual”

Set the following items using F/f/g and the number buttons.

• IP Address

• Subnet Mask

• Default Gateway

7 Press . 8 Select “Test”, then press . 9 Select “Yes”, then press .

The network diagnostic starts. When the message “Connection successful.” appears, press RETURN repeatedly to exit.

You can select home network servers to be displayed on the Home Menu. Up to 10 servers can be displayed on the Home Menu automatically.

1 Set the server to allow connections from

the TV.

For details on settings on the server, refer to the Operating Instructions supplied with the server.

2 Press HOME. 3 Press G/g to select “Settings”. 4 Press F/f to select “Network Settings”,

then press .

5 Select “Server Display Settings”, then

press .

6 Select the server you want to display on

the Home Menu, then press .

7 Select “Yes”, then press .

To set the server not to be displayed on the Home Menu

In step 7, press F/f to select “No”, then press

Available OPTIONS (on the connected server settings display)

Option Description

Delete All Deletes all connected

servers.

Update List Updates the server list to

the latest information.

Using Home Network Features

Information Displays information

about the connected server currently selected.

Delete Deletes the connected

server currently selected.

(Continued)

Page 30

If you cannot connect to your home network

The TV can check if the server is being correctly recognised.

1 Press HOME. 2 Press G/g to select “Settings”. 3 Press F/f to select “Network Settings”,

then press .

4 Select “Server Diagnostics”, then press . 5 Select “Yes”, then press .

The server diagnostic starts. When the server diagnostic is complete, the diagnostic result list appears.

6 Select the server you want to confirm,

then press .

The diagnostic results of the selected server appear. If the diagnostic results indicate a failure, look up the possible causes and what to do, and check connections and settings.

Page 31

Using MENU Functions

Navigating through TV Home Menu on XMB™

The XMB™ (XrossMediaBar) is a menu of BRAVIA features and input sources displayed on the TV screen. The XMB™ is an easy way to select programming and adjust settings on your BRAVIA TV.

1 Press HOME to display the XMB™.

Media Category Bar

Category Object Bar

2 Press G/g to select the category.

Media category icon Description

Settings You can make advanced settings and adjustments. For details about

settings, see page 32.

Photo You can enjoy photo files via USB devices or the network (page 23,

27).

Music You can enjoy music files via USB devices or the network (page 23,

27).

Digital You can select a digital channel, Favourite list (page 18), or Guide

(page 17). You can also select a channel using the number buttons or PROG +/–.

Analogue You can select an analogue channel.

You can also select a channel using the number buttons or PROG +/–. To hide the list of analogue channels, set “Programme List Display” to “Off” (page 39).

External Inputs You can select equipment connected to the TV.

To assign a label to an external input, see “Video Labels” (page 37).

3 Press F/f to select the item, then press . 4 Follow the instructions on the screen. 5 Press HOME to exit.

Using MENU Functions

• The options you can adjust vary depending on the situation.

• Unavailable options are greyed out or not displayed.

(Continued)

Page 32

TV Settings Menu


Picture Mode Sets the picture mode except for PC input source. “Picture Mode” includes options

best suited for video and photographs, respectively. The options that can be selected differ depending on the input source.

Vivid Enhances picture contrast and sharpness.

Standard For standard pictures. Recommended for home

entertainment.

Cinema For viewing film-based content. Most suitable when viewing

the TV in a theatre-like environment.

Photo-Vivid For viewing photographs. Enhances picture contrast and

sharpness.

Photo-Standard For viewing photographs. Provides the optimum picture

quality for viewing in the home.

Photo-Original For viewing photographs. Represents the picture quality used

when imaging developed photographs.

Display Mode

(only in PC Input/HDMI PC Input)

Reset Resets all the “Picture” settings to the factory settings excluding “Picture Mode”

Backlight Adjusts the brightness of the backlight.

Picture Increases or decreases picture contrast.

Brightness Brightens or darkens the picture.

Colour Increases or decreases colour intensity.

Hue Increases or decreases the green tones and red tones.

Sets a display mode when displaying a PC input.

Video For video images.

Tex t For text, charts or tables.

and “Display Mode”.

• “Hue” can be adjusted only for the NTSC colour system (e.g. U.S.A. video tapes).

Colour Temperature Adjusts the whiteness of the picture.

Cool Gives white colours a blue tint.

Neutral Gives white colours a neutral tint.

Warm 1/Warm 2 Gives white colours a red tint. “Warm 2” gives a redder tint

than “Warm 1”.

• “Warm 1” and “Warm 2” are not available when “Picture Mode” is set to “Vivid” (or “Photo-Vivid”).

Sharpness Sharpens or softens the picture.

Noise Reduction Reduces the noise level of pictures (snowy pictures) when the broadcast signal is

weak.

• “Noise Reduction” is not available when “Intelligent Picture” (page 39) is set to “On with Indicator” or “On” in analogue TV mode.

High/Medium/ Low

Off Turns off the “Noise Reduction”.

Modifies the effect of the noise reduction.

Page 33

MPEG Noise Reduction

Advanced Settings Allows you to set “Picture” settings in more detail. These settings are not available

Reduces picture noise in MPEG-compressed videos. This is effective when viewing a DVD or digital broadcast.

when “Picture Mode” is set to “Vivid” (or “Photo-Vivid”).

Adv. Contrast Enhancer

Live Colour Makes colours more vivid.

Automatically adjusts “Backlight” and “Picture” to the most suitable settings judging from the brightness of the screen. This setting is especially effective for dark images scenes, and will increase the contrast distinction of the darker picture scenes.

• “Live Colour” is not available when “Colour Space” is set to “Standard”.

Colour Space Changes the colour reproduction gamut. “Wide” reproduces

Sound

Sound Mode Sets the sound mode.

Dynamic Enhances treble and bass. Recommended for home

Standard For standard sound.

Clear Voice Makes voice sound clearer.

Reset Resets all the “Sound” settings to the factory settings excluding “Dual Sound”.

Treble Adjusts higher-pitched sounds.

Bass Adjusts lower-pitched sounds.

Balance Emphasises the left or right speaker.

Intelligent Volume Keeps volume level constant across all programmes and adverts (e.g. adverts tend

to be louder than programmes).

Volume Offset Sets an independent volume level to each equipment connected to the TV.

Surround S-FORCE Front

Surround

Simulated Stereo Adds a surround-like effect to mono programmes.

Off Selects for normal stereo or mono reception.

Voice Zoom Adjusts the clarity of human voices. For example, if the voice of a news announcer

is indistinct, you can turn up this setting to make the voice louder. Conversely, if you are watching a sports programme, you can turn down this setting to soften the voice of the commentator.

Sound Booster Gives sound more impact by compensating for phase effects in speakers.

the vivid colour and “Standard” reproduces the standard colour.

entertainment.

Provides a virtual surround sound experience made possible using just two front speakers.

Using MENU Functions

(Continued)

Page 34

Dual Sound Sets the sound from the speaker for a stereo or bilingual broadcast.

Stereo/Mono For stereo broadcasts.

Main/Sub/Mono For bilingual broadcasts, select “Main” for sound channel 1,

“Sub” for sound channel 2, or “Mono” for mono channel, if available.

• For other equipment connected to the TV, set “Dual Sound” to “Stereo”, “Main”, or “Sub”.

• When you connect an external equipment to the HDMI jack, “Dual Sound” is automatically set to “Stereo” (except when using the audio in jacks).

• Some options are not available when “Speaker” is set to “Audio System” or headphones are connected.

Features

USB Auto Start Automatically starts photo playback when the TV is turned on and a digital still

camera or other device storing photo files is connected to the USB port and then turned on.

Slideshow Select to view JPEG files as a slideshow.

Thumbnail View Select to view JPEG files as thumbnails.

Off Select to disable this function.

• Playback does not start automatically if the TV is turned on after connecting the digital still camera or other device to the USB port.

Quick Start The TV turns on faster than usual within two hours after switching to standby

Power Saving Reduces power consumption of the TV by adjusting the backlight.

Light Sensor On Automatically optimises the picture settings according to the

mode. However, power consumption in standby mode is higher than usual.

When you select “Picture Off”, the picture is switched off, and the (Picture Off) indicator on the TV front panel lights up in green. The sound remains unchanged.

Standard Power Default settings.

Reduced Power Reduces the power consumption of the TV.

Picture Off Switches off the picture. You can listen to the sound with the

picture off.

ambient light in the room.

Off Turns off the “Light Sensor” feature.

• Be sure not to put anything over the sensor, as its function may be affected. See page 14 for the location of the light sensor.

Logo Illumination Lights up and turns off the Sony logo on the front of the TV.

Page 35

Motionflow Provides smoother picture movement and reduces picture blur.

High Provides smoother picture movement such as for film-based

contents.

Standard Provides smooth picture movement. Use this setting for

standard use.

Off Use this setting when the “High” and “Standard” settings

result in noise.

• Depending on the video, you may not see the effect visually, even if you have changed the setting.

Cinema Drive Provides improved picture movement when playing DVD or VCR images taken on

film, reducing picture blur and graininess.

Auto 1 Provides smoother picture movement than the original film-

based content. Use this setting for standard use.

Auto 2 Provides the original film-based content as is.

Off Turns off the “Cinema Drive”.

• If the image contains irregular signals or too much noise, “Cinema Drive” is automatically turned off even if “Auto 1” or “Auto 2” is selected.

• “Cinema Drive” is not available when “Video/Photo” is set to “Photo” or when photograph is detected if “Video-A” is set.

Game/Text Mode Provides the optimum screen for viewing images with fine lines and characters that

are input from video game equipment. Set to “On” for the sharp display of fine lines or characters.

Video/Photo Sets the image quality setting most suited to the input source (video or photograph

data).

Video-A Sets suitable image quality, depending on the input source,

video data or photograph data when directly connecting Sony HDMI output-capable equipment that supports “Video-A” mode.

Video Produces suitable image quality for moving pictures.

Photo Produces suitable image quality for still images.

Using MENU Functions

• If the connected equipment does not support Video-A mode, the setting is automatically set to “Video”, even if you select “Video-A”.

• “Video/Photo” is available only for HDMI or component input source (1080p and 1080i).

x.v.Colour Displays moving pictures that is more faithfully to the original source by matching

the colour space of source.

• The setting is fixed to “Normal” when the input signal is HDMI (RGB), even if “x.v.Colour” is selected.

• Only available for HDMI 1, HDMI 2, HDMI 3 and Component in format 720p, 1080i or 1080p.

(Continued)

Page 36

Photo Colour Space Selects an option (sRGB, sYCC, Adobe RGB) to set the picture quality best suited

to the colour space of the photograph. If equipment converts the output colour space of a photograph from sYCC or Adobe RGB to x.v.Colour or xvYCC, select “sYCC”. Results in picture quality best suited to the original colour space. If an RGB signal is being input through HDMI input, automatically set to “sRGB” even if you have selected “sYCC”.

• Select “sYCC” when using the equipment that supports “x.v.Colour”.

• Only available for HDMI 1, HDMI 2, HDMI 3 and Component in format 1080i or 1080p.

• Not available when “Colour Space” is set to “Wide” (page 33).

Timer Settings Sets the timer to turn on/off the TV.

Sleep Timer Sets the TV to automatically switch to standby mode after a

On Timer Settings

Time Adjustment When digital channels have been received, set this to “Auto”

Clock Set Allows you to adjust the clock manually. When the TV is

certain amount of time. When “Sleep Timer” is activated, the (Timer) indicator on the TV front panel lights up in orange.

• When you turn off the TV and turn it on again, “Sleep Timer” is reset to “Off”.

• A notification message appears on the screen one minute before the TV switches to standby mode.

On Timer Sets the TV to automatically turn on from

standby mode.

Timer Mode Sets the desired day(s) of the week you

want the timer to turn on the TV.

Time Sets the time you want the timer to turn

on the TV.

Duration Sets how long you want the TV to stay on

before switching to standby mode again.

to adjust the clock automatically. If no digital channels have been received, set this to “Manual”, and adjust the clock manually in “Clock Set”.

receiving digital channels, you cannot adjust the clock manually, because the clock automatically receives the time code from the broadcast signal.

Set-up

Auto Start-up You can run the initial set-up that appeared when you first connected the TV

Region (Australian

model only)

Screen Settings Wide Mode See “To change the Wide Mode manually” on page 16.

(page 6), and select the region (Australian model only) and tune in all available channels again. Even if you have made the settings when you first connected the TV, you may need to change the settings after moving house, or to search for newly launched channels.

Sets the region in which you will operate the TV.

Page 37

Auto Wide Automatically changes “Wide Mode” to match input signals.

If you want to use the setting that you specified in “Wide Mode”, select “Off”.

4:3 Default Selects the default Wide Mode for use with the 4:3 picture.

Wide Zoom Enlarges the 4:3 picture to fill the 16:9

screen, keeping the original image as much as possible.

Normal Displays conventional 4:3 picture in the

Off Keeps the current “Wide Mode” setting

Display Area Adjusts the picture display area in 1080i, 1080p and 720p

Horizontal Shift Adjusts the horizontal position of the picture.

Vertical Shift Adjusts the vertical position of the picture when “Wide

Vertical Size Adjusts the vertical size of the picture when “Wide Mode” is

PC Settings Wide Mode Sets “Wide Mode” for displaying pictures from your PC.

Reset Resets all PC screen settings to factory settings.

Auto Adjustment Automatically adjusts the display position and phase of the

Phase Adjusts the phase when the screen flickers.

Pitch Adjusts the pitch when the picture has unwanted vertical

Horizontal Shift Adjusts the horizontal position of the picture.

Power Management

AV Set-up Video Labels Assigns a name to equipment connected to the side and rear

sources when “Wide Mode” is set to “Full”.

Auto During digital broadcasts, displays

Full Pixel Displays the original picture area.

Normal Displays pictures in their recommended

Mode” is set to “Wide Zoom”, “Zoom” or “14:9”.

set to “Wide Zoom”, “Zoom” or “14:9”.

Full 1 Enlarges the picture to fill the vertical

Full 2 Enlarges the picture to fill the display

picture when the TV receives an input signal from the connected PC.

• “Auto Adjustment” may not work well with certain input signals. In such cases, manually adjust “Phase”, “Pitch” and “Horizontal Shift”.

stripes.

Switches the TV to standby mode if no signal is received for 30 seconds.

jacks. The name appears briefly on the screen when you select the equipment. You can skip input sources from connected equipment that you do not want displayed on the screen.

correct proportion.

when the channel or input is changed.

pictures in accordance with the settings recommended by the broadcast station.

size.

display area, while maintaining its original proportion.

area.

1 Press F/f to select the desired input source, then press

2 Press F/f to select the desired option, then press .

Using MENU Functions

(Continued)

Page 38

Equipment labels

Edit Allows you to create your own label.

Skip Skips unnecessary input sources.

Speaker TV Speaker Turns on and outputs the TV’s sound

Audio System Turns off the TV speakers and outputs the

Audio Out Variable Allows you to use the TV’s remote to

Fixed The audio output of the TV is fixed. Use

• “Audio Out” is not available when the TV is interlocked with the operations of the connected HDMI audio system.

HDMI Set-up Allows the TV to communicate with the connected “Control for HDMI”

compatible equipment. Note that communication settings must also be made on the connected equipment.

Control for HDMI Sets whether or not to link the operations of the TV and the

connected equipment that is compatible with control for HDMI. When set to “On”, the following menu items can be performed. If the specific Sony equipment that is compatible with control for HDMI is connected, this setting is applied to the connected equipment automatically when the “Control for HDMI” is set to “On” using the TV.

Auto Devices Off When this is set to “On”, the connected equipment that is

compatible with control for HDMI turns off when you switch the TV to standby mode using the remote.

Auto TV On When this is set to “On”, the TV turns on when you turn on

Device List Update

HDMI Device List Displays the connected “Control for HDMI” compatible

the connected equipment that is compatible with control for HDMI.

Creates or updates the “HDMI Device List”. Up to 11 compatible equipment items can be connected, and up to 5 equipment items can be connected to a single jack. Be sure to update the “HDMI Device List” when you change the connections or settings. If the specific Sony equipment that is compatible with control for HDMI is connected, “Control for HDMI” is applied to the connected equipment automatically when the “Device List Update” is executed on the TV.

equipment.

Uses preset labels to assign a name to connected equipment.

Press F/f to select the desired letter or number, then press g. Repeat this step until you complete the name, then select “OK” and press .

from the TV speakers.

TV’s sound from external audio equipment connected to the audio output jacks on the TV. You can also turn on the connected equipment that is compatible with control for HDMI, after making the appropriate settings of control for HDMI.

control audio output from an audio system connected to the TV.

your audio receiver’s volume control to adjust the volume (and other audio settings) through your audio system.

Page 39

• You cannot use “Control for HDMI” if the TV operations are linked to the operations of an audio system that is compatible with control for HDMI.

Product Information Displays product information of the TV.

Factory Settings Resets all settings to factory settings except for the “Programme Block” setting,

“Digital Favourites” setting, and programme preset data. After completing this process, the initial set-up screen is displayed. Completing auto tuning in initial setup will reset the settings that are not reset by “Factory Settings”. To retain the settings, skip the “Auto Tuning”.

• Do not turn off the TV or press any buttons during “Factory Settings” (takes about 30 seconds).

Analogue Set-up

Programme List Display

1 Digit Direct Select “On” to select a channel using one preset number button (0 – 9) on the

Select “Off” to hide the list of analogue channels from the XMB™ (XrossMediaBar).

remote.

• When “1 Digit Direct” is set to “On”, you cannot select channel numbers 10 and above entering two digits using the remote.

Auto Tuning Tunes in all the available analogue channels.

You can retune the TV after moving house, or to search for newly launched channels.

Programme Sorting Changes the order of analogue channels stored in the TV.

1 Press F/f to select the channel you want to move to a new position, then press

2 Press F/f to select the new position for the channel, then press .

Programme Block Blocks an individual channel from being watched.

1 Press F/f to select the channel you want to block, then press . 2 Press F/f to select “Block”, then press .

To watch the channel, select “Allow”.

Intelligent Picture On with Indicator Automatically reduces the picture noise. The signal level bar

On Automatically reduces the picture noise.

Off Turns off the “Intelligent Picture” feature.

Manual Programme Preset

Before selecting “Label”/“AFT”/“LNA”/“Audio Filter”/“Skip”/“Colour System”, press PROG +/– to select the programme number with the channel. You cannot select a programme number that is set to “Skip”.

is displayed when the channel is changed or the display is changed from an input screen to a TV programme.

Using MENU Functions

(Continued)

Page 40

Programme/ TV System/ Frequency

Presets programme channels manually.

1 Press F/f to select “Programme”, then press . 2 Press F/f to select the programme number you want to

manually tune (if tuning a VCR, select programme 0), then press .

3 Press F/f to select “TV System”, then press . 4 Press F/f to select the best received TV broadcast

systems, then press .

5 Press F/f to select “Frequency”, then press . 6 Press G/g to search for the next available channel. The

frequency band (“VHF Low”, “VHF High” or “UHF”) is changed accordingly.

Label Assigns a name of your choice, up to five letters or numbers,

AFT Allows you to fine-tune the selected channel manually if you

LNA Improves the picture quality of the channel (noisy picture)

Audio Filter Improves the sound of individual channels when distortion

to the selected channel. This name appears briefly on the screen when you select the channel.

feel that a slight tuning adjustment may improve picture quality. You can adjust the fine tuning over a range of –15 to +15. When “On” is selected, fine tuning adjustments are made automatically.

when the broadcast signal is very weak. If you cannot see any improvement in the picture quality even if you set to “On”, set this option to “Off” (factory setting).

occurs in mono broadcasts. Sometimes a non-standard broadcast signal can cause sound distortion or intermittent sound muting in mono programmes. If you do not experience any sound distortion, we recommend that you leave this option to “Off” (factory setting).

• You cannot receive stereo or dual sound when “Low” or “High” is selected.

Skip Skips unused analogue channels when you press PROG +/–

to select channels. To select channels you have programmed to skip, use the corresponding number buttons.

Colour System Selects the colour system (“Auto”, “PAL”, “SECAM”)

Signal Level Displays the signal level for programme currently being

according to the channel.

watched.

Digital Set-up

Digital Tuning Digital Auto

Tuning

Tunes in the available digital channels. You can retune the TV after moving house, or to search for newly launched channels.

Page 41

Programme Sorting

Allows you to remove or change the order of digital channels stored in the TV.

1 Press F/f to select the channel you want to remove or

move to a new position.

For the New Zealand model, you can also select a channel by pressing the number buttons to enter its three-digit channel number.

2 Remove or change the order of the digital channels as

follows:

To remove the digital channel

Press . After a confirmation message appears, press G to select “Yes”, then press .

To change the order of the digital channels

Press g, then press F/f or number buttons (New Zealand model only) to select the new position for the channel and press G.

3 Press RETURN.

Digital Manual Tuning

Tunes the digital channels manually.

1 Press the number buttons to enter the channel number

you want to tune, then press F/f.

2 When the available channels are found, press F/f to

select the channel you want to store, then press .

3 Press F/f to select the channel number where you want

to store the new channel, then press .

Repeat the above procedure to tune other channels.

Subtitle Set-up Subtitle Setting When set to “For Hard Of Hearing”, visual aids for the

Subtitle Language

Audio Set-up Audio Type Switches to broadcast for the hearing impaired when you

Audio Language Sets the language to be used for a programme. Some digital

Audio Description

Mixing Level Adjusts the TV main audio and Audio Description output

Dynamic Range Compensates for differences in the audio level between

Optical Out Selects the audio signal that is output from the DIGITAL

Radio Display Displays the screen wallpaper when you listen to a radio broadcast. You can select

the screen wallpaper colour, display a random colour or view a slide show (page 23). To cancel the screen wallpaper display temporarily, press any button.

hearing impaired are displayed with the subtitles (when such visual aids are available).

Allows you to select the language of the subtitles.

select “For Hard Of Hearing”.

channels may broadcast several audio languages for a programme.

Provides audio description (narration) of visual information, when such information is available.

levels.

• This option is only available when “Audio Description” is set to “On”.

different channels. Note that this function may have no effect for some channels.

AUDIO OUT (OPTICAL) jack on the rear of the TV. Set to “Auto” when equipment compatible with Dolby Digital is connected, and set to “PCM” when incompatible equipment is connected.

Using MENU Functions

(Continued)

Page 42

Parental Lock Sets a parental guidance level. Programmes that exceed the set level can only be

watched after entering the correct PIN code.

1 Press the number buttons to enter your PIN code.

If you have not already set a PIN code, a PIN code entry screen appears. Follow the instructions in “PIN Code” below.

2 Press F/f to select the level you want to set (refer to the table below), then

press .

3 Press RETURN.

(Australian model)

Level Function

Block All All programmes need a password to view.

G and above To lock “General” and above programmes.

PG and above To lock “Parental Guidance” and above programmes.

M and above To lock “Mature” and above programmes.

MA and above To lock “Mature Adult” and above programmes.

AV and above To lock “Adult/Violence” and above programmes.

R and above To lock “Restricted” and above programmes.

No block No programmes need a password to view.

(New Zealand model)

Level Function

Block All All programmes need a password to view.

G and above To lock “General” and above programmes.

PGR and above To lock “Parental Guidance Recommended” and above

programmes.

AO and above To lock “Adults Only” and above programmes.

No block No programmes need a password to view.

PIN Code To set a PIN for the first time

1 Press the number buttons to enter a PIN code. 2 Press the number buttons to enter the PIN code entered in step 1. 3 Press RETURN.

To change your PIN

1 Press the number buttons to enter your PIN code. 2 Press the number buttons to enter a new PIN code. 3 Press the number buttons to enter the new PIN code entered in step 2. 4 Press RETURN.

• PIN code 9999 is always accepted.

Technical Set-up Auto Service

Update

System Update Enables the TV to automatically receive free software

System Information

Enables the TV to detect and store new digital services as they become available.

updates through your existing antenna (when issued). We recommend that you leave the setting to “On” at all times.

Displays the current software version and the signal level.

Page 43

Network Settings

Network IP Address

Server Display Settings

Server Diagnostics Diagnoses whether the TV can connect to each server on the home network.

Renderer Function Enables playback of photos or music on the TV through other control devices on

Renderer Access Control

Renderer Set-up Automatic

Settings

Test Diagnoses whether the network is correctly connected.

IP Address/ Subnet Mask/ Default Gateway

MAC Address Displays the MAC address, which is a fixed, globally unique

Displays the connected server list and allows you to select the server you want to display on the Home Menu.

the network, such as a digital still camera or mobile phone.

Allows you to specify the accessible controller to the TV. When this setting is set to “On”, you can playback photos or music on the TV using the controller.

Access Permission

Renderer Name Allows you to set the name of the TV to be shown on the

DHCP Automatically acquires the network

settings through the Dynamic Host Configuration Protocol server function of the router or Internet service provider.

Manual Allows you to set the network settings

according to your network environment.

You need to configure each item when “Manual” is selected in “IP Address Settings”.

identifier of the network device.

Allows you to select whether to permit access to the TV automatically when a network device accesses the TV for the first time.

controller.

Using MENU Functions

Page 44

Additional Information

Installing the Accessories (Wall-Mount Bracket)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installing of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Your TV can be installed using the Wall-Mount Bracket SU-WL500/SU-WL50B (sold separately).

• Refer to the Instructions supplied with the Wall-Mount Bracket to properly carry out the installation.

• Refer to “Detaching the Table-Top Stand from the TV” (page 8).

• Refer to “TV installation dimensions table” (page 45).

• Refer to “Screw and Hook locations diagram/table” (page 46).

• Place the TV on the Table-Top Stand, when securing the Mounting Hook.

SU-WL500:

Screw (+PSW 6 × 16)

Square hole

Mounting Hook

SU-WL50B:

Screw (+PSW 6 × 16)

Mounting Hook

Sufficient expertise is required for installing these products, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of these products to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Page 45

TV installation dimensions table

SU-WL500:

Screen centre point

SU-WL50B:

Screen centre point

Unit: mm

Model Name

KDL-52W4500

KDL-46W4500

KDL-40W4500

KDL-40E4500

Display

dimensions

1,262 829 39 167 487 615 179 180 413 786 522

1,120 742 84 212 487 615 175 176 380 704 521

986 646 122 175 474 527 170 171 348 614 507

1,006 645 122 175 463 615 174 180 359 618 506

Screen

centre

dimension

C DEFGH

SU-

WL500

SU-

WL50B

WL500

Length for each mounting angle

Angle (0°) Angle (20°)

SU-

WL50B

WL500

SU-

WL50B

SU-WL500 only

Figures in the above table may differ slightly depending on the installation.

WARNING

The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of the TV. Refer to “Specifications” (page 47) for its weight.

Additional Information

(Continued)

Page 46

Screw and Hook locations diagram/table

Model Name

KDL-52W4500/46W4500

KDL-40W4500/40E4500 d, i

Screw location Hook location

SU-WL500 SU-WL50B SU-WL500 SU-WL50B

d, g

SU-WL500:

Screw location Hook location

When installing the Mounting Hook on the TV.

When installing the TV onto the Base Bracket.

* Hook location “a” and “c” cannot be

used for the models.

e, j

a* b c*

SU-WL50B:

Screw location

When installing the Mounting Hook on the TV.

Hook location

When installing the TV onto the Base Bracket.

a* b c*

Mounting Hook

Base Bracket

* Hook location “a” and “c” cannot be

used for the models.

Page 47

Specifications

Model name KDL-40W4500 KDL-46W4500 KDL-52W4500 KDL-40E4500

System

Panel system

TV system

Colour/video system

Channel coverage

Sound output

Input/Output jacks

Antenna

1, 2, 3

1/ 2

HDMI IN 1, 2, 3

PC IN (RGB)

DMPORT

Power and others

Power requirements

Screen size (measured diagonally)

LCD (Liquid Crystal Display) Panel

Analogue: B/G, I, D/K Digital: DVB-T

Analogue: PAL, PAL60, SECAM, NTSC3.58/4.43 (only video input) Digital: MPEG-2 MP@ML/HL (Australian model),

H.264/MPEG-4 AVC (New Zealand model)

Analogue:

B/G: VHF: E2 to E12 / UHF: E21 to E69 /CATV: S01 to S03, S1 to S41 VHF: 0 to 12, 5A, 9A / UHF: 28 to 69 /CATV: S01 to S03, S1 to S44 (Australia only) VHF: 1 to 11 / UHF: 21 to 69 /CATV: S01 to S03, S1 to S41(New Zealand only) I: UHF: B21 to B69 / CATV: S01 to S03, S1 to S41 D/K: VHF: C1 to C12, R1 to R12 /UHF: C13 to C57, R21 to R60 /CATV: S01 to S03, S1

Digital: VHF/UHF (Australian model), UHF (New Zealand model)

10 W + 10 W

75 ohm external terminal for VHF/UHF

S video input (4-pin mini DIN)

Video input (phono jacks)

Audio input (phono jacks): 500 mVrms, Impedance: 47 kilohms

Supported formats: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i Y: 1 Vp-p, 75 ohms, 0.3V negative sync/P P

R/CR: 0.7 Vp-p, 75 ohms

Video: 1080/24p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24 bits

Analogue audio input (minijack): 500 mVrms, Impedance: 47 kilohms (HDMI IN 3 only)

Video output (phono jack)

DIGITAL AUDIO OUT (OPTICAL) (digital optical jack)/Audio output (phono jacks)

PC Input (D-sub 15-pin) (see page 48) G: 0.7 Vp-p, 75 ohms, non Sync on Green/B: 0.7 Vp-p, 75 ohms/ R: 0.7 Vp-p, 75 ohms/HD: 1-5 Vp-p/VD: 1-5 Vp-p

PC audio input (minijack)

Headphones jack

USB port

DIGITAL MEDIA PORT

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

220 V – 240 V AC, 50 Hz

40 inches (Approx.

101.6 cm)

to S41, Z1 to Z39

46 inches (Approx.

116.8 cm)

B/CB: 0.7 Vp-p, 75 ohms/

52 inches (Approx.

132.2 cm)

40 inches (Approx.

101.6 cm)

Additional Information

Display resolution

Power consumption

Dimensions (Approx.) (w × h × d)

with TableTop Sta nd

without Table

-Top Stand

Mass (Approx.)

with TableTop Sta nd

without Table

-Top Stand

Supplied accessories

1,920 dots (horizontal) × 1,080 lines (vertical)

Indicated on the rear of the TV

986 × 684 × 279 mm 1,120 × 782 × 307 mm 1,262 × 871 × 347 mm 1,006 × 695 × 283 mm

986 × 646 × 110 mm 1,120 × 742 × 115 mm 1,262 × 829 × 119 mm 1,006 × 645 × 114 mm

22.0 kg 29.0 kg 38.0 kg 23.5 kg

19.0 kg 25.0 kg 32.0 kg 20.0 kg

See “1: Checking the accessories” on page 4.

(Continued)

Page 48

Model name KDL-40W4500 KDL-46W4500 KDL-52W4500 KDL-40E4500

Optional accessories

SU-WL500/SU-WL50B Wall-Mount Bracket

Design and specifications are subject to change without notice.

PC input signal reference chart for PC IN (RGB) jack

Resolution Signals Horizontal

VGA

SVGA

XGA

WXGA

SXGA

(Pixel)

640 × 480 31.5 60 VGA

640 × 480 37.5 75 VESA

720 × 400 31.5 70 VGA-T

800 × 600 37.9 60 VESA Guidelines

800 × 600 46.9 75 VESA

1024 × 768 48.4 60 VESA Guidelines

1024 × 768 56.5 70 VESA

1024 × 768 60.0 75 VESA

1280 × 768 47.4 60 VESA

1280 × 768 47.8 60 VESA

1280 × 768 60.3 75

1360 × 768 47.7 60 VESA

1280 × 1024 64.0 60 VESA

× Vertical

(Line)

Horizontal frequency (kHz)

Vertical frequency (Hz)

Standard

• This TV’s PC input does not support Sync on Green or Composite Sync.

• This TV’s PC input does not support interlaced signals.

• This TV’s PC input supports signals in the above chart with a 60 Hz vertical frequency.

PC input signal reference chart for HDMI IN 1, 2, 3 jack

Resolution Signals Horizontal

(Pixel)

VGA

SVGA

XGA

WXGA

SXGA

640 × 480 31.5 60 VGA

800 × 600 37.9 60 VESA Guidelines

1024 × 768 48.4 60 VESA Guidelines

1280 × 768 47.4 60 VESA

1280 × 768 47.8 60 VESA

1280 × 1024 64.0 60 VESA

× Vertical

(Line)

Horizontal frequency (kHz)

Vertical frequency (Hz)

Standard

Page 49

Troubleshooting

Check whether the 1 (standby) indicator is flashing in red.

When the 1 (standby) indicator is flashing

The self-diagnosis function is activated.

1 Count how many times the 1 (standby) indicator flashes between each two second break.

For example, the indicator may flash three times, go off for two seconds, then flash again three times.

2 Press 1 on the TV to turn it off, disconnect the AC power cord, and inform your dealer or Sony

service centre of how the indicator flashes (number of flashes).

When the 1 (standby) indicator is not flashing

1 Check the items in the tables below. 2 If the problem persists, have your TV serviced by qualified service personnel.

Condition Explanation/Solution


There is no picture (screen is dark) and no sound.

Ghosting occurs, or double images appear.

Only snow and noise appear on the screen.

The picture is distorted (dotted lines or stripes appear).

There is picture or sound noise when viewing a TV channel.

Tiny black points and/or bright points appear on the screen.

The picture contours are distorted.

The picture is not displayed in colour.

The picture from equipment connected to the 1 or 2 jacks is not displayed in colour, or is displayed in irregular colours.

• Check the antenna connection.

• Connect the TV to the AC power, and press 1 on the TV.

• If the 1 (standby) indicator lights up in red, press "/1.

• Check the antenna connection.

• Check the antenna location and direction.

• Check if the antenna is broken or bent.

• Check if the antenna has reached the end of its serviceable life (three to five years for normal use, one to two years when used at the seaside).

• Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers, or optical equipment.

• When installing optional equipment, leave some space between the optional equipment and the TV.

• Check the antenna connection.

• Keep the antenna TV cable away from other connecting cables.

• Adjust “AFT” (Automatic Fine Tuning) to obtain better picture reception (page 40).

• The screen is composed of pixels. Tiny black points and/or bright points (pixels) on the screen do not indicate a malfunction.

• Select other settings in “Cinema Drive” (page 35).

• Select “Reset” (page 32).

• Check the connection of the 1 or 2 jacks and check if the jacks are firmly seated in their respective jacks.

Additional Information

(Continued)

Page 50

Condition Explanation/Solution

No picture from the connected equipment appears on the screen.

You cannot select the connected equipment on the Home Menu or you cannot switch the input.

• Turn the connected equipment on.

• Check the cable connection.

• Press / to display the list of inputs, then select the desired input.

• Correctly insert the memory card or other storage device in the digital still camera.

• Use a digital still camera memory card or other storage device that has been formatted according to the instruction manual supplied with the digital still camera.

• Operations are not guaranteed for all USB devices. Also, operations differ depending on the features of the USB device and the video being played.

• Check the cable connection.

• Set the server to be displayed on the Home Menu (page 29).

Sound

The picture is good, but there is no sound.

There is a significant difference in the output volume level between DIGITAL MEDIA PORT input and TV or other equipment input.

• Press 2 +/– or % (Mute).

• Check if the “Speaker” is set to “TV Speaker” (page 38).

• When using HDMI input with Super Audio CD or DVD-Audio, DIGITAL AUDIO OUT (OPTICAL) may not output audio signals.

• Adjust “Volume Offset” setting in the “Sound” menu (page 33).

Channels

You cannot select your desired channel.

Some channels are blank. • The channel is for scrambled/subscription service only. Subscribe to a

You cannot view digital channels.

• Switch between digital and analogue mode, and select the desired digital/analogue channel.

pay TV service.

• The channel is used only for data (no picture or sound).

• Contact the broadcaster for transmission details.

• Contact a local installer to find out if digital transmissions are provided in your area.

• Upgrade to a higher gain antenna.

Home Network

Connection diagnostic results indicate a failure.

The server cannot be found, a list cannot be retrieved, and playback fails.

Check Connections

• Use a straight cable for the LAN cable.

• Check if the cable is connected firmly.

• Check the connection between the TV and the router.

• Once server settings are changed, turn the TV off and on by pressing 1 on the TV.

• Execute “Server Diagnostics” (page 30).

When using a PC as the server

• Check if the PC is turned on. Do not turn off the PC while accessing.

• If security software is installed on the PC, be sure to allow connections from external devices. For details, see the manual supplied with your security software.

• The load on the PC may be too high or the server application may become unstable. Try the following: – Stop the server application and restart it. – Restart the PC. – Reduce the number of applications running on the PC. – Reduce the amount of content.

Page 51

Condition Explanation/Solution

Changes on the server are not being applied or displayed content differs from content on the server.

Photo and/or music files do not appear or icons are not displayed.

• Sometimes changes are not applied to displays on the TV even though content has been added and/or deleted on the server. If this happens, go back up one level and try opening the folder or server again.

Preliminary Check

• Check that the connected device supports DLNA.

• Operations are not guaranteed for all servers. Also, operations differ depending on the features of the server and the content in question.

• Turn the connected device on.

Check Connections

• Check that the LAN cable and/or AC power cord of the server has not become disconnected.

Check Settings

• Check that the connected device is registered under “Server Display Settings” (page 29).

• Check that the server is correctly configured.

• Check that the selected device is connected to the network and can be accessed.

• If the “IP Address Settings” in “Network” under “Network Settings” is set to “DHCP”, it may take some time to recognise devices if there is no DHCP server. Execute “Server Diagnostics” (page 30).

The TV cannot be found from renderer-compatible device (the controller).

Check Connections

• Check that the LAN cable and/or AC power cord of the server has not become disconnected.

Check Settings

• Check if the “Renderer Function” is activated (page 43).

• Check that the connected device is registered under “Renderer Access Control” (page 43).

General

The TV turns off automatically (the TV enters standby mode).

The TV turns on automatically.

Some input sources cannot be selected.

The remote does not function. • Replace the batteries.

HDMI equipment does not appear on “HDMI Device List”.

You cannot select “Off” in “Control for HDMI”.

Not all channels are tuned for cable.

The auto tuning procedure takes a long time.

• Check if the “Sleep Timer” is activated, or confirm the “Duration” setting of “On Timer Settings” (page 36).

• Check if the “On Timer Settings” is activated (page 36).

• Select “Video Labels” and cancel the “Skip” setting for the input source (page 38).

• Check that your equipment is compatible with control for HDMI.

• If you have connected any audio system that is compatible with control for HDMI, you cannot select “Off” in this menu. If you want to change the audio output to the TV speaker, select “TV Speaker” in the “Speaker” menu (page 38).

• Check the support website for cable provide information. http://www.sony-asia.com/bravia/flash.html

• If you have connected the VCR to the TV, we recommend inserting a pre-recorded tape into a VCR before you start auto tuning for fast tuning. Cancel the auto tuning, and insert a pre-recorded tape into a VCR connected to the TV. Then select “Auto Start-up” (page 36) to make the initial set-up again.

Additional Information

Page 52

Instructions on “Installing the Wall-Mount Bracket” are not supplied in the form of a separate leaflet with this TV. These installation instructions are included within this TV’s instructions manual.

Customer Support:

Printed in Malaysia

4-106-869-13(1)
