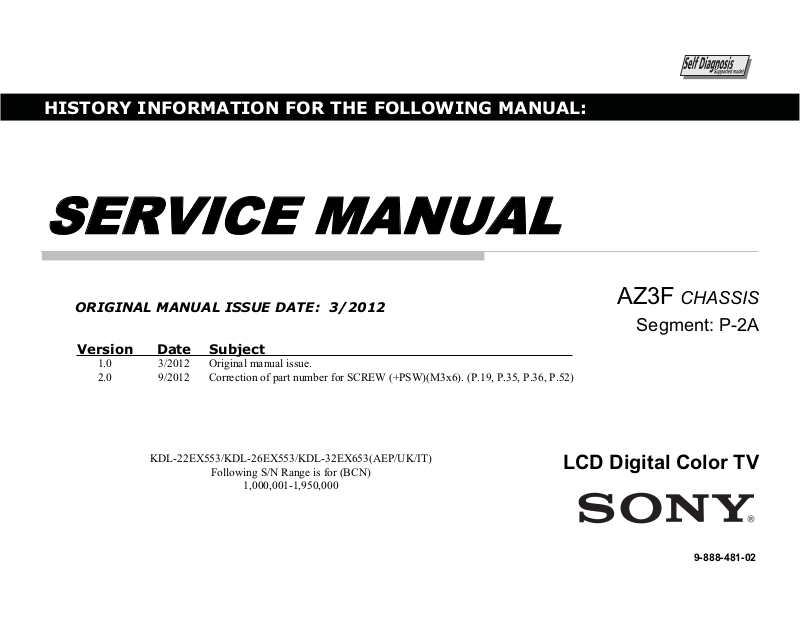

SERVICE MANUAL
HISTORY INFORMATION FOR THE FOLLOWING MANUAL:
ORIGINAL MANUAL ISSUE DATE: 3/2012
Version Date Subject
1.0 3/2012 Original manual issue.
2.0 9/2012 Correction of part number for SCREW (+PSW)(M3x6). (P.19, P.35, P.36, P.52)
KDL-22EX553/KDL-26EX553/KDL-32EX653(AEP/UK/IT)
Following S/N Range is for (BCN)
1,000,001-1,950,000
AZ3F CHASSIS
Segment: P-2A
LCD Digital Color TV
9-888-481-02
Page 2
SERVICE MANUAL
AZ3F CHASSIS
Segment: P-2A
LCD Digital Color TV
9-888-481-02
Page 3
MODEL LIST
MODEL COLOR COMMANDER DEST.
KDL-22EX550 Black RM-ED050 AEP
KDL-22EX553 Black RM-ED050 AEP
White RM-ED050 AEP
Black RM-ED050 UK
White RM-ED050 UK
Black RM-ED050 IT
White RM-ED050 IT
KDL-22EX555 Black RM-ED050 AEP
KDL-26EX550 Black RM-ED050 AEP
White RM-ED050 AEP
KDL-26EX553 Black RM-ED050 AEP
White RM-ED050 AEP
Black RM-ED050 UK
White RM-ED050 UK
Black RM-ED050 IT
White RM-ED050 IT
MODEL COLOR COMMANDER DEST.
KDL-32EX650 Black RM-ED050 AEP
KDL-32EX653 Black RM-ED050 AEP
Black RM-ED050 UK
Black RM-ED050 IT
KDL-32EX655 Black RM-ED050 AEP
*1
KDL-26EX555 Black RM-ED050 AEP
White RM-ED050 AEP
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
*1
Serial number range 1,300,001 ~ 1,400,000 are B2B models.
Its commercial name is FWD-32EX650P.
3
Page 4
WARNINGS AND CAUTIONS -ENGLISH
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
WARNING!!
An isolation transformer should be used during any service to avoid possible shock hazard, because of live chassis.
The chassis of this receiver is directly connected to the ac power line.
CARRYING THE TV
Be sure to follow these guidelines to protect your property and avoid causing serious injury.
• Carry the TV with an adequate number of people; larger size TVs require two or more people.
• Correct hand placement while carrying the TV is very important for safety and to avoid damages.
SAFETY-RELATED COMPONENT WARNING!!
Components identified by shading and ! mark on the schematic diagrams, exploded views, and in the parts list are critical for safe operation. Replace these components with Sony
parts whose part numbers appear as shown in this manual or in supplements published by Sony. Circuit adjustments that are critical for safe operation are identified in this manual.
Follow these procedures whenever critical components are replaced or improper operation is suspected.
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
4
Page 5
WARNINGS AND CAUTIONS - FRENCH
ATTENTION!!
Ces instructions de service sont à l’usage du personnel de service qualifi é seulement.
Pour prévenir le risque de choc électrique, ne pas faire l’entretien autre que celui contenu dans le Mode d’emploi à moins que vous soyez qualifi é faire ainsi.
WARNING!!
Afi n d’eviter tout risque d’electrocution provenant d’un chássis sous tension, un transformateur d’isolement doit etre utilisé lors de tout dépannage. Le chássis de ce récepteur est
directement raccordé à l’alimentation du secteur.
POUR TRANSPORTER LE TÉLÉVISEUR
Tenez compte de ce qui suit pendant l’installation du téléviseur :
• Débranchez tous les câbles avant de transporter le téléviseur.
• Transportez le téléviseur avec le nombre de personnes approprié ; un téléviseur de grande taille doit être transporté par au moins deux personnes.
• Lors du transport du téléviseur, l’emplacement des mains est très important pour votre sécurité, ainsi que pour éviter de causer des dommages.
ALERTE!!
Afi n d’eviter tout risque d’electrocution provenant d’un chassis sous tension, un transformateur d’isolement doit etre utilise lors de tout depannage. Le chassis de ce recepteur est
directement raccorde a l’alimentation du secteur.
ATTENTION AUX COMPOSANTS RELATIFS A LA SECURITE!!
Les composants identifi es par une trame et par une marque ! sur les schemas de principe, les vues explosees et les listes de pieces sont d’une importance critique pour la securite du
fonctionnement. Ne les remplacer que par des composants Sony dont le numero de piece est indique dans le present manuel ou dans des supplements publies par Sony. Les reglages
de circuit dont l’importance est critique pour la securite du fonctionnement sont identifi es dans le present manuel. Suivre ces procedures lors de chaque remplacement de
composants critiques, ou lorsqu’un mauvais fonctionnement suspecte.
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
5
Page 6
USE CAUTION WHEN HANDLING THE LCD PANEL
When repairing the LCD panel, be sure you are grounded by using a wrist band.
When repairing the LCD panel on the wall, the LCD panel must be secured using the 4 mounting holes on the rear cover.
1) Do not press on the panel or frame edge to avoid the risk of electric shock.
2) Do not scratch or press on the panel with any sharp objects.
3) Do not leave the module in high temperatures or in areas of high humidity for an extended period of time.
4) Do not expose the LCD panel to direct sunlight.
5) Avoid contact with water. It may cause a short circuit within the module.
6) Disconnect the AC power when replacing the backlight (CCFL) or inverter circuit. (High voltage occurs at the inverter circuit at 650Vrms.)
7) Always clean the LCD panel with a soft cloth material.
8) Use care when handling the wires or connectors of the inverter circuit. Damaging the wires may cause a short.
9) Protect the panel from ESD to avoid damaging the electronic circuit (C-MOS).
10) It is recommended not to exceed 1 hour of Power-On nor Burn-in period with LCD panel face down condition, in repair activity.
WARNINGS AND CAUTIONS
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
6
Page 7
SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or poorly soldered connections. Check the entire board surface for solder splashes and bridges.
2. Check the interboard wiring to ensure that no wires are “pinched” or touching high-wattage resistors.
3. Check that all control knobs, shields, covers, ground straps, and mounting hardware have been replaced. Be absolutely certain that you have replaced all the insulators.
4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.
5. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.
6. Check the line cords for cracks and abrasion. Recommend the replacement of any such line cord to the customer.
7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below.
8. For safety reasons, repairing the Power board and/or Inverter board is prohibited.
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
7
Page 8
Leakage Test
The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed
metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’
instructions to use these instructions.
2. A battery-operated AC milliampmeter. The Data Precision 245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The
“limit” indication is 0.75 V, so analog meters must have an accurate low voltage scale.
The Simpson’s 250 and Sanwa SH-63TRD are examples of passive VOMs that are suitable. Nearly all
battery-operated digital multimeters that have a 2 VAC range are suitable (see Figure A).
How to Find a Good Earth Ground
A cold-water pipe is a guaranteed earth ground; the cover-plate retaining screw on most AC outlet boxes is also
at earth ground.
If the retaining screw is to be used as your earth ground, verify that it is at ground by measuring the resistance
between it and a cold-water pipe with an ohmmeter. The reading should be zero ohms.
If a cold-water pipe is not accessible, connect a 60- to 100-watt trouble- light (not a neon lamp) between the hot
side of the receptacle and the retaining screw. Try both slots, if necessary, to locate the hot side on the line; the
lamp should light at normal brilliance if the screw is at ground potential (see Figure B).
SAFETY CHECK-OUT
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
8
Page 9
SELF DIAGNOSIS FUNCTION
The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY LED will automatically begin to flash.
The number of times the LED flashes translates to a probable source of the problem.
A definition of the STANDBY LED flash indicators is listed in the instruction manual for the user’s knowledge and reference.
If an error symptom cannot be reproduced, the remote commander can be used to review the failure occurrence data stored in memory to reveal past problems and how often these
problems occur.
DIAGNOSTIC TEST INDICATORS
When an error occurs, the STANDBY LED will flash a set number of times to
indicate the possible cause of the problem.
If there is more than one error, the LED will identify the first of the problem areas.
Result for all of the following diagnostic items are displayed on screen.
If the screen displays a “0”, no error has occurred .
DISPLAY OF STANDBY LED FLASH COUNT
0.5
0.5
3
STBY LED
Fla sh tim e
10 - Not used
11 - Not used
12 - Not used
Service menu Item
name
(Screeen Display)
2 MAIN_POWE Main 12 V failure
3
4 - Not used
5
6 BACKLITE Backlight failure
7
8-
9 - Not used
DC_ALERT Main 5.0/3.3/1.2 V failure
AUD_PROT Audio amp. protection
HDMI_EQ HDMI equalizer/switch I2C NACK
TU_DEMOD Tuner or demodulator I2C NACK
P_ID_ERR
TEMP_ERR Over temperature protection
TEMP_ERR Temp. sens or I2C NACK
Panel ID EEPROM I2C NACK (Also panel power failure is a
suspect)
Software Error (Also the main board’s memory or Wi-Fi
module is a suspect)
Diagnostic Item Description
SELF-DIAGNOSTIC SCREEN DISPLAY
For errors with symptoms such as “power sometimes shuts off” or “screen sometimes goes out” that cannot be confirmed, it is possible to bring up past occurrences of failure for
confirmation on the screen:
[To Bring Up Screen Test]
In standby mode, press buttons on the remote commander sequentially in rapid succession as shown below:
*
DISPLAY TV POWERChannel Volume
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
5
* : Note that this differs from entering the service mode (volume +)
9
Page 10
[SELF DIAGNOSTIC SAMPLE SCREEN DISPLAY]
SELFCHECK
000RESERVEDŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
Item name
STBY LED flash time
CPU Watch-dog timer
000RESERVEDŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
002MAIN_POWEŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
003DC_ALERTŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
003AUD_PROTŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
003HDMI_EQŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
003TU_DEMODŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
004VLEDŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
004LD_ERRŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
005HFR_ERRŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
005TCON_ERR1108231325ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 01
005P_ID_ERRŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
006BACKLITEŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
007TEMP_ERRŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
007FAN_ERRŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
010EMITTERŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
101VPC_WDTŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
102MEPS_WDTŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
103HOST_WDTŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
104
TBY_WDTŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00
S
0081Ş00671Ş00088
Panel operation time by hour (MAX:65535)
Boot count (MAX:65535)
Total operation time by hour (MAX:65535)
SELF DIAGNOSIS FUNCTION
Error count (00-99)
Error history (Last failure time beforehand) *1
Error history (Failure time before last) *1
Error history (The last failure time) *1
*1 : Format of error history
YYMMDDhhmm (in UTC)
Example:1108231325 -> Aug 23 13:25 2011 UTC
Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen.
After you have completed the repairs, clear the result display to “0”.
Clearing the Self Check Diagnostic List
1. Error history and Error count : Press the Channel 8 => Channel 0 .
2. Panel operation time : Press the Channel 7 => Channel 0 .
Exiting the Self-diagnostic screen
To exit the Self Diagnostic screen, turn off the power to the TV by pressing the POWER button on the remote or the POWER button on the TV.
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
10
Page 11
SEC 1. DISASSEMBLY
• There are clutch in the yellow frame[ ]. Therefore please be careful in the case of the disassembly or assembly of parts.
Note: When removing the rear cover, to prevent damaging the rear cover, please refer Appendix 1.
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
11
Page 12

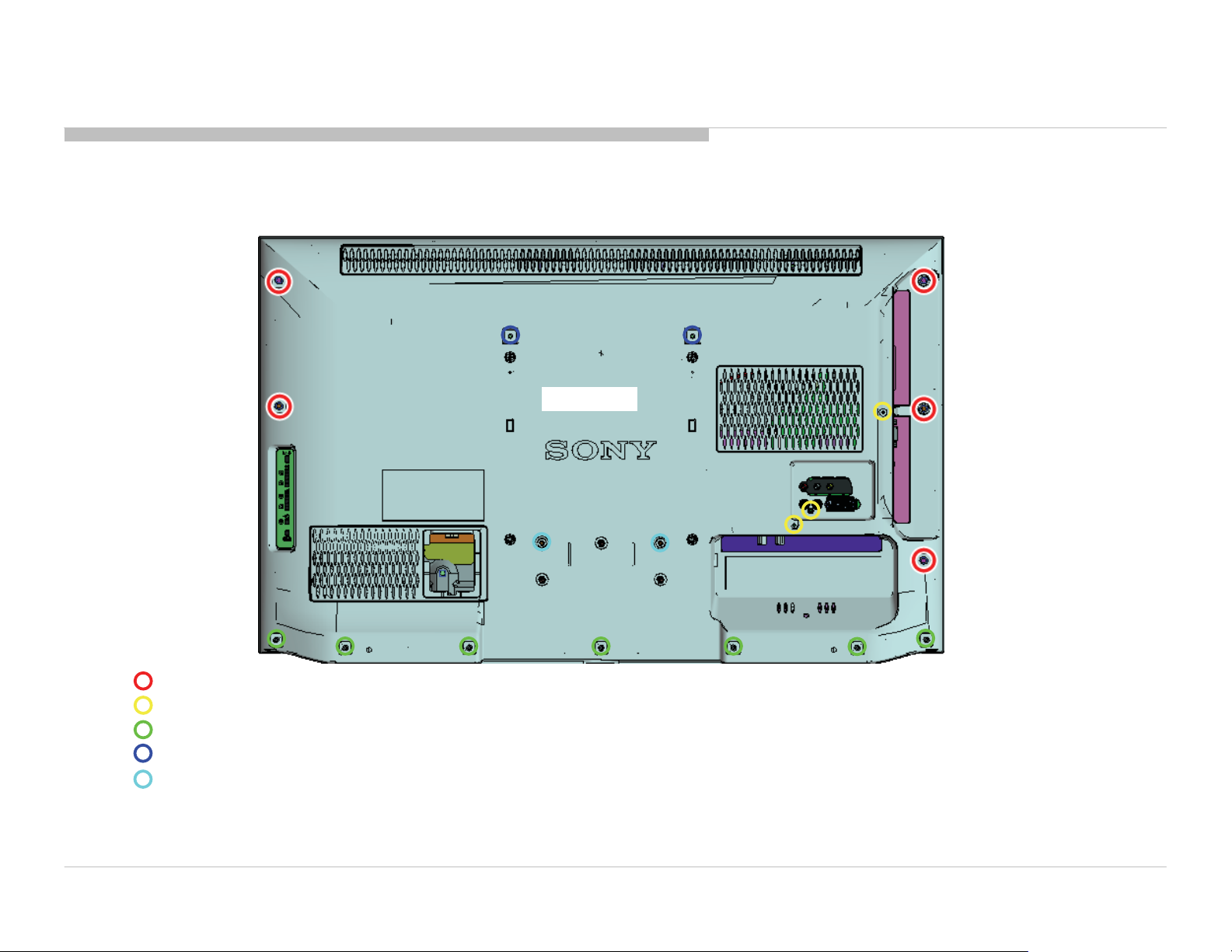

1-1. KDL-22EX550/553/555

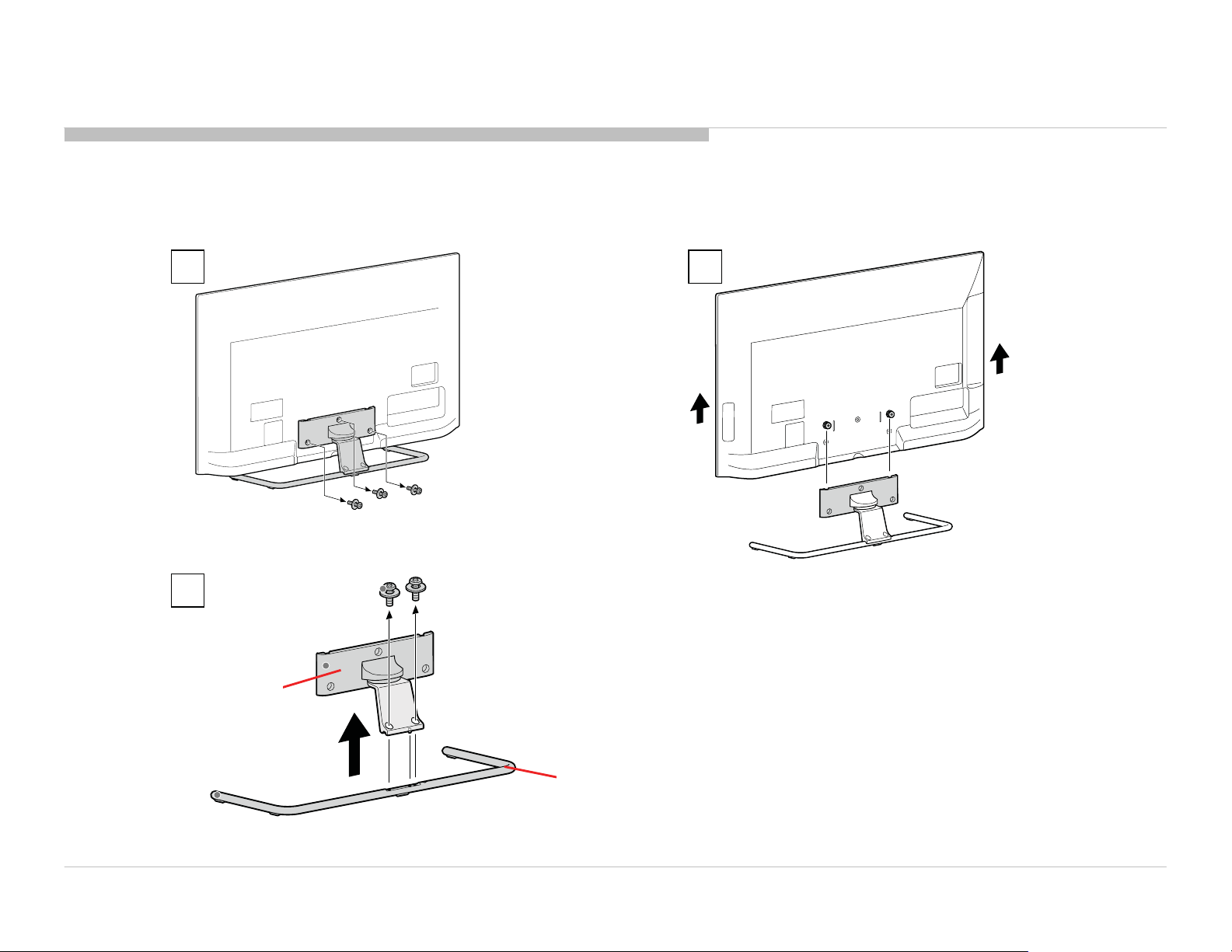

1-1-1.EASEL STAND
1 2
DISASSEMBLY
2 Screws (SCREW, +PSW M5X16) P/N: 2-580-608-01
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
EASEL STAND
EASEL STAND
12
Page 13
1-1. KDL-22EX550/553/555
1-1-2. AC COVER AND POWER SUPPLY CORD
DISASSEMBLY
REAR COVERAC COVER
POWER
SUPPLY
CORD
1 Screw (SCREW, +PSW M3X6 W12) P/N: 4-256-393-01
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
Note: When assemble the AC COVER, hold the AC COVER and tighten a screw.
13
Page 14
1-1. KDL-22EX550/553/555
1-1-3. REAR COVER
DISASSEMBLY
REAR COVER

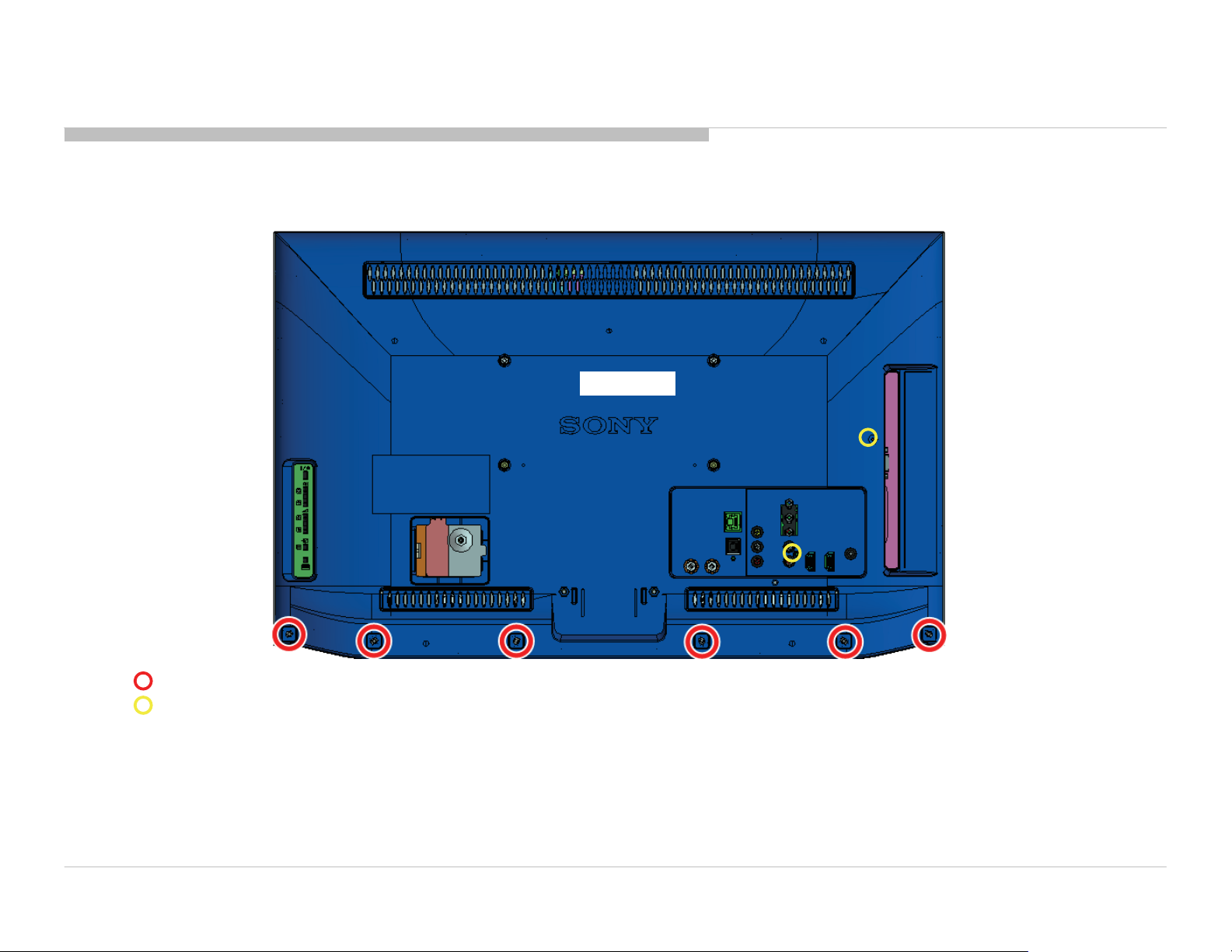

6 Screws (SCREW, +BVTP 4X12 TYPE2 IT-3) P/N: 2-580-639-01
2 Screws (SCREW +BVTP 3X12 TYPE2 IT-3) P/N:7-685-648-79
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
14
Page 15
1-1. KDL-22EX550/553/555
DISASSEMBLY

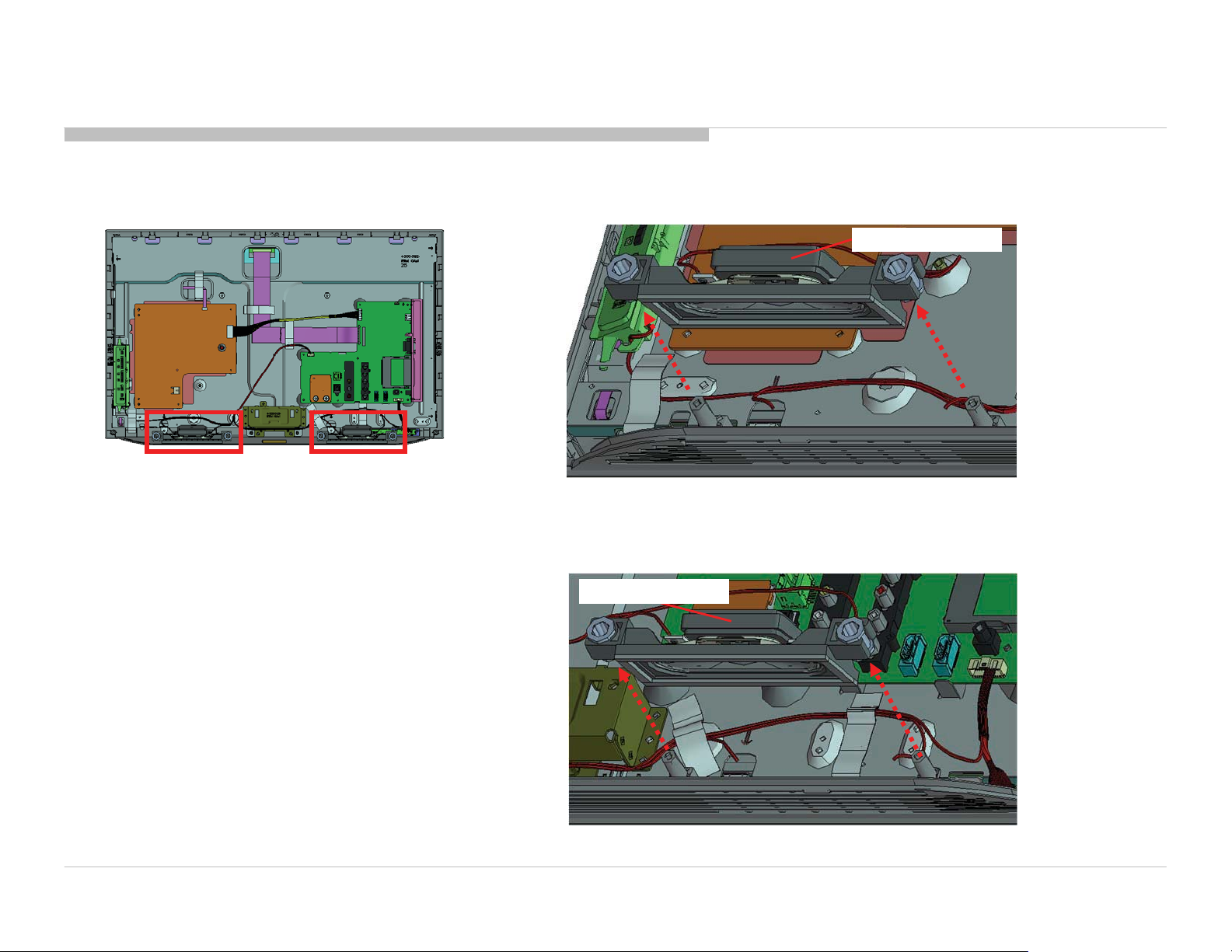

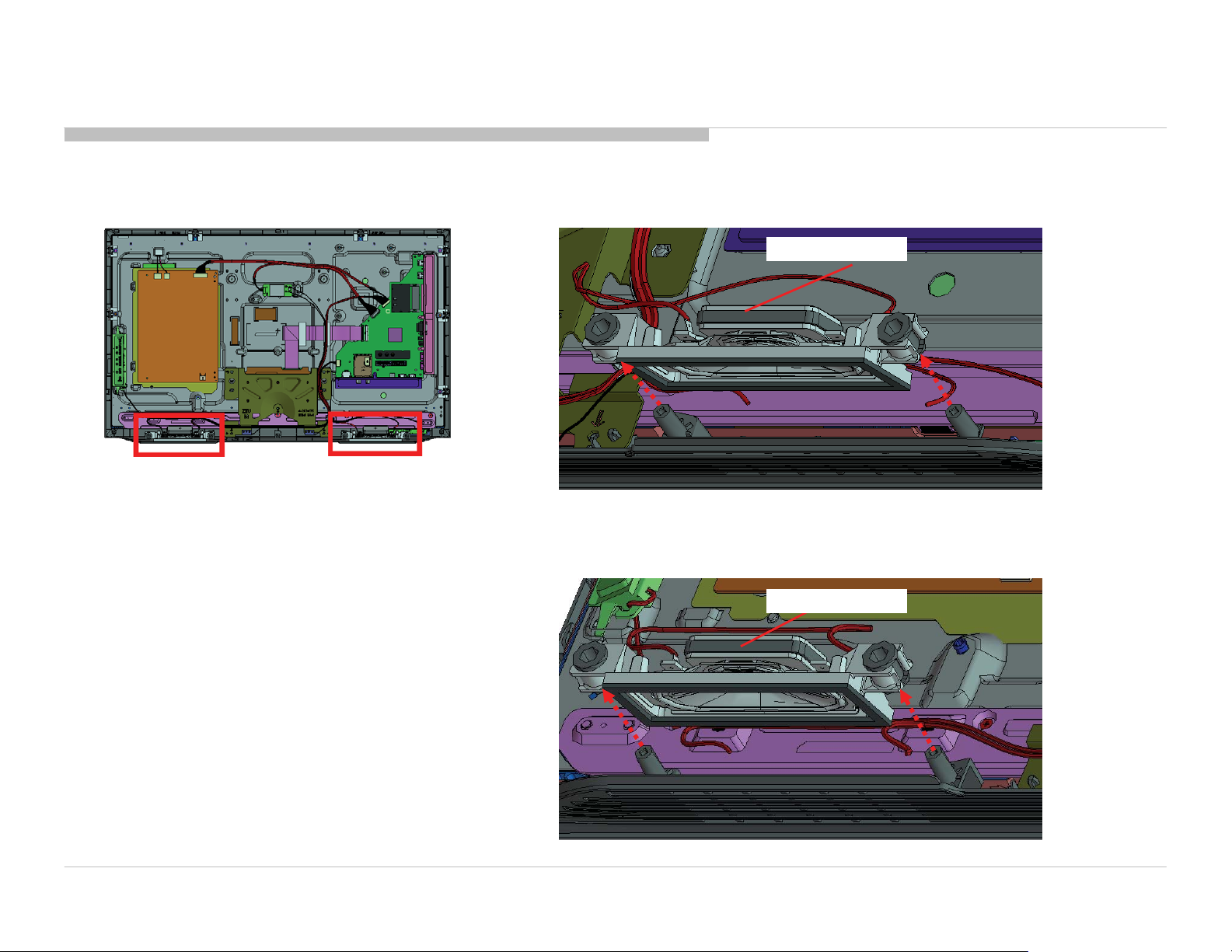

1-1-4. SPEAKER BOX ASSY
<A>
SPEAKER BOX ASSY
<B><A>
<B>
SPEAKER BOX ASSY
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
15
Page 16
1-1. KDL-22EX550/553/555

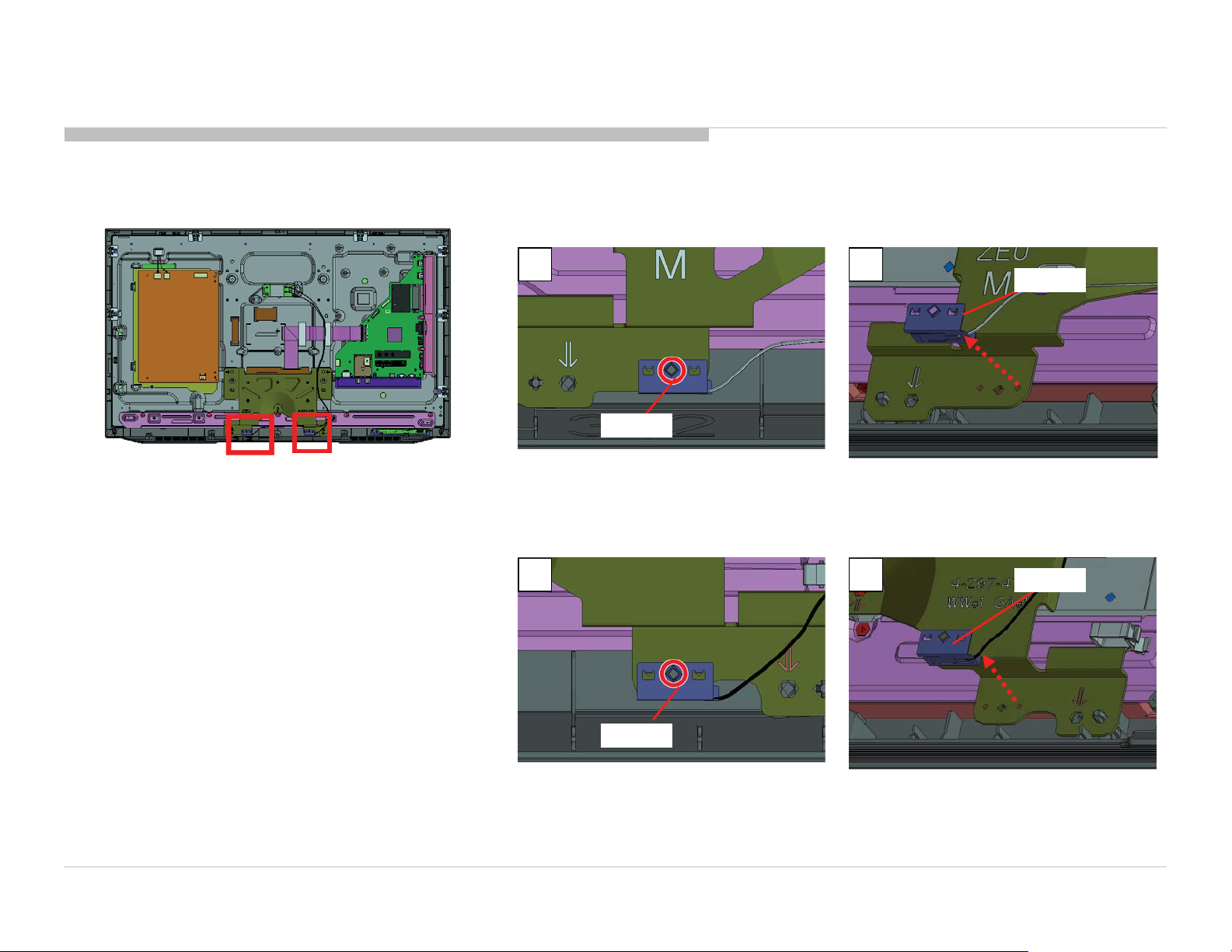

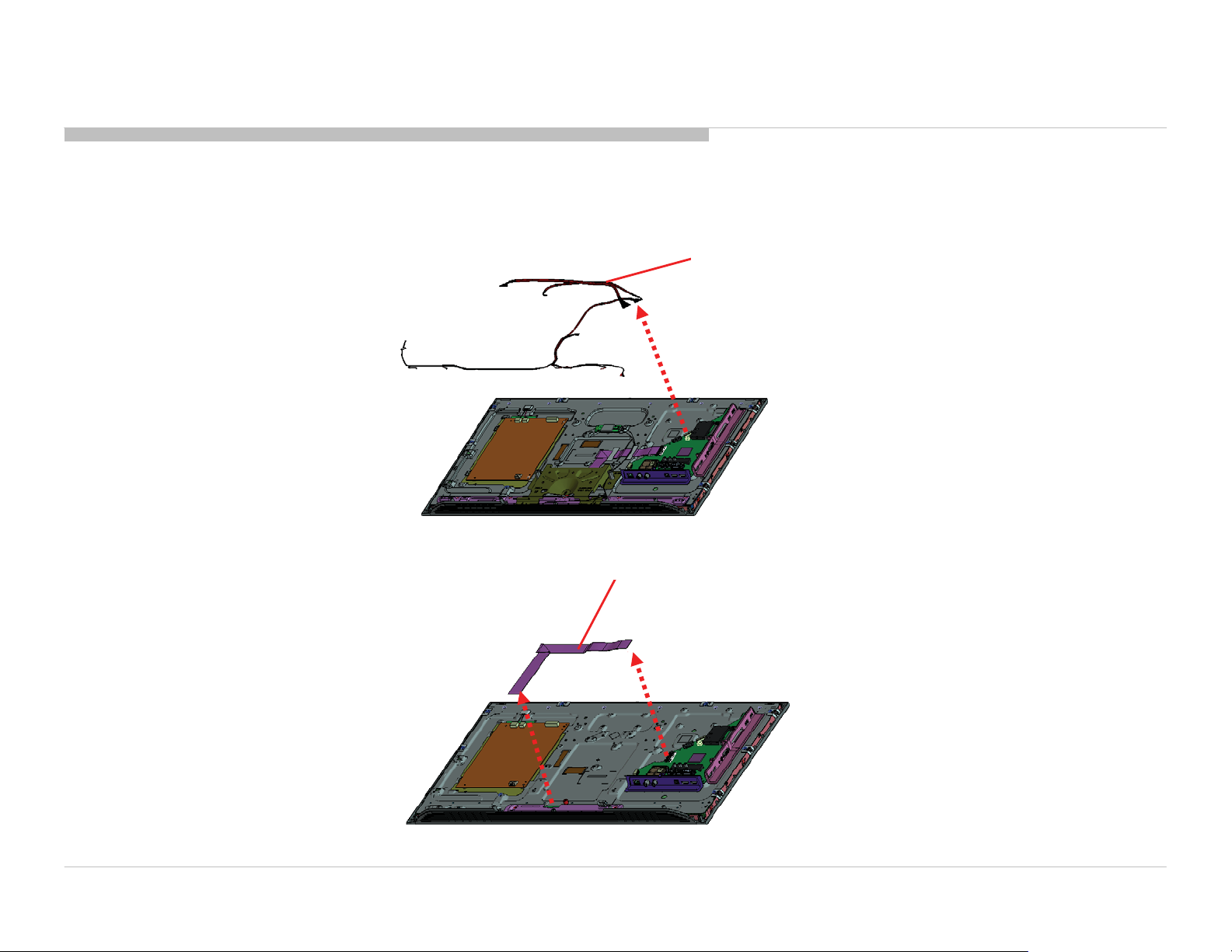

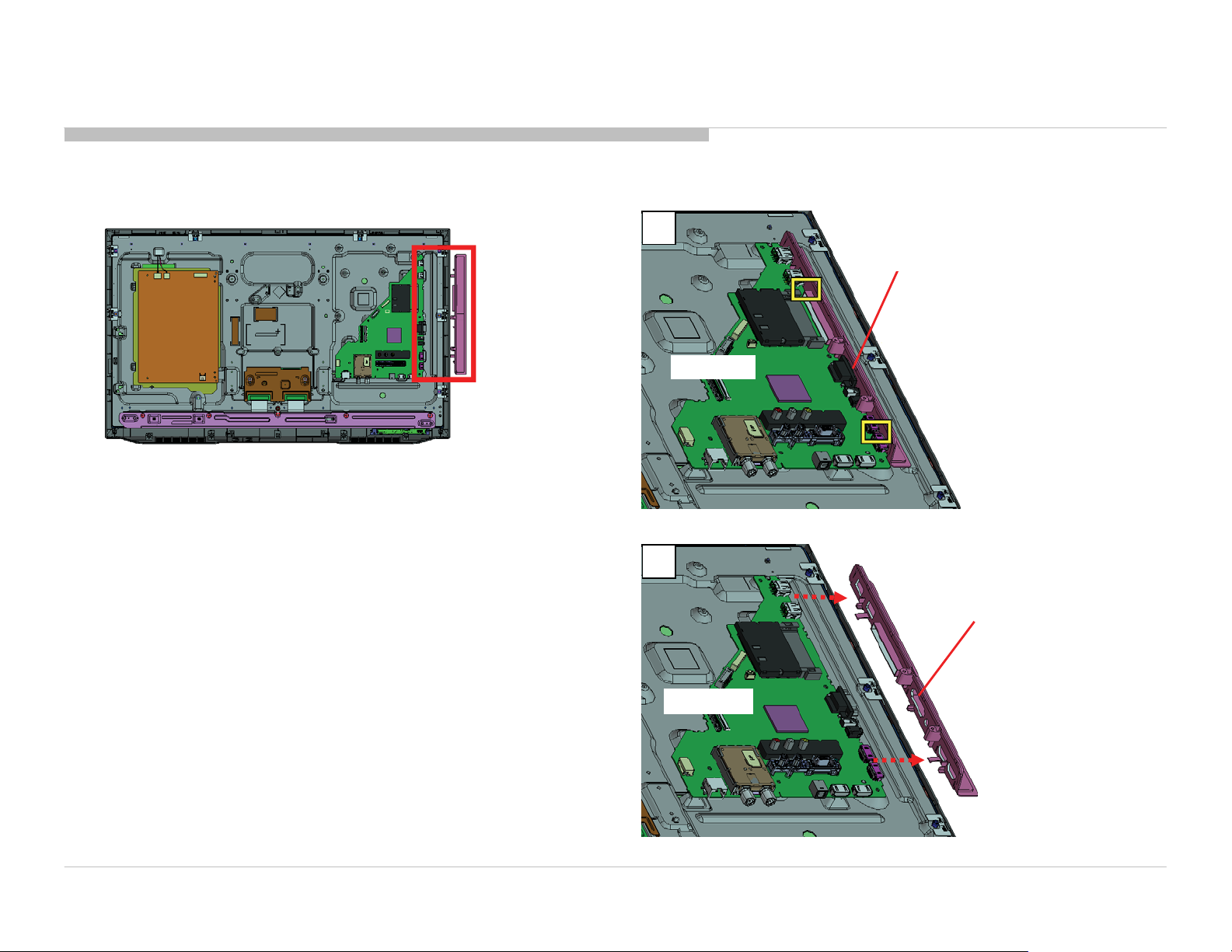

1-1-5. WIRELESS LAN CARD
DISASSEMBLY
1
WIRELESS LAN CARD
2 Screws (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
2
WIRELESS LAN CARD WIRELESS LAN CARD
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
3
Note: Refer to the connection from the antenna when
installing a wireless module.
16
Page 17
1-1. KDL-22EX550/553/555
1-1-6. SWITCH UNIT
DISASSEMBLY
1
SWITCH UNIT
32
SWITCH UNIT SWITCH UNIT
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
17
Page 18
1-1. KDL-22EX550/553/555

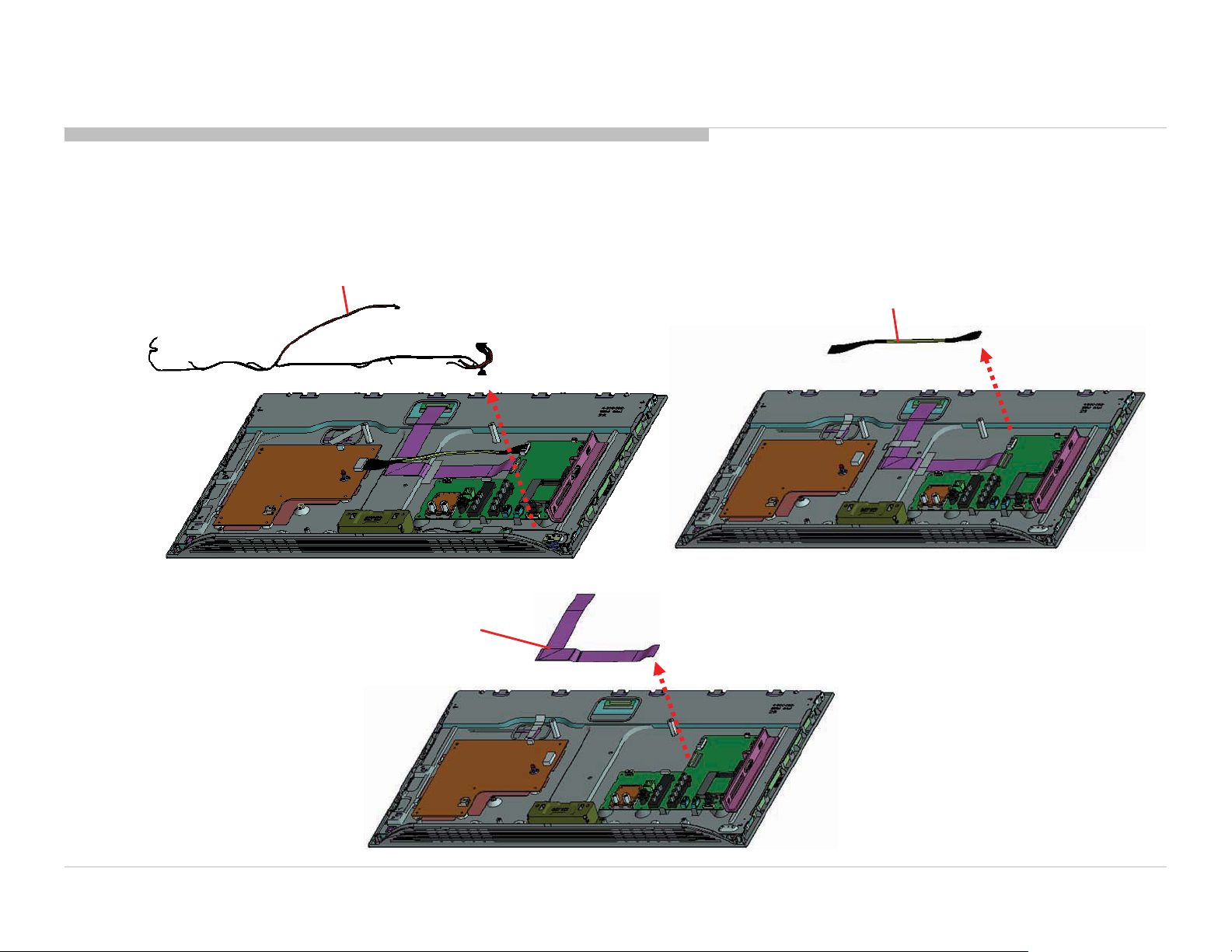

1-1-7. CONNECTOR AND HARNESS
DISASSEMBLY

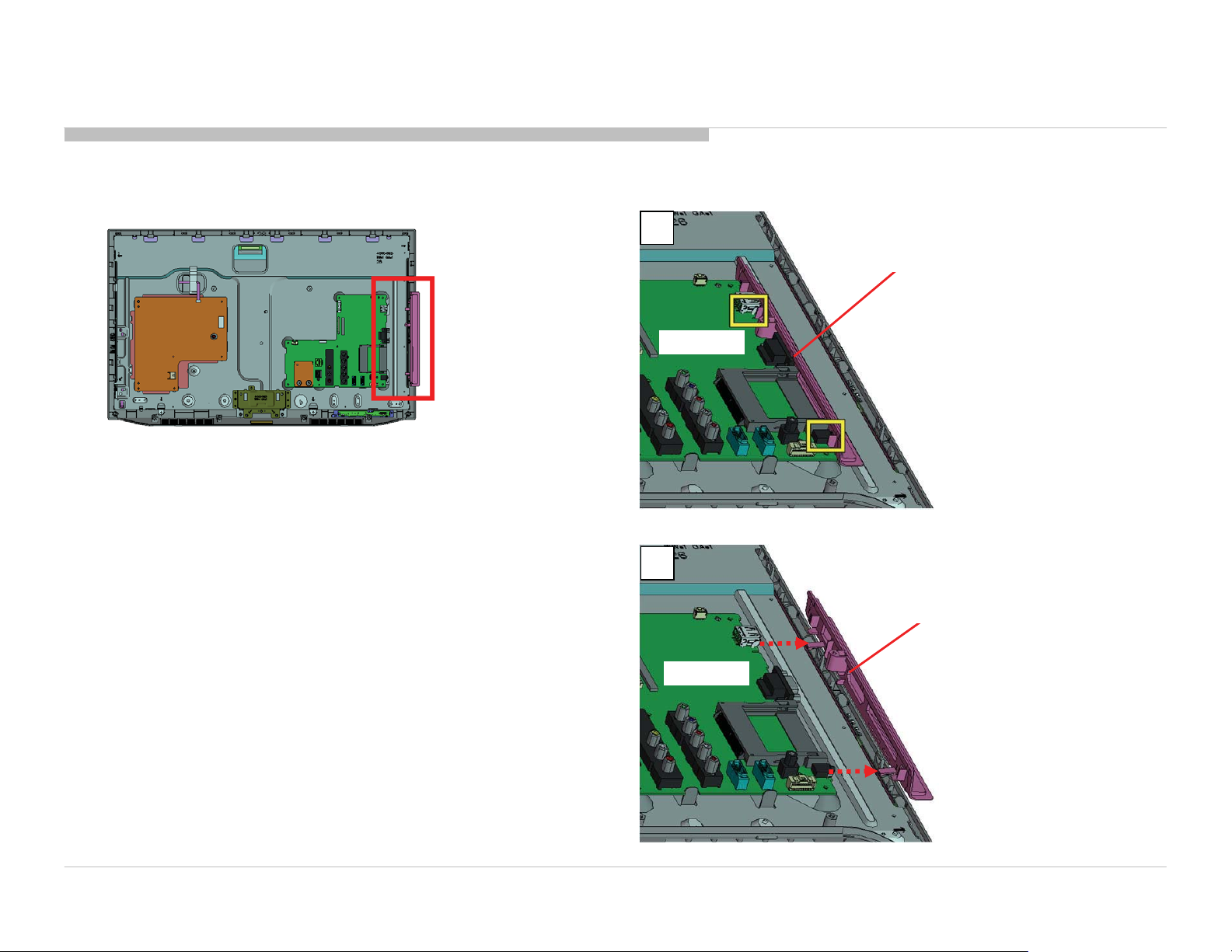

CONNECTOR
HARNESS
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
18
Page 19

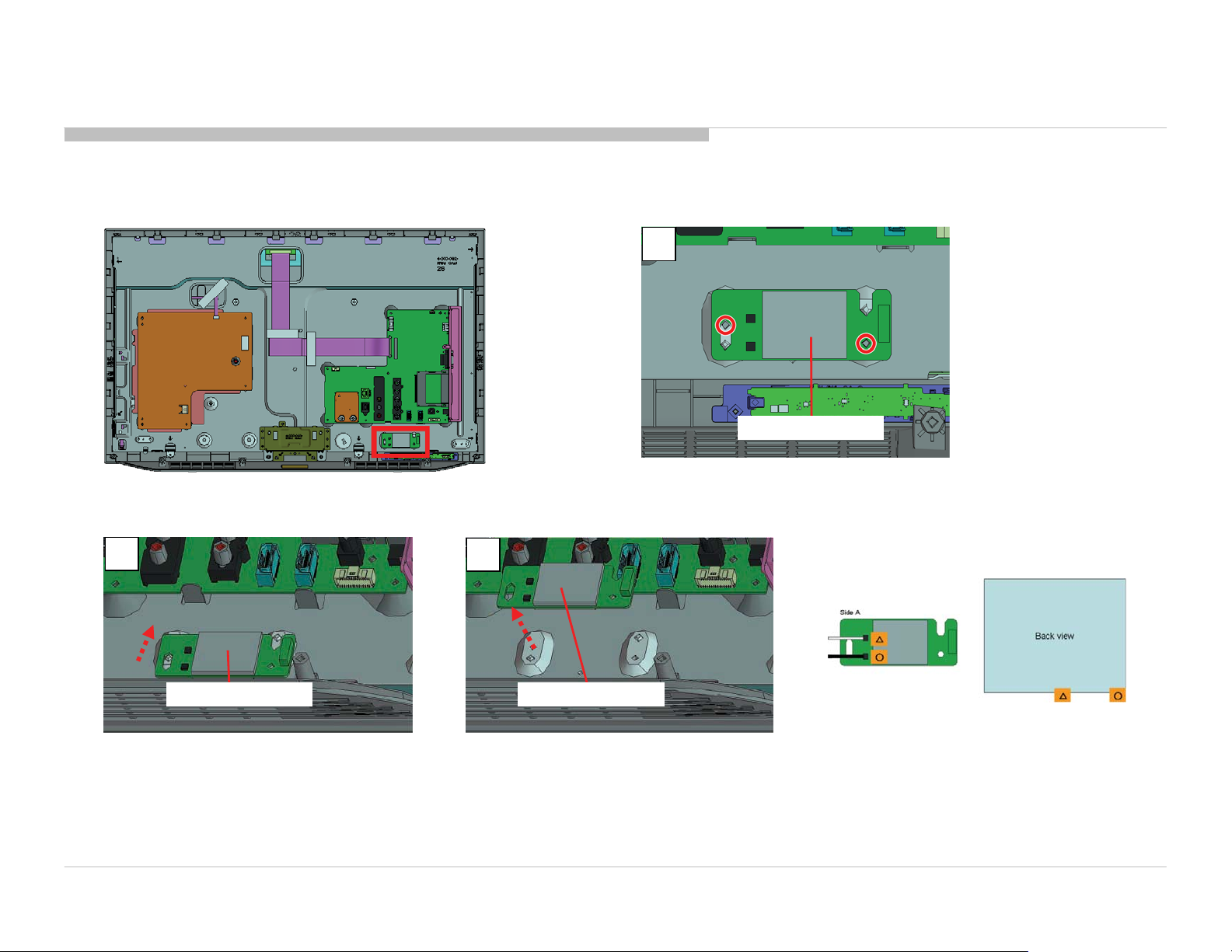

1-1. KDL-22EX550/553/555

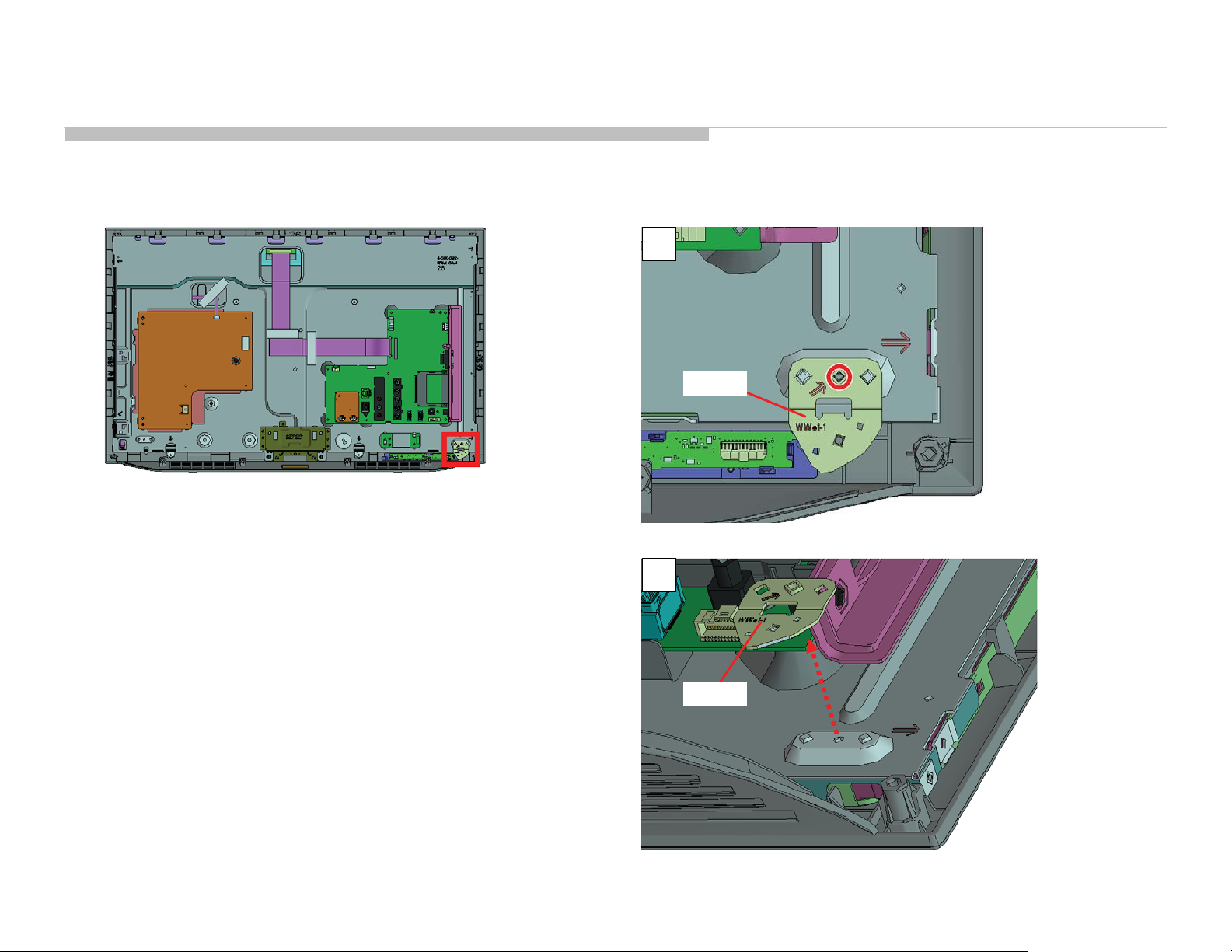

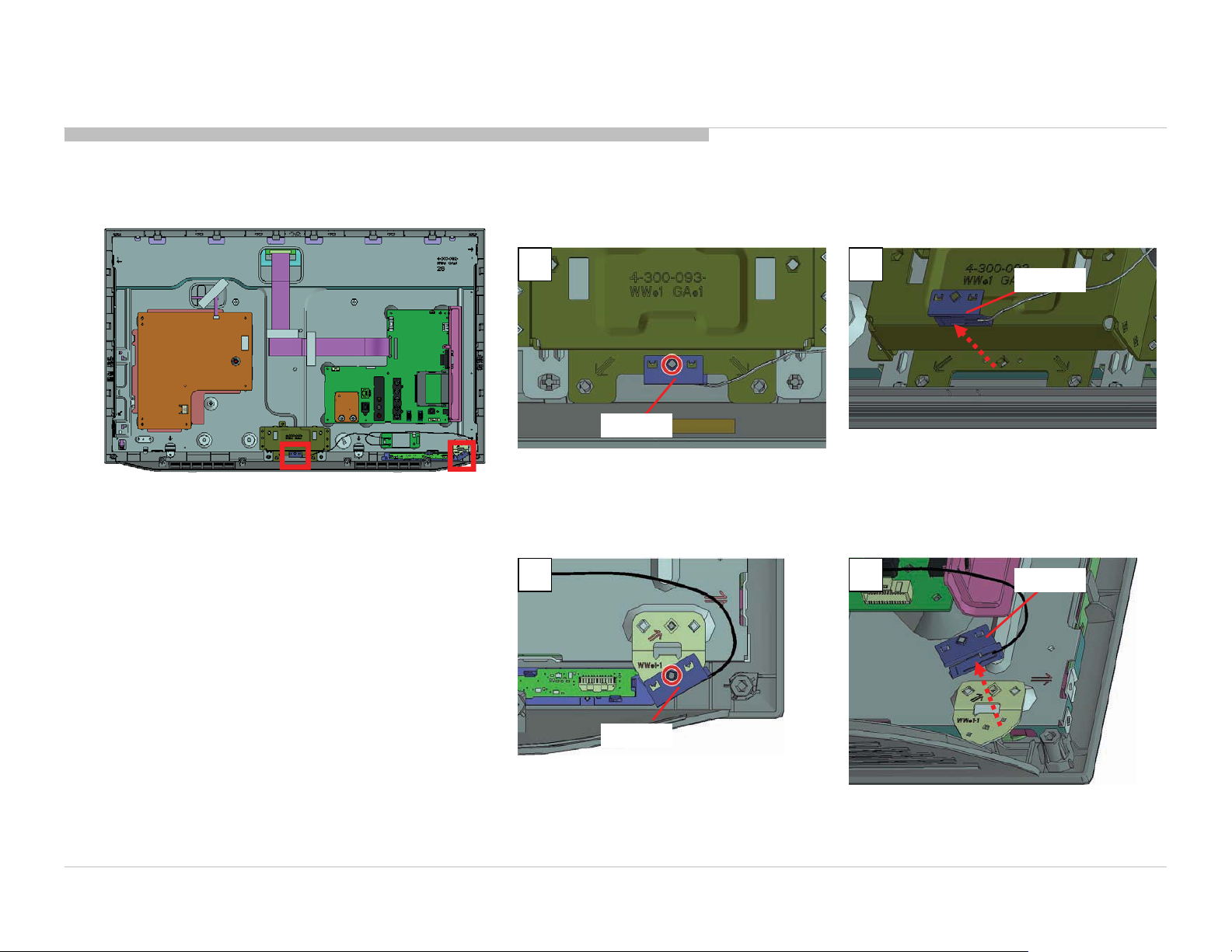

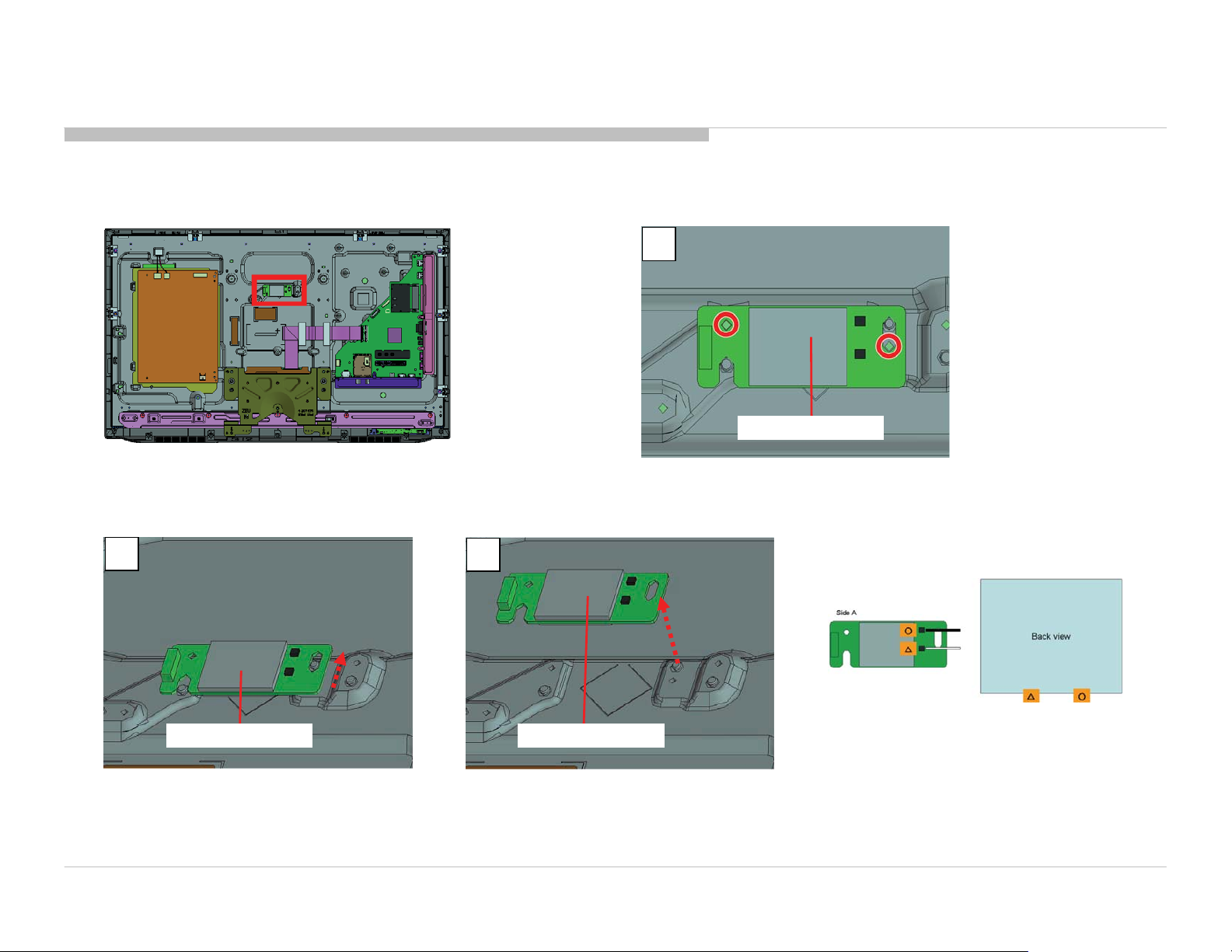

1-1-8. ANTENNA
DISASSEMBLY
<A>
<A>
<B>
1 2
ANTENNA
1 Screw (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
<B>
1 2
ANTENNA
ANTENNA
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
ANTENNA
1 Screw (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
19
Page 20
1-1. KDL-22EX550/553/555
1-1-9. SIDE BRACKET
DISASSEMBLY
1
SIDE BRACKET

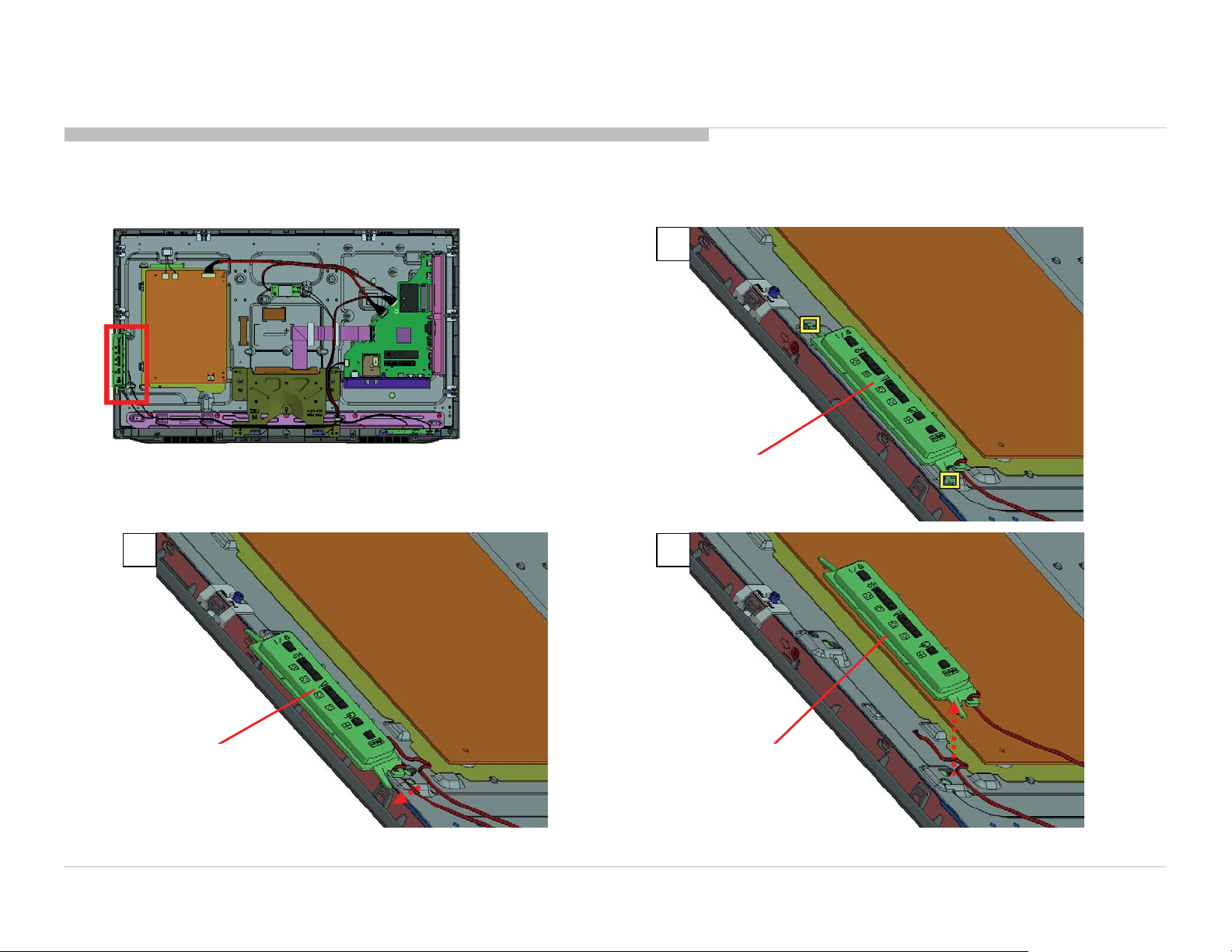

BAC BOARD
2
SIDE BRACKET
BAC BOARD
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
20
Page 21

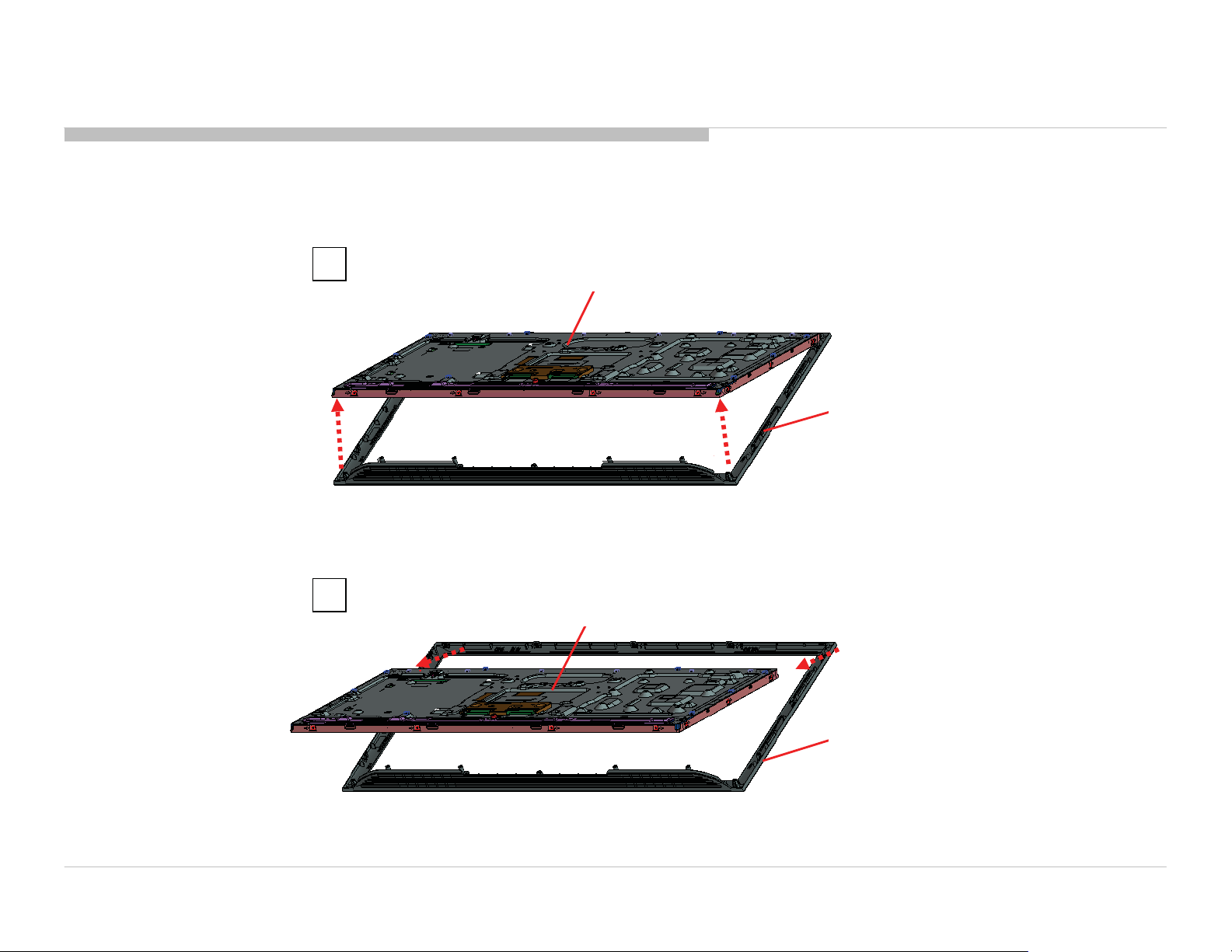

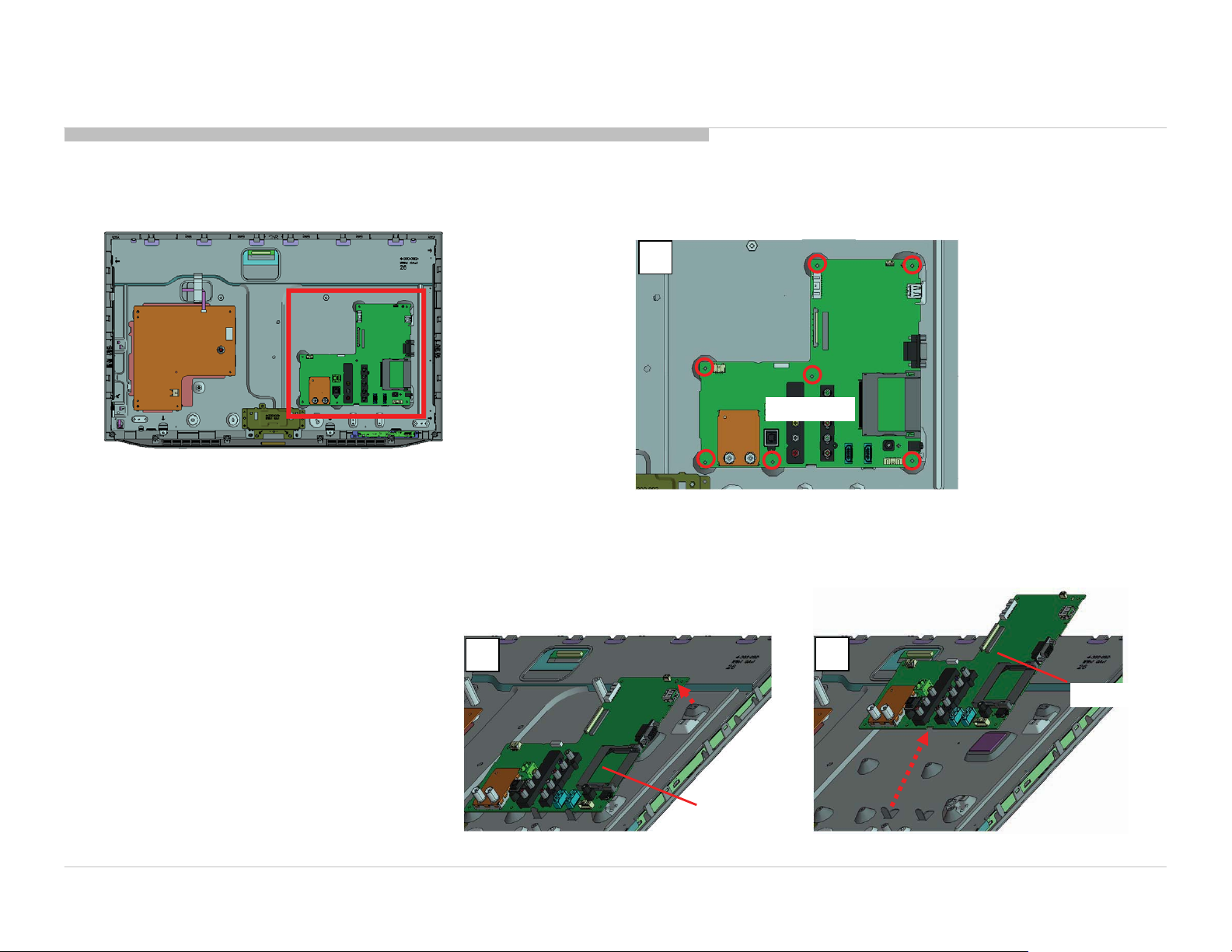

1-1. KDL-22EX550/553/555

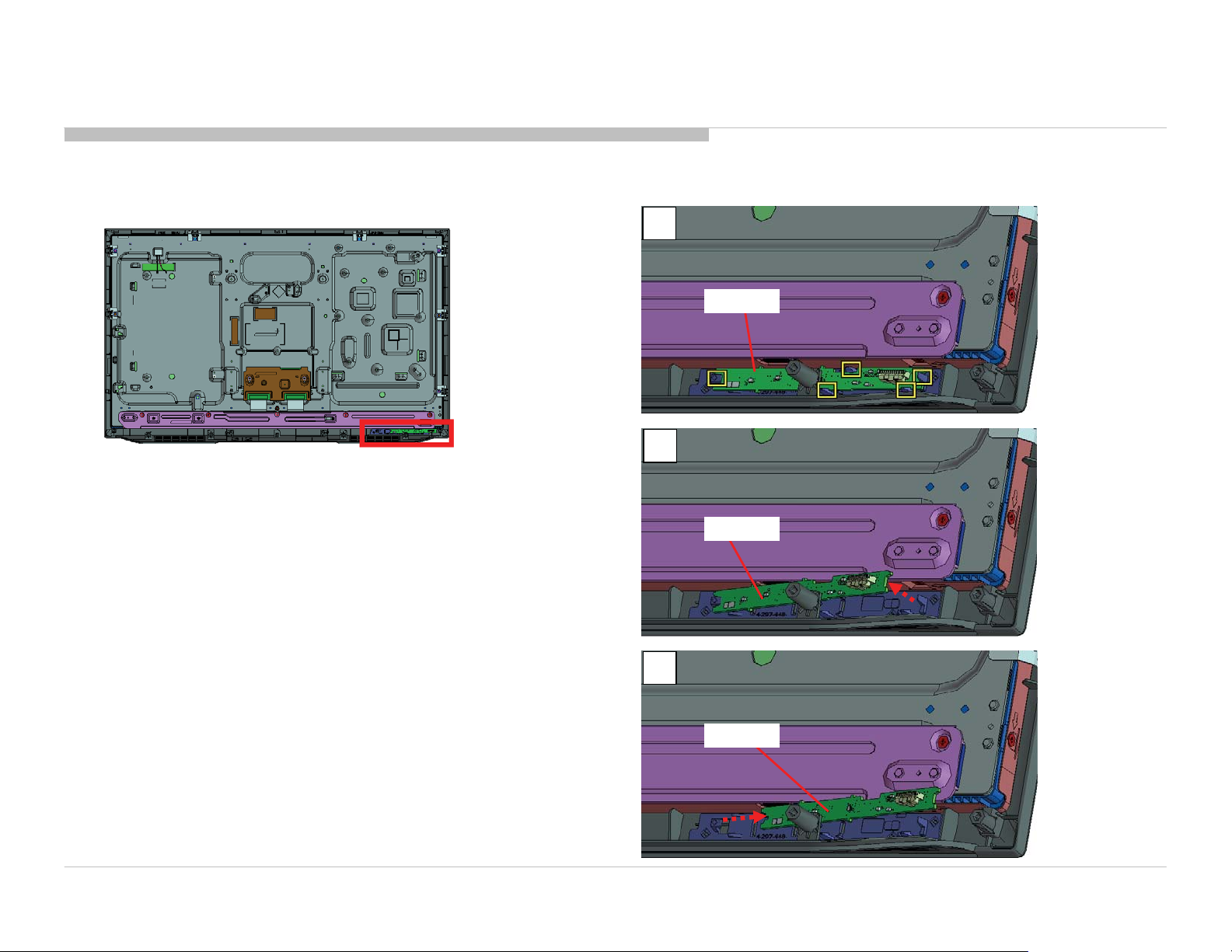

1-1-10. BAC BOARD
DISASSEMBLY
1
BAC BOARD
7 Screws (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
2
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
BAC BOARD
3
BAC BOARD
21
Page 22

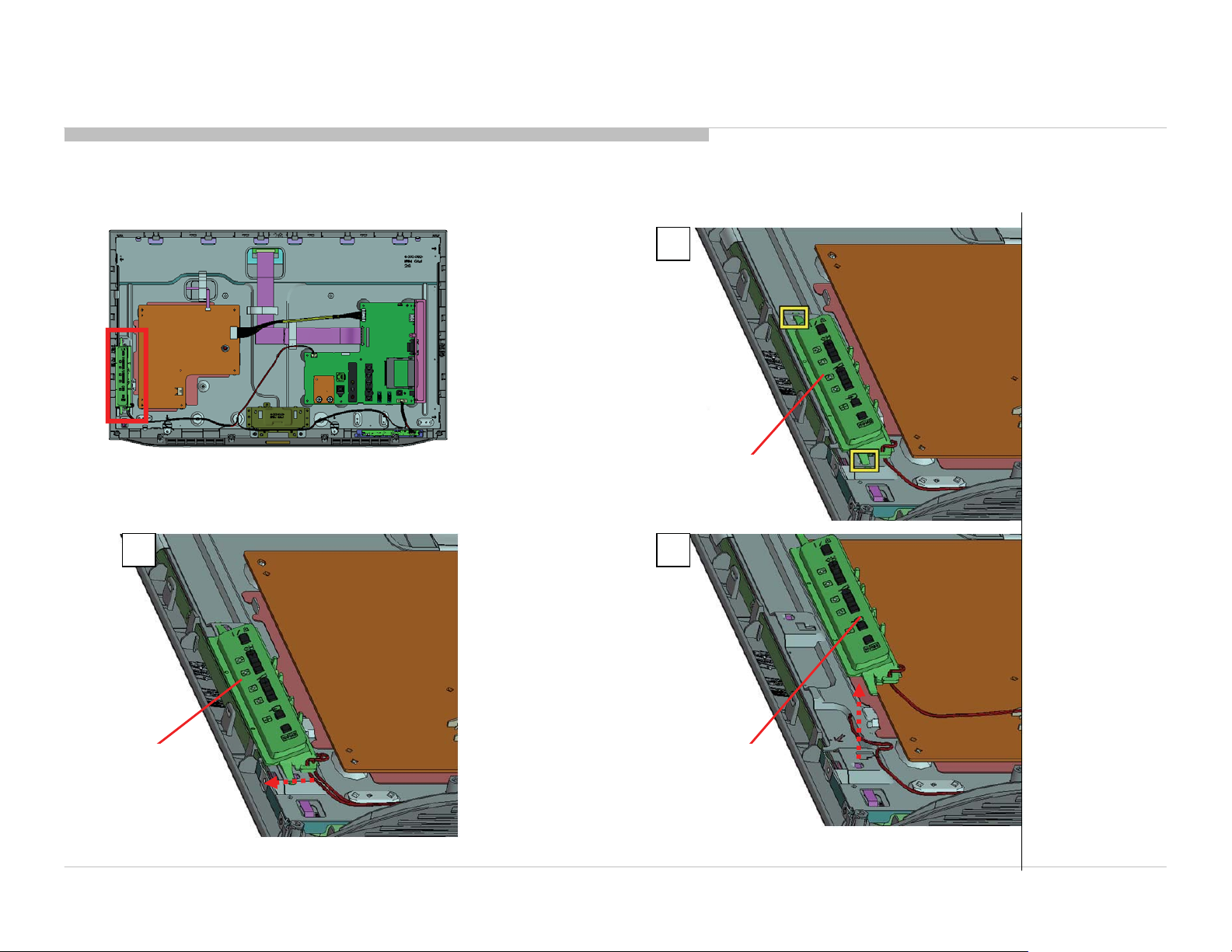

1-1. KDL-22EX550/553/555
1-1-11. GL1 BOARD
DISASSEMBLY
1
2
GL1 BOARD
5 Screws (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
3
GL1 BOARD
22
Page 23
1-1. KDL-22EX550/553/555

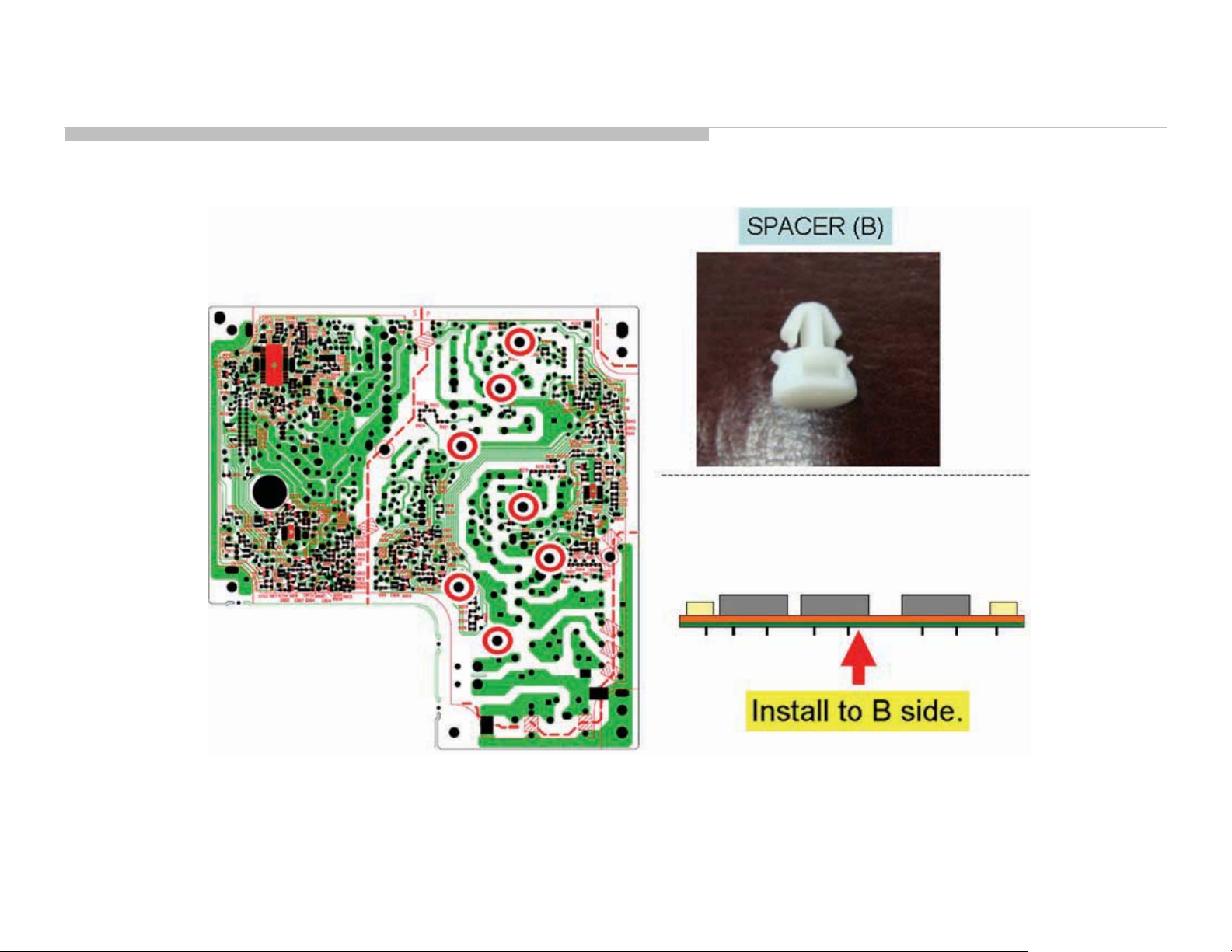

1-1-12. SPACER (B)
DISASSEMBLY

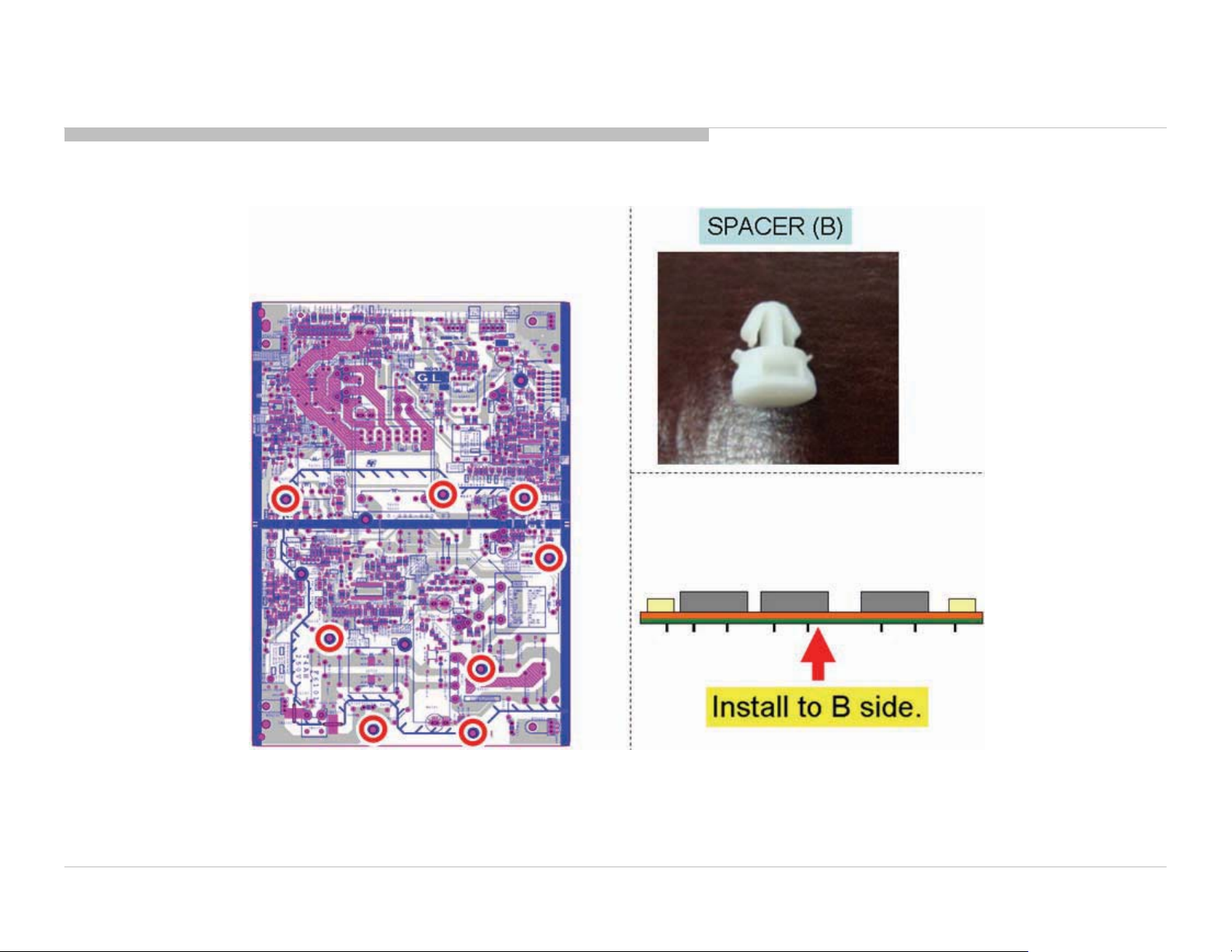

Note: Don’t install G board without Spacers
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
23
Page 24
1-1. KDL-22EX550/553/555
1-1-13. INSULATION SHEET
DISASSEMBLY
1
INSULATION SHEET
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
2
INSULATION SHEET
24
Page 25
1-1. KDL-22EX550/553/555

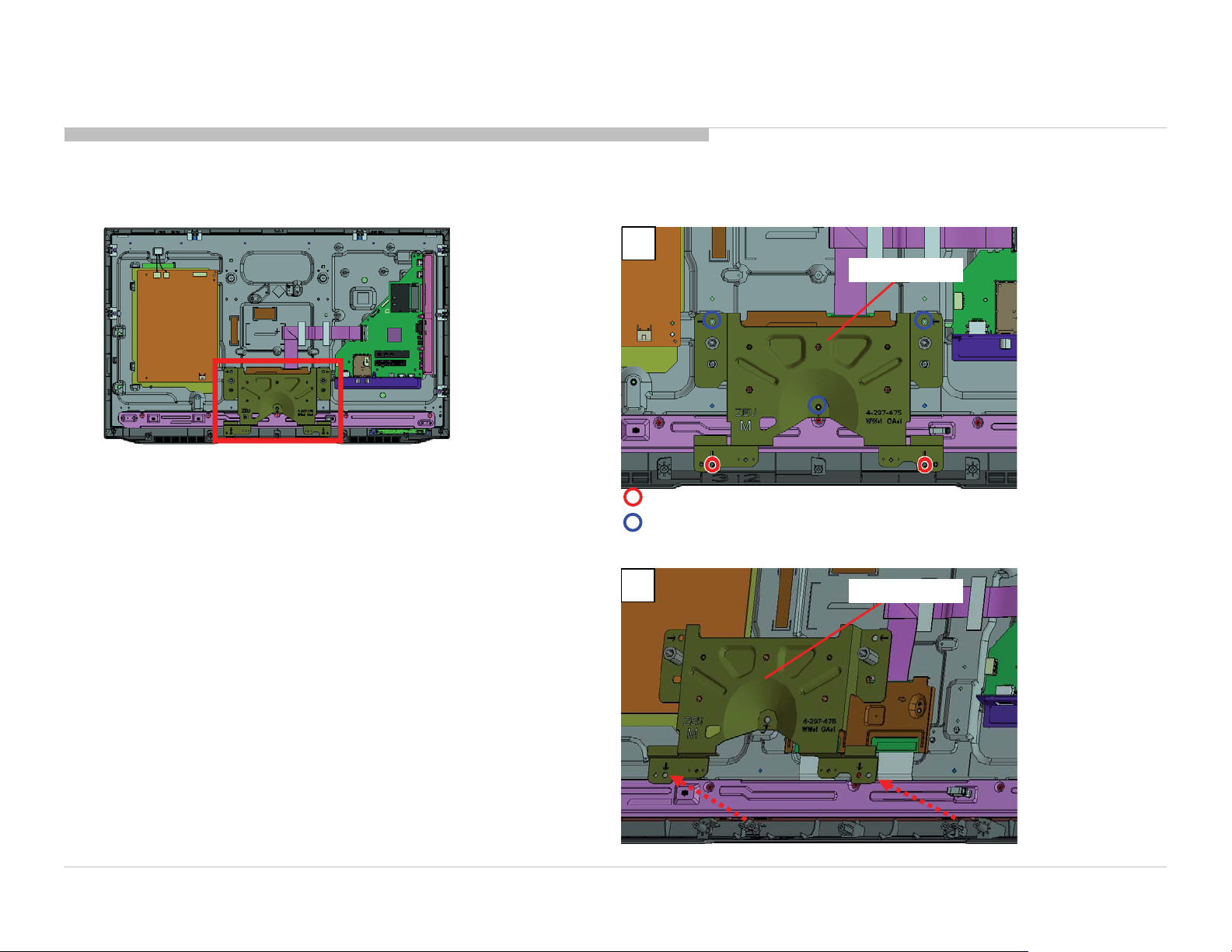

1-1-14. HL BOARD
DISASSEMBLY
1
HL BOARD
2
HL BOARD
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
3
HL BOARD

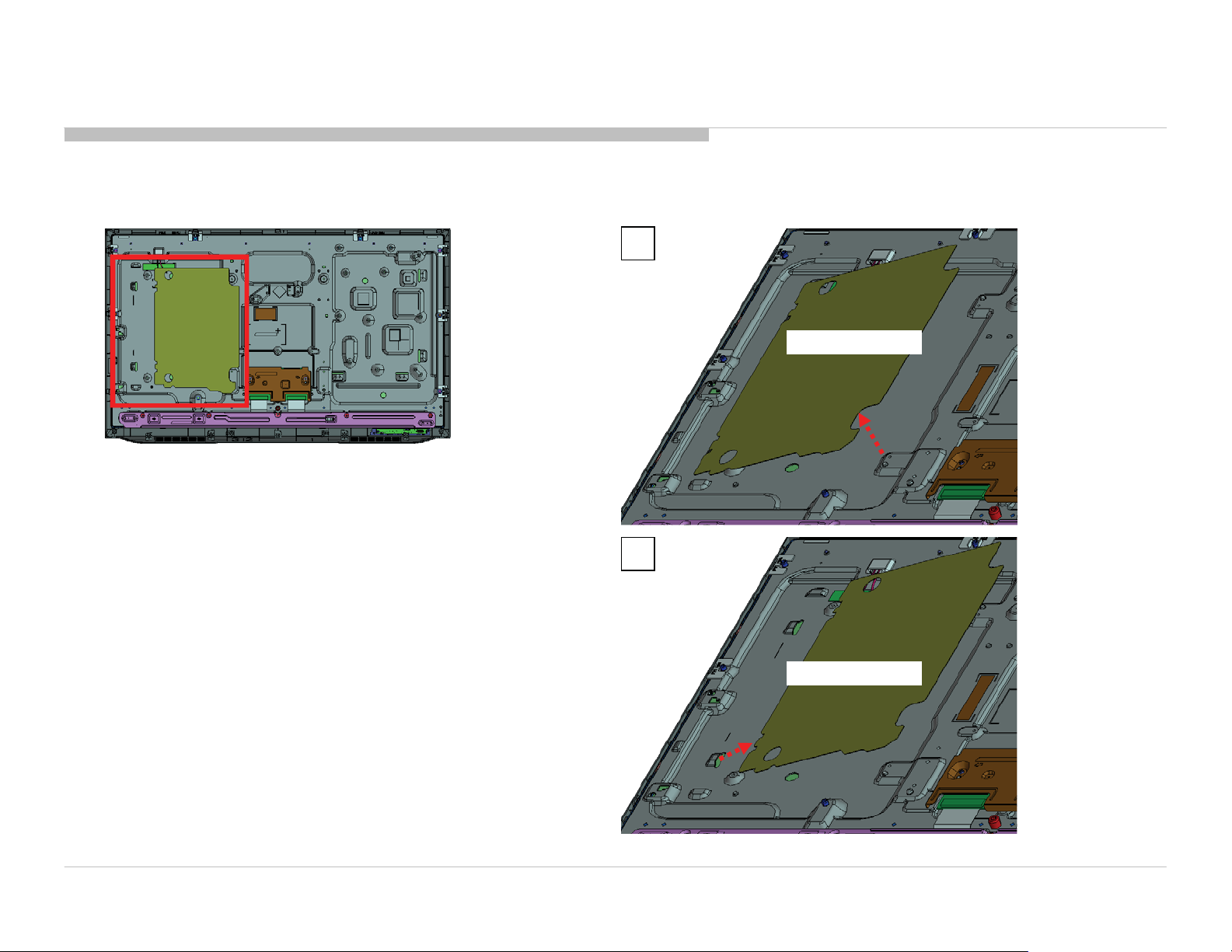

25
Page 26
1-1. KDL-22EX550/553/555
1-1-15. THERMAL SHEET AND BEZEL
DISASSEMBLY

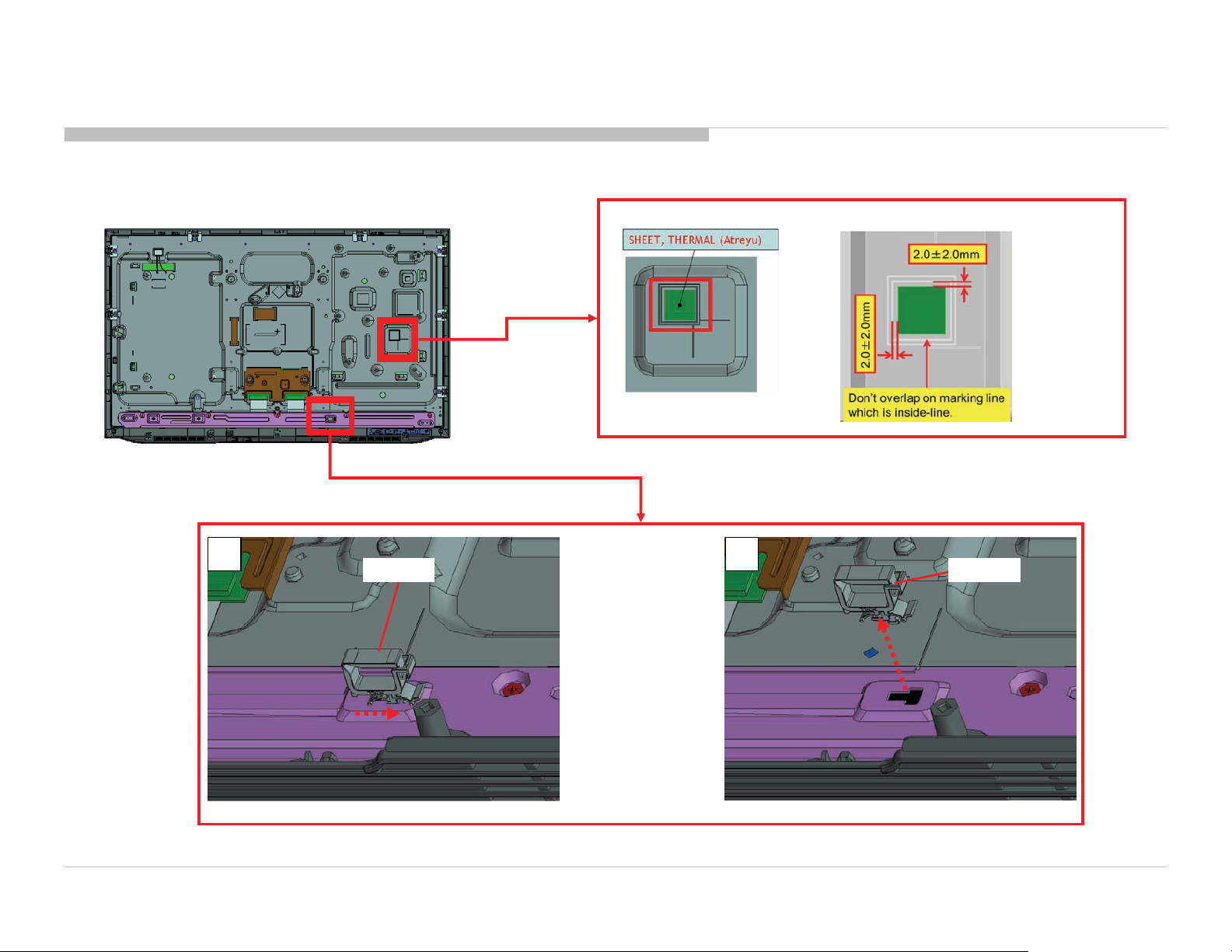

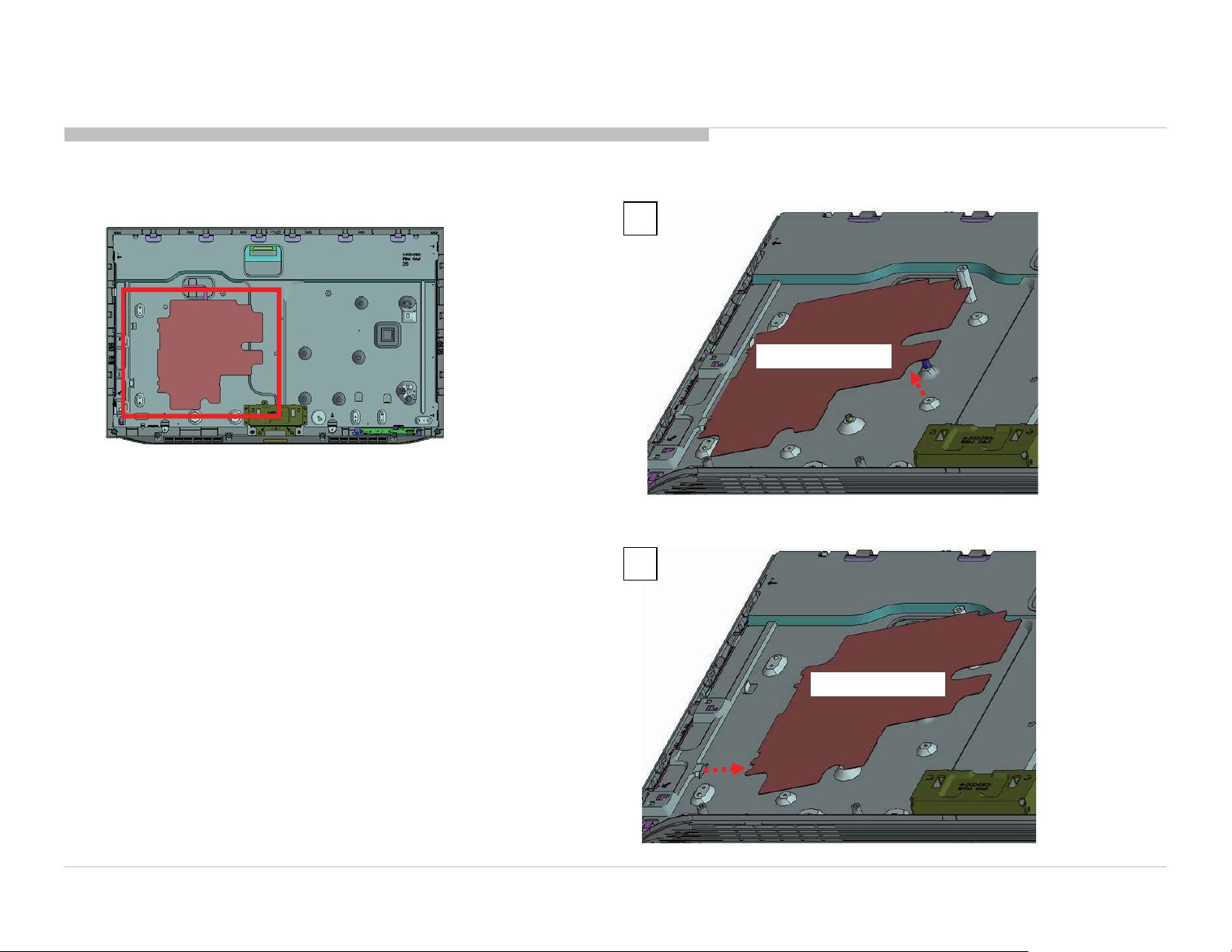

Note: Attention when attach the Thermal Sheet.
1
2
3
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
BEZEL
4 Screws (SCREW, +BVTP 4X12 TYPE2 IT-3) P/N: 2-580-639-01
4
BEZEL
26
Page 27
1-1. KDL-22EX550/553/555
1-1-16. LCD BRACKET
4 Screws (SCREW, +PSW M3X6) P/N: 2-990-421-41
1 2 3
DISASSEMBLY
FFC
Note䋺 Don’t pinch FFC when attaching LCD
BRACKET to LCDPANEL.
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
LCD BRACKET
LCDPANELLCD BRACKET
27
Page 28
1-1. KDL-22EX550/553/555

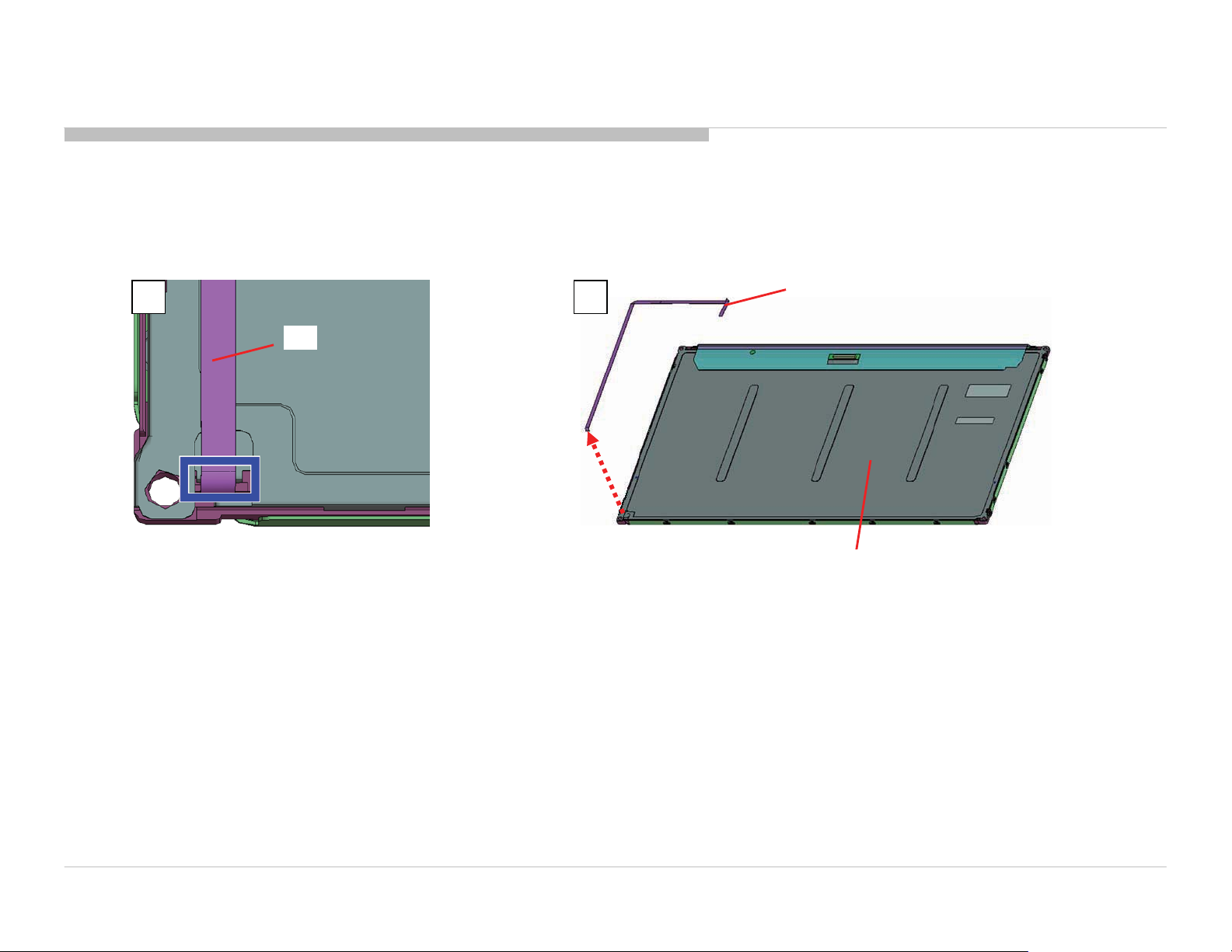

1-1-17. FFC AND LCD PANEL
1 2
DISASSEMBLY
FFC
DISCONNECT
FFC
LCD PANEL
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
28
Page 29
1-2. KDL-26EX550/553/555
1-2-1.EASEL STAND
1 2
DISASSEMBLY
2 Screws (SCREW, +PSW M5X16) P/N: 2-580-608-01
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
EASEL STAND
EASEL STAND
29
Page 30
1-2. KDL-26EX550/553/555

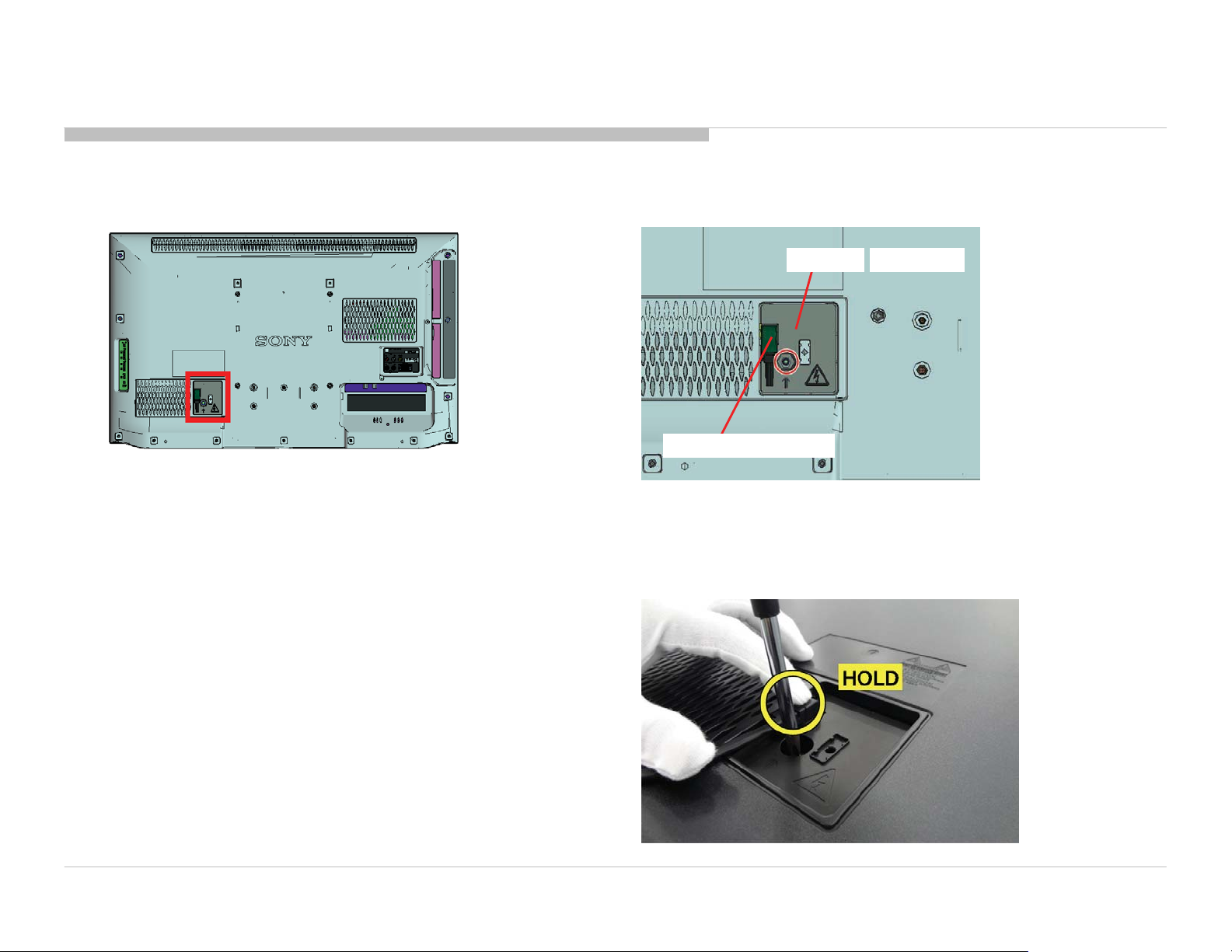

1-2-2. AC COVER AND POWER SUPPLY CORD
DISASSEMBLY
REAR COVERAC COVER
POWER
SUPPLY
CORD
1 Screw (SCREW, +PSW M3X6 W12) P/N: 4-256-393-01
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
Note: When assemble the AC COVER, hold the AC COVER and tighten a screw.
30
Page 31
1-2. KDL-26EX550/553/555
1-2-3. REAR COVER
DISASSEMBLY
REAR COVER
6 Screws (SCREW, +BVTP 4X12 TYPE2 IT-3) P/N: 2-580-639-01
2 Screws (SCREW +BVTP 3X12 TYPE2 IT-3) P/N:7-685-648-79
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
31
Page 32
1-2. KDL-26EX550/553/555
DISASSEMBLY
1-2-4. SPEAKER BOX ASSY
<A>
<A>
SPEAKER BOX ASSY
<B>
<B>
SPEAKER BOX ASSY
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
32
Page 33
1-2. KDL-26EX550/553/555
1-2-5. SWITCH UNIT
DISASSEMBLY
1
SWITCH UNIT
32
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
SWITCH UNITSWITCH UNIT
33
Page 34
1-2. KDL-26EX550/553/555
1-2-6. CONNECTOR, HARNESS AND FFC
HARNESS
DISASSEMBLY
CONNECTOR
FFC
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
34
Page 35
1-2. KDL-26EX550/553/555
1-2-7. ANTENNA
DISASSEMBLY
<A>
<A>
<B>
1 2
ANTENNA
1 Screw (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
<B>
1 2
ANTENNA
ANTENNA
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
ANTENNA
1 Screw (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
35
Page 36
1-2. KDL-26EX550/553/555
1-2-8. HOLDER
DISASSEMBLY
1
HOLDER
1 Screw (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
2
HOLDER
36
Page 37
1-2. KDL-26EX550/553/555
1-2-9. WIRELESS LAN CARD
DISASSEMBLY
1
WIRELESS LAN CARD
2 Screws (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
2
WIRELESS LAN CARD WIRELESS LAN CARD
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
3
Note: Refer to the connection from the antenna when
installing a wireless module.
37
Page 38
1-2. KDL-26EX550/553/555

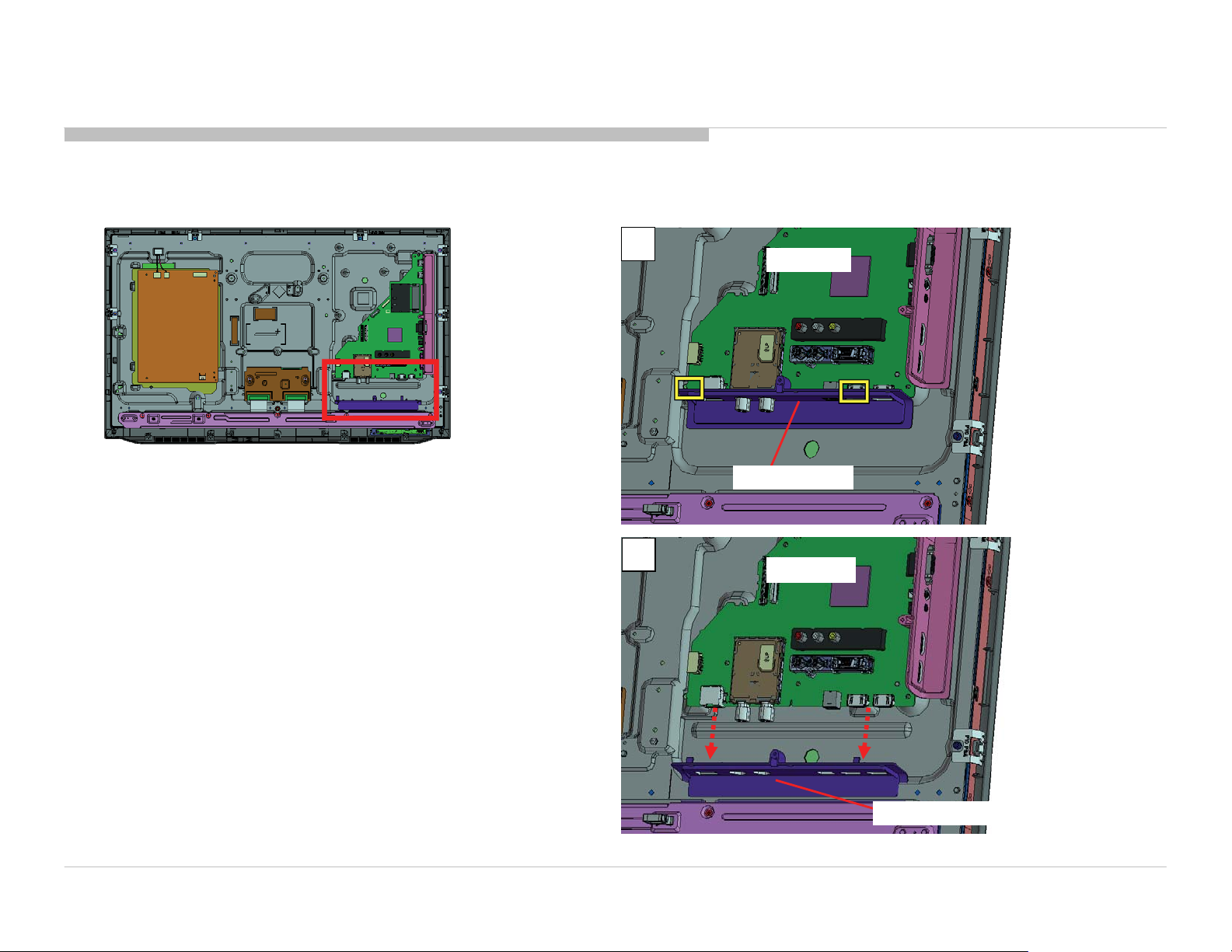

1-2-10. SIDE BRACKET
DISASSEMBLY
1
SIDE BRACKET
BAC BOARD
2
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
SIDE BRACKET
BAC BOARD
38
Page 39
1-2. KDL-26EX550/553/555

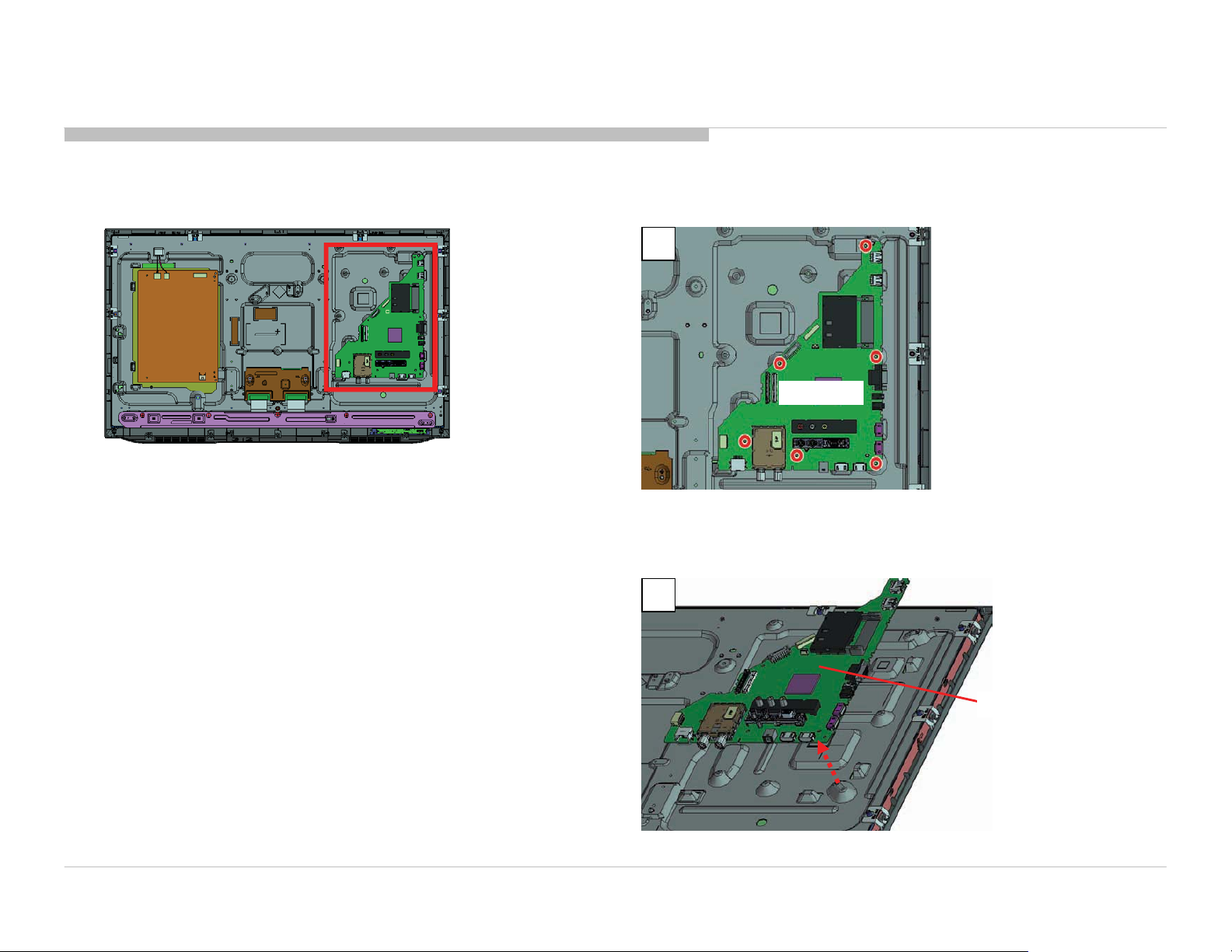

1-2-11. BAC BOARD
DISASSEMBLY
1
BAC BOARD
7 Screws (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
2
BAC BOARD
3
BAC BOARD
39
Page 40
1-2. KDL-26EX550/553/555

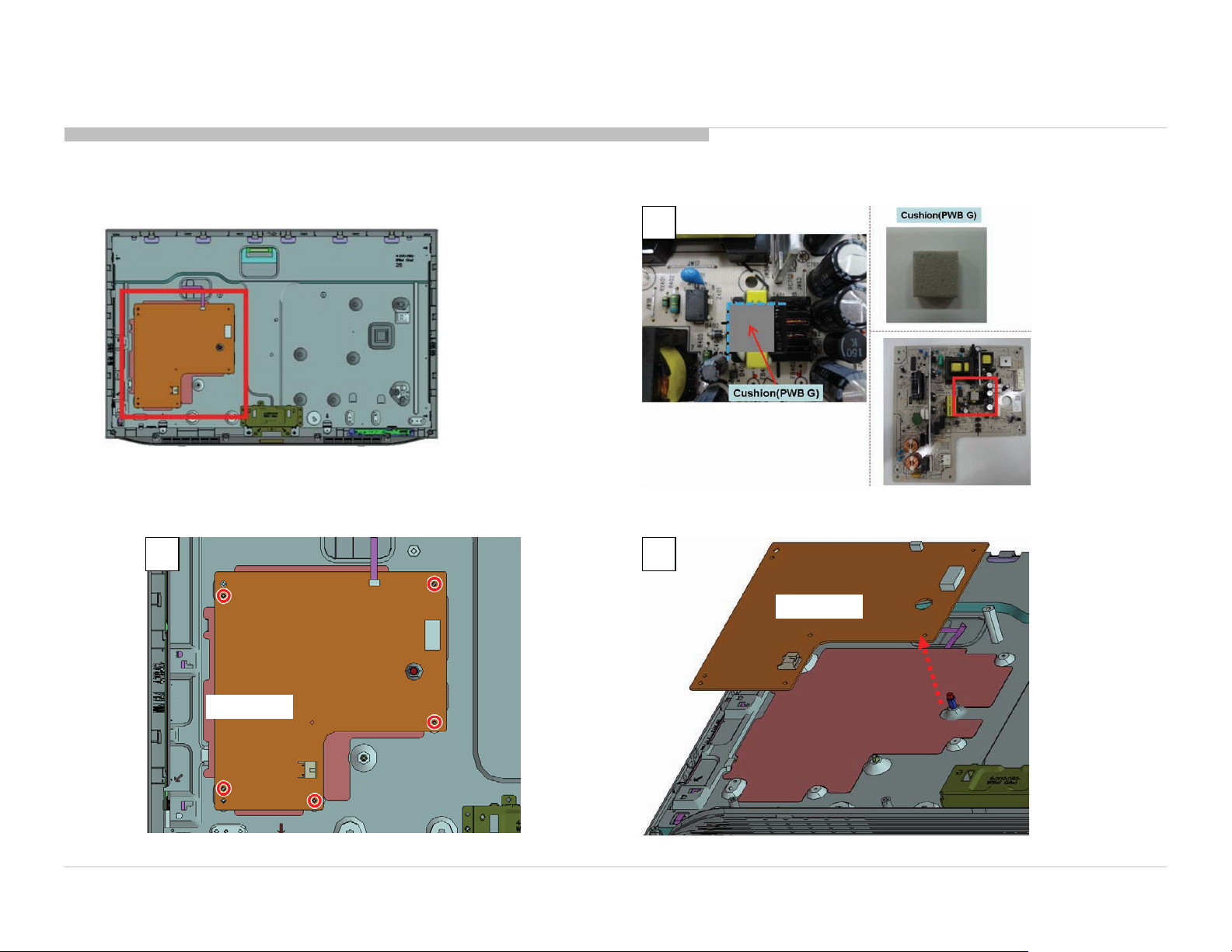

1-2-12. GL3 BOARD
DISASSEMBLY
1
32
GL3 BOARD
5 Screws (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
GL3 BOARD
40
Page 41
1-1. KDL-26EX550/553/555
1-2-13. SPACER (B)
DISASSEMBLY
Note: Don’t install G board without Spacers
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
41
Page 42
1-2. KDL-26EX550/553/555
1-2-14. INSULATION SHEET
DISASSEMBLY
1
INSULATION SHEET
2
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
INSULATION SHEET
42
Page 43
1-2. KDL-26EX550/553/555
1-2-15. HL BOARD
DISASSEMBLY
1
HL BOARD
2
HL BOARD
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
3
HL BOARD
43
Page 44
1-2. KDL-26EX550/553/555
1-2-16. THERMAL SHEET䈫BEZEL
DISASSEMBLY
Note: Attention when attach the Thermal Sheet.
1
2
3
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
BEZEL
4 Screws (SCREW, +BVTP 4X12 TYPE2 IT-3) P/N: 2-580-639-01
4
BEZEL
44
Page 45
1-2. KDL-26EX550/553/555
1-2-17. LCD BRACKET
4 Screws (SCREW, +PSW M3X8) P/N: 2-580-592-01
FFC
1 2 3
LCD BRACKET
DISASSEMBLY
LCD BRACKET
Note䋺 Don’t pinch FFC when attaching LCD
BRACKET to LCDPANEL.
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
LCDPANEL
45
Page 46
1-2. KDL-26EX550/553/555
1-2-18. FFC AND LCD PANEL
DISASSEMBLY
1 2
FFC
DISCONNECT
FFC
LCD PANEL
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
46
Page 47
1-3. KDL-32EX653
1-3-1. HEAD STAND AND PIPE STAND
1 2
3 Screws (SCREW, +PSW M5X16) P/N: 2-580-608-01
DISASSEMBLY
3
HEAD STAND
2 Screws (SCREW, +PSW M5X16) 2-580-608-01
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
PIPE STAND
47
Page 48
1-3. KDL-32EX650/653/655
1-3-2. AC COVER AND POWER SUPPLY CORD
DISASSEMBLY
REAR COVERAC COVER
POWER SUPPLY CORD
1 Screw (SCREW, +PSW M3X6 W12) P/N: 4-256-393-01
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
Note: When assemble the AC COVER, hold the AC COVER and tighten a screw.
48
Page 49
1-3. KDL-32EX650/653/655
1-3-3. REAR COVER
DISASSEMBLY
REAR COVER
5 Screws (SCREW, +PSW M3X6 W12) P/N: 4-256-393-01
3 Screws (SCREW +BVTP 3X12 TYPE2 IT-3) P/N:7-685-648-79
7 Screws (SCREW, +BVTP 4X12 TYPE2 IT-3) P/N: 2-580-639-01
2 Screws (SCREW, +PSW M4X10) P/N:4-159-298-01
2 Screws (JOINT, SCREW) P/N: 4-400-043-01
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
49
Page 50
1-3. KDL-32EX650/653/655
DISASSEMBLY
1-3-4. SPEAKER BOX ASSY
<A>
SPEAKER BOX ASSY
<B><A>
<B>
SPEAKER BOX ASSY
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
50
Page 51
1-3. KDL-32EX650/653/655
1-3-5. SWITCH UNIT
DISASSEMBLY
1
SWITCH UNIT
32
SWITCH UNIT SWITCH UNIT
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
51
Page 52
1-3. KDL-32EX650/653/655
1-3-6. ANTENNA
DISASSEMBLY
<A>
<A>
<B>
1 2
ANTENNA
1 Screw (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
<B>
1 2
ANTENNA
ANTENNA
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
ANTENNA
1 Screw (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
52
Page 53
1-3. KDL-32EX650/653/655
1-3-7. WIRELESS LAN CARD
DISASSEMBLY
1
WIRELESS LAN CARD
2 Screws (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
2
WIRELESS LAN CARD WIRELESS LAN CARD
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
3
Note: Refer to the connection from the antenna when
installing a wireless module.
53
Page 54
1-3. KDL-32EX650/653/655
1-3-8. BOTTOM FRAME
DISASSEMBLY
1
BOTTOM FRAME
2 Screws (SCREW, +BVTP 4X12 TYPE2 IT-3) P/N: 2-580-639-01
3 Screws (SCREW, +PSW M4X10) P/N:4-159-298-01
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
2
BOTTOM FRAME
54
Page 55
1-3. KDL-32EX650/653/655
1-3-9. HARNESS AND FFC
DISASSEMBLY
HARNESS
FFC
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
55
Page 56
1-3. KDL-32EX650/653/655
1-3-10. UNDER BRACKET
DISASSEMBLY
1
BAP BOARD
UNDER BRACKET
2
BAP BOARD
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
UNDER BRACKET
56
Page 57
1-3. KDL-32EX650/653/655
1-3-11. SIDE BRACKET
DISASSEMBLY
1
SIDE BRACKET
BAP BOARD
2
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
SIDE BRACKET
BAP BOARD
57
Page 58
1-3. KDL-32EX650/653/655
1-3-12. BAP BOARD
DISASSEMBLY
1
BAP BOARD
6 Screws (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
2
BAP BOARD
58
Page 59
1-3. KDL-32EX650/653/655
DISASSEMBLY

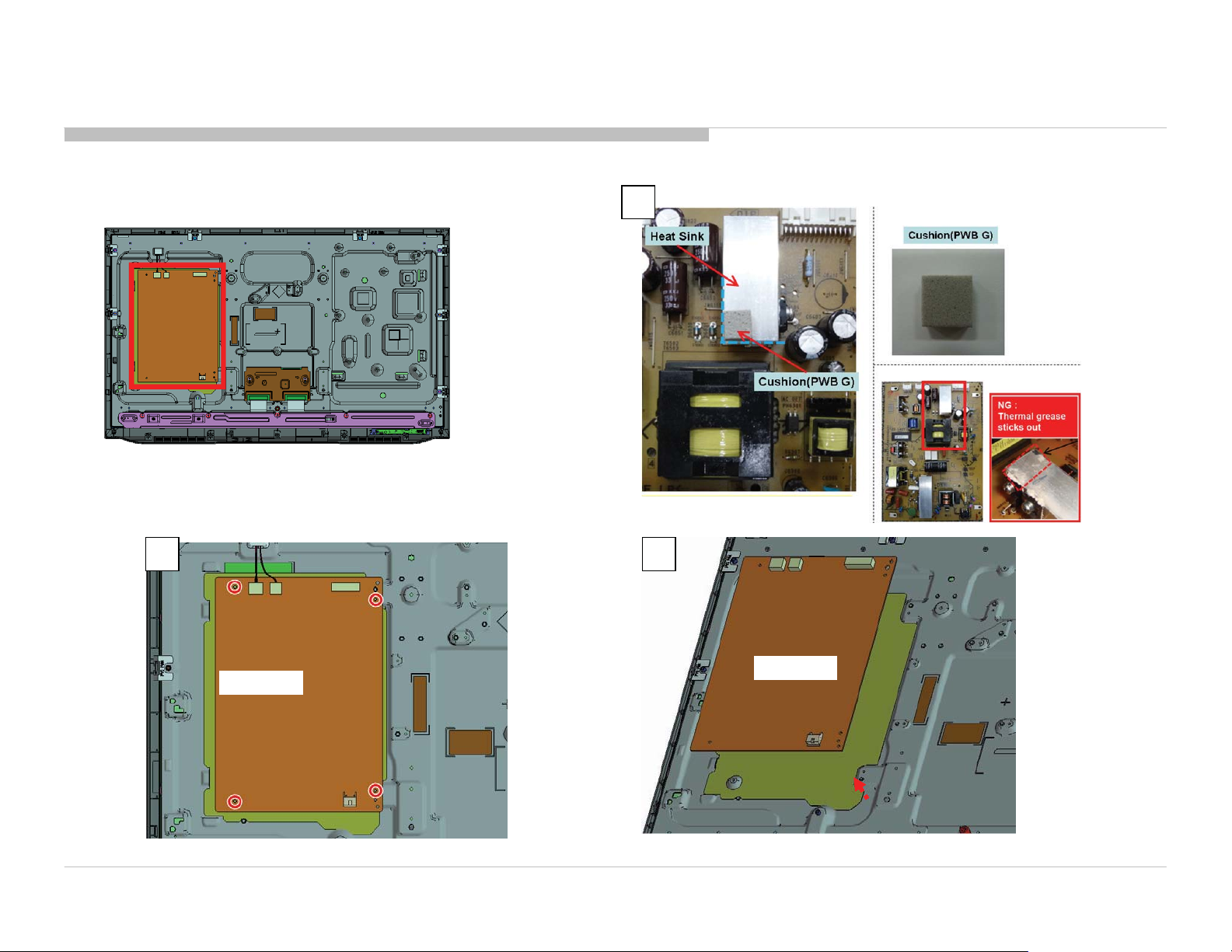

1-3-13. GL2 BOARD
2
1
3
GL2 BOARD
4 Screws (SCREW (+PSW) (M3X6)) P/N: 2-990-421-41
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
GL2 BOARD
59
Page 60
1-3. KDL-32EX650/653/655
1-3-14. SPACER (B)
DISASSEMBLY
Note: Don’t install G board without Spacers
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
60
Page 61
1-3. KDL-32EX650/653/655
1-3-15. INSULATION SHEET
DISASSEMBLY
1
INSULATION SHEET
2
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
INSULATION SHEET
61
Page 62
1-3. KDL-32EX650/653/655
1-3-16. HL BOARD
DISASSEMBLY
1
HL BOARD
2
HL BOARD
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
3
HL BOARD
62
Page 63
1-3. KDL-32EX650/653/655

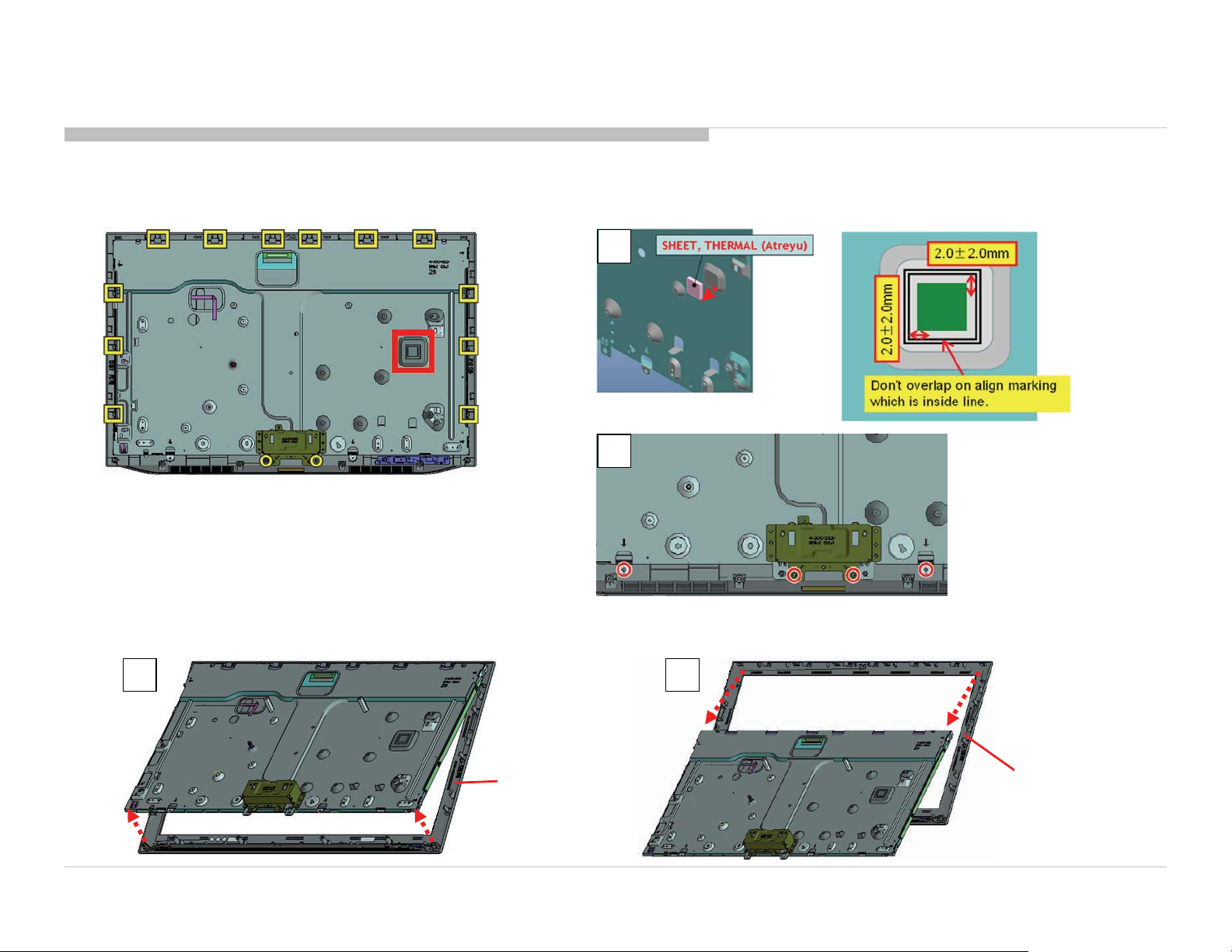

1-3-17. THERMAL SHEET AND CLAMPER
DISASSEMBLY
Note: Attention when attach the Thermal Sheet.
1
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
CLAMPER CLAMPER
2
63
Page 64
1-3. KDL-32EX650/653/655

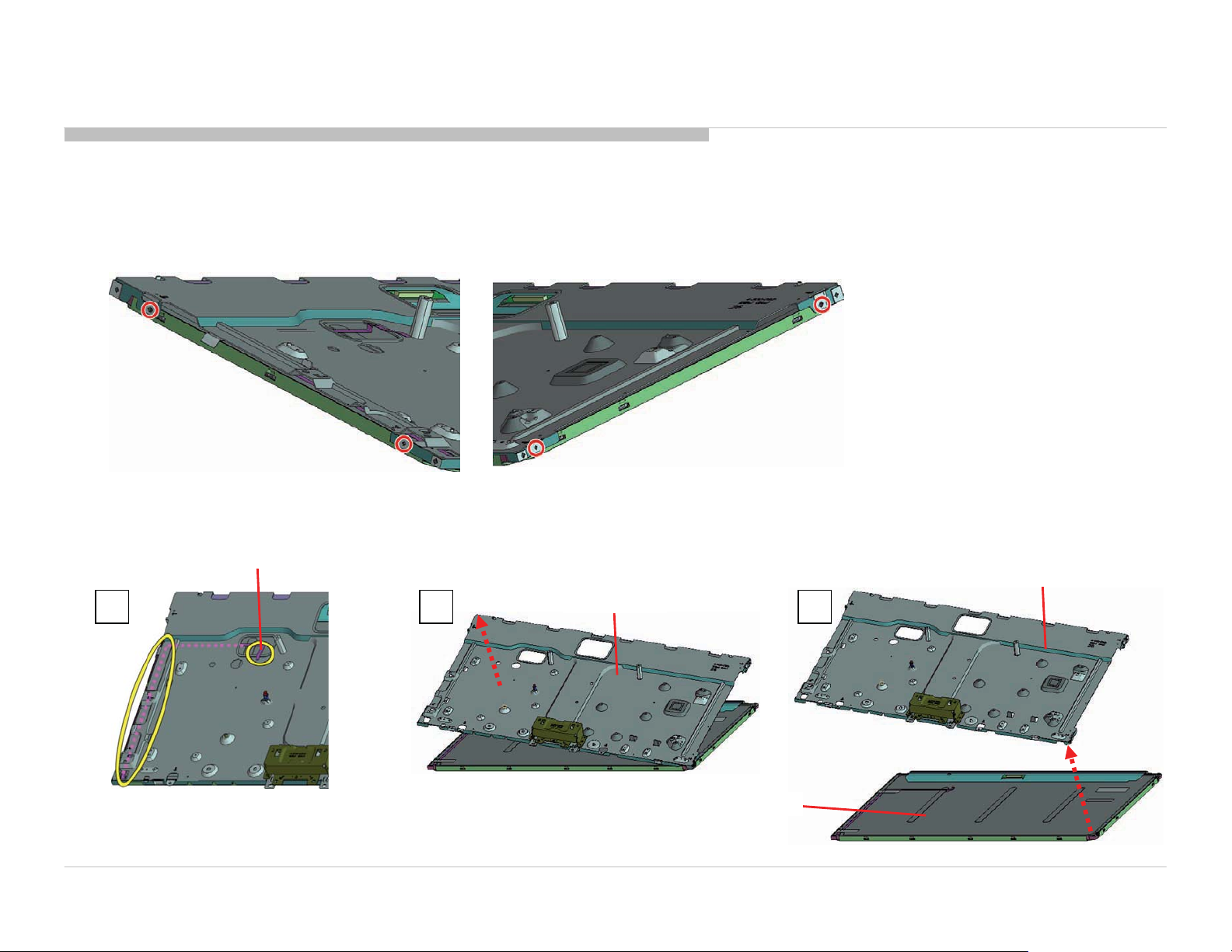

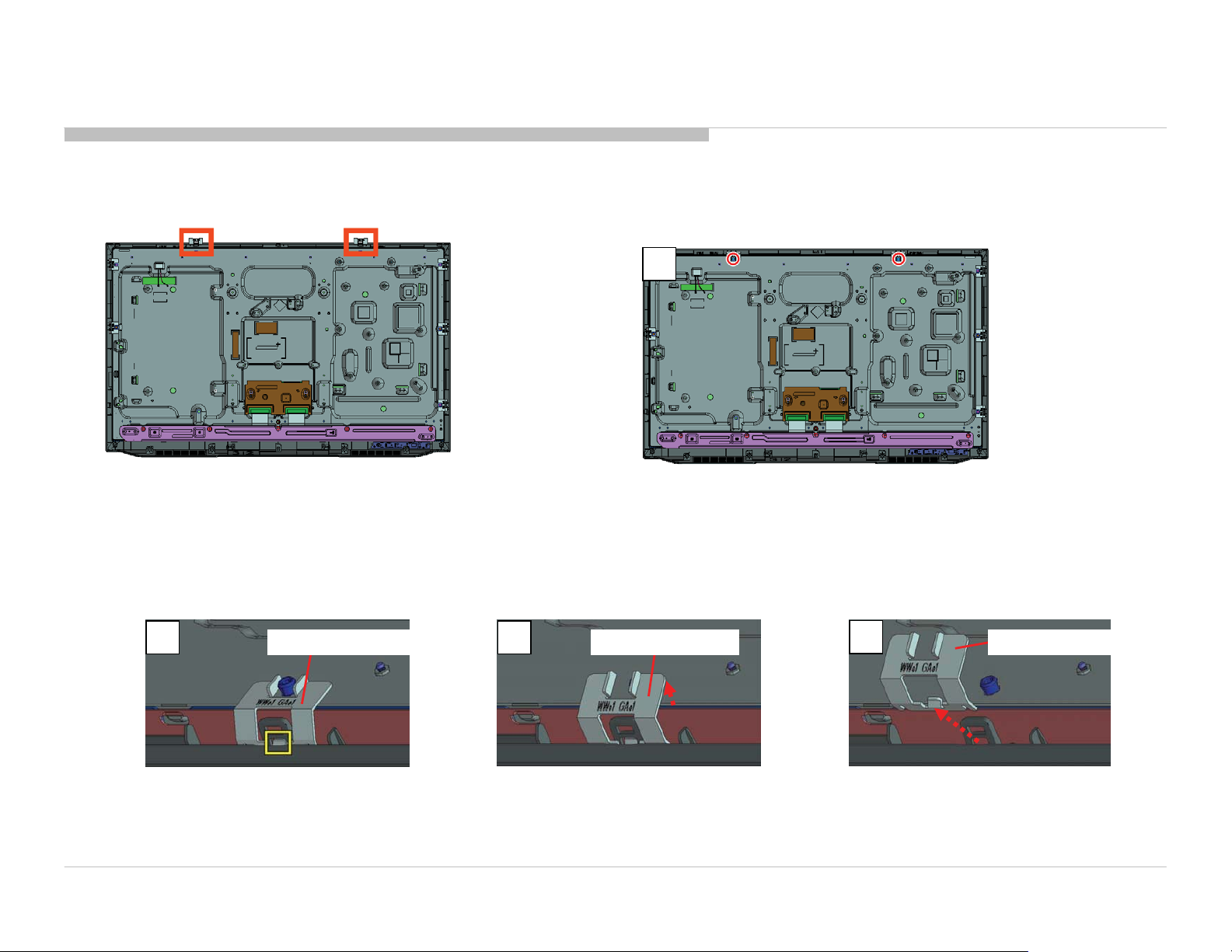

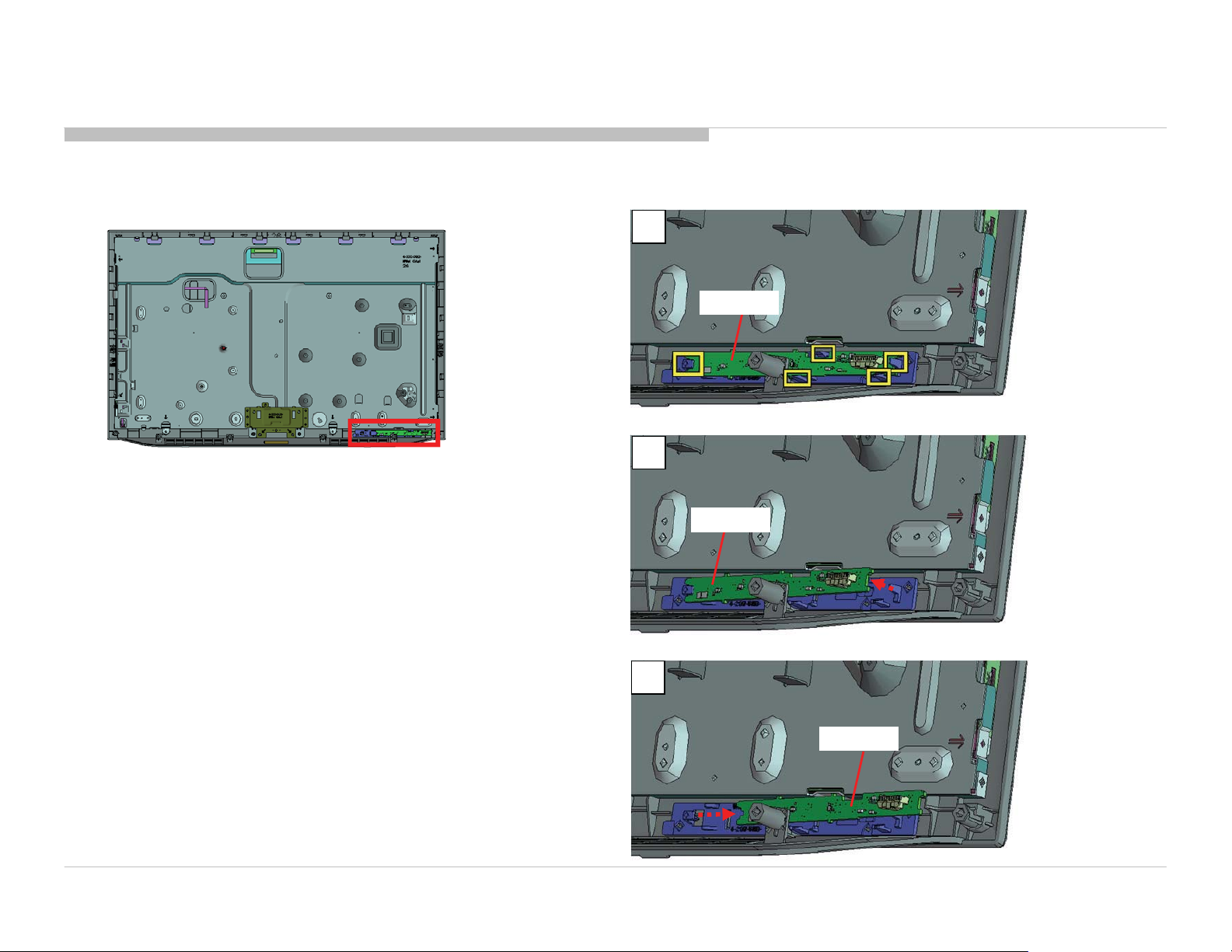

1-3-18. PANEL BRACKET (H)
DISASSEMBLY
1
2 Screws (SCREW, +PSW M3X6) P/N: 4-256-393-01
2 3
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
PANEL BRACKET (H) PANEL BRACKET (H) PANEL BRACKET (H)
4
64
Page 65

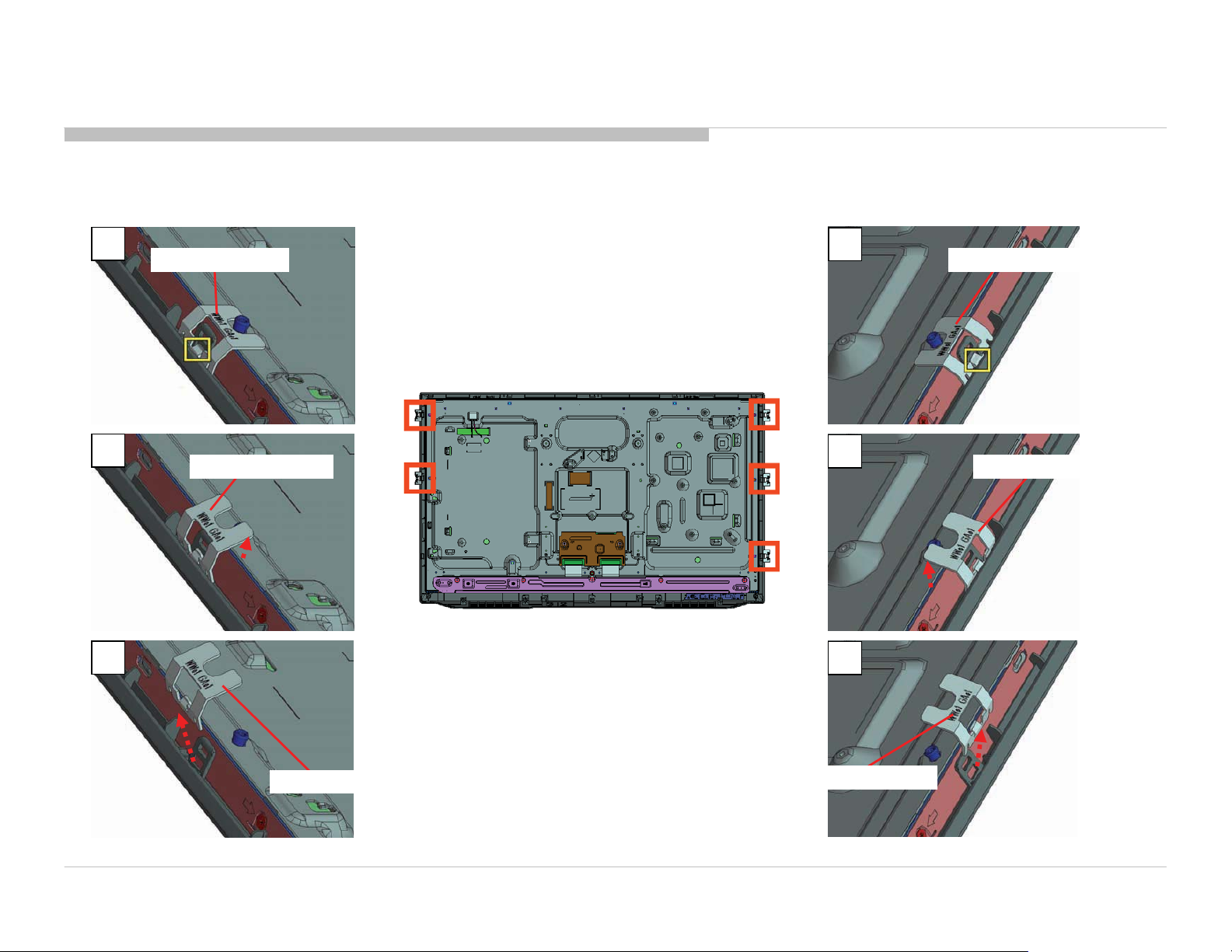

1-3. KDL-32EX650/653/655
1-3-19. PANEL BRACKET (V)
DISASSEMBLY
1
PANEL BRACKET (V)
2
PANEL BRACKET (V)
3
1
PANEL BRACKET (V)
2
PANEL BRACKET (V)
3
PANEL BRACKET (V)
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
PANEL BRACKET (V)
65
Page 66
1-3. KDL-32EX650/653/655
1-3-20. LCD PANEL AND BEZEL
DISASSEMBLY
1
LCD PANEL
BEZEL
2
LCD PANEL
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
BEZEL
66
Page 67
SEC 2. ADJUSTMENT
HOW TO ENTER SERVICE MODE
1) Turn on the main power switch to place this set in standby mode.
2) Press the buttons on the remote commander as follows, and entering service mode.
DISPLAY TV POWERChannel Volume
3) Service mode display.
Note: First of all, when you enter Service Mode, you can see “Digital” service mode.
Whenever you press “OPTIONS” or “JUMP” on remote, each service mode is changed.
“Digital” -> “Chassis” -> “VPC”
5
DIGITALSERVICE
001OP
000VERSŞŞŞ
Category number
<MAIN><EXT>
DM1.301W00AARF:01.05
WF1.003W00AAWF:2.0.0.99
DF1.001W00AAWF:0B
YM1.010W00AACAM:X.XXX
DB2.105W00AAFD:XXXX
(DM1.301W00AA)
DD1.016W00AA
WP0.521W00AA<PEM>
MID:1C117081PM1.012W00LU
PID:04020000PB1.000W00LU
PNL:LTY320AB01PL1.011J46LUX
POP:X.XXXPD1.011J46LUX
Item number
CHASSIS SERVICE
000 WYVERN
000 S2_NOISE_TH32
Item name
Data
Category
name
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
67
Page 68
4) How to use the remote commander.
Function The flow of control
Service mode on <Test>+<TV>/<Display><5><Vol Up><Power>
Service mode off <Other> / <Power off + on>
Item up / down <1>/<4>
Category up / down <2>/<5>
Data up / down <3>/<6>
Test reset <8> + <Mute> + <0>
Read data <9> + <0>
Execute <10 or 0>
Write data <Mute> + <0>
Change module <Jump> / <Option>
ADJUSTMENT
5) After entering service mode, then turn off the power switch.
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
68
Page 69
CHANGE DATA
Note: “Digital” service mode don’t have to Save. (except “002 MODEL” and “005 CHPRSET” category)
1) Change Data of “Digital” service mode. (except “003 DIG_SRV_MODE” category)
a. Press “2 / 5” on remote to select (up / down) category.
b. Press “1 / 4” on remote to select (up / down) Item.
c. Press “3 / 6” on remote change (up / down) data.
2) Change Data of “Digital” service mode. ( “003 DIG_SRV_MODE” category)
“003 DIG_SRV_MODE” is one category of “Digital” service mode.
Please note because this operation is special.
a. Press “2 / 5” on remote to select “003 DIG_SRV_MODE”.
b. Press “1 / 4” on remote to select (up / down) Item.
c. Press “0 / 10” on remote to select item.
d. Press number key “1”~”9” directly. “*” stamp move.
e. Press “12 / enter / select” to decide and advance next step. Press “return”, when returning on the
previous page.
ADJUSTMENT
DIGITAL SERVICE
004TUNER
000!A_NOSIG_DET 001
DIGITAL SERVICE
003DIG_SRV_MODE
000TEST_PATTERN ŞŞŞ
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
DIGITAL(DIG_SRV_MODE)SERVICE
TEST_PATTERN
*1Video
2Audio
69
Page 70
SAVE CHANGING DATA
1) Write data for “Chassis” or “VPC” service mode
a. Press “Mute” on remote.
It shows green “SERVICE” changes to green “WRITE”.
b. Press “0” or “enter” on remote. Green “WRITE” changes to red “WRITE”. It indicate writing is processing.
c. After a while, red “WRITE” changes to green “SERVICE”. Writing process is done at this point.
2) TV reboot is necessary for applying data change.
ADJUSTMENT
CHASSIS WRITE
000 WYVERN
000 S2_NOISE_TH32
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
70
Page 71
WHITE BALANCE ADJUSTMENT
Note: Please execute this adjustment if necessary.
Change Data of “VPC” service mode. (“006 WB” category)
a. Press “1” or “4” on remote to select WB adjustment menu.
b. Change data by pressing “3” or “6”. Each range of these items is 0~255.
c. Press “mute” 䋫”0” on remote to save the data.
“SERVICE” comment is changed to “WRITE”, indicating writing process.
d. After a while, “WRITE” comment returns to “SERVICE”, which means writing process is done..
ADJUSTMENT
VPC SERVICE
006 WB
000 R_DRV 128
VPC SERVICE
006 WB
001 G_DRV 128
VPC SERVICE
006 WB
002 B_DRV 128
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
VPC SERVICE
006 WB
003 R_BKG 128
VPC SERVICE
006 WB
004 G_BKG 128
VPC SERVICE
006 WB
005 B_BKG 128
71
Page 72
VCOM ADJUSTMENT
Note: Please execute this adjustment if necessary.
1) Change Data of “VPC” service mode.
a. Select “002 VCOM” category by pressing “2 / 5” on remote.
b. Select “000 ENABLE” item by pressing “1 / 4” on remote.
c. Change ENABLE from “0” to “1” to enable VCOM adjustment.
d. Select “002 VCOM” category by pressing “2 / 5” on remote.
e. Select “001 ADJUST” item by pressing “1 / 4” on remote.
f. Change data by pressing “3 / 6” on remote controller.
g. Finish the adjustment when the picture seems OK.
ADJUSTMENT
VPC SERVICE
002 VCOM
000 ENABLE0
VPC SERVICE
002 VCOM
001 ADJUST64
Attention:
-Every time the data changed by pressing “3 / 6” Key, the VCOM pattern will display for 5s and in the mean time OSD will disappear, After the 5s period, VCOM pattern
will disappear and OSD will display again.
The 5s time can be adjust by data change.
-If pressing the “3/6” key again during the 5s period, the VCOM pattern display time will be extended to another 5s.
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
72
Page 73
SET TO SHIPPING CONDITION
How to do shipping condition.
a. Move to “Digital” service mode.
Press “8” on remote.
It shows green “SERVICE” changes to green “RST-”.
Press “mute” on remote.
Added green “EXE” after green “RST-”.
d. Press “0” on remote. Green “EXE-RST” changes to red “EXE-RST”. It indicate writing is processing.
After a while, red “EXE-RST” changes to green “SERVICE”.
And all LED lights.
Writing process is done at this point.
ADJUSTMENT
<Another way>
You can set to shipping condition w/o entering Service Mode.
-> “Cursor Up” on remote + “Power Key” on Front panel.
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
TIMER Standby POWER
73
Page 74
SEC 3. TROUBLE SHOOTING
3-1. TRIAGE CHART
Note: B board and Power board are different in name every inch. Therefore this section displays difference point in"*".
Ref ere nce
B* BOARD
G* BOARD
HL BOARD
SPEAKER
Skype MODULE
LVDS CABLE
T-CON
LCD PANEL
Problem
: doubtful part
: Few pos sibility
Symptoms - Shutdown. Power LED
blinking red diagnos tics sequences
234567810
POWER
POWER
AU DIO
POWER
PANEL
( TCON)
PANEL
(IN VERTER)
TEMP Softw are EMITTER
Green LED
BlinkingNoPower
Green LED
non-stop
Blinking
No Green
Power LED
(Dead Set)
Video - miss ing or distorted
Stationary
colored lines
or dots
No video
one of Inputs
Remote Network Audio Skype
No video
all InputsNoRemote
Wireless
can't
connect
No Audio
Skype
Can't Work
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
74
Page 75

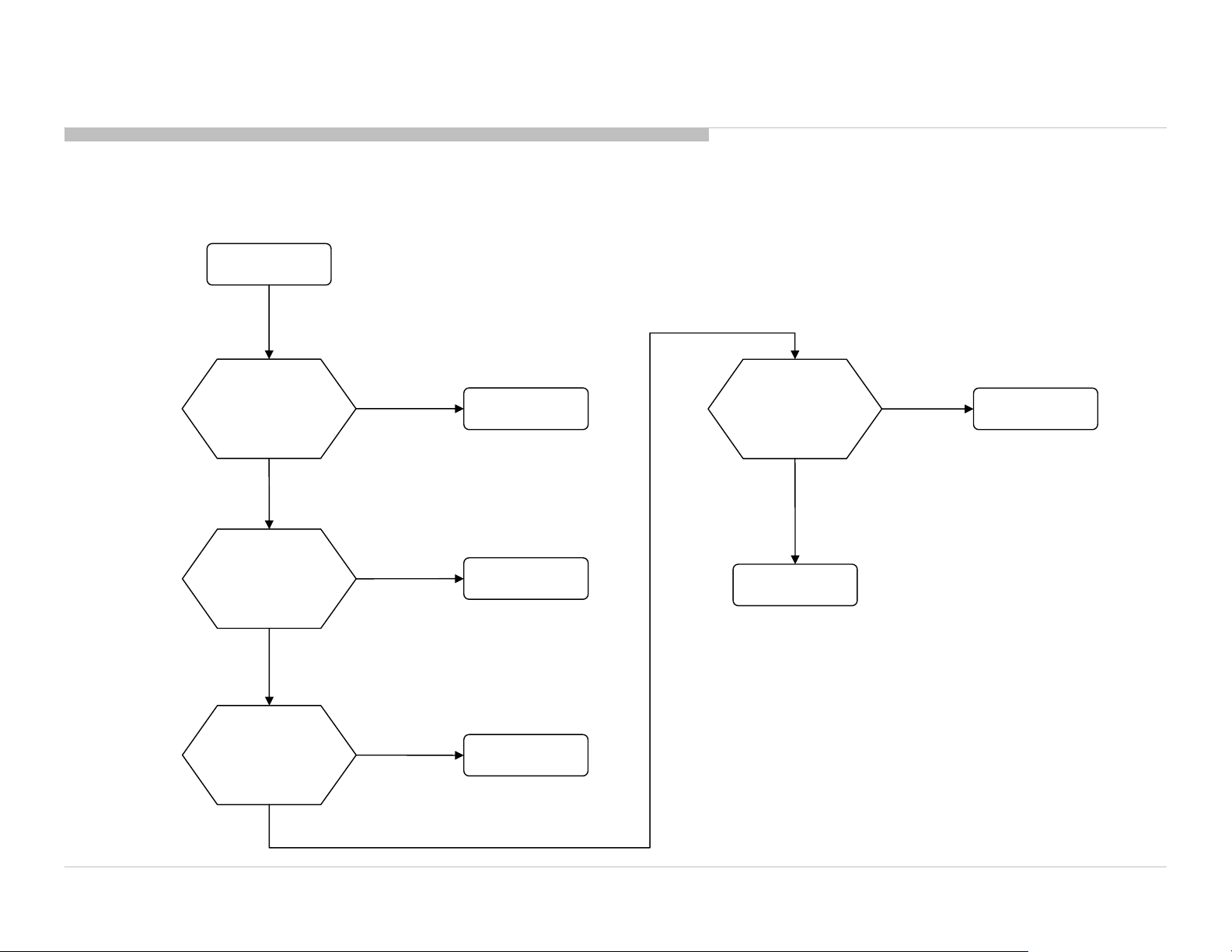

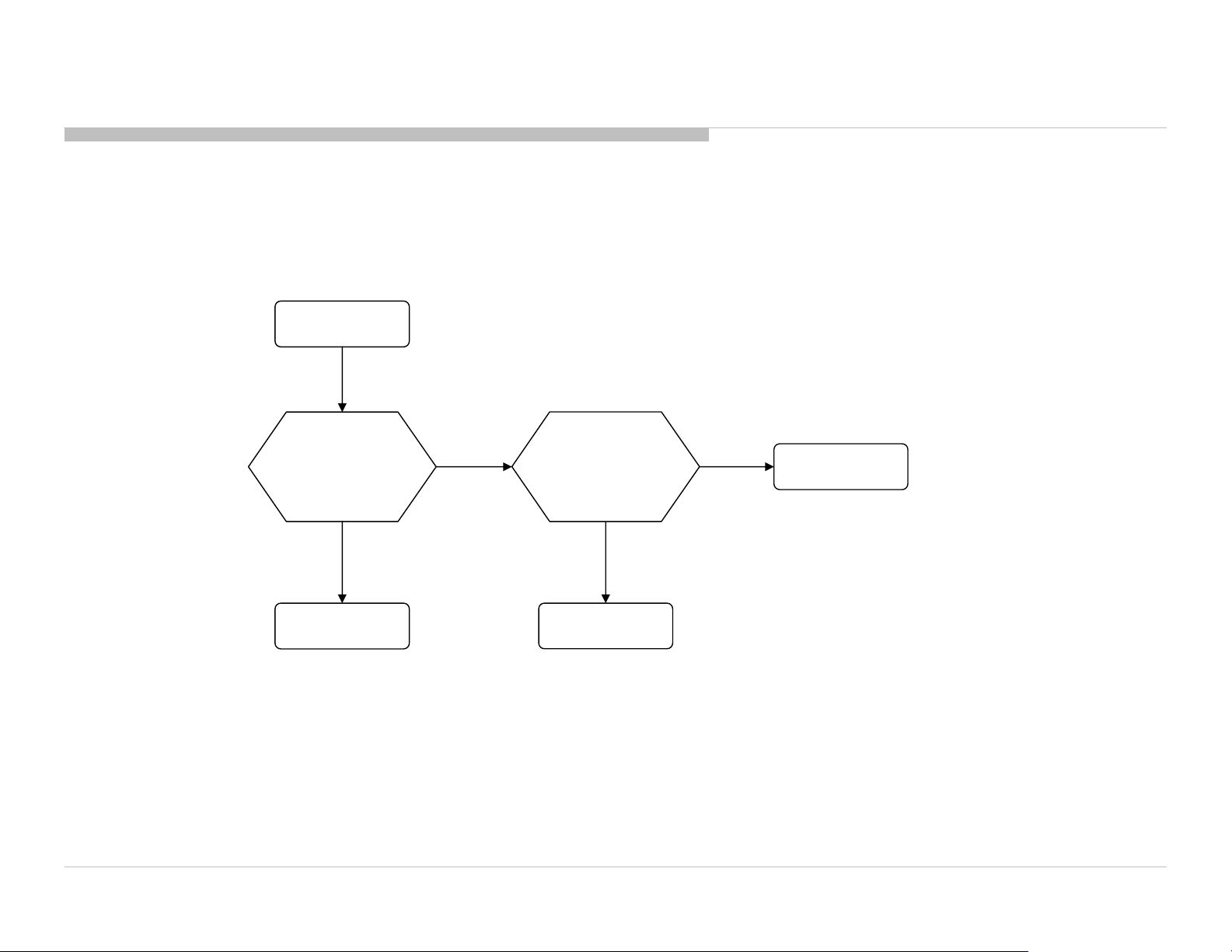

3-2. FLOW CHART
START
TROUBLE SHOOTING
Does the Power Led
stay on when the
TV is switched on ?
Yes
Is the Standby Led
blink ?
No
Is the Power Led
blink ?
No
Is the Picture and
Sound OK ?
Yes
Do the buttons
on the TV & Remote
Commander work
properly?
No
Yes
Yes
No
NoNo
See
No Power
See
Standby LED Blink
See
Power LED Blink
See
No Picture / No Sound
See
TV/ Commander
button malfunction
Is the network
connection OK?
Yes
Is the Skype
function OK?
Yes
Is the HDD Rec
function OK?
Yes
END
No
No
No
See
Network malfunction
See
Skype malfunction
See
HDD Rec malfunction
Yes
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
75
Page 76

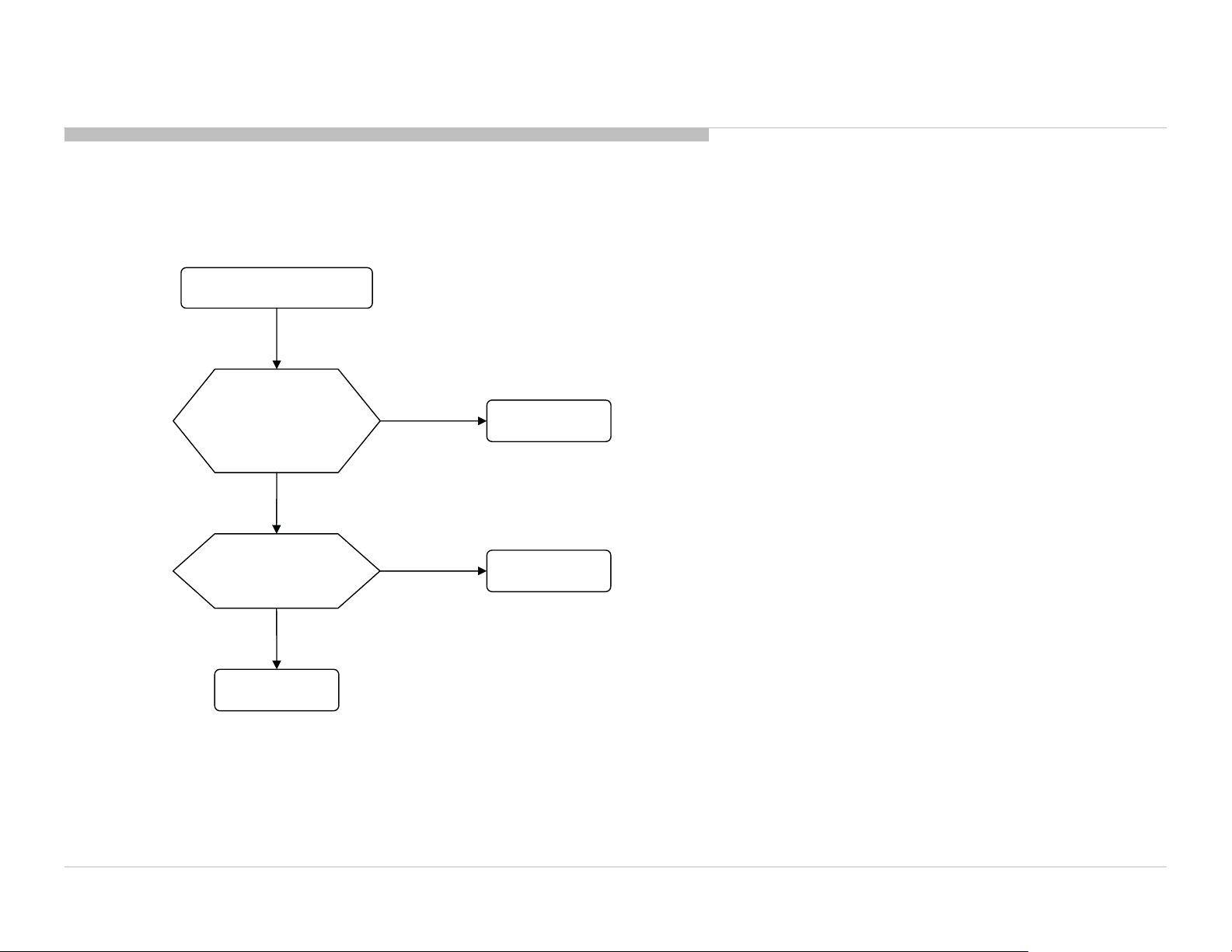

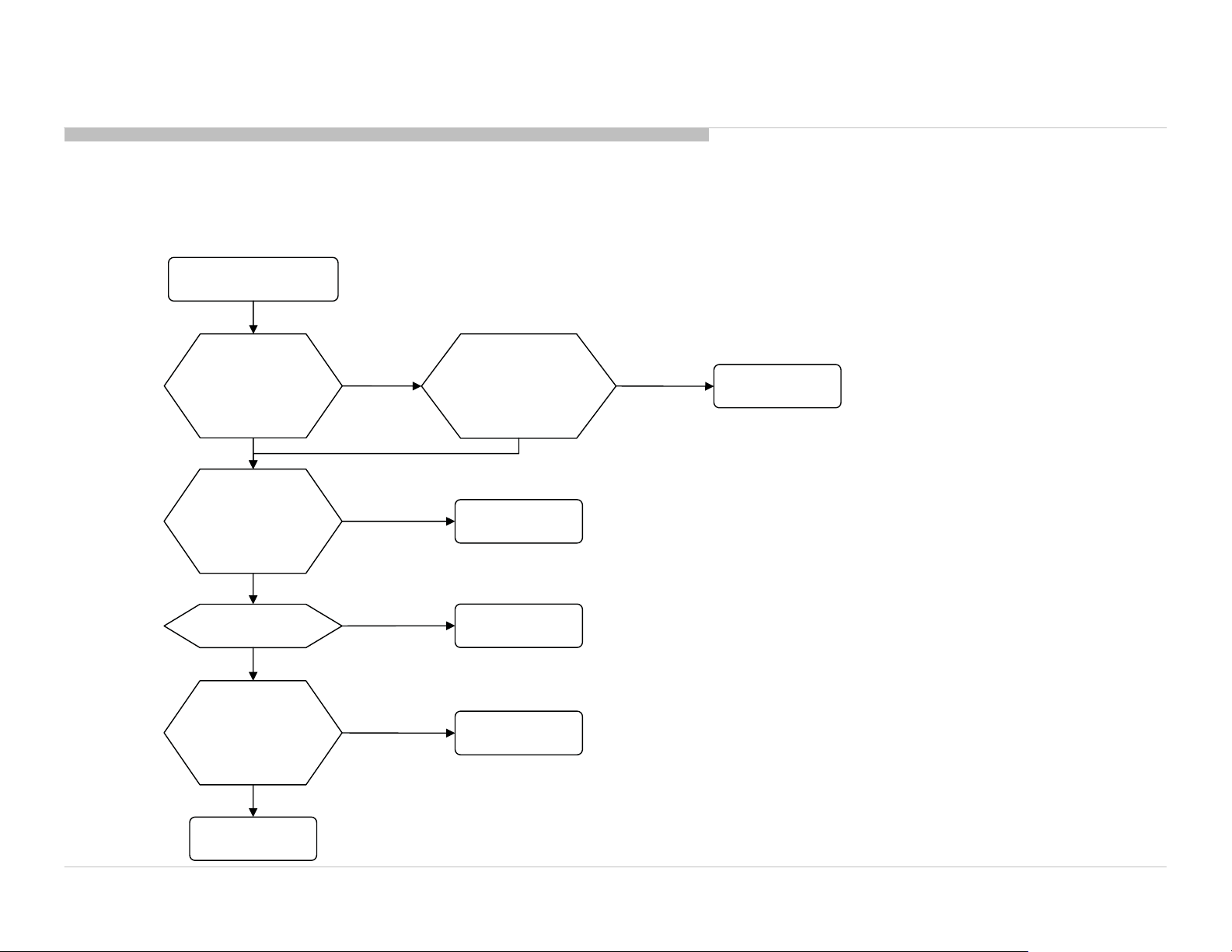

3-3. NO POWER
TROUBLE SHOOTING
No power
Long AC off
(> 15 min.).
NG
Check STBY_+3.3V
at 10 pin of CN6001
on the B* board
OK
B* board
OK
NG
Power protection or
CPU abnormal stop
Replace the harness
between G* board and
B* board
Symptom
improvement
Harness
NG
G* board
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
76
Page 77

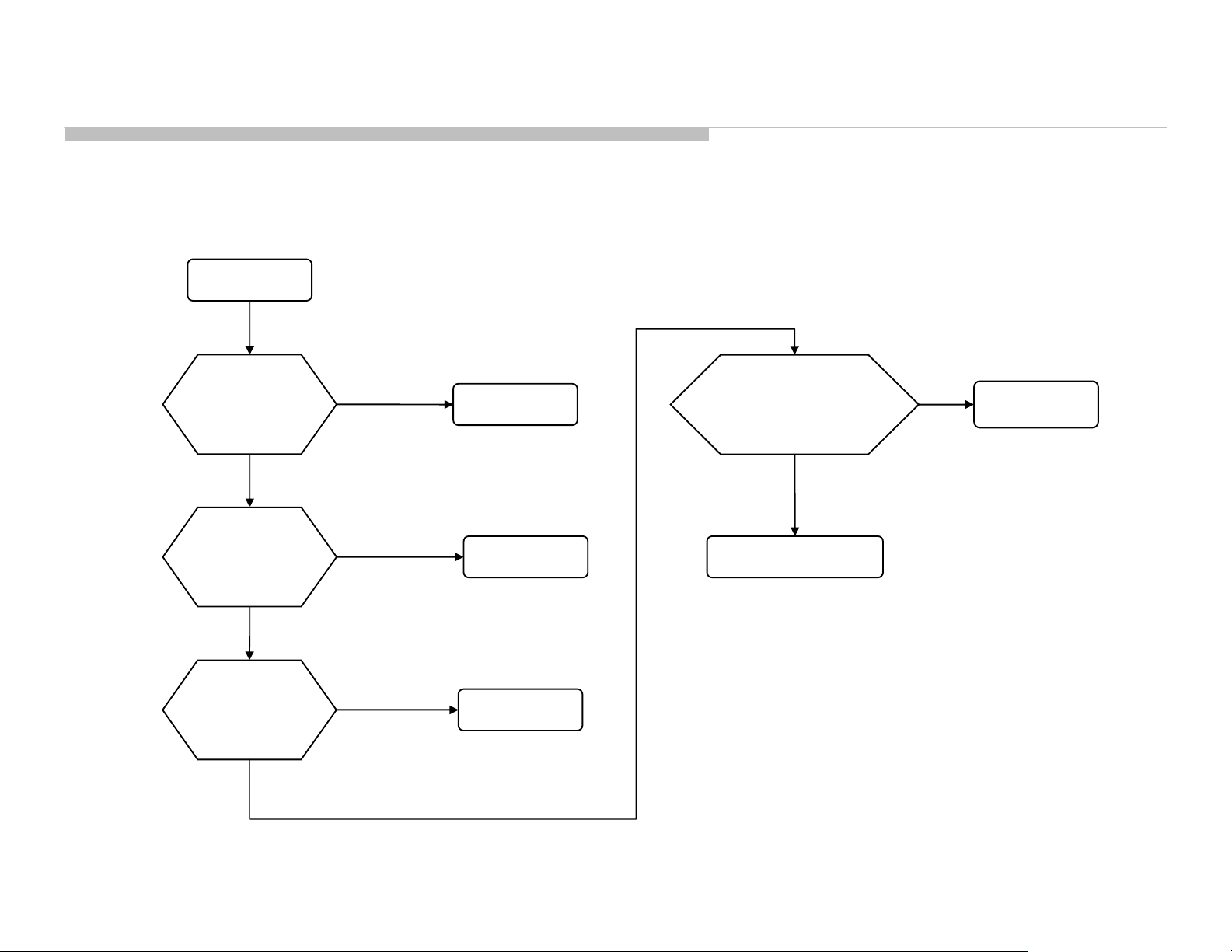

3-4. STANDBY LED BLINK
1) 2 times blinking (Main Power Error)
2 times blinking
TROUBLE SHOOTING
Check REG+12V at
pins 3/5 of
CN6001 on
the B* Board
12V OK
B* Board
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
12V NG
Replace
Between G* Board to
B* Board Harness
Symptom
improvement
Harness
NG
G* Board
77
Page 78
2) 3 times blinking (Main Board Error)
TROUBLE SHOOTING
3 times blinking
Check D+1.2V at
JL6002
on the B* Board
OK
Check +3.3V_MAIN
at JL6005 on
the B* Board
OK
Check
Speaker Impedance
at SP Connector
NG
NG
NG
DC_ALERT
F6001,IC6001,etc
F6003,IC6003,etc
AUDIO
(B* Board)
(B* Board)
Speaker
Check AUDIO+12.5V
at pin 2/4 of
CN6001 on
the B* Board
OK
Check +12.5V
at F4601 on
the B* Board
OK
Other B* Board’s parts
(Audio, Tuner, HDMI Eq...)
AUDIO
NG
G* Board
NG
F4601,IC4601,etc
(B* Board)
FE/BE Communication
OK
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
78
Page 79
3) 5 times blinking (T-con Error)
5 time blinking
TROUBLE SHOOTING
about 5V : 22” Model
about 12V : ex. 22” Model
Check PANEL_VCC
at JL6001 on
on the B* Board
OK
Replace the Harness
Between G* and Panel
(Only 3a-G)
NG
Replace
the LVDS FFC
NG
NG
Symptom
improvement
Symptom
improvement
G* Board
Harness
LVDS FFC
Panel (T-con)
change
Symptom
improvement
Panel (T-con)
NG
B* Board
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
79
Page 80

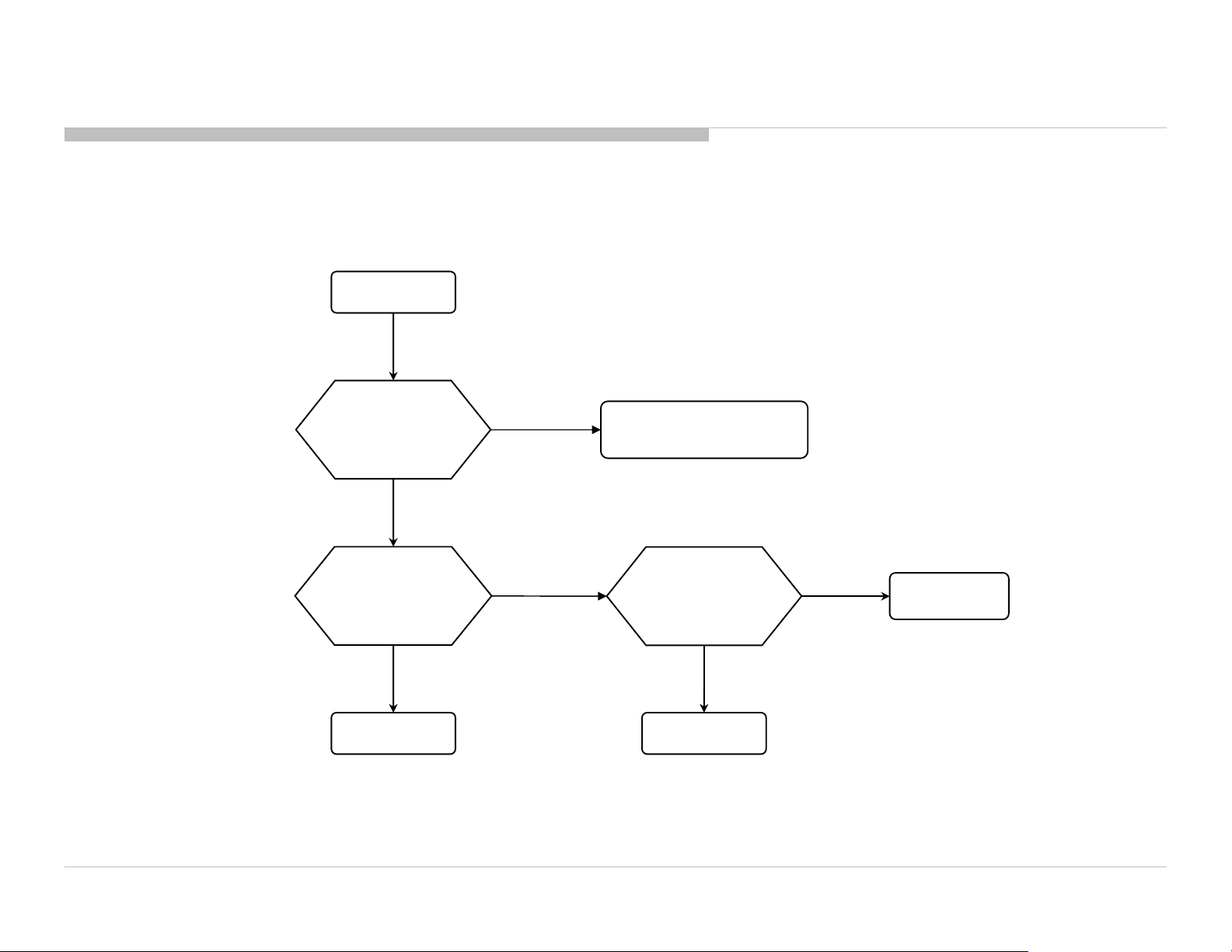

4) 6 times blinking (Backlight Error)
6 time blinking
TROUBLE SHOOTING
Check
BACKLIGHT_MON
at JL6017
on the B* board
Over 2.65V
Check the harness
between G* board
and B* board.
OK
Change G* board
NG
Under 2.65V
NG
Symptom
improvement
B* board
G-B harness
G* board
Check the connection
between G* board and
the light source
(inside the panel module).
Light source
(Inside Panel module)
NG
LS connection
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
80
Page 81
TROUBLE SHOOTING
5) 7 times blinking (Temperature Error)
7 times blinking
Setting circumstance
NO
is OK?
Temperature,
Ventilation, etc.
YES
Change B* Board,
and Aging a few hours
OK
Set to another
Location, etc.
Panel
6) 8 times blinking (Software Error)
8 times blinking
If the Symptom
Improved by changing
the WIFI module
Symptom
improvement
WIFI Module
NO
B* Board
B* Board
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
81
Page 82
3-5. POWER (Green) LED BLINKING
Non-Stop blinking
POWER (Green) blinking
TROUBLE SHOOTING
Check
the impedance between
TCON_VCC (CN6401#19)
and GND (CN6401#12)
< 200 Ohm
Remove the LVDS FFC.
And recheck the impedance.
< 200 Ohm
B* Board
>= 200 Ohm
G* Board
>= 200 Ohm
T-con
(Panel module)
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
82
Page 83
3-6. NO PICTURE
No Picture
TROUBLE SHOOTING
Press HOME key.
Menu displayed?
YES
B* Board
NO
Check
BL_ON and BLINKING
at CN6401#5 & 4
on the G* Board
Not both H
Replace the harness
between G* board
and B* board)
OK
Change B* Board
Symptom
improvement
B* board
NG
NG
Both H
Harness
䋨G* to B*)
G* board
Replace
the LVDS FFC
Symptom
improvement
FFC
(LVDS)
NG
Panel
(Tcon)
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
83
Page 84
3-7. NO SOUND
“Speakers setting”
No Sound
Check the
TROUBLE SHOOTING
“Audio System”
Change to
“TV Speaker”
“TV Speakers”
NG
Check the Speaker
Harness
Symptom
improvement
Speaker Harness
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
Replace
the B* Board
NG
Speaker
Symptom
improvement
B* Board
84
Page 85
3-8. TV COMMANDER BUTTONS MALFUNCTION
1) TV button malfunction
Button malfunction
on the TV
TROUBLE SHOOTING
Replace the Harness
between B* to
Switch Unit
Symptom
improvement
Harness
NG
Switch Unit change
NG
B* Board
Symptom
improvement
Switch Unit
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
85
Page 86
2) IR remote commander malfunction
TV isn’t controlled
by remote commander
TROUBLE SHOOTING
Green LED light
at power indicator
NG
Check the Harness
between the B* Board
and the HLR Board
NG
Exchange the Harness
NG
Exchange the
HLR Board
NG
OK
OK
Symptom
improvement
Symptom
improvement
Green LED blinks
at power indicator
when using commander
near sensor’s window
NG
Sensor is broken
Harness
HLR Board
OK
Mechanical
(ex. bezel)
B* Board
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
86
Page 87
3-9. NETWORK MALFUNCTION
1) Wired Network malfunction
Wired Network
on the TV
TROUBLE SHOOTING
Connection result
Cable Connection
OK
Connection result
Local Access
OK
Connection result
Internet Access
NG
NG
NG
NG
Check the Ethernet Cable Ethernet Cable
OK
B* Board
Auto
Wired Set-up
IP address setting
Check Local router DHCP server
Manual
Check IP address
and Local router setting
Proxy setting
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
87
Page 88
2) USB Wireless Network malfunction
Wireless Network
on the TV
TROUBLE SHOOTING
Error Message appear
when the Wireless
Network is selected?
NO
Is the radio field
Strength too weak
or even No signal?
NO
B* Board
YES
USB Dongle
YES
Access Point
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
88
Page 89
3-10. Skype MALFUNCTION 1/2
Skype malfunction
No
USB plugged? Insert USB
Yes
TROUBLE SHOOTING
No
Able to run Skype App?
Yes
No
Network connected?
Yes
Next page
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
-Unplug other USB device
NG
-AC OFF/ON
OK
Spec. USB overload.
Do network setup
NG
Connect to other
USB port
OK
B* board
NG
Insert other Skype unit
or
USB dongle
OK
Skype unit
NG
B* board
89
Page 90
3-10. Skype MALFUNCTION 2/2
Previous page
No
Far end
Video/Audio quality?
Auto-Focus work?
No
Sound quality?
No video?
Sound
quality
Call Skype sound test
TROUBLE SHOOTING
NG
Move unit away
from speaker
Yes
Network speed
or
far end system issue
Yes
Manual Focus work?
Yes
Check Auto-Focus area
No
No video
Enough network speed?
Yes
Skype unit
OK NG
Far end setting/system
Skype unit
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
90
Page 91
3-11. HDD-Rec MALFUNCTION
HDD Rec
Malfunction
TROUBLE SHOOTING
HDD is connected
to the appropriate
USB port?
Yes
USB Hub is inserted
in between the
USB port and HDD?
Yes
USB Hub is
not supported
No
No
Connect to the
appropriate port
Is the drive size larger
than 32GB and
Smaller than 2TB??
Yes
All the setups and
restrictions listed in
iManual are cleared?
Yes
No
No
Only 32GB~2TB
is supported
Check the iManual
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
B board
91
Page 92
SEC 4. DIAGRAMS

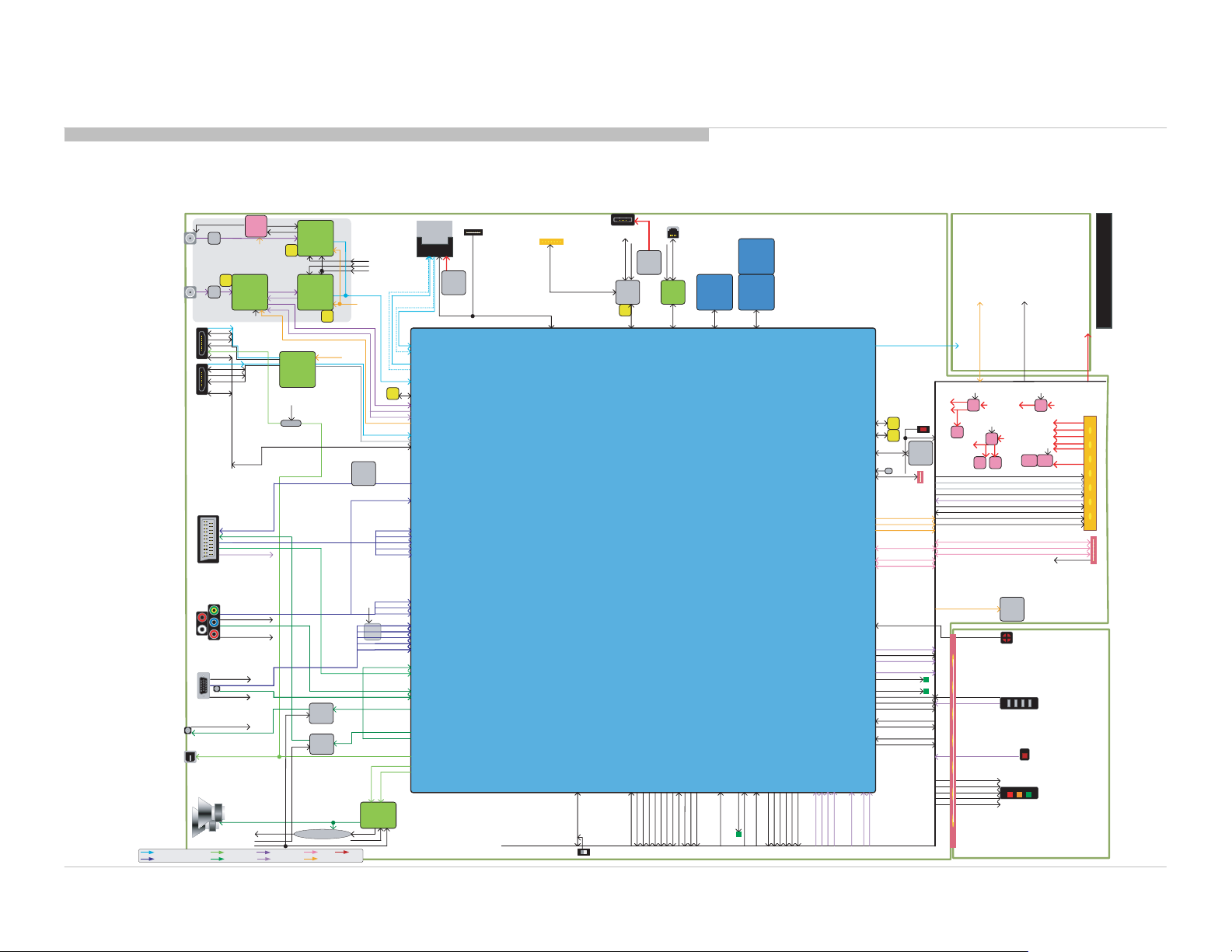

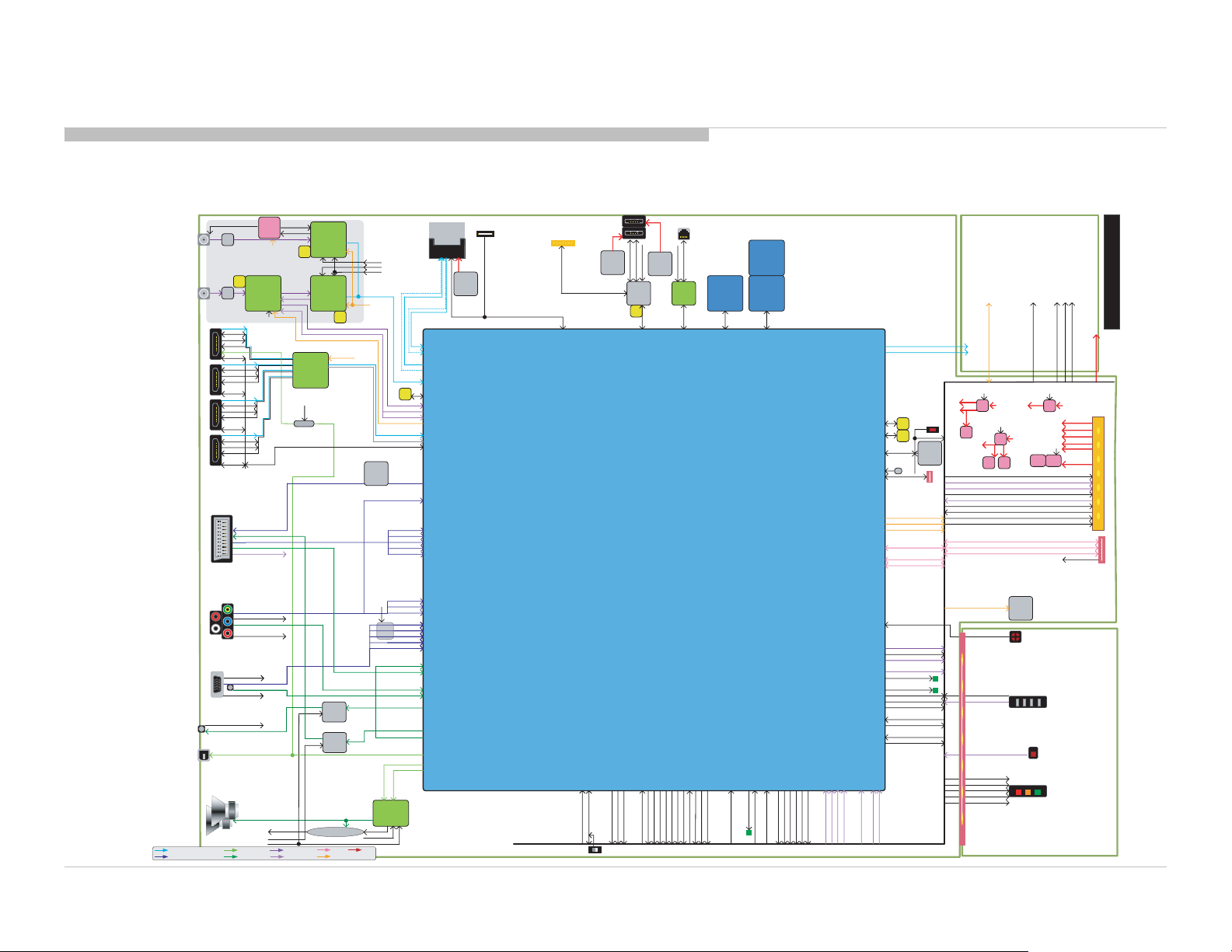

4-1. BLOCK DIAGRAM
4-1-1. KDL-22/26EX550/553/555
LNB_POWER
Satellite
Terrestrial
HDMI1
(ARC)
HDMI2
LNA
LNA
X_SYSTEM1_RST
TMDS1
DDC1
DDC_5V_1
HPD1
ARC
CEC1
TMDS2
DDC2
DDC_5V_2
HPD2
CEC2
SCART
COMP
PC_CON_Det
PC
HP/Line
Out
SPDIF
Main
SPEAKER
Digital Video/TS/TMDS
Analog Video
PC_R,PC_G,PC_B,PC_H,PC_V
PC_5V, PC_DDC
HP_/ Line Out Det
HP/Line Out LR
SPDIF
X_AUDIO_MUTE2
X_AUDIO_MUTE1
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
DDC
[A8298]
X’tal
4M
Silicon
Tuner
[ASCOT2SR]
TV_Out
TV_Out_LR
Scart_CV,R,G,B,FB
Scart_LR
ASPECT1
COMP_Y, Pb, Pr
VideoB_Det
COMP_LR
Cr_Det
PC_LR
Main Speaker_Out_LR
X_FAULT
Analog Audio
I2CB
DiSEqC_Out
DiSEqC_In
IF2
IF1
PWM
X’tal
27M
EQ SW
[Sil9287B]
HDMI_ARC
3.3->1
(for S2 model)
Ext Demod
IFAGC
[Luxor]
(for T2/C2 model)
Ext Demod
IFAGC
[JUNO]
OPAMP
[TPA6138A2]
OPAMP
[NJU72011RB]
AUDIO_MON
X_SYSTEM1_RST
UARTDigital Audio
I2CAnalog Signal
TS1
X’tal
41M
I2CA
DMD_CLK_ENABLE2
DMD_CLK_ENABLE1
DMD_RST
I2CB
75
Drv
[NJM2561]
PC_RGB_EN
COMP_Y
COMP_Pb
COMP_Pr
LPF
(Service)
Scart1_LR
COMP_LR
Line Out_LR
TV_Out_LR
Atreyu_SPDIF
Main Speaker_Out_LR
Audio
Power AMP
[YDA175]
SPI
TS
X’tal
41M
TMDS
TV_Out
COMP_Y
Scart_CV
Scart_G
Scart_B
Scart_R
Scart_FB
Tuner_LR
PC_LR
Tuner_LR
DDC
PC_G
PC_G
PC_B
PC_R
PC_H
PC_V
MS
CI/CI+
5V
Current
Limit
IF1
CEC
H Con.
USB3
Wifi
USB1
Crystal
Atreyu
BINT/Panel less
H/L
Panelless
USB
HUB
[GL850G]
12M
Current
[TPS2553DBV]
X_SYSTEM1_RST
PC_CON_DET
CR_DET
5V
Limit
X_AUDIO_MUTE2
VIDEOA_DET
VIDEOB_DET
Ether
X_SYSTEM1_RST
Ether
PHY
[RTL8201F]
X_AUDIO_MUTE1
ACT_STBY
NMI
BACKLIGHT_ON
REC_LED
X_SYSTEM1_RST
Oneí
NAND
Muxed
4Gb
POWER_LED
DDR3
í1333
2Gb
DDR3
í1333
2Gb
PS_STATUS (no use)
POWER_KEY
DEBUG_LED1
AC_MON
TCON
P
A
N
E
L
LVDS_ODD
I2CC
BINT(WP)
REG_12V
DDC
5V
3.4V
3.3V
LDO
LDO
SIRCS
Power_KEY
KEY
Light_Sensor_Det
REC_LED
SYSTEM1_PWR
1.2V
REG_12V
SYSTEM2_PWR
S1.2V
LDO
Blinking (32inch and over)
Temp
Sensor
[LM75B]
DDC
S1.8V
BACKLIGHT_ON
BACKLIGHT_MON
UARTD(VPC_LOG)
SYSTEM2_PWR
1.5V
DDC
Reset
AC_MON
/RST
Reset
[PST3629]
3.3V
SYSTEM2_PWR
2.5V
Push
LDO
X’tal
48M
X’tal
32.76
8K
GND
JTAG
I2CA (EQSW, Temp Sensor)
I2CB (Ext Demod/AudioAMP)
I2CC (Panel)
UARTA (LOG)
UARTC (ECS/Hotel)
UARTD (VPC_LOG)
I2CA
PWM_DIMMER
DMD_CLK_ENABLE2
Blinking
DC_DIMMER
DEBUG_LED2
DEBUG_LED3
PANEL_PWR
DMD_CLK_ENABLE1
DMD_RST
HP_DET
PC_RGB_EN
X_AUDIO_MON
HDMI_ARC
POWER_LED
STBY_LED
DC_MON
Light_Sensor_Det
BACKLIGHT_MON
PANEL_PWR_Det
STBY_LED
TIMER_LED
MAIN_PWR
SYSTEM2_PWR
SYSTEM1_PWR
PIC_MUTE_LED
DC_5V_Det
ASPECT1
KEY
TIMER_LED
PIC_MUTE_LED
REG_12V
T-CON_VCC
REG12V
REG12V
AUDIO_12V
AUDIO_12V
STBY 3.3V
LDO
TCON-ON
DC_DIMMER2
PWM_DIMMER1
MAIN_PWR
AC_MON
ACT_STBY
UARTA(LOG)
UARTC(ECS)
Reset
Temp Sensor
Sircs
KEY
Light Sensor
LED
T-CON_VCC (5V)
Power
Power_Control
TL-JIG
92
Page 93
4-1-2. KDL-32EX650/653/655
LNB_POWER
Satellite
Terrestrial
HDMI1
(ARC)
HDMI2
HDMI3
HDMI4
LNA
X’tal
LNA
X_SYSTEM1_RST
TMDS1
DDC1
DDC_5V_1
HPD1
ARC
CEC1
TMDS2
DDC2
DDC_5V_2
HPD2
CEC2
TMDS3
DDC3
DDC_5V_3
HPD3
CEC3
TMDS4
DDC4
DDC_5V_4
HPD4
CEC4
SCART
COMP
PC_CON_Det
PC
HP/Line
Out
SPDIF
Main
SPEAKER
Digital Video/TS/TMDS
Analog Video
PC_R,PC_G,PC_B,PC_H,PC_V
PC_LR
PC_5V, PC_DDC
HP_/ Line Out Det
HP/Line Out LR
SPDIF
X_AUDIO_MUTE2
X_AUDIO_MUTE1
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
DDC
[A8298]
I2CB
4M
Silicon
Tuner
[ASCOT2SR]
TV_Out
TV_Out_LR
Scart_CV,R,G,B,FB
Scart_LR
ASPECT1
COMP_Y, Pb, Pr
VideoB_Det
COMP_LR
Cr_Det
Main Speaker_Out_LR
X_FAULT
Analog Audio
DiSEqC_Out
DiSEqC_In
IF2
IF1
PWM
X’tal
27M
EQ SW
[Sil9287B]
HDMI_ARC
3.3->1
(for S2 model)
Ext Demod
IFAGC
[Luxor]
(for T2/C2 model)
Ext Demod
IFAGC
[JUNO]
OPAMP
[TPA6138A2]
OPAMP
[NJU72011RB]
AUDIO_MON
X_SYSTEM1_RST
UARTDigital Audio
I2CAnalog Signal
TS1
X’tal
41M
I2CA
DMD_CLK_ENABLE2
DMD_CLK_ENABLE1
DMD_RST
I2CB
TS
75
Drv
[NJM2561]
COMP_Y
PC_RGB_EN
COMP_Y
COMP_Pb
COMP_Pr
LPF
(Service)
Tuner_LR
Scart1_LR
COMP_LR
Line Out_LR
TV_Out_LR
Tuner_LR
Atreyu_SPDIF
Main Speaker_Out_LR
Audio
Power AMP
[YDA175]
SPI
X’tal
41M
TMDS
DDC
CEC
TV_Out
Scart_CV
Scart_G
Scart_B
Scart_R
Scart_FB
PC_G
PC_G
PC_B
PC_R
PC_H
PC_V
PC_LR
DIAGRAMS
MS
CI/CI+
5V
Current
Limit
IF1
H Con.
USB3
Wifi
USB1
USB2
5V
Current
Limit
[TPS2553DBV]
Crystal
Atreyu
LUT_SEL1
LUT_SEL0
TCON_RDY
BINT/Panel less
H/L
Panelless
Ether
USB
HUB
[GL850G]
12M
5V
Current
[TPS2553DBV]
X_SYSTEM1_RST
Limit
X_SYSTEM1_RST
Ether
PHY
[RTL8201F]
Oneí
NAND
Muxed
4Gb
DDR3
í1333
2Gb
DDR3
í1333
2Gb
LVDS_ODD
LVDS_EVEN
X’tal
48M
X’tal
32.76
8K
GND
Reset
/RST
AC_MON
Reset
[PST3629]
SYSTEM2_PWR
1.5V
3.3V
2.5V
Push
LDO
JTAG
I2CA (EQSW, Temp Sensor)
I2CB (Ext Demod/AudioAMP)
I2CC (Panel)
UARTA (LOG)
UARTC (ECS/Hotel)
UARTD (VPC_LOG)
PWM_DIMMER
DMD_CLK_ENABLE2
Blinking
DC_DIMMER
DEBUG_LED2
DEBUG_LED3
PANEL_PWR
DMD_CLK_ENABLE1
DMD_RST
HP_DET
PC_RGB_EN
X_AUDIO_MON
HDMI_ARC
VIDEOA_DET
VIDEOB_DET
CR_DET
X_AUDIO_MUTE1
X_AUDIO_MUTE2
NMI
BACKLIGHT_ON
ACT_STBY
POWER_LED
REC_LED
X_SYSTEM1_RST
PS_STATUS (no use)
POWER_KEY
DEBUG_LED1
AC_MON
DC_MON
Light_Sensor_Det
BACKLIGHT_MON
PANEL_PWR_Det
STBY_LED
TIMER_LED
MAIN_PWR
SYSTEM2_PWR
SYSTEM1_PWR
PIC_MUTE_LED
DC_5V_Det
ASPECT1
KEY
LUT_SEL2
PC_CON_DET
I2CC
DDC
SYSTEM2_PWR
5V
3.3V
LDO
I2CA
SIRCS
Power_KEY
Light_Sensor_Det
POWER_LED
STBY_LED
TIMER_LED
REC_LED
PIC_MUTE_LED
REG_12V
DDC
3.4V
LDO
KEY
TCON
BINT(WP)
SYSTEM1_PWR
1.2V
REG_12V
SYSTEM2_PWR
S1.2V
LDO
Blinking (32inch and over)
Temp
Sensor
[LM75B]
LUT_SEL1
LUT_SEL0
LUT_SEL2
DDC
REG_12V
T-CON_VCC
REG12V
REG12V
AUDIO_12V
AUDIO_12V
S1.8V
STBY 3.3V
LDO
TCON-ON
DC_DIMMER
PWM_DIMMER
BACKLIGHT_ON
BACKLIGHT_MON
MAIN_PWR
AC_MON
ACT_STBY
UARTA(LOG)
UARTC(ECS)
UARTD(VPC_LOG)
Reset
Temp Sensor
Sircs
KEY
Light Sensor
LED
P
A
N
E
L
T-CON_VCC (12V)
Power
Power_Control
TL-JIG
93
Page 94
4-2. CONNECTOR DIAGRAM
4-2-1. KDL-22EX550/553/555 (1/2)
BAC board
CN9007 SCL823SCL
BAC-W BAC-S CMI Internal use724NC
NC14
SW
27
GND RXCLK+229RXCLK+
SW module RXCLK-1201RECLK-
POWER_INT
KEY1 GND0211GND
1-822-693-11
JAM SZ15-03WLR
HL board
STBY+3.3V GND4171GNDWIFI VBUS31CN
LED/IR/OPT_Sensor RX0+3181RX0+HOTEL_CL_AC_MONNC41CN
IR Capture RX0-2191RX0-
GND
LED_REC
LED_STBY
LED_TIMER
LED_POWER
LED_PIC_MUTE
OPT_SENS GND742GND
VD+3.3V GND652GNDHLR GND122
SIRCS VCC (12V)562POWERHLR OPT_SENS228
IR_CAPTURE
1-821-138-11
JAM SYT10-11WS
1
2
3
1-842-738-11
SZ15-03HGR
1223
4
5
6
7
8
9
10
11
25
26
BAP- H Harness
21
193
17
15
18
20
22
24
16
NC
-1
1-820-388-12 1-820-162-11
501189-3051 MOLEX
RF STBY3.3V22
45
51
6CN
7CN
WIFI USB_P
9CN
HLR LED_ON_TIMER
515
HLR LED_STBY
714
HLR LED_POWER
816
HLR LED_REC
913
HLR LED_PIC_MUTE
027
SW_POWER_KEY
522GH11-01TYS
SW_KEY
623
SW GND721
NC82CN FFC Connector
NC92CN
GND03CN
HOTEL_REG+12V
HOTEL_CL_STBY_+3.3V
HOTEL_VOL_UPRF_RX
HOTEL_CL_MAIN_+3.3VRF UART_SEL
HOTEL_HTL_LINEOUT_LRF_RST
HOTEL_HTL_GNDRF_GND
HOTEL_CL_I2CA_SDA
HOTEL_CL_I2CA_SCL
HOTEL_CL_GND
CN2002 To BAC
LVDS-FFC
30pin FFC
102GNDHLR SIRCS6101
1-842-088-12
P-TWO / 187053-30091
LVDS Connector (Receptacle)
CMI
GND031GND
SDA922SDA
GND625GND
RX3+526RX3+
RX3-427RX3-HOTEL_VOL_DOWNRF_TX33
GND328GND
RX2+9121RX2+HOTEL_SP_MUTENC8CN
RX2-8131RX2GND7141GNDWIFI GND01CN
RX1+6151RX1+WIFI USB_N11CN
RX1-5161RX1-WIFI GND21CN
GND1
CMI Internal use0112NC
SELLVDS(GND)922GND
BINT(WE)832BINT
VCC (12V)472POWERHLR STBY_3.3V321
VCC (12V)382POWERHLR 3.3V42911-521-128
VCC (12V)292POWER
VCC (12V)103POWER
DIAGRAMS
X Board
wifi module
EU model ONLY
SPEAKER
Front
Lch
SPEAKER
Front
Rch
GND
DC 5V
USB_DATA+
USB_DATAGND (S-GND)
1-819-334-11
JST SM05B-GHS-TB
L+ (Terminal # 187)
L- (Terminal # 110)
R- (Terminal # 110)
R+ (Terminal # 187)
124
2
33
455
1
1-819-495-11
GHR-05V-S
Faston #187
121
2
Faston #110
Faston #110
213
4
Faston #187 CN4601
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
1-842-593-11
JST PBVP-04V
11L+
22L23R-
14R+
1-842-566-12
JST SM04B-PBVSS-TB(LF)(SN)
94
Page 95
4-2-1. KDL-22EX550/553/555 (2/2)
CN
To B board (100106)
GL1 Board
POWER_ON
AC_OFF_DET
T-CON_ON
PS_STATUS
STBY_GND
STBY3.3V
T-CON_VCC12V
T-CON_Vcc12V
AU_12V
AU_12V
BTV12V
BTV12V
REG12V
REG12V
GND
GND
GND
GND
AU_GND
AU_GND
DIGITAL_STBY
BL ON
BLINKING
BL_ERR
PWM_DIMMER
DC_DIMMER
1-842-551-11
JAM SJM20-28WLB
CN6801
XAP-06V-S
1-793-240-11
28
27
26
25
24
23
22GND
21GND
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1TUO2TUO31TUO+
42TUO+
5TUO6TUO-
13
19
20
NC
11
10
NC
NC
NC
1
4
NC
5
3
9
7
NC
NC
8
6
15
17
12
18
14
16
1-842-598-11
SJM20-28HG
G-B Harness
G-Panel
Harness
BAC board
CN6001
19 1 TCON_VCC
17 2 AUDIO+12.5V
13 3 REG+12.5V
18 4 AUDIO+12.5V
14 5 REG+12.5V
7 6 AUDIO+12.5V_GND
REG+12.5V_GND
11 7
AUDIO+12.5V_GND
88
REG+12.5V_GND
12 9
23 10 STBY3.3V
GND/PS_STATUS
24 11
4 12 BLINKING
POWER_ON
28 13
PWM_DIMMER
214
DIGITAL_STBY
615
1 16 DC_DIMMER
BL_ON
517
BL_ERR
318
27 19 AC_OFF_DET
TCON_ON
26 20
1-843-150-112 1-843-151-11
PBDP-20V-SCN SM20B-PBDSS-TF
CMI
X Board
1 VLED2 VLED3 VLED+
4 VLED+
5 VLED-
6 VLED-
CviLux/CI1406M1HRF-NH
DIAGRAMS
AC_IN
AC-N
AC-L
CN6001
SFP79-02WLB JAM
1-822-908-11
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
121
2
AC pigtail
95
Page 96
4-2-2. KDL-26EX550/553/555 (1/2)
DIAGRAMS
SW
HL board
1-822-693-11
JAM SZ15-03WLR
CN100
DNGLED/IR/OPT_Sensor
1-821-138-11
JAM SYT10-11WS
721DNG
522TNI_REWOPSW module
6231YEK
SZ15-03HGR
1-821-900-11
321V3.3+YBTS
122
913CER_DELIR Capture
714YBTS_DEL
515REMIT_DEL
816REWOP_DEL
027ETUM_CIP_DEL
228SNES_TPO
29V3.3+DV
4
6101SCRIS
CN11ERUTPAC_RI
1-821-125-11
SYT10-11HG
BAC- H Harness
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
10
11
NC
NC
12
NC
13
NC
14
15
5
10
16
4
17
6
18
3
19
20
7
2
21
22
8
23
1
24
9
2
25
3
26
1
27
28
NC
NC
29
30
NC
BAC board
CN9007
1
WIFI GND
WIFI VBUS
2
3
WIFI USB_P
4
GND
WIFI USB_N5
GND6
HOTEL_HTL_GND7
8
HOTEL_VOL_UP
9
HOTEL_SP_MUTE
HOTEL_VOL_DOWN
NC
HOTEL_HTL_LINEOUT_L
NC
NC
HLR LED_ON_TIMER
HLR SIRCS
HLR LED_STBY
HLR LED_POWER
HLR LED_REC
HLR LED_PIC_MUTE
HLR GND
HLR OPT_SENS
HLR STBY_3.3V
HLR 3.3V
SW_POWER_KEY
SW_KEY
SW GND
NC
HOTEL_REG+12V
GND
1-820-162-11
Molex
CN2002 To BAC
GND
SDA
SCL
NC
GND
RX3+
RX3-
GND
RXCLK+
RXCLK-
GND
RX2+
RX2-
GND
RX1+
RX1-
GND
RX0+
RX0-
GND
NC
GND
B-INT / WP
GND
GND
GND
VCC
VCC
VCC
VCC
1-842-088-11/21
FLAT CABLE CONNECTOR 30P: P-TWO
1
2
3
4
5
6
LVDS-FFC
7
B-TCON
8
9
10
11
12
13
30pin FFC
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30 GND
29 SDA
28 SCL
27 Internal use (TST AGE)
26 GND
25 RX3+
24 RX3-
23 GND
22 RXCLK+
21 RXCLK-
20 GND
19 RX2+
18 RX2-
17 GND
16 RX1+
15 RX1-
14 GND
13 RX0+
12 RX0-
11 GND
10 Internal use (LUT0)
9 SELLVDS
8WE
7GND
6GND
5GND
4 VCC
3VCC
2VCC
1 VCC
P-TWO/187053-30091
WXGA Panel
Faston #187
SPEAKER
Front
Lch
SPEAKER
Front
Rch
L+ (Terminal # 187)
L- (Terminal # 110)
R- (Terminal # 110)
R+ (Terminal # 187)
11
22
Faston #110
Faston #110
32
41
Faston #187 CN4601 OK
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
11L+
22L-
23R-
14R+
1-842-593-11 1-842-566-12
JST PBVP-04V JST SM04B-PBVSS-TB(LF)(SN)
96
Page 97
4-2-2. KDL-26EX550/553/555 (2/2)
DIAGRAMS
GL3 Board
CN6401
To B board (100106)
POWER_ON
AC_OFF_DET
T-CON_ON
PS_STATUS
STBY_GND
STBY3.3V
T-CON_VCC12V
T-CON_Vcc12V
AU_12V
AU_12V
BTV12V
BTV12V
REG12V
REG12V
AU_GND
AU_GND
DIGITAL_STBY
BL ON
BLINKING
BL_ERR
PWM_DIMMER
DC_DIMMER
1-842-551-11
JAM SJM20-28WLB
-OUT
-OUT
-OUT
-OUT
-OUT
-OUT
NC
+OUT3
+OUT2
+OUT1
CF25102HOTT-05 P-TWO 161035-10041-3
CN6801
AC_IN
AC-N 1 1
AC-L 2 2
CN6101
SFP79-02WLB JAM
1-822-908-11
28
27
26
25
24
23
22DNG
12DNG
20
19
18
17
16
15
14
13
21DNG
11DNG
01DNG
9DNG
8
7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
9
10
31
91
02
CN
11
01
CN
CN
CN
1
4
2
NC
5
3
9
7
NC
NC
8
6
15
17
12
18
14
16
1-842-598-11
SJM20-28HG
G-B Harness
LS
AC pigtail
CN6001
19 1
TCON_VCC
AUDIO+12.5V
17 2
13 3
REG+12.5V
18 4
AUDIO+12.5V
14 5
REG+12.5V
76
AUDIO+12.5V_GND
11 7
REG+12.5V_GND
88
AUDIO+12.5V_GND
12 9
REG+12.5V_GND
23 10
STBY3.3V
24 11
GND/PS_STATUS
412
BLINKING
28 13
POWER_ON
214
PWM_DIMMER
615
DIGITAL_STBY
116
DC_DIMMER
BL_ON
517
BL_ERR
318
AC_OFF_DET
27 19
TCON_ON
26 20
1-843-150-11 1-843-151-11(JST)
PBDP-20V-SCNSM20B-PBDSS-TF
BAC board
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
97
Page 98
4-2-3. KDL-32EX650/653/655 (1/2)
DIAGRAMS
SW
HL board
SPEAKER
Front
Lch
SPEAKER
Front
Rch
1-822-693-11
JAM SZ15-03WLR
CN100
DNGLED/IR/OPT_Sensor
1-821-138-11
JAM SYT10-11WS
L+ (Terminal # 187)
L- (Terminal # 110)
R- (Terminal # 110)
R+ (Terminal # 187)
CN9006
1
NC
WIFI GND
WIFI VBUS
2
NC
3
WIFI USB_P
NC
4
NC
GND
361DNG
332TNI_REWOPSW module
3531YEK
SZ15-03HGR
1-821-900-11
291V3.3+YBTS
272
253CER_DELIR Capture
214YBTS_DEL
195REMIT_DEL
236REWOP_DEL
267ETUM_CIP_DEL
288SNES_TPO
309V3.3+DV
2001SCRIS
CN11ERUTPAC_RI
1-821-125-11
SYT10-11HG
Faston #187
11
22
Faston #110
Faston #110
32
41
Faston #187 CN4601
BAP- H Harness
NC
WIFI USB_N5
NC
WIFI GND6
NC
EMI_FAIL7
8
EMI_12V
NC
9
GLS_CTRL1
NC
10
EMI_GND
NC
11
GLS_CTRL2
NC
12
NC
NC
13
RF GND
NC
NC
14
RF Rx / HOTEL_VOL_UP
15
NC
RF RST / HOTEL_SP_MUTE
NC
16
RF Tx / HOTEL_VOL_Down
NC
17
RF STBY3.3V / HOTEL_CL_STBY_+3.3V
NC
18
RF UART_SEL
19
5
HLR LED_ON_TIMER
20
10
HLR SIRCS
21
HLR LED_STBY
4
22
WIFI VBUS / HOTEL_CL_I2CA_SDA
NC
23
6
HLR LED_POWER
24
NC
WIFI GND / HOTEL_CL_I2CA_SCL
3
HLR LED_REC
25
26
HLR LED_PIC_MUTE
7
2
27
HLR GND
28
8
HLR OPT_SENS
29
1
HLR STBY_3.3V
30
9
HLR 3.3V
31
NC
HOTEL_CL_MAIN_+3.3V
NC
HOTEL_HTL_LINEOUT_L
32
33
SW_POWER_KEY
2
34
HOTEL_CL_AC_MON
NC
35
SW_KEY
3
36
SW GND
1
37
HOTEL_HTL_REG+12V
NC
SONY LOGO
38
NC
LOGO 5V
39
NC
LOGO GND / HOTEL_CL_GND
40
NC
1-819-538-11
SHLDP-40V-S(B)
1-842-593-11 1-842-566-12
JST PBVP-04V JST SM04B-PBVSS-TB(LF)(SN)
1-818-692-22
JST
11L+
22L-
23R-
14R+
BAP board
CN2001
Panel_Ctrl1 / LVDS_OPTION
1-842-546-11
FFC Direct Connector :I-PEX
1
2Panel_Ctrl2 / TCON_RDY
3Panel_Ctrl3 / NC
4Panel_Ctrl4 / LUT_SEL2
5Panel_Ctrl5 / LUT_SEL1
6Panel_Ctrl6 / LUT_SEL0
7Panel_Ctrl7 / NC
8Panel_Ctrl8 / PANEL_SEL
9Panel_Ctrl9 / BUS_SW
01Panel_Ctrl10 / NC
11Panel_Ctrl11 / SDA
21Panel_Ctrl12 / SCL
31DNG
41PANEL_EVEN4_P
51PANEL_EVEN4_N
61PANEL_EVEN3_P
71PANEL_EVEN3_N
81DNG
1PANEL_EVEN_CLK_P 9
02PANEL_EVEN_CLK_N
12DNG
22PANEL_EVEN2_P
32PANEL_EVEN2_N
42PANEL_EVEN1P
52PANEL_EVEN1_N
62PANEL_EVEN0_P
72PANEL_EVEN0_N
82DNG
92PANEL_ODD4_P
03PANEL_ODD4_N
13PANEL_ODD3_P
23PANEL_ODD3_N
33DNG
43PANEL_ODD_CLK_P
5
3PANEL_ODD_CLK_N
63DNG
73PANEL_ODD2_P
83PANEL_ODD2_N
93PANEL_ODD1P
04PANEL_ODD1_N
14PANEL_ODD0_P
24PANEL_ODD0_N
34DNG
44DNG
54Panel_Ctrl13
64DNG
74PANEL_VCC_SW
84PANEL_VCC_SW
94PANEL_VCC_SW
05PANEL_VCC_SW
15PANEL_VCC_SW
LVDS-FFC
B-TCON
51pin FFC
To BAP
SEL1/LVDS Option15
NC05
NC94
LUT SEL284
LUT SEL174
LUT SEL064
NC54
NC44
Panel_Ctrl9 / BINT34
NC24
Panel_Ctrl11 / SDA14
Panel_Ctrl12 / SCL04
PANEL_EVEN4_P83
PANEL_EVEN4_N73
PANEL_EVEN3_P63
PANEL_EVEN3_N53
PANEL_EVEN_CLK_P33
PANEL_EVEN_CLK_N23
PANEL_EVEN2_P03
PANEL_EVEN2_N92
PANEL_EVEN1P82
PANEL_EVEN1_N72
PANEL_EVEN0_P62
PANEL_EVEN0_N52
PANEL_ODD4_P32
PANEL_ODD4_N22
PANEL_ODD3_P1
2
PANEL_ODD3_N02
PANEL_ODD_CLK_P81
PANEL_ODD_CLK_N71
PANEL_ODD2_P51
PANEL_ODD2_N41
PANEL_ODD1P31
PANEL_ODD1_N21
PANEL_ODD0_P11
PANEL_ODD0_N
01
PANEL_VCC_SW5
PANEL_VCC_SW4
PANEL_VCC_SW3
PANEL_VCC_SW2
PANEL_VCC_SW1
JAE/FI-RE51S-HF
DNG93
DNG43
DNG13
DNG42
DNG91
DNG61
DNG9
DNG8
DNG7
CN6
T-con Board
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
98
Page 99
4-2-3. KDL-32EX650/653/655 (2/2)
DIAGRAMS
FY12 GL2
Board
CN6801
CN6802
CN6401
To B board (100106)
POWER_ON
AC_OFF_DET
T-CON_ON
PS_STATUS
STBY_GND
STBY3.3V
DNG
DNG
T-CON_VCC12V
T-CON_Vcc12V
AU_12V
AU_12V
BTV12V
BTV12V
REG12V
REG12V
DNG
DNG
DNG
DNG
AU_GND
AU_GND
DIGITAL_STBY
BL ON
BLINKING
BL_ERR
PWM_DIMMER
DC_DIMMER
1-842-551-11
JAM SJM20-28WLB
+OUT1
NC
NC
+OUT2
MOLEX L4P
1-822-359-11
-OUT1
NC
NC
-OUT2
NC
MOLEX L5P
1-822-360-11
AC_IN
AC-N 1 1
AC-L 2 2
CN6101
SFP79-02WLB JAM
1-822-908-11
28
27 19
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
2
3
4
1
2
3
4
5
13
20
NC
11
10
NC
NC
NC
1
4
2
NC
NC
5
3
9
7
NC
NC
8
6
15
17
12
18
14
16
1-842-598-11
SJM20-28HG
G-B Harness
AC pigtail
LS
CN6001
19 1
TCON_VCC
AUDIO+12.5V
17 2
13 3
REG+12.5V
18 4
AUDIO+12.5V
14 5
REG+12.5V
76
AUDIO+12.5V_GND
11 7
REG+12.5V_GND
88
AUDIO+12.5V_GND
12 9
REG+12.5V_GND
23 10
STBY3.3V
24 11
GND/PS_STATUS
412
BLINKING
28 13
POWER_ON
214
PWM_DIMMER
615
DIGITAL_STBY
116
DC_DIMMER
517
BL_ON
318
BL_ERR
27 19
AC_OFF_DET
26 20
1-843-150-11 1-843-151-11(JST)
PBDP-20V-S SM20B-PBDSS-TF
TCON_ON
BAP board
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
99
Page 100

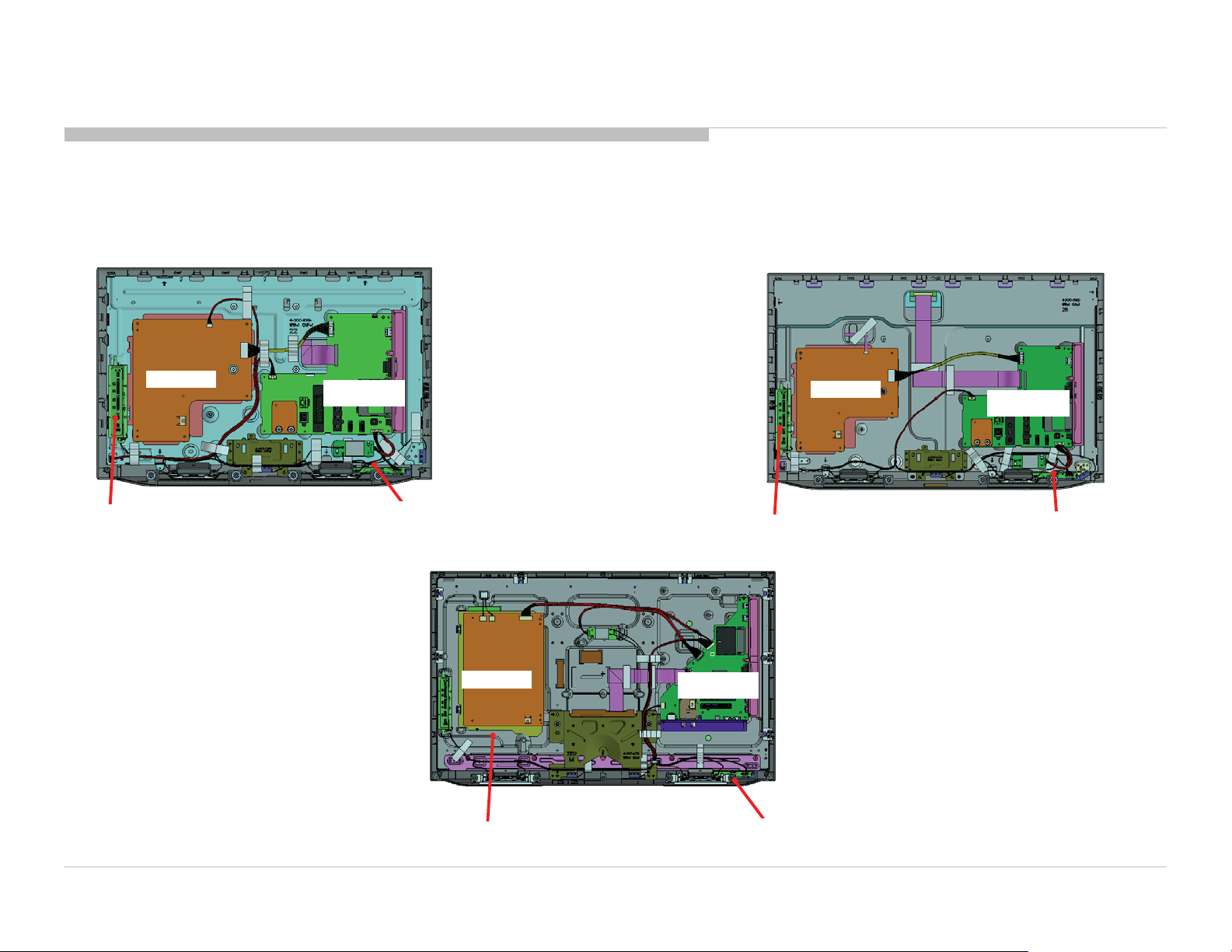

4-3. CIRCUIT BOARDS LOCATION
DIAGRAMS
KDL-22EX550/553/555
GL1 Board
Switch Unit
BAC Board
HL Board
KDL-32EX650/653/655
GL2 Board
BAP Board
KDL-26EX550/553/555
GL3 Board
Switch Unit
BAC Board
HL Board
KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT)
Switch Unit
HL Board
100
Loading...
