LCD
Digital Color TV
Setup Guide (Operating Instructions)
Setting up your TV
To watch TV
Additional Information
KDL-40EX40B / 32EX40B
Sony Customer Support
U.S.A.: www.sony.com/tvsupport
Canada: www.sony.ca/support
United States Canada
1.800.222.SONY 1.877.899.SONY
Please Do Not Return
the Product to the Store
Owner’s Record
The model and serial numbers are
located at the side and rear of the TV.
Record these numbers in the spaces
provided below. Refer to them
whenever you call upon your Sony
dealer regarding this TV.
Model Name
Serial No.
CAUTION
To prevent electr ic shock and blade exposure,
do not use this polarized AC plug with an
extension cord, receptacle or other outlet
unless the blades can be fully inserted.
• Operate the TV only on 110-240 V
AC (U.S.A./Canada 120 V AC)
• Operate the TV at temperatures
between 41°F and 95°F (5°C and
35°C).
Licensing Information
Macintosh is a trademark of Apple Inc.,
registered in the U.S. and other countries.
HDMI, the HDMI logo and High-De finition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing,
LLC.
Fergason Patent Properties, LLC:
U.S. Patent No. 5,717,422
U.S. Patent No. 6,816,141
Manufactured under license from Dolby
Laboratories. Dolby and the double-D
symbol are trademarks of Dolby
Laboratories.
In the United States, TV Guide and TV Guide
On Screen are registered trademarks of TV
Guide Entertainment Group, Inc. and/or its
subsidiaries or affiliates, and are used under a
license by Gemstar-TV Guide International,
Inc. and/or its subsidiaries. In Canada, TV
Guide is a registered mark of
Transcontinental Inc., and is used under a
license by Gemstar-TV Guide International,
Inc. and/or its subsidiaries.
The TV Guide On Screen system is
manufactured under license from GemstarTV Guide International, Inc. and/or its
subsidiaries.
The TV Guide On Screen system is protected
by one or more of the following United States
patents 6,498,895; 6,850,693; 6,396,546;
5,940,073; 6,239,794 to Gemstar-TV Guide
International, Inc. and/or its subsidiaries.
Gemstar-TV Guide International, Inc. and/or
its related affiliates are not in any way liable
for the accuracy or availability of the program
schedule information or other data in the TV
Guide On Screen system and cannot
guarantee service availability in your area. In
no event shall Gemstar-TV Guide
International, Inc. and/or its related affiliates
be liable for any damages in connection with
the accuracy or availability of the program
schedule information or other data in the TV
Guide On Screen system.
“BRAVIA” and , S-Force,
Motionflow, BRAVIA Sync, and are
trademarks or registered marks of Sony
Corporation.
“XrossMediaBar” is a trademark of Sony
Corporation. “XMB” is a trademark of Sony
Corporation and Sony Computer
Entertainment Inc.
“PlayStation” is a registered trademark and
“PS3” is a trademark of Sony Computer
Entertainment Inc.
®
, the DLNA Logo and DLNA
DLNA
CERTIFIED™ are trademarks, service
marks, or certification marks of the Digital
Living Network Alliance.
“Blu-ray Disc”, “Blu-ray” and “Blu-ray
Disc” logo are trademarks of Blu-ray Disc
Association.
is a trademark of DVD Format/Logo
Licensing Corporation.
“AVCHD” and the “AVCHD” logo are
trademarks of Panasonic Corporation and
Sony Corporation.
Java and all Java-based trademarks and logos
are trademarks or registered trademarks of
Sun Microsystems, Inc. in the U.S. and other
countries.
“BD-LIVE,” “BD-LIVE” logo, and
“BONUSVIEW” are trademarks of Blu-ray
Disc Associa tion.
Manufactured under license under U.S.
Patent #’s: 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS
and DTS 2.0 + Digital Out are registered
trademarks and the DTS logos and Symbol
are trademarks of DTS, Inc. © 1996-2008
DTS, Inc. All Rights Reserved.
Your BRAVIA TV is
ENERGY STAR
in the “Home” mode.
It meets strict energy
efficiency guidelines set by
the U.S. Environmental
Protection Agency and
Department of Energy. ENERGY STAR is a
joint program of these government agencies,
designed to promote energy efficient products
and practices.
Changes to certain feature s, settings, and
functionalities of this TV (i.e. TV Guide,
Picture/Sound, Light Sensor, Power Savings)
can increase or change the power
consumption.
Depending upon such changed s ettings, the
power consumption may exceed the limits
required for the ENERGY STAR
qualification in the “Home” mode.
The 32 class has a 31.5 inch viewable
image size (measured diagonally).
®
qualified
2
Table of Contents
Checking the accessories..............................................................................................................4
Inserting batteries into the remote control .....................................................................................4
Setting up your TV
Attaching the Table-Top Stand......................................................................................................5
Connecting the TV.........................................................................................................................6
Securing the TV...........................................................................................................................10
Organizing the AC power cord ....................................................................................................11
Running initial setup....................................................................................................................11
Detaching the Table-Top Stand from the TV...............................................................................11
Using a Wall-Mount Bracket........................................................................................................12
Installing the TV Against a Wall or Enclosed Area......................................................................13
To watch TV
To watch programs......................................................................................................................14
To use the TV features................................................................................................................14
To use i-Manual...........................................................................................................................15
Playing a disc ..............................................................................................................................16
Additional Information
Troubleshooting...........................................................................................................................17
Specifications ..............................................................................................................................19
Safety information about built-in BD player.................................................................................21
Precautions about built-in BD player ...........................................................................................22
•
Operating instructions are built into your
• Retain this manual for future reference.
BRAVIA
TV. Refer to “To use i-Manual” for operation (page 15).
The BRAVIA® Full HDTV Experience
Thank you for choosing Sony! Your new BRAVIA® TV
opens the door to the “Full HDTV Experience.” This
document will help you get the most out of your TV.
Please take a moment to register your TV at:
U.S.A.: http://productregistration.sony.com
Canada: http://www.SonyStyle.ca/registration
Four Steps to a Full HD Experience
Set, Source, Sound, and Setup.
1 Set
Now that you have made the best selection in LCD TV
technology, be sure to remove all accessory contents
from the packaging before setting up your TV.
2 Source
To experience the stunning detail of your BRAVIA TV,
you need access to HD programming.
• Upgrade your signal or content source to highdefinition (HD) by contacting your HD service
provider.
This TV displays all video input signals in a resolution of 1,920 dots × 1,080 lines.
• Receive over-the-air HD broadcasts with an HDquality antenna connected directly to the back of your
TV.
Visit www.antennaweb.org for more
information on antenna selection and setup.
• Discover the wealth of entertainment now available
on super-high resolution BD™ player and other
Sony HD equipment.
3 Sound
Complete the high-definition experience with a
BRAVIA Sync™ surround sound system or A/V
receiver from Sony.
4 Setup
Install your TV and connect your sources. See page 6 for
sample connection diagrams.
To help assure the highest quality for your HD experience,
use Sony HDMI (High-Definition Multimedia Interface)
cables.
To learn more about HDTV, visit:
U.S.A.: http://www.sony.com/HDTV
Canada: http://www.SonyStyle.ca/hd
3
Checking the accessories
Table-Top Stand (1)*
Fixing screws for Table-Top Stand
(M5 × 16) (4)
Assembling Screws for Table-Top Stand
(M5 × 16) (4)
Remote control (1)*
Size AAA batteries (2)
*1 Assembling the Table-Top Stand is required.
Refer to other leaflet to assemble the Table-Top
Stand.
*2 Please refer to the model name printed on the
remote control.
1
2
Inserting batteries into the remote control
Push and lift the cover to open.
Guidelines for Remote Control
• Point your remote control directly at the IR
sensor located on your TV.
• Make sure that no objects are blocking the
path between the remote control and the IR
sensor on your TV.
• Fluorescent lamps can interfere with your
remote control; try turning off the fluorescent
lamps.
• If you are having problems with the remote
control, reinsert or replace your batteries and
make sure that they are correctly inserted.
4
Setting up your TV
Some TV models are packaged with a detached
Table-Top Stand so you can mount your TV to
a wall right away. If you are not mounting the
TV to a wall, you will need to attach the
Table-Top Stand. You will need a Phillips
screwdriver and the supplied screws to
complete the task. Look for the attachment
instructions provided with the TV.
Be sure to consider the following while setting
up your TV:
• Disconnect all cables when carrying the
TV.
• Never install the TV on unstable and/or
uneven surfaces.
• Carry the TV with the adequate number of
people; larger size TVs require two or more
people.
• Correct hand placement while carrying the
TV is very important for safety and to avoid
damage.
Attaching the Table-Top Stand
Refer to the supplied Table-Top Stand
instruction leaflet for proper attachment for
some TV models.
1 Gently slide the TV unit onto the
Table-Top Stand and align the screw
holes.
~
• Do not put stress on the LCD panel or the frame
around the screen.
• Be careful to not pinch your hands or the AC
power cord when you install the TV unit to the
Table-Top Stand.
Setting up your TV
• Ensure your TV has adequate ventilation,
see page 13.
• For best picture quality, do not expose the
screen to direct illumination or sunlight.
• Avoid installing the TV in a room with
reflective wall and floor materials.
• If the TV is brought directly from a cold to
a warm location, or is placed in a very damp
room, or is placed in a room in which
heating has just been turned on, moisture
may condense on the surface or inside the
TV. Should this occur, turn off the TV and
leave the TV off until the moisture
evaporates, and then the TV can be used. If
a disc is inserted in the built-in BD player,
eject and take out the disc and turn off the
TV. Using the TV with moisture in or on it
may cause the TV to show poor picture and/
or poor color or may cause a malfunction.
2 Use the supplied screws to attach the
TV unit to the Table-Top Stand.
~
• If you use an electric screwdriver, set the
tightening torque at approximately 1.5 N·m
{15 kgf·cm}.
5
Connecting the TV
The following chart shows the high-definition (HD) and standard-definition (SD) video formats
supported by your BRAVIA TV inputs.
* For supported PC formats refer to the i-Manual.
Recommendation of the F type plug
Projection of the inner wire from the
connection part must be less than 1.5 mm.
1.5 mm
6
Shown with a Set Top Box with HDMI
connection
Shown with a Set Top Box with
COMPONENT connection
IN
ARC
1
Set Top Box
Cable System or VHF/UHF Antenna System
Set Top Box
VIDEO IN
Y
1
P
B
R
P
(MONO)
L
L
AUDIO
R
R
2
1
Setting up your TV
CABLE / ANTENNA
Cable
or
Antenna
(Continued)
7
Shown with HD BRAVIA® Sync™ Basic Connection
*Rear of TV
PC IN
CABLE / ANTENNA
AM
OPT IN
OPT IN
SAT
VIDEO 1
AC IN
VIDEO IN
COAX IN AUDIO IN
DVD
LAN
1
(MONO)
AUDIO
1
DVD INSAT IN VIDEO 2/BD IN OUT
L
RLR
AUDIO IN AUDIO IN
L
R
2
HDMI
OUT
IN
RGB
1
ARC
Y
P
B
AUDIO
P
R
PC/HDMI 1
AUDIO IN
L
L
AUDIO
R
R
FRONT R
COMPONENT
VIDEO OUT
VIDEO
OUT
Y
DIGITAL OUT
VIDEO
PCM/DTS/DOLBY DIGITAL
COAXIAL OPTICAL
B
B
/
P
C
R
/
R
P
C
S VIDEO
* Signifies a BRAVIA Sync capable device.
Side Panel
2
3
VIDEO
L
(MONO)
AUDIO
R
2
VIDEO IN
SAT (Dish)
*A/V Receiver
FRONT L SUR R SUR L CENTER SUBWOOFER
Cable/
Antenna
*BD Player
5.1CH OUTPUT
AUDIO
OUT
FRONT REAR CENTER
L
L
R
R
WOOFER
IN
HD Cable Box or
HD Satellite Receiver
Shown with HD Basic Connection with Home Theater System
Home Theater System
CABLE / ANTENNA
Cable/
Antenna
Rear of TV
LAN
VIDEO IN
1
(MONO)
L
AUDIO
R
2
1
Cable/SAT
(Dish)
PC IN
Side Panel
IN
RGB
1
ARC
Y
P
B
AUDIO
P
R
PC/HDMI 1
AUDIO IN
L
L
AUDIO
R
R
2
3
VIDEO
L
(MONO)
AUDIO
R
2
VIDEO IN
IN
or
SD Cable Box or
BD/DVD Player
SD Satellite Receiver
8
Shown with PC Connection with SD VCR/DVD
CABLE / ANTENNA
Splitter
Cable/Antenna
Rear of TV Notebook PC
PC IN
VIDEO IN
LAN
1
(MONO)
L
AUDIO
R
1
2
IN
RGB
1
ARC
Y
P
B
AUDIO
R
P
PC/HDMI 1
AUDIO IN
L
L
AUDIO
R
R
or
PC
DVDVCR
VCR/DVD Combo
Setting up your TV
9
Securing the TV
Sony strongly recommends
taking measures to prevent the
TV from toppling over.
Unsecured TVs may topple and
result in property damage,
serious bodily injury or even
death.
Preventing the TV from
Toppling
2 Secure the TV to the Stand
Use the optional hardware listed below (not
supplied):
• M4 × 16 machine screw (screwed into the
TV’s Table-Top Stand)
• A screw or similar (attach it to the Stand)
• Rope or chain (strong enough to support the
weight of the TV). Make sure that there is
no excess slack in the rope or chain.
An alternative way to secure the TV is with an
optional Sony Support Belt Kit.
M4 × 16
machine
screw (not
supplied)
• Secure the TV to a wall and/or stand.
• Do not allow children to play or climb on
furniture and TV sets.
• Avoid placing or hanging items on the TV.
• Never install the TV on:
– slippery, unstable and/or uneven surfaces.
– furniture that can easily be used as steps,
such as a chest of drawers.
• Install the TV where it cannot be pulled,
pushed, or knocked over.
• Route all AC power cords and connecting
cables so that they are not accessible to
curious children.
Recommended Measures to
Secure the TV
Consider the following measures when
securing your TV to a Stand (not supplied).
1 Secure the Stand for the TV
Make sure the Stand can adequately support
the weight of the TV. Use two angle braces
(not supplied) to secure the stand. For each
angle brace use the appropriate hardware to:
• Attach one side of the angle brace to the
wall stud.
• Attach the other side to the Stand.
Angle brace
(not supplied)
Rope or
chain (not
Screw hole on
the Table-Top
Stand
~
Contact Sony Customer Support to obtain the
optional Support Belt Kit by providing your TV
model name.
• For United States call: 1-800-488-7669 or visit:
www.sony.com/accessories
• For Canada call: 1-877-899-7669
supplied)
Screw
(not supplied)
3 Anchor the TV to the Wall
Anchor the TV to the wall by using bolts, wall
anchor and chain (or rope).
Anchor bolts (not supplied)
Wallmount
holes
Rope
or
chain
(not
supplied)
Wall-anchor
(not supplied)
10
Stand
~
• Securing the TV to the stand without securing
the TV and the stand to the wall provides
minimum protection against the TV toppling
over. For further protection, be sure to follow the
three measures recommended.
Organizing the AC power cord
Running initial setup
POWER
4 Select Continue to scan for available
channels and enable the
®
Screen
feature. If you receive channels
from a cable box or satellite receiver
and do not wish to use the TV’s built-in
tuner, select
Selecting
On Screen
Skip.
Skip will disable the TV Guide
feature, which is only
available when the TV’s tuner is used.
~
• If you skip the channel scan while in the setup
menus, TV Guide will be disabled.
Detaching the Table-Top Stand from the TV
Remove only the screws marked with on
the TV.
~
• Do not remove the Table-Top Stand for any
reason other than to install corresponding
accessories on the TV.
TV Guide On
Setting up your TV
1 Complete your cable connections
before proceeding with the Initial
Setup.
Connect the TV to your nearest power
outlet.
2 Press POWER on the TV.
When you switch the TV on for the first
time, the Language menu appears on
the screen.
3 Follow the instructions on the screen.
~
• Home mode sets the TV to settings optimized for
home viewing (this setting is ENERGY STAR
compliant).
11
Using a Wall-Mount Bracket
Your TV can be mounted on a wall using a
Wall-Mount Bracket (not supplied) out of the
box as packaged. If the Table-Top Stand is
attached to the TV, the TV may require
detaching the Table-Top Stand; see “Detaching
the Table-Top Stand from the TV” (page 11).
Prepare the TV for the Wall-Mount Bracket
before making cable connections.
For product protection and safety reasons,
Sony strongly recommends that you use the
Wall-Mount Bracket designed for your TV
and the installation should be performed by
a Sony dealer or licensed contractor.
• Follow the instruction guide provided with
the Wall-Mount Bracket for your model.
Sufficient expertise is required in installing
this TV, especially to determine the
strength of the wall for withstanding the
TV’s weight.
• Do not install the TV in an inclined
position. It is designed to be operated in a
vertical position only.
Eject and take out any disc from the built-in
BD player before installing the TV on a
wall.
8-12 mm
Screw
(supplied with the
Wall-mount bracket)
Mounting Hook
Hook attachment on rear of TV
set
• Be sure to store the unused screws and
Table-Top Stand in a safe place until you
are ready to attach the Table-Top Stand.
Keep the screws away from small children.
~
• Read the supplied Safety Booklet for additional
safety information.
• Be sure to use the screws supplied with the
Wall-mount bracket when attaching the
mounting hooks to the TV set.
The supplied screws are designed so that
they are 8 mm to 12 mm in length when
measured from the attaching surface of the
mounting hook.
The diameter and length of the screws differ
depending on the Wall-mount bracket
model. Use of screws other than those
supplied may result in internal damage to
the TV set or cause it to fall, etc.
12

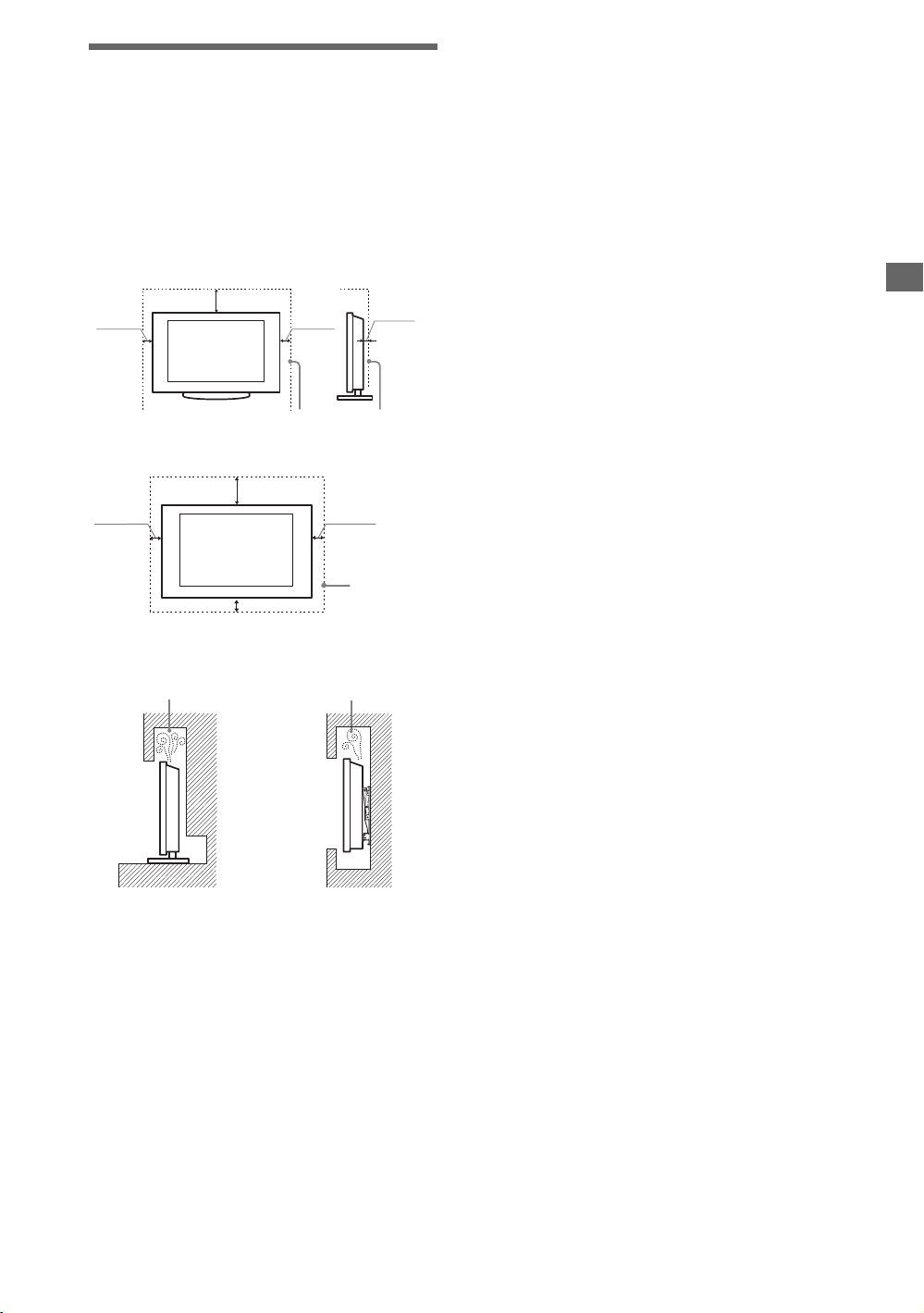

Installing the TV Against a Wall or Enclosed Area
Make sure that your TV has adequate
ventilation. Allow enough space around the
TV as shown below. Operate the TV at
temperatures between 41°F and 95°F (5°C and
35°C).
Installed with stand
7
/
inches
11
8
4 inches
(10 cm)
(30 cm)
4 inches
(10 cm)
Leave at least this much space around the set.
Installed on the wall
7
11
inches
/
8
(30 cm)
4 inches
(10 cm)
4 inches (10 cm)
inches
4 inches
(10 cm)
Leave at
least this
much space
around the
set.
2
3
/
8
(6 cm)
Setting up your TV
Never install the TV set as follows:
Air circulation is blocked.
Wall Wall
~
• Inadequate ventilation can lead to overheating of
the TV and may cause damage to your TV or
cause a fire.
Air circulation is blocked.
13

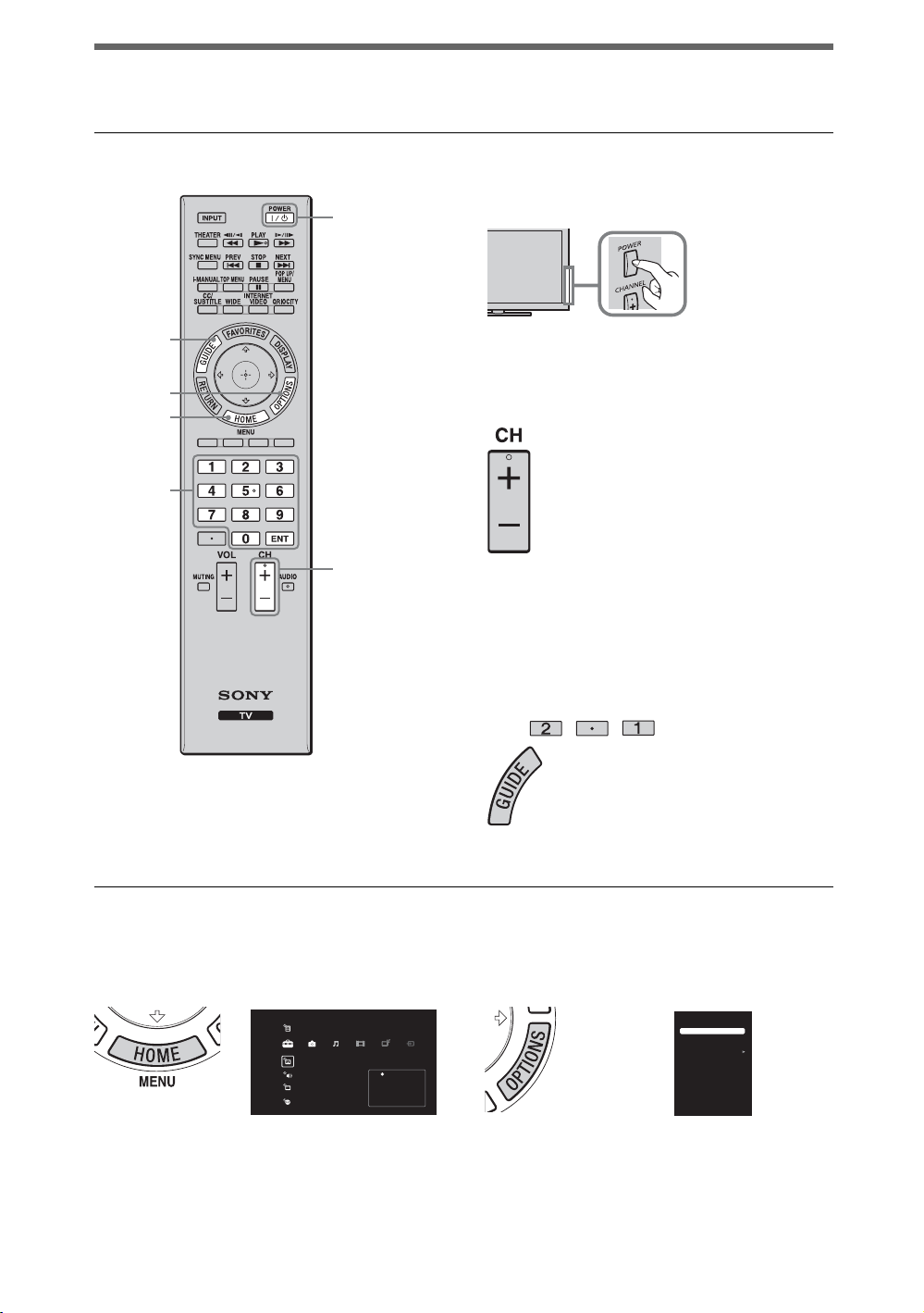

To watch TV
To watch programs
1
Turn on the TV.
1
GUIDE
OPTIONS
HOME
0-9
ENT
2
Press POWER on the TV or on the
remote control to turn on the TV.
Select a TV channel.
2
To use the Guide
Press GUIDE to display the TV Guide On
Screen to view scheduled programs or to
select a program to watch. Press again to exit
the Guide. Use with 0-9 and ENT to select
digital channels. For example, to enter 2.1,
press , , and ENT.
To use the TV features
Press HOME to display TV Home Menu/
XMB
to access TV Settings and other
™
media and network related content.
Settings
Picture & Display
Adjust the picture and screen settings
Press for:
Picture Adjustments
Ambient Sensor
Screen
Pro Picture Setup
14
Press
OPTIONS
to display a list of convenient
functions and menu shortcuts. The Options menu
items vary based on current input and/or content.
Picture Adjustments
Sound Adjustments
Add to Favorites
Speakers
To use i-Manual
1
2
Your BRAVIA TV comes with an on-screen
manual. To learn more about your TVs features
you can access your i-Manual with the touch of a
button.
Press i-MANUAL.
1
Press F/f/G/g/ to navigate and
2
select items.
i-Manual
Welcome to i-Manual
"BRAVIA" TV Features
Watching TV
Playing a Disc
Using the Home Menu
Fun Features with Connected Equipment
Parts Description
Troubleshooting
Index
To watch TV
x Welcome to i-Manual
x “BRAVIA” TV Features
x Fun Features with Connected
Equipment
Introduces how to connect and enjoy optional
x Watching TV
Introduces convenient features such as TV
Guide, Favorites, etc.
x Playing a Disc
equipment.
x Parts Description
x Troubleshooting
You can find solutions for your problems.
x Using the Home Menu
You can find how to customize your TV
x Index
settings, etc.
~
• Images and illustrations may differ from what you are watching on this TV.
RETURN
Back
15
Playing a disc
Playback
The Playback feature allows you to play a
desired disc by simply inserting it into the disc
slot.
1 Insert a disc into the slot with the
playback side facing away from you.
2 For a video disc, playback starts
automatically.
For a music or photo disc, select
from the Music or Photo category in
the “XMB” and press .
~
• If playback does not start automatically, select
from the Video category in the “XMB” and press
.
16
Additional Information
Troubleshooting
The TV will indicate any problems with the STANDBY indicator flashing in red.
When the STANDBY indicator is flashing
The self-diagnosis function is activated.
1 Count how many times the STANDBY indicator flashes between each three second
break.
For example, the indicator may flash three times, go off for three seconds, then flash again three
times.
2 Press POWER on the TV to turn it off, disconnect the AC power cord, and contact
Sony Customer Support (information provided on the front cover) with how many times
the indicator flashes.
When the STANDBY indicator is not flashing
1 Check the items in the tables below. (Also refer to “Troubleshooting” in the i-Manual.)
2 If the problem persists, contact Sony Customer Support (information provided on the
front cover).
Additional Information
Condition Explanation/Solution
There is no picture (screen
is dark) and no sound.
Tiny black dots and/or
bright dots appear on the
screen.
General
The TV turns off
automatically (the TV
enters standby mode).
The remote does not
function.
The Parental Lock/
Parental Control
Settings password has
been forgotten.
Sound is heard when
turning on the TV or
inserting a disc into the
built-in BD player.
• Check the antenna/cable connection.
• Connect the TV to the AC power, and press POWER on the TV.
• If the STANDBY indicator lights up in red, press POWER on the
remote control.
• The screen is composed of pixels. Tiny black dots and/or bright
dots (pixels) on the screen do not indicate a malfunction.
• Check if the Sleep Timer, Timer, or Idle TV Standby is
activated.
• The Auto Shut-off function may be set to On. If Auto
Shut-off is activated and TV receives no signal, the TV will
automatically enter standby mode in 15 minutes. Check Auto
Shut-off is activated under Eco feature of this TV.
• Replace the batteries.
• Your TV may be in SYNC mode. Press SYNC MENU, select TV
Control and then select Home (Menu) or Options to control
the TV.
• Enter 4357 for the PIN code after selecting Password in
Parental Lock of Preferences in the Settings menu. (PIN
code 4357 is always accepted.)
• It is a sound of the built-in BD player working and not a
malfunction.
17
How to Care for Your BRAVIA
Safety is very important, please read and follow the safety documentation (Safety Booklet)
separately provided.
Unplug the TV and other connected equipment from the wall
outlet before you begin cleaning your TV.
• Wipe the LCD screen gently with a soft cloth.
• Stubborn stains may be removed with a cloth slightly moistened with a
solution of mild soap and warm water.
• If using a chemically pretreated cloth, please follow the instruction
provided on the package.
• Never use strong solvents such as a thinner, alcohol or benzine for cleaning.
• Do not plug in the TV into the wall outlet until the moisture from cleaning has evaporated.
The TV should also be placed on a stable surface to prevent it from toppling over (see page 10).
If you have young children or pets at home, check regularly to insure the TV is securely fastened.
18
Specifications
Model name KDL- 40EX40B 32EX40B
System
Television system NTSC: American TV standard
Channel coverage Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69
Panel system LCD (Liquid Crystal Display) Panel
Speaker output 10 W + 10 W
Input/Output jacks
CABLE/ANTENNA 75-ohm external terminal for RF inputs
VIDEO IN 1/2 VIDEO / AUDIO
COMPONENT IN 1/2 YP
HDMI IN 1/2/3 HDMI: Video: 480i, 480p, 720p, 1080i, 1080p, 1080/24p
AUDIO OUT 500 mVrms (typical)
DIGITAL AUDIO OUT
(OPTICAL)
PC IN D-sub 15-pin, analog RGB
PC/HDMI 1 AUDIO INPUT Stereo mini jack
LAN
USB/DLNA Refer to the i-Manual for supported format.
EXT External memory slot (For connecting the USB memory)
Power and others
Power requirement 110 V - 240 V AC, 50/60 Hz (U.S.A./Canada 120 V AC, 60 Hz)
Power consumption
in use
2
in DAM*
in standby Less than 0.12 W Less than 0.12 W
Laser Type: Semiconductor, continuous
Screen size
(inches measured diagonally)
Display resolution
Speaker
Full range with speaker (mm)
Dimensions with stand (mm)
Mass with stand (kg)/(lb.) 18.0/39.7 13.2/29.1
Supplied accessories
Optional accessories Connecting cables / Support Belt Kit / Wall-Mount Bracket / USB Wireless LAN Adapter (UWA-BR100)
*1 For LAN connections, use a Category 7 10BASE-T/100BASE-TX cable (not supplied).
*2 Download Acquisition Mode (DAM) is used for software updates and/or collecting data for TV Guide On Screen.
• Optional accessories availability depends on its stock.
• Design and specifications are subject to change without notice.
box (2) (inches)
without stand (mm)
wall-mount hole pattern (mm)
wall-mount screw size (mm)
without stand (kg)/(lb.) 15.1/33.3 11.2/24.7
ATSC (8VSB terrestrial): ATSC compliant 8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)
Analog Cable: 1 - 135 / Digital Cable: 1 - 135
BPR (Component Video) / Signal format: 480i, 480p, 720p, 1080i, 1080p / AUDIO
HDMI: Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital
AUDIO (HDMI IN 1)
PCM/Dolby Digital/DTS Digital
10BASE-T/100BASE-TX connector (Connection speed may differ depending on the network environment.
10BASE-T/100BASE-TX communication rate and communication quality are not guaranteed for this TV.)*
DC output: 5 V 500 mA Max
176 W 128 W
13 W 13 W
(You may hear a clicking noise during the download but this is normal.)
BD Wavelength: 400 - 410 nm
Power: Max 20 mW
DVD Wavelength: 650 - 663 nm
Power: Max 7 mW
CD Wavelength: 770 - 800 nm
Power: Max 7 mW
40 inches 31.5 inches (32 class)
1,920 dots (horizontal) × 1,080 lines (vertical)
45 × 160
13
1
/16 × 5 1/8
992 × 636 × 280
(inches)
39 1/8 × 25 1/8 × 11 1/
992 × 598 × 116
(inches)
39 1/8 × 23 5/8 × 4 5/
300 × 300 200 × 200
See “Checking the accessories” (page 4).
8
8
(length: refer to diagram on page 12.)
45 × 160
13
1
/16 × 5 1/8
800 × 534 × 250
31 1/2 × 21 1/8 × 9 7/
800 × 497 × 113
31 1/2 × 19 5/8 × 4 1/
M6
8
2
Additional Information
1
19
Declaration of Conformity
Trade Name: SONY
Model: KDL-40EX40B/KDL-32EX40B
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
For customers in Canada
This Class B digital apparatus complies with Canadian
ICES-003.
FCC Related Information
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one
or more of the following measures:
❑ Reorient or relocate the receiving antenna.
❑ Increase the separation between the equipment and
receiver.
❑ Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
❑ Consult the dealer or an experienced radio/TV
technician for help.
Pursuant to FCC regulations, you are cautioned that any
changes or modifications not expressly approved in this
manual could void your authority to operate this
equipment.
Compatible Wall-Mount Bracket Information
Use the following Sony Wall-Mount Bracket with
your TV model.
Sony TV Model No.
KDL-40EX40B KDL-32EX40B
Sony Wall-Mount
Bracket Model No.
Use with other Wall-Mount Brackets may cause instability
and could result in property damages or injury.
SU-WL500
To Customers
Sufficient expertise is required for TV installations. Be
sure to subcontract the installation to a Sony dealer or
licensed contractor and pay adequate attention to safety
during the installation.
For Customers in the United States
Lamp in this product contains mercury.
Disposal of these materials may be regulated
due to environmental considerations. For
disposal or recycling information, please
contact your local authorities or the Electronic
Industries Alliance (www.eiae.org).
Note
This television includes a QAM demodulator which should
allow you to receive unscrambled digital cable television
programming via subscription service to a cable service
provider. Availability of digital cable television
programming in your area depends on the type of
programming and signal provided by your cable service
provider.
20
Safety information about built-in BD player
• The use of optical instruments with this
product will increase eye hazard. As the
laser beam used in this built-in BD player is
harmful to eyes, do not attempt to
disassemble the cabinet.
Refer servicing to qualified personnel only.
– A disc that has cellophane tape or sticker
adhesive on it.
• Do not resurface the playing side of a disc
to remove surface scratches.
• When ejecting a disc from the built-in BD
player by pressing Z on the TV, be sure to
take out the disc from the disc slot. Do not
leave the disc in the disc slot.
• Eject and take out the disc from the disc slot
and turn off the TV when not using the TV.
• Do not expose the disc to direct sunlight or
heat sources such as hot air ducts, or leave it
in a car parked in direct sunlight as the
temperature may rise considerably inside
the car.
• After playing, store the disc in its case.
• Clean the disc with a cleaning cloth. Wipe
the disc from the center out.
Additional Information
This label is located on the laser protective
housing inside the enclosure.
This appliance is classified as a CLASS 1
LASER product. The CLASS 1 LASER
PRODUCT MARKING is located on the
laser protective housing inside the
enclosure.
• To keep the disc clean, handle the disc by
its edge. Do not touch the surface. Dust,
fingerprints, or scratches on the disc may
cause it to malfunction.
• Do not use the following discs.
– A lens cleaning disc.
– A disc that has a nonstandard shape (e.g.,
card, heart).
– A disc with a label or sticker on it.
• Do not use solvents such as benzine,
thinner, commercially available disc/lens
cleaners, or anti-static spray intended for
vinyl LPs.
• If you have printed the disc’s label, dry the
label before playing.
• Do not force a disc into the disc slot. When
there is already a disc inside the built-in BD
player, trying to insert another disc may
cause malfunction.
• Sound may jump or picture distortion may
occur if a lens is dirty with dust. For repair,
contact Sony Customer Support
(information provided on the front cover).
21
Precautions about built-in BD player
• The TV has a region code located on the
rear of the unit.
• Do not use cleaning discs or disc/lens
cleaners (including wet or spray types).
These may cause the apparatus to
malfunction.
• When ejecting a disc, the disc may hit
objects and cause damage or injury. Keep
an open space around the disc slot.
• Take out any discs from the built-in BD
player when you move the TV. If you don’t,
the disc may be damaged. Eject and take
out the disc before moving the TV.
• Do not pull out the AC power cord while
the built-in BD player is playing.
• Be sure small children do not put hands into
the disc slot. It may cause injury.
22
Online
Registration:
Software
Updates:
For Your Convenience
Be sure to register your TV.
United States
Canada
Your TV is capable of receiving software updates. For the
latest information about software updates for your TV, visit:
United States
Canada
NOTE: If your TV is connected to the Internet, you can check
for software updates by selecting Settings, Product
Support and then Automatic Software Update.
http://productregistration.sony.com
http://www.SonyStyle.ca/registration
http://www.sony.com/tvsupport
http://www.sony.ca/support
© 2010 Sony Corporation
Printed in U.S.A.
Loading...
