Sony KD-65X9350D Users guide

Television
Reference Guide
KD-65X9350D / 55X9350D
Table of Contents
Safety Information . . . . . . . . . . . . . . . . . . . . .2
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Controls and Indicators . . . . . . . . . . . . . . . . . 6
Inputs and Outputs . . . . . . . . . . . . . . . . . . . . 7
Using Remote Control . . . . . . . . . . . . . . . . 9
Remote Control Parts Description. . . . . . . . .9
Attaching the Table-Top Stand
(Alternative) . . . . . . . . . . . . . . . . . . . . . . . .11
Connecting the TV . . . . . . . . . . . . . . . . . . 12
Installing the TV to the Wall . . . . . . . . . . 16
SU-WL450 (KD-65/55X9350D). . . . . . . . . . . 17
Troubleshooting. . . . . . . . . . . . . . . . . . . . 21
Troubles and Solutions . . . . . . . . . . . . . . . . 21
Specifications . . . . . . . . . . . . . . . . . . . . . . 22
Introduction
Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain i t for future reference.
Note
• Before operating the TV, please read “Safety Information” (page 2).
• Instructions about “Installing the TV to the Wall” are included within this TV’s instructions manual.
• Images and illustrations used in Startup Guide and this manual are for referenc e only and may differ from actual product appearance.
Help Guide
Help Guide explains the information on how to use the TV's features. To display Help Guide on the TV, press HELP on the remote c ontrol and se lect [ Help G uide] .
Location of the identification label
Labels for the Model No. and Power Supply rating are located on the rear of the TV.

Safety Information

WARNING
Batteries must not be exposed to excessive heat such as sunshine, fire or the like. Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: Using cabinets or stands recommended by the manufacturer of
the television set.
Only using furniture that can safely support the television set.Ensuring the television set is not overhanging the edge of the
supporting furniture.
Not placing the television set on tall furniture (for example,
cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
Not placing the television set on cloth or other materials that
may be located between the television set and supporting furniture.
Educating children about the dangers of climbing on furniture
to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied.
Installation/Set-up
Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.
Installation
• The TV set should be installed near an easily accessible AC
power outlet (mains socket).
• Place the TV set on a stable, level surface to avoid it from falling
down and cause personal injury or damage to the TV.
• Install the TV where it cannot be pulled, pushed, or knocked
over.
GB
2
• Install the TV so that the TV's Table-Top Stand does not
Screw (M6)
Wall-Mount Bracket
8 mm - 12 mm
30 cm
10 cm
10 cm
10 cm
Leave at least this space around the set.
30 cm
10 cm
10 cm
Leave at least this space around the set.
6 cm
Air circulation is blocked.
Wall Wall
protrudes out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.
• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including: Wall-Mount Bracket SU-WL450 (KD-65/55X9350D)
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.
Tran spo rti ng
• Before transporting the TV set, disconnect all cables.
• Two or three people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.
KD-65/55X9350D
• When transporting the TV set, do not subject it to jolts or excessive v ibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.
Ventilation
• Never cover the ventilation holes or insert anything in the cabinet.
• Leave space around the TV set as shown below.
• It is strongly recommende d that you use a Sony Wall-Mount Bracket in order to provide adequate air circulation.
Installed on the wall
Installed with stand
• To ensure proper ventilation and prevent the collection of dirt or dust: Do not lay the TV set flat, install upside down, backwards, or
sideways.
Do not place the TV set on a shelf, rug, bed or in a closet.Do not cover the TV set with a cloth, such as curtains, or items
such as newspapers, etc.
Do not install the TV set as shown below.
AC power cord (mains lead)
Handle the AC power cord (mains lead) and outlet (mains socket) as follows in order to avoid any risk of fire, electric shock or damage and/or injuries:
Insert the plug fully into the AC power outlet (mains socket).Operate the TV set on a 110–240 V AC supply only.When wiring cables, be sure to unplug the AC power cord
(mains lead) for your safety and take care not to catch your feet on the cables.
Disconnect the AC power cord (mains lead) from the AC power
outlet (mains socket) before working on or moving the TV set.
Keep the AC power cord (mains lead) away from heat sources.Unplug the AC power plug (mains plug) and clean it regularly. If
the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.
Note
• Do not pinch, bend, or twist the AC power cord (mains lead) excessively. The core conductors may be exposed or broken.
• Do not modify the AC power cord (mains lead).
• Do not put anything heavy on the AC power cord (mains lead).
• Do not pull on the AC power cord (mains lead) itself when disconnecting the AC power cord (mains lead).
• Do not connect too many appliances to the same AC power outlet (mains socket).
• Do not use a poor fitting AC power outlet (mains socket).
3
GB
GB
Prohibited Usage
Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electric shock, damage and/or injuries.
Location:
• Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.
• If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.
• For best picture quality, do not expose the screen to direct illumination or sunlight.
• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor colour. Should this occur, allow moisture to evaporate completely before powering the TV on.
Environment:
Places that are hot, humid, or excessively dusty; where insects
may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.
Do not place the TV in a humid or
dusty space, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric shock, or warping may result.
Do not install the TV in places subject to extreme temperature,
such as in direct sunlight, near a radiator or a heating vent. The TV may overheat in such conditions which can cause deformation of the enclosure and/or TV malfunction.
Situation:
• Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from AC power outlet (mains socket) and antenna (aerial) during lightning storms.
• Do not install the TV so that it sticks out into an open space. Injury or damage from a person or object bumping into the TV may result.
Broken pieces:
• Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.
• If the surface of the TV set cracks, do not touch it until you have unplugged the AC power cord (mains lead). Otherwise electric shock may result.
When not in use
• If you will not be using the TV set for several days, the TV set should be disconnected from the AC power (mains) for environmental and safety reasons.
• As the TV set is not disconnected from the AC power (mains) when the TV set is just turned off, pull the plug from the AC power outlet (mains socket) to disconnect the TV set completely.
• However, some TV sets may have features that require the TV set to be left in standby to work correctly.
For children
• Do not allow children to climb on the TV set.
• Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.
If the following problems occur...
Turn o ff the TV set and unplug the AC power cord (mains lead) immediately if any of the following problems occur. Ask your dealer or Sony service centre to have it checked by qualified service personnel.
When:
AC power cord (mains lead) is damaged.Poor fitting of AC power outlet (mains socket).TV set is damaged by being dropped, hit or having something
thrown at it.
Any liquid or solid object falls through openings in the cabinet.
About LCD Monitor Temperature
When the LCD Monitor is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand.

Precautions

Viewing the TV
• View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.
• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.
• Some people may experience discomfort (such as eye strain, fatigue, or nausea) while watching 3D video images or playing stereoscopic 3D games. Sony recommends that all viewers take regular breaks while watching 3D video images or playing stereoscopic 3D games. The length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video images or playing stereoscopic 3D games until the discomfort ends; consult a doctor if you believe necessary. You should also review (i) the instruction manual of any other device or media used with this television and (ii) our website (http://www.sony-asia.com/support) for the latest information. The vision of young children (especially those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video images or play stereoscopic 3D games. Adults should supervise young children to ensure they follow the recommendations listed above.
• Do not use, store, or leave the 3D Glasses or battery near a fire, or in places with a high temp erature, e.g., in direct sunlight, or in sun-heated cars.
LCD Screen
• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.
• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.
• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.
• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.
• The LCD screen contains a small amount of liquid crystal. Follow your local ordinances and regulations for disposal.
GB
4
Handling and cleaning the screen surface/ cabinet of the TV set
Be sure to unplug the AC power cord (mains lead) connected to the TV set from AC power outlet (mains socket) before cleaning. To avoid material degradation or screen coating degradation, observe the following precautions.
• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.
• Never spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set.
• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.
• Periodic vacuuming of the ventilation openings is recommended to ensure to proper ventilation.
• When adjusting the angle of the TV set, move it slowly so as to prevent the TV set from moving or slipping off from its table stand.
Optional Equipment
Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.
Wireless Function of the unit
• Do not operate this unit near medical equipment (pacemaker, etc.), as malfunction of the medical equipment may result.
• Although this unit transmits/receives scrambled signals, be careful of unauthorised interception. We cannot be responsible for any trouble as a result.
Caution about handling the remote control
• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.
• Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind onto it.
• Do not place the remote control in a location near a heat source, a place subject to direct sunlight, or a damp room.
Disposal of the TV set
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)
Disposal of the TV set
Disposal of Old Electrical & Electronic Equipment (Applicable in Republic of India)
This symbol indicates that this product shall not be treated as household waste and may not be dropped in garbage bins. Product owners are advised to deposit their product at the nearest collection point for the recycling of
operation shall facilitate proper disposal & help prevent potential negative consequences/hazards to the environment and human health, which could otherwise be caused by inappropriate waste disposal including improper handling, accidental breakage, damage and/or improper recycling of e-waste. The recycling of materials will help to conserv e natural resources. For more detailed information about recycling of this product, please contact your local civic office, your household waste disposal service provider or the store where you made the purchase. You may contact our company’s toll free number in India for assistance.
This product complies with the “India E-waste Rule 2011”. The E-waste Rules, 2011 is an Indian directive aimed at reducing the harmful environmental impact of waste electrical equipment by restricting the use of known hazardous substances. As of 1st May 2012, new electrical and electronic equipment introduced into the market may no longer contain the following chemicals or its specified maximum concentration levels: Lead, Mercury, Hexavalent Chromium, Polybrominated Biphenyls (PBB) or Polybrominated Diphenylethers (PBDE) - in concentrations exceeding 0.1 weight % and Cadmium - 0.01 weight %, except of exemptions set in Schedule 2 of the aforesaid Rule.
electrical and electroni c equipment. Your co-
GB
GB
5

Parts and Controls

Controls and Indicators

Remote Control sensor* /
Light sensor*
/ Illumination LED /
3D Sync Transmitter*
The illumination LED lights up or blinks according to the status of the TV.
•White When turning on the TV/picture off mode/software update, etc.
•Cyan When connecting with a mobile device wirelessly.
•Amber Timer is set.
 (Power)
CH +/- (Channel)
 +/- (Volume)
 (Input select)
Display and select the input source.
GB
6
TV
Switch to a TV channel or input from other applications.
* Do not place anything near the sensor.

Inputs and Outputs

KD-65X9350D
KD-55X9350D
GB
GB
7
 LAN
HDMI 3 AUDIO IN
For HDMI 3 analogue audio connection.
DIGITAL AUDIO OUT (OPTICAL)
 VIDEO IN 2, / COMPONENT IN
• For a composite connection: Use VIDEO IN 2, and (L/R) of / COMPONENT IN*1.
• For a component connection: Use Y, PB, PR, and (L/R).
(USB 1/2), (USB 3)
• Connecting a large USB device may interfere with other connected devices beside it.
• When connecting a large USB device, connect to the USB 1 jack.
AUDIO OUT*2 /
To listen to the TV's sound through the connected equipment, press HOME. Select [Settings] [Sound] [Headphone/Audio out] and then select the desired item.
HDMI IN 1/3/4
• If the device has a DVI jack, connect it to HDMI IN 3 through a DVI - HDMI adaptor interface (not supplied), and connect the device's audio out jack to HDMI 3 AUDIO IN.
• If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technology, use HDMI IN 4. If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.
HDMI IN 2/MHL
You can connect your MHL (Mobile High­definition Link) device using an HD quality MHL cable.
/ VIDEO IN 1
For a composite connection, use the supplied Analogue Extension Cable*1.
 CABLE/ANTENNA
Connect to your cable or antenna (aerial).
*1 When connecting mono equipment, connect to the
L(MONO) audio jack.
*2 Supports 3-pole stereo mini jack only.
GB
8

Using Remote Control

Ȫ
ȩ
ȫ
Ȭ
ȭ
Ȯ
MIC

Remote Control Parts Description

GB
/ (Input select/Text hold)
In TV mode: Display and select the input source. In Text mode: Hold the current page.
(Microphone)
Use Voice Function. (e.g., Search various content by voice.)
(TV standby)
Turn on or turn off the TV (standby mode).
DIGITAL/ANALOG
Switch between digital and analogue mode.
EXIT
Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.
Number buttons
/ (Info/Text reveal)
Display information.
(Text)
Display text information.
GB
9
Colour buttons
Execute correspondent function at that time.
Google Play
Access the "Google Play" online service.
NETFLIX
Access the “NETFLIX” online service.
ACTION MENU
Display a list of contextual functions.
TV
Switch to a TV channel or input from other applications.
GUIDE/
Display the digital programme guide.
BACK
Return to previous screen.
HOME
Display the TV Home Menu.
DISCOVER
Bring up the Content Bar to search for content.
//// (Item select/Enter)
 +/– (Volume)
Adjust the volume.
(Jump)
Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.
(Muting)
Mute the sound. Press again to restore the sound.
PROG +/–//
In TV mode: Select the channel. In Text mode: Select the next () or previous () page.
AUDIO
Change the language for the programme currently being viewed.
(Subtitle setting)
Turn subtitles on or off (when the feature is available).
HELP
Display Help Menu.
(Wide mode)
Change the screen format.
//////
Operate media contents on TV and connected BRAVIA Sync-compatible device.
SYNC MENU
Display the BRAVIA Sync Menu.
10
GB
Attaching the Table-Top Stand
Middle position
Thick cushion
1.5 N∙m {15 kgf∙cm}
IR Sensor
3D Sync Trans mit ter
*1
*2
(Alternative)
You can change the Table-Top Stand from the edge to the middle position by referring to the instructions below.
2
GB
Note
• Two or more people are needed to carry out this installation.
• Be careful not to pinch the finger during installation.
1
Note
• Two or more people are needed to carry out this installation.
• Ensure that there are no objects in front of the TV.

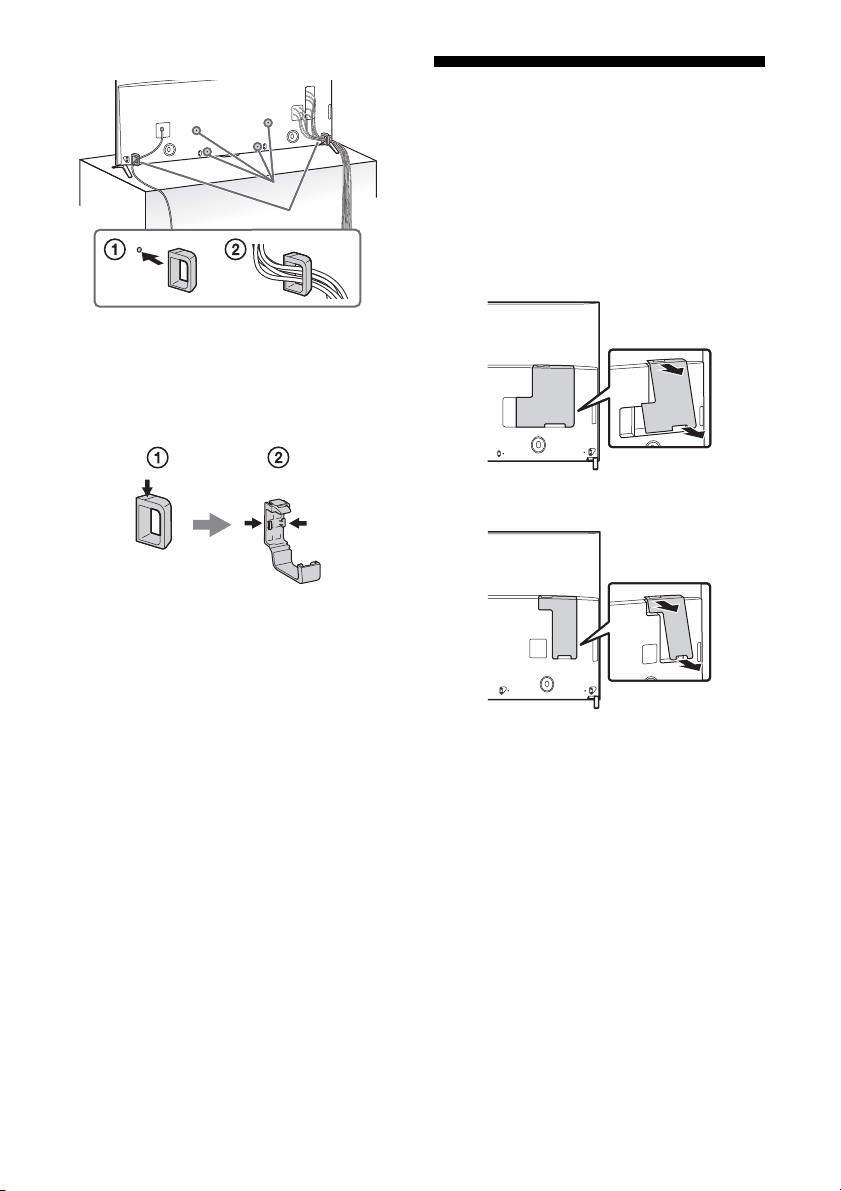

To bundle the cables
KD-65X9350D
GB
11
KD-55X9350D
*1
*2
*1 Location of cable clamper when the Table-Top Stand
is attached to middle position.
*2 Location of cable clamper when the Table-Top Stand
is attached to edge position.
Note
• To detach the cable clamper from the TV, press the
top of the clamper , then pinch as illustrated.

Connecting the TV

Note
• To select an input device connected to the TV, press
.
To detach the terminal cov e r
The terminal cover is factory-attached to the TV. Before connecting cables, remove the terminal cover.
KD-65X9350D
KD-55X9350D
Note
• After connecting all cables, re-attach the terminal cover to the TV.
GB
12
To connect with an HDMI cable
To H DMI O UT
< 12 mm
< 21 mm
To H D M I OUT
< 12 mm
< 21 mm
To C OMPO N ENT OUT (P
R/PB/Y)
To A U DIO OUT
KD-65X9350D
KD-55X9350D
To connect with component cables
GB
GB
13
To connect with Analogue Extension
To VIDEO OUT
To VIDEO OUT
Use authorized MHL CABLE
with MHL logo
(not supplied)
MHL device
Use authorized MHL CABLE
with MHL logo
(not supplied)
MHL device
Cable
KD-65X9350D
To connect MHL device
KD-65X9350D
KD-55X9350D
14
GB
KD-55X9350D
The TV simultaneously charges the MHL-
Picture Quality
• AV composite cable
• Antenna (aerial) cable
Standard definition (SD) videos have picture signals with a vertical resolution of 480 (NTSC) or 576 (PAL/SECAM) lines.
•Component cable •HDMI cable
High definition (HD) videos have picture signals with a vertical resolution of 720 or 1,080 lines. (For 4K vertical resolution: 2,160 lines)
compatible connected device while playing photo/music/video files. You can use the TV remote control to control the connected MHL­compatible device.
Note
• If [MHL charging during standby] is set to [On], you can continue charging the MHL-compatible device even when the TV is in standby mode.
• Use authorized MHL 3 CABLE with MHL logo for 4K smartphone or mobile devices.
GB
GB
15

Installing the TV to the Wall

KD-55X9350D
KD-65X9350D
Standard mounting
Super Slim (60) mounting
* Be sure to keep this screw.
This screw is necessary when attaching the Attachment parts for Wall­Mount Bracket.
*
This TV’s instruction manual only shows the steps on preparing the installation of the TV before installing to the wall.
To Customers:
For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the installation, periodic maintenance and examination of this product.
Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.
Use the Wall-Mount Bracket SU-WL450 (not supplied) (KD-65/55X9350D) to install the TV to the wall.
When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.
Note
• Be sure to store the removed screws in a safe place, keeping them away from children.
To remove the screws from the rear of the TV
GB
16

SU-WL450 (KD-65/55X9350D)

Screen centre point
Standard mounting
Slim mounting (KD­55X9350D)
Super Slim (60) mounting (KD­65X9350D)
1 Make sure that the wall has enough space for the TV and is capable of supporting a
weight of at least four times that of the TV. Refer to the following table on installing the TV to the wall. See page 22 (Specifications) for the TV’s weight.
Model Name
KD-
Display dimensions
Scree n centre
dimension
Length for mounting
GB
Unit: mm
65X9350D
(Standard mounting)
65X9350D
(Super Slim (60)
mounting)
55X9350D
(Standard mounting)
55X9350D
(Slim mounting)
Note
• Figures in the table may differ slightly depending on the installation.
• When your TV is installed on the wall, the upper side of the TV slightly leans forward.
1,706 871
1,484 744 149 528
71 513 153
251 693 103
153
111
GB
17
2 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by
Screw (+PSW 6 x 20)
Pulley
Screw (+PSW 6 x 50)
Belt
Spacer (60 mm)
Wall-Mount Attachment (supplied with the TV)
referring to “1” of the Wall-Mount Bracket Installation Guide.
Note
• Be sure to fasten the Wall-Mount Attachment when attaching them to the TV. Use only a flat head screwdriver to install the Wall-Mount Attachment. Use of another tool might result in over torqueing the Wall-Mount Attachment and damaging the TV.
• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.
• Be sure to store the unused parts in a safe place for future use. Retain this manual for future reference.
Standard mounting
Slim mounting (KD-55X9350D), Super Slim (60) mounting (KD-65X9350D)
Note
• You cannot use some of the terminals on the rear of the TV when using this mounting style. Connect the Analogue Extension Cable if you need to use the / VIDEO IN 1 jack.
18
GB
Slim mounting (KD-55X9350D)
Screw (+PSW 6 x 20)
Pulley
Screw (+PSW 6 x 20)
Belt
Spacer (20 mm)
Wall-Mount Attachment (supplied with the TV)
Screw (+PSW 6 x 20)
Pulley
*
Belt
Spacer
Super Slim (60) mounting (KD-65X9350D)
*Attach Belt F with the removed screw (see page 16) using the top hole on the Belt.
GB
3 Connect necessary cables to the TV.
Note
• You cannot access to any terminal after installing the TV to the wall.
GB
19
4 Detach the Table-Top Stand from the TV.
a b c d
Screws (PSW4x10) J
Base (20)
Base Adaptor
5 Install the TV to the Base. Refer to “5” of Installation Guide and “Installing the TV to the
Wall” of Operating Instructions supplied with the Wall-Mount Bracket.
Model Name KD- Hook location
65X9350D (*) a
55X9350D b
* When you select Super Slim (60) mounting, attach the Base Adaptor  (supplied with the Wall-Mount Bracket) to Base (20) (supplied with the Wall-Mount Bracket) (KD-65X9350D only).
Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.
20
GB

Troubleshooting

Rear of TV
In order to keep your TV software up-to-date, it is necessary to download the latest software information via the digital broadcasting system or internet and to update the software. Select [Update Now] to start a software update. The illumination LED flashes white while the software is updating. Do not unplug the AC power cord during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 30 minutes. If you do not wish to update the software automatically, press HOME and select [Help] [System software update] [Automatic software download] [Off].
When you plug in TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV, because it takes time to initialize the system. Wait for about one minute, then operate it again. When you turn on by pressing the power button on the remote control or the TV, it takes some time to turn on the illumination LED and for the remote control to be functional.
When the illumination LED is flashing in red, count how many times it flashes (interval time is three seconds).
If the illumination LED flashes red, reset the TV by disconnecting the mains lead for two minutes, then turn on the TV. If the problem persists, contact your dealer or Sony service centre with the number of times the illumination LED flashes red (interval time is three seconds). Disconnect the mains lead, and inform your dealer or Sony service centre.
When the illumination LED is not flashing, check the items as follows.
You can also refer to [Troubleshooting] in the Help Guide or perform self-diagnosis by selecting [Help] [Self diagnostics]. If the problem persists, have your TV serviced by qualified service personnel.

Troubles and Solutions

There is no picture (screen is dark) and no sound.
Check the antenna (aerial)/cable connection.Connect the TV to the AC power (mains), and
press on the TV or remote control.
Some programmes cannot be tuned.
Check the antenna (aerial)/cable connection.
The remote control does not function.
Replace the batteries.
The [Parental lock] password has been forgotten.
Enter 9999 for the PIN code. (PIN code 9999 is
always accepted.)
The TV surrounds become warm.
When the TV is used for an extended period, the
TV surrounds become warm. You may feel hot when touching there by the hand.
Frozen audio or video, a blank screen, or the TV does not respond to TV or remote control buttons.
Perform a simple reset of the TV by unplugging
the AC power cord (mains lead) for two minutes, then plug it in again.
The , CH+/–, +/–, and TV buttons cannot be located on the TV.
See below illustration for location of the buttons
on the TV.
GB
GB
21
The illumination LED is turned on.
If you do not wish to light up the illumination LED,
you can turn it off. Press HOME, then select [Illumination LED] t [Off].
[Settings] t
Cannot connect to a wireless router by WPS (Wi-Fi Protected Setup).
• If you use WEP security, select [Easy] t [Wi-Fi] t [Connect by scan list]. Then, select the network name (SSID) you want to connect.
Cannot find the required network name in network setup.
• Select [[Manual entry]] and press to enter network name.

Specifications

System
Panel system
LCD (Liquid Crystal Display) Panel, LED Backlight
TV system
Analogue: B/G, I, D/K, M: Depend on your country/area selection. Digital: DVB-T/DVB-T2: Depend on your country/ area selection.
Colour/video system
Analogue: PAL, SECAM, NTSC3.58, NTSC4.43 Digital: Refer to the Help Guide
Channel coverage
Analogue: UHF/VHF/Cable, Depending on your country/area selection. Digital: UHF/VHF, Depending on your country/ area selection.
Sound output
12.5 W + 12.5 W + 12.5 W + 12.5 W + 20 W + 20 W
Wireless technology
Protocol IEEE802.11ac/a/b/g/n (IEEE802.11ac may not be available depending on countries/regions.) Bluetooth Version 4.1
Input/Output jacks
Antenna (aerial)/cable
75 ohm external terminal for VHF/UHF
/ VIDEO IN 1
Video/Audio input (mini jack)
/ COMPONENT IN
YPBPR (Component Video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i Audio input (phono pin jack)
VIDEO IN 2
Video input (common phono pin with Y input)
22
GB
HDMI IN 1, 2, 3, 4 (support 4K resolution)
Video (2D):
4096 × 2160p (50, 60 Hz)*, 4096 × 2160p (24 Hz)*, 3840 × 2160p (50, 60 Hz)*, 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formats
* 3840 × 2160p is displayed when 4096 × 2160p is
input
Video (3D):
Frame Packing: 1080p (30 Hz), 1080/24p, 1080i(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p Side-by-Side: 1080p (50, 60 Hz), 1080/24p, 1080i(50, 60 Hz), 720p (50, 60 Hz) Over-Under: 1080p (30, 50, 60 Hz), 1080/24p,
1080i (50, 60 Hz), 720p (50, 60 Hz) Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby Digital and DTS ARC (Audio Return Channel) (HDMI IN 4 only)
MHL (HDMI IN 2)
Video (2D):
4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25,
30 Hz), 1080p (30, 50, 60 Hz), 1080/24p,
1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p,
576p, 576i, 480 p, 480i
* 3840 × 2160p is displayed when 4096 × 2160p is
input
Video (3D):
Frame Packing: 1080p (30 Hz), 1080/24p,
1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p
Side-by-Side: 1080p (50, 60 Hz), 1080/24p,
1080i (50, 60 Hz), 720p(50, 60 Hz)
Over-Under: 1080p (50, 60 Hz), 1080p (30 Hz),
1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz) Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby Digital and DTS
DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM, Dolby Digital, DTS)
HDMI 3 AUDIO IN
Analogue audio input (Stereo mini jack)
AUDIO OUT / (Stereo mini jack)
Headphone, Audio Output, Subwoofer
1, 2, 3
USB port 1 and 2 support High Speed USB (USB2.0). USB port 3 supports Super Speed USB (USB3.0)
LAN
10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/ 100BASE-TX communication rate and communication quality are not guaranteed for this TV.)
Others
Optional accessories
Wall-Mount Bracket: SU-WL450 (KD-65/55X9350D) Wireless subwoofer: SWF-BR100 MHL cable: DLC-MC10, DLC-MC20 Active 3D Glasses: TDG-BT500A
Operating temperature
0 ºC – 40 ºC
Power and others
Power requirements
110 V - 240 V AC, 50/60 Hz
Screen size (measured diagonally) (Approx.)
KD-65X9350D: 65 inches / 163.9 cm KD-55X9350D: 55 inches / 138.8 cm
Display resolution
3,840 pixels (horizontal) × 2,160 lines (vertical)
Power consumption
Indicated on the rear of the TV
Output Rating
USB 1/2: 5 V, 500 mA MAX USB 3: 5 V, 900 mA MAX MHL (HDMI IN 2): 5 V, 1.5 A MAX
Dimensions (Approx.) (w × h × d)
with Table-Top Stand
Edge position: KD-65X9350D: 1,706 × 911 × 292 mm KD-55X9350D: 1,484 × 780 × 255 mm Middle position: KD-65X9350D: 1,706 × 919 × 292 mm KD-55X9350D: 1,484 × 787 × 255 mm
without Table-Top Stand
KD-65X9350D: 1,706 × 871 × 90 mm KD-55X9350D: 1,484 × 744 × 90 mm
GB
23
GB
Stand width (Approx.)
Edge position:
KD-65X9350D: 1,690 mm KD-55X9350D: 1,468 mm
Middle position:
KD-65X9350D: 607 mm KD-55X9350D: 607 mm
Mass (Approx.)
with Table-Top Stand
KD-65X9350D: 48.0 kg KD-55X9350D: 37.9 kg
without Table-Top Stand
KD-65X9350D: 47.3 kg KD-55X9350D: 37.3 kg
Note
• Design and specifications are subject to change without notice.
• This TV set incorporates MHL 3.
Notes on Digital TV function
• Any functions related to Digital TV () will only work in countries or areas where DVB-T/DVB-T2 (MPEG-2 and H.264/MPEG-4 AVC) digital terrestrial signals are broadcast. Please confirm with your local dealer if you can receive a DVB-T/DVB-T2 signal where you live.
• This TV set complies with DVB-T/DVB-T2 specifications, but compatibility with future DVB-T/ DVB-T2 digital terrestrial broadcasts are not guaranteed.
• Some Digital TV functions may not be available in some countries/areas.
Trademark information
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
• “BRAVIA” and are trademarks of Sony Corporation.
• Gracenote, Gracenote eyeQ, Gracenote VideoID, Gracenote Video Explore, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.
• Opera® Devices SDK from Opera Software ASA. Copyright 1995-2015 Opera Software ASA. All rights reserved.
• Wi-Fi, Wi-Fi Direct, Miracast, Wi-Fi Protected Setup and Wi-Fi CERTIFIED Logo are trademarks or registered trademarks of Wi-Fi Alliance.
• MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.
• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2014
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.
• USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc.
TM
24
GB
GB
25
GB
Customer Support and Contact:
©2016 Sony Corporation 4-589-743-11(1)
Loading...
