Television
tv/igar1/h_ga/
8 mm – 12 mm
M6 screw (supplied)
1.2 N·m/{12 kgf·cm}
Screw
(not supplied)
Cord
(not supplied)
8 mm – 12 mm
Screw (M6)
TV’s rear cover
Wall-Mount Bracket

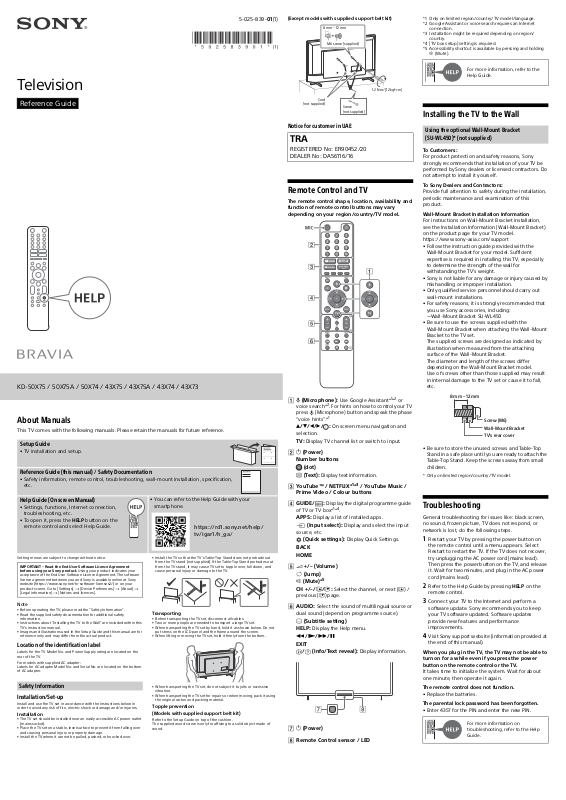

Reference Guide
KD-50X75 / 50X75A / 50X74 / 43X75 / 43X75A / 43X74 / 43X73
About Manuals
This TV comes with the following manuals. Please retain the manuals for future reference.
Setup Guide
• TV installation and setup.
Reference Guide (this manual) / Safety Documentation
• Safety information, remote control, troubleshooting, wall-mount installation, specification,
etc.
Help Guide (On screen Manual)
• Settings, functions, Internet connection,
troubleshooting, etc.
• To open it, press the HELP button on the
remote control and select Help Guide.
Setting menus are subject to change without notice.
IMPORTANT – Read the End User Software Licence Agreement
before using your Sony product. Using your product indicates your
acceptance of the End User Software Licence Agreement. The software
licence agreement between you and Sony is available online at Sony
website (https://www.sony.net/tv-software-licenses2/) or on your
product screen. Go to [Settings] t [Device Preferences] t [About] t
[Legal information] t [Notices and licences].
Note
• Before operating the TV, please read the “Safety Information”.
• Read the supplied safety documentation for additional safety
information.
• Instructions about “Installing the TV to the Wall” are included within this
TV’s instruction manual.
• Images and illustrations used in the Setup Guide and this manual are for
reference only and may differ from the actual product.
Location of the identification label
Labels for the TV Model No. and Power Supply rating are located on the
rear of the TV.
For models with supplied AC adapter:
Labels for AC adapter Model No. and Serial No. are located on the bottom
of AC adapter.
Safety Information
Installation/Set-up
Install and use the TV set in accordance with the instructions below in
order to avoid any risk of fire, electric shock or damage and/or injuries.
Installation
• The TV set should be installed near an easily accessible AC power outlet
(mains socket).
• Place the TV set on a stable, level surface to prevent it from falling over
and causing personal injury or property damage.
• Install the TV where it cannot be pulled, pushed, or knocked over.
• You can refer to the Help Guide with your
smartphone.
https://rd1.sony.net/help/
• Install the TV so that the TV’s Table-Top Stand does not protrude out
from the TV stand (not supplied). If the Table-Top Stand protrudes out
from the TV stand, it may cause TV set to topple over, fall down, and
cause personal injury or damage to the TV.
Tran spor ting
• Before transporting the TV set, disconnect all cables.
• Two or more people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not
put stress on the LCD panel and the frame around the screen.
• When lifting or moving the TV set, hold it firmly from the bottom.
• When transporting the TV set, do not subject it to jolts or excessive
vibration.
• When transporting the TV set for repairs or when moving, pack it using
the original carton and packing material.
Topple prevention
(Models with supplied support belt kit)
Refer to the Setup Guide on top of the cushion.
The supplied wood screw is only for affixing to a solid object made of
wood.
5-025-839-01(1)
(Except models with supplied support belt kit)
Notice for customer in UAE
TRA
REGISTERED No: ER90452/20
DEALER No: DA56116/16
Remote Control and TV
The remote control shape, location, availability and
function of remote control buttons may vary
depending on your region/country/TV model.
(Microphone): Use Google Assistant*
voice search*2. For hints on how to control your TV
press (Microphone) button and speak the phase
“voice hints”.*
1
////: On screen menu navigation and
selection.
TV: Display TV channel list or switch to input.
(Power)
Number buttons
(dot)
(Text):
YouTu b e™ / N E T F LI X *
Display text information.
1*3
/ YouTube Music /
Prime Video / Colour buttons
GUIDE/ : Display the digital programme guide
of TV or TV box*1*4.
APPS: Display a list of installed apps.
(Input select): Display and select the input
source, etc.
(Quick settings): Display Quick Settings.
BACK
HOME
+/– (Volume)
(Jump)
(Mute)*
5
CH +/–//: Select the channel, or next () /
previous () page.
AUDIO: Select the sound of multilingual source or
dual sound (depend on programme source).
(Subtitle setting)
HELP:
Display the Help menu.
///
EXIT
/ (Info/Text reveal):
Display information.
(Power)
Remote Control sensor / LED
1*2
or
*1 Only on limited region/country/TV model/language.
*2 Google Assistant or voice search requires an Internet
connection.
*3 Installation might be required depending on region/
country.
*4 [TV box setup] setting is required.
*5 Accessibility shortcut is available by pressing and holding
(Mute).
For more information, refer to the
Help Guide.
Installing the TV to the Wall
Using the optional Wall-Mount Bracket
(SU-WL450)* (not supplied)
To Customers:
For product protection and safety reasons, Sony
strongly recommends that installation of your TV be
performed by Sony dealers or licensed contractors. Do
not attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the installation,
periodic maintenance and examination of this
product.
Wall-Mount Bracket Installation Information
For instructions on Wall-Mount Bracket installation,
see the Installation Information (Wall-Mount Bracket)
on the product page for your TV model.
https://www.sony-asia.com/support
• Follow the instruction guide provided with the
Wall-Mount Bracket for your model. Sufficient
expertise is required in installing this TV, especially
to determine the strength of the wall for
withstanding the TV’s weight.
• Sony is not liable for any damage or injury caused by
mishandling or improper installation.
• Only qualified service personnel should carry out
wall-mount installations.
• For safety reasons, it is strongly recommended that
you use Sony accessories, including:
Wall-Mount Bracket SU-WL450
• Be sure to use the screws supplied with the
Wall-Mount Bracket when attaching the Wall-Mount
Bracket to the TV set.
The supplied screws are designed as indicated by
illustration when measured from the attaching
surface of the Wall-Mount Bracket.
The diameter and length of the screws differ
depending on the Wall-Mount Bracket model.
Use of screws other than those supplied may result
in internal damage to the TV set or cause it to fall,
etc.
• Be sure to store the unused screws and Table-Top
Stand in a safe place until you are ready to attach the
Table-Top Stand. Keep the screws away from small
children.
* Only on limited region/country/TV model.
Troubleshooting
General troubleshooting for issues like: black screen,
no sound, frozen picture, TV does not respond, or
network is lost, do the following steps.
1 Restart your TV by pressing the power button on
the remote control until a menu appears. Select
Restart to restart the TV. If the TV does not recover,
try unplugging the AC power cord (mains lead).
Then press the power button on the TV, and release
it. Wait for two minutes, and plug in the AC power
cord (mains lead).
2 Refer to the Help Guide by pressing HELP on the
remote control.
3 Connect your TV to the Internet and perform a
software update. Sony recommends you to keep
your TV software updated. Software updates
provide new features and performance
improvements.
4 Visit Sony support website (information provided at
the end of this manual).
When you plug in the TV, the TV may not be able to
turn on for a while even if you press the power
button on the remote control or the TV.
It takes time to initialize the system. Wait for about
one minute, then operate it again.
The remote control does not function.
• Replace the batteries.
The parental lock password has been forgotten.
• Enter 4357 for the PIN and enter the new PIN.
For more information on
troubleshooting, refer to the Help
Guide.
Specifications
System
Panel system: LCD (Liquid Crystal Display) Panel, LED
Backlight
TV system: Depend on your country/area selection
Analogue: B/G, I, D/K, M
Digital: DVB-T/DVB-T2
Colour system: PAL/SECAM/NTSC3.58/NTSC4.43
Channel coverage: Depend on your country/area
selection
Analogue: UHF/VHF/Cable
Digital: UHF/VHF
Sound output: 10 W + 10 W
Wireless technology
Protocol IEEE 802.11a/b/g/n/ac
(IEEE 802.11ac may not be available depending on
countries/regions.)
Bluetooth® Version 4.2
Input/Output jacks
Antenna (aerial)/cable
75 ohm external terminal for VHF/UHF
/ AVIN
Video/Audio input (phono jacks)
HDMI IN 1/2/3 (support 4K resolution, HDCP
2.3-compatible)
Video:
4096 × 2160p (50, 60 Hz)*1, 4096 × 2160p (24 Hz),
3840 × 2160p (50, 60 Hz)*1, 3840 × 2160p (24, 25,
30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50,
60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i,
480p, 480i, PC Formats*
Audio:
Two channel linear PCM: 32/44.1/48 kHz 16/20/24
bits, Dolby Audio
ARC (Audio Return Channel) (HDMI IN 3 only)*
Two channel linear PCM: 48 kHz 16 bits, Dolby Audio
DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM: 48 kHz
16 bits, Dolby Audio)
(Stereo mini jack)
Headphone
1, 2
USB port 1 and 2 support High Speed USB (USB 2.0)
LAN
10BASE-T/100BASE-TX connector (Depending on the
operating environment of the network, connection
speed may differ. The communication rate and
quality are not guaranteed.)
DC IN 19.5 V
AC adapter input
Power and others
Power requirements
19.5 V DC with AC adapter
Rating: Input 100 V – 240 V AC, 50/60 Hz
Energy Efficiency Class*
(For Jordan only)
KD-50X75: A
KD-43X75: A
Screen size (measured diagonally) (Approx.)
KD-50X75 / 50X75A / 50X74: 50 inches / 125.7 cm
KD-43X75 / 43X75A / 43X74 / 43X73: 43 inches /
108.0 cm
Power consumption
Indicated on the rear of the TV
Power consumption*
In [Standard] mode
(For Jordan only)
KD-50X75: 80 W
KD-43X75: 67 W
In [Vivid] mode
KD-50X75: 115 W
KD-43X75: 96 W
Annual energy consumption*
(For Jordan only)*
KD-50X75: 117 kWh per year
KD-43X75: 98 kWh per year
Standby power consumption*4*6*7: 0.50 W
Display resolution (horizontal × vertical) (pixels)
3,840 × 2,160
Output Rating
USB 1/2
5 V , 500 mA MAX
Dimensions (Approx.) (w × h × d) (mm) / (inches)
with stand
KD-50X75 / 50X75A / 50X74:
1,127 × 706 × 231 / 443/8 × 27 13/16 × 9 1/
KD-43X75 / 43X75A / 43X74 / 43X73:
971 × 619 × 231 / 38 1/4 × 24 3/8 × 9 1/
without stand
KD-50X75 / 50X75A / 50X74:
1,127 × 662 × 77 / 44 3/8 × 26 1/16 × 3
KD-43X75 / 43X75A / 43X74 / 43X73:
971 × 575 × 77 / 38 1/4 × 22 5/8 × 3
Mass (Approx.) (kg) / (lb.)
with stand
KD-50X75 / 50X75A / 50X74: 10.0 / 22.0
KD-43X75 / 43X75A / 43X74 / 43X73: 8.0 / 17.6
without stand
KD-50X75 / 50X75A / 50X74: 9.8 / 21.6
KD-43X75 / 43X75A / 43X74 / 43X73: 7.8 / 17.2
Others
Optional accessories
Wall-Mount Bracket: SU-WL450
Operating temperature: 0 ºC – 40 ºC
2
3
4
4
4
5
16
16
*1 To support 18 Gbps, set [HDMI signal format] to [Enhanced
format].
*2 Refer to the Help Guide for details.
*3 Connect your audio system to the HDMI IN 3 to route TV
audio to your audio system.
*4 This information is for EU and other countries whose
relevant regulation is based on EU energy labelling
regulation.
*5 Energy consumption in kWh per year, based on the power
consumption of the television operating 4 hours per day for
365 days. The actual energy consumption will depend on
how the television is used.
*6 Specified standby power is reached after the TV finishes
necessary internal processes.
*7 Standby power consumption will increase when your TV is
connected to the network.
Note
• Optional accessories availability depends on countries/
region/TV model/stock.
• Design and specifications are subject to change without
notice.
• Subscriptions for services and applications may be required
and additional terms, conditions and/or charges may apply
when using the Google Assistant.
Notes on Digital TV function
• Any functions related to Digital TV ( ) will only
work in countries or areas where DVB-T/DVB-T2
(MPEG-2 and H.264/MPEG-4 AVC) digital terrestrial
signals are broadcast. Please confirm with your local
dealer if you can receive a DVB-T/DVB-T2 signal
where you live.
• This TV set complies with DVB-T/DVB-T2
specifications, but compatibility with future DVB-T/
DVB-T2 digital terrestrial broadcasts are not
guaranteed.
• Some Digital TV functions may not be available in
some countries/areas.
Trademark information
• The terms HDMI, HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing
Administrator, Inc.
• Manufactured under license from Dolby
Laboratories. Dolby, Dolby Audio, and the double-D
symbol are trademarks of Dolby Laboratories
Licensing Corporation.
• Google TV and related logos are trademarks of
Google LLC.
• Netflix is a registered trademark of Netflix, Inc.
• All other trademarks are the property of their
respective owners.
Support
https://www.sony-asia.com/support
© 2021 Sony Corporation
Loading...
