4-748-411-11(1)
Television
HOME
Reference Guide
參考指南
Help Guide
GB
CT
Customer Support and Contact:
用戶支援和聯絡：
http://www.sony-asia.com/support
KD-65X7000G / 55X7000G / 49X7000G / 43X7000G
To attach the Table-Top
Stand, refer to the Setup
Guide.
Table of Contents
Safety Information . . . . . . . . . . . . . . . . . . . . .2
Parts and Controls . . . . . . . . . . . . . . . . . . . 4
Controls and Indicators . . . . . . . . . . . . . . . . .4
Using Remote Control . . . . . . . . . . . . . . . . 5
Remote Control Parts Description. . . . . . . . .5
Connection Diagram . . . . . . . . . . . . . . . . . 7
Installing the TV to the Wall . . . . . . . . . . . 9
Using the optional Wall-Mount Bracket . . . .9
Detaching the Table-Top Stand from
the TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting. . . . . . . . . . . . . . . . . . . . 12
Troubles and Solutions. . . . . . . . . . . . . . . . . 12
Specifications . . . . . . . . . . . . . . . . . . . . . . 12
Introduction
Thank you for choosing this Sony product.
Before operating the TV, please read this manual thoroughly and
retain i t for fu ture reference.
Note
• Before operating the TV, please read the “Safety Information”
(page
2).
• Read the supplied Safety Information for additional safety
information.
• Instructions about “Installing the TV to the Wall” are included
within this TV’s instruction manual.
• Images and illustrations used in the Setup Guide and this
manual are for reference only and may differ from the actual
product.
Help Guide (Manual)
For more detailed information, press HOME on the remote
control, then select [Help Guide] under [Settings] menu. You
can also check the Help Guide from your PC or smartphone
(information provided on the back cover of this manual).
Location of the identification label
Labels for the TV Model No. and Power Supply rating are located
on the rear of the TV.
For models with supplied AC adapter:
Labels for AC adapter Model No. and Serial No. are located at the
bottom of AC adapter.
This television is designed for use in Hong Kong and ensured
the usage in Hong Kong only.
Safety Information
Installation/Set-up
Install and use the TV set in accordance with the instructions
below in order to avoid any risk of fire, electric shock or damage
and/or injuries.
Installation
• The TV set should be installed near an easily accessible AC
power outlet (mains socket).
• Place the TV set on a stable, level surface to prevent it from
falling over and causing personal injury or property damage.
• Install the TV where it cannot be pulled, pushed, or knocked
over.
• Install the TV so that the TV’s Table-Top Stand does not protrude
out from the TV stand (not supplied). If the Table-Top Stand
protrudes out from the TV stand, it may cause TV set to topple
over, fall down, and cause personal injury or damage to the TV.
• Only qualified service personnel should carry out wall-mount
installations.
• For safety reasons, it is strongly recommended that you use
Sony accessories, includin g:
Wall-Mount Bracket: SU-WL450
GB
2
• Be sure to use the screws supplied with the Wall-Mount Bracket
Screw (M6)
Wall-Mount Bracket
TV’s rear co ver
8 mm – 12 mm
8 mm – 12 mm
M6 screw (not supplied)
Cord (not sup plied)
Screw (not
supplied)
1.5 N·m
{15 kgf·cm}
8 mm – 12 mm
M6 screw (not supplied)
Cord (not supplied)
Screw (not
supplied)
1.5 N·m
{15 kgf·cm}
GB
when attaching the Wall-Mount Bracket to the TV set. The
supplied screws are designed as indicated by illustration when
measured from the attaching surface of the Wall-Mount Bracket.
The diameter and length of the screws differ depending on the
Wall-Mount Bracket model.
Use of screws other than those supplied may result in internal
damage to the TV set or cause it to fall, etc.
Tran spo rti ng
• Before transporting the TV set, disconnect all cables.
• Two or three people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below.
Do not put stress on the LCD panel and the frame around the
screen.
• When lifting or moving the TV set, hold it firmly from the
bottom.
• When transporting the TV set, do not subject it to jolts or
excessive v ibration.
• When transporting the TV set for repairs or when moving, pack
it using the original carton and packing material.
Topple prevention
KD-65X7000G / 55X7000G
KD-49X7000G / 43X7000G
GB
3
Parts and Controls
ȩ
ȩ
Controls and Indicators
KD-65X7000G KD-55X7000G / 49X7000G / 43X7000G
(Power) /+/–
When the TV is off,
Press to power on.
When the TV is on,
Press and hold to power off.
Press repeatedly to change the function,
then press + or – button to:
•Adjust the volume.
• Select the channel.
• Select the input source of TV.
Remote Control sensor* / LED indicator
The LED indicator lights up or blinks
according to the status of the TV.
For more information, refer to the Help
Guide.
* Do not place anything near the sensor.
Note
• Make sure that the TV is completely turned off before
unplugging the AC power cord (mains lead).
• To disconnect the TV from the AC power (mains)
completely, pull the plug from the AC power outlet
(mains socket).
• Please wait for a while when perform input selection
to change to other input.
GB
4
Using Remote Control
GB
Remote Control Parts Description
The remote control shape, location, availability and function of remote control buttons may vary
depending on your region/country/TV model.
Note
•The number 5, , CH/PROG + and AUDIO
buttons have tactile dots. Use the tactile dots as
references when operating the TV.
/ (Input select/Text hold)
In TV mode: Display and select the input
source.
In Text mode: Hold the current page.
(TV standby)
Turn on or turn off the TV (standby mode).
ANT/DIGITAL/ANALOG
Switch between digital and analogue input.
EXIT
Return to the previous screen or exit from
the menu. When an Interactive Application
service is available, press to exit from the
service.
SYNC MENU
Display the BRAVIA Sync Menu.
For more detailed information, press HOME
on the remote control, then select [Help
Guide] under [Settings] menu.
5
GB
Number buttons
Use with the 0-9 buttons to select digital
channels.
(Text)
Display text information.
Colour buttons
Execute corresponding function at that time.
YouTube (Only on limited region/
country/TV model)
Access the “YouTube” online service.
NETFLIX (Only on limited region/
country/TV model)
Access the “NETFLIX” online service.
/ (Info/Text reveal)
Display information.
SLEEP
Press repeatedly until the TV displays the
time in minutes ([Off]/[15 min]/[30 min]/
[45 min]/[60 min]/[90 min]/[120 min]) that
you want the TV to remain on before
shutting off. To cancel the sleep timer, press
SLEEP repeatedly until [Off] appears.
GUIDE/
Display the Digital EPG (Electronic
Programme Guide).
RETURN
Return to the previous screen.
OPTIONS
Display a list that contain shortcuts to some
setting menus.
The listed options vary depending on the
current input and content.
HOME
Display the TV Home Menu.
//// (Navigation D-pad)
On screen menu navigation and selection.
+/– (Volume)
Adjust the volume.
(Jump)
Return to the previous channel or input
viewed more than 15 seconds.
(Mute)
Mute the sound. Press again to restore the
sound.
CH/PROG +/–//
In TV mode: Select the channel.
In Text mode: Select the next () or
previous () page.
AUDIO
Select the sound of multilingual source or
dual sound for the programme currently
being viewed (depend on programme
source).
CC/ (Subtitle)
Turn subtitles on or off (when the feature is
available).
(Wide Mode)
Adjust the screen display. Press repeatedly
to select the desired wide mode.
///.//>/
Operate media contents on the TV and
connected BRAVIA Sync-compatible device.
This key also can be used to operate VOD
(Video on Demand) service playback.
Availability is depend on VOD service.
Replay the scene/briefly fast forwards the
scene.
GB
6

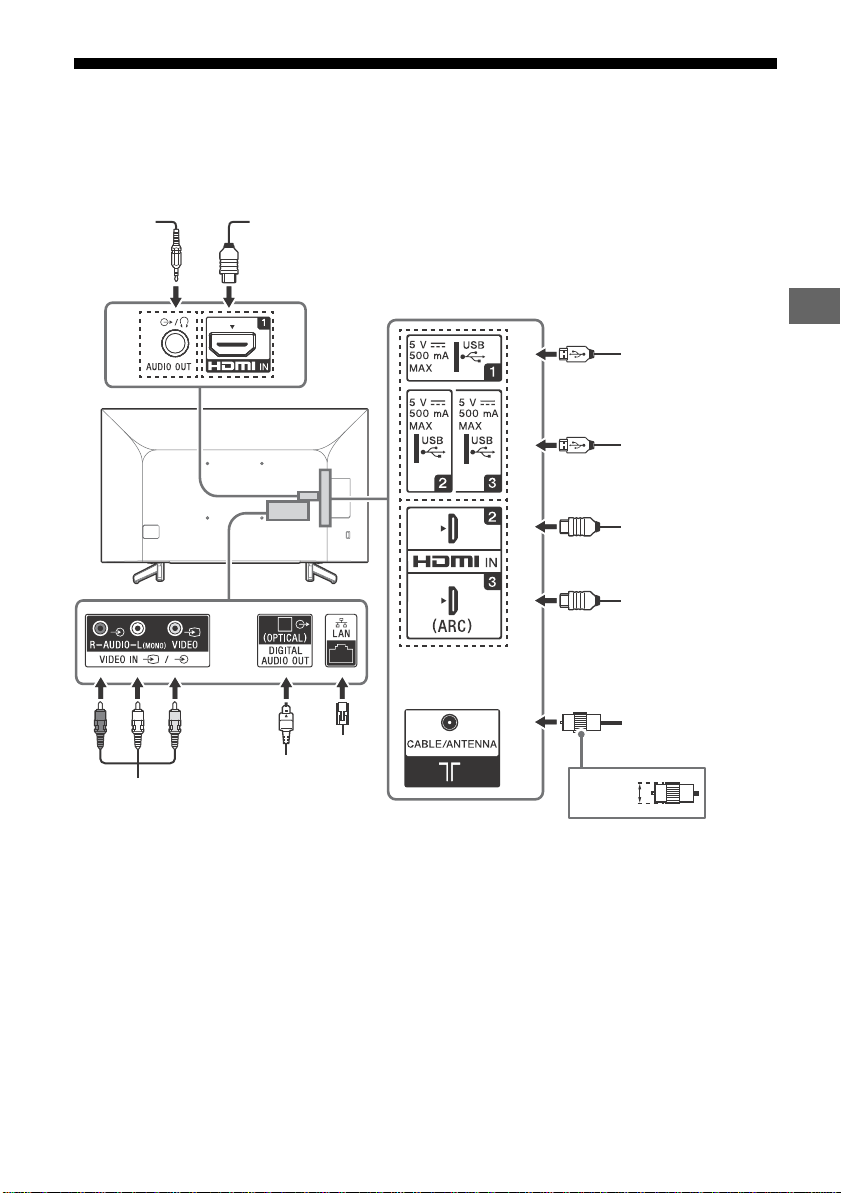

Connection Diagram
Ȫȫ
ȩ
Ȫ
<
Headphone/
Audio
System/
Subwoofer
Digital still camera/
Camcorder/USB
storage media
Audio System with
ARC/HDMI Device
HDMI Device
VCR/Video game
equipment/DVD
player/Camcorder
Audio
System with
Optical
Audio Input
14 mm
HDMI Device
Digital still camera/
Camcorder/USB
storage media
Router
Cable/Antenna
GB
You can connect a wide range of optional equipment to your TV.
Note
• Terminals and labels may vary depending on region/country/TV model.
GB
7
USB 1/2/3
<
<
12 mm
21 mm
• Connecting a large USB device may
interfere with other connected devices
beside it.
• When connecting a large USB device,
connect to the USB 1 port.
HDMI IN 1/2/3
• HDMI interface can transfer the digital
video and audio on a single cable.
•
• HDMI IN 2/3
To enjoy high quality 4K 50p/60p
contents, connect a Premium High Speed
HDMI cable to the HDMI IN 2/3 and set the
[HDMI signal format] to [Enhanced
format].
For details of supported formats, refer to
the “Specifications” in this manual (page
12-13).
• HDMI IN 3 ARC (Audio Return Channel)
Connect your audio system to the
HDMI IN 3 to route TV audio to your audio
system. An audio system that supports
HDMI ARC can send video to the TV, and
receive audio from the TV via the same
HDMI cable. If your audio system does not
support HDMI ARC, an additional
connection with DIGITAL AUDIO OUT
(OPTICAL) is necessary.
AUDIO OUT /
• Supports 3-pole stereo mini jack only.
• To listen to the TV’s sound through the
connected equipment, press HOME, then
select [System Settings] t [Setup] t [AV
Setup] t [Headphone/Audio Out] and
then select the desired item.
GB
8
Installing the TV to the Wall
GB
Using the optional Wall-Mount Bracket
This TV’s instruction manual only provides the steps to prepare the TV for Wall-Mount installation
before it is installed on the wall.
To Customers:
For product protection and safety reasons, Sony strongly recommends that installation of your TV be
performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the installation, periodic maintenance and examination of this
product.
Sufficient expertise is required for installing this product, especially to determine the strength of the wall for
withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers
or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for
any damage or injury caused by mishandling or improper installation.
Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall.
When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide
supplied with the Wall-Mount Bracket.
Note
• Be sure to store the removed screws in a safe place, keeping them away from children.

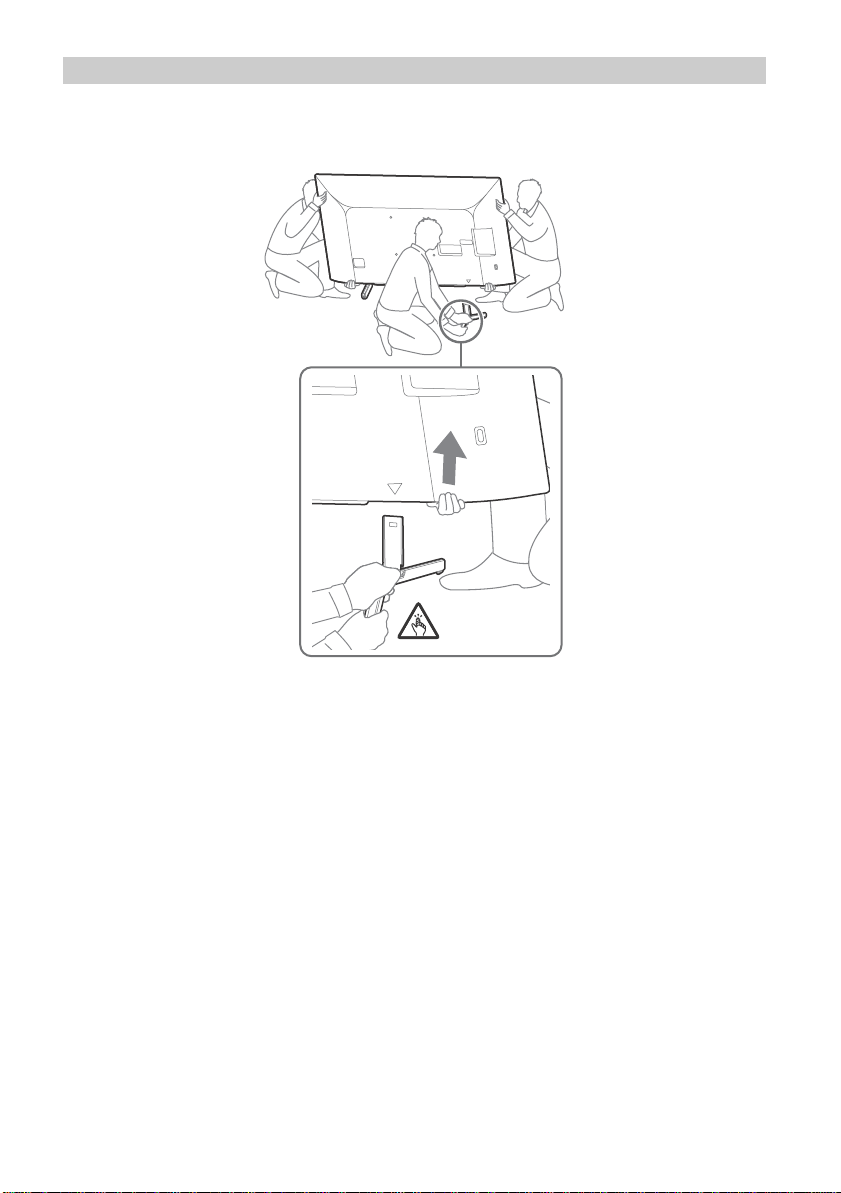

• If the Table-Top Stand is attached to the TV, detach the Table-Top Stand beforehand. See the Setup Guide and follow
in reverse order the steps to detach the Table-Top Stand.
• Place the TV with its screen facing down on a level and stable surface covered with a thick and soft cloth when
removing the Table-Top Stand from the TV to prevent damaging the surface of the LCD display. (KD-49/43X7000G
only)
For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the
product page for your TV model.
http://www.sony-asia.com/support
GB
9
Detaching the Table-Top Stand from the TV
KD-65X7000G
1 Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand
securely with both hands while the other people lift up the TV.
2 Repeat the previous step and remove the other side of the Table-Top Stand.
Note
• Three or more people are required to detach the Table-Top Stand.
• Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to
fall resulting in personal injury or physical damage to the TV.
• Take care when handling the Table-Top Stand to prevent damage to the TV.
• Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause
personal injury.
• Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface
that the TV is sitting on.
GB
10
Loading...
