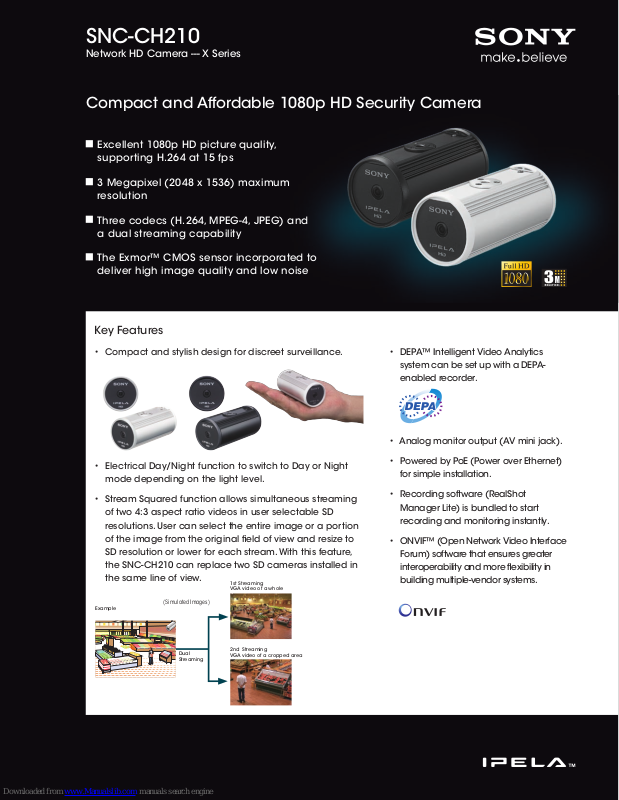

Sony IPELA SNC-CH210, SNCCH210/S Specifications
SNC-CH210
Network HD Camera --- X Series
Compact and Affordable 1080p HD Security Camera
Excellent 1080p HD picture quality,
supporting H.264 at 15 fps
3 Megapixel (2048 x 1536) maximum
resolution
Three codecs (H.264, MPEG-4, JPEG) and
a dual streaming capability
The Exmor™ CMOS sensor incorporated to
deliver high image quality and low noise
Key Features
• Compact and stylish design for discreet surveillance.
• Electrical Day/Night function to switch to Day or Night
mode depending on the light level.
• Stream Squared function allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. User can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream. With this feature,
the SNC-CH210 can replace two SD cameras installed in
the same line of view.
Example
(Simulated Images)
1st Streaming
VGA video of a whole
• DEPA™ Intelligent Video Analytics
system can be set up with a DEPAenabled recorder.
• Analog monitor output (AV mini jack).
• Powered by PoE (Power over Ethernet)
for simple installation.
• Recording software (RealShot
Manager Lite) is bundled to start
recording and monitoring instantly.
• ONVIF™ (Open Network Video Interface
Forum) software that ensures greater
interoperability and more flexibility in
building multiple-vendor systems.
Dual
Streaming
2nd Streaming
VGA video of a cropped area
1
13/16
（46）
3
3/4
（93）
ø1
3/4
（
44
）
SPECIFICATIONS
Network
Recording Software
RealShot Manager Lite
Network Surveillance
Recorder
NSR-S10
PC
HD monitor
SNC-CH210
SNC-CH210
Camera
Image device 1/2.8 type progressive scan Exmor CMOS sensor
Minimum illumination 2.0lx
Number of effective pixels
(H x V)
Electronic shutter speed 1s to 1/10000s
Gain control Auto
Exposure control Auto, EV Compensation, Auto Slow Shutter
White balance mode Auto (ATW, ATW-PRO) , Preset, One-push WB, Manual
Lens type fixed
Horizontal viewing angle 88 degrees
Focal length f=3.3 mm
F-number F2.8
Minimum object distance 500 mm
Camera Features
Day/Night Yes (electrical D/N)
Noise reduction Yes
Codec image size (H x V) 2048×1536(JpegOnly), 1920x1080, 1600x1200, 1680x1056, 1440x912, 1280x1024, 1280x960,
Video compression format H.264, MPEG-4, JPEG
Codec streaming capability Dual streaming
Maximum frame rate H.264: 15fps (1920×1080) / 30fps (1280×720)
Scene Analytics
Intelligent motion detection Yes
Network
Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP,
ONVIF software Yes
Number of clients 5
Authentication IEEE802.1X
Analog Video Output
Signal system NTSC / PAL
Interface
Ethernet 10BASE-T / 100BASE-TX (RJ-45)
Analog monitor output MiniJack
Sensor input x 1
General
Weight 3.5 oz (100g)
Dimensions ø 44 x 93 mm (1 3/4 x 3 3/4 inches)
Power requirements PoE (IEEE802.3af compliant)
Power consumption 2.4W
Starting temperature 0°C to 50°C (32°F to 122°F)
Working temperature 0°C to 50°C (32°F to 122°F)
Storage temperature -20°C to +60°C (-4°F to +140°F)
Safety regulation UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A,
System Requirements
Operating system Microsoft Windows XP
Processor Intel Core2 Duo
Memory 1 GB or more
Web browser Microsoft Internet Explorer
Supplied Accessories
Operating system CD-ROM (User’s Guides, and supplied programs)
* The SNC-CH210 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).
(AGC 38dB / 50IRE[IP])
3 Megapixel
(2096×1561)
1376x768, 1280x800, 1280x720, 1024x768, 1024x576, 768x576, 720x576, 704x576, 800x480,
720x480, 640x480, 640x368, 384x288, 352x288, 320x240, 320x192, 176x144
JPEG: 12fps (2048×1536) / 15fps (1920×1080) / 30fps (1280×720)
MPEG-4: 15fps (1920×1080) / 30fps (1280×720)
SNMP (MIB-2)
C-Tick Class A
Firefox® Ver.3.5 (Plug-in free viewer only)
Safari® Ver.4.0 (Plug-in free viewer only)
Google® Chrome Ver.4.0 (Plug-in free viewer only)
Installation manual
B&P Warranty Booklet
Front Sheet (with logo)
Front Sheet (without logo)
Sensor input cable
SNC-CH210
®
, Windows Vista® (32bit), Windows® 7 (32bit)
®
2 GHz or higher
®
Ver. 6.0, Ver. 7.0, Ver. 8.0
SYSTEM CONFIGURATION
DIMENSIONS
Unit: inches (mm)
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/security
S-IP2072 (MK10719V1)
Reproduction in whole or in part without written permission is prohibited.
© 2010 Sony Electronics Inc. All rights reserved.
Features and specifications are subject to change without notice.
Weights and measurements are approximate
Sony, 'make.believe', IPELA, DEPA, Exmor and their respective logos
are trademarks of Sony.
All other trademarks are the property of their respective owners.
Printed in USA (8/10)
