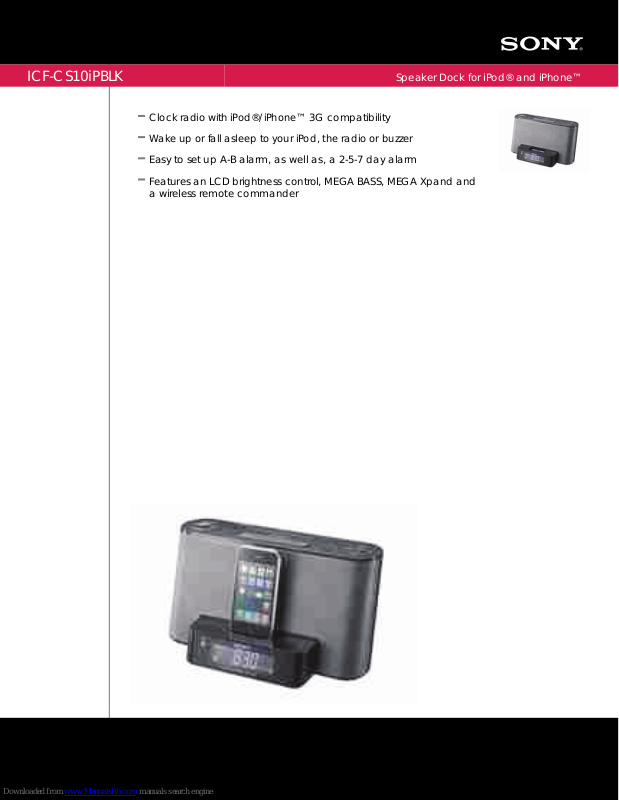

Page 1
ICF-
CS10iPBLK
Speaker Dock for iPod® and iPhone™
Clock radio with iPod®/
iPhone
™ 3G compatibility
Wake up or fall asleep to your iPod, the radio or buzzer
Easy to set up A-B alarm, as well as, a 2-5-7 day alarm
Features an LCD brightness control, MEGA BASS, MEGA Xpand and
a wireless remote commander
Page 2
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 10/20/2009
ICF-
CS10iPBLK
Speaker Dock for iPod® and iPhone™
Please visit the Dealer Network for current information at
www.sony.com/dn
Features
Clock radio with iPod®/
iPhone™ 3G compatibility.
Dual Alarms Wake up or fall asleep to your iPod, the radio or
buzzer.
Alarm Features Easy to set A-B alarm, in addition to a 2-5-7 day
alarm.
LCD Brightness Control
Sound Features
Mega Bass and Mega Xpand
Included Accessories Remote Commander® Remote Control
AC Cord with AC Adaptor
Audio-in Cable
AM Loop Antenna
Universal dock adapter for iPhone x 1
Universal dock adapter for iPhone 3G x 1
Specifications
General
Day/Night Function: 3 Step brightness control (Hi, Mid, Lo)
Audio
Frequency Range: FM: 87.5 - 108 MHz, AM: 530 -1710 kHz
Tuner Type: Digital AM/FM
Sound Enhancer:
Mega Bass and Mega Xpand
Station Preset(s): 10 FM, 5 AM
Full Range Speaker Size: 2 1/4" (5.7 cm) , 6 Ohm
Speaker Output: 3.5W + 3.5W
Convenience
Timer Clock: Sleep timer: 15 min.//30 min./60 min./90 min.
Alarm: Dual
Snooze w/Extendable Snooze:
Snooze: 10 minute intervals up to 1
hour
AM/FM Memory Presets: 10 FM, 5 AM
Convenience Features
Sleep Timer:
Snooze
Remote Control: Remote Commander
®
Hardware
Display: 12-Hour time display
Power
Power Requirements: 120 V AC, 60 Hz
Output Power: 3.5W + 3.5W (at 10% harmonic distortion)
Battery Type: Remote: CR2025 battery (1)
Power Back-up: Battery back-up: CR2032 battery (1)
Speaker
Speaker Dimensions: Approx. 2 1/4 inches (5.7 cm) diameter, 6
Ohm
Dimensions
Weight: 4 lbs. 4 oz. (1.94 kg) including power supply unit
Measurements: 11 3/8 x 5 15/16 x 5 1/2" (290.5 x 152 x 139.5
mm) including projecting parts and controls
Supplied Accessories
Remote Commander (1)
AM loop antenna (1)
Audio Connecting Cable (1)
Universal dock adapter for iPhone (1)
Universal dock adapter for iPhone 3G (1)
Optional Accessories
Remote Commander® Remote Control
AC Cord with AC Adaptor
Audio-in Cable
AM Loop Antenna
Universal dock adapter for iPhone x 1
Universal dock adapter for iPhone 3G x1
Color:
Black
UPC Code:
027242773318
1.Compatible with iPod® touch, iPod® touch second generation, iPhone, iPod Nanao first generation, iPod
Mini, iPod Nano second generation (aluminum), iPod Nano third generation (video), iPod Nano fourth
generation (video), iPod fouthr generation (color display), iPhone 3G, iPod classic, iPod 5th generation
(video), iPod 4th generation.
©
2009 Sony Electronics Inc. Sony, and the Sony logo are trademarks of Sony. iPod is a trademark of Apple
Inc., registered in the U.S. and other countries.
Features and Specifications are subject to change without notice. Non-metric weights and measures are
approximate.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, like.no.other
and Remote Commander are trademarks of Sony. iPod is a trademark of Apple Inc.
