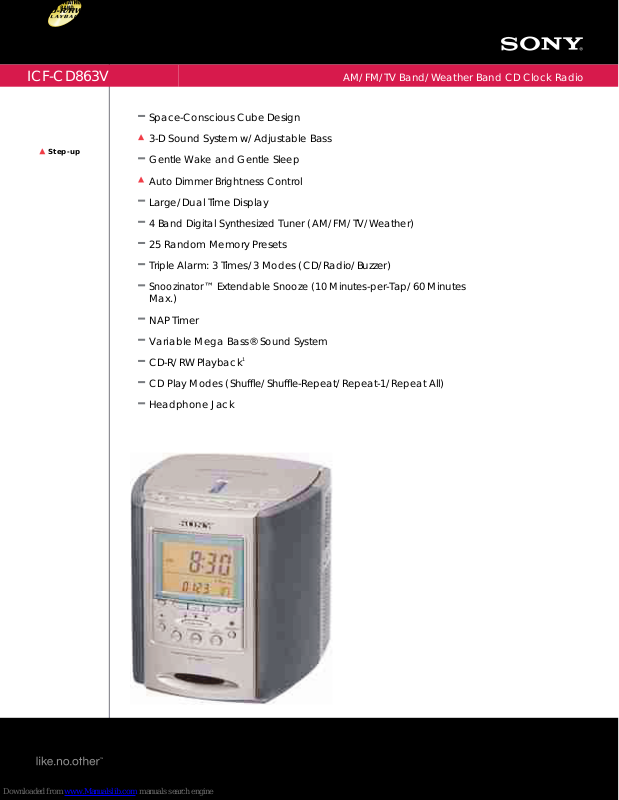

Page 1
ICF-CD863V
AM/FM/TV Band/Weather Band CD Clock Radio
Step-up
Space-Conscious Cube Design
3-D Sound System w/Adjustable Bass
Gentle Wake and Gentle Sleep
Auto Dimmer Brightness Control
Large/Dual Time Display
4 Band Digital Synthesized Tuner (AM/FM/TV/Weather)
25 Random Memory Presets
Triple Alarm: 3 Times/3 Modes (CD/Radio/Buzzer)
Snoozinator
™
Extendable Snooze (10 Minutes-per
-Tap/60 Minutes
Max.)
NAP Timer
Variable Mega Bass®
Sound System
CD-R/RW Playback
1
CD Play Modes (Shuffle/Shuffle
-Repeat/Repeat-
1/Repeat All)
Headphone Jack
Page 2
Sony Electronics Inc. • 16530 Via Esprillo Drive • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com
Last Updated: 10/08/2007
ICF-CD863V
AM/FM/TV Band/Weather Band CD Clock Radio
Please visit the Dealer Network for current information at
www.sony.com/dn
Features
Space-Conscious Cube Design
distinguishes this versatile
system from ordinary looking clock radios while compact
styling also saves space on nightstand, desk or table
3-D Sound System w/Adjustable Bass improves sound
dispersion for a more authentic listening experience, and
enhances reproduction of bass tones for a more exciting and
enjoyable listening experience
Gentle Wake and Gentle Sleep Gentle Wake gradually
increases alarm volume until it reaches the maximum level
you set. Gentle Sleep operates when listening to CD or radio
with Sleep Timer, gradually decreasing volume until it turns off
Auto Dimmer Brightness Control automatically adjusts itself to
brightness in the room, so the display is easy to read during
the day, and not overpowering at night
Large/Dual Time Display is backlit for day/night visibility, and
shows both the current time and alarm-set time
4 Band Digital Synthesized Tuner
(AM/FM/TV/Weather) provides the most accurate drift-free
tuning of all available radio stations, plus audio from TV
channels 2-13, and up to the minute weather from your local
Weather Band broadcasts
25 Random Memory Presets offer convenient one-button
tuning to 10 of your favorite FM and 5 AM radio stations along
with 5 TV channels and 5 weather frequencies
Triple Alarm: 3 Times/3 Modes (CD/Radio/Buzzer) gives you
the convenience to set three different alarm times with choice
of waking to CD, buzzer alarm, or a favorite radio station, for
each different time
Snoozinator™ Extendable Snooze (10 minutes-per-tap, 60
minutes max.)-NAP Timer gives you the freedom to choose
your personal snooze time instead of having to settle for the
standard time intervals of other alarms; each press of the
Snooze bar adds an additional 10 minutes to your snooze time,
up to a full hour, so with a few quick flicks of your fingertips you
can roll over for more uninterrupted sleep without having to re
-
set the alarm
Nap Timer is a separate button which allows you to take a
short nap and wake up to radio or buzzer without changing
your alarm settings (you can select your favorite nap time
10/20/30/60/90/120 minutes)
Variable Mega Bass® Sound System produces rich, deep
bass tones for more powerful overall sound, and you can
adjust its tones variably
CD-R/RW Playback Plays all CD-R/RW discs burned either in a
PC or a home recording deck. Create custom mixes from your
existing music collection and always have the right music at
hand.
1
CD Play Modes (Shuffle/Shuffle-Repeat/Repeat-1/Repeat
All) lets you hear CD tracks in multiple modes: in sequence as
recorded, all tracks in random (Shuffle), repeat of all tracks in
random order, a single track over and over or all tracks over
and over
Headphone Jack lets you enjoy stereo music and sound, and
allows for private listening
Specifications
General
Design: Space conscious Cube Nightstand
Day/Night Function: Time: 12 hour system
Audio
Frequency Range: AM: 530-1710kHz; FM: 87.5-108MHz; TV: Ch. 2
-
13; Weather: Ch. 1-7
Antenna System: AM: Built-in Ferrite Bar Antenna; FM, TV,
Weather: Wire Antenna
Tuner Type: Digital
CD Play Mode(s):
Shuffle, Shuffle-Repeat, Repeat-1, Repeat All
Format(s) Supported: CD-R/RW
Sound Enhancer: 3-D Sound System w/Adjustable Bass, Mega
Bass® Sound System
Station Preset(s): 25 (5 AM, 10 FM, 5 TV, 5 WB)
Tuning:
5 Direct Access Buttons
Convenience
Timer Clock: Nap Timer
Alarm: Triple
Snooze w/Extendable Snooze:
10 Minute Intervals up to 1 Hour,
Gentle Wake, Gentle Sleep
Hardware
Display: LED, with Auto Dimmer Brighness Control
Power
Power Requirements: AC 120V, 60Hz
Output Power: 1.5W + 1.5W (at 10% harmonic distortion)
Power Handling Capacity: With 3.2-ohm load, both channels
driven from 150-10,000HZ, rated .8 W per channel minimum
RMS power, with no more than 10% total harmonic distortion in
AC operation
Speaker
Speaker Dimensions: 3 1/8" (77mm)
Speaker Type: Stereo, Built-In
Inputs and Outputs
Headphone Output(s): 1
Dimensions
Weight: 5 lbs 15 oz (2700g)
Measurements: W 7 3/8" x H 7 3/4" x D 7 3/4" (185 x 195 x
196mm)
Color:
Champagne
UPC Code:
027242595224
1. Playback may not be compatible will all discs, depending on recording conditions.
©2006 Sony Electronics Inc.
Features and specifications are subject to change without notice. Non-metric weights and measures are
approximate.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Dream
Machine, Mega Bass, Snoozinator, and like.no.other are trademarks of Sony.
