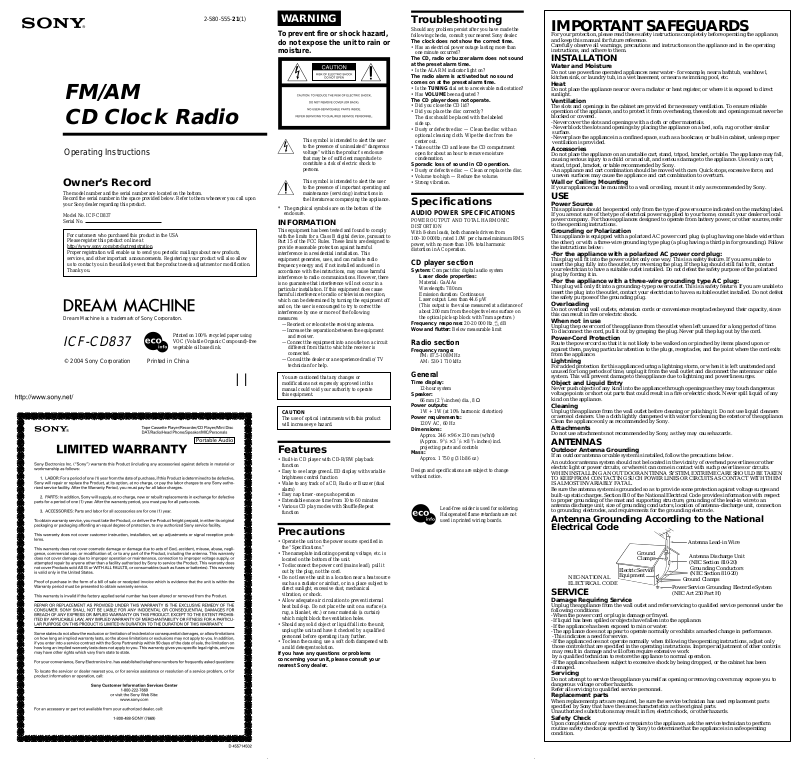

Sony ICF-CD837 User Manual

2-580-555-21(1)
FM/AM CD Clock Radio
Operating Instructions
Owner’s Record
The model number and the serial number are located on the bottom. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.
Model No. ICF-CD837 Serial No.
For customers who purchased this product in the USA Please register this product on line at http://www.sony.com/productregistration. Proper registration will enable us to send you periodic mailings about new products, services, and other important announcements. Registering your product will also allow us to contact you in the unlikely event that the product needs adjustment or modification. Thank you.
Dream Machine is a trademark of Sony Corporation.
Printed on 100% recycled paper using
ICF-CD837
© 2004 Sony Corporation Printed in China
VOC (Volatile Organic Compound)-free vegetable oil based ink.
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
* The graphical symbols are on the bottom of the
enclosure.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna. —Increase the separation between the equipment
and receiver.
—Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV
technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
CAUTION
The use of optical instruments with this product will increase eye hazard.
Features
• Built-in CD player with CD-R/RW playback function
• Easy to see large green LED display with variable brightness control function
•Wake to any track of a CD, Radio or Buzzer (dual alarm)
• Easy nap timer -one push operation
• Extendable snooze time from 10 to 60 minutes
•Various CD play modes with Shuffle/Repeat function
Precautions
• Operate the unit on the power source specified in the “Specifications.”
•The nameplate indicating operating voltage, etc. is located on the bottom of the unit.
•To disconnect the power cord (mains lead), pull it out by the plug, not the cord.
• Do not leave the unit in a location near a heat source such as a radiator or airduct, or in a place subject to direct sunlight, excessive dust, mechanical vibration, or shock.
• Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on a surface (a rug, a blanket, etc.) or near materials (a curtain) which might block the ventilation holes.
• Should any solid object or liquid fall into the unit, unplug the unit and have it checked by a qualified personnel before operating it any further.
•To clean the casing, use a soft cloth dampened with a mild detergent solution.
If you have any questions or problems concerning your unit, please consult your nearest Sony dealer.
Troubleshooting
Should any problem persist after you have made the following checks, consult your nearest Sony dealer.
The clock does not show the correct time.
• Has an electrical power outage lasting more than one minute occurred?
The CD, radio or buzzer alarm does not sound at the preset alarm time.
• Is the ALARM indicator light on?
The radio alarm is activated but no sound comes on at the preset alarm time.
• Is the TUNING dial set to a receivable radio station?
• Has VOLUME been adjusted ?
The CD player does not operate.
• Did you close the CD lid?
• Did you place the disc correctly? The disc should be placed with the labeled side up.
• Dusty or defective disc — Clean the disc with an optional cleaning cloth. Wipe the disc from the center out.
•Take out the CD and leave the CD compartment open for about an hour to remove moisture condensation.
Sporadic loss of sound in CD operation.
• Dusty or defective disc — Clean or replace the disc.
•Volume too high — Reduce the volume.
• Strong vibration.
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION With 8-ohm loads, both channels driven from 100-10 000Hz; rated 1.0W per channelminimum RMS power, with no more than 10% total harmonic distortion in AC operation.
CD player section
System: Compact disc digital audio system
Laser diode properties:
Material: GaAlAs Wavelength: 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of about 200 mm from the objective lens surface on the optical pick-up block with 7mm aperture.)
Frequency response: 20-20 000 Hz Wow and flutter: Below measurable limit
Radio section
Frequency range:
FM: 87.5-108 MHz AM: 530-1 710 kHz
General
Time display:
12-hour system
Speaker: Power outputs: Power requirements: Dimensions:
Mass:
Design and specifications are subject to change without notice.
5
/
66 mm (2
1 W + 1 W (at 10% harmonic distortion)
120 V AC, 60 Hz Approx. 246 × 96 × 210 mm (w/h/d)
(Approx. 9 projecting parts and controls
Approx. 1 750 g (3 lb 86 oz)
inches) dia., 8
8
3
/4 × 3 7/8 × 8 3/8 inches) incl.
Lead-free solder is used for soldering. Halogenated flame retardants are not used in printed wiring boards.
+1
dB
–1.5
IMPORTANT SAFEGUARDS
For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance and in the operating instructions, and adhere to them.
INSTALLATION
Water and Moisture
Do not use powerline operated appliances near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.
Heat
Do not place the appliance near or over a radiator or heat register, or where it is exposed to direct sunlight.
Ventilation
The slots and openings in the cabinet are provided for necessary ventilation. To ensure reliable operation of the appliance, and to protect it from overheating, these slots and openings must never be blocked or covered.
-Never cover the slots and openings with a cloth or other materials.
-Never block the slots and openings by placing the appliance on a bed, sofa, rug or other similar surface.
-Never place the appliance in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.
Accessories
Do not place the appliance on an unstable cart, stand, tripod, bracket, or table. The appliance may fall, causing serious injury to a child or an adult, and serious damage to the appliance. Use only a cart, stand, tripod, bracket, or table recommended by Sony.
-An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
Wall or Ceiling Mounting
If your appliance can be mounted to a wall or ceiling, mount it only as recommended by Sony.
USE
Power Source
This appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For those appliances designed to operate from battery power, or other sources, refer to the operating instructions.
Grounding or Polarization
This appliance is equipped with a polarized AC power cord plug (a plug having one blade wider than the other), or with a three-wire grounding type plug (a plug having a third pin for grounding). Follow the instructions below:
-For the appliance with a polarized AC power cord plug:
This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized plug by forcing it in.
-For the appliance with a three-wire grounding type AC plug:
This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the grounding plug.
Overloading
Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock.
When not in use
Unplug the power cord of the appliance from the outlet when left unused for a long period of time. To disconnect the cord, pull it out by grasping the plug. Never pull the plug out by the cord.
Power-Cord Protection
Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exits from the appliance.
Lightning
For added protection for this appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the appliance due to lightning and powerline surges.
Object and Liquid Entry
Never push objects of any kind into the appliance through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.
Cleaning
Unplug the appliance from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the appliance. Clean the appliance only as recommended by Sony.
Attachments
Do not use attachments not recommended by Sony, as they may cause hazards.
ANTENNAS
Outdoor Antenna Grounding
If an outdoor antenna or cable system is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can come in contact with such power lines or circuits. WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
Antenna Grounding According to the National Electrical Code
Antenna Lead-in Wire
Ground Clamps
Electric Service
NEC-NATIONAL ELECTRICAL CODE
Equipment
SERVICE
Damage Requiring Service
Unplug the appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:
-When the power cord or plug is damage or frayed.
-If liquid has been spilled or objects have fallen into the appliance.
-If the appliance has been exposed to rain or water.
-The appliance does not appear to operate normally or exhibits a marked change in performance.
-This indicates a need for service.
-If the appliance does not operate normally when following the operating instructions, adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.
-If the appliance has been subject to excessive shock by being dropped, or the cabinet has been damaged.
Servicing
Do not attempt to service the appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Replacement parts
When replacement parts are required, be sure the service technician has used replacement parts specified by Sony that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.
Safety Check
Upon completion of any service or repairs to the appliance, ask the service technician to perform routine safety checks (as specified by Sony) to determine that the appliance is in safe operating condition.
Antenna Discharge Unit (NEC Section 810-20)
Grounding Conductors (NEC Section 810-20)
Ground Clamps
Power Service Grounding Electrode System (NEC Art 250 Part H)
CLOCK
TRACK
SET/
ALARM SET A
A
A
L
A
R
M
S
E
E
R
T
B
ALARM SET B
TIME SET
B
U
Z
R
Z
A
D
I
C
O
D
O
F
F
A
L
A
R
M
M
O
D
E
ALARM MODE selector
The CD button has a tactile dot.
CD/RADIO indicator
NAP indicator
REPEAT
NORMAL
BRIGHTNESS
HIGH
LOW
CD PLAY MODE
SHUFFLE
SHUFFLE REPEAT
Changing the Brightness of the Clock display
T
E
S
E
R
M
R
A
L
A
OFF
IO
D
N
A
R
E
S
P
U
O
L
S
C
H
/
N
O
E
P
SLEEP
S
N
O
O
Z
F
O
P
E
E
L
S
E
/
P
F
A
N
O
CD
AC power cord
Turn BRIGHTNESS to adjust the brightness of the clock display.
Setting the Clock
1 Plug in the unit.
The display will flash “AM 12:00”.
2 Press CLOCK SET/TRACK for a few
seconds.
You will hear a beep and the hour will start to flash in the display.
3 Press TIME SET + or – until the correct
hour appears in the display.
4 Press CLOCK SET/TRACK once.
copyright protection technologies
This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.
To handle compact discs
Correct
Handle the disc by its edge.
Incorrect
Do not touch the surface.
5 Repeat steps 3 and 4 to set the minute.
Music discs encoded with
After setting the minute, press CLOCK SET/ TRACK to start the counting of the seconds, and
you will hear two short beeps.
FM wire antenna
VOLUME
BAND
AM
FM
TUNING
There is a tactile dot beside volume to show the direction to turn up the volume.
•To set the current time rapidly, hold down
TIME SET + or –.
• In step 5, when you press CLOCK SET/TRACK
after the minute setting to activate the clock, the seconds start counting from zero.
Playing a CD
An 8 cm (3-inch) CD can be played without an adaptor.
1 Push ZPUSH OPEN/CLOSE to open
the CD compartment lid and place a disc.
2 Close the CD compartment lid.
Notes
• Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this unit. Attempting to do so may damage the unit. Do not use such discs.
• If you press CD u when there is no disc in the CD compartment, “00” flashes for about 5 seconds on the display and the unit turns off automatically.
Various Modes of CD Playback
You can play tracks repeatedly or in random order.
Slide CD PLAY MODE.
As you slide CD PLAY MODE, the play mode changes as follows:
TRACK
AM
PM
A
ALARM
B
Push.
Labeled surface up
Legend on CD PLAY MODE Play mode
NORMAL (normal play) All the tracks are played once. “REPEAT” (all repeat) All the tracks are played repeatedly. “SHUFFLE (shuffle play) All the tracks are played once in random order. “SHUFFLE REPEAT” (shuffle repeat) All the tracks are played repeatedly in random order.
Do not stick paper or tape nor write anything on the surface.
7 IF you selected the CD alarm, press
TIME SET + or – select the desired
wake-up track number.
The wake-up track number can be set up to 99. Its default value is “01”.
8 Press ALARM SET.
Two short beeps confirms the setting, and the ALARM A or ALARM B indicator lights up.
For the CD alarm, the track you specified as the Wake-up track is played first. (If the CD play mode is set to “SHUFFLE” or “SHUFFLE REPEAT”, however, all the tracks are played in random order.)
To Check the Alarm Time
Press ALARM SET A or ALARM SET B. The display shows the alarm time. If you press ALARM SET A or ALARM SET B again, the indication changes to the wake-up track number . After a few seconds, the display returns to the current time.
• Alarm time in CD alarm, radio alarm and buzzer alarm is set at PM 12:00 when you purchased the unit.
ALARM ON
For the CD alarm, the track you specified as the Wake-up track is played first. (If the CD play mode is set to “SHUFFLE” or “SHUFFLE REPEAT”, however, all the tracks are played in random order.)
If you set the CD alarm when there is no disc in the CD player or the CD compartment lid is open, the buzzer alarm will sound at the set time.
For the radio alarm, the station that the tuning dial is set to will be received.
For the buzzer alarm, the beeping of the alarm becomes more rapid after every few seconds in three progressive stages.
Note
When ALARM A and ALARM B are set for the same time, only ALARM A will result.
To Doze for a Few More Minutes
Press SNOOZE/SLEEP OFF.
The CD, radio or buzzer alarm turns off but will be automatically activated again after about 10 minutes. Every time you press SNOOZE/SLEEP OFF, the
Setting the Sleep Timer
You can fall asleep to the radio or CD using the built­in sleep timer that turns off the CD or the radio automatically after a preset duration.
Press SLEEP during CD or radio play.
You can set the sleep timer to durations of 90, 60, 30, or 15 minutes. Every push changes the display as follows:
OFF (current time)
15
The CD or the radio will play for the time you set, then shut off.
•To turn off the CD or radio before the preset time,
press SNOOZE/SLEEP OFF.
To Use Both the Sleep Timer and the Alarm
You can fall asleep to the CD or the radio and be awakened by the CD, radio or buzzer alarm.
1 Set the alarm. (See “Setting the Alarm”.) 2 Set the sleep timer. (See “Setting the Sleep
Timer”.)
90
60
30
snooze time changes as follows:
Close the lid.
3 Press CD u.
The CD/RADIO indicator lights up and “TRACK 01” appears in the display to indicate that track 1 of the CD is playing.
After you press CD u, it takes about 10 seconds before the music starts. The indication in the display returns to the current time after about 4 seconds.
4 Turn VOLUME to adjust the volume.
To
Pause Resume play after pause Locate the beginning of
the current track (AMS*) Locate the next track
(AMS) Go back at high speed Go forward at high speed Locate the previous track
(AMS) Locate the succeeding
track (AMS) Stop play
* AMS = Automatic Music Sensor **These operations are possible during both play and
pause.
• During CD playback, every time you press CLOCK SET/TRACK, the current time and the track number appear in the display alternately.
Press CD u CD u again
.**
>**
Hold down .** Hold down >**
. repeatedly**
> repeatedly**
OFF x
About CD-Rs/CD-RWs
This unit is compatible with CD-Rs/CD-RWs but playback capability may vary depending on the quality of the disc,the recording device and application software.
Playing the Radio
1 Press RADIO•ON to turn on the radio.
The “CD/RADIO” indication will light up.
2 Adjust VOLUME. 3 Select the BAND. 4 Tune in a station using the TUNING dial.
•To turn off the radio, press OFF x • ALARM RESET.
Improving the reception
FM: Extend the FM wire antenna to improve
reception.
AM: Rotate the unit horizontally for optimum
reception. A ferrite bar antenna is built into the unit.
Do not operate the unit over a steel desk or metal surface, as this may lead to interference of receptoin.
Setting the Alarm
This clock radio is equipped with 3 alarm modes— CD, radio and buzzer. Before setting the alarm, make sure to set the clock (see “Setting the Clock”). This unit is also equipped with a dual alarm function. You can set the alarm for two different times ALARM SET A and ALARM SET B.
To Set the Alarm Time 1 If you will select the CD alarm or radio
alarm, adjust the volume. Also, if you will select the radio alarm, tune in to the desired station.
2 Set the ALARM MODE selector to CD,
RADIO or BUZZER. The ALARM A or ALARM B indicator lights up.
3 Press ALARM SET A or ALARM SET
B for a few seconds. The ALARM A or ALARM B indicator flashes, depending
on which one you set.
After one beep, the hour will start to flash in the display.
4 Press TIME SET + or – until the desired
hour appears.
To set the hour rapidly, hold down TIME SET + or –.
5 Press ALARM SET.
The minute will flash.
6 Repeat step 4 to set the minute and press
ALARM SET.
The wake-up track number flashes on the display.
20
10
The display shows the snooze time for a few seconds and returns to show the current time. When you press
30
40
60
50
SNOOZE/SLEEP OFF after the current time appeared, the snooze time starts from 10 minutes again.
• The maximum length of the snooze time is 60 minutes.
ALARM OFF
The alarm is turned off automatically after 60 minutes.
To Stop the Alarm
Press OFF x • ALARM RESET to turn off the alarm.
The alarm will come on again at the same time the next day.
To Deactivate the Alarm
Set the ALARM MODE selector to OFF. ALARM A or ALARM B indicator go off.
Using the NAP Timer (Count Down Timer)
The NAP timer sounds the buzzer after a present time duration.
Press NAP repeatedly until the desiresd minutes is displayed.
Each press changes the display as follows:
OFF
(current time)
10 90120
The NAP indicator turns on, and the NAP time is displayed for a few seconds. NAP timer starts counting down the NAP time.
When selected NAP time has passed, the beep sound comes on, and the NAP indicator flashs.
To Stop NAP Timer
Press NAP or OFF x to turn off the buzzer.
• ALARM RESET
To Deactive NAP Timer
Press NAP.
The NAP indicator goes off.
30
20 60
Loading...
