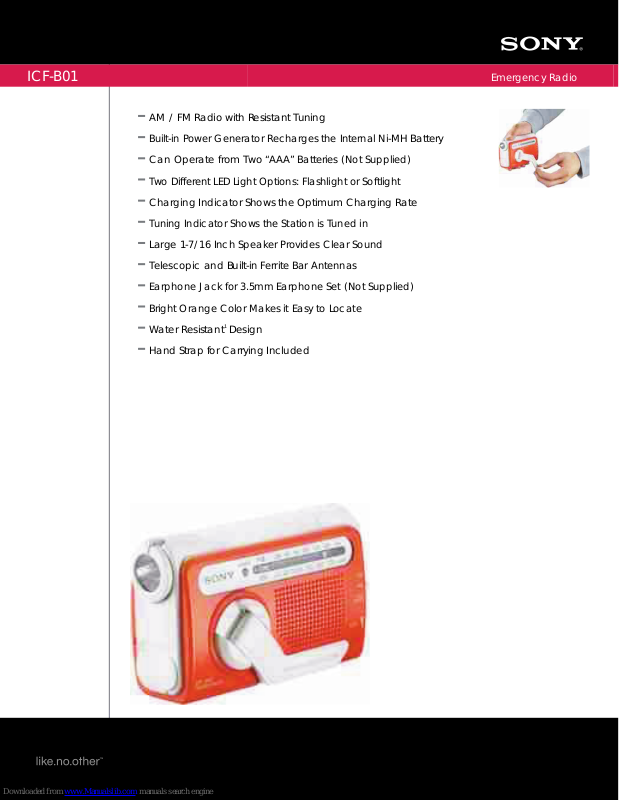

Sony ICF-B01 Marketing Specifications

ICF-

B01

Emergency Radio

AM / FM Radio with Resistant Tuning

Built-in Power Generator Recharges the Internal Ni

-MH Battery

Can Operate from Two “AAA”

Batteries (Not Supplied)

Two Different LED Light Options: Flashlight or Softlight

Charging Indicator Shows the Optimum Charging Rate

Tuning Indicator Shows the Station is Tuned in

Large 1-

7/16 Inch Speaker Provides Clear Sound

Telescopic and Built-

in Ferrite Bar Antennas

Earphone Jack for 3.5mm Earphone Set (Not Supplied)

Bright Orange Color Makes it Easy to Locate

Water Resistant Design

1

Hand Strap for Carrying Included

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 800.222.7669 • www.sony.com

Last Updated: 11/27/2007

ICF-

B01

Emergency Radio

Please visit the Dealer Network for current information at

www.sony.com/dn

Features

AM / FM Radio with Resistant Tuning allows the station to be

tuned before it’s put away for emergency use and will stay in
that position until it's changed by the user.

Built-in Power Generator with 1 minute of cranking at the
optimum rate indicated by the green LED charging indicator,
the user is provided with up to: 60 minutes of AM radio, 40
minutes of FM radio or 15 minutes of light.

2

Power Source Choice

the unit can be operated using the

Power Generator or 2 “AAA” batteries (not supplied).

Two Light Settings allows you to choose between using a
flashlight or a softlight which adds to the functionality of the
radio. In the flashlight setting, the LED provides a bright light
that can be used to illuminate an object or help guide the user
when walking. The softlight is a low level light that adds
illumination to a small area acting as a night light or comfort
light when a group of children or adults are gathered around it.

Charging Indicator when the Power Generator handle is
turned at the optimum rotating speed (in either direction), the
green LED Charging Indicator will illuminate. Continuing to turn
the handle at this same rate for approximately one minute
[120 rotations] will provide a full charge.

Bright Orange Color makes it easy to locate.

Water Resistant Unit is designed to be splash resistant for all

weather operation. It cannot, however, be immersed in water.

1

Compact size with a total cubic volume of 34 cubic inches it
can easily fit in an emergency kit, kitchen drawer or the glove
box in your car, ready when you need it.

Specifications

Power

Power Back-up: Built-in Power Generator

AM Radio: 60 Minutes
FM Radio: 40 Minutes
Light: 15 Minutes

Battery Life (Approx.): Optional AAA Batteries x 2

AM Radio: 50 Hours
FM Radio: 40 Hours
Light: 30 Hours

Dimensions

Weight: 10 oz (285g)
Measurements: W 5 1/8" x H 3" x D 2" (130 x 77x 52mm)

Supplied Accessories

Hand strap for carrying

Optional Accessories

Two “AAA” batteries

3.5mm earphone set

Color:

Orange

2

2

UPC Code:

027242694040

1. Not meant to me immersed or come in continuous contact with water.

2. All power times are approximate.

©2006 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony and
like.no.other are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures are
approximate.
