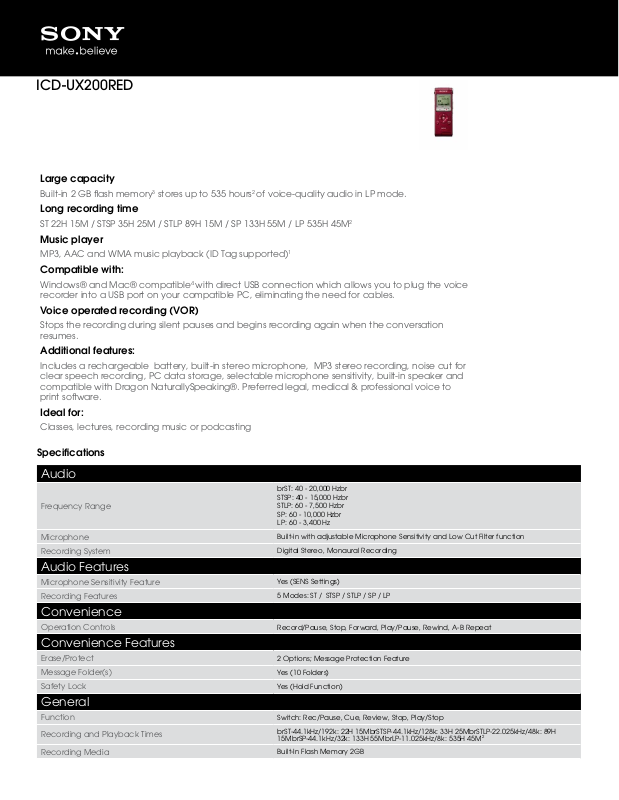

ICD-UX200RED
Large capacity
Built-in 2 GB ash memory3 stores up to 535 hours2 of voice-quality audio in LP mode.
Long recording time
ST 22H 15M / STSP 35H 25M / STLP 89H 15M / SP 133H 55M / LP 535H 45M
Music player
MP3, AAC and WMA music playback (ID Tag supported)
1
Compatible with:
Windows® and Mac® compatible4 with direct USB connection which allows you to plug the voice
recorder into a USB port on your compatible PC, eliminating the need for cables.
Voice operated recording (VOR)
Stops the recording during silent pauses and begins recording again when the conversation
resumes.
Additional features:
Includes a rechargeable battery, built-in stereo microphone, MP3 stereo recording, noise cut for
clear speech recording, PC data storage, selectable microphone sensitivity, built-in speaker and
compatible with Dragon NaturallySpeaking®. Preferred legal, medical & professional voice to
print soware.
Ideal for:
Classes, lectures, recording music or podcasting
2
Specications
Audio
Frequency Range
Microphone
Recording System
Audio Features
Microphone Sensitivity Feature
Recording Features
Convenience
Operation Controls
Convenience Features
Erase/Protect
Message Folder(s)
Safety Lock
General
Function
Recording and Playback Times
Recording Media
brST: 40 - 20,000 Hzbr
STSP: 40 - 15,000 Hzbr
STLP: 60 - 7,500 Hzbr
SP: 60 - 10,000 Hzbr
LP: 60 - 3,400 Hz
Built-in with adjustable Microphone Sensitivity and Low Cut Filter function
Digital Stereo, Monaural Recording
Yes (SENS Settings)
5 Modes: ST / STSP / STLP / SP / LP
Record/Pause, Stop, Forward, Play/Pause, Rewind, A-B Repeat
2 Options; Message Protection Feature
Yes (10 Folders)
Yes (Hold Function)
Switch: Rec/Pause, Cue, Review, Stop, Play/Stop
brST-44.1kHz/192k: 22H 15MbrSTSP-44.1kHz/128k: 33H 25MbrSTLP-22.025kHz/48k: 89H
15MbrSP-44.1kHz/32k: 133H 55MbrLP-11.025kHz/8k: 535H 45M
Built-In Flash Memory 2GB
2
Page 2
Type of Use
Hardware
Display
LCD
Speakers
Inputs and Outputs
Headphone Output
Headphone Output(s)
Microphone Input
USB Port(s)
Memory
Memory Size
Power
Battery Type
Output Power
Power Requirements
Soware
Operating System Compatibility
Supplied Soware
Speaker
Speaker Dimensions
Dimensions (Approx.)
Dimensions (Approx.)
Weights and Measurements
Weight (Approx.)
Accessories
Supplied Accessories
Optional Accessories
Ultra Portable Voice Recorder
Full Function Display
Display: Alarm, Connecting, Hold Mark, ST/STSP/STLP/SP/LP/Mode, Voice Operated
Recording, Title and Artist name/ID3 tag, Back Light, Files Number, Folder, Full Dot-matrix
Display, Mic Sensitivity(H/L), Memory Remain, Repeat, Play/Remain Time, Erase, Battery
Remain, Date & Time, Rec Date/Time, Title/ID3-tag
Inner Speaker: 10mm
Earphone Jack, Mic Jack, USB
1
1
1
2 GB (approx. 1.79 GB=1,928,822,784 Byte)
"AAA" x 1
90 mW
One NH-AAA rechargeable battery (supplied):
1.2 V DC
One LR03 (size AAA) alkaline battery (not
supplied): 1.5 V DC
Windows Vista® Ultimate Service Pack 1 or higher, Windows Vista® Business Service
Pack 1 or higher, Windows Vista® Home Premium Service Pack 1 or higher, Windows
Vista® Home Basic Service Pack 1 or higher, Windows® XP Media Center Edition 2005
Service Pack 3 or higher, Windows® XP Media Center Edition 2004 Service Pack 3 or
higher, Windows® XP Media Center Edition Service Pack 3 or higher, Windows® XP
Professional Service Pack 3 or higher, Windows® XP Home Edition Service Pack 3 or
higher, Windows® 2000 Professional Servie Pack 4 or higher, Mac OS X (v10.2.8-v10.5),
pre-installed
“SonyRecorder_Driver.exe” as installed in the IC
recorder.
Approx. 21/32 in. diameter
1 1/2 × 4 × 19/32 in.
Approx. 58 g (2 oz) including NH-AAA
rechargeable battery
IC Recorder (1)
NH-AAA (size AAA) rechargeable batteries (1)
Stereo headphones (1)
USB connecting cable (1)
Battery case* (1)
Operating Instructions
Active speaker SRS-M50
Electret condenser microphone ECM-CS10,
ECM-CZ10, ECM-DS70P, ECM-DS30P, ECM-TL1
Audio connecting cable RK-G136 and RK-G139
USB AC adaptor AC-U50AD (U.S.A. and Canada only)
Rechargeable battery NH-AAA-B2K
Battery charger BCG-34HS2KA (U.S.A. and Canada only)
Page 3
1. Not all WMA, MP3, and AAC les may play back due to le variations. Playback
depends on recording conditions.
2. Actual battery life will vary based on network, product settings, usage patterns, battery,
and environmental conditions. Actual storage capacity may vary based on product
settings, usage patterns, operating environment and battery condition. Calculated based
on 4 minutes per song for WMA and MP3 les. Not all WMA and MP3 les may play back
due to le variations.
3. 1 GB equals 1073741824 bytes, a portion of which is used for data management
functions.
4. 64 Bit Windows Vista® compatible with optional DVE 3.2.01
5. Based on 1 song being equal to 4 minutes.
© 2010 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without
written permission is prohibited. Sony is a trademark of Sony. Windows® is a registered
trademark of Microso Corporation in the United States and/or other countries.
Macintosh® and Mac® are registered trademarks of Apple Computer, Inc. Dragon
Naturally Speaking® is a registered trademark of Nuance Communications, Inc. All other
trademarks are trademarks of their respective owners. Features and specications are
subject to change without notice. Non-metric weights and measures are approximate and
may vary. /Updated: December 16, 2011
