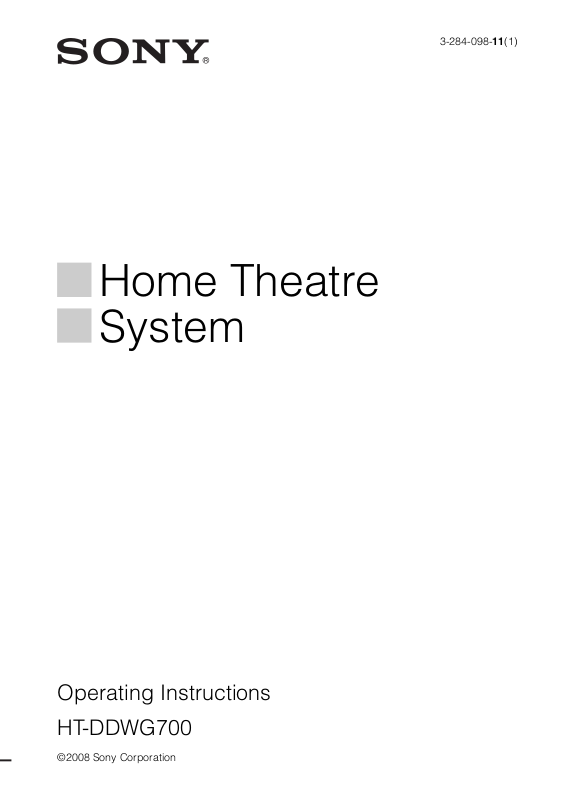

Sony HT-DDWG700 User Manual

Home Theatre System

3-284-098-11(1)

Operating Instructions

HT-DDWG700

Owner’s Record

The model and serial numbers are located on the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

M o d e l N o . ______________________________________________________

Serial No. __________________________________________________________________

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To prevent fire, do not cover the ventilation of the apparatus with newspapers, table-cloths, curtains, etc. And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Install this system so that the power cord can be unplugged from the wall socket immediately in the event of trouble.

Batteries or batteries installed apparatus shall not be exposed to excessive heat such as sunshine, fire or the like.

For customers in the United States

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Incr ease the separation between the equip ment and

receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

CAUTION

You are cautioned that any changes or modification not expressly approved in this manual could void your authority to operate this equipment.

Note to CATV system installer:

This reminder is provided to call CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for p roper grounding and, in particular, specifies that the cable ground shall be

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

connected to the grounding system of the building, as close to the point of cable entry as practical.

About This Manual

• The instructions in this manual are for model HT-DDWG700. In this manual, models of area code U is used for illustration purposes unless stated otherwise. Any difference in operation is clearly indicated in the text, for example, “Models of area code U only”.

The HT-DDWG700 consists of:

• Receiver STR-KG700

• Speaker system – Front speakers SS-MSP700 – Center speaker SS-CNP710 – Surround speakers SS-SRP700 – Sub woofer SS-WP700

• The instructions in this manual describe the controls on the supplied remote. You can also use the controls on the receiver if they have the same or similar names as those on the remote.

About area codes

The area code of the receiver you purchased is shown on the lower right portion of the rear panel (see the illustration below).

iPod is a trademark of Apple Inc., registered in the U.S. and other countries. All other trademarks and registered trademarks are of their respective holders. In this manual, ™ and ® marks are not specified.

FRONTCENTER

Area code

Any differences in operation, according to the area code, are clearly indicated in the text, for example, “Models of area code AA only”.

This receiver incorporates Dolby* Digital and Pro Logic Surround and the DTS** Digital Surround System. * Manufactured under license from Dolby

Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

** Manufactured under license under U.S. Patent

#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved.

Table of Contents

Getting Started

Description and location of parts...................5

1: Installing the speakers .............................12

2: Connecting the speakers..........................14

3: Connecting the audio/video

components.............................................15

4: Connecting the antennas..........................20

5: Preparing the receiver and the remote .....21

6: Adjusting the speaker levels and

balance (TEST TONE) ...........................22

Playback

Selecting a component.................................24

Listening/Watching a component................25

Amplifier Operations

Navigating through menus...........................27

Adjusting the level (LEVEL menu).............30

Adjusting the tone (TONE menu) ...............31

Settings for the surround sound

(SUR menu)............................................31

Settings for the tuner (TUNER menu).........32

Settings for the audio (AUDIO menu).........32

Settings for the system (SYSTEM menu) ...33

Tuner Operations

Listening to FM/AM radio.......................... 39

Presetting radio stations.............................. 41

Other Operations

Switching between digital and analog

audio (INPUT MODE) .......................... 43

Enjoying the DIGITAL MEDIA PORT

(DMPORT) ............................................ 44

Naming inputs............................................. 45

Changing the display .................................. 46

Using the Sleep Timer ................................ 46

Using the Remote

Changing button assignments ..................... 47

Additional Information

Glossary ...................................................... 48

Precautions.................................................. 49

Troubleshooting .......................................... 51

Specifications.............................................. 54

Index ............................................. Back cover

Enjoying Surround Sound

Enjoying Dolby Digital and DTS surround

sound (AUTO FORMAT DIRECT) ....... 35

Selecting a pre-programmed sound field.....36

Using only the front speakers and sub

woofer (2CH STEREO) .........................38

Resetting sound fields to the initial

settings....................................................39

Getting Started

Description and location of parts

Receiver

Front panel

Getting Started

?/1

VIDEO IN/

PORTABLE AUDIO IN

PHONES

Name Function

A ?/1

(on/standby)

B DIMMER Press to adjust the

C SLEEP Press to activate the Sleep

D Display The current status of the

E DISPLAY Press to select information

F INPUT MODE Press to select the input

2 3

DIMMER SLEEP 2CH

A.F.D. MOVIE MUSIC

Press to turn the receiver on or off (page 21, 25, 26, 39).

brightness of the display.

Timer function and the duration which the receiver turns off automatically (page 46).

selected c omponent or a li st of selectable items appears here (page 6).

displayed on the display (page 46).

mode when the same components are connected to both digital and analog

DISPLAY

INPUT MODE

INPUT SELECTOR

Name Function

G MASTER

VOLUME

H INPUT

SELECTOR

I Remote sensor Receives signals from

J 2CH Press to select a sound field

A.F.D.

MOVIE

MUSIC

K VIDEO IN/

PORTABLE AUDIO IN jack

L PHONES jack Connects to headphones

Turn to adjust the volume level of all speakers at the same time (page 23, 24, 25,

26).

Turn to select the input source to play back (page

24).

remote commander.

(page 35, 36, 38).

Connects to a portable audio such as MP3 player, etc. (page 16).

(page 51).

jacks (page 43).

MASTER VOLUME

continued

About the indicators on the display

1 2 3 4 5 6

LFE

LCR

SL S SR

;

PLII

PL OPT DTS MEMORY ST

;

qs qa 9q;

Name Function

A SW Lights up when the audio signal

B LFE Lights up when the disc being

C ; D Lights up when the receiver is

D ; PL/

; PLII

E OPT Lights up when INPUT MODE

is output from the SUB WOOFER jack.

played back contains an LFE (Low Frequency Effect) channel and the LFE channel signal is actually being reproduced.

decoding Dolby Digital signals.

Note

When playing a Dolby Digital format disc, be sure that you have made digital connections and that INPUT MODE is set to “AUTO” (page 43).

“; PL” lights up when the receiver applies Pro Logic processing to 2 channel signals in order to output the center and surround channel signals. “; PLII” lights up when the Pro Logic II Movie/Music decoder is activated.

is set to “AUTO” and the source signal is a digital signal being input through the OPTICAL jack.

Name Function

F DTS Lights up when the receiver is

G MEMORY Lights up when a memory

H Tuner

indicators

I Preset

station indicators

J D.RANGE Lights up when dynamic range

K COAX Lights up when DVD/BD input

decoding DTS signals.

Note

When playing a DTS format disc, be sure that you have made digital connections and that INPUT MODE is set to “AUTO” (page 43).

function, such as Preset Memory (page 41), etc., is activated.

Lights up when using the receiver to tune in radio stations (page 39), etc.

Lights up when using the receiver to tune in preset radio stations. For details on presetting radio stations, see page 41.

compression is activated (page

28).

is selected. However, “UNLOCK” appears on the display if no digital signal is input through the COAXIAL jack.

MONOD.RANGECOAX

Name Function

L Playback

channel indicators

L R C SL SR S

The letters (L, C, R, etc.) indicate the channels being played back. The boxes around the letters vary to show how the receiver downmixes the source sound. Front Left Front Right Center (monaural) Surround Left Surround Right Surround (monaural or the surround components obtained by Pro Logic processing)

Example:

Recording format (Front/ Surround): 3/2.1 Sound Field: A.F.D. AUTO

Getting Started

LCR

SL SR

continued

Rear panel

1 2

ANTENNA

DIGITAL

OPTICAL

SAT

COAXIAL

DVD/BD

DMPORT

DC5V

0.7A MAX

SUB

SURROUND

SA-CD/CD

IN IN

TV SAT

WOOFER

45 3

SPEAKERS

FRONTCENTER

A DIGITAL INPUT section

OPTICAL IN jack

COAXIAL IN jack

B ANTENNA section

FM ANTENNA jack

AM ANTENNA terminals

C SPEAKERS section

Connects to a DVD player, etc. The COAXIAL jack provides a better sound quality (page 18).

Connects to the FM wire antenna supplied with this receiver (page 20).

Connects to the AM loop antenna supplied with this receiver (page 20).

Connects to the speakers and sub woofer (page 14).

D AUDIO INPUT section

White (L)

Red (R)

AUDIO IN jacks

E DMPORT

DMPORT jack

Connects to a CD player, etc. (page

16).

Connects to a DIGITAL MEDIA PORT adapter (page 44).

Remote commander

You can use the supplied RM-AAU024 Remote Commander to operate the receiver and to control the Sony audio/video components that the remote is assigned to operate (page 47).

TV INPUT

SLEEP

VIDEO DVD/BD SAT TV

2CH A.F.D.

123

ql qk

>10

CLEAR

DISPLAY

RETURN/EXIT

TV CH –

PRESET –

TUNING –

?/1

DMPORT

?/1

SYSTEM STANDBY

SA-CD/CD TUNER

MOVIE MUSIC

DVD/BD

D.TUNING

AMP MENU

MEMORY

0/10

ENTER

TOOLS/

OPTIONS

MASTER VOL

MENU/HOME

REPLAY ADVANCE

PRESET +

TUNING +

HmM

FM MODE

?/1

D.SKIP

MUTING

TV VOL

TV CH +

8 9

Name Function

A TV ?/1

(on/standby)

AV ?/1 (on/standby)

B ?/1

(on/standby)

C Input buttons Press one of the buttons to

D 2CH Press to select a sound field.

A.F.D.

MOVIE

MUSIC

E DVD/BD

F D.SKIP Press to skip a disc when

G D.TUNING Press to enter direct tuning

Press TV ?/1 and TV (N) at the same time to turn the TV on or off.

Press to turn on or off the Sony audio/video compo nents that the remote is assigned to operate (page 47). If you press ?/1 (B) at the same time, it will turn off the receiver and other components (SYSTEM STANDBY).

Note

The function of the AV ?/1 switch changes automatically each time you press the input buttons (C).

Press to turn the receiver on or off. To turn off all components, press ?/1 and AV ?/1 (A) at the same time (SYSTEM STANDBY).

select the component you want to use. When you press any of the input buttons, the receiver turns on. The buttons are factory assigned to control Sony components. You can change the button assignments following the steps in “Changing button assignments” on page 47.

Press to display the menu of the DVD or Blu-ray disc on the TV screen . Then, use V, v, B, b and (P) to perform menu operations.

using a multi-disc changer.

mode.

Getting Started

continued

Name Function

H AMP MENU Press to display the menu of

I ENTER Press to enter the value after

MEMORY Press to store a station.

J MUTING Press to turn off the sound

K TV VOL

/–

MASTER

VOL +

L MENU/HOME Press to display the menu of

M ./>

REPLAY / ADVANCE

m/M

a)b)

the receiver. Then, use V, v, B, b and (P) to perform

menu operations.

selecting a channel, disc or track using the numeric buttons of the TV, VCR or satellite tuner.

temporarily. Press MUTING again to restore the sound. Press MUTING and TV (N) at the same time to activate the TV’s muting function.

Press TV VOL +/– and TV (N) at the same time to adjust the volume level of the TV.

Press to adjust the volume

/–

level of all speakers at the same time.

the VCR, DVD player, satellite tuner or Blu-ray disc player on the TV screen. Press MENU/HOME and TV (N) at the same time to display the TV’s menu. Then, use V, v, B, b and (P) to perform menu operations.

Press to skip a track of the CD player, DVD player or Bluray disc player.

Press to replay the previous

scene or fast forward the current scene of the VCR, DVD player or Blu-ray disc player.

Press to – search tracks in the forward/

reverse direction of the DVD player.

– start fast forward/rewind of

the VCR, CD player or Bluray disc player.

Press to start playback of the VCR, CD player, DVD player, or Blu-ray disc player.

Name Function

TV CH +/– Press TV CH +/– and TV (N)

PRESET +/– Press to select

TUNING +/– Press to scan a station.

FM MODE Press to select the FM

N TV Press TV and the buttons with

O RETURN/

EXIT O

V/v/B/b

Press to pause playback or recording of the VCR, CD player, DVD player or Blu-ray disc player. (Also starts recording with components in recording standby.)

Press to stop playback of the VCR, CD player, DVD player or Blu-ray disc player.

at the same time to select preset TV channels.

– preset stations. – preset channels of the VCR

or satellite tuner.

monaural or stereo reception.

orange printing at the same time to enable the TV operation.

Press to – return to the previous menu. – exit the menu while the

menu or on-screen guide of the VCR, DVD player, satellite tuner or Blu-r ay disc player is displayed on the TV screen.

Press RETURN /EXIT O and TV (N) at the same time to return to the previous menu or exit the TV’s menu while the menu is displayed on the TV screen.

After pressing DVD/BD MENU (E), AMP MENU (H), or MENU/HOME (L), press V, v, B or b to select the settings. Then, press to enter the selection if you have pressed DVD/BD MENU or MENU/HOME previously. Press also to enter the selection o f the receiver, VCR , satellite tuner, CD player, DVD player or Blu-ray disc player.

Name Function

Q DISPLAY Press to select information

R TOOLS/

OPTIONS

S Press to input the decimal

>10 Press to select track numbers

CLEAR Press to clear a mistake when

T Numeric

buttons (number 5

U TV INPUT Press TV INPUT and TV (N)

SLEEP Press to activate the Sleep

displayed on the TV screen of the VCR, satellite tuner, CD player, DVD player or Bluray disc player. Press DISPLAY and TV (N) at the same time to display TV’s information on the TV screen.

Press to display and select the options of the DVD player or Blu-ray disc player. Press TOOLS/OPTIONS and TV (N) at the same time to display the options applicable to the Sony TV.

point for channel number of the Digital CATV terminal. Press and TV (N) at the same time to input the decimal point for the channel numbers of the TV.

over 10 of the CD player.

you press the incorrect numeric button.

Press to – preset/tune to preset

)

stations.

– select track numbers of the

CD player, DVD player or Blu-ray disc player. Press 0/ 10 to select track number 10.

– select channel numbers of

the VCR or satellite tuner.

Press the numeric buttons and TV (N) at the same time to select the TV channels.

at the same time to select the input signal (TV input or video input).

Timer function and the duration which the receiver turns off automatically.

The nu mb er 5, MASTE R VOL +, TV VOL +, and H buttons have tactile dots. Use the tactile dots as references when operating the receiver.

This button is also available for DIGITAL MEDIA PORT adapter operation. For details on the function of the button, see the operating instructions supplied with the DIGITAL MEDIA PORT adapter.

Notes

• Some functions explained in this section may not work depending on the model.

• The above explanation is intended to serve as an example only. Therefore, depending on the component, the above operation may not be possible or may operate differently than described.

Getting Started

1: Installing the speakers

To fully enjoy theater-like multi channel surround sound requires five speakers (two front speakers, a center speaker, and two surround speakers) and a sub woofer (5.1 channel).

Example of a 5.1 channel speaker system configuration

AFront speaker (left) BFront speaker (right) CCenter speaker DSurround speaker (left) ESurround speaker (right) FSub woofer

Installing the speakers on a flat surface

Before you install the speakers and sub woofer, be sure to attach the supplied foot pads to prevent vibration or movement as shown in the illustration below.

Installing the speakers on the speaker stand

For greater flexibility in positioning the speakers, use the optional WS-FV11 or WS-FV10D speaker stand (available only in certain countries). Be sure to detach the screw from the speaker and use it when you install the speaker to the speaker stand. For details, refer to the operating instructions supplied with the speaker stand.

Tip

Since the sub woofer does not emit highly directional signals, you can place it wherever you want.

Installing the speakers on the wall

You can install your front, center and surround speakers on the wall.

1 Prepare screws (not supplied)

that are suitable for the hook on the back of each speaker as shown in the illustrations below.

3/16 inch (4 mm)

more than 1 inch (25 mm)

3 Hang the speakers on the

screws.

Hook on the back of the speaker

3/16 inch (4.6 mm)

13/32 inch (10 mm)

Getting Started

3/16 inch (4.6 mm)

13/32 inch (10 mm)

Hook on the back of the speaker

2 Fasten the screws to the wall.

The screws should protrude 7/32 to 9/32 inch (5 to 7 mm).

7/32 to 9/32 inch

(5 to 7 mm)

Notes

• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where reinforcement is applied.

• Contact a screw shop or installer regarding the wall material or screws to be used.

• Sony is not responsible for accident or damage caused by improper installation, insufficient wall strength or improper screw installation, natural calamity, etc.

2: Connecting the speakers

Before connecting the cords, be sure to disconnect the AC power cord (mains lead).

FC B

SUB

WOOFER

SURROUND

LR LR

SPEAKERS

FRONTCENTER

AFront speaker (left) BFront speaker (right) CCenter speaker DSurround speaker (left) ESurround speaker (right) FSub woofer

ADE

To connect the speakers correctly

Check the speaker type by referring to the speaker label* at the rear panel or bottom of the speakers.

Character on speaker label

LFront left

R Front right

CCenter

SL Surround left

SR Surround right

* The sub woofer do not have any character on the

speaker label. For details on the speaker type, see page 3.

Tip

Use the supplied speakers to optimize the system’s performance.

Speaker type

3: Connecting the audio/ video components

How to connect your components

This section describes how to hook up your components to this receiver. Before you begin, refer to “Component to be connected” below for the pages which describe how to connect the audio/video components. After connect all your components, proceed to “4: Connecting the antennas” (page 20).

Component to be connected

To connect See

Audio components

• Super Audio CD player/

CD player

• Portable audio such as MP3

player, etc.

Video components

• DVD player/DVD recorder/

Blu-ray disc player

• Satellite tuner/Set-top box

•TV

page 16

page 18

Getting Started

Connecting audio components

The following illustration shows how to connect audio components such as MP3 player, Super Audio CD player or CD player.

Super Audio CD player/CD player

Before connecting the cords, be sure to disconnect the AC power cord (mains lead)

DC5V

0.7A MAX

ANTENNA

SA-CD/CD

IN IN

TV SAT

SUB

WOOFER

DIGITAL

OPTICAL

SAT

COAXIAL

DVD/BD

DMPORT

Portable audio

A Audio cord (not supplied) B Phono cord with stereo headphone jack (not supplied)

SURROUND

SPEAKERS

(On the front panel)

PORTABLE AUDIO IN

VIDEO IN/

FRONTCENTER

Notes

• When listening to a component connected to the VIDEO IN/PORTABLE AUDIO IN jack, sound may be distorted or interrupted. This is not a malfunction and will depend on the connected component.

• If the sound from the component connected to the VIDEO IN/PORTABLE AUDIO IN jack is very soft, you may increase the volume level. However, before you select other component, be sure to reduce the volume level to avoid damaging your speaker.

Tip

You are recommended to use “PORTABLE” sound field if the source is MP3 or other compressed source.

Getting Started

+ 39 hidden pages
