Page 1
3G FIBER TRANSMISSION UNIT
HKC-HB10
HKC-HB15
HKCU-HB10
HKCU-HB15
3G SINGLE LINK INTERFACE UNIT
HKCU2005
OPERATION MANUAL [English]
1st Edition
Page 2
For the customers in the U.S.A.
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority to
operate this equipment.
All interface cables used to connect peripherals must be
shielded in order to comply with the limits for a digital device
pursuant to Subpart B of Part 15 of FCC Rules.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
For the customers in Canada
This Class A digital apparatus complies with Canadian ICES-
003.
Pour les clients au Canada
Cet appareil numérique de la classe A est conforme à la
norme NMB-003 du Canada.
• EN55103-2 : Sensibilité électromagnétique (immunité)
Ce produit est prévu pour être utilisé dans les environnements
électromagnétiques suivants : E1 (résidentiel), E2
(commercial et industrie légère), E3 (urbain extérieur) et E4
(environnement EMC contrôlé, ex. studio de télévision).
Le fabricant de ce produit est Sony Corporation, 1-7-1 Konan,
Minato-ku, Tokyo, Japon.
Le représentant autorisé pour EMC et la sécurité des produits
est Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Allemagne.
Für Kunden in Europa
Dieses Produkt besitzt die CE-Kennzeichnung und erfüllt die
EMV-Richtlinie der EG-Kommission.
Angewandte Normen:
• EN55103-1: Elektromagnetische Verträglichkeit
(Störaussendung)
• EN55103-2: Elektromagnetische Verträglichkeit
(Störfestigkeit)
Für die folgenden elektromagnetischen Umgebungen: E1
(Wohnbereich), E2 (kommerzieller und in beschränktem
Maße industrieller Bereich), E3 (Stadtbereich im Freien) und
E4 (kontrollierter EMV-Bereich, z.B. Fernsehstudio).
Der Hersteller dieses Produkts ist Sony Corporation, 1-7-1
Konan, Minato-ku, Tokyo, Japan.
Der autorisierte Repräsentant für EMV und Produktsicherheit
ist Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Deutschland.
For HKC-HB10/HB15, HKCU-HB10/HB15 only
For the customers in Europe
This product with the CE marking complies with the EMC
Directive issued by the Commission of the European
Community.
Compliance with this directive implies conformity to the
following European standards:
• EN55103-1 : Electromagnetic Interference(Emission)
• EN55103-2 : Electromagnetic Susceptibility(Immunity)
This product is intended for use in the following
Electromagnetic Environments: E1 (residential), E2
(commercial and light industrial), E3 (urban outdoors), E4
(controlled EMC environment, ex. TV studio).
The manufacturer of this product is Sony Corporation, 1-7-1
Konan, Minato-ku, Tokyo, Japan.
The Authorized Representative for EMC and product safety is
Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Germany.
Pour les clients en Europe
Ce produit portant la marque CE est conforme à la Directive
sur la compatibilité électromagnétique (EMC) émise par la
Commission de la Communauté européenne.
La conformité à cette directive implique la conformité aux
normes européennes suivantes :
• EN55103-1 : Interférences électromagnétiques (émission)

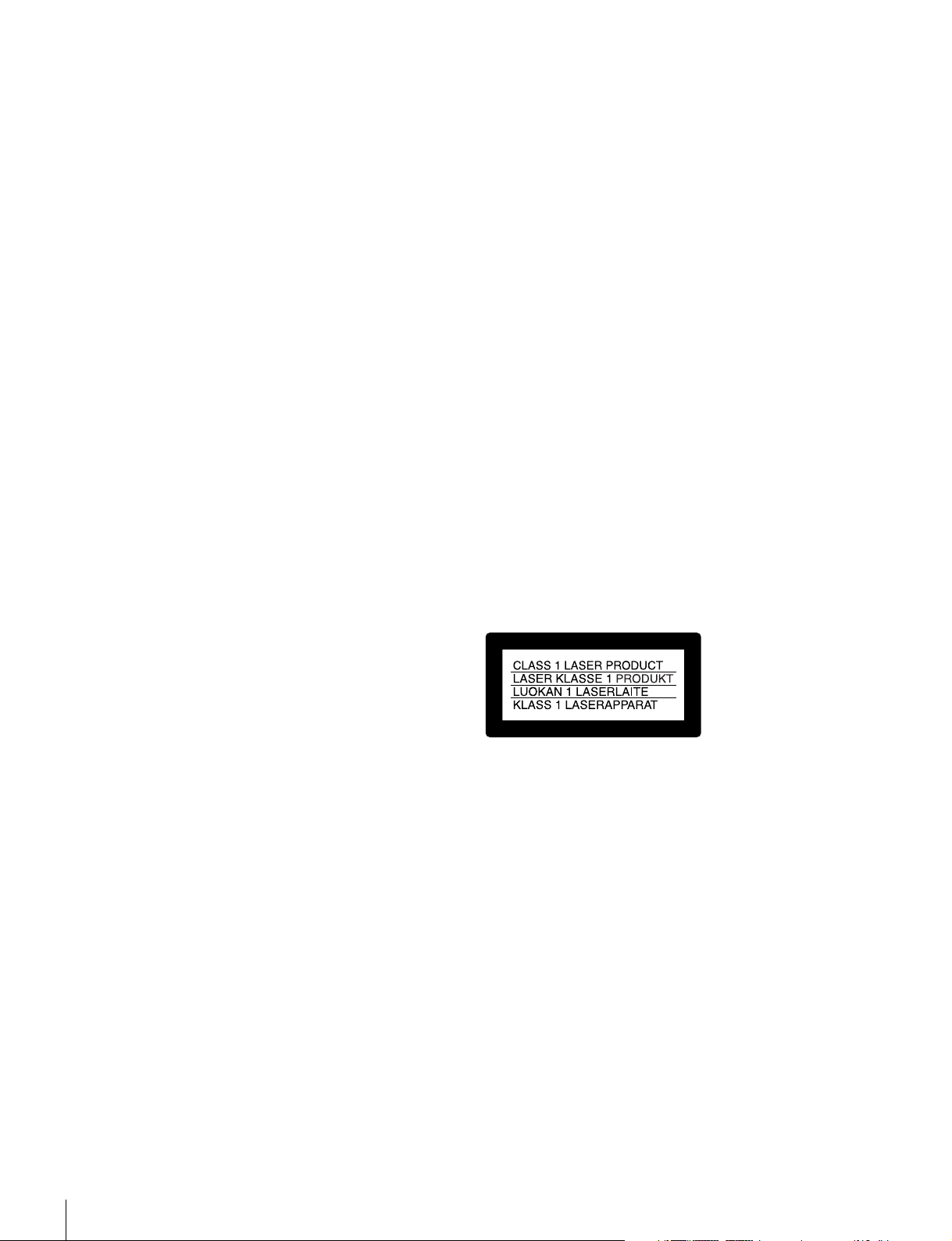

This 3G Fiber Transmission Unit is classified as a CLASS 1
LASER PRODUCT.
Dieses 3G-Fiberoptik-Übertragungsgerät ist als
LASERPRODUKT DER KLASSE 1 eingestuft.
Tämä 3G-kuitusiirtolaite on luokiteltu 1. LUOKAN
LASERTUOTTEEKSI.
Den här 3G Fiber Transmission Unit klassificeras som en
LASERPRODUKT AV KLASS 1.
Caution
The use of optical instruments with this product will increase
eye hazard.
Caution
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
2
Page 3
Table of Contents
Overview..................................................................................4
Camera Systems That Become Available....................................4
Major Functions That Become Usable ........................................5
HDC1000R/1000: HKC-HB10 Installed ..................................6
Side Panels...................................................................................6
MAINTENANCE Menu..............................................................7
HDC1500R/1400R/1500: HKC-HB15 Installed.......................8
Connector Panel...........................................................................8
MAINTENANCE Menu..............................................................9
Video Formats and the Output Signals of the Camera .....11
HDCU1000: HKCU-HB10 Installed.......................................13
Rear Panel ..................................................................................13
Output Signals: in Dual Link Format (1080/59.94P, 1080/50P)
Transmission ...................................................................14
HDCU1500: HKCU-HB15 Installed.......................................15
Rear Panel ..................................................................................15
Output Signals: in Dual Link Format (1080/59.94P, 1080/50P)
Transmission ...................................................................16
HKCU2005 3G Single Link Interface Unit ...........................17
DRX-8 Board.............................................................................17
HIF-57 Board.............................................................................17
HDCU1000: HKCU-HB10 and HKCU2005 Installed ............18
Rear Panel ..................................................................................18
Output Signals: in Dual Link Format (1080/59.94P, 1080/50P)
Transmission ...................................................................19
HDCU1500: HKCU-HB15 and HKCU2005 Installed ............21
Rear Panel ..................................................................................21
Output Signals: in Dual Link Format (1080/59.94P, 1080/50P)
Transmission ...................................................................22
Connections and Settings ...................................................23
Fiber Transmission System of Dual Link Format .....................23
COAXIAL Connection System .................................................25
Dual-Camera System .................................................................26
Sub-Camera System...................................................................27
Specifications .......................................................................28
HKC-HB10 ................................................................................28
HKC-HB15 ................................................................................28
HKCU-HB10 .............................................................................28
HKCU-HB15 .............................................................................29
HKCU2005 ................................................................................29
Product Configuration..........................................................30
HKC-HB10 ................................................................................30
HKC-HB15 ................................................................................30
HKCU-HB10 .............................................................................30
HKCU-HB15 .............................................................................30
HKCU2005 ................................................................................30
Table of Contents
3
Page 4
Overview
The HKC-HB10/HB15 and HKCU-HB10/HB15 3G Fiber
Transmission Units are function enhancement units for
Sony HD color cameras or HD camera control units.
The applicable cameras and camera control units are
shown in the table below.
Notes
• Connection compatibility with HDC-900-series models is
lost by function enhancement.
• Do not install the 3G Fiber Transmission Units in any
cameras or camera control units other than the applicable
models.
Camera /
Camera Control Unit
HDC1000R
HDC1000
HDC1500R
HDC1500
HDCU1000
HDCU1500 HKCU-HB15
1)
3G Fiber Transmission
Unit
HKC-HB10
HKC-HB15HDC1400R
HKCU-HB10
About the manuals
This operation manual introduces the outlines of systems
which can be established by installing the abovementioned products in a camera or camera control unit,
and it describes the functions added or changed by the
function enhancement.
For conventional functions and operations of the camera or
camera control unit, refer to the operation manual supplied
with the camera or camera control unit.
Camera Systems That Become Available
The following camera systems become available with the
3G Fiber Transmission Units. (There are some restrictions,
depending on the model and combination of the products.
See the table “Additional Functions” in the next
paragraph.)
• Fiber transmission system of Dual Link
Single Link
2)
format (signal transmission at “High Bit
Rate”)
• COAXIAL connection system of Single Link format
using two coaxial cables
• Dual-Camera system
• Sub-Camera system (Only HDCU1000 with an HKCUHB10 installed can be the main camera control unit.)
1)
or
1) Only HDCU1000 units of serial number 14001 or higher (UC), 44001 or
higher (CE), or 410001 or higher (CE) are applicable.
Installing these units provides conventional HD color
camera and HD camera control units for HD-SDI optical
transmission with “High Bit Rate” optical transmission
capability.
The bit rate (High Bit Rate/HD-SDI) of optical
transmission between the camera and the camera control
unit is automatically switched, depending on connected
devices.
The HKCU2005 3G Single Link Interface Unit is a
function enhancement unit for the HDCU1000 with an
HKCU-HB10 installed and the HDCU1500 with an
HKCU-HB15 installed.
When an HKCU2005 is installed, max. four 3G-SDI signal
outputs can be fed from the camera control unit.
Precaution
If these products are installed incorrectly, personal injury
or damage to peripheral items may occur due to fire, shock,
or other accidental circumstances. To avoid such risks,
installation should be performed by trained service
technicians.
HDC1000R/1500R/1000/1500-series models with no 3G
Fiber Transmission Unit installed can be used in
combination.
For connections and settings, see “Connections and
Settings” (page 23).
1) Dual Link formats:
1080/59.94P, 1080/50P
2) Single Link formats:
1080/59.94I, 1080/29.97PsF, 1080/23.98PsF, 720/59.94P, 1080/50I,
1080/25PsF, 1080/24PsF, 720/50P
4
Overview
Page 5
Major Functions That Become Usable
1 Dual Link format (1080/59.94P, 1080/50P)
transmission
2 Dual Link output from the camera and camera control
unit
3 3G-SDI output from the camera and camera control
unit
4 HD-prompter/HD-trunk-video transmission between
the camera and camera control unit
5 Sub-camera control via the AUX REMOTE connector
added to the HDCU1000 rear panel
Note
AES/EBU signal cannot be used when AUX REMOTE is
used.
Additional Functions
Added functions
3G Fiber
Transmission
Unit
HKC-HB10 Large camera HDC1000R yes yes yes yes
HKC-HB15 Portable
HKCU-HB10 Full-size CCU HDCU1000 yes
HKCU-HB15 Portable CCU HDCU1500
1) An HKCU2005 3G Single Link Interface Unit is required.
2) Available with HDCU1000 units of serial number 15001 or higher (UC), or 420002 or higher (CE).
3) An HKCU1005 SDI Output Expansion Unit is required for Dual Link output.
Applicable model
camera
HDC1000 yes yes yes
HDC1500R yes yes yes yes
HDC1400R yes yes
HDC1500 yes yes yes
1Dual Link
format
transmission
2Dual Link
output
yes
3)
33G-SDI output 4HD-prompter/
1)
yes
1)
yes
HD-trunk-video
transmission
yes
yes
5AUX REMOTE
yes
2)
Overview
5
Page 6
HDC1000R/1000: HKC-HB10 Installed
Side Panels
The figure shows an HDC1000R.
1
OUTPUT REMOTE CRANE TRACKER RET
PROMPTER 1 HD TRUNK IN
SDI 1 SDI 2 TEST OUT
a SDI 1 connector
b SDI 2 connector
d REMOTE connector
c HD TRUNK IN connector
a SDI 1 connector (BNC type)
You can select the output signal with SDI-1 OUT on the
<SDI OUT> page of the MAINTENANCE menu.
For Dual Link formats: LINK-A, HD PROMPTER,
3G-SDI
For Single Link formats: MAIN(HD-SDI), HD
PROMPTER
Note
Output signal selection is not possible when the camera is
used in a COAXIAL connection system (page 25) or DualCamera system (page 26), as the connector is used for
connection to a camera control unit or connection between
the primary camera and secondary camera.
For the signal settings, see “Video Formats and the Output
Signals of the Camera” (page 11).
b SDI 2 connector (BNC type)
For HD-SDI or SD-SDI signal output.
Select the output signal with SDI-2 OUT on the <SDI
OUT> page of the MAINTENANCE menu. You can select
from among MAIN(HD-SDI), VF, RET, and SD-SDI.
LINK-B can also be selectable when the camera is used
with a Dual Link format.
CONTROL
DC OUT
12V 1.5A
1
AUDIO IN 2
AUDIO IN 1
MIC
MICOFF
OFF
LINE
LINE
+48V
+48V
AES/EBU
e AUDIO IN 2 switch
For the signal settings, see “Video Formats and the Output
Signals of the Camera” (page 11).
c HD TRUNK IN connector (BNC type)
The conventional PROMPTER 2 output connector is
changed to a trunk signal input connector.
When a camera control unit equipped with an HD TRUNK
OUT connector is connected, an HD-SDI signal input from
this connector is fed from the HD TRUNK OUT connector
of the camera control unit.
Notes
• The HD trunk function cannot be used with a Dual Link
format.
• By changing the installation method, the connector can
be returned to the conventional PROMPTER 2
connector. For details, consult a Sony service or sales
representative. Note that it does not function as an HD
TRUNK IN connector in that status.
• The HD-SDI signal fed to this connector must be in
frequency synchronization with the camera.
• Signal selection is not possible when the camera is used
in a COAXIAL connection system (page 25) or DualCamera system (page 26), as the connector is used for
connection to a camera control unit or connection
between the primary camera and secondary camera.
DC IN
f CCU connector
HDC1000R/1000: HKC-HB10 Installed
6
Page 7
d REMOTE connector (8-pin)
When the camera is used as a main camera in a SubCamera system (page 27), connect with the REMOTE
connector of the sub camera.
The connector operates the same as before function
enhancement in other conditions.
• The HDC1000R cannot be used as the sub camera in a
Sub-Camera system.
e AUDIO IN 2 switch
The AES/EBU setting is not valid in a Sub-Camera system
(page 27).
Notes
• Sub-Camera system cannot be established with the
HDC1000.
f CCU connector (optical/electrical multi-connector)
The connector becomes applicable both for HD-SDI and
“High Bit Rate” transmission.
MAINTENANCE Menu
Parts of M12 and M18 are changed as follows, and the <EXT RETURN> page is added as M19.
Menu page No. Item⁄ Default Settings Remarks
<SDI OUT> M12
<OTHERS 2> M18 DATE TYPE 5 M/D/Y 1 Y/Mn/D, 2 Mn/D, 3 D/M/Y,
<EXT RETURN> M19 EXT RET IN VBS VBS, HD-SDI Select the type of return signal.
<OPTION KEY> M20 READ (MStCAM) Execute by ENTER. As before
SDI-1 OUT MAIN MAIN, LINK-A, HD
(U17)
SDI-2 OUT MAIN MAIN, VF, LINK-B, RET,
(PWR SAVE) Displayed only when SDI-2
CHARACTER OFF ON, OFF Not displayed if SDI-2 OUT is
EMB AUDIO OFF ON, OFF
(1-MIC1 2-MIC2)
(3-AES1 4-AES2)
(1-PGM1 2-PGM2)
(3-ENG 4-PROD)
FILTER WHT MEM OFF ON, OFF As before
F NO. DISP CONTROL CONTROL, RETURN As before
COAX MODE OFF ON, OFF Set to OFF when using the
STATUS Display only
FORMAT Display only
SD ASPECT SQ SQ, EC Valid only when EXT RET IN is
INSTALLED OPTION As before
PROMPTER, 3G-SDI
SD-SDI
4 D/M, 5 M/D/Y, 6 M/D
MAIN: Displayed for Single
Link formats only
LINK-A: Displayed for Dual
Link formats only
LINK-B: Valid with Dual Link
formats only
SD-SDI: SD signal selected for
OUTPUT SIGNAL of
<DOWN CONVERTER>
OUT is in POWER SAVE mode
set to VF or LINK-B
Displayed when SDI-2 OUT is
MAIN or LINK-B (display only)
Displayed when SDI-2 OUT is
VF, RET, or SD-SDI (display
only)
As before
camera in a COAXIAL
connection system (page 25)
or using it as the secondary
camera in a Dual-Camera
system (page 26).
See “Format of the external
return signal input” (page 10).
VBS
HDC1000R/1000: HKC-HB10 Installed
7
Page 8
HDC1500R/1400R/1500: HKC-HB15 Installed
Connector Panel
The figure shows HDC1500R.
f AUDIO IN CH2 switch
a CCU connector (optical/electrical multi-connector)
The connector becomes applicable both for HD-SDI and
“High Bit Rate” transmission.
b REMOTE connector (8-pin)
When the camera is used as a main camera in a SubCamera system (page 27), connect with the REMOTE
connector of the sub camera.
The connector operates the same as before function
enhancement in other conditions.
Note
Sub-Camera system cannot be established with the
HDC1500.
a CCU connector
b REMOTE connector
c SDI 1 connector
d HD TRUNK IN connector
e SDI 2 connector
For Dual Link formats: LINK-A (HDC1500R/1500
only), HD PROMPTER, 3G-SDI
For Single Link formats: MAIN(HD-SDI), HD
PROMPTER
Note
Output signal selection is not possible when the camera is
used in a COAXIAL connection system (page 25) or DualCamera system (page 26), as the connector is used for
connection to a camera control unit or connection between
the primary camera and secondary camera.
For the signal settings, see “Video Formats and the Output
Signals of the Camera” (page 11).
c SDI 1 connector (BNC type)
You can select the output signal with SDI-1 OUT on the
<SDI OUT> page of the MAINTENANCE menu.
HDC1500R/1400R/1500: HKC-HB15 Installed
8
d HD TRUNK IN connector (BNC type)
The conventional PROMPTER 2 output connector is
changed to a trunk signal input connector.
When a camera control unit equipped with an HD
TRUNK OUT connector is connected: The input
Page 9
signal from this connector is fed from the HD TRUNK
OUT connector of the camera control unit.
When using the camera in stand-alone status (no
camera control unit connected): The HD-SDI/VBS
input signal from this connector can be displayed on the
viewfinder as RET2. Select the input signal on the
<EXT RETURN> page of the MAINTENANCE
menu.
For applicable input signals, see “Format of the external
return signal input” (page 10).
Notes
• By changing the installation method, the connector can
be returned to the conventional PROMPTER 2
connector. For details, consult a Sony service or sales
representative. Note that it does not function as an HD
TRUNK IN connector in that status.
• The HD-SDI signal fed to this connector must be in
frequency synchronization with the camera.
MAINTENANCE Menu
• Signal selection is not possible when the camera is used
in a COAXIAL connection system (page 25) or DualCamera system (page 26), as the connector is used for
connection to a camera control unit or connection
between the primary camera and secondary camera.
e SDI 2 connector (BNC type)
For HD-SDI or SD-SDI signal output.
Select the output signal with SDI-2 OUT on the <SDI
OUT> page of the MAINTENANCE menu. You can select
from among MAIN(HD-SDI), VF, RET, and SD-SDI.
LINK-B can also be selectable when the camera is used
with a Dual Link format.
For the signal settings, see “Video Formats and the Output
Signals of the Camera” (page 11).
f AUDIO IN CH2 switch
The AES/EBU setting is not valid in a Sub-Camera system
(page 27).
Parts of M12, M13 (HDC1400R only), and M19 are changed as follows, and the <EXT RETURN> page is added as M20.
Menu page No. Item⁄ Default Settings Remarks
<SDI OUT> M12
<POWER SAVE> M13
SDI-1 OUT MAIN MAIN, LINK-A, HD
(U18)
SDI-2 OUT MAIN MAIN, VF, LINK-B, RET,
(PWR SAVE) Displayed only when SDI-2
CHARACTER OFF ON, OFF Not displayed if SDI-2 OUT is
EMB AUDIO OFF ON, OFF
(1-MIC1 2-MIC2)
(3-AES1 4-AES2)
(1-PGM1 2-PGM2)
(3-ENG 4-PROD)
SDI-2 OUT PWR SAVE PWR SAVE, ACTIVE As before (HDC1500R/1500
(U11)
DOWN CONVERTER ACTIVE PWR SAVE, ACTIVE As before
PROMPTER, 3G-SDI
SD-SDI
MAIN: Displayed for Single
Link formats only
LINK-A: Displayed for Dual
Link formats only
(HDC1500R/1500 only)
LINK-B: Valid with Dual Link
formats only (HDC1500R/
1500 only)
SD-SDI: SD signal selected for
OUTPUT SIGNAL of
<DOWN CONVERTER>
OUT is in POWER SAVE mode
set to VF or LINK-B
Displayed when SDI-2 OUT is
MAIN or LINK-B (display only)
Displayed when SDI-2 OUT is
VF, RET, or SD-SDI (display
only)
only)
HDC1500R/1400R/1500: HKC-HB15 Installed
9
Page 10
Menu page No. Item⁄ Default Settings Remarks
<OTHERS 2> M19 DATE TYPE 5 M/D/Y 1 Y/Mn/D, 2 Mn/D, 3 D/M/Y,
4 D/M, 5 M/D/Y, 6 M/D
FILTER WHT MEM OFF ON, OFF As before (HDC1500R/1500
F NO. DISP CONTROL CONTROL, RETURN As before
COAX MODE OFF ON, OFF Set to OFF when using the
<EXT RETURN> M20 EXT RET IN VBS VBS, HD-SDI Select the type of return signal.
STATUS Display only
FORMAT Display only
SD ASPECT SQ SQ, EC Valid only when EXT RET IN is
<OPTION KEY> M21 READ (MStCAM) Execute by ENTER. As before
INSTALLED OPTION As before
As before
only)
camera in a COAXIAL
connection system (page 25)
or using it as the secondary
camera in a Dual-Camera
system (page 26).
See “Format of the external
return signal input” below.
VBS
Format of the external return signal input
EXT RET IN: VBS
Camera format Usable return signal format
1080/59.94P NTSC
1080/59.94i NTSC
1080/29.97PsF NTSC
1080/23.98PsF Not usable
720/59.94P NTSC
1080/50P PAL
1080/50i PAL
1080/25PsF PAL
1080/24PsF Not usable
720/50P PAL
EXT RET IN: HD-SDI
Camera format Usable return signal format
1080/59.94P 1080/59.94i or 1080/29.97PsF
1080/59.94i 1080/59.94i or 1080/29.97PsF
1080/29.97PsF 1080/59.94i or 1080/29.97PsF
1080/23.98PsF Not usable
720/59.94P 720/59.94P
1080/50P 1080/50i or 1080/25PsF
1080/50i 1080/50i or 1080/25PsF
1080/25PsF 1080/50i or 1080/25PsF
1080/24PsF Not usable
720/50P 720/50P
(HD-SDI only)
HDC1500R/1400R/1500: HKC-HB15 Installed
10
Page 11
Video Formats and the Output Signals of the Camera
You can specify video signals to be directly output from
the camera on the following MAINTENANCE menu
pages.
• <POWER SAVE>
•<OUTPUT FORMAT>
•<TEST OUT>
•<SDI OUT>
• <DOWN CONVERTER>
• <EXT RETURN>
Set the items on these pages as shown in the table.
Note
The MAIN (camera picture), RET (return video), or VF
(the same picture as that displayed on the viewfinder
screen) setting is common to SD-SDI and VBS. Different
signals cannot be output.
Outputting the signal being shot (camera
picture)
To output as 3G-SDI (SDI 1 connector)
Menu page Item Setting
<SDI OUT> SDI-1 OUT 3G-SDI
The same textual information as that displayed on the
viewfinder screen can be added to the output signal from
the SDI 2 and TEST OUT connectors by setting
CHARACTER to “ON” on the <SDI OUT> or <TEST
OUT> page.
Constantly outputting return video
To output as HD-SDI (SDI 2 connector)
Menu page Item Setting
<POWER SAVE> SDI-2 OUT ACTIVE
<SDI OUT> SDI-2 OUT RET
To output as SD-SDI (SDI 2 connector)
Menu page Item Setting
<POWER SAVE> SDI-2 OUT ACTIVE
DOWN CONVERTER ACTIVE
<DOWN CONVERTER> OUTPUT SIGNAL RET
<SDI OUT> SDI-2 OUT SD-SDI
To output as VBS (TEST OUT connector)
To output as HD-SDI (SDI 1 connector)
Menu page Item Setting
<SDI OUT> SDI-1 OUT MAIN
To output as HD-SDI (SDI 2 connector)
Menu page Item Setting
<POWER SAVE> SDI-2 OUT ACTIVE
<SDI OUT> SDI-2 OUT MAIN
To output as SD-SDI (SDI 2 connector)
Menu page Item Setting
<POWER SAVE> SDI-2 OUT ACTIVE
DOWN CONVERTER ACTIVE
<DOWN CONVERTER> OUTPUT SIGNAL MAIN
<SDI OUT> SDI-2 OUT SD-SDI
To output as VBS (TEST OUT connector)
Menu page Item Setting
<POWER SAVE> DOWN CONVERTER ACTIVE
<DOWN CONVERTER> OUTPUT SIGNAL MAIN
<TEST OUT> OUTPUT VBS
Menu page Item Setting
<POWER SAVE> DOWN CONVERTER ACTIVE
<DOWN CONVERTER> OUTPUT SIGNAL RET
<TEST OUT> OUTPUT VBS
The same textual information as that displayed on the
viewfinder screen can be added to the output signal from
the SDI 2 and TEST OUT connectors by setting
CHARACTER to “ON” on the <SDI OUT> or <TEST
OUT> page.
Using an external return signal in standalone operation
When using the camera in the standalone status, the signal
supplied to the HD TRUNK IN connector can be used as
the RET2 signal.
For usable signal format, see “Format of the external
return signal input” (page 10).
To accept an HD-SDI signal
Menu page Item Setting
<EXT RETURN> EXT RET IN HD-SDI
Video Formats and the Output Signals of the Camera
11
Page 12
To accept a VBS signal
Menu page Item Setting
<EXT RETURN> EXT RET IN VBS
Outputting the same image as that on the
viewfinder screen
To output as HD-SDI (SDI 2 connector)
Menu page Item Setting
<POWER SAVE> SDI-2 OUT ACTIVE
<SDI OUT> SDI-2 OUT VF
To output as SD-SDI (SDI 2 connector)
Menu page Item Setting
<POWER SAVE> SDI-2 OUT ACTIVE
DOWN CONVERTER ACTIVE
<DOWN CONVERTER> OUTPUT SIGNAL VF
<SDI OUT> SDI-2 OUT SD-SDI
To output as VBS (TEST OUT connector)
Menu page Item Setting
<POWER SAVE> DOWN CONVERTER ACTIVE
<DOWN CONVERTER> OUTPUT SIGNAL VF
<TEST OUT> OUTPUT VBS
Outputting via Dual Link (1080/59.94P or
1080/50P) (HDC1000R/1500R/1000/1500 only)
The SDI-1 output is assigned to Link A, SDI-2 output to
Link B.
Menu page Item Setting
<OUTPUT FORMAT> ACTIVE LINE 1080
(Format) 59.94P or 50P
<POWER SAVE> SDI-2 OUT ACTIVE
<SDI OUT> SDI-1 OUT LINK-A
SDI-2 OUT LINK-B
Outputting the HD prompter signal
The signal being fed to the HD PROMPTER IN connector
can be output from the SDI 1 connector.
Menu page Item Setting
<SDI OUT> SDI-1 OUT HD PROMPTER
Video Formats and the Output Signals of the Camera
12
Page 13
HDCU1000: HKCU-HB10 Installed
Rear Panel
b HD PROMPTER IN connector
a HD TRUNK OUT connector
HD TRUNK OUT HD PROMPTER IN
e Expansion slots
f RETURN INPUT area
a HD TRUNK OUT connector (BNC type)
When a camera that supports the HD trunk function is
connected via the CAMERA connector, an HD-SDI signal
fed to the HD TRUNK IN connector of the camera is
output from this connector.
b HD PROMPTER IN connector (BNC type)
When a camera that supports the HD prompter function is
connected via the CAMERA connector, an HD-SDI signal
fed to this connector can be output from the SDI 1
connector of the camera.
c AUX REMOTE connector
d CAMERA connector
AUX REMOTE
g AES/EBU connector
e Expansion slots
Install the optional HKCU1001 SD Encoder Unit,
HKCU1003 Multi Interface Unit, or HKCU1005 SDI
Output Expansion Unit.
For details on installation, contact a Sony service or sales
representative.
f RETURN INPUT area
The connectors do not support 3G-SDI input. They can be
used as before for HD-SDI, SD-SDI and VBS input.
Note
The HD-SDI signal fed to this connector must be in
frequency synchronization with the camera control unit.
c AUX REMOTE connector (8-pin) (for sub camera
control)
Connect to an RCP-1000-series Remote Control Panel for
the sub camera in a Sub-Camera system (page 27).
Note
The AUX REMOTE connector can be used on HDCU1000
units of serial number 15001 or higher (UC), or 420002 or
higher (CE).
d CAMERA connector (optical/electrical multi-
connector)
The connector becomes applicable both for HD-SDI and
“High Bit Rate” transmission.
g AES/EBU connector (BNC type)
This connector cannot be used in a Sub-Camera system
(page 27).
HDCU1000: HKCU-HB10 Installed
13
Page 14
Output Signals: in Dual Link Format (1080/59.94P, 1080/50P) Transmission
Slot Output connector Output signal format
SLOT 1
(HDCU1000 standard)
SLOT 2
(HDCU1000 standard)
1) The prefix “M” for the output signal format means that the signal is output with character data of the camera control unit.
2) SD-SDI for monitoring obtained by downconverting Link-A.
SDI OUTPUT 1&2 1080/59.94P (Link-A) 1080/50P (Link-A)
SDI OUTPUT 3&4 • M1080/59.94P (Link-A)
• M525/59.94I (Link-A)
2)
SDI OUT 1&2 • 1080/59.94P (Link-B)
• 1080/59.94I
• 525/59.94I
SDI OUT 3&4 • M1080/59.94P (Link-B)
• M1080/59.94I
• M525/59.94I
• M1080/50P (Link-A)
• M625/50I (Link-A)
• 1080/50P (Link-B)
• 1080/50I
•625/50I
• M1080/50P (Link-B)
• M1080/50I
• M625/50I
1)
2)
HDCU1000: HKCU-HB10 Installed
14
Page 15
HDCU1500: HKCU-HB15 Installed
Rear Panel
a HD TRUNK OUT connector
b HD PROMPTER IN connector
HD TRUNK OUT HD PROMPTER IN
c CAMERA connector
e Return video input connectors
d Expansion slots
a HD TRUNK OUT connector (BNC type)
When a camera that supports the HD trunk function is
connected via the CAMERA connector, an HD-SDI signal
fed to the HD TRUNK IN connector of the camera is
output from this connector.
b HD PROMPTER IN connector (BNC type)
When a camera that supports the HD prompter function is
connected via the CAMERA connector, an HD-SDI signal
fed to this connector can be output from the SDI 1
connector of the camera.
Note
The HD-SDI signal fed to this connector must be in
frequency synchronization with the camera control unit.
c CAMERA connector (optical/electrical multi-
connector)
The connector becomes applicable both for HD-SDI and
“High Bit Rate” transmission.
For details on installation, contact a Sony service or sales
representative.
e Return video input connectors (BNC type)
The connectors do not support 3G-SDI input. They can be
used as before HD-SDI, SD-SDI and VBS input.
d Expansion slots
Install the optional HKCU1001 SD Encoder Unit,
HKCU1003 Multi Interface Unit, or HKCU1005 SDI
Output Expansion Unit.
HDCU1500: HKCU-HB15 Installed
15
Page 16
Output Signals: in Dual Link Format (1080/59.94P, 1080/50P) Transmission
When installing an HKCU1005 SDI Output Expansion Unit in slot 2
Slot Output connector Output signal format
SLOT 1
(HDCU1500 standard)
SLOT 2 (HKCU1005) SDI OUT 1&2 • 1080/59.94P (Link-B)
1) The prefix “M” for the output signal format means that the signal is output with character data of the camera control unit.
2) SD-SDI for monitoring obtained by downconverting Link-A.
SDI1&SDI2 1080/59.94P (Link-A) 1080/50P (Link-A)
SDI3 (MON) • M1080/59.94P (Link-A)
• M525/59.94I (Link-A)
• 1080/59.94I
• 525/59.94I
SDI OUT 3&4 • M1080/59.94P (Link-B)
• M1080/59.94I
• M525/59.94I
2)
• M1080/50P (Link-A)
• M625/50I (Link-A)
• 1080/50P (Link-B)
• 1080/50I
•625/50I
• M1080/50P (Link-B)
• M1080/50I
• M625/50I
1)
2)
HDCU1500: HKCU-HB15 Installed
16
Page 17
HKCU2005 3G Single Link Interface Unit
The HKCU2005 consists of a DRX-8 front board and a
HIF-57 rear board. It is designed to be installed in slot 2 of
an HDCU1000 with an HKCU-HB10 installed or that of
HDCU1500 with an HKCU-HB15 installed.
When the HKCU2005 is installed, max. four 3G-SDI
signal outputs can be fed from the HDCU1000/1500.
A signal of 1080P format transmitted from a camera and a
converted signal of 720P format can be output
simultaneously.
The format of SDI signal output from the HIF-57 board
can be specified independently for the two upper
connectors and two lower connectors.
Notes
• Always install the HKCU2005 in slot 2 of a camera
control unit with an HKCU-HB10/HB15 installed.
• Do not install two or more HKCU2005 unit in the same
camera control unit.
DRX-8 Board
HIF-57 Board
SDI OUT [3G]
1
2
1 3G-SDI OUT 1-4 connectors
3
4
a 3G-SDI OUT (3G/HD serial digital interface
output) 1-4 connectors (BNC-type)
Four 3G-SDI or HD-SDI signals as well as two 3G-SDI
and two HD-SDI signals can be output.
For connectors 3 and 4, character ON/OFF is selectable.
DRX B
1080
720
SD
P/PsF
FC/RC
1 Output signal format indicators
60
50
30
25
24
a Output signal format indicators
Displays the format status of the output signal.
1080/720/SD: One of these indicators corresponding to the
signal status of output connectors 1 and 2 of the four
SDI signal outputs from this unit lights.
P/PsF: Lights when the video camera is operating in
Progressive mode.
FC/RC: Lights when the frame rate converter/rate
converter function of the unit is performed.
60/50/30/25/24: One of these indicators corresponding to
the field/frame frequency of the output signals lights.
HKCU2005 3G Single Link Interface Unit
17
Page 18
HDCU1000: HKCU-HB10 and HKCU2005 Installed
Rear Panel
The figure shows an HDCU1000 with an HKCU2005 in slot 2 and the standard DRX-5/HIF-26 boards in slot 3 mounted.
b HD PROMPTER IN connector
c AUX REMOTE connector
a HD TRUNK OUT connector
HD TRUNK OUT HD PROMPTER IN
SDI OUT 3G
AUX REMOTE
d CAMERA connector
e Slot 2
f RETURN INPUT area
a HD TRUNK OUT connector (BNC type)
When a camera that supports the HD trunk function is
connected via the CAMERA connector, an HD-SDI signal
fed to the HD TRUNK IN connector of the camera is
output from this connector.
b HD PROMPTER IN connector (BNC type)
When a camera that supports the HD prompter function is
connected via the CAMERA connector, an HD-SDI signal
fed to this connector can be output from the SDI 1
connector of the camera.
Note
The HD-SDI signal fed to this connector must be in
frequency synchronization with the camera control unit.
c AUX REMOTE connector (8-pin) (for sub camera
remote control)
Connect to an RCP-1000-series Remote Control Panel for
the sub camera in a Sub-Camera system (page 27).
g AES/EBU connector
d CAMERA connector (optical/electrical multi-
connector)
The connector becomes applicable both for HD-SDI and
“High Bit Rate” transmission.
e Slot 2
Install the optional HKCU2005 3G Single Link Interface
Unit after removing the HDCU1000’s standard DRX-5/
HIF-26 boards.
For details on the HKCU2005, see “HKCU2005 3G
Single Link Interface Unit” (page 17).
f RETURN INPUT (return video input) area
The connectors do not support 3G-SDI input. They can be
used As before for HD-SDI, SD-SDI and VBS input.
g AES/EBU connector (BNC type)
This connector cannot be used in a Sub-Camera system
(page 27).
Note
The AUX REMOTE connector can be used on HDCU1000
units of serial number 15001 or higher (UC), or 420002 or
higher (CE).
HDCU1000: HKCU-HB10 and HKCU2005 Installed
18
Page 19
Output Signals: in Dual Link Format (1080/59.94P, 1080/50P) Transmission
When installing an HKCU2005 3G Single Link Interface Unit in slot 2 and the DRX-5/HIF-26 (HDCU1000
standard) in slot 3
Slot Output connector Output signal format
SLOT 1
(HDCU1000 standard)
SLOT 2 (HKCU2005) SDI OUT 1&2 • 1080/59.94P (3G)
SLOT 3 (HDCU1000
standard DRX-5/HIF-26)
1) The prefix “M” for the output signal format means that the signal is output with character data of the camera control unit.
2) SD-SDI for monitoring obtained by downconverting Link-A.
3) 720P is valid only when CCU VIDEO CONVERT is enabled.
4) Not selectable when 1080/59.94P (3G) or 1080/50P (3G) is selected for SDI OUT 3&4.
SDI OUTPUT 1&2 1080/59.94P (Link-A) 1080/50P (Link-A)
SDI OUTPUT 3&4 • M1080/59.94P (Link-A)
• M525/59.94I (Link-A)
2)
• M1080/50P (Link-A)
• M625/50I (Link-A)
• 1080/50P (3G)
• 1080/59.94P (Link-B)
• 720/59.94P
• 1080/59.94I
3) 4)
4)
SDI OUT 3&4 • M1080/59.94P (3G)
• M1080/59.94P (Link-B)
• M720/59.94P
3)
• M1080/59.94I
SDI OUT 1&2
• 720/59.94P
3)
• 1080/59.94I
• 525/59.94I
SDI OUT 3&4
• M720/59.94P
3)
• M1080/59.94I
• M525/59.94I
• 1080/50P (Link-B)
• 720/50P
• 1080/50I
• M1080/50P (3G)
• M1080/50P (Link-B)
• M720/50P
• M1080/50I
• 720/50P
• 1080/50I
• 625/50I
• M720/50P
• M1080/50I
• M625/50I
1)
2)
3) 4)
4)
3)
3)
3)
When installing an HKCU2005 in slot 2, the DRX-5/HIF-26 in slot 3, an HKCU1005 SDI Output Expansion
Unit in slot 4, and an HKCU1001 SD Encoder Unit in slot 5
Slot Output connector Output signal format
SLOT 1
(HDCU1000 standard)
SLOT 2 (HKCU2005) SDI OUT 1&2 • 1080/59.94P (3G)
SLOT 3 (HDCU1000
standard DRX-5/HIF-26)
SDI OUTPUT 1&2 1080/59.94P (Link-A) 1080/50P (Link-A)
SDI OUTPUT 3&4 • M1080/59.94P (Link-A)
• M525/59.94I (Link-A)
2)
• M1080/50P (Link-A)
• M625/50I (Link-A)
• 1080/50P (3G)
• 1080/59.94P (Link-B)
• 720/59.94P
• 1080/59.94I
3) 4)
4)
SDI OUT 3&4 • M1080/59.94P (3G)
• M1080/59.94P (Link-B)
• M720/59.94P
3)
• M1080/59.94I
SDI OUT 1&2
• 720/59.94P
3)
• 1080/59.94I
• 525/59.94I
SDI OUT 3&4
• M720/59.94P
3)
• M1080/59.94I
• M525/59.94I
• 1080/50P (Link-B)
• 720/50P
• 1080/50I
• M1080/50P (3G)
• M1080/50P (Link-B)
• M720/50P
• M1080/50I
• 720/50P
• 1080/50I
• 625/50I
• M720/50P
• M1080/50I
• M625/50I
1)
2)
3) 4)
4)
3)
3)
3)
HDCU1000: HKCU-HB10 and HKCU2005 Installed
19
Page 20
Slot Output connector Output signal format
SLOT 4 (HKCU1005) SDI OUT 1&2
SDI OUT 3&4
• 720/59.94P
• 1080/59.94I
• 525/59.94I
• M720/59.94P
• M1080/59.94I
• M525/59.94I
3)
•720/50P
• 1080/50I
•625/50I
3)
• M720/50P
• M1080/50I
• M625/50I
SLOT 5 (HKCU1001) VBS 1&2 NTSC PAL
PIX OUT NTSC PAL
WF OUT NTSC PAL
1) The prefix “M” for the output signal format means that the signal is output with character data of the camera control unit.
2) SD-SDI for monitoring obtained by downconverting Link-A.
3) 720P is valid only when CCU VIDEO CONVERT is enabled.
4) Not selectable when 1080/59.94P (3G) or 1080/50P (3G) is selected for SDI OUT 3&4.
1)
3)
3)
HDCU1000: HKCU-HB10 and HKCU2005 Installed
20
Page 21
HDCU1500: HKCU-HB15 and HKCU2005 Installed
Rear Panel
The figure shows an HDCU1500 with an HKCU2005 in slot 2 mounted.
a HD TRUNK OUT connector
b HD PROMPTER IN connector
c CAMERA connector
HD TRUNK OUT HD PROMPTER IN
SDI OUT 3G
e Return video input connectors
d Expansion slot 2
a HD TRUNK OUT connector (BNC type)
When a camera that supports the HD trunk function is
connected via the CAMERA connector, an HD-SDI signal
fed to the HD TRUNK IN connector of the camera is
output from this connector.
b HD PROMPTER IN connector (BNC type)
When a camera that supports the HD prompter function is
connected via the CAMERA connector, an HD-SDI signal
fed to this connector can be output from the SDI 1
connector of the camera.
Note
The HD-SDI signal fed to this connector must be in
frequency synchronization with the camera control unit.
c CAMERA connector (optical/electrical multi-
connector)
The connector becomes applicable both for HD-SDI and
“High Bit Rate” transmission.
For details on the HKCU2005, see “HKCU2005 3G
Single Link Interface Unit” (page 17).
e Return video input connectors
The connectors do not support 3G-SDI input. They can be
used As before for HD-SDI, SD-SDI and VBS input.
d Expansion slot 2
Install the optional HKCU2005 3G Single Link Interface
Unit to use 3G-SDI output.
HDCU1500: HKCU-HB15 and HKCU2005 Installed
21
Page 22
Output Signals: in Dual Link Format (1080/59.94P, 1080/50P) Transmission
When installing an HKCU2005 3G Single Link Interface Unit in slot 2
Slot Output connector Output signal format
SLOT 1
(HDCU1500 standard)
SLOT 2 (HKCU2005) SDI OUT 1&2 • 1080/59.94P (3G)
1) The prefix “M” for the output signal format means that the signal is output with character data of the camera control unit.
2) SD-SDI for monitoring obtained by downconverting Link-A.
3) 720P is valid only when CCU VIDEO CONVERT is enabled.
4) Not selectable when 1080/59.94P (3G) or 1080/50P (3G) is selected for SDI OUT 3&4.
SDI1&SDI2 1080/59.94P (Link-A) 1080/50P (Link-A)
SDI3 (MON) • M1080/59.94P (Link-A)
• M525/59.94I (Link-A)
2)
• M1080/50P (Link-A)
• M625/50I (Link-A)
• 1080/50P (3G)
• 1080/59.94P (Link-B)
• 720/59.94P
• 1080/59.94I
3) 4)
4)
SDI OUT 3&4 • M1080/59.94P (3G)
• M1080/59.94P (Link-B)
• M720/59.94P
3)
• M1080/59.94I
• 1080/50P (Link-B)
•720/50P
• 1080/50I
• M1080/50P (3G)
• M1080/50P (Link-B)
• M720/50P
• M1080/50I
1)
2)
3) 4)
4)
3)
When installing an HKCU2005 3G Single Link Interface Unit in slot 2 and an HKCU1005 SDI Output
Expansion Unit in slot 3
Slot Output connector Output signal format
SLOT 1
(HDCU1500 standard)
SLOT 2 (HKCU2005) SDI OUT 1&2 • 1080/59.94P (3G)
SLOT 3 (HKCU1005) SDI OUT 1&2
SDI1&SDI2 1080/59.94P (Link-A) 1080/50P (Link-A)
SDI3 (MON) • M1080/59.94P (Link-A)
• M525/59.94I (Link-A)
2)
• M1080/50P (Link-A)
• M625/50I (Link-A)
• 1080/50P (3G)
• 1080/59.94P (Link-B)
• 720/59.94P
• 1080/59.94I
3) 4)
4)
SDI OUT 3&4 • M1080/59.94P (3G)
• M1080/59.94P (Link-B)
• M720/59.94P
3)
• M1080/59.94I
• 720/59.94P
3)
• 1080/59.94I
• 525/59.94I
SDI OUT 3&4
• M720/59.94P
3)
• M1080/59.94I
• M525/59.94I
• 1080/50P (Link-B)
•720/50P
• 1080/50I
• M1080/50P (3G)
• M1080/50P (Link-B)
• M720/50P
• M1080/50I
•720/50P
• 1080/50I
•625/50I
• M720/50P
• M1080/50I
• M625/50I
1)
2)
3) 4)
4)
3)
3)
3)
1) The prefix “M” for the output signal format means that the signal is output with character data of the camera control unit.
2) SD-SDI for monitoring obtained by downconverting Link-A.
3) 720P is valid only when CCU VIDEO CONVERT is enabled.
4) Not selectable when 1080/59.94P (3G) or 1080/50P (3G) is selected for SDI OUT 3&4.
HDCU1500: HKCU-HB15 and HKCU2005 Installed
22
Page 23
Connections and Settings
INTERCOM 1
FRONT OFF ENG
OFF
+48V
MIC
FRONT MIC
DC OUT
AUDIO IN
CH1 CH2
TEST
OUT
SDI 2
DC IN 10.5-17V
PROMPTER
RET IN
GENLOCK IN
LINE
OFF
+48V
MIC
AES/EBU
LINE
INTERCOM 2
EARPHONE
REMOTE
RET CTRL
CRANETRACKER
FRONT OFF ENG
Fiber Transmission System of Dual Link Format
The camera and the camera control unit are connected via
a single optical fiber cable, and transmission is achieved at
“High Bit Rate.”
Connection example 1
Optical fiber cable (High Bit Rate)
HDC1500R+HKC-HB15
Prompter/
Floor monitor
VTR
CCU
SDI 1
BNC cable
SDI OUT 1
(SLOT2)
(HD-SDI)
SDI OUT 1 (SLOT1)
LINK-B LINK-A
Switcher
(Dual Link)
HD prompter source
(HD-SDI)
HD PROMPTER IN
SDI OUT 3
(SLOT2)
SDI OUT 3
(SLOT1)
LINK-B LINK-A
Monitor
(Dual Link)
RET (HD-SDI)
RET (HD-SDI)
HD TRUNK OUT HD PROMPTER IN
RETURN
INPUT/
HD SDI
1-4
Reference
signal
REFERENCE
AUX REMOTE
Network cable
Hub
CAMERA
HDCU1000+HKCU-HB10
Settings
Camera
MAINTENANCE menu, <SDI OUT> page:
Set SDI-1 OUT to HD PROMPTER.
RET (HD-SDI)
RET (HD-SDI)
Camera control unit
Format: Select a Dual Link format of 1080/59.94P or
1080/50P.
MSU-1000/1500
Master Setup Unit
RCP-1500/1501/1530
Remote Control Panel
Connections and Settings
23
Page 24
Connection example 2
INTERCOM 1
FRONT OFF ENG
OFF
+48V
MIC
FRONT MIC
DC OUT
AUDIO IN
CH1 CH2
TEST
OUT
SDI 2
DC IN 10.5-17V
PROMPTER
RET IN
GENLOCK IN
LINE
OFF
+48V
MIC
AES/EBU
LINE
INTERCOM 2
EARPHONE
REMOTE
RET CTRL
CRANETRACKER
FRONT OFF ENG
Optical fiber cable (High Bit Rate)
HDC1500R+HKC-HB15
Prompter/
Floor monitor
VTR
CCU
SDI 1
BNC cable
(HD-SDI)
SDI OUT 1
(SLOT2)
Switcher
(3G-SDI)
HD prompter source
(HD-SDI)
HD PROMPTER IN
HD TRUNK OUT HD PROMPTER IN
SDI OUT 3G
SDI OUT 3
(SLOT2)
Monitor
(3G-SDI)
RET (HD-SDI)
RET (HD-SDI)
RETURN
INPUT/
HD SDI
1-4
Reference
signal
REFERENCE
AUX REMOTE
Network cable
Hub
CAMERA
HDCU1000+HKCU-HB10
+HKCU2005
Settings
Camera
MAINTENANCE menu, <SDI OUT> page:
Set SDI-1 OUT to HD PROMPTER.
Camera control unit
Format: Select a Dual Link format of 1080/59.94P or
1080/50P.
RET (HD-SDI)
RET (HD-SDI)
MSU-1000/1500
Master Setup Unit
RCP-1500/1501/1530
Remote Control Panel
24
Connections and Settings
Page 25
COAXIAL Connection System
INTERCOM 1
FRONT OFF ENG
OFF
+48V
MIC
FRONT MIC
DC OUT
AUDIO IN
CH1 CH2
TEST
OUT
SDI 2
DC IN 10.5-17V
PROMPTER
RET IN
GENLOCK IN
LINE
OFF
+48V
MIC
AES/EBU
LINE
INTERCOM 2
EARPHONE
REMOTE
RET CTRL
CRANETRACKER
FRONT OFF ENG
The camera and the camera control unit is connected via
two coaxial cables in place of an optical fiber cable, and
transmission is achieved with HD-SDI.
Unlike fiber transmission, Dual Link formats cannot be
used.
Connection example
BNC cable (HD-SDI)
HDC1500R+HKC-HB15
DC power
1)
SDI 1
HD TRUNK IN
BNC cable (HD-SDI)
Note
Do not connect an optical fiber cable in a COAXIAL
connection system. If an optical fiber cable is connected,
the SHORT LED of the CABLE ALARM indicators will
flash on the front panel of the camera control unit.
HD TRUNK OUT
HD TRUNK OUT HD PROMPTER IN
HD PROMPTER IN
1) A dedicated power source is required for the camera. No power
is supplied from the camera control unit.
Settings
Camera
MAINTENANCE menu, <OTHERS 2> page:
Set COAX MODE to ON.
Camera control unit
Format: Select a Single Link format.
CCU CONFIGURATION menu, <PROMPT/TRUNK>
page: Set CABLE to COAX.
HDCU1500+HKCU-HB15
Connections and Settings
25
Page 26
Dual-Camera System
INTERCOM 1
FRONT OFF ENG
OFF
+48V
MIC
FRONT MIC
DC OUT
AUDIO IN
CH1 CH2
TEST
OUT
SDI 2
DC IN 10.5-17V
PROMPTER
RET IN
GENLOCK IN
LINE
OFF
+48V
MIC
AES/EBU
LINE
INTERCOM 2
EARPHONE
REMOTE
RET CTRL
CRANETRACKER
FRONT OFF ENG
INTERCOM 1
FRONT OFF ENG
OFF
+48V
MIC
FRONT MIC
DC OUT
AUDIO IN
CH1 CH2
TEST
OUT
SDI 2
DC IN 10.5-17V
PROMPTER
RET IN
GENLOCK IN
LINE
OFF
+48V
MIC
AES/EBU
LINE
INTERCOM 2
EARPHONE
REMOTE
RET CTRL
CRANETRACKER
FRONT OFF ENG
Two pairs of cameras and camera control units are
connected via an optical fiber cable for “High Bit Rate”
transmission.
Connection example
Optical fiber cable (High Bit Rate)
Primary camera
(HDC1500R+HKC-HB15)
CCU
SDI 1
HD TRUNK
IN
HD TRUNK
BNC cables
(HD-SDI)
Secondary camera
(HDC1500R+HKC-HB15)
Notes
• The primary camera and the secondary camera must be
in genlock status.
• Do not connect any optical fiber cable to the secondary
system.
Reference signal
SDI OUT
OUT
HD TRUNK OUT HD PROMPTER IN
HD
PROMPTER
IN
REFERENCE
CAMERA
AUX REMOTE
REFERENCE
BNC cable
Primary camera control unit
(HDCU1000+HKCU-HB10)
BNC cable (HD-SDI)
SDI 1
HD TRUNK
IN
DC power
1)
1) A dedicated power source is required for the secondary
camera. No power is supplied from the camera control unit.
Settings
Primary camera
MAINTENANCE menu, <SDI OUT> page:
Set SDI-1 OUT to HD PROMPTER.
Secondary camera
MAINTENANCE menu, <OTHERS 2> page:
Set COAX MODE to ON.
26
Connections and Settings
BNC cable (HD-SDI)
HD
PROMPTER
HD TRUNK
OUT
SDI OUT
HD TRUNK OUT HD PROMPTER IN
IN
REFERENCE
AUX REMOTE
Secondary camera control unit
(HDCU1000+HKCU-HB10)
Primary camera control unit
Format: Set it to a Single Link format.
CCU CONFIGURATION menu, <PROMPT/TRUNK>
page: Set CABLE to CAMERA CABLE.
Secondary camera control unit
Format: Set it to a Single Link format.
CCU CONFIGURATION menu, <PROMPT/TRUNK>
page: Set CABLE to COAX.
Page 27
Sub-Camera System
Use an HDC-P1, etc. as the sub camera, which can be
controlled via the AUX REMOTE connector of the
HDCU1000.
Connection example
Main camera
(HDC1000R+HKC-HB10)
CCU
OUTPUT REMOTE CRANE TRACKER RET
PROMPTER 1 HD TRUNK IN
SDI 1 SDI 2 TEST OUT
HD
TRUNK
REMOTETEST OUT
IN
CONTROL
DC OUT
12V 1.5A
Notes
• Only HDCU1000 units of serial number 15001 or higher
(UC), or 420002 or higher (CE) support this system.
HDC1500 cannot be used.
• AES/EBU signal cannot be used between the camera and
camera control unit.
Optical fiber cable (High Bit Rate)
Sub camera signal output
HD TRUNK OUT
HDCU1000
+HKCU-HB10
HD TRUNK OUT HD PROMPTER IN
2)
CAMERA
AUX REMOTE
RCP/CNU AUX REMOTE
(HD-SYNC or SD-SYNC)
Sub camera (HDC-P1, etc.)
DC power
1) A dedicated power source is required for the sub camera.
No power is supplied from the camera control unit.
2) Adjust the phase of the sub camera signal output on the
sub camera.
BNC cable
GENLOCK
SDI-1/SDI-2
REMOTE
1)
Settings
Main camera
MAINTENANCE menu, <TEST OUT> page:
Set OUTPUT to HD-SYNC or SD-SYNC.
Sub camera
Enable the genlock function.
CCA cable
CNU-700
CCA cable
BNC cable (HD-SDI)
Camera Network Unit
MSU-1000/1500
Master Setup Unit
CCA cable
RCP-1000-series
Remote Control Panel
(for main camera)
RCP-1000-series
Remote Control Panel
(for sub camera)
Note
To use the tally function of the sub camera, supply the tally
signal directly to the sub camera.
Camera control unit
Format: Set it to a Single Link format.
CCU CONFIGURATION menu, <PROMPT/TRUNK>
page: Set AUX REMOTE to ENABLE.
Connections and Settings
27
Page 28
Specifications
HKC-HB10
Storage temperature
–20°C to +60°C (–4°F to +140°F)
Dimensions (w/h)
SDI-95 board: Approx. 154 × 102 mm
(6 1/8 × 4 1/8 inches)
Mass Approx. 1.0 kg (2 lb 3.3 oz)
General
Power consumption
8.4 W (HKC-HB10 only)
Operating temperature
–20°C to +45°C (–4°F to +113°F)
Storage temperature
–20°C to +60°C (–4°F to +140°F)
Dimensions (w/h)
SDI-95 board: Approx. 154 × 102 mm
(6 1/8 × 4 1/8 inches)
Mass Approx. 0.3 kg (10.6 oz)
Input connector
HD TRUNK IN
BNC type (1)
HD trunk video, or EXT RET (HD-SDI)
in COAXIAL transmission or
standalone status: Conforming to
BTA S-004/SMPTE 292M, 75 ohms,
1.485 Gbps/1.4835 Gbps
EXT RET (VBS) in standalone status:
1.0 Vp-p, 75 ohms
Output connector
SDI 1 BNC type (1)
MAIN (Link-A)/HD PROMPTER or
COAXIAL transmission: Conforming
to BTA S-004/SMPTE 292M,
0.8 Vp-p, 75 ohms, 1.485 Gbps/
1.4835 Gbps
3G-SDI: Conforming to SMPTE 424M/
425M Level-B, 0.8 Vp-p, 75 ohms,
2.970 Gbps/2.967 Gbps
Input/output connectors other than those mentioned above
are the same as the cameras (HDC1000R/1000).
Design and specifications are subject to change without
notice.
HKC-HB15
Input connector
HD TRUNK IN
BNC type (1)
HD trunk video, or EXT RET (HD-SDI)
in COAXIAL transmission or
standalone status: Conforming to
BTA S-004/SMPTE 292M, 75 ohms,
1.485 Gbps/1.4835 Gbps
EXT RET (VBS) in standalone status:
1.0 Vp-p, 75 ohms
Output connector
SDI 1 BNC type (1)
MAIN (Link-A)/HD PROMPTER or
COAXIAL transmission: Conforming
to BTA S-004/SMPTE 292M,
0.8 Vp-p, 75 ohms, 1.485 Gbps/
1.4835 Gbps
3G-SDI: Conforming to SMPTE 424M/
425M Level-B, 0.8 Vp-p, 75 ohms,
2.970 Gbps/2.967 Gbps
Input/output connectors other than those mentioned above
are the same as the cameras (HDC1500R/1400R/1500).
Design and specifications are subject to change without
notice.
HKCU-HB10
General
Power consumption
6.5 W (HKCU-HB10 only)
Operating temperature
+5°C to +40°C (+41°F to +104°F)
Storage temperature
–20°C to +60°C (–4°F to +140°F)
Dimensions (w/h/d)
Approx. 421 × 128 × 184 mm
(16 5/8 × 5 1/8 × 7 3/8 inches)
Mass Approx. 1.2 kg (2 lb 10.3 oz)
General
Power consumption
Operating temperature
Specifications
28
7.9 W (HKC-HB15 only)
–20°C to +45°C (–4°F to +113°F)
Input connector
HD PROMPTER IN
BNC type (1)
Conforming to BTA S-004/SMPTE
292M, 75 ohms, 1.485 Gbps/
1.4835 Gbps
Page 29
Output connectors
HD TRUNK OUT
BNC type (1)
Conforming to BTA S-004/SMPTE
292M, 0.8 Vp-p, 75 ohms, 1.485 Gbps/
1.4835 Gbps
(Effective only when the camera is in
Single Link format or in COAXIAL
transmission)
AES/EBU BNC type (1)
AES/EBU format
Invalid in Sub-Camera system (AUX
REMOTE enabled)
SDI OUTPUT (SLOT 1)
BNC type (4)
Conforming to BTA S-004/SMPTE
292M/SMPTE 372M, 0.8 Vp-p, 75 ohms,
1.485 Gbps/1.4835 Gbps
SDI OUT (only when installed in SLOT 2. When installed
in slot 3 to 6, they function the same as
those of the HDCU1000)
BNC type (4)
Conforming to BTA S-004/SMPTE
292M/SMPTE 372M, 0.8 Vp-p, 75 ohms,
1.485 Gbps/1.4835 Gbps
Input/output connector
AUX REMOTE
8-pin multi-connector (1)
Valid in Sub-Camera system (AUX
REMOTE enabled)
Input/output connectors other than those mentioned above
are the same as the HDCU1000.
Design and specifications are subject to change without
notice.
HKCU-HB15
General
Power consumption
6.5 W (HKCU-HB15 only)
Operating temperature
–10°C to +40°C (+14°F to +104°F)
Storage temperature
–20°C to +60°C (–4°F to +140°F)
Dimensions (w/h/d)
Approx. 200 × 124 × 195 mm
(7 7/8 × 5 × 7 3/4 inches)
Mass Approx. 0.6 kg (1 lb 5.2 oz)
Input connector
HD PROMPTER IN
BNC type (1)
Conforming to BTA S-004/SMPTE
292M, 75 ohms, 1.485 Gbps/
1.4835 Gbps
Output connectors
HD TRUNK OUT
BNC type (1)
Conforming to BTA S-004/SMPTE
292M, 0.8 Vp-p, 75 ohms, 1.485 Gbps/
1.4835 Gbps
(Effective only when the camera is in
Single Link format or in COAXIAL
transmission)
SDI1, SDI2, SDI3(MON) (SLOT 1)
BNC type (1 each)
Conforming to BTA S-004/SMPTE
292M/SMPTE 372M, 0.8 Vp-p, 75 ohms,
1.485 Gbps/1.4835 Gbps
SDI OUT (HKCU1005 installed in SLOT2)
BNC type (4)
Conforming to BTA S-004/SMPTE
292M/SMPTE 372M, 0.8 Vp-p, 75 ohms,
1.485 Gbps/1.4835 Gbps
Input/output connectors other than those mentioned above
are the same as the HDCU1500.
Design and specifications are subject to change without
notice.
HKCU2005
General
Power consumption
8.5 W (HKCU2005 only)
Operating temperature
–10°C to +40°C (+14°F to +104°F)
Storage temperature
–20°C to +60°C (–4°F to +140°F)
Dimensions (w/h/d)
DRX-8 board:
Approx. 19 × 110 × 226 mm
(3/4 × 4 3/8 × 8 7/8 inches)
HIF-57 board:
Approx. 19 × 98 × 159 mm
(3/4 × 3 7/8 × 6 1/4 inches)
Mass Approx. 0.4 kg (14.1 oz)
Specifications
29
Page 30
Output connectors
3G-SDI OUT connectors (HIF-57 board)
BNC-type (4)
3G-SDI: Conforming to BTA S-004/
SMPTE 424M/SMPTE 425M
Level B, 0.8 Vp-p, 75 ohms,
2.970 Gbps/2.967 Gbps
HD-SDI: Conforming to BTA S-004/
SMPTE 292M/SMPTE 372M,
0.8 Vp-p, 75 ohms, 1.485 Gbps/
1.4835 Gbps
Design and specifications are subject to change without
notice.
Product Configuration
HKC-HB10
SDI-95 board (1)
DC fan (1)
Coaxial cables (2)
Optical composite cable (1)
Indication labels (1 set)
Parts for radiation (1 set)
Installation guide (1)
Note
Always verify that the unit is operating properly before
use. SONY WILL NOT BE LIABLE FOR DAMAGES
OF ANY KIND INCLUDING, BUT NOT LIMITED
TO, COMPENSATION OR REIMBURSEMENT ON
ACCOUNT OF THE LOSS OF PRESENT OR
PROSPECTIVE PROFITS DUE TO FAILURE OF
THIS UNIT, EITHER DURING THE WARRANTY
PERIOD OR AFTER EXPIRATION OF THE
WARRANTY, OR FOR ANY OTHER REASON
WHATSOEVER.
HKC-HB15
SDI-95 board (1)
Power unit (1)
DC fan (1)
Coaxial cable (2)
Optical composite cable (1)
Indication labels (1 set)
Parts for radiation (1 set)
Installation guide (1)
HKCU-HB10
Rear-panel assembly (SDP-16 board, CN-2672G board,
optical composite cable included) (1 set)
Harness (1)
Shield-reinforcing parts (1 set)
Indication labels (1 set)
Parts for radiation (1 set)
Operation manual (this manual) (1)
HKCU-HB15
Product Configuration
30
Rear-panel assembly (SDP-16 board included, optical
composite cable included) (1 set)
Shield-reinforcing parts (1 set)
Indication labels (1 set)
Parts for radiation (1 set)
Operation manual (this manual) (1)
HKCU2005
DRX-8 board (1)
HIF-57 board (1)
Indication labels (1 set)
Installation guide (1)
Page 31
The material contained in this manual consists of information
that is the property of Sony Corporation and is intended
solely for use by the purchasers of the equipment described
in this manual.
Sony Corporation expressly prohibits the duplication of any
portion of this manual or the use thereof for any purpose
other than the operation or maintenance of the equipment
described in this manual without the express written
permission of Sony Corporation.
Page 32
HKC-HB10/HB15 (SY)
HKCU-HB10/HB15 (SY)
HKCU2005 (SY)
4-191-937-01(1)
Sony Corporation
Printed in Japan
2010.03 08
© 2010
Loading...
