Page 1

A-E4D-100-13(1)

Color Camera Module

Technical Manual

FCB-EH3400/EH3300 FCB-EH3410/EH3310

2011 Sony Corporation



Page 2

Features ............................................................................. 3

Precautions ....................................................................... 4

Locations of Controls .......................................................5

Basic Functions ................................................................. 6

Overview of Functions ..................................................................... 6

Eclipse ................................................................................................. 21

Spectral Sensitivity Characteristics .......................................... 21

Vibration Specifications ............................................................... 21

Initial Settings, Custom Preset and Backup .......................... 22

Mode Condition .............................................................................. 24

Command List .................................................................27

VISCA/RS-232C Commands ........................................................ 27

FCB Camera Commands .............................................................. 33

Specifications ................................................................. 52

Page 3

Overview

Features

• This camera uses a 1/4" Exmor CMOS image sensor (approx. 1.43 million effective pixels) that supports HD (high definition) to produce high-quality images.

• Using progressive scan, images with a wide dynamic range can be obtained with the newly developed image signal processor (Wide Dynamic Range function). Furthermore, it is possible to automatically switch to this Wide Dynamic Range function, which enables you to obtain optimal images ranging from the dark areas of a subject to the light areas.

• FCB-EH3400/EH3410 is equipped with a bright zoom lens with 28× optical zoom and F1.35 aperture (optical zoom + digital zoom = 336×).

• FCB-EH3300/EH3310 is equipped with a bright zoom lens with 20× optical zoom and F1.35 aperture (optical zoom + digital zoom = 240×).

• Low-noise images can be obtained even in low-light environments using the Noise Reduction function.

• Video signals can be output as digital and analog Y/Pb/Pr outputs. Depending on register settings, you can select from a variety of digital output methods: 720p/59.94, 720p/50, 720p/29.97, 720p/25.

• An infrared (IR) Cut-Filter can be disengaged from the image path for increased sensitivity in low light environments. The ICR will automatically engage depending on the ambient light, allowing the camera to be effective in day/night environment.

• VISCA is a communications protocol, which enables the camera to be controlled remotely from a host computer/controller.

• Six memory locations are provided to temporally save and recall up to six sets of camera settings.

• A Privacy Zone Masking function (max. 24 blocks) is available.

• A Motion Detection function is available.

• A title composed of up to 11 lines can be set for displaying on the screen. 20 characters can be used on one line.

• Adjustable AE response speed

With consideration given environmental protection, this module is designed to operate with low power consumption and also incorporates lead-free and halogen-free circuit boards.

Page 4

Overview

Precautions

Software

Use of the demonstration software developed by Sony Corporation or use of the software with customer developed application software may damage hardware, the application program or the camera. Sony Corporation is not liable for any damages under these conditions.

Operation

Start the camera control software on your computer after you turn on the camera and the image is displayed.

Operation and storage locations

Do not shoot images that are extremely bright (e.g., light sources, the sun, etc.) for long periods of time. Do not use or store the camera in the following extreme conditions:

• Extremely hot or cold places (operating temperature –5 ˚C to +60 ˚C (23 ˚F to 140 ˚F))

• Close to generators of powerful electromagnetic radiation such as radio or TV transmitters

• Where it is subject to fluorescent light reflections

• Where it is subject to unstable (flickering, etc.) lighting conditions

• Where it is subject to strong vibration

• Where it is subject to radiation from laser beams

Care of the unit

Remove dust or dirt on the surface of the lens with a blower (commercially available).

Other

• The CMOS image sensor and IC included in this camera may break if exposed to static electricity. When directly handling this camera, wear an antistatic strap, spread a conductive sheet or similar item under your workbench, and take measures to eliminate static electricity.

In case of abnormal operation, contact your authorized Sony dealer or the store where you purchased the product.

Phenomena specific to CMOS image sensors

The following phenomena that may appear in images are specific to CMOS (complementary metal-oxide semiconductor) image sensors. They do not indicate malfunctions.

Rolling shutter

As CMOS image sensors use shutters that capture images line-by-line, there is a slight time difference between the top and bottom of an image. As a result, images may appear skewed if the camera is moved.

White flecks

Although the CMOS image sensors are produced with high-precision technologies, fine white flecks may be generated on the screen in rare cases, caused by cosmic rays, etc. This is related to the principle of CMOS image sensors and is not a malfunction.

The white flecks especially tend to be seen in the following cases:

• when operating at a high environmental temperature

• when you have raised the master gain (sensitivity)

• when operating in Slow-Shutter mode

Aliasing

When fine patterns, stripes, or lines are shot, they may appear jagged or flicker.

• Do not apply excessive voltage. (Use only the specified voltage.) Otherwise, you may get an electric shock or a fire may occur.

Phenomena Specific to Lenses

Ghosting

If a strong light source (e.g., the sun) exists near the incidence angle of the lens, bright spots may appear in the image due to diffuse reflection within the lens.

Page 5

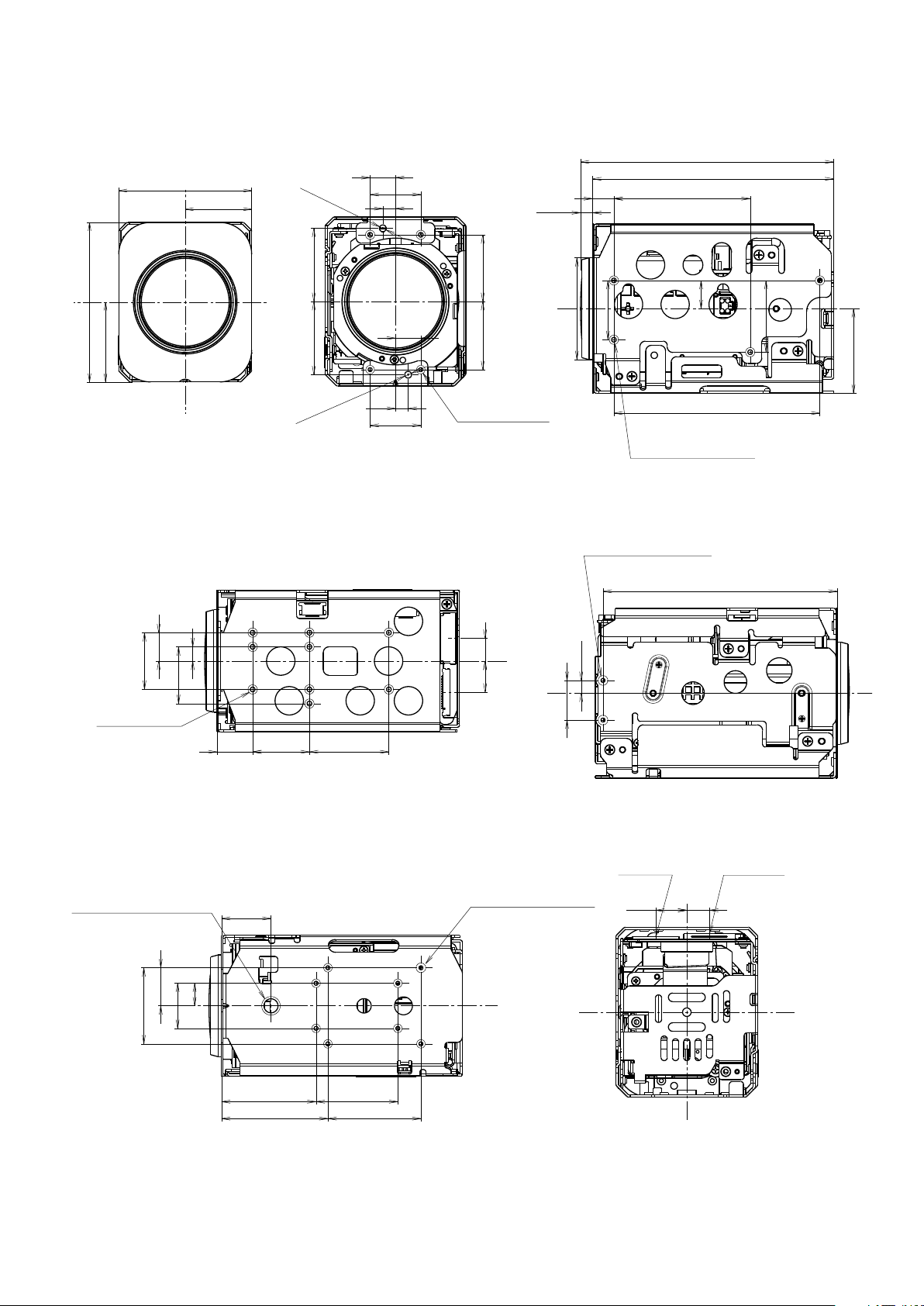

Locations of Controls

FCB-EH3400/EH3410

Front Back Bottom

Locations of Controls

FCB-EH3300/EH3310

Front Back Bottom

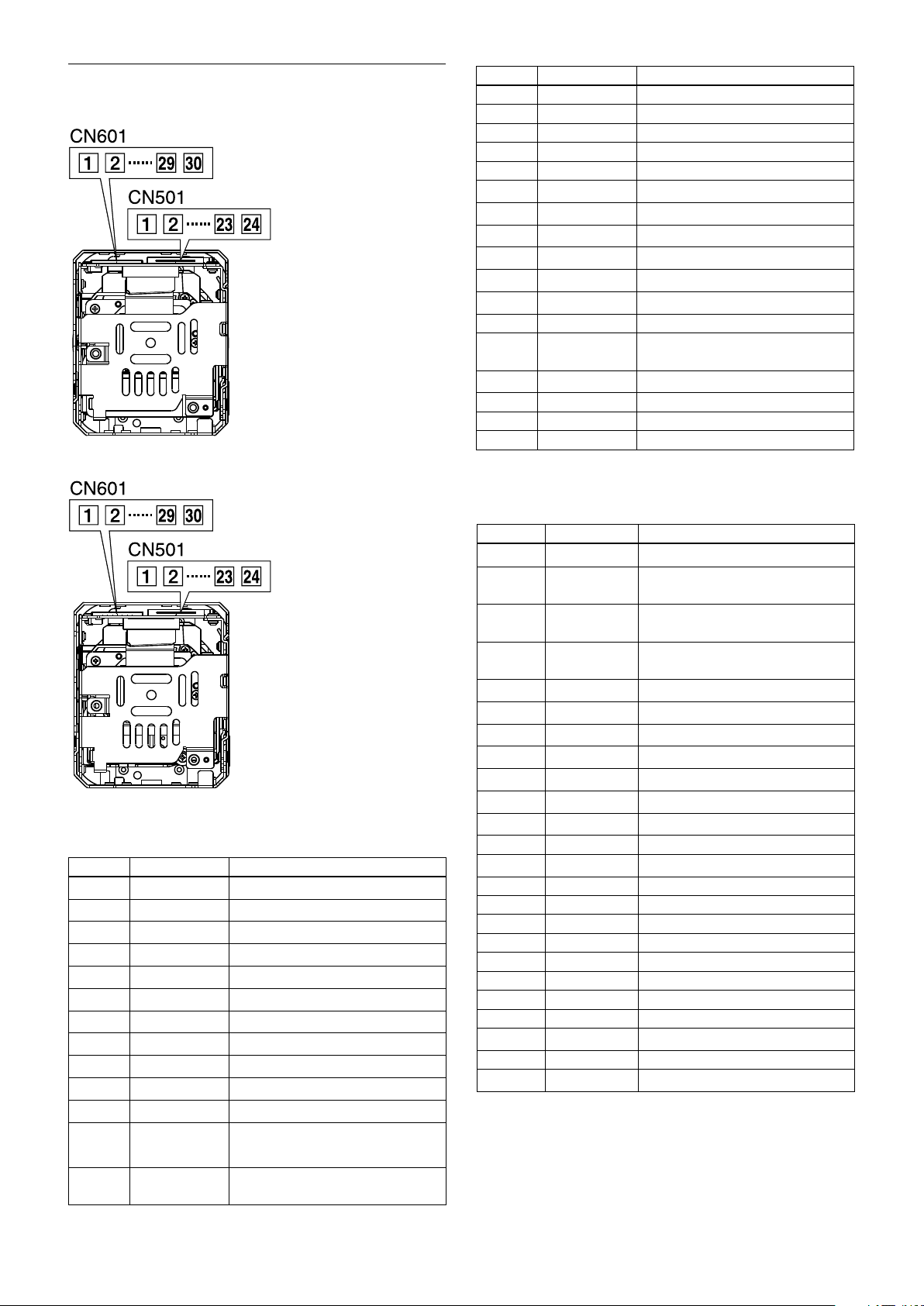

 Lens  CN501 jack  CN601 jack  Tripod screw hole

When a tripod is used, please use 7 mm (

Also, please be sure to attach the tripod securely.

/32 in.) or less screw to attach it to the camera.

Page 6

Basic Functions

Overview of Functions

VISCA commands are the basis of camera control.

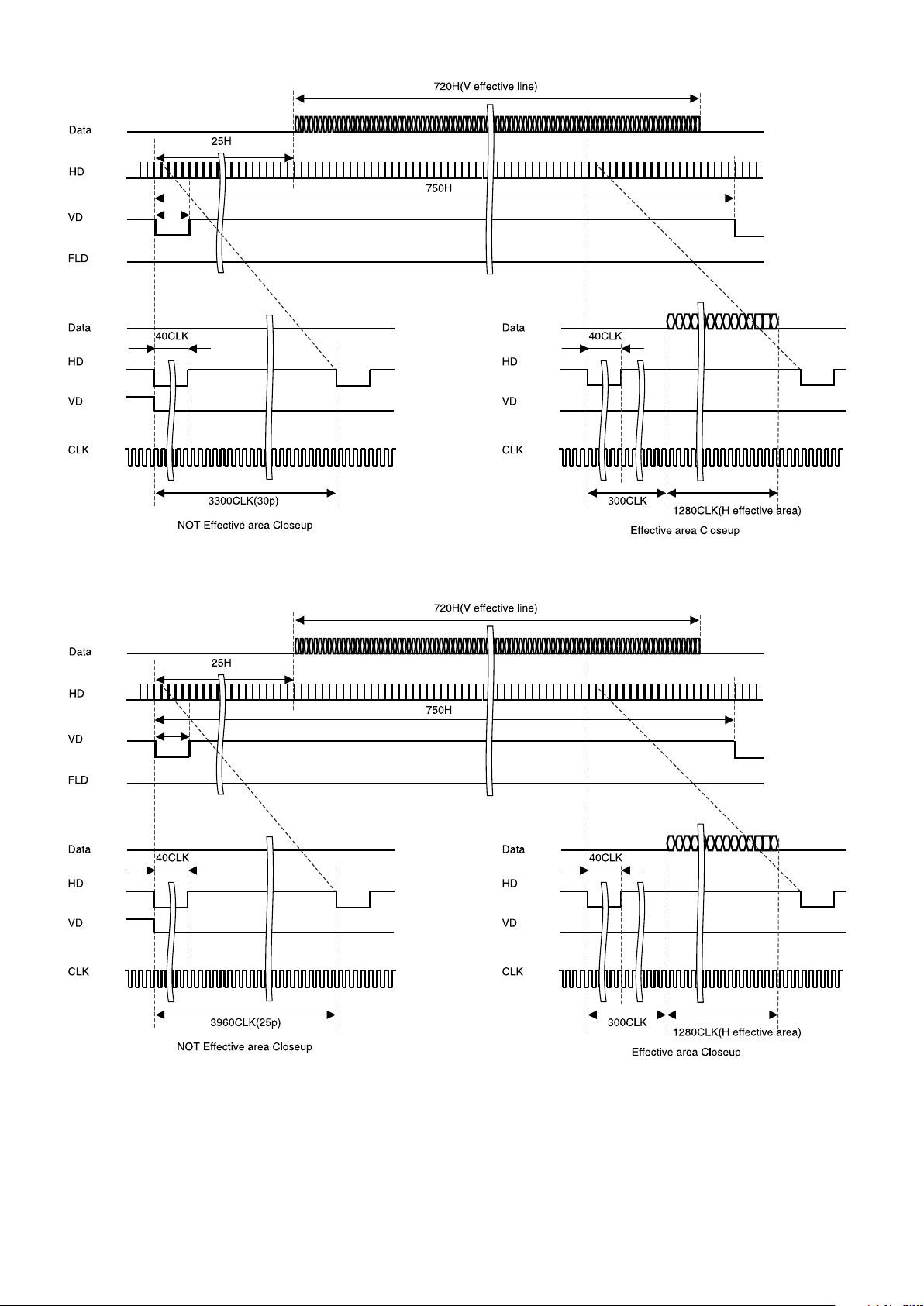

Timing Chart

As VISCA Command processing can only be carried out one time in a Vertical cycle, it takes the maximum 1V cycle time for an ACK/Completion to be returned. If the Command ACK/Completion communication time can be cut shorter than the 1V cycle time, then every 1V cycle can receive a Command.

General Commands

Query Commands

In general

• Power On/Off

Powers the camera on and off. When the power is off,

the camera is able to accept only the lowest level of VISCA Commands; the display and other features are turned off.

• I/F Clear

Clears the Command buffer of the FCB camera.

Clearing the buffer can also be carried out from the control application software when the power is on.

• Address Set

VISCA is a protocol, which normally supports a daisy

chain of up to seven connected cameras via RS-232C interface. In such cases, the address set command can be used to assign addresses from 1 to 7 to each of the seven cameras, allowing you to control the seven cameras with the same personal computer.

Although the FCB camera does not support direct

connection of cameras in a daisy chain, be sure to use the address set command to set the address whenever a camera is connected for the first time.

16 Byte

1) 1V cycle times on each Monitoring Mode and Shutter Speed.

Shutter Speed

1/10000 sec to 1/60 sec 1/30 sec 1/60 sec 1/30 sec 1/30 sec 1/30 sec 1/15 sec 1/15 sec 1/15 sec 1/8 sec 1/8 sec 1/8 sec 1/4 sec to 1/1 sec 1/4 sec to 1/1 sec 1/4 sec to 1/1 sec

Shutter Speed

1/10000 sec to 1/50 sec 1/25 sec 1/50 sec 1/25 sec 1/25 sec 1/25 sec 1/12 sec 1/12 sec 1/12 sec 1/6 sec 1/6 sec 1/6 sec 1/3 sec to 1/1 sec 1/3 sec to 1/1 sec 1/3 sec to 1/1 sec

720p/30/29.97 720p/60/59.94

720p/25 720p/50

Monitoring Mode

• ID Write

Sets the camera ID.

• Mute

Blanks the screen and sends out a synchronizing

signal.

• Lens Initialize

Initializes the zoom and focus of the lens. Even when

power is already on, it initializes the zoom and the focus.

Page 7

Basic Functions

Zoom

FCB-EH3400/EH3410 employs a 28× optical zoom lens combined with a digital zoom function; this camera allows you to zoom up to 336×.

• FCB-EH3400/EH3410 Optical 28×, f = 3.5mm to

98.0 mm (F 1.35 to F 3.7)

The horizontal angle of view of FCB-EH3400/EH3410 is approximately 55.9 degrees (wide end) to 2.1 degrees (tele end). Digital Zoom enlarges the center of the subject by expanding each image in both the vertical and horizontal directions. When 336× zoom is used, the number of effective picture elements in each direction reduces to deteriorates.

FCB-EH3300/EH3310 employs a 20× optical zoom lens combined with a digital zoom function; this camera allows you to zoom up to 240×.

• FCB-EH3300/EH3310 Optical 20×, f = 3.5mm to

70.0 mm (F 1.35 to F 3.4)

The horizontal angle of view of FCB-EH3300/EH3310 is approximately 55.9 degrees (wide end) to 2.9 degrees (tele end). Digital Zoom enlarges the center of the subject by expanding each image in both the vertical and horizontal directions. When 240× zoom is used, the number of effective picture elements in each direction

reduces to

/12 and the overall resolution deteriorates.

You can activate the zoom in the following ways with a VISCA command.

Using Standard Mode Using Variable Mode

There are eight levels of zoom speed.

Direct Mode

Setting the zoom position enables quick movement to the designated position.

Digital Zoom ON/OFF

In these standard and variable Speed Modes, it is necessary to send Stop Command to stop the zoom operation.

• The Zoom Mode supports a Combined Mode and a

Separate Mode.

Combined Mode

This is the previously existing zoom method. After the optical zoom has reached its maximum level, the camera switches to Digital Zoom Mode.

Separate Mode

In this mode, Optical Zoom and Digital Zoom can be operated separately. You can use digital zoom magnification at any time from within any level of optical magnification.

About Continues Zoom position Reply

With ZoomDirect mode, or when zooming according to a preset, the camera outputs zoom position data when Continues Zoom position Reply is set to ON via a command. Continues Zoom position Reply: y0 07 04 69 0p 0p 0q 0q 0q 0q FF

pp: D-Zoom position qqqq: Zoom position

/12 and the overall resolution

Focus

Focus has the following modes, all of which can be set using VISCA Commands.

• Auto Focus Mode

The minimum focus distance is 10 mm at the optical

wide end and 1500 mm at the optical tele end, and is independent of the digital zoom.

The Auto Focus (AF) function automatically adjusts

the focus position to maximise the high frequency content of the picture in a center measurement area, taking into consideration the high luminance and strong contrast components.

- Normal AF Mode

This is the normal mode for AF operations.

- Interval AF Mode

The mode used for AF movements carried out at particular intervals. The time intervals for AF movements and for the timing of the stops can be set in one-second increments using the Set Time Command. The initial value for both is set to five seconds.

- Zoom Trigger Mode

When the zoom is changed, the pre-set value (initially set at 5 seconds) becomes that for AF Mode. Then, it stops.

AF sensitivity can be set to either Normal or LOW.

- Normal

Reaches the highest focus speed quickly. Use this when shooting a subject that moves frequently. Usually, this is the most appropriate mode.

- LOW

Improves the stability of the focus. When the lighting level is low, the AF function does not take effect, even though the brightness varies, contributing to a stable image.

• Manual Focus Mode

Manual Focus has both a Standard Speed Mode and a

Variable Speed Mode. Standard Speed Mode focuses at a fixed rate of speed. Variable Speed Mode has eight speed levels that can be set using a VISCA Command.

In these standard and variable Speed Modes, it is necessary to send Stop Command to stop the zoom operation.

• One Push Trigger Mode

When a Trigger Command is sent, the lens moves to

adjust the focus for the subject. The focus lens then holds that position until the next Trigger Command is input.

• Infinity Mode

The lens is forcibly moved to a position suitable for an

unlimited distance.

• Near Limit Mode

Can be set in a range from 1000 (∞) to C000 (10 mm). Default setting: 9000h (30 cm)

Page 8

Basic Functions

White Balance

White Balance has the following modes, all of which can be set using VISCA Commands.

• Auto White Balance

This mode computes the white balance value output

using color information from the entire screen. It outputs the proper value using the color temperature radiating from a black subject based on a range of values from 3000 to 7500K.

This mode is the factory setting.

• ATW

Auto Tracing White balance (2000 to 10000K)

• Indoor

3200K Base Mode

• Outdoor

5800K Base Mode

• One Push WB

The One Push White Balance mode is a fixed white

balance mode that may be automatically readjusted only at the request of the user (One Push Trigger), assuming that a white subject, in correct lighting conditions, and occupying more than 1/2 of the image, is submitted to the camera.

One Push White Balance data is lost when the power

is turned off. If the power is turned off, reset One Push White Balance.

• Manual WB

Manual control of R and B gain, 256 steps each

• Outdoor Auto

This is an auto white balance mode specifically for

outdoors. It allows you to capture images with natural white balance in the morning and evening.

• Sodium Vapor Lamp Auto

This is an auto white balance mode that is compatible

with sodium vapor lamps.

• Sodium Vapor Lamp

This is a fixed white balance mode specifically for

sodium vapor lamps.

Note

High-pressure sodium lamps are supported. Proper white balance may not be captured for some subjects when using low-pressure sodium lamps.

Automatic Exposure Mode

A variety of AE functions are available for optimal output of subjects in lighting conditions that range from low to high.

• Full Auto

Auto Iris and Gain, Fixed Shutter Speed

Priority, Iris Priority, Bright, Spot Exposure and Manual in the AE mode. Use this setting when image signal-to-noise ratio is particularly important.

• Shutter Priority

Variable Shutter Speed, Auto Iris and Gain

(1/1 to 1/10,000 sec., 16 high-speed shutter speeds plus 6 low-speed shutter speeds)

1) Flicker can be eliminated by setting shutter to

 1/100s for NTSC models used in countries with a 50 Hz

power supply frequency

 1/120s for PAL models used in countries with a 60 Hz power

supply frequency

• Iris Priority

Variable Iris (F1.35 to Close, 16 steps), Auto Gain and

Shutter speed

• Manual

Variable Shutter, Iris and Gain

• Bright

Variable Iris and Gain (Close to F1.35, 17 steps at

0 dB: F1.35, 15 steps from 0 to 28 dB)

AE – Shutter priority

The shutter speed can be set freely by the user to a total of 22 steps – 16 high speeds and 6 low speeds. When

the slow shutter is set, the speed can be

/4s, 1/2s, 1/1s. The picture output is read at a normal rate

/30s, 1/15s, 1/8s,

from the memory. The memory is updated at a low rate from the CMOS. AF capability is low. In high speed mode, the shutter speed can be set up to 1/10,000s. The iris and gain are set automatically, according to the brightness of the subject.

Data 60/30 mode 50/25 mode

15 1/10000 1/10000 14 1/6000 1/6000 13 1/4000 1/3500 12 1/3000 1/2500 11 1/2000 1/1750 10 1/1500 1/1250 0F 1/1000 1/1000 0E 1/725 1/600

0D 1/500 1/425

0C 1/350 1/300 0B 1/250 1/215 0A 1/180 1/150

09 1/125 1/120 08 1/100 1/100 07 1/90 1/75 06 1/60 1/50 05 1/30 1/25 04 1/15 1/12 03 1/8 1/6 02 1/4 1/3 01 1/2 1/2 00 1/1 1/1

• Gain Limit Setting

The gain limit can be set at the Full Auto, Shutter

Page 9

Basic Functions

(8,8)

Horizontal 16

Vertical 16

0 1 2 3 4 5 6 7 8 9 A

B C D E F

1 2 3 4 5 6 7 8 9 A B C D E F

MIN

MAX

AGC

OPEN

IRIS

AE – Iris priority

The iris can be set freely by the user to 16 steps between F1.35 and Close. The gain and shutter speed are set automatically, according to the brightness of the subject.

Data

11 F1.35 09 F5.6 10 F1.6 08 F6.8

0F F2 07 F8

0E F2.4 06 F9.6 0D F2.8 05 F11 0C F3.4 04 F14

0B F4 03 F16 0A F4.8 00 CLOSE

Setting value

Data

Setting value

AE – Manual

The shutter speed (22 steps), iris (16 steps) and gain (16 steps) can be set freely by the user.

AE – Bright

The bright control function adjusts both gain and iris using an internal algorithm, according to a brightness level freely set by the user. Exposure is controlled by gain when dark, and by iris when bright. As both gain and iris are fixed, this mode is used when exposing at a fixed camera sensitivity. When switching from Full Auto or Shutter Priority Mode to Bright Mode, the current status will be retained for a short period of time. Only when the AE mode is set to “Full Auto” or “Shutter Priority,” can you switch it to “Bright.”

Gain

IRIS curve

Gain curve

Dark Bright

Controlled by gain

Controlled by IRIS

Data Iris Gain Data Iris Gain

1F F1.35 28 dB 10 F1.6 0 dB

1E F1.35 26 dB 0F F2 0 dB 1D F1.35 24 dB 0E F2.4 0 dB 1C F1.35 22 dB 0D F2.8 0 dB 1B F1.35 20 dB 0C F3.4 0 dB 1A F1.35 18 dB 0B F4 0 dB

19 F1.35 16 dB 0A F4.8 0 dB

18 F1.35 14 dB 09 F5.6 0 dB

17 F1.35 12 dB 08 F6.8 0 dB

16 F1.35 10 dB 07 F8 0 dB

15 F1.35 8 dB 06 F9.6 0 dB

14 F1.35 6 dB 05 F11 0 dB

13 F1.35 4 dB 04 F14 0 dB

12 F1.35 2 dB 03 F16 0 dB

11 F1.35 0 dB 00 CLOSE 0 dB

When switching from the Shutter Priority mode to the Bright mode, the shutter speed set in the Shutter Priority mode is maintained.

Spot Exposure Mode

In Full Auto AE, the level for the entire screen is computed and the optimum Auto Iris and Gain levels are determined. In Spot AE, a particular section of the subject can be designated, and then that portion of the image can be weighted and a value computed so that Iris and Gain can be optimized to obtain an image. For example, in an image with a lot of movement and with varying levels of brightness, portions without much change can be designated as such a “spot,” and changes to the screen can be minimized in that area. As shown in the diagram below, a range of 16 blocks vertically and 16 blocks horizontally can be designated. In the case where the center is designated (shown in black), the level is computed along with a weighted value for the surrounding block (shaded), including the specified portions; and then the Gain and Iris are set. The value of the designated portions and the surrounding areas should be calculated as 100%, the rest should be set to 20%. The range of the Spot AE frame is fixed to 5 blocks vertically and 4 blocks horizontally.

Bright limit which controllable for this unit

Page 10

Basic Functions

Exposure Compensation

Exposure compensation is a function which offsets the internal reference brightness level used in the AE mode, by steps of 1.5 dB.

Data Step

0E +7 +10.5 dB 0D +6 +9 dB 0C +5 +7.5 dB 0B +4 +6 dB 0A +3 +4.5 dB

09 +2 +3 dB

08 +1 +1.5 dB

07 0 0 dB

06 −1 −1.5 dB

05 −2 −3 dB

04 −3 −4.5 dB

03 −4 −6 dB

02 −5 −7.5 dB

01 −6 −9 dB

00 −7 −10.5 dB

Setting value

Slow AE (Automatic Exposure)

The slow AE Response (automatic exposure) function allows you to reduce the exposure response speed. Usually the camera is set up so that the optimum exposure can be obtained automatically within about 1 second. However, using the slow AE response function allows you to lengthen the automatic exposure response speed from the factory setup speed (01 (hex) up to approx. 10 minutes (30 (hex)). For example, with the normal setting (about 1 second), if the headlights of a car are caught by the camera, the camera automatically adjusts the exposure so that it can shoot a high-intensity subject (in this case, the headlights). As a result, images around the headlights, that is, the rest of the subject, except the headlights, becomes relatively dark, and poorly distinguished. However, using the slow AE function means the AE response speed will be slower, and response time will be longer. As a result, even if the camera catches a highintensity subject (e.g., the headlights) for a moment, you can still easily distinguish the portions of the image surrounding the headlights.

High Resolution Mode

This mode enhances edges and produces higher definition images.

Aperture Control

Aperture control is a function which adjusts the enhancement of the edges of objects in the picture. There are 16 levels of adjustment, starting from “no enhancement.” When shooting text, this control may help by making them sharper.

Back Light Compensation

When the background of the subject is too bright, or when the subject is too dark due to shooting in the AE mode, back light compensation will make the subject appear clearer.

Wide Dynamic Range Mode (WD)

The Wide Dynamic Range mode is a function for dividing an image into several blocks and correcting blocked-up shadows and blown-out highlights in accordance with the intensity difference. It enables you to obtain images in which portions ranging from dark to light can be recognized, even when capturing a subject with a large intensity difference that is backlit or includes extremely light portions. Images with wide dynamic range are produced by combining long-exposure signals (normal shutter) with the signals of the high-intensity portions obtained with a short exposure (high-speed shutter).

Wide Dynamic Range Auto On/Off Mode

The wide dynamic range can be set to be automatically switched ON/OFF in accordance with the intensity difference obtained by dividing an image into several blocks and then averaging the intensity of each block.

Wide Dynamic Range Auto On/Off Mode

Auto On/Off

When the intensity difference between the dark portions and light portions of a subject becomes large because of back lighting or the like, the wide dynamic range mode is switched ON.

When the subject changes and the intensity difference between the dark portions and light portions becomes small, the wide dynamic range mode is switched OFF.

Page 11

Basic Functions

The wide dynamic range mode includes the following operation modes.

• WD Mode

This mode corrects blocked-up shadows and blown-

out highlights in accordance with the intensity difference.

• WD Auto ON/OFF Mode

This mode switches WD ON/OFF automatically in accordance with the intensity difference of the subject.

Configure the sensitivity for when WD is switched

from OFF to ON with the detection sensitivity parameter.

• Exposure Ratio Mode

This mode fixes the shutter speed of a long exposure.

Configure the shutter speed of a short exposure by setting the ratio with regards to a long exposure with the exposure ratio parameter.

Blown-out highlight correction is not performed in

this mode.

• Histogram Mode

This mode uses a histogram to correct blocked-up

shadows and blown-out highlights. (The operation is similar to that of FCB-EX1010/P Dver.)

• About WD Set Parameter (Command: 8x 01 04 2D 0p 0q 0r 0s 0t 0u 00 00 FF)

p: Screen display (0: Combined image, 2: Long-time,

3: Short-time)

Set the screen display to the combined image, a

long exposure image or short exposure image. q: Detection sensitivity (0: Low, 1: Mid, 2: Hi) Select from three levels for detecting the

intensity within the image for when switching

Auto WD from OFF to ON.

r: Blocked-up shadow correction level can be

set to one of four levels. (0:L 1:M 2:H 3:S)

s: Blown-out highlight correction level can be

set to one of three levels. (0:L 1:M 2:H) tu: Parameter to use in the exposure ratio mode. Specify the short exposure time by setting

the magnification ratio (×1 to ×64) with

regards to a long exposure time.

Notes

• When the wide dynamic range mode is ON, solarization may be observed in the images of some subjects. This phenomenon is unique to wide dynamic range mode, and is not an indication of a camera malfunction.

• The frame rate during Wide Dynamic Range mode will be half of that during standard mode. Example: When Wide Dynamic Range mode is ON in 720/30P

mode, the frame rate is 15 fps.

Noise Reduction

The NR (Noise Reduction) function removes noise (both random and non-random) to provide clearer images. This function has six steps: levels 1 to 5, plus off. The NR effect is applied in levels based on the gain, and this setting value determines the limit of the effect. In bright conditions, changing the NR level will not have an effect.

High Sensitivity Mode

In this mode, higher sensitivity gain is applied as standard gain increases, reaching a gain level at MAX gain of up to 4x the standard gain. In such cases, however, there will be a high volume noise in the image.

Custom Gamma Mode

Gamma correction can be changed in this mode. The following five options are available. 1: Standard 2: Straight gamma 3: S-curve - Low 4: S-curve - Mid 5: S-curve - High

Tip

Blocked-up shadows in images will be more noticeable than usual.

Color Enhancement

A captured color image is converted to 256 levels of gray, and you can set a color to all levels brighter than the threshold value, and another color to all levels darker than the threshold value.

Color specifications

• You can select from nine colors to specify for the high-intensity and low-intensity colors.

Color options: Yellow, cyan, green, white, magenta, red, blue, black, gray

• The default settings for color specification are “green” for high-intensity and “white” for low-intensity.

Page 12

Basic Functions

Threshold values

• You can set the threshold value that determines high or low intensity.

• The minimum threshold value is 1h (decimal: 1), and the maximum threshold value is FE1h (decimal:

4065).

• The default setting for the threshold value is 200h (decimal: 512).

Grayscale image (256 levels)

Color image

Binarization process

Assign any color

Image Stabilizer (FCB-EH3400/EH3410 only)

Switching ON the Image Stabilizer function reduces image blurring caused by, for example, vibration, which allows you to obtain images without much blurring. A correction effect of approximately 90% is possible for a vibration frequency of around 10 Hz. The Image Stabilizer function employs the digital zoom system, so the angle of view and resolution are changed, but the sensitivity is maintained.

Hold Function of Image Stabilizer

With the Image Stabilizer function, suddenly stopping high-speed movement (pan, tilt, etc.) of the camera produces a blur sensor counteraction that may cause image movement. In such a case, you can use a command setting (hold) to maintain the correction of the Image Stabilizer function. In this case the image stabilizer is off, but there is no change in the angle of view.

Note

When image stabilizer is activated, residual movement may appear on the top and bottom of the image.

Temperature Reading Function

The conversion value (hex) of the temperature sensor built into to the camera can be read by using a query command. The conversion value has an error of ±3 C, and because the temperature sensor is inside the camera, this value is not the ambient temperature. Use it as a reference value.

Slow shutter – Auto/Manual

When set to “Auto,” ensures that the slow shutter is set automatically when the brightness drops. Effective only when the AE mode is set to “Full Auto.” Set to “Slow Shutter Manual” at shipment.

Note

The Slow Shutter Auto function is not available in WD mode.

Low-Illumination Chroma Suppress Mode

You can configure a chroma suppress mode for lowillumination conditions. This can be useful when color noise is particularly noticeable in such conditions. Four levels (disabled and three levels) are available for the low-illumination chroma suppress mode. Set the effect to be applied at approximately 15 dB. Higher setting values produce stronger chroma suppressing effects.

ICR (IR Cut-Removable) Mode

An infrared (IR) Cut-Filter can be disengaged from the image path for increased sensitivity in low light environments. The ICR will automatically engage depending on the ambient light, allowing the camera to be effective in day/night environments. When the auto ICR mode is set to ON, the image becomes black and white.

Custom Color Gain

You can customize and configure the color gain. Use this setting when bright color is particularly important. The initial setting 100% (4h) can be set to range from approx. 60% (Oh) to 200% (Eh) with 15 stages.

Custom Color Phase

You can customize and configure the color phase. The initial setting 0 degrees (7h) is adjustable between approx.

−14 degrees (0h) and +14 degrees (Eh), in

15 increments.

Auto ICR Mode

Auto ICR Mode automatically switches the settings needed for attaching or removing the IR Cut Filter. With a set level of darkness, the IR Cut Filter is automatically disabled (ICR ON), and the infrared sensitivity is increased. With a set level of brightness, the IR Cut Filter is automatically enabled (ICR OFF). Also, on systems equipped with an IR light, the internal data of the camera is used to make the proper decisions to avoid malfunctions. Auto ICR Mode operates with the AE Full Auto setting.

Page 13

ICR

SHUTTER

Dark Bright

AGC MAX

IRIS OPEN

Shutter 1/60 sec

ICR OFF U ON

GAIN

ICR ON

IRIS

ICR ON

AGC MAX

IRIS OPEN

(Iris Open)

(Gain Max)

ICR ON

(Slow Shutter Max)

Dark

GAIN

Adjustable

ICR ON U OFF Adjustable

SHUTTER

IRIS

Bright

(Iris Min) (0dB) (1/60 sec)

When Auto Slow Shutter is OFF (initial setting)

When Auto Slow Shutter is ON

Note

When in Auto_ICR_OFF state and WB data is added (default), a malfunction may occur when the subjects largely consisting of blue and green colors are taken.

Camera ID

The ID can be set up to 65,536 (0000 to FFFF). As this will be memorized in the nonvolatile memory inside, data will be saved regardless of whether it has been backed up.

Effect

It consists of the following functions.

Neg. Art: Negative/Positive Reversal

•

Black White: Monochrome Image

•

Others

E-FLIP

This function turns the video output from the camera upside down.

Basic Functions

Mirror Image

This function reverses the video output from the camera horizontally.

Freeze

This function captures an image in the field memory of the camera so that this image can be output continuously.

Because communication inside the camera is based on V cycle, the captured image is always the one 3V to 4Vs after the sending of a Command. Thus, you can not specify a time period after sending EVEN, ODD or a Command.

Memory (Position preset)

Using the position preset function, 6 sets of camera shooting conditions can be stored and recalled. This function allows you to achieve the desired status instantly, even without adjusting the following items each time.

• Zoom Position

• Digital Zoom On/Off

• Focus Auto/Manual

• Focus Position

• AE Mode

• Shutter control parameters

• Bright Control

• Iris control parameters

• Gain control parameters

• Exposure Compensation On/Off

• Exposure Level

• Backlight Compensation On/Off

• Slow Shutter Auto/Manual

• Slow AE Response speed

• White Balance Mode

• R/B Gain

• Aperture

• ICR Shoot On/Off

• WD On/Off

Custom Preset

As with the position preset function, the camera shooting conditions can be stored and recalled. The settings are recalled when the power is turned on.

For setting items, see the “Initial Settings, Custom Preset and Backup” section on page 22.

User Memory Area

A user area of 16 bytes allows you to write data, such as an ID for each customer, data for each system, and so on, freely.

Note

Rewriting of memory is not unlimited. Be careful to avoid using the memory area for such as unnecessary tasks as rewriting the contents of the memory for every operation.

Page 14

Basic Functions

The camera’s default settings can be changed by the register setting command. Register Setting Command:

8x 01 04 24 mm 0p 0q FF

mm: Register No. (=00 to 7F) pq: Register Value (=00 to FF)

8x 09 04 24 mm FF

mm: Register No.

y0 50 0p 0p FF

pp: Register Value (returned from the camera)

Example: To set communication speed to 38400 bps

8x 01 04 24 00 00 02 FF After sending this command, turn power off and back on (power reset) to resume communication control at 38400 bps.

Example: Sending to confirm settings

8x 09 04 24 00 FF y0 50 00 03 FF is returned from the camera

The register setting items and No. are as follows. Baud Rate: 00

Communication speed can be changed.

Monitoring Mode: 72

This register “72” allows digital output mode configuration.

For details on each output mode and parameter, see “Register Setting” on page 50.

Output Enable: 73

“Analog Output”, “Digital Output”, or “Both” can be set.

For details on parameters, see “Register Setting” on page 50.

Zoom Limit: 50 (Wide end), 51 (Tele end)

The Wide and Tele zoom limits can be set.

E-Zoom Max: 52

The maximum digital zoom limit can be specified (default is ×12).

FocusTrace: 54

When you want to prioritize zoom speed, set FocusTrace to OFF to minimize the transition time between Wide and Tele zoom (although the image may be blurred because focus is not tracked). For example, the focus transition time from Wide to Tele ends, which typically takes 2.3 seconds, can be reduced to 1.6 seconds.

FocusOffset: 55

Placing a dome cover in front of the camera may cause the focal distance of the camera to change. Especially at the Tele end, this effect exceeds the AF range, so focus cannot track, although it responds to changes in this value.

For details, see “Register Setting” on page 50.

Privacy Zone Masking Settings

For details, see page 15.

Motion detection

For details, see page 19.

Title Display

• You can set a title composed of up to 11 lines. One line can contain up to 20 characters.

• You can set display on/off, the horizontal position of the first character, blinking state and color for each line.

• The camera gives priority to lines of a title when the camera status is displayed on the relevant line. On the lines where a title is not set, the camera status is displayed.

Line Number 00 to 0A H-position 00 to 1F

Blink

Color

00 01 02 03 04 05 06 07

A B C D E F G H

08 09 0a 0b 0c 0d 0e 0f

I J K L M N O P

10 11 12 13 14 15 16 17

Q R S T U V W X

18 19 1a 1b 1c 1d 1e 1f

Y Z & ? ! 1 2

20 21 22 23 24 25 26 27

3 4 5 6 7 8 9 0

28 29 2a 2b 2c 2d 2e 2f

À È Ì Ò Ù Á É Í

30 31 32 33 34 35 36 37

Ó Ú Â Ê Ô Æ Ã

38 39 3a 3b 3c 3d 3e 3f

Õ Ñ Ç ß Ä Ï Ö Ü

40 41 42 43 44 45 46 47

Å $ ¥ £ ¿ ¡

48 49 4a 4b 4c 4d 4e 4f

ø “ : ‘ . , / -

00: Does not blink

01: Blinks 00 White 01 Yellow 02 Violet 03 Red 04 Cyan 05 Green 06 Blue

Page 15

Privacy Zone Masking Function

Privacy Zone masking protects private objects and areas such as house windows, entrances, and exits which are within the camera’s range of vision but not subject to surveillance. Privacy zone masking can be masked on the monitor to protect privacy.

Features

• Mask can be set on up to 24 places according to Pan/ Tilt positions.

• Mask can be displayed on 8 places per screen simultaneously.

• Privacy Zones are displayed according to priority in alphabetical order.

• Individual on/off zone masking settings.

• Two colors can be individually set for each of 24 privacy zones.

• Interlocking control with zooming.

• Interlocking control with Pan/Tilt.

• Non-interlocking control with Pan/Tilt.

Basic Functions

Page 16

Privacy Zone Setting Command List

Command Set Command Command Packet Comments

CAM_PrivacyZone SetMask 8x 01 04 76 mm nn

0r 0r 0s 0s FF

Display 8x 01 04 77 pp pp pp pp FF Setting Mask Display On/Off

SetMaskColor 8x 01 04 78 pp pp pp pp qq

rr FF

SetPanTiltAngle 8x 01 04 79 0p 0p 0p

0q 0q 0q FF

SetPTZMask 8x 01 04 7B mm

0p 0p 0p 0q 0q 0q 0r 0r 0r 0r FF

Non_InterlockMask 8x 01 04 6F mm

0p 0p 0q 0q 0r 0r 0s 0s FF

Grid On 8x 01 04 7C 02 FF Setting Grid Display On/Off Grid Off 8x 01 04 7C 03 FF CenterLineOn 8x 01 04 7C 04 FF Setting the center line On

Setting Mask(Size) See “mm: Mask setting list”, “nn: Setting”, and “rr: w, ss: h” in “Parameters” on page 17.

See “pp pp pp pp: Mask bit” in “Parameters” on page

17. pp pp pp pp: Mask setting (0: OFF, 1: ON)

Setting Color of Mask See “pp pp pp pp: Mask bit” and “qq, rr: Color code” in “Parameters” on page 17. qq: Color setting when setting the Mask bit to 0 rr: Color setting when setting the Mask bit to 1

Setting Pan/Tilt Angle See “Setting pan/tilt angle” in “Parameters” on page

17. ppp: Pan angle, qqq: Tilt angle

Setting the direct position of PTZ See “mm: Mask setting list” and “Setting pan/tilt angle” in “Parameters” on page 17. ppp: Pan , qqq: Tilt , rrrr: Zoom

Setting non-interlocking the mask to pan/till See “mm: Mack setting list” and “pp:x,qq:y, rr:w, ss: h“ in “Parameters“ on page 17.

Basic Functions

Privacy Zone Inquiry Command List

Inquiry Command Command Packet Inwuiry Packet Comments

CAM_Privacy DisplayInq

CAM_PrivacyPan TiltInq

CAM_PrivacyPTZInq 8x 09 04 7B mm FF y0 50 0p 0p 0p 0q 0q 0q

CAM_Privacy MonitorInq

8x 09 04 77 FF y0 50 pp pp pp pp FF Inquiry about the status of Setting Mask Display On/

Off See “pp pp pp pp: Mask bit” in “Parameters” on page

17. 1:On, 0:Off

8x 09 04 79 FF y0 50 0p 0p 0p 0q 0q 0q FFInquiry about the pan/tilt position currently set

See “Setting pan/tilt angle” in “Parameters” on page

17. ppp: Pan, qqq: Tilt

Inquiry about pan/tilt/zoom position at the mm Mask

0r 0r 0r 0r FF

8x 09 04 6F FF y0 50 pp pp pp pp FF Inquiry about the mask currently displayed

setting See “mm: Mask setting list” and “Setting pan/tilt angle” in “Parameters” on page 17. ppp: Pan Position, qqq: Tilt Position rrrr: Zoom Position

See “pp pp pp pp: Mask bit” in “Parameters” on page

17.

Page 17

160

0h(x,y)

B0h

D3h

2Dh

50h

0 90-180 -90 180

400h800h C00h 800h

TILT=+90˚

PAN=–90˚ Tilt=0˚

TILT=–90˚

PAN=+/–180˚

Pan=0˚,TILT=0˚

PAN=+90˚ Tilt=0˚

Tilt Angle (–90˚ to +90˚)

Pan Angle (–180˚ to +180˚)

Parameters

Basic Functions

mm: Mask setting list

Mask Name mm (Hex) Mask Name mm (Hex)

Mask_A 00h Mask_M 0Ch Mask_B 01h Mask_N 0Dh Mask_C 02h Mask_O 0Eh Mask_D 03h Mask_P 0Fh Mask_E 04h Mask_Q 10h Mask_F 05h Mask_R 11h Mask_G 06h Mask_S 12h Mask_H 07h Mask_T 13h Mask_I 08h Mask_U 14h Mask_J 09h Mask_V 15h Mask_K 0Ah Mask_W 16h Mask_L 0Bh Mask_X 17h

Note

The priority order of the mask display is in the sequence from A (highest) to X (lowest). When you set the parameters of masks non-sequentially, it is recommended that you set the mask whose priority order is higher, first.

nn:Setting

nn Setting

00 Resetting the zone size (the value of w,h)

for the existing mask.

01 Setting newly the zone size (the value of w,h).

pp: x, qq: y, rr: w, ss: h

mask

Effective display area

pp pp pp pp: Mask bit

pp pp pp pp

bit 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 Mask - - X W V U T S - - R Q P O N M - - L K J I H G - - F E D C B A

The “-” must be “0”.

qq, rr: Color code

Mask (Color) Code (qq, rr) Black 00h Gray1 01h Gray2 02h Gray3 03h Gray4 04h Gray5 05h Gray6 06h White 07h Red 08h Green 09h Blue 0Ah Cyan 0Bh Yellow 0Ch Magenta 0Dh

Setting pan/tilt angle

Angle/Parameter of Angle (ppp, qqq)

Set the angle resolution to 360 (degree)/4096 (1000h).

Page 18

Basic Functions

Details of Setting Commands

Set Mask

Command: 8x 01 04 76 mm nn 0r 0r 0s 0s FF Parameters:

mm Setting Mask

See “mm: Mask setting list” in “Parameters” on page 17.

nn Selects new setting or resetting for the zone. See “nn:

Setting” in “Parameters” on page 17. rr Sets the half value “w” of the Mask Width. ss Sets the half value “h” of the Mask Height.

See “pp: x, qq: y, rr: w, ss: h” in “Parameters” on page 17.

Comments: To set the mask, first display the object at

the center of the screen. When “nn” is set to 1, the current Pan/Tilt/Zoom position is recorded in internal memory.

When “nn” is set to 0, the Pan/Tilt/Zoom position

in memory is not changed.

Notes

• The tilt angle at which you can set the mask is between –70 to +70 degrees.

• It is recommended that you set the size to at least twice the size of the object (height and width).

Set Display

Command: 8x 01 04 77 pp pp pp pp FF Parameter:

Two colors can be individually set for each of

24 privacy zones.

If the bit of parameter (pp pp pp pp) is set to “0”,

mask color will be “qq” color (Color code). If the bit of parameter (pp pp pp pp) is set to “1”, the mask color will be “rr” color (Color code).

Example: 8x 01 04 78 00 00 00 03 00 07 FF The mask color of Mask_A and Mask_B is White

(color code 07h), and the mask color of the other Mask (C to X) is Black (color code 00h).

Set Pan Tilt Angle

Command: 8x 01 04 79 0p 0p 0p 0q 0q 0q FF Parameter:

ppp Pan Angle qqq Tilt Angle

See “Setting pan/tilt angle” in “Parameters” on page 17.

Comments: Pan/Tilt angle settings are hexadecimal

data.

The resolution of Pan/Tilt angle is 0.088 degrees.

Note

• When you set the pan/tilt angle, locate the pan/tilt position at the center point of the FCB camera’s position.

• If you set the pan/tilt angle or zoom the camera, a bigger mask will be displayed for about one second.

pp pp pp pp Each 24 Privacy Zones corresponds to 1 bit.

See “pp pp pp pp: Mask bit” in “Parameters” on page 17.

Comments: Each of 24 Privacy zones can be switched

on and off individually by a single VISCA command. If you want to display a Privacy zone, you must set its bit to 1. If you do not want to display a Privacy zone, you must set its bit to 0.

Set Mask Color

Command: 8x 01 04 78 pp pp pp pp qq rr FF Parameter:

pp pp pp pp Each 24 Privacy Zones correspond with the BIT.

See “pp pp pp pp: Mask bit” in “Parameters” on page 17.

qq Set the color code rr Set the color code. See “qq, rr: Color code” in

“Parameters” on page 17.

Comments: Two different color masks can be chosen.

Set PTZ Mask

Command: 8x 01 04 7B mm 0p 0p 0p 0q 0q 0q 0r 0r

0r 0r FF

Parameter:

mm Setting Mask

See “mm: Mask setting list” in “Parameters” on page 17.

ppp Pan Angle (000 to FFF)

See “Setting pan/tilt angle” in “Parameters” on page 17.

qqq Tilt Angle (000 to FFF)

See “Setting pan/tilt angle” in “Parameters” on page 17.

rrrr Zoom Position (000 to 4000)

See “Zoom Ratio and Zoom Position (for reference)” on page 48.

Comments: Mask can be set at the desired position

by setting the pan tilt angle and zoom position using this command. The set value can be input by hexadecimal number.

Page 19

Basic Functions

Non Interlock Mask

Command: 8x 01 04 6F mm 0p 0p 0q 0q 0r 0r 0s 0s

Parameters:

mm Setting Mask

See “mm: Mask setting list” in “Parameters” on page 17.

pp Sets the center position “x” of the Mask on screen. qq Sets the center position “y” of the Mask on screen. rr Sets the half value “w” of the Mask Width.

ss Sets the half value “h” of the Mask Height.

See “pp: x, qq: y, rr: w, ss: h” in “Parameters” on page 17.

Commands: Mask does not interlock with pan/tilt.

The limitations of parameters are as follows.

(hexadecimal representation) x: ±50h w: ±50h y: ±2Dh h: ±2Dh

Note

When the Set Mask command and the Non Interlock Mask command are set to the same mask, the command set later becomes effective.

Grid

Use the grid displayed on the screen to set mask positions (see the figure below). By executing the Center Line On command, only the x and y axes of the center are displayed. Grids lines disappear.

Motion Detection Function

This function instructs the camera to detect movement within the monitoring area and then send an alarm signal automatically. The Detect signal goes out through the serial command (VISCA) communication line.

Features

• You can set a frame for the detection range of 16 (horizontally) × 8 (vertically) blocks.

• You can set up to four frames.

• When the motion is detected in the set frame, the Alarm Replay VISCA command is sent.

• The threshold level for detection can be set (common to four frames).

• The interval of alarm detection can be set up to 255 seconds in units of one second.

• You can set on/off for each frame.

• When the Block Mode is set to ON, the Alarm Reply command is not sent. Use this mode for checking when the camera is installed or for confirming the camera operation.

• The frame number is also sent with Alarm Replay to report in which frame the motion has been detected.

Frames

Setting frames

You can set the frame by assigning the starting point and terminating point vertically and horizontally. You can set up to four frames.

When motion is detected within the rage where frames overlap

The alarms are sent for both frames.

Frame 1

Frame 2

Frame 3

Frame 4

At this position, the alarm for frame 3 is sent.

Within this overlapped range, alarms are sent for both frame 3 and frame 4.

Page 20

Basic Functions

Sending Alarms

• When motion is detected, the Alarm Replay command is issued via the serial command (VISCA) communication line.

Alarm issue Alarm issue Alarm issue Alarm issue

Alarm interval

Motion is detected in frame 1.

Interval

Motion is detected in frame 1.

Setting Commands

• MD On/Off

The Display mode is selected by the Function Set

command and frames are set by the Frame Set command. By sending an MD On command, the frame is displayed when motion is detected in the set frame. The Alarm Reply command is set via the serial command (VISCA) communication line.

8x 01 04 1B 02 FF --- On 8x 01 04 1B 03 FF --- Off

• Function Set

Select the detected frame, and set the Threshold Level

and the Interval Time.

8x 01 04 1C 0m 0n 0p 0q 0r 0s FF m: Display Mode on/off (bit0: Frame) n: Detection Frame set on/off (bit0:Frame0, bit1:

Frame1, bit2:Frame2, bit3:Frame3)

-- (0 to F) pq: Threshold -- (00 to FF) rs: Interval time set -- (00 to FF) (When pq and rs are 0, the command is received, but the setting is disabled.)

• When multiple motions are detected or motion is detected in another frame within the set interval following the original time the alarm was issued, another alarm command is not issued.

• When motion is detected after the interval time elapsed, the alarm is issued again.

Interval Interval

Motion is detected in frame 1.

Motion is detected in frame 2.

Motion is detected in frame 3.

• Frame Set

You can set up to four frames by assigning the starting

and terminating points.

Note

Set a terminating point higher vertically and

horizontally than the starting point. If you set the wrong value, the command yields an error.

8x 01 04 1D 0m 0p 0q rr 0s FF m: Select Detection Frame (0: Frame0, 1: Frame1, 2:

Frame2, 3: Frame3) -- (0, 1, 2, 3) p: Frame set Start Horizontal Position -- (00 to 0F) q: Frame set Start Vertical Position -- (00 to 07) r: Frame set End Horizontal Position -- (01 to 10) s: Frame set End Vertical Position -- (01 to 08)

• Alarm Reply

When motion is detected in the set frame, the camera

issues this command. This command includes the information on the number of the detected frame.

y0 07 04 1B 0p FF p: Frame Number (bit0: Frame0, bit1: Frame1, bit2:

Frame2, bit3: Frame3)

Page 21

Basic Functions

12.7

72.6°

ø37.3

41.3°

ø31

(ø36.1)

Eclipse

When designing the housing, refer to the dimensional allowance as shown in the figure below.

Vibration Specifications

Test Method (Random vibration)

• Fix the camera at the four fixation points of the base

using M2 screws.

• Perform the random vibration test under the

following conditions in the X, Y and Z directions for 20 minutes in each direction.

• The camera vibration specification is to have no

malfunction after this test.

Power spectrum density 5 Hz to 50 Hz 4.14 m2/s3 {0.043 G2/Hz}

Eective overall value 14.3 m/s Test time 20 minutes

50 Hz to 100 Hz –36 dB/oct

{1.46 G}

Spectral Sensitivity Characteristics

Use the graph as a reference value. (We can not guarantee these values.) This data is measured when the IR cut filter is removed and the characteristics of the lens and optical source characteristics are ignored.

Page 22

Initial Settings, Custom Preset and Backup

Initial settings for the various functions of the FCB camera are indicated in the “Initial settings” column. The “Custom preset” column indicates whether the custom preset function can be used to store the settings. The function enables the stored settings to be recalled automatically when the camera is turned on. The “Back up at standby” column indicates whether the data is preserved even when the camera is powered OFF.

Basic Functions

Mode/Position setting Initial settings

Zoom Position Wide end D-Zoom On/Off D-Zoom Separate/Combine D-Zoom Position Focus Position Focus Auto/Manual Near Limit Setting 9000h (30 cm) AF Sensitivity AF Mode AF Run Time 5 sec AF Interval 5 sec WB Mode WB Data (Rgain, Bgain) One Push WB Data AE Mode Full Auto AE Response WD On/Off/Auto Slow Shutter Mode Shutter Position 1/30 sec Iris Position Gain Position Bright Position Exposure Compensation On/Off Exposure Compensation Amount BackLight On/Off Spot AE On/Off Spot AE Position Setting X=8, Y=8 Aperture Level High Resolution Mode On/Off LR Reverse On/Off Freeze On/Off Picture Effect ICR On/Off Auto ICR On/Off Auto ICR Threshold Level

Combine

00h

—

Auto

Normal Normal

Auto

— —

Off

Manual

— — —

Off

±0 Off Off

0Ah

On Off Off Off Off Off

0Ah

Custom

preset

                                                                     

Back up

at standby

A circle “” in this column signifies that the data is preserved. A cross “” signifies that the data IS NOT preserved.

Page 23

Basic Functions

Mode/Position setting Initial settings

Camera Memory Same as the initial value setting Display On/Off Mute On/Off WD Alarm On/Off Auto ICR Alarm On/Off NR Level Gain Limit Color Enhancement On/Off Color Enhancement Threshold Level Color Enhancement High Luminance

Color Setting Color Enhancement Low Luminance Color Setting Low-Illumination Chroma Suppress 2h (Middle)

Color Gain 4h (100%) Color Hue 7h (0degrees) Title Display On/Off Title Setting Mask Setting Mask Display On/Off Mask Color Setting Grid/Center Line Display On/Off Alarm On/Off Alarm Mode Alarm Detect Level E-Flip On/Off Privacy Zone On/Off Privacy Zone Setting Camera ID Alarm DayLight Threshold Level MD On/Off MD Display Setting MD Threshold Level MD Interval 1 sec MD Window Setting ZoomPos Continuous Output On/Off ZoomPos Continuous Output Interval

Off Off Off Off

—

Off

200h

2h (Green)

3h (White)

Off

— —

Off

— Off Off

—

— Off Off

—

0000h

— Off Off 10h

— Off

3Ch

Custom

preset

                 

 

                                               

Back up

at standby

A circle “” in this column signifies that the data is preserved. A cross “” signifies that the data IS NOT preserved.

Note

The number of times written to EEPROM (when Custom Preset is executed) is limited.

Page 24

Basic Functions

Mode Condition

Mode Power Off Initializing Power On Freeze On MemRecall

Condition

        

        

        

        

        

        

        

        

        

        

        

        

    *    

    

Command Cancel

Power On/Off

IF_Clear

Address Set

Lens

Mode Power Off Initializing Power On Freeze On MemRecall Zoom Direct Focus Direct ZmFo Direct Focus Auto

Zoom Direct

Zoom Focus Direct

D-Zoom On/Off

D-Zoom Separate/Combine

D-Zoom Tele/Wide/Stop

D-Zoom ×1/Max

D-Zoom Direct

Focus Far/Near/Stop

Focus Direct

Focus Auto/Manual

One Push AF

Focus Infinity

Focus Near Limit

AF Sensitivity Normal/Low

AF Mode Norm/Interval/Zoom

Zoom Tele/Wide/Stop

AF Activation Time/Interval Setting

        

Camera Memory Set/Reset

Camera Memory Recall

Lens Initialize

Page 25

OnePush ATW Manual

Sodium

Outdoor

Basic Functions

Lamp AUTO

Lamp

AUTO

White Balance

          

          

          

             

             

             

WB Mode Switchover

Mode Power Off Initializing Power On Freeze On MemRecall WB AUTO Indoor outdoor

One Push WB

BGain Setting

RGain Setting

Exposure

Mode Power Off Initializing Power On Freeze On MemRecall AE Full Auto AE Manual ShutterPri Iris Priority Bright WD

AE Full Auto

AE Manual

Shutter Priority

Bright

Iris Priority

Shutter Setting

          

          

Iris Setting

          

          

Gain Setting

          

          

          

          

Bright Setting

Slow Shutter Auto/Manual

Exposure Compensation On/Off

Exposure Compensation Setting

SpotAE On/Off

BackLight On/Off

SpotAE Setting

WD On/Off

Page 26

Basic Functions

Power Off Initializing Power On Freeze On MemRecall

Mode

Others

    

    

    

    

    

    

    

    

    

    

    

    

WD Alarm On/Off

Aperture Setting

High Resolution Mode On/Off

LR_Reverse On/Off

Freeze On/Off

Picture Effect Setting

ICR On/Off

Auto ICR On/Off

Auto ICR Threshold Level Setting

Auto ICR Alarm On/Off

Display On/Off

Mute On/Off

Title Setting

Mask On/Off

Mask Setting

Key Lock On/Off

Alarm On/Off

Alarm Mode

MD On/Off

MD Function Setting

MD Window Setting

ID Write

Memory Save

Color Enhancement On/Off

NR Level Setting

Chroma Suppress

Color Gain

Color Hue

Page 27

VISCA1)/RS-232C Commands

This Manual outlines an RS-232 control protocol and command list for certain Sony cameras from which control software can be developed. THIS CONTROL PROTOCOL AND COMMAND LIST IS PROVIDED BY SONY ON AN “AS-IS BASIS” WITHOUT WARRANTY OF ANY KIND. SONY DOES NOT WARRANT ANY PARTICULAR RESULT FROM THE USE OF THIS CONTROL PROTOCOL AND COMMAND LIST AND DISCLAIMS AND EXCLUDES ALL WARRANTIES. EXPRESS OR IMPLIED, WITH RESPECT TO THAT CONTROL PROTOCOL AND COMMAND LIST, INCLUDING, BUT NOT LIMITED TO, ANY OR ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN FACT, SONY SPECIFICALLY ACKNOWLEDGES THAT SOFTWARE DEVELOPED BASED ON THIS CONTROL PROTOCOL AND COMMAND LIST MAY CAUSE MALFUNCTION OR DAMAGE TO HARDWARE AND SOFTWARE USED WITH IT (INCLUDING SONY HARDWARE AND SOFTWARE) AND SPECIFICALLY DISCLAIMS ANY LIABILITY FOR ANY SUCH MALFUNCTION OR DAMAGE. THIS CONTROL PROTOCOL AND COMMAND LIST SHOULD BE USED WITH CAUTION.

Command List

Overview of VISCA

In VISCA, the device outputting commands, for example, a computer, is called the controller. The device receiving the commands, an FCB camera is called the peripheral device. In VISCA, up to seven peripheral devices like the FCB camera can be connected to one controller using communication conforming to the RS-232C standard. The parameters of RS-232C are as follows.

Communication speed: 9.6 kbps/19.2 kbps/



38.4 kbps

Data bits : 8



Start bit : 1



Stop bit : 1



Non parity



Flow control using XON/XOFF and RTS/CTS, etc., is not supported.

.......................................................................................................................................................................................................................................................

1) VISCA is a protocol which controls consumer camcorders developed by Sony. “VISCA” is a trademark of Sony Corporation.

Page 28

Command List

Bit 7

(MSB)

Bit 6 Bit 5 Bit 4 Bit 3 B it 2 B it 1 Bit 0

(LSB)

1 0

Bit 7

(MSB)

Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

(LSB)

1 1 1 1 1 1 1 1

VISCA Communication Specifications

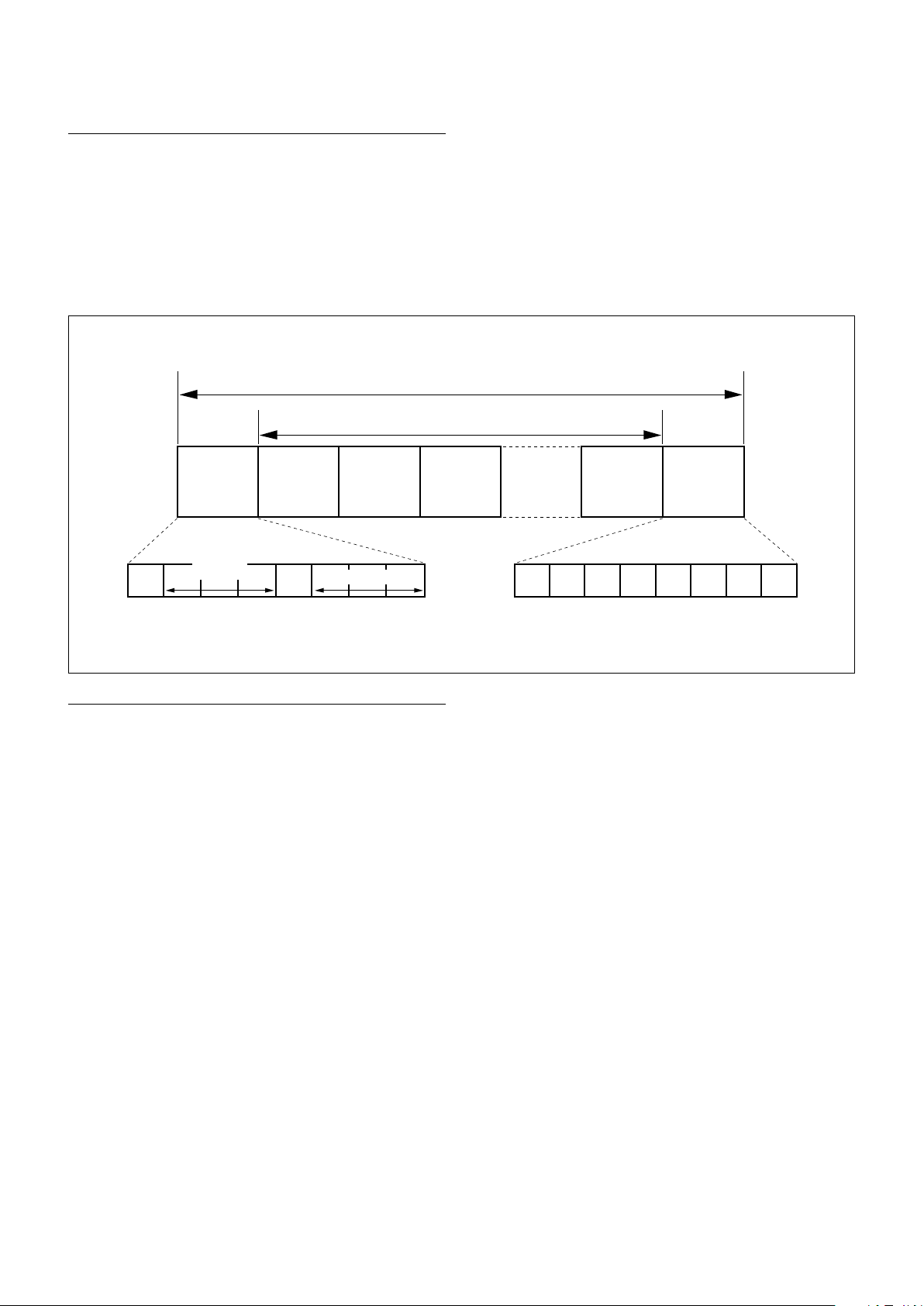

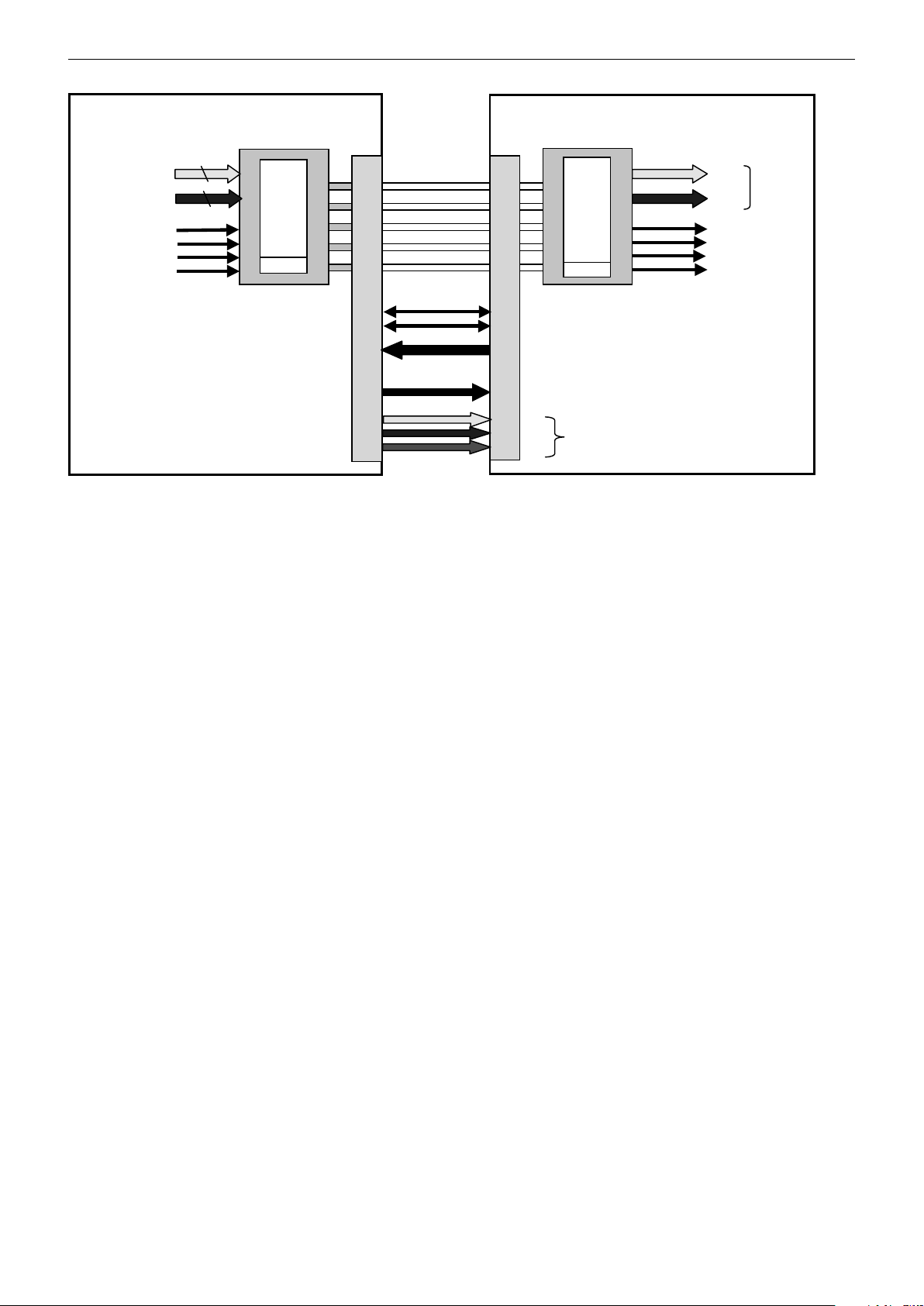

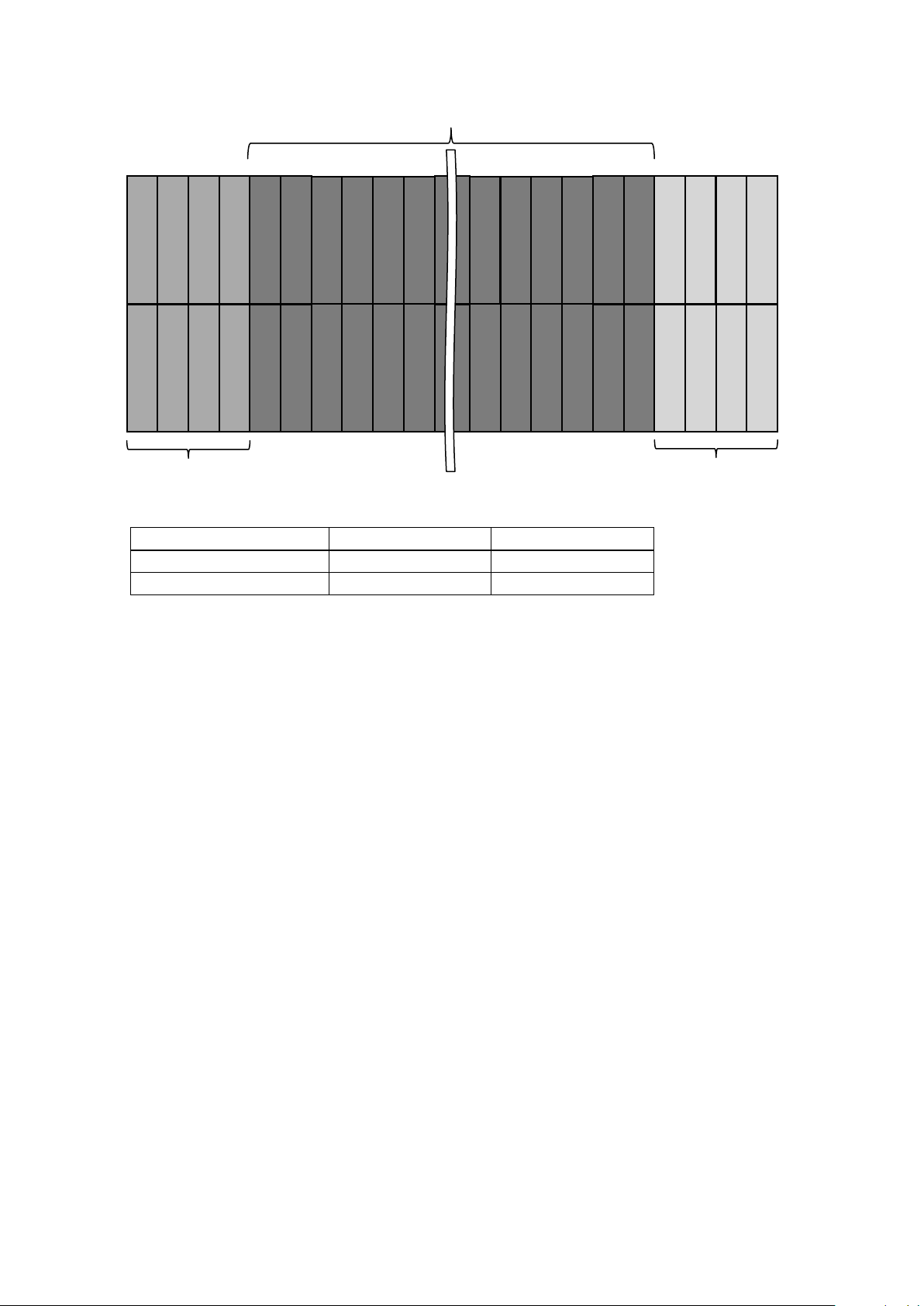

VISCA packet structure

The basic unit of VISCA communication is called a packet. The first byte of the packet is called the header and comprises the sender’s and receiver’s addresses. For example, the header of the packet sent to the FCB camera assigned address 1 from the controller (address

0) is hexadecimal 81H. The packet sent to the camera

Packet (3 to 16 bytes)

Header

Byte 1 Byte 2 Byte 3

Message (1 to 14 bytes)

assigned address 2 is 82H. In the command list, as the header is 8X, input the address of the camera at X. The header of the reply packet from the camera assigned address 1 is 90H. The packet from the camera assigned address 2 is A0H. Some of the commands for setting cameras can be sent to all devices at one time (broadcast). In the case of broadcast, the header should be hexadecimal 88H. When the terminator is FFH, it signifies the end of the packet.

Terminator

Sender’s

address

Receiver’s address

Command and inquiry

 Command

Sends operational commands to the FCB camera.

 Inquiry

Used for inquiring about the current state of the FCB camera.

Command Packet Note Inquiry 8X QQ RR ... FF QQ RR

QQ = 01 (Command), 09 (Inquiry)

RR = 00 (Interface), 04 (camera 1), 06 (Pan/Tilter), 07 (camera 2)

X = 1 to 7: FCB camera address

= Command/Inquiry,

= category code

Page 29

Command List

Responses for commands and inquiries

 ACK message Returned by the FCB camera when it receives a

command. No ACK message is returned for inquiries.

 Completion message Returned by the FCB camera when execution of

commands or inquiries is completed. In the case of inquiry commands, it will contain reply data for the inquiry after the 3rd byte of the packet. If the ACK message is omitted, the socket number will contain

Reply Packet Note Ack X0 4Y FF Y = socket number Completion (commands) X0 5Y FF Y = socket number Completion (Inquiries) X0 5Y ... FF Y = socket number X = 9 to F: FCB camera address + 8

 Error message When a command or inquiry command could not

be executed or failed, an error message is returned instead of the completion message.

Command execution cancel

To cancel a command which has already been sent, send the Cancel command as the next command. To cancel one of any two commands which have been sent, use the cancel message.

Cancel Packet Note Cancel 8X 2Y FF Y = socket number X = 1 to 7: FCB camera address, Y = socket number

An error message will be returned for this command, but this is not a fault. It indicates that the command has been canceled.

Error Packet Description

X0 6Y 01 FF Message length error (>14 bytes) X0 6Y 02 FF Syntax Error X0 6Y 03 FF Command buffer full X0 6Y 04 FF Command cancelled X0 6Y 05 FF No socket (to be cancelled) X0 6Y 41 FF Command not executable X = 9 to F: FCB camera address + 8, Y = socket number

Socket number

When command messages are sent to the FCB camera, it is normal to send the next command message after waiting for the completion message or error message to return. However to deal with advanced uses, the FCB camera has two buffers (memories) for commands, so that up to two commands including the commands currently being executed can be received. When the FCB camera receives commands, it notifies the sender which command buffer was used using the socket number of the ACK message. As the completion message or error message also has a socket number, it indicates which command has ended. Even when two command buffers are being used at any one time, an FCB camera management command and some inquiry messages can be executed. The ACK message is not returned for these commands and inquiries, and only the completion message of socket number 0 is returned.

Page 30

VISCA Device Setting Command

Before starting control of the FCB camera, be sure to send the Address command and the IF_Clear command using the broadcast function.

For VISCA network administration

 Address Sets an address of a peripheral device. Use when

initializing the network, and receiving the following network change message.

 Network Change Sent from the peripheral device to the controller

when a device is removed from or added to the network. The address must be re-set when this message is received.

Packet Note Address 88 30 01 FF Always broadcasted. Network Change X0 38 FF X = 9 to F: FCB camera address + 8

Command List

VISCA interface command

 IF_Clear

Clears the command buffers in the FCB camera and

cancels the command currently being executed.

Command Packet Reply Packet Note IF_Clear 8X 01 00 01 FF X0 50 FF IF_Clear (broadcast) 88 01 00 01 FF 88 01 00 01 FF X = 1 to 7: FCB camera address (For inquiry packet) X = 9 to F: FCB camera address +8 (For reply packet)

VISCA interface and inquiry

 CAM_VersionInq

Returns information on the VISCA interface.

Inquiry Inquiry Packet Reply Packet Description

CAM_VersionInq 8X 09 00 02 FF Y0 50 GG GG HH HH JJ JJ KK FF GGGG = Vender ID (0020: Sony) HHHH = Model ID 045D:FCB-EH3400

0464:FCB-EH3410 0465:FCB-EH3310 JJJJ = ROM revision

045E:FCB-EH3300

KK = Maximum socket #(02)

X = 1 to 7: FCB camera address (For inquiry packet) X = 9 to F: FCB camera address +8 (For reply packet)

Page 31

VISCA Command/ACK Protocol

Command Command Message Reply Message Comments

General Command 81 01 04 38 02 FF

(Example)

81 01 04 38 FF (Example)

81 01 04 38 02 FF (Example)

81 01 04 08 02 FF (Example)

Inquiry Command 81 09 04 38 FF

(Example)

81 09 05 38 FF (Example)

Address Set 88 30 01 FF 88 30 02 FF Returned the device address to +1.

IF_Clear(Broadcast) 88 01 00 01 FF 88 01 00 01 FF Returned the same command.

IF_Clear (For x) 8x 01 00 01 FF z0 50 FF (Completion) ACK is not returned for this command.

Command Cancel 8x 2y FF z0 6y 04 FF

90 41 FF (ACK)+90 51 FF (Completion) 90 42 FF 90 52 FF

90 60 02 FF (Syntax Error) Accepted a command which is not supported or a command

90 60 03 FF (Command Buffer Full)

90 61 41 FF (Command Not Executable) 90 62 41 FF

90 50 02 FF (Completion) ACK is not returned for the inquiry command.

90 60 02 FF (Syntax Error) Accepted an incompatible command.

(Command Canceled)

z0 6y 05 FF (No Socket)

Returns ACK when a command has been accepted, and Completion when a command has been executed.

lacking parameters.

There are two commands currently being executed, and the command could not be accepted.

Could not execute the command in the current mode.

Returned when the command of the socket specified is canceled. Completion for the command canceled is not returned.

Returned when the command of the specified socket has already

been completed or when the socket number specified is wrong.

Command List

Page 32

Command List

VISCA Camera-Issued Messages

ACK/Completion Messages

Command Messages Comments

ACK z0 4y FF

(y:Socket No.)

Completion z0 5y FF

(y:Socket No.)

z = Device address + 8

Error Messages

Command Messages Comments

Syntax Error z0 60 02 FF Returned when the command format is different or when a command with illegal

Command Buffer Full z0 60 03 FF Indicates that two sockets are already being used (executing two commands) and the

Command Canceled z0 6y 04 FF

(y:Socket No.)

No Socket z0 6y 05 FF

(y:Socket No.)

Command Not Executable z0 6y 41 FF

(y:Socket No.)

Returned when the command is accepted.

Returned when the command has been executed.

command parameters is accepted.

command could not be accepted when received. Returned when a command which is being executed in a socket specified by the cancel command is canceled. The completion message for the command is not returned. Returned when no command is executed in a socket specified by the cancel command, or when an invalid socket number is specified. Returned when a command cannot be executed due to current conditions. For example, when commands controlling the focus manually are received during auto focus.

Network Change Message

Command Message Comments

Network Change z0 38 FF Issued when power is being routed.

Page 33

FCB Camera Commands

Command List (1/5)

Command Set Command Command Packet Comments

AddressSet Broadcast 88 30 01 FF Address setting

IF_Clear Broadcast 88 01 00 01 FF I/F Clesr

CommandCancel – 8x 2p FF p: Socket No. (=1 or 2)

CAM_Power On 8x 01 04 00 02 FF Power ON/OFF

Off (Standby) 8x 01 04 00 03 FF

CAM_Zoom Stop 8x 01 04 07 00 FF

Tele (Standard) 8x 01 04 07 02 FF

Wide (Standard) 8x 01 04 07 03 FF

Tele (Variable) 8x 01 04 07 2p FF p=0 (Low) to 7 (High)

Wide (Variable) 8x 01 04 07 3p FF

Direct 8x 01 04 47 0p 0q 0r 0s FF pqrs: Zoom Position

CAM_DZoom On 8x 01 04 06 02 FF Digital zoom ON/OFF

Off 8x 01 04 06 03 FF

Combine Mode 8x 01 04 36 00 FF Optical/Digital Zoom Combined

Separate Mode 8x 01 04 36 01 FF Optical/Digital Zoom Separate

Stop 8x 01 04 06 00 FF

Tele (Variable) 8x 01 04 06 2p FF p=0 (Low) to 7 (High)

Wide (Variable) 8x 01 04 06 3p FF

x1/Max 8x 01 04 06 10 FF x1/MAX Magnification Switchover

Direct 8x 01 04 46 0p 0q 0r 0s FF pq: D-Zoom Position

CAM_Focus Stop 8x 01 04 08 00 FF

Far (Standard) 8x 01 04 08 02 FF

Near (Standard) 8x 01 04 08 03 FF

Far (Variable) 8x 01 04 08 2p FF p=0 (Low) to 7 (High)

Near (Variable) 8x 01 04 08 3p FF

Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position

Auto Focus 8x 01 04 38 02 FF AF ON/OFF

Manual Focus 8x 01 04 38 03 FF

Auto/Manual 8x 01 04 38 10 FF

One Push Trigger 8x 01 04 18 01 FF One Push AF Trigger

Infinity 8x 01 04 18 02 FF Forced infinity

Near Limit 8x 01 04 28 0p 0q 0r 0s FF pqrs: Focus Near Limit Position

AF Sensitivity

CAM_AFMode Normal AF 8x 01 04 57 00 FF AF Movement Mode

CAM_IRCorrection Standard 8x 01 04 11 00 FF FOCUS IR compensation data switching

CAM_ZoomFocus Direct 8x 01 04 47 0p 0q 0r 0s

CAM_Initialize Lens 8x 01 04 19 01 FF Lens Initialization Start

Normal 8x 01 04 58 02 FF AF Sensitivity High/Low

Low 8x 01 04 58 03 FF

Interval AF 8x 01 04 57 01 FF

Zoom Trigger AF 8x 01 04 57 02 FF

Active/Interval Time 8x 01 04 27 0p 0q 0r 0s FF pq: Movement Time, rs: Interval

IR Light 8x 01 04 11 01 FF

0t 0u 0v 0w

Camera 8x 01 04 19 03 FF Camera reset

* Enabled during Separate Mode

pqrs: Zoom Position tuvw: Focus Position

Command List

Page 34

Command List (2/5)

Command Set Command Command Packet Comments

CAM_WB Auto 8x 01 04 35 00 FF Normal Auto

Indoor 8x 01 04 35 01 FF Indoor mode

Outdoor 8x 01 04 35 02 FF Outdoor mode

One Push WB 8x 01 04 35 03 FF One Push WB mode

ATW 8x 01 04 35 04 FF Auto Tracing White Balance

Manual 8x 01 04 35 05 FF Manual Control mode

One Push Trigger 8x 01 04 10 05 FF One Push WB Trigger

Outdoor Auto 8x 01 04 35 06 FF Outdoor auto

Sodium Lamp Auto 8x 01 04 35 07 FF Auto including sodium lamp source

Sodium Lamp 8x 01 04 35 08 FF Sodium lamp source fixed mode

CAM_RGain Reset 8x 01 04 03 00 FF Manual Control of R Gain

Up 8x 01 04 03 02 FF

Down 8x 01 04 03 03 FF

Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain

CAM_BGain Reset 8x 01 04 04 00 FF Manual Control of B Gain

Up 8x 01 04 04 02 FF

Down 8x 01 04 04 03 FF

Direct 8x 01 04 44 00 00 0p 0q FF pq: B Gain

CAM_AE Full Auto 8x 01 04 39 00 FF Automatic Exposure mode

Manual 8x 01 04 39 03 FF Manual Control mode

Shutter Priority 8x 01 04 39 0A FF Shutter Priority Automatic Exposure mode

Iris Priority 8x 01 04 39 0B FF Iris Priority Automatic Exposure mode

Bright 8x 01 04 39 0D FF Bright Mode (Manual control)

CAM_SlowShutter Auto 8x 01 04 5A 02 FF Auto Slow Shutter ON/OFF

Manual 8x 01 04 5A 03 FF

CAM_Shutter Reset 8x 01 04 0A 00 FF Shutter Setting

Up 8x 01 04 0A 02 FF

Down 8x 01 04 0A 03 FF

Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position

CAM_Iris Reset 8x 01 04 0B 00 FF Iris Setting

Up 8x 01 04 0B 02 FF

Down 8x 01 04 0B 03 FF

Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position

CAM_Gain Reset 8x 01 04 0C 00 FF Gain Setting

Up 8x 01 04 0C 02 FF

Down 8x 01 04 0C 03 FF

Direct 8x 01 04 4C 00 00 0p 0q FF pq: Gain Position

Gain Limit 8x 01 04 2C 0p FF p: Gain Position

CAM_Bright Reset 8x 01 04 0D 00 FF Bright Setting

Up 8x 01 04 0D 02 FF

Down 8x 01 04 0D 03 FF

Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright Position

Command List

Page 35

Command List

Command List (3/5)

Command Set Command Command Packet Comments

CAM_ExpComp On 8x 01 04 3E 02 FF Exposure Compensation ON/OFF

Off 8x 01 04 3E 03 FF

Reset 8x 01 04 0E 00 FF Exposure Compensation Amount Setting

Up 8x 01 04 0E 02 FF

Down 8x 01 04 0E 03 FF

Direct 8x 01 04 4E 00 00 0p 0q FF pq: ExpComp Position

CAM_BackLight On 8x 01 04 33 02 FF Back Light Compensation ON/OFF

Off 8x 01 04 33 03 FF

CAM_SpotAE On 8x 01 04 59 02 FF Spot Automatic Exposure Setting

Off 8x 01 04 59 03 FF

Position 8x 01 04 29 0p 0q 0r 0s FF pq: X (0 to F), rs: Y (0 to F)

CAM_AE_Response Direct 8x 01 04 5D pp FF pp: Automatic Exposure Response Setting (01 to 30),

default value: 01

CAM_WD On 8x 01 04 3D 02 FF Wide-D ON/OFF

Off 8x 01 04 3D 03 FF

AutoOnOff 8x 01 04 3D 00 FF Wide dynamic ON/OF auto switching

On (RatioFix) 8x 01 04 3D 01 FF Wide dynamic ON (Fixed exposure ratio mode)

On (Dver Compati) 8x 01 04 3D 04 FF Wide dynamic ON (Dver operation)

Set Parameter 8x 01 04 2D 0p 0q 0r 0s 0t

0u 00 00 FF

CAM_WDAlarmReply On 8x 01 04 3B 02 FF Wide dynamic auto switching alarm ON/OFF

Off 8x 01 04 3B 03 FF

(Reply) y0 07 04 3B 02 FF

y0 07 04 3B 03 FF

CAM_Aperture Reset 8x 01 04 02 00 FF Aperture Control

Up 8x 01 04 02 02 FF

Down 8x 01 04 02 03 FF

Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain

CAM_HR On 8x 01 04 52 02 FF High-Resolusion Mode ON/OFF

Off 8x 01 04 52 03 FF

CAM_NR — 8x 01 04 53 0p FF p: NR Setting (0: OFF, level 1 to 5)

CAM_Gamma — 8x 01 04 5B 0p FF p: Gamma setting (0: Standard, 1 to 4)

CAM_HighSensitivity On 8x 01 04 5E 02 FF High Sensitivity mode ON/OFF

Off 8x 01 04 5E 03 FF

CAM_LR_Reverse On 8x 01 04 61 02 FF Mirror Image ON/OFF

Off 8x 01 04 61 03 FF

CAM_Freeze On 8x 01 04 62 02 FF Still Image ON/OFF

Off 8x 01 04 62 03 FF

CAM_PictureEffect Off 8x 01 04 63 00 FF Picture Effect Setting

Neg.Art 8x 01 04 63 02 FF

B&W 8x 01 04 63 04 FF

CAM_PictureFlip On 8x 01 04 66 02 FF Picture flip ON/OFF

Off 8x 01 04 66 03 FF

CAM_ICR On 8x 01 04 01 02 FF Infrared Mode ON/OFF

Off 8x 01 04 01 03 FF

p: Screen display

0: Combined image, 2: Long-time, 3: Short-time q: Detection sensitivity (0: L 1: M 2: H) r: Blocked-up shadow correction level (0: L 1: M 2: H 3: S) s: Blown-out highlight correction level (0: L 1: M 2: H) tu: Exposure ratio of short exposure (x1 to x64)

Wide dynamic OFF

Wide dynamic ON

 ON  OFF

Page 36

Command List

Command List (4/5)

Command Set Command Command Packet Comments

CAM_AutoICR On 8x 01 04 51 02 FF Auto dark-field mode On/Off

Off 8x 01 04 51 03 FF

Threshold 8x 01 04 21 00 00 0p 0q FF

CAM _AutoICRAlarmReply

CAM_Stabilizer On 8x 01 04 34 02 FF

CAM_Memory Reset 8x 01 04 3F 00 0p FF p: Memory Number (=0 to 5)

CAM_CUSTOM Reset 8x 01 04 3F 00 7F FF Starts up in this mode when the power is turned on.

CAM_MemSave Write 8x 01 04 23 0X 0p 0p 0q 0q FF X: 00 to 07 (Address), total 16 byte

CAM_Display On 8x 01 04 15 02 FF

CAM_MultiLineTitle Title Set1 8x 01 04 73 1L 00 nn pp

CAM_Mute On 8x 01 04 75 02 FF Muting ON/OFF

CAM_PrivacyZone SetMask 8x 01 04 76 mm nn

On 8x 01 04 31 02 FF Auto ICR switching Alarm ON/OFF

Off 8x 01 04 31 03 FF (Reply) y0 07 04 31 02 FF

y0 07 04 31 03 FF

Off 8x 01 04 34 03 FF Off 8x 01 04 34 00 FF

Set 8x 01 04 3F 01 0p FF Recall 8x 01 04 3F 02 0p FF

Set 8x 01 04 3F 01 7F FF Recall 8x 01 04 3F 02 7F FF

(8x 01 06 06 02 FF)

Off 8x 01 04 15 03 FF

(8x 01 06 06 03 FF)

On/Off 8x 01 04 15 10 FF

(8x 01 06 06 10 FF)

qq 00 00 00 00 00 00 FF

Title Set2 8x 01 04 73 2L mm nn pp

qq rr ss tt uu vv ww FF

Title Set3 8x 01 04 73 3L mm nn pp

qq rr ss tt uu vv ww FF Title Clear 8x 01 04 74 1p FF Title Setting clear (p: 0 to a, f= all lines) On 8x 01 04 74 2p FF Title display On/Off (0 to a, f= all lines) Off 8x 01 04 74 3p FF

Off 8x 01 04 75 03 FF On/Off 8x 01 04 75 10 FF

0r 0r 0s 0s FF

Display 8x 01 04 77 pp pp pp pp FF Mask Display ON/OFF

SetMaskColor 8x 01 04 78 pp pp pp pp

qq rr FF

SetPanTiltAngle 8x 01 04 79 0p 0p 0p

0q 0q 0q FF

SetPTZMask 8x 01 04 7B mm 0p 0p 0p

0q 0q 0q 0r 0r 0r 0r FF

Non_InterlockMask 8x 01 04 6F mm

0p 0p 0q 0q 0r 0r 0s 0s FF

GridOn 8x 01 04 7C 02 FF Grid Display ON/OFF GridOff 8x 01 04 7C 03 FF Grid/Center Line Display Off CenterLineOn 8x 01 04 7C 04 FF Center Line Display On

pq: ICR ON  OFF Threshold Level

ICR OFF  ON ICR OFF Image Stabilizer On/Off

FCB-EH3400/EH3410 only FCB-EH3400/EH3410 only Holds Image Stabilizer.

FCB-EH3400/EH3410 only

ppqq: 0x0000 to 0xFFFF (Data)

Display ON/OFF

L: Line Number, nn: H-position pp: Color, qq: Blink

L: Line Number, mnpqrstuvw: Setting of characters (1 to 10)

mm: Mask Settings nn 00: Modify, 01: New rr: W, ss: H

pp pp pp pp: Mask Settings (0: OFF, 1: ON) pp pp pp pp: Mask Color Settings

qq: Color Setting when 0 is selected rr: Color Setting when 1 is selected

Pan/Tilt Angle Settings ppp: Pan qqq: Tilt

Pan/Tilt/Zoom Settings for Mask ppp: Pan, qqq: Tilt, rrrr: Zoom

mm: Non_Interlock Mask Settings pp: X, q: Y, rr: W, ss: H

 ON

Page 37

Command List

Command List (5/5)

Command Set Command Command Packet Comments

CAM_IDWrite — 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF)

CAM_Alarm On 8x 01 04 6B 02 FF Alarm ON/OFF

Off 8x 01 04 6B 03 FF

SetMode 8x 01 04 6C pp FF pp: Mode setting

00 Focus change detection (reference value is not updated) 01 Focus change detection (reference value is updated) 02 AE change detection (reference value is not updated) 03 AE change detection (reference value is updated)

SetDayNighLevel 8x 01 04 6D 0p 0p 0p 0q 0q 0q FF ppp: Day judgement level setting

qqq: Night judgement level setting

Alarm(Reply) y0 07 04 6B 01 FF

y0 07 04 6B 00 FF

CAM_MD On 8x 01 04 1B 02 FF Motion Detection On/Off

Off 8x 01 04 1B 03 FF

Function Set 8x 01 04 1C 0m 0n 0p 0q 0r 0s FF m: Display mode

Window Set 8x 01 04 1D 0m 0p 0q rr 0s FF m: Select Detection Frame (0, 1, 2, 3)

Alarm (Reply) y0 07 04 1B 0p FF p: Detection Frame Number

CAM_Continuous ZoomPosReply

CAM_ ReplyIntervalTimeSet CAM_RegisterValue — 8x 01 04 24 mm 0p 0p FF mm: Register No. (=00-7F)

CAM_ColorEnhance Parameter Set 8x 01 04 20 mm nn

CAM_ChromaSuppress 8x 01 04 5F pp FF pp: Chroma Suppress setting level

CAM_ColorGain Direct 8x 01 04 49 00 00 00 0p FF p: Color Gain setting 0h (60%) to Eh (200%)

CAM_ColorHue Direct 8x 01 04 4F 00 00 00 0p FF p: Color Hue setting 0h (− 14 dgrees) to Eh ( +14 degrees)

On 8x 01 04 69 02 FF ZoomPosition data Continuous Output On/Off

Off 8x 01 04 69 03 FF

(Reply) y0 07 04 69 0p 0p 0q 0q 0q 0q FF pp: D-Zoom Position

— 8x 01 04 6A 00 00 0p 0p FF pp: Interval Time [Vertical timing]

pp qq rr FF

On 8x 01 04 50 02 FF Color Enhancement ON/OFF

Off 8x 01 04 50 03 FF

Detection level “Low”  “High”

Detection level “High”

n: Detection Frame Set (0 to F) pq: Threshold Level (00 to FF) rs: Interval Time set (00 to FF)

p: Start Horizontal Position (00 to 0F) q: Start Vertical Position (00 to 07) r: Stop Horizontal Position (01 to 10) s: Stop Vertical Position (01 to 08)

* 00: When Zoom Mode is Combine qqqq: Zoom Position

pp: Register Value (=00-7F) mm: First byte from the top threshold value nn: Second byte from the top threshold value pp: Third byte from the top threshold value qq: Color specification for high-intensity rr: Color specification for low-intensity Range for mm, nn, and pp is 0 to F. Range for qq and rr is 0 to 8. Colors 0: Yellow, 1: Cyan, 2: Green, 3: White, 4: Magenta, 5: Red, 6: Blue, 7: Black, 8: Gray

00: OFF 1 to 3: ON (3 levels). Effect increases as the level number increases.

 “Low”

Page 38

Inquiry Command List (1/3)

Inquiry Command Command Packet Inquiry Packet Comments

CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF On

y0 50 03 FF Off (Standby)

CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position

CAM_DZoomModeInq 8x 09 04 06 FF y0 50 02 FF D-Zoom On

y0 50 03 FF D-Zoom Off

CAM_DZoomC/SModeInq 8x 09 04 36 FF y0 50 00 FF Combine Mode

y0 50 01 FF Separate Mode

CAM_DZoomPosInq 8x 09 04 46 FF y0 50 00 00 0p 0q FF pq: D-Zoom Position

CAM_FocusModeInq 8x 09 04 38 FF y0 50 02 FF Auto Focus

y0 50 03 FF Manual Focus

CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position

CAM_FocusNearLimitInq 8x 09 04 28 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Near Limit Position

CAM_AFSensitivityInq 8x 09 04 58 FF y0 50 02 FF AF Sensitivity Normal

y0 50 03 FF AF Sensitivity Low

CAM_AFModeInq 8x 09 04 57 FF y0 50 00 FF Normal AF

y0 50 01 FF Interval AF

y0 50 02 FF Zoom Trigger AF

CAM_AFTimeSettingInq 8x 09 04 27 FF y0 50 0p 0q 0r 0s FF pq: Movement Time, rs: Interval

CAM_IRCorrectionInq 8x 09 04 11 FF y0 50 02 FF Standard

y0 50 03 FF IR Light

CAM_WBModeInq 8x 09 04 35 FF y0 50 00 FF Auto

y0 50 01 FF In Door

y0 50 02 FF Out Door

y0 50 03 FF One Push WB

y0 50 04 FF

y0 50 05 FF

y0 50 06 FF Outdoor Auto

y0 50 07 FF Sodium Lamp Auto

y0 50 08 FF Sodium Lamp

CAM_RGainInq

CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain

CAM_AEModeInq 8x 09 04 39 FF y0 50 00 FF Full Auto

CAM_SlowShutterModeInq 8x 09 04 5A FF y0 50 02 FF Auto

CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 0p 0q FF pq: Shutter Position

CAM_IrisPosInq 8x 09 04 4B FF y0 50 00 00 0p 0q FF pq: Iris Position

CAM_GainPosInq 8x 09 04 4C FF y0 50 00 00 0p 0q FF pq: Gain Position

CAM_GainLimitInq 8x 09 04 2C FF y0 50 0q FF p: Gain Limit

CAM_BrightPosInq 8x 09 04 4D FF y0 50 00 00 0p 0q FF pq: Bright Position

CAM_ExpCompModeInq 8x 09 04 3E FF y0 50 02 FF On

CAM_ExpCompPosInq 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position

CAM_BackLightModeInq 8x 09 04 33 FF y0 50 02 FF On

8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain

y0 50 03 FF

y0 50 0A FF Shutter Priority

y0 50 0B FF Iris Priority

y0 50 0D FF

y0 50 03 FF

ATW

Manual

Bright

Manual

Off

Command List

Page 39

Inquiry Command List (2/3)

Inquiry Command Command Packet Inquiry Packet Comments

CAM_SpotAEModeInq 8x 09 04 59 FF y0 50 02 FF On

y0 50 03 FF

CAM_SpotAEPosInq 8x 09 04 29 FF y0 50 0p 0q 0r 0s FF pq: X position, rs: Y position

CAM_AE_ResponseInq 8x 09 04 5D FF y0 50 pp FF pp: 01 to 20 (hex)

CAM_WDModeInq 8x 09 04 3D FF y0 50 02 FF On Wide-D

y0 50 03 FF y0 50 00 FF y0 50 01 FF On (RatioFix)

y0 50 04 FF On (Dver operation)

CAM_WDParameterInq 8x 09 04 2D FF

CAM_WDAlarmReplyInq 8x 09 04 3B FF y0 50 02 FF On

CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain CAM_HRModeInq 8x 09 04 52 FF y0 50 02 FF On (Hi-Resolution)

CAM_NRModeInq 8x 09 04 53 FF y0 50 0p FF Noise Reduction p: 0 to 5 CAM_GammaInq 8x 09 04 5B FF y0 50 0p FF Gamma p: 0 to 4

CAM_HighSensitivityInq 8x 09 04 5E FF y0 50 02 FF On

CAM_LR_ReverseModeInq 8x 09 04 61 FF y0 50 02 FF On

CAM_FreezeModeInq 8x 09 04 62 FF y0 50 02 FF On

CAM_PictureEffectModeInq 8x 09 04 63 FF y0 50 00 FF Off

CAM_PictureFlipModeInq 8x 09 04 66 FF y0 50 02 FF On

CAM_ICRModeInq 8x 09 04 01 FF y0 50 02 FF On

CAM_AutoICRModeInq 8x 09 04 51 FF y0 50 02 FF On

CAM_AutoICRThresholdInq 8x 09 04 21 FF y0 50 00 00 0p 0q FF

CAM_AutoICRAlarmReplyInq 8x 09 04 31 FF y0 50 02 FF On

CAM_Stabilize Mode Inq 8x 09 04 34 FF y0 05 02 FF

CAM_MemoryInq 8x 09 04 3F FF y0 50 pp FF pp: Memory number recalled last CAM_MemSaveInq 8x 09 04 23 0X FF y0 50 0p 0p 0q 0q FF X: 00 to 07 (Address)

CAM_DisplayModeInq 8x 09 04 15 FF

(8x 09 06 06 FF)

CAM_TitleDisplayModeInq 8x 09 04 74 FF

(8x 09 06 06 FF)

y0 50 0p 0q 0r 0s 0t 0u 00 00 FF

y0 50 03 FF

y0 50 02 FF y0 50 04 FF

y0 50 03 FF

y0 05 03 FF

y0 05 00 FF

y0 50 02 FF On y0 50 03 FF y0 50 02 FF On

y0 50 03 FF

Off

Off AutoOnOff

p: Screen display q: Detection sensitivity r: Blocked-up shadow correction level s: Blown-out highlight correction level tu: Exposure ratio of short exposure

Off

Neg.Art B&W

Off

Off pq: ICR ON  OFF Threshold Level

Off On

FCB-EH3400/EH3410 only Off

FCB-EH3400/EH3410 only Hold

FCB-EH3400/EH3410 only

ppqq: 0x0000 to 0xFFFF (Data)

Off

Command List

Page 40

Command List

Inquiry Command List (3/3)

Inquiry Command Command Packet Inquiry Packet Comments

CAM_MuteModeInq 8x 09 04 75 FF y0 50 02 FF On

y0 50 03 FF CAM_PrivacyDisplayInq 8x 09 04 77 FF y0 50 pp pp pp pp FF pp pp pp pp: Mask Display (0: OFF, 1: ON) CAM_PrivacyPanTiltInq 8x 09 04 79 FF y0 50 0p 0p 0p 0q 0q 0q FF ppp: Pan

CAM_PrivacyPTZInq 8x 09 04 7B mm FF y0 50 0p 0p 0p 0q 0q 0q 0r 0r 0r 0r FFmm: Mask Settings

CAM_PrivacyMonitorInq 8x 09 04 6F FF y0 50 pp pp pp pp FF pp pp pp pp: Mask is displayed now.

CAM_KeyLockInq 8x 09 04 17 FF y0 50 00 FF Off

y0 50 02 FF

CAM_IDInq 8x 09 04 22 FF y0 50 0p 0q 0r 0s FF pqrs: Camera ID

CAM_VersionInq 8x 09 00 02 FF y0 50 00 20

mn pq rs tu vw FF

CAM_AlarmInq 8x 09 04 6B FF y0 50 02 FF On

y0 50 03 FF

CAM_AlarmModeInq 8x 09 04 6C FF y0 50 pp FF pp: Alarm Mode

CAM_AlarmDayNightLevelInq 8x 09 04 6D FF y0 50 0p 0p 0p

0q 0q 0q 0r 0r 0r FF

CAM_AlarmDetectLevelInq 8x 09 04 6E FF y0 50 01 FF Detection level “High”

y0 50 00 FF Detection level “Low”

CAM_MDModeInq 8x 09 04 1B FF y0 50 02 FF On

y0 50 03 FF

CAM_MDFunctionInq 8x 09 04 1C FF y0 50 0m 0n 0p 0q FF m: Display mode

CAM_MDWindowInq 8x 09 04 1D 0m FF y0 50 0p 0q 0r 0s FF m: Select Detection Frame (0, 1, 2, 3)

CAM_ContinuousZoomPos ReplyModeInq

CAM_ReplyIntervalTimeInq 8x 09 04 6A FF y0 50 00 00 0p 0p FF pp: Interval Time

CAM_RegisterValueInq 8x 09 04 24 mm FF y0 50 0p 0p ff mm: Register No. (00 to 7F)

CAM_ColorEnhanceInq 8x 09 04 20 FF y0 50 mm nn pp qq rr FF mm: First byte from the top threshold value

CAM_ChromaSuppressInq 8x 09 04 5F FF y0 50 pp FF pp: Chroma Suppress setting level

CAM_ColorGainInq 8x 09 04 49 FF y0 50 00 00 00 0p FF p: Color Gain setting 0h (60%) to Eh (200%)

CAM_ColorHueInq 8x 09 04 4F FF y0 50 00 00 00 0p FF

CAM_TempInq 8x 09 04 68 FF Y0 50 00 00 0p 0q FF pq: Temperature *Lens temperature

8x 09 04 69 FF y0 50 02 FF On

y0 50 03 FF

8x 09 04 50 FF y0 50 02 FF

y0 50 03 FF

Off

qqq: Tilt

ppp: Pan qqq: Tilt rrr: Zoom

mnpq: Model Code (04xx) rstu: ROM version vw: Socket Number (=02)

Off

ppp: Day judgement level setting qqq: Night judgement level setting rrr: Current Automatic Exposure level setting

Off

n: Detection Frame Set (0 to F) pq: Threshold Level (0 to FF) rs: Interval Time set (0 to FF)

p: Start Horizontal Position (00 to 0B) q: Start Vertical Position (00 to 07) r: Stop Horizontal Position (01 to 0C) s: Stop Vertical Position (01 to 08)

Off

pp: Register Value (00 to FF)

nn: Second byte from the top threshold value pp: Third byte from the top threshold value qq: Color specification for high-intensity rr: Color specification for low-intensity Colors 0: Yellow, 1: Cyan, 2: Green, 3: White, 4: Magenta, 5: Red, 6: Blue, 7: Black, 8: Gray On

Off

p: Color Hue setting 0h (− 14 degrees) to Eh (+ 14 degrees)

Page 41

Command List

Block Inquiry Command List

Lens Control System Inquiry Commands .....................Command Packet 8x 09 7E 7E 00 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

6 6 0 6 0

5 5 0 5 0

4 4 0 4 0

2 2 2 0

1 1 1 0

0 0 0 0

7 0 Completion Message (50h)

6 1 6 0 6 0

5 0 5 0

4 1 4 0

3 0 3

2 0 2

1 0 1

0 0 0

7 0

6 0 6 0

5 0 5 0

4 0 4 0 6 0

2 2 4 0

1 1

0 0

7 0

6 0 6 0

5 0 5 0

4 0 4 0

2 2

1 1

0 0 6 1

7 0

6 0 6 0 4 1

5 0 5 0 3 1

4 0 4 0 2 1

2 2 0 1

1 1

0 0

7 0

6 0 6 0

5 0 5 0

4 0 4 0

2 2

1 1

0 0

Destination Address

Source Address

Zoom Position (HH)

Zoom Position (HL)

Zoom Position (LH)

Zoom Position (LL)

7 0

Focus Near Limit (H)

7 0

Focus Near Limit (L)

7 0 1 Digital Zoom 1: On 0: Off

Focus Position (HH)

7 0

Focus Position (HL)

7 0 5 1

Focus Position (LH)

7 0

Focus Position (LL)

7 0

3 0

7 0

DZoomMode 0: Combine 1: Separate

0: Normal 1: Interval 2: Zoom Trigger

AF Sensitivity 0: Slow 1: Normal

Focus Mode 0: Manual 1: Auto

0 7 0

5 0

Low Contrast Detection 1: Yes 0: No

Camera Memory Recall 1: Executing 0: Stopped

Focus Command 1: Executing 0: Stopped

Zoom Command 1: Executing 0: Stopped

7 1 Terminator (FFh)

1 1

Page 42

Command List

Camera Control System Inquiry Commands ................Command Packet 8x 09 7E 7E 01 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

6 6 0 6 0

5 5 0 5 0

4 4 0 4 0

2 2 2

1 1 1

0 0 0

7 0 Completion Message (50h)

6 1 6 0 6 0

5 0 5 0 5 0

4 1 4 0 4

3 0 3

2 0 2 2

1 0 1 1

0 0 0 0

7 0

6 0 6 0 6 0

5 0 5 0 5 0

4 0 4

2 2 2

1 1 1

0 0 0

7 0

6 0 6 0 6 1

5 0

4 0

2 3 Spot AE 1: On 0: Off 2 1

1 2 Back Light 1: On 0: Off 1 1

0 1 Exposure Comp. 1: On 0: Off 0 1

7 0

6 0

5 0 6 0

4 0 5 0

2 3

1 2

0 1

7 0 0

6 0

5 0 6 0

4 0 5 0

2 3

1 2

0 1

Destination Address

Source Address

R Gain (H)

R Gain (L)

B Gain (H)

B Gain (L)

7 0

WB Mode

7 0

Aperture Gain

7 0

3 3

Exposure Mode

7 0

High-Resolution 1: On 0: Off

Wide-D (1: Other than Off,

0: Off)

Slow Shutter 1: Auto 0: Manual

0 7 0

Shutter Position

7 0

Iris Position

7 0

Gain Position

7 0

Bright Position

7 0

4 0

Exposure Comp. Position

7 1 Terminator (FFh)

5 1

4 1

3 1

Page 43

Command List

Other Inquiry Commands ............................................. Command Packet 8x 09 7E 7E 02 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

6 6 0 6 0

5 5 0 5 0

4 4 0 4

2 2 0 3 0

1 1 0 2

0 0 0

7 0 Completion Message (50h)

6 1 6 0 0 1: 1/50, 1/25 0: 1/60, 1/30

5 0 5 0

4 1 4 0 6 0

3 0 3 0 5 0

2 0 2 0 4 0

1 0 1 0 3 0

0 0 0 0 2 0

7 0

6 0 6 0 0 0

5 0 5 0

4 0 4 0 6 0

2 Auto ICR 1: On 0: Off 2 4 0

1 0 1 3 0

0 Power 1: On 0: Off 0 2 0

7 0

6 0 6 0 0 0

5 0 5 0

4 ICR 1: On 0: Off 4 0 6 1

3 Freeze 1: On 0: Off

2 LR Reverse 1: On 0: Off 2 4 1

1 0 1 3 1

0 0 0 2 1

7 0

6 0 6 0 0 1

5 Privacy Zone 1: On 0: Off 5 0

4 Mute 1: On 0: Off 4 0

3 Title Display 1: On 0: Off 3

2 Display 1: On 0: Off 2

1 0 1

0 0 0

7 0

6 0 6 0

5 0 5 0

4 0 4 0

2 2

1 1

0 0

Destination Address

Source Address

Auto ICR Alarm (1: On, 0: Off)

Picture Effect Mode

7 0

3 0

7 0 1 0

Camera ID (HH)

7 0 1 0

Camera ID (HL)

7 0 1 1

Camera ID (LH)

7 0

Camera ID (LL)

7 0

Memory 1: Provided 0: Not provided

ICR 1: Provided 0: Not provided

7 0

5 0

7 1 Terminator (FFh)

5 1

Page 44

Command List

Enlargement Function1 Query Command ....................Command Packet 8x 09 7E 7E 03 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

6 6 0 6

5 5 0 5

4 4 0 4

2 2

1 1

0 0

7 0 Completion Message (50h)

6 1 6 0

5 0 5 0

4 1 4 0

3 0 3

2 0 2 5 0

1 0 1 4

0 0 0 3

7 0

6 0 6 0 1

5 0 5 0 0

4 0 4 0

1 1 4

0 0 3

7 0

6 0 6 0 2

5 0 5 0 1

4 0 4 0 0

2 2 6

1 1 5

0 0 4

7 0

6 0 6 0 2

5 0 5 0 1

4 0 4 0 0

2 2 MD (1: On, 0: Off ) 6 1

1 1 Alarm (1: On, 0: Off ) 5 1

0 0 Picture flip (1: On, 0: Off) 4 1

7 0 3 1

6 0 2 1

5 0 1 1

4 0 0 1

Destination Address

Source Address

Digital Zoom Position (H)

Digital Zoom Position (L)

AF Activation Time (H)

AF Activation Time (L)

7 0

AF Interval Time (H)

7 0

AF Interval Time (L)

7 0 2

SpotAE Position (X)

7 0

SpotAE Position (Y)

7 0 3

3 0

7 0

Color Gain (0h (60%) to Eh (200%))

Advanced Privacy (1: Provided, 0: Not provided)

Alarm (1: Provided, 0: Not provided)

Picture flip (1: Provided, 0: Not provided)

7 0

6 0

AE Response

7 0

Gamma2 2 5

High Sensitivity mode (1: ON, 0: OFF)

NR Level

7 0

Chroma Suppress

Gain Limit

7 1 Terminator (FFh)

Page 45

Command List

Enlargement Function2 Query Command ....................Command Packet 8x 09 7E 7E 04 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

7 6 6 0 6 0 5 5 0 5 0

4 4 0 4 0 3 2 2 2 0 1 1 1 0 0 0 0 0 7 0 Completion Message (50h) 6 1 6 0 6 0 5 0 5 0 5 0 4 1 4 0 4 0 3 0 3 0 3 0 2 0 2 0 2 0 1 0 1 0 1 0 0 0 0 0 0 0 7 0 6 0 6 0 6 0 5 0 5 0 5 0 4 0 4 0 4 0 3 0 3 0 3 0 2 1 1 0 1 0 0 0 0 0 0 7 0

6 0 6 0 6 0

5 0 5 0 5 0

4 0 4 0 4 0

2 2 0 2 0

0 7 0 6 0 6 1 6 0 5 0 5 1 5 0 4 0 4 1 4 0 3 0 3 1 3

2 1 0 1 1

0 7 0 6 0 5 0 4 0 3 2 1 0

Destination Address

Source Address

WideD mode (0: OFF, 1: ON, 2: Auto ON/OFF, 3: ON (RatioFIx), 4: ON (Dver))

WideD screen display 0: Combined image 2: Long-time 3: Short-time

WideD detection sensitivity 0: L 1: M 2: H

WideD blocked-up shadow correction level 0: L 1: M 2: H 3: S

WideD blown-out highlight correction level 0: L 1: M 2: H

WideD short exposure

Exposure ratio (H)

7 0

WideD short exposure Exposure ratio (L)

7 0

2 0 2 0

7 0

3 0 3 0

1 0 1 0

0 0 0 0

7 0

2 0 2 1

0 0 0 1

7 0

3 0

7 0

7 1 Terminator (FFh)

Page 46

Command List

Enlargement Function3 Query Command ....................Command Packet 8x 09 7E 7E 05 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

7 6 6 5 5 5

4 4 4 3 2 2 2 1 1 1 0 0 0 7 0 Completion Message (50h) 6 1 6 5 0 5 5 4 1 4 4 3 0 3 3 2 0 2 2 1 0 1 1 0 0 0 0 7 0 6 0 6 5 0 5 5 4 0 4 4 3 2 2 2 1 1 1 0 0 0 7 0

5 5 5

4 4 4

3 3 3

2 2 2

1 1 1

0 0 0

7 0 6 5 5 5 1 4 4 4 1 3 3 3 1 2 2 2 1

1 1 1 1

0 0 0 1

7 0

6 5 4 3 2 1 0

Destination Address

Source Address

Color Hue

(0h(− 14 degrees) to Eh(+ 14 degrees))

Reserved

7 0

3 3

7 0

3 3

7 0

7 0 6

Reserved

7 0 6

7 0

7 1 Terminator (FFh) 6 1

Reserved

Page 47

VISCA Command Setting Values

Command List

Exposure control (1/2)

Shutter Speed

Iris

15 1/10000 1/10000

14 1/6000 1/6000

13 1/4000 1/3500

12 1/3000 1/2500

11 1/2000 1/1750

10 1/1500 1/1250

0F 1/1000 1/1000

0E 1/725 1/600

0D 1/500 1/425

0C 1/350 1/300

0B 1/250 1/215

0A 1/180 1/150

09 1/125 1/120

08 1/100 1/100

07 1/90 1/75

06 1/60 1/50

05 1/30 1/25

04 1/15 1/12

03 1/8 1/6

02 1/4 1/3

01 1/2 1/2

00 1/1 1/1

11 F1.35

10 F1.6

0F F2

0E F2.4

60/30 mode 50/25 mode

Gain

Gain Limit

0F +28 dB

0E +26 dB

0D +24 dB

0C +22 dB

0B +20 dB

0A +18 dB

09 +16 dB

08 +14 dB

07 +12 dB

06 +10 dB

05 +8 dB

04 +6 dB

03 +4 dB

02 +2 dB

01 0 dB

00 −3 dB

0F +28 dB

0E +26 dB

0D +24 dB

0C +22 dB

0B +20 dB

0A +18 dB

09 +16 dB

08 +14 dB

07 +12 dB

06 +10 dB

05 +8 dB

04 +6 dB

0D F2.8

0C F3.4

0B F4

0A F4.8

09 F5.6

08 F6.8

07 F8

06 F9.6

05 F11

04 F14

03 F16

00 CLOSE

Page 48

Command List

Exposure control (2/2)

Bright

Exposure Comp.

1F F1.35 +28 dB

1E F1.35 +26 dB

1D F1.35 +24 dB

1C F1.35 +22 dB

1B F1.35 +20 dB

1A F1.35 +18 dB

19 F1.35 +16 dB

18 F1.35 +14 dB

17 F1.35 +12 dB

16 F1.35 +10 dB

15 F1.35 +8 dB

14 F1.35 +6 dB

13 F1.35 +4 dB

12 F1.35 +2 dB

11 F1.35 0 dB

10 F1.6 0 dB

0F F2 0 dB

0E F2.4 0 dB

0D F2.8 0 dB

0C F3.4 0 dB

0B F4 0 dB

0A F4.8 0 dB

09 F5.6 0 dB

08 F6.8 0 dB

07 F8 0 dB

06 F9.6 0 dB

05 F11 0 dB

04 F14 0 dB

03 F16 0 dB

00 CLOSE 0 dB

0E +7 +10.5 dB

0D +6 +9 dB

0C +5 +7.5 dB

0B +4 +6 dB

0A +3 +4.5 dB

09 +2 +3 dB

08 +1 +1.5 dB

07 0 0 dB

06 −1 −1.5 dB

05 −2 −3 dB

04 −3 −4.5 dB

03 −4 −6 dB

02 −5 −7.5 dB

01 −6 −9 dB

00 −7 −10.5 dB

IRIS GAIN

Zoom Ratio and Zoom Position (for reference)

FCB-EH3400/EH3410

Zoom Ratio

×28 Lens

×1 0000 ×2 15CA

×3 1F65 ×4 2527

×5 2921 ×6 2C22 ×7 2E88 ×8 3088

×9 3242 ×10 33C9 ×11 3529 ×12 366C ×13 3795 ×14 38A8 ×15 39A5 ×16 3A8E ×17 3B61 ×18 3C1E ×19 3CC7 ×20 3D5C ×21 3DDE ×22 3E50 ×23 3EB3 ×24 3F09 ×25 3F53 ×26 3F94 ×27 3FCD ×28 4000

FCB-EH3300/EH3310

Optical Zoom

Ratio ×20 Lens

×1 0000

×2 17C5

×3 21CD

×4 27B5

×5 2BC4

×6 2ED4

×7 314A

×8 335C

×9 352B ×10 36C8 ×11 383E ×12 3994 ×13 3ACB ×14 3BE3 ×15 3CDB ×16 3DB3 ×17 3E6C ×18 3F0A ×19 3F8F ×20 4000

Optical Zoom

Positon Data

Optical Zoom Position Data

Page 49

Command List

Digital Zoom Combine mode

X12

Digital Zoom

Ratio

×1 4000 ×2 6000 ×3 6A80 ×4 7000 ×5 7300 ×6 7540 ×7 76C0 ×8 7800

×9 78C0 ×10 7980 ×11 7A00 ×12 7AC0

Digital Zoom

Position Data

Digital Zoom Separate mode

X12

Digital Zoom

Ratio

×1 00

×2 80

×3 AA

×4 C0

×5 CC

×6 D5

×7 DB

×8 E0

×9 E3 ×10 E6 ×11 E8 ×12 EB

Digital Zoom

Position Data

Lens control

0000 to 4000 to 7AC0

Zoom Position

Focus Position

Focus Near Limit

1000 to C000 Far end Near end

1000: Over Inf

2000: 12m

3000: 5.6m

4000: 4m

5000: 2.7m

6000: 2m

7000: 1.5m

8000: 80cm

9000: 30cm (initial setting)

A000: 19cm

B000: 9cm

C000: 1cm

Wide end Optical Digital

As the distance on the left will differ due to temperature characteristics, etc., use as approximate values. * The lower 1 byte is fixed at 00.

Wide/Tele Limit Setting

FCB-EH3400/EH3410

Wide/Tele Limit

Setting Value

00 0000 1.00 4000 28.0

10 0161 1.04 3E9E 22.8

20 02C3 1.08 3D3C 19.8

30 0425 1.12 3BDA 17.6

40 0587 1.17 3A78 15.9

50 06E9 1.21 3916 14.4

60 084B 1.27 37B4 13.1

70 09AD 1.32 3652 11.9

80 0B0E 1.38 34F1 10.8

90 0C70 1.44 338F 9.8

A0 0DD2 1.51 322D 8.9

B0 0F34 1.58 30CB 8.1

C0 1096 1.66 2F69 7.4

D0 11F8 1.74 2E07 6.8

E0 135A 1.83 2CA5 6.2

F0 14BB 1.92 2B44 5.7

FF 1607 2.02 29F8 5.3

Wide Limit Tele Limit

Zoom

Position

Zoom

Ratio

Tele end Tele end

Zoom

Position

Zoom

Ratio

Page 50

Command List

FCB-EH3300/EH3310

Wide/Tele Limit

Setting Value

00 0000 1.00 4000 20.0

10 0161 1.03 3E9E 17.3

20 02C3 1.07 3D3C 15.4

30 0425 1.11 3BDA 14.0

40 0587 1.15 3A78 12.7

50 06E9 1.19 3916 11.6

60 084B 1.23 37B4 10.6

70 09AD 1.28 3652 9.7

80 0B0E 1.33 34F1 8.9

90 0C70 1.39 338F 8.1

A0 0DD2 1.44 322D 7.4

B0 0F34 1.51 30CB 6.8

C0 1096 1.57 2F69 6.2

D0 11F8 1.64 2E07 5.7

E0 135A 1.72 2CA5 5.3

F0 14BB 1.80 2B44 4.9

FF 1607 1.88 29F8 4.5

Wide Limit Tele Limit

Zoom

Position

Zoom

Ratio

Zoom

Position

Title setting

Line number 00 to 0A H-position 00 to 1F

Blink

Color

00 01 02 03 04 05 06 07

A B C D E F G H

08 09 0a 0b 0c 0d 0e 0f

I J K L M N O P

10 11 12 13 14 15 16 17

Q R S T U V W X

18 19 1a 1b 1c 1d 1e 1f

Y Z & ? ! 1 2

20 21 22 23 24 25 26 27

3 4 5 6 7 8 9 0

28 29 2a 2b 2c 2d 2e 2f

À È Ì Ò Ù Á É Í

30 31 32 33 34 35 36 37

Ó Ú Â Ê Ô Æ Ã

38 39 3a 3b 3c 3d 3e 3f

Õ Ñ Ç ß Ä Ï Ö Ü

40 41 42 43 44 45 46 47

Å $ ¥ £ ¿ ¡

48 49 4a 4b 4c 4d 4e 4f

ø “ : ‘ . , / -

00: Dose not blink

01: Blinks

00 White

01 Yellow

02 Violet 03 Red 04 Cyan 05 Green 06 Blue

Zoom

Ratio

Temperature Reading Conversion Value (Reference Value)

Reading Value

pq (hex)

00 −3 to +3

0A 7 to 13

14 17 to 23

1E 27 to 33

28 37 to 43

32 47 to 53

3C 57 to 63

Temperature

Conversion

Value (ºC)

The register settings are enabled when the power is turned off and then back on again. After turning the power back on again, verify that the mode settings have been changed.

VISCA Baud Rate

Monitoring Mode

Output Enabling

Zoom Limit

E-Zoom Max

StableZoom 53 00

FocusTrace @ZoomDirect

FocusOffset @DomeCover

SAV/EAV 56 00

00 00

(Default value)

01 19200 bps 02 38400 bps

72 09

(Default value)

0A 720p/59.94

0C 720p/50 0D

0E 720p/30 0F 720p/29.97 10

11 720p/25 12

73 01 Analog Output

02 Digital Output

(Default value)

50 00-FF

(Default value: 00)

51 00-FF

(Default value: 00)

52 00-EB

(Default value: EB)

(Default value: 00)

01 ON

54 00 OFF

(Default value: 01)

55 00-FF

(Default value: 00)

9600 bps

720p/60

NTSC Analog Output (Stop Digital Output)

PAL Analog Output (Stop Digital Output)

NTSC Analog Output (Stop Digital Output)

PAL Analog Output (Stop Digital Output)

enabled

enabled Both Analog/Digital

Output enabled Wide Limit

(0: Disabled) Tele Limit

(0: Disabled) Max. digital

zoom ratio = 256 ÷ (256-Value)

OFF

00: None to FF: Max.

OFF

Page 51

SAV/EAV 56 01 ON

Others

Command List

AF Active Time

AF Interval Time

Spot AE X position

Spot AE Y position

R Gain

B Gain

Aperture Level

AE Response

AutoICR ON

OFF Threshold Level MD Threshold Level

MD Interval Time

MD Set Horizontal Position

MD Set Vertical Position

Color Enhancement threshold value

Color Enhancement high-intensity color specification

Color Enhancement low-intensity color specification

Chroma Suppress setting level

Color Gain setting level

Color Hue setting level



00 to FF

00 to 0F

00 to FF

00 to 0F

01 to 30

00 to 1C

00 to FF

00 to 10

00 to 08

01 to FE1 00 to 08

00 to 08

00 to 03

00 to 0E

Unit: One second

Page 52

Specifications

Imager 1/4 Type Exmor CMOS Sensor Picture elements 1430K pixels Lens FCB-EH3400/EH3410 28× zoom F= 3.5 mm (WIDE) to 98.0 mm

(TELE), F1.35 to F3.7 Zoom movement speed Optical WIDE – Optical TELE

2.6 sec (Focus Tracking ON)

1.8 sec (Focus Tracking OFF)

Optical WIDE – Digital TELE

4.7 sec (30p/60p mode)

5.2 sec (25p/50p mode)

Digital WIDE – Digital TELE

2.2 sec (30p/60p mode)

2.7 sec (25p/50p mode) Focus Movement time ∞ to Near 0.8 sec FCB-EH3300/EH3310 20× zoom F= 3.5 mm (WIDE), 70.0 mm

(TELE), F1.35 to F3.4 Zoom movement speed Optical WIDE – Optical TELE

2.3 sec (Focus Tracking ON)

1.8 sec (Focus Tracking OFF)

Optical WIDE – Digital TELE

4.7 sec (30p/60p mode)

4.9 sec (25p/50p mode)

Digital WIDE – Digital TELE

2.2 sec (30p/60p mode)

2.7 sec (25p/50p mode) Focus Movement time ∞ to Near Digital zoom FCB-EH3400/EH3410 12× (336× with optical zoom) FCB-EH3300/EH3310 12× (240× with optical zoom) Angle of view (H) FCB-EH3400/EH3410 Approx. 55.9 degrees (WIDE end),

approx. 2.1 degrees (TELE end) FCB-EH3300/EH3310 Approx. 55.9 degrees (WIDE end),

approx. 2.9 degrees (TELE end) Min. working distance 10 mm (WIDE end), 1500 mm

(TELE end)

Sync system Internal Min. illumination 0.25 lx (1/30 sec, 50%, (Typical value) High Sensitivity mode ON)

1.0 lx (1/30 sec, 50%, High Sensitivity mode OFF)

0.13 lx (NTSC 1/4 sec, PAL

ICR-ON Mode

0.03 lx (1/30 sec, 50%, High

0.1 lx (1/30 sec, 50%, High

Recommended illumination 100 lx to 100,000 lx S/N ratio 50 dB (Weight ON) Back light compensation ON/OFF Electronic shutter speed 60/30 mode: 1/1 sec to 1/10000 sec

50/25 mode: 1/1 sec to 1/10000 sec

White balance AUTO, ATW, Indoor, Outdoor, One

Gain Auto/Manual (–3 dB to +28 dB,

Max. Gain Limit (6 dB to 28 dB,

Wide dynamic range ON/OFF/AUTO Noise reduction ON/OFF (level 5 to 1 / OFF, 6 steps) Color Enhancement ON/OFF Aperture control 16 steps Preset 6-POSITIONS Serial interface VISCA protocol (CMOS 5V)

9.6 kbps, 19.2 kbps, 38.4 kbps, Stop

0.04 lx (NTSC 1/4 sec, PAL 1/3 sec, 50%, High Sensitivity mode ON)

1/3 sec, 50%, High Sensitivity mode OFF)

Sensitivity mode ON)

Sensitivity mode OFF)

0.002 lx (NTSC 1/4 sec, PAL 1/3 sec, 30%, High Sensitivity mode ON)

(22 steps)

Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/ Auto)

16 steps)

12 steps)

bit, 1 bit

Page 53

Video Output HD: Analog component (Y/Pb/Pr)

Digital (LVDS) Analog SD: VBS Storage temperature/Humidity –20 °C to +60 °C (–4 °F to +140 °F)/

20% to 95% Operating temperature/Humidity –5 °C to +60 °C (23 °F to +140 °F)/

20% to 80% Power requirements/Power consumption 6 V to 12 V DC/2.7 W (3.4 W) Weight Approx. 240 g (8.0 oz.) Dimensions 50.0 × 60 × 89.7 mm

(2 × 2

/8 × 3 5/8 in.) (w/h/d)

Design and specifications are subject to change without notice.

Specifications

Page 54

Interface

FCB-EH3400/EH3300

HD Digital Video

PLL

8 bits x 2

Cb/Cr

Sync Signal

74MHz

HD VD FLD

CLK

8 bits x 2

Cb/Cr

HD VD FLD

CLK

LVDC

5 pairs (10 pin)

TXD RXD

nalog

Video

VBS

SD Video

HD Digital Video

Sync Signal

Pb P

PLL

TT L Parallel to

LV DS

LVDS

TTL

Parallel

TTL

Parallel

LVDS

POWER

USL00-30L-C (KEL Cop.)

30 Coaxcial

cable

THC63LVD104C

(THine Electronics, Inc.)

Specifications

• The FCB-EH3400/EH3300/EH3410/EH3310 uses the LVDS transmitter IC chip. The LVDS receiver IC chip

(e.g., THC63LVD104C) is recommended.

• Recommended connectors and cables Cable: #42 thin coaxial cable Connector: USL20-30S (KEL)

Page 55

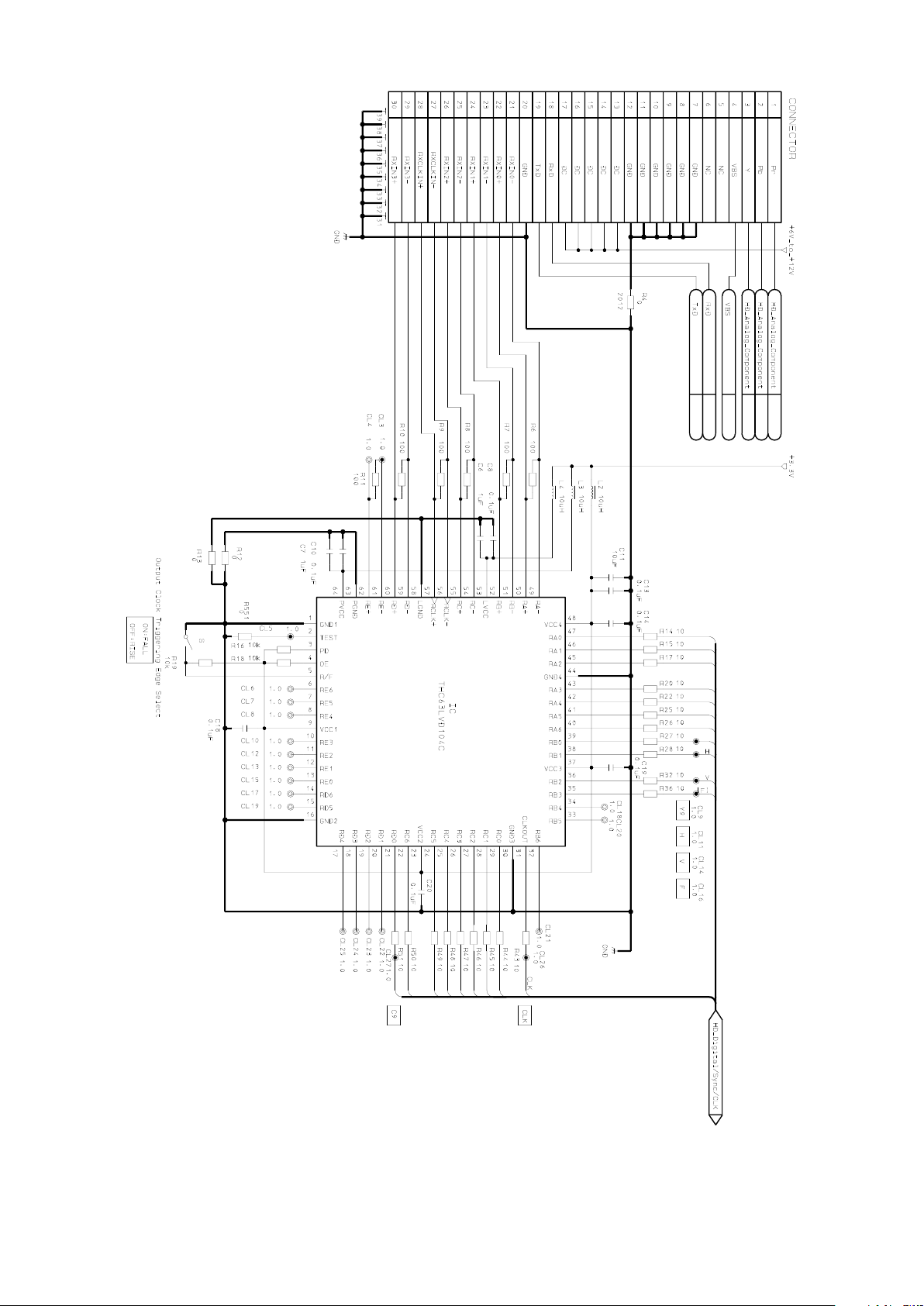

LVDS receiver circuit example

Specifications

• When using the circuit example, use 1-N crossover cables. (The pin numbers of the unit are reversed in the circuit

example.)

• SW selects whether to input at the rising edge or falling edge of the signal.

Page 56

LVDS receiver IC (example: THC63LVD104C) Pin assignment LVDS input - CMOS/TTL output

Pin No. Description Signal Pin No. Description Signal

1 GND1 33 2 TEST 34 3 35 RB3 FLD 4 36 RB2 VD 5 37 VCC3 6 38 RB1 HD 7 39 RB0 Y7 8 40 RA6 Y6

9 41 RA5 Y5 10 42 RA4 Y4 11 43 RA3 Y3 12 44 GND4 13 45 RA2 Y2 14 46 RA1 Y1 15 47 RA0 Y0 16 48 VCC4 17 RD4 49 RA− RXIN0− 18 RD3 50 RA+ RXIN0+ 19 RD2 51 RB− RXIN1− 20 RD1 52 RB+ RXIN1+ 21 RD0 C7 53 LVCC 22 RC6 C6 54 RC− RXIN2− 23 VCC2 55 RC+ RXIN2+ 24 RC5 C5 56 PCLK− RXCLKIN− 25 RC4 C4 57 PCLK+ RXCLKIN+ 26 RC3 C3 58 LGND 27 RC2 C2 59 RD− RXIN3− 28 RC1 C1 60 RD+ RXIN3+ 29 RC0 C0 61 RE− 30 GND3 62 RE+ 31 CLKOUT CLK 63 32 64

Specifications

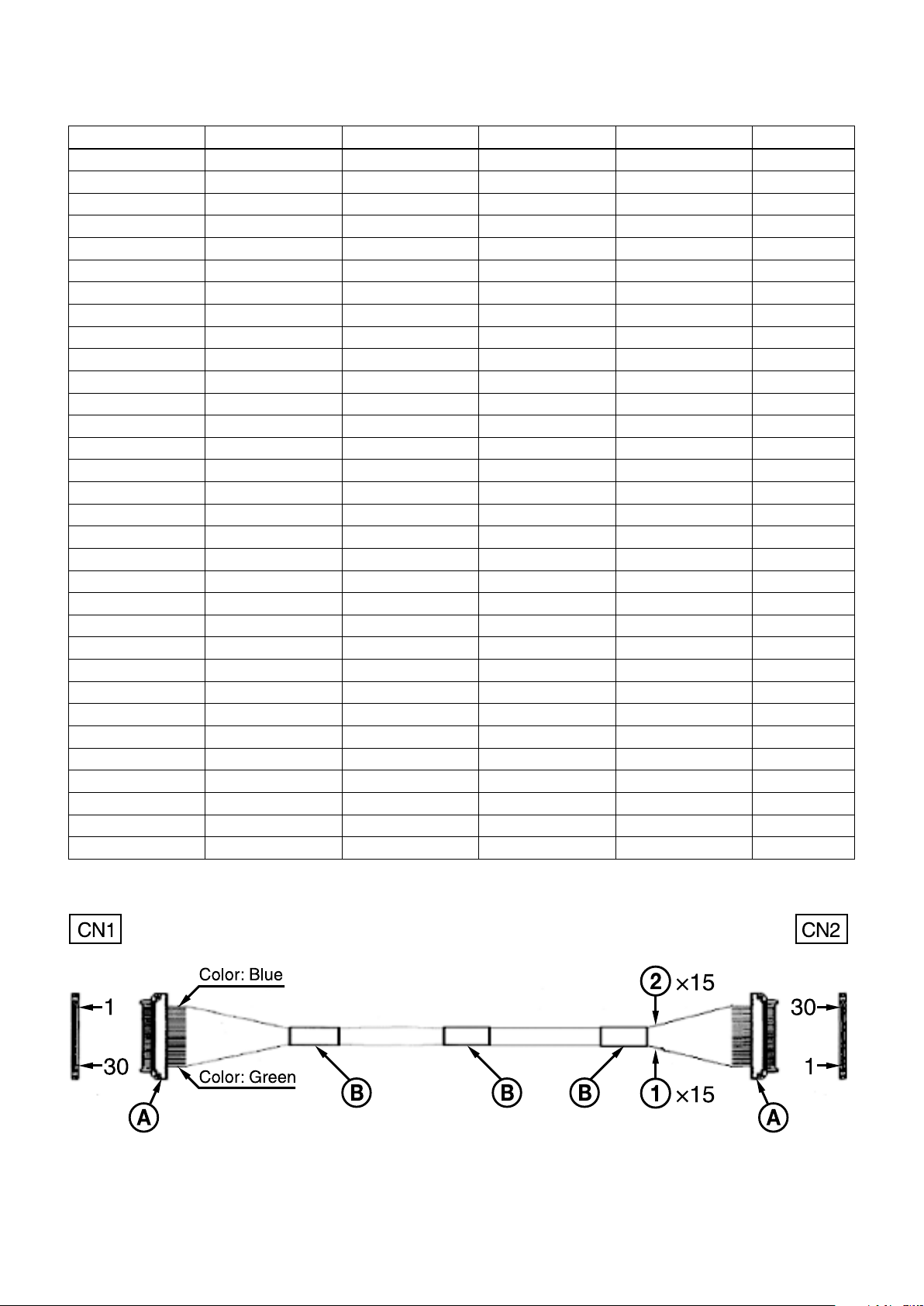

Cable reference specifications (crossover)

• Recommended connectors and cables Cable green: #42 thin coaxial cable Cable blue: #42 thin coaxial cable Connector: USL20-30S (KEL) Binding tape



Page 57

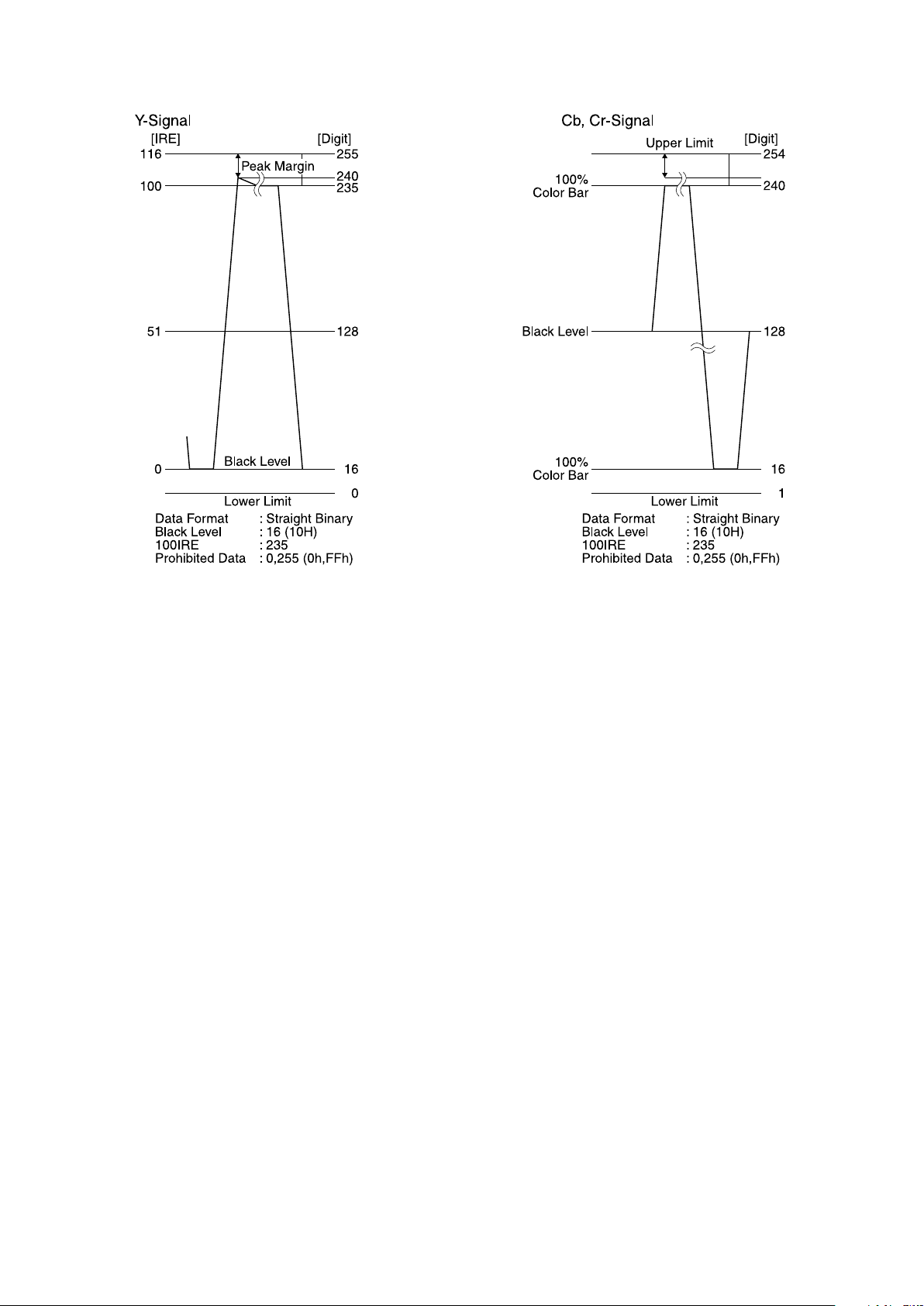

DIGITAL Image Output Y, Cb, Cr 4:2:2 FORMAT Color coding complies with BT709.

Specifications

Page 58

Timing Chart

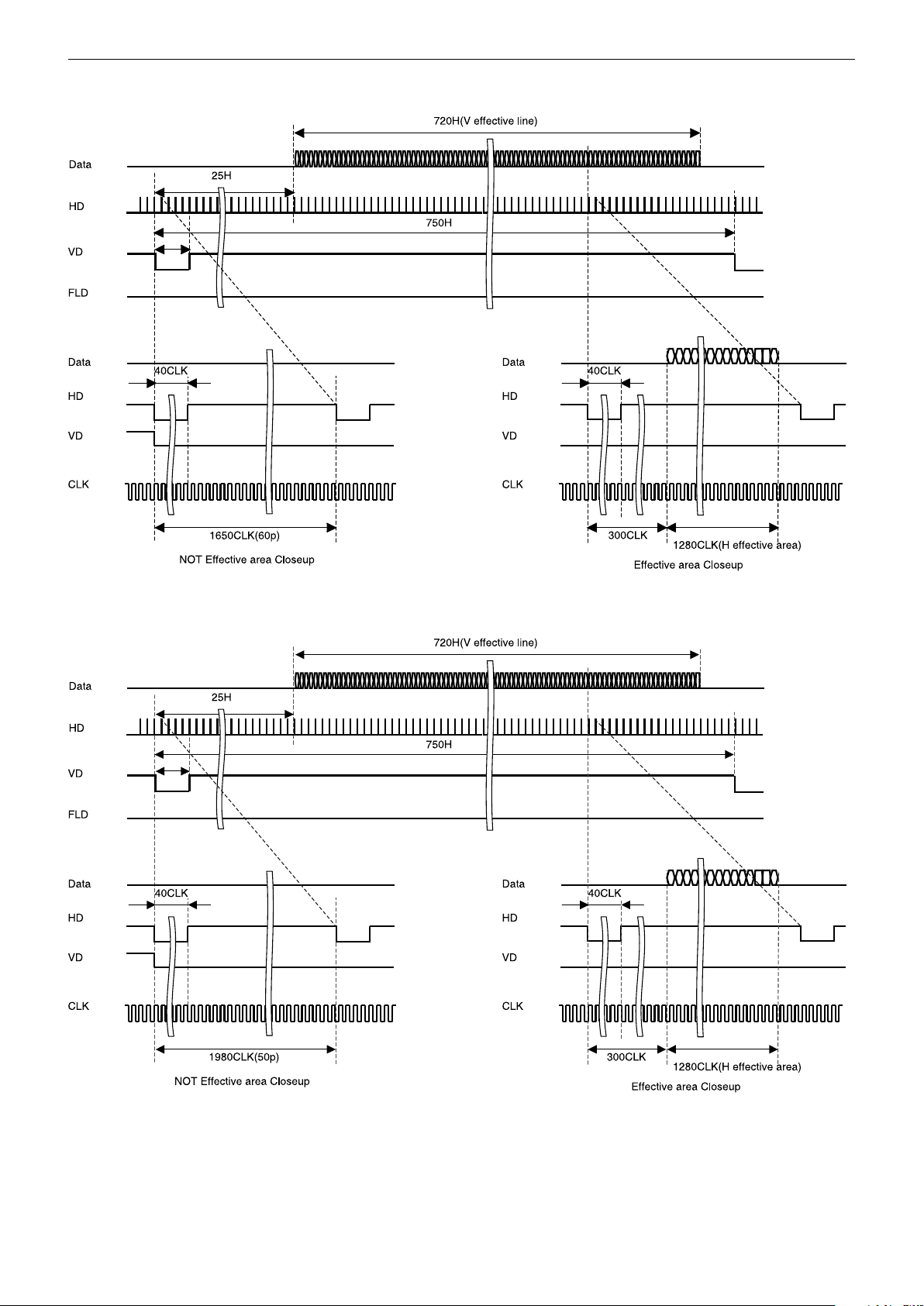

720p/60 Output Timing Chart

Specifications

720p/50 Output Timing Chart

Page 59

720p/30 Output Timing Chart

Specifications

720p/25 Output Timing Chart

Page 60

Digital output timing chart of Syncronized codes

F F

0 0

X X

P b

P r

P b

P r

F F

0 0

X X

P b

P r

P b

P r

P b

P r

P b

P r

Active Video Area or Non-active Video Area

Specifications

EAVSAV

Active Video Area

Non-active Video Area

XX for SAV XX for EAV

80h 9Dh

ABh B6h

Page 61

Digital output timing chart of Syncronized codes

Non-active Video Area

Active Video Area

Non-active Video Area

Blanking

SAV

EAV

SAV for Active Video Area

SAV for Non-active Video Area

EAV for Active Video Area

EAV for Non-active Video Area





















Progressive system (Comparable to SMPTE 296 M)

Specifications

Page 62

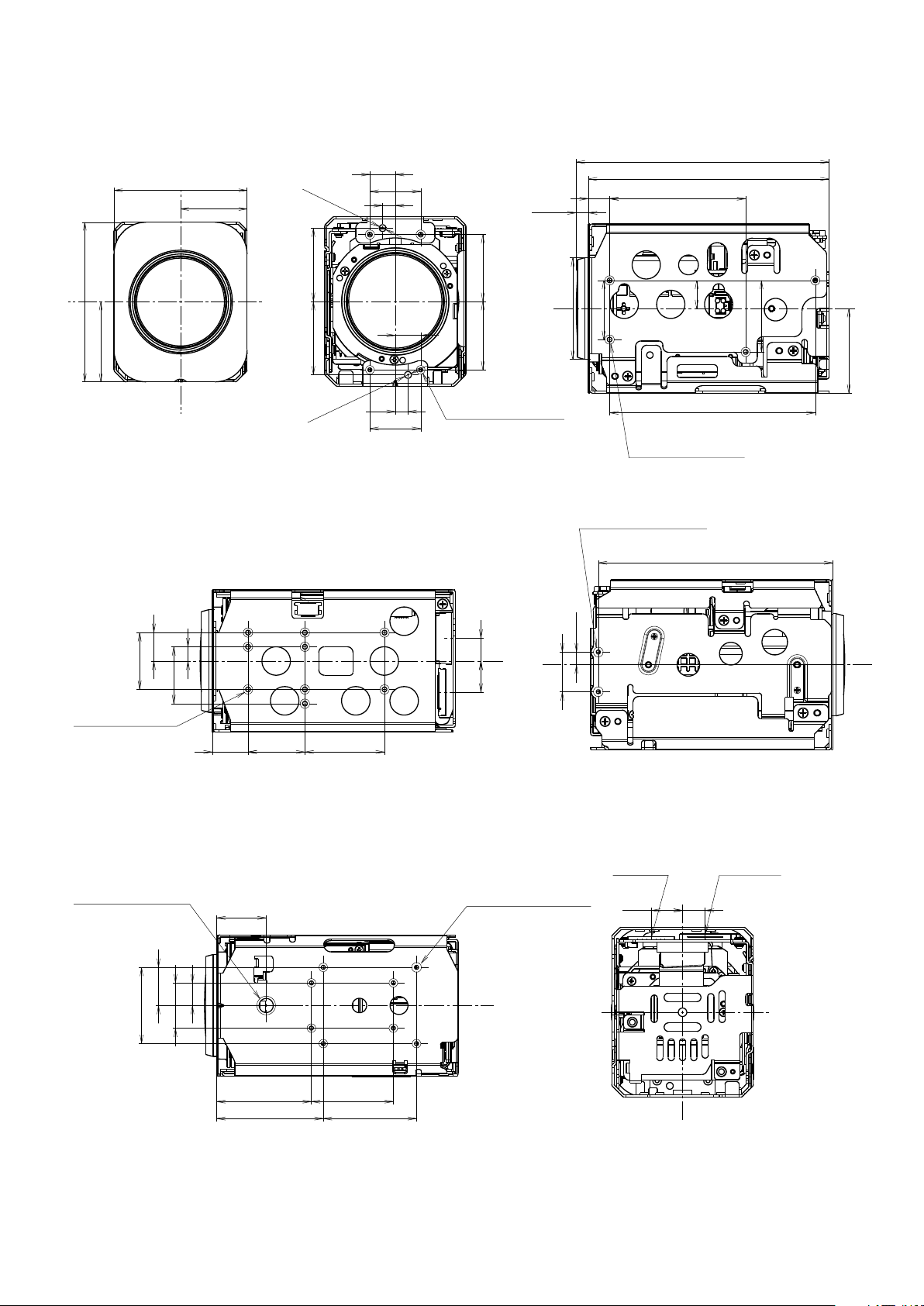

Dimensions FCB-EH3400/EH3410

(25)

(30)

25.4±0.1

73±0.1

4-M2

21±0.1

(

ø36.1

)

89.7

85.5

48.3

±0.1

7.6

(4.3)

(

)

(11) (8)

±0.1

4.5

ø2.4 hole

26 26

23.724.2

4-M2

ø2.4 hole

18±0.1

4.5

Digital I/O

8-M2

28±0.1

20±0.112.6

9-M2

20±0.1

±0.1

Analog I/O

82.7

2-M2

4.5

±0.1

17.5

1/4-20UNC (Tripod Screw)

16±0.1

27±0.1

13.5

33.5

37.7

29±0.1

33±0.1

Specifications

Front Right side

Front view (without panel)

Top Left side

Within a depth of 3 mm (1/8 in.) or less form the side

Within a depth of 3 mm (1/8 in.) or less form the top surface

Bottom Back

Within a depth of 5 mm (7/32 in.) or less form the bottom surface

Within a depth of 3 mm (1/8 in.) or less form the bottom surface

Unit: mm (inches)

Page 63

Dimensions FCB-EH3300/EH3310

(25)

(30)

±0.1

4.5

ø2.4 hole

26 26

23.724.2

ø2.4 hole

18±0.1

4.5

25.4±0.1

73±0.1

4-M2

8-M2

2-M2

9-M2

4-M2

21±0.1

(

ø36.1

)

89.7

85.5

48.3

±0.1

7.6

(4.3)

(

)

(11) (8)

Digital I/O Analog I/O

28±0.1

20±0.112.6

20±0.1

±0.1

82.7

4.5

±0.1

17.5

1/4-20UNC (Tripod Screw)

16±0.1

27±0.1

13.5

33.5

37.7

29±0.1

33±0.1

Front Right sideFront view (without panel)

Specifications

Top Left side

Within a depth of 3 mm (1/8 in.) or less form the top surface

Within a depth of 3 mm (1/8 in.) or less form the side

Bottom Back

Within a depth of 5 mm (7/32 in.) or less form the bottom surface

Within a depth of 3 mm (1/8 in.) or less form the bottom surface

Unit: mm (inches)

Page 64

Specifications

Pin assignment

FCB-EH3400/EH3410

FCB-EH3300/EH3310

Pin No. Name Level

14 DC IN 6 to 12 V DC 15 DC IN 6 to 12 V DC 16 DC IN 6 to 12 V DC 17 DC IN 6 to 12 V DC 18 DC IN 6 to 12 V DC

19 GND 20 GND 21 GND 22 GND 23 GND 24 GND

25 NC

RESET Reset: Low (GND), Normal:

27 VBS-OUT 28 Y HD Analog Component

29 Pb HD Analog Component 30 Pr HD Analog Component

Open (1.8V)

CN501

Kyocera-elco 046240024006800+

CN601

KEL Cop. USL00-30L-C

Pin No. Name Level

1 TXOUT3+ 2 TXOUT3− 3 TXCLKOUT+ 4 TXCLKOUT− 5 TXOUT2+ 6 TXOUT2− 7 TXOUT1+ 8 TXOUT1−

9 TXOUT0+ 10 TXOUT0− 11 GND

12 TxD

13 RxD CMOS 5 V (Low: MAX 0.8 V,

CMOS 5 V (Low: Max 0.1 V, High: min 4.4 V)

High: min 2.0 V)

Pin No. Name Level

1 GND 2 TxD CMOS 5 V

(Low: Max 0.1 V, High: min 4.4 V)

3 RxD CMOS 5 V

(Low: MAX 0.8 V, High: min 2.0 V)

4 RESET Reset: Low (GND), Normal:

Open (1.8V)

5 GND 6 NC 7 GND 8 NC

9 GND 10 VBS-OUT 11 GND

12 Y-OUT HD Analog Component 13 GND 14 Pb-OUT HD Analog Component

15 GND 16 Pr-OUT HD Analog Component 17 GND 18 Power 6 to 12 V DC 19 Power 6 to 12 V DC 20 Power 6 to 12 V DC 21 Power 6 to 12 V DC

22 GND 23 Power 6 to 12 V DC 24 GND

Sony FCB-EH3300, FCB-EH3310, FCB-EH3400, FCB-EH3410 Technical Manual

Table of Contents

Features

Precautions

Locations of Controls

Basic Functions

Overview of Functions

Eclipse

Vibration Specifications

Spectral Sensitivity Characteristics

Initial Settings, Custom Preset and Backup

Mode Condition

Command List

FCB Camera Commands

Specifications
