Sony FCB-EV7520, FCB-CV7520, FCB-EV7517 Users guide

C-216-100-12(1)

Color Camera Module

Technical Manual

FCB-EV7520
FCB-CV7520
FCB-EV7517

2015 Sony Corporation



Table of Contents

Features ............................................................................. 3

Precautions ....................................................................... 4

Locations of Controls .......................................................6

Basic Functions ................................................................. 7

Overview of Functions ..................................................................... 7

User’s Updating ............................................................................... 21

Eclipse ................................................................................................. 24

Spectral Sensitivity Characteristics .......................................... 24

Initial Settings, Custom Preset and Backup .......................... 25

Mode Condition .............................................................................. 27

Command List .................................................................30

VISCA/RS-232C Commands ........................................................ 30

FCB Camera Commands .............................................................. 36

Specifications ................................................................. 57

2

• Imager

This camera uses a 1/2.8" “Exmor R” CMOS

(complementary metal-oxide semiconductor) image
sensor (approx. 2.13 million effective pixels) that
supports FULL HD (high definition) to produce high­quality images.

Overview

Features

• ISP

Using the image signal processor (ISP), the following

images can be obtained.

- Full HD 60fps output image

- Low focal plane distortion image using the
high-speed readout of imager

The following functions are provided.

- Noise Reduction (NR), and Image Stabilizer
functions

- Tone correction (Visibility Enhancer) and Defog
functions

• Lens

The camera is equipped with a bright lens with 30×

optical zoom and F1.6 aperture (optical zoom +
digital zoom = 360×).

With consideration given environmental protection,
this module is designed to operate with low power
consumption and also incorporates lead-free and
halogen-free circuit boards.

3

Overview

Precautions

Software

Use of the demonstration software developed by Sony
Corporation or use of the software with customer
developed application software may damage hardware,
the application program or the camera. Sony
Corporation is not liable for any damages under these
conditions.

Operation

Start the camera control software on your computer
after you turn on the camera and the image is displayed.

Operation and storage locations

Do not shoot images that are extremely bright (e.g.,
light sources, the sun, etc.) for long periods of time. Do
not use or store the camera in the following extreme
conditions:

• Extremely hot or cold places (operating temperature
–5 ˚C to +60 ˚C (23 ˚F to 140 ˚F))

• Close to generators of powerful electromagnetic
radiation such as radio or TV transmitters

• Where it is subject to fluorescent light reflections

• Where it is subject to unstable (flickering, etc.)
lighting conditions

• Where it is subject to strong vibration

• Where it is subject to radiation from laser beams

Care of the unit

Remove dust or dirt on the surface of the lens with a
blower (commercially available).

Other

• Design and specifications are subject to change
without notice.

• Do not apply excessive voltage. (Use only the specified
voltage.) Otherwise, you may get an electric shock or
a fire may occur.

• The CMOS image sensor and IC included in this
camera may break if exposed to static electricity.
When directly handling this camera, wear an
antistatic strap, spread a conductive sheet or similar
item under your workbench, and take measures to
eliminate static electricity.

• In case of abnormal operation, contact your
authorized Sony dealer or the store where you
purchased the product.

Phenomena specific to CMOS image sensors

The following phenomena that may appear in images
are specific to CMOS image sensors. They do not
indicate malfunctions.

Rolling shutter

As CMOS image sensors use shutters that capture
images line-by-line, there is a slight time difference
between the top and bottom of an image. As a result,
images may appear skewed if the camera is moved.

White flecks

Although the CMOS image sensors are produced with
high-precision technologies, fine white flecks may be
generated on the screen in rare cases, caused by cosmic
rays, etc.
This is related to the principle of CMOS image sensors
and is not a malfunction.

The white flecks especially tend to be seen in the
following cases:

• when operating at a high environmental temperature

• when you have raised the master gain (sensitivity)

• when operating in Slow-Shutter mode

Aliasing

When fine patterns, stripes, or lines are shot, they may
appear jagged or flicker.

Phenomena Specific to Lenses

Ghosting

If a strong light source (e.g., the sun) exists near the
incidence angle of the lens, bright spots may appear in
the image due to diffuse reflection within the lens.

About the trademark

“Exmor R” and “StableZoom” are trademarks of Sony
Corporation.

4

Notification on BSD License Application
Software

Please read the contents of description below at least
once.

FILE:sha2.c,sha2.h,sha2prog.c,sha2speed.c,sha2test.pl
AUTHOR: Aaron D. Gifford - http://www.aarongifford.com/

Copyright (c) 2000-2001, Aaron D. Gifford All rights
reserved.

Redistribution and use in source and binary forms, with or
without modification, are permitted provided that the
following conditions are met:

1. Redistributions of source code must retain the above
copyright notice, this list of conditions and the following
disclaimer.

2. Redistributions in binary form must reproduce the above
copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials
provided with the distribution.

3. Neither the name of the copyright holder nor the names of
contributors may be used to endorse or promote products
derived from this software without specific prior written
permission.

Overview

THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND
CONTRIBUTOR(S) “AS IS” AND ANY EXPRESS OR
IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE AUTHOR OR CONTRIBUTOR(S) BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

5

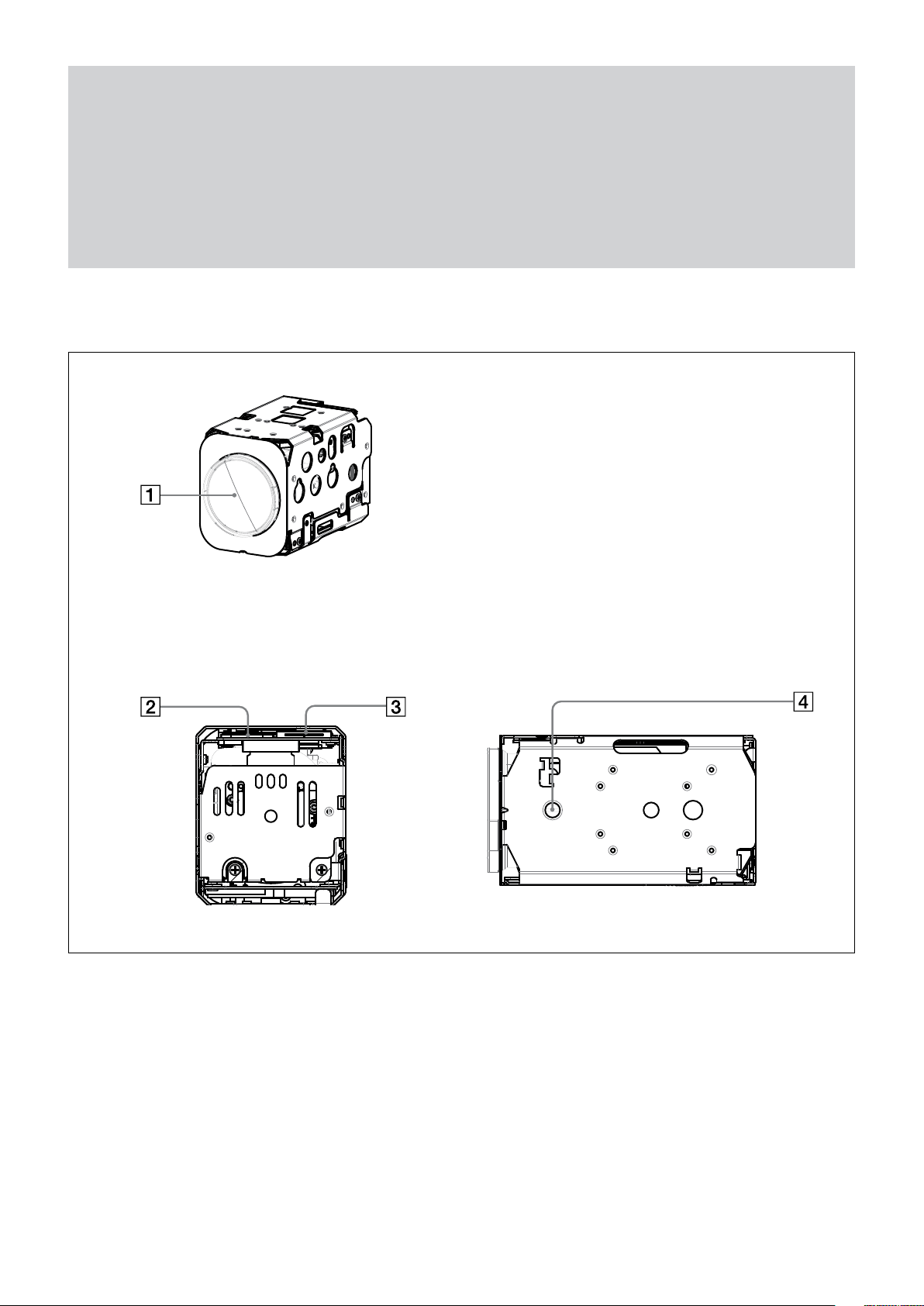

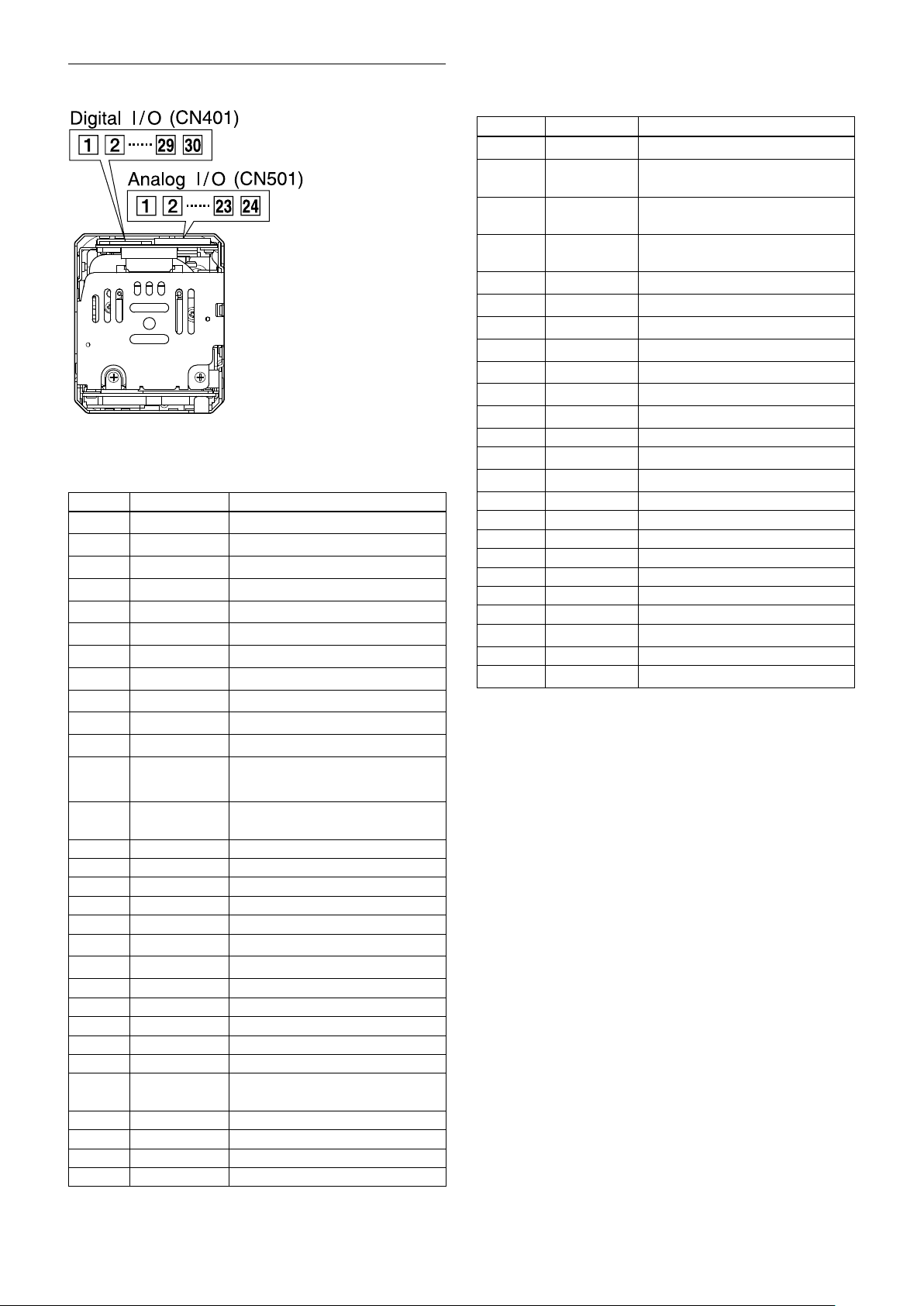

Front

Locations of Controls

Locations of Controls

Back

 Lens
 CN401 connector
 CN501 connector
 Tripod screw hole

When a tripod is used, please use 7 mm (

Also, please be sure to attach the tripod securely.

Bottom

9

/32 in.) or less screw to attach it to the camera.

6

Basic Functions

Basic Functions

Overview of Functions

The camera control is performed by VISCA
Commands.

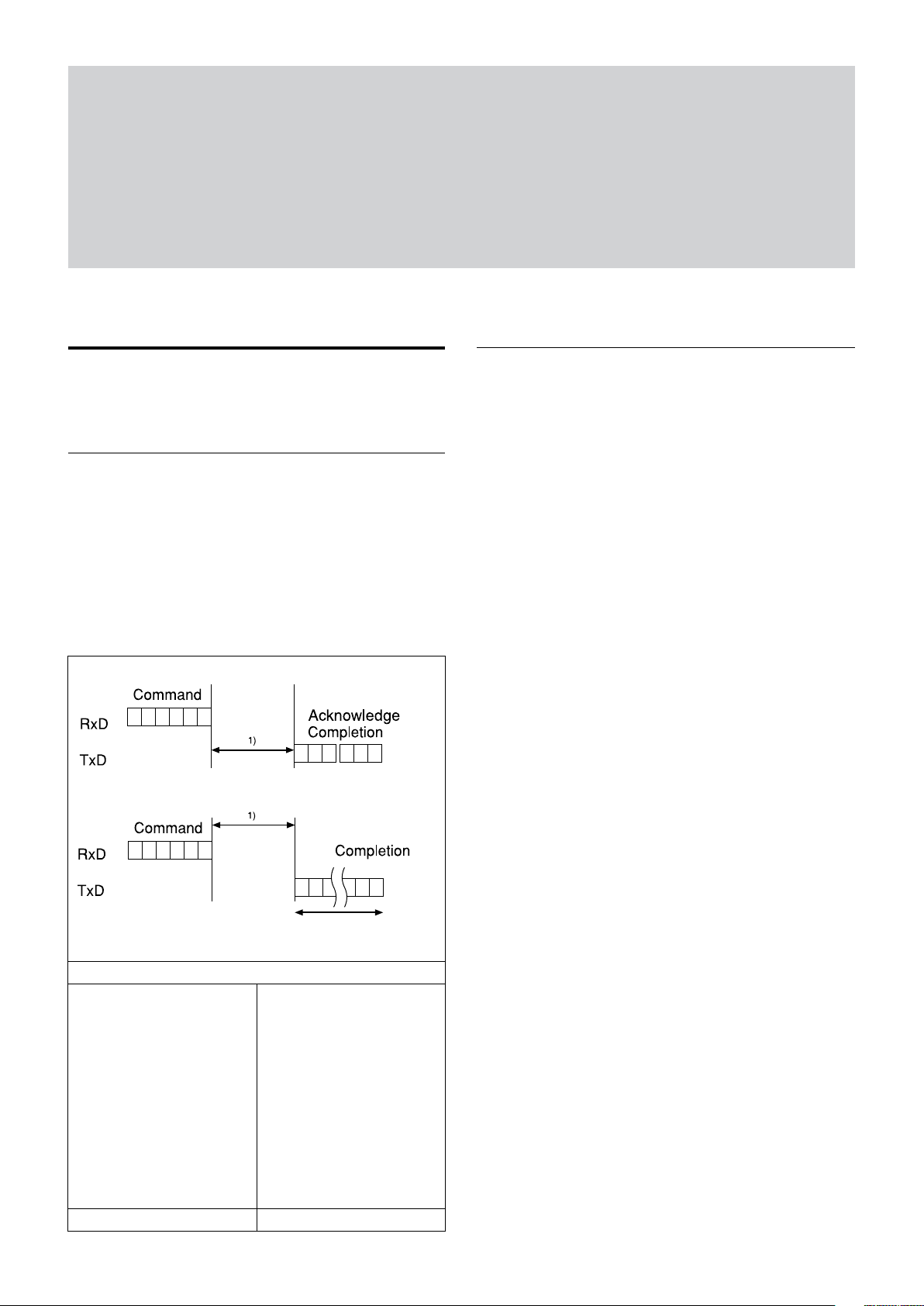

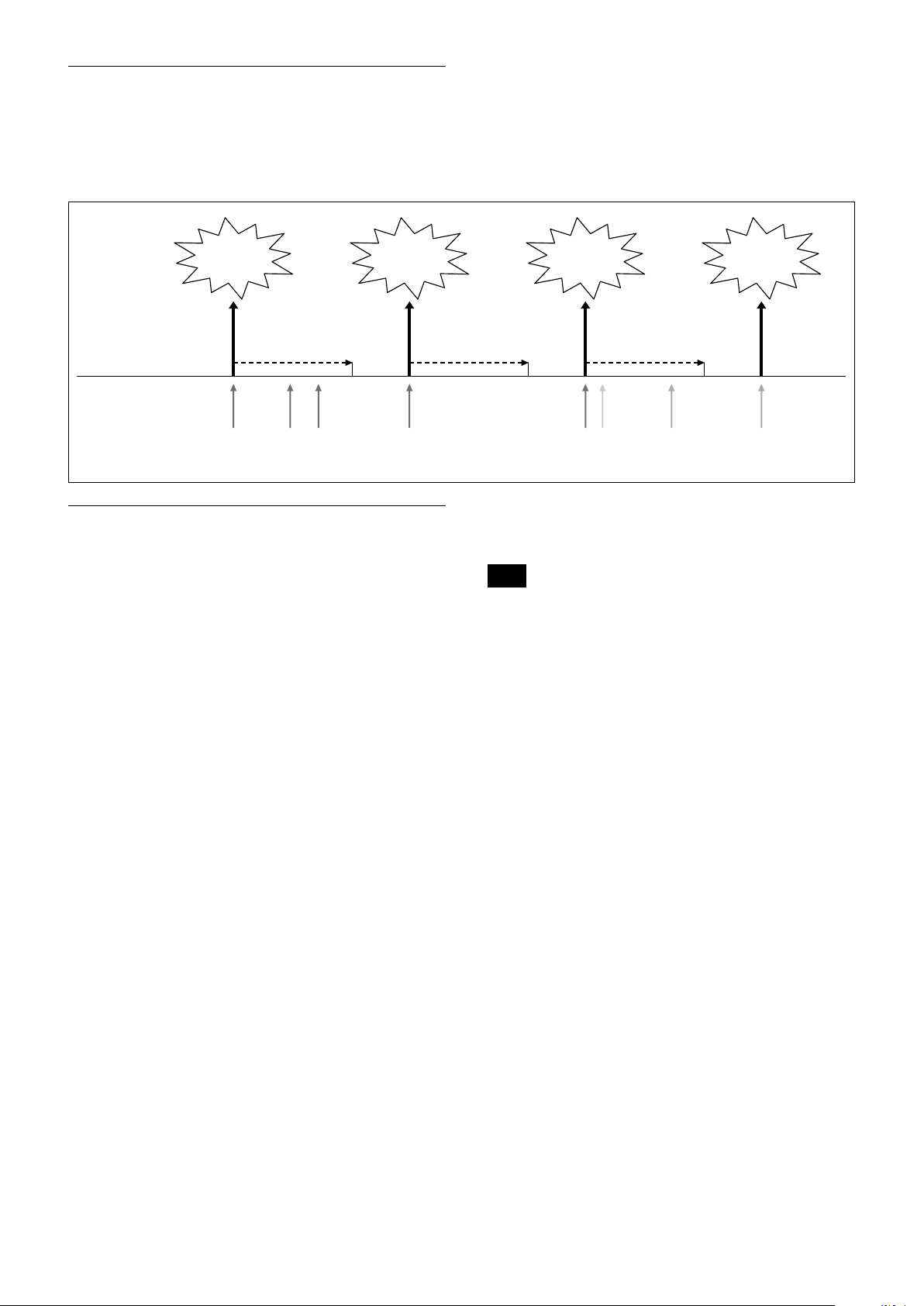

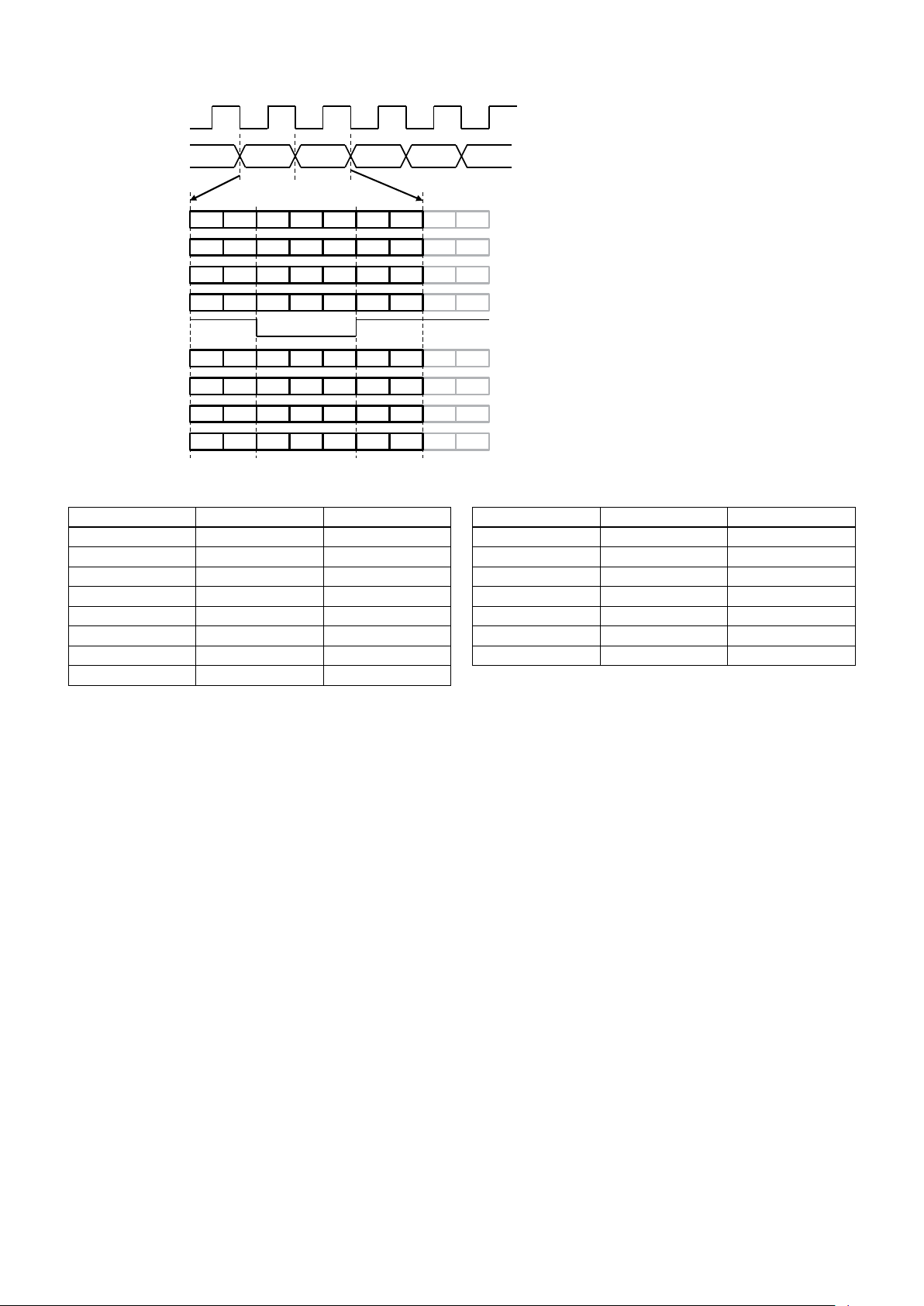

Timing Chart

As VISCA Command processing can only be carried
out one time in a Vertical cycle, it takes the maximum
1V cycle time for an Acknowledge/Completion to be
returned.
If the Command/Acknowledge/Completion
communication time can be less than the 1V cycle
time, then every 1V cycle can receive a Command.

General Commands

Query Commands

In general

• Power On/Off

Powers the camera on and off.

When the power is off, the camera is able to accept
the VISCA Commands although the screen is set
non-displayed.

• I/F Clear

Clears the Command buffer of the FCB camera.

• Address Set

VISCA is a protocol, which normally supports a daisy

chain of up to seven connected cameras via RS-232C
interface. In such cases, the address set command can
be used to assign addresses from 1 to 7 to each of the
seven cameras, allowing you to control the seven
cameras with the same personal computer.

Although the FCB camera does not support direct

connection of cameras in a daisy chain, be sure to use
the address set command to set the address whenever
a camera is connected for the first time.

• ID Write

Sets the camera ID.

16 Byte

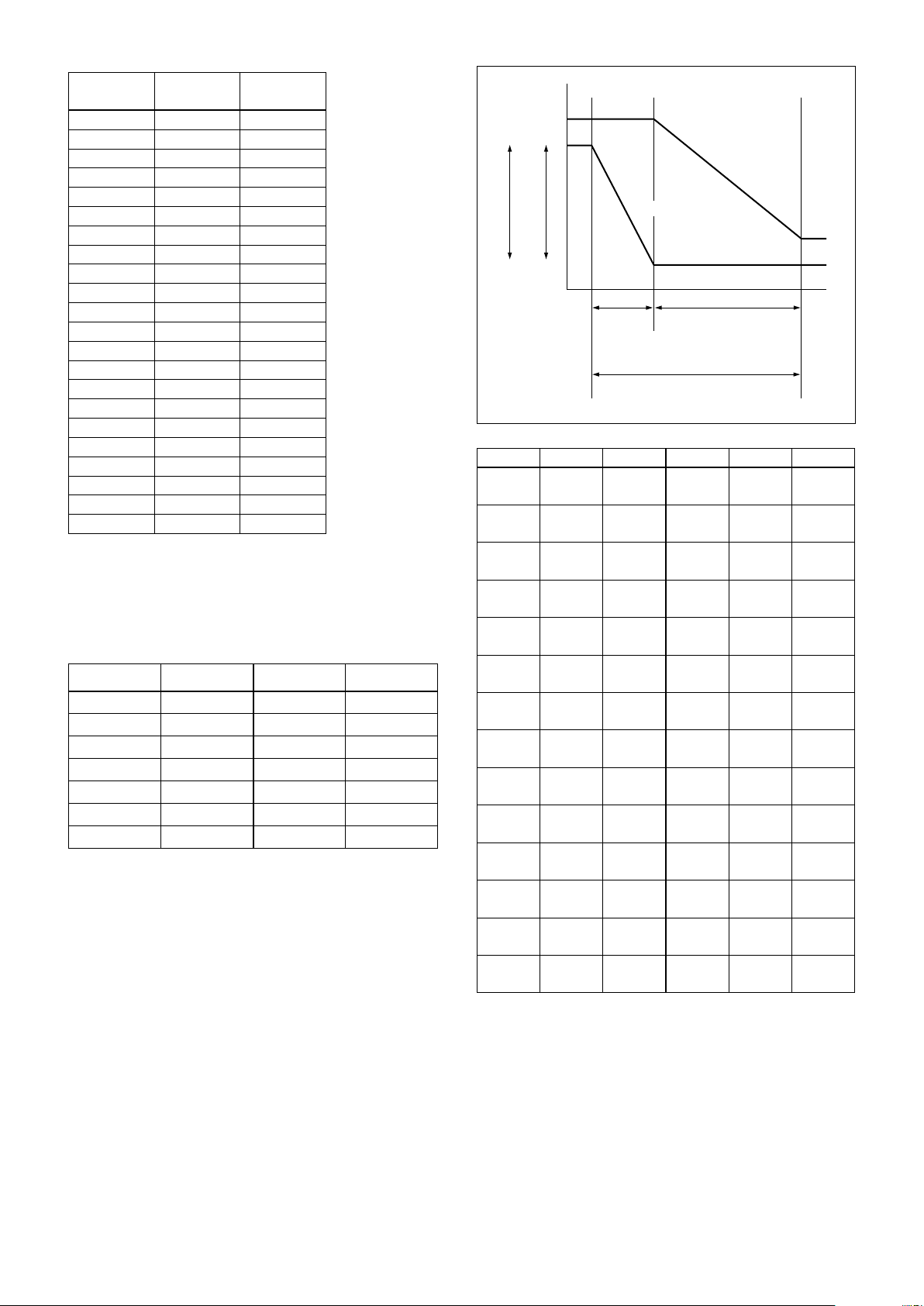

1) 1V cycle times on each Monitoring Mode and Shutter Speed.

Monitoring Mode

1080p/60 1080p/50

1080p/59.94 1080p/25

1080p/30 1080i/50

1080p/29.97 720p/50

1080i/60 720p/25

1080i/59.94

720p/60

720p/59.94

720p/30

720p/29.97

1/60 sec 1/50 sec

• Mute

Blanks the screen and sends out a synchronizing

signal.

• Lens Initialize

Initializes the zoom and focus of the lens. Even when

power is turned on, it initializes the zoom and the
focus.

7

Basic Functions

8

Zoom

The FCB camera incorporates a 30× optical zoom lens
combined with a digital zoom function; this camera
allows you to zoom up to 360×.

• Optical 30

(F 1.6 to F 4.7)

The horizontal angle of view is approximately 63.7
degrees (wide end) to 2.3 degrees (tele end).
Digital Zoom enlarges the center of the subject by
expanding each image in both the vertical and
horizontal directions. When 360× zoom is used, the
number of effective picture elements in each direction
reduces to

Zoom has the following modes.

Using Standard Mode
Using Variable Mode

Direct Mode

Digital Zoom

About Continuous Zoom Position Reply

With ZoomDirect mode, or when zooming according
to a preset, the camera outputs zoom position data
when Continues Zoom Position Reply is set to On via a
command.
Continues Zoom Position Reply: y0 07 04 69 0p 0p 0q
0q 0q 0q FF

pp: D-Zoom Position
qqqq: Zoom Position

×, f = 4.3 mm to 129 mm

1

/12 and the overall resolution deteriorates.

There are eight levels of zoom speed.

In these standard and variable modes, it is necessary to send
Stop Command to stop the zoom operation.

Setting the zoom position enables quick
movement to the designated position.

The Zoom Mode supports, a OFF, a Combined
Mode and a Separate Mode.

Combined Mode

This is the previously existing zoom method.
After the optical zoom has reached its
maximum level, the camera switches to Digital
Zoom Mode.

Separate Mode

In this mode, Optical Zoom and Digital Zoom
can be operated separately. You can use digital
zoom magnification at any time from within
any level of optical magnification.

Focus

Focus has the following modes.

• Auto Focus Mode

The minimum focus distance is 10 mm at the optical

wide end and 1200 mm at the optical tele end, and is
independent of the digital zoom.

The Auto Focus (AF) function automatically adjusts

the focus position to maximise the high frequency
content of the picture in a center measurement area,
taking into consideration the high luminance and
strong contrast components.

- Normal AF Mode

This is the normal mode for AF operations.

- Interval AF Mode

The mode used for AF movements carried out at
particular intervals. The time intervals for AF
movements and for the timing of the stops can be
set in one-second increments using the Set Time
Command. The initial setting for both is set to 5
seconds.

- Zoom Trigger Mode

When zoom position is changed,it becomes AF
mode during the pre-set value (initial setting is set
to 5 seconds). Then it stops.

• AF Sensitivity

The switching of AF sensitivity can be set.

- Normal

Reaches the highest focus speed quickly. Use this
when shooting a subject that moves frequently.
Usually, this is the most appropriate mode.

- Low

Improves the stability of the focus. When the
lighting level is low, the AF function does not take
effect, even though the brightness varies,
contributing to a stable image.

• Manual Focus Mode

Manual Focus has both a Standard Mode and a

Variable Mode. Standard Mode focuses at a fixed rate
of speed. Variable Mode has eight speed levels.

In these standard and variable modes, it is necessary to send Stop
Command to stop the zoom operation.

• One Push Trigger Mode

When a Trigger Command is sent, the lens moves to

adjust the focus for the subject. The focus lens then
holds that position until the next Trigger Command is
input.

• Near Limit

Can be set in a range from 1000 (∞) to F000 (10 mm).
Initial setting: D000h (30 cm)

Basic Functions

White Balance (WB)

White Balance has the following modes.

• Auto

This mode computes the white balance value output

using color information from the entire screen. It
outputs the proper value using the color temperature
radiating from a black subject based on a range of
values from 2500K to 7500K.

This mode is the initial setting.

• ATW

Auto Tracing White balance (2000K to 10000K)

• Indoor

3200K Base Mode

• Outdoor

5800K Base Mode

• One Push WB

The One Push White Balance mode is a fixed white

balance mode that may be automatically readjusted
only at the request of the user (One Push Trigger),
assuming that a white subject, in correct lighting
conditions, and occupying more than 1/2 of the
image, is submitted to the camera.

One Push White Balance data is lost when the power

is turned off. If the power is turned off, reset One
Push White Balance.

• Manual WB

This is a mode that enables you to manually set the

control of R and B gain up to 256 steps.

• Outdoor Auto

This is an auto white balance mode specifically for

outdoors. It allows you to capture images with natural
white balance in the morning and evening.

• Sodium Vapor Lamp Auto

This is an auto white balance mode that is compatible

with sodium vapor lamps.

• Sodium Vapor Lamp

This is a fixed white balance mode specifically for

sodium vapor lamps.

Auto Exposure Mode (AE)

A variety of AE functions are available for optimal
output of subjects in lighting conditions that range
from low to high.

• Full Auto

Iris, Gain and Shutter Speed can be set automatically.

• Gain Limit Setting

The gain limit can be set at the Full Auto, Shutter

Priority, Iris Priority, Bright, Spot Exposure and
Manual in the AE mode. Use this setting when you
want to obtain image in which signal-to-noise ratio is
particularly important.

• Shutter Priority

Adjust with Variable Shutter Speed (1/1 to 1/10,000

sec., 16 high-speed shutter speeds plus 6 low-speed
shutter speeds), Auto Iris and Gain.

1) Flicker in the East Japan area (50 Hz power supply frequency)
can be eliminated by setting shutter to 1/100s.

• Iris Priority

Adjust with Variable Iris (F1.6 to Close, 14 steps),

Auto Gain and Shutter speed

• Manual

Adjust with Variable Shutter, Iris and Gain

• Bright

Adjust with Variable Iris and Gain (Close to F1.6, 14

steps and F1.6 at 15 steps)

AE – Shutter Priority

The shutter speed can be set freely by the user to a total
of 22 steps – 16 high speeds and 6 low speeds. When
the slow shutter is set, the speed can be adjusted
according to subject brightness. The picture output is
read at a normal rate from the memory. The memory is
updated at a low rate from the CMOS. AF following
capability is lowered and also the number of frame to
be displayed is decreased.
In high speed mode, the shutter speed can be set up to
1/10,000s. The iris and gain are set automatically,
according to the brightness of the subject.

1)

• Sodium Vapor Lamp Outdoor Auto

This is an auto white balance mode specifically for

outdoors, which is compatible with sodium vapor
lamps.

Note

High-pressure sodium lamps are supported. Proper
white balance may not be captured for some subjects
when using low-pressure sodium lamps.

9

Basic Functions

10

MIN

MAX

AGC

CLOSE

OPEN

Iris

Data 59.94/29.97

mode

15 1/10000 1/10000
14 1/6000 1/6000
13 1/4000 1/3500
12 1/3000 1/2500
11 1/2000 1/1750
10 1/1500 1/1250
0F 1/1000 1/1000

0E 1/725 1/600
0D 1/500 1/425
0C 1/350 1/300
0B 1/250 1/215
0A 1/180 1/150

09 1/125 1/120

08 1/100 1/100

07 1/90 1/75

06 1/60 1/50

05 1/30 1/25

04 1/15 1/12

03 1/8 1/6

02 1/4 1/3

01 1/2 1/2

00 1/1 1/1

50/25 mode

AE – Iris Priority

The iris can be set freely by the user to 14 steps
between F1.6 and Close.
The gain and shutter speed are set automatically,
according to the brightness of the subject.

Data

11 F1.6 0A F5.6
10 F2 09 F6.8
0F F2.4 08 F8

0E F2.8 07 F9.6
0D F3.4 06 F11
0C F4 05 F14
0B F4.8 00 CLOSE

Setting value

Data

Setting value

AE – Manual

The shutter speed (22 steps), iris (14 steps) and gain
(15 steps) can be set freely by the user.

AE – Bright

The bright control function adjusts both gain and iris
using an internal algorithm, according to a brightness
level freely set by the user. Exposure is controlled by
gain when dark, and by iris when bright.
As both gain and iris are fixed, this mode is used when
exposing at a fixed camera sensitivity. When switching
from Full Auto or Shutter Priority Mode to Bright
Mode, the current status will be retained for a short
period of time.
Only when the AE mode is set to “Full Auto” or
“Shutter Priority,” can you switch it to “Bright.”

Gain

Iris curve

Gain curve

Dark Bright

Controlled
by gain

Bright limit which controllable
for this unit

Data Iris Gain Data Iris Gain

1F F1.6

1E F1.6

1D F1.6

1C F1.6

1B F1.6

1A F1.6

19 F1.6

18 F1.6

17 F1.6

16 F1.6

15 F1.6

14 F1.6

13 F1.6

12 F1.6

50.0 dB

(28 step)

46.4 dB

(26 step)

42.8 dB

(24 step)

39.3 dB

(22 step)

35.7 dB

(20 step)

32.1 dB

(18 step)

28.6 dB

(16 step)

25.0 dB

(14 step)

21.4 dB

(12 step)

17.8 dB

(10 step)

14.3 dB
(8 step)

10.7 dB
(6 step)

7.1 dB

(4 step)

3.6 dB

(2 step)

Controlled by Iris

11 F1.6

10 F2

0F F2.4

0E F2.8

0D F3.4

0C F4

0B F4.8

0A F5.6

09 F6.8

08 F8

07 F9.6

06 F11

05 F14

00 CLOSE

0 dB

(0 step)

0 dB

(0 step)

0 dB

(0 step)

0 dB

(0 step)

0 dB

(0 step)

0 dB

(0 step)

0 dB

(0 step)

0 dB

(0 step)

0 dB

(0 step)

0 dB

(0 step)

0 dB

(0 step)

0 dB

(0 step)

0 dB

(0 step)

0 dB

(0 step)

When switching from the Shutter Priority mode to the
Bright mode, the shutter speed set in the Shutter
Priority mode is maintained.

Basic Functions

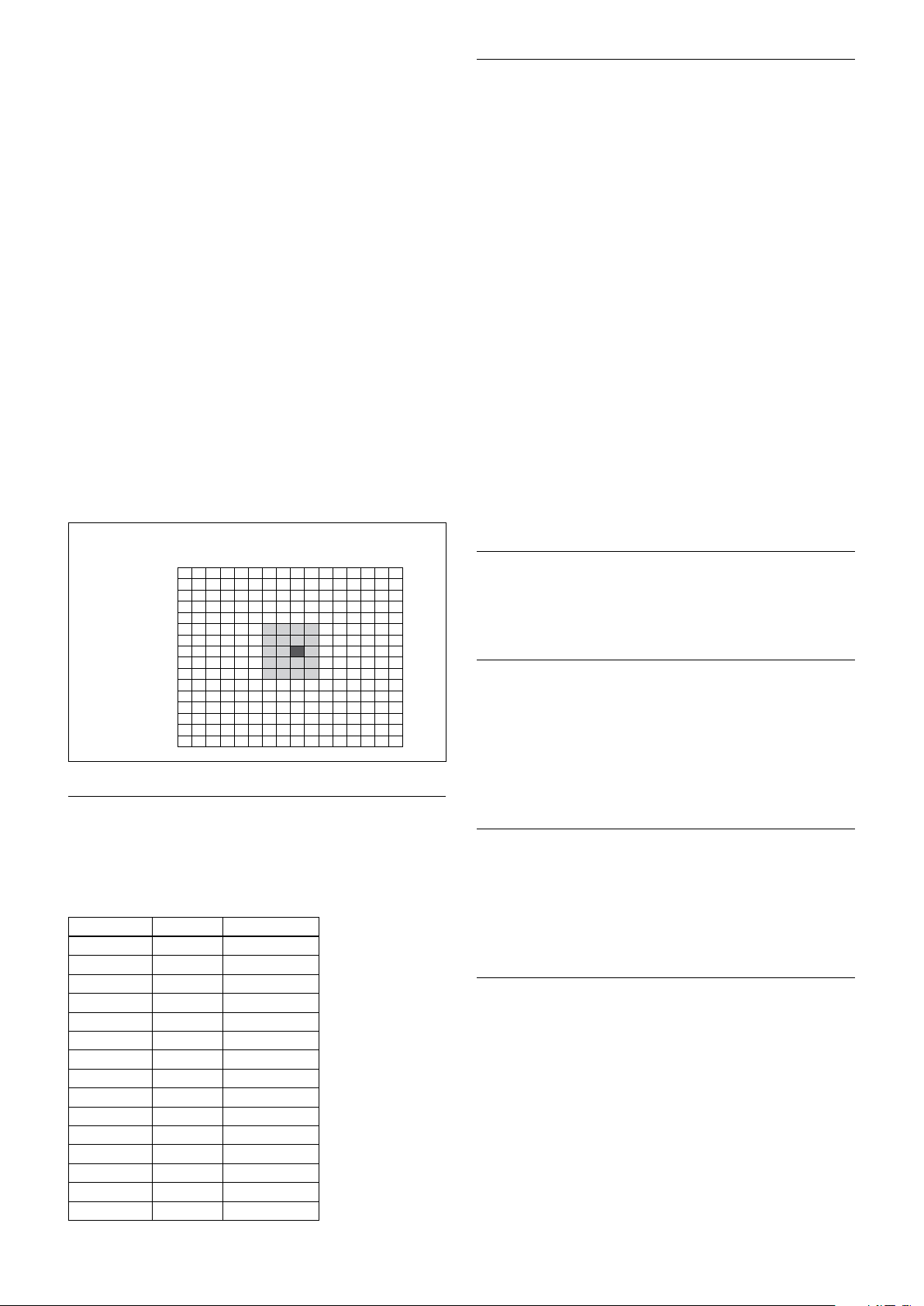

(8,7)

Horizontal 16

Vertical 16

0

0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F

1 2 3 4 5 6 7 8 9 A B C D E F

Spot Exposure Mode

In Full Auto AE, the level for the entire screen is
computed and the optimum Auto Iris and Gain levels
are determined. In Spot AE, a particular section of the
subject can be designated, and then that portion of the
image can be weighted and a value computed so that
Iris and Gain can be optimized to obtain an image.
For example, in an image with a lot of movement and
with varying levels of brightness, portions without
much change can be designated as such a “spot,” and
changes to the screen can be minimized in that area.
As shown in the diagram below, a range of 16 blocks
vertically and 16 blocks horizontally can be designated.
In the case where the center is designated (shown in
black), the level is computed along with a weighted
value for the surrounding block (shaded), including the
specified portions; and then the Gain and Iris are set.
The value of the designated portions and the
surrounding areas should be calculated as 100%, the
rest should be set to 20%. The range of the Spot AE
frame is fixed to 5 blocks vertically and 4 blocks
horizontally.

Slow AE (Auto Exposure)

The slow AE Response function allows you to reduce
the exposure response speed. Usually the camera is set
up so that the optimum exposure can be obtained
automatically within about
1 second. However, using the slow AE response
function allows you to lengthen the auto exposure
response speed from the initial setup speed (01h) to
approx. 10 minutes (30h) (at normal shutter speed).
For example, with the normal setting (about 1 second),
if the headlights of a car are caught by the camera, the
camera automatically adjusts the exposure so that it can
shoot a high-intensity subject (in this case, the
headlights). As a result, images around the headlights,
that is, the rest of the subject, except the headlights,
becomes relatively dark, and poorly distinguished.
However, using the slow AE function means the AE
response speed will be slower, and response time will
be longer. As a result, even if the camera catches a high­intensity subject (e.g., the headlights) for a moment,
you can still easily distinguish the portions of the image
surrounding the headlights.

Exposure Compensation

Exposure compensation is a function which offsets the
internal reference brightness level used in the AE
mode, by steps of 1.5 dB.

Data Step

0E +7 +10.5 dB
0D +6 +9 dB
0C +5 +7.5 dB
0B +4 +6 dB
0A +3 +4.5 dB

09 +2 +3 dB

08 +1 +1.5 dB

07 0 0 dB

06 −1 −1.5 dB

05 −2 −3 dB

04 −3 −4.5 dB

03 −4 −6 dB

02 −5 −7.5 dB

01 −6 −9 dB

00 −7 −10.5 dB

Setting value

High Resolution Mode

This mode enhances edges and produces higher
definition images.

Aperture Control

Aperture control is a function which adjusts the edge
enhancement of objects in the picture. There are 16
levels of adjustment, starting from “no enhancement.”
When shooting text, this control may help by making
them sharper.

Backlight Compensation

When the background of the subject is too bright, or
when the subject is too dark due to shooting in the AE
mode, back light compensation will make the subject
appear clearer.

Wide Dynamic Range Mode (WD)
(Supported in FW version 7.00 or later for
FCB-EV7520/CV7520 only)

The Wide Dynamic Range mode is a function for
dividing an image into several blocks and correcting
blocked-up shadows and blown-out highlights in
accordance with the intensity difference. It enables you
to obtain images in which portions ranging from dark
to light can be recognized, even when capturing a
subject with a large intensity difference that is backlit

11

Basic Functions

12

or includes extremely light portions.
Images with wide dynamic range are produced by
combining long-exposure signals (normal shutter) with
the signals of the high-intensity portions obtained with
a short exposure (high-speed shutter).

• About WD Set Parameter
(Command: 8x 01 04 2D 00 0q 0r 0s 00 00 00 00 FF)

q: Display brightness
(0: Dark to 6: Bright)
The brightness and the darkness can be

adjusted to seven levels. The normal brightness

is set to 3.
Initial setting: 3
r: Brightness compensation selection
(0: Darker, 1: Dark, 2: Standard, 3: Bright)
Set the area which you want to adjust the

brightness of the image with WD effect.
Initial setting: 2
S: Compensation level
(0: Low, 1: Mid, 2: High)
The compensation of the brightness, which you

select from the parameter, can be set to three

levels.
Initial setting: 1

Notes

• When the WD is On, false colors may appear in some parts of the
image. This phenomenon is unique to WD, and is not an
indication of a camera malfunction.

• When switching WD mode, images are shown at a maximum of 8
frames at the same time.

Visibility Enhancer (VE)

Depending on the imaging scene, the Visibility
Enhancer function makes the darker part of a camera
image brighter, and automatically correct brightness
and contrast to show bright parts clearly.

Note

This function is also used in the WD operation.

It allows you to easily read the number of vehicles and
number plate in the indoor parking area or in the
outdoor during the night.

MinimumShutter

When the subject becomes dark, the shutter speed
becomes slow, and then the gain is increased. This is a
function to put a limit on the shutter speed.
It prevents the camera shake when you shoot a moving
subject in a dark place.

Noise Reduction (NR)

The NR function removes noise (both random and
non-random) to provide clearer images.
The functions of both 2D NR (removal of 2­dimentional noise) and 3D NR (removal of 3­dimentional noise) are provided. When the 2D NR
level is increased, the details of image may be lost
because the smoothing of image with the peripheral
area is performed. Also, when the 3D NR level is
increased, adverse effects such as image blur and
blending in the successive images occur in the moving
portion. In this function, the mode to set the level of
effect by combining 2D/3D (normal setting) and the
mode to individually set the level of effect respectively
(independent setting) are available.

• In the normal setting, you can select the noise
reduction level from 6 levels: levels 1 to 5, plus off.

In this setting, the users cannot adjust the ratio of

2D/3D effect level.

• In the independent setting, you can individually select
the 2D NR and 3D NR from 6 levels respectively:
levels 1 to 5, plus off.

* The 2D/3D NR independent setting is supported in

version 6.00 or later.

The NR effect is applied in levels based on the gain,
and this setting value determines the limit of the effect.
In bright conditions, changing the NR level will not
have an effect.

Defog mode

When the surrounding area of the subject is foggy and
low contrast, the defog mode will make the subject
appear clearer.
You can select this function from the four levels: OFF,
Low, Middle and High.

HLC

HLC (highlight correction) is a function to adjust AE
and AF, and to perform the masking of light area as
required when a high intensity spot light is detected.

High Sensitivity Mode

In this mode, the maximum gain increases, enabling to
obtain a brighter output even in a darker environment.
However, if the gain reaches high level (up to 4x), the
image will have a large amount of noise.

Variable Gamma Mode

There are standard (01h) mode and straight gamma
(02h) mode.

Basic Functions

Gamma Offset

You can set the brightness from -16 (00h) to +64 (40h)
in each mode of variable gamma mode.

Contrast Adjustment Function (supported in
version 6.00 or later)

You can adjust the contrast level in the range from 0
(00h) to 255 (FFh). The initial setting is 128 (80h). The
smaller the value is, the lower the contrast becomes,
and the larger the value is, the higher the contrast
becomes.

Note

This function is available when the variable gamma mode is
set to standard (00h) mode and when VE/WDR/HLC are set
to OFF.

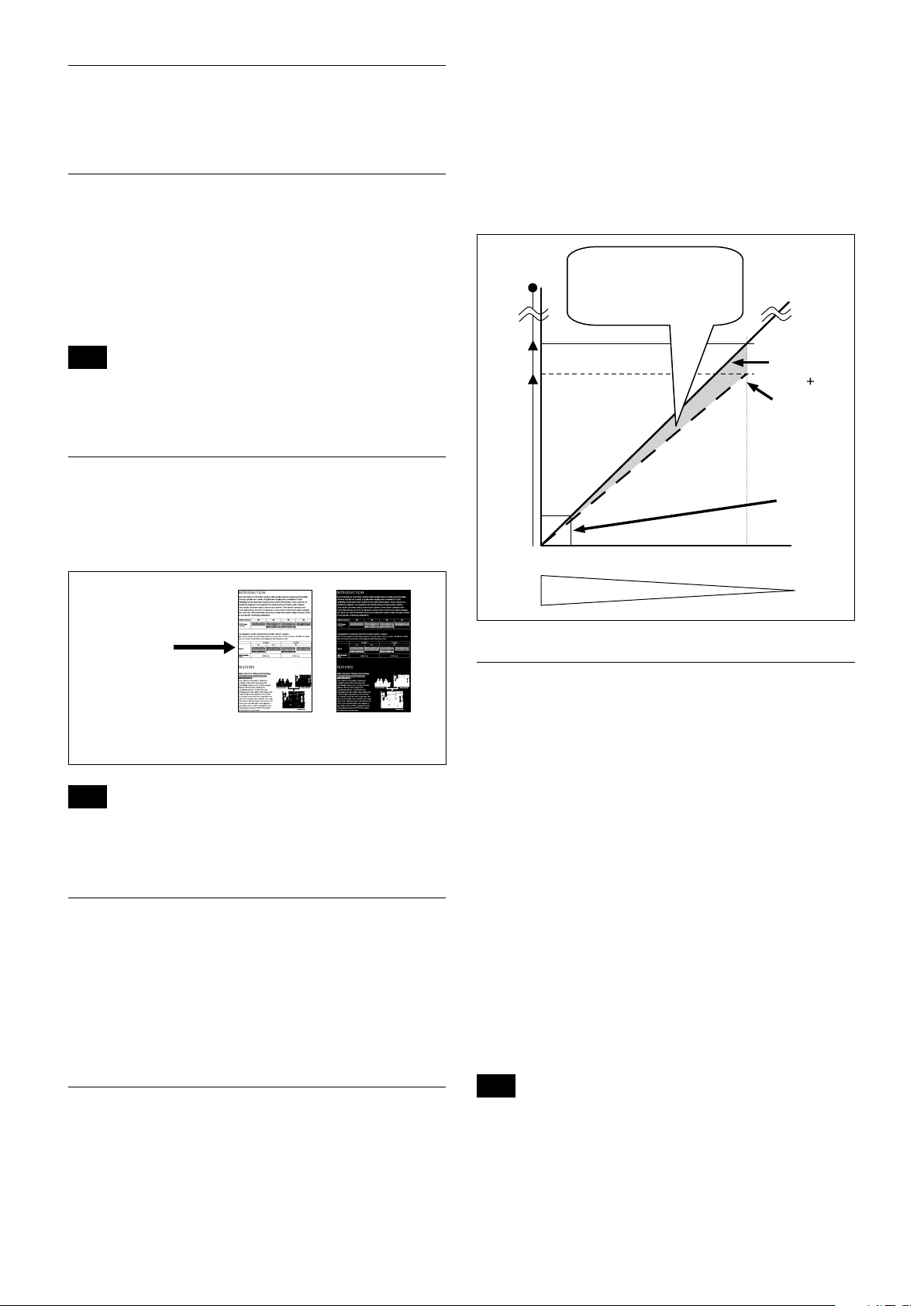

Color Enhancement

A color image can be created two colors brighter and
darker than the threshold value.
(The threshold level can be set with an optional level.)

zoom and digital zoom. The digital zoom can be
further used to zoom up to 360×. At the wide end, you
can obtain images without any reduction in the
resolution because the digital zoom is not switched On.
On the other hand, at the tele end, the correction effect
by the Image Stabilizer function is at its maximum so
blurring is reduced. The “StableZoom” function can be
switched On/Off in the register settings.

360x

approx.

36x

30x

Zoom
ratio

Wide Optical zoom position Tele

Blurring is corrected in this
digital zoom area.

“StableZoom”

Digital zoom

Optical zoom

The digital
zoom is not
switched On
at the wide
end.

Grayscale image
(256 levels)

Color image

Binarization
process

Note

Flicker on images with color enhancement is not a malfunction of
the camera. Flicker can be reduced by setting the threshold level
and the aperture control.

Assign any
color

Temperature Reading Function

The conversion value (hex) of the temperature sensor
built into to the camera can be read by using a query
command. The conversion value has an error of ±3 C,
and because the temperature sensor is inside the
camera, this value is not the ambient temperature. Use
it as a reference value.

Angle of view and resolution

Image Stabilizer

Switching On the Image Stabilizer function reduces
image blurring caused by, for example, vibration, which
allows you to obtain images without much blurring. A
correction effect is possible for a vibration frequency of
around 10 Hz. The Image Stabilizer function employs
the digital zoom system, so the angle of view and
resolution are changed, but the sensitivity is
maintained.

Hold Function of Image Stabilizer

With the Image Stabilizer function, suddenly stopping
high-speed movement (pan, tilt, etc.) of the camera
produces a blur sensor counteraction that may cause
image movement. In such a case, you can use a
command setting (hold) to maintain the correction of
the Image Stabilizer function. In this case the image
stabilizer is off, but there is no change in the angle of
view.

“StableZoom”

“StableZoom” is a function for performing correction
using the Image Stabilizer function in accordance with
the zoom ratio, and smoothly zooming up to
approximately 36× using a combination of the optical

Note

The hand shake correction function may not work correctly under
the condition that high-frequency vibration component exits. In
such a case, set the image stabilizer function to Off.

13

Basic Functions

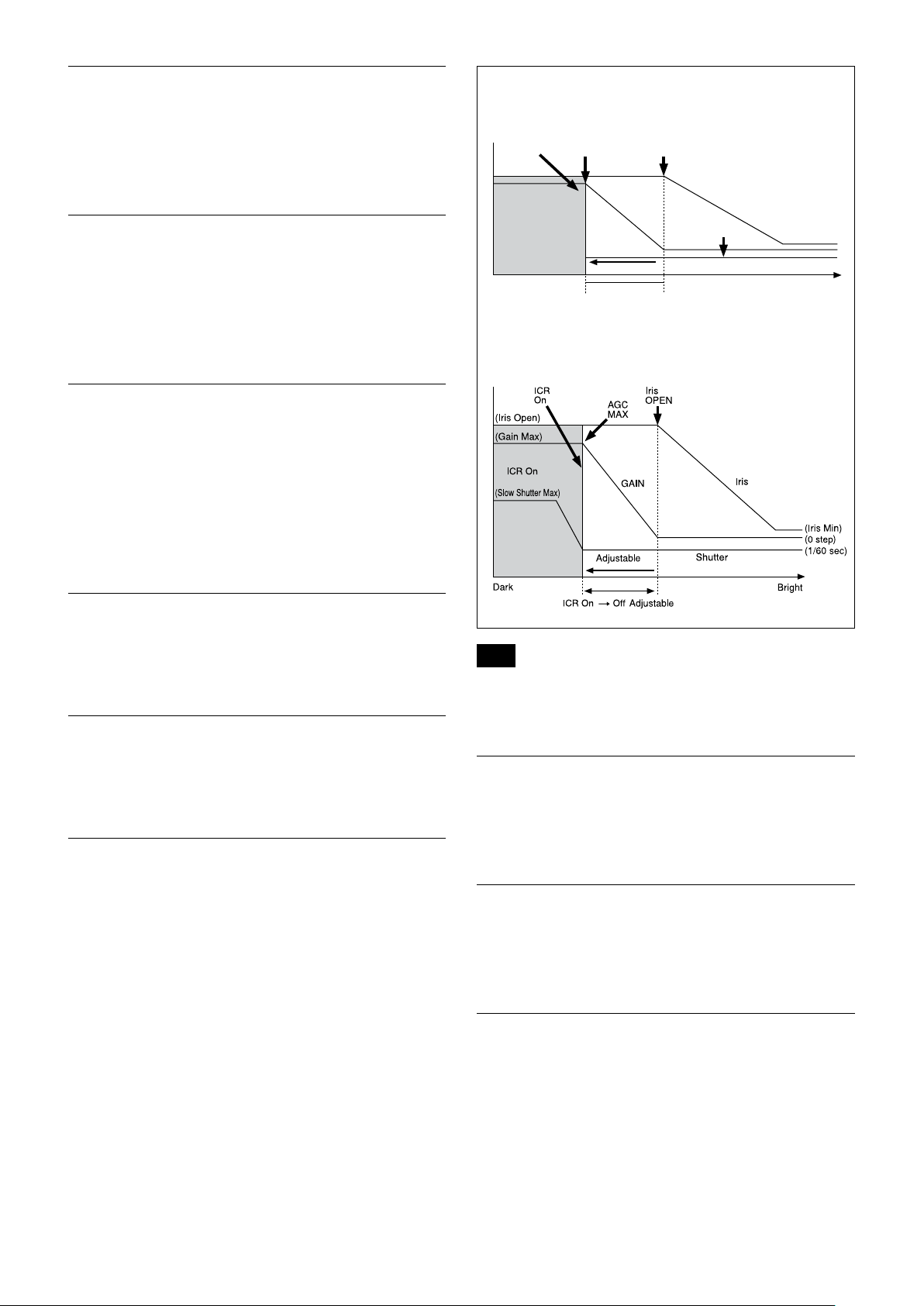

14

ICR

Shutter

Dark Bright

AGC
MAX

Iris
OPEN

Shutter 1/60 sec

ICR Off  On

GAIN

ICR On

Iris

Auto Slow Shutter On/Off

When set to “On,” the slow shutter functions
automatically when the light darkens. This setting is
available only when the AE mode is set to “Full Auto.”
The initial setting is “Auto Slow Shutter Off.”

Low-Illumination Chroma Suppress Mode

You can configure a chroma suppress mode for low­illumination conditions. This can be useful when color
noise is particularly noticeable in such conditions.
Four levels (disabled and three levels) are available for
the low-illumination chroma suppress mode.

ICR (IR Cut-Removable) Mode

An infrared (IR) Cut-Filter can be disengaged from the
image path for increased sensitivity in low light
environments. The ICR will automatically engage
depending on the ambient light, allowing the camera to
be effective in day/night environments.
When the auto ICR mode is set to On, the image
becomes black and white.

When Auto Slow Shutter is Off (initial setting)

When Auto Slow Shutter is On

Custom Color Gain

You can configure the color gain. Use this setting when
bright color is particularly important.
The initial setting 100% (4h) can be set to range from
approx. 60% (0h) to 200% (Eh) with 15 stages.

Custom Color Phase

You can configure the color phase. The initial setting 0
degrees (7h) is adjustable between approx.
(0h) to +14 degrees (Eh), in
15 increments.

Auto ICR Mode

Auto ICR Mode automatically switches the settings
needed for attaching or removing the IR Cut Filter.
With a set level of darkness, the IR Cut Filter is
automatically disabled (ICR On), and the infrared
sensitivity is increased. With a set level of brightness,
the IR Cut Filter is automatically enabled (ICR Off).
Also, on systems equipped with an IR light, the internal
data of the camera is used to make the proper decisions
to avoid malfunctions.
Auto ICR Mode operates with the AE Full Auto setting.

−14 degrees

Note

Depending on the information such as brightness, etc., in the On/
Off settings condition, a malfunction may occur when the subjects
largely consisting of blue and green colors are taken.

Camera ID

The ID can be set up to 65,536 (0000h to FFFFh). As
this will be memorized in the nonvolatile memory
inside, data will be saved.

Picture Effect

It consists of the following functions.

• Neg. Art: Negative/Positive Reversal

• Black & White: Monochrome Image

Others

E-FLIP

This function reverses the video output from the
camera vertically and horizontally.

LR Reverse

This function reverses the video output from the
camera horizontally.

Basic Functions

Freeze

This function captures an image in the field memory of
the camera so that this image can be output
continuously.

Because communication inside the camera is based on V cycle,
the captured image is always the one 3V to 4Vs after the
sending of a Command. Thus, you can not specify a time
period after sending EVEN, ODD or a Command.

Memory (Position preset)

Using the position preset function, 16 sets of camera
shooting conditions can be stored and recalled.
This function allows you to achieve the desired status
instantly, even without adjusting the following items
each time.

• Zoom Position

• Digital Zoom On/Off

• Focus Auto/Manual

• Focus Position

• AE Mode

• Shutter control parameters

• Bright Control

• Iris control parameters

• Gain control parameters

• Exposure Compensation On/Off

• Exposure Level

• Backlight Compensation On/Off

• Auto Slow Shutter On/Off

• White Balance

• R/B Gain

• Aperture Control

• ICR On/Off

• Defog

• WD On/Off *Supported in FW version 7.00 or later

for FCB-EV7520/CV7520 only

• WD Parameter *Supported in FW version 7.00 or

later for FCB-EV7520/CV7520 only

• VE On /Off

• VE Parameter

• Minimum Shutter Mode

• Minimum Shutter Limit

Custom Preset

As with the position preset function, the camera
shooting conditions can be stored and recalled. The
settings are recalled when the power is turned on.

For setting items, see the “Initial Settings, Custom Preset
and Backup” section on page 25.

User Memory Area

A user area of 16 bytes allows you to write data, such as
an ID for each customer, data for each system, and so
on, freely.

Note

Rewriting of memory is not unlimited. Be careful to avoid using the
memory area for such as unnecessary tasks as rewriting the
contents of the memory for every operation.

Register Setting

The camera’s initial settings can be changed by the
register setting command.
Register Setting Command:

8x 01 04 24 mm 0p 0q FF

mm: Register No. (=00 to 7F)
pq: Register Value (=00 to FF)

Register Inquiry Command:

8x 09 04 24 mm FF

mm: Register No.

y0 50 0p 0p FF

pp: Register Value
(returned from the camera)

The register setting items and No. are as follows.
For details, see “Register Setting” on page 55, 56.
Baud Rate: 00

Communication speed can be changed.

Monitoring Mode: 72

The output mode can be set.

LVDS Mode: 74

LVDS output mode can be set.

Zoom Limit: 50 (Wide end), 51 (Tele end)

The Wide and Tele zoom limits can be set.

D-Zoom Max: 52

The maximum digital zoom limit can be set (initial
settinig is 12×).

“StableZoom”: 53

ON/OFF can be set. (initial setting is OFF.)
For details, see page 12.

FocusTrace: 54

When you want to prioritize zoom speed, set
FocusTrace to Off to minimize the transition time
between Wide and Tele zoom (although the image
may be blurred because focus is not tracked).

FocusOffset: 55

Placing a dome cover in front of the camera may
cause the focal distance of the camera to change.
Especially at the Tele end, this effect exceeds the AF
range, so focus cannot track, although it responds
to changes in this value.

For details, see “Register Setting” on page 56.

AE parameter change during VE On, Defog On: 58

ON/OFF can be set. (initial setting is ON.)

Auto slow shutter limit: 59

The auto slow shutter limit can be set. (initial
setting is 04.)

For details, refer to “Register Setting” (page 56).

Extended normal shutter: 5A

The lower limit of slow shutter when the Auto Slow
Shutter mode is set to OFF can be set. (initial
setting is OFF.)

Defog Limit: 5B, 5C, 5D

The maximum value of Defog mode in the low,
mid and high levels can be set respectively.

15

Basic Functions

Extended mode: 5F

ON/OFF can be set. (initial setting is OFF.)
For details, see page 21.

Note

After changing the register setting, turn off the camera, then turn it
on again.

Privacy Zone Masking Settings

For details, see page 17.

Motion detection

For details, see page 19.

Title Display

• You can set a title of up to 11 lines. One line can
contain up to 20 characters.

• You can set display on/off, the horizontal position of
the first character, blinking state and color for each
line.

• The camera gives priority to a title display when the
camera status is displayed on the relevant line. On the
lines where a title is not set, the camera status is
displayed.

Line Number 00h to 0Ah
H-position 00h to 1Fh

00h WHITE
01h YELLOW
02h VIOLET

Color

Blink

03h RED
04h CYAN
05h GREEN
06h BLUE
00h Off
01h On

00 01 02 03 04 05 06 07

A B C D E F G H

08 09 0A 0B 0C 0D 0E 0F

I J K L M N O P

10 11 12 13 14 15 16 17

Q R S T U V W X

18 19 1A 1B 1C 1D 1E 1F

Y Z & ? ! 1 2

20 21 22 23 24 25 26 27

3 4 5 6 7 8 9 0

28 29 2A 2B 2C 2D 2E 2F

À È Ì Ò Ù Á É Í

30 31 32 33 34 35 36 37

Ó Ú Â Ê Ô Æ Ã

38 39 3A 3B 3C 3D 3E 3F

Õ Ñ Ç ß Ä Ï Ö Ü

40 41 42 43 44 45 46 47

Å $ ¥ £ ¿ ¡

48 49 4A 4B 4C 4D 4E 4F

ø ” : ’ . , / -

16

Basic Functions

Privacy Zone Masking Function

Privacy Zone masking protects private objects and
areas such as house windows, entrances, and exits
which are within the camera’s range of vision but not
subject to surveillance.
Privacy zone masking can be masked on the monitor to
protect privacy.

Features

• Mask can be set on up to 24 places according to Pan/
Tilt positions.

• Mask can be displayed on 8 places per screen
simultaneously.

• Individual on/off zone masking settings.

• Two colors can be individually set for each of
24 privacy zones.

• Interlocking control with zooming.

• Interlocking control with Pan/Tilt.

• Non-interlocking control with Pan/Tilt.

Details of Setting Commands

Set Mask

Command: 8x 01 04 76 mm nn 0r 0r 0s 0s FF
Parameters:

mm Setting Mask

See “mm: Mask setting list” in “Parameters” on page 18.

nn Selects new setting or resetting for the zone. See “nn:

Setting” in “Parameters” on page 18.
rr Sets the half value “w” of the Mask Width.
ss Sets the half value “h” of the Mask Height.

See “pp: x, qq: y, rr: w, ss: h” in “Parameters” on page 18.

Comments: To set the mask, first display the object at

the center of the screen. When “nn” is set to 1, the
current Pan/Tilt/Zoom Position is recorded in
internal memory.

When “nn” is set to 0, the Pan/Tilt/Zoom Position

in memory is not changed.

Notes

• The tilt angle at which you can set the mask is between –70 to
+70 degrees.

• It is recommended that you set the size to at least twice the size
of the object (height and width).

Set Display

Command: 8x 01 04 77 pp pp pp pp FF
Parameter:

pp pp pp pp Each 24 Privacy Zones corresponds to the BIT.

See “pp pp pp pp: Mask bit” in “Parameters” on
page 19.

Comments: Each of 24 Privacy zones can be switched

on and off individually by a single VISCA
Command. If you want to display a Privacy zone,
you must set its bit to 1. If you do not want to
display a Privacy zone, you must set its bit to 0.

Set Mask Color

Command: 8x 01 04 78 pp pp pp pp qq rr FF
Parameter:

pp pp pp pp Each 24 Privacy Zones correspond to the BIT.

See “pp pp pp pp: Mask bit” in “Parameters” on
page 19.

qq Set the color code
rr Set the color code. See “qq, rr: Color code” in

“Parameters” on page 19.

Comments: Two different color masks can be chosen.
Two colors can be individually set for each of

24 privacy zones.

If the bit of parameter (pp pp pp pp) is set to “0”,

mask color will be “qq” color (Color code). If the
bit of parameter (pp pp pp pp) is set to “1”, the
mask color will be “rr” color (Color code).

17

Basic Functions

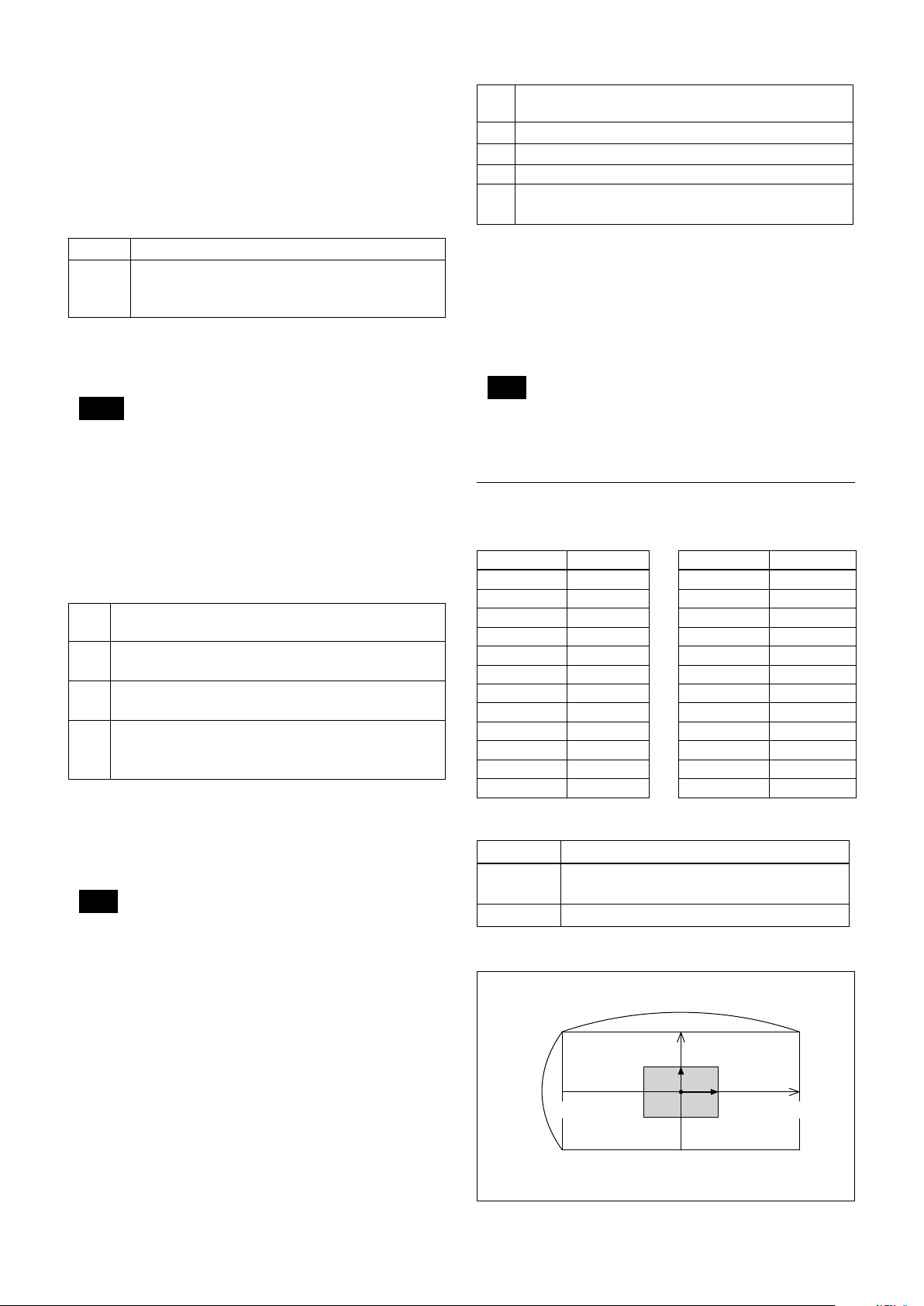

160

90

0h(x,y)

w

B0h

D3h

2Dh

50h

Example: 8x 01 04 78 00 00 00 03 00 07 FF
The mask color of Mask_A and Mask_B is White

(color code 07h), and the mask color of the other
Mask (C to X) is Black (color code 00h).

Set Pan Tilt Angle

Command: 8x 01 04 79 0p 0p 0p 0q 0q 0q FF
Parameter:

ppp Pan Angle
qqq Tilt Angle

See “Setting pan/tilt angle” in “Parameters” on
page 19.

Comments: Pan/Tilt angle settings are hexadecimal

data.

The resolution of Pan/Tilt angle is 0.088 degrees.

Notes

• When you set the pan/tilt angle, locate the pan/tilt position at
the center point of the FCB camera’s position.

• If you set the pan/tilt angle or zoom the camera, a bigger mask
will be displayed for about one second.

Parameters:

mm Setting Mask

See “mm: Mask setting list” in “Parameters” on page 18.

pp Sets the center position “x” of the Mask on screen.
qq Sets the center position “y” of the Mask on screen.
rr Sets the half value “w” of the Mask Width.

ss Sets the half value “h” of the Mask Height.

See “pp: x, qq: y, rr: w, ss: h” in “Parameters” on page 18.

Commands: Mask does not interlock with pan/tilt.

The limitations of parameters are as follows.

(hexadecimal representation)
x: ±50h
w: ±50h
y: ±2Dh
h: ±2Dh

Note

When the Set Mask command and the Non Interlock Mask
command are set to the same mask, the command set later
becomes effective.

Parameters

Set PTZ Mask

Command: 8x 01 04 7B mm 0p 0p 0p 0q 0q 0q 0r 0r

0r 0r FF

Parameter:

mm Setting Mask

See “mm: Mask setting list” in “Parameters” on page 18

ppp Pan Angle (000 to FFF)

See “Setting pan/tilt angle” in “Parameters” on page 19.

qqq Tilt Angle (000 to FFF)

See “Setting pan/tilt angle” in “Parameters” on page 19.

rrrr Zoom Position (000 to 4000)

See “Zoom Ratio and Zoom Position (for reference)” on
page 53.

Comments: Mask can be set at the desired position

by setting the pan tilt angle and zoom position
using this command. The set value can be input by
hexadecimal number.

Note

Privacy mask zone follows the change of angle of view according
to zoom. However, the follow might be delayed for a moment if
there is any big change, such as when using D-Zoom or E-FLIP.

mm: Mask setting list

Mask Name mm (Hex) Mask Name mm (Hex)

Mask_A 00h Mask_M 0Ch
Mask_B 01h Mask_N 0Dh
Mask_C 02h Mask_O 0Eh
Mask_D 03h Mask_P 0Fh
Mask_E 04h Mask_Q 10h
Mask_F 05h Mask_R 11h
Mask_G 06h Mask_S 12h
Mask_H 07h Mask_T 13h
Mask_I 08h Mask_U 14h
Mask_J 09h Mask_V 15h
Mask_K 0Ah Mask_W 16h
Mask_L 0Bh Mask_X 17h

nn:Setting

nn Setting

00 Resetting the zone size (the value of w,h)

for the existing mask.

01 Setting newly the zone size (the value of w,h).

pp: x, qq: y, rr: w, ss: h

Non Interlock Mask

Command: 8x 01 04 6F mm 0p 0p 0q 0q 0r 0r 0s 0s

FF

18

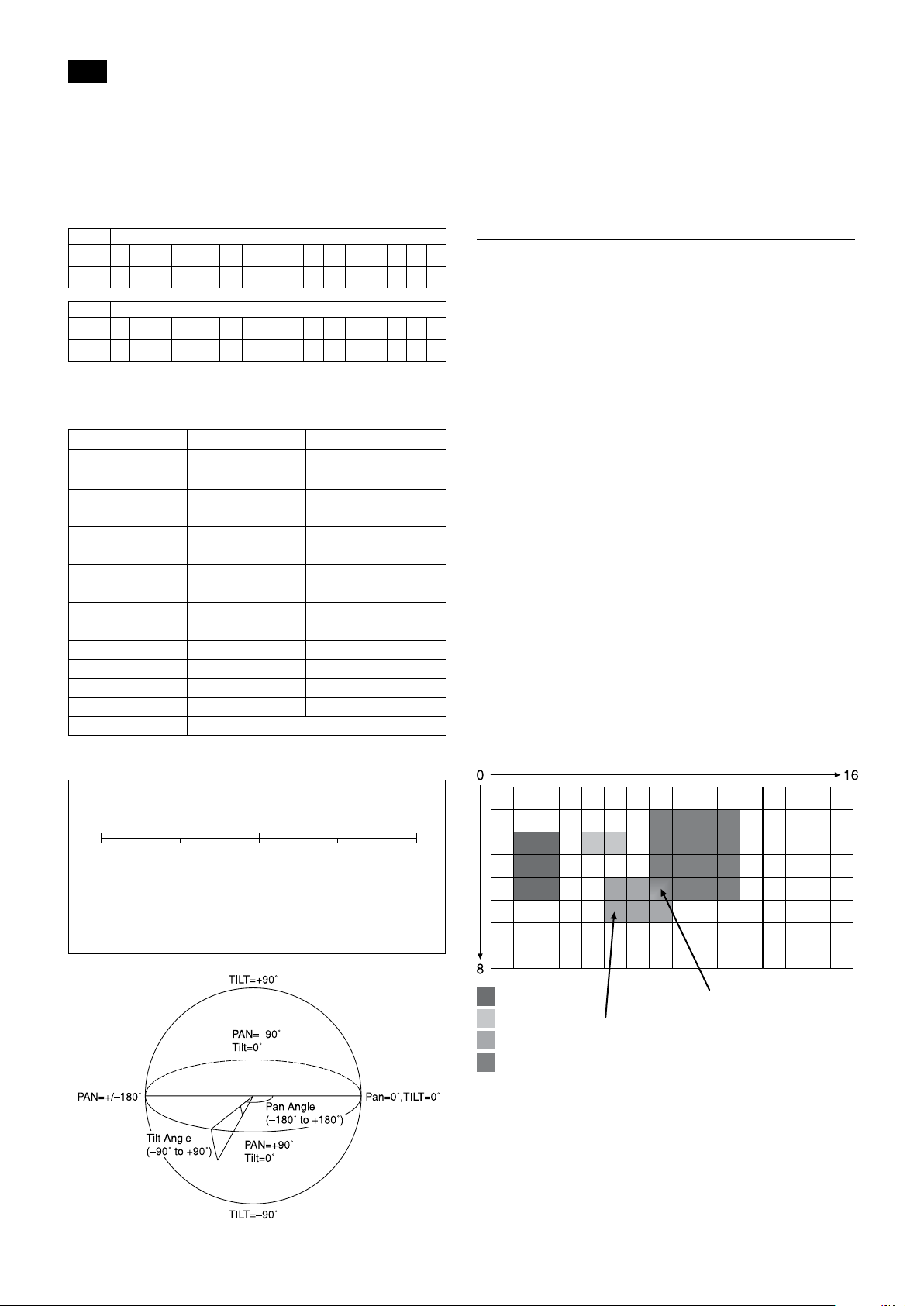

mask

Effective display area

Basic Functions

0 90-180 -90 180

400h800h C00h 800h

Note

The priority order of the mask display is in the sequence from A
(highest) to X (lowest).
When you set the parameters of masks non-sequentially, it is
recommended that you set the mask whose priority order is higher,

first.

pp pp pp pp: Mask bit

pp pp

bit 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0
Mask - - X W V U T S - - R Q P O N M

pp pp

bit 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0
Mask - - L K J I H G - - F E D C B A

The “-” must be “0”.

qq, rr: Color code

Mask (color) Code (qq, rr) Translucence (qq, rr)

Black 00 h 10 h
Gray1 01 h 11 h
Gray2 02 h 12 h
Gray3 03 h 13 h
Gray4 04 h 14 h
Gray5 05 h 15 h
Gray6 06 h 16 h
White 07 h 17 h

Red 08 h 18 h

Green 09 h 19 h

Blue 0A h 1A h

Cyan 0B h 1B h

Yellow 0C h 1C h

Magenta 0D h 1D h

Mosaic 7F h

Setting pan/tilt angle

Motion Detection (MD) Function

This function instructs the camera to detect movement
within the monitoring area and then send an alarm
signal automatically.
The Detect signal goes out through the VISCA
Command.

Features

• You can set a frame for the detection range of
16 (horizontally) × 8 (vertically) blocks.

• You can set up to four frames.

• When the motion is detected in the set frame, the
Alarm Replay VISCA Command is sent.

• The threshold level for detection can be set (common
to four frames).

• The interval of alarm detection can be set up to
255 seconds in units of one second.

• You can set on/off for each frame.

• The frame number is also sent with Alarm Replay to
report in which frame the motion has been detected.

Frames

Setting frames

You can set the frame by assigning the starting point
and terminating point vertically and horizontally. You
can set up to four frames.

When motion is detected within the range where
frames overlap

The alarms are sent for both frames.

Angle/Parameter of Angle (ppp, qqq)

Set the angle resolution to 360 (degree)/4096 (1000h).

Frame 1

Frame 2

Frame 3

Frame 4

At this position, the
alarm for frame 3 is
sent.

Within this overlapped
range, alarms are sent for
both frame 3 and frame 4.

19

Basic Functions

Sending Alarms

• When motion is detected, the Alarm Replay
command is issued via the serial command (VISCA)
communication line.

Alarm issue Alarm issue Alarm issue Alarm issue

Alarm interval

Motion is
detected in
frame 1.

Interval

Motion is
detected in
frame 1.

Motion is
detected in
frame 1.

Motion is
detected in
frame 1.

Setting Commands

• MD On/Off

The Display mode is selected by the Function Set

command and frames are set by the Frame Set
command. By sending an MD On command, the
frame is displayed when motion is detected in the set
frame. The Alarm Reply command is sent via the
serial command (VISCA) communication line.

8x 01 04 1B 02 FF --- On
8x 01 04 1B 03 FF --- Off

• Function Set

Select the detected frame, and set the Threshold Level

and the Interval Time.

8x 01 04 1C 0m 0n 0p 0q 0r 0s FF
m: Display Mode on/off (bit0)
n: Detection Frame set on/off (bit0:Frame0, bit1:

Frame1, bit2:Frame2, bit3:Frame3)

-- (0 to F)
pq: Threshold -- (00 to FF)
rs: Interval time set -- (00 to FF)
(When pq and rs are 0, the command is received, but
the setting is disabled.)

• When multiple motions are detected or motion is
detected in another frame within the set interval
following the original time the alarm was issued,
another alarm command is not issued.

• When motion is detected after the interval time
elapsed, the alarm is issued again.

Interval Interval

Motion is
detected in
frame 1.

Motion is
detected in
frame 2.

Motion is
detected in
frame 3.

Motion is
detected in
frame 3.

• Frame Set

You can set up to four frames by assigning the starting

and terminating points.

Note

Set a terminating point higher vertically and

horizontally than the starting point. If you set the
wrong value, an error occurs.

8x 01 04 1D 0m 0p 0q rr 0s FF
m: Select Detection Frame (0: Frame0, 1: Frame1, 2:

Frame2, 3: Frame3) -- (0, 1, 2, 3)
p: Frame set Start Horizontal Position -- (00 to 0F)
q: Frame set Start Vertical Position -- (00 to 07)
r: Frame set End Horizontal Position -- (01 to 10)
s: Frame set End Vertical Position -- (01 to 08)

• Alarm Reply

When motion is detected in the set frame, the camera

issues this command. This command includes the
information on the number of the detected frame.

y0 07 04 1B 0p FF
p: Frame Number (bit0: Frame0, bit1: Frame1, bit2:

Frame2, bit3: Frame3)

20

Basic Functions

Extended Commands

Extended commands support the following functions
(described previously).
Turn on this mode (for details, see “Extended Mode” in
“Register Setting” on page 56) to enable the following
functions.

• Exposure Compensation

The setting can be set in steps of approximately 0.2dB

(-128 (00h) to approximately +127 (FFh)).

For details, see page 11.

• Aperture Control

The setting can be set to 256 levels (00h to FFh).

For details, see page 11.

• Custom Color Gain

The initial setting is 100% (80h), and the setting can

be set to 256 levels from approximately 0% (00h) to
approximately 200% (FFh).

For details, see page 13.

• Custom Color Phase

The initial setting is 0 degrees (80h), and the setting

can be set to 256 levels from approximately −14
degrees (00h) to approximately +14 degrees (FFh).

For details, see page 13.

• Auto ICR Mode

The setting of ICR ON→OFF threshold can be set

when Auto ICR is on.
The setting range is 0 step (00h) to 255 step (FFh).
The setting of ICR OFF→ON threshold (On Level)

can be set when Auto ICR is on.
The setting range is 0 step (00h) to 28 step (1Ch).

For details, see page 13.

Note

When the extended mode is Off, CMD_NOT_EXEC

will be returned if you send the extended commands

to the camera.
When the extended mode is On, CMD_NOT_EXEC

will be returned if you send the normal commands to

the camera.

User’s Updating

Overview

The details on the firmware version upgrade are
described.
To perform the firmware version upgrade, the
following three steps are required.

1) Shifting to the maintenance mode using the Visca
command

2) Binary transmission (X model protocol) of the
firmware in the maintenance mode

3) Finalizing setting using the Visca command

Each step is described as follows.

1) Shifting to the maintenance mode using the Visca
command

After entering the standby mode using the Visca

command, the unit shifts to the maintenance mode.
When shifting to the maintenance mode, the
Writer program is written in FlashROM after the
last Visca command is sent, and then the Writer
program is started after reboot. The writing takes
approximately 5 seconds.
Note that if the power is turned off during the
writing, the program will be broken and cannot be
restored.

2) Binary transmission (X model protocol) of the
firmware in the maintenance mode

Serial Port Setting during maintenance mode

Communication Speed 115200 bps
Data bit 8 bit
Parity None
Stop bit 1 bit
Flow control

In the maintenance mode, the terminal software

capable of sending the character command is used.

The terminal software that is provided with the

XMODEM binary transfer protocol is used.

When you transfer the camera firmware (uug.bin

file) using this function, the transferred file is
written in FlashROM. The writing takes
approximately 4 minutes.
Note that if the power is turned off during the
writing, the program will be broken and cannot be
restored.
After the writing is completed, the unit restarts
automatically, and then the camera firmware is
started.

None

3) Finalizing setting using the Visca command

The finalizing setting is performed using the Visca

command.

You cannot read the correct camera firmware

version without performing this setting. Be sure to
perform this setting.

21

Basic Functions

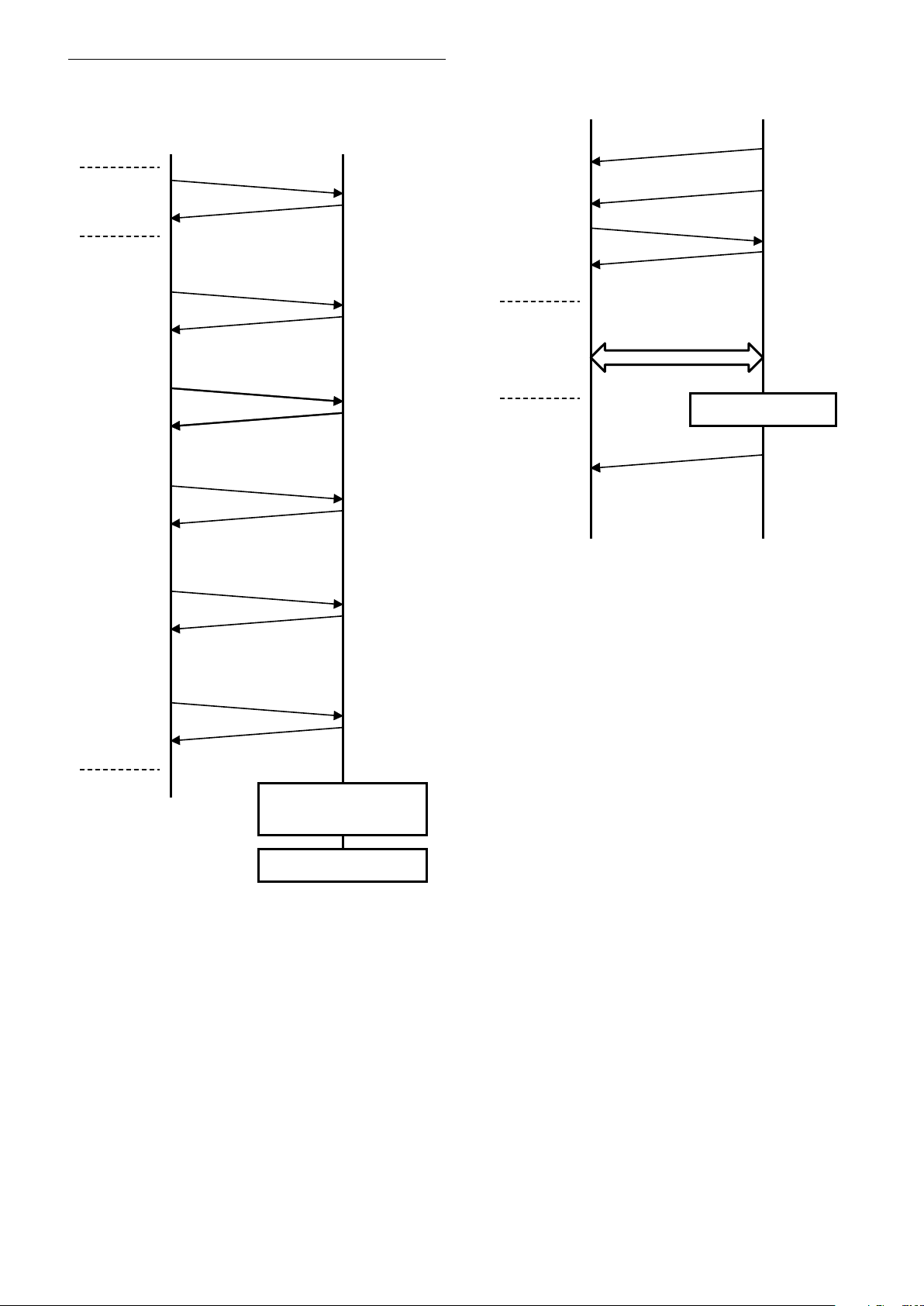

HOST FCB

CAM_Power off

8x 01 04 00 03 FF

ACK, COMP

8x 01 04 00 0C FF

ACK, COMP

8x 01 04 00 0D FF

ACK, COMP

8x 01 04 00 13 FF

ACK, COMP

8x 01 04 00 04 FF

ACK, COMP

8x 01 04 00 20 FF

ACK, COMP

Enter
Standby
Mode

Enter
Maintenance
Mode

* Writing of Writer program
in FlashROM

* When power is off during this period, camera will be broken.

REBOOT AUTOMATICALLY

Sending firmware

* When power is off during this period, camera will be broken.

Sending Firmware Binary
with X modem protocol

Firmware Update
Ready Message

HOST FCB

’reboot’ + CR

CODE NAME+

VERSION + CR

“ready” + CR

“reprogram ( )” + CR

“receive”+ CR

* Writing in FlashROM

Update Procedure

Enter Maintenance Mode

Maintenance Mode

22

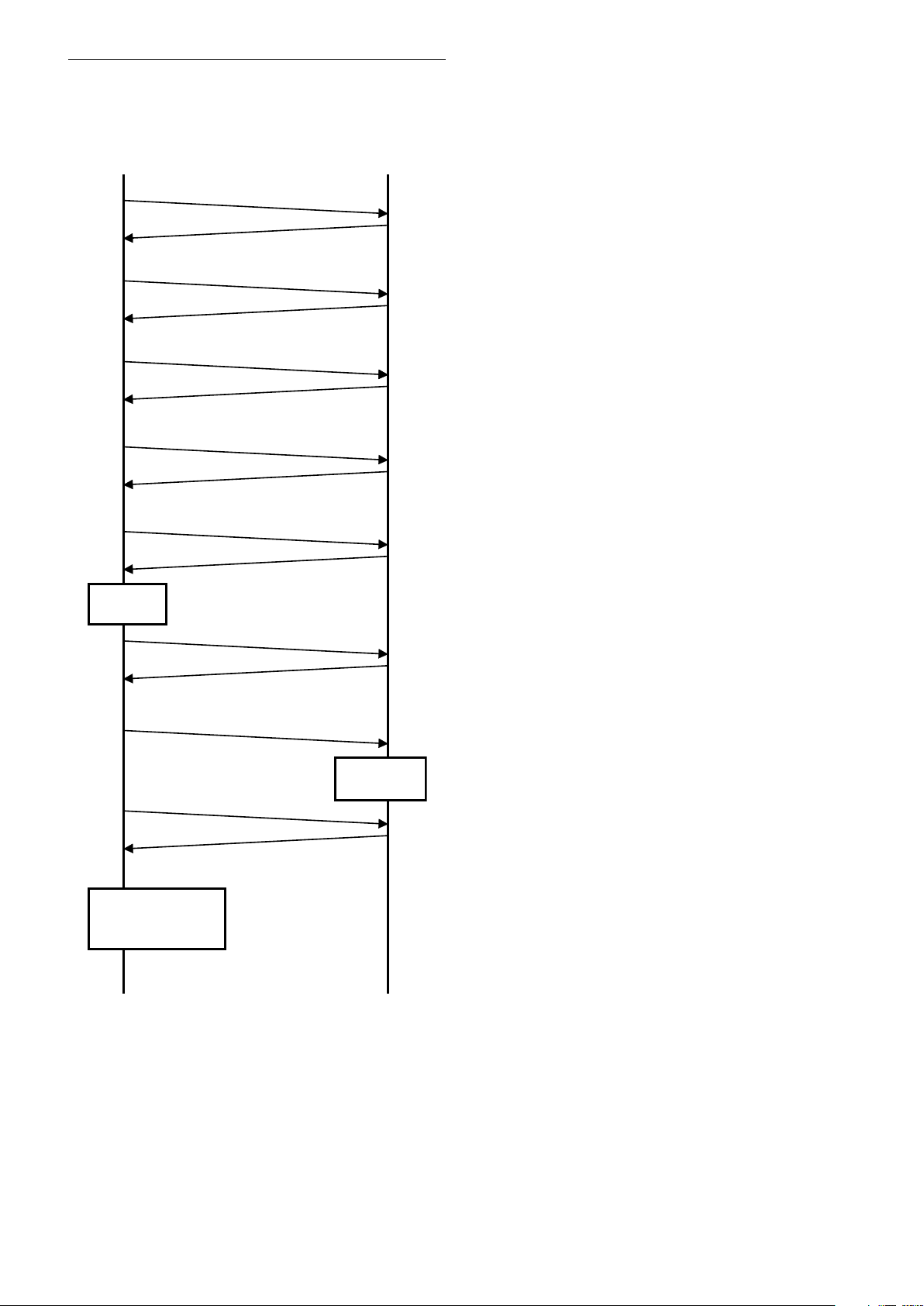

Finalizing procedure

HOST FCB

Reboots
automatically.

8x 01 7F 01 7F FF

ACK, COMP

8x 01 7F 7F 02 00 00 01 00 01 FF

ACK, COMP
8x 01 7F 7F 02 03 08 00 00 08 FF: EV7520
8x 01 7F 7F 02 03 08 00 00 0A FF: EV7517

ACK, COMP

8x 01 7F 7F 02 03 00 00 06 01 FF

ACK, COMP

8x 01 7F 7F 02 03 00 01 06 01 FF

ACK, COMP

8x 09 7F 7F 01 03 00 02 FF

8x 09 00 02 FF

9x 50 00 00 00 01 FF is received.*

1

8x 01 04 19 03 FF

9x 50 00 20 HH HH JJ JJ 02 FF is received.

Check that JJJJ is the
same as the updated
FW version. *

2

*1 When 9x 50 00 00 00 00 FF is received,
retransmit 8x 09 7F 7F 01 03 00 02 FF
until 9x 50 00 00 00 01 FF is received.

*2 If it is not the same, perform the
update procedure from the beginning.

Wait for
10 seconds.

After the maintenance mode, perform the following
finalizing procedure.

Basic Functions

23

Eclipse

0.0

0.2

0.4

0.6

0.8

1.0

400 500 600 700 800 900 1000

Relative response [a.u.]

Wavelength [nm]

Red Green Blue

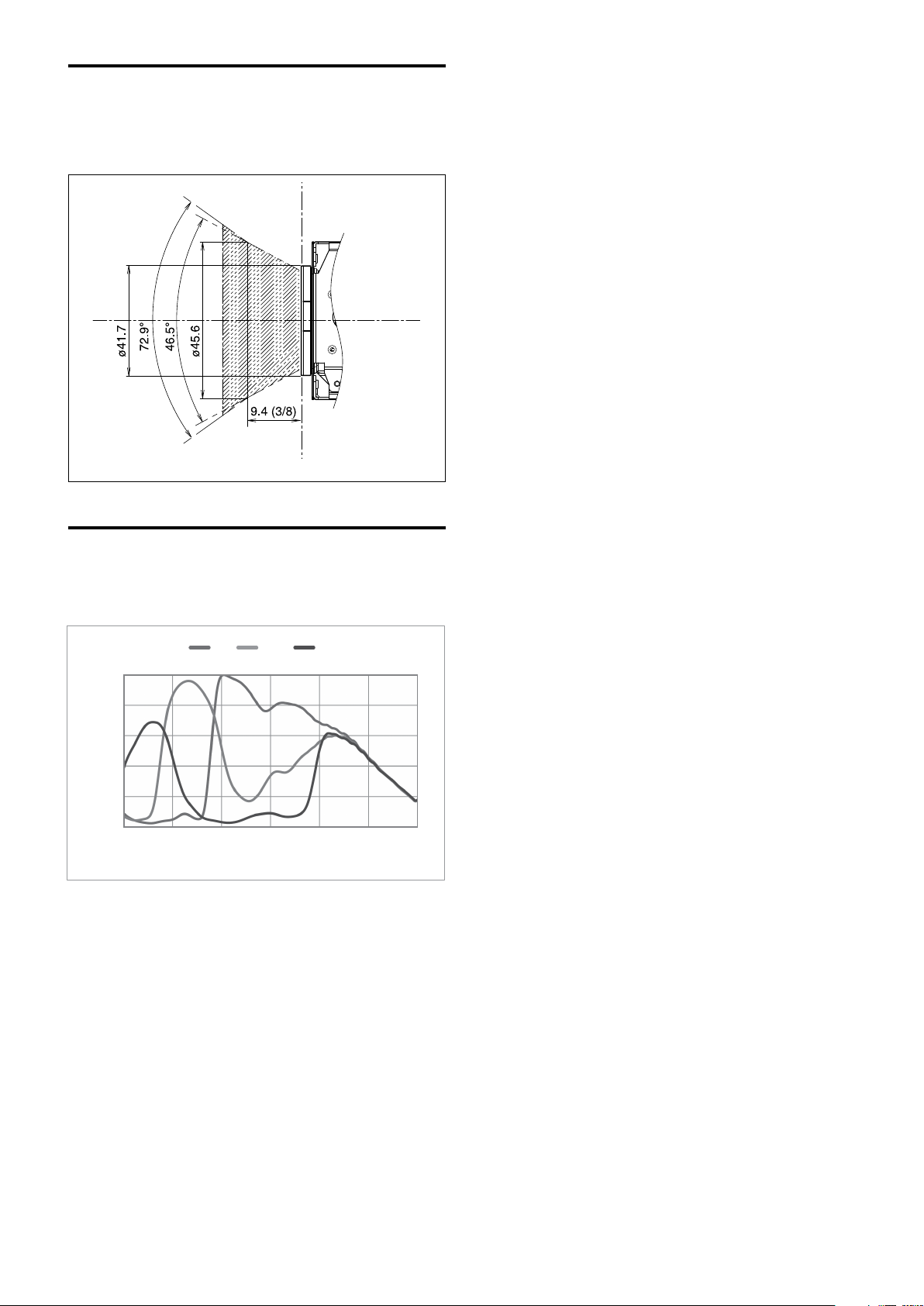

When designing the housing, refer to the dimensional
allowance as shown in the figure below.

unit: mm (inches)

Basic Functions

Spectral Sensitivity Characteristics

Use the graph as a reference value. (We can not
guarantee these values.)
This data is measured when the IR cut filter is removed
and the characteristics of the lens and optical source
characteristics are ignored.

24

Initial Settings, Custom Preset and Backup

Initial Settings for the various functions of the FCB
camera are indicated in the “Initial Settings” column.
The “Custom Preset” column indicates whether the
custom preset function can be used to store the
settings. The function enables the stored settings to be
recalled automatically when the camera is turned on.
The “Back up at standby” column indicates whether the
data is preserved even when the camera is in the
standby mode.

Basic Functions

Mode/Position setting Initial Settings

Zoom Position Wide end
D-Zoom On/Off
D-Zoom Separate/Combine
D-Zoom Position
Focus Position
Focus Auto/Manual
Near Limit Setting D000 (30 cm)
AF Sensitivity
AF Mode
AF Run Time 5 sec
AF Interval 5 sec
WB Mode
WB Data (Rgain, Bgain)
One Push WB Data
AE Mode Full Auto
AE Response
Auto Slow Shutter Mode
Shutter Position
Iris Position
Gain Position
Bright Position
Exposure Compensation On/Off
Exposure Compensation Amount
BackLight On/Off
Spot AE On/Off
Spot AE Position Setting X=8, Y=8
Aperture Level
High Resolution Mode On/Off
LR Reverse On/Off
Freeze On/Off
Picture Effect
ICR On/Off
Auto ICR On/Off
Auto ICR Threshold Level
Camera Memory Same as the initial value setting
Display On/Off
Mute On/Off
Auto ICR Alarm On/Off
Image Stabilizer On/Off/Hold
High Sensitivity Mode On/Off
Gamma 0:standard
Defog On/Off
NR level (normal setting)

A circle “” in this column signifies that the data is preserved.
A cross “” signifies that the data IS NOT preserved.

On

Combine

00h

—

Auto

Normal
Normal

Auto

—
—

01

Off

—
—
—
—

Off

±0
Off
Off

0Ah

Off
Off
Off
Off
Off
Off

0Eh

Off
Off
Off
Off
Off

Off

3

Custom

Preset

 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 

Back up

at standby

25

Basic Functions

Mode/Position setting Initial Settings

NR level (independent setting)

*1

Gain Limit
Color Enhancement On/Off
Color Enhancement Threshold Level
Color Enhancement High Luminance
Color Setting Y

Color Enhancement High Luminance
Color Setting Cr

Color Enhancement High Luminance
Color Setting Cb

Color Enhancement Low Luminance
Color Setting Y

Color Enhancement Low Luminance
Color Setting Cr

Color Enhancement Low Luminance
Color Setting Cb

Disabled

—
Off
30h

00h

40h

40h

64h

47h

14h

Low-Illumination Chroma Suppress 2h (Mid)
Color Gain 4h (100%)
Color Hue 7h (0 degrees)
Title Display On/Off
Title Setting
Mask Setting
Mask Display On/Off
Mask Color Setting
Center Line Display On/Off
E-Flip On/Off
Privacy Zone On/Off
Privacy Zone Setting

Camera ID
MD On/Off
MD Display Setting
MD Threshold Level

Off

—

—
Off

—
Off
Off
Off

—

0000h

Off
Off
10h

MD Interval 1 sec
MD Window Setting
ZoomPos Continuous Output On/Off
ZoomPos Continuous Output Interval

Minimum Shutter Mode

Minimum Shutter Limit

HLC Level

HLC Mask Level

VE On/Off

—
Off

3Ch

Off

1/125

Off

Off
Off

VE Parameter Display brightness level: 3

Brightness compensation
selection: 2 (Standard)

WD On/Off

*2

WD Parameter

*2

Compensation level: 1 (Mid)

Off

Display brightness level: 3
Brightness compensation
selection: 2 (Standard)
Compensation level: 1 (Mid)

80h

Contrast Adjustment

*1

Custom

Preset

 
 
 
 

 

 

 

 

 

 

 
 
 
 
 
 
 
 
 
 
 
 

 
 
 
 
 
 
 
 

 
 
 
 
 

 

 

 

 

Back up

at standby

” in this column signifies that the data is preserved.

A circle “
A cross “” signifies that the data IS NOT preserved.

Notes

• The number of times written to EEPROM (when Custom Preset is executed) is limited.

• Privacy Zone Setting while digital zooming is not preserved by Custom Preset.

*1 Supported in FW version 6.00 or later
*2 Supported in FW version 7.00 or later for FCB-EV7520 only

26

Basic Functions

    

Mode Power Off Initializing Power On Freeze On MemRecall

Mode Condition

Condition

Address Set

        

        

        

        

        

        

        

        

        

        

        

        

        

        

        

        

        

        

    

    

    

Command Cancel

Power On/Off

IF_Clear

Lens

Mode Power Off Initializing Power On Freeze On MemRecall Zoom Direct Focus Direct ZmFo Direct Focus Auto

Zoom Direct

Zoom Focus Direct

D-Zoom On/Off

D-Zoom Separate/Combine

D-Zoom Tele/Wide/Stop

D-Zoom ×1/Max

D-Zoom Direct

Focus Far/Near/Stop

Focus Direct

Focus Auto/Manual

One Push AF

Focus Near Limit

AF Sensitivity Normal/Low

AF Mode Norm/Interval/Zoom

Zoom Tele/Wide/Stop

27

AF Activation Time/Interval Setting

        

Camera Memory Set/Reset

Camera Memory Recall

Lens Initialize

OnePush ATW Manual

Basic Functions

Sodium Lamp

Sodium

Sodium

Outdoor

Outdoor Auto

Lamp Auto

Lamp

Auto

Iris

Shutter

AE

Bright WD VE/Defog HLC

Priority

Priority

Manual

White Balance

            

            

            

            

            

            

            

            

            

            

            

            

            

            

            

            

            

            

            

            

              

              

              

              

BGain Setting

RGain Setting

Mode Power Off Initializing Power On Freeze On MemRecall WB Auto Indoor outdoor

One Push WB

WB Mode Switchover

Exposure

Mode Power Off Initializing Power On Freeze On MemRecall AE Full Auto

AE Full Auto

AE Manual

Bright

Shutter Priority

Iris Priority

Shutter Setting

Iris Setting

Gain Setting

Bright Setting

Auto Slow Shutter On/Off

Exposure Compensation On/Off

Exposure Compensation Setting

BackLight On/Off

SpotAE On/Off

SpotAE Setting

Defog On/Off

Minimum Shutter On/Off

VE On/Off

HLC Setting (On/Off/Mask Level)

WD On/Off

28

Basic Functions

Power Off Initializing Power On Freeze On MemRecall

Mode

Others

    

    

    

    

    

    

    

    

    

    

    

    

    

    

    

    

    

    

    

    

    

    

    

    

    

Aperture Setting

High Resolution Mode On/Off

LR_Reverse On/Off

Freeze On/Off

Picture Effect Setting

ICR On/Off

Auto ICR On/Off

Auto ICR Threshold Level Setting

Auto ICR Alarm On/Off

Display On/Off

Mute On/Off

Title Setting

Mask On/Off

Mask Setting

MD On/Off

MD Function Setting

MD Window Setting

ID Write

Memory Save

Register Value Setting

Color Enhancement On/Off

NR Level Setting

Chroma Suppress

29

    

Color Gain

Color Hue

Contrast Adjustment

VISCA/RS-232C Commands

This Manual outlines an RS-232C control protocol and
command list for certain Sony cameras from which
control software can be developed.
THIS CONTROL PROTOCOL AND COMMAND
LIST IS PROVIDED BY SONY ON AN “AS-IS BASIS”
WITHOUT WARRANTY OF ANY KIND. SONY
DOES NOT WARRANT ANY PARTICULAR RESULT
FROM THE USE OF THIS CONTROL PROTOCOL
AND COMMAND LIST AND DISCLAIMS AND
EXCLUDES ALL WARRANTIES. EXPRESS OR
IMPLIED, WITH RESPECT TO THAT CONTROL
PROTOCOL AND COMMAND LIST, INCLUDING,
BUT NOT LIMITED TO, ANY OR ALL IMPLIED
WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. IN FACT,
SONY SPECIFICALLY ACKNOWLEDGES THAT
SOFTWARE DEVELOPED BASED ON THIS
CONTROL PROTOCOL AND COMMAND LIST
MAY CAUSE MALFUNCTION OR DAMAGE TO
HARDWARE AND SOFTWARE USED WITH IT
(INCLUDING SONY HARDWARE AND
SOFTWARE) AND SPECIFICALLY DISCLAIMS
ANY LIABILITY FOR ANY SUCH MALFUNCTION
OR DAMAGE. THIS CONTROL PROTOCOL AND
COMMAND LIST SHOULD BE USED WITH
CAUTION.

Command List

Command List

Overview of VISCA

In VISCA, the device outputting commands, for
example, a computer, is called the controller. The
device receiving the commands, an FCB camera is
called the peripheral device. In VISCA, up to seven
peripheral devices like the FCB camera can be
connected to one controller using communication
conforming to the RS-232C standard. The parameters
of RS-232C are as follows.

Communication speed: 9.6 kbps/19.2 kbps/



38.4 kbps/115.2 kbps

Data bits : 8



Start bit : 1



Stop bit : 1



Non parity



Flow control using XON/XOFF and RTS/CTS, etc., is
not supported.

30

VISCA Communication

Bit 7

(MSB)

Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

(LSB)

1 0

FF

Bit 7

(MSB)

Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

(LSB)

1 1 1 1 1 1 1 1

Specifications

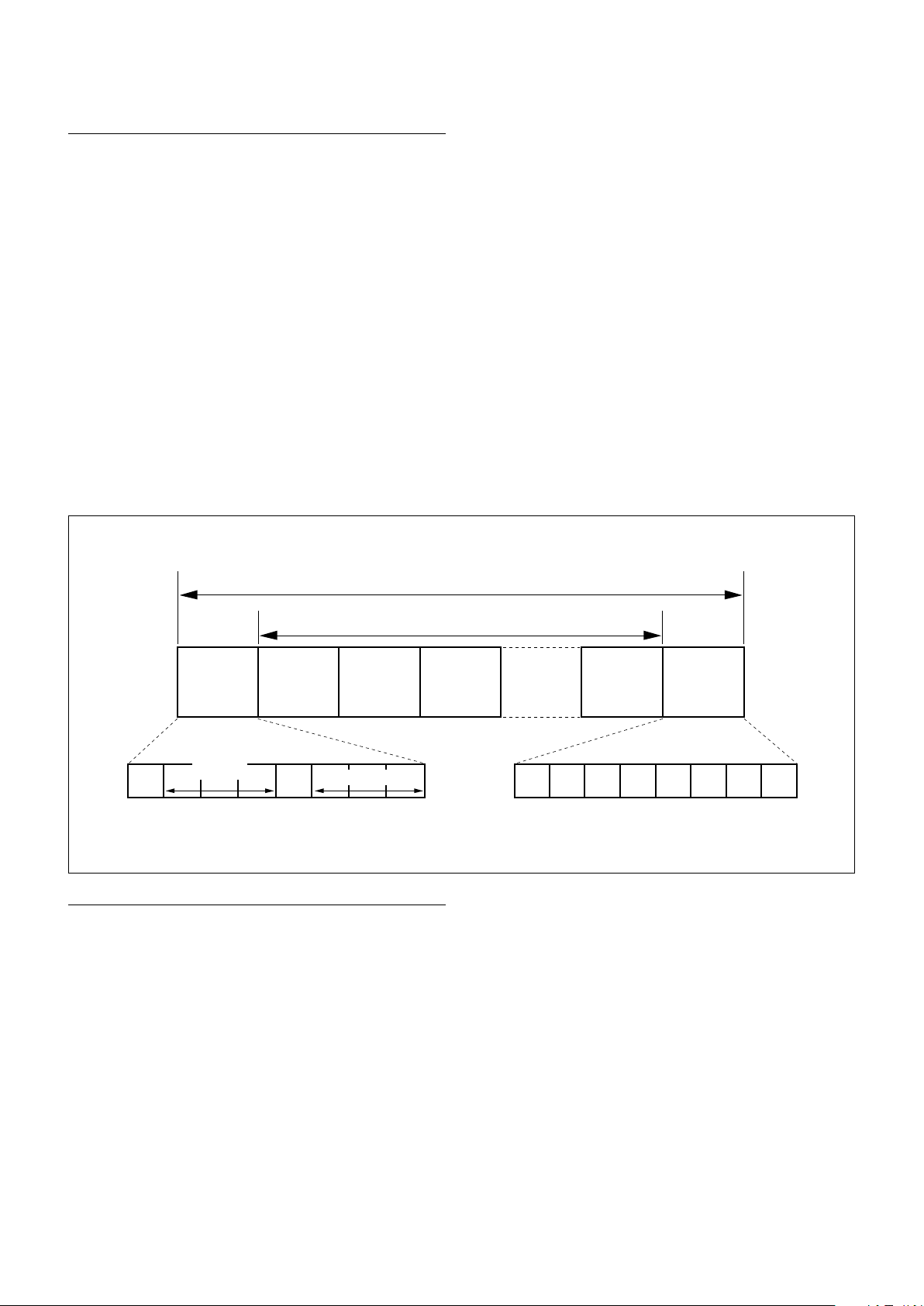

VISCA packet structure

The basic unit of VISCA communication is called a
packet. The first byte of the packet is called the header
and comprises the sender’s and receiver’s addresses. For
example, the header of the packet sent to the FCB
camera assigned address 1 from the controller (address

0) is hexadecimal 81h. The packet sent to the camera
assigned address 2 is 82h. In the command list, as the
header is 8X, input the address of the camera at X. The
header of the reply packet from the camera assigned
address 1 is 90h. The packet from the camera assigned
address 2 is A0h.
Some of the commands for setting cameras can be sent
to all devices at one time (broadcast). In the case of
broadcast, the header should be hexadecimal 88h.
When the terminator is FFh, it signifies the end of the
packet.

Command List

Header

Sender’s

address

Byte 1 Byte 2 Byte 3

Receiver’s address

Message (1 to 14 bytes)

Command and inquiry

 Command

Sends operational commands to the FCB camera.

 Inquiry

Used for inquiring about the current state of the FCB
camera.

Packet (3 to 16 bytes)

Terminator

Command Packet Note
Inquiry 8X QQ RR ... FF QQ
RR

1)

QQ = 01 (Command), 09 (Inquiry)

2)

RR = 00 (Interface), 04 (camera 1), 06 (Pan/Tilt), 07 (camera 2)

X = 1 to 7: FCB camera address

1)

= Command/Inquiry,

2)

= category code

31

Command List

Responses for commands and inquiries

 Acknowledge message
Returned by the FCB camera when it receives a

command. No Acknowledge message is returned for
inquiries.

 Completion message
Returned by the FCB camera when execution of

commands or inquiries is completed. In the case of
inquiry commands, it will contain reply data for the
inquiry after the 3rd byte of the packet. If the
Acknowledge message is omitted, the socket number
will contain 0.

Reply Packet Note
Acknowledge X0 4Y FF Y = socket number
Completion (Commands) X0 5Y FF Y = socket number
Completion (Inquiries) X0 5Y ... FF Y = socket number
X = 9 to F: FCB camera address + 8

 Error message
When a command could not be executed or failed,

an error message is returned instead of the
Acknowledge message. After an Acknowledge
message, an error message may be returned if the
process of some command (zoom, etc.) has not been
completed.
When a inquiry command could not be executed or
failed, an error message is returned instead of the
completion message.

The Acknowledge message is not returned for these
commands and inquiries, and only the completion
message of socket number 0 is returned.

Command execution cancel

To cancel a command which has already been sent,
send the Cancel command as the next command. To
cancel one of any two commands which have been
sent, use the cancel message.

Cancel Packet Note
Cancel 8X 2Y FF Y = socket number
X = 1 to 7: FCB camera address, Y = socket number

An error message will be returned for this command,
but this is not a fault. It indicates that the command has
been canceled.

Error Packet Description

X0 6Y 01 FF Message length error (>14 bytes)
X0 6Y 02 FF Syntax Error
X0 6Y 03 FF Command buffer full
X0 6Y 04 FF Command cancelled
X0 6Y 05 FF No socket (to be cancelled)
X0 6Y 41 FF Command not executable
X = 9 to F: FCB camera address + 8, Y = socket number

Socket number

When command messages are sent to the FCB camera,
send the next command message after waiting for the
completion message or error message to return.
However to deal with advanced uses, the FCB camera
has two buffers (memories) for commands, so that up
to two commands including the commands currently
being executed can be received. When the FCB camera
receives commands, it notifies the sender which
command buffer was used using the socket number of
the Acknowledge message. As the completion message
or error message also has a socket number, it indicates
which command has ended. Even when two command
buffers are being used at any one time, an FCB camera
management command and some inquiry messages
can be executed.

32

VISCA Device Setting Command

Before starting control of the FCB camera, be sure to
send the Address command and the IF_Clear
command using the broadcast function.

For VISCA network administration

 Address
Sets an address of a peripheral device. Use when

initializing the network, and receiving the following
network change message.

 Network Change
Sent from the peripheral device to the controller

when a device is removed from or added to the
network. The address must be re-set when this
message is received.

Packet Note
Address 88 30 01 FF Always broadcasted.
Network Change X0 38 FF
X = 9 to F: FCB camera address + 8

Command List

VISCA interface command

 IF_Clear

Clears the command buffers in the FCB camera and

cancels the command currently being executed.

Command Packet Reply Packet Note
IF_Clear 8X 01 00 01 FF X0 50 FF
IF_Clear (broadcast) 88 01 00 01 FF 88 01 00 01 FF
X = 1 to 7: FCB camera board address (For inquiry packet)
X = 9 to F: FCB camera board address +8 (For reply packet)

VISCA interface and inquiry

 CAM_VersionInq

Returns information on the VISCA interface.

Inquiry Inquiry Packet Reply Packet Description

CAM_VersionInq 8X 09 00 02 FF Y0 50 GG GG HH HH JJ JJ KK FF GGGG = Vender ID
(0020: Sony)
HHHH = Model ID
046F: FCB-EV7520
xxxx: FCB-CV7520
0471 : FCB-EV7517
JJJJ = ROM revision

KK = Maximum socket #(02)

X = 1 to 7: FCB camera address (For inquiry packet)
X = 9 to F: FCB camera address +8 (For reply packet)

33

VISCA Command/Acknowledge Protocol

Command Command Message Reply Message Comments

General Command 81 01 04 38 02 FF

(Example)

81 01 04 38 FF
(Example)

81 01 04 38 02 FF
(Example)

81 01 04 08 02 FF
(Example)

Inquiry Command 81 09 04 38 FF

(Example)

81 09 05 38 FF
(Example)

Address Set 88 30 01 FF 88 30 02 FF Returned the device address to +1.

IF_Clear(Broadcast) 88 01 00 01 FF 88 01 00 01 FF Returned the same command.

IF_Clear (For x) 8x 01 00 01 FF z0 50 FF (Completion) Acknowledge is not returned for this command.

Command Cancel 8x 2y FF z0 6y 04 FF

90 41 FF (Acknowledge)
+90 51 FF (Completion)
90 42 FF 90 52 FF

90 60 02 FF (Syntax Error) Accepted a command which is not supported or a command

90 60 03 FF
(Command Buffer Full)

90 61 41 FF
(Command Not Executable)
90 62 41 FF

90 50 02 FF (Completion) Acknowledge is not returned for the inquiry command.

90 60 02 FF (Syntax Error) Accepted an incompatible command.

(Command Canceled)

z0 6y 05 FF (No Socket)

Returns Acknowledge when a command has been accepted, and
Completion when a command has been executed.

lacking parameters.

There are two commands currently being executed, and the
command could not be accepted.

Could not execute the command in the current mode.

Returned when the command of the socket specified is canceled.
Completion for the command canceled is not returned.

Returned when the command of the specified socket has already

been completed or when the socket number specified is wrong.

Command List

34

Command List

VISCA Camera-Issued Messages

Acknowledge/Completion Messages

Command Messages Comments

Acknowledge z0 4y FF

(y:Socket No.)

Completion z0 5y FF

(y:Socket No.)

z = Device address + 8

Error Messages

Command Messages Comments

Syntax Error z0 60 02 FF Returned when the command format is different or when a command with illegal

Command Buffer Full z0 60 03 FF Indicates that two sockets are already being used (executing two commands) and the

Command Canceled z0 6y 04 FF

(y:Socket No.)

No Socket z0 6y 05 FF

(y:Socket No.)

Command Not Executable z0 6y 41 FF

(y:Socket No.)

Returned when the command is accepted.

Returned when the command has been executed.

command parameters is accepted.

command could not be accepted when received.
Returned when a command which is being executed in a socket specified by the cancel
command is canceled. The completion message for the command is not returned.
Returned when no command is executed in a socket specified by the cancel command,
or when an invalid socket number is specified.
Returned when a command cannot be executed due to current conditions. For example,
when commands controlling the focus manually are received during auto focus.

Network Change Message

Command Message Comments

Network Change z0 38 FF Issued when power is being routed.

35

FCB Camera Commands

Command List (1/6)

Command Set Command Command Packet Comments

AddressSet Broadcast 88 30 01 FF Address Setting

IF_Clear – 8x 01 00 01 FF I/F Clear

Broadcast 88 01 00 01 FF

CommandCancel – 8x 2p FF p: Socket No. (=1 or 2)

CAM_Power On 8x 01 04 00 02 FF Power On/Off

Off (Standby) 8x 01 04 00 03 FF

CAM_Zoom Stop 8x 01 04 07 00 FF

Tele (Standard) 8x 01 04 07 02 FF

Wide (Standard) 8x 01 04 07 03 FF

Tele (Variable) 8x 01 04 07 2p FF p=0 (Low) to 7 (High)

Wide (Variable) 8x 01 04 07 3p FF

Direct 8x 01 04 47 0p 0q 0r 0s FF pqrs: Zoom Position

CAM_DZoom On 8x 01 04 06 02 FF Digital Zoom On/Off

Off 8x 01 04 06 03 FF

Combine Mode 8x 01 04 36 00 FF Optical/Digital Zoom Combined

Separate Mode 8x 01 04 36 01 FF Optical/Digital Zoom Separate

Stop 8x 01 04 06 00 FF

Tele (Variable) 8x 01 04 06 2p FF p=0 (Low) to 7 (High)

Wide (Variable) 8x 01 04 06 3p FF

x1/Max 8x 01 04 06 10 FF x1/MAX Magnification Switchover

Direct 8x 01 04 46 00 00 0p 0q FF pq: D-Zoom Position

CAM_Focus Stop 8x 01 04 08 00 FF

Far (Standard) 8x 01 04 08 02 FF

Near (Standard) 8x 01 04 08 03 FF

Far (Variable) 8x 01 04 08 2p FF p=0 (Low) to 7 (High)

Near (Variable) 8x 01 04 08 3p FF

Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position

Auto Focus 8x 01 04 38 02 FF AF On/Off

Manual Focus 8x 01 04 38 03 FF

Auto/Manual 8x 01 04 38 10 FF

One Push Trigger 8x 01 04 18 01 FF One Push AF Trigger

Near Limit 8x 01 04 28 0p 0q 0r 0s FF pqrs: Focus Near Limit Position

CAM_AFSensitivity Normal 8x 01 04 58 02 FF AF Sensitivity High/Low

Low 8x 01 04 58 03 FF

CAM_AFMode Normal AF 8x 01 04 57 00 FF AF Movement Mode

Interval AF 8x 01 04 57 01 FF

Zoom Trigger AF 8x 01 04 57 02 FF

Active/Interval Time 8x 01 04 27 0p 0q 0r 0s FF pq: Movement Time, rs: Interval

CAM_IRCorrection Standard 8x 01 04 11 00 FF Focus IR compensation data switching

IR Light 8x 01 04 11 01 FF

CAM_ZoomFocus Direct 8x 01 04 47 0p 0q 0r 0s

0t 0u 0v 0w FF

CAM_Initialize Lens 8x 01 04 19 01 FF Lens Initialization Start

Camera 8x 01 04 19 03 FF Camera reset

* Enabled during Separate Mode

* Enabled during Separate Mode

* Enabled during Separate Mode

pqrs: Zoom Position
tuvw: Focus Position

Command List

36

Command List (2/6)

Command Set Command Command Packet Comments

CAM_WB Auto 8x 01 04 35 00 FF Normal Auto

Indoor 8x 01 04 35 01 FF Indoor mode

Outdoor 8x 01 04 35 02 FF Outdoor mode

One Push WB 8x 01 04 35 03 FF One Push WB mode

ATW 8x 01 04 35 04 FF Auto Tracing White Balance

Manual 8x 01 04 35 05 FF Manual Control mode

One Push Trigger 8x 01 04 10 05 FF One Push WB Trigger

Outdoor Auto 8x 01 04 35 06 FF Outdoor auto

Sodium Lamp Auto 8x 01 04 35 07 FF Auto including sodium lamp source

Sodium Lamp 8x 01 04 35 08 FF Sodium lamp source fixed mode

Sodium Lamp Outdoor
Auto

CAM_RGain Reset 8x 01 04 03 00 FF Manual Control of R Gain

Up 8x 01 04 03 02 FF

Down 8x 01 04 03 03 FF

Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain

CAM_BGain Reset 8x 01 04 04 00 FF Manual Control of B Gain

Up 8x 01 04 04 02 FF

Down 8x 01 04 04 03 FF

Direct 8x 01 04 44 00 00 0p 0q FF pq: B Gain

CAM_AE Full Auto 8x 01 04 39 00 FF Auto Exposure mode

Manual 8x 01 04 39 03 FF Manual Control mode

Shutter Priority 8x 01 04 39 0A FF Shutter Priority Auto Exposure mode

Iris Priority 8x 01 04 39 0B FF Iris Priority Auto Exposure mode

Bright 8x 01 04 39 0D FF Bright Mode (Manual control)

CAM_AutoSlowShutter On 8x 01 04 5A 02 FF Auto Slow Shutter On/Off

Off 8x 01 04 5A 03 FF

CAM_Shutter Reset 8x 01 04 0A 00 FF Shutter Setting

Up 8x 01 04 0A 02 FF

Down 8x 01 04 0A 03 FF

Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position

CAM_Iris Reset 8x 01 04 0B 00 FF Iris Setting

Up 8x 01 04 0B 02 FF

Down 8x 01 04 0B 03 FF

Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position

CAM_Gain Reset 8x 01 04 0C 00 FF Gain Setting

Up 8x 01 04 0C 02 FF

Down 8x 01 04 0C 03 FF

Direct 8x 01 04 4C 00 00 0p 0q FF pq: Gain Position

Gain Limit 8x 01 04 2C 0p FF p: Gain Position

CAM_Bright Reset 8x 01 04 0D 00 FF Bright Setting

Up 8x 01 04 0D 02 FF

Down 8x 01 04 0D 03 FF

Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright Position

8x 01 04 35 09 FF Outdoor auto including sodium lamp source

Command List

37

Command List

Command List (3/6)

Command Set Command Command Packet Comments

CAM_ExpComp On 8x 01 04 3E 02 FF Exposure Compensation On/Off

Off 8x 01 04 3E 03 FF

Reset 8x 01 04 0E 00 FF Exposure Compensation Amount Setting

Up 8x 01 04 0E 02 FF

Down 8x 01 04 0E 03 FF

Direct 8x 01 04 4E 00 00 0p 0q FF pq: ExpComp Position

CAM_Backlight On 8x 01 04 33 02 FF Back Light Compensation On/Off

Off 8x 01 04 33 03 FF

CAM_SpotAE On 8x 01 04 59 02 FF Spot Auto Exposure Setting

Off 8x 01 04 59 03 FF

Position 8x 01 04 29 0p 0q 0r 0s FF pq: X (0h to Fh), rs: Y (0h to Fh)

CAM_AE_Response Direct 8x 01 04 5D pp FF pp: Auto Exposure Response Setting (01h to 30h),

initial setting: 01h

CAM_VE Off 8x 01 04 3D 03 FF Off

VE On 8x 01 04 3D 06 FF VE On

Set Parameter 8x 01 04 2D 00 0q 0r 0s 00 00 00

00 FF

CAM_WD
(Supported in FW version

7.00 or later for FCB­EV7520/CV7520 only)

CAM_Defog On 8x 01 04 37 02 0p FF Defog On/Off

CAM_Aperture Reset 8x 01 04 02 00 FF Aperture Control

CAM_HR On 8x 01 04 52 02 FF High Resolusion Mode On/Off

CAM_NR Noise Reduction 8x 01 04 53 pq FF pq: NR setting

CAM_Gamma — 8x 01 04 5B 0p FF p: Gamma Setting (0: Standard, 1: Straight)

CAM_HighSensitivity On 8x 01 04 5E 02 FF High Sensitivity mode On/Off

CAM_LR_Reverse On 8x 01 04 61 02 FF LR Reverse On/Off

CAM_Freeze On 8x 01 04 62 02 FF Freeze On/Off

CAM_PictureEffect Off 8x 01 04 63 00 FF Picture Effect Setting

On 8x 01 04 3D 02 FF WD On

Off 8x 01 04 3D 03 FF WD Off

VE On 8x 01 04 3D 06 FF VE On

Set Parameter 8x 01 04 2D 00 0q 0r 0s 00 00 00

00 FF

Off 8x 01 04 37 03 00 FF

Up 8x 01 04 02 02 FF

Down 8x 01 04 02 03 FF

Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain

Off 8x 01 04 52 03 FF

2D/3D NR independent
setting (Supported in FW
version 6.00 or later)

Off 8x 01 04 5E 03 FF

Off 8x 01 04 61 03 FF

Off 8x 01 04 62 03 FF

Neg.Art 8x 01 04 63 02 FF

Black & White 8x 01 04 63 04 FF

8x 01 05 53 0p 0q FF p: 2DNR level (0: Off, 1 to 5: level 1 to 5)

q: Display brightness level (0: Dark to 6: Bright)

Brightness compensation selection (0: Very dark, 1: Dark,

r:

2: Standard, 3: Bright)

s: Compensation level (0: Low, 1: Mid, 2: High)

q: Display brightness level (0: Dark to 6: Bright)
r: Brightness compensation selection (0: Very dark, 1: Dark,

2: Standard, 3: Bright)

s: Compensation level (0: Low, 1: Mid, 2: High)

p: Defog level (1: low, 2: mid, 3: high)

(00: Off, 01 to 05: level 1 to 5, 7F: 2D/3D NR independent
setting available)

q: 3DNR level (0: Off, 1 to 5: level 1 to 5)

38

Command List

Command List (4/6)

Command Set Command Command Packet Comments

CAM_MinShutter On 8x 01 04 12 02 FF pq: Minimum Shutter Position (05h to 14h)

Off 8x 01 04 12 03 FF

Limit 8x 01 04 13 00 00 0p 0q FF

CAM_PictureFlip On 8x 01 04 66 02 FF E-Flip On/Off

Off 8x 01 04 66 03 FF

CAM_ICR On 8x 01 04 01 02 FF ICR Mode On/Off

Off 8x 01 04 01 03 FF

CAM_AutoICR On 8x 01 04 51 02 FF Auto ICR Mode On/Off

Off 8x 01 04 51 03 FF

Threshold 8x 01 04 21 00 00 0p 0q FF

CAM
_AutoICRAlarmReply

CAM_Stabilizer On 8x 01 04 34 02 FF Stabilizer On/Off/HOLD

CAM_Memory Reset 8x 01 04 3F 00 0p FF p: Memory Number (=0h to Fh)

CAM_Custom Reset 8x 01 04 3F 00 7F FF Starts up in this mode when the power is turned on.

CAM_MemSave Write 8x 01 04 23 0X 0p 0q 0r 0s FF X: 00h to 07h (Address), total 16 byte

CAM_Display On 8x 01 04 15 02 FF

CAM_MultiLineTitle Title Set1 8x 01 04 73 1L 00 nn pp

CAM_Mute On 8x 01 04 75 02 FF Muting On/Off

CAM_PrivacyZone SetMask 8x 01 04 76 mm nn

On 8x 01 04 31 02 FF Auto ICR switching Alarm On/Off

Off 8x 01 04 31 03 FF

(Reply) y0 07 04 31 02 FF

y0 07 04 31 03 FF

Off 8x 01 04 34 03 FF

Hold 8x 01 04 34 00 FF

Set 8x 01 04 3F 01 0p FF

Recall 8x 01 04 3F 02 0p FF

Set 8x 01 04 3F 01 7F FF

Recall 8x 01 04 3F 02 7F FF

(8x 01 06 06 02 FF)

Off 8x 01 04 15 03 FF

(8x 01 06 06 03 FF)

On/Off 8x 01 04 15 10 FF

(8x 01 06 06 10 FF)

qq 00 00 00 00 00 00 FF

Title Set2 8x 01 04 73 2L mm nn pp

qq rr ss tt uu vv ww FF

Title Set3 8x 01 04 73 3L mm nn pp

qq rr ss tt uu vv ww FF
Title Clear 8x 01 04 74 1p FF Title Setting clear (p: 0h to Ah, F= all lines)
On 8x 01 04 74 2p FF Title display On/Off (p: 0h to Ah, F= all lines)
Off 8x 01 04 74 3p FF

Off 8x 01 04 75 03 FF

On/Off 8x 01 04 75 10 FF

0r 0r 0s 0s FF

Display 8x 01 04 77 pp pp pp pp FF Mask Display On/Off

SetMaskColor 8x 01 04 78 pp pp pp pp

qq rr FF

SetPanTiltAngle 8x 01 04 79 0p 0p 0p

0q 0q 0q FF

SetPTZMask 8x 01 04 7B mm 0p 0p 0p

0q 0q 0q 0r 0r 0r 0r FF

39

pq: ICR On  Off Threshold Level

ICR Off  On

 Off

ICR On

pqrs: 0000h to FFFFh (Data)
Display On/Off

L: Line Number, nn: H-position
pp: Color, qq: Blink

L: Line Number,
mnpqrstuvw: Setting of characters (1 to 10)

L: Line Number,
mnpqrstuvw: Setting of characters (11 to 20)

mm: Mask Settings
nn 00: Modify, 01: New
rr: W, ss: H

pp pp pp pp: Mask Settings (0: Off, 1: On)
pp pp pp pp: Mask Color Settings

qq: Color Setting when 0 is selected
rr: Color Setting when 1 is selected

Pan/Tilt Angle Settings
ppp: Pan
qqq: Tilt

Pan/Tilt/Zoom Settings for Mask
ppp: Pan, qqq: Tilt, rrrr: Zoom, mm: Mask Settings

Command List (5/6)

Command Set Command Command Packet Comments

CAM_PrivacyZone Non_InterlockMask 8x 01 04 6F mm

0p 0p 0q 0q 0r 0r 0s 0s FF

CenterLineOff 8x 01 04 7C 03 FF Center Line Display Off

CenterLineOn 8x 01 04 7C 04 FF Center Line Display On

CAM_IDWrite CenterLineOn 8x 01 04 7C 04 FF Center Line Display On

CAM_MD On 8x 01 04 1B 02 FF MD On/Off

Off 8x 01 04 1B 03 FF

Function Set 8x 01 04 1C 0m 0n 0p 0q 0r 0s FF m: Display mode

Window Set 8x 01 04 1D 0m 0p 0q rr 0s FF m: Select Detection Frame (0, 1, 2, 3)

Alarm (Reply) y0 07 04 1B 0p FF p: Detection Frame Number

CAM_Continuous
ZoomPosReply

CAM_ZoomPos
ReplyIntervalTimeSet

On 8x 01 04 69 02 FF Zoom Position data Continuous Output On/Off

Off 8x 01 04 69 03 FF

(Reply) y0 07 04 69 0p 0p 0q 0q 0q 0q FF pp: D-Zoom Position

— 8x 01 04 6A 00 00 0p 0p FF pp: Interval Time [V cycle]

mm: Non_Interlock Mask Settings
pp: X, qq: Y, rr: W, ss: H

n: Detection Frame Set (00h to 0Fh)
pq: Threshold Level (00h to FFh)
rs: Interval Time set (00h to FFh)

p: Start Horizontal Position (00h to 0Fh)
q: Start Vertical Position (00h to 07h)
rr: Stop Horizontal Position (01h to 10h)
s: Stop Vertical Position (01h to 08h)

* 00: When Zoom Mode is Combine
qqqq: Zoom Position

Command List

CAM_Continuous
FocusPosReply

CAM_FocusPosReply
IntervalTimeSet
CAM_RegisterValue — 8x 01 04 24 mm 0p 0p FF mm: Register No. (=00h to 7Fh)

CAM_ColorEnhance Parameter Set 8x 01 04 20 mm 00 pp

CAM_ChromaSuppress — 8x 01 04 5F pp FF pp: Chroma Suppress setting level

CAM_ColorGain Direct 8x 01 04 49 00 00 00 0p FF p: Color Gain Setting 0h (60%) to Eh (200%)

CAM_ColorHue Direct 8x 01 04 4F 00 00 00 0p FF p: Color Hue Setting 0h (-14 degrees) to Eh (+14 degrees)

CAM_GammaOffset Direct 8x 01 04 1E 00 00 00 0s 0t 0u FF s: Polarity offset (0 is plus, 1 is minus)

On 8x 01 04 16 02 FF Focus Position data Continuous Output On/Off

Off 8x 01 04 16 03 FF

(Reply) y0 07 04 16 00 00 0p 0p 0p 0p FF pppp: Focus Position

— 8x 01 04 1A 00 00 0p 0p FF pp: Interval Time [V cycle]

pp: Register Value (=00h to FFh)
mm: Threshold level

qq rr ss tt uu FF

On 8x 01 04 50 02 FF Color Enhancement On/Off

Off 8x 01 04 50 03 FF

pp: Y fixed color for high-intensity
qq: Cr fixed color for high-intensity
rr: Cb fixed color for high-intensity
ss: Y fixed color for low-intensity
tt: Cr fixed color for low-intensity
uu: Cb fixed color for low-intensity
Each parameter setting 00h to 7Fh

00: Off
01h to 03h: On (3 levels).
Effect increases as the level number increases.

tu: Offset s=0 (00h to 40h)
Offset s=1 (00h to 10h)

40

Command List

Command List (6/6)

Command Set Command Command Packet Comments

CAM_ContrastAdjLevel
(Supported in FW version

6.00 or later)

CAM_ExExpComp Reset 8x 01 04 1F 0E 00 00 FF Exposure compensation reset

CAM_ExAperture Reset 8x 01 04 1F 02 00 00 FF Aperture control reset

CAM_ExAutoICR Threshold

CAM_ExColorGain Direct 8x 01 04 1F 49 00 00 0p 0q FF Color Gain Setting

CAM_ExColorHue Direct 8x 01 04 1F 4F 00 00 0p 0q FF Color Hue Setting

CAM_HLC Parameter Set 8x 01 04 14 0p 0q FF p: HLC level (0: Off, 1: Low, 2: Mid, 3: High)

Direct 8x 01 05 5D 01 0p 0q FF pq: 00h to FFh

00h to 7Fh: The smaller the value is, the lower the contrast
becomes.
80h (Initial setting): No contrast adjustment
81h to FFh: The larger the value is, the higher the contrast
becomes.

Up 8x 01 04 1F 0E 02 pp FF Exposure compensation up

pp: Step number
pp=00h to 7Fh (However, 00h is the same operation as 01h.)

Down 8x 01 04 1F 0E 03 pp FF Exposure compensation down

pp: Step number
pp=00h to 7Fh (However, 00h is the same operation as 01h.)

Direct 8x 01 04 1F 4E 00 00 0p 0q FF Set the exposure compensation to the specified level

pq: Level
pq=00h to FFh

Up 8x 01 04 1F 02 02 pp FF Aperture control up

pp: Step number
pp=00h to 7Fh (However, 00h is the same operation as 01h.)

Down 8x 01 04 1F 02 03 pp FF Aperture control down

pp: Step number
pp=00h to 7Fh (However, 00h is the same operation as 01h.)

Direct 8x 01 04 1F 42 00 00 0p 0q FF Set the aperture control to the specified level

pq: Level
pq=00h to FFh

8x 01 04 1F 21 00 00 0p 0q FF pq: ICR On→Off threshold level when Auto ICR
(ON→OFF)
On Level 8x 01 04 1F 21 01 00 0r 0s FF pq: ICR Off→On threshold level when Auto ICR

pq=00h to FFh

pq=00h to 1Ch

pq: Gain setting level
pq=00h (0%) to FFh (200%)

pq: Phase setting level
pq=00h (-14 degrees) to FFh (14 degrees)

q: HLC mask level (0: Off, 1 to F: from low to high level)

41

Inquiry Command List (1/4)

Inquiry Command Command Packet Inquiry Packet Comments

CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF On

y0 50 03 FF Off (Standby)

CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position

CAM_DZoomModeInq 8x 09 04 06 FF y0 50 02 FF D-Zoom On

y0 50 03 FF D-Zoom Off

CAM_DZoomC/SModeInq 8x 09 04 36 FF y0 50 00 FF Combine Mode

y0 50 01 FF Separate Mode

CAM_DZoomPosInq 8x 09 04 46 FF y0 50 00 00 0p 0q FF pq: D-Zoom Position

CAM_FocusModeInq 8x 09 04 38 FF y0 50 02 FF Auto Focus

y0 50 03 FF Manual Focus

CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position

CAM_FocusNearLimitInq 8x 09 04 28 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Near Limit Position

CAM_AFSensitivityInq 8x 09 04 58 FF y0 50 02 FF AF Sensitivity Normal

y0 50 03 FF AF Sensitivity Low

CAM_AFModeInq 8x 09 04 57 FF y0 50 00 FF Normal AF

y0 50 01 FF Interval AF

y0 50 02 FF Zoom Trigger AF

CAM_AFTimeSettingInq 8x 09 04 27 FF y0 50 0p 0q 0r 0s FF pq: Movement Time, rs: Interval

CAM_IRCorrectionInq 8x 09 04 11 FF y0 50 00 FF Standard

y0 50 01 FF IR Light

CAM_WBModeInq 8x 09 04 35 FF y0 50 00 FF Auto

y0 50 01 FF

y0 50 02 FF

y0 50 03 FF One Push WB

y0 50 04 FF

y0 50 05 FF

y0 50 06 FF Outdoor Auto

y0 50 07 FF Sodium Lamp Auto

y0 50 08 FF Sodium Lamp

y0 50 09 FF Sodium Lamp Outdoor Auto

CAM_RGainInq

CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain

CAM_AEModeInq 8x 09 04 39 FF y0 50 00 FF Full Auto

CAM_AutoSlowShutterInq 8x 09 04 5A FF y0 50 02 FF On

CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 0p 0q FF pq: Shutter Position

CAM_IrisPosInq 8x 09 04 4B FF y0 50 00 00 0p 0q FF pq: Iris Position

CAM_GainPosInq 8x 09 04 4C FF y0 50 00 00 0p 0q FF pq: Gain Position

CAM_GainLimitInq 8x 09 04 2C FF y0 50 0q FF p: Gain Limit

CAM_BrightPosInq 8x 09 04 4D FF y0 50 00 00 0p 0q FF pq: Bright Position

CAM_ExpCompModeInq 8x 09 04 3E FF y0 50 02 FF On

CAM_ExpCompPosInq 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position

CAM_BackLightModeInq 8x 09 04 33 FF y0 50 02 FF On

8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain

y0 50 03 FF

y0 50 0A FF Shutter Priority

y0 50 0B FF Iris Priority

y0 50 0D FF

y0 50 03 FF

y0 50 03 FF

y0 50 03 FF

Indoor

Outdoor

ATW

Manual

Manual

Bright

Off

Off

Off

Command List

42

Command List

Inquiry Command List (2/4)

Inquiry Command Command Packet Inquiry Packet Comments

CAM_SpotAEModeInq 8x 09 04 59 FF y0 50 02 FF On

y0 50 03 FF

CAM_SpotAEPosInq 8x 09 04 29 FF y0 50 0p 0q 0r 0s FF pq: X Position, rs: Y Position

CAM_VEModeInq 8x 09 04 3D FF y0 50 03 FF Off

y0 50 06 FF VE On

CAM_VEParameterInq 8x 09 04 2D FF y0 50 00 0q 0r 0s 0t 0u 00 00 FF q: Display brightness level (0: Dark to 6: Bright)

CAM_WDModeInq
(Supported in FW version 7.00 or
later for FCB-EV7520/CV7520 only)

CAM_WDParameterInq
(Supported in FW version 7.00 or
later for FCB-EV7520/CV7520 only)

CAM_AEResponseInq 8x 09 04 5D FF y0 50 pp FF pp: 01h to 30h

CAM_DefogInq 8x 09 04 37 FF y0 50 02 0p FF p: Defog level (1: low, 2: mid, 3: high)

CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain

CAM_HRModeInq 8x 09 04 52 FF y0 50 02 FF On

CAM_NRInq 8x 09 04 53 FF y0 50 pq FF pq: NR level (00: Off, 01 to 05: level 1 to 5, 7F: 2D/3D

CAM_NR2D3Dinq
(Supported in FW version 6.00 or
later)
CAM_GammaInq 8x 09 04 5B FF y0 50 0p FF Gamma p: 00h, 01h

CAM_HighSensitivityInq 8x 09 04 5E FF y0 50 02 FF On

CAM_LR_ReverseModeInq 8x 09 04 61 FF y0 50 02 FF On

CAM_FreezeModeInq 8x 09 04 62 FF y0 50 02 FF On

CAM_PictureEffectModeInq 8x 09 04 63 FF y0 50 00 FF Off

CAM_PictureFlipModeInq 8x 09 04 66 FF y0 50 02 FF On

CAM_ICRModeInq 8x 09 04 01 FF y0 50 02 FF On

CAM_AutoICRModeInq 8x 09 04 51 FF y0 50 02 FF On

CAM_AutoICRThresholdInq 8x 09 04 21 FF y0 50 00 00 0p 0q FF

CAM_AutoICRAlarmReplyInq 8x 09 04 31 FF y0 50 02 FF On

CAM_MemoryInq 8x 09 04 3F FF y0 50 pp FF pp: Memory number recalled last

CAM_MemSaveInq 8x 09 04 23 0X FF y0 50 0p 0q 0r 0s FF X: 00h to 07h (Address)

8x 09 04 3D FF y0 50 02 FF On

y0 50 03 FF

y0 50 06 FF VE On

8x 09 04 2D FF y0 50 00 0q 0r 0s 0t 0u 00 00 FF q: Display brightness level (0: Dark to 6: Bright)

y0 50 03 00 FF Defog Off

y0 50 03 FF

8x 09 05 53 FF y0 50 0p 0q FF p: 2D NR level (0: Off, 01 to 05: level 1 to 5)

y0 50 03 FF

y0 50 03 FF

y0 50 03 FF

y0 50 02 FF

y0 50 04 FF Black & White

y0 50 03 FF

y0 50 03 FF

y0 50 03 FF

y0 50 03 FF

Off

r: Brightness compensation selection (0: Very dark,
1: Dark, 2: Standard, 3: Bright)
s: Compensation level (00h: Low, 01h: Mid, 02h: High)
tu: Always 0

Off

r: Brightness compensation selection (0: Very dark,
1: Dark, 2: Standard, 3: Bright)
s: Compensation level (00h: Low, 01h: Mid, 02h: High)
tu: Always 0

Off

NR independent setting available)

q: 3D NR level (0: Off, 01 to 05: level 1 to 5)

Off

Off

Off

Neg.Art

Off

Off

Off

pq: ICR On  Off Threshold Level

Off

pqrs: 0000h to FFFFh (Data)

43

Command List

Inquiry Command List (3/4)

Inquiry Command Command Packet Inquiry Packet Comments

CAM_DisplayModeInq 8x 09 04 15 FF

(8x 09 06 06 FF)

CAM_StabilizerModeInq 8x 09 04 34 FF y0 05 02 FF On

CAM_MuteModeInq 8x 09 04 75 FF y0 50 02 FF On

CAM_PrivacyDisplayInq 8x 09 04 77 FF y0 50 pp pp pp pp FF pp pp pp pp: Mask Display (0: Off, 1: On)
CAM_PrivacyPanTiltInq 8x 09 04 79 FF y0 50 0p 0p 0p 0q 0q 0q FF ppp: Pan

CAM_PrivacyPTZInq 8x 09 04 7B mm FF y0 50 0p 0p 0p 0q 0q 0q 0r 0r 0r 0r FFmm: Mask Settings

CAM_PrivacyMonitorInq 8x 09 04 6F FF y0 50 pp pp pp pp FF pp pp pp pp: Mask is displayed now.
CAM_IDInq 8x 09 04 22 FF y0 50 0p 0q 0r 0s FF pqrs: Camera ID
CAM_VersionInq 8x 09 00 02 FF y0 50 00 20

CAM_MDModeInq 8x 09 04 1B FF y0 50 02 FF On

CAM_MDFunctionInq 8x 09 04 1C FF y0 50 0m 0n 0p 0q 0r 0s FF m: Display mode

CAM_MDWindowInq 8x 09 04 1D 0m FF y0 50 0p 0q rr 0s FF m: Select Detection Frame (0, 1, 2, 3)

CAM_ContinuousZoomPos
ReplyModeInq
CAM_ZoomPosReply
IntervalTimeInq

CAM_Continuous
FocusPosReplyModeInq
CAM_FocusReply
IntervalTimeInq

CAM_RegisterValueInq 8x 09 04 24 mm FF y0 50 0p 0p FF mm: Register No. (=00h to 7Fh)

CAM_ColorEnhanceInq 8x 09 04 20 FF y0 50 mm 00 pp qq rr ss tt uu FF mm: Threshold level

CAM_ChromaSuppressInq 8x 09 04 5F FF y0 50 pp FF pp: Chroma Suppress setting level
CAM_ColorGainInq 8x 09 04 49 FF y0 50 00 00 00 0p FF p: Color Gain Setting 0h (60%) to Eh (200%)
CAM_ColorHueInq 8x 09 04 4F FF y0 50 00 00 00 0p FF
CAM_TempInq 8x 09 04 68 FF Y0 50 00 00 0p 0q FF pq: Lens Temperature
CAM_GammaOffsetInq 8x 09 04 1E FF y0 50 00 00 00 0s 0t 0u FF s: Polarity offset (0 is plus, 1 is minus)

CAM_ContrastAdjLevelInq
(Supported in FW version 6.00 or
later)
CAM_ExExpCompPosInq 8x 09 04 1F 4E FF y0 50 00 00 0p 0q FF pq: Exposure compensation level pq = 00h to FFh

8x 09 04 69 FF y0 50 02 FF On

8x 09 04 6A FF y0 50 00 00 0p 0p FF pp: Interval Time

8x 09 04 16 FF y0 50 02 FF On

8x 09 04 1A FF y0 50 00 00 0p 0p FF pp: Interval Time

8x 09 04 50 FF y0 50 02 FF On

8x 09 05 5D FF y0 50 0p 0q FF pq: Contrast adjustment value

y0 50 02 FF On

y0 50 03 FF Off

y0 05 03 FF Off

y0 05 00 FF Hold

y0 50 03 FF Off

qqq: Tilt

ppp: Pan
qqq: Tilt
rrrr: Zoom

mnpq: Model Code (04xx)

mn pq rs tu vw FF

y0 50 03 FF Off

y0 50 03 FF Off

y0 50 03 FF Off

y0 50 03 FF Off

rstu: ROM version
vw: Socket Number (=02)

n: Detection Frame Set (00h to 0Fh)
pq: Threshold Level (00h to FFh)
rs: Interval Time set (00h to FFh)

p: Start Horizontal Position (00h to 0Fh)
q: Start Vertical Position (00h to 07h)
rr: Stop Horizontal Position (01h to 10h)
s: Stop Vertical Position (01h to 08h)

pp: Register Value (=00h to FFh)

pp: Y fixed color for high-intensity
qq: Cr fixed color for high-intensity
rr: Cb fixed color for high-intensity
ss: Y fixed color for low-intensity
tt: Cr fixed color for low-intensity
uu: Cb fixed color for low-intensity

p: Color Hue Setting 0h (− 14 degrees) to Eh (+ 14 degrees)

tu: Offset s=0 (00h to 40h)
Offset s=1 (00h to 10h)

(low) 00h - 80h (no adjustment) - FFh (high)

44

Command List

Inquiry Command List (4/4)

Inquiry Command Command Packet Inquiry Packet Comments

CAM_ExApertureInq 8x 09 04 1F 42 FF y0 50 00 00 0p 0q FF pq: Aperture control level

pq=00h to FFh

CAM_ExColorGainInq 8x 09 04 1F 49 00 FF y0 50 0p 0q FF pq: Gain setting level, pq: 00h (0%) to FFh (200%)

CAM_ExColorHueInq 8x 09 04 1F 4F 00 FF y0 50 0p 0q FF pq: Phase setting level

pq: 00h (-14 degree) to FFh (+14 degree)

CAM_ExAutoICRThresholdInq 8x 09 04 1F 21 00 FF y0 50 00 00 0p 0q FF pq: ICR ON→OFF threshold level when Auto ICR

pq = 00h to FFh

CAM_ExAutoICROnLevelInq 8x 09 04 1F 21 01 FF y0 50 00 00 0p 0q FF pq: ICR OFF→ON threshold level when Auto ICR

pq = 00h to 1Ch

CAM_MinShutterInq 8x 09 04 12 FF y0 50 02 FF On

y0 50 03 FF

CAM_MinShutterLimitInq 8x 09 04 13 FF y0 50 00 00 0p 0q FF pq: MinShutter Position

CAM_HLCInq 8x 09 04 14 FF y0 50 0p 0q FF p: HLC level (0: Off, 1: Low, 2: Mid, 3: High)

Off

q: HLC mask level (0: Off, 1 to F: from low to high level)

45

Command List

Block Inquiry Command List

Lens Control System Inquiry Commands .....................Command Packet 8x 09 7E 7E 00 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

7

6 6 0 6 0

5 5 0 5 0

4 4 0 4 0

0

3

2 2 2 0

1 1 1 0

0 0 0 0

7 0 Completion Message (50h)

6 1 6 0 6 0

5 0 5 0

4 1 4 0

1

3 0 3

2 0 2

1 0 1

0 0 0

7 0

6 0 6 0

5 0 5 0

4 0 4 0 6 0

2

3

2 2 4 0

1 1

0 0

7 0

6 0 6 0

5 0 5 0

4 0 4 0

3

3

2 2

1 1

0 0 6 1

7 0

6 0 6 0 4 1

5 0 5 0 3 1

4 0 4 0 2 1

4

3

2 2 0 1

1 1

0 0

7 0

6 0 6 0

5 0 5 0

4 0 4 0

5

3

2 2

1 1

0 0

Destination Address

Source Address

Zoom Position (HH)

Zoom Position (HL)

10

Zoom Position (LH)

11

Zoom Position (LL)

7 0

6

3

Focus Near Limit (H)

7 0

7

Focus Near Limit (L)

7 0 1 Digital Zoom 1: On 0: Off

8

3

Focus Position (HH)

7 0

9

3

Focus Position (HL)

7 0 5 1

3

Focus Position (LH)

7 0

3

Focus Position (LL)

12

13

14

15

7 0

3 0

7 0

5

DZoomMode 0: Combine
1: Separate

4

0: Normal 1: Interval
2: Zoom Trigger

3

2

AF Sensitivity 0: Low
1: Normal

Focus Mode 0: Manual 1: Auto

0
7 0

5 0

3

Low Contrast Detection 1: Yes
0: No

2

Camera Memory Recall
1: Executing 0: Stopped

1

Focus Command 1: Executing
0: Stopped

0

Zoom Command 1: Executing
0: Stopped

7 1 Terminator (FFh)

1 1

46

Command List

Camera Control System Inquiry Commands ................Command Packet 8x 09 7E 7E 01 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

7

6 6 0 6 0

5 5 0 5 0

4 4 0 4

0

3

2 2 2

1 1 1

0 0 0

7 0 Completion Message (50h)

6 1 6 0 6 0

5 0 5 0 5 0

4 1 4 0 4 0

1

3 0

2 0 2 2

1 0 1 1

0 0 0 0

7 0

6 0 6 0 6 0

5 0 5 0 5 0

4 0 4

2

3

2 2 2

1 1 1

0 0 0

7 0

6 0 6 0 6 0

5 0

4 0 4 0

3

3

2 2

1 1

0 0

7 0 3 Spot AE 1: On 0: Off

6 0 2 Backlight 1: On 0: Off 6 1

5 0 1 Exposure Comp. 1: On 0: Off 5 1

4 0

4

3

2 6 0 2 1

1 5 0 1 1

0 4

7 0 3

6 0 2

5 0 1

4 0 0

5

3

2

1

0

Destination Address

Source Address

R Gain (H)

R Gain (L)

B Gain (H)

10

B Gain (L)

7 0

6

3

WB Mode

7 0

7

3

Aperture Gain

7 0

8

3 3

Exposure Mode

7 0

5

High Resolution
1: On 0: Off

VE 1: On 0: Off

4

WD (1:

9

*Supported in FW version 7.00 or

later for FCB-EV7520/CV7520
only)

Slow Shutter 1: On 0: Off 4 1

0
7 0 3 1

47

Other than

Shutter Position

Off, 0: Off)

11

12

13

14

15

7 0

3

Iris Position

7 0

3

Gain Position

7 0

4

Bright Position

7 0

5 0

3

Exposure Comp. Position

7 1 Terminator (FFh)

0 1

Command List

Other Inquiry Commands ............................................. Command Packet 8x 09 7E 7E 02 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

7

6 6 0 6 0

5 5 0 5 0

4 4 0 4

0

3

2 2 0 3 0

1 1 0 2

0 0 0

7 0 Completion Message (50h)

6 1 6 0 0 System 1: 1/50, 1/25 0: 1/60, 1/30

5 0 5 0

4 1 4 0 6 0

1

3 0 3 0 5 0

2 0 2 0 4 0

1 0 1 0 3 0

0 0 0 0 2 0

7 0

6 0 6 0 0 0

5 0 5 0

4 0 4 0 6 0

2

3

2 Auto ICR 1: On 0: Off 2 4 0

1 0 1 3 0

0 Power 1: On 0: Off 0 2 0

7 0

6 Stabilizer 1: On 0: Off 6 0 0 0

5 Stabilizer Hold 1: Hold 0: Off 5 0

4 ICR 1: On 0: Off 4 0 6 1

3

3 Freeze 1: On 0: Off

2 LR Reverse 1: On 0: Off 2 4 1

1 0 1 3 1

0 0 0 2 1

7 0

6 0 6 0 0 1

5 Privacy Zone 1: On 0: Off 5 0

4 Mute 1: On 0: Off 4 0

4

3 Title Display 1: On 0: Off 3

2 Display 1: On 0: Off 2

1 0 1

0 0 0

7 0

6 0 6 0

5 0 5 0

4 0 4 0

5

3

2 2

1 1

0 0

Destination Address

Source Address

Auto ICR Alarm (1: On, 0: Off)

10

11

Picture Effect Mode

7 0

6

3 0

7 0 1

7

7 0 1 0

8

3

Camera ID (HH)

7 0 1 0

9

3

Camera ID (HL)

7 0 1 1

Camera ID (LH)

7 0

3

Camera ID (LL)

48

12

13

14

15

7 0

7 0

7 0

5 0

7 1 Terminator (FFh)

5 1

Memory 1: Provided 0: Not
provided

ICR 1: Provided 0: Not
provided

Stabilizer 1:

Provided 0: Not

provided

Command List

Extended Function1 Query Command .........................Command Packet 8x 09 7E 7E 03 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

7

6 6 0 6

5 5 0 5

4 4 0 4

0

3

2 2

1 1

0 0

7 0 Completion Message (50h)

6 1 6 0

5 0 5 0 6 0

1

4 1 4 0 5 0

3 0 3

2 0 2 3

1 0 1 2

0 0 0 1

7 0

6 0 6 0

5 0 5 0 6

4 0 4 0 5

2

3

2 2 3

1 1

0 0 2

7 0

6 0 6 0 0

5 0 5 0

4 0 4 0 6

3

3

2 2 4

1 1 3

0 0 2

7 0

6 0 6 0 0

5 0 5 0

4 0 4 0 6 1

4

3

2 2 MD (1: On, 0: Off ) 4 1

1 1 0 3 1

0 0 E-Flip (1: On, 0: Off ) 2 1

7 0 1 1

6 0 0 1

5 0

4 0

5

3

2

1

0

Destination Address

Source Address

Digital Zoom Position (H)

Digital Zoom Position (L)

10

AF Activation Time (H)

AF Activation Time (L)

7 0

6

3

AF Interval Time (H)

7 0

7

AF Interval Time (L)

7 0 0

8

3

Spot AE Position (X)

7 0 1

9

3

Spot AE Position (Y)

7 0 1

3 0 5 1

49

11

12

13

14

15

7 0

Color Gain (0h (60%) to
Eh (200%))

3

2

Advanced Privacy
(1: Provided, 0: Not provided)

1

0

E-Flip
(1: Provided, 0: Not provided)

7 0

4

7 0

4

High Sensitivity mode
(1: On, 0: Off)

NRInq return value pq are stored.)

7 0

5

7 1 Terminator (FFh)

Reserved

AE Response

Gamma

NR Level

(The lower 3 bits of the CAM_

Chroma Suppress

Gain Limit

Command List

Extended Function2 Query Command .........................Command Packet 8x 09 7E 7E 04 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

7
6 6 0 6 0
5 5 0 5 0
4 4 0 4 0

0

3
2 2 0 2 0
1 1 Compensation level 1 0
0 0 0: Low 1: Mid 2: High 0 0
7 0 Completion Message (50h)
6 1 6 0 6 0
5 0 5 0 5 0
4 1 4 0 4 0

1

3 0 3 0 3 0
2 0 2 0 2 0
1 0 1 0 1 0
0 0 0 Defog 0: Off 1: On 0 0
7 0
6 0 6 0 6 0
5 0 5 0 5 0
4 0 4 0 4 0

2

3 0 3 0 3 0
2 0 2 0 2 0
1
0 0 0 0
7 0

6 0

5 0 6 0 5 0

4 0 5 0 4 0

3

3 0 4 0 3 0

2 0 3 0 2 0

1 0 2 0 1 0

0 0 1 0 0 0
7 0 0 0
6 0
5 0 6 0 5 1
4 0 5 0 4 1

4

3

2

1 2 0 1 1

0 1 0 0 1
7 0 0 0
6 0
5 0
4 0

5

3 0
2 0

1 Brightness compensation selection
0

Destination Address

Source Address

WD
0: Off 1: On 2: VE On

0

Display brightness level setting

0: Dark to 6: Bright

0: Very dark 1: Dark 2: Standard
3:

Bright

10

7 0

6

3 0 3 0

7 0

7

7 0

8

1

Defog Level
1: low 2: mid 3: high

7 0 6 0

9

7 0 6 1

4 0 3 1

3 0 2 1

11

12

13

14

15

7 0

7 0

7 0

1 0

7 0

7 1 Terminator (FFh)

50

Command List

Extended Function3 Query Command .........................Command Packet 8x 09 7E 7E 05 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

7
6 6
5 5 5
4 4 4

0

3
2 2 2
1 1 1
0 0 0
7 0 Completion Message (50h)
6 1 6
5 0 5 5
4 1 4 4

1

3 0 3 3
2 0 2 2
1 0 1 1
0 0 0 0
7 0
6 0 6
5 0 5 5
4 0 4 4

2

3
2 2 2
1 1 1
0 0 0
7 0

6

5 5 5

4 4 4

3

3 3 3

2 2 2

1 1 1

0 0 0

7 0
6
5 5 5 1
4 4 4 1

4

3 3 3 1
2 2 2 1

1 1 1 1

0 0 0 1

7 0

6
5
4

5

3
2
1
0

Destination Address

Source Address

Color Hue

(0h(− 14 degrees) to Eh(+ 14 degrees))

Reserved

Reserved

Reserved

10

7 0

6

3 3

7 0

7

7 0

8

3 3

7 0

6

9

7 0
6

Reserved

Reserved

Reserved

Reserved

Reserved

7 0
6

11

7 0
6

12

7 0
6

13

7 0

6

14

7 1 Terminator (FFh)
6 1

15

Reserved

Reserved

Reserved

Reserved

51

VISCA Command Setting Values

Command List

Exposure control (1/2)

Shutter Speed

15 1/10000 1/10000

14 1/6000 1/6000

13 1/4000 1/3500

12 1/3000 1/2500

11 1/2000 1/1750

10 1/1500 1/1250

0F 1/1000 1/1000

0E 1/725 1/600

0D 1/500 1/425

0C 1/350 1/300

0B 1/250 1/215

0A 1/180 1/150

09 1/125 1/120

08 1/100 1/100

07 1/90 1/75

06 1/60 1/50

05 1/30 1/25

04 1/15 1/12

03 1/8 1/6

02 1/4 1/3

01 1/2 1/2

00 1/1 1/1

59.94/29.97
mode

50/25 mode

Gain

Gain Limit

0F 50.0 dB (28 step)

0E 46.4 dB (26 step)

0D 42.8 dB (24 step)

0C 39.3 dB (22 step)

0B 35.7 dB (20 step)

0A 32.1 dB (18 step)

09 28.6 dB (16 step)

08 25.0 dB (14 step)

07 21.4 dB (12 step)

06 17.8 dB (10 step)

05 14.3 dB (8 step)

04 10.7 dB (6 step)

03 7.1 dB (4 step)

02 3.6 dB (2 step)

01 0 dB (0 step)

0F 50.0 dB (28 step)

0E 46.4 dB (26 step)

0D 42.8 dB (24 step)

0C 39.3 dB (22 step)

0B 35.7 dB (20 step)

0A 32.1 dB (18 step)

09 28.6 dB (16 step)

08 25.0 dB (14 step)

Iris

11 F1.6

10 F2

0F F2.4

0E F2.8

0D F3.4

0C F4

0B F4.8

0A F5.6

09 F6.8

08 F8

07 F9.6

06 F11

05 F14

00 CLOSE

07 21.4 dB (12 step)

06 17.8 dB (10 step)

05 14.3 dB (8 step)

04 10.7 dB (6 step)

52

Command List

Exposure control (2/2)

Bright

1F F1.6 50.0 dB (28 step)

1E F1.6 46.4 dB (26 step)

1D F1.6 42.8 dB (24 step)

1C F1.6 39.3 dB (22 step)

1B F1.6 35.7 dB (20 step)

1A F1.6 32.1 dB (18 step)

19 F1.6 28.6 dB (16 step)

18 F1.6 25.0 dB (14 step)

17 F1.6 21.4 dB (12 step)

16 F1.6 17.8 dB (10 step)

15 F1.6 14.3 dB (8 step)

14 F1.6 10.7 dB (6 step)

13 F1.6 7.1 dB (4 step)

12 F1.6 3.6 dB (2 step)

11 F1.6 0 dB (0 step)

10 F2 0 dB (0 step)

0F F2.4 0 dB (0 step)

0E F2.8 0 dB (0 step)

0D F3.4 0 dB (0 step)

0C F4 0 dB (0 step)

0B F4.8 0 dB (0 step)

0A F5.6 0 dB (0 step)

09 F6.8 0 dB (0 step)

08 F8 0 dB (0 step)

07 F9.6 0 dB (0 step)

06 F11 0 dB (0 step)

05 F14 0 dB (0 step)

00 CLOSE 0 dB (0 step)

Iris Gain

Zoom Ratio and Zoom Position
(for reference)

Optical Zoom

Ratio

1× 0000
2× 16A1
3× 2063
4× 2628
5× 2A1D
6× 2D13
7× 2F6D
8× 3161

9× 330D
10× 3486
11× 35D7
12× 3709
13× 3820
14× 3920
15× 3AOA
16× 3ADD
17× 3B9C
18× 3C46
19× 3CDC
20× 3D60
21× 3DD4
22× 3E39
23× 3E90
24× 3EDC
25× 3F1E
26× 3F57
27× 3F8A
28× 3FB6
29× 3FDC
30× 4000

Optical Zoom
Position Data

Exposure Comp.

0E +7 +10.5 dB

0D +6 +9 dB

0C +5 +7.5 dB

0B +4 +6 dB

0A +3 +4.5 dB

09 +2 +3 dB

08 +1 +1.5 dB

07 0 0 dB

06 −1 −1.5 dB

05 −2 −3 dB

04 −3 −4.5 dB

03 −4 −6 dB

02 −5 −7.5 dB

01 −6 −9 dB

00 −7 −10.5 dB

53

Command List

Digital Zoom Combine mode

Digital Zoom

Ratio

1× 4000
2× 6000
3× 6A80
4× 7000
5× 7300
6× 7540
7× 76C0
8× 7800

9× 78C0
10× 7980
11× 7A00
12× 7AC0

Digital Zoom

Position Data

Digital Zoom Separate mode

Digital Zoom

Ratio

1× 00

2× 80

3× AA

4× C0

5× CC

6× D5

7× DB

8× E0

9× E3
10× E6
11× E8
12× EB

Digital Zoom

Position Data

Lens control

0000 to 4000 to 7AC0

Zoom Position

Focus Position

Focus Near
Limit

1000 to F000
Far end Near end

1000: Over Inf

2000: 20 m

3000: 10 m

4000: 6 m

5000: 4.2 m

6000: 3.1 m

7000: 2.5 m

8000: 2.0 m

9000: 1.65 m

A000: 1.4 m

B000: 1.2 m

C000: 0.8 m

D000: 30 cm
(initial setting)

E000: 11 cm

F000: 1 cm

Wide end Optical Digital

As the distance on the left
will differ due to temperature
characteristics, etc., use as
approximate values.
* The lower 1 byte is fixed at 00.

Wide/Tele Limit Setting

Wide/Tele Limit

Setting Value
Limit Setting

Value

00 0000 1 4000 30

10 00C4 1.02 3F3B 25.5

20 0188 1.04 3E77 22.7

30 024C 1.06 3DB3 20.7

40 0310 1.08 3CEF 19.1

50 03D4 1.11 3C2B 17.8

60 0498 1.13 3B67 16.7

70 055C 1.15 3AA3 15.7

80 0620 1.18 39DF 14.8

90 06E4 1.2 391B 14

A0 07A8 1.23 3857 13.2

B0 086C 1.26 3793 12.5

C0 0930 1.28 36CF 11.8

D0 09F4 1.31 360B 11.2

E0 0AB8 1.34 3547 10.6

F0 0B7C 1.38 3483 10

FF 0C33 1.41 33CC 9.5

Wide Limit Tele Limit

Zoom

Position

Zoom

Ratio

Position

Tele end Tele end

Zoom

Zoom

Ratio

54

Command List

Temperature Reading Conversion Value
(Reference Value)

Reading Value

pq (hex)

FB −8 to −2

00 −3 to +3

0A 7 to 13

14 17 to 23

1E 27 to 33

28 37 to 43

32 47 to 53

3C 57 to 63

Temperature

Conversion

Value (ºC)

Register Setting

The register settings are enabled when the power is
turned off and then back on again. After turning the
power back on again, verify that the mode settings have
been changed.

Register No. Value

VISCA
Baud Rate

Monitoring
Mode

LVDS Mode 74 00

Zoom Limit

D-Zoom Max

“StableZoom” 53 00

00 00

(Iinitial Setting)

01 19200 bps
02 38400 bps
03 115200 bps

72 01

(Iinitial Setting)

02
03

04 1080i/50
05

06 1080p/29.97
07
08 1080p/25

09 720p/59.94
0A
0B
0C 720p/50
0D
0E 720p/29.97

0F

10

11 720p/25

12

13 1080p/59.94

14 1080p/50

15

(Iinitial Setting)

01 Double output

50 00-FF

(Iinitial Setting: 00)

51 00-FF

(Iinitial Setting: 00)

52 00-EB

(Iinitial Setting: EB)

(Iinitial Setting: 00)

01 On

9600 bps

1080i/59.94

1080i/60
NTSC Analog Output
(Stop Digital Output)

PAL Analog Output
(Stop Digital Output)

1080p/30

720p/60
Reserved

Reserved

720p/30
Reserved

Reserved

1080p/60
Single output

Wide Limit
(0: Disabled)
Tele Limit
(0: Disabled)
Max. digital
zoom ratio =
256 ÷ (256-Value)
Off

55

Command List

FocusTrace
@ZoomDirect

FocusOffset
@DomeCover
AE Parameter
Change During
VE On, Defog
On
Auto Slow
Shutter Limit

Extended
Normal Shutter

Defog Limit

Extended
Mode

Register No. Value

54 00 Off

01

(Iinitial Setting: 01)

55 00-FF

(Iinitial Setting: 00)

58 00 OFF

01

(Iinitial Setting)

59 01 1/30

02 1/15
03 1/8
04

(Iinitial Setting)

05 1/2
06 1/1

5A 00

(Iinitial Setting)

01 Allowed up to

02 Allowed up to

03 Allowed up to

04 Allowed up to

05 Allowed up to

06 Allowed up to

5B 00-FF

(Iinitial Setting:

FF)

5C 00-FF

(Iinitial Setting:

FF)

5D 00-FF

(Iinitial Setting:

FF)

5F 00

(Iinitial Setting)
bit: 0 Exposure compensation
Extended 256 levels On/Off
bit: 1 Aperture Extended 256 levels
On/Off
bit: 2 Color Gain/Hue Extended 256
levels On/Off
bit: 3 Auto ICR Off  On setting
enable On/Off
*For all of bit, 1 is to activate, 0 is
Off

On

00: None to
FF: Max.

ON

1/4

OFF

1/30

1/15

1/8

1/4

1/2

1/1
Defog level
Low Limit

Defog level
Mid Limit

Defog level
High Limit

OFF

Others

AF Active Time

AF Interval Time

Spot AE X position

Spot AE Y position

R Gain

B Gain

Aperture Control Level

AE Response

AutoICR On
MD Threshold Level

MD Interval Time

MD Set Horizontal Position

MD Set Vertical Position

Chroma Suppress setting level

Color Gain setting level

Color Hue setting level

Color Enhancement threshold level

Color Enhancement Y fixed color

Color Enhancement Cr fixed color

Color Enhancement Cb fixed color

1)

Unit: One second

1)

1)

 Off Threshold Level

1)

00 to FF

00 to FF

00 to 0F

00 to 0F

00 to FF

00 to FF

00 to 0F

01 to 30

00 to 1C

00 to FF

00 to FF

00 to 10

00 to 08

00 to 03

00 to 0E

00 to 0E

00 to 7F

00 to 7F

00 to 7F

00 to 7F

56

Specifications

Specifications

Imager 1/2.8 Type “Exmor R” CMOS Sensor
Picture elements 2130K pixels
Lens 30× Zoom
F= 4.3 mm (WIDE) to 129 mm

(TELE), F1.6 to F4.7
Zoom movement speed
Optical WIDE – Optical TELE

4.6 sec (Focus Tracking On)

3.2 sec (Focus Tracking Off)

Optical WIDE – Digital TELE

6.7 sec (29.97p/59.94p mode)

7.1 sec (25p/50p mode)

Digital WIDE – Digital TELE

2.2 sec (29.97p/59.94p mode)

2.7 sec (25p/50p mode)
Focus Movement time
∞ to Near 1.1 sec
Digital Zoom 12× (360× with optical zoom)
Angle of view (H)
Approx. 63.7 degrees (wide end),

approx. 2.3 degrees (tele end)
Min. working distance
10 mm (wide end), 1200 mm

(tele end)
Sync system Internal
Min. illumination In the case of ICR-Off
(Typical value) 0.01 lx (1/30 sec, 50%,
High Sensitivity mode On)

0.1 lx (1/30 sec, 50%, High

Sensitivity mode Off)

0.013 lx (1/4 sec, 1/3 sec, 50%,

In the case of ICR-On

0.0015 lx (1/30 sec, 50%, High

0.006 lx (1/30 sec, 50%, High

0.0008 lx (1/4 sec, 1/3 sec, 30%,

Recommended illumination
100 lx to 100,000 lx
S/N ratio 50 dB (Weight On)

0.0013 lx (1/4 sec, 1/3 sec, 50%,

High Sensitivity mode On)

High Sensitivity mode Off)

Sensitivity mode On)

Sensitivity mode Off)

High Sensitivity mode On)

Back light compensation
On/Off
Electronic shutter speed
1/1 sec to 1/10000 sec (22 steps)
White Balance Auto, ATW, Indoor, Outdoor, One

Push WB, Manual WB, Outdoor
Auto, Sodium Vapor Lamp (Fix/
Auto/Outdoor Auto)

Gain Auto/Manual

(0 to 50.0 dB (0 to 28 step))

Max. Gain Limit

(10.7 to 50.0 dB (6 to 28 step))
Wide Dynamic Range Mode
On/Off
(Supported in FW version 7.00 or

later for FCB-EV7520/CV7520

only)
Noise Reduction
On/Off (level 5 to 1 / Off, 6 steps)
Defog mode On/Off
Color Enhancement
On/Off
Aperture control 16 steps
Preset 16-POSITIONS
Camera control VISCA protocol (CMOS 5V)

9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2

kbps, Stop bit, 1 bit
Video Output HD: Digital (LVDS)
Analog SD: VBS
Storage temperature/Humidity
–20 °C to +60 °C (–4 °F to +140 °F)/

20% to 95%
Absolute humidity: 36 g/m
Operating temperature/Humidity
–5 °C to +60 °C (23 °F to +140 °F)/

20% to 80%
Absolute humidity: 36 g/m
Power requirements
6 V to 12 V DC
Power consumption

3.2 W
(during motor operation: 4.0 W)
Mass Approx. 255 g (9.0 oz.)
Dimensions 50.0 × 60 × 89.7 mm
(2 × 2

3

3

3

/8 × 3 5/8 in.) (w/h/d)

57

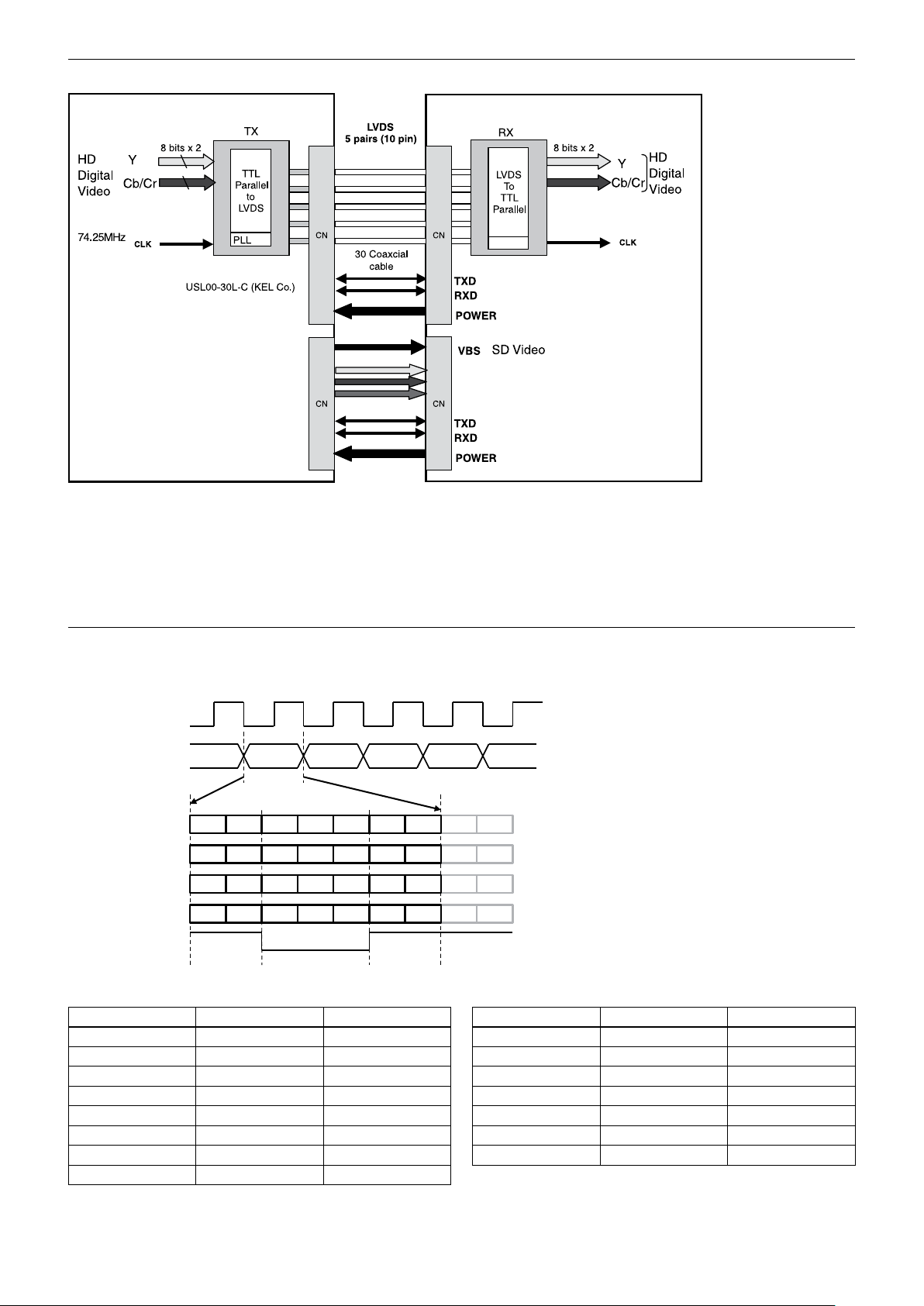

Interface

PLL

FCB-EV7520 FCB-EV7517
FCB-CV7520

046240024006800+
(Kyocera-elco)

Y6 Y5

0 0

C5C6

0 0

Pixel CLK

Pixel Data

Y6 Y5 Y4 Y3 Y2 Y1 Y0

0 0 0    Y7

C6 C5 C4 C3 C2 C1 C0

0 0 0 0 0 C6 C7

TA1 +/

TB1 +/

TC1 +/

TD1 +/

TCLK +

FCB OUT

Single Mode

 Please ignore the value which can be “0” or “1”.

Specifications

• In FCB-EV7520/FCB-CV7520/FCB-EV7517, the video signal is transmitted by using LVDS.The LVDS receiver
IC chip (e.g., THC63LVD1024, THC63LVD104C, BU90R102) is recommended.

• Recommended connectors and cables

Cable: #42 thin coaxial cable
Connector: USL20-30S (KEL)

LVDS Pixel Data Format

Output Format Pixel CLK[Hz] TCLK+[Hz] Output Format Pixel CLK[Hz] TCLK+[Hz]

1080p/60 148.5M 148.5M 720p/59.94 74.25M/1.001 74.25M/1.001

1080p/59.94 148.5M/1.001 148.5M/1.001 720p/30 74.25M 74.25M

1080p/30 74.25M 74.25M 720p/29.97 74.25M/1.001 74.25M/1.001

1080p/29.97 74.25M/1.001 74.25M/1.001 1080p/50 148.5M 148.5M

1080i/60 74.25M 74.25M 1080p/25 74.25M 74.25M

1080i/59.94 74.25M/1.001 74.25M/1.001 720p/50 74.25M 74.25M

1080i/50 74.25M 74.25M 720p/25 74.25M 74.25M

720p/60 74.25M 74.25M

58

Specifications

Y6 Y5

0 0

C5

0 0

Y6 Y5

0 0

C5

0 0

Y6 Y5 Y4 Y3 Y2 Y1 Y0

0 0 0 Y7

C5 C4 C3 C2 C1 C0

0 0 0 0 0 C6 C7

Y6 Y5 Y4 Y3 Y2 Y1 Y0

0 0 0 Y7

C5 C4 C3 C2 C1 C0

0 0 0 0 0 C6 C7

TA1 +/

TB1 +/

TC1 +/

TD1 +/

TA2 +/

TB2 +/

TC2 +/

TD2 +/

TCLK +

FCB OUT

ODD
DATA

EVEN DATA

Pixel CLK

Pixel Data

ODD EVEN ODD EVEN ODD

Double Mode



  

* Please ignore the value which can be “0” or “1”.



  

Output Format Pixel CLK[Hz] TCLK+[Hz] Output Format Pixel CLK[Hz] TCLK+[Hz]

1080p/60 148.5M 74.25M 720p/59.94 74.25M/1.001 37.125M/1.001

1080p/59.94 148.5M/1.001 74.25M/1.001 720p/30 74.25M 37.125M

1080p/30 74.25M 37.125M 720p/29.97 74.25M/1.001 37.125M/1.001

1080p/29.97 74.25M/1.001 37.125M/1.001 1080p/50 148.5M 74.25M

1080i/60 74.25M 37.125M 1080p/25 74.25M 37.125M

1080i/59.94 74.25M/1.001 37.125M/1.001 720p/50 74.25M 37.125M

1080i/50 74.25M 37.125M 720p/25 74.25M 37.125M

720p/60 74.25M 37.125M

59

Specifications

DE

Y1

Y4

C0 01

10 u

25 V

HS YNC

Y5

C0 08

0. 1u

25 V

C6

C3

C0 09

0. 1u

25 V

C0 03

0. 1u

25 V

CL K

R0 28

10 k

FB 003

R0 29

10 k

R0 02 10 0

RX D

C0 10

0. 1u

25 V

C0 04

0. 1u

25 V

RE SET

C4

D3 .3V _

TX D

Y7

C0

UN REG

R0 06 10 0

C5

R0 03 10 0

R0 05 10 0

Y0

CN 001

30 P

1TX OUT 4-

2TX OUT 4+

3TX OUT 5-

4TX OUT 5+

5RE SET

6NC

7TX OUT 6-

8TX OUT 6+

9TX OUT 7-

10TX OUT 7+

11GN D

12GN D

13UN REG

14UN REG

15UN REG

16UN REG

17UN REG

18RX D

19TX D

20GN D

21TX OUT 0-

22TX OUT 0+

23TX OUT 1-

24TX OUT 1+

25TX OUT 2-

26TX OUT 2+

27TX CLK OU T-

28TX CLK OU T+

29TX OUT 3-

30TX OUT 3+

C1

FB 002

C0 05

1u

25 V

C0 07

0. 1u

25 V

R0 01 10 0

Y2

Y3

R0 27

10 k

Y6

C7

IC 001

TH C63 LV D10 4C

1

GN D_1

2

TE ST

3

PD

4

OE

5

R/ F

6

RE 6

7

RE 5

8

RE 4

9

VC C_9

10

RE 3

11

RE 2

12

RE 1

13

RE 0

14

RD 6

15

RD 5

16

GN D_1 6

RD 417RD 318RD 219RD 120RD 021RC 6

22

VC C_2 3

23

RC 524RC 425RC 326RC 227RC 128RC 0

29

GN D_3 030CL KOU T

31

RB 6

32

33

RB 5

34

RB 4

35

RB 3

36

RB 2

37

VC C_3 7

38

RB 1

39

RB 0

40

RA 6

41

RA 5

42

RA 4

43

RA 3

44

GN D_4 4

45

RA 2

46

RA 1

47

RA 0

48

VC C_4 8

RA -49RA +50RB -51RB +52LV CC53RC -54RC +55RC LK-56RC LK+57LG ND58RD -59RD +60RE -61RE +62PG ND63PV CC

64

VS YNC

C2

GN D

FB 001

R0 04 10 0

C0 06

1u

25 V

C0 02

0. 1u

25 V

S0 01

100 I m ped a n c e

4 l a ne

3 0 p in C oa x ia l

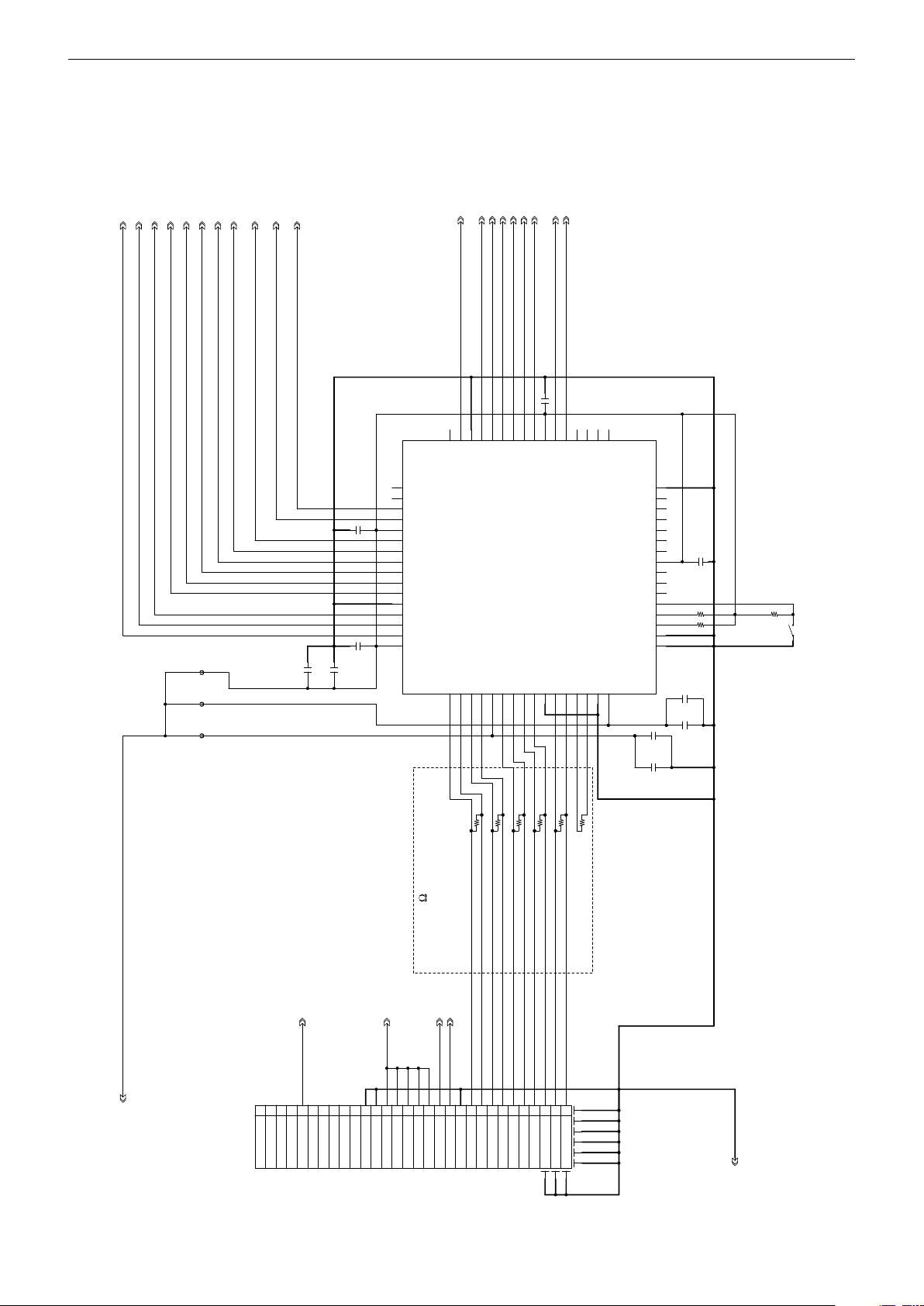

LVDS receiver circuit example

Sony Corporation is not liable for any damages to user’s hardware incurred by the use of the circuit example shown
below.

LVDS receiver circuit example  (Single output) * Not compatible with 1080p/60, 59.94, 50

• The switch (S001) selects whether to input the rising edge or falling edge of the signal.

60

Specifications

LVDS receiver IC (e.g., THC63LVD104C)
Pin assigment Single mode LVDS input - CMOS output * Not compatible with 1080p/60, 59.94, 50

Pin No. Description Signal

1 GND_1
2 TEST
3 PD
4 OE
5 R/F
6 RE6
7 RE5
8 RE4

9 VCC_9
10 RE3
11 RE2
12 RE1
13 RE0
14 RD6
15 RD5
16 GND_16
17 RD4
18 RD3
19 RD2
20 RD1
21 RD0 C7
22 RC6 C6
23 VCC_23
24 RC5 C5
25 RC4 C4
26 RC3 C3
27 RC2 C2
28 RC1 C1
29 RC0 C0
30 GND_30
31 CLKOUT CLK
32 RB6

Pin No. Description Signal

33 RB5
34 RB4
35 RB3 DE
36 RB2 VSYNC
37 VCC_37
38 RB1 HSYNC
39 RB0 Y7
40 RA6 Y6
41 RA5 Y5
42 RA4 Y4
43 RA3 Y3
44 GND_44
45 RA2 Y2
46 RA1 Y1
47 RA0 Y0
48 VCC_48
49 RA− TXOUT0−
50 RA+ TXOUT0+
51 RB+ TXOUT1−
52 RB− TXOUT1+
53 LVCC
54 RC− TXOUT2−
55 RC+ TXOUT2+
56 RCLK− TXCLKOUT−
57 RCLK+ TXCLKOUT+
58 LGND
59 RD− TXOUT3−
60 RD+ TXOUT3+
61 RE−
62 RE+
63 PGND
64 PVCC

61

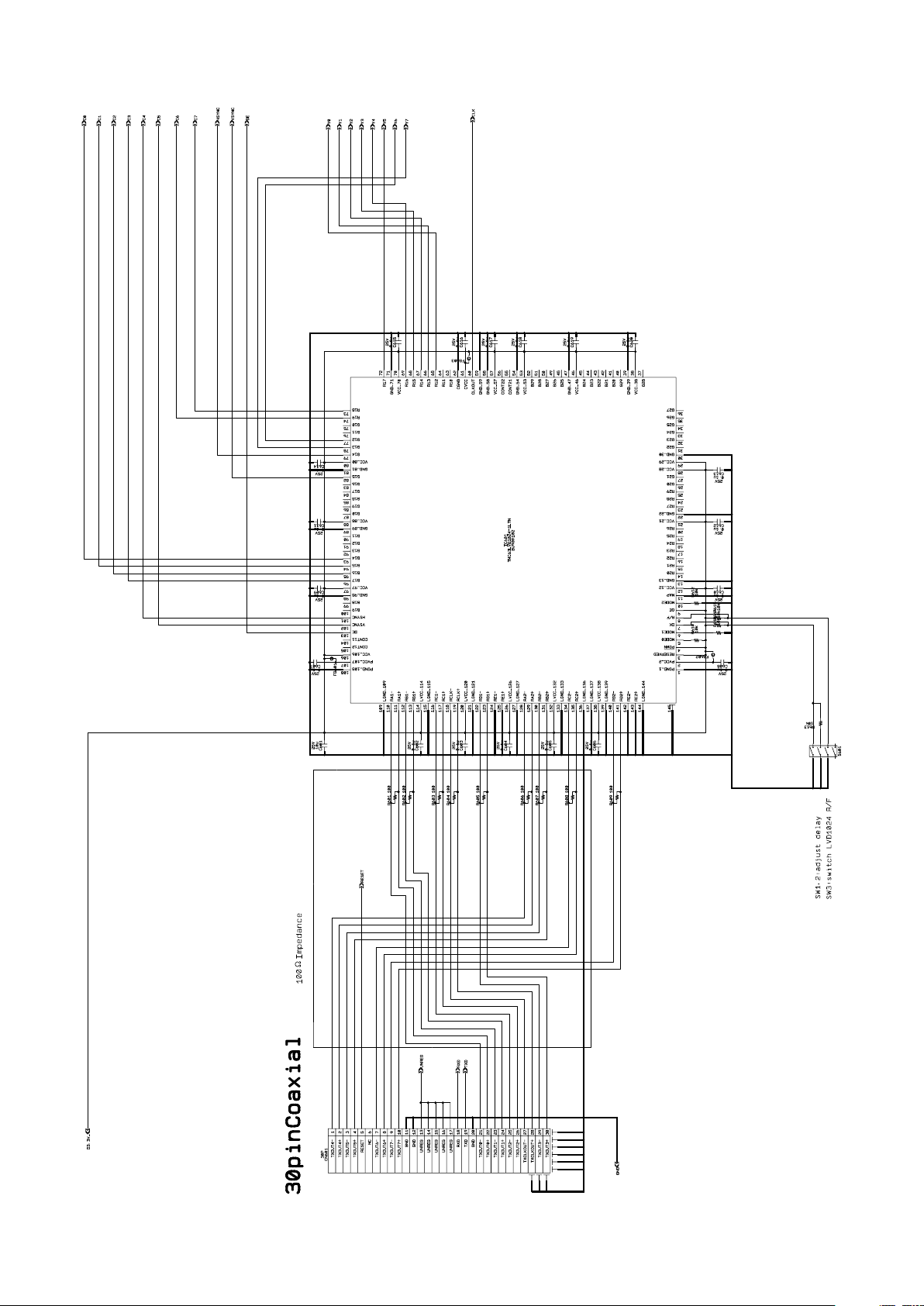

LVDS receiver circuit example  (Single output)

Specifications

• No.1 and 2 of S601 adjust the signal delay. No.3 selects whether to input the rising edge or falling edge of the
signal.

62

LVDS receiver IC (e.g., THC63LVD1024, BU90R102)
Pin assigment Single mode LVDS input - CMOS output

Specifications

Pin No. Description Signal

1 PGND_1
2 PVCC_2
3 RESERVED
4 PDWN
5 MODE0
6 MODE1
7 DK
8 R/F

9 OE
10 MODE2
11 MAP
12 VCC_12
13 GND_13
14 R20
15 R21
16 R22
17 R23
18 R24
19 R25
20 R26
21 VCC_21
22 GND_22
23 R27
24 R28
25 R29
26 G20
27 G21
28 VCC_28
29 VCC_29
30 GND_30
31 G22
32 G23
33 G24
34 G25
35 G26
36 G27
37 G28
38 VCC_38
39 GND_39
40 G29
41 B20
42 B21
43 B22
44 B23
45 B24
46 VCC_46
47 GND_47
48 B25
49 B26
50 B27

Pin No. Description Signal

51 B28
52 B29
53 VCC_53
54 GND_54
55 CONT21
56 CONT22
57 VCC_57
58 GND_58
59 GND_59
60 CLKOUT CLK
61 CVCC
62 CGND
63 R10
64 R11
65 R12 Y0
66 R13 Y1
67 R14 Y2
68 R15 Y3
69 R16 Y4
70 VCC_70
71 GND_71
72 R17 Y5
73 R18 C7
74 R19 C6
75 G10
76 G11
77 G12 Y6
78 G13 Y7
79 G14 HSYNC
80 VCC_80
81 GND_81
82 G15 VSYNC
83 G16 DE
84 G17
85 G18
86 G19
87 B10
88 VCC_88
89 GND_89
90 B11
91 B12
92 B13
93 B14 C0
94 B15 C1
95 B16 C2
96 B17 C3
97 VCC_97
98 GND_98
99 B18

100 B19

Pin No. Description Signal

101 HSYNC C4
102 VSYNC C5
103 DE C6
104 CONT11
105 CONT12
106 VCC_106
107 PVCC_107
108 PGND_108
109 LGND_109
110 RA1− TXOUT0−
111 RA1+ TXOUT0+
112 RB1− TXOUT1−
113 RB1+ TXOUT1+
114 LVCC_114
115 LGND_115
116 RC1− TXOUT2−
117 RC1+ TXOUT2+
118 RCLK− TXCLKOUT−
119 RCLK+ TXCLKOUT+
120 LVCC_120
121 LGND_121
122 RD1− TXOUT3−
123 RD1+ TXOUT3+
124 RE1−
125 RE1+
126 LVCC_126
127 LGND_127
128 RA2−
129 RA2+
130 RB2−
131 RB2+
132 LVCC_132
133 LGND_133
134 RC2−
135 RC2+
136 LGND_136
137 LGND_137
138 LVCC_138
139 LVCC_139
140 RD2−
141 RD2+
142 RE2−
143 RE2+
144 LGND_144

63

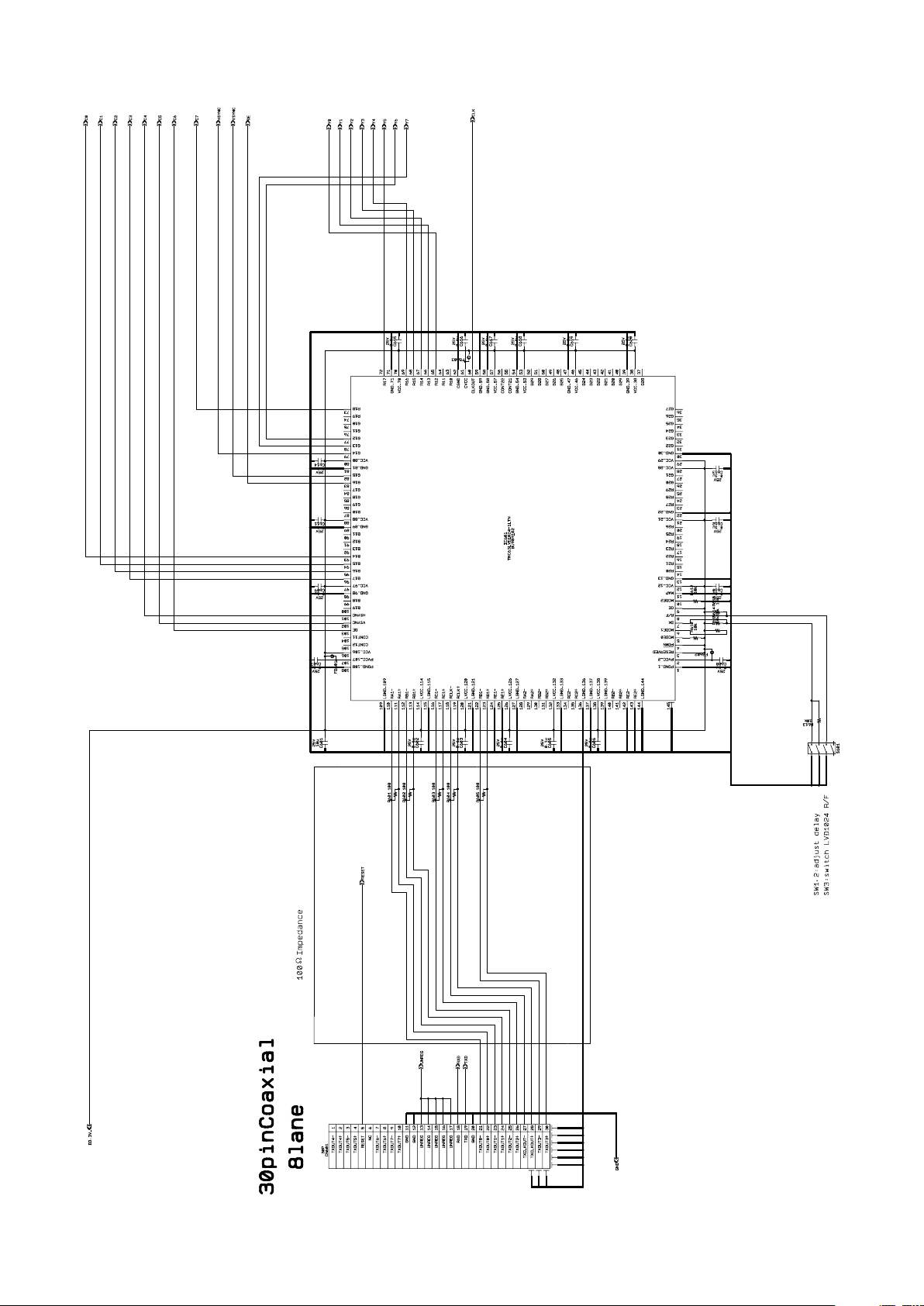

LVDS receiver circuit example  (Double output)

Specifications

• No.1 and 2 of S601 adjust the signal delay. No.3 selects whether to input the rising edge or falling edge of the
signal.

64

LVDS receiver IC (e.g., THC63LVD1024, BU90R102)
Pin assigment Double mode LVDS input - CMOS output

Specifications

Pin No. Description Signal

1 PGND_1
2 PVCC_2
3 RESERVED
4 PDWN
5 MODE0
6 MODE1
7 DK
8 R/F

9 OE
10 MODE2
11 MAP
12 VCC_12
13 GND_13
14 R20
15 R21
16 R22
17 R23
18 R24
19 R25
20 R26
21 VCC_21
22 GND_22
23 R27
24 R28
25 R29
26 G20
27 G21
28 VCC_28
29 VCC_29
30 GND_30
31 G22
32 G23
33 G24
34 G25
35 G26
36 G27
37 G28
38 VCC_38
39 GND_39
40 G29
41 B20
42 B21
43 B22
44 B23
45 B24
46 VCC_46
47 GND_47
48 B25
49 B26
50 B27

Pin No. Description Signal

51 B28
52 B29
53 VCC_53
54 GND_54
55 CONT21
56 CONT22
57 VCC_57
58 GND_58
59 GND_59
60 CLKOUT CLK
61 CVCC
62 CGND
63 R10
64 R11
65 R12 Y0
66 R13 Y1
67 R14 Y2
68 R15 Y3
69 R16 Y4
70 VCC_70
71 GND_71
72 R17 Y5
73 R18 C7
74 R19 C6
75 G10
76 G11
77 G12 Y6
78 G13 Y7
79 G14 HSYNC
80 VCC_80
81 GND_81
82 G15 VSYNC
83 G16
84 G17
85 G18
86 G19
87 B10
88 VCC_88
89 GND_89
90 B11
91 B12
92 B13
93 B14 C0
94 B15 C1
95 B16 C2
96 B17 C3
97 VCC_97
98 GND_98
99 B18

100 B19

Pin No. Description Signal

101 HSYNC C4
102 VSYNC C5
103 DE DE
104 CONT11
105 CONT12
106 VCC_106
107 PVCC_107
108 PGND_108
109 LGND_109
110 RA1− TXOUT0−
111 RA1+ TXOUT0+
112 RB1− TXOUT1−
113 RB1+ TXOUT1+
114 LVCC_114
115 LGND_115
116 RC1− TXOUT2−
117 RC1+ TXOUT2+
118 RCLK− TXCLKOUT−
119 RCLK+ TXCLKOUT+
120 LVCC_120
121 LGND_121
122 RD1− TXOUT3−
123 RD1+ TXOUT3+
124 RE1−
125 RE1+
126 LVCC_126
127 LGND_127
128 RA2− TXOUT4−
129 RA2+ TXOUT4+
130 RB2− TXOUT5−
131 RB2+ TXOUT5+
132 LVCC_132
133 LGND_133
134 RC2− TXOUT6−
135 RC2+ TXOUT6+
136 LGND_136
137 LGND_137
138 LVCC_138
139 LVCC_139
140 RD2− TXOUT7−
141 RD2+ TXOUT7+
142 RE2−
143 RE2+
144 LGND_144

65

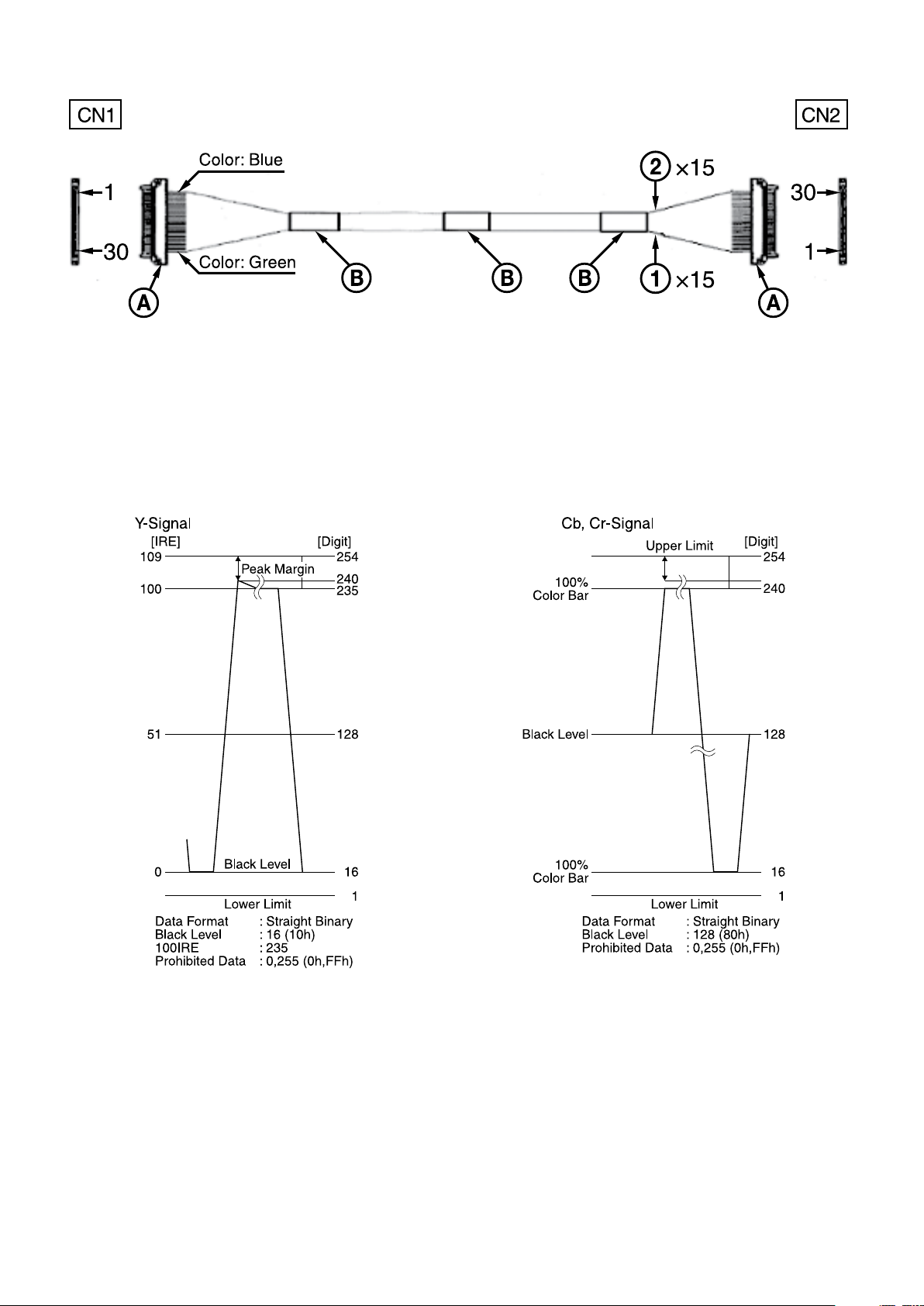

Cable reference specifications (crossover)

• Recommended connectors and cables
Cable green: #42 thin coaxial cable
Cable blue: #42 thin coaxial cable
Connector: USL20-30S (KEL)
Binding tape



Specifications

DIGITAL Image Output Y, Cb, Cr 4:2:2 FORMAT Color coding complies with BT709.

66

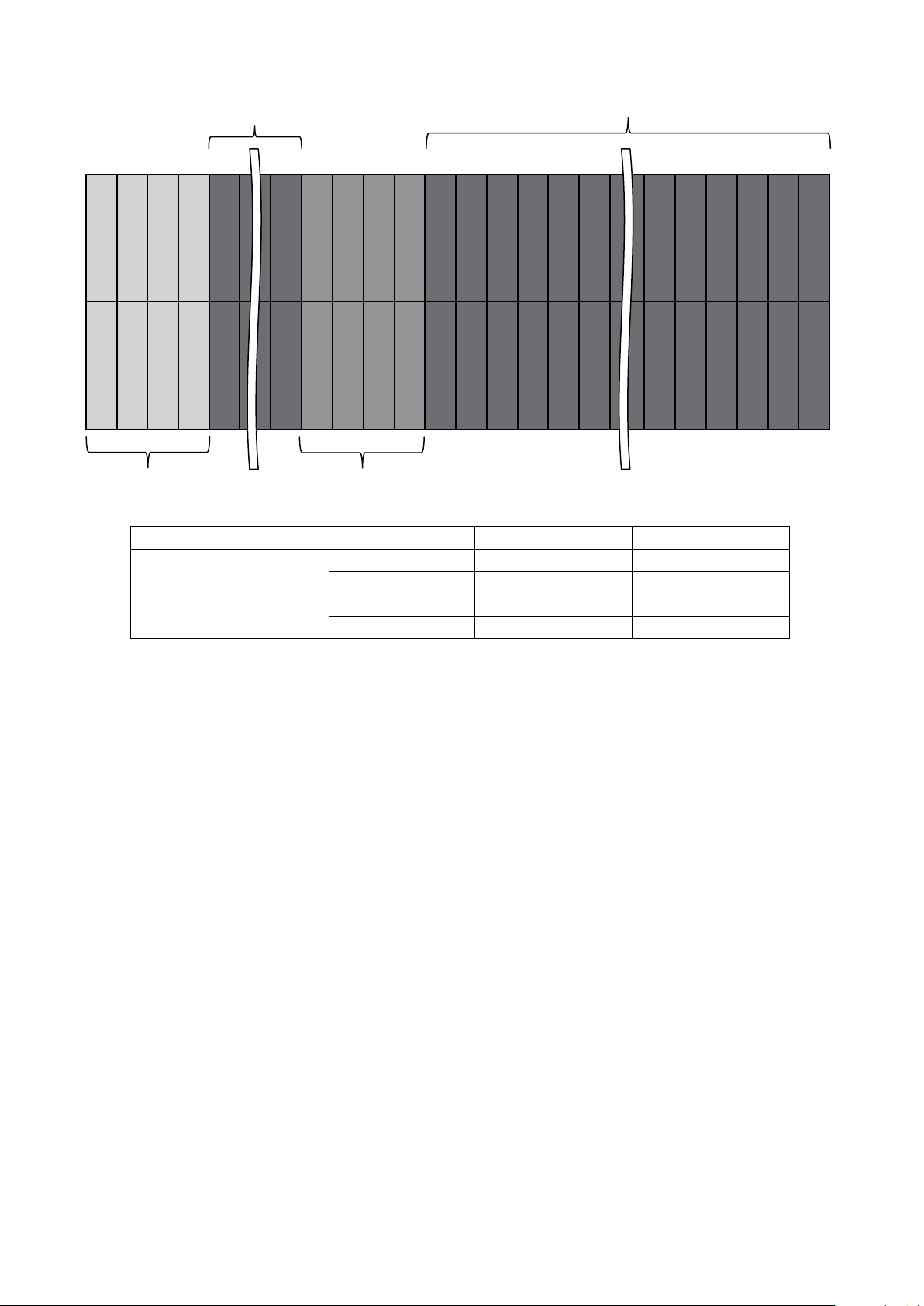

Synchronized codes

0
0

F
F

00X

X

FF0000X

X

Y

Y Y

0
0

F
F

00X

X

0000X

X

YY YY

YYYYY

P
r

P
b

P
r

P
b

P
r

P
b

P
r

P
b

P
r

P
b

P
r

P
b

F
F

Specifications

Blanking

EAV SAV

First Field

Second Field

Active Video Area

Non-active Video Area

Active Video Area

Non-active Video Area

Active Video Area or Non-active Video Area

XX for SAV XX for EAV

80h 9Dh
ABh B6h
C7h DAh
ECh F1h

67

Synchronized codes

SAV for First Field Active Video Area

SAV for First Field Non-active Video Area

SAV for Second Field Active Video Area

SAV for Second Field Non-active Video Area

EAV for Second Field Active Video Area

EAV for Second Field Non-active Video Area































Non-active Video Area

Active Video Area

Non-active Video Area

Non-active Video Area

Active Video Area

Non-active Video Area

Blanking

Blanking

Blanking

Blanking

Blanking

First Field

Second Field

Blanking





EAV for First Field Active Video Area

EAV for First Field Non-active Video Area





SAV

EAV

Interlace system (Comparable to SMPTE 274 M)

Specifications

68

Synchronized codes

Non-active Video Area

Active Video Area

Non-active Video Area

Blanking

Blanking

Blanking

SAV

EAV

SAV for Active Video Area

SAV for Non-active Video Area

EAV for Active Video Area

EAV for Non-active Video Area





















Progressive system (Comparable to SMPTE 274 M, 296 M)

Specifications

69

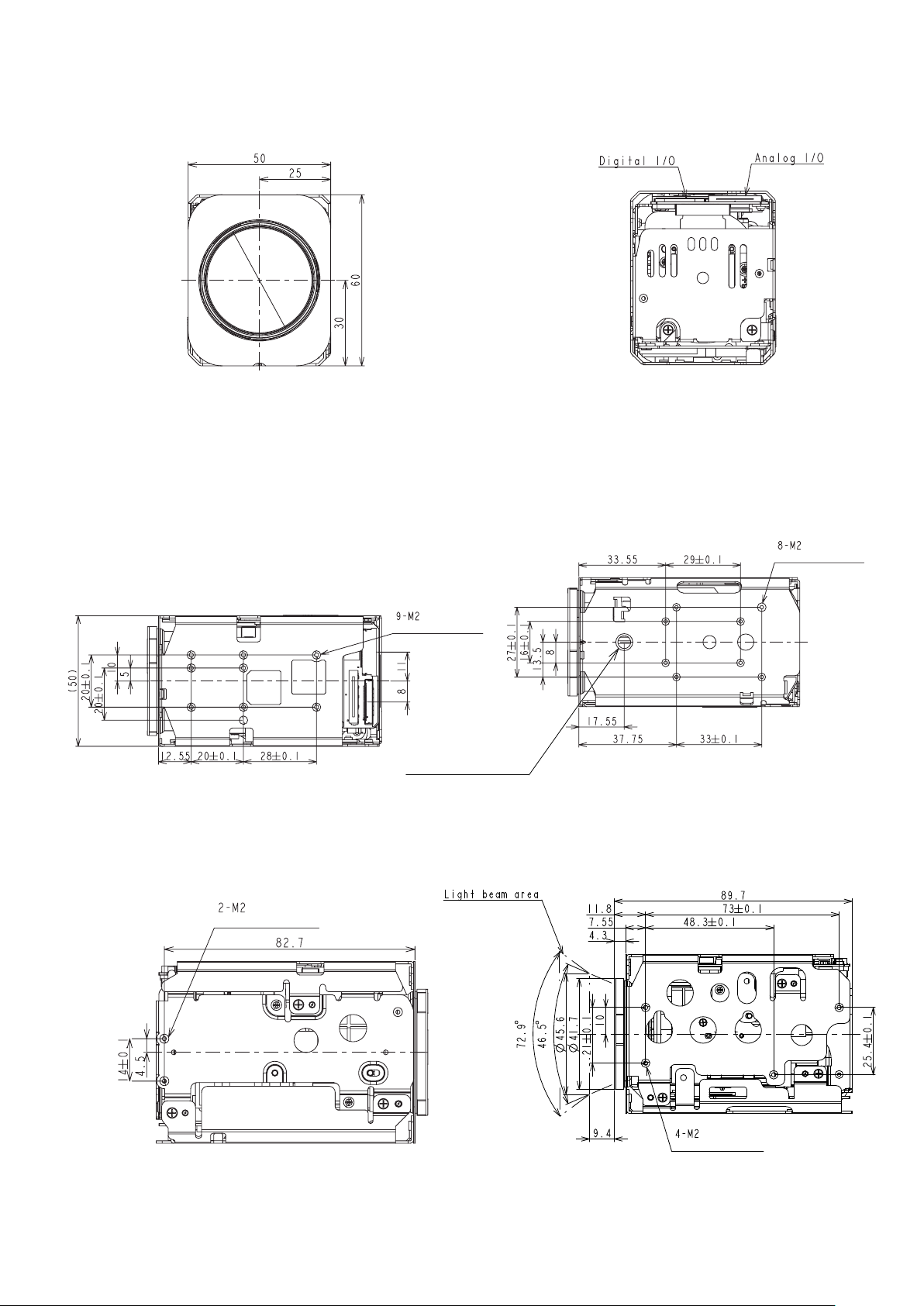

Dimensions

Front Back

Specifications

Top Bottom

Within a depth of
3 mm (1/8 in.) or
less from the top
surface

Screw for camera tripod
within a depth of
7 mm (9/32 in) or less
(1/4-20UNC)

Left side Right side

Within a depth of 3 mm (1/8 in.) or
less from the side

Within a depth of 3
mm (1/8 in.) or less
from the bottom
surface

70

Within a depth of 3 mm (1/8 in.) or
less from the side

Unit: mm (inches)

Specifications

Pin assignment

CN401

KEL Co. USL00-30L-C

Pin No. Name Level

1 TXOUT3+
2 TXOUT3−
3 TXCLKOUT+
4 TXCLKOUT−
5 TXOUT2+
6 TXOUT2−
7 TXOUT1+
8 TXOUT1−

9 TXOUT0+
10 TXOUT0−
11 GND

12 TxD

13 RxD CMOS 5 V (Low: Max 1.0 V,

14 DC IN 6 to 12 V DC
15 DC IN 6 to 12 V DC
16 DC IN 6 to 12 V DC
17 DC IN 6 to 12 V DC
18 DC IN 6 to 12 V DC

19 GND
20 GND

21 TXOUT7+ Single out mode: open
22 TXOUT7– Single out mode: open
23 TXOUT6+ Single out mode: open
24 TXOUT6– Single out mode: open
25 NC

26 RESET

27 TXOUT5+ Single out mode: open
28 TXOUT5– Single out mode: open
29 TXOUT4+ Single out mode: open
30 TXOUT4– Single out mode: open

CMOS 5 V (Low: Max 0.1 V,
High: Min 4.4 V)

High: Min 2.3 V)

Reset: Low (GND), Normal:
Open (1.8V)

CN501

Kyocera-elco 046240024006800+

Pin No. Name Level

1 GND
2 TxD CMOS 5 V

(Low: Max 0.1 V, High: Min 4.4 V)

3 RxD CMOS 5 V

(Low: Max 1.0 V, High: Min 2.3 V)

4 RESET Reset: Low (GND), Normal:

Open (1.8V)

5 GND
6 NC
7 GND
8 NC

9 GND
10 VBS-OUT
11 GND

12 NC
13 GND

14 NC
15 GND

16 NC
17 GND
18 DC IN 6 to 12 V DC
19 DC IN 6 to 12 V DC
20 DC IN 6 to 12 V DC
21 DC IN 6 to 12 V DC

22 GND
23 DC IN 6 to 12 V DC
24 GND

71
