Sony BKDS-7003, DVS-7150, BKDS-7031, BKDS-7030, BKDS-7075 Installation Manual

DIGITAL VIDEO SWITCHER

DVS-7150

SWITCHER CONTROL PANEL

BKDS-7017

BKDS-2031
BKDS-7001
BKDS-7003
BKDS-7030
BKDS-7031
BKDS-7033
BKDS-7075
BKDS-7091
BKDS-7110
BKDS-7111
BKDS-7113

BKDS-7161
BKDS-7163
BKDS-7280
BKDS-M1690
BZS-7080

BKDS-7134

INSTALLATION MANUAL
1st Edition

! WARNING

This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.

! WARNUNG

Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.

! AVERTISSEMENT

Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.

DVS-7150 Serial No. 10001 and Higher
BKDS-2031 Serial No. 10001 and Higher
BKDS-7001 Serial No. 10001 and Higher
BKDS-7003 Serial No. 10001 and Higher
BKDS-7017 Serial No. 10001 and Higher
BKDS-7030 Serial No. 10001 and Higher
BKDS-7031 Serial No. 10001 and Higher
BKDS-7033 Serial No. 10001 and Higher
BKDS-7075 Serial No. 10001 and Higher
BKDS-7091 Serial No. 10001 and Higher
BKDS-7110 Serial No. 10001 and Higher
BKDS-7111 Serial No. 10001 and Higher
BKDS-7113 Serial No. 10001 and Higher

BKDS-7134 Serial No. 10001 and Higher
BKDS-7161 Serial No. 10001 and Higher
BKDS-7163 Serial No. 10001 and Higher
BKDS-7280 Serial No. 10001 and Higher
BKDS-M1690 Serial No. 10001 and Higher
BZS-7080 Serial No. 10001 and Higher

WARNING

This unit has no power switch.
When installing the unit, incorporate a readily
accessible disconnect device in the fixed wiring, or
connect the power cord to a socket-outlet which must be
provided near the unit and easily accessible, so that the
user can turn off the power in case a fault should occur.

WARNUNG

Dieses Gerät hat keinen Netzschalter.
Beim Einbau des Geräts ist daher im Festkabel ein leicht
zugänglicher Unterbrecher einzufügen, oder das
Netzkabel mu
befindlichen, leicht zugänglichen Wandsteckdose
verbunden werden, damit sich bei einer
Funktionsstörung die Stromversorgung zum Gerät
jederzeit unterbrechen lä

Attention-when the product is installed in Rack:

1. Prevention against overloading of branch circuit

When this product is installed in a rack and is
supplied power from an outlet on the rack, please
make sure that the rack does not overload the supply
circuit.

ß

mit einer in der Nähe des Geräts

ß

t.

2. Providing protective earth

When this product is installed in a rack and is
supplied power from an outlet on the rack, please
confirm that the outlet is provided with a suitable
protective earth connection.

3. Internal air ambient temperature of the rack

When this product is installed in a rack, please make
sure that the internal air ambient temperature of the
rack is within the specified limit of this product.

4. Prevention against achieving hazardous
condition due to uneven mechanical loading

When this product is installed in a rack, please make
sure that the rack does not achieve hazardous

condition due to uneven mechanical loading.

Table of Contents

Manual Structure

Purpose of this manual .............................................................................................. 3

Related manuals......................................................................................................... 3

Contents ..................................................................................................................... 4

1. Installation

1-1. Operating Environment............................................................................... 1-1

1-2. Power Supply .............................................................................................. 1-1

1-2-1. Power Switch for Service (Control panel) .................................1-1

1-2-2. Power Specifications ..................................................................1-1

1-2-3. Power Cord.................................................................................1-1

1-3. Connectors...................................................................................................1-2

1-4. Input and Output Signals of Connectors ..................................................... 1-3

1-4-1. DVS-7150 ..................................................................................1-3

1-4-2. BKDS-7017................................................................................ 1-6

1-5. Example of System Connection ..................................................................1-8

2. Installation of DVS-7150

2-1. External Dimensions ................................................................................... 2-1

2-2. Rack Mounting............................................................................................ 2-2

3. Installation of Control Panel

3-1. External Dimensions ................................................................................... 3-1

3-2. Installation Space to Console ......................................................................3-2

3-3. Installation to Console.................................................................................3-3

3-4. Replacement of Key Tops........................................................................... 3-4

DVS-7150E IM

1

4. Installation of Options

4-1. Installation of Plug-in Boards .....................................................................4-2

4-2. Combination of Optional boards.................................................................4-4

4-2-1. Function of optional boards .......................................................4-4

4-2-2. Relation between optional boards and rear panel connectors ....4-4

4-3. Installation of Options for DVS-7150.........................................................4-6

4-3-1. Removing and Installing of Front Panel ....................................4-6

4-3-2. Inserting/Pulling Out of Plug-in Boards ....................................4-7

4-3-3. Installation of Optional Boards ..................................................4-8

4-3-4. Installation of BKDS-M1690

(Redundant Power Supply Unit) ..............................................4-11

4-4. Installation of Options for Control Panel ..................................................4-12

4-4-1. Opening and Closing of Panel..................................................4-12

4-4-2. Turning On/Off the Power .......................................................4-13

4-4-3. Installation of BKDS-7001 (Control Port Expansion Board) ..4-14

4-4-4. Installation of BKDS-7003 (Source Name Display Unit)........4-15

4-4-5. Installation of BKDS-7031 Track Ball ....................................4-17

4-4-6. Installation of Option Panels (BKDS-7030/7031/7033) ..........4-18

4-4-7. Joining of BKDS-7075 (Control Panel Remote Adaptor) .......4-21

4-4-8. Connection of BKDS-7075 to Control Panel...........................4-25

4-4-9. Installation of BKDS-7091 (Redundant Power Supply Unit)

(BKDS-7017) ...........................................................................4-26

5. Confirmation in Installation

5-1. Switch Settings on Boards and LEDs Description......................................5-1

5-1-1. DVS-7150 ..................................................................................5-1

5-1-2. BKDS-7134................................................................................5-6

5-1-3. BKDS-7017................................................................................5-7

5-2. Hard Reset.................................................................................................5-11

5-3. Adjustment of Secondary Power Supply Voltage.....................................5-11

5-3-1. DVS-7150 ................................................................................5-11

5-3-2. BKDS-7017..............................................................................5-13

5-4. Adjustment of Operation Power for Fader Lever .....................................5-15

6. Initial Set-up of System

6-1. Operation and Saving of Set-up Data..........................................................6-1

6-2. Installation of Program (BZS-7080) ...........................................................6-4

6-2-1. Down Load of Program..............................................................6-5

6-2-2. Initializing of Data on RAM ......................................................6-6

6-2-3. Initializing of “Nonvolatile Memory”........................................6-7

6-3. Set-up ..........................................................................................................6-8

2

DVS-7150E IM

Purpose of this manual

Related manuals

Manual Structure

This manual is the installation manual of Digital Video Switcher DVS-7150.
This manual is intended for use by trained system and service engineers, and
describes the information when installing DVS-7150.

The following manuals are prepared for DVS-7150.
The part numbers of these manuals as of Novemver, 1998 describe.

..

. User’s Guide (Supplied with BZS-7080)

..

This manual describes the application and operation of DVS-7150.

..

. Operation Manual (Supplied with DVS-7150)

..

This manual describes the overview, system configuration examples and specifica­tions of options.

..

. Maintenance Manual Part 1 (Supplied with DVS-7150)

..

This manual describes the information for the periodic maintenance, and the
information for the service with predicated on the replacement of the principal
blocks and mounted circuit boards.
Part number : 3-201-448-01

..

. Maintenance Manual Part 2

..

The following manuals describe the detailed service information. For obtaining,
please contact your local Sony’s sale/service office.
All Supplements will publish at February, 1999.

Volume 1 (Block diagrams and Frame wirings)

Part number : 9-967-615-03

Supplement 4 Part number : 9-967-615-84

Volume 2
(Spare parts, Service overview and Replacement of main parts)

Part number : 9-967-616-03

Supplement 5 Part number : 9-967-616-85

Volume 3 (Semiconductor pin assignments)

Part number : 9-967-617-03

Supplement 3 Part number : 9-967-617-83

Volume 4 (Board layouts)

Part number : 9-967-618-03
Supplement 4 Part number : 9-967-618-84

DVS-7150E IM

3

Contents

..

. Maintenance Manual Part 2

..

Volume 5 (Schematic diagrams 1 A through I)

Part number : 9-967-624-03

Supplement 3 Part number : 9-967-624-83

Volume 6 (Schematic diagrams 2 K through Z)

Part number : 9-967-625-02
Supplement 4 Part number : 9-967-625-84

This manual is organized by following sections.

Section 1 Installation

This section describes the operating environment, power supply, connectors, input
and output signals of connectors, and example of system connection.

Section 2 Installation of DVS-7150

This section describes the external dimensions and rack mounting.

Section 3 Installation of Control panel

This section describes the external dimensions, installation space to console, rack
mounting and replacement of key tops.

Section 4 Installation of Options

This section describes the installation of plug-in boards, combinations of optional
boards and installation of options.

Section 5 Confirmation in Installation

This section describes the switch settings on boards and LEDs description,hard
reset,confirmation of secondary power supply voltage and adjustment of operation
power for fader lever.

Section 6 Initial Set-up of System

This section describes the operation and saving of set-up data, installation of pro­gram, set-up.

4

DVS-7150E IM

Section 1

Installation

1-1. Operating Environment

. Install the unit in a well ventilated place to prevent a

temperature rise in the unit. Never cover the ventilation
holes of the outer frame.

. Never install the unit near a heat source because the

environmental temperature during operation should be
5 dC to 40 dC.

1-2. Power Supply

1-2-1. Power Switch for Service

(Control panel)

w

The power switches for service of the control panels are
placed only in the unit.
When installing the unit, incorporate a readily accessible
disconnect device in the fixed wiring, so that the operator/
engineer power in case a fault should occur.

1-2-3. Power Cord

w

The power cords are not supplied with DVS-7150 and the
control panel. Be sure to use the power cords that are
applicable to the places in the world.
To avoid a fire or an electric shock, be sure to use the
designated power cord. And do not damage to the power
cord.

For the customer in the U.S.A. and Canada
Required Parts

1 Power Cord, 125 V 10 A (2.4 m) : 1-557-377-11

1

For the customer in the United Kingdom
Required Parts

DK-2401 (EK)
1 Power Cord, 250 V 10 A (2.4 m)

AC inlet

1-2-2. Power Specifications

Power requirements : 100 to 240 V AC ± 10%

50/60 Hz

Current consumption

DVS-7150 : 4 to 2 A
BKDS-7017 : 1.0 A (max.)

m

As the inrush current at turn-on is the maximum 20 A, the
capacity of the AC power must be commensurate in it with
the inrush current of the maximum 20 A for the processor
and the control panel respectively. If the capacity of the
AC power is not the adequately large, the breaker of the
AC power at the supply side will operate or the unit will
abnormal operate.

1

For the customer in the all European countries
except the United Kingdom

Required Parts

DK-2401 (AE)

1 Power Cord, 250 V 10 A (2.4 m)

1

AC inlet

AC inlet

n

For the customer outside of the area as shown above,
please consult with local Sony’s sale/service office.

DVS-7150E IM

1-1

1-3. Connectors

1-3. Connectors

When connecting cables to various connectors on the rear
panel at the time of installing, connecting or servicing,
connect the following connectors or their equivalents.

1. DVS-7150

Connector function name Connector parts No. and
on rear panel name of cable

(*2)

(* 2)

(*2)

(* 2)

(* 2)

(*2)

(* 2)

(* 2)

(* 2)
(* 2)

D-sub 9-pin, Male

Connector 9-pin, Male

1-560-651-00

(*1)

Junction Shell 9-pin

1-561-749-00

D-sub 25-pin, Male

Connector 25-pin, Male

1-560-904-11

(*1)

Junction Shell 25-pin

1-563-377-11

Main Power Supply Cable
(For the details of the cable,
refer to Section 1-2-3.)

PANEL 1
DME 1 to 2
SERIAL TALLY
TERMINAL
EDITOR-A/REMOTE 1
EDITOR-B/REMOTE 2
PANEL 2/REMOTE 3
MATRIX/REMOTE 4

GPI

PRIMARY INPUTS 1 to 24 BNC Coaxial Connector Plug
CRK INPUT 1 to 2
REF INPUT
REF OUTPUT
AUX BUS OUTPUTS 1 to 6
ME OUTPUTS 1 to 2
PGM OUTPUTS 1 to 4
PVW OUTPUTS 1 to 2
EDIT PVW OUTPUT

AC IN

2. BKDS-7017

Connector function name Connector parts No. and
on rear panel name of cable

(*2)

(*2)

(*2)

(*2)

D-sub 9-pin, Male

Connector 9-pin, Male

1-560-651-00

(*1)

Junction Shell 9-pin

SWITCHER
DME
TERMINAL 1 to 2
REMOTE 1 to 4

1-561-749-00

OPTION PANEL

(*2)

BVS Cable

1-574-993-11

(*2)

AC IN

Main Power Supply Cable
(For the details of the cable,
refer to Section 1-2-3.)

(*1):The following solderless contact must be used for the plug.

AWG #18 to #22:1-566-493-00
AWG #22 to #24:1-564-774-00
AWG #24 to #30:1-564-775-00

(*2):For the customers in europe

When connecting the cables to the following connectors, attach the two
ferrite cores that are packed with each model to the two connectors at
the both sides of the cable.

1-2

DVS-7150E IM

1-4. Input and Output Signals of

Connectors

The input and output signals of the connectors on the rear
panel are specified in the following table. And refer to the
following illustration for the pin positions of the connec­tors.

1-4-1. DVS-7150

1-4. Input and Output Signals of Connectors

[D-SUB 25 PIN • FEMALE]

13

25

1

14

EXT VIEW

[D-SUB 9 PIN • FEMALE]

5

1

69

EXT VIEW

m

(*1) <CONTROLLER>: Controlling device
(*2) <DEVICE> : Controlled device

PANEL 1 : RS-422A (D-sub 9-pin.Female)
<DEVICE>

Pin No. Signal Name Function

1 GND Frame ground
2 TX-A Transmitted data (_)
3 RX-B Received data (+)
4 GND Common ground
5 FIELD (+) Field signal output (+)
6 GND Common ground
7 TX-B Transmitted data (+)
8 RX-A Received data (_)

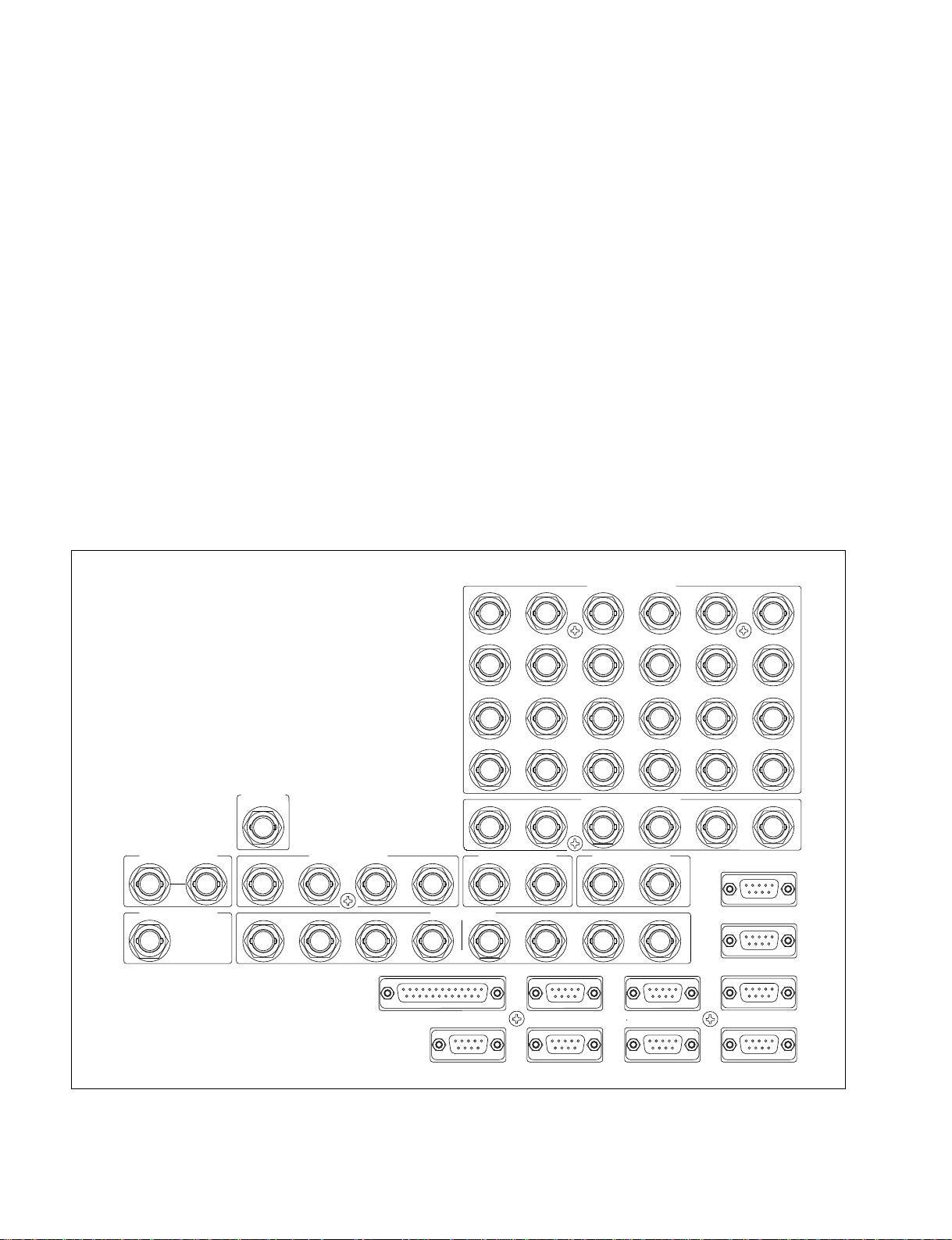

9 FIELD (_) Field signal output (_)

(*2)

from Control panel BKDS-7017

PANEL1

9

DME1

9

SERIAL TALLY

9

9

DME2

9

MATRIX /REMOTE4

9

25

GPI

PANEL2 /REMOTE3

9

TERMINAL

9

EDITOR-B /REMOTE2 EDITOR-A /REMOTE1

9

Rear panel

PANEL 2/REMOTE 3 : RS-422A (D-sub 9-pin.Female)
<DEVICE>

(* 2)

from Control panel

Pin No. Signal Name Function

1 GND Frame ground
2 TX-A Transmitted data (_)
3 RX-B Received data (+)
4 GND Common ground
5 VD-B Transmited VD signal (+)
6 GND Common ground
7 TX-B Transmitted data (+)
8 RX-A Received data (_)
9 VD-A Transmited VD signal (_)

(*3):Control Panel BKDS-2010 etc. (PANEL 2)

Keyer Remote Panel BKDS-7060 etc. (REMOTE 3)

(* 3)

DVS-7150E IM

1-3

1-4. Input and Output Signals of Connectors

SERIAL TALLY : RS-422A (D-sub 9-pin.Female)
<CONTROLLER>

(*1)

n

For the SERIAL TALLY connector, refer to the Protocol
Manual of DVS-8000 Series.

Pin No. Signal Name Function

1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5 __
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9 FG Frame Ground

DME 1, 2 : RS-422A (D-sub 9-pin.Female)
<DEVICE>

(*2)

from Digital multi effects DME-3000/7000

etc.

Pin No. Signal Name Function

1 FG Frame ground
2 TX-A Transmitted data (_)
3 RX-B Received data (+)
4 GND Common ground
5 __
6 GND Common ground
7 TX-B Transmitted data (+)
8 RX-A Received data (_)
9 FG Frame Ground

EDITOR-A/REMOTE 1 : RS-422A (D-sub 9-pin.Female)
<DEVICE>

Pin No. Signal Name Function

1 FG Frame ground
2 EDT A TX-A Transmitted data (_)
3 EDT A RX-B Received data (+)
4 GND Common ground
5 __
6 GND Common ground
7 EDT A TX-B Transmitted data (+)
8 EDT A RX-A Received data (_)
9 FG Frame Ground

(*5):Editing control Unit BVE-9100 etc. (EDITOR A)

(*2)

from Editor

(*5)

EDITOR-B/REMOTE 2 : RS-422A (D-sub 9-pin.Female)
<DEVICE>

Pin No. Signal Name Function

1 FG Frame ground
2 TX-A Transmitted data (_)
3 RX-B Received data (+)
4 GND Common ground
5 __
6 GND Common ground
7 TX-B Transmitted data (+)
8 RX-A Received data (_)
9 FG Frame Ground

(*6):Editing control Unit BVE-9100 etc. (EDITOR B)

(*2)

from Editor

(*6)

TERMINAL : RS-232C (D-sub 9-pin.Female)

to Terminal

MATRIX/REMOTE 4

<CONTROLLER>

Pin No. Signal Name Function

1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5 __
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9 FG Frame Ground

(*4)

: RS-422A (D-sub 9-pin.Female)

(*1)

to Routing switcher

1-4

Pin No. Signal Name Function

1 DCD Data Carrier detect
2 RXD Received data
3 TXD Transmitted data
4 DTR Data terminal ready
5 SG Signal ground
6 DSR Data set ready
7 RTS Request to send
8 CTS Clear to send
9 __

(*7) :Pins 1, 4 and 6 are short-circuited each other on the CN-1751 board.

(*7)

(*7)

(*7)

DVS-7150E IM

GPI : (D-sub 25-pin.Female)
INPUT x 8, TTL
OUTPUT x 4, relay contact 30 V 0.1 A
(resistance load)
OUTPUT x 4, open collector 30 V rated voltage
GPI timing : Refer to User’s Guide

Pin No. Signal Name Function

1 GND Ground
2 GND Ground
3 GPI IN 2
4 GPI IN 4
5 GPI IN 6
6 GPI IN 8
7 GPI OUT 1B
8 GPI OUT 2B
9 GPI OUT 3B
10 GPI OUT 4B
11 GPI OUT 6
12 GPI OUT 8
13 GPI OUT COM Ground for open collector output
14 GND Ground
15 GPI IN 1
16 GPI IN 3
17 GPI IN 5
18 GPI IN 7
19 GPI OUT 1A
20 GPI OUT 2A
21 GPI OUT 3A
22 GPI OUT 4A
23 GPI OUT 5
24 GPI OUT 7
25 GPI OUT COM Ground for open collector output

General-purpose input

General-purpose relay output (B)

General-purpose open collector output

General-purpose input

General-purpose relay output (A)

General-purpose open collector output

1-4. Input and Output Signals of Connectors

(*8)

(*9)

(*8)

(*9)

n

A and B of same number constitute a pair of relay contacts.

(*8) : <Relay>

GPI OUT x B
GPI OUT x A

x;1-4

(*9) : <Open collector output>

GPI OUT 5-8

GPI OUT COM

DVS-7150E IM

+V

1-5

1-4. Input and Output Signals of Connectors

1-4-2. BKDS-7017

[D-SUB 25 PIN • FEMALE]

13

25

EXT VIEW

[D-SUB 9 PIN • FEMALE]

5

69

EXT VIEW

m
(*1) <CONTROLLER> : Controlling device

1. Main Panel
SWITCHER : RS-422A (D-sub 9-pin.Female)

<CONTROLLER>

(*1)

to Processor DVS-7150

1

14

1

SWITCHER DME TERMINAL1 TERMINAL2

1

5

69

OPTION PANEL REMOTE1 REMOTE2 REMOTE3 REMOTE4

13

25

1

14

1

5

69

1

5

69

1

5

69

1

5

5

5

69

1

5

69

Rear panel

REMOTE 1 to 4

<CONTROLLER>

(*2)

: RS-422A (D-sub 9-pin.Female)

(*1)

to External Device

1

69

1

69

Pin No. Signal Name Function

1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5 FIELD (+) Field signal input (+)
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9 FIELD (_) Field signal input (_)

DME : RS-422A (D-sub 9-pin.Female)
<CONTROLLER>

(*1)

to Digital multi effects DME-3000/

7000 etc.

Pin No. Signal Name Function

1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5 _ NC
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9 __

Pin No. Signal Name Function

1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5 __
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9 __

(*2) :BKDS-7001 (Option : IF-523 board) is in need of using the REMOTE

from 1 to 4.

TERMINAL 1, 2 : RS-232C (D-sub 9-pin.Female)

to Terminal

Pin No. Signal Name Function

1 DCD Received line signal detector signal
2 RX Received data
3 TX Transmitted data
4 DTR Data terminal ready signal
5 GND Signal ground
6 DSR Data set ready signal
7 RTS Request to send signal
8 CTS Clear to send signal
9 __

(*3) :Pins 1, 4 and 6 are short-circuited each other on the CN-1149 board.
(*4):Pins 7 and 8 are short-circuitede each other on the CN-1149 board.

(*3)

(* 3)

(*4)

(* 4)

(*3)

1-6

DVS-7150E IM

OPTION PANEL : (D-sub 25-pin.Female)

to Adaptor box (BKDS-7075)

Pin No. Signal Name Function

1 GND Ground
2 +12 V Power supply +12 V
3 SCLK Serial clock for switch read and LED

light
4 GND Ground
5 WDT LED light data
6 IWLD Control signal for switch read and LED

light
7 GND Ground
8 TCLK Serial clock for character display
9 TWDT Indicate data for character display
10 GND Ground
11 TBLANK Disable signal for character display
12 GND Ground
13 GND Ground
14 +12 V Power supply +12 V
15 +12 V Power supply +12 V
16 BLANK LED light disable signal
17 GND Ground
18 SEQ Control signal for switch read and LED

light
19 RDT Switch read data
20 GND Ground
21 TSEQ Control signal for character display
22 TQCLK Control signal for character display
23 +12 V Power supply +12 V
24 +12 V Power supply +12 V
25 GND Ground

1-4. Input and Output Signals of Connectors

DVS-7150E IM

1-7

1-5. Example of System Connection

1234567891011121314151617181920212223

24

Y1U1V1S1Y2U2V2

S2

TERMINAL

MATRIX/REMOTE 4

x4

ROUTER

x4

SUPER V/K

x4

DME V/K

x4

VTR

REF OUT

REF IN

CAMERA

x8

SW'ER

K

V

DME PANEL

DME-7000

BKDS-7016/7016L/7017

INPUTS

COMPONENT

ANALOG

CRK IN

INPUTS

DIGITAL

INPUTS

DIGITAL

IN

PRIMARY

CONTROL PANEL

KEYER REMOTE

BKDS-7060

CONTROL

OUT1

CONTROL

OUT2

REMOTE 3

PANEL 2

SUB PANEL

BKDS-2010

SW'ER

SG

CCU

DCU

DCU

DVW-500

Y

U

V

REC

SOURCE

LINE IN

CG

BVW-75

BVW-75D

DVR-2000

V

K

YUV

ROUTER

DVS-V6464B

PC

TALLY

INTERFACE

UNIT

BKDS-7700

GPI

SERIAL

TALLY

D1 LIVE SW'ER

DVS-7150

EDIT PVW

EDITOR-B

/REMOTE 2

EDITOR-A

/REMOTE 1

AUX3

AUX4

DME2

AUX5

AUX6

AUX1

AUX2

DME1

PGM1

PGM2

PVW1

PVW2

PGM3

PGM4

ME OUT1

ME OUT2

PANEL 2

/REMOTE 3 1

PANEL

SWITCHER

MAIN PANEL

REMOTE2

DME

DME2

VKVKZ

SW'ER PANEL

VKZ

SW'ER

K

V

DME PANEL

DME-7000

DME1

VK

SW'ER PANEL

VKZ

MONITOR

VE

WFM

PGM

PVW

ME1

BVE-9100

EDITOR

DMEVTR AB

KEY BOARD

1-5. Example of System Connection

1. D1 LIVE SWITCHER SYSTEM

1-8

DVS-7150E IM

2. D2 LIVE SWITCHER SYSTEM

1234567891011121314151617181920212223

24

Y1U1V1S1Y2U2V2

S2

TERMINAL

MATRIX/REMOTE 4

x4

ROUTER

x4

SUPER V/K

x4

DME V/K

x4

VTR

REF OUT

REF IN

CAMERA

x8

DME PANEL

V

K

SW'ER

SW'ER

K

V

DME PANEL

DME-7000

DME-7000

BKDS-7016/7016L/7017

INPUTS

COMPONENT

ANALOG

CRK IN

INPUTS

DIGITAL

COMPOSITE

ANALOG

IN

PRIMARY

INPUTS

CONTROL PANEL

KEYER REMOTE

BKDS-7060

CONTROL

OUT1

CONTROL

OUT2

REMOTE 3

PANEL 2

SUB PANEL

BKDS-2010

SW'ER

SG

CCU

CCU

CCU

DVR-28

Y

U

V

REC

SOURCE

LINE IN

CG

BVW-75

DVR-20

BVW-D265

V

K

YUV

ROUTER

DVS-V6464B

PC

TALLY

INTERFACE

UNIT

BKDS-7700

GPI

SERIAL

TALLY

D2 LIVE SW'ER

DVS-7150

EDIT PVW

EDITOR-B

/REMOTE 2

EDITOR-A

/REMOTE 1

AUX3

AUX4

DME2

AUX5

AUX6

AUX1

AUX2

DME1

PGM1

PGM2

PVW1

PVW2

PGM3

PGM4

ME OUT1

ME OUT2

PANEL 2

/REMOTE 3 1

PANEL

SWITCHER

MAIN PANEL

REMOTE2

DME

DME2

VKVKZ

SW'ER PANEL

SW'ER PANEL

VKZ

SW'ER

K

V

DME PANEL

DME-7000

DME3

VKVKZ

VKZ

SW'ER

K

V

DME PANEL

DME-7000

DME1

VK

SW'ER PANEL

VKZ

KZKVV

DME4

MONITOR

VE

WFM

PGM

PVW

ME1

BVE-9100

EDITOR

DMEVTR AB

KEY BOARD

1-5. Example of System Connection

DVS-7150E IM

1-9

2-1. External Dimensions

Section 2

Installation of DVS-7150

475

146

221(5UNIT)

23.5

A

B

482
465

424

(Front view)

DIGITAL VIDEO SWITCHER DVS-7150

88.2

83.7

(Top view)

450

304.8

101.6

254

(Right side view)

Unit : mm

DVS-7150E IM

2-1

2-2. Rack Mounting

2-2. Rack Mounting

DVS-7150 can be mounted in a 19-inch standard rack. Be sure to use the optional rack mount rail RMM-

30.

< Required Parts >
. Rack mount rail (RMM-30)

Rails with bracket : 2 pcs
Screw (B5 x 8) : 8 pcs

. Screw (BVTT4 x 8)
. Screw for rack mounting (RK5 x 16) : 4 pcs
. Ornamental washer for rack mounting : 4 pcs

(Sony part number : 2-297-913-01)

(*1) : DVS-7150 is supplied with the eight screws. Use two of them for the spare parts.

c

(1) If DVS-7150 is mounted in a 19-inch standard rack, it is recommended to install a ventilation fan to

prevent a temperature rise in the rack. Make sure that all the units in the rack should be operated
within the temperature range of 10 dC to 35 dC.

(2) Be sure to use the recommended rail when rack mounting. The unit cannot be installed completely to

a rack by rack angles alone.

(3) It is recommended to fix the rack to the floor with bolts. When the unit is pulled out from the rack,

this will prevent its fall.

(4) An installation manual is supplied with the rack mount rail RMM-30. However follow the instruc-

tions in this manual. Because the rack mounting procedures of DVS-7150 differ somewhat from the
procedures explained in RMM-30 installation manual.

(5) Be sure to mount in the rack with two-person or more.

(*1)

: 6 pcs

2-2

DVS-7150E IM

Procedures

(1) Pull out the inner member while pressing the stopper of the rack mount rail RMM-30. (Fig. 1)
(2) Secure the inner member to the unit by the six screws (BVTT 4 x 8) supplied with DVS-7150.

Remove the feet of the unit as required. (Fig. 2)

Inner menber

BVTT4 x 8

Outer menber

Stopper

Feet

DVS-7150

2-2. Rack Mounting

Inner menber

Inner menber

(Fig. 1) (Fig. 2)

Feet

(3) Loosen the screws secured the rear bracket to the outer member. Adjust the position of the rear

bracket in line with the rack depth. (Fig. 3)

(4) Temporarily secure the front and rear brackets to the outside of the rack by the eight screws (B5 x 8)

supplied with RMM-30. (Fig. 4)

Rear braket

Outer member

(Fig. 3)

Rack (Left)

Front bracket

12.7

31.75

12.7

31.75

Front bracket

Rack (Right)

Outer member

12.7

BVTT4 x 8

Front bracket

B5 x 8

DVS-7150E IM

B5 x 8

B5 x 8

Outer member

(Fig. 4)

2-3

2-2. Rack Mounting

(5) For installing the unit in the rack, press the inner members fully to the outer members while pressing

the stoppers of the inner members. (Fig. 5)

(6) After confirming that the unit can be moved smoothly, tighten the screws (B5 x 8) secured tempo-

rarily in the step (4).

n

When securing the front brackets to the rack by screws, pull out the unit about 20 cm (8 inches) from
the rack, and fasten the screws of the front brackets to the rack.

(7) After installing the unit in the rack, secure the unit to the rack by the prepared four screws (RK5 x

16) and four ornamental washers. (Fig. 6)

Rack

DVS-7150

RK5 x 16

DVS-7150

Rack

Ornamental washer

RK5 x 16

Outer menber

Stopper

Inner member

(Fig. 5) (Fig. 6)

. When DVS-7150 is mounted in a rack, the maximum traveling distance is illustrated below.

581

Maximum travelling distance

Ornamental washer

221.2

88.6

Distance to the center of the slide rail

Height of the unit mounted in a Rack

2-4

Unit : mm

DVS-7150E IM

3-1. External Dimensions

Main Panel
BKDS-7017

Section 3

Installation of Control Panel

14

496

30

AUX

M/E

K

A

B

PGM/PST

DSK

PGM

PST

AUX DELEGATION

760

96

96

96

96

5

5

1

MANUAL

INSTRUCTION
SEE

96

5

1

TERMINAL 2

5

1

1

1

REMOTE 2

REMOTE 3 REMOTE 4

96

96

5

5

1

1

1

DME

TERMINAL 1

25 14

5

13

1

OPTION PANEL

REMOTE 1

96

5

SWITCHER

850

TOP MENU

UTILITY

30

14

24

11076.8

10

15

51

385

DOWNSTREAM KEYER

DVS-7150system

3015

DVS-7150E IM

Unit : mm

3-1

3-1. External Dimensions
3-2. Installation Space to Console

BKDS-7075

55

212

74

78.5

132

84

24

26

2-M4

3-2. Installation Space to Console

Control panel can be installed in the console by drilling holes in the console in the locations specified
below.

BKDS-7017

(52)

15

470

500

483 110

Unit : mm

7.2

10

3-2

11-M4

185 185

418

185 185

824
854

418 9

15

198 198

43

9

15

Approx.75d

Unit : mm

DVS-7150E IM

3-3. Installation to Console

c

(1) Be sure to install the control panel to the rack with three-person or more.
(2) Be sure to install the panel in the following procedures.

Prepared Part
Screws (B4 x 6) : 11 pcs

(1) Lift the control panel with two-person or more. Then install the control panel to console while

supporting under the control panel with the other one person.
(2) Open the control panel. (Refer to “4-4-1. Opening and Closing of Panel”.)
(3) Secure the control panel to the console by the prepared screws (B4 x 6).

BKDS-7017

BKDS-7017

B4 x 6

B4 x 6

3-3. Installation to Console

Console

B4 x 6

DVS-7150E IM

3-3

3-4. Replacement of Key Tops

3-4. Replacement of Key Tops

The control panels are supplied with a cap pull tool.

Remove or install the key top in the following procedures.
For removing the key tops, use the cap pull tool.

Part number : 3-179-054-01

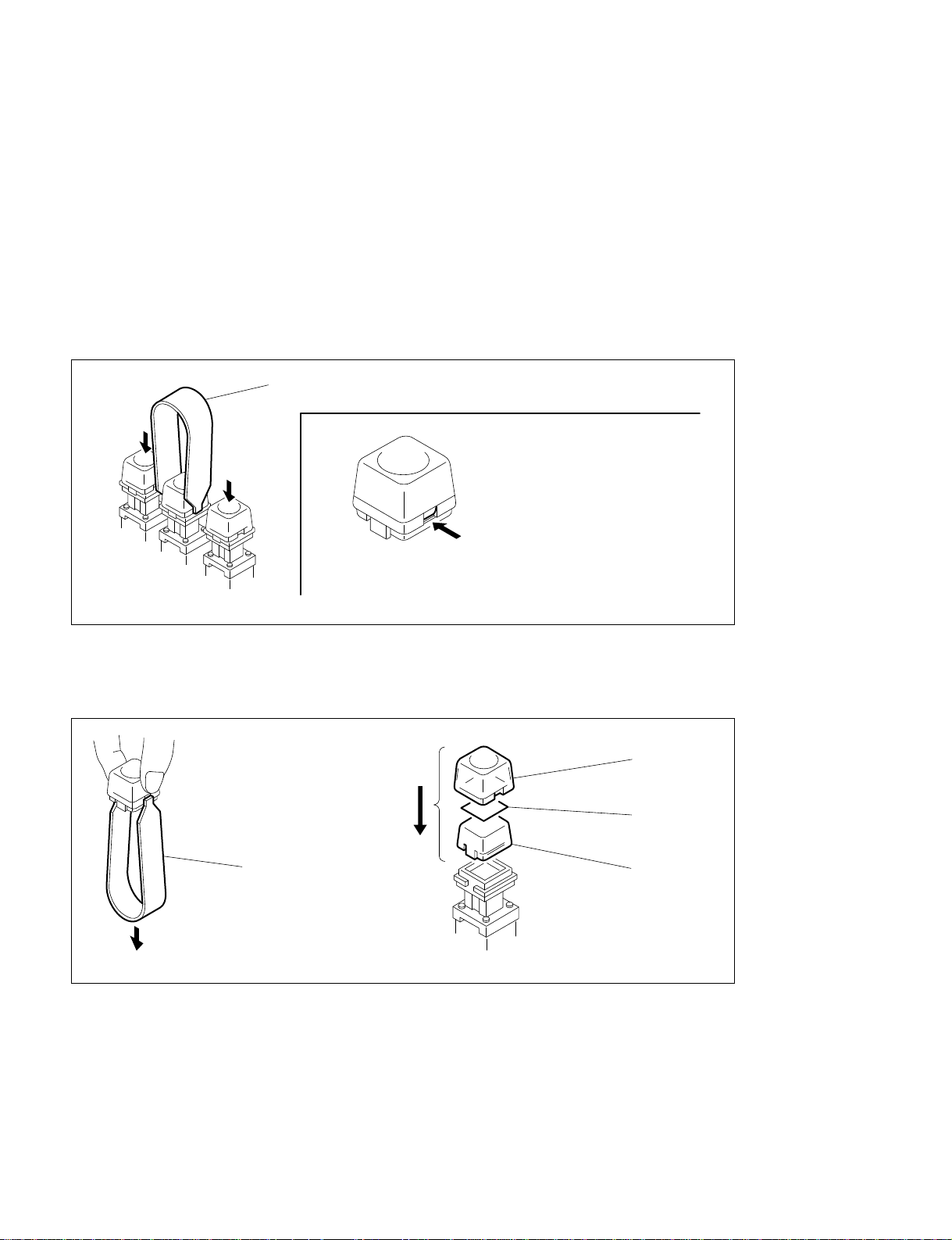

(1) Push down the key top on both sides and insert the cap pull tool in the gap between key and sides.

(Fig. 1)

(2) Hold the key top to remove it. (Fig. 2)

Cap pull tool

Hook the tool here and pull out the key top.

(Fig. 2)(Fig. 1)

(3) Remove the diffusion plate (milky white color) by the cap pull tool from the removed key top.
(4) Insert the switch tip between diffusion plate (milky white color) and key top (clear), and assemble

them by pushing in the key.

Key top

Switch tip

(Fig. 3)

Cap pull tool

(Fig. 4)

Diffusion plate

3-4

DVS-7150E IM

Section 4

Installation of Options

Optional Equipments for DVS-7150

Option Function name

BKDS-7110 (ADC-21 board) Blank Input Adaptor Board
BKDS-7111 (ADI-3 board) Analog Composite Input Board
BKDS-7113 (DI-34 board) Serial Digital Input Board
BKDS-7134 (ADC-22 board) CRK Analog Component Input Board
BKDS-7161 (DA-94 board) Analog Composite Output Board
BKDS-7163 (SD-48 board) Serial Digital Output Board
BKDS-7280 (UP-10 board) ME PVW Board
BKDS-M1690 (RE-109 and RE-110 boards) Redundant Power Supply Unit
BKDS-2031 (CRK-10 board) Chromakey Board
BZS-7080

Optional Equipments for the control panel

Option Function name

BKDS-7001 (IF-523 board) Control Port Expansion Board
BKDS-7003 (LE-147, 148, 180 and DC-92 boards) Source Name Display Unit
BKDS-7030 (KY-328 board) Key Frame Control Panel Unit
BKDS-7031 (KY-329 board) DME Control Panel Unit
BKDS-7033 (KY-395C board) Memory Recall Control Panel Unit
BKDS-7075 (IF-629 board) Control Panel Remote Adaptor
BKDS-7091 (RE-146 board) Redundant Power Supply Unit

(*1) : For installation of BZS-7080, refer to the section 6 and BZS-7080 User’s Guide.

(*1)

Operation Software with Manual (E)

DVS-7150E IM

4-1

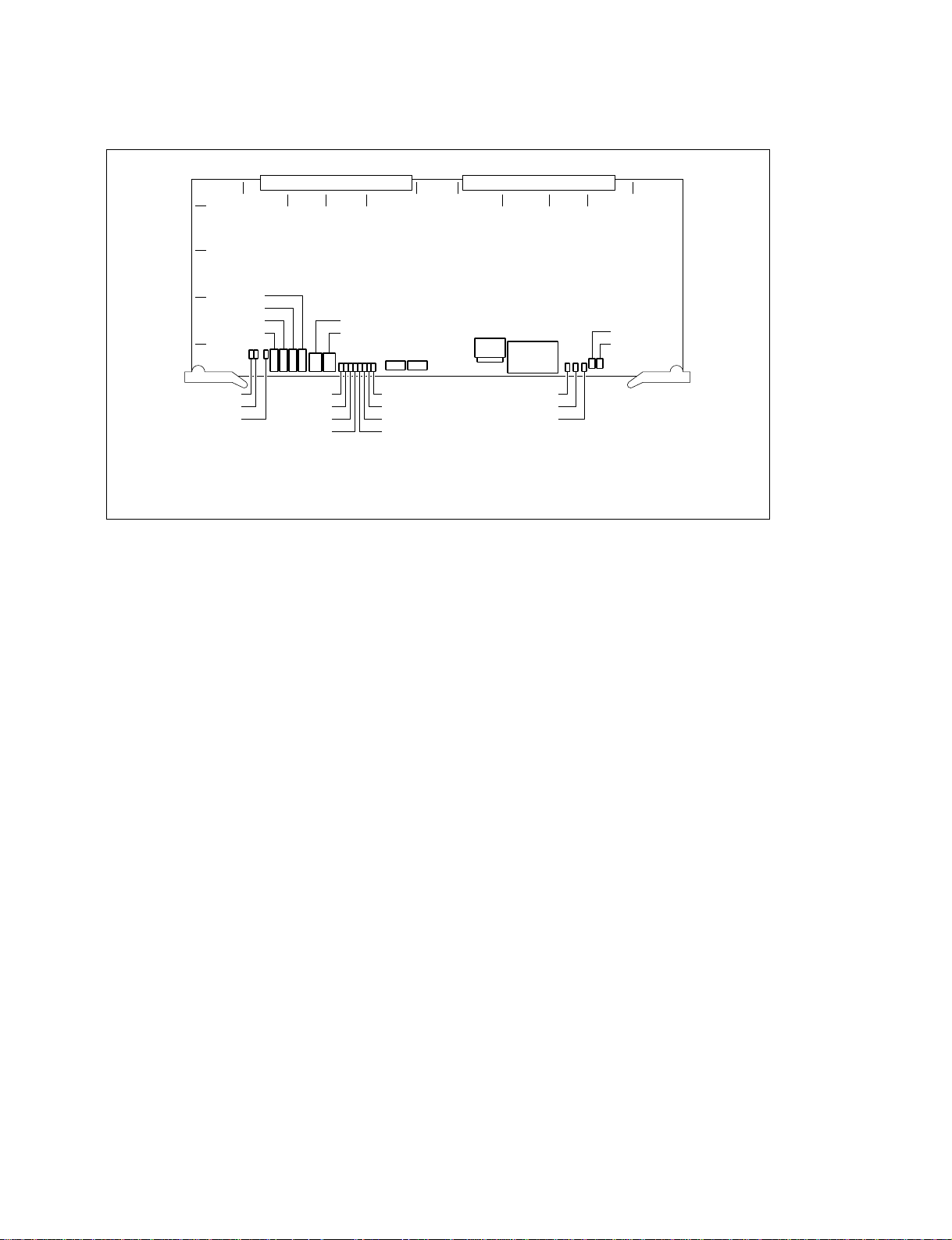

4-1. Installation of Plug-in Boards

4-1. Installation of Plug-in Boards

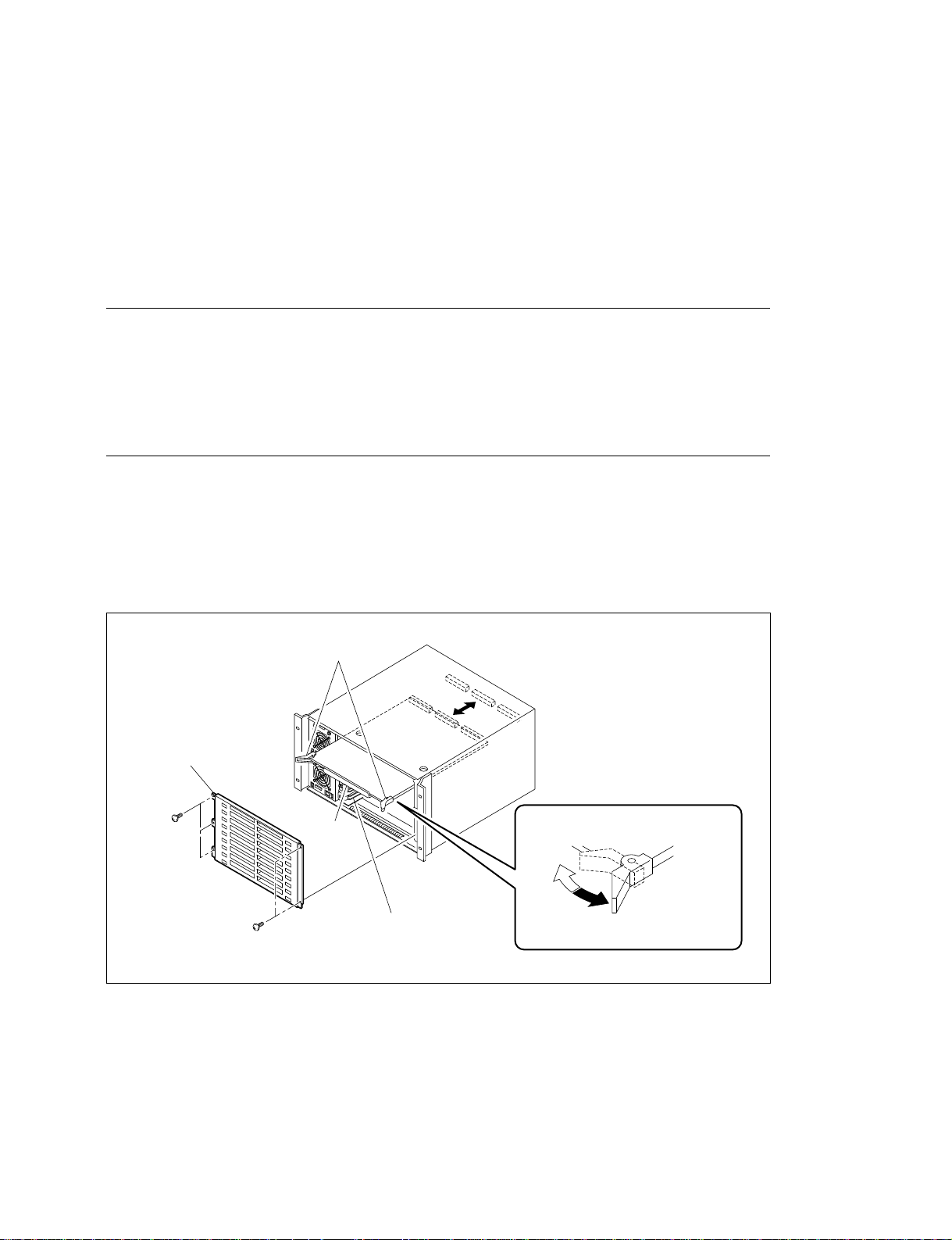

It is possible to be used DVS-7150 for various systems, and its functions can be extended by selecting the
optional boards. Each plug-in board must be installed in the corresponding slot of DVS-7150. Confirm
that all the boards are in the specified slots by referring to the following table.
For the details of how to install the plug-in board, refer to “4-3-2. Inserting/Pulling Out of Plug-in
Boards”.

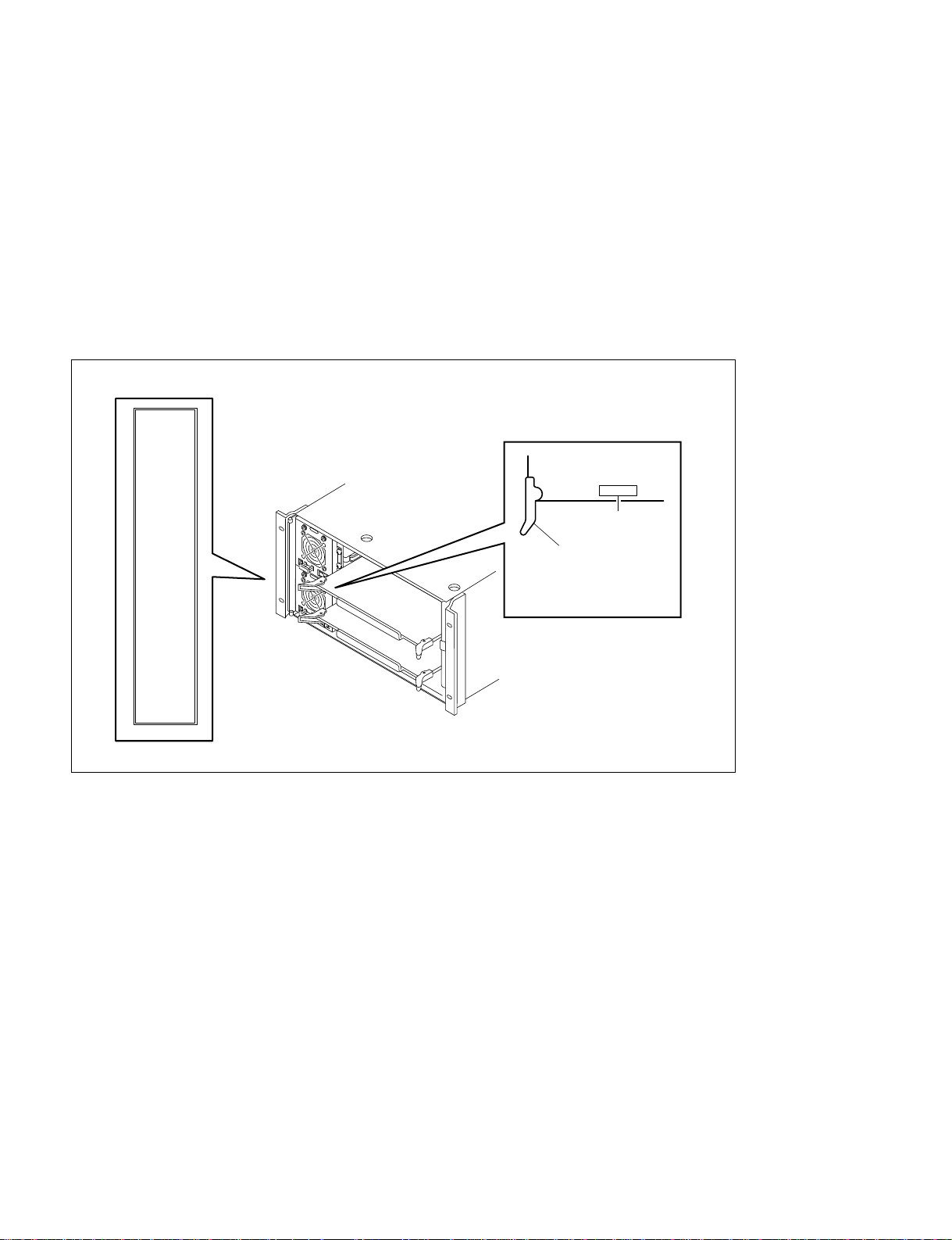

The board name are displayed near the eject lever at the left side on the A side of each plug-in board. The
slot numbers that can be installed the board are displayed on the inside of the front panel of DVS-7150.
Like the standard board, each optional boards should also be installed in the specified slot according to
the slot number display.



1 ADC-21


2 ADC-21


3 XPT-15


4 OUT-9


5 MIX-35A
BD-26

6 MIX-35B
BD-26

7 CRK-10


8 ENC-34A
ADC-22

9 CA-35
CPU-264

ADC-21

Board name

Ejectlever

(A Side)

m

(1) Confirm that the connectors on each board are securely connected to the MB-828 board of the main

unit.

(2) If the board is installed in an incorrect slot, a system error occurs. Then the system is not activated

properly.

(3) Be sure to confirm the supply voltage when an optional board is added or a board is replaced.

(Refer to “5-3. Adjustment of Secondary Power Supply Voltage”.)

4-2

DVS-7150E IM

Plug-in Boards

4-1. Installation of Plug-in Boards

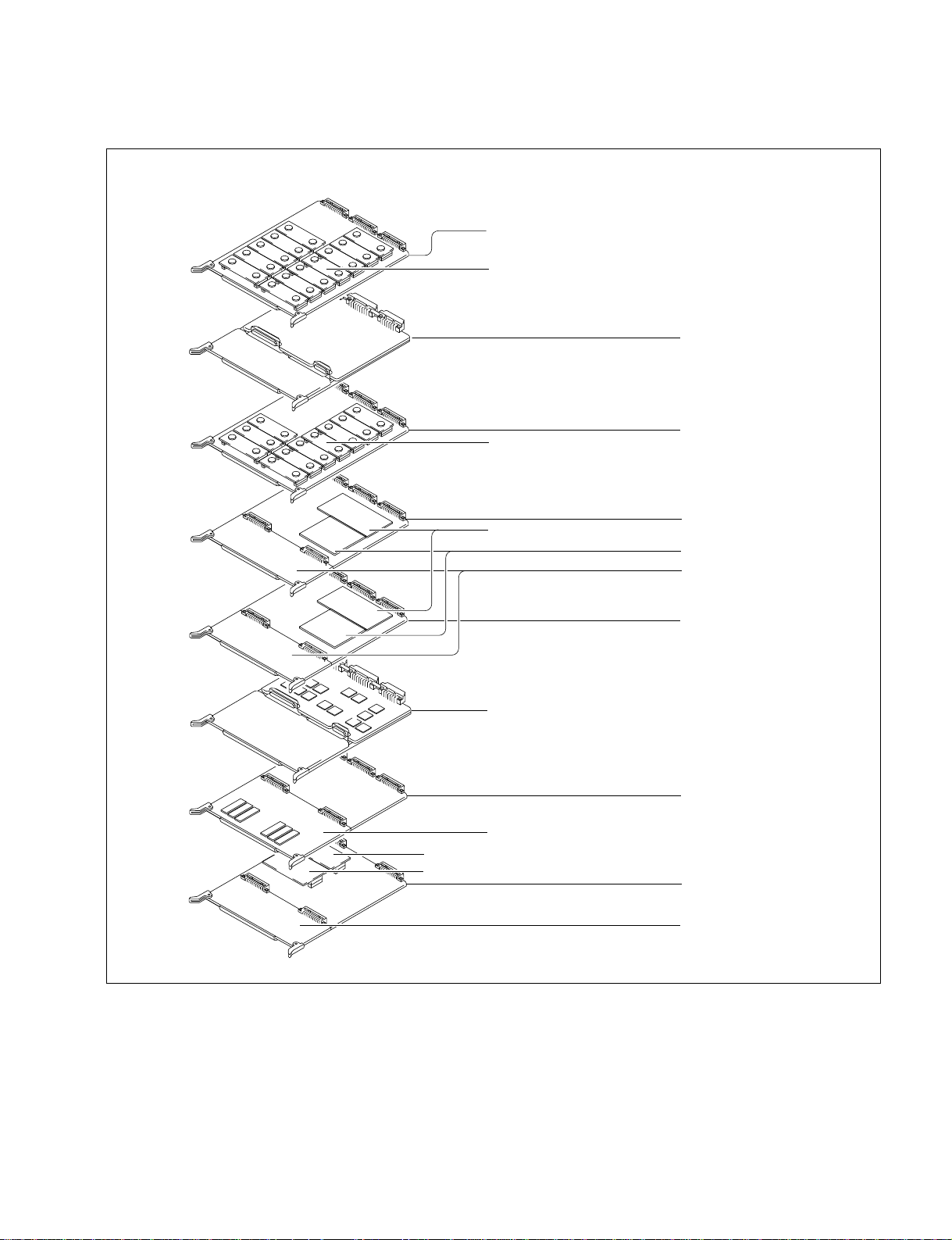

Slot No. Option Board

BKDS-7110
Blank input adaptor board

1 and 2

XPT-15

BKDS-7111
Analog composite input board
or
BKDS-7113
Serial digital input board

3

OUT-9

4

MIX-35(A)

5

6

BD-26

MIX-35(B)

BD-26

WKG-12

WKG-12

BKDS-7161
Analog composite output board
or
BKDS-7163
Serial digital output board

BKDS-7278
ME PVW board

Standard Board

Cross point board

System control board

P/P mixer board
Enhanced wipe generator board

Key boarder board

M/E mixer board

7

Dummy
plate

ENC-34(A)

8

IF-729
MEM-94

9

CPU-264

CA-35

BKDS-2031
Chromakey board

CRK analog component 
input board

BKDS-7134
CRK analog component input board

Aplication board

System control board

DVS-7150E IM

4-3

4-2. Combination of Optional boards

4-2. Combination of Optional boards

4-2-1. Function of optional boards

1. Input

. The analog composite (NTSC) input can be used if installing ADI-3 board (BKDS-7111) onto ADC-21

board (BKDS-7110).

. The serial digital input can be used if installing DI-34 board (BKDS-7113) onto ADC-21 board

(BKDS-7110).

2. Output

. The analog composite output can be used if installing DA-94 board (BKDS-7161) onto the OUT-9

board.

. The serial digital input can be used if installing SD-48 board (BKDS-7163) onto OUT-9 board.

4-2-2. Relation between optional boards and rear panel connectors

Install the applicable optional boards to the specified slots according to the signal to be input and output.
The following table shows the relations between rear panel connectors, signals to be input and output,
boards and slot numbers.

<DVS-7150 Rear Panel>

REF INPUT

REF OUTPUTS

EDIT PVW

OUTPUT

PGM OUTPUTS

43

CH1

SYNC SYNC

R-Y/R

2

CRK INPUTS

B-Y/B B-Y/R

12

ME OUTPUTS

1

Y/G

PANEL2 /REMOTE3

6

6

CH2

TERMINALGPI

925

EDITOR-B /REMOTE2

PRIMARY INPUTS

AUX BUS OUTPUTS

PVW OUTPUTS

B-Y/B

SERIAL TALLY

9

EDITOR-A /REMOTE1

192021222324

231415161718

7891011

12345

345

1212

Y/G

PANEL1

MATRIX /REMOTE4

12

9

DME1

9

DME2

9

4-4

99

99

DVS-7150E IM

4-2. Combination of Optional boards

Output

Slot Optional Parent Board Rear Panel Connector
No. Output Board OUT-9

4 DA-94

(*1) : For analog composite output signal
(*2) : For serial digital output signal

(*1)

CN1, 2 AUX BUS OUTPUT 1
(BKDS-7161) CN3, 4 AUX BUS OUTPUT 2
or CN5, 6 AUX BUS OUTPUT 3

(*2)

SD-48

CN7, 8 AUX BUS OUTPUT 4
(BKDS-7163) CN9, 10 AUX BUS OUTPUT 5

CN11, 12 AUX BUS OUTPUT 6

CN13, 14 EDIT PVW OUTPUT

CN15, 16 PGM OUTPUT 1 to 4

CN17, 18 PVW OUTPUT 1, 2

CN19, 20 ME OUPUT 1, 2

Input

Slot Optional Parent Board Rear Panel Connector
No. Input Board ADC-21

2 ADI-3

1 ADI-3

(*3) : For analog composite input signal
(*4) : For serial digital input signal

(*3)

CN101, 102 PRIMARY INPUT 1
(BKDS-7111) CN201, 202 PRIMARY INPUT 2
or CN301, 302 PRIMARY INPUT 3

(*4)

DI-34

CN401, 402 PRIMARY INPUT 4
(BKDS-7113) CN501, 502 PRIMARY INPUT 5

CN601, 602 PRIMARY INPUT 6

CN701, 702 PRIMARY INPUT 7

CN801, 802 PRIMARY INPUT 8

CN901, 902 PRIMARY INPUT 9

CN1001, 1002 PRIMARY INPUT 10

CN1101, 1102 PRIMARY INPUT 11

CN1201, 1202 PRIMARY INPUT 12

(* 3)

CN101, 102 PRIMARY INPUT 13
(BKDS-7111) CN201, 202 PRIMARY INPUT 14
or CN301, 302 PRIMARY INPUT 15

(*4)

DI-34

CN401, 402 PRIMARY INPUT 16
(BKDS-7113) CN501, 502 PRIMARY INPUT 17

CN601, 602 PRIMARY INPUT 18

CN701, 702 PRIMARY INPUT 19

CN801, 802 PRIMARY INPUT 20

CN901, 902 PRIMARY INPUT 21

CN1001, 1002 PRIMARY INPUT 22

CN1101, 1102 PRIMARY INPUT 23

CN1201, 1202 PRIMARY INPUT 24

DVS-7150E IM

4-5

4-3. Installation of Options for DVS-7150

4-3. Installation of Options for DVS-7150

This section is described the installation procedures of the optional equipments that are installed to DVS-

7150.

4-3-1. Removing and Installing of Front Panel

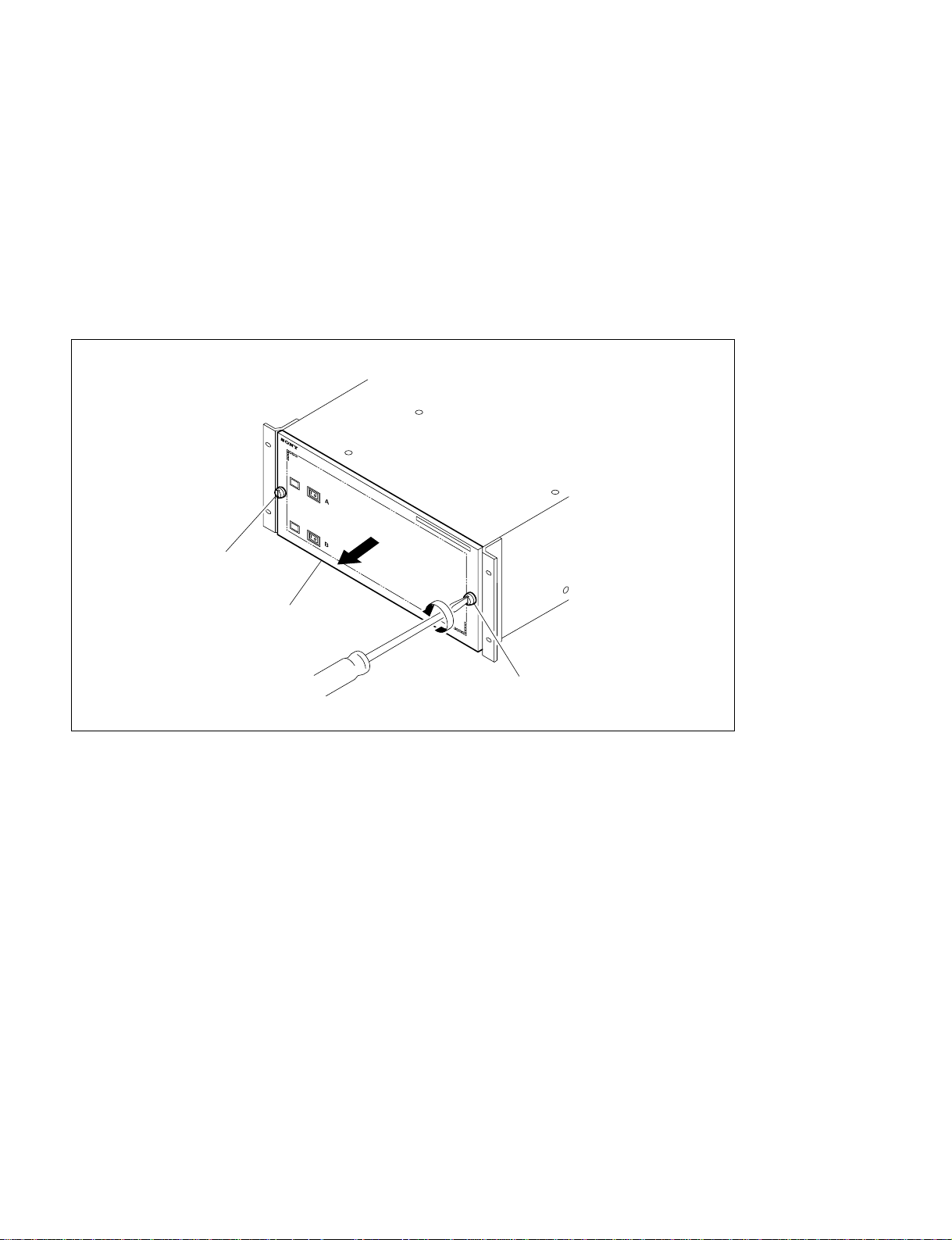

(1) Loosen the two locking screws on the front panel using a flatblade screwdriver.
(2) Remove the front panel in the direction of the arrow.
(3) Install the front panel in the reverse order of the steps (1) and (2).

Locking screw

Front panel

Locking screw

4-6

DVS-7150E IM

4-3. Installation of Options for DVS-7150

4-3-2. Inserting/Pulling Out of Plug-in Boards

c

To avoid shock hazards and/or damage to the boards, be sure to turn off the power switch before inserting
or pulling out the plug-in boards.

(1) Remove the front panel. (Refer to “4-3-1. Removing and Installing of Front Panel”.)
(2) Remove the five screws, the board retainer.

Removal

(3) Open the eject levers of the plug-in board in the direction of arrow 1.
(4) Pull out the plug-in board from the unit.

n

Pull out the plug-in board with a equal force for both eject levers.

Installation

(5) Insert the plug-in board along the board guide rails while putting the eject levers to 1 position as

shown in the figure.

(6) Connect the plug-in board to the connector on the mother board by putting the eject levers in the

direction of the arrow 2.

(7) Install the two board retainer in the reverse order of the steps (1) and (2).

Board retainer

BVTT3 x 5

BVTT3 × 5

Eject levers

Board

Board guide rail

To insert the board

2

1To pull out the board

DVS-7150E IM

4-7

4-3. Installation of Options for DVS-7150

4-3-3. Installation of Optional Boards

There are the three installation types of the optional boards in DVS-7150.
<Type 1> The type that the optional board is inserted in the slot.
<Type 2> The type that the optional board is connected onto the connector of the pre-installed board and

is secured by the screws.
<Type 3> The type that the optional board is connected onto the connector of the pre-installed board.
The installation procedures are described below.

<Type 1>

This Type’s Optional Boards

Slot No. Optional board

1, 2 ADC-21 board (BKDS-7110)
7 CRK-10 board (BKDS-2031)

(1) Install the optional board. (Refer to “4-3-2. Inserting/Pulling Out of Plug-in Boards”.)

<Type 2>

This Type’s Optional Board

Slot No. Optional board Pre-installed board

8 ADC-22 board (BKDS-7134) ENC-34 (A) board

Install the optional board to the pre-installed board or the optional board in the following procedures.

(1) Remove the ten screws secured to the pre-installed board, shield plate and dummy plate.

PTTWH3 x 6

PTTWH3 x 6

PTTWH3 x 6

Pre-installed board

4-8

Shield plate

Dummy plate

DVS-7150E IM

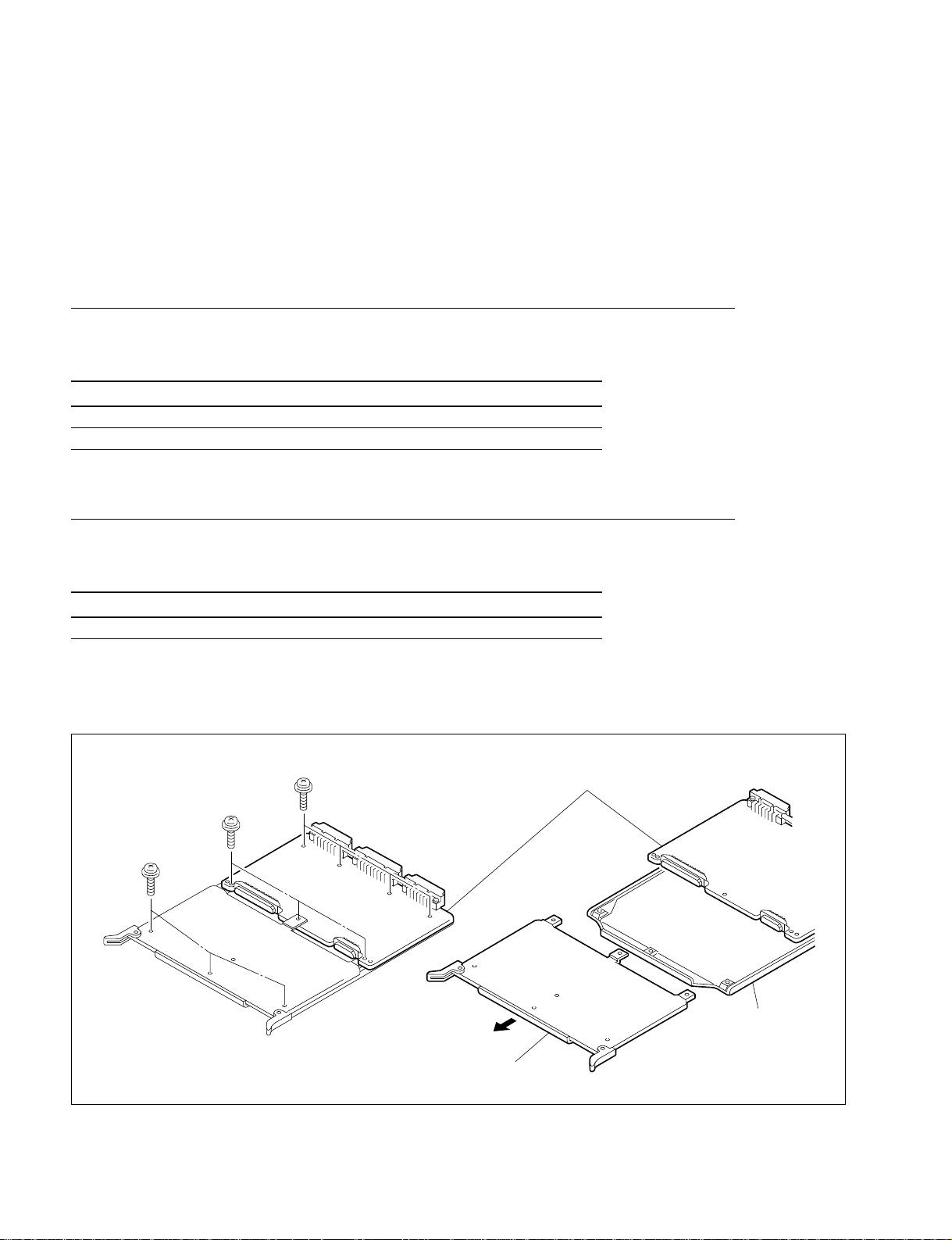

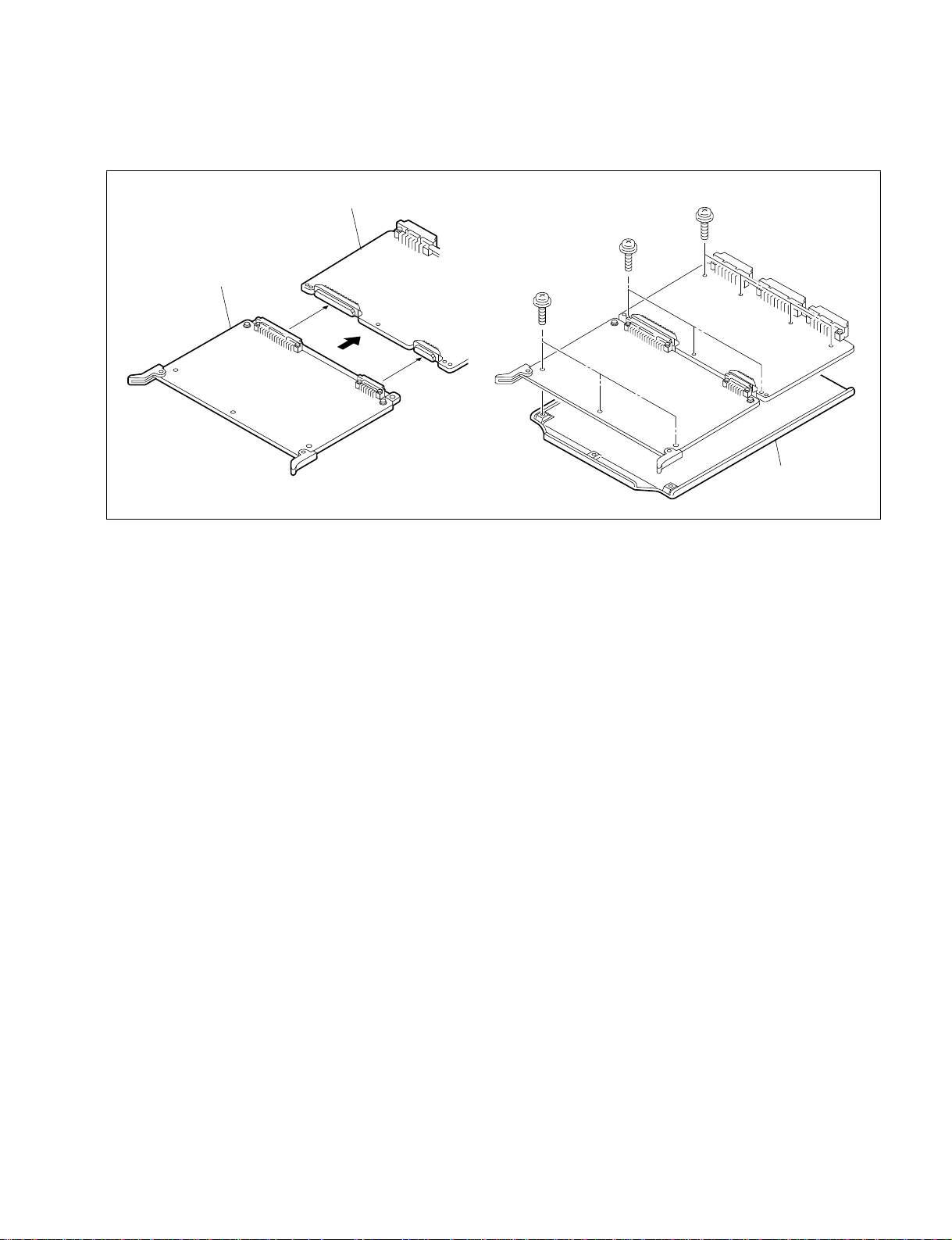

(2) Connect the optional board to the connectors on the pre-installed board.
(3) Secure the optional board and shield plate by ten screws.

4-3. Installation of Options for DVS-7150

Optional board

Pre-installed board

PTTWH3 x 6

PTTWH3 x 6

PTTWH3 x 6

Shield plate

DVS-7150E IM

4-9

4-3. Installation of Options for DVS-7150

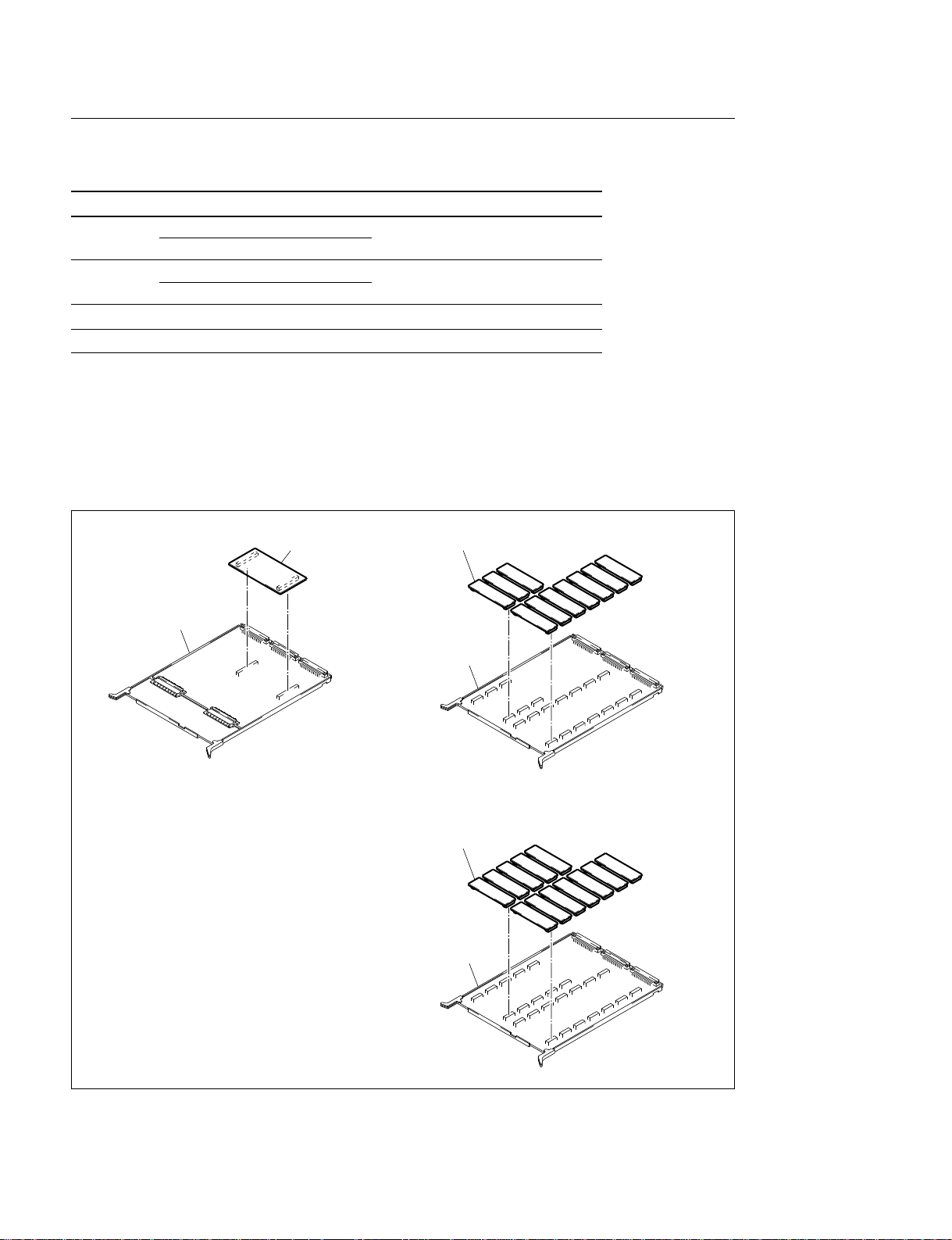

<Type3>

This Type’s Optional Boards

Slot No. Optional board Pre-installed board

1, 2 ADI-3 board (BKDS-7111)

DI-34 board (BKDS-7113)

4 DA-94 board (BKDS-7161)

SD-48 board (BKDS-7163)

5 UP-10 board (BKDS-7280) MIX-35 (A) board
6 UP-10 board (BKDS-7280) MIX-35 (B) board

ADC-21 board (BKDS-7110)

OUT-9 board

After checking the installation direction of the optional board by its connector number, connect the
optional board to the connectors on the pre-installed board.

n

When installing the optional boards, confirm that the connectors are tightly connected. If the connectors
cannot be completely connected, the optional board may be placed in the other way.

MIX-35 (A) board or
MIX-35 (B) board

UP-10 board

DA-94 Board or SD-48 Board

OUT-9 Board

ADI-3 Board or DI-34 Board

ADC-21 Board

4-10

DVS-7150E IM

4-3. Installation of Options for DVS-7150

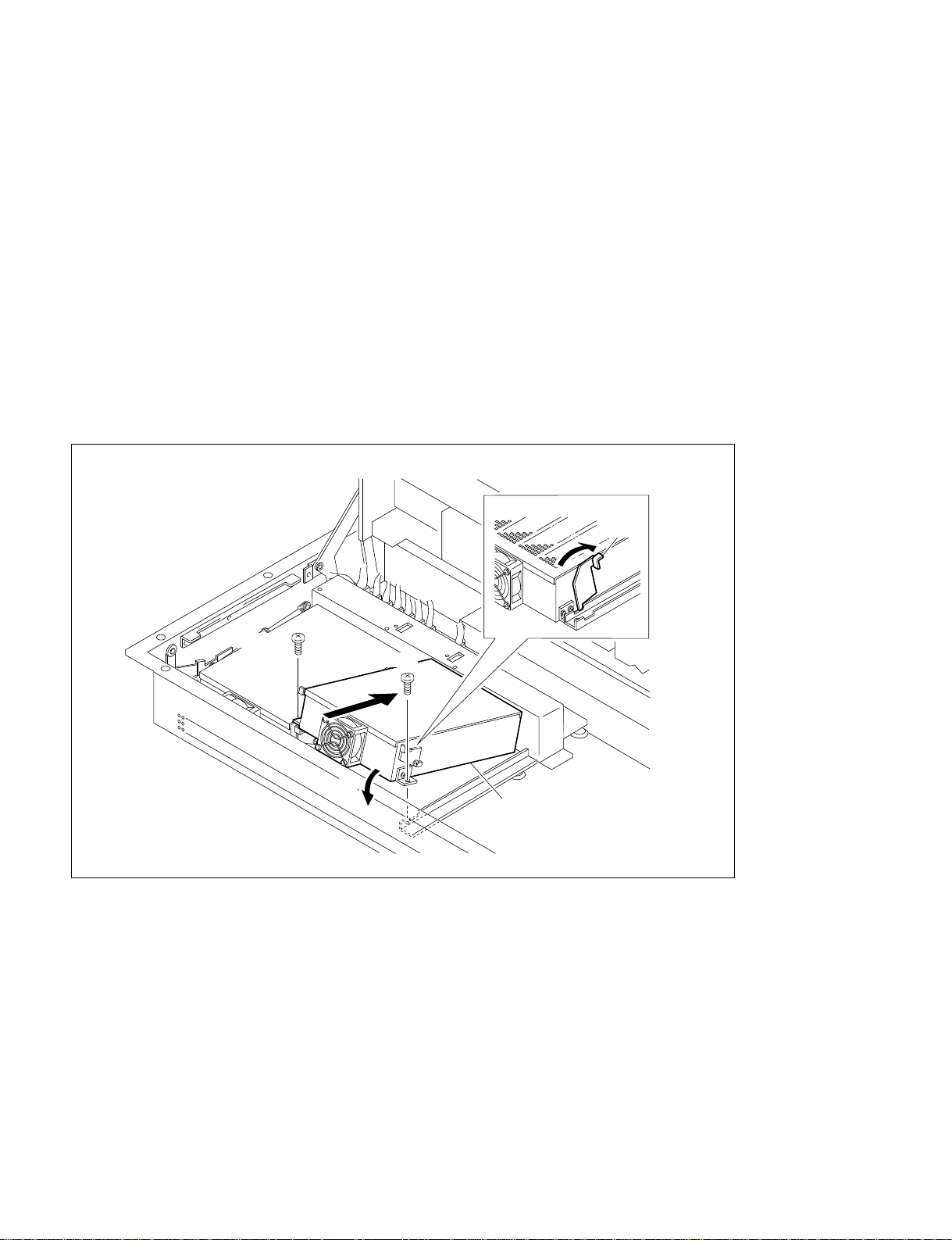

4-3-4. Installation of BKDS-M1690 (Redundant Power Supply Unit)

w

To avoid shock hazards, be sure to turn off the breaker at the outside of DVS-7150 or unplug the power
cord when installing BKDS-M1690.

Contents

Power unit : 1 pc
Screw (PTTWH3 x 6) : 2 pcs
Screw (PSW3 x 6) : 2 pcs

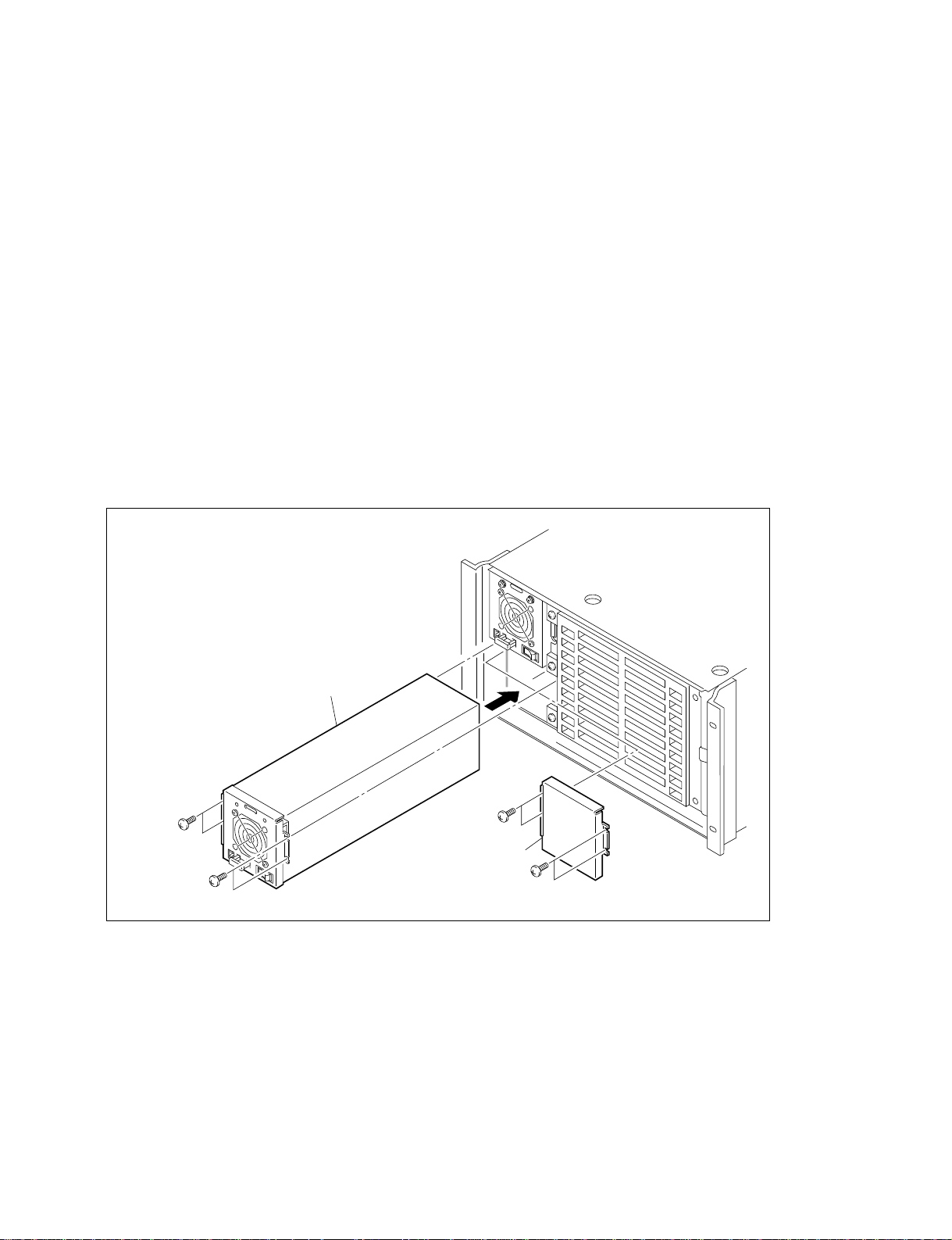

(1) Detach the front panel of DVS-7150. (Refer to “4-3-1. Removing and Installing of Front Panel”.)
(2) Remove the pre-installed blank panel of BKDS-M1690 as shown in the following figure.

(two screws PTTWH3 x 6 and two screws PSW3 x 6)
(3) Properly insert BKDS-M1690 to the pre-install position.
(4) Secure BKDS-M1690 to DVS-7150 by the four screws (two screws PTTWH3 x 6 and two screws

PSW3 x 6) supplied with BKDS-M1690.
(5) Turn on the power switch of BKDS-M1690.

PTTWH3 x 6

PSW3 x 6

BKDS-M1690

PTTWH3 x 6

Blank panel

PSW3 x 6

DVS-7150E IM

4-11

4-4. Installation of Options for Control Panel

4-4. Installation of Options for Control Panel

This section is described the installation procedures of the optional equipments that are installed to the
control panel.

c

To avoid shock hazards and/or damage to the boards, be sure to turn off the breaker at the outside of the
unit or unplug the power cord when installing the optional equipments.

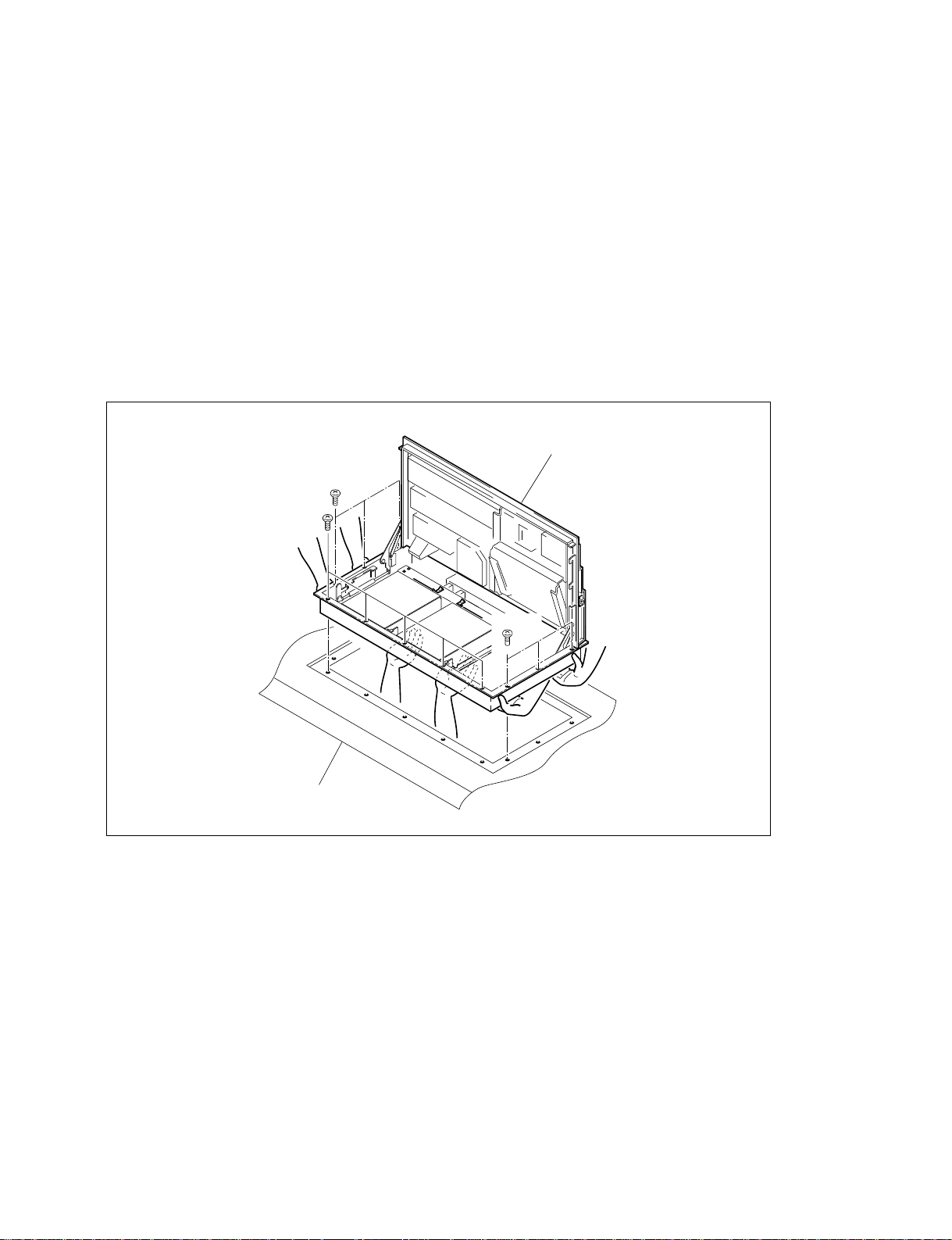

4-4-1. Opening and Closing of Panel

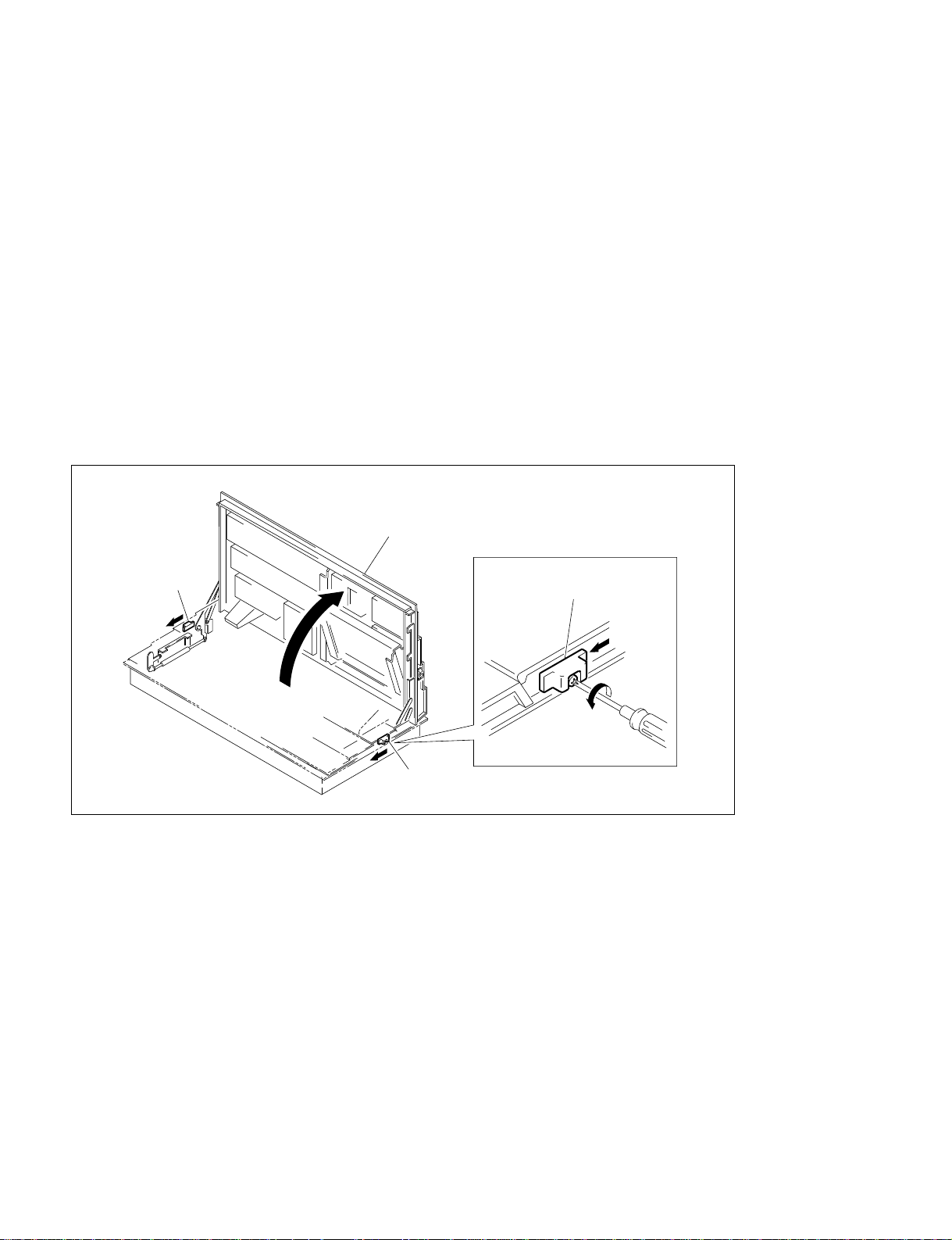

1. BKDS-7017

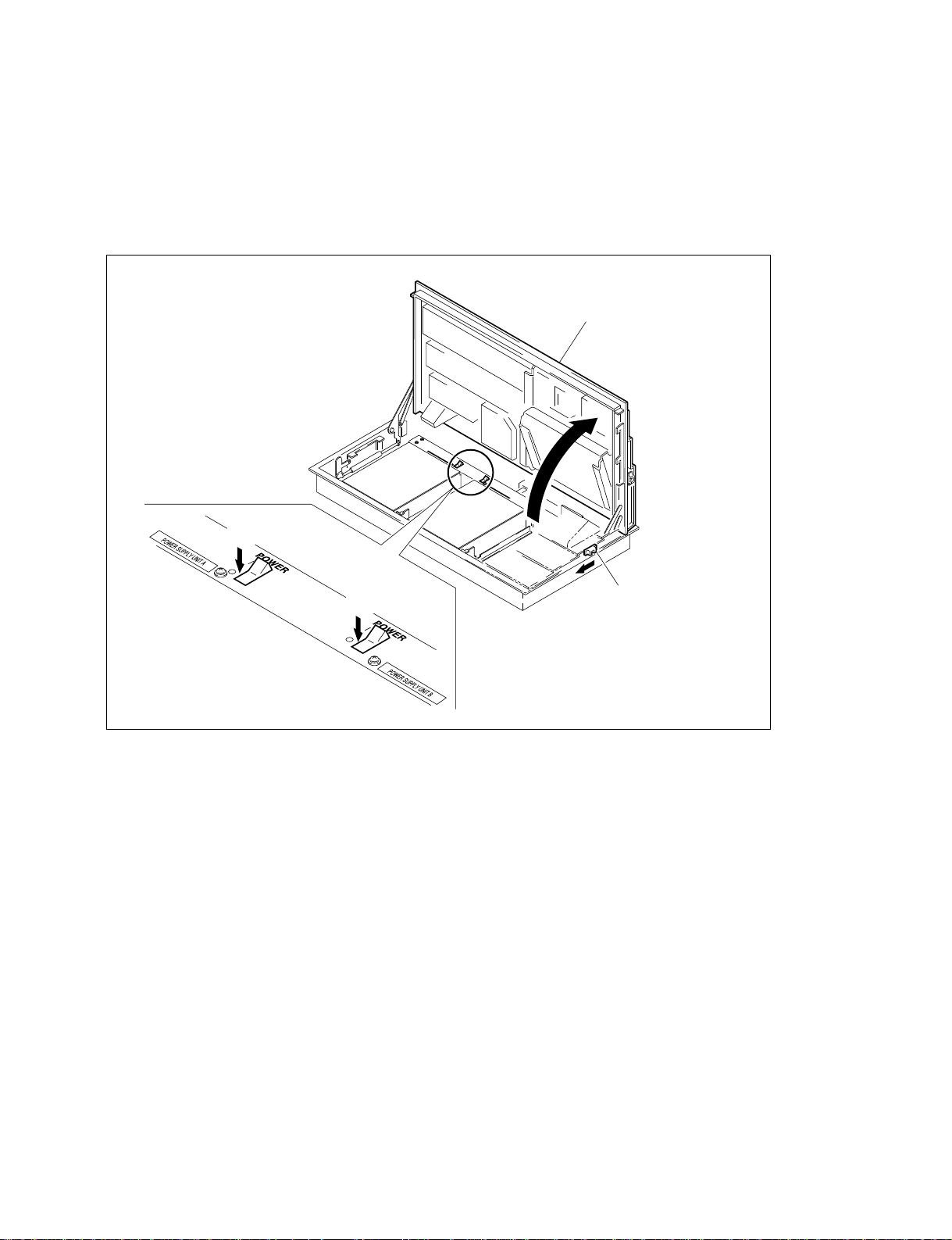

(1) Loosen the screws of the slide knobs at both sides of the panel.
(2) Move the slide knobs forward and release the locks.
(3) Push up the panel and open it.

Control panel

Slide knob

Slide knob

(4) Push down the panel until the slide knobs are locked, and close it.
(5) Tighten the screws of the slide knobs at both sides of the panel.

Slide knob

4-12

DVS-7150E IM

4-4-2. Turning On/Off the Power

1. BKDS-7017

(1) Open the panel of control panel. (Refer to “4-4-1. Opening and Closing of Panel”.)
(2) Turn off the power switches A and B in the control panel.

Control panel

4-4. Installation of Options for Control Panel

Power switch A
OFF

Power switch B
OFF

Slide knobs (Right and Left)

DVS-7150E IM

4-13

4-4. Installation of Options for Control Panel

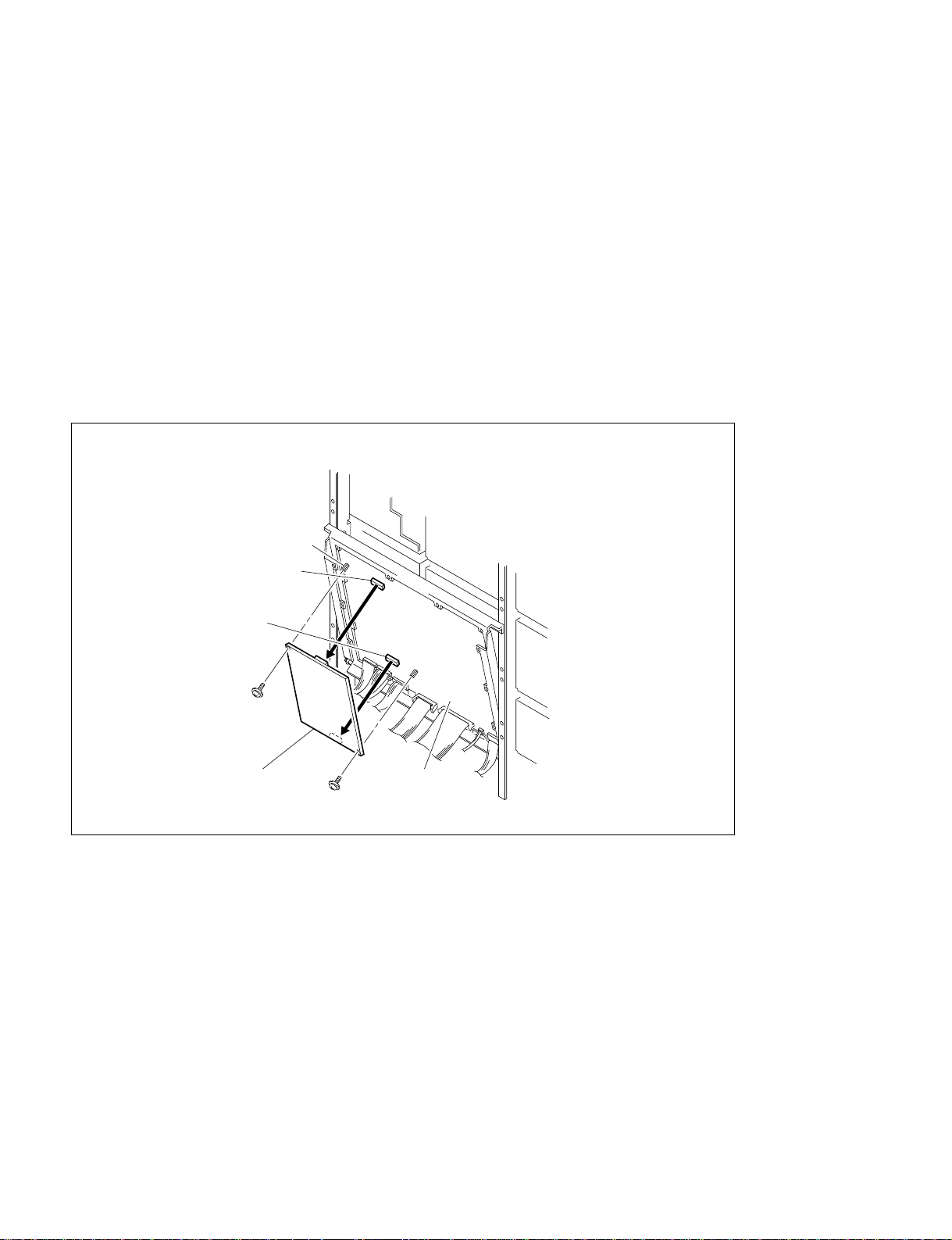

4-4-3. Installation of BKDS-7001 (Control Port Expansion Board)

1. BKDS-7017

Contents

IF-523 board : 1 pc
Screw (PSW3 x 8) : 2 pcs

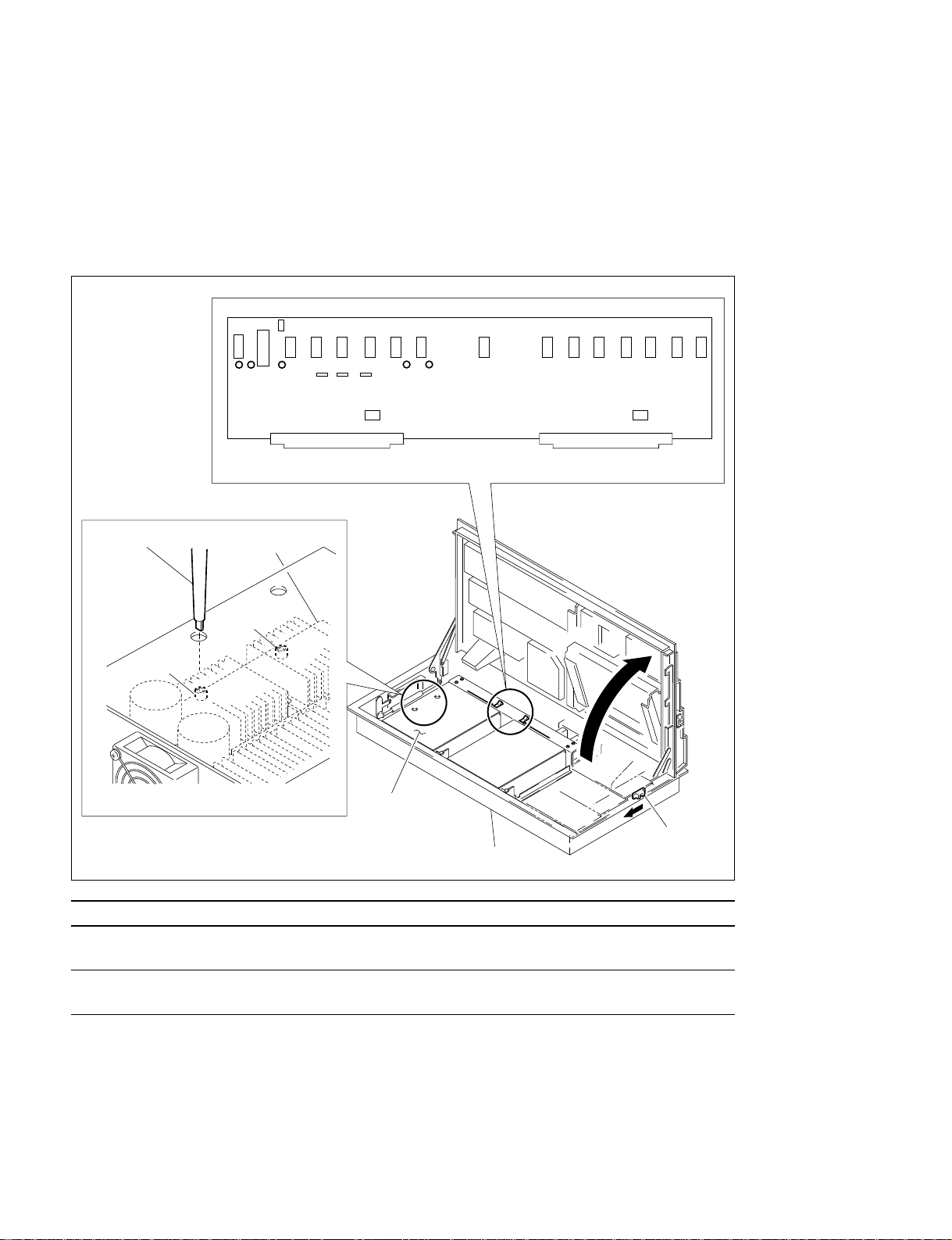

(1) Open the panel. (Refer to “4-4-1. Opening and Closing of Panel”.)
(2) Turn off the power switches in the control panel. (Refer to “4-4-2. Turning On/Off the Power”.)
(3) Connect the CN1 on the IF-523 board to the CN12 on the CPU-246 board. Connect the CN2 on the

IF-523 board to the CN13 on the CPU-246 board.

(4) Secure the IF-523 board to the supports on the CPU-246 board by the two screws (PSW3 x 8)

supplied with BKDS-7001.

BKDS-7017

Supports

CN12

CN13

PSW3 x 8

IF-523 board

PSW3 x 8

CPU-246 board

(5) Turn on the power switches in the control panel.

(If the one power unit is installed, turn on the power switch of the installed power unit.)
(Refer to “4-4-2. Turning On/Off the Power”.)

(6) Close the panel. (Refer to “4-4-1. Opening and Closing of Panel”.)

4-14

DVS-7150E IM

4-4. Installation of Options for Control Panel

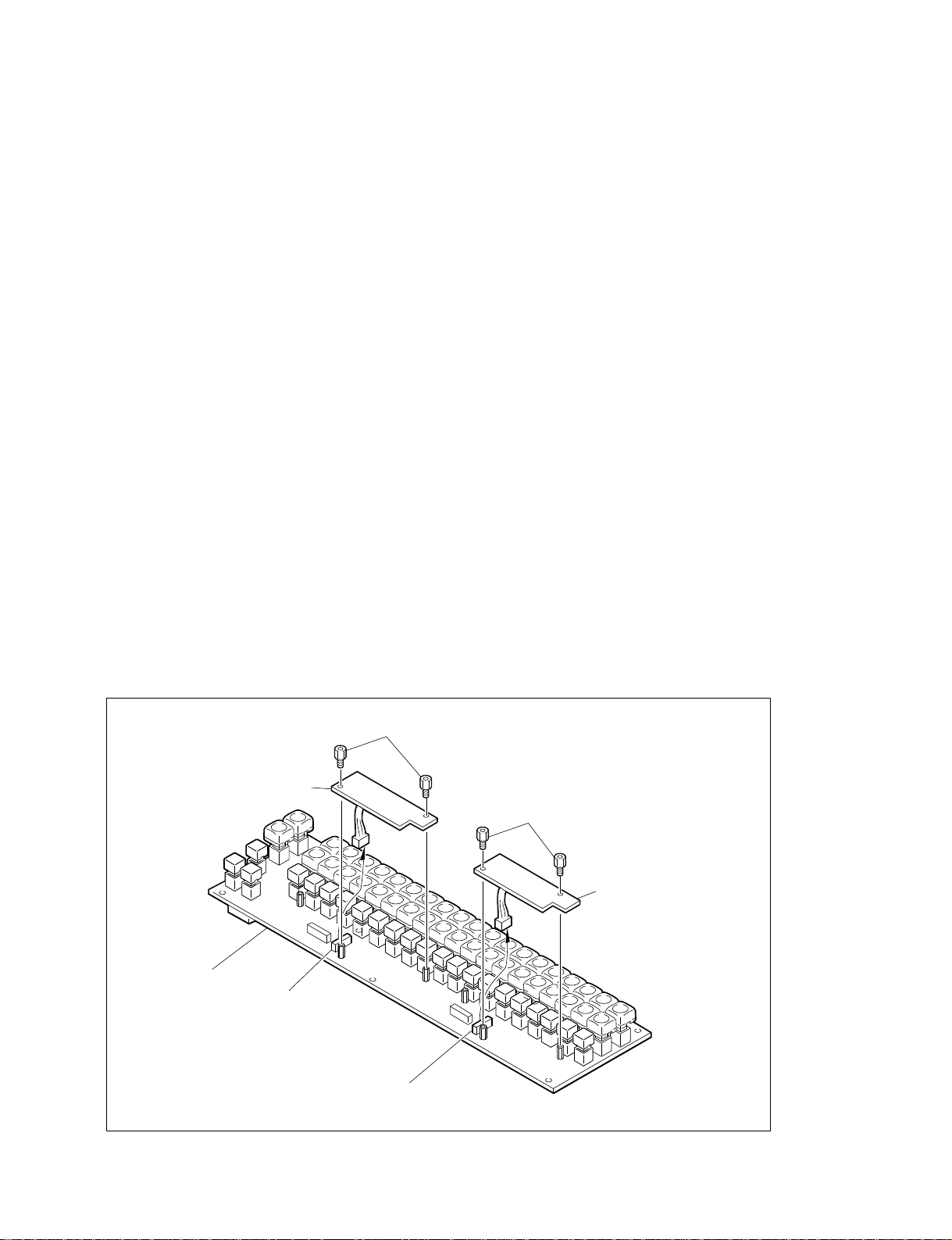

4-4-4. Installation of BKDS-7003 (Source Name Display Unit)

1. BKDS-7017

Contents

LE-147 Board : 2 pcs
LE-148 Board : 2 pcs
LE-180 Board : 1 pc
DC-92 Board : 5 pcs
Screw for board support : 10 pcs
Screw (B2.6 x 5) : 15 pcs

n

When cleaning the LED unit on the KY-147, 148 or 180 board, use a dry cloth or a cloth moistened with
a small amount of water. If using a cloth moistened with a solvent (alcohol and the like), it is possible to
be whiten and crack on the surface of the LED unit.

(1) Open the panel. (Refer to “4-4-1. Opening and Closing of Panel”.)
(2) Turn off the power switch in the control panel. (Refer to “4-4-2. Turning On/Off the Power”.)
(3) Remove the KY-389A, 389B or 441 board.

(Refer to “1-2-5. Installation and Removal of Boards” in the maintenance manual part 1.)

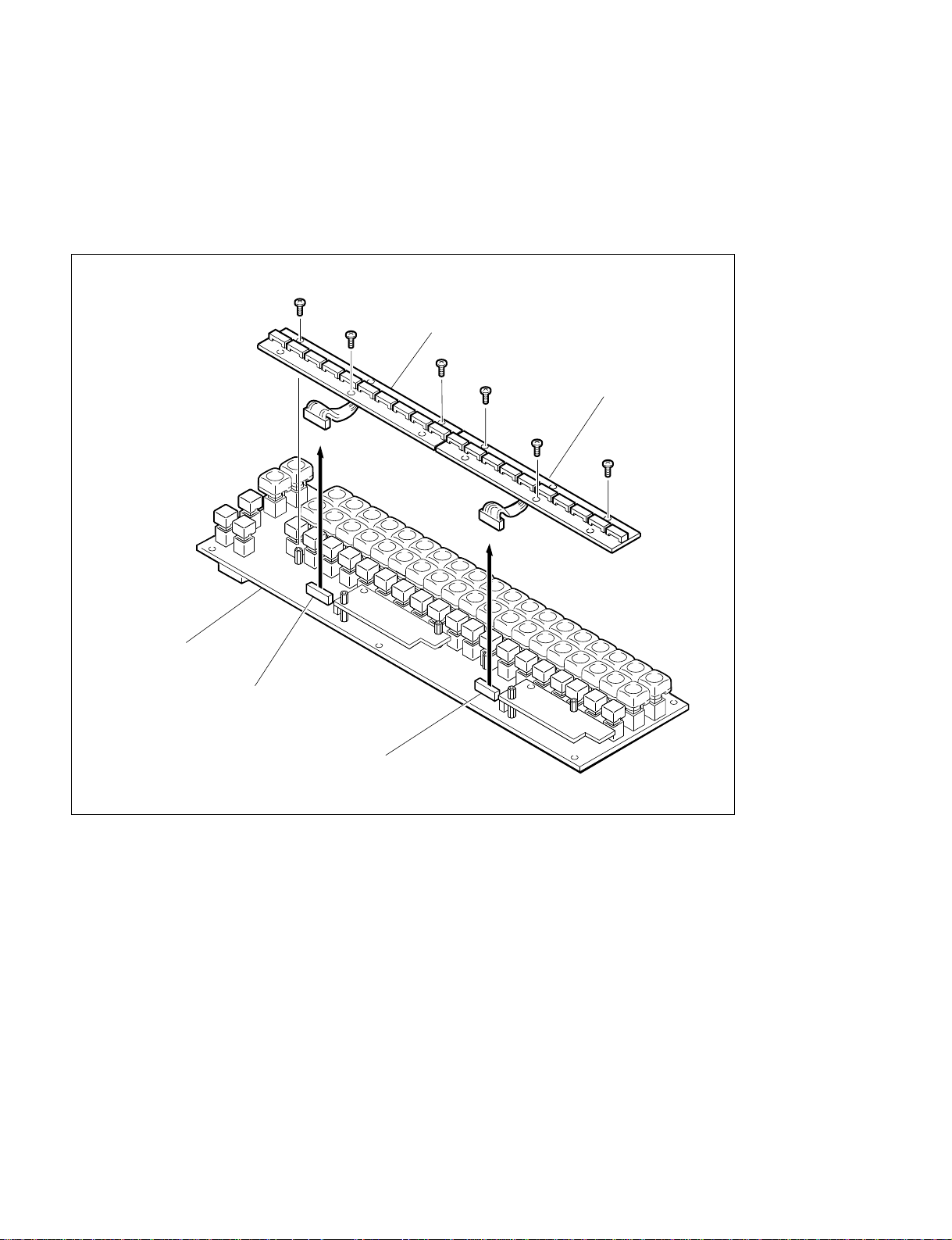

(4) Connect the two harness of the DC-92 board to the CN15 and CN16 on the KY-389A, 389B or 441

board.

KY-389A or 389B board : CN15 and CN16 on the KY-389 or 389B board

KY-441 board : CN15 on the KY-441 board
(5) Install the DC-92 board to the KY-389A, 389B or 441 borad using the two screws for board support

packed with BKDS-7002.

DC-92 board

KY-389A, 389B or 441 board

Screws for board support

Screws for board support

DC-92 board
(For KY-389A or 389B board)

CN15

CN16
(For KY-389A or 389B board)

DVS-7150E IM

4-15

4-4. Installation of Options for Control Panel

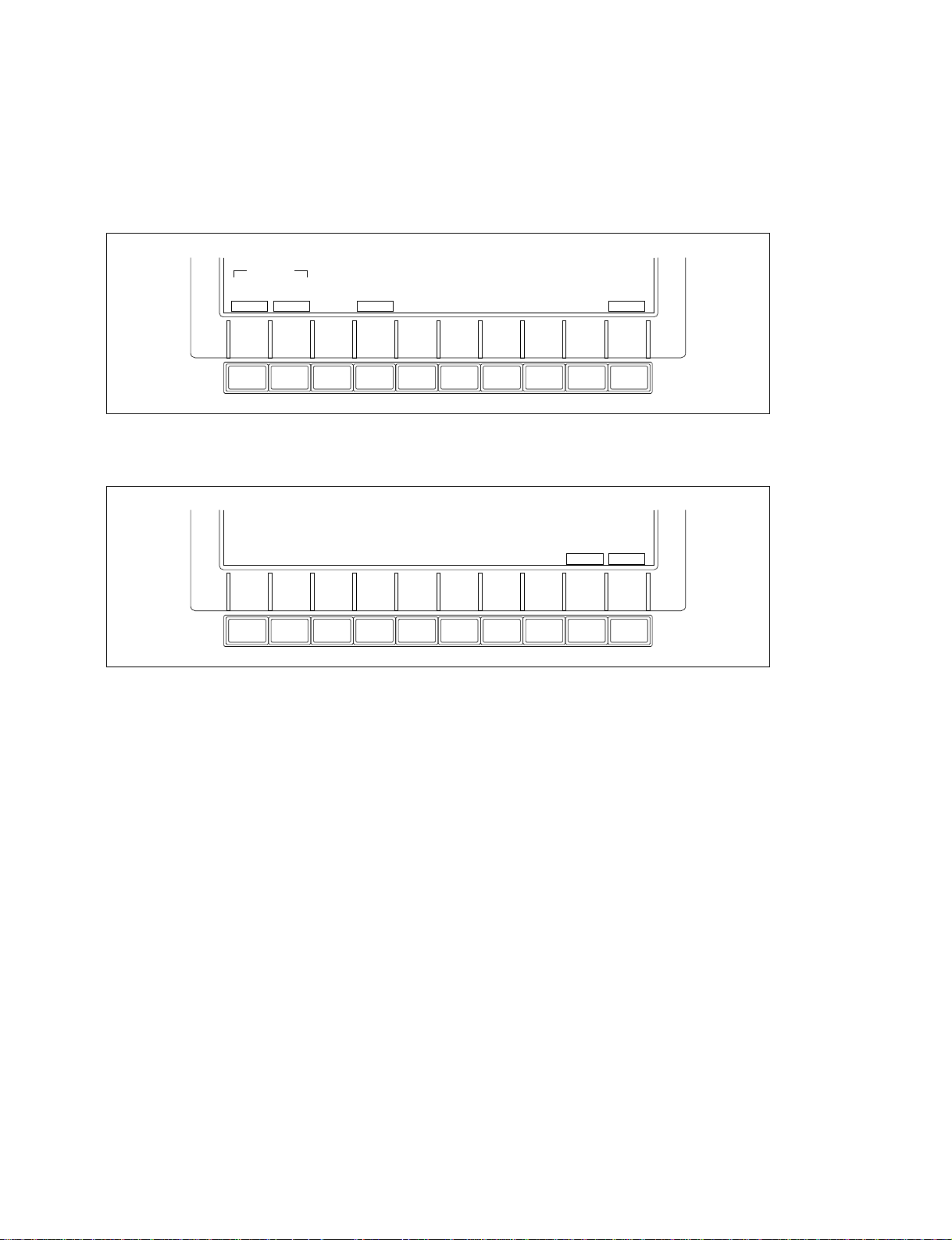

(6) Connect the harness of the LE-147, 148 or 180 board to the connector on KY-389A, 389B or 441

board.
LE-147 board : CN5 on the KY-389A or 389B board
LE-148 board : CN6 on the KY-389A or 389B board
LE-180 board : CN5 on the KY-441 board

(7) Install the LE-147, 148 or 180 board using the six screws (B2.6 x 5) packed with BKDS-7003.

P2.6 x 5

KY-389A, 389B or 441 board

CN5
(For LE-147 or 148 board)

P2.6 x 5

CN6
(For LE-148 board)

LE-147 or 180 board

P2.6 x 5

P2.6 x 5

LE-148 board

P2.6 x 5

P2.6 x 5

(8) Install the KY-389A, 389B or 441 board.

(Refer to “1-2-5. Installation and Removal of Boards” in the maintenance manual part 1.)
(9) Turn on the power switch in the control panel. (Refer to “4-4-2. Turning On/Off the Power”.)
(10) Close the panel. (Refer to “4-4-1. Opening and Closing of Panel”.)

4-16

DVS-7150E IM

4-4-5. Installation of BKDS-7031 Track Ball

Contents

DME panel (KY-329 board) : 1 pc
Track ball : 1 pc
Harness (CTRL5) : 1 pc
Harness (DC9) : 1 pc
Screws (PSW3 x 8) : 4 pcs

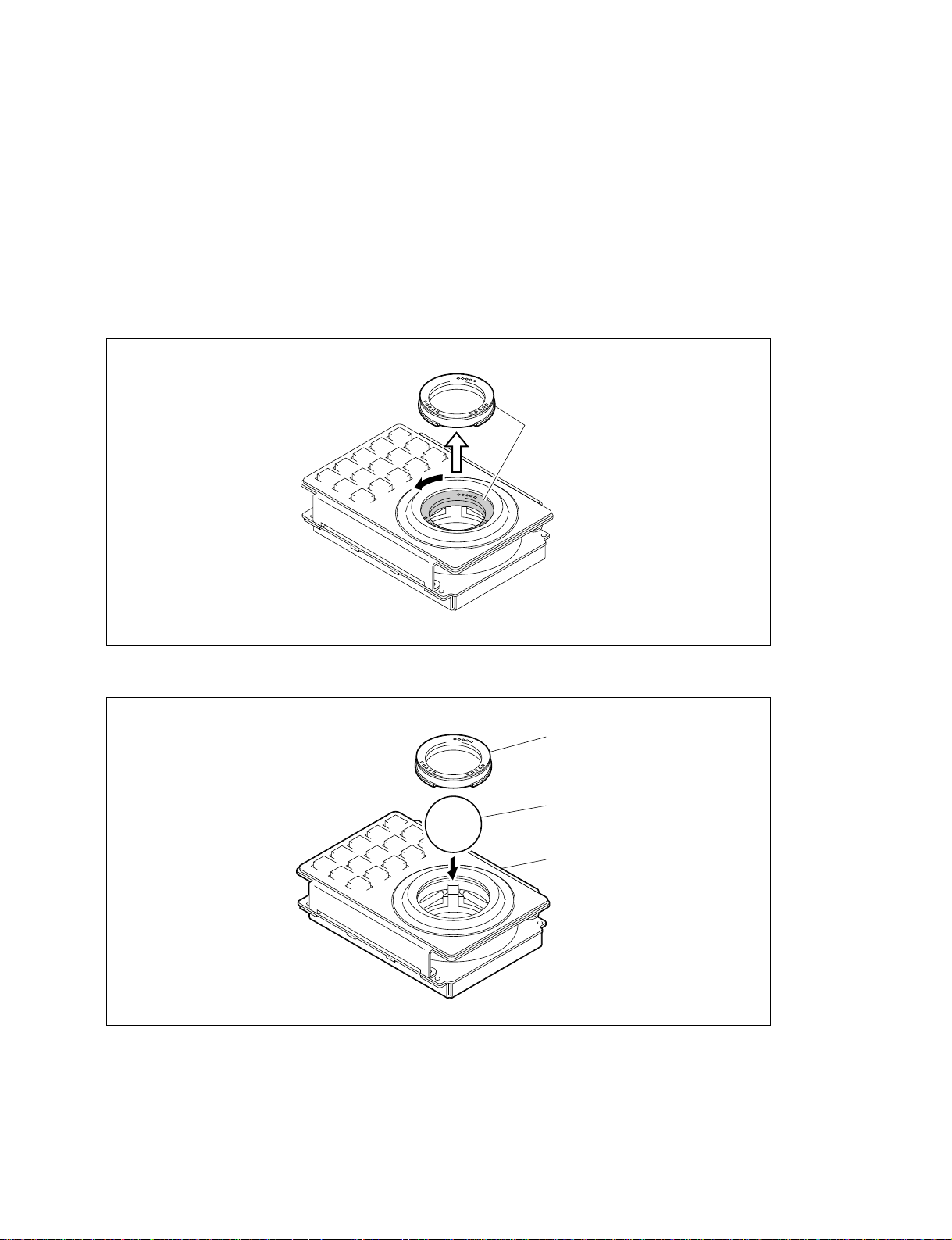

(1) Turn the ball retainer counterclockwise to release a lock.

4-4. Installation of Options for Control Panel

Ball retainer

(2) Install the track ball and the ball retainer.

Ball retainer

Track ball

BKDS-7031

DVS-7150E IM

4-17

4-4. Installation of Options for Control Panel

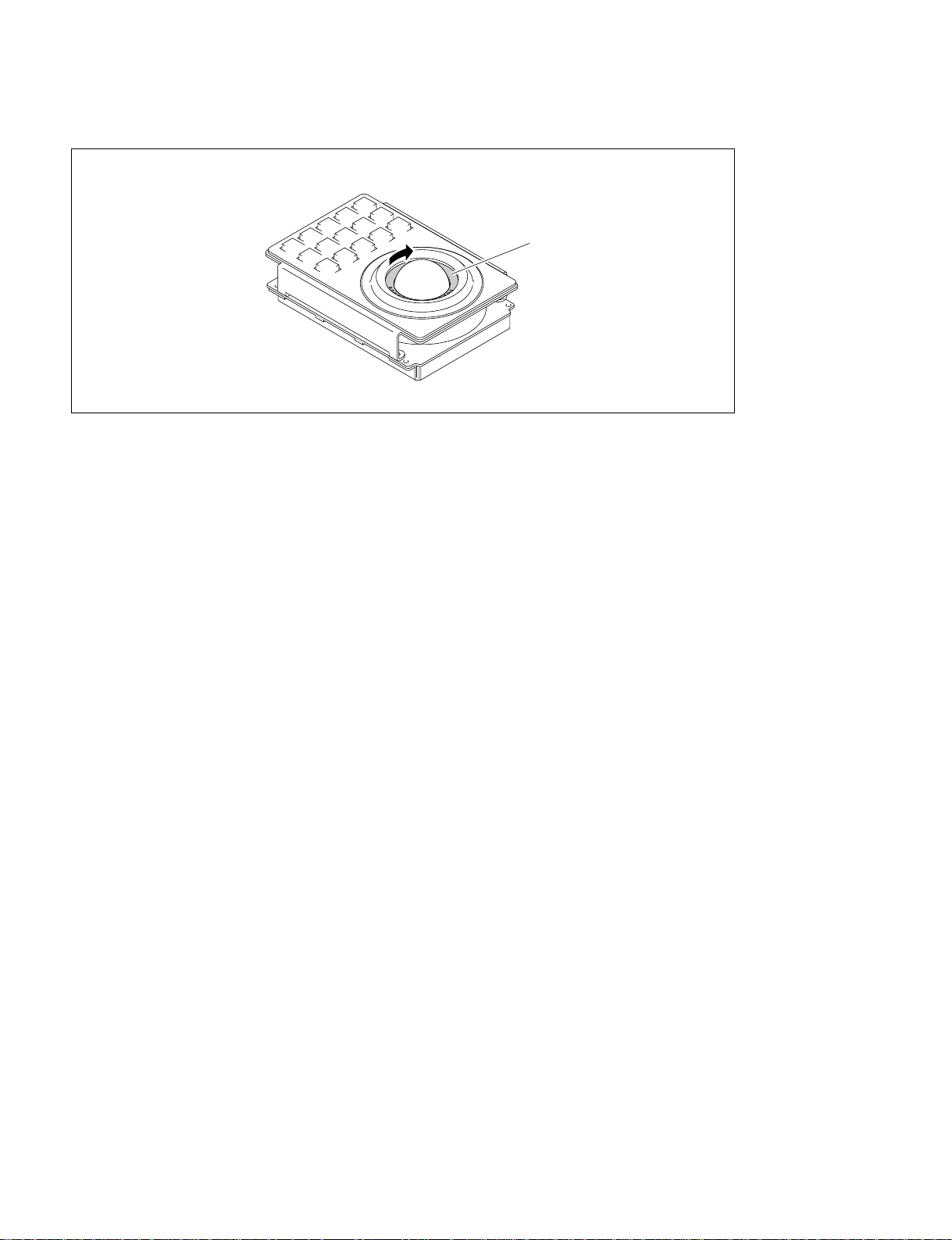

(3) Turn the ball retainer clockwise to lock.

Ball retainer

4-4-6. Installation of Option Panels (BKDS-7030/7031/7033)

Contents of BKDS-7030

Key Frame Panel Unit (KY-328 board): 1 pc
Harness (CTRL5) : 1 pc
Harness (DC9) : 1 pc
Screws (PSW3 x 8) : 4 pcs

Contents of BKDS-7031

DME Control Panel Unit (KY-329 board) : 1 pc
Harness (CTRL5) : 1 pc
Harness (DC9) : 1 pc
Screw (PSW3 x 8) : 4 pcs

Contents of BKDS-7033

Memory Recall Control Panel Unit (KY-395C board) : 1 pc
Harness (CTRL5) : 1 pc
Harness (DC9) : 1 pc
Screw (PSW3 x 8) : 4 pcs

4-18

DVS-7150E IM

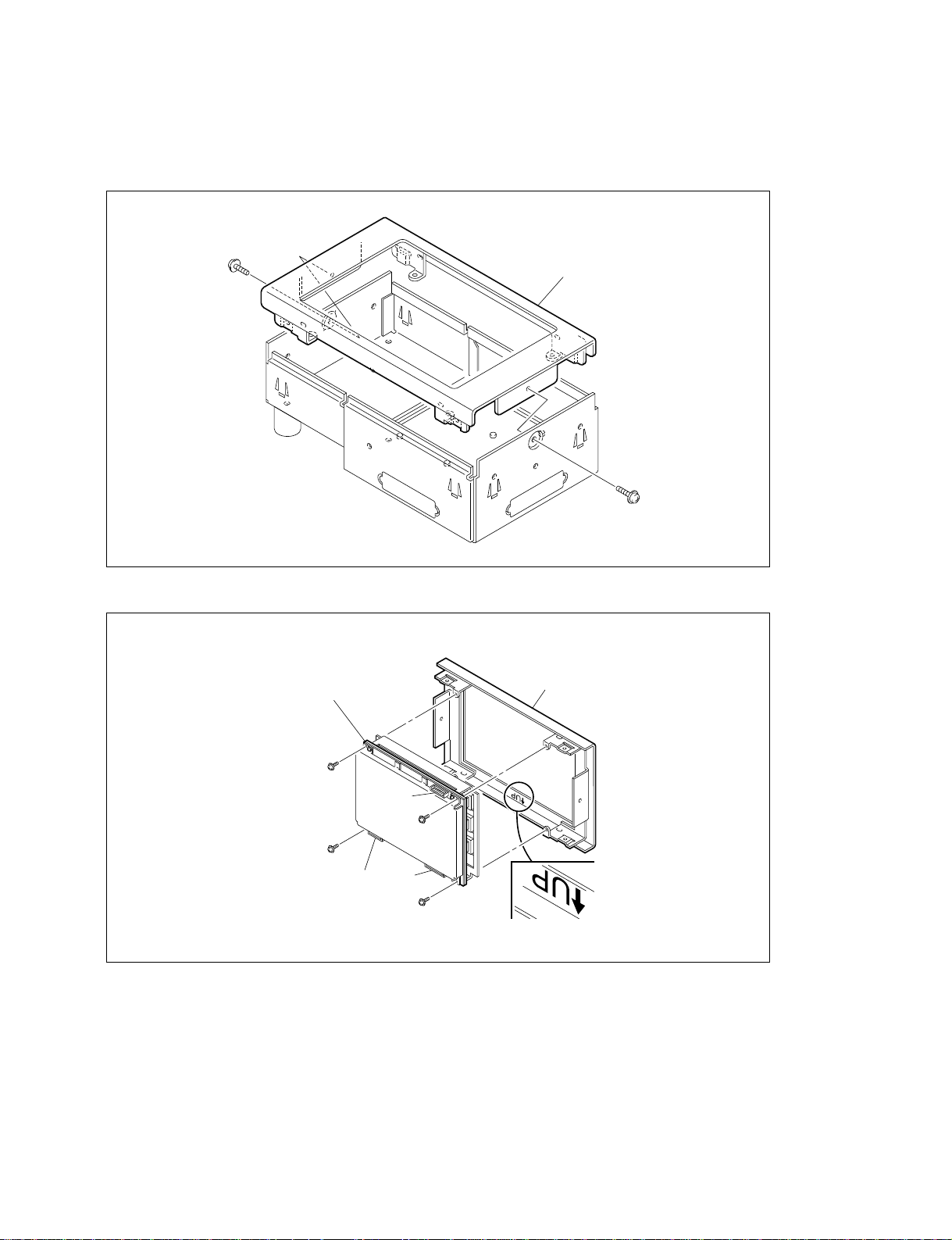

1. Installation to adaptor box (BKDS-7075)

(1) Remove the two screws and the AD panel.

B3 x 5

4-4. Installation of Options for Control Panel

AD panel

B3 x 5

(2) Secure the option panel to the AD panel by the supplied four screws (PSW3 x 8).

Option panel
(BKDS-7030/7031/7033)

PWH3 x 8

CN1

PWH3 x 8

PWH3 x 8

CN3 CN2

PWH3 x 8

AD panel

DVS-7150E IM

4-19

4-4. Installation of Options for Control Panel

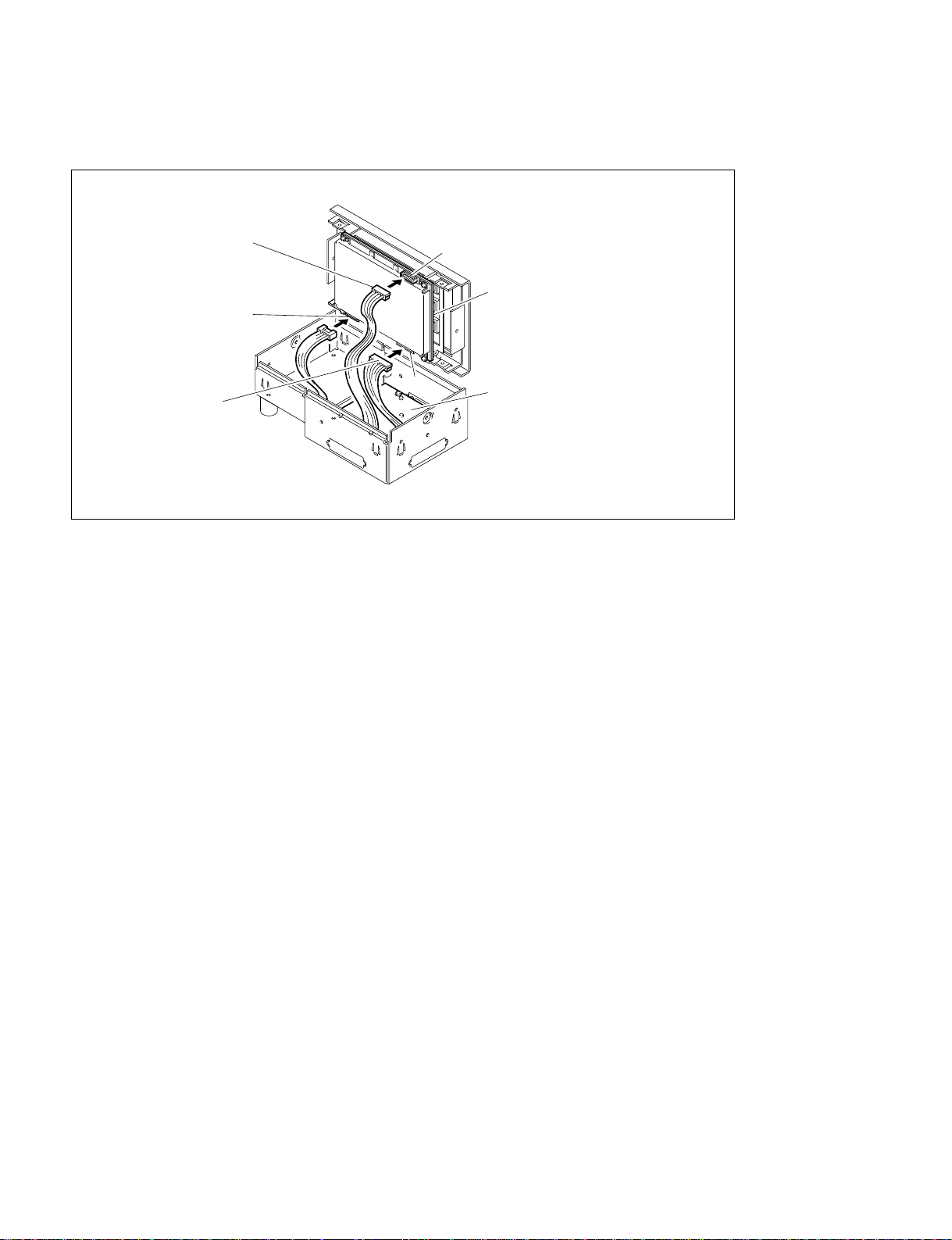

(3) Connect the three harnesses of the IF-629 board to the CN1 through CN3 on the KY-328/329/395C

board.

Red

CN3

White

CN1

CN2

(4) Secure the AD panel to the adaptor box by the two screws.

KY-328/329/395C board

IF-629 board

4-20

DVS-7150E IM

4-4. Installation of Options for Control Panel

4-4-7. Joining of BKDS-7075 (Control Panel Remote Adaptor)

Contents

Adaptor : 1 pc
Joint : 2 pcs
Joint bracket : 6 pcs
Nylon rivet : 2 pcs
Screws (B 3 x 5) : 6 pcs

BKDS-7075s can be joined the vertical direction, the horizontal direction or the vertical and horizontal
directions as shown in the following figure.
Before joining the BKDS-7075s, reinstall the IF-629 board according to the type (type A through D).

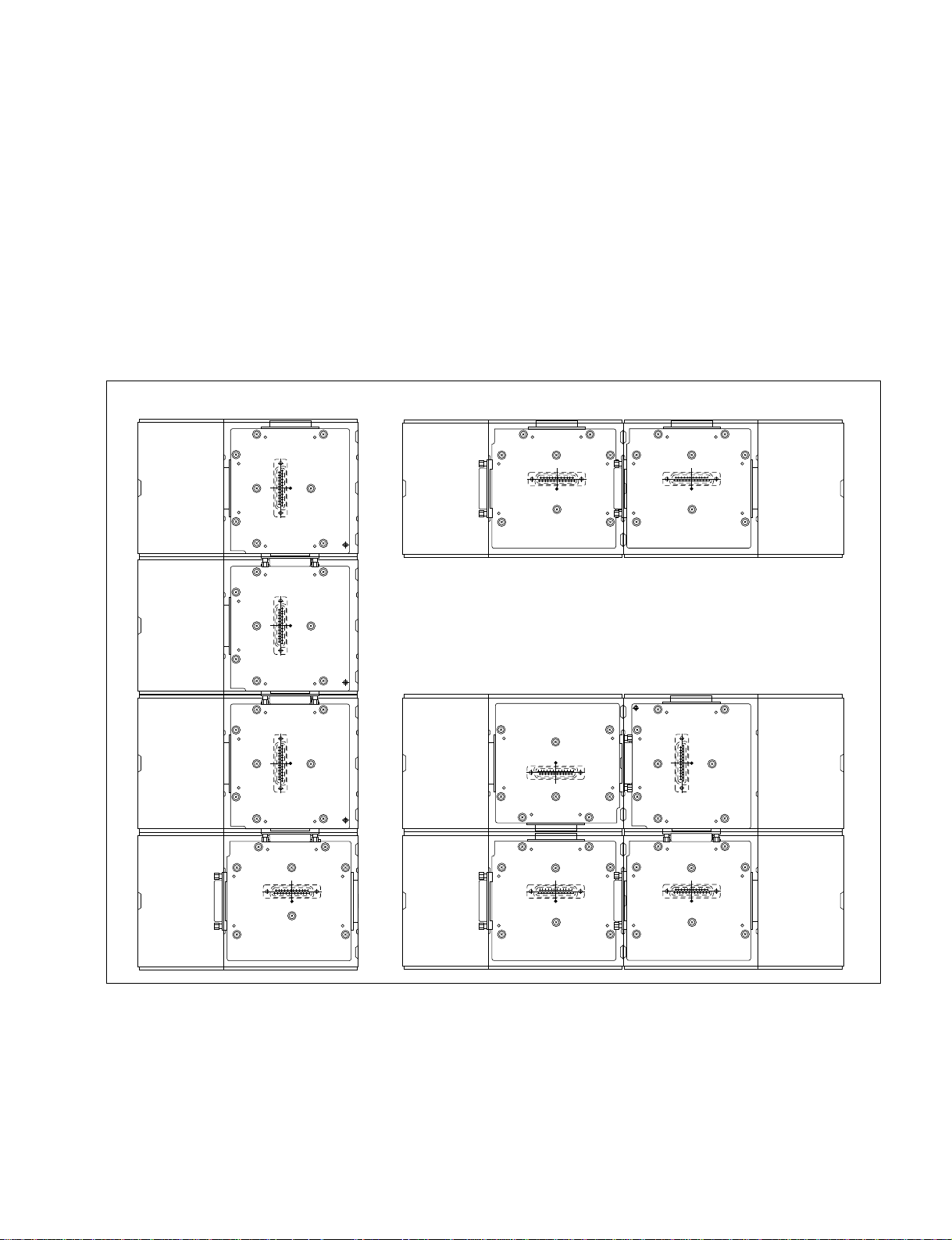

Vertical direction

Type-B

Type-B

Type-B

Horizontal direction

Type-A

Vertical and horizontal direction

Type-C

Type-C

Type-D

DVS-7150E IM

Type-A

Type-A

Type-C

4-21

4-4. Installation of Options for Control Panel

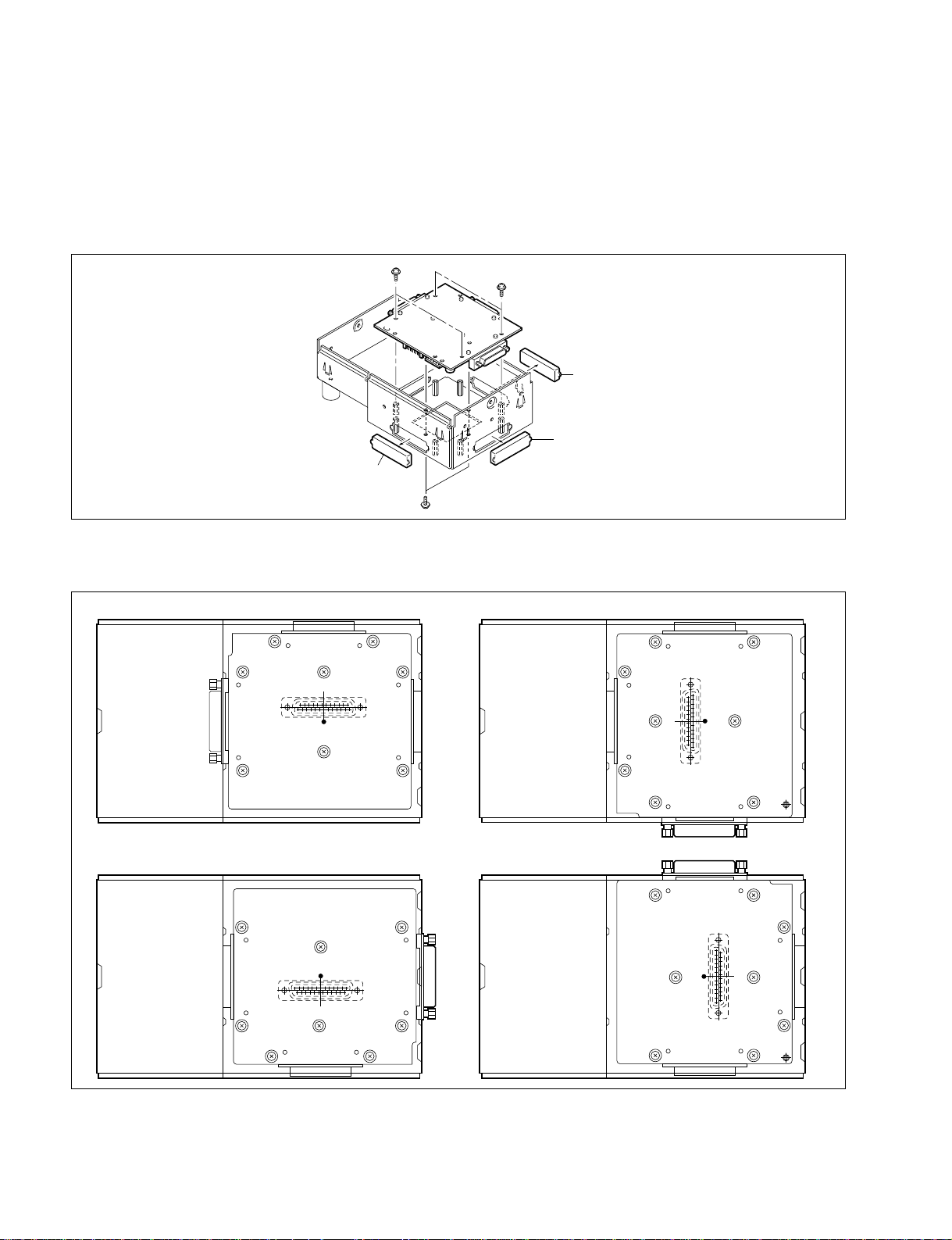

1. Removal and Installation of IF-629 Board

(1) Remove the AD panel.

(Refer to the step (1) of “1. Installation to adaptor box (BKDS-7075)” in the section 4-4-6.)

(2) Remove the caps and the IF-629 board.

(Refer to “5. IF-629 board (BKDS-7075)” in the section 1-2-5 of maintenance manual part 1.)

PSW3 x 8

Cap

PSW3 x 8

Cap

Cap

B3 x 5

(3) Install the IF-629 board according to the type of joining of BKDS-7075s as shown in the following

figure. (Refer to “5. IF-629 board (BKDS-7075)” in the section 1-2-5 of maintenance manual part 1.)

Type-A (Factory setting)

CN7

CN4 CN8

Type-B

CN8

CN7

IF-629 board

Type-C

CN8 CN4

IF-629 board

CN7

Type-D

(4) Install the caps to the connectors (except CN4) on the IF-629 board.
(5) Install the AD panel to the adaptor box.

(Refer to the step (4) of “1. Installation to adaptor box (BKDS-7075)” in the section 4-4-6.)

4-22

IF-629 board

CN4

CN4

CN7

IF-629 board

CN8

DVS-7150E IM

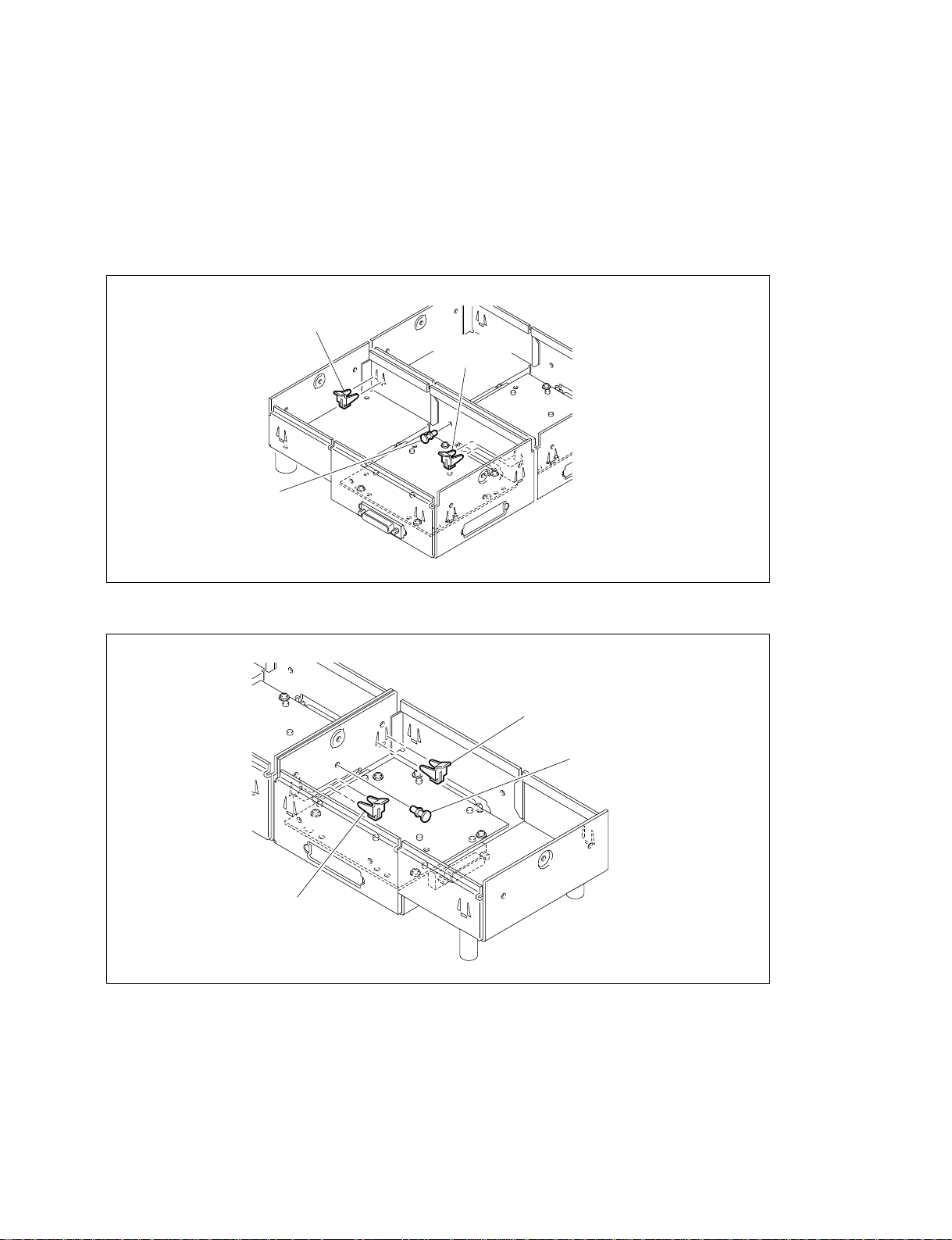

2. Joining of Adaptor Box (BKDS-7075)

(1) Join the two adaptor boxes (BKDS-7075).
(2) Press in the nylon rivet as shown in the following figure.
(3) Press in the two joint brackets as shown in the following figure.

(In the case of the vertical direction)

Joint bracket

Joint bracket

Nylon rivet

4-4. Installation of Options for Control Panel

(In the case of the horizontal direction)

Joint bracket

Joint bracket

Nylon rivet

DVS-7150E IM

4-23

4-4. Installation of Options for Control Panel

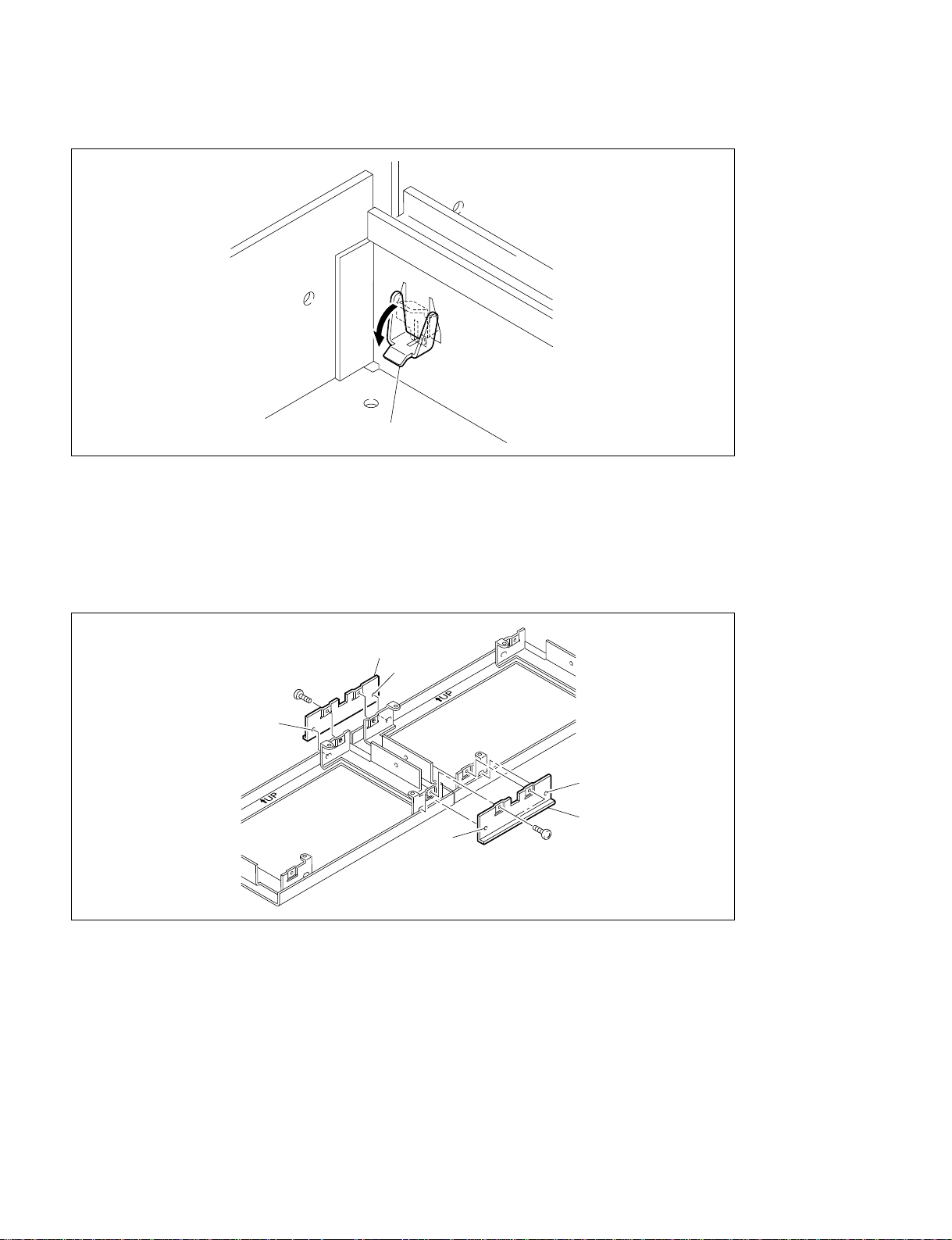

(4) Lock the two adaptor boxes by pressing down the joint brackets.

Joint bracket

3. Joining of AD panel

In the case of the horizontal direction, join the two AD panels in the following procedures.
(1) Place the two AD panels as shown in the following figure.
(2) Put the bosses of the joint in the holes of the AD panel, and then install the joint to the AD panel by

the two screws.

Joint

B3 x 5

Boss

Boss

Boss

Boss

Joint

B3 x 5

4. Installation of AD panel

(1) Install the AD panel to the adaptor box.

(Refer to the step (4) of “1. Installation to adaptor box (BKDS-7075)” in the section 4-4-6.)

* In the case of the vertical and horizontal directions, join to the vertical direction after joining to the

horizontal direction.

4-24

DVS-7150E IM

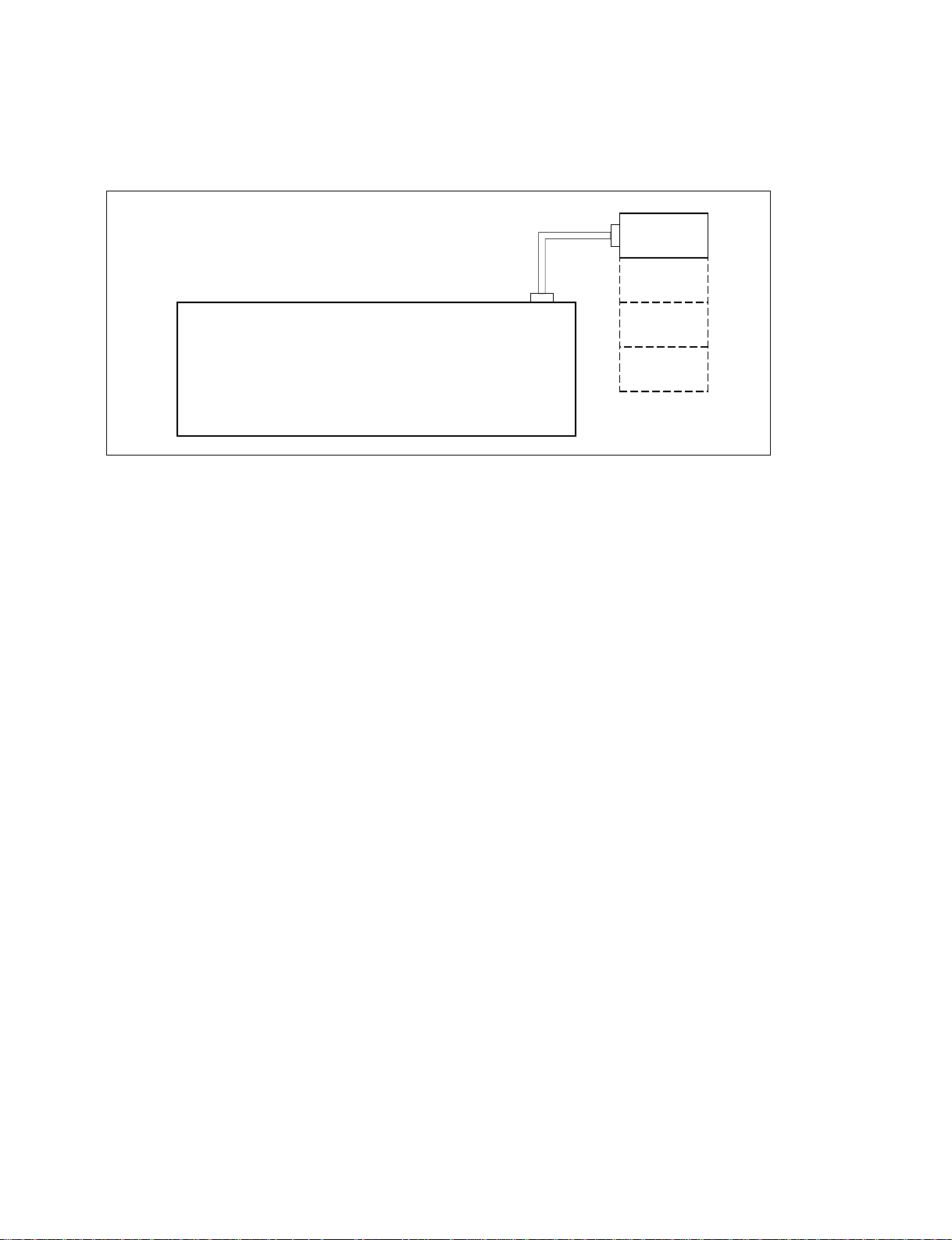

4-4-8. Connection of BKDS-7075 to Control Panel

Use the BVS cables, and connection control panel to the adaptor box.



OPTION

PANEL

CONTROL PANEL

(*1) : Use the BVS cables (1-574-993-11).

(*1)

4-4. Installation of Options for Control Panel

ADAPTOR

BOX

(

BKDS-7075

)

DVS-7150E IM

4-25

4-4. Installation of Options for Control Panel

4-4-9. Installation of BKDS-7091 (Redundant Power Supply Unit) (BKDS-7017)

w

To avoid shock hazards, be sure to turn off the breaker at the outside of the control panel or unplug the
power cord when installing BKDS-7091.

Contents

Power unit : 1 pc
Screw (PS3 x 6) : 2 pcs

(1) Open the panel. (Refer to “4-4-1. Opening and Closing of Panel”.)
(2) Turn off the power switches in the control panel. (Refer to “4-4-2. Turning On/Off the Power”.)
(3) Move BKDS-7091 in the direction of arrow 1 and put BKDS-7091 in the direction of arrow 2.
(4) Tilt the levers at both sides of the power unit in the directions of the allow.
(5) Secure BKDS-7091 to the control panel by the two screws (PS3 x 6) supplied with BKDS-7091.

Lever

PS3 x 6

PS3 x 6

1

2

BKDS-7091

(6) Turn on the power switches in the control panel. (Refer to “4-4-2. Turning On/Off the Power”.)
(7) Close the panel. (Refer to “4-4-1. Opening and Closing of Panel”.)

4-26

DVS-7150E IM

Section 5



Confirmation in Installation

5-1. Switch Settings on Boards and LEDs Description

n

The addresses on the boards are shown by ( ) marks.

5-1-1. DVS-7150

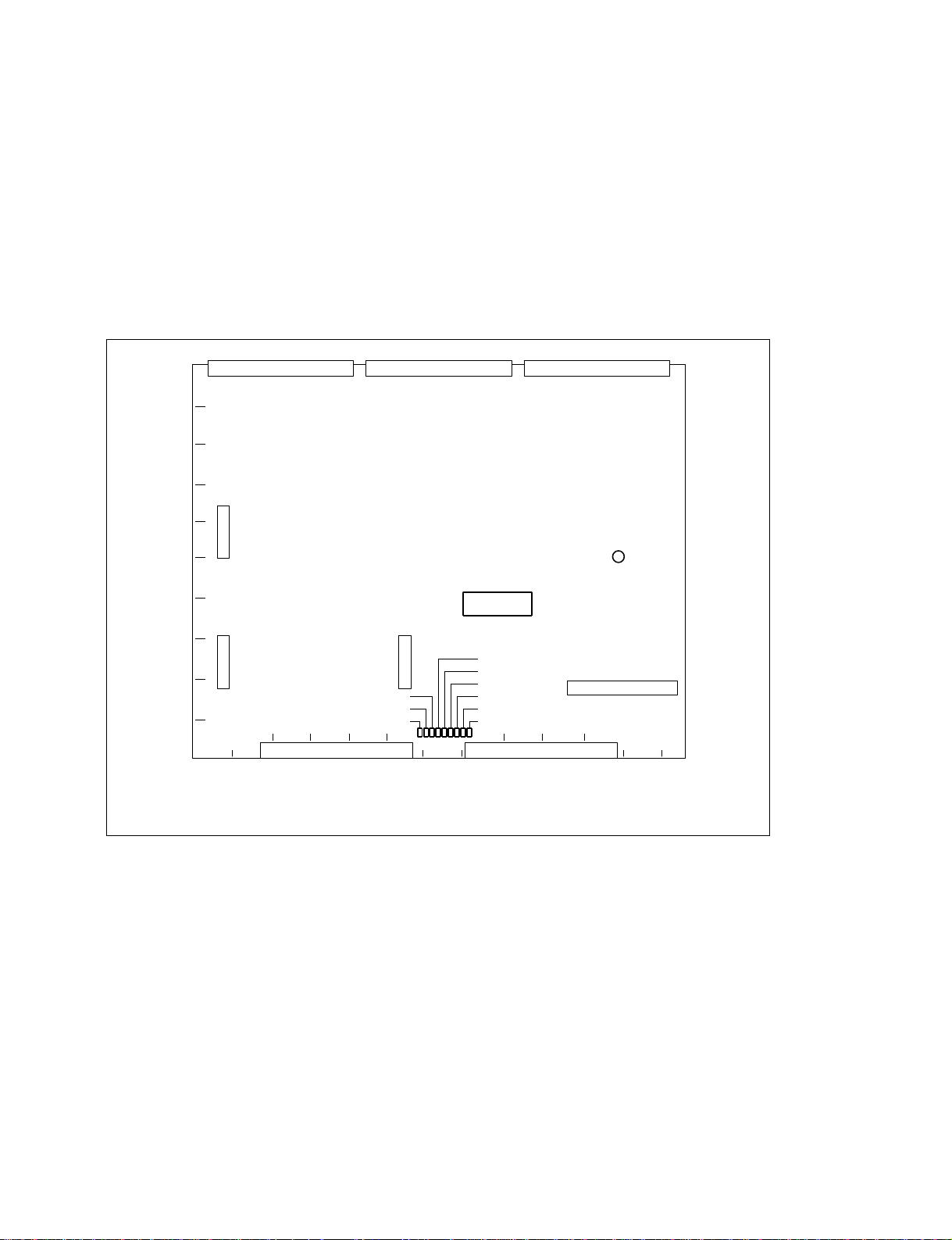

1. CA-35 Board

K

J

H

G

F

E

D

C

B

A

12

3 4 5 6 8 9 10 11

D508
D507
D506

(Component side/A side)

CN1

D509
D510
D513
D9
D23
D24

71213

CA-35 board

CN1 (E8) : FRAME MEMORY BOARD connector
This connector is reserved for future system expansion.

CT501 (F11) : BURST LEVEL adjustment
This potentiometer is used to adjust for the BURST level of the REF OUT.
Not use. This adjustment is finished in the factory.

CT501

D506 (Green color) (A6) : REF IN
This LED is displayed that the REF INPUT terminal receives the reference signal or not.
When the REF INPUT terminal receives the reference signal, this LED lights.

D507 (Green color) (A7) : REF OUT BB ON
This LED is displayed that the type of the signal is provided from the REF OUTPUT terminal.
Light; The 525 line black burst signal is provided from the REF OUTPUT terminal.
Light off; The sync signal is provided from the REF OUTPUT terminal.

DVS-7150E IM

5-1

5-1. Switch Settings on Boards and LEDs Description

D508 (Yellow color) (A7) : D1/D2 lamp
This LED is displayed that the SYSTEM is selected into the D1 or D2 format. This LED lights that the
SYSTEM is selected into the D1 format.

D509 (Yellow color) (A7) : 625/525
This LED is displayed that the SYSTEM is selected into the 525 or 625 line mode. This LED lights that
the SYSTEM is selected into the 625 line mode.

D510 (Red color) (A7) : REF ERR
This LED is displayed that the status of the reference signals are provided to the REF INPUTs terminals.
When the REF INPUTs terminals are not received the reference signals or the received reference signals
are abnormal, this LED lights.
In combination with the REF ERR and REF IN, this LED can check that the status of the reference input
signals.

REF ERR (D510)
Light The reference signal is abnormal. The reference signal is not provided.

Light off The normal reference signal is provide. _

REF IN (D506) Light Light off

D513 (Green color) (A7) : SCH

This LED is displayed that the SCH phase of the black burst signals are provided to the REF INPUTS
signals. When the SCH phase is normal, this LED lights.

D9 (Green color) (A7) : _5 V
This LED is displayed the status of the _5 V source for the CA-35 board.
Light ; Normal status.
Light off ; The power does not provide to the CA-35 board.

D23 (Yellow color) (A7) : +5 V
This LED is displayed the status of the +5 V source for the CA-35 board.
Light ; Normal status.
Light off ; The power does not provide to the CA-35 board.

D24 (Yellow color) (A8) : +3 V
This LED is displayed the status of the +3 V source for the CA-35 board.
Light ; Normal status.
Light off ; The power does not provide to the CA-35 board.

5-2

DVS-7150E IM

2. CPU-264 Board



AF L

1

2

3

CNT7
CNT6

4

CNT4
CNT3

5

BCD E GHJ K

D100
D101

S1

S2

CN8

CN9

S3
S4

D15
D16
D18

D1
D2
D3
D4

D8
D7
D6
D5

(Component side/A side)

D14
D12
D13

CPU-264 board

CNT3 (B5) : +5 V TEST terminal
This terminal is used to measure the +5 V voltage.
When re-adjusting the voltage after installing the option board to the unit, this terminal is used.

CNT4 (B5) : +3 V TEST terminal
This terminal is used to measure the +3 V voltage.
When re-adjusting the voltage after installing the option board to the unit, this terminal is used.

CNT6 (C5) : _5 V TEST terminal
This terminal is used to measure the _5 V voltage.
When re-adjusting the voltage after installing the option board to the unit, this terminal is used.

CNT7 (C5) : GND TEST terminal
This terminal is the reference against the +5 V, +3 V and _5 V TEST terminals.

CN8 (G5) : LAN connector
This connector is used for the adjustment in the factory.

CN9 (H5) : TERMINAL connector
This connector complies with the RS-232C standard, and is connected to the control terminal for the
adjustment in the factory and the maintenance.

DVS-7150E IM

5-3

5-1. Switch Settings on Boards and LEDs Description

D1 through D8 (Green colors) (D5/E5) : STATUS displays
These LEDs are used for the adjustment in the factory.

D15 (Yellow color) (B5) : +5 V
This LED is displayed the status of the +5 V source for all system.
Light ; Normal status.
Light off ; The power does not provide to the CPU-264 board or the fuse on the CPU-264 or CA-35

board blows.

D16 (Yellow color) (B5) : +3 V
This LED is displayed the status of the +3 V source for all system.
Light ; Normal status.
Light off ; The power does not provide to the CPU-264 board or the fuse on the CPU-264 or CA-35

board blows.

D18 (Green color) (B5) : _5 V
This LED is displayed the status of the _5 V source for all system.
Light ; Normal status.
Light off ; The power does not provide to the CPU-264 board or the fuse on the CPU-264 or CA-35

board blows.

D14 (Yellow color) (J5) : VD
When the VD signal provides at regular intervals from the CA-35 board and is normal operated, this LED
lights.

D12 (Green color) (J5) : RUN
When the CPU is normal operated, this LED lights.

D13 (Red color) (J5) : FAIL
When the CPU is stopped by some source, this LED lights.

S3 (K5) : ABORT switch
This switch is used when the unit starts up in the factory settings (except for the D1/D2 format and the
RESUME mode).
The unit is operated the same as the clear command of the SET UP menu.

S4 (K5) : RESET switch
This switch is used to forcefully restart the SYSTEM by the hardware.
The unit is operated the same as the operation when turning the POWER ON.
The resume function is not operated.

S1 (E5) and S2 (F5) : DBG switch
This switch is a 8-pin dip switch and is used to adjust in the factory.
Settings under normal status : All OFF

D100 (C5) and D101 (D5) : 7 SEGMENT displays
Light off; The power is turned ON.
Display the figure; The application starts the operation.
These figures differ according to the operation mode.

5-4

DVS-7150E IM

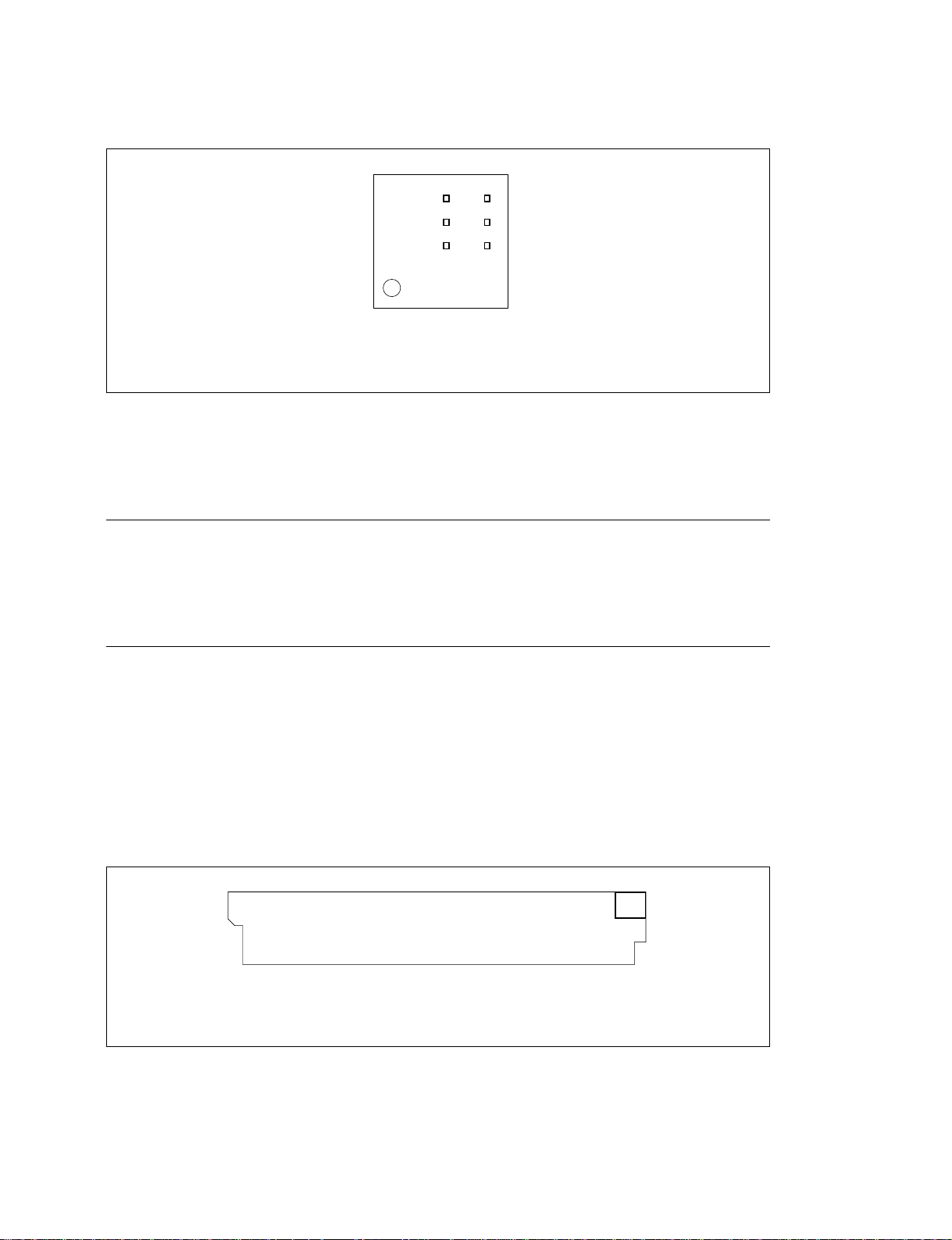

3. LE-156 Board (BKDS-M1690)



D2 D1
D4 D3
D6 D5

(Solder side/B side)

LE-156 board

D1 through D6 (Green colors) (A1) :
These LEDs are displayed the status of the power unit of DVS-7150.
Light ; Normal status
Light off ; The following troubles come up.

5-1. Switch Settings on Boards and LEDs Description

In the cases that one power unit is used.

. When the fun stops at the front of the power unit, the LEDs light off.
. When the AC-DC converter (CP101) is abnormal operated, the LEDs light off.
. When the DC-DC converter (CP201) of the +5 V source is abnormal operated, the LEDs light off.

In the cases that two power units are used.

. When a fun stops at the front of a power unit, the LEDs light off.
. When the AC-DC converter (CP101) are abnormal operated, the LEDs light off.
. When a DC-DC converter (CP201, CP202 or CP203) of the +5 V, +3 V or _5 V source is abnormal

operated, the LEDs light off.

. When the voltage adjustment is not correctly carried out and voltage of a power unit is lower-level than

the other power unit, the LEDs light off.

4. RE-114 Board (BKDS-M1690)



S1

(Component side/A side)

RE-114 board

S1 (P1) : Power switch
This switch is turned the power of DVS-7150 ON/OFF.

DVS-7150E IM

5-5

5-1. Switch Settings on Boards and LEDs Description

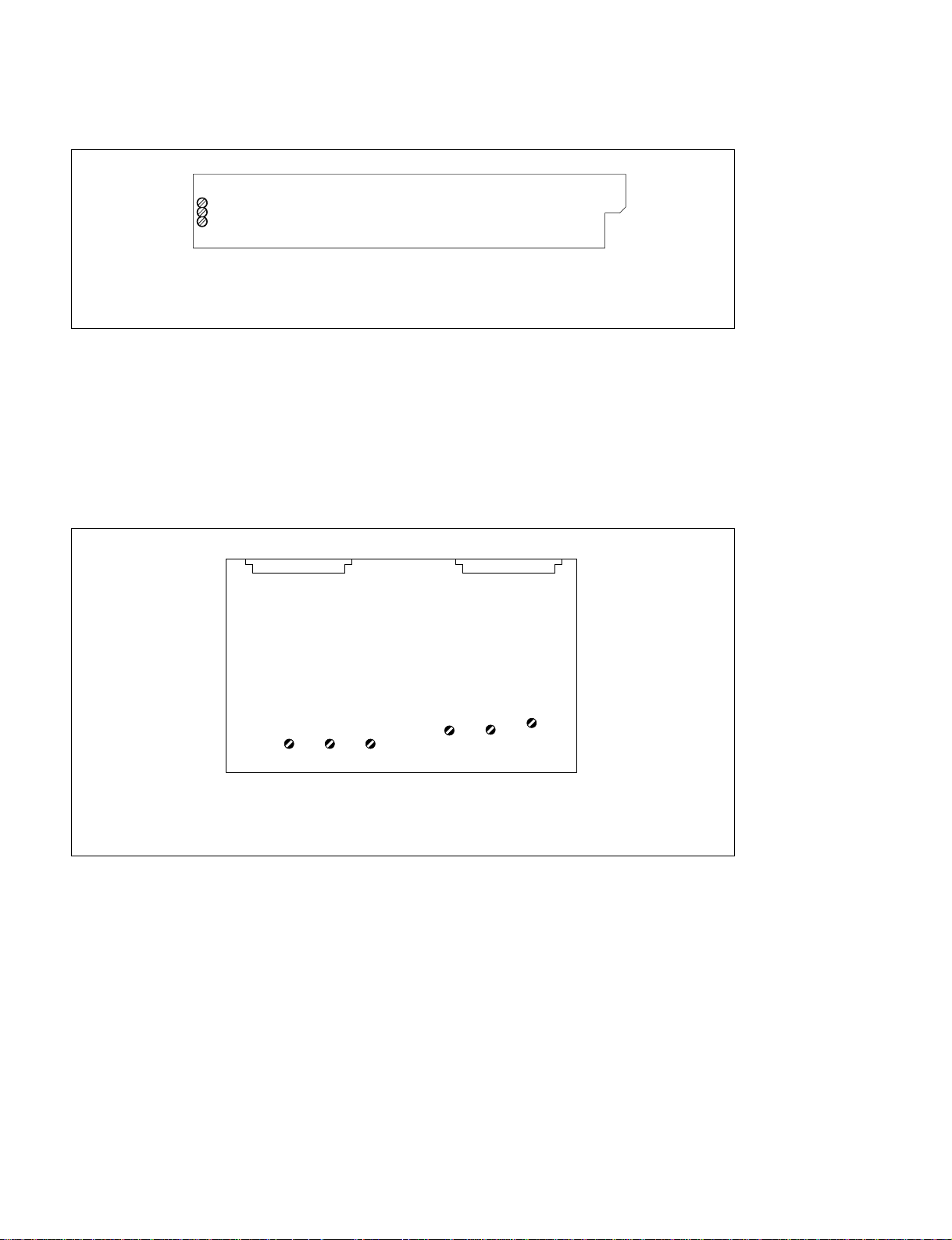

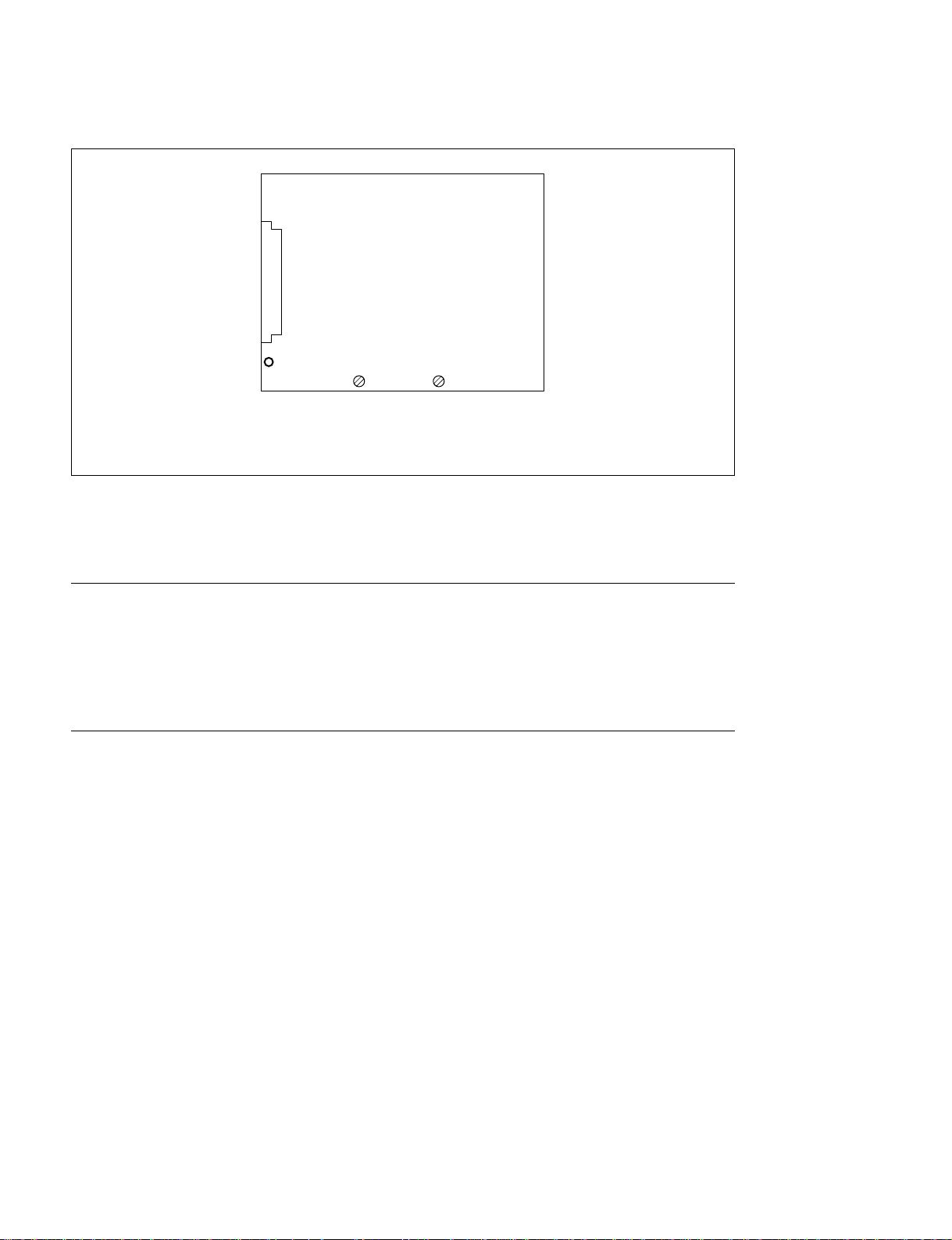

5. RE-115A Board (BKDS-M1690)

RV201
RV202
RV203

RV201 (N2) : +5 V voltage adjustment
RV202 (N2) : _5 V voltage adjustment
RV203 (N2) : +3 V voltage adjustment

5-1-2. BKDS-7134

1. ADC-22 Board



(Solder side/B side)

RE-115A board



CNX1 CNY1

CV100 CV200 CV300

(Component side/A side)

ADC-22 board

CV100 (D2) : CH1 G/Y frequency response adjustment
CV200 (F2) : CH1 B/B-Y frequency response adjustment
CV300 (H2) : CH1 R/R-Y frequency response adjustment
CV500 (K3) : CH2 G/Y frequency response adjustment
CV600 (M3) : CH2 B/B-Y frequency response adjustment
CV700 (P3) : CH2 R/R-Y frequency response adjustment

CV500 CV600

CV700

5-6

DVS-7150E IM

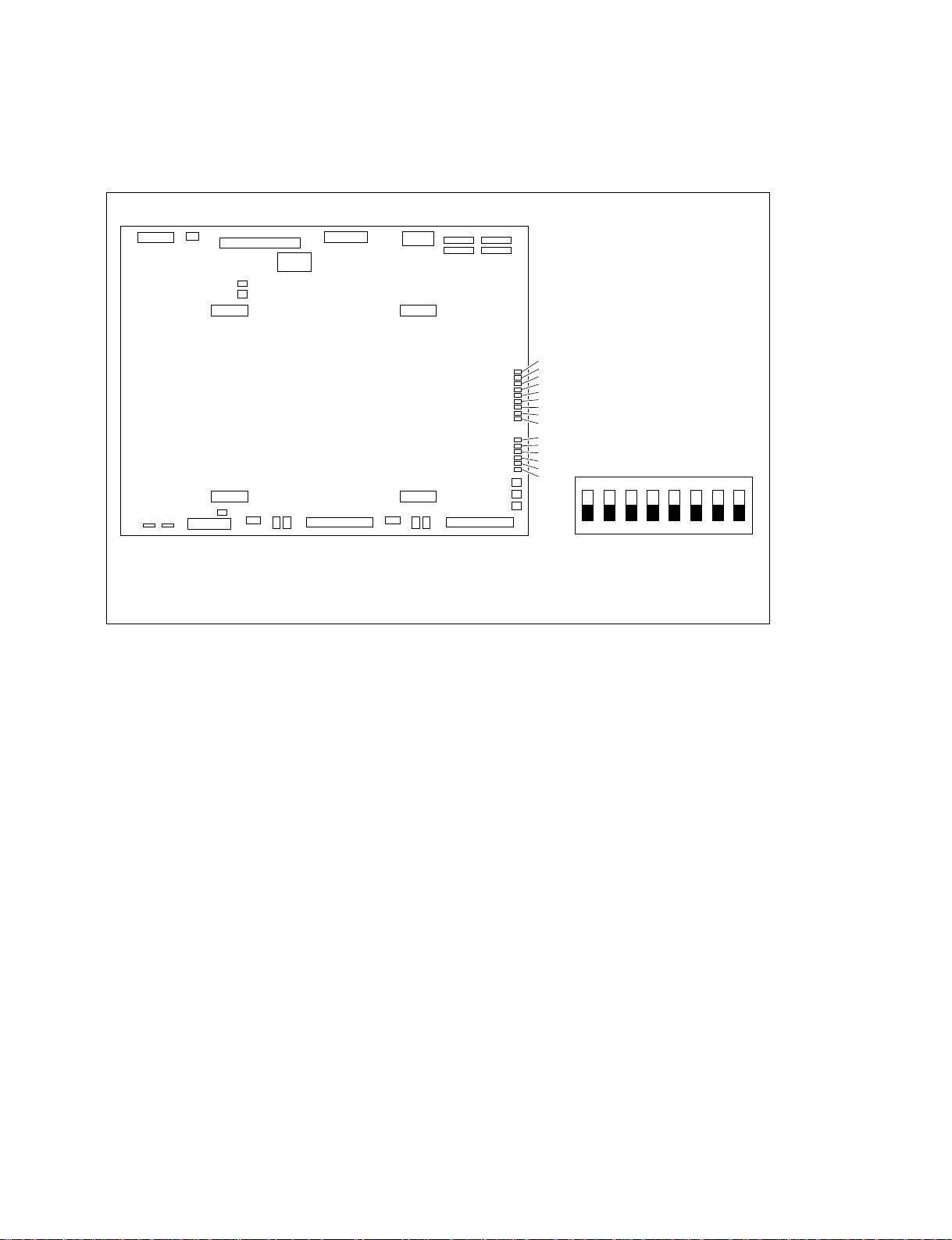

5-1-3. BKDS-7017

1. CPU-246 Board

CN8 CN17

CN15 CN13

COP2

CN18CN21

CN16



CN9

CN10 CN1

IC39

COP1
COP3

D101

D111

S5 S4

(Component side/A side)

CN20

5-1. Switch Settings on Boards and LEDs Description

CN5 CN3

CN6 CN4

D27
D26
D25
D24
D23
D22
D18
D17
D16

D6
D7

Factory setting

D2
D1

S4, S5

D295
D8

ON

12345678

CN19

S3
S2
S1

CN12CN14

D102D112

CPU-246 board

COP1 (E3) :
This is used to select the mode corresponding to the synchronized signal that is connected to the
SWITCHER on the rear panel. For DVS-7150, this is opened under normal status.

COP3 (E3) :
This is used to select the RS-232C signal that is connected to the TERMINAL 2 on the rear panel.
Selection under normal status ; NOR side
Selection in the factory ; DBG side

S1 (R10) : RESET switch
This switch is used to forcibly restart the SYSTEM by the hardware. The unit is operated the same as the
operation when turning the POWER ON.

S2 (R19) : ABORT switch
This switch is used for the adjustment in the factory.

S3 (R10) : SUB ABORT switch
This switch is used for the adjustment in the factory. If pressing this switch after selecting the S5 switch
on the CPU-246 board to the SUB CPU flash memory access protection mode, clean the content of the
flash memory for stored-program.

DVS-7150E IM

5-7

5-1. Switch Settings on Boards and LEDs Description

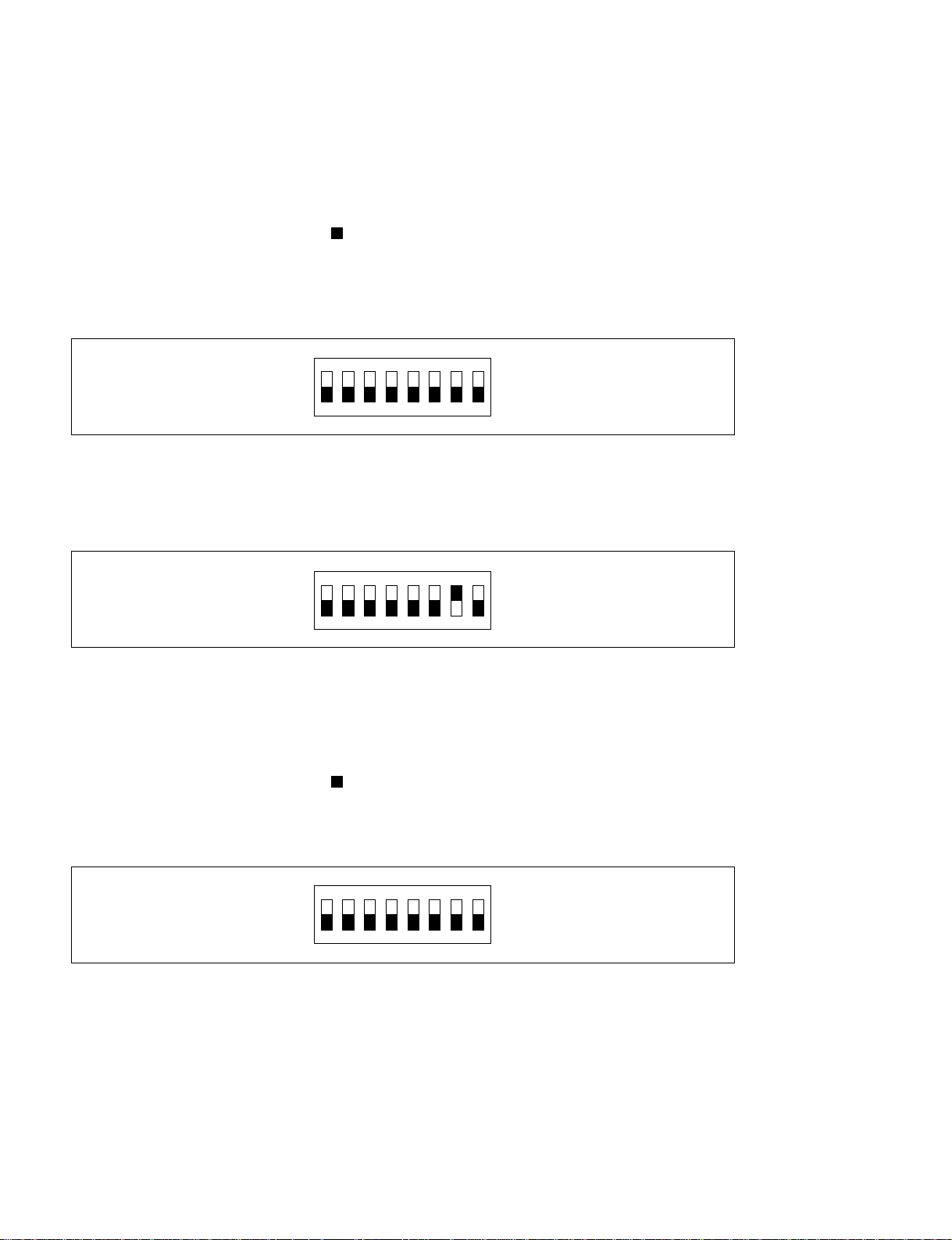

S4 (L11) : MAIN CPU switch
This switch is used to select the operation of MAIN CPU. After changing the selection, to start the
operation re-press the S1 of the RESET switch on the CPU-246 board or re-turn the power on.
Setting : All OFFs.

n

The addresses of the knobs are shown by marks.

(1) Selection 1 under normal status

When starting up the system, the diagnostic program does not run. Just after turning the power on,
the system starts up.

ON

12345678

(2) Selection 2 under normal status.

When starting up the system, diagnostic program runs. After turning the power on, it is necessary for
about ten seconds until the system starts up.
Under normal status, all settings are OFFs.

ON

12345678

S5 (N1) : SUB CPU switch
This switch is used to select the operation mode of SUB CPU.
Selections in the factory : All OFF

n

The addresses of the knobs are shown by marks.

(1) Selections when operating under normal status

The selections for normal operation.

ON

12345678

5-8

DVS-7150E IM

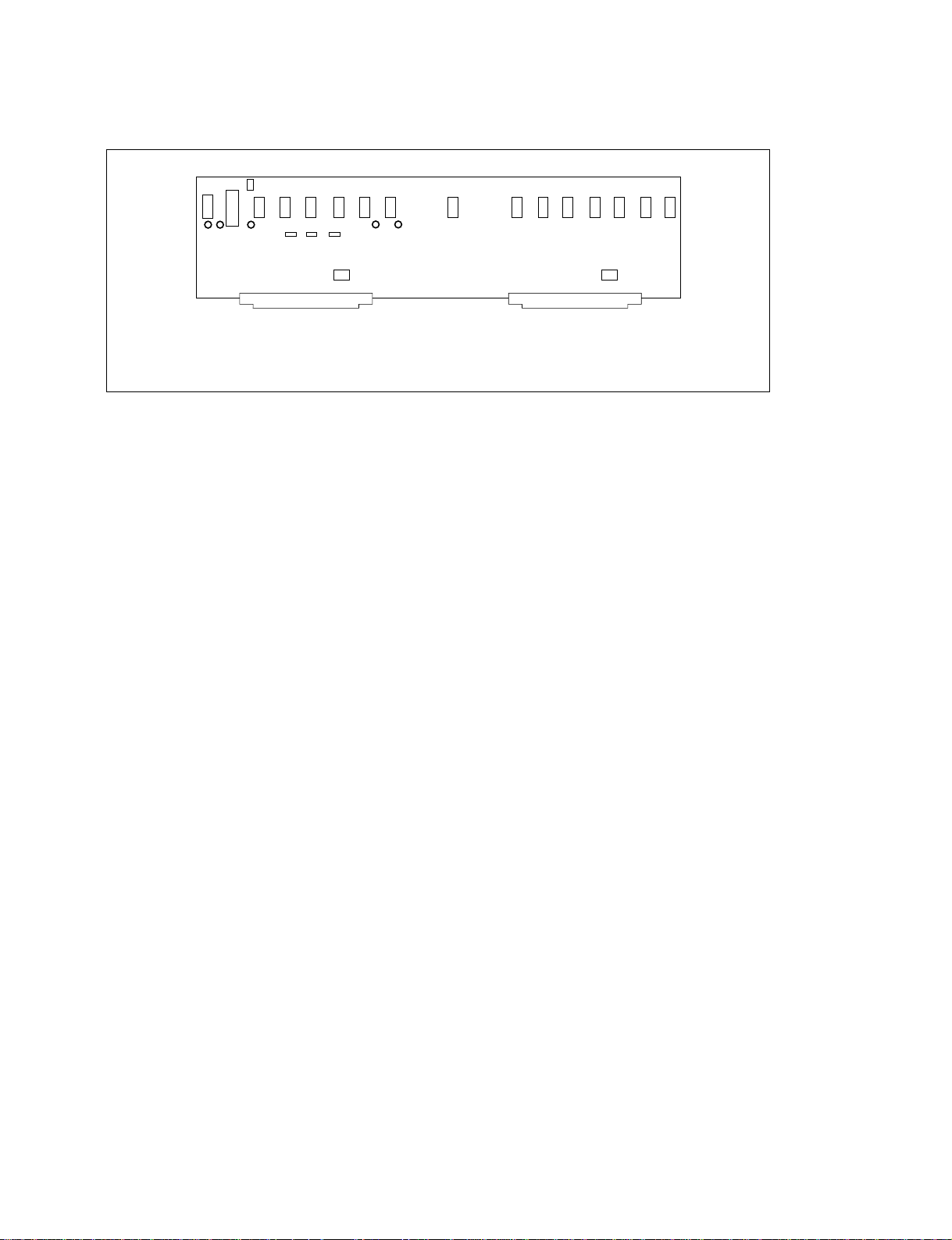

2. CN-1150 Board

5-1. Switch Settings on Boards and LEDs Description

CN21

CN4

D3

D1

CN3

CN5

CN6

CN7

CN8

D2

E1

TP1

TP2

CN1 CN19

CN2

CN9

D4

CN10

D5

CN11

CN12

CN13

CN14

CN15

CN16

CN20

CN17

CN18

(Component side/A side)

CN-1150 board

D1 (Yellow color) (A1) :
When the +12 V source provides to the CN3 on the CN-1150 board, this LED lights.

D2 (Green color) (B1) :
When the +5 V source provides to the CN3 on the CN-1150 board, this LED lights.

D3 (Yellow color) (A1) :
When the +12 V source provides to the CN4 on the CN-1150 board, this LED lights.

D4 (Yellow color) (D1) :
When the +12 V source provides to the CN5 through CN18 on the CN-1150 board, this LED lights.

D5 (Green color) (D1) :
When the +5 V source provides to the CN5 through CN18 on the CN-1150 board, this LED lights.

DVS-7150E IM

5-9

5-1. Switch Settings on Boards and LEDs Description

3. RE-146 Board (BKDS-7091)



CN1

D9

RV2

(Component side/A side)

RE-146 board

D9 (Green color) (D4) :
When the power is normal operated, this LED lights.
When the following troubles come up, this LED light off.

RV1

In the cases that one power unit is used.

1. When the power switch in the panel is turned off.

2. When the fun stops in the power unit.

3. When a converter of the DC-DC converters (CP2 and CP3) in the power unit is abnormal operated,

LEDs light off.

In the cases that two power units are used.

1. When the one power switch in the panel is turned off.

2. When the one fun stops in the power unit.

3. When a converter of the DC-DC converters (CP2 and CP3) and AC-DC converter (CP1) in the power

unit is abnormal operated, LEDs light off.

4. When the voltage of the two power is correctly adjusted.

(The diode on the power unit that is low-level lights off.)

In the steps 1 through 3, the diode on the power unit that is not normal operated lights off.

RV1 (D2) : +12 V voltage adjustment
RV2 (D3) : +5 V voltage adjustment

5-10

DVS-7150E IM

5-3. Adjustment of Secondary Power Supply Voltage

5-2. Hard Reset

1. BKDS-7017

(1) Open the panel. (Refer to “4-4-1. Opening and Closing of Panel”.)
(2) Push the S1 of the RESET switch on the CPU-246 board or turn OFF/ON the power switch in the

control panel.

5-3. Adjustment of Secondary Power Supply Voltage

5-3-1. DVS-7150

DVS-7150 has the power sources of +5 V, +3 V, and _5 V. For the voltage measurement of +5 V, +3
V, and _5 V and on the CPU-264 board the test terminals are provided that can be connected to the probe
of a digital voltmeter.
After installation of all required plug-in boards is completed, confirm the power supply voltage in the unit
as described below.

5-2. Hard Reset

n

Confirm that the power unit is properly inserted and secured by the four screws.

When only standard power unit is installed, refer to the following procedures for power
unit A.

This standard power unit is named as power unit A

(Procedures for Power Unit A)

(1) Detach the front panel of DVS-7150. (Refer to “4-3-1. Removing and Installing of Front Panel”)
(2) Turn on the power switch of the power unit A.
(3) Confirm that all indicators (D15, D16 and D18) on the CPU-264 board light.
(4) Connect the digital voltmeter between test terminals on the CPU-264 board and confirm that the

voltage value of each test connector meet the specification shown in the next page.
If the specification does not meet, adjust the voltage by the adjustment potentiometers of the power
unit A.

n

When connecting the probes of the digital voltmeter between test terminals, take care to avoid
contacting the probes with the GND areas of the shield plates.

When the power unit BKDS-M1690 is installed, refer to the following procedures for
power unit B.

The power unit of BKDS-M1690 is named as power unit B.

(Procedures for Power Unit B)

(1) Turn off the power switch of the power unit B.
(2) Carry out all steps of “procedures for power unit A”.
(3) Turn off the power switch of the power unit A and turn on the power switch of the power unit B.
(4) Confirm that all indicators (D15, D16 and D18) on the CPU-264 board light.

DVS-7150E IM

5-11

5-3. Adjustment of Secondary Power Supply Voltage



(5) Connect the digital voltmeter between test terminals on the CPU-264 board and confirm that the

voltage value of each test connector meet the specification shown in the table below.
If the specification does not meet, adjust the voltage by the adjustment potentiometers of the power

unit B.
(6) Turn on the power switches of the power units A and B.
(7) Confirm that the indicators of the power units A and B light. If an indicator of both does not light, re-

carry out from the step (1) of “procedures for power unit B”.

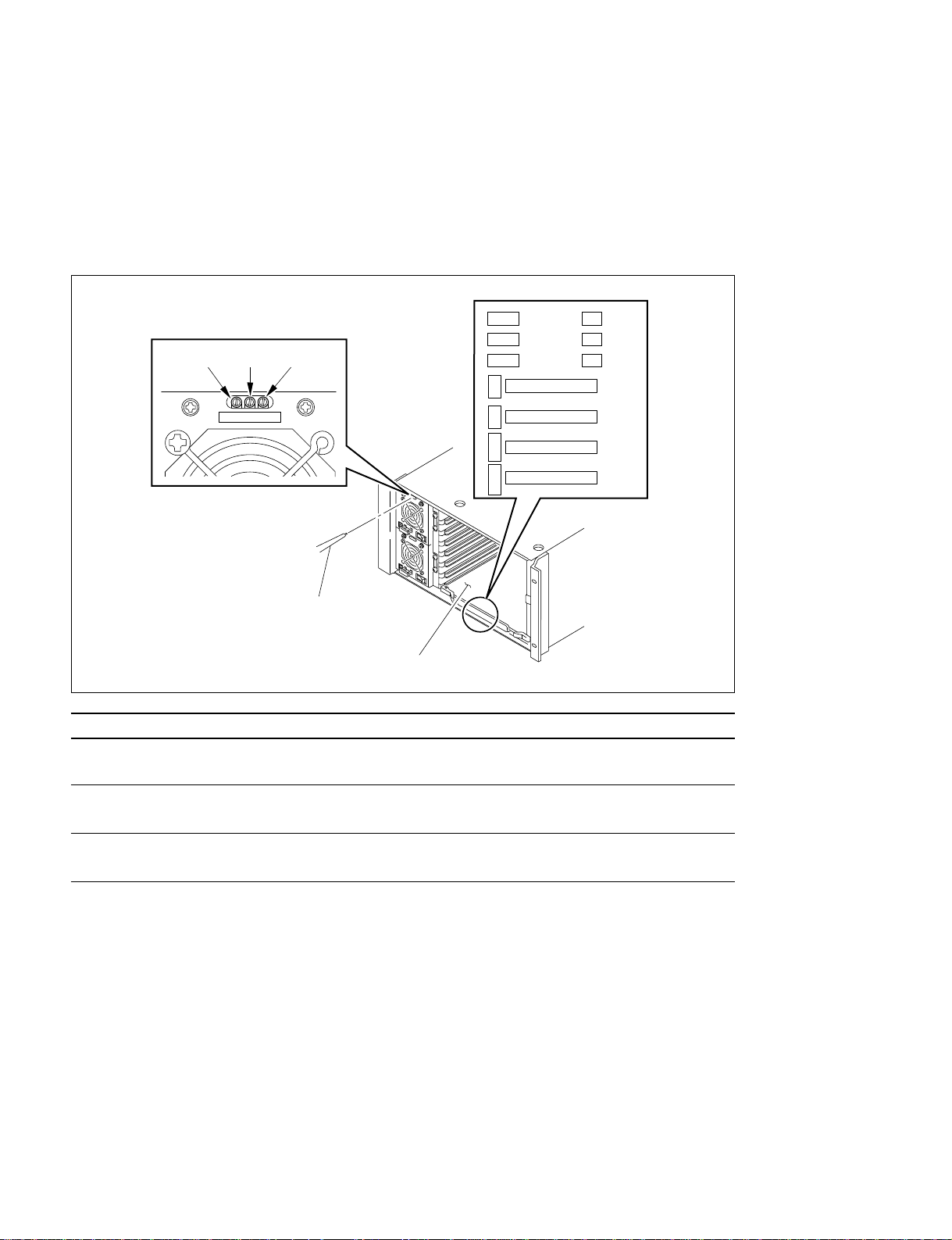

5V

D15 (B5)

3V

D16 (B5)

RV201

RV202

RV203

_5V

5V 3V _5V

D18 (B5)

CNT3

5V _5V 3.3V

GND

Adjustment driver

CPU-264 board

Voltage Specifications Test connector Adjustment potentiometer

+5 V +5.05 ± 0.02 V CPU-264 board RE-115A board

→

CNT3 (+5 V)

+3 V +3.35 ± 0.02 V CPU-264 board RE-115A board

CNT4 (+3 V)

_5 V _5.05 ± 0.02 V CPU-264 board RE-115A board

CNT6 (_5 V)

→

CNT7 (GND) 1RV201

→

→

CNT7 (GND) 1RV203

→

→

CNT7 (GND) 1RV202

CNT4

CNT6

CNT7

5-12

DVS-7150E IM

5-3. Adjustment of Secondary Power Supply Voltage

5-3-2. BKDS-7017

The control panels BKDS-7017 have the power sources of +5 V and +12 V.
For the voltage measurement of +5 V and +12 V, on the CN-1150 board the test terminals are provided
that can be connected to the probe of a digital voltmeter.
After installation of all required options is completed, confirm the power supply voltage in the unit as
described below.

n

Confirm that the power unit is properly inserted and secured by the two screws.

When only standard power unit is installed, refer to the following procedures for power
unit A.

The standard power unit is named as power unit A.

(Procedures for Power Unit A)

(1) Open the panel. (Refer to “4-4-1. Opening and Closing of Panel”.)
(2) Turn on the power switch A of the power unit A.
(3) Confirm that the indicators (D1 through D5) on the CN-1150 board light.
(4) Connect the digital voltmeter between test connectors on the CN-1150 board and confirm that the

voltage value meets the specification shown in the next page.
If the specification does not meet, adjust the voltage by the adjustment potentiometer of the power
unit A.

When the power unit of BKDS-7091 is installed, refer to the following procedures for
power unit B.

This power unit of BKDS-7091 is named as power unit B.

(Procedures for Power Unit B)

(1) Turn OFF the power switch B of the power unit B.
(2) Carry out all steps of “procedures for power unit A”.
(3) Turn OFF the power switch A of the power unit A and turn ON the of the power switch B of the

power unit B.

(4) Confirm that the indicators (D1 through D5) on the CN-1150 board lights.

DVS-7150E IM

5-13

5-3. Adjustment of Secondary Power Supply Voltage

(5) Connect the digital voltmeter between test terminals on the CN-1150 board and confirm that the

voltage value meets the specification shown in the table below.

If the specification does not meet, adjust the voltage by the adjustment potentiometer of the power

unit B.
(6) Turn ON the power switches A and B of the power units A and B.
(7) Confirm that the indicators of the power units A and B light. If an indicator of both does not light, re-

carry out from the step (1) of “procedures for power unit B”.



Adjustment driver

RV1

+12 V

CN21

CN4

D3D1D2

CN3

CN5

CN6

CN7

E1

TP1

CN1 CN19

CN-1150 board (A side)

RE-146 board

RV2

+5 V

TP2

CN8

CN2

CN9

D4

CN10

D5

CN11

CN12

CN13

CN14

CN15

CN16

CN20

CN17

CN18

Power supply unit

Slide knobs

BKDS-7017

(Right and Left)

Voltage Specifications Test connector Adjustment potentiometer

+5 V +5.10 ± 0.02 V CN-1150 board RE-146 board

→

TP2 (+5 V)

→

E1 (GND) 1RV2

+12 V +12.24 ± 0.02 V CN-1150 board RE-146 board

→

TP1 (+12 V)

→

E1 (GND) 1RV1

5-14

DVS-7150E IM

5-4. Adjustment of Operation Power for Fader Lever

5-4. Adjustment of Operation Power for Fader Lever

Without removing the fader from the panel, the operation power of the fader lever is possible to adjust.

(1) Open the panel. (Refer to “4-4-1. Opening and Closing of Panel”.)
(2) When adjusting the fader lever (BKDS-7030) with installed to the adaptor box (BKDS-7075), remove

the two screws and the AD panel.
(Refer to “1-2-3. Removal of Adaptor Box (BKDS-7075)” of maintenance manual part 1.)

(3) Turn the screw by an L wrench (across 4.0 mm) and adjust the operation power.

2 : If turning the screw clockwise, the operation of the fader lever become slow.
3 : If turning the screw counterclockwise, the operation of the fader lever become fast.

Fader assy

Hexagon wrench (4.0 mm)

Screw

DVS-7150E IM

5-15

Section 6

Initial Set-up of System

Before setting-up for DVS-7150, the installation of operating program, the set-up required in the con­struction of the system and the saving of set-up data for DVS-7150 system are described.

6-1. Operation and Saving of Set-up Data

This section is described the operation and the saving of the set-up data in the system.
A set-up data exists in the four domains shown as follows.

1. RAM

This memory is the operating domain. The system operates using the set-up data on this memory. The
set-up data is always changed on this memory.
When the resume function is selected to the OFF, by turning the power OFF or by resetting the system the
set-up data on this memory is lost.
After turning the power ON or resetting the system, the set-up data in the Nonvolatile memory is recalled
on this RAM.
When the resume function is selected to the ON, regardless of the turning the power OFF or resetting
system, the system operates using the set-up data on this memory.

2. Nonvolatile memory

This is a nonvolatile memory. If turning the power OFF, this memory can save the data. This memory is
used as the saving domain of the back up data when the resume function is selected to the OFF.

3. ROM

This memory permanently saves the basic set-up data in the factory shipment. When the system is reset
up or the nonvolatile memory is initialized, this memory is used.
If calling the contents, initialize the system in the set-up menu screen.

4. DISK

A disk is used to more permanently save the set-up data saved in the nonvolatile memory, to transfer the
set-up data to another editing suite, or to keep the data for oneself by operator.

DVS-7150E IM

6-1

6-1. Operation and Saving of Set-up Data

n

The following data are saved the status that is displayed on the menu screen and are not changed by
resetting or all-clearing the system.

. Signal format (D2-525, D1-525 and D1-625)
. Setting of resume function



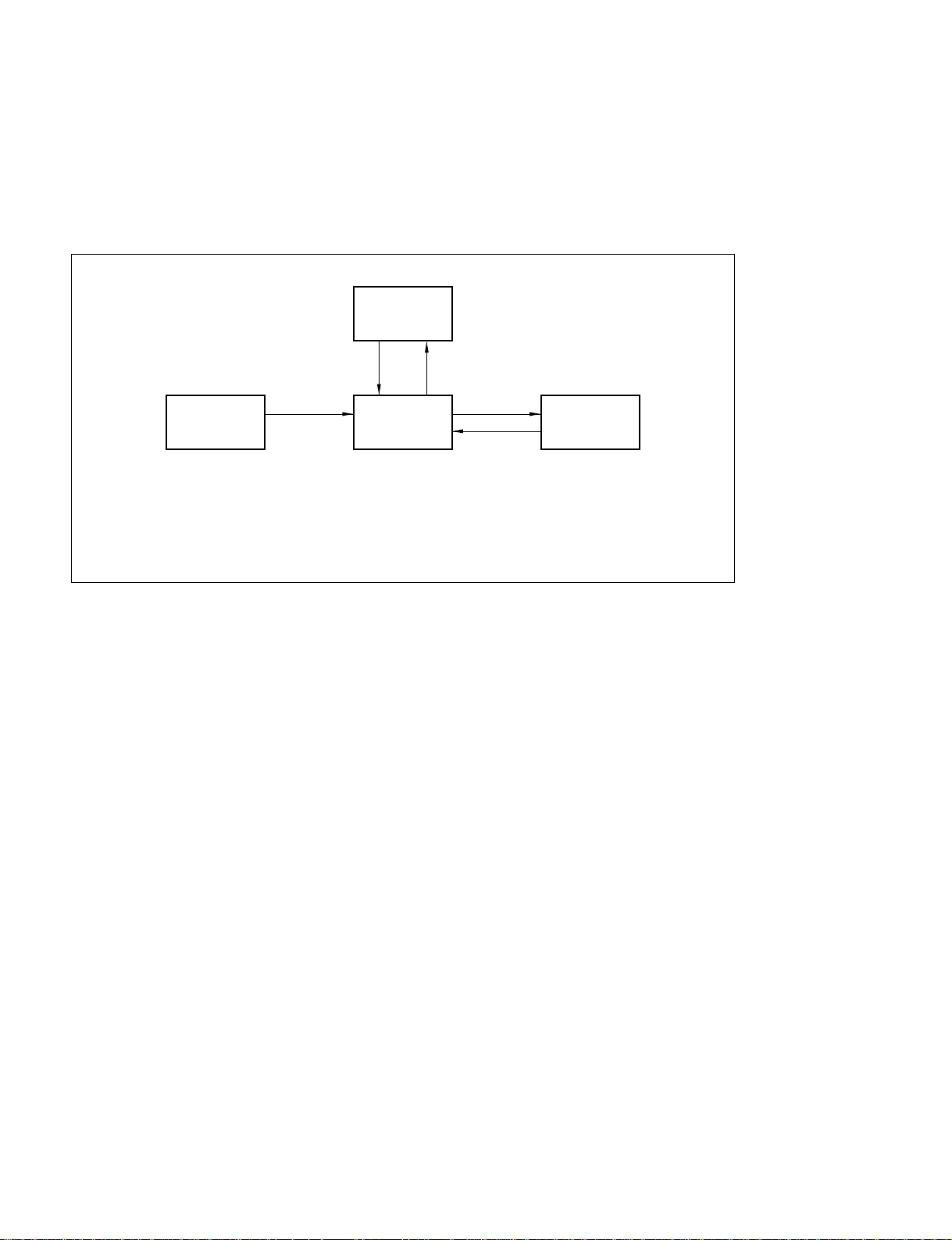

Nonvolatile

memory

43

ROM RAM DISK

1 : DISK MENU SETUP SAVE
2 : DISK MENU SETUP LOAD
3 : SETUP MENU BACKUP
4 : POWER ON or SETUP MENU RESET (RESUME : OFF)
5 : SETUP MENU ALL CLEAR

15

2

6-2

DVS-7150E IM

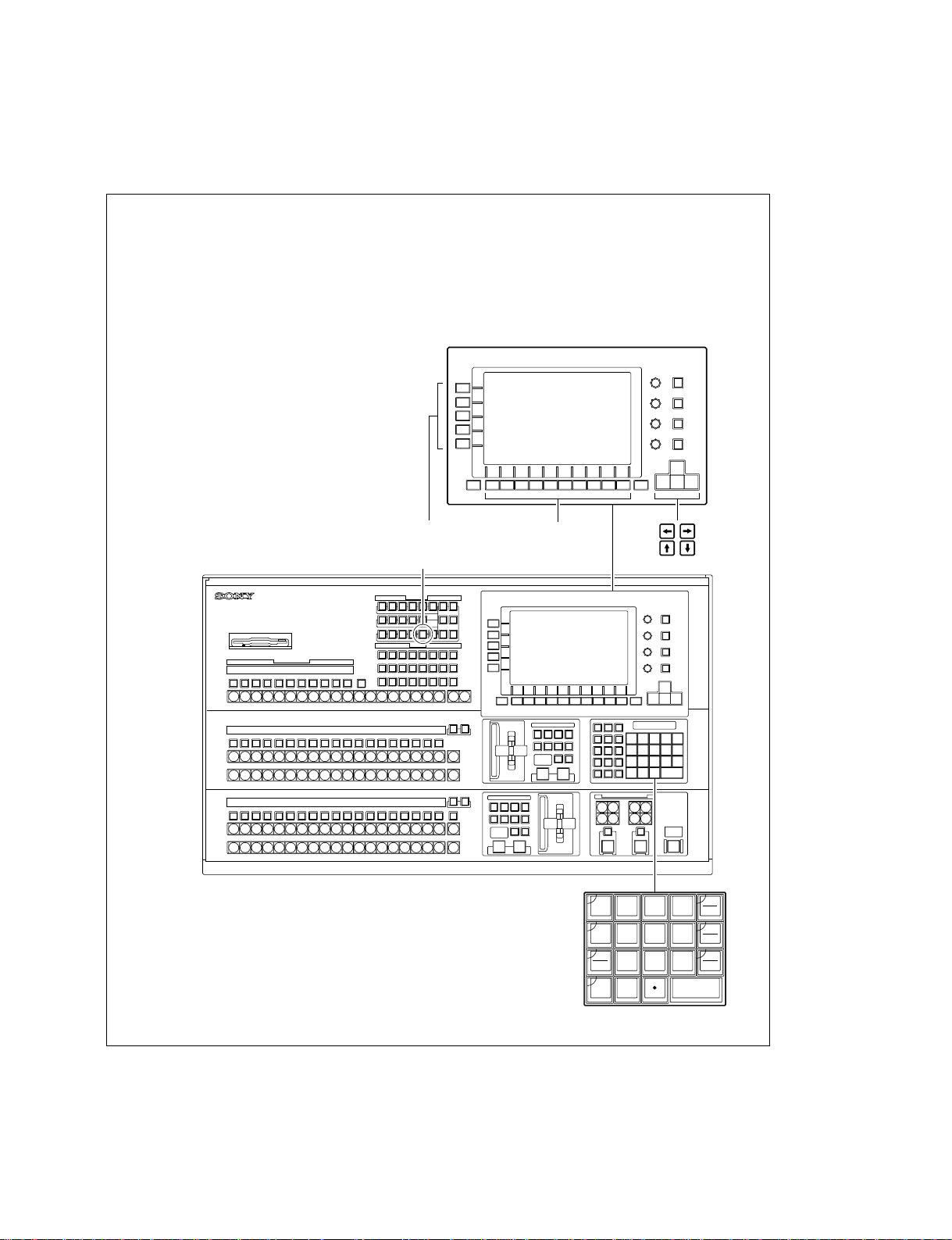

<Keys and Display of Control Panel>

The keys and display are named as follows.

BKDS-7017

. How keys are displayed : ex.) [F1] (PANEL)

This means that “PANEL” is indicated above
the Function key [F1] on the display.

6-1. Operation and Saving of Set-up Data

Display panel

BKDS-7017

SET UP key

Function keysItem keys

keys
keys

DVS-7150system

+/­EFF

DIS

CLR

AUTO

TRANS

TRIM

XPT

DSBL

ENTERRCALL

LASTX

TRANS
RATE

STORE
LEARN

89

7

456

1

23

0

DVS-7150E IM

Numeric key pad

6-3

6-2. Installation of Program (BZS-7080)

6-2. Installation of Program (BZS-7080)

Before using DVS-7150 system, the operating program of operation software BZS-7080 (option) is
installed to the flash memory in the system.
The program on the flash memory is not cleared by turning the power ON/OFF.
If finishing this process, do not load this process till the version-up of the software is executed.
For the program installation, execute “6-2-1. Down Load of Program”, “6-2-2. Initializing of Data on
RAM” and “6-2-3. Initializing of Nonvolatile Memory”.

n

If executing the program installation, the set-up data on the Nonvolatile memory is initialized to the
default status and the data (snap shot and key frame) on the RAM are cleared.
When executing the version-up of the software except for the first program installation, execute the
following processes.

. Before the program installation is executed.

Save the set-up, snap shot and key frame data into a floppy disk.

. After the program installation is finished.

(1) Load the saved set-up, snap shot and key frame data from the floppy disk.
(2) For saving the loaded set-up datum into the nonvolatile memory, refer to user’s guide BZS-7080.

For details of these processes, refer to user’s guide BZS-7080.

6-4

DVS-7150E IM

6-2-1. Down Load of Program

(1) In the set-up menu screen, press the keys on the display panel in the following sequence.

[SETUP], [1] (SYSTEM), [F10] (INSTALL)
The display for the function keys is changed as follows.

6-2. Installation of Program (BZS-7080)

DVS7150
SYSTEM

F1 F2 F3 F4 F5 F6 F7

F8

EXEC

F9 F10

(2) Press [F2] (DVS7150 SYSTEM) key (to display in the reverse), then [F10] (EXEC) key.

“Do You Want to Load the OPERATING PROGRAM ?” is indicated on the display, and the display
for the function keys is changed as follows.

NOYES

F9 F10

F1 F2 F3 F4 F5 F6 F7

F8

(3) Press [F9] (YES) key.

“Insert the OPERATING PROGRAM 1.” is indicated on the display.

(4) Insert “OPERATING PROGRAM 1” (Switcher software) to the floppy disk drive.

“Do you Want to Load the OPERATING PROGRAM ?” is indicated on the display, and the display
for the function keys is changed as follows.

DVS-7150E IM

F1 F2 F3 F4 F5 F6 F7

F8

NOYES

F9 F10

6-5

6-2. Installation of Program (BZS-7080)

(5) Press [F9] (YES) key.

The loading of the program starts.
(6) When loading is completed, “Load Complete. Insert the OPERATING PROGRAM 2.” is indicated

on the display, and the display for the function keys is changed as follows.

EXEC

F9 F10

F1 F2 F3 F4 F5 F6 F7

F8

(7) Insert the OPERATING PROGRAM 2 (Control panel software) to the disk drive, and press

[F10] (EXEC) key.

Loading starts.
(8) When loading is completed, all datum of the switcher, and control are cleared.

6-2-2. Initializing of Data on RAM

(1) In the set-up menu screen, press the keys on the display panel in the following sequence.

[SETUP], [1] (SYSTEM), [F6] (INITIALIZE)

The display for the function keys is changed as follows.

RESET

F1 F2 F3 F4 F5 F6 F7

(2) Press [F4] (PANEL) key (to display in the reverse) and [F5] (SWER) key (to display in the re-

verse), then [F10] (EXEC) key. The display for the function keys is changed as follows.

ALL CLEAR

SWERPANEL

F8

EXECSWERPANEL

F9 F10

NOYES

F1 F2 F3 F4 F5 F6 F7

F8

(3) Press [F9] (YES) key.

The data on the “RAM” is initialized, and all data are reset to the factory setting.

6-6

F9 F10

DVS-7150E IM

6-2-3. Initializing of “Nonvolatile Memory”

(1) In the set-up menu screen, press the keys on the display panel in the following sequence.

[SETUP], [1] (SYSTEM), [F5] (BACKUP)
The display for the function keys is changed as follows.

6-2. Installation of Program (BZS-7080)

BACKUP

DEFAULTSETUP

F1 F2 F3 F4 F5 F6 F7

SETUP

LOCK

F8

EXEC

F9 F10

(2) Press [F1] (SETUP) key (to display in the reverse) and [F2] (DEFAULT) key (to display in the

reverse), then [F10] (EXEC) key. The display for the function keys is changed as follows.

NOYES

F9 F10

F1 F2 F3 F4 F5 F6 F7

F8

(3) Press [F9] (YES) key.

The data on the “RAM” is written into the “Nonvolatile memory”, and the “Nonvolatile memory” is
initialized.

DVS-7150E IM

6-7

6-3. Set-up

6-3. Set-up

The processes to construct the system are described below.
Basically set up in the following sequence.
For any process that does not need to change the selection exists, no problem that the process is not re­changed in this selection.

1. Confirmation of the Software Version

2. Setting of the Signal Format

3. Setting about System

4. Setting of the System Configuration

5. Assigning of the Crosspoint

6. Assigning of the Key Sources for Key Fill (By Key Source Auto Select Mode)

7. Setting of the Switcher Input Signal

8. Setting of the Chroma Key Input Signal

9. Setting of the Switcher Output Signal 1

10. Setting of the Switcher Output Signal 2

11. Setting of the Synchronized Signal Change of Assignment

12. Setting of the Assignable Output Signal

13. Setting of the Internal Generation Matte Signal

14. Setting of the DME Interface

15. Setting of the GPI Input

16. Setting of the GPI Output

17. Setting of the Operation mode

n

For details of set-up and saving the data, refer to the following user’s guide (option).

User’s Guide : BZS-7080 (English)

6-8

DVS-7150E IM

SAFETY CHECK-OUT

After correcting the original service problem,
perform the following safety checks before
releasing the set to the customer :

The material contained in this manual consists of
information that is the property of Sony Corporation and
is intended solely for use by the purchasers of the
equipment described in this manual.
Sony Corporation expressly prohibits the duplication of
any portion of this manual or the use thereof for any
purpose other than the operation or maintenance of the
equipment described in this manual without the express
written permission of Sony Corporation.

Le matériel contenu dans ce manuel consiste en
informations qui sont la propriété de Sony Corporation et
sont destinées exclusivement à l’usage des acquéreurs
de l’équipement décrit dans ce manuel.
Sony Corporation interdit formellement la copie de
quelque partie que ce soit de ce manuel ou son emploi
pour tout autre but que des opérations ou entretiens de
l’équipement à moins d’une permission écrite de Sony
Corporation.

Das in dieser Anleitung enthaltene Material besteht aus
Informationen, die Eigentum der Sony Corporation sind,
und ausschließlich zum Gebrauch durch den Käufer der
in dieser Anleitung beschriebenen Ausrüstung bestimmt
sind.
Die Sony Corporation untersagt ausdrücklich die
Vervielfältigung jeglicher Teile dieser Anleitung oder den
Gebrauch derselben für irgendeinen anderen Zweck als
die Bedienung oder Wartung der in dieser Anleitung
beschriebenen Ausrüstung ohne ausdrückliche
schriftliche Erlaubnis der Sony Corporation.

Check the metal trim, “metallized” knobs, screws,
and all other exposed metal parts for AC
leakage. Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to
any exposed metal part having a return to
chassis, must not exceed 3.5 mA. Leakage
current can be measured by any one of three
methods.

1. A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers’ instructions to use these
instruments.

2. A battery-operated AC milliammeter. The
Data Precision 245 digital multimeter is
suitable for this job.

3. Measuring the voltage drop across a resistor
by means of a VOM or battery-operated AC
voltmeter. The “limit” indication is 5.25 V, so
analog meters must have an accurate low­voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM
that is suitable. Nearly all battery operated
digital multimeters that have a 20 V AC range
are suitable. (See Fig. A)

To Exposed Metal
Parts on Set

1.5 k

0.15 µF

Fig A. Using an AC voltmeter to check AC leakage.

Ω

Earth Ground

AC
voltmeter
(5.25V)

DVS-7150 (SY) E
3-201-447-01

Printed in Japan

Sony Corporation 1998. 11 08

Broadcasting & Professional Systems Company ©1998
