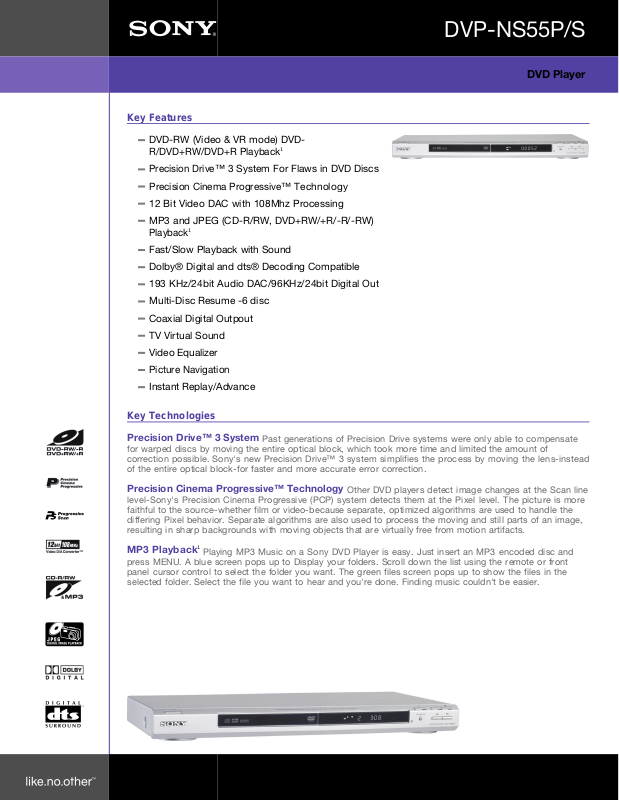

Sony DVP-NS55P/S BROCHURE
DVP
-NS55P/S
DVD Player
Key Features
DVD-RW (Video & VR mode) DVDR/DVD+RW/DVD+R Playback
1
Precision Drive
™ 3 System For Flaws in DVD Discs
Precision Cinema Progressive
™ Technology
12 Bit Video DAC with 108Mhz Processing
MP3 and JPEG (CD-R/RW, DVD+RW/+R/-R/-RW)
Playback
1
Fast/Slow Playback with Sound
Dolby® Digital and dts® Decoding Compatible
193 KHz/24bit Audio DAC/96KHz/24bit Digital Out
Multi-Disc Resume -6 disc
Coaxial Digital Outpout
TV Virtual Sound
Video Equalizer
Picture Navigation
Instant Replay/Advance
Key Technologies
Precision Drive™ 3 System
Past generations of Precision Drive systems were only able to compensate
for warped discs by moving the entire optical block, which took more time and limited the amount of
correction possible. Sony's new Precision Drive™ 3 system simplifies the process by moving the lens-instead
of the entire optical block-for faster and more accurate error correction.
Precision Cinema Progressive™ Technology
Other DVD players detect image changes at the Scan line
level-Sony's Precision Cinema Progressive (PCP) system detects them at the Pixel level. The picture is more
faithful to the source-whether film or video-because separate, optimized algorithms are used to handle the
differing Pixel behavior. Separate algorithms are also used to process the moving and still parts of an image,
resulting in sharp backgrounds with moving objects that are virtually free from motion artifacts.
MP3 Playback
Playing MP3 Music on a Sony DVD Player is easy. Just insert an MP3 encoded disc and
press MENU. A blue screen pops up to Display your folders. Scroll down the list using the remote or front
panel cursor control to select the folder you want. The green files screen pops up to show the files in the
selected folder. Select the file you want to hear and you're done. Finding music couldn't be easier.
1
DVP
-NS55P/S
DVD Player
Sony Electronics Inc. •
16530 Via Esprillo
• San Diego, CA 92127 • 1-800-222-7669 • www.sony.com
Last Updated: 04/04/2006
Please visit the Dealer Network for current
information at www.sony.com/dn
Features
General
Background Graphics: Yes
Tray Type: Carousel
Video
DVD (VR Mode) Playback: Yes (with CPRM)
DVD Playback: Yes
Precision Cinema Progressive™
Technology: Yes
Screen Saver: Yes
SVCD Playback: Yes
VCD Playback: Yes
DVD+R DL Read Compatibility: Yes
DVD+R Read Compatibility: Yes
DVD+RW Read Compatibility: Yes
DVD-R Read Compatibility: Yes
DVD-RW (VR Mode) Read Compatibility: Yes
(with CPRM)
DVD-RW Read Compatibility: Yes
JPEG Playback: Yes
Precision Drive 3: Yes
Audio
CD Playback: Yes (CD, CD-
R, CD-RW)
Dolby® Digital Decoding: Yes
dts® Output: Yes
MP3 Playback: Yes
Convenience
Instant Replay: Yes
Instant Search: Yes
Multiple Disc Resume: Yes
Smooth Slow: Yes
Specifications
General
Disk Capacity:
1
Video
Digital-to-Analog Converter:
12 Bit, 108Mhz
Audio
Digital-to-Analog Converter:
24 Bit, 192 kHz
Convenience
On Screen Controls: Yes
Inputs and Outputs
Coaxial Audio Digital Output(s): 1 (Rear)
RCA Audio Output(s): 1 (Rear)
S-Video Output(s): 1 (Rear)
Composite Video Output(s): 1 (Rear)
Component Video (Y/Pb/Pr) Output(s):
1
(Rear)
1 1 1 1 1 1 1 1 1 1 1 1 1
Power
Power Requirements:
AC 120V, 60Hz
Power Consumption (in Operation):
10W
Dimensions
Weight:
3lbs 13oz (1.72kg)
Measurements:
17" x 1 9/13" x 8 3/16" (430 x 43
x 208 mm)
Optional Accessories
Remote Control, Batteries, Owners Manual, AV
Cable
Color:
Silver
UPC Code:
027242688827
1. Playback may not be compatible with all discs, depending on recording
conditions.
©2006 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited.
Sony is a trademark of Sony. All other trademarks are property of their
respective owners.
Features and specifications are subject to change without notice. Nonmetric weights and measures are approximate.
