Sony DVP-NC615S Operating manual

CD/DVD
Player

Operating Inst ructions

3-074-252-11(1)

DVP-NC615

© 2002 Sony Corporation

WARNING

To prevent fire or shock
hazard, do not expose the
unit to rain or moisture.
To avoid electrical shock, do
not open the cabinet. Refer
servicing to qualified
personnel only.

CAUTION

The use of optical instruments with
this product will increase eye
hazard. As the laser beam used in
this CD/DVD player is harmful to
eyes, do not attempt to disassemble
the cabinet.
Refer servicing to qualified
personnel only.

For U.S./Canadian
models

This symbol is
intended to alert the
user to the presence
of uninsulated

within the product’s enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock to
persons.

maintenance (servicing)
instructions in the literature
accompanying the appliance.

The following caution label is
located on the laser protective
housing inside the enclosure.

“dangerous voltage”

This symbol is
intended to alert the
user to the presence
of important
operating and

CAUTION :

TO PREVENT ELECTRIC
SHOCK, MATCH WIDE BLADE
OF PLUG TO WIDE SLOT,
FULLY INSERT .

For customers in the
U.S.A.

Owner’s Record

The model and serial numbers are
located at the rear of the unit.
Record the serial number in the
space provided below. Refer to
them whenever you call upon your
Sony dealer regarding this product.

Model No. DVP-NC615
Serial No.______________

CAUTION

You are cautioned that any change
or modifications not expressly
approved in this manual could void
your authority to operate this
equipment.

Note

This equipment has been tested
and found to comply with the
limits for a Class B digital device,
pursuant to Part 15 of the FCC
Rules. These limits are designed to
provide reasonable protection
against harmful interference in a
residential installation. This
equipment generates, uses, and can
radiate radio frequency energy
and, if not installed and used in
accordance with the instructions,
may cause harmful interference to
radio communications. However,
there is no guarantee that
interference will not occur in a
particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be
determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the
following measures:

– Reorient or relocate the

receiving antenna.

– Increase the separation

between the equipment and
receiver.

– Connect the equipment into an

outlet on a circuit different

from that to which th e receiver
is connected.

– Consult the dealer or an

experienced radio/TV
technician for help.

Welcome!

Thank you for purchasing this
Sony CD/DVD Player. Before
operating this player, please read
this manual thoroughly and retain
it for future reference.

2

Precautions

• The power requirements and power
consumption of this player are indicated on
the back of the play er . Check that the
player’s operating voltage is identical with
your local power supply.

Power requirements and
power consumption t

DVP–XXXX

00V 00Hz

NO.

00W

0-000-000-00

• Keep the player and discs away f ro m
equipment with strong magnets, such as
microwave ov ens, or large loudspeakers.

• Do not place h eavy objects on the player.

For the model supplied with the AC plug
adaptor

If the AC plug of your u ni t does not fit into
the wall outlet, attach the supplied AC plug
adaptor.

X

On safety

• Ca ution – The use of optical instruments
with this p roduct wi ll increase e ye hazard.

• To prevent fire or shock hazard, do not
place objects filled with liquids, such as
vases, on the app aratus.

• Should any solid object or liquid fall into
the cabinet, unplu g the player and have it
checked by quali f ie d personnel before
operating it any further.

On power sources

• The player is not disconne cted fro m the AC
power source as long as it is connected to
the wall outlet, even if the player itself has
been turned off.

• I f you are not going to use the player for a
long time, be sure to disconnect the pla yer
from the wall outlet. To disconnect the AC
power cord, grasp the plug itself; never pull
the cord.

• Should the AC power cord need to be
changed, have it done at a qualified service
shop only.

On placement

• Place the player in a l oc at ion wi th ade quat e
ventilation to prevent heat build-up in the
player.

• Do not place the player on a soft surface
such as a rug that might block the
ventilation holes.

• Do not place the player in a location near
heat sources, or in a place subject to direct
sunlight, excessive dust, or mechanical
shock.

• Do not install the player in an inclined
position. It is des i gned to be operated in a
horizontal position only.

On operation

• If the player is br ou ght di re ctl y fr om a co ld
to a warm location, or is placed in a very
damp room, moisture may condense on th e
lenses inside the player. Should this occur,
the player may not operate properly. In this
case, remove the disc and leave the player
turned on for about half an hour until the
moisture evaporates.

• When you move the player, take out any
discs. If you do n’t, the disc may be
damaged.

On adjusting volume

Do not turn up the volume while listening to
a section with very low level inputs or no
audio signals. If you do, the speakers may be
damaged when a pe ak l eve l se cti on is pl ay ed.

On cleaning

Clean the cabinet, panel, and controls with a
soft cloth slightly moistened with a mild
detergent solution. Do not use any type of
abrasive pad, scouring powder or solvent
such as alcohol or benzine.

On cleaning discs

Do not use a commercially available cleaning
disc. It may cause a malfunction.

IMPORTANT NOTICE

Caution: This player is capable of holding a
still video image or on-screen display image
on your television screen indefinite ly . I f
you leave the still video image or on-screen
display ima ge displayed on your TV for an
extended period of time you risk permanent
damage to your television screen.
Projection telev is i ons are especially
susceptible to this.

3

On transportin g the player

Before transporting the player, follow the
procedure below to ret urn the internal
mechanisms to their original positions.

1 Remove all the discs from the disc tray.
2 Press Z to close t he disc tray.

Make sure that “NO DISC” appears on
the front panel display.

3 Press ?/1 to turn o ff the player.

The player enters st andby mode and the
power indicator lights up in red.

4 Disconnect the A C power cord.

If you have any ques t io ns or problems
concerning your pl ayer, please consult your
nearest Sony deale r .

4

Table of Contents

WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Welcome!. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

This Player Can Play the Following Discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Notes about the Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Index to Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Guide to On-Screen Displays (Control Bar). . . . . . . . . . . . . . . . . . . . . . . . . . 13

Simple Star t Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Quick Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Step 1: Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Step 2: Inserting Batteries into the Remote . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Step 3: TV Hookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Step 4: Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Hookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Hooking Up the Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Step 1: Connecting the Video Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

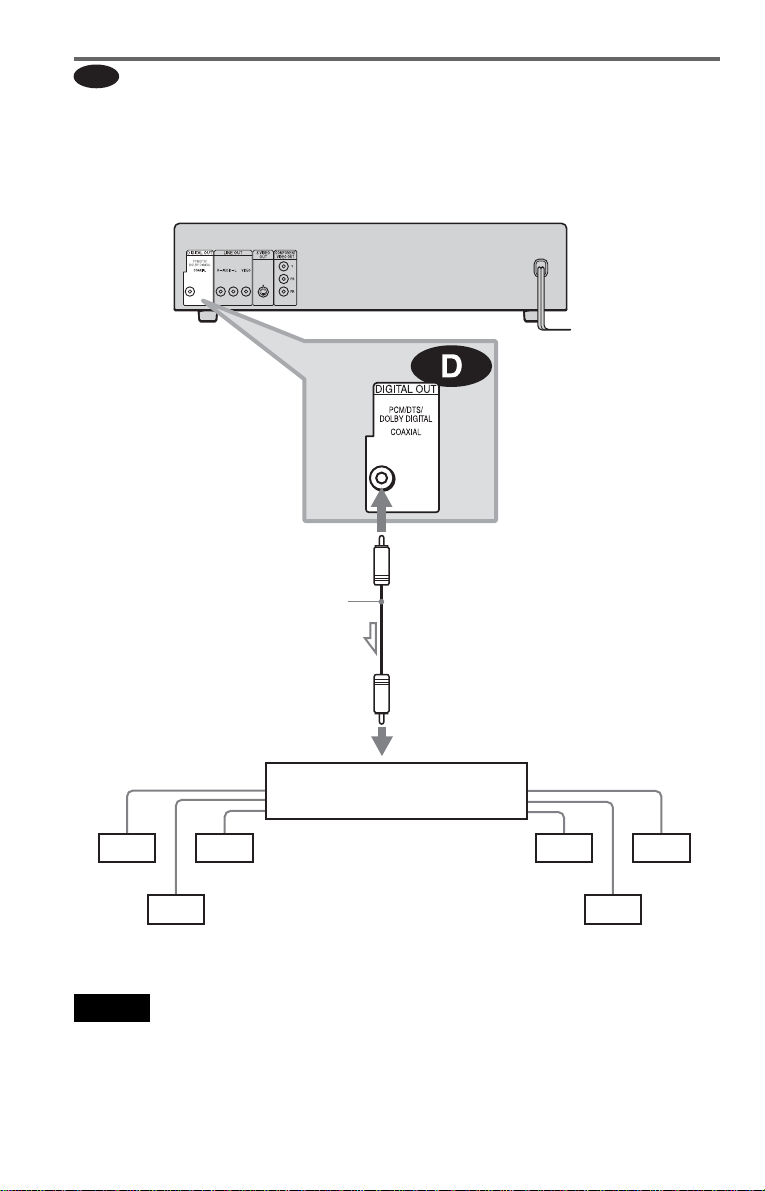

Step 2: Connecting the Audio Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Step 3: Connecting the Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Step 4: Quick Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Playing Disc s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Playing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Searching for a Particular Point on a Disc (Scan, Slow-motion Play, Search,

Freeze Frame). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Resuming Playback from the Point Where You Stoppe d th e D isc

(Resume Play/Multi-disc Resume). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using the DVD’s Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Playing VIDEO CDs with PBC Functions (PBC Playback) . . . . . . . . . . . . . . 33

Playing an MP3 Audio Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Various Play Mode Function s (Program Play, Shuffle Play, Repeat Play,

A-B Repeat Play). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Searching for a Scene . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

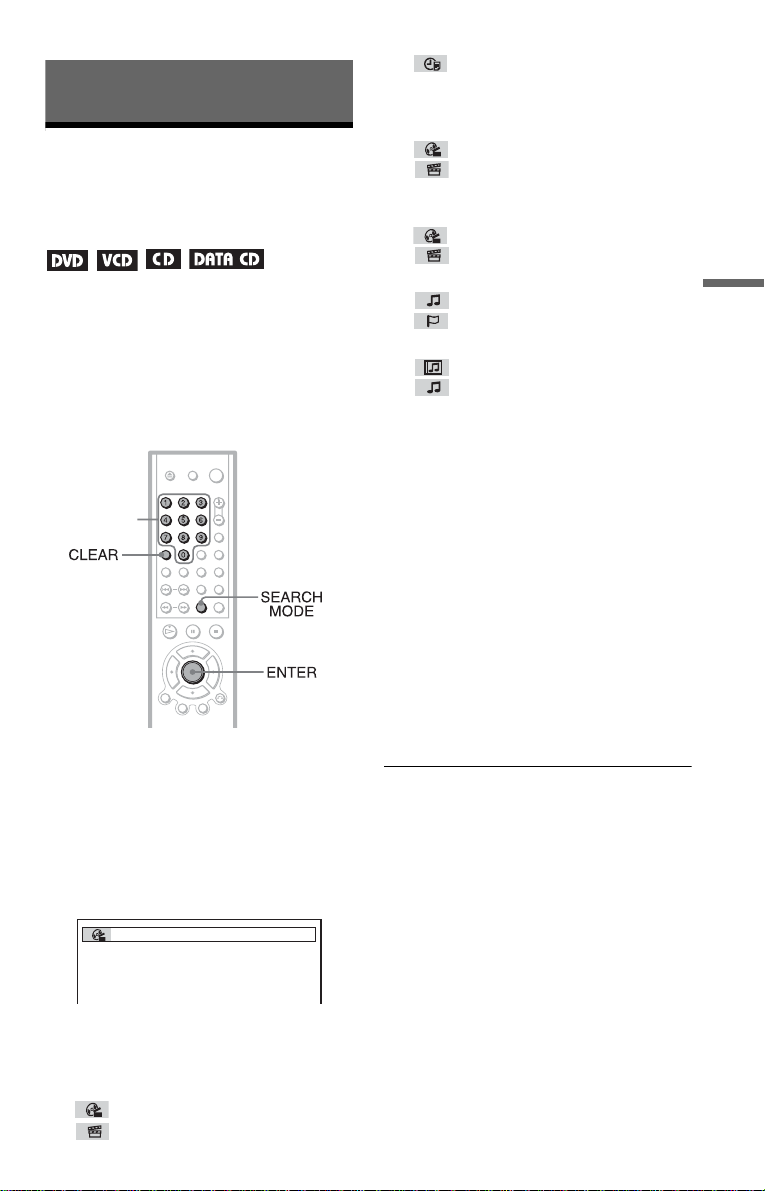

Searching for a Title/Chap te r/Tr ac k/ I ndex/Scene (Search mode) . . . . . . . . 43

Viewing Information About the Disc . . . . . . . . . . . . . . . . . . . . . . . 44

Checking the Playing Time and Remaining Time . . . . . . . . . . . . . . . . . . . . . 44

Sound Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Changing the Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

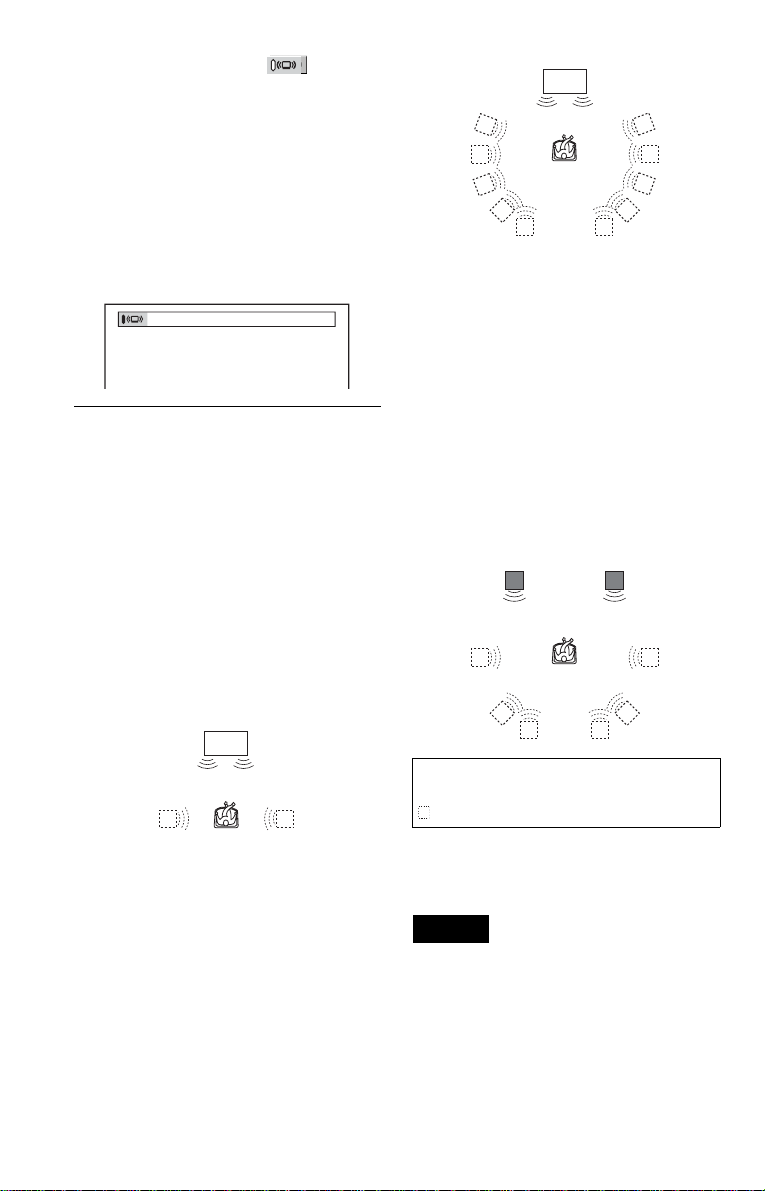

TV Virtual Surround Settings (TVS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

5

Enjoying Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Changing the Angles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Displaying the Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Adjusting the Picture Quality (BNR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

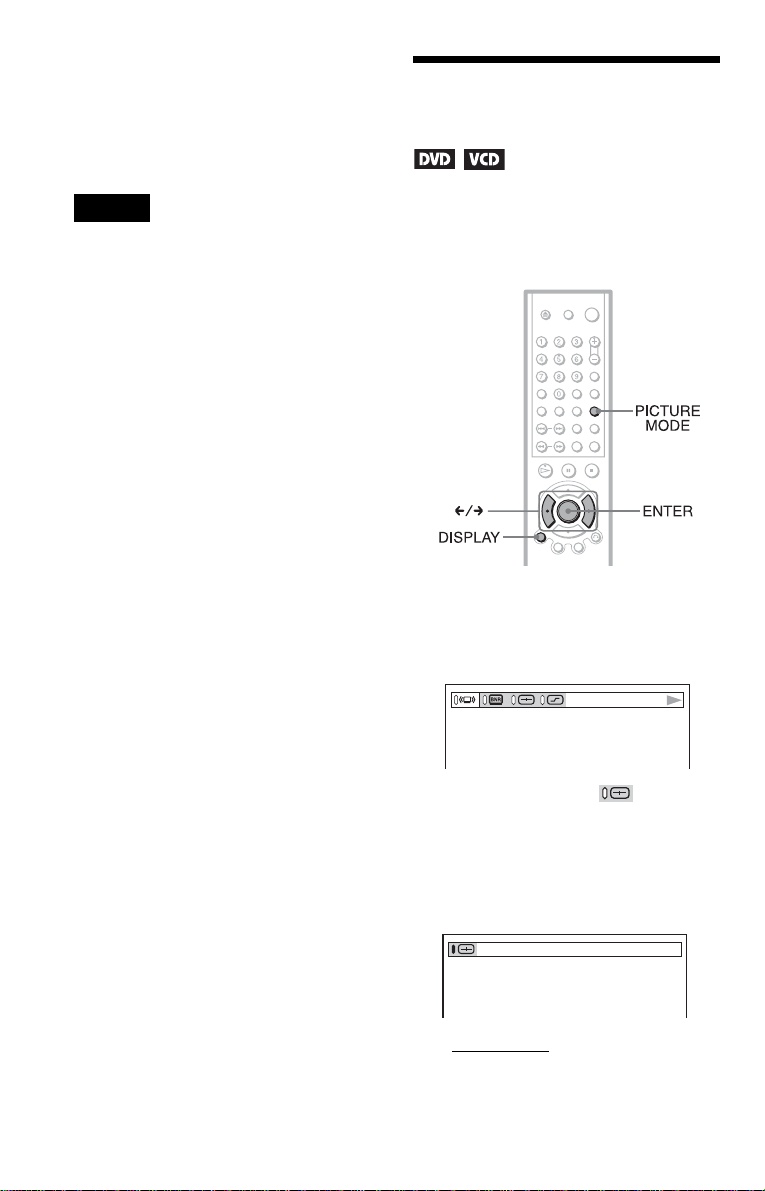

Adjusting the Playback Picture (CUSTOM PICTURE MODE) . . . . . . . . . . . 52

Enhancing the Playback Picture (DIGITAL VIDEO ENHANCER) . . . . . . . . 53

Using Various Additional Functions . . . . . . . . . . . . . . . . . . . . . . . 55

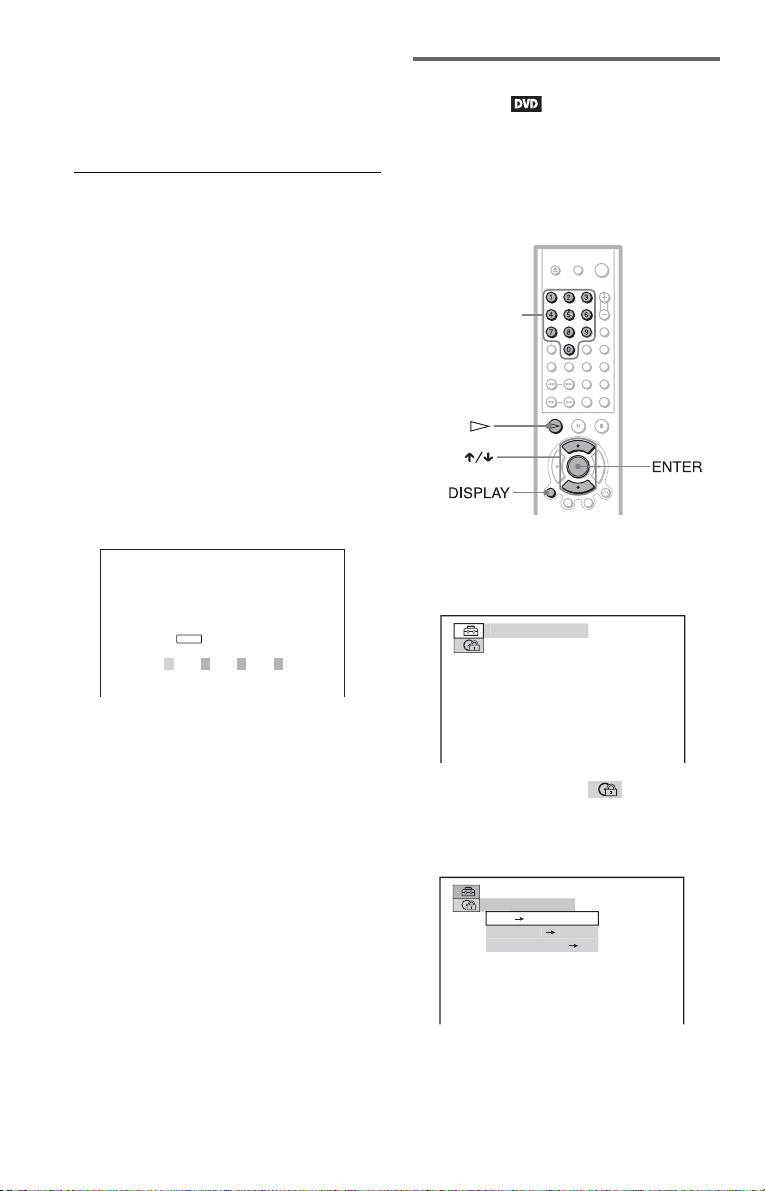

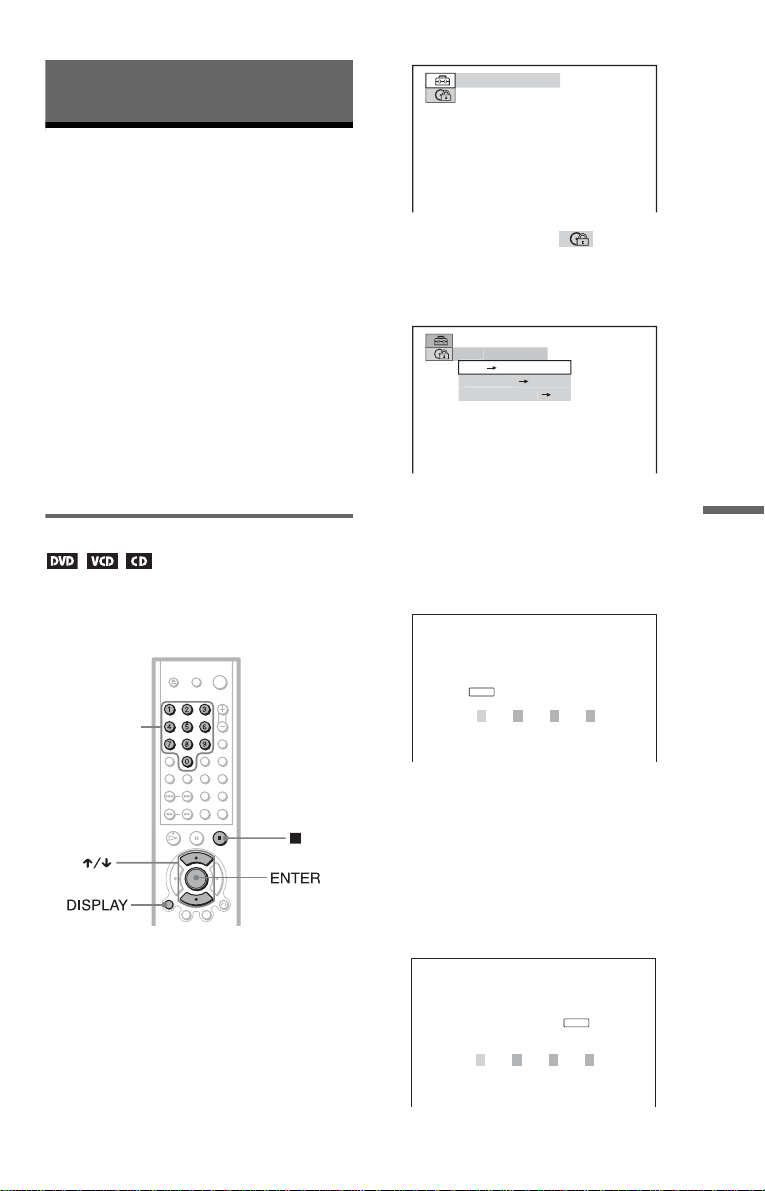

Locking Discs (CUSTOM PARENTAL CONTROL, PARENTAL CONTROL) 55

Controlling Your TV with the Supplied Remote . . . . . . . . . . . . . . . . . . . . . . . 59

Settings an d Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Using the Setup Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Setting the Display or Sound Track Language (LANGUAGE SET UP ) . . . . . 62

Settings for the Display (SCREEN SETUP). . . . . . . . . . . . . . . . . . . . . . . . . . 63

Custom Settings (CUSTOM SETUP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Settings for the Sound (AUDIO SETUP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Self-diagnosis Functio n (When letters/numbers appear in the display). . . . . 70

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

6

About this Manual

This Player Can Play the Following Discs

Check your model

The instructions in this manual are for
DVP-NC615 sold in the U.S.A., Canada,
Asia and Oceania. The differ ences be tween
U.S./Canadian models and Asian/Oceanian
models are the supplied remote
commander, RMT-D143A for U.S./
Canadian models or RMT-D143E for
Asian/Oceanian models, jack name s on the
rear panel, and some of the on-screen
displays.
U.S./Canadian model is the one used for
illustration purposes unless otherwise
specified. Any difference in operat ion is
clearly indicated in the text, for example,
“Asian/Oceanian models only.”

• I nstructions in this manual describe the
controls on the remote. You can also use the
controls on the play er if they ha ve the same
or similar names as those on the remote.

• Th e meaning of the icons used in this
manual is described below:

Icon Meaning

Functions available for DVD
VIDEOs or DVD-Rs/DVD­RWs in video mode

Functions available for VIDEO
CDs or CD-Rs/CD-RWs in
video CD format

Functions available for DATA
CDs (CD-ROMs/CD-Rs/CD­RWs containing MP3* audio
tracks)

Functions available for music
CDs or CD-Rs/CD-RWs in
music CD format

* MP3 (MPEG1 Audio Layer 3) is a standard

format defined by ISO (International Standard
Organization)/MPEG which compresses audio
data.

Format of discs

DVD VIDEO

VIDEO CD

Music CD

The “DVD VIDEO” logo is a trademark.

Region code

Your player has a reg i on code printed on the
back of the unit and only will play DVD
VIDEO discs (p la yback only) labeled wi t h
identical region codes. This system is used to
protect copyrights.

DVDs labeled will also play on this

ALL

player.

If you try to play any oth er DVD, the message
“Playback prohibited by area limitations..”
will appear on the TV screen. Depending on
the DVD, no region code indication may be
labeled even though playing the DVD is
prohibited by area restrictions.

X

DVP–XXXX

00V 00Hz

NO.

00W

Region code

0-000-000-00

Example of discs that the player
cannot play

The player cannot play the following discs:

• All CD-ROMs (including PHOTO CDs)/
CD-Rs/CD-RWs other than those recorded
in the following formats:
–music CD format
–video CD format
–MP3 format that co nforms to ISO9660 *
Level 1/Level 2, or its extended format,
Joliet

• Data part of C D -Extras

• DVD-RWs in VR mode

7

• DVD-ROMs

• DVD Audio discs

• HD layer on Super Audio CDs

* A logical format of files and folders on CD-

ROMs defined by ISO (International Standard
Organization).

Macrovision Corporation, and is intended for
home and other limited viewing uses only
unless otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.

Also, the player cannot play the following
discs:

• A DVD with a different region code.

• A disc that has a non-standard shape (e.g.,
card, heart).

• A disc with paper or stickers on it.

• A disc that has the a dhesive of cellophane
tape or a sticker still left on it.

For U.S./Canadian models only:

• The player cannot play a disc recorded in a
color system other than NTSC, such as PAL
or SECAM (this p la y er conforms to the
NTSC color system).

Note

Some CD-Rs, CD-RWs, DVD-Rs, or DVD-RWs
(in video mode) cannot be played on this player due
to the recording quality or physical condition of the
disc, or the characteristi cs of the record ing device.
Furthermore, the disc will not play if it has not been
correctly finalized . For more information, see the
operating instructions for the recording device.
Note that discs created in the Packet Write format
cannot be played.

Note on playback operations of
DVDs and VIDEO CDs

Some playback operations of DVDs and
VIDEO CDs may be intentionally set by
software producers. Since this player plays
DVDs and VIDEO CDs according to the disc
contents the software producers designed,
some playback features may not be available.
Also, refer to the instructions supplied with
the DVDs or VIDEO CDs.

Notes about the D i scs

• To keep the disc clean, handle the disc by its
edge. Do not touch the surface.

• Do not expose the disc to direct sunlight or
heat sources such as hot air ducts, or leave it
in a car parked in direct sunlight as the
temperature may rise considerably inside
the car.

• After playing, st or e the disc in its case.

• Clean the disc with a cleaning cloth.
Wipe the disc from the center out.

• Do not use solvents s uch as benzine,
thinner, co mmerciall y available cl eaners, or
anti-static spra y in t ended for vinyl LPs.

Copyrights

This product i ncorporates copyright
protection technology that is protected by
method claims of cer t ai n U . S. patents, other
intellectual property rights owned by
Macrovisio n Co rporation, and other rights
owners. Use of this copyright protection
technology must be authorized by

8

Index to Parts an d Controls

For more information, refer to the pages indicated in parentheses.

Front panel

A [/1 (on/standby) button/indicator (28)

Lights up in green wh en t he power is on
and lights up in red when the p la y er is in
standby mode.

B DISC S ELECT 1 – 5 buttons (29)
C (remote sensor) (15)
D Front panel display (10)
E H (playback) button (28)

The H button has a t act i le dot . *

F X (pause) button (29)
G x (stop) button (29)

H ./> (previous/next) buttons (29)
I A (open/close) button (28)
J DISC SKIP button (28)
K EXCHANGE button (30 )
L Disc tray (28)
M SURROUND button (47)
N LOAD bu tton (29)
O PICTURE MODE button (52)

* Use the tactile dot as a referen ce whe n operating

the player.

c continued

9

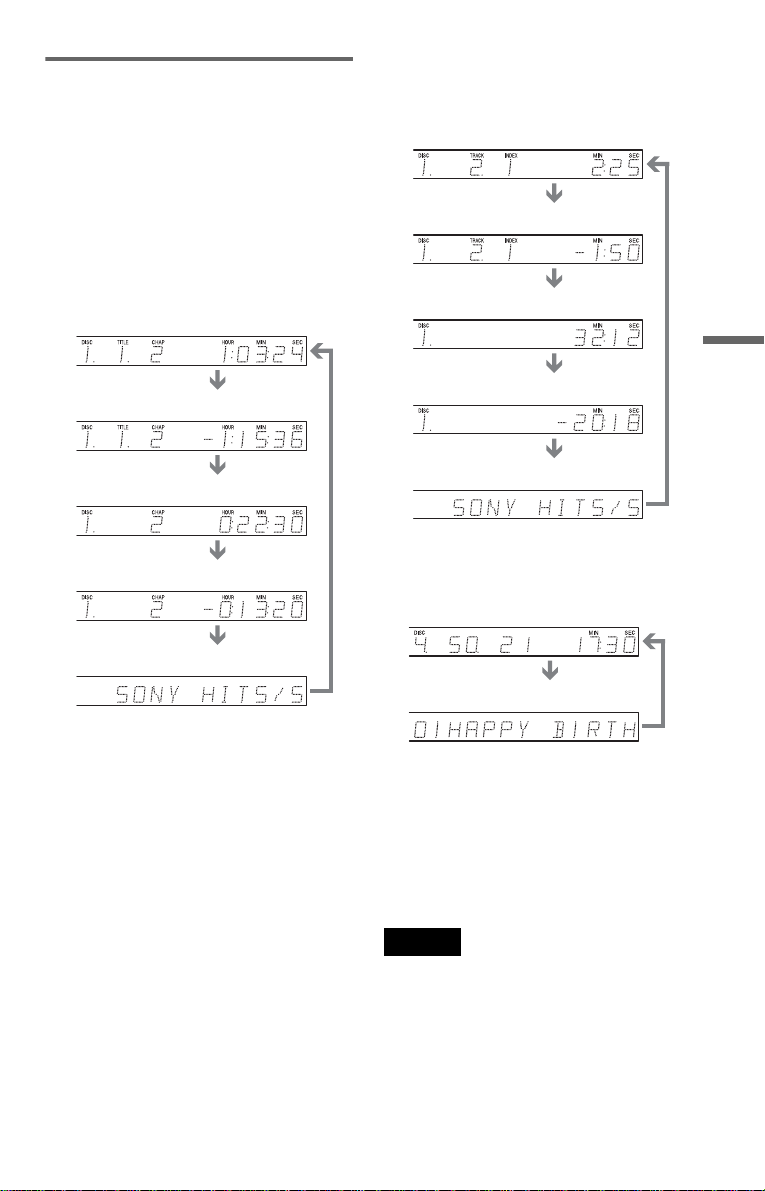

Front panel display

When playing back a D VD

Playing status

Disc type

Current audio
signal (47)

All discs
mode (37)

Disc numbers (29)

Current disc

Current play
mode (37)

Current title and
chapter (45)

Lights up when you can
change the angle (50)

Playing time (45)

For Asian/Oceanian models only

Lights up when the player outputs
the signal in NTSC format

When playing back a VIDEO CD with Pl ayback Control (PBC) (33)

Playing status

Disc type

All discs mode (37)

Lights up during A-B Repeat Play (41)

Disc numbers (29)

Current disc

Current scene (45)

For Asian/Oceani a n models only

Lights up when the pl ayer outp uts the
signal in NTSC format

Playing time (45)

When playing back a CD, DATA CD (MP3 au dio), or VIDEO CD (without PBC)

Current track and
index (45)

Playing time (45)

Playing status

Disc type

Disc numbers (29)

Current disc

All discs mode (37)

10

Lights up when playing
MP3 audio tracks (34)

Current play mode (37)

For Asian/Oceanian models only

Lights up when the player outputs
the signal in NTSC format

Rear panel

A DIGITAL OUT (COAXIAL) jack (22)

(23) (24)

B LINE OUT L/R (AUDIO) jacks (21)

(22) (23)

C LINE OUT (VIDEO) jack (18)

D S VIDEO OUT jack (18)
E COMP ONEN T VIDEO OUT jacks

(18)

(The jack names d i ffer depending on the
models.

U.S./Canadian m odels: Y, P
Asian/Oceanian models: Y, CB, CR)

B, PR

c continued

11

Remote

A TV [/1 (on/standby) button (59)
B

Z OPEN/CLOSE button (28)

C Number buttons (33)

The number 5 butt on has a tactile dot.*

D CLEAR button (37)
E SUBTITLE button (50)
F AUDIO button (46)
G ./> PREV/NEXT (previous/

next) buttons (29)

H m/M SCAN/SLOW

buttons (31)

I X PAUSE button (29)
J H PLAY button (28)

The H button has a t actile dot.*

K C/X/x/c buttons (33)
L DISPLAY button (13)
M TOP MENU button (33)
N [/1 (on/standby) button (28 )
O VOL (volume) +/– buttons (59)

The + button has a t actile dot.*

P TV/VIDEO button (59)
Q TIME/TEXT button (44)
R DISC SKIP button (28)
S ANGLE button (50)
T PICTURE MODE button (52)
U SUR (surround) button (47)
V REPEAT button (40)
W REPLAY button (29)
X SEARCH MODE button (43)
Y x STOP button (29)
Z ENTER button (25)

wj O RETURN button (33)
wk MENU button (33) (34)

12

* Use the tactile dot as a refere n ce when operating

the player.

Guide to On-Screen

12345 6

789q

q

q

q

q

q

q

Displays (Control Bar)

The following expl ai ns the Control Bar. The
Control Bar is used for making adjustments to
the settings or displaying information du ring
playback.
The displayed contents differ according to the
type of disc being pla yed. The numbers in
parentheses indicate referenc e pages.

Displaying the Control Bar during
playback

The following displays appear when the
DISPLAY butto n i s pressed repeatedly
during playback. You can select the setting
that suits the current playback item and view
the related information.

◆Display 1

The following play modes 1~5 can be set.
The indicator lights up in blue when activated.
Example: When Repeat Play is selected. (The
display will differ wh en A - B Repeat Play is
set.)

CHAPTER

;

G TVS (47)
H “BNR” (51)
I “CUSTOM PICTURE MODE” (52)
J “DIGITAL VIDEO ENHANCER”

(53)

K Playback status (NPlayback,

XPause, xStop, etc.)

a

m

◆Display 3

The following playback information is
displayed.
Example: When playing a DVD.

h

g

f

d

s

T41 – 8

3:DVD T 1:01:57

L TIME/TEXT icon
M Disc number and type
N Title number of the DVD (44)
O Chapter number of the DVD (44)
P Playing time or remaining time (44)

A Disc mode (37)
B Repeat Play (40)
C Shuffle Play (39)
D Program Play (37)
E A-B Repeat Play (41)
F Unit being repeated in this example.

m

◆Display 2

The following play modes 7~0 can be set.
The indicator lights up in blue when activated.
Example: When “TVS” is set.

m

◆Display 4 (DVD playback only)

DOLBY DIGITAL

qj

Q Format of the current audio signal (47)

3/2.1

m

◆No display

m

◆Return to Display 1

c continued

13

Displaying the Control Bar in

Q

stop mode

The following dis pl ays appear when the
DISPLAY button is repeatedly pressed
during stop mode . You can make basic
adjustments an d customize the pla yer to suit
your viewing preferences.

◆Display 1

The following set ti ngs can be made.

UICK

A SETUP (61)

• Select QUICK to make the minimum
number of basic a dj ustments for using the
player.

• Select CUSTOM to make a full rang e of
adjustments.

• Select RESET to return the
adjustments to the default settings.

B PARENTAL CONTROL(55)

• Set this to limit the playback of selected
discs on this player.

SETUP

m

◆Display 2

Shows the same inf o r m at ion as Display 1
during playback.

m

◆Display 4

Shows the same information as Display 3
during playback .

T41 – 8

3:DVD T 1:01:57

m

◆No display

m

◆Return to Display 1

CHAPTER

m

◆Display 3

Shows the same inf o r m at ion as Display 2
during playback.

14

Simple Start Guide

Quick Overvie w

Step 2: Inserting Batteries into the Remote

Simple Start Guide

A quick overview presented in this guide will
give you enough information to start using the
player for your enjoy m ent. To use the
surround sound f eatures of this player, refer
to “Hookups” on pag e 18.

Notes

• You cannot connect this player to a TV that does
not have a video input jack.

• Be sure to disconnect the powe r of eac h
component before connecti ng.

Step 1: Unpacking

Check that you have the following items:

• Audio/video cord (pinpl ug × 3 y pinplug
× 3) (1)

• Remote commander (remote) (1 )

• Size AA (R6) batteries (2)

• A plug adapter is included with some
models.

You can control the player using the supplied
remote. Insert t wo Size AA (R6) batteries by
matching the 3 an d # ends on the batteries
to the markings inside the compartment.
When using the remote, poin t it at the r emote
sensor on the player.

Notes

• Do n ot leave the remote in an ex tremely hot or
humid place.

• Do not dr op a ny fo reign object into the remote
casing, particular ly when rep lacing the batteries.

• Do not expose the remote sensor to direct light
from the sun or a lighting appara tus. Doing so
may cause a malfunction.

• If you do not use the re mot e for an exte nded
period of time, remove the batteries to avoid
possible damage from batter y le ak age a nd
corrosion.

15

Step 3: TV Hookups

Connect the supplied audio/video cord and the power cord in the order (1~3) shown below.
Be sure to connect the power cord last .

CD/DVD Player

LINE OUT

to LINE OUT
L/R (AUDIO)

to LINE OUT
(VIDEO)

to video input

1 Audio/video

cord (supplied)

l : Signal flow

to audio input

Depending on the TV type, the im ag e of
some discs may not fit your TV screen.

If you want to ch an ge th e a spec t ra ti o, pl ea se
refer to page 63.

When connecting to a monaural TV

Use a stereo-mono conversion cord (not
supplied). Connect the LINE OUT (VIDEO)
jack on the player to the TV’s video input
jack, and connect the LINE OUT L/R
(AUDIO) jack s t o t he TV’s audio input j ack.

3 Power source

TV

2 Power source

For Asian/Oceanian models only
To change the color syst em

The color system of the player is set to NTSC
or PAL. If the on-screen menu of the player
does not appear on t he TV, change the colo r
system of the player to the same color system
(PAL or NTSC) of your TV. To change the
color system , hold ?/1 down for a few
seconds while pr essing X on the player.

z Hint

To check the current setting of the player’s color
system, press ?/1. The ?/1 indicator lights up in
green. When “NTSC” appears on the front panel
display, the color system of the player is set to
NTSC. When “NTSC” does not appear, the color
system is set to PAL.

16

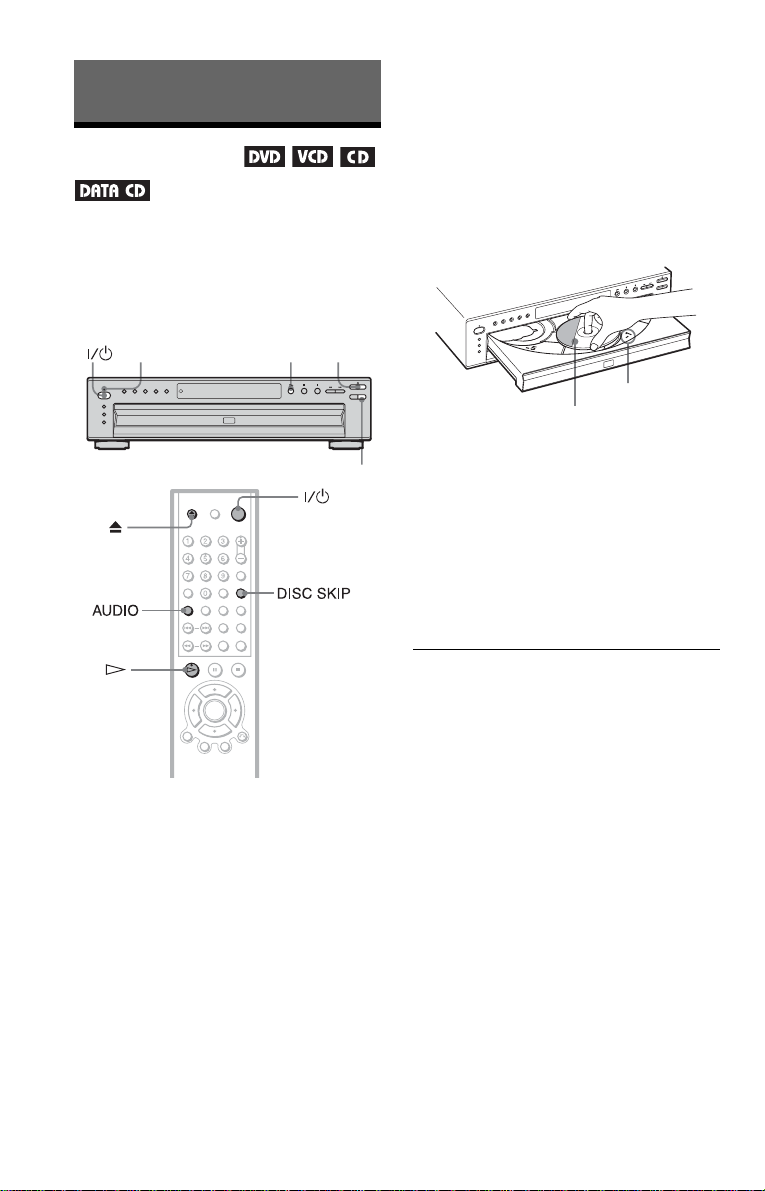

Step 4: Playing a Disc

Simple Start Guide

Disc compartment number

With the playback side facing down

A Turn on the TV.
B Press [/1 on the player.
C Switch the input selector on your

TV so that the signal from the
player appears on the TV screen.

D Press A on th e player to open the

disc tray.

E Place the disc on the tray with the

playback side facing down.

F Press H.

The disc tray closes and the player begins
playing the disc.

After Step 6

Depending on the di sc, a menu may be
displayed on the TV screen. If so, select the
item you want from the menu and play the
DVD (page 33) or VIDEO CD disc (page 33).

To stop playin g

Press x.

To remove the disc

Press A.

To turn off the player

Press [/1. The player enters standby mode
and the power indicator lights up in red.

17

Hookups

Hooking Up the Player

Follow Steps 1 t o 4 to hook up and adjust the setting s of t he player.
Before you start, disconnect the power cords, check that you have all of the supplied accessories,
and insert the batteries into the remote (page 15).

Notes

• Plug cords securely to prevent unwanted noise.

• Refer to the instructions supplied with the components to be connected.

Step 1: Connecting the Video Cords

Connect thi s player to your TV monit or, pr ojector, or AV am plifier (receive r) using a video cord.
Select one of the patter ns A through C, according to the input jack on your TV monitor,
projector, or AV am plifier (receiver ).

TV, projector or AV
amplifier (receiver)

to LINE OUT (VIDEO)

CD/DVD player

l : Signal flow

(yellow)

(yellow)

Audio/video cord
(supplied)

(green)

S VIDEO cord
(not supplied)

Component video
cord (not
supplied)

(red)(blue)

(green)
(blue)

(red)

TV, projector or AV
amplifier (receiver)

TV, projector or AV
amplifier (receiver)

18

A If you are connecting to a video input jack

Connect the yellow plug of the audio/v ideo cord (supplied) to the yellow (video) jacks. You will
enjoy standard quality images.

Yellow (Video)
White (L)
Red (R)

Yellow (Video)
White (L)
Red (R)

Use the red and wh it e pl ugs to connect to the audio input jacks (p age 21). (Do this if you are
connecting to a TV only.)

B If you are connecting to an S VIDEO input jack

Connect an S VIDEO cord (not supplied). You will enjoy high quality images.

C If you are connecting to a monitor, projector, or AV amplifier (receiver)
having component video input jacks (Y/P

Connect the compo nent via the COMPONEN T V I D E O OU T jacks using a compo ne nt video
cord (not supplie d) or three video cords (not supplied) of the same kind and length . You will
enjoy accurate color reproduction and high quality images.

Green
Blue
Red

Notes

• Connect the playe r directly to the TV. If you pass the player signals via the VCR, you m ay no t rec ei ve a
clear image on the TV screen.

B/PR or Y/CB/CR)

Green
Blue
Red

Hookups

VCR

CD/DVD player

Connect
directly

• For Asian/Oceanian models only
You can switch the player’s color system to match the color system of the connected TV (page 16).

TV

c continued

19

Step 2: Connecting the Audio Cords

Refer to the chart below to se lect the c onnection that best sui ts your syst em. Be sure to also read
the instructions for the components you wish to connect.

Select a connection

Select one of the foll owing connections, through .

Components to be connected Connection Your setup

TV

• Surround effects: TVS DYNAMIC (page 48),
TVS WIDE (page 48)

A D

A

(page 21) Example

Stereo amplifier (receiver)

• Surround effects: TVS STANDARD (page 48)

or

MD deck/DAT deck

• Surround effects: none

AV amplifier (receiver) having a Dolby*
Surround (Pro Logic) decoder and 3 to 6
speakers

• Surround effects: D olb y Surround (Pro Logic)
(page 66)

AV amplifier (receiver) with a digital input jack
having a Dolby Digital, MPEG audio or DTS**
decoder and 6 speakers

• Surround effects: Dolby Digital (5.1ch) (page 66),
DTS (5.1ch) (page 67), MPEG audio (5.1ch)
(page 67)

* Manufactured under license fr om Dol by

Laboratories. “Dolby,” “Pro Logic,” and the
double-D symbol are trademarks of Dolb y
Laboratories.

** “DTS” and “DTS Digital Out” are tradema rk s

of Digital Theater Systems, Inc.

and two speakers

(page 22) Example

B

(page 23) Example

C

(page 24) Example

D

20

A

Connecting to your TV

This connection will use your TV speakers for sound.

CD/DVD player

Hookups

(yellow)*

(white)

(red)

to LINE OUT L/R
(AUDIO)

l : Signal flow

* The yellow plug is used for video signals (pa ge

18).

z Hint

When connecting to a monaural TV, use a stereo­mono conversion cord (not supp li ed). Connect the
LINE OUT L/R (AUDIO) jacks to the TV’s audio
input jack.

Audio/video
cord (supplied)

(yellow)

(white)

(red)

to audio input

TV

c continued

21

Connecting to a stereo amp lifier (rece iver) and 2 speakers/Co nnecting to

B

an MD deck or DAT deck

If the stereo amplifier (receiver) has audio input jacks L and R only, use . If the amplifier
(receiver) has a digital input jack, or when connecting to an MD deck or DAT deck, use .
In this case, you can also connect the player directly to the MD deck or DAT deck without using
your stereo amplifier (receiver).

CD/DVD player

B-1

B-2

Coaxial digital
cord (not supplied)

or

to DIGITAL OUT
(COAXIAL)

to coaxial digital
input

[Speakers]

Front (L)

Front (R)

l: Signal flow

z Hint

In connection
audio/video cord instead of using a separate audio
cord.

B-1

, you can use the supplied

Stereo amplifier (receiver)

Stereo audio cord
(not supplied)

(white)

(white)

(red)

to LINE OUT L/R (AUDIO)

(red)

to audio input

MD deck/DAT deck

Note

If you select one of the TVS effects (page 47) while
playing a disc, no sound will come from your
speakers with the connection.

B-2

22

C

Connecting to an AV amplifier (receiver) having a Dolby Sur round (Pro

Logic) decoder and 3 to 6 speakers

You can enjoy the Dolby Surround effects only when playing Dolby Surround audio or multi­channel audio (D ol by D igital) discs.
If your amplifier (receiver) has L and R audio input jacks onl y, use . If you r amplifier
(receiver) has a di gital input jack, use .

CD/DVD player

Coaxial digital cord
(not supplied)

C-2

Stereo
audio cord (not
supplied)

C-1

(white)

Hookups

or

to DIGITAL OUT
(COAXIAL)

to coaxial digital input

[Speakers]

Rear (L)

l: Signal flow

Rear (R)

Subwoofer

Amplifier (receiver) with Dolby
Surround decoder

Center

Note

When connecting 6 speak ers, replace the monaural
rear speaker with a center speaker, 2 rear speakers
and a subwoofer.

(red)

to LINE OUT L/R (AUDIO)

(red)(white)

to audio input

[Speakers]

Front (R)Front (L)

Rear (mono)

c continued

23

D

Connecting to an AV amplifier (receiver) with a dig i tal i np ut j ac k ha vi ng

a Dolby Digital, MPEG audio or DTS decoder and 6 speakers

This connection will allow you to use the Dolby Digital, MPEG audio or DTS decoder function
of your AV amplifier (receiver). Yo u ar e not able to enjoy the surround sound effe ct s of this
player.

CD/DVD player

to DIGITAL OUT
(COAXIAL)

Coaxial digital cord
(not supplied)

to coaxial digital
input

[Speakers]

Rear (L)

l: Signal flow

Subwoofer

Rear (R)

Notes

• After you have completed the connection, be sure
to set “DOLBY DIGITAL” to “DOLBY
DIGITAL” and “DTS” to “ON” in Quick Setup
(page 25). Otherwise, no sound or a loud noise
will come from the spe akers.

24

AV amplifier (receiver) having
a decoder

• For Asian/Oceanian models only

If your AV amplifier (receiver) has an MPEG
audio decoder function, set “MPEG” to “MPEG”
(page 67). Otherwise, no sound or a loud noise
will come from the spe a k er s .

[Speakers]

Front (L)

Center

Front (R)

Step 3: Connecting the Power Cord

Plug the playe r and TV power cords into an AC outlet .

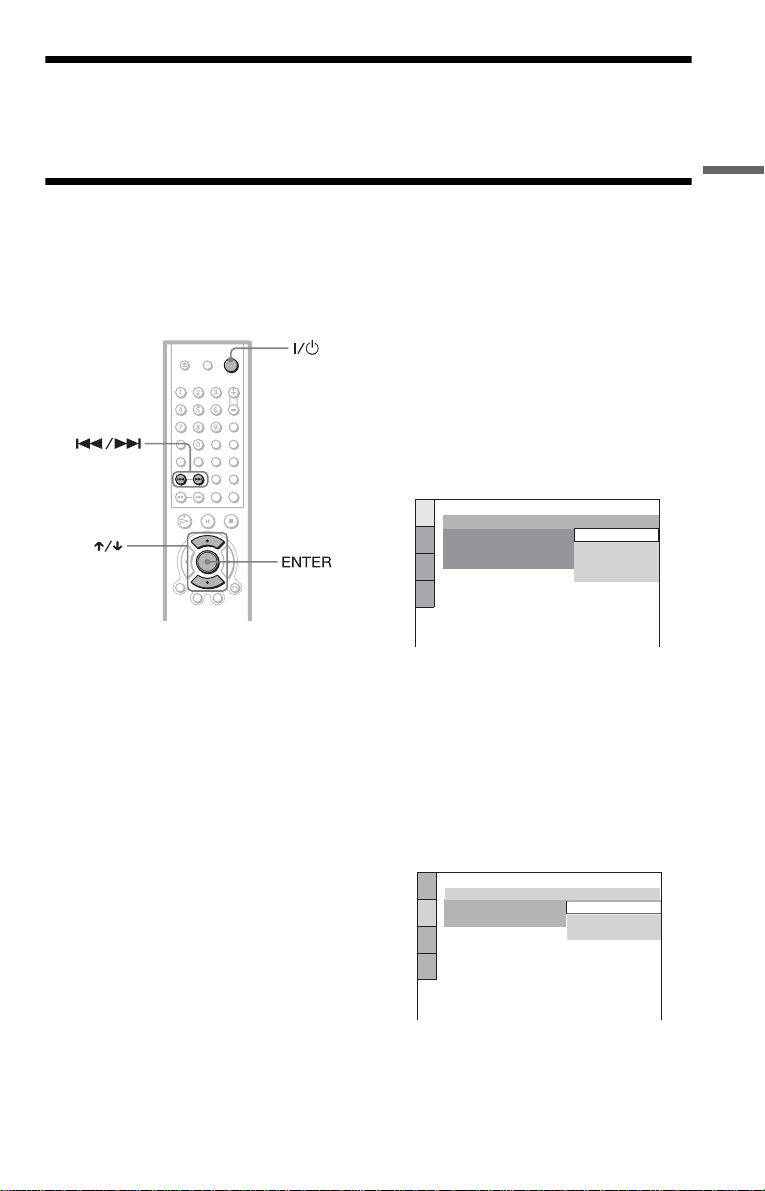

Step 4: Quick Setu p

Follow the steps below to make the minimum number o f basi c adjust ments for using the play er.
To skip an adjustment, press >. To return to the previous adjustment, press ..
The on-screen disp la y di ffers depending on the pl ayer model.

4 Press ENTER without inserting a

disc.

The Setup Display for selecting the
language used i n the on-screen display
appears.
The available languages differ depending
on the player model.

LANGUAGE SETUP

OSD:
MENU:
AUDIO:
SUBTITLE:

ENGLISH
ENGLISH

FRENCH

SPANISH

PORTUGUESE

Hookups

1 T urn on th e TV.
2 Press [/1.
3 Switch the input selector on your

TV so that the signal from the
player appears on the TV screen.

“Press [ENTER] to run QUICK SETUP.”
appears at the bottom of the screen. If this
message does not appear, select
“QUICK” under “SETUP” in the Control
Bar to run Quick Set up (page 62).

5 Press X/x to select a language.

The player uses th e l anguage selected
here to display the menu and subtitles as
well.

6 Press ENTER.

The Setup Display for selecting the
aspect ratio of the TV to be connected
appears.

SCREEN SETUP

TV TYPE:
SCREEN SAVER:
BACKGROUND:

4:3 LETTER BOX

4:3 LETTER BOX

4:3 PAN SCAN

16:9

c continued

25

7 Press X/x to select the setting that

matches your TV type.

◆ If you have a 4:3 standard TV

• 4:3 LETTER BOX or 4:3 PAN SCA N
(page 63)

◆ If you have a wide-screen TV or a 4:3

standard TV with a wide-screen mode

• 16:9 (page 63)

8 Press ENTER.

The Setup Display f or sel ec ti ng the type
of jack used to conne ct your amplifier
(receiver) appe ars.

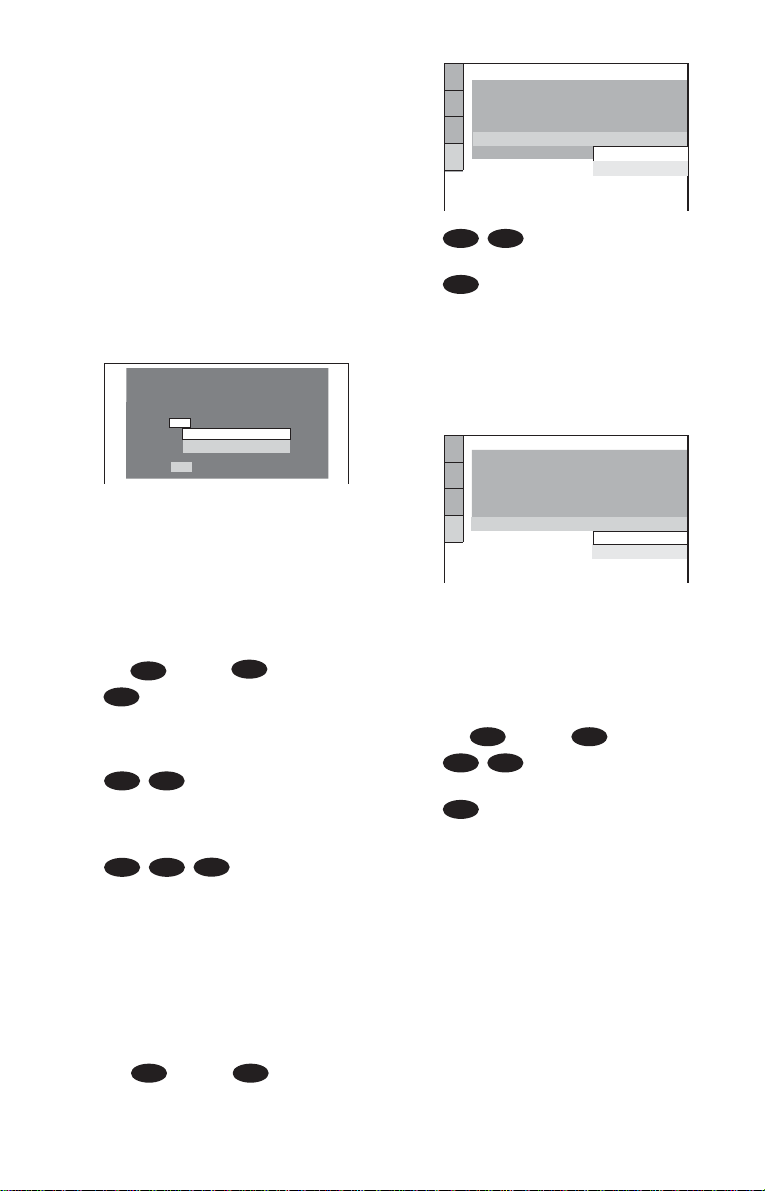

AUDIO SETUP

AUDIO ATT:
AUDIO DRC:
DOWNMIX:
DIGITAL OUT:

DOLBY DIGITAL:
DTS:

B-2 C-2

DOLBY SURROUND

DOLBY DIGITAL

OFF

STANDARD

ON

D-PCM

D-PCM

• D-PCM (pag e 66)

D

• DOLBY DIGITAL (only if the
amplifier (recei ver) has a Dol by Digi tal
decoder) (page 66)

Is this player connected to an amplifier
(receiver) ? Select the type of jack you
are using.

YES

LINE OUTPUT L/R (AUDIO)
DIGITAL OUTPUT

NO

9 Press X/x to select the type of jack

(if any) you are using to connect to
an amplifier (receiver), then press
ENTER.

Choose the item that matches the audio
connection you selected on pages 21 to
24 ( through ).

A

A

• If you connect just a TV and nothing
else, select “NO. ” Quick Setup is
finished and connections are comp le t e.

B-1 C-1

• Select “LINE O U TPUT L/R
(AUDIO).” Quick Setup is finished and
connections are complete.

B-2 C-2

• Select “DIGITA L OU TP U T. ” Th e Set u p
Display for “DOLBY DIGITAL” appears.

D

D

10Press X/x to select the type of

Dolby Digital signal you wish to
send to your amplifier (receiver).

Choose the signal that matches the audio
connection you selected on pages 22 to
24 ( through ).

B D

11Press ENTER.

“DTS” is selected.

AUDIO SETUP

AUDIO ATT:
AUDIO DRC:
DOWNMIX:
DIGITAL OUT:

DOLBY DIGITAL:
DTS:

DOLBY SURROUND

OFF

STANDARD

ON

D-PCM

OFF
OFF

ON

12Press X/x to select whether or

not you wish to send a DTS signal
to your amplifier (receiver).

Choose the item that matches the audio
connection you selected on pages 22 to
24 ( t hrough ).

B D

B-2 C-2

• OFF (page 67)

D

• ON (only if the amplifier (receiver) has
a DTS decoder) (p age 67)

13Press ENTER.

Quick Setup is finished. All connections
and setup operations are complete.

For Asian/Oceanian models only:

If your AV amplifier (receiver) has an
MPEG audio decoder, adjust “MPEG”
setting (page 67 ).

26

Enjoying the surround sound
effects

To enjoy the surround soun d effects of this
player or your amplifie r (rece i ver), set the
following items as described below for the
audio connection you selected on pages 22 to
24 ( through ). Each of these is the

B D

default setting and doe s not need to be adjusted
when you first connect the p l ayer. R efer to
page 61 for using the Setup Display.

Audio Connection (pages 21 to 24)

A

• No additional settings ar e needed.

C-1

B-1

• Set “DOWNMIX” to “DOLBY
SURROUND” (page 66).

• If the sound distorts e ven wh en th e v ol ume
is turned down, set “AUDIO ATT” to “ON”
(page 65).

B-2 C-2 D

• Set “DOWNMIX” to “DOLBY
SURROUND” (page 66).

• Set “DIGITAL OUT” to “ON ” (page 66).

Hookups

27

Playing Discs

Playing Discs

Depending on the DVD or VIDEO CD, some
operations may be di fferent or restricted .

Refer to the operating instructions supplied
with your disc.

Power
indicator

AH

4 Press A on the player, and plac e a

disc on the disc tray.

To place other discs on the tray, press
DISC SKIP and pl ace the discs in the
order you want to play them.
Each time you press DISC SKIP, the disc
tray turns so you ca n place the discs on
the empty compartments. The player
plays from the last disc placed on the tr ay.

Disc

With the playba ck
side facing down

compartment
number

DISC SKIP

1 Tu rn on your TV .
2 Press [/1.

The player turns on and the power
indicator lights up in gr een.

3 Switch the input selector on your

TV so that the signal from the
player appears on the TV screen.

◆ When using an ampl i fi er (receiver)

Turn on the amplifier (receiver) and
select the appropriate channel so that you
can hear sound fr om t h e player.

5 Press H.

The disc tray closes, and the player starts
playback (continuous play). Adjust the
volume on the TV or the amplifier
(receiver).
Depending on the disc, a menu may
appear on the TV screen. For DVDs, see
page 33. For VIDE O CDs, see page 33.

To turn off the player

Press [/1. The player enters standby mode.

z Hint

The player w ill turn off auto matically when ever
you leave it in st op mo de for mo re th a n 30 mi nu te s
(Auto Power Off function).

For U.S./Canadian models only:

The Auto Power Off function is set to off when you
purchase the player. You can turn the function on or
off by setting “AUTO POWER OFF” in
“CUSTOM SETUP” (page 64).

Notes on playing DTS sound tracks on a CD

• When playing DTS-encoded CDs,
excessive noise wi ll be heard from the
analog stereo jacks. To avoid possible
damage to the audi o system, the consum er
should take proper pre cautions when the
analog stereo jacks of the player are
connected to an amplification syst em. To
enjoy DTS Digital Surround™ playback, an
external 5.1-channel decoder system must

28

be connected to the digital jack of the
player.

• Set the sound to “STEREO” using t he
AUDIO button when you play DTS sound
tracks on a CD (page 46).

• Do not play DTS sound tracks without first
connecting the player to an audio
component having a built-in DTS decoder.
The player outputs t he D TS signal via the
DIGITAL OUT (COAXIAL) jack even if
“DTS” in “AUDIO SETUP” is set to “OFF”
in the Setup Display (page 67), and may
affect your ears or cause your speakers to be
damaged.

Notes on playing DVDs with a DTS sound
track

• DTS audio signals are output only through
the DIGITAL OUT (COAXIAL) jack.

• When you play a DVD with DTS sound
tracks, set “DTS” to “ON” in “AUDIO
SETUP” (page 67).

• If you connect the pl ayer to audio
equipment without a D T S decoder, do not
set “DTS” to “ON” in “AUDIO SETUP”
(page 67). A loud noise may come out f rom
the speakers, affe ct in g you r ears o r ca us ing
the speakers to be damaged.

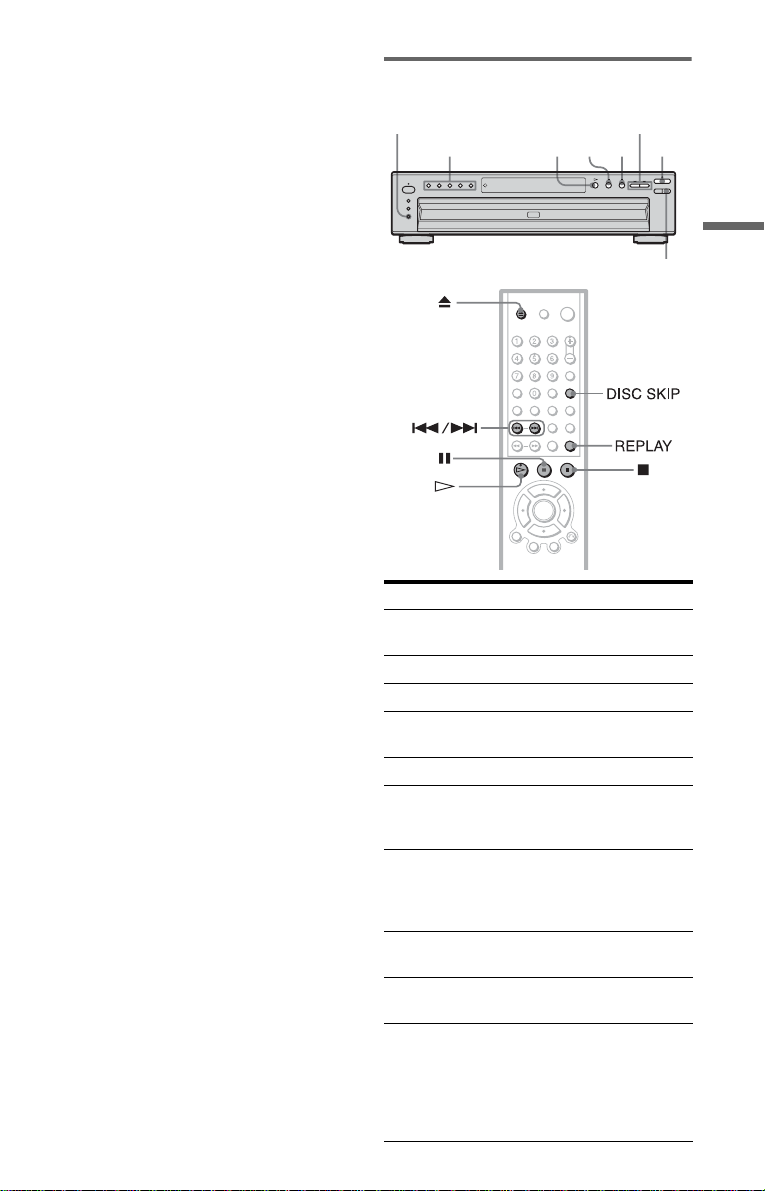

Additional operations

LOAD

DISC SELECT

To Operation

Select a disc Press DISC SELECT

Stop Press x
Pause Press X
Resume play after

pause
Go to the next disc Press DISC SKIP
Go to the next chapter ,

track, or scene in
continuous play mode

Go back to the
previous chapter,
track, or scene in
continuous play mode

Stop play and remove
the disc

Replay the previous
scene (DVD only)

Check if a disc is in
the disc compartment

1–5 on the player

Press X or H

Press >

Press .

Press Z

Press REPLAY

Press LOAD on the
player.
The disc number
indicators on the front
panel disp l ay (1–5)
light up.

./>

AH Xx

DISC SKIP

c continued

Playing Discs

29

z Hints

• The Replay function is useful when you want to
review a scene or dialog that you miss ed.

• Before loading the discs, a disc number indicator
of an empty compartment m ay be lit.

Note

You may not be able to use the Replay function with
some scenes.

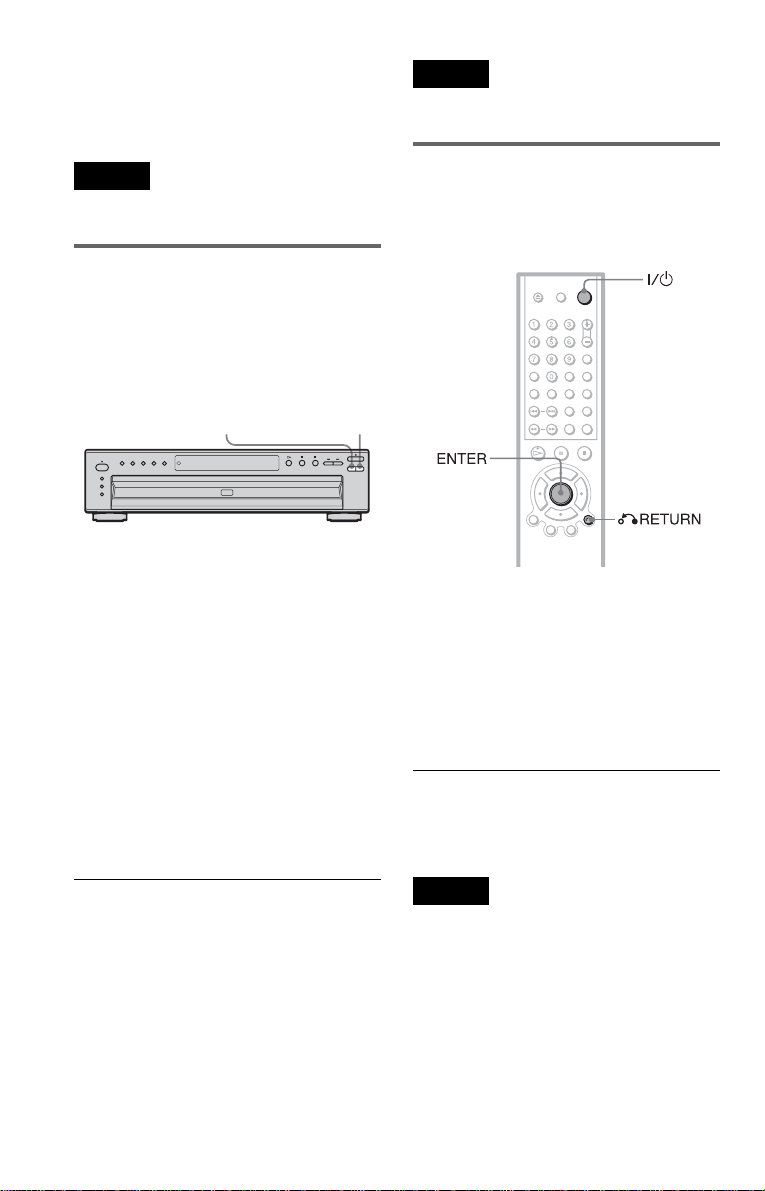

Replacing discs while playing a
disc (EXCHANGE)

You can open the disc t ray while playing a
disc so that you can check which discs are to
be played next and replace discs without
interrupting playback of the current disc.

DISC SKIPEXCHANGE

1 Press EXCHANGE .

The disc tray op en s and two disc
compartment s appear. Even if the pl ayer
is playing a disc, it doesn’t stop playing.

2 Replace the discs in the

compartments with new ones.

3 Press DISC SKIP.

The disc tray turn s and another two disc
compartments appear.

4 Replace the discs in the

compartments with new ones.

5 Press EXCHANGE .

The disc tray closes .

Note

Do not push the disc tray to close in Step 5, as you
may damage the player.

Locking the disc tray (Child
Lock)

You can lock the disc tray to prevent children
from opening it.

When the player is in standby mode, press
O RETURN , ENTE R, and then [/1 on the
remote.

The player turns on and “LOCKED” appears
on the front panel display.
The A and EXCHANGE buttons on the
player and t he Z button on the remote do not
work while the Child Lock is set.

To unlock the disc tray

When the player is in standby mode, press
O RETURN, ENTER, and then [/1 again.

z Hint

While the disc tray is open,
– If the playback o f the current disc end, the player

stops playing. If the disc is played in One Dis c
Repeat Play mode (page 40), the current disc
starts playing again.

– In All Discs Shuffle Pla y mode (page 39), titles/

tracks/chapters are reshuffled only on the current
disc.

– In Program Play mode (p age 37 ), th e title s/t racks/

chapters only on the current disc are played.

30

Note

Even if you select “RESET” under “SETUP” in the
Control Bar (page 6 1), the dis c tray rema ins lo cked.

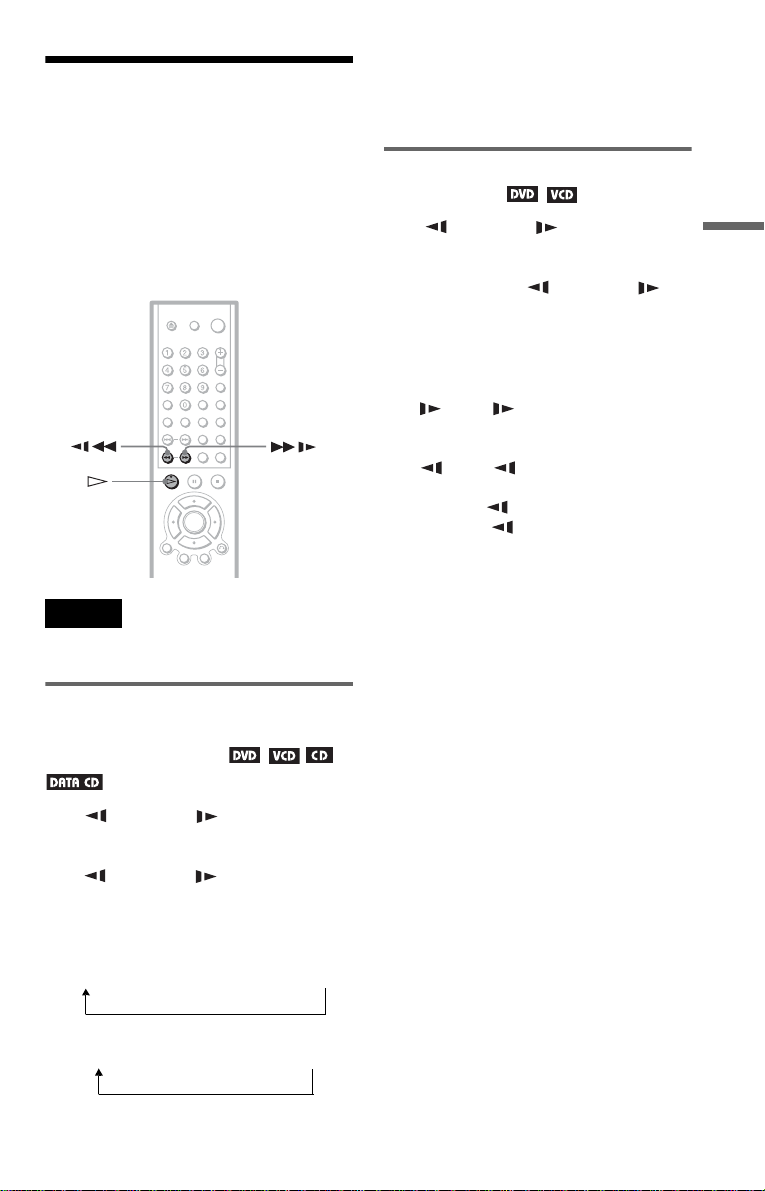

Searching for a
Particular Point on a

The “

×2B”/“×2b” playback speed is ab out

twice the normal speed. The “2M”/“2m”
playback speed is faster than “ 1M”/
“1m.”

Disc (Scan, Slow-motion Play,

Search, Freeze Frame)

You can quickly locate a particular point on a
disc by monitoring the picture or playing back
slowly.

Note

Depending on the DVD/VIDEO CD, you may not
be able to do some of the operations desc r ibe d.

Locating a point quickly by
playing a disc in fast forward or
fast reverse (Scan)

Watching frame by frame (Slow­motion play)

Press m or M when the player is
in pause mode. To return to the normal speed,
press H.
Each time you press m or M
during Slow-motion play, the playback speed
changes. Two speeds are av ailable. Wi th each
press the indicat ion changes as follows :

Playback dire ction

2 y 1

Opposite direction (DVD only)

2 y 1

The “2 y”/“2 ” playback speed is slower
than “1 y”/“1 .”

Playing Discs

Press m or M while playing a
disc. When you find the point you want, press
H to return to normal speed. Each time you
press m or M during scan, the
playback speed changes. Three speeds are
available. With e ach press the indicati o n
changes as follows:
Playback direction

×2B (DVD/CD only) t 1M t 2M

Opposite direction

×2b (DVD only) t 1m t 2m

31

Resuming Playback from
the Point Where You
Stopped the Disc (Resume

Play/Multi-disc Resume)

The player remembers the point where y ou
stopped the disc.

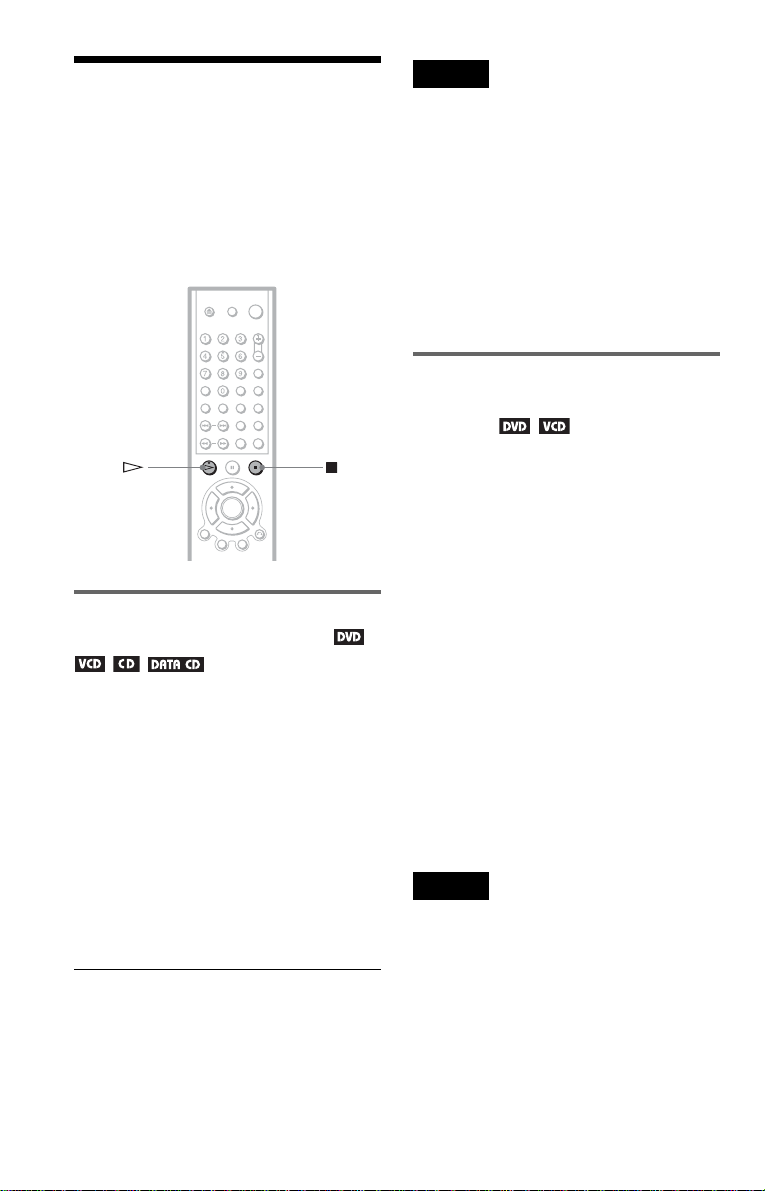

Resuming playback for the
current disc (Resume Play)

The player remembers the point where y ou
stopped the disc ev en if the player enters
standby mode by pressing [/1.

1 While playing a disc, press x to

stop playback.

“RESUME” appe ars on the front panel
display.

2 Press H.

The player starts playback from the point
where you stoppe d th e disc in Step 1.

Notes

• The point where you stopped playing is cleared
when:

– you change the play mode.
– you do Program Play or Shuffle Play.
– you change the settings on the Setup Display .

• When playing a CD, the point where you stopped
is cleared when the disc tray is opened or the
power cord is disconnected.

• When playing a DATA CD, the point where you
stopped playing is cleared when the player enters
standby mode, the disc tray is opened, or the
power cord is disconnected.

• This function may not work with some discs.

Storing the point where you
stopped the disc (Multi-disc
Resume)

The player stores the point where you stopped
the disc and resumes playback from the same
point the next time you insert the same disc.
The player rem embers the stopped poi nt of
the disc even after you play other discs in the
disc tray.
Resume playback points for up to 6 d ifferent
DVD/VIDEO discs remain in memory ev en if
you disconnect the power cord. When you
store a resume playback point for the 7th disc,
the resume playback point for t he fir st disc i s
deleted.

z Hints

• To play from the beginning of the disc, press x
twice, then press H.

• To turn off the Multi-disc Resume fu nction, set
“MULTI-DISC RESUME” in “CUSTOM
SETUP” to “OFF” (page 65). Pl ayback res tarts at
the resume point only for the current disc in the
player.

Note

This function may not work with some discs.

z Hint

To play from the beginning of the disc, press x
twice, then press H.

32

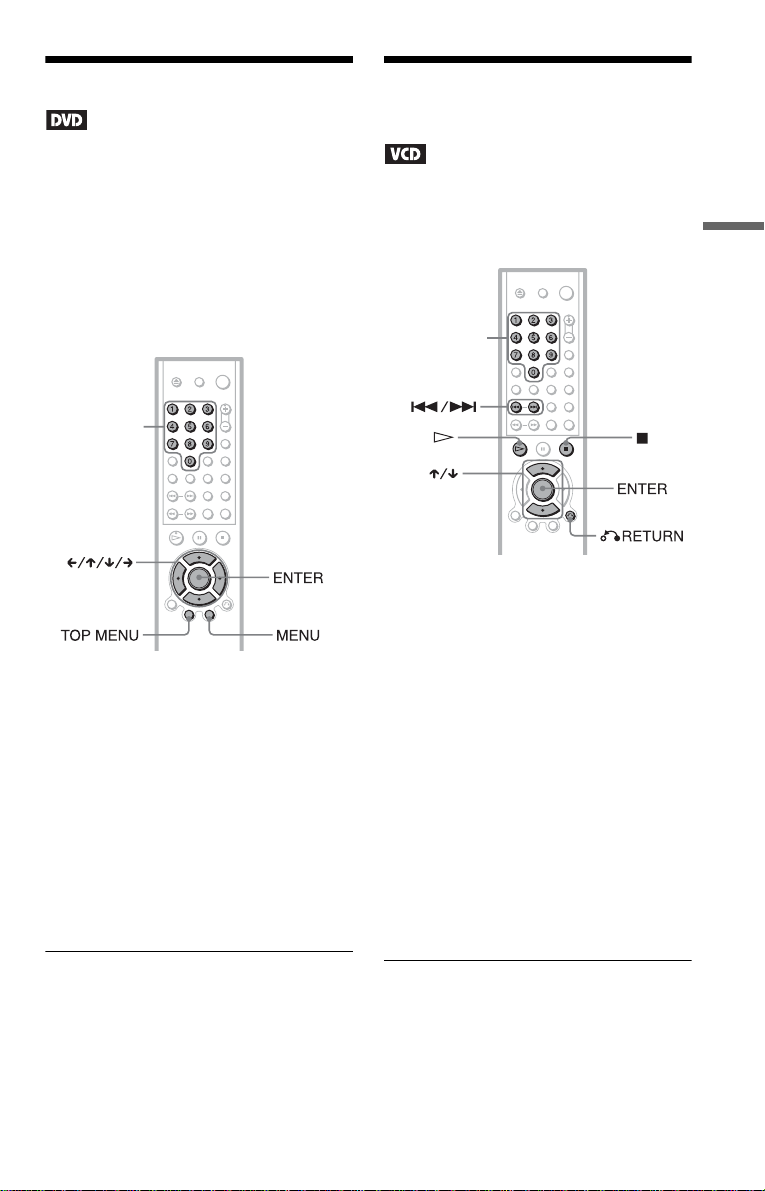

Using the DVD’s Men u

A DVD is divided into long sections of a
picture or a music f eat ure called “titles.”
When you play a DVD which contains
several titles, you can sele ct the title you want
using the TOP MENU bu tton.
When you play DVDs that allow you to sele ct
items such as the language for the subtitles
and the language for the sound, select these
items using the ME N U but ton.

Number
buttons

Playing VIDEO CDs with PBC Functions ( PBC Playback)

PBC (Playback Contr ol ) al lo w s y ou t o pl ay
VIDEO CDs interactively by following the
menu on the TV screen.

Number
buttons

1 Start playing a VIDEO CD with PBC

functions.

The menu for your selection appears.

Playing Discs

1 Press TOP MENU or MENU.

The disc’s menu ap pears on the TV
screen.
The contents of the menu vary from disc
to disc.

2 Press C/X/x/c or the number

buttons to select the item you want
to play or change.

3 Press ENTER.

2 Select the item number and track

you want using X/x or the number
buttons.

3 Press ENTER.
4 Follow the instructions in the

menu for interactive operations.

Refer to the instructions supplied with the
disc, as the operat i ng procedure may
differ depending on the VIDEO CD.

To return to the menu

Press O RETURN.

c continued

33

z Hint

To play without using PBC, press ./> while
the player is stopped to select a track, then press H
or ENTER.
“Play without PBC.” appears on the TV screen and
the player starts continuous play. You cannot play
still pictures such as a menu.
To return to PBC playback, press x twice then
press H.

Notes

• Depending on the VIDEO CD, “Press ENTER” in
Step 3 may appear as “Press SELECT” in the
instructions supplied with the disc. In this case,
press H.

• The PBC functions of Super VCDs do not wor k
with this player. Super VCDs are played in
continuous play mode only.

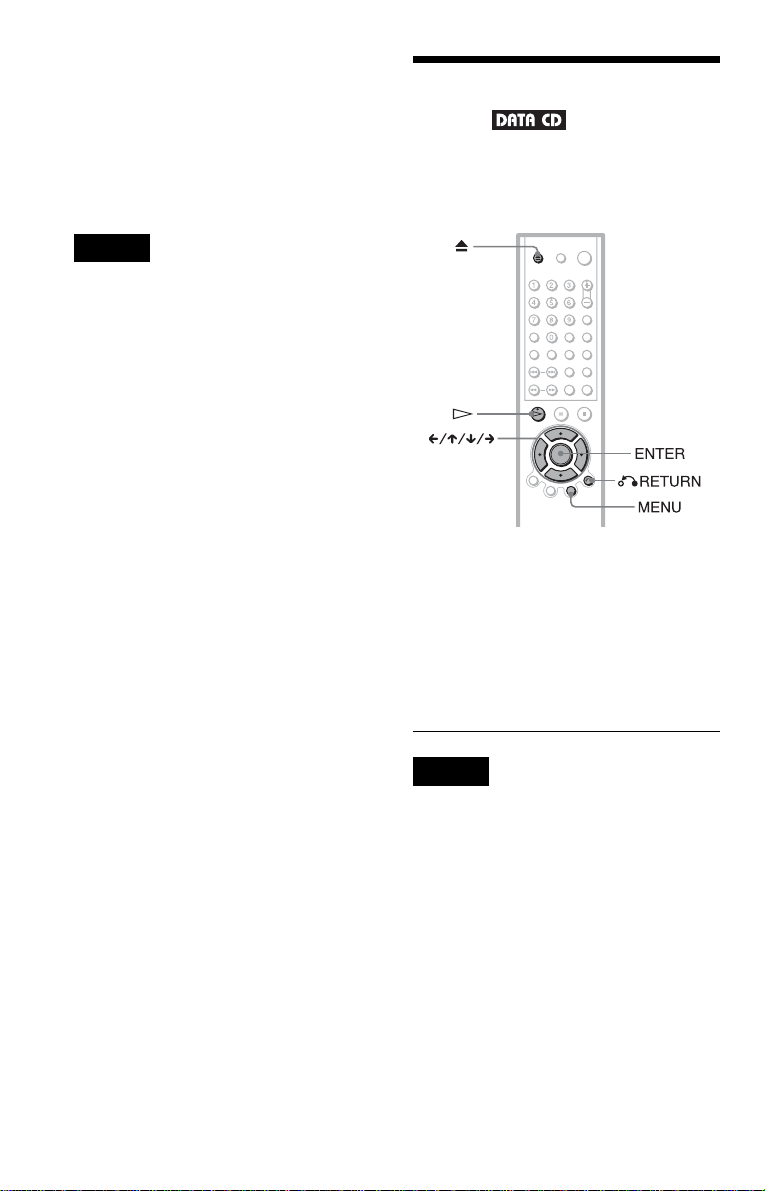

Playing an MP3 Audio Track

You can play back DATA CDs (CD-ROMs/
CD-Rs/CD-RWs) record ed in MP3 ( MPEG1
Audio Layer 3) format.

1 Press Z and place a DATA CD on

the disc tray.

2 Press H.

The disc tray closes, and the player starts
to play the first MP3 audio track in the
first album on the disc.

34

Notes

• The playback order ma y be dif fere nt f ro m the
edited order. See “The playback orde r of MP3
audio tracks” below for details.

• This player can play MP3 audio t racks recorded i n
the following sampling frequencies:
32 kHz, 44.1 kHz, 48 kHz.

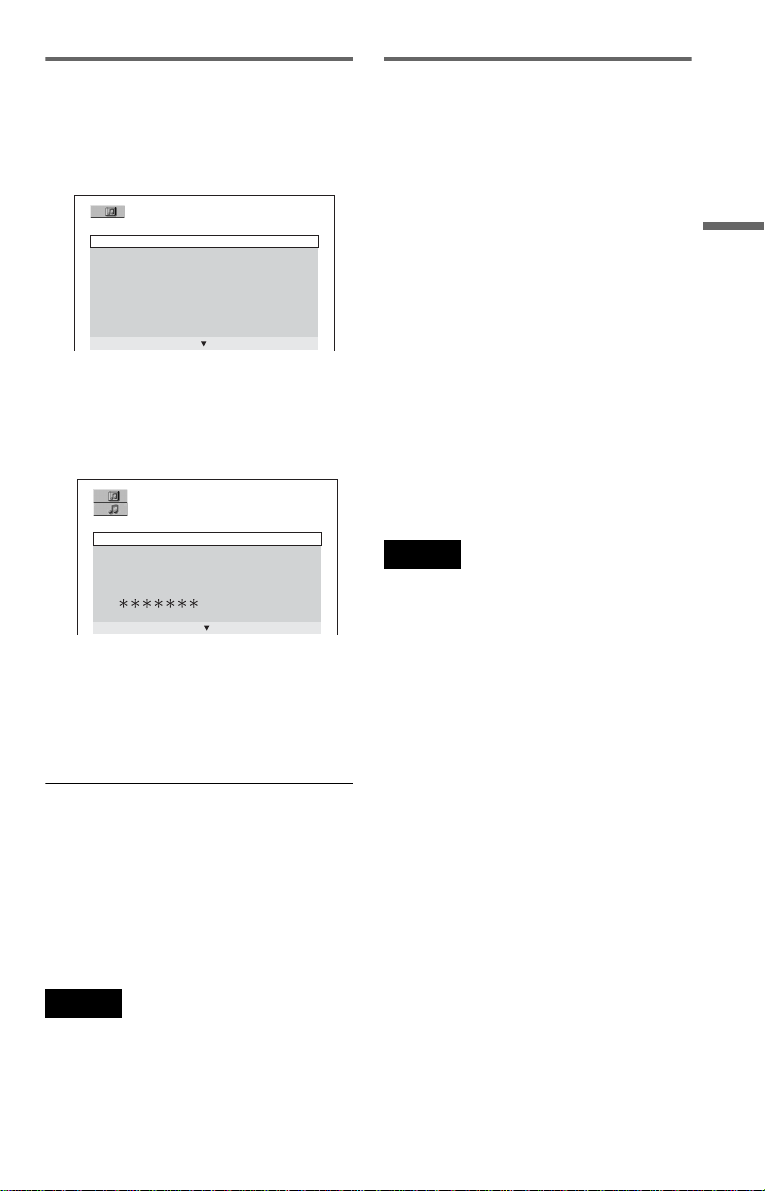

Selecting an album and track

1 Press MENU.

The list of MP3 albums recorded on the
DATA CD appears.

(

3 0

)

1

ROCK BEST HIT
KARAOKE
JAZZ
R&B
MY FAVORITE SONGS
CLASSICAL
SALSA OF CUBA
BOSSANOVA

2 Select an album using X/x and

press ENTER .

The list of tracks cont ai ned in the album
appears.

JAZZ
1 ( 90

01SHE IS SPECIAL
02ALL YOU NEED IS ...
03SPICY LIFE
04HAPPY HOUR
05RIVER SIDE
06

5

07TAKE TIME,TAKE TIME

)

3 Select a track using X/x and press

ENTER.

The selected trac k st arts playing.
When a track or album is being played, its
title is shaded.

About MP3 audio tracks

You can play MP3 au di o t ra cks on CD­ROMs, CD-Rs, or CD-RWs. However, the
discs must be reco rded acc ording to IS O9660
level 1, level 2, or Joliet format for the player
to recognize the tracks.
You can also play d is cs recorded in Multi
Session.
See the instructions of the CD-R/RW device
or recording software (not supplied) for
details on the recording format.

To play a Multi Session CD

This player can play Multi Session CDs when
an MP3 au dio track is located in the first
session. Any subs equent MP3 audio tra cks,
recorded in the later sessions, can also be
played back.
When audio tracks and images in music CD
format or Video CD format are recorded in
the first session, only the first sess ion will be
played back.

Notes

• If you put the extension “.MP3” to data not in
MP3 format, the p layer can not re cogni ze th e d ata
properly and will generate a loud noise which
could damage your speaker syste m.

• The player cannot play audio tracks in MP3PRO
format.

Playing Discs

To go to the next or previous page

Press c or C.

To return to the previous display

Press O RETURN.

To turn off the display

Press MENU.

Notes

• Only the letters in the alpha be t a nd numbers can
be used for album or track names. Anything else
is displayed as an aste ris k .

• ID3 tags cannot be displayed.

c continued

35

The playback order of MP3 audio tracks

The playback order of albums and tracks
recorded on a DATA CD is as follows.

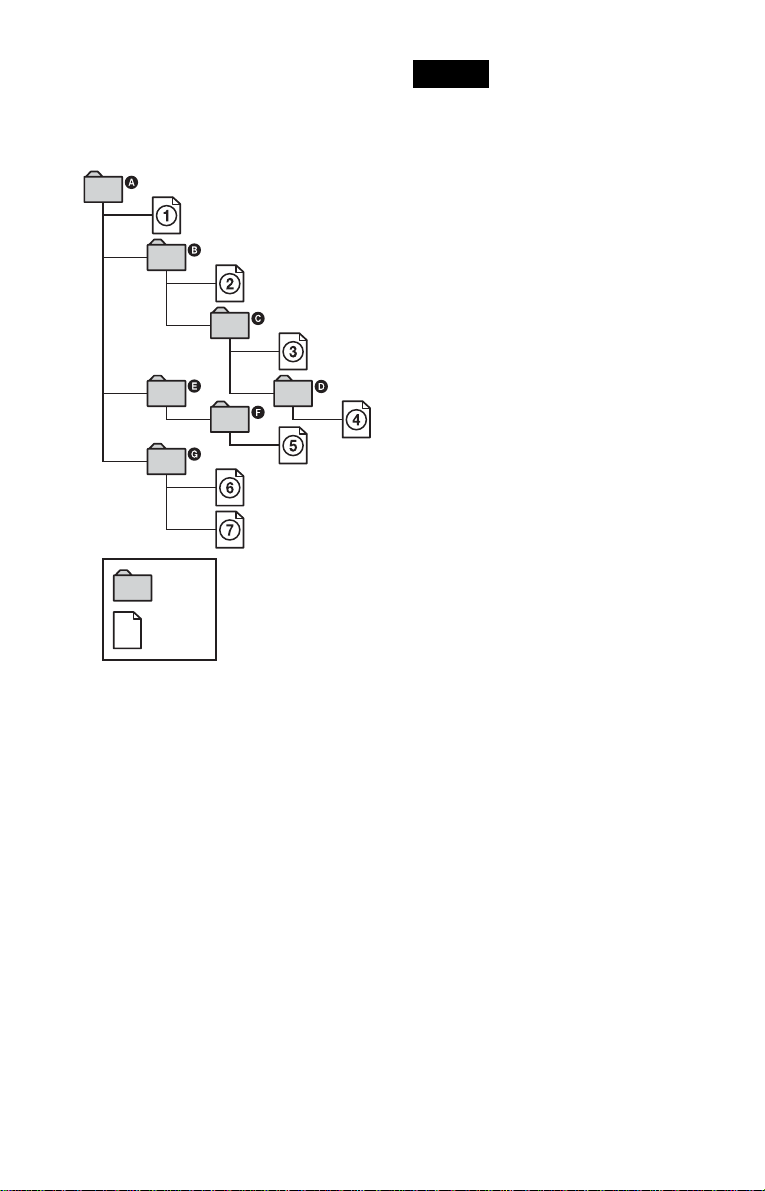

◆Structure of disc contents

Tree 1 Tree 2 Tree 3 Tree 4 Tree 5

ROOT

album

track

Notes

• Depending on the soft wa re you use to c reate the
DATA CD, the playback order may differ from
the illustration above.

• The playback order above may not be applicable
if there are more than a total of 200 albums and
tracks in the DATA CD .

• The player can recogniz e up to 100 a lbum s ( the
player will count just albums, including albums
that do not contain MP3 audio tracks). The player
will not play any albums beyond the first 100
albums. Of the first 100 albums, the playe r will
play no more than a combined total of 200 albums
and tracks.

When you insert a DATA CD and press H,
the numbered tracks are played sequentially,

1 through 7. Any sub-albums/tracks

from
contained withi n a currently selected album
take priority over the next alb u m in the same
tree. (Example: C contains D so
before

5.)

When you press ME N U and the list of MP3
albums appears (page 35), the albums are
arranged in the following order: A t B t
C t D t F t G. Albums that do not
contain tracks (suc h as album E) do not
appear in the list.

z Hints

• If you add numb ers ( 01, 02, 03, et c .) to the front
of the track names, the tracks will be playe d in
that order.

• Since a disc with many trees takes longer to start
playback, place your albums within the first two
trees.

36

4 is played

Various Play Mode
Functions (Program Play,

Shuffle Play, Re peat Play, A-B Repeat
Play)

You can set the following play modes:

• Program Play (page 37)

• Shuffle Play (p age 39)

• Repeat Play (page 40)

• A-B Repeat Play (page 41)

Note

The play mode is canceled when:
– you open the disc tray.
– the player enters standby mode by pressing [/1.

Selecting the disc mode (One
Disc or All Discs)

You can play one disc or all of the discs in the
player. Before se tt i ng Program Play, Shuffle
Play, or Repeat Play, you must select whether
to set those play mode on one disc or all of the
discs.

Disc mode

2 Press ENTER to select the disc mode.

(One Disc) or (All Discs) is

selected alternately.

Creating your own program
(Program Play)

You can play the co nt ents of a disc in the
order you want by ar ranging the order of the
titles, chapters, or tr ac k s o n th e disc to create
your own program.
You can program up to 99 items. By selecting
All Discs mode (page 37), you can create a
program for all of the discs in the player.

Number
buttons

Playing Discs

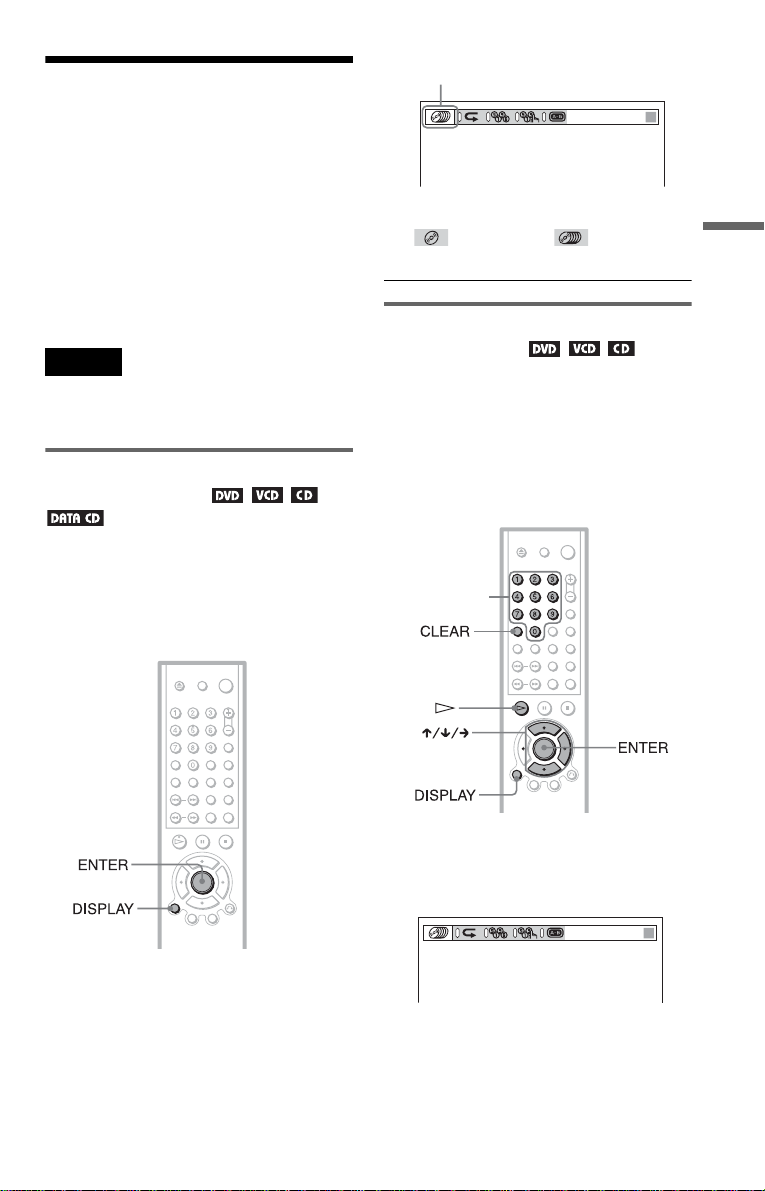

1 Press DISPLAY during playback (or

twice during stop mode).

The following Cont rol Bar appears.

1 Press DISPLAY twice while the player

is in stop mode.

The following Control Bar appears.

c continued

37

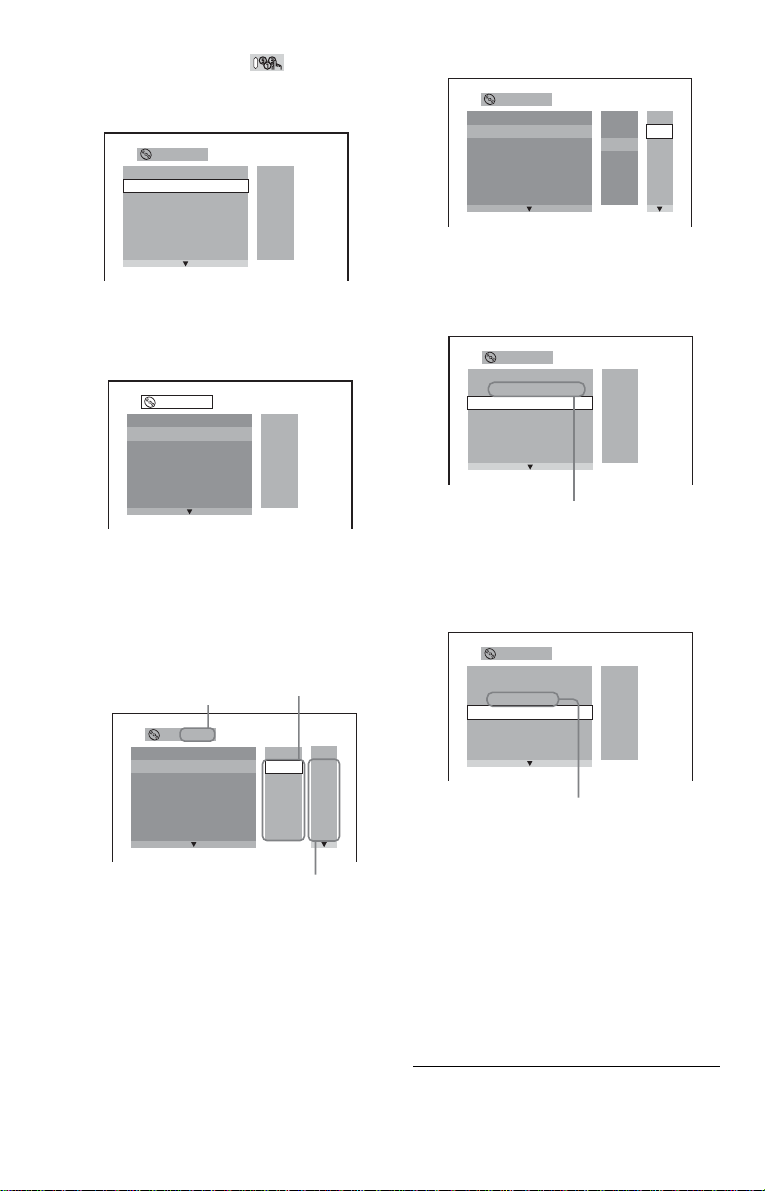

2 Press C/c to select

(PROGRAM), then press ENTER.

The display for programming appears.

PROGRAM

– : – – – –

ALL CLEAR

1. – – – – –

2. – – – – –

3. – – – – –

4. – – – – –

5. – – – – –

6. – – – – –

T
ALL

3 Press c.

The player is ready to program the first
disc.

PROGRAM

– : – – – –

ALL CLEAR

1. – – – – –

2. – – – – –

3. – – – – –

4. – – – – –

5. – – – – –

6. – – – – –

T
ALL

PROGRAM

3 : DVD

ALL CLEAR

1. – – – – –

2. – – – – –

3. – – – – –

4. – – – – –

5. – – – – –

6. – – – – –

T

ALL

01
02
03
04
05
06

ALL

01
02
03
04
05
06

C

Next, press X/x or the number buttons to
select “03” under “C,” then press
ENTER.

PROGRAM

– : – – – –

ALL CLEAR

1. 3DVD –T02–C03
– – – – –

2.
– – – – –

3.
– – – – –

4.
– – – – –

5.
– – – – –

6.

Selected disc, ti tl e and c hapter

T
ALL

4 Select the disc you want to program

using the number buttons or X/x, then
press ENTER.

The cursor moves to the title or track row
“T” (in this case, “01”).

Disc type

PROGRAM

3 : DVD

ALL CLEAR

1. – – – – –

2. – – – – –

3. – – – – –

4. – – – – –

5.

– – – – –

6. – – – – –

Chapters recorded on a disc

“?” appears when the p layer has not played
the disc.

Titles or tracks
recorded on a disc

C

T

ALL

ALL

01

01

02

02

03

03

04

04

05

05
06

06

5 Select the title, chapter, or track you

want to program.

◆ When playing a DVD

For example, select chapter “03” of tit le
“02.”
Press X/x or the number buttons to select
“02” under “T,” then press ENTER.

◆ When playin g a VI D EO CD or CD

For example, se l ect t rack “02.”
Press X/x or the number buttons to select
“02” under “T,” then press ENTER.

PROGRAM

– : – – – –

ALL CLEAR

1. 3DVD –T02–C03

2. 2VCD –T02
– – – – –

3.
– – – – –

4.
– – – – –

5.
– – – – –

6.

Selected disc and trac k

0:15:30

T
ALL

6 To program other discs, titles,

chapters, or tracks, repeat Steps 3 to

5.

The programmed discs, titles, chapters,
and tracks are displayed in the selected
order.

7 Press H to start Program Play.

Program Play begi ns .
When the program ends, you can restart
the same program again by pressing H.

38

To stop Program Play

TITLE

Press CLEAR.

To turn off the display

Press DISPLAY repeatedly until the display
is turned o ff.

To cancel or change a program

1 Follow Steps 1 and 2 of “C r eating your

own program (Program Play).”

2 Select the progra m number of the disc,

title, chapter, or track you want to cancel
or change using X/x or the number
buttons, and pres s c.

3 To cancel the program, press C then

CLEAR.
To change th e progra m, foll ow Ste p 4 for
new programming.

To cancel all the disc s, titles, chapter s, or
tracks in the program

1 Follow Steps 1 and 2 of “C r eating your

own program (Program Play).”

2 Press X and select “A LL CLEAR.”
3 Press ENTER.

z Hint

You can do Repeat Play or Shuffle Play of the
programmed titles, chapters, or tracks. During
Program Play, follow the s teps of “Repeat Play”
(page 40) or “Shuffle Play” (page 39).

Notes

• When playing Super VCDs, the total time of the
programmed tracks does not appear on the screen.

• You cannot use this f unc tion with DATA CDs.

Playing in random order (Shuffle
Play)

You can have the player “shuffle” titles,
chapters, or tracks. Subsequent “shuffli ng”
may produce a different playing order. By
selecting All Di scs mode (page 37), yo u can
shuffle all of the d is cs in the player.

1 Press DISPLAY during playback.

The following Control Bar appears.

2 Press C/c to select (SHUFFLE),

then press EN TER repe ated ly to sele ct
the item to be shuffled.

Playing Discs

◆ When playi ng a DVD

•DISC*

•TITLE

• CHAPTER

◆ When playing a VIDEO CD or CD

•DISC*

• TRACK

◆ When playi ng a DATA CD

•DISC*

c continued

39

◆ When Program Play is activated

CHAPTER

• ON: shuffles titles, chapters, or tracks

selected in Program Play.

* You can select “DISC” in All Discs mode only.

To return to normal play

Press CLEAR, or select “OFF” in Step 2.

To turn off the Control Bar

Press DISPLAY repeatedly until the Control
Bar is turned off.

z Hints

• You can set Shuffle Play while the player is
stopped. After selecting the “SHUFFLE” option,
press H. Shuffle Play starts.

• Up to 96 chapters in a disc can be played in
random order when “CHAPTER” is selected.

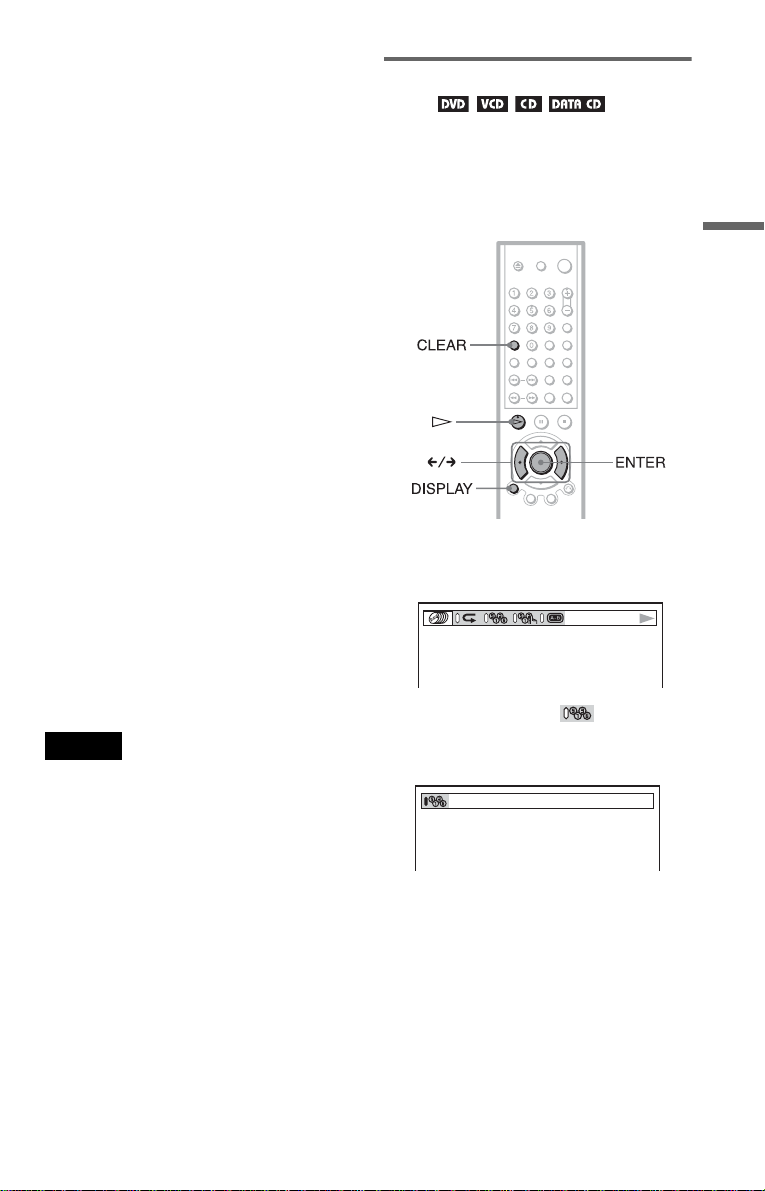

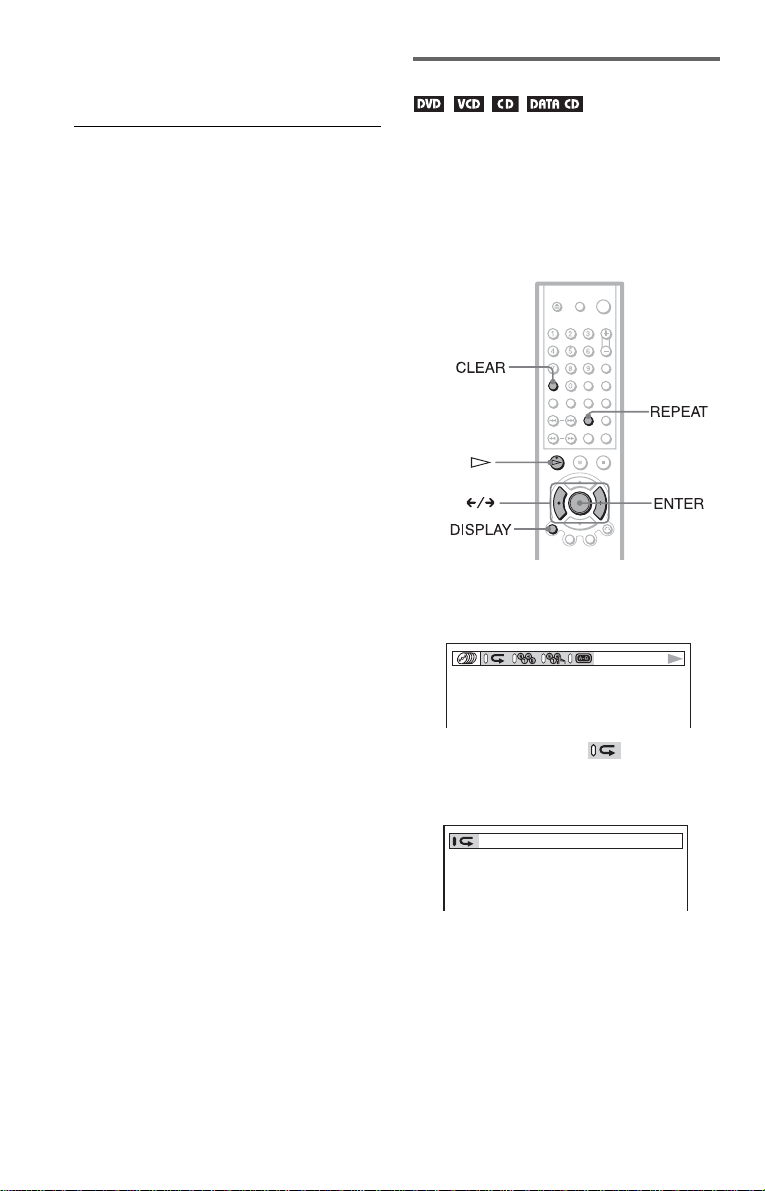

Playing repeatedly (Repeat Play)

You can play all of t he titles, a lbums or trac ks
on a disc or a single ti t le , chapter, album, or
track repeatedly.
You can use a comb in ation of Shuffle or
Program Play modes. By selecting All Discs
mode (page 37), you can repeat all of the
discs in the player .

1 Press DISPLAY during playback.

The following Control Bar appe ars.

40

2 Press C/c to select

(

REPEAT),
then press ENT ER repe atedly to sele ct
the item to be repeated.

◆ When playing a DVD

• DISC: repeats all of the titles on the

current disc in One Disc mode, or all of
the discs in All Discs mode.

• TITLE: repeats the current title on a

disc.

• CHAPTER: repeats the current

chapter.

◆ When playing a VIDEO CD or CD

A13 – 0:27:34 B

• DISC: repeats all of the tracks on the

current disc in One Disc mode, or all of
the discs in All Discs mode.

• TRACK: repeats the current track.

◆ When playing a DATA CD (MP3 audio)

• DISC: repeats all of the albums on the

current disc in One Disc mode, or all of
the discs in All Discs mode.

• ALBUM: repeats the current album.

• TRACK: repeats the current track.

◆ When Progr am P lay or Sh u ffl e P la y is
activated

• ON: repeats Progra m Pl ay or Shuffle

Play.

To return to normal play

Press CLEAR, or select “O FF” in Step 2.

To turn off the Control Bar

Press DISPLAY repeatedly until the Control
Bar is turned off.

z Hints

• You can set Repeat Play while the player is
stopped. After selecting the “REPEAT” option,
press H. Repeat Play starts.

• You can select “REPEAT” directly by pr ess ing
REPEAT.

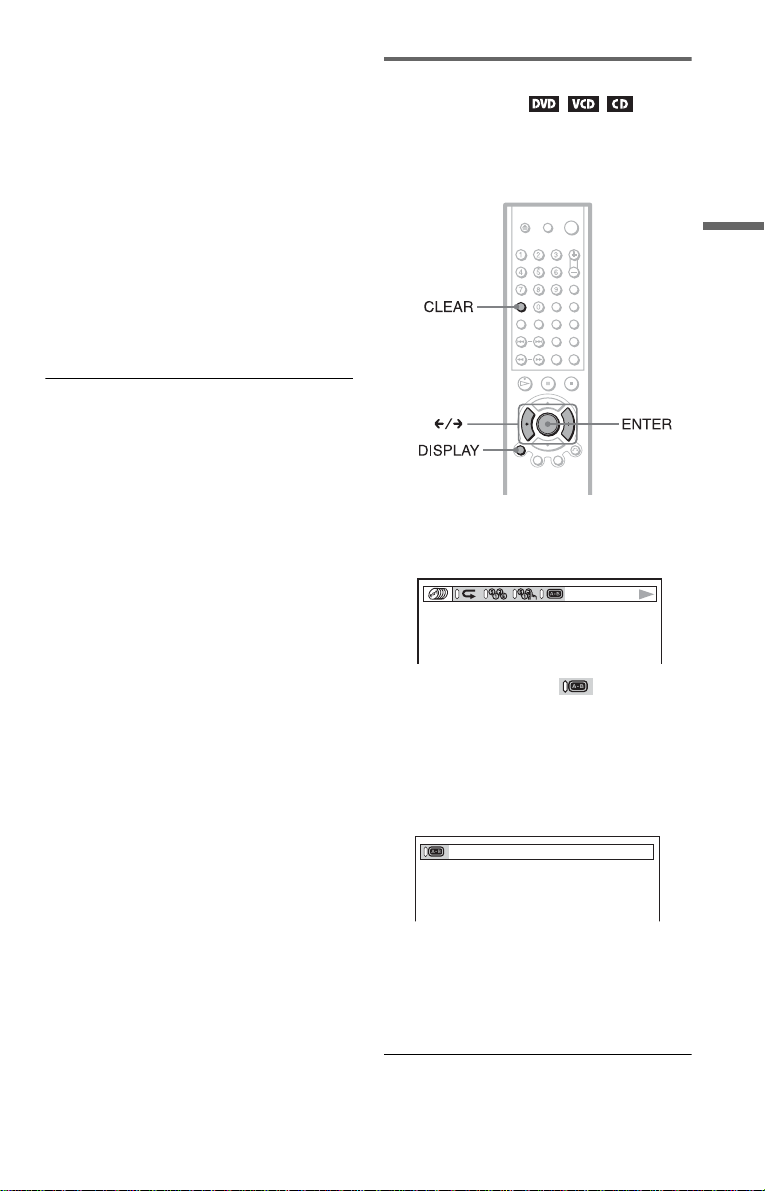

Repeating a specific portion (A­B Repeat Play)

You can play a specific portion of a title,
chapter or track repeatedly. (This function is
useful when you want t o memorize lyrics, et c.)

Playing Discs

1 Press DISPLAY during playback.

The following Control Bar appears.

2 Press C/c to select (A-B

REPEAT).

3 During playback, when you find the

starting point (poin t A) of the portion to
be played repeat edly, press ENTER.

The starting point (point A) is set.

4 When you reach the ending point

(point B), press ENTER again.

The set points are di splayed and the
player starts repeating this specific
portion.

c continued

41

To return to normal play

Press CLEAR.

To turn off the Control Bar

Press DISPLAY repeatedly until the Control
Bar is turned off.

Note

When you set A-B Repeat Play, the sett ings for
Shuffle Play, Repeat Play, and Pro g r am Pl ay are
canceled.

42

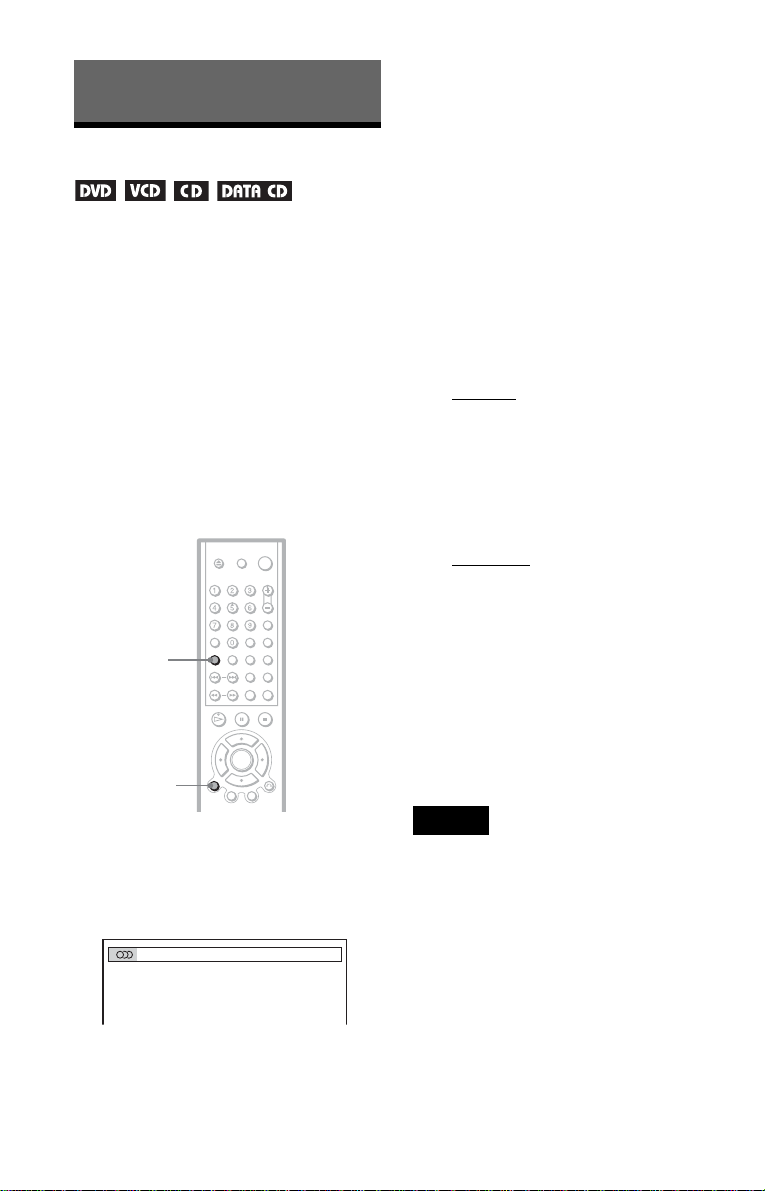

Searching for a Scene

– – (10)

Searching for a Title/ Chapter/Track/Index/ Scene (Search mode)

You can search a DVD by title or chapte r, and
you can search a VID EO CD/CD by track,
index, or scene. As ti tles and tracks are
assigned unique numbers on the disc, you can
select the de sire d one by e nteri ng its number .
Or, you can search for a scene using the time
code.

Number
buttons

(TIME/TEXT)
Select “TIME/TEXT” to search for a
starting point by inputting the time code.

◆ When playi ng a VIDEO CD

(TRACK) or
(INDEX)

◆ When playing a VIDEO CD with PBC
Playback

(SCENE) or

(INDEX)

◆ When playi n g a CD

(TRACK) or
(INDEX)

◆ When playing a DATA CD (MP3 audio)

(ALBUM) o r
(TRACK)

3 Select the number of the title,

track, scene, time code, etc. you
want using the number buttons.

For example, to find the scene at 2 hours,
10 minutes, and 20 seconds after the
beginning, select “TIME/TEX T ” in Step
2 and enter “2:10: 2 0.”

If you make a mistake

Cancel the numbe r by pressing CLEAR,
then select another number.

Searching for a Scene

1 P r es s SEARCH MODE.

The following dis pl ay a ppears.
“--

)” appears next to the icon (**

(**

refers to a nu m b er).
The number in parent heses indicates the
total number of titles, tracks,
indexes, scenes , et c. of the disc.

2 Press SEARCH MODE repeatedly

to select the search method.

◆ When playing a DVD

(TITLE),
(CHAPTER),

4 Press ENTER.

The player starts playback from the
selected number.

z Hint

When the display is turned of f, you can searc h for a
chapter (DVD) or track (CD) by pre ssing the
number buttons and ENTER.

43

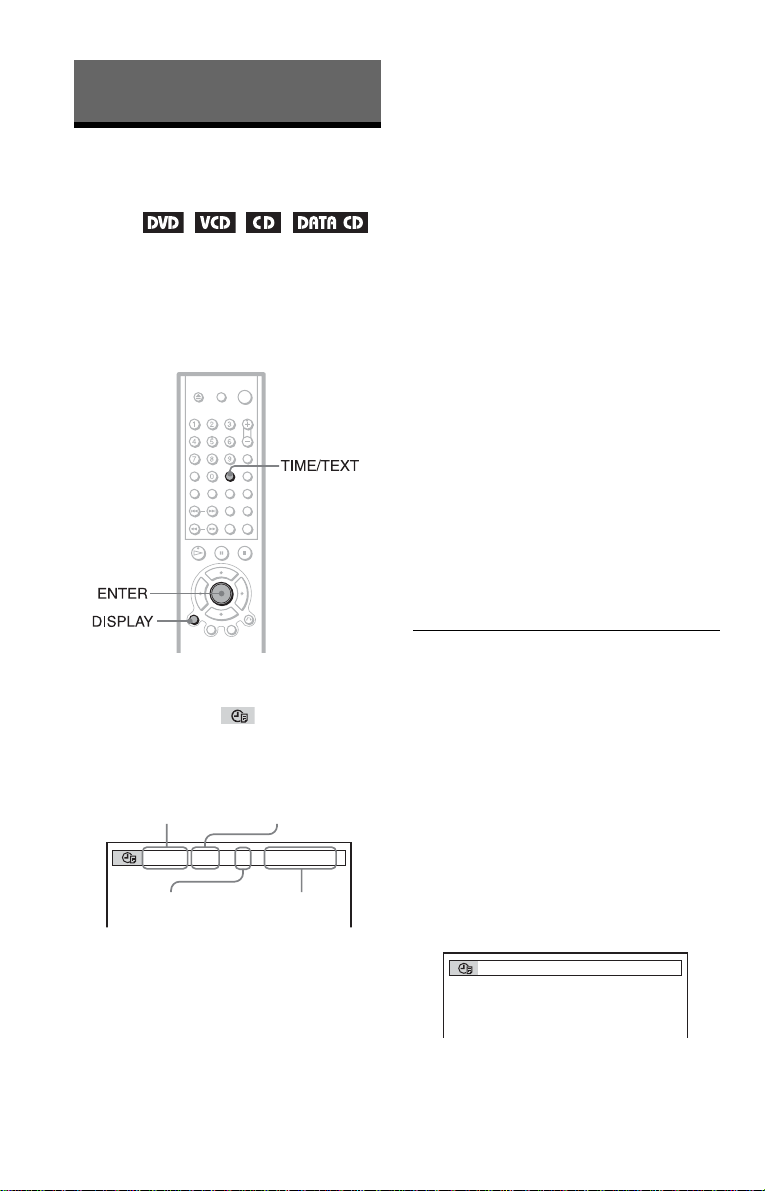

Viewing Information About the

r

BRAHMS SYMPHONY

Disc

Checking the Playing Time and Remaining Time

You can check the pl aying time and
remaining time of the curr ent title, c hapter, or
track. Also, you can check the DVD/CD text
or track name (MP3 audio) recorded o n th e
disc.

•T–

**:**:**

Remaining time of the current title

•C

**:**:**

Playing time of the current chapter

•C–

**:**:**

Remaining time of the curren t chapte r

◆ When playin g a VI D EO CD (with PBC
functions)

•

**:**

Playing time of the current scene

◆ When playin g a VI D EO CD (without
PBC functions) or CD

•T

**:**

Playing time of the current track

•T–

**:**

Remaining time of the current track

•D

**:**

Playing time of the current disc

•D–**:

**

Remaining time of the current disc

◆ When playing a DATA CD (MP3 audio)

•

****:**

Playing time of the current track

◆ When playing a Super VCD (For Asian/
Oceanian model s only)

•

T **:**

Playing time of the current track

1 Press DISPLAY repeatedly during

playback until (TIME/TEXT)
appears.

Disc number
and type

3:DVD T 1:01:57

Chapter, index, or
track (DATA CD)

Title, track (CD/
VIDEO CD), scene, o
album number

T41 – 8

Time
information

2 P ress ENTER repeatedly to change

the time information.

The display and the kinds of time that you
can change depend on t he disc you are
playing.

◆ When playing a DVD

•T

44

**:**:**

Playing time of the current title

To turn off the Control Bar

Press DISPLAY repeatedly until the Control
Bar is turned off.

To check the DVD/CD text or track name
(MP3 audio)

Press ENTER repeatedly in Step 2 to display
text recorded on the DVD/CD/DATA CD.
The DVD/CD text appears only when text is
recorded in the dis c. Y ou cannot change the
text. If the disc does not contain text, “NO
TEXT” appears.
For DATA CDs, only the track name of the
MP3 audio track a ppears.

Checking the information on the
front panel display

You can view the t ime information and text
displayed on the TV screen also on the front
panel display. The in formation on the fr ont
panel display cha nges as follows when you
change the time information on your TV
screen.

When playing a DVD

Title playing time and current disc, title
and chapter number

When playing a VIDEO CD (without PBC
functions) or CD

Track playing time and current
disc, track and index number

Remaining time of
the current track

Playing time of the disc

Viewing Information About the Disc

Remaining time of the current ti tle

Playing time and
number of the current chapter

Remaining time of
the current chapter

Text

Remaining time of the disc

Text

When playing a DATA CD (MP3 audi o)

Track playing time and number of the
current disc, album and track

Track name

z Hints

• When playing VI DEO CDs with PBC functions,
the disc number, scene number and the pla yi ng
time are displayed.

• Long text that does not fit in a single line will
scroll across th e f r ont panel display.

• You can also check the time informatio n an d text
by pressing TIME/TEXT repeatedly.

Notes

• Depending on the type of disc being played, th e
DVD/CD text or track name may not be
displayed.

• The player can only display the first level of the
DVD/CD text, such as the disc name or title.

• Playing time of MP3 audio tracks may not be
displayed correctly.

45

Sound Adjustments

1(4

):

Changing the Sound

When playing a DVD recorded in multiple
audio formats (PCM, Dolby Digital, MPEG
audio, or DTS), you c an change the audio
format. If the DVD is recorded with
multilingual tracks, you can also change the
language.
With CDs, DATA CDs, or VIDEO CDs, you
can select the soun d from the right or lef t
channel and listen to the sound of the selected
channel through both the right and left
speakers. For ex ample, when playin g a di sc
containing a song with the vocals on the right
channel and the ins tr uments on the left
channel, you can hear the instruments from
both speakers by selecting the left channel.

AUDIO

DISPLAY

2 Press AUDIO repeatedly to select

the desired audio signal.

◆ When playing a DVD

Depending on the DVD, the choice of
language varies.
When 4 digits ar e di splayed, they
indicate a language code. Refer to
“Language Code List ” on page 74 to see
which language the code represents.
When the same language is displayed two
or more times, the DVD is recorded in
multiple audio formats.

◆ When playing a VI D EO CD, CD, or
DATA CD (MP3 audio)

The default setting is underlined.

•STEREO

• 1/L: The sound of the left channel
(monaural)

• 2/R: The sound of the right channel
(monaural)

◆ When playing a Super VCD (For Asian/

Oceanian model s only)

The default setting is underlined.

•1:STEREO
audio track 1

• 1:1/L: The sound of the left channel of
the audio track 1 (monaural)

• 1:2/R: The sound of the right channel of
the audio track 1 (monaural)

• 2:STEREO: The stereo sound of the
audio track 2

• 2:1/L: The sound of the left channel of
the audio track 2 (monaural)

• 2:2/R: The sound of the right channel of
the audio track 2 (monaural)

: The standard stereo sound

: The stereo sound of the

1 Press AUDI O dur in g playba ck.

The following display appears.
The number in parentheses indicates the
total number of ava ilable audio signals.

ENGLISH

46

Note

While playing a Super VCD on which the audio
track 2 is not recorded, no sound will com e out
when you select “2:STEREO,” “2 :1 / L ” or “2 :2 / R.”

Checking the audio signal

3 / 2 .1

format

If you press DISPLAY repeatedly during
playback, the form at of the current audio
signal (Dolby Digital, MPEG audio, D TS,
PCM, etc.) appears as s hown below.

Example:

Dolby Digital 5.1 ch

Rear (L/R)

DOLBY DIGITAL

Front (L/R)
+ Center

About audio signa ls

Audio signal s recorded in a disc contain t he
sound elements ( channels) shown below.
Each channel is outp ut from a separate
speaker.

• Front (L)

• Front (R)

•Center

• Rear (L)

• Rear (R)

• Rear (Monaura l) : T hi s signal can be either
the Dolby Surround Sound processed
signals or the Dolby Digital sound’s
monaural rear audio signals.

• LFE (Low Frequency Effect) signal

LFE (Low Frequency
Effect)

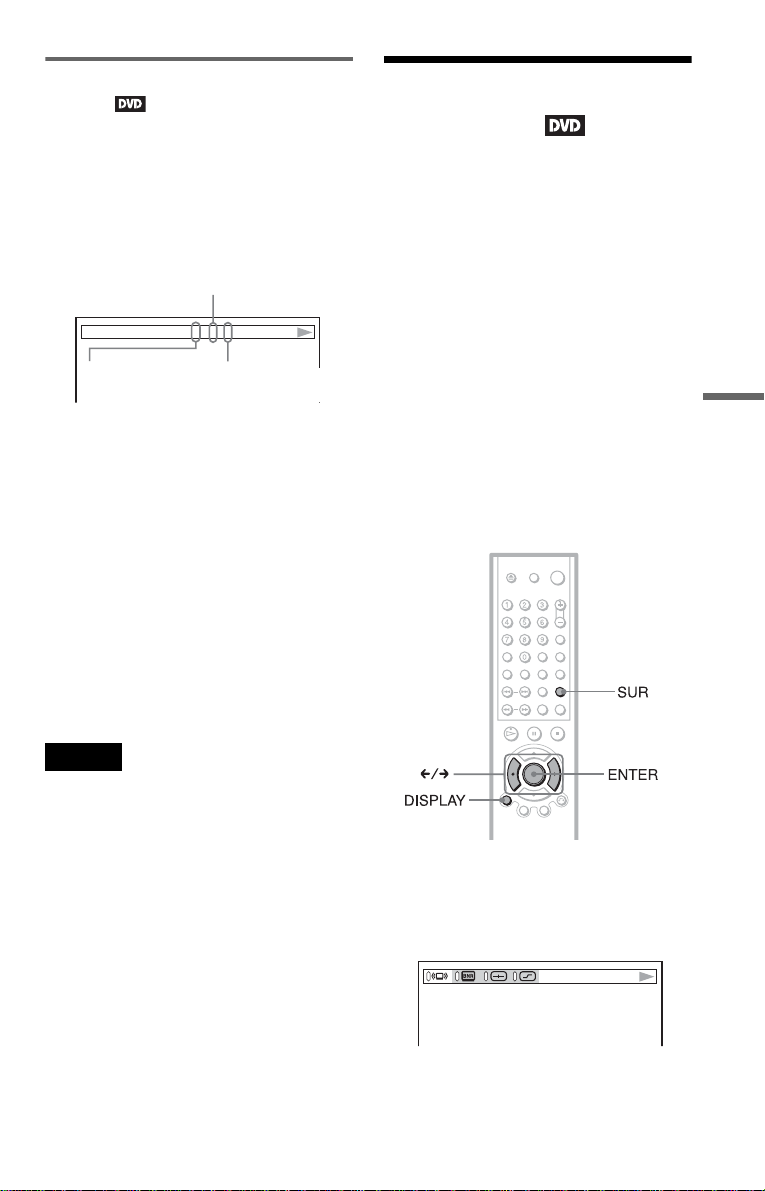

TV Virtual Surrou nd Settings (TVS)

When you connect a stereo TV or 2 front
speakers, TVS ( T V V i rt ual Surround) lets
you enjoy surro und sound effects b y using
sound imaging to create virtual rear speakers
from the sound of the front speakers (L: left,
R: right) without using actual rear speakers.
TVS was developed by Sony to produce
surround sound for home use usin g just a
stereo TV.
This function is designed to work with the
LINE OUT L/R (AUDIO) jacks.
Note tha t if you select one of th e TVS
settings, the playe r do es not output the
following signals from the DIGITAL OUT
(COAXIAL) jack.
—Dolby Digital si gnals when you set

“DOLBY DIGITAL” in “AUDIO SETUP”
to “D-PCM” (page 66)

—MPEG audio signals

Sound Adjustments

Note

If “DTS” is set to “OFF” in “AUDIO SETUP,” the
DTS track selection option will not appear on the
screen even if the disc contains DTS tracks (

67

).

page

1 Press DISPLAY twice during

playback.

The following Control Bar appears.

c continued

47

2 Press C/c to select

TVS DYNAMIC

(SURROUND), then press ENTER
repeatedly to select o ne of the TVS
sounds.

Refer to the following explanations given
for each item.

• TVS DYNAMIC

•TVS WIDE

• TVS NIGHT

• TVS STANDARD

To cancel the setti ng

Select “OFF” in Step 2.

To turn off the Control Bar

Press DISPLAY repeatedly until the Control
Bar is turned off.

◆TVS DYNAMIC

Creates virtual rear speakers from the sound
of the front speakers (L, R) without using
actual rear speakers (shown bel ow ).
This mode is effect iv e w hen the distance
between the front L and R speakers is short,
such as with built-in speakers on a stereo TV.

TV

◆TVS NIGHT

Large sounds, suc h as explosions, are
suppressed, but the quieter sounds are
unaffected. This feature is useful when you
want to hear the dial og and enjoy the
surround sound effects of “TVS WIDE” at
low volume.

◆TVS STANDARD

Creates virtual rear speakers fr om the sound
of the front speakers (L, R) without using
actual rear speakers. The virtual speakers are
reproduced as shown in the illustration
below. Use this setting when you want to use
TVS with 2 separate speakers.

L R

◆TVS WIDE

Creates virtual rear speakers from the sound
of the front speakers (L, R) without using
actual rear speakers. The virtual speakers are
reproduced as shown in the illustration
below.
This mode is effect iv e w hen the distance
between the front L and R speakers is short,
such as with built-in speakers on a stereo TV.

48

TV

L : Front speaker (le ft )
R : Front speaker (right)

: Virtual speaker

z Hint

You can also change the setting by pres si n g SUR
(or SURROUND on the player) repeatedly.

Notes

• When the playing signal does not contain a signal
for the rear speakers, the surround effects will be
difficult to hear.

• When you select one of the TVS modes, turn off
the surround setting of the connected TV or
amplifier (receiver).

• Make sure that your listening position is between
and at an equal distance from your speakers, and
that the speakers are located in similar
surroundings.

• “TVS NIGHT” only works with Dolby Digital
and MPEG audio discs. However, not all dis cs
will respond to the “TVS NIGHT” function in the
same way.

• If you use the DIGITAL OUT (COAXIAL) jack
and set “DOLBY DIGITAL” to “DOLBY
DIGITAL” or “DTS” to “ON” in “AUDIO
SETUP,” sound will come from your speakers but
it will not have the TV S effect.

Sound Adjustments

49

Enjoying Movies

2(7

)

1(8):ENGLISH

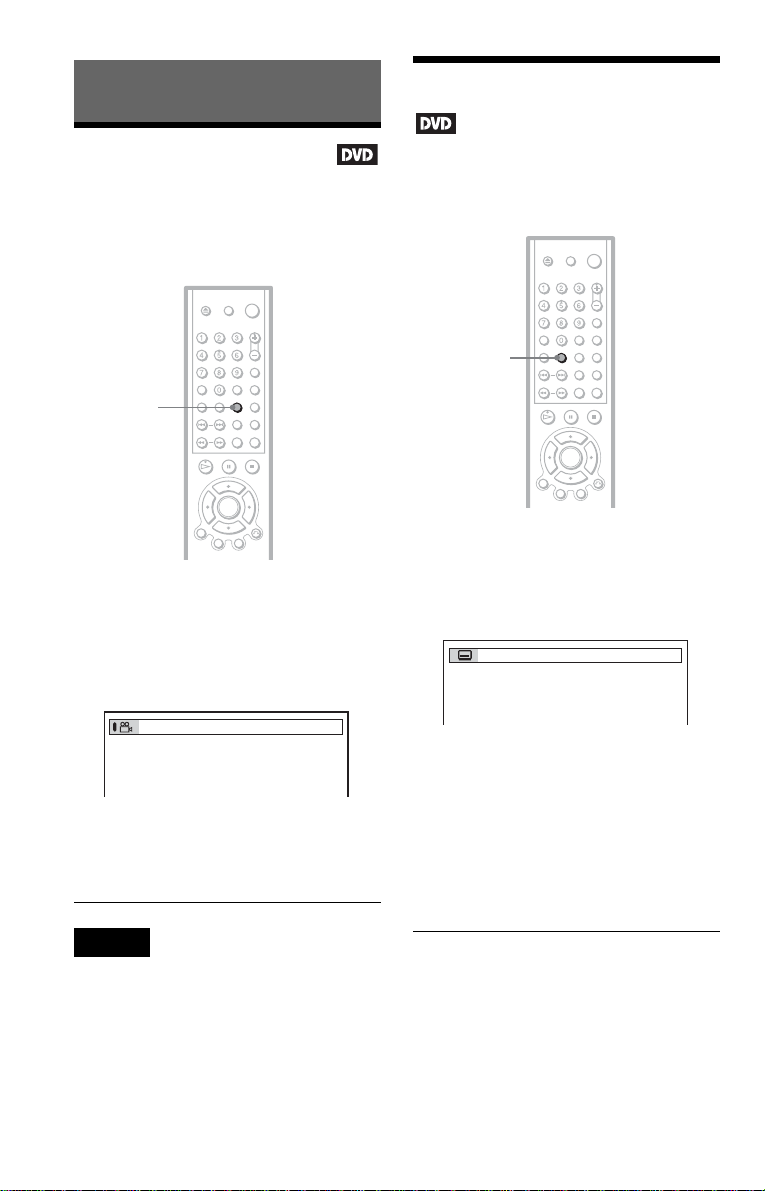

Displaying the Subtitles

Changing the Angles

If various angl es (multi-angle s) for a scene
are recorded on the DVD, “ANGLE” appears
in the front panel disp lay. This means that you
can change the view i ng angle.

ANGLE

1 Press ANGLE during playback.

The number of the an gl e appears on the
display.
The number in parentheses indicates the
total number of angle s.

If subtitles ar e r ecor de d on th e di sc s, y ou c an
change the subti tl es or turn them on and o ff
whenever you want while playing a DVD.

SUBTITLE

1 Press SUBTITLE during playback.

The following display appears.
The number in pare ntheses indicates the
total number of available subtitles.

2 P ress ANGL E repe at ed ly to select

the angle number.

The scene changes to the selected angle.

Note

Depending on the DVD, you may not be able to
change the angles even if mult i-angles are recorded
on the DVD.

50

2 Press SUBTITLE repeatedly to

select the language.

Depending on the DVD, the choice of
language varies.
When 4 digits ar e di splayed, they
indicate a language code. Refer to
“Language Code List ” on page 74 to see
which language the code represents.

To turn off the subtitles

1

Select “OFF” in Step 2.

Adjusting th e Pi ct ure

Note

Depending on the DVD, you may not be able to
change the subtitles eve n if m ultilingual subtitles
are recorded on it. You also may not be able to turn
them off.

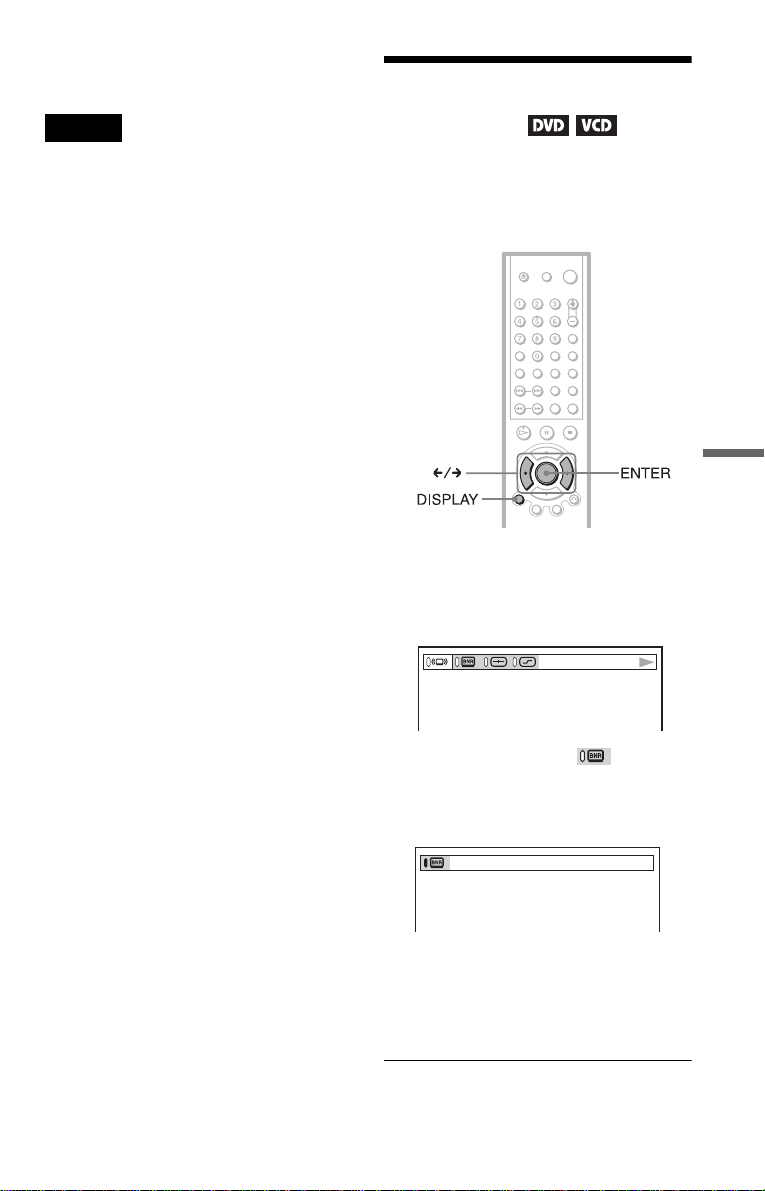

Quality (BNR)

The Block Noise Reduc t io n (BNR) function
adjusts the picture quality by reducing the
“block noise” or mosaic like patterns that
appear on your TV sc reen.

Enjoying Movies

1 Press DISPLAY twice during

playback.

The following Control Bar appears.

2 Press C/c to select (BNR),

then press ENTER repeatedly to
select a level.

• 1: reduces the “block noise.”

• 2: reduces the “block noise” more than

1.

• 3: reduces the “block noise” more than

2.

c continued

51

To cancel the “BNR” sett ing

DYNAMIC 1

Select “OFF” in Step 2.

To turn off the Control Bar

Press DISPLAY repeatedly until the Control
Bar is turned off.

Adjusting th e Pl ay back Picture (CUSTOM PICTURE MODE)

Notes

• If the outlines of the images on your screen should
become blurred, set “BNR” to “OFF.”

• Depending on the disc or the scene being played,
the “BNR” effect may be hard to discern.

You can adjust the video signal of the DVD or
VIDEO CD from the player to obtain the
picture quality y ou w a nt. Choose the setting
that best suits the program you are watching.

1 Press DISPLAY twice during

playback.

The following Control Bar appe ars.

52

2 Press C/c to select (CUSTOM

PICTURE MODE), then press
ENTER repeatedly to select the
setting you want.

The default setting is underlined.

• STANDARD:
picture.

• DYNAMIC 1: produces a bold
dynamic picture by increasing the
picture contrast and t he color intensity.

displays a standard

• DYNAMIC 2: prod uces a more

1

dynamic picture than DYNAMIC 1 by
further increasi ng the picture contrast
and the color intensity.

• CINEMA 1 : enhances details in dark
areas by increasi ng the black level.

• CINEMA 2 : White colors become
brighter and black c o l or s become
richer, and the co lo r contrast is
increased.

To turn off the Control Bar

Press DISPLAY repeatedly until the Control
Bar is turned off.

z Hints

• When you watch a movie, “CIN EMA 1” or
“CINEMA 2” is recommended.

• You can also select the “CUSTOM PICTURE
MODE” setting by pressing PICTURE MODE
repeatedly.

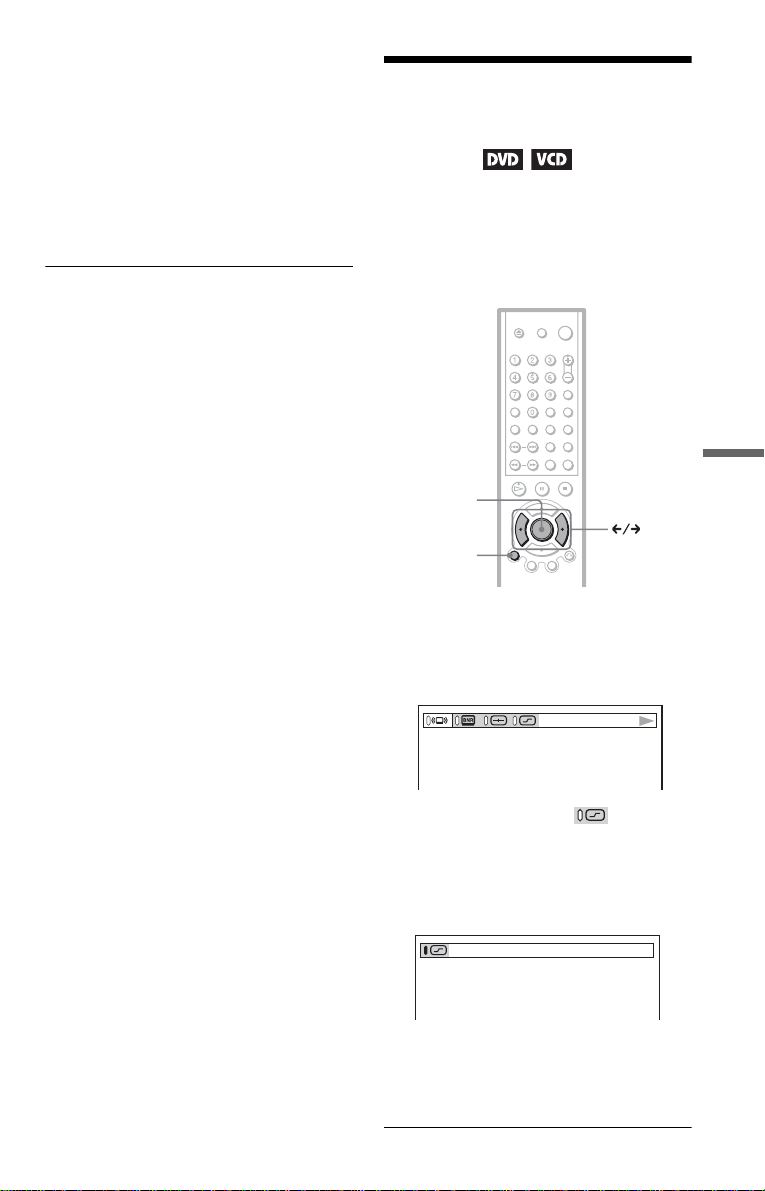

Enhancing the Playback
Picture (DIGITAL VIDEO

ENHANCER)

The Digital Video Enhancer (DVE) function
makes the picture appear clear and crisp by
enhancing the outlines of images on your TV
screen. Also, this function can soften the
images on the screen.

Enjoying Movies

ENTER

DISPLAY

1 Press DISPLAY twice during

playback.

The following Control Bar appears.

2 Press C/c to select (DIGITAL

VIDEO ENHANCER), then press
ENTER repeatedly to select a
level.

• 1: enhances the outline.

• 2: enhances the outl i ne more than 1.

• 3: enhances the outl i ne more than 2.

• SOFT: softens the image (DVD only).

c continued

53

To cancel the “DIGITAL VIDEO
ENHANCER” setting

Select “OFF” in Step 2.

To turn off the Control Bar

Press DISPLAY repeatedly until the Control
Bar is turned off.

Note

Depending on the disc or the scene being played,
noise found in the disc may become more apparent.
If this happens, it is recommended that you use the
BNR function (page 51) with the DVE functi on. If
the condition still does not impr ove , reduc e the
Digital Video Enhancer level, or select “SOFT”
(DVD only) in Step 2 above.

54

Using Various Additional

Q

K

ON

D

OFF

Functions

Locking Discs (CUSTOM

PARENTAL CONTROL, PARENTAL

UIC

CONTROL)

You can set two kinds of playback restrictions
for the desired disc.

• Custom Parental Cont rol
You can set playback restrictions so that the
player will not play in appropriate discs.

• Parental Control
Playback of some DVDs can be limited
according to a predetermined level s uch as
the age of the use rs. Sc enes may be blocke d
or replaced with different scenes.

The same password is used for both Parental
Control and Custom Pa rental Control.

Custom Parental Control

You can set the sam e Custom Parental
Control password for up to 40 discs. When
you set the 41st-d isc, the fir st disc is canceled.

Number
buttons

1 Insert the disc you want to lock.

If the disc is playin g, press x to stop
playback.

2 Press DISPLAY while the player is in

stop mode.

The following Cont rol Bar appears.

3 Press X/x to select (PARENTAL

CONTROL), then press ENTER.

The options for “PARENTAL
CONTROL” ap pear.

PASSWOR

4 Press X/x to select “ON t,” then

press ENTER.

◆ If you have not entered a pa ssword

The display for registering a new
password appears.

PARENTAL CONTROL

Enter a new 4-digit password, then

ENTER

press

.

Enter a 4-digit password using the
number buttons, then press ENTER.
The display for confirming the password
appears.

◆ When you have already registered a
password

The display for entering the password
appears.

PARENTAL CONTROL

Enter password, then press

ENTER

.

Using Various Additiona l Fun ctions

c continued

55

5 Enter or re-enter your 4-digit password

Q

K

ON

D

OFF

using the number buttons, then press
ENTER.

“Custom parental cont rol is s et.” a ppear s
when you enter your password.

To turn off the Custom Parental Control
function

1 Follow Steps 1 thro ugh 3 of “Custom

Parental Control.”

2 Press X/x to select “OFF t,” then press

ENTER.

3 Enter your 4-digit password using the

number buttons, then press ENTER.

To play a disc for which Custom Parental
Control is set

1 Insert the dis c for which Cus tom Parenta l

Control is set.
The “CUSTOM PARENTAL
CONTROL” display appears.

CUSTOM PARENTAL CONTROL

Custom parental control is already
set. To play, enter your password

ENTER

and press

.

Parental Control (limited
playback)

Playback of some DVDs can be limited
according to a predeter mined leve l such as t he
age of the users. The “PARENTAL
CONTROL” function allows you to set a
playback limitation level.

Number
buttons

1 Press DISPLAY whil e the player is in

stop mode.

The following Control Bar appe ars.

UIC

2 Enter your 4-digit password using the

number buttons, then press ENTER.
The player is ready for pl ayback.

z Hint

If you forget your password, enter the 6-digit
number “199703” using the number buttons when
the “CUSTOM PARENTAL CONTROL” display
asks you for your password, then press ENTER.
The display will ask you to enter a new 4-digit
password.

56

2 Press X/x to select (PARENTAL

CONTROL), then press ENTER.

The options for “PARENTAL
CONTROL” appear.

PASSWOR

3 Press X/x to select “PLAYER t,”

then press ENTER.

◆ If you have not entered a password

The display for registering a new
password appears.

PARENTAL CONTROL

Enter a new 4-digit password, then

ENTER

press

.

Enter a 4-digit pass word using the
number buttons, then pr ess ENTER.
The display for confirming the password
appears.

◆ When you have already registered a
password

The display for entering the password
appears.

PARENTAL CONTROL

Enter password, then press

ENTER

.

PARENTAL CONTROL

LEVEL: OFF
STANDARD:

USA
USA

OTHERS

6 Press X/x to select a geographic area

as the playback limitation level, then
press ENTER.

The area is sele ct ed.
When you select “OTHERS t,” select
and enter a standard code in the table on
page 58.

7 Press X/x to select “LEVEL,” then

press ENTER.

The selection items for “LEVEL” are
displayed.

PARENTAL CONTROL

LEVEL: OFF
STANDARD:

OFF

8:

NC17

7:
6:
5:

R

Using Various Additiona l Fun ctions

4 Enter or re-enter your 4-digit password

using the number buttons, then press
ENTER.

The display for sett in g t he playback
limitation level appears.

PARENTAL CONTROL

LEVEL: OFF
STANDARD:

USA

5 Press X/x to select “STANDARD,”

then press ENTER.

The selection items for “STANDARD”
are displayed.

8 Select the level you want using X/x,

then press ENTER .

Parental Control setting is complete.

PARENTAL CONTROL

LEVEL:
STANDARD: USA

The lower the value, the stricter the
limitation.

To turn off the Parental Control function

Set “LEVEL” to “OFF” in Step 8.

4: PG13

c continued

57

To play a disc for which Parental Control is
set

1 Insert the disc and press H.

The display for enter i ng your password
appears.

2 Enter your 4-digit password using the

number buttons, then press ENTER.
The player starts pl ayback.

z Hint

If you forget your password, remove the dis c and
repeat Steps 1 to 3 of “Parental Control (limited
playback).” When you are asked to ente r your
password, enter “199703” using the number
buttons, then press ENTER. The display will a sk
you to enter a new 4-digit password. After you enter
a new 4-digit password in Step 4, replace the disc in
the player and press H. When the display for
entering your password appears, enter you r new
password.

Note

When you play DVDs which do not have the
Parental Control function, playback cannot be
limited on this player.

Area Code

Standard Code

number

Argentina 2044
Australia 2047
Austria 2046
Belgium 2057
Brazil 2070
Canada 2079
Chile 2090
China 2092
Denmark 2115
Finland 2165
France 2174
Germany 2109
India 2248
Indonesia 2238
Italy 2254
Japan 2276

Standard Code

Korea 2304
Malaysia 2363
Mexico 2362
Netherlands 2376
New Zealand 2390
Norway 2379
Pakistan 2427
Philippines 2424
Portugal 2436
Russia 2489
Singapore 2501
Spain 2149
Sweden 2499
Switzerland 2086
Thailand 2528
United

Kingdom

number

2184

Changing the password

1 Press DISPLAY whil e the player is in

stop mode.

The Control Bar appears.

2 Press X/x to select (PARENTAL

CONTROL), then press ENTER.

The options for “PARENTAL
CONTROL” appear.

3 Press X/x to selec t “PASSW ORD

t,” then press ENTER.

The display for enterin g the password
appears.

4 Enter your 4-digit password using the

number buttons, then press ENTER.

5 Enter a new 4-digit password using the

number buttons, then press ENTER.

6 To confirm your password, re-enter it

using the number buttons, then press
ENTER.

58

If you make a mistake entering your
password

Press C before you press ENTER and inpu t
the correct number.

Controlling Your TV with the Supplied Remote

If you make a mistake

Press O RETURN.

To turn off the display

Press DISPLAY repeatedly until the display
is turned o ff.

You can control the sound le vel, input source,
and power switch of your Sony TV with the
supplied remote.

Number
buttons

Using Various Additiona l Fun ctions

You can control your TV using the buttons
below.

By pressing You can

TV [/1 Turn the TV on or off
VOL +/– Adjust the volume of the TV
TV/VIDEO Switch the TV’s input source

between the TV and other
input sources

Note

Depending on the unit being connected, you ma y
not be able to control your TV using some of the
buttons.

c continued

59

Controlling other TVs with the
remote

You can control the sound level, input source,
and power switch o f no n- Sony TVs as well.
If your TV is listed in the table below, set the
appropriate ma nuf acturer’s code.

1 While hold ing down T V [/1, press the

number buttons to select your TV’s
manufacturer’s code (see the table
below).

2 Release TV [/1.

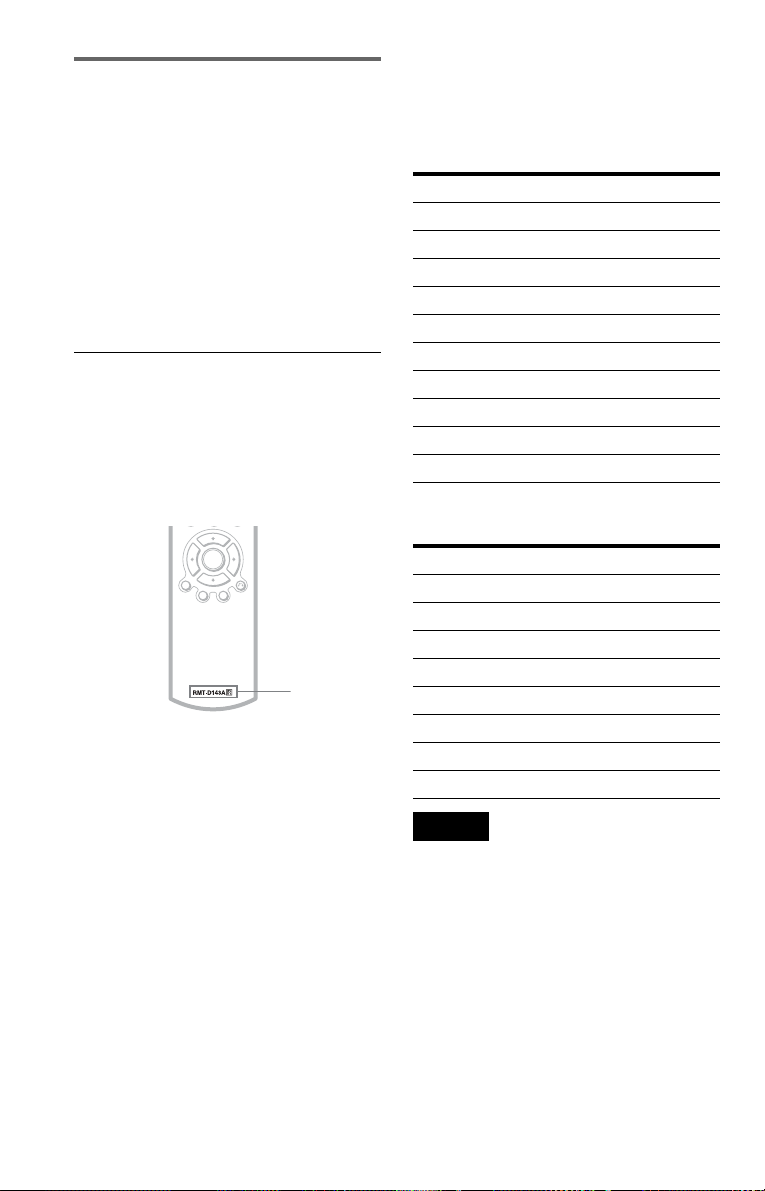

Checking the model name of your remote

The supplied remote commander is different
depending on the player model. Check the
model name of your remote (RMT-D143A or
RMT-D143E) so that you can input the
correct manufacturer’s code num ber to your
remote.

Model
name

Code numbers of controllable TVs

If more than one c ode number is listed, tr y
entering them one at a time until y ou find the
one that works with your TV.

◆For U.S./Canadian m odels (RMT-D143A)

Manufacturer Code number

Sony (default) 01
JVC 09
Panasonic 19
Philips 21
RCA 10
Samsung 20
Sanyo 11
Sharp 18
Toshiba 07
Zenith 15

◆For Asian/Oceanian models (RMT-D143E)

Manufacturer Code number

Sony (default) 01
JVC 33
LG 06
Panasonic 17, 49
Philips 06, 08
Samsung 23
Sharp 29
Toshiba 38

60

Notes

• If you enter a new code number, the code number
previously entered will be erased.

• When you replace the batteries of the remote, the
code number you have set may be reset to the
default setting. Set the appropr ia te code number
again.

Settings and Adjustments

Q

K

Using the Setup Di splay

By using the Set up Display, you can make
various adjustments to items such as picture
and sound. You can also set a language for the
subtitles and the Setup Display, among other
things. The on-scre en displays differ
depending on the player model. For details on
each Setup Display item, see pages from 62 to

67.

Note

Playback settings stored in the disc take priori ty
over the Setup Display settings and not all the
functions described may work.

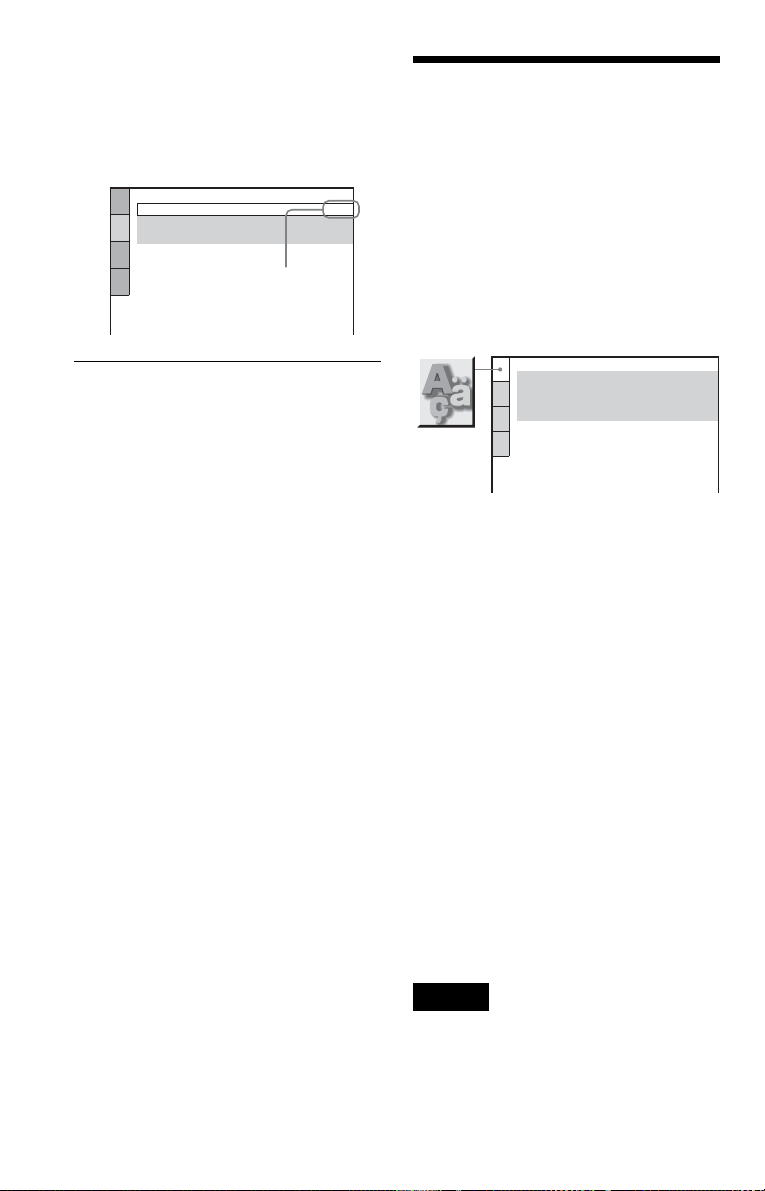

3 Press X/x to select “CUSTOM,”

then press ENTER.

The Setup Displ ay appears.

LANGUAGE SETUP

OSD:
MENU:
AUDIO:
SUBTITLE:

ENGLISH
ENGLISH

ORIGINAL

ENGLISH

4 Press X/x to select the setup item

from the displayed list:
“LANGUAGE SETUP,” “SCREEN
SETUP,” “CUSTOM SETUP,” or
“AUDIO SETUP.” Then press
ENTER.

The Setup item is selected.
Example: “SCREEN SETUP”

SCREEN SETUP

TV TYPE:
SCREEN SAVER:
BACKGROUND:

4:3 LETTER BOX

JACKET PICTURE

ON

Settings and Adjustments

1 P ress DISP LAY when the pl ayer i s

in stop mode.

The Control Bar appears.

UIC

2 Press X/x to select (SETUP),

then press ENTER.

Selected item

Setup items

5 Select an item using X/x, then

press ENTER.

The options for the selected item appear.
Example: “TV TYPE”

SCREEN SETUP

TV TYPE:
SCREEN SAVER:
BACKGROUND:

4:3 LETTER BOX
4:3 LETTER BOX

4:3 PAN SCAN

Options

c continued

16:9

61

6 Select a setting using X/x, then

press ENTER.

The setting is selected and setup is
complete.
Example: “16:9”

Setting the Di sp lay or
Sound Track Language

(LANGUAGE SETUP)

SCREEN SETUP

TV TYPE:
SCREEN SAVER:
BACKGROUND:

JACKET PICTURE

Selected setting

16:9

ON

To turn off the display

Press DISPLAY repeatedly until the display
is turned off.

To enter the Quick Setup mode

Select “QUICK” in Step 3. Follow from Step
5 of the Quick Setup ex pl anation to make
basic adjustm en t s (p age 25).

To reset all of the “SETUP” settings

If you select “RESET” in Step 3, you can reset all of
the “SETUP” settings on pages 62 to 67 to the
default settings. After you select “RESET” and
press ENTER, select “YES” and press ENTER to
reset the settings (it take s a f ew seconds to
complete), or select “NO” and press ENTER to
return to the Control Bar. Do not press [/1 when
resetting the player .

“LANGUAGE SETUP” allows you to set
various languages for the on-screen display or
sound track.

Select “LANGUAGE SETUP” in the Setup
Display. To use th e di splay, see “Using the
Setup Display” (page 61).

LANGUAGE SETUP

OSD:
MENU:
AUDIO:
SUBTITLE:

ENGLISH
ENGLISH

ORIGINAL

ENGLISH

◆OSD (On-Screen Display)

Switches the display language on the screen.

◆MENU (DVD only)

You can select the desired language for the
disc’s menu.

◆AUDIO (DVD only)

Switches the language of the sound track.
When you select “ORIGINAL,” the language
given priori ty in the disc is selected.

◆SUBTITLE (DVD only)

Switches the language of the subt itle record ed
on the DVD.
When you select “AUDIO FOLLOW,” the
language for the subtitles changes according to
the language you selected for the sou nd t rack.

62

z Hint

If you select “OTHERS t” in “MENU,”
“SUBTITLE,” and “AUDIO,” select and enter a
language code from “Language Code List” on
page 74 using the number buttons.

Note

When you select a language in “MENU,”
“SUBTITLE,” or “AUDIO” that is not recorded on
the DVD, one of the recorded languages will be
automatically selected.

Settings for the Display

(SCREEN SETUP)

4:3 LETTER BOX

Choose settings according to the TV to be
connected.

Select “SCREEN SETUP” in the Setup
Display. To use the display, see “Using the
Setup Display” on page 61.
The default settings are underlined.
The on-screen displays differ depending on
the player model.

Example: Asian/Oceanian models

SCREEN SETUP

TV TYPE:
COLOR SYSTEM: AUTO
SCREEN SAVER:
BACKGROUND:

JACKET PICTURE

16:9

ON

◆TV TYPE

Selects the aspect ratio of the connected TV
(4:3 standa rd or wide).

4:3 LETTER
BOX

4:3 PAN
SCAN

16:9 Select this when you connect a

Select this when you conn ec t a
4:3 screen TV. Displays a wide
picture with bands on the upper
and lower portions of the
screen.

Select this when you conn ec t a
4:3 screen TV. Autom atically
displays the wide picture on the
entire screen and cuts off the
portions that do not fit.

wide-screen TV or a TV with a
wide mode function.

4:3 PAN SCAN

16:9

Note

Depending on the DVD, “4:3 LETTER BOX” may
be selected automatically instead of “4:3 PAN
SCAN” or vice versa.

◆COLOR SYSTEM (VIDEO CD only; For
Asian/Oceanian models only)

Selects the color system when you play a
VIDEO CD.

AUTO Outputs the video signal in the

PAL Changes the video signal of an

NTSC Changes the video sign al of a

system of the VIDEO CD,
either PAL or NTSC. If your
TV is the DUAL system, select
AUTO.

NTSC VIDEO CD and outputs
it in the PAL system.

PAL VIDEO CD and outputs it
in the NTSC system.

Notes

• You cannot change the color system for DVDs.

• You can change the color system of this player
according to the connecte d TV. See p ag e 16.

◆SCREEN SAVER

The screen saver image appears when you
leave the player in pause or stop mode for 15
minutes, or when yo u pl ay back a CD or
DATA CD (MP3 audio) for more than 15
minutes. The screen saver will help prevent
your displa y devi ce fr om bec omi ng dam aged
(ghosting). Press H to turn off the screen
saver.

ON

Turns on the screen saver.

Settings and Adjustments

c continued

63

OFF T urns off the screen saver.

◆BACKGROUND

Selects the ba ckground colo r or picture on th e
TV screen in stop mode or while playing a
CD or DATA CD (MP3 audio ).

JACKET

The jacket pict ure (st ill pict ure)
appears, but only when the
jacket picture is already
recorded on the dis c (C D ­EXTRA, etc.). If the disc does
not contain a ja cket pi ctur e, the
“GRAPHICS” picture appears.

GRAPHICS

A preset picture stored in the
player appears.

BLUE The background color is blue.
BLACK The background color is black .

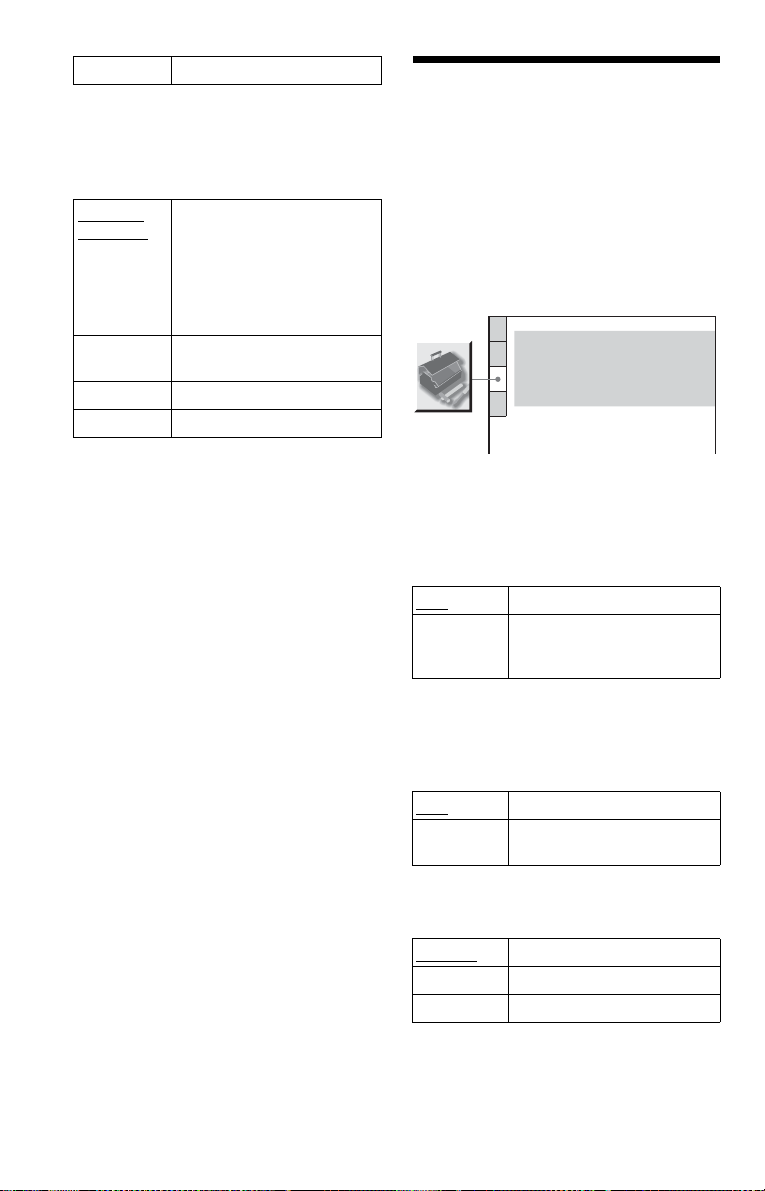

Custom Settings (CUSTOM

SETUP)

Use this to set up playback related and other
settings.

Select “CUSTOM SETUP” in the Setup
Display. To use th e di splay, see “Using the
Setup Display” (page 61).
The default sett i ngs are underlined.

CUSTOM SETUP

AUTO POWER OFF:
AUTO PLAY:
DIMMER:
PAUSE MODE:
TRACK SELECTION:
MULTI-DISC RESUME:

◆AUTO POWER OFF (For U.S./Canadian
models only)

Switches the Auto Power Off setting on or
off. For Asian/Oceanian models, the Auto
Power Off function is fixed to on .

OFF Switches this function off.
ON The player enters standby mode

when left in stop mode for more
than 30 minutes.

OFF
OFF

BRIGHT

AUTO

OFF

ON

64

◆AUTO PLAY

Switches the Auto Play setting on or off. This
function is useful when the player is
connected to a timer (not supplied).

OFF

Switches th is f unction off.

ON Automatically starts playback

when the player is turned on.

◆DIMMER

Adjusts the lighting of the front panel display.

BRIGHT

Makes the lighting bright.

DARK Makes the lighting dark.
OFF Turns off the lighting.

◆P AUS E MOD E ( DVD on ly )

Selects the pictur e in pause mode.

AUTO The picture, including subjects

FRAME The picture, including subjects

that move dynamically, is
output with no jitter. Normally
select this position.

that do not move dynamical ly,
is output in high resolution.

◆TRACK SELECTION (DVD only)

Gives the sound tra ck w hich contains the
highest number of channels priority when you
play a DVD on which multiple audio formats
(PCM, DTS, MPEG audio or Dolby Digital
format) are r ecorded.

OFF
AUTO Priority given.

No priority given.

Notes

• When you set the item to “AUTO,” the language
may change. The “TRACK SELECTION” setting
has higher priority than the “ AUDIO” settings in
“LANGUAGE SETUP” (page 62).

• If you set “DTS” to “OFF” (page 67), the DTS
sound track is not played even if you set “TRACK
SELECTION” to “AUTO.”

• If PCM, DTS, MPEG audio and Dolby Digital
sound tracks have the same num be r of chan ne ls,
the player selects PCM, DTS, Dolby Digital, and
MPEG audio sound tracks in this order .

◆MULTI-DISC RESUME (DVD/VIDEO CD

only)

Switches the Multi-disc Res ume setting on or
off. Resume playback can be stored in
memory for up to 6 different DVD/VIDEO
CD discs (page 3 2 ) .

ON

OFF Does not store the resume

Stores the resume settings in
memory for up to 6 discs (The
settings remain in memor y even
if you select “OFF.”)

settings in memory. Playback
restarts at the resume p oint only
for the curr ent di sc in the player.

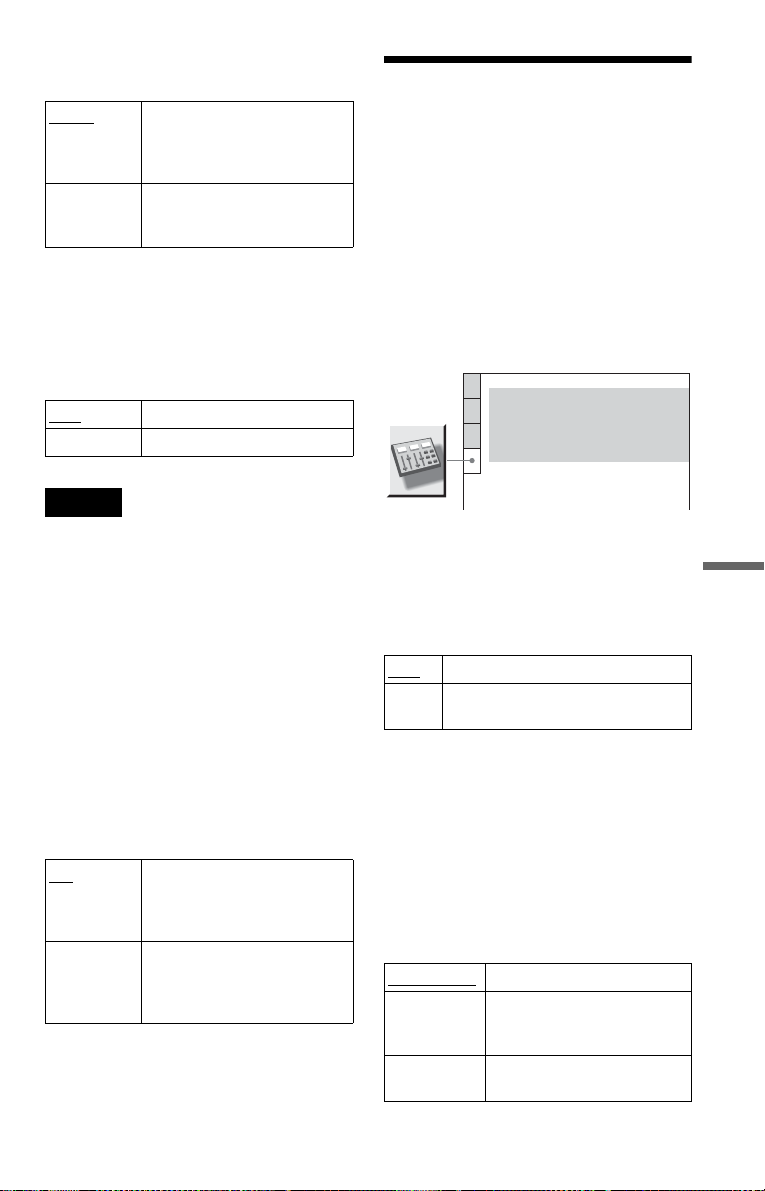

Settings for the Sound

(AUDIO SETUP)

“AUDIO SETUP” allows you to set the s ound
according to the pla yback and connection
conditions.

Select “AUDIO SETUP” in the Setup
Display. To use the display, see “U sing the
Setup Display” (page 61).
The default settings are underlined.
The on-screen dis pl ays differ depending on
the player model.

AUDIO SETUP

AUDIO ATT:
AUDIO DRC:
DOWNMIX:
DIGITAL OUT:

DOLBY DIGITAL:
DTS:

DOLBY SURROUND

◆AUDIO ATT (attenuation)

If the playback sound is distorted, set this
item to “ON.” The player reduces the audio
output level.
This function affects the output of the LINE
OUT L/R (AUDIO) jacks.

OFF Normally, select this posi tion.
ON S elect this when the playbac k sound

from the speakers is distorte d.

◆AUDIO DRC (Dynamic Range Control)
(DVD only)

Makes the sound cl ear when the volume is
turned down when playing a DVD that
conforms to “AUDIO DRC.” This affects the
output from the following jacks:
– LINE OUT L/R (AUDIO) jack s
– DIGITAL OUT (COAXIAL) jack only

when “DOLBY DIGITAL” is set to “D­PCM” (page 66).

STANDARD
TV MODE Make s the low sounds clear

WIDE
RANGE

Normally se lect this posi tion.

even if you turn the volume
down.

Gives you the feeling of bein g
at a live performance.

OFF

STANDARD

ON

D-PCM

OFF

Settings and Adjustments

c continued

65

◆DOWNMIX (DVD only)

Switches the method for mixing down to 2
channels when you play a DVD which has
rear sound elem ents (cha nnels) or is record ed
in Dolby Digital format. For details on the
rear signal com ponents, see “Checking the
audio signal format” (page 47). This function
affects the output of the following jacks:
–LINE OUT L/R (AUDIO) jacks
–DIGITAL OUT (COAXIAL) jack when

“DOLBY DIGITAL” is set to “D-PCM”
(page 66).

DOLBY
SUR­ROUND

Select this wh en the player i s
connected to an audio
component that conforms to
Dolby Surround (Pro Logi c).

NORMAL Select this wh en the player i s

connected to an audio
component that does not
conform to Dolby Surround (Pro
Logic).

◆DIGITAL OUT

Selects if audio signa ls ar e output via the
DIGITAL OUT (COAXIAL) jack.

Normally select this position. When

ON

you select “ON,” see “Setting the
digital output signal” for further
settings.

OFF The influence of the digital circuit

upon the analog circuit is min imal.

Setting the digital output signal

Switches the meth od of outputting audio
signals when you connect a component such
as an amplifier (receiver) or MD deck with a
digital input jack.
For connection details, see page 20.
Select “DOLBY DIGITAL,” “MPEG” and
“DTS” after settin g “D I GITAL OUT” to
“ON.”

Example: Asian/Oceanian mode ls

AUDIO SETUP

AUDIO ATT:
AUDIO DRC:
DOWNMIX:
DIGITAL OUT:

DOLBY DIGITAL:
MPEG:
DTS:

DOLBY SURROUND

If you connect a component that does not
conform to the selected audio signal, a loud
noise (or no sound) will come out from the
speakers, affe ct ing your ears or causing t h e
speakers to be dama ged.

◆DOLBY DIGITAL (DVD only)

Selects the type of Do l by D igital signal.

D-PCM Select this when the player is

connected to an audio
componen t lacking a buil t-in
Dolby Digital decoder. You can
select whether the signals
conform to Dolby Surround
(Pro Logic) or not by making
adjustments to the
“DOWNMIX” item in
“AUDIO SETUP” (page 66).

DOLBY
DIGITAL

Select this when the player is
connected to an audio
componen t w ith a built-in
Dolby Digital decoder.

OFF

STANDARD

ON

D-PCM

PCM

OFF

66

◆MPEG (DVD only; For Asian/Oceanian

models only)

Selects the type of MPEG audio signal.

PCM Select this when the player is

MPEG Select this when the player is

connected to an audio
component lacking a built-in
MPEG decoder. If you play
MPEG audio sound trac ks, the
player outputs stereo signals
via the DIGITAL OUT
(COAXIAL) jack.

connected to an audio
component with a built-in
MPEG decoder.

◆DTS (DVD only)

Selects whether or not to output DTS sig nal .

OFF

ON Select this when the player is

Select this when the player is
connected to an audio
componen t lacking a buil t-in
DTS decoder.

connected to an audio
component with a built-in DTS
decoder.

Note

If you select one of t h e T VS s e tt ings while playing
a DVD, the player does not output the following
signals from the DIGITAL OUT (COAXIAL) jack.
– Dolby Digital signals (when you se t “DOLBY

DIGITAL” in “AUDIO SETUP” to “D-PCM”)
(page 66)

– MPEG audio signals

Settings and Adjustments

67

Additional Information

screen becomes black and white when you
play a disc recorded in the NTSC color
system.

Troubleshooting

If you experience any of the following
difficulties while us in g the player, use this
troubleshooting guide to help remedy the
problem before req uesting repairs. Should
any problem persis t , co nsult your nearest
Sony dealer.

Power

The power is not turned on.

, Check that the AC p owe r co rd i s co nn ecte d

securely.


There is no picture/picture noise appears.

, Re-connect the c onnecting cord securely.
, The connecting cord is damaged.
, Check the connection to your TV (page 18)

and switch the input selector on your TV so
that the signal fr om the player appears on
the TV screen.

, The disc is dirty or flawed.
, If the picture outpu t from your player goes

through your VCR to get to your TV or if
you are connected to a combination TV/
VIDEO player, the copy-protection signal
applied to some DVD programs could affect
picture quality. If you still exp eri e nce
problems even wh en you connect your
player directly to you r TV , please try
connecting your player to your TV’s S
VIDEO input (page 18).

, If the color system of your player does not

match with that of your TV, change the
color system of the player. For details, see
page 16. (You cannot change the color
system of the DVD disc itself.)

Sound

There is no sound.

, Re-connect the connecting cord securely.
, The connect in g cord is damaged.
, The player is connected to the wrong input

jack on the amplifier (receiver) (page 22,
23, 24).

, The ampl ifier (receiver) input is no t

correctly set.

, The player is in pau se mode or in Slow-

motion Play mode.

, The player is in fast forward or fast reverse

mode.

, If the audio signal does not come through

the DIGITAL OUT (COAXIAL) jack,
check the audio set tings (page 66).

, While playing a Super VCD on which the

audio track 2 is not recorded, no sound will
come out when you select “2:STEREO,”
“2:1/L” or “2:2/R.”

Sound is noisy.

, When playing a CD wit h DTS so und track s,

noise will come from the LINE OUT L/R
(AUDIO) jacks or DIGITAL OUT
(COAXIAL) jack (page 28).

Sound distortion occ ur s.

, Set “AUDIO ATT” in “AUDIO SETUP” to

“ON” (page 65).

The sound volume is low.

, The sound volume i s low on some DVDs.

The sound volume may improve if you set
“AUDIO DRC” to “TV MODE” (page 65)
and set “DOWNMIX” to “NORMAL”
(page 66).

, Set “AUDIO ATT” in “AUDIO SETUP” to

“OFF” (page 65).

Even though you set the aspect ratio in “TV
TYPE” of “SCREE N SETUP,” the pictur e
does not fill the screen.

, The aspect ratio of th e dis c is fi xe d on yo ur

DVD.

The picture is black and white.

, Depending on the TV, the pic t ure on the

68

Operation

The remote does not func tio n.

, There are obstacle s betwe en the r emote a nd

the player.

, The distance between the remote and the

player is too far.

, The remote is not poin ted at the remo te

sensor on the player.

, The batteries in the remote are weak.

The disc does not play.

, The disc is turn ed over.

Insert the disc with the playback side facing
down on the disc tray.

, The disc is skewed.

The player can not p lay certa in d iscs ( pag e 7).

,
, The region code on the DVD does not match

the player.

, Moisture has condensed inside the player

(page 3).

, The player cannot play CD-Rs, CD-RWs,

DVD-Rs, or DVD-RWs (video mode) that
are not finalize d (p age 7).

Playback stops automatically.

, While playing discs with an auto pause

signal, the player stops playback at the auto
pause signal.

You cannot perform some functions such
as Stop, Search, Slow-motion Play,
Repeat Play, Shuffle Play , or Progr a m
Play.

, Depending on the disc, you may not be able

to do some of the operations above. See the
operating manual that comes with the disc.

The following message appears when you
play a DATA CD.

“Data error”

, The MP3 audio track you want to play is

broken.

, The data is not MPEG1 Audio Layer 3 data.

The MP3 audio trac k cannot be played
(page 35).

, The DATA CD is not recorded in the MP3

format that conforms to ISO9660 Level 1/
Level 2 or Joliet.

, The MP3 audio track does not have the

extension “.MP3.”

, The data is not formatted in MP3 even

though it has the extension “.MP3.”

, The data is not MPEG1 Audio Layer 3 data.
, The player cannot pla y a udio tracks in

MP3PRO format.

The title of the MP 3 audio album or track
is not correctly displayed.

,

The player can only display numbers and
alphabet. Other characters are displayed as
asterisks.

The disc does not start playing from the
beginning.

, Program Play, Shuffle Play, Repeat Play, or

A-B Repeat Play has been selected (page

37).

, Resume play has taken effect (page 32 ).

The player starts playing the disc
automatically.

, The disc features an auto playback function.
, “AUTO PLAY” in “CUSTOM SETUP” is

set to “ON” (page 64).

The language for the sound track cannot
be changed.

, Try using the DVD’s menu instead of the

direct selection button on the remote (page

33).

, Multilingual tracks are not recorded on the

DVD being played.

, The DVD prohibits the changing of the

language for the sound track.

The subtitle language cannot be changed
or turned off.

, Try using the DVD’s menu instead of the

direct selection button on the remote (page

33).

, Multilingual subtitles are not recorded on

the DVD being played.

, The DVD prohibits the changing of the

subtitles.

The angles cannot be cha ng ed .

, Try using the DVD’s menu instead of the

direct selection button on the remote (page

33).

, Multi-angles are not recorded on the DVD

being played.

, The angle can only be changed when the

“ANGLE” indica to r lig hts up on the front
panel disp lay (page 10).

, The DVD prohibits changing of the angles.

The player does not operate properly.

, When static electricity, etc., causes the

player to operate abnormally, unplug the
player.

Nothing is displayed on the front panel
display.

, “DIMMER” in “CUSTOM SETUP” is set

c continued

Additional Information

69

to “OFF.” Set “DIMMER” to “BRIGHT” or
“DARK” (page 64).

Self-diagnosis Function

5 numbers or letters are displayed on the
screen and on the front panel display.

, The self-diagnosis function was activ ated .

(See the table on page 70.)

The disc tray does not open and “LOCKED”
appears on the fr ont panel display.

, Child Lock is se t (page 30).

The disc tray does not open and “TRAY
LOCKED” appears on the front panel
display.

, Contact your Sony dea le r or lo cal

authorize d S o ny service facility.

(When letters/numbers appear in the
display)

When the self-diagnos is fu ncti on i s act ivat ed
to prevent the player from malfunctioning, a
five-character serv ice nu mber (e.g., C 13 50)
with a combination of a letter and four digits
appears on the screen and the front pan el
display. In this case, check the following
table.

First three
characters of
the service
number

C 13 The disc is dirty .

C 31 The disc is not inserted

E XX

(xx is a number)

Cause and/or corrective
action

, Clean the disc with a soft

cloth (page 8).

correctly.
, Re-insert the disc

correctly.

To prevent a malf unction, the
player has performed the
self-diagnosis function.
, Contact your nearest

Sony dealer or local
authorized Sony service
facility and give the 5­character ser vice numb er.
Example: E 61 1 0

70

Glossary

Chapter (page 10)

Sections of a pictur e or a music feature that
are smaller than titles. A ti tle is composed of
several chapters. Depending on th e disc, no
chapters may b e recorded.

Dolby Digital (page 24, 66)

Digital audio compression technol ogy
developed by Dolby Laboratories. This
technology conforms to 5.1-channel surround
sound. The rear channel is stereo and there is
a discrete subwoofer channel in this format.
Dolby Digital provides the same 5.1 dis crete
channels of high quality digital audio found in
Dolby Digital cinema audio systems. Good
channel separation is realized because all of
the channel data are recorded discr et ely and
little deterioration is realized because all
channel data processing is digital.

Dolby Surroun d (Pro Logic) (page 23)

Audio signal processing technology th at
Dolby Laboratories developed for surround
sound. When the in put signal contains a
surround component, the Pro Logic process
outputs the front, center and rear signals. The
rear channel is monaural.

DTS (page 24, 67)

Digital audio compression technol ogy that
Digital Th eater Syst ems, Inc. d eveloped. This
technology conforms to 5.1-channel surround
sound. The rear channel is stereo and there is
a discrete subwoofer channel in this format.
DTS provides the same 5.1 discrete channels
of high quality digital audio.
Good channel se paration is realiz ed because
all of the channel data is recorded discretely
and little deterioration is re alized because all
channel data processing is digital.

DVD (page 7)

A disc that contains up to 8 hours of moving
pictures even though its diam eter is the same
as a CD.
The data capacity of a single-layer and single­sided DVD is 4.7 GB (Giga Byte), which is 7
times that of a CD. The data capacity of a
double-layer and single-sided DVD is 8.5
GB, a single-layer and double-sided DVD is

9.4 GB, and double-layer and double-sided
DVD is 17GB.
The picture data uses the MPEG 2 format, one
of the worldw id e st andards of digital
compression t ec hnology. The picture dat a i s
compressed to about 1/40 (ave rage) of its
original size. The DVD also uses a variable
rate coding technology that changes t he data
to be allocated ac cording to the status of the
picture. Audio information is recorded in a
multi-channel format, such as Dolby Digital,
allowing you to enjoy a more real audio
presence.
Furthermore, various advanced functions
such as the multi-angle, multilingual, and
Parental Contro l functions are provided with
the DVD.

Index (CD)/Video Index (VIDEO CD) (page

10)

A number that divides a track into sections to
easily locate the point you want on a CD or
VIDEO CD. De pendi ng on the disc , no ind ex
may be recorded.

MPEG audio (page 24, 67)

International standard coding system used to
compress audio digital signals authorized by
ISO/IEC. MPEG 1 conf or m s to up to 2­channel stereo. M PEG 2, used on DVDs,
conforms to up to 7. 1-channel surround.

Scene (page 10)

On a VIDEO CD with PBC (playback
control) functions, the menu screens, moving
pictures and still pictures are divided into
sections called “scenes.”

Additional Information

c continued

71

Title (page 10)

The longest section of a picture or music
feature on a DVD, movie, etc., in video
software, or the entire album in audio
software.

Track (page 10)

Sections of a pictur e or a m usic feature on a
CD or VIDEO CD (the length of a song).

72

Specifications

System

Laser: Semiconductor laser
Signal format system:

U.S./Canadian models: NTSC
Asian/Oceanian models: PAL/ NTSC

(See page 16 to switch.)

Audio characteristics

Frequency response: DVD VIDEO (PCM

96 kHz): 2 Hz to 44 kHz (±1. 0 dB)/DV D
VIDEO (PCM 48 kHz): 2 Hz to 22 kHz
(±0.5 dB)/CD: 2 Hz to 20 kHz (±0.5 dB)

Signal-to-noise ratio (S/N ratio): 115 dB

(LINE OUT L / R (AUDIO) ja cks only)

Harmonic distortion: 0.003 %
Dynamic rang e: DVD VIDEO: 103 dB/CD:

99 dB

Wow and flutter: Less than detected value

(±0.001% W PEAK)

The signals from LINE OUT L/R (AUDIO)
jacks are measur ed. When you play PCM
sound tracks with a 96 kHz sampling
frequency, the out put signals from the
DIGITAL OUT (COAXIAL) jack are
converted to 48 kHz sampling fre quency.

Outputs

(Jack name: Jack type/Output level/Load

impedance)

LINE OUT L/R (AUDIO): Phono jack/

2 Vrms/10 kilohms

DIGITAL OUT (COAXIAL): Phono jack/

0.5 Vp-p/75ohms

COMPONENT VIDEO OUT(Y, P

C

R): Phono jack/Y: 1.0 V p-p/PB, PR, CB,

C

R,: 0.7 Vp-p/75 ohms

B/CB, PR/

LINE OUT (VIDEO): Phono jack/1.0Vp-p/

75 ohms

S VIDEO OUT: 4-pin mini DIN/

Y: 1.0 Vp-p/C:0.3 Vp-p (PAL),

0.286 Vp-p (NTSC)/75 ohms

General

Power requiremen ts :

120 V AC, 60 Hz
110 to 240V AC, 50/6 0 Hz
220 to 240V AC, 50/6 0 Hz
See page 3 fo r further information.

Power consumptio n: 13 W/14 W

See page 3 fo r further information.

Dimensions (approx.): 430 × 108 × 409 mm

(17 × 4

3

/

8

1

× 16

/

8

in.) (width/height/

depth) incl. projecting parts

Mass (approx.): 5.1 kg (11 lb 4 oz)
Operating tem p erature: 5 °C to 35 °C

(41

°F to 95 °F)

Operating humidity: 25 % to 80 %

Supplied accessories

See page 15.
Specifications and design are subject to

change without notice.

ENERGY STAR

As an

ENERGY STAR

Corporation has determined that th is product
meets the

R

is a U.S. registered mark.

R

ENERGY STAR

Partner, Sony

R

guidelines for

energy efficiency.

Additional Information

73

Language Code List

For details, see pages 46, 50, 62.
The language spelli ngs conform to the ISO 639: 1988 (E/F) standard.

Code Language Code Language Code Language Code Language

1027 Afar
1028 Abkhazian
1032 Afrikaans
1039 Amharic
1044 Arabic
1045 Assamese
1051 Aymara
1052 Azerbaijani
1053 Bashkir
1057 Byelorussian
1059 Bulgarian
1060 Bihari
1061 Bislama
1066 Bengali;

Bangla
1067 Tibetan
1070 Breton
1079 Catalan
1093 Corsican
1097 Czech
1103 Welsh
1105 Danish
1109 German
1130 Bhutani
1142 Greek
1144 English
1145 Esperanto
1149 Spanish
1150 Estonian
1151 Basque
1157 Persian
1165 Finnish
1166 Fiji
1171 Faroese
1174 French
1181 Frisian

1183 Irish
1186 Scots Gaelic
1194 Galician
1196 Guarani
1203 Gujarati
1209 Hausa
1217 Hindi
1226 Croatian
1229 Hungarian
1233 Armenian
1235 Interlingua
1239 Interlingue
1245 Inupiak
1248 Indonesian
1253 Icelandic
1254 Italian
1257 Hebrew
1261 Japanese
1269 Yiddish
1283 Javanese
1287 Georgian
1297 Kazakh
1298 Greenlandic
1299 Cambodian
1300 Kannada
1301 Korean
1305 Kashmiri
1307 Kurdish
1311 Kirghiz
1313 Latin
1326 Lingala
1327 Laothian
1332 Lithuanian
1334 Latvian;

Lettish

1345 Malagasy

1347 Maori
1349 Macedonian
1350 Malayalam
1352 Mongolian
1353 Moldavian
1356 Marathi
1357 Malay
1358 Maltese
1363 Burmese
1365 Nauru
1369 Nepali
1376 Dutch
1379 Norwegian
1393 Occitan
1403 (Afan)Orom o
1408 Oriya
1417 Punjabi
1428 Polish
1435 Pashto;

Pushto
1436 Portuguese
1463 Quechua
1481 Rhaeto-

Romance
1482 Kirundi
1483 Romanian
1489 Russian
1491 Kinyarwanda
1495 Sanskrit
1498 Sindhi
1501 Sangho
1502 Serbo-

Croatian
1503 Singhalese
1505 Slovak
1506 Slovenian

1507 Samoan
1508 Shona
1509 Somali
1511 Albanian
1512 Serbian
1513 Siswati
1514 Sesotho
1515 Sundanese
1516 Swedish
1517 Swahili
1521 Tamil
1525 Telugu
1527 Tajik
1528 Thai
1529 Tigrinya
1531 Turkmen
1532 Tagalog
1534 Setswana
1535 Tonga
1538 Turkish
1539 Tsong a
1540 Tatar
1543 Twi
1557 Ukrainian
1564 Urdu
1572 Uzbek
1581 Vietnamese
1587 Volapük
1613 Wolof
1632 Xhosa
1665 Yoruba
1684 Chinese
1697 Zulu

1703 Not specified

74

Index

Numerics

16:9 63

4:3 LETTER BOX
4:3 PAN SCAN

5.1 Channel Surround

63

63

24

A

A-B REPEAT 41

43

ALBUM

35

Album

50

ANGLE

46, 62

AUDIO
AUDIO ATT
AUDIO DRC
AUDIO SETUP
Audio signal format
AUTO PLAY
