Sony DV-E980 Operating Manual

Blu-ray Disc/DVD Home Theatre System

Operating Instructions

4-261-387-13(1)

BDV-E980/BDV-E880/BDV-E380

WARNING

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

To reduce the risk of fire, do not cover the ven tilation opening of the apparatus with newspapers, tablecloths, curtains, etc. Do not place the naked flame sources such as lighted candles on the apparatus.

To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus.

Do not expose batteries or apparatus with battery-installed to excessive heat such as sunshine, fire or the like.

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

Indoor use only.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this Blu-ray Disc / DVD Home Theatre System is harmful to eyes, do not attempt to disassemble the cabinet.

Refer servicing to qualified personnel only.

This appliance is classified as a CLASS 3R LASER product. Visible and invisible laser radiation is emitted when the laser protective housing is opened, so be sure to avoid direct eye exposure.

This marking is located on the laser protective housing inside the enclosure.

This appliance is classified as a CLASS 1 LASER product. This marking is located on the rear exterior.

For the customers in Europe

Disposal of Old Electrical & Electronic Equipment (Applicable in

the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and

other European countries with separate collection systems)

This symbol on th e battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste

disposal service or the shop where you purchased the product.

Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

The nameplate is located on the bottom exterior.

Precautions

On power sources

• The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.

• As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.

On watching 3D video images

Some people may experience discomfort (such as eye strain, fatigue, or nausea) while watching 3D video images. Sony recommends that all viewers take regular breaks while watching 3D video images. The length and frequency of necessary breaks will vary from person to person. You must decide what works best . If you experience any discomfort, you should stop watching the 3D video images until the discomfort ends;

consult a doctor if you believe necessary. You should also review (i) the instruction manual an d/or the caution message of any other device used with, or Blu-ray Disc contents played with this product and (ii) our website (http:// esupport.sony.com/) for the latest information. The vision of young children (especially those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video images.

Adults should supervise young children to ensure they follow the recommendations listed above.

Copy Protection

Please be advised of the advanced content protection systems used in both Blu-ray Disc media. These systems, called AACS (Advanced Access Content System) and CSS (Content Scramble System), may contain some restrictions on playback, analog output, and other similar features. The operation of this product and the restrictions placed may vary depending on the date of purchase, as the governi ng board of the AACS may adopt or change its restriction rules after the time of purchase.

and DVD

Copyrights and Trademarks

• This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS** Digital Surround System.

* Manufactured under license

from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

** Manufactured under license

under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535;

7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS, DTS-HD and the Symbol are registered trademarks, & DTS-HD Master Audio, and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

• This system incorporates HighDefinition Multimedia Interface

(HDMI HDMI, the HDMI logo and HighDefinition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Java is a trademark of Oracle and/ or its affiliates.

• “BD-LIVE” and “BONUSVIEW” are trademarks of Blu-ray Disc Association.

• “Blu-ray Disc” is a trademark.

• “Blu-ray Disc,” “DVD+RW,” “DVD-RW,” “DVD+R,” “DVDR,” “DVD VIDEO,” and “CD” logos are trademarks.

• “Blu-ray 3D” and “Blu-ray 3D” logo are trademarks of Blu-ray Disc Association.

• “BRAVIA” is a trademark of Sony Corporation.

• “AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.

• , “XMB,” and “xross media bar” are trademarks of Sony Corporation and Sony Computer Entertainment Inc.

• “PLAYSTATION” is a trademark of Sony Computer Entertainment Inc.

• Music and video recognition technology and related data are provided by Gracenote Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.

) technology.

CD, DVD, Blu-ray Disc, and music and video-related data from Gracenote, Inc., copyright © 2000-present Gracenote. Gracenote Software, copyright © 2000-present Gracenote. One or more patents owned by Grac enote apply to this product and service. See the Gracenote website for a nonexhaustive list of applicable Gracenote patents. Gracenote, CDDB, MusicID, MediaVOCS, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

• The Wi-Fi CERTIFIED™ Logo is a certification mark of the Wi-Fi Alliance.

• The Wi-Fi Protected Setup™ Mark is a mark of the Wi-Fi Alliance.

• “Wi-Fi CERTIFIED™” and “WiFi Protected Setup™” are trademarks of the Wi-Fi Alliance.

• “PhotoTV HD” and the “PhotoTV HD” logo are trademarks of Sony Corporation.

• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, a nd has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

• Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft. Content owners use Microsoft PlayReady

™

content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRMprotected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReadyprotected content. Revocation should not affect unprotected content or content protected by other content access technol ogies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

, the DLNA Logo and

•DLNA DLNA CERTIFIED

™

are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

• All other trademarks are trademarks of their respective owners.

• Other system and product names are generally trademarks or registered trademarks of the manufacturers. ™ and ® marks are not indicated in this document.

About These Operating Instructions

• The instructions in these Operating Instructions describe the controls on the remote. You can also use the controls on the unit if they have the same or similar names as those on the remote.

• In this manual, “disc” is used as a general reference for BDs, DVDs, Super Audio CDs, or CDs unless otherwise specified by the text or illustrations.

• The instructions in this manual are for BDV-E980, BDV-E880, and BDV-E380. BDV-E980 is the model used for illustration purposes. Any difference in operation is clearly indicated in the text, for example, “BDV-E980 only.”

• Some illustrations are presented as conceptual drawings, and may be different from the actual products.

• The items displayed on the TV screen may vary depending on the area.

• The default setting is underlined.

Table of Contents

About These Operating Instructions.......5

Unpacking...............................................7

Index to Parts and Controls...................11

Getting Started

Step 1: Installing the System.......16

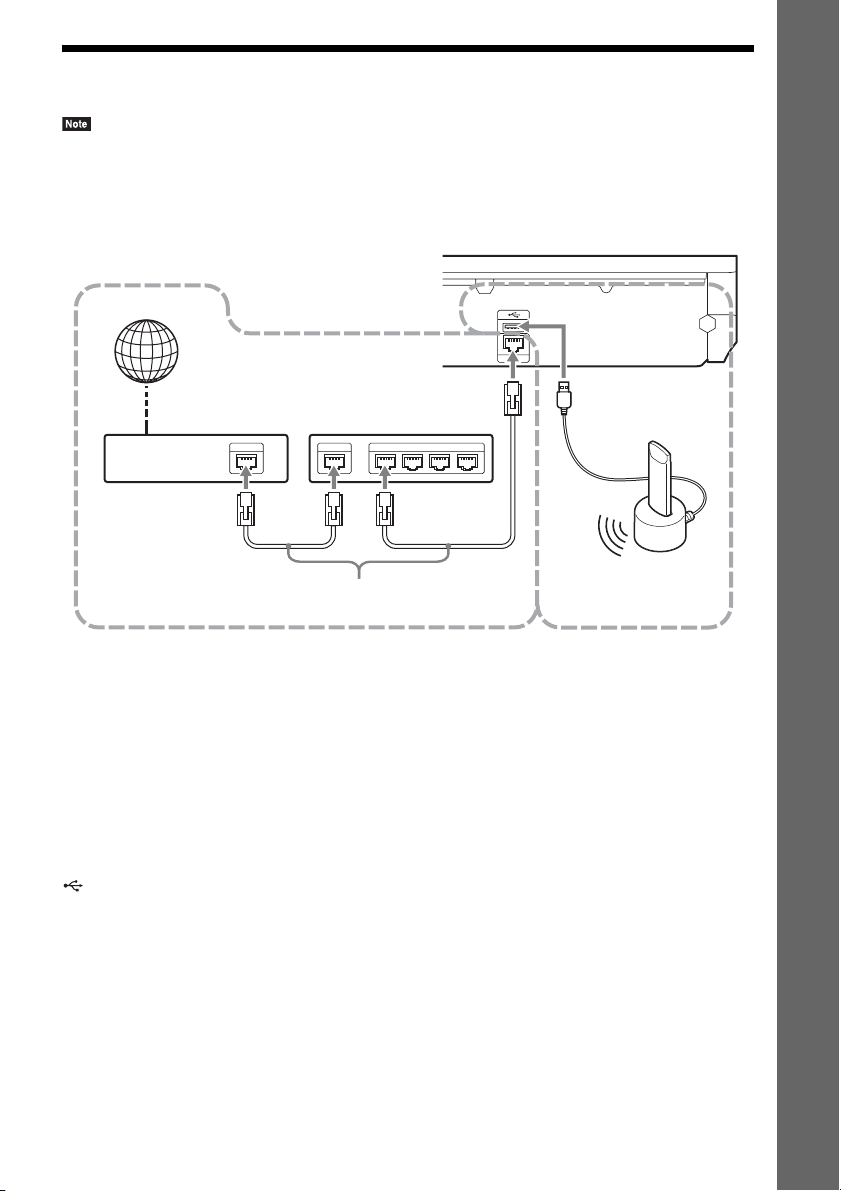

Step 2: Connecting the System ...20 Step 3: Connecting to the

Network ....................................27

Step 4: Performing the Easy

Setup ........................................29

Step 5: Selecting the Source .......30

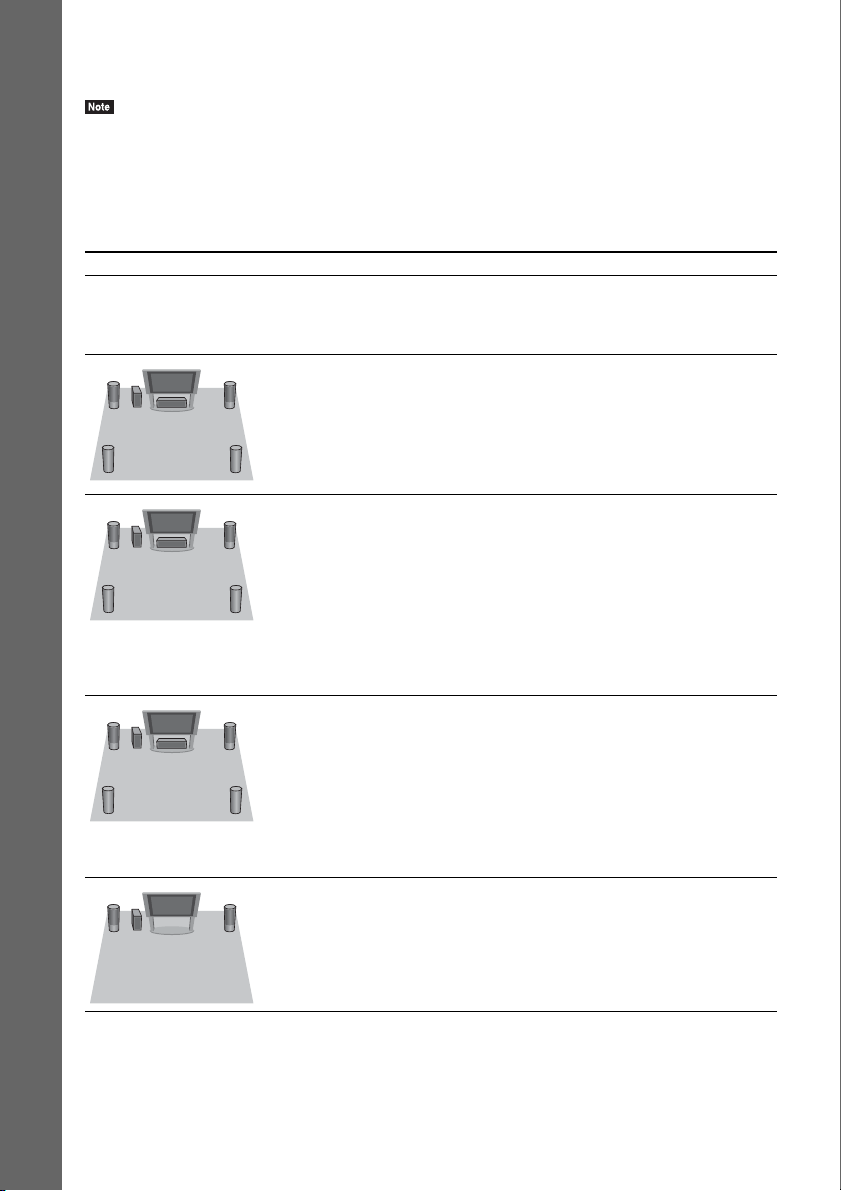

Step 6: Enjoying Surround

Sound .......................................31

Playback

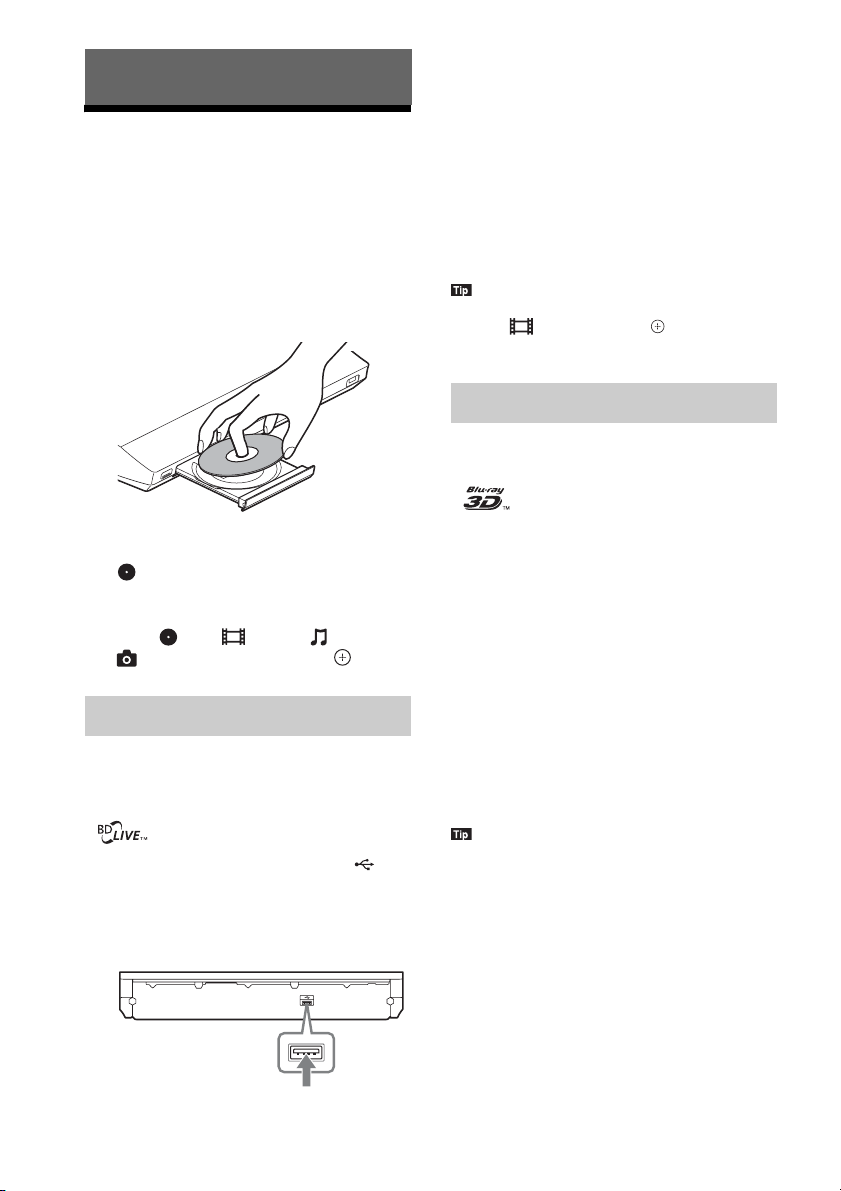

Playing a Disc .......................................34

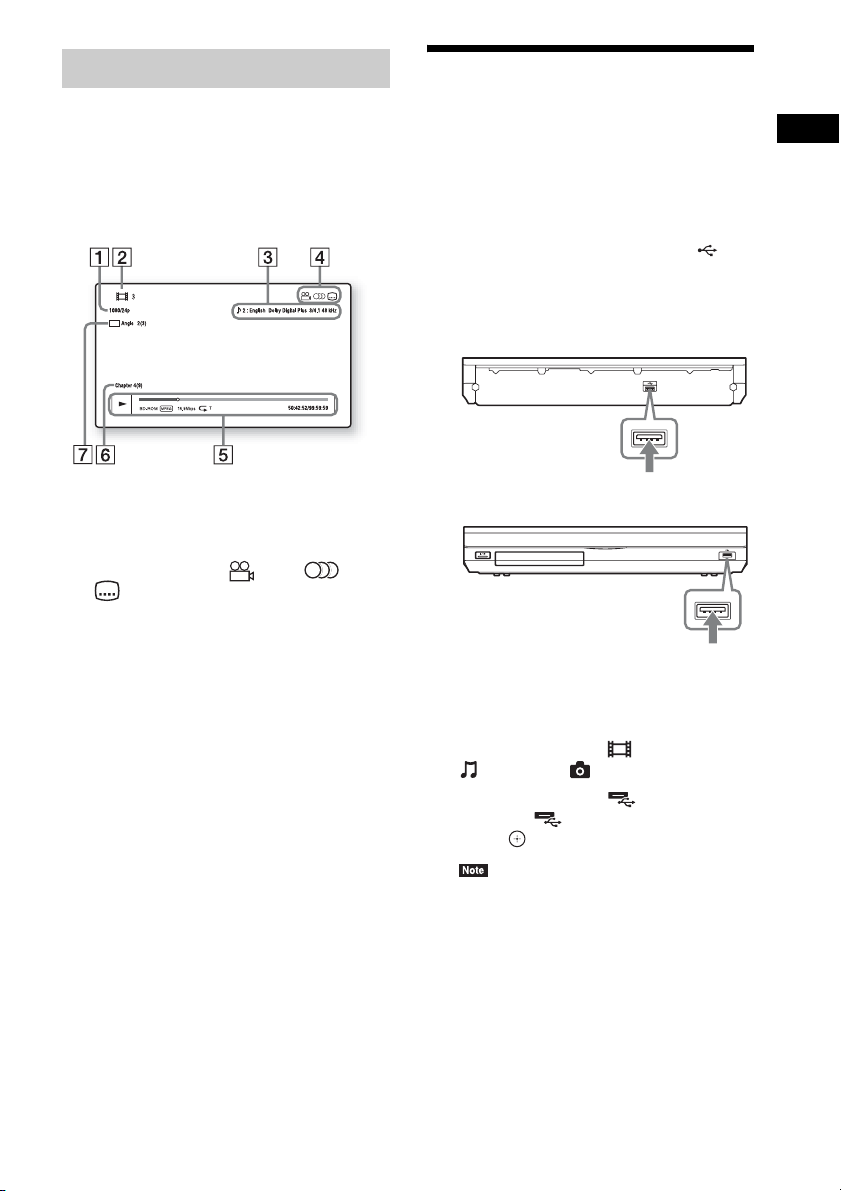

Playing from a USB Device..................35

Enjoying an iPod/iPhone.......................36

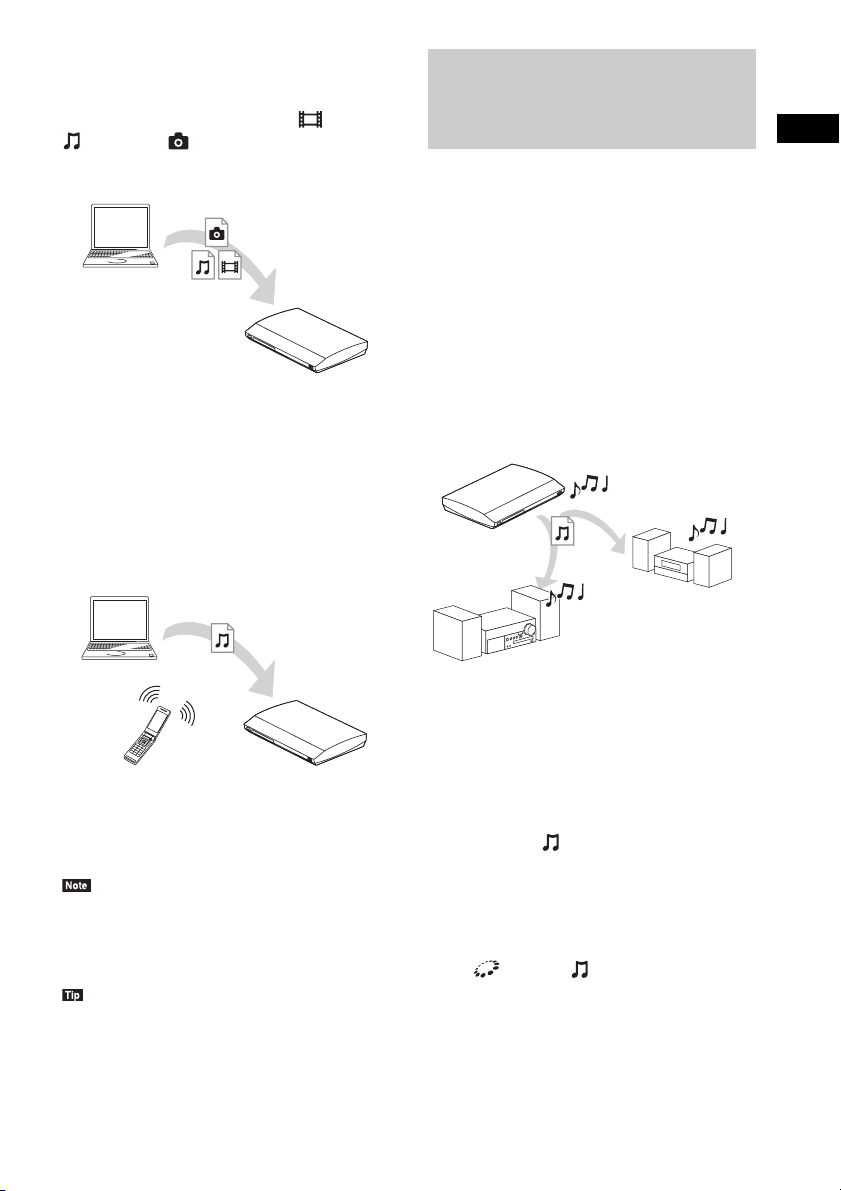

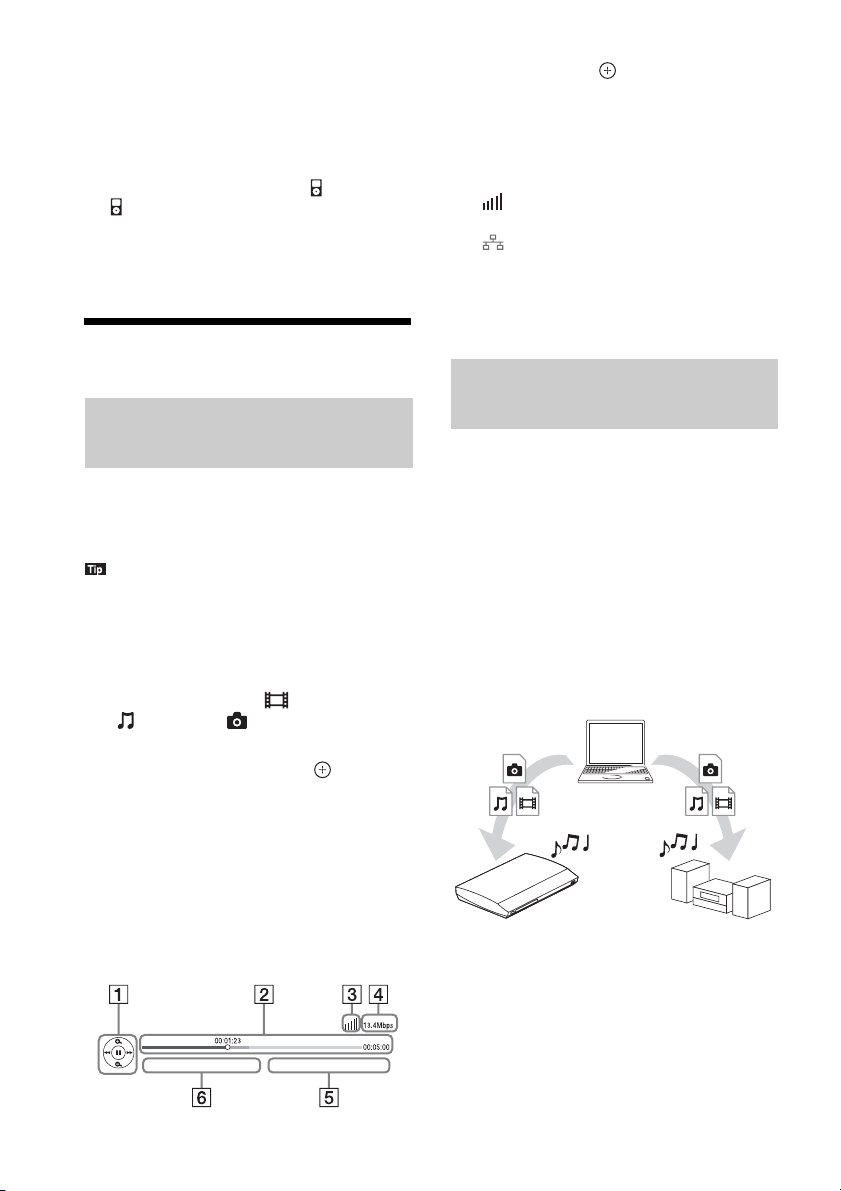

Playing via a Network...........................38

Available Options .................................40

Sound Adjustment

Selecting the Effect to Suit

the Source ....................................... 43

Selecting the Audio Format, Multilingual

Tracks, or Channel..........................43

Enjoying Multiplex Broadcast

Sound..............................................44

Tuner

Listening to the Radio...........................45

Using the Radio Data System

(RDS)..............................................46

Other Operations

Using the Control for HDMI Function for

“BRAVIA” Sync ............................47

Calibrating the Appropriate Settings

Automatically ................................. 48

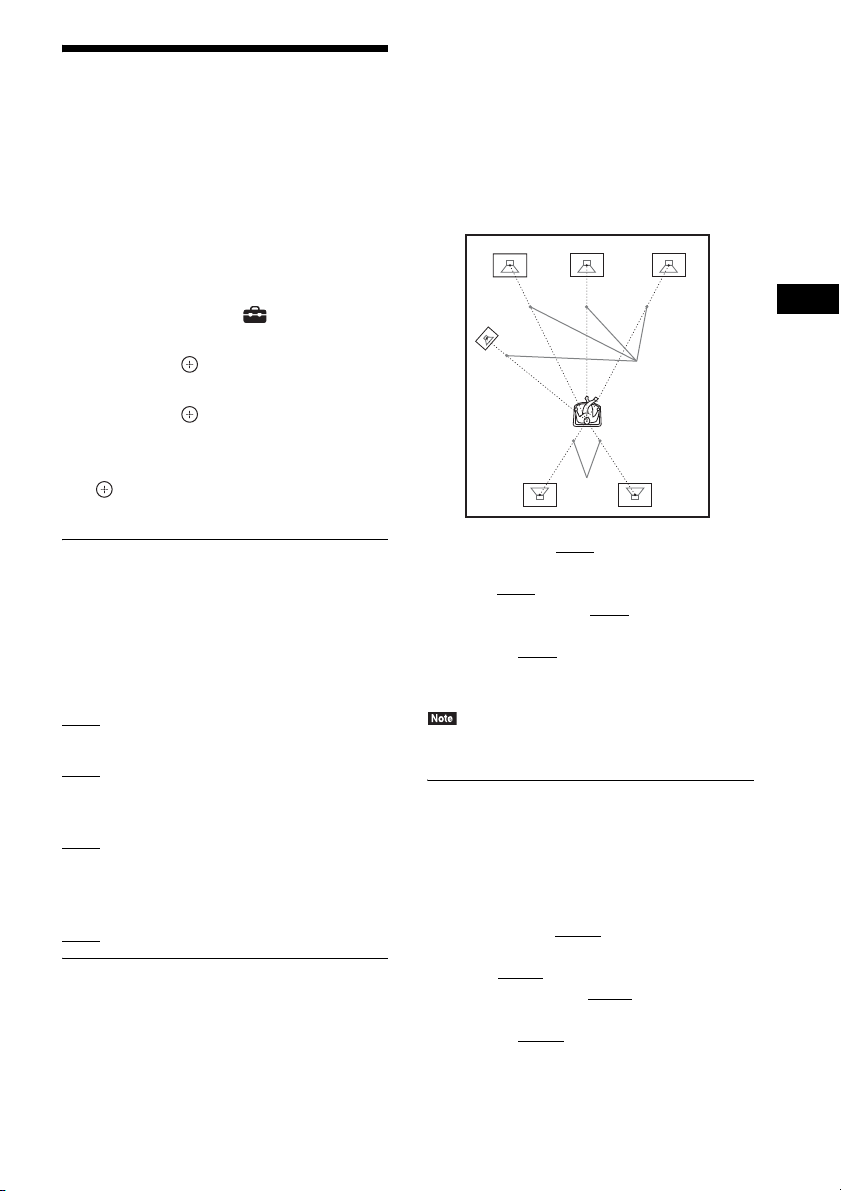

Setting the Speakers..............................49

Using the Sleep Timer .......................... 50

Deactivating the Buttons on

the Unit ........................................... 50

Controlling Your TV with the Supplied

Remote............................................51

Changing the Brightness of the Front

Panel Display.................................. 51

Saving Power in Standby Mode ........... 51

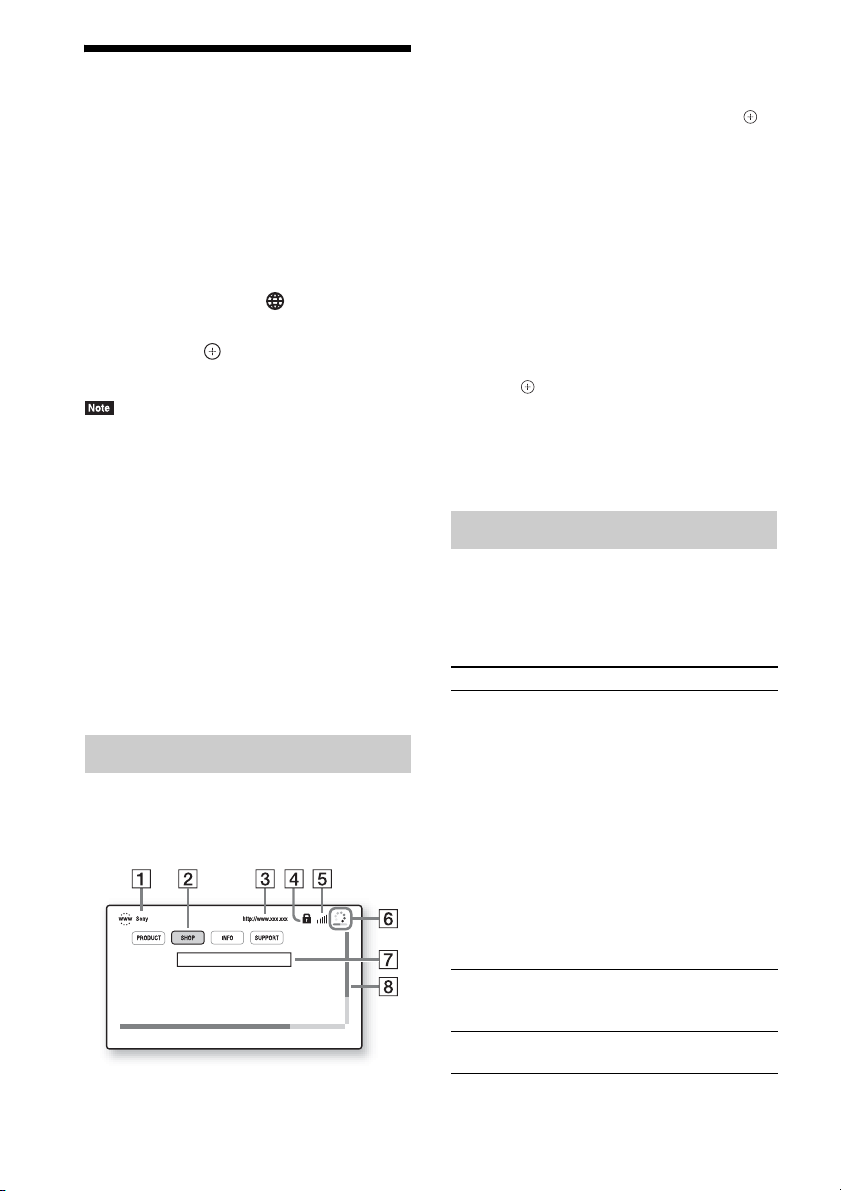

Browsing Websites............................... 52

Setting up the Network......................... 53

Settings and Adjustments

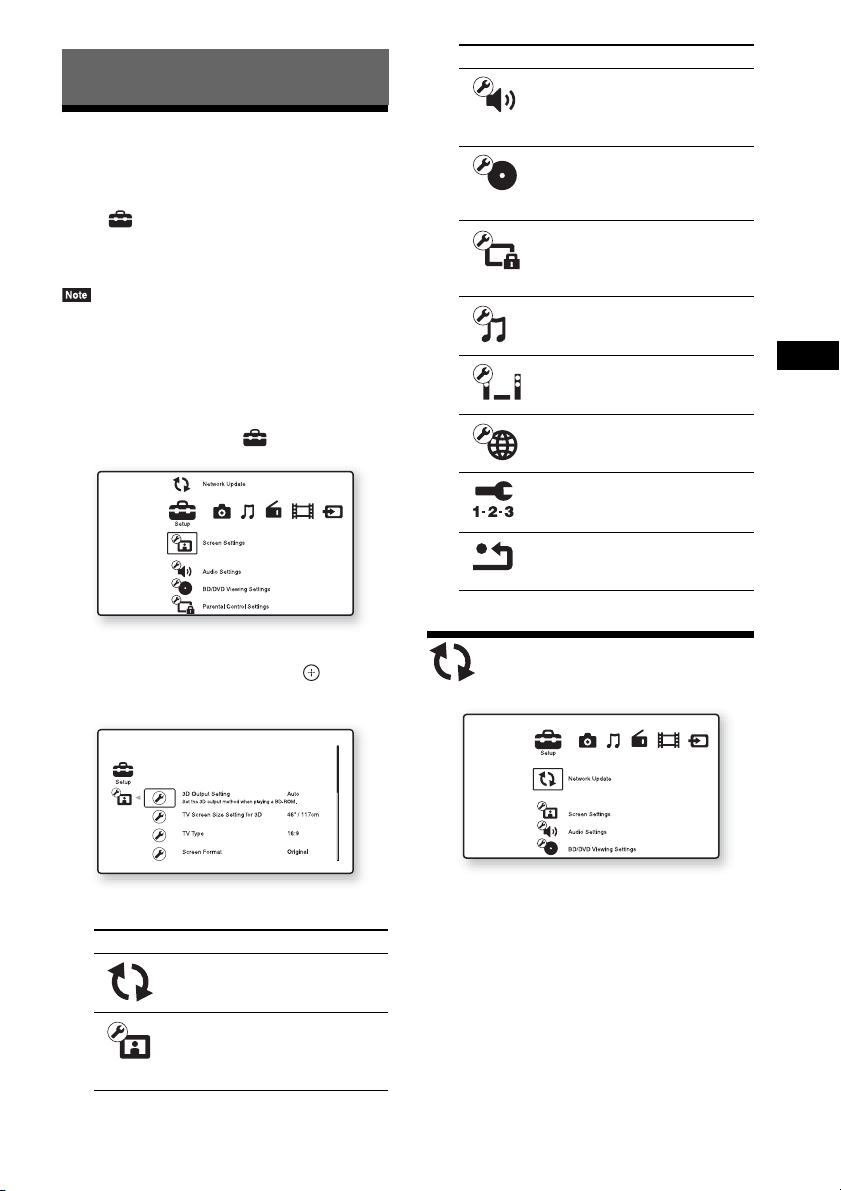

Using the Setup Display ....................... 57

[Network Update]................................. 57

[Screen Settings]................................... 58

[Audio Settings].................................... 59

[BD/DVD Viewing Settings] ............... 60

[Parental Control Settings] ................... 61

[Music Settings].................................... 61

[System Settings].................................. 61

[Network Settings]................................ 62

[Easy Setup].......................................... 63

[Resetting] ............................................ 63

Additional Information

Precautions ........................................... 64

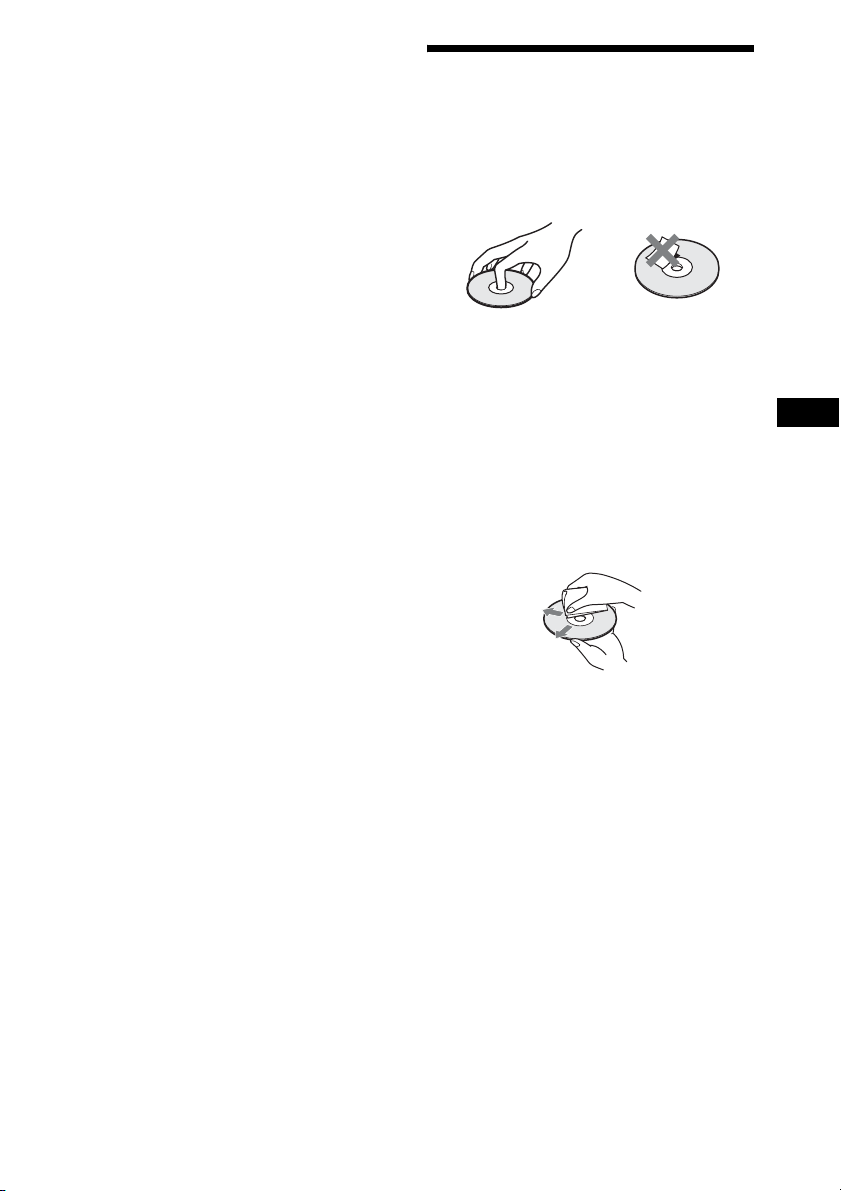

Notes about the Discs ........................... 65

Troubleshooting.................................... 66

Playable Discs ...................................... 71

Playable Types of Files ........................ 72

Supported Audio Formats..................... 73

Specifications ....................................... 74

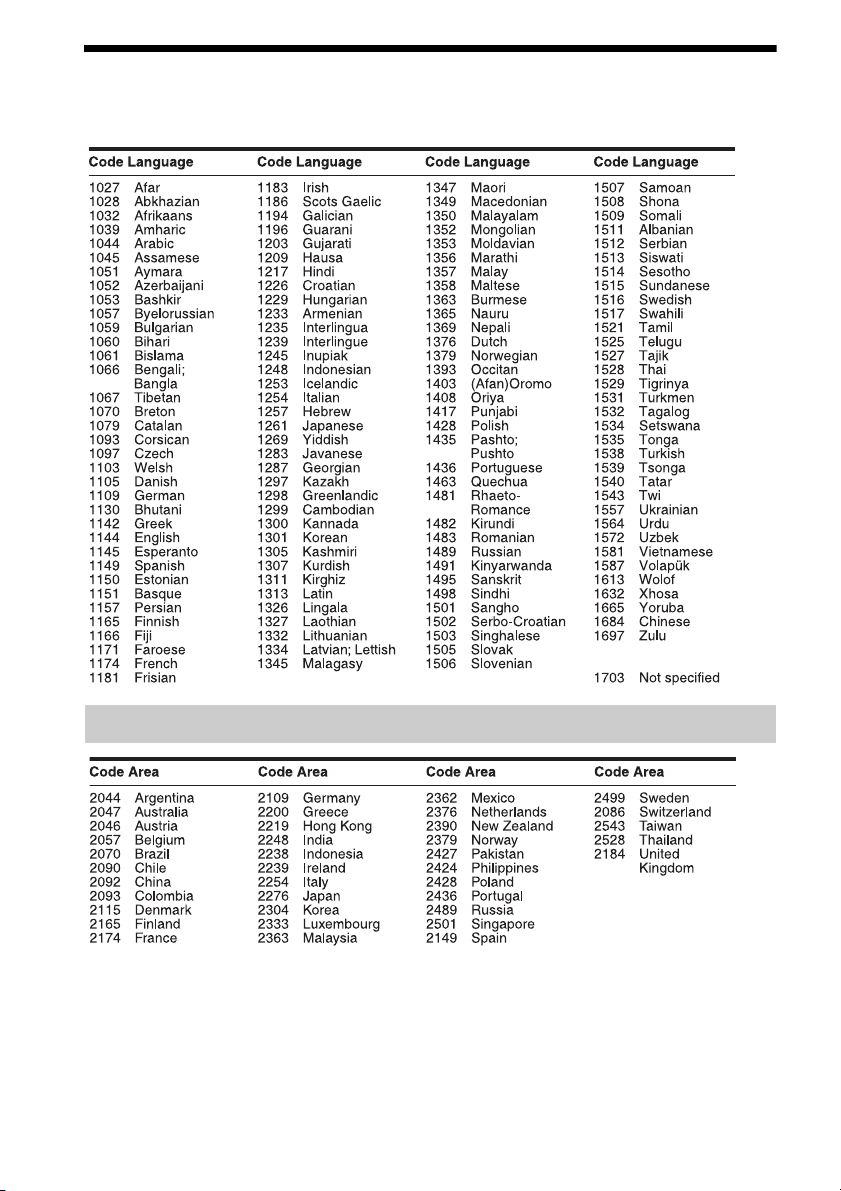

Language Code List.............................. 76

Index ..................................................... 77

Unpacking

BDV-E980

• Front speakers (2)

• Surround speakers (2)

• Center speaker (1)

• Speaker cords (5, red/white/ green/gray/blue)

• Speaker-bottom covers (4)

• Bases (4)

• Lower parts of the front and surround speakers (4)

• Screws (silver) (4)

• FM wire antenna (aerial) (1)

• Video cord (1) (Russian model only)

• Remote commander (remote) (1)

• R6 (size AA) batteries (2)

• Calibration mic (1)

• High Speed HDMI cable (1) (Indian and Chinese models only)

• Subwoofer (1)

• Screws (black) (12)

• Operating Instructions

• Quick Setup Guide

• Speaker Installation Guide

• Software License Information

BDV-E880

• Front speakers (2)

• Speaker-bottom covers (2)

• R6 (size AA) batteries (2)

• Surround speakers (2)

• Center speaker (1)

• Subwoofer (1)

• Speaker cords (5, red/white/ green/gray/blue)

• Bases (2)

• Lower parts of the front speakers (2)

• Screws (silver) (2)

• Screws (black) (6)

• FM wire antenna (aerial) (1)

• Video cord (1) (Russian, Saudi Arabian, Singapore, and Taiwan models only)

• Remote commander (remote) (1)

• Calibration mic (1)

• High Speed HDMI cable (1) (Indian, Saudi Arabian, Singapore, Chinese, and Taiwan models only)

• Dock for iPod/iPhone (TDM-iP30) (1) (Singapore models only)

• USB cable (1) (Singapore models only)

• Operating Instructions

• Quick Setup Guide

• Speaker Installation Guide

• Software License Information

BDV-E380

• Front speakers (2)

• Surround speakers (2)

• FM wire antenna (aerial) (1)

• Video cord (1)

• Dock for iPod/iPhone (TDM-iP30) (1) (European, Singapore, and Thai models only)

• Center speaker (1)

• Subwoofer (1)

• Speaker cords (5, red/white/ green/gray/blue)

• Remote commander (remote) (1)

• R6 (size AA) batteries (2)

• Calibration mic (1)

• High Speed HDMI cable (1) (Singapore, Thai, and Taiwan models only)

• USB cable (1) (European, Singapore, and Thai models only)

• Operating Instructions

• Quick Setup Guide

• Speaker Installation Guide

• Software License Information

Preparing the remote

Insert two R6 (size AA) batteries (supplied) by matching the 3 and # ends on the batteries to the markings inside the compartment.

Index to Parts and Controls

For more information, refer to the pages indicated in parentheses.

Front panel

VOL VOL FUNCTION

A Front panel display B Soft-touch buttons/indicators

Z (open/close) (page 34)

Opens or closes the disc tray.

N (play)

Starts or re-starts playback (resume play). Plays a slideshow when a disc containing

JPEG image files is inserted.

x (stop)

Stops playback and remembers the stop point (resume point). The resume point for a title/track is the last point you played or the last photo for a photo folder.

VOL +/–

Adjusts the system’s volume.

FUNCTION

Selects the playback source.

C (USB) port (page 35)

Used for connecting a USB device.

D Power indicator

Lights up while the system is turned on.

E Disc tray (page 34) F "/1 (on/standby)/Remote sensor

Turns on the unit, or sets it to standby mode.

About soft-touch buttons/ indicators

These buttons function when the soft-touch button indicators are lit. You can turn on/off the indicators by setting [Illumination/Display] (page 61). When you set [Illumination/Display] to [Simple/Off], the indicators turn off. In this case, touch any softtouch button. When the indicators light up, touch the desired button.

• These buttons work when you touch them lightly. Do not press on them with excessive force.

Front panel display

About the indications in the front panel display

A Displays the system’s playing status. B Lights up when repeat play is

activated.

C Lights up when stereo sound is

received. (Radio only)

D Lights up when the system is playing

via the PARTY STREAMING function.

E Lights up when the HDMI (OUT) jack is

correctly connected to an HDCP (Highbandwidth Digital Content Protection)compliant device with HDMI or DVI (Digital Visual Interface) input.

F Lights up when muting is on. G Displays the system’s status, such as

radio frequency, etc.

H Lights up when outputting 720p/1080i/

1080p video signals from the HDMI (OUT) jack or 720p/1080i video signals from the COMPONENT VIDEO OUT jacks*.

* COMPONENT VIDEO OUT jacks are

equipped on non-European/non-Saudi Arabian models.

Rear panel

SPEAKERS

FRONT R FRONT L

SUBWOOFER

SUR R SUR L

CENTER

VIDEO OUT

A SPEAKERS jacks (page 20) B COMPONENT VIDEO OUT jacks (page

22) (for non-European/non-Saudi Arabian models)

C (USB) port (page 35) D SAT/CABLE (DIGITAL IN COAXIAL)

jack (page 24)

E ANTENNA (FM COAXIAL 75Ω) jack

(page 26)

F A.CAL MIC jack (pages 29, 48) G AUDIO (AUDIO IN L/R) jacks (page 24)

COMPONENT VIDEO OUT

PBP

ARC

OUT

IN 1 IN 2

LAN (100)

DIGITAL IN

OPTICAL

CABLE

DIGITAL IN

SAT/

COAXIAL

AUDIO IN

ECM-AC2

COAXIAL

AUDIO

A.CAL MIC

H TV (DIGITAL IN OPTICAL) jack (page

22)

I LAN (100) terminal (page 27) J HDMI (IN 2) jack (page 24) K HDMI (IN 1) jack (page 24) L HDMI (OUT) jack (page 22) M VIDEO OUT jack (page 22)

ANTENNA

Remote control

SPEAKERS

AUDIO

BRAVIA Sync

FUNCTION

TOP MENU

RETURN OPTIONS

SOUND MODE

PRESET

TUNING

DIMMER

SLEEP

DISPLAY

HOME

231

564

8097

POP UP/ MENU

SOUND MODE

PRESET

TUNING

Number 5, , 2 +, and N buttons have a tactile dot. Use the tactile dot as a reference when operating the remote.

• : For TV operations (For details, see “Controlling Your TV with the Supplied Remote” (page 51).)

A Z (open/close)

Opens or closes the disc tray.

SPEAKERS TVy AUDIO

Selects whether TV sound is output from the system’s speakers or the TV’s speaker(s). This function works only when you set [Control for HDMI] to [On] (page 61).

TV "/1 (on/standby) (page 51)

Turns on the TV or sets it to standby mode.

"/1 (on/standby) (pages 29, 45)

Turns on the system or sets it to standby mode.

B Number buttons (pages 46, 51)

Enters the title/chapter numbers, preset station number, etc.

(audio) (pages 43, 44)

Selects the audio format/track.

(subtitle) (page 60)

Selects the subtitle language when multilingual subtitles are recorded on a BDROM/DVD VIDEO.

C Color buttons (red/green/yellow/blue)

Short cut keys for selecting items on some BD menus (can also be used for Java interactive operations on BDs).

D TOP MENU

Opens or closes the BD’s or DVD’s Top Menu.

POP UP/MENU

Opens or closes the BD-ROM’s Pop-up Menu, or the DVD’s menu.

OPTIONS (pages 31, 40. 52)

Displays the options menu on the TV screen or in the front panel display. (The location differs based on the selected function.)

RETURN

Returns to the previous display.

C/X/x/c

Moves the highlight to a displayed item.

(enter)

Enters the selected item.

E SOUND MODE +/– (page 43)

Selects the sound mode.

HOME (pages 29, 45, 48, 49, 52, 53, 57)

Enters or exits the system’s home menu.

F Playback operation buttons

See “Playback” (page 34).

./> (previous/next)

Skip to the previous/next chapter, track, or file.

(replay/advance)

Briefly replay the current scenes for 10 seconds./Briefly fast forwards the current scenes for 15 seconds.

m/M (fast/slow/freeze frame)

Fast reverse/fast forward the disc during playback. Each time you press the button, the search speed changes.

Activates slow-motion play when pressed for more than one second in pause mode. Plays one frame at a time when pressed in pause mode.

Slow-motion and single-frame playback are not available for Blu-ray 3D Discs.

N (play)

Starts or re-starts playback (resume play). Activates One-Touch Play (page 47) when

the system is on and set to the “BD/DVD” function.

X (pause)

Pauses or re-starts playback.

x (stop)

Stops playback and remembers the stop point (resume point). The resume point for a title/track is the last point you played or the last photo for a photo folder.

H DISPLAY (pages 34, 38, 52)

Displays playback and web browsing information on the TV screen.

Displays the preset radio station, frequency, etc., in the front panel display. Displays the stream information/decoding status in the front panel display when the function is set to other than “BD/DVD.” When the system is set to the “HDMI1,” “HDMI2,” “TV,” or “SAT/CABLE” function, the stream information/decoding status appears only when a digital signal is input. The stream information/decoding status may not appear depending on the stream or item being decoded.

I DIMMER (page 51)

Changes the brightness of the front panel display.

SLEEP (page 50)

Sets the sleep timer.

FUNCTION (pages 30, 45)

Selects the playback source.

(favorites)

Displays the Internet contents added to the Favorites List. You can save 18 favorite Internet contents.

Radio operation buttons

See “Tuner” (page 45).

PRESET +/–

TUNING +/–

G (muting)

Turns off the sound temporarily.

2 (volume) +/– (page 45)

Adjusts the volume.

TV 2 (volume) +/–

Adjusts the TV volume.

TV t (TV input)

Switches the TV’s input source between the TV and other input sources.

Getting Started

Step 1: Installing the System

Getting Started

How to position the system

Install the system by referring to the illustration below.

• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed,

oiled, polished, etc.) floor, as staining or discoloration may result.

• Do not lean or hang on a speaker, as it may fall down.

A Front speaker (L (left)) B Front speaker (R (right)) C Center speaker D Surround speaker (L (left)) E Surround speaker (R (right)) F Subwoofer G Unit

• To assemble the speakers, refer to the supplied “Speaker Installation Guide.” (BDV-E980/BDV-E880 only)

• You can install the speakers on a wall. For details, refer to the supplied “Speaker Installation Guide.”

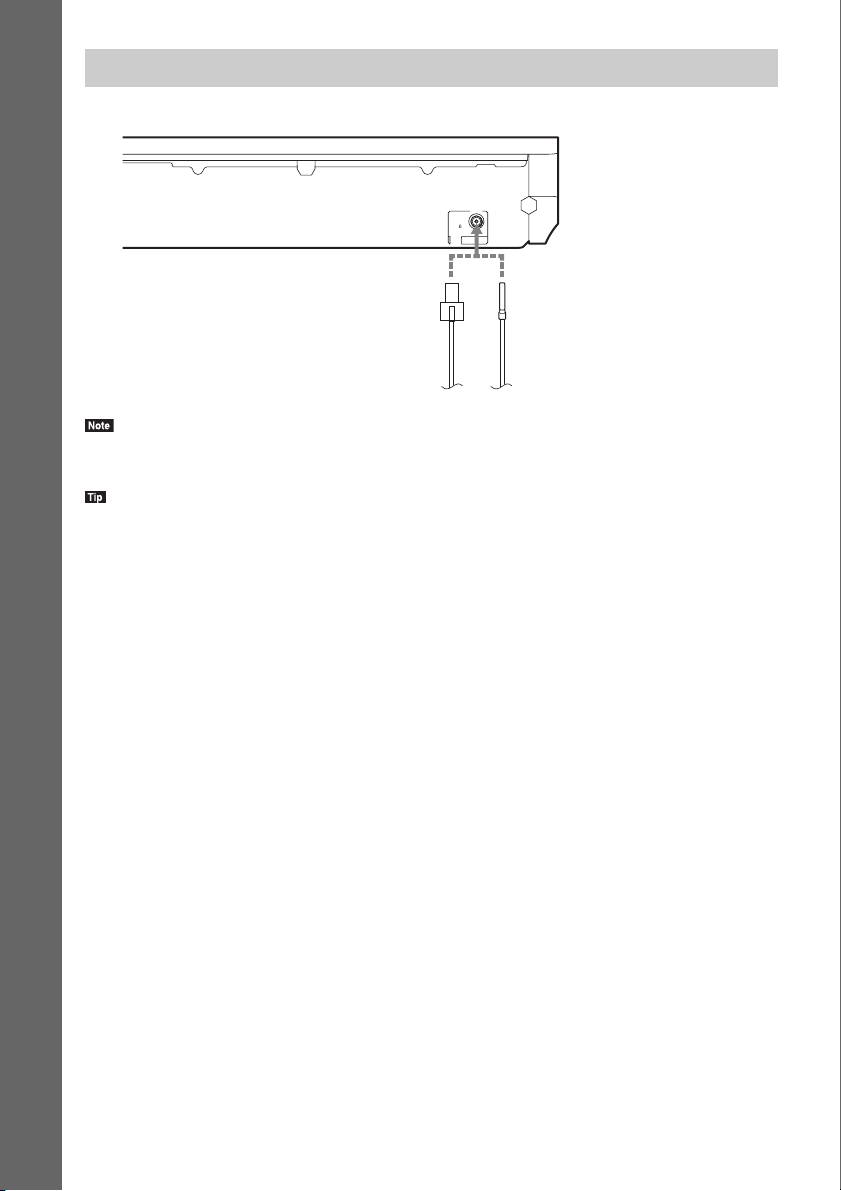

About the subwoofer’s speaker cord

(BDV-E980 only)

You can arrange the subwoofer’s speaker cord by changing which direction it protrudes from the bottom of the subwoofer.

Bottom of the subwoofer

When packing is opened: Speaker cord is connected.

• To avoid short-circuiting the speakers, make sure that the speaker cord connection is not like the following examples. If there is a problem, correct it.

Examples of an improper speaker cord connection

Stripped speaker cord is touching another speaker terminal

Stripped cords are touching each other due to excessive removal of insulation

Getting Started

When installing the subwoofer with the wide side facing forward

Toward the listening position

Getting Started

1 Secure the speaker cord in the speaker cord holder to the right of the speaker terminal.

Speaker cord holder to the right of the speaker terminal

Speaker cord

2 Thread the speaker cord through the gap along the side of the subwoofer.

Gap

When installing the subwoofer with the narrow side facing forward

Toward the listening position

1 Secure the speaker cord in the speaker cord holder to the left of the speaker terminal.

Speaker cord holder to the left of the speaker terminal

Speaker cord

2 Thread the speaker cord through the gap along the side of the subwoofer.

Gap

Getting Started

Step 2: Connecting the System

For connecting the system, read the information on the following pages. Do not connect the AC power cord (mains lead) of the unit to a wall outlet (mains) until all the other connections are made. To assemble the speakers, refer to the supplied “Speaker Installation Guide.” (BDV-E980/BDV-E880 only)

Getting Started

• When you connect another component with a volume control, turn down the volume of the other components to a level where sound is not distorted.

Connecting the speakers

To connect speaker cords to the speaker

You need to connect a speaker cord to each of the front, center, and surround speakers. The connector of the speaker cords and the color tube are color-coded based on the speaker type. Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with the color tube to 3, and the speaker cord without the color tube to #. Do not catch the speaker cord insulation (rubber covering) in the speaker terminals.

Connector

Color tube

Rear or bottom of the speaker

(+)

(–)

To connect speaker cords to the unit

Connect the speaker cords to match the color of the SPEAKERS jacks of the unit. When connecting to the unit, insert the connector until it clicks.

White (Front left speaker (L))

Red (Front right speaker (R))

SPEAKERS

Purple (Subwoofer)

Green (Center speaker)

Rear panel of the unit

Getting Started

Gray (Surround right speaker (R))

FRONT R FRONT L

SUR R SUR L

SUBWOOFER

CENTER

Blue (Surround left speaker (L))

Connecting the TV

Connect the system to your TV to display the image of the system on your TV, and listen to TV sound via the system’s speakers.

Depending on the jacks and functions on your TV, select the connection method.

• When your TV has an HDMI jack that is marked “ARC

• When your TV has an HDMI jack: Connections A and D

Getting Started

”: Connection A

• When your TV has component video input jacks (for non-European/non-Saudi Arabian models):

Connections B and D

• When your TV does not have jacks above: Connections C and D

Video connections

Audio connection

ABC D

HDMI cable

Image quality

Signal flow

: Video signal

: Audio signal

Component video cable

(not supplied)

ABC D

Video cord

HDMI IN

Green

COMPONENT VIDEO IN

PBP

Digital optical cord

(not supplied)

VIDEO IN DIGITAL OUT

Red

Yellow

Blue

OPTICAL

Blue

Rear panel of the unit

Audio Return Channel. For details, see “About Audio Return Channel” (page 23).

The High Speed HDMI cable is supplied with Indian, Saudi Arabian, Singapore, Thai, Chinese, and Taiwan models

Green

VIDEO OUT

COMPONENT VIDEO OUT

PBP

ARC

OUT

Red

IN 1 IN 2

Yellow

DIGITAL IN

OPTICAL

only.

The video cord is supplied with Russian, Saudi Arabian, and Taiwan models only.

Available only when your TV is compatible with the Audio Return Channel function.

A HDMI cable connection

If your TV has an HDMI jack, connect to the TV with an HDMI cable. This will provide better image quality compared to other types of connections. When connecting with an HDMI cable, you need to select the type of output signal when performing the Easy Setup (page 29). For further HDMI settings, see “[HDMI Settings]” (page 61).

About Audio Return Channel

If your TV is compatible with the Audio Return Channel function, an HDMI cable connection also sends a digital audio signal from the TV. You do not need to make a separate audio connection for listening to TV sound. For setting the Audio Return Channel function, see [Audio Return Channel] (page 61).

B Component video cable connection (for non-European/non-Saudi Arabian models)

If your TV does not have an HDMI jack, but has component video input jacks, connect to the TV with a component video cable. Picture quality will be improved compared to using a video cord connection. When connecting with a component video cable, you need to select the type of output signal in the Easy Setup (page 29).

C Video cord connection

If your TV does not have an HDMI jack or a component video input jack, make this connection.

D Digital optical cord connection

This connection sends an audio signal to the system from the TV. To listen to TV sound via the system, perform this connection. With this connection, the system receives a Dolby Digital multiplex broadcast signal and you can enjoy multiplex broadcast sound.

Getting Started

• You can enjoy the TV sound by selecting the “TV” function (page 30).

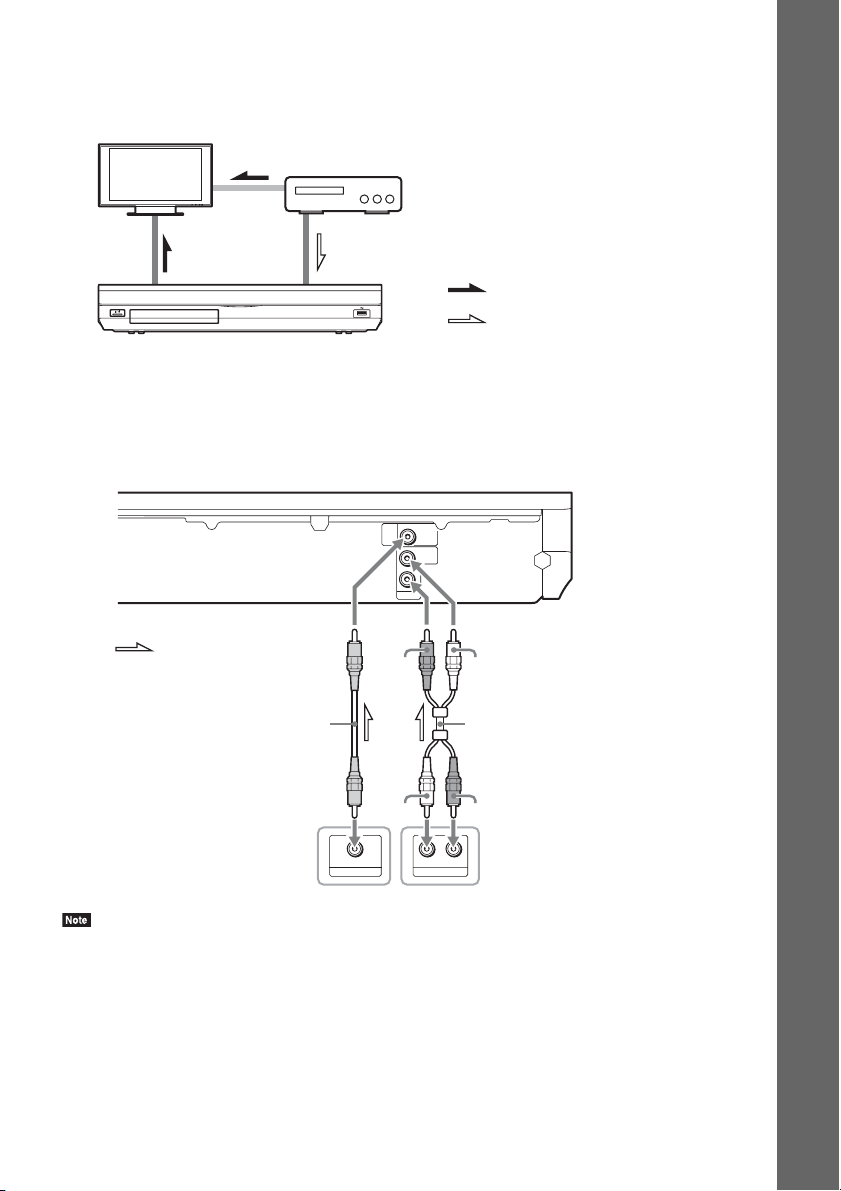

• If your TV does not have a digital optical output jack, you can connect the unit and your TV with an audio cord for listening to TV sound via the system. For connection details, see “Connecting the other components” (page 24).

Connecting the other components

When a component you wish to connect to the system has an HDMI (OUT) jack

You can connect a component that has an HDMI (OUT) jack such as a set-top box/digital satellite receiver or PLAYSTATION®3, etc., with an HDMI cable. An HDMI cable connection can send both video and audio signals. By connecting the system and the component using an HDMI cable, you can enjoy high-quality digital picture and sound via the HDMI (IN 1) or HDMI (IN 2) jack.

Getting Started

Rear panel of the unit

ARC

OUT

IN 1 IN 2

HDMI cable (not supplied) Use HDMI (IN 1) or HDMI (IN 2).

To the HDMI OUT jack of the set-top box/

HDMI OUT

digital satellite receiver or PLAYSTATION

3, etc.

• Video signals from the HDMI (IN 1/2) jacks are sent to the HDMI (OUT) jack only when the “HDMI1” or “HDMI2” function is selected.

• To send an audio signal from the HDMI (IN 1/2) jacks to the HDMI (OUT) jack, you may need to change the audio output setting. For details, see [Audio Output] in [Audio Settings] (page 59).

• You can change the audio input of a component that is connected to the HDMI (IN 1) jack to the TV (DIGITAL IN OPTICAL) jack. For details, see [HDMI1 Audio Input mode] in [HDMI Settings] (page 61). (European models only.)

+ 56 hidden pages

Sony DV-E980 Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

WARNING

About These Operating Instructions

Unpacking

Preparing the remote

Index to Parts and Controls

Front panel

Front panel display

Rear panel

Remote control

Getting Started

Step 1: Installing the System

How to position the system

About the subwoofer’s speaker cord

Step 2: Connecting the System

Connecting the speakers

Connecting the TV

Connecting the other components
