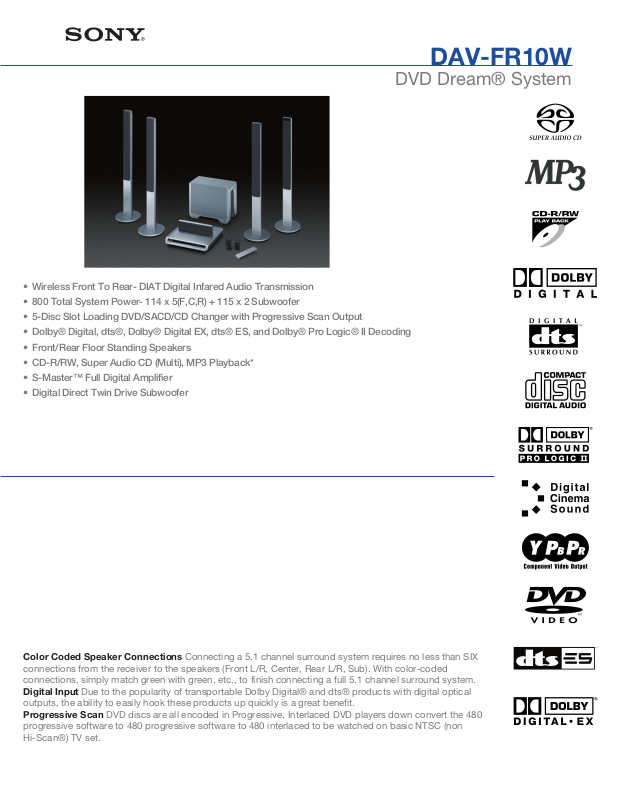

Sony DVD Dream DAV-FR10W Specification Sheet
DVD Dream® System
• Wireless Front To Rear- DIAT Digital Infared Audio Transmission
• 800 Total System Power- 114 x 5(F,C,R) + 115 x 2 Subwoofer
• 5-Disc Slot Loading DVD/SACD/CD Changer with Progressive Scan Output
• Dolby® Digital, dts®, Dolby® Digital EX, dts® ES, and Dolby® Pro Logic® II Decoding
• Front/Rear Floor Standing Speakers
• CD-R/RW, Super Audio CD (Multi), MP3 Playback*
• S-Master™ Full Digital Amplifier
• Digital Direct Twin Drive Subwoofer
DAV-FR10W
Color Coded Speaker Connections Connecting a 5.1 channel surround system requires no less than SIX
connections from the receiver to the speakers (Front L/R, Center, Rear L/R, Sub). With color-coded
connections, simply match green with green, etc., to finish connecting a full 5.1 channel surround system.
Digital Input Due to the popularity of transportable Dolby Digital® and dts® products with digital optical
outputs, the ability to easily hook these products up quickly is a great benefit.
Progressive Scan DVD discs are all encoded in Progressive, Interlaced DVD players down convert the 480
progressive software to 480 progressive software to 480 interlaced to be watched on basic NTSC (non
Hi-Scan®) TV set.
DAV-FR10W
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
DVD Dream® System
For more information:
http://www.sony.com/dn
Features
General
• 5-Disc DVD/SACD/CD Changer
with Progressive Scan Output
• 800 Watts Total System Power
• CD-R/RW, Super Audio CD (Multi),
MP3 Playback*
• JPEG Playback with Slide Show
• Dolby® Digital, dts®, and Dolby®
Pro Logic® II Decoding
• S-Master™ Full Digital Amplifier
• 6 Speaker System, Front/Rear
Floor Standing Speakers, Center
Channel and Active Powered
Subwoofer
• Front and Rear Floor Standing
Speakers
• Tuner with 20 FM + 10 AM Station
Presets
• Progressive Scan Output (480P)
• Input Function DVD, (SACD, CD,
Video, Sat, Tuner AM/FM)
Audio
• Bass Enhancement Function
• Digital Cinema Sound™ System
• Total Power Output 650W Front
Speaker: 100W x 2 (3 ohms 1 kHz,
10% THD); Center Speaker: 100W
x 1 (3 ohms 1 kHz, 10 % THD);
Rear Speaker: 100W x 2 (3 ohms 1
kHz, 10 % THD); Subwoofer: 150W
x 1 (3 ohms 100 Hz, 10% THD)
• CD/SACD Text
• Play Modes (Shuffle, Program,
Repeat)
Inputs and Outputs
• Component Video and S-Video
Outputs
• Digital Input for Satellite TV, etc.
• 2 Analog A/V Inputs, 1 Analog A/V
Output
• Headphone Jack 3.5mm Mini Pin
• Digital Audio Input x 1
• Video Signal Inputs x 2
• Video Signal Outputs x 4 (2
Composite,1 Component,1
S-Video Output)
Convenience
• Color Coded Speaker Connections
With color coded connections, a
user simply has to match green
with green, etc. to finish
connecting a full 5.1 channel
surround system.
• Pre-Programmed Luminous A/V
Remote Commander® Remote
Control
• On Screen Display (OSD)
• Power Save Mode
Specifications
DVD/CD/SACD Changer
• Video DA Converter 10 bit
• Audio DA Converter 1 bit
Tuner
• FM Tuning Range 87.5 - 108 MHz
• AM Tuning Range 530 - 1710 kHz
Front/Rear Speaker
• Tweeter Unit Dimension 1"
• Woofer Unit Dimension 2 3/4"
Woofer
• Speaker System 2 way type
Center Speaker
• Tweeter Unit Dimension 1"
• Woofer Unit Dimension 2 3/4"
Woofer
• Speaker System 2 way type
Subwoofer
• Speaker System Dual Bass Reflex
Design
• Woofer Unit Dimension 6 1/4" x 2
Weights and Measurements
• Front/Rear Dimensions 3.5" x 43"
x 3" (90 x 1113 x 75mm)
• Front/Rear Weights 12.12 lbs. (4.1
kg)
• Center Dimensions 14" x 3.6" x 3"
(356 x 92 x 76mm)
• Center Weights 2.2 lbs. (0.95 kg)
• Subwoofer Dimensions 7.9" x
14.5" x 17.6" (201 x 369 x 449mm)
• Subwoofer Weight 20.72 lbs. (9.5
kg)
Supplied Accessories
• Instruction Manual
• Remote Commander® Remote
Control RM-SP350
• Lengths of Supplied Speaker
Cable: 16.4' x 3 (Front
Speakers/Center Speaker); 49.2' x
2 (Rear Surround Speakers)
Optional Accessories
• WS-FV11D Optional Speaker
Stands - Floor
• WS-DAV10D Optional Speaker
Stands - Wall
Weights & Measures
• 12.13 lbs (5.6kg)
• 17" x 2.75" x 15.6" (430 x 70 x
398mm)
UPC Codes
• 0272426457900
©2004 Sony Electronics Inc. All rights reserved.
Features and specifications are subject to
change without notice. All trademarks
referenced herein are trademarks of Sony or
their respective owners.
*CD-R/RW playback may not be compatible
with all discs, depending on recording
conditions.
