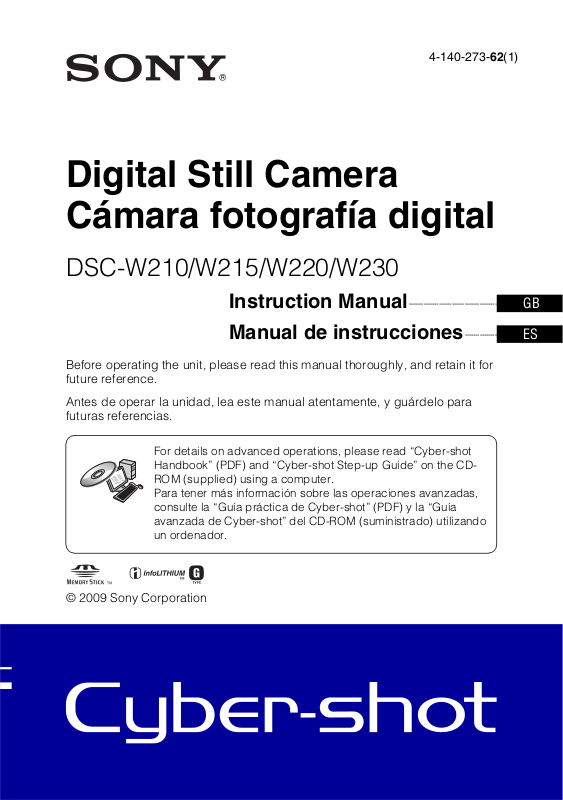

4-140-273-62(1)

Digital Still Camera Cámara fotografía digital

DSC-W210/W215/W220/W230

Instruction Manual

Manual de instrucciones

Before operating the unit, please read this manual thoroughly, and retain it for future reference.

Antes de operar la unidad, lea este manual atentamente, y guárdelo para futuras referencias.

For details on advanced operations, please read “Cyber-shot Handbook” (PDF) and “Cyber-shot Step-up Guide” on the CDROM (supplied) using a computer. Para tener más información sobre las operaciones avanzadas, consulte la “Guía práctica de Cyber-shot” (PDF) y la “Guía avanzada de Cyber-shot” del CD-ROM (suministrado) utilizando un ordenador.

·······························································

·····································

English

Owner’s Record

The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. DSC-W210/W215/W220/W230

Serial No. ___________________________

WARNING

To reduce fire or shock hazard, do not expose the unit to rain or moisture.

If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.

CAUTION For Customers in the U.S.A. and

Canada

[ Battery pack

If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.

• Do not disassemble.

• Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.

• Do not short circuit and do not allow metal objects to come into contact with the battery terminals.

• Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a car parked in the sun.

• Do not incinerate or dispose of in fire.

• Do not handle damaged or leaking lithium ion batteries.

• Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.

• Keep the battery pack out of the reach of small children.

• Keep the battery pack dry.

• Replace only with the same or equivalent type recommended by Sony.

• Dispose of used battery packs promptly as described in the instructions.

[ Battery charger

Even if the CHARGE lamp is not lit, the battery charger is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet (wall socket). If some trouble occurs while using the battery charger, immediately shut off the power by disconnecting the plug from the wall outlet (wall socket).

[ RECYCLING LITHIUM-ION

BATTERIES

Lithium-Ion batteries are recyclable.

You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you.

For more information regarding recycling of rechargeable batteries, call toll free 1-800-822-8837, or visit http://www.rbrc.org/

Caution: Do not handle damaged or leaking Lithium-Ion batteries.

[ Battery pack

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

For Customers in the U.S.A.

UL is an internationally recognized safety organization.

This product has received UL Listing.

If you have any questions about this product, you may call:

Sony Customer Information Center 1-800-222-SONY (7669)

The number below is for the FCC related matters only.

[ Regulatory Information

Declaration of Conformity

Trade Name: SONY Model No.: DSC-W230 Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo,

San Diego, CA 92127U.S.A.

Telephone No.: 858-942-2230

Declaration of Conformity

Trade Name: SONY Model No.: DSC-W220 Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo,

San Diego, CA 92127U.S.A.

Telephone No.: 858-942-2230

Declaration of Conformity

Trade Name: SONY Model No.: DSC-W210, DSC-W215 Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo,

San Diego, CA 92127U.S.A.

Telephone No.: 858-942-2230

[ CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

[ Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet on a

circuit different from that to which the receiver is connected.

– Consult the dealer or an experi enced radio/TV

technician for help.

The supplied interface cable must be used with t he equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For Customers in Europe

[ Notice for the customers in the

countries applying EU Directives

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 1080075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

This product has been tested and found compliant with the limits set out in the EMC Directive for using connection cables shorter than 3 meters (9.8 feet).

[ Attention

The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit.

[ Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.

[ Disposal of Old Electrical &

Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste.

By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-oflife to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely.

Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Notice for customers in the United Kingdom

A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the supplied one and approved by ASTA or BSI to BS 1362, (i.e., marked with an or mark) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

Notes on using the camera ...................................................................... 8

Getting started ................................................................................. 9

Checking the accessories supplied ......................................................... 9

1 Preparing the battery pack .................................................................. 10

2 Inserting the battery pack/a “Memory Stick Duo” media

(sold separately) ..................................................................................... 11

3 Turning the camera on/setting the clock ............................................. 13

Shooting images easily .................................................................14

Mode dial/Zoom/Flash/Macro/Self-timer/Display ................................... 15

Detecting smiles and shooting automatically (Smile Shutter) ................ 17

Detecting the shooting conditions (Scene Recognition) ........................ 18

Viewing/deleting images ...............................................................19

Learning the various functions – HOME/Menu ........................... 22

Using the HOME screen ......................................................................... 22

HOME items ............................................................................................ 23

Using menu items ................................................................................... 24

Menu items.............................................................................................. 25

Enjoying your computer ............................................................... 27

Supported Operating Systems for USB connection and application

software (supplied) ................................................................................. 27

Viewing “Cyber-shot Handbook” ............................................................ 27

Indicators on the screen ............................................................... 28

Battery life and memory capacity ................................................30

Battery life and number of images you can record/view ........................ 30

Number of still images and recordable time of movies .......................... 31

Troubleshooting ............................................................................32

Battery pack and power ......................................................................... 32

Shooting still images/movies .................................................................. 33

Viewing images ...................................................................................... 34

Precautions .................................................................................... 35

Specifications ................................................................................36

Notes on using the camera

[ Internal memory and “Memory

Stick Duo” media back up

Do not turn off the camera, remove the battery pack, or remove the “Memory Stick Duo” media while the access lamp is lit. Otherwise, the internal memory data or “Memory Stick Duo” media may be damaged. Be sure to make a backup copy to protect your data.

[ Notes on recording/playback

• Before you start recording, make a trial

recording to make sure that the camera is working correctly.

• The camera is neither dust-proof, nor splash-

proof, nor water-proof. Read “Precautions” (page 35) before operating the camera.

• Avoid exposing the camera to water. If water

enters inside the camera, a malfunction may occur. In some cases, the camera cannot be repaired.

• Do not aim the camera at the sun or other bright

light. It may cause the malfunction of the camera.

• Do not use the camera near a location that

generates strong radio waves or emits radiation. Otherwise, the camera may not properly record or play back images.

• Using the camera in sandy or dusty locations

may cause malfunctions.

• If moisture condensation occurs, remove it

before using the camera (page 35).

• Do not shake or strike the camera. It may cause

a malfunction and you may not be able to record images. Furthermore, the recording media may become unusable or image data may be damaged.

• Clean the flash surface before use. The heat of

flash emission may cause dirt on the flash surface to become discolored or to stick to the flash surface, resulting in insufficient light emission.

[ Notes on the LCD screen and

lens

• The LCD screen is manufactured using extremely high-precision technology so over

99.99% of the pixels are operational for effective use. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the LCD screen. These dots are a normal result of the manufacturing process, and do not affect the recording.

• When the battery level becomes low, the lens might stop moving. Insert a charged battery pack and turn on the camera again.

[ On image data compatibility

• The camera conforms with DCF (Design rule for Camera File system) universal standard established by JEITA (Japan Electronics and Information Technology Industries Association).

• Sony does not guarantee that the camera will play back images recorded or edited with other equipment, or that other equipment will play back images recorded with the camera.

[ On the overheat protection

The power may go off automatically to protect the camera depending on the temperature of the unit or the battery pack. In this case, the message appears on the screen before the power goes off.

[ Warning on copyright

Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

[ No compensation for damaged

content or recording failure

Sony cannot compensate for failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc.

Getting started

Checking the accessories supplied

• Battery charger BC-CSGD/BC-CSGE (1)

• Power cord (mains lead) (1) (not supplied in the USA and Canada)

• Rechargeable battery pack NP-BG1 (1)/ Battery case (1)

• USB, A/V cable for multi-use terminal (1)

The camera is supplied with a wrist strap. Attach the strap and place your hand through the loop to prevent the camera from damage by being dropped.

• Wrist strap (1)

• Soft carrying case (1) (DSC-W215 only)

•CD-ROM (1) – Cyber-shot application software – “Cyber-shot Handbook” – “Cyber-shot Step-up Guide”

• Instruction Manual (this manual) (1)

Hook

1 Preparing the battery pack

For customers in the USA and Canada

Plug

CHARGE lamp

For customers in countries/regions other than the USA and Canada

CHARGE lamp

Power cord (mains lead)

1Insert the battery pack into the battery charger.

2Connect the battery charger to the wall outlet (wall socket).

The CHARGE lamp lights up, and charging starts. When the CHARGE lamp turns off, charging is finished (Normal charge). If you continue charging the battery pack for about one more hour (until it is fully charged), the charge

will last slightly longer.

[ Charging time

Full charge time Normal charge time

Approx. 330 min. Approx. 270 min.

• The table above shows the time required to charge a fully depleted battery pack at a temperature of 25°C (77°F). Charging may take longer depending on conditions of use and circumstances.

• See page 30 for the battery life and the number of images that can be recorded.

• Connect the battery charger to the nearest wall outlet (wall socket).

• When charging is finished, disconnect the power cord (mains lead) from the wall outlet (wall socket), and remove the battery pack from the battery charger.

• Be sure to use the battery pack or the battery charger of the genuine Sony brand.

2 Inserting the battery pack/a “Memory Stick Duo” media

(sold separately)

Insert the battery pack while pressing the battery eject lever with the tip of the battery pack.

Battery/“Memory Stick Duo” media cover

With the terminal side facing the lens, insert the “Memory Stick Duo” media until it clicks into place.

1Open the battery/“Memory Stick Duo” media cover.

2Insert the “Memory Stick Duo” media (sold separately).

3Insert the battery pack.

4Close the battery/“Memory Stick Duo” media cover.

[ When there is no “Memory Stick Duo” media inserted

The camera records/plays back images using the internal memory (approx. 15 MB).

[ To check the remaining battery charge

Press ON/OFF (Power) button to turn on and check the remaining battery charge on the LCD screen.

Remaining charge indicator

Status Sufficient

power remaining

• If you use the NP-FG1 battery pack (sold separately), the minutes also appear after the battery remaining indicator ( 60 Min).

• It takes about one minute until the correct remaining charge indicator appears.

• The remaining charge indicator may not be correct depending on conditions of use and circumstances.

• Battery capacity decreases over time and through repeated use. When the operating time per charge decreases markedly, the battery pack needs to be replaced. Purchase a new battery pack.

Battery almost fully charged

Battery half full

Battery low, recording/ playback will stop soon.

Change the battery with fully charged one, or charge the battery. (The warning indicator flashes.)

[ To remove the battery pack/“Memory Stick Duo” media

Open the battery/“Memory Stick Duo” media cover.

Battery pack“Memory Stick Duo” media

Make sure that the access lamp is not lit, then push the “Memory Stick Duo” media in once.

• Never remove the battery pack/“Memory Stick Duo” media when the access lamp is lit. This may cause damage to data in the “Memory Stick Duo” media/internal memory.

Slide the battery eject lever. Be sure not to drop the battery pack.

3 Turning the camera on/setting the clock

ON/OFF (Power) button Control button

z button

HOME button

1Press ON/OFF (Power) button.

2Set the clock with the control button.

1 Select the date display format with v/V, then press z. 2 Select each item with b/B and set the numeric value with v/V, then press z. 3 Select [OK], then press z.

• The camera does not have a feature for superimposing dates on images. By using “PMB” in the CD-ROM (supplied), you can print or save images with the date.

• Midnight is indicated as 12:00 AM, and noon as 12:00 PM.

[ To change the date and time

Press HOME, and select [ Clock Settings] in (Settings) (pages 22, 23).

[ Notes on when the power is turned on

• Once the battery pack is inserted in the camera, it may take time before operation becomes possible.

• If the camera is running on battery power and you do not operate the camera for about three minutes, the camera turns off automatically to prevent wearing down the battery pack (Auto power-off function).

2 3

Shooting images easily

Microphone

Speaker

Shutter button

W/T (Zoom) button

Mode dial

Control button

Tripod receptacle (bottom)

MENU button

1Select the desired function on the mode dial.

When shooting still images (Auto Adjustment mode): When shooting movies: Select .

2Hold the camera, with your elbows pressed against your body to steady it.

Flash

Self-timer lamp/ Smile Shutter lamp

Macro button DISP button

Flash button Self-timer button

Select .

Position the subject in the center of the focus frame. Do not cover the speaker with your finger.

3Shoot with the shutter button.

When shooting still images:

1 Press and hold the shutter button halfway down

to focus.

The z (AE/AF lock) indicator (green) flashes, a beep sounds, the indicator stops flashing and remains lit.

2 Press the shutter button fully down.

When shooting movies:

Press the shutter button fully down. To stop recording, press the shutter button fully down again.

• The shortest shooting distance is approx. 4 cm (1 5/8 inches) (W)/50 cm (1 feet 7 3/4 inches) (T) (from the lens).

AE/AF lock indicator

Mode dial/Zoom/Flash/Macro/Self-timer/Display

[ Using the mode dial

Auto Adjustment

Allows you to shoot with the settings adjusted automatically.

Easy Shooting

Allows easy shooting with easy-to-see indicators.

Smile Shutter

When the camera detects a smile, the shutter is released automatically (page 17).

High Sensitivity (DSC-W220/W230 only)

Shoots images without a flash even in low lighting.

SteadyShot (DSC-W210/W215 only)

Shoots images clearly, reducing blur.

Soft Snap

Shoots images with a softer atmosphere for portraits of people, flowers, etc.

Landscape

Shoots with the focus on a distant subject.

Twilight Portrait

Shoots sharp images of people in a dark place without losing the nighttime atmosphere.

SCN* Scene Selection

Selects a setting from the Scene Selection menu.

Movie Mode

Allows you to record movies with audio.

Program Auto

Allows you to shoot with the exposure adjusted automatically (both the shutter speed and the aperture value). You can adjust other settings using the menu.

* Scene Selection in SCN mode

Press MENU and select a setting (page 24).

High Sensitivity (DSC-W210/W215 only)

Shoots images without a flash even in low lighting.

Twilight

Shoots night scenes without losing the nighttime atmosphere.

Gourmet

Shifts to Macro mode, allowing you to shoot food arrangements in delicious color.

Beach

Shoots seaside or lakeside scenes with the blueness of the water captured more vividly.

Snow

Shoots snow scenes in white more clearly.

Fireworks

Shoots fireworks in all their splendor.

Underwater

Shoots underwater in natural colors when the water-proof case is attached.

[ W/T Using the zoom

Press T to zoom, press W to return the zoom.

[ Flash (Selecting a flash mode for still images)

Press B ( ) on the control button repeatedly until the desired mode is selected.

: Flash Auto

Flashes when there is insufficient light or backlight (default setting)

: Flash forced on

: Slow synchro (Flash forced on)

The shutter speed is slow in a dark place to clearly shoot the background that is out of flash light.

: Flash forced off

• You cannot use (Flash forced on) or (Slow synchro) when [Scene Recognition] is set to [Auto] or

[Advanced].

• Even with flash on, the flash may not operate during burst.

[ Macro (Shooting close-up)

Press b ( ) on the control button repeatedly until the desired mode is selected.

: Auto

The camera adjusts the focus automatically from distant subjects to close-up. Normally, put the camera in this mode.

: Macro On

The camera adjusts the focus with priority on close-up subjects. Set Macro on when shooting close subjects.

[ Using the self-timer

Press V ( ) on the control button repeatedly until the desired mode is selected.

: Not using the self-timer : Setting the 10-second delay self-timer

Use this setting if you want to include yourself in the image.

: Setting the 2-second delay self-timer

This is to prevent blurring due to unsteadiness when the shutter button is pressed.

When you press the shutter button, the self-timer lamp flashes and a beep sounds until the shutter operates. To cancel, press V () again.

[ DISP Changing the screen display

Press v (DISP) on the control button. Each time you press v (DISP), the display and brightness changes as follows:

Indicators on

Indicators on*

Histogram on*

Indicators off*

* The LCD Backlight brightens.

Detecting smiles and shooting automatically (Smile Shutter)

When the camera detects a smile, the shutter is released automatically.

1Select (Smile Shutter) mode on the mode dial.

2Aim the camera at the subject and press the shutter button halfway down to

focus.

3Press the shutter button all the way down to set Smile Detection mode.

The Smile Shutter enters standby.

Smile Detection mark/Number of images

Smile Detection frame (Orange)

Smile Detection Sensitivity indicator

4Wait detecting a smile.

When the smile level exceeds the b point on the indicator, the camera records up to six images. Press the shutter button all the way down again to exit the Smile Shutter mode.

• Shooting using the Smile Shutter ends automatically when either the “Memory Stick Duo” media or internal memory becomes full or when six images have been recorded.

• Smiles may not be detected correctly depending on the conditions.

z Hints for better capturing of smiles

1 Do not cover the eyes with the bangs. 2 Try to orient the face in front of the camera and be as level as

possible. The detection rate is higher when the eyes are narrowed.

3 Give a clear smile with an open mouth. The smile is easier to

detect when the teeth are showing.

Detecting the shooting conditions (Scene Recognition)

The camera automatically detects the shooting conditions, and then takes the shot.

1Select (Auto Adjustment) mode on the mode dial.

2Press MENU button (pages 24, 25).

3Select (Scene Recognition) with v/V on the control button.

4Select the desired setting, then press z.

: Off (Default setting)

Does not use Scene Recognition.

: Auto

When the camera recognizes the scene, it switches to the optimal settings and shoots the image.

: Advanced

The camera shoots one image without using the scene recognition function and another image using scene recognition. (A total of two shots)

• Scene recognition does not function in the following situations: – During burst shooting – When using Digital Zoom

z When the camera recognizes the scene

Setting value icon Scene Recognition icon

When the camera recognizes the scene, (Twilight), (Twilight Portrait),

(Twilight using a tripod) (DSC-W220/W230 only), (Backlight),

(Backlight Portrait) appears.

When the camera does not recognize the scene, the image is shot as Scene Recognition [Off].

Viewing/deleting images

(Index) button

Speaker

(Playback)

Multi connector

MENU ( ) button

button

(bottom)

1Press (Playback).

If you press when the camera is powered off, the camera is turned on automatically and set to playback mode. To switch to the shooting mode, press again.

2Select an image with b/B on the control button.

Movie:

Press z to play back a movie. (Press z again to stop playback.) Press B to fast forward, b to rewind. (Press z to return to normal playback.) Press V to display the volume control screen, then press b/B to adjust the volume.

[ To delete images

1 Display the image you want to delete, then press MENU ( ). 2 Select [Delete] with v/V and select [This Image] with b/B, then press z. 3 Select [OK] with v, then press z.

(Playback zoom) button

Control button

HOME button

[ To view an enlarged image (playback zoom)

Press (T) while displaying a still image. To return the zoom, press W. Adjust the position with v/V/b/B. To cancel the playback zoom, press z.

Shows the displayed area of the whole image

[ To view an index screen

Press (Index) while a single image is displayed. Then, select an image with v/V/b/B. To return to the single image screen, press z.

• Each time you press (Index), the number of images on the index screen increases.

[ To delete images in index mode

1 Press MENU while the index screen is displayed. 2 Select (Delete) with v/V and select [Multiple Images] with b/B, then press z. 3 Select the image you want to delete with v/V/b/B, then press z.

The mark is checked in the checkbox of the image. To cancel a selection, select an image you have selected for deletion, then press z again.

4 Press MENU and select [OK] with v, then press z.

• To delete all the images in a folder, select [All In This Folder], then press z in step 2.

[ To play back a series of images with effects and music (Slideshow)

1 Press MENU button. 2 Select (Slideshow) with v/V on the control button, then press z.

The Setup screen appears.

3 Select [OK], then press z.

The slideshow starts.

The music will change together with the [Effects]. You can also transfer and change the music to your desired music. To transfer and change the music, take the following steps.

1 Install the software included in the CD-ROM (supplied) to your computer. 2 Press HOME button. Then select [ Music Tool] t [Download Music] in [Slideshow] (pages 22,

23).

3 Connect the camera and a computer with cable for multi-use terminal. 4 Start up “Music Transfer” installed to your computer and change the music.

For details on changing the music, refer to Help in “Music Transfer”.

[ To view images on TV

Connect the camera to the TV with the cable for multi-use terminal (supplied).

To the multi connector

To audio/video input jacks

Cable for multi-use terminal (supplied)

To view on HD (High Definition) TV, an HD Output Adaptor Cable (sold separately) is needed.

• If you set the image size to [16:9], you can record images in the size that fills the entire screen of the HD TV.

• You cannot view movies output in [HD(1080i)] signal format. Set [COMPONENT] to [SD] when shooting movies.

• Use a Type2b-compliant HD Output Adaptor Cable.

Learning the various functions – HOME/Menu

Using the HOME screen

The HOME screen is the gateway screen for all the functions of the camera, and can be called up regardless of the mode setting (shooting/viewing).

z button

Control button

HOME button

1Press HOME to display the HOME screen.

Shooting

Shoot photos or movies

Category Item

Guide

2 Select a category with b/B on the control button.

3 Select an item with v/V, then press z.

[ When you select the (Manage Memory) or (Settings) category

1 Select the desired setting with v/V, then press z.

• HOME screen is displayed by pressing b.

2 Select a setting with v/V, then press z.

• The camera is set to the shooting or viewing mode by pressing HOME again.

For details on the operation 1 page 22

HOME items

Pressing HOME displays the following items. Only the available items are displayed on the screen. Details on the items are displayed on the screen by the guide.

Categories Items

Shooting View Images

Slideshow

Manage Memory

Settings

* DSC-W220/W230 only.

Shooting

Single Image Image Index Slideshow Music Tool

Download Music Format Music Print

Memory Tool

Memory Stick Tool

Format Create REC.Folder

Change REC.Folder Copy

Internal Memory Tool

Format Main Settings

Main Settings 1

Beep Function Guide

Initialize Smile demo mode

Main Settings 2

USB Connect COMPONENT

Video Out Wide Zoom Display Shooting Settings

Shooting Settings 1

AF Illuminator Grid Line

AF Mode Digital Zoom

Conversion Lens

Shooting Settings 2

Auto Orientation* Auto Review Clock Settings Language Setting

Using menu items

z button

Control button

MENU button

Press MENU to display the menu.

Function Guide

• The menu will be displayed only during shooting and playback mode.

• Different items will become visible depending on the selected mode.

2Select a desired menu item with v/V on the control button.

• If the desired item is hidden, keep pressing v/V until the item appears on the screen.

3Select a setting with b/B.

• If the desired item is hidden, keep pressing b/B until the item appears on the screen.

• Select an item in playback mode, and press z.

4Press MENU to turn off the menu.

+ 56 hidden pages

Sony DSC-W230 User Manual [en, es]

English

Table of contents

Notes on using the camera

Getting started

Checking the accessories supplied

1 Preparing the battery pack

3 Turning the camera on/setting the clock

Shooting images easily

Mode dial/Zoom/Flash/Macro/Self-timer/Display

Detecting smiles and shooting automatically (Smile Shutter)

Detecting the shooting conditions (Scene Recognition)

Viewing/deleting images

Using the HOME screen

HOME items

Using menu items
