Prepare the battery

Turn the camera on/set the clock

Insert a “Memory Stick” (not supplied)

Digital Still Camera

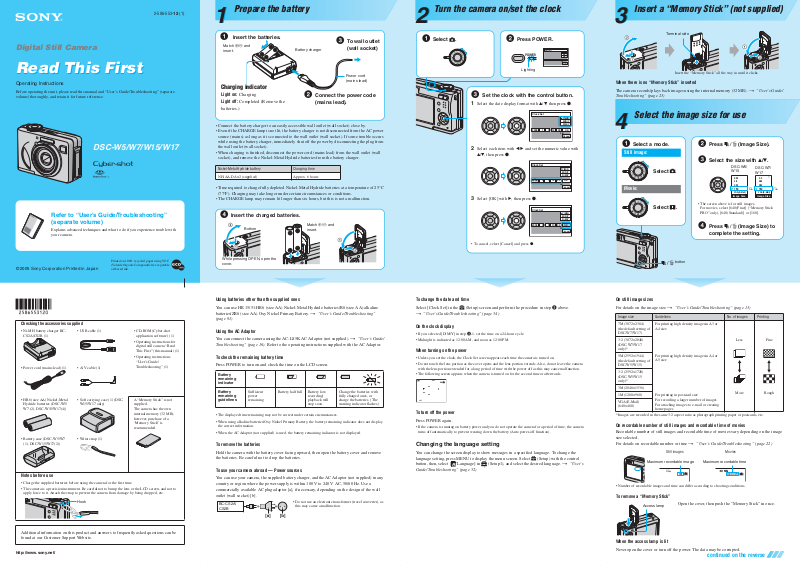

Read This Firs

Operating Instructions

Before operating the unit, please read this manual and “User’s Guide/Troubleshooting” (separate volume) thoroughly, and retain it for future reference.

DSC-W5/W7/W15/W17

Refer to “User’s Guide/Troubleshooting” (separate volume)

Explains advanced techniques and what to do if you experience trouble with your camera.

1 Insert the batteries.

Match 3/# and insert.

Battery charger

3 To wall outlet

(wall socket)

Power cord (mains lead)

Charging indicator

Light on: Charging Light off: Completed (Remove the

batteries.)

• Connect the battery charger to an easily accessible wall outlet (wall socket) close by.

• Even if the CHARGE lamp is not lit, the battery charger is not disconnected from the AC power

source (mains) as long as it is connected to the wall outlet (wall socket). If some trouble occurs while using the battery charger, immediately shut off the power by disconnecting the plug from the wall outlet (wall socket).

• When charging is finished, disconnect the power cord (mains lead) from the wall outlet (wall

socket), and remove the Nickel-Metal Hydride batteries from the battery charger.

Nickel-Metal Hydride battery Charging time

NH-AA-DA×2 (supplied) Approx. 6 hours

• Time required to charge fully depleted Nickel-Metal Hydride batteries at a temperature of 25°C

(77°F). Charging may take longer under certain circumstances or conditions.

• The CHARGE lamp may remain lit longer than six hours, but this is not a malfunction.

2 Connect the power code

(mains lead).

4 Insert the charged batteries.

Bottom

Match 3/# and insert.

1 Select . 2 Press POWER.

Clock Set

2005

Lighting

3 Set the clock with the control button.

1 Select the date display format with v/V, then press z.

Clock Set

2005

1 1

2 Select each item with b/B and set the numeric value with

v/V, then press z.

Clock Set

2005

1 1

3 Select [OK] with B, then press z.

Clock Set

2005

1 1

• To cancel, select [Cancel] and press z.

1 1

12 00

10 30

12 00

Y/M/D M/D/Y D/M/Y

Cancel

Y/M/D M/D/Y D/M/Y

Cancel

Y/M/D M/D/Y D/M/Y

Cancel

Y/M/D M/D/Y D/M/Y

Cancel

Terminal side

Insert the “Memory Stick” all the way in until it clicks.

When there is no “Memory Stick” inserted

The camera records/plays back images using the internal memory (32 MB). t “User’s Guide/ Troubleshooting” (page 23)

Select the image size for use

1 Select a mode.

Still image:

Select .

Movie:

Select .

2 Press (Image Size).

3 Select the size with v/V.

DSC-W5/ W15

3:2

VGA(E-Mail)

Image Size

• The screen above is for still images. For movies, select [640(Fine)] (“Memory Stick PRO” only), [640(Standard)] or [160].

DSC-W7/ W17

3:2

VGA(E-Mail)

Image Size

4 Press (Image Size) to

complete the setting.

Printed on 100% recycled paper using VOC

(Volatile Organic Compound)-free vegetable oil based ink.

Checking the accessories supplied

• Ni-MH battery charger BCCS2A/CS2B (1)

• Power cord (mains lead) (1) • A/V cable (1)

• HR6 (size AA) Nickel-Metal Hydride batteries (DSC-W5/ W7 (2), DSC-W15/W17(4))

• Battery case (DSC-W5/W7 (1), DSC-W15/W17(2))

• USB cable (1) • CD-ROM (Cyber-shot

• Soft carrying case (1) (DSCW15/W17 only)

• Wrist strap (1)

application software) (1)

• Operating instructions for digital still camera “Read This First” (this manual) (1)

• Operating instructions “User’s Guide/ Troubleshooting” (1)

A “Memory Stick” is not supplied. The camera has the own internal memory (32 MB), however, purchase of a “Memory Stick” is recommended.

Notes before use

• Charge the supplied batteries before using the camera for the first time.

• The camera is a precision instrument. Be careful not to bump the lens or the LCD screen, and not to apply force to it. Attach the strap to prevent the camera from damage by being dropped, etc.

Hook

While pressing OPEN, open the cover.

Using batteries other than the supplied ones

You can use HR 15/51:HR6 (size AA) Nickel-Metal Hydride batteries/R6 (size AA) alkaline batteries/ZR6 (size AA) Oxy Nickel Primary Battery. t “User’s Guide/Troubleshooting”

(page 91)

Using the AC Adaptor

You can connect the camera using the AC-LS5K AC Adaptor (not supplied). t “User’s Guide/ Troubleshooting” (page 16). Refer to the operating instructions supplied with the AC Adaptor.

To check the remaining battery time

Press POWER to turn on and check the time on the LCD screen.

Battery remaining indicator

Battery remaining guidelines

• The displayed time remaining may not be correct under certain circumstances.

• When using alkaline batteries/Oxy Nickel Primary Battery, the battery remaining indicator does not display the correct information.

• When the AC Adaptor (not supplied) is used, the battery remaining indicator is not displayed.

Sufficient power remaining

Battery half full Battery low,

recording/ playback will stop soon.

Change the batteries with fully charged ones, or charge the batteries. (The warning indicator flashes.)

To remove the batteries

Hold the camera with the battery cover facing upward, then open the battery cover and remove the batteries. Be careful not to drop the batteries.

To use your camera abroad — Power sources

You can use your camera, the supplied battery charger, and the AC Adaptor (not supplied) in any country or region where the power supply is within 100 V to 240 V AC, 50/60 Hz. Use a commercially available AC plug adaptor [a], if necessary, depending on the design of the wall outlet (wall socket) [b].

BC-CS2A/ CS2B

• Do not use an electronic transformer (travel converter), as this may cause a malfunction.

To change the date and time

Select [Clock Set] in the (Setup) screen and perform the procedure in step 3 above.

t “User’s Guide/Troubleshooting” (page 54)

On the clock display

• If you selected [D/M/Y] in step 3-1, set the time on a 24-hour cycle.

• Midnight is indicated as 12:00 AM, and noon as 12:00 PM.

When turning on the power

• Unless you set the clock, the Clock Set screen appears each time the camera is turned on.

• Do not touch the lens portion as the cover opens and the lens portion extends. Also, do not leave the camera with the lens portion extended for a long period of time with the power off as this may cause malfunction.

• The following screen appears when the camera is turned on for the second time or afterwards.

VGA

S AF

To turn off the power

Press POWER again.

• If the camera is running on battery power and you do not operate the camera for a period of time, the camera turns off automatically to prevent wearing down the battery (Auto power-off function).

Changing the language setting

You can change the screen display to show messages in a specified language. To change the language setting, press MENU to display the menu screen. Select (Setup) with the control button, then, select [ Language] in (Setup1), and select the desired language. t “User’s

Guide/Troubleshooting” (page 52)

button

On still image sizes

For details on the image size t “User’s Guide/Troubleshooting” (page 13)

Image size Guidelines No. of images Printing

7M (3072×2304) (the default setting of

DSC-W7/W17)

3:2 (3072×2048) (DSC-W7/W17 only)*

5M (2592×1944) (the default setting of

DSC-W5/W15)

3:2 (2592×1728) (DSC-W5/W15

only)*

3M (2048×1536)

1M (1280×960) For printing in postcard size

VGA(E-Mail) (640×480)

*Images are recorded in the same 3:2 aspect ratio as photograph printing paper or postcards, etc.

For printing high density imagesin A3 or A4 size

For printing high density imagesin A4 or A5 size

For recording a larger number of images For attaching images to e-mail or creating

home pages

Less

Fine

Rough

On recordable number of still images and recordable time of movies

Recordable number of still images and recordable time of movies vary depending on the image size selected. For details on recordable number or time t “User’s Guide/Troubleshooting” (page 22)

Still images Movies

Maximum recordable image Maximum recordable time

• Number of recordable images and time can differ according to shooting conditions.

To remove a “Memory Stick”

Access lamp

Open the cover, then push the “Memory Stick” in once.

Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.

http://www.sony.net/

When the access lamp is lit

Never open the cover or turn off the power. The data may be corrupted.

continued on the reverse

Shoot images easily (Auto adjustment mode)

Shoot still images (Scene Selection)

View/delete images

Holding the camera

Position the subject in the center of the focus frame.

Control button

Using the control button

VGA

RETURN

Using the self-timer

8/8

10:30PM2005 1 1101-0029

Checking the last image you shot (Quick Review)

Review

1 Select a mode.

Still image (auto adjustment mode):

2 Shoot with the shutter button.

Still image:

1 Select the desired mode of Scene

Selection ( , , , , , ,

1 Select . 2 Select an image with b/B.

VGA

3/9

Movie:

Select .

Press and hold halfway down to focus

AE/AF lock indicator Flashing t lit/beeps

FINE

VGA

Press fully down

The shutter sounds.

• For details on modes, see below.

/button

button

10:30

2005 1 1101-0003

BACK/NEXT

VOLUME

Still image: the image size is displayed

Movie: is displayed

Movie:

Select .

SAF

F2.830

AF range finder frame

2 Shoot with the shutter button.

To play back a movie, press z.

STD

640

10/10

00:00:03

Movie:

Playback bar

10:30

Press fully down

Zoom button

To stop recording, press the shutter button fully down again.

640

00:00:02[00:10:48]

REC

STD

button

Control button

• Movies with the image size [160] are displayed a size smaller.

To cancel the Scene Selection

VGA

Using the flash for

SAF

still images

VGA

Shooting close-up (Macro)

SAF

VGA

SAF

Using the zoom

Zoom button

• You cannot change the zoom scale while shooting a movie.

• When the zoom scale exceeds 3×, the camera uses [Digital Zoom].

For details on the [Digital Zoom] settings and the image quality t “User’s Guide/Troubleshooting” (page

45)

Set the mode dial to other than the mode of Scene Selection.

To delete images

1 Display the image you want to delete and press (delete). 2 Select [Delete] with v, then press z.

VGA

2/9

To cancel the deletion

Delete

Exit

BACK/NEXT

Select [Exit], then press z.

2005 1 1101_0010

STOP REV/CUE VOLUME

Rewind/Fast forward: b/B (Return to normal playback: z) Vo l u m e : v/V Stop playback: z

Checking the last still image you shot (Quick Review)

Press b ( ) on the control button. To cancel, press b again.

• The image may appear rough right after playback starts.

• To delete the image, press (Delete) and select [Delete] with v on the control button, then press z.

Selecting a flash mode for still images

Before step 2, press v ( ) on the control button repeatedly until the desired mode is selected.

No indicator Strobes if it is dark or against light (default setting)

Forced flash

Slow synchro (Forced flash)

The shutter speed is slow in a dark place to clearly shoot the background that is out of flash light.

No flash

• Shooting distance (when [ISO] is set to [Auto])

W side: Approx. 0.2 to 4.5 m (7 7/8 to 14 feet 9 1/4 inches)

T side: Approx. 0.3 to 2.5 m (11 7/8 to 8 feet 2 1/2 inches)

• The flash strobes twice. The first time is to adjust the light quantity.

Shooting close-up (Macro)

Before step 2, press B ( ) on the control button.

To cancel, press

• Setting the zoom all the way to the W side is recommended.

• The in-focus range becomes narrow, and the complete subject may not entirely be in focus.

• The AF speed drops.

B again.

Shortest shooting distance from the lens surface

Setting all the way to the W side: Approx. 6 cm (2 3/8 inches) Setting all the way to the T side: Approx. 30 cm (11 7/8 inches)

Using the self-timer

Before step 2, press V ( ) on the control button.

Press the shutter button, the self-timer lamp flashes, and a beep sounds until the shutter operates (approximately 10 seconds later).

If you shoot a still image of a subject that is difficult to focus on

• If the subject is closer than approx. 50 cm (19 3/4 inches), use the Macro mode (left column).

• When the camera cannot focus on the subject automatically, the AE/AF lock indicator changes to flashing slowly and the beep does not sound. Recompose the shot and focus again.

Subjects difficult to focus on are:

–Distant from the camera and dark

–The contrast between the subject and its

background is poor.

–Reflect light or have a lustrous finish

– Flashing

–Against light

–Seen through glass

–Moving fast

To identify items on the screen

t “User’s Guide/Troubleshooting” (page 17)

To turn off the LCD screen

Press (Display/LCD on/off) repeatedly. Use the finder for saving battery power, or shooting images when it is difficult to confirm images using the LCD screen.

button

Scene Selection modes

The following modes are predetermined to match the scene conditions.

Twilight* Beach

Shoots night scenes at a distance without losing the dark atmosphere of the surroundings.

Shoots seasides or lakesides, the blue of the water clearly recorded.

Twilight portrait* Landscape

Shoots portraits in dark places. Shoots landscapes, etc., by

focusing on a distant subject.

Candle* Soft snap

Shoot candlelit scenes, without spoiling the atmosphere.

Shoots portraits of people, flowers, etc., with a gentle atmosphere.

Snow

Shoots whitish scenes brightly.

*The shutter speed becomes slower, so using a tripod is recommended.

To use the functions set by the control button with Scene Selection

Before shooting in step 2, select the settings with the control button. Some functions are not available, depending on the Scene Selection mode. When you press the button to select functions that cannot be combined with Scene Selection, a beep sounds. t “User’s Guide/

Troubleshooting” (page 26)

To view an enlarged image (playback zoom)

While displaying a still image, press to zoom in on the image.

To undo the zoom, press . Adjust the portion: v/V/b/B Cancel playback zoom: z

To store enlarged images: [Trimming] t “User’s Guide/Troubleshooting” (page 43)

Viewing an index screen

Press (index), then select an image with v/V/b/B. To return to the single-image screen, press z. To display the next (previous) index screen, press

b/B.

VGA

3/9

10:30

SINGLE DISPLAY

•

SINGLE DISPLAY

•

BACK/NEXT

2005 1 1101-0003

VOLUME

If you press again, the sixteen-image index screen appears.

To delete images in index mode

1 While an index screen is displayed, press (Delete) and select [Select] with v/V on the

control button, then press z.

2 Select the image you want to delete with v/V/b/B, then press z to display the (Delete)

indicator on the selected image.

To cancel a selection

Select an image you have previously selected for deletion, then press z to delete the indicator from the image.

TO NEXTSELECT

3 Press (Delete). 4 Select [OK] with B, then press z.

• To delete all the images in the folder, select [All In This Folder] with v/V in step 1 instead of [Select], then press z.

Self-timer lamp
