Sony DNWA25WS, DNWA25WSP Operating Instructions

DIGITAL VIDEOCASSETTE RECORDER
DNW-A25WS DNW-A25WSP

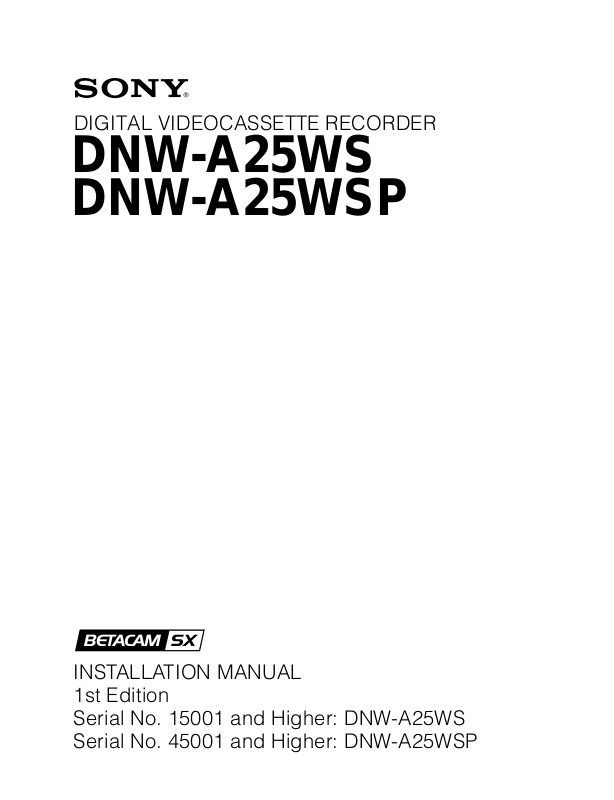

INSTALLATION MANUAL 1st Edition Serial No. 15001 and Higher: DNW-A25WS Serial No. 45001 and Higher: DNW-A25WSP
This manual is intended for qualified service personnel only. To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer all servicing to qualified service personnel.
! WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt. Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die Gefahr eines elektrischen Schlages, Feuergefahr und Ver letzungen zu vermeiden, sind bei Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung dazu besitzen.
! AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres. Pour toute réparation faire appel à une personne compétente uniquement.
DNW-A25WS/A25WSP
Table of Contents
Manual Structure
Purpose of this manual .............................................................................................. 2
Related manuals......................................................................................................... 2
1. Installation
1-1. Installation Procedure..................................................................................1-1
1-2. Supplied Accessories ..................................................................................1-1
1-3. Operating Conditions ..................................................................................1-1
1-4. Power Supply ..............................................................................................1-2
1-5. Installation Space ........................................................................................1-3
1-6. Connectors/Cables.......................................................................................1-4
1-7. Signal Inputs and Outputs ...........................................................................1-5
1-8. Settings for Internal Switches/Slit Lands.................................................... 1-8
1-8-1. AU-249 Board ............................................................................1-8
1-8-2. RE-150 Board.............................................................................1-9
1-9. Setup Extended Menu ...............................................................................1-10
1-10. Settings for External Editors .....................................................................1-11
1-10-1. Time Code Settings for Recorder.............................................1-11
1-10-2. VTR Constant Settings for External Editors ............................1-11
1-10-3. System Phase Adjustment ........................................................1-11
1-10-4. Setup Menu Setting of ITEM-701............................................1-11
1-11. Removing/Reattaching the Plug-in Boards............................................... 1-12
1-12. How to Take Out the Cassette Whose Tape is Slacked ............................ 1-14
DNW-A25WS/A25WSP
Appendix A Setting Check Sheet
1
Purpose of this manual
Related manuals
Manual Structure
This manual is the installation manual of digital videocassette recorder DNW-A25WS/A25WSP. This manual is intended for use by trained system and service engineers, and provides the information that is required to install (environment, connection infor­mation, initial setting, etc.) .
Besides this “installation manual”, the following manuals are available for digital videocassette recorder DNW-A25WS/A25WSP.
..
. Operation Manual (Supplied with the unit.)
..
This manual is necessary for application and operation (and installation) of the unit.
..
. Maintenance Manual (available on request)
..
Volume-1 : Service Instruction Volume-2 : Parts List, Diagrams
These manuals describe the maintenace and service information (service over­view, adjustments, board layouts, schematic diagrams, detailed parts list, etc.) for this unit. If these manuals are required, please contact your local Sony Sales Office/Service Center.
..
. Protocol Manual of Remote (9-pin) Connector (available on request)
..
This manual explains the protocol for controlling the VTR via the RS-422A (9-pin serial remote). If this manual is required, please contact your local Sony Sales Office/Service Center.
..
. BKNW-225 Maintenance Manual (Supplied with the BKNW-225)
..
This manual describes the spare parts list and the exploded view for the service parts of the docking kit BKNW-225, that is used when the two DNWs are cou­pled.
2
DNW-A25WS/A25WSP
Section 1
Installation
1-1. Installation Procedure
Installation procedure of this unit is shown on the follow­ing flowchart. Refer to each section about detail of each flow. The operation manual is also reqruired to do *-marked flow.
Start
Determination of installation place
Unpacking
Installation
*Connection
1-3. Operating Conditions 1-4. Power Supply
1-5. Installation Space
1-6. Connectors/Cables 1-7. Signal Inputs and Outputs
1-3. Operating Conditions
c
Do not block an air vent. If ventilation is not enough, the unit may be damaged due to increase the internal tempera­ture of the unit.
. Do not shove the unit into cramped place with poor
ventilation.
. Be sure to make cleaning if a cooling fan is covered with
dust.
. Replace a cooling fan periodically. . Do not place the unit on a longhaired carpet. . Do not cover the unit with cloth.
n
Good air circulaiton is essential to prevent internal heat build-up. Place the unit in location with sufficient air circulation. Do not block the ventilation holes of the cabinet and the front and rear panels.
*Initial setup
*Operation check
End
1-8. Settings for Internal
Switches/Slit Lands
1-9. Setup Extended Menu 1-10. Settings for External Editors
1-2. Supplied Accessories
Cap, BNC ........................................................................ 11
Cap, DC OUT ....................................................................2
Cap, XLR (F)..................................................................... 2
Cap, XLR (M) ................................................................... 5
Cap, DUST ........................................................................ 1
Shoulder belt assembly...................................................... 1
Rear panel cover ................................................................ 1
Operation manual .............................................................. 1
Installation manual ............................................................ 1
Operating temperature: 0dC to 40dC Operating humidity: 25% to 80% (Condensation not
allowed) Storage temperature: _20dC to 60dC Locations to avoid:
. Areas where the unit will be exposed to direct sunlight
of any other strong lights.
. Areas near heat sources. . Dusty areas or areas subject to vibration. . Areas with strong magnetic field. . Areas with much electrical noise. . Areas with much static electricity. . Areas that is impossible to find a specified room for
installation. (Refer to Section “1-5. Installation Space” .)
. Areas windtight.
n
After installation, be sure to use the supplied caps for protecting unused connectors.
DNW-A25WS/A25WSP
1-1
1-4. Power Supply
1-4. Power Supply
The unit works either on AC current (using the AC adaptor) or battery. When repairing or checking the unit, however, AC-operation is recommended.
Power Voltage: DC 11 to 17 V Power Consumption : 65 W
m . The AC adaptor AC-DN1 cannot be used to derive power. . The AC adaptor AC-DN2A/DN2B can supply power to two VTRs simultaneously. The AC-DN2 with
serial No.11001 or higher can supply, too. If the above adaptor is used, power on the VTRs and load cassettes in turn allowing for an inrush current.
. While the unit is battery-operated, the remaining battery capacity is displayed on the sub menu indica-
tor. When the battery is nearly dead, the WARNING indicator on the side of the LCD monitor will blink. For details, refer to the operation manual supplied with the unit.
Connection example (when operating two VTRs)
AC adaptor AC-DN2A/DN2B
DC OUT
(DC cable)
DC IN
AC adaptor AC-DN2A/DN2B
Battery terminal
Lithium-ion battery BP-L90A/L60A
DNW-A25WS/A25WSP
Rear View
Ni-cd battery BP-90A
+
Battery adaptor DC-L90
AC adaptor AC-550
1-2
Ni-cd battery BP-90A
+
Battery adaptor DC-210
DNW-A25WS/A25WSP
1-5. Installation Space
c
To avoid an injury, do not install the unit on rickety table.
Ventilation and Installation Space for Servicing
. Do not block an exhaust section and an air vent (rear panel). . In order to make a unit with good ventilation, ensure sufficient clearance around the unit. . In order to ensure a workspace, more than 20 cm behind the unit is required.
Outside Dimensions
1-5. Installation Space
461
443
R217
120d
89
145
150
157
331
349
DNW-A25WS/A25WSP
210 230
Unit : mm
1-3
1-6. Connectors/Cables
1-6. Connectors/Cables
Connection made with the connector panels during installation or service, should be made with the connectors or complete cable assemblies specified in the following list, or equivalent parts.
Panel indication Connection connector (Sony P/N) Connection cable (Sony P/N)
VIDEO REF IN Plug, BNC (1-564-742-11) RG-59B/U cable VIDEO INPUT VIDEO OUTPUT TC IN TC OUT
SDI IN Plug, BNC (1-564-742-11) BNC coaxial cable SDI OUT (1-791-456-11: supplied with BKNW-225) or
BELDEN 8281 cable (Maximum cable length: 200 m)
AUDIO INPUT XLR 3P, MALE (1-508-084-00) –––––––
AUDIO OUTPUT XLR 3P, FEMALE (1-508-083-00) ––––––– MONITOR OUTPUT
DC IN XLR 4P, FEMALE (1-508-362-00) DC power cord (1-551-577-00:supplied with AC-550/
550CE)
DC OUT Plug 4P MALE (1-566-425-11) –––––––
REMOTE Plug 9P MALE (1-560-651-00) 9P remote control cable
Shell, Junction 9P (1-561-749-00) (1-783-089-12: supplied with BKNW-225) or
RCC-5G(5 m)/10G(10 m)/30G(30 m)
AUX Plug 6P MALE (1-560-078-00) –––––––
HEADPHONES JM-60 stereo phone plug –––––––
(Separately available)
1-4
DNW-A25WS/A25WSP
