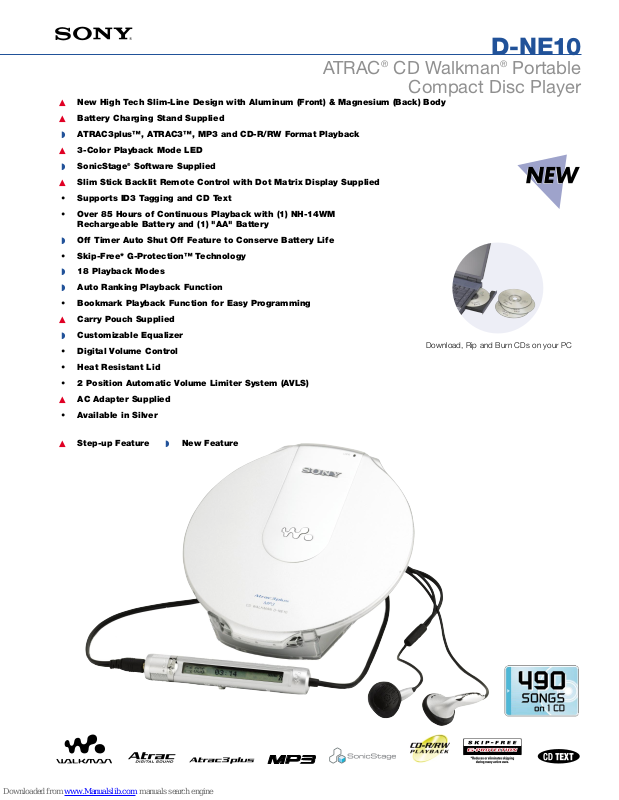

Page 1
D-NE10
ATRAC®CD Walkman®Portable
Compact Disc Player
®
▲ New High Tech Slim-Line Design with Aluminum (Front) & Magnesium (Back) Body
▲ Battery Charging Stand Supplied
◗ ATRAC3plus™, ATRAC3™, MP3 and CD-R/RW Format Playback
▲ 3-Color Playback Mode LED
◗ SonicStage®Software Supplied
▲ Slim Stick Backlit Remote Control with Dot Matrix Display Supplied
• Supports ID3 Tagging and CD Text
• Over 85 Hours of Continuous Playback with (1) NH-14WM
Rechargeable Battery and (1) "AA" Battery
◗ Off Timer Auto Shut Off Feature to Conserve Battery Life
• Skip-Free* G-Protection™ Technology
◗ 18 Playback Modes
◗ Auto Ranking Playback Function
• Bookmark Playback Function for Easy Programming
▲ Carry Pouch Supplied
◗ Customizable Equalizer
• Digital Volume Control
• Heat Resistant Lid
• 2 Position Automatic Volume Limiter System (AVLS)
▲ AC Adapter Supplied
• Available in Silver
▲ Step-up Feature ◗ New Feature
Download, Rip and Burn CDs on your PC
Page 2
features
▲New High-Tech Slim Line Design with Aluminum (Front) and
Magnesium (Back) Body
exceptionally thin aluminum and magnesium
body with a new high tech look that s it apart from the typical portable
CD player
▲Battery Charging Stand lets you simply place the CD Walkman player
on its specially-designed stand to charge the rechargeable batteries,
with no need to press buttons or flip switches
◗
ATRAC3plus™, ATRAC3, MP3 and CD-R/RW Format Playback
ATRAC3plus is an advanced audio compression technology offering
multiple bit rates, allowing you to create music compilations tailored to
your listening preference with the ability to get up to 490** songs on 1
CD-R/RW disc @ 48kbps. ATRAC3plus offers extended song capacity
with superior sound quality. You can also play back MP3 files
(16-320kbps) downloaded and recorded onto a CD-R/RW disc
▲3-Color Playback Mode LED gives you a visual indication if you are in
play, fast forward or rewind
◗
SonicStage®Software Supplied is easy to use and allows you to
create your own ATRAC3plus music file compilations on CD-R/RW
media using your PC's CD-ROM drive. The ability to add your own titles
and edit your music groups allows for an element of customization in
your portable music
▲Slim Stick Backlit Remote Control with Dot Matrix Display
Supplied
fits naturally into your hand during jogging or other activity and
allows you to access all essential operations using only your thumb
• Supports CD Text and ID3 Tagging to easily view CD text and ID3
information including song title, album title and artist name
◗
Customizable Equalizer Offers 4 different modes including 3 preset
and 1 custom setting for enhanced sound
• Over 85 Hours of Continuous Playback with (1) NH-14WM
Rechargeable Battery and (1) "AA" Battery (Not Supplied) for
ATRAC3plus Playback
advanced Sony DSP technology and new
mechanism which provides dramatically extended battery life from
predecessor models
◗
Off Timer Auto Shut Off Feature to Conserve Battery Life
Maximizes battery life by powering down the player when not in use
• Skip-Free* G-Protection™ Technology continues to provide quick
recovery from both horizontal and vertical shock
◗
18 Playback Modes offer many predetermined choices in the playback
of CDs, including hearing one track over and over, hearing a selection of
tracks in a desired order, or listening to tracks randomly
◗
Auto Ranking Playback Function listen to the tracks on your CD in
the order you want them
• Bookmark Playback Function for Easy Programming You can
easily program your favorite songs from multiple CDs and play them
back with the touch of a button. This feature makes it easy to program
and playback a personalized mix of your favorite songs
▲Carry Case Supplied new high tech carry case supplied
• Digital Volume Function provides precise adjustment of volume level,
while the volume level appears on the display
• Heat Resistant Lid helps protect against high temperature build-up
especially when using the CD Walkman
®
player in hot climates and
in vehicles
• 2 Position Automatic Volume Limiter System (AVLS) maintains
volume output at levels below distortion threshold for cleaner sound
reproduction
• AC Adapter Supplied
• Available In Silver
specifications
Digital-Analog Conversion: 1 Bit
D/A Conversion: 1 Bit Quartz Time-Axis Control
Frequency Response: 20-20000Hz, +1/-2dB
Inputs: DC-In 3.0V
Outputs: Headphone (stereo mini jack)
Power Requirements: DC 1.5V x 1 ("AA" x 1 Batteries)
Battery Life (Approx.): 85 Hours with "Gum type NH-14WM" x 1 + "AA" Sony
Alkaline Batteries x 1 (ATRAC CD recorded at 48kbps/G-Protection 2)
Color: Silver
Dimensions (WHD): 5 x 23⁄32" x 5 1⁄4" (127 x 17.7 x 132.7mm)
Weight: 5.30 oz (148g)
Supplied Accessories: Stereo Headphones, CD-ROM (SonicStage® Software),
LCD Remote Commander
®
Remote Control with Backlit, Battery Charging
Stand, Rechargeable Battery (NH-14WM x1), External Battery Case (AA x 1),
Carrying Pouch, AC Power Adapter
Optional Accessories: AC-E30HG/E30A AC Adapter, DCC-E345 Car Battery
Cord, RK-G129HG/G136HG Connecting Cord
©2004 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved.
Sony, ATRAC, ATRAC3, ATRAC3plus, G-Protection, Mega Bass, Remote Commander, SonicStage and
Walkman are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
*Eliminates or reduces skipping during many active uses.
**Estimated at 4 minutes per song, using 700MB CD-R/RW media, compressing in ATRAC3plus @48kbps.
