Portable
CD Player
Operating Instructions
About the area code
The area code of the location in which you purchased the CD player
is shown on upper left of the bar code label on the package.
For accessories supplied with your CD player, check the area code
of your model and see “Accessories (supplied/optional).”
D-E999
D-EJ925
© 2000 Sony Corporation
Page 2
CAUTION
The use of optical instruments with this
product will increase eye hazard.
Owner’s Record
The model number is located at the rear and
the serial number is located inside the lid of
the CD player. Record these numbers in the
spaces provided below. Refer to them
whenever you call upon your Sony dealer
regarding this product.
Model No. ___________________
Serial No. ___________________
Certain countries may regulate disposal of
the battery used to power this product. Please
consult with your local authority.
For the customers in the USA and Canada
DISPOSAL OF NICKEL METAL HYDRIDE
BATTERY.
NICKEL METAL HYDRIDE BATTERY.
DISPOSE OF PROPERLY.
You can return your unwanted nickel metal hydride
batteries to your nearest Sony Service Center or Factory
Service Center.
Note: In some areas the disposal of nickel metal
hydride batteries in household or business trash may
be prohibited.
For the Sony Service Center nearest you call 1-800222-SONY (United States only)
For the Sony Factory Service Center nearest you call
416-499-SONY (Canada only)
Caution: Do not handle damaged or leaking nickel
metal hydride battery.
For the customers in the USA and Canada
This mark is available in the USA and Canada
only
RECYCLING NICKEL-CADMIUM BATTERIES
Nickel-Cadmium batteries are
recyclable. You can help preserve our
environment by returning your unwanted
batteries to your nearest point for
collection, recycling or proper disposal.
Note: In some areas the disposal of
nickel-cadmium batteries in household
or business trash may be prohibited.
RBRC (Rechargeable Battery Recycling Corporation)
advises you about spent battery collection by the
following phone number.
Call toll free number: 1-800-822-8837 (United
States and Canada only)
Caution: Do not handle damaged or leaking nickel-
cadmium batteries.
For the customers in the USA
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
For the customers in Australia
The supply cord of the AC power adaptor cannot be
replaced; if the cord is damaged, the AC power adaptor
should be discarded.
The CE mark on the CD player is valid only
for products marketed in the European
Union.
2
Page 3
Table of Contents
Getting started
Locating the controls ................................... 4
Playing a CD
1.Connect your CD player. ......................... 7
2.Insert a CD. ............................................. 7
3.Play a CD. ............................................... 8
Playback options
Playing tracks repeatedly (Repeat play) .... 11
Playing a single track (Single play)........... 11
Playing tracks in random order
(Shuffle play)......................................... 11
Playing tracks in your favorite order
(PGM play)............................................ 12
Available features
G-PROTECTION function........................ 13
Displaying CD text information ................ 13
Checking the remaining time on the CD and
the number of tracks left ....................... 14
Emphasizing the bass sound (SOUND) .... 14
Protecting your hearing (AVLS) ................ 15
Locking the controls (HOLD) ................... 15
Turning off the operation beep sound........ 16
Turning off the LCD’s backlight ............... 16
Connecting a power source
Using the rechargeable batteries................ 19
Using the dry batteries............................... 21
Notes on the power source ........................ 22
Additional information
Precautions ................................................ 23
Maintenance .............................................. 23
Troubleshooting......................................... 24
Specifications ............................................ 26
Accessories (supplied/optional) ................ 27
Connecting your CD player
Connecting a stereo system ....................... 17
Using your CD player in a car ................... 18
3
Page 4
Getting started
Locating the controls
For details, see pages in parentheses.
CD player (front)
CD player (inside)
1 EXT BATT (external battery)/
DC IN 4.5 V (external power
input) jack (pages 7, 19, 21)
2 LINE OUT (OPTICAL) jack
(page 17)
3 VOL (volume) +/– buttons
(page 8)
4 ./> (AMS/search)
buttons
(pages 8, 11, 12)
5 u (play/pause) button
(page 8)
6 x (stop) /CHG (charge) button
(pages 8, 16, 19)
7 i (headphones) jack
(page 7)
8 CHG (charge)/HOLD lamp
(pages 15, 19)
9 OPEN switch
(page 7)
CD player (rear)
q; Battery
compartment
(pages 19)
qa G-PRO (G-
PROTECTION)
switch
4
(page 13)
qs AVLS switch
(page 15)
qd HOLD switch
(page 15)
Page 5
Remote control
qf Display
(pages 9, 11 - 15)
qg Rotary control
N/>: play, AMS/search (pages 8, 11, 12)
.: AMS/search (pages 8, 11, 12)
VOL +/–: Pull the control in the direction of the
arrow, and then turn it toward + or –. (page 8)
qj Clip
qk DISPLAY
button
(pages 13, 14)
ql PLAY MODE
button
(pages 10 - 12, 16)
Getting started
qh x (stop) button
(pages 8, 16)
wa HOLD switch
(page 15)
ws i (headphones) jack
(page 7)
wd X (pause) button
(page 8)
w; RPT (repeat)/ENT
(enter) button
(pages 10 - 12)
wf SOUND button
(page 14)
Note
Use only the supplied remote control. You cannot
operate this CD player with the remote control
supplied with other CD players.
5
Page 6
Using the carrying case
You can carry your player and its battery case together using the supplied carrying case. Insert
them into the proper places in the case as illustrated below.
6
Page 7
Playing a CD
You can also use rechargeable batteries, dry batteries and a car battery as a power source.
to an AC outlet
1
. Connect your CD player.

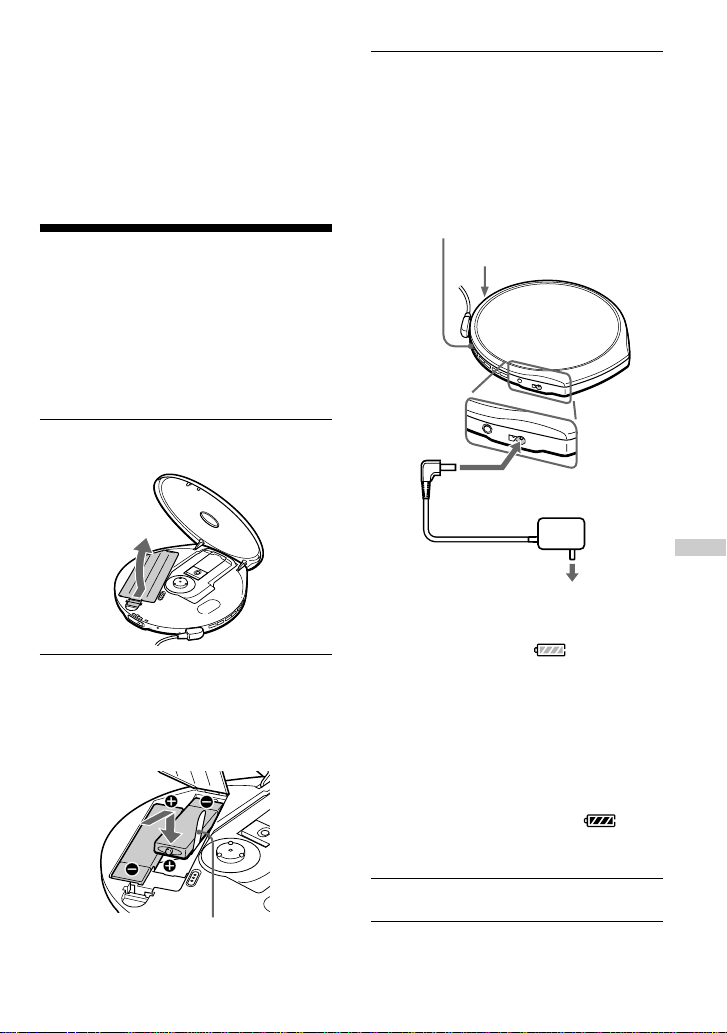

1 Connect the AC power adaptor.
2 Connect the headphones/earphones
with remote control.
For models supplied with the AC plug
adaptor
If the AC power adaptor does not fit the AC
outlet, use the AC plug adaptor.
For models supplied with the remote
control.
• Connect the plug of the headphones/
earphones to the remote control.
• Connect the headphones/earphones to
the remote control firmly. A loose
connection may cause noise during
playback.
to EXT
BATT/DC
IN 4.5V
to i
AC power
adaptor
u button
Playing a CD
Headphones
or
Earphones
2
. Insert a CD.
1 Slide OPEN to open the CD
player lid.
OPEN switch
2 Place the CD on the tray and close
the lid.
Label side up
(Continued)
7
Page 8
3
N/>
VOL–
.
VOL+
. Play a CD.
VOL + / –
u
1 Press u.
2 Adjust the volume by pressing
VOL + or –.
1 Turn the rotary control toward
N/> or ..
2 Pull the rotary control in the
direction of the arrow.
3 Adjust the volume by turning the
rotary control toward VOL + or –.
To Do this on the remote control
Play Turn the rotary control toward
Pause Press X (u for the CD player).
Stop Press x (x/CHG for the CD player).*
Find the beginning of the current track (AMS*1) Turn the rotary control toward .
Find the beginning of the previous tracks (AMS) Turn the rotary control toward .
Find the beginning of the next track (AMS) Turn the rotary control toward
Find the beginning of the succeeding tracks (AMS) Turn the rotary control toward
Go backwards quickly Turn the rotary control toward . and
Go forward quickly Turn the rotary control toward
N/ > or . (press u for the CD
player).
2
once.*
repeatedly.*
N/ > once.*
N/ > repeatedly.*
hold it.*
N/ > and hold it.*
2
2
2
2
2
2
*1Automatic Music Sensor
*2These operations can be done during both play and pause.
8
Page 9
About the display
• When you turn the rotary control toward N/> or . (press u for the CD player) after
changing the CD or turning off and on the player, the total number of tracks in the CD and
total playing time appear for about two seconds.
• During play, the track number and the elapsed playing time of the current track appear.
• Between tracks, the time to the beginning of the next track appears with the “–” indication.
• During pause, the elapsed playing time flashes.
If the volume level does not increase

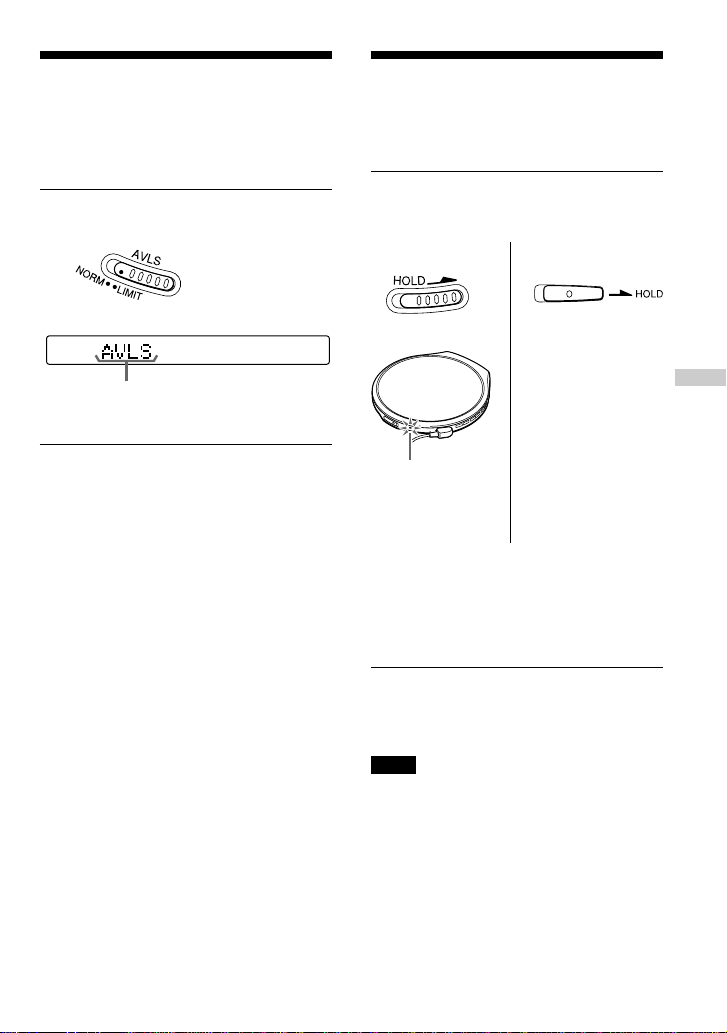

Is AVLS set to “LIMIT”? Set AVLS to “NORM.” For details, see “Protecting your hearing
(AVLS).”
Removing the CD
Remove the CD while pressing the pivot in the center of the tray.
Playing a CD
9
Page 10
Playback options

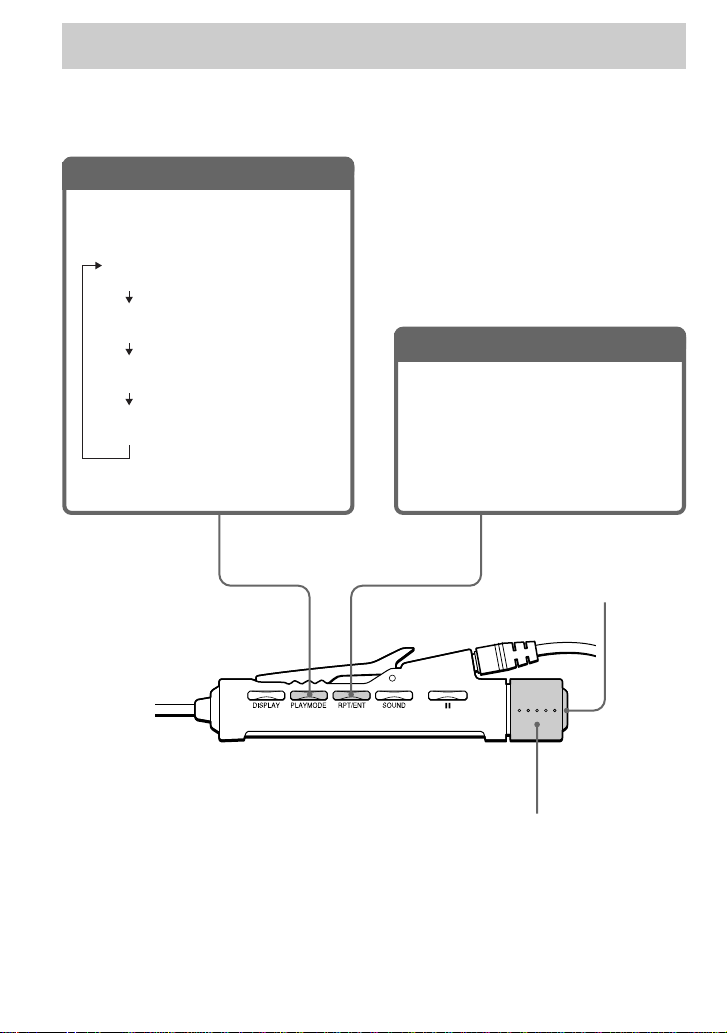

You can enjoy various ways of playback using the PLAY MODE button and the RPT (repeat)/
ENT (enter) button.
PLAY MODE button
Each time you press the button, you can
change the playback mode.
No indication
(Normal play)
“1”
(Play a single track)
“SHUF”
(Play tracks in random order)
“PGM”
(Play tracks in your favorite order)
RPT/ENT button
RPT (repeat)
You can repeat play that is selected using
PLAY MODE.
ENT (enter)
You can select tracks for PGM play
mode.
x button
10
Rotary control
(N/>, .)
Page 11
Playing tracks repeatedly (Repeat play)
You can play tracks repeatedly in normal, single, shuffle and PGM play modes.
During playback, press RPT/ENT.
Note on ./>
During Repeat play, you can locate the first track after the last track by turning the rotary control
toward N/> repeatedly. You can also locate the last track after first track by turning the
rotary control toward . repeatedly.
Playing a single track (Single play)

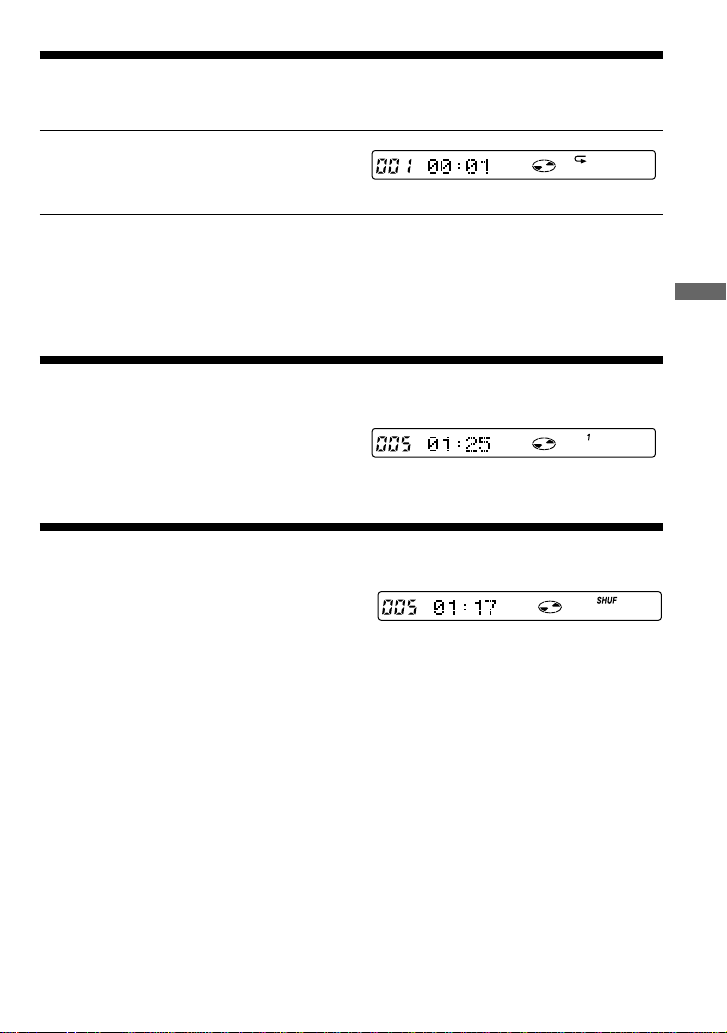

During playback, press PLAY MODE
repeatedly until “1” appears.
Playing tracks in random order (Shuffle play)
During playback, press PLAY MODE
repeatedly until “SHUF” appears.
Playback options
11
Page 12
Playing tracks in your favorite order (PGM play)

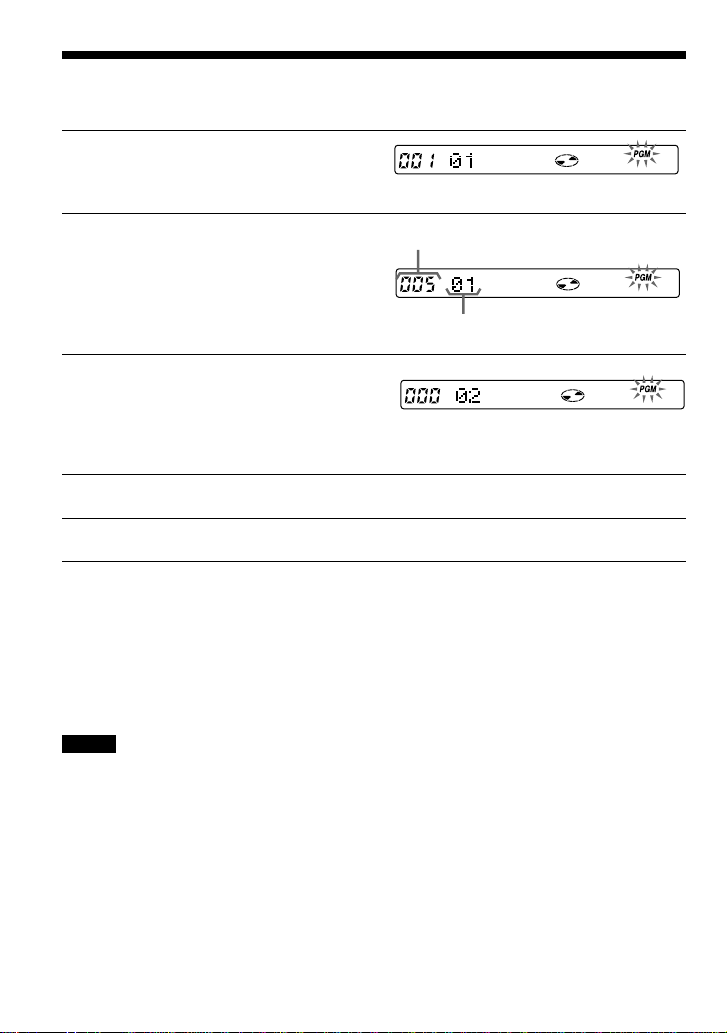

You can program the CD player to play up to 64 tracks in your favorite order.
During playback, press PLAY MODE
1
repeatedly until “PGM” appears.
Turn the rotary control toward
2
N/> or . to select a track.
Press RPT/ENT to enter
3
the selected track.
“00” appears and the playing order increases
by one.
Repeat steps 2 and 3 to select the tracks in your favorite order.
4
Press RPT/ENT until the PGM play starts.
5
To check the program
During programming:
Press RPT/ENT repeatedly before step 5.
During the PGM play:
Press PLAY MODE repeatedly until “PGM” flashes, then press RPT/ENT.
Each time you press RPT/ENT, the track number appears.
Notes
• When you finish entering the 64th track in step 3, the first selected track appears in the display.
• If you select more than 64 tracks, the first selected tracks are erased.
Track number
Playing order
12
Page 13

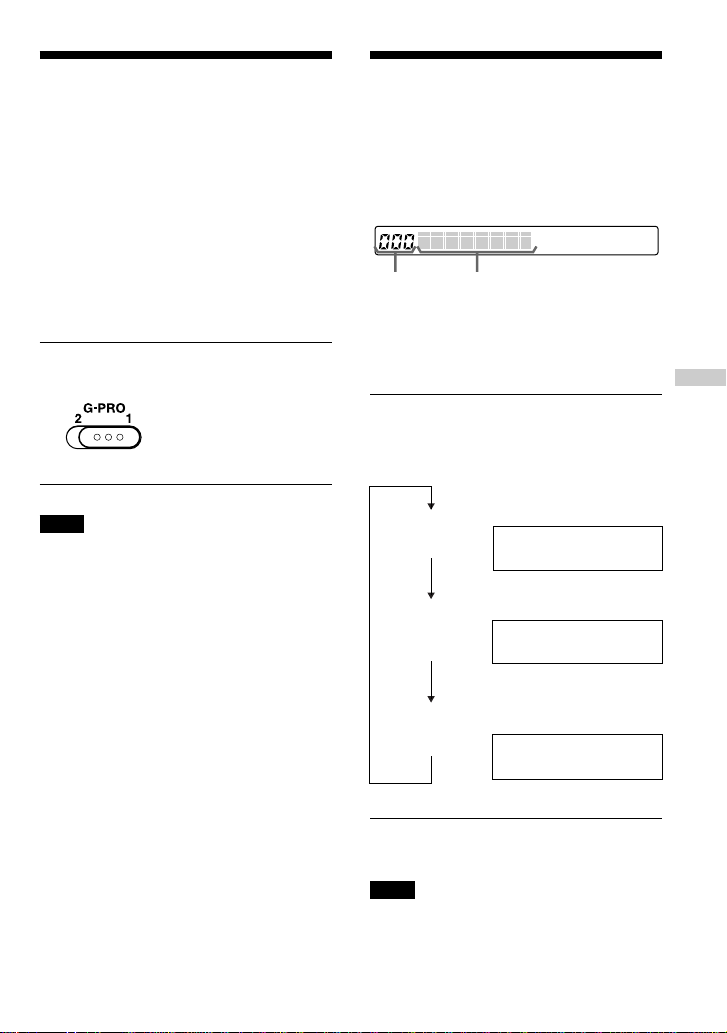

B
Available features
G-PROTECTION
function
The G-PROTECTION function has been
developed to provide excellent protection
against sound skipping while jogging.
When you set the G-PRO switch on your CD
player to “2”, the G-PROTECTION function
will be enhanced compared to “1.”
To walk with the CD player and enjoy high
quality CD sound using the Gfunction, set the G-PRO switch to “1.” While
taking harder exercise, it is recommended
that you set it to “2.”
Set G-PRO (under the lid) to “1” or
“2.”
Note
Sound may skip if:
– the CD player receives stronger continuous
shock than expected or
– a dirty or scratched CD is played.
PROTECTION
Displaying CD text
information
When you play a CD containing CD text
information, the track name, disc name, artist
name, etc., appear in the display.
Display on the remote control
“Track
number”
appears.
* While the CD player is reading the information
on the CD, “READING” appears.
Press DISPLAY.
Each time you press the button, the display
changes as follows:
Normal play
Press DISPLAY
once.
CD text appears in this
portion.*
Display
Track number and name of
the current track
Track number and name of
the current track/artist name
Available features
Press DISPLAY
twice.
** Not displayed during single play, shuffle play or
PGM play.
Note
CD text displayed on this CD player is in English
only.
The number of tracks left**
and disc name/artist name
13
Page 14

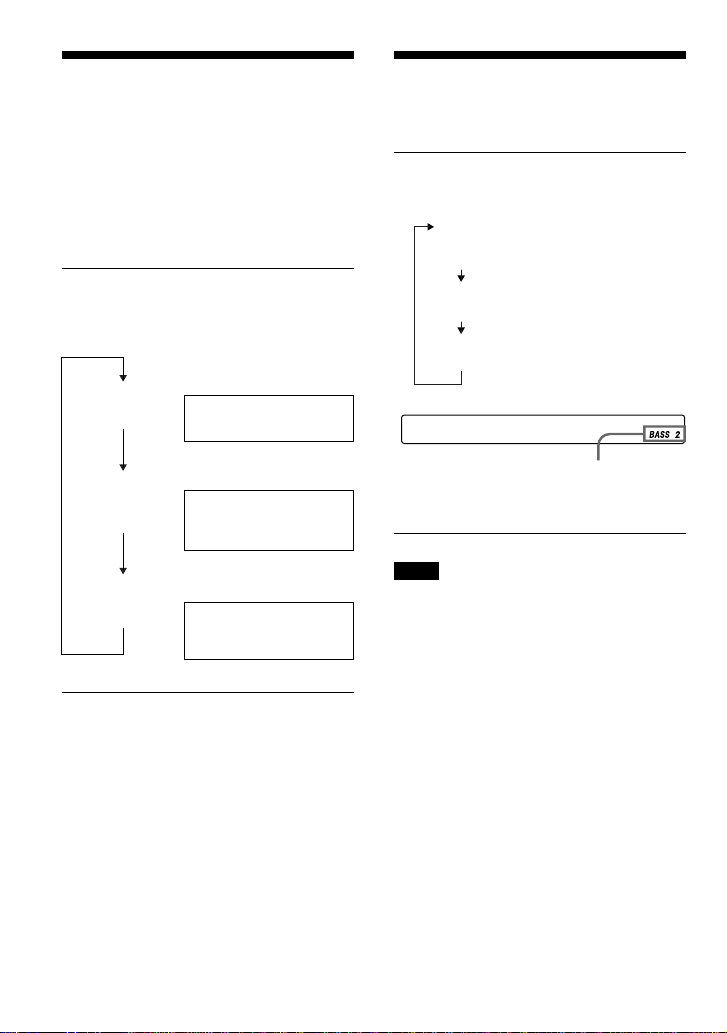

Checking the remaining
time on the CD and the
number of tracks left
You can check the remaining time on the CD
and the number of tracks left using
DISPLAY.
When playing a CD containing CD text
information, you cannot use this function.
Emphasizing the bass
sound
You can emphasize the bass-boosted sound.
Press SOUND to select “BASS 1” or
“BASS 2.”
(SOUND)
No indication
(Normal play)
Press DISPLA Y.
Each time you press the button, the display
changes as follows.
Display
Normal play
Press DISPLAY
once.
Press DISPLAY
twice.
* Not displayed during Single play, Shuffle play or
PGM play.
Track number and elapsed
playing time
Track number and
remaining time on the
current track
The number of tracks left*
and remaining time on the
CD*
BASS 1
BASS 2
The selected sound mode is displayed.
“BASS 2” enhances the bass sound more
than “BASS 1.”
Note
If the sound is distorted when using the SOUND
function, turn down the volume.
14
Page 15
Protecting your hearing
(AVLS)
The AVLS (Automatic Volume Limiter
System) function keeps down the maximum
volume to protect your hearing.
Set A VLS to “LIMIT.”
Locking the controls
(HOLD)
You can lock the controls on your CD player
to prevent accidental button presses.
Slide HOLD in the direction of the
arrow.
CD player Remote control
Appears when the volume is turned up
and beyond a certain level.
To turn off the AVLS function
Set A VLS to “NORM.”
Available features
CHG/HOLD lamp
flashes while the
HOLD function is
working.
You can use the HOLD function with both
the CD player and remote control. You can
still operate your CD player using the remote
control when HOLD on the remote control is
set to off.
To unlock the controls
Slide HOLD in the opposite direction of the
arrow.
Note
Even if the HOLD function is working, “HOLD”
will not appear in the display of the remote control.
15
Page 16
Turning off the
operation beep sound
You can turn off the beep sound that is heard
from your headphones/earphones when you
operate your CD player.
Remove the power source (AC
1
power adaptor, rechargeable
batteries or dry batteries) from the
CD player.
Connect the power source while
2
pressing x (x/CHG for the CD
player).
To turn on the beep sound
Remove the power source and then connect
the power source without pressing x or
x/CHG.
Turning off the LCD’s
backlight
While you are using the rechargeable
batteries or dry batteries, the LCD’s
backlight turns on for about 5 seconds every
time you press a button. However, you can
turn off the backlight to save the battery
power.
Remove the rechargeable
1
batteries or dry batteries from the
CD player.
Insert the batteries while pressing
2
PLAY MODE.
To turn on the LCD’s backlight
Remove the batteries and then insert the
batteries without pressing PLAY MODE.
About the LCD’s backlight
The LCD’s backlight is always turned on
when using the AC power adaptor or car
battery.
16
Page 17
B
Connecting your CD player

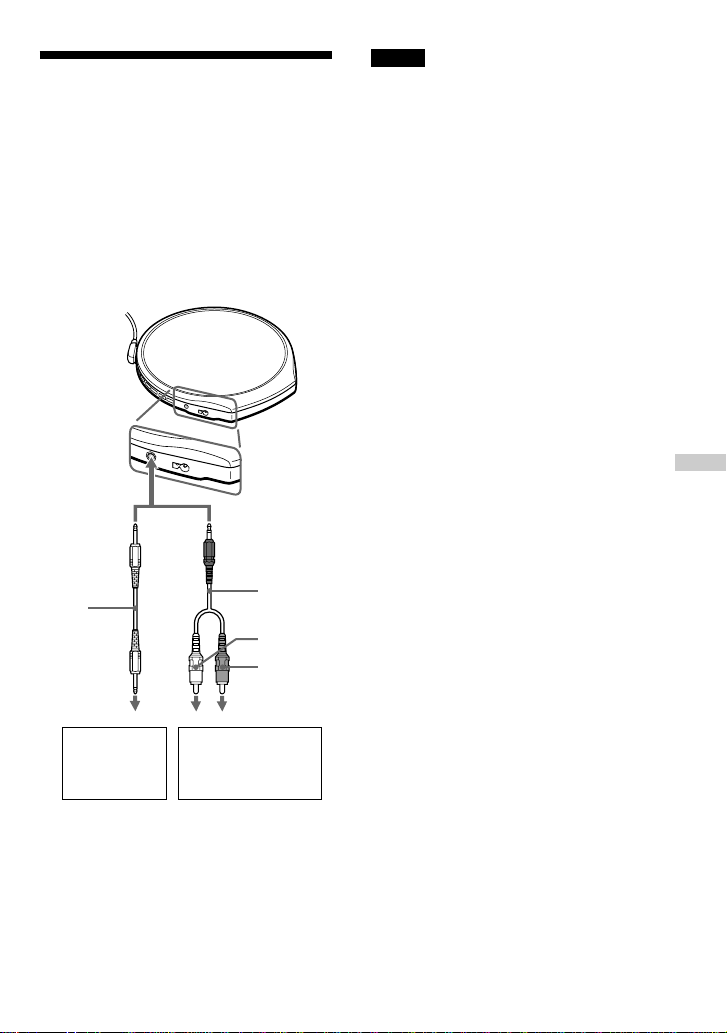

Connecting a stereo
system
You can listen to CDs through a stereo
system and record CDs on a cassette tape and
a MiniDisc. For details, see the instruction
manual that comes with the connected
device.
Be sure to turn off all connected devices
before making connections.
to LINE OUT
(OPTICAL)
Optical
digital
connecting
cord
Connecting
cord
Left (white)
Right (red)
Notes
• Before you play a CD, turn down the volume of
the connected device to avoid damaging the
connected speakers.
• Use the AC power adaptor for recording. If you
use the rechargeable batteries or dry batteries as a
power source, batteries may become completely
depleted during recording.
• Adjust the volume properly on the connected
device so that the sound will not be distorted.
When using the connecting cord
If the sound is distorted, connect the device
to the i jack.
When using the optical digital
connecting cord
To record a CD on a MiniDisc, DAT, etc.,
make sure that the CD player is in pause
before operating the recording procedures.
About the G-PROTECTION and
SOUND functions when using the
connecting cord or optical digital
connecting cord
• To record high quality CD sound, set the
G-PRO switch to “1.”
• The SOUND function works only on the
output sound from the i jack and not work
on the output sound from the LINE OUT
(OPTICAL) jack.
Connecting your CD player
MiniDisc
recorder, DAT
deck, etc.
Stereo system,
cassette recorder,
radio cassette
recorder, etc.
(Continued)
17
Page 18
Connecting a stereo system
About Joint Text (CD text copying
function)
The Joint Text function allows you to copy
the disc and track names that are on a CD
containing CD text information. By
connecting a Sony MD Walkman (MZ-R90/
R91), which supports Joint Text, to this CD
player, you can copy the CD text onto an MD
during recording. You must use an optical
digital connecting cable (POC-5B or other
model, not supplied) and the RK-TXT1 CD
text connecting cable (not supplied) to make
the connections.
For details, refer to the operating instructions
of the MD Walkman.
Using your CD player in
a car
You can use your CD player in a car by
connecting it to the car cassette deck.
You cannot use the car mount plate for this
CD player.
When you use your CD player in a car,
install it securely in a location that does not
interfere with your driving.
Optional car accessory needed
To connect your CD player to a car cassette
deck, you need the following car accessories
in “Accessories (supplied/optional)”:
• Car battery cord, and
• Car connecting pack*
For details, see the instruction manuals that
come with the optional accessories.
* Noise may be heard if you use an optional
connecting cord. It is recommended that you use
a Sony car connecting pack to reduce noise.
Switched ignition function (when
using the car battery cord)
With this feature, your CD player stops
automatically when you turn off the car
engine (turn off the ignition key) even if the
batteries are inserted in the CD player. This
function is invalid depending on the car
models.
Note
Use only the car battery cord listed in “Accessories
(supplied/optional).” If you use any other car
battery cord, a heat, smoke or malfunction may
occur.
18
Page 19
B
Connecting a power source
You can use the following power sources:
• Rechargeable batteries
• AC power adaptor (see “Playing a CD”)
• LR6 (size AA) alkaline batteries (external
battery case)
For the battery life and charging time of the
rechargeable batteries, see “Specifications.”
Using the rechargeable
batteries
Charge the rechargeable batteries before
using them for the first time. You can use
only the following rechargeable batteries for
your CD player.
• NH-14WM
• NC-6WM
Open the battery compartment lid
1
inside your CD player.
Connect the AC power adaptor to
3
the EXT BATT/DC IN 4.5 V jack of
your CD player and an AC outlet,
then press x/CHG to start
charging.
If the AC power adaptor does not fit the
AC outlet, use the AC plug adaptor.
x/CHG button
CHG/HOLD lamp
to EXT BATT/
DC IN 4.5 V
Insert two rechargeable batteries
2
by matching the 3 to the diagram
in the battery compartment and
close the lid until it clicks into
place.
Put the end of the
ribbon inside.
AC power adaptor
to an AC outlet
The CD player charges the batteries. The
indicator sections of in the display
of the remote control light up in
succession and the CHG/HOLD lamp
lights up.
When the batteries are completely
charged, all indications in the display
disappear and the CHG/HOLD lamp
goes off.
If you press x/CHG after the charge has
already been completed, the
indicator flashes and “FULL” appears in
the display.
Disconnect the AC power adaptor.
4
Connecting a power source
(Continued)
19
Page 20
Using the rechargeable batteries

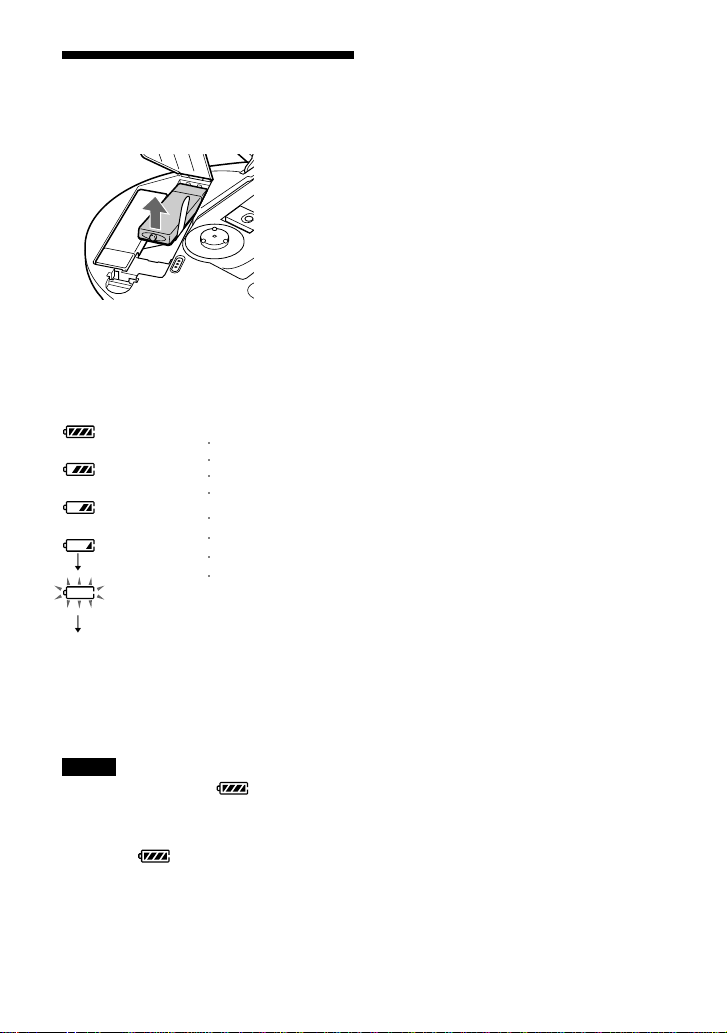

To remove the rechargeable batteries
Pull the ribbon.
When to charge the rechargeable
batteries
You can check the remaining power of the
batteries in the display.
r
Battery power is full.
○○○○ ○ ○ ○ ○
When to replace the rechargeable
batteries
If the battery life becomes shorter by about
half, replace the batteries with new
rechargeable batteries.
Note on the rechargeable batteries
If the battery is new or has not been used for
a long time, it may not be charged
completely until you charge and discharge it
several times.
Note on carrying the rechargeable
batteries
Use the supplied battery carrying case to
prevent unexpected heat. If the rechargeable
batteries and the metallic objects are
contacted, heat or fire may occur due to a
short circuit.
r
Battery power is getting low.
r
r
Battery power is low.
r
Lobatt* Batteries are depleted.
* Beep sounds.
To keep the original battery capacity for a
long time, charge the batteries only when
they are completely depleted.
Notes
• The indicator sections of roughly show the
remaining battery power. One section does not
always indicate one-fourth of the battery power.
• Depending on operating conditions, the indicator
sections of
may increase or decrease.
20
Page 21

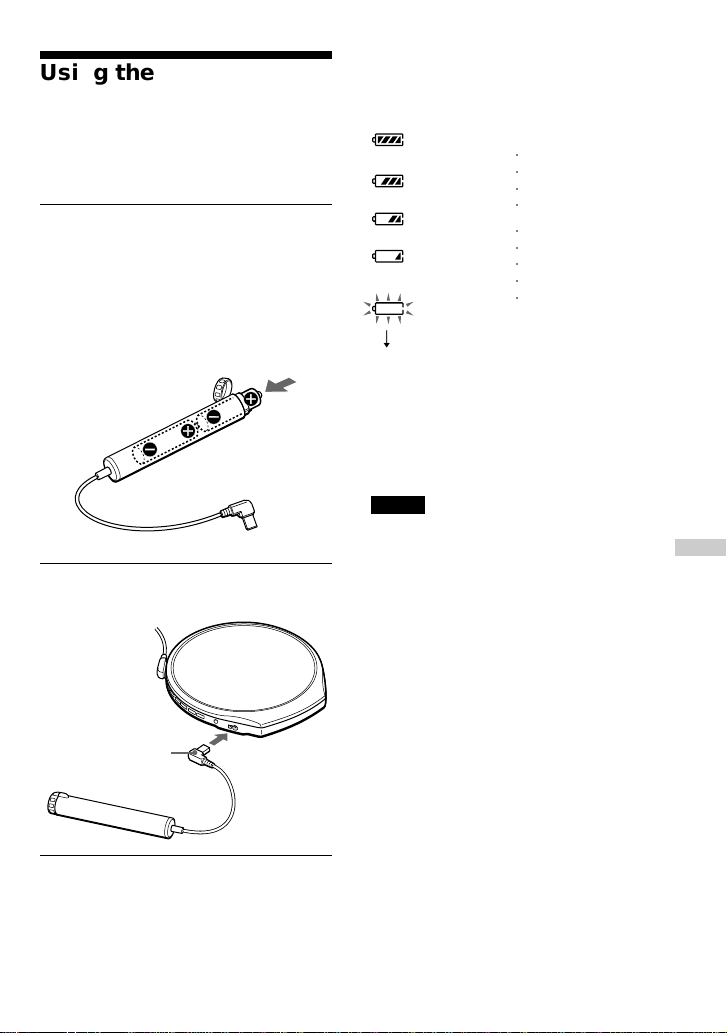

Using the dry batteries
Make sure to use the supplied external
battery case.
Use only the following dry battery type for
your CD player:
• LR6 (size AA) alkaline batteries
Unlock the cap of the external
1
battery case, and insert two LR6
(size AA) alkaline batteries by
matching the 3 to the diagram
outside the external battery case
and close the cap of the external
battery case.
Connect the external battery case
2
to the CD player.
When to replace the batteries
You can check the remaining power of the
batteries in the display.
Battery power is full.
r
r
Battery power is getting low.
r
r
○○○○
○○○○○
Battery power is low.
r
Lobatt* Batteries are depleted.
* Beep sounds.
When the batteries are depleted, replace both
batteries with new ones.
The batteries in the CD player and external
battery case are discharged simultaneously.
Notes
• Be sure to remove the AC power adaptor when
attaching the external battery case.
• When using the rechargeable batteries and dry
batteries together to extend power, use fully
charged rechargeable batteries and new dry
batteries.
Connecting a power source
With the v side down
to EXT BATT/
DC IN 4.5 V
21
Page 22
Notes on the power
source
Disconnect all power sources when the CD
player is not used.
On AC power adaptor
• Use only the AC power adaptor supplied or
recommended in “Accessories (supplied/
optional).” Do not use any other AC power
adaptor. It may cause a malfunction.

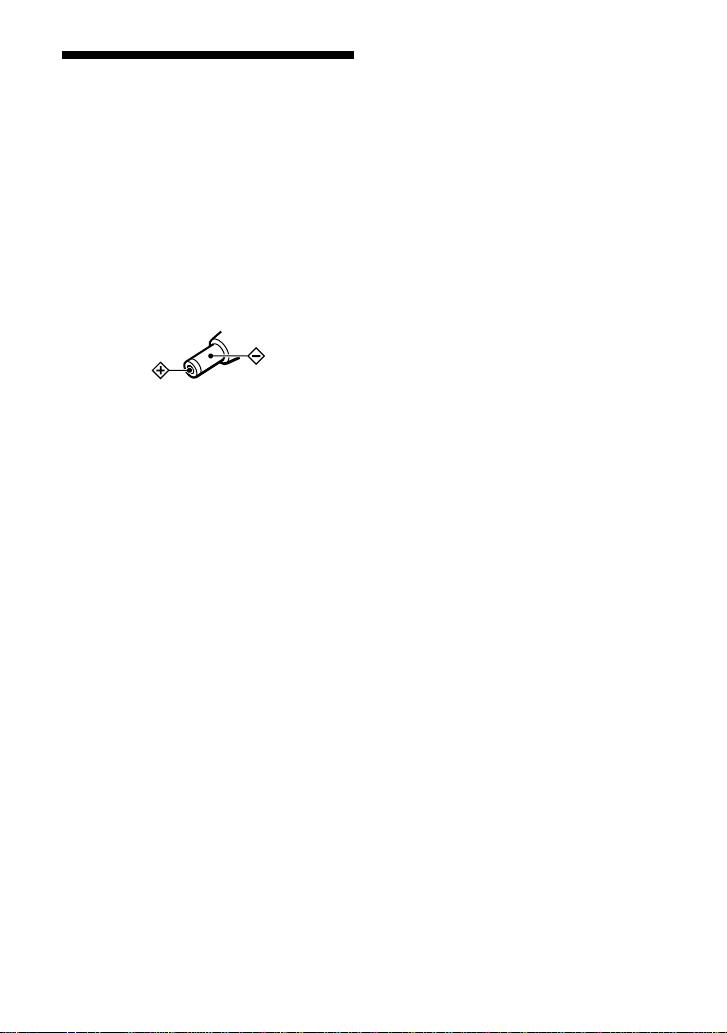

Polarity of the plug
• When disconnecting the AC power adaptor
from the AC outlet, grasp the adaptor
itself. Do not pull it by the cord.
• Do not touch the AC power adaptor with
wet hands.
On rechargeable batteries
and dry batteries
• Do not charge the dry batteries.
• Do not throw the batteries into fire.
• Do not carry the batteries with coins or
other metallic objects. It can generate heat
if the positive and negative terminals of the
battery are accidentally contacted by a
metallic object.
• Do not mix rechargeable batteries with dry
batteries.
• Do not mix new batteries with old ones.
• Do not use different types of batteries
together.
• When the batteries are not to be used for a
long time, remove them.
• If battery leakage occurs, wipe off any
deposit in the battery compartment, and
install new batteries. In case the deposit
adheres to you, wash it off thoroughly.
22
Page 23
B
Additional information
Precautions
On safety
• Should any solid objects or liquid fall into
the CD player, unplug it and have it
checked by qualified personnel before
operating it any further.
• Do not put any foreign objects in the DC
IN 4.5 V (external power input) jack.
On the CD player
• Keep the lens on the CD player clean and
do not touch it. If you do so, the lens may
be damaged and the CD player will not
operate properly.
• Do not put any heavy object on top of the
CD player. The CD player and the CD may
be damaged.
• Do not leave the CD player in a location
near heat sources, or in a place subject to
direct sunlight, excessive dust or sand,
moisture, rain, mechanical shock,
unleveled surface, or in a car with its
windows closed.
• If the CD player causes interference to the
radio or television reception, turn off the
CD player or move it away from the radio
or television.

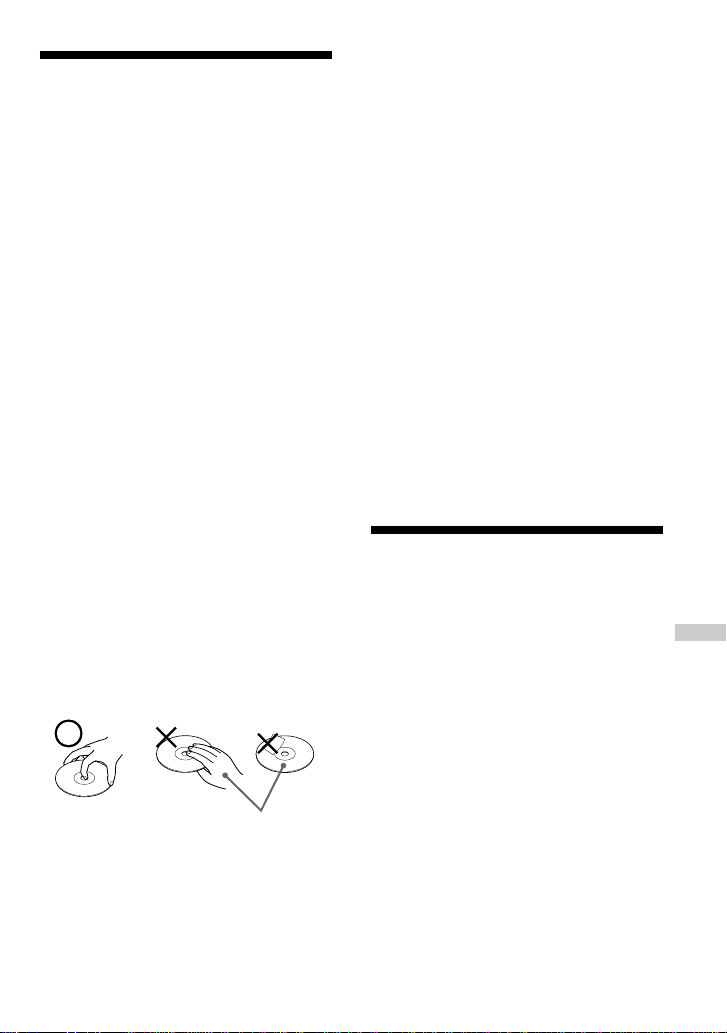

On handling CDs
• To keep the CD clean, handle it by its
edge. Do not touch the surface.
• Do not stick paper or tape onto the CD.
On headphones/earphones
Road safety
Do not use headphones/earphones while
driving, cycling, or operating any motorized
vehicle. It may create a traffic hazard and is
illegal in some areas. It can also be
potentially dangerous to play your headsets
at high volume while walking, especially at
pedestrian crossings. You should exercise
extreme caution or discontinue use in
potentially hazardous situations.
Preventing hearing damage
Avoid using headphones/earphones at high
volume. Hearing experts advise against
continuous, loud and extended play. If you
experience a ringing in your ears, reduce
volume or discontinue use.
Consideration for others
Keep the volume at a moderate level. This
will allow you to hear outside sounds and to
be considerate to the people around you.
Maintenance
To clean the casing
Use a soft cloth slightly moistened in water
or a mild detergent solution. Do not use
alcohol, benzine or thinner.
Additional information
Not these ways
• Do not expose the CD to direct sunlight or
heat sources such as hot air ducts. Do not
leave the CD in a car parked under direct
sunlight.
23
Page 24
Troubleshooting
Should any problem persist after you have checked these symptoms, consult your nearest Sony
dealer.
Symptom
Cannot adjust the volume by
turning the rotary control on
the remote control.
Cannot start play by turning
the rotary control on the
remote control.
The volume does not increase
even if you press the VOL +
button repeatedly.
No sound, or noise is heard.
The playing time is too short
when powered with the dry
batteries.
The playing time is too short
when powered with the
rechargeable batteries.
When you press u,
“Lobatt” or “00” appears in
the display. The CD does not
play.
“HiDCin” appears in the
display.
The CD does not play or
“Nodisc” appears in the
display when a CD is placed
in the CD player.
CHG/HOLD lamp flashes
when you press a button, and
the CD does not play.
Cannot adjust the volume
with the VOL +/– buttons on
the CD player.
Cause and/or corrective actions
c Pull the rotary control in the direction of the arrow indicated on
the control, then turn the control toward VOL + or –. (page 8)
c The rotary control is pulled out. Push the control back, then turn
the control toward N/> or .. (page 8)
c Set the AVLS switch to “NORM.” (page 15)
c The headphones/earphones are connected to the LINE OUT
(OPTICAL) jack. Connect them to the i jack. (page 7)
c Connect the plugs firmly. (page 7)
c Plugs are dirty. Clean the plugs with a dry soft cloth periodically.
c Check that you are using alkaline batteries and not manganese
batteries. (page 21)
c Replace the batteries with new LR6 (size AA) alkaline batteries.
(page 21)
c Charge and discharge the rechargeable batteries several times.
(pages 19, 20)
c The rechargeable batteries are used up completely. Charge the
batteries. (page 19)
c Replace the batteries with new LR6 (size AA) alkaline batteries.
(page 21)
c Use only the AC power adaptor or car battery cord in “Accessories
(supplied/optional).” (page 27)
c Remove all power sources, then insert the batteries or connect the
AC power adaptor again. (pages 7, 19, 21)
c The buttons are locked. Slide the HOLD switch back. (page 15)
c The CD is dirty or defective. (page 23)
c Check that the CD is inserted with the label side up. (page 7)
c Moisture condensation has occurred.
Leave the CD player aside for several hours until the moisture
evaporates.
c Close the lid of the battery compartment firmly.
(pages 19)
c Make sure the batteries are inserted correctly. (pages 19, 21)
c Connect the AC power adaptor to an AC outlet securely. (page 7)
c The buttons are locked. Slide the HOLD switch back. (page 15)
c
The CD player is connected to an audio device. Adjust the volume
using the volume control on the connected device.
(page 17)
24
Page 25
Symptom
During recording with optical
digital connection, the track
number cannot be recorded
correctly.
The CD player does not start
charging.
Playback starts from the
point you stopped.
Rustlig noise of the CD is
heard.
Cause and/or corrective actions
c Record the track number again using the MiniDisc recorder, DAT
recorder, etc. (page 17)
c See the instruction manual that comes with the recording device.
(page 17)
c
During stop, press x/CHG. (page 19)
c You pressed x on the remote control. Press x
player. (page 19)
c
The resume function is working. Open the lid of the CD player; or
remove all power sources, then insert the batteries or connect the
AC power adaptor again. (pages 7, 19, 21)
c
Close the lid of the battery compartment firmly. (page 19)
/CHG
on the CD
Additional information
25
Page 26
Specifications
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength: λ = 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance
of 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture.)
D-A conversion
1-bit quartz time-axis control
Frequency response
20 - 20 000 Hz
307)
Output (at 4.5 V input level)
Line output (stereo minijack)
Output level 0.7 V rms at 47 kΩ
Recommended load impedance over 10 kΩ
Headphones (stereo minijack)
Approx. 5 mW + Approx. 5 mW at 16 Ω
(Approx. 0.5 mW + Approx. 0.5 mW
at 16 Ω)*
*For the customers in France
Optical digital output (optical output connector)
Output level: –21 - –15 dBm
Wavelength: 630 - 690 nm at peak level
Power requirements
For the area code of the model you
purchased, check the upper left side of the
bar code on the package.
• Two Sony NH-14WM rechargeable batteries:
2.4 V DC
• Two Sony NC-6WM rechargeable batteries:
2.4 V DC
• Two LR6 (size AA) batteries: 3 V DC
• AC power adaptor (DC IN 4.5 V jack):
U2/CA2/E92/MX2 model: 120 V, 60 Hz
CED/CET/CEW/CEX/CE7/EE/EE1/E13/G5/
G6/G7/G8 model:
220 - 230 V, 50/60 Hz
CEK/3CE7 model: 230 - 240 V, 50 Hz
EA3 model: 110 - 240 V, 50/60 Hz
AU2 model: 240 V, 50 Hz
JE.W/E33 model: 100 - 240 V, 50/60 Hz
+1–2
dB (measured by EIAJ CP-
HK2 model: 220 V, 50/60 Hz
AR1/CN2 model: 220 V, 50 Hz
• Sony DCC-E345 car battery cord for use on
car battery: 4.5 V DC
Battery life* (approx. hours)
(When you use the CD player on a flat and stable
surface.)
Playing time varies depending on how the CD
player is used.
When using G-PROTECTION
“1” “2”
Two NH-14WM 29 28
(charged for
about 4 hours**)
Two NC-6WM 15 14
(charged for
about 4 hours**)
External battery case 50 48
(two alkaline batteries)
Rechargeable batteries 80 76
NH-14WM and external
battery case (two alkaline
batteries)
Rechargeable batteries 65 61
NC-6WM and external
battery case (two alkaline
batteries)
* Measured value by the standard of EIAJ
(Electronic Industries Association of Japan).
** Charging time varies depending on how the
rechargeable battery is used.
Operating temperature
5°C - 35°C (41°F - 95°F)
Dimensions (w/h/d) (excluding
projecting parts and controls)
Approx. 127.2 × 15.4 × 135.6 mm
(5 1⁄8 × 5⁄8 × 5 3⁄8 in.)
Mass (excluding accessories)
Approx. 155 g (5.5 oz)
Design and specifications are subject to change
without notice.
26
Page 27

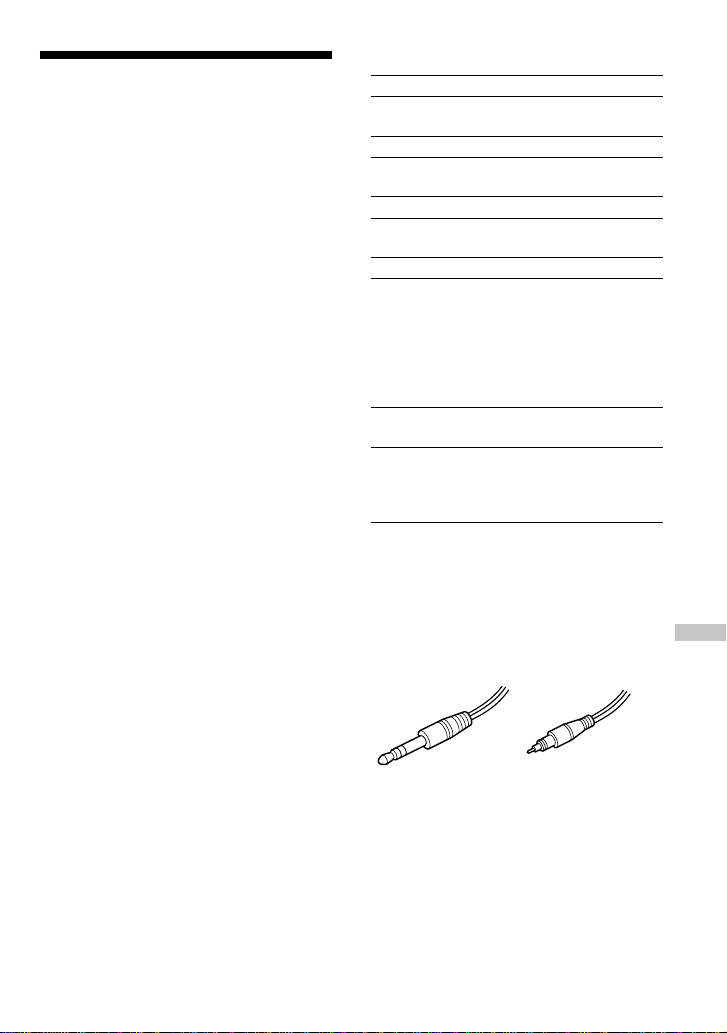

Accessories (supplied/optional)
Supplied accessories
For the area code of the location in which you
purchased the CD player, check the upper left side
of the bar code on the package.
AC power adaptor (1)
Headphones/earphones with remote control (1)
Rechargeable batteries (2)
Battery carrying case (2)
Carrying case (1)
External battery case (1)
AC plug adaptor (1)*
* Supplied with JE.W and E33 models
For US customers
The AC power adaptor supplied is not intended to
be serviced. Should the AC power adaptor cease to
function in its intended manner, during the warranty
period, the adaptor should be returned to your
nearest Sony Service Center or Sony Authorized
Repair Center for replacement, or after warranty
period, it should be discarded.
Optional accessories
AC power adaptor AC-E45HG
Active speaker system SRS-Z1
SRS-Z1000
Car battery cord DCC-E345
Car battery cord with car connecting pack
DCC-E34CP
Car connecting pack CPA-9C
Connecting cord RK-G129
RK-G136
CD TEXT connecting cableRK-TXT1
Optical digital connecting cord
POC-5B
POC-10B
POC-15B
POC-5AB
POC-10AB
POC-15AB
Rechargeable battery NH-14WM
NC-6WM
Earphones MDR-E848LP
MDR-EX70LP
MDR-A44L
MDR-A110LP
When connecting optional
headphones/earphones to the
supplied remote control
Use only headphones with stereo mini plugs.
You cannot use headphones with micro
plugs.
Additional information
Stereo miniplug Micro plug
Your dealer may not handle some of the
above listed accessories. Please ask the
dealer for detailed information about the
accessories in your country.
27
Page 28
Sony Corporation Printed in Malaysia
Loading...
