Portable
CD Player
Operating Instructions
About the area code
The area code of the location in which you purchased the CD player
is shown on upper left of the bar code label on the package.
For accessories supplied with your CD player, check the area code
of your model and see “Accessories (supplied/optional).”
D-EJ756CK
D-EJ758CK
© 2002 Sony Corporation
“WALKMAN” is a trademark of
Sony Corporation.
Page 2
WARNING
To prevent fire or shock
hazard, do not expose the unit
to rain or moisture.
Do not install the appliance in a confined
space, such as a bookcase or built-in
cabinet.
To prevent fire, do not cover the ventilation
of the apparatus with newspapers, tablecloths, curtains, etc. And don’t place lighted
candles on the apparatus.
To prevent fire or shock hazard, do not place
objects filled with liquids, such as vases, on
the apparatus.
CAUTION
The use of optical instruments with this
product will increase eye hazard.
Owner’s Record
The model and serial numbers are located at
the rear. Record these numbers in the spaces
provided below. Refer to them whenever you
call upon your Sony dealer regarding this
product.
Model No. __________________________
Serial No. __________________________
Certain countries may regulate disposal of
the battery used to power this product. Please
consult with your local authority.
For the customers in the USA
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
Product registration
For the customers in the USA
Please register this product on line at
www.sony.com/productregistration.
<http://www.sony.com/productregistration>
Proper registration will enable us to send you
periodic mailings about new products,
services, and other important
announcements. Registering your product
will also allow us to contact you in the
unlikely event that the product needs
adjustment or modification. Thank you.
CAUTION
• INVISIBLE LASER RADIATION WHEN
OPEN
• DO NOT STARE INTO BEAM OR VIEW
DIRECTLY WITH OPTICAL
INSTRUMENTS
2
Page 3
Table of Contents
Getting started
Locating the controls ................................... 4
Playing a CD
1. Connect your CD player.......................... 6
2. Insert a CD. ............................................. 6
3. Play a CD. ............................................... 6
Playback options
Playing tracks repeatedly (Repeat play) .... 10
Playing a single track (Single play) ........... 10
Playing tracks in random order
(Shuffle play)......................................... 10
Playing tracks in your favorite order
(PGM play)............................................ 11
Available features
G-PROTECTION function ........................ 12
Emphasizing the bass sound (SOUND) .... 12
Protecting your hearing (AVLS)................ 13
Locking the controls (HOLD) ................... 13
Turning off the operation beep sound........ 14
Installing in a car
Where to place your CD player ................. 16
Mounting your CD player ......................... 16

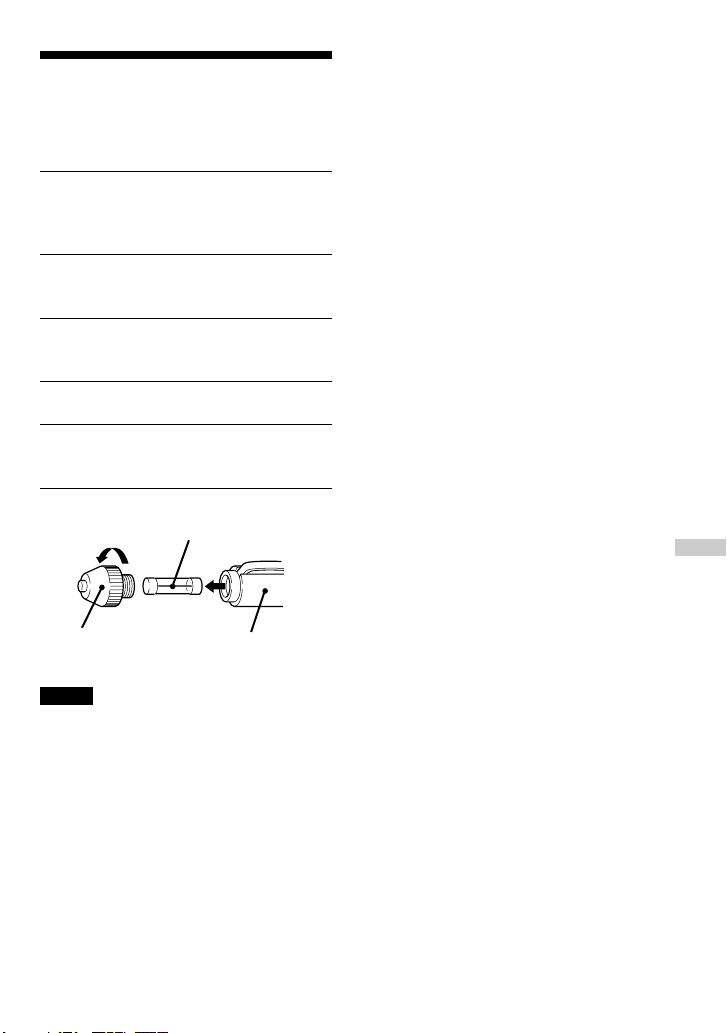

Replacing the fuse of the car battery cord . 17
Mounting the rotary commander ............... 18
Connecting to a power source
Using the AC power adaptor ..................... 19
Using the rechargeable batteries ................ 19
Using the dry batteries ............................... 21
Notes on the power source ........................ 22
Additional information
Precautions ................................................ 23
Maintenance .............................................. 23
Troubleshooting......................................... 24
Specifications ............................................ 26
Accessories (supplied/optional) ................ 27
Connecting your CD player
Connecting a stereo system ....................... 15
3
Page 4
Getting started
Locating the controls
For details, see pages in parentheses.
CD player (front)
1 PLAY MODE
button
(pages 9 - 11)
2 SOUND button
(pages 12, 13)
3 VOL (volume) +*
button (page 6)
4 . (AMS/
search) button
(pages 7, 11)
5 VOL (volume) –
button (page 6)
6 X (pause) button
(page 7)
7 x (stop)/CHG (charge)
button (pages 7, 14, 20)
8 N*/> (play/
AMS/search) button
(pages 6, 7, 11)
CD player (inside)
qj G-PROTECTION
switch
(page 12)
9 DC IN 4.5 V (external
power input) jack
(pages 6, 20)
q; Strap holes (page 5)
qa Display
(pages 7, 10 - 13)
qs REPEAT/ENTER
button (pages 9 - 11)
qd HOLD switch
(page 13)
qf OPEN switch
(page 6)
qg LINE OUT
jack (page 15)
qh i (headphones)
jack
qk Battery compartment
(page 19)
*The button has a tactile dot.
4
Page 5
Rotary commander
ql .(AMS/search)•
> (AMS/search)/
N(play) control
(pages 6, 7, 11)
Note
The supplied rotary commander should be used with this player only.
Using the hand strap
To carry during strenuous activity, use the supplied hand strap.
1 Pass the hand strap through the strap holes of the player.
w; x (stop) button
(pages 7, 14)
wa Jack for connecting a car
connecting pack
Getting started
2 Put your hand through the hand strap, and hold the player in one of two ways as illustrated
below.
5
Page 6
Playing a CD
You can also use rechargeable batteries, dry batteries and house current ( AC power adaptor) as a
power source.
1
. Connect your CD player.
1 Connect the car connecting pack.
2 Connect the car battery cord.
Note
Turn down the volume of the car cassette deck
before inserting the car connecting pack.
Car cassette deck
to a cigarette
lighter socket
2
. Insert a CD.
1 Slide OPEN to open the lid.
OPEN
switch
2 Place the CD on the tray and close
the lid.
Label
side up
Car battery
cord
to DC IN
4.5 V
to i
(headphones)
Rotary
commander
3
. Play a CD.
Press N/>.
Adjust the volume by
pressing VOL + or –.
You can also adjust the volume on the
car cassette deck.
Car
connecting
pack
to LINE
OUT
Rotate the control
toward >/N.
6
Page 7
To Press
Play (from the point you stopped) N/>
Play (from the first track) N/> for 2 seconds or more
Pause (on the CD player only) X
Stop x/CHG (x for the rotary commander)*
Find the beginning of the current track (AMS*1) .once quickly*
Find the beginning of the previous tracks (AMS) .repeatedly*
Find the beginning of the next track (AMS) N/> once quickly*
Find the beginning of the succeeding tracks (AMS) N/> repeatedly*
Go backwards quickly Hold down .*
Go forward quickly Hold down N/>*
*1Automatic Music Sensor
2
*
These operations can be done during both play and pause.
3
*
After you have played the last track, you can return to the beginning of the first track by pressing N/> .
Similarly, if you are at the first track, you can locate the last track by pressing ..
2
2, *3
2, *3
2, *3
2
2
About the display
• When you press N/> after changing the CD or turning off and on the player, the total
number of tracks in the CD and total playing time appear for about two seconds.
• During play, the track number and the elapsed playing time of the current track appear.
• During pause, the elapsed playing time flashes.
If the volume level does not increase
• If “AVLS” flashes in the display, hold down SOUND until “AVLS” disappears from the
display. For details, see “Protecting your hearing (AVLS).”
• If the headphones are connected to the LINE OUT jack, connect them to the
i (headphones) jack.
2
Playing a CD
(Continued)
7
Page 8
About CD-Rs/CD-RWs
This CD player can play CD-Rs/CD-RWs recorded in the CD-DA format*, but playback
capability may vary depending on the quality of the disc and the condition of the recording
device.
* CD-DA is the abbreviation for Compact Disc Digital Audio. It is a recording standard used for Audio CDs.
Removing the CD
Remove the CD while pressing the pivot in the center of the tray.
8
Page 9
Playback options
You can enjoy various ways of playback using PLAY MODE and REPEAT/ENTER.
PLAY MODE button
Each time you press the button, you can
change the playback mode.
No indication
(Normal play)
“1”
(Play a single track)
“SHUF”
(Play tracks in random order)
“PGM”
(Play tracks in your favorite order)
. button
REPEAT/ENTER button
REPEAT
You can repeat play mode that was
selected using PLAY MODE.
ENTER
You can select tracks for PGM play
mode.
Playback options
x/CHG button
N/> button
(Continued)
9
Page 10

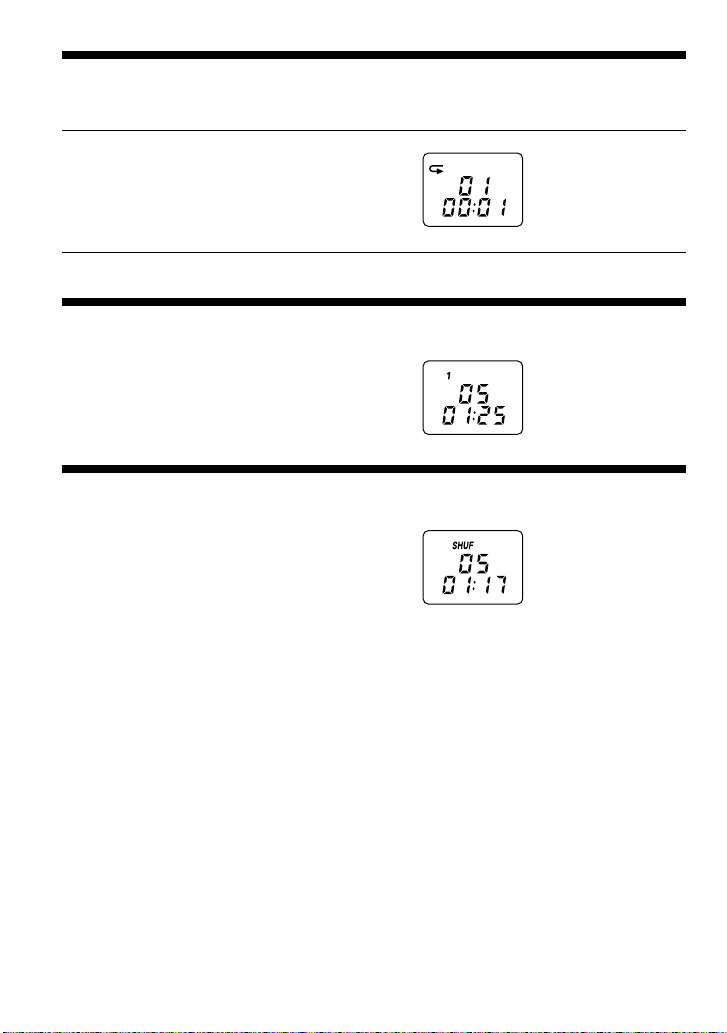

Playing tracks repeatedly (Repeat play)
You can play tracks repeatedly in normal, single, shuffle and PGM play modes.
During playback, press REPEAT/ENTER.
Playing a single track (Single play)
During playback, press PLAY MODE
repeatedly until “1” appears.
Playing tracks in random order (Shuffle play)
During playback, press PLAY MODE
repeatedly until “SHUF” appears.
10
Page 11
Playing tracks in your favorite order (PGM play)
You can program the CD player to play up to 64 tracks in your favorite order.
During playback, press PLAY MODE
1
repeatedly until “PGM” appears.
Press . or N/> to select a
2
track.
Press REPEAT/ENTER quickly (less
3
than 0.5 second) to enter the
selected track.

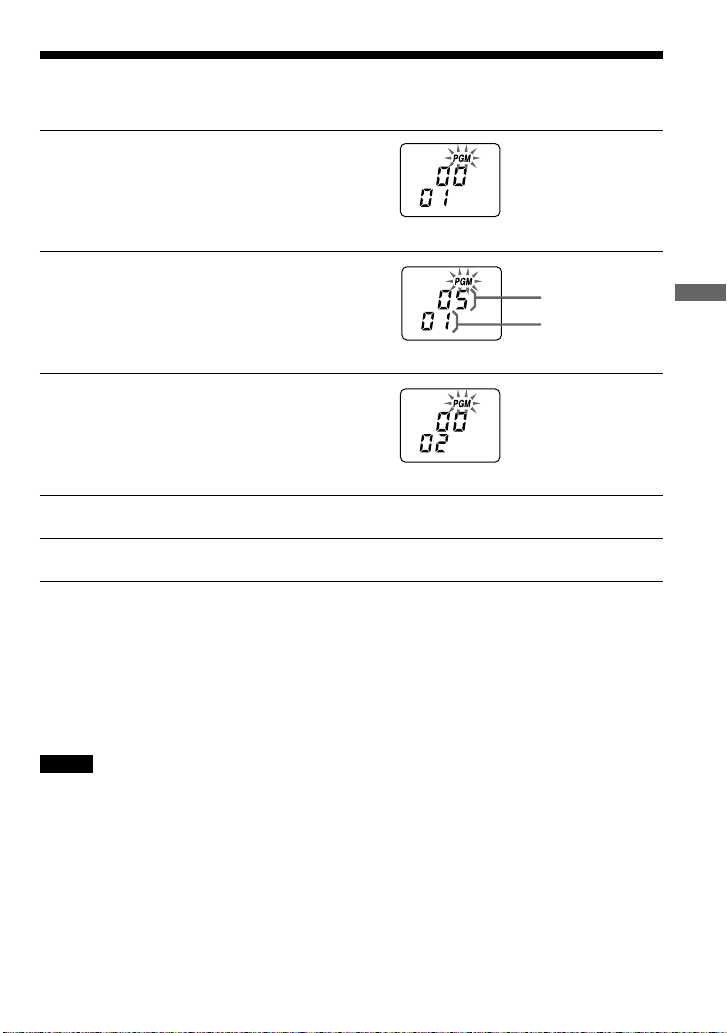

“00” appears and the playing order increases
by one.
Repeat steps 2 and 3 to select the tracks in your favorite order.
4
Hold down REPEAT/ENTER until play starts.
5
To check the program
During programming:
Press REPEAT/ENTER repeatedly before step 5.
During the PGM play:
Press PLAY MODE repeatedly until “PGM” flashes, then press REPEAT/ENTER.
Each time you press REPEAT/ENTER, the track number appears.
Notes
• When you finish entering the 64th track in step 3, the first selected track appears in the display.
• If you select more than 64 tracks, the first selected tracks are erased.
Track number
Playing order
Playback options
11
Page 12
B
Available features
G-PROTECTION function
The G-PROTECTION function has been
developed to provide excellent protection
against sound skipping during many active
uses. This function provides a higher level of
shock protection than the traditional one.

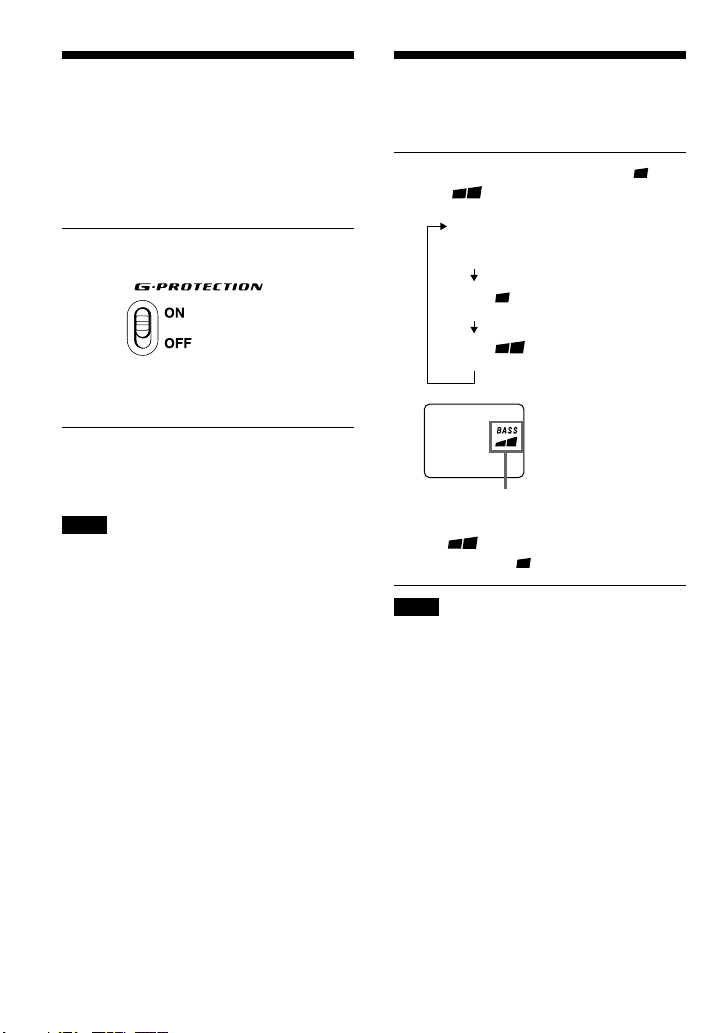

Set G-PROTECTION (under the lid) to
“ON.”
During active uses, be sure to hold your CD
player with the OPEN switch facing upward.
To turn off the G-PROTECTION
function
Set G-PROTECTION to “OFF.”
Note
Sound may skip:
– if the CD player receives stronger continuous
shock than expected,
– if a dirty or scratched CD is played or
– when using poor-quality CD-Rs/CD-RWs or
if there is a problem with the recording device
or application software.
Emphasizing the bass
sound
You can emphasize the bass-boosted sound.
Press SOUND to select “BASS ” or
“BASS .”
“BASS ” enhances the bass sound
more than “BASS .”
Note
If the sound is distorted when using the SOUND
function, turn down the volume.
(SOUND)
No indication
(Normal play)
BASS
BASS
The selected sound mode is displayed.
12
Page 13
Protecting your hearing
(AVLS)

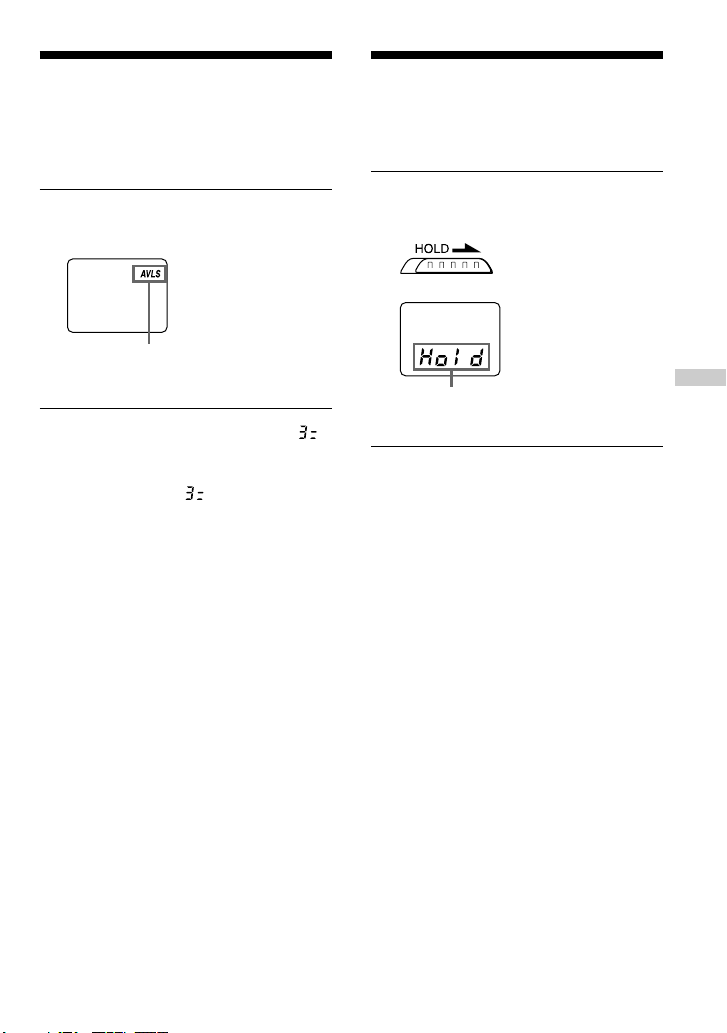

The AVLS (Automatic Volume Limiter
System) function keeps down the maximum
volume to protect your hearing.
Press and hold SOUND until “AVLS”
appears in the display.
Flashes when the volume is turned up
and beyond a certain level.
When you turn up the volume to “ ”
“AVLS” flashes and you cannot turn up the
volume any more. If you want to turn up the
volume to more than “ ,” hold down
SOUND until “AVLS” disappears from the
display.
Locking the controls
(HOLD)
You can lock the controls on your CD player
to prevent accidental button presses.
Slide HOLD in the direction of the
arrow.
Displayed when the HOLD function is
activated.
To unlock the controls
Slide HOLD in the opposite direction of the
arrow.
Available features
13
Page 14
Turning off the operation beep sound
You can turn off the beep sound that is heard
from your headphones/earphones when you
operate your CD player.
Remove the power source (AC
1
power adaptor, rechargeable
batteries or dry batteries) from the
CD player.
Connect the power source while
2
pressing x/CHG on the CD player
or x on the rotary commander.
To turn on the beep sound
Remove the power source and then connect
the power source without pressing x/CHG
or x.
14
Page 15
B
Connecting your CD player
Connecting a stereo system
You can listen to CDs through a stereo
system and record CDs on a cassette tape.
For details, see the instruction manual that
comes with the connected device.
Be sure to turn off all connected devices
before making connections.
to LINE OUT
Connecting cord
Right (red)
Notes
• Before you play a CD, turn down the volume of
the connected device to avoid damaging the
connected speakers.
• Use the AC power adaptor for recording. If you
use the rechargeable batteries or dry batteries as a
power source, batteries may become completely
depleted during recording.
• Adjust the volume properly on the connected
device so that the sound will not be distorted.
When using the connecting cord
If the sound is distorted, connect the device
to the i jack.
About the G-PROTECTION and
SOUND functions when using the
connecting cord
• To record high quality CD sound, set the
G-PROTECTION switch to “OFF.”
• The SOUND function works only on the
output sound from the i jack and not work
on the output sound from the LINE OUT
jack.
Connecting your CD player
Left (white)
Stereo system,
cassette recorder,
radio cassette
recorder, etc.
15
Page 16
B
Installing in a car
Where to place your CD player
• Install the CD player in a location which:
– does not interfere with your driving.
– is not dangerous for passengers.
– does not interfere with the glove box lid
or ashtray.
– is stable, and where nothing around it
may interfere with installation.
• Do not install the CD player near heat
sources or where subject to direct sunlight,
excessive dust, or moisture (especially on a
dashboard.)
Please understand that we will not incur any
obligations for troubles caused by incorrect
installation.
If you have any questions or problems
concerning your CD player, please contact
your nearest Sony dealer.
Mounting your CD player
Attach the CD player to the console box with
the supplied Velcro tapes.
Notes
• Do not affix Velcro tapes to the name plate.
• When you are going to park your car for a long
period of time, remove the CD player from the
Velcro tapes so that it will not be exposed to
direct sunlight.
Note on the car battery cord
The 4.5V DC plug supplied with car battery cord
conforms to the proposed standards of the Japan
Electronics and Information Technology Industries
Association (JEITA). Do not connect it to other
players.

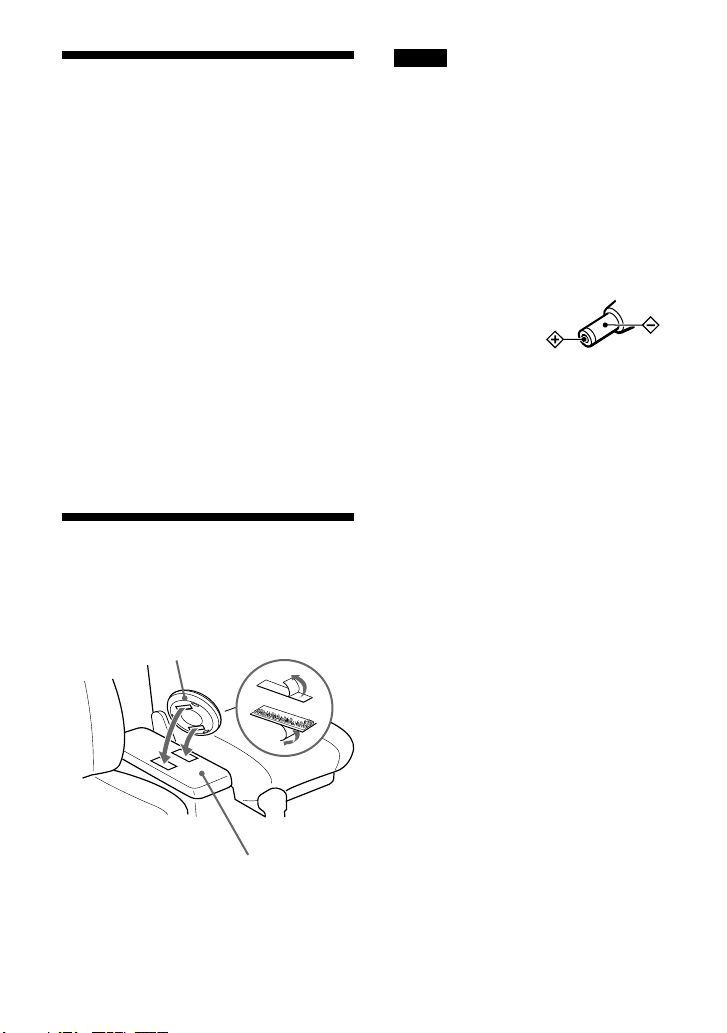

Polarity of the plug
(JEITA standards)
Bottom of the CD player
16
Console box
Page 17
Replacing the fuse of the car battery cord
If the CD player does not operate, check the
fuse. If it is blown, replace it as follows:
Turn off the CD player and remove
1
the cigarette lighter plug from the
cigarette lighter socket.
Remove the plug end by turning it
2
counterclockwise.
Remove the defective fuse from
3
the plug.
Insert a new fuse into the plug.
4
Replace the plug end by turning it
5
clockwise.
Notes on the car connecting pack
• If no sound is heard or the car connecting pack is
ejected, change the direction of playback on the
car cassette deck.
• Never insert the cord end of the car connecting
pack into the cassette insertion door. Otherwise,
the cord may break or the car cassette deck may
be damaged.
• You cannot use the car connecting pack with
some car cassette deck.
• The cord should be placed so that it does not
hinder driving.
• To disconnect the cord from the CD player, pull it
out by grasping the plug. Never pull the plug out
by the cord.
• With some car cassette decks, you may hear some
rattling noise from the car connecting pack.
However, this is not a sign of malfunction.
Remove
Plug end
Notes
• Be sure to use a fuse of the same amperage and
length as the one to be replaced. Never use a
piece of wire as a substitute for the fuse.
• If the fuse is blown again after replacing it,
contact your nearest Sony dealer. In such a case,
bring the defective fuse to the dealer with you.
Fuse
Cigarette lighter plug
Installing in a car
17
Page 18
Mounting the rotary commander
If you use the supplied rotary commander,
you can control your CD player as you
would control the headlight or the wiper
switch of your car while driving.

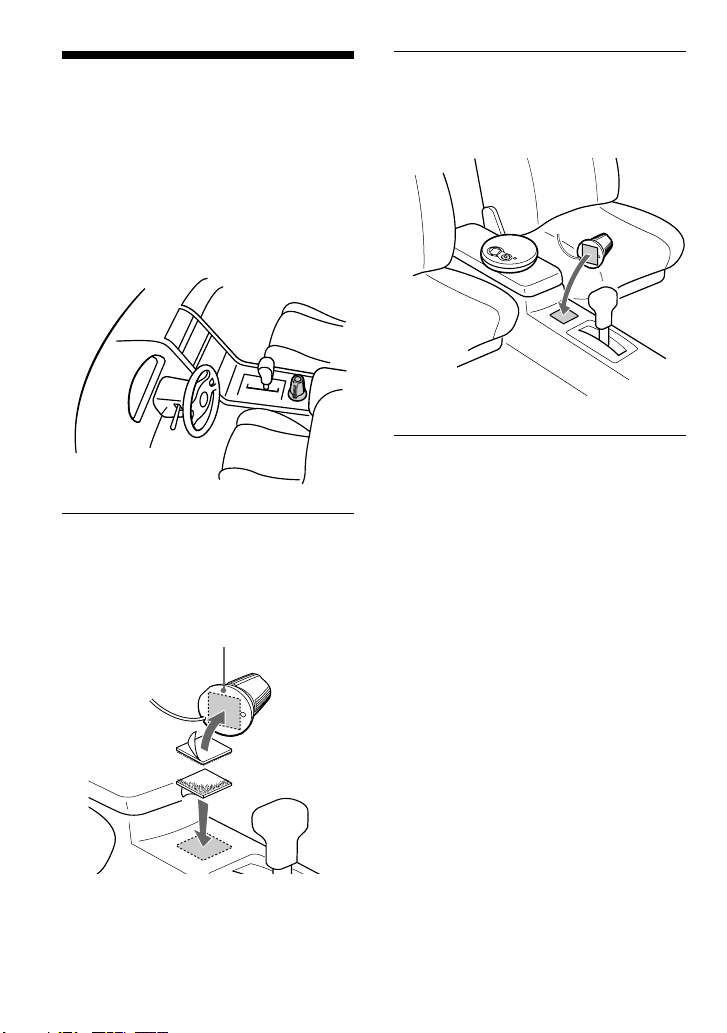

Attach the rotary commander to a flat place
as illustrated below.
Attach the supplied Velcro tapes
1
to the bottom of the rotary
commander and to a flat place.
Bottom of the rotary
commander
Secure the rotary commander to
2
the flat place by pressing the
Velcro tapes firmly together.
18
Page 19
B
Connecting to a power source
You can use the following power sources:
• AC power adaptor
• Rechargeable batteries
• LR6 (size AA) alkaline batteries
For the battery life and charging time of the
rechargeable batteries, see “Specifications.”
Using the AC power adaptor
Connect the supplied AC power adaptor to
the DC IN 4.5 V jack and an AC outlet.
to an AC outlet

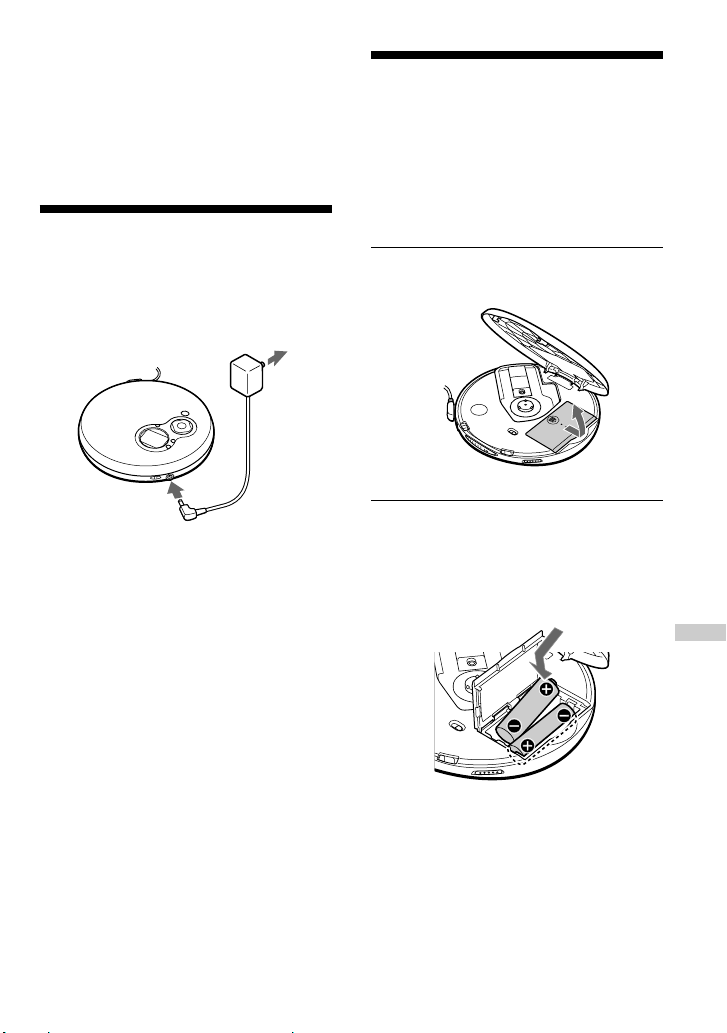

Using the rechargeable batteries
Charge the rechargeable batteries before
using them for the first time. You can use
only the following rechargeable batteries for
your CD player.
• NC-WMAA
• NH-WM2AA (NH-WMAA × 2)
Open the battery compartment lid
1
inside your CD player.
to DC IN 4.5 V
Insert two rechargeable batteries
2
by matching the 3 to the diagram
in the battery compartment and
close the lid until it clicks into
place.
Connecting to a power source
(Continued)
19
Page 20
Using the rechargeable batteries
Connect the AC power adaptor to
3
the DC IN 4.5 V jack of your CD
player and an AC outlet, then
press x/CHG to start charging.
x/CHG button
to DC IN 4.5 V
To remove the rechargeable batteries
Remove the batteries as illustrated below.
When to charge the rechargeable
batteries
You can check the remaining power of the
batteries in the display.
r
Battery power is full.
○○○○
AC power adaptor
to an AC outlet
The CD player charges the batteries. The
“CHG” indicator turns on in the display,
and the indicator sections of light
up in succession. When the batteries are
completely charged, the “CHG” and
indicators get turned off.
If you press x/CHG after the charge has
already been completed, the
indicator flashes and “Full” appears in
the display.
Disconnect the AC power adaptor.
4
20
r
r
r
Battery power is getting low.
○○○○
Battery power is low.
r
Lo batt* Batteries are depleted.
* Beep sounds.
To keep the original battery capacity for a
long time, charge the batteries only when
they are completely depleted.
Notes
• The indicator sections of roughly shows
the remaining battery power. One section does
not always indicate one-fourth of the battery
power.
• Depending on operating conditions, the indicator
sections of
may increase or decrease.
Page 21
When to replace the rechargeable
batteries
If the battery life becomes shorter by about
half, replace the batteries with new
rechargeable batteries.
Note on the rechargeable batteries
If the battery is new or has not been used for
a long time, it may not be charged
completely until you charge and discharge it
several times.
Note on carrying the rechargeable
batteries
Use the supplied battery carrying case to
prevent unexpected heat. If the rechargeable
batteries and the metallic objects get
contacted, heat or fire may occur due to a
short circuit.

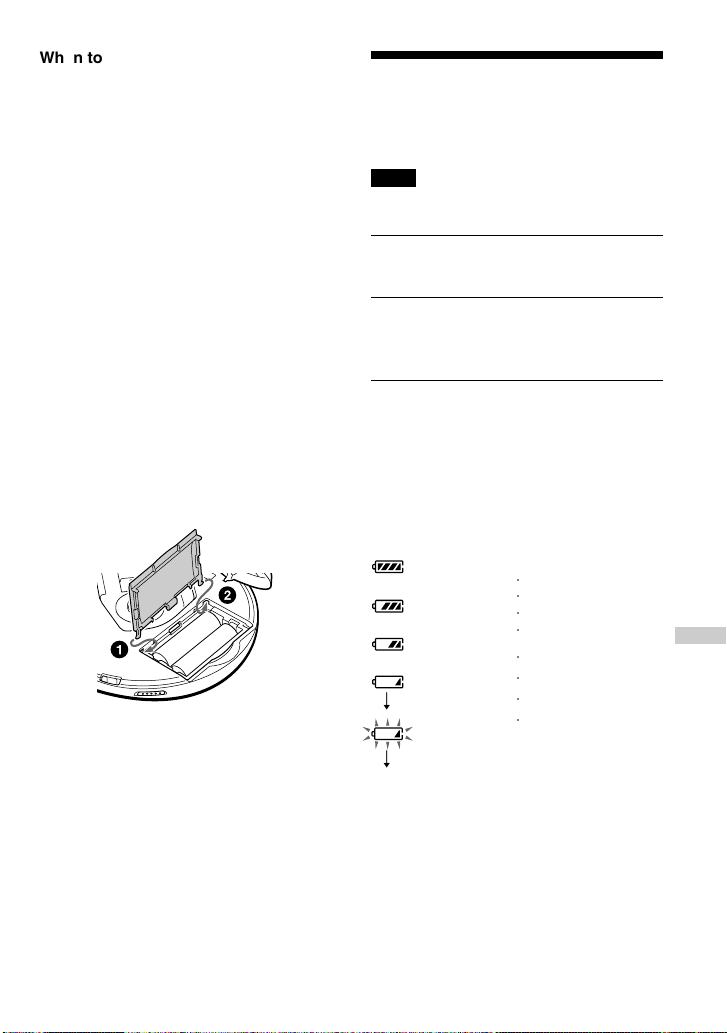

To attach the battery compartment lid
If the battery compartment lid is detached by
an accidental drop, excessive force, etc.,
attach it as illustrated below.
Using the dry batteries
Use only the following dry battery type for
your CD player:
• LR6 (size AA) alkaline batteries
Note
Be sure to remove the AC power adaptor when
using the dry batteries.
Open the battery compartment lid.
1
Insert two LR6 (size AA) batteries
2
by matching the 3 to the diagram
in the battery compartment.
To remove the batteries
Remove the batteries in the same way as
rechargeable batteries.
When to replace the batteries
You can check the remaining power of the
batteries in the display.
r
r
r
r
r
Lo batt* Batteries are depleted.
* Beep sounds.
When the batteries are depleted, replace both
batteries with new ones.
Battery power is full.
Battery power is getting low.
Battery power is low.
○○○○
○○○○
21
Connecting to a power source
Page 22
Notes on the power source
Disconnect all power sources when the CD
player is not used.
On AC power adaptor
• Use only the AC power adaptor supplied or
recommended in “Accessories (supplied/
optional).” Do not use any other AC power
adaptor. It may cause a malfunction.

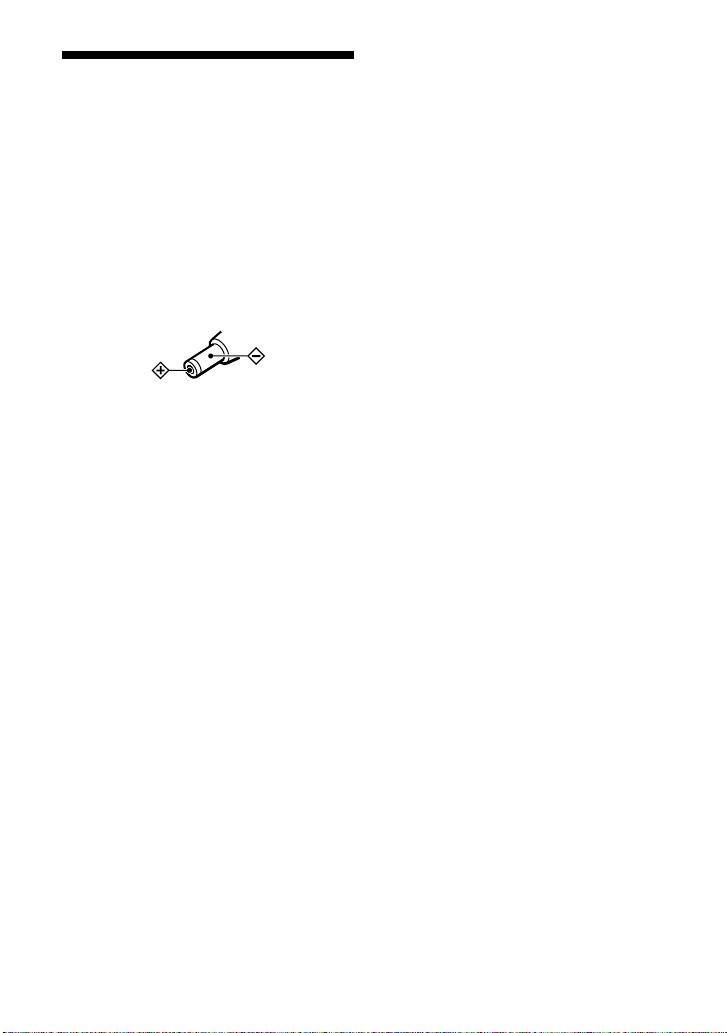

Polarity of the plug
• When disconnecting the AC power adaptor
from the AC outlet, grasp the adaptor
itself. Do not pull it by the cord.
• Do not touch the AC power adaptor with
wet hands.
On rechargeable batteries
and dry batteries
• Do not charge the dry batteries.
• Do not throw the batteries into fire.
• Do not carry the batteries with coins or
other metallic objects. It can generate heat
if the positive and negative terminals of the
battery are accidentally contacted by a
metallic object.
• Do not mix rechargeable batteries with dry
batteries.
• Do not mix new batteries with old ones.
• Do not use different types of batteries
together.
• When the batteries are not to be used for a
long time, remove them.
• If battery leakage occurs, wipe off any
deposit in the battery compartment, and
install new batteries. In case the deposit
adheres to you, wash it off thoroughly.
22
Page 23
B
Additional information
Precautions
On safety
• Should any solid objects or liquid fall into
the CD player, unplug it and have it
checked by qualified personnel before
operating it any further.
• Do not put any foreign objects in the DC
IN 4.5 V (external power input) jack.
On the CD player
• Keep the lens on the CD player clean and
do not touch it. If you do so, the lens may
be damaged and the CD player will not
operate properly.
• Do not put any heavy object on top of the
CD player. The CD player and the CD may
be damaged.
• Do not leave the CD player in a location
near heat sources, or in a place subject to
direct sunlight, excessive dust or sand,
moisture, rain, mechanical shock,
unleveled surface, or in a car with its
windows closed.
• If the CD player causes interference to the
radio or television reception, turn off the
CD player or move it away from the radio
or television.
• Discs with non-standard shapes (e.g.,
heart, square, star) cannot be played on this
CD player. Attempting to do so may
damage the CD player. Do not use such
discs.
On handling CDs

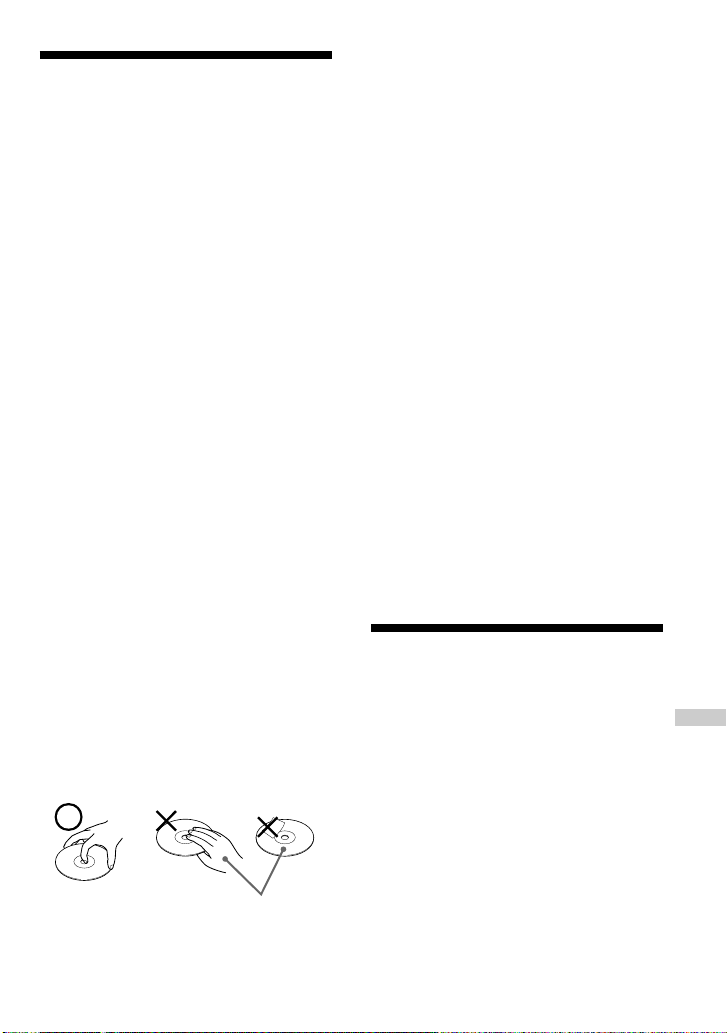

• To keep the CD clean, handle it by its
edge. Do not touch the surface.
• Do not stick paper or tape onto the CD.
• Do not expose the CD to direct sunlight or
heat sources such as hot air ducts. Do not
leave the CD in a car parked under direct
sunlight.
On headphones/earphones
Road safety
Do not use headphones/earphones while
driving, cycling, or operating any motorized
vehicle. It may create a traffic hazard and is
illegal in some areas. It can also be
potentially dangerous to play your headsets
at high volume while walking, especially at
pedestrian crossings. You should exercise
extreme caution or discontinue use in
potentially hazardous situations.
Preventing hearing damage
Avoid using headphones/earphones at high
volume. Hearing experts advise against
continuous, loud and extended play. If you
experience a ringing in your ears, reduce
volume or discontinue use.
Consideration for others
Keep the volume at a moderate level. This
will allow you to hear outside sounds and to
be considerate to the people around you.
Maintenance
To clean the casing
Use a soft cloth slightly moistened in water
or a mild detergent solution. Do not use
alcohol, benzine or thinner.
Additional information
Not these ways
23
Page 24
Troubleshooting
Should any problem persist after you have checked these symptoms, consult your nearest Sony
dealer.
Symptom
The volume does not increase
even if you press the VOLUME
+ button repeatedly.
Cannot adjust the volume.
No sound, or noise is heard.
The playing time is too short
when powered with the dry
batteries.
The playing time is too short
when powered with the
rechargeable batteries.
“Lo batt” or “00” appears in
the display. The CD does not
play.
“HI dc In” appears in the
display.
The CD does not play or
“no dISC” appears in the
display when a CD is placed
in the CD player.
“Hold” appears in the
display when you press a
button, and the CD does not
play.
Cause and/or corrective actions
c Press and hold SOUND until “AVLS” disappears from the display.
(page 13)
c The headphones/earphones are connected to the LINE OUT jack.
Connect them to the i (headphones) jack.
c The headphones/earphones are connected to the LINE OUT jack.
Connect them to the i (headphones) jack.
c Connect the plugs firmly. (page 6)
c Plugs are dirty. Clean the plugs with a dry soft cloth periodically.
c Check that you are using alkaline batteries and not manganese
batteries. (page 21)
c Replace the batteries with new LR6 (size AA) alkaline batteries.
(page 21)
c Charge and discharge the rechargeable batteries several times.
(pages 19, 20)
c The rechargeable batteries are used up completely. Charge the
batteries. (page 19)
c Replace the batteries with new LR6 (size AA) alkaline batteries.
(page 21)
c Use only the AC power adaptor or car battery cord in “Accessories
(supplied/optional).” (page 27)
c Remove all power sources, then insert the batteries or connect the
AC power adaptor again. (pages 6, 19 - 21)
c The buttons are locked. Slide the HOLD switch back. (page 13)
c The CD is dirty or defective. (page 23)
c Check that the CD is inserted with the label side up. (page 6)
c Moisture condensation has occurred.
Leave the CD player aside for several hours until the moisture
evaporates.
c Close the lid of the battery compartment firmly.
(page 19)
c Make sure the batteries are inserted correctly. (pages 19 - 21)
c Connect the AC power adaptor to an AC outlet securely. (page 19)
c The CD-R/CD-RW was not finalized. Finalize the CD-R/CD-RW
with the recording device.
c There is a problem with the quality of the CD-R/CD-RW,
recording device, or application software.
c The buttons are locked. Slide the HOLD switch back. (page 13)
24
Page 25
Symptom
The CD player does not start
charging.
Playback starts from the
point you stopped. (resume
function)
Rustling noise is heard from
the CD.
When closing the lid of the
CD player, the CD starts to
rotate.
You cannot operate the CD
player properly using the
rotary commander.
Cause and/or corrective action
c
During stop, press x/CHG. (page 20)
c
The resume function is working. To start play from the first track,
press N/> for 2 seconds or more, or open the lid of the CD
player. Or remove all power sources, then insert the batteries or
connect the AC power adaptor again.
(pages 6, 7, 19, 21)
c
Close the lid of the battery compartment firmly. (page 19)
c The CD player is reading the information on the CD. It is not
malfunctioning.
c The buttons on the CD player are kept pressed by mistake.
Additional information
25
Page 26
Specifications
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength: λ = 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance
of 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture.)
D-A conversion
1-bit quartz time-axis control
Frequency response
20 - 20 000 Hz
307)
Output (at 4.5 V input level)
Line output (stereo minijack)
Output level 0.7 V rms at 47 kΩ
Recommended load impedance over 10 kΩ
Headphones (stereo minijack)
Approx.5 mW + Approx. 5 mW at 16 Ω
Power requirements
For the area code of the model you
purchased, check the upper left side of the
bar code on the package.
• Two Sony NC-WMAA rechargeable
batteries: 2.4 V DC
• Sony NH-WM2AA rechargeable batteries:
2.4 V DC
• Two LR6 (size AA) batteries: 3 V DC
• AC power adaptor (DC IN 4.5 V jack):
U2/U/CA2/E92/MX2/TW2/BR3 model:
120 V, 60 Hz
CED/CET/CEW/CEX/CE7/EE/EE1/E13/G5/
G6/G7/G8/BR1 model:
220 - 230 V, 50/60 Hz
CEK/3CE7 model: 230 - 240 V, 50 Hz
AU2 model: 240 V, 50 Hz
JE.W/E33/EA3/KR4 model: 100 - 240 V,
50/60 Hz
HK2 model: 220 V, 50/60 Hz
AR1/CNA model: 220 V, 50 Hz
+1–2
dB (measured by JEITA CP-
Battery life* (approx. hours)
(When you use the CD player on a flat and stable
surface.)
Playing time varies depending on how the CD
player is used.
When using G-PROTECTION function
on off
Two NC-WMAA 12 10
(charged for
about 3 hours**)
NH-WM2AA 25 22
(charged for
about 5 hours**)
Two Sony alkaline 48 38
batteries LR6(SG)
(produced in Japan)
* Measured value by the standard of JEITA (Japan
Electronics and Information Technology
Industries Association).
** Charging time varies depending on how the
rechargeable battery is used.
Operating temperature
5°C - 35°C (41°F - 95°F)
Dimensions (w/h/d) (excluding
projecting parts and controls)
Approx. 135.5 × 29.2 × 137.4 mm
(5 3⁄8 × 1 3⁄16 × 5 1⁄2 in.)
Mass (excluding accessories)
Approx. 185 g (6.6 oz.)
Design and specifications are subject to change
without notice.
26
Page 27
Accessories (supplied/optional)
Supplied accessories
For the area code of the location in which you
purchased the CD player, check the upper left side
of the bar code on the package.
AC power adaptor (1)
Headphones/earphones (1)
Rotary commander (1)
Car battery cord (1)
Car connecting pack (1)
Velcro tape for the CD player (4)
Velcro tape for the rotary commander (2)
Hand strap (1)
For US customers
The AC power adaptor supplied is not intended to
be serviced. Should the AC power adaptor cease to
function in its intended manner, during the warranty
period, the adaptor should be returned to your
nearest Sony Service Center or Sony Authorized
Repair Center for replacement, or after warranty
period, it should be discarded.
Optional accessories
AC power adaptor AC-E45HG
Active speaker system SRS-T55
SRS-Z500
Car battery cord DCC-E345
Car battery cord with car connecting pack
DCC-E34CP
Car connecting pack CPA-9C
Connecting cord RK-G129
RK-G136
Rechargeable battery NH-WM2AA
Earphones MDR-E848LP
MDR-EX70LP
Headphones MDR-A44L
MDR-A110LP
When using optional headphones, use only
headphones with stereo miniplugs. You
cannot use headphones with micro plugs.

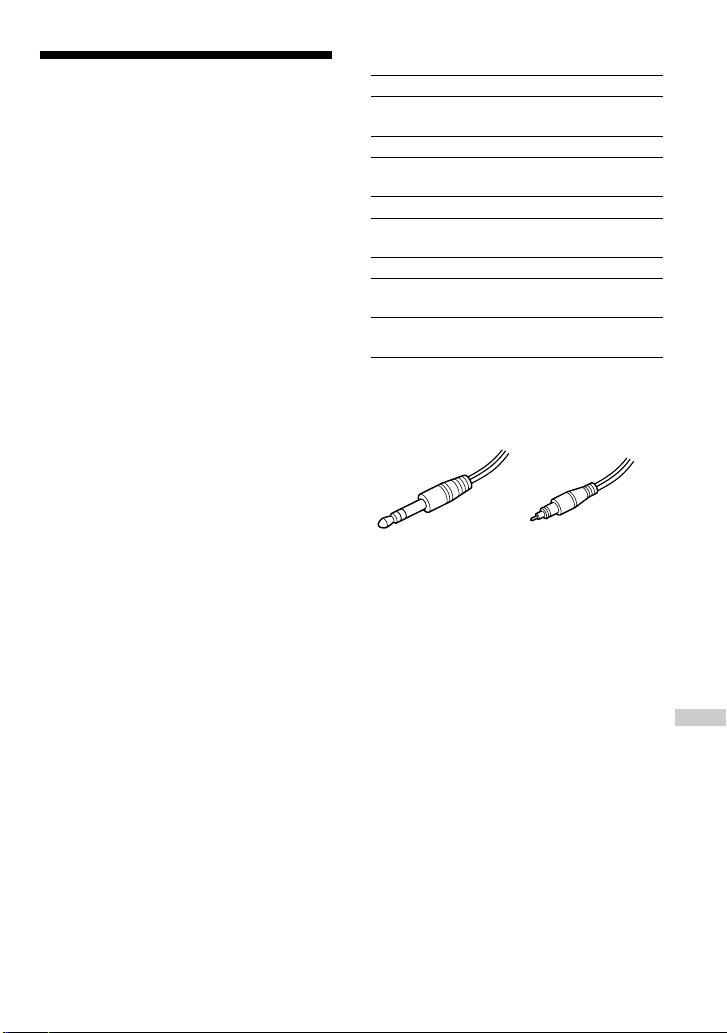

Stereo miniplug
Micro plug
Your dealer may not handle some of the
accessories listed above. Please ask the
dealer for detailed information about the
accessories in your country.Stereo
miniplugMicro plug
Additional information
27
Page 28

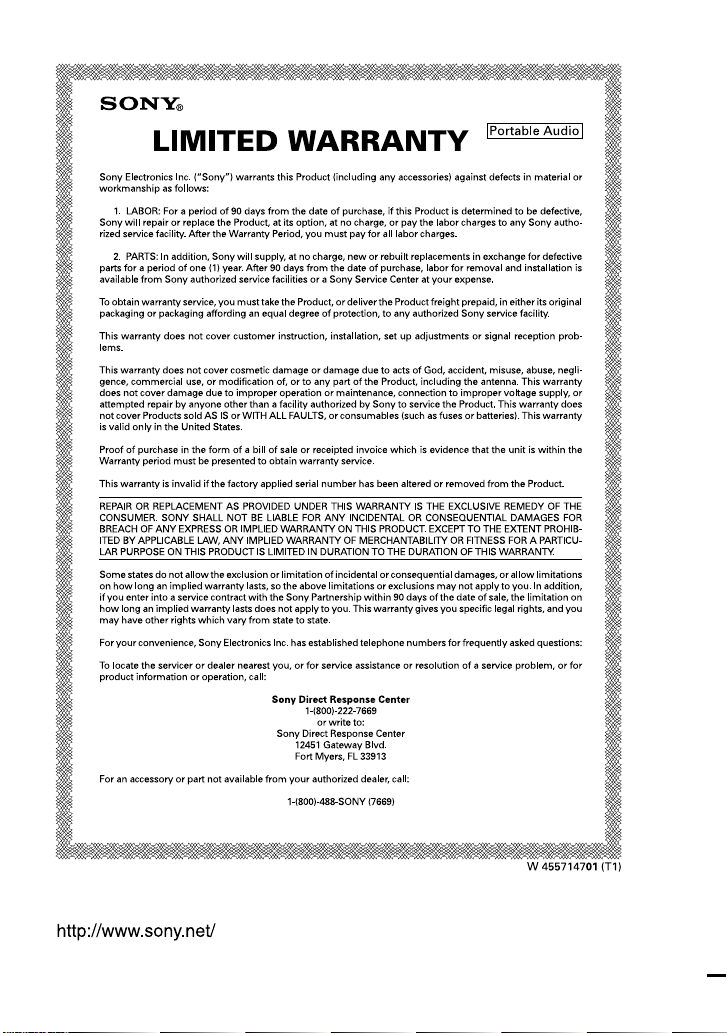

This warranty is valid only in the United States.
Sony Corporation Printed in Malaysia
Loading...
