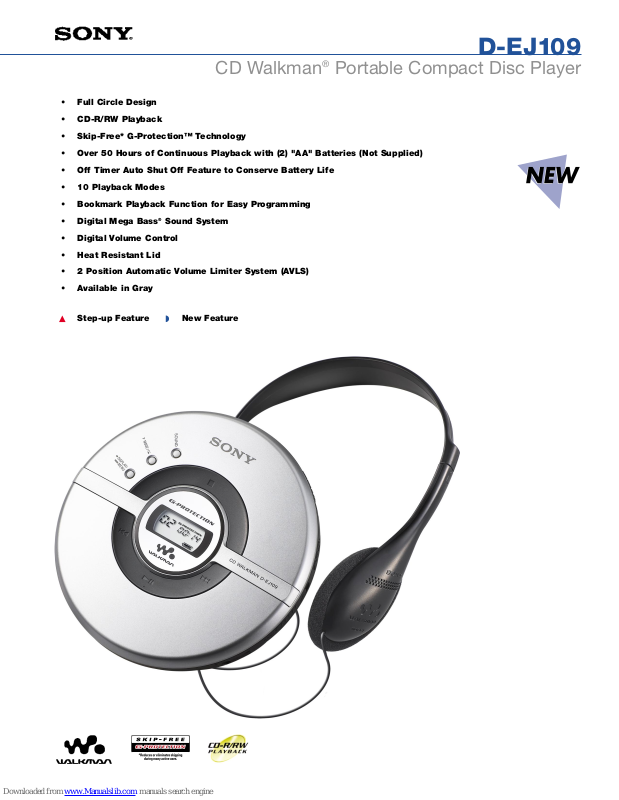

Page 1
D-EJ109
CD Walkman®Portable Compact Disc Player
• Full Circle Design
• CD-R/RW Playback
• Skip-Free* G-Protection™ Technology
• Over 50 Hours of Continuous Playback with (2) "AA" Batteries (Not Supplied)
• Off Timer Auto Shut Off Feature to Conserve Battery Life
• 10 Playback Modes
• Bookmark Playback Function for Easy Programming
• Digital Mega Bass
®
Sound System
• Digital Volume Control
• Heat Resistant Lid
• 2 Position Automatic Volume Limiter System (AVLS)
• Available in Gray
▲ Step-up Feature ◗ New Feature
Page 2
features
• Full Circle Design new slim and compact design mirrors the look of
the CD itself
• CD-R/RW Playback lets you enjoy playback of music CDs created on
personal CD-R/CD/RW drives in addition to commercially produced CDs
• Skip-Free* G-Protection™ Technology continues to provide quick
recovery from both horizontal and vertical shock
• Over 50 Hours of Continuous Playback with 2 "AA" Batteries (Not
Supplied)
Advanced Sony DSP technology provides dramatically
extended battery life from predecessor models
• Off Timer Auto Shut Off Feature to Conserve Battery Life
Maximizes battery life by powering down the player when not in use
• 10 Playback Modes offer many predetermined choices in the playback
of CDs, including hearing one track over and over, hearing a selection of
tracks in a desired order, or listening to tracks randomly
• Bookmark Playback Function for Easy Programming You can
easily program your favorite songs from multiple CDs and play them
back with the touch of a button. This feature makes it easy to program
and playback a personalized mix of your favorite songs
• Digital Mega Bass®Sound uses digital processing technology to
produce rich, deep, bass tones with extremely low harmonic distortion
• Digital Volume Function provides precise adjustment of volume level,
while the volume level appears on the LCD display
• Heat Resistant Lid helps protect against high temperature build-up
especially when using the CD Walkman
®
player in hot climates and
in vehicles
• 2 Position Automatic Volume Limiter System (AVLS) maintains
volume output at levels below distortion threshold for cleaner sound
reproduction
• Available In Gray
specifications
Digital-Analog Conversion: 1 Bit
D/A Conversion: 1 Bit Quartz Time-Axis Control
Frequency Response: 20-20000Hz, +1/-2dB
Inputs: DC-In 4.5V
Outputs: Headphone (stereo mini jack)
Power Requirements: DC 1.5V x 2 ("AA" x 2 Batteries)
Battery Life (Approx.): 50 Hours with "AA" Sony Alkaline Batteries x 2
(G-Protection on)
Color: Gray
Dimensions (WHD): 5 3⁄8" x 20⁄32" x 5 3⁄8" (135.8 x 22.8 x 135.8mm)
Weight: 6.4 oz (180g)
Supplied Accessories: MDR-027LP Stereo Headphones
Optional Accessories: AC-E45HG/E45A AC Adapter, DCC-E345 Car Battery
Cord, RK-G129HG/G136HG Connecting Cord, CPA-9C Car Connecting Pack,
DCC-E34CP Car Battery Cord
©2004 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony,
G-Protection, Mega Bass, and Walkman are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
*Eliminates or reduces skipping during many active uses.
D-EJ109
CD Walkman®Portable Compact Disc Player
Sony Electronics Inc.
1 Sony Drive
Park Ridge, New Jersey 07656
www.sony.com
Printed in USA 7/2004
