Sony CSDES155 Operating Manual
87-CD8-905-01
970519 AA0-IX
IEBm
-mBi3
DIGITAL AUDIO
WARNING
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
1A= Al
“CAUTION: TO REDUCETHE RISK OF
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
I
Explanation of Graphical Symbols:
A
●
A
OWNER’S RECORD
For your convenience, record the model number (you will find it at the
bottom of the unit) and serial number (you will find it
compartment) in the space provided below. Please refer to them when
you contact your AIWA dealer
Model No.

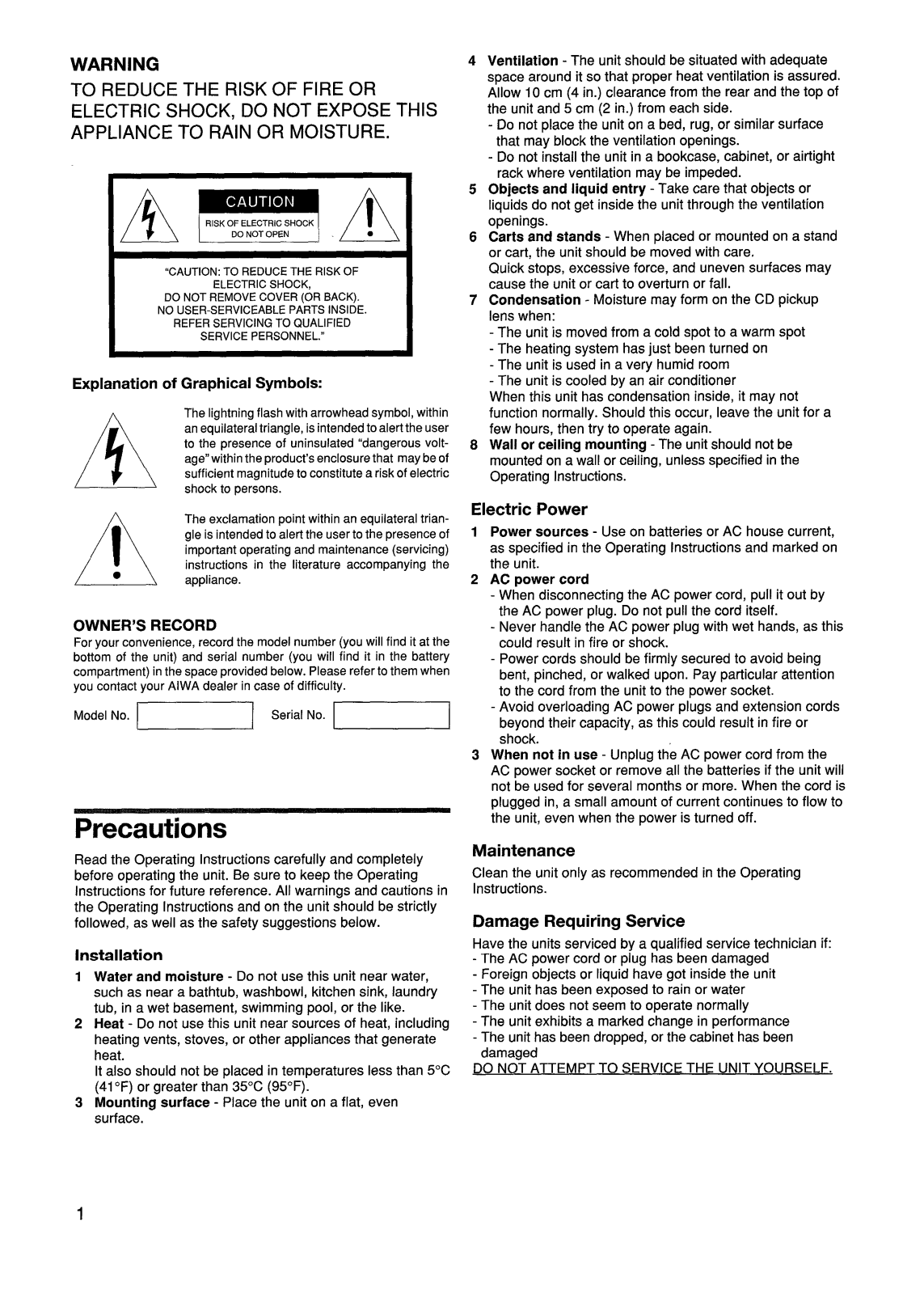

Precautions
Read the Operating Instructions carefully and completely
before operating the unit. Be sure to keep the Operating
Instructions for future reference. All warnings and cautions in
the Operating Instructions and on the unit should be strictly
followed, as well as the safety suggestions below.
Installation
Water and moisture - Do not use this unit near water,
1
such as near a bathtub, washbowl, kitchen sink, laundry
tub, in a wet basement, swimming pool, or the like.
2
Heat - Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate
heat.
It also should not be placed in temperatures less than 5°C
(41oF) or greater than 35°C (95°F).
3
Mounting surface - Place the unit on a flat, even
surface.
ELECTRIC SHOCK,
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
The lightning flash with arrowhead symbol, within
an equilateral triangle, isintended to alert the user
to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to Dersons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
in case of difficulty.
I
in the battery
I ‘eria’NO~
4
Ventilation - The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of
the unit and 5 cm (2 in.) from each side.
- Do not place the unit on a bed, rug, or similar surface
that may block the ventilation openings.
- Do not install the unit in a bookcase, cabinet, or airtight
rack where ventilation may be impeded.
5
Objects and liquid entry - Take care that objects or
liquids do not get inside the unit through the ventilation
openings.
Carts and stands - When placed or mounted on a stand
6
or cart, the unit should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the unit or cart to overturn or fall.
7
Condensation - Moisture may form on the CD pickup
lens when:
- The unit is moved from a cold spot to a warm spot
- The heating system has just been turned on
- The unit is used in a very humid room
- The unit is cooled by an air conditioner
When this unit has condensation inside, it may not
function normally. Should this occur, leave the unit for a
few hours, then try to operate again.
Wail or ceilina mounting - The unit should not be
8
mounted on a-wall or ceil;ng, unless specified in the
Operating Instructions.
Electric Power
Power sources - Use on batteries or AC house current,
1
as specified in the Operating Instructions and marked on
the unit.
2
AC power cord
- When disconnecting the AC power cord, pull it out by
the AC power plug. Do not pull the cord itself.
- Never handle the AC power plug with wet hands, as this
could result in fire or shock.
- Power cords should be firmly secured to avoid being
bent, pinched, or walked upon. Pay particular attention
to the cord from the unit to the power socket.
- Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or
shock.
When not in use - Urr~lua the AC Dower cord from the
3
AC power socket or re”mo;e all the”batteries if the unit will
not be used for several months or more. When the cord is
plugged in, a small amount of current continues to flow to
the unit, even when the power is turned off.
Maintenance
Clean the unit only as recommended in the Operating
Instructions.
Damage Requiring Service
Have the units serviced by a qualified service technician if:
- The AC power cord or plug has been damaged
- Foreign objects or liquid have got inside the unit
- The unit has been exposed to rain or water
- The unit does not seem to operate normally
- The unit exhibits a marked change in performance
- The unit has been dropped, or the cabinet has been
damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
1

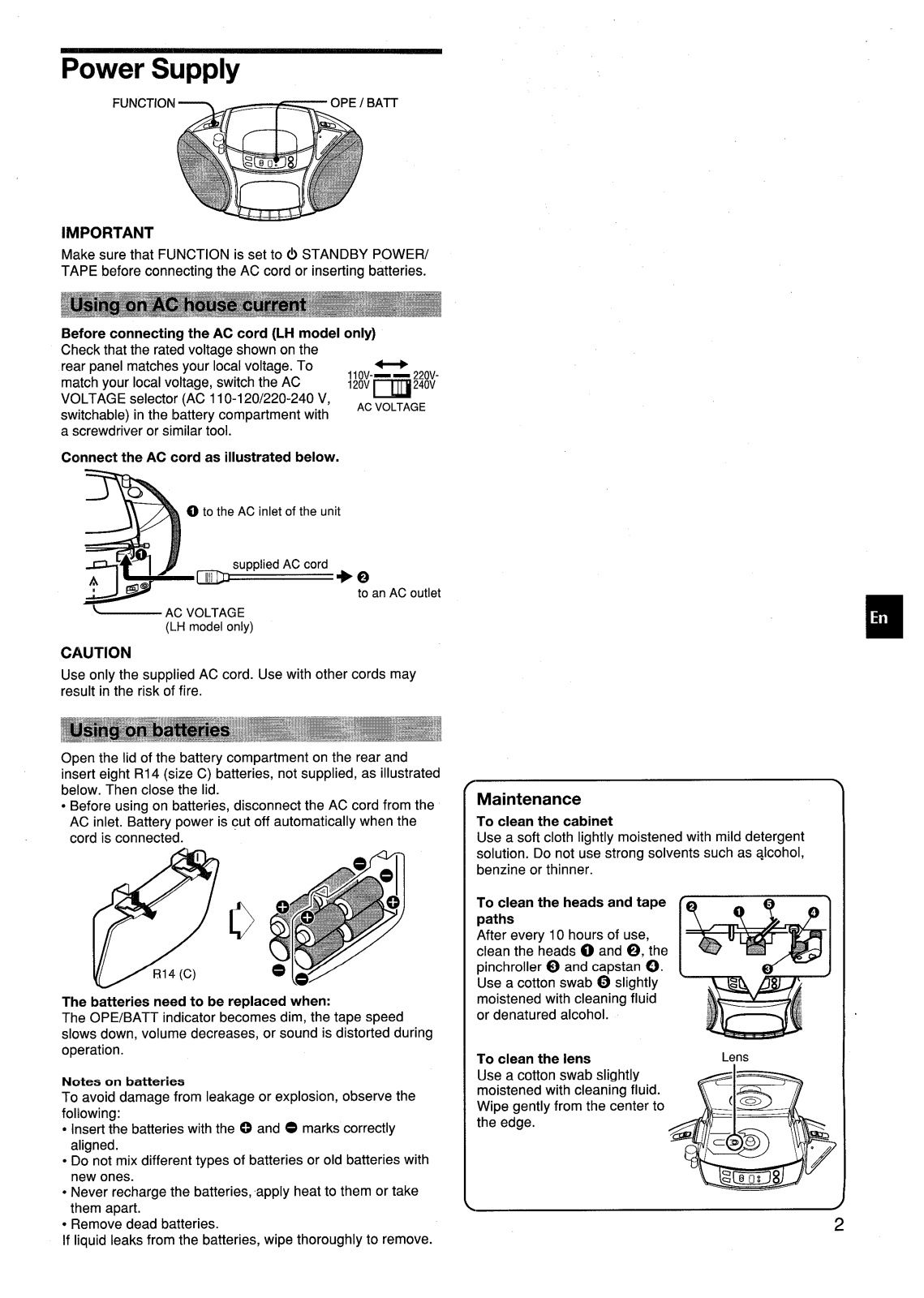

Power Supply
FUNCTION
IMPORTANT
Make sure that FUNCTION is set to (!) STANDBY POWER/
TAPE before connecting the AC cord or inserting batteries.
Before connecting the AC cord (LH model only)
Check that the rated voltage shown on the
rear panel matches your local voltage. To
match your local voltage, switch the AC
VOLTAGE selector (AC 11O-120/220-240 V,
switchable) in the battery compartment with
a screwdriver or similar tool.
Connect the AC cord as illustrated below.
BAIT
~jm;.fi= ;~21;-
AC VOLTAGE
it
Q
+
to an AC outlet
~
CAUTION
Use only the supplied AC cord. Use with other cords may
result in the risk of fire.
Open the lid of the battery compartment on the rear and
insert eight RI 4 (size C) batteries, not supplied, as illustrated
below. Then close the lid.
c Before using on batteries, disconnect the AC cord from the
AC inlet. Battery power is cut off automatically when the
cord is connected.
AC VOLTAGE
(LH model only)
o
@
The batteries need to be replaced when:
The OPE/BATT indicator becomes dim, the tape speed
slows down, volume decreases, or sound is distorted during
operation.
Notes on batteries
To avoid damage from leakage or explosion, observe the
following:
● Insert the batteries with the 0 and ~ marks correctly
aligned.
● Do not mix different types of batteries or old batteries with
new ones.
● Never recharge the batteries, apply heat to them or take
them apart.
● Remove dead batteries.
If liquid leaks from the batteries, wipe thoroughly to remove.
R14 (c)
Maintenance
To clean the cabinet
Use a soft cloth lightly moistened with mild detergent
solution. Do not use strong solvents such as qlcohol,
benzine or thinner.
To clean the heads and tape
paths
After every 10 hours of use,
clean the heads 0 and 0, the
pinchroller @ and capstan ~.
Use a cotton swab @ slightly
moistened with cleaning fluid
or denatured alcohol.
To clean the lens
Use a cotton swab slightly
moistened with cleaning fluid.
Wipe gently from the c&ter to
the edge.
>1%
Lens
fir+>
2

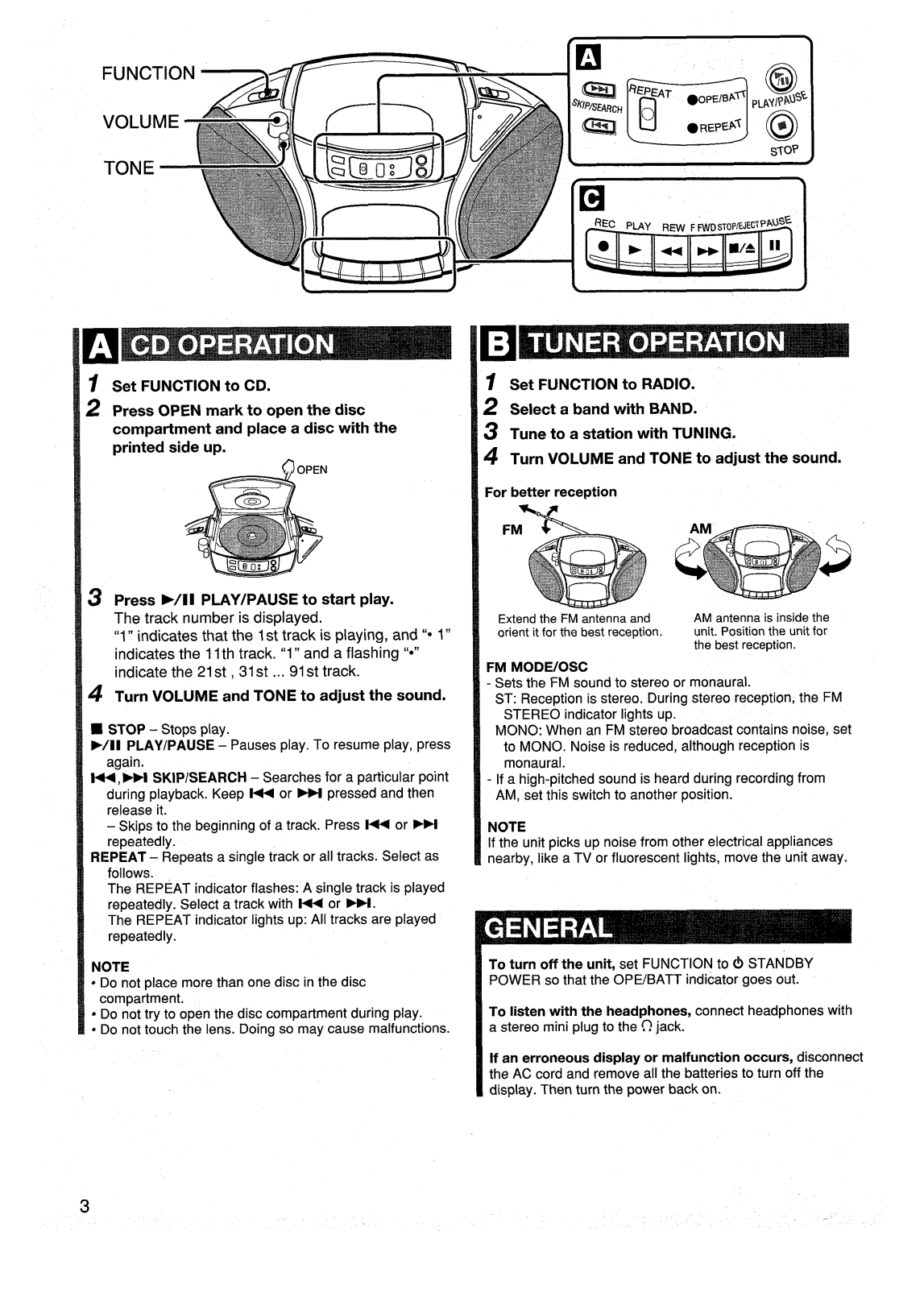

FUNGI IUN
1
Set FUNCTION to CD.
Press OPEN mark to open the disc
2
compartment and place a disc with the
printed
side up.
I ‘-,rmmrwI 1A
f
,, -,....
— I
J
.
H
f+=c PLAY REW F WD STOP/EJECTPAUSE
L1,,,,,,m
1 Set FUNCTION to RADIO.
2 Select a band with BAND.
~ Tune
~ Turn VOLUME and TONE to adjust the sound.
For better reception
F
to a station with TUNING.
I
Press Wll PLAY/PAUSE to start play.
3
The track number is displayed.
“1” indicates that the 1st track is playing, and “O1”
indicates the 11th track. “1” and a flashing “o”
indicate the 21st, 31st ... 91st
Turn VOLUME and TONE to adjust the sound.
4
9 STOP - Stops play.
➤/11 PLAY/PAUSE – Pauses play. To resume play, press
again.
1+, M SKIP/SEARCH – Searches for a particular point
during playback. Keep M or - pressed and then
release it.
– Skips to the beginning of a track. Press l++ or M
repeatedly.
REPEAT – Repeats a single track or all tracks. Select as
follows.
The REPEAT indicator flashes: A single track is played
repeatedly. Select a track with 1+4 or M.
The REPEAT indicator lights up: All tracks are played
repeatedly.
NOTE
. Do not place more than one disc in the disc
compartment.
● Do not try to open the disc compartment during play.
● Do not touch the lens. Doing so may cause malfunctions.
track.
Extend the FM antenna and
orient it for the best reception.
FM MODE/OSC
- Sets the FM sound to stereo or monaural.
ST: Reception is stereo. During stereo reception, the FM
STEREO indicator lights up.
MONO: When an FM stereo broadcast contains noise, set
to MONO. Noise is reduced, although reception is
monaural.
- If a high-pitched sound is heard during recording from
AM, set
NOTE
if the unit picks up noise from other electrical appliances
nearby, like a TV or fluorescent lights, move the unit away.
To turn off the unit, set FUNCTION to (!) STANDBY
POWER so that the OPE/BATT indicator goes out.
To listen with the headphones, connect headphones
a stereo mini plug to the Q jack.
this switch to another position.
AM antenna is inside the
unit. Position the unit for
the best reception.
with
If an erroneous display or malfunction occurs, disconnect
the AC cord and remove all the batteries to turn off the
display. Then turn the power back on.
