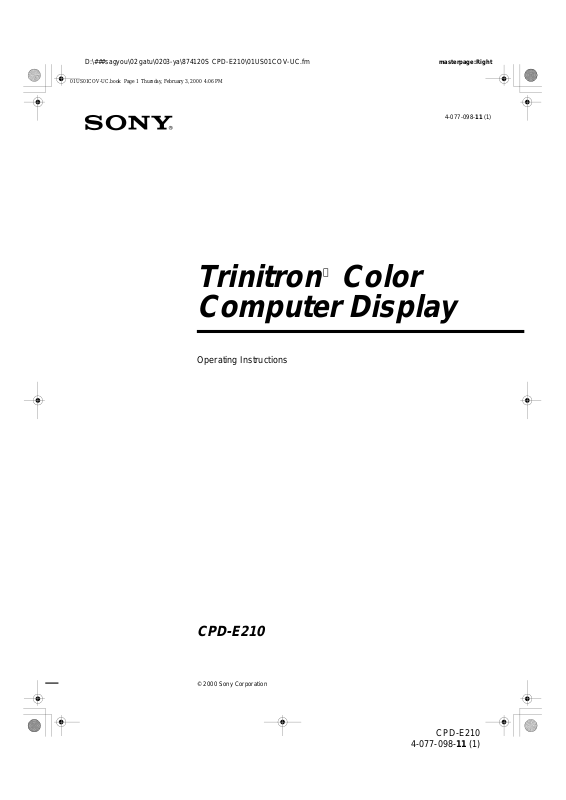

Sony CPD-E210 User Manual

4-077-098-11 (1)



Trinitron Color Computer Display

Operating Instructions

CPD-E210

Owner’s Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No.

Serial No.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for

help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

INFORMATION This product complies with Swedish National Council for Metrology (MPR) standards issued in December 1990 (MPR II) for very low frequency (VLF) and extremely low frequency (ELF).

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications: SPECIFICATIONS

Plug Type Nema-Plug 5-15p Cord Type SVT or SJT, minimum 3 × 18 AWG Length Maximum 15 feet Rating Minimum 7 A, 125 V

NOTICE

Cette notice s’applique aux Etats-Unis et au Canada uniquement. Si cet appareil est export* aux Etats-Unis ou au Canada, utiliser le cordon d’alimentation portant la mention UL LISTED/CSA LABELLED et remplissant les conditions suivantes: SPECIFICATIONS

Type de fiche Fiche Nema 5-15 broches Cordon Type SVT ou SJT, minimum 3 × 18 AWG Longueur Maximum 15 pieds Tension Minimum 7 A, 125 V

NERGY STAR Partner, Sony

As an Corporation has determined that this product meets the guidelines for energy efficiency.

If you have any questions about this product, you may call:

Sony Customer Information Center 1-800-222-SONY (7669)

or write to:

Sony Customer Information Center 1 Sony Drive, Mail Drop #T1-11, Park Ridge, NJ 07656

NERGY STAR

Declaration of Conformity

Trade Name: Sony Model No.: CPD-E210 Responsible Party: Sony Electronics Inc. Address: 1 Sony Drive, Park Ridge, NJ 07656 USA Telephone No.: 201-930-6970

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Table of Contents

Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Identifying parts and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

• Trinitron and FD Trinitron is a registered trademark of Sony Corporation.

• Macintosh is a tr ademark license d to Apple Computer, Inc., registered in the U.S.A. and other countries.

• Windows trademarks of Microsoft Corp oration in the United States and other countries.

• IBM PC/AT and VGA are registered trademarks of IBM Corporation of the U.S.A.

• VESA and DDC Video Electronics Standard Associati on.

•

mark.

• All other product names ment i one d herein may be the trademarks or registered trademarks of their respective companies.

• Furthermore, “” and “” are not mentioned in each case in this manual.



and MS-DOS are registered



are trademarks of the

NERGY STAR is a U.S. registered

Step 1: Step 2: Step 3:

Connect your monitor to your computer . . . . . . . . . . . . . . . 6

Connect the power cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Turn on the monitor and computer . . . . . . . . . . . . . . . . . . . 7

Selecting the on-screen menu language (LANG). . . . . . . . . . . . . . . 7

Customizing Your Monitor . . . . . . . . . . . . . . . . . . . . . . . .8

Navigating the menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Adjusting the brightness and contrast. . . . . . . . . . . . . . . . . . . . . . . . 9

Adjusting the centering of the picture (CENTER) . . . . . . . . . . . . . . . 9

Adjusting the size of the picture (SIZE) . . . . . . . . . . . . . . . . . . . . . . 9

Enlarging or reducing the picture (ZOOM) . . . . . . . . . . . . . . . . . . . 10

Adjusting the shape of the picture (GEOM) . . . . . . . . . . . . . . . . . . 10

Adjusting the color of the picture (COLOR) . . . . . . . . . . . . . . . . . . 10

Adjusting the convergence (CONV) . . . . . . . . . . . . . . . . . . . . . . . . 10

Additional settings (OPTION) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Helpful hints and information (HELP) . . . . . . . . . . . . . . . . . . . . . . . 12

Resetting the adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Preset and user modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Power saving function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

If thin lines appear on your screen (damper wires). . . . . . . . . . . . . 13

On-screen messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Trouble symptoms and remedies . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Self-diagnosis function . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . Back cover

Precautions

90°

5°

90°

15°

Centering dots

Warning on power connections

• Use the supplied power cord. If you use a different power cord,

be sure that it is compatible with your local power supply.

For the customers in the U.S.A.

If you do not use the appropriate cord, this monitor will not conform to mandatory FCC standards.

Example of plug types

Use of the tilt-swivel

This monitor can be adjusted within the angles shown below. To find the center of the mon itor’ s turnin g radius, a lign the ce nter of the monitor’s screen with the centering dots on the stand. Hold the monitor at the bott om with bo th ha nd s whe n yo u tu rn it horizontally or vertically. Be careful not to pinch your fingers at the back of the monitor when you tilt the monitor up vertically.

for 100 to 120 V AC

• Before disconnecting the power cord, wait at least 30 se conds

after turning off the power to allow the static elec tricity on the screen’s surface to discharge.

• After the power is turned on, the screen is demagnetized

(degaussed) for about 5 seconds. This generates a strong magnetic field around the screen which may affect data stored on magnetic tapes and disks placed near the monitor. Be sure to keep magnetic recording equipment, tapes, and disks away from the monitor.

The equipment should be in stalled near an easily accessible outlet.

for 200 to 240 V AC

Installation

Do not install the monitor in the following places:

• on surfaces (rugs, blankets, etc.) or near materials (curtains,

draperies, etc.) that may block the ventilation holes

• near heat sources such as radiators or air ducts, or in a place

subject to direct sunlight

• in a place subject to severe temperature changes

• in a place subject to mechanical vibration or shock

• on an unstable surface

• near equipment which generates magnetism, such as a

transformer or high volta g e po w er lines

• near or on an electrically charged metal surface

Maintenance

• Clean the screen with a soft cloth. If you use a glass cleaning

liquid, do not use any t ype of cleaner containing an anti-static solution or similar additive as this may scratch the screen’s coating.

• Do not rub, touch, or tap the surface of the screen with sharp or

abrasive items su ch as a ballpoint pe n or screwdrive r. This type of contact may result in a scratched pict ure tube.

• Clea n the cabine t, pa nel an d controls with a soft cloth lightly

moistened with a mild detergent solution. Do not use any type of abrasive pa d, sc ouring powder or solv ent, s uch as a lcohol o r benzene.

Transportation

When you transport this monitor for repair or shipment, use the original carton and packing materials.

Identifying parts and controls

1 2 3 4

876

11 12 13 14 15

See the pages in parentheses for further details.

RESET

RearFront

AC IN

RESET

RESET button (page 12)

This button resets the adjustments to the factory settings.

Control button (page 9)

The control button is used to display the menu and make adjustments to the monitor, including brightn ess and contrast adjustments.

(power) switch and indicator (pages 7, 13 and

3 1

back cover)

This button turns the monitor on and off. The power ind icator lights up in green when the monitor is turned on, and either flashes in green and orange, or lights up in orange when the monitor is in power saving mode.

AC IN connector (page 6)

This connector provides AC power to the monitor.

Video input connector (HD15) (page 6)

This connector inputs RGB video sign als (0.700 Vp-p, positive) and sync signals.

Pin No. Signal

1Red 2 Green

(Sync on Green) 3Blue 4 ID (Ground) 5 DDC Ground* 6 Red Ground 7 Green Ground 8 Blue Ground 9– 10 Ground 11 ID (Ground) 12 Bi-Directional Data (SDA)* 13 H. Sync 14 V. Sync 15 Data Clock (SCL)*

* DDC (Display Dat a Ch annel) is a standard of VESA.
