Sony CDX-S2000 User Manual

3-259-960-12 (1)

FM/MW/LW Compact Disc Player

Operating Instructi on s Bedienungsanleitung Mode d’emploi Istruzioni per l’uso Gebruiksaanwijzing

Wichtig! Bitte nehmen Sie sich etw as Z eit, um den Gerä te-Pass vollständig

auszufüllen. Dieser be findet sic h a uf der hinteren Umsc hla gseite d ieser Bedienungsanleitung .

Si dichiara che l’apparecchio è stato fabbricato in conformità all’art. 2, Comma 1 del D.M. 28.08. 1995 n. 548.

For installation and connections, see the supplied installation/connections manual. Zur Installation und zum Anschluss siehe die mitgelie ferte Ins tallatio ns-/Anschlussanleitung. En ce qui concerne l’installation et les connexi ons, consulter le manuel d’installation/

raccordement fourni. Per l’installazione e i collegamenti, fare riferimento al manuale di istruzioni per

l’installazione e i collegamenti in dotazione. Zie voor het monteren en aansluiten van het apparaat de bijgeleverde handleiding “Installatie

en aansluitingen”.

GB DE FR IT NL

CDX-S2000C CDX-S2000

Welcome !

Thank you for purchas in g t hi s Sony Compact Disc Player. You can enjoy its various f eat ures even more with:

• CD TEXT information (displayed when a CD TEXT disc* is played )

• Optional controller accessor ies Card remote commander RM-X114 Rotary commander RM-X4S

* A CD TEXT disc is an audio CD that includes

information such as the disc name, artist name, and track names. This information is recorded on the disc.

This label is located on the bottom of the chassis.

Table of Contents

Location of controls . . . . . . . . . . . . . . . . . . . 4

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Notes on discs . . . . . . . . . . . . . . . . . . . . . . . . 6

Getting Started

Resetting the unit. . . . . . . . . . . . . . . . . . . . . . 7

Detaching the front panel . . . . . . . . . . . . . . . 7

Setting the clock . . . . . . . . . . . . . . . . . . . . . . 8

CD Player

Playing a disc. . . . . . . . . . . . . . . . . . . . . . . . . 9

Display items. . . . . . . . . . . . . . . . . . . . . . . . . 9

Playing tracks repeatedly

— Repeat Play . . . . . . . . . . . . . . . . . . . . 10

Playing tracks in ra ndom order

— Shuffle Play . . . . . . . . . . . . . . . . . . . . 10

Radio

Storing stations automatically

— Best Tuning Memory (BTM). . . . . . . 10

Receiving the stored stations. . . . . . . . . . . . 11

Storing only the desired stations . . . . . . . . . 11

RDS

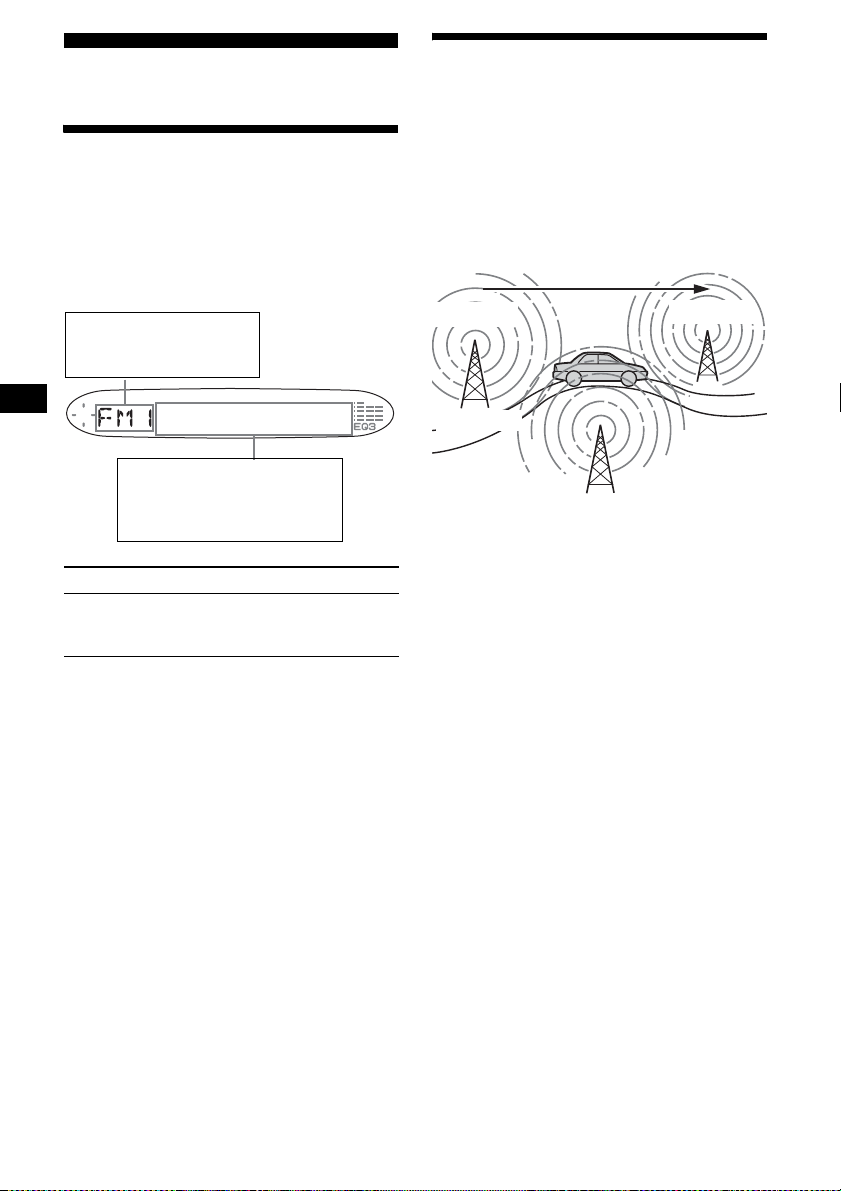

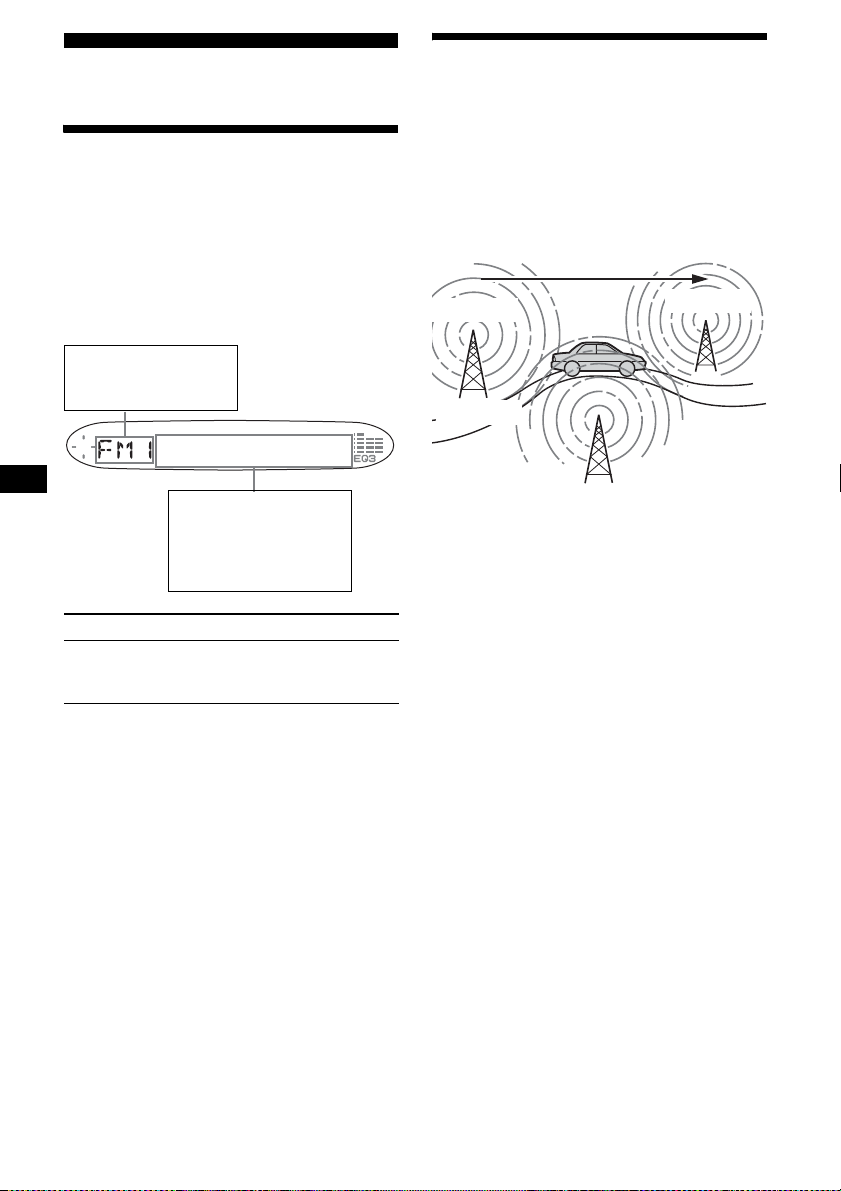

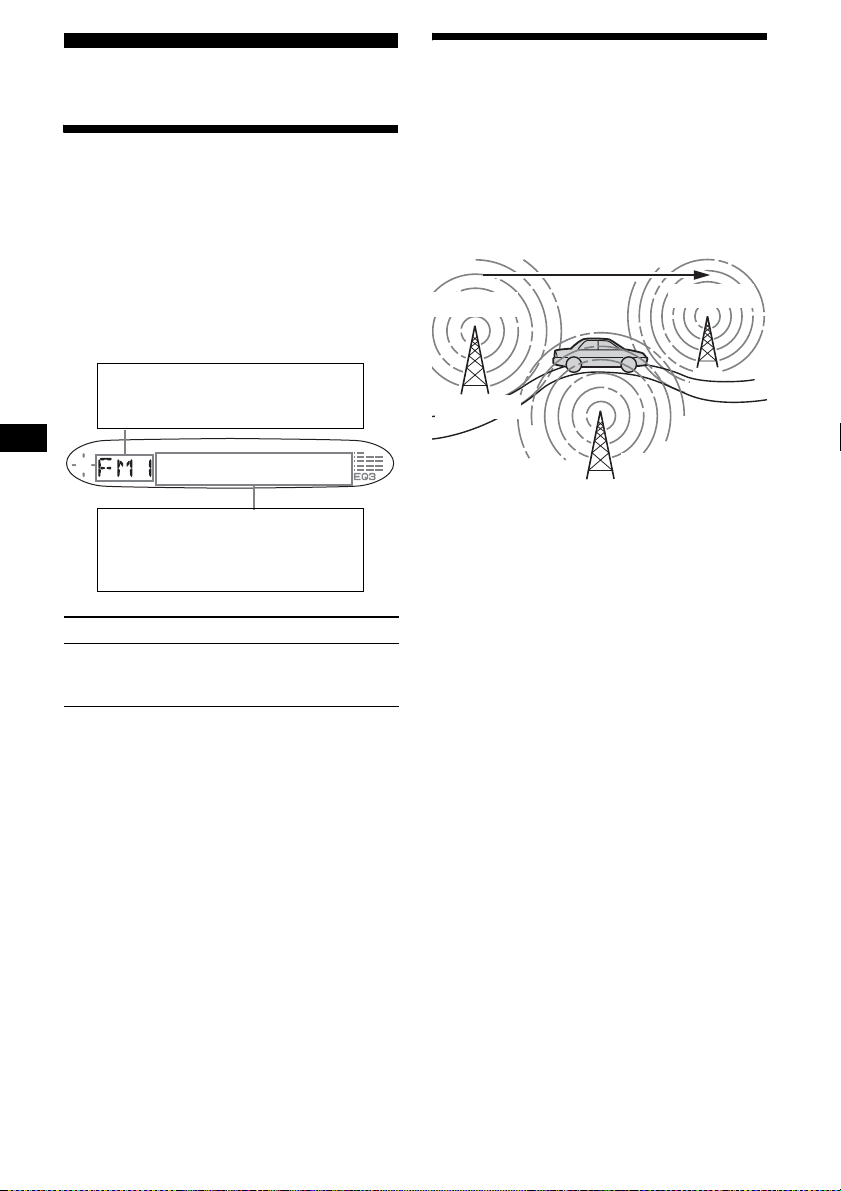

Overview of RDS . . . . . . . . . . . . . . . . . . . . 12

Automatic retuning for best receptio n results

— AF (Alternative Frequencies) . . . . . . 12

Receiving traffic announcements

— TA (Traffic Announcement)/TP

(Traffic Programme). . . . . . . . . . . . . . . . 13

Presetting RDS stations with the AF and TA

setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

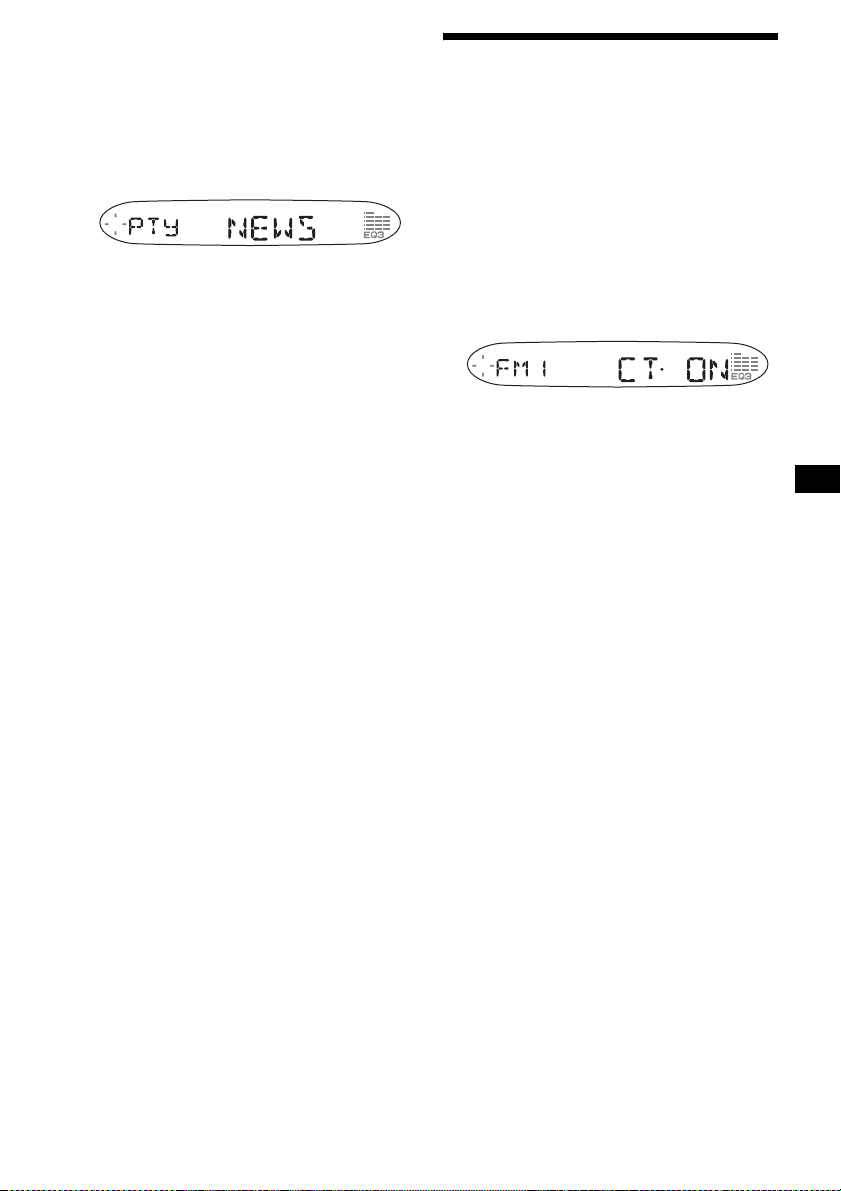

Tuning in stations by pr ogramme type

— PTY (Programme types) . . . . . . . . . . 14

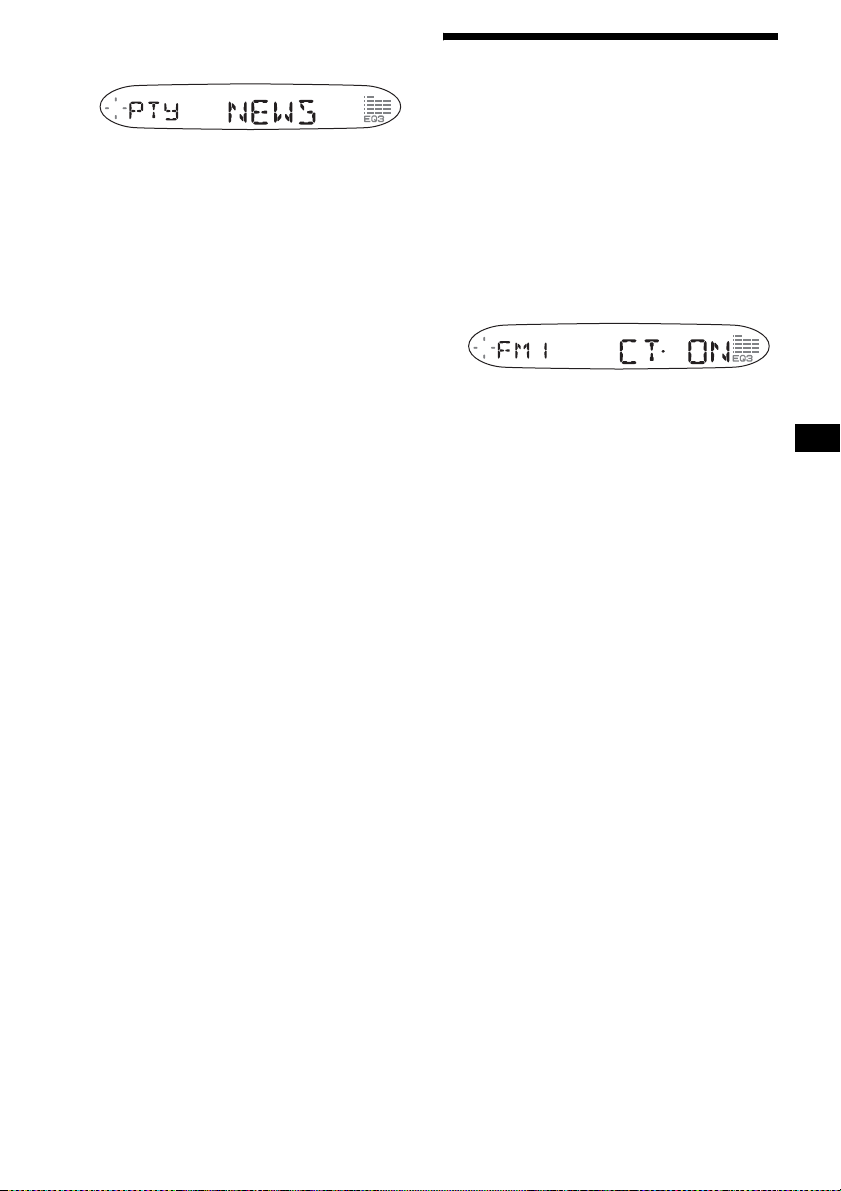

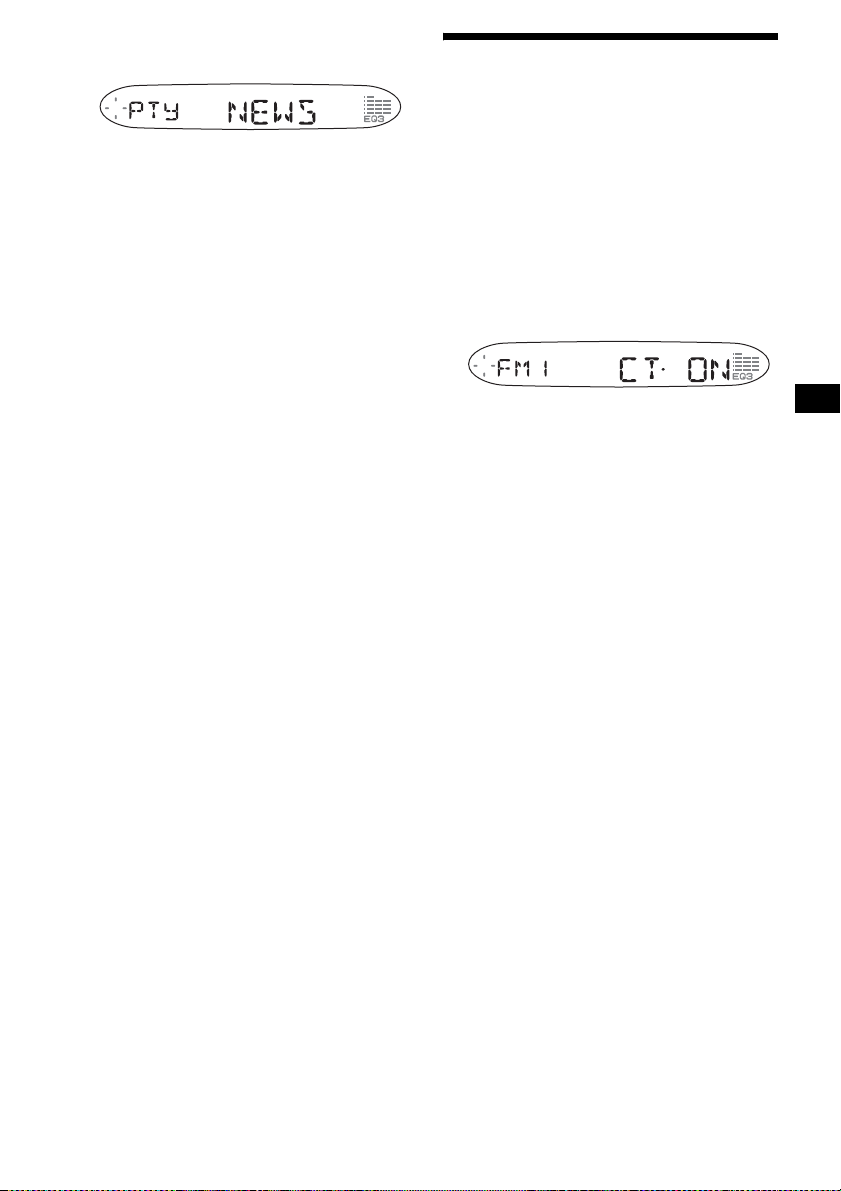

Setting the clock automatically

— CT (Clock Time) . . . . . . . . . . . . . . . . 15

Other Functions

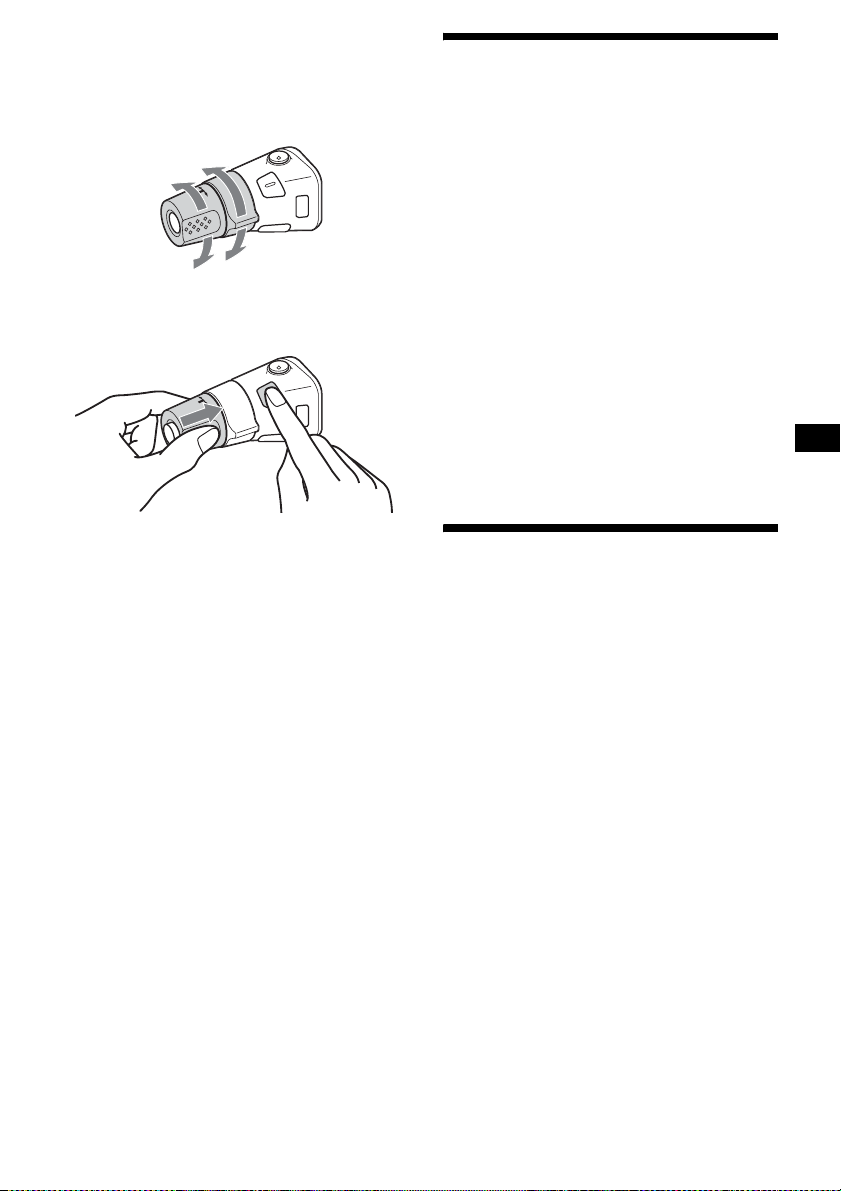

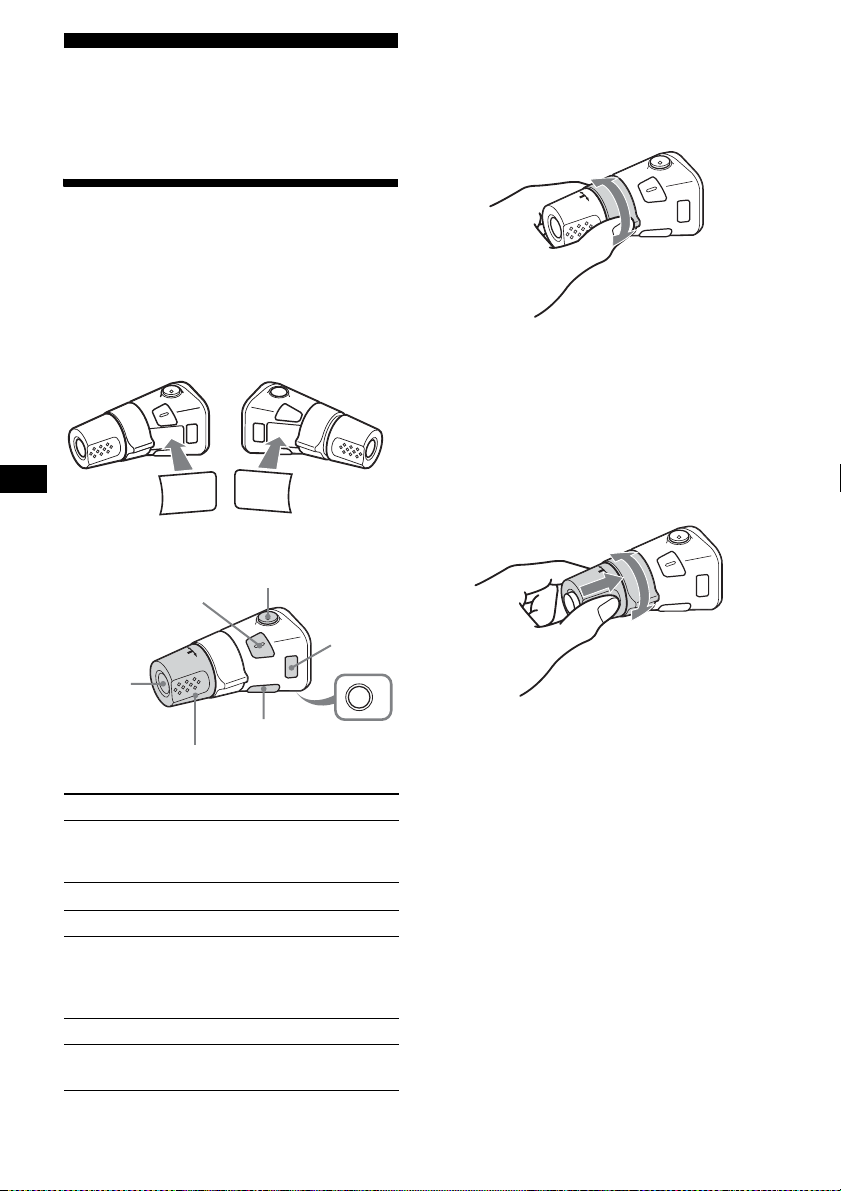

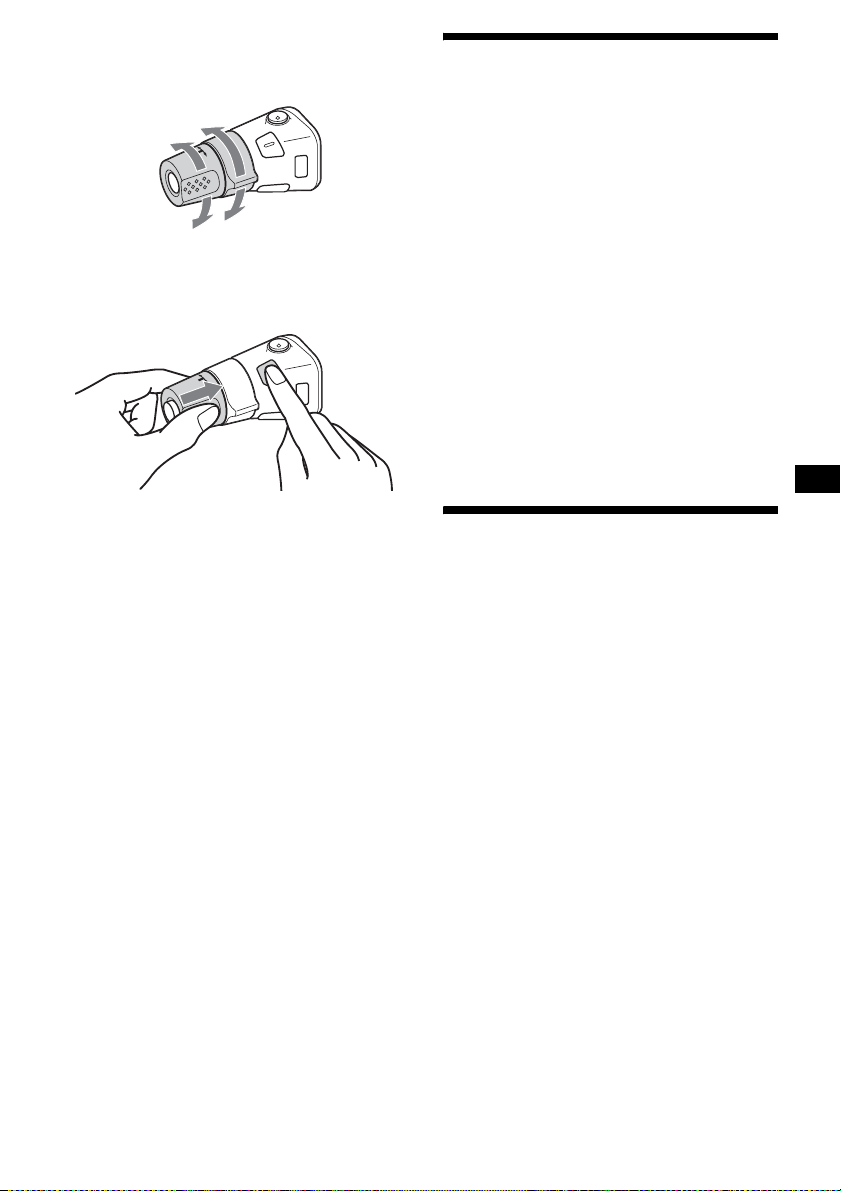

Using the rotary commander. . . . . . . . . . . . 16

Adjusting the balance and fader . . . . . . . . . 17

Quickly attenuating the sound . . . . . . . . . . 17

Changing the sound and display settings . . 17

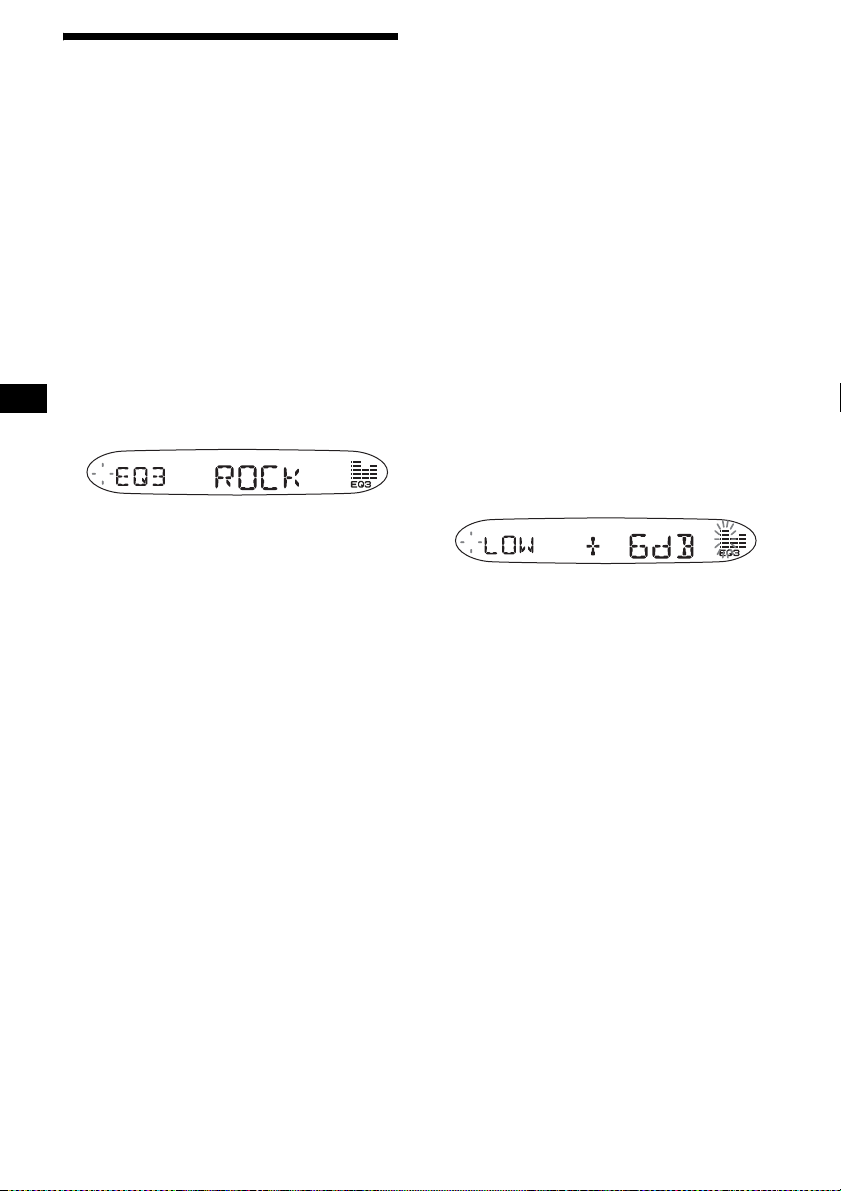

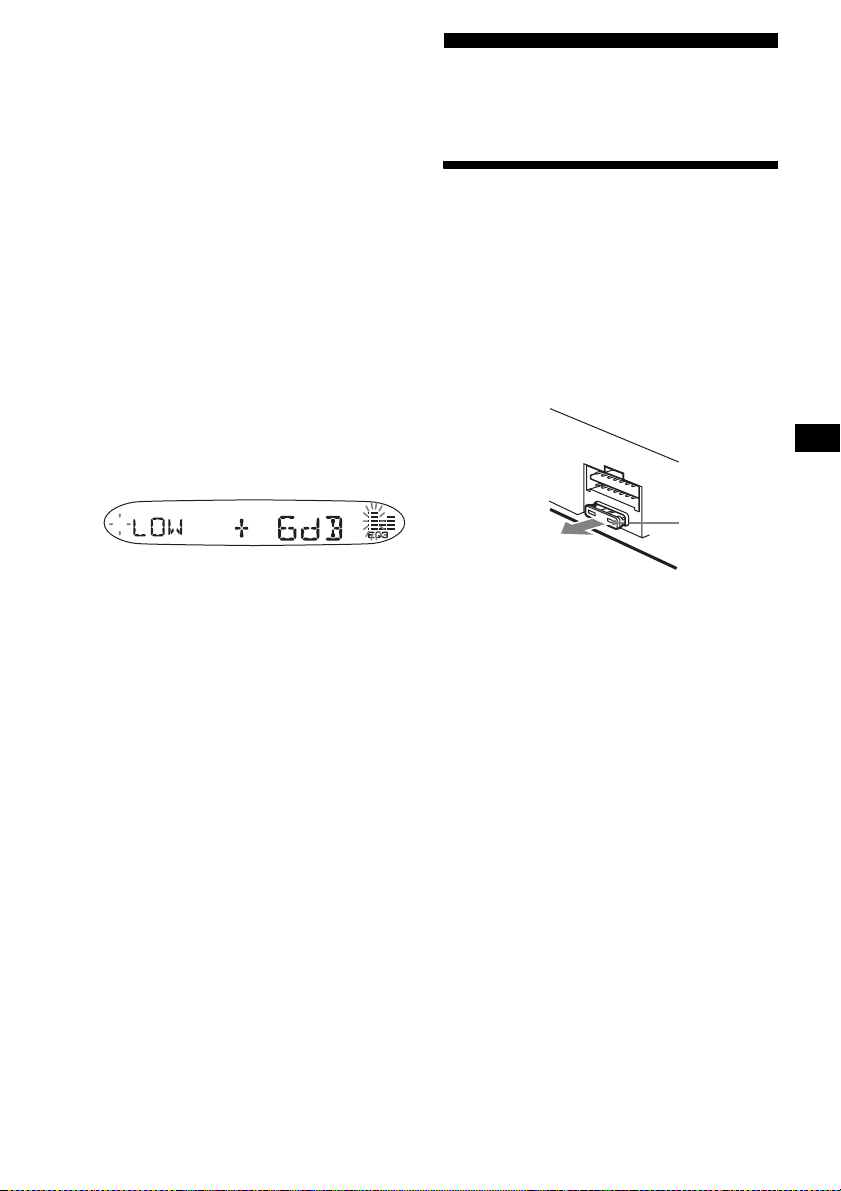

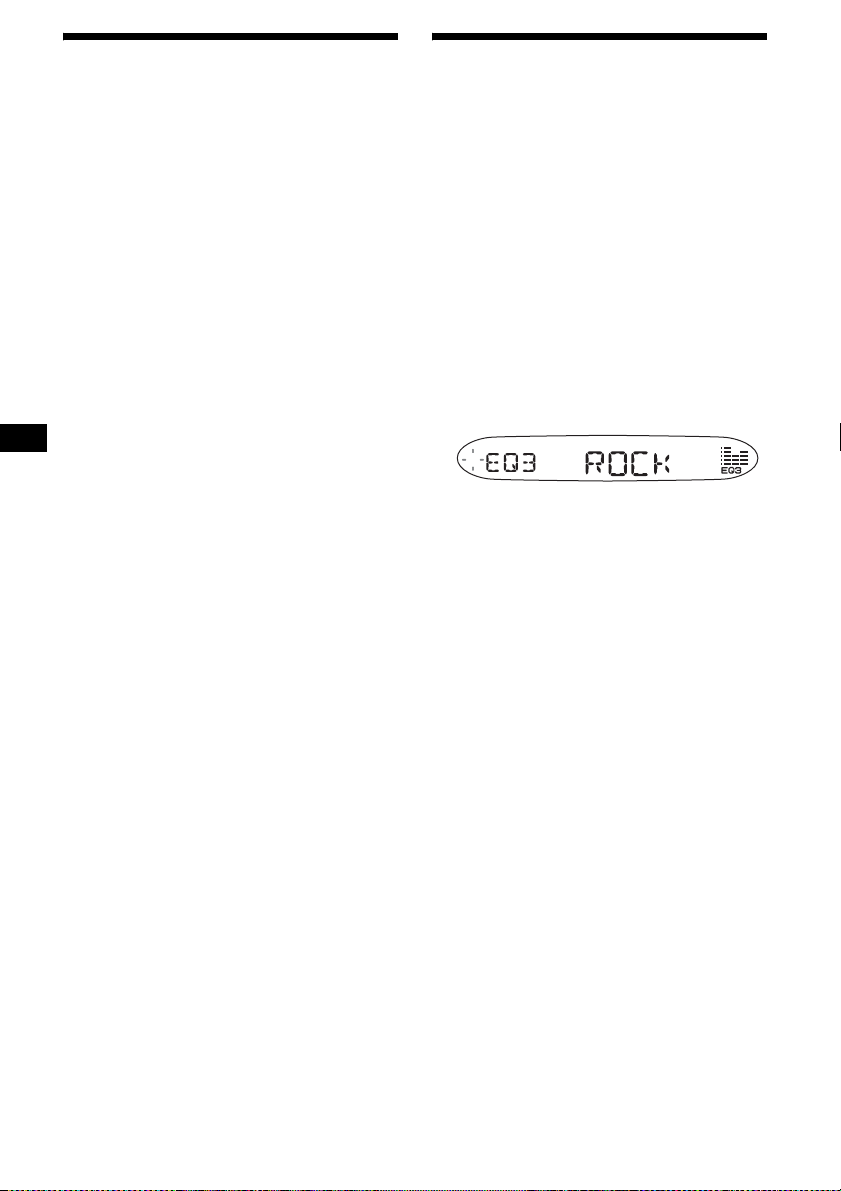

Setting the equalizer (EQ3). . . . . . . . . . . . . 18

Additional Information

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 19

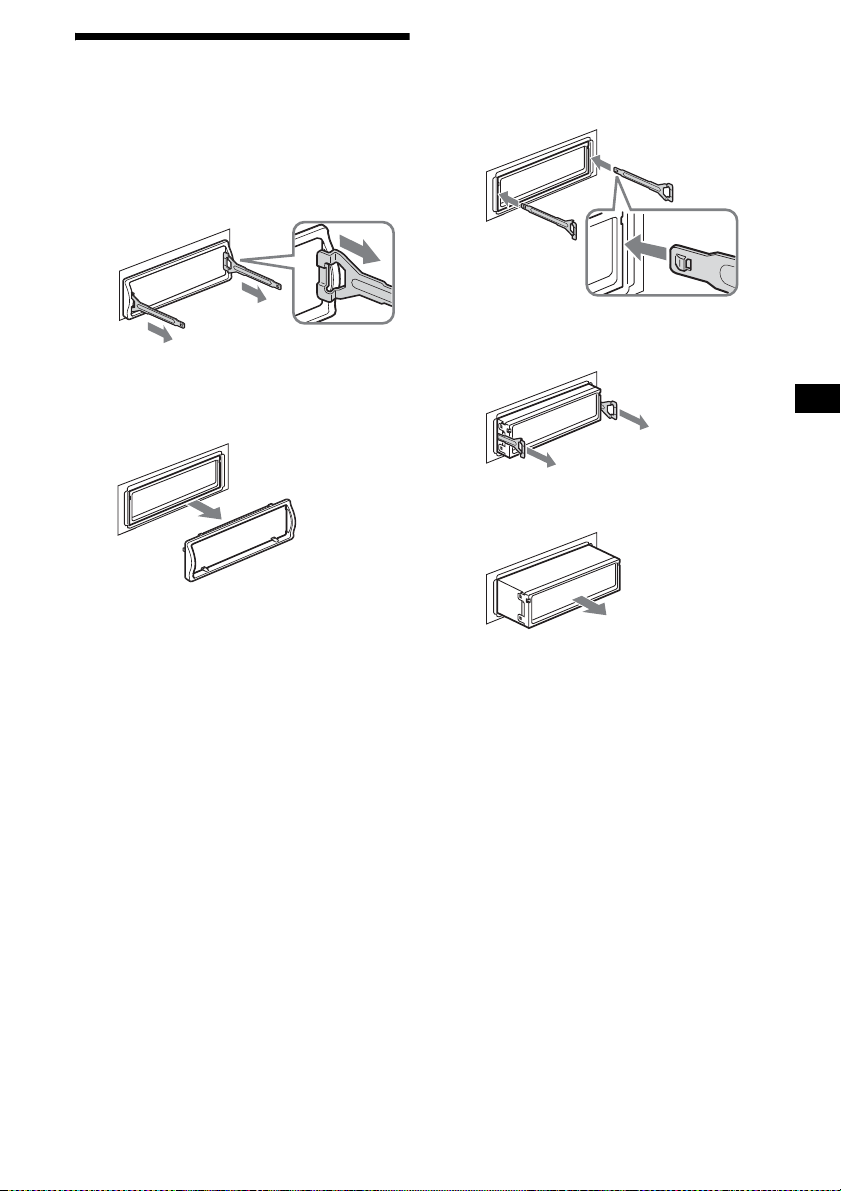

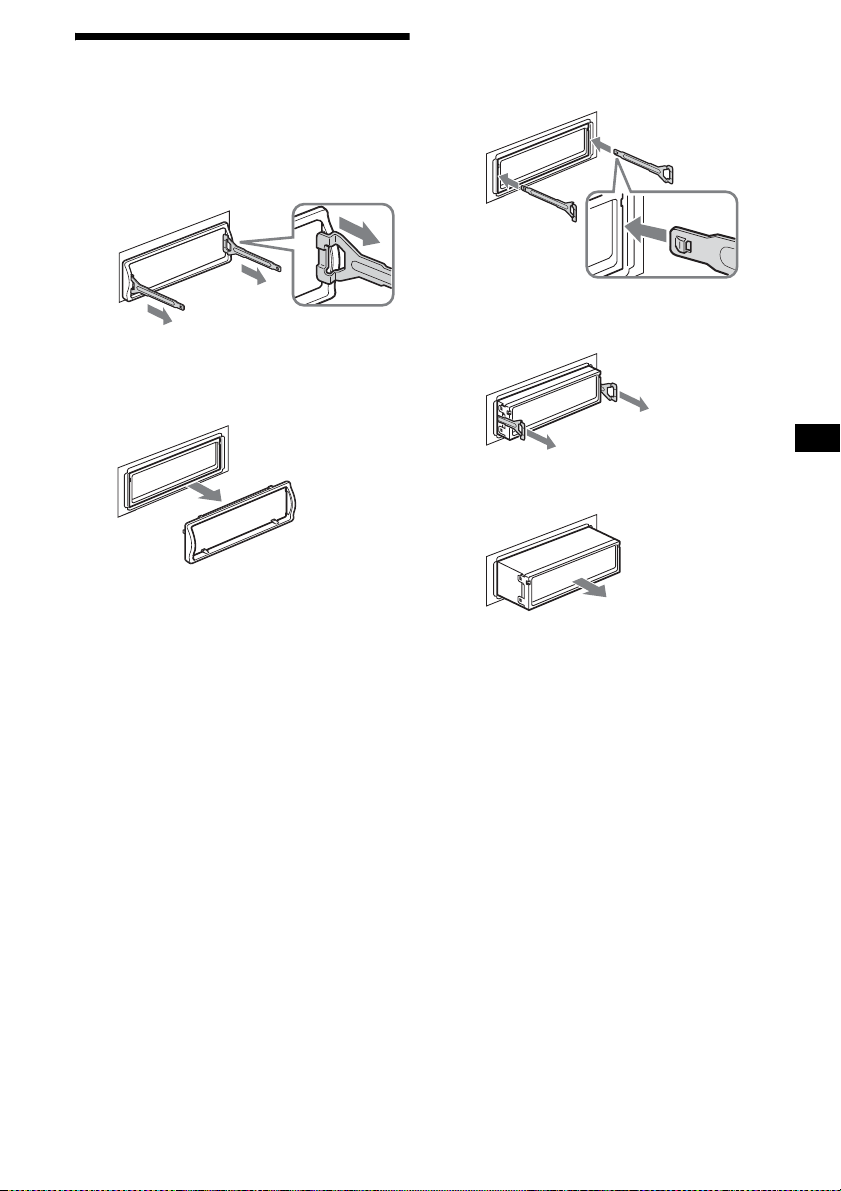

Removing the unit. . . . . . . . . . . . . . . . . . . . 20

Specifications . . . . . . . . . . . . . . . . . . . . . . . 21

Troubleshooting . . . . . . . . . . . . . . . . . . . . . 22

Error displays/Messages. . . . . . . . . . . . . . . 23

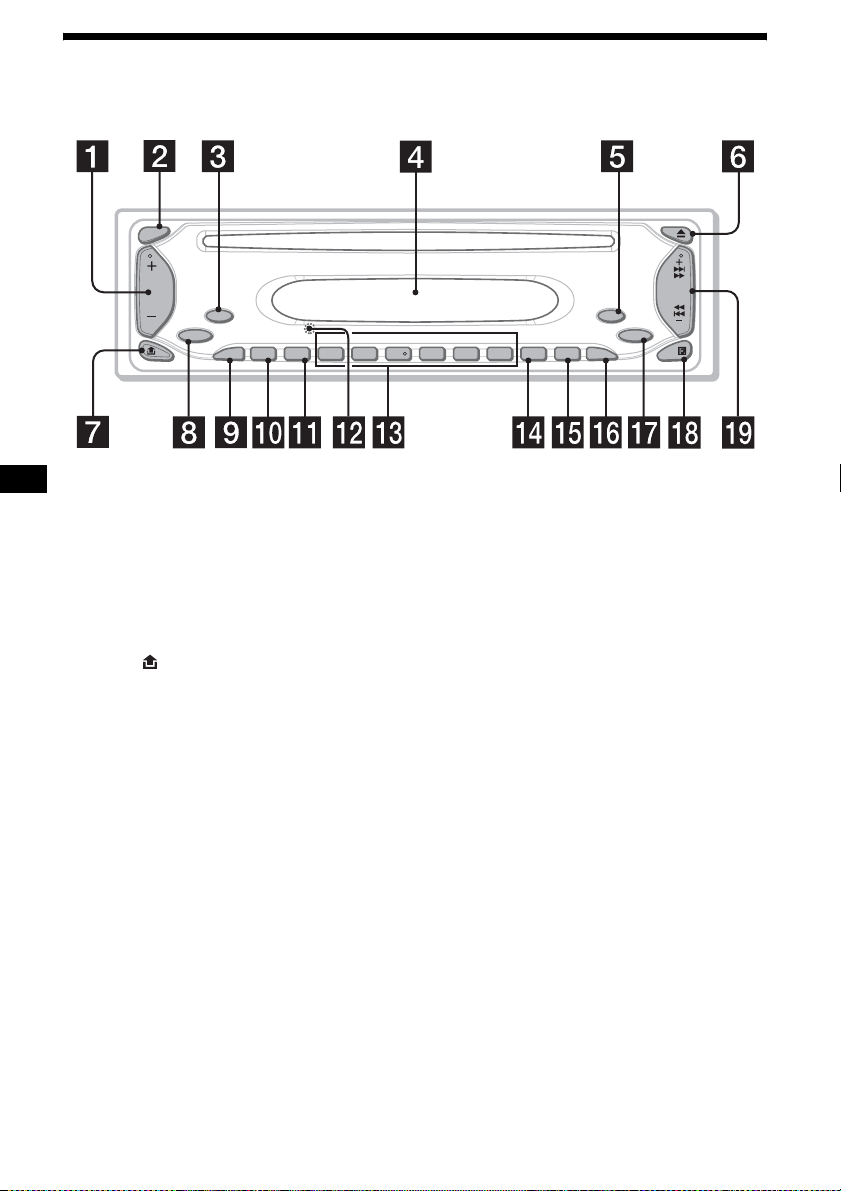

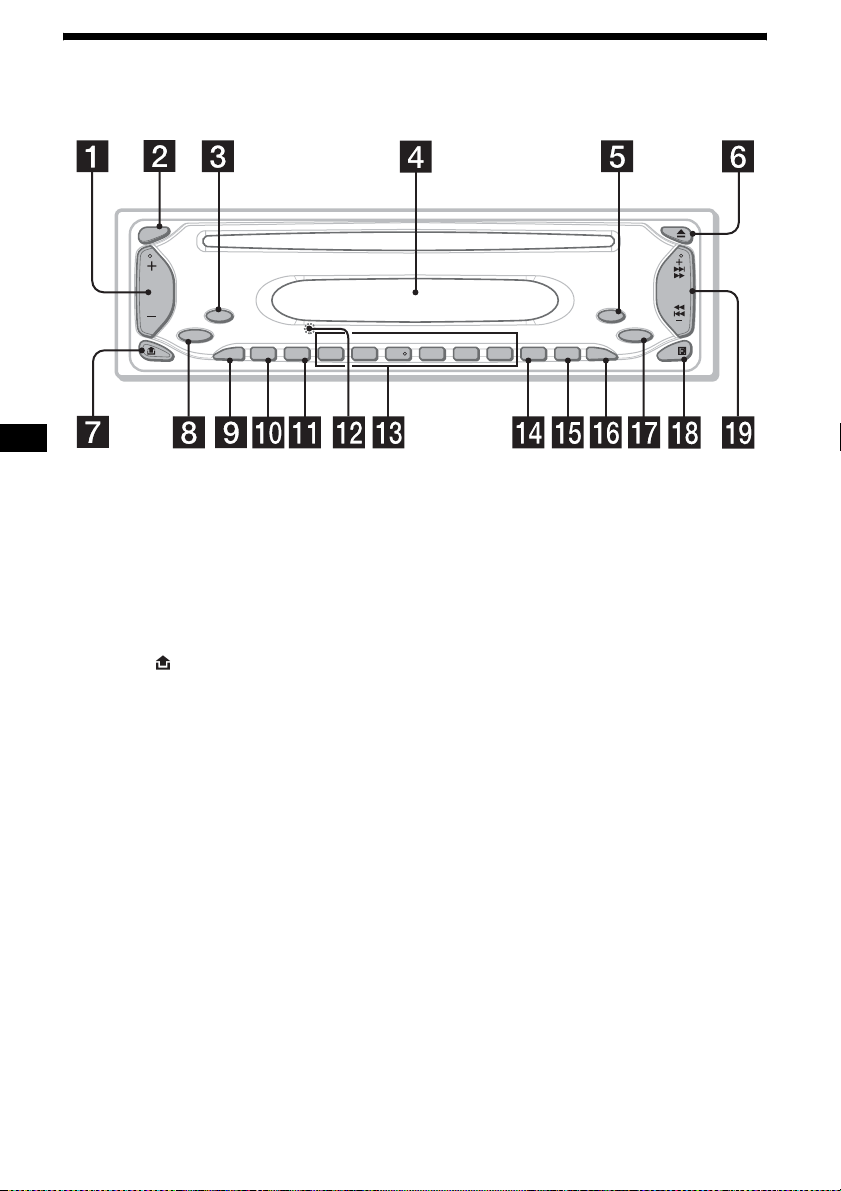

Location of controls

Refer to the pages listed for details.

SEL

MODE

SOURCE

BTM REP SHUF

ATTAF

SENS

1234

CDX-S2000C/S2000

SEEK

OFF

EQ3

PTY DSPL TA

a Volume +/– button b SEL (select) button

Selecting items.

c MODE button

Changing the operation.

d Display window e OFF (Stop/Power off) button* 7, 9 f Z (eject) button 9 g (front panel release) button 7 h SOURCE (Power on/Radio/CD) button

Selecting the source.

i AF button 12, 13, 14 j ATT (attenuate) button 17 k SENS/BTM button 10, 11, 14 l RESET button (located on t he fron t side of

the unit, behind the fr ont panel) 7

m Number buttons

Radio: Storing the desired station on each number button. CD:

(3): REP 10 (4): SHUF 10

n PTY (programme type) button 15 o DSPL (display mode change) button

9, 12

p T A button 13, 14 q EQ3 button 18 r Receptor for the card remote

commander

s SEEK +/– button

Radio: Tuning in stations automatically/finding a station manually. CD: Skipping tracks/fast-forwarding, reversing a track.

* Warning when installing in a car without

an ACC (accessory) position on the ignition switch

After turning off the ignition, be sure to press and hold (OFF) on the unit until the display disappears.

Otherwise, the display does not turn off and this causes battery drain.

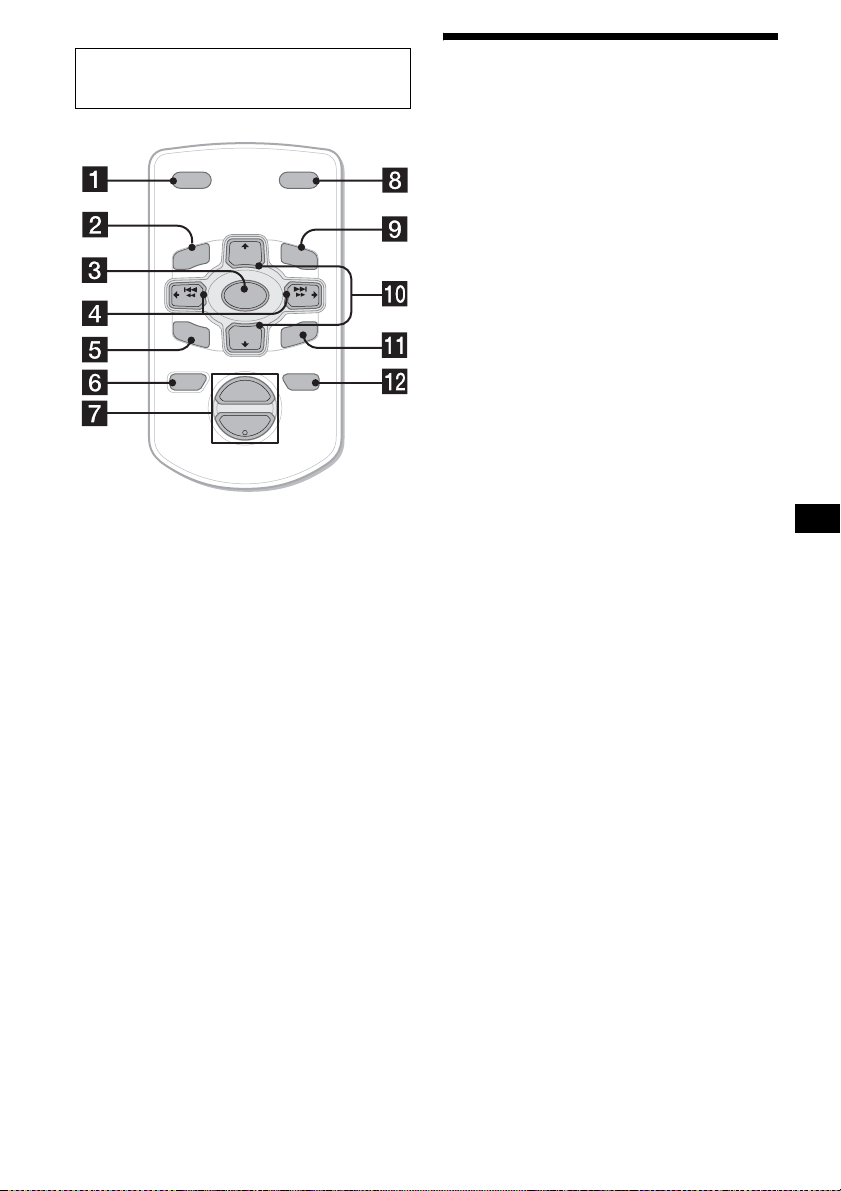

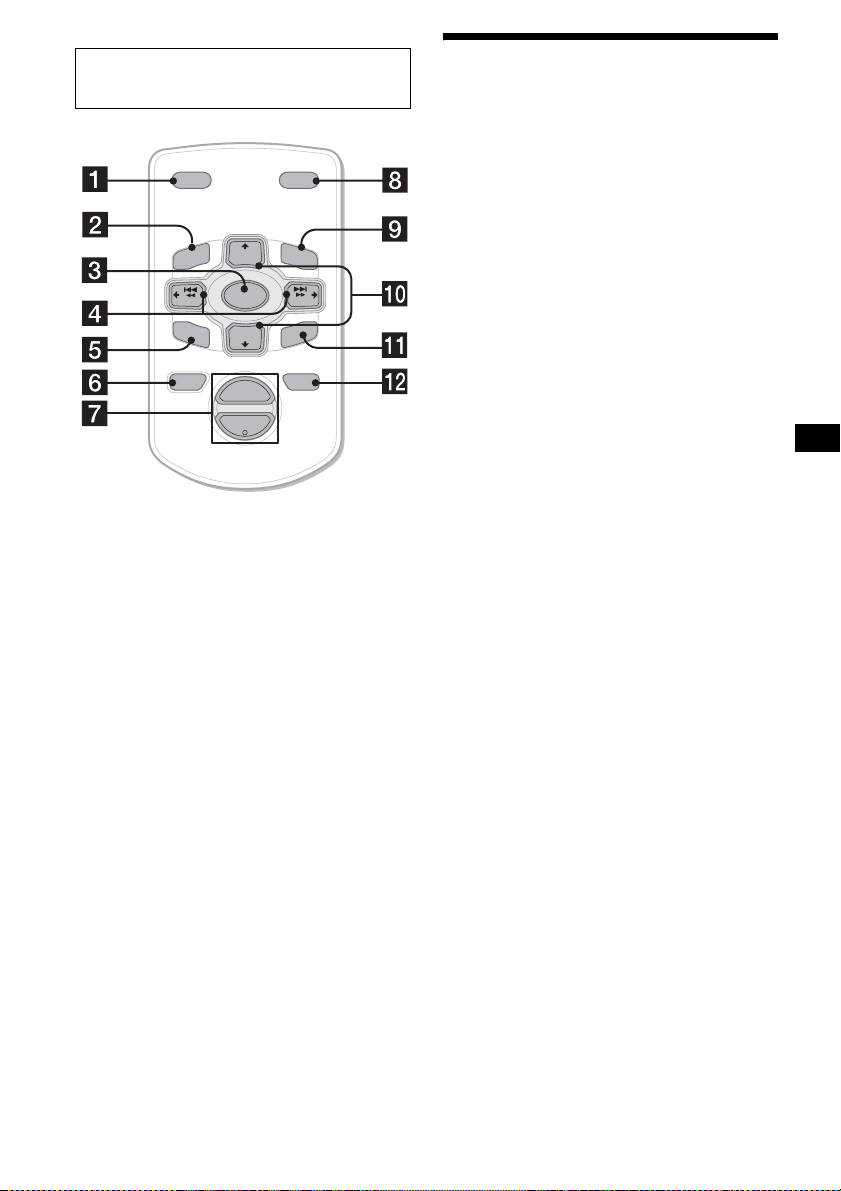

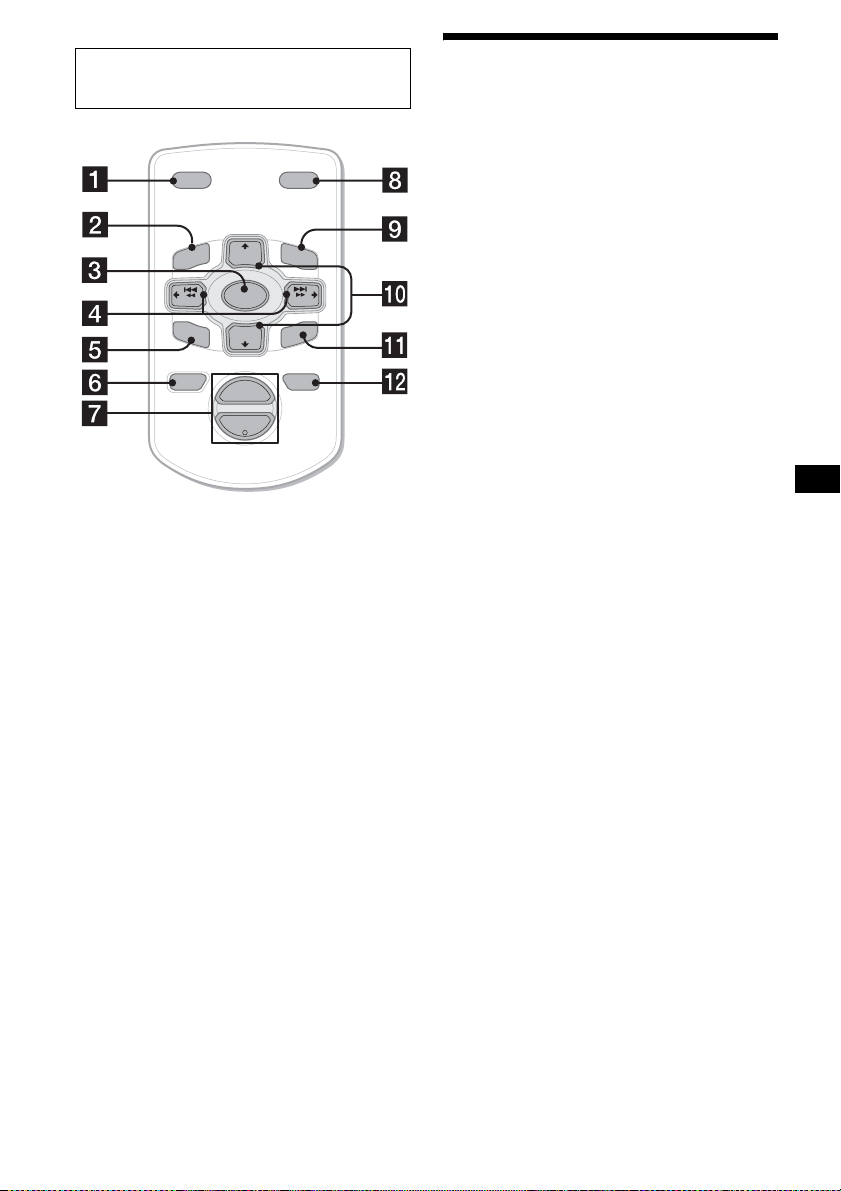

Card remote commander RM-X114 (optional)

DSPL MODE

PRESET

LIST

DISC

–

SEEK

SOUND

SOURCE

DISC

PRESET –

VOL

SEEK

–

ENTER

ATTOFF

–

The corresponding buttons of the card remote commander control the same functions as those on this unit.

a DSPL button b MENU button* c SOURCE button d SEEK (+/–) buttons e SOUND button f OFF button g VOL (+/–) buttons h MODE button i LIST button* j DISC*/PRESET (+/–) buttons k ENTER button* l ATT button

Precautions

• If your car has been parked in direct sunlight, allow the unit to cool off befor e operating it.

• Power aerial will extend automatically while the unit is o perating .

If you have any questions or probl em s concerning your unit that are not covered in this manual, please consult your nearest Sony dealer.

Moisture condensation

On a rainy day or in a very dam p area, moisture condensation may occur inside the lenses and display of the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

To maintain high sound quality

Be careful not to splash jui ce or other soft drinks onto the unit or discs.

* Not available for this unit

Note

If the display disappears by pressing (OFF), it cannot be operated with the card remote commander unless (SOURCE) on the unit is pressed, or a disc is inserted to activate the unit first.

Tip

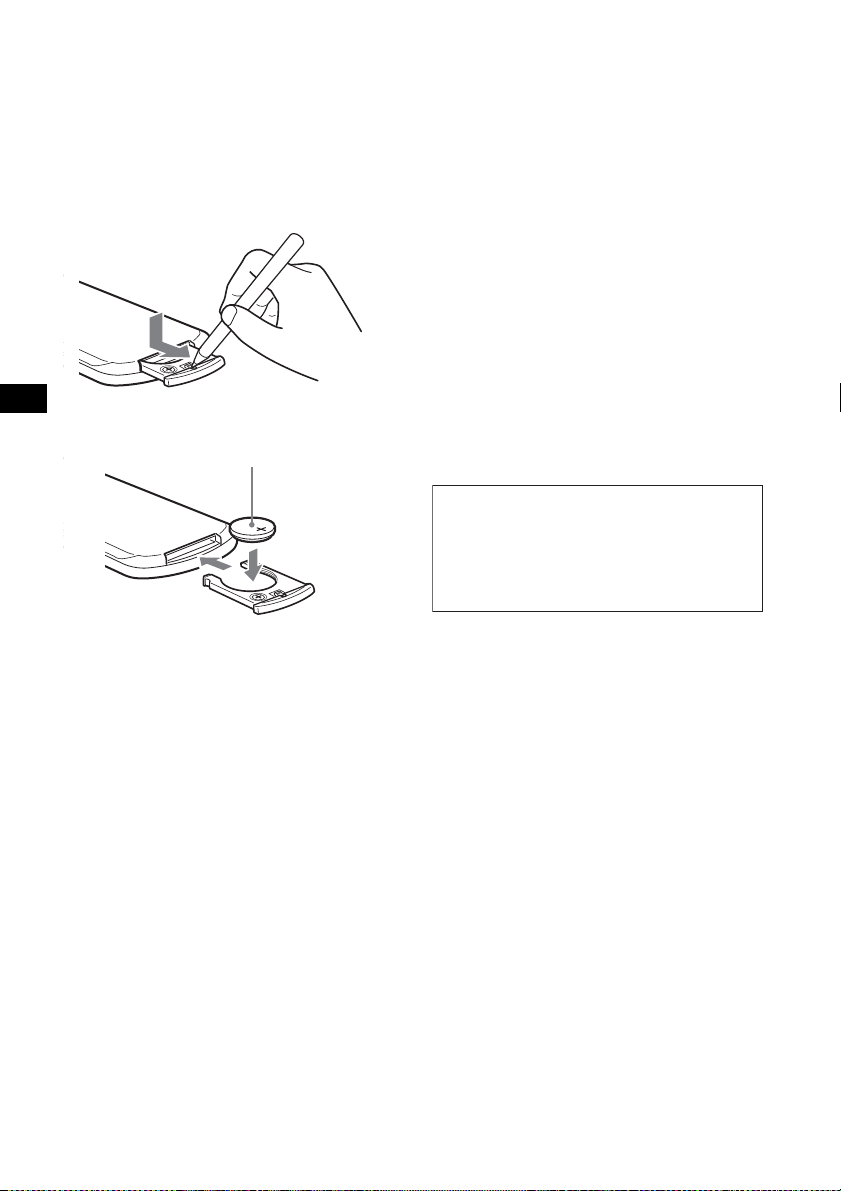

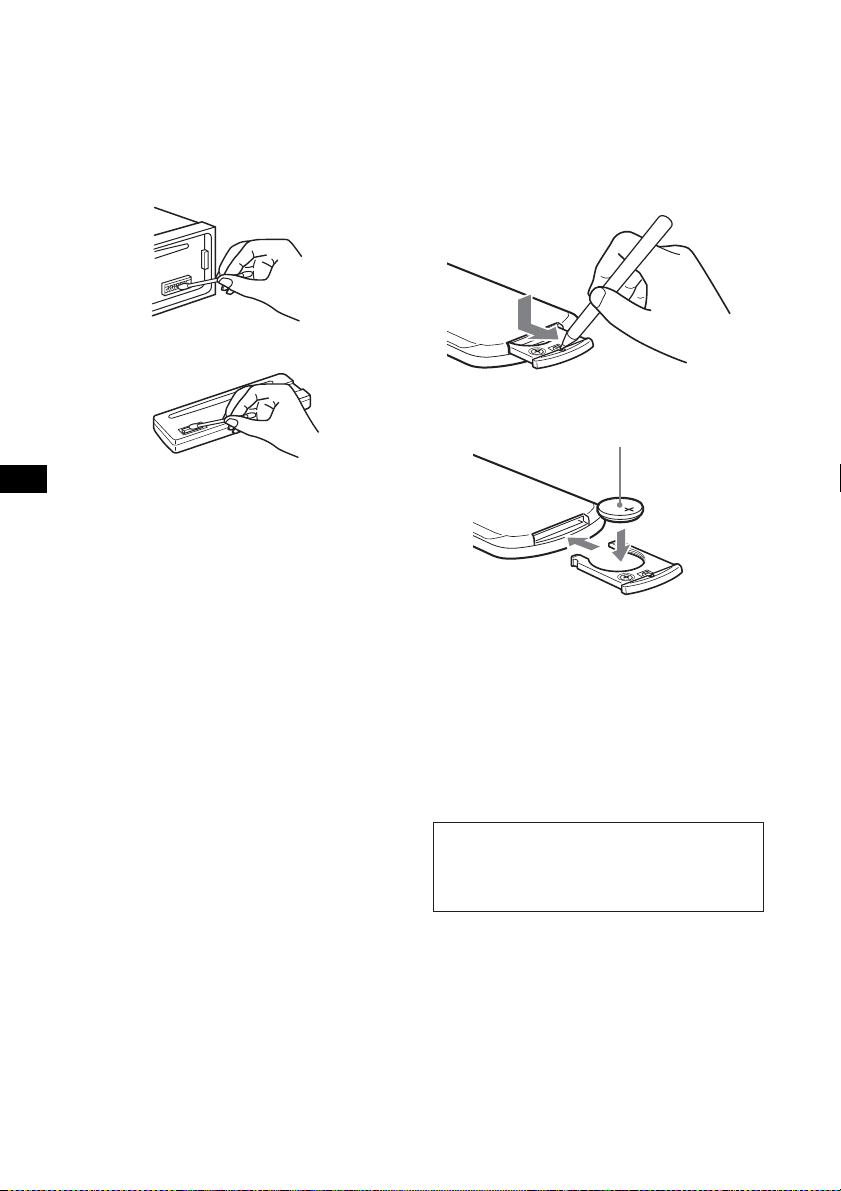

Refer to “Replacing the lithium battery” for details on how to replace the battery (page 19).

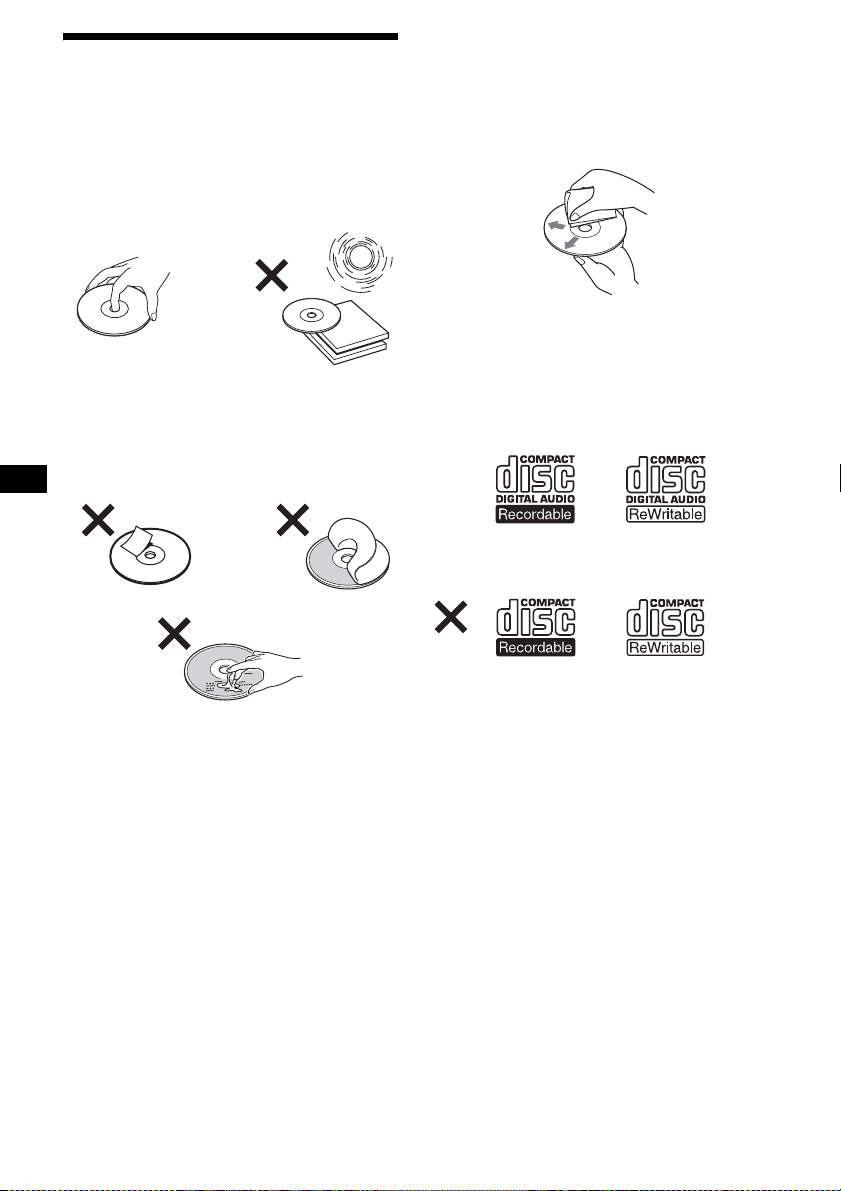

Notes on discs

• To keep a disc clean, do not touch its surface. Handle the disc by its edge.

• Keep your discs in the ir cases or disc magazines when no t in use.

• Do not subject discs to heat/high temperature. Avoid leaving them in a parked car or on a dashboard/rear tray.

• Do not attach labels, or use discs with sticky ink/residue. Such discs may stop spinning when used, causing a malfunction, or may ruin the disc.

• Before playing, cl ean the discs with a commercially available cleaning cloth. Wipe each disc from the centre out. Do not use solvents such as benzi ne, thinner , commerc ially available cleaners, or antistatic spray intended for analogue dis cs .

Notes on CD-R/CD-RW discs

• You can play CD-Rs (recordable CDs)/CDRWs (rewritable CDs) desi gned for audio us e on this unit. Look for these marks to distinguish CD-Rs/ CD-RWs for audio use .

These marks denote that a disc is not for audio use.

• Do not use any discs with labels or st ickers attached. The following malfunctions may result from using such discs: – Inability to eject a d is c (due to a label or

sticker peeling off and jamming the eject mechanism).

– Inability to read audio data correctly (e.g.,

playback skippi ng, or no playback) d ue t o heat shrinking of a sticker or label caus ing a disc to warp.

• Discs with non-standard shapes (e.g., heart, square, star) ca nnot be played on this unit. Attempting to do so may damage the unit. Do not use such discs.

• You cannot play 8 c m C D s.

• Some CD-Rs/CD-RWs (dependi ng on the equipment used for its recording or the condition of the di sc) may not play on thi s unit.

• You cannot play a CD-R/a CD - RW that is not finalized*.

* A process necessary for a recorded CD-R/CD-RW

disc to be played on the audio CD player.

Getting Started

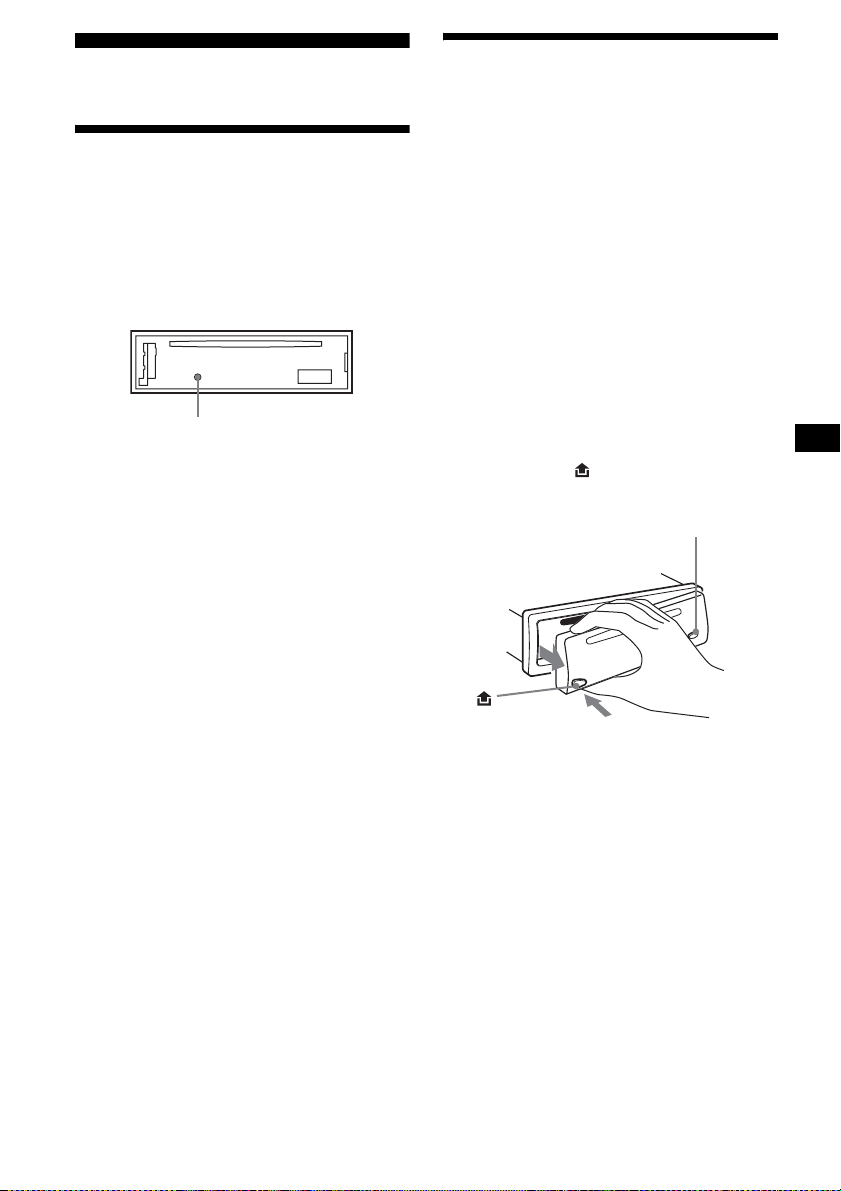

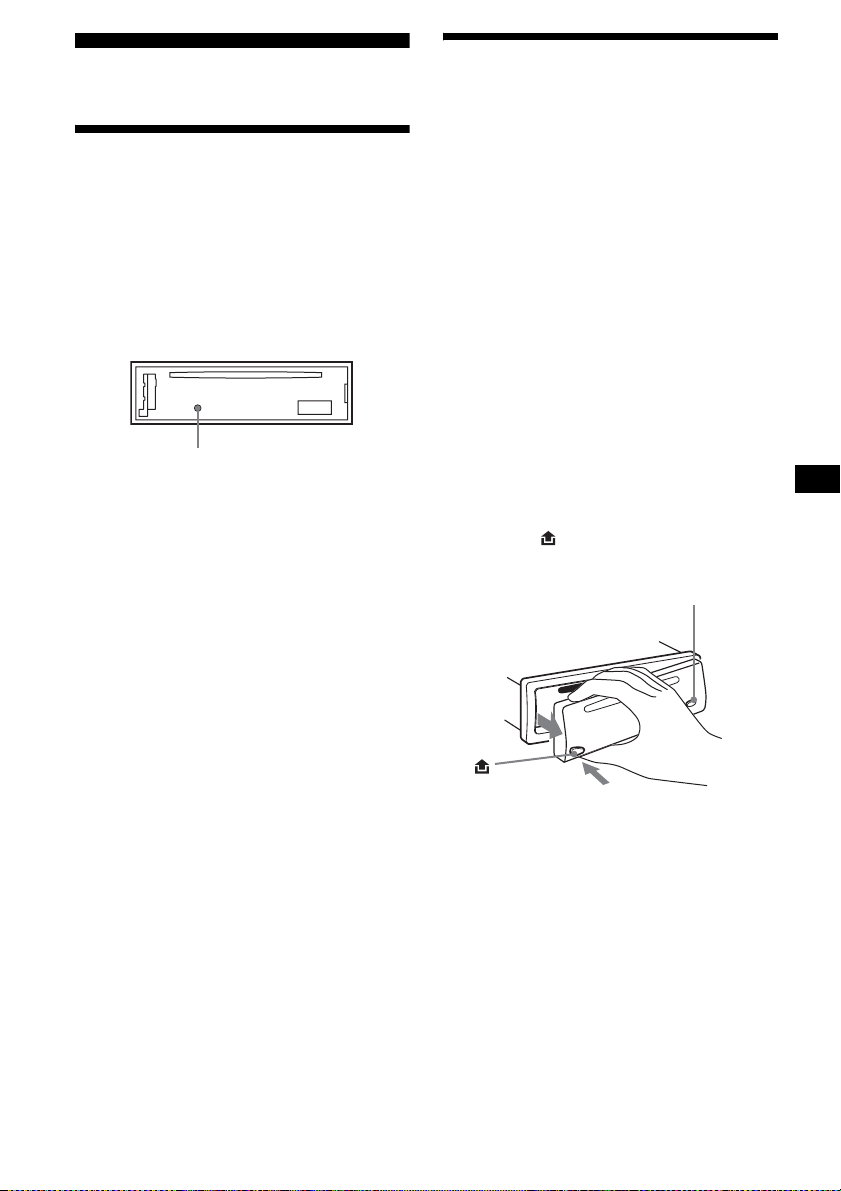

Detaching the front panel

You can detach the front panel of this unit to protect the unit from being stolen.

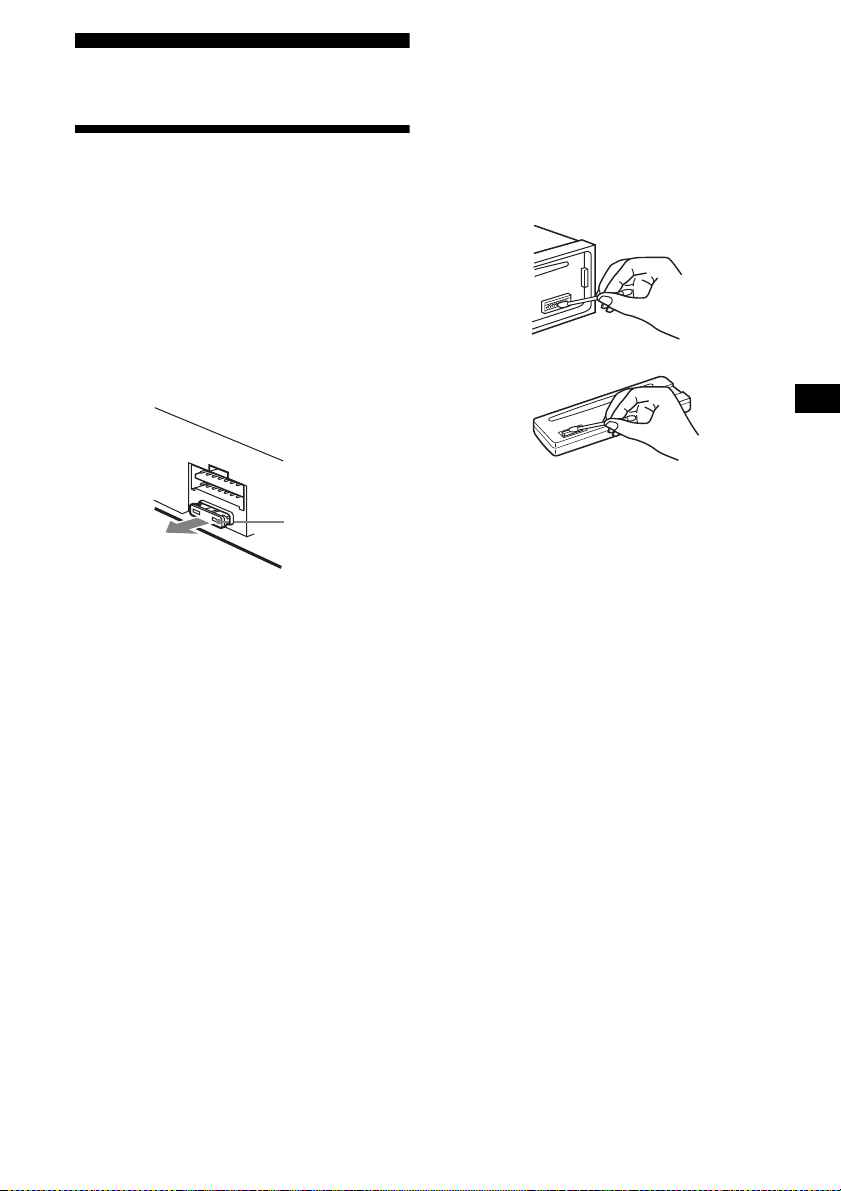

Resetting the unit

Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit. Remove the front panel and press the RESET button with a pointed object, such as a ballpoint pen.

RESET button

Note

Pressing the RESET button will erase the clock setting and some stored contents.

Caution alarm

If you turn the ignition switch to the OFF position without removing the front panel, the caution alarm will beep for a few seconds. If you connect an op ti onal amplifier and do not use the built-in amplifier, the beep sound will be deactivated.

1 Press (OFF)*.

CD playback or radio reception stops (the key illumination and display remain on).

* If your car has no ACC (accessory) position on

the ignition switch, be sure to turn the unit off by pressing (OFF) until the display disappears to avoid car battery drain.

2 Press , then pull it off towards you.

(OFF)

Notes

• If you detach the panel while the unit is still turned

on, the power will turn off automatically to prevent the speakers from being damaged.

• Do not drop or put excessive pressure on the front

panel and its display window.

• Do not subject the front panel to heat/high

temperature or moisture. Avoid leaving it in a parked car or on a dashboard/rear tray.

Tip

When carrying the front panel with you, use the supplied front panel case.

continue to next page t

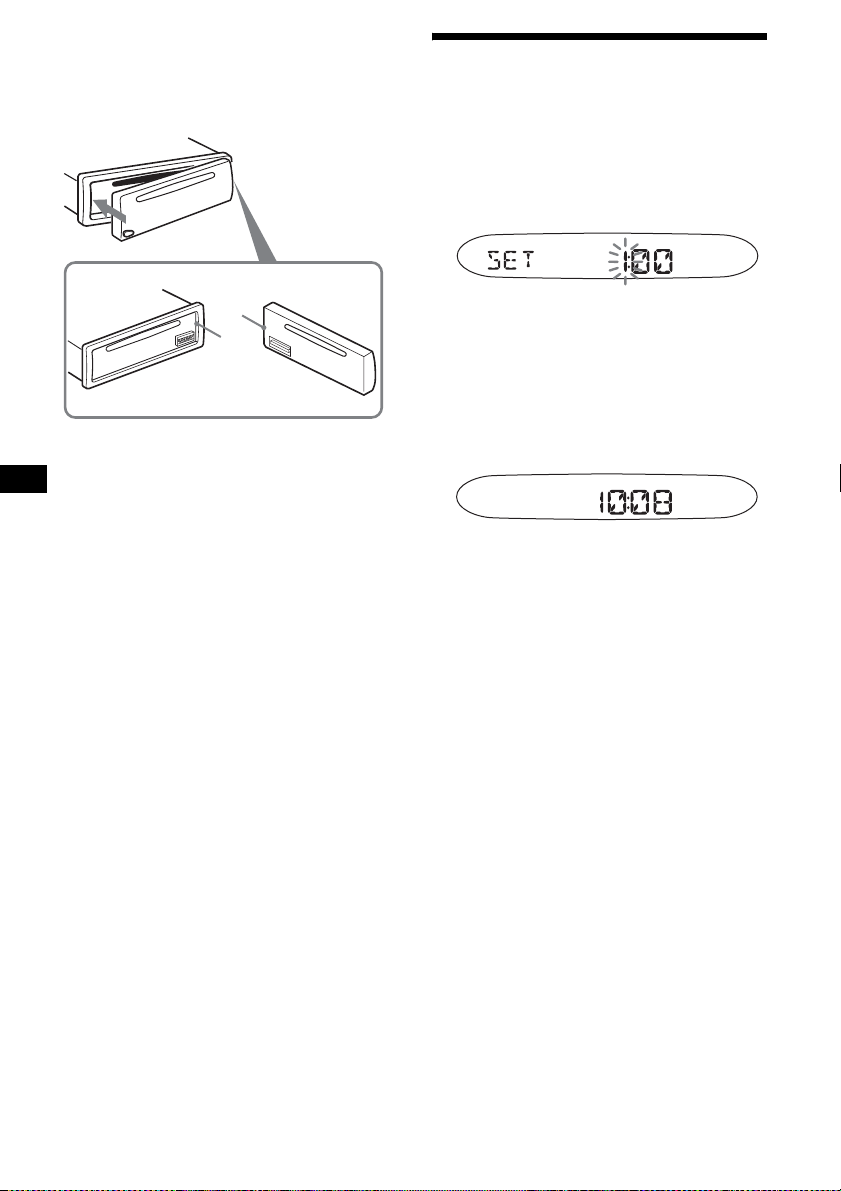

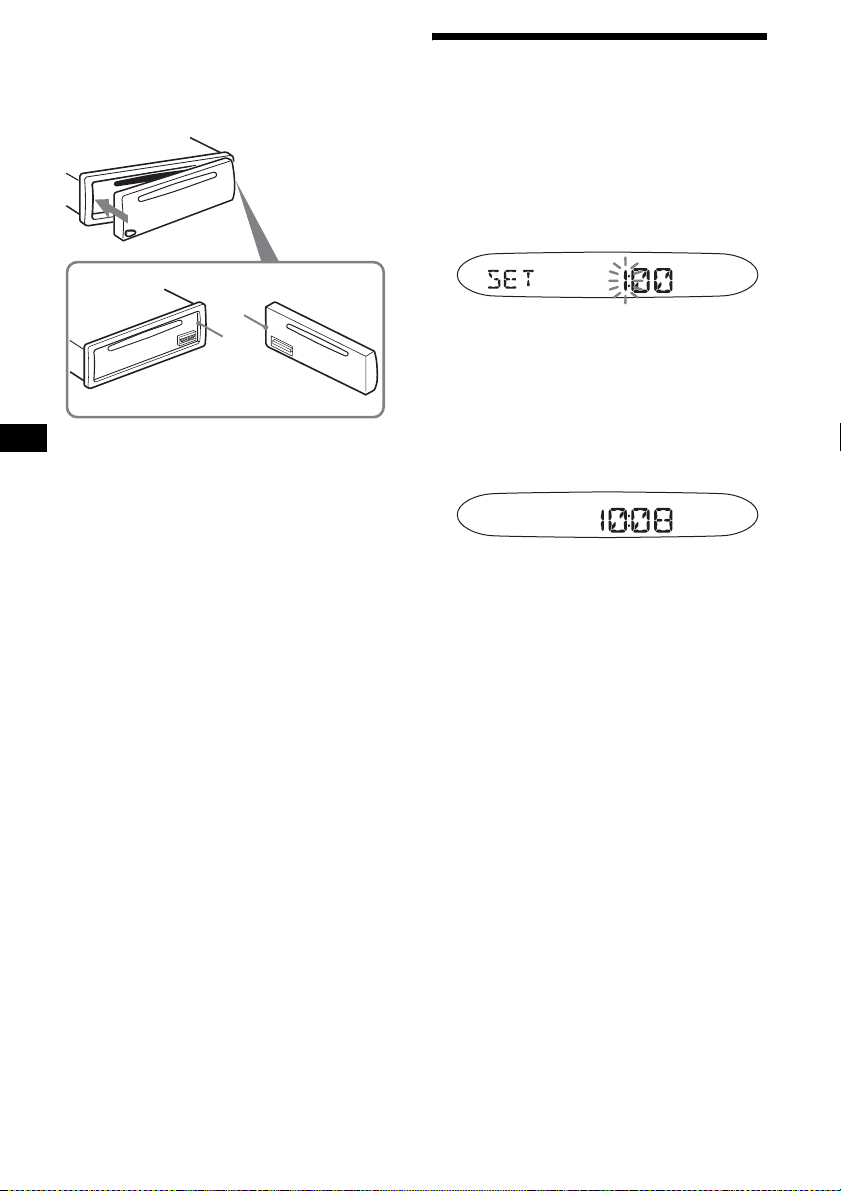

Attaching the front panel

Attach part A of the front panel to part B of the unit as illustrated and push the left side into position until it clicks.

Setting the clock

The clock uses a 24-hour digital indica ti on. Example: To set the clock to 10:08

1 Press (DSPL) for 2 seconds.

The hour indication flashes.

Note

Do not put anything on the inner surface of the front panel.

1Press the volume +/– button to set

the hour.

2Press (SEL).

The minute indi cation flashes.

3Press the volume +/– button to set

the minute.

2 Press (DSPL).

The clock starts. Aft er th e cl ock setting is completed, the display retu rn s to normal play mode.

Tip

You can set the clock automatical ly with the RDS feature (page 15).

CD Player

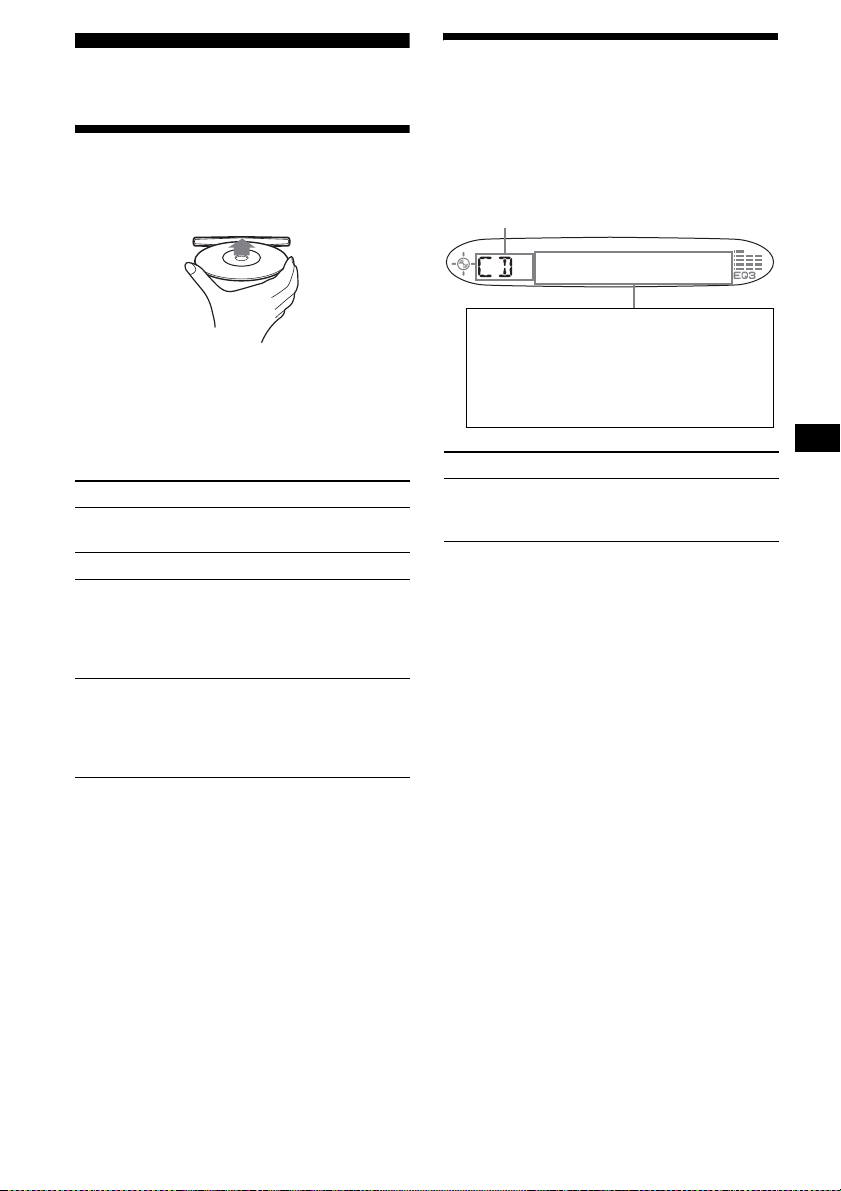

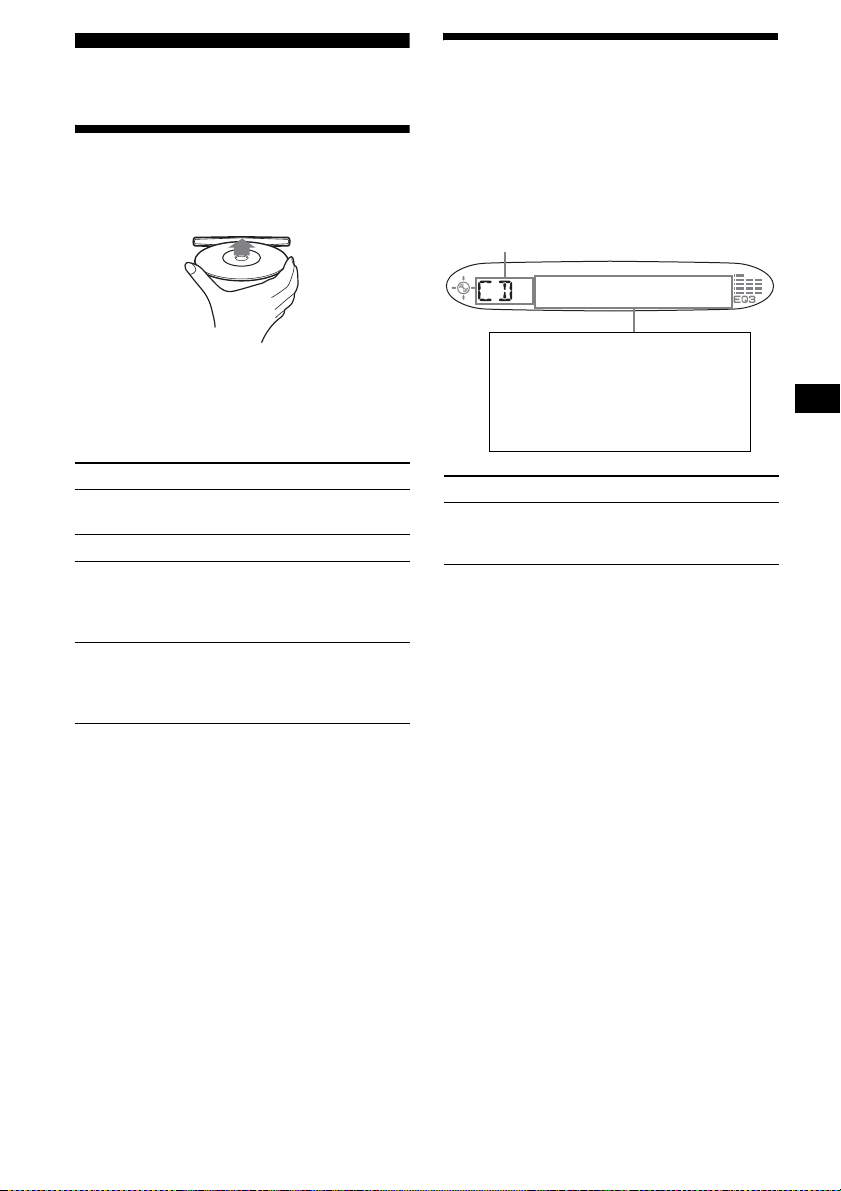

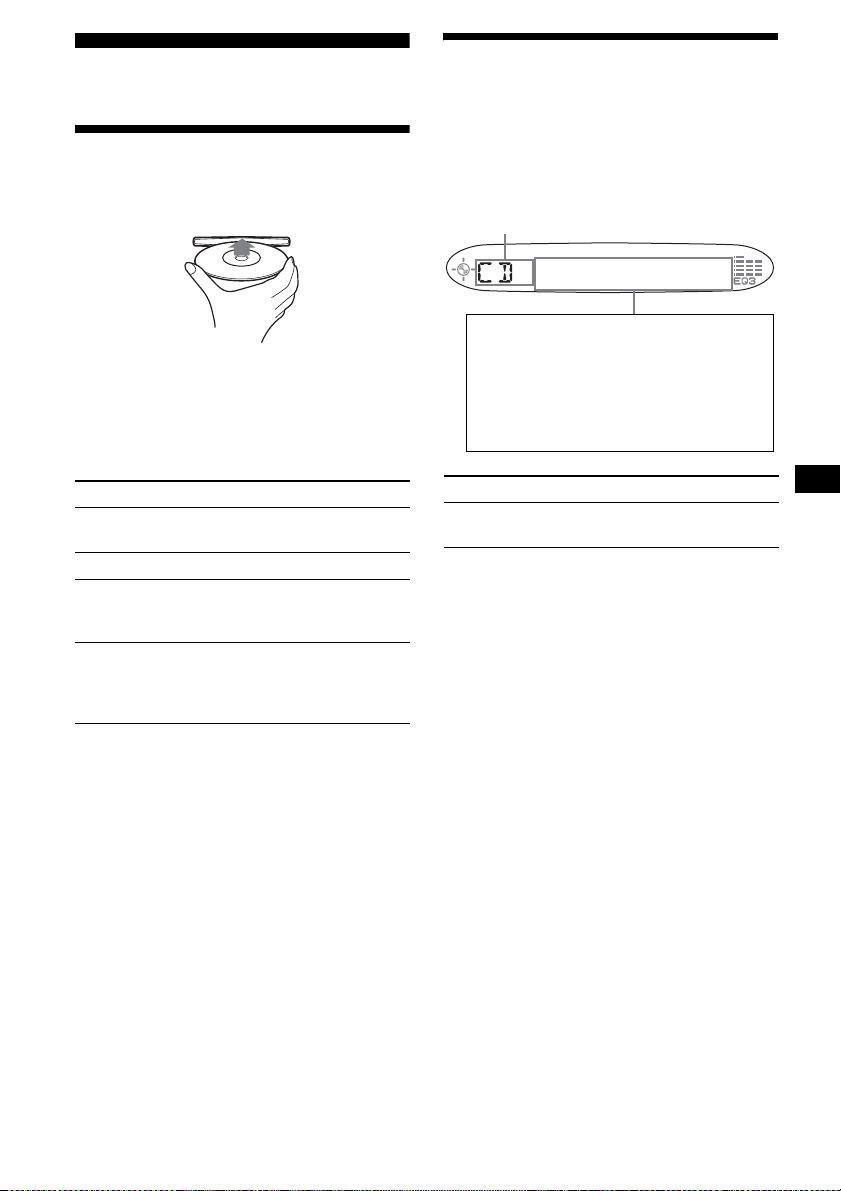

Playing a disc

Display items

When the disc/track changes, any prerecorded

title*

of the new track is automatically displayed (if A.SCRL (Auto Scroll) is set to “ON,” names exceeding 8 characters will be scrolled (page 17)).

Insert the disc (labelled side up).

Playback starts automatically.

If a disc is already inserted, pre ss (SOURCE) repeatedly unti l “ C D ” appears to start playback.

To Press

Stop playba ck Z or (OFF) Eject the disc Z Skip tracks

–Automatic

Music Sensor

Fast-forward/ reverse –Manual Search

Notes

• While the first/last track on the disc is playing, if

(SEEK) (–) or (SEEK) (+) is pressed, playback skips to the last/first track of the disc.

• When the last track on the disc is over, playback restarts from the first track of the disc.

(SEEK) (–/+) (./>) [once for each tr ack]

(SEEK) (–/+) (m/M) [hold to desired p o i nt ]

Source

Displayable item s

• Track number/Elapsed playing time

•Clock

• Disc name*

• Track name*

To Press

/Artist name*

Switch display item (DSPL)

*1 When pressing (DSPL), “NO NAME” indicates that

there is no prerecorded name to display.

*2 Only for CD TEXT discs with the artist name.

Notes

• Some characters cannot be displayed. Characters and signs which cannot be displayed appear as “ *.”

• For some CD TEXT discs with very many characters, information may not scroll.

• This unit cannot display the artist name for each track of a CD TEXT disc.

Tip

When A.SCRL (Auto Scroll) is set to “OFF” and the disc/track is changed, the disc/track name does not scroll.

Playing tracks repeatedly

— Repeat Play

The current track will repeat itself when it reaches the end.

During playback, press (3) (REP) repeatedly until “REP-ON” appears in the display.

Repeat Play starts.

To return to normal play mode, select “REP-OFF.”

Playing tracks in random order

— Shuffle Play

You can select to play the tracks in the current disc in random order.

During playback, press (4) (SHUF) repeatedly until “SHUF-ON” appears in the display.

Shuffle Play starts.

To return to normal play mode, select “SHUF-OFF.”

Radio

The unit can store up t o 6 st ations per band (FM1, FM2, FM3, MW, and LW).

Caution

When tuning in stat i ons while driving, use Best Tuning Memory to prevent accidents .

Storing stations automatically

— Best Tuning Memory (BTM)

The unit selects the stations with th e st rongest signals wit hi n t he selected band, and stores them in the order of their frequency.

1 Press (SOURCE) repeatedly to select

the radio.

2 Press (MODE) repeatedly to select the

band.

3 Press (SENS) (BTM) for 2 seconds.

The unit stores stations in the order of their frequencies on the number buttons. A beep sounds when the setting is stored.

Notes

• If only a few stations can be received due to weak signals, some number buttons will retain their former settings.

• When a number is indicated in the display, the unit starts storing stations from the one currently displayed.

Receiving the stored stations

1 Press (SOURCE) repeatedly to select

the radio.

2 Press (MODE) repeatedly to select the

band.

3 Press the number button ((1) to (6))

on which the desired station is sto re d.

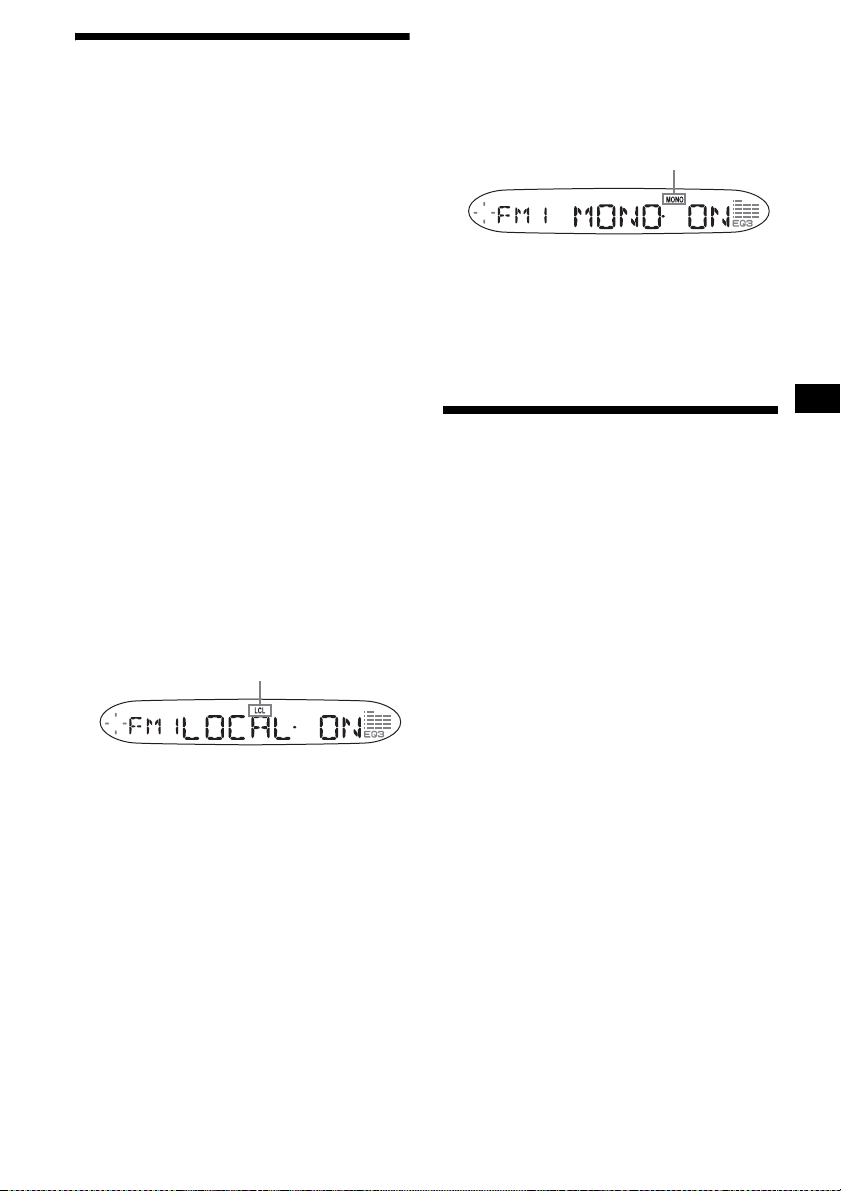

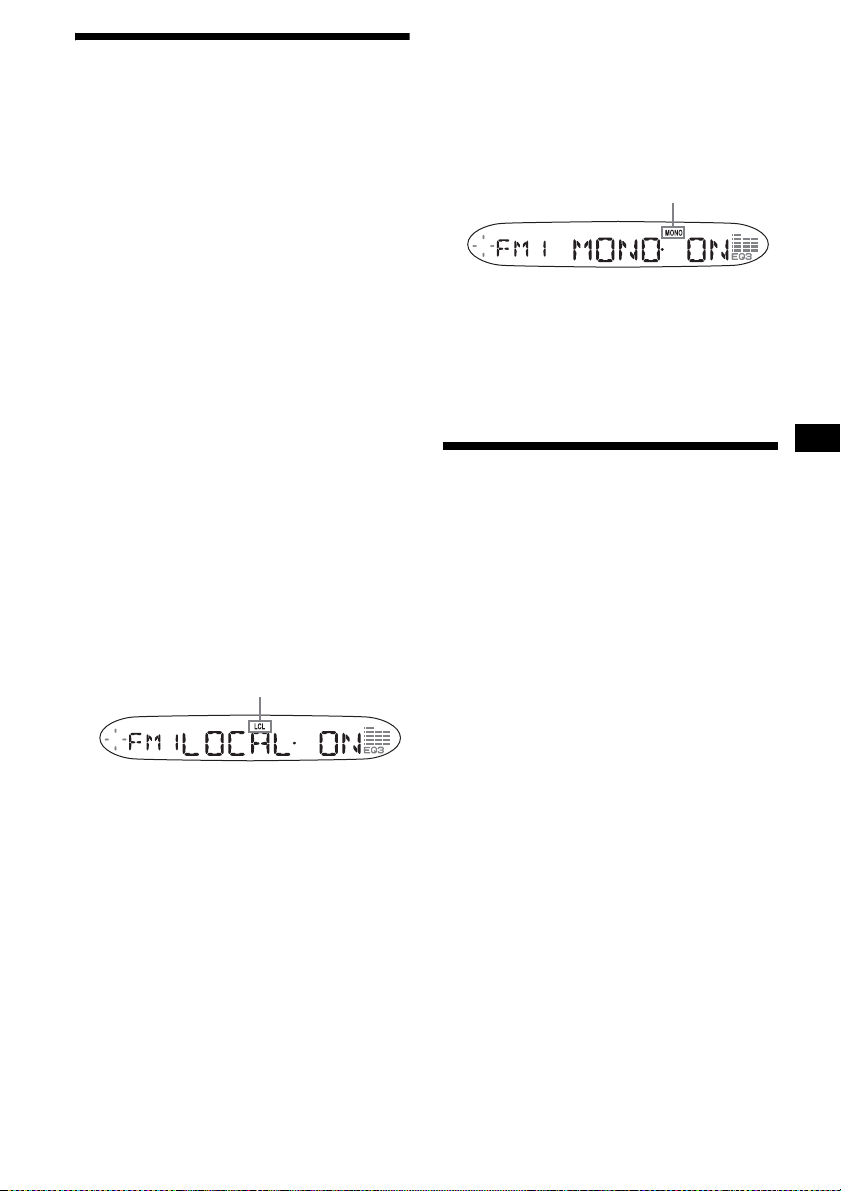

If FM stereo reception is poor

— Monaural Mode

During radio reception, press (SENS) (BTM) repeatedly until “MONO-ON” appears in the display.

“MONO” indicator is displayed.

If preset tuning does not work

— Automatic tuning/Local Seek Mode

Automatic tuning:

Press (SEEK) (+) or (SEEK) (–) to search for the station.

Scanning stops when the unit receives a station. Repeat the operation until the desired station is rece ived.

Local Seek Mode:

If the automatic tuning stops too frequently, press (SENS) (BTM) repeatedly until “LOCAL-ON” appears in the display.

“LCL” indicator is displayed.

Only the stations with relatively strong signals will be tuned in.

To cancel the local seek mode, press (SENS) (BTM) twice when receiving FM.

Note

When receiving MW or LW, to cancel the local seek mode, press (SENS) (BTM) (“LOCAL-OFF” appears).

Tip

If you know the frequency of the station you want to listen to, press and hold (SEEK) (+) or (SEEK) (–) to locate the approximate frequency, then press (SEEK) (+) or (SEEK) (–) repeatedly to fine adjust to the desired frequency (manual tuning).

The sound improves, but becomes monaural (“ST” disapp ears).

To return to normal radio reception mode, press (SENS) (BTM) (“MONO-OFF” appears).

Storing only the desired stations

You can manually preset the desire d stations on any chosen number button.

1 Press (SOURCE) repeatedly to select

the radio.

2 Press (MODE) repeatedly to select the

band.

3 Press (SEEK) (+) or (SEEK) (–) to tune

in the stat i on that you want to store.

4 Press the desired number button ((1)

to (6)) for 2 seconds until “MEM” appears.

The number button indication appears in the display.

Note

If you try to store another station on the same number button, the previously stored station will be erased.

RDS

Overview of RDS

FM stations with Radio Data System (RDS) service send in audible digital information along with the regular radio programme signal. For example, one of the fol lowing will be displayed upon receiving a station with RDS capability.

Displayable ite m s

• Radio band

•Function

Automatic retuning for best reception results

— AF (Alternative Frequencies )

The AF function allows the radio to always tune into the area’s strongest signal for the station you are listening to.

Frequencies change automatically.

98.5 MHz

Station

96.0 MHz

Displayable ite m s

• Station name (frequency)

•Clock

• RDS data

To Press

Switch Clock/ Station name

(DSPL)

RDS services

RDS data offers you other conveniences, such as:

• Automatic retun ing of a programme, h elpful

during long-dista nce drives. — AF t page 12

• Receiving traffic announcements, even

when enjoying an ot her programme /s ource. — TA t page 13

•

Selecting stations by the — PTY t page 14

• Automatic clock time setting.

— CT t page 15

Notes

• Depending on the country/region, not all of the RDS functions are available.

• RDS will not work properly if the signal strength is too weak or if the station you are tuned to is not transmitting RDS data.

type of programme

102.5 MHz

1 Select an FM station (page 10). 2 Press (AF) repeatedly until “AF-ON”

appears.

The unit starts searching for an alte rnative frequency with a stronger signal in the same network. If “NO AF” flas hes, the current ly tuned station does not have an alternative frequency.

Notes

• If you want to change the on/off setting while playing a CD, press (AF).

• When there is no al te rnativ e fr equ ency in t he area or when you do not need to search for one, turn the AF function off by selecting “AF-OFF.”

For stations without alternative frequencies

Press (SEEK) (+) or (SEEK) (–) while the station name is flashing (within 8 seconds).

The unit starts searching for another frequency with the same PI (Programme Identification) data (“PI SEEK” appears). If the unit cannot find the same PI, the unit returns to the previous ly selected frequency.

Staying with one regional programme

When the AF function is on: this unit’s factory setting restricts reception to a specific region, so you won’t be switched to another regional station with a stronger frequency.

If you leave this regional programme’s reception area or wo ul d l ik e t o t ak e advantage of t he w hol e AF function, pres s (AF) for 2 seconds until “REG-OFF” appears .

Note

This function does not work in the United Kingdom and in some other areas.

Local Link function (United Kingdom only)

This function enables you to select other local stations in the area, even if they are not stored on your number buttons.

1 Press a number button ((1) to (6))

that has a local station stored on it.

2 Within 5 seconds, press the number

button of t he local station again.

3 Repeat this procedure until the

desired local station is received.

Receiving traffic announcements

— TA (Traffic Announcement)/TP (Traffic Programme)

By activating TA and TP, you can automatically tune in an FM stati on br oadcasting traffic announcements. These setting s fu nction regardless of the cu rrent FM program m e/source, CD; the unit switches back to the or iginal source when the bulletin is over.

Press (TA) repeatedly until “TA-ON” appears.

The unit starts sear ching for traffic information stations. “TP” indicates reception of such stations, and “TA” flashes dur i ng an actual traffic announcement. The unit will continue searching for stations av ailable with TP if “NO TP” is indicated.

To cancel all traffic announcements, select “TAOFF.”

To Press

Cancel current announcement

Tip

You can also cancel the current announcement by pressing (SOURCE) or (MODE).

Presetting the volume of traffic announcements

You can preset the volume level of the traffic announcements so as not to miss hearing them.

(TA)

1 Press the volume +/– button to adjust

the desired volume level.

2 Press (TA) for 2 seconds.

“TA” appears and the setting is stored.

Receiving emergency announcements

If either AF or TA is on, the unit will switch to emergency announcements, if one comes in while listening to an FM station or CD.

Presetting RDS stations with the AF and TA setting

When you preset RDS stations, the unit st ores each station’s AF/TA setting (on/off) as well as its frequency. You can select a different setting (for AF, TA, or both) for individual preset stations, or the same setting for all preset stations. If you preset stations with “AF-ON” the unit automatically stores stations with the strongest radio signal.

Presetting the same setting for all preset stations

1 Select an FM band (page 10). 2 Press (AF) and/or (TA) to select “AF-

ON” and/or “TA-ON.”

Note that selecting “AF-OFF” and “TA-OFF” applies to non-RDS stations as well as RDS stations.

3 Press (SENS) (BTM) until “BTM”

flashes.

Presetting different settings f or eac h preset station

1 Select an FM band, and tune in the

desired station (page 1 0).

2 Press (AF) and/or (TA) to select “AF-

ON” and/or “TA-ON.”

3 Press the desired number button ((1)

to (6)) until “ M E M” appears.

Repeat from step 1 t o pr eset other stations.

Note

If you want to change the AF/TA setting while you are playing a CD, press (AF) or (TA).

Tuning in stations by programme type

— PTY (Programme types)

You can tune in a station by selecting the type of programme you w ould like to list en to.

Programme types Display

News NEWS Current Affairs AFFAIRS Information INFO Sports SPORT Education EDUCATE Drama DRAMA Culture CULTURE Science SCIENCE Varied VARIED Popular Musi c POP M Rock Music ROCK M Easy Listening EASY M Light Classical LIGHT M Classical CLASSICS Other Music Type OTHER M Weather WEATHER Finance FINANCE Children’s Programmes CHILDREN Social Affairs SOCIAL A Religion RELIGION Phone In PHONE IN Travel TRAVEL Leisure LEISURE Jazz Music JAZZ Country Music COUNTRY National Music NATION M Oldies Music OLDIES Folk Music FOLK M Documentary DOCUMEN T

Note

Y ou cannot use this function in some countries/regions where no PTY (Programme Type selection) data is available.

1 Press (PTY) during FM reception.

The current programme type name appears if the station is transmitting the PTY data. “- - - - - - - -” appears if the rec e i v ed s tat ion is not an RDS station, or if the RDS data is not received.

2 Press (PTY) repeatedly until the

desired programme type appears.

The programme types appear in the order shown in the table. “NONE” appears if the programme type is not specified in the RDS data.

3 Press (SEEK) (+) or (SEEK) (–).

The unit starts searching for a station broadcasting the selected programme type.

Setting the clock automatically

— CT (Clock Time)

The CT data from the RDS transmission sets the clock automatically.

Selecting “CT-ON”

During radio reception, press (SEL) and (2) simultaneously.

The clock is set.

After one second, the display re turns to normal radio reception mode.

To select “CT-OFF,” press (SEL) and (2) simultaneously again.

Notes

• The CT function may not work even though an RDS

station is being received.

• There might be a difference between the time set by

the CT function and the actual time.

Other Functions

You can also control the unit with a rotary commander (optional).

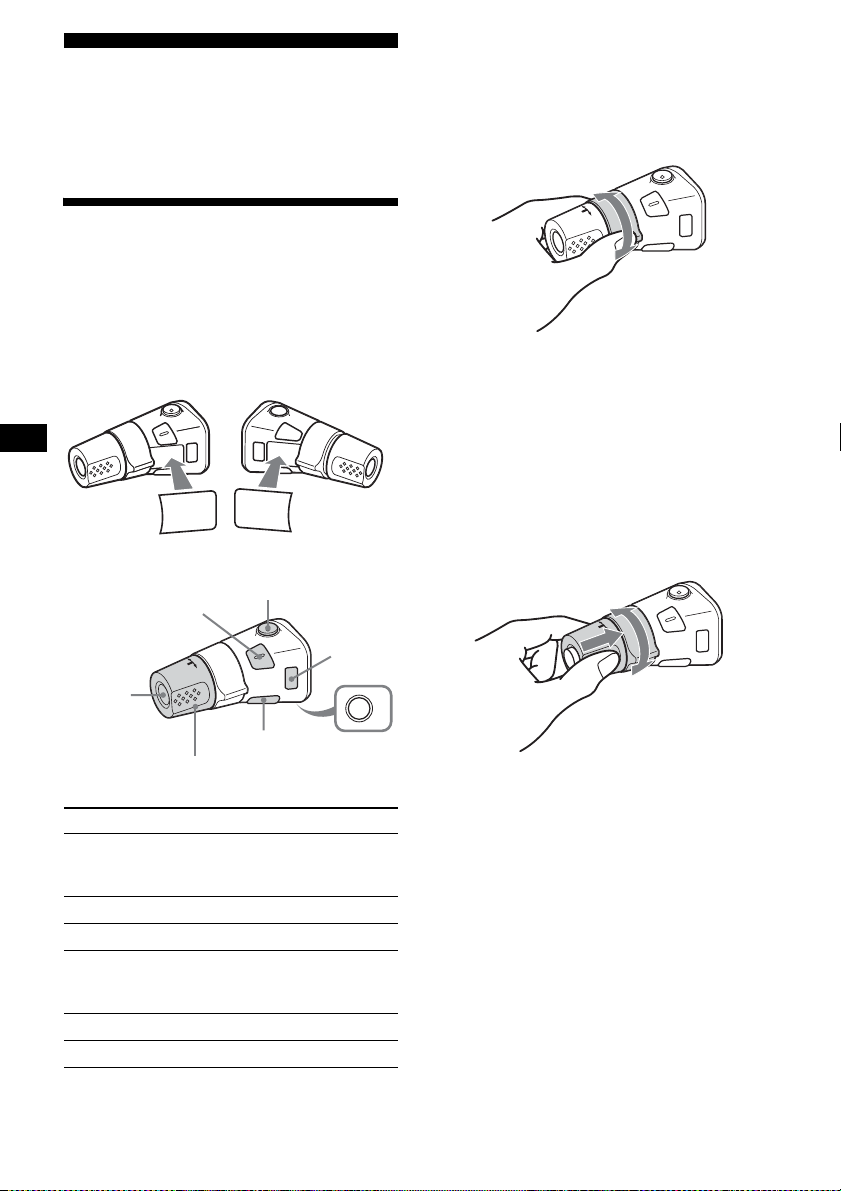

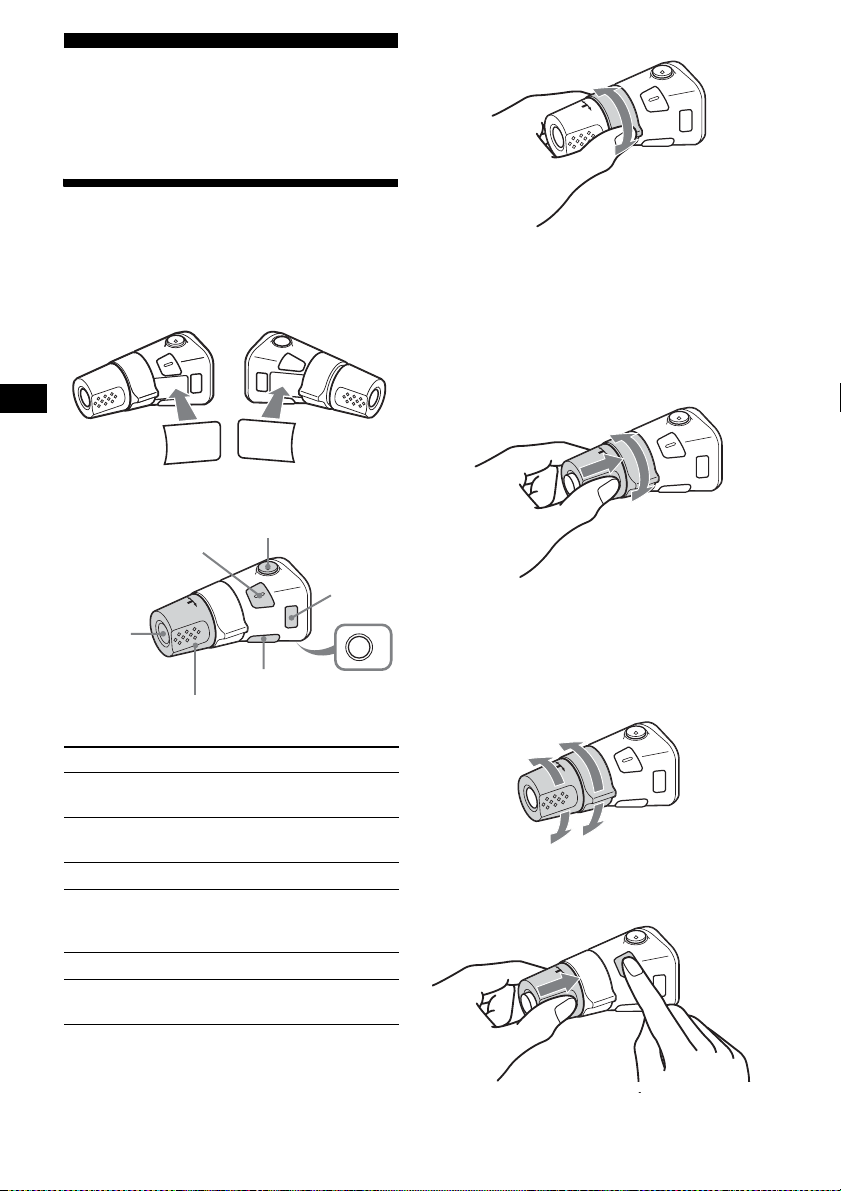

Using the rotary commander

By rotating the control

SEEK/AMS control

First, attach the appropriate label depending on how you want to mount the rotary commander. The rotary commander works by pressing buttons and/or rotatin g con tro ls.

SEL

DSPL

MODE

DSPL

SEL

By pressing buttons

(SEL)

(SOURCE)

Rotate the VOL control to adjust the volume.

Press To

(ATT)

(DSPL)

(MODE)

(OFF)

(SOURCE) Change source

(Radio/CD)/Power on

(MODE) Change radio band (ATT) Attenuate sound (OFF)* Stop playback or radio

reception/Power off

(SEL) Adjust and select (DSPL) Change the display item

Rotate and release to:

– Skip tracks. – Tune in stations automatically.

Rotate, hold, and release to:

– Fast-forward/reverse a t ra ck. – Find a station manually.

By pushing in and rotating the control

PRESET control

Push in and rotate the control to:

– Receive preset stations.

Changing the operative direction

OFF

The operative direction of controls is factory-se t as shown below.

To increase

To decrease

If you need to moun t t he r otary commander on the right hand side of th e steering column, yo u can reverse the operative direction.

* If your car has no ACC (accessory) position on the

ignition key switch, after turning off the ignition, be sure to press and hold (OFF) until the display disappears.

Press (SEL) for 2 seconds while pushing the VOL control.

Adjusting the balance and fader

Changing the sound and display settings

You can adjust the ba la nce and fader.

1 Press (SEL) repeatedly until “BAL” or

“FAD” appears.

Each time you p re ss (SEL), the item changes as follows:

LOW* t MID* t HI* t BAL (left-right)

* When EQ3 is activated (page 18).

t FAD (front-rear)

2 Press the volume +/– button to adjust

the selected item.

Note

Adjust within 3 seconds after selecting the item.

Quickly attenuating the sound

Press (ATT).

After “ATT- ON” momentarily appears, “ATT” appears in the displ ay.

To restore the previous volume level, press (ATT) again.

Tip

When the interface cable of a car telephone is connected to the ATT lead, the unit decreases the volume automatically when a telephone call comes in (Telephone ATT function).

The following items can be set:

• AMBER/GREEN*1 — to change the

illumination colo ur to amber or green.

• CT (Clock Time) (page 15)

• A.SCRL (Auto Scroll)*2 (page 9)

•DEMO*3 — to turn the demonstration display

on or off. – Select “ON” to activate the demonstration

display (The demonstration starts about 10 seconds after the unit is turne d off).

– Select “OFF” to deactivate the demonstration

display.

• BEEP — to turn the beeps on or off.

Selecting the desired item

Press (SEL) and the desired button simultaneously.

(SEL) + (1): AMBER/GREEN* (SEL) + (2): CT (SEL) + (3): A.SCRL* (SEL) + (4): DEMO* (SEL) + (6): BEEP

*1 CDX-S2000C only *2 When no CD is playing, this item will not

appear.

*3 When the unit is turned off.

Note

The displayed item will differ depending on the source.

To cancel the item, press (SEL) and the desired button simultaneously again.

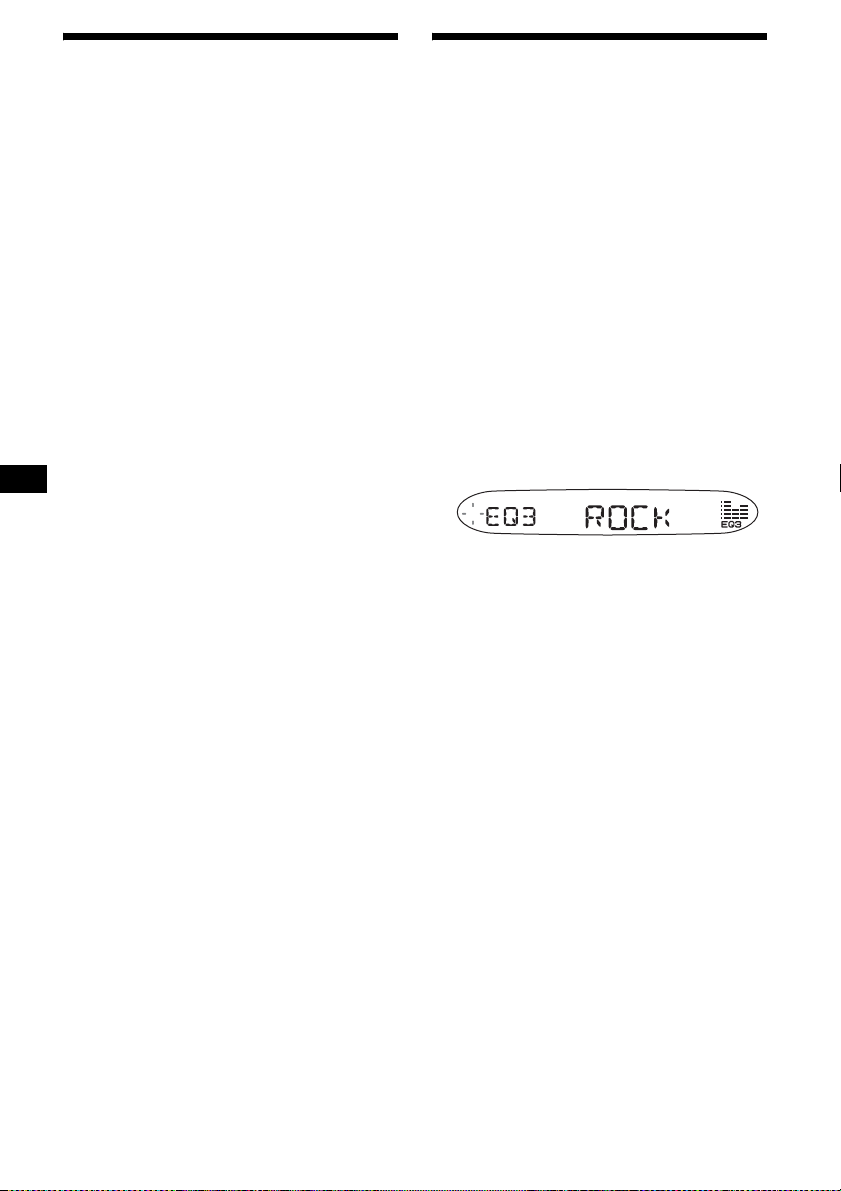

Setting the equalizer (EQ3)

You can select an equalizer curve fo r 7 music types (XPLOD, VOCAL, CLUB, JAZZ, NEW AGE, ROCK, CUSTOM, and OFF (equalizer OFF)). You can store a different equalizer setting for each source.

Selecting the equalizer curve

1 Press (SOURCE) to select a source

(Radio or CD).

2 Press (EQ3) repeatedly until the

desired equalizer curve.

Each time you press (EQ3), the item changes.

To cancel the equalizing effect, select “OFF.”

Adjusting the equalizer curve

You can store and adjust the equalizer settings for different tone ranges.

1 Press (SOURCE) to select a source

(Radio or CD).

2 Press (EQ3) repeatedly to select the

desired equalizer curve.

3 Adjusting the equalizer cur ve.

1Press (SEL) repeatedly to select the

desired tone range.

Each time you pr ess (SEL), the tone range changes.

LOW t MID t HI (t BAL t FAD)

2Press the volume +/– button

repeatedly to adjust to the desired volume level.

The volume level is adjustable by 1 dB steps from –10 dB to +10 dB.

3Repeat step 1 and 2 to adjust the

equalizer curve .

To restore the factory-set equali zer curve, press (SEL) for 2 seconds. After 3 seconds, the display returns to normal play mode.

Note

When EQ3 is set to “OFF,” you cannot adjust the equalizer curve settings.

Additional Information

Maintenance

Fuse replacement

When replacing t he fuse, be sure to use on e matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In su ch a case, consult your near es t Sony dealer.

Fuse (10 A)

Warning

Never use a fuse with an amperage rating exceeding the one supplied with the unit as this could damage the u ni t.

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (p age 7) and clean the conn ectors with a cotton swab dipped in alcohol . D o no t apply too much force. Otherwise, t he connectors may be damaged.

Replacing the lithium battery

Under normal conditions, battery will last approximately 1 year . (The serv ic e lif e may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.

+ side up

Notes on lithium battery

• Keep the lithium battery out of the reach of

children. Should th e battery be swallowed, immediately consult a doctor.

• Wipe the battery with a dry cloth to assure a

good contact.

• Be sure to obser ve th e correct polarity when

installing the battery.

• Do not hold the battery with metallic tweezers,

otherwise a shor t-circuit may occur.

Main unit

Back of the front panel

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.

• Never touch the connectors directly with your fingers or with any metal device.

WARNING

Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire.

Removing the unit

1 Remove the protection collar.

1 Detach the front panel (page 7). 2 Engage the release keys together

with the protection collar.

2 Remove the unit.

1Insert both releas e keys together

until they click.

Face the hoo inwards.

Orient the release key correctly.

3 Pull out the rel ease keys to remove

the protection collar.

2Pull the rele ase keys to unseat the

unit.

3Slide the unit out of the mounting.

Specifications

CD Player section

Signal-to-noise ratio 120 dB Frequency response 10 – 20,000 Hz Wow and flutter Below measurable limit

Tuner section

Tuning range 87. 5 – 108. 0 MHz Aerial terminal Exte rnal aerial connector Intermediate frequency 10.7 MHz/450 kHz Usable sensitivity 9 dBf Selectivity 75 dB at 400 kHz Signal-to-noise ratio 67 dB (stereo),

Harmonic distortion at 1 kHz

Separation 35 dB at 1 kHz Frequency response 30 – 15,000 Hz

69 dB (mono)

0.5 % (stereo),

0.3 % (mono)

MW/LW

Tuning range MW: 531 – 1,602 kHz Aerial terminal Exte rnal aerial connector

Intermediate frequency 10.7 MHz/450 kHz Sensitivity MW: 30 µV

LW: 153 – 279 kHz

LW: 40 µV

Power amplifier section

Outputs Speaker outputs Speaker impedance 4 – 8 ohms

Maximum power output 50 W × 4 (at 4 ohms)

(sure seal connectors)

General

Outputs Audio outputs (rear)

Inputs Telephone ATT control

Tone controls Low:

Power requirements 12 V DC car battery Dimensions Approx. 178 × 50 × 176 mm Mounting dimensions Approx. 182 × 53 × 161 mm Mass Approx. 1.2 kg

Supplied accessori e s Parts fo r installation and

Optional accessories Card remote commander

Design and specifications are subject to change without notice.

Power aerial relay control terminal Power amplifier control terminal

terminal Remote controller input Aerial input termina l

±10 dB at 60 Hz (XPLOD) Mid: ±10 dB at 1 kHz (XPLOD) High: ±10 dB at 10 kHz (XPLOD)

(negative earth) (w/h/d) (w/h/d)

connections (1 set) Front panel case (1)

RM-X114 Rotary commander RM-X4S

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connect i on and operating procedures.

General

No sound.

• Press the volume + button to adjust the volume.

• Cancel the ATT function.

• Set the fader contro l to the centre posi tion for a 2-speaker syste m.

The contents of the memory have been erased.

• The RESET button has been pr essed. t Store again into the memory.

• The power lead or battery has been disconnected.

• The power connecting lead is not connected properly.

No beep sound.

• The beep sound is ca ncelled (page 17).

• An optional power amp li fier is connected and you are not using the built-in amplifier.

The display disappears from/does not appear in the display window.

• The displa y disappears if you pr ess and hold (OFF). t Press and hold (OFF) again until the

display appears.

• Remove the front panel a nd clean the connectors. See “Cleaning the connectors” (page 19) for d e t ails.

Stored stations and correct time are erased. The fuse has blown. Makes noise when the ignition key is in the ON, ACC, or OFF posit ion.

The leads are no t matched correctly w i t h the car’s accessory power connect or.

No power is being supplied to the unit.

• Check the connect i on. If everything is in order, check the fuse.

• The car does not have an ACC position. t Press (SOURCE) (o r insert a disc) t o turn

on the unit.

The power is continuously supplied to the unit.

The car does not have an ACC po sition.

The power aerial does not extend.

The power aerial does not have a relay box.

CD playback

A disc cannot be loaded.

• Another CD is already loaded.

• The CD has been forcibly inserted upside down or in the wrong way.

Playback does not begin.

• Defective or dirty CD.

• CD-R/CD-RW that is not finalized.

• You tried to playback a CD - R/ C D - RW not designed for audio use.

• Some CD-Rs/CD- RWs may not play due to its recording equipment or the disc condition.

A disc is automatically ejected.

The ambient tempe ra t ur e exceeds 50°C.

The operation buttons do not function. CD will not be ejected.

Press the RESET button.

The sound skips from vi br a tion.

• The unit is installed at an angle of mor e tha n 45°.

• The unit is not ins t al led in a sturdy part of the car.

The sound skips.

Dirty or defect ive disc.

Radio reception

Preset tuning is not possible.

• Store the correct frequency in the memory.

• The broadcast signal is too weak.

The stations cannot be received. The sound is hampered by noises.

• Connect a po w er a er ial cont ro l le ad (b lu e) or accessory power supply lead (red) to the power supply lead of a car’s aerial booster (only when your ca r has built-in FM/MW/ LW aerial in the rear/side glass).

• Check the connection of the car aeri al .

• The auto aerial will not go up. t C heck the connection of the power aerial

control lead.

• Check the frequency.

Automatic tuning is not possible.

• The local seek mode is set to “ON.” t S et the local seek mode to “OFF”

(page 11).

• The broadcast signal is too weak. t Perform manual tuning.

The “ST” indication flashes.

• Tune in the frequency accura tely.

• The broadcast signal is too weak. t Set the monaural reception mode to

“ON” (page 11).

A programme broadcast in stereo is heard in monaura l .

The unit is in monaural reception mode. t Cancel monaural rece pt i on m ode

(page 11).

RDS

The SEEK starts after a few seconds of listening.

The station is non-TP or ha s w eak signal. t Press (TA) repeatedly until “TA-OFF”

appears.

No traffic announcements.

• Activate “TA.”

• The station does not broadcast any traffic announcements des pi t e being TP. t Tune in another station.

PTY displays “- - - - - - - -.”

• The current sta tion is not an RDS stati on.

• RDS data has not been received.

• The station does not specify the programme type.

Error displays/Messages

Error displays

The following indica tions will flash for ab out 5 seconds, and an al arm sound will be heard.

ERROR

• A CD is dirty or inserted upside down. t Clean or insert the CD correctly.

• A CD cannot play be cause of some proble m . t Ins ert another CD.

FAILURE

The connection of speakers/amplifiers is incorrect. t See the installation guide manual of this

model to check the connection.

HI TEMP

The ambient temp er at ure is more than 50°C. t Wait until the temperature goes down

below 50°C.

OFFSET

There may be an internal malfunction. t Check the connection. If the error

indication remains on in the display, consult your nearest Sony dealer.

RESET

The CD unit cannot be o per ated because of some problem. t Press the RESET button on the unit.

Messages

L.SEEK +/–

The local seek mode is on during automatic tuning (page 11).

NO AF

There is no alternative frequency for the current station.

“ ” or “ ”

You have reached the beginning or t he end of the disc and you ca nnot go any further.

If these solution s do not help improve the situation, consul t y our nearest Sony dealer.

Willkommen!

Danke, dass Sie sich für diesen CD-Player von Sony entschieden habe n. Si e haben folgende zusätzliche Möglichkeiten, um die vielfältigen Funktionen des Ge räts noch besser nutz en zu können:

• CD TEXT-Informationen (werden bei der Wiedergabe einer CD mit CD TEXT* angezeigt)

• Gesondert erhältliches

Bedienungszubehör

Kartenfernbedienung RM-X114 Joystick RM-X4S

* Eine CD mit CD TEXT ist eine Audio-CD, die

Informationen wie den Namen der CD, den Namen des Interpreten und die Namen der Titel enthält. Diese Daten sind auf der CD aufgezeichnet.

Dieses Etikett befindet sich an der Unterseite des Gehäuses.

Inhalt

Lage und Funktion der Tei l e und

Bedienelemente . . . . . . . . . . . . . . . . . . . . 4

Sicherheitsmaßnahmen . . . . . . . . . . . . . . . . . 5

Hinweise zu CDs. . . . . . . . . . . . . . . . . . . . . . 6

Vorbereitungen

Zurücksetzen des Geräts . . . . . . . . . . . . . . . . 7

Abnehmen der Frontplatte. . . . . . . . . . . . . . . 7

Einstellen der Uhr . . . . . . . . . . . . . . . . . . . . . 8

CD-Player

Wiedergeben einer CD . . . . . . . . . . . . . . . . . 9

Informationen im Display . . . . . . . . . . . . . . . 9

Wiederholtes Wiedergebe n von Titeln

— Repeat Play . . . . . . . . . . . . . . . . . . . . 10

Wiedergeben von Tit el n i n w i ll kürlicher

Reihenfolge

— Shuffle Play . . . . . . . . . . . . . . . . . . . . 10

Radio

Automatisches Speichern vo n Radiosendern

— BTM (Best Tuning Memory). . . . . . . 10

Einstellen gespeicherter Sender. . . . . . . . . . 11

Speichern bestim m te r Radiosender . . . . . . . 11

RDS

Übersicht über RDS. . . . . . . . . . . . . . . . . . . 12

Automatisches Neueinstellen von Sendern für

optimale Empfangsqualität

— AF (Alternative Frequencies) . . . . . . 12

Empfangen von Verke hr sd ur chsagen

— TA (Traffic Announcement)/ TP (Traff ic

Programme) . . . . . . . . . . . . . . . . . . . . . . 13

Speichern von RDS- Sendern zusammen mit

der AF- und TA-Einstellung. . . . . . . . . . 14

Einstellen von Sendern nach Programmtyp

— PTY (Programme Types). . . . . . . . . . 14

Automatisches Einstellen der Uhr

— CT (Clock Time) . . . . . . . . . . . . . . . . 15

Weitere Funktionen

Der Joystick . . . . . . . . . . . . . . . . . . . . . . . . 16

Einstelle n der Balance und des Faders . . . . 17

Schnelles Dämpfen des Tons . . . . . . . . . . . 17

Wechseln der Kla ng- und

Anzeigeeinstellungen. . . . . . . . . . . . . . . 17

Einstellen des Equalizers (EQ3). . . . . . . . . 18

Weitere Informationen

Wartung . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Ausbauen des Geräts. . . . . . . . . . . . . . . . . . 21

Technische Daten . . . . . . . . . . . . . . . . . . . . 22

Störungsbehebung. . . . . . . . . . . . . . . . . . . . 23

Fehleranzeigen/Meldungen. . . . . . . . . . . . . 25

Lage und Funktion der Teile und Bedienelemente

Näheres finden Sie auf den angegebenen Seiten.

SEL

SOURCE

MODE

BTM REP SHUF

ATTAF

SENS

1234

CDX-S2000C/S2000

PTY DSPL TA

OFF

SEEK

EQ3

a Lautstärketaste +/– b Taste SEL (Auswählen)

Auswählen von Optione n.

c Taste MODE

Wechseln des Betriebsmodus.

d Display e Taste OFF (Stopp/Ausschalten)* 7, 9 f Taste Z (Auswerfen) 9 g Taste (Lösen der Frontplatte) 7 h Taste SOURCE (Einschalten/Radio/

CD)

Auswählen der Tonquelle.

i Taste AF 12, 13, 14 j Taste ATT (Dämpfen des Tons) 17 k Taste SENS/BTM 10, 11, 14 l Taste RESET (befindet sich an der

V orderseite des Geräts hinter der Frontplatte)

m Zahlentasten

Radio: Speichern der gewünsc h t en Sender auf den einzelnen Zahlen ta st en. CD:

(3): REP 10 (4): SHUF 10

n Taste PTY (Programm ty pausw ahl) 15 o Taste DSPL (Ändern des

Anzeigemodus) 9, 12

p Taste TA 13, 14 q Taste EQ3 18 r Empfänger für die

Kartenfernbedienung

s T aste SEEK +/–

Radio: Automatisches/manuelles Einstellen von Sendern. CD: Überspringen von Titeln/Vorwärts- bzw. Rückwärtssuchen in einem Tite l.

* Warnhinweis zur Installation des Geräts in

einem Auto mit Zündschloss ohne Zubehörposition ACC oder I

Nachdem Sie die Zündung ausgeschaltet haben, halten Sie am Gerät unbedingt (OFF) gedrückt, bis die Anzeige ausgeblendet wird.

Andernfalls wird die Anzeige nicht ausgeschaltet und der Autobatterie w ird Strom entzogen.

Kartenfernbedienung RM-X114 (gesondert erhältlich)

DSPL MODE

PRESET

LIST

DISC

–

SEEK

SOUND

SOURCE

DISC

PRESET –

VOL

SEEK

–

ENTER

ATTOFF

–

Die entsprechenden Tasten auf der Kartenfernbedienung haben dies elbe Funktion wie die Tasten an diesem Gerät.

a Taste DSPL b Taste MENU* c Taste SOURCE d Tasten SEEK (+/–) e Taste SOUND f Taste OFF g Tasten V OL (+/–) h Taste MODE i Taste LIST* j Tasten DISC*/PRESET (+/–) k Taste ENTER* l Taste ATT

Sicherheitsmaßnahmen

• Wenn das Fahrzeug längere Zeit in dir ekt em Sonnenlicht geparkt war, lassen Sie das Gerät etwas abkühlen, bevor Sie es eins chalten.

• Motorantennen werden automatisch ausgefahren, wenn das Gerät eingesch al tet wird.

Sollten an Ihrem Gerät Probleme auftreten oder sollten Sie Fragen haben, auf die in dieser Anleitung nicht eingegangen wird, wenden Sie sich bitte an Ihren Sony-Händler.

Feuchtigkeitskondensation

Bei Regen oder bei se hr hoher Luftfeuchtig keit kann sich auf de n Li nsen im Inneren des G eräts und im Display Fe uchtigkeit niederschlagen. In diesem Fall funktioniert das Gerät nicht mehr richtig. Nehmen S ie di e CD heraus und warten Sie etwa eine Stunde, b is di e Feuchtigkeit verdunstet ist.

So bewahren Sie die hohe Tonqualität

Achten Sie dara uf , kein e Säfte oder andere zuckerhaltige Getränke auf das Gerät oder die CDs zu verschütten.

* Funktion bei diesem Gerät nicht verfügbar

Hinweis

Wenn Sie die Anzeige ausblenden, indem Sie (OFF) drücken, können Sie das Gerät nicht mit der Kartenfernbedienung bedienen. Drücken Sie zunächst (SOURCE) am Gerät oder legen Sie eine CD ein, um das Gerät zu aktivieren.

Tipp

Informat ionen zum Austauschen der Batterie finden Sie unter „Austauschen der Lithiumbatterie“ (Seite 20).

Hinweise zu CDs

• Berühren Sie nicht di e O berfläche von CDs, damit diese nicht verschmutzt werden. Fassen Sie CDs nur am Rand an.

• Bewahren Sie CDs in ihrer Hülle od er in den CD-Magazinen auf, wenn sie nicht abgespielt werden.

• Schützen Sie CDs vor Hitze bzw. hohen Temperaturen. Lassen Sie sie nicht in geparkten Autos , auf dem Armaturenbr ett oder auf der Hutablage liegen.

• Bringen Sie keine Aufkleber auf CDs an und verwenden Sie keine CDs mit Rückständen von Tinte oder Klebstoffen. Solche CDs drehen sich beim Betrieb möglicherweise nicht mehr und führen zu einer Fehlfunktion oder können beschädigt werden.

• Reinigen Sie CDs vor dem A bspielen mit einem handelsübli chen Reinigungstuch. Wischen Sie dabei von der Mitte nach außen. Verwenden Sie keine Lösungsmittel wie Benzin oder Verdünner und keine handelsüblichen Reinigungsmittel oder Antistatik -Sprays für Schallplatten.

Hinweise zu CD-Rs/CD-RWs

• Mit diesem Gerät können Sie CD-Rs (beschreibbare CDs) sowie CD-RWs (wiederbeschreib bare CDs ), die als Audi o-CDs konzipiert sind, wi edergeben lassen. An folgenden M arkierungen können Sie CDRs bzw. CD-RWs, die als Audio-CDs konzipiert sind, erkennen.

Folgende Markierungen kennzeichnen Datenträger, die nicht fü r die Audiowiedergabe geeignet sind.

• Verwenden Sie keine CDs, a n denen Etiketten oder Aufkleber angebracht sind. Bei Verwendung so lc her CDs kann es zu folgenden Fehlfunktionen kommen: – Die CD lässt sich n i cht auswerfen, wei l s ic h

ein Etikett oder Aufkl eber gelöst hat und de n Auswurfmech anismus blockiert.

– Die Audiodaten werden nicht korrekt gelesen

(z. B. Tonsprünge bei der Wiedergabe, keine Wiedergabe), weil ein Etikett ode r Aufkleber durch Wärmeeinwirkung geschrumpft ist und die CD sich verzogen hat.

• CDs mit außergewöhnli chen Formen (z. B. herzförmige, quadratische oder sternförmige CDs) können mit diesem Gerät nicht wiedergegeben werd en. Fa lls Sie es doch versuchen, kann da s G er ät beschädigt werden. Verwenden Sie solche CDs nicht.

• Single-CDs (8-cm-CDs) k önnen ebenfalls nicht verwendet werden.

• Je nach dem Gerät, mit dem die CD-R/CD-RW bespielt wurde, oder dem Zustand der CD-R/ CD-RW selbst ist eine Wiedergabe mit diesem Gerät nicht in jedem Fall möglich.

• Eine noch nicht abgeschlossene* CD-R/CDRW kann nicht wiedergegeben werden.

* Dieser Vorgang ist notwendig, damit eine bespielte

CD-R/CD-RW auf einem Audio-CD-Player abgespielt werden kann.

Vorbereitungen

Abnehmen der Frontplatte

Um einem Diebstahl des Geräts vorzubeugen, kann die Frontplatte abgenommen werden.

Zurücksetzen des Geräts

Bevor Sie das Gerät zum er st en Mal benutzen oder wenn Sie die Autobatterie ausg et auscht haben oder die Verbindungen wechseln, müs se n Sie das Gerät zurücksetzen. Nehmen Sie die Fron tp l at te ab und drücken Sie die Taste RESET mit einem spitzen Gegenstand, wie z. B. einem Kuge ls chreiber.

Taste RESET

Hinweis

Wenn Sie die Taste RESET drücken, werden die eingestellte Uhrzeit und einige weitere gespeicherte Einstellungen gelöscht .

Warnton

We nn S ie de n Zü ndsc hl üs sel in di e Pos iti on OFF stellen, ohne die Frontplatte abzune hm en, ertönt einige Sekunden lang ein Warnton. Wenn Sie einen gesondert erhältlichen Verstärker anschließe n un d den in te gr ie rte n Verstärker nicht benutzen, wird der Signalton deaktiviert.

1 Drücken Sie (OFF)*.

Die CD-Wiedergabe bzw. der Radioempfang wird beendet. Die Tastenbeleuchtung und das Display bleiben e ingeschaltet.

* Wenn Ihr Fahrzeug nicht über ein Zündschloss

mit Zubehörposition (ACC oder I) verfügt, halten Sie zum Ausschalten des Geräts unbedingt (OFF) gedrückt, bis die Anzeige ausgeblendet wird. Andernfalls wird der Autobatterie weiterhin Strom entzogen.

2 Drücken Sie auf und ziehen Sie die

Frontplatte dann auf sich zu.

(OFF)

Hinweise

• Wenn Sie die Frontplatte bei eingeschaltetem Gerät

abnehmen, schaltet sich das Gerät automatisch aus, um eine Beschädigung der Lautspr ech er zu vermeiden.

• Lassen Sie die Frontplatte nicht fallen und drücken

Sie nicht zu stark auf die Frontplatte und das Display.

• Schützen Sie die Frontplatte vor Hitze bzw. hohen

Temperaturen und vor Feuchtigkeit. Lassen Sie sie nicht in geparkten Autos, auf dem Armaturenbrett oder auf der Hutablage liegen.

Tipp

Bewahren Sie die Frontplatte im mitgelieferten Behälter auf, wenn Sie sie bei sich tragen.

Fortsetzung auf der nächsten Seite t

Anbringen der Frontplatte

Setzen Sie Teil A der Frontplatte wie abgebildet an Teil B am Gerät an und drücken Sie dann die linke Seite hinein, bis sie mit einem Klicken einrastet.

Einstellen der Uhr

Die Uhr zeigt die Uhrzeit im 24-Stunden-Format digital an.

Beispiel: Einstelle n der Uhr auf 10:08

1 Drücken Sie 2 Sekunden lang (DSPL).

Die Stundenanze ig e bl i nkt .

Hinweis

Legen Sie auf der Innenseite der Frontplatte nichts ab.

1Stellen Sie mit der Lautstärket aste

+/– die Stun den ein.

2Drücken Sie (SEL).

Die Minutenanzeige blinkt.

3Stellen Sie mit der Lautstärket aste

+/– die Minuten ein.

2 Drücken Sie (DSPL).

Die Uhr beginnt zu laufen. Wenn Sie die Uhreinstellung vorgen om m en haben, erscheint im Display wieder die Anzeige für den normalen Wiedergabemodus.

Tipp

Mithilfe der RDS-Funktion können Sie die Uhr auch automatisch einstellen lassen (Seite 15).

+ 90 hidden pages
