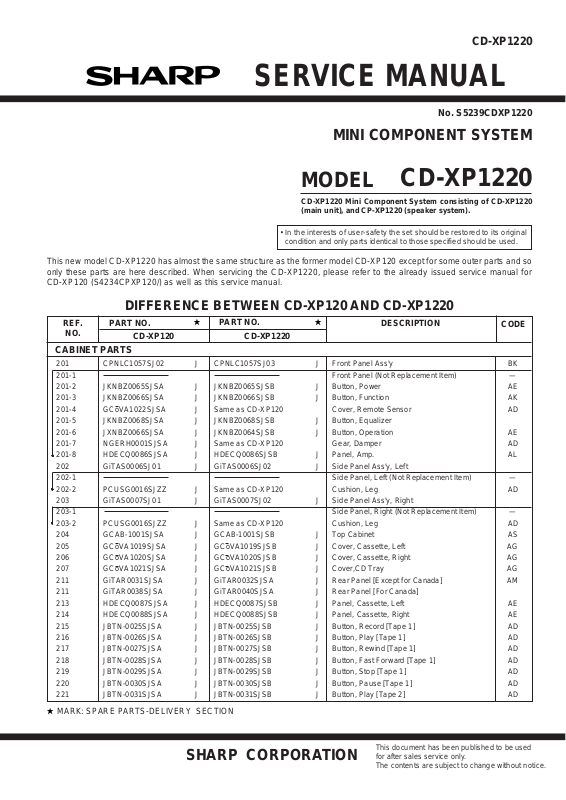

CD-XP1220
SERVICE MANUAL
No. S5239CDXP1220
MINI COMPONENT SYSTEM
MODEL
CD-XP1220 Mini Component System consisting of CD-XP1220
(main unit), and CP-XP1220 (speaker system).
• In the interests of user-safety the set should be restored to its original
condition and only parts identical to those specified should be used.
This new model CD-XP1220 has almost the same structure as the former model CD-XP120 except for some outer parts and so
only these parts are here described. When servicing the CD-XP1220, please refer to the already issued service manual for
CD-XP120 (S4234CPXP120/) as well as this service manual.
CD-XP1220
DIFFERENCE BETWEEN CD-XP120 AND CD-XP1220
PART NO.
NO.
CABINET PARTS
201 CPNLC1057SJ02 J CPNLC1057SJ03 J Front Panel Ass'y BK
201-1 Front Panel (Not Replacement Item) —
201-2 JKNBZ0065SJSA J JKNBZ0065SJSB J Button, Power AE
201-3 JKNBZ0066SJSA J JKNBZ0066SJSB J Button, Function AK
201-4 GCoVA1022SJSA J Same as CD-XP120 Cover, Remote Sensor AD
201-5 JKNBZ0068SJSA J JKNBZ0068SJSB J Button, Equalizer
201-6 JXNBZ0066SJSA J JKNBZ0064SJSB J Button, Operation AE
201-7 NGERH0001SJSA J Same as CD-XP120 Gear, Damper AD
201-8 HDECQ0086SJSA J HDECQ0086SJSB J Panel, Amp. AL
202 GiTAS0006SJ01 J GiTAS0006SJ02 J Side Panel Ass'y, Left
202-1 Side Panel, Left (Not Replacement Item) —
202-2 PCUSG0016SJZZ J Same as CD-XP120 Cushion, Leg AD
203 GiTAS0007SJ01 J GiTAS0007SJ02 J Side Panel Ass'y, Right
203-1 Side Panel, Right (Not Replacement Item) —
203-2 PCUSG0016SJZZ J Same as CD-XP120 Cushion, Leg AD
204 GCAB-1001SJSA J GCAB-1001SJSB J Top Cabinet AS
205 GCoVA1019SJSA J GCoVA1019SJSB J Cover, Cassette, Left AG
206 GCoVA1020SJSA J GCoVA1020SJSB J Cover, Cassette, Right AG
207 GCoVA1021SJSA J GCoVA1021SJSB J Cover,CD Tray AG
211 GiTAR0031SJSA J GiTAR0032SJSA J Rear Panel [Except for Canada] AM
211 GiTAR0038SJSA J GiTAR0040SJSA J Rear Panel [For Canada]
213 HDECQ0087SJSA J HDECQ0087SJSB J Panel, Cassette, Left AE
214 HDECQ0088SJSA J HDECQ0088SJSB J Panel, Cassette, Right AE
215 JBTN-0025SJSA J JBTN-0025SJSB J Button, Record [Tape 1] AD
216 JBTN-0026SJSA J JBTN-0026SJSB J Button, Play [Tape 1] AD
217 JBTN-0027SJSA J JBTN-0027SJSB J Button, Rewind [Tape 1] AD
218 JBTN-0028SJSA J JBTN-0028SJSB J Button, Fast Forward [Tape 1] AD
219 JBTN-0029SJSA J JBTN-0029SJSB J Button, Stop [Tape 1] AD
220 JBTN-0030SJSA J JBTN-0030SJSB J Button, Pause [Tape 1] AD
221 JBTN-0031SJSA J JBTN-0031SJSB J Button, Play [Tape 2] AD
PART NO.
CD-XP1220CD-XP120
DESCRIPTIONREF.
CODE
MARK: SPARE PARTS-DELIVERY SECTION
SHARP CORPORATION
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
![](/html/b0/b00d/b00d05e43b3d9224b5644b3b4148f08b0aeb9f1d3c0e541223d5d263082ca7da/bg2.png)
CD-XP1220
DIFFERENCE BETWEEN CD-XP120 AND CD-XP1220
REF.
NO.
PART NO.
CABINET PARTS
222 JBTN-0032SJSA J JBTN-0032SJSB J Button, Rewind [Tape 2] AD
223 JBTN-0033SJSA J JBTN-0033SJSB J Button, Fast Forward [Tape 2] AD
224 JBTN-0034SJSA J JBTN-0034SJSB J Button, Stop [Tape 2] AD
PACKING PARTS (Except for U.S.A.)
SPAKC0212SJZZ J SPAKC0214SJZZ J Packing Case [Except for Canada]
SPAKC0214SJZZ J SPAKC0247SJZZ J Packing Case [For Canada]
ACCESSORIES PARTS
TiNSK0033SJZZ J TiNSK0034SJZZ J Operation Manual [For Canada]
TLABR1250SJZZ J TLABR1249SJZZ J Label, Bar Code
RRMCG0047SJSA J Same as CD-XP120 J Remote Control [For Canada] AQ
RRMCG0047SJSA RRMCG0048SJSA J Remote Control [Except for Canada] AQ
GFTAT1121AFSA J Same as CD-XP120 Battery Lid, Remote Control AB
MARK: SPARE PARTS-DELIVERY SECTION
PART NO.
CD-XP1220CD-XP120
DESCRIPTION
DIFFERENCE BETWEEN CP-XP120 AND CP-XP1220
REF.
NO.
PART NO.
CP-XP120
SPEAKER BOX PARTS
901 B3CPXP120U J B3CPXP1220U J Speaker Box Ass'y
PART NO.
CP-XP1220
DESCRIPTION
CODE
CODE
MARK: SPARE PARTS-DELIVERY SECTION
COPYRIGHT 2002 BY SHARP CORPORATION
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
©
ALL RIGHTS RESERVED.
SHARP CORPORATION
AV Systems Group
Audio Systems Division
Higashihiroshima, Hiroshima 739-0192, Japan
Printed in Japan
A0205-1625DS•HA•C
SC • SL
