Sony CDX-HS70MW User Manual

FM/AM Compact Disc Player

CDX-HS70MW/CDX-HS70MS

FM/MW/LW Compact Disc Player

CDX-HR70MW/CDX-HR70MS

A-CN5-100-11 (1)

Operating Instructions

Mode d’emploi

Manual de instrucciones

Bedienungsanleitung

Gebruiksaanwijzing

Istruzioni per l’uso

To cancel the demonstration (DEMO) display, see page 12. Pour annuler la démonstration (DEMO), reportez-vous à la page 13. Para cancelar la pantalla de demostración (DEMO), consulte la página 13. Zum Deaktivieren der Demo-Anzeige (DEMO) schlagen Sie bitte auf Seite 13 nach. Om de demonstratie (DEMO) te annuleren, zie pagina 13. Per annullare la dimostrazione (DEMO), vedere pagina 13.

2006 Sony Corporation

For installation and connections, see the

– –

–

supplied installation/connections manual.

Warning

This label is located on the bottom of the chassis.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment

packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Applicable accessory: Remote commander

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its

and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

CAUTION

CDX-HS70MW/HS70MS only

The “SAT Radio Ready” logo indicates that this product will control a

satellite radio tuner module (sold separately). Please see your nearest authorized Sony dealer for details on the satellite radio tuner module. “SAT Radio,” “SAT Radio Ready,” the SAT Radio and SAT Radio Ready logos and all related marks are trademarks of Sirius Satellite Radio Inc. and XM Satellite Radio Inc.

The use of optical instruments with this produc will increase eye hazard.

SonicStage and its logo are trademarks of Sony Corporation.

For the state of california, USA only

Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate Perchlorate Material: Lithium battery contains

perchlorate

“ATRAC” and its logo are trademarks of Sony Corporation.

Microsoft, Windows Media,

and the Windows logo are

trademarks or registered

trademarks of Microsoft

Warning if your boat’s ignition has no ACC position

Corporation in the United States and/or other countries.

Be sure to set the Auto Off function (page 12). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the Auto Off function, press and hold (OFF) until the display disappears each time you turn the ignition off.

Table of Contents

Welcome ! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Getting Started

Resetting the unit. . . . . . . . . . . . . . . . . . . . . . . . 5

Preparing the card remote commander . . . . . . . 5

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . 5

Inserting the disc in the unit . . . . . . . . . . . . . . . 5

Ejecting the disc . . . . . . . . . . . . . . . . . . . . . . 5

Location of controls and basic operations

Main unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Card remote commander RM-X151. . . . . . . 8

Display items . . . . . . . . . . . . . . . . . . . . . . . . 9

Repeat and shuffle play. . . . . . . . . . . . . . . . . 9

Radio

Storing and receiving stations . . . . . . . . . . . . . . 9

Storing automatically — BTM . . . . . . . . . . . 9

Storing manually. . . . . . . . . . . . . . . . . . . . . . 9

Receiving the stored stations . . . . . . . . . . . . 9

Tuning automatically . . . . . . . . . . . . . . . . . 10

RDS (CDX-HR70MW/HR70MS). . . . . . . . . . 10

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Setting AF and TA . . . . . . . . . . . . . . . . . . . 10

Selecting PTY. . . . . . . . . . . . . . . . . . . . . . . 11

Setting CT. . . . . . . . . . . . . . . . . . . . . . . . . . 11

Other functions

Changing the sound settings. . . . . . . . . . . . . . 12

Adjusting the sound characteristics

— BAL/FAD/SUB. . . . . . . . . . . . . . . . . . . 12

Customizing the equalizer curve

— EQ3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Adjusting setup items — SET . . . . . . . . . . . . 12

Using optional equipment. . . . . . . . . . . . . . . . 13

CD/MD changer. . . . . . . . . . . . . . . . . . . . . 13

Marine remote commander RM-X55M. . . 14

Rotary commander RM-X4S . . . . . . . . . . . 14

Auxiliary audio equipment. . . . . . . . . . . . . 15

Additional Information

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Notes on discs . . . . . . . . . . . . . . . . . . . . . . 15

Playback order of MP3/WMA/

AAC files . . . . . . . . . . . . . . . . . . . . . . . . . . 16

About MP3 files. . . . . . . . . . . . . . . . . . . . . 16

About WMA files. . . . . . . . . . . . . . . . . . . . 16

About AAC files . . . . . . . . . . . . . . . . . . . . 17

About ATRAC CD. . . . . . . . . . . . . . . . . . . 17

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 18

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 19

Error displays/Messages. . . . . . . . . . . . . . . 20

Welcome !

Thank you for purchasing this Sony Compact Disc Player. You can enjoy your sailing with the following functions.

• CD playback

You can play CD-DA (also containing CD TEXT*), CD-R/CD-RW (MP3/WMA/AAC files also containing Multi Session ( and ATRAC CD (ATRAC3 and ATRAC3plus format (

page 17)).

Type of discs Label on the disc

CD-DA

MP3

WMA

AAC

ATRAC CD

• Radio reception

– You can store up to 6 stations per band.

CDX-HS70MW/HS70MS:

FM1, FM2, FM3, AM1 and AM2

CDX-HR70MW/HR70MS:

FM1, FM2, FM3, MW and LW

– BTM (Best Tuning Memory): The unit selects

strong signal stations and stores them.

• RDS services

– You can listen to FM stations with the Radio

Data System (RDS) in Europe. (CDX-HR70MW/HR70MS)

• Sound adjustment – EQ3 stage2: You can choose any one of 7

preset equalizer curves.

– DSO (Dynamic Soundstage Organizer):

Creates a more ambient sound field, using virtual speaker synthesis, to enhance the sound of speakers, even if they are installed low in the door.

• Optional unit operation You can also control optional CD/MD changers.

• Auxiliary equipment connection An AUX IN jack on the rear of the unit allows connection of an external audio device.

* A CD TEXT disc is a CD-DA that includes

information such as disc, artist and track name.

page 16))

About water resistancy

This unit is designed for use in a marine environment. To protect the unit from water spray, waves, rain, moisture, ultraviolet rays, etc., the unit has undergone the following tests to ensure reliability and functionality (Front panel only):

• Water resistant front panel - IPx5 certified

• Salt fog resistant - Tested under ASTM B117

• Conformal coated circuit board

• UV resistant - Tested under ASTM G154

Notes

• Be sure to close the front panel to maintain water resistant performance, except when inserting/ ejecting a disc.

• Do not allow water to contact the unit except the front panel.

• Do not use this unit in the following places: – places where the unit may be subject to high water

pressure, hot springs or bathtubs, etc.

– underwater.

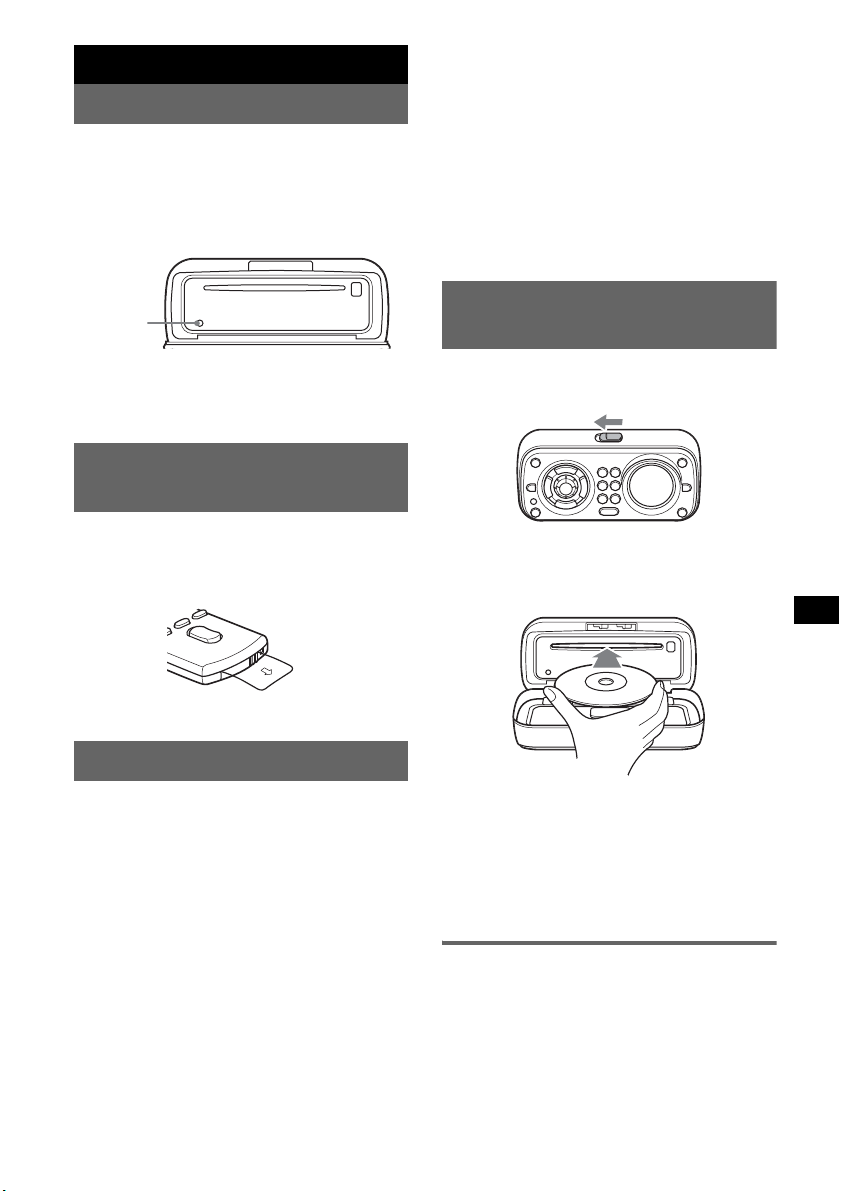

Getting Started

Resetting the unit

Before operating the unit for the first time, or after replacing the boat’s battery or changing the connections, you must reset the unit. Open the front panel and press the RESET button with a pointed object, such as a ball-point pen.

RESET button

Note

Pressing the RESET button will erase the clock setting and some stored contents.

Preparing the card remote commander

Before using the card remote commander for the first time, remove the insulation film.

Setting the clock

With the card remote commander

In step 4, to set the hour and minute, press M or m.

Tip

You can set the clock automatically with the RDS

page 11). (CDX-HR70MW/HR70MS only)

feature (

Inserting the disc in the unit

1 Slide the OPEN switch in the direction

of the arrow.

2 Open the front panel. 3 Insert the disc (label side up).

4 Close the front panel.

Playback starts automatically.

Notes

• Do not put anything on the inner surface of the front

panel.

• Be sure to close the front panel during operation.

CDX-HS70MW/HS70MS:

12-hour indication

CDX-HR70MW/HR70MS:

24-hour indication

1 Press and hold (SELECT).

The setup display appears.

2 Press (SELECT) repeatedly until

“CLOCK-ADJ” appears.

3 Press (SEEK) +.

The hour indication flashes.

4 Rotate the volume control dial to set

the hour and minute.

To move the digital indication, press (DSPL).

5 Press (SELECT).

The setup is complete and the clock starts.

To display the clock, press (DSPL). Press (DSPL) again to return to the previous display.

Ejecting the disc

1 Slide the OPEN switch and open the

front panel.

2 Press Z.

The disc is ejected.

3 Close the front panel.

Location of controls and basic operations

Main unit

OFF

Front panel opened

RESET

GP/ALBM

REP SHUF

SOURCE

PAUSE

CDX-HS70MW CDX-HS70MS CDX-HR70MW CDX-HR70MS

DSPL

MODE

Refer to the pages listed for details. The corresponding buttons on the card remote commander control the same functions as those on the unit.

A DSO button 4

To select the DSO mode (1, 2, 3 or OFF). The larger the number, the more enhanced the effect.

B OFF button

To power off; stop the source.

C SCRL (scroll) button (CDX-HS70MW/

HS70MS)

To scroll the display item.

AF (Alternative Frequencies)/TA (Traffic Announcement) button (CDXHR70MW/HR70MS)

To set AF and TA in RDS.

D Volume control dial 12

To adjust volume.

E Number buttons

CD/MD*1: (1)/(2): GP*2/ALBM*3 –/+

To skip albums (press); skip albums continuously (press and hold).*

(3): REP 9, 13 (4): SHUF 9, 13 (6): PAUS E*

To pause playback. To cancel, press

again. Radio: To receive stored stations (press); store stations (press and hold).

F OPEN switch 5 G Display window H DSPL (display) button 9, 10

To change display items.

I EQ3 (equalizer) button 12

To select an equalizer type (XPLOD, VOCAL, EDGE, CRUISE, SPACE, GRAVITY, CUSTOM or OFF).

J Receptor for the card remote

commander

K BTM/CAT*6 button (CDX-HS70MW/

HS70MS)

To start the BTM function (press and hold).

PTY (Program Type) button (CDXHR70MW/HR70MS)

To select PTY in RDS.

L SEEK –/+ buttons

CD: To skip tracks (press); skip tracks continuously (press, then press again within about 1 second and hold); reverse/fastforward a track (press and hold). Radio: To tune in stations automatically (press); find a station manually (press and hold).

M SELECT button

To select setup items.

N SOURCE button

To power on; change the source (Radio/CD/

MD*

/AUX).

O Frequency select switch (CDX-

HS70MW/HS70MS) (located on the

bottom of the unit) See “Frequency select switch” in the supplied installation/connections manual.

P MODE button 9, 13

To select the radio band; select the unit*7.

Q RESET button 5 R Disc slot 5

To insert the disc.

S Z (eject) button 5

To eject the disc.

continue to next page t

Card remote commander RM-X151

The following buttons on the card remote commander have also different buttons/functions from the unit. Remove the insulation film before use (

page 5).

w; < (.)/, (>) buttons

To control CD/radio, the same as (SEEK) –/+ on the unit.

wa VOL (volume) +/– button

To adjust volume.

ws ATT (attenuate) button

To attenuate the sound. To cancel, press again.

wd M (+)/m (–) buttons

To control CD, the same as (GP/ALBM) –/+ on the unit.

wf SCRL (scroll) button 9

To scroll the display item.

wg Number buttons

To receive stored stations (press); store stations (press and hold).

*1 When an MD changer is connected. *2 When an ATRAC CD is played. *3 When an MP3/WMA/AAC is played. *4 If the changer is connected, the operation is

different, see page 13.

*5 When playing back on this unit. *6 When the SAT tuner is connected. *7 When a CD/MD changer is connected.

Note

If the unit is turned off and the display disappears, it cannot be operated with the card remote commander unless (SOURCE) on the unit is pressed, or a disc is inserted to activate the unit first.

Tip

For details on how to replace the battery, see “Replacing the lithium battery of the card remote commander” on page 17.

For details on selecting a CD/MD changer, see page 13.

Display items

A Source B Track number/Elapsed playing time, Disc/

artist name, Album/group number*, Album/ group name, Track name, Text information, Clock

C ATRAC/WMA/MP3/AAC indication

* Album/group number is displayed only when the

album/group is changed.

To change display items B, press (DSPL); scroll display items B, press (SCRL) or set “A.SCRL-ON” (

Tip

Displayed items will differ, depending on the disc type, recorded format and settings. For details on MP3/ WMA/AAC, see

Repeat and shuffle play

1 During playback, press (3) (REP) or

(4) (SHUF) repeatedly until the desired setting appears.

Select To play

TRACK track repeatedly. ALBUM*

GROUP* SHUF ALBUM*1album in random order. SHUF GROUP*2group in random order. SHUF DISC disc in random order.

*1 When an MP3/WMA/AAC is played. *2 When an ATRAC CD is played.

To return to normal play mode, select “ OFF” or “SHUF OFF.”

page 13).

page 16; ATRAC CD, see page 17.

album repeatedly. group repeatedly.

Radio

Storing and receiving stations

Caution

When tuning in stations while sailing, use Best Tuning Memory (BTM) to prevent an accident.

Storing automatically — BTM

1 Press (SOURCE) repeatedly until

“TUNER” appears.

To change the band, press (MODE) repeatedly.

2 Press and hold (SELECT).

The setup display appears.

3 Press (SELECT) repeatedly until

“BTM” appears.

4 Press (SEEK) +.

The unit stores stations in order of frequency on the number buttons. A beep sounds when the setting is stored.

Storing by the BTM button

(CDX-HS70MW/HS70MS only) Press and hold (BTM) until “BTM” flashes,

instead of steps 2 to 4.

Storing manually

1 While receiving the station that you

want to store, press and hold a number button ((1) to (6)) until “MEM” appears.

The number button indication appears in the display.

Note

If you try to store another station on the same number button, the previously stored station will be replaced.

Tip

When a RDS station is stored, the AF/TA setting is also stored (

Receiving the stored stations

1 Select the band, then press a number

page 10). (CDX-HR70MW/HR70MS only)

button ((1) to (6)).

Tuning automatically

1 Select the band, then press (SEEK) –/+

to search for the station.

Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received.

Tip

If you know the frequency of the station you want to listen to, press and hold (SEEK) approximate frequency, then press (SEEK) repeatedly to fine adjust to the desired frequency (manual tuning).

–/+ to locate the

–/+

RDS (CDX-HR70MW/HR70MS)

Overview

FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal.

Display items

TA (Traffic Announcement)/TP (Traffic

Program)

Provides current traffic information/programs. Any information/program received, will interrupt the currently selected source.

PTY (Program Types)

Displays the currently received program type. Also searches your selected program type.

CT (Clock Time)

The CT data from the RDS transmission sets the clock.

Notes

• Depending on the country/region, not all RDS functions may be available.

• RDS will not work if the signal strength is too weak, or if the station you are tuned to is not transmitting RDS data.

Setting AF and TA

1 Press (AF/TA) repeatedly until the

desired setting appears.

Select To

AF-ON activate AF and deactivate TA. TA-ON activate TA and deactivate AF. AF, TA-ON activate both AF and TA. AF, TA-OFF deactivate both AF and TA.

A Radio band, Function B TA/ TP *

C Frequency*2 (Program service name), Preset

number, Clock, RDS data

*1 “TA” flashes during traffic information. “TP” lights

up while such a station is received.

*2 While receiving the RDS station, “ *” is displayed

on the left of the frequency indication.

To change display items C, press (DSPL).

RDS services

This unit automatically provides RDS services as follows:

AF (Alternative Frequencies)

Selects and retunes the station with the strongest signal in a network. By using this function, you can continuously listen to the same program during long-distance sailing without having to retune the same station manually.

Storing RDS stations with the AF and TA setting

You can preset RDS stations along with the AF/ TA setting. If you use the BTM function, only RDS stations are stored with the same AF/TA setting. If you preset manually, you can preset both RDS and non-RDS stations with the AF/TA setting for each.

1 Set AF/TA, then store the station with BTM or

manually.

Presetting the volume of traffic announcements

You can preset the volume level of the traffic announcements so as to not miss hearing them.

1 Rotate the volume control dial to adjust the

volume level.

2 Press and hold (AF/TA) until “TA” appears.

Receiving emergency announcements

With AF or TA on, the emergency announcements will automatically interrupt the currently selected source.

Staying with one regional program — REG

When the AF function is on: this unit’s factory setting restricts reception to a specific region, so you will not be switched to another regional station with a stronger frequency.

If you leave this regional program’s reception area, set “REG-OFF” in setup during FM reception (

Note

This function does not work in the UK and in some other areas.

page 13).

Local Link function (UK only)

This function enables you to select other local stations in the area, even if they are not stored on your number buttons.

1 During FM reception, press a number button

((1) to (6)) on which a local station is stored.

2 Within 5 seconds, press again a number button

of the local station. Repeat this procedure until the local station is received.

Selecting PTY

1 Press (PTY) during FM reception.

Type of programs

NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIED (Varied), POP ROCK

M (Rock Music), EASY M (Easy Listening), LIGHT CLASSICS (Classical), OTHER Music Type), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children’s Programs), SOCIAL RELIGION (Religion), PHONE TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION

Music), FOLK (Documentary)

Note

You cannot use this function in countries/regions where no PTY data is available.

M (National Music), OLDIES (Oldies

M (Folk Music), DOCUMENT

M (Popular Music),

M (Light Classical),

M (Other

A (Social Affairs),

IN (Phone In),

Setting CT

1 Set “CT-ON” in setup (page 12).

Notes

• The CT function may not work even though an RDS

station is being received.

• There might be a difference between the time set by

the CT function and the actual time.

The current program type name appears if the station is transmitting PTY data.

2 Press (PTY) repeatedly until the

desired program type appears.

3 Press (SEEK) –/+.

The unit starts to search for a station broadcasting the selected program type.

Other functions

Changing the sound settings

Adjusting the sound characteristics — BAL/FAD/SUB

You can adjust the balance, fader, and subwoofer volume.

1 Press (SELECT) repeatedly until

“BAL,” “FAD” or “SUB” appears.

The item changes as follows:

LOW*1 t MID*1 t HI*1 t BAL (left-right) t FAD (front-rear) t SUB (subwoofer volume)*

*1 When EQ3 is activated (page 12). *2 When the audio output is set to “SUB”

(page 12). “ATT” is displayed at the lowest setting, and can be adjusted up to 20 steps.

*3 When AUX source is activated (page 15).

2 Rotate the volume control dial to

adjust the selected item.

After 3 seconds, the setting is complete and the display returns to normal play/reception mode.

With the card remote commander

In step 2, to adjust the selected item, press <, M, , or m.

t AUX*

After 3 seconds, the setting is complete and the display returns to normal play/reception mode.

Tip

Other equalizer types are also adjustable.

With the card remote commander

In step 3, to adjust the selected item, press <, M, , or m.

Adjusting setup items — SET

1 Press and hold (SELECT ).

The setup display appears.

2 Press (SELECT) repeatedly until the

desired item appears.

3 Rotate the volume control dial to

select the setting (example “ON” or “OFF”).

4 Press and hold (SELECT ).

The setup is complete and the display returns to normal play/reception mode.

Note

Displayed items will differ, depending on the source and setting.

With the card remote commander

In step 3, to select the setting, press < or ,.

The following items can be set (follow the page reference for details): “z” indicates the default settings.

Customizing the equalizer curve — EQ3

“CUSTOM” of EQ3 allows you to make your own equalizer settings.

1 Select a source, then press (EQ3)

repeatedly to select “CUSTOM.”

2 Press (SELECT) repeatedly until

“LOW,” “MID” or “HI” appears.

3 Rotate the volume control dial to

adjust the selected item.

The volume level is adjustable in 1 dB steps, from –10 dB to +10 dB.

Repeat steps 2 and 3 to adjust the equalizer curve. To restore the factory-set equalizer curve, press and hold (SELECT) before the setting is complete.

CLOCK-ADJ (Clock Adjust) (page 5)

(Clock Time)

CT*

To set “CT-ON” or “CT-OFF” (

z) (page 10, 11).

BEEP

To set “BEEP-ON” (z) or “BEEP-OFF.”

AUX-A*

(AUX Audio) To turn the AUX source display “AUX-A-ON” (

z) or “AUX-A-OFF” (page 15).

A.OFF (Auto Off)

To shut off automatically after a desired time when the unit is turned off: “A.OFF-NO” (

z),

“A.OFF-30S (Seconds),” “A.OFF-30M (Minutes)” or “A.OFF-60M (Minutes).”

REAR/SUB*

To switch the audio output. – “REAR-OUT” (

z): to output to a power

amplifier.

– “SUB-OUT”: to output to a subwoofer.

DEMO*

(Demonstration)

To set “DEMO-ON” (z) or “DEMO-OFF.”

DIM (Dimmer)

To change the brightness of the display. –“DIM-AT” (

z): to dim the display

automatically when you turn lights on. – “DIM-OFF”: to deactivate the dimmer. – “DIM-ON”: to dim the display.

CONTRAST

To adjust the contrast of the display. The contrast level is adjustable in 7 steps.

M.DSPL (Motion Display)

To select the Motion Display mode. – “M.DSPL-LM” (

z): to show moving patterns

and level meter. – “M.DSPL-OFF”: to deactivate the Motion

Display. – “M.DSPL-ON”: to show moving patterns.

A.SCRL (Auto Scroll)

To scroll long displayed item automatically when the disc/album/group/track is changed. – “A.SCRL-ON” (

z): to scroll.

– “A.SCRL-OFF”: to not scroll.

LOCAL (Local seek mode)

– “LOCAL-OFF” (

z): to tune normal reception.

– “LOCAL-ON” : to only tune into stations with

stronger signals.

MONO*

(Monaural mode) To improve poor FM reception, select monaural reception mode. – “MONO-OFF” (

z): to hear stereo broadcast in

stereo.

– “MONO-ON”: to hear stereo broadcast in

monaural.

1*3

REG*

LPF*

(Regional)

To set “REG-ON” (

(Low Pass Filter)

z) or “REG-OFF” (page 11).

To select the subwoofer cut-off frequency: “LPF OFF” (

z), “LPF125Hz” or “LPF 78Hz.”

BTM (page 9)

*1 CDX-HR70MW/HR70MS only. *2 When the unit is turned off. *3 When FM is received. *4 When the audio output is set to “SUB.”

Using optional equipment

CD/MD changer

Selecting the changer

1 Press (SOURCE) repeatedly until “CD” or

“MD” appears.

2 Press (MODE) repeatedly until the desired

changer appears.

Unit number

Disc number

Playback starts.

Skipping albums and discs

1 During playback, press (1)/(2) (GP/ALBM

–/+).

To skip

album and release (hold for a

album continuously

discs repeatedly. discs

continuously

Repeat and shuffle play

1 During playback, press (3) (REP) or (4)

(SHUF) repeatedly until the desired setting appears.

Select To play

DISC*

SHUF CHANGER*

SHUF ALL*

*1 When one or more CD/MD changers are

connected.

*2 When one or more CD changers, or two or more

MD changers are connected.

Press (1)/(2) (GP/ALBM –/+)

moment). within 2 seconds of first

releasing.

then, press again within 2 seconds and hold.

disc repeatedly. tracks in the changer in random

order.

tracks in all units in random order.

continue to next page t

To return to normal play mode, select “ OFF” or “SHUF OFF.”

Tip

“SHUF ALL” will not shuffle tracks between CD units and MD changers.

Marine remote commander RM-X55M

Rotary commander RM-X4S

Attaching the label

Attach the indication label depending on how you mount the rotary commander.

Location of controls

The corresponding buttons on the marine remote commander control the same functions as those on this unit.

VOLUME

+/–

SOURCE

MUTING

(ATT)

OFF

The following controls on the marine remote commander require a different operation from the unit.

VOLUME +/– button

The same as the volume control dial on the unit.

MODE

SEEK –/+

GP/ALBM

M SPL

Location of controls

The corresponding buttons on the rotary commander control the same functions as those on this unit.

SEL

PRESET/

DISC

SOURCE

VOL

ATT

DSPL

SEEK/ AMS

MODE

OFF

The following controls on the rotary commander require a different operation from the unit.

• PRESET/DISC control

The same as (1)/(2) (GP/ALBM –/+) on the unit (push in and rotate).

• VOL (volume) control

The same as the volume control dial on the unit (rotate).

• SEEK/AMS control

The same as (SEEK) –/+ on the unit (rotate, or rotate and hold).

Changing the operative direction

The operative direction of the controls is factoryset as shown below.

To increase

To decrease

If you need to mount the rotary commander on the right hand side of the steering column, you can reverse the operative direction.

1 While pushing the VOL control, press and

hold (SEL).

Auxiliary audio equipment

By connecting an optional portable audio device to the AUX IN jack on the unit and then simply selecting the source, you can listen on your boat speakers. The volume level is adjustable for any difference between the unit and the portable audio device. Follow the procedure below:

Adjust the volume level

Be sure to adjust the volume for each connected audio device before playback.

1 Turn down the volume on the unit. 2 Press (SOURCE) repeatedly until “AUX”

appears. “AUX REAR IN” appears.

3 Start playback of the portable audio device at a

moderate volume.

4 Set your usual listening volume on the unit. 5 Press (SELECT) repeatedly until “AUX”

appears, and rotate the volume control dial to adjust the input level (–8 dB to +18 dB).

Additional Information

Precautions

• If your boat has been moored in direct sunlight, allow the unit to cool off before operating it.

• Power antenna (aerial) will extend automatically while the unit is operating.

Moisture condensation

On a rainy day or in a very damp area, moisture condensation may occur inside the lenses and display of the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

To maintain high sound quality

Be careful not to splash juice or other soft drinks onto the unit or discs.

Notes on discs

• To keep a disc clean, do not touch its surface. Handle the disc by its edge.

• Keep your discs in their cases or disc magazines when not in use.

• Do not subject discs to heat/high temperature. Avoid leaving them in a moored boat.

• Do not attach labels, or use discs with sticky ink/ residue. Such discs may stop spinning when used, causing a malfunction, or may ruin the disc.

• Do not use any discs with labels or stickers attached. The following malfunctions may result from using such discs: – Inability to eject a disc (due to a label or sticker

peeling off and jamming the eject mechanism).

– Inability to read audio data correctly (e.g.,

playback skipping, or no playback) due to heat shrinking of a sticker or label causing a disc to warp.

• Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this unit. Attempting to do so may damage the unit. Do not use such discs.

• You cannot play 8 cm (3

/4 in) CDs.

continue to next page t

• Before playing, clean the discs with a commercially available cleaning cloth. Wipe each disc from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray intended for analog discs.

Notes on CD-R/CD-RW discs

• Some CD-Rs/CD-RWs (depending on the equipment used for its recording or the condition of the disc) may not play on this unit.

• You cannot play a CD-R/a CD-RW that is not finalized.

• The unit is compatible with the ISO 9660 level 1/ level 2 format, Joliet/Romeo in the expansion format, and Multi Session.

• The maximum number of: – folders (albums): 150 (including root and empty

folders).

– files (tracks) and folders contained in a disc: 300

(if a folder/file names contain many characters, this number may become less than 300).

– displayable characters for a folder/file name is

32 (Joliet), or 64 (Romeo).

• When the disc is recorded in Multi Session, only the first track of the first session format is recognized and played (any other format is skipped). The priority of the format is CD-DA, ATRAC CD and MP3/WMA/AAC. – When the first track is a CD-DA, only CD-DA of

the first session is played.

– When the first track is not a CD-DA, an ATRAC

CD or MP3/WMA/AAC session is played. If the disc has no data in any of these formats, “NO MUSIC” is displayed.

Music discs encoded with copyright protection technologies

This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.

Note on DualDiscs

A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed.

Playback order of MP3/WMA/AAC files

MP3/WMA/AAC

Folder (album)

MP3/WMA/ AAC file (track)

About MP3 files

• MP3, which stands for MPEG-1 Audio Layer-3, is a music file compression format standard. It compresses audio CD data to approximately 1/10 of its original size.

• ID3 tag versions 1.0, 1.1, 2.2, 2.3 and 2.4 apply to MP3 only. ID3 tag is 15/30 characters (1.0 and

1.1), or 63/126 characters (2.2, 2.3 and 2.4).

• When naming an MP3 file, be sure to add the file extension “.mp3” to the file name.

• During playback or fast-forward/reverse of a VBR (variable bit rate) MP3 file, elapsed playing time may not display accurately.

About WMA files

• WMA, which stands for Windows Media Audio, is a music file compression format standard. It compresses audio CD data to approximately 1/22* of its original size.

• WMA tag is 63 characters.

• When naming a WMA file, be sure to add the file extension “.wma” to the file name.

• During playback or fast-forward/reverse of a VBR (variable bit rate) WMA file, elapsed playing time may not display accurately.

* only for 64 kbps

Note on WMA

Playback of the following WMA files is not supported. – lossless compression – copyright-protected

About AAC files

• AAC, which stands for Advanced Audio Coding, is a music file compression format standard. It compresses audio CD data to approximately 1/11* of its original size.

• AAC tag is 126 characters.

• When naming an AAC file, be sure to add the file extension “.m4a” to the file name.

• During playback or fast-forward/reverse of a VBR (variable bit rate) AAC file, elapsed playing time may not display accurately.

* only for 128 kbps

Note on AAC

Playback of a copyright-protected file is not supported.

Maintenance

Replacing the lithium battery of the card remote commander

Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.

+ side up

About ATRAC CD

ATRAC3plus format

ATRAC3, which stands for Adaptive Transform Acoustic Coding3, is audio compression technology. It compresses audio CD data to approximately 1/10 of its original size. ATRAC3plus, which is an extended format of ATRAC3, compresses the audio CD data to approximately 1/20 of its original size. The unit accepts both ATRAC3 and ATRAC3plus format.

ATRAC CD

ATRAC CD is recorded audio CD data which is compressed to ATRAC3 or ATRAC3plus format using authorized software, such as SonicStage 2.0 or later, or SonicStage Simple Burner.

• The maximum number of: – folders (groups): 255 – files (tracks): 999

• The characters for a folder/file name and text information written by SonicStage are displayed.

For details on ATRAC CD, see the SonicStage or SonicStage Simple Burner manual.

Note

Be sure to create the ATRAC CD using authorized software, such as SonicStage 2.0 or later, or SonicStage Simple Burner 1.0 or 1.1.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Notes on the lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.

• Wipe the battery with a dry cloth to assure a good contact.

• Be sure to observe the correct polarity when installing the battery.

• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire.

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Fuse (10A)

Specifications

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

23.2 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5% total harmonic distortion.

CEA2006 Standard Power Output: 17 Watts RMS × 4 at 4 Ohms < 1% THD+N SN Ratio: 82 dBA (reference: 1 Watt into 4 Ohms)

CD Player section

Signal-to-noise ratio: 120 dB Frequency response: 10 – 20,000 Hz Wow and flutter: Below measurable limit

Tuner section

CDX-HS70MW/HS70MS: FM

Tuning range:

87.5 – 108.0 MHz (at 50 kHz step)

87.5 – 107.9 MHz (at 200 kHz step)

FM tuning interval: 50 kHz/200 kHz switchable Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 10.7 MHz/450 kHz Usable sensitivity: 9 dBf Selectivity: 75 dB at 400 kHz Signal-to-noise ratio: 67 dB (stereo), 69 dB (mono) Harmonic distortion at 1 kHz: 0.5 % (stereo),

0.3 % (mono)

Separation: 35 dB at 1 kHz Frequency response: 30 – 15,000 Hz

Tuning range:

531 – 1,602 kHz (at 9 kHz step) 530 – 1,710 kHz (at 10 kHz step)

AM tuning interval: 9kHz/10kHz switchable Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 10.7 MHz/450 kHz Sensitivity: 30 µV

CDX-HR70MW/HR70MS: FM

Tuning range: 87.5 – 108.0 MHz Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 10.7 MHz/450 kHz Usable sensitivity: 9 dBf Selectivity: 75 dB at 400 kHz Signal-to-noise ratio: 67 dB (stereo), 69 dB (mono) Harmonic distortion at 1 kHz: 0.5 % (stereo),

0.3 % (mono)

Separation: 35 dB at 1 kHz Frequency response: 30 – 15,000 Hz

MW/LW

Tuning range:

MW: 531 – 1,602 kHz LW: 153 – 279 kHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 10.7 MHz/450 kHz Sensitivity: MW: 30 µV, LW: 40 µV

Power amplifier section

Outputs: Speaker outputs (sure seal connectors) Speaker impedance: 4 – 8 ohms Maximum power output: 52 W × 4 (at 4 ohms)

General

Outputs:

Audio outputs terminal (front, rear/sub switchable) Power antenna (aerial) relay control terminal Power amplifier control terminal

Inputs:

Telephone ATT control terminal Illumination control terminal BUS control input terminal BUS audio input terminal Remote controller input terminal Antenna (aerial) input terminal AUX input terminal

Tone controls:

Low: ±10 dB at 60 Hz (XPLOD) Mid: ±10 dB at 1 kHz (XPLOD) High: ±10 dB at 10 kHz (XPLOD)

Power requirements: 12 V DC boat battery

(negative ground (earth))

Dimensions: Approx. 197 × 89 × 187 mm

(7 7/8 × 3 5/8 × 7 3/8 in) (w/h/d)

Mounting dimensions: Approx. 181 × 52 × 144 mm

(7 1/4 × 2 1/8 × 5 3/4 in) (w/h/d)

Mass: Approx. 1.7 kg (3 lb 12 oz) Supplied accessories:

Card remote commander: RM-X151 Parts for installation and connections (1 set)

Optional accessories/equipment*:

Marine remote commander: RM-X55M Rotary commander: RM-X4S BUS cable (supplied with an RCA pin cord): RC-61 (1 m), RC-62 (2 m) CD changer (10 discs): CDX-757MX CD changer (6 discs): CDX-T70MX, CDX-T69 Source selector: XA-C40 AUX-IN selector: XA-300 Interface adaptor for iPod: XA-110IP

* Accessories/equipment other than the marine

remote commander RM-X55M are not waterproof. Do not subject them to water.

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

US and foreign patents licensed from Dolby Laboratories.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

Note

This unit cannot be connected to a digital preamplifier or an equalizer which is Sony BUS system compatible.

Design and specifications are subject to change without notice.

• Halogenated flame retardants are not used in the certain printed wiring boards.

• Halogenated flame retardants are not used in cabinets.

• Cushions made from paper.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

General

No power is being supplied to the unit.

• Check the connection. If everything is in order, check the fuse.

• If the unit is turned off and the display disappears, it cannot be operated with the remote commander.

t Turn on the unit.

The power antenna (aerial) does not extend.

The power antenna (aerial) does not have a relay box.

No sound.

• The volume is too low.

• The ATT function is activated, or the Telephone ATT function (when the interface cable of a telephone is connected to the ATT lead) is activated.

• The position of the fader control “FAD” is not set for a 2-speaker system.

• The CD changer is incompatible with the disc (MP3/ WMA/AAC/ATRAC CD).

t Play back with this unit.

No beep sound.

• The beep sound is canceled (page 12).

• An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

• The RESET button has been pressed.

t Store again into the memory.

• The power supply lead or battery has been disconnected.

• The power supply lead is not connected properly.

Stored stations and correct time are erased. The fuse has blown. Makes noise when the position of the ignition is switched.

The leads are not matched correctly with the boat’s accessory power connector.

The display disappears from/does not appear in the display window.

• The dimmer is set “DIM-ON” (page 13).

• The display disappears if you press and hold (OFF).

t Press and hold (OFF) on the unit until the

display appears.

The Auto Off function does not operate.

The unit is turned on. The Auto Off function activates after turning off the unit. t Turn off the unit.

Card remote commander operation is not possible.

Make sure the insulation film has been removed (page 5).

DSO does not function.

Depending on the boat’s interior or type of music, DSO may not have a desirable effect.

CD/MD playback

The disc cannot be loaded.

• Another disc is already loaded.

• The disc has been forcibly inserted upside down or in the wrong way.

The disc does not playback.

• Defective or dirty disc.

• The CD-Rs/CD-RWs are not for audio use (page 16).

• The disc format and file version are incompatible with this unit (For details, refer to page 4 and 16).

MP3/WMA/AAC files take longer to play back than others.

The following discs take a longer time to start playback. – a disc recorded with a complicated tree structure. – a disc recorded in Multi Session. – a disc to which data can be added.

The ATRAC CD cannot play.

• The disc is not created by authorized software, such as SonicStage or SonicStage Simple Burner.

• Tracks that are not included in the group cannot be played.

continue to next page t

The display items do not scroll.

• For discs with very many characters, those may not scroll.

• “A.SCRL” is set to “OFF”.

tSet “A.SCRL-ON” (page 13) or press (SCRL).

The sound skips.

• Installation is not correct.

tInstall the unit at an angle of less than 45° in a

sturdy part of the boat.

• Defective or dirty disc.

The operation buttons do not function. The disc will not eject.

Press the RESET button (page 5).

Radio reception

The stations cannot be received. The sound is hampered by noises.

• Connect a power antenna (aerial) control lead (blue) or accessory power supply lead (red) to the power supply lead of the boat’s antenna (aerial) booster (only when the boat has built-in antenna (aerial)).

• Check the connection of the boat antenna (aerial).

• The auto antenna (aerial) will not go up.

tCheck the connection of the power antenna

(aerial) control lead.

• Check the frequency.

• When the DSO mode is on, the sound is sometimes hampered by noises.

tSet the DSO mode to “OFF” (page 7).

Preset tuning is not possible.

• Store the correct frequency in the memory.

• The broadcast signal is too weak.

Automatic tuning is not possible.

• Setting of the local seek mode is not correct.

tTuning stops too frequently:

Set “LOCAL-ON” (page 13).

tTuning does not stop at a station:

Set “MONO-ON” (page 13).

• The broadcast signal is too weak.

tPerform manual tuning.

During FM reception, the “ST” indication flashes.

• Tune in the frequency accurately.

• The broadcast signal is too weak.

tSet “MONO-ON” (page 13).

An FM program broadcast in stereo is heard in monaural.

The unit is in monaural reception mode. t Set “MONO-OFF” (page 13).

RDS (CDX-HR70MW/HR70MS)

The SEEK starts after a few seconds of listening.

The station is non-TP or has weak signal. t Deactivate TA (page 10).

No traffic announcements.

• Activate TA (page 10).

• The station does not broadcast any traffic announcements despite being TP.

tTune in another station.

PTY displays “- - - - - - - -.”

• The current station is not an RDS station.

• RDS data has not been received.

• The station does not specify the program type.

Error displays/Messages

BLANK*

Tracks have not been recorded on the MD.* t Play an MD with recorded tracks.

ERROR*

FAILURE

FAILURE (Illuminates for about 1 second.)

(CDX-HS70MW/HS70MS only)

LOAD

L. SEEK +/–

NO AF (CDX-HR70MW/HR70MS only)

NO DISC

NO INFO

NO MAG

NO MUSIC

NO NAME

NO TP (CDX-HR70MW/HR70MS only)

• The disc is dirty or inserted upside down.*

t Clean or insert the disc correctly.

• A blank disc has been inserted.

• The disc cannot play due to a problem.

t Insert another disc.

The connection of speakers/amplifiers is incorrect. t See the installation guide manual of this model to

check the connection.

When the XM tuner is connected, storing an XM radio channel into a preset failed. t Be sure to receive the channel that you want to

store, then try it again.

The changer is loading the disc. t Wait until loading is complete.

The local seek mode is on during automatic tuning.

There is no alternative frequency for the current station. t Press (SEEK) –/+ while the program service name

is flashing. The unit starts searching for another frequency with the same PI (Program Identification) data (“PI SEEK” appears).

The disc is not inserted in the CD/MD changer. t Insert discs in the changer.

Text information is not written in the MP3/WMA/ AAC files or ATRAC CD.

The disc magazine is not inserted in the CD changer. t Insert the magazine in the changer.

The disc is not a music file. t Insert a music CD in this unit or MP3 playable

changer.

A disc/album/group/track name is not written in the track.

The unit will continue searching for available TP stations.

NOT READ

The disc information has not been read by the unit. tLoad the disc, then select it on the list.

NOTREADY

The lid of the MD changer is open or the MDs are not inserted properly. tClose the lid or insert the MDs properly.

OFFSET

There may be an internal malfunction. tCheck the connection. If the error indication

remains on in the display, consult your nearest Sony dealer.

READ

The unit is reading all track and group/album information on the disc. tWait until reading is complete and playback starts

automatically. Depending on the disc structure, it may take more than a minute.

RESET

The CD unit and CD/MD changer cannot be operated due to a problem. tPress the RESET button (page 5).

“ ” or “ ”

During reverse or fast-forward, you have reached the beginning or the end of the disc and you cannot go any further.

“ ”

The character cannot be displayed with the unit.

*1 If an error occurs during playback of a CD or MD,

the disc number of the CD or MD does not appear in the display.

*2 The disc number of the disc causing the error

appears in the display.

If these solutions do not help improve the situation, consult your nearest Sony dealer. If you take the unit to be repaired because of CD playback trouble, bring the disc that was used at the time the problem began.

En ce qui concerne l’installation et les connexions, consulter le manuel d’installation/raccordement fourni.

ATTENTION

L’utilisation d’instruments optiques avec ce produit augmente les risques pour les yeux.

Avertissement au cas où le contact de votre bateau ne dispose pas d’une position ACC

Veillez à régler la fonction Auto Off (page 13). L’appareil s’éteint complètement et automatiquement après le laps de temps défini une fois l’appareil mis hors tension afin d’éviter que la batterie ne se décharge. Si vous ne réglez pas la fonction Auto Off, maintenez la touche (OFF) enfoncée jusqu’à ce que l’affichage disparaisse à chaque fois que vous coupez le contact.

Cette étiquette est située sur la partie inférieure du châssis.

CDX-HS70MW/HS70MS uniquement

Le logo « SAT Radio Ready » indique que ce produit commande un module tuner

radio satellite (vendu séparément). Consultez votre détaillant agréé Sony le plus proche pour en savoir plus sur le fonctionnement du module tuner radio satellite. « SAT Radio », « SAT Radio Ready », les logos SAT Radio et SAT Radio Ready, ainsi que toutes les marques associées sont des marques de commerce de Sirius Satellite Radio Inc. et de XM Satellite Radio Inc.

SonicStage et son logo sont des marques de commerce de Sony Corporation. « ATRAC » et son logo sont des marques de commerce de Sony Corporation.

Microsoft, Windows Media et

le logo Windows sont des

marques de commerce ou des

marques déposées de Microsoft Corporation aux Etats-Unis et/ou dans d’autres pays.

Traitement des appareils électriques et électroniques en fin de vie (Applicable dans les pays de l’Union Européenne et aux autres pays européens disposant de systèmes de collecte sélective)

Ce symbole, apposé sur le produit ou sur son emballage, indique que ce produit ne doit pas être traité avec les déchets ménagers. Il doit être remis à un point de collecte approprié pour le recyclage des équipements électriques et électroniques. En s’assurant que ce produit est bien mis au rebut de manière appropriée, vous aiderez à prévenir les conséquences négatives potentielles pour l’environnement et la santé humaine. Le recyclage des matériaux aidera à préserver les ressources naturelles. Pour toute information supplémentaire au sujet du recyclage de ce produit, vous pouvez contacter votre municipalité, votre déchetterie ou le magasin où vous avez acheté le produit.

Accessoire compatible : Télécommande

Table des matières

Félicitations !. . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Préparation

Réinitialisation de l’appareil . . . . . . . . . . . . . . . 5

Préparation de la mini-télécommande. . . . . . . . 5

Réglage de l’horloge . . . . . . . . . . . . . . . . . . . . . 5

Insertion du disque dans l’appareil . . . . . . . . . . 5

Ejection du disque. . . . . . . . . . . . . . . . . . . . . 5

Emplacement des commandes et opérations de base

Appareil principal . . . . . . . . . . . . . . . . . . . . . 6

Mini-télécommande RM-X151. . . . . . . . . . . 8

Rubriques d’affichage. . . . . . . . . . . . . . . . . . 9

Lecture répétée et aléatoire. . . . . . . . . . . . . . 9

Radio

Mémorisation et réception des stations . . . . . . 10

Mémorisation automatique — BTM. . . . . . 10

Mémorisation manuelle . . . . . . . . . . . . . . . 10

Réception des stations mémorisées. . . . . . . 10

Syntonisation automatique . . . . . . . . . . . . . 10

Fonction RDS

(CDX-HR70MW/HR70MS) . . . . . . . . . . . . . . 10

Aperçu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Réglage de AF et TA . . . . . . . . . . . . . . . . . 11

Sélection de PTY . . . . . . . . . . . . . . . . . . . . 12

Réglage de CT . . . . . . . . . . . . . . . . . . . . . . 12

Autres fonctions

Modification des caractéristiques du son . . . . 12

Réglage des caractéristiques du son

— BAL/FAD/SUB. . . . . . . . . . . . . . . . . . . 12

Personnalisation de la courbe de l’égaliseur

— EQ3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Réglage des paramètres de configuration

— SET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Utilisation d’un appareil en option . . . . . . . . . 14

Changeur CD/MD . . . . . . . . . . . . . . . . . . . 14

Télécommande marine RM-X55M . . . . . . 15

Satellite de commande RM-X4S . . . . . . . . 15

Appareil audio auxiliaire . . . . . . . . . . . . . . 16

Informations complémentaires

Précautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Remarques sur les disques . . . . . . . . . . . . . 16

Ordre de lecture des fichiers

MP3/WMA/AAC . . . . . . . . . . . . . . . . . . . . 17

A propos des fichiers MP3. . . . . . . . . . . . . 17

A propos des fichiers WMA . . . . . . . . . . . 18

A propos des fichiers AAC . . . . . . . . . . . . 18

A propos de CD ATRAC . . . . . . . . . . . . . . 18

Entretien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Spécifications . . . . . . . . . . . . . . . . . . . . . . . . . 19

Dépannage . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Affichage des erreurs et messages . . . . . . . 21

Félicitations !

Nous vous remercions d’avoir fait l’acquisition de ce lecteur de disques compacts Sony. Vous pouvez profiter de la navigation grâce aux fonctions ci-dessous.

• Lecture de CD

Il est possible de lire des CD-DA (contenant également des informations CD TEXT*), des CD-R/CD-RW (fichiers MP3/WMA/AAC contenant également des multisessions (page 17)) et des CD ATRAC (formats ATRAC3 et ATRAC3plus (page 18)).

Type de disque

CD-DA

MP3

WMA

AAC

CD ATRAC

Symbole indiqué sur le

disque

• Réception radio

– Vous pouvez mémoriser jusqu’à 6 stations

pour chaque bande de fréquences.

CDX-HS70MW/HS70MS :

FM1, FM2, FM3, AM1 et AM2

CDX-HR70MW/HR70MS :

FM1, FM2, FM3, MW et LW

– BTM (mémorisation des meilleurs accords) :

l’appareil sélectionne les stations émettant des signaux forts et les mémorise.

• Services RDS

– Vous pouvez écouter une station FM

disposant du système RDS (système de radiocommunication de données) en Europe. (CDX-HR70MW/HR70MS)

• Réglage du son – EQ3 stage2 : vous pouvez choisir une des 7

courbes d’égaliseur prédéfinies.

– DSO (répartiteur dynamique du son) : crée

un champ sonore mieux réparti grâce à une synthèse de haut-parleurs virtuels, afin d’améliorer le son des haut-parleurs même si ceux-ci sont installés dans la partie inférieure des portières.

• Fonctionnement de l’appareil en option Vous pouvez aussi commander des changeurs CD/MD en option.

• Raccordement d’un appareil auxiliaire Une prise AUX IN située à l’arrière de l’appareil permet de raccorder un appareil audio externe.

* Un disque CD TEXT est un CD-DA contenant des

informations, telles que le nom du disque, le nom de l’artiste et le nom des plages.

A propos de la résistance à l’eau

Cet appareil est conçu pour être utilisé en milieu marin. Pour le protéger contre les diverses projections d’eau, les vagues, la pluie, l’humidité, les rayons ultraviolets, etc., l’appareil a fait l’objet des tests suivants afin de garantir sa fiabilité ainsi que son bon fonctionnement (façade uniquement) :

• Façade étanche - certifiée IPx5

• Résistance au brouillard salin - testée conformément à la norme ASTM B117

• Carte de circuit enrobée conforme

• Résistance aux UV - testée conformément à la norme ASTM G154

Remarques

• Fermez bien la façade pour garantir une étanchéité optimale, sauf lorsque vous insérez ou éjectez un disque.

• Ne laissez pas de liquide entrer en contact avec l’appareil, à l’exception de la façade.

• N’utilisez pas cet appareil dans les endroits suivants : – les lieux où l’appareil peut être soumis à une

pression d’eau élevée, dans une source chaude ou dans une baignoire, etc. ;

– sous l’eau.

Préparation

Réinitialisation de l’appareil

Avant la première mise en service de l’appareil, après avoir remplacé la batterie du bateau ou modifié les raccordements, vous devez réinitialiser l’appareil. Ouvrez la façade et appuyez sur la touche RESET avec un objet pointu, comme un stylo à bille.

5 Appuyez sur (SELECT).

Le réglage est terminé et l’horloge démarre.

Pour afficher l’horloge, appuyez sur (DSPL). Appuyez de nouveau sur (DSPL) pour revenir à l’écran précédent.

Avec la mini-télécommande

A l’étape 4, appuyez sur M ou m pour régler l’heure et les minutes.

Conseil

Vous pouvez régler l’horloge automatiquement au moyen de la fonction RDS (page 12). (CDX-HR70MW/ HR70MS uniquement)

Touche RESET

Remarque

Une pression sur la touche RESET remet l’heure à zéro et efface certaines informations mémorisées.

Préparation de la minitélécommande

Retirez la feuille isolante avant d’utiliser la minitélécommande pour la première fois.

Réglage de l’horloge

CDX-HS70MW/HS70MS :

Cycle de 12 heures

CDX-HR70MW/HR70MS :

Cycle de 24 heures

1 Appuyez sur la touche (SEL ECT) et

maintenez-la enfoncée.

La fenêtre de réglage s’affiche.

2 Appuyez plusieurs fois sur (SELECT)

jusqu’à ce que « CLOCK-ADJ » apparaisse.

3 Appuyez sur (SEEK) +.

L’indication de l’heure clignote.

4 Tournez la molette de réglage du

volume pour régler les heures et les minutes.

Pour déplacer l’indication numérique, appuyez sur (DSPL).

Insertion du disque dans l’appareil

1 Faites glisser le commutateur OPEN

dans le sens de la flèche.

2 Ouvrez la façade. 3 Insérez le disque (côté imprimé vers le

haut).

4 Fermez la façade.

La lecture commence automatiquement.

Remarques

• Ne posez rien sur la face interne de la façade.

• Fermez la façade en cours d’utilisation.

Ejection du disque

1 Faites glisser le commutateur OPEN,

puis ouvrez la façade.

2 Appuyez sur Z.

Le disque est éjecté.

3 Fermez la façade.

Emplacement des commandes et opérations de base

Appareil principal

OFF

Façade ouverte

RESET

GP/ALBM

REP SHUF

SOURCE

PAUSE

CDX-HS70MW CDX-HS70MS CDX-HR70MW CDX-HR70MS

DSPL

MODE

Pour plus de détails, reportez-vous aux numéros de pages indiqués entre parenthèses. Les touches correspondantes sur la mini-télécommande commandent les mêmes fonctions que celles de l’appareil.

A Touche DSO 4

Permet de sélectionner le mode DSO (1, 2, 3 ou OFF). Plus la valeur est élevée, plus l’effet est prononcé.

B Touche OFF

Permet de mettre l’appareil hors tension ; d’arrêter la source.

C Touche SCRL (défilement)

(CDX-HS70MW/HS70MS) 9

Permet de faire défiler les rubriques d’affichage.

Touche AF (fréquences alternatives)/ TA (messages de radioguidage) (CDX-HR70MW/HR70MS) 11

Permet de régler AF et TA en RDS.

D Molette de réglage du volume 12

Permet de régler le niveau du volume.

E Touches numériques

CD/MD* (1)/(2) : GP*

/ALBM*3 –/+

Permettent de sauter des albums (appuyez) ; de sauter plusieurs albums de suite (appuyez sur la touche et maintenez-la enfoncée).*

(3) : REP 9, 15 (4) : SHUF 9, 15 (6) : PAU SE *

Permet d’interrompre la lecture. Appuyez de nouveau sur cette touche

pour annuler. Radio : Permettent de recevoir les stations enregistrées (appuyez) ; de mémoriser des stations (appuyez sur la touche et maintenezla enfoncée).

F Commutateur OPEN 5 G Fenêtre d’affichage H Touche DSPL (affichage) 9, 10

Permet de changer les rubriques d’affichage.

I Touche EQ3 (égaliseur) 12

Permet de sélectionner un type d’égaliseur (XPLOD, VOCAL, EDGE, CRUISE, SPACE, GRAVITY, CUSTOM ou OFF).

J Récepteur de la mini-télécommande

K Touche BTM/CAT*

(CDX-HS70MW/

HS70MS) 10

Permet de lancer la fonction BTM (appuyez sur la touche et maintenez-la enfoncée).

Touche PTY (type d’émission) (CDX-HR70MW/HR70MS) 12

Permet de sélectionner PTY en mode RDS.

L Touches SEEK –/+

CD : Permettent de sauter des plages (appuyez) ; de sauter des plages en continu (appuyez, puis appuyez de nouveau sur la touche dans un délai d’environ 1 seconde et maintenez-la enfoncée) ; d’avancer ou de reculer rapidement dans une plage (appuyez sur la touche et maintenez-la enfoncée). Radio : Permettent de syntoniser automatiquement des stations (appuyez) ; de rechercher manuellement une station (appuyez sur la touche et maintenez-la enfoncée).

M Touche SELECT

Permet de régler des paramètres de configuration.

N Touche SOURCE

Permet de mettre l’appareil sous tension ; de changer de source (Radio/CD/MD*

O Commutateur de sélection des

fréquences (CDX-HS70MW/HS70MS)

(situé sur la partie inférieure de l’appareil) Reportez-vous à la section « Commutateur

de sélection des fréquences » du manuel d’installation/de raccordements fourni.

P Touche MODE 10, 14

Permet de sélectionner la bande radio ou l’appareil*

Q Touche RESET 5 R Fente d’insertion des disques 5

Permet d’insérer le disque.

S Touche Z (éjecter) 5

Permet d’éjecter le disque.

suite à la page suivante t

/AUX).

Mini-télécommande RM-X151

Les touches suivantes de la mini-télécommande ont également des touches/fonctions différentes de celles de l’appareil. Retirez la feuille isolante avant l’utilisation (page 5).

w; Touches < (.)/, (>)

Permettent de commander le lecteur CD/la radio, identiques à la commande (SEEK) –/+ de l’appareil.

wa Touche VOL (volume) +/–

Permet de régler le niveau du volume.

ws Touche ATT (atténuation du son)

Permet d’atténuer le son. Appuyez de nouveau sur cette touche pour annuler.

wd Touches M (+)/m (–)

Permettent de commander le lecteur CD, identiques à la touche (GP/ALBM) –/+ de l’appareil.

wf Touche SCRL (défilement) 9

Permet de faire défiler les rubriques d’affichage.

wg Touches numériques

Permettent de recevoir les stations enregistrées (appuyez) ; de mémoriser des stations (appuyez sur la touche et maintenezla enfoncée).

*1 Lorsqu’un changeur MD est raccordé. *2 Lors de la lecture d’un CD ATRAC. *3 Lors de la lecture d’un fichier MP3/WMA/AAC. *4 Lorsque le changeur est raccordé, le

fonctionnement est différent, reportez-vous à la page 14.

*5 Lors de la lecture sur cet appareil. *6 Lors du raccordement du récepteur SAT. *7 Lors du raccordement d’un changeur CD/MD.

Remarque

Si vous mettez l’appareil hors tension et que l’affichage est désactivé, il ne peut plus être utilisé avec la mini-télécommande sauf si vous appuyez sur la touche (SOURCE) de l’appareil ou si vous insérez un disque dans le lecteur pour l’activer.

Conseil

Pour obtenir des informations détaillées sur la façon de remplacer la pile, reportez-vous à la section « Remplacement de la pile au lithium de la minitélécommande » à la page 18.

Pour obtenir des informations détaillées sur la sélection d’un à un changeur CD/MD, reportezvous à la page 14.

Rubriques d’affichage

A Source B Numéro de plage/temps de lecture écoulé,

nom du disque/artiste, numéro de l’album/ groupe*, nom de l’album/groupe, nom des plages, informations textuelles, horloge

C Indication ATRAC/WMA/MP3/AAC

* Le numéro d’album/de groupe s’affiche uniquement

lorsque vous changez d’album/de groupe.

Pour changer de rubrique d’affichage B, appuyez sur (DSPL) ; pour faire défiler les rubriques d’affichage B, appuyez sur (SCRL) ou réglez l’appareil sur « A.SCRL-ON » (page 14).

Conseil

Les rubriques affichées diffèrent selon le type de disque, le format d’enregistrement et les réglages. Pour plus de détails sur le format MP3/WMA/AAC, voir la page 17 et voir la page 18 concernant le format CD AT RA C.

Lecture répétée et aléatoire

1 En cours de lecture, appuyez

plusieurs fois sur (3) (REP) ou (4) (SHUF) jusqu’à ce que le réglage souhaité apparaisse.

Sélectionnez Pour lire

TRACK une plage en boucle. ALBUM* GROUP*

SHUF ALBUM*

SHUF GROUP*

SHUF DISC un disque dans un ordre

*1 Lors de la lecture d’un fichier MP3/WMA/AAC. *2 Lors de la lecture d’un CD ATRAC.

Pour revenir au mode de lecture normal, sélectionnez « OFF » ou « SHUF OFF ».

un album en boucle. un groupe en boucle.

un album dans un ordre aléatoire.

un groupe dans un ordre aléatoire.

aléatoire.

Radio

Mémorisation et réception des stations

Réception des stations mémorisées

1 Sélectionnez la bande, puis appuyez

sur une touche numérique ((1) à (6)).

Attention

Pour syntoniser des stations pendant que vous naviguez, utilisez la fonction de mémorisation des meilleurs accords (BTM) afin d’éviter les accidents.

Mémorisation automatique — BTM

1 Appuyez plusieurs fois sur (SOURCE)

jusqu’à ce que l’indication « TUNER » apparaisse.

Pour changer de bande, appuyez plusieurs fois sur (MODE).

2 Appuyez sur la touche (SELECT) et

maintenez-la enfoncée.

La fenêtre de réglage s’affiche.

3 Appuyez plusieurs fois sur la touche

(SELECT) jusqu’à ce que « BTM » s’affiche.

4 Appuyez sur (SEEK) +.

L’appareil enregistre les stations sur les touches numériques dans l’ordre des fréquences. Un bip retentit lorsque le réglage est mémorisé.

Mémorisation à l’aide de la touche BTM

(CDX-HS70MW/HS70MS uniquement) Appuyez sur (BTM) et maintenez la touche

enfoncée jusqu’à ce que « BTM » clignote au lieu d’effectuer les étapes 2 à 4.

Syntonisation automatique

1 Sélectionnez la bande, puis appuyez

sur (SEEK) –/+ pour rechercher la station.

Le balayage s’interrompt lorsque l’appareil capte une station. Répétez cette procédure jusqu’à ce que vous captiez la station souhaitée.

Conseil

Si vous connaissez la fréquence de la station que vous souhaitez écouter, appuyez sur la touche (SEEK) –/+ et maintenez-la enfoncée pour localiser la fréquence approximativement, puis appuyez plusieurs fois sur (SEEK) –/+ pour régler la fréquence souhaitée avec précision (syntonisation manuelle).

Fonction RDS (CDX-HR70MW/ HR70MS)

Aperçu

Les stations FM disposant du système RDS (système de radiocommunication de données) transmettent des informations numériques inaudibles en même temps que le signal normal de leurs émissions radio.

Rubriques d’affichage

Mémorisation manuelle

1 Lorsque vous recevez la station que

vous souhaitez mémoriser, appuyez sur une touche numérique ((1) à (6)) et maintenez-la enfoncée jusqu’à ce que « MEM » apparaisse.

Le numéro de la touche apparaît dans la fenêtre d’affichage.

Remarque

Si vous essayez de mémoriser une autre station sur la même touche numérique, la station mémorisée précédemment est effacée.

Conseil

Lorsqu’une station RDS est mémorisée, le réglage AF/TA est également mémorisé (page 11). (CDX-HR70MW/HR70MS uniquement)

A Bande radio, fonctionnement B TA/ T P* C Fréquence*2 (nom du service de l’émission),

*1 L’indication « TA » clignote pendant les messages

*2 Lorsque vous captez la station RDS, « *» est

Pour modifier les rubriques d’affichage C, appuyez sur (DSPL).

numéro de présélection, horloge, données RDS

de radioguidage. L’indication « TP » s’allume lorsqu’une de ces stations est captée.

affiché à gauche de l’indication de la fréquence.

+ 102 hidden pages
