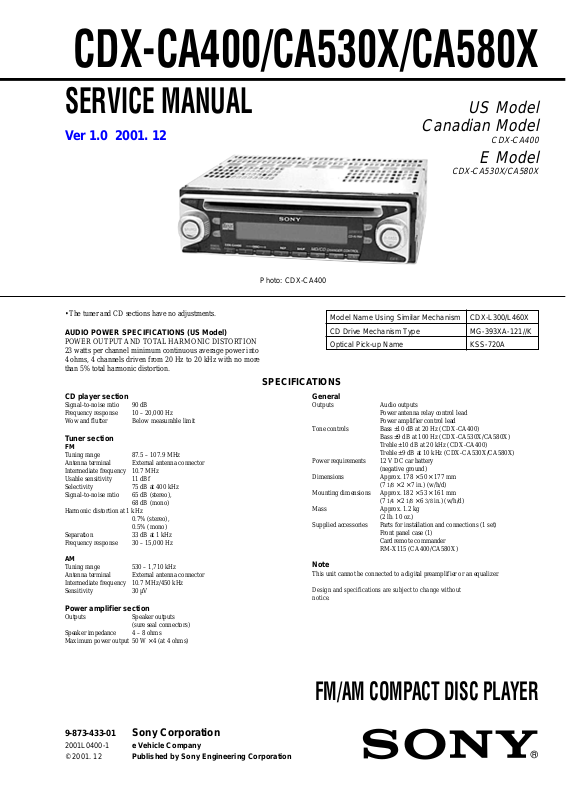

Page 1
CDX-CA400/CA530X/CA580X
SERVICE MANUAL
Ver 1.0 2001. 12
Photo: CDX-CA400
• The tuner and CD sections have no adjustments.
AUDIO POWER SPECIFICATIONS (US Model)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.
SPECIFICATIONS
CD player section
Signal-to-noise ratio 90 dB
Frequency response 10 – 20,000 Hz
Wow and flutter Below measurable limit
Tuner section
FM
Tuning range 87.5 – 107.9 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity 11 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 65 dB (stereo),
68 dB (mono)
Harmonic distortion at 1 kHz
0.7% (stereo),
0.5% (mono)
Separation 33 dB at 1 kHz
Frequency response 30 – 15,000 Hz
AM
Tuning range 530 – 1,710 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity 30 µV
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 – 8 ohms
Maximum power output 50 W × 4 (at 4 ohms)
US Model
Canadian Model
CDX-CA400
E Model
CDX-CA530X/CA580X
Model Name Using Similar Mechanism CDX-L300/L460X
CD Drive Mechanism Type MG-393XA-121//K
Optical Pick-up Name KSS-720A
General
Outputs Audio outputs
Power antenna relay control lead
Power amplifier control lead
Tone controls Bass ±10 dB at 20 Hz (CDX-CA400)
Bass ±9 dB at 100 Hz (CDX-CA530X/CA580X)
Treble ±10 dB at 20 kHz (CDX-CA400)
Treble ±9 dB at 10 kHz (CDX-CA530X/CA580X)
Power requirements 12 V DC car battery
(negative ground)
Dimensions Approx. 178 × 50 × 177 mm
(7 1/8 × 2 × 7 in.) (w/h/d)
Mounting dimensions Approx. 182 × 53 × 161 mm
(7 1/4 × 2 1/8 × 6 3/8 in.) (w/h/d)
Mass Approx. 1.2 kg
(2 lb. 10 oz.)
Supplied accessories Parts for installation and connections (1 set)
Front panel case (1)
Card remote commander
RM-X115 (CA400/CA580X)
Note
This unit cannot be connected to a digital preamplifier or an equalizer.
Design and specifications are subject to change without
notice.
9-873-433-01
2001L0400-1
© 2001. 12
FM/AM COMPACT DISC PLAYER
Sony Corporation
e Vehicle Company
Published by Sony Engineering Corporation
1
Page 2
CDX-CA400/CA530X/CA580X
k
SERVICE NOTES
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.
Notes on Chip Component Replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
If the optical pick-up block is defective, please replace the whole
optical pick-up block.
Never turn the semi-fixed resistor located at the side of optical
pick-up block.
optical pick-up bloc
semi-fixed resistor
TEST DISCS
This set can playback CD-R and CD-ROM discs. The following
test discs should be used to check the capability:
CD-R test disc TCD-R082LMT (Part No. J-2501-063-1)
CD-RW test disc TCD-W082L (Part No. J-2501-063-2)
Notes on CD-R/CD-RW discs
• Y ou can play CD-Rs (recordable CDs)/CD-RWs (rewritable CDs)
designed for audio use on this unit.
Look for these marks to distinguish CD-Rs/CD-RWs for audio
use.
These marks denote that a disc is not for audio use.
• Some CD-Rs/CD-RWs (depending on the equipment used for
its recording or the condition of the disc) may not play on this
unit.
• You cannot play a CD-R/CD-RW that is not finalized∗.
∗ A process necessary for a recorded CD-R/CD-RW disc to be
played on the audio CD player.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY P ARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
2
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS P AR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
Page 3
TABLE OF CONTENTS
CDX-CA400/CA530X/CA580X
1. GENERAL
Location of controls (CDX-CA400)........................................ 4
Location of controls (CDX-CA530X/CA580X) ..................... 4
Connections (CDX-CA400) .................................................... 5
Connections (CDX-CA530X/CA580X).................................. 6
2. DISASSEMBLY
2-1. Panel (1) Assy, Sub ............................................................. 7
2-2. CD Mechanism Block ......................................................... 8
2-3. Main Board ......................................................................... 8
2-4. Heat Sink ............................................................................. 9
2-5. Chassis (T) Sub Assy .......................................................... 9
2-6. Lever Section .................................................................... 10
2-7. Servo Board....................................................................... 10
2-8. Shaft Roller Assy .............................................................. 11
2-9. Floating Block Assy .......................................................... 11
2-10. Optical Pick-up Block ....................................................... 12
3. DIAGRAMS
3-1. IC Pin Description............................................................. 13

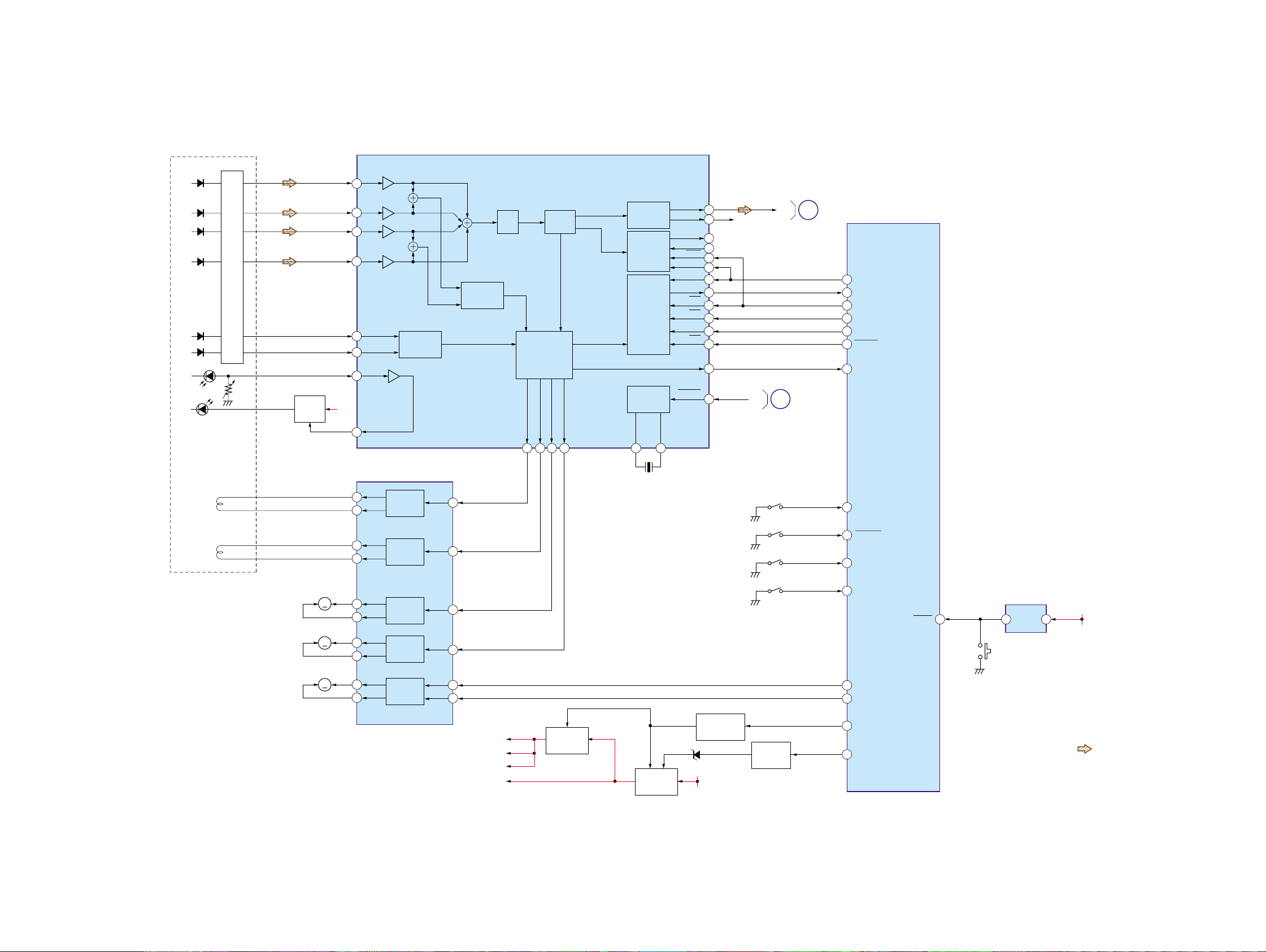

3-2. Block Diagram –CD Section–........................................... 15

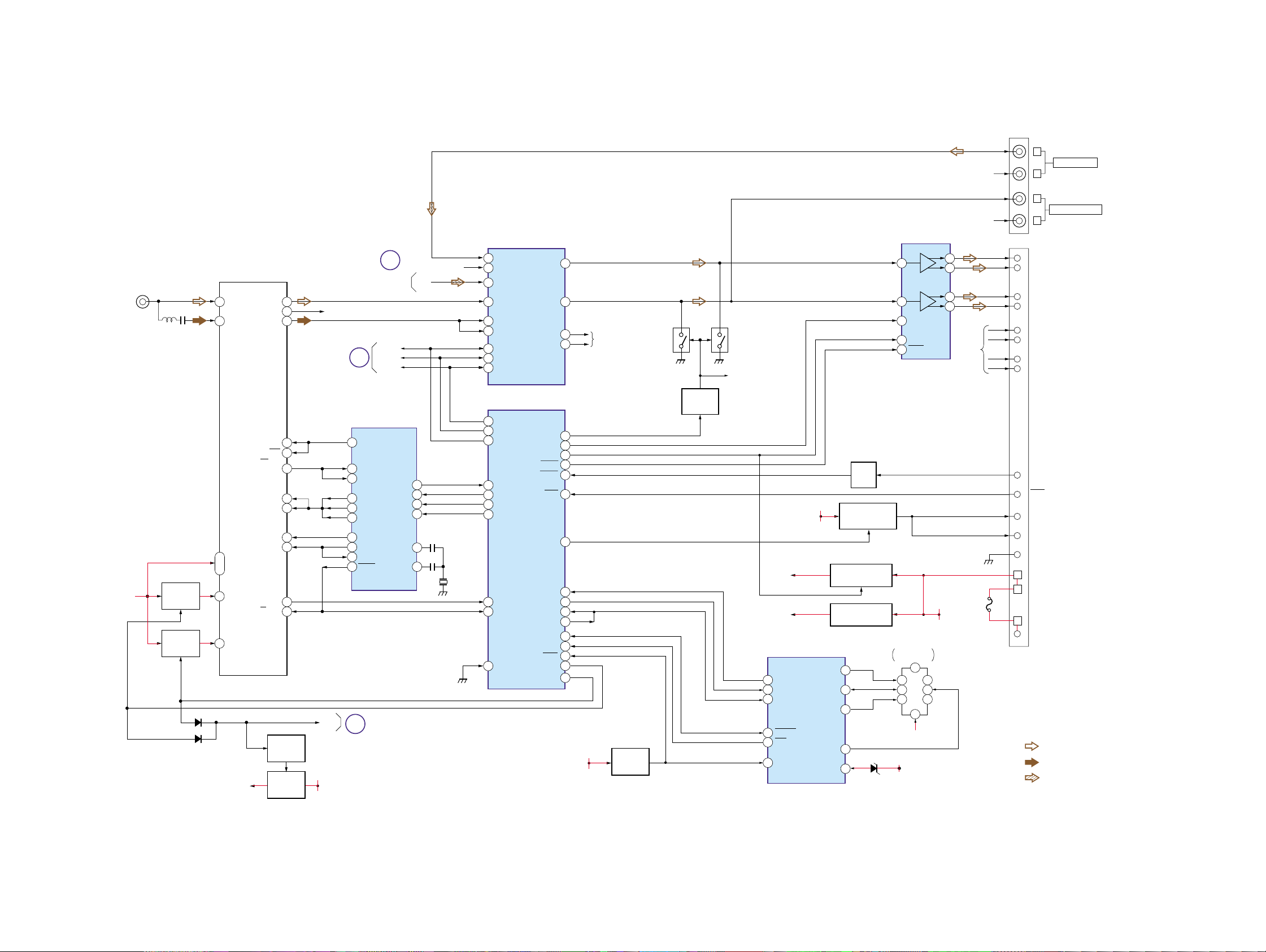

3-3. Block Diagram –Tuner Section–....................................... 16
3-4. Block Diagram –Display Section–.................................... 17
3-5. Circuit Boards Location .................................................... 17

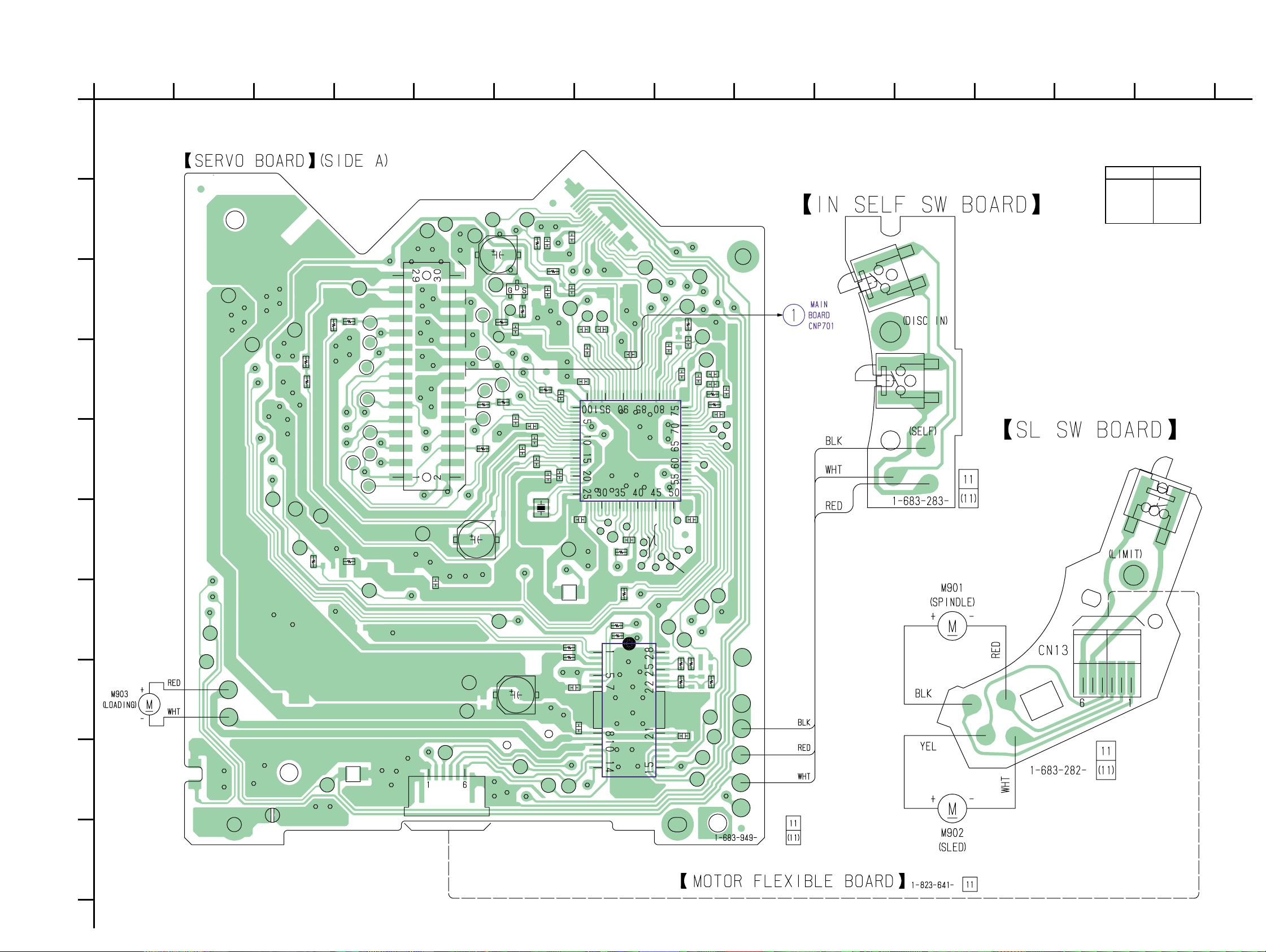

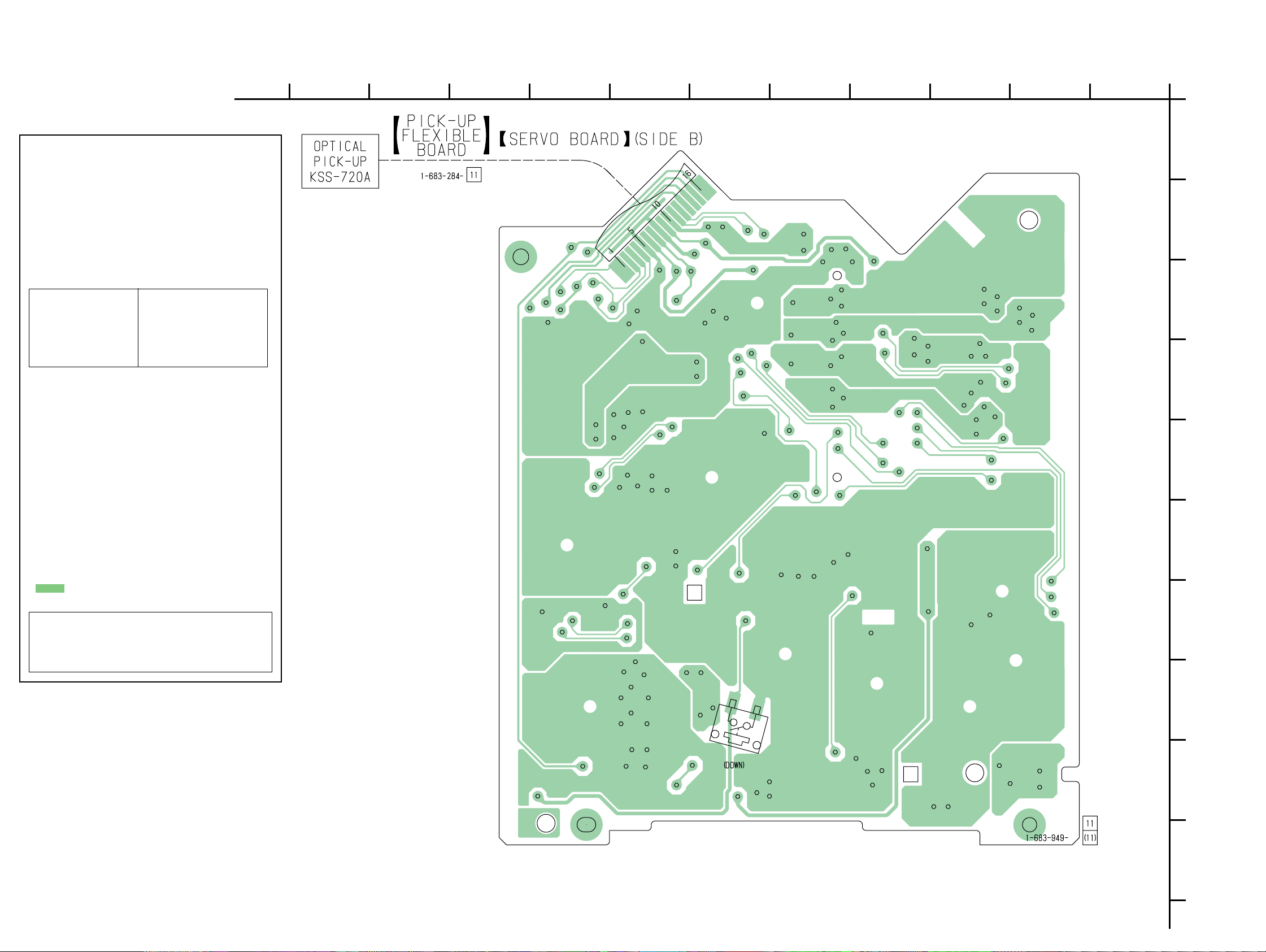

3-6. Printed Wiring Boards –CD Mechanism Section–............ 18

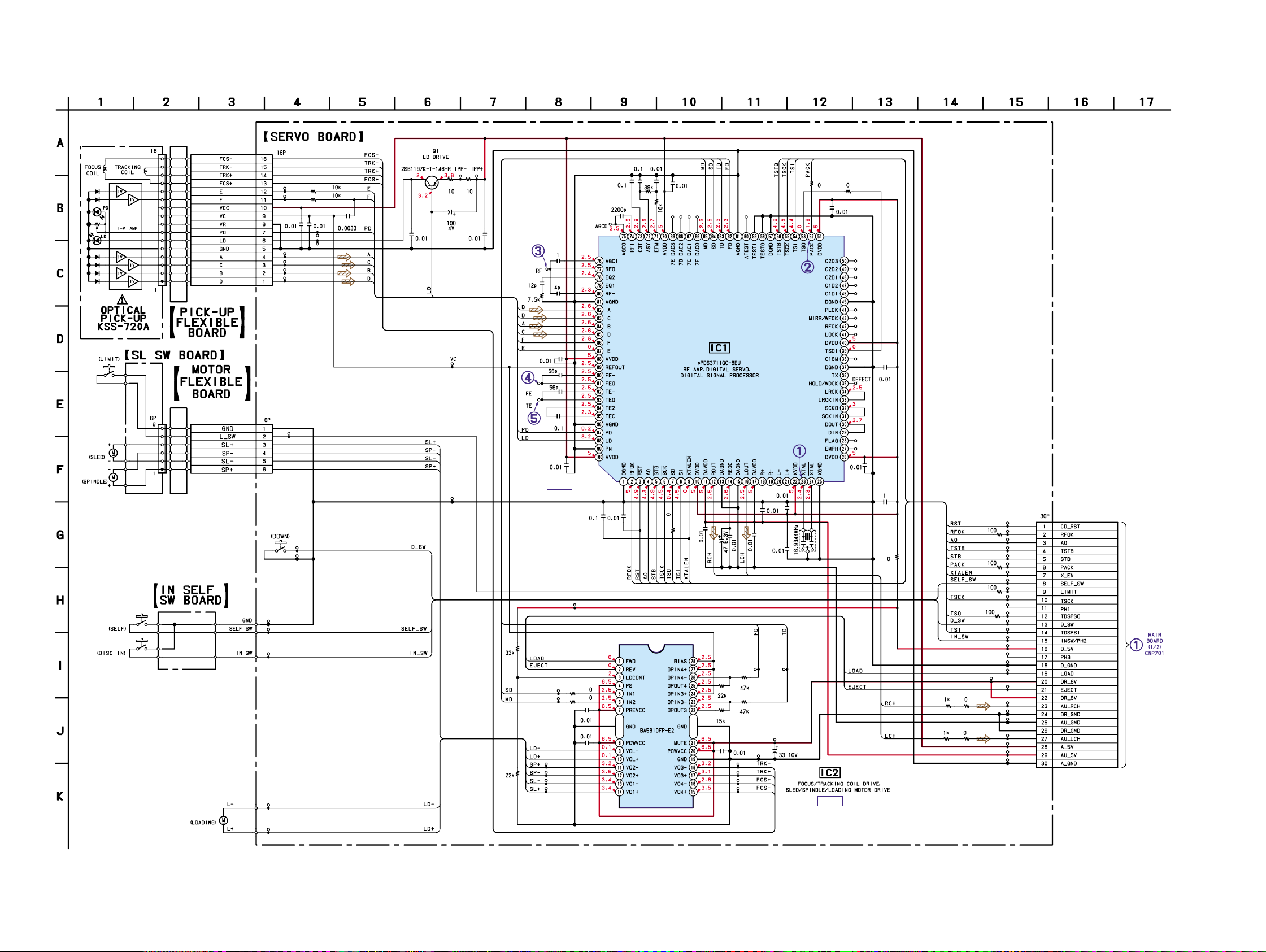

3-7. Schematic Diagram –CD Mechanism Section– ................ 20

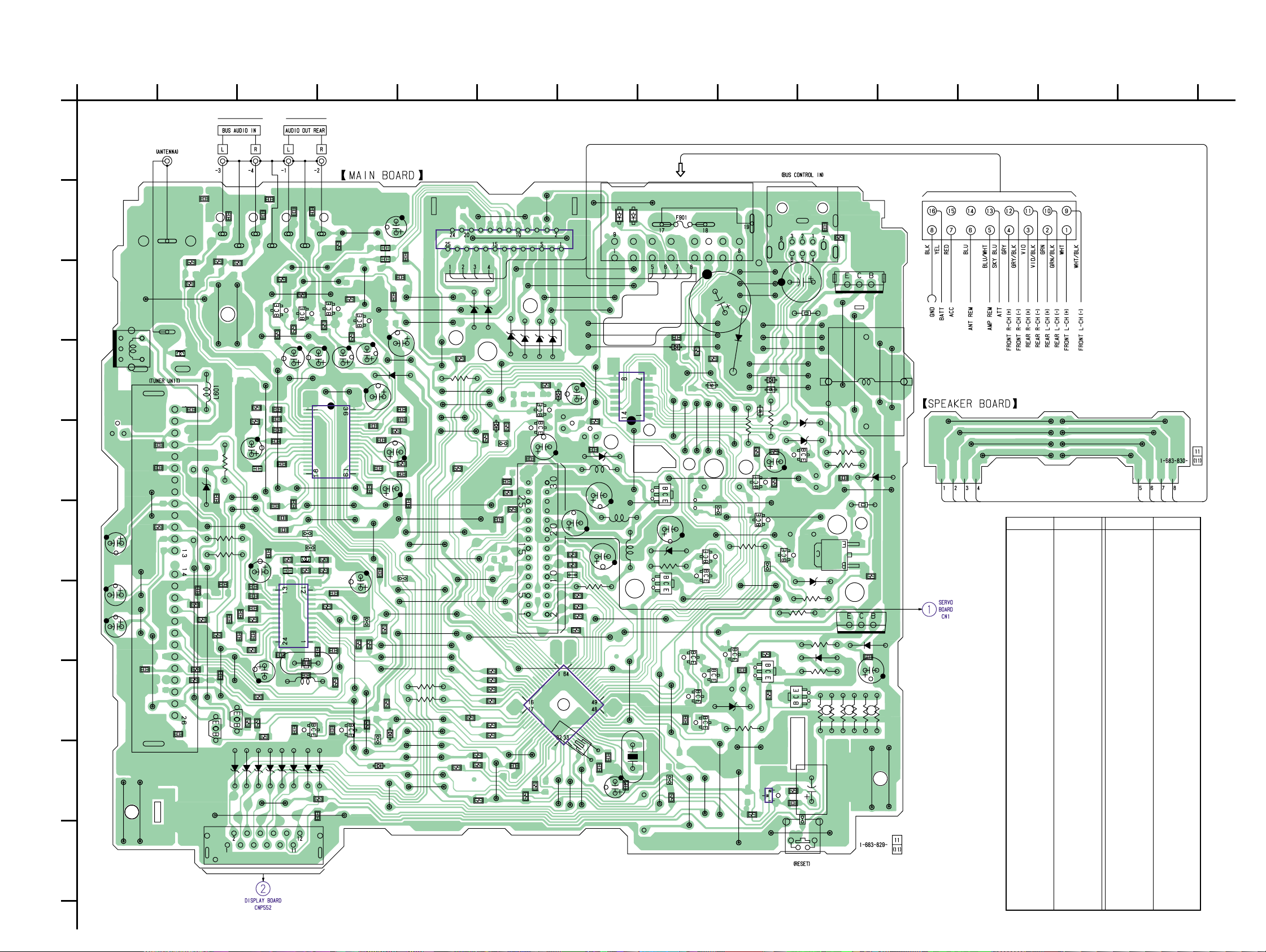

3-8. Printed Wiring Board –Main Section–.............................. 21

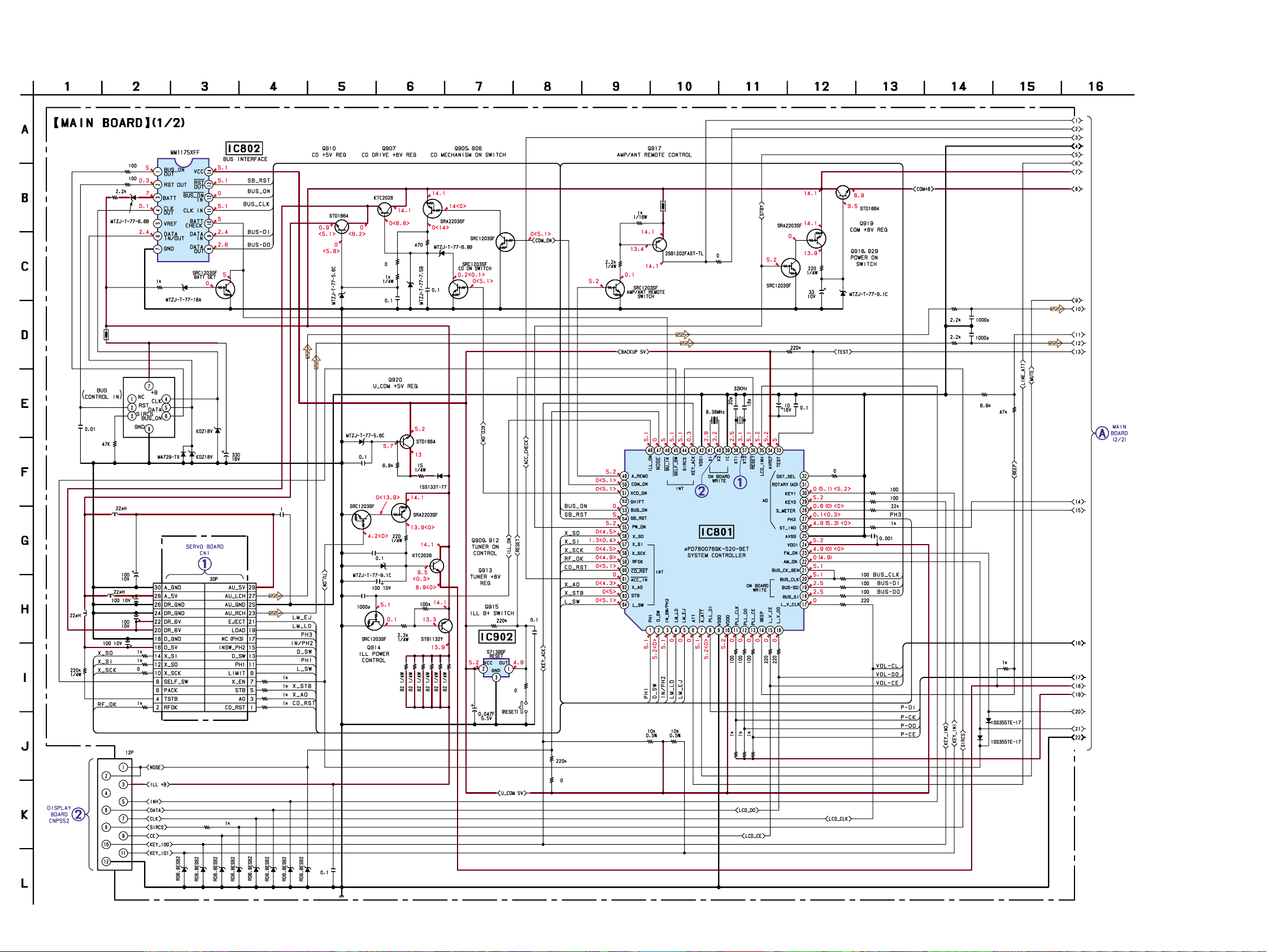

3-9. Schematic Diagram –Main Section (1/2)– ........................ 22

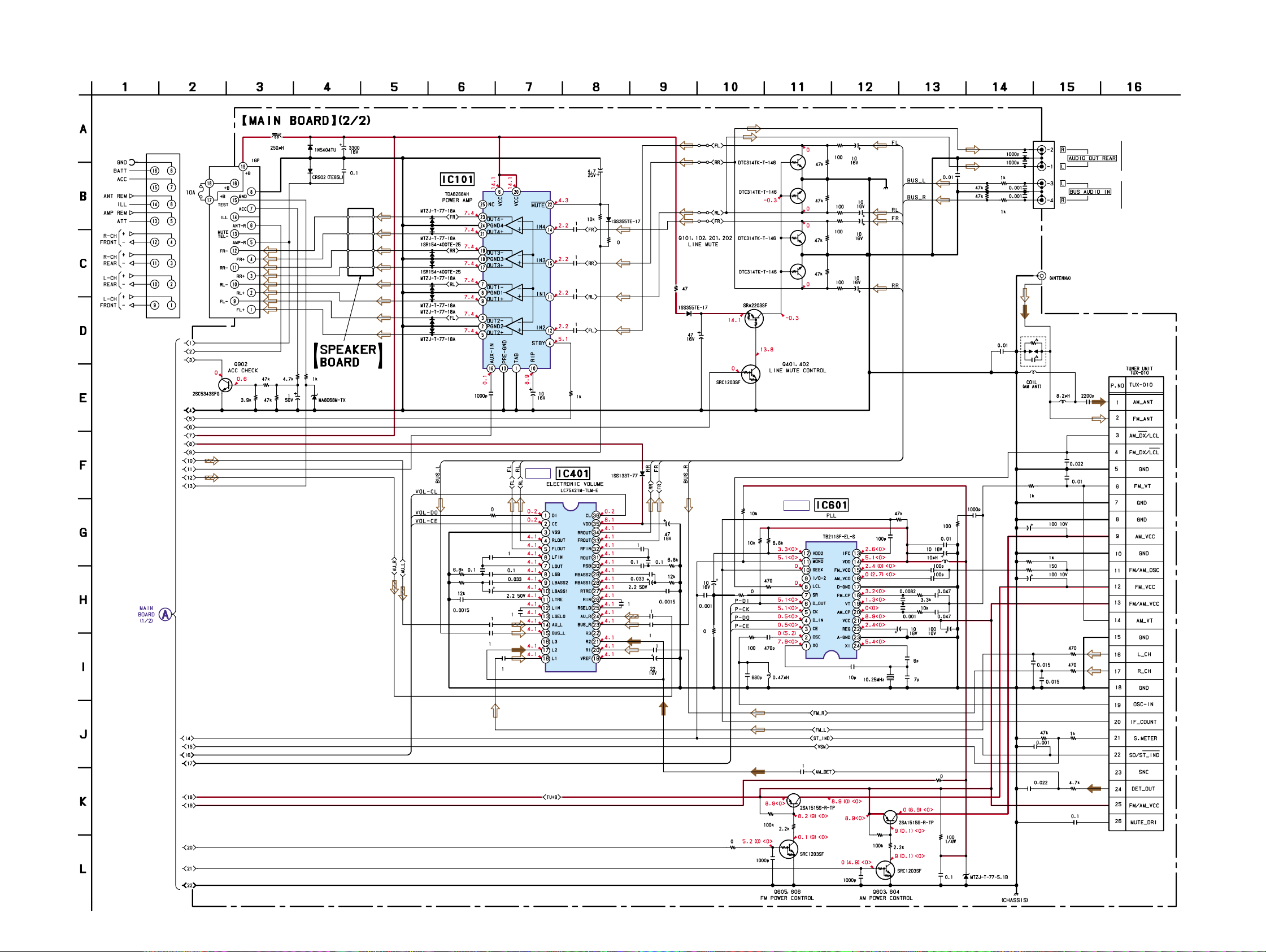

3-10. Schematic Diagram –Main Section (2/2)– ........................ 23

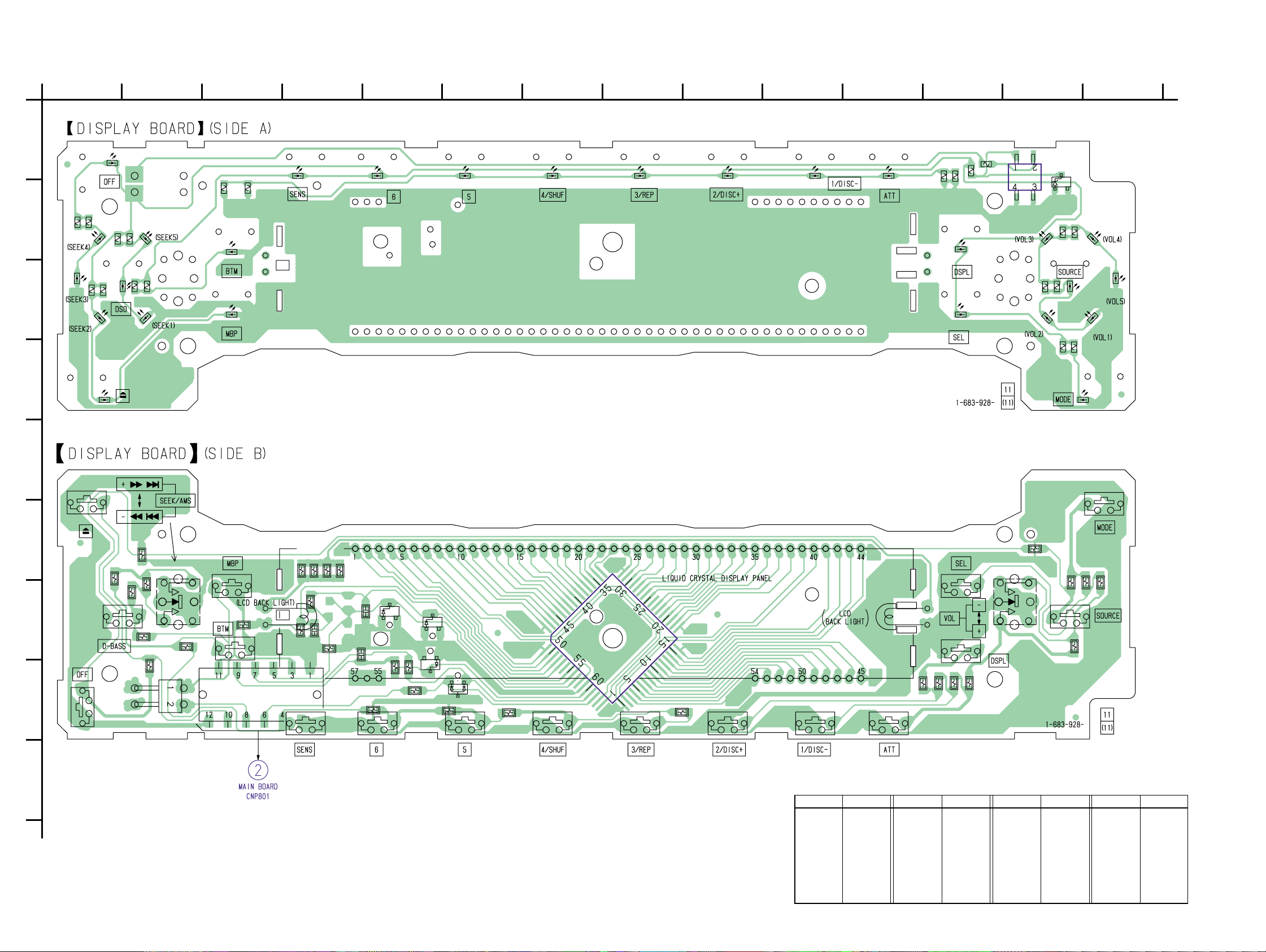

3-11. Printed Wiring Board –Display Section– .......................... 24

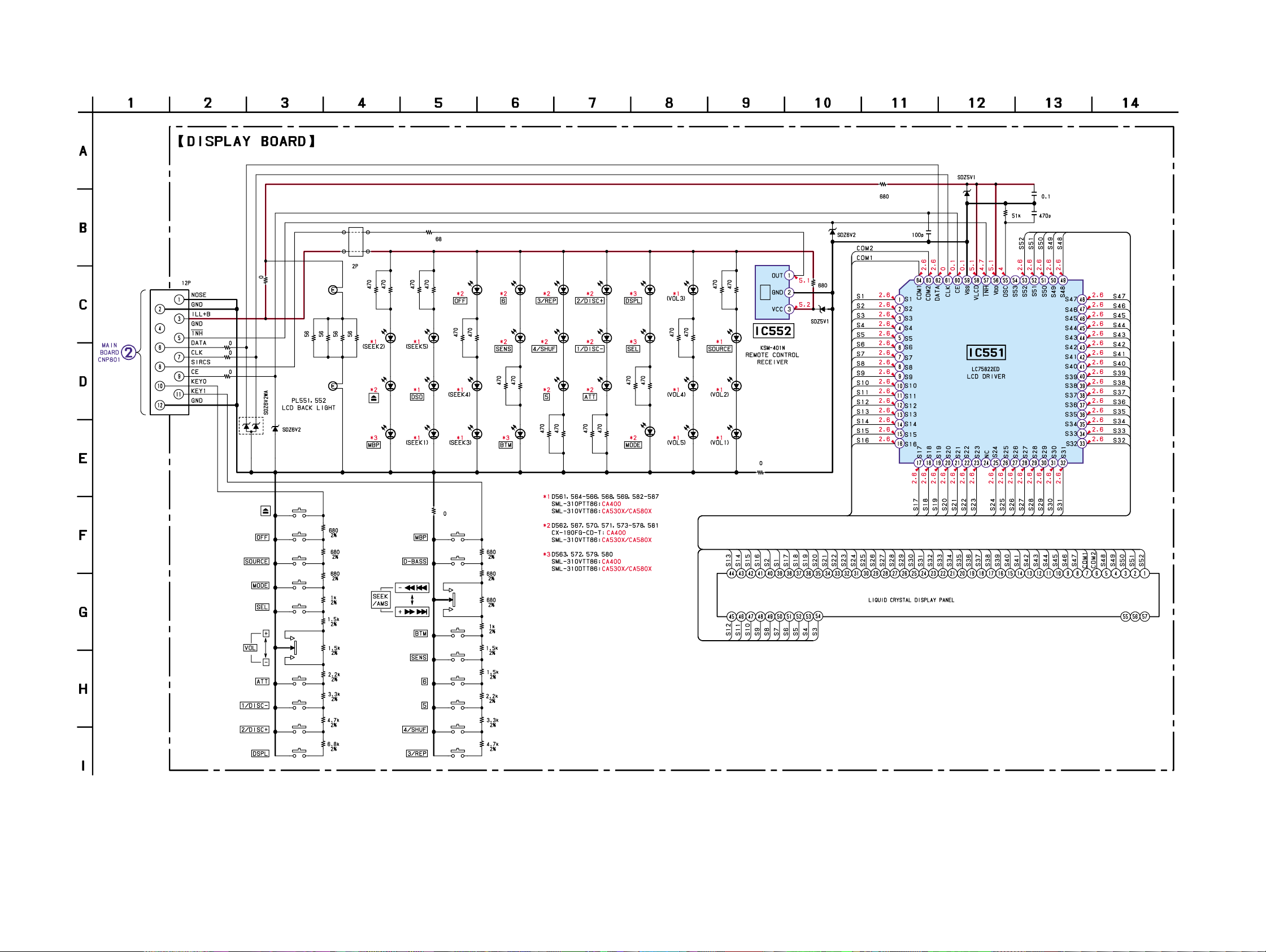

3-12. Schematic Diagram –Display Section–............................. 25
4. EXPLODED VIEWS
4-1. Chassis Section ................................................................. 28

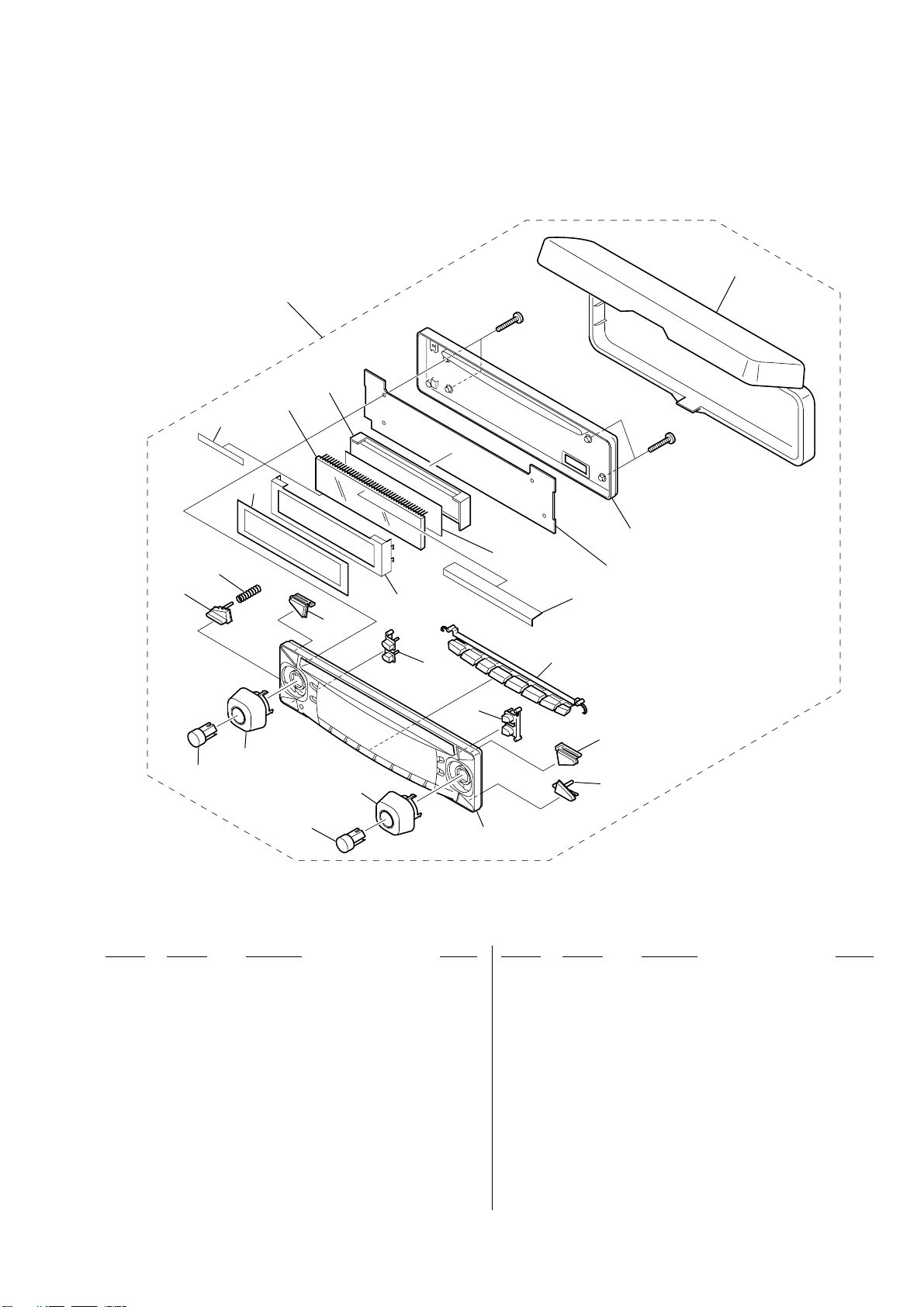

4-2. Front panel Section ........................................................... 29

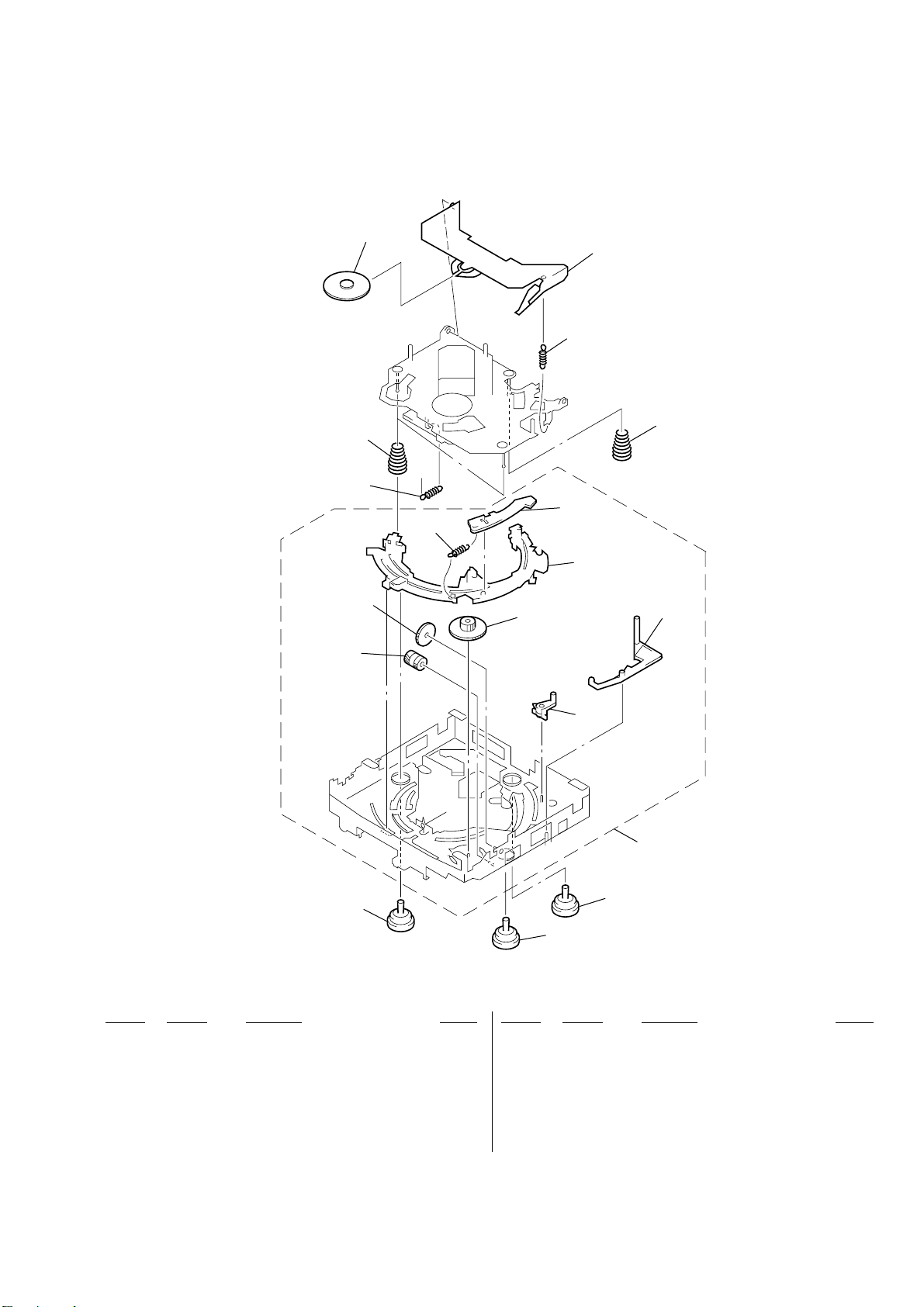

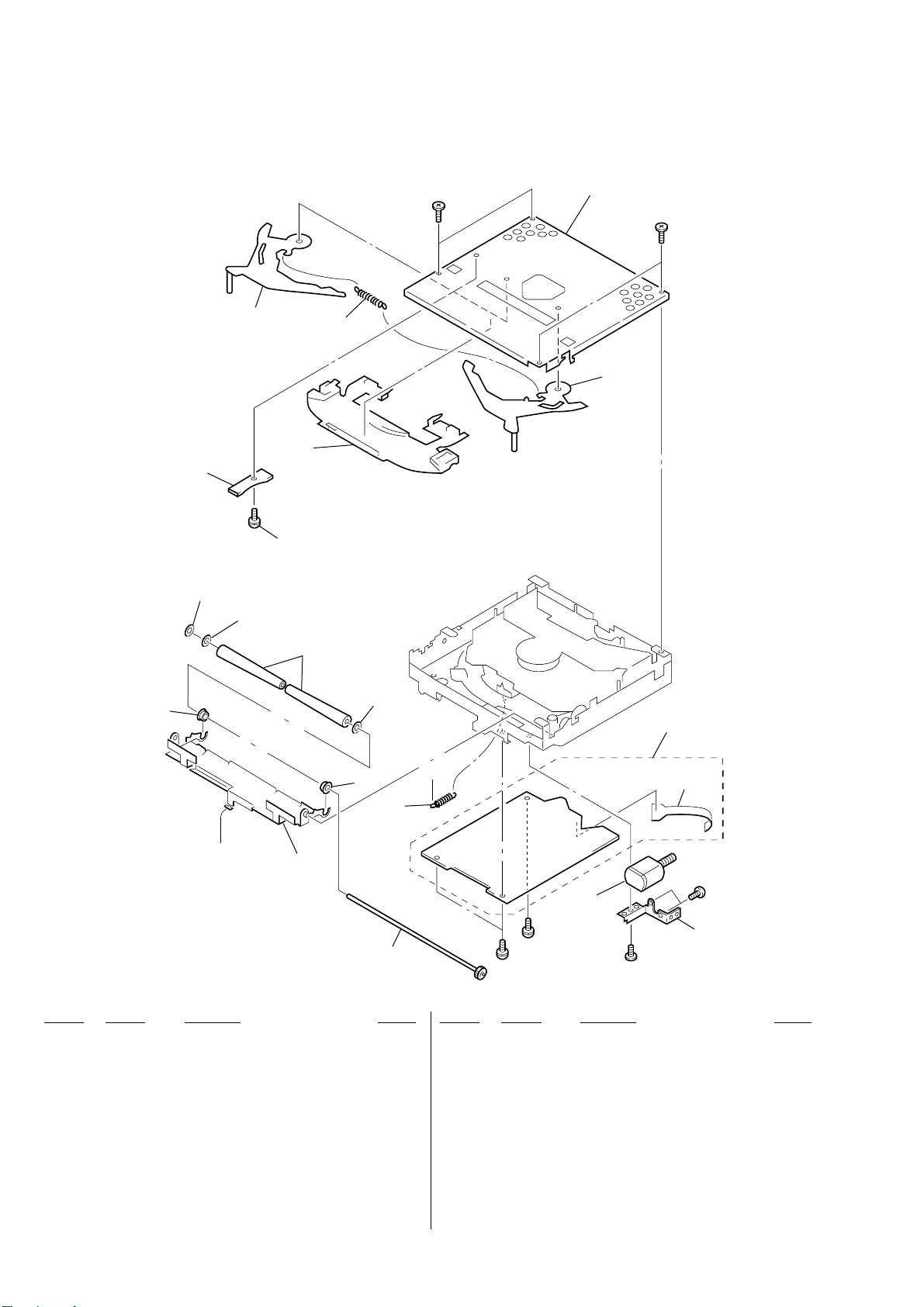

4-3. CD Mechanism Section (1) ............................................... 30
4-4. CD Mechanism Section (2) ............................................... 31
4-5. CD Mechanism Section (3) ............................................... 32
5. ELECTRICAL PARTS LIST ........................................ 33
EXTENSION CABLE AND SERVICE POSITION
When repairing or servicing this set, connect the jig (extension cable)
as shown below.
• Connect the MAIN board (CNP701) and the SERVO board (CN1)
with the extension cable (Part No. J-2502-062-1).
MAIN BOARD CNP701
SERVO BOARD CN1
3
Page 4
CDX-CA400/CA530X/CA580X
SECTION 1
GENERAL
(CDX-CA400) (CDX-CA530X/CA580X)
This section is extracted
from instruction manual.
(CDX-CA400)
(CDX-CA530X/CA580X)
4
Page 5
Connections (CDX-CA400)
CDX-CA400/CA530X/CA580X
5
Page 6
CDX-CA400/CA530X/CA580X
Connections (CDX-CA530X/CA580X)
6
Page 7
SECTION 2
DISASSEMBLY
Note : This set can be disassemble according to the following sequence.
SET
2-5. CHASSIS (T) SUB ASSY
2-1. PANEL (1) ASSY, SUB
(Page 7)
(Page 9)
CDX-CA400/CA530X/CA580X
2-2. CD MECHANISM BLOCK
(Page 8)
2-3. MAIN BOARD
(Page 8)
2-4. HEAT SINK
(Page 9)
2-6. LEVER SECTION
(Page 10)
2-8. SHAFT ROLLER ASSY
(Page 11)
2-9. FLOATING BLOCK ASSY
(Page 11)
2-10. OPTICAL PICK-UP BLOCK
(Page 12)
Note : Follow the disassembly procedure in the numerical order given.
2-1. PANEL (1) ASSY, SUB
2-7. SERVO BOARD
(Page 10)
1
PTT 2.6x6
2
PTT 2.6x6
3
claw
claws
5
panel (1) assy, sub
4
claws
7
Page 8
CDX-CA400/CA530X/CA580X
8
6
2-2. CD MECHANISM BLOCK
5
CD mechanism block
2
PTT 2.6x6
3
7
bracket (CD)
6
PTT 2.6x
2-3. MAIN BOARD
4
screws (+BTT)
5
MAIN board
3
screw (+BTT)
4
CNP701
2
1
PTT 2.6x6
PTT 2.6x
1
PTT 2.6x8
8
Page 9
8
2-4. HEAT SINK
CDX-CA400/CA530X/CA580X
6
heat sink
5
PTT 2.6x
4
PTT 2.6x8
3
PTT 2.6x12
2-5. CHASSIS (T) SUB ASSY
1
Unsolder the
lead wires.
2
P 2x3
1
PTT 2.6x8
2
PTT 2.6x8
3
P 2x3
4
chassis (T) sub assy
black
red
white
9
Page 10
CDX-CA400/CA530X/CA580X
k
2-6. LEVER SECTION
6
lever (R)
3
tension spring (LR)
7
lever (L)
5
guide (disc)
1
special screw
2
IN SELF SW board
2-7. SERVO BOARD
2
4
loading motor assy
4
claws
5
special screws
Removal the solders.
1
CN3
3
P 2x3
7
SERVO board
6
special screw
8
connector
10
optical pick-up bloc
Page 11
Fig. 1
1
tension spring (RA)
2
arm (roller)
3
retaing ring (RA)
4
shaft retainer
5
shaft roller assy
retaing ring (RA)
arm
arm
washer
washer
shaft retainer
shaft retainer
2-8. SHAFT ROLLER ASSY
• When installing, take note of the positions
arm (roller) and washers. (Fig. 1)
CDX-CA400/CA530X/CA580X
2-9. FLOATING BLOCK ASSY
7
5
direction of the arrow.
compression spring (FL)
1
tension spring (KF1)
Turn loading ring in the
6
floating block assy
8
compression spring (FL)
4
Fit lever (D) in the
direction of the arrow.
3
damper (T)
2
damper (T)
11
Page 12
CDX-CA400/CA530X/CA580X
2-10. OPTICAL PICK-UP BLOCK
1
P 2x3
2
sled motor assy
6
shaft (feed) assy
4
P 2x3
5
spring (feed), plate
3
optical pick-up block
12
Page 13
CDX-CA400/CA530X/CA580X
SECTION 3
DIAGRAMS
3-1. IC PIN DESCRIPTION
• IC801 µPD780076GK-520-9ET (SYSTEM CONTROLLER)
Pin No. Pin Name I/O Pin Description
1 PH1 I PH1 detection input (Not used in this set.)
2 D SW I Down switch detection input
3 IN SW/PH2 I Disc in switch detection input
4 LM LD O Loading motor drive output (Loading)
5 LM EJ O Loading motor drive output (Eject)
6 ATT O Line out mute control output
7 A ATT O Power amplifier mute control output
8 PLL DI I PLL IC data input
9 VSSO — Ground pin
10 VDDO — Power supply pin (+5 V)
11 PLL CLK O PLL IC clock output
12 PLL DO O PLL IC data output
13 PLL CE O PLL IC chip enable output
14 BEEP O BEEP output of key beep, caution alarm
15 L V CE O Electric volume, LCD chip enable output
16 L V DO O Electric volume, LCD data output
17 L V CLK O Electric volume, LCD clock output
18 BUS SI I BUS interface serial input
19 BUS SO O BUS interface serial output
20 BUS CLK I BUS interface serial clock input
21 BUS CK GEN O BUS interface serial clock output
22 AM ON O Tuner AM power supply control output
23 FM ON O Tuner FM power supply control output
24 VDD1 — Power supply pin (+5 V)
25 AVSS — Ground pin
26 ST IND I FM stereo detection input
27 PH3 I PH3 detection input (Not used in this set.)
28 S METER I S meter signal input
29 KEY0 I A/D key input 0
30 KEY1 I A/D key input 1
31 ROTARY (AD) I Not used in this set.
32 DST SEL I Destination select input (Connect to ground in this set.)
33 TEST I Force test mode input
34 AVREF — A/D converter power supply pin (+5 V)
35 LCD INH O INHIBIT control output of LCD
36 RESET I Reset input (“L”: reset detection)
37 XT2 O Sub clock output (32.768 kHz)
38 XT1 I Sub clock input (32.768 kHz)
39 IC — Connect to ground in this set.
40 X2 O Master clock output (8.38 MHz)
41 X1 I Master clock input (8.38 MHz)
42 VSS1 — Ground pin
43 KEY ACK I Key acknowledge detection input
44 SIRCS I Wireless remote control signal input
45 SELF SW I Self switch detection input
46 BU IN I Backup power supply detection input
47 NOSE I Front panel attachment detection input
48 ILL ON O Illumination power supply control output
49 A REMO O External amplifier remote control output
50 CDM ON O CD mechanism deck power supply control output
51 XCD ON O CD DSP IC 16 MHz X’tal on/off control output
13
Page 14
CDX-CA400/CA530X/CA580X
Pin No. Pin Name I/O Pin Description
52 SHIFT — Not used in this set.
53 BUS ON O Enable output of bus IC
54 SB RST O Reset output of bus IC
55 PW ON O System power supply control output
56 X SO O CD DSP IC serial data output
57 X SI I CD DSP IC serial data input
58 X SCK O CD DSP IC serial clock output
59 RFOK I CD servo IC RFOK signal input
60 CD RST O CD DSP IC reset control output
61 ACC IN I Accessory power supply detection input
62 X AO O
63 STB O CD servo IC data strobe signal output
64 L SW I CD sled limit switch detection input
CD servo IC command/parameter discrimination signal output
“L”: Command, “H”: Parameter
14
Page 15
3-2. BLOCK DIAGRAM — CD SECTION —
OPTICAL PICK-UP
KSS-720A
RF AMP,DIGITAL SERVO
DIGITAL SIGNAL PROCESSOR
IC1
CDX-CA400/CA530X/CA580X
PD
LD
A
C
B
D
E
F
FOCUS
COIL
I-V
CONV.
LD
DRIVE
Q1
B
84
D
85
A
82
C
83
E
87
F
86
PD
97
A5V
LD
98
FOCUS/TRACKING COIL DRIVE,
SLED/SPINDLE/LOADING MOTOR DRIVE
FCS-
15
FCS+
16
APC
IC2
FOCUS
COIL
DRIVE
TRACKING
ERROR
(Page 16)
TUNER
CDL
B
SECTION
A
TUNER
SECTION
SYSTEM CONTROL
56
X_SO
57
X_SI
58
X_SCK
63
STB
62
X A0
60
CD_RST
59
RFOK
IC801(1/3)
FORCUS
ERROR
LOUT
D/A
CONV
DSUB CODE
PROCESS
I/F
OSC
SERVO
CTL
EFM
DEMOD
RF
EQ
ROUT
PACK
TSTB
TSCK
TSI
SCK
STB
RST
RFOK
XTALEN
16
12
R-CH
52
56
55
54
SI
8
SO
7
6
5
AO
4
3
2
9
X EN
(Page 16)
FDTDSD
62 63 64 65
FD
26
MD
23 24
X1
16.9344MHz
SW1
(DOWN)
2
D_SW
TRACKING
COIL
M902
(SLED)
M901
(SPINDLE)
M903
(LOADING)
45
3
64
4
5
50
51
SELF_SW
IN_SW
L_SW
LM _LD
LM_ EJ
CDM ON
XCD_ON
RESET
IC902
36
1
S901
(RESET)
RESET
2
U_COM+5V
• Signal path
:CD
• R-ch is omitted due to
same as L-ch.
TRK+
17
TRK-
18
SL-
M
13
SL+
14
SP+
M
11
SP-
12
LD-
M
9
LD+
10
TRACKING
COIL
DRIVE
SLED
MOTOR
DRIVE
SPINDLE
MOTOR
DRIVE
LOADING
MOTOR
DRIVE
TD
23
SD
5
MD
6
LOAD
1
EJECT
2
A_5V
AU_5V
D_5V
DR_6V
CD+5V
REG
Q910,D910
CD DRIVE
+6V REG
Q907,D908
D909
SW2
(SELF)
SW3
(DISC IN)
SW4
(LIMIT)
CD MECHANISM
ON SWITCH
Q905,906
BATT
CD ON
SWITCH
Q921
15 15
Page 16
CDX-CA400/CA530X/CA580X
3-3. BLOCK DIAGRAM — TUNER SECTION —
CNJ601
(ANTENNA)
TU+8V
FM POWER
CONTROL
Q605,606
AM POWER
CONTROL
Q603,604
2 16
1
13
•
25
12
9
D931
D932
TUNER UNIT
TU601
FM_ANT L-CH
AM_ANT
FM/AM_VCC
FM_VCC
AM_VCC
TU+8V
R-CH
DET_OUT
AM_DX/LCL
FM_DX/LCL
FM/AM_OSC
FM_VT
AM_VT
OSC-IN
IF_COUNT
S_METER
SD/ST_IND
17
24
3
4
11
6
14
19
20
21
22
TUNER ON
CONTROL
Q909,912
TUNER +8V
REG
Q913,D913
(Page 15)
R-CH
DISPLAY
SECTION
(Page 17)
X EN
BATT
A
CD
SECTION
LCD CE
LCD DO
C
LCD CLK
PLL
IC601
8
LCL
15
FM_VCO
16
AM_VCO
18
FM_CP
19
VT
20
AM_CP
2
OSC
10
SEEK
13
IFC
11 24
MONO
B
D_OUT
D_IN
CK
CE
XO
XI
CD
SECTION
(Page 15)
PJ401
-3
L
BUS AUDIO IN
-4
R-CH
ELECTRONIC VOLUME
IC401
BUS L
X601
15
BUS R
23
AU-L
14
L1
18
L2
17
R2
21
CE
2
DI
1
CL
36
SYSTEM CONTROL
LV CLK
17
LV DO
16
LV CE
15
PLL_DI
8
PLL_DO
12
PLL_CLK
11
PLL_CE
13
S_METER
28
SD_IND
26
DST_SEL
32
R-CH
CDL
6
4
5
3
1
10.25MHz
IC801 (2/3)
A REMO
BUS CLK
BUS CK GEN
FL OUT
RL OUT
FR OUT
RR OUT
ATT
BEEP
PW ON
A_ATT
ACC IN
TEST
BUS SI
BUS SO
BUS ON
SB RST
BU IN
FM_ON
AM_ON
5
4
33
R-CH
34
6
14
55
7
61
33
49
18
19
20
21
53
54
46
23
22
BATT
BATT
DET
Q904,D907
LINE MUTE
Q102
LINE MUTE
CONTROL
Q401,402
LINE MUTE
Q101
R-CH
COM+8V
U_COM+5V
8
DATA OUT
9
DATA IN
CLK IN
11
12
BUS ON IN
13
RST OUT
BATT CHECK
10
BATT
BUS INTERFACE
IC802
BUS ON OUT
DATA IN/OUT
CLK OUT
RST OUT
ACC
CHECK
Q902
AMP/ANT
REMOTE CONTROL
Q911,917
COM+8V REG
Q918,919,929,D923
U_COM+5 V REG
Q920,D930,D999
1
6
4
2
3
BATT
D854
POWER AMP
IC101
12
11
AUX-IN
16
STBY
4
MUTE
22
CNJ801
BUS
CONTROL IN
8
6
5
4
7
BATT
BATT
BATT
3
2
1
R-CH
5
3
9
7
R-CH
F901
10A
R
-1
L
-2
R
CNP901
1
FL+
9
FL–
2
RL+
10
RL–
4
FR+
12
FR–
3
RR+
11
RR–
7
ACC
15
TEST
5
AMP REM
6
ANT REM
8
GND
19
17
18
+B (BATT)
16
• Signal path
:FM
:AM
:CD
AUDIO OUT REAR
• R-ch is omitted due to
same as L-ch.
1616
Page 17
CDX-CA400/CA530X/CA580X

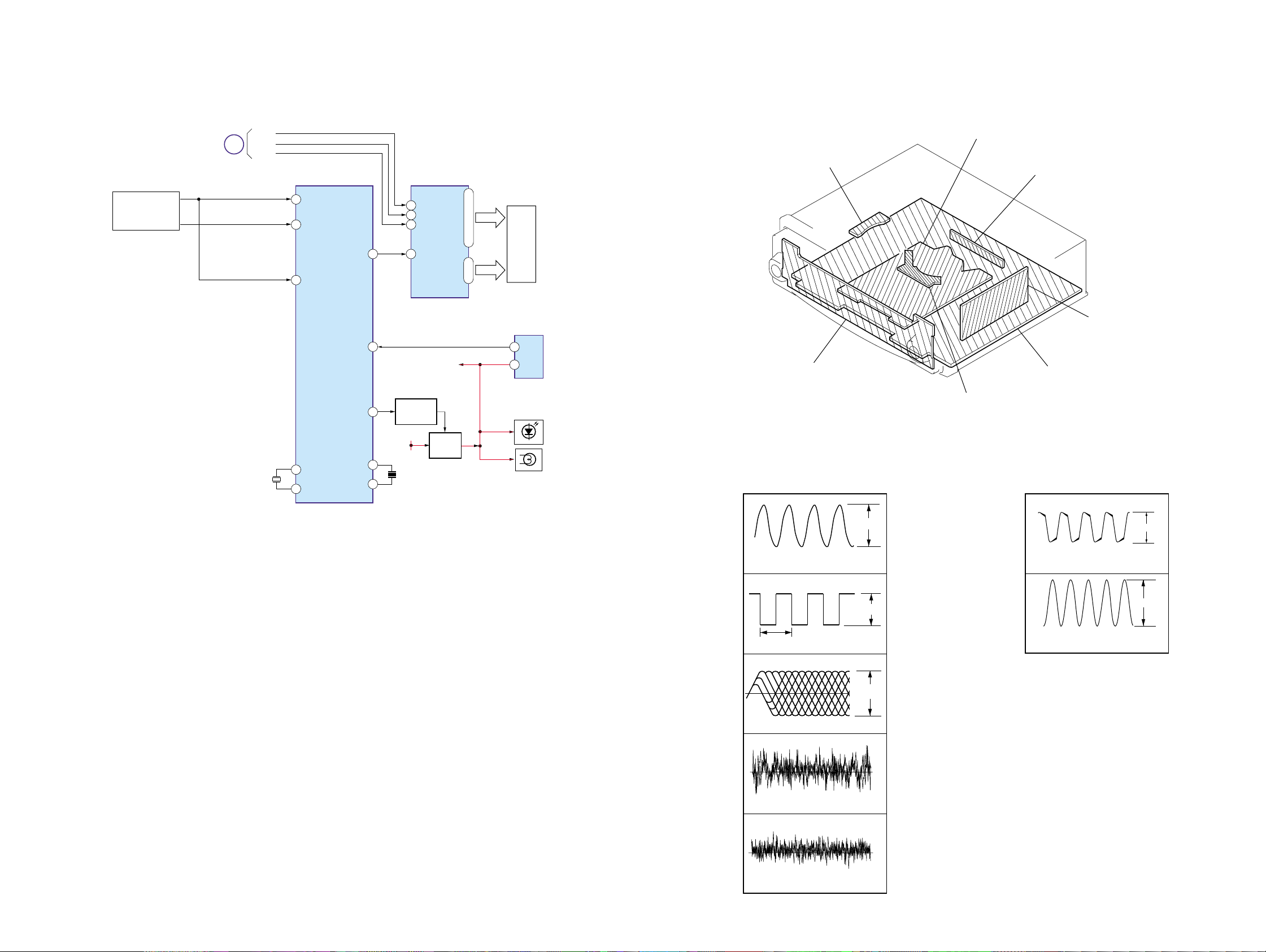

3-4. BLOCK DIAGRAM — DISPLAY SECTION —
C
KEY 0
KEY 1
LCD DO
LCD CLK
LCD CE
X802
32.768kHz
SYSTEM CONTROL
IC801 (3/3)
KEY 0
29
KEY 1
30
KEY ACK
43
XT2
37
XT1
38
LCD INH
SIRCS
ILL ON
KEY MATRIX
S501-519
TUNER
SECTION
(Page 16)
3-5. CIRCUIT BOARDS LOCATION
SERVO board
LCD DRIVE
IC551
1
SEG52
ILL B+
ILL B+
Q915
SEG1
COM1
COM2
|
23
|
•
25
|
53
64
•
•
63
LCD
LCD501
REMOTE CONTROL
RECEIVER
IC552
OUT
1
VCC
3
DISPLAY board
SL SW board
D561-587
PL551,552
KEY
()
ILLUMINATION
LCD BACK
()
LIGHT
• Waveforms
— Servo Board —
(MODE: CD PLAY)
DATA
DATA
62
CLK
CLK
61
CE
CE
60
35
44
48
X2
40
X1
41
57
ILL POWER
CONTROL
BATT
X801
8.38MHz
INH
Q914
SWITCH
1
2Vp-p
IN SELF SW board
SPEAKER board
tuner unit
(TU601)
MAIN board
— Main Board —
1
5Vp-p
2
3
4
5
16.9344MHz
IC1
IC1
IC1
IC1
IC1
(XTAL)
wd
3.2msec
(PACK)
ts
(RFO)
uj
Approx. 100mVp-p
(FEO)
oa
Approx. 100mVp-p
(TEO)
od
5Vp-p
1.2Vp-p
0V
0V
2
32.768kHz
IC801
8.38MHz
IC801
ej
r;
(XT2)
3Vp-p
(X2)
17 17
Page 18
CDX-CA400/CA530X/CA580X
3-6. PRINTED WIRING BOARDS — CD MECHANISM SECTION — • Refer to page 17 for Circuit Boards Location.
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
for schematic diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/
specified.
• % : indicates tolerance.
f
•
• C : panel designation.
• A : B+ Line.
• Power voltage is dc 14.4V and fed with regulated dc power
• Voltages are taken with a VOM (Input impedance 10 MΩ).
• Waveforms are taken with a oscilloscope.
• Circled numbers refer to waveforms.
• Signal path.
: internal component.
Note:
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part
number specified.
supply from ACC and BATT cords.
Voltage variations may be noted due to normal produc-
tion tolerances.
Voltage variations may be noted due to normal production tolerances.
F : FM
f : AM
J : CD
4
W or less unless otherwise
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
CN2
23456789101112
1
A
B
C
D
E
for printed wiring boards:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
• x : parts mounted on the conductor side.
a
•
• : Pattern from the side which enables seeing.
Caution:
Pattern face side: Parts on the pattern face side seen from the
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
: Through hole.
(The other layer’s patterns are not indicated.)
F
G
H
SW1
I
J
1818
Page 19
CDX-CA400/CA530X/CA580X
A
B
C
D
E
F
G
H
I
1
234567891011121314
• Semiconductor
Location
Ref. No. Location
IC1 E-7
IC2 H-7
Q1 C-6
SW4
TP66
TP73
TP53
TP64
TP86
TP87
TP75
TP47
TP69
TP57
R20
R22
FB6
R21
TP68
TP54
TP76
FB7
FB3
TP48
TP85
TP50
TP51
TP52
TP56
TP58
TP61
TP74
TP62
CN1
TP49
TP7
C44
TP91
TP90
TP19
CN3
TP63
TP60
TP59
TP71
R17
TP72
TP80
TP8
R19
C26
TP77
R26
C4
TP9
TP70
C40
TP55
C27
C37
TP78
FB1
TP20
R30
Q1
C6
R3
C25
C34
C1
R29
C3
R18
C41
C45
X1
TP92
TP17
C29
R7
R6
TP16
TP79
C17
C22
C21
C5
C43
C9
C16
C36
TP34
TP11
TP36
C10
C8
R24
R25
TP12
TP35
FB4
FB2
C15
IC1
TP46
C38
TP39
IC2
TP82
TP81
C11
TP37
TP38
C14
TP45
TP40
TP30
TP83
TP43
TP42
TP32
R15
R12
R10
TP26
C30
TP28
TP27
TP84
C13
C18
TP23
C35
TP41
TP29
R5
R9
TP44
TP21
TP10
TP89
TP88
TP18
TP3
TP2
TP1
C20
C19
R8
R14
C23
C24
TP22
TP24
TP25
TP6
SW3
(Page 21)
SW2
TP5
TP4
J
19 19
Page 20
CDX-CA400/CA530X/CA580X
• Refer to page 17 for Waveforms.
3-7. SCHEMATIC DIAGRAM — CD MECHANISM SECTION — • Refer to page 26 for IC Block Diagrams.
CN2
Q1
TP9 TP8
R3 R26
C4
TP7
TP92
C6
TP10
C13
R5
C15
C10
C9
TP12
TP11
R7
TP21
TP18
R6
C3
M902
M901
SW4
SW3
SW2
CN13
M903
CN3
TP87
TP86
TP4
TP2
TP3
SW1
TP77
TP78
C1 C5
TP81
TP82
TP83
TP84
TP85
TP1
TP5
R29
R30
TP79
TP80
C43
C14
C11
C8
C16
IC B/D
TP17
TP20
TP16
TP19
TP6
R24
R25
C22
C21
C40
TP89
C17
C18
C19
C20
C23
FB2
C37
FB4
C35
TP45
TP44
TP43
TP42
TP41
TP40
TP39
TP38
TP37
TP46
TP36
C38
TP35
TP34
C36
C44
CN1
TP61
TP76
TP60
TP75
TP59
TP74
TP58
TP73
TP57
TP72
TP56
TP71
TP55
TP70
TP54
TP69
TP53
TP68
TP52
TP51
TP50
TP64
TP49
TP48
TP63
TP47
TP62
(Page 22)
R22
R21
R18
R19
R20
R17
TP66
FB7
FB6
X1
FB3
C24
R9
TP23
TP24
TP22
R8
IC2
TP25
FB1
C41
IC1
R12
R10
C26
C27
C30
TP30
R15
R14
TP27
TP29
TP26
TP28
TP88
C25
C29
C34
C45
TP32
TP90
TP91
IC B/D
Note:
• Voltage is dc with respect to
ground under no-signal conditions.
no mark : CD PLAY
2020
Page 21
3-8. PRINTED WIRING BOARD — MAIN SECTION — • Refer to page 17 for Circuit Boards Location.
CDX-CA400/CA530X/CA580X
A
B
C
D
E
F
G
H
J
1
CNJ601
L669
TU601
C603
C604
JW18
R602
C605
C606
JW17
JW16
C620
C848
JW15
I
JW2
JW1
23456789101112131415
PJ401
CNJ801
D919
L702
JW109
C802
D923
Q910
C919
R934
Q919
CNP901
C931
D933
JW106
JW111
JW110
R824
JW91
Q905
C846
JR904
R906
JW77
JW92
Q911
C901
D903
JW93
JW99
Q918
JW116
JW94
R905
Q929
JW104
Q914
JW113
R854
JW98
D901
JW95
Q912
Q906
D930
JW114
JW96
JW101
R913
C909
R919
JW112
JW115
JW89
JW90
JW103
R819
JW88
R908
Q902
Q909
JW78
JW79
JW80
D853
R901
R931
JW82
JW83
JW81
R907
JR929
R918
IC902
D851
D852
R853
Q921
Q920
C904
R909
JW100
Q915
R920
C916
C851
TH851
D854
D907
R932
JR903
S901
D909
R912
Q904
R917
D999
R930
C869
C905
Q913
R924
C915
Q917
JW84
R851
R911
R925
JW117
R852
C913
R926
Q907
JW85
TH901
R927
L901
JW102
D913
C914
R928
D908
JW118
JW86
R933
R929
JW87
JW119
JW149
(Page 19)
JW148
JW147
JW146
• Semiconductor Location
Ref. No. Location
D401 D-4
D402 D-7
D444 E-6
D604 E-2
D802 I-4
D803 I-3
D804 I-3
D805 I-3
D806 I-3
D807 I-3
D808 I-3
D809 I-3
D851 D-9
D852 D-9
D853 D-9
D854 E-10
D901 D-9
D903 D-8
D907 E-10
D908 E-10
D909 G-10
D910 E-7
D913 G-10
D915 D-6
D916 D-6
D917 D-6
D918 D-6
D919 B-7
D920 B-7
D921 C-6
D922 C-5
D923 F-8
D930 H-9
D931 I-4
D932 H-4
JW153
JW152
JW151
JW150
Ref. No. Location
IC101 B-6
IC401 E-4
IC601 G-3
IC801 H-7
IC802 D-7
IC902 I-9
Q101 C-3
Q102 C-3
Q201 C-4
Q202 C-4
Q401 D-6
Q402 E-6
Q603 H-2
Q604 H-4
Q605 H-2
Q606 H-3
Q902 E-9
Q904 E-10
Q905 G-8
Q906 H-8
Q907 C-10
Q909 F-9
Q910 E-8
Q911 H-8
Q912 G-9
Q913 G-10
Q914 H-8
Q915 H-9
Q917 F-10
Q918 F-8
Q919 G-8
Q920 H-9
Q921 F-9
Q929 F-8
R121
R122
JW36
CP601
R620
C608
R622
R604
R628
C669
C672
JW19
C650
R609
JW20
Q605
R222
JW37
D604
R603
R601
C651
JW21
R614
JW26
C627
C619
C652
Q603
C121
R221
JW38
R115
JW28
C617
JW27
C615
R608
JW22
D805
R113
C114
C115
C610
R605
R616
R617
D804
CNP801
C671
C119
C218
C612
C613
C614
R607
C618
C221
Q101
C120
R618
D803
JW4
R107
JW40
R109
JW32
C609
C622
C621
D806
JW39
JW33
C108
C110
C111
C113
R613
C611
C625
R110
C103
C116
IC601
X601
C842
D808
C105
R108
Q102
JW34
JR607
L603
R606
L604
C809
R105
C117
JR606
D809
C205
R106
C104
C623
D807
Q202
R210
IC401
JW31
JW30
R611
R619
C624
JW29
R612
C633
C626
Q606
D802
R835
JW3
R208
C204
JW35
C841
R207
JW23
R610
R206
Q201
R209
C631
JW14
Q604
C216
JW24
C203
C208
C213
C220
R806
JW13
R615
R205
C435
R807
JR603
D931
C101
C201
C219
JW49
JR605
R712
C102
D401
C214
C118
C426
C401
JW60
JR110
R808
D932
JW5
C202
JW63
R213
JW47
JW46
JW44
JW43
JW42
JW41
C407
C210
C211
R215
C215
JW45
JW12
JW64
C217
JW54
JW50
R811
R812
JW11
JW10
JW9
JW8
JW7
JW62
JW51
JW61
JW56
JW55
R809
R814
R408
R407
JW58
JW57
JW52
JW53
JW48
R840
R813
R923
D922
R821
R845
C706
R714
C707
JW70
IC101
D921
D444
R444
R716
R849
R848
R847
R810
R846
R844
JW123
D918
JW59
C847
JW122
C810
JW69
R401
D917
R922
JW67
D916
R410
Q401
C701
CNP701
JW71
JW66
D915
Q402
JW107
JW108
IC801
R815
JW65
D402
JW68
C432
C907
C703
R704
R705
R710
JW121
D910
R706
R708
R709
R711
X802
JW120
JW75
R404
L703
C702
C704
R707
C803
JW124
JW72
D920
JW73
JW74
JW76
IC802
JW97
L701
JW105
X801
C804
C801
D933 D-8
D999 G-10
(Page 24)
21 21
Page 22
CDX-CA400/CA530X/CA580X
3-9. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — • Refer to page 17 for Waveforms.
IC802
R853
R852
R851
TH851
D854
R911
D907
Q910
Q904
D910
Q907
JR929
R913
C907
R912
D908
C905
Q906
D909
Q905
Q921
R932
R933
Q911
TH901
Q917
R905
Q929
R821
Q918
R934
C919
Q919
D923
R714
R716
C706
C707
L702
R707
C869
CNJ801
C704
R854
L701
C702
L703
C701
C703
R704
R705
R706
R708
CNP801
D851
CNP701
D853
D852
C851
(Page
20)
R712
R711
R710
R709
C847
D930
C909
Q909
C913
C914
C846
D913
Q914
R931
R917
R919
R924
R930
R925
Q913
R918
Q920
Q912
R926
D999
Q915
R927
R928
R929
R920
C915
IC902
JR903
S901
C916
R824
JR904
R923
R922
X801
IC801
X802
C804
R849
R808
R848
R807
C803
R847
R806
R810
R811
C801
C802
R819
R844
R845
R846
R812
R815
R814
R813
R840
C810
R408
R407
(Page 23)
R809
D931
D932
(Page 25)
D805
D804
R835
D803
D807
D806
D808
D809
D802
C809
Note:
• Voltage is dc with respect
to ground under no-signal
(detuned) condition.
no mark : FM
( ) : AM
< > : CD PLAY
2222
Page 23
3-10. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) — • Refer to page 26 for IC Block Diagrams.
CDX-CA400/CA530X/CA580X
(Page22)
F901
Q902
CNP901
R908
R907R909
L901
R901
C904
R906
D901
D933
C901
C931
D903
Note:
• Voltage is dc with respect to ground under
no-signal (detuned) condition.
no mark : FM
( ) : AM
< > : CD
D922
D921
D920
D919
D917
D918
D915
D916
IC101
R113
R115
C115
C110
C426
JR110
C117
C120
C108
C111
C113
C114
C119
C116
C407
IC B/D
IC401
C201
C202
C102
C101
R404
C401
R401
R444
C211
C213
C214
D444
D401
C208
C216
C218
C217
C220
C219
C210
C435
C215
R213
R215
R410
C432
D402
R105
R206
R106
R205
C631
C633
JR606
Q402
JR605
R613
R610
Q101
Q201
Q401
R612
Q102
Q202
R619
C626
R611
L604
IC B/D
R108
R208
IC601
R107
R207
R109
R110
R209
R210
C624C625
C103
C204
C104
C203
X601
C611
C614
C618
R606
R607
R608
C621
C610
L603
C622
C623
C612
C613
C615
C617
C620
C671
R609
C609
R122
R222
C619
C205
C105
C121
C221
R121
R221
C672
CP601
L669
R601
C605
R602
R603
C606
CNJ601
C651
L601
PJ401
TU601
C669
C603
C604
R620
R622C650
23 23
JR603
C842
R618
R617
C118
Q606
Q605
C841
R616
R615
Q604
Q603
JR607
R614
C627
D604
C848
C652
R605
R604
R628
C608
Page 24
CDX-CA400/CA530X/CA580X
3-11. PRINTED WIRING BOARD — DISPLAY SECTION — • Refer to page 17 for Circuit Boards Location.
A
B
C
D
D568
D569
D561
1
R568
R567
R563
D567
R564
D565
D562
R566
2 3 4 5 6 7 8 9 10 11 12 13 14
R554
D555
R577
D585
R579
R580
D586
R576
D581
R565
R570
D564
R569
D566
R572
D572
D563
R571
D571
D570
D575
D574
D573
D576
D577
D578
R573
D580
R574
D579
IC552
R555
D582
R578
R575
D583
D584
D587
E
F
G
H
S504
S501
JR503
S513
R513
R514
R512
S512
R511
S502
CNP551
R515
R501
I
S514
S511
(Page 21)
CNP552
PL552
JR504
S515
R562
R551
R561
R552
C551
JR506
R560
R559
C552
C553
R516
D556
JR508
JR507
S516
JR505
D551
D553
R517
S517
D554
R518
S518
IC551
S519
R519
LCD501
PL551
S508
S507S509
• Semiconductor Location
Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location
D551 G-5
D553 H-5
D554 H-6
D555 A-13
D556 G-5
D561 C-1
D562 D-1
D563 C-3
D564 B-2
D565 C-2
D566 C-2
D567 A-1
D568 B-1
D569 C-1
D570 A-5
D571 A-4
D572 B-3
D573 A-8
R510
R509
S505
R508
S510
R507
D574 A-7
D575 A-6
D576 A-9
D577 A-10
D578 A-11
D579 B-12
D580 C-12
D581 D-13
D582 B-13
S506
R502
S503
R504
R503
R506
D583 B-14
D584 C-14
D585 C-13
D586 C-13
D587 C-14
IC551 G-8
IC552 A-13
R505
2424
Page 25
3-12. SCHEMATIC DIAGRAM — DISPLAY SECTION —
CDX-CA400/CA530X/CA580X
D551
(Page 22)
CNP552
JR507
JR508
JR505
CNP551
JR504
D554
PL551
R564
R563
D561 D564
R561
R562
R560
R559
PL552
D553
S501
S502 S511
R501
D562 D565
D563 D572
R554
D567
R566
R565
R567
D568
D566 D569
JR503
D570 D573 D576
D571 D574 D577
R568
R570
R569
D575 D578
R572
R571
R573
D579
D580
R576
R575
D581 D584 D587
R574
D582
D585
R577
R578
D583 D586
R579
R580
JR506
IC552
R555
D555
D556
R552
C553
IC551
R551
C552
C551
S503
S504
S505
S507
S508
S509
S510
S506
R502
R503
R504
R505
R506
R507
R508
R509
R510
S512
S514
S515
S516
S517
S518
S519
S513
R511
R512
R513
R514
R515
R516
R517
R518
R519
LCD501
Note:
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
25 25
Page 26
CDX-CA400/CA530X/CA580X
VDD
AMP
AMP
AMP
VDD2
1
2
3
4
5
6
7
8
9
10
24
23
22
21
20
19
18
17
16
15
11
12
14
13
XO
OSC
CE
D_IN
CK
D_OUT
SR
LCL
I/O-2
SEEK
MONO
VDD2
IFC
VDD
FM_VCO
AM_VCO
D-GND
FM_CP
VT
AM_CP
VCC
REG
A-GND
XI
SERIAL
INTERFACE
I/O
PORT
OSCILLATOR
ON/OFF
BUFFER
REFERENCE
DIVIDER
PHASE
COMPARATOR
20BIT
IF COUNTER
PRESCALLER
12BIT
PROGRAMMABLE
COUNTER
+
–
REGULATOR
18BIT
18BIT
22BIT
40BIT SHIFT
REGISTER
REF
VCC
SEEK/RECP
SEEK/RECP
+
–
SIG
4BIT SWALLOW
COUNTER
OUTPUT
PORT
+
+

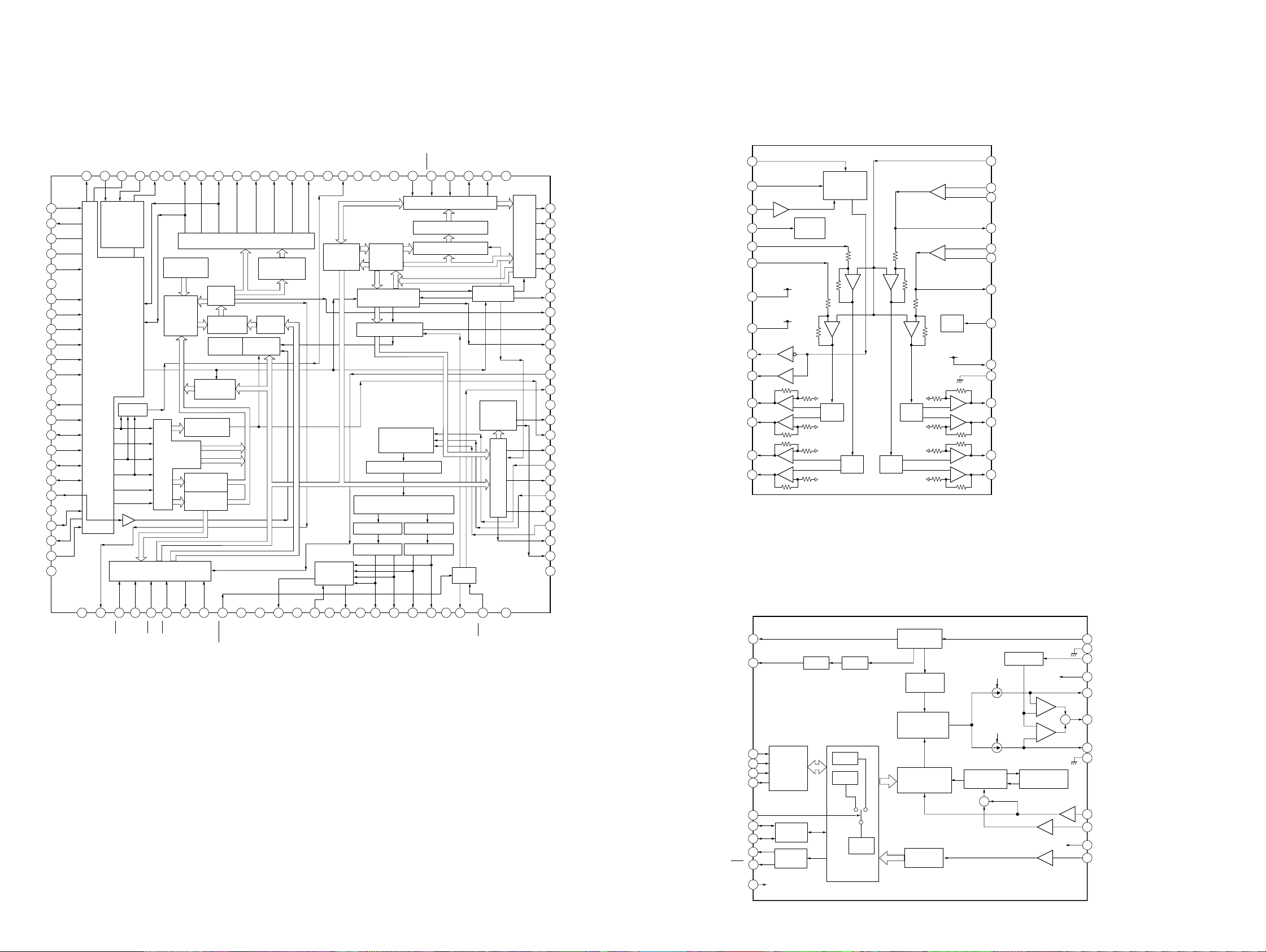

• IC BLOCK DIAGRAMS
IC1 µPD63711GC-8EU
AGCO74RFI73C3T72ASY71EFM70AVDD697E DAC3687D DAC2677C DAC1667F DAC065MD64SD63TD62FD
75
AGCI
76
RFO
77
EQ2
78
EQ1
79
RF-
80
AGND
81
A
82
C
83
B
84
D
AVDD
REFOUT
FEO
TE-
TEO
TE2
TEC
AGND
AVDD
85
F
86
E
87
88
89
FE-
90
91
92
93
94
95
96
PD
97
LD
98
99
PN
100
AMP BLOCK
DEFECT
MIRR
EFM
COMPARATOR
EFM
FEOFS
TEOFS
RF
EFM
SWITCH
FOK
A3T
FEO
TEO
COMPARATOR
MICROCOMPUTER INTERFACE
AUTO GAIN
CONTROLLER
SVDRAM
PROCESSOR
DEFECT
COMPARATOR
RFENV
MIRENV
TRACKING
A/D CONVERTER
REGISTER
FOCUS
REGISTER
ADDER
MULTIPLIER
SVROM
CLV
D/A
FD/TD/SD/MD
CONTROLLER
SVCRAM
ROM
DECODER
ATEST59TEST158TEST057DGND56TSTB55TSCK54TSI53TSO52PACK51DVDD
AGND
60
61
MICROCOMPUTER INTERFACE
CD-TEXT DECODER
D/A
INTERFACE
CIRCUIT
OCTUPLED
NOISE SHAVER
OUTPUT BUFFER
SUB-CODE PROCESSOR
OSC
MEMORY
PROCESSOR
EFM DEMODULATOR
TIMING GENERATOR
DE-EMPHASIS CIRCUIT
OVERSAMPLING DIGITAL FILTER
NOISE SHAVER
OUTPUT BUFFER
SCF
16K
SRAM
DIGITAL PLL
DIGITAL
AUDIO
INTERFACE
OUTPUT PROCESSOR
ERROR
PROCESSOR
CORRECTION
C2D3
50
C2D2
49
C2D1
48
C1D2
47
C1D1
46
DGND
45
PLCK
44
MIRR/WFCK
43
RFCK
42
LOCK
41
DVDD
40
TSOI
39
C16M
38
DGND
37
TX
36
HOLD/WDCK
35
LRCK
34
LRCKIN
33
SCKO
32
SCKIN
31
DOUT
30
DIN
29
FLAG
28
EMPH
27
DVDD
26
FWD
REV
LDCONT
PREVCC
POWVCC
VOL–
VOL+
VO2–
VO2+
VO1–
VO1+
IC2 BA5810FP-E2
1
2
X3
3
POWER
PREVCC
(PRE.LOADING)
POWVCC12
(CH1.CH2)
–
+
+
–
–
+
+
–
SAVE
16k
10k
10k
10k
10k
IN1
IN2
PS
4
5
6
7
8
9
10
10k
11
12
10k
10k
13
14
10k
IC601 TB2118F-EL-S
LOADING PRE
FWD REV
7.5k
16k
7.5k
–
+
LEVEL
SHIFT
LEVEL
SHIFT
BIAS
28
+
–
+
7.5k
–
+
+
LEVEL
SHIFT
–
LEVEL
SHIFT
–
16k
7.5k
CH1-4
–
+
MUTE
16k
POWVCC34
(CH3,CH4)
10k
10k
10k
10k
–
+
+
–
–
+
+
–
10k
10k
10k
10k
27
26
25
24
23
22
21
20
19
18
17
16
15
OPIN4+
OPIN4–
OPOUT4
OPIN3+
OPIN3–
OPOUT3
MUTE
POWVCC
GND
VO3–
VO3+
VO4–
VO4+
1
2
3
4A05
6
7SO8SI9
STB
RST
RFOK
DGND
SCK
10
XTALEN
11
DVDD
DAVDD
12
ROUT
13
REGC
DAGND
1514
16
DAGND
17
18R+19R–20L+21L–22
LOUT
DAVDD
23
XVDD
XTAL24XTAL
25
XGND
2626
Page 27

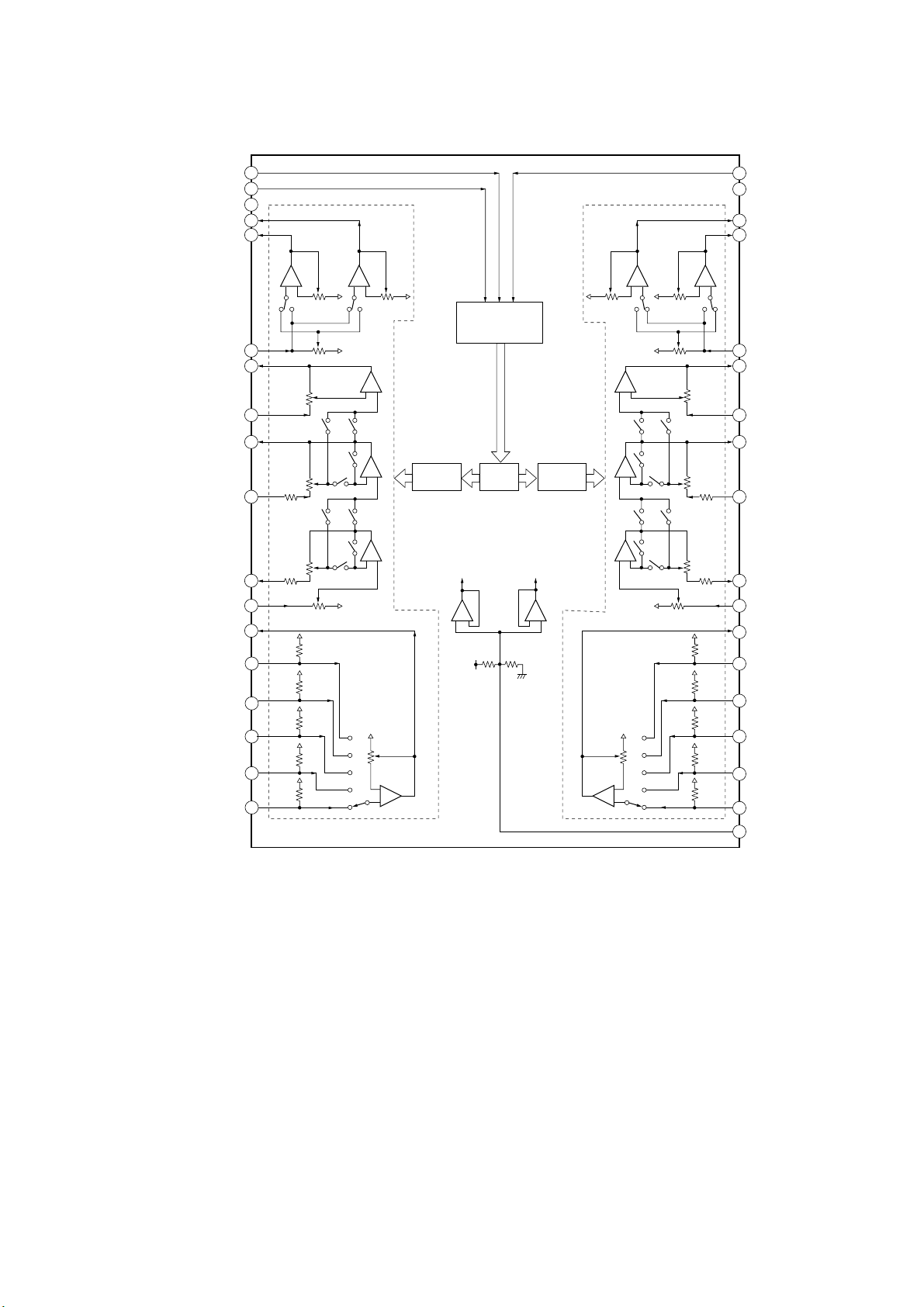

IC401 LC75421M-TLM-E
DI
1
CE
2
VSS
3
LROUT
4
LFOUT
5
CDX-CA400/CA530X/CA580X
CL
36
VDD
35
RROUT
34
RFOUT
33
LFIN
LOUT
LSB
LBASS2
LBASS1
LTRE
LIN
LSELO
+
–
6
7
8
9
10
11
12
13
L5
14
L4
15
+
–
CCB
INTERFACE
+
–
+
–
–
CONTROL
CIRCUIT
+
LOGIC
CIRCUIT
CONTROL
CIRCUIT
+
–
+
–
+
–
+
–
LVREF RVREF
+
–
+
–
+
–
RFIN
32
ROUT
31
RSB
30
29
RBASS2
RBASS1
28
RTRE
27
RIN
26
25
RSELO
24
R5
23
R4
16
L3
L2
17
–
L1
18
+
–
+
22
R3
21
R2
20
R1
19
VREF
27
Page 28
CDX-CA400/CA530X/CA580X
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
4-1. CHASSIS SECTION
3
2
SECTION 4
EXPLODED VIEWS
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)

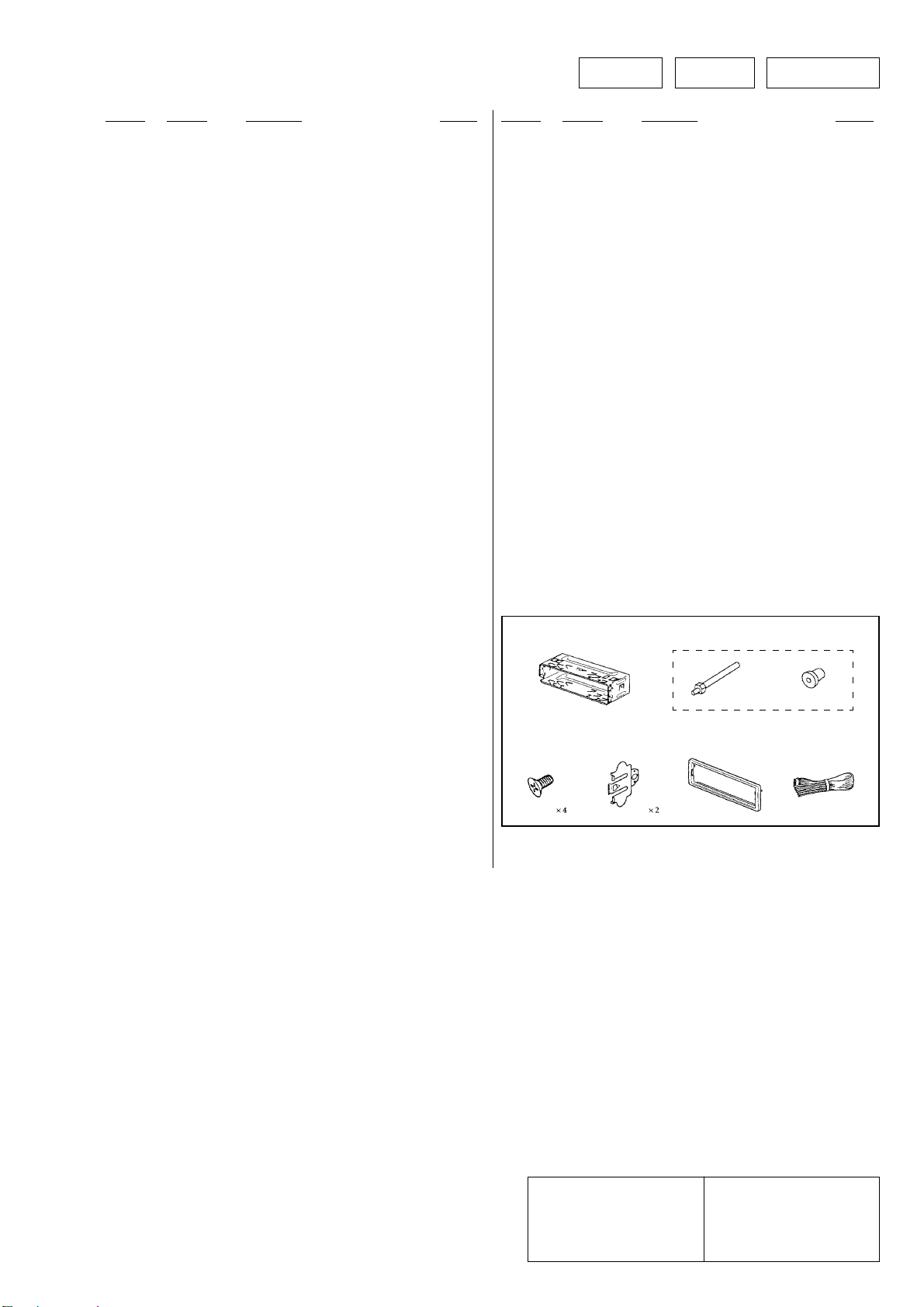

• Accessories are given in the last of this
parts list.
MG-393XA-121//K
4
6
RR
Parts Color Cabinet’s Color
5
10
11
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
#1
#2
#2
#2
#3
#2
#2
15
#1
#1
13
7
9
TU601
#2
8
F901
12
6
#1
#1
1
14
Ref. No. Part No. Description Remark
* 1 3-224-612-01 CHASSIS (CD)
2 3-224-309-21 COVER
3 1-776-206-21 CORD (WITH CONNECTOR) (POWER)
* 4 3-024-285-01 CUSHION (RUBBER)
* 5 3-041-173-11 BRACKET (CD)
6 3-922-535-11 SCREW (+BTT)
7 A-3283-245-A MAIN BOARD, COMPLETE
8 3-236-922-01 HEAT SINK
* 9 3-019-565-01 BRACKET (IC)
10 1-683-830-11 SPEAKER BOARD
28
Ref. No. Part No. Description Remark
11 3-041-261-11 BRACKET (TR)
* 12 3-048-259-01 SHEET (E)
13 X-3380-594-3 LOCK ASSY (S)
14 X-3381-269-1 PANEL (1) ASSY, SUB
15 3-231-472-01 SCREW (+B 2X4)
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TU601 A-3220-835-A TUNER UNIT (TUX-010)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-793-09 SCREW +PTT 2.6X8 (S)
#3 7-685-795-09 SCREW +PTT 2.6X12 (S)
Page 29
4-2. FRONT PANEL SECTION
70
LCD501
71
72
CDX-CA400/CA530X/CA580X
69
#4
67
#4
61
60
64
62
59
58
57
56
51 X-3381-640-1 PANEL (S) ASSY, FRONT (CA400)
51 X-3381-641-1 PANEL (S) ASSY, FRONT (CA530X)
51 X-3381-642-1 PANEL (S) ASSY, FRONT (CA580X)
52 3-236-909-01 BUTTON (OFF)
53 3-236-912-01 BUTTON (EJECT)
63
68
66
not supplied
(DISPLAY board)
65
55
54
53
52
51
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
63 3-236-906-01 BUTTON (SEL)
64 3-236-921-01 PLATE (LCD), GROUND
* 65 3-229-751-01 SHEET (LCD.UP)
66 3-236-920-01 SHEET (LCD), DIFFUSION
67 X-3381-357-1 HOLDER (LCD) ASSY
54 3-236-908-01 BUTTON (MBP)
55 3-236-910-01 BUTTON (1-6)
56 3-236-905-01 BUTTON (D-BASS)
57 X-3381-356-1 RING (SEEK) ASSY
58 3-236-904-01 BUTTON (SOURCE)
59 X-3381-355-1 RING (VOL) ASSY
60 3-236-911-01 BUTTON (RELEASE)
61 3-229-774-01 SPRING (RELEASE)
62 3-236-907-01 BUTTON (MODE)
68 3-236-902-01 PANEL, FRONT BACK
69 X-3380-054-2 CASE ASSY (for FRONT PANEL)
70 A-3337-073-A PANEL COMPLETE ASSY, FRONT (CA400)
70 A-3337-074-A PANEL COMPLETE ASSY, FRONT (CA530X)
70 A-3337-075-A PANEL COMPLETE ASSY, FRONT (CA580X)
* 71 3-227-293-01 SHEET (LCD)
72 3-236-926-01 CUSHION (LCD)
LCD501 1-804-626-11 DISPLAY PANEL, LIQUID CRYSTAL
#4 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
29
Page 30
CDX-CA400/CA530X/CA580X
4-3. CD MECHANISM SECTION (1)
(MG-393XA-121//K)
101
115
104
114
109
116
103
#8
102
#8
107
106
105
114
111
105
C
117
113
C
110
M903
#7
108
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 1-683-283-11 IN SELF SW BOARD
102 3-040-039-02 CHASSIS (T)
103 3-040-038-01 SPRING (LR), TENSION
104 3-040-050-01 LEVER (L)
105 3-040-022-01 RETAINER (ROLLER), SHAFT
#7
112 3-221-779-01 BRACKET (MOTOR)
113 3-040-034-01 SPRING (RA), TENSION
114 3-040-042-01 WASHER
115 3-043-880-01 RING (RA), RETAINING
116 3-044-206-11 SCREW, SPECIAL
#8
#9
112
106 3-040-044-01 ROLLER (S)
107 3-040-067-01 LEVER (R)
108 A-3301-980-A SHAFT ROLLER ASSY
109 3-040-037-01 GUIDE (DISC)
110 3-040-040-02 ARM (ROLLER)
111 A-3283-233-A SERVO BOARD, COMPLETE
30
117 1-683-284-11 FLEXIBLE BOARD
M903 A-3315-039-A MOTOR SUB ASSY, LO (LOADING)
#7 7-628-253-00 SCREW, SPECIAL
#8 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
#9 7-627-553-17 SCREW, PRECISION +P 2X2 TYPE3
Page 31
4-4. CD MECHANISM SECTION (2)
(MG-393XA-121//K)
CDX-CA400/CA530X/CA580X
157
158
163
154
162
D
160
155
151
156
157
164
not supplied
153
161
D
159
152
152
152
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 3-040-025-01 ARM, CHUCKING
152 3-040-031-01 DAMPER (T)
153 3-040-056-01 LEVER (D)
154 3-040-024-01 RETAINER (DISC)
155 3-040-054-01 WHEEL (LW), WORM
156 3-040-026-01 SPRING (CH), TENSION
157 3-040-032-01 SPRING (FL), COMPRESSION
158 3-040-033-01 SPRING (KF1), TENSION
159 A-3307-422-A CHASSIS (M) COMPLETE ASSY
160 3-040-059-01 SPRING (TR), TENSION
161 3-040-057-01 LEVER (LOCK)
162 3-040-058-01 GEAR (MDL)
163 3-040-052-01 WHEEL (U), WORM
164 3-040-051-02 LEVER (TR)
31
Page 32
CDX-CA400/CA530X/CA580X
4-5. CD MECHANISM SECTION (3)
(MG-393XA-121//K)
207
201
M901
209
208
210
#11
206
202
M902
205
#8
203
#10
204
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 X-3378-480-1 CHASSIS (OP) ASSY (including M901)
202 3-040-029-01 SPRING (SL), TORSION
203 3-040-045-01 BASE (DRIVING)
204 3-040-194-01 GEAR (MIDWAY)
205 A-3301-983-A SHAFT (FEED) ASSY
206 3-040-030-01 SPRING (FEED), PLATE
207 1-823-641-11 CABLE, FLEXIBLE FLAT (6 CORE)
208 1-683-282-11 SL SW BOARD
209 3-909-607-01 SCREW
0 210 8-820-103-11 PICK-UP, OPTICAL KSS-720A/C-RP
M902 A-3301-985-A MOTOR ASSY, SLED (SLED)
#8 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
#10 7-627-850-28 SCREW, PRECISION +P 1.4X3
#11 7-685-780-01 SCREW +PTT 2X3 (S)
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
32
Page 33
CDX-CA400/CA530X/CA580X
SECTION 5
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
DISPLAY BOARD
**************
* 3-227-293-01 SHEET (LCD)
* 3-229-751-01 SHEET (LCD.UP)
3-236-920-01 SHEET (LCD), DIFFUSION
3-236-921-01 PLATE (LCD), GROUND
X-3381-357-1 HOLDER (LCD) ASSY
< CAPACITOR >
C551 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C552 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C553 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
< CONNECTOR >
* CNP551 1-779-131-11 PIN, CONNECTOR 2P
CNP552 1-794-312-21 PIN, CONNECTOR 12P
< DIODE >
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
• CAPACITORS
uF : µF
• COILS
uH : µH
D569 8-719-078-21 LED SML-310PTT86 (SEEK3) (CA400)
D570 8-719-038-05 LED CL-190FG-CD-T (6) (CA400)
D570 8-719-053-09 LED SML-310VTT86 (6) (CA530X/CA580X)
D571 8-719-038-05 LED CL-190FG-CD-T (SENS) (CA400)
D571 8-719-053-09 LED SML-310VTT86 (SENS)
D572 8-719-053-08 LED SML-310DTT86 (BTM) (CA530X/CA580X)
D572 8-719-053-09 LED SML-310VTT86 (BTM) (CA400)
D573 8-719-038-05 LED CL-190FG-CD-T (3/REP) (CA400)
D573 8-719-053-09 LED SML-310VTT86 (3/REP)
D574 8-719-038-05 LED CL-190FG-CD-T (4/SHUF) (CA400)
D574 8-719-053-09 LED SML-310VTT86 (4/SHUF)
D575 8-719-038-05 LED CL-190FG-CD-T (5) (CA400)
D575 8-719-053-09 LED SML-310VTT86 (5) (CA530X/CA580X)
D576 8-719-038-05 LED CL-190FG-CD-T (2/DISC +) (CA400)
D576 8-719-053-09 LED SML-310VTT86 (2/DISC +)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
DISPLAY
(CA530X/CA580X)
(CA530X/CA580X)
(CA530X/CA580X)
(CA530X/CA580X)
D551 8-719-073-15 DIODE SDZ5V1
D553 8-719-067-70 DIODE SDZ6V2
D554 8-719-068-68 DIODE SDZ6V2WA
D555 8-719-073-15 DIODE SDZ5V1
D556 8-719-067-70 DIODE SDZ6V2
D561 8-719-053-09 LED SML-310VTT86 (SEEK2)
(CA530X/CA580X)
D561 8-719-078-21 LED SML-310PTT86 (SEEK2) (CA400)
D562 8-719-053-09 LED SML-310VTT86 (Z) (CA530X/CA580X)
D562 8-719-038-05 LED CL-190FG-CD-T (Z) (CA400)
D563 8-719-053-08 LED SML-310DTT86 (MBP) (CA530X/CA580X)
D563 8-719-053-09 LED SML-310VTT86 (MBP) (CA400)
D564 8-719-053-09 LED SML-310VTT86 (SEEK5)
(CA530X/CA580X)
D564 8-719-078-21 LED SML-310PTT86 (SEEK5) (CA400)
D565 8-719-053-09 LED SML-310VTT86 (DSO) (CA530X/CA580X)
D565 8-719-078-21 LED SML-310PTT86 (DSO) (CA400)
D566 8-719-053-09 LED SML-310VTT86 (SEEK1)
(CA530X/CA580X)
D566 8-719-078-21 LED SML-310PTT86 (SEEK1) (CA400)
D567 8-719-038-05 LED CL-190FG-CD-T (OFF) (CA400)
D567 8-719-053-09 LED SML-310VTT86 (OFF) (CA530X/CA580X)
D568 8-719-053-09 LED SML-310VTT86 (SEEK4)
(CA530X/CA580X)
D568 8-719-078-21 LED SML-310PTT86 (SEEK4) (CA400)
D569 8-719-053-09 LED SML-310VTT86 (SEEK3)
(CA530X/CA580X)
D577 8-719-038-05 LED CL-190FG-CD-T (1/DISC –) (CA400)
D577 8-719-053-09 LED SML-310VTT86 (1/DISC –)
(CA530X/CA580X)
D578 8-719-038-05 LED CL-190FG-CD-T (ATT) (CA400)
D578 8-719-053-09 LED SML-310VTT86 (ATT) (CA530X/CA580X)
D579 8-719-053-08 LED SML-310DTT86 (DSPL)
(CA530X/CA580X)
D579 8-719-053-09 LED SML-310VTT86 (DSPL) (CA400)
D580 8-719-053-08 LED SML-310DTT86 (SEL) (CA530X/CA580X)
D580 8-719-053-09 LED SML-310VTT86 (SEL) (CA400)
D581 8-719-038-05 LED CL-190FG-CD-T (MODE) (CA400)
D581 8-719-053-09 LED SML-310VTT86 (MODE)
(CA530X/CA580X)
D582 8-719-053-09 LED SML-310VTT86 (VOL3)
(CA530X/CA580X)
D582 8-719-078-21 LED SML-310PTT86 (VOL3) (CA400)
D583 8-719-053-09 LED SML-310VTT86 (VOL4)
(CA530X/CA580X)
D583 8-719-078-21 LED SML-310PTT86 (VOL4) (CA400)
D584 8-719-053-09 LED SML-310VTT86 (VOL5)
(CA530X/CA580X)
D584 8-719-078-21 LED SML-310PTT86 (VOL5) (CA400)
D585 8-719-053-09 LED SML-310VTT86 (SOURCE)
(CA530X/CA580X)
D585 8-719-078-21 LED SML-310PTT86 (SOURCE) (CA400)
D586 8-719-053-09 LED SML-310VTT86 (VOL2)
(CA530X/CA580X)
D586 8-719-078-21 LED SML-310PTT86 (VOL2) (CA400)
33
Page 34
CDX-CA400/CA530X/CA580X
DISPLAY IN SELF SW
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
D587 8-719-053-09 LED SML-310VTT86 (VOL1)
(CA530X/CA580X)
D587 8-719-078-21 LED SML-310PTT86 (VOL1) (CA400)
< IC >
R561 1-216-806-11 RES-CHIP 56 5% 1/16W
R562 1-216-806-11 RES-CHIP 56 5% 1/16W
R563 1-216-817-11 METAL CHIP 470 5% 1/16W
R564 1-216-817-11 METAL CHIP 470 5% 1/16W
R565 1-216-817-11 METAL CHIP 470 5% 1/16W
IC551 8-759-369-90 IC LC75822ED
IC552 8-749-017-35 IC KSM-401N
< JUMPER RESISTOR >
JR503 1-216-864-11 METAL CHIP 0 5% 1/16W
JR504 1-216-864-11 METAL CHIP 0 5% 1/16W
JR505 1-216-864-11 METAL CHIP 0 5% 1/16W
JR506 1-216-864-11 METAL CHIP 0 5% 1/16W
JR507 1-216-864-11 METAL CHIP 0 5% 1/16W
JR508 1-216-864-11 METAL CHIP 0 5% 1/16W
< LIQUID CRYSTAL DISPLAY >
LCD501 1-804-626-11 DISPLAY PANEL, LIQUID CRYSTAL
< PILOT LAMP >
PL551 1-518-753-11 LAMP, PILOT (LCD BACK LIGHT) (CA400)
PL551 1-518-754-11 LAMP, PILOT (LCD BACK LIGHT)
(CA530X/CA580X)
PL552 1-518-753-11 LAMP, PILOT (LCD BACK LIGHT) (CA400)
PL552 1-518-754-11 LAMP, PILOT (LCD BACK LIGHT)
(CA530X/CA580X)
< RESISTOR >
R501 1-219-286-11 RES-CHIP 680 2% 1/16W
R502 1-219-286-11 RES-CHIP 680 2% 1/16W
R503 1-219-286-11 RES-CHIP 680 2% 1/16W
R504 1-218-847-11 RES-CHIP 1K 2% 1/16W
R505 1-218-851-11 RES-CHIP 1.5K 2% 1/16W
R506 1-218-851-11 RES-CHIP 1.5K 2% 1/16W
R507 1-218-855-11 RES-CHIP 2.2K 2% 1/16W
R508 1-218-859-11 RES-CHIP 3.3K 2% 1/16W
R509 1-218-863-11 RES-CHIP 4.7K 2% 1/16W
R510 1-218-867-11 RES-CHIP 6.8K 2% 1/16W
R511 1-219-286-11 RES-CHIP 680 2% 1/16W
R512 1-219-286-11 RES-CHIP 680 2% 1/16W
R513 1-219-286-11 RES-CHIP 680 2% 1/16W
R514 1-218-847-11 RES-CHIP 1K 2% 1/16W
R515 1-218-851-11 RES-CHIP 1.5K 2% 1/16W
R516 1-218-851-11 RES-CHIP 1.5K 2% 1/16W
R517 1-218-855-11 RES-CHIP 2.2K 2% 1/16W
R518 1-218-859-11 RES-CHIP 3.3K 2% 1/16W
R519 1-218-863-11 RES-CHIP 4.7K 2% 1/16W
R551 1-218-331-11 RES-CHIP 51K 5% 1/16W
R552 1-216-819-11 METAL CHIP 680 5% 1/16W
R554 1-216-807-11 METAL CHIP 68 5% 1/16W
R555 1-216-819-11 METAL CHIP 680 5% 1/16W
R559 1-216-806-11 RES-CHIP 56 5% 1/16W
R560 1-216-806-11 RES-CHIP 56 5% 1/16W
R566 1-216-817-11 METAL CHIP 470 5% 1/16W
R567 1-216-817-11 METAL CHIP 470 5% 1/16W
R568 1-216-817-11 METAL CHIP 470 5% 1/16W
R569 1-216-817-11 METAL CHIP 470 5% 1/16W
R570 1-216-817-11 METAL CHIP 470 5% 1/16W
R571 1-216-817-11 METAL CHIP 470 5% 1/16W
R572 1-216-817-11 METAL CHIP 470 5% 1/16W
R573 1-216-817-11 METAL CHIP 470 5% 1/16W
R574 1-216-817-11 METAL CHIP 470 5% 1/16W
R575 1-216-817-11 METAL CHIP 470 5% 1/16W
R576 1-216-817-11 METAL CHIP 470 5% 1/16W
R577 1-216-817-11 METAL CHIP 470 5% 1/16W
R578 1-216-817-11 METAL CHIP 470 5% 1/16W
R579 1-216-817-11 METAL CHIP 470 5% 1/16W
R580 1-216-817-11 METAL CHIP 470 5% 1/16W
< SWITCH >
S501 1-572-704-31 SWITCH, KEYBOARD (Z)
S502 1-572-704-31 SWITCH, KEYBOARD (OFF)
S503 1-572-704-31 SWITCH, KEYBOARD (SOURCE)
S504 1-572-704-31 SWITCH, KEYBOARD (MODE)
S505 1-572-704-31 SWITCH, KEYBOARD (SEL)
S506 1-771-290-11 SWITCH, SLIDE (VOL)
S507 1-572-704-31 SWITCH, KEYBOARD (ATT)
S508 1-572-704-31 SWITCH, KEYBOARD (1/DISC –)
S509 1-572-704-31 SWITCH, KEYBOARD (2/DISC +)
S510 1-572-704-31 SWITCH, KEYBOARD (DSPL)
S511 1-572-704-31 SWITCH, KEYBOARD (MBP)
S512 1-572-704-31 SWITCH, KEYBOARD (D-BASS)
S513 1-771-290-11 SWITCH, SLIDE (SEEK/AMS)
S514 1-572-704-31 SWITCH, KEYBOARD (BTM)
S515 1-572-704-31 SWITCH, KEYBOARD (SENS)
S516 1-572-704-31 SWITCH, KEYBOARD (6)
S517 1-572-704-31 SWITCH, KEYBOARD (5)
S518 1-572-704-31 SWITCH, KEYBOARD (4/SHUF)
S519 1-572-704-31 SWITCH, KEYBOARD (3/REP)
*************************************************************
1-683-283-11 IN SELF SW BOARD
****************
< SWITCH >
SW2 1-529-566-31 SWITCH, PUSH (1 KEY) (SELF)
SW3 1-529-566-31 SWITCH, PUSH (1 KEY) (DISC IN)
*************************************************************
34
Page 35
CDX-CA400/CA530X/CA580X
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-3283-245-A MAIN BOARD, COMPLETE (including
SPEAKER BOARD)
*********************
* 3-019-565-01 BRACKET (IC)
3-041-261-11 BRACKET (TR)
3-236-922-01 HEAT SINK
7-685-793-09 SCREW +PTT 2.6X8 (S)
7-685-795-09 SCREW +PTT 2.6X12 (S)
< CAPACITOR >
C608 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C609 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C610 1-104-396-11 ELECT 10uF 20% 16V
C611 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C612 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C613 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C614 1-164-174-11 CERAMIC CHIP 0.0082uF 10% 25V
C615 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C617 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C618 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C101 1-164-346-11 CERAMIC CHIP 1uF 16V
C102 1-164-346-11 CERAMIC CHIP 1uF 16V
C103 1-104-396-11 ELECT 10uF 20% 16V
C104 1-104-396-11 ELECT 10uF 20% 16V
C105 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C108 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C110 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C111 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C113 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C114 1-124-257-00 ELECT 2.2uF 20% 50V
C115 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V
C116 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C117 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C118 1-164-346-11 CERAMIC CHIP 1uF 16V
C119 1-164-346-11 CERAMIC CHIP 1uF 16V
C120 1-164-346-11 CERAMIC CHIP 1uF 16V
C121 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C201 1-164-346-11 CERAMIC CHIP 1uF 16V
C202 1-164-346-11 CERAMIC CHIP 1uF 16V
C203 1-104-396-11 ELECT 10uF 20% 16V
C204 1-104-396-11 ELECT 10uF 20% 16V
C205 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C208 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C210 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C211 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C619 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C620 1-104-665-11 ELECT 100uF 20% 10V
C621 1-104-396-11 ELECT 10uF 20% 16V
C622 1-162-911-11 CERAMIC CHIP 6PF 0.5PF 50V
C623 1-162-912-11 CERAMIC CHIP 7PF 0.5PF 50V
C624 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C625 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
C626 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C627 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C631 1-104-396-11 ELECT 10uF 20% 16V
C633 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C650 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V
C651 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V
C652 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C669 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C671 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C672 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C701 1-124-584-00 ELECT 100uF 20% 10V
C702 1-124-584-00 ELECT 100uF 20% 10V
C703 1-124-584-00 ELECT 100uF 20% 10V
C704 1-124-584-00 ELECT 100uF 20% 10V
C706 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C707 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C801 1-104-396-11 ELECT 10uF 20% 16V
C802 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C213 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C214 1-124-257-00 ELECT 2.2uF 20% 50V
C215 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V
C216 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C217 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C218 1-164-346-11 CERAMIC CHIP 1uF 16V
C219 1-124-234-00 ELECT 22uF 20% 16V
C220 1-164-346-11 CERAMIC CHIP 1uF 16V
C221 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C401 1-126-163-11 ELECT 4.7uF 20% 50V
C407 1-104-396-11 ELECT 10uF 20% 16V
C426 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C432 1-124-589-11 ELECT 47uF 20% 16V
C435 1-124-589-11 ELECT 47uF 20% 16V
C603 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C604 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C605 1-104-665-11 ELECT 100uF 20% 10V
C606 1-104-665-11 ELECT 100uF 20% 10V
C803 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C804 1-164-160-11 CERAMIC CHIP 20PF 5% 50V
C809 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C810 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C841 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C842 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C846 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C847 1-164-346-11 CERAMIC CHIP 1uF 16V
C848 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C851 1-124-119-00 ELECT 330uF 20% 16V
C869 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C901 1-135-473-21 ELECT 3300uF 20% 16V
C904 1-126-160-11 ELECT 1uF 20% 50V
C905 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C907 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C909 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C913 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C914 1-104-665-11 ELECT 100uF 20% 10V
35
Page 36
CDX-CA400/CA530X/CA580X
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C915 1-110-654-11 DOUBLE LAYERS 0.047F 5.5V
C916 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C919 1-124-229-00 ELECT 33uF 20% 10V
C931 1-164-156-11 CERAMIC CHIP 0.1uF 25V
D933 8-719-074-47 DIODE CRS02(TE85L)
D999 8-719-991-33 DIODE 1SS133T-77
< IC >
< JACK >
CNJ601 1-793-598-11 JACK (ANTENNA)
< CONNECTOR >
CNJ801 1-580-907-31 PLUG, CONNECTOR (BUS CONTROL IN)
CNP701 1-815-260-11 CONNECTOR, BOARD TO BOARD 30P
CNP801 1-794-311-21 PLUG, CONNECTOR 12P
CNP901 1-774-701-11 PIN, CONNECTOR 16P
< SURGE ABSORBER >
CP601 1-803-335-21 ABSORBER, CHIP SURGE
< DIODE >
D401 8-719-991-33 DIODE 1SS133T-77
D402 8-719-988-61 DIODE 1SS355TE-17
D444 8-719-988-61 DIODE 1SS355TE-17
D604 8-719-109-85 DIODE RD5.1ES-B2
D802 8-719-109-97 DIODE RD6.8ES-B2
D803 8-719-109-97 DIODE RD6.8ES-B2
D804 8-719-109-97 DIODE RD6.8ES-B2
D805 8-719-109-97 DIODE RD6.8ES-B2
D806 8-719-109-97 DIODE RD6.8ES-B2
D807 8-719-109-97 DIODE RD6.8ES-B2
D808 8-719-109-97 DIODE RD6.8ES-B2
D809 8-719-109-97 DIODE RD6.8ES-B2
D851 8-719-420-51 DIODE MA729
D852 8-719-017-95 DIODE MA8180-TX
D853 8-719-017-95 DIODE MA8180-TX
D854 8-719-109-97 DIODE RD6.8ES-B2
D901 8-719-049-38 DIODE 1N5404TU
D903 8-719-977-12 DIODE DTZ6.8B
D907 8-719-110-49 DIODE RD18ES-B2
D908 8-719-921-63 DIODE MTZJ-7.5B
D909 8-719-109-97 DIODE RD6.8ES-B2
D910 8-719-109-89 DIODE RD5.6ES-B2
D913 8-719-110-14 DIODE RD9.1ES-B3
D915 8-719-110-49 DIODE RD18ES-B2
D916 8-719-110-49 DIODE RD18ES-B2
D917 8-719-110-49 DIODE RD18ES-B2
D918 8-719-110-49 DIODE RD18ES-B2
D919 8-719-053-18 DIODE 1SR154-400TE-25
D920 8-719-053-18 DIODE 1SR154-400TE-25
D921 8-719-110-49 DIODE RD18ES-B2
D922 8-719-110-49 DIODE RD18ES-B2
D923 8-719-110-14 DIODE RD9.1ES-B3
D930 8-719-109-89 DIODE RD5.6ES-B2
D931 8-719-988-61 DIODE 1SS355TE-17
D932 8-719-988-61 DIODE 1SS355TE-17
IC101 8-759-827-14 IC TA8268AH
IC401 8-759-827-11 IC LC75421M-TLM-E
IC601 8-759-586-59 IC TB2118F-EL-S
IC801 6-801-302-01 IC uPD780076GK-520-9ET
IC802 8-759-096-16 IC MM1175XFF
IC902 8-759-837-07 IC S7139SF
< JUMPER RESISTOR >
JR110 1-216-864-11 METAL CHIP 0 5% 1/16W
JR603 1-216-864-11 METAL CHIP 0 5% 1/16W
JR605 1-216-864-11 METAL CHIP 0 5% 1/16W
JR606 1-216-864-11 METAL CHIP 0 5% 1/16W
JR607 1-216-864-11 METAL CHIP 0 5% 1/16W
JR903 1-216-864-11 METAL CHIP 0 5% 1/16W
JR904 1-216-864-11 METAL CHIP 0 5% 1/16W
JR929 1-216-864-11 METAL CHIP 0 5% 1/16W
< COIL >
L601 1-410-508-11 INDUCTOR 8.2uH
L603 1-412-006-31 INDUCTOR 10uH
L604 1-410-750-41 INDUCTOR 0.47uH
L669 1-424-759-21 COIL (AM ANT)
L701 1-410-513-11 INDUCTOR 22uH
L702 1-410-513-11 INDUCTOR 22uH
L703 1-410-513-11 INDUCTOR 22uH
L901 1-419-476-31 COIL, CHOKE 250uH
< JACK >
PJ401 1-774-699-12 JACK, PIN 4P (AUDIO OUT REAR,
BUS AUDIO IN)
< TRANSISTOR >
Q101 8-729-920-21 TRANSISTOR DTC314TK-T-146
Q102 8-729-920-21 TRANSISTOR DTC314TK-T-146
Q201 8-729-920-21 TRANSISTOR DTC314TK-T-146
Q202 8-729-920-21 TRANSISTOR DTC314TK-T-146
Q401 8-729-055-92 TRANSISTOR SRA2203SF
Q402 8-729-055-96 TRANSISTOR SRC1203SF
Q603 8-729-030-51 TRANSISTOR 2SA1515S-R-TP
Q604 8-729-055-96 TRANSISTOR SRC1203SF
Q605 8-729-030-51 TRANSISTOR 2SA1515S-R-TP
Q606 8-729-055-96 TRANSISTOR SRC1203SF
Q902 8-729-049-40 TRANSISTOR 2SC5343SFG
Q904 8-729-055-96 TRANSISTOR SRC1203SF
Q905 8-729-055-96 TRANSISTOR SRC1203SF
Q906 8-729-055-92 TRANSISTOR SRA2203SF
Q907 8-729-019-00 TRANSISTOR 2SD2394-G
Q909 8-729-055-96 TRANSISTOR SRC1203SF
36
Page 37
CDX-CA400/CA530X/CA580X
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Q910 8-729-920-85 TRANSISTOR 2SD1664-QR
Q911 8-729-055-96 TRANSISTOR SRC1203SF
Q912 8-729-055-92 TRANSISTOR SRA2203SF
Q913 8-729-019-00 TRANSISTOR 2SD2394-G
Q914 8-729-055-96 TRANSISTOR SRC1203SF
R618 1-216-845-11 METAL CHIP 100K 5% 1/16W
R619 1-216-817-11 METAL CHIP 470 5% 1/16W
R620 1-216-817-11 METAL CHIP 470 5% 1/16W
R622 1-216-817-11 METAL CHIP 470 5% 1/16W
R628 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
Q915 8-729-049-43 TRANSISTOR STB1132Y
Q917 8-729-820-46 TRANSISTOR 2SB1202FAS
Q918 8-729-055-92 TRANSISTOR SRA2203SF
Q919 8-729-920-85 TRANSISTOR 2SD1664-QR
Q920 8-729-920-85 TRANSISTOR 2SD1664-QR
Q921 8-729-055-96 TRANSISTOR SRC1203SF
Q929 8-729-055-96 TRANSISTOR SRC1203SF
< RESISTOR >
R107 1-216-841-11 METAL CHIP 47K 5% 1/16W
R108 1-216-841-11 METAL CHIP 47K 5% 1/16W
R109 1-216-809-11 METAL CHIP 100 5% 1/16W
R110 1-216-809-11 METAL CHIP 100 5% 1/16W
R113 1-218-867-11 RES-CHIP 6.8K 5% 1/16W
R115 1-216-834-11 METAL CHIP 12K 5% 1/16W
R121 1-216-821-11 METAL CHIP 1K 5% 1/16W
R122 1-216-841-11 METAL CHIP 47K 5% 1/16W
R207 1-216-841-11 METAL CHIP 47K 5% 1/16W
R208 1-216-841-11 METAL CHIP 47K 5% 1/16W
R209 1-216-809-11 METAL CHIP 100 5% 1/16W
R210 1-216-809-11 METAL CHIP 100 5% 1/16W
R213 1-218-867-11 RES-CHIP 6.8K 5% 1/16W
R215 1-216-834-11 METAL CHIP 12K 5% 1/16W
R221 1-216-821-11 METAL CHIP 1K 5% 1/16W
R222 1-216-841-11 METAL CHIP 47K 5% 1/16W
R401 1-216-833-11 METAL CHIP 10K 5% 1/16W
R404 1-216-821-11 METAL CHIP 1K 5% 1/16W
R407 1-249-437-11 CARBON 47K 5% 1/4W
R408 1-218-867-11 RES-CHIP 6.8K 5% 1/16W
R410 1-216-805-11 METAL CHIP 47 5% 1/16W
R444 1-216-864-11 METAL CHIP 0 5% 1/16W
R601 1-249-417-11 CARBON 1K 5% 1/4W
R602 1-216-821-11 METAL CHIP 1K 5% 1/16W
R603 1-249-407-11 CARBON 150 5% 1/4W
R604 1-216-821-11 METAL CHIP 1K 5% 1/16W
R605 1-216-841-11 METAL CHIP 47K 5% 1/16W
R606 1-216-841-11 METAL CHIP 47K 5% 1/16W
R607 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R608 1-216-833-11 METAL CHIP 10K 5% 1/16W
R609 1-216-809-11 METAL CHIP 100 5% 1/16W
R610 1-216-809-11 METAL CHIP 100 5% 1/16W
R611 1-218-867-11 RES-CHIP 6.8K 5% 1/16W
R612 1-216-833-11 METAL CHIP 10K 5% 1/16W
R613 1-216-833-11 METAL CHIP 10K 5% 1/16W
R614 1-247-807-31 CARBON 100 5% 1/4W
R615 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R616 1-216-845-11 METAL CHIP 100K 5% 1/16W
R617 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R704 1-216-821-11 METAL CHIP 1K 5% 1/16W
R705 1-216-821-11 METAL CHIP 1K 5% 1/16W
R706 1-216-864-11 METAL CHIP 0 5% 1/16W
R707 1-247-887-00 CARBON 220K 5% 1/4W
R708 1-216-821-11 METAL CHIP 1K 5% 1/16W
R709 1-216-821-11 METAL CHIP 1K 5% 1/16W
R710 1-216-821-11 METAL CHIP 1K 5% 1/16W
R711 1-216-821-11 METAL CHIP 1K 5% 1/16W
R712 1-216-821-11 METAL CHIP 1K 5% 1/16W
R714 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R716 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R806 1-216-821-11 METAL CHIP 1K 5% 1/16W
R807 1-216-821-11 METAL CHIP 1K 5% 1/16W
R808 1-216-821-11 METAL CHIP 1K 5% 1/16W
R809 1-216-821-11 METAL CHIP 1K 5% 1/16W
R810 1-216-813-11 METAL CHIP 220 5% 1/16W
R811 1-249-409-11 CARBON 220 5% 1/4W
R812 1-249-409-11 CARBON 220 5% 1/4W
R813 1-216-837-11 METAL CHIP 22K 5% 1/16W
R814 1-216-809-11 METAL CHIP 100 5% 1/16W
R815 1-216-809-11 METAL CHIP 100 5% 1/16W
R819 1-216-864-11 METAL CHIP 0 5% 1/16W
R821 1-216-849-11 METAL CHIP 220K 5% 1/16W
R824 1-216-849-11 METAL CHIP 220K 5% 1/16W
R835 1-216-821-11 METAL CHIP 1K 5% 1/16W
R840 1-216-821-11 METAL CHIP 1K 5% 1/16W
R844 1-216-809-11 METAL CHIP 100 5% 1/16W
R845 1-216-809-11 METAL CHIP 100 5% 1/16W
R846 1-216-809-11 METAL CHIP 100 5% 1/16W
R847 1-216-809-11 METAL CHIP 100 5% 1/16W
R848 1-216-809-11 METAL CHIP 100 5% 1/16W
R849 1-216-809-11 METAL CHIP 100 5% 1/16W
R851 1-249-421-11 CARBON 2.2K 5% 1/4W
R852 1-216-809-11 METAL CHIP 100 5% 1/16W
R853 1-247-807-31 CARBON 100 5% 1/4W
R854 1-216-841-11 METAL CHIP 47K 5% 1/16W
R855 1-216-821-11 METAL CHIP 1K 5% 1/16W
R901 1-249-425-11 CARBON 4.7K 5% 1/4W
R905 1-216-864-11 METAL CHIP 0 5% 1/16W
R906 1-216-821-11 METAL CHIP 1K 5% 1/16W
R907 1-216-841-11 METAL CHIP 47K 5% 1/16W
R908 1-216-841-11 METAL CHIP 47K 5% 1/16W
R909 1-216-828-11 METAL CHIP 3.9K 5% 1/16W
R911 1-249-417-11 CARBON 1K 5% 1/4W
R912 1-249-413-11 CARBON 470 5% 1/4W
R913 1-249-417-11 CARBON 1K 5% 1/4W
R917 1-249-409-11 CARBON 220 5% 1/4W
R918 1-216-845-11 METAL CHIP 100K 5% 1/16W
37
Page 38
CDX-CA400/CA530X/CA580X
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R919 1-249-421-11 CARBON 2.2K 5% 1/4W
R920 1-216-849-11 METAL CHIP 220K 5% 1/16W
R922 1-208-806-11 RES-CHIP 10K 0.5% 1/10W
R923 1-208-806-11 RES-CHIP 10K 0.5% 1/10W
R924 1-249-404-00 CARBON 82 5% 1/4W
R925 1-249-404-00 CARBON 82 5% 1/4W
R926 1-249-404-00 CARBON 82 5% 1/4W
R927 1-249-404-00 CARBON 82 5% 1/4W
R928 1-249-404-00 CARBON 82 5% 1/4W
R929 1-249-404-00 CARBON 82 5% 1/4W
R930 1-249-395-11 CARBON 15 5% 1/4W
R931 1-218-867-11 RES-CHIP 6.8K 5% 1/16W
R932 1-249-421-11 CARBON 2.2K 5% 1/4W
R933 1-216-821-11 METAL CHIP 1K 5% 1/16W
R934 1-249-409-11 CARBON 220 5% 1/4W
S901 1-762-638-11 SWITCH, TACTILE (RESET)
TH851 1-801-792-21 THERMISTOR, POSITIVE
TH901 1-809-148-11 THERMISTOR PTH8L07AR2R0M1B510
TU601 A-3220-835-A TUNER UNIT (TUX-010)
SERVO
< SWITCH >
< THERMISTOR (POSITIVE) >
< TUNER >
C19 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C20 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C21 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C22 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C23 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C24 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C25 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C26 1-126-391-11 ELECT CHIP 47uF 20% 6.3V
C27 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C29 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C30 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C34 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C35 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C36 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C37 1-126-393-11 ELECT CHIP 33uF 20% 10V
C38 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C40 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C41 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C43 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C44 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C45 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
< CONNECTOR >
CN1 1-815-352-11 CONNECTOR, BOARD TO BOARD 30P
CN3 1-816-275-11 CONNECTOR, FFC/FPC 6P
< VIBRATOR >
X601 1-781-246-21 VIBRATOR, CRYSTAL (10.25MHz)
X801 1-795-259-11 VIBRATOR, CERAMIC (8.38MHz)
X802 1-567-098-41 VIBRATOR, CRYSTAL (32kHz)
*************************************************************
A-3283-233-A SERVO BOARD, COMPLETE
**********************
1-683-284-11 FLEXIBLE BOARD
< CAPACITOR >
C1 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C3 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C4 1-104-609-11 ELECT CHIP 100uF 20% 4V
C5 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C6 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C8 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C9 1-162-924-11 CERAMIC CHIP 56PF 5% 50V
C10 1-162-924-11 CERAMIC CHIP 56PF 5% 50V
C11 1-162-909-11 CERAMIC CHIP 4PF 0.25PF 50V
C13 1-162-916-11 CERAMIC CHIP 12PF 5% 50V
C14 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C15 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C16 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C17 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C18 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
< JUMPER RESISTOR >
FB1 1-216-864-11 METAL CHIP 0 5% 1/16W
FB2 1-216-864-11 METAL CHIP 0 5% 1/16W
FB3 1-216-864-11 METAL CHIP 0 5% 1/16W
FB4 1-216-864-11 METAL CHIP 0 5% 1/16W
FB6 1-216-864-11 METAL CHIP 0 5% 1/16W
FB7 1-216-864-11 METAL CHIP 0 5% 1/16W
< IC >
IC1 8-759-699-98 IC uPD63711GC-8EU
IC2 8-759-658-87 IC BA5810FP-E2
< TRANSISTOR >
Q1 8-729-904-87 TRANSISTOR 2SB1197K-R
< RESISTOR >
R3 1-216-797-11 METAL CHIP 10 5% 1/16W
R5 1-218-344-11 RES-CHIP 7.5K 5% 1/16W
R6 1-216-837-11 METAL CHIP 22K 5% 1/16W
R7 1-216-839-11 METAL CHIP 33K 5% 1/16W
R8 1-216-833-11 METAL CHIP 10K 5% 1/16W
R9 1-216-840-11 METAL CHIP 39K 5% 1/16W
R10 1-216-835-11 METAL CHIP 15K 5% 1/16W
R12 1-216-837-11 METAL CHIP 22K 5% 1/16W
R14 1-216-841-11 METAL CHIP 47K 5% 1/16W
R15 1-216-841-11 METAL CHIP 47K 5% 1/16W
38
Page 39
CDX-CA400/CA530X/CA580X
SERVO
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R17 1-216-809-11 METAL CHIP 100 5% 1/16W
R18 1-216-809-11 METAL CHIP 100 5% 1/16W
R19 1-216-809-11 METAL CHIP 100 5% 1/16W
R20 1-216-809-11 METAL CHIP 100 5% 1/16W
R21 1-216-821-11 METAL CHIP 1K 5% 1/16W
R22 1-216-821-11 METAL CHIP 1K 5% 1/16W
R24 1-216-864-11 METAL CHIP 0 5% 1/16W
R25 1-216-864-11 METAL CHIP 0 5% 1/16W
R26 1-216-797-11 METAL CHIP 10 5% 1/16W
R29 1-216-833-11 METAL CHIP 10K 5% 1/16W
R30 1-216-833-11 METAL CHIP 10K 5% 1/16W
< SWITCH >
SW1 1-762-944-12 SWITCH, DETECTION (SMALL TYPE) (DOWN)
< VIBRATOR >
X1 1-795-520-21 VIBRATOR, CERAMIC (16.9344MHz)
*************************************************************
1-683-282-11 SL SW BOARD
************
< SWITCH >
SW4 1-529-565-41 SWITCH, PUSH (1 KEY) (LIMIT)
*************************************************************
*************************************************************
251 3-014-370-21 FRAME, FITTING
252 X-3366-405-1 SCREW ASSY (EXP), FITTING
253 3-934-325-01 SCREW (+K 5X8 TP)
254 3-030-929-04 SPRING, FITTING
255 3-236-923-01 COLLAR
256 1-776-206-21 CORD (WITH CONNECTOR) (POWER)
1-476-526-31 REMOTE COMMANDER (RM-X115)
3-230-047-01 LID, BATTERY CASE (for RM-X115)
3-238-717-11 MANUAL, INSTRUCTION, INSTALL
3-238-719-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
3-238-722-11 MANUAL, INSTRUCTION, INSTALL
3-238-723-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH)
X-3380-054-2 CASE ASSY (for FRONT PANEL)
PARTS FOR INSTALLATION AND CONNECTIONS
**************************************
SL SW SPEAKER
ACCESSORIES
************
(CA400/CA580X)
(CA400/CA580X)
(ENGLISH,FRENCH) (CA400)
(CA400)
(ENGLISH,SPANISH) (CA530X/CA580X)
(CA530X/CA580X)
(CA530X/CA580X)
1-683-830-11 SPEAKER BOARD (supplied with
MAIN BOARD, COMPLETE)
**************
*************************************************************
MISCELLANEOUS
***************
3 1-776-206-21 CORD (WITH CONNECTOR) (POWER)
201 X-3378-480-1 CHASSIS (OP) ASSY (including M901)
207 1-823-641-11 CABLE, FLEXIBLE FLAT (6 CORE)
0 210 8-820-103-11 PICK-UP, OPTICAL KSS-720A/C-RP
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
M902 A-3301-985-A MOTOR ASSY, SLED (SLED)
M903 A-3315-039-A MOTOR SUB ASSY, LO (LOADING)
*************************************************************
252251
253 254 255 256
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
39
Page 40
CDX-CA400/CA530X/CA580X
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2001. 12 New
40
Loading...
