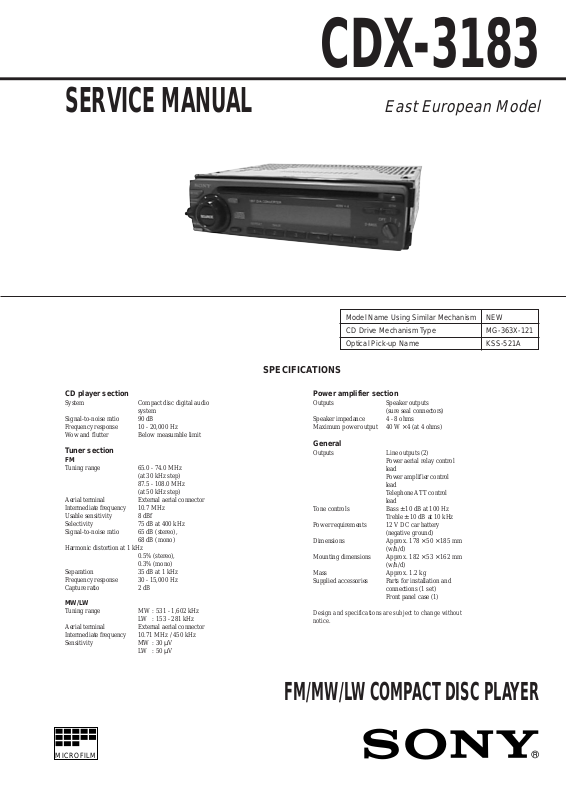

Page 1
CDX-3183
SERVICE MANUAL
SPECIFICATIONS
East European Model
Model Name Using Similar Mechanism NEW CD Drive Mechanism Type MG-363X-121 Optical Pick-up Name KSS-521A
CD player section
System Compact disc digital audio
system Signal-to-noise ratio 90 dB Frequency response 10 - 20,000 Hz Wow and flutter Below measurable limit
Tuner section
FM
Tuning range 65.0 - 74.0 MHz
(at 30 kHz step)
87.5 - 108.0 MHz
(at 50 kHz step) Aerial terminal External aerial connector Intermediate frequency 10.7 MHz Usable sensitivity 8 dBf Selectivity 75 dB at 400 kHz Signal-to-noise ratio 65 dB (stereo),
68 dB (mono) Harmonic distortion at 1 kHz
0.5% (stereo),
0.3% (mono) Separation 35 dB at 1 kHz Frequency response 30 - 15,000 Hz Capture ratio 2 dB
MW/LW
Tuning range MW : 531 - 1,602 kHz
LW : 153 - 281 kHz Aerial terminal External aerial connector Intermediate frequency 10.71 MHz / 450 kHz Sensitivity MW : 30 µV
LW : 50 µV
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 - 8 ohms Maximum power output 40 W × 4 (at 4 ohms)
General
Outputs Line outputs (2)
Power aerial relay control lead Power amplifier control lead Telephone ATT control lead
Tone controls Bass ± 10 dB at 100 Hz
Treble ± 10 dB at 10 kHz
Power requirements 12 V DC car battery
(negative ground)
Dimensions Approx. 178 × 50 × 185 mm
(w/h/d)
Mounting dimensions Approx. 182 × 53 × 162 mm
(w/h/d) Mass Approx. 1.2 kg Supplied accessories Parts for installation and
connections (1 set)
Front panel case (1)
Design and specifications are subject to change without notice.
MICROFILM
FM/MW/LW COMPACT DISC PLAYER
– 1 –
Page 2
SERVICE NOTE
TABLE OF CONTENTS
CAUTION
Use of controls or adjustments or performance of proce­dures other than those specified herein may result in haz­ardous radiation exposure.
Notes on Chip Component Replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objecti ve lens in the optical pic k-up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.
NOTES ON PICK-UP FLEXIBLE BOARD
The pick-up flexible board in this set is secured to the optical pick-up with an adhesive tape. Once the tape is remov ed, an adhering force becomes weak, and it cannot be reused. Therefore, if the optical pick-up is replaced, replace also the pick-up flexible board with a new one.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE P AR T NUMBERS APPEAR AS SHO WN IN THIS MANU AL OR IN SUPPLEMENTS PUBLISHED BY SONY.
1. GENERAL
A készülék kezel˝ogombjai .......................................................3
Els˝o lépések .............................................................................3
Óra beállítása ........................................................................... 4
CD lejátszó .............................................................................. 4
Rádió ....................................................................................... 4
Egyéb funkciók........................................................................ 5
Csatlakozások .......................................................................... 7
2. DISASSEMBLY
2-1. Cover Assy .......................................................................... 9
2-2. Front Panel Assy ................................................................. 9
2-3. Sub Panel (1) Assy ............................................................ 10
2-4. CD Mechanism Block ....................................................... 10
2-5. Main Board ....................................................................... 11
2-6. Heat Sink ........................................................................... 11
2-7. Chassis (T) Sub Assy ........................................................ 12
2-8. Lever Assy......................................................................... 12
2-9. Servo Board....................................................................... 13
2-10. Roller Assy........................................................................ 13
2-11. Chassis (OP) (O/S) Assy ................................................... 14
2-12. Optical Pick-up Block ....................................................... 14
3. ELECTRICAL ADJUSTMENTS
Tuner Section.........................................................................15
CD Section ............................................................................ 18
4. DIAGRAMS
4-1. IC Pin Description............................................................. 19
4-2. Circuit Boards Location .................................................... 21
4-3. Printed Wiring Boards –CD Mechanism Section–............ 23
4-4. Schematic Diagram –CD Mechanism Section– ................25
4-5. Printed Wiring Board –Display Section– .......................... 27
4-6. Schematic Diagram –Display Section–............................. 29
4-7. Printed Wiring Board –Main Section– .............................. 31
4-8. Schematic Diagram –Main Section (1/2)– ........................33
4-9. Schematic Diagram –Main Section (2/2)– ........................35
5. EXPLODED VIEWS
5-1. Chassis Section ................................................................. 40
5-2. Front Panel Section ........................................................... 41
5-3. CD Mechanism Section (1) ............................................... 42
5-4. CD Mechanism Section (2) ............................................... 43
5-5. CD Mechanism Section (3) ............................................... 44
6. ELECTRICAL PARTS LIST ........................................ 45
– 2 –
Page 3
SECTION 1

GENERAL

This section extracted from Dutch instruction manual.
– 3 –
Page 4
– 4 –
Page 5
– 5 –
Page 6
– 6 –
Page 7
– 7 –
Page 8
– 8 –
Page 9
SECTION 2

DISASSEMBLY

Note : Follow the disassembly procedure in the numerical order giv en.
2-1. COVER ASSY
1
claw
3
claws
4
cover assy
2
claw
2-2. FRONT PANEL ASSY
1
button (release)
2
front panel assy
– 9 –
Page 10
2-3. SUB PANEL (1) ASSY
5
sub panel (1) assy
1
PTT 2.6x6
3
claw
4
claw
2
PTT 2.6x6
2-4. CD MECHANISM BLOCK
5
CD mechanism block
2
PTT 2.6x6
8
bracket (M/D)
7
PTT 2.6x6
3
PTT 2.6x6
6
PTT 2.6x6
1
PTT 2.6x6
– 10 –
4
CNP701
Page 11
2-5. MAIN BOARD
8
8
3
screw (+BTT)
5
MAIN board
4
screws (+BTT)
2
1
PTT 2.6x8
PTT 2.6x
2-6. HEAT SINK
3
PTT 2.6x8
2
PTT 2.6x8
4
heat sink
1
PTT 2.6x
– 11 –
Page 12
2-7. CHASSIS (T) SUB ASSY
1
Unsolder the
lead wires.
red
white
black
3
P 2x3
2
P 2x3
4
chassis (T) sub assy
2-8. LEVER ASSY
6
lever (R) assy
3
tension spring (LR)
7
lever (L) assy
5
guide (disc)
1
PS 2x4
2
DISC IN SW board
4
claws
– 12 –
Page 13
2-9. SERVO BOARD
4
loading motor assy
3
5
P 2x3
PS 2x4
1
CN3
6
PS 2x4
2
CN2
7
SERVO board
2-10. ROLLER ASSY
• When installing, take note of the positions arm (roller) and washers. (Fig. 1)
4
PS 2x3
5
LOAD SW board
washer
arm
washer
3
2
Fig. 1
roller assy
arm (roller)
washers
arm
1
tension spring (RA)
– 13 –
Page 14
2-11. CHASSIS (OP) (O/S) ASSY
8
compression spring (FL)
1
tension spring (angle)
7
9
compression spring (FL)
2
tension spring (KR1)
5
Fit lever (D) in the
direction of the arrow.
chassis (OP) (O/S) assy
6
Turn loading ring in the
direction of the arrow.
4
damper (T)
2-12. OPTICAL PICK-UP BLOCK
1
P 2x3
2
sled motor assy
3
damper (T)
3
optical pick-up block
– 14 –
Page 15
SECTION 3

ELECTRICAL ADJUSTMENTS

TUNER SECTION
Cautions during repair
When the tuner unit is defective, replace it by a new one because its internal block is difficult to repair.
0 dB = 1 µV
TEST MODE
This set have the test mode function. In the test mode, FM Auto Scan/Stop Level and MW Auto Scan/Stop Level adjustments can be performed easier than it in ordinary procedure.
<Set the Test Mode>
1. Set the “OFF” mode.
2. Push the preset 4 button.
3. Push the preset 5 button.
4. Press the preset 1 button for more than two seconds.
5. Then the display indicates all lights, the test mode is set.
<Release the Test Mode>
1. Push the OFF button.
Note on Adjustment
The adjustments of tuner section, should be performed according to the following sequence.
1. FM Auto Scan/Stop Level Adjustment
2. FM Stereo Separation Adjustment
3. MW Auto Scan/Stop Level Adjustment
FM Auto Scan/Stop Level Adjustment
Setting :
D-BASS switch : OFF SOURCE button : FMI
FM RF signal
generator
Carrier frequency : 98.00 MHz Output level : 22 dB (12.6 µV) Mode : mono Modulation : 1 kHz, 22.5 kHz deviation (30%)
Procedure :
1. Set to the test mode.
2. Push the SOURCE button and set to FMI.
Display
0.01
antenna terminal
µ
F
FMI
3. Push the preset 3 button.
Display
FMI
set
SHUF
SHUF
4. Adjust with the volume RV2 on TU01 so that the “FMI”
indication turns to “FMI I” indication on the display window. But, in case of already indicated “FMI I”, turn the RV2 so that put out light “I” indication and adjustment.
Display
FMI I
SHUF
Adjustment Location : See page 17.
– 15 –
Page 16
FM Stereo Separation Adjustment
Setting :
D-BASS switch : OFF SOURCE button: FMI
FM RF signal
generator
Carrier frequency : 98.00 MHz Output level : 70 dB (3.2 mV) Mode :stereo Modulation : main : 1 kHz, 20 kHz deviation (26.5%)
antenna terminal
0.01
µ
F
set
LINE OUT REAR
sub : 1 kHz, 20 kHz deviation (26.5%) 19 kHz pilot : 7.5 kHz deviation (10%)
10 k
Ω
Procedure :
FM stereo
signal generator
output channel
Level meter Level meter
connection reading (dB)
L-CH L-CH A
B
R-CH L-CH Adjust RV4 on TU01 for
minimum reading.
R-CH R-CH C
D
L-CH R-CH Adjust RV4 on TU01 for
minimum reading.
level meter
MW Auto Scan/Stop Level Adjustment
Setting :
D-BASS switch : OFF SOURCE n MODE button : MW
AM RF signal
generator
Carrier frequency : 999 kHz 30% amplitude modulation by 1 kHz signal output level : 33 dB (44.7 µV)
AM dummy
antenna (50
Ω
)
Procedure :
1. Set to the test mode. (See page 15.)
2. Push the SOURCE button.
3. Push the MODE button and set to MW. Display
MW
ST
4. Push the preset 3 button. Display
30
antenna terminal
15 pF
Ω
65 pF
set
SHUF
L-CH stereo separation : A – B R-CH stereo separation : C – D The separations of both channels should be equal.
Specification : Separation more than 28 dB
Adjustment Location : See page 17.
MW
ST
SHUF
5. Adjust with the volume RV1 on TU01 so that the “MW”
indication turns to “MWI” indication on the display window. But, in case of already indicated “MWI”, turn the RV1 so that put out light “I” indication and adjustment.
Display
I
MW
ST
Adjustment Location : See page 17.
SHUF
– 16 –
Page 17
Adjustment Location : tuner unit (TU01)
–set upper view–
TU01
MW AUTO SCAN/
STOP LEVEL ADJ
FM AUTO SCAN/
STOP LEVEL ADJ
FM STEREO
SEPARATION ADJ
RV1
RV2
RV4
– 17 –
Page 18
CD SECTION
Note:
1. CD Block basically constructed to operate without adjustment. Therefore, check each item in order given.
2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.
3. Use the oscilloscope with more than 10 MΩ impedance.
4. Clean an objective lens by an applicator with neutral deter gent when the signal level is low than specified value with the follow­ing checks.
Focus Bias Adjustment
Setting: This adjustment is performed with the set placed
horizontally.
oscilloscope
SERVO board
TP (RF)
TP (RF. GND)
Procedure:
1. Connect an oscilloscope between TP (RF) and TP (RF. GND) on the SERVO board.
2. Connect the power supply.
3. Push the RESET button (S801) on the MAIN board.
4. Insert the disc (YEDS-18) and playback.
5. Adjust RV1 so that the oscilloscope w aveform is clear and check RF signal level is correct or not.
Note: Clear RF signal waveform means that the sharp “≈ ” can be
clearly distinguished at the center of the waveform.
Focus Gain Adjustment (Coarse adjustment)
This adjustment is not required unless the following parts are replaced:
• Optical pick-up
•RV4
Procedure:
1. Set RV4 to the standard position. (mechanical center)
2. Check whether operation noise (while noise type) caused by the 2-axis device (lens section of the optical pick-up) is abnormally loud. If the operation noise is too loud, turn RV4 slightly counter­clockwise.
• If the gain is too low: Focus does not function and no music is selected.
• If the gain is too high: Noise caused by scratches and dust is heard and the operation becomes unstable.
Adjustment Location: servo board
Adjustment Location: servo board (component side)
RV4
IC3
CN2
FOCUS GAIN ADJ
RF signal waveform
VOLT/DIV: 200 mV TIME/DIV: 500 nS
level: 1.0 – 1.5 Vp-p
• When observing the eye pattern, set the oscilloscope to A C range and raise the vertical sensitivity so that it may be easily seen.
Adjustment Location: servo board
CN1
IC1
TP
(RF. GND)
IC2
TP
(RF)
CN3
RV1
FOCUS BIAS ADJ
– 18 –
Page 19
SECTION 4

DIAGRAMS

4-1. IC PIN DESCRIPTION
• IC801 µPD17705GC-526-3B9 (SYSTEM CONTROL)
Pin No. Pin Name I/O Pin Description
1 SIRCS I SIRCS input (A/D) 2 IN-SW I CD mechanism position detection 3 D-SW I CD mechanism position detection 4 SELF-SW I CD mechanism position detection 5 L-SW I LIMIT switch 6 LM-EJ O Loading motor control (Eject direction) 7 LM-LOD O Loading motor control (Loading direction) 8 ANT-ON O Power control for amplifier.
9 MONO O Force MONO output (Not used in this set.) 10 SD I SD signal input 11 BAND-SW I Band plan setting of general area. 12 AREA1-SW I Destination select 1 (Fixed at “H” in this set.) 13 AREA2-SW I Destination select 2 (Fixed at “H” in this set.)
14, 15 RE1, 2 I Rotary encoder input 1, 2
16 SEEK O SEEK output
17 – 20 NC — Not used in this set.
21 GND3 — GND
22 – 24 KEYIN3 – 1 I A/D key input 3 – 1
25 ROT-IN I Rotary commander input 26 S-METER I FM and AM common signal meter A/D conversion input 27 TEST-SW I TEST mode select input 28 AM-IFC I AM center frequency input 29 FM-IFC I FM center frequency input 30 VDD2 — Power supply (+5 V) 31 VCOH-FM I Local oscillation frequency input (FM) 32 VCOL-AM I Local oscillation frequency input (AM) 33 GND2 — GND 34 NC — Not used in this set. 35 EO1-PDOUT O Error out output 36 TESTO — Fixed at “L” in this set. 37 AM-ON(TU-ON) O AM power output (AM select) 38 FM-ON(FM/AM) O FM power output (FM select) 39 LCL/DX O LOCAL/DX select (“H” : LOCAL, “L” : DX) 40 BEEP O BEEP output 41 ACC-IN I Accessory input 42 SCOR I SUBQ data read request 43 MUTE O System mute output 44 AMP-MUTE O Power amplifier mute output 45 TEL-MUTE O Telephone mute output 46 NC — Not used in this set. 47 VOL-CE O Electric volume chip select 48 VOL-CLK O Electric volume serial clock 49 VOL-DATA O Electric volume serial data 50 EMPHO O De-emphasis control output 51 PW-ON O System power control 52 MD-ON O Loading motor power 53 CD-ON O Servo drive power 54 ILL-ON O Illumination output
55, 56 MOD1, 2 O Bus boost control 1, 2
57 NC — Not used in this set. 58 LCD-CE O LCD drive chip select output
– 19 –
Page 20
Pin No. Pin Name I/O Pin Description
59 EZ-SEL I SHIFT + input 60 SENS I Information input from servo IC. 61 FOK I Focus OK input 62 LD-ON O Laser diode control 63 NC — Connect to GND. 64 ST/MONO I/O Used for both STEREO indicator display input and force MONO output. (FM) 65 LCD-CKO O LCD driver serial clock output 66 LCD-SO O LCD driver serial data output 67 C.ALARM O Caution alarm output (Fixed at “H” in this set.) 68 SQ-CKO O Q data read serial clock output 69 CD-RST O Servo IC/DAC reset output 70 SQ-SI I Q data input 71 CD-SO O Serial data output to servo IC. 72 CD-LAT O Data latch output to servo IC. 73 CD-CKO O Serial clock output to servo IC. 74 VREF — Not used in this set. 75 GND1 — GND 76 X-OUT — Crystal oscillator connection (4.5 MHz) 77 X-IN I Crystal oscillator connection (4.5 MHz) 78 BU-IN I Back-up detection 79 VDD1 — Power supply (+5 V) 80 RESET I RESET input
– 20 –
Page 21
4-2. CIRCUIT BOARDS LOCATION
• Wavef orms (MODE:PLA Y)
1
tuner unit (TU01)
DISPLAY board
LOAD SW board
DISC IN SW board
SUB board
SERVO board
LIMIT SW board
MAIN board
2
3
4
5
Approx. 620mVp-p
IC2
IC2
IC2
IC1
(FEO)
1
(RFO)
#¡
Approx. 200mVp-p
(TEO)
$™
(MDP)
3
0V
1.2Vp-p
0V
2.6Vp-p
7.6µsec
5.8Vp-p
6
7
IC1
IC1
IC1
22.7µsec
(LRCK)
@º
474nsec
(BCK)
@™
16.89MHz
(XTAI)
#¢
5.7Vp-p
3.2Vp-p
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums.
• All resistors are in Ω and 1/ specified.
Note: The components identified by mark ! or dotted line
with mark ! are critical for safety. Replace only with part number specified.
• U : B+ Line.
• H : adjustment for repair.
• P ower voltage is dc 14.4V and fed with regulated dc po wer supply from ACC and BATT cords.
• Voltage and waveforms are dc with respect to ground under no-signal conditions. no mark : CD PLAY
• V oltages are taken with a V OM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances.
• Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances.
• Circled numbers refer to waveforms.
• Signal path. J : CD
: Impossible to measure
∗
4
W or less unless otherwise
– 21 – – 22 –
Page 22
CDX-3183
4-3. PRINTED WIRING BOARDS — CD MECHANISM SECTION —
(Page 32)
• Semiconductor Location
Ref. No. Location IC1 D-3
IC2 E-6 IC3 B-3
Q1 F-6 Q2 F-7
Note:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
• b : Pattern from the side which enables seeing.
– 23 – – 24 –
Page 23
4-4. SCHEMATIC DIAGRAM — CD MECHANISM SECTION — • Refer to page 22 for Waveforms and Note and page 37 for IC Block Diagrams.
CDX-3183
(Page 33)
– 25 – – 26 –
Page 24
CDX-3183
4-5. PRINTED WIRING BOARD — DISPLAY SECTION —
(Page 31)
• Semiconductor Location
Ref. No. Location (D851) B-10
(D852) B-11 (D853) B-10 (D854) B-10 D861 B-12 D862 A-13 D863 B-13 D864 C-5 D865 C-4 D866 C-2 D867 B-4 D868 C-9
( ) : SIDE B
Ref. No. Location D869 C-8
D870 C-7 D871 C-12 D872 C-11 D873 C-3 D874 C-2 D875 B-3 D876 B-2 D877 B-1 D878 A-1
(IC851) B-7
Note:
• b : Pattern from the side which enables seeing. (The other layer’s patterns are not indicated.)
Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated.
– 27 – – 28 –
Page 25
4-6. SCHEMATIC DIAGRAM — DISPLAY SECTION —
CDX-3183
(Page 36)
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums.
• All resistors are in Ω and 1/ specified.
• U : B+ Line.
• P ower voltage is dc 14.4V and f ed with regulated dc power supply from ACC and BATT cords.
4
W or less unless otherwise
– 29 – – 30 –
• C : panel designation.
• Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM
• Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances.
Page 26
CDX-3183
4-7. PRINTED WIRING BOARD — MAIN SECTION —
• Semiconductor Location
Ref. No. Location D401 C-10
D402 D-3 D507 I-1 D601 G-12 D602 G-13 D603 H-11 D801 J-4 D802 J-4 D804 J-3 D805 J-4 D806 J-3 D808 J-3 D810 C-7 D811 J-4 D812 J-3 D901 F-1 D902 D-1 D903 H-1 D905 J-2 D906 D-3 D907 C-2 D908 C-3 D909 D-3
IC401 E-8 IC402 B-8 IC701 G-3 IC702 F-5 IC801 I-8
Q101 D-10
Ref. No. Location Q102 C-10
Q201 C-11 Q202 B-11 Q401 C-9 Q402 C-9 Q601 H-12 Q602 H-12 Q603 H-11 Q604 G-12 Q605 E-12 Q606 E-12 Q801 G-6 Q901 G-1 Q902 F-2 Q903 F-2 Q904 H-2 Q905 G-2 Q906 E-1 Q907 J-3 Q908 J-3 Q909 D-3 Q910 C-2 Q911 E-2 Q912 J-2 Q913 I-2 Q914 E-2 Q915 E-3 Q916 J-1 Q919 D-5 Q921 G-2
Note:
• X : parts extracted from the component side.
¢
•
• b : Pattern from the side which enables seeing.
: internal component.
– 31 – – 32 –
(Page 28) (Page 23)
Page 27
4-8. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — • Refer to page 39 for IC Block Diagrams.
(Page 26)
CDX-3183
(Page 35)
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums.
• All resistors are in Ω and 1/ specified.
¢
•
• C : panel designation.
• U : B+ Line.
• P ower voltage is dc 14.4V and fed with regulated dc po wer
• Voltage is dc with respect to ground under no-signal
• V oltages are taken with a V OM (Input impedance 10 MΩ).
• Signal path.
: internal component.
supply from ACC and BATT cords. (detuned) condition.
no mark : FM ( ) : MW
Voltage variations may be noted due to normal production tolerances.
F : FM f : MW J : CD
4
W or less unless otherwise
– 33 – – 34 –
Page 28
CDX-3183
4-9. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) — • Refer to page 34 for Note and page 39 for IC Block Diagrams.
(Page 34)
(Page 29)
– 35 – – 36 –
Page 29
• IC Block Diagrams
IC1 CXD2507AQ
FOK
MON MDP
MDS
LOCK
TEST
FILO
FILI PCO VSS
AVSS
CLTV
AVDD
BIAS
ASYI
ASYO
ASYE
WDCK
XLON
SPOC
SPOD
63
62
64
1
2 3 4 5 6
7 8 9
10
11 12 13
RF
14 15 16 17
18
19
SERVO AUTO SEQUENCER
CPU
INTERFACE
14
DIGITAL
PLL
ASYMMETRY CORRECTOR
5
20 21 22 23 24 25 26 27 293031 3228
BCLK
LRCK
PCMD
16K RAM
GTOP
VDD
CLKO
SPOB
SPOA
58596061
5
SUB CODE
PROCESSOR
EFM
DEMODULATOR
3
ERROR
CORRECTOR
GFS
VDD
XUGF
XPCK
XLTO
DATO
5657
4
D/A
INTERFACE
3
C2PO
RFCK
CNIN
XROF
5455
SEIN
53
6
MNT3
CLOK
52
MNT1
XLAT
DIGITAL
CLV
DIGITAL
OUT
CLOCK
GENERATOR
51
DATA
50
XRST
49
SENS
48
MUTE
47
SQCK SQSO
46 45
EXCK
44
SBSO
43
SCOR
42
VSS
41
WFCK
40
EMPH
39
DOUT
C4M
38 37
FSTT
36
XTSL
35
XTAO
34
XTAI
MNTO
33
IC3 BA6796FP-T1
OP IN –
OP IN +
VREF
28
1
OPOUT
26
27
CTL1 CTL2 FWD REV
23 4
CH4
CH4-IN
CH3
THERMAL
SHUT
DOWN
CTL1
2425
LOGIC
5
CTL2
CH3-IN
LEVEL SHIFT
CH2
23
78
6
FWD
REV
22
CH2-IN
LEVEL SHIFT
V/I
TRAY
21
VCC
LEVEL SHIFT
VCC
DRIVE
BUFFER
9
10
GND
CH1
CH5 –
1920
CH1-IN
DRIVE
BUFFER
DRIVE
BUFFER
11
CH1 +
LEVEL SHIFT
COM
CH1 –
DRIVE
BUFFER
DRIVE
BUFFER
12 13
CH4 +
161718
DRIVE
BUFFER
DRIVE
BUFFER
CH2 +
CH3 +
15
DRIVE
BUFFER
DRIVE
BUFFER
14
CH2 –
CH3 –
– 37 –
Page 30
IC2 CXA1782BQ
FE BIAS
PHD 2
36 35 34
37
F
38
E
39
PHD 1
RF IV AMP1
APC
RF IV AMP2
F IV AMP
PHD
33
FE AMP
LD
RF M
32
LEVEL S
FOK
RF O
31
TTL
IIL
FZC COMP
RF I
30 29 28 27 26 25
MIRR
IIL DATA REGISTER
TOG1-3
FS1-4 TG1-2 TM1-7 PS1-4
BAL1-3
CP
CB
DFCT
INPUT SHIFT REGISTER ADDRESS DECODER
OUTPUT DECODER
CC1
IIL
TTL
TTL
IIL
CC2
FOK
24
SENS
C.OUT
23
XRST
22
21
DATA
20
XLT
19
CLK
VCC
18
VEE TED
LPFI
TEI
ATSC
TZC
TDFCT
BAL2
TOG1
WINDOW COMP
BAL 3
TOG2
E IV AMP
TOG3
ATSC
TE AMP
HPF COMP
TZC COMP
DFCT
TM1
DFCT
FS4
2
1
FEI
FEO
FDFCT
43
FGD
LPF COMP
TG1
FCS PHASE
COMPENSATION
5
6
FLB
FE O
FS1
FS2
FE M
TRACKING PHASE
COMPENSATION
TM6
TM5
TM4
TM3
TM7
TG2
987
TGU
SRCH
ISET
TM2
F SET
11
10
TG2
FSET
ISET
17
SL O
16
SL M
15
SL P
14
13
TA O
12
TA M
EI
40
BAL1
41 42
43 44 45 46 47
VC
48
– 38 –
Page 31
IC401 LC75374E
34
LSELO
35
L4 L3
36
L2
37
L1
38
39
VDD
R1
40 41
R2 R3
42
R4
43 44
RSELO
1
LT3
LT2
+ –
– +
LT1
+ –
+ –
DECODER LATCH
RT1
RT2
RT3
LVRIN
RVRIN
LCOM
+ –
+ –
– +
– +
2 345 6 7 8 9 10
RCOM
LTOUT
2627282930313233
– +
CONTROL
SHIFT
REGISTER
+ –
RSIN
RTOUT
2324
25
22
LFIN
+
– +
+ –
11
NC
NC
RSB1
RSB2
–
+ –
– +
– +
LFOUT
21
LROUT
20
19
VREF
18
CE
17
DI
16
CL
15
VSS
14
RROUT
RFOUT
13
12
RFIN
LSB2
LSB1
NC
NC
LSIN
IC701 SM5852FS-E2
LRCI
1
BCKI
2
INTERFACE
3
DI
4
CLK
5
VSS
SEQUENTIAL
6
RSTN
TESTN
MUTEN
CONTROL
7 8
CONTROL
INPUT
SYSTEM
CLOCK
MUTE
DIGITAL SIGNAL
PROCESSOR
OUTPUT
INTERFACE
MODE
CONTROL
IC702 SM5878AM-E2
DB/DS
16
MOD2
15
MOD1
14
OPT
13
VDD
12
LRCO
11
BCKO
10
DOUT
9
MUTE
DEEN
CKO
DVSS
BCKI
DVDD
LRCI
TSTN
TO1
AVDDL
1
2
3 4 5
DI
6 7
8
9
10
11
ATTENUATION COUNTER
FILTER & ATTENUATION
OPERATION BLOCK
R
LPF
AMP
L
OPERATION BLOCK
L
INPUT INTERFACE
11 LEVEL DEM DAC
NOISE SHAPER
11 LEVEL DEM DAC
R
11 LEVEL DEM DAC
LPF
AMP
TIMING
CONTROL
CLOCK
GENERATOR
11 LEVEL DEM DAC
ATCK
24
MODE
23
RSTN
22 21
DS
20
XVSS
XTO
19 18
XTI
17
XVDD
MUTE
16
15
AVDDR
LO
12
– 39 –
14
RO
13
AVSS
Page 32
NOTE:
• The mechanical parts with no reference number in the exploded views are not supplied.
• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.
• -XX and -X mean standardized parts, so they may have some difference from the original one.
5-1. CHASSIS SECTION
SECTION 5

EXPLODED VIEWS

• Color Indication of Appearance Parts Example :
KNOB, BALANCE (WHITE) ... (RED)
• Accessories and packing materials and hardware (# mark) list are given in the last of this parts list.
N
Parts Color Cabinet’s Color
N
The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified.
#1
#3
4
11
MG-363X-121
1
A
13
5
12
5
8
#2
#2
#10
#1
#2
#1
#2
#2
3
2
TU01
#1
F901
7
9
#3
B
6
#1
10
#1
Ref. No. Part No. Description Remark * 1 X-3374-809-1 COVER ASSY
2 X-3374-808-1 PANEL (1) ASSY, SUB 3 X-3368-104-2 LOCK ASSY
* 4 3-019-564-01 BRACKET (M/D)
5 3-922-535-11 SCREW (+BTT)
* 6 A-3294-382-A MAIN BOARD, COMPLETE * 7 3-019-556-01 HEAT SINK * 8 3-019-565-01 BRACKET (IC)
A
B
Ref. No. Part No. Description Remark
* 9 3-009-350-01 BRACKET (REG) * 10 3-019-562-01 CHASSIS (MAIN)
11 1-769-786-81 CORD (WITH CONNECTOR) (POWER)
* 12 3-024-285-01 CUSHION (RUBBER) * 13 3-024-016-11 PAPER (N), SHIELD
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A TU01 A-3282-031-A TUNER UNIT (TUX-006/2(EE))
– 40 –
Page 33
5-2. FRONT PANEL SECTION
4
not supplied (DISPLAY board)
62
57
LCD851
66
58
63
59
64
54
D
C
D
65
C
61
60
#4
#4
#
67
51
53
56
55
52
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 3-019-549-01 BUTTON (RELEASE) 52 3-019-544-01 KNOB (SEEK/AMS) 53 3-375-373-01 SPRING (RELEASE) 54 3-019-550-01 BUTTON (MODE/SOUND) 55 3-019-552-01 BUTTON (1-6)
56 3-019-551-01 BUTTON (EJECT) 57 3-019-545-01 BUTTON (SOURCE) 58 3-019-547-01 KNOB (VOL) 59 3-019-548-01 RING
60 3-019-543-01 KNOB (D-BASS)
* 61 X-3374-803-1 HOLDER (LCD) ASSY * 62 3-019-530-01 PLATE (LCD), GROUND
63 3-021-407-01 SHEET (D), LCD
* 64 3-019-531-01 SHEET (LCD), COLOR
65 3-019-538-01 PANEL (FRONT BACK) 66 X-3374-968-1 FRONT PANEL ASSY
* 67 3-023-946-01 SHEET (H), BACK
LCD851 1-803-007-11 DISPLAY PANEL, LIQUID CRYSTAL
– 41 –
Page 34
5-3. CD MECHANISM SECTION (1)
(MG-363X-121)
102
104
111
112
#8
#8
103
107
101
E
#7
108
109
110
105
106
114
115
E
111
112
113
M903
#9
#7
116
#7
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 101 1-659-836-11 DISC IN SW BOARD * 102 A-3291-816-B CHASSIS (T) SUB ASSY
103 3-931-909-01 SPRING (LR), TENSION 104 X-3371-501-1 LEVER (L) ASSY 105 3-338-737-01 SCREW (2X3), + PS
* 106 1-659-837-11 LOAD SW BOARD
107 X-3371-502-1 LEVER (R) ASSY 108 A-3301-203-A ROLLER ASSY 109 3-931-908-01 GUIDE (DISC)
110 3-931-902-03 ARM (ROLLER) 111 3-936-756-01 ROLLER (D) 112 3-321-393-01 WASHER, STOPPER
* 113 3-939-139-01 SPACER
114 3-931-916-01 SPRING (RA), TENSION
* 115 A-3309-227-A SERVO BOARD, COMPLETE * 116 3-007-530-01 BRACKET (MOTOR)
M903 A-3291-676-A MOTOR SUB ASSY, LOADING
#8
– 42 –
Page 35
5-4. CD MECHANISM SECTION (2) (MG-363X-121)
155
#9
154
157
158
162
163
F
160
156
not supplied
164
151
157
153
161
F
159
152
152
152
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 3-931-893-01 ARM, CHUCKING 152 3-931-897-01 DAMPER (T) 153 3-931-879-02 LEVER (D)
* 154 3-913-404-11 RETAINER (DISC)
155 3-931-894-01 BRACKET (CP)
156 3-931-895-01 SPRING (CH), TENSION 157 3-931-898-01 SPRING (FL), COMPRESSION
158 3-019-805-01 SPRING (KF1), TENSION
* 159 A-3291-677-G CHASSIS (M) ASSY
160 3-931-883-01 SPRING (TR), TENSION 161 3-931-881-01 LEVER (LOCK) 162 3-931-882-02 GEAR (MDL)
163 3-007-537-01 WHEEL (U), WORM 164 3-019-806-01 SPRING (KR1), TENSION
– 43 –
Page 36
5-5. CD MECHANISM SECTION (3)
(MG-363X-121)
#6
M901
207
201
202
#9
M902
208
203
205
#5
206
209
210
#8
204
213
211
212
#8
The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 201 X-3374-022-1 CHASSIS (OP) (O/S) ASSY
202 3-931-829-01 SPRING (SL), PLATE 203 X-3371-504-1 BASE (DRIVING) ASSY 204 3-931-832-01 GEAR (SL MIDWAY)
* 205 1-659-835-12 LIMIT SW BOARD
209 3-909-607-01 SCREW
! 210 8-820-010-06 PICK-UP, OPTICAL KSS-521A/K1RP
211 3-931-834-01 SPRING (FEED), PLATE 212 1-659-881-11 PICK-UP FLEXIBLE BOARD 213 A-3291-669-A SHAFT (FEED) ASSY
206 3-338-737-01 SCREW (2X3), + PS 207 1-659-880-11 MOTOR FLEXIBLE BOARD
* 208 1-659-834-11 SUB BOARD
M901 X-3371-664-2 MOTOR ASSY (SPINDLE) M902 A-3291-674-A MOTOR ASSY, SLED
– 44 –
Page 37
SECTION 6

ELECTRICAL PARTS LIST

NOTE:
• Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set.
• -XX and -X mean standardized parts, so they may have some difference from the original one.
• RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 1-659-836-11 DISC IN SW BOARD
****************
• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.
• SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
• CAPACITORS uF : µF
• COILS uH : µH
D877 8-719-067-77 LED SML-010PF-T87 D878 8-719-067-77 LED SML-010PF-T87 (MODE)
The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified.
When indicating parts by reference number, please include the board.
DISPLAYDISC IN SW
< SWITCH >
SW1 1-572-288-11 SWITCH, PUSH (DISC IN) SW2 1-572-288-11 SWITCH, PUSH (SELF)
*************************************************************
DISPLAY BOARD
**************
* X-3374-803-1 HOLDER (LCD) ASSY * 3-019-530-01 PLATE (LCD), GROUND * 3-019-531-01 SHEET (LCD), COLOR
3-021-407-01 SHEET (D), LCD
< CAPACITOR >
C851 1-163-137-00 CERAMIC CHIP 680PF 5% 50V C852 1-164-505-11 CERAMIC CHIP 2.2uF 16V C853 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C854 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V
< CONNECTOR >
CNP851 1-764-423-11 PIN, CONNECTOR 12P
< DIODE >
D851 8-719-976-99 DIODE DTZ5.1B D852 8-719-068-68 DIODE SDZ6V2WA D853 8-719-988-62 DIODE 1SS355 D854 8-719-068-68 DIODE SDZ6V2WA D861 8-719-067-77 LED SML-010PF-T87 (DSPL)
D862 8-719-067-77 LED SML-010PF-T87 (6) D863 8-719-067-77 LED SML-010PF-T87 (SENS) D864 8-719-067-77 LED SML-010PF-T87 (1) D865 8-719-067-77 LED SML-010PF-T87 (OFF) D866 8-719-067-77 LED SML-010PF-T87 (SOURCE)
D867 8-719-067-77 LED SML-010PF-T87 (SOUND) D868 8-719-067-77 LED SML-010PF-T87 (4) D869 8-719-067-77 LED SML-010PF-T87 (3) D870 8-719-067-77 LED SML-010PF-T87 (2) D871 8-719-067-77 LED SML-010PF-T87 (6)
D872 8-719-067-77 LED SML-010PF-T87 (5) D873 8-719-067-77 LED SML-010PF-T87 D874 8-719-067-77 LED SML-010PF-T87 D875 8-719-067-77 LED SML-010PF-T87 D876 8-719-067-77 LED SML-010PF-T87
< IC >
IC851 8-759-369-90 IC LC75822ED
< JUMPER RESISTOR >
JR854 1-216-296-00 SHORT 0 JR855 1-216-296-00 SHORT 0 JR856 1-216-296-00 SHORT 0 JR858 1-216-296-00 SHORT 0 JR859 1-216-296-00 SHORT 0
JR860 1-216-296-00 SHORT 0
< LIQUID CRYSTAL DISPLAY >
LCD851 1-803-007-11 DISPLAY PANEL, LIQUID CRYSTAL
< PILOT LAMP >
PL801 1-517-665-11 LAMP, PILOT PL802 1-517-665-11 LAMP, PILOT
< RESISTOR >
R851 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R852 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R853 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R854 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R855 1-216-073-00 METAL CHIP 10K 5% 1/10W
R856 1-216-083-00 METAL CHIP 27K 5% 1/10W R861 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R862 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R863 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R864 1-216-067-00 METAL CHIP 5.6K 5% 1/10W
R865 1-216-222-00 RES,CHIP 10K 5% 1/8W R871 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R872 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R873 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R874 1-216-067-00 METAL CHIP 5.6K 5% 1/10W
R875 1-216-073-00 METAL CHIP 10K 5% 1/10W R876 1-216-083-00 METAL CHIP 27K 5% 1/10W R881 1-216-090-00 METAL CHIP 51K 5% 1/10W R882 1-216-045-00 RES,CHIP 680 5% 1/10W R883 1-216-121-00 RES,CHIP 1M 5% 1/10W
R884 1-216-189-00 RES,CHIP 430 5% 1/8W
– 45 –
Page 38
LIMIT SW LOAD SWDISPLAY MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R885 1-216-186-00 RES,CHIP 330 5% 1/8W R886 1-216-189-00 RES,CHIP 430 5% 1/8W R887 1-216-186-00 RES,CHIP 330 5% 1/8W R888 1-216-186-00 RES,CHIP 330 5% 1/8W R891 1-216-182-00 RES,CHIP 220 5% 1/8W
R892 1-216-182-00 RES,CHIP 220 5% 1/8W R893 1-216-182-00 RES,CHIP 220 5% 1/8W R894 1-216-182-00 RES,CHIP 220 5% 1/8W R895 1-216-182-00 RES,CHIP 220 5% 1/8W R896 1-216-182-00 RES,CHIP 220 5% 1/8W
R897 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R898 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
< ROTARY ENCODER >
RE851 1-475-014-11 ENCODER, ROTARY
* A-3294-382-A MAIN BOARD, COMPLETE
*********************
* 3-009-350-01 BRACKET (REG) * 3-019-556-01 HEAT SINK * 3-019-565-01 BRACKET (IC)
7-685-792-09 SCREW +PTT 2.6X6 (S) 7-685-793-09 SCREW +PTT 2.6X8 (S)
7-685-794-09 SCREW +PTT 2.6X10 (S)
< CAPACITOR >
C101 1-163-010-11 CERAMIC CHIP 0.0012uF 10% 50V C102 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C103 1-164-346-11 CERAMIC CHIP 1uF 16V C104 1-164-232-11 CERAMIC CHIP 0.01uF 50V C105 1-126-160-11 ELECT 1uF 20% 50V
< SWITCH >
S851 1-572-704-31 SWITCH, KEY BOARD (6) S852 1-572-704-31 SWITCH, KEY BOARD (DSPL) S853 1-572-704-31 SWITCH, KEY BOARD (SENS/BTM) S854 1-762-937-11 SWITCH, ROTARY (D-BASS) S861 1-572-704-31 SWITCH, KEY BOARD (OFF)
S862 1-572-704-31 SWITCH, KEY BOARD (SOURCE) S863 1-771-290-11 SWITCH, SLIDE (SEEK/AMS) S864 1-762-719-21 SWITCH, TACTILE (MODE) S865 1-572-704-31 SWITCH, KEY BOARD (6) S871 1-572-704-31 SWITCH, KEY BOARD (5)
S872 1-762-719-21 SWITCH, TACTILE (4) S873 1-762-719-21 SWITCH, TACTILE (3) S874 1-762-719-21 SWITCH, TACTILE (2/SHUF) S875 1-762-719-21 SWITCH, TACTILE (1/REPEAT) S876 1-572-704-31 SWITCH, KEY BOARD (SOUND)
*************************************************************
* 1-659-835-12 LIMIT SW BOARD
***************
< SWITCH >
SW3 1-572-688-11 SWITCH, PUSH (1 KEY) (LIMIT)
*************************************************************
* 1-659-837-11 LOAD SW BOARD
***************
< SWITCH >
SW4 1-572-288-11 SWITCH, PUSH (DOWN)
*************************************************************
C106 1-126-160-11 ELECT 1uF 20% 50V C107 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V C108 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C109 1-126-157-11 ELECT 10uF 20% 16V C112 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V
C113 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V C114 1-126-157-11 ELECT 10uF 20% 16V C115 1-126-157-11 ELECT 10uF 20% 16V C116 1-126-157-11 ELECT 10uF 20% 16V C117 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C118 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C119 1-164-005-11 CERAMIC CHIP 0.47uF 25V C120 1-164-005-11 CERAMIC CHIP 0.47uF 25V C201 1-163-010-11 CERAMIC CHIP 0.0012uF 10% 50V C202 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V
C203 1-164-346-11 CERAMIC CHIP 1uF 16V C204 1-164-232-11 CERAMIC CHIP 0.01uF 50V C205 1-126-160-11 ELECT 1uF 20% 50V C206 1-126-160-11 ELECT 1uF 20% 50V C207 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V
C208 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C209 1-126-157-11 ELECT 10uF 20% 16V C212 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V C213 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V C214 1-126-157-11 ELECT 10uF 20% 16V
C215 1-126-157-11 ELECT 10uF 20% 16V C216 1-126-157-11 ELECT 10uF 20% 16V C217 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C218 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C219 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C220 1-164-005-11 CERAMIC CHIP 0.47uF 25V C401 1-124-584-00 ELECT 100uF 20% 10V C402 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C403 1-124-234-00 ELECT 22uF 20% 16V C404 1-163-109-00 CERAMIC CHIP 47PF 5% 50V
– 46 –
C405 1-163-038-00 CERAMIC CHIP 0.1uF 25V C406 1-124-589-11 ELECT 47uF 20% 16V
Page 39
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C407 1-124-465-00 ELECT 0.47uF 20% 50V C408 1-164-346-11 CERAMIC CHIP 1uF 16V C409 1-124-259-11 ELECT 4.7uF 20% 16V C410 1-124-589-11 ELECT 47uF 20% 16V C412 1-163-038-00 CERAMIC CHIP 0.1uF 25V
CNJ601 1-785-006-11 JACK (ANTENNA)
< JACK >
< CONNECTOR >
C501 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C601 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C602 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C603 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C604 1-126-514-11 ELECT 22uF 20% 16V
C605 1-164-232-11 CERAMIC CHIP 0.01uF 50V C606 1-126-785-11 ELECT 47uF 20% 10V C608 1-126-785-11 ELECT 47uF 20% 10V C610 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C614 1-163-023-00 CERAMIC CHIP 0.015uF 10% 50V
C615 1-163-023-00 CERAMIC CHIP 0.015uF 10% 50V C619 1-126-157-11 ELECT 10uF 20% 16V C620 1-126-157-11 ELECT 10uF 20% 16V C621 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C623 1-124-257-00 ELECT 2.2uF 20% 50V
C624 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C625 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C628 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C701 1-164-232-11 CERAMIC CHIP 0.01uF 50V C702 1-164-232-11 CERAMIC CHIP 0.01uF 50V
C703 1-163-169-00 CERAMIC CHIP 33PF 5% 50V C706 1-124-584-00 ELECT 100uF 20% 10V C708 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C709 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C710 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C713 1-163-222-11 CERAMIC CHIP 5PF 0.25PF 50V C801 1-164-232-11 CERAMIC CHIP 0.01uF 50V C802 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C804 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C805 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C807 1-163-099-00 CERAMIC CHIP 18PF 5% 50V C808 1-163-234-11 CERAMIC CHIP 20PF 5% 50V C812 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C813 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C817 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
CNP701 1-764-617-12 PIN, CONNECTOR (PC BOARD) 30P CNP801 1-764-422-11 PLUG, CONNECTOR 12P CNP901 1-774-701-11 PIN, CONNECTOR 16P
< DISCHARGE GAP >
CP601 1-519-504-11 GAP, DISCHARGE
< DIODE >
D401 8-719-109-71 DIODE RD3.9ES-B1 D402 8-719-991-33 DIODE 1SS133T-77 D507 8-719-109-89 DIODE RD5.6ESB2 D601 8-719-986-73 DIODE RB441Q D602 8-719-986-73 DIODE RB441Q
D603 8-719-109-85 DIODE RD5.1ES-B2 D801 8-719-109-93 DIODE RD6.2ESB2 D802 8-719-109-93 DIODE RD6.2ESB2 D804 8-719-109-93 DIODE RD6.2ESB2 D805 8-719-109-93 DIODE RD6.2ESB2
D806 8-719-109-93 DIODE RD6.2ESB2 D808 8-719-109-93 DIODE RD6.2ESB2 D810 8-719-109-93 DIODE RD6.2ESB2 D811 8-719-109-93 DIODE RD6.2ESB2 D812 8-719-109-93 DIODE RD6.2ESB2
D901 8-719-929-15 DIODE MTZJ-T-77-9.1B D902 8-719-923-60 DIODE MTZJ-T-77-9.1A D903 8-719-109-89 DIODE RD5.6ESB2 D905 8-719-109-93 DIODE RD6.2ESB2 D906 8-719-923-91 DIODE MTZJ-T-77-16A
D907 8-719-049-38 DIODE 1N5404TU D908 8-719-200-82 DIODE 11ES2 D909 8-719-109-97 DIODE RD6.8ES-B2
< FUSE >
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
C822 1-164-232-11 CERAMIC CHIP 0.01uF 50V C823 1-164-232-11 CERAMIC CHIP 0.01uF 50V C830 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V C831 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C901 1-124-257-00 ELECT 2.2uF 20% 50V
C902 1-163-038-00 CERAMIC CHIP 0.1uF 25V C907 1-163-038-00 CERAMIC CHIP 0.1uF 25V C908 1-124-465-00 ELECT 0.47uF 20% 50V C910 1-110-654-11 ELECT(BLOCK) 0.047F 5.5V C911 1-124-257-00 ELECT 2.2uF 20% 50V
C914 1-126-768-11 ELECT 2200uF 20% 16V C916 1-164-232-11 CERAMIC CHIP 0.01uF 50V C919 1-124-242-00 ELECT 33uF 20% 25V
< IC >
IC401 8-759-487-82 IC LC75374E IC402 8-759-490-74 IC TDA7384 IC701 8-759-473-70 IC SM5852FS-E2 IC702 8-759-498-36 IC SM5878AM-E2 IC801 8-759-529-19 IC uPD17705GC-526-3B9
< JACK >
J801 1-764-270-21 JACK, STEREO MINIATURE (DIA. 3.5)
(REMOTE IN)
– 47 –
Page 40
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< JUMPER RESISTOR >
JR1 1-216-295-00 SHORT 0 JR2 1-216-049-11 RES,CHIP 1K 5% 1/10W JR5 1-216-295-00 SHORT 0 JR7 1-216-295-00 SHORT 0 JR8 1-216-296-00 SHORT 0
Q913 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q914 8-729-901-05 TRANSISTOR DTA124EK Q915 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q916 8-729-920-85 TRANSISTOR 2SD1664-QR Q919 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q921 8-729-901-05 TRANSISTOR DTA124EK
JR15 1-216-295-00 SHORT 0 JR16 1-216-295-00 SHORT 0 JR17 1-216-296-00 SHORT 0 JR18 1-216-295-00 SHORT 0 JR19 1-216-296-00 SHORT 0
JR21 1-216-295-00 SHORT 0 JR22 1-216-296-00 SHORT 0 JR27 1-216-295-00 SHORT 0 JR28 1-216-295-00 SHORT 0 JR215 1-216-295-00 SHORT 0
< COIL >
L703 1-410-513-11 INDUCTOR 22uH L704 1-414-142-11 INDUCTOR 1uH L801 1-410-513-11 INDUCTOR 22uH L901 1-416-539-11 COIL, CHOKE
< JACK >
PJ401 1-764-697-11 JACK, PIN 4P (LINE OUT REAR/FRONT)
< TRANSISTOR >
Q101 8-729-920-21 TRANSISTOR DTC314TKH04 Q102 8-729-920-21 TRANSISTOR DTC314TKH04 Q201 8-729-920-21 TRANSISTOR DTC314TKH04 Q202 8-729-920-21 TRANSISTOR DTC314TKH04 Q401 8-729-027-52 TRANSISTOR DTC124EKA-T146
Q402 8-729-901-05 TRANSISTOR DTA124EK Q601 8-729-111-52 TRANSISTOR 2SB984-K Q602 8-729-111-52 TRANSISTOR 2SB984-K Q603 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q604 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q605 8-729-620-06 TRANSISTOR 2SC3052-EF Q606 8-729-620-06 TRANSISTOR 2SC3052-EF Q801 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q901 8-729-019-00 TRANSISTOR 2SD2394-G Q902 8-729-901-05 TRANSISTOR DTA124EK
Q903 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q904 8-729-015-11 TRANSISTOR 2SD1802FAST-TL Q905 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q906 8-729-209-15 TRANSISTOR 2SD2012 Q907 8-729-620-06 TRANSISTOR 2SC3052-EF
Q908 8-729-620-06 TRANSISTOR 2SC3052-EF Q909 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q910 8-729-822-84 TRANSISTOR 2SB1202FAST Q911 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q912 8-729-101-07 TRANSISTOR 2SB798-DL
< RESISTOR >
R101 1-216-075-00 METAL CHIP 12K 5% 1/10W R102 1-216-073-00 METAL CHIP 10K 5% 1/10W R103 1-216-214-00 RES,CHIP 4.7K 5% 1/8W R104 1-216-214-00 RES,CHIP 4.7K 5% 1/8W R105 1-216-049-11 RES,CHIP 1K 5% 1/10W
R106 1-216-049-11 RES,CHIP 1K 5% 1/10W R107 1-216-077-00 METAL CHIP 15K 5% 1/10W R108 1-216-077-00 METAL CHIP 15K 5% 1/10W R109 1-216-129-00 METAL CHIP 2.2M 5% 1/10W R110 1-216-129-00 METAL CHIP 2.2M 5% 1/10W
R111 1-216-079-00 METAL CHIP 18K 5% 1/10W R112 1-216-079-00 METAL CHIP 18K 5% 1/10W R118 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R201 1-216-075-00 METAL CHIP 12K 5% 1/10W R202 1-216-073-00 METAL CHIP 10K 5% 1/10W
R203 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R204 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R205 1-216-049-11 RES,CHIP 1K 5% 1/10W R206 1-216-049-11 RES,CHIP 1K 5% 1/10W R207 1-216-077-00 METAL CHIP 15K 5% 1/10W
R208 1-216-077-00 METAL CHIP 15K 5% 1/10W R209 1-216-129-00 METAL CHIP 2.2M 5% 1/10W R210 1-216-129-00 METAL CHIP 2.2M 5% 1/10W R211 1-216-079-00 METAL CHIP 18K 5% 1/10W R212 1-216-079-00 METAL CHIP 18K 5% 1/10W
R218 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R220 1-216-073-00 METAL CHIP 10K 5% 1/10W R401 1-216-113-00 METAL CHIP 470K 5% 1/10W R402 1-216-049-11 RES,CHIP 1K 5% 1/10W R517 1-216-077-00 METAL CHIP 15K 5% 1/10W
R601 1-249-430-11 CARBON 12K 5% 1/4W R602 1-249-417-11 CARBON 1K 5% 1/4W R603 1-249-417-11 CARBON 1K 5% 1/4W R604 1-216-085-00 METAL CHIP 33K 5% 1/10W R605 1-216-085-00 METAL CHIP 33K 5% 1/10W
R607 1-216-025-00 RES,CHIP 100 5% 1/10W R608 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R609 1-216-060-00 RES,CHIP 3K 5% 1/10W R610 1-216-206-00 RES,CHIP 2.2K 5% 1/8W R611 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R612 1-216-049-11 RES,CHIP 1K 5% 1/10W R613 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R614 1-216-049-11 RES,CHIP 1K 5% 1/10W R615 1-249-431-11 CARBON 15K 5% 1/4W R616 1-249-417-11 CARBON 1K 5% 1/4W
– 48 –
Page 41
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R617 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R618 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R622 1-216-097-00 RES,CHIP 100K 5% 1/10W R625 1-247-815-11 CARBON 220 5% 1/4W R701 1-247-807-11 CARBON 100 5% 1/4W
R901 1-216-182-00 RES,CHIP 220 5% 1/8W R903 1-249-411-11 CARBON 330 5% 1/4W R904 1-249-395-11 CARBON 15 5% 1/4W R906 1-216-089-00 RES,CHIP 47K 5% 1/10W R907 1-216-105-00 RES,CHIP 220K 5% 1/10W
SERVO
R702 1-247-807-11 CARBON 100 5% 1/4W R703 1-247-807-11 CARBON 100 5% 1/4W R704 1-216-033-00 METAL CHIP 220 5% 1/10W R708 1-249-411-11 CARBON 330 5% 1/4W R709 1-216-005-00 METAL CHIP 15 5% 1/10W
R710 1-216-027-00 METAL CHIP 120 5% 1/10W R711 1-216-270-00 RES,CHIP 1M 5% 1/8W R712 1-216-113-00 METAL CHIP 470K 5% 1/10W R801 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R802 1-216-105-00 RES,CHIP 220K 5% 1/10W
R803 1-216-105-00 RES,CHIP 220K 5% 1/10W R805 1-216-105-00 RES,CHIP 220K 5% 1/10W R806 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R807 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R808 1-216-053-00 METAL CHIP 1.5K 5% 1/10W
R809 1-216-073-00 METAL CHIP 10K 5% 1/10W R810 1-216-105-00 RES,CHIP 220K 5% 1/10W R811 1-216-073-00 METAL CHIP 10K 5% 1/10W R812 1-216-073-00 METAL CHIP 10K 5% 1/10W R813 1-216-073-00 METAL CHIP 10K 5% 1/10W
R815 1-216-049-11 RES,CHIP 1K 5% 1/10W R816 1-216-049-11 RES,CHIP 1K 5% 1/10W R818 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R819 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R820 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R821 1-249-417-11 CARBON 1K 5% 1/4W R822 1-249-417-11 CARBON 1K 5% 1/4W R823 1-216-049-11 RES,CHIP 1K 5% 1/10W R824 1-216-105-00 RES,CHIP 220K 5% 1/10W R825 1-216-105-00 RES,CHIP 220K 5% 1/10W
R908 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R909 1-216-079-00 METAL CHIP 18K 5% 1/10W R910 1-216-105-00 RES,CHIP 220K 5% 1/10W R911 1-216-079-00 METAL CHIP 18K 5% 1/10W R912 1-216-049-11 RES,CHIP 1K 5% 1/10W
R913 1-216-049-11 RES,CHIP 1K 5% 1/10W R914 1-216-206-00 RES,CHIP 2.2K 5% 1/8W R915 1-216-049-11 RES,CHIP 1K 5% 1/10W R916 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R917 1-216-077-00 METAL CHIP 15K 5% 1/10W
R918 1-216-182-00 RES,CHIP 220 5% 1/8W R920 1-216-049-11 RES,CHIP 1K 5% 1/10W
< SWITCH >
S801 1-762-638-11 SWITCH, TACTILE (RESET)
< THERMISTOR >
TH901 1-809-148-11 THERMISTOR PTH8L07AR2R0M1B510
< TUNER >
TU01 A-3282-031-A TUNER UNIT (TUX-006/2(EE))
< VIBRATOR >
X701 1-579-345-11 VIBRATOR, CERAMIC (16.9344MHz) X801 1-760-223-11 VIBRATOR, CRYSTAL (4.5MHz)
*************************************************************
* A-3309-227-A SERVO BOARD, COMPLETE
**********************
R826 1-216-105-00 RES,CHIP 220K 5% 1/10W R827 1-216-234-00 RES,CHIP 33K 5% 1/8W R828 1-216-254-00 RES,CHIP 220K 5% 1/8W R829 1-216-254-00 RES,CHIP 220K 5% 1/8W R830 1-247-887-00 CARBON 220K 5% 1/4W
R831 1-216-089-00 RES,CHIP 47K 5% 1/10W R832 1-247-887-00 CARBON 220K 5% 1/4W R833 1-249-395-11 CARBON 15 5% 1/4W R834 1-216-049-11 RES,CHIP 1K 5% 1/10W R838 1-216-049-11 RES,CHIP 1K 5% 1/10W
R839 1-216-049-11 RES,CHIP 1K 5% 1/10W R841 1-216-105-00 RES,CHIP 220K 5% 1/10W R842 1-216-105-00 RES,CHIP 220K 5% 1/10W R854 1-247-891-00 CARBON 330K 5% 1/4W R855 1-216-117-00 METAL CHIP 680K 5% 1/10W
R856 1-216-049-11 RES,CHIP 1K 5% 1/10W R861 1-216-049-11 RES,CHIP 1K 5% 1/10W R862 1-216-005-00 METAL CHIP 15 5% 1/10W
< CAPACITOR >
C1 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C2 1-164-232-11 CERAMIC CHIP 0.01uF 50V C3 1-135-145-11 TANTALUM CHIP 0.47uF 10% 35V C4 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C5 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V
C6 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C7 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C9 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C10 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C11 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V
C12 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C13 1-164-232-11 CERAMIC CHIP 0.01uF 50V C14 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V C15 1-164-232-11 CERAMIC CHIP 0.01uF 50V C16 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V
C17 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
– 49 –
Page 42
SER VO
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C18 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C19 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C20 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C21 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C22 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
JR19 1-216-296-00 SHORT 0 JR20 1-216-296-00 SHORT 0 JR21 1-216-296-00 SHORT 0 JR22 1-216-296-00 SHORT 0 JR23 1-216-296-00 SHORT 0
C23 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C24 1-163-259-11 CERAMIC CHIP 220PF 5% 50V C25 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C26 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C27 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C28 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V C29 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C30 1-126-603-11 ELECT CHIP 4.7uF 20% 35V C31 1-164-232-11 CERAMIC CHIP 0.01uF 50V C32 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V
C33 1-124-779-00 ELECT CHIP 10uF 20% 16V C34 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C35 1-164-232-11 CERAMIC CHIP 0.01uF 50V C36 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C37 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C38 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C39 1-126-204-11 ELECT CHIP 47uF 20% 16V C40 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
< CONNECTOR >
CN1 1-764-616-12 HOUSING, CONNECTOR (PC BOARD) 30P CN2 1-565-728-11 CONNECTOR, FPC 17P CN3 1-770-347-21 CONNECTOR, FPC 6P
< IC >
IC1 8-752-372-94 IC CXD2507AQ IC2 8-752-074-34 IC CXA1782BQ IC3 8-759-354-16 IC BA6796FP-T1
< JUMPER RESISTOR >
JR1 1-216-296-00 SHORT 0 JR2 1-216-296-00 SHORT 0 JR3 1-216-296-00 SHORT 0 JR4 1-216-296-00 SHORT 0 JR5 1-216-296-00 SHORT 0
JR6 1-216-296-00 SHORT 0 JR7 1-216-296-00 SHORT 0 JR8 1-216-296-00 SHORT 0 JR9 1-216-296-00 SHORT 0 JR10 1-216-296-00 SHORT 0
JR11 1-216-296-00 SHORT 0 JR12 1-216-296-00 SHORT 0 JR13 1-216-296-00 SHORT 0 JR14 1-216-296-00 SHORT 0 JR15 1-216-296-00 SHORT 0
JR16 1-216-296-00 SHORT 0 JR17 1-216-296-00 SHORT 0 JR18 1-216-296-00 SHORT 0
JR24 1-216-296-00 SHORT 0 JR25 1-216-296-00 SHORT 0 JR26 1-216-296-00 SHORT 0 JR27 1-216-296-00 SHORT 0 JR28 1-216-296-00 SHORT 0
JR29 1-216-296-00 SHORT 0 JR30 1-216-296-00 SHORT 0 JR31 1-216-296-00 SHORT 0 JR32 1-216-296-00 SHORT 0 JR33 1-216-296-00 SHORT 0
JR34 1-216-296-00 SHORT 0 JR35 1-216-296-00 SHORT 0 JR36 1-216-296-00 SHORT 0 JR37 1-216-296-00 SHORT 0 JR38 1-216-296-00 SHORT 0
JR39 1-216-296-00 SHORT 0 JR40 1-216-296-00 SHORT 0 JR41 1-216-296-00 SHORT 0 JR43 1-216-296-00 SHORT 0 JR44 1-216-296-00 SHORT 0
JR45 1-216-296-00 SHORT 0 JR46 1-216-296-00 SHORT 0
< COIL >
L1 1-412-058-11 INDUCTOR CHIP 10uH L2 1-412-058-11 INDUCTOR CHIP 10uH L3 1-412-058-11 INDUCTOR CHIP 10uH
< TRANSISTOR >
Q1 8-729-904-60 TRANSISTOR DTB113ZK Q2 8-729-904-86 TRANSISTOR 2SB1197K-Q
< RESISTOR >
R1 1-216-073-00 METAL CHIP 10K 5% 1/10W R2 1-216-097-00 RES,CHIP 100K 5% 1/10W R3 1-216-121-00 RES,CHIP 1M 5% 1/10W R4 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R5 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R6 1-216-073-00 METAL CHIP 10K 5% 1/10W R7 1-216-009-00 METAL CHIP 22 5% 1/10W R8 1-216-119-00 METAL CHIP 820K 5% 1/10W R9 1-216-119-00 METAL CHIP 820K 5% 1/10W R10 1-216-073-00 METAL CHIP 10K 5% 1/10W
R11 1-216-073-00 METAL CHIP 10K 5% 1/10W R14 1-216-085-00 METAL CHIP 33K 5% 1/10W R15 1-216-085-00 METAL CHIP 33K 5% 1/10W R16 1-216-077-00 METAL CHIP 15K 5% 1/10W R17 1-216-081-00 METAL CHIP 22K 5% 1/10W
– 50 –
Page 43
SUBSER VO
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R19 1-216-079-00 METAL CHIP 18K 5% 1/10W R20 1-216-105-00 RES,CHIP 220K 5% 1/10W R21 1-216-105-00 RES,CHIP 220K 5% 1/10W R22 1-216-085-00 METAL CHIP 33K 5% 1/10W R23 1-216-121-00 RES,CHIP 1M 5% 1/10W
R24 1-216-073-00 METAL CHIP 10K 5% 1/10W R27 1-216-295-00 SHORT 0 R28 1-216-101-00 METAL CHIP 150K 5% 1/10W R29 1-216-097-00 RES,CHIP 100K 5% 1/10W R30 1-216-097-00 RES,CHIP 100K 5% 1/10W
R31 1-216-081-00 METAL CHIP 22K 5% 1/10W R32 1-216-109-00 METAL CHIP 330K 5% 1/10W R33 1-216-105-00 RES,CHIP 220K 5% 1/10W R34 1-216-009-00 METAL CHIP 22 5% 1/10W R35 1-216-065-00 RES,CHIP 4.7K 5% 1/10W
R36 1-216-097-00 RES,CHIP 100K 5% 1/10W R37 1-216-117-00 METAL CHIP 680K 5% 1/10W R38 1-216-109-00 METAL CHIP 330K 5% 1/10W R39 1-216-101-00 METAL CHIP 150K 5% 1/10W R40 1-216-114-00 RES,CHIP 510K 5% 1/10W
R41 1-216-093-00 METAL CHIP 68K 5% 1/10W R42 1-216-103-00 METAL CHIP 180K 5% 1/10W R43 1-216-097-00 RES,CHIP 100K 5% 1/10W R44 1-216-085-00 METAL CHIP 33K 5% 1/10W R45 1-216-081-00 METAL CHIP 22K 5% 1/10W
R46 1-216-097-00 RES,CHIP 100K 5% 1/10W R47 1-216-105-00 RES,CHIP 220K 5% 1/10W R48 1-216-073-00 METAL CHIP 10K 5% 1/10W R49 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R50 1-216-065-00 RES,CHIP 4.7K 5% 1/10W
R51 1-216-295-00 SHORT 0
< VARIABLE RESISTOR >
11 1-769-786-81 CORD (WITH CONNECTOR) (POWER) 207 1-659-880-11 MOTOR FLEXIBLE BOARD
! 210 8-820-010-06 PICK-UP, OPTICAL KSS-521A/K1RP
212 1-659-881-11 PICK-UP FLEXIBLE BOARD F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
M901 X-3371-664-2 MOTOR ASSY (SPINDLE) M902 A-3291-674-A MOTOR ASSY, SLED M903 A-3291-676-A MOTOR SUB ASSY, LOADING
*************************************************************
ACCESSORIES & PACKING MATERIALS
********************************
3-862-034-11 MANUAL, INSTRUCTION, INSTALL (DUTCH,
3-862-389-11 MANUAL, INSTRUCTION (DUTCH,RUSSIAN) X-3374-810-1 CASE ASSY
*************************************************************
#1 7-685-792-09 SCREW +PTT 2.6X6 (S) #2 7-685-793-09 SCREW +PTT 2.6X8 (S) #3 7-621-772-10 SCREW +B 2X4 #4 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT #5 7-627-850-28 SCREW, PRECISION +P 1.4X3
#6 7-627-000-00 SCREW, PRECISION +P 1.7X2.2 TYPE 3 #7 7-628-253-00 SCREW +PS 2X4 #8 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE 3 #9 7-627-553-17 SCREW, PRECISION +P 2X2 TYPE 3 #10 7-685-794-09 SCREW +PTT 2.6X10 (S)
*************************************************************
MISCELLANEOUS
***************
RUSSIAN)
**************
HARDWARE LIST
**************
RV1 1-238-091-11 RES, ADJ, CERMET 22K RV4 1-238-091-11 RES, ADJ, CERMET 22K
*************************************************************
* 1-659-834-11 SUB BOARD
**********
< CONNECTOR >
CN1 1-770-347-21 CONNECTOR, FPC 6P
*************************************************************
PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
251 3-014-370-31 FRAME, FITTING 252 X-3374-806-1 COLLAR ASSY 253 X-3366-405-1 SCREW ASSY (EXP), FITTING 254 3-388-078-01 KEY 255 1-769-786-81 CORD (WITH CONNECTOR) (POWER)
The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified.
– 51 –
Page 44
CDX-3183
9-925-907-11
Sony Corporation
Personal & Mobile Communication Company
– 52 –
Printed in Japan C1998. 2
98B04077-1
Published by Quality Assurance Dept.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
