DIGITAL AUDIO

CDC”XI16Y“

STEREO CAR CD RECEIVER RADIO-TOCADISCOS DE CD ESTEREOFONICO PARA AUTOMOVIL

OWNER’S RECORD

For your convenience, record the model number and serial number (you will find them on the right side of your set) in the space provided below. Please refer to them when you contact your AIWA dealer in case of difficulty.

Model No. ]CDC-X116 Serial No. ~

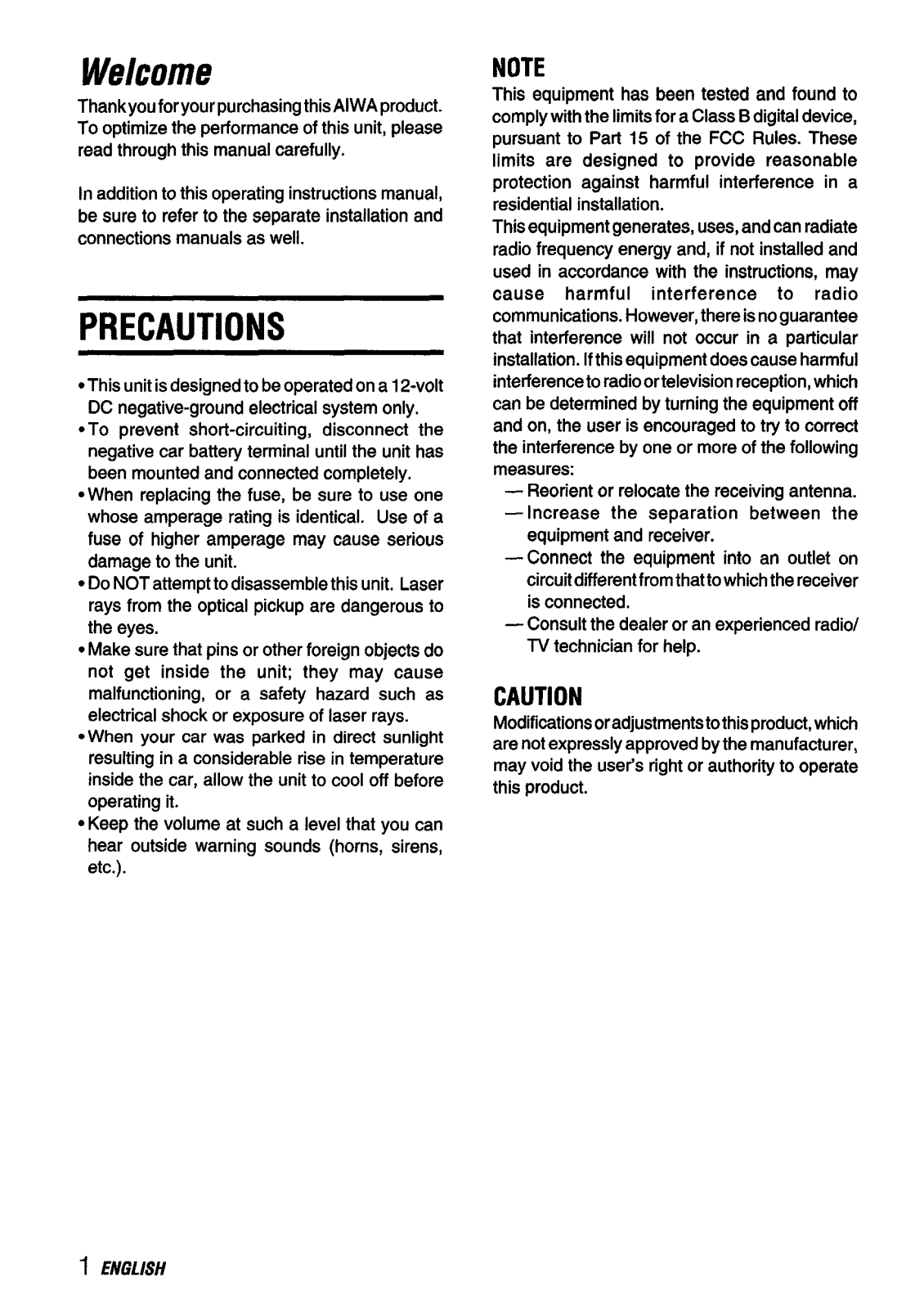

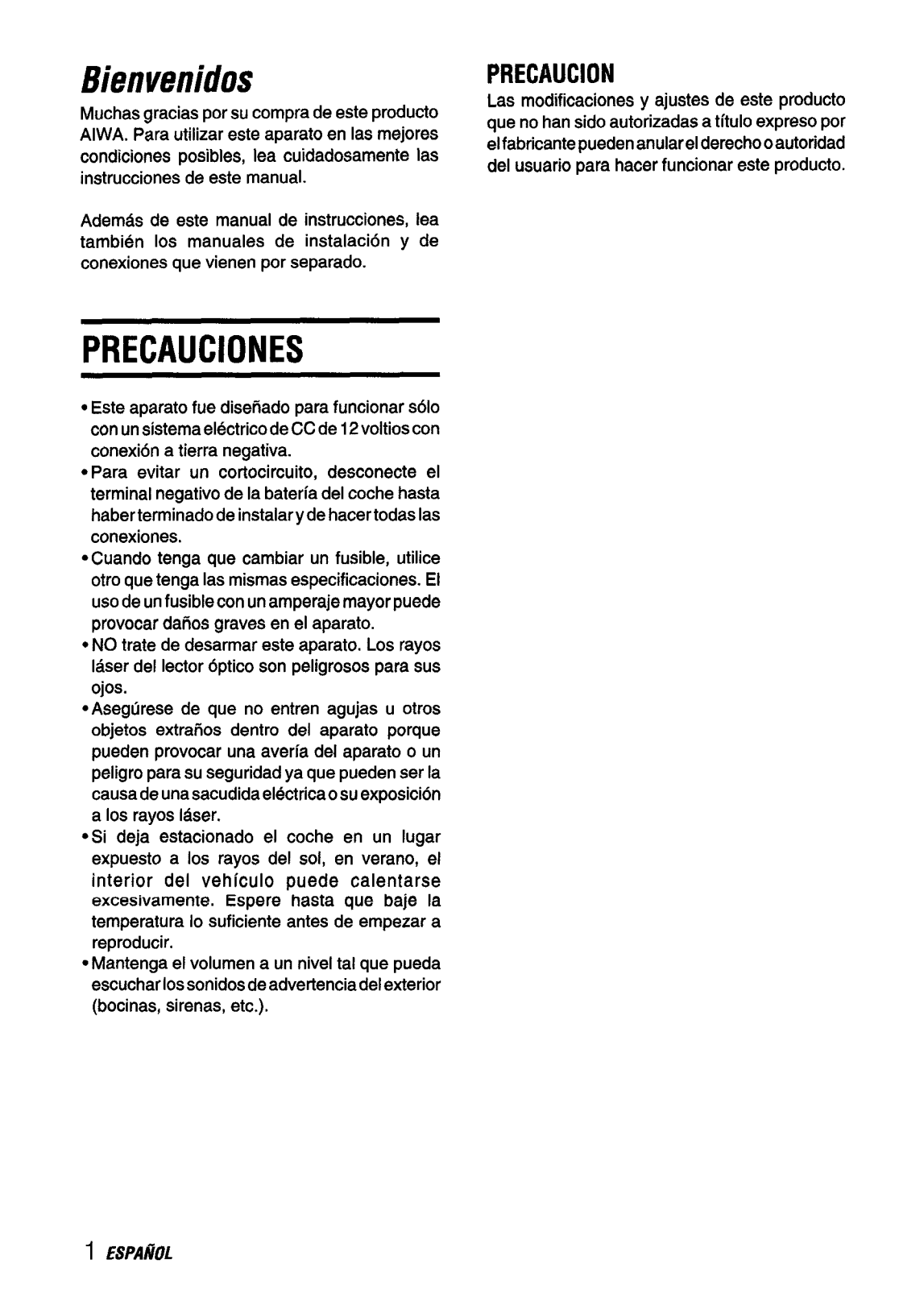

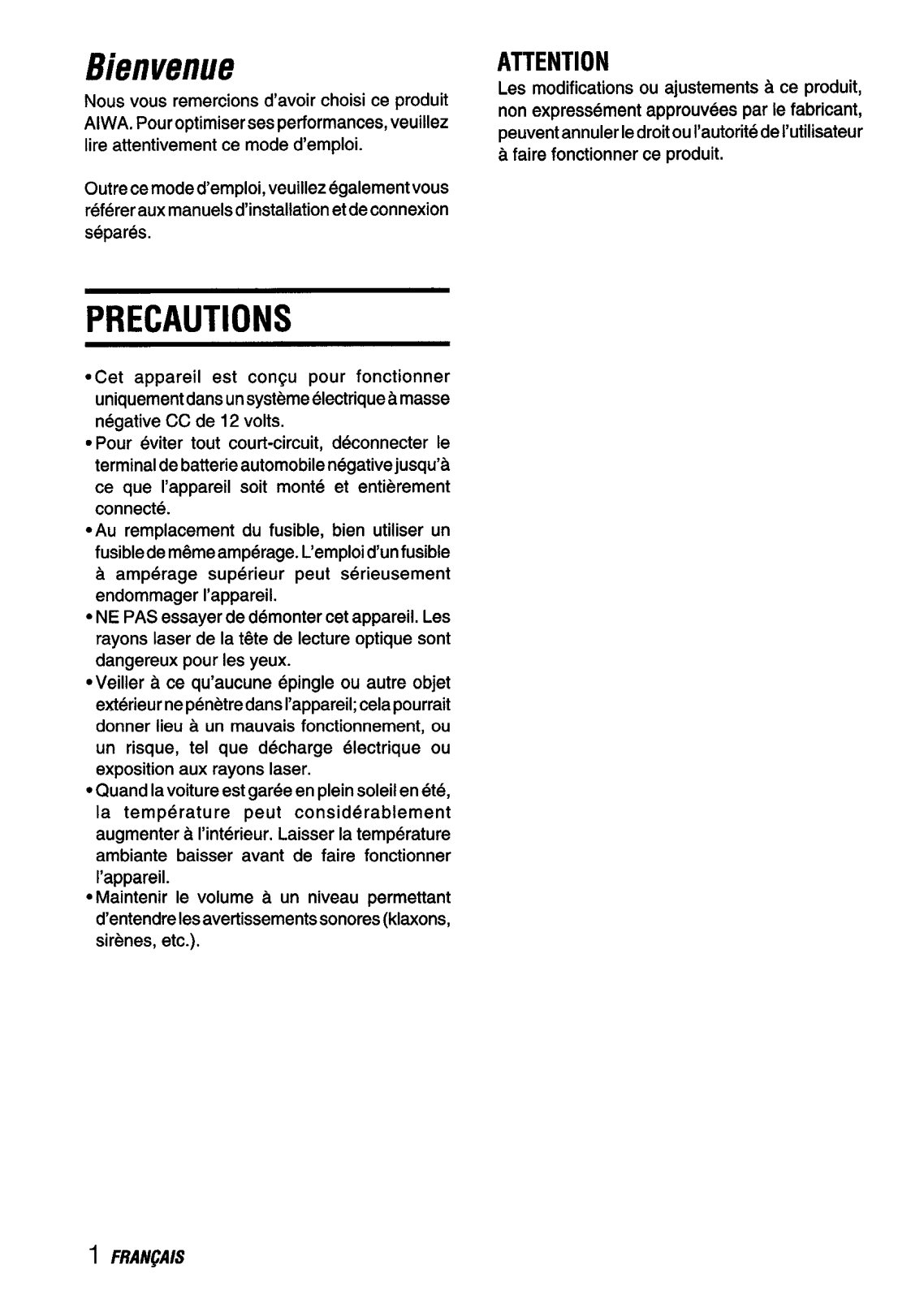

Welcome

Thank you for your purchasing thisAIWA product. To optimize the performance of this unit, please read through this manual carefully.

In addition to this operating instructions manual, be sure to refer to the separate installation and connections manuals as well.

PRECAUTIONS

● This unit isdesigned to be operated on a 12-volt

DC negative-ground electrical system only.

● To prevent short-circuiting, disconnect the

negative car battery terminal until the unit has been mounted and connected completely.

● When replacing the fuse, be sure to use one

whose amperage rating is identical. Use of a fuse of higher amperage may cause serious damage to the unit.

● Do NOT attempt to disassemble this unit. Laser

rays from the optical pickup are dangerous to the eyes.

● Make sure that pins or other foreign objects do

not get inside the unit; they may cause malfunctioning, or a safety hazard such as electrical shock or exposure of laser rays.

. When your car was parked in direct sunlight

resulting in a considerable rise in temperature inside the car, allow the unit to cool off before operating it.

● Keep the volume at such a level that you can

hear outside warning sounds (horns, sirens, etc.).

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna. — Increase the separation between the

equipment and receiver.

— Connect the equipment into an outlet on

circuit different from that to which the receiver is connected.

— Consult the dealer or an experienced radio/

TV technician for help.

CAUTION

Modifications oradjustmentstothis product, which are not expressly approved by the manufacturer, may void the user’s right or authority to operate this product.

1 ENGLISH

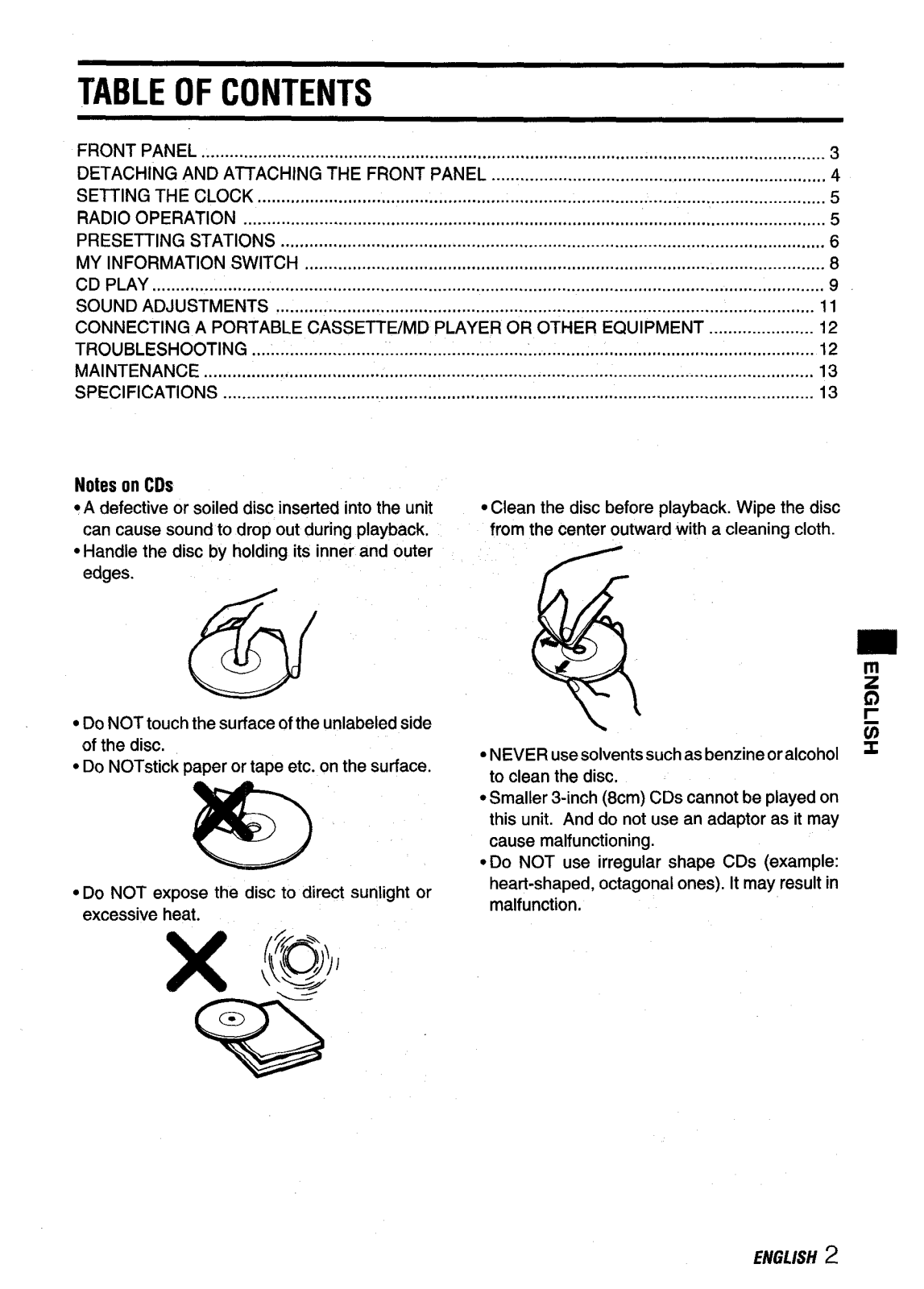

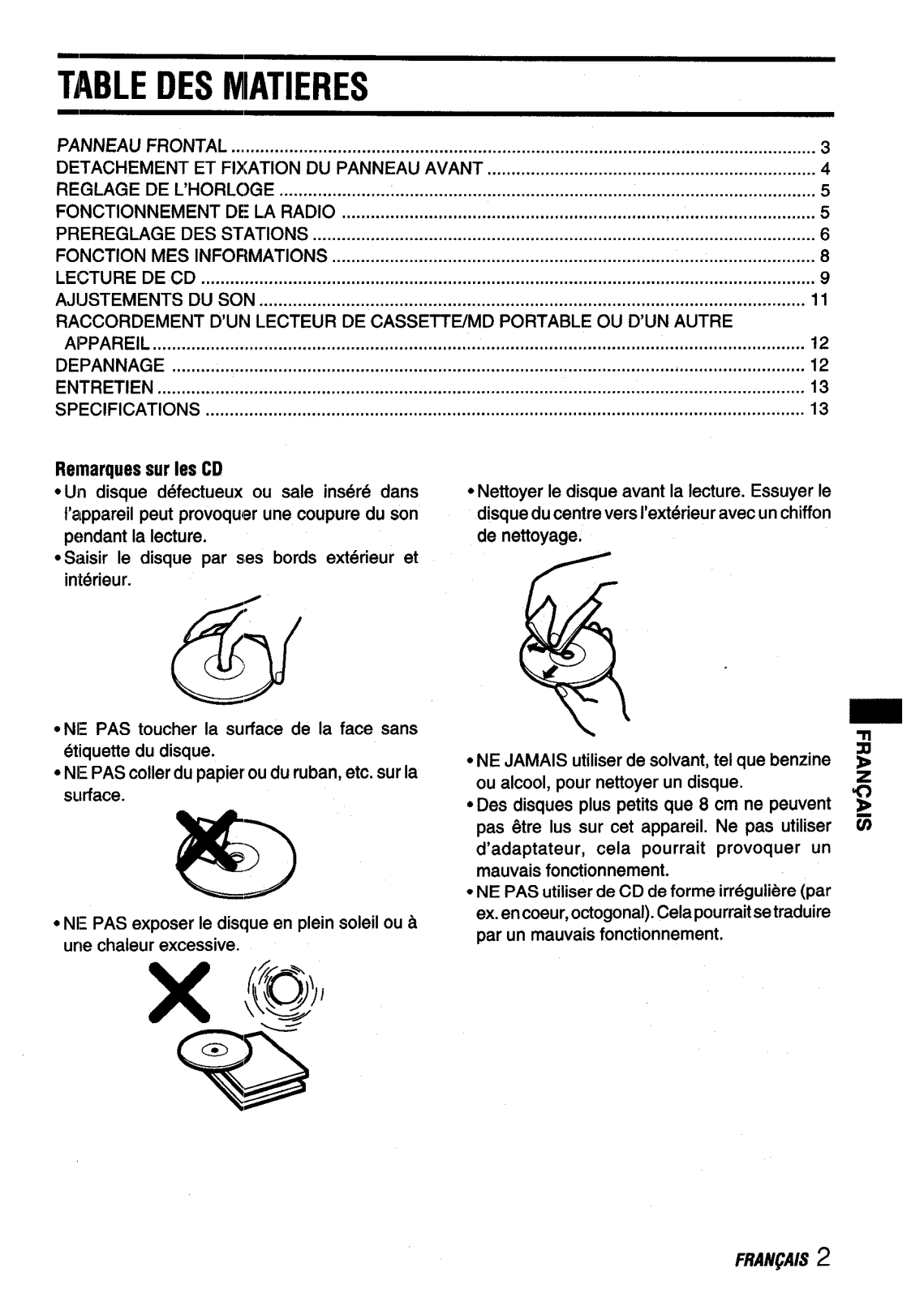

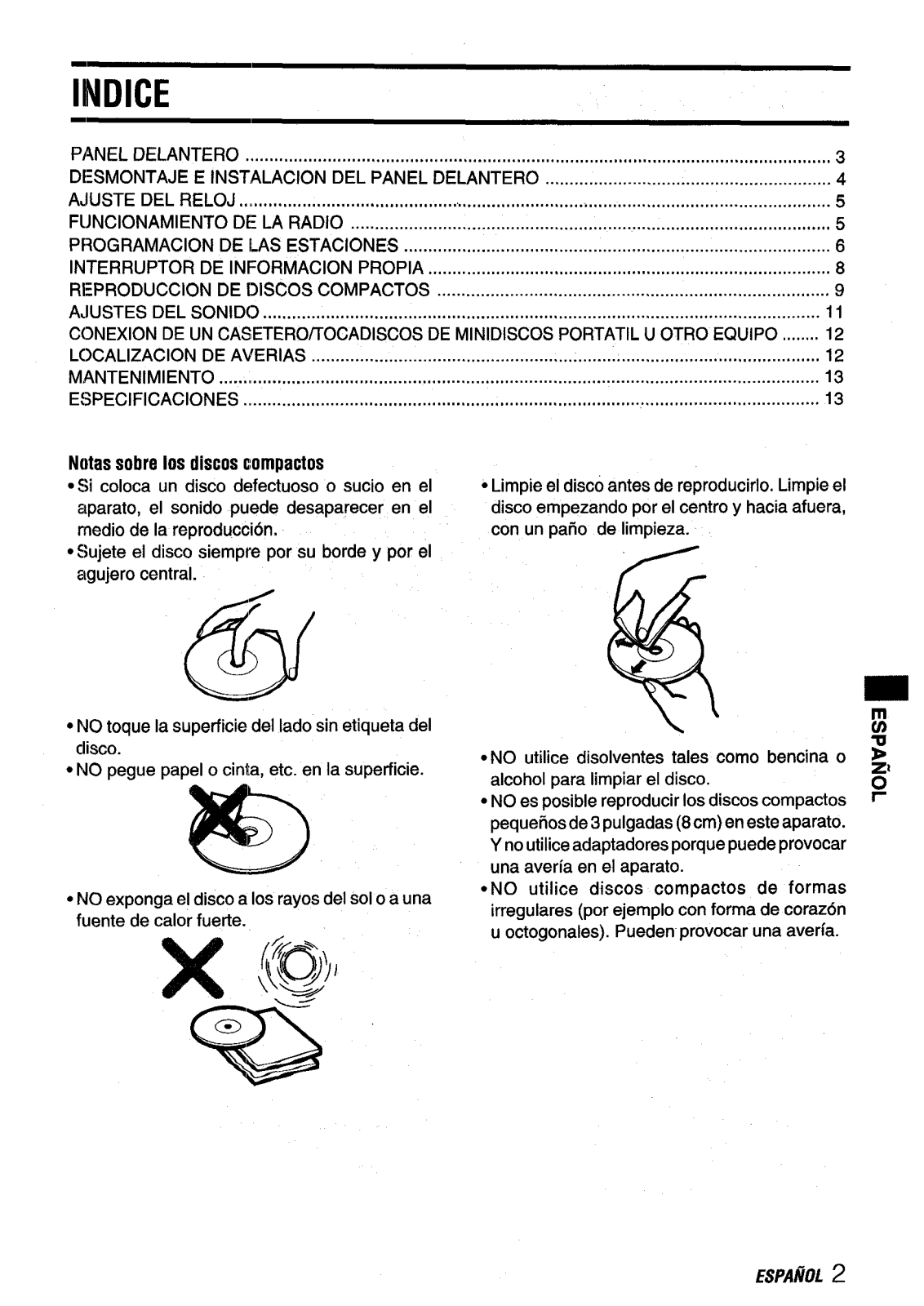

TABLE OF CONTENTS

FRONT PANEL ................................................................................................................................... 3

DETACHING AND AITACHING THE FRONT PANEL ...................................................................... 4

SETTING THE CLOCK ....................................................................................................................... 5

RADIO OPERATION .......................................................................................................................... 5

PRESETTING STATIONS .................................................................................................................. 6

MY INFORMATION SWITCH ............................................................................................................. 8

CD PLAY ............................................................................................................................................. 9

SOUND ADJUSTMENTS ................................................................................................................. 11

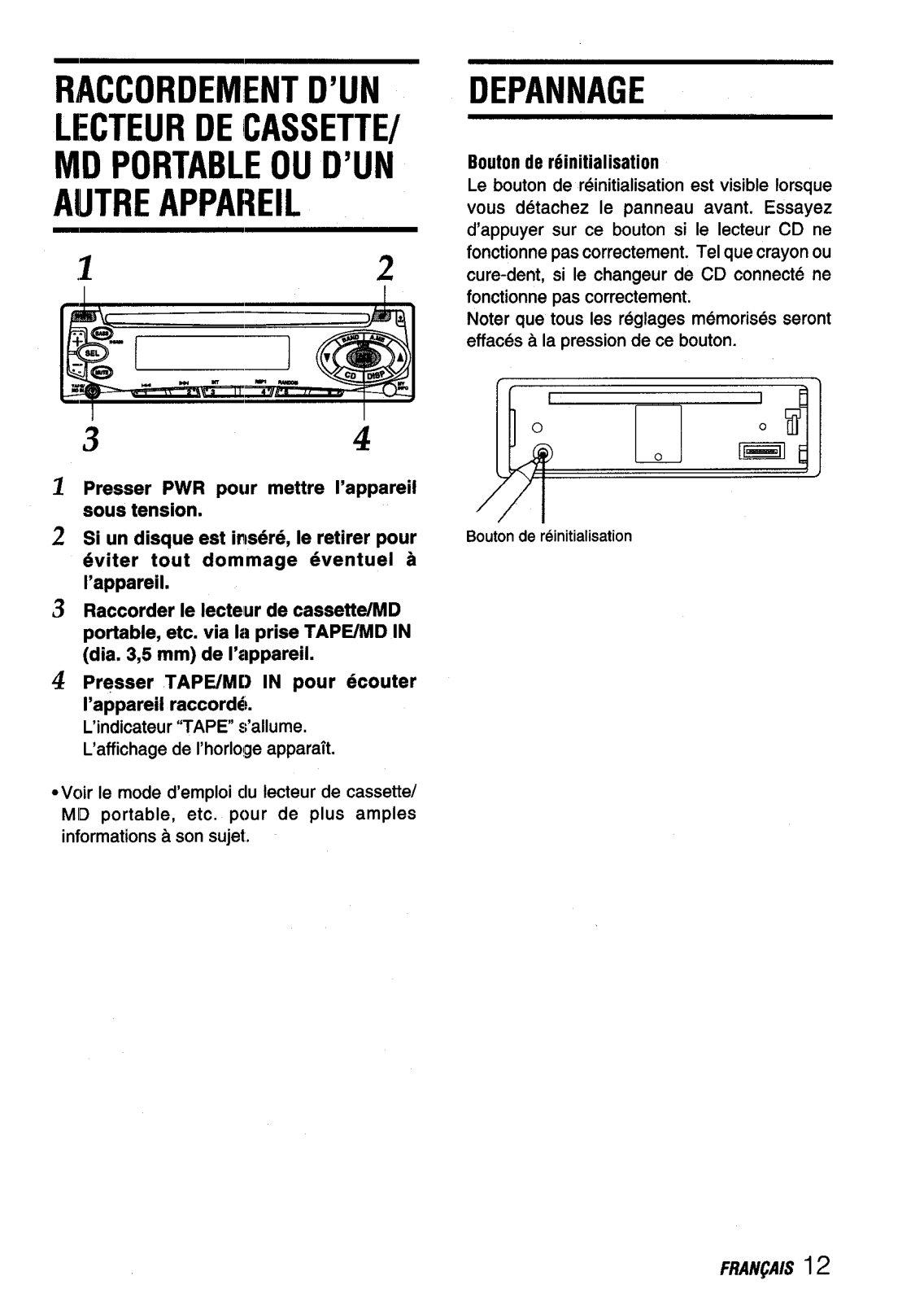

CONNECTING A PORTABLE CASSETTE/MD PLAYER OR OTHER EQUIPMENT ...................... 12

TROUBLESHOOTING ...................................................................................................................... 12

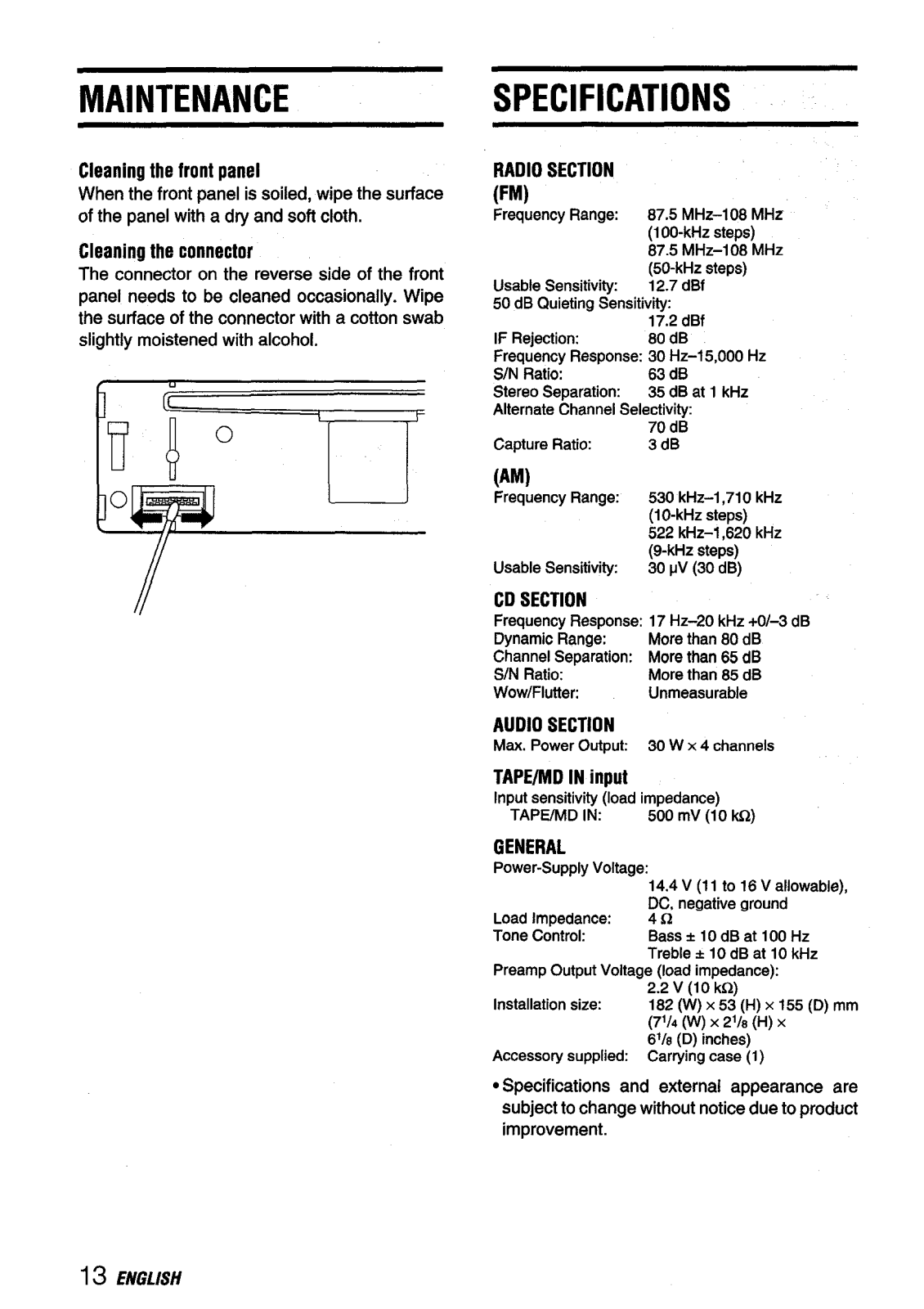

MAINTENANCE ................................................................................................................................ 13

SPECIFICATIONS ............................................................................................................................ 13

Noteson CDs

Adefective orsoiled disc inserted into the unit

●

can cause sound to drop out during playback.

●Handle the disc by holding its inner and outer

edges.

● Do NOT touch the surface of the unlabeled side

of the disc.

● Do NOTstick paper or tape etc. on the surface.

●Do NOT expose the disc to dkect sunlight or

excessive heat.

●Clean the disc before playback. Wipe the disc

from the center outward with a cleaning cloth.

●NEVER usesolvents suchasbenzine oralcohol =

to clean the disc.

● Smaller 3-inch (8cm) CDs cannot be played on

this unit. And do not use an adaptor as it may cause malfunctioning.

● Do NOT use irregular shape CDs (example:

heart-shaped, octagonal ones). It may result in malfunction,

ENGLISH

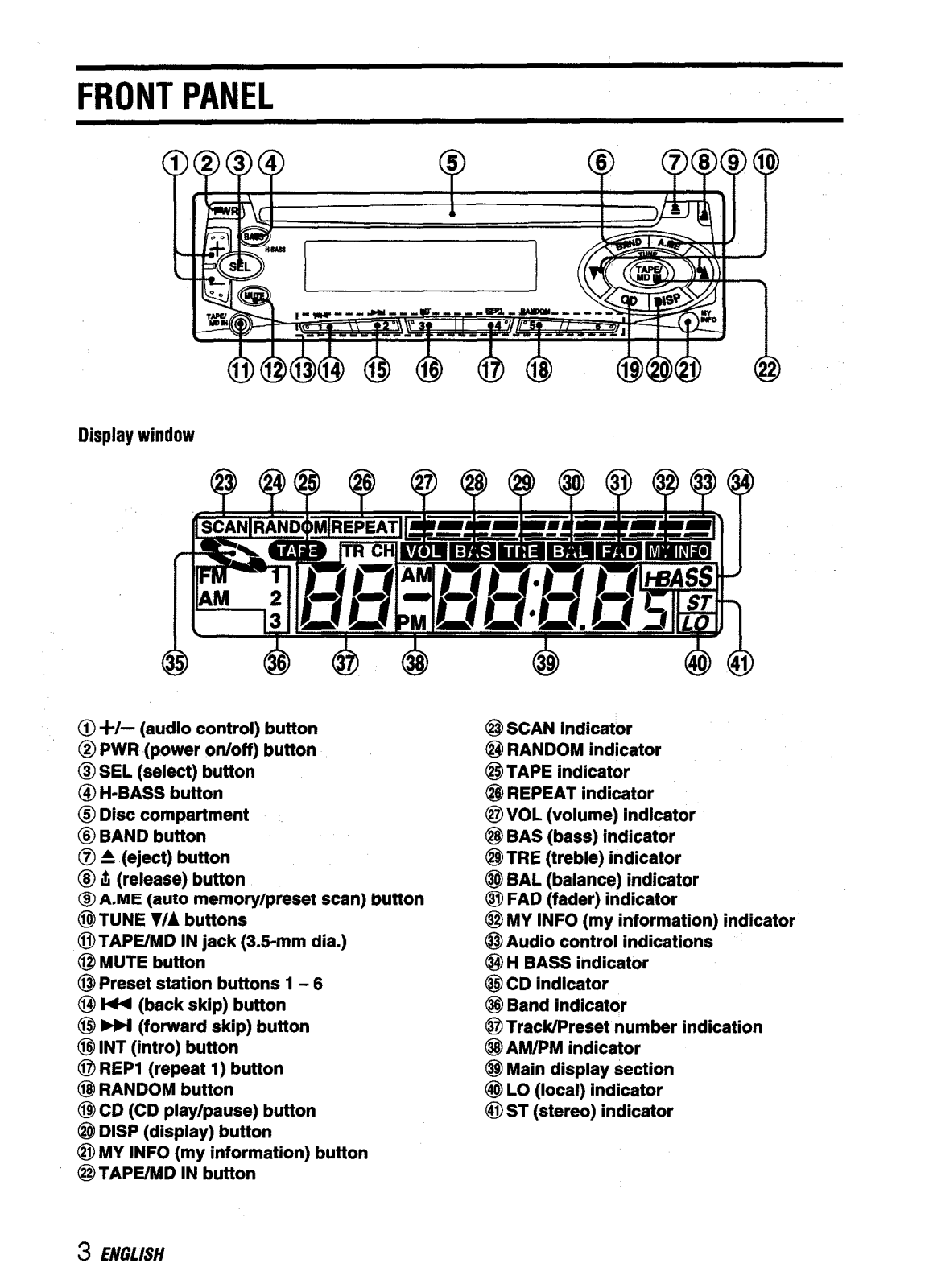

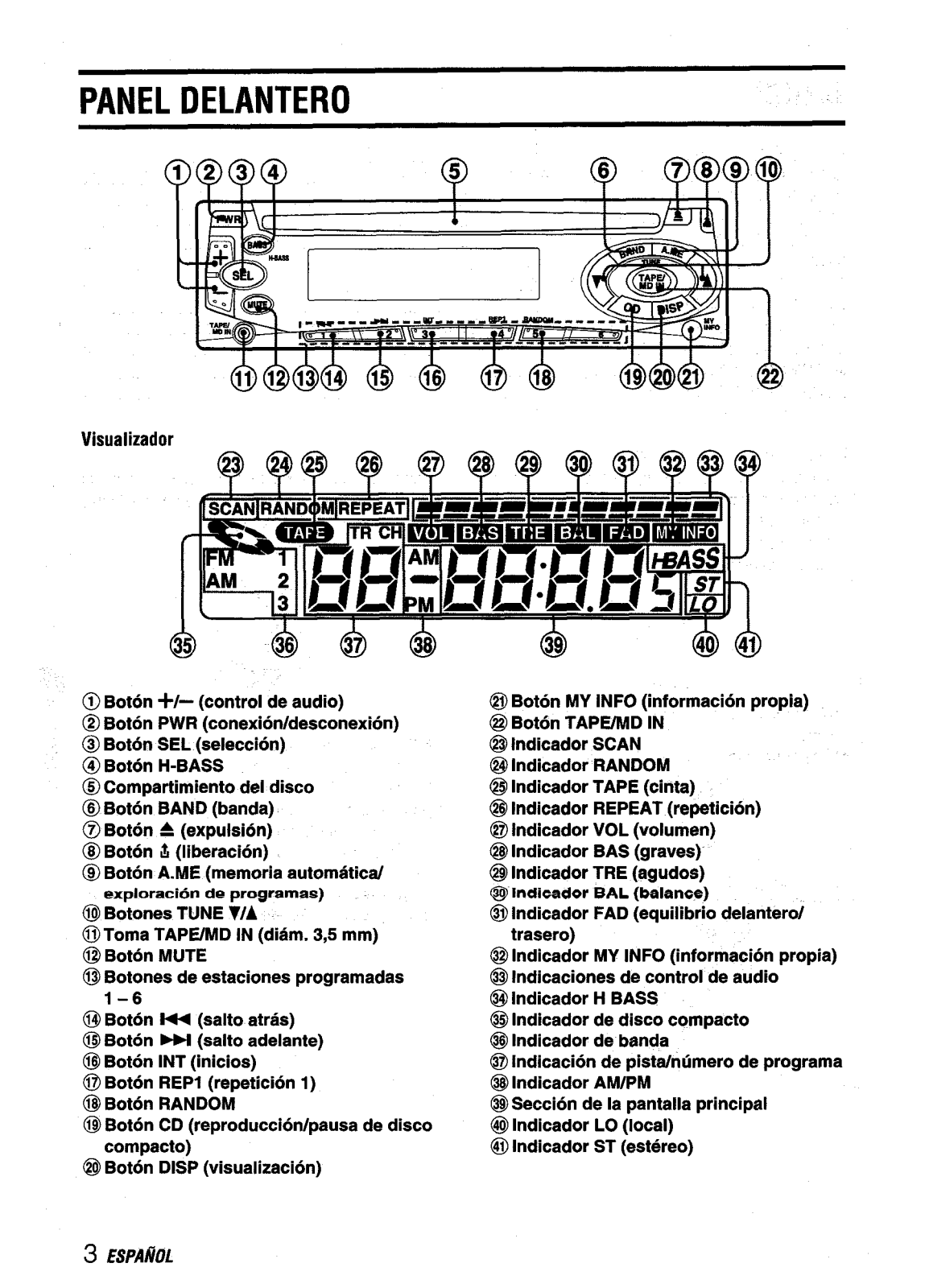

FRONTPANEL

1234

Eii9isi

Displaywindow

@+/– (audio control) button

@ PWR (power otioff) button

@ SEL (select) button

H.BASS button

@Disc compsrtmsnt

@BAND bunon

@ A (eject) button

@ ~ (release) button

A.ME (auto memory/preset SCWt) fXtttOtI

@TUNE

@TAPE/MD IN jack (3.5-mm dia.)

@ MUTE button

@Preset station buttons 1-6

@ W (back skip) button

@ bPf (forward skip) button @IINT (intro) button

@ REP1 (repeat 1) button @ RANDOM button

@CD (CD play/pause) button

@ DISP (display) button @MY INFO (my information) button

@TAPEhID IN button

71Abuttons

@SCAN indicator @ RANDOM indicator

@JTAPE indicator @REPEAT indicator @ VOL (volume) indicator @lBAS (bass) indicator @ TRE (treble) indicator @ BAL(balance) indicator

@ FAD(fader) indicator @MY INFO (my information) indicator

@Audio control indications @H BASS indicator @CD indicator (?$Band indicator @TracWPreset number indication @ AWPM indicator @ Main display section @LO (local) indicator @ST (stereo) indicator

78910

3 ENGLISH

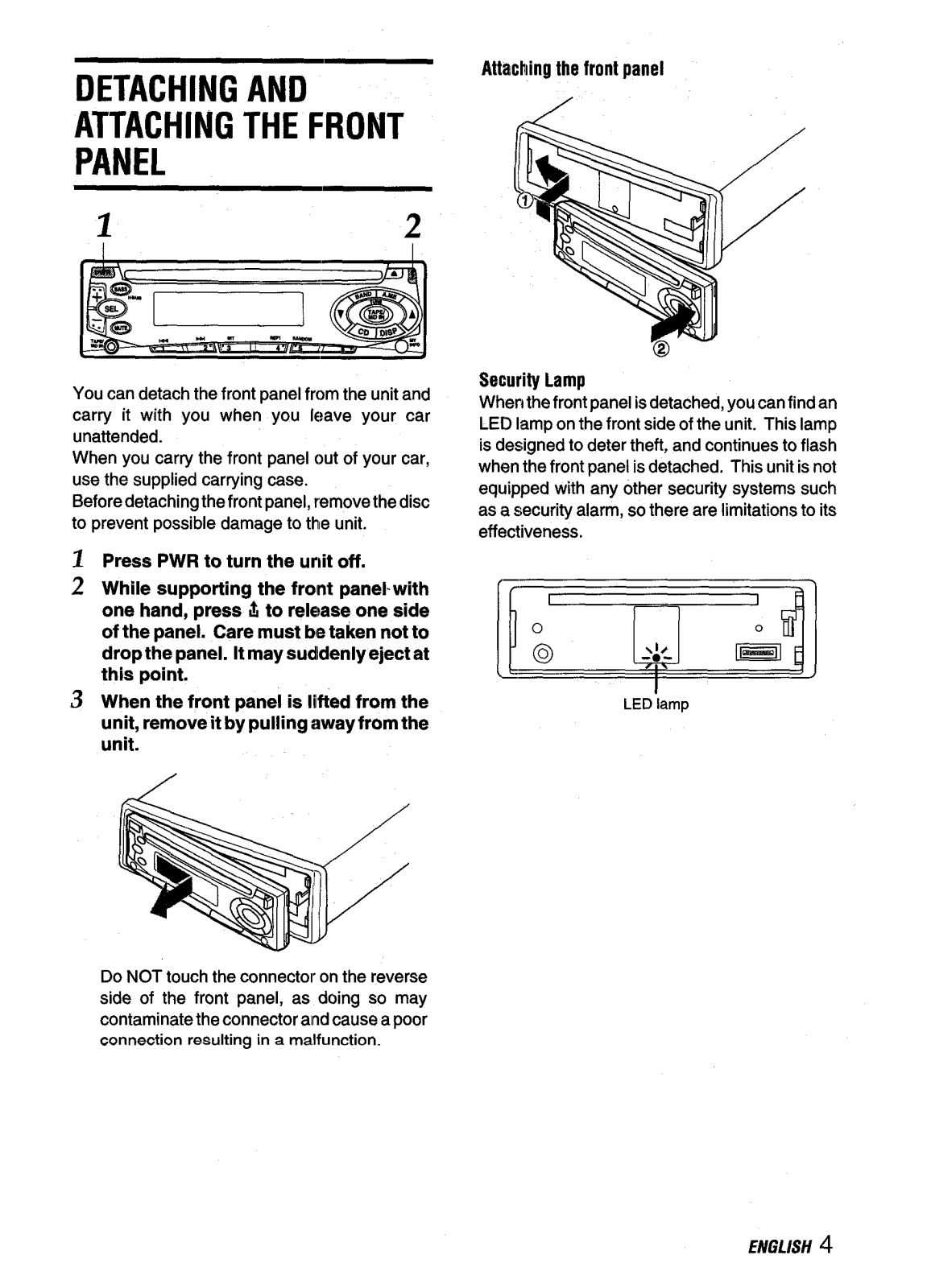

DETACHING AND

ATTACHING THE FRONT

PANEL

You can detach the front panel from the unit and carry it with you when you leave your car

unattended. When you carty the front panel out of your car, use the supplied carrying case. Before detaching the front panel, remove the disc to prevent possible damage to thle unit.

Press PWR to turn the unit off.

While supporting the front panel- with one hand, press I?Ito rele!aseone side of the panel. Care must be taken not to drop the panel. It may sudldenlyeject at this point.

When the front panel is Wted from the unit, remove itby pulling away from the unit.

Attaching the front panel

Security Lamp

When the front panel is detached, you can find an LED lamp on the front side of the unit. This lamp is designed to deter theft, and continues to flash when the front panel is detached. This unit is not equipped with any other security systems such

as a securiw alarm, so there are limitations to its effectiveness.

LED’lamp

Do NOT touch the connector on the reverse side of the front panel, as doing so may contaminate the connector and cause a poor connection resulting in a malfunction.

ENGLISH

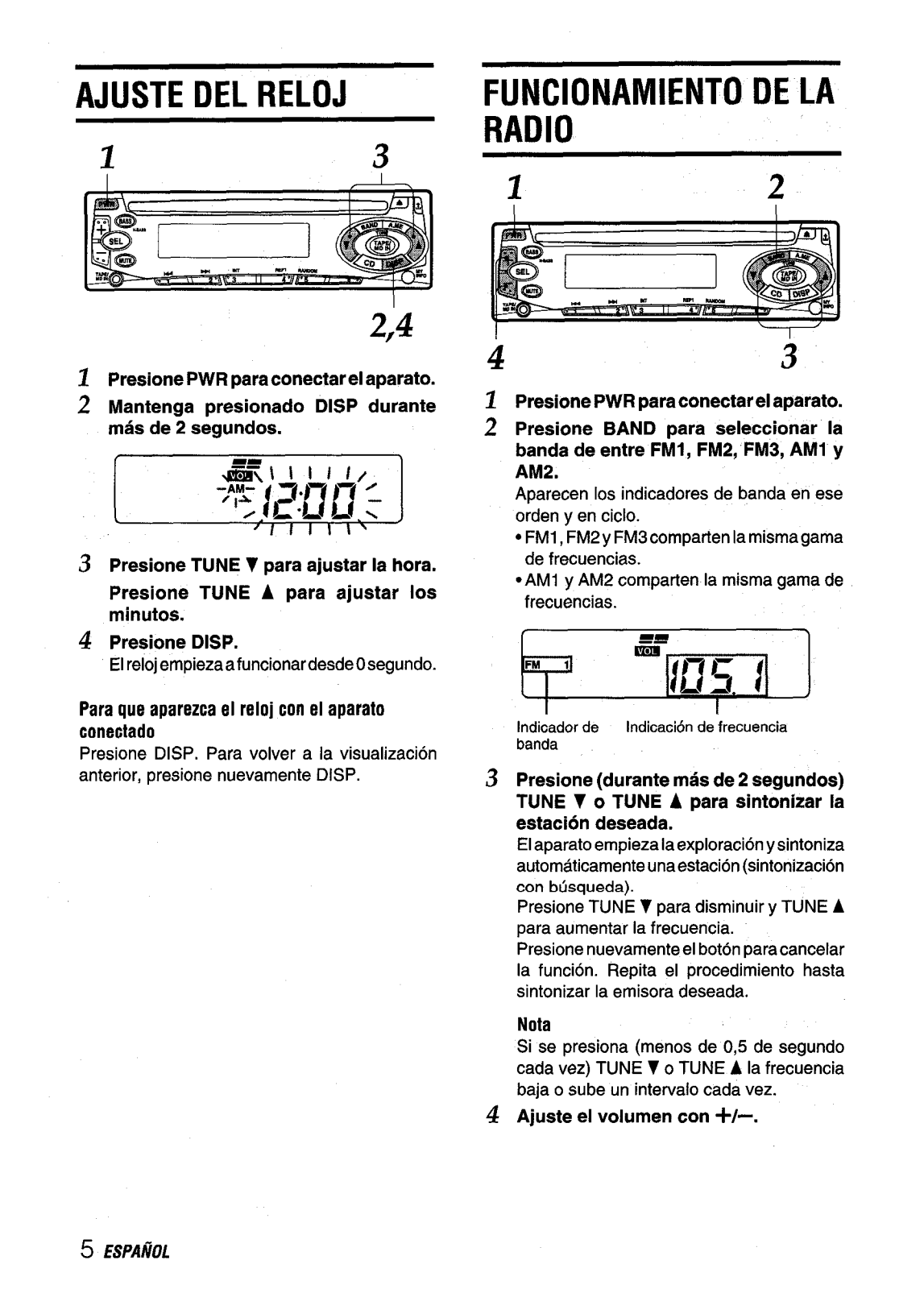

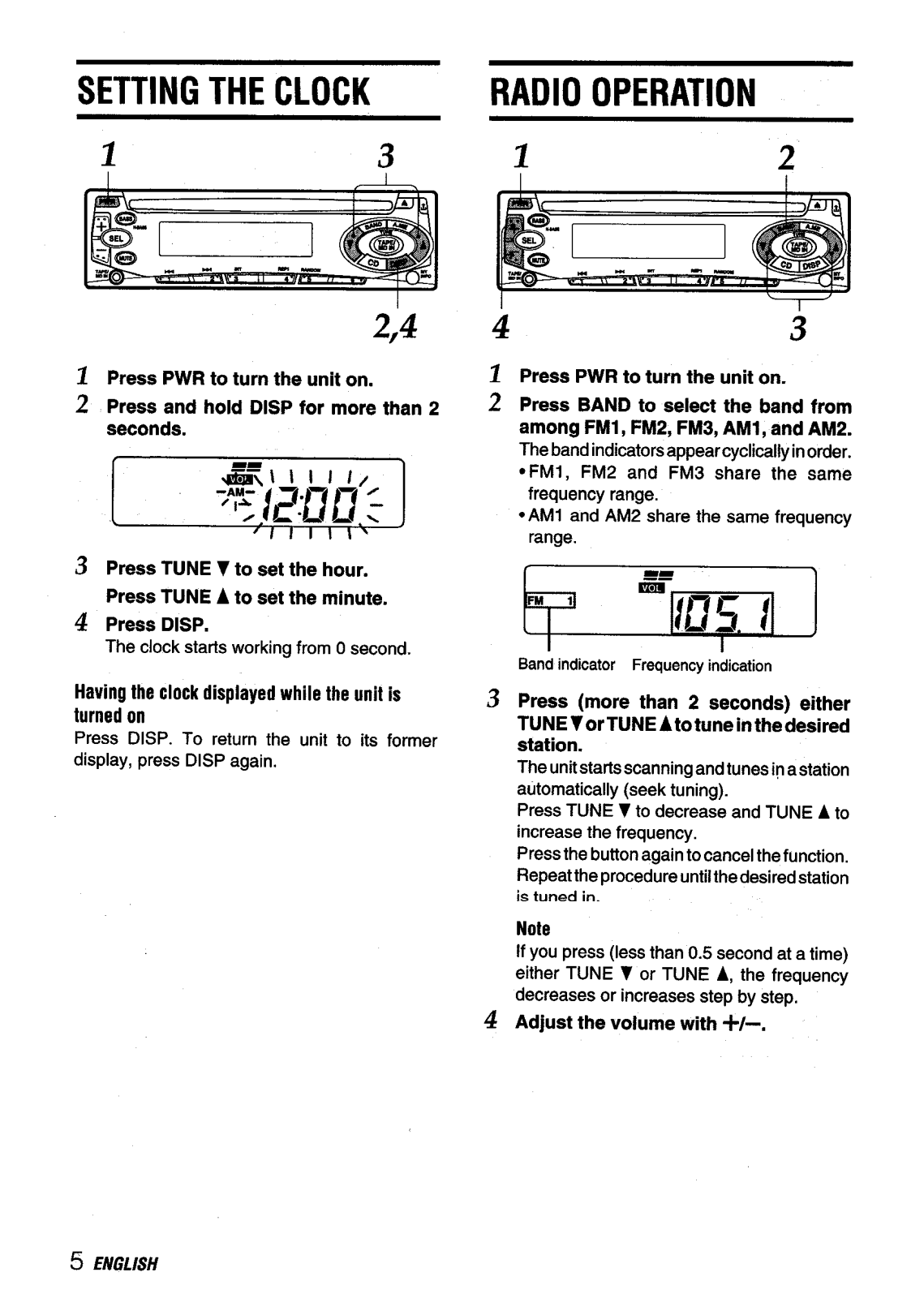

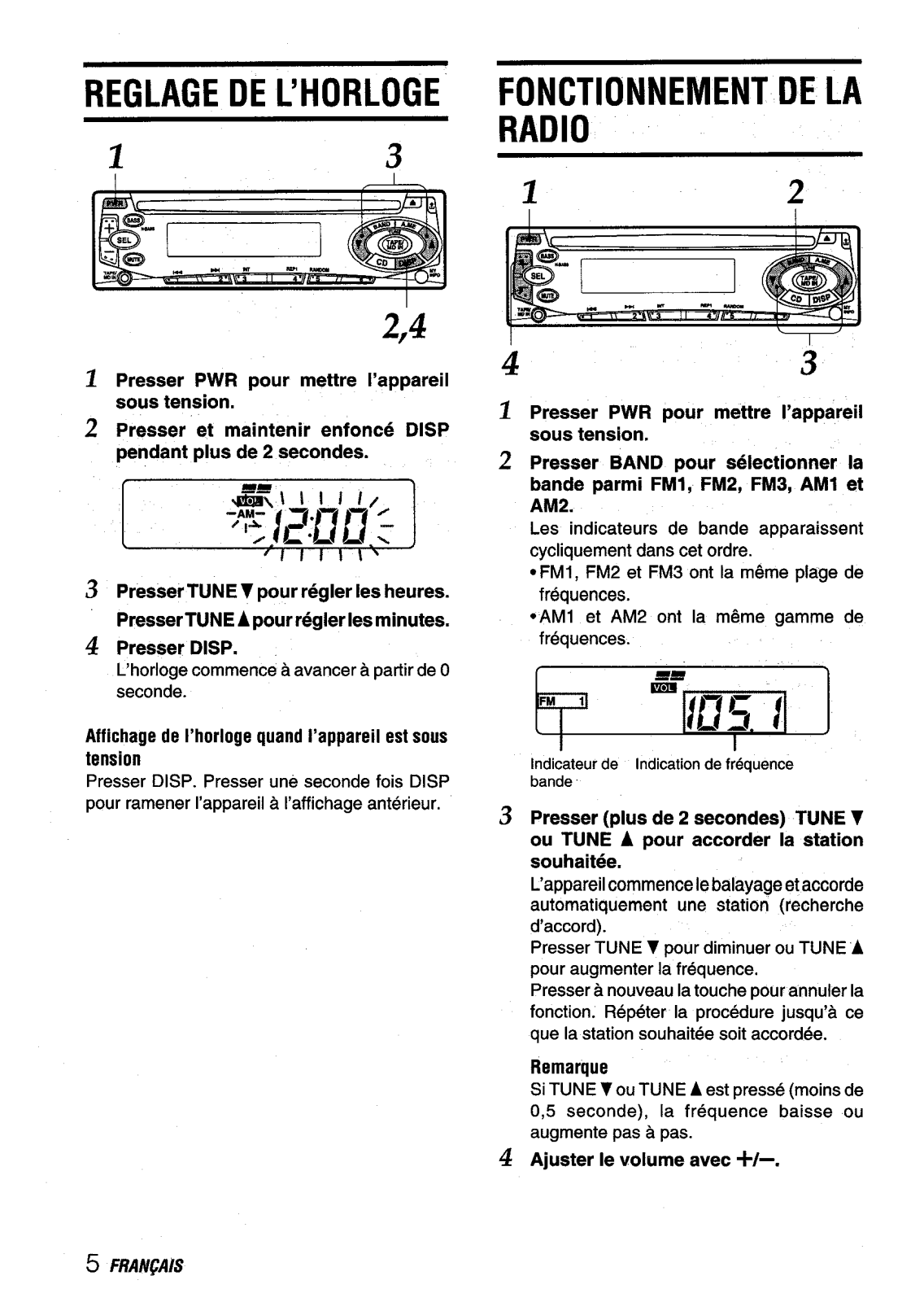

SETTING THE CLOCK

RADIO OPERATION

2,4

I Press PWR to turn the unit on.

z Press and hold DISP for more than 2

seconds.

s Press TUNE 7 to set the hour.

Press TUNE

4 Press DISP.

The clock starts working from Osecond.

Having the clock displayed while the unit is

turned on

Press DISP. To return the unit to its former

display, press DISP again,

A to eet the minute.

Press PWR to turn the unit on.

Press BAND to select the band from among FM1, FM2, FM3, AM1, and AM2.

The band indicators appear cyclically in order.

● FM1, FM2 and FM3 share the same

frequency range.

● AM1 and AM2 share the same frequency

range.

Bandindicator Frequency indication

Press (more than 2 seconds) either TUNE YorTUNE Atotune inthedesired station.

The unit starts scanning and tunes ina station automatically (seek tuning). Press TUNE Y to decrease and TUNE increase the frequency. Press the button again to cancel the function. Repeat the procedure until the desired station is

tuned in.

Note

If you press (less than 0.5 second at a time)

either TUNE V or TUNE A, the frequency decreases or increases step by step.

Adjust the volume with +/-.

A to

5 ENGLISH

To turn the unit off

Press PWR.

Note

The “ST” indicator lights up when the tuned-in

station is broadcasting in stereo and the reception

is good.

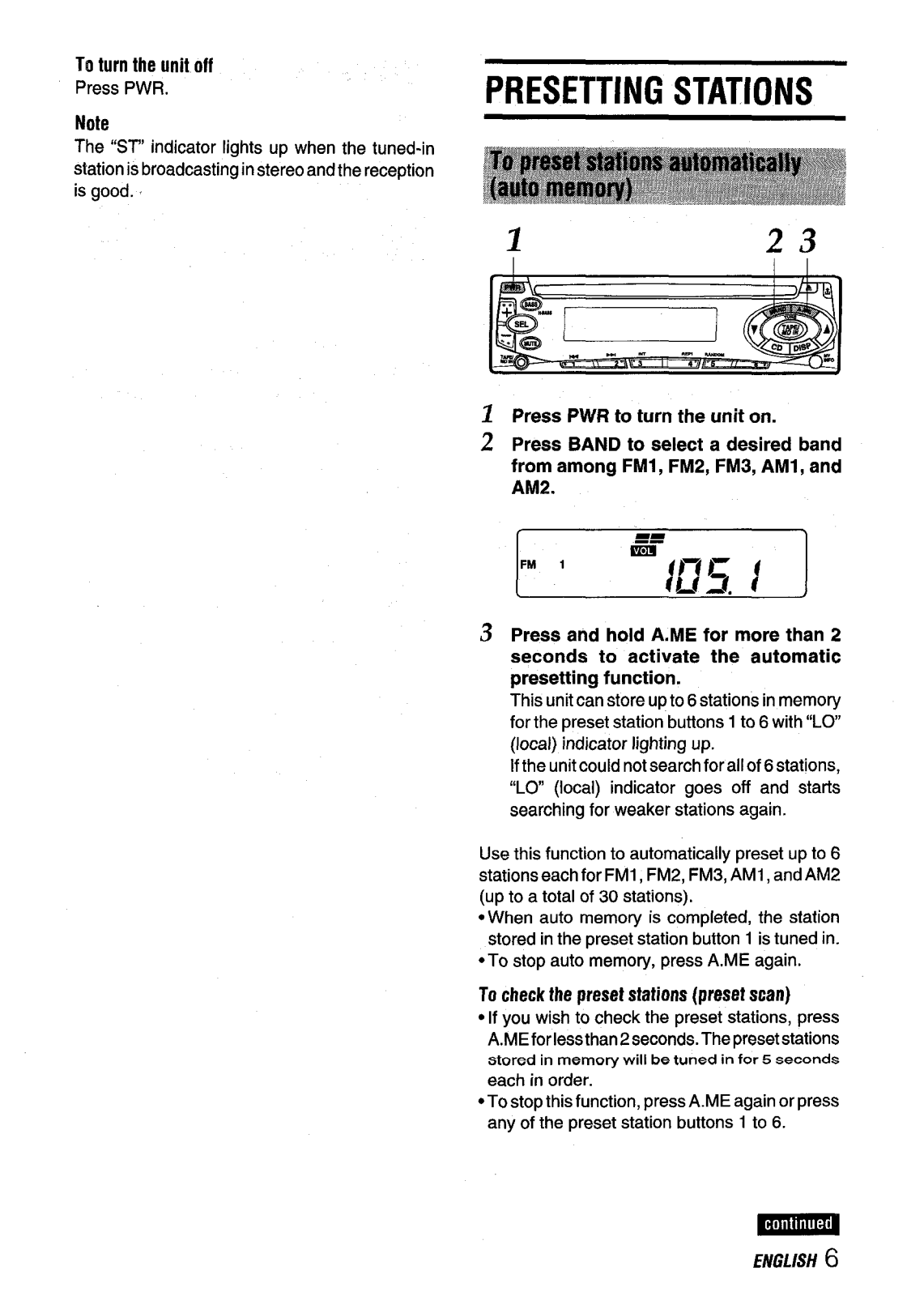

PRESETTING STATIONS

Press PWR to turn the unit on.

Press BAND to select a desired bsnd

from among FM1, FM2, FM3, AM1, and

AM2.

Press and hold A.ME for more than 2 seconds to activate the automatic presetting function.

This unit can store up to 6stations in memory for the preset station buttons 1 to 6 with “LO (local) indicator lighting up. Ifthe unit could not search for all of 6 stations, “LO (local) indicator goes off and starts searching for weaker stations again.

Use this function to automatically preset up to 6 stations each for FM1, FM2, FM3, AM1, and AM2 (up to a total of 30 stations).

● When auto memory is completed, the station

stored in the preset station button 1 is tuned in.

●To stop auto memory, press A.ME again.

To checkthepresetstations(presetscan)

● If you wish to check the preset stations, press

A.ME forlessthan 2 seconds. The preset stations

stored in memory will be tuned in for 5 seconds

each in order.

●To stop this function, press A.ME again or press

any of the preset station buttons 1 to 6.

ENGLISH 6

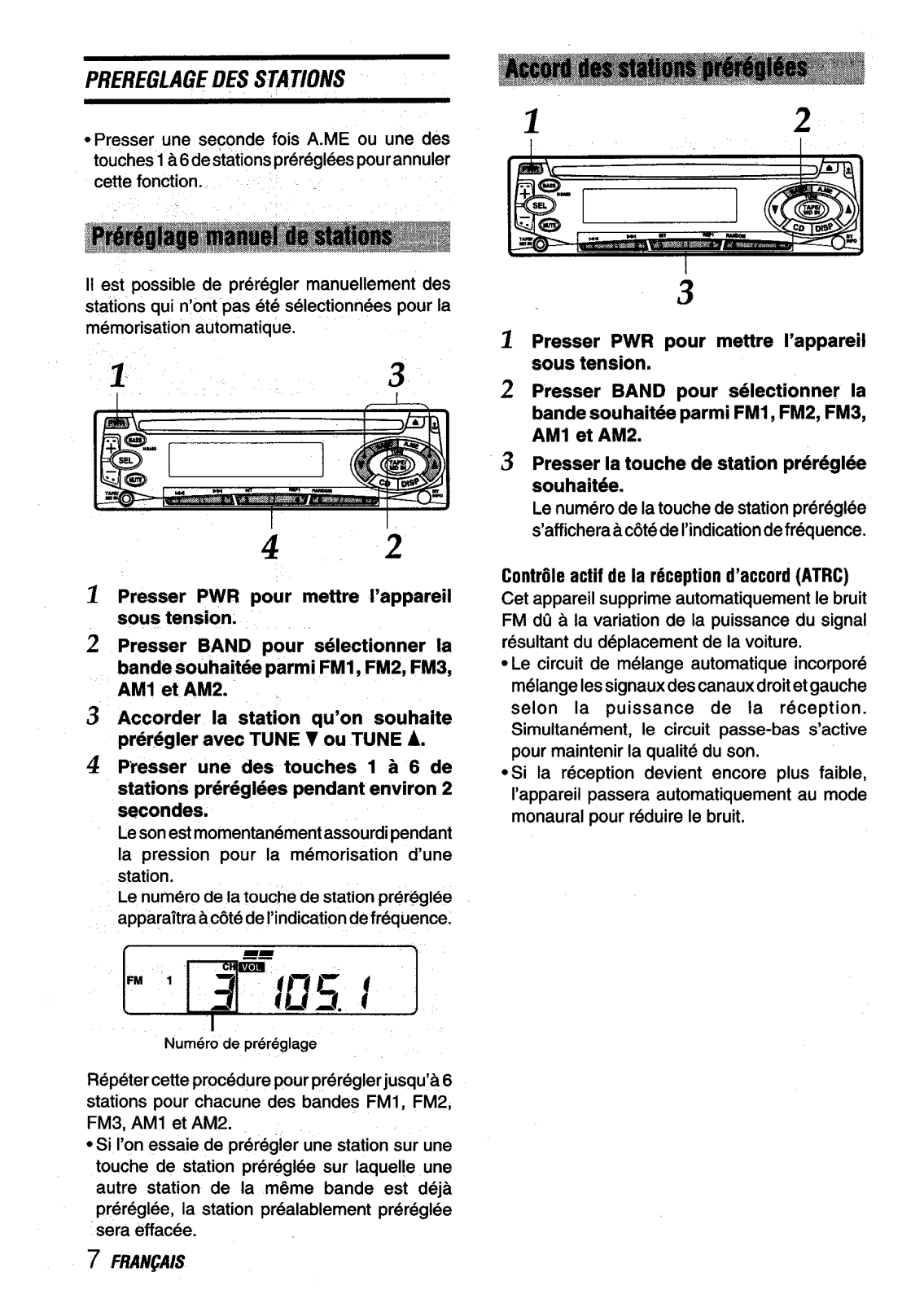

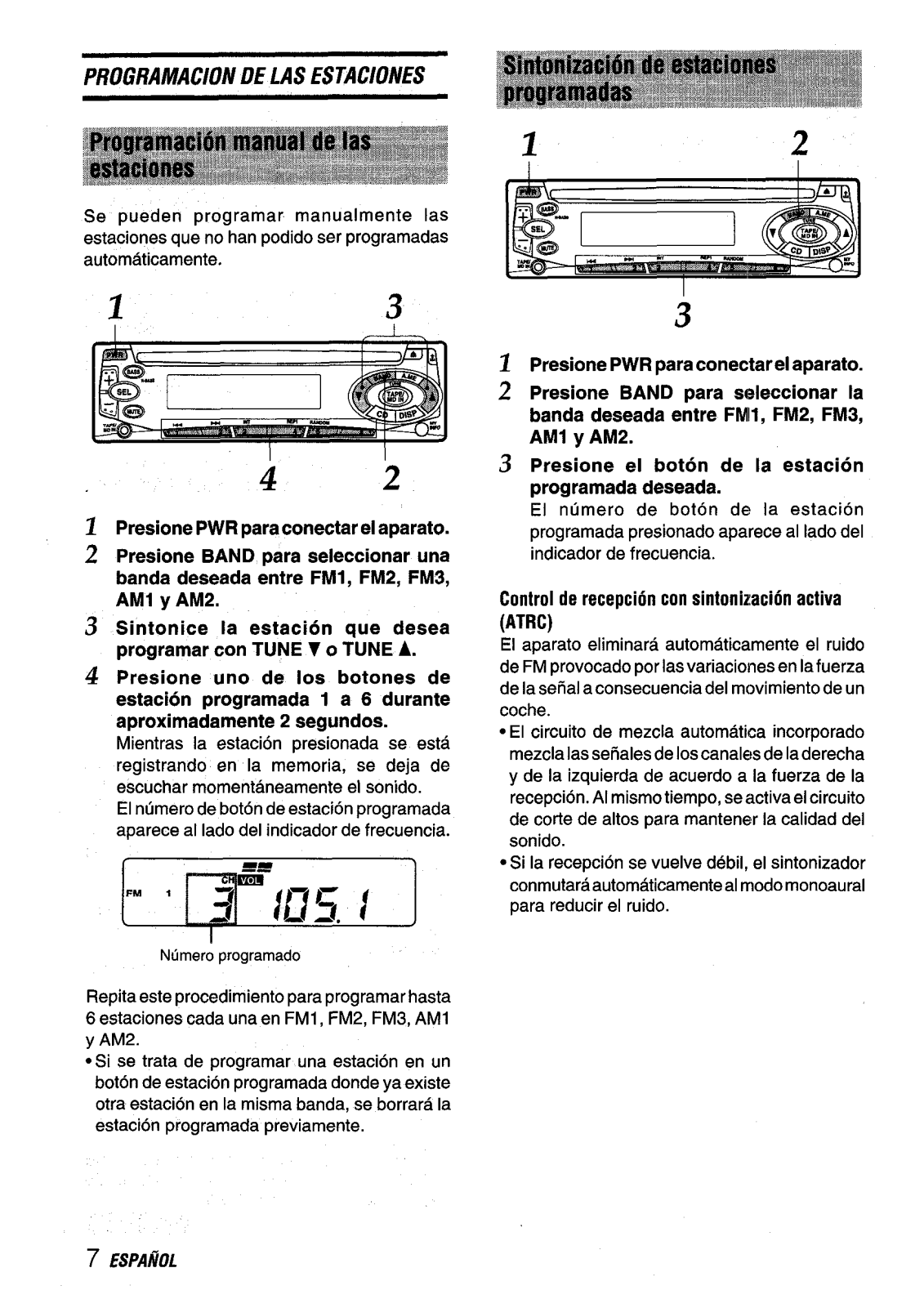

PRESETTINGSTATIONS

You can manually preset stations that have not been selected by auto memory.

1 3

Press PWR to turn the unit on.

Prees BAND to select the band from among FM1, FM2, FM3, AM1, snd AM2.

Tune in the station that you wish to

preset with TUNE Y or TUNE Prees one of the preset station buttons

1 to 6 for appro~mately 2 seconds.

While the station you are presetting is being registered in memory, the sound is momentarily muted. The number of the pressed preset station button appears next to the frequency indication.

Prees PWR to turn the unit on,

Press BAND to select a desired band

from among FMI, FM2, FM3, AM1, and

AM2. Press the desired preset station button.

The number of the-pressed preset station

button appears next to the frequency indication.

Active

tuning reception control (ATRC)

This unit automatically suppresses FM noise caused by varying signal strength resulting from

movement of the car.

● The built-in automatic blending circuit mixes the

left and right channel signals according to the strength of the reception. At the same time, the high-cut circuit activates to maintain the sound quality.

● If the reception becomes even weaker, the unit

automatically switches to Monaural mode, to reduce noise.

Presetlnumber

Repeat these procedures to preset up to 6stations

each for FM1, FM2, FM3, AM1, and AM2.

● If you try to preset a station on a preset station

button on which another station of the same band has already been preset, the previously preset station will be erased.

7 ENGLISH

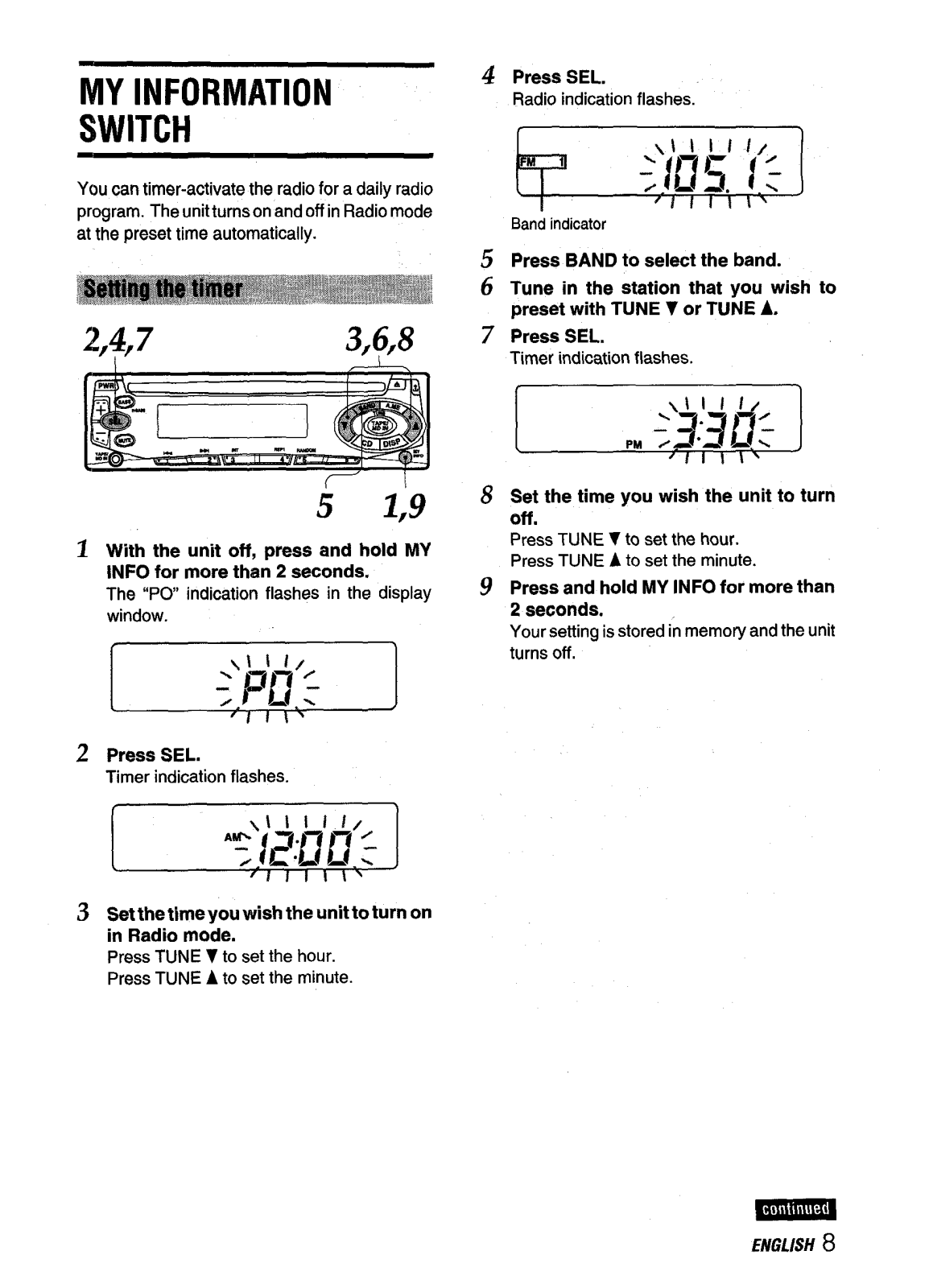

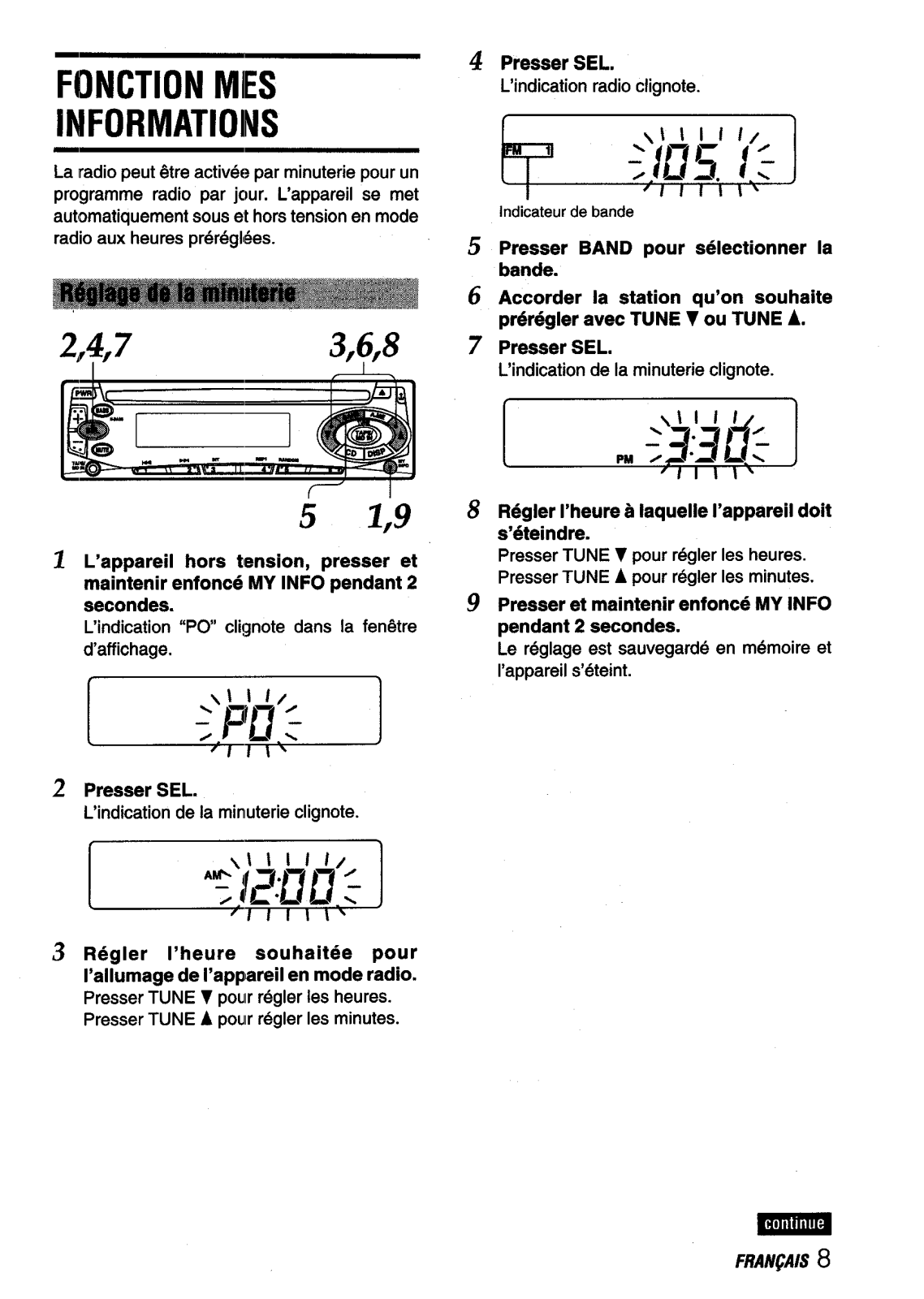

MY INFORMATION

SWITCH

You can timer-activate the radio for a daily radio program. The unit turnson and off in Radio mode at the preset time automatically.

2,4,7 3,6,8

5 1;9

With the unit off, press snd hold MY INFO for more than 2 seconds.

The “PO indication flashes in the display window.

Press SEL.

Radio indication flashes.

Band indicator

Press BAND to select the bsnd.

Tune in the station that you wish to

preset with TUNE V or TUNE A. Press SEL.

Timer indication flashes.

Set the time you wish the unit to turn

off.

Press TUNE V to set the hour. Press TUNE A to set the minute.

Press snd hold MY INFO for more than

2 seconds.

Your sefting is stored in memory and the unit turns off.

Press SEL.

Timer indication flashes.

Set the time you wish the unit to turn on

in Radio mode.

Press TUNE Y to set the hour. Press TUNE

A to set the minute.

ENGLISH

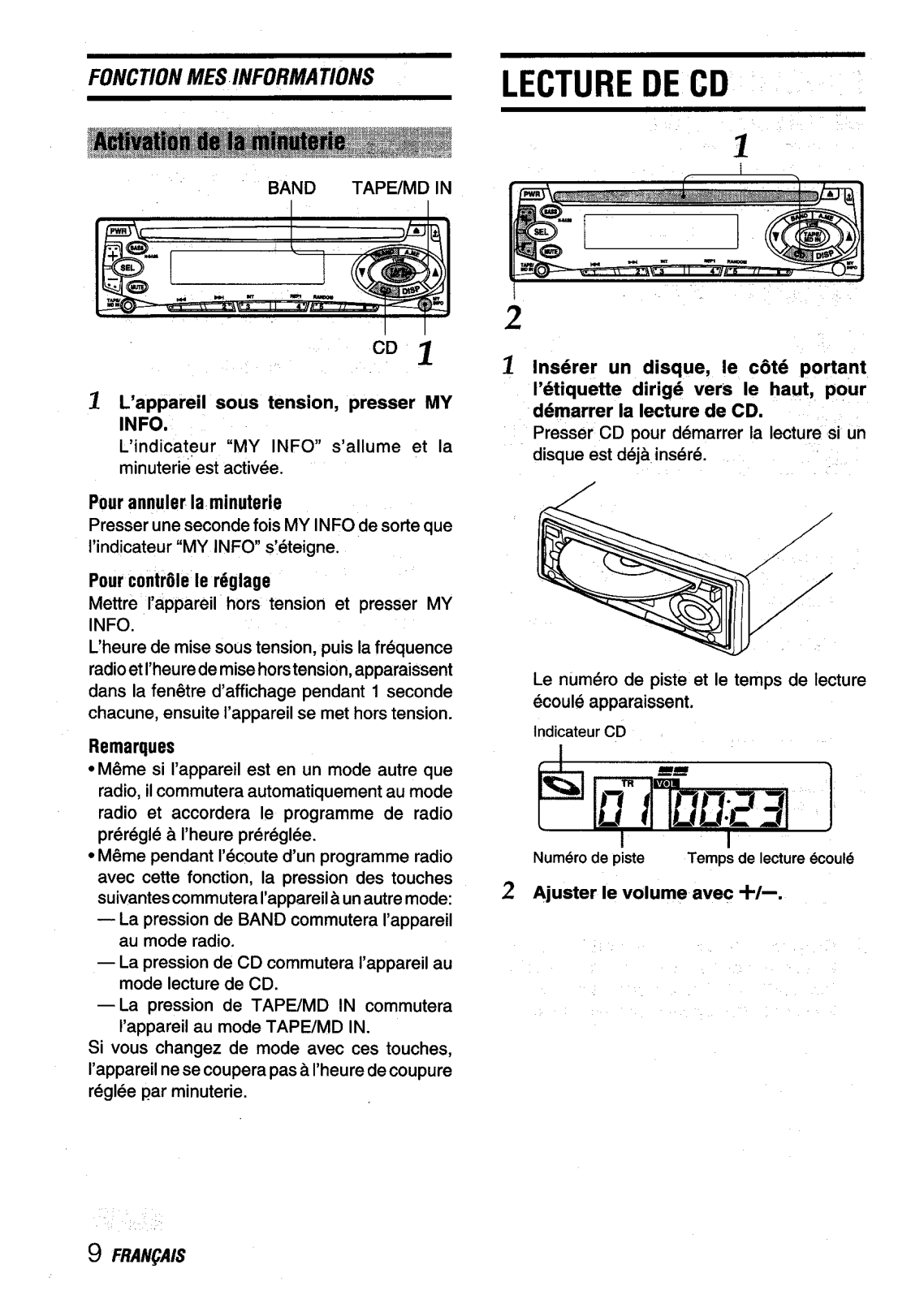

MY lltlF&’MlwlT/mSWITCH

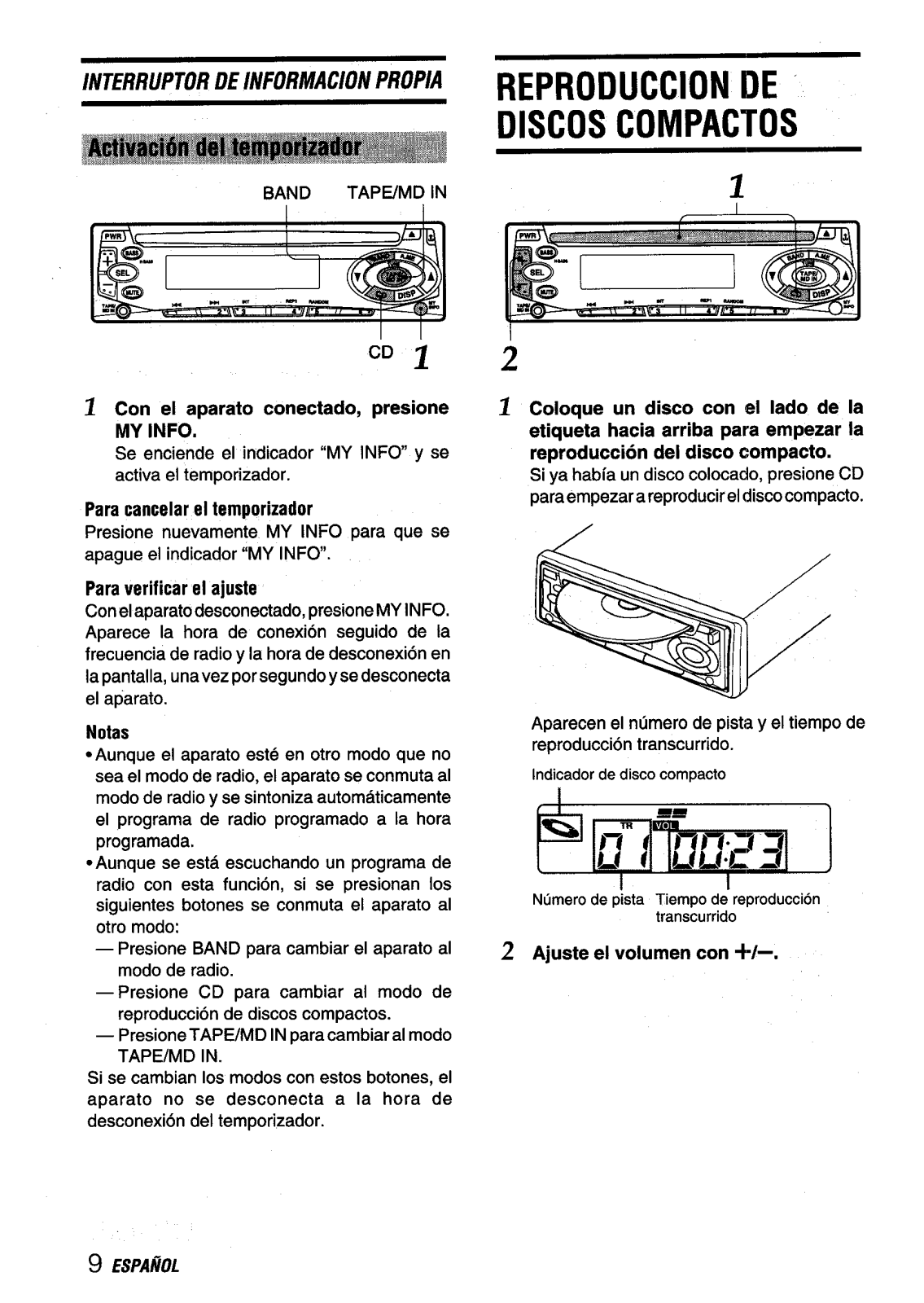

CD PLAY

BAND

( d,~,q )

TAPE/MD IN

CD 1

~ With the unit on, press MY INFO.

The “MY INFO indicator lights up and the timer is activated.

To cancel the timer

Press MY INFO again so that the “MY INFO indicator disappears.

To check the setting

With the unit off, press MY INFO. The turn-on time, followed by the radio frequency and the turn-off time, appears in the display window each for 1second, then the unit turns off.

Notes

● Even if the unit is in a mode other thah Radio

mode, the unit switches to Radio mode and tunes in the preset radio program at the preset time automatically.

● Even if you are listening to a radio program with

this function, pressing the following buttons switches the unit to other mode:

— Pressing BAND changes the unit to Radio

mode.

— Pressing CD changes the unit to CD Play

mode.

— Pressing TAPE/MD IN changes the unit to

TAPE/MD IN mode. If you switch modes with these buttons, the unit does not turn off at the turn-off time of the timer.

Insert a disc with the labeled side

upward to start CD play.

If a disc is already inserted, press CD to start CD play.

The track number and elapsed playing time appear.

CD indicator

Track n~mber

Adjust the volume with +/-.

Elap~edplayingtime

9 ENGLISH

CQ &

W ~ INTREP1 RANDOM

Press these buttons to operate CD play.

Press

Eject a disc.

— CD Pause play.

The elapsed playing time flashes. To resume play, press CD again.

* Skip to the next track with a short press

(for less than 0.5 second). Each extra press skips forward one extra track. To search forward rapidly, press and hold - until the desired part is Dlaved. then release it.

144 Restart the track currently in play with a

short press (fo[ less than 0.5 second). Each extra press skips backward one extra track. To search backward rapidly, press and hold M until the desired part is

—

played, then release it.

Notes

● Smaller 3-inch (8 cm) CDs cannot be played on

this unit. Anddonot useanadaptor as it may cause malfunctioning.

● When you inserla disc, CD play starts at the first

track on the disc. When switching back from

Radio mode, etc. if you press CD with a disc inserted, CD play starts at the point on the disc where it had stopped previously.

Press REP1 during CD play. The’’REPEAT” indicator lights upandthecurrently selected track is played repeatedly.

Press REP1 again to cancel Repeat play.

Note

If Repeat play is not activated, all the tracks on

the disc are played repeatedly.

Press INT during CD play. The “SCAN indicator lights up and the first 10 seconds of all the tracks on the disc are played in order.

When the desired track is found, press INT again. The unit returns to the normal CD play.

Press RANDOM during CD play. The “RANDOM indicator lights up and the tracks on the disc are played randomly.

Press RANDOM again to cancel Random play.

Note

During Random play, even if ~ is pressed repeatedly, the track currently in play is restarted.

ENGLISH

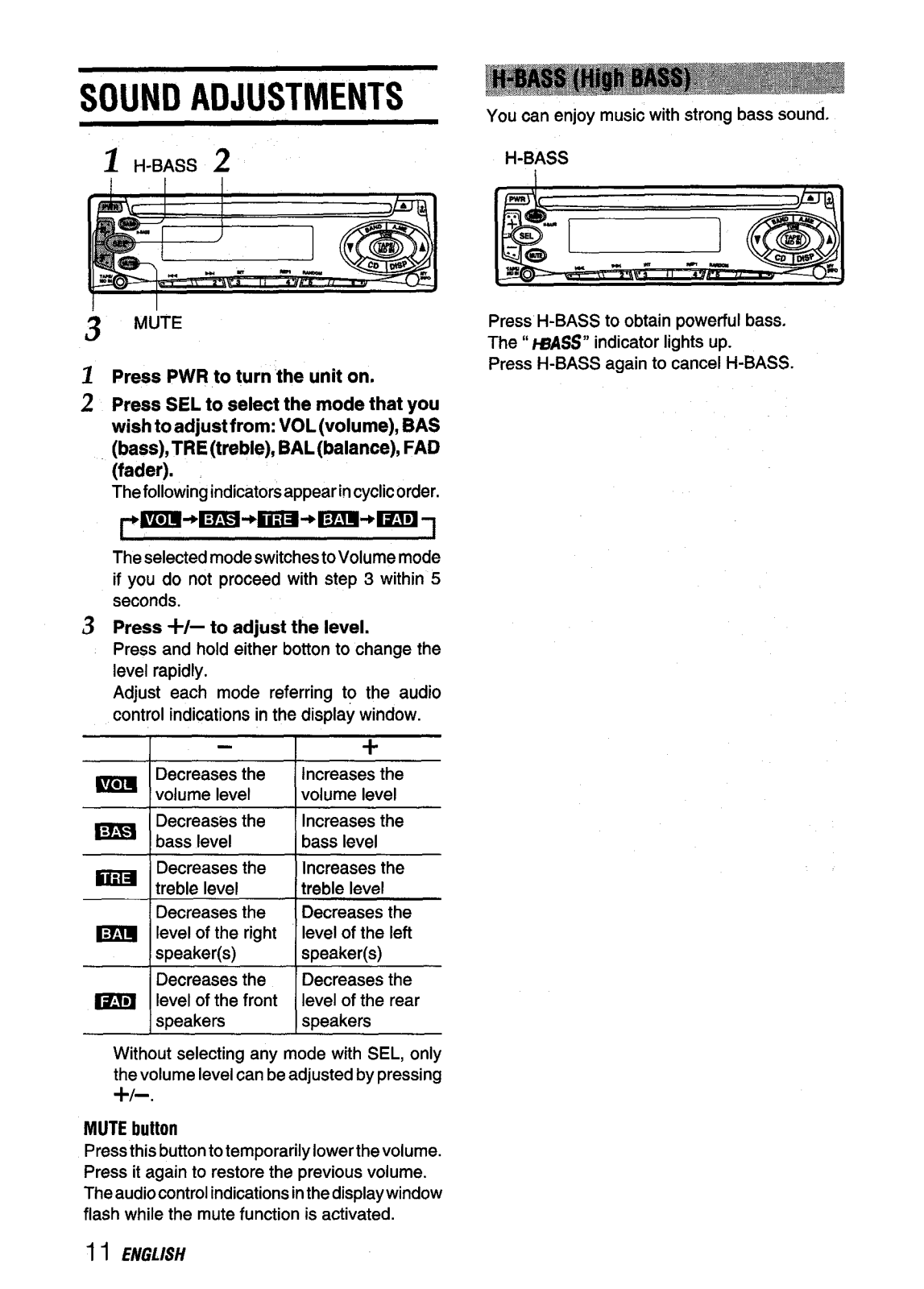

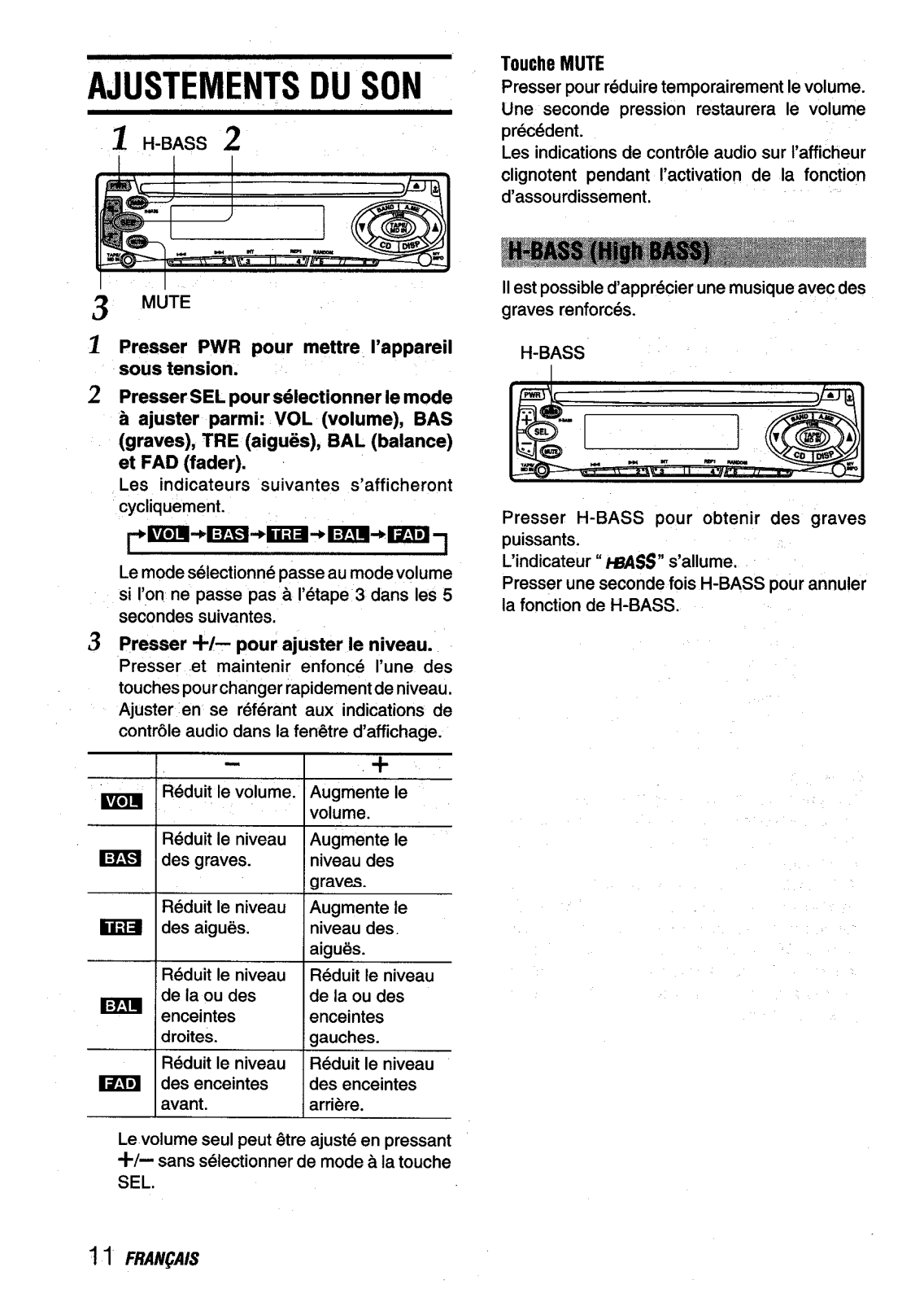

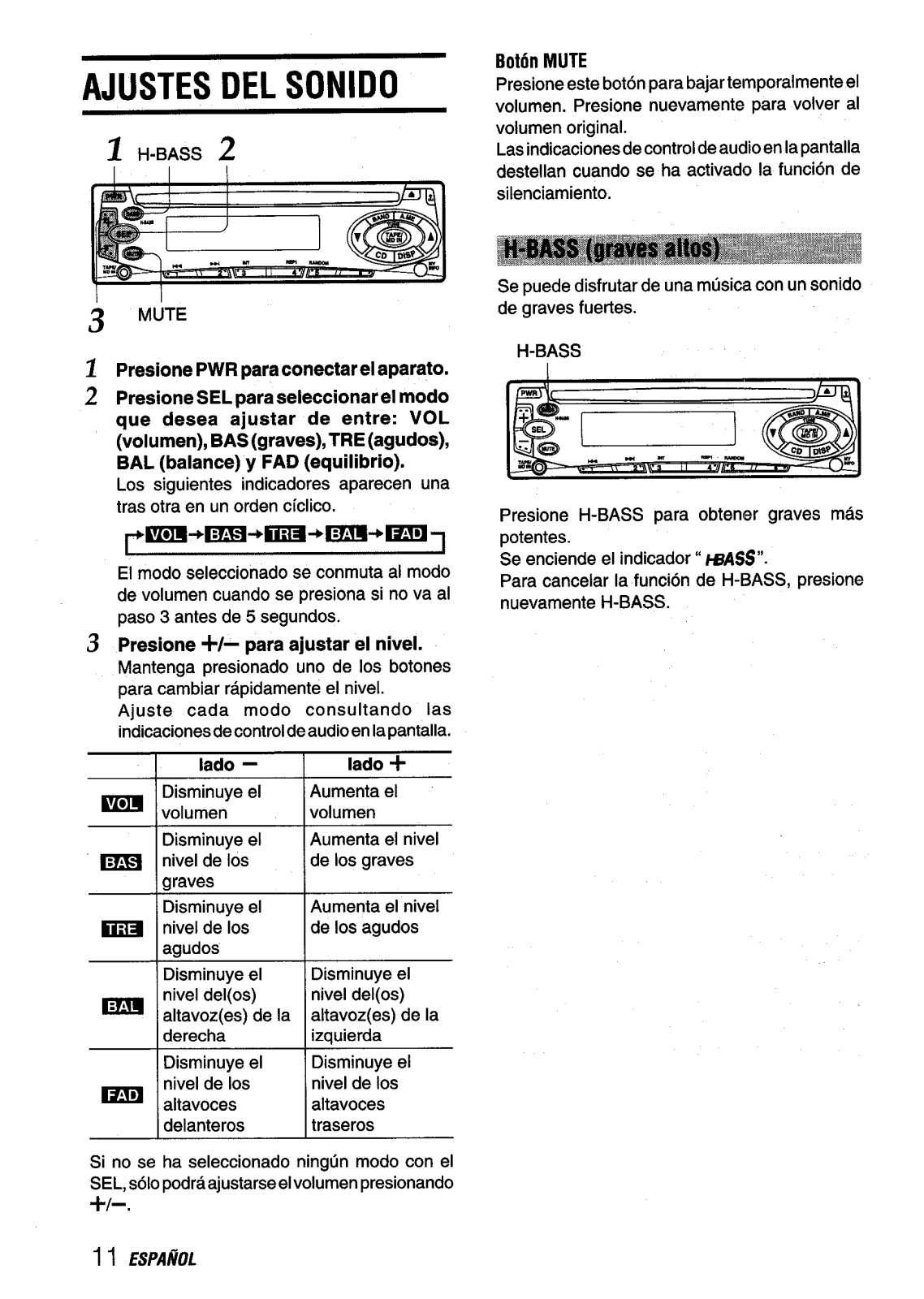

SOUNDADJUSTMENTS

You can enjoy music with strong bass sound,

~ H-BASS 2

MUTE

Press PWR to turn the unit on,

Press SEL to select the mode that you

wish to adjust from: VOL (volume), BAS (bass), TRE(trebie), BAL(balance), FAD (fader).

The following indicators appear incyclic order.

pm+m”m”m”ml

The selected mode switches to Volume mode if you do not proceed with step 3 within 5 seconds.

Press +/– to adjust the Iaval.

Press and hold eit~er botton to change the level rapidly. Adjust each mode referring to the audio control indications in the display window.

~ level of the right

speaker(s) Decreases the

~ level of the front

soeakers

Without selecting any mode with SEL, only the volume level can be adjusted by pressing +/-.

Increases the volume level

Increases the bass level

Increases the treble level

Decreases the level of the left spaaker(s)

Decreases the level of the rear soeakers

MUTE button

Press this button totemporarily lower the volume. Press it again to restore the previous volume. The audio control indications inthe display window flash while the mute function is activated.

H-BASS

Press H-BASS to obtain powerful bass.

The” figASS” indicator lights up.

Press H-BASS again to cancel H-BASS.

1 I ENGL/SH

CONNECTING A

PORTABLE CASSETTE/ MD PLAYER OR OTHER EQUIPMENT

1 2

TROUBLESHOOTING

Reset button

The Reset button is visible when you detach the front panel. Try pressing this button if a CD does not operate properly. When you press this burton, use the tip of a pointed object such as a pencil or toothpick. Note that the memory contents, however, will be erased by pressing this button.

Press PWR to turn the unit on.

Ifa disc is inserted, remove itto prevent possible damage to the unit.

Connect a potiab!e cassette/MD player, etc. via the TAPE/MD IN jack (3.5-mm

dia.) on the unit.

Press TAPE/MD IN to listen to the

connected equipment.

The “TAPE indicator lights up. The clock display appears.

cFor further information on the portable cassette/

MD player, etc., refertothe operating instructions for the equipment.

Reset button

ENGLISH

MAINTENANCE

SPECIFICATIONS

Cleaning the front panel

When the front panel is soiled, wipe the surface of the panel with a dry and soft cloth.

Cleaning the connector

The connector on the reverse side of the front

panel needs to be cleaned occasionally. Wipe

the surface of the connector with a cotton swab

slightly moistened with alcohol.

RADIO SECTION

(FM)

FrequencyRange S7.5MHz–1OSMHz

Usable Sensitivity: 12.7 dBf 50 dB QuietingSensitivity

IF Rejection: 80 dB FrequencyResponse 30 Hz-15,000 Hz SIN Ratio: 63 dB Stereo Separation: 35 dB at 1kHz Alternate ChannelSelectivity

Capture Ratio 3 dB (AM)

FrequencyRange:

UsableSensitivity 30 PV(30 dB)

(100-kHzsteps)

87.5 MHz-IOS MHz (50-kHzsteps)

17.2dBf

70 dB

530 kHz-1,710 kHz (10-kHzsteps) 522 kHz-1 ,620 kHz (9-kHzsteps)

CD SECTION

FraquencyResponse: 17 Hz-2o kHz +0/-3 dB

DynamicRange: Channel Separation: Morethan 65 dB S/N Ratio: Morethan S5dB Wow/Flutter Unmeasurable

Morethan 80 dB

AUDIO SECTION

Max. PowerOutput 30 W x 4 channels

TAPE/MD IN input

Inputsensitivity (load impedance)

TAPEiMD IN:

500 mV (10 I@

GENERAL

Power-SupplyVoltage:

Load Impedance 4 Q Tone Control: Baes*l OdBat100Hz

PreampOutput Voltaga (load impedance): Installationsize: 182 (W) x 53 (H) x 155(D) mm

Accessory supplied: Carrying case (1)

● Specifications and external appearance are

subject to change without notice due to product improvement.

14.4V (11to 16V allowable), DC, nagative ground

Treble * 10 dB at 10 kHz

2.2 V (10 kf2) (7’/4 (W)

X 2’/8(H) X

61/s(D) inches)

13 ENGLISH

+ 30 hidden pages
