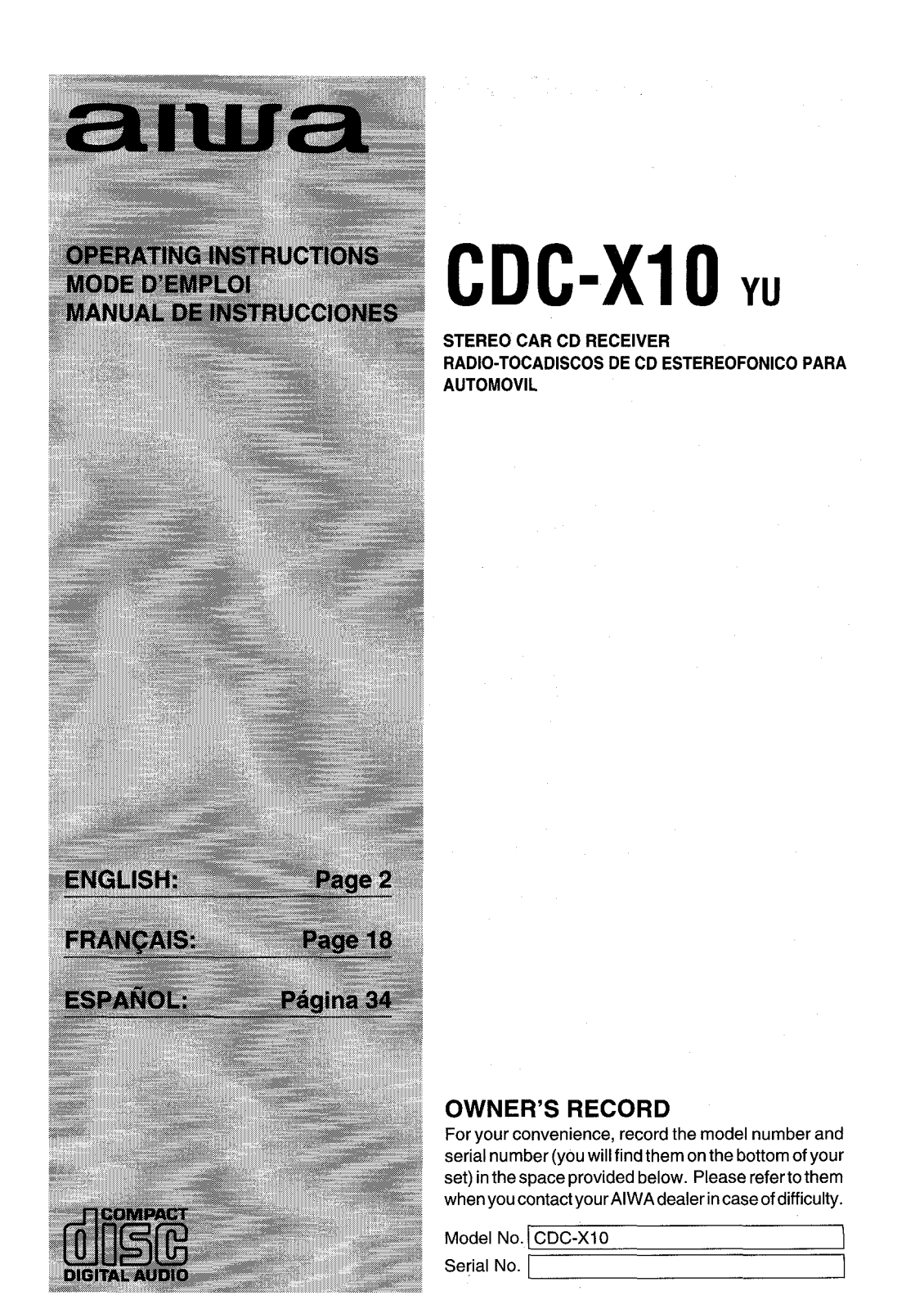

Sony CD-CX10 User Manual

CDC-XIO w

STEREO CAR CD RECEIVER RADIO-TOCADISCOS DE CD ESTEREOFONICO PARA AUTOMOVIL

OWNER’S RECORD

For your convenience, record the model number and

serial number(you will find them on the bottom of your set) in the space provided below. Please refer to them when you contact yourAIWA dealer incase of difficulty.

Model No. \ CDC-XI O

‘eria’ ‘0 ~

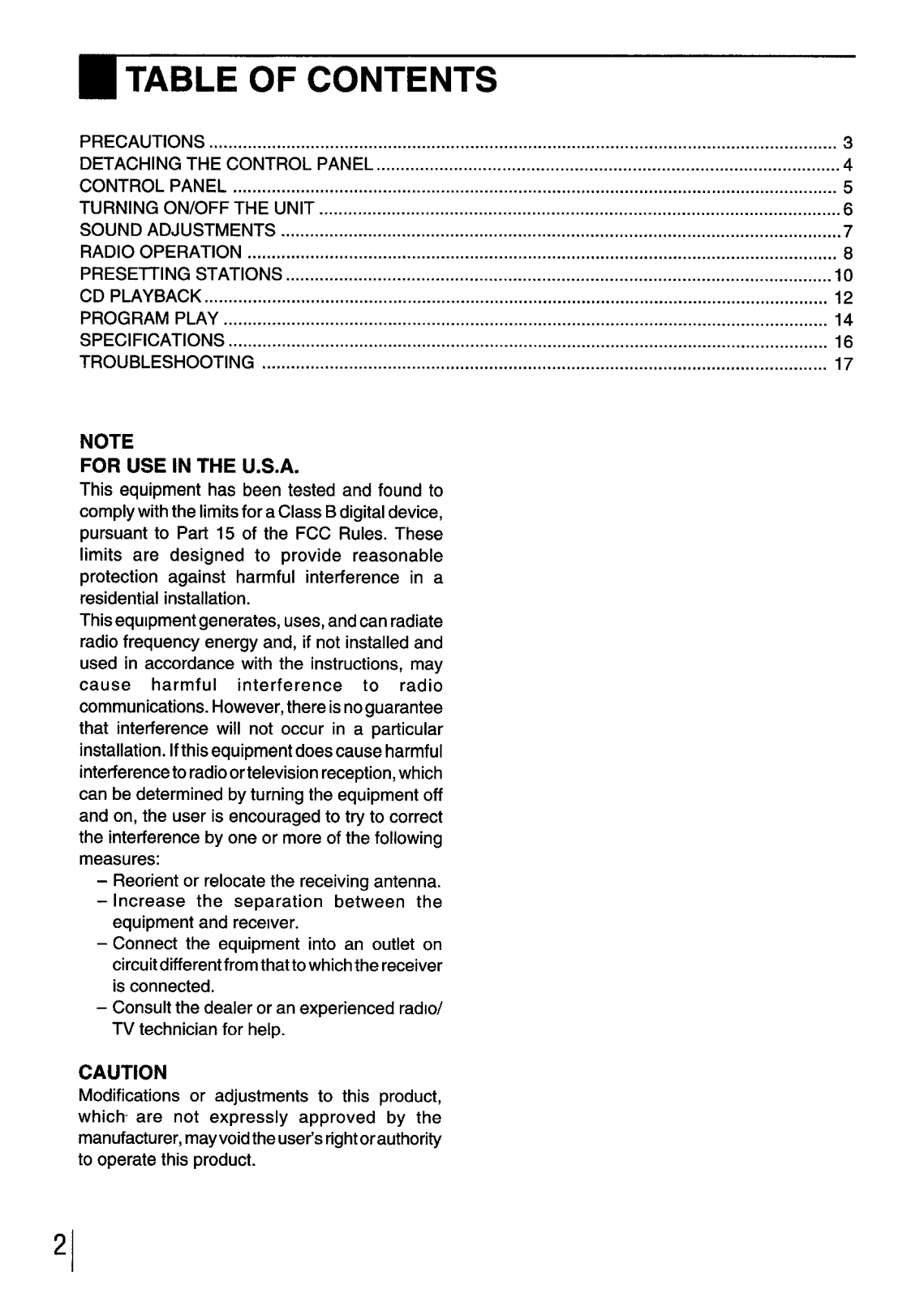

~ TABLE OF CONTENTS

PRECAUTIONS .................................................................................................................................. 3

DETACHING THE CONTROL PANEL ................................................................................................4

CONTROL PANEL ............................................................................................................................. 5

TURNING ON/OFF THE UNIT ............................................................................................................6

SOUND ADJUSTMENTS ....................................................................................................................7

RADIO OPERATION .......................................................................................................................... 8

PRESE~lNG STATIONS .................................................................................................................lO

CD PLAYBACK .................................................................................................................................

PROGRAM PLAY ............................................................................................................................. 14

SPECIFICATIONS ............................................................................................................................ 16

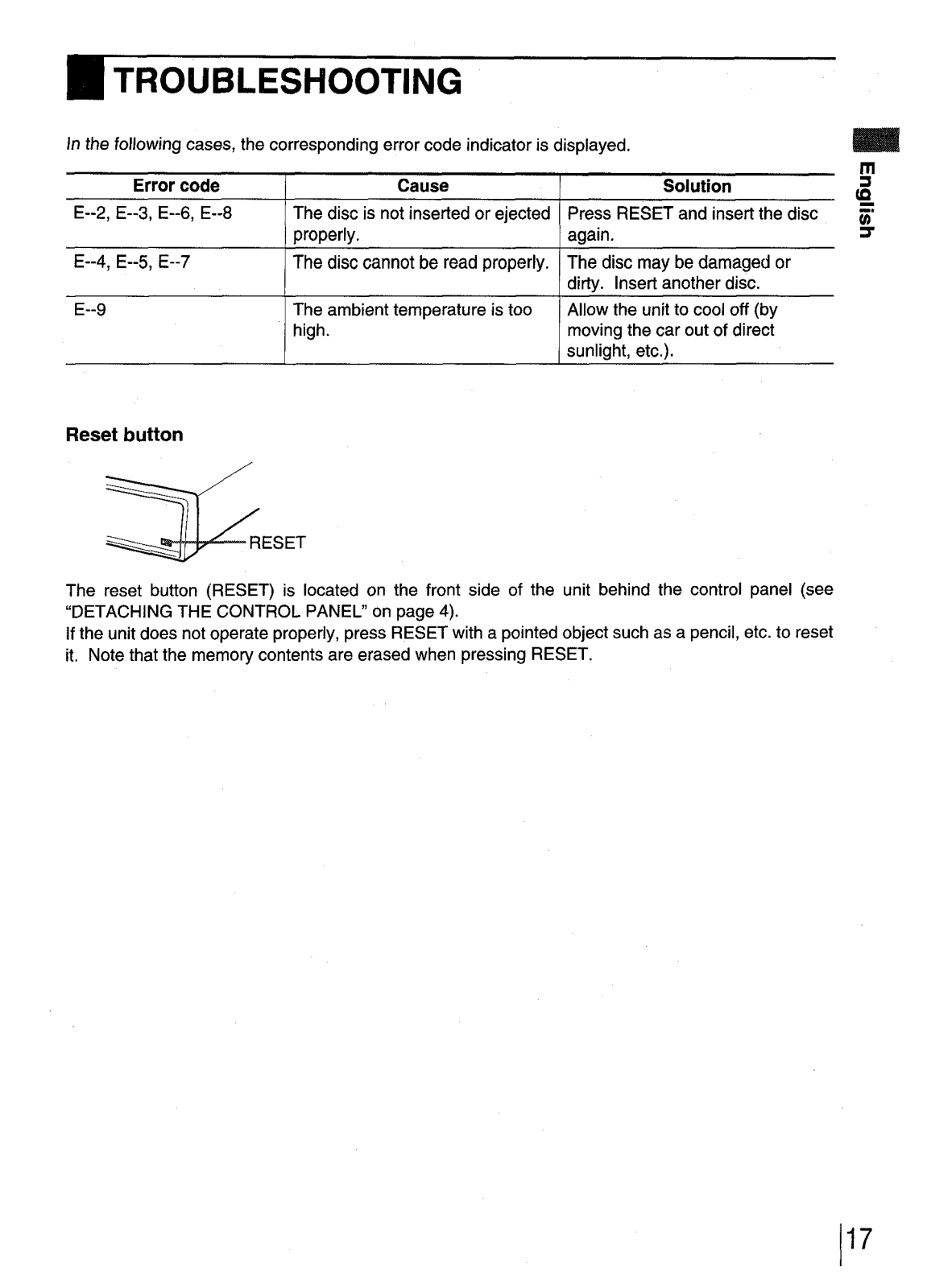

TROUBLESHOOTING ..................................................................................................................... 17

NOTE

FOR USE IN THE U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable

protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to communications. However, there is no guarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and recewer.

– Connect the equipment into an outlet on

circuit different from that towhich the receiver is connected.

– Consult the dealer or an experienced radio/

TV technician for help.

radio

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user’s right orauthorify to operate this product.

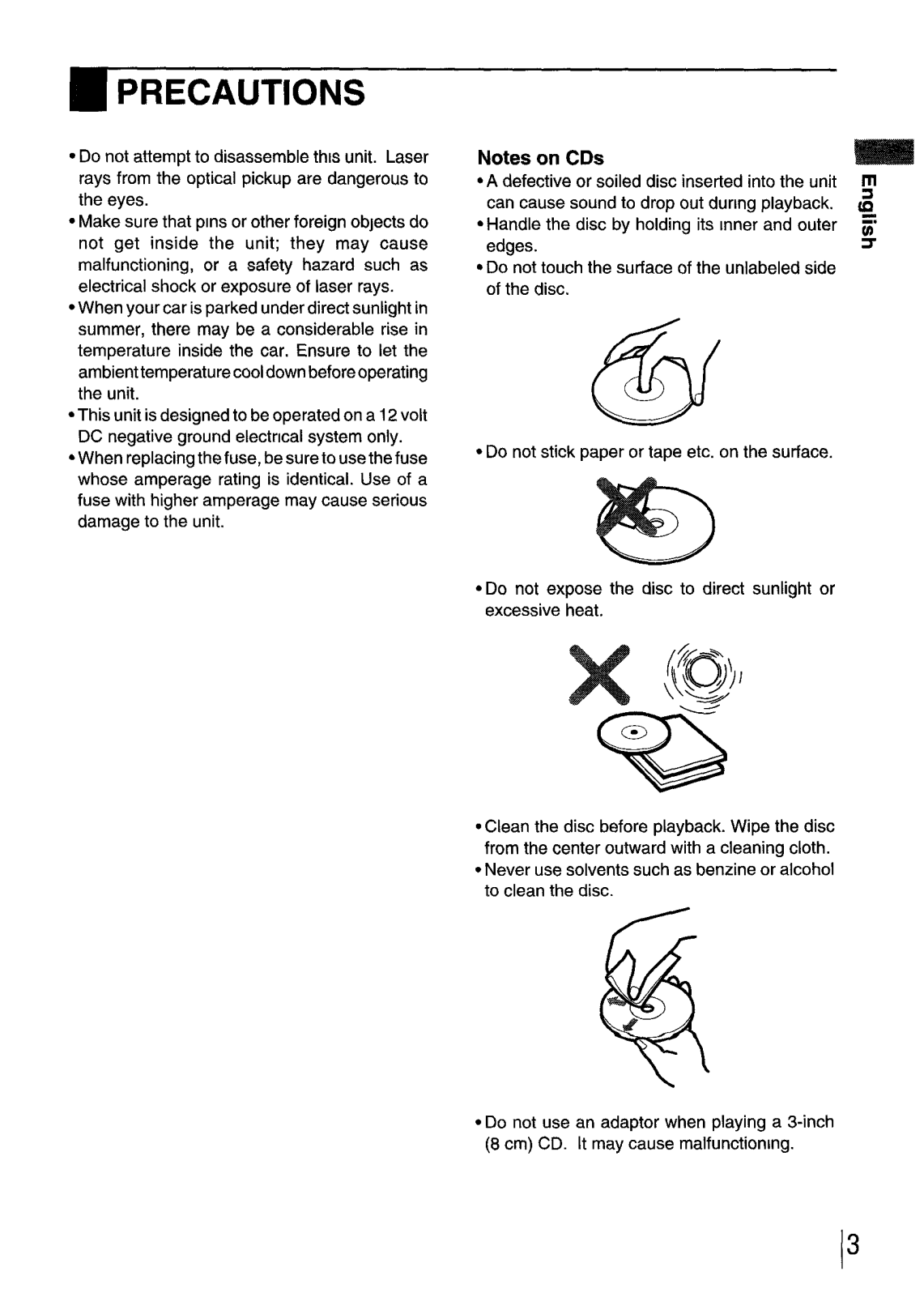

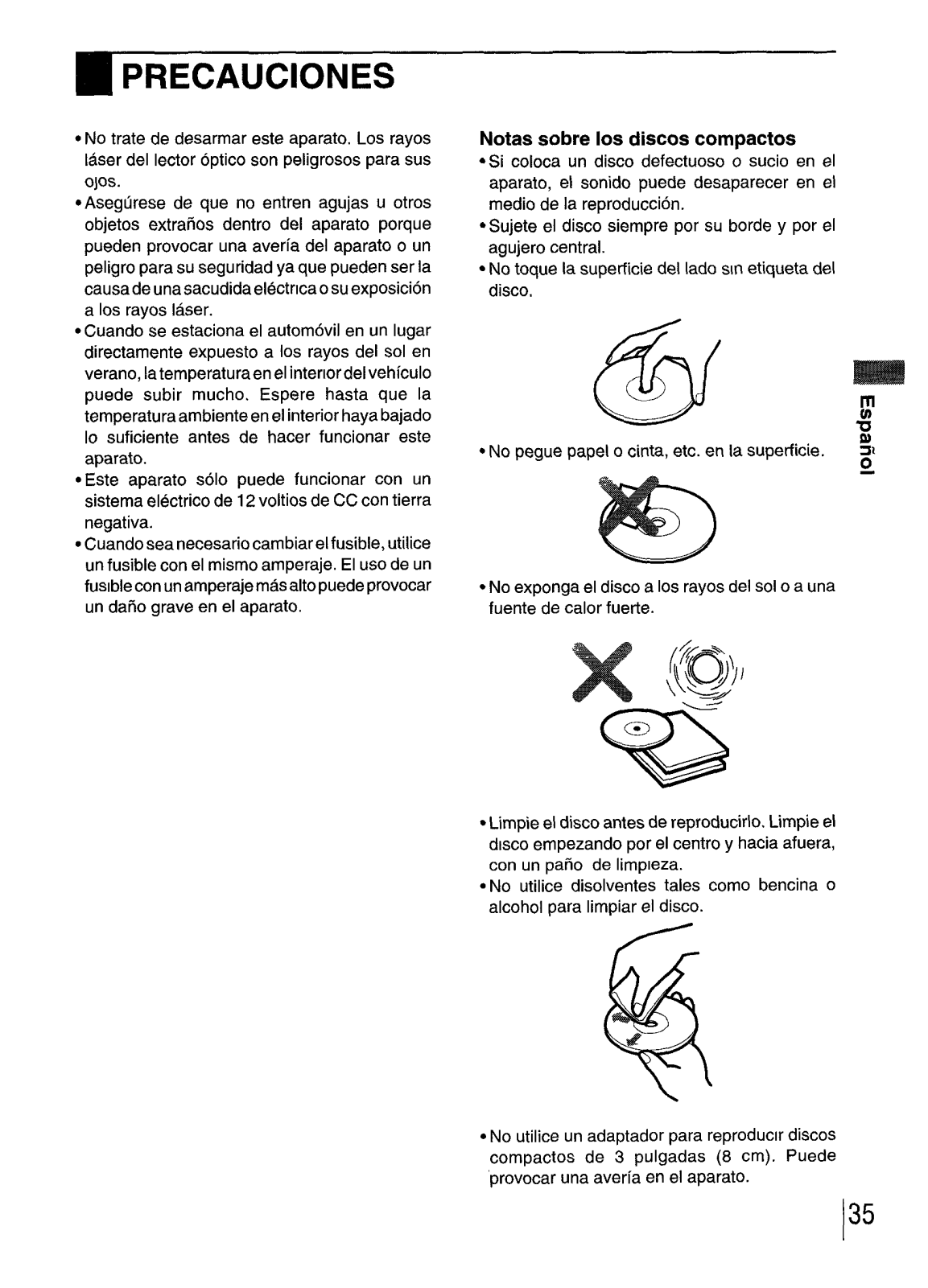

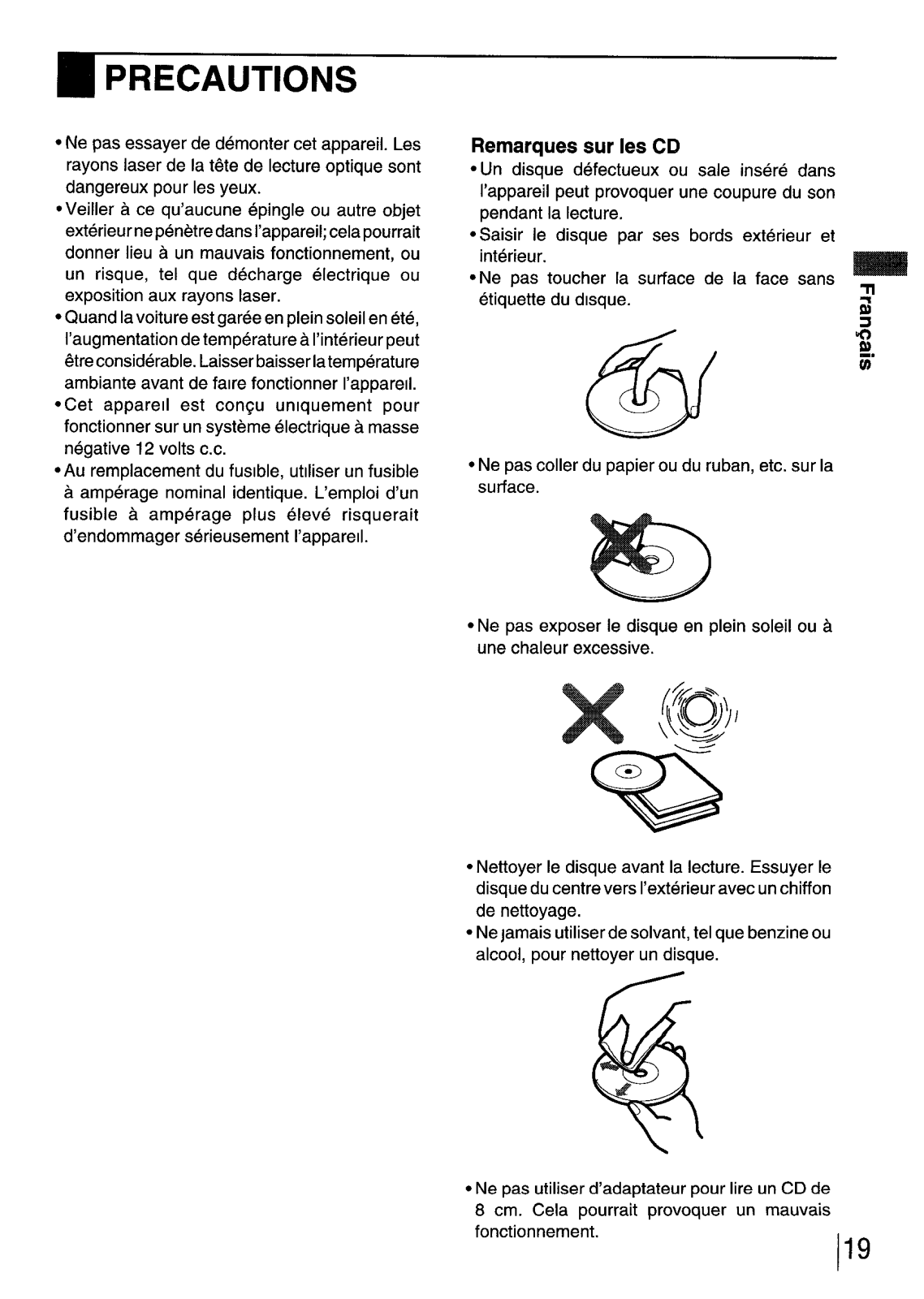

~ PRECAUTIONS

● Do not attempt to disassemble this unit. Laser

rays from the optical pickup are dangerous to

the eyes.

● Make sure that pms or other foreign objects do

not get inside the unit; they may cause malfunctioning, or a safety hazard such as electrical shock or exposure of laser rays.

● When your car is parked under direct sunlight in

summer, there may be a considerable rise in temperature inside the car. Ensure to let the ambient temperature cool down before operating the unit.

● This unit is designed to be operated on a 12volt

DC negative ground electrical system only.

● When replacing the fuse, be sure to usethefuse

whose amperage rating is identical. Use of a fuse with higher amperage may cause serious damage to the unit.

Notes on CDs

● A defective or soiled disc inserted into the unit M

can cause sound to drop out during playback. &

● Handle the disc by holding its inner and outer

edges.

● Do not touch the surface of the unlabeled side

of the disc.

● Do not stick paper or tape etc. on the surface.

● Do not expose the disc to direct sunlight or

excessive heat.

=. %

. Clean the disc before playback. Wipe the disc

from the center outward with a cleaning cloth.

● Never use solvents such as benzine or alcohol

to clean the disc.

● Do not use an adaptor when playing a 3-inch

(8 cm) CD. It may cause malfunctiomng.

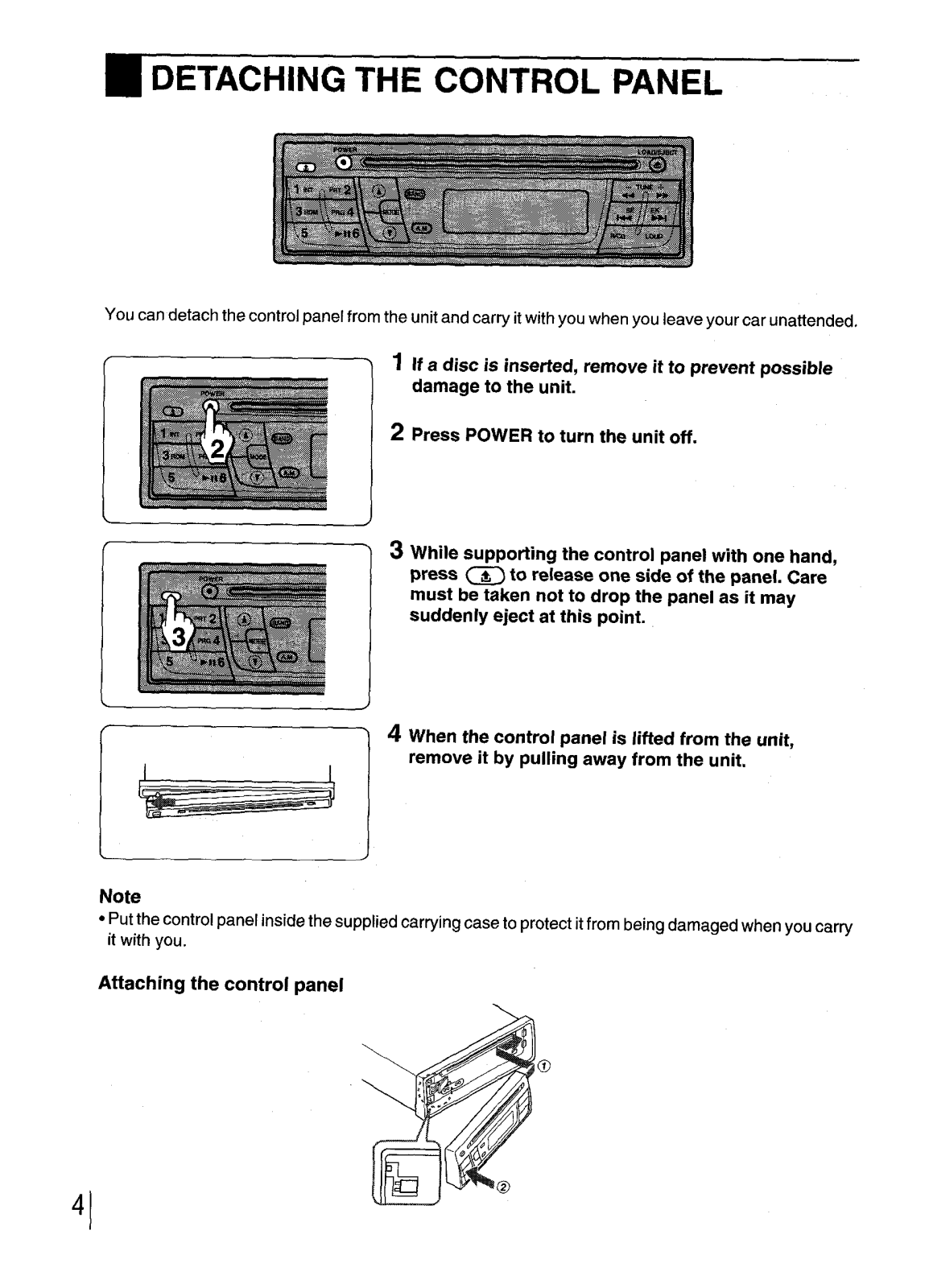

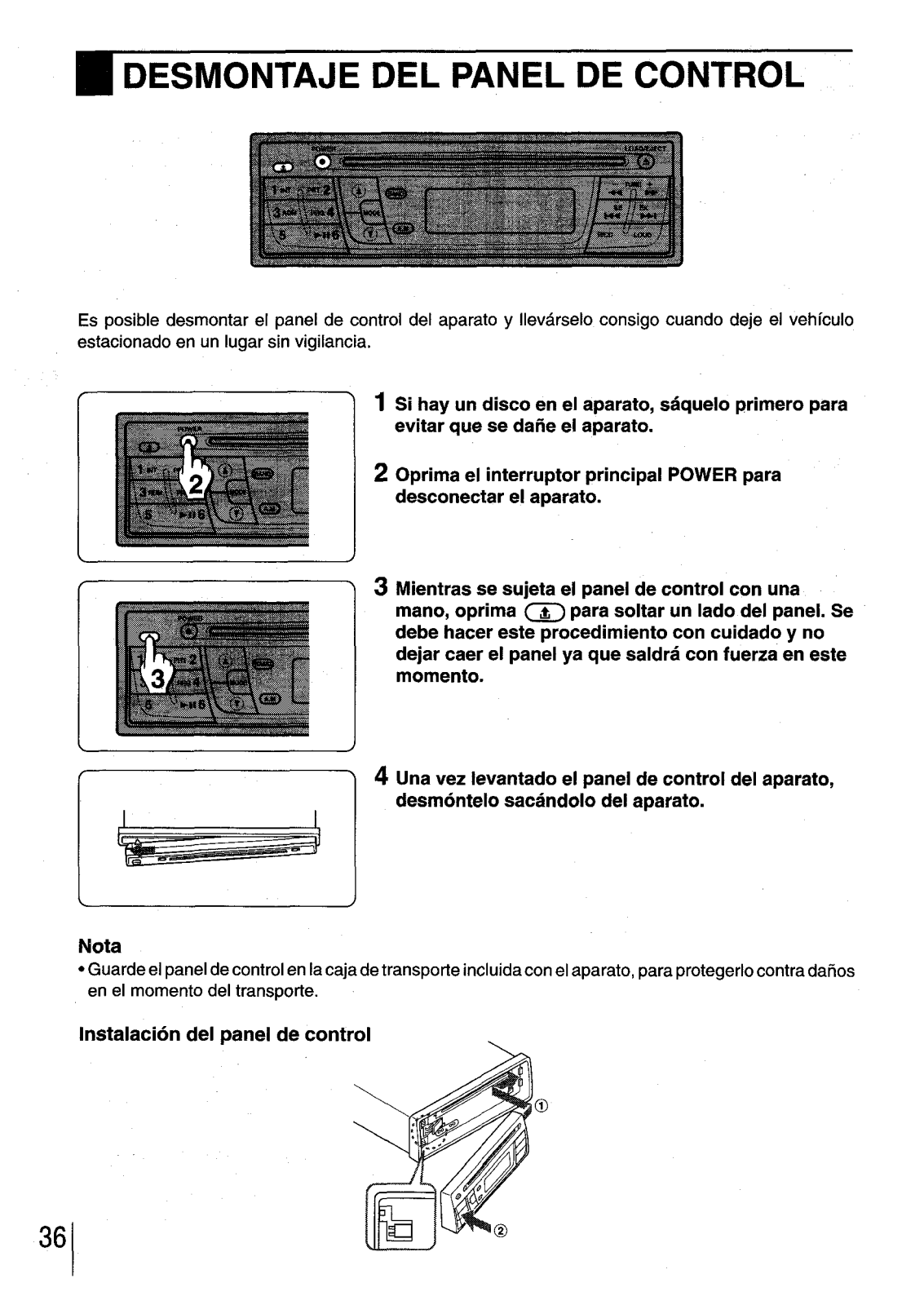

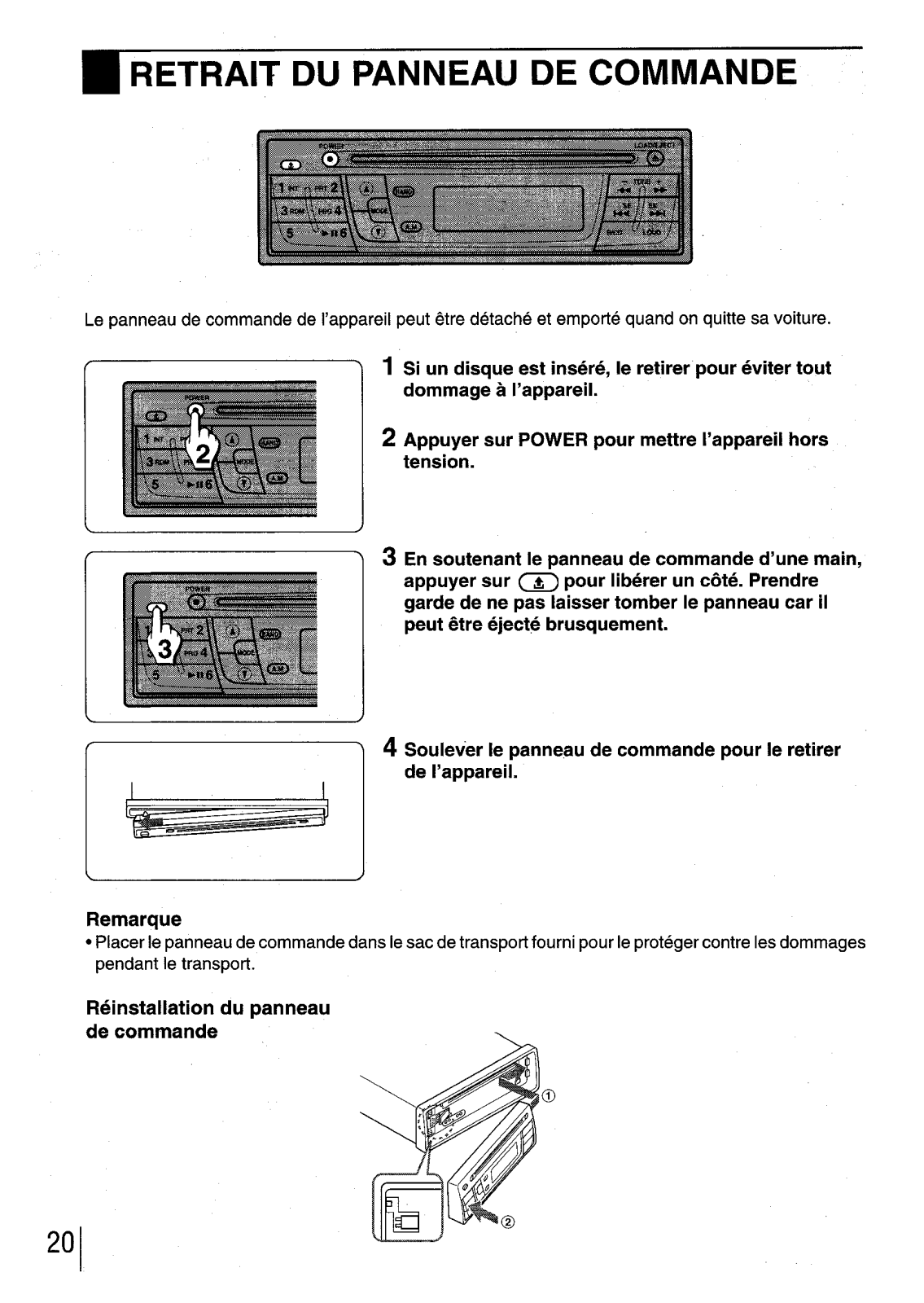

●DETACHING THE CONTROL PANEL

You can detach the control panel from the unit and carry it with you when you leave your car unattended,

1 If a disc is inserted, remove it to prevent possible

damage to the unit.

2 Press POWER to turn the unit off.

3 While supporting the control panel with one hand,

press @to release one side of the panel. Care must be taken not to drop the panel as it may suddenly eject at this point.

4 When the control panel is lifted from the unit,

remove it by pulling away from the unit,

Note

● Put the control panel inside the supplied carrying case to protect it from being damaged when you carry

it with you.

Attaching the control panel

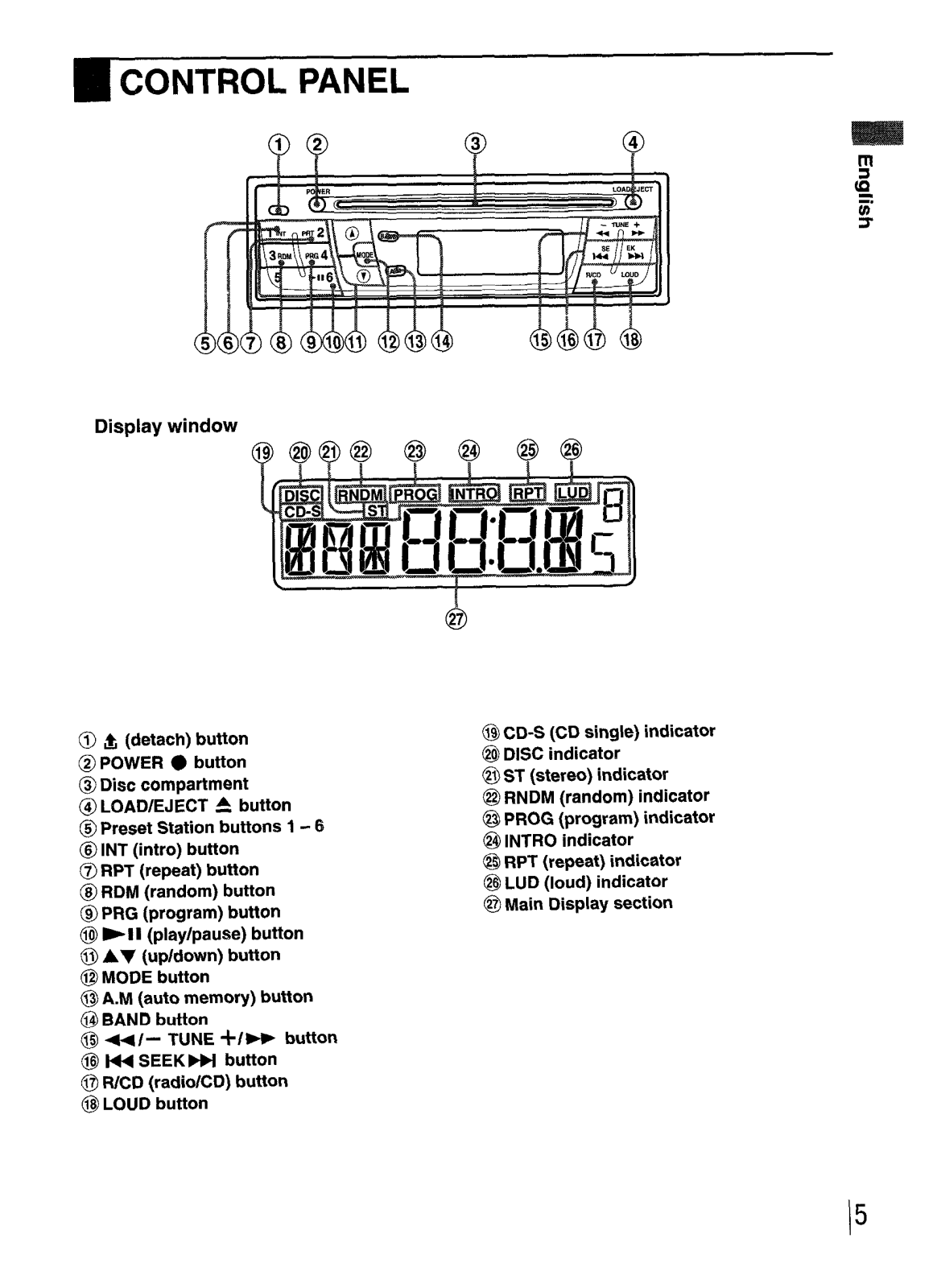

CONTROL PANEL

Display window

o & (detach) button

@ POWER @ button

@Disc compartment

@LOAD/EJECT 4 button

@Preset Station buttons 1-6

@ INT (intro) button

@ RPT (repeat) button

@ RDM (random) button @ PRG (program) button @ -11 (play/pause) button @ AV (upldown) button

@MODE button @ A.M (auto memory) button

@ BAND button @ 4/- TUNE +/w button

@ W SEEKW button @ R/CD (radio/CD) button

@LOUD button

@CD-S (CD single) indicator @ DISC indicator @ST (stereo) indicator

@ RNDM (random) indicator @ PROG (program) indicator

(@INTRO indicator @ RPT (repeat) indicator

@ LUD (loud) indicator @Main Display section

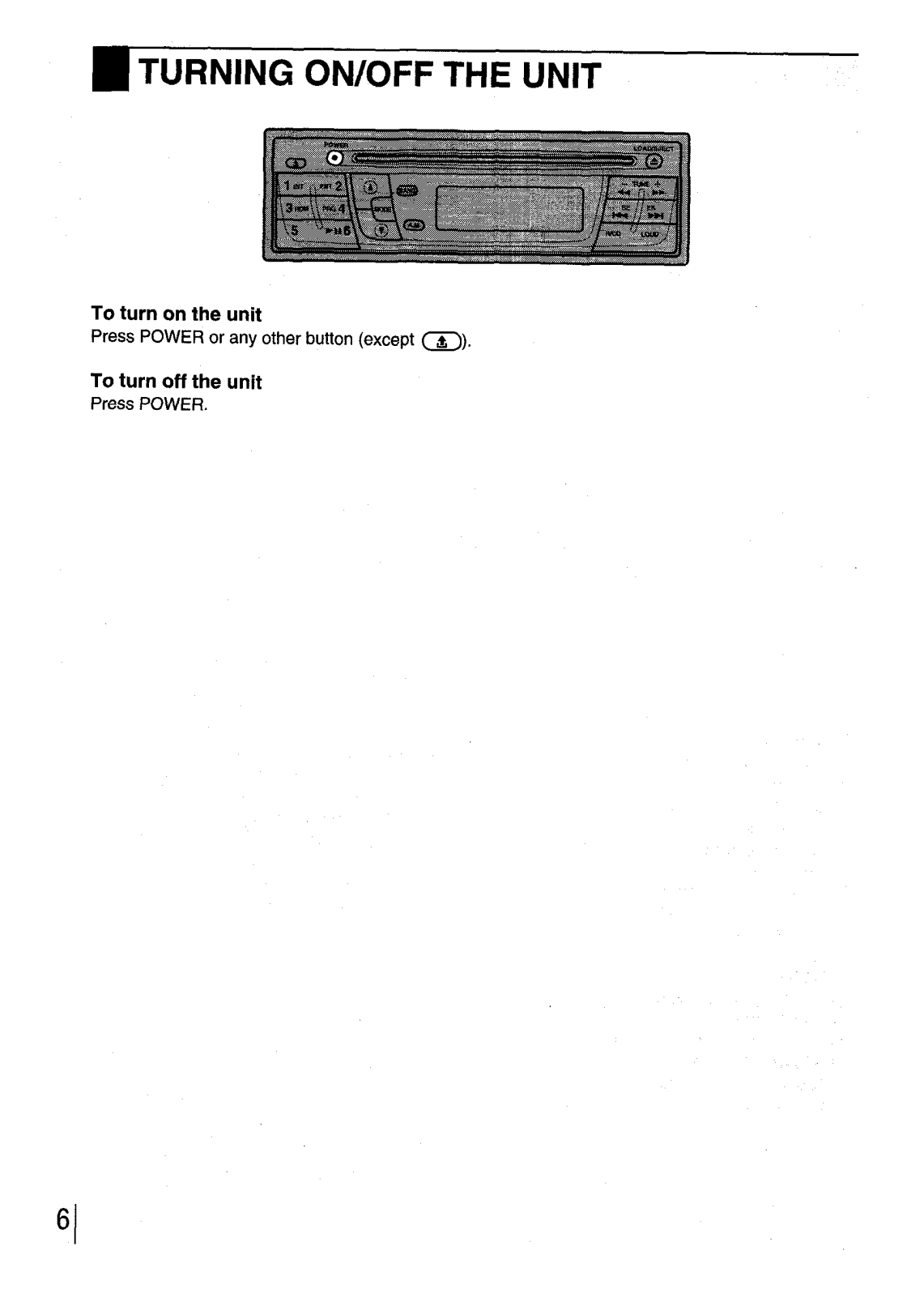

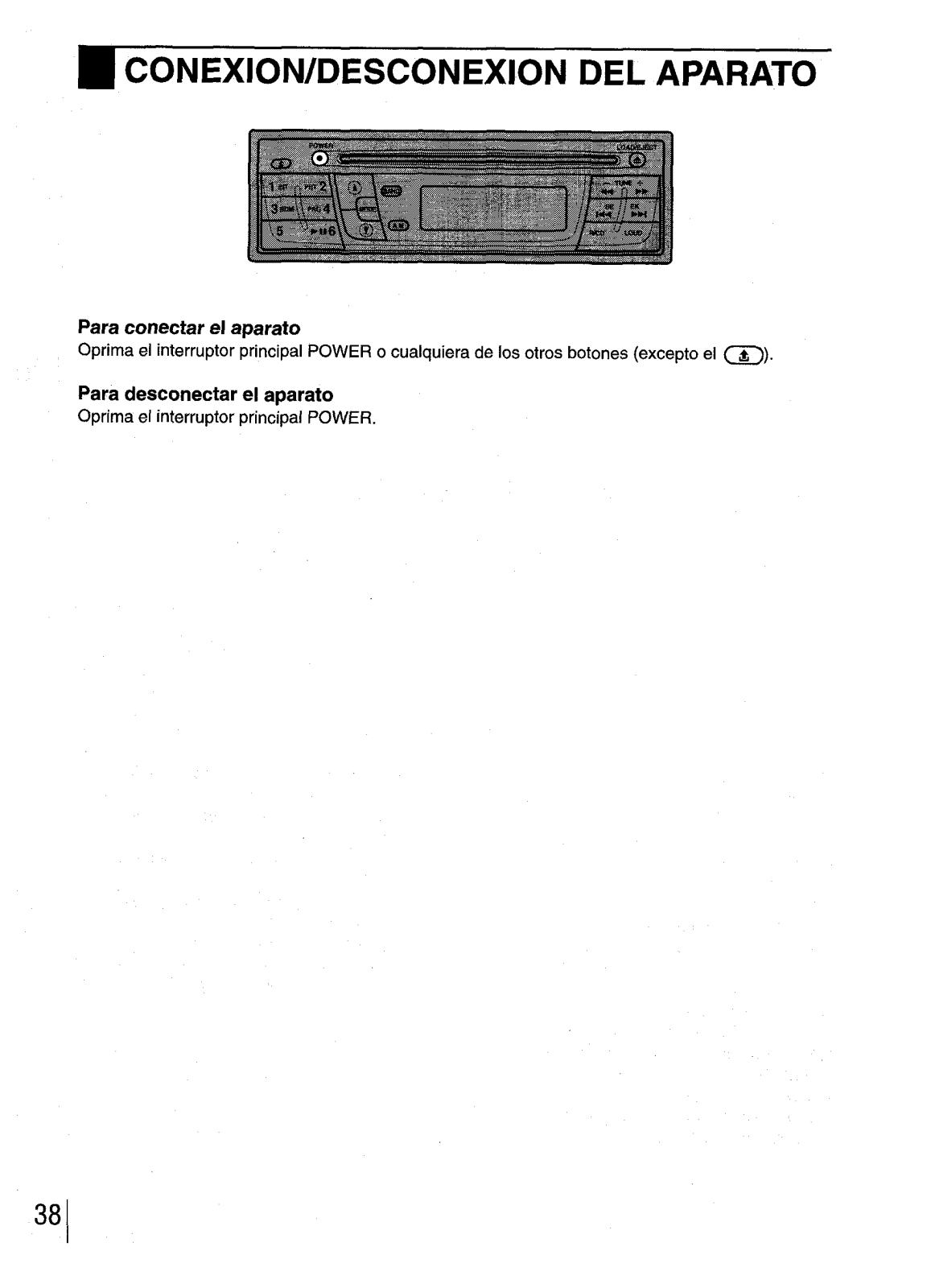

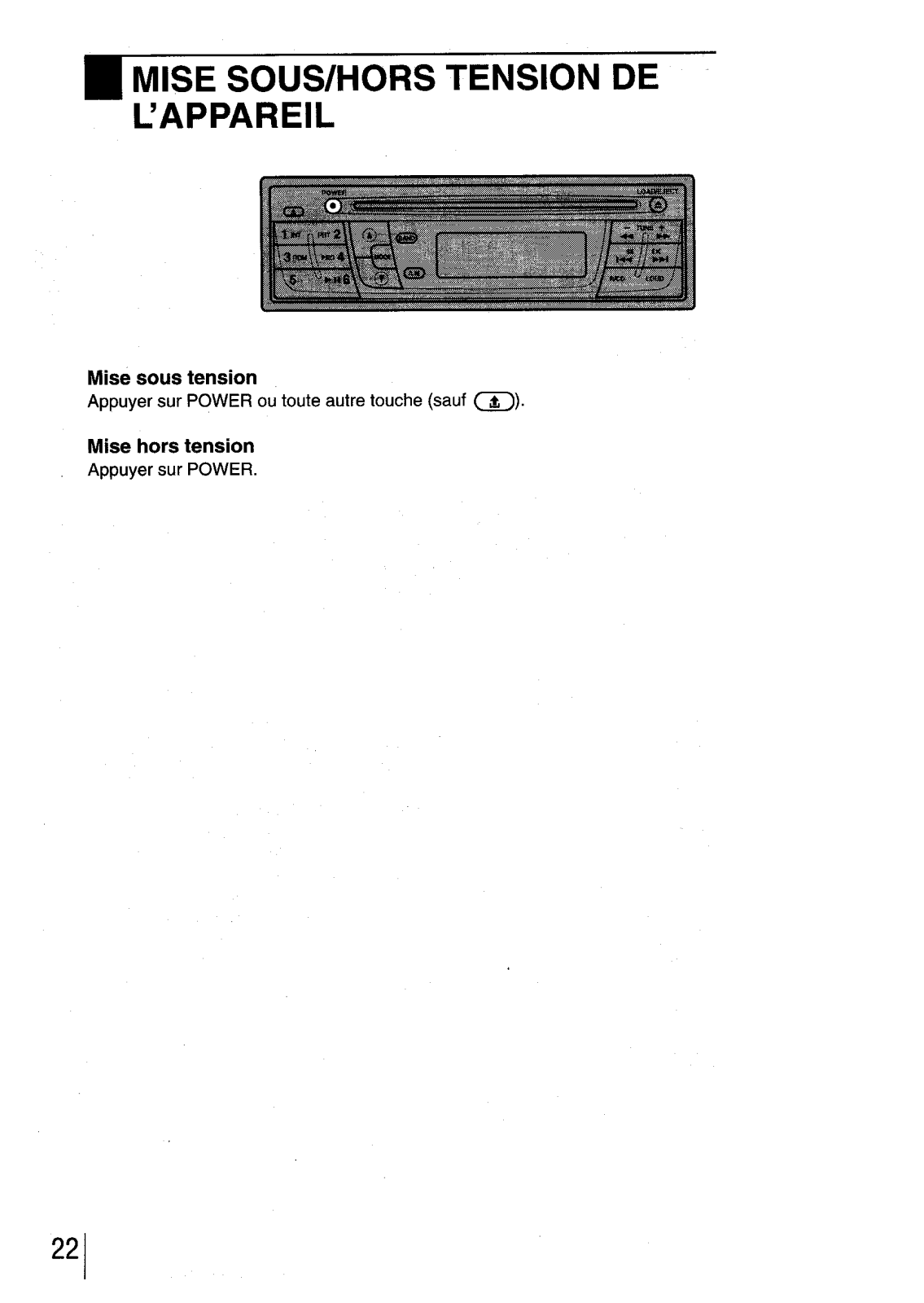

To turn on the unit

Press POWER or any other button (except ~).

To turn off the unit

Press POWER.

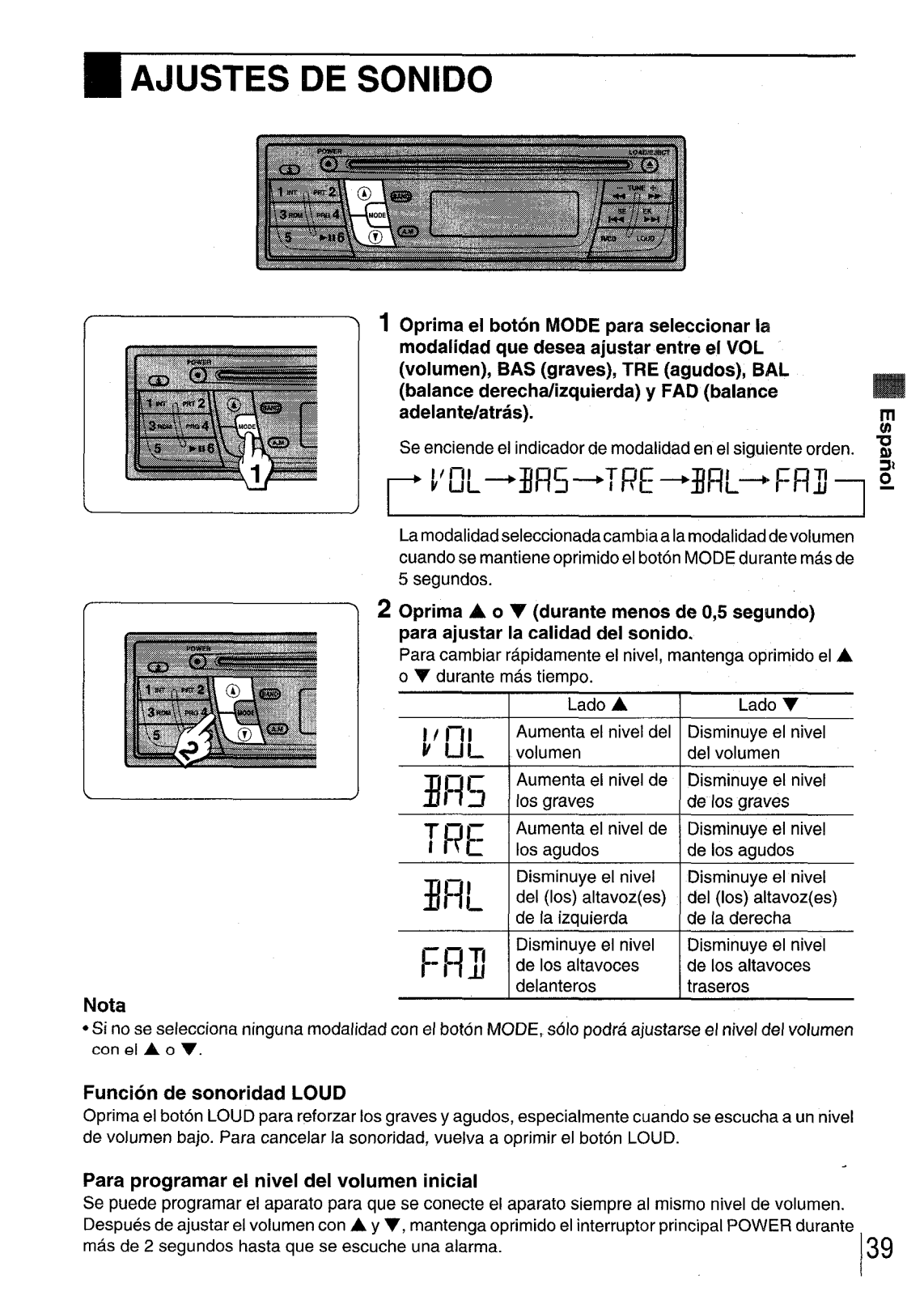

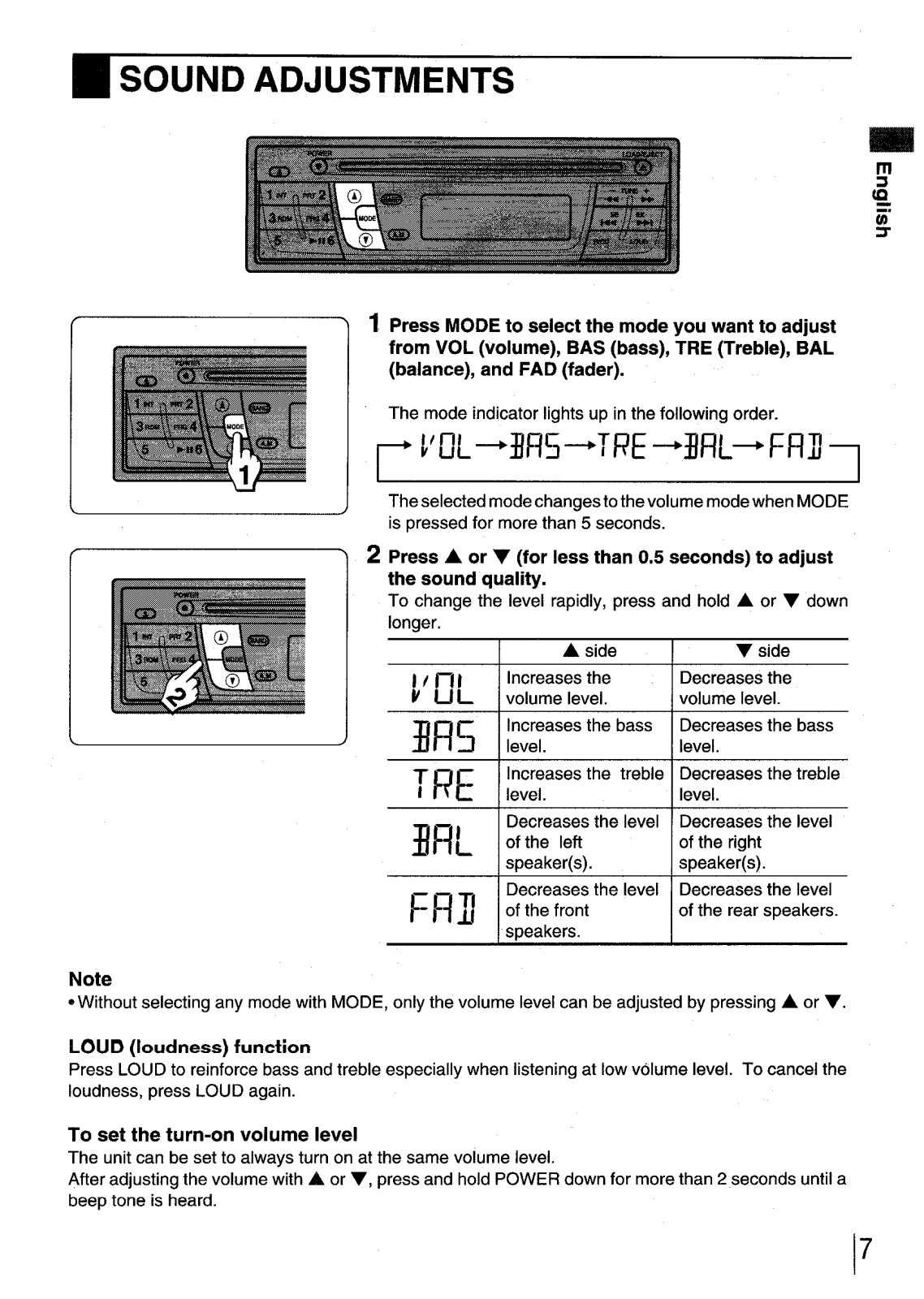

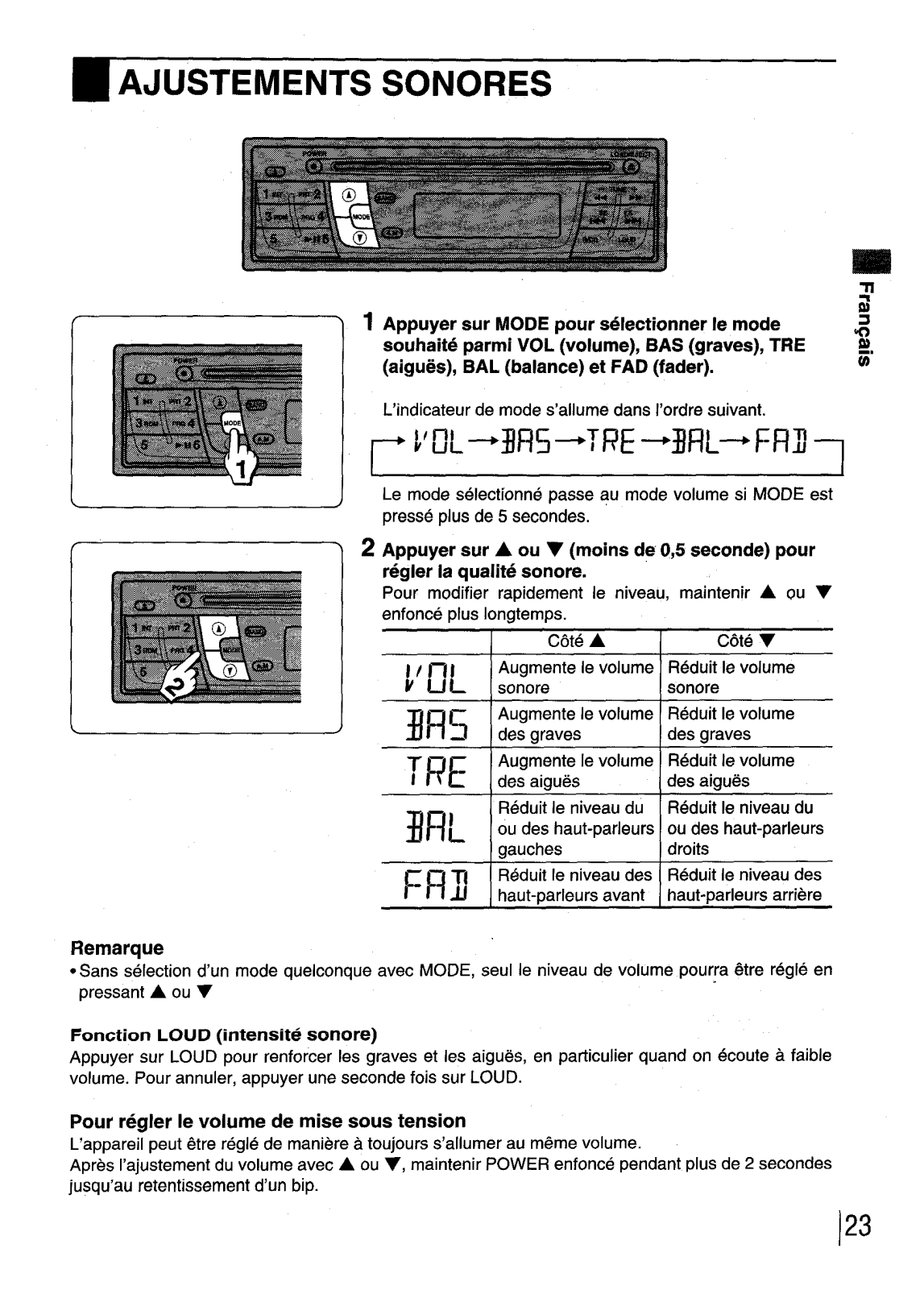

m SOUND ADJUSTMENTS

(—) 1 Press MODE to select the mode You want to adjust

from VOL (volume), BAS (bass), TRE (Treble), BAL (balance), and FAD (fader).

Themodeindicatorlightsupinthefollowingorder.

‘7

(

Note

*Without

LOUD (loudness) function

Press LOUD to reinforce bass and treble especially when listening at low volume level. To cancel the loudness, press LOUD again.

selecting any mode with MODE, only the volume level can be adjusted by pressing A or T.

The selected mode changes to the volume mode when MODE

is pressed for more than 5 seconds.

2 Press A or V (for less than 0,5 seconds) to adjust

the sound quality.

To change the level rapidly, press and hold A or 7 down longer.

A side V side

Ifrft

v uf_

%H5

~l?~ I level.

~~~ of the front of the rear speakers.

Increases the Decreases the

volume level.

Increases the bass Decreases the bass

level. level. Increases the treble Decreases the treble

Decreases the level Decreases the level of the left of the right

speaker(s). speaker(s). Decreases the level Decreases the level

speakers.

volume level.

level.

To set the turn-on volume level

The unit can be set to always turn on at the same volume level. After adjusting the volume with beep tone is heard.

A or Y, press and hold POWER down for more than 2 seconds until a

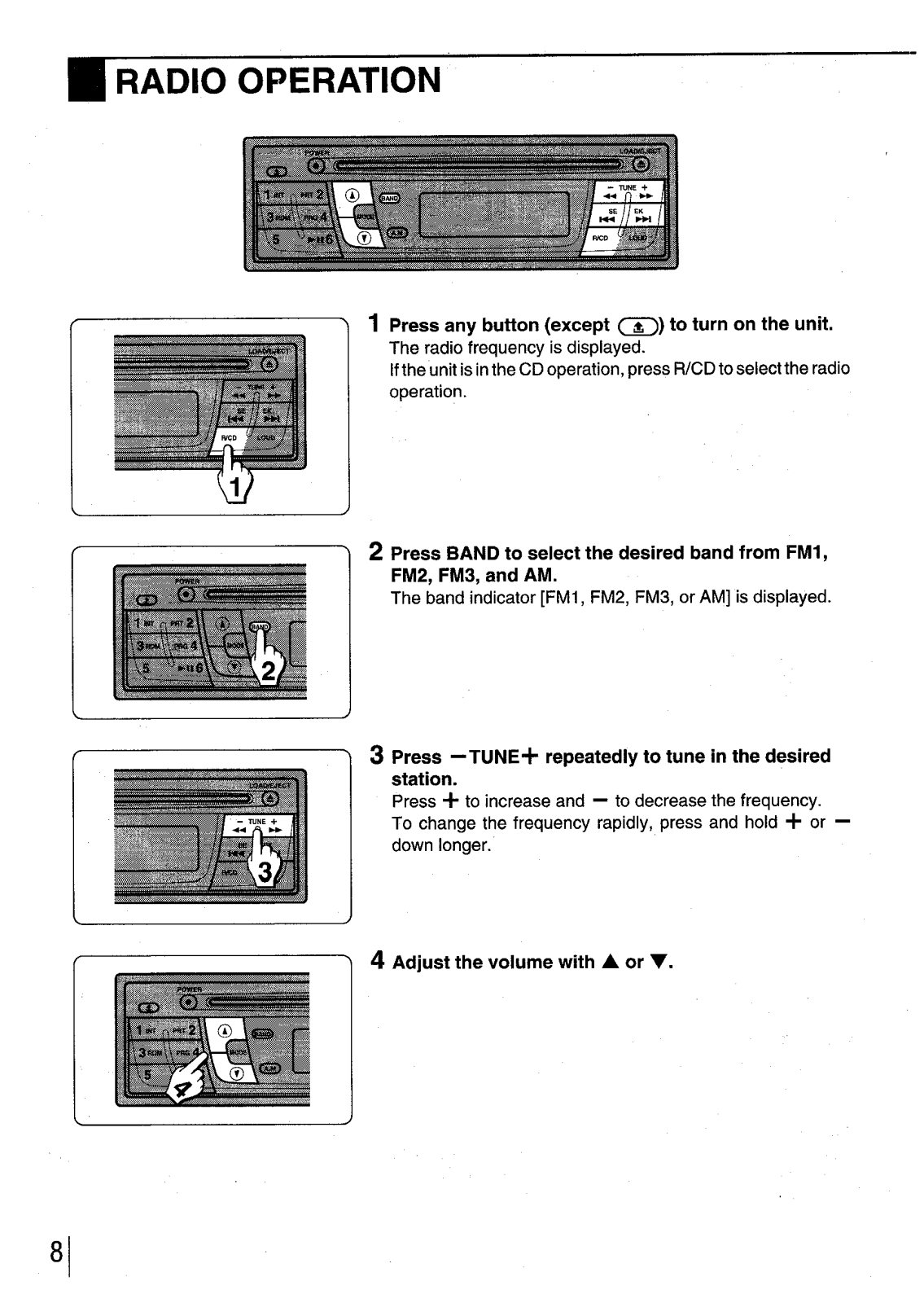

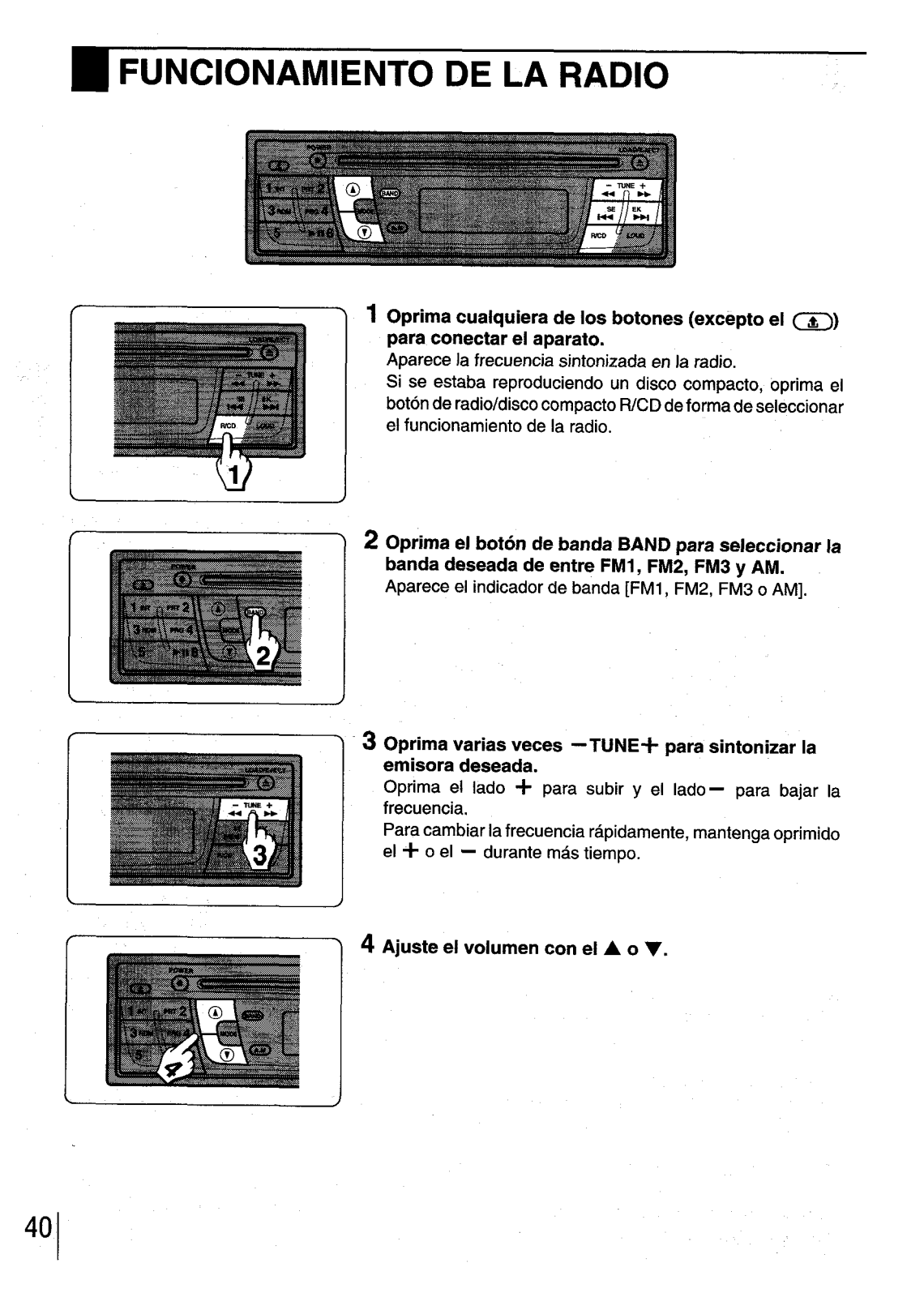

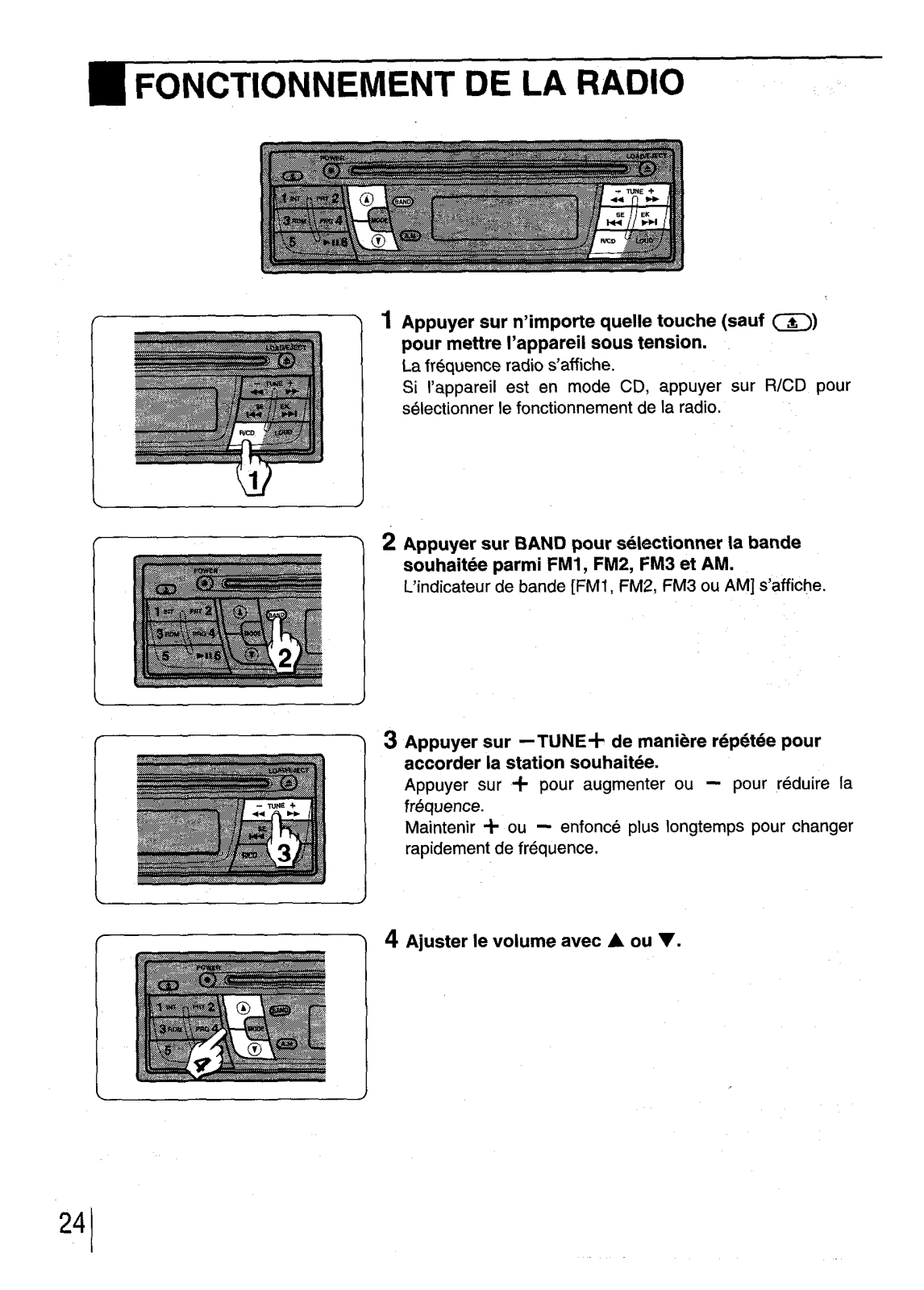

~ RADIO OPERATION

1 Press any button (except ~) to turn on the unit.

The radio frequency is displayed. Ifthe unit is in the CD operation, press R/CD to select the radio operation.

Press BAND to select the desired band from FM1,

FM2, FM3, and AM.

The band indicator [FM1, FM2, FM3, or AM] is displayed.

Press -TUNE+ repeatedly to tune in the desired

station.

Press + to increase and - to decrease the frequency. To change the frequency rapidly, press and hold + or down longer.

. Adjust the volume with A or 7.

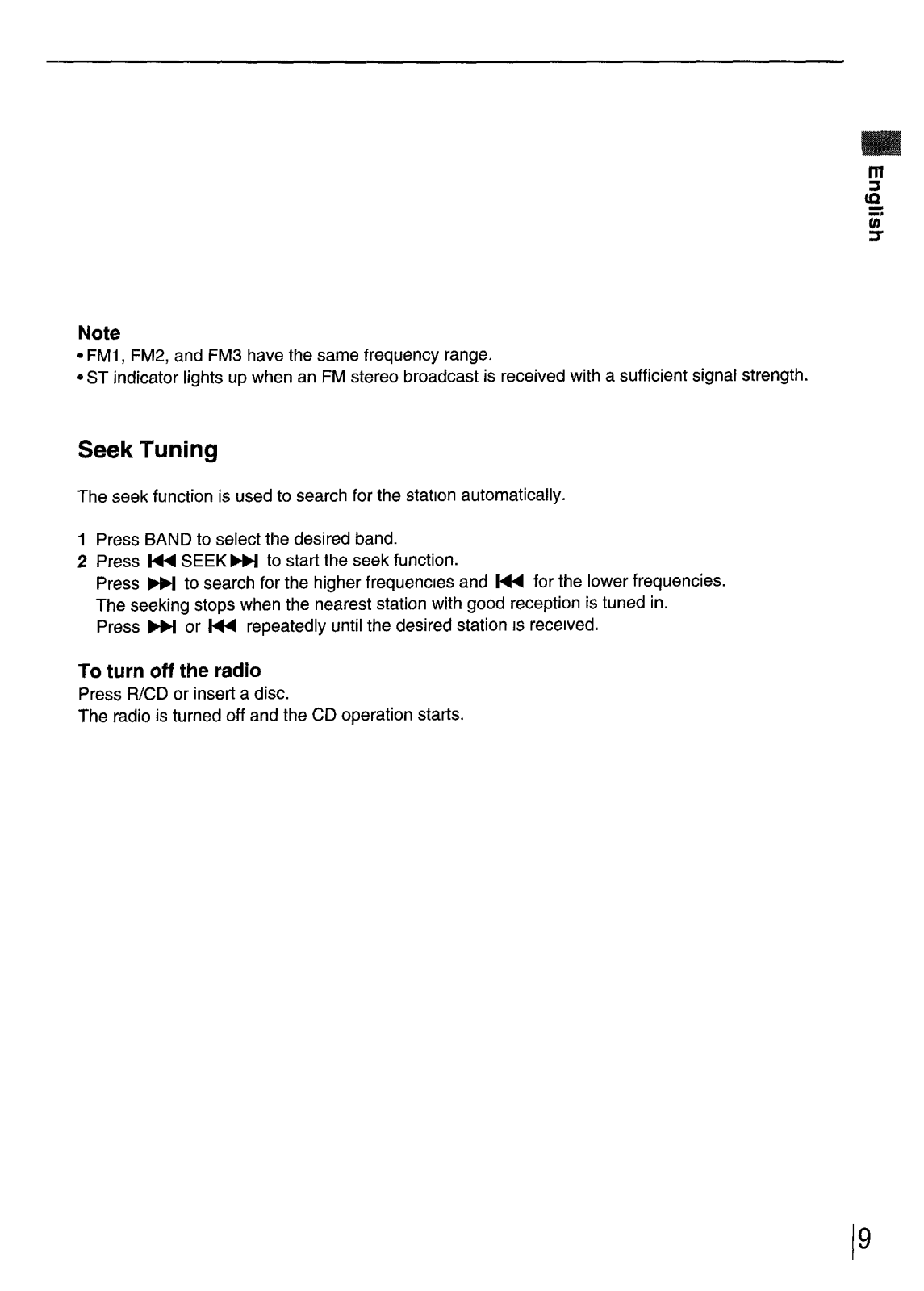

Note

● FM1, FM2, and FM3 have the same frequency range.

*ST indicator lights up when an FM stereo broadcast is received with a sufficient signal strength.

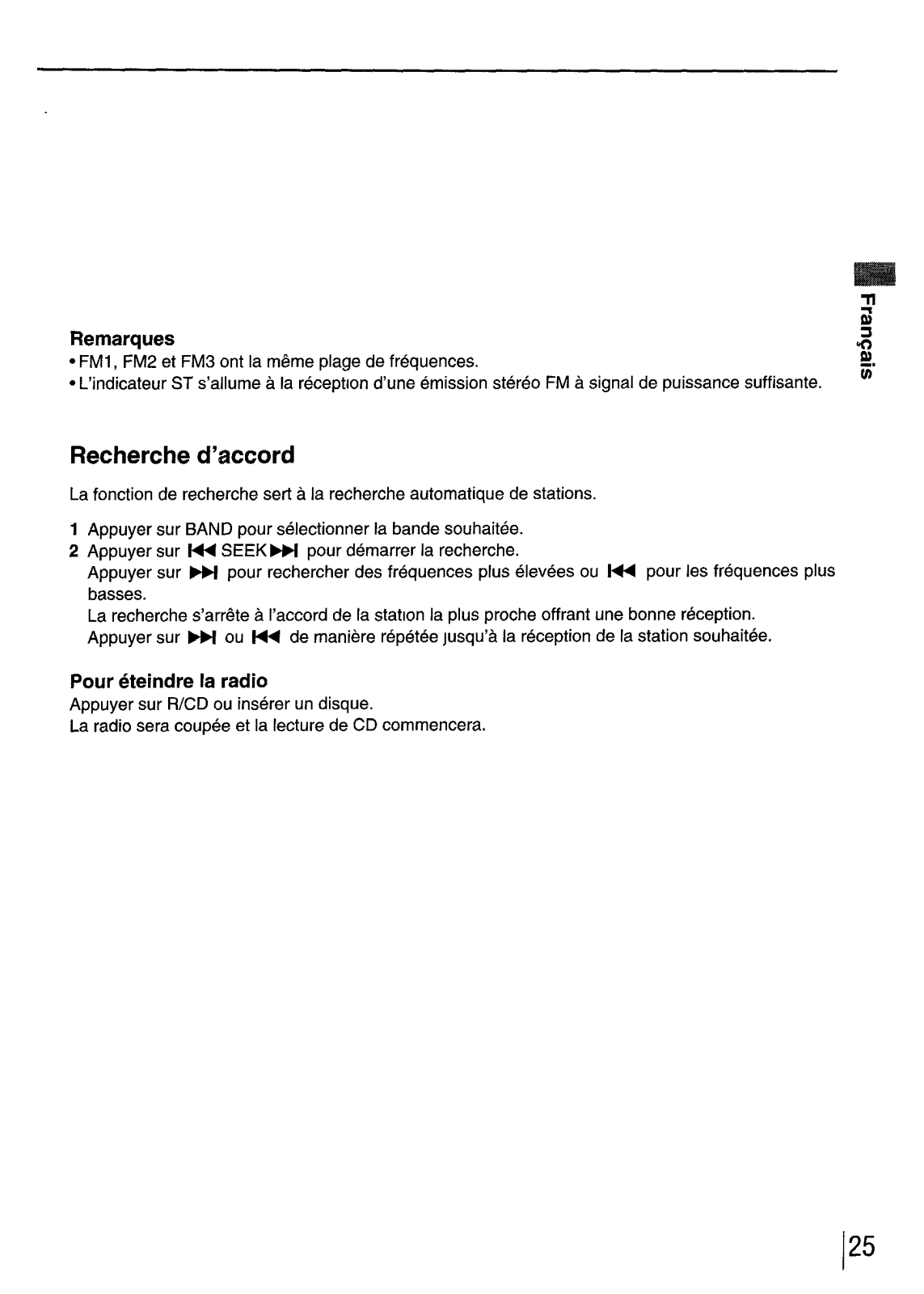

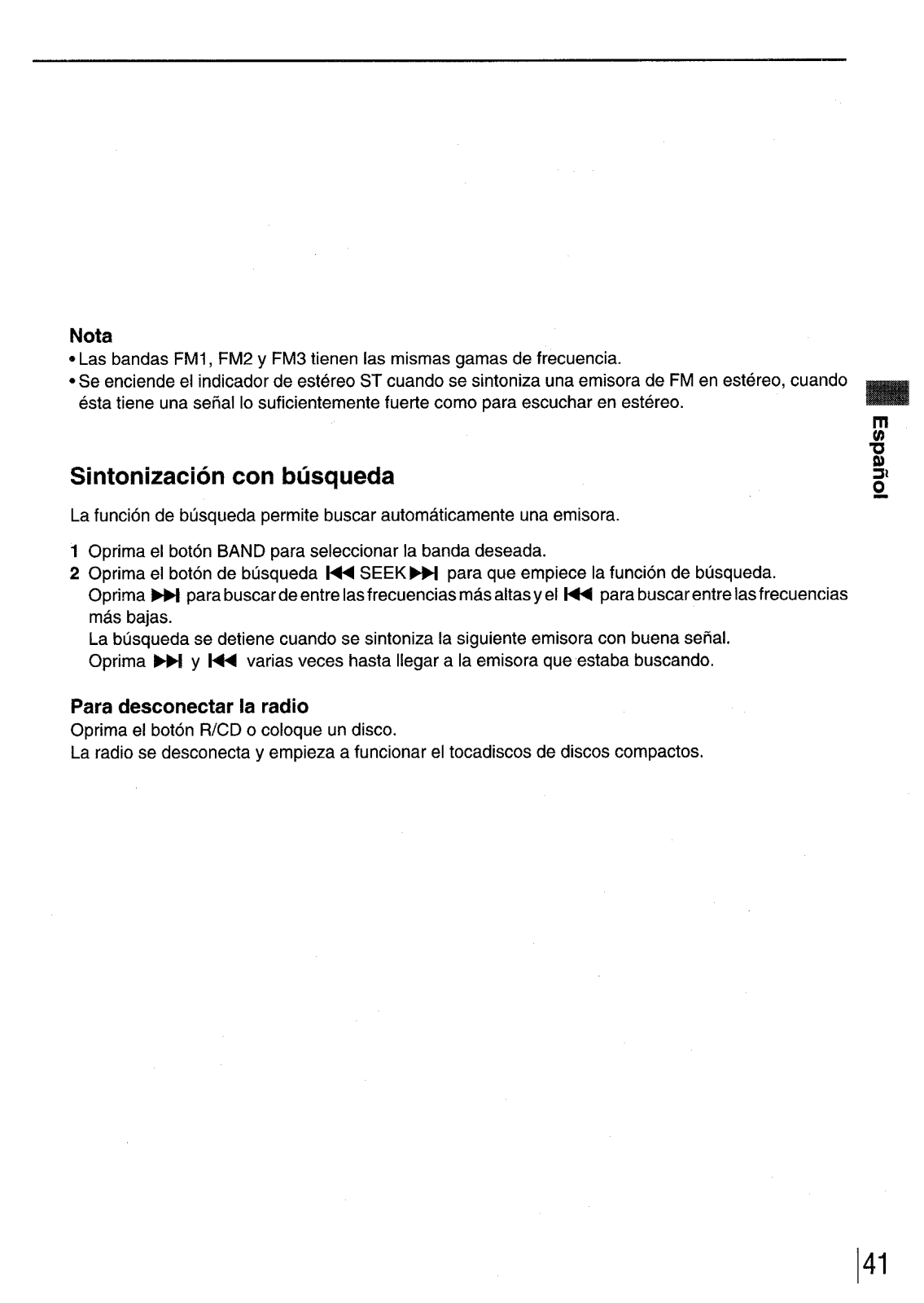

Seek Tuning

The seek function is used to search for the station automatically.

1 Press BAND toselect thedesired band. 2 Press 144 SEEK~ tostart theseek function.

Press W tosearch forthehigher frequencies and M forthe lower frequencies. The seeking stops when the nearest station with good reception is tuned in.

Press WI or 144 repeatedly until thedesired station lsrecewed.

To turn off the radio

Press R/CD or insert a disc. The radio is turned off and the CD operation starts.

Y’

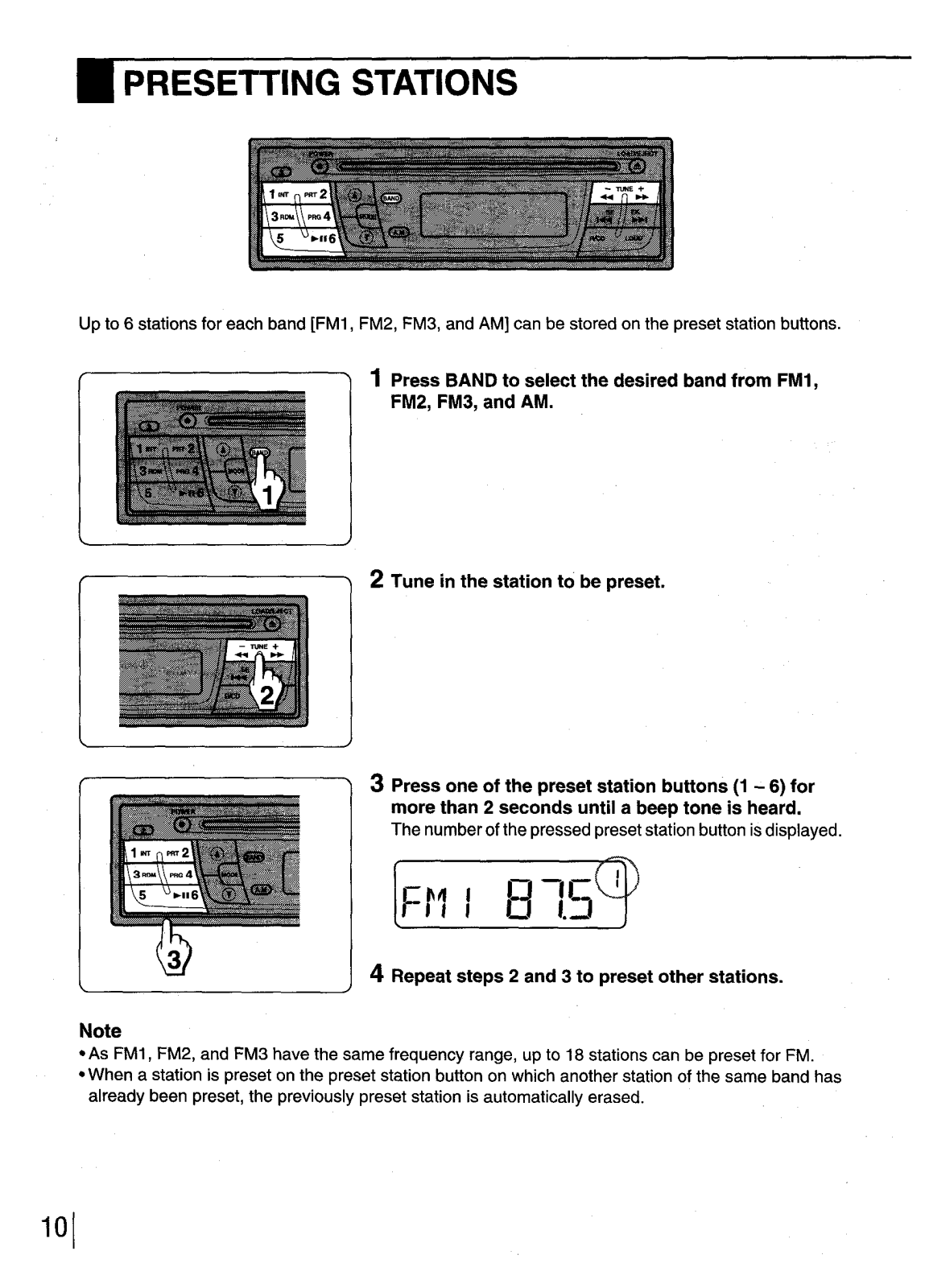

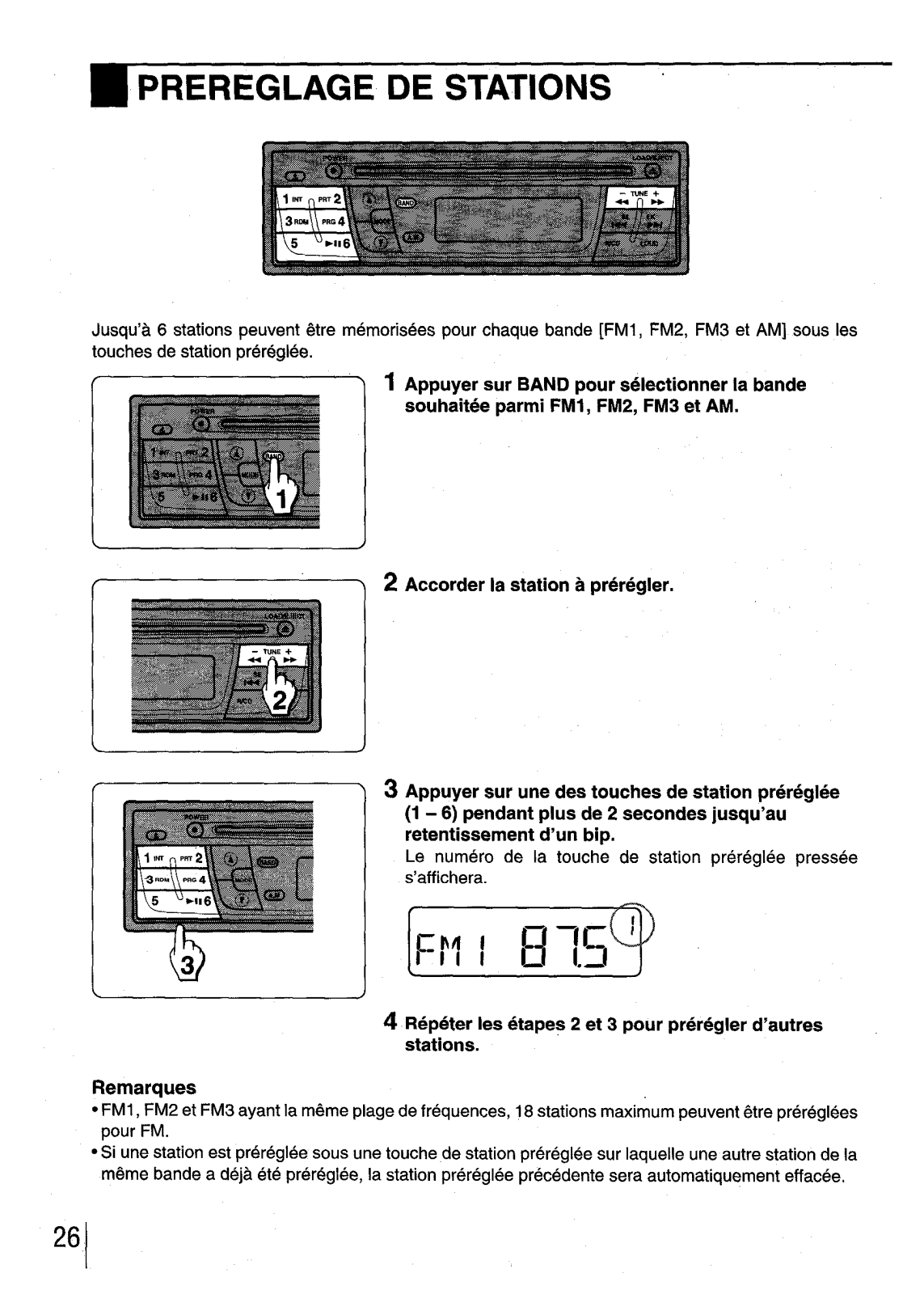

~ PRESETTING STATIONS

Up to 6 stations for each band [FM1, FM2, FM3, and AM] can be stored on the preset station buttons.

1 Press BAND to select the desired band from FM1,

FM2, FM3, and AM.

z Tune in the station to be preset.

a Press one of the preset station buttons (1 - 6) for

more than 2 seconds until a beep tone is heard.

The number of the pressed preset station button is displayed.

[

Note

● As FM1, FM2, and FM3 have the same frequency range, up to 18 stations can be preset for FM.

. When a station is preset on the preset station button on which another station of the same band has

already been preset, the previously preset station is automatically erased.

4 Repeat steps 2 and 3 to preset other stations.

10[

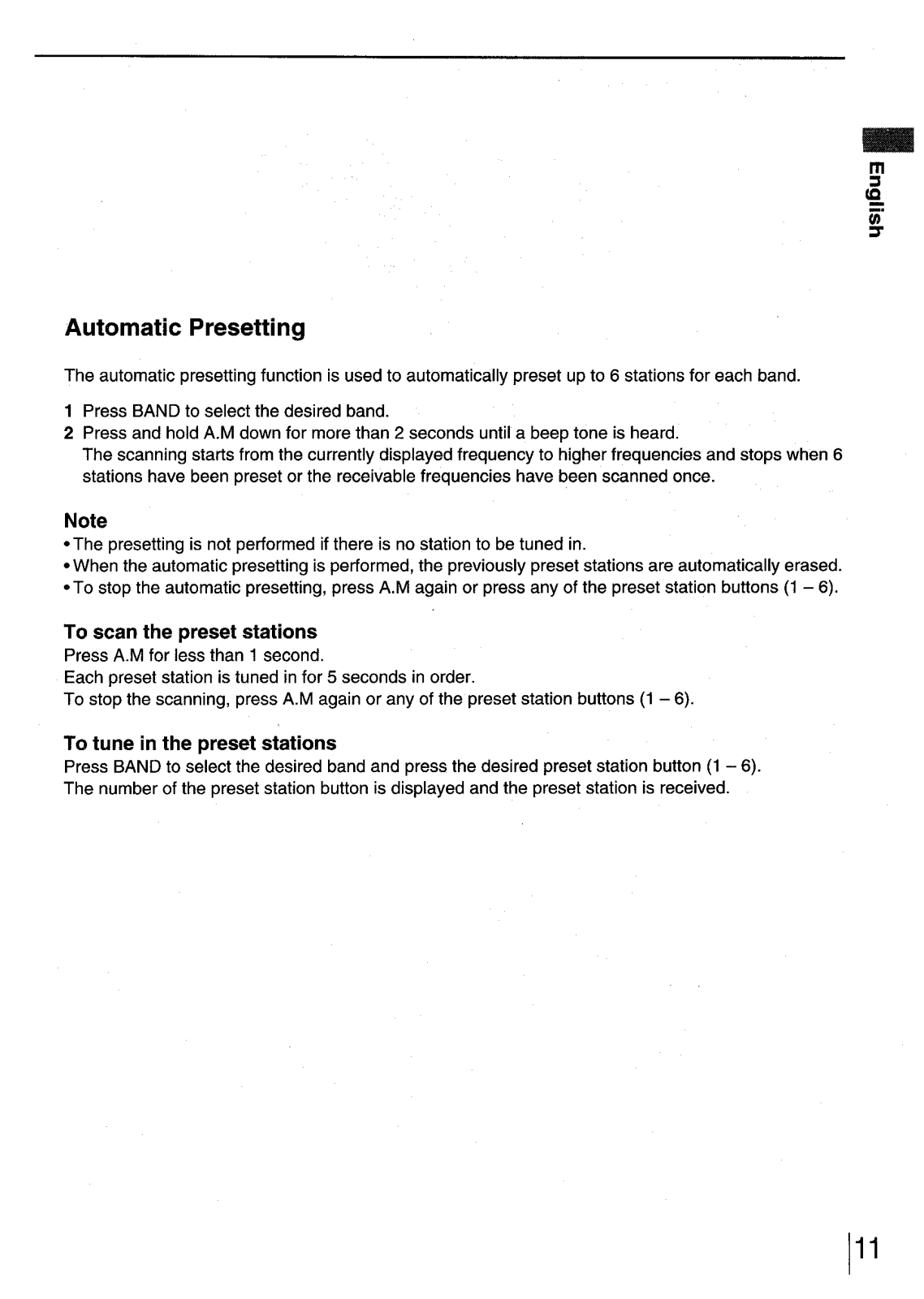

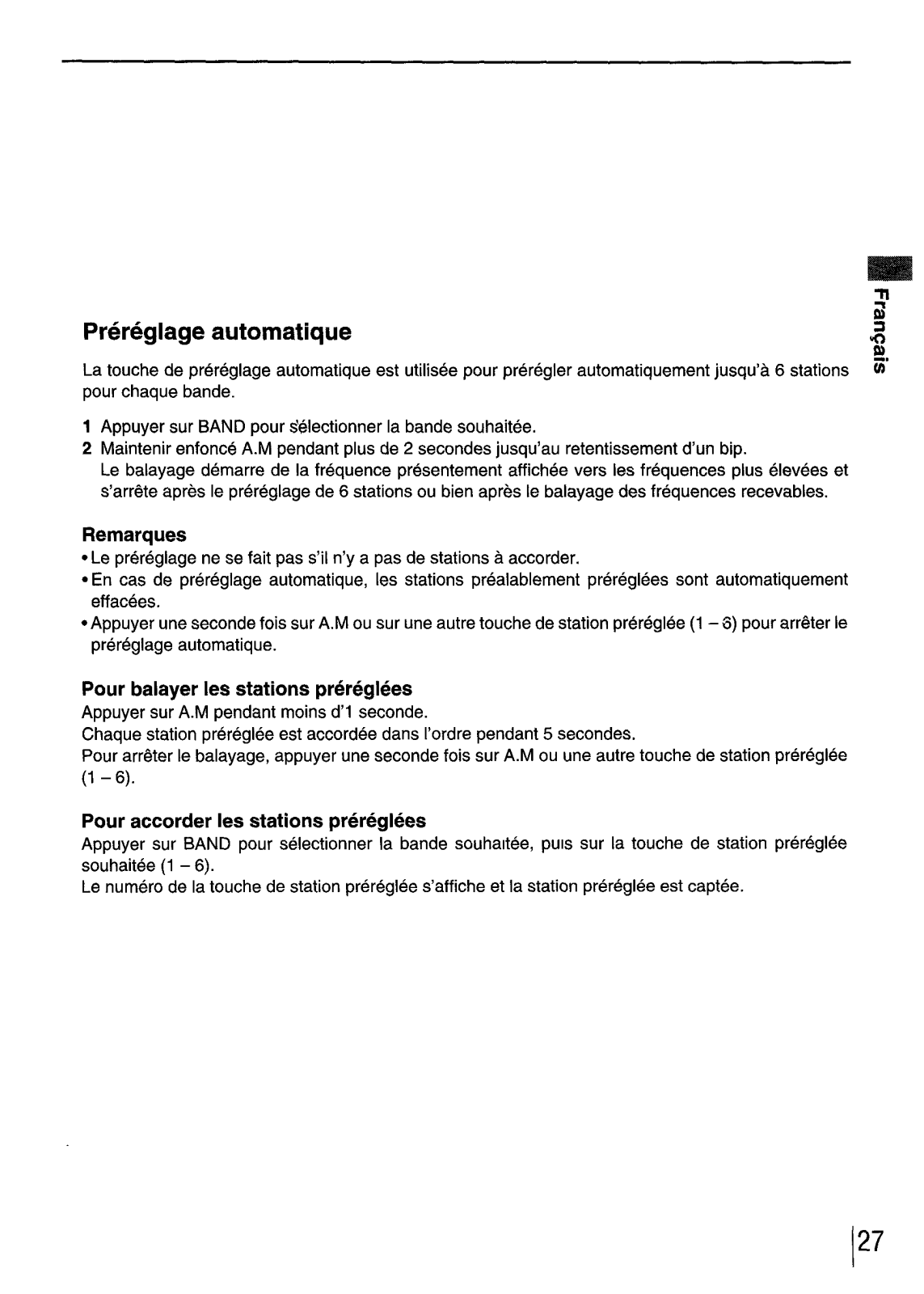

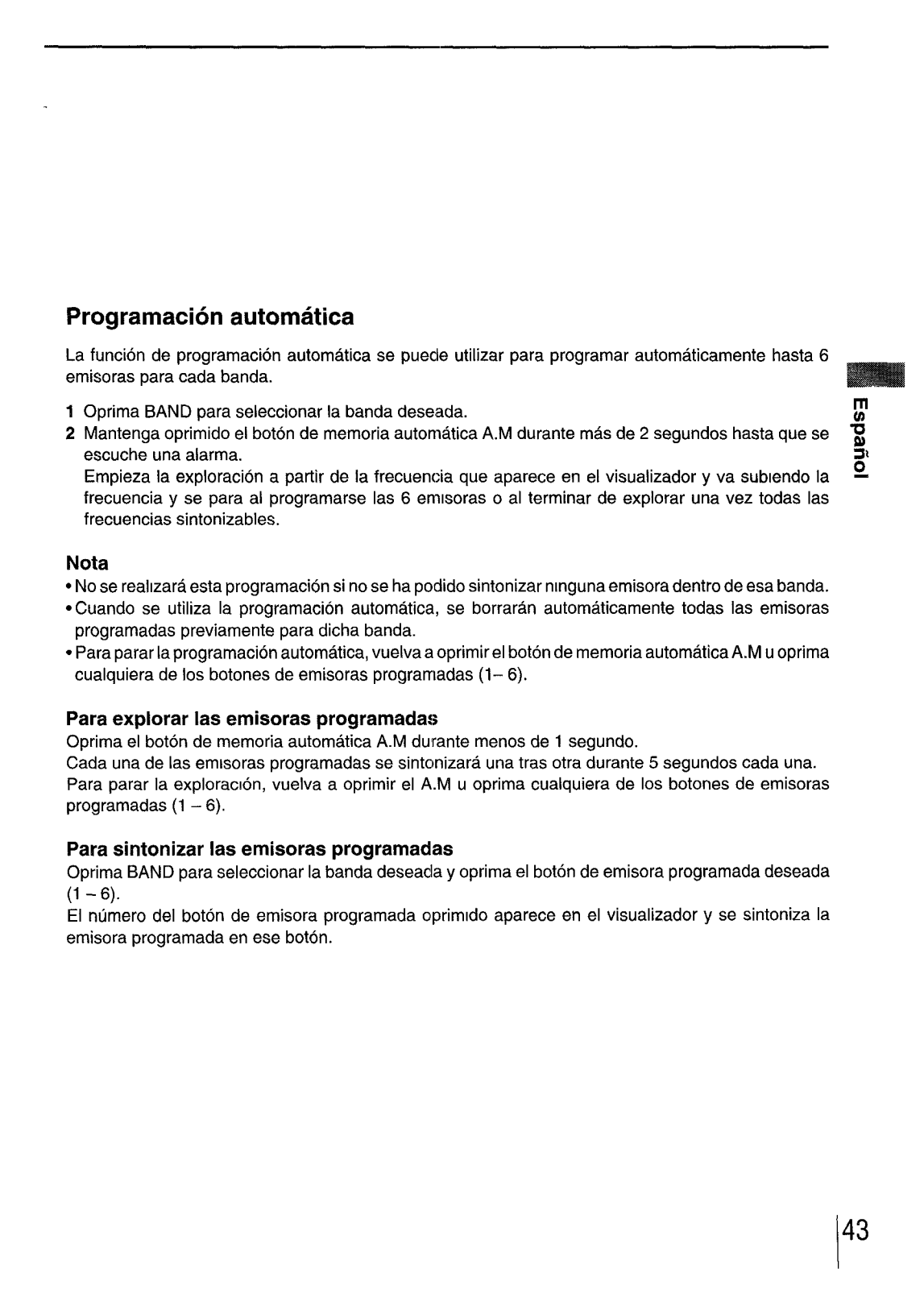

Automatic Presetting

The automatic presetting function is used to automatically preset up to 6 stations for each band.

1 Press BAND to select the desired band.

2 Press and hold A.M down for more than 2 seconds until a beep tone is heard.

The scanning starts from the currently displayed frequency to higher frequencies and stops when 6 stations have been preset or the receivable frequencies have been scanned once.

Note

● The presetting is not performed if there is no station to be tuned in.

● When the automatic presetting is performed, the previously preset stations are automatically erased.

=To stop the automatic presetting, press A.M again or press any of the preset station buttons (1 – 6).

To scan the preset stations

Press A.M for less than 1 second. Each preset station is tuned in for 5 seconds in order. To stop the scanning, press A.M again or any of the preset station buttons (1 – 6).

To tune in the preset stations

Press BAND to select the desired band and press the desired preset station button (1 – 6). The number of the preset station button is displayed and the preset station is received.

Ill

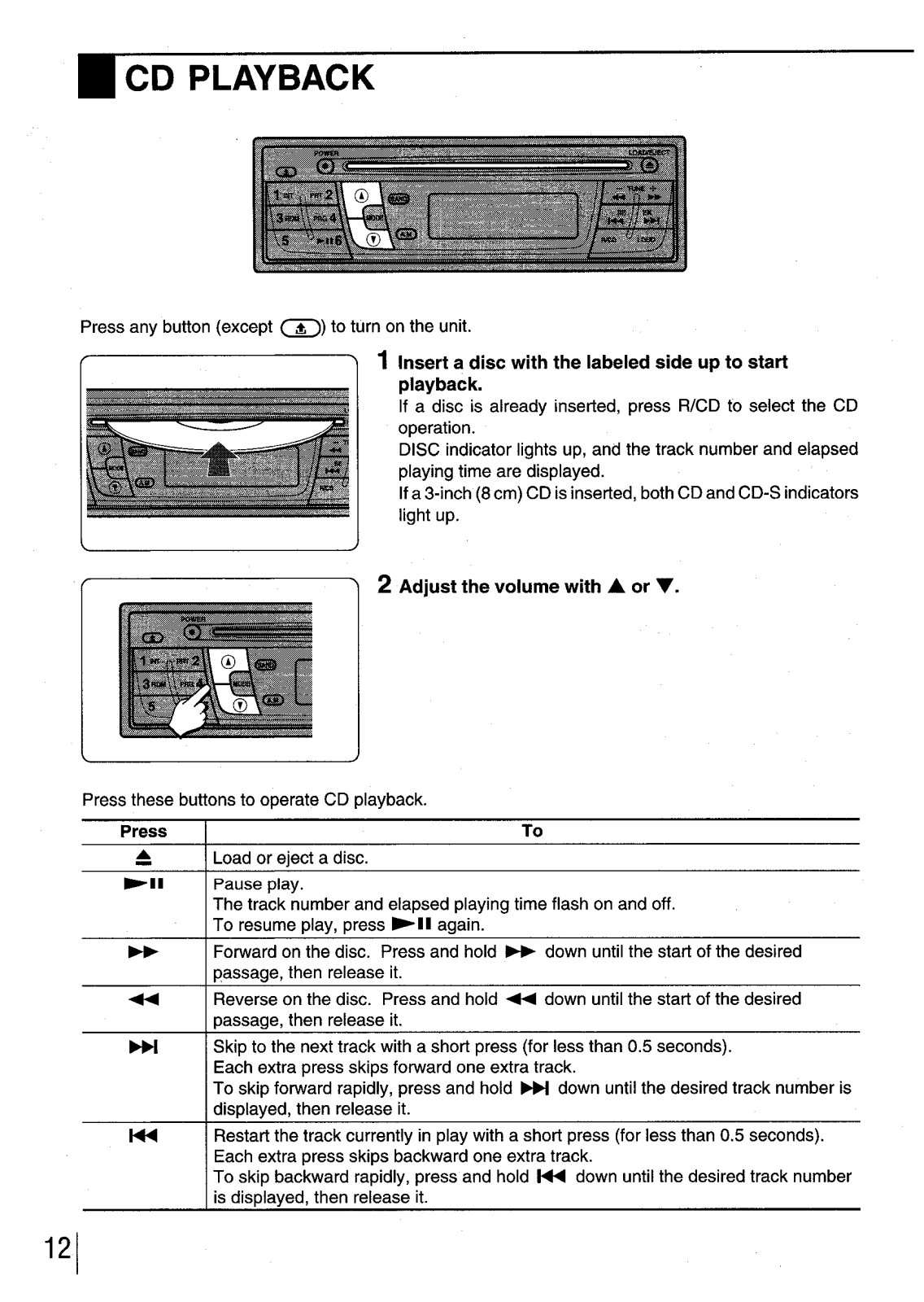

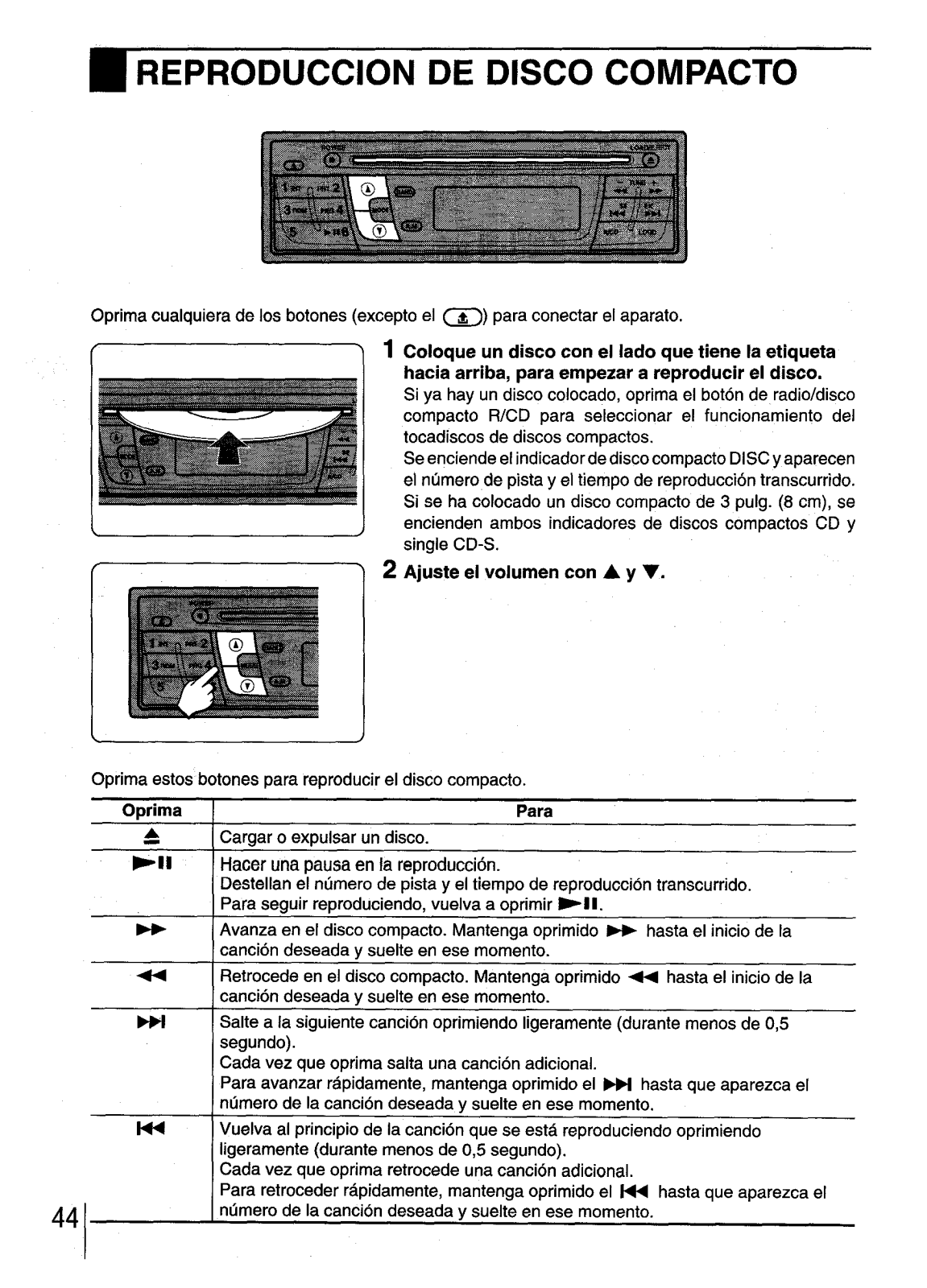

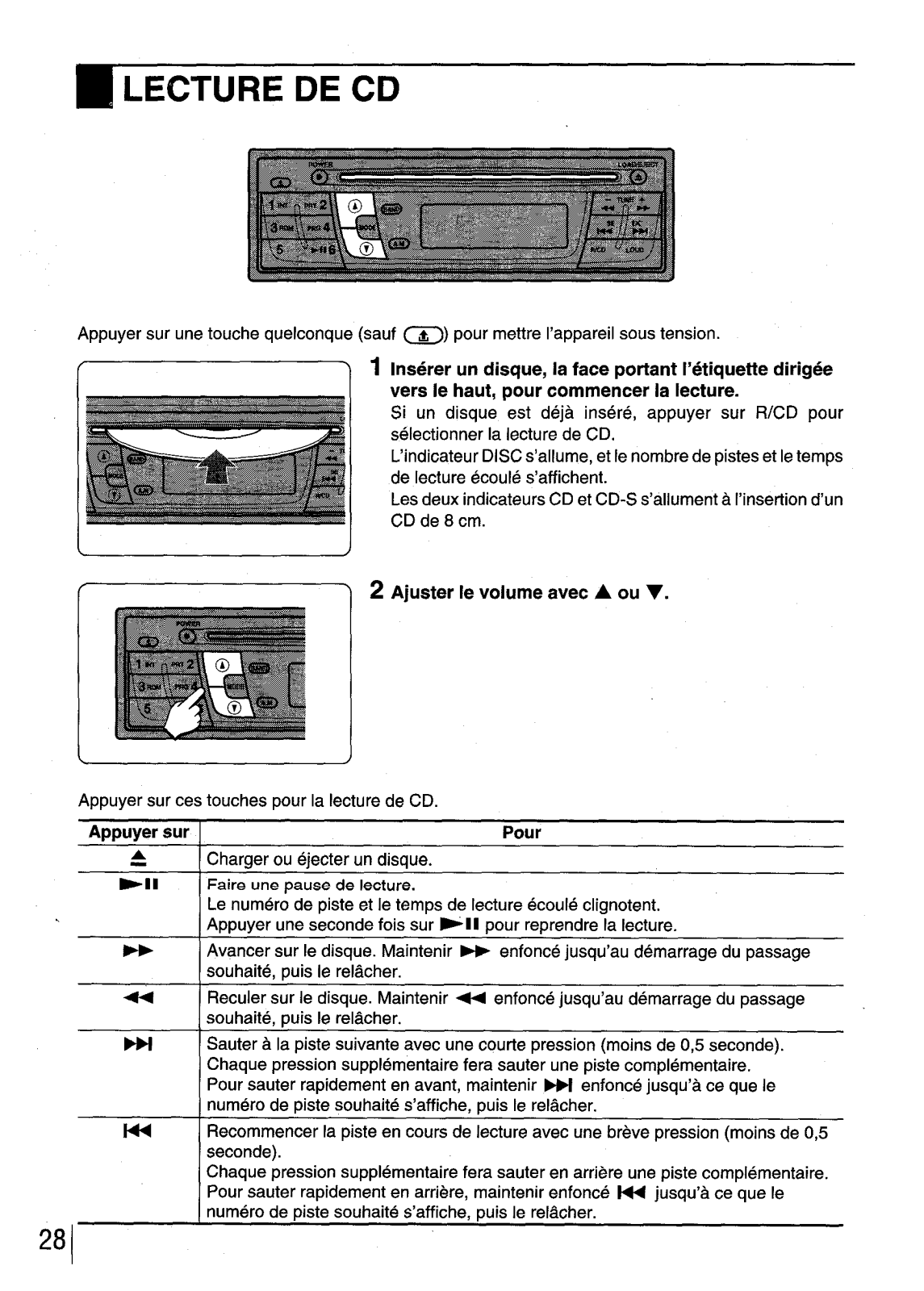

~ CD PLAYBACK

Press any button (except ~) to turn on the unit

Insert a disc with the labeled side uo to start

playback.

If adiscis already inserted, press R/CD toselectthe CD operation. DISC indicator lights up, and the track number and elapsed playing time are displayed. If a 3-inch (8 cm) CD is inserted, both CD and CD-S indicators light up.

z Adjust the volume with A or V.

Press these buttons to operate CD playback.

Press

EIl

Load or eject a disc. Pause play.

The track number and elapsed playing time flash on and off. To resume play, press ~11 again.

Forward on the disc. Press and hold * down until the stari of the desired passage, then release it.

Reverse on the disc. Press and hold + down until the start of the desired passage, then release it.

I Skip to the next track with a short press (for less than 0.5 seconds).

Each extra press skips forward one extra track. To skip forward rapidly, press and hold WI down until the desired track number is disulaved, then release it.

Restart the track currently in play with a short press (for less than 0.5 seconds). Each extra press skips backward one extra track. To skip backward rapidly, press and hold K down until the desired track number is displayed, then release it.

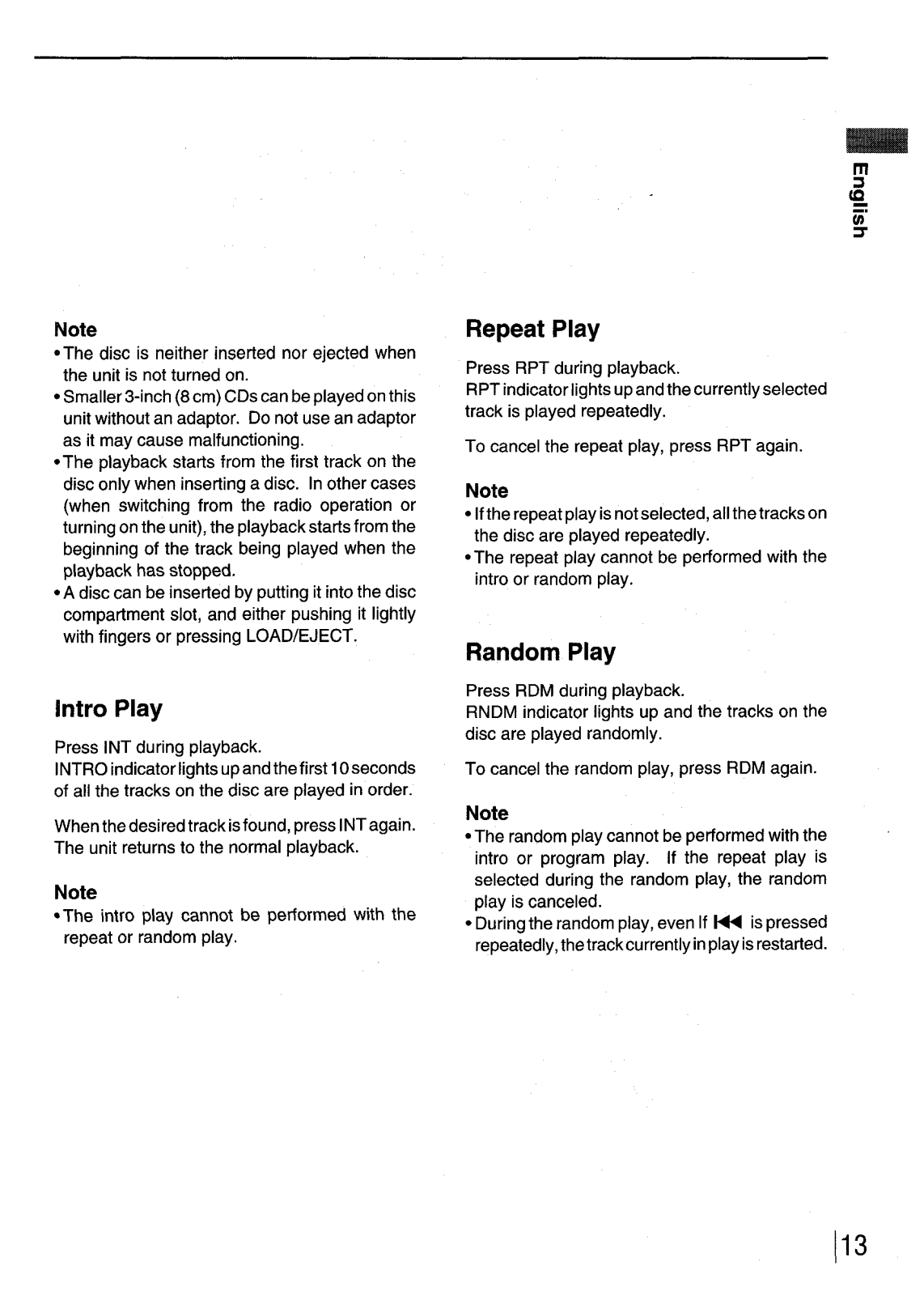

Note

~The disc is neither inserted nor ejected when

the unit is not turned on.

● Smaller 3-inch (8 cm) CDs can be played on this

unitwithout an adaptor. Donotuse an adaptor as it may cause malfunctioning.

● The playback starts from the first track on the

disc only when inserting a disc. In other cases

(when switching from the radio operation or turning on the unit), the playback starts from the beginning of the track being played when the playback has stopped.

● A disc can be inserted by putting it into the disc

compartment slot, and either pushing it lightly with fingers or pressing LOAD/EJECT.

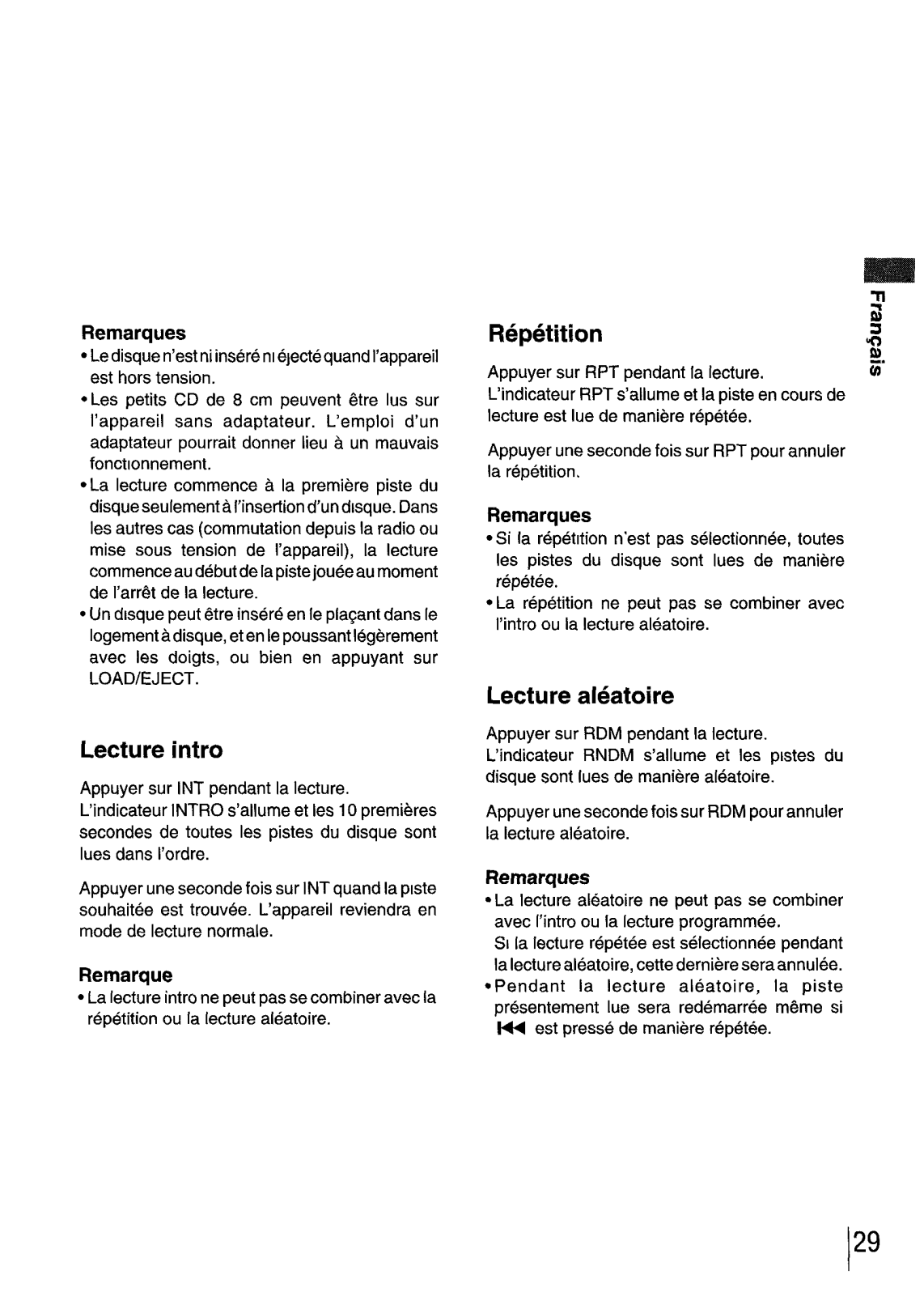

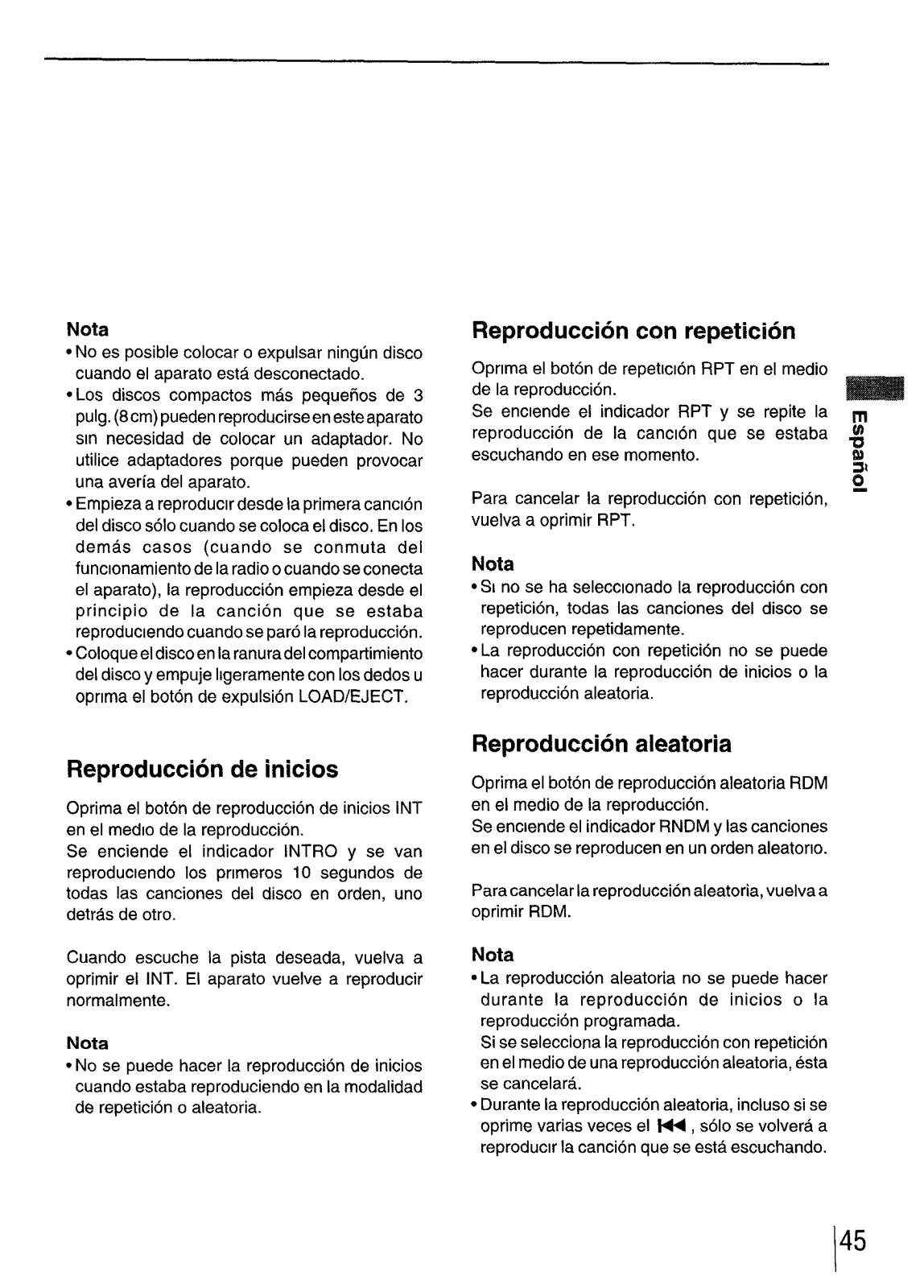

Intro Play

Press INT during playback. INTRO indicator lights upandthefirst 10seconds of all the tracks on the disc are played in order.

When the desired track is found, press lNTagain. The unit returns to the normal playback.

Note

● The intro play cannot be performed with the

repeat or random play.

Repeat Play

Press RPT during playback. RPT indicator lights up and the currently selected

track is played repeatedly. To cancel the repeat play, press RPT again.

Note

● Ifthe repeat play is not selected, all the tracks on

the disc are played repeatedly.

● The repeat play cannot be performed with the

intro or random play.

Random Play

Press RDM during playback.

RNDM indicator lights up and the tracks on the

disc are played randomly. To cancel the random play, press RDM again.

Note

● The random play cannot be performed with the

intro or program play. If the repeat play is selected during the random play, the random play is canceled.

● During the random play, even If K ispressed

repeatedly, thetrackcurrently in play is restarted.

113

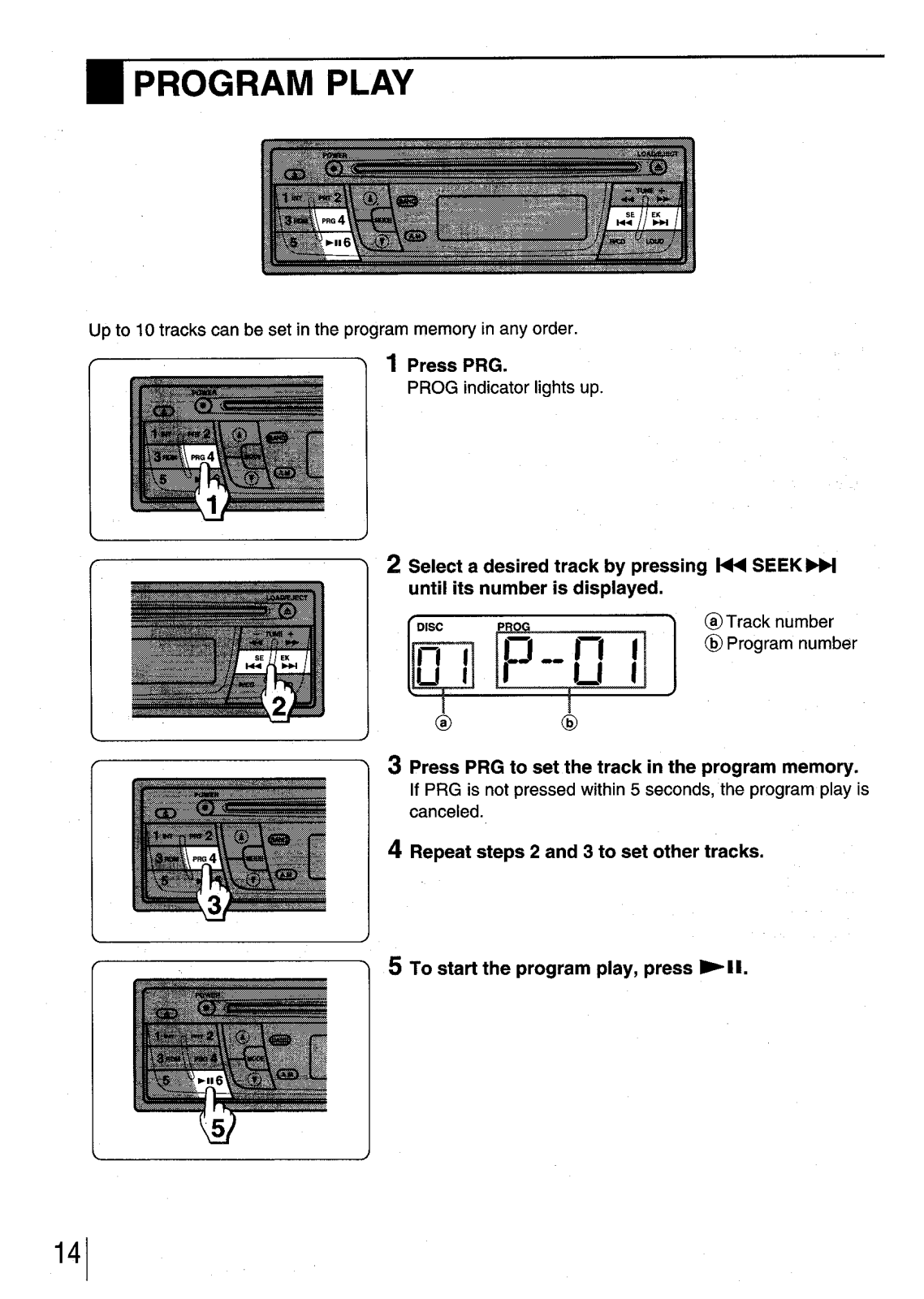

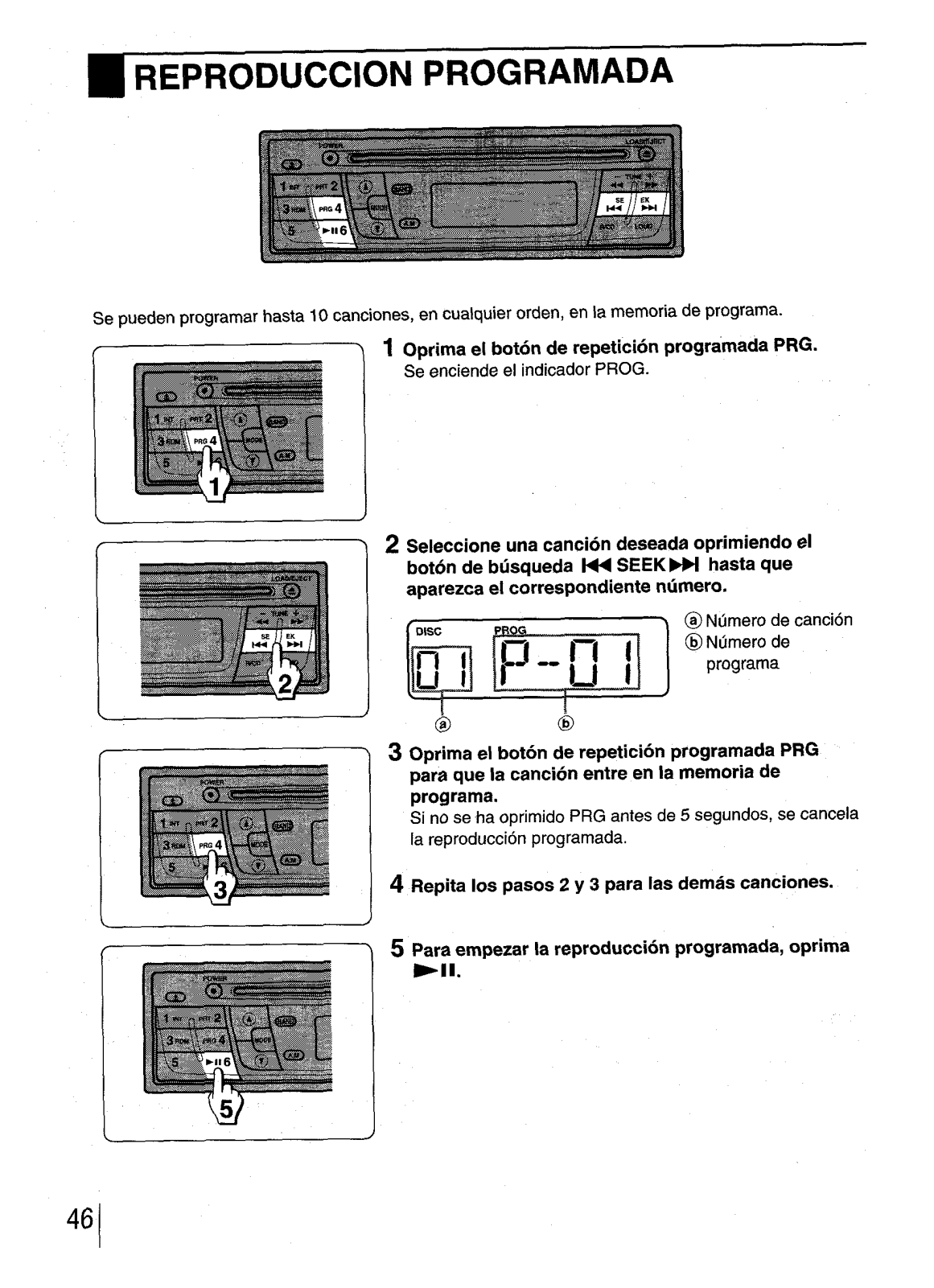

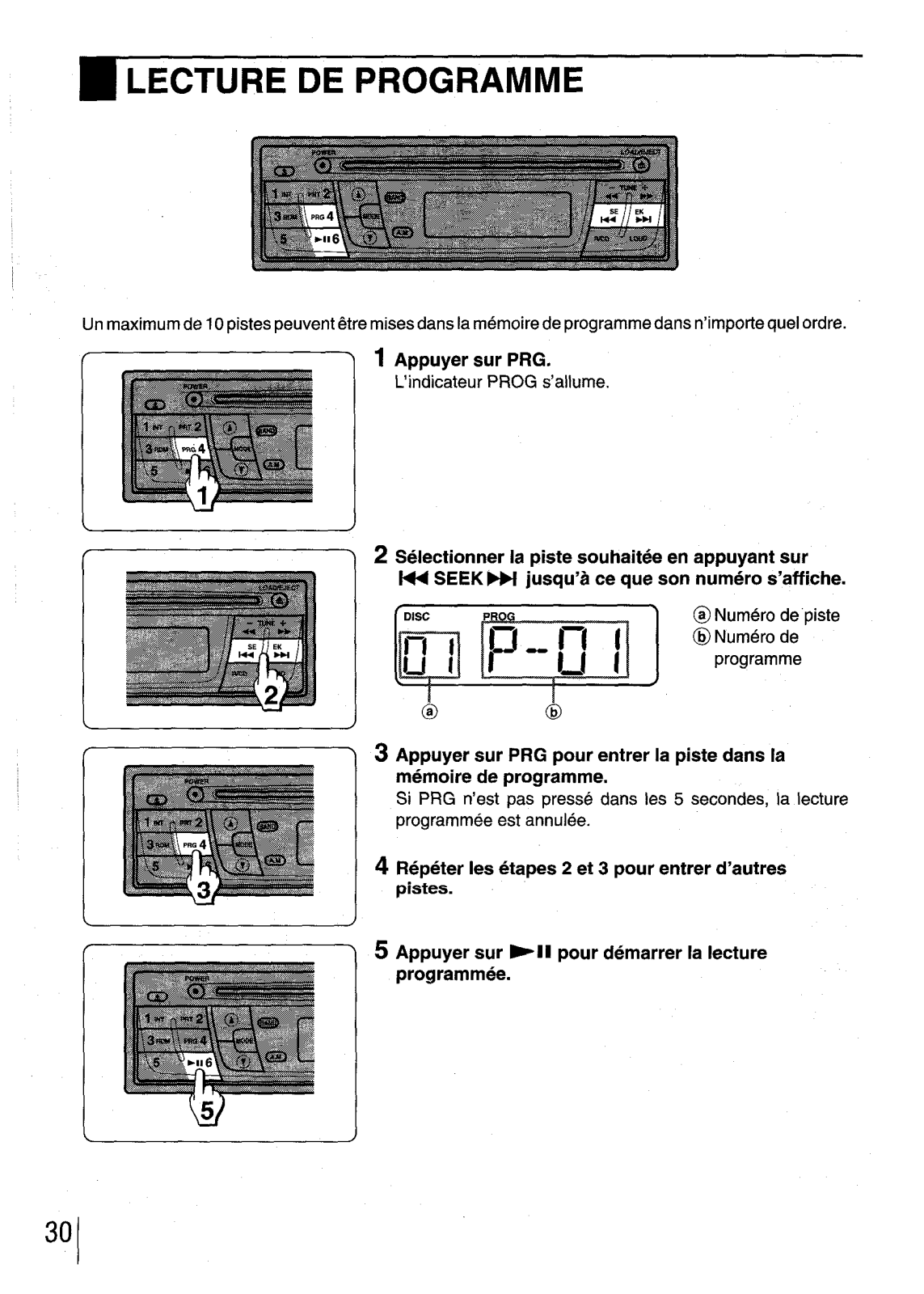

~ PROGRAM PLAY

Up to 10 tracks can be set in the program memory in any order.

1 Press PRG.

PROG indicator lights up.

z Select a desired track by pressing M SEEKBI

until its number is displayed.

a Press PRG to set the track in the program memory.

If PRG is not pressed within 5 seconds, the program play is canceled.

4 Repeat steps 2 and 3 to set other tracks.

b To start the program play, press FI1.

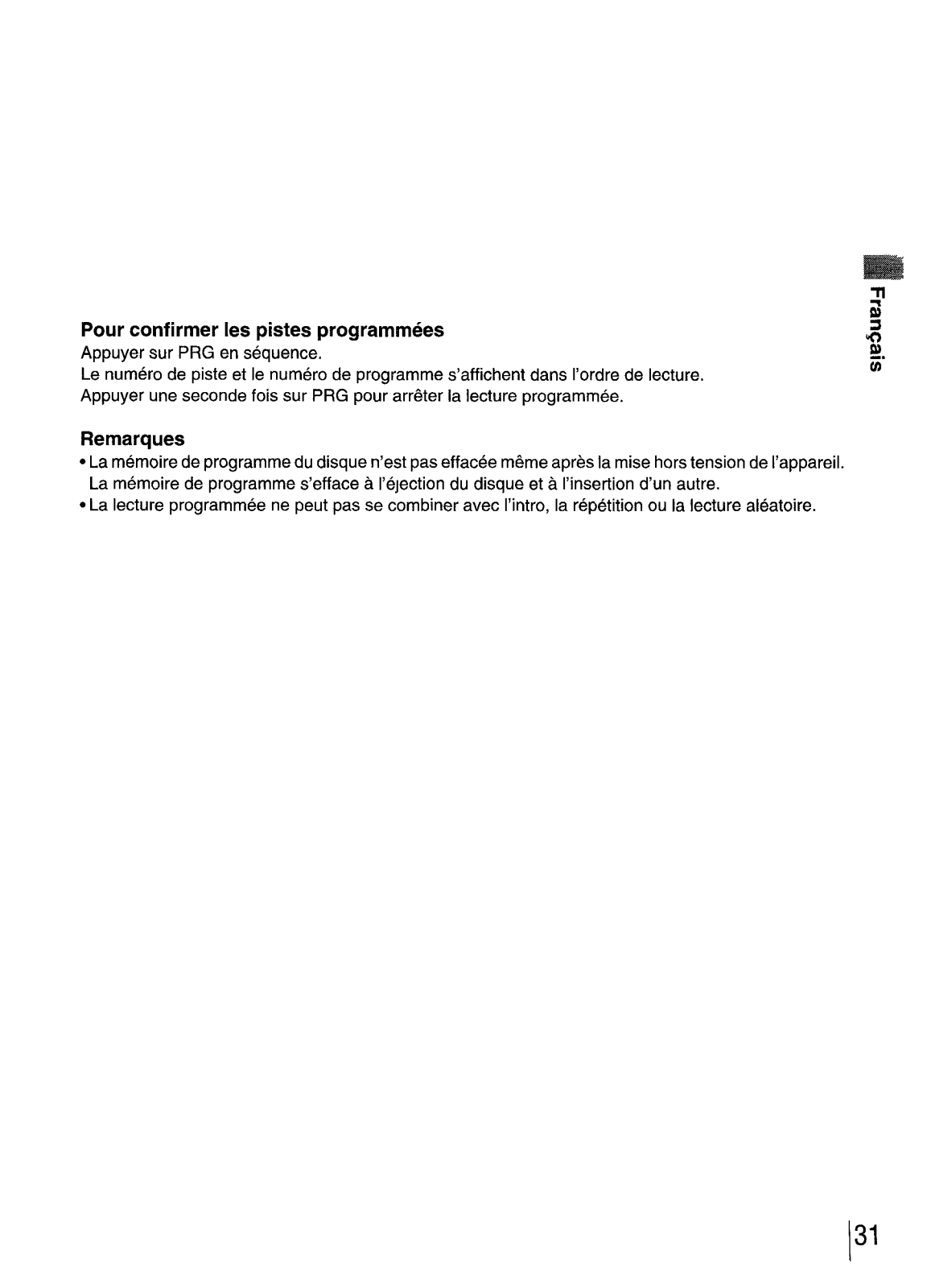

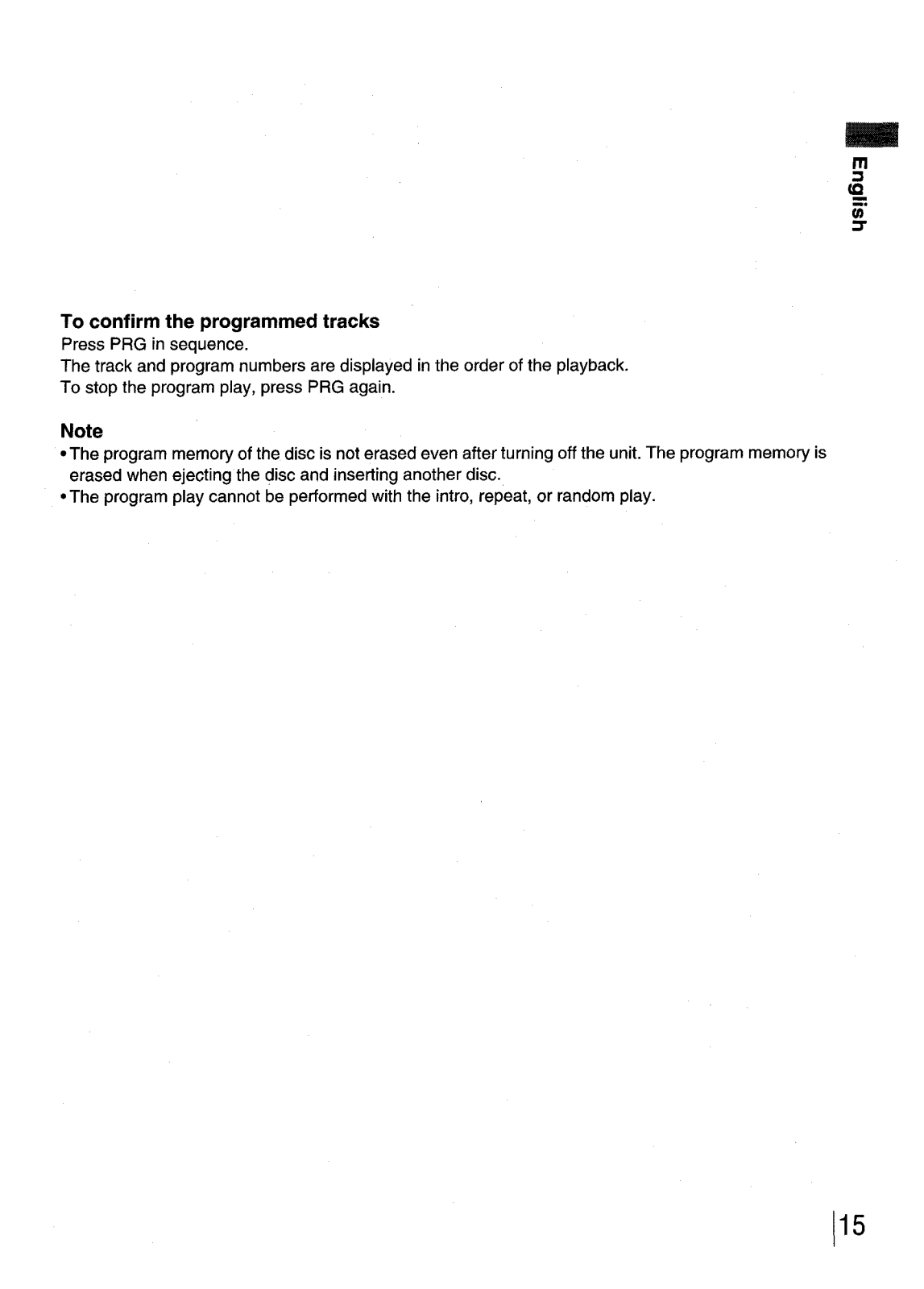

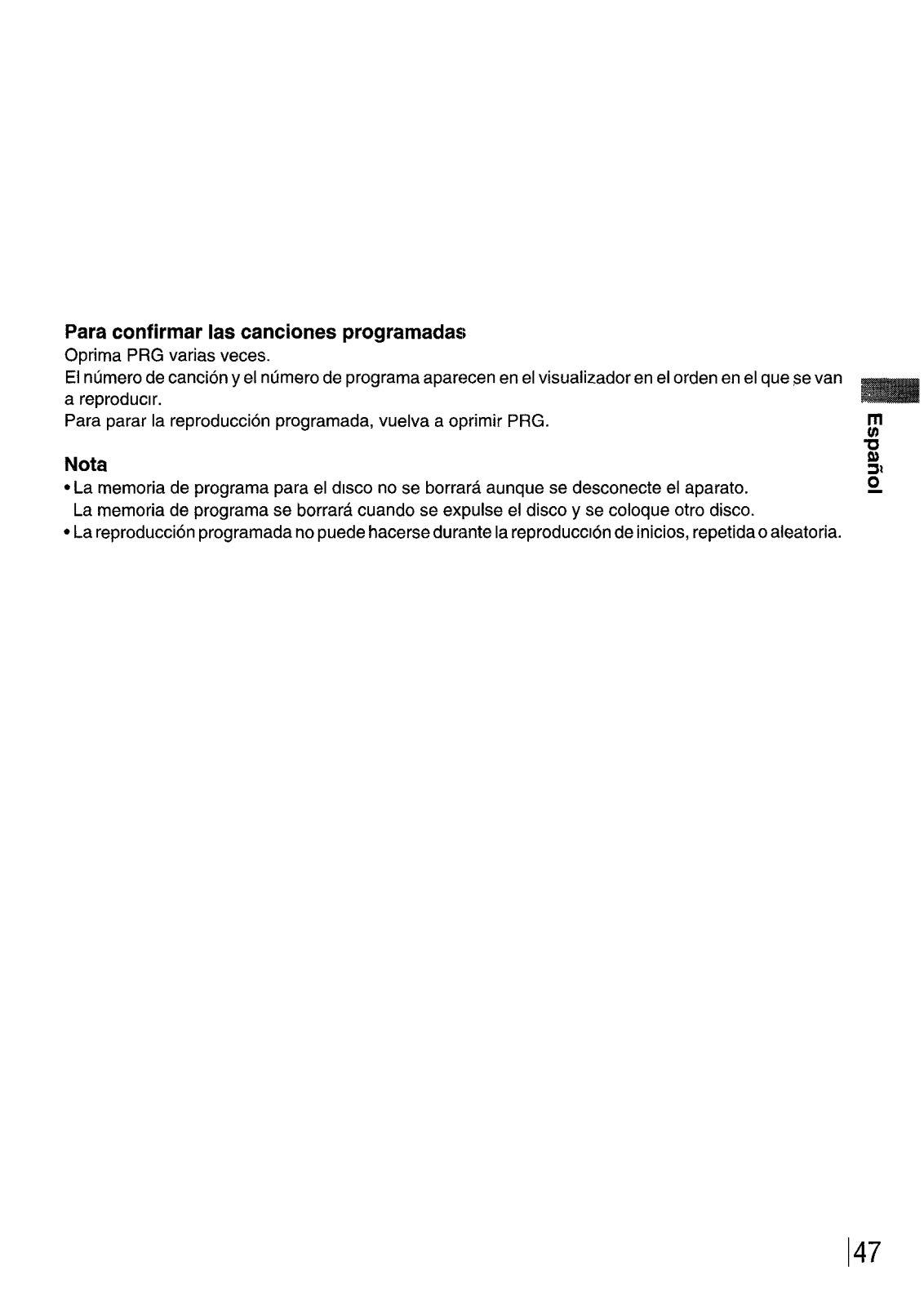

To confirm the programmed tracks

Press PRG in sequence.

The track and program numbers are displayed in the order of the playback. To stop the program play, press PRG again.

Note

The program memory of the disc is not erased even after turning off the unit. The program memory is

●

erased when ejecting the disc and inserting another disc.

● The program play cannot be performed with the intro, repeat, or random play.

115

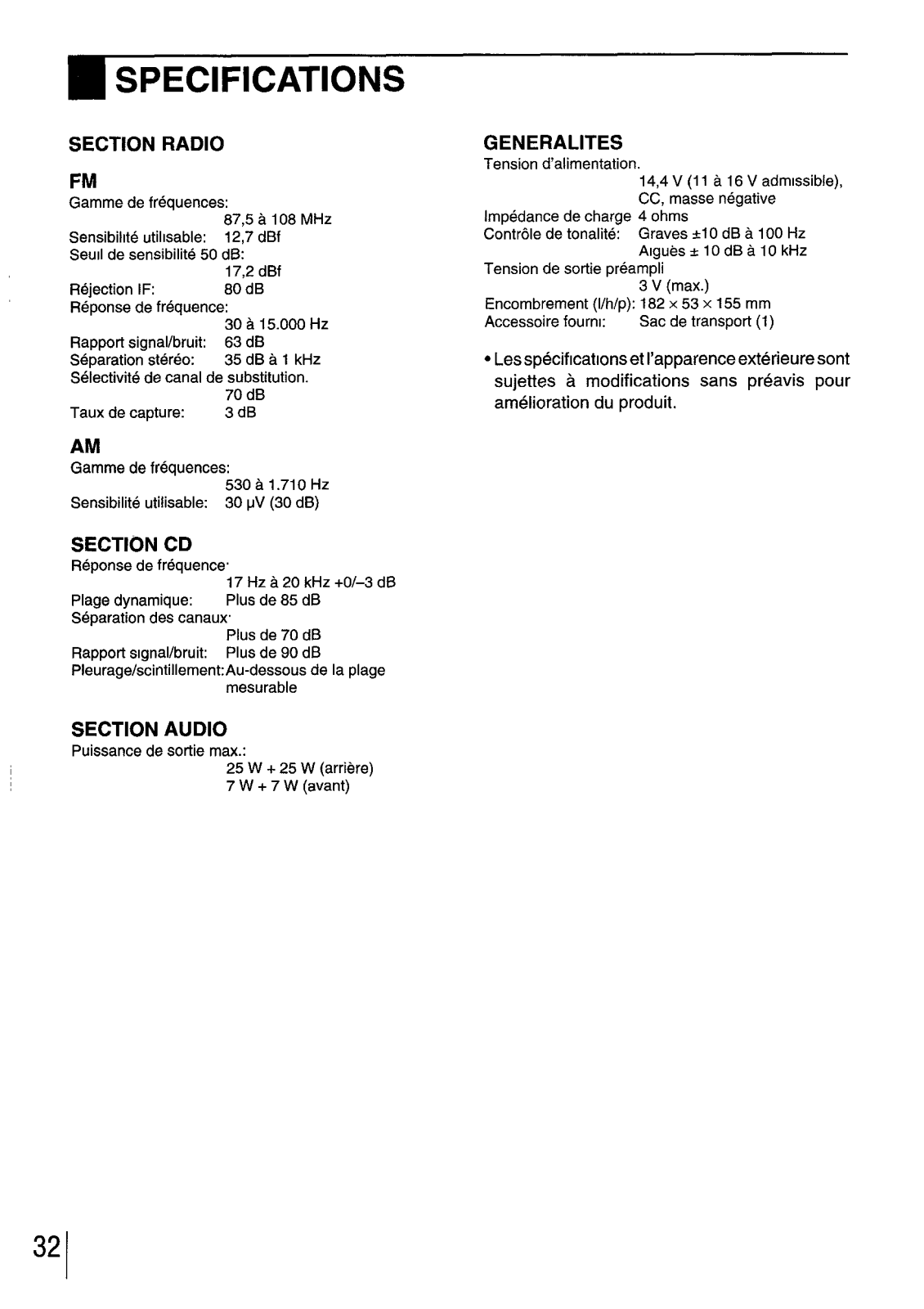

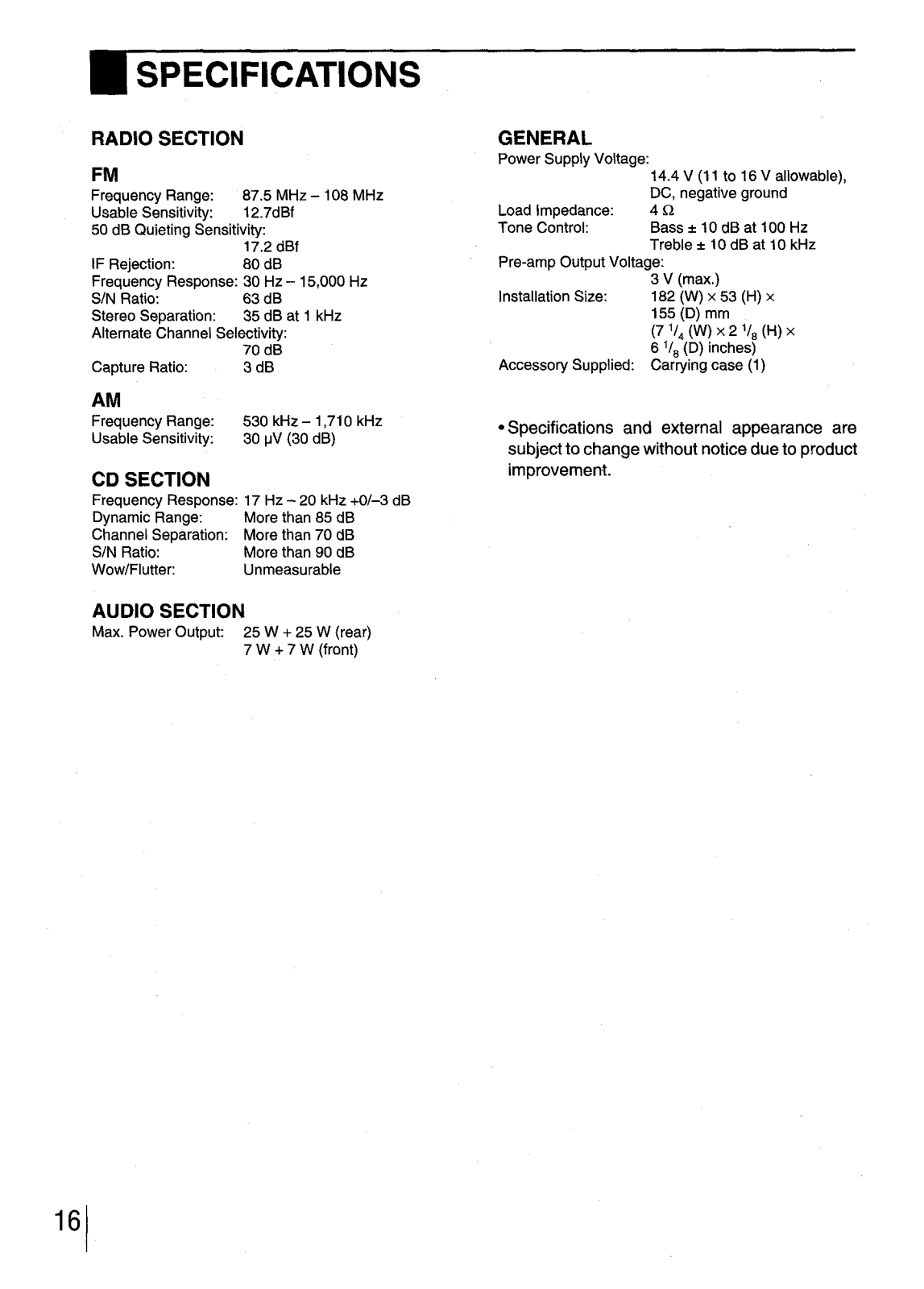

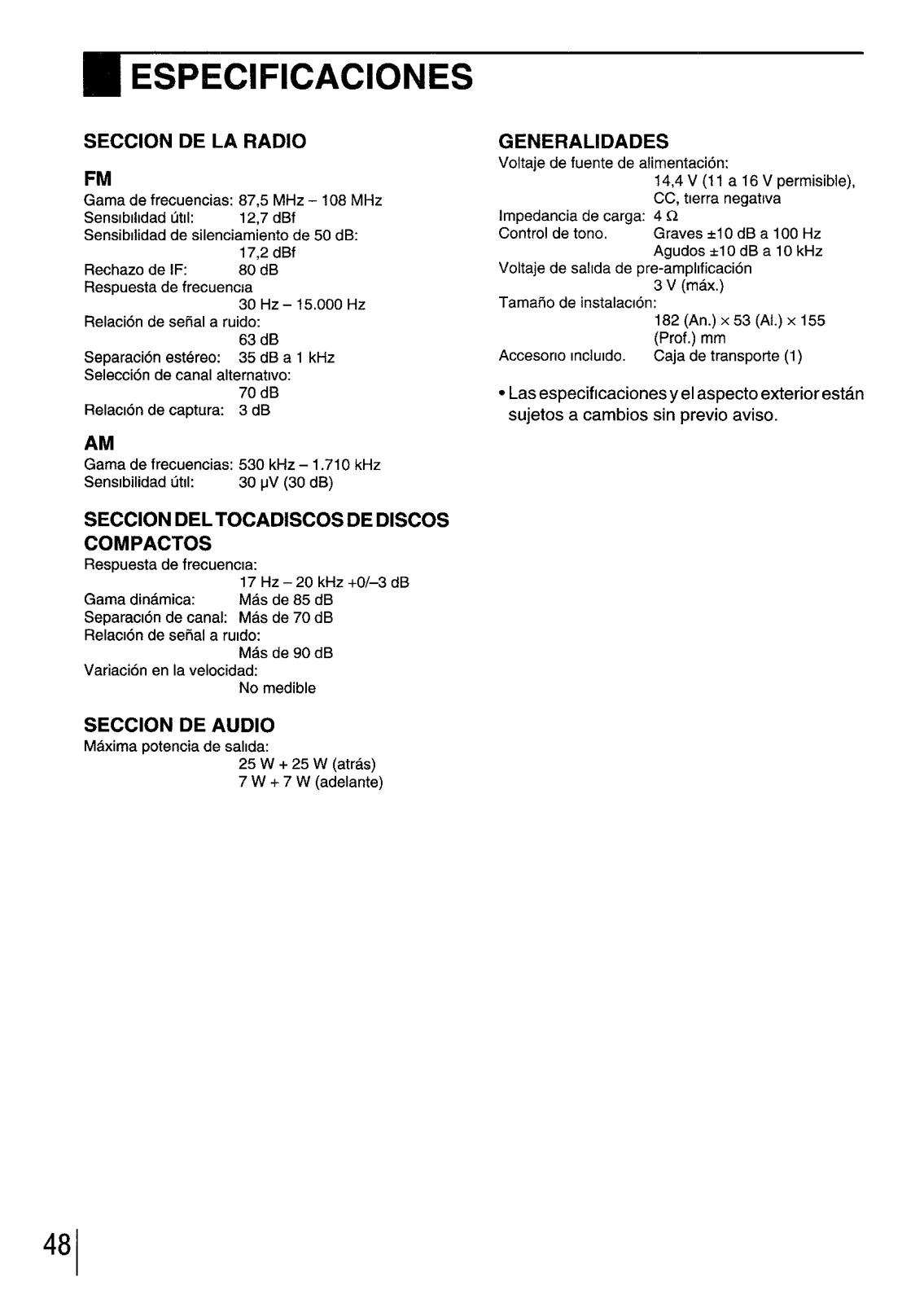

, SPECIFICATIONS

RADIO SECTION FM

FrequencyRange: UsableSensitivity: 50 dB Quieting Sensitivity

IF Rejection:

FrequencyResponse: 30 Hz – 15,000 Hz S/N Ratio: 83

Stereo Se~aration: Alternate Channel Selectivity:

Capture Ratio:

87.5 MHz-108 MHz

12.7dBf

17.2dBf

80 dB

35 dB at 1 kHz

70 dB 3 dB

Frequency Range: Usable Sensitivity:

530 kHz -1,710 kHz 30 PV (30 dB)

CD SECTION

Frequency Response 17 Hz -20 kHz +0/–3 dB

Dynamic Range:

Channel Separation: More than 70 dB

SIN Ratio More than 90 dB

Wow/Flutter

Morethan 85

Unmeasurable

AUDIO SECTION

Max. Power Output 25 W + 25 W (rear)

7 W + 7 W (front)

GENERAL

Power Supply Voltage:

Load Impedance: 4 Q Tone Control:

Pre-amp Output Voltage:

Installation Size: 182 (W)

Accessory Supplied: Carrying case (1)

● Specifications and external appearance are

subject to change without notice due to product improvement.

14.4 V(11 to 16 V allowable), DC, negative ground

Bass +lOdBat100Hz Treble + 10 dB at 10 kHz

3 V (max.)

X 53 (H) X

155 (D) mm (7 ‘/, (W) 6 1/8(D) inches)

x 2 ‘/8 (H) X

+ 36 hidden pages
