Page 1

LCD VIDEO MONITOR

BVM-L230

OPERATION MANUAL [English] 1st Edition (Revised 4)

Page 2

WARNING

This apparatus shall not be used in the residential area.

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

THIS APPARATUS MUST BE EARTHED.

Using this unit at a voltage other than 120 V may require the use of a different line cord or attachment plug, or both. To reduce the risk of fire or electric shock, refer servicing to qualified service personnel.

For the customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For the customers in Europe, Australia and New Zealand

WARNING

This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

Attention-when the product is installed in Rack:

1.Prevention against overloading of branch circuit

When this product is installed in a rack and is supplied power from an outlet on the rack, please make sure that the rack does not overload the supply circuit.

2.Providing protective earth

When this product is installed in a rack and is supplied power from an outlet on the rack, please confirm that the outlet is provided with a suitable protective earth connection.

3.Internal air ambient temperature of the rack

When this product is installed in a rack, please make sure that the internal air ambient temperature of the rack is within the specified limit of this product.

4.Prevention against achieving hazardous condition due to uneven mechanical loading

When this product is installed in a rack, please make sure that the rack does not achieve hazardous condition due to uneven mechanical loading.

5.Install the equipment while taking the operating temperature of the equipment into consideration

For the operating temperature of the equipment, refer to the specifications of the Operation Manual.

For the customers in Europe

This product with the CE marking complies with both the EMC Directive and the Low Voltage Directive issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European standards:

• EN60950-1:Product Safety

• EN55103-1: Electromagnetic Interference (Emission)

• EN55103-2: Electromagnetic Susceptibility (Immunity) This product is intended for use in the following Electromagnetic Environment: E4 (controlled EMC environment, ex. TV studio)

The manufacturer of this product is Sony Corporation, 17-1 Konan, Minato-ku, Tokyo, Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

6.When performing the installation, keep the following space away from walls in order to obtain proper exhaust and radiation of heat.

Lower, Upper: 4.4 cm (1

For the customers in Norway

This equipment can be connected to IT power distribution system.

For kundene i Norge

Dette utstyret kan kobles til et IT-strømfordelingssystem.

/4 inches) or more

AVERTISSEMENT

Afin de réduire les risques d’incendie ou d’électrocution, ne pas exposer cet appareil à la pluie ou à l’humidité.

Afin d’écarter tout risque d’électrocution, garder le coffret fermé. Ne confier l’entretien de l’appareil qu’à un personnel qualifié.

Page 3

CET APPAREIL DOIT ÊTRE RELIÉ À LA TERRE.

Pour les clients Europe

Ce produit portant la marque CE est conforme à la fois à la Directive sur la compatibilité électromagnétique (EMC) et à la Directive sur les basses tensions émises par la Commission de la Communauté Européenne. La conformité à ces directives implique la conformité aux normes européennes suivantes:

• EN60950-1: Sécurité des produits

• EN55103-1: Interférences électromagnétiques (émission)

• EN55103-2: Sensibilité électromagnétique (immunité)

Ce produit est prévu pour être utilisé dans l’environnement électromagnétique suivants: E4 (environnement EMC contrôlé, ex. studio de télévision).

Le fabricant de ce produit est Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japon. Le représentant autorisé pour EMC et la sécurité des produits est Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Allemagne. Pour toute question concernant le service ou la garantie, veuillez consulter les adresses indiquées dans les documents de service ou de garantie séparés.

Ne pas utiliser cet appareil dans une zone résidentielle.

• EN55103-2: Elektromagnetische Verträglichkeit (Störfestigkeit)

Für die folgenden elektromagnetischen Umgebungen: E4 (kontrollierter EMV-Bereich, z.B. Fernsehstudio)

Der Hersteller dieses Produkts ist Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japan. Der autorisierte Repräsentant für EMV und Produktsicherheit ist Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Deutschland. Bei jeglichen Angelegenheiten in Bezug auf Kundendienst oder Garantie wenden Sie sich bitte an die in den separaten Kundendienst- oder Garantiedokumenten aufgeführten Anschriften.

Dieser Apparat darf nicht im Wohnbereich verwendet werden.

Für Kunden in Europa, Australien und Neuseeland

WARNUNG

Dies ist eine Einrichtung, welche die Funk-Entstörung nach Klasse A besitzt. Diese Einrichtung kann im Wohnbereich Funkstörungen verursachen; in diesem Fall kann vom Betreiber verlangt werden, angemessene Maßnahmen durchzuführen und dafür aufzukommen.

Pour les clients en Europe, Australie et NouvelleZélande

AVERTISSEMENT

Il s’agit d’un produit de Classe A. Dans un environnement domestique, cet appareil peut provoquer des interférences radio, dans ce cas l’utilisateur peut être amené à prendre des mesures appropriées.

WARNUNG

Um die Gefahr von Bränden oder elektrischen Schlägen zu verringern, darf dieses Gerät nicht Regen oder Feuchtigkeit ausgesetzt werden.

Um einen elektrischen Schlag zu vermeiden, darf das Gehäuse nicht geöffnet werden. Überlassen Sie Wartungsarbeiten stets nur qualifiziertem Fachpersonal.

DIESES GERÄT MUSS GEERDET WERDEN.

Für Kunden in Europa

Dieses Produkt besitzt die CE-Kennzeichnung und erfüllt die EMV-Richtlinie sowie die Niederspannungsrichtlinie der EGKommission. Angewandte Normen:

• EN60950-1: Sicherheitsbestimmungen

• EN55103-1: Elektromagnetische Verträglichkeit (Störaussendung)

Page 4

Table of Contents

Chapter 1 Overview

Precautions ........................................................................... 7

On Safety ....................................................................................7

On Installation ............................................................................ 7

Handling the LCD Screen ..........................................................7

On Cleaning................................................................................7

On Repacking ............................................................................. 8

On Rack Mounting ..................................................................... 8

Functions Supported in Software Version 1.3 ................... 9

Features ............................................................................... 10

Options ................................................................................ 12

Input/Output Connector and Adaptor....................................... 13

Location and Function of Parts......................................... 14

Front Panel................................................................................14

Rear Panel/Left Side Panel....................................................... 16

Chapter 2 Preparations

Environments of the Installation Location ....................... 18

Installing an Input Adaptor ................................................ 19

Attaching the Cable Holder................................................ 20

Changing the Aspect Ratio of the Screen ........................ 21

Attaching the Bracket......................................................... 22

Connections ........................................................................ 23

Connecting the Controller (BKM-16R).................................... 24

Connecting the Multiple Units with the LAN ..........................24

Turning on the Power......................................................... 26

Connecting the AC Power Cord ............................................... 26

Turning on the Monitor ............................................................ 26

Settings................................................................................ 27

Selecting the Area..................................................................... 27

Setting for the LAN to Connect the Multiple Units ................. 28

Selecting the Monitor (Designation of the Monitor or Group ID

Number)..................................................................... 29

Assigning the Input Signal to the Channel ............................... 29

Setting the Display Mode of the Picture................................... 30

Adjusting ............................................................................. 30

Chroma/Phase Adjustment .......................................................30

Table of Contents

Page 5

Chapter 3 Menu

Color Temperature (White Balance) Adjustment.....................31

Brightness/Contrast Adjustment...............................................31

Basic Menu Operations.......................................................33

Menu Operation Buttons...........................................................33

Displaying the Menu.................................................................34

Setting or Adjusting in the Menu Operation.............................34

Entering the Channel Number ..................................................36

Aborting Menu Operation.........................................................36

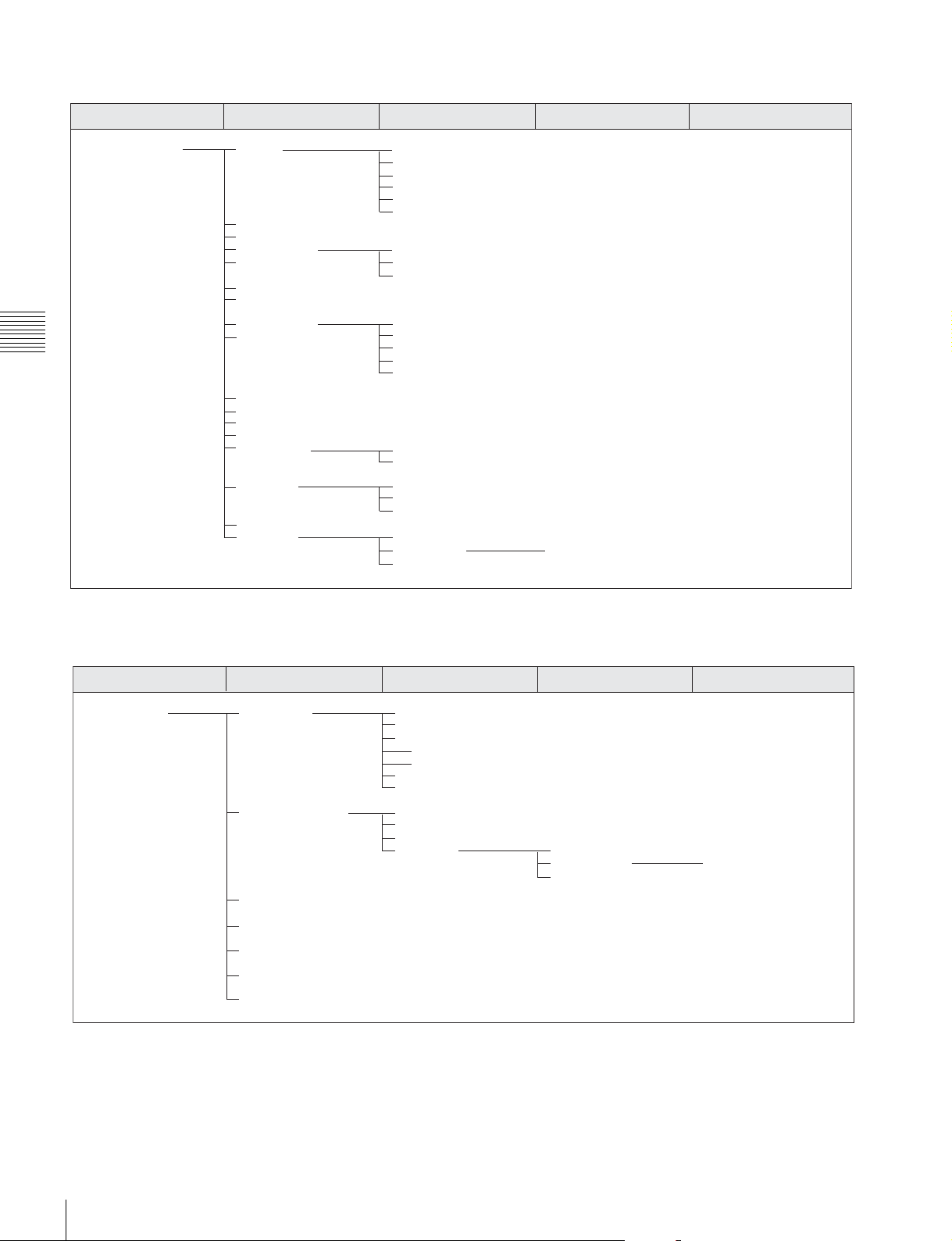

Menu Structure ....................................................................37

Adjustment Menu.................................................................44

Overview...................................................................................44

Menu Function and Operation ..................................................44

Input Configuration Menu ...................................................51

Overview...................................................................................51

Menu Function and Operation ..................................................51

Display Setting Menu ..........................................................57

Overview...................................................................................57

Menu Function and Operation ..................................................57

Display Function Menu .......................................................60

Overview...................................................................................60

Menu Function and Operation ..................................................60

System Configuration Menu...............................................70

Overview...................................................................................70

Menu Function and Operation ..................................................70

File Management Menu .......................................................76

Overview...................................................................................76

Menu Function and Operation ..................................................76

Status Menu .........................................................................78

Overview...................................................................................78

Menu Function and Operation ..................................................78

Controller Menu ...................................................................80

Overview...................................................................................80

Menu Function and Operation ..................................................80

Key Protect Menu ................................................................84

Overview...................................................................................84

Menu Function and Operation ..................................................84

Chapter 4 Operations

Selecting Display Mode.......................................................85

Setting the Display of Native Scan Mode ..........................86

Table of Contents

Page 6

Appendixes

Selecting the Native Scan/Scan Mode .............................. 87

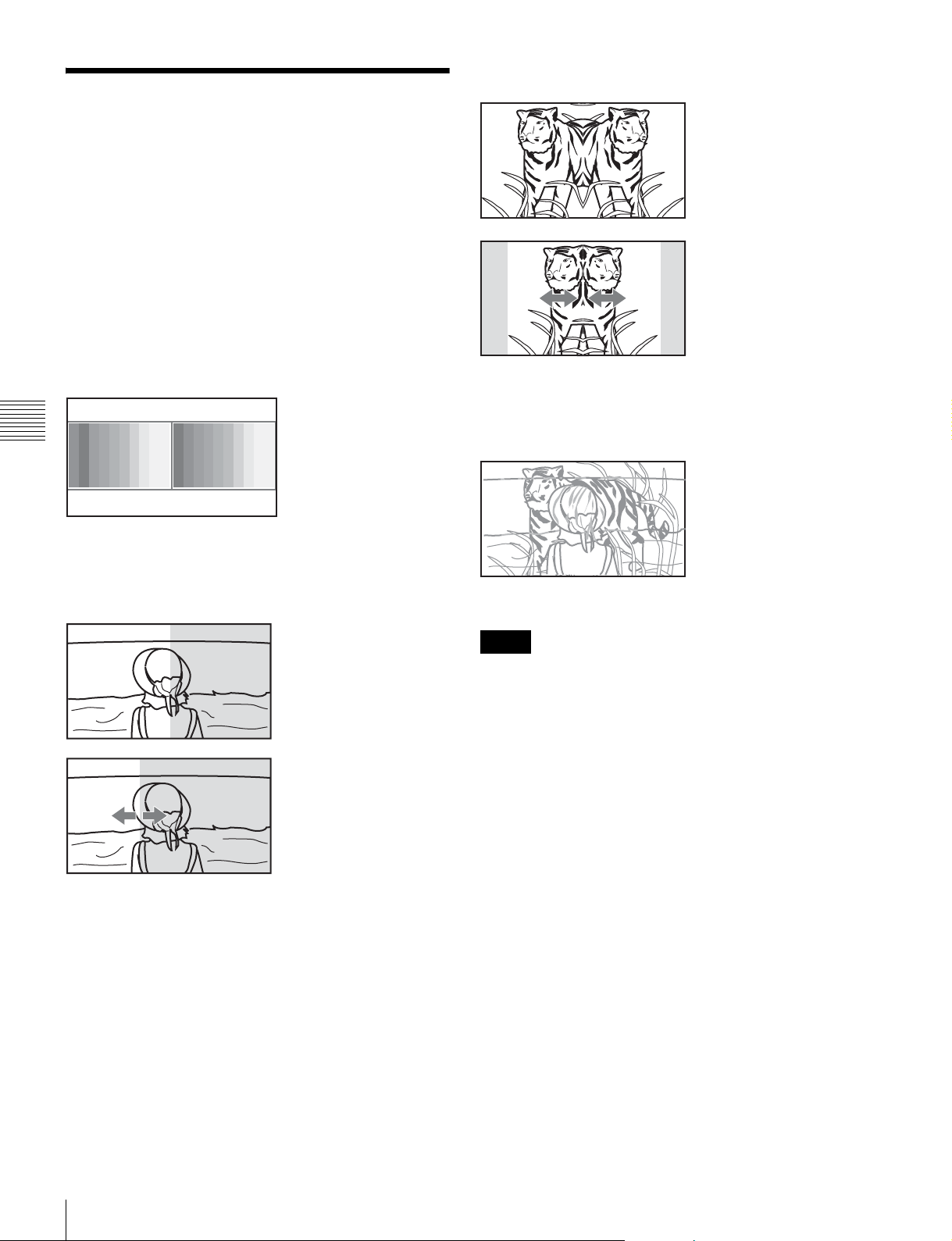

Displaying Two Signals on One Screen

(Picture&Picture).................................................... 88

Magnifying the Picture (Pixel Zoom)................................. 89

Displaying the Picture in Black Detail Mode .................... 90

Capturing the Picture of the HD Signal

(HD Frame Capture) ............................................... 91

Displaying the Area Marker or Aspect Marker ................. 92

Copying the Setting or Adjustment Value to Another

Monitor .................................................................... 93

Assigning the Function on the Function Button.............. 94

Upgrading the Monitor and Controller.............................. 94

Saving the upgrade data in a “Memory Stick PRO” ................94

Upgrading the monitor .............................................................95

Upgrading the controller........................................................... 95

Specifications...................................................................... 97

Input Signals and Adjustable/Setting Items..................... 99

Available Signal Systems................................................. 101

Available Signal Formats ................................................. 103

Aperture Modification Frequency.................................... 107

Picture Display Size.......................................................... 108

Picture·Frame Display ...................................................... 110

Matrix/Gamma Setting Table............................................ 112

Scan Mode Image.............................................................. 117

Troubleshooting................................................................ 120

Dimensions........................................................................ 122

Connection Cable Specifications for Color Temperature

Probes ................................................................... 124

Inserting/Ejecting the “Memory Stick” ........................... 126

Notes on “Memory Stick” ...................................................... 126

Menu Index 128

Table of Contents

Page 7

Chapter 1 Overview

Overview

Precautions

On Safety

• Operate the unit only with a power source as specified in the “Specifications” section.

• A nameplate indicating operating voltage, power consumption, etc., is located on the rear panel.

• Should any solid object or liquid fall into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.

• Do not drop or place heavy objects on the power cord. If the power cord is damaged, turn off the power immediately. It is dangerous to use the unit with a damaged power cord.

• Unplug the unit from the wall outlet if it is not to be used for several days or more.

• Disconnect the power cord from the AC outlet by grasping the plug, not by pulling the cord.

• The socket-outlet shall be installed near the equipment and shall be easily accessible.

Chapter

of pixels may be “stuck”, either always off (black), always on (red, green, or blue), or flashing. In addition, over a long period of use, because of the physical characteristics of the liquid crystal display, such “stuck” pixels may appear spontaneously. These problems are not a malfunction.

• Do not leave the LCD screen facing the sun as it can damage the LCD screen. Take care when you place the unit by a window.

• Do not push or scratch the LCD monitor’s screen. Do not place a heavy object on the LCD monitor’s screen. This may cause the screen to lose uniformity.

• If the unit is used in a cold place, horizontal lines or a residual image may appear on the screen. This is not a malfunction. When the monitor becomes warm, the screen returns to normal.

• If a fixed picture such as a frame of a divided picture or time code, or a still picture is displayed for a long time, an image may remain on the screen and be superimposed as a ghosting image.

• The screen and the cabinet become warm during operation. This is not a malfunction.

On Cleaning

On Installation

• Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation holes.

• Do not install the unit in a location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.

Handling the LCD Screen

• The LCD panel fitted to this unit is manufactured with high precision technology, giving a functioning pixel ratio of at least 99.99%. Thus a very small proportion

Before cleaning

Be sure to disconnect the AC power cord from the AC outlet.

On cleaning the monitor screen

The monitor screen surface is especially treated to reduce reflection of light. As incorrect maintenance may impair the performance of the monitor, take care with respect to the following:

• Wipe the screen gently with a soft cloth such as a cleaning cloth or glass cleaning cloth. If you wipe the screen using too much force, the screen surface may lose uniformity or the LCD panel may malfunction. Never use tissue as it may scar the surface of the screen.

• Stubborn stains may be removed with a soft cloth such as a cleaning cloth or glass cleaning cloth lightly dampened with water.

Precautions

Page 8

• Never use solvent such as alcohol, benzene or thinner, or acid, alkaline or abrasive detergent, or chemical cleaning cloth, as they will damage the screen surface.

On cleaning the cabinet

• Clean the cabinet gently with a soft dry cloth. Stubborn

Chapter 1 Overview

stains may be removed with a cloth lightly dampened with mild detergent solution, followed by wiping with a soft dry cloth.

• Use of alcohol, benzene, thinner or insecticide may damage the finish of the cabinet or remove the indications on the cabinet. Do not use these chemicals.

• If you rub on the cabinet with a stained cloth, the cabinet may be scratched.

• If the cabinet is in contact with a rubber or vinyl resin product for a long period of time, the finish of the cabinet may deteriorate or the coating may come off.

On Repacking

Do not throw away the carton and packing materials. They make an ideal container which to transport the unit.

On Rack Mounting

When the monitor is mounted on a rack, the temperature around the monitor may rise due to heat generated from other equipment and reduced air circulation, causing damage to the monitor. To prevent this, keep the space around the monitor (1U or more space above and below the monitor), and install a ventilation fan or take other effective countermeasures so that the temperature around the monitor is within the specified range: operating temperature range of 0 to 35 °C (32 to 95°F).

If you have any questions about this unit, please contact your Sony service representative.

Precautions

Page 9

Functions Supported in Software Version 1.3

Menu Supported function Reference page

User LUT (in the Color Gamut menu of the Display Setting menu)

Aspect Correction (in the Native Scan Mode menu of the Display Setting menu)

Peak White Control (in the Display Setting menu)

• Black Detail Setting (in the Display Function menu)

• Black Detail Mode (in the Function Switch menu of the Display Function menu)

Monitor Upgrade (in the System Configuration menu)

Controller Upgrade (in the Controller menu)

The user LUT data are applied as the setting of the color gamut (color space and gamma).

An SD signal of non-square pixels (the number of H pixels of the signal system is 720 or 1440) or a 640 × 480 SD signal of DVI video is displayed correctly by scaling processing of doubling for the V direction and correct aspect ratio for the H direction, and the picture is also optimized and displayed by modifying the aperture coefficient value, filter coefficient value, etc.

The signal gain is controlled automatically according to the setting value for brightness, to prevent clipping.

The display mode to reduce to dull black color by backlight leaking and assess any parts with low color gradation precisely (black detail mode display)

The monitor is upgraded. 75

The controller is upgraded. 83

59, 108

11, 65, 69, 90

Chapter 1 Overview

Functions Supported in Software Version 1.3

Page 10

Features

The BVM-L230 is 23-inch LCD Video Monitor. This is

Chapter 1 Overview

suitable for television stations or video production houses, where precise image reproduction is required.

The BVM-L230 features flat panel and “TRIMASTER*”, which is a new technology developed for three elements, “accurate color reproduction”, “precision imaging” and “quality picture consistency,” that are in demand for professional use. “TRIMASTER” decreases the viewing difference that occurs due to the individuality of each panel. Also, the BVM-L230 realizes the high picture quality and high-trust required for the master monitor by the color management system with its wide color gamut device, high-resolution/precise gradation display, animation improvement technology and signal processing of high accuracy/calibration/feedback system.

* TRIMASTER is a trademark of Sony Corporation.

23-inch LCD panel developed for the BVM-L230

The 23-inch (22.5 inch) LCD panel was developed for the BVM-L230 and supports the full HD signal. It offers a 10-bit driver, high-speed response, high resolution and high color gradation.

Backlight system by LED with high-purity technology

High-purity LEDs enable the wider color space. The precision backlight system also incorporates a uniformity control function and a color feedback system.

12-bit precision display engine for professional use

The panel is equipped with a unique signal process engine developed for the professional use monitor. This engine incorporates 12-bit output accuracy at each process, and provides a high-quality I/P conversion algorithm, scaling processing, panel driving and a highly accurate color management system.

The signal delay is decreased by judging the animation or still picture from the past video signal. Film cadence processing, which converts the signal composed of 2-2·23·2-3-3-2 pull down to the I/P signal closely following the original, is also selectable.

Interlace display mode

The interlace signal is displayed as the interlace picture by inserting the black line without I/P conversion processing. A picture faithful to the original signal and with the same feel as a CRT is gained.

For setting the display, see “Selecting Display Mode” on page 85.

Black frame insertion display mode

Motion blur caused by the holding-type display of the LCD is decreased by inserting the black frame between the picture frames in double frame rate (100/120Hz) operation of the LCD panel.

For setting the display, see “Selecting Display Mode” on page 85.

Available to a multi signal format

The monitor supports various input signals such as 720 × 576/50i to 1920 × 1080/50P, 60P, digital cinema (D-Cine) 2048 × 1080/24P and variable computer signals up to WUXGA (1920 × 1200). A DVI-D (HDCP correspondence) and four option slots are equipped as the interface and the monitor supports HD-SDI, SDI, RGB, YPbPr, Y/C, composite and Dual-link HD-SDI signal input.

HD frame capture function

The frame of the HD-SDI input signal is captured and saved as a picture file in the “Memory Stick”. This is used to confirm the color tone and picture angle of the current scene and recorded scene by using the multi display (Picture&Picture) function.

* As the frame of the input signal is captured, the data and

marker set by the monitor is not reflected.

Multi color space

A backlight system with high-precision technology and color management system which uses the unique 3D LUT (Look Up Table) reproduces the color space that complies with the broadcast standard ITU-R BT.709, EBU and SMPTE-C accurately. A wider color space* allows digital cinema reproductions.

* The RGB chromaticity of SMPTE RP 431-2 is not

covered in full.

High-quality I/P conversion processing

A high-quality picture near the original one, in which jagged lines and conversion errors are decreased by detecting the feature of the picture inside the subdivided block and processing properly, is reproduced.

Features

For the operation, see “Capturing the Picture of the HD Signal (HD Frame Capture)” on page 91.

Multi display function

Two kinds of input signals are output on the monitor. You can select from side by side, wipe, butterfly and blending mode. This is useful for adjusting the color or comparing two pictures.

For the operation, see “Displaying Two Signals on One Screen (Picture&Picture)” on page 88.

Page 11

Pixel zoom function

As part of the picture is magnified up to 8 times without scaling processing, this is convenient for confirming a minute part of the signal.

For the operation, see “Magnifying the Picture (Pixel Zoom)” on page 89.

Safe area marker and aspect marker functions

The monitor is equipped with two area markers and center marker as the safe area marker and aspect marker for confirming the picture angle.

For the operation, see “Displaying the Area Marker or Aspect Marker” on page 92.

Scan selection/Native scan display function

You can select from under scan (–3%), normal scan (0%) and over scan (mask of the 5% over scan portion in the normal scan) for the picture display. The monitor is equipped with a native scan display function which maps the pixel of the signal to the panel in one-to-one mode. You can select the mode from ×1, ×2 or Aspect Correction to display a signal in native mode. An SD signal of non-square pixels (the number of H pixels of the signal system is 720 or 1440) or a 640 × 480 SD signal of DVI video is displayed correctly by scaling processing of doubling for the V direction and correct aspect ratio for the H direction, and the picture is also optimized and displayed by modifying the aperture coefficient value, filter coefficient value, etc. in Aspect Correction mode.

For the operation, see “Selecting the Native Scan/Scan Mode” on page 87.

Gamut error function

The signal outside the specified range (gamut error) caused by the conversion of the format or during CG/CM production is displayed in a zebra pattern.

* When the aspect ratio is set to 2.39:1, the resolution is

reduced.

Remote control function (Ethernet control)

The controller controls up to 32 monitors by the Ethernet (10BASE-T/100BASE-TX) connection. Up to four controllers are connected to one monitor in single mode. You can control individual monitors or monitor groups simply by entering the monitor ID number or group ID number. You can also execute the same operation on all connected monitors, or put all connected monitors into the same setup and adjustment state.

Closed caption display function

EIA/CEA-608 or EIA/CEA-708 standard closed caption signals superimposed on the SDI signals are displayed by installing the optional input adaptor (BKM-244CC).

Variable picture adjustment functions

Auto chroma, phase and matrix adjustment function are equipped. The white balance is automatically adjusted by using a commercially available probe (Konica Minolta CA-210, DK-Technologies PM5639/06, X-Rite Eye-One Pro).

Other features

• The color temperature is selectable from D65, D93, D61, D56, D-Cine and User.

• Built-in test pattern for 100% white signal, 20% gray signal, 0% black signal, PLUGE (Picture Line Up Generation Equipment) signal, color-bar signal, 5 step gray scale signal and ramp signal.

• Chroma Up function that increases the chroma setting by 12 dB.

• Blue only function and RGB cut off function to monitor signal noise.

• A parallel remote of the contact point control connector is equipped.

Chapter 1 Overview

Black detail mode display function

You can reduce to dull black color by backlight leaking and precisely assess any parts with low color gradation. You can decrease the black level up to 40% of the normal display (100 cd/m

at 100% signal). The parts with high color gradation (higher than 75 IRE) are clipped by the dynamic range of the circuit, but a zebra pattern (selectable) is displayed in the clipped portions.

For the operation, see “Displaying the Picture in Black Detail Mode” on page 90.

Aspect selectable function

A squeezed and recorded signal is displayed with the correct angle. You can select from 4:3, 16:9, 1.896:1 and

2.39:1* aspect modes.

Features

Page 12

Options

For external control

Chapter 1 Overview

BKM-16R Monitor Control Unit

The BKM-16R is a controller of the BVM-L230 and you can control multiple monitors from one controller.

In this manual, the BKM-16R is referred to as the controller.

For installation

BKM-37H Controller Attachment Stand

Used to join a BKM-16R and the BVM-L230. When the stand is attached to the BVM-L230, you can adjust the monitor angle up or down.

SMF-700 Monitor Interface Cable

Used to connect the BVM-L230 to the BKM-16R.

BKM-23M Monitor Protection Panel

The BKM-23M is a panel to protect the LCD panel of the BVM-L230.

Note

The signal from the MONITOR OUT connector of the BKM-220D does not satisfy the ON-LINE signal specifications.

BKM-227W NTSC/PAL Input Adaptor

Includes a decoder for NTSC/PAL/PAL-M/SECAM signals. Input/output connectors for each one composite signal channel and Y/C signal channel are equipped.

BKM-229X Analog Component Input Adaptor

Includes a decoder for analog component signals and analog RGB signals. Input connector for one channel is equipped.

BKM-243HS HD/D1-SDI Input Adaptor

Includes a decoder for serial digital component signals. Input/output connectors for two serial digital channels and output connector for one monitor channel are equipped.

Note

The signal from the MONITOR OUT connector of the BKM-243HS does not satisfy the ON-LINE signal specifications.

Input adaptors

The input connector panel is composed by installing the optional input adaptor into the input option slot at the left side of the monitor. Up to four adaptors can be installed to the monitor. The input signal type for each connector of the adaptor is set with the Input Configuration menu, in accordance with the configuration of the connector panel.

Note

When installing the adaptor, be sure to perform the necessary input signal setup with the Input Configuration menu. If the setup is not performed, the adaptors may not function correctly.

For information about the Input Configuration menu, see page 51.

For details of each input adaptor, refer to the operating instructions of each model.

BKM-220D SDI 4:2:2 Input Adaptor

Includes a decoder for serial digital signals (525/625 component). Input/output connectors for two serial digital channels and output connector for one monitor channel are equipped.

BKM-244CC HD/SD-SDI Closed Caption Adaptor

Includes a decoder for serial digital component signals. EIA/CEA-608 or EIA/CEA-708 standard closed caption signals superimposed on the SDI signals are decoded and displayed. Input/output connectors for two serial digital channels and output connector for one monitor channel are equipped.

Note

The signal from the MONITOR OUT connector of the BKM-244CC does not satisfy the ON-LINE signal specifications.

Caution

When you install the following input adaptors to this equipment, use those with the serial numbers given below.

• BKM-220D with serial number 2100001 or higher

• BKM-229X with serial number 2200001 or higher

• BKM-243HS with serial number 2108355 or higher BKM-220D: This equipment may not meet the requirements of the electromagnetic interference standard if designated input adaptors are not installed. BKM-229X: This equipment may not work correctly or you may not be satisfied with the performance if designated input adaptors are not installed. BKM-243HS: This equipment may not meet the requirements of the electromagnetic interference standard or work correctly, or you may not be satisfied with the performance if designated input adaptors are not installed.

Options

Page 13

Input/Output Connector and Adaptor

By adding the optional input expansion adaptors, the input/ output connector panel can be assembled in a wide variety of configurations. The signals that each of the adaptors’ connectors supports are given in the following table. The type of signal to be applied to each input/output connector is set with the Input Configuration menu.

For information about the Input Configuration menu, see page 51.

Input adaptor BKM-

Input signal

Number of analog inputs – 1 1 –

a: Signal can be reproduced. a(2): Two adaptors are used.

220D

BKM227W

BKM229X

BKM243HS/ 244CC

For details, see “Available Signal Formats” on page 103.

Chapter 1 Overview

Input adaptor BKM-

Input signal

Component 525/ 625

Single-link HD-SDI a

input

Dual-link HD-SDI

Serial digital

Composite NTSC a Composite PAL a Composite PAL-M a

Composite SECAM

Y/C NTSC a Y/C PAL a Y/C PAL-M a Y/C SECAM a YPbPr 525i/625i a RGB 525i/625i a

YPbPr/RGB 1080/24PsF

YPbPr/RGB 1080/24P

YPbPr/RGB

Analog input

1080/50i (25PsF)

YPbPr/RGB 1080/25P

YPbPr/RGB 576/50P

YPbPr/RGB 480/60P

YPbPr/RGB 1080/60i (30PsF)

YPbPr/RGB 1080/30P

YPbPr/RGB 720/50P

YPbPr/RGB 720/60P

Number of digital inputs 2 – – 2

220D

BKM227W

BKM229X

BKM243HS/ 244CC

a(2)

Options

Page 14

Location and Function of Parts

Front Panel

Chapter 1 Overview

6 OPTION B

connector

1 Tally lamp

2 OPERATE lamp

5 OPTION A

connector

a Tally lamp

With factory settings, the tally lamp lights when pins No. 8 and No. 9 of the PARALLEL REMOTE connector on the left side panel are shorted. By changing the setting in the Parallel Remote menu, different pins on the PARALLEL REMOTE connector can be used to control the tally lamp.

For information about the Parallel Remote menu, see “Parallel Remote” (page 71) of the System Configuration Menu.

b OPERATE lamp

Lights in red when the monitor is in standby mode. The monitor will be in standby mode under the following conditions:

• Standby Mode is set to On in the Power menu of the System Configuration menu and the MAIN POWER switch (on the rear panel) is turned on. (The OPERATE lamp will flash for initialization after the switch is turned on, then will light.)

• The monitor is changed from operation mode to standby mode by external control.

Lights in green when the monitor is put into operation mode from standby mode by pressing the MONITOR I/1 switch of the controller.

For information about the Power menu, see “Power” (page 72) of the System Configuration Menu.

3 STATUS lamp

4 OVER RANGE lamp

Notes

• When the lamp is flashing in red, the monitor cannot be put into operation mode. (Internal data initialization is taking place.) Wait until the lamp is steadily lit.

• The lamp may show the error, warning or operation mode.

For details, see “Error/warning/operation mode display by the lamp” on page 15.

c STATUS lamp

Lights in blue when the gamut error is detected. Set the method to clear the error display with Notification Reset (page 64) in the Gamut Error Display menu of the Display Function menu.

Note

The lamp may show the error, warning or operation mode.

For details, see “Error/warning/operation mode display by the lamp” on page 15.

d OVER RANGE lamp

Lights in orange when the picture is displayed in black detail mode or when the dynamic range of the following item is exceeded.

Location and Function of Parts

Page 15

• Contrast (contrast) Flashes when the luminance is decreased to protect the monitor from a rise in temperature.

For details of the black detail mode display, see “Displaying the Picture in Black Detail Mode” on page

90.

OVER RANGE lamp

Goes out

STATUS lamp

Lights in blue

OPERATE lamp

Flashes in green

LED disconnection of the LED backlight part.

Warning/operation mode display

Symptoms

Chapter 1 Overview

Note

The lamp may show the error, warning or operation mode.

For details, see “Error/warning/operation mode display by the lamp” on page 15.

e OPTION A connector

Used to connect a probe for automatic adjustment.

f OPTION B connector

Used for future expansion. The cover is attached at the factory.

Error/warning/operation mode display by the lamp

The OVER RANGE lamp, STATUS lamp or OPERATE lamp on the front panel may show an error, warning or operation mode while the monitor is being operated.

Error display

If the error is shown, please contact your Sony representative.

OVER RANGE lamp

Flashes in orange

Lights in orange

–: Status except for error display.

STATUS lamp

OPERATE lamp

––

Symptoms

The luminance is reduced to protect the circuit from an increase of temperature in the LED backlight part. g Please contact your

Sony representative.

• The dynamic range of the LED backlight part is exceeded. g Please contact your

Sony representative.

• The dynamic range is exceeded when contrast is adjusted. g Reduce the contrast

setting.

• When the picture is displayed in black detail mode

OVER RANGE lamp

Lights in orange

Flashes in orange

Goes out

Lights in orange

Flashes in orange

STATUS lamp

Goes out

Lights in blue

Flashes in blue

Lights in blue

Goes out

OPERATE lamp

Flashes in red

Flashes in green

Flashes in red

Flashes in green

Symptoms

The power in the LED backlight part is overcurrent.

The power in the LED backlight part is overvoltage.

The LED temperature of the LED backlight part is unusual.

The LED driver temperature of the LED backlight part is unusual.

The temperature sensor is unusual.

The temperature of the LCD panel is unusual.

The RGB sensor of the LED backlight part is unusual.

Fan error.

Location and Function of Parts

Page 16

Rear Panel/Left Side Panel

Chapter 1 Overview

1 MAIN POWER switch

2 AC IN

connector

3 DC 5V OUT connector

4 LAN (10/100) connector

a MAIN POWER switch

When turned on (?), the monitor enters operation mode. By setting in Power menu of the System Configuration menu, the monitor can also be set to enter standby mode when the MAIN POWER switch is turned on.

For information about the Power menu, see “Power” (page 72) of the System Configuration Menu.

b AC IN connector (3-pin)

Connects the monitor to an AC power source, via the supplied AC power cord.

5 NETWORK switch

6 PARALLEL REMOTE connector

7 DVI-D connector

8 Input option slots

Connect to the DC 5V/12V IN connector of the controller with the SMF-700 or the cable supplied with the BKM37H.

CAUTION

DC 5V OUT connector (female) is non LPS (Limited Power Source) circuit.

ATTENTION Le connecteur DC 5V OUT (femelle) est un circuit non LPS (Limited Power Source, source d’alimentation limitée).

c DC 5V OUT connector (female)

Supplies the DC power to the controller.

Location and Function of Parts

d LAN (10/100) connector (10BASE-T/100BASE-TX)

Connect to the LAN (10/100) connector of the controller by using the SMF-700 or the cable supplied with the BKM-

Page 17

37H. Or connect to the network or the LAN (10/100) connector of the controller by using a 10BASE-T/ 100BASE-TX LAN cable (shielded-type, optional).

CAUTION

• For safety, do not connect the connector for peripheral device wiring that might have excessive voltage to this port. Follow the instructions for this port.

• When you connect the LAN cable of the unit to peripheral device, use a shielded-type cable to prevent malfunction due to radiation noise.

• To connect the monitor to the LAN (10/100) connector of the controller in 1 to 1 connection (NETWORK switch is set to PEER TO PEER), use a straight (shielded-type) cable.

• The connection speed may be affected by the network system.

ATTENTION

Par mesure de sécurité, ne raccordez pas le connecteur pour le câblage de périphériques pouvant avoir une tension excessive à ce port. Suivez les instructions pour ce port.

ACHTUNG

Aus Sicherheitsgründen nicht mit einem PeripheriegerätAnschluss verbinden, der zu starke Spannung für diese Buchse haben könnte. Folgen Sie den Anweisungen für diese Buchse.

e NETWORK switch LAN: To connect to the network. PEER TO PEER: To connect to the LAN (10/100)

connector of the controller in 1 to 1 connection.

f PARALLEL REMOTE connector (D-sub 9-pin,

female)

Forms a parallel switch and controls the monitor externally. The pin assignment and factory setting function assigned to each pin are given below.

Pin number Function

4 Selects whether monochrome image is

displayed or the monitor switches the display mode automatically between color image and monochrome image depending on the input signal (MONO button function).

5 Marker (set in the Marker Setting

6, 7 Not connected

8 Tally lamp On/Off

9Ground

menu) On/Off (MARKER button function).

All pin function assignments can be changed with the Parallel Remote menu.

For information about the Parallel Remote menu, see “Parallel Remote” (page 71) of the System Configuration Menu.

To switch each function between On and Off or between enable and disable, change pin connections in the following way.

On or enabled: Short each pin and pin 9 together. Off or disabled: Leave each pin open.

g DVI-D (digital DVI) input connector

Inputs DVI Rev.1.0 applicable Single-link digital RGB signal. To monitor the DVI signal of SXGA or higher resolution, use the cable within 3 m (118

/8 inches) in length.

h Input option slots

Used to install the optional input adaptors.

For installing the input adaptor, see page 19.

For the input signals, see “Input/Output Connector and Adaptor” on page 13.

Chapter 1 Overview

Pin number Function

1 Sets input signal channel 1 (numeric

keypad function).

2 Sets input signal channel 2 (numeric

keypad function).

3 Selects sync signal (SYNC button

function).

Location and Function of Parts

Page 18

Preparations

Chapter 2 Preparations

Chapter

Environments of the Installation Location

Illumination environments

The apparent color reproduction on the monitor is greatly affected by ambient light or glare. The LCD device controls the brightness by moving LCD molecules with the backlight always lit. For this reason, in a dark place, an LCD monitor screen shows very dim light leaks from the black image. We recommend that you adjust the ambient light and use in an environment that does not degrade the reproduction of black.

Viewing angle

The ideal viewing angle is within 5 degrees (up/down/left/ right) off the center of the monitor screen when the operator views the entire monitor screen. Keep the viewing angle within 15 degrees off the center of the monitor screen.

Environments of the Installation Location

Page 19

Installing an Input Adaptor

Each input adaptor can be installed in any input option slot on the side panel.

Board

Caution

When you install the following input adaptors to this equipment, use those with the serial numbers given below.

• BKM-220D with serial number 2100001 or higher

• BKM-229X with serial number 2200001 or higher

• BKM-243HS with serial number 2108355 or higher

BKM-220D: This equipment may not meet the requirements of the electromagnetic interference standard if designated input adaptors are not installed. BKM-229X: This equipment may not work correctly or you may not be satisfied with their performance if designated input adaptors are not installed. BKM-243HS: This equipment may not meet the requirements of the electromagnetic interference standard or work correctly, or you may not be satisfied with the performance if designated input adaptors are not installed.

Note

Turn off the MAIN POWER switch of the monitor and disconnect the AC power cord before installing or removing adaptors.

Loosen two screws and remove the cover of an input option slot on the side panel of the monitor.

Push the adaptor in until it is firmly fit into the connector inside the monitor, then tighten the two screws to secure the adaptor.

Chapter 2 Preparations

Make sure the MAIN POWER switch is turned off, and disconnect the AC power cord.

Insert the adaptor facing the board as shown below.

Cover of an input option slot

For Dual-link operation

Two BKM-243HS or BKM-244CC input adaptors are required. Install the input adaptors in OPTION 1 and 2 option slots, or OPTION 3 and 4 option slots.

To connect the cable

Input the Link A signal to OPTION 1 or 3, and the Link B signal to OPTION 2 or 4. Connect the cable to the same input number (both INPUT 1 or both INPUT 2) of the input adaptors installed in OPTION 1 and 2 option slots, or OPTION 3 and 4 option slots.

Installing an Input Adaptor

Page 20

Example of dual-link cable connection

INPUT 1

Attaching the Cable Holder

Chapter 2 Preparations

OPTION 3 and 4

OPTION 1 and 2

INPUT 2

INPUT 1

INPUT 2

The cables connected to the input adaptors can be gathered together in the supplied cable holder.

Remove the screw.

Attach the cable holder to the monitor with the removed screw.

Attaching the Cable Holder

Cable holder (supplied)

Page 21

Gather the cables together in the cable holder.

Changing the Aspect Ratio of the Screen

The 16:9 frame is installed at the factory. The aspect ratio can be switched from 16:9 to 16:10 by removing the 16:9 frame. To display the native scan picture (×2 mode) of the 576/50i signal, or whole picture of the UXGA or WUXGA signal, remove the 16:9 frame.

Remove the front frame.

Chapter 2 Preparations

Remove 10 screws and then remove the 16:9 frame.

Changing the Aspect Ratio of the Screen

Page 22

Replace the front frame by pressing it until it clicks.

Chapter 2 Preparations

Attaching the 16:9 frame

Remove the front frame.

Replace the 16:9 frame and secure it with 10 screws.

Replace the front frame by pressing it until it clicks.

Attaching the Bracket

You can prevent falling of the monitor by using the supplied bracket.

Remove three screws from the bracket.

Bracket (supplied)

Attach the bracket on the rear panel of the monitor with the three removed screws.

Attaching the Bracket

Page 23

Attach a piece of string, etc. to the bracket and secure it to the floor or wall.

Bracket

String, etc.

Connections

Note on connecting the cable to the DC 5V OUT connector

Be sure to plug the male connector of the cable into the DC 5V OUT connector of the monitor. Insert the connector so as to fit the shape of the DC 5V OUT connector.

Plug the male connector into the monitor.

Chapter 2 Preparations

Connections

Page 24

Connecting the Controller (BKM16R)

Monitor

PEER TO PEER

Chapter 2 Preparations

NETWORK

LAN

Set to PEER TO PEER.

LAN (10/100) connector

SMF-700, etc.

DC 5V OUT connector

Or connect the output cable of the AC adaptor supplied with the controller to the DC 5V/12V IN connector of the controller.

Connecting the Multiple Units with the LAN

The controller controls up to 32 monitors. Up to four controllers are connected to one monitor in single mode.

Note

The controller cannot control monitors in another subnetwork.

DC 5V/12V IN

Controller (BKM-16R)

Turn off the MAIN POWER switch of the monitor

connector

NETWORK

LAN

Set to PEER TO PEER.

PEER TO PEER

LAN (10/100) connector

before connecting the units.

Set the NETWORK switches of the monitor and the controller to PEER TO PEER.

Connect the LAN (10/100) connector of the monitor and the LAN (10/100) connector of the controller by using the SMF-700 or the cable supplied with the BKM-37H, or a 10BASE-T/100BASE-TX straight LAN cable (shielded-type, optional).

Note

When an optional LAN cable is connected, use a shielded-type cable to prevent a malfunction due to noises.

Connect the DC 5V OUT connector of the monitor and the DC 5V/12V IN connector of the controller by using the SMF-700 or the cable supplied with the BKM-37H.

Connections

Page 25

Monitor

NETWORK

Set to LAN.

LAN (10/100) connector

PEER TO PEER

LAN

Monitor

LAN (10/100) connector

of a straight/cross cable. When the switching hub without auto selection function is used, connect the monitor and switching hub with the straight cable, and the controller and switching hub with the cross cable.

Connect the output cable on the AC adaptor supplied with controller to the DC 5V/12V IN connector of the controller.

Note

When the multiple units are connected, set for the LAN before setting the NETWORK switch to LAN (page

28).

Set the NETWORK switches of each monitor and the controller to LAN.

Chapter 2 Preparations

AC adaptor (supplied with the BKM-16R)

Switching hub (recommended: with AUTO MDI/MDI-X function)

DC 5V/12V IN connector

Controller (BKM-16R)

NETWORK

LAN

Turn off the MAIN POWER switch of the monitor

PEER TO PEER

Set to LAN.

LAN (10/100) connector

before connecting the units.

Connect to the network by using a 10BASE-T/ 100BASE-TX cable (shielded-type, optional).

Notes

• When an optional LAN cable is connected, use a shielded-type cable to prevent a malfunction due to noises.

• We recommend to use an optional switching hub with auto selection function (AUTO MDI/MDI-X)

Connections

Page 26

Turning on the Power

Connecting the AC Power Cord

Plug the AC power cord into the AC IN connector on the rear panel. Then, attach the AC plug holder

Chapter 2 Preparations

(supplied) to the AC power cord.

AC power cord (supplied)

AC plug holder (supplied)

Attach the AC plug holder to the AC power cord, and connect the cord to the AC IN connector so that the cord does not come loose.

The warm-up time is more than 30 minutes, approximately.

When the monitor is in standby mode

As the OPERATE lamp lights in red in standby mode, press the MONITOR I/1 switch of the controller. The OPERATE lamp lights in green and the monitor enters operation mode.

Slide the AC plug holder over the cord until it locks.

To disconnect the AC power cord

Pull out the AC plug holder while pressing the lock levers.

Turning on the Monitor

Press the MAIN POWER switch on the rear panel to turn on the power. When you turn on the monitor for the first time after purchasing it, the Select Area screen is displayed. Select the area where you intend to use this monitor.

For selecting the area, see page 27.

Turning on the Power

Page 27

Settings

Selecting the Area

When you turn on the monitor for the first time after purchasing it, select the area where you intend to use this monitor from among the options. When the area is selected, the menu item settings suitable for the selected area are applied.

Default value for each area

1North America D65 7.5% Betacam

2Latin America

PAL& PAL-N Area

NTSC&PALM Area

3Africa

Australasia Europe Middle-East

4Asia Except

Japan

5Japan D93 0%

Argentina D65 0%

Paraguay D65 0%

Uruguay D65 0%

Other Area D65 7.5% Betacam

NTSC Area D65 7.5% Betacam

PAL Area D65 0%

Color Tem p

D65 0%

Setup Level

Component

Level

SMPTE/

EBU-N10

SMPTE/

EBU-N10

SMPTE/

EBU-N10

SMPTE/

EBU-N10

SMPTE/

EBU-N10

SMPTE/

EBU-N10

Color

Gamut

Emulation

BVM

SMPTE-C

BVM EBU

BVM

SMPTE-C

BVM EBU

BVM

SMPTE-C

BVM EBU

ENTER button

UP/DOWN buttons

Ent button

Turn on the monitor with the MAIN POWER switch.

The Select Area screen appears.

1 North America

Select Area

North America B

Latin America B Africa B Australasia B Europe B Middle-East B Asia Except Japan B Japan B

Press the UP or DOWN button of the controller to

2 Latin America 3 Africa

Australia/New Zealand

Europe/Russia

Middle East

4 Asia Except Japan 5 Japan

select the area where you intend to use the monitor and press the ENTER (Ent) button.

If you select either Latin America or Asia Except Japan, one of the following screens appears.

If 2 Latin America is selected:

Select Area

Latin America

PAL & PAL-N Area B

NTSC & PAL-M Area B

PAL&PAL-N area

NTSC&PAL-M area

Chapter 2 Preparations

Select PAL & PAL-N or NTSC & PAL-M and press the ENTER (Ent) button.

Settings

Page 28

If 4 Asia Except Japan is selected:

After saving and reflecting the setting, you can change the setting with the menu.

• Color Temp (color temperature) (page 53)

Select Area

Asia Except Japan

NTSC Area B

PAL Area B

NTSC area

PAL area

• Setup Level (NTSC Setup Level: page 55, Betacam Setup Level: page 55)

• Component Level (page 55)

• Color Gamut Emulation (page 57)

Setting for the LAN to Connect the

Chapter 2 Preparations

Customers who will use this monitor in the shaded areas shown in the map below should select NTSC Area. Other customers should select PAL Area. Then press the ENTER (Ent) button.

Multiple Units

You can control the multiple monitors using the controller connected via each LAN (10/100) connector. You can also control a specific monitor or monitor group.

Set an IP address to the monitors and the controller and a monitor ID number and group ID number to each monitor.

Set the NETWORK switches of each monitor and the controller to PEER TO PEER.

Confirm the settings.

Select Area

XXXXXXXXXX Color Temp: xx Setup Level: xx Component Level: xx

Color Gamut Emulation:

Cancel Confirm

PEER TO PEER

NETWORK

LAN

NETWORK

LAN

Set the different IP address to each monitor and the

PEER TO PEER

controller.

Monitor: Set the IP address in the Network Setting menu of the System Configuration menu (page 70). Controller: Set the IP address in the Network Setting menu of the Controller menu (page 80).

Cancel: Select to cancel the setting and return to the

Select Area screen.

Confirm: Select to save the setting and end selecting

the area.

See “Default value for each area” on page 27 on the

setting value.

Settings

Set Monitor ID and Group ID in the Network menu of the System Configuration menu (page 70).

Set the different monitor ID number to each monitor and if necessary, group ID number. You can use the numbers 1 to 99 as a monitor ID number or group ID number.

Page 29

Set the NETWORK switches of the monitor and the controller to LAN.

PEER TO PEER

NETWORK

LAN

NETWORK

LAN

PEER TO PEER

GROUP button: Selects group connection mode. The monitor of the designated group is connected remotely. The group ID number is displayed on all connected monitors when the button is held pressed. ALL button: Selects all connection mode. All monitors are connected remotely.

The lamp corresponding the pressed button flashes and lights after recognizing the monitor.

Select the monitor ID number for the single connection mode or group ID number for the group connection mode by pressing the UP/DOWN or numeric button.

Up to 99 is entered as the monitor ID or group ID number.

Press the ENTER or Ent button to confirm the setting.

The monitor ID number, group ID number or ALL is displayed in the display window.

Notes

Chapter 2 Preparations

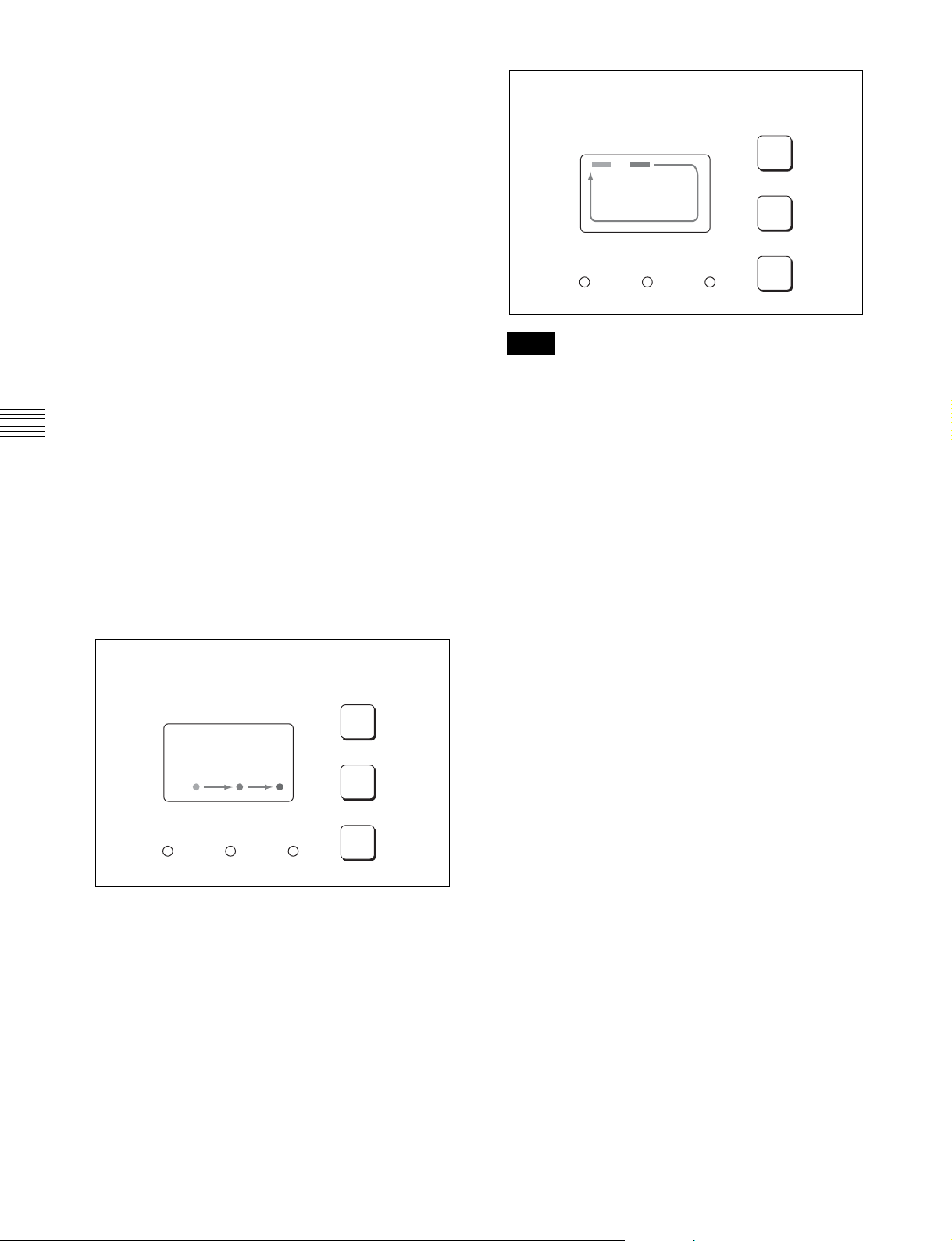

Selecting the Monitor (Designation of the Monitor or Group ID Number)

When the multiple monitors are connected by the network connections, you can remotely connect the monitors from the controller by designating the set monitor ID number or group ID number.

Display window

Lamp

• When the monitor with no assigned monitor ID number or group ID number is selected, the setting is not changed and the previous connection status is maintained.

• When there are monitors with the same ID number, the monitor with the lower IP address is selected.

• Even if a different monitor ID number is set to the monitors, when the same IP address is set to another monitor, the monitor cannot be connected to the network.

Assigning the Input Signal to the Channel

When you assign the input signal to the channel, you can select the channel and change the input signal by pressing the numeric button. The input signal is assigned to one of channels 1 to 30.

Press the corresponding button to select the connection mode.

SINGLE button: Selects single connection mode. The designated monitor is connected remotely. The monitor ID number is displayed on all connected monitors when the button is held pressed.

Settings

Page 30

Select the channel (CH1 to CH30) to be assigned by pressing the numeric button of the controller.

To assign to a channel number from 1 to 9, press the appropriate one-digit channel number on the numeric keypad. To assign to a channel number from 10 to 30, press the 0 button, then press the appropriate two-digit channel number.

Chapter 2 Preparations

Set the input signal for the selected channel in Input Configuration menu (page 51).

The required setting is different due to the input signal or picture quality to be displayed.

For details of the setting, see the Input Configuration menu (page 51).

Setting the Display Mode of the Picture

Set the display mode condition of the input signal to display on the screen. The setting items are following.

• Setting Matrix/Gamma (transmission matrix and transmission gamma)

• Selecting the color gamut (color space and gamma)

Set Matrix/Gamma in the Matrix/Gamma menu (page

53) of the Input Configuration menu.

Select the color gamut (color space and gamma) in the Emulation menu (page 57) of the Display Setting menu.

Adjusting

Before adjusting

The monitor must be warmed up sufficiently. To perform stable color reproduction, turn on the power of the monitor, display the white signal and leave it in this state for more than 30 minutes.

About monitor adjustment

The monitor is used as a measuring instrument and is required to faithfully reproduce the input signal. To measure the signal accurately, the monitor must be calibrated correctly using a reference signal. To calibrate, adjust the following items in sequence.

1 Chroma/phase adjustment

You can save the adjustment value in Preset1 to Preset5 and Preset (D-Cine). The data of Preset1 to Preset5 or Preset (D-Cine) is set to the channel in the Picture Preset menu (page 53) of the Input Configuration menu. Adjust the picture automatically with the auto chroma/ phase/matrix function for every signal format and signal system to display the composite signal or Y/C signal from the BKM-227W, or analog component signal or analog RGB signal from the BKM-229X. If the picture is not adjusted, the picture may not be displayed correctly.

2 Color Temperature (white balance) adjustment

You can adjust the data set to the channel in the Color Temp menu (page 53) of the Input Configuration menu. You can adjust D93, D65, D61, D56, D-Cine or User1 to User5 except for the XYZ format signal and D-Cine XYZ or User XYZ1 to User XYZ5 for the XYZ format signal.

3 Brightness/Contrast adjustment

Chroma/Phase Adjustment

Automatic adjustment (with auto chroma/phase/matrix function) is required for each signal format, signal system and matrix to display the composite or Y/C signal from the BKM-227W, or the analog component or analog RGB signal from the BKM-229X. As you can automatically adjust the chroma, phase, matrix and also 100% (white) and 0% (black) levels of the monitor to the same as those of the reference signal by performing

Adjusting

Page 31

the automatic adjustment, the automatic adjustment is also effective for the RGB signal. Perform the manual adjustment of chroma and phase to adjust them further after automatic adjustment or the digital signal from the BKM-220D, BKM-243HS or BKM244CC.

Set the BLUE ONLY button to off.

Color Temperature (White Balance) Adjustment

Automatic adjustment (recommended)

Input the reference color-bar signal to the monitor.

Select Auto in the Picture Adj menu of the Adjustment menu and perform the automatic adjustment of the chroma, phase and matrix in Auto Adjust (page 44).

Manual adjustment

The following is the example of the method to perform the manual adjustment of the chroma and phase.

Input the multi format color-bar signal or SMPTE color-bar signal to the monitor.

Set the BLUE ONLY button to on.

Red and green signals are cut, and only the blue signal is displayed as a monochrome picture.

The following is the example of the adjustment when the multi format color-bar signal is used.

Select the Manual Adjust menu (page 45) in the Picture Adj menu of the Adjustment menu and adjust the levels with the CHROMA or PHASE knob of the controller while tracking so that the brightness of bars “a” (Blue part) and “b” (75% White part) (in the following illustration) are the same.

For the composite and Y/C signals

Adjust the levels with the CHROMA and PHASE knob.

You can adjust manually or automatically with a specified color temperature probe.

Note

When the XYZ or DVI Computer signal is displayed, the color temperature cannot be adjusted automatically. Perform the manual adjustment of the color temperature.

Automatic adjustment

Use one of the following probes.

• Konica Minolta CA-210

• DK-Technologies PM5639/06

• X-Rite Eye-One Pro

Connect the color temperature probe.

For the cable to connect the color temperature probe, see page 124.

Select Auto Adjust (page 48) in the Color Temp Adj menu of the Adjustment menu and adjust the color temperature.

Manual adjustment

Select Manual Adjust (page 46) in Manual of the Color Temp Adj menu of the Adjustment menu.

Adjust the color as desired with the PHASE, CHROMA or BRIGHT knob.

Press the ENTER or Ent button.

Chapter 2 Preparations

For the component signal

Adjust the levels with the CHROMA knob.

b (75% White)

Press the ENTER or Ent button.

The adjusted data is confirmed.

Brightness/Contrast Adjustment

a (Blue)

As an image on a color video monitor is seen differently according to the ambient light (environmental brightness), adjust the brightness (black level) according to the ambient light and the black level of the image to be reproduced and adjust the contrast (white level) according to the ambient light. Adjust the brightness/contrast with an external reference signal of a multi format color-bar signal or SMPTE colorbar signal.

Adjusting

Page 32

Note

When the XYZ signal is displayed, the brightness cannot be adjusted.

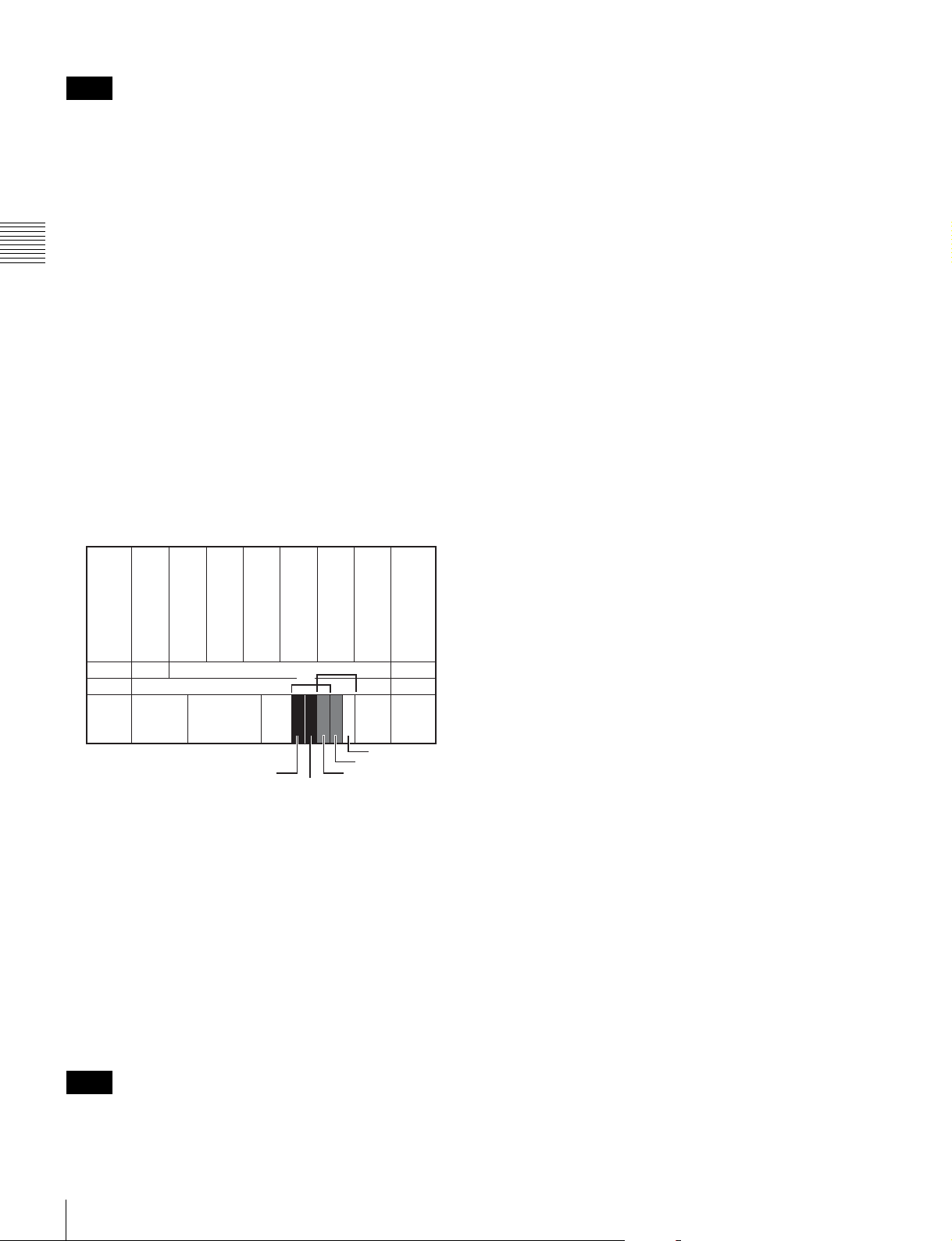

Input the multi format color-bar signal or SMPTE color-bar signal to the monitor.

The following are explained as the example when the multi format color-bar signal is used for adjustment.

Chapter 2 Preparations

Select the Manual Adjust menu (page 45) in the Picture Adj menu of the Adjustment menu.

Adjust the –2%, 0% and +2% ranges or the 0%, +2% and +4% ranges of the PLUGE signal section of the color-bar with the BRIGHT knob.

HD signal

Adjust so that the –2% and 0% ranges are seen as equal and the +2% and 0% ranges are more distinctive.

SD signal

Adjust so that the 0% and +2% ranges are seen as equal and the +2% and +4% ranges are more distinctive.

] (20 [cd/m2] in black frame insertion or interlace display mode) or higher, and the contrast is adjusted by the signal level for a picture of luminance lower than 40 [cd/

] (20 [cd/m2] in black frame insertion or interlace display mode).

+4%

+2%-2%

Adjust so that the luminance of the 100% white signal of the color-bar is set to the desired value with the CONTRAST knob.

We recommend adjusting the luminance to 100 [cd/

] when Preset1 to Preset5 is selected in the Picture

Preset menu of the Input Configuration menu and to 48

[cd/m

] when Preset (D-Cine) is selected in the Picture

Preset menu of the Input Configuration menu.

As the brightness and contrast adjustments affect each other, repeat the adjustments of step 3 and 4.

Note

When the contrast of this unit is adjusted, the luminance of the backlight is adjusted for a picture of luminance 40 [cd/

Adjusting

Page 33

Basic Menu Operations

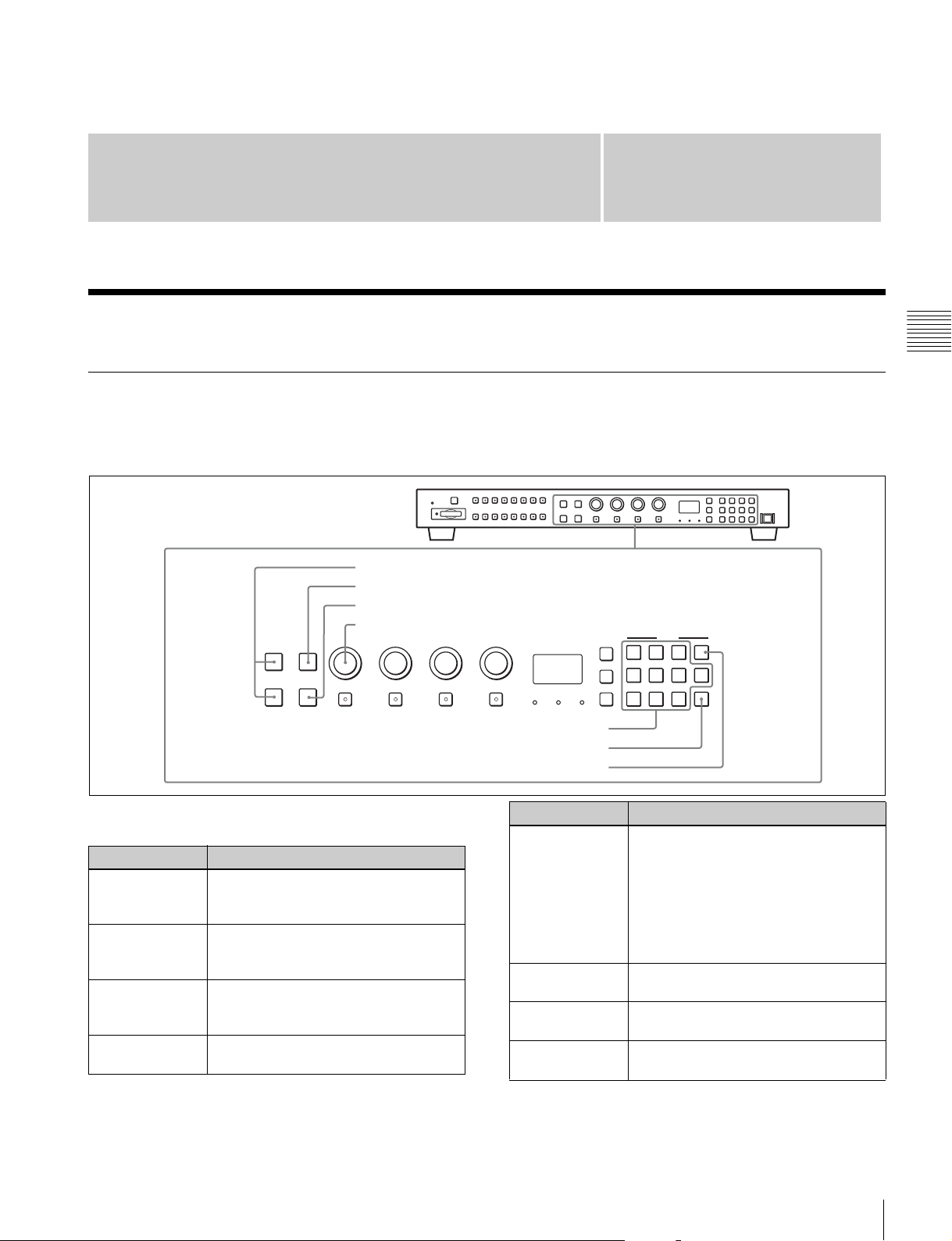

Menu Operation Buttons

The menu is operated using the menu operation buttons on the controller (BKM-16R, optional).

Controller (BKM-16R)

1 UP/DOWN buttons 2 MENU button 3 ENTER button 4 PHASE knob

UP MENU

DOWN

PHASE

ENTER

MANUAL MANUAL MANUAL MANUAL

CHROMA

BRIGHT

CONTRAST

SINGLE

GROUP ALL

Chapter

REMOTE

SINGLE

GROUP

ALL

INPUT

Chapter 3 Menu

Del

Ent

The functions of the menu operation buttons are described below.

Button Function

1 UP button

1 DOWN button

2 MENU button

3 ENTER

button

Moves the cursor upward. In setting mode, increases the setting or adjustment value.

Moves the cursor downward. In setting mode, decreases the setting or adjustment value.

Displays the menu. Goes back to the menu of the upper level. (On the main menu, goes back to the normal picture.)

Changes the item. In setting mode, confirms the adjustment or setting value.

5 Numeric buttons

6 Ent button

7 Del button

Button Function

4 PHASE knob

5 Numeric

buttons

6 Ent button

7 Del button

By turning this knob clockwise, the cursor moves upward. In setting mode, increases the setting or adjustment value (has the same function as UP button). By turning this knob counterclockwise, the cursor moves downward. In setting mode, decreases the setting or adjustment value (has the same function as DOWN button).

Enters the numerical values.

Changes the item. In setting mode, confirms the adjustment or setting value.

Deletes the values and characters entered.

Basic Menu Operations

Page 34

Displaying the Menu

The current settings are displayed in place of the x marks on the illustrations of the menu screen.

Press the MENU button. The main menu is displayed on the screen.

Adjustment B

Input Configuration B Display Setting B Display Function B System ConfigurationB File Management B Status B Controller B

Key Protect: xxx

Chapter 3 Menu

When you select one item on the main menu, the level 1 menu of the selected item appears.

For the items on the menu, see “Menu Structure” on page

37.

Notes

• Menu items displayed in gray cannot be selected.

• This menu is not displayed when Pixel Zoom is set to on.

Setting or Adjusting in the Menu Operation

Press the MENU button.

The main menu is displayed.

iInput Configuration 1/2 CH01

Format B

Slot No: xxxxx Input No: xxxxx Screen Aspect B Sync Mode: xxx

Color Temp: xxx Picture Preset: xxxxx Matrix/Gamma B

Repeat steps 2 and 3 until the desired menu is

v V

displayed.

For more information about setting and adjustments, see below.

Display example

Indicates that

iInput Configuration 1/2 CH01

Format B

Slot No: xxxxx Input No: xxxxx Screen Aspect B Sync Mode: xxx

Color Temp: xxx Picture Preset: xxxxx Matrix/Gamma B

the menu continues onto next page.

Chooses the setting value.

Indicates that this item has sub-list. You can go to the lower level.

Using the UP or DOWN button or PHASE knob, select the desired item. (Example: select the Input Configuration menu by pressing the DOWN button.)

Press the ENTER or Ent button.

The level 1 of the selected menu is displayed.

Basic Menu Operations

Adjustment B

Input Configuration B

Display Setting B Display Function B System ConfigurationB File Management B Status B Controller B

Key Protect: xxx

Indicates that the menu is continued from

iInput Configuration 2/2 CH01 H Shift Offset: xxx

Channel Name B

NTSC Setup Level:: xx Component Level: xxxxx

Betacam Setup Level::

RGB Range: B 1080I/PsF B

Film Cadence::

Copy From B

xxx

previous page.

Enters numerical values.

Choosing the setting value

The method for selecting the value is different due to the menu item.

• Selecting in setting mode

• Selecting from the setting list

Page 35

When selecting in setting mode

Using the UP or DOWN button or PHASE knob, select the desired item and press the ENTER or Ent button.

The cursor moves to the setting value and the monitor enters in setting mode.

Display example

The cursor moves to the setting value and the monitor enters in setting mode.

Display example

iInput Configuration 1/2 CH01 Format B Slot No: xxxxx Input No: xxxxx Screen Aspect B Sync Mode: xxx

Color Temp: xxx Picture Preset: xxxxx Matrix/Gamma B

Set: ENTER Cancel: MENU

Using the UP or DOWN button or PHASE knob, select

v V

Cursor

the setting value.

Press the ENTER or Ent button.

The setting is confirmed and the cursor returns to the item.

iInput Configuration 2/2 CH01 H Shift Offset: xxx Channel Name B NTSC Setup Level:: xx Component Level: xxxxx

Betacam Setup Level::

RGB Range: B 1080I/PsF B

Film Cadence::

Copy From B

Select the value in one of the following three ways:

xxx

Set: ENTER Cancel: MENU

v V

• Enter the value directly using the numeric buttons and press the ENTER or Ent button. (only the item whose the value of setting range is over 0)

• Select the value using the UP or DOWN button.

• Select the value using the PHASE knob.

Press the ENTER or Ent button.

The setting is confirmed and the cursor returns to the item.

Chapter 3 Menu

When selecting from the setting list

Using the UP or DOWN button or PHASE knob, select the desired item in the setting list.

Display example

iiiParallel Remote 1/4 1 Pin CH: 01

---

Under Scan

Over Scan Native Scan 16 : 9 H Delay V Delay External Sync Comb

Press the ENTER or Ent button.

v V

The setting is confirmed and the display returns to the menu of the upper level.

Entering characters

Using the UP or DOWN button or PHASE knob, select New Name or the existing name.

The “---“ means that one or more characters can be entered in sequence after the existing name.

Press the ENTER or Ent button.

Using the UP or DOWN button or PHASE knob, select the characters that you wish to enter.

Display example

iiChannel Name CH01

PROG___

EDIT___ CAM___ VTR___ PREV___

New Name

Entering numerical values

Using the UP or DOWN button or PHASE knob, select the desired item and press the ENTER or Ent button.

Basic Menu Operations

Page 36

When you press the UP button or turn the PHASE knob clockwise, the characters and symbols appear in the sequence shown below.

Capital letters (A t B t ....... t Y t Z) t Lower-

case letters (a t b t ....... t y t z) t Numbers (0

t 1 t ....... t 8 t 9) t Marks t Capital

letters...

094: Five-step gray scale signal 095: Ramp signal 096: color-bar signal 097: 0% black signal

To cancel the internal signal, select one from the channel numbers 1 to 30.

Chapter 3 Menu

When you press the DOWN button or turn the PHASE knob counterclockwise, the characters and symbols appear in the reverse sequence described above. The usable symbols are limited depending on the menu. “(space)” is not used as a first character of a sentence.

Press the ENTER or Ent button.

The selected character is entered.

Display example

iiChannel Name CH01

PROG___

EDIT___ CAM___ VTR___ PREV___

New Name

Note

You cannot select channel numbers 91 to 97 in the following cases:

• When the XYZ or DVI Computer format signal is input

• When Side by Side is set to On

• When Wipe is set to On

• When Butterfly is set to On

• When Blending is set to On

• When Pixel Zoom is set to on

Aborting Menu Operation

Press the MENU button. The menu of the upper level is displayed. When the MENU button is pressed in setting mode or during adjustment, the menu returns to the previous setting.

Repeat steps 3 and 4 until all the characters are entered, then press the ENTER or Ent button.

The selected characters are confirmed and the display returns to the menu of the upper level.

To correct the entered character

Press the Del button. The character on the left side of the cursor is deleted.

Entering the Channel Number

When selecting a one-digit number, press the button of the channel number. When selecting a two-digit number, first press the 0 button, then press a two-digit channel number.

Channel numbers 91 to 97 assignment

The signal systems to which the internal signal is displayed are assigned to channel numbers 91 to 97. The internal signal of the last signal system is displayed.

091: PLUGE signal 092: 20% gray signal 093: 100% white signal

Basic Menu Operations

Page 37

Menu Structure

For details of each menu, see the page in parentheses.

Adjustment menu (page 44)

Main menu Level 1 Level 2 Level 3 Level 4

Adjustment Picture Adj Auto Auto Adjust Color Bar Restore Factory Data Status Slot No Format Matrix Manual Adjust Copy From Preset Value Other Monitor Monitor ID Memory Stick

Color Temp Adj Manual Manual Adjust Original Value Signal Contrast Hold

Auto Auto Adjust Target Color Temp x y Target Luminance Probe Contrast Hold

Copy From Preset Value Other Monitor Monitor ID Memory Stick

Restore Factory Data

Position Adj H Shift V Shift

Chapter 3 Menu

Menu Structure

Page 38

Input Configuration menu (page 51)

Main menu Level 1 Level 2 Level 3 Level 4

Input Configuration Format SDI/HD-SDI Dual Link HD-SDI Composite YC Component DVI Slot No Input No Screen Aspect HD Sync Mode SD DC 2048 × 1080 Color Temp Picture Preset

Matrix/Gamma HD H Shift Offset SD

Chapter 3 Menu

DC 2048 × 1080 RGB DC 2048 × 1080 XYZ DVI Computer

Channel Name NTSC Setup Level Component Level Betacam Setup Level RGB Range DVI Video DVI Computer

1080I/PsF 24PsF 25PsF/50I 30PsF/60I Film Cadence Copy From Other CH Other Monitor Monitor ID Memory Stick

Display Setting menu (page 57)

Main menu Level 1 Level 2 Level 3 Level 4

Display Setting Color Gamut Emulation User LUT User LUT Data File Emulation Load LUT Delete LUT

User Matrix/Gamma User Data Matrix Gamma Copy From Preset Value Other Monitor Monitor ID Memory Stick

Native Scan Mode

Aperture Value

NTSC Comb Filter

Filter Switch

Peak White Control

Menu Structure

Page 39

Display Function menu (page 60)

Main menu Level 1 Level 2 Level 3 Level 4

Display Function Marker Setting Marker Preset Aspect Blanking Aspect Blanking Mode

Aspect Marker Aspect Marker Aspect Mode Aspect Line Color Bright

Area Marker 1 Area Marker 1 Aspect Mode Aspect Area Size Width Height Mode Line Color Bright

Area Marker 2 Area Marker 2 Aspect Mode Aspect Area Size Width Height Mode Line Color Bright

Center Marker Center Marker Mode Color Bright H Position V Position Copy From Preset Value Other Monitor Monitor ID Memory Stick

P&P Setting Side by Side Line Display Line Color Line Bright

Wipe Line Display Line Color Line Bright Position

Butterfly Line Display Line Color Line Bright Position

Blending Blending Ratio

Pixel Zoom Setting Line Color

Chapter 3 Menu

Menu Structure

Page 40

Chapter 3 Menu

Main menu Level 1 Level 2 Level 3 Level 4

Gamut Error Display Gamut Error Display Notification Notification Reset Input Detection Detection Pixel Threshold Signal Level D1/HD-SDI YPbPr 10bit Upper Limit Y/Pb/Pr Lower Limit Y/Pb/Pr

HD-SDI RGB 10bit Upper Limit G/B/R Lower Limit G/B/R

HD-SDI YPbPr 12bit Upper Limit Y/Pb/Pr Lower Limit Y/Pb/Pr

HD-SDI RGB 12bit Upper Limit G/B/R Lower Limit G/B/R Post-Process Detection Detection Pixel Threshold Signal Level Upper Limit Lower Limit Zebra Pattern Line Modulation

Black Detail Setting Clip Indicator Zebra Pattern Line Modulation

Capture Load Rename Delete

Internal Signal

Function Switch Scan Mode Native Scan 16:9 H Delay V Delay External Sync Comb Aperture Mono Blue Only R Off G Off B Off Chroma Up Black Frame Insertion Interlace Marker Aspect Marker Area Marker 1 Area Marker 2 Side by Side Wipe Butterfly Blending Error Notify Clear Black Detail Mode

Menu Structure

Page 41

System Configuration menu (page 70)

Main menu Level 1 Level 2 Level 3 Level 4

System Configuration Network Monitor ID Group ID Network Setting IP Address Subnet Mask Default Gateway Address

SNMP Setting Contact Name Location Trap Mode Trap Address Setting Trap Address Status Reset Mode/Address Community Authentication

Protocol Setting SDCP/SDAP Community SDCP Port No SDAP Port No SDAP Broadcast SDAP Broadcast Period Acceptable IP Address Reset Protocol Setting

Parallel Remote Parallel Remote 1 Pin - 8 Pin

Power Standby Mode Power On Status Default CH

On Screen Set Input Information Format Position CH No Position CH Name Position Scan Mode Position

Closed Caption Closed Caption Type Service 708 Service 608 OSD Level

Password Change Password Apply Password Adjustment Input Configuration Display Setting Display Function System Configuration Individual Item Network Parallel Remote File Management Power Controller On Screen Set Key Protect Date/Time Scan Mode Skip

Date/Time

Scan Mode Skip

Monitor Upgrade Software Upgrade Kernel Upgrade FPGA Upgrade Maintenance

Chapter 3 Menu

Menu Structure

Page 42

File Management menu (page 76)

Main menu Level 1 Level 2 Level 3 Level 4

File Management Save To Memory Stick

Copy From Other Monitor Monitor ID Memory Stick

Delete Memory Stick

Data Maintenance Back Up System Data Restore System Data

Chapter 3 Menu

Status menu (page 78)

Main menu Level 1 Level 2 Level 3 Level 4

Status CH Status Slot Status Option1-Option4 Model Name Serial No

Model Name Serial No Software Version Operation Time Backlight Network Switch Controller Status Model Name Serial No Software Version Network Switch

Menu Structure

Page 43

Controller menu (page 80) / Key Protect menu (page 84)

Main menu Level 1 Level 2 Level 3 Level 4

Controller Network Network Setting IP Address Subnet Mask Default Gateway Address

SNMP Setting Contact Name Location Trap Mode Trap Address Setting Trap Address Status Reset Mode/Address Authentication Community

Protocol Setting SDCP/SDAP Community SDCP Port No SDAP Port No SDAP Broadcast SDAP Broadcast Period Reset Protocol Setting Function Key F1 - F16

Monitor ID Display

Controller Upgrade Software Upgrade Kernel Upgrade

Key Protect

Chapter 3 Menu

Menu Structure

Page 44

Adjustment Menu

Overview

Adjusts the picture, color temperature, etc. When Adjustment is selected, the following menu is displayed.

Note

This menu is not selectable in the following cases:

• When Side by Side is set to On

iAdjustment

Picture Adj B

Color Temp Adj B

Chapter 3 Menu

Position Adj B

• When Wipe is set to On

• When Butterfly is set to On

• When Blending is set to On

Menu Function and Operation

Menu Function and operation ([ ]: factory setting)

Picture Adj Adjusts the chroma, phase, matrix and signal level automatically and contrast, brightness,

chroma and phase to set the preset value to picture adjustment preset data.

When the item is selected, the picture adjustment preset data to be set is displayed. To change the picture adjustment preset data to be adjusted, you can select from Preset1, Preset2, Preset3, Preset4, Preset5 and Preset (D-Cine) in the Picture Preset menu of the Input Configuration menu.

For information about the Input Configuration menu, see page 51.

Auto Sets the automatic adjustment of chroma, phase, matrix and signal level.

When the item is selected, the selected preset data is displayed. You can select this item when the composite or Y/C signal from the BKM-227W, or the analog component or analog RGB signal from the BKM-229X is displayed.

Note

This menu is not selectable when the internal signal or captured frame is displayed.

Auto Adjust Starts automatic adjustment. (It may take some time until the automatic adjustment is

completed.) An external color-bar signal for the reference is necessary for automatic adjustment (page

45). The chroma data is reset to the default setting [1000]. The phase data is reset to the default setting [000].

Note

When the analog component signal or analog RGB signal is input, adjust the picture position in the Position Adj menu (page 50) to perform the automatic adjustment in the Auto Adjust menu. When the picture position does not fit, the adjustment will not be performed correctly and this may cause a malfunction.

To cancel adjustment

Press the MENU button.

Adjustment Menu

Page 45

Menu Function and operation ([ ]: factory setting)

Color Bar Sets the color-bar signal to input.

[Full Field 8]: 100% full-field 8-color bars (white, yellow, cyan, green, magenta, red, blue and black)

Picture Adj

Restore Factory Data Resets the automatic adjustment data of chroma, phase, matrix and signal level to the default

Status Displays the status of the automatic adjustment data of the chroma, phase, matrix and signal

Slot No Displays the input option slot number of the automatic adjustment data to be adjusted.

Format Displays the signal format and signal system of the automatic adjustment data to be adjusted.

Matrix Displays the matrix of the automatic adjustment data to be adjusted.

Manual Adjust Adjusts values by turning the PHASE, CHROMA, BRIGHT, and/or CONTRAST knobs. After

Copy From Copies picture adjustment preset data.

Preset Value Copies other data in this monitor.

Other Monitor Copies data from another monitor.

Monitor ID Enter the ID number of the source monitor.

Memory Stick Copies data in the “Memory Stick”.

SMPTE: SMPTE standard color bars EIA: EIA standard color bars (effective for 480/60i and 575/50i signals only) Multi Format: Color bars standardized by SMPTE RP219/ARIB STD-B28

setting. You cannot select this when the setting is the default value. The following message appears.

Restore factory data?

OK: To reset the data, press the ENTER (Ent) button. Cancel: To cancel, press the MENU button.

level to be adjusted.

Not Adjusted: Displays when the data is not adjusted. Adjusted: Displays when the data is adjusted.

adjustment, press the ENTER (Ent) button to confirm the adjusted values.

Phase: –150 to +150 [000] Chroma: 0000 to 2000 [1000] Bright: –500 to +500 [000] Contrast: 0000 to 2500 [1000] (for Preset1 to Preset5), [0480] (for Preset (D-Cine))

To display no characters on the screen while adjusting manually

Set the CHAR OFF button to on. The characters disappear. To display characters, set the CHAR OFF button to off.

To reset the setting to the default

Press the corresponding MANUAL button. The adjusted value is reset to the default.

To cancel adjustment

Press the MENU button. The adjustment data is cleared.

To confirm adjustment

Press the ENTER (Ent) button.

Note

Automatic adjustment data is not copied.

When the item is selected, you can select from Preset1, Preset2, Preset3, Preset4, Preset5 or Preset (D-Cine).

When the NETWORK switch is set to PEER TO PEER, this is not selectable. When the ID number is entered, you can select from Preset1, Preset2, Preset3, Preset4,

Preset5 or Preset (D-Cine).

When the item is selected, the file names in the source “Memory Stick” are displayed. When the file is selected, you can select from Preset1, Preset2, Preset3, Preset4, Preset5

or Preset (D-Cine).

Chapter 3 Menu

Adjustment Menu

Page 46

Menu Function and operation ([ ]: factory setting)

Color Temp Adj Adjusts the color temperature.

When the item is selected, the color temperature data to be adjusted is displayed.

Except for the XYZ format signal

When D93, D65, D61, D56 or D-Cine data is changed, they are displayed as D93*, D65*, D61*, D56* or D-Cine*. To change the color temperature data to be adjusted, select D93, D65, D61, D56, D-Cine, User1, User2, User3, User4 or User5 in the Color Temp menu of the Input Configuration menu.

For the XYZ format signal

When D-Cine XYZ data is changed, it is displayed as D-Cine XYZ*. To change the color temperature data to be adjusted, select D-Cine XYZ, User XYZ1, User XYZ2, User XYZ3, User XYZ4 or User XYZ5 in the Color Temp menu of the Input Configuration menu.

Chapter 3 Menu

Manual Adjusts the color temperature manually.

Manual Adjust Adjusts the color temperature with the adjustment knob.

For information about the Input Configuration menu, see page 51.

When the item is selected, the color temperature data to be set is displayed.

Except for the XYZ format signal

When D93, D65, D61, D56 or D-Cine data is changed, they are displayed as D93*, D65*, D61*, D56* or D-Cine*.

For the XYZ format signal

When D-Cine XYZ data is changed, it is displayed as D-Cine XYZ*.

When Contrast Hold is set to Off, the color temperature data and contrast data are displayed. The contrast data is displayed as the picture preset data Preset1 to Preset5 or Preset (DCine) set in Picture Preset of the Input Configuration menu, or MANUAL. To change the displayed data from the picture preset data to MANUAL, set the MANUAL button of CONTRAST to on. To change the displayed data from MANUAL to the picture preset data, set the MANUAL button of CONTRAST to off. To change the type of the picture preset data, select from Preset1 to Preset5 or Preset (D-Cine) in the Picture Preset menu of the Input Configuration menu.

For information about the Input Configuration menu, see page 51.

Note

This menu is not selectable when the contrast is set to less than 400.

When the item is selected, the color temperature adjustment display appears and the x and y values of the color temperature data to be adjusted are displayed.

Note

The displayed chromaticity coordinates x and y are reference values and are not guaranteed as absolute values.

When Contrast Hold is set to On, the adjustable item and the relevant knobs are as follows.

To adjust Red (red): BRIGHT knob To adjust Green (green): CHROMA knob To adjust Blue (blue): PHASE knob

When Contrast Hold is set to Off, the adjustable item and the relevant knobs are as follows.

To adjust Red (red): BRIGHT knob To adjust Green (green): CHROMA knob To adjust Blue (blue): PHASE knob To adjust Contrast (contrast): CONTRAST knob

Adjustment Menu

Page 47

Menu Function and operation ([ ]: factory setting)

To hide the characters on the monitor during manual adjustment

Set the CHAR OFF button of the controller to on. As the characters on the display are hidden, it becomes easy to adjust the picture. To display the characters, set the CHAR OFF button to off.

To reset Red, Green and Blue to the value before adjustment

Color Temp Adj

Original Value Sets the initial value.

Signal Sets the white signal to be used for adjustment.

Contrast Hold Sets whether or not to adjust the color temperature and contrast (backlight) at the same time.

Auto Adjusts the color temperature automatically by using an optional probe.

Press the MANUAL button of BRIGHT, CHROMA or PHASE. The Red, Green and Blue are reset to the value before adjustment.

To reset Contrast to the value before adjustment

Press the MANUAL button of CONTRAST.

Note

You cannot reset the setting after you press the ENTER (Ent) button.

To cancel adjustment

Press the MENU button. The adjustment data is cleared and the setting returns to the previous value.

To confirm adjustment

Press the ENTER (Ent) button.

Except for the XYZ format signal

You can select from D93, D65, D61, D56, D-Cine, User1, User2, User3, User4 or User5. When D93, D65, D61, D56 or D-Cine data is changed, they are displayed as D93*, D65*, D61*, D56* or D-Cine*.

For the XYZ format signal You can select from D-Cine XYZ, User XYZ1, User XYZ2, User XYZ3, User XYZ4 or User XYZ5.

When D-Cine XYZ data is changed, it is displayed as D-Cine XYZ*.

Internal: Select when an internal signal is used. The signal is automatically switched to the 100% white signal.

[External]: Select when an external input signal is used. Supply the 100% white signal.

Note

When the signal format set in the Format menu of the Input Configuration menu is 4:4:4 XYZ 12bit or DVI Computer, this menu is not selectable. Input the 100% white signal.

Off: Contrast is adjusted. [On]: Contrast is not adjusted.

When the item is selected, the color temperature data to be adjusted is displayed. When D93, D65, D61, D56 or D-Cine data is changed, they are displayed as D93*, D65*, D61*, D56* or D-Cine*.

For information about the Input Configuration menu, see page 51.

Chapter 3 Menu

Adjustment Menu

Page 48

Menu Function and operation ([ ]: factory setting)

Auto Adjust Starts adjustment.

Note

This menu is not selectable in the following case:

• When 4:4:4 XYZ 12bit or DVI Computer is selected in the Format menu of the Input Configuration menu

Color Temp Adj

Chapter 3 Menu

Target Color Temp Sets the adjustment value to be used from D93, D65, D61, D56, D-Cine or Any.

x Enters the CIE color system x coordinate.

y Enters the CIE color system y coordinate.

Target Luminance Enters the luminance (cd/m

Probe Selects the probe to be used for automatic adjustment of the color temperature.

Before automatic adjustment, select the value to use for the adjustment in following sequence. When you use the previously adjusted values for adjustment, select Auto Adjust to start adjustment without performing step 1, step 2 and step 3.

1 Select the color temperature to be used in Target Color Temp.

When Any is selected, enter the values of the CIE color system x and y coordinates.

2 When Contrast Hold is set to Off, select Target Luminance and enter the value of the

luminance (cd/m

) when the 100% white signal is input.

3 Select the probe to be used in Probe. 4 Select Auto Adjust.

The following message appears.

Set probe on cursor.

Attach the probe on the center of the display to start automatic adjustment. (It may take some time until the automatic adjustment is completed.)

Note

First select the probe and then select Auto Adjust.

To cancel/stop the adjustment

Press the MENU button.

Set to 0.280 to 0.345.

Set to 0.280 to 0.352.

) when the 100% white signal is input.

Adjust the luminance by the contrast adjustment (backlight adjustment). Set to 40 to 250. [100]

Notes

• This menu is not selectable when Contrast Hold is set to On.

• The luminance is reduced to about half due to the principle of operation in the black frame insertion mode or the interlace display mode. However, on this monitor the normal luminance is set by the contrast adjustment (backlight adjustment). For this reason, as the upper limit of Target Luminance becomes about 120 [cd/m

• The luminance calibrated internally by the backlight does not guarantee an absolute value and may be different from the luminance calibrated by the probe. When you set Target Luminance near to the upper limit (250) or the lower limit (40), the setting value may exceed the adjustment range and cause an error. If an adjustment error occurs, change Target Luminance and perform the automatic adjustment again.

[CA-210]: Select when Konica Minolta CA-210 is used. PM 5639/06: Select when DK-Technologies PM 5639/06 is used. Eye-One Pro: Select when X-Rite Eye-One Pro is used.

The cable to connect the probe and the monitor is required.

About the color temperature after automatic adjustment

The values of x and y displayed by the probe may be different from those set in Target Color Temp because the x and y values of the probe is calibrated by the monitor.

Note

An external PC with USB connector and software for adjusting the color temperature are required to use the Eye-One Pro. Before adjusting the color temperature automatically, start the software for adjusting the color temperature. For the software for adjusting the color temperature, please contact your Sony representative.

For more information about the cable specification required and about the connection, see “Connection Cable Specifications for Color Temperature Probes” on page 124.

], set it to less than 120 [cd/m2].

Adjustment Menu

Page 49

Menu Function and operation ([ ]: factory setting)

Contrast Hold Sets whether or not to adjust the color temperature and contrast (backlight) at the same time.

Off: Contrast is adjusted. [On]: Contrast is not adjusted.

Copy From Copies the other color temperature.

Color Temp Adj

Preset Value Copies other data in this monitor.

Except for the XYZ format signal When the item is selected, you can select from D93, D65, D61, D56, D-Cine, User1, User2, User3, User4 or User5.

D93: Copies the color temperature of D93. D65: Copies the color temperature of D65. D61: Copies the color temperature of D61. D56: Copies the color temperature of D56. D-Cine: Copies the color temperature of D-Cine. User1 to 5: Copies the color temperature of User1 to 5.

When D93, D65, D61, D56 or D-Cine data is changed, they are displayed as D93*, D65*, D61*, D56* or D-Cine*.

For the XYZ format signal When the item is selected, you can select from D-Cine XYZ, User XYZ1, User XYZ2, User XYZ3, User XYZ4 or User XYZ5.

D-Cine XYZ: Copies the color temperature of D-Cine XYZ. User XYZ1 to 5: Copies the color temperature of User XYZ1 to 5.

When D-Cine XYZ data is changed, it is displayed as D-Cine XYZ*.

Other Monitor Copies data from another monitor.

Monitor ID Enter the ID number of the source monitor.

When the NETWORK switch is set to PEER TO PEER, this is not selectable.

Except for the XYZ format signal When the ID number is entered, you can select from D93, D65, D61, D56, D-Cine, User1, User2, User3, User4 or User5.

When D93, D65, D61, D56 or D-Cine data is changed, they are displayed as D93*, D65*, D61*, D56* or D-Cine*.

For the XYZ format signal When the ID number is entered, you can select from D-Cine XYZ, User XYZ1, User XYZ2, User XYZ3, User XYZ4 or User XYZ5.

D-Cine XYZ: Copies the color temperature of D-Cine XYZ. User XYZ1 to 5: Copies the color temperature of User XYZ1 to 5.

When D-Cine XYZ data is changed, it is displayed as D-Cine XYZ*.

Chapter 3 Menu

Adjustment Menu

Page 50

Menu Function and operation ([ ]: factory setting)

Memory Stick Copies data in the “Memory Stick”.

When the item is selected, the file names in the source “Memory Stick” are displayed.

Except for the XYZ format signal When the file is selected, you can select from D93, D65, D61, D56, D-Cine, User1, User2,

Color Temp Adj

Chapter 3 Menu

Restore Factory Data Resets the color temperature to the default setting.

Position Adj Adjusts the position of the picture when the analog signal is input.

H Shift Adjusts the horizontal position of the picture.

V Shift Adjusts the vertical position of the picture.

User3, User4 or User5.

When D93, D65, D61, D56 or D-Cine data is changed, they are displayed as D93*, D65*, D61*, D56* or D-Cine*.

For the XYZ format signal When the file is selected, you can select from D-Cine XYZ, User XYZ1, User XYZ2, User XYZ3, User XYZ4 or User XYZ5.

D-Cine XYZ: Copies the color temperature of D-Cine XYZ. User XYZ1 to 5: Copies the color temperature of User XYZ1 to 5.

When D-Cine XYZ data is changed, it is displayed as D-Cine XYZ*.

You cannot select this when the setting is the default value. The following message appears to confirm the data reset operation.

Restore factory data?

OK: To reset the data, press the ENTER (Ent) button. Cancel: To cancel, press the MENU button.

When the item is selected, the signal system to be set is displayed. You can select the item when the composite or Y/C signal from the BKM-227W, or the analog component or analog component RGB signal from the BKM-229X is displayed.

To hide the characters on the monitor during adjustment

Set the CHAR OFF button of the controller to on. As the characters on the display are hidden, it becomes easy to adjust the picture. To display the characters, set the CHAR OFF button to off.

Note

This menu is not selectable when the internal signal or captured frame is displayed.

As the setting increases, the picture moves to the right, and as the setting decreases, the picture moves to the left. [000] Set in the H Shift Offset menu (page 55) of the Input Configuration menu when the difference of the horizontal position is necessary to adjust for different input signals of the same signal system, etc.

As the setting increases, the picture moves up, and as the setting decreases, the picture moves down. [000]

Adjustment Menu

Page 51

Input Configuration Menu

Overview

This menu is used for pertaining data to the input signals. When Input Configuration is selected, the following menus are displayed.

iInput Configuration 1/2 CH01

Format B xxxxx

Slot No: xxxxx Input No: xxxxx Screen Aspect B Sync Mode: xxx

Color Temp: xxx Picture Preset: xxxxx Matrix/Gamma B

v V

iInput Configuration 2/2 CH01 H Shift Offset: xxx Channel Name B NTSC Setup Level:: xx Component Level: xxxxx

Betacam Setup Level::

RGB Range: B 1080I/PsF B

Film Cadence::

Copy From B

The current channel is displayed. Perform the input setting for the selected channel.

xxx

Note

v V

This menu is not selectable in the following cases:

Before setting

Set the input signal for each channel. A channel number (1 to 30) is entered with the numeric buttons (page 36).

• When Side by Side is set to On

• When Wipe is set to On

• When Butterfly is set to On

• When Blending is set to On

Menu Function and Operation

Menu Function and operation ([ ]: factory setting)

Format Sets the input signal type.

Note

The default setting is HD-SDI/D1 Auto. Set Format except for when the BKM-243HS or BKM244CC is installed.

SDI/HD-SDI Sets the serial digital signal format (SDI or Single-link HD-SDI) when BKM-220D, BKM-

243HS or BKM-244CC is installed.

When BKM-220D is installed

When BKM-243HS or BKM-244CC is installed

[HD-SDI/D1 Auto]: Changes the format automatically according to the format of the

input signal.

Dual Link HD-SDI Sets the Dual-link HD-SDI signal format when two BKM-243HS or BKM-244CC are installed

in the OPTION 1 and 2 or OPTION 3 and 4 option slots.

4:2:2 YPbPr 10bit 4:4:4 YPbPr 10bit 4:4:4 RGB 10bit 4:4:4 YPbPr 12bit 4:4:4 RGB 12bit 4:4:4 XYZ 12bit

Chapter 3 Menu

Input Configuration Menu

Page 52

Menu Function and operation ([ ]: factory setting)

Composite Sets the composite signal format when BKM-227W is installed.

Auto: Changes automatically according to the format of the input signal.

Format

YC Sets the Y/C signal format when BKM-227W is installed.

Chapter 3 Menu

Component Sets the analog component signal format or analog RGB signal format when BKM-229X is

DVI Sets the DVI signal format.

Slot No Enters the option slot number.

Input No Enters the input connector number.

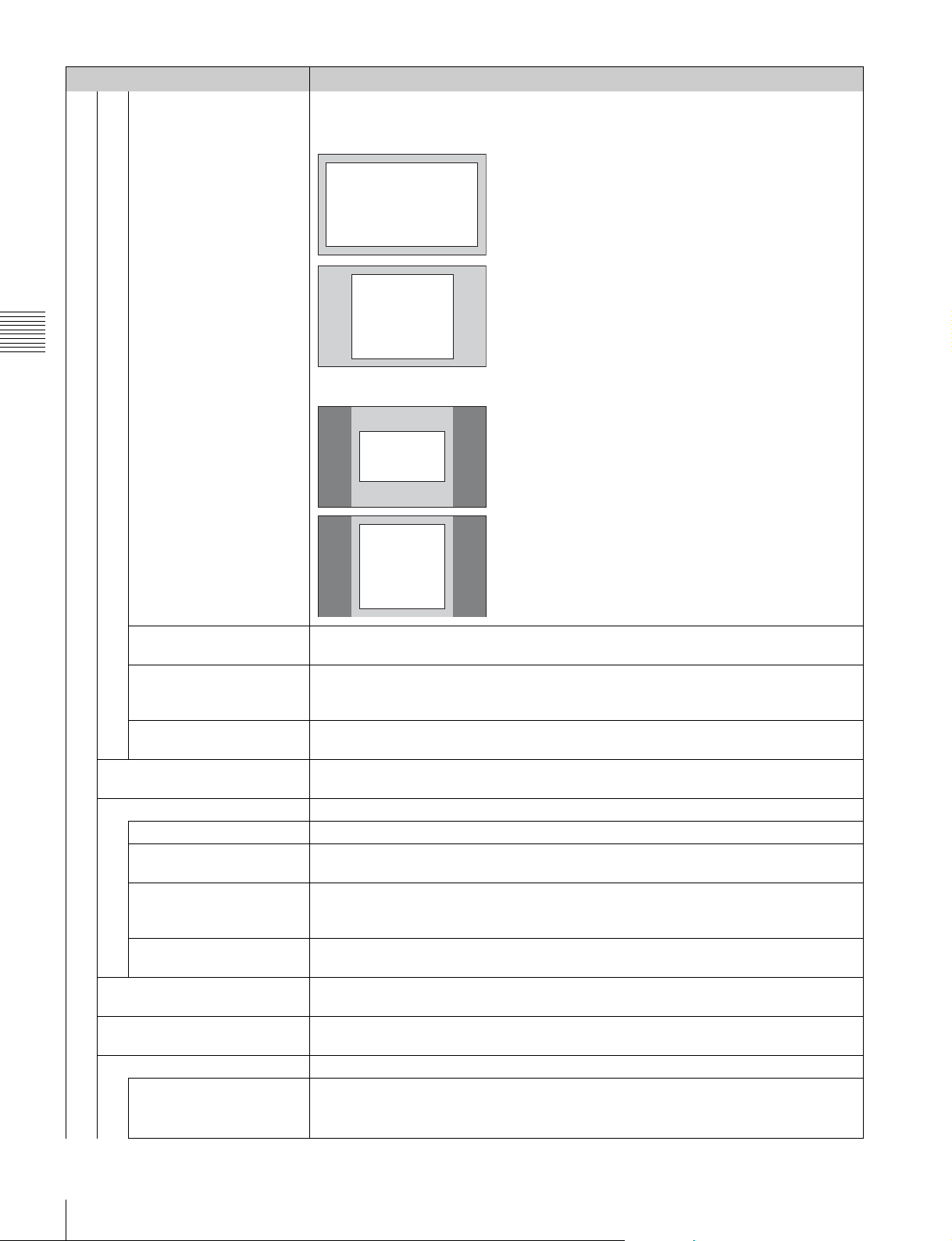

Screen Aspect Selects the aspect ratio.

HD Sets the aspect ratio of the HD signal.

SD Sets the aspect ratio of the SD signal.

DC 2048 × 1080 Sets the aspect ratio of the digital cinema signal (2048 × 1080).

It will take a few seconds to detect the format of an input signal. It is recommended that a particular format be selected if it is determined.

NTSC PAL PAL-M SECAM

Auto: Changes automatically according to the format of the input signal.

It will take a few seconds to detect the format of an input signal. It is recommended that a particular format be selected if it is determined.

NTSC PAL PAL-M SECAM

installed. You can select from YPbPr or RGB.

Video: Displays the CEA-861 signal. Computer: Displays the computer output signal such as the VESA standard signal.

For each signal format to be displayed, see page 105.

You can select from Option1 to Option4, Option1&2 or Option3&4. Adaptor and the item to be selected

Option1 to Option4

• When the BKM-243HS or BKM-244CC is installed and Format is set to HD-SDI/D1 Auto

• When the BKM-220D, BKM-243HS or BKM-244CC is installed and Format is set to D1

• When the BKM-227W is installed and Format is set to Composite Auto, Composite

NTSC, Composite PAL, Composite PAL-M, Composite SECAM, YC Auto, YC NTSC, YC PAL, YC PAL-M or YC SECAM

• When the BKM-229X is installed and Format is set to Component YPbPr or Component

RGB

Option1&2, Option3&4

• When two BKM-243HS or BKM-244CC are installed in the OPTION 1 and 2 or OPTION

3 and 4 option slots and Format is set to 4:2:2 YPbPr 10bit, 4:4:4 YPbPr 10bit, 4:4:4 RGB 10bit, 4:4:4 YPbPr 12bit, 4:4:4 RGB 12bit or 4:4:4 XYZ 12bit

Note

When the setting of Format and the installed adaptor do not match, the setting value may not be changed. Set the Format correctly according to the installed adaptor.

You can select from [Input 1] or Input 2. You can select when Format is set to HD-SDI/D1 Auto, D1, 4:2:2 YPbPr 10bit, 4:4:4 YPbPr 10bit, 4:4:4 RGB 10bit, 4:4:4 YPbPr 12bit, 4:4:4 RGB 12bit or 4:4:4 XYZ 12bit.

Note

When the setting of Format and the installed adaptor do not match, the setting value may not be changed. Set the Format correctly according to the installed adaptor.

Note

This menu is not selectable when Format is set to DVI Computer.

You can select from [16:9] or 2.39:1.

You can select from [16:9] or 4:3.

You can select from [1.896:1] or 2.39:1.

Input Configuration Menu

Page 53

Menu Function and operation ([ ]: factory setting)

Sync Mode Sets the sync signal when the analog component signal or analog RGB signal is input.

You can select when Format is set to Component YPbPr or Component RGB.

[Internal]: Select when an internal sync signal is used. External: Select when an external sync signal is used.

Color Temp Sets the color temperature.

Except for the XYZ format signal

You can select from D93, D65, D61, D56, D-Cine, User1 to User5. When D-Cine RGB is selected, the color temperature is set to x=0.314 and y=0.351 in the CIE chromaticity coordinate. When D93, D65, D61, D56 or D-Cine data is changed, they are displayed as D93*, D65*, D61*, D56* or D-Cine*.

For the XYZ format signal

You can select from D-Cine XYZ or User XYZ1 to User XYZ5. When D-Cine XYZ data is changed, it is displayed as D-Cine XYZ*.

Picture Preset Sets the picture adjustment preset.

Select from Preset1 to Preset5 or Preset (D-Cine).

Matrix/Gamma Sets Matrix/Gamma data (transmission matrix and transmission gamma) depending on the

input signal format.

Matrix/Gamma data are seven data in which the transmission matrix and transmission gamma have been preset and five user data in which the transmission matrix and transmission gamma can be selected respectively (see below table).

Preset data: ITU-R BT.709, ITU-R BT.601, SMPTE 240M, D-Cine RGB, D-Cine XYZ, xvYCC 709, xvYCC 601 Data set respectively: User1 to User5

The Matrix/Gamma data can be set for each type of the input signal (HD, SD, DC 2048 × 1080 RGB, DC 2048 × 1080 XYZ or DVI Computer). For the type of the input signal, see “Matrix/Gamma Setting Table” (page 112).

Chapter 3 Menu

Matrix/Gamma Matrix

(Transmission

Gamma (Transmission gamma)

matrix)

ITU-R BT.709 ITU709 2.2

ITU-R BT.601 ITU601 2.2

SMPTE 240M SMPTE240M 2.2

D-Cine RGB ITU709 2.6 RGB

D-Cine XYZ ITU709 2.6 XYZ

xvYCC 709 ITU709 xvYCC

xvYCC 601 ITU601 xvYCC

User1 to User5 ITU709

ITU601 SMPTE240M Select above three types.

2.2

2.6 RGB

2.6 XYZ xvYCC S-LOG Standard S-LOG Full Select above six types.

Input Configuration Menu

Page 54

Menu Function and operation ([ ]: factory setting)

Matrix/Gamma data

ITU-R BT.709: Select when the signal of the ITU-R BT.709 standards format is input. ITU-R BT.601: Select when the signal of the ITU-R BT.601 standards format is input. SMPTE 240M: Select when the signal of the SMPTE-240M standards format is input.

Matrix/Gamma

Chapter 3 Menu

HD Sets Matrix/Gamma of the HD signal.

SD Sets Matrix/Gamma of the SD signal.

DC 2048 × 1080 RGB Sets Matrix/Gamma of the digital cinema signal (2048 × 1080) of the RGB format.

DC 2048 × 1080 XYZ Sets Matrix/Gamma of the digital cinema signal (2048 × 1080) of the XYZ format.

DVI Computer Sets Matrix/Gamma of the DVI Computer signal.

D-Cine RGB: Select when 2048 × 1080 RGB format signal is input. D-Cine XYZ: Select when XYZ format signal of SMPTE RP 431-2 standard is input. xvYCC 709: Select when the IEC 61966-2-4 standards (xvYCC) and the transmission

matrix ITU-R BT.709 standards format signal is input. xvYCC 601: Select when the IEC 61966-2-4 standards (xvYCC) and the transmission matrix ITU-R BT.601 standards format signal is input. User1 - User5: Select when the transmission matrix and transmission gamma is set individually depending on the input signal format.

Notes

• When you select xvYCC 709 or xvYCC 601, set Emulation (page 57) to L230 Native in the Color Gamut menu of the Display Setting menu to display the extended color gamut area.

• For setting the user data (User1 to User5) of Matrix/Gamma, see the User Matrix/Gamma menu (page 58)

Transmission matrix

ITU709: Matrix of ITU-R BT.709 standards ITU601: Matrix of ITU-R BT.601 standards SMPTE240M: Matrix of SMPTE-240M standards

Note

The internal fixed value applies to the transmission matrix of the RGB format or XYZ format.

Transmission gamma

2.2: Transmission gamma 2.2

2.6 RGB: Transmission gamma 2.6 for 2048 × 1080 RGB format

2.6 XYZ: Transmission gamma 2.6 for the XYZ format xvYCC: Transmission gamma of IEC 61966-2-4 standards (xvYCC) S-LOG Standard: Log gamma available with the F23 Digital Cinematography Camera.

Select to run the 100% output level of the F23 with the 100% level of the monitor for confirmation. S-LOG Full: Log gamma available with the F23. Select to fit the full dynamic range of the F23 in the 100% level of the monitor for confirmation.

Notes

• As 2.6 RGB is setting for 2048 × 1080 RGB format, the input signal of any other format is not displayed correctly.

• When you select xvYCC, set Emulation (page 57) to L230 Native in the Color Gamut menu of the Display Setting menu to display the extended color gamut area.

• When the quantization range of the DVI signal is Full, the internal fixed value of the transmission gamma is applied.

You can select from [ITU-R BT.709], ITU-R BT.601, SMPTE 240M, xvYCC 709, xvYCC 601 or User1 to User5.

You can select from ITU-R BT.709, [ITU-R BT.601], SMPTE 240M, xvYCC 709, xvYCC 601 or User1 to User5.

You can select from [D-Cine RGB] or User1 to User5.

You can select from [D-Cine XYZ] or User1 to User5.

You can select from [ITU-R BT.709], ITU-R BT.601, SMPTE 240M, xvYCC 709, xvYCC 601 or User1 to User5.

of the Display Setting menu.

Input Configuration Menu

Page 55

Menu Function and operation ([ ]: factory setting)

H Shift Offset Sets the horizontal picture position when the analog signal is input.

You can select when Format is set to Composite Auto, Composite NTSC, Composite PAL, Composite PAL-M, Composite SECAM, YC Auto, YC NTSC, YC PAL, YC PAL-M, YC SECAM, Component YPbPr or Component RGB. Set to –100 to +100*. [000] *When the setting value is out of range, the display of the setting value is changed but the horizontal position of the picture is not changed.

To hide the characters on the monitor during adjustment

Set the CHAR OFF button of the controller to on. As the characters on the display are hidden, it becomes easy to adjust the picture. To display the characters, set the CHAR OFF button to off.

Channel Name Sets a channel name.

When the item is selected, you can select a preset name, or enter a new one.

PROG: Program signal EDIT: Signal from an editor CAM: Camera signal VTR: Signal from a VTR PREV: Preview monitor New Name: Enter a new name. (Up to 20 characters can be entered.)

NTSC Setup Level Sets the NTSC setup level.

You can select when Format is set to Composite Auto, Composite NTSC, YC Auto or YC NTSC. You can select from 0% or 7.5%.

Component Level Sets the component level of the analog component 480/60i signal.

You can select when Format is set to Component YPbPr. You can select from SMPTE/EBU-N10 or Betacam.

Betacam Setup Level Sets the Betacam setup level when Component Level is set to Betacam.

You can select from 0% or 7.5%.

RGB Range Sets the quantization range of the DVI input signal.

You can select when Format is set to DVI Video or DVI Computer.

DVI Video Sets the display mode for the DVI Video signal.

Full: 0 (black level) to 255 (white level) (8bit) [Limit]:16 (black level) to 235 (white level) (8bit)

DVI Computer Sets the display mode for the DVI Computer signal.

[Full]: 0 (black level) to 255 (white level) (8bit) Limit: 16 (black level) to 235 (white level) (8bit)

1080I/PsF When the 1080i/PsF signal is input, select the display mode.

You can select when Format is set to HD-SDI/D1 Auto, 4:2:2 YPbPr 10bit, 4:4:4 YPbPr 10bit, 4:4:4 RGB 10bit, 4:4:4 YPbPr 12bit, 4:4:4 RGB 12bit, 4:4:4 XYZ 12bit, Component YPbPr or Component RGB. When 1080I is selected, the I/P conversion signal is displayed. When 1080PsF is selected, the progressive conversion (PsF to P) signal is displayed. When the 1080PsF signal is input and 1080I is selected, the display delay is shortened. The signal converted from PsF to P is not displayed and the I/P conversion signal is displayed.

24PsF Sets the display mode for the 1080/24PsF signal.

You can select from 1080I or [1080PsF].

25PsF/50I Sets the display mode for the 1080/25PsF, 50i signal.

You can select from [1080I] or 1080PsF.

30PsF/60I Sets the display mode for the 1080/30PsF, 60i signal.

You can select from [1080I] or 1080PsF.

Chapter 3 Menu

Input Configuration Menu

Page 56

Menu Function and operation ([ ]: factory setting)

Film Cadence Sets the film cadence mode.

This menu is not selectable when Format is set to DVI Computer. The progressive conversion signal is displayed according to the setting.

[Off]: The progressive conversion signal is not displayed in film cadence mode. 2-2: The progressive conversion signal is displayed when the interlace signal of 2-2 pull-

down processing is input 2-3: The progressive conversion signal is displayed when the interlace signal of 2-3 pulldown processing is input 2-3-3-2: The progressive conversion signal is displayed when the interlace signal of 2-33-2 pull-down processing is input

Notes

• When the 50i interlace signal is input, the mode is automatically set to 2-2, even when 2-3 or 2-3-3-2 is selected.

• The signal is not displayed in film cadence mode when 1080i interlace signal is input and 1080PsF is selected in the 1080I/PsF menu. Set to 1080I.

Chapter 3 Menu

Copy From Copies signal setting data from other channel.

Other CH Copies other data in this monitor.

Other Monitor Copies data from other monitor.

Monitor ID Enters the ID number of the source monitor.

Memory Stick Copies data in the “Memory Stick”.

• As the signal is displayed in film cadence mode by cadence sequence detection based on the pattern of the input signal, the signal may not be displayed correctly, because of the pattern of the input signal.

• The signal is not displayed in film cadence mode in the following cases: – When Side by Side is set to On

– When Wipe is set to On – When Butterfly is set to On – When Blending is set to On

When the item is selected, you can designate the channel to be copied.

When the NETWORK switch is set to PEER TO PEER, this is not selectable.

When the item is selected, you can designate the source monitor.

When the ID number is entered, you can designate the channel to be copied.

When the item is selected, the file names in the source “Memory Stick” are displayed.

When the file is selected, you can enter the channel number in the selected file.

Input Configuration Menu

Page 57

Display Setting Menu

Overview

This menu is used for setting the monitor condition such as the color reproduction or frame. When Display Setting is selected, the following menu is displayed.

iDisplay Setting

Color Gamut B

User Matrix/Gamma

Native Scan Mode: xxx Aperture Value: xxx NTSC Comb Filter: xxx Filter Switch: xxx Peak White Control: xxx

Menu Function and Operation

Chapter 3 Menu

Menu Function and operation ([ ]: factory setting)

Color Gamut As the BVM-L230 is equipped with the wider color space LED backlight, the signal can be

displayed (emulation) in the color gamut (color space and gamma) selected in the Emulation menu.

Emulation Sets the used color gamut (color space and gamma).

BVM SMPTE-C: Displays in the color gamut of BVM-A24 SMPTE-C phosphor CRT. BVM EBU: Displays in the color gamut of BVM-A24 EBU phosphor CRT. ITU-R BT.709: Displays in the color gamut of three primary colors chromaticity point

provided by ITU-R BT.709.

D-Cine*

by SMPTE RP 431-2. L230 Native: Displays in the color gamut of the BVM-L230 individual three primary colors chromaticity point. This is the widest color space setting of the signal reproduced by the BVM-L230. S-GAMUT: Sets to display the color gamut of the wide color space mode S-GAMUT, which is available for the F23 Digital Cinematography Camera.

*1Three primary colors chromaticity point provided by SMPTE RP 431-2 is not covered in full.

Note

When User LUT is set to Applied, you cannot set Emulation.

User LUT Sets whether or not to apply the user data for the Emulation setting ([Not Applied] or

Applied). If the user data are not prepared, you cannot set User LUT.

User LUT Data Selects the user data.

You can select from User1, User2, User3, User4 or User5. [--- (no setting)]

Note

The user data without a LUT data file is not displayed and cannot be selected.

File The read LUT data file name is displayed.

Emulation The reference color gamut for making the LUT data are displayed.

When User LUT is set to Applied, Emulation is forcibly set to the color gamut displayed in this menu inside the monitor.

: Displays in the color gamut of three primary colors chromaticity point provided

Display Setting Menu

Page 58

Menu Function and operation ([ ]: factory setting)

Load LUT Reads a LUT data file from a “Memory Stick”.

You can select from User1, User2, User3, User4 or User5. When a LUT data file is read for the user data (User1 to User5), the file name is displayed next to the user data.

Color Gamut

Delete LUT Deletes the LUT data file read into the user data (User1 to User5).

Chapter 3 Menu

User Matrix/Gamma Sets the user data (User1 to User5) of Matrix/Gamma (transmission matrix and transmission

User Data Selects the user data of Matrix/Gamma.

Matrix Sets the transmission matrix.

Gamma Sets the transmission gamma.

When you select the user data, a list of LUT data files in the “Memory Stick” is displayed, and you can select a file name.

Note

After converting the LUT data output from Grading Tool of another vendor to LUT data in the Sony-unique format, convert the LUT data again with the coversion tool so that it can be read by the monitor.

The Sony-unique format specifications for the LUT data to input to the conversion tool, conversion tool and operation procedures for the conversion tool are scheduled for release in February 2009. To obtain them, contact your Sony representative.

Note

When there are no user data with the LUT data file, you cannot select the user data.

When the item is selected, the user data with the LUT data file, file name and All are displayed.

When a user data is selected to delete each user data (file) or All is selected to delete all user data, the following message is displayed:

Delete this data?

OK: To delete the data, press the ENTER (Ent) button. Cancel: To cancel, press the MENU button.

gamma). As the signal is processed internally by the data setting of Matrix/Gamma, the signal may not be displayed correctly, if the signal is not set according to the transmission standards for the input signal.

For the transmission gamma and the transmission matrix of Matrix/Gamma, see the Matrix/ Gamma menu (page 53) of the Input Configuration menu.

You can select from User1 to User5. [User1]

[ITU709]: Matrix of ITU-R BT.709 standards ITU601: Matrix of ITU-R BT.601 standards SMPTE 240M: Matrix of SMPTE-240M standards

Note

The internal fixed value applies to the transmission matrix of the RGB format and XYZ format.

[2.2]: Transmission gamma 2.2

2.6 RGB: Transmission gamma 2.6 for the RGB format

2.6 XYZ: Transmission gamma 2.6 for the XYZ format xvYCC: Transmission gamma of IEC 61966-2-4 standards (xvYCC) S-LOG Standard: Log gamma available with the F23 Digital Cinematography Camera.

Notes

• As 2.6 RGB is setting for 2048 × 1080 RGB format, the input signal of any other format is not displayed correctly.

• When you select xvYCC, set Emulation (page 57) to L230 Native in the Color Gamut menu of the Display Setting menu to display the extended color gamut area.

• When the quantization range of the DVI signal is Full, the internal fixed value of the transmission gamma is applied.

Display Setting Menu

Page 59

Menu Function and operation ([ ]: factory setting)

Copy From Copies the user data from the other Matrix/Gamma.

Preset Value Copies other data in this monitor.

When the item is selected, you can select from User1, User2, User3, User4 or User5.

Other Monitor Copies data from another monitor.

Monitor ID Enter the ID number of the source monitor.

User Matrix/Gamma

Memory Stick Copies data in the “Memory Stick”.

Native Scan Mode Sets the native scan mode.

Aperture Value Sets the aperture modification value.

NTSC Comb Filter Sets the type of NTSC filter.

Filter Switch Sets whether or not to turn on the Y/C separation filter ([Off] or On) when the picture is set to

Peak White Control When the brightness is increased, using the brightness adjustment, the picture may be

When the NETWORK switch is set to PEER TO PEER, this is not selectable. When the ID number is entered, you can select from User1, User2, User3, User4 or User5.

When the item is selected, the file names in the source “Memory Stick” are displayed. When the file is selected, you can select from User1, User2, User3, User4 or User5.

[Aspect Correction]: Displaying an SD signal of non-square pixels (the number of H pixels of the signal system is 720 or 1440) or a 640 × 480 SD signal of DVI video by scaling processing of doubling for the V direction and correct aspect ratio for the H direction and also optimizing and displaying a picture by modifying the aperture coefficient value, filter coefficient value, etc.

×1: Input signal display without conversion ×2: Input signal display doubled

For selecting Aspect Correction, ×1 or ×2, see “Picture Display Size” on page 108.

Notes

• When an HD signal or DVI computer signal is input, the signal is displayed in ×1 mode, even if the mode is set to Aspect Correction or ×2.

• When an SD signal from the BKM-229X is input and the number of the H pixels of the signal system is 1440, the signal is displayed in ×2 mode, even if the mode is set to ×1.

• When you select Aspect Correction and set Native Scan to On for SD signal input, Aperture is set to On (factory setting).

Sets to 000 to 200. [090] (when the signal is displayed in Aspect Correction mode of the native display), [000] (when the signal is displayed in mode other than Aspect Correction of the native display)

You can select from [3Lines] or 3D. When the BKM-227W is installed, you can select the item.

monochrome mode. When the BKM-227W is installed, you can select the item.

clipped, because of the dynamic range of the circuit. Sets whether or not to control the signal gain automatically according to the setting value of the brightness, to prevent such clipping (Off or [On]).

Note

Peak white control does not function with XYZ signals.

Chapter 3 Menu

Display Setting Menu

Page 60

Display Function Menu

Overview

This menu is used to set the function related to the picture display. When Display Function is selected, the following menu is displayed.

iDisplay Function

Marker Setting B

P&P Setting B Pixel Zoom Setting B

Chapter 3 Menu

Gamut Error Display B Black Detail Setting B Capture B Internal Signal B

Function Switch B

Menu Function and Operation

Menu Function and operation ([ ]: factory setting)

Marker Setting Sets whether or not to display the marker when the MARKER button is pressed, and the

display mode.

To hide the characters on the monitor during setting

Set the CHAR OFF button of the controller to on. As the characters on the display are hidden, it becomes easy to adjust the picture. To display the characters, set the CHAR OFF button to off.

Marker Preset Sets the marker preset data.

You can select from Marker1 to Marker5. [Marker1]

Aspect Blanking Sets the display of the blanking outside the area of the aspect marker.

Aspect Blanking Sets whether or not to set the blanking.

[Off]: Blanking is released. On: Blanking.

Mode Sets the blanking mode when Aspect Blanking is set to On.

You can select from Black (blanking) or [Half] (half blanking).

Aspect Marker Sets the aspect marker display.

Aspect Marker Sets whether or not to display the aspect marker when the MARKER button is pressed ([Off]

or On).

Aspect Mode Sets the aspect ratio of the aspect marker.

You can select from [16:9], 15:9, 14:9, 13:9, 4:3, 2.39:1, 2.35:1, 1.85:1, 1.66:1, 1.896:1 or Variable.

Aspect Sets the aspect ratio of the aspect marker when Variable is selected in Aspect Mode.

Set to 1.00:1 to 3.00:1. [1.78]:1

Line Sets the thickness of the aspect marker.

You can select from [Thick] (thick) or Thin (thin).

Color Sets the color of the aspect marker.

You can select from [White] (white), Red (red), Green (green), Blue (blue), Yellow (yellow), Cyan (cyan) or Magenta (magenta).

Bright Sets the luminance of the aspect marker.

You can select from [90IRE] (bright) or 40IRE (dark).

Display Function Menu

Page 61

Menu Function and operation ([ ]: factory setting)

Area Marker 1 Sets the area marker 1.

Area Marker 1 Sets whether or not to display the area marker 1 when the MARKER button is pressed (Off or

[On])*. * Area Marker 2: ([Off], On)

Marker Setting

Aspect Mode Sets the aspect ratio of the area marker 1.

You can select from [16:9], 15:9, 14:9, 13:9, 4:3, 2.39:1, 2.35:1, 1.85:1, 1.66:1, 1.896:1 or

Variable. Note

When Variable (dot) is selected in Area Size, the size of the area marker 1 is set in pixel unit of the input signal and the Aspect Mode setting becomes invalid.

Aspect Sets the aspect ratio of the area marker 1 when Variable is selected in Aspect Mode.

Set to 1.00:1 to 3.00:1. [1.78]:1

Area Size Sets the size of the area marker 1.

You can select from [80%], 88%, 90%, 93%, Variable (%) or Variable (dot).

Width Sets the width of the area marker 1 when Area Size is set to Variable (%) or Variable (dot).

When Variable (%) is selected Set to 050 to 100 (%). [080]

When Variable (dot) is selected

Set to 0360 to 2048 (dot). [0512]

Height Sets the height of the area marker 1 when Area Size is set to Variable (%) or Variable (dot).

When Variable (%) is selected Set to 050 to 100 (%). [080]

When Variable (dot) is selected

Set to 0240 to 1080 (dot). [0384]

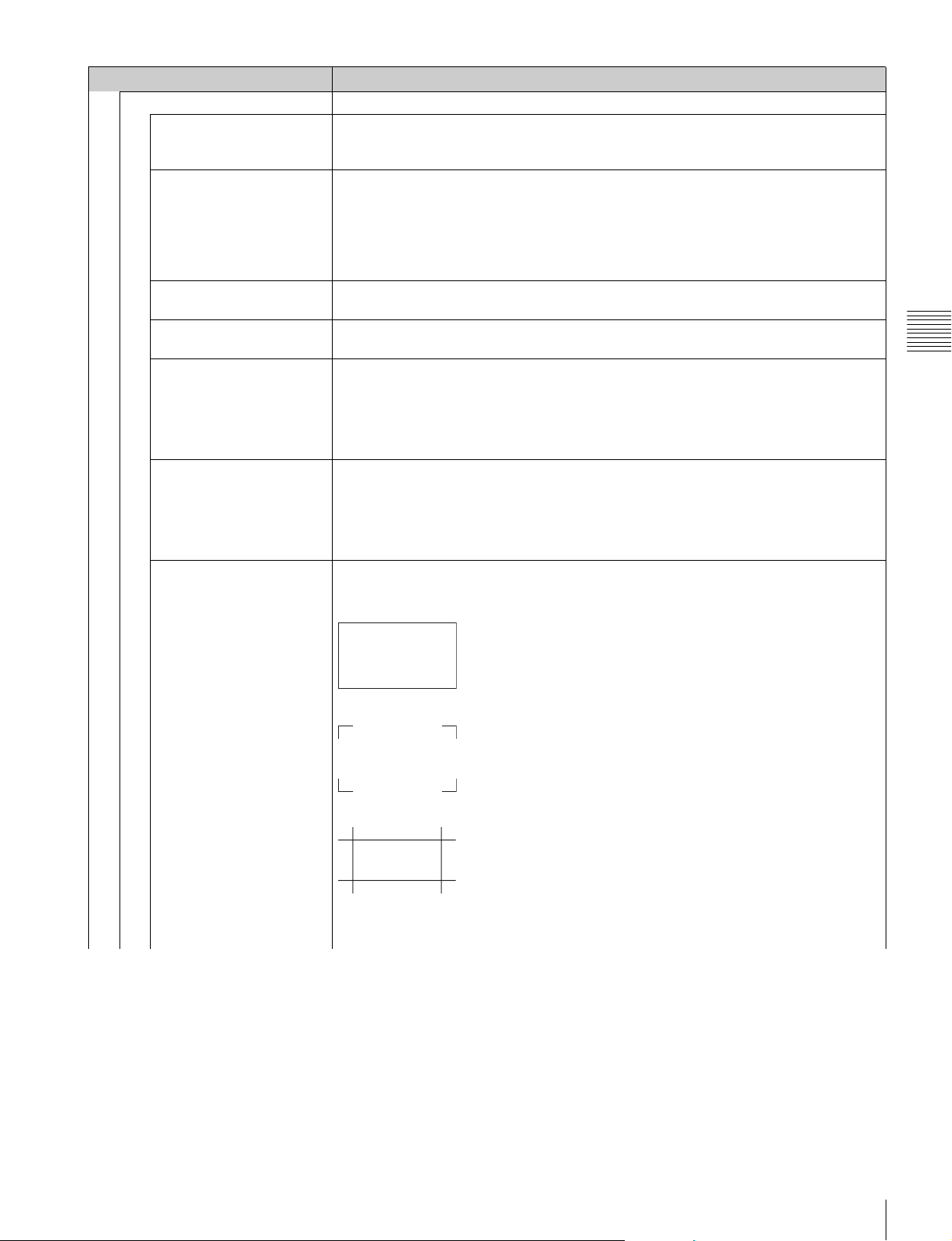

Mode Sets the shape of the area marker 1.

You can select from [Shape A], Shape B or Shape C.

Shape A

Chapter 3 Menu

Shape B

Shape C

Note

The size of the area is as follows depending on the Aspect Mode and 16:9 On/Off setting.

Display Function Menu

Page 62

Menu Function and operation ([ ]: factory setting)

Example: Area Size 80%, Aspect Mode 16:9 or 4:3 With 16:9

Marker Setting

80%

Aspect Mode 16:9

Chapter 3 Menu

80%

With 4:3

80%

Line Sets the thickness of the area marker 1.

You can select from [Thick] (thick) or Thin (thin).

Color Sets the color of the area marker 1.

You can select from [White] (white), Red (red), Green (green), Blue (blue), Yellow (yellow), Cyan (cyan) or Magenta (magenta).

Bright Sets the luminance of the area marker 1.

You can select from [90IRE] (bright) or 40IRE (dark).

Area Marker 2 Sets the area marker 2.

The set items are the same as for Area Marker 1 (page 61).

Center Marker Sets the center marker.

Center Marker Sets whether or not to display the center marker ([Off] or On).

Mode Sets the display mode of the center marker.

You can select from [Short] (short) or Long (long).

Color Sets the color of the center marker.

You can select from [White] (white), Red (red), Green (green), Blue (blue), Yellow (yellow), Cyan (cyan) or Magenta (magenta).

Bright Sets the luminance of the center marker.

You can select from [90IRE] (bright) or 40IRE (dark).

H Position Sets the horizontal position of the marker.

Set to –65 (leftward) to +65 (rightward). [00]

V Position Sets the vertical position of the marker.

Set to –35 (downward) to +35 (upward). [00]

Copy From Copies the other marker preset data.

Preset Value Copies other data in this monitor.

When the item is selected, you can select from Marker1, Marker2, Marker3, Marker4 or Marker5.

Aspect Mode 4:3

Aspect Mode 16:9

Aspect Mode 4:3

Display Function Menu

Page 63

Menu Function and operation ([ ]: factory setting)

Other Monitor Copies data from another monitor.

Monitor ID Enter the ID number of the source monitor.

When the NETWORK switch is set to PEER TO PEER, this is not selectable. When the ID number is entered, you can select from Marker1, Marker2, Marker3, Marker4

Marker Setting

Memory Stick Copies data in the “Memory Stick”.

P&P Setting Sets the multi display setting.

Side by Side Sets the side by side display.

Line Display Sets display mode of the boundary line.

Line Color Sets the boundary line color of two pictures.

Line Bright Sets the luminance of the boundary line.

Wipe Sets the wipe display.

Line Display Sets display mode of the boundary line.

Line Color Sets the boundary line color.

Line Bright Sets the luminance of the boundary line.

Position Sets the position of the boundary line.

Butterfly Sets the butterfly display.

Line Display Sets display mode of the boundary line.

Line Color Sets the boundary line color.

Line Bright Sets the luminance of the boundary line.

Position Sets the position of the boundary line.

Blending Sets the blending display.

Blending Ratio Sets the blending ratio when two images are mixed.

Pixel Zoom Setting Sets the pixel zoom.

Line Color Sets the boundary line color.

or Marker5.

When the item is selected, the file names in the source “Memory Stick” are displayed. When the file is selected, you can select from Marker1, Marker2, Marker3, Marker4 or

Marker5.

[Off]: Not displayed. On: Always displayed.

You can select from [White] (white), Red (red), Green (green), Blue (blue), Yellow (yellow), Cyan (cyan), Magenta (magenta) or Black (black).

You can select from [90IRE] (bright) or 40IRE (dark).

[Auto]: Appears when the position of the boundary line is set and disappears after a

while.

On: Always displayed. Off: Not displayed.

You can select from [White] (white), Red (red), Green (green), Blue (blue), Yellow (yellow), Cyan (cyan) or Magenta (magenta) or Black (black).

You can select from [90IRE] (bright) or 40IRE (dark).

Set to –100 (leftward) to +100 (rightward). [000]

Off: Not displayed. [On]: Always displayed.

You can select from [White] (white), Red (red), Green (green), Blue (blue), Yellow (yellow), Cyan (cyan) or Magenta (magenta) or Black (black).

You can select from [90IRE] (bright) or 40IRE (dark).

Set to –100 to +100. [000]

Set to 000 (Signal A disappears.) to 100% (Signal B disappears). [050]

You can select from [White] (white), Red (red), Green (green), Blue (blue), Yellow (yellow), Cyan (cyan) or Magenta (magenta) or Black (black).

Chapter 3 Menu

Display Function Menu

Page 64

Menu Function and operation ([ ]: factory setting)

Gamut Error Display Sets the gamut error display.

You can select when the BKM-220D, BKM-243HS or BKM-244CC is installed.

Notes

• The gamut error display function is effective when D1 or HD-SDI (except 2048 × 1080 RGB and XYZ) signal is input. The gamut error display function does not work in the following cases:

- When the input signal has no sync signal

- When the internal signal is displayed

- When H Delay/V Delay is set to On

- When Side by Side is set to On

- When Wipe is set to On

- When Butterfly is set to On

- When Blending is set to On

- When Black Detail Mode is set to On

• In under scan mode, each one line of the upper and lower lines of the video signal is also

Chapter 3 Menu

Gamut Error Display Sets whether or not to display the gamut error ([Off] or On).

Notification Sets the error detection mode.

Notification Reset Sets the method to reset the error detection mode.

Input Detection Sets the error detection of the input signal.

Detection Sets whether or not to detect the error of the input signal (Off or [On]).

Pixel Threshold Sets the pixel number of the gamut error in the frame to notify the gamut error detection.

Signal Level Sets the upper and lower lines of every signal to detect the gamut error.

D1/HD-SDI YPbPr 10bit Upper Limit (upper limit)

HD-SDI RGB 10bit When two BKM-243HS or BKM-244CC are installed in the OPTION 1 and 2 or OPTION 3

detected for gamut error display.

• In over scan mode, 5% mask portion is also detected for gamut error display. However, the zebra pattern is not displayed on 5% mask portion.

[LED]: The STATUS lamp lights when the error is detected. LED&OSD: The STATUS lamp lights and the message of the error notification appears

on the screen when the error is detected.

[Auto]: Resets automatically after detecting the error. Manual: Resets manually. To reset the error detection, press the button to which the

Error Notify Clear function is assigned or set the pin of the PARALLEL REMOTE connector to which the Error Notify Clear function is assigned to On.

For assignment to the function button, see page 81 and for assignment to the PARALLEL REMOTE connector, see page 71.

When the pixel number of the error is over the set pixel number, the detection is notified. Set to 00000 to 65535. [00000]

Y: 0000 to 1023 [0983] Pb: 0000 to 1023 [1004] Pr: 0000 to 1023 [1004]

Lower Limit (lower limit)

Y: 0000 to 1023 [0020] Pb: 0000 to 1023 [0019] Pr: 0000 to 1023 [0019]

and 4 option slots, you can select this item.

Upper Limit (upper limit)

G: 0000 to 1023 [0983] B: 0000 to 1023 [0983] R: 0000 to 1023 [0983]

Lower Limit (lower limit)

G: 0000 to 1023 [0020] B: 0000 to 1023 [0020] R: 0000 to 1023 [0020]

Display Function Menu

Page 65

Menu Function and operation ([ ]: factory setting)

HD-SDI YPbPr 12bit When two BKM-243HS or BKM-244CC are installed in the OPTION 1 and 2 or OPTION 3

and 4 option slots, you can select this item.

Upper Limit (upper limit)

Y: 0000 to 4095 [3935] Pb: 0000 to 4095 [4019] Pr: 0000 to 4095 [4019]

Lower Limit (lower limit)

Gamut Error Display

HD-SDI RGB 12bit When two BKM-243HS or BKM-244CC are installed in the OPTION 1 and 2 or OPTION 3

Post-Process Detection Sets the error detection setting for the signal after YPbPr is converted to RGB.

Detection Sets whether or not to detect the error of the input signal ([Off] or On).

Pixel Threshold Sets the pixel number of the gamut error in the frame to notify the gamut error detection.

Signal Level Sets the upper and lower lines of the signal level.

Zebra Pattern Sets the zebra pattern displayed by the gamut error detection.

Line Sets the direction of the pattern.

Modulation Sets the amplitude of the pattern display.

Black Detail Setting Sets the black detail mode.

Clip Indicator Sets whether or not to display a zebra pattern in the clipped portions with high color gradation

Zebra Pattern Sets the zebra pattern displayed in the clipped portions.

Line Sets the direction of the pattern.

Modulation Sets the amplitude of the pattern display.

Capture Captures the still picture for the standard of the color evaluation.

Load Loads the captured picture from the “Memory Stick”.

Y: 0000 to 4095 [0080] Pb: 0000 to 4095 [0077] Pr: 0000 to 4095 [0077]

and 4 option slots, you can select this item.

Upper Limit (upper limit)

G: 0000 to 4095 [3935] B: 0000 to 4095 [3935] R: 0000 to 4095 [3935]

Lower Limit (lower limit)

G: 0000 to 4095 [0080] B: 0000 to 4095 [0080] R: 0000 to 4095 [0080]

When the pixel number of the error is over the set pixel number, the detection is notified. Set to 00000 to 65535. [00000]

The signal level to be set is black level 256 and white level 3760 in 12bit conversion value.

Upper Limit: 0000 to 4095 [3761] Lower Limit: 0000 to 4095 [0255]

Note

When the setting for the zebra pattern is changed, Zebra Pattern of Black Detail Setting is also set to the same setting value.

[Diagonal Type1]: Right descending Diagonal Type2: Left descending

Set to 1 to 50. [16]

on the black detail mode display (Off

Note

When the setting for the zebra pattern is changed, Zebra Pattern of Gamut Error Display is also set to the same setting value.

[Diagonal Type1]: Right descending Diagonal Type2: Left descending

Set to 1 to 50. [16]

When the item is selected, you can select the file name to be loaded.

or [On]).

Chapter 3 Menu

Display Function Menu

Page 66

Menu Function and operation ([ ]: factory setting)

Rename Changes a file name of the captured picture in the “Memory Stick”.

When the item is selected, the file names are displayed.

Capture

Delete Deletes the file of the captured picture in the “Memory Stick”.

Chapter 3 Menu

Internal Signal Selects the internal signal display.

Function Switch Sets the function to be assigned to the function button of the controller in the menu.

Scan Mode Sets the scan size of the picture.

Native Scan Sets whether or not to display the native scan ([Off] or On).

16:9 Sets whether or not to display the aspect in 16:9 or 1.896:1 (digital cinema signal) (Off or

When the file name is selected, you can change the file name (1 to 20 characters).

Existing file name: Enter the existing file name. New Name: Enter a new file name.

Note

The “.” must not be used as the first character.

When the item is selected, the file names in the “Memory Stick” are displayed.

When the file name is selected, the following message appears.

Delete this file?

OK: To delete the data, press the ENTER (Ent) button. Cancel: To cancel, press the MENU button.

You can select from PLUGE, Gray (20% gray signal), White (100% white signal), 5 step (5 step gray scale signal), Ramp, Color Bars or Black (0% black signal). To cancel the internal signal, select one from the channel numbers 1 to 30 with the numeric buttons of the controller.

Note

Internal Signal is not set in the following cases:

• When the XYZ or DVI Computer format signal is input

• When Side by Side is set to On

• When Wipe is set to On

• When Butterfly is set to On

• When Blending is set to On

[Normal Scan]: Normal scan Under Scan: 3% under scan Over Scan: Mask of 5% over scan portion in the normal scan

Note

The scan size is not selectable in the following cases:

• When Native Scan is set to On

• When the input signal has no sync signal

• When the internal signal is displayed

• When Side by Side is set to On

• When Wipe is set to On

• When Butterfly is set to On

• When Blending is set to On

Note

The native scan is not selectable in the following cases:

• When the input signal has no sync signal

• When Side by Side is set to On

• When Pixel Zoom is set to on

• When Format of the Input Configuration menu is set to DVI Computer (The native scan is displayed regardless of the setting.)

• When a digital cinema signal (2048 × 1080) is input and the internal signal is displayed (Native Scan is set to Off and the normal scan is displayed regardless of the setting.)

• When the signal system is the SD signal of 720 × 576 or 1440 × 576, Native Scan Mode is set to Aspect Correction and the internal signal of the aspect ratio 16:9 is displayed (Native Scan is set to Off and the normal scan is displayed regardless of the setting.)

[On]).

Notes

• The aspect ratio is not selectable in the following cases:

- When Native Scan Mode is set to ×1 or ×2 and Native Scan is set to On

- When the input signal has no sync signal

• The aspect ratio may be fixed due to the signal format. For details, see “Available Signal Formats” on page 103.

Display Function Menu

Page 67

Menu Function and operation ([ ]: factory setting)

H Delay Sets whether or not to display in H delay ([Off] or On).

When the 720/24, 25, 30P signal is input, the display position is changed with the PHASE knob.

Note

The picture is not displayed in H delay in the following cases:

Function Switch

V Delay Sets whether or not to display in V delay ([Off] or On).

External Sync Sets whether or not to select external sync mode ([Off] or On) when the analog component

Comb Sets whether or not to use the comb filter (Off or [On]).

Aperture Sets whether or not to function the aperture modification (Off or On).

Mono Sets whether or not to display in monochrome mode ([Off] or On).

Blue Only Sets whether or not to display only the blue signal as a monochrome picture after cutting the

R Off Sets whether or not to cut the red signal ([Off] or On).

• When the input signal has no sync signal

• When the internal signal is displayed

• When Format of the Input Configuration menu is set to DVI Video or DVI Computer

• When Side by Side is set to On

• When Wipe is set to On

• When Butterfly is set to On

• When Blending is set to On

• When the captured frame is displayed

Note

The picture is not displayed in V delay in the following cases:

• When the input signal has no sync signal

• When the internal signal is displayed

• When Format of the Input Configuration menu is set to DVI Video or DVI Computer

• When Side by Side is set to On

• When Wipe is set to On

• When Butterfly is set to On

• When Blending is set to On

• When the captured frame is displayed

signal or analog RGB signal format is input. When On is selected, the signal to be displayed is synchronized with the sync signal input to the SYNC connector (External Sync). When Off is selected, the signal to be displayed is synchronized with the sync signal included in the signals being monitored (Internal Sync).

Notes

• When Component is set to YPbPr or RGB in Format of the Input Configuration menu, you can set the external sync.

• The external sync is not set in the following cases: – When the internal signal is displayed – When the captured frame is displayed

When Off is selected, the trap · band-pass filter (Trap/BPF) is selected. You can select the type of comb filter in NTSC Comb Filter menu (page 59) of the Display Setting menu.

Notes

• When Composite is set to Auto, NTSC, PAL or PAL-M in Format of the Input Configuration menu, you can set the comb filter.

• The comb filter is not set in the following cases: – When the internal signal is displayed

– When the captured frame is displayed

[Off] (when the signal is displayed in Aspect Correction mode of the native display), [On] (when the signal is displayed in mode other than Aspect Correction of the native display)

Note

When the displayed signal is XYZ, the signal is not displayed in monochrome mode.

red and green signals ([Off] or On).

Note

When the displayed signal is XYZ, the signal is not displayed in blue only mode.

Note

When the displayed signal is XYZ, the red signal is not cut.

Chapter 3 Menu

Display Function Menu

Page 68

Menu Function and operation ([ ]: factory setting)

G Off Sets whether or not to cut the green signal ([Off] or On).

Note

When the displayed signal is XYZ, the green signal is not cut.

B Off Sets whether or not to cut the blue signal ([Off] or On).

Note

When the displayed signal is XYZ, the blue signal is not cut.

Note

The chroma value is not increased in the following cases:

• When the signal to be displayed is RGB or XYZ

• When the composite signal is automatically displayed in monochrome depending on the color discrimination of the input adaptor

• When the internal signal is displayed

Note

The black frame is not inserted in the following cases:

• When Interlace is set to On

• When the 24P or 24PsF input signal is displayed

• When Format of the Input Configuration menu is set to DVI Computer

For details of this menu, see “Selecting Display Mode” on page 85.

Notes

• Set Native Scan to On for the interlace display.

• The picture is not displayed in interlace mode in the following cases: – When Side by Side is set to On – When Wipe is set to On

– When Butterfly is set to On – When Blending is set to On – When Pixel Zoom is set to on

For details of this menu, see “Selecting Display Mode” on page 85.

Note

The marker is not displayed in the following cases:

• When the input signal has no sync signal

• When the internal signal is displayed

• When Format of the Input Configuration menu is set to DVI Computer

• When H Delay/V Delay is set to On

• When Side by Side is set to On

• When Wipe is set to On

• When Butterfly is set to On

• When Blending is set to On

• When Pixel Zoom is set to on

Note

The aspect marker is not displayed in the following cases:

• When the input signal has no sync signal

• When the internal signal is displayed

• When Format of the Input Configuration menu is set to DVI Computer

• When H Delay/V Delay is set to On

• When Side by Side is set to On

• When Wipe is set to On

• When Butterfly is set to On

• When Blending is set to On

• When Pixel Zoom is set to on

Chapter 3 Menu

Function Switch

Chroma Up Sets whether or not to increase the chroma value by 12 dB ([Off] or On).

Black Frame Insertion Sets whether or not to display in black frame insertion mode ([Off] or On).

Interlace Sets whether or not to display in interlace mode ([Off] or On).

Marker Sets whether or not to display all markers ([Off] or On).

Aspect Marker Sets whether or not to display the aspect marker ([Off] or On).

Display Function Menu

Page 69

Menu Function and operation ([ ]: factory setting)

Area Marker 1 Sets whether or not to display the area marker 1 ([Off] or On).

Note

The area marker 1 is not displayed in the following cases:

• When the input signal has no sync signal

• When the internal signal is displayed

Function Switch

Area Marker 2 Sets whether or not to display the area marker 2 ([Off] or On).

Side by Side Sets whether or not to display in the side by side display ([Off] or On).

Wipe Sets whether or not to display in the wipe display ([Off] or On).

Butterfly Sets whether or not to display in the butterfly display ([Off] or On).

Blending Sets whether or not to display in the blending display ([Off] or On).

Error Notify Clear When the item is selected, the notification of the gamut error detection is cleared. Black Detail Mode Sets whether or not to display the signal in black detail mode ([Off] or On).

• When Format of the Input Configuration menu is set to DVI Computer

• When H Delay/V Delay is set to On

• When Side by Side is set to On

• When Wipe is set to On

• When Butterfly is set to On

• When Blending is set to On

• When Pixel Zoom is set to on

Note

The area marker 2 is not displayed in the following cases:

• When the input signal has no sync signal

• When the internal signal is displayed

• When Format of the Input Configuration menu is set to DVI Computer

• When H Delay/V Delay is set to On

• When Side by Side is set to On

• When Wipe is set to On

• When Butterfly is set to On

• When Blending is set to On

• When Pixel Zoom is set to on

Note

The side by side display is not set in the following cases:

• When the internal signal is displayed

• When Pixel Zoom is set to on

Note

The wipe display is not set in the following cases:

• When the internal signal is displayed

• When Pixel Zoom is set to on

Note

The butterfly display is not set in the following cases:

• When the internal signal is displayed

• When Pixel Zoom is set to on

Note

The blending display is not set in the following cases:

• When the internal signal is displayed

• When Pixel Zoom is set to on

Note

The black detail mode is not set in the following cases:

• When Interlace is set to On

• When Black Frame Insertion is set to On

• When H Delay/V Delay is set to On

Chapter 3 Menu

Display Function Menu

Page 70

System Configuration Menu

Overview

This menu is used to set the system such as the network, parallel remote control function, etc. When System Configuration is selected, the following menu is displayed.

iSystem Configuration

Network B

Parallel Remote B Power B On Screen Set B

Chapter 3 Menu

Password B Date/Time B Scan Mode Skip: xxx

Monitor Upgrade B Maintenance B

Menu Function and Operation

Menu Function and operation ([ ]: factory setting)

Network Sets the remote control function of the network.

Monitor ID Enter a monitor ID number.

Set to 01 to 99. [01]

Group ID Enter a group ID number.

Set to 01 to 99. [01]

Network Setting Sets the IP address, subnet mask and default gateway.

For the setting value, consult the network administrator.

IP Address Sets the IP address. [192.168.000.001]

Note

When the NETWORK switch is set to PEER TO PEER, the IP address is set to “192.168.0.1” regardless of the display. When the NETWORK switch is set to LAN, the IP address is set to the displayed one.

Subnet Mask Sets the subnet mask. [255.255.255.000]

Note

When the NETWORK switch is set to PEER TO PEER, the subnet mask is set to “255.255.255.000” regardless of the display. When the NETWORK switch is set to LAN, the subnet mask is set to the displayed one.

Default Gateway Sets whether or not to set the default gateway ([Off] or On). Address Sets the address of the default gateway. [---.---.---.--- (no setting)]

Cancel Cancels the changed or confirmed setting.

Confirm Saves the changed or confirmed setting.

SNMP Setting Sets SNMP.

For the setting value, consult the network administrator.

Contact Sets the information of the administrator.

When the item is selected, you can enter a new name.

New Name: Enter a new name (up to 20 characters).

System Configuration Menu

Page 71

Menu Function and operation ([ ]: factory setting)

Name Sets the information for the administration (device ID).

When the item is selected, you can enter a new name.

Network

Location Sets the location information.

Trap Sets the address to send the information.

Mode Sets the settings to send information manually or automatically ([Manual] or Auto). Trap Address Setting Sets the IP address to send the information. [000.000.000.000]

Trap Address Status Displays the IP address to send the information.

Reset Mode/Address Resets the settings to send information manually or automatically and the IP address to the

Authentication Sets whether or not to issue the authentication ([Disable] or Enable).

Community Sets the community name.

Protocol Setting Sets the required items for communications such as the port number.

SDCP/SDAP Community Sets the SDCP/SDAP community name.

SDCP Port No Sets the SDCP port number.

SDAP Port No Sets the SDAP port number.

SDAP Broadcast Sets whether or not to issue the SDAP (Disable or [Enable]).

SDAP Broadcast Period Sets the period (seconds) to issue the SDAP.

Acceptable IP Address Sets the IP address to connect.

Reset Protocol Setting Resets the protocol setting.

Parallel Remote Sets the parallel remote function.

Parallel Remote Selects whether or not to use the parallel remote functions. ([Off] or On)

New Name: Enter a new name (up to 20 characters).

When the item is selected, you can enter a new name.

New Name: Enter a new name (up to 20 characters).

When Mode is set to Manual, you can select this item. When the item is selected, you can set the IP address of Trap1 to Trap4.

Cancel: Cancels the changed or confirmed setting. Confirm: Saves the changed or confirmed setting.

When Mode is set to Auto, you can select this item. When the item is selected, the IP address of Trap1 to Trap4 is displayed.

factory setting.

When the item is selected, the following message appears.

Are you sure?

OK: To reset the data, press the ENTER (Ent) button. Cancel: To cancel, press the MENU button.

When the item is selected, you can enter the community name (up to 20 characters).

public: Initially, public is entered automatically. Enter any character after it. New Name: Enter a community name.

For the setting value, consult the network administrator.

When the item is selected, you can enter the community name (four characters).

SONY: SONY is entered as a community name. New Name: Enter a new name.

Set to 53434 to 53534. [53484]

Set to 53812 to 53912. [53862]

Set to 05 to 30. [15]

When the item is selected, you can set IP1 to IP4.

Cancel: Cancels the changed or confirmed setting. Confirm: Saves the changed or confirmed setting.

When the item is selected, the following message appears.

Are you sure?

To reset data, press the ENTER (Ent) button.

OK: Cancel: To cancel, press the MENU button.

Chapter 3 Menu

System Configuration Menu

Page 72

Menu Function and operation ([ ]: factory setting)

1 Pin to 8 Pin Assigns the function to each pin of the PARALLEL REMOTE connector when Parallel Remote

is set to On.

1 Pin: [CH01] 2 Pin: [CH02] 3 Pin: [External Sync]

Parallel Remote

Chapter 3 Menu

Power Sets the status of the monitor when the main power is turned on or the power is turned on by

4 Pin: [Mono] 5 Pin: [Marker] 6 Pin: [unused] 7 Pin: [unused] 8 Pin: [Tally]

You can change the assignment to the following functions for pins 1 to 8.

Parallel Remote (1/4)

CH01 to 30: Selects a channel number. Enter the desired channel number with the numeric buttons.

----: Unused Under Scan: The under scan function. When it is set to off, the scan mode is set to

Normal Scan. Over Scan: The over scan function. When it is set to off, the scan mode is set to Normal Scan.

Native Scan: The native scan function 16:9: The 16:9 or 1.896:1 (digital cinema signal 2048 × 1080) aspect ratio function.

When it is set to off, the aspect ratio is set to 4:3 or 2.39:1. The aspect ratio may be fixed to 16:9 due to the signal format. For details, see “Available Signal Formats” on page 103.

H Delay: The horizontal sync display function V Delay: The vertical sync display function External Sync: The synchronization function to external sync signals Comb: The comb filter function. When it is set to off, the trap · band-pass filter (Trap/

BPF) is selected. You can select the type of comb filter in NTSC Comb Filter menu (page 59) of the Display Setting menu.

Parallel Remote (2/4)

Aperture: The aperture modification function Mono: The monochrome display function Blue Only: The function by which red and green signals are cut and only the blue signal

is displayed as a monochrome picture

R Off: The cutting function of red signals G Off: The cutting function of green signals B Off: The cutting function of blue signals Chroma Up: 12 dB up function of the chroma setting value Black Frame Insertion: The display function in black frame insertion mode Interlace: The display function in interlace mode Tally: The function to turn on the tally lamp

Parallel Remote (3/4)

Marker: The display function of all markers set in the Marker Setting menu Aspect Marker: The display function of the aspect marker set in the Marker Setting

Area Marker 1: The display function of the area marker 1 set in the Marker Setting menu Area Marker 2: The display function of the area marker 2 set in the Marker Setting menu Side by Side: The side by side function Wipe: The wipe function Butterfly: The butterfly function Blending: The blending function Error Notify Clear: The function to cancel the notification of the gamut error detection Power Off: The monitor power function

Parallel Remote (4/4)

Black Detail Mode: The display function in black detail mode

For the pin assignment, see “PARALLEL REMOTE connector” in Location and Function of Parts on page 17.

remote operation.

System Configuration Menu

Page 73

Menu Function and operation ([ ]: factory setting)

Standby Mode Sets the status when the MAIN POWER switch is turned on.

Power

Power On Status Sets the input channel when the power is turned on.

Default CH Selects the channel (01 to 30) when the Power On Status is set to CH. [01]

On Screen Set Sets the items for the screen display.

Input Information Sets the display of the input information.

Format Sets the display mode of the signal system.

Position Sets the display position for the signal system.

CH No Sets the display mode of the channel number.

Position Sets the display position for the channel number.

CH Name Sets the display mode of the channel name.

Position Sets the display position for the channel name.

Scan Mode Sets the display mode of the scan mode.

Position Sets the display position for the scan mode.

Closed Caption Sets the items for the closed caption display.

Closed Caption Sets whether or not to display closed caption signal ([Off] or On).

Type Sets the closed caption type.

Service 708 Sets Service when Type is set to 708.

Service 608 Sets Service when Type is set to 608 (VBI), 608 (ANC) or 608 (708).

OSD Level Sets the luminance of the letter.

[Off]: Operation mode On: Standby mode

[Last]: Sets to the channel that was selected at the time the power was last turned off. CH: Sets to the channel number specified in Default CH.

[Auto]: Disappears after being displayed for a while. On: Always displayed. Off: Not displayed.

You can select from Top Left (top left), Top Center (top center), Top Right (top right), [Bottom Left] (bottom left), Bottom Center (bottom center) or Bottom Right (bottom right).

[Auto]: Disappears after being displayed for a while. On: Always displayed. Off: Not displayed.

You can select from Top Left (top left), Top Center (top center), [Top Right] (top right), Bottom Left (bottom left), Bottom Center (bottom center) or Bottom Right (bottom right).

[Auto]: Disappears after being displayed for a while. On: Always displayed. Off: Not displayed.

You can select from [Top Left] (top left), Top Center (top center), Top Right (top right), Bottom Left (bottom left), Bottom Center (bottom center) or Bottom Right (bottom right).

[Auto]: Disappears after being displayed for a while. On: Always displayed. Off: Not displayed.

You can select from Top Left (top left), Top Center (top center), Top Right (top right), Bottom Left (bottom left), Bottom Center (bottom center) or

When the BKM-244CC is installed, you can select the item. The setting is effective for the input signal of the BKM-244CC.

[708]: Select to display the closed caption signal of the EIA/CEA-708 standards. 608 (708): Select to display the closed caption signal of the EIA/CEA-608 standards

transmitted by EIA/CEA-708 standards. 608 (ANC): Select to display the closed caption signal of the EIA/CEA-608 standards transmitted as the ancillary data 608 (VBI): Select to display the closed caption signal of the EIA/CEA-608 standards transmitted by using the line 21.

You can select from Service1 to Service6. [Service1]

You can select from CC1 to CC4 or Text1 to Text4. [CC1]

You can select from [100IRE] (bright), 50IRE or 30IRE (dark).

[Bottom Right] (bottom right).

Chapter 3 Menu

System Configuration Menu

Page 74

Menu Function and operation ([ ]: factory setting)

Password Sets the password for the menu.

Enter a four-digit number for the password. [9999]

Change Password Changes the password.

Enter New Password: Enter a new password with the numeric buttons and press the ENTER (Ent) button. Re-Enter Password: Enter the new password again and press the ENTER (Ent) button. The password is registered.

To change it, press the MENU button.

Apply Password Sets whether or not to apply the password to each menu (Yes or [No]).

Adjustment Yes: Apply the password.

[No]: Not apply the password.

Input Configuration Yes: Apply the password.

[No]: Not apply the password.

Chapter 3 Menu

Date/Time When the item is selected, you can set or change the date and time.

Scan Mode Skip Sets the scan mode to be skipped when the SCAN button is pressed in the single mode

Display Setting Yes: Apply the password.

[No]: Not apply the password.

Display Function Yes: Apply the password.

[No]: Not apply the password.

System Configuration Yes: Apply the password.

[No]: Not apply the password.

Individual Item Sets whether or not to apply the password to the System Configuration menu.

Network Yes: Apply the password.

[No]: Not apply the password.

Parallel Remote Yes: Apply the password.

[No]: Not apply the password.

Power Yes: Apply the password.

[No]: Not apply the password.

On Screen Set Yes: Apply the password.

[No]: Not apply the password.

Date/Time Yes: Apply the password.

[No]: Not apply the password.

Scan Mode Skip Yes: Apply the password.

[No]: Not apply the password.

File Management Yes: Apply the password.

[No]: Not apply the password.

Controller Yes: Apply the password.

[No]: Not apply the password.

Key Protect Yes: Apply the password.

[No]: Not apply the password.

Year Sets the year.

Month Sets the month.

Day Sets the day.

Hour Sets the hour (in 24-hour display).

Minute Sets the minute.

Cancel Cancels the setting.

Confirm Executes the setting.

Second is set to 0.

connection.

[None]: No scan is skipped. Under Scan: The under scan is skipped. Over Scan: The over scan is skipped.

System Configuration Menu

Page 75

Menu Function and operation ([ ]: factory setting)

Monitor Upgrade Upgrades the monitor.

When the item is selected, the screen for inputting the password is displayed. After the 4-digit password is entered, the current versions of Software Version, Kernel Version, FPGA1 Version, FPGA2 Version, and FPGA Core Version are displayed.

For the password, see Password (page 74) of the System Configuration menu.

For details on upgrading the monitor, see “Upgrading the Monitor and Controller” on page 94.

Software Upgrade Upgrades the software for the monitor.

Kernel Upgrade Upgrades the kernel of the monitor.

FPGA Upgrade Upgrades the FPGA data of the monitor.

Maintenance The menu for the Sony service representative is displayed.

Chapter 3 Menu

System Configuration Menu

Page 76

File Management Menu

Overview

The system data is saved, copied and deleted. When File Management is selected, the following menu is displayed.

Note

You cannot save, copy or delete a User LUT data file in this menu.

iFile Management

Save To B

Chapter 3 Menu

Copy From B Delete B

Data Maintenance B

Menu Function and Operation

Menu Function and operation ([ ]: factory setting)

Save To Saves the data in the “Memory Stick”.

Note

Use the “Memory Stick” after formatting.

Memory Stick Saves the data in the “Memory Stick”.

When the item is selected, you can select the file to save data, or create a new file name.

New Name: Enter a new name of the new file (1 to 20 characters). Existed file name: Select the file to save data.

The following message appears.

Overwrite this file?

OK: To overwrite the data, press the ENTER (Ent) button. Cancel: To cancel, press the ENTER (Ent) button.

Note

When a new name is entered, the “.” must not be used as the first character.

Copy From Copies the data.

Other Monitor Selects the data of other monitor.

Monitor ID Enter the ID number of the source monitor.

When the NETWORK switch is set to PEER TO PEER, this is not selectable.

When the ID number is entered, you can select the data to be copied.

All: Copies all data. Picture Preset: Copies the picture preset data. Color Temp: Copies the color temperature data. CH Memory: Copies the channel memory data. Matrix/Gamma: Copies the user data of Matrix/Gamma (transmission matrix and

transmission gamma).

Marker: Copies the preset data of the marker. System: Copies the system data.

File Management Menu

Page 77

Menu Function and operation ([ ]: factory setting)

Memory Stick Selects the data in the source “Memory Stick”.

When the item is selected, the file names in the “Memory Stick” are displayed.

When the item is selected, you can select the data to be copied.

Copy From

Delete Deletes the file in the “Memory Stick”.

Memory Stick Deletes the file in the “Memory Stick”.

Data Maintenance Does maintenance the system data.

Back Up System Data Writes the data to the “Memory Stick” as the backup data.

Restore System Data Reads the data from the “Memory Stick”.

transmission gamma).

Marker: Copies the preset data of the marker. System: Copies the system data.

When the item is selected, the file names in the “Memory Stick” are displayed.

When the file is selected, the following message appears.

Delete this file?

OK: To delete the data, press the ENTER (Ent) button. Cancel: To cancel, press the MENU button.

The “In progress x” is displayed and “x” flashes during data writing. (It may take some time to write the data.)

When the item is selected, the following message appears.

All data will be restored and monitor will restart Are you sure?

OK: To continue, press the ENTER (Ent) button.

Reads the data from the “Memory Stick” and automatically restarts the monitor. Cancel: To cancel, press the MENU button. Returns to the Data Maintenance menu.

Chapter 3 Menu

File Management Menu

Page 78

Status Menu

Overview

This menu is used to view general data about the monitor status, current channel, etc. When Status is selected, the following menus are displayed.

iStatus 1/2

CH Status B

Slot Status Option1 HD-SDI/D1 B

Chapter 3 Menu

Option2 D1 B Option3 Composite B Option4 Component B

v V

iStatus 2/2

Model Name: B xxxxx Serial No: B xxxxx Software Version: xxxxx

Operation Time: xxxxx Backlight: xxxxx

Network Switch: xxx

Controller Status B

Menu Function and Operation

Menu Function and operation ([ ]: factory setting)

CH Status Displays the information on the used channels.

The information of the internal signal assigned to the channel number is displayed on the channels 91 to 97.

CH: Channel number Op: Option slot number In: Input connector number Format: Input signal format Name: Channel name

For details on the assigned signal, see “Channel numbers 91 to 97 assignment” on page 36.

Slot Status Option1 to Option4

Model Name Displays the model name of the monitor. Serial No Displays the serial number of the monitor. Software Version Displays software version of the monitor. Operation Time Displays operation time (hours, in total) of the monitor. Backlight Displays brighten time (hours, in total) of the monitor backlight. Network Switch Displays the NETWORK switch setting. Controller Status Displays information on the controller.

Model Name Displays the model name.

Displays the type of input adaptor installed in Option1 to Option4.

D1: When BKM-220D is installed Composite: When BKM-227W is installed Component: When BKM-229X is installed HD-SDI/D1: When BKM-243HS or BKM-244CC is installed Empty: When the adaptor is not installed Unknown: When non-supported adaptor is installed

When the item is selected, the model name and serial number of the installed input adaptor are displayed.

Model Name: Model name Serial No: Serial number

v V

Status Menu

Page 79

Menu Function and operation ([ ]: factory setting)

Serial No Displays the serial number.

Software Version Displays software version.

Network Switch Displays the NETWORK switch setting.

Controller Status

Chapter 3 Menu

Status Menu

Page 80

Controller Menu

Overview

This menu is for the network setting and assigning the function to the function button of the controller. When Controller is selected, the following menu is displayed.

iController

Network B

Function Key B Monitor ID Display: xxx

Chapter 3 Menu

Controller Upgrade B

Menu Function and Operation

Menu Function and operation ([ ]: factory setting)

Network Sets the remote control function of the network.

For the setting value, consult the network administrator.

Network Setting Sets the IP address, subnet mask and default gateway.

IP Address Sets the IP address. [192.168.000.100]

Note

When the NETWORK switch is set to PEER TO PEER, the IP address is set to “192.168.0.100” regardless of the display. When the NETWORK switch is set to LAN, the IP address is set to the displayed one.

Subnet Mask Sets the subnet mask. [255.255.255.000]

Note

When the NETWORK switch is set to PEER TO PEER, the subnet mask is set to “255:255:255:000” regardless of the display. When the NETWORK switch is set to LAN, the subnet mask is set to the displayed one.

Default Gateway Sets whether or not to set the default gateway ([Off] or On). Address Sets the address of the default gateway. [---.---.---.--- (no setting)]

Cancel Cancels the changed or confirmed setting.

Confirm Saves the changed or confirmed setting.

SNMP Setting Sets SNMP.

For the setting value, consult the network administrator.

Contact Sets the information of the administrator.

When the item is selected, you can enter a new name.

New Name: Enter a new name (up to 20 characters).

Name Sets the information for the administration (device ID).

When the item is selected, you can enter a new name.

New Name: Enter a new name (up to 20 characters).

Controller Menu

Page 81

Menu Function and operation ([ ]: factory setting)

Location Sets the location information.

When the item is selected, you can enter a new name.

Network

Trap Sets the address to send the information.

Mode Sets the settings to send information manually or automatically ([Manual] or Auto).

Trap Address Setting Sets the IP address to send the information. [000.000.000.000]

Trap Address Status Displays the IP address to send the information.

Reset Mode/Address Resets the settings to send information manually or automatically and the IP address to the

Authentication Sets whether or not to issue the authentication ([Disable] or Enable).

Community Sets the community name.

Protocol Setting Sets the required items for communications such as the port number.

SDCP/SDAP Community Sets the SDCP/SDAP community name.

SDCP Port No Sets the SDCP port number.

SDAP Port No Sets the SDAP port number.

SDAP Broadcast Sets whether or not to issue the SDAP (Disable or [Enable]).

SDAP Broadcast Period Sets the period (seconds) to issue the SDAP.

Reset Protocol Setting Resets the protocol setting.

Function Key Assigns the function to the function buttons.

New Name: Enter a new name (up to 20 characters).

This item cannot be selected when the monitor is controlled with BKM-15R or BVM-A14F5.

When Mode is set to Manual or the monitor is controlled with BKM-15R or BVM-A14F5, you can select this item.

When the item is selected, you can set the IP address of Trap1 to Trap4. When the monitor is controlled with BKM-15R or BVM-A14F5, you can set only the IP address of Trap1 and Trap2.

Cancel: Cancels the changed or confirmed setting. Confirm: Saves the changed or confirmed setting.

When Mode is set to Auto, you can select this item. This item cannot be selected when the monitor is controlled with BKM-15R or BVM-A14F5.

When the item is selected, the IP address of Trap1 to Trap4 is displayed.

factory setting. This item cannot be selected when the monitor is controlled with BKM-15R or BVM-A14F5.

When the item is selected, the following message appears.

Are you sure?

OK: To reset the data, press the ENTER (Ent) button. Cancel: To cancel, press the MENU button.

This item cannot be selected when the monitor is controlled with BKM-15R or BVM-A14F5.

When the item is selected, you can enter the community name (up to 20 characters).

public: Initially, public is entered automatically. Enter any character after it. New Name: Enter a community name.

This item cannot be selected when the monitor is controlled with BKM-15R or BVM-A14F5. For the setting value, consult the network administrator.

When the item is selected, you can enter the community name (four characters).

SONY: SONY is entered as a community name. New Name: Enter a new name.

Set to 53434 to 53534. [53484]

Set to 53812 to 53912. [53862]

Set to 05 to 30. [30]

When the item is selected, the following message appears.

Are you sure?

OK: To reset data, press the ENTER (Ent) button. Cancel: To cancel, press the MENU button.

This item cannot be selected when the monitor is controlled with BKM-15R or BVM-A14F5.

Chapter 3 Menu

Controller Menu

Page 82

Menu Function and operation ([ ]: factory setting)

F1 to F16 The following functions are assigned.

Scan Mode: Changes the scan mode of the picture. Native Scan: Displays the picture in native scan mode. 16:9: Changes the aspect ratio to 16:9 or 1.896:1 (digital cinema signal), and when set to

Function Key

Chapter 3 Menu

Off, the aspect ratio changes to 4:3 or 2.39:1. The aspect ratio of some signals is fixed to 16:9 depending on the signal format. For details, see “Available Signal Systems” on page 101. H Delay: The picture moves horizontally and a horizontal sync signal appears.

• Brightness of the picture increases automatically, and it makes it easy to check the sync part.

• When V DELAY button is set to on in H delay mode, a pulse cross picture is displayed.

V Delay: The picture moves vertically and a vertical sync signal appears approximately in the center of the screen.

• Brightness of the picture increases automatically, and it makes it easy to check the sync part.

• When H DELAY button is set to on in V delay mode, a pulse cross picture is displayed.

External Sync: Sets whether or not to set to the external sync mode when the analog component signal or analog RGB signal is input. When the button is set to on, the signal to be displayed is synchronized with the sync signal input to the EXT SYNC connector (External Sync). When set to off, the signal to be displayed is synchronized with the sync signal included in the signals being monitored (Internal Sync).

Note

When the button is set to off (Internal Sync), a sync signal is added on the Y signal to monitor the analog component signal and on the G signal to monitor the analog RGB signal.

Comb: The comb filter is turned on. When the button is set to off, the band-pass filter is selected. When the displayed signal is NTSC, PAL or PAL-M, this functions. You can select the kind of the comb filter in the NTSC Comb Filter menu (page 59) of the Display Setting menu.

Char Off: The characters on the monitor screen hide during manual adjustment. Color Temp: You can access directly the Manual Adjust menu of the color temperature. Capture Load: Displays the menu to load the captured picture from the “Memory Stick”.

Aperture: When the function is set to on, the frequency response can be modified. The

degree of modification is set in the Aperture Value menu (page 59) of the Display Setting menu. For information about the aperture modification frequency for each signal system, see “Aperture Modification Frequency” on page 107. Mono: When the button is set to on, a monochrome picture is displayed. When the button is set to off, the monitor switches automatically between color and monochrome mode, depending on the color discrimination of the input adaptor. Blue Only: Red and green signals are cut, and only the blue signal is displayed as a monochrome picture. It makes it easy to adjust chroma and phase, and to check VTR noise.

R Off: R (red) signals are cut respectively. G Off: G (green) signals are cut respectively. B Off: B (blue) signals are cut respectively. Chroma Up: The chroma setting increases by 12 dB. Black Frame Insertion: Displays in the black frame insertion mode. Interlace: Displays in the interlace mode. Pixel Zoom: The part of the picture is magnified up to 8 times.

Note

When Pixel Zoom is used, set Native Scan to On. Marker: When the button is set to on, all markers are displayed on the screen.

The display mode of the marker is set in the Marker Setting menu (page 60) of the Display Function menu.

Note

When External Sync is set to On, the marker may not be shown in the correct position.

Controller Menu

Page 83

Menu Function and operation ([ ]: factory setting)

Aspect Marker: An aspect marker is displayed on the screen.

The display mode of the aspect marker is set in Aspect Marker (page 60) of the Marker Setting menu of the Display Function menu.

Note

Function Key

Monitor ID Display Sets display mode of the display window.

Controller Upgrade Upgrades the controller.

Software Upgrade Upgrades the software for the controller.

Kernel Upgrade Upgrades the kernel of the controller.

When External Sync is set to On, the marker may not be shown in the correct position. Area Marker1: An area marker 1 is displayed on the screen.

The display mode of the area marker 1 is set in Area Marker 1 (page 61) of the Marker Setting menu of the Display Function menu.

Note

When External Sync is set to On, the marker may not be shown in the correct position. Area Marker2: An area marker 2 is displayed on the screen.

The display mode of the area marker 2 is set in Area Marker 2 (page 62) of the Marker Setting menu of the Display Function menu.

Note

When External Sync is set to On, the marker may not be shown in the correct position.

Side by Side: The screen is displayed in the side by side display mode. Wipe: The screen is displayed in the wipe display mode. Butterfly: The screen is displayed in the butterfly display mode. Blending: The screen is displayed in the blending display mode. Error Notify Clear: Clears the notification detected in the gamut error detection. Degauss: The CRT is degaussed (only for BVM-A series). Black Detail Mode: The signal is displayed in black detail mode.

[On]: Always displayed. Auto: Displayed during operating by the remote connection and disappears

automatically after operation. Off: Not displayed.

When the item is selected, the screen for inputting the password is displayed. After the 4-digit password is entered, the current versions of Software Version and Kernel Version are displayed.

For the password, see Password (page 74) of the System Configuration menu.

For details on upgrading the controller, see “Upgrading the Monitor and Controller” on page

94.

Chapter 3 Menu

Controller Menu

Page 84

Key Protect Menu

Overview

This menu is used to lock the data so that the setting is not changed by an unauthorized user.

Adjustment B Input Configuration B Display Setting B Display Function B System ConfigurationB

Chapter 3 Menu

File Management B Status B Controller B

Key Protect: Off

Menu Function and Operation

Menu Function and operation ([ ]: factory setting)

Key Protect Sets the key protection.

On: The button on the controller (except the menu operation buttons and monitor

selection buttons) and the parallel remote do not function and other settings are not changeable. [Off]: Release the lock.

Key Protect Menu

Page 85

Operations

Selecting Display Mode

This monitor applies high-contrast to the picture and reproduces accurate color by displaying the interlace signal in progressive mode by the I/P conversion or the PsF·progressive signal in progressive mode without the I/P conversion. You can select following mode according to the input signal or the object to evaluate the picture.

• Black frame insertion display mode: A black frame is

inserted between the picture frames. It is convenient to confirm the picture with multi-action scenes or roll telop as the motion blur caused by the holding-type display of the LCD is decreased.

• Interlace display mode: The picture is displayed in

interlace mode without I/P conversion processing. The picture near the original quality of the input signal is monitored.

Chapter

– When Blending is set to On – When Pixel Zoom is set to on

Set Native Scan (page 66) to On in the Display Function menu for interlace display.

Set Interlace and Black Frame Insertion in the Function Switch menu (page 66) of the Display Function menu.

iiFunction Switch 2/4

Aperture: xxx Mono: xxx Blue Only: xxx R Off: xxx G Off: xxx B Off: xxx Chroma Up: xxx

Black Frame Insertion

Interlace: xxx

: xxx

v V

Chapter 4 Operations

Notes

• The luminance is reduced due to the principle of operation in the black frame insertion mode and the interlace display mode. However, on this monitor the normal luminance is set by setting up the value of the backlight luminance. For this reason, the black level is set higher than the normal setting level and the range of the contrast adjustment (backlight adjustment) is different from the normal level, and the luminance may be reduced according to the setting of the contrast.

• You cannot use both the black frame insertion display mode and interlace display mode. When the interlace display is set to on, the black frame insertion display is not set to on.

• The black frame is not inserted in the following cases: – When Interlace is set to On – When the 24P or 24PsF input signal is displayed – When Format of the Input Configuration menu is set

to DVI Computer

• The picture is not displayed in interlace mode in the following cases: – When Side by Side is set to On – When Wipe is set to On – When Butterfly is set to On

Setting Interlace and Black Frame Insertion

Display mode Interlace Black Frame

Insertion

Progressive (factory setting) Off Off

Black frame insertion display Off On

Interlace display On Off

For the input signal to display in black insertion mode and interlace mode, see “Picture·Frame Display” on page 110.

Selecting Display Mode

Page 86

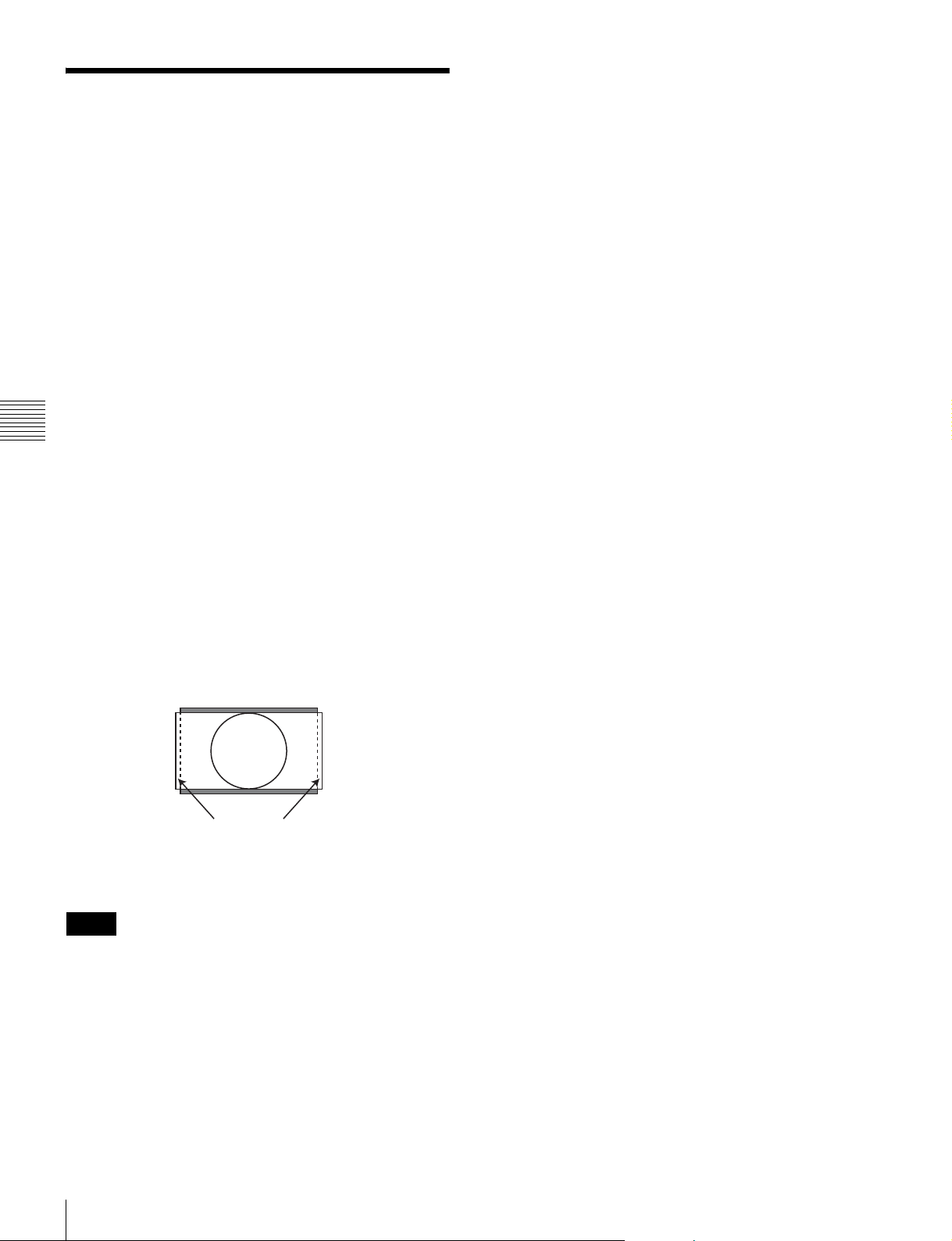

Setting the Display of Native Scan Mode

About the native scan mode

You can set the picture display type for the native scan mode according to the input signal. You can select ×1 or ×2, which differ in picture display size, to map the pixels of the signal to the panel in one-toone mode, or Aspect Correction. An SD signal of nonsquare pixels (the number of H pixels of the signal system is 720 or 1440) or a 640 × 480 SD signal of DVI video is displayed correctly by scaling processing of doubling for the V direction and correct aspect ratio for the H direction, and the picture is also optimized and displayed by modifying the aperture coefficient value, filter coefficient value, etc. in Aspect Correction mode.

Chapter 4 Operations

For details, see “Picture Display Size” on page 108. Set the native scan mode in the Native Scan Mode menu (page 59) of the Display Setting menu.

Display of the input signal system 2048 × 1080

When the input signal system is 2048 × 1080 and the native scan mode is selected, you can display no display area of the left and right sides over the H size (1920) by sliding the picture with the PHASE knob. You can restore the display position to the center by pressing the MANUAL button of PHASE of the controller.

– When the signal system is the SD signal of 720 × 576

or 1440 × 576, Native Scan Mode is set to Aspect Correction and the internal signal of the aspect ratio 16:9 is displayed (Native Scan is set to Off and the normal scan is displayed regardless of the setting.)

• The set position of 2048 × 1080 is held even when the system is changed to another input signal system.

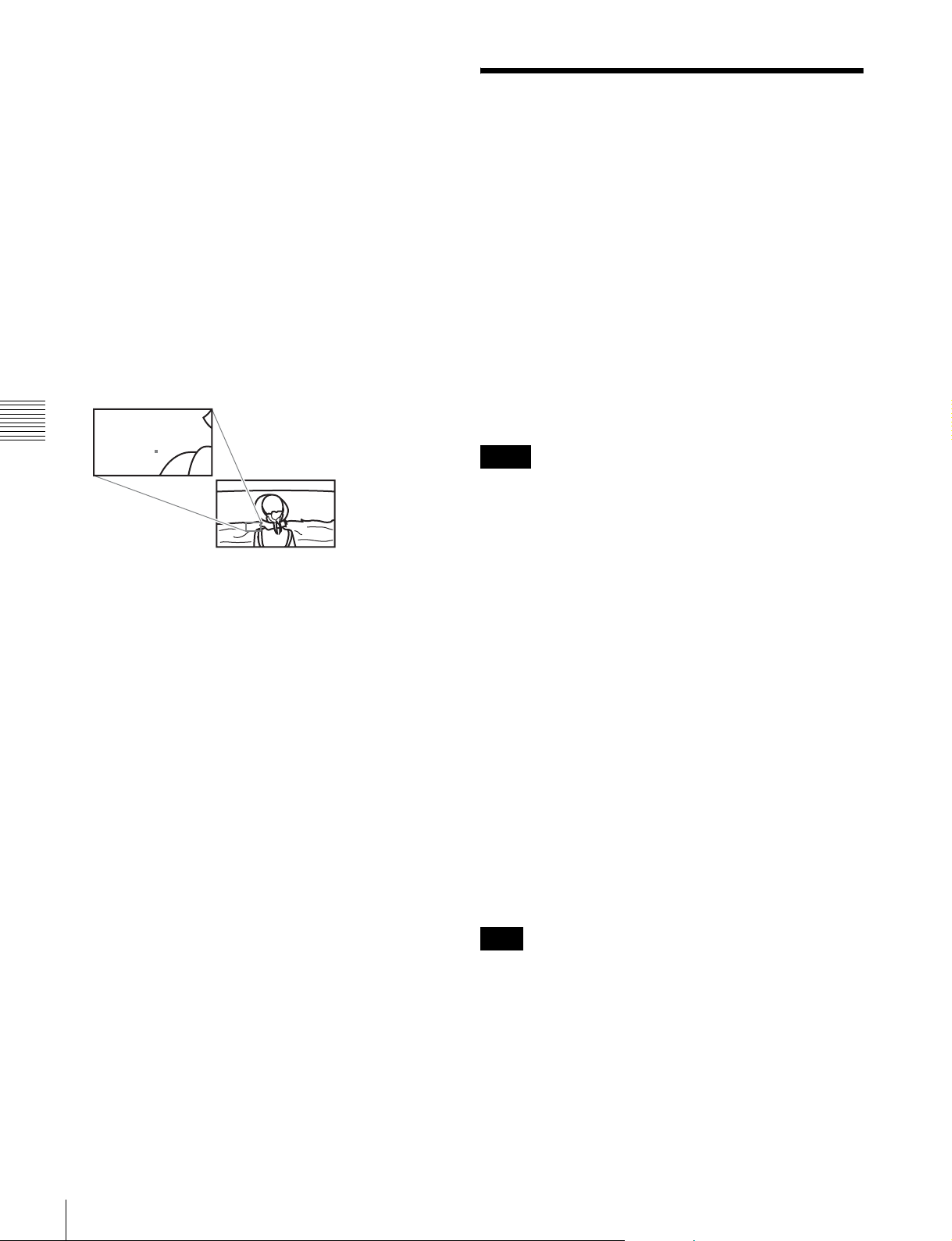

Displayed by sliding the picture with the PHASE knob of the controller.

Notes

• The native scan is not selectable in the following cases: – When the input signal has no sync signal – When Side by Side is set to On – When Pixel Zoom is set to on – When Format of the Input Configuration menu is set

to DVI Computer (The native scan is displayed regardless of the setting.)

– When a digital cinema signal (2048 × 1080) is input

and the internal signal is displayed (Native Scan is set to Off and the normal scan is displayed regardless of the setting.)

Setting the Display of Native Scan Mode

Page 87

Over Scan: Over mode

Selecting the Native Scan/Scan Mode

You can select scan mode from a native scan, under scan (– 3%), normal scan (0%) and over scan (mask of 5% over scan portion in the normal scan picture). You can set scan mode with the NATIVE SCAN button or SCAN button of the controller, or in the Function Switch menu of the Display Function menu.

Setting with the NATIVE SCAN button or SCAN button of the controller

To set to the native scan mode

Set the NATIVE SCAN button to on. (The LED on the button lights.)

To select the scan mode

Set the NATIVE SCAN button to off. (The LED on the button is turned off.)

Press the SCAN button to select the scan mode.

For details on the Function Switch menu, see “Function Switch” (page 66) in the Display Function menu.

Note

The scan mode is not selectable in the following cases:

• When Native Scan is set to On

• When the internal signal is displayed

• When Side by Side is set to On

• When Wipe is set to On

• When Butterfly is set to On

• When Blending is set to On

Chapter 4 Operations

Scan mode is changed to normal, under and over scan mode by each press of the button.

Setting in the menu

Set Scan Mode or Native Scan in the Function Switch menu of the Display Function menu.

iiFunction Switch 1/4

Scan Mode: xxx Native Scan: xxx 16:9: xxx H Delay: xxx V Delay: xxx External Sync:: xxx Comb: xxx

To set to the native scan mode

Set Native Scan to On.

To select the scan mode

Set Native Scan to Off.

v V

Select Scan Mode, then select scan mode from the following.

Normal Scan: Normal mode Under Scan: Under mode

Selecting the Native Scan/Scan Mode

Page 88

Butterfly (butterfly)

Displaying Two Signals on One Screen (Picture&Picture)

Two input signals are output on the monitor. You can select the display mode from Side by Side (side by side), Wipe (wipe), Butterfly (butterfly) and Blending (blending). This is useful for adjusting the color or comparing two pictures. You can input the file loaded in the Capture menu (page

65) of the Display Function menu.

Side by Side (side by side)

Two pictures are displayed side by side.

Chapter 4 Operations

Signal A Signal B

The right picture is a left-right reversal picture of the left picture.

The display range of the picture is changed with the PHASE knob of the controller.

Signal A Signal B

Blending (blending)

A picture that superimposes signal A and signal B is displayed. The mixed ratio of two input signals is changed with the PHASE knob of the controller.

Wipe (wipe)

Signal A Signal B

Left and right pictures connected at the boundary position are displayed.

The boundary line of the left and right area is changed with the PHASE knob of the controller.

Signal A and Signal B

Notes

• The input signals from INPUT 1 and INPUT 2 of one input adaptor are not displayed in the multi display. Two or more input adaptors are required to use the input signals from the input adaptor as signal A and signal B.

• You cannot select the same channel number as channels for signal A and signal B. And set a different channel number of the different input adaptor for signal A and signal B.

• When the wipe or blending mode is used, signal A and signal B should be genlocked to synchronize with each other.

• When signal A and signal B are not the same signal format and signal system, the pictures may not be displayed correctly.

• The input of signal A is not changed in the multi display.

• The internal signal is not displayed in the multi display.

• The captured picture data is not used to display as signal A and signal B at the same time.

• The signals are not displayed in the multi display mode when Pixel Zoom is set to on.

Displaying Two Signals on One Screen (Picture&Picture)

Procedure

Select the channel number and set the input signal to display as signal A.

Page 89

Select the display mode of Picture&Picture (Side by Side, Wipe, Butterfly or Blending) with the function button* of the controller or in the Function Switch menu of the Display Function menu and set it to On.

For details on the Function Switch menu, see the “Function Switch” (page 66) of the Display Function menu.

* Each function of Picture&Picture is assigned to each function

button of the controller in the Function Key menu (page 81) of the Controller menu.

Magnifying the Picture (Pixel Zoom)

As part of the picture is magnified up to 8 times (up to 4 times when the display magnification of the native scan is ×2) without scaling processing, this is convenient for confirming a minute of the signal. This functions in native scan mode.

Select the channel number and set the input signal to display as signal B.

The channel for signal B is set to CH01 at the factory setting.

Note

When the picture is displayed in wipe, butterfly or blending mode, set signal A and signal B to the input signal of the same signal format and signal system to compare the picture correctly, and set to the native scan mode (page 66).

To display the captured picture data file

You can use a captured picture other than the picture selected by designating the channel number as signal A and signal B. Instead of setting the channel number in step1 or step3, press the Capture Load button* or select Load in the Capture menu.

For details on the Capture menu, see the “Capture” (page

65) of the Display Function menu.

* Captur Load is assigned to the controller in the Function Key menu

(page 81) of the Controller menu.

Note

The Pixel Zoom is not set to on in the following cases:

• When Side by Side is set to On

• When Wipe is set to On

• When Butterfly is set to On

• When Blending is set to On

• When the internal signal is displayed

• When the input signal has no sync signal

Set Native Scan to On by pressing the NATIVE SCAN button of the controller or in the Function Switch menu of the Display Function menu.

For details on Native Scan, see “Function Switch” (page 66) of the Display Function menu.

Display the picture and set Pixel Zoom to on by pressing the Pixel Zoom button* of the controller.

The cursor is displayed.

Note

When Native Scan Mode is set to Aspect Correction and Pixel Zoom is set to on for SD signal input, Native Scan Mode is set to ×2.

Chapter 4 Operations

Note

When the captured picture data file is used in wipe or blending mode, input an HD-SDI signal for another signal. When a signal not available for capture other than the HDSDI signal is input, the picture will not be displayed correctly.

To end the multi display

Set Side by Side, Wipe, Butterfly or Blending to Off in Function Switch menu (page 66) of the Display Function menu, or set each function button of the controller to off.

To cancel the cursor display and return to the previous screen

Press the MENU button of the controller.

* Pixel Zoom is assigned to the function button of the controller

in the Function Key menu (page 81) of the Controller menu.

Select the cursor size with the UP or DOWN button of the controller.

You can select the cursor size from 1 to 8 (from 1 to 4 when the display magnification of the native scan is ×2 (page 59)). The larger the number, the smaller the cursor.

Adjust the position of the cursor.

To move the leftward or rightward: Turn the PHASE knob.

Magnifying the Picture (Pixel Zoom)

Page 90

To move the upward or downward: Turn the CHROMA knob.

Press the ENTER (Ent) button.

Part inside the cursor is magnified. You can move the position of the magnified picture with the PHASE knob or CHROMA knob. You can change the magnification ratio with the UP or DOWN button. You can also change the boundary line color.

For details on changing the boundary line color, see “Pixel Zoom Setting” (page 63) of the Display Function menu.

Displaying the Picture in Black Detail Mode

Black detail mode display function

You can reduce to dull black color by backlight leaking and precisely assess any parts with low color gradation. You can decrease the black level up to 40% of the normal display (100 cd/m color gradation (higher than 75 IRE) are clipped by the dynamic range of the circuit, but a zebra pattern (selectable) is displayed in the clipped portions.

at 100% signal). The parts with high

Press the MENU button of the controller to return to the cursor display.

Chapter 4 Operations

To end the pixel zoom operation

When the cursor is displayed or the picture is magnified, press the Pixel Zoom button of the controller.

For details on the zebra pattern display for the clipped portion, see “Zebra Pattern” (page 65) in the Black Detail Setting menu of the Display Function menu.

Notes

• The setting is in effect when Gamma (transmission gamma) of the Matrix/Gamma menu is set to 2.2 or 2.6 RGB.

• The contrast is not adjusted in black detail mode.

• The gamut error is not displayed in black detail mode.

• The signal is not displayed in black detail mode in the following cases: – When Interlace is set to On – When Black Frame Insertion is set to On – When H Delay/V Delay is set to On

For the Matrix/Gamma setting, see “Matrix/Gamma” (page 53) of the Input Configuration menu.

To display the signal in black detail mode

Press the Black Detail Mode button* of the controller or set Black Detail Mode to On in the Function Switch menu of the Display Function menu (page 69). The OVER RANGE lamp of the front panel is lit in black detail mode.

Displaying the Picture in Black Detail Mode

* Black Detail Mode is assigned to the controller in the Function

Key menu (page 81) of the Controller menu.

Note

Use the controller with software version 1.3 or higher to assign Black Detail Mode to the function button of the controller.

Page 91

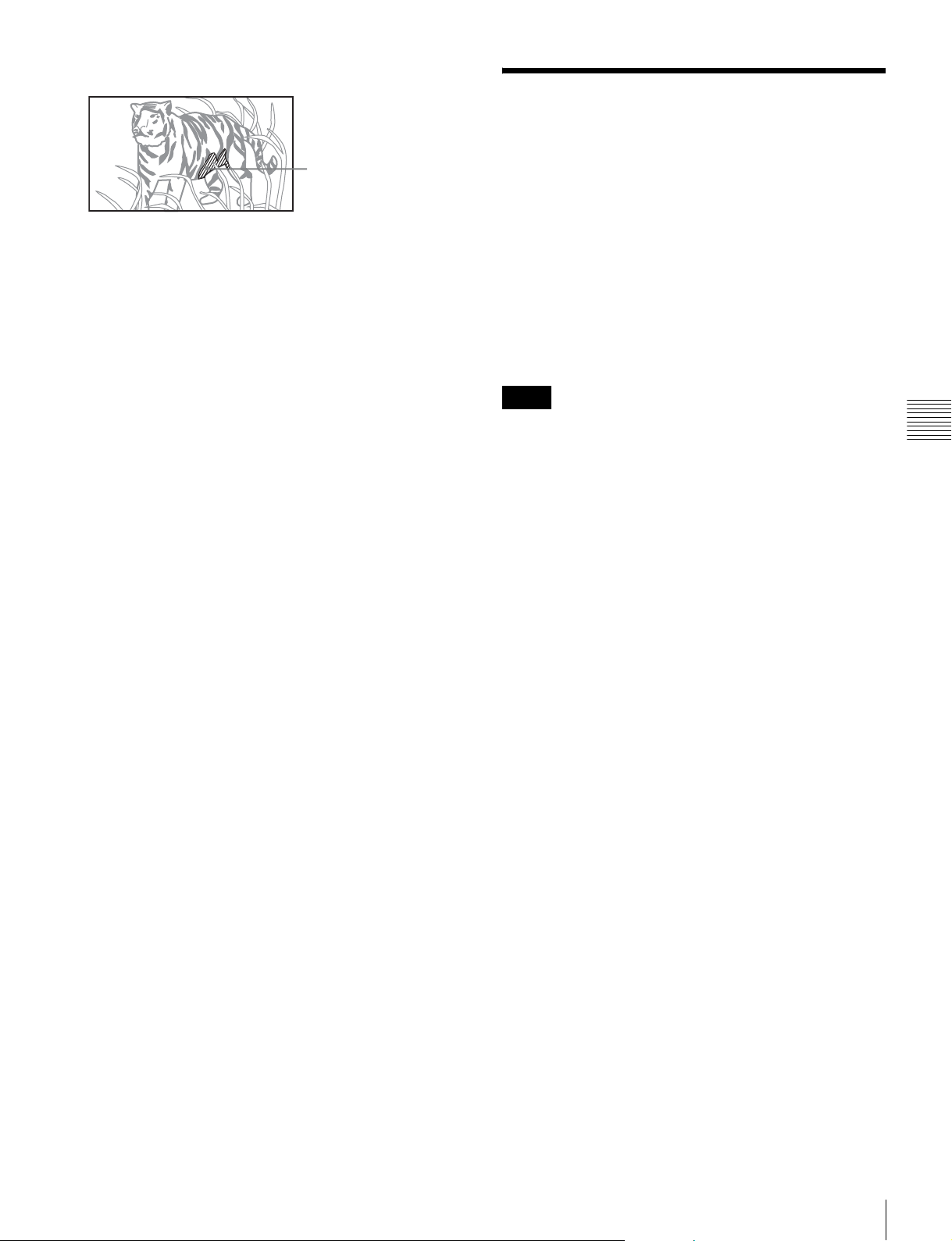

Zebra pattern display of the clipped portion

Capturing the Picture of the HD Signal (HD Frame

Zebra pattern

To end the black detail mode

Set the Black Detail Mode button of the controller to off, or set the Black Detail Mode to Off in the Function Switch menu of the Display Function menu.

Capture)

The frame picture of the HD-SDI input signal is captured and saved as a picture file in the “Memory Stick”. This is used to confirm the color tone and picture angle of the current scene and recorded scene, or as the reference picture to adjust the monitor. To save the captured frame, we recommend using “Memory Stick PRO (High-Speed)” or “Memory Stick PRO Duo (High-Speed)”.

Notes

• The file is saved in TIFF. The file size is a maximum of 13 MB.

• The picture file is captured or loaded without deterioration.

• The saved file may not be opened due to the PC application used.

• The HD Frame Capture function is effective only for the HD-SDI signal.

• The interlace input signal is captured in each frame (first field (F=0) and second field (F=1)).

• The frame is not captured in the following cases: – When Side by Side is set to On – When Wipe is set to On – When Butterfly is set to On – When Blending is set to On – When Pixel Zoom is set to on – When the internal signal is displayed – When the input signal has no sync signal – When the captured frame is displayed

• The HD Frame Capture function is not available on BKM-15R and BVM-A14F5.

Chapter 4 Operations

To capture

Insert the “Memory Stick” into the Memory Stick insertion slot of the controller.

For details on the “Memory Stick”, see “Inserting/Ejecting the “Memory Stick”” on page

126.

Display the picture and press the CAPTURE button of the controller at the point on the picture to be captured.

The captured still picture appears on the display.

Capturing the Picture of the HD Signal (HD Frame Capture)

Page 92

CAPTURE

Displaying the Area Marker or Aspect Marker

Save: ENTER Cancel: MENU

To hide characters on the monitor, set the CHAR OFF button to on. As the characters are hidden, it becomes easy to confirm the still picture. To display the characters, set the CHAR OFF button to off.

Press the ENTER (Ent) button.

The display of the captured still picture is cleared and saving in the “Memory Stick” of the captured frame starts.

Chapter 4 Operations

The “In progress during data saving. (It may take some time to write the data.) The file of the captured frame is automatically named and the file name is displayed on the screen during file saving.

Note

The monitor is not operated until the saving is completed.

x” is displayed and “x” flashes

To load the captured frame

Press the Capture Load button* of the controller or select Load in the Capture menu (page 65) of the Display Function menu, and then the file name. To cancel the captured frame display, select any one of channel numbers 1 to 30.

The monitor is equipped with two area markers and center marker as the safe area marker and aspect marker for confirming the picture angle.

Set the marker to display to On in the Marker Setting menu (page 60) of the Display Function menu.

Input the signal.

Press the function button of the controller.

When the MARKER button is set to on

All the markers that are set to On in the Marker Setting menu of the Display Function menu are displayed. The MARKER button lights.

To display the aspect marker, area marker 1 or area marker 2

Set the button of the marker that you wish to display (ASPECT MARKER, AREA MARKER 1 or AREA MARKER 2) to on. The MARKER button and the pressed button light.

To cancel the marker display

Set the MARKER button to off.

* Capture Load is assigned to the function button of the controller in

the Function Key menu (page 81) of the Controller menu.

Displaying the Area Marker or Aspect Marker

Page 93

Press the ENTER (Ent) button.

Copying the Setting or Adjustment Value to Another Monitor

You can save the setting or adjustment value in the “Memory Stick” and copy it to another monitor.

Insert the “Memory Stick” into the Memory Stick insertion slot of the controller.

For details on the “Memory Stick”, see “Inserting/Ejecting the “Memory Stick”” on page

126.

Select Memory Stick in the Save To menu (page 76) of the File Management menu, and then select New Name or the existing file name.

When you select New Name, the display to create a new name appears.

Display example

The data is saved in the “Memory Stick”.

Notes

• Data saving, copying and deleting using the “Memory Stick” is not available on BKM-15R or BVM-A14F5.

• Data copying from the BVM-A series monitor is not available.

Chapter 4 Operations

iiiFile Management

Save to Memory Stick

New Name

File1 File2 File3

Enter a new name (1 to 20 characters).

When the existing file name is selected, the display to confirm a file name appears.

Display example

iiiiFile Management

Save to Memory Stick FileX

Overwrite this file?

OK: ENTER Cancel: MENU

Copying the Setting or Adjustment Value to Another Monitor

Page 94

Assigning the Function

Upgrading the Monitor

on the Function Button

You can assign a function other than the factory preset on the function button of the controller.

Select the Function Key menu in the Controller menu.

Select F1 to F16 button, and then the function assigned on each button.

The following functions are assigned. Scan Mode Native Scan 16 : 9 H Delay V Delay

Chapter 4 Operations

External Sync Comb Char Off Color Temp Capture Load Aperture Mono Blue Only R Off G Off B Off Chroma Up Black Frame Insertion Interlace Pixel Zoom Marker Aspect Marker Area Marker 1 Area Marker 2 Side by Side Wipe Butterfly Blending Error Notify Clear Degauss Black Detail Mode

For details on the assigned function, see “Function Key” (page 81) in the Controller menu.

and Controller

You can upgrade the monitor and the controller with the data saved in a “Memory Stick”. You can upgrade the following data:

Monitor: Software program

Kernel FPGA data

Controller: Software program

Kernel

Notes

• Upgrading of the software for the controller is available for version 1.11 or later of the software for the controller, and upgrading of the controller kernel is available for version 1.2 or later.

• Use a “Memory Stick PRO” for upgrading. If a “Memory Stick” other than “Memory Stick PRO” is used, the upgrading may not be executed correctly.

• To initialize the “Memory Stick PRO”, use a machine and application corresponding to “Memory Stick PRO”. If Windows Explorer is used for initialization, the upgrading may not be executed correctly.

To get the upgrade data

Contact your Sony representative.

Saving the upgrade data in a “Memory Stick PRO”

Save the upgrade data (MSSONY folder) in a “Memory Stick PRO”. Save the whole MSSONY folder directly in the root directory of the Memory Stick drive.

To confirm saving the data correctly

Double-click on the file including checksum.bat in the file name.

• MSSONY/MONITOR/BVM_L/UPDATES/SOFT/BVM _L230/checksum_soft.bat

• MSSONY/MONITOR/BVM_L/UPDATES/KERNEL/B VM_L230/checksum_kernel.bat

• MSSONY/MONITOR/BVM_L/UPDATES/FPGA/BV M_L230/checksum_fpga.bat

• MSSONY/MONITOR/BVM_L/UPDATES/SOFT/BKM _16R/checksum_soft.bat

• MSSONY/MONITOR/BVM_L/UPDATES/KERNEL/B KM_16R/checksum_kernel.bat

Assigning the Function on the Function Button / Upgrading the Monitor and Controller

Page 95

Display example

Confirming the upgrade data of the kernel of the monitor

Double-click the following file: MSSONY/MONITOR/BVM_L/UPDATES/KERNEL/B VM_L230/checksum_kernel.bat

When the data are saved correctly

E:\MSSONY\MONITOR\BVM_L\UPDATES\KERNEL\BVM_L230>check_data\\checksum -c check_da ta\\checksum_table -f vxWorks_rom.bin -f version

********************************* * * * check 2 files Ok * * * * Success * * * *********************************

E:\MSSONY\MONITOR\BVM_L\UPDATES\KERNEL\BVM_L230>pause

...

“Success” is displayed.

When the data are not saved correctly

Select the item to upgrade from among Software Upgrade, Kernel Upgrade, and FPGA Upgrade.

After about 10 seconds, the old and new software versions or kernel version, and the message to confirm that you with to execute the upgrade are displayed. When FPGA Upgrade is selected, the new versions of FPGA1, FPGA2, FPGA CORE, starting from the left, and a confirmation message are displayed.

Display example

Monitor software will be upgraded and monitor will restart. Are you sure?

Confirm the data version and press the ENTER (Ent) button.

Upgrading starts. The “In progress x” is displayed and “x” flashes during upgrading. The “x” indication may stop flashing during upgrading, but the data are being upgraded correctly. It takes about 6 minutes to upgrade the software and about 1 minute to upgrade the kernel or FPGA data.

Chapter 4 Operations

E:\MSSONY\MONITOR\BVM_L\UPDATES\KERNEL\BVM_L230>check_data\\checksum -c check_da ta\\checksum_table -f vxWorks_rom.bin -f version

"vxWorks_rom.bin" check : Error!!!

********************************* * * * 1 file error * * * * Error * * * *********************************

E:\MSSONY\MONITOR\BVM_L\UPDATES\KERNEL\BVM_L230>pause

...

“Error” is displayed.

Upgrading the monitor

Insert the “Memory Stick PRO” into the Memory Stick insertion slot of the controller.

Select the Monitor Upgrade menu in the System Configuration menu (page 75).

Enter the 4-digit password.

The Monitor Upgrade screen is displayed, and the current version is indicated.

For the password, see Password (page 74) of the System Configuration menu.

Notes

• Do not remove the “Memory Stick PRO” from the Memory Stick insertion slot during upgrading or disconnect the LAN cable between the monitor and controller.

• Do not turn off the power of the monitor and controller during upgrading.

After completion of upgrading, the display on the screen disappears, and the system is restarted. After restarting, the previous screen is displayed.

Select the Monitor Upgrade menu in the System Configuration menu and confirm that the version of the selected item has been upgraded.

When the upgrade sequence does not move forward correctly, the message such as “Procedure failure” is displayed in red. If this error message is displayed, contact your Sony representative.

Upgrading the controller

Insert the “Memory Stick PRO” into the Memory Stick insertion slot of the controller.

Select the Controller Upgrade menu in the Controller menu (page 83).

Enter the 4-digit password.

Upgrading the Monitor and Controller

Page 96

The Controller Upgrade screen is displayed, and the current version is indicated.

For the password, see Password (page 74) of the System Configuration menu.

Select the item to upgrade from Software Upgrade or Kernel Upgrade.

REMOTE

SINGLE

GROUP

Chapter 4 Operations

After about 10 seconds, the old and new software versions or kernel version, and the message to confirm that you wish to execute the upgrade are displayed.

Display example

Controller software will be upgraded and controller will restart. Are you sure?

Confirm the data version and press the ENTER (Ent) button.

Upgrading starts.

When a version earlier than 1.2 of the software for the controller is upgraded

When upgrading starts, the dot (indicator) lights as moving from left to right in the display window of the controller. The dot may stop during upgrading, but the data are being upgraded correctly. It takes about 1 minute to upgrade the controller.

REMOTE

SINGLE

ALL

SINGLE

Notes

GROUP ALL

• Do not remove the “Memory Stick PRO” from the Memory Stick insertion slot during upgrading or disconnect the LAN cable between the monitor and controller.

• Do not turn off the power of the monitor and controller during upgrading.

After completion of upgrading, the system is restarted. The network between the monitor and controller is reconnected, and you can operate the controller.

When the upgrade sequence does not move forward correctly, the error message “Err” is displayed in the display window. If this error message is displayed, contact your Sony representative.

Exit the Controller Upgrade menu, select the Controller Upgrade menu again, and confirm that the version of the selected item has been upgraded.

SINGLE

When version 1.2 or later of the software for the controller is upgraded

When the upgrading starts, the indicator lights as turning clockwise in the display window of the controller. The indicator may stop during upgrading, but the data are being upgraded correctly. It takes about 1 minute to upgrade the controller. After upgrading, all indicators light for about 1 second.

Upgrading the Monitor and Controller

GROUP

ALL

GROUP ALL

Page 97

Appendixes

Specifications

General

LCD panel a-Si TFT Active Matrix Picture size 22.5 inches Display area 483.84 (H) × 302.4 (V) Resolution 1920 (H) × 1200 (V) pixel Backlight High-purity LEDs Panel drive RGB 10 bit Panel frame rate

96/100/120 Hz

Viewing angle 85º/85º/85º/85º

(up/down/left/right, contrast 10:1) Pixel efficiency 99.99% Warm-up time Approx. 30 minutes Power consumption

Approx. 180 W (at maximum load, the

luminance compensation due to the aged deterioration of the LED is included.)

Approx. 130 W (the BKM-243HS is

attached, the default status)

Power requirements

100 to 240 V AC,

2.0 to 0.9 A, 50/60 Hz

Peak inrush current

(1) Power ON, current probe method:

20 A (100 V), 52 A (240V)

(2) Hot switching inrush current,

measured in accordance with European standard EN55103-1: 25 A (230 V)

Mass Approx. 22 kg (48 lb 8 oz)

Input/Output

Option slot Four slots

Signal format

Refer to “Available Signal Systems” (page 101) and “Available Signal Formats” (page 103).

PC input DVI-D (HDCP correspondence) × 1

Signal format

Refer to “DVI-D” (page 105) of “Available Signal Formats”.

Control OPTION A: Mini-DIN 8-pin (female) ×

1 OPTION B: USB (Type A) type × 1 LAN (10BASE-T/100BASE-TX): RJ-

45 × 1 PARALLEL REMOTE: D-sub 9-pin

(female) × 1 DC 5V OUT: Circle 4-pin (female) × 1

Picture performance

Normal scan 0% scan Native scan Mapping the pixels of the signal to the

panel to one-to-one mode, or

displaying an SD signal of non-

square pixels (the number of H

pixels of the signal system is 720 or

1440) or a 640 × 480 SD signal of

DVI video by scaling processing of

doubling for the V direction and

correct aspect ratio for the H

direction and also optimizing and

displaying a picture by modifying

the aperture coefficient value, filter

coefficient value, etc.

Under scan 3% under scan Over scan Mask of 5% over scan portion in the

normal scan

Color temperature

D56, D61, D65, D93, D-Cine*, (Setting

possible in other color temperature)

*D-Cine: x=0.314 y=0.351

Standard luminance

100 cd/m 48 cd/m (1.0 Vp-p reference signal, 100% white

Color space (color gamut)

ITU-R BT.709, BVM EBU, BVM

*1 Chromaticity point of SMPTE RP 431-

(Preset1 to Preset5)

(Preset (D-Cine))

signal input)

SMPTE-C, D-Cine*

L230 Native*

S-GAMUT*

2 is not covered in full.

Appendixes

Specifications

Page 98

*2 The BVM-L230 individual chromaticity

points. The widest color space setting of the signal reproduced by the BVM-L230

R 0.661 0.313

G 0.233 0.664

B 0.154 0.064

*3 For displaying the color gamut of the

wide color space mode S-GAMUT, which is available for the F23 Digital Cinematography Camera

Operating conditions

Temperature 0 °C to 35 °C (32 °F to 95 °F) Optimum temperature

20 °C to 30 °C (68 °F to 86 °F) Humidity 0% to 90% (no condensation) Pressure 700 hPa to 1060 hPa

Storage and transport conditions

Temperature –20 °C to +60 °C (–4 °F to +140 °F)

Appendixes

Humidity 0% to 90% Pressure 700 hPa to 1060 hPa

Accessories supplied

AC power cord (1) AC plug holder (1) Cable holder (1) Bracket (1) Connection cable for color temperature adjustment (1) Operation Manual (Japanese, English, each 1) CD-ROM (1) Using the CD-ROM Manual (1)

(Typical)

if an input adaptor with a serial number that is not designated is installed. BKM-229X: This equipment may not work correctly or you may not be satisfied with the performance if an input adaptor with a serial number that is not designated is installed. BKM-243HS: This equipment may not meet the requirement for the electromagnetic interference standard or work correctly, or you may not be satisfied with the performance if an input adaptor with a serial number that is not designated is installed.

Design and specifications are subject to change without notice.

Notes

• Always make a test recording, and verify that it was recorded successfully. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF FAILURE OF THIS UNIT OR ITS RECORDING MEDIA, EXTERNAL STORAGE SYSTEMS OR ANY OTHER MEDIA OR STORAGE SYSTEMS TO RECORD CONTENT OF ANY TYPE.

• Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

Optional accessories

BKM-16R Monitor Control Unit BKM-37H Controller Attachment Stand SMF-700 Monitor Interface Cable, Sony BKM-23M Monitor Protection Panel BKM-220D SDI 4:2:2 Input Adaptor (with serial number

2100001 or higher) BKM-227W NTSC/PAL Input Adaptor BKM-229X Analog Component Input Adaptor (with serial

number 2200001 or higher) BKM-243HS HD/D1-SDI Input Adaptor (with serial

number 2108355 or higher) BKM-244CC HD/SD-SDI Closed Caption Adaptor

Note

BKM-220D: This equipment may not meet the requirement for the electromagnetic interference standard

Specifications

Page 99

Input Signals and Adjustable/Setting Items

Input signal

Analog SDI DVI-D

Item

Composite Y/C

CONTRAST a a a aaaa a aa a a BRIGHT aaaaaaaaa× aa CHROMA aaaa××aa×× × ×

PHASE

Picture Auto Adjust aaaaaaЧЧЧЧЧ Ч

Component Level × ×

NTSC Setup Level

Betacam Setup Level × ×

Position Adj aaaaaaЧЧЧЧЧ Ч Gamut Error Display × × × × × × a a a(*1) × × × Scan Mode a a a aaaa aaa a ×

Native Scan (×1, ×2) (*2) a a a aaaa a aa a a

Native Scan (Aspect Correction)

16 : 9 aaaaaaaa (*3) a (*4) a (*4) a (*5) × H Delay a a a aaaa aaa ×× V Delay a a a aaaa aaa ×× External Sync × × aaaaЧЧЧЧЧ Ч Comb a Ч Ч ЧЧЧЧЧЧЧЧ Ч

Degauss (*6) × × × × × × × × × × × × Aperture a a a aaaa a aa a × Mono aaaaaaaaa× aa Blue Only aaaaaaaaa× aa R Off aaaaaaaaa× aa G Off aaaaaaaaa× aa B Off aaaaaaaaa Chroma Up aaaa××aa×× × × Capture Load a a a aaaa a aa a a Pixel Zoom a a a aaaa aaa a a Marker a a a aaaa aaa a × Aspect Marker a a a aaa a aaa a × Area Marker 1 a a a aaaa aaa a × Area Marker 2 a a a aaaa aaa a × Side by Side a a a aaaa a aa a a Wipe a a a aaaa aaa a a Butterfly a a a aaaa aaa a a Blending a a a aaa a aaa a a

(NTSC)a(NTSC)

(NTSC)a (NTSC)

aaa× a × a ×××a (*7) ×

Component

(YPbPr)

SD HD SD HD YPbPr YPbPr RGB XYZ RGB RGB

× ×××× ××× × ×

(480i)

× ×××× ××× × ×

(480i)

ЧЧЧЧЧЧЧЧ Ч

RGB D1 HD Video

× aa

Computer

Appendixes

Input Signals and Adjustable/Setting Items

Page 100

Input signal

Analog SDI DVI-D

Item

Composite Y/C

Component

(YPbPr)

RGB D1 HD Video

SD HD SD HD YPbPr YPbPr RGB XYZ RGB RGB

Error Notify Clear × × × × × × aaa×× × Char Off a a a aaaa a aa a a Color Temp a a a aaaa aaa a a Capture × × × × × × × aaa ××

Black Frame Insertion

Interlace

See “Picture·Frame Display” on page 110.

Black Detail Mode (*8) a a a aaaa a aa a a

a: Adjustable/can be set

×: Not adjustable/cannot be set

*1:Does not function when the 2048 × 1080 signal is input. *2:Fixed to ×1 when the HD signal or DVI computer signal is input and ×2 when the SD signal is input from BKM-229X. *3:Fixed to 16:9 with 720P input signal. *4:Becomes 1.896:1 with 2048 × 1080 input signal. *5:Excludes 640 × 480/60*P. Fixed to 16:9 with 1280 × 720/50P, 60*P. *6:Becomes effective when the BVM-A series monitor is controlled.

*7:In effect with SD format *8:In effect when Gamma (transmission gamma) of the Matrix/Gamma menu is set to 2.2 or 2.6 RGB

Appendixes

Computer

100

Input Signals and Adjustable/Setting Items
