Page 1

Television

Reference Guide

KD-75X9400C / 65X9300C / 55X9300C

Page 2

Table of Contents

Safety information . . . . . . . . . . . . . . . . . . . . . 2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Parts and Controls . . . . . . . . . . . . . . . . . . . 7

Controls and Indicators . . . . . . . . . . . . . . . . . 7

Inputs and Outputs . . . . . . . . . . . . . . . . . . . .8

Using Remote Control . . . . . . . . . . . . . . . 10

Remote Control Parts Description. . . . . . . . 10

Using the Touchpad Remote Control . . . . . 12

Launching the Touchpad Remote Control

Introduction/Tutorial . . . . . . . . . . . . . . . . . . 12

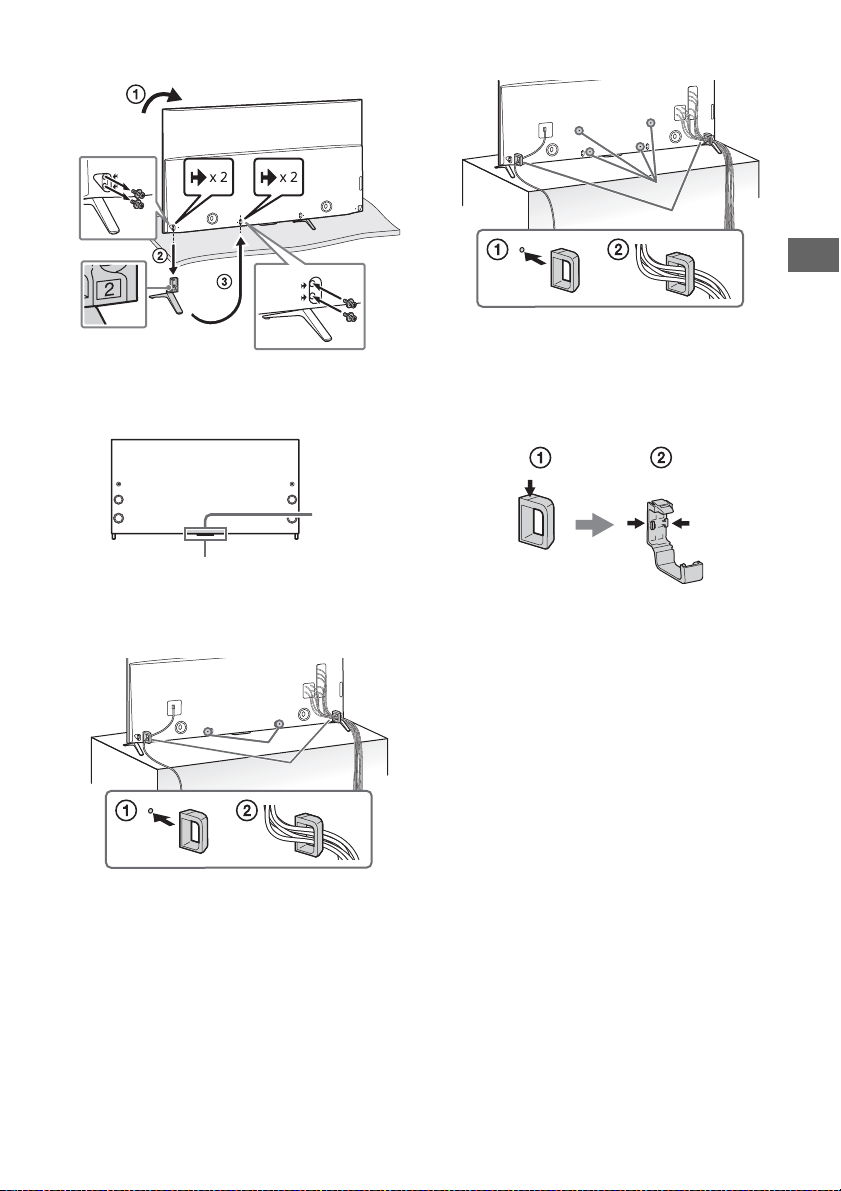

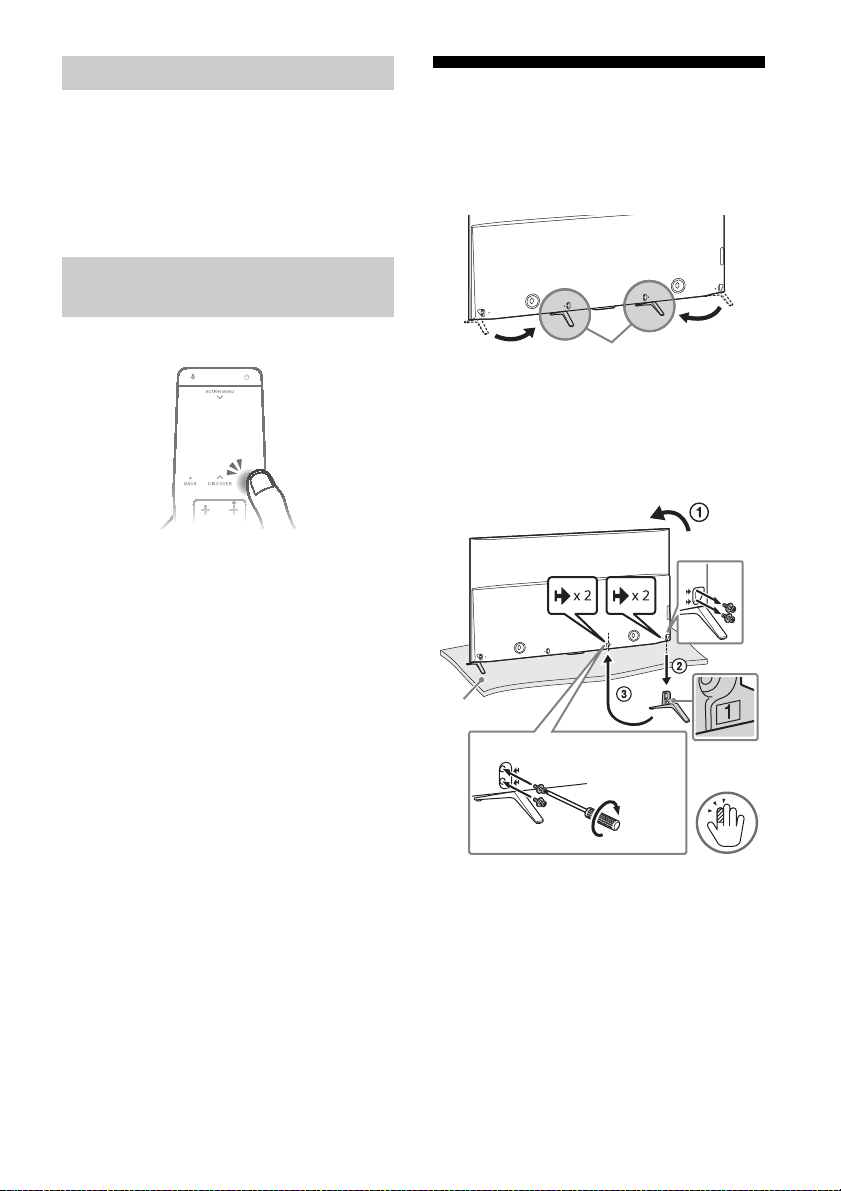

Attaching the Table-Top Stand

(Alternative) . . . . . . . . . . . . . . . . . . . . . . . 12

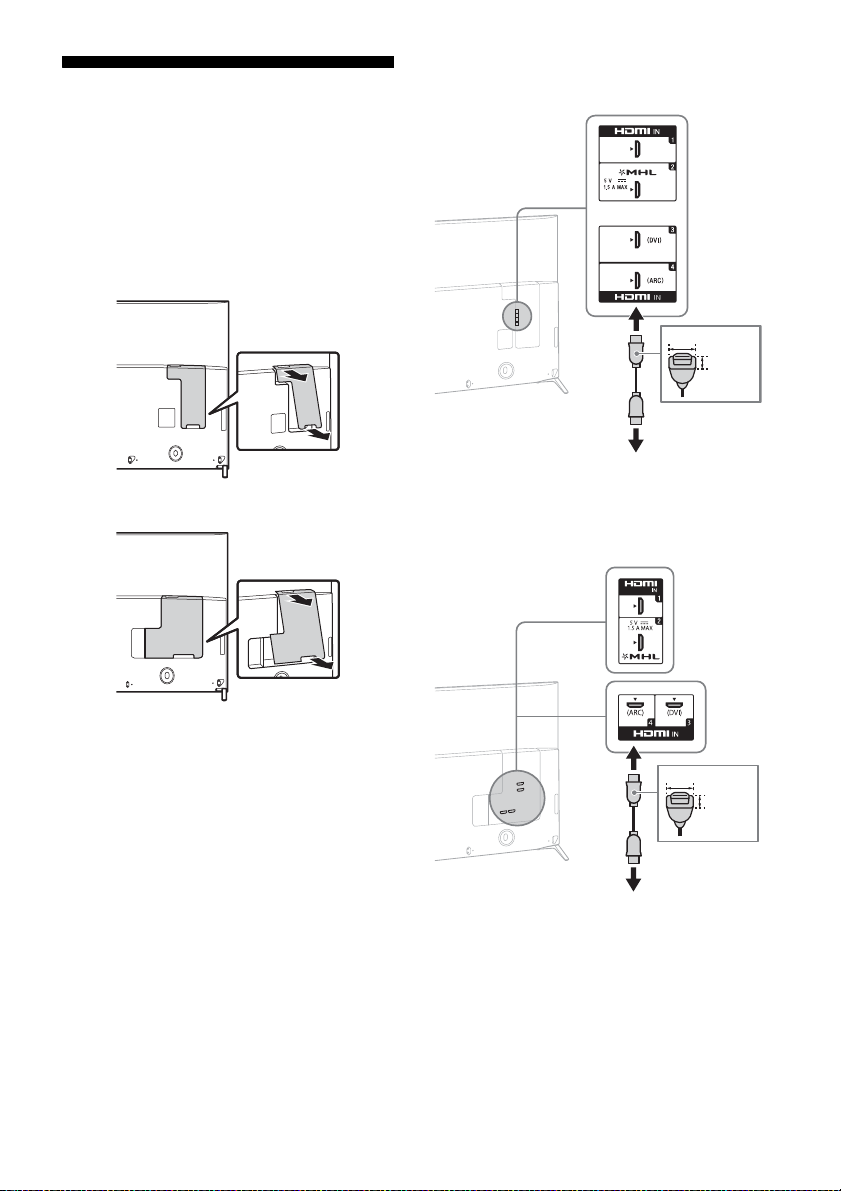

Connecting the TV . . . . . . . . . . . . . . . . . . 14

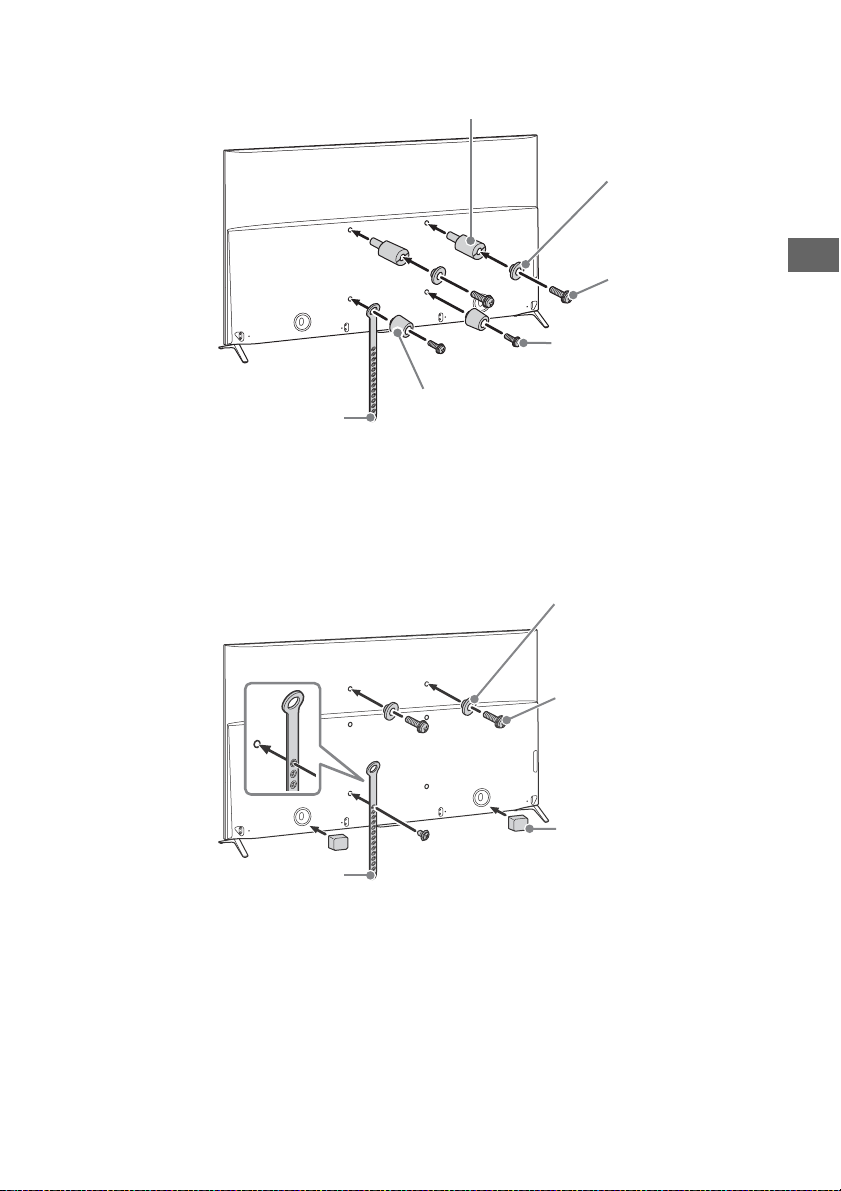

Installing the TV to the Wall . . . . . . . . . . 18

SU-WL500 (KD-75X9400C) . . . . . . . . . . . . . . 19

SU-WL450 (KD-65/55X9300C) . . . . . . . . . . . 21

Troubleshooting . . . . . . . . . . . . . . . . . . . . 25

Troubles and Solutions . . . . . . . . . . . . . . . . 25

Specifications . . . . . . . . . . . . . . . . . . . . . . 26

Introduction

Thank you for choosi ng this Sony product. Before operating the TV, please read this manual thoroughly and retain it for fu ture re ference .

Note

• Before operating the TV, please read “Safety information” (page 2).

• Instructio ns about “Installing th e TV to the Wall” are included within this TV’s instructions manual.

• Images an d illustrations used in Startup Guide and this manu al are for reference only and ma y differ from actual product appearance.

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located on the rear of the TV.

Notice for customers in Thailand

This telecommunication equi pment conforms to NTC technical requirement.

Notes for Australia and New Zealand model

This product is ENERGY RATING qualified in the default mode. ENERGY RATING is a programme designed to promote energy efficient products and p ractices.

• When the TV is initially set up, it is designed to meet ENERGY RATING requirement s while main tainin g optimum pi cture quality.

• Changes to cer tain features, settings and fun ctionalities of this TV (e.g. TV Guide, Picture/Sound, Eco setting) can slightly change the power consumption.

Depending upon suc h changed settings (e.g. Shop mode), the power consumption may vary which possibly could exceed the stated energy rating. To reset the TV to ENERGY RATING qualified settings, compl ete the initial set-up procedure in [Initial se tup] under the setting s menu.

IMPORTANT INFORMATION

If a television is not positioned in a sufficiently stable location, it can be potentia lly hazardous due to fallin g. Many inju ries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabin ets or stands recommended by th e manufacturer of the television.

• Only using furniture that can safely supp ort the television.

• Ensuring the television is not overhanging the edge of the supporting furniture.

• Not placing the television on tall furniture (fo r example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.

• Not standin g the televisions on c loth or other materials placed between the televisio n and supporting fur niture.

• Educating children about the dangers of climbing on furniture to reach the television or its controls.

Safety information

WARN ING

Batteries must not be expose d to excessive heat such as sunshine, fire or the like.

Installation/Set-up

Install and use the TV s et in accordance with the instructi ons below in order to avoid any risk of fire, electrical shock or damage and/or in juries.

Installation

• The TV se t should be insta lled near an easi ly accessible AC power outlet (mains socket).

• Place the TV set on a stable, level surface to avoid it from falling down and cause pe rsonal injury or dam age to the TV.

• Install the TV where it cannot be pulled, pushed, or knocked over.

Page 3

• Install the TV s o that the TV's Table-Top Stand does not

Screw (M6)

Wall-Mount Bracket

8 mm - 12 mm

30 cm

10 cm

Leave at least this space around the set.

30 cm

10 cm

Leave at least this space around the set.

6 cm

Air circulation is blocked.

Wall Wall

protrudes out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause T V set to topple over, fall down, and caus e personal injury or da mage to the TV.

• Only qualified service personnel should carry out wall installations.

• For safety reasons, it is strongly recommended t hat you use Sony accessories, includ ing:  Wall-Mount Bracket SU-WL500 (KD-75X9400C), SU-WL450

(KD-65/55X9300C)

• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Moun t Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than t hose supplied may result in internal damage to the TV se t or cause it to fall, etc.

Tran spo rti ng

• Before transporting the TV set, disconnect all cables.

• Two or three people are needed to transport a large TV set.

• When transpo rting the TV set by han d, hold it as shown bel ow. Do not put stress on the LCD pane l and the frame around th e screen.

KD-75X9400C

KD-65/55X9300C

• When transpo rting the TV set, do not s ubject it to jolts or excessive vibration.

• When transpo rting the TV set for repai rs or when moving , pack it using the original carton and packing material.

Ventilation

• Never cover the ventilation holes or insert anything in the cabin et.

• Leave space around the TV set as shown below.

• It is strongly recomme nded that you use a Sony Wall-Mo unt Bracket in order to provide adequate air circulation.

Installed on the wall

Installed with stand

• To ensure proper ventilation and prevent the collection of dirt or dust:  Do not la y the TV set flat, install u pside down, backw ards, or

sideways.

 Do not pla ce the TV set on a shelf, rug, bed o r in a closet.  Do not cover the TV set with a cloth , such as curtains, or item s

such as newspapers, etc.

 Do n ot install the TV set as show n below.

AC power cord (mains lead)

Handle the AC power cord (ma ins lead) and outlet (m ains socket) as follows in order to avo id any risk of fire, electrical shock or damage and/or injuries:

 In sert the plug fully i nto the AC power outlet (ma ins socket).  Operate the TV set on a 110–240 V AC supply only.  W hen wiring cables, be sure to unplug th e AC power cord

(mains lead) for you r safety and take care not to catch your feet on the cables.

 Di sconnect the AC power cord (mai ns lead) from the AC power

outlet (mains socket) before working on or moving the TV set.

 Keep the AC power cord (mains lea d) away from heat sources.  Un plug the AC power plug (mains plug) and clean it regularly. If

the plug is covered with dust and it picks up moisture, its insulation may deteriorate, whic h could result in a fire.

Page 4

Note

• Do not pinch, bend, or twist the AC power cord (mains lead) excessively. The core conductors may be exposed or broken.

• Do not modify the AC power cord (mains lead) .

• Do not put anythi ng heavy on the AC powe r cord (mains lead).

• Do not pull on th e AC power cord (mains lead) i tself when disconnecting the AC power cord (mains lead).

• Do not connect to o many appliances to the same AC power outlet (m ains so cket).

• Do not use a po or fitting AC power outlet (m ains socket).

Prohibited Usage

Do not install/use the TV s et in locations, environments or situations such as t hose listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries.

Location:

• Outdoors (in d irect sunlight), at the seash ore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or s moke.

• If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid moving the TV from a cold area to a warm area. S udden room temperature changes m ay cause moisture condensati on. This may cause the TV to show poor picture and/or poor colour. Should this occur, allow moisture to evap orate completely before powering the TV on.

Environment:

 Places th at are hot, humid, or excessively dus ty; where insects

may enter; where it mig ht be exposed to mecha nical vibration, near flammable objects (candles, etc). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vas es, shall be placed on the TV.

 Do not pla ce the TV in a humid or

dusty space, or in a room with oily smoke or steam (near cooking tables or humidifiers) . Fire, electric shoc k, or warping may result.

 Do not install the TV in places subject to extreme temperature,

such as in direct s unlight, near a radiator or a heating vent. The TV may overheat in su ch conditions which can ca use deformation of the enclosure and/or TV malfunction.

When not in use

• If you will not be using the TV set for se veral days, the TV set should be disconnected from the AC power (mains) for environmental and safety reasons.

• As the TV s et is not disconnected from the AC pow er (mains) when the TV set is just turned off, pull the plug from the AC power outlet (mains socket) to disconnect the TV set completely.

• However, some T V sets may have features that require the TV set to be left in standby to w ork correctly.

For children

• Do not allow children to climb on the TV set.

• Keep small accessorie s out of the reach of children, so that the y are not mistakenly swallowe d.

If the following problems occur...

Turn off the T V set and unplug the AC p ower cord (mains lead) immediately if any of th e following p roblems occur. Ask your dealer or Sony service centre to have it checked by qualified service personnel.

When:

 AC pow er cord (mains lead) is damage d.  Poor fittin g of AC power outlet (mai ns socket).  TV set is damaged by being dropped, hit or having something

thrown at it.

 Any liquid or solid object falls through openings in the cabinet.

About LCD Monitor Temperature

When the LCD Monitor is used for an extended period, the panel surrounds become warm. You may feel hot wh en touching there by the hand.

Situation:

• Do not use when your hands are w et, with the cabinet removed, or with attachments n ot recommended b y the manufacturer. Disconnect the TV s et from AC power outlet (m ains socket) and antenna (aerial) during li ghtning storms.

• Do not install the TV so that it sticks out into an open space. Injur y or damage from a person or o bject bumpin g into the TV may result.

Broken pieces:

• Do not throw anything at the TV set. Th e screen glass may break by the impact and cause serious injury.

• If the surface of the T V set cracks, do not touch it until you ha ve unplugged the AC power cord (mains lead). Otherwise electric shock may result.

Page 5

Precautions

Viewing the TV

• Vi ew the TV i n moderate li ght, as view ing the TV i n poor ligh t or during long period of time, strains your eyes.

• When using he adphones, adjust th e volume so as to avoid excessive levels , as hea ring damag e may result .

• Some people may experience discomfort (such as eye strain, fatigue, or nausea) whil e watching 3D video image s or playing stereoscopic 3D games. Sony recommends that all vie wers take regular breaks while watching 3 D video images or playi ng stereosco pic 3D ga mes. The length a nd frequency of n ecessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video images or playing stereoscop ic 3D games until the discomfort ends; consult a doctor if you believ e necessary. You should als o review (i) the in struction manual of any other device or medi a used with this television and (ii) our website (http://www.sony-asia.com/support) for the latest information . The vision o f young ch ildren (espec ially those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video images or play stereoscopic 3D games. Adults should supervise young children to ensure they follow the recomme ndations listed above.

• Do not use, store, or lea ve the 3D Glasses or b attery near a fire, or in places with a high temperature, e.g., in direct sunlight, or in sun-heated cars.

LCD Screen

• Although th e LCD screen is made with high-precision technology and 99.99% or m ore of the pixels are effect ive, black dots may appear or bright points of light (red, blue, or green) may appear constantly o n the LCD screen. This is a structural property of the LCD screen an d is not a malfunction.

• Do not push or sc ratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.

• If this TV set is u sed in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena d isappear as the tempe rature rises.

• Ghos ting may o ccur when st ill pictures are displaye d continuously. It may disappe ar after a few moments.

• The screen an d cabinet get warm when this TV set is in use. This is not a malfunction.

• The LCD screen con tains a small amount of liquid cry stal. Follow your local ordi nances and reg ulations for dis posal.

Handling and cleaning the screen surface/ cabinet of the TV set

Be sure to unplug the AC pow er cord (mains lead) connected to the TV set from AC power outlet (mains socket) before cleaning. To avoid material degradation or screen coating deg radation, observe the following precautions.

• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened w ith a diluted mild detergent so lution.

• Never spray water or d etergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV s et, and may cause dam age to the TV set.

• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile so lvent, such as alcoh ol, benzene, thinner o r insecticid e. Using such materials or maintainin g prolonged contact wi th rubber or vinyl m aterials may result in damage to the screen sur face and cabinet material.

• Periodic vacuuming of the ventilation openings is recommended to ensure to proper ventilation.

• When adju sting the angle of the T V set, move it slowly so a s to prevent the TV set from m oving or slipping off from its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

Wireless Function of the unit

• Do not operate this u nit near medical equipm ent (pacemaker, etc.), as malfunction of th e medical equipment m ay result.

• Altho ugh this un it transmits/receives scramb led signals , be careful of unauthorised i nterception. We cannot be responsible for any trouble as a result.

Caution about handling the remote control

• Obser ve the correct polarity when in serting batteries.

• Do not use di fferent types of batterie s together or mix old an d new batteries.

• Disp ose of batteri es in an envi ronmentally friendly way. Certai n regions may regulate the disp osal of batteries. Plea se consult your local au thority.

• Handle the rem ote control with care. Do not drop or step on it, or spill liquid of any kind onto it.

• Do not pla ce the remote control in a location nea r a heat source, a place subject to direct sunligh t, or a damp room.

Disposal of the TV set

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol is on the remote control.

Disposal of the TV set

Disposal of Old Electrical & Electronic Equipment (Applicable in Republic of India)

This symbol indicates that this product shall not be treated as household waste and may not be dropped in garbage bins. Product owners are advised to deposit their product at the nearest collection point for the recycling of

operation shall facilitate prope r disposal & help preve nt potential negative consequences/hazards to the environment and human health, which could otherwise be caused by inappropriate waste disposal including improper handling, accidental breakage, damage and/or improper recycling of e-waste. The recycling of materials will help to conserv e natural resources. For more detailed information ab out recycling of this produ ct, please contact your local civic office, your househol d waste disposal service provider or the store where you made the purchase. You may contact our company’s toll free nu mber in India for assistance.

This product complies with the “India E-waste Rule 2011”. The E-waste Rules, 2011 is an Indian directive aimed at reducing the harmful environmental impact of waste electrical equipment by restricting the use of known hazardous substances. As of 1st May 2012, new electrical and e lectronic equipment introduced into the market may no longer contain the follow ing chemica ls or its spec ified maxim um concentration levels: Lead, Mercury, Hexavalent Chromium, Polybromi nated Biphenyls (PBB) or Polybrominated Diphenylethers (PBDE) - in concentrations exceeding 0.1 weight % and Cadm ium - 0.01 weight %, except of exemptions set in Schedule 2 of the aforesaid Rule.

electrical and electronic equipment. Your co-

Page 6

Notice for customer in UAE

TRA

REGISTERED No: ER35215/14 DEALER No: DA0065531/11

Page 7

Parts and Controls

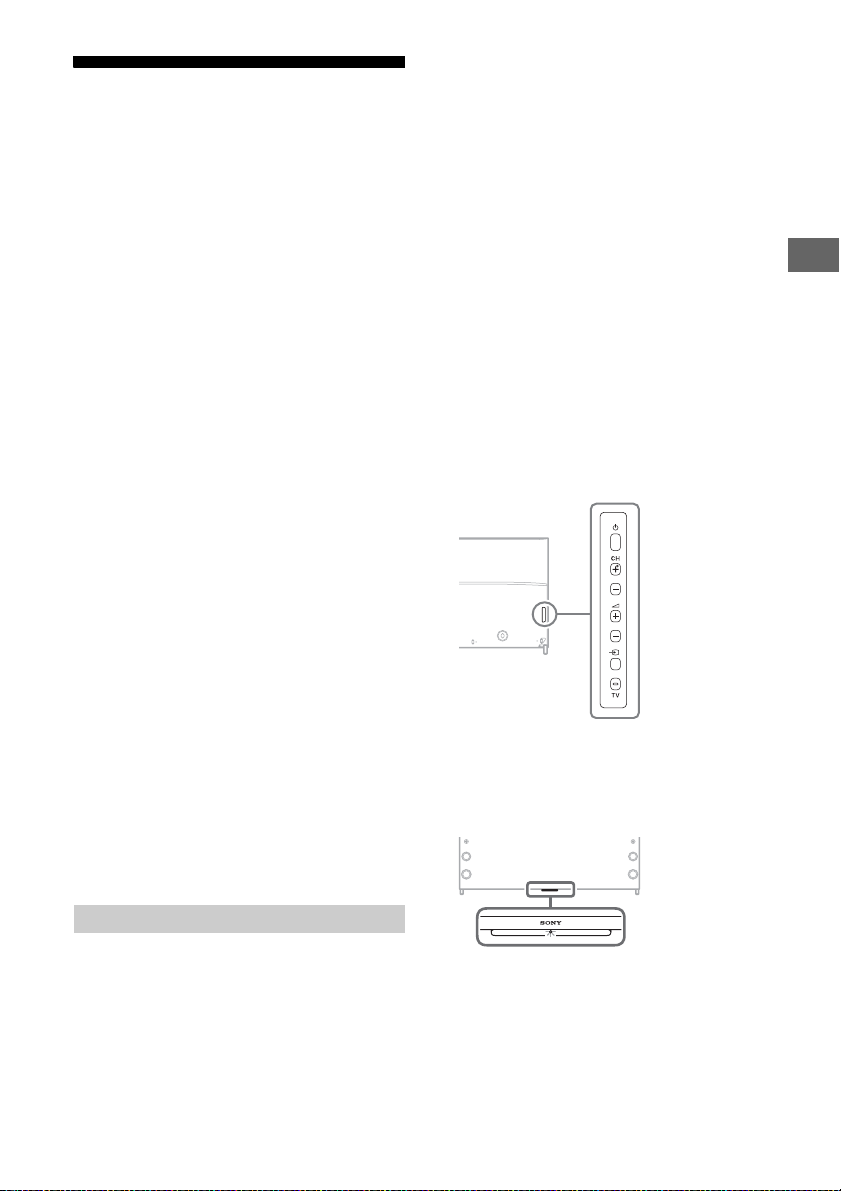

Controls and Indicators

 Remote Control sensor*1 / Light

sensor* Transmitter*

The illumination LED lights up or blinks according to the status of the TV.

•White

•Cyan

•Pink*

•Amber

/ Illumination LED / 3D Sync

When turning on the TV/picture off mode/software update, etc.

When connecting with a mobile device wirelessly.

Recording mode.

Timer is set.

 (Power)

 CH +/- (Channel)

 +/- (Volume)

 (Input select)

Display and select the input source.

 TV

Switch to a TV channel or input from other applications.

*1 Do not place anything near the sensor.

*2 Only on limited region/country/TV model.

Page 8

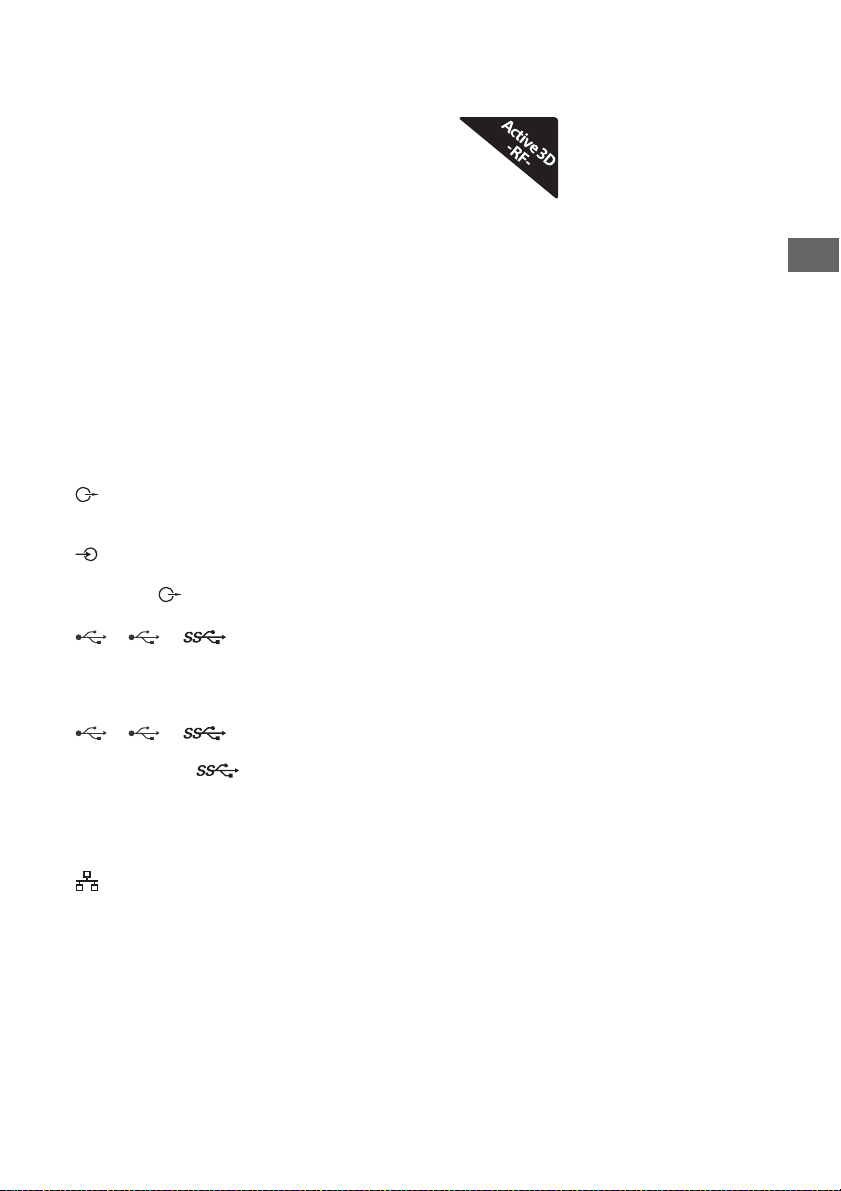

Inputs and Outputs

KD-75X9400C/55X9300C

KD-65X9300C

Page 9

 LAN

 HDMI 3 AUDIO IN 

For HDMI 3 analogue audio connection.

 DIGITAL AUDIO OUT (OPTICAL)

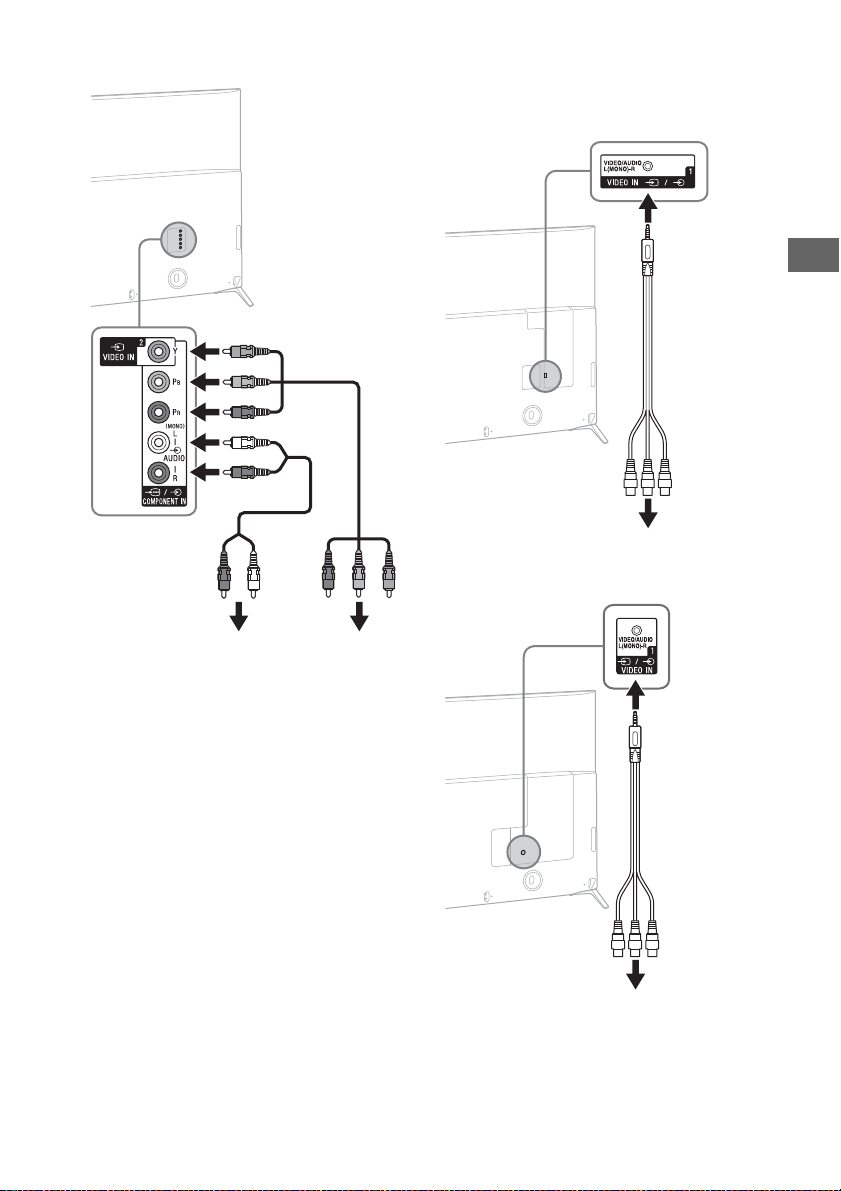

 VIDEO IN 2, / COMPONENT IN

• For a composite connection:

Use VIDEO IN 2, and  (L/R) of / COMPONENT IN*

• For a component connection:

Use Y, PB, PR, and  (L/R).

 (USB 1/2), (USB 3)

(except Australia and New Zealand model)

(USB 1/2), (USB 3 (HDD

2 *3

REC))*

(Australia and New Zealand model only)

•Connecting a large USB device may interfere with other connected devices beside it.

• When connecting a large USB device, connect to the USB 1 jack.

 AUDIO OUT /

To listen to the TV's sound through the connected equipment, press HOME. Select [Settings]  [Sound]  [Headphone/Audio out] and then select the desired item.

 HDMI IN 1/3/4

• If the device has a DVI jack, connect it to HDMI IN 3 through a DVI - HDMI adaptor interface (not supplied), and connect the device's audio out jack to HDMI 3 AUDIO IN.

• If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technology, use HDMI IN 4. If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

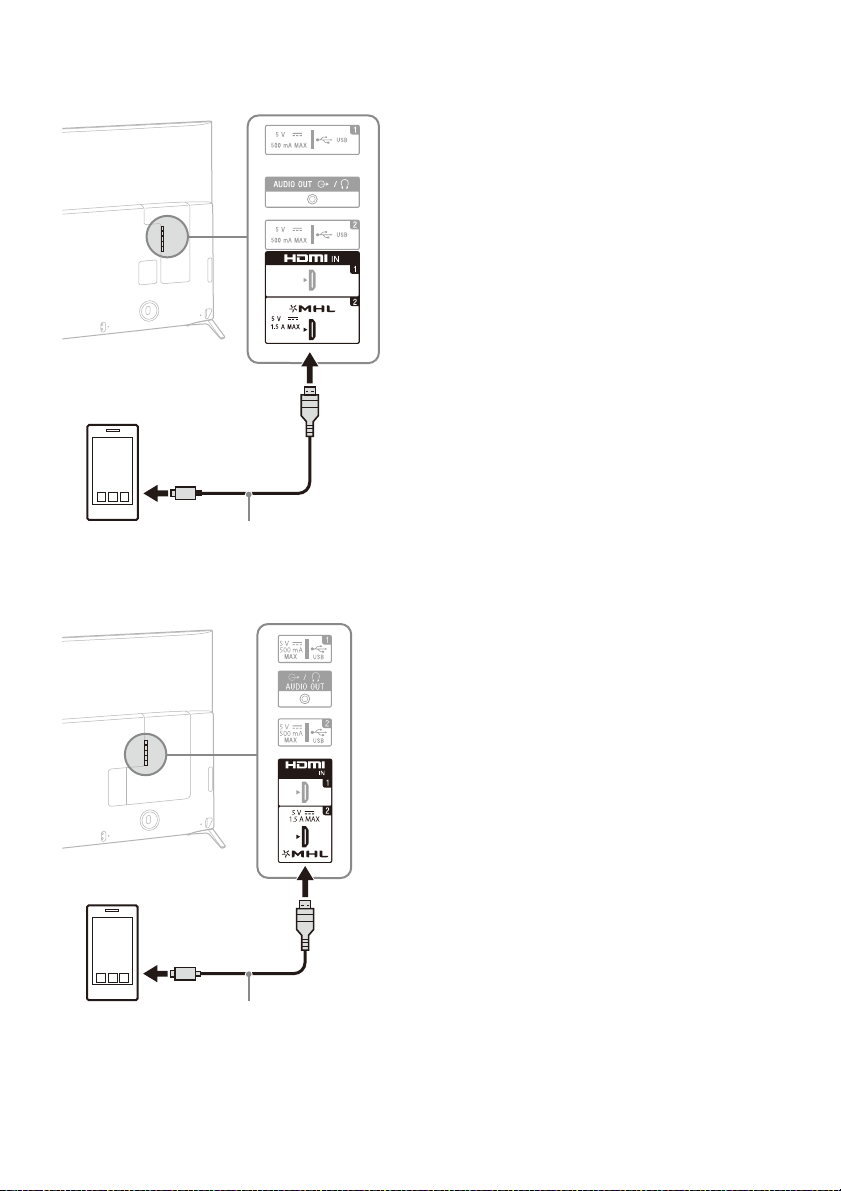

 HDMI IN 2/MHL

You can connect your MHL (Mobile Highdefinition Link) device using an HD quality MHL cable.

/ VIDEO IN 1

For a composite connection, use the supplied Analogue Extension Cable*

 CABLE/ANTENNA

Connect to your cable or antenna (aerial).

*1 When connecting mono equipm ent, connect to the L

(MONO) audio jack.

*2 Only on limited region/country/TV model.

*3 HDD REC function will be available within 2015. You

will receive HDD REC function automatically as a software upgrade. Make sure your TV is con nected to the Internet. If you do not have a network connection, you will be able to download the software from the Sony support website using your PC. For details on how to upgrade, please visit the Sony support website. To stay informed about the exact release date, please subscribe at Australia http://www.sony.com.au/braviausbrecording New Zealand http://www.sony.co.nz/braviausbrecording

Page 10

Using Remote Control

IR (infrared) Remote Control Touchpad Remote Control

Remote Control Parts Description

/ (Input select/Text hold)

In TV mode: Display and select the input source. In Text mode: Hold the current page.

SYNC MENU*

Display the BRAVIA Sync Menu.

 (TV standby)

Turn on or turn off the TV (standby mode).

DIGITAL/ANALOG

Switch between digital and analogue mode.

EXIT

Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.

FOOTBALL*

Turn Live Football Mode on or off (when the feature is available).

 Number buttons

(Twin picture/PIP)*

Display two pictures simultaneously.

1 *3

 (Text)

Display text information.

 Colour buttons

Execute correspondent function at that time.

/ (Info/Text reveal)*

Display information.

NETFLIX*

Access the “NETFLIX” online service.

Page 11

HELP

Display Help Menu

 ACTION MENU

Display a list of contextual functions. You can also display it by slide down your finger from ACTION MENU on the Touchpad Remote Control.

TV*

Switch to a TV channel or input from other applications.

GUIDE/ *

Display the digital programme guide.

BACK

Return to previous screen.

HOME

Display the TV Home Menu.

DISCOVER

Bring up the Content Bar to search for content. You can also launch Content Bar by slide up your finger from DISCOVER on the Touchpad Remote Control.

//// (Item select/Enter)

 +/– (Volume)

Adjust the volume.

(Jump)

Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.

 (Muting)

Mute the sound. Press again to restore the sound.

PROG +/–//

In TV mode: Select the channel. In Text mode: Select the next ( previous (

) page.

) or

 AUDIO

Change the language for the programme currently being viewed.

(Subtitle setting)

Turn subtitles on or off (when the feature is available).

(Wide mode)*

Change the screen format.

//////

Operate media contents on TV and connected BRAVIA Sync-compatible device.

 REC*1 *

Record the current programme with the USB HDD recording function.

TITLE LIST*

Display the Title list.

 (Microphone)

Use Voice Function. (e.g., Search various content by voice.)

 Touchpad

Operate the TV with the touchpad.

 (NFC)

Touch the device (e.g. some models of Xperia) corresponding to the One-touch mirroring function, then its screen is displayed on the TV.

*1 The location, availability and function of remote

control button may vary depending on your country/ region/TV model.

*2 HDD REC function will be available within 2015. You

*3 Twin Picture function will be available within 2015.

You will receive Twin Picture function automatically as a network software upgrade. Make sure your TV is connected to the Internet. If you do not have a network connection, you will be able to download the software from the Sony support website using your PC. For details on how to upgrade, please visit the Sony support website.

Page 12

Using the Touchpad Remote Control

Middle position

Thick cushion

1.5 N∙m/1,5 N∙m {15 kgf∙cm}

Touchpad Remote Control can only be used after pairing with the TV. To pair, follow the pairing screen instruction. Pairing screen can be displayed by pressing the  button on the TV for 5 seconds, or select [Settings] - [Touchpad Remote Control settings]

- [Pair Touchpad Remote Control].

Launching the Touchpad Remote Control Introduction/Tutorial

1 Press HOME.

2 Select [Settings] - [Touchpad Remote

Control settings] - [Start Introduction/ Tutor ial ].

Attaching the Table-Top Stand (Alternative)

You can change the Table-Top Stand from the edge to the middle position by referring to the instructions below.

Note

• Two or more people are needed to carry out this installation.

• Be careful not to pinch the finger during installation.

Page 13

IR Sensor

3D Sync Transmitter

Note

• Two or more people are needed to carry out this installation.

• Ensure that there are no objects in front of the TV.

To bundle the cables

KD-75X9400C/65X9300C

KD-55X9300C

*1 Location of cable clamper when the Table-Top Stand

is attached to middle position.

*2 Location of cable clamper when the Table-Top Stand

is attac hed to edge position.

Note

• To detach the cable clamper from the TV, press the

top of the clamper , then pinch  as illustrated.

Page 14

Connecting the TV

To H DMI O UT

< 12 mm

< 21 mm

To H D MI OU T

< 12 mm

< 21 mm

Note

• To select an input device connected to the TV, press

.

To detach the terminal cover

The terminal cover is factory-attached to the TV. Before connecting cables, remove the terminal cover.

KD-75X9400C/55X9300C

KD-65X9300C

To connect with an HDMI cable

KD-75X9400C/55X9300C

KD-65X9300C

Note

• After connecting all cables, re-attach the terminal cover to the TV.

Page 15

To connect with component cables To connect with Analogue Extension

To C OMP ONE NT OUT (P

R/PB/Y)

To AUDIO OUT

To VIDEO OUT

To V I DEO O UT

Cable

KD-75X9400C/55X9300C

KD-65X9300C

Page 16

To connect MHL device

Use authorized MHL

CABLE with MHL

logo (not supplied)

MHL device

Use authorized MHL

CABLE with MHL

logo (not supplied)

MHL device

KD-75X9400C/55X9300C

KD-65X9300C

The TV simultaneously charges the MHLcompatible connected device while playing photo/music/video files. You can use the TV remote control to control the connected MHLcompatible device.

Note

• If [MHL charging during standby] is set to [On], you can continue charging the MHL-compatible device even when the TV is in standby mode.

• Use authorized MHL 3 CABLE with MHL logo for 4K smartphone or mobile devices.

Page 17

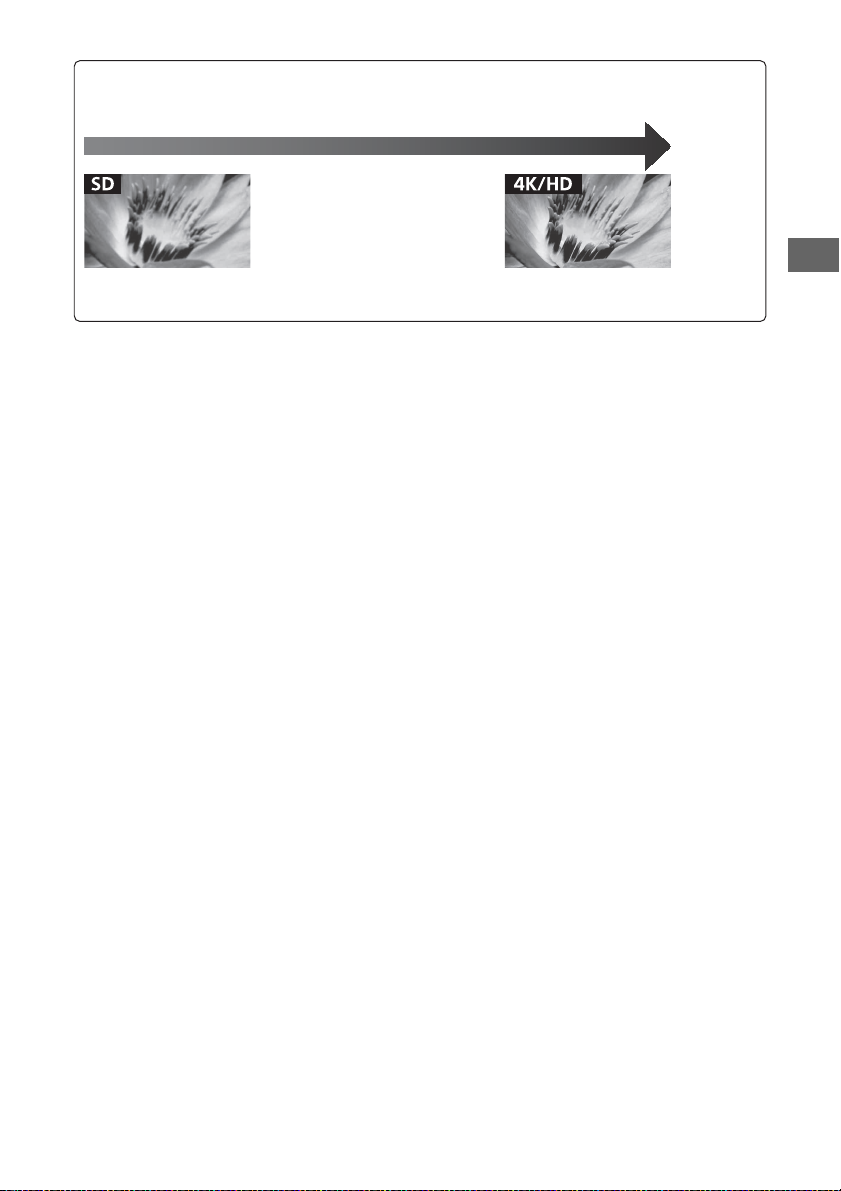

Picture Quality

• AV composite cable

• Antenna (aerial) cable

Standard definition (SD) videos have picture signals with a vertical resolution of 480 (NTSC) or 576 (PAL/SECAM) lines .

• Component cable • HDMI cable

High definition (HD) videos have picture signals with a vertical resolu tion of 720 or 1,080 line s. (For 4K vertical resol ution: 2,160 lines)

Page 18

Installing the TV to the Wall

KD-75X9400C/55X9300C

KD-65X9300C

Standard mounting

Super Slim (60) mounting

* Be s ure to keep thi s screw.

This screw is necessary when attaching the Attachment parts for WallMount Bracket.

This TV’s instruction manual only shows the steps on preparing the installation of the TV before installing to the wall.

To Customer s :

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL500 (not supplied) (KD-75X9400C) and SU-WL450 (not supplied) (KD-65/55X9300C) to install the TV to the wall.

When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.

Note

• Be sure to store the removed screws in a safe place, keeping them away from children.

To remove the screws from the rear of the TV

Page 19

SU-WL500 (KD-75X9400C)

Screen centre point

Hook location

When installing the TV onto the Base Bracket.

Screw location

When installing the Mounting Hook on the TV.

1 Make sure that the wall has enough space for the TV and is capable of supporting a

weight of at least four times that of the TV. Refer to the following table on installing the TV to the wall. See page 28 (Specifications) for the TV’s weight.

Model Name

KD-

75X9400C 1,929 991 41 170 543

Note

• Only applicable for 0° for this TV model.

• Figures in the table may differ slightly depending on the installation.

Display dimensions

Screen cent re

dimension

Length for mounting

Angle (0°)

2 Install the TV on the wall.

Model Name

KD-

75X9400C e, j a

Screw location Hook location

Unit: mm

Page 20

3 Attach the Mounting Hook using the four screws supplied with the Wall-Mount Bracket.

Mounting Hook

Screw (+PSW 6 × 16)

Wall-Mount Attachment  (supplied with the TV)

Note

• Be sure to fasten the Wall-Mount Attachment when attaching them to the TV. Use only a flat head screwdriver to install the Wall-Mount Attachment. Use of another tool might result in over torqueing the Wall-Mount Attachment and damaging the TV.

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

• Be sure to store the unused parts in a safe place for future use. Retain this manual for future re ference.

4 Connect necessary cables to the TV. 5 Detach the Table-Top Stand from the TV.

Note

• When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the original holes on the rear of the TV.

Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.

Page 21

SU-WL450 (KD-65/55X9300C)

Screen centre point

Standard mounting

Slim mounting (KD-55 X9300C)

Super Slim (60) mounting (KD-65 X9300C)

1 Make sure that the wall has enough space for the TV and is capable of supporting a

weight of at least four times that of the TV. Refer to the following table on installing the TV to the wall. See page 28 (Specifications) for the TV’s weight.

Model Name

KD-

Display dimensions

Screen centre

dimension

Length for mounting

Unit: mm

65X9300C

(Standard mounting)

65X9300C

(Super Slim (60)

mounting)

55X9300C

(Standard mounting)

55X9300C

(Slim mounting)

Note

• Figures in the table may differ slightly depending on the installation.

• When your TV is installed on the wall, the upper side of the TV slightly leans forward.

1,706 871

1,484 744 149 528

71 513 153

251 693 103

153

111

Page 22

2 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by

Screw (+PSW 6 x 20) 

Pulley 

Screw (+PSW 6 x 50) 

Belt 

Spacer (60 mm) 

Wall-Mount Attachment  (supplied with the TV)

referring to “1” of the Wall-Mount Bracket Installation Guide.

Note

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

• Be sure to store the unused parts in a safe place for future use. Retain this manual for future re ference.

Standard mounting

Slim mounting (KD-55X9300C), Super Slim (60) mounting (KD-65X9300C)

Note

• You cannot use some of the terminals on the rear of the TV when using this mounting style. Connect the Analogue Extension Cable if you need to use the / VIDEO IN 1 jack.

Page 23

Slim mounting (KD-55X9300C)

Screw (+PSW 6 x 20) 

Pulley 

Screw (+PSW 6 x 20) 

Belt 

Spacer (20 mm) 

Wall-Mount Attachment  (supplied with the TV)

Screw (+PSW 6 x 20) 

Pulley 

Belt



Spacer 

Super Slim (60) mounting (KD-65X9300C)

*Attach Belt F with the removed screw (see page 18) using the top hole on the Belt.

3 Connect necessary cables to the TV.

Note

• You cannot access to any terminal after installing the TV to the wall.

Page 24

4 Detach the Table-Top Stand from the TV.

a b c d

Screws (PSW4x10) J

Base (20) 

Base Adopter 

5 Install the TV to the Base. Refer to “5” of Installation Guide and “Installing the TV to the

Wall” of Operating Instructions supplied with the Wall-Mount Bracket.

Model Name KD- Hook location

65X9300C(*) a

55X9300C b

* When you select Super Slim (60) mounting, attach the Base Adopter  (supplied with the Wall-Mount Bracket) to Base (20)  (supplied with the Wall-Mount Bracket) (KD-65X9300C only).

Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.

Page 25

Troubleshooting

Rear of TV

In order to keep your TV software up-to-date, it is necessary to download the latest software information via the digital broadcasting system or internet and to update the software. Select [Update Now] to start a software update. The illumination LED flashes white while the software is updating. Do not unplug the AC power cord during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 30 minutes. If you do not wish to update the software automatically, press HOME and select [Help]  [System software update]  [Automatic software download]  [Off].

When you unplug the TV and plug it in again, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV because it takes time to initialize the system. Wait for about 10 to 20 seconds, then operate it again.

When the illumination LED is flashing in red, count how many times it flashes (interval time is three seconds).

If the illumination LED flashes red, reset the TV by disconnecting the mains lead for two minutes, then turn on the TV. If the problem persists, contact your dealer or Sony service centre with the number of times the illumination LED flashes red (interval time is three seconds). Disconnect the mains lead, and inform your dealer or Sony service centre.

When the illumination LED is not flashing, check the items as follows.

You can also refer to [Troubleshooting] in the Help Guide or perform self-diagnosis by selecting [Help]  [Self diagnostics]. If the problem persists, have your TV serviced by qualified service personnel.

The remote control does not function.

 Replace the batteries.

The [Parental lock] password has been forgotten.

 Enter 9999 for the PIN code. (PIN code 9999 is

always accepted.)

The TV surrounds become warm.

 When the TV is used for an extended period, the

TV surrounds become warm. You may feel hot when touching there by the hand.

Frozen audio or video, a blank screen, or the TV does not respond to TV or remote control buttons.

 Perform a simple reset of the TV by unplugging

the AC power cord (mains lead) for two minutes, then plug it in again.

The , CH+/–,  +/–,  and TV buttons cannot be located on the TV.

 See below illustration for location of the buttons

on the TV.

The illumination LED is turned on.

 If you do not wish to light up the illumination LED,

you can turn it off. Press HOME, then select [Illumination LED] t [Off].

[Settings] t

Troubles and Solutions

There is no picture (screen is dark) and no sound.

 Check the antenna (aerial)/cable connection.  Connect the TV to the AC power (mains), and

press  on the TV or remote control.

Some programmes cannot be tuned.

 Check the antenna (aerial)/cable connection.

Cannot connect to a wireless router by WPS (Wi-Fi Protected Setup).

• If you use WEP security, select [Easy] t [Wi-Fi] t [Connect by scan list]. Then, select the network name (SSID) you want to connect.

Page 26

Cannot find the required network name in network setup.

• Select [[Manual entry]] and press to enter network name.

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel, LED Backlight

TV system

Analogue: B/G, I, D/K, M: Depend on your country/area selection. Digital: DVB-T/DVB-T2: Depend on your country/ area selection.

Colour/video system

Analogue: PAL, SECAM, NTSC3.58, NTSC4.43 Digital: Refer to the Help Guide

Channel coverage

Analogue: UHF/VHF/Cable, Depending on your country/area selection. Digital: UHF/VHF, Depending on your country/ area selection.

Sound output

12.5 W + 12.5 W + 12.5 W + 12.5 W + 20 W + 20 W

Wireless technology

Protocol IEEE802.11ac/a/b/g/n (IEEE802.11ac may not be available depending on countries/regions.) Bluetooth Version 4.1

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

/ VIDEO IN 1

Video/Audio input (mini jack)

/ COMPONENT IN

YPBPR (Component Video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i Audio input (phono pin jack)

VIDEO IN 2

Video input (common phono pin with Y input)

HDMI IN 1, 2, 3, 4 (support 4K resolution)

Video (2D):

4096 × 2160p (50, 60 Hz)*

Hz)*

, 3840 × 2160p (50, 60 Hz)*1, 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formats

*1 YCbCr 4:2:0 / 8bit only *2 3840 × 2160p is displayed when 4096 × 2160p is

input

Video (3D):

Frame Packing: 1080p (30 Hz), 1080/24p, 1080i(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p Side-by-Side: 1080p (50, 60 Hz), 1080/24p, 1080i(50, 60 Hz), 720p (50, 60 Hz)

1*2

, 4096 × 2160p (24

Page 27

Over-Under: 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz) Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby Digital and DTS ARC (Audio Return Channel) (HDMI IN 4 only)

MHL (HDMI IN 2)

Video (2D):

4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25, 30

Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50,

60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i,

480p, 480i

* 3840 × 2160p is displayed when 4096 × 2160p is

input

Video (3D):

Frame Packing: 1080p (30 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Side-by-Side: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p(50, 60 Hz)

Over-Under: 1080p (50, 60 Hz), 1080p (30 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz) Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby Digital and DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM, Dolby Digital, DTS)

HDMI 3 AUDIO IN

Analogue audio input (Stereo mini jack)

AUDIO OUT / (Stereo mini jack)

Headphone, Audio Output, Subwoofer

1, 2, 3 (Except Australia and

New Zealand model)

USB port 1 and 2 support High Speed USB (USB2.0). USB port 3 supports Super Speed USB (USB3.0)

1, 2, 3 (HDD REC)*, (Australia

and New Zealand model only)

USB device port ( 3 USB HDD device for REC feature). USB port 1 and 2 support High Speed USB (USB2.0). USB port 3 supports Super Speed USB (USB3.0) * Only on limited region/country/TV model.

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/100BASETX communication rate and communication quality are not guaranteed for this TV.)

Others

Optional accessories

Wall-Mount Bracket: SU-WL 500 (KD-75X9400C), SU-WL450 (KD-65/ 55X9300C)

Wireless subwoofer: SWF-BR100 MHL cable: DLC-MC10, DLC-MC20, DLC-MC30 Active 3D Glasses: TDG-BT500A

Operating temperature

0 ºC – 40 ºC

Power and others

Power requirements

110 V - 240 V AC, 50/60 Hz

Screen size (measured diagonally) (Approx.)

KD-75X9400C: 75 inches / 189.3 cm KD-65X9300C: 65 inches / 163.9 cm KD-55X9300C: 55 inches / 138.8 cm

Display resolution

3,840 pixels (horizontal) × 2,160 lines (vertical)

Power consumption

Indicated on the rear of the TV

Output Rating

USB 1/2: 5 V, 500 mA MAX USB 3: 5 V, 900 mA MAX MHL (HDMI IN 2): 5 V, 1.5 A MAX

Dimensions (Approx.) (w × h × d)

with Table-Top Stand

Edge position: KD-75X9400C: 1,929 × 1,041 × 322 mm KD-65X9300C: 1,706 × 911 × 292 mm KD-55X9300C: 1,484 × 780 × 255 mm Middle position: KD-75X9400C: 1,929 × 1,048 × 322 mm KD-65X9300C: 1,706 × 919 × 292 mm KD-55X9300C: 1,484 × 787 × 255 mm

without Table-Top Stand

KD-75X9400C: 1,929 × 991 × 110 mm KD-65X9300C: 1,706 × 871 × 90 mm KD-55X9300C: 1,484 × 744 × 90 mm

Stand width (Approx.)

Edge position:

KD-75X9400C: 1,910 mm KD-65X9300C: 1,690 mm KD-55X9300C: 1,468 mm

Middle position:

KD-75X9400C: 707 mm KD-65X9300C: 607 mm KD-55X9300C: 607 mm

Page 28

Mass (Approx.)

wi t h Table -Top St a nd

KD-75X9400C: 56.8 kg KD-65X9300C: 48.0 kg KD-55X9300C: 37.9 kg

without Table-Top Stand

KD-75X9400C: 56.0 kg KD-65X9300C: 47.3 kg KD-55X9300C: 37.3 kg

Note

• Optional accessories availability depends on countries/region/TV model/stock.

• Design and specifications are subject to change without notice.

• This TV set incorporates MHL 3.

Notes on Digital TV function

• Any functions related to Digital TV () will only work in countries or areas where DVB-T/DVB-T2 (MPEG-2 and H.264/MPEG-4 AVC) digital terrestrial signals are broadcast. Please confirm with your local dealer if you can receive a DVB-T/DVB-T2 signal where you live.

• This TV set complies with DVB-T/DVB-T2 specifications, but compatibility with future DVB-T/ DVB-T2 digital terrestrial broadcasts are not guaranteed.

• Some Digital TV functions may not be available in some countries/areas.

Trademark information

• The terms HDMI and HDMI High-Definition

Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Manufactured under license from Dolby

Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

• “BRAVIA” and are trademarks of

Sony Corporation.

• Gracenote, Gracenote eyeQ, Gracenote

VideoID, Gracenote Video Explore, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

• Opera® Devices SDK from Opera Software

• Wi-Fi, Wi-Fi Direct, Miracast and Wi-Fi

Protected Setup are trademarks or registered trademarks of Wi-Fi Alliance.

• MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

• Designed with UEI Technology

• The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

• USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc.

• The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

Page 29

Page 30

Page 31

Page 32

Customer Support and Contact:
