Page 1

Television

Reference Guide

4-693-659-E1(1)

KD-65A1 / 55A1

Page 2

Table of Contents

Note

ВАЖНОЕ ПРИМЕЧАНИЕ . . . . . . . . . . . . . . . . 3

ВАЖЛИВА ПРИМІТКА . . . . . . . . . . . . . . . . . . 3

ЕСКЕРТУ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety Information . . . . . . . . . . . . . . . . . . . . . 3

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Protecting the TV Screen (OLED TV) . . . . . . . 7

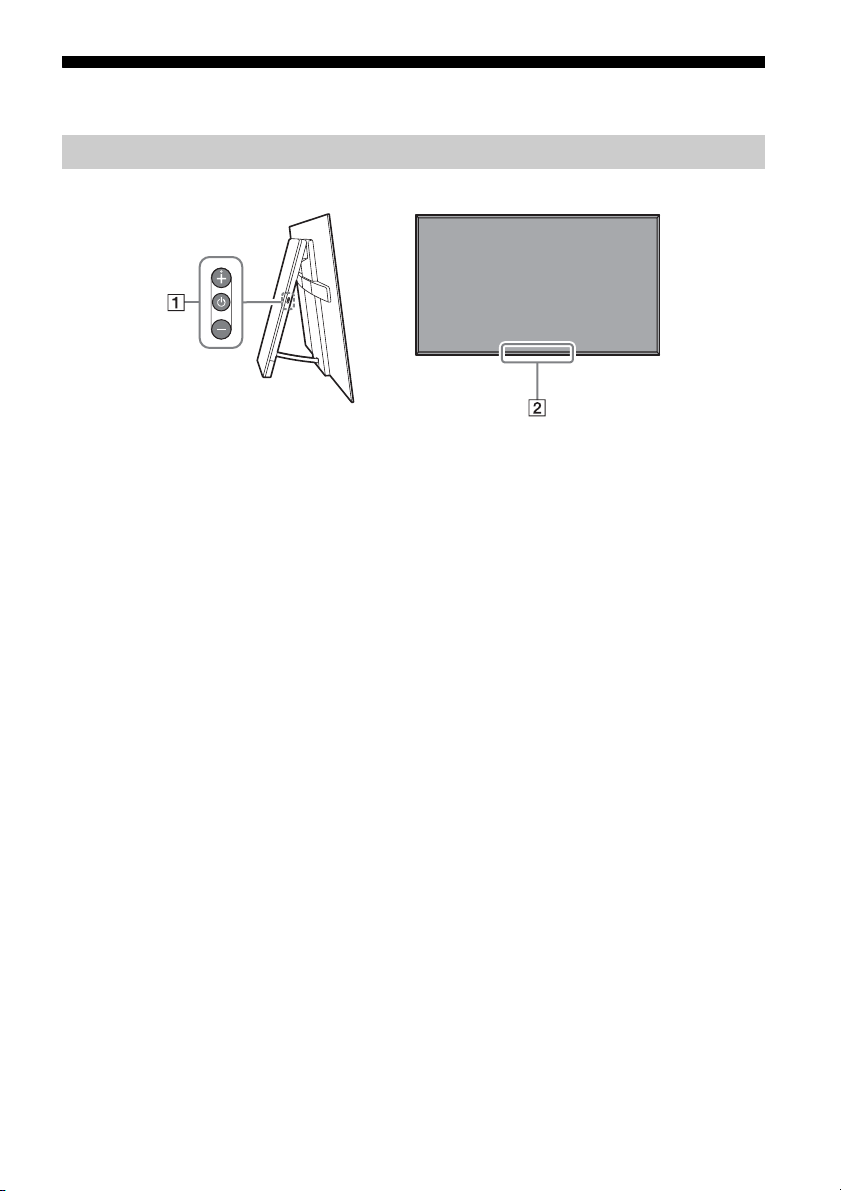

Parts and Controls . . . . . . . . . . . . . . . . . . . 8

Controls and Indicators . . . . . . . . . . . . . . . . . 8

Using Remote Control . . . . . . . . . . . . . . . . 9

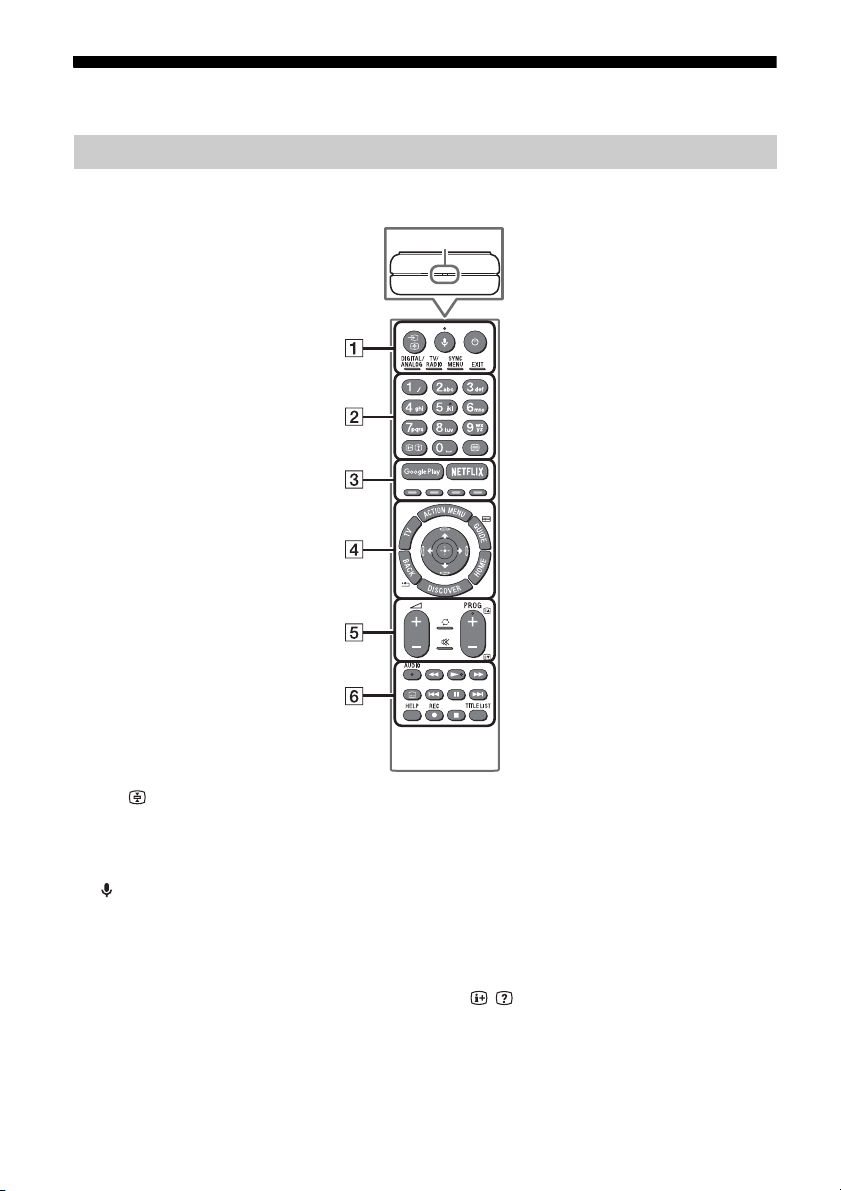

Remote Control Parts Description. . . . . . . . . 9

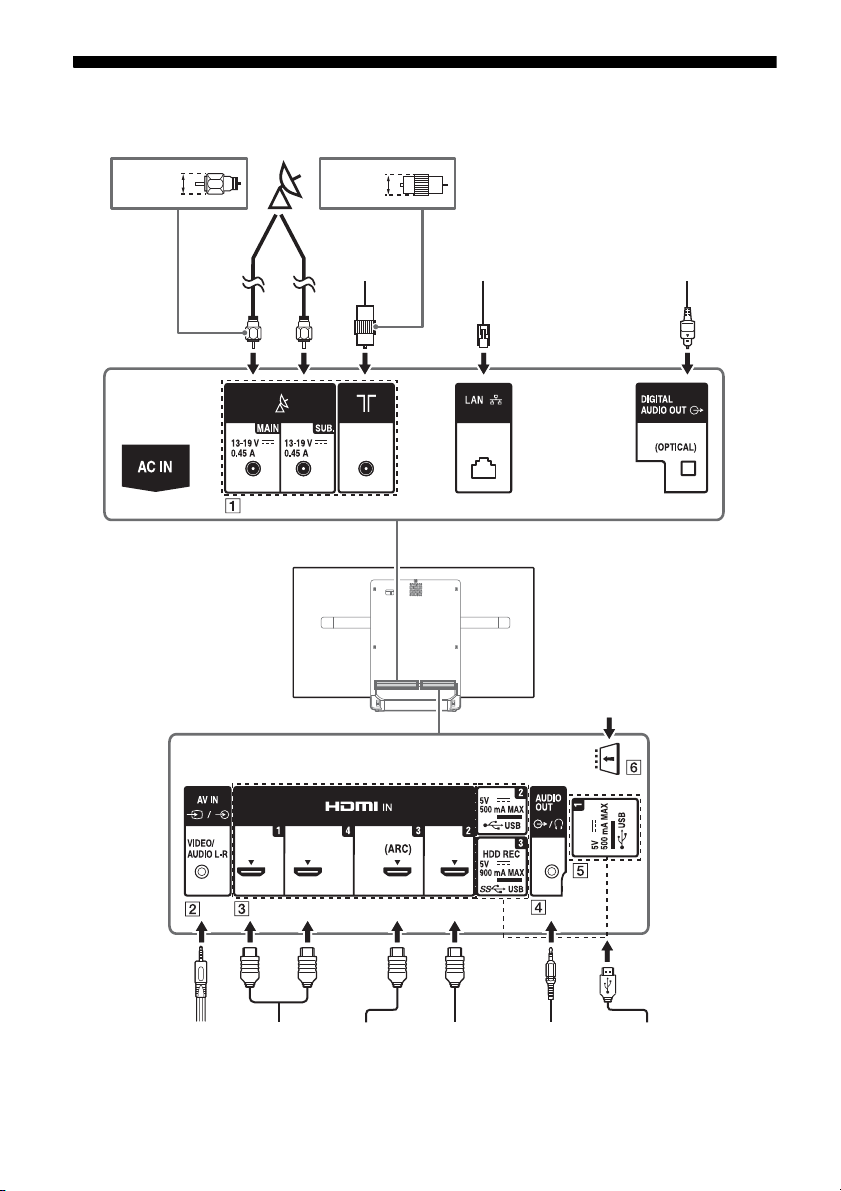

Connection Diagram . . . . . . . . . . . . . . . . .11

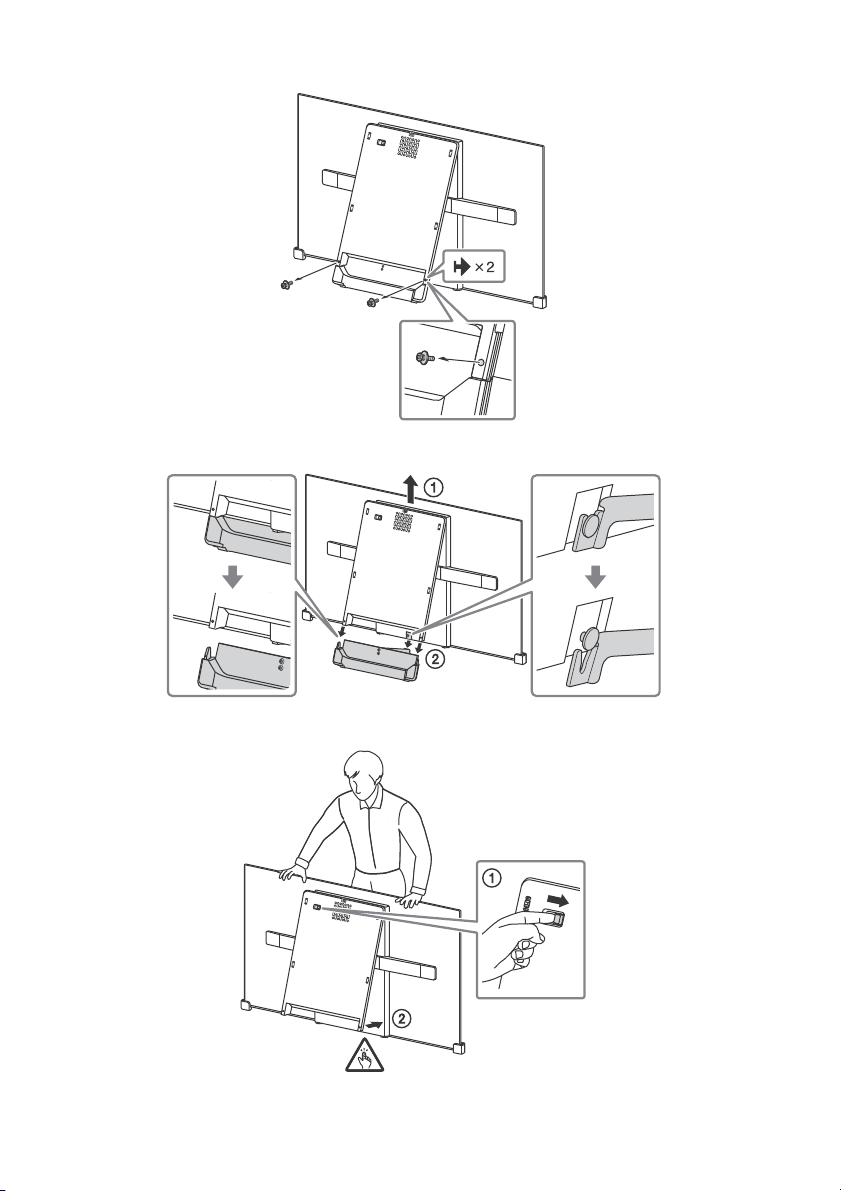

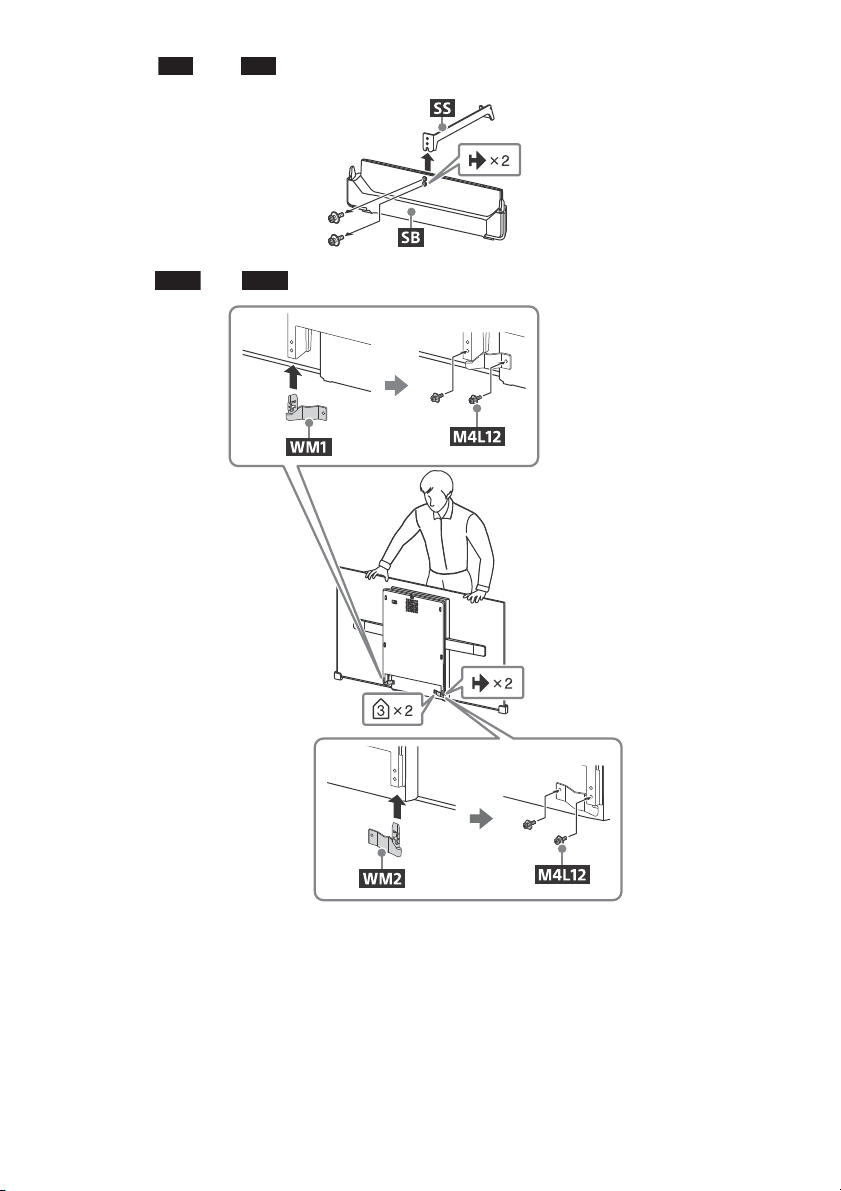

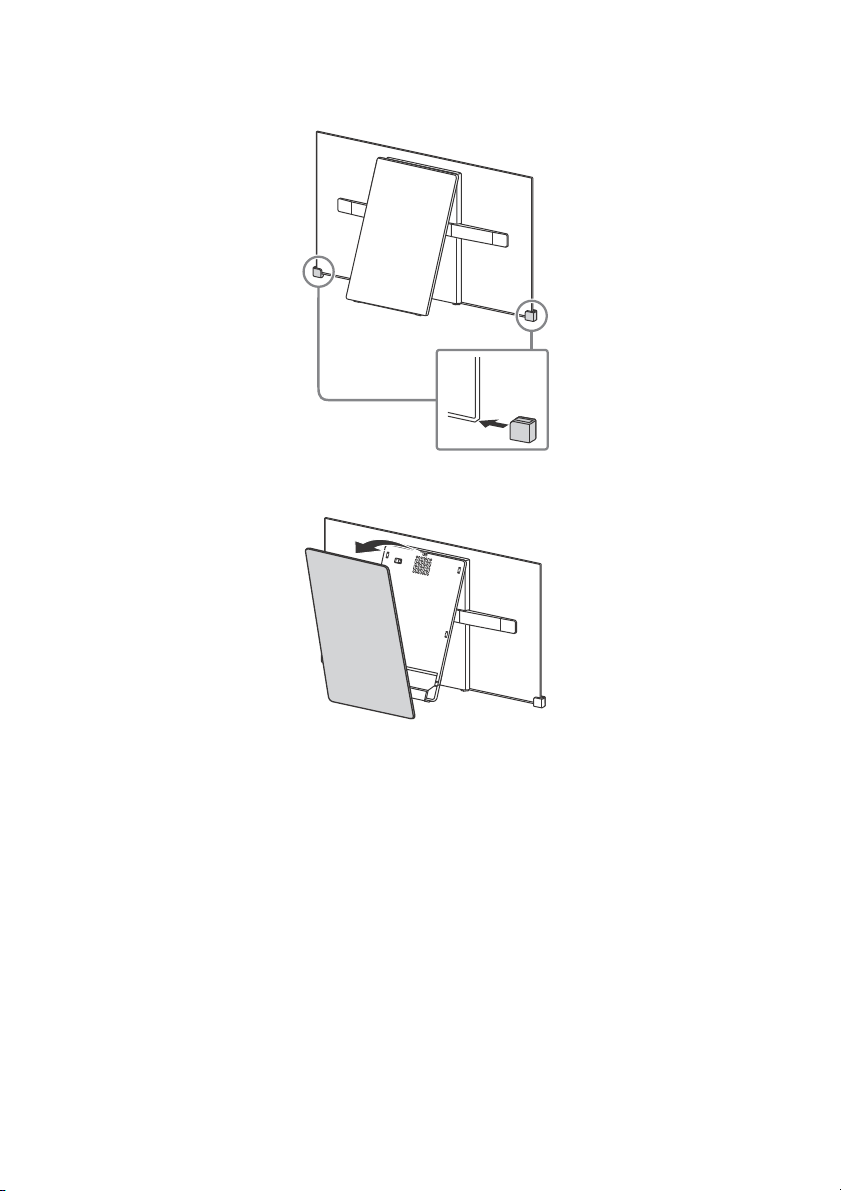

Installing the TV to the Wall . . . . . . . . . . 13

Using the optional Wall-Mount Bracket . . . 13

Troubleshooting . . . . . . . . . . . . . . . . . . . . 18

Troubles and Solutions. . . . . . . . . . . . . . . . . 18

Specifications . . . . . . . . . . . . . . . . . . . . . . 19

Internet Connection and Data Privacy

This product connects to the internet during initial setup as so on as a network is connected in order to confirm internet connection, and later to configure the Home screen. Your IP address is use d in these an d all other intern et connections. If you do not want yo ur IP address be used at all, do not set-up th e wireless internet function an d do not connect an internet cable. Please refer to the privacy in formation presented in the set-up screens for further details o f internet connections.

Introduction

Thank you for choosi ng this Sony product. Before operating the TV, please read this manual thoroughly and retain it for fut ure reference.

• Before operating the TV, please read the “Safety Information” (page 3).

• Imag es and illustrati ons used in the Setup Guide a nd this manual are for reference only and may differ from the actual product.

• Sales shou ld be performed in accordance wi th current applicable local regulation. Product which cannot be used anymore should be utilized in accordance with current applicable local regulation.

Location of the Setup Guide

Setup Guide is placed on top of the cushion inside the TV carton.

Help/Help Guide

Help feature offers a lot of informat ion about your TV. To use the Help feature, press HELP on the remote co ntrol. You can f ind how to and troubleshooting from the list or keyword search. Select [Help Guide] on Help menu to view the manual. If you connect your TV to the internet, the He lp feature and information will be updated.

Location of the identification label

Labels for the TV Model No. , Production Date (year/month ) and Power Supply rating are located on the rear of the TV or package. They can be found by removing the center cover.

Дата изготовления указана на изделии и упаковке на этикетке со штрих-кодом в следующем формате: YYYY/MM, где YYYY - год, MM - месяц изготовления.

Дата виготовлення зазначена на виробі та упаковці на етикетці зі штрих-кодом у наступному форматі: YYYY/MM, де YYYY - рік, MM - місяць виготовлення.

Өндіруші: Сони Корпорейшн

Өндіруші мекенжайы: 1-7-1 Конан Минато-ку Токио, 108-0075

Жапония

Словакияда жасалған

Өндіруші ел өнімде жəне қорапта көрсетілген.

Кеден одағы жеріндегі шетелден əкелуші: «Сони Электроникс» АҚ, Ресей, 123103 , Мəскеу, Карамышевский өтпе көшесі, 6

Қазақстан жеріндегі тұтын ушылар дың шағым-талаптарын қабылдауға уəкілетті ұйым «Сони Электроникс» АҚ Қазақстандағы Өкілдігі, 050010, Қазақстан Республикасы, Алматы қ., Достық да

ңғылы, 117/7 үй

WARNING

TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

Page 3

Для покупателей в России

Устройство предназначено только для использования в помещениях.

Информация для покупателей в Украине

Уполномоченный представитель в Украине по вопросам соотв етствия требовани ям технических регламентов: ООО «Сони Украина», ул. Ильинская, 8, г. Киев, 04070, Украина. Оборудование отвечает требованиям:  Технического регламента ограничения

использования некоторых опасных веществ в электрическом и электронном оборудовании (постановление КМУ от 03.12.2008 № 1057);

 Технического регламента по электромагнитной

совместимости оборудования (постановле ние КМУ от

16.12.2015 № 1077);

 Технического регламента низковольтного электрического

оборудования (постановление КМУ от 16.12.2015 № 1067). Настоящим С они Корпорейшн заявляет, что те левизоры моделей KD-65A1, KD-55A1 соответствуют Техническому регламенту радиооборудования и телекоммуникационного конечного (тер минального) об орудования. Полны й текст декларации о соответствии доступен в Интернете по адресу: [email protected].

ВАЖНОЕ ПРИМЕЧАНИЕ

Название продукта: Телевизор

Производитель: Сони Корпорейшн, 1-7-1 Конан Минато-ку Токио, 108-0075 Япония Сделано в Словакии. Страна производства ук азана на изделии и упак овке.

Импортер на территории стран Таможенного союза: АО «Сони Электроникс», Россия, 123103, Москва, Карамышевский проезд, 6

ВАЖЛИВА ПРИМІТКА

Назва виробу: Телевізор

Обладнання відповідає вимогам:

 Технічного регламенту обмеження

використання деяких небезпечних речовин в електричному та електронному обладнанні (постанова КМУ від 03.12.2008 № 1057);

 Технічного регламенту з електромагнітної

сумісності обладнання (постанова КМУ від

16.12.2015 № 1077);

 Технічного регламенту низьковольтного електричного

обладнання (по станова КМУ від 16.12.2015 № 1067).

Справжнім Соні Корпорейшн заявляє, що телевізори моделей KD-65A1, KD-55A1 відповідають Технічному регламенту радіообладнання і телекомунікаційного кінцевого (термінального) обладнання. Повний текст декларації про відповідність до ступний в Інтернеті за т акою адресою: [email protected]. Виробник: Соні Корпорейшн, 1-7-1 Конан Мінато-ку Токіо, 108-0075 Японія Вироблено у Словаччині. Країна виробництва зазначається на виробі та пакуванні. Уповноважений представник в Україні з питань відповідності вимогам технічних регламентів: ТОВ «Соні Україна», вул. Іллінська, 8, м. Київ, 04070, Україна.

ЕСКЕРТУ

Θнім атауы: Телевизор

Safety Information

WARNING

Batteries must not be exp osed to excessive heat such as sunshine, fire or the like. Never place a television se t in an unstable location. A telev ision set may fall, causing serio us personal in jury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:  Using cabinets or stands recommended by the manufacturer of

the television se t.

 Onl y using furniture that can safely sup port the television set.  Ensuring the television set is not overhanging the edge of the

supporting furnitu re.

 Not p lacing the television set on tal l furniture (for example,

cupboards or boo kcases) without anchoring both the furniture and the television s et to a suitable support.

 Not p lacing the television set on cl oth or other materials that

may be located between the television set and sup porting furniture.

 Edu cating children about the dange rs of climbing on furn iture

to reach the television set or its cont rols. If your existing television set is being retained and relocated, the same considerations a s above should be app lied.

Installation/Set-up

Sufficient expertise is required when installing the TV to the Table-Top Stand. Refer to the Setup Guide s upplied with the TV for stan d installatio n. Sony is not lia ble for any dam age or injur y caused by mishandling or im proper installation.

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Page 4

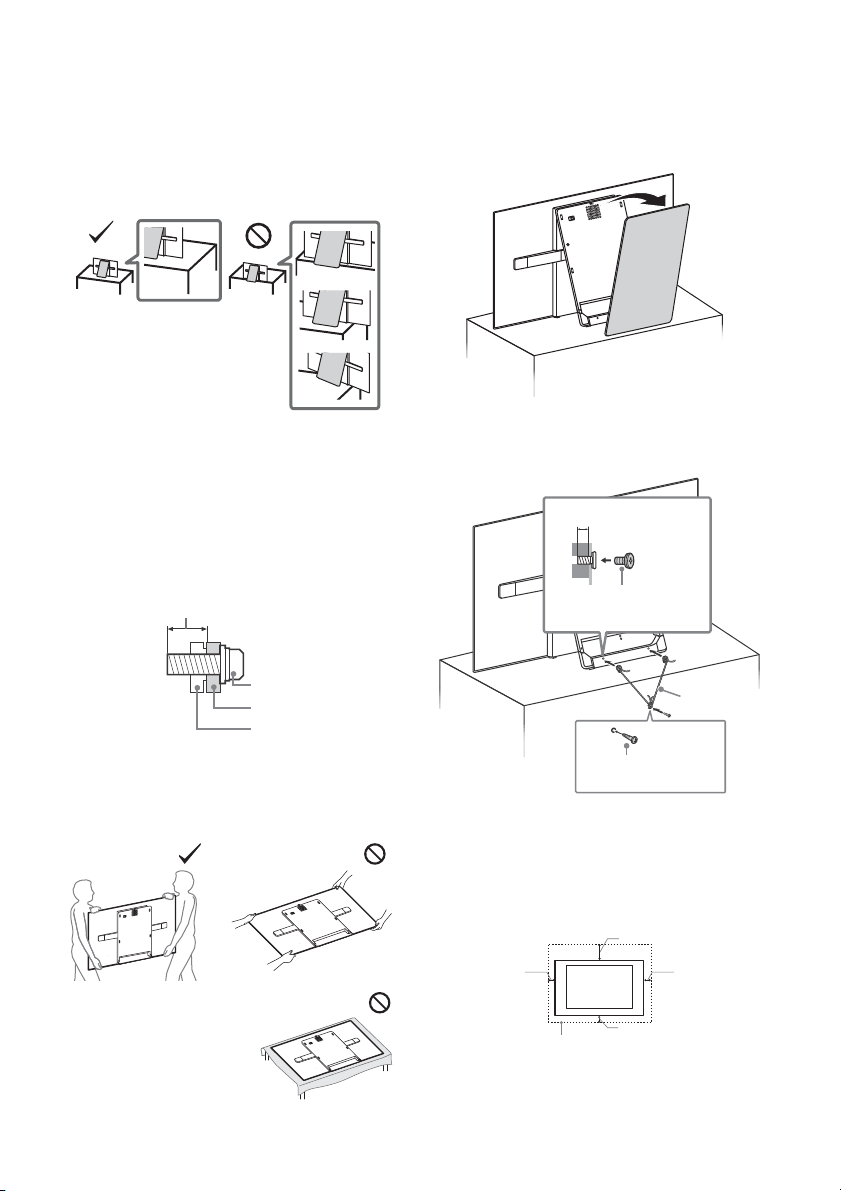

Installation

Screw (M6)

Wall-Mount Bracket

10 mm - 14 mm

TV’s rear cover

10 mm - 14 mm

M6 screw (not supplied)

Screw (not supplied)

Cord (not supplied)

30 cm

10 cm

Leave at least this space around the set.

• The TV set sho uld be installed near an easily accessi ble mains socket.

• Place the TV se t on a stable, level surface to preven t it from falling over and causing personal injury or property damage.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Install the TV so that the TV bottom does not protrude out from the TV stand (not supplied). If the TV bottom protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

• Only qu alified serv ice personnel sh ould carry ou t wall-mount installations.

• For safety reasons, it is strongly recommended that you use Sony accessories, including:  Wall-Mount Bracket SU-WL450

• Be su re to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mo unt Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than th ose supplied may result i n internal damage to the TV set or cause it to fall, etc.

• When transpo rting the TV set, do not sub ject it to jolts or excessive vibration.

• When transpo rting the TV set for repairs o r when moving, pack it using the original car ton and packing material.

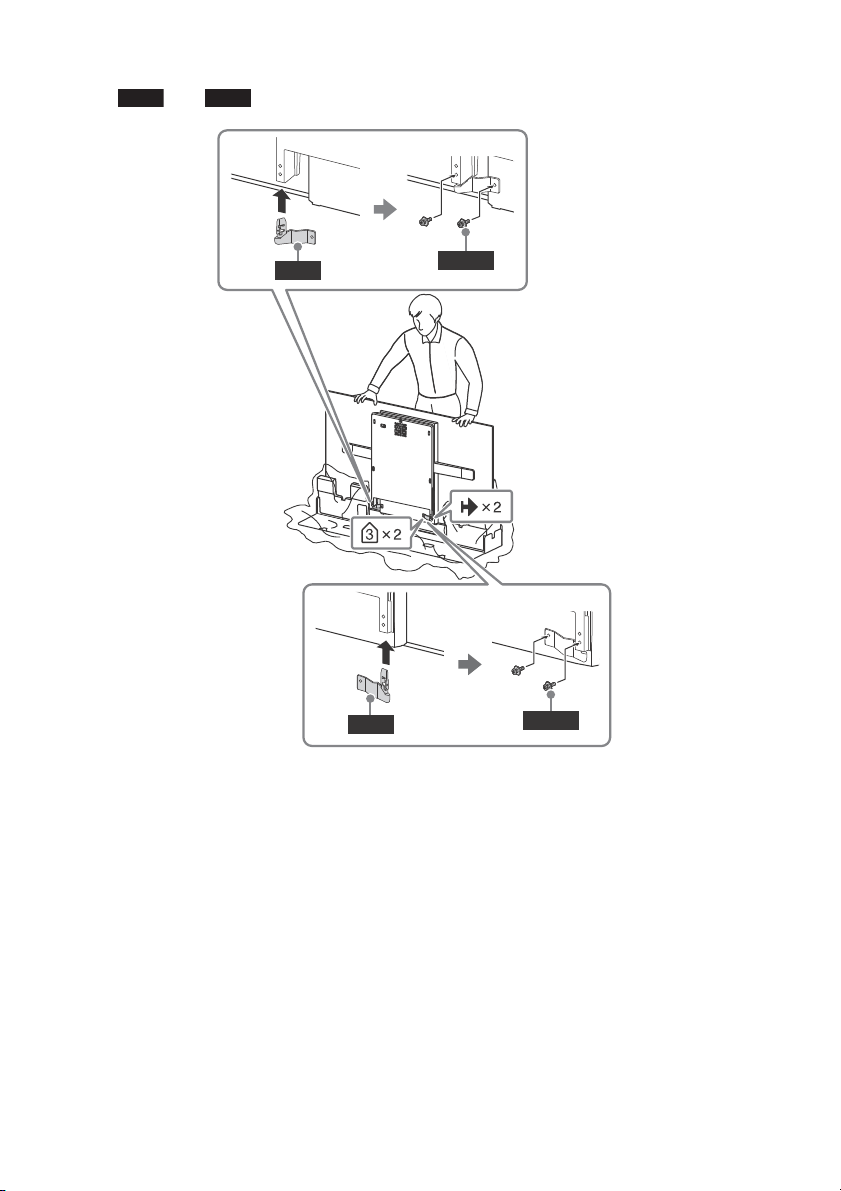

Topple prevention

Remove the center cover.

2 Secure the TV to the TV stan d.

Tran spo rti ng

• Before transport ing the TV set, disconnect a ll cables.

• Two or three people are needed to transp ort a large TV set.

• When transpor ting the TV set by hand, hold it as shown below. Do not put stress on the panel and the frame around the sc reen.

• When handlin g or mounting the TV set, do not lay down the TV.

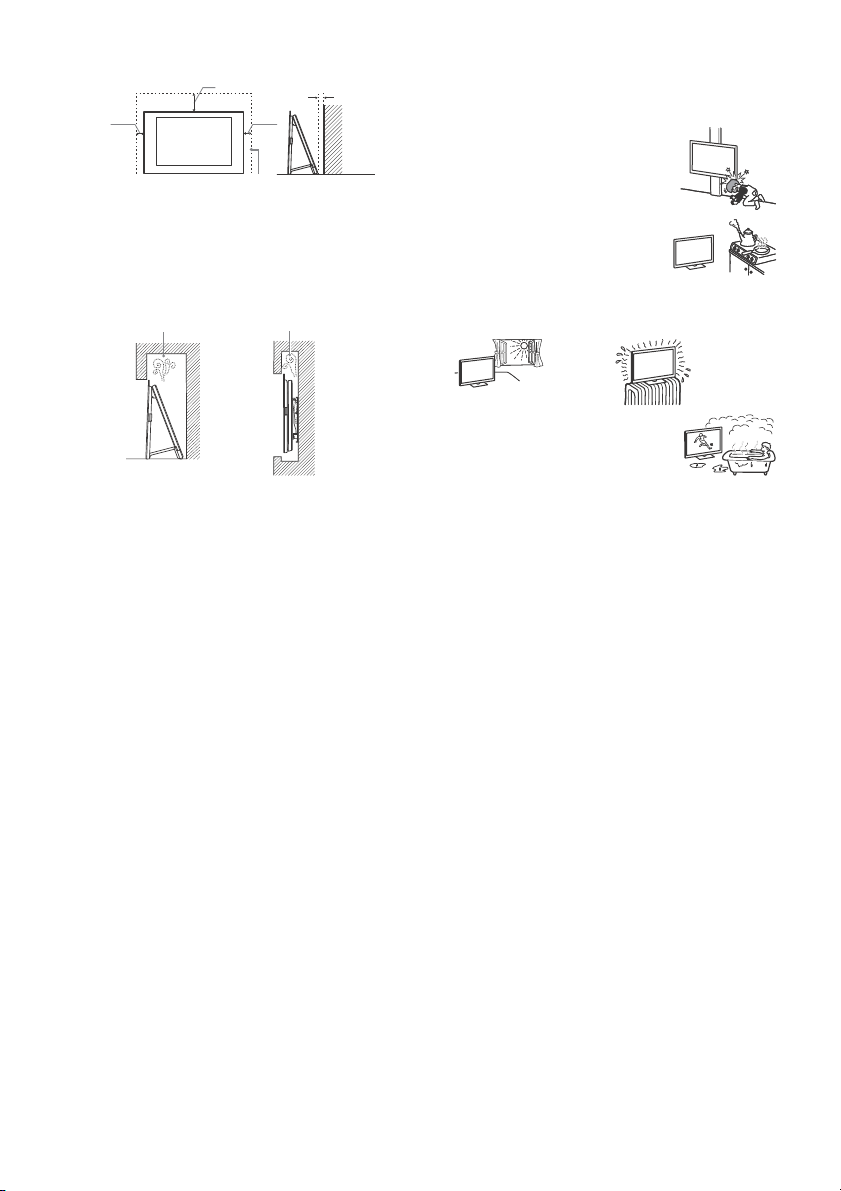

Vent ilation

• Never cover the ventilation holes or insert anything in the cabinet.

• Leave space arou nd the TV set as shown be low.

• It is strongly recommende d that you use a Sony Wall-Mount Bracket in order to provide adequate air c irculation.

Installed on the wall

Page 5

Installed with stand

Note

30 cm

10 cm 10 cm

Leave at least this space a round the set.

1 cm

Wall

Air circulation is blocked.

Wall Wall

Situations:

• Use when y our hands are wet, with the cab inet removed, or with attachments not recom mended by the manufactu rer. Disconnect the TV set from ma ins socket and aerial during lightning storms.

• Install the T V so that it sticks out into an open space. Injury or damage from a person or ob ject bumping into the TV may result.

• To ensure proper ventilation an d prevent the collection of dirt or dust:  Do not lay the TV set flat, install upsid e down, backwards, or

sideways.

 Do not place the TV set on a shelf, rug, bed or in a closet.  Do not cover the T V set with a cloth, such as curtains, or items

such as newspapers, etc.

 Do not ins tall the TV set as shown be low.

Mains lead

Handle the mains lea d and socket as follows in order to avoid any risk of fire, electric shock or damage and/or injuries:

 Use only mains leads supplied by Sony, not other suppliers.  Inser t the plug fully into the ma ins socket.  Operate the TV s et on a 220 V - 240 V AC supply only.  When wiring cables, be sure to unplug the mains lead for your

safety and take care not to catch your feet on the cables.

 Disconne ct the mains lead from the mains socket before

working on or m oving the TV set.

 Keep the mai ns lead away from heat sources.  Unplug the mains plug and clean it regularly. If the plug is

covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

• Do not use th e supplied mains lead on an y other equipment.

• Do not p inch, bend, or twist the mains lea d excessively. The core conductors may be exposed or broken.

• Do not modif y the mains lead.

• Do not put any thing heavy on the main s lead.

• Do not pull on the mains lead itself when disconnecting the mains lead.

• Do not connect too many appliances to th e same mains socket.

• Do not use a po or fitting mains socket.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as tho se listed below, or the TV set may malfunction and cause a fire, electric shock, damage and/or injuries.

Locations:

• Outdoors (in di rect sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical in stitutions, unsta ble locations, near water, rain, moistu re or smoke.

Environments:

• Places that a re hot, humid, or excessively dusty; where insects may enter; where it migh t be exposed to mechanical vib ration, near flammable objects (candles, etc.). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

• Place the TV in a humid or dusty space, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric sho ck, or warpin g may result.

• Install the T V in places subject to extreme temperature such as in direct su nlight, near a radiator or a heating vent. The TV may overhe at in such condition which can cause deformation of the enclosure and/or TV malfunction.

• If the TV is p laced in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid moving the TV from a cold area to a warm area. S udden room te mperatu re changes may cau se moisture con densation . This may cause the TV to show poor picture and/or poor colour. Should this occur, allow mois ture to evaporate completely before powering the TV on.

Broken pieces:

• D o not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

• If the surfa ce of the TV set cracks, do not touch it until y ou have unplugged the mains lead. Otherwise this may cause an electric shock.

When not in use

• If you will n ot be using the TV set for severa l days, the TV set should be disconnected from the mains for environmental and safety reasons.

• As the TV set is not disconnected from the mains when the TV set is just turned off, pull the plug from th e mains to disconnect the TV set completely.

• Some TV sets may have features that require the TV s et to be left in standby to work correctly.

For children

• Do not allo w children to climb on the TV set.

• Keep small accessorie s out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur...

Turn off the T V set and unplug the mains l ead immediately if any of the follow ing problem s occur. Ask your dealer or Sony s ervice centre to have it checked by qualified service personnel.

When:

 Ma ins lead is da maged.  Poor fitting of ma ins socket.  TV set is damaged by being dropped, hit or having something

thrown at it.

 Any liquid o r solid object fal ls through open ings in the cabi net.

Page 6

About TV Temperature

1.5 mm max.

(Reference drawing of the F-type plug)

7 mm max.

When the TV is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand.

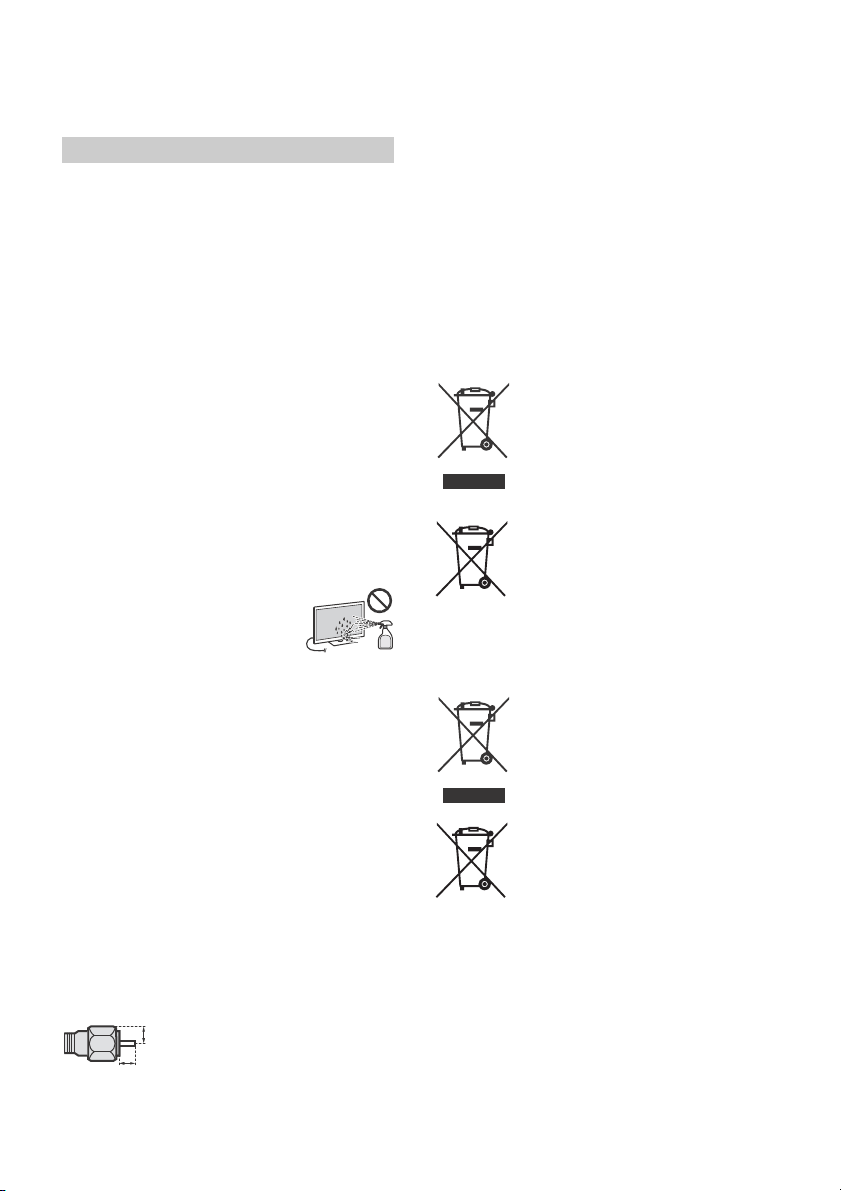

Precautions

Viewing the TV

• View the TV in moderate li ght, as viewing th e TV in poor light or during long period of time, strains your eyes.

• When using he adphones, adjust the v olume so as to avoid excessive levels , as hea ring damage m ay result.

OLED Screen

• Although the OLED screen is made with high-precision technology and 99.99 % or more of the pixels are effective, black dots may appear or bright points of light (white, red, blue, or green) may appear constantly on the OLED screen. This is a structural property of the OLED screen and is not a malfunction.

• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the OLED screen may be damaged.

• The screen and cabinet get warm whe n this TV set is in use. This is not a malfunction.

• When di sposing of your TV be sure to follow your local la ws and regulations.

Handling and cleaning the screen surface/ cabinet of the TV set

Be sure to unplug the mai ns lead connected to the TV se t from mains socket before c leaning. To avoid material degradation or screen coatin g degradation, observe the following precautions.

• To remove dust from the sc reen surface/cabinet, wipe g ently with a soft cloth. If dus t is persistent, wipe wi th a soft cloth slightly moistened with a diluted mild detergent solution.

• Never spray water or de tergent directly on the TV set. It may drip to th e bottom of the screen or exterior parts and enter the TV set, and may cause dam age to the TV set.

• Never use any type of abrasive pad, alkaline/acid cl eaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rub ber or vinyl materials may resu lt in damage to the screen sur face and cabinet material.

• Do not touch the TV if your hand is covered in any chemical substance such as hand cream or sunblock.

• Periodic vacuuming of the ventilation openings is recommended to ensure to p roper ventilation.

• When adju sting the angle of the TV set, m ove it slowly so as to prevent the TV set from m oving or slipping off f rom its table stand.

Optional Equipment

• Keep optional components or any equipment emitting electromagnetic radiation away f rom the TV set. Otherwise picture distortion and/or noisy sound may occur.

• This equipment has been tested and found to comply with the limits set out in the EM C Directive using a connecti on signal cable shorter than 3 m eters.

• This equipment has been tested and found to comply with the limits set out in the EMC Directive using a RF cable shorte r than 30 meters for terrestrial/satellite/C ATV terminal.

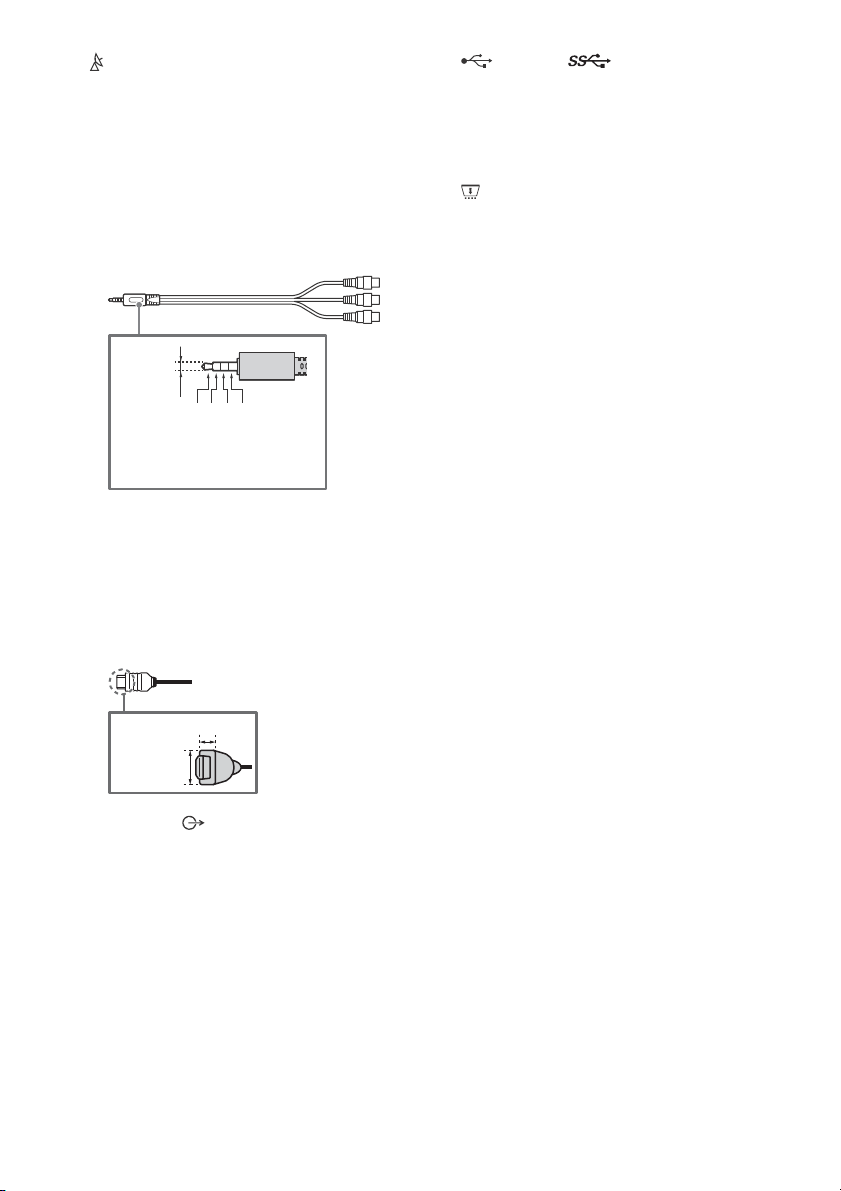

Recommendation of F-type plug

Projection of the inner wire from the connection part must be less than 1.5 mm.

Wireless Function of the unit

• Do not operate this un it near medical equipment (p acemaker, etc.), as this may result in t he malfunct ion of the medical equipment.

• Although th is unit transmits/receives scrambled si gnals, be careful of unauthorise d interception. We cannot be responsi ble for any trouble as a result.

• This equipm ent should be installed an d operated keeping a separation distance of 20 cm or more between the anten na of this device and a person's body.

Caution about handling the remote control

• Observe the correct polarity when inserting batteries.

• Do not use di fferent types of batteries together or mix old and new batteries.

• Dispose o f batteries in an environmentally f riendly way. Certain regions may regulate the d isposal of batteries. Pleas e consult your local authority.

• Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind onto it.

• Do not place the remote cont rol in a location near a heat source, a place subject to direct sunlight, or a damp room.

Утилизация телевизора

Утилизация отслужившего электрического и электронного оборудования (директива применяется в странах Евросоюза и других европейских странах, где действуют системы раздельного сбора отходов)

Утилизация использованных элементов питания (применяется в странах Евросоюза и других европейских странах, где действуют системы раздельного сбора отходов)

Утилізація телевізора

Утилізація старого електричного та електронного обладнання (застосовується в Європейському союзі та інших європейських країнах із системами роздільного збирання сміття)

Переробка використаних елементів живлення (директива діє у межах країн Європейського Союзу та інших країн Європи зі системами роздільного збору відходів)

Page 7

Теледидар құрылғысын лақтыру

Қызмет мерзімі біткен электр жəне электрондық жабдықты залалсыз жою (бағыттама қалдықтарды бөлек жинау жүйелері жұмыс істейтін Еуроодақ жəне басқа еуропа елдерінде қолданылады)

Пайдаланылған қоректену элементтерін залалсыз жою (қалдықтарды бөлек жинау жүйелері жұмыс істейтін Еуроодақ елдерінде жəне басқа еуропа елдерінде қолданылады)

Protecting the TV Screen (OLED TV)

Precautions to Protect the Screen from Damage

Image retention

OLED TV‘s are susceptible to image retention (burn-in) due to the characteristics of the materia ls used. Image retention may occur if images are displayed in the same location on the screen repeatedly or over extended periods of time. This is not a malfunction of the TV. Avoid displaying images that may caus e image retention.

The following are examples of images that may cause image retention:

• Content with bl ack bars either on the top and bottom and/or the left and right sides of the screen. (for example, Letterboxed, 4:3 screen, Standard defin ition)

• Static imag es such as photos.

• Video game s that might have static conten t in some part of the screen.

• On-screen menus, programme guides, channel logos etc.

• Static content from applications.

• On-screen tickers, such as those used for news and headlines.

To reduce the risk of image retention:

• Sony recommends that you turn off the TV n ormally by pressing the power button on t he remote control or the TV.

• Fill the screen by changing [Wide mode] to eliminate the black bars. Select [Wide mode] other than [Normal].

• Turn off the OSD (On Screen Display) by pressing the / button, and turn off the m enus from connected equipment. For details, refer to the instruction m anuals for the connected equipme nt.

• Avoid displaying static images with bright colours (including white), clocks or logos on any portion of the screen.

• Set the picture settings based on the ambient conditions. The Standard Picture is recommended for home use and when viewing content that often di splays the station logos, etc.

The TV has following features to help reduce/ prevent image retenti on.

Panel refresh

Panel refresh will automatically run to ad just the uniformity of the TV screen after it has been in use for long pe riods of time. Panel refresh can also be performed manually and should only be used if image retention is very no ticeable or you see the follow ing message: [Panel refresh did not finish…]

Caution:

• The Panel refresh function may affect the panel. As a reference, perform the Panel refresh only once a year, do not perform it more than once a year as it may affect the usable life of the panel.

• Panel refresh takes about one hour to complete.

• A white line may be displayed on the screen during the Panel refresh, this is not a malfunction of the TV.

• Panel refresh will only work when the room temperature is between 10 ºC and 40 ºC.

Pixel shift

Automatically moves th e image on the screen to preven t image retenti on.

Other feature

The screen brightness is automatically reduced when displaying still images, clocks, bright colours or logos etc.

Page 8

Parts and Controls

Controls and Indicators

 (Power) / + / –

When the TV is off,

Press  to power on.

When the TV is on,

Press and hold  to power off. Press  repeatedly to change the function, then press + or - button to:

• Adjust the volume.

• Select the channel.

• Select the input source of TV.

 Remote Control sensor* /

Light sensor* / Illumination LED

The illumination LED lights up or blinks according to the status of the TV. For more information, refer to the Help Guide.

* Do not place anything near the sensor.

Page 9

Using Remote Control

MIC

Remote Control Parts Description

The remote control shape, location, availability and function of remote control button may vary depending on your region/country/TV model.

/ (Input select/Text hold)

In TV mode: Display and select the input source. In Text mode: Hold the current page.

(Microphone)

Use Voice Function. (e.g., Search various content by voice.)

 (TV standby)

Turn on or turn off the TV (standby mode).

DIGITAL/ANALOG

Switch between digital and analogue mode.

TV/RADIO

Switch between TV or RADIO broadcasts.

SYNC MENU

Display the BRAVIA Sync Menu.

EXIT

Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.

 Number buttons

/ (Info/Text reveal)

Display information.

 (Text)

Display text information.

Page 10

 Google Play

Access the “Google Play” online service.

NETFLIX (Only on limited region/ country/TV model)

Access the “NETFLIX” online service.

Colour buttons

Execute corresponding function at that time.

 ACTION MENU

Display a list of contextual functions.

• Switch to a TV channel or input from other applications.

• Turn on the TV to display TV channel or input.

GUIDE/

Display the digital programme guide.

BACK/

Return to previous screen.

HOME

Display the TV Home Menu.

DISCOVER

Bring up the Content Bar to search for content.

//// (Item select/Enter)

 AUDIO

Change the language for the programme currently being viewed.

//////

Operate media contents on TV and connected BRAVIA Sync-compatible device.

(Subtitle setting)

Turn subtitles on or off (when the feature is available).

HELP

Display Help menu. Help Guide can be accessed from here.

 REC

Record the current programme with the USB HDD recording function.

TITLE LIST

Display the Title list.

 +/– (Volume)

Adjust the volume.

(Jump)

Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.

 (Muting)

Mute the sound. Press again to restore the sound.

PROG +/–//

In TV mode: Select the channel. In Text mode: Select the next () or previous () page.

Page 11

Connection Diagram

Home Audio System with Optical Audio Input

Cable/Antenna/ Set Top Box

Router

Satellite

Home Audio System with ARC/HDMI Device

Digital still camera/ Camcorder/USB storage media

Headphone/ Home Audio System/ Subwoofer

Conditional Access Module

< 14 mm

HDMI Device

VCR/Video game equipment/DVD player/Camcorder/ Set Top Box*

< 14 mm

For more information on connections, refer to the Help Guide by pressing HELP on the remote control.

Page 12

 (Satellite input),  (RF input)

Note

3.5 mm

1234

1: L 2: Video 3: Ground 4: R

< 12 mm

< 21 mm

• Connections for terrestrial/cable and satellite. Connection steps: SUB.  Antenna  MAIN

• For SUB. jack, connect only when you are using twin tuner mode except for Single Cable Distribution EN50494.

/ AV IN

• For a composite connection, use an Analogue Extension Cable (not supplied).

•

 USB 1/2, USB 3 (HDD REC)*

• Connecting a large USB device may interfere with other connected devices beside it.

• When connecting a large USB device, connect to the USB 1 port.

 CAM (Conditional Access Module)

• Provides access to pay TV services. For details, refer to the instruction manual supplied with your CAM.

• Do not insert the smart card directly into the TV CAM slot. It must be fitted into the Conditional Access Module provided by your authorised dealer.

• CAM is not supported in some countries/ areas. Check with your authorised dealer.

• A CAM message may appear when you switch to a digital programme after using the Internet video.

*1 For an external device which has only SCART AV

OUT, use a SCART-RCA adapter and Analogue Extension Cable.

*2 Only on limited region/country/TV model.

 HDMI IN 1/2/3/4

• If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technology, use HDMI IN 3. If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

•

 AUDIO OUT /

• Supports 3-pole stereo mini jack only.

• To listen to the TV's sound through the connected equipment, press HOME. Select [Settings]  [Sound]  [Headphone/Audio out] and then select the desired item.

• Be sure to store the side cover in a safe place for future use.

Page 13

Installing the TV to the Wall

Note

Using the optional Wall-Mount Bracket

This TV’s instruction manual only shows the steps on preparing the installation of the TV before installing to the wall.

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall. When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.

• Be sure to store the removed screws in a safe place, keeping them away from children.

• Be sure to hold the TV while preparing it for wall-mount installation.

• Please remove the corner guards after installing the TV to the wall.

For instructions on Wall-Mount Bracket installation of your TV model, refer to the following website: www.sony.eu/tv/wall-mount-bracket-manual

Page 14

Installing the TV to the Wall from Carton

Note

WM1

WM2

M4L12

WM1

M4L12

WM2

Attach and (supplied with the TV) to the rear of the TV.

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

Page 15

Installing the TV to the Wall from Table-Top Stand

1 Insert the corner guards.

2 Remove the center cover.

Page 16

3 Remove the screws.

4 Detach the stand base.

5 Close the center block by releasing the hinge lock.

Page 17

6 Detach from .

Note

WM1

WM2

7 Attach and (supplied with the TV) to the rear of the TV.

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

Page 18

Troubleshooting

Updating...

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button

on the remote control until a message appears. The TV will restart. If the TV does not recover, try unplugging the TV from the mains lead for three minutes and then plug it in again.

2 Refer to the Help menu by pressing HELP on

the remote control.

3 Connect your TV to the Internet and perform

a software update.

4 Visit Sony support website (information

provided on the back cover).

When [A new TV system software update is available…] message is displayed.

Sony strongly recommends you to update the TV software by selecting [Update Now]. These software updates improve your TV performance or add new features. The following screen with [Updating…] will appear and the illumination LED flashes white while software is updating.

Do not unplug the mains lead during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 15 minutes.

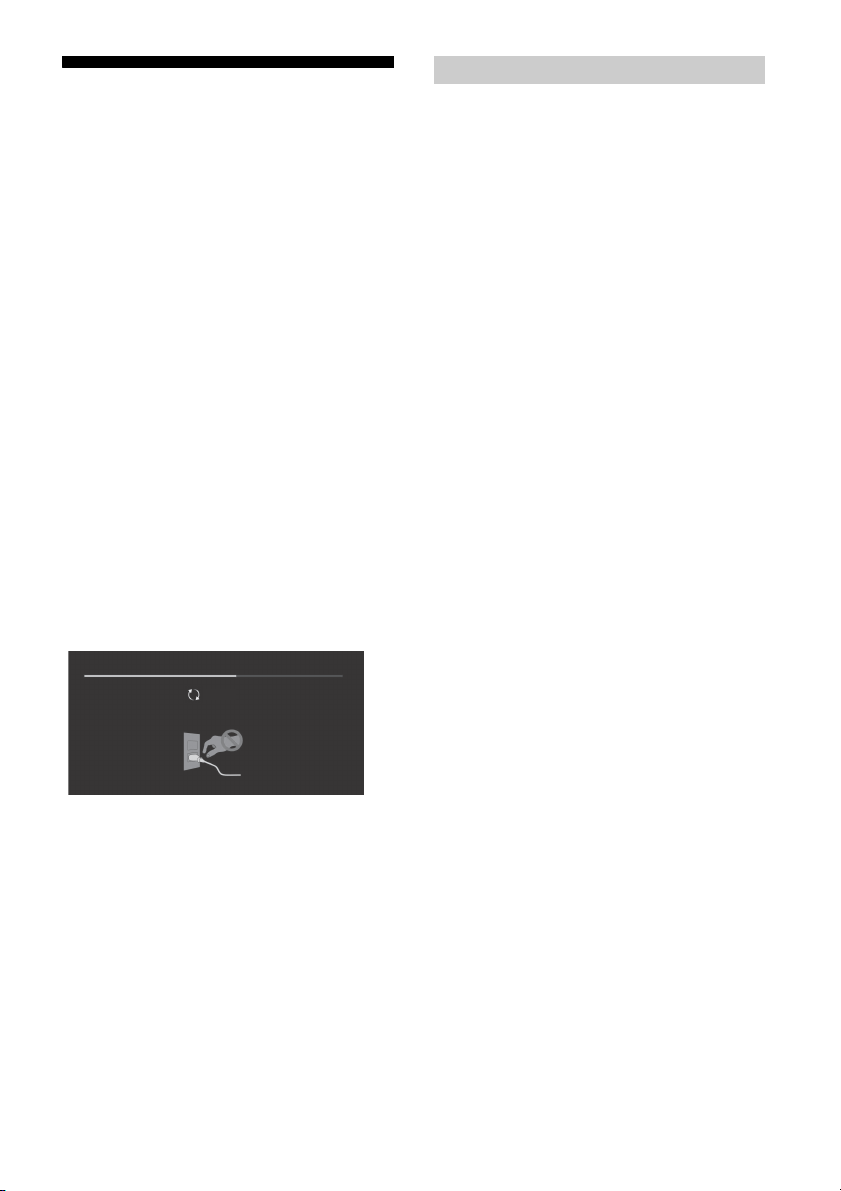

When you plug in TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

Troubles and Solutions

When the illumination LED is flashing in red.

 Count how many times it flashes (interval time is

three seconds). Reboot the TV by disconnecting the mains lead for three minutes, then turn on the TV. If the problem persists, disconnect the mains lead, and contact your dealer or Sony service centre with the number of times the illumination LED flashes.

Terrestrial/cable service cannot be received.

 Check the antenna (aerial)/cable connection and

booster settings.

 Select terrestrial/cable service by pressing

DIGITAL/ANALOG on the remote control. If the broadcasting service is not displayed, press TV and then press DIGITAL/ANALOG.

 Terrestrial signal might be suppressed if there is a

strong signal supplied nearby. Set [LNA (CH ---)] to [Off] in digital tuning settings.

 After moving to a new house or trying to receive

new services, attempt a service search by selecting [Digital Tuning].

Satellite service cannot be received.

 Check the satellite cable connection.  When [No signal. LNB overload detected…]

message is displayed, unplug the mains lead. Then, ensure the satellite cable is not damaged and the satellite signal line is not short-circuited in the satellite connector.

The remote control does not function.

 Replace the batteries.

The parental lock for broadcast password has been forgotten.

 Enter 9999 for the PIN code and select [Change

PIN Code].

The TV surrounds become warm.

 Whe n the TV is used for an extended period, the

TV surrounds become warm. You may feel hot when touching there by the hand.

The screen becomes darker while watching TV.

 If the whole image or part of the image remains

still, the screen brightness will be gradually reduced to prevent image retention. This is not a malfunction of the TV.

Page 19

You are concerned about image retention.

Note

 If the same image is displayed repeatedly or for

long periods of time, image retention may occur. You can manually perform a Panel refresh to reduce image retention.

• Perform Panel refresh only when image retention is particularly noticeable. As a reference, perform it only once a year. Avoid performing it more than once a year because it may affect the usable life of the panel.

• Images that include clocks, logos and bright colours (including white) easily cause image retention. Avoid displaying these types of images for long periods of time, otherwise image retention may occur.

A white line appears on the screen.

 Panel refresh automatically runs after the TV has

been used for long periods of time to reduce image retention. Panel refresh starts after the TV is turned off and takes about one hour to complete. A white line may be displayed on the screen during the Panel refresh. This is not a malfunction of the TV.

The message [Panel refresh did not finish…] is displayed.

Panel refresh automatically runs after the TV has been used for long periods of time to reduce image retention. If the TV is turned on, the mains lead is unplugged, or the room temperature falls outside of the range between 10 ºC and 40 ºC during the Panel refresh, the process will not be completed and this message will appear.

 If Panel refresh started automatically, it will restart

when you turn off the TV with the remote control.

 If Panel refresh initiated manually, you must

select it again.

Specifications

System

Panel system

OLED (Organic Light Emitting Diode) Panel

TV system

Depending on your country/area selection/TV model Analogue: B/G, D/K, I Digital: DVB-T/DVB-C DVB-T2* Satellite*: DVB-S/DVB-S2

Colour system

PAL, SECAM, NTSC3.58 (Video only), NTSC4.43 (Video only)

Channel coverage

Depending on your country/area selection/TV model Analogue: UHF/VHF/Cable Digital: UHF/VHF/Cable Satellite*: IF Frequency 950-2,150 MHz

Sound output

10 W + 10 W + 10 W + 10 W + 10 W

Wireless technology

Protocol IEEE802.11ac/a/b/g/n (IEEE802.11ac may not be available depending on countries/regions.) Bluetooth Version 4.1 Frequency band(s): WLAN 2.4 GHz/5 GHz, Bluetooth 2.4 GHz Radio frequency power transmitted: 100 mW MAX

* Not all the TV sets have DVB-T2 or DVB-S/S2

technology or satellite antenna terminal.

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna

Female F-Type Connector, 75 ohm . DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single Cable Distribution EN50494.

/ AV IN

Video/Audio input (mini jack)

Page 20

HDMI IN 1, 2, 3, 4 (Support 4K resolution, HDCP 2.2-compatible)

Video:

4096 × 2160p (50, 60 Hz)*

(24 Hz)*

, 3840 × 2160p (50, 60 Hz)*2, 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formats

3840 × 2160p is displayed when 4096 × 2160p is input.

HDMI IN 2 / 3 only. Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby Digital, Dolby Digital Plus and DTS

1*2

, 4096 × 2160p

ARC (Audio Return Channel) (HDMI IN 3 only)

(Two channel linear PCM: 48 kHz, 16 bits, Dolby Digital, Dolby Digital Plus, DTS)

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM: 48 kHz, 16 bits, Dolby Digital, DTS)

AUDIO OUT / (Stereo mini jack)

Headphone, Audio output, Subwoofer

1, 2, 3 (HDD REC)*

USB device port ( 3 USB HDD device for REC feature) USB port 1 and 2 support High Speed USB (USB2.0). USB port 3 supports Super Speed USB (USB3.0).

CAM (Conditional Access Module) slot

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/ 100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

Others

Optional accessories

Wall-Mount Bracket: SU-WL450

Условия хранения:

Товары сохраняют в упакованном виде в темных, сухих, чистых, хорошо вентилируемых помещениях, изолированных от мест хранения кислот и щелочей. Температура хранения*: от -20 °C до +60 °C. Относительная влажность хранения*: < 80 % (без конденсации). *Примечание: максимальные значения для обоих параметров не могут быть достигнуты одновременно. Рабочая температура: от 0 °C до 40 °C. Рабочая относительная влажность: 10 % – 80 % (без конденсации).

Умови зберігання:

Продукцію зберігають в упакованому виді в темних, сухих, чистих, добре вентильованих приміщеннях, ізольованих від місць зберігання кислот і лугів. Температура зберігання*: від

-20 °C до +60 °C. Відносна вологість зберігання*: < 80 % (без конденсації). * Примітка: неможливо отримати максимальні значення для обох параметрів одночасно. Робоча температура: від 0 °C до 40 °C. Робоча відносна вологість: 10 % - 80 % (без конденсації).

Сақтау шарты:

Өнімдерді қараңғы, құрғақ, таза, жақсы желдетілетін қышқылдар мен сілтілік металдар сақталған орыннан оқшауланған бумада сақтау қажет. Сақтау температурасы*: -20 °C мен +60 °C аралығы. Сақтау ылғалдылығы*: < 80% салыст. ылғалдылық (конденсациясыз).

* Ескерту: Екі параметрдің ең үлкен мəндеріне бір

уақытта жету мүмкін емес.

Жұмыс температурасы: 0 °C мен 40 °C аралығы. Жұмыс ылғалдылығы: 10 % – 80 % салыст. ылғалдылық (конденсациясыз).

Power, Product Fiche and others

Power requirements

Rating: Input 220 V - 240 V AC, 50 Hz

Energy Efficiency Class

KD-65A1: A KD-55A1: B

Screen size (measured diagonally) (Approx.)

KD-65A1: 163.9 cm / 65 inches KD-55A1: 138.8 cm / 55 inches

Удельная потребляемая мощность в режиме [Стандартный]:

KD-65A1: 13,5 мВт/см KD-55A1: 16,5 мВт/см

Power consumption in [Standard] mode

KD-65A1: 154 W KD-55A1: 135 W

in [Vivid] mode

KD-65A1: 498 W KD-55A1: 378 W

Average annual energy consumption*

KD-65A1: 214 kWh KD-55A1: 187 kWh

Standby power consumption*3*

0.50 W (27 W in software/EPG update mode)

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Output Rating

USB 1/2: 5 V, , 500 mA MAX USB 3: 5 V, , 900 mA MAX

Page 21

Dimensions (Approx.) (w × h × d)

Note

wi t h Tab le-To p St and

KD-65A1: 145.1 × 83.2 × 33.9 cm KD-55A1: 122.8 × 71.0 × 33.9 cm

without Table-Top Stand

KD-65A1: 145.1 × 83.4 × 8.6 cm KD-55A1: 122.8 × 71.1 × 8.6 cm

Mass (Approx.)

wi t h Tab le-To p St and

KD-65A1: 36.2 kg KD-55A1: 28.8 kg

without Table-Top Stand

KD-65A1: 29.8 kg KD-55A1: 25.0 kg

Only on limited region/country/TV model.

Energy consumption per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

Specified standby power is reached after the TV finishes necessary internal processes.

Standby power consumption will increase when your TV is connected to the network.

• Do not remove the cover from TV CAM (Conditional

Access Module) slot other than to inser t a smart card fitted in CAM.

• Optional accessories availability depends on

countries/region/TV model/stock.

• Design and specifications are subject to change

without notice.

Notes on Digital TV function

• Digital TV (DVB terrestrial, satellite and

cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.

• This TV supports digital broadcasting using

MPEG-2, H.264/MPEG-4 AVC and H.265/ HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Trademark Information

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

• “BRAVIA” and are trademarks of Sony Corporation.

• Gracenote, Gracenote eyeQ, Gracenote VideoID, Gracenote Video Explore, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

• Wi-Fi, Wi-Fi Direct, Miracast, Wi-Fi Protected Setup and Wi-Fi CERTIFIED Logo are trademarks or registered trademarks of Wi-Fi Alliance.

• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.

• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

• USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc.

Page 22

Page 23

Page 24

Actual resolution: 3840 x 2160 pixels.

Для получения полезной информации о продукции Сони Для отримання корисної інформації щодо виробів компанії Sony

Sony ԧɧɿɦɞɟɪɿɧɿԙ ɩɚɣɞɚɥɵ ɚԕɩɚɪɚɬɬɚɪɵ

http://rd1.sony.net/help/tv/eaep1/h_eu/

Справочное руководство

Ⱦɨɜɿɞɤɚ Ʉԧɦɟɤɲɿ ɧԝɫԕɚɭɥɵԕ
