Sony AITE390, AITE90V, AITE520V, AITE130V, AITE1040 Operating Instructions

AIT Drive

Operating Instructions

4-681-446-19(1)

AIT-5 TAPE DRIVE

AITe1040/AITe1040V

AIT-4 TAPE DRIVE

AITe520/AITe520V

AIT-3 Ex TAPE DRIVE

AITe390/AITe390V

AIT-3 TAPE DRIVE

AITe260/AITe260V

AIT-2 TAPE DRIVE

AITe130/AITe130V

AIT-1 TAPE DRIVE

AITe90/AITe90V

©2003 Sony Corporation

Safety Regulations

Owner’s Record

The model and serial numbers are located on the bottom. Record the serial
number in the space provided below.
Refer to them whenever you call upon your dealer regarding this product.

Model No. Serial No.
________________________ __________________________________

Information

WARNING

To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.

Model No. for Regulatory Compliance

Your AITe1040 or AITe1040V is assigned a Model No. SDX-D1100 for
regulatory compliance certifications. Your AITe520, AITe520V, AITe390, or
AITe390V is assigned a Model No. ATDEA4 for regulatory compliance
certifications. Your AITe260 or AITe260V is assigned a Model No.:
ATDEA3 for regulatory compliance certifications. Your AITe130,
AITe130V, AITe90, or AITe90V is assigned a Model No.: ATDEA2 for
regulatory compliance certifications. The number is indicated on the model
number label on your drive along with the rated voltage and current.

2 Safety Regulations

For the customers in the USA

You are cautioned that any changes or modifications not expressly approved
in this manual could void your authority to operate this equipment.

WARNING
Note: This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

All interface cables used to connect peripherals must be shielded in order to
comply with the limits for a digital device pursuant to Subpart B of Part 15 of
FCC Rules.

CAUTION

The mains plug on this equipment must be used to disconnect mains power.
Please ensure that the socket outlet is installed near the equipment and shall
be easily accessible.

ACHTUNG

Zur Trennung vom Netz ist der Netzstecker aus der Steckdose zu ziehen,
welche sich in der Nähe des Gerätes befinden muß und leicht zugänglich
sein soll.

Hinweis

Maschinenlärminformations-Verordnung - 3. GPSGV, der höchste
Schalldruckpegel beträgt 70 dB(A) oder weniger gemäss EN ISO 7779.

NOTICE

Use the power cord set approved by the appropriate testing organization for
the specific countries where this unit is to be used.

HINWEIS

Zum Netzanschluß dieses Gerätes ist eine geprüfte Leitung zu verwenden.
Es sind die zutreffenden nationalen Errichtungs- und/oder
Gerätebestimmungen zu beachten. (Für einen Nennstrom bis 6A)
Es ist eine geprüfte flexible PVC-ummantelte Leitung entsprechend IEC
60227 (H05VV-F 3G 0,75 mm2 oder H05VVH2-F 3G 0,75 mm2) zu
verwenden. Andernfalls ist eine flexible Leitung aus synthetischem Gummi
entsprechend IEC 60245 (Bauartkurzzeichen H05RR-F 3G 0,75 mm2) zu
verwenden.

If you have any questions about this product, please refer to Sony contact in
the instruction manual.

ATTENTION

According to the EU Directives related to product safety, EMC and R&TTE
the manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku
Tokyo, 108-0075 Japan. The Authorised Representative is Sony Deutschland
GmbH, Hedelfinger Strasse 61,70327 Stuttgart, Germany. For any service or
guarantee matters please refer to the addresses given in separate service or
guarantee documents.

AUFMERKSAMKEIT

Im Sinne der EU Richtlinien bezüglich Produktsicherheit, EMV und R&TTE
ist Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan der
Hersteller dieses Produktes. Bevollmächtigter ist Sony Deutschland GmbH,
Hedelfinger Strasse 61, D-70327 Stuttgart. Für Service oder
Garantieangelegenheiten wenden Sie sich bitte an die in separaten Service
oder Garantiedokumenten angegebenen Adressen.

European Union Restriction of Hazardous Substances Directive
compliant.

Entspricht der Richtlinie der Europäischen Union zur
Beschränkung der Verwendung gefährlicher Stoffe.

Safety Regulations 3

DECLARATION OF CONFORMITY

Trade Name: SONY
Model: SDX-D1100, ATDEA4, ATDEA3, ATDEA2
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo San Diego, CA.

Telephone number: 858-942-2230
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.

Für Kunden in Deutschland

Diese Ausrüstung erfüllt die Europäischen EMC-Bestimmungen für die
Verwendung in folgender/folgenden Umgebung(en):

– Wohngegenden
– Gewerbegebiete

– Leichtindustriegebiete
(Diese Ausrüstung erfüllt die Bestimmungen der Norm EN 55022, Klasse
B.)

92127 U.S.A.

4 Safety Regulations

IMPORTANT SAFEGUARDS

For your protection, please read these safety
instructions completely before operating the
appliance, and keep this manual for future
reference.

Carefully observe all warnings, precautions and
instructions on the appliance, or described in the
operating instructions and adhere to them.

USE

Power Sources – This unit should be operated
only from the type of power source indicated on
the marking label. If you are not sure of the type
of electrical power, consult your dealer or local
power company.

For the unit with a three-wire grounding type
ac plug:

If you are unable to insert the plug into the outlet,
contact your electrician to have a suitable plug
installed. Do not defeat the safety purpose of the
grounding plug.

AC Power cord:

The AC power cord should have appropriate safety
approvals or marking for the country in which the
equipment will be used. Consult your dealer or
local power company.

Cleaning – Unplug the unit from the wall outlet
before cleaning or polishing it. Do not use liquid
cleaners or aerosol cleaners.
Use a cloth lightly dampened with water for
cleaning the exterior of the unit.

Object and Liquid Entry – Never push objects of
any kind into the unit through openings as they
may touch dangerous voltage points or short out
parts that could result in a fire or electric shock.
Never spill liquid of any kind on the unit.

Safety Regulations 5

INSTALLATION

Water and Moisture – Do not use power-line
operated units near water - for example, near a
bathtub, washbowl, kitchen sink, or laundry tub, in
a wet basement, or near a swimming pool, etc.

Power-Cord Protection – Route the power cord
so that it is not likely to be walked on or pinched
by items placed upon or against it, paying
particular attention to the plugs, receptacles, and
the point where the cord exits from the appliance.

Accessories – Do not place the unit on an unstable
cart, stand, tripod, bracket, or table. The unit may
fall, causing serious injury to a child or an adult,
and serious damage to the unit. Use only a cart,
stand, tripod, bracket, or table recommended by
the manufacturer.

Ventilation – The slots and openings in the
cabinet are provided for necessary ventilation. To
ensure reliable operation of the unit, and to protect
it from overheating, these slots and openings must
never be blocked or covered.

• Never cover the slots and openings with a cloth
or other materials.

• Never block the slots and openings by placing
the unit on a bed, sofa, rug, or other similar
surface.

• Never place the unit in a confined space, such as
a bookcase, or built-in cabinet, unless proper
ventilation is provided.

SERVICE

Damage Requiring Service – Unplug the unit
from the wall outlet and refer servicing to qualified
service personnel under the following conditions:

• When the power cord or plug is damaged or
frayed.

• If liquid has been spilled or objects have fallen
into the unit.

• If the unit has been exposed to rain or water.

• If the unit has been subject to excessive shock by
being dropped, or the cabinet has been damaged.

• If the unit does not operate normally when
following the operating instructions. Adjust
only those controls that are specified in the
operating instructions. Improper adjustment of
other controls may result in damage and will
often require extensive work by a qualified
technician to restore the unit to normal
operation.

• When the unit exhibits a distinct change in
performance - this indicates a need for service.

Servicing – Do not attempt to service the unit
yourself as opening or removing covers may
expose you to dangerous voltage or other hazards.
Refer to all servicing to qualified service
personnel.

6 Safety Regulations

Table of Contents

How To Use This Guide ..................................................................... 8

Part 1.
Introduction

Part 2.
Preparation

Part 3.
Operation

Part 4.
Care and
Maintenance

About AIT Drives ............................................................................... 9

Features.................................................................................................. 10

Compatible Data Cartridges .................................................................. 13

System Components .............................................................................. 14

Part Names and Functions ............................................................. 15

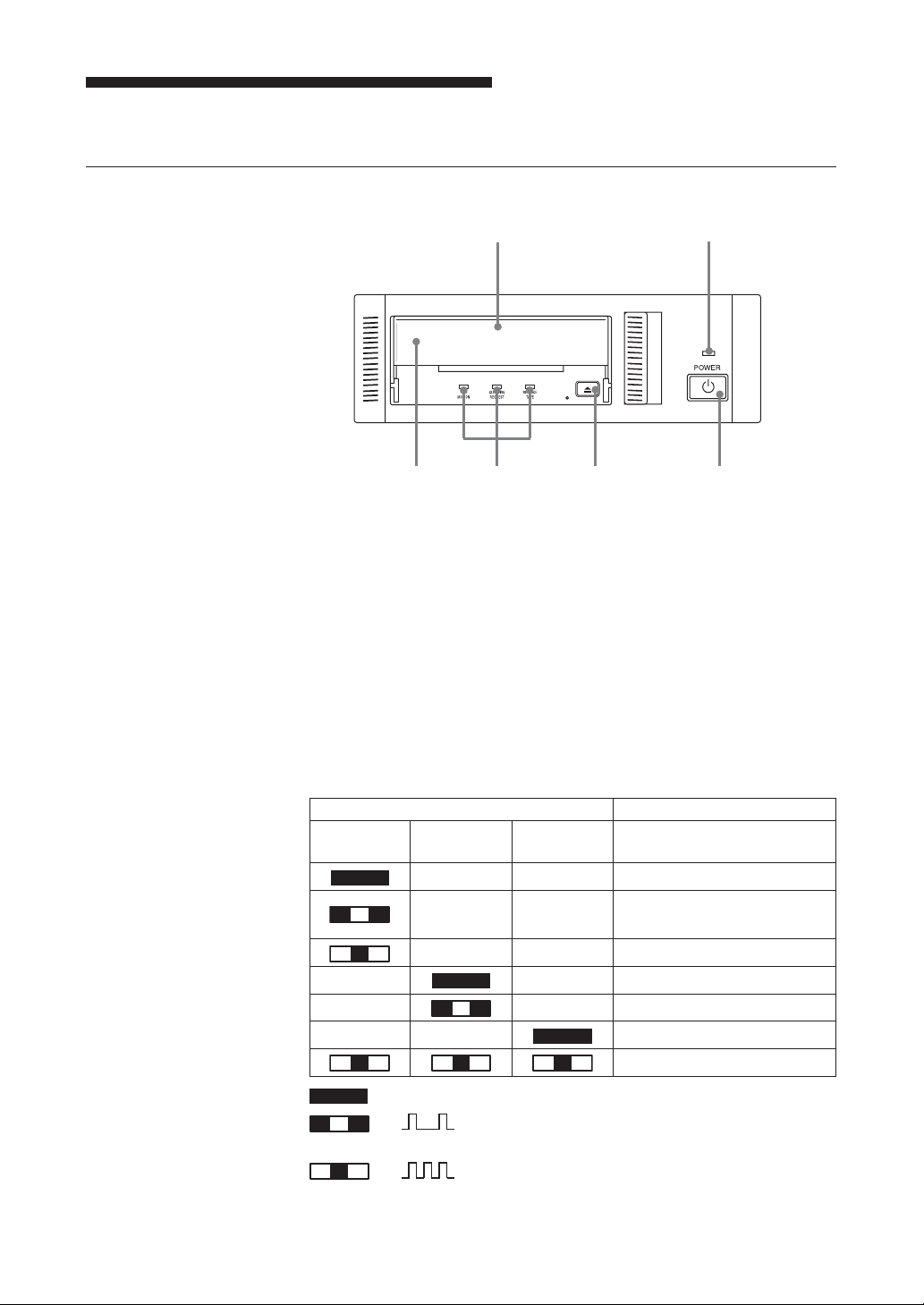

Front Panel............................................................................................. 15

Rear Panel .............................................................................................. 16

Supplied Items................................................................................. 17

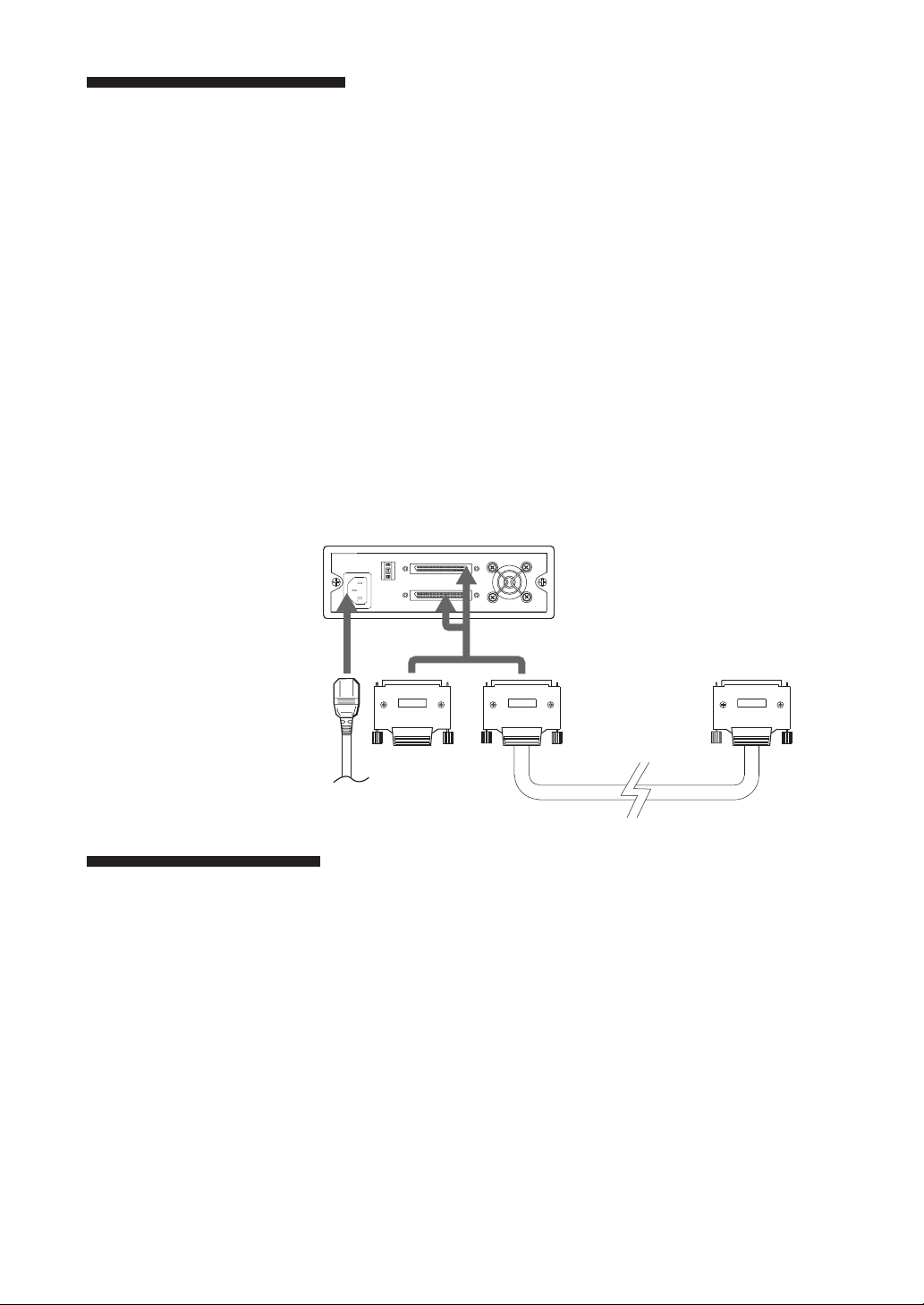

Interconnections ............................................................................. 18

SCSI ID Setting ................................................................................ 18

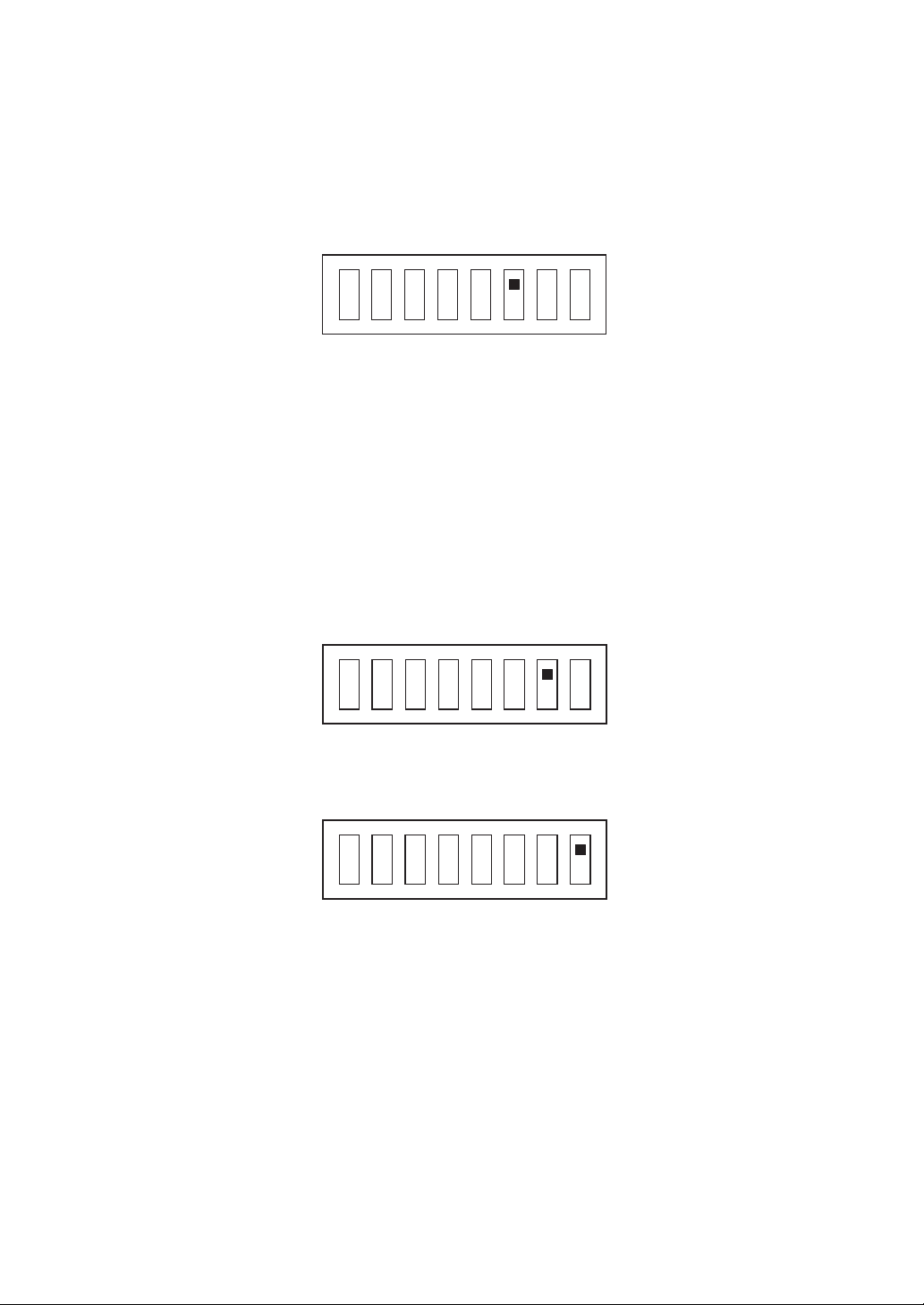

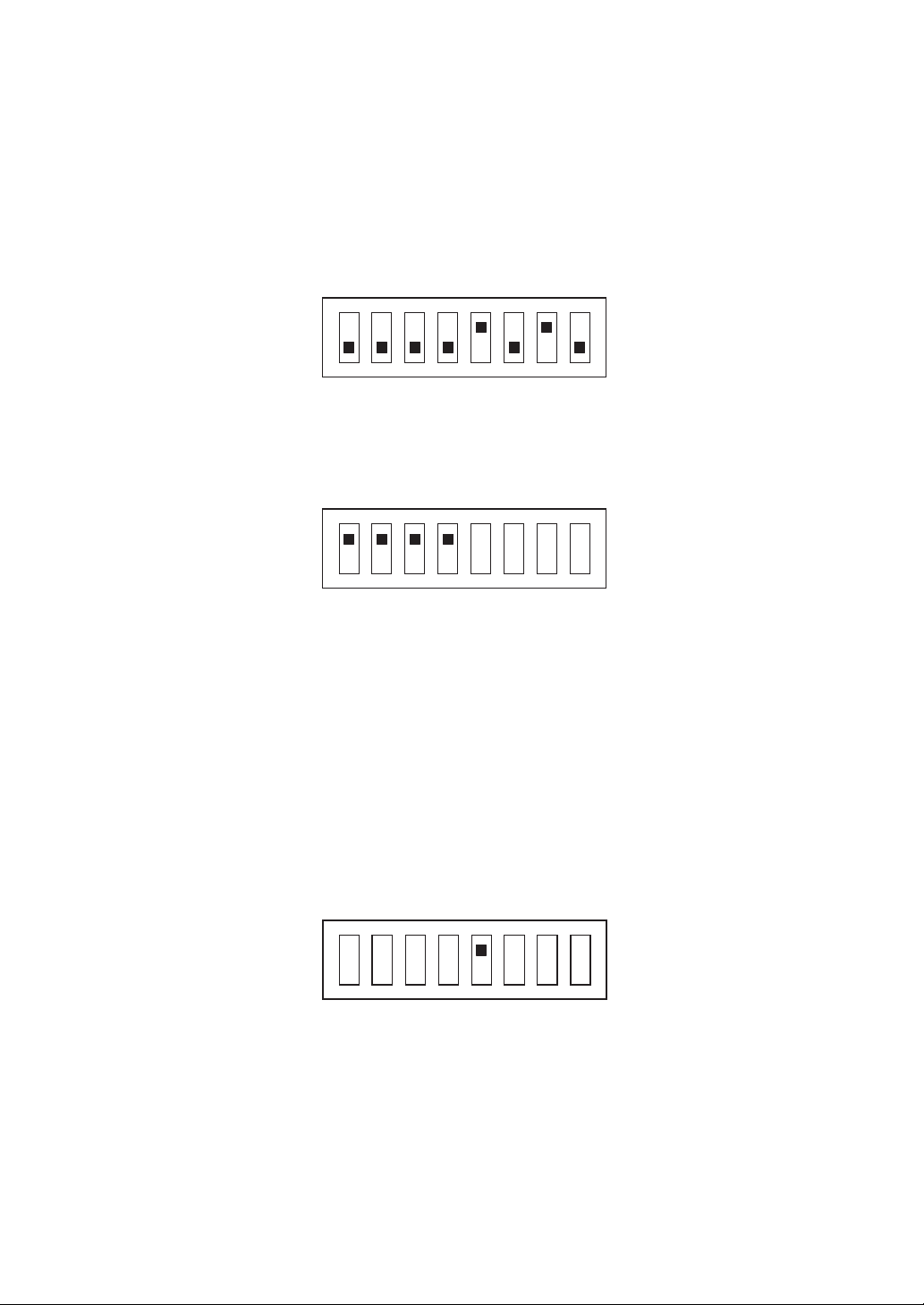

Option Switches (DIP Switch) ........................................................ 19

How To Use the AIT Drive ............................................................... 24

Cartridge Removal .................................................................................25

Attaching the Dust Cover ............................................................... 26

WORM Function .............................................................................. 28

Taking Care of the Drive ................................................................. 30

Safety Considerations ............................................................................30

Avoiding Damage .................................................................................. 30

Taking Care of Cartridges .............................................................. 32

Use Precautions ..................................................................................... 32

Storage Precautions ............................................................................... 32

Cleaning ........................................................................................... 33

How To Clean ........................................................................................ 33

Appendix

Specifications (AITe1040/AITe1040V) ............................................ 34

Specifications (AITe520/AITe520V) ................................................ 35

Specifications (AITe390/AITe390V) ................................................ 36

Specifications (AITe260/AITe260V) ................................................ 37

Specifications (AITe130/AITe130V) ................................................ 38

Specifications (AITe90/AITe90V) .................................................... 39

Sony Contacts ................................................................................. 40

• Sony cannot accept liability for data written to cartridges lost as a result of using this product.

• Sony bears no responsibility for any financial damages, lost profits, or claims made by third parties arising from the use of
this product.

Table of Contents 7

How To Use This Guide

This Guide describes the AITe1040/AITe1040V/AITe520/AITe520V/
AITe390/AITe390V/AITe260/AITe260V/AITe130/AITe130V/AITe90/
AITe90V drive, and how to take care of it. Please read it carefully before
using the unit, and keep it handy for future reference.
The Guide consists of four parts, plus the specifications. Refer to the parts
that relate to your use of the drive.

Part 1 describes the features of the drive, its system components, and the
name and function of each part.

Part 2 describes the necessary connections between the drive and the host
computer. If other SCSI devices are being used, you may need to change the
SCSI ID setting. Read this part if you are installing the drive.

Part 3 describes how to use the drive, including how to turn it on, and how
to insert and remove cartridges. Read this part if you are going to operate the
drive.

Part 4 describes how to take care of the drive and cartridges, and how to
clean the drive. Read this part before using the drive.

Appendix provides the major specifications of the AITe1040/AITe1040V/
AITe520/AITe520V/AITe390/AITe390V/AITe260/AITe260V/AITe130/
AITe130V/AITe90/AITe90V drive.

8 How to Use this Guide

Part 1. Introduction

About AIT Drives

The AITe1040/AITe1040V AIT-5 Tape Drives are external AIT drive units
that use data cartridges conforming to the AIT-5 format.
The AITe520/AITe520V AIT-4 Tape Drives are external AIT drive units that
use data cartridges conforming to the AIT-4 format.
The AITe390/AITe390V AIT-3 Ex Tape Drives are external AIT drive units
that use data cartridges conforming to the AIT-3 Ex format.
The AITe260/AITe260V AIT-3 Tape Drives are external AIT drive units that
use data cartridges conforming to the AIT-3 format.
The AITe130/AITe130V AIT-2 Tape Drives are external AIT drive units that
use data cartridges conforming to the AIT-2 format.
The AITe90/AITe90V AIT-1 Tape Drives are external AIT drive units that
use data cartridges conforming to the AIT-1 format.

The AITe1040/AITe1040V drives support the AIT-5, AIT-4, AIT-3 Ex, and
AIT-3 formats.
The AITe520/AITe520V drives support the AIT-4 and AIT-3 Ex format.
The AITe390/AITe390V drives support the AIT-3 Ex, AIT-3, AIT-2 Turbo,
AIT-2 (Read only), AIT-1 Turbo (Read only), AIT-1 (Read only), and
AIT-E Turbo (Read only) formats.
The AITe260/AITe260V drives support the AIT-3, AIT-2, and AIT-1
formats.
The AITe130/AITe130V drives support the AIT-2 and AIT-1 formats.
The AITe90/AITe90V drives support only the AIT-1 format.

Part 1. Introduction 9

Features

The AITe1040/AITe1040V drives have the following features:

• Supports reading and writing to data cartridges conforming to the AIT-5,
AIT-4, AIT-3 Ex, and AIT-3 formats.

• Data compression provides 1,040 gigabytes of storage on SDX5-400C data
cartridges.

*

The native capacity is 400 gigabytes of storage on SDX5-400C data
cartridges.

• Ultra 160 SCSI interface is fully supported for host computer access.

• Fragment rewrite function (AIT-5, AIT-4, AIT-3 Ex)

• Frame rewrite function (AIT-3)

The AITe520/AITe520V drives have the following features:

• Supports reading and writing to data cartridges conforming to the AIT-4
and AIT-3 Ex formats.

• Data compression provides 520 gigabytes of storage on SDX4-200C data
cartridges.

*

The native capacity is 200 gigabytes of storage on SDX4-200C data
cartridges.

• Ultra 160 SCSI interface is fully supported for host computer access.

• Fragment rewrite function

*

This is assuming 2.6 : 1 compression ratio.
The degree of data compression attained while recording data varies according to system
environment and data type.

10 Part 1. Introduction

The AITe390/AITe390V drives have the following features:

• Supports reading and writing to data cartridges conforming to the
AIT-3 Ex, AIT-3, and AIT-2 Turbo formats.

• Supports reading from data cartridges conforming to the AIT-2,
AIT-1 Turbo, AIT-1, and AIT-E Turbo formats.

• Data compression provides 390 gigabytes of storage on SDX3X-150C data
cartridges.

*

The native capacity is 150 gigabytes of storage on SDX3X-150C data
cartridges.

• Ultra 160 SCSI interface is fully supported for host computer access.

• Fragment rewrite function (AIT-3 Ex)

• Frame rewrite function (AIT-3)

The AITe260/AITe260V drives have the following features:

• Supports reading and writing to data cartridges conforming to the AIT-3,
AIT-2, and AIT-1 formats.

• Data compression provides 260 gigabytes of storage on SDX3-100C data
cartridges.

*

The native capacity is 100 gigabytes of storage on SDX3-100C data
cartridges.

• Ultra 160 SCSI interface is fully supported for host computer access.

• Frame rewrite function

*

This is assuming 2.6 : 1 compression ratio.
The degree of data compression attained while recording data varies according to system
environment and data type.

Part 1. Introduction 11

The AITe130/AITe130V drives have the following features:

• Supports reading and writing to data cartridges conforming to the AIT-2
and AIT-1 formats.

• Data compression provides 130 gigabytes of storage on SDX2-50C data
cartridges.

*

The native capacity is 50 gigabytes of storage on SDX2-50C data
cartridges.

•Wide Ultra SCSI (LVD/SE) interface is fully supported for host computer
access.

• Frame rewrite function

The AITe90/AITe90V drives have the following features:

• Supports reading and writing to data cartridges conforming to the AIT-1
format.

• Data compression provides 91 gigabytes of storage on SDX1-35C data
cartridges.

*

The native capacity is 35 gigabytes of storage on SDX1-35C data
cartridges.

•Wide Ultra SCSI (LVD/SE) interface is fully supported for host computer
access.

• Frame rewrite function

*

This is assuming 2.6 : 1 compression ratio.
The degree of data compression attained while recording data varies according to system
environment and data type.

12 Part 1. Introduction

Compatible Data Cartridges

The AITe1040/AITe1040V drives can be used with data cartridges marked
with the AIT-5, AIT-4, AIT-3 Ex, or AIT-3 logo.
The AITe520/AITe520V drives can be used with data cartridges marked with
the AIT-4 or AIT-3 Ex logo.
The AITe390/AITe390V drives can be used with data cartridges marked with
the AIT-3 Ex, AIT-3, AIT-2 Turbo, AIT-2 (read only), AIT-1 Turbo (read
only), AIT-1 (read only), or AIT-E Turbo (read only) logo.
The AITe260/AITe260V drives can be used with data cartridges marked with
the AIT-3, AIT-2, or AIT-1 logo.
The AITe130/AITe130V drives can be used with data cartridges marked with
the AIT-2 or AIT-1 logo.
The AITe90/AITe90V drives can be used with data cartridges marked with
the AIT-1 logo.

AIT-E Turbo LOGO AIT-1 LOGO AIT-1 Turbo LOGO

AIT-2 LOGO AIT-2 Turbo LOGO AIT-3 LOGO

AIT-3 Ex LOGO AIT-4 LOGO AIT-5 LOGO

Caution

• Do not use cartridges other than the ones described above with this drive.
Be sure to use only the cartridges designed specifically for AIT.

• Do not use anything but AIT cartridges with this drive, as doing so can
damage the drive. Although commercially available 8 mm videotapes
resemble AIT cartridges in appearance, they have entirely different
specifications and cannot be used.

Part 1. Introduction 13

System Components

This drive uses a Wide SCSI interface. The following shows a typical system
configuration.

Host Computer

Wide SCSI

AITe520/AITe520V/
AITe390/AITe390V/
AITe260/AITe260V/
AITe130/AITe130V/

AITe90/AITe90V

Example connection to the host computer and other peripheral devices

Peripheral DevicesAITe1040/AITe1040V/

Terminator

14 Part 1. Introduction

Part Names and Functions

6354

Front Panel

1 AIT Data Cartridge Receptacle

See page 24 to 25 for information on inserting and removing a AIT data
cartridge.

2 POWER Indicator

Lights while the drive is on.

12

Advanced
Intelligent
Tape

3 Dust Cover

Prevents dust from entering the data cartridge receptacle. Keep this cover
closed when not inserting or removing data cartridges.

4 LED Indication for Drive Status

The LED indicators are defined as follows.

LED

TAPE CLEANING REPLACE

MOTION REQUEST TAPE

Independent Independent Tape Loaded

Independent Independent

Independent Independent Tape Access in Progress (others)
Independent Independent Cleaning is requested
Independent Independent Cleaning is Not Completed
Independent Independent Media Error Occurred

on

Slow

1 pulse (0.9 sec on/0.3 sec off)

Fast

1 pulse (0.3 sec on/0.3 sec off)

Tape Access in Progress
(write/read)

H/W Error Occurred

Sense

Part 1. Introduction 15

Rear Panel

5 EJECT Button

Push to remove a data cartridge from the drive.

6 POWER Switch

Press to turn the drive on or off.

1

243

1 Rotary Selector Switch

SCSI ID selector.

2 AC IN Connector

Connect the supplied power cable here.

3 SCSI Connector

Connects to the SCSI interface of the host computer or peripheral device
via a Wide SCSI cable.

4 Cooling Fan

16 Part 1. Introduction

Part 2. Preparation

After you confirm that you have all of the required accessories for your
installation, connect the drive to the host computer, and select the SCSI ID
with the rotary switch on the rear panel.

Supplied Items

When you first open the box, make sure it contains the following items.
Contact your supplier if anything is missing or broken.

• AIT Drive Unit

• Operating Instructions/Device Driver (CD-ROM)

• Quick Start Guide

• TapeCopy (CD-ROM)

• Terminator

• AIT data cartridge

• Cleaning cartridge

Notes

• In addition to the above items, the package may also include a power cord,
SCSI cable, documentation, and application CD.

• The supplied items are listed on the bundled goods list affixed to the box.

Part 2. Preparation 17

Interconnections

A single Wide SCSI bus allows connection of up to 15 peripheral SCSI
devices.
Use a commercially available SCSI cable appropriate to the peripheral device
for connections.
This drive uses a 68-pin half-pitch connector.

Precautions

• Switch off the host computer and peripherals before connecting the SCSI
cable.

•Make sure the SCSI connectors are pressed tightly together.

• If this unit is the last (or only) device on the SCSI bus, make sure to connect
a terminator to the appropriate unused SCSI connector. Using an
incompatible terminator may damage the unit.

• During LVD SCSI connections, make sure that the total length of the
cable(s) connecting the host computer and the last device on the SCSI bus is
no longer than 12 meters (39 feet). (During single-end SCSI connections,
make sure that the total length of the SCSI cable(s) is no longer than 1.5
meters (5 feet).)

SCSI ID Setting

The SCSI ID is set by the rotary switch on the rear panel. Press the + or ­buttons to move the number up or down, respectively.
As shipped from the factory, the SCSI ID is set to 5. Press the switch buttons,
if necessary, to select the SCSI ID number you require. Because the host
adapter ID is usually set to 7, select some other value for the SCSI ID setting.

Precautions

• The SCSI ID must be different from IDs of the other peripherals on the
SCSI bus.

•When shipped from the factory, SCSI parity is enabled and Term power is
ON. Be sure to connect a terminator to the SCSI bus before use.

• Before changing the SCSI ID setting, be sure to turn off the power with the
POWER switch on the front panel.

18 Part 2. Preparation

Terminator

AC power

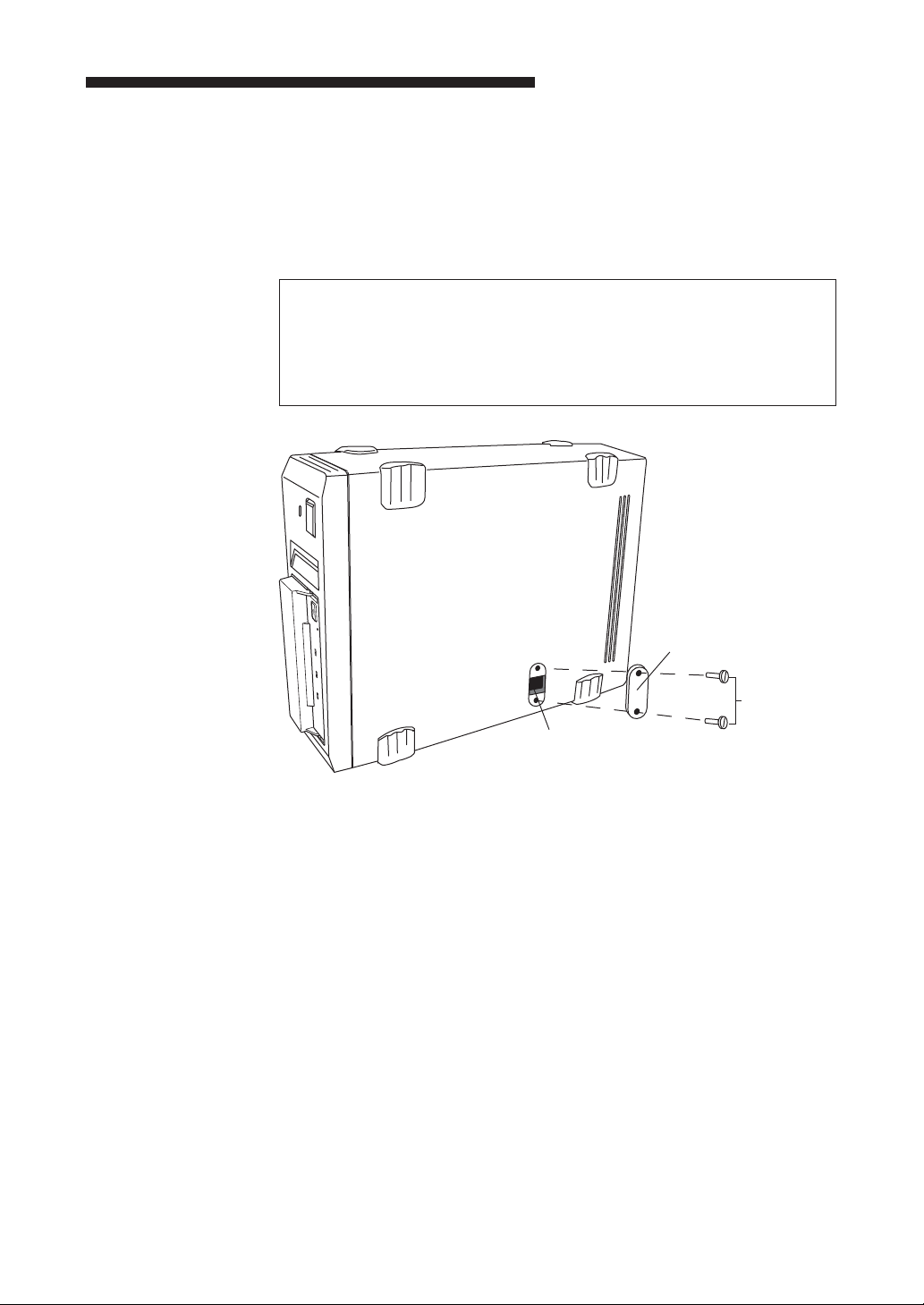

Option Switches (DIP Switch)

Remove the two slotted screws by using a slotted screwdriver. Remove the
access cover to change the DIP switch settings. (Refer to the following
figure for details changing the DIP switch settings.)
After changing the DIP switch settings, replace access cover and tighten the
two slotted screws using a slotted screwdriver.

CAUTION

Before removing the access cover to change DIP switch settings on the
drive, turn off the computer and disconnect the power cord from the unit.
Once the DIP switch settings have been changed, replace the access cover
using the two original slotted screws provided.

DIP Switch

Access Cover

Slotted
Screws

Part 2. Preparation 19

DIP Switch Positions
(for the AITe1040, AITe1040V, AITe520, AITe520V, AITe390, and

AITe390V Drives)

Default

ON
OFF

12345678

Emulation Mode

*

1 DR (Disaster Recovery)

Mode (OFF)
2 Emulation Mode (OFF)
3 AIT Library Interface

Mode (ON)
4 Reserved (OFF)
5 Terminator Power (ON)
6 Periodic Cleaning Req

(OFF)
7 DC Control (1) (ON)
8 DC Control (2) (OFF)

To enable Emulation Mode, set DIP switch 2 [Emulation Mode] to ON.

ON
OFF

12345678

*

Emulation Mode for the AITe1040/AITe1040V drives return the following
as the Product Identification field of the Inquiry command.

*

Emulation Mode for the AITe520/AITe520V drives return the following as
the Product Identification field of the Inquiry command.

*

Emulation Mode for the AITe390/AITe390V drives return the following as
the Product Identification field of the Inquiry command.

SDX-900V

SDX-700C

SDX-700C

20 Part 2. Preparation

Terminator Power

To enable terminator power, set DIP switch 5 [Terminator Power] to ON.

ON
OFF

12345678

Periodic Cleaning Request Mode

To enable Periodic Cleaning Request Mode, set DIP switch 6 [Periodic
Cleaning Req] to ON.

ON
OFF

12345678

The “CLEANING REQUEST” LED on the front panel lights after every 100
hours of operation.
When this LED lights, clean the drive with a cleaning cartridge.

Note

To maintain the drive in optimum condition in environments affected by dust
and other contaminants, we recommend keeping cleaning requests enabled.

Data Compression Control

Data compression can be selected by DIP switches.
Data compression is enabled when DIP switch 7 [DC Control (1)] is ON.

ON
OFF

12345678

Control by host can be disabled when DIP switch 8 [DC Control (2)] is ON.

ON
OFF

12345678

Part 2. Preparation 21

DIP Switch Positions
(for the AITe260, AITe260V, AITe130, AITe130V, AITe90, and
AITe90V Drives)

Default

ON
OFF

12345678

Emulation Mode

*

1 Drive Mode (OFF)
2 Drive Mode (OFF)
3 Drive Mode (OFF)
4 Drive Mode (OFF)
5 Terminator Power (ON)
6 Periodic Cleaning Req

(OFF)
7 DC Control (1) (ON)
8 DC Control (2) (OFF)

To enable Emulation Mode, set DIP switches 1 to 4 [Drive Mode] to ON.

ON
OFF

12345678

*

Emulation Mode for the AITe260/AITe260V drives return the following as
the Product Identification field of the Inquiry command.

*

Emulation Mode for the AITe130/AITe130V drives return the following as
the Product Identification field of the Inquiry command.

*

Emulation Mode for the AITe90/AITe90V drives return the following as the
Product Identification field of the Inquiry command.

SDX-700C

SDX-500C

SDX-400C

22 Part 2. Preparation

Terminator Power

To enable terminator power, set DIP switch 5 [Terminator Power] to ON.

ON
OFF

12345678

Periodic Cleaning Request Mode

To enable Periodic Cleaning Request Mode, set DIP switch 6 [Periodic
Cleaning Req] to ON.

ON
OFF

12345678

The “CLEANING REQUEST” LED on the front panel lights after every 100
hours of operation.
When this LED lights, clean the drive with a cleaning cartridge.

Note

To maintain the drive in optimum condition in environments affected by dust
and other contaminants, we recommend keeping cleaning requests enabled.

Data Compression Control

Data compression can be selected by DIP switches.
Data compression is enabled when DIP switch 7 [DC Control (1)] is ON.

ON
OFF

12345678

Control by host can be disabled when DIP switch 8 [DC Control (2)] is ON.

ON
OFF

12345678

Part 2. Preparation 23

Part 3. Operation

This section describes how to use the AIT drive, and how to handle data
cartridges.

How To Use the AIT Drive

1 Press the POWER switch on the front panel.

The POWER indicator should light, and the TAPE MOTION,
CLEANING REQUEST, and REPLACE TAPE indicators should blink
as the self-test is performed.

2 When the three indicators stop blinking, open the dust cover and insert a

data cartridge as shown below. The TAPE MOTION indicator lights.

24 Part 3. Operation

3 Computer software controls the reading and writing of tapes. While

reading or writing, the TAPE MOTION indicator blinks.

4 Close the dust cover.

Cartridge Removal

1 Press the EJECT button.

2 Open the dust cover.

The cartridge is ejected automatically.

Caution

Do not push the EJECT button while the TAPE MOTION indicator is
blinking. To do so may destroy data on the tape.

3 Remove the cartridge from the receptacle, and then close the dust cover.

Part 3. Operation 25

Attaching the Dust Cover

If the dust cover comes loose, attach it as described below.

Note

We recommend that you use the drive with the dust cover.

1 Align the dust cover’s hinge clips (one on each side) with the pins of the

drive bezel.

• The dust cover should be positioned so that the magnets* on the cover’s
back face the drive bezel.

*

This magnet does not affect the tape of the cartridge.

• Holding the dust cover at an angle as shown in the figure below, set the
hinge clips on top of the bezel pins, positioning them so that they
bracket the pins.

26 Part 3. Operation

2 Press down at an angle on each side in turn until you hear the hinge clips

click into place.

Caution

Do not press the dust cover in horizontally from the front. Doing so
could cause the dust cover to break.

3 Close the dust cover.

This completes attachment of the dust cover.

Part 3. Operation 27

WORM Function

The AITe1040, AITe1040V, AITe520, AITe520V, AITe260, AITe260V,
AITe130, and AITe130V drives support the WORM function. This explains
the WORM function.

What is “WORM”?

“WORM” is an acronym for “Write Once Read Many”, a function that allows
data to be written to the same place on a tape only once, but permits that data
to be read from the tape for any number of times. The AITe1040,
AITe1040V, AITe520, AITe520V, AITe260, AITe260V, AITe130, and
AITe130V drives support WORM cartridges. When a WORM cartridge is
used with an application that supports the WORM function, data that has
been written to a tape can not be accidentally deleted or overwritten.
A WORM drive operates in the same manner as a non-WORM drive when
used with a non-WORM cartridge (henceforth referred to as “regular
cartridge”).
The operation of a WORM drive and a non-WORM drive differs according
to the type of cartridge that is being used.

Non-WORM drive Read/Write Enabled Waiting for Eject
WORM drive Read/Write Enabled Read/

Tape Drive Cartridge

Regular Cartridge WORM Cartridge
(without WORM logo) (with WORM logo)

Append-Write Enabled

WORM Cartridges

WORM cartridges can be distinguished from regular cartridges by their
WORM logo and red shutters.

Red

WORM logo

AIT-5 WORM cartridge: SDX5-400W
AIT-4 WORM cartridge: SDX4-200W
AIT-3 WORM cartridge: SDX3-100W
AIT-2 WORM cartridge: SDX2-50W

28 Part 3. Operation

How to Write Data onto a WORM Cartridge

As with a regular cartridge, there is no limit on how many times data can be
read from a WORM cartridge. When writing data to a WORM cartridge, the
data cannot be written to a portion of the tape that data has already been
written.
When writing data onto a WORM cartridge, it is appended after data that has
already been written onto the cartridge. Accordingly, you must move to the
EOD area before writing data onto the cartridge.

SCSI Commands Supported by the WORM Drive

The WORM drives support the same SCSI commands that are supported by
non-WORM drives. However, if an attempt is made to write to a portion of a
tape where data has already been written, the following error information is
returned: “Sense Key = 07, ASC = 27h, ASCQ = 00: Persistent Write
Protect” or “Sense Key = 03, ASC = 27h, ASCQ = 04: Write Position Error.”

Notes

• Sony cannot accept liability for data written onto a WORM cartridge that is
lost as a result of using this unit.

• Sony accepts no responsibility for any financial damages, lost profits, or
claims made by third parties arising from the use of this product.

Part 3. Operation 29

Part 4. Care and Maintenance

Taking Care of the Drive

Safety Considerations

■ Power

• Be sure to use only 100 V - 240 V AC.

• Avoid plugging into the same outlet as high-current equipment like copiers
or shredders.

■ Power Cable Precautions

• Do not crush the cable or place heavy items on it. If the cable insulation
appears worn or broken, do not use the cable.

• Always unplug the cable by holding the plug. Never pull the cable itself, as
it will break.

• If the drive is not being used for a long time, unplug the cable from the
outlet.

Avoiding Damage

■ Avoid shock and vibration

Intense shock, such as from dropping the drive, will damage it.

■ Environmental considerations

Do not store or use the drive in locations subject to:

• high humidity • excessive dust

• high temperature • intense vibration

• direct sunlight • sudden changes in temperature

■ Proper ventilation

To avoid overheating, install the drive where it will have free air circulation
around the case, and do not cover it during operation. The drive can
malfunction if the internal temperature rises too high.

30 Part 4. Care and Maintenance

■ Avoid sudden changes in temperature

If the drive is moved from a cool place to a warm place, or if the room
temperature suddenly rises, moisture may condense inside the case. After a
sudden change in temperature, turn off the drive and wait at least one hour
before turning it on again.
Inserting a cartridge with condensation inside the drive can damage the drive
or the tape. Immediately remove cartridges in the drive if there is a possibility
that there is condensation inside.
Leaving the drive on without inserting cartridges, moreover, will quickly
evaporate any condensation.

■ Abnormal occurrences

If the drive behaves abnormally, or if it begins to smell or smoke,
immediately unplug it from the wall outlet and contact your supplier for
assistance.

■ Cabinet cleaning

Wipe the cabinet with a soft dry cloth. For heavy dirt, wipe with a soft cloth
moistened with a gentle liquid soap, then wipe again with a soft dry cloth. Do
not use alcohol, paint thinner, bug sprays, or other volatile solvents, as they
can damage the finish.

Part 4. Care and Maintenance 31

Taking Care of Cartridges

Use Precautions

• Avoid heavy vibration and dropping.

• The shutter on the face of the cartridge is opened automatically when it is
inserted into the drive. Do not open the shutter by hand, as touching the tape
may damage it.

• The cartridge was carefully aligned during assembly at the factory. Please
do not try to open it or take it apart.

• The write-protect switch on the face of the cartridge prevents the tape from
being written to or accidentally erased. If you do not need to write to the
tape, move this switch to the write-protect position (in the direction of the
arrow).

• In case of a sudden change in temperature, condensation may interfere with

• Avoid unnecessary insertion and removal of cartridges if you do not need to

•When finished using the drive, remove the cartridge.

Storage Precautions

• Keep cartridges in their cases when not in the drive.

• Avoid storing cartridges in dusty places, in direct sunlight, near heaters or

• Do not place cartridges on the dashboard or in a storage tray in a car.

AIT-5
AIT-4
AIT-3 Ex
AIT-3
AIT-2 Turbo
AIT-2

AIT-1

AIT-1 Turbo
AIT-E Turbo

Using your fingernail, push the switch in the
direction of the arrow to protect the tape
from writing or accidental erasure.

Return the switch to its original position to
re-enable writing.

reading and writing to a tape.

write or read a tape.

air conditioners, or, in humid locations.

32 Part 4. Care and Maintenance

Cleaning

How To Clean

To keep the AIT drive in top condition, clean the drive unit as needed using a
cleaning cartridge with the AIT logo. When the drive unit needs cleaning, the
CLEANING REQUEST indicator lights. (For the AITe1040, AITe1040V,
AITe520, AITe520V, AITe390, and AITe390V, use the AITe1040,
AITe1040V, AITe520, AITe520V, AITe390, and AITe390V cleaning
cartridge respectively.)

Use the cleaning cartridge made exclusively for each model.

Cleaning cartridge to use

AITe1040, AITe1040V SDX5-CL

AITe520, AITe520V SDX4-CL, SDX4-CLL

AITe390, AITe390V SDX3X-CL

AITe260, AITe260V, AITe130, AITe130V, SDX1-CL
AITe90, AITe90V

1 Load the cleaning cartridge into the AIT drive.

Cleaning starts automatically.

2 Cleaning takes about 15 seconds and the cartridge is automatically

ejected when finished. (AITe260, AITe260V, AITe130, AITe130V,
AITe90, AITe90V)
Cleaning takes from a few seconds to a minute for the AITe1040,
AITe1040V, AITe520, AITe520V, AITe390, and AITe390V*, and the
cartridge is automatically ejected when finished.

*

The cleaning time varies depending on the condition of the drive (AITe1040, AITe1040V,
AITe520, AITe520V, AITe390, AITe390V).

Notice

Do not rewind the cleaning cartridge and reuse it. When you reach the end of
the cartridge, dispose it and buy a new cleaning cartridge with the AIT logo.

Part 4. Care and Maintenance 33

Appendix

Specifications (AITe1040/AITe1040V)

■ Performance

Storage Capacity 1,040GB compressed (with SDX5-400C)

Bit Error Rate less than 10
Data Transfer Rate 24 MB/s uncompressed

Burst Data Transfer Rate 12 MB/s maximum, asynchronous
(SCSI) 160 MB/s maximum, synchronous
Initialize Time less than 5 seconds
Load Time average of 14 seconds
Unload Time average of 24 seconds
Rewind Time average of 115 seconds (with SDX5-400C)

■ Operating Environment

Operating Temperature: 10 to 35 °C (∆T<10 °C / h)

Non-operating Temperature: –40 to 70 °C (∆T<20 °C / h)

■ Power Supply & Miscellaneous

*

400 GB uncompressed (with SDX5-400C)

-17

62.4 MB/s compressed

*

**

**

**

(50 to 95 °F (∆T<18 °F / h))

Humidity: 30 to 80% (no condensing)
Maximum wet bulb temperature: 26 °C (78.8 °F)

(–40 to 158 °F (∆T<36 °F / h))

Humidity: 10 to 90% (∆RH<30% / h)
Maximum wet bulb temperature: 45 °C (113 °F)

34 Appendix

Power Supply 100 V to 240 V AC, 50/60 Hz

1.2 A

Case Dimensions 198 × 64.5 × 246 mm (W × H × D)

(excluding protruding parts)

Weight 2.4 kg

Specifications may be subject to change, in the interest of technological
improvement, without notice or obligation.

*

This is assuming 2.6:1 compression ratio.
The degree of data compression attained while recording data varies according to system
environment and data type.

**

No retries.

Specifications (AITe520/AITe520V)

■ Performance

Storage Capacity 520 GB compressed (with SDX4-200C)

Bit Error Rate less than 10
Data Transfer Rate 24 MB/s uncompressed

Burst Data Transfer Rate 12 MB/s maximum, asynchronous
(SCSI) 160 MB/s maximum, synchronous
Initialize Time less than 5 seconds
Load Time average of 14 seconds
Unload Time average of 24 seconds
Rewind Time average of 115 seconds (with SDX4-200C)

■ Operating Environment

Operating Temperature: 10 to 35 °C (∆T<10 °C / h)

Non-operating Temperature: –40 to 70 °C (∆T<20 °C / h)

■ Power Supply & Miscellaneous

*

200 GB uncompressed (with SDX4-200C)

-17

62.4 MB/s compressed

*

**

**

**

(50 to 95 °F (∆T<18 °F / h))

Humidity: 30 to 80% (no condensing)
Maximum wet bulb temperature: 26 °C (78.8 °F)

(–40 to 158 °F (∆T<36 °F / h))

Humidity: 10 to 90% (∆RH<30% / h)
Maximum wet bulb temperature: 45 °C (113 °F)

Power Supply 100 V to 240 V AC, 50/60 Hz

1.2 A

Case Dimensions 198 × 64.5 × 246 mm (W × H × D)

(excluding protruding parts)

Weight 2.4 kg

Specifications may be subject to change, in the interest of technological
improvement, without notice or obligation.

*

This is assuming 2.6:1 compression ratio.
The degree of data compression attained while recording data varies according to system
environment and data type.

**

No retries.

Appendix 35

Specifications (AITe390/AITe390V)

■ Performance

Storage Capacity 390 GB compressed (with SDX3X-150C)

Bit Error Rate less than 10
Data Transfer Rate 18 MB/s uncompressed

Burst Data Transfer Rate 12 MB/s maximum, asynchronous
(SCSI) 160 MB/s maximum, synchronous
Initialize Time less than 5 seconds
Load Time average of 14 seconds
Unload Time average of 24 seconds
Rewind Time average of 115 seconds

■ Operating Environment

Operating Temperature: 10 to 35 °C (∆T<10 °C / h)

Non-operating Temperature: –40 to 70 °C (∆T<20 °C / h)

■ Power Supply & Miscellaneous

*

150 GB uncompressed (with SDX3X-150C)

-17

46.8 MB/s compressed

(with SDX3X-150C)

*

**

**

**

(50 to 95 °F (∆T<18 °F / h))

Humidity: 30 to 80% (no condensing)
Maximum wet bulb temperature: 26 °C (78.8 °F)

(–40 to 158 °F (∆T<36 °F / h))

Humidity: 10 to 90% (∆RH<30% / h)
Maximum wet bulb temperature: 45 °C (113 °F)

36 Appendix

Power Supply 100 V to 240 V AC, 50/60 Hz

1.2 A

Case Dimensions 198 × 64.5 × 246 mm (W × H × D)

(excluding protruding parts)

Weight 2.4 kg

Specifications may be subject to change, in the interest of technological
improvement, without notice or obligation.

*

This is assuming 2.6:1 compression ratio.
The degree of data compression attained while recording data varies according to system
environment and data type.

**

No retries.

Specifications (AITe260/AITe260V)

■ Performance

Storage Capacity 260 GB compressed (with SDX3-100C)

Bit Error Rate less than 10
Data Transfer Rate 12 MB/s uncompressed

Burst Data Transfer Rate 12 MB/s maximum, asynchronous
(SCSI) 160 MB/s maximum, synchronous
Initialize Time less than 5 seconds
Load Time average of 14 seconds
Unload Time average of 24 seconds
Rewind Time average of 105 seconds (with SDX3-100C)

■ Operating Environment

Operating Temperature: 10 to 35 °C (∆T<10 °C / h)

Non-operating Temperature: –40 to 70 °C (∆T<20 °C / h)

■ Power Supply & Miscellaneous

*

100 GB uncompressed (with SDX3-100C)

-17

31.2 MB/s compressed

*

**

**

**

(50 to 95 °F (∆T<18 °F / h))

Humidity: 30 to 80% (no condensing)
Maximum wet bulb temperature: 26 °C (78.8 °F)

(–40 to 158 °F (∆T<36 °F / h))

Humidity: 10 to 90% (∆RH<30% / h)
Maximum wet bulb temperature: 45 °C (113 °F)

Power Supply 100 V to 240 V AC, 50/60 Hz

1.2 A

Case Dimensions 198 × 64.5 × 246 mm (W × H × D)

(excluding protruding parts)

Weight 2.4 kg

Specifications may be subject to change, in the interest of technological
improvement, without notice or obligation.

*

This is assuming 2.6:1 compression ratio.
The degree of data compression attained while recording data varies according to system
environment and data type.

**

No retries.

Appendix 37

Specifications (AITe130/AITe130V)

■ Performance

Storage Capacity 130 GB compressed (with SDX2-50C)

Bit Error Rate less than 10
Data Transfer Rate 6 MB/s uncompressed

Burst Data Transfer Rate 12 MB/s maximum, asynchronous
(SCSI) 40 MB/s maximum, synchronous
Initialize Time less than 5 seconds
Load Time average of 14 seconds
Unload Time average of 20 seconds
Rewind Time average of 105 seconds (with SDX2-50C)

■ Operating Environment

Operating Temperature: 10 to 35 °C (∆T<10 °C / h)

Non-operating Temperature: –40 to 70 °C (∆T<20 °C / h)

■ Power Supply & Miscellaneous

*

50 GB uncompressed (with SDX2-50C)

-17

15.6 MB/s compressed

*

**

**

**

(50 to 95 °F (∆T<18 °F / h))

Humidity: 30 to 80% (no condensing)
Maximum wet bulb temperature: 26 °C (78.8 °F)

(–40 to 158 °F (∆T<36 °F / h))

Humidity: 10 to 90% (∆RH<30% / h)
Maximum wet bulb temperature: 45 °C (113 °F)

38 Appendix

Power Supply 100 V to 240 V AC, 50/60 Hz

1.2 A

Case Dimensions 198 × 64.5 × 246 mm (W × H × D)

(excluding protruding parts)

Weight 2.4 kg

Specifications may be subject to change, in the interest of technological
improvement, without notice or obligation.

*

This is assuming 2.6:1 compression ratio.
The degree of data compression attained while recording data varies according to system
environment and data type.

**

No retries.

Specifications (AITe90/AITe90V)

■ Performance

Storage Capacity 91 GB compressed (with SDX1-35C)

Bit Error Rate less than 10
Data Transfer Rate 4 MB/s uncompressed

Burst Data Transfer Rate 12 MB/s maximum, asynchronous
(SCSI) 40 MB/s maximum, synchronous
Initialize Time less than 5 seconds
Load Time average of 14 seconds
Unload Time average of 20 seconds
Rewind Time average of 105 seconds (with SDX1-35C)

■ Operating Environment

Operating Temperature: 10 to 35 °C (∆T<10 °C / h)

Non-operating Temperature: –40 to 70 °C (∆T<20 °C / h)

■ Power Supply & Miscellaneous

*

35 GB uncompressed (with SDX1-35C)

-17

10.4 MB/s compressed

*

**

**

**

(50 to 95 °F (∆T<18 °F / h))

Humidity: 30 to 80% (no condensing)
Maximum wet bulb temperature: 26 °C (78.8 °F)

(–40 to 158 °F (∆T<36 °F / h))

Humidity: 10 to 90% (∆RH<30% / h)
Maximum wet bulb temperature: 45 °C (113 °F)

Power Supply 100 V to 240 V AC, 50/60 Hz

1.2 A

Case Dimensions 198 × 64.5 × 246 mm (W × H × D)

(excluding protruding parts)

Weight 2.4 kg

Specifications may be subject to change, in the interest of technological
improvement, without notice or obligation.

*

This is assuming 2.6:1 compression ratio.
The degree of data compression attained while recording data varies according to system
environment and data type.

**

No retries.

Appendix 39

Sony Contacts

For further information, please contact:

Sony Electronics Inc., Tape Storage Solutions (USA)

URL: http://www.storagebysony.com
