Sony A5880002 Users Manual

S001

Illustrationsand Screenshots inThisManual

Noteson CellPhoneUse

Contents

GettingReady

Makingand AnsweringCalls

CharacterInput

BasicManual

rea d thi s ma nua l to ma ste r

the cellular phone

PhoneBook

PairFunction

Mail

Camera

EZweb

EZNewsFlash/ auoneGadget

EZNavi

TV(1Seg)

InCaseof LossofYourS001

Troubleshooting

Index

Introduction

Thank you for purchasing the S001. Before using your S001, be sure to read the S001 Basic Manual (this PDF manual) to ensure correct usage. After you have finished reading this manual, store this PDF manual and the printed manuals in safe places so you can retrieve them whenever you need them.

Manuals for the S001

The S001 comes with the Basic Manual and Instruction Manual.

● For learning the basics:

Read the S001 Basic Manual (this manual).

● For learning details on using each function:

Read the supplied S001 Instruction Manual (Japanese). Be sure to read the Safety Precautions “安全上のご注意” to ensure proper usage of the S001.

The keyword searchable au Online Manual is also available on the au homepage: http://www.au.kddi.com/manual/index.html

•

To access from EZweb: M M

⇒ EZweb ⇒ au one Top ⇒

オンラインマニュアル

(Online Manual)

auお客さまサポート

(au Customer Support) ⇒

Scan this QR code to access the au Online Manual.

▶

Illustrations and Screenshots in This Manual

Note on Illustrations

■

The illustrations in this manual may look different from the actual cell phone in shape, color and typeface. The key illustrations are also simplified as shown below.

①

②

③

④

⑤

Note on Screenshots

■

⑥

⑥ ⑦

⑦

⑧

⑨

⑩

⑪

⑫

⑬

⑭

The screenshots in this manual are simplified and may look different from the actual cell phone screens.

•

The display design themes of the S001 vary by model color. The screenshots for the XXXXX models are used in this manual.

Key Illustration Key Illustration

① ② ③

K L

Q

⑦ M ⑧ R ⑨ S

123 456

④

789

⑩ !

*0;

⑤ [GF ⑪ H ⑥ J ⑫ N

Illustrations and Screenshots in This Manual

1

Notes on Cell Phone Use

Cell Phone Etiquette

Notes on Cell Phone Use

The cell phone always emits weak radio waves when power is on. Use the cell phone in an enjoyable and safe manner without forgetting to be considerate of others around you.

Use of cell phones is not allowed in some places.

●

Do not use the cell phone while you are driving. Doing

• so is both dangerous and prohibited by law. Using a cell phone in an aircraft is prohibited by law.

• Be sure to turn the cell phone off.

Radio waves from cell phones may interfere with

●

medical electrical equipment.

Some people close to you in crowded places such

• as packed trains may be using a cardiac pacemaker. Turn the cell phone off in such places. Abide by the rules of hospitals and other medical

• institutions where it is forbidden to use or carry cell phones.

Be considerate of where you use the cell phone and

●

how loudly you talk.

Do not make calls in theaters, museums, libraries, and

• other similar places. Turn power off or turn on manner mode not to disturb others around you by ring tones. Do not use the cell phone on a street where you might

• interrupt the flow of pedestrians. Move to areas where you will not inconvenience others

• on trains or in hotel lobbies.

•

Refrain from talking in a loud voice.

Obtain the permission of other people before you take

• their photos with the cell phone's camera. Do not record information with the cell phone's camera

• in bookstores and other locations where taking photos is not permitted.

Do not use the cell phone while driving!

Turn off your cell phone or put it in Drive Mode while driving.

Do not use the cell phone while driving a car/motorcycle or riding a bicycle. It may result in a traffic accident. Using a cell phone while driving is prohibited by law. Using a cell phone while riding a bicycle may also be punishable by law.

Prohibited!

•

Looking at a cell phone display

•

Talking on a cell phone while holding it

Drive Mode

In Drive Mode, a Japanese message meaning "I'm driving now, so I can't answer your call." is played when a call is received, and asks the caller to leave a message on the answer memo. When the standby screen is displayed, press

gG to select Drive, and then press {[ (Select).

hH, use

2

Disaster Message Board Service

When a big scale disaster occurs, you can register your safety information from EZweb. The registered information can be referred from anywhere in Japan from EZweb or Internet.

When a big scale disaster occurs, from

Registering

safety

information

Inquiring

for safety

information

Access

• an au phone, you can register your safety information (i.e. your condition and comments) to the 災害用伝言板 (Disaster Message Board) created on the EZweb.

•

After registration of your safety information, e-mail is sent to your family or acquaintances you have previously designated to notify that your safety information has been uploaded to the 災害用伝言板 (Disaster Message Board).

•

You can inquire for safety information of a person by entering his/her phone number from EZweb or Internet.* * To inquire from other carriers' cell

phone, a PHS or PC, access "http://dengon.ezweb.ne.jp/".

⇒ EZweb ⇒ au one Top ⇒

M (Disaster Message Board)

http://dengon.ezweb.ne.jp/

災害用伝言板

The maximum storage period of the registered

• information is 72 hours. The maximum available number of registrations is 10

• per phone number. When the number of registrations exceeds 10, the oldest one is overwritten. The demonstration of this service can be referred to

• anytime by pressing

auお客さまサポートべる

(Search ) ⇒

Message Board (Demo Version)). To view the Disaster Message Board in English, select

• English from the top menu of the Disaster Message Board.

mM ⇒ EZweb ⇒ au one Top ⇒

(au Customer Support) ⇒

災害用伝言板（デモ版）

調

(Disaster

Notes on Cell Phone Use

3

Contents

Introduction

Illustrations and Screenshots in This Manual

Contents

Notes on Cell Phone Use 2

Cell Phone Etiquette …………………………………… 2 Do not use the cell phone while driving! …………… 2 Disaster Message Board Service …………………… 3

Contents 4

Getting Ready 6

Checking the Contents of the Box ………………… 6 Names of Parts ………………………………………… 7 Charging the Battery Pack …………………………… 8 Learning the Basics …………………………………… 9 Turning On Power ……………………………………… 10 Switching the Display Language to English ……… 10 Initial Setup of E-mail and EZweb …………………… 10 Checking Your Phone Number and E-mail Address …………………………………………………………… 10 Display Indicators ……………………………………… 11 Using Main Menu ……………………………………… 12 Changing Your E-mail Address ……………………… 13 Security Code and Passwords ……………………… 14

Making and Answering Calls 15

Making a Call …………………………………………… 15 Making an International Call ………………………… 15

4

1

Answering a Call ……………………………………… 16 Returning a Call (Outgoing History/Incoming History …………………………………………………………… 17 One-ring Calls ………………………………………… 17 Adjusting the Earpiece Volume during a Call ……… 17 Turning On Manner Mode …………………………… 17 Changing the Incoming Ring Tone ………………… 18 Adjusting the Incoming Ring Tone Volume ………… 18 Turning On the Answer Memo ……………………… 19

)

Character Input 20

Character Entry Modes ……………………………… 20 Entering Alphanumeric Characters ………………… 20 Entering E-mail Addresses …………………………… 21 Entering Pictograms …………………………………… 22

Phone Book 23

Saving a Phone Book Entry ………………………… 23 Dialing from the Phone Book ………………………… 23 Editing Phone Book Entries ………………………… 23 Saving a Phone Number from the Incoming or Outgoing History ……………………………………… 24

Pair Function 25

Registering a Pair Partner …………………………… 25 Making a Call to a Pair Partner ……………………… 25 Sending Mail to a Pair Partner ……………………… 25

Mail 26

Using E-mail …………………………………………… 26 Creating and Sending E-mail Messages …………… 26 Reading Received E-mail Messages ……………… 27

Reading an E-mail Message with an Attached Photo or Movie ………………………………………………… 27 Replying to Received E-mail Messages …………… 27 Rejecting Spam ………………………………………… 28 Using C-mail …………………………………………… 29 Creating and Sending C-mail Messages …………… 29 Reading Received C-mail Messages ……………… 29

Camera 30

Photo Taking Tips ……………………………………… 30 About Photo Modes …………………………………… 30 Taking a Photo ………………………………………… 31 Viewing Photos ………………………………………… 31

EZweb 32

Accessing Sites ………………………………………… 33 Bookmarking Frequently Accessed Pages ………… 34 Viewing Bookmarked Pages ………………………… 34 Checking Charges …………………………………… 35 Downloading Chaku-Uta-Full®/Chaku-Uta® ……… 35

EZ News Flash/au one Gadget

Basic Operations ……………………………………… 36 Setting EZ News Flash ………………………………… 36

36

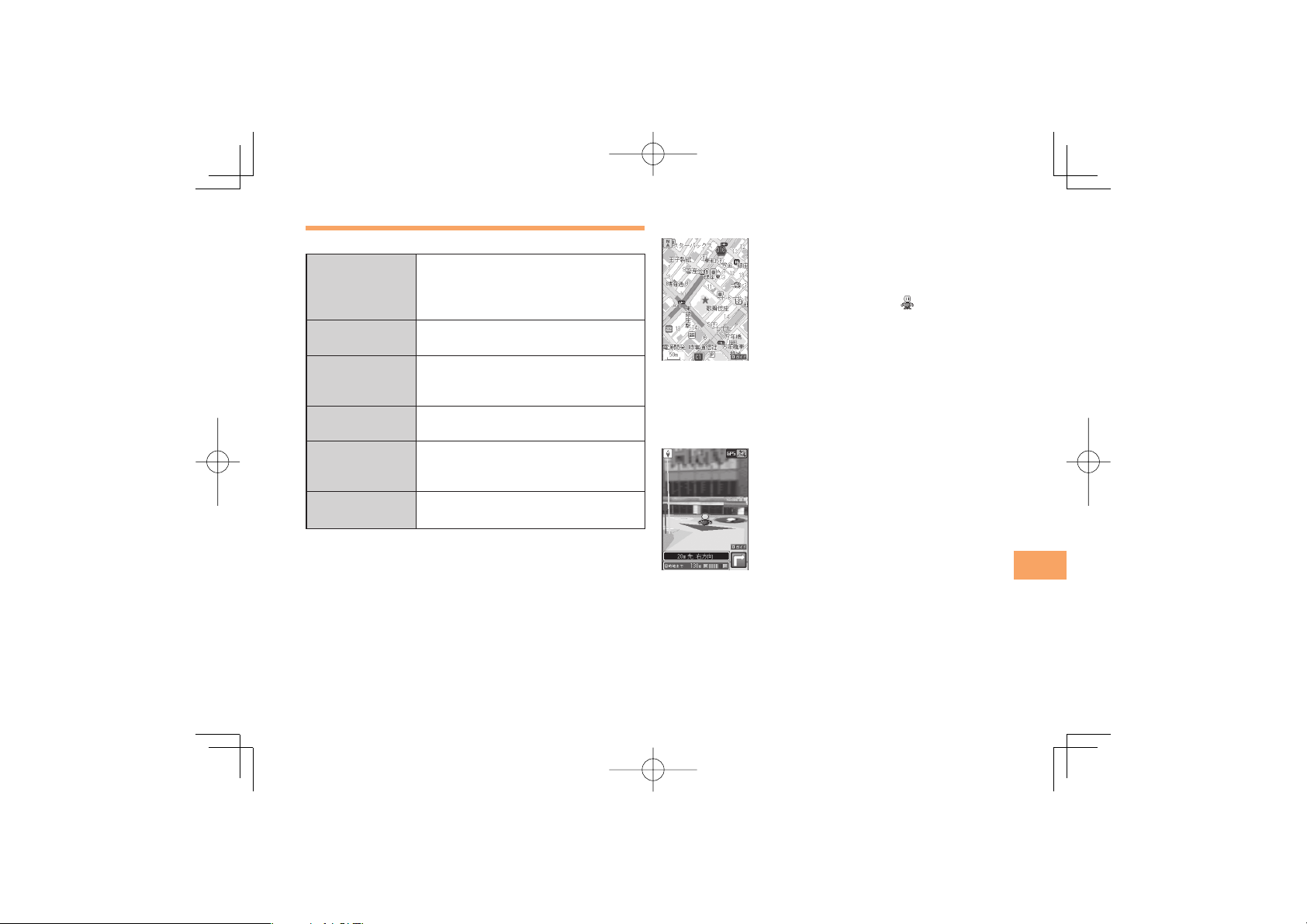

EZ Navi 38

Passenger Seat Navi for People in the Passenger Seat to Check the Route …………………………………… 38 Security Navi to Check Where Your Kids Are ……… 38 EZ Navi Walk for When You Go Out ………………… 39

Evacuate Navi to Guide You Home or to Nearby Evacuation Areas during Disasters ………………… 40

TV (1 Seg)

Initial Setup of au Media Tuner ……………………… 42 Watching TV (1 Seg) …………………………………… 42 Basic Operations ……………………………………… 43 Exiting the au Media Tuner …………………………… 43

41

In Case of Loss of Your S001 44

Setting Conditions for Activating the Remote Ctrl Lock … Remotely Activating the Remote Ctrl Lock on Your S001 …………………………………………………………… 44 Activating the Remote Ctrl Lock by the Security Lock Service …………………………………………………… 45

44

Troubleshooting 46

Index 48

Contents

5

Getting Ready

Checking the Contents of the Box

The box contains the cell phone and accessories.

Cell phone• Battery pack• CD-ROM

Getting Ready

An AC adapter and microSD memory card are not included. Purchase a common AC adapter 01/02 (sold separately)

• and a commercially available microSD memory card.

• Instruction Manual (Japanese)

• Warranty (Japanese)

• Safety Precautions (Japanese)

• Global Passport CDMA Owner’s Guide (Japanese)

• Global Passport GSM Owner’s Guide (Japanese)

• Global Passport mobile rental service Owner’s Guide

• (Japanese) Osaifu-Keitai

• JIBUN BANK Launcher Operation Guide (Japanese)

•

®

Guide (Japanese)

6

Names of Parts

From the Front■

Lux Sensor

Earpiece

Display

Cross

Cross controller

controller

Phone book key/

Soft key 1

Soft key 1 Manner key

Manner key

Mail key

Send key/

Pair key

Pair key Microphone

Microphone

Keypad,

key,

key

Incoming LED/

Incoming LED/ Charge indicator

Charge indicator

EZapps key/

EZapps key/ Soft key 2

Soft key 2

Multi key

EZ key

Power key/

Power key/ End key

End key

Memo key/

Memo key/ Clear key

Clear key

From the Back■

Built-in

Built-in antenna

antenna

Memory card slot

Speaker

Speaker Flash/

Flash/ Photo light

Photo light Camera(lens)

Camera(lens)

Battery pack

Battery pack cover

cover Battery pack

Battery pack (built-in)

(built-in)

au IC-Card*

* Do not remove this

card unnecessarily

card unnecessarily as your phone

as your phone number is

number is recorded on it.

recorded on it.

From the Sides■

Lock key

Power

Power terminal

terminal

Hand strap eyelet

Side key 1

Flat-type

Flat-type earphone jack

earphone jack

Side key 2

Play key

Shutter key

External power

External power terminal

terminal

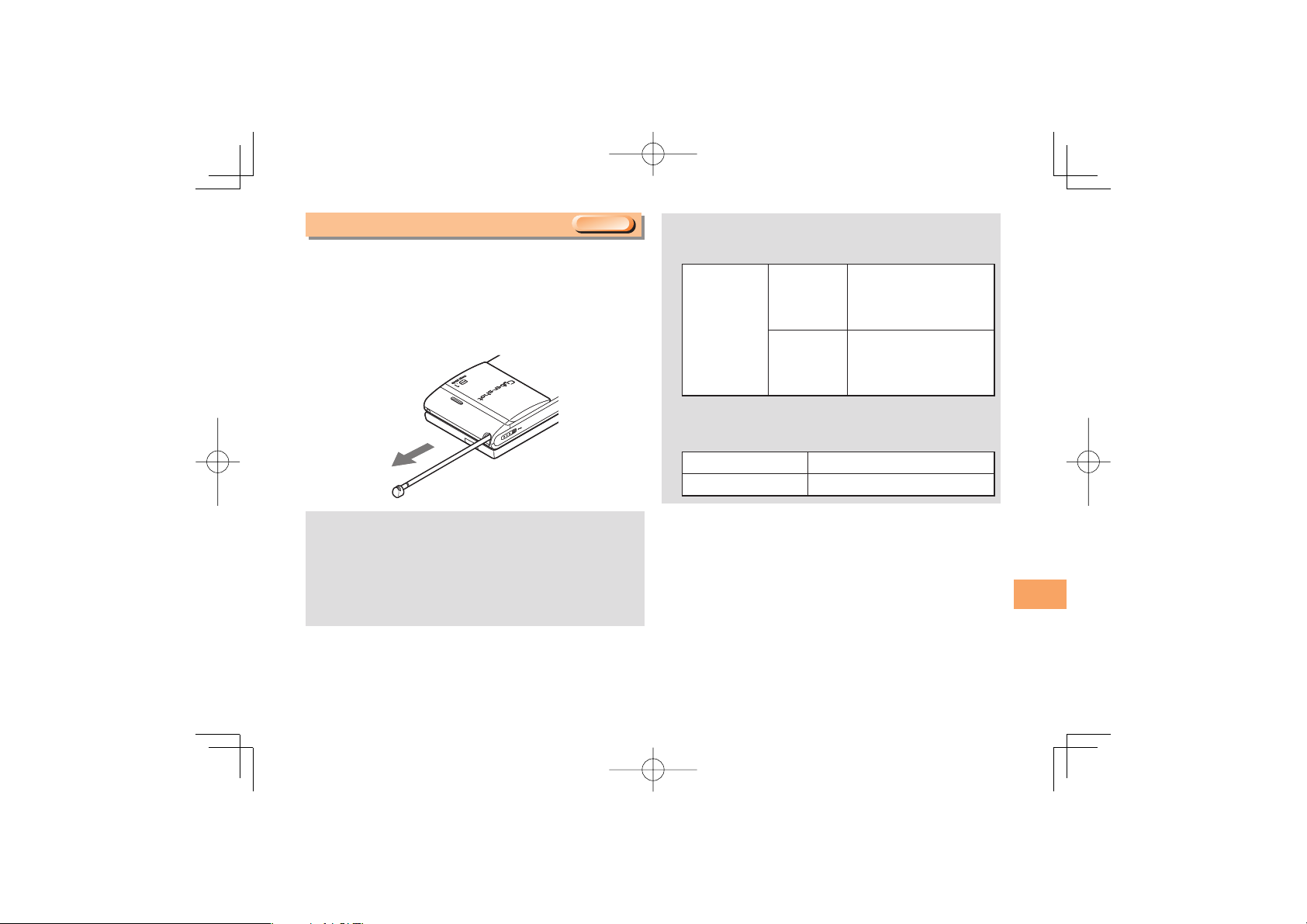

Whip antenna

Infrared port

Getting Ready

7

Charging the Battery Pack

The battery pack is not fully charged at the time of purchase. Be sure to charge the battery pack before using the cell phone for the first time.

An AC adapter is not included. Purchase a common AC

• adapter 01/02 (sold separately).

Getting Ready

Connector

Connect the common AC adapter 01/02 to the

➡

desktop holder.

Check the shape of the connector of the common AC

• adapter 01/02 and then plug it straight into the power terminal of the desktop holder.

Power

Power terminal

terminal

1

4

Charge terminal

Charge indicator

Power plug

Desktop holder

3

Common

Common AC adapter

AC adapter 01/02

01/02

2

100 V AC

100 V AC power outlet

power outlet

Unfold the power plug of the common AC

➡

adapter 01/02 and plug it into a 100 V AC power outlet.

➡

Close the cell phone with the battery pack attached and insert it into the desktop holder as shown in the figure.

➡

Confirm that the charge indicator lights.

Charging: The charge indicator lights.

• Charging finished: The charge indicator goes out.

•

Hold the desktop holder while removing the cell

• phone.

•

You can also charge the battery pack by connecting the common AC adapter 01/02 directly to the external power terminal.

8

Learning the Basics

Key Assignments

■

: Display Incoming History.



: Display Alert window/Shortcut



menu.

: Use Phone Book.



: Send/receive e-mail/c-mail.



: Make/answer calls.



Use the Pair function.

: Set/cancel Answer memo.



 Delete characters.

Cancel operation.

Side Key Assignments

■

: Activate au Media Tuner.

: Display the ticker field, info pane and



gadget (setting) icon.

: Display Outgoing History.



: Display Main menu.



: Activate EZapps.



: Display EZ Service menu.



: Turn power on/off.



End call/communication.

 Cancel operation.

:

〜

Input phone numbers and characters.

: Activate Camera.

: Set/cancel manner mode.

:

Getting Ready

If you lose track of where you are or if you make a mistake, press rR to return to the previous screen. Return to the

• standby screen by holding down

sS for at least one second.

9

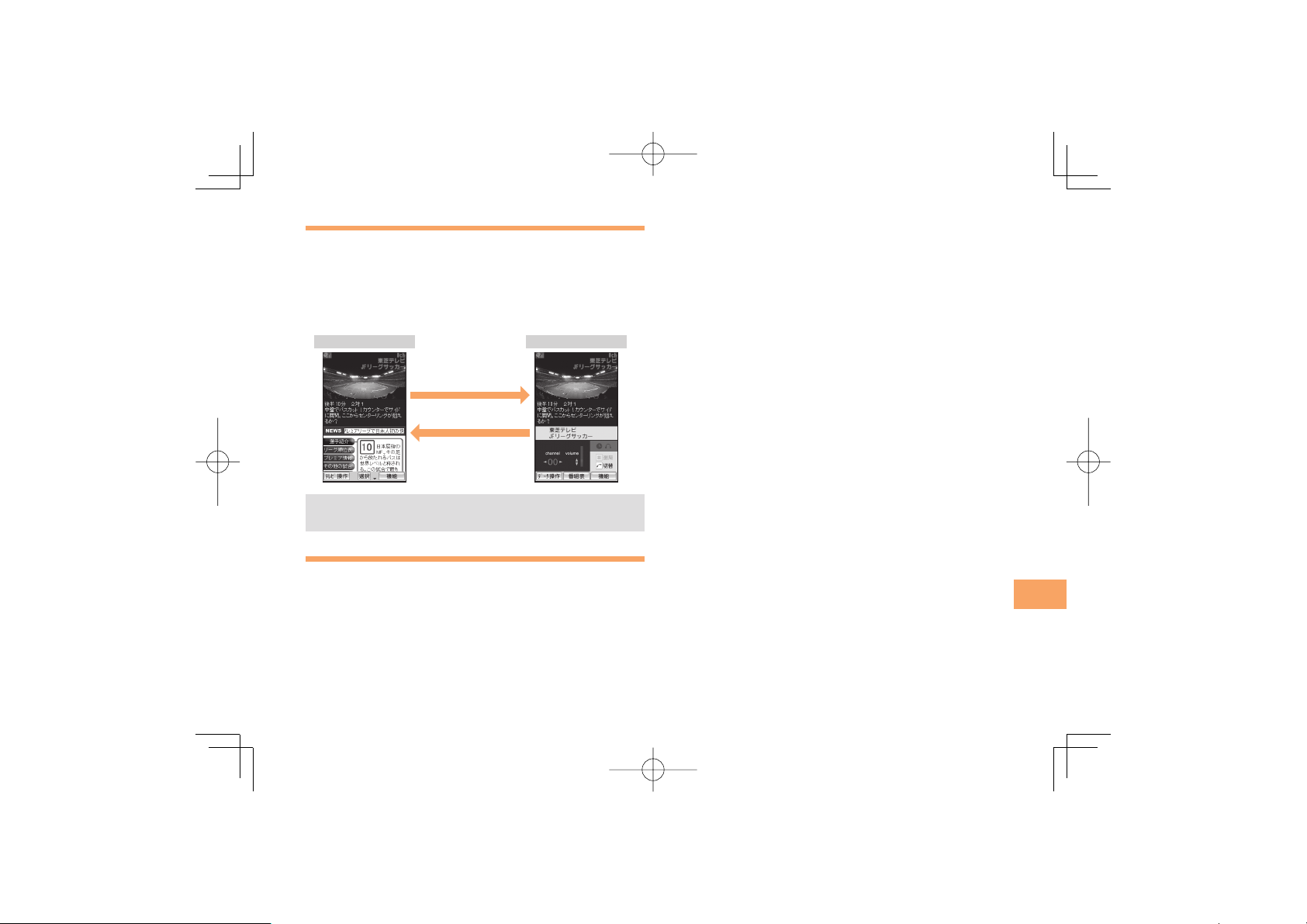

Hiding/Redisplaying the

■

Alert windowAlert window

Alert Window

When the alert window is displayed on the standby screen, you can temporarily hide it by pressing K (Back) and then display the Main menu by pressing [.

Getting Ready

To redisplay the hidden alert window, press B when the standby screen is displayed.

Turning On Power

Hold down S for at least one second.

You cannot receive or make calls if (out of range

• indicator) is displayed.

Turning Off Power

■

When the standby screen is displayed, hold down S for at least one second.

Switching the Display Language to English

You can switch the display language for function names and other items to English.

When the standby screen is displayed, press [.

Use E to select

➡

press [ (選択 [Select]).

10

機能

(Function) and then

Use G to select

➡

画面表示

(Screen Setup) and

then press [ (選択 [Select]).

➡

Use G to select Set Language and then press [ (選択 [Select]).

➡

Use G to select English and then press [ (Set).

Initial Setup of E-mail and EZweb

To use e-mail and EZweb, you need to apply for an EZweb subscription. If you did not apply for an EZweb subscription at the time of purchase, contact an au shop or the au Customer Service Center. Also, before use, you need to configure initial settings. Your e-mail address is assigned automatically in the initial setup.

When the standby screen is displayed, press L.

➡

Press [ (OK).

After a short while, your e-mail address is displayed.

➡

Press [ (OK).

The initial settings are complete.

You can also configure initial settings by pressing mM

•

jJ.

or

Checking Your Phone Number and E-mail Address

When the standby screen is displayed, press [ and then 0.

Display Indicators

Display indicators inform you of mail arrival, current settings, etc.

Display

■

①

②③④⑤⑥

①

②③④⑤⑥

⑪⑫⑬ ⑭

⑦

⑦ ⑧

⑧ ⑨

⑨

⑩

⑮

Indicator Description

① ② ③

④

⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱

Signal strength

Battery level

A microSD memory card (commercially available) inserted

During a call

au Media Tuner activated

EZapps activated

Connecting to EZweb

Receiving EZ News Flash information

Missed calls

New or unread e-mail/c-mail

Current date and time

Ticker field

Search window

Info pane

Alert icon

Shortcut menu

Auto Lock activated

Manner mode set

Answer memo or manner mode set

Getting Ready

11

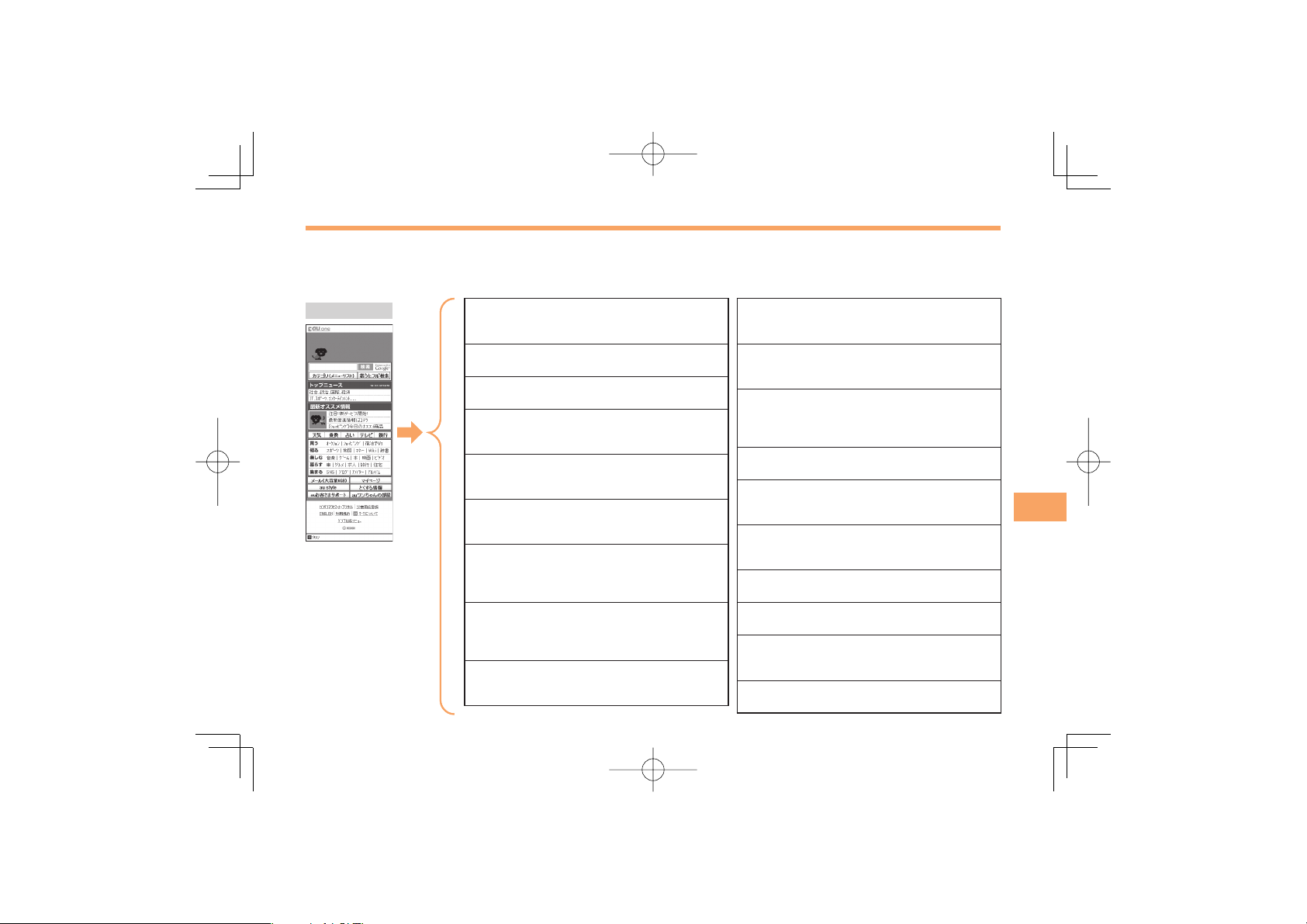

Using Main Menu

You can access various functions from the Main menu. The Main menu patterns vary by model color. The screenshots for the XXXXX models are used in this manual.

Model Color Main Menu Pattern

XXXXX XXXXX

Getting Ready

XXXXX XXXXX

Each Main menu pattern has a different set of items.

XXXXX XXXXX XXXXX

12

Changing Your E-mail Address

△△△@ezweb.ne.jp

Account name Domain name

E-mail address

△△△@ezweb.ne.jp

Account name Domain name

E-mail address

You can change the account name of your e-mail address.

When the standby screen is displayed, press L.

Use G to select E-mail Setup and then press

➡

[ (Select). Use G to select Other and then press

➡

[ (Select).

The cell phone connects to the server.

Use G to select

➡

E-mail Address) and then press [ (Select). Use G to select the entry box, press [ (Input),

➡

enter your security code, and then press [ (OK).

Your security code is the four-digit number you wrote

• on your subscription form.

•

If the security code is incorrectly entered three times consecutively during a single day, the e-mail address change operation will be disabled until the next day.

Use G to select 送信 (Send) and then press

➡

[ (Select). Use G to select

➡

press [ (Select).

Eメールアドレスの変更

承諾する

(Accept) and then

(Change

Use G to select the entry box, press [ (Input),

➡

enter an e-mail address using single-byte alphanumeric characters, and then press [ (OK).

For details on entering e-mail addresses, see page 21.

•

Use G to select 送信 (Send) and then press

➡

[ (Select). Use G to select OK, press [ (Select) and then

➡

[ (OK).

Check that the e-mail address has been updated

•

before pressing [ (OK).

Your e-mail address cannot be changed if the new

• address you enter in the above procedure is already being used. In this case, enter a different e-mail address.

Getting Ready

13

Security Code and Passwords

You can use a security code and other passwords described below. Take care not to forget your security code and passwords, because they are required for performing various operations and using subscription services.

Getting Ready

Security Code

■

Usage Example

Initial Setting

Lock No.

■

Usage Example

Initial Setting

①Using the Answering Service (Voice

Mail) and Call Transfer remotely from a fixed-line phone

②Making inquiries, applications, and

changes while using au Customer Service Center voice guidance, au web pages, and EZweb

③Changing the settings of Mail Filter or

Other Setup under E-mail Setup

The four-digit number you wrote on your subscription form

Changing various settings of the cell phone

1234

EZ Password

■

Usage Example

Initial Setting

Premium EZ Password

■

Usage Example

Initial Setting

Subscribing or canceling subscriptions to EZweb fee-based contents

The four-digit number you wrote on your subscription form

①Subscribing or canceling subscriptions

to EZweb fee-based contents paid

まとめて

by Payment Service)

②Purchasing products from EZweb sites

The four-digit number you wrote on your subscription form

まとめて

using Payment Service)

au

支払い

au

支払い

(au Collective

14

Making and Answering Calls

Making a Call

When the standby screen is displayed, use 0 to 9 to enter a phone number.

When calling to a fixed-line phone, you also need to enter

• the area code.

Press Q.

➡

To end the call, press S.

•

After you enter a phone number, you can add 184 or

• 186 to the phone number as follows:

➡ ➡

➡

184: When you do not want to inform the other party of

186: When you want to inform the other party of your

{[ (Call).

Press

gG to select Add Extra No. and then press

Use

{[ (Select).

gG to select 184 or 186 and then press

Use

{[ (Select).

your phone number.

phone number.

Making an International Call

au International Call Service

■

Available without any additional application Example: To call 212-123-△△△△ in the USA

Press 005345.

International access code

Press 1.

➡

Country code (USA)

➡

Press 212.

➡

Press 123△△△△.

➡

Press Q.

Calling charges for this service are added to monthly

• cell phone calling charges and billed together.

•

Check the country code at the au Customer Service Center.

•

For charges, refer to au MOBILE PHONE SERVICE GUIDE or au Customer Service Center.

↑

↑

Area code

↑

Phone number

Making and Answering Calls

15

001 KOKUSAI MOBILE TALK

■

Application required. For inquiries, contact the KDDI Customer Service Center.

0077-7160

(toll-free; open 9:00 to 20:00 everyday including

weekends and national holidays)

Making and Answering Calls

001

KDDIinternational

accesscode

↑

010 212 123-XXXX1001

010 212 123-XXXX1

Country

code

(USA)

↑

Areacode↑Phonenumber

Answering a Call

To answer a call, press Q.

To end the call, press S.

•

Display When a Call is Received

■

The phone number of the caller appears. If the caller's phone number and name are in the phone book, the name is also displayed. When the phone number of the caller is not displayed, one of the following indicators may appear.

•

Charges for 001 KOKUSAI MOBILE TALK are charged separately from monthly au telephone charges.

•

Check the country code at the au Customer Service Center.

•

For charges, refer to au MOBILE PHONE SERVICE GUIDE or au Customer Service Center.

16

Indicator Meaning

ID Unsent

Payphone

Not Support

Missed Call Notification

■

If you did not answer a call,

The caller did not send a Caller ID.

The call is from a pay phone.

The call is from a phone that does not support Caller ID.

and Missed Call are

displayed to let you know that you missed a call. To check the caller's phone number, use F to select Missed Call and then press [ (select). You can then return the call (see page 17).

Returning a Call (Outgoing History/ Incoming History)

Example: Returning a call to a phone number in the

When the standby screen is displayed, press D.

•

➡

•

incoming history

Press C while the standby screen is displayed to display the Outgoing History screen.

Use G to select the phone number you want to call and then press [ (Detail).

Press C to display the Outgoing History screen.

•

Press Q.

The cell phone can store up to 50 phone numbers in each of the incoming and outgoing history.

One-ring Indicator

■

indicator on the Incoming History screen indicates you have received a one-ring call (a call rang for three seconds or shorter). Be careful when you return a call to an unknown caller.

Adjusting the Earpiece Volume during a Call

During a call, use G.

A: Increases the volume.

•

B: Decreases the volume.

•

Press [ (OK).

➡

Turning On Manner Mode

Making and Answering Calls

One-ring Calls

What is a One-ring Call?

■

A one-ring call is a call from an unknown caller that only rings once, causing it to be stored in the incoming history. One-ring calls are often used to get you to return the call, which will connect you to a dating service or some other service that charges you at high rates.

When the standby screen is displayed, hold down H for at least one second.

This turns on manner mode, and displays , and on the standby screen. This also turns on Answer memo, which is indicated by

Turning Off Manner Mode

■

When the standby screen is displayed, hold down H for at least one second. Turning off manner mode causes from the standby screen. Answer memo is also turned off, which is indicated by screen.

on the standby screen.

, and to disappear

disappearing from the standby

17
