Sony 82574V Users Manual

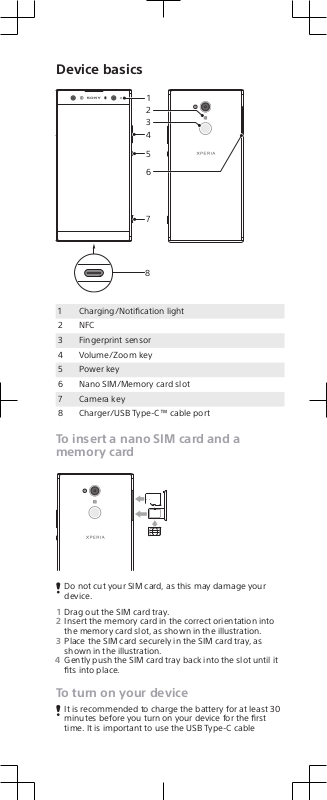

Device basics

1 2

3 4

5

6

7

8

1Charging/Notification light

2NFC

3Fingerprint sensor

4Volume/Zoom key

5Power key

6Nano SIM/Memory card slot

7Camera key

8Charger/USB Type-C™ cable port

To insert a nano SIM card and a memory card

Do not cut your SIM card, as this may damage your device.

1Drag out the SIM card tray.

2Insert the memory card in the correct orientation into the memory card slot, as shown in the illustration.

3Place the SIM card securely in the SIM card tray, as shown in the illustration.

4Gently push the SIM card tray back into the slot until it fits into place.

To turn on your device

It is recommended to charge the battery for at least 30 minutes before you turn on your device for the first

time. It is important to use the USB Type-C cable

provided when charging your device, as other types of USB cables can damage your device.

1Press and hold down the power key until the device vibrates.

2Wait a moment for the device to start.

To activate the screen

• Briefly press the power key .

Screen protection

Before using your device, remove the protection film by

pulling up on the protruding tab.

Screen covers and protectors may help you protect your device against damage. We recommend you use only those screen covers intended for your Xperia™ device. The use of third party screen protection accessories may prevent your device from working correctly by covering sensors, lenses, speakers, or microphones and can invalidate the warranty.

Support for you

Use the Support app to find your device’s model name, software information, help topics and support tools. Visit support.sonymobile.com from the Support app or any browser for user guides, troubleshooting tips, support forum and support contact information.

You can find support contact information in the Support app even without a network connection. The Support

app is not available in all countries and regions.

To access the Support app

• Find and tap .

Warranty, SAR and usage guidelines

For information about warranty, SAR (Specific Absorption Rate) and safety guidelines, please read the Important information provided under Settings > System > About phone > Legal information on your device.

Transferring contacts and content

For transferring contacts, messages, photos or other data from an old device to your new device, we recommend that you use the Xperia Transfer application.

Visit https://www.sonymobile.com/xperiatransfer for more information.

To view the CE marking and the FCC ID

Sony Mobile

Communications Inc.

4-12-3 Higashi-Shinagawa,

Shinagawa-ku Tokyo,

140-0002 Japan

1Drag out the SIM card tray.

2Remove the memory card from its slot.
