Sony KDL-40X4500, 46X4500, 55X4500 Schematic

HISTORY

Model Name :
SERVICE MANUAL

Click on Page Number to display detail of changes.

Date Part Number Description of Revisions

Original Manual.
Add inverter board part number for 40 inches. (P.79)

KDL-40/46/55X4500

Version

1.09-883-412-01 2008.09

2.09-883-412-02 2008.09

SERVICE MANUAL

EG1H

CHASSIS

MODEL

DEST

KDL-40X4500
KDL-46X4500
KDL-55X4500

AEP/UK

AEP/UK

AEP/UK

- 1 -

RM-ED012

FLAT PANEL COLOR TV

TABLE OF CONTENTS

Section Title Page Section Title Page

1. GENERAL ................................................................... 3

Caution................................................................ 3

Specifications ..................................................... 5

Connectors .......................................................... 6

Self Diagnosis..................................................... 7

2. DISASSEMBLY

2-1. Rear Cover Removal .......................................... 9

2-2. Stand Removal ................................................... 9

2-3. Speaker Box Removal ........................................ 9

2-4. Woofer Box Removal......................................... 9

2-5. CB1 Board Removal(46/55 inches) ................... 10

2-6. D4 Board Removal (40 inches).......................... 10

2-7. FBA Board Removal .......................................... 10

2-8. G6 Board Board Removal .................................. 10

2-9. G7 Board Removal(55 inches)........................... 11

2-10. GL Board Removal(46/55 inches) ..................... 11

2-11. H1VM Board Removal ...................................... 11

2-12. H3VM Board Removal ...................................... 11

2-13. H4 Board Removal ............................................. 12

2-14. K2 Board Removal ............................................. 12

2-15. AE Board Removal ............................................ 12

2-16. Sensor Module Removal .................................... 12

3. SERVICE MENUS

3-1. How to enter the Service Mode ........................ 13

3-2. Changing TVM Data Settings ........................... 13

3-3. Writing TVM Data ............................................ 13

3-4. Entering BEM Service Menu ............................ 13

3-5. Changing BEM Data Settings ........................... 13

3-6. Writing BEM Data ............................................ 13

3-7. Trouble Shooting ............................................... 14

3-7-1. No Power ......................................................... 14

3-7-2. Set Reboots...................................................... 14

3-7-3. Power Error ..................................................... 14

3-7-4. T-Con Error ..................................................... 14

3-7-5. Back Light Error ............................................. 14

3-7-6. Temperature Error ........................................... 14

3-7-7. Audio Error ..................................................... 14

3-7-8. Fan Error..........................................................

14

3-7-9. Balancer Error ................................................. 14

3-8. CB1 Board Replacement (46/55 inches) .......... 14

3-8-1. Copying data from Panel to CB1 Board ......... 14

4. DIAGRAMS

4-1. Block Diagram ................................................... 20

4-2. Circuit Board Location....................................... 21

4-3. Schematic Diagrams and Printed Wiring

Boards ................................................................. 21

AE Board Schematic Diagram ........................... 22

CB1 Board Schematic Diagram(46/55 inches) . 31

D4 Board Schematic Diagram(40 inches) ......... 38

FBA Board Schematic Diagram ........................ 39

G6 Board Schematic Diagram ........................... 60

G7 Board Schematic Diagram (55 inches) ........ 62

GL Board Schematic Diagram(46/55 inches) ... 63

H1VM Board Schematic Diagram ..................... 65

H3VM Board Schematic Diagram ..................... 65

H4 Board Schematic Diagram ........................... 65

K2 Board Schematic Diagram ........................... 66

AE Printed Wiring Board................................... 67

CB1 Printed Wiring Board(46/55 inches) ......... 69

D4 Printed Wiring Board (40 inches) ................ 70

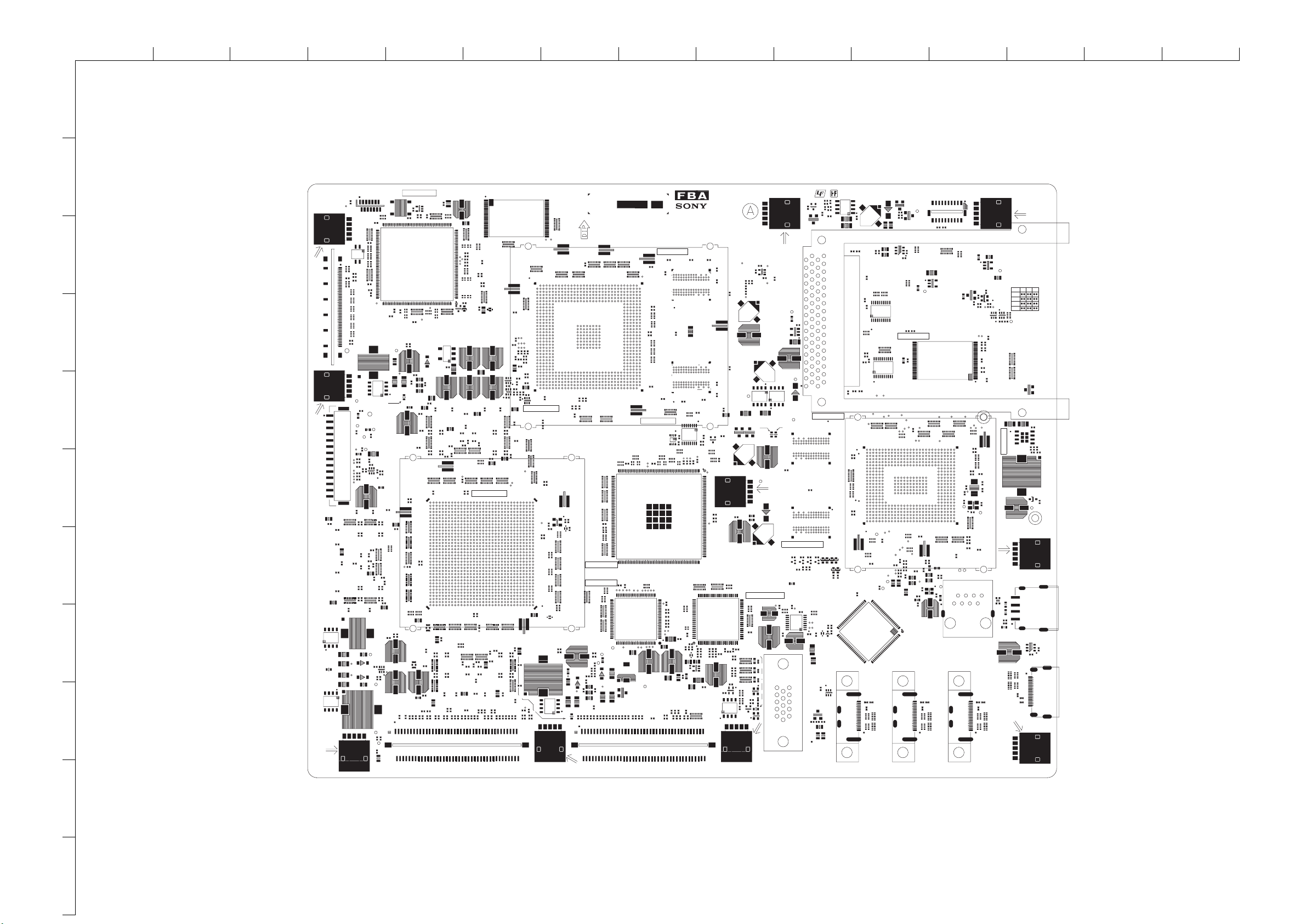

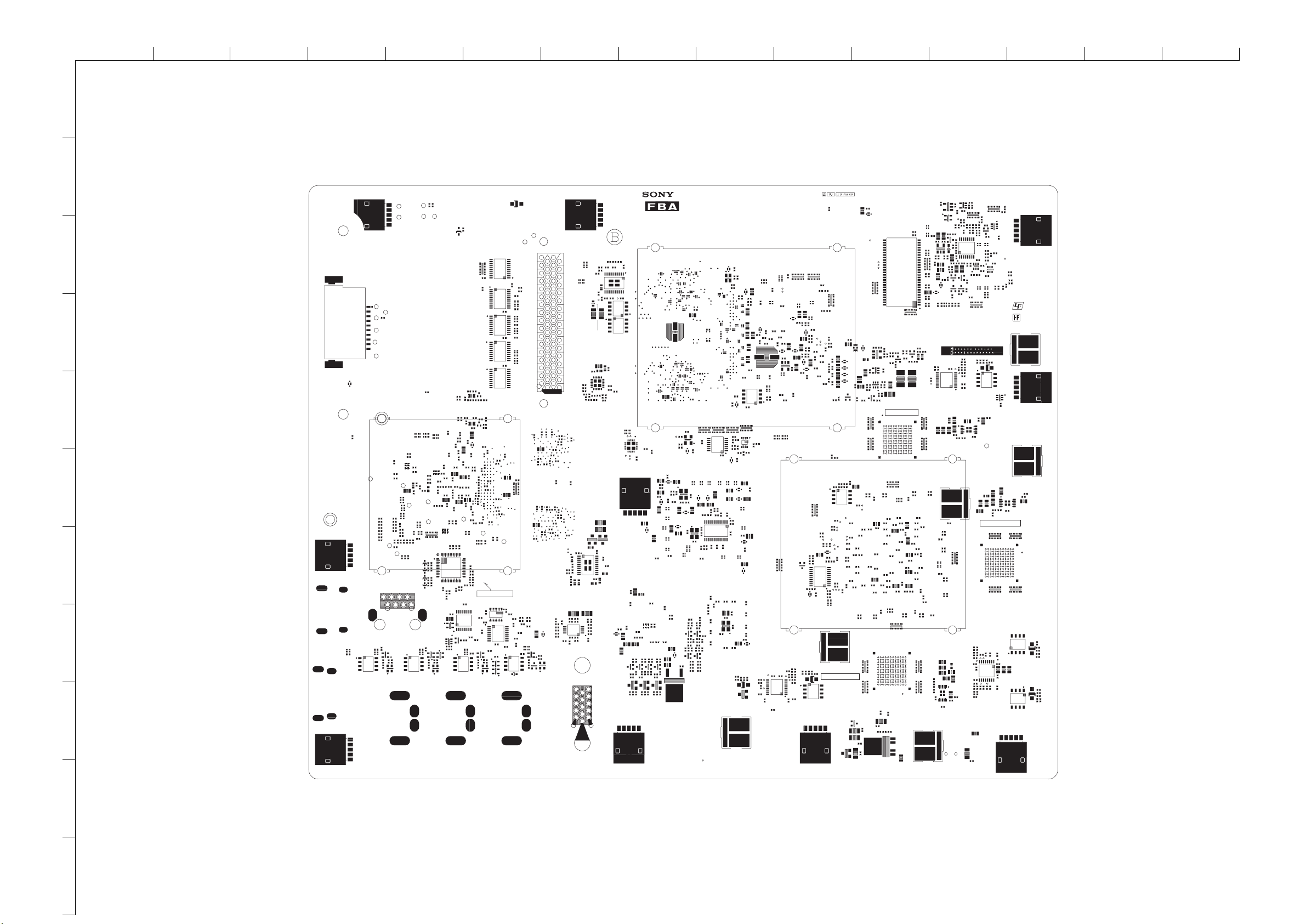

FBA Printed Wiring Board ................................ 71

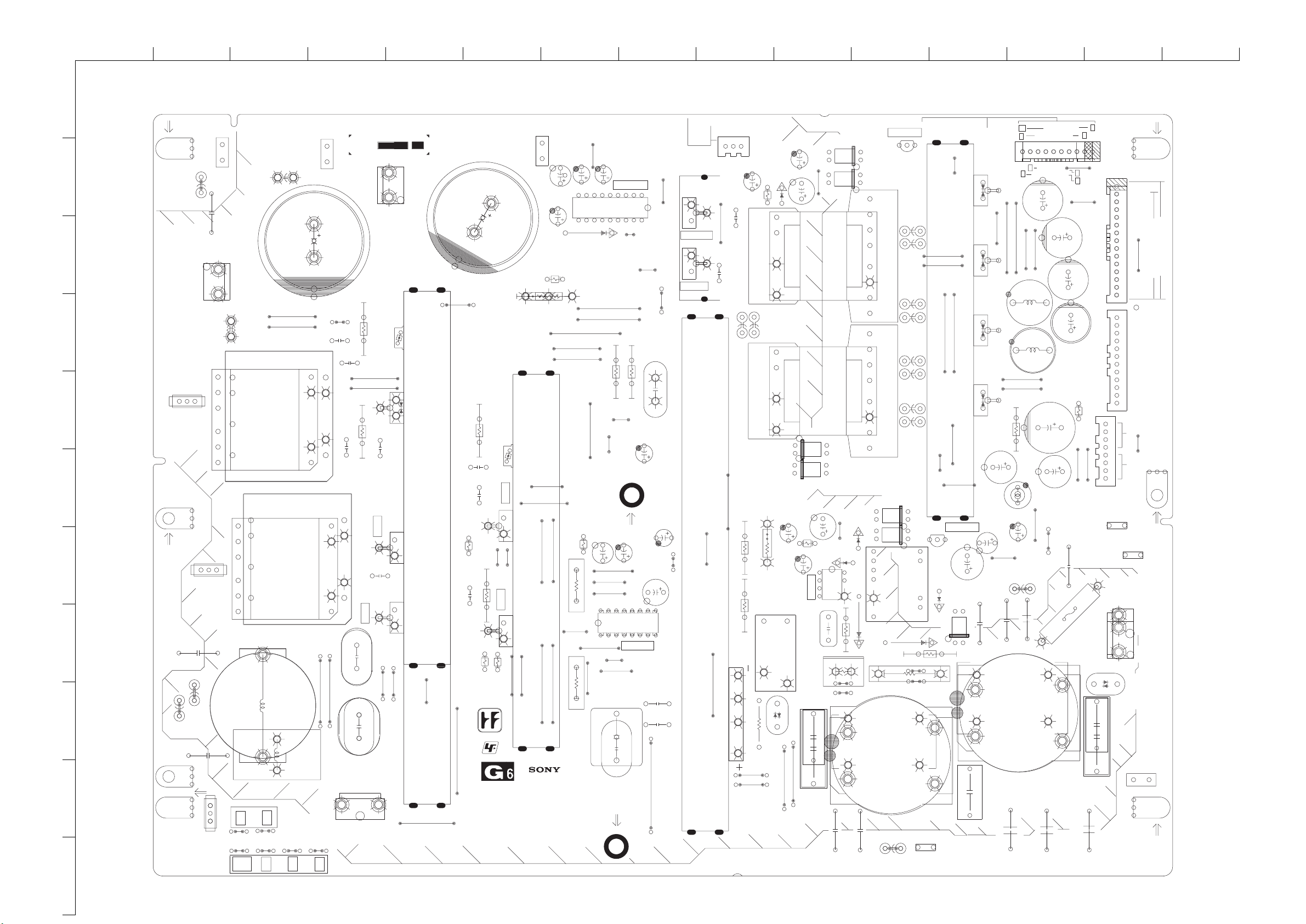

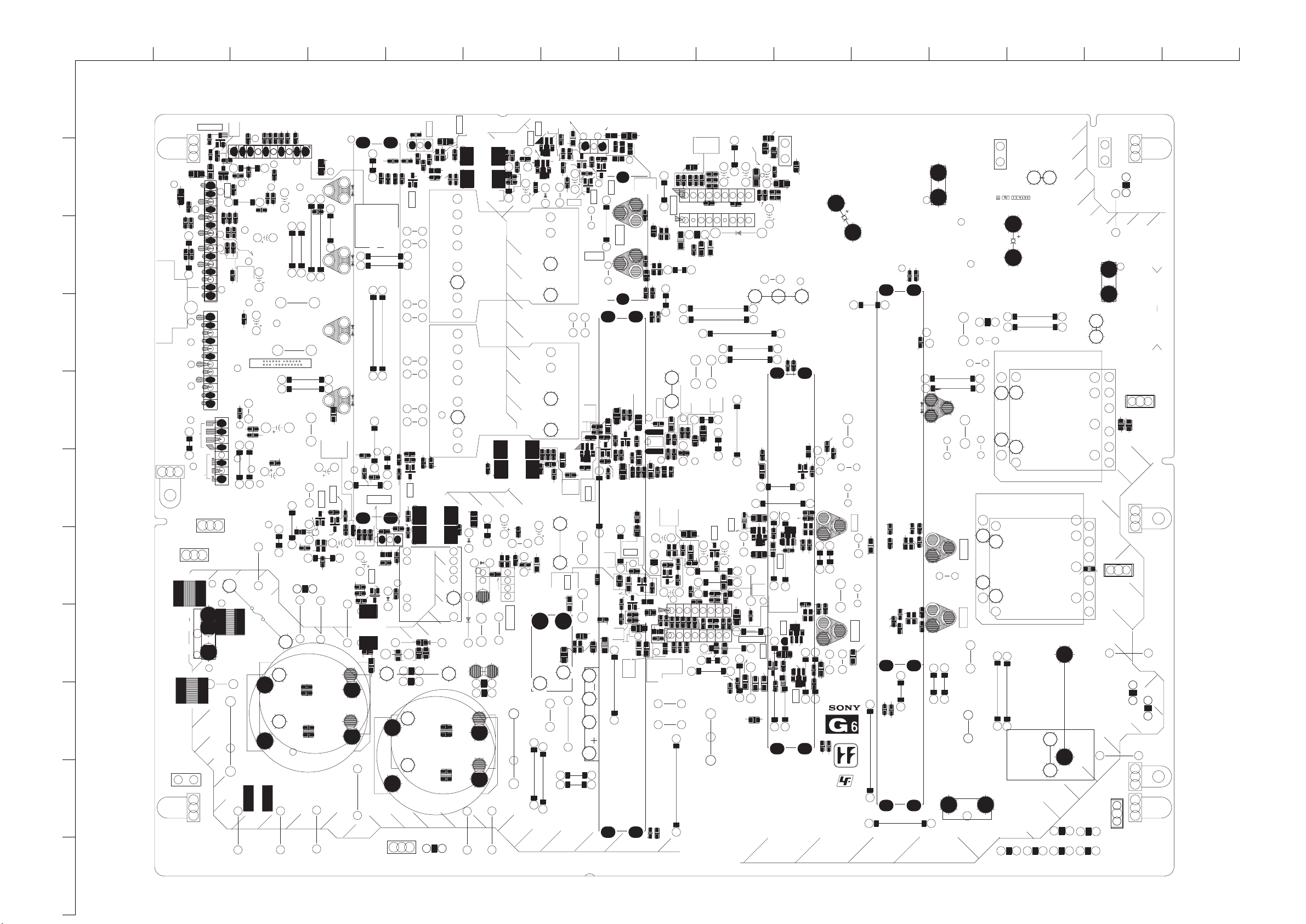

G6 Printed Wiring Board ................................... 73

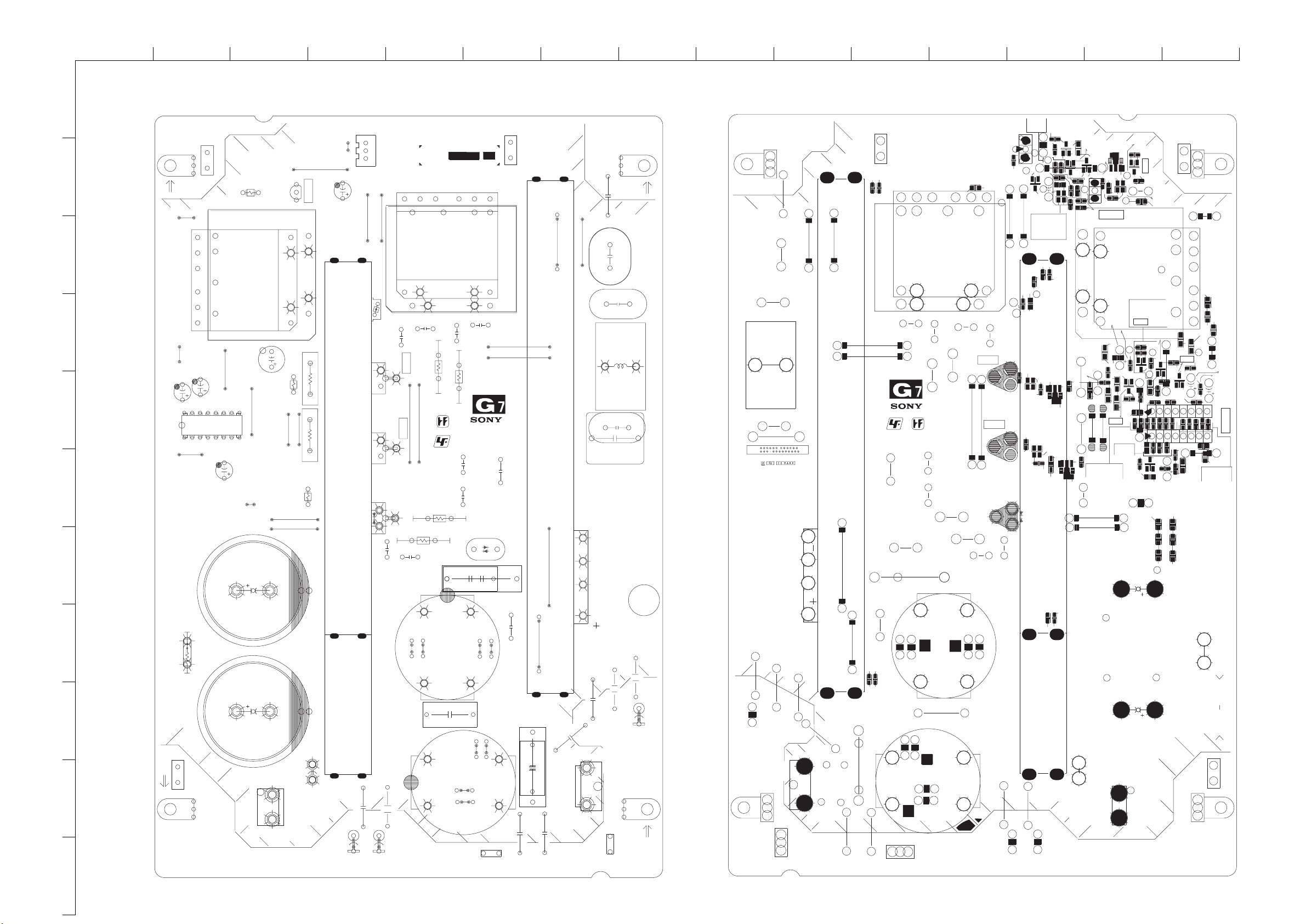

G7 Printed Wiring Board(55 inches) ................. 75

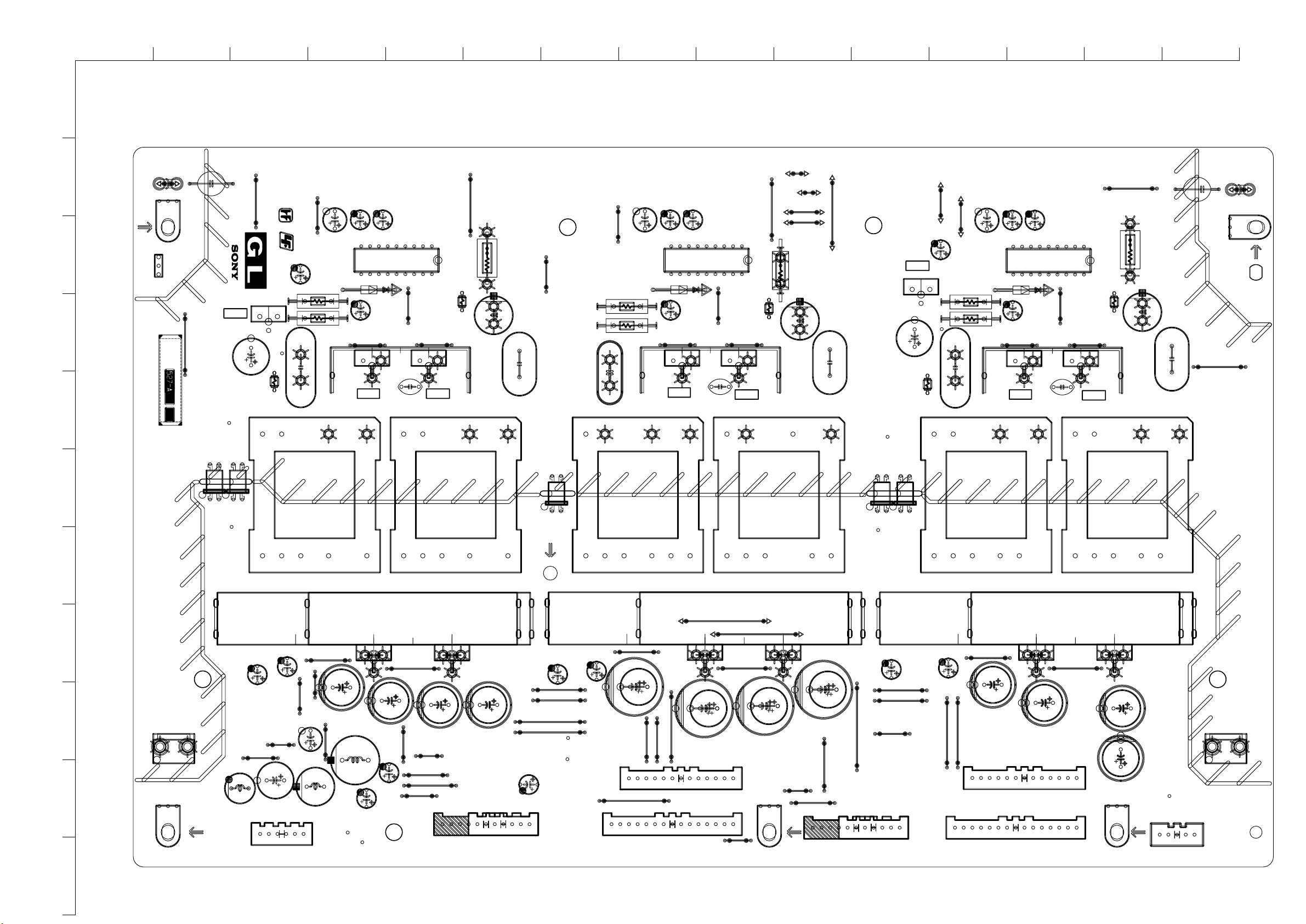

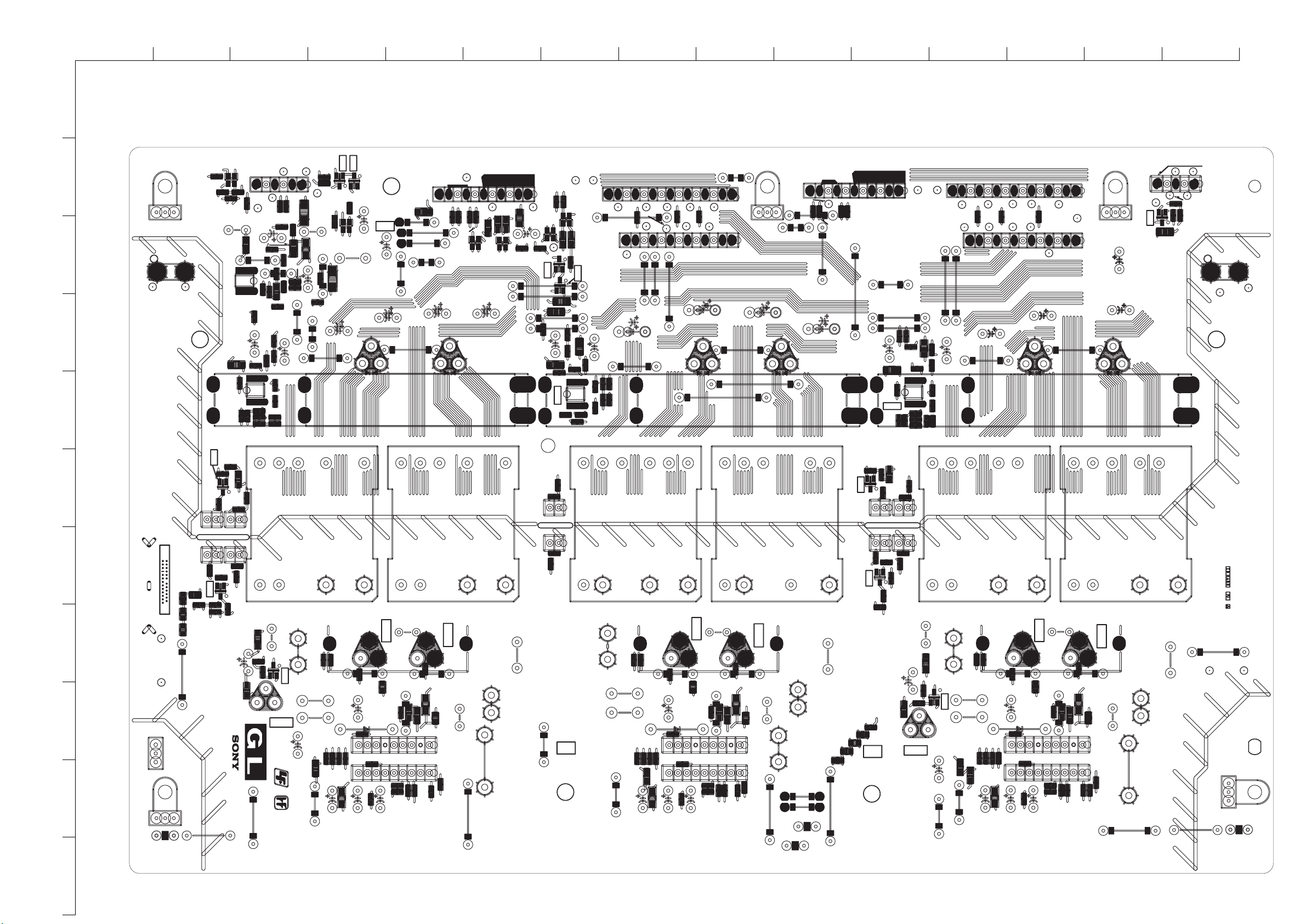

GL Printed Wiring Board(46/55 inches) ........... 76

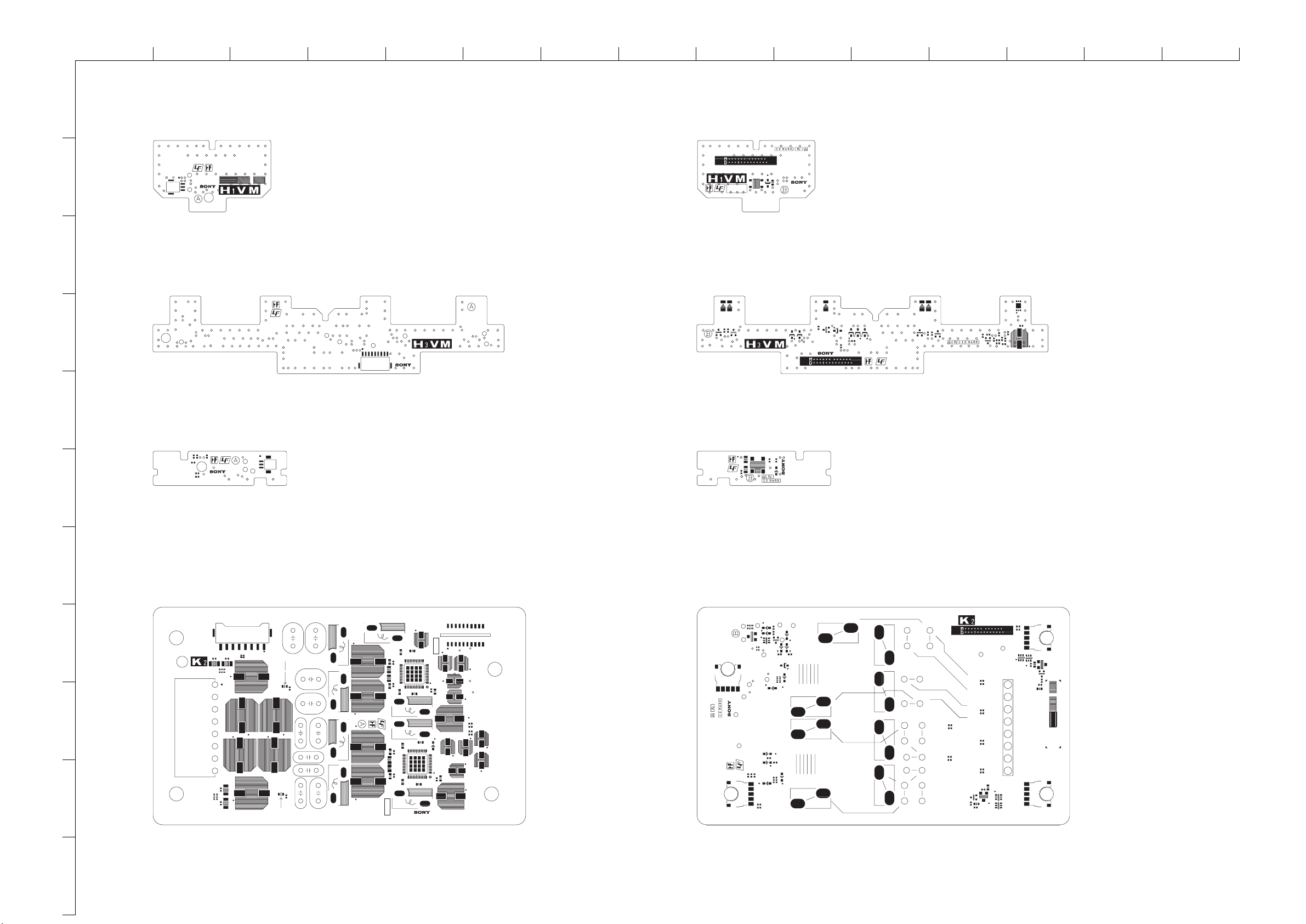

H1VM Printed Wiring Board............................. 78

H3VM Printed Wiring Board............................. 78

H4 Printed Wiring Board ................................... 78

K2 Printed Wiring Board ................................... 78

5. EXPLODED VIEWS

5-1. Chassis ................................................................ 79

5-2. Stand Assy & Speakers ...................................... 80

5-3. Bezel ................................................................... 81

5-4. Rear Cover & Power Supply Cords ................... 82

6. ELECTRICAL PARTS LIST .................................. 83

WARNING !!

AN ISOLATION TRANSFORMER SHOULD BE USED DURING ANY
SERVICE W ORK TO AVOID POSSIBLE SHOCK HAZARD DUE TO
LIVE CHASSIS, THE CHASSIS OF THIS RECEIVER IS DIRECTLY
CONNECTED TO THE POWER LINE.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY SHADING AND MARKED
THE EXPLODED VIEWS AND IN THE PARTS LIST ARE CRITICAL
FOR SAFE OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN
THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

- 2 -

ON

SECTION 1 GENERAL

How to replace the fuse.
Open the fuse compartment with
a screwdriver blade and replace
the fuse.

FUSE

SECTION 1 GENERAL

CAUTION

Lead Free Soldered Boards

example

The circuit boards used in these models have been processed using
Lead Free Solder. The boards are identif ied by the LF logo located
close to the board designation e.g. H1 etc [ see example ]. The
servicing of these boards requires special precautions to be taken as
outlined below.

Lead Free Solder material must be used to comply with environmental requirements of new solder joints. Lead Free Solder is available under
the following part numbers :

rebmuntraP retemaiD skrameR

91-500-046-7mm3.0gK52.0
02-500-046-7mm4.0gK05.0
12-500-046-7mm5.0gK05.0
22-500-046-7mm6.0gK52.0
32-500-046-7mm8.0gK00.1
42-500-046-7mm0.1gK00.1
52-500-046-7mm2.1gK00.1
62-500-046-7mm6.1gK00.1

Due to the higher melting point of Lead Free Solder the soldering iron tip temperature needs to be set to 370 degrees centigrade. This requires
soldering equipment capable of accurate temperature control coupled with a good heat recovery characteristics.

For more information on the use of Lead Free Solder, please refer to http://www.sony-training.com

UK PLUG W ARNING

WARNING (UK Models only)

The flexible mains lead is supplied connected to a B.S. 1363 fused
plug having a fuse of the correct rating for the set. Should the fuse
need to be replaced, use a fuse of the same rating approved by ASTA
to BS 1362, ie one that carries the

ASA

T

mark.

IF THE PLUG SUPPLIED WITH THIS APPLIANCE IS NOT SUITABLE
FOR THE OUTLET SOCKETS IN YOUR HOME, IT SHOULD BE CUT
OFF AND AN APPROPRIA TE PLUG FITTED. THE PLUG SEVERED
FROM THE MAINS LEAD MUST BE DESTROYED AS A PLUG WITH
BARED WIRES IS DANGEROUS IF ENGAGED IN A LIVE SOCKET .

When an alternative type of plug is used, it should be fitted with the
correct rating fuse, otherwise the circuit should be protected by the
same rating fuse at the distribution board.

- 3 -

Attachment of HIROSE MDF 61 connector

locked state

1. Insertion

(1) Hold the center
of a connector

CAUTION

(2) Press the center of
the connector to insert
it

(3) Slide the
slider to lock the
connector

Detachment of HIROSE MDF61 connector

2. Detachment

(1) Slide the slider to
release the slider lock

Lock

(2) Press the center
lock tab to release
the lock and pull the
connector up

Unlock

- 4 -

- 4 -

SPECIFICATIONS

Analogue:
Depending on your country/region
B/G/H, D/K, L, I

Digital:
Depending on model
DVB-T/DVB-C

Input/Output Terminals [REAR] General Specifications

1: 21-pin Euro connector
(CENELEC standard)

2: 21-pin Euro connector
(CENELEC standard)

Television System Channel Coverage Colour/Video System

Inputs for Audio and Video signals.
Inputs for RGB.
Outputs of TV Video and Audio
signals.

Inputs for Audio and Video signals.
Inputs for RGB.
Outputs of Video and Audio signals
(Selectable). SmartLink interface.

Analogue: VHF : E2-E12
UHF : E21-E69
CATV : S1-S20
HYPER : S21-S41
D/K: R1-R12, R21-R69
L: F2-F10, B-Q, F21-F69
I: UHF B21-B69
Digital: VHF/UHF

Power Requirements 220 - 240V

Power Consumption/
Standby

Dimensions

Weight

Analogue:
PAL, PA L 60(VIDEO IN), SECAM
NTSC 3.58, NTSC4.43(VIDEO IN)

Digita l:
MPEG-2 MP@ML/HL, H.264/MPEG-4 AVC
MP/[email protected]

(40 inches):
Approx 210W/0.2W (Home/Standard mode)
Approx 230W/0.2W (Shop/Vivid mode)
(46 inches):
Approx 270W/0.5W (Home/Standard mode)
Approx 350W/0.5W (Shop/Vivid mode)
(55 inches):
Approx 370W/0.6W (Home/Standard mode)
Approx 480W/0.6W (Shop/Vivid mode)

(40 inches):
Approx 1128x655x279mm (With stand)
Approx 1128x603x125mm (Without stand)
(46 inches):
Approx 1259x737x315mm (With stand)
Approx 1259x685x144mm (Without stand)
(55 inches):
Approx 1486x855x356mm (With stand)
Approx 1486x803x147mm (Without stand)

Approx 27.0kg (40 inches with stand)
Approx 23.5kg (40 inches without stand)
Approx 38.0kg (46 inches with stand)
Approx 33.0kg (46 inches without stand)
Approx 54.0kg (55 inches with stand)
Approx 47.5kg (55 inches without stand)

Supported formats: 1080p, 1080i,
720p, 576p, 576i, 480p, 480i
Y: 1 Vp-p, 75 ohms, 0.3 negative

Component In

HDMI Inputs

PC Input

DMPORT Digital Media Port

Digital Audio Out Digital Optical Jack
LAN 10BASE-T/100BASE-TX connector
CAM Conditional Access Module Slot

Input/Output Terminals [SIDE] Remote control system : Infrared control

Headphone jack Stereo mini jack
Audio input Phono jacks
Video input Phono jack
S Video input 4-pin mini DIN
USB input USB port

HDMI input HDMI Connector

sync
PB/CB: 0.7 Vp-p, 75 ohms
PR/CR: 0.7 Vp-p, 75 ohms
Audio input: Phono jacks

Video: 1080/24p, 1080p, 1080i,

720p, 576p, 576i, 480p, 480i

Audio: Two channel linear PCM

32, 44.1 and 48kHz,

16, 20 and 24 bits
Analogue audio: Minijack
(HDMI IN 1 only)

Video:15 Pin D Sub Connector
Audio: Minijack

Design and specifications are subject to change without notice.

High Picture & Sound Quality, Bravia Sync,
Full HD with 10bit panel, XMB,
Live Colour Creation, 2CH speaker system,

Other Features

Sound Output

Right and Left speaker 2 x 10W, 2 x 12W(Woofer)

Power requirements

Illuminated logo, USB Input, 4 HDMI inputs,
PC input, S-Force, Digital Media Port,
Picture Frame Mode, 24P True Cinema,
PAP, PIP Freeze, Photo Map, Swivel.

3V dc
2 batteries IEC designation
R06 (size AA)

- 5 -

21 Pin Connector (SCART)

1

21
19
17
15
13
11

9
7
5
3
1

20
18
16
14
12
10

CONNECTORS

Pin No 1 2 Signal Signal level

1 Audio output B

2

3
4 Ground (audio)
5 Ground (blu e)
6 Audio input A

7 Blue input 0.7 +/- 3dB, 75 ohms positive

8 Function select

9 Ground (green)
10 AVlink
11 Green Green signal : 0.7 +/- 3dB, 75 ohms,

12 Open

8

13 Ground (red)
14 Ground (blanking)

6
4
2

15

16 Blanking input

17 Ground (video

18 Ground (video

19 Video output 1V +/- 3dB, 75ohms, positive sync 0.3V

20

21 Common ground

(right)
Audio input B

(right)
Audio output A

(left)

(left)

(AV control)

_ _ Red input 0.7 +/- 3dB, 75 ohms, positive

_ (S signal Chroma

-

-

input)

(Ys signal)

output)

input)

Video input 1V +/- 3dB, 75ohms, positive sync 0.3V

Video input

--

Y (S signal)

(plug, shield)

Connected Not Connected (open) * at 20Hz - 20kHz

Standard level : 0.5V rms
Output impedence : Less than 1kohm*

Standard level : 0.5V rms
Output impedence : More than 10kohm*

Standard level : 0.5V rms
Output impedence : Less than 1kohm*

Standard level : 0.5V rms
Output impedence : More than 10kohm*

High state (9.5-12V) : Part mode
Low state (0-2V) : TV mode
Input impedence : More than 10K ohms
Input capacitance : Less than 2nF

positive

0.3 +/- 3dB, 75 ohms, positive

High state (1-3V) Low state (0-0.4V)
Input impedence : 75 ohms

(-3+10dB)

(-3+10dB)
1V +/- 3dB, 75ohms, positive sync 0.3V

(-3+10dB)

HDMI Connector

15 Pin D Sub Connector (PC)

Pin No Signal Assignment Pin No Signal Assignment

1 TMDS Da t a 2+ 11 TMDS Cl o ck S hield

2 TMDS Data2 Shield 12 TMDS Clock-

3TMDS Data2- 13CEC

4 TMDS Data1+ 14 Reserved (N.C. on device)

5 TMDS Data1 Shield 15 SCL

6 TMDS Data1- 16 SDA

7 TMDS Data0+ 17 DDC/CEC Ground

8 TMDS Data0 Shield 18 +5V Power

9 TMDS Data0- 19 Hot Plug Detect

10 TMDS Clock+

Pin No Signal Assignment Pin No Signal Assignment

1Red Out 9+5V DC

2 Green Out 10 S ync Return (Ground)

3 Blue Out 11 Monitor ID0 in Display

4 Unused 12 DCC Serial Da ta

5 Ground 13 Horizontal Sync

6 Red Re t urn 14 Vertical Sy n c

7 Green Return (Ground) 15 DCC Serial Clock

8 Blue Return (Ground)

- 6 -

EG1H SELF DIAGNOSTIC SOFTWARE

The identification of errors within the EG1H chassis is triggered in one of two ways :- 1: Busy or 2: Device failure to respond to IIC. In the
event of one of these situations arising the software will f irst try to release the bus if busy (Failure to do so will report with a continuous
flashing LED) and then communicate with each device in turn to establish if a device is faulty. If a device is found to be faulty the relevant
device number will be displayed through the LED (Series of flashes which must be counted).

LED Error Codes and Descriptions

Number of LED

Flashes

02 POW ERR1 Power error (Watching 12v rail).
05 T_CON T-CON error.

06 BACKLITE
07 PANEL TEMP Panel temperature abnormal detection.

08 AUD_PROT Audio abnormal detection.
09 FAN_ERR Fan error
10 DTT ERR EMMA WDT - Not detected (Reboot operation).

13 BALANCER

Display Error Description

DISPLAY OF STANDBY LIGHT FLASH COUNT

[CCFL] Panel inverter error.

[LED] GL board error.

[CCFL] Panel balancer error.

[LED-BL] SPI error(Babylon communication error).

[ FLASH COUNT ]

2 times
4 times
5 times

LED ON 0.3 sec.
LED OFF 0.3 sec.

Note: One flash count is not self-diagnostic.

LED OFF

2 sec.

STANDBY LED

STOPPING THE STANDBY FLASH

Turn off the power switch on the TV main unit or unplug the power cord from the outlet to stop the STANDBY LED for flashing.

- 7 -

SELF-DIAGNOSTIC SCREEN DISPLAY

For errors with symptoms such as “power sometimes shuts off” or “screen sometimes goes out” that cannot be confirmed, it is possible to
bring up past occurrences of failure for confirmation on the screen:

[To Bring Up Screen Test]

In standby mode, press buttons on the remote commander sequentially in rapid succession as shown below:

5

( Info/Text reveal )

( Number button )

* ( Volume ) ( TV standby )
* : Note that this differs from entering the service mode (volume +)

[ SELF-DIAGNOSTIC SCREEN DISPLAY ]

SELF CHECK

002 POW_ERR1
005 T_CON

006 BACKLITE
007 PANL TEMP
008 AUD_PROT
009 FAN_ERR
010 DTT_ERR

013 BALANCER

12345 - 00333 - 06789

0501210811 0412311234 0311111825 00
0000000000 0000000000 0000000000 00

0000000000 0000000000 0000000000 00
0000000000 0000000000 0000000000 00
0000000000 0000000000 0000000000 00
0000000000 0000000000 0000000000 00
0000000000 0000000000 0000000000 00

0000000000 0000000000 0000000000 00

Panel operation time by hour (max 99999)
Boot count (max 99999)

Total operation time by hour (max 99999)

The last failure time
Falure time before last

Last failure time beforehand

Error count (00-99)

Item name
Frequency of LED blinking.

Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen
After you have completed the repairs, clear the result display to “0”.

Clearing the result display

To clear the result display to “0”, press button on the remote commander sequentially as shown below when the diagnostic screen is being
displayed.

<Delection of Error Count and Error History>

Press “8” button

<Delection of Panel Operation Time>

Press “7” button

Press “-” button

,

Press “-” button

,

Quitting Self-diagnostic screen

To quit the entire self-diagnostic screen, turn off the power switch on the remote commander or the main unit.

- 8 -

SECTION 2 DISASSEMBLY

2-1. Rear Cover Removal

1

=>

=>

1

=>

1

=>

1

=>

1

=>

3

1

=>

3

=>

1

=>

1

Remove the rear cover fixing screws indicated and pull the rear cover
gently backwards away from the back of the TV set.

Screw Part number(s) and Description(s)

1) 2-580-640-01 SCREW, +BVTP2 4X16 (18 Screws)

2) 7-685-648-79 SCREW, +BVTP 3X12 TYPE2 IT-3 (2 Screws)

3) 2-580-608-01 SCREW, +PSW M5X16 (4 Screws)

1

=>

=>

1

=>

1

=>

1

=>

3

=>

1

=>

3

=>

=>

1

=>

1

=>

2

=>

2

=>

1

=>

1

=>

1

2-2. Stand Removal

=>

=>

Remove the 4 stand fixing screws as indicated.

Screw Part number(s) and Description(s)

2-580-608-01 SCREW, +PSW M5X16 (4 Screws)

=>

=>

2-3. Speaker Box Removal

Screws

T o remove the speaker box f irstly remove the speaker grille by
pushing the grille upwards, disconnect the speaker cable and then
remove the 5 screws circled.

Screw Part number(s) and Description(s)

2-580-640-01 SCREW, +BVTP2 4X16 (5 Screws)

2-4. W oof er Box Remova l

Screws

T o remove the w oofer box disconnect all connectors and then remove
the 2 screws circled and ease the box gently away from the back of the
TV set.

Screw Part number(s) and Description(s)

2-580-654-01 SCREW, +PWTP2 4X16 (2 Screws)

- 9 -

2-5. CB1 Board Removal

Screws

2-6. D4 Board Removal (40 inches)

Screws

T o remov e the CB1 board disconnect all connectors and then remo ve
the shield. Then remove the 4 screws circled and ease the board gently
away from the back of the TV set.

Screw Part number(s) and Description(s)

7-682-948-01 SCREW, +PSW 3X8 (4 Screws)

T o remove the D4 board disconnect all connectors and then remove the
6 screws circled and ease the board gently away from the back of the
TV set.

Note: Refer to page 4 - Hirose MDF61 connector.
Screw Part number(s) and Description(s)

2-674-965-51 SCREW, +PSW 3SG (6 Screws)

2-7. FBA Board Removal 2-8. G6 Board Removal

T o remove the FBA board disconnect all connectors and then remove
the 10 screws circled and ease the board gently away from the back of
the TV set.

Screw Part number(s) and Description(s)

2-580-629-01 SCREW, +BVST 3X8 (10 Screws)

Screws

ScrewsScrews Screws

T o remove the G6 board disconnect all connectors and then remov e the
8 screws circled and ease the board gently away from the back of the
TV set.

Screw Part number(s) and Description(s)

7-682-948-01 SCREW, +PSW 3X8 (8 Screws)

- 10 -

2-9. G7 Board Removal (55 inches)

2-10. GL Board Removal (46 & 55 inches)

Screws

To remo ve the G7 board disconnect all connectors and then remove the
4 screws circled and ease the board gently away from the back of the
TV set.

Screw Part number(s) and Description(s)

7-682-948-01 SCREW, +PSW 3X8 (4 Screws)

T o remove the GL board disconnect all connectors and then remove the
6 screws circled and ease the board gently away from the back of the
TV set.

Note: Refer to page 4 - Hirose MDF61 connector.
Screw Part number(s) and Description(s)

7-682-948-01 SCREW, +PSW 3X8 (6 Screws)

2-11. H1VM Board Removal 2-12. H3VM Board Removal

Screws

Clips

Clips

To remove the H1VM board firstly remove the power button assy
away from the bezel assy , disconnect the connector and then release the
2 clips circled and ease the board gently of its housing.

T o remove the H3VM board disconnect the connector and then release
the 2 clips circled and ease the board gently away from the back of the
TV set.

- 11 -

2-13. H4 Board Removal 2-14. K2 Board Removal

Clip

T o remove the H4 board disconnect the connector and then release the
clip circled and gently ease the board towards you and away from the
back of the TV set.

T o remove the K2 board disconnect all connectors and then remove the
4 screws circled and ease the board gently away from the back of the
TV set.

Screw Part number(s) and Description(s)

2-580-629-01 SCREW, +BVST 3X8 (4 Screws)

Screws

2-15. AE Board Removal

ScrewsScrews

To remo ve the AE board disconnect all connectors and then remove the
10 screws circled and ease the board gently away from the back of the
TV set.

Screw Part number(s) and Description(s)

2-580-629-01 SCREW, +BVST 3X8 (9 Screws)

2-16. Sensor Module Removal

Pic.1

Pic.2

T o remove the sensor module remov e the connector . Then remov e the
‘holder, touch’ by releasing the 2 clips circled in Pic.1and then releasing
the 2 clips circled in Pic.2, you can then remove the the sensor module.

- 12 -

SECTION 3 SERVICE MENUS

3-1. How to enter Service Mode

Service adjustments to this model can be performed using the
supplied remote Commander RM-ED012.

1. Turn on the power to the TV set and enter into the stand-by
mode.

2. Press the following sequence of buttons on the Remote
Commander.

i+

(ON SCREEN (DIGIT 5) (VOLUME +) (TV)
DISPLAY)

3. The TVM Service Menu appears on the screen (See Pic.1).

Pic.1

5

+

TV

I/

3-4. Entering BEM Service Menu

1. Press “Previous channel ” on the remote commander and the
BEM menu appears (See Pic.4)

Pic.4

3-5. Changing BEM Data Settings

1. Press “2 / 5” on the remote commander to select (up / down)
category (See Pic.5).

2. Press “1 / 4” on the remote commander to select (up / down)
item (See Pic.5).

3. Press “3 / 6” on the remote commander to select (up / down)
data (See Pic.5).

Pic.5

Category

Note :

• After carrying out the service adjustments, to prevent the
customer accessing the ‘Service Menu’ switch the TV set OFF

and then ON.

3-2. Changing TVM Data Settings

1. Press “2 / 5” on the remote commander to select (up / down)
category (See Pic.2).

2. Press “1 / 4” on the remote commander to select (up / down)
item (See Pic.2).

3. Press “3 / 6” on the remote commander to select (up / down)
data (See Pic.2).

Pic.2

Data

Category

Item

3-3. Writing TVM Data

Item

Data

3-6. Writing BEM Data

1. Press “Mute” on the remote commander. The word “SER VICE”
in green changes to “WRITE” (See Pic.6).

2. Press “0” on the remote commander. The word “WRITE” in
green changes to red. This indicates writing is in progress
(See Pic.6).

3. When “WRITE” changes to green “SERVICE”. This indicates
writing is complete.

Pic.6

1. Press “Mute” on the remote commander. The word “SER VICE”
changes to “WRITE” (See Pic.3).

2. Press “0” on the remote commander.

3. After approximately 1 minute, “WRITE” changes to
“SER VICE”. This indicates writing is complete.

Pic.3

- 13 -

3-7. T rouble Shooting

3-7-1. No Power

When the TV Set has no power please see flowchart [A].

3-7-2. Set Reboots

When the TV Set tries to restart please check the following:-

1. FBA board.

- CN2800 12v power and harness to G6.

- F4100, F4101, F4102, F5400, F7800, F7801
for conduction .

2. If no problems are found with the power rail replace the

FBA board.

3-7-3. Power Error

When the TV Set indicates a power error please check the following:-

1. Check the TV micro pin 79 and 138 on the AE boar d.

2. Check 12V at CN1000 and F1001 on the AE board .

3. Check the G6 board.

3-7-4. T-Con Error

When the TV Set has a T-Con error please check the following:-

1. Check the BE micro pin 128 on the FBA board.

2. Replace the panel module.

3-7-9. Balancer Error

When the TV Set has a Balancer board error please check the
following:-

1. Check the BE micro pin 163 on the FBA board.

2. Check harness connection CN6700 on the D4 board and
CN104 on tne balancer board of panel module (40 inches).

3. Check harness connection CN9700, CN9701 on the CB1
board and panel module (46/55 inches).

4. Replace the panel module.

5. Replace CB1 board (46/55 inches).

3-8. CB1 Board Replacement (46/55 inches)

When replacing the CB1 board adjustment data held in the backlight
NVM of the panel can be copied to the CB1 board. Data held on the
CB1 board can also be copied to the panel in the case of panel
replacement.

3-8-1. Copying data from Panel to CB1 Board

1. Enter Service Mode (See 3-1).

2. Go in to BEM Service Mode (See 3-4) and go to
‘DATA_COPY’ (See Pic.7).

Pic.7

3-7-5. Back Light Error

When the TV Set has a Back Light error please check the following:-

1. Check the BE micro pin 78 on the FBA board.

2. Replace the D4 board in CCFL model and GL board in LED
models.

3-7-6. Temperature Error

When the TV Set temperature is high please check the following:-

1. Check IC1000 on the AE board and replace the AE board
if the temperature monitoring circuit has a problem.

2. Check the panel.

3-7-7. Audio Error

When the TV Set has an audio error please check the following:-

1. Check IC1800 on AE board. The audio amp detects ov er
current, thermal shutdown and/or low voltage.

2. Check voltage at CN1002 pin 20 on the AE board.

3. Replace the AE board.

3-7-8. Fan Error

When the TV Set has a fan error please check the following:-

1. Check the BE micro pin 154 on the FBA board.

2. Check fan harness connection.

3. Check the voltage on CN1301 the AE board.

4. Replace the fan.

3. Change ‘COPY_SW1’ to 1 and wait until the message
“ COPIED NVM TO FLASH” appears (See Pic.8).
At this point make sure the TV set is not powered off until
this message appears.

Pic.8

4. Software has now been copied. Switch AC of f and back on
again to confirm.

- 14 -

See Flow Chart [A]

See (3-7-2)

See Flow Chart [B]

NO

Trouble

Set Power

EG1H Trouble Shooting

YES

YES

NO

Set Re-boots

YES

Self diagnosis

Video

See Flow Chart [C]

NO

Audio

See Flow Chart [D]

- 15 -

H1VM board

NO

W6

See Flow Chart [B]

YES

works
key

Power

YES

NO

AC cable or AC inlet

AE board

G6 board

(No STBY5V)

NO

  

No Power

(No relay clicks)

NO

Blinks

RED LED

110-240Vac

- 16 -

YES

CN6000 on G6

5Vdc

CN2800 #7

YES

on FBA

W6

See 3-7-7 AUDIO ERR

See 3-7-8 FAN ERR

See 3-7-9 Balancer ERR

  

W7

See 3-7-3 POW ERR

YES

8X

YES

NO

9X

See 3-7-4 T-CON ERR

NO

See 3-7-5 BACK LIGHT

YES

13X

ERR

Q(

See 3-7-6 TEMP

YES

2X

RED LED Blinks

NO

YES

5X

- 17 -

NO

YES

6X

NO

YES

7X

NO

W7

VCBS

Problem?

NO

Problem?

Component

NO

YES

YES

Check

AE board

Check

FBA board

AE board

Joint connector

  

Video

problem

Digital

/Analog

Channel

NO

HDMI

Problem?

NO

have

All inputs

Problem?

problem?

YES YES

YES

Check

FBA board

AE board

Check

FBA board

AE board

Joint connector

YES

OSD

appear?

Joint connector

YES

turn on?

Back Light

NO

NO

Check

FBA board

Check

LVDS harness

FBA board

CB1 board

Here is trouble shooting flow related Video

- 18 -

Check

LVDS harness

G6/7/GL boards

FBA board

Panel Module

CB1 board

D4 board

Check

AE Board

NO

Analog

Channel

NO

Digital

Channel

K2 Board

YES

Problem?

YES

Problem?

Check

AE Board

Check

FBA Board

AE Board

Joint connector

Flow Chart [D]

Audio

problem

Here is trouble shooting flow related audio

NO

HDMI

Problem?

NO

Only

Speaker

out?

YES

YES

Check

FBA board

AE Board

UI setting

K2 Board

Joint connector

YES

off/On

correct?

HP Link

Volume, SP

NO

Check Speaker

AE Board

K2 Board

Set correctly or

reset by menu.

- 19 -

4-1. BLOCK DIA GRAM

EG-1H Block Diagram

HDMI1

HDMI2

HDMI3

HDMI4

PC In

MS (JIG)

Ether

USB

TMDS
DDC
CEC

TMDS
DDC
CEC

TMDS
DDC
CEC

TMDS
DDC
CEC

PCMCIA

NVM

PHY

TS
TS

IIC

NAND

512Mb

HDMI EQ/SW

SW

FRAM

2Kb

EMMA3SL

YC

CXB1446

DAC

L/R

DDR2

512Mbx2

TMDS
DDC

CEC

ADC

TH7984

IIC

IIC

㧴㧰㧹㧵 㧾㨤

YCbCr16bit H/V/CK
GPX ARGB888 H/V/CK

H/V/CK (for GPX)
REC656 (for teletext)

I2S 2ch/5.1ch

SW

SPDIF

UART
UART

SPI

Companion

Sil19151

v1.3

DLY

I2S 2ch

IIC

IIC

BUS

SW

IIC

IIC

NVM

Sub Chrom

FBA

SAA7115A

IIC

IIC

IIC

DDR2

128Mbx3

IFP

core

RCP

LVDS

Flash
32Mb

BEM

SDR

64Mb

BUS

BUS

SW

DRC V3

DRC v1

SW

IIC

CCP-XA

core

BUS

SW

EPP

SW

IIC

DDR2

Flash

256Mbx2

Kaiser

MB91305

SIRCS

UART

IIC

Aerial/Cable

Audio-In DVI

S-Mini

PC Audio-In

S-Mini

SCART1

SCART2

Comp1

Comp2

DMPORT

Audio Out

Opt. Out

UFE4

Tuner

L/R

L/R

CVBS/RGB
L/R
CVBS (TVOUT)
L/R (TVOU T )

CVBS/RGB
L/R
CVBS (SELOUT)
L/R (SELOUT)
YCbCr
L/R

YCbCr
L/R

CVBS
L/R(diff)
UART

L/R

SPDIF

AE

QSS / FM

SW

MSP3417

L/R(M)
L/R(TVOUT)

Video SW

CXA2240

diff->

unbal

YCbCr/RGB
CVBS/YC(M)
CVBS/YC(S)

Audio

DSP

TAS3308

HP

SELOUT

LO

SP

BASI

CXA3767

RTC

Power SW

Touch

Panel

Key

IR

LED

DDR2

128Mbx2

NVM

DDR

128Mbx2

NVM

Cayenne-S

Babylon

DDR2

128Mb

SONY Logo

I2S

DAC

WL
WR

Amp

Flash

CB1

T-CON

Cayenne-S

NVM

T-CON

(CT)

L
R

CVBS / YC

L/R

Amp

K2

Side Video

HP Out

FHD HFR LED

55”,46”

BL_NVM

MEGA

SPI

FHD HFR CCFL

40”

MAC

- 20 -

4-2. CIRCUIT BO ARD LOCA TION

5-2. CIRCUIT BOARD LOCATION

Reference Information

CB1

H1VM

VM

D4/GL

CVM Board

H

A

H3VM

D1

A Board

H4

4-3. SCHEMA TIC DIA GRAMS AND

5-3. SCHEMATIC DIAGRAMS AND

PRINTED WIRING BOARDS

PRINTED WIRING BOARDS

C

C

N

S1 Board

G6

D2

A

D

G7

Note :

• All capacitors are in µF unless otherwise noted.

• pF : µµF 50WV or less are not indicated except for
electrolytic types.

• Indication of resistance, which does not have one for
rating electrical power, is as follows.

Pitch : 5mm
Electrical power rating : 1/4W

• Chip resistors are 1/10W

• All resistors are in ohms.
k = 1000 ohms, M = 1000,000 ohms

• : nonflammable resistor.

• : fusible resistor.

• : internal component.

• : panel designation or adjustment for repair.

• All variable and adjustable resistors have
characteristic curve B, unless otherwise noted.

• All voltages are in Volts.

• Readings are taken with a 10Mohm digital mutimeter.

• Readings are taken with a color bar input signal.

• Voltage variations may be noted due to normal production
tolerences.

•: B + bus.

FBA

K2

AE

J

A1

A2

RESISTOR RN

RC
FPRD
FUSE
RS
RB
RW

COIL LF-8L
CAPACITOR TA

PS
PP
PT
MPS
MPP
ALB
ALT
ALR

Note :

The components identified by shading
and marked are critical for safety.
Replace only with the part numbers
specified in the parts list.

Note :

Les composants identifiés par une trame et
par une marque sont d'une importance
critique pour la sécurité. Ne les remplacer
que par des pièces de numéro spécifié.
specified.

Note :

The components identified by mark
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.

: METAL FILM
: SOLID
: NON FLAMMABLE CARBON
: NON FLAMMABLE FUSIBLE
: NON FLAMMABLE METAL OXIDE
: NON FLAMMABLE CEMENT
: NON FLAMMABLE WIREWOUND
: ADJUSTMENT RESISTOR

: MICRO INDUCTOR
: TANTALUM
: STYROL
: POLYPROPYLENE
: MYLAR
: METALIZED POLYESTER
: METALIZED POLYPROPYLENE
: BIPOLAR
: HIGH TEMPERATURE
: HIGH RIPPLE

contain

• : B - bus.

• : RF signal path.

• : earth - ground.

• : earth - chassis.

Note: Schematic dia grams are for reference onl y . Please refer to the electrical parts list for
the correct value and part number of components.

- 21 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

AE - EG1H

TEMP SENSOR/MECHA/PO WER CONNECTOR

2

3

D3.3V

2

3

AUDIO PIN JACK/K CONNECTOR

C1000

0.1

16V

1005

4

5

8765

IC1000

MM3286EFBE

4321

GND_1

2143658

XX

RB1004

•xZ T[

7

1

Mount Mecha

Mount Mecha

Mount Mecha

A1000

A1001

A1005

410268311

410268311

410268311

XX

XX

AUDIO_VCC

4

5

A Side

22

RB1003

E

ET1002

XX

E

ET1004

XX

BEM_SCL1

6

BEM_SDA1

E

ET1000

XX

E

ET1007

XX

E

ET1009

XX

E

ET1011

XX

E

ET1013

XX

E

ET1015

XX

B Side

E

E

7

12V

E

ET1001

ET1003

E

ET1005

E

ET1006

E

ET1008

8

FB1001XXFB1002

0uH

CL1002

12V

GND
GND

12V

1
2

JL1001

3
4

To G

9

CN1000

4P

F1001

5A

24V

JL1000

C1001

0.001
50V

X7R
1005

XX

C1032

Mount Mecha

A1004

T00016025

E

ET1010

E

ET1012

XX

ET1014

ET1016

E

ET1017

XX

E

ET1019

XX

E

ET1018

E

JL1014

Audio Out

L

L

JL1015

R

R

J1000

JL1013

GND_1

VD1008

VD1010

X7R

1005

50V

0.001

C1033

X7R

1005

50V

0.001

C1034

008:5E

008:5E

LINE_OUT_L

LINE_OUT_R

SP_MUTE

SP_MUTE3

008:5H

003:5H

003:11E

Q1000

UNR52A1G0LS0

GND_1

SP_MUTE_2

SDO_MUTE

MAIN_SW_FAULT

008:7C

SP_L008:12F

SP_R008:12F

AWF_R003:13D

AWF_L003:13C

R1044

GND_1

CL1004

CL1003

R1039

100

1/16W

CHIP

5%

1005

CL1005

CL1006

R1042

100

R1043

L1000

XX

XX

0uH

AUDIO_VCC

1

AUDIO_VCC

2

AUDIO_GND

3

AUDIO_GND

4

SP_MUTE3 (GND)

5

GND

6

SP_L-

7

GND(shield-L)

8

SP_L+

9

PFC_DET_AU

10

SP_R+

11

GND(shield-R)

12

SP_R-

13

X_SP_MUTE2

14

AWF_R

15

GND(shield-AWF)

16

AWF_L

17

SDO_MUTE (GND)

18

SP_MUTE

19

MAIN_SW_FAULT

20

CN1002

20P

WHT

6

7

8

9

10

11

12

13

14

15

16

17

18

19

SET_ON

DMP_DET

DIGITAL MEDIA PORT

R1018

XX

Q1001

XX

R1007

XX

GND_1

R1004

R1008

XX

DMP5V

XX

JL1025

C1005

XX

1k

JL1026

C1004

R1036

XX

XX

GND_1

IN B
IN A

321

GND OUT Y

IC1002

VCC

54

DMP

R1038

XX

JL1002

C1002

0.1

16V

R1003

10k

1/16W

CHIP

5%

CN1001

20P
BLK

GND_1

R1040

100k

1/16W

CHIP

5%

C1003

100
16V

CL1007

GND_1

1PGND
2VBUS(5V)
3NC
4VIDEO5V

JL1006

5RXD

JL1003

6TXD

JL1007

7DET
8DGND
9WM DET

10WM A/D

JL1008

11(Lch)AGND

JL1004

12(Rch)AGND

JL1009

13Lch

JL1005

14Rch
15WM RX
16WM TX

JL1010

17VIDEO
18VGND

JL1011

C1006

0.01
25V
X7R
1005

VD1000

XX

C1007

0.001
50V

X7R
1005

MIC2005-0.8YM6TR

IC1001

123

Vin

Vout

GND

C slew

ENABLE FAUL T/

C1008

0.1

16V
1005

GND_1

VD1001

XX

456

C1010

VD1002

XX

1000

6.3V

VD1003

XX

XX

VD1004

CL1008

1k

RB1005

JL1012

XX

VD1005

1k

XX

VD1006

RB1006

XX

VD1007

75

R1045

1/16W

RN-CP

1k

RB1007

0.5%

XX

C1011

1k

RB1008

GND_1

R1048

47k

DMP_TXD 010:8B
DMP_RXD 010:8B
DMP_DET 007:10I

A_DMP_L- 008:5H
A_DMP_R- 008:5H
A_DMP_L+ 008:5H
A_DMP_R+ 008:5H

CVBS_DMP 007:9I

HP OUT

DVI A UDIO

PC Audio

J1001

3
4
5
1
2
7
6

R

J1002

L

JL1016
JL1017

JL1018

GND_1

J1003

JL1019

GND_1

GND_1

JL1020

JL1021

L

R

VD1009

JL1022

R

L

VD1011

1
2

JL1023

JL1024

VD1014

1
2

C1015

XX

VD1015

C1019

VD1016

C1020

VD1012

C1013

VD1013

C1014

XX

XX

XX

XX

R

C1016

XX

L

R1054

XX

R1053

XX

R1052

XX

R1051

XX

R1050

XX

R1049

XX

FB1006

0uH

R1025
1/16W

CHIP

R1026
1/16W

CHIP

R1021
1/16W

CHIP

R1022
1/16W

CHIP

1k

5%

1k

5%

1k

5%

1k

5%

C1021

0.022
25V

X7R
1005

FB1007

GND_HP

R1027

RN-CP

100

1/10W 5%

C1022

0.001
50V

X7R
1005

C1023

0.001
50V
X7R
1005

C1018

0.001
X7R

1005

0uH

C1017

0.001
50V

X7R
1005

50V

R1033

1M

1/16W

CHIP

5%

R1029

1M
1/16W
CHIP

5%

C1024

470p

50V
X7R
1005

R1032
1/16W

1M

CHIP

5%

R1028

1M

1/16W

CHIP

5%

C1025

0.022
25V

X7R
1005

R1030

2.2k
1/16W
RN-CP

0.5%

R1031

2.2k
1/16W
RN-CP

0.5%

R1023

2.2k
1/16W
RN-CP

0.5%

R1024

2.2k
1/16W
RN-CP

0.5%

R1034

100
1/10W
RN-CP

5%

C1028

2.2
10V
X7R

2012

C1029

2.2
10V

X7R
2012

C1026

2.2
10V

X7R
2012

C1027

2.2
10V

X7R
2012

C1030

470p

50V
X7R
1005

C1031

1005

003:5J

003:5J

100p

CH

DVI_AU_L

DVI_AU_R

PC_AU_R

PC_AU_L

R1035

1k

003:5J

003:5J

HP_DET

HP_L 008:12G

HP_R 008:12G

10

11

12

010:8I

13

14

15

16

17

18

19

20

21

22

GND_1

ABCDEF GH JIKLMN

O

20

AE

1/9 TUNER, ANALOGUE SWITCH, AUDIO, I/O TERMINAL

21

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ AE Board Schematic Diagram [ Tuner, Analogue Switch, Audio, I/O Terminal ] P age 1/9 ~

- 22 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

AE - EG1H

2

DD-CON/REGULATOR/FAN

DMP5V

PQ070XNA1ZPH

IC1108

2

3

3

DMP5V

DDG

321

Q1102

XX

654

SDD

C1123

C1124

D1106

M1FM3

JL1101

CL1104

C1134

XX

GND_1

R1145

XX

R1148

XX

L1109

4.7uH

C1130

10V
X7R

R1153

10

CL1101

A

˚zu

A

˚zu

0

XX

XX

R1141

XX

L1110

0uH

C1133

XX

D1109

DIODE PTZ-TE25-5.6B

CL1106

C1114

1000

6.3V

GND_1

REG_PWR_ON2

002:11E;002:11D;002:11F;002:11H

4

12V

C1117

C1172

C1171

XX

470

5

16V

GND_1

GND_1

4.7

25V
X7R
3216

Q1100

RSQ035P03TR

654

SDD

DDG

321

FB1100

XX

R1134

XX

12345

X7R

R1177

C1144

680

25V1

1/16W

2012

RN-CP

GND_1

0.5%

R1178

1k
1/16W
RN-CP

0.5%

R1179

1k
1/16W
RN-CP

0.5%

XX

C1139

GND_1

C1154

10

6.3V
X6S
2012

C1148

GND_1

GND_1

CL1110

C1157

XX

GND_1

XX

A_TAS3.3V

25V

X7R

1005

0.01

C1160

GND_1

A_TAS3.3V

4

5

10

11

XX

CL1112

XX

L1114

1005

X7R

25V

0.01

C1158

GND_1

L1113

XX

R1185

6

D3.3V

D3.3V

7

8

+5V

TUNER_5V

C1165

10

0.01

6.3V

XX

C1162

X6S
2012

GND_1

V5V

9

V5V

10

C1167

XX

XX

C1161

GND_1

11

2012

D1107

M1FM3

X7R

25V

1

C1122

C1125
3300p

C1126

3300p

R1139

10k

R1142

XX

R1143

15

R1140

XX

C1128

0.001
50V

X7R
1005

R1146

15

C1127

0.015
25V

X7R
1005

L1108

4.7uH

R1149

15

R1150

6.8k
1/16W
RN-CP

0.5%

A

˚zu

C1129

10

10V
X7R
3216

R1152

0

CL1102

R1154

47k
1/16W
RN-CP

0.5%

R1155

100k
1/16W
RN-CP

0.5%

CL1103

R1156

22k
1/16W
RN-CP

0.5%

D1108

PTZ-TE25-6.8B

R1157

18k
1/16W
RN-CP

0.5%

C1131

47p
50V
CH

1005

A

JL1102

A

˚zu

˚zu

C1132

XX

SUB_ON

6.1V

GND_1

C1135

XX

CL1105

6.1V

CL1107

R1161

10k

1/16W

CHIP

002:11D;002:11F;002:11H;002:11C

REG_PWR_ON2

XX

C1136

REG_PWR_ON2

002:11E;002:11F;002:11H;002:11C

X7R

REG_PWR_ON2

002:11E;002:11D;002:11H;002:11C

IC1104

IC BD9853AFV-E2

6

RN-CP

22k

0.5%
RN-CP
1/16W

33k

R1121

1/16W

R1119

0.5%

150k

R1120

R1122

6.8k

C1119

XX

R1123

RSQ035P03TR

Q1101

654

SDD

0.015
25V

X7R
1005

C1118

0.001

C1120

1

25V

2012

DDG

321

C1121

2012

XX

R1128

15

1
25V
X7R

FB1104

R1133

XX

RN-CP
1/16W

R1135

18k

R1118

7

47p

C1115

AE

2/9

8

9

GND_1

C1116

4.7

25V
X7R
3216

0.5%

8.2k

Vcc

OUT1_1

OUT1_2

VB

RT

654321

FB1

-INE1

87

CSCP1 CSCP2

DDG

321

XX

Q1103

OUT2_1

OUT1_2

CTL

GND

FB2

-INE2

VH

16 15 14 13 12 11

10 9

654

SDD

PQ070XNA1ZPH

IC1105

12345

C1149

10

6.3V
X6S

2012

C1145

GND_1

Vadj

C1146

GND_1

XX

C1151

10
10V
X7R

3216

XX

GND_1

GND

GND_1

X7R

R1167

C1140

680

25V1

1/16W

2012

RN-CP

0.5%

R1168

1k
1/16W
RN-CP

GND_1

0.5%

R1169

1k

1/16W

RN-CP

0.5%
GND_1

PQ070XNA1ZPH

IC1106

Vin

Vc

Vo

12345

C1141

25V

XX

C1137

2012

GND_1

R1170

1

2.7k

1/16W

RN-CP

0.5%

R1171

390
1/16W
RN-CP

0.5%

0.5%
GND_1

R1172

1k
1/16W
RN-CP

C1150

XX

GND_1

CL1111

C1155

GND_1

12

13

14

15

12V

C1100

XX

IC1100

PQ200WNA1ZPH

Vin

OnOffControl

Vout

12345

C1102

1

R1100

25V

10k

X7R
2012

R1104

R1102

2.2k

4.7k
1/16W

1/16W

RN-CP

RN-CP

0.5%

0.5%
1005

1005

Vadj

GND

D1100

MA2J1110GLS0

R1107

1.8k
1/16W
RN-CP

0.5%

R1106

5.6k
1/16W
RN-CP

0.5%
1005

C1104

10

16V
X6S
3216

C1106

XX

C1108

220
16V

R1196

1M

1/16W

CHIP

5%

GND_1

R1110

10k

1/16W

C1110

0.47
16V

X7R
1608

+INPUT

IC1102

V+

NJM2125F(TE2)

54

BE_FAN_DRIVE2

321

GND

-INPUTOUTPUT

R1112

10k
1/16W
RN-CP

0.5%
1005

R1113

10k
1/16W
RN-CP

0.5%
1005

BE_FAN_ERR_I

002:6J;002:8G

Put the circuit near CN1000

2143658

MA4J1130GLS0

D1113

10k

XX

XX

RB1100

JL1100

R1200

GND_1

R1201

GND_1

7

To FAN

FAN_DRV_M

FAN_ERR1

FAN_ERR2

BE_FAN_ERR_I

002:6G;002:6J

R1144

XX

R1151

1/16W
RN-CP

0.5%
1005

Q1104

UNR52A1G0LS0

GND_1

D3.3V

10k

UNR52A1G0LS0

GND_1

Q1105

BE_FAN_ERR

XX

R1158

GND_1

Invalid Fan Error

Vin

12345

C1142

1

25V

XX

X7R

C1138

2012

GND_1

REG_PWR_ON2

002:11E;002:11D;002:11F;002:11C

PQ070XNA1ZPH

IC1107

Vc

Vo

R1173

2.7k

1/16W

RN-CP

0.5%

R1174

390
1/16W
RN-CP

0.5%

0.5%
GND_1

R1175

1k
1/16W
RN-CP

Vadj

C1147

GND_1

C1152

10

10V

X7R

3216

XX

GND

GND_1

CL1114

C1156

GND_1

12

13

+5V

TUNER_5V

14

XX

15

16

17

18

19

20

12V

C1101

XX

IC1101

XX

Vin

OnOffControl

Vout

12345

R1101

XX

C1103

XX

R1103

R1105

XX

XX

C1111

0.01
25V
X7R

1005

Vadj

GND

R1108

XX

C1109

XX

R1111

D1101

C1107

XX

GND_1

R1109

XX

C1105

XX

R1197

XX

XX

GND_1

XX

C1112

XX

XX

IC1103

GND

+INPUT

V+

54

321

BE_FAN_DRIVE2

-INPUTOUTPUT

GND_1

R1114

R1115

BE_FAN_ERR_I

002:6G;002:8G

XX

XX

XX

D1110

XX

D1111

XX

RB1101

XX

214

R1205

GND_1

XX

3

XX

R1204

R1203

GND_1

To FAN

1
2
3
4
5
6
7
8
9

FAN_DRV4
FAN_ERR4
GND
FAN_DRV5
FAN_ERR5
GND
FAN_DRV6
FAN_ERR6
GND

CN1100

XX

SUB_ON

Q1106

UNR52A1G0LS0

12V

R1166

10k

1/16W

CHIP

GND_1

C1143

1
25V
X7R
2012

R1180

XX

IC1109

PQ200WNA1ZPH

Vin

Vc

Vo

12345

R1181

10k

1/16W

CHIP

C1153

XX

Q1107

2SC5950G0LS0

GND_1

A9V

Vadj

GND

A9V

R1189

100
1/16W
RN-CP

0.5%

R1191

1k
1/16W
RN-CP

0.5%

R1188

4.7k
1/16W
RN-CP

0.5%

R1190

1k
1/16W
RN-CP

0.5%

C1169

XX

C1170

10
16V
X6S

3216

GND_1

CL1113

16

17

18

19

20

21

22

C1113

XX

GND_1

ABCDEF GH JIKLMN

O

21

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ AE Board Schematic Diagram [ Tuner, Analogue Switch, Audio, I/O Terminal ] P age 2/9 ~

- 23 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

AE - EG1H

2

2

A9V

L1707
10uH

3

PCM1754DBQR

4

5%47R1715 5%47R1723

5

C1720

10

AE

3/9

6.3V
X6S
2012

IC1701

16 15 14 13

SCK

SDA T A

FMT
MUTE
DEMP

12 11 10 9

TEST
ZEROA

VOUTL

VCOM

VOUTRAGND

_sOŁ ¢ª
A[Ȣ

BCK

LRCK

4321

DGND

NC

VCC

8765

R1725

V5V

5%47R1724

5%47

C1730

0.1

16V

1005

C1740

10

6.3V
X6S

2012

L1706

10uH

470

RB1722

C1748

0.1

16V

C1750

2.2
10V
X7R
2012

C1751

2.2
10V
X7R
2012

C1749

0.1
16V

6

ASSIST WOOFER

C1757

0.1

16V

1005

C1758

XX

R1743

XX

B-IN

BOUTPUT
A-IN

A+IN

GND B+IN

4321

R1746

XX

R1744

C1759

8765

VCC

AOUTPUT

C1761

XX

CHIP

XX

0

C1760

XX

R1745

CHIP

1005

2
4
6
8

10k

RB1723

RB1724

47K

C1756

10

16V

1
3
5
7

C1755

10V

2.2

2012

X7R

C1772

47

16V

IC1703

NJM4558V-TE2

0

C1765

22

16V

C1766

22

16V

100

RB1725

R1752

XX

R1753

XX

001:13D
AWF_L

001:13D
AWF_R

3

4

5

6

10

11

12

13

14

15

16

17

18

19

7

D3.3V

L1700

100

RB1717

C1702

0.1

16V

1cm

C1710

0uH

C1701

0.01
25V

X7R

1005

GND_1

¨zu

–

C1707

0.1
16V

47

6.3V

10k

RB1718

IC

s'

4.7˘0.1˝1_¯GND

GND_1

C1703

100
16V

C1704

4.7

10V
X7R
2012

C1705

0.1

16V

1005

C1711

47

6.3V

A_TAS3.3V

1cm

C1712

10V
2012

8

R1708

R1710

XX

XX

9

005:15C,005:13C,005:15C,005:13C,005:15C,005:13C

I2C_TAS_SDA
I2C_TAS_SCL

AUDIO_DSP_INT

SDO_MUTE001:13E

DSP_MUTE

DSP_RST

DSP_MUTE2

SC1/V1_AU_L

006:5D

SC1/V1_AU_R

006:5D

SC2/V3_AU_L

006:5F

006:5F

SC2/V3_AU_R

COMP1_LR_IN

COMP2_LR_IN

001:13I

PC_AU_L

001:13I

PC_AU_R

001:13H

DVI_AU_L

001:13H

DVI_AU_R

006:16I

SIDE/V2_AU_L

SIDE/V2_AU_R006:16I

FE_I2S

COMP1_LR_IN_L

COMP1_LR_IN_R

TV_L

004:11F

TV_R

004:11F

FE_BCK

FE_LRCK
FE_MCK

FE_DA T0

FE_DA T1
FE_DA T2

INB
INA

321

GND OUTY

TC7SET32FU(T5RSOJF)

R1701
R1702

5%

R1703
R1704
R1705
R1706

_sOŁ ¢ª
A[Ȣ

R1700

XX

VCC

IC1702

FE_SPDIF

47
47
47
47
47
47

7

54

SP_MUTE_2

001:13D

2143658

C1700

0.1

16V

1005

2.2k

RB1716

2143658

SC1/V1_AU_L
SC1/V1_AU_R

SC2/V3_AU_L
SC2/V3_AU_R

COMP1_LR_IN_L

COMP1_LR_IN_R

RB1701

7

10k

IC

s'

4.7˘0.1˝1_¯GND

R1709

1k

1/16W

CHIP

5%

RB1703

47k

SPDIF_OUT

C1706

0.1

16V

¨zu

–

4.7

C1708

0.1

16V

C1709

0.1

16V

L1701

10uH

COMP2_LR_IN_L

006:9I

MCLKIN

26

DVSS_DPLL

27

VR_DIG2

28

DVDD3

29

DVSS3

30

I2C_SDA2

31

I2C_SCL2

32

I2C_SDA1

33

I2C_SCL1

34

CS

35

GPIO1

36

GPIO2

37

/MUTE

38

/RESET

39

DVSS4

40

VR_DIG3

41

DVDD4

42

LINEIN1L

43

LINEIN1R

44

AVSS_LI1

45

LINEIN2L

46

LINEIN2R

47

AVDD_LI1

48

LINEIN3L

49

LINEIN3R

50

C1713

C1714

470

16V

16V

1005

RB1705

COMP2_LR_IN_R

PC_AU_L

SCLKIN

LRCLKIN

DPLL

Analog Block

LINEIN4L

LINEIN4R

515253

0.1

47k

PC_AU_R

CL1703

SDOUT1

CL1704

SCLKOUT

CL1705

2143658

LRCLKOUT

RB1708

CL1706

IC

s'

MCLKOUT

47

STEST

/VREG_EN

C1721

C1718

16V

47

6.3V

1cm

¨zu

DVSS2

XX

RB1706

2
4
6
8

CL1700 CL1701

23 24 25

SDIN3

SDIN2

SDIN1

CL1702

7

1
3
5
7

SPDIF_IN

SDOUT2/SPDIF_OUT

Digital Block

CXD9926A TQ

IC1700

LINEIN5L

AVDD_LI2

5455565758596061626364656667

LINEIN5R

DVI_AU_L

DVI_AU_R

AVSS_LI2

LINEIN6L

LINEIN6R

47K

TV_L

AVSS_ADC/REF

RB1719

C1715

10
10V
X7R

3216

TV_R

LINEIN7L

LINEIN7R

C1717

0.1

16V

1005

47K

RB1720

C1716

10
10V
X7R

3216

SIDE/V2_AU_L

SIDE/V2_AU_R

LINEIN8L

AVDD_ADC

LINEIN8R

C1719

0.1

16V

1005

100

RB1721

0.1

R1716

XX

DVDD2

AVDD_LI3

C1722

0.1

16V

6.3V

1005

47

C1723

12

910111213 14 15 16 17 18 19 20 21 22

PWM3_RD

PWM3_RI

VALID/SYNC

DVSS_PWM3

DVDD_PWM3

PWM Block

Xtal

APLL

LINEIN9L

LINEIN10L

LINEIN9R

RN-CP

C1770

10V
X7R
3216

LINEIN10R

AVSS_LI3

6869707172737475

R1718

R1717
1/16W

0.5%

10

47k

47k

1/16W

RN-CP

0.5%
C1771

10V
X7R
3216

10

PWM3_LD

PWM3_LI

BIAS_REF

BG_REF

2.2k

R1719

C1724

10V
X7R
1608

R1720

22k
1/16W
RN-CP

12345678

PWM2_RD

PWM2_RI

DVDD_PWM2

DVSS_PWM2

PWM2_LI
PWM2_LD
PWM1_RI

PWM1_RD
DVDD_PWM1
DVSS_PWM1

PWM1_LI

PWM1_LD

VR_DIG1

DVSS1
DVDD1

VR_ANA
AVSS_OSC
XTAL_OUT

XTAL_IN

AVDD_OSC

VR_ANA2
AVSS_PLL
PLL_FLTM
PLL_FLTP
AVDD_PLL

AVSS_LO

LINEOUT1R
LINEOUT1L

V1P5_REF

AVDD_REF

AVDD_LO

C1726

C1725

1

4.7

10V
X7R
2012

4.7

10V
X7R
2012

L1703

10uH

L1704

10uH

C1732

C1743

0.1

47

16V

6.3V

1005

100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76

C1727

0.1

16V
X7R

C1733

0.1

16V

1005

C1731

4.7

C1737

0.1

C1735

47

6.3V

4.7

C1738

C1739

0.1

L1702

0uH

C1741

10V

2012

C1734

16V

1005

C1736

0.1

16V

1005

4.7

0.1

IC

C1742

6.3V

C1745

0.1

L1705

10uH

s'

47

R1726

220

1cm

TAS DSP

4.7˘0.1˝1_¯GND

¨zu

R1731

0

CHIP

1005

R1730

1M

1/16W

C1746

0.1
C1747

0.01
25V

X7R
1005

C1744

0.01
25V

X7R
1005

R1727

220

AUDIO_REG33

–

X1700

24.576MHz

1

2

A_REC_R 008:12I
A_REC_L 008:12I

C1753

10p
50V

CH

1005

C1754

10p
50V

CH

1005

C1752

0.01
25V

X7R
1005

GND_1

R1734
R1735
R1736
R1737

R1738
R1739
R1740
R1741

1/16W

0.5%10k
1/16W

0.5%10k
1/16W

0.5%10k
1/16W

0.5%10k

1/16W

0.5%10k
1/16W

0.5%10k
1/16W

0.5%10k
1/16W

0.5%10k

C1762

680p
50V

CH

1005

C1764

680p

50V

CH

1005

C1763

680p
50V

CH

1005

C1767

680p
50V

CH

1005

1/16W

R1748

0.5%4.7k

1/16W

R1749

0.5%4.7k

1/16W

R1750

0.5%4.7k

1/16W

R1751

0.5%4.7k

C1768

470p
50V
X7R
1005

A_HP_OUT_L 008:12H

A_HP_OUT_R 00 8:1 2H

A_LINE_OUT_L

008:5E

A_LINE_OUT_R

008:5E

C1769

470p

50V
X7R
1005

CL1707

CL1708

SP_TAS_OUT_R

008:11E

SP_TAS_OUT_L

008:11E

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

008:5I

DMPORT_AU_L

008:5I

DMPORT_AU_R

ASUB_L
ASUB_R

ABCDEF GH JIKLMN

DMPORT_AU_L

DMPORT_AU_R

O

20

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ AE Board Schematic Diagram [ Tuner, Analogue Switch, Audio, I/O Terminal ] P age 3/9 ~

- 24 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

2

2

3

3

4

4

5

5

10

11

12

13

AE - EG1H

6

6

V5V

A9V

STBY3.3V

V5V

XX

7

FB1301

0uH

0uH

FB1302

8

9

6.1V

FB1303

12V_SW

AC_DET_IN

BE_FAN_DRIVE2

BE_FAN_ERR

BEM_SCL1

BEM_SCL2

BEM_SCL3

BEM_LOG_TX

BEM_CODE_TX

TVM_BEM_TX

MODE_BEM

BE_RST

BE_BUSY

SET_ON

SCL_DEVICE

SUB_ON

I2S_SW_SEL

HDMI_SCL

HDMI_LATCH

HDMI_PC_WP

HDMI_OS_AB

HDMI_SEL1

PANELLESS1

HDMI_HPLG_CTRL

HDMI_INT

CEC_IN

FB1304

0uH

XX R1363

8

10
12

FAN_DRIVE2
20
22

BEM_LOG_TX

BEM_CODE_TX

TV_BEM_TX

MODE_BEM
42
44
46
48
50

SCL_DEVICE

52

I2S_SW_SEL

62
64

HDMI_LATCH
HDMI_PC_WP

68

HDMI_OS_AB

70

HDMI_SEL1

72

E_HDMI_CE

74

HDMI_HP_CTRL
76
78

CN1300

REC_6.1V

REC_6.1V
STBY3.3V
STBY3.3V

12V_SW

AC_DET_IN

FAN_ERR

GND

BEM_SCL2
BEM_SCL3

GND

GND

BE_RST

BE_BUSY

SET_ON

GND

GND

SUB_ON

GND

HDMI_SCL

HDMI_INT

CEC_IN

GND

A9V

WHT

CN1302

WHT

80P

GND
GND
GND
GND
GND

NC

GND

GND
GND
AC_RL Y
FAN_DRIVE1
BL_IN
GND
BEM_SDA1BEM_SCL1
BEM_SDA2
BEM_SDA3
GND
BEM_LOG_RX
BEM_CODE_RX
TV_BEM_RX
GND
JIG_BEM_RST
GND
BE_WDT
SET_ON2
GND
SDA_DEVICE
GND
SUBCHRO_RST
PC_DET
GND
HDMI_SDA

GND

HDMI_CE
HDMI_RST
HDMI_OS_CD
HDMI_SEL2
E_HDMI_RJ
HDMI_EDID_SW
CEC_ON
CEC_OUT
GND

12
3 4
56
7
9

11
13 14
15 16
17 18
19
21
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41
43
45
47
49
51
53 54
55 56
57 58
59 60
61
63
65 66
67
69
71
73
75
77
79 80

AC_RL Y

BL_IN

BEM_SDA1

BEM_SDA2

BEM_SDA3

BEM_LOG_RX

BEM_CODE_RX

TVM_BEM_RX

JIG_BEM_RST

BE_WDT
SET_ON2

SDA_DEVICE

SUBCHRO_RST

PC_DET

HDMI_SDA

HDMI_CE
HDMI_RST

HDMI_OS_CD

HDMI_SEL2

HDMI_EDID_SW

CEC_ON

CEC_OUT

6.3V

220

C1311

XX

R1353

V5V

10uH

L1307

C1300

XX

STBY3.3V

XXC1301

AE

DMP5V

1000

C1304

4/9

D3.3V

C1302

XX

MAIN_COMP_OUT

TUNER_SCL_DIGITAL

FE_SPDIF

ASUB_L

PC_H_OUT

PC_H_IN

CCP_CB

CCP_CR

CCP_Y

S_CV/Y

REC_Y

TUNER_LNA_SW
TUNER_FE_CKOUT
TUNER_FE_SYNC

TUNER_DA T A_0

TUNER_DA T A_2
TUNER_DA T A_4
TUNER_DA T A_6

FE_TXD0B
FE_TXD1B
FE_TXD2B

FE_MASTER_RSTB

FE_SCL_EMMA

GND

FE_TXD0B
FE_TXD1B
FE_TXD2B

8

GND

10

FE_MASTER_RSTB

12

GND

FE_SCL_EMMA

GND

20

FE_SPDIF

22

FE_MCLK

FE_DA T A0
FE_DA T A2
GND
ASUB_L
GND

PC_H_OUT

PC_H_IN

GND

M_CB/B
M_CR/R

42

M_Y/G

44
46

GND

S_CV/Y

48
50

NC(S_CR)

52

REC_Y

GND

TUNER_SCL_DIGITAL

GND

NC

62

NC

64

TUNER_LNA_SW

TUNER_FE_CKOUT

68

TUNER_FE_SYNC
70

GND

72

TUNER_DA T A0
74

TUNER_DA T A2
TUNER_DA T A4

76
TUNER_DA T A6

78

GND

80P

GND

FE_RXD0B

FE_RXD1B
FE_RXD2B

GND

DTT_PON_DELAY

GND

FE_SDA_EMMA

GND

DSP_MUTE2

FE_BCLK

FE_LRCLK
FE_DA T A1

GND

ASUB_R

GND
PC_V_OUT
PC_V_IN

GND
M_CV/Y

M_C
M_YS

GND

S_C

GND

REC_C

GND

TUNER_SDA_DIGIT AL

GND

DEM_SEL

NC

TUNER_RST
TUNER_SW

TUNER_FE_VAL

GND

TUNER_DA T A1
TUNER_DA T A3
TUNER_DA T A5

TUNER_DA T A7

GND

12
34
5 6
7
9

11
13 14
15 16
17 18
19
21
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41
43
45
47
49
51
53 54
55 56
57 58
59 60
61
63
65 66
67
69
71
73
75
77
79 80

FE_RXD0B
FE_RXD1B
FE_RXD2B

DTT_PON_DELAY

FE_SDA_EMMA
DSP_MUTE2

FE_I2S

005:2B

FE_BCK

FE_LRCK

FE_MCK

FE_DA T0

FE_DA T1

FE_DA T2

ASUB_R

005:2H;005:12I

PC_V_OUT

PC_V_IN

M_CV/Y
M_C
M_YS

S_C

REC_C

TUNER_SDA_DIGIT AL

TUNER_RST

TUNER_SW

TUNER_FE_VAL

TUNER_DA T A_1
TUNER_DA T A_3
TUNER_DA T A_5
TUNER_DA T A_7

7

8

9

10

11

12

13

14

15

16

17

PANELLESS2

TP_RST

R1346

1k

1/16W

NJM2878F3-05(TE2)

IC1300

CTRL

Vin

GND

321

NC Vout

6.1V

54

X7R
16V

0.47

C1307

X7R
10V

C1306

C1309

1

XX

XX

C1303

SONY_LOGO

FAN_DRV_M

002:6G;001:3B;001:3B

FAN_ERR2

PANELLESS2

STBY_LED

POWER_LED

I2C_SDA_TP

UART_RX_RF A

BL_IN

CL1301

JL1300

JL1301

JL1302

R1311

XX

FB1305

0uH

FB1306

0uH

L1306 0uH

L1300

0uH

L1301

0uH

CL1300

XX

VD1300XXVD1301

XX

VD1307

L1302

0uH

XX

VD1302

0.1

C1310

STBY3.3V
LED_1(STBY)

4

LED_5(POWER)

6

BL_IN

8

TOUCH_KEY_VDD

10

TOUCH_KEY_VCC

12

TOUCH_KEY_SDA

14

GND

16

STBY_3.3V

18

LOGO

20

REG5V

22

GND

24

RF_RXD/CAT

26

RF_BINT

28

GND

30

FAN_DRV1

32

GND

34

FAN_ERR2

36

FAN_DRV3

38

GND

40

CN1301

40P

WHT

LED_4(REC)

LED_3(TSUSHIN)

LED_2(PMUTE)

REC_3.3V

TOUCH_KEY_SCL

TOUCH_KEY_DET

SIRCS

POWER_SENSE
RF_TXD/SIRCS

STBY_3.3V

POWER_SW

FAN_ERR1

FAN_DRV2

FAN_ERR3

GND

GND

GND
GND

KEY

GND

12
3
5
7

9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39

FB1307

JL1303

0uH

FB1308

0uH

FB1309

0uH

XX

VD1303

L1303

0uH

XX

VD1304XXVD1305

REC_R_LED
ON_TIMER_LED
PIC_MUTE_LED

R1325

XX

XXR1326

I_SIRCS

RFC_RST 001:3C

UART_TX_RF A

0.1

C1317

POWER_SW

FAN_ERR1 002:6H

JL1304

FAN_DRV_M

JL1306

PANELLESS1

JL1305

KEY

L1304

XX

I2C_SCL_TP

R1341

XX

XX

R1342

S

XX

R1345

C1305

XX

XX

Q1301

RFC_RST

14

15

16

17

18

19

20

21

KEY

GND

POWER_SW

CN1303

XX

1

2

3

Q1302

XX

18

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

19

20

21

22

ABCDEF GH JIKLMN

O

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ AE Board Schematic Diagram [ Tuner, Analogue Switch, Audio, I/O Terminal ] P age 4/9 ~

- 25 -

10

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

AE - EG1H

1

1

Q001

RT3XBBM-T111-1

2

JL1401

JL1403

3

JL1404

JL1406

4

SCART 1

21P

CN1400

R-OUT

5

6

R-IN

L-OUT

AUDIO-GND

GND
L-IN
BLUE
MODE

GND

GREEN

GND

GND

RED

BLK

GND

GND

TV-OUT

VIDEO-IN

SHILD-GND

NC
NC

GND_1

JL1408

JL1409

JL1410

VD1403

VD1404

VD1405

VD1406

VD1407

GND_1

VD1408

C1400

470p

C1401

XX

C1402

470p

C1403

XX

0.5%

RN-CP

0.5%

RN-CP

R1406

330

1/16W

CHIP

5%

R1407

1k

1/16W

CHIP

5%

R1408

330

1/16W

CHIP

5%

R1409

1k

1/16W

CHIP

5%

75

1/16W

75

1/16W

R1492

R1493

C1405

0.022

C1407

0.022

1/16W

C1406

0.001
50V

X7R
1005

1/16W

C1408

0.001

50V
X7R
1005

R1413

220

CHIP

5%

R1415

220

CHIP

5%

R1426

1M

1/16W

CHIP

5%

R1425

1M

1/16W

CHIP

5%

R1419

470k

C1409

XX

C1410

XX

GND_1

R1428

470k

R1414

2.2k
1/16W
RN-CP

0.5%

R1416

2.2k
1/16W
RN-CP

0.5%

C1418

2.2
10V
X7R

2012

C1419

10

16V

C1420

2.2
10V

X7R
2012

C1421

10

16V

7

JL1411

GND_1

VD1409

0.5%

RN-CP

75

1/16W

R1494

C1411

XX

8

JL1412

JL1407

VD1410

GND_1

GND_1

R1401

22k

1/16W

CHIP

R1410

12k

1/16W

CHIP

MODE1

004:8I

9

JL1400

VD1400

JL1405

VD1401

VD1402

0.5%

1/16W

RN-CP

75

R1496

GND_1

GND_1

0.5%

RN-CP

R1402
1/16W

RN-CP

0.5%

75

1/16W

75

R1495

004:11D

TV_V_O

C1404

XX

AV1_CV_IN

004:7H

TV_OUT_MUTE

SC1_TV_OUT_R

005:12K

SC1/V1_AU_R

005:2E

SC1_TV_OUT_L

005:12K

SC1/V1_AU_L

005:2E

BLK1

2

JL1439

JL1441

JL1442

JL1440

VD1430

D1400

MAZ8091G0LS0

VD1425

VD1426

VD1427

VD1428

C1435

470p

C1436

XX

C1437

470p

C1438

XX

VD1434

GND_1

GND_1

VD1435

VD1431

R1448

330

1/16W

CHIP

5%

R1449

1k

1/16W

CHIP

5%

R1450

330

1/16W

CHIP

5%

R1451

1k

1/16W

CHIP

5%

R1452
1/16W

CHIP

VD1436

VD1437

RN-CP

22k

GND_1

R1453

75

1/16W

0.5%

C1439

0.022

C1441

0.022

0.5%

RN-CP

0.5%

75

1/16W

R1455

12k

1/16W

CHIP

1/16W

RN-CP

R1506

0.5%

75

R1509

C1442

0.001
50V

X7R
1005

0.5%

RN-CP

1/16W

RN-CP

GND_1

R1461

220

1/16W

CHIP

5%

C1440

0.001
50V

X7R
1005

R1458

220

1/16W

CHIP

5%

75

R1507

1/16W

75

R1508

004:11C

R1476

1M

1/16W

CHIP

5%

GND_1

SEL_V_OUT

R1475

1M

1/16W

CHIP

5%

R1463

470k

C1446

XX

R1474

100

1/16W

CHIP

GND_1

001:13C

C1447

XX

C1448

XX

GND_1

004:7H

R1482

470k

R1457

2.2k
1/16W
RN-CP

0.5%

R1459

2.2k
1/16W
RN-CP

0.5%

GND_1

SMART_LINK

AV2_CV_IN

004:8I

MODE2

C1449

10

16V

C1450

10

16V

B2

G2

R2

BLK2

SC2_SEL_OUT_R

SC2/V3_AU_R

005:2E

SC2_SEL_OUT_L

SC2/V3_AU_L

005:2E

004:6G

AV2_RGB

3

4

5

6

7

8

9

10

JL1433

AE

004:6F

AV1_RGB

B1

G1

R1

5/9

SCART 2

R-OUT

R-IN

L-OUT

AUDIO-GND

L-IN
BLUE
MODE

SMART_LINK

GREEN

SEL-OUT

VIDEO-IN

SHILD-GND

GND

GND

GND
GND
RED
BLK
GND
GND

NC

21P

CN1402

JL1429

JL1430

GND_1

JL1431

JL1434

JL1432

JL1435

JL1438

JL1436

JL1437

11

12

13

14

15

16

17

18

COMPONENT 1 IN

COMPONENT 2 IN

GND_1

004:7H

COMP1_V_IN

VD1429

0.5%

RN-CP

75

1/16W

R1510

C1443

XX

GND_1

11

12

COMP1_Y

C1426

XX

75

0.5%

R1497

1/16W

VD1415

XX

VD1412

G1

COMP_DET1

JL1416

BL1

Y

JL1417

GND_1

VD1416

Cb

R1

JL1419

GND_1

JL1422

JL1423

JL1424

VD1417

VD1413

VD1414

C1412

XX

C1413

XX

Cr

L

R

Y

Cb

BL2

L1

R2

G2

JL1420

JL1421

XX

VD1411

COMP_DET2

JL1418

Cr

R3

L2

JL1413

JL1425

JL1414

L

R4

JL1415

VD1420

R

J1400

JL1402

RN-CP

0.5%

RN-CP

0.5%

RN-CP

R1430

1k

1/16W

CHIP

5%

R1431

1k

1/16W

CHIP

5%

75

1/16W

75

1/16W

C1417

0.001

R1498

R1499

50V
X7R
1005

0.5%

1/16W

RN-CP

75

R1500

C1416

0.001
50V
X7R
1005

C1424

C1425

R1442

1M

1/16W

CHIP

5%

V5V

13

COMP1_PB

XX

Opt Out

COMP1_PR

CN1401

XX

005:1E

COMP1_LR_IN

COMP1_LR_IN_L

R1441

1M
1/16W
CHIP

5%

R1434

2.2k
1/16W
RN-CP

0.5%

C1430

10

16V

BLK

VIN
VCC
GND

7P

JL1426
JL1427
JL1428

GND_1

L1400

10uH

C1434

0.1

16V

1005

005:4A

SPDIF_OUT

14

15

V2_C

004:7F

C

R1435

2.2k
1/16W
RN-CP

0.5%

C1429

XX

C1431

10

16V

COMP2_V_IN

COMP2_Y

COMP2_PB

COMP1_LR_IN_R

004:6H

Video IN 2

S

34

12

V

VD1424

GND_1

GND_1

GND_1

VD1438

VD1439

GND_1

GND_1

004:10I

SSW

Y

CV

V2_S

0.5%

0.5%

75

1/16W

RN-CP

75

1/16W

RN-CP

GND_1

R1505

GND_1

R1504

0.5%

RN-CP

75

1/16W

R1503

XX

C1455

004:7F

XX

C1456

XX

C1457

16

V2_Y

17

004:7G

V2_V_IN

18

19

20

21

22

GND_1

VD1421

VD1422

VD1418

VD1419

C1414

XX

C1415

XX

R1432

1k

1/16W

CHIP

5%

R1433

1k

1/16W

CHIP

5%

0.5%

0.5%

1/16W

RN-CP

1/16W

RN-CP

C1423

0.001
50V
X7R

1005

75

75

R1501

R1502

C1422

0.001
50V
X7R
1005

R1446

1M

1/16W

CHIP

5%

C1427

XX

C1428

XX

R1445

1M
1/16W
CHIP

5%

R1436

2.2k

1/16W

RN-CP

0.5%

R1437

2.2k

1/16W

RN-CP

0.5%

C1432

10

16V

C1433

10

16V

COMP2_PR

COMP2_LR_IN_L

COMP2_LR_IN_R

005:1F

COMP2_LR_IN

GND_1

XX

VD1423

L

R

TB1400

GND_1

VD1432

SIDE_V_DET

1
2

VD1433

1
2

VD1440

GND_1

GND_1

GND_1

C1444

XX

C1445

XX

R1480

1k

1/16W

CHIP

5%

R1481

1k

1/16W

CHIP

5%

C1451

0.001
50V

X7R
1005

C1452

0.001
50V

X7R
1005

R1485

1M

1/16W

CHIP

5%

R1486

1M

1/16W

CHIP

5%

R1487

2.2k

1/16W

CHIP

5%

R1488

2.2k

1/16W

CHIP

5%

C1453

10

16V

C1454

10

16V

GND_1

005:2E

SIDE/V2_AU_L

005:2E

SIDE/V2_AU_R

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

19

20

21

22

ABCDEF GH JIKLMN

O

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ AE Board Schematic Diagram [ Tuner, Analogue Switch, Audio, I/O Terminal ] P age 5/9 ~

- 26 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

18

19

20

1

1

AE - EG1H

2

2

SUB VIDEO

R1629

100

1/16W

R1630

100

1/16W

C1598

C1630

470
16V

60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31

C1599

X7R
2012

C1600

C1601

V5V

L1554
10uH

220
16V

5%

CHIP

1/16W

470

R1636

5%

2.2

CHIP

10V

1/16W

220

R1637

220
16V

5%

CHIP

1/16W

470

R1638

2.2

10V

1/16W

X7R
2012

R1639

JL1550

GND_1

1/16W
RN-CP

0.01

10V1X7R

R1631

R1634

1608 16V

V2_S 003:15B

001:10G

6.3V
100

C1614

GND_1

5%

CHIP

220

10kR1635

0.5%

10V1X7RC1609

1608

25V

1005

XX

C1611

C1613

0.22

C1625

4.7C1602
10C1603

100

0.47X7RC1604
160816V

0.47X7RC1605
160816V

100

0.47X7RC1606
160816V

0.47C1607

0.47X7RC1608

TU_MAIN

REC_Y

REC_C

S_CV/Y

GND_1

GND_1

X7RC1610

0.01C1612

X6S

6.3V

S_C

1005

GND_1

C1615

0.1

16V

1005

CL1550

1
3
5
7

RB1554

C1616

GND_1

1005
16V

0.1

S_C

001:15D

S_CV/Y

001:13D

SEL_V_OUT

TV_V_O

V5V

V5V

L1557

10uH

220

16V

C1631

47

001:15D

PC_V_OUT
PC_H_OUT

001:13D

3

4

5

6

7

8

9

10

I2C_DEV_5V

2
4
6
8

SCL_DEV_5V

SDA_DEV_5V

11

12

X1550
4MHz

C1618

0.1

16V

1005

13

14

15

16

V5V

XX

C1617

1005
16V

0.1

C1619

1005

X7R

25V

0.01

C1620

5%

CHIP

1/16W

22k

R1645

1005
X7R
25V

0.01

C1621

5%

CHIP

1/16W

22k

R1647

1005
X7R

25V

0.01

C1623

Q1562

2SC5950G0LS0

MA2J1110GLS0

D1550

MA4J1130GLS0

GND_1

Q1563

2SC5950G0LS0

D1551

MA4J1130GLS0

GND_1

D1552

C1626

D1553

MA2J1110GLS0

C1627

10
10V
X7R

3216

10
10V
X7R

3216

C1628

GND_1

C1629

1005

GND_1

47p
50V

CH

1005

47p
50V

CH

1/16W470R1653

1/16W470R1652

PC_H_IN

001:13D

PC_V_IN

001:15D

17

18

19

20

3

MAIN VIDEO

R1623

R1624

470

470

1/16W

1/16W

CHIP

CHIP

5%

Q1555

100

2SA2122G0LS0

Y_SAG

CV/Y_OUT5

IN1_L3

IN1_V/L2

100

R1620

C1593

2.2

10V

5%

GND_1

Q1556

NC

IN1_H/L1

C1594

0.1

16V

1005

C_OUT5

100

RB1555

L1556

IN1_SW

4

A9V

L1550

10uH

5

16V

100

C1550

6

7

8

9

MAIN_COMP_OUT

CCP_Y

CCP_CR

CCP_CB

R1552

XX

XX

R1550

XX

R1551

R1556

R1553

68
1/16W
RN-CP

0.5%

R1554

68
1/16W
RN-CP

0.5%

R1555

68
1/16W
RN-CP

0.5%

AE

GND_1

R1557

470

1/16W

XX

6/9

C1551

0.1

16V

1005

ADA4861-3YRZ-RL7

PD1

PD2

PD3

GND_1

VCC

IN+1

IN-1

7654321

OUT1 OUT3

IC1550

OUT2

IN-2

IN+2

VEE

IN+3

IN-3

R1563

14 13 12 11 10 9 8

GND_1

R1560

470

1/16W

RN-CP

R1561

XX

GND_1

470

1/16W

R1564

10
1/16W
RN-CP

0.5%

R1565

10
1/16W
RN-CP

0.5%

R1566

10
1/16W
RN-CP

0.5%

R1567

XX

GND_1

C1552

10V
X7R
1608

Q1550

2SA1226-T1E3E4

003:11C

AV2_RGB_IN

1

003:6C

GND_1

C1633

XX

AV1_RGB

BLK2
B2
G2
R2

003:6I

M_C

M_CV/Y

GND_1

COMP2_V_IN

R1568

330

1/16W

CHIP

R1569

22

1/16W

CHIP

5%

L1558

10uH

C1632

220
16V

BLK1

B1
G1
R1

AV1_CV_IN

COMP_DET1

AV2_CV_IN

003:6F

COMP_DET2

DMP_DET

PC_DET

SIDE_V_DET

V5V

R1571

COMP1_V_IN

R1572

10

1/16W

R1573

10

1/16W

1/16W100

V2_C
V2_Y

V2_V_IN

100R1570

COMP2_PB
COMP2_Y
COMP2_PR

C1553

0.1

16V

1005

R1574

330

1/16W

CHIP

Q1551
2SA1226-T1E3E4

R1575

22

1/16W

CHIP

GND_1

5%

M_YS

1/16W

COMP1_PB
COMP1_Y
COMP1_PR

GND_1

GND_1

10k

RB1550

6.3V
100

C1554

C1559

C1560

C1561

R1582

330

1/16W

CHIP

Q1552

2SA1226-T1E3E4

GND_1

C1568

0.1

16V

C1569

2.2

2.2

C1570

C1556

2.2

C1557

2.2

C1558

2.2

C1562

2.2

R1584

C1563

2.2

V5V

2143658

R1585
1/16W

CHIP

Q1553

2SA2122G0LS0

GND_1

R1590
1/16W

CHIP

10V1
10V1
10V1

R1578

C1564

2.2

C1565

2.2

C1566

2.2

100

7

V5V

L1551

10uH

330

2SA2122G0LS0

5%

R1603

22

1/16W

22

5%

330k

1/16W

R1587

330k
1/16W

R1588

330k

1/16W

R1589

100R1576

1/16W

100R1577

1/16W

100

1/16W

1/16W100R1591

1/16W

100R1592

1/16W

100R1593

100550V0.001 X7RC1555

16V0.1

C1572

1005

100R1597

100R1598
100R1599

1/16W 100 R1601

1/16W100R1594

100R1595

1/16W

C1574

2.2

C1575

2.2

C1576

2.2

5%

CHIP

1/16W

330

R1602

Q1554

GND_1

91
92
93
94
95
96
97
98

99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120

R1605

R1617

100

1/16W

2SA2122G0LS0

R1621

1/16W

R1608

22

1/16W

V5V

R1616

1005
16V

0.1

C1588

Y_PH2

C/CB/B_IN4

1/16W

100

100

R1614

R1615

2.2

1/16W

GND9_OUT

Y/Y/G_IN4

1/16W

2.2

C1589

68k

CHIP

5%

CV/Y_OUT4

CV/Y_OUT3

CV/CR/R_IN4

S2-1

C1590

CV_OUT5

VCC_9OUT

CV3

CV2

100R1619

CV_SAG

CV1

NC

S1-1

R1613

68k
1/16W
CHIP

1005

5%

16V

0.1

C1587

GND_1

XX

C1584

C1583

XX

NC

NC
B_IN14
G_IN14
R_IN14
NC
CLP_CR2
CLP_CR1_1
CLP_CR1_2
FBLK_IN3
SC_B/C/CB/B_IN13
SC_G/Y/Y/G_IN13
SC_R/CV/CR/R_IN13
FBLK_IN2
SC_B/C/CB/B_IN12
SC_G/Y/YG_IN12
SC_R/CV/CR/R_IN12
VCC_IN
FBLK_IN1
SC_B/C/CB/B_IN11
SC_G/Y/Y/G_IN11
SC_R/CV/CR/R_IN11
MD4/S2-4
C/CB/B_IN10
Y/Y/G_IN10
CV/CR/R_IN10
S1-4
C/CB//B_IN9
Y/Y/G_IN9
CV/CR/R_IN9
GND_IN

C1580

C1581
C1582

MODE1

C_OUT1_2

VCCFB_OUT

Y/Y/G_IN8

CV/CR/R_IN8

100R1611

100R1609

100R1610

CVBS_DMP

003:10K

FBLK_OUT

VCC5_OUT1

MD3/S2-3

C/CB/B_IN7

C/CR/R_OUT1_1

Y/Y/G_IN7

CV/CR/R_IN7

CV_OUT1_2

C/CB/B_IN8

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

100

1/16W
1/16W100R1606
1/16W

100R1607

2.2

2.2

2.2

MODE2

003:9C
003:4D

XX

C1585

NC

C/CB/B_OUT1_1

CV/Y/G_OUT1_1

S1-3

C/CB/B_IN6

Y/Y/G_IN6

100

R1612

2.2
C1586

VCC5_OUT

C/CR/R_OUT2

CV/CR/R_IN6

MD2/S2-2

1/16W

GND5_OUT

C/CB/B_OUT2

CV/Y/G_OUT2

IC1551

CXA2240AR-TL

C/CB/B_IN5

Y/Y/G_IN5

CV/CR/R_IN5

Y_PH1

S1-2

GND_1

A9V

10uH

616263646566676869707172737475767778798081828384858687888990

ADR

DC_OUT

VCC5H_OUT

SELV_OUT2
SELH_OUT2

PC_ID
SELV_OUT1
SELH_OUT1

GND5H_OUT

IREF

PS_HVCS

EXT_CLK/X’tal

VCC_DEF

V_PH2
H_PH2

SYNC_IN2

SYNC_OUT2

V_PH1
H_PH1

SYNC_IN1

SYNC_OUT1

GND_DEF

IN4_H

IN4_V

IN3_SW
IN3_H/L1
IN3_V/L2

IN3_L3

IN2_SW
IN2_H/L1

IN2_L3

IN2_V/L2

2143658

C1597

0.1

16V

1005

SCL
SDA

7

21

22

ABCDEF GH JIKLMN

O

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ AE Board Schematic Diagram [ Tuner, Analogue Switch, Audio, I/O Terminal ] P age 6/9 ~

- 27 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

1

1

2

AE - EG1H

2

AU_PROT

L: Fault

3

3

MAIN_SW_FAULT

001:2J

Q1802

UNR52A1G0LS0

4.7k

R1806

1/16W

CHIP

5%

4

4

LINE_MUTE

HP_MUTE

5

SP_MUTE_2

D1801

XX

AE

6

7

7/9

LINE_OUT

A_LINE_OUT_R
A_LINE_OUT_L

LINE_OUT_L

LINE_OUT_R

005:10E
005:10E

470

RB1815

2
4
6
8

1

4

2

6

3

5

Q1800

RT3N77M-TP-1

C1802

2.2

10V
X7R
2012

C1803

2.2
10V
X7R
2012

005:11G

LINE_MT

C1804

100p

CH

CH

C1807

100p

50V

1
3
5
7

CL1800
CL1801

R1802

470k

C1812

47

16V

C1813

47

16V

R1803

470k

5%

5%

D1802

XX

100

RB1818

8

SPLP

SPLN

SPRN

49

SPRP

C1809

2012

C1810

2.2

10V

2012

2.2
10V

50
51
52
53
54
55
56
57
58
59
60
61
62
63
64

GNDREG
REG33
V12REG
VUNREGREF
LINE_MT
REC_MT
VUNREGMT
GNDMT
SCART_MT
HP_MT
MLDIN
TV1INL_N
TV1INL_P
TV2INL

10V

X7R

2012

2012

CL1802
CL1803

2.2

X7R

GND_1

AUDIO_REG33

C1805

C1800

47

25V

A9V

L1800

10uH

C1801

0.1
25V
X7R

A9V

9

L1250

10uH

QSS_R_AUDIO

V5V

FM_AM_L_AUDIO

MSP

A9V

AUDIO_VCC

16V

C1808

4.7

10V
X7R
2012

C1806

0.1

47

16V

1005

C1811

10

16V

Q1251

C1273

0.1
16V

D1250

MA2J1110GLS0

L1254

10uH

C1276

47

16V

C1271
2200p

1005

C1272
2200p

50V

1005

C1274
2200p
50V

X7R

1005

C1275
2200p

50V

X7R

1005

GND_1

X7R50V

X7R

CL1250
CL1251

TV_L
TV_R

A_DMP_L­A_DMP_L+

C1850

2.2

10V
X7R

2012

C1851

2.2

10V
X7R

2012

R1826

22k

1/16W

CHIP

5%

1005

R1823

22k

1/16W

CHIP

5%

1005

C1855

XX

R1827

22k

C1858

XX

C1859

2.2
10V
X7R
2012

GND_1

DMPORT_AU_L

LINE_MT

005:11F

SP_MUTE3

SEL_OUT_MT

001:11E;005:13E;005:17H

HP_MT

A9V

10uH

1
3
5
7

L1807

100

RB1801

001:9E;005:2H

001:11E;005:2H

2
4
6
8

ASUB_L
ASUB_R

A_REC_L

005:8E

A_REC_R

005:8E

RB1253

XX

L1251

8.2uH

R1250

XX

2SC5950G0LS0

Q1250

C1250

XX

1005

R1251

47

1/16W

RN-CP

1005

C1251

120p

50V CH

1005

R1252

XX

R1258

XX

C1253
4700p

50V
X7R
1005

XX

RB1252

4.7k

C1254

2p

C1255

2p

L1252

0uH

C1257

0.1

16V

R1253

100k

C1256

47

6.3V

C1258

0.001
50V
X7R
1005

C1259

100p

CH

50V

1005

X1250

18.432MHz

C1260
50V

L1253

0uH

0.001
X7R

1005

C1261

R1254

XX

1234567891011

AVSUP
ANA_IN1+
ANA_IN­TESTEN
XTAL_IN
XTAL_OUT
TP
D_CTR_I/O1
D_CTR_I/O0
ADR_SEL
STANDBYQ

FB1250

0uH

SCL_DEV_5V

C1263

0.1

16V

1005

10

16V

C1262

2.2

10V

X7R

2012

43

44

AVSS

MONO_IN

I2C_CL

I2C_DA

1213141516171819202122

FB1251

SDA_DEV_5V

MSP_RESET

C1264

40

41

42

VREFTOP

SC1_IN_L

SC1_IN_R

MSP3417G-QG-B8V3

TPTPTP

FB1252

0uH

0uH

10

16V

39

NC

IC1250

TP

C1268

16V

1005

38

NC

TP_CO

0.1

UNR52A1G0LS0

C1266

0.1

16V
1005

37

NC

C1265

47

6.3V

36

DVSUP

R1256

100k

1/16W

CHIP

Q1252

AGNDC

DVSS

C1267

220p
X7R

1005

35

AHVSS

TP

50V

C1270

34

CAPL_M

AHVSUP

SC1_OUT_L
SC1_OUT_R

VREF1

DACM_L
DACM_R

VREF2

RESETQ

C1269

0.1

16V

16V

NC

NC

NC
NC

10

2324252627282930313233

VFAULT

HPMT_CNT

LINEMT_CNT

X_PROTECTOUT

TV3INL

TV4INL

SCTSWL

SCTINL

V12SCART

SCARTOUTL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

C1815

2.2

10V

C1816

D3.3V

I2C_TAS_SCL

I2C_TAS_SDA

SCL

SDA

DGND

IC1800

CXA3767R-T6

GNDSCART

SCARTOUTR

SCTINR

DVDD

LINEINR

SCTSWR

TV1INR_N

C1822

220
16V

LINEOUTR

TV1INR_P

X7R

2012

GNDLINE

TV2INR

2.2

10V

C1817

X7R

2012

LINEOUTL

TV3INR

2.2

10V

C1818

A9V

C1821

0.1

16V
1005

GND_1

33343536373839404142434445464748

V12LINE

RECOUTR

GNDREC

RECOUTL

REF6V_R

REF6V_L

TV4INR

L1802

10uH

C1823

0.1

16V

LINEINL

RECINR

V12REC
RECINL

CBIAS

CREFH

CREF

HPINR

HPOUTR

GNDHP

HPOUTL

V12HP

HPINL

C1824

10
16V
X6S

3216

C1825

10
16V
X6S

3216

L1804

10uH

32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17

C1826

47

16V

A9V

C1827

C1828

C1830

C1829

2.2

50V

2.2

50V

16V

5

6

7

SP_TAS_OUT_L

SP_TAS_OUT_R

A9V

L1806

10k

RB1816

C1848

0.1

R1817

8.2k

1/16W

RN-CP

0.5%

R1818

8.2k
1/16W
RN-CP

0.5%

C1833

2.2
10V
X7R

X7R

C1832

10

16V

2012

C1834

0.1

16V
1005

201225V1

10

16V

47

C1837

CL1804
CL1805

C1835

XX

R1809

470k

1/16W

R1810

470k

1/16W

L1805
10uH

C1839

2.2

10V
X7R
2012

C1838

2.2

10V
X7R
2012

R1811

1/16W

CHIP

R1812

1/16W

CHIP

A9V

330

5%

330

5%

C1844

47

16V

C1845

47

16V

A_HP_OUT_R 005:10D
A_HP_OUT_L 005:10D

2

Q1803

RT3N77M-TP-1

10k

RB1817

1

3

4

6

C1846

680p
50V

CH

1005

C1847

680p
50V

CH

1005

220

RB1813

HP IN

5

16V

1005

2

Q1804

RT3XBBM-T111-1

SC2_SEL_OUT_L

SC2_SEL_OUT_R

SEL_OUT_MT

10uH

C1849

47

16V

8

9

SP_R

001:2I

SP_L

001:2I

10

HP_R

003:16E

HP_L

R1807

10k

1

4

6

3

C1814

2.2

5

10V
X7R
2012

GND_HP

003:16E

HP_MT

11

HP

12

13

10k

5%

R1832

27k

1/16W

CHIP

5%

TV_OUT_MUTE

14

15

16

IC1803

RT8H225C

123

R1831

100k

1/16W

CHIP

5%

GND_1

OUT

R

C1868

10
25V
X7R
3225

GND

VCC

C1867

10

25V

X7R
3225

456

IN C

R1833
1/16W

CHIP

17

18

19

20

A_DMP_R­A_DMP_R+

C1852

2.2

10V
X7R

2012

C1853

2.2

10V
X7R

2012

C1854

0.1

16V

1005

R1824

22k

1/16W

CHIP

5%

1005

R1825

22k

1/16W

CHIP

5%

1005

8765

V+

NJM4558V-TE2

A OUT

22k

R1828

XX

C1857

B OUT

IC1802

A- IN

C1856

XX

B- IN

A+ IN

B+ IN

V-

4321

¯”s ¯A [»˝s ¨¢

22k

R1829

22k

R1830

C1860

2.2
10V
X7R
2012

C1863

2.2
10V
X7R
2012

DMPORT_AU_R

C1870

47

16V

4.7k

RB1819

C1866

22

16V

GND_1

C1819

2.2
10V
X7R
2012

C1820

2.2

10V
X7R
2012

GND_1

7
5
3
1

2
4
6
8

10k

RB1820

47K

RB1821

17

8
6
4
2

C1836

0.1

1
3
5
7

16V

1005

GND B+IN

4321

B-IN

A+IN

8765

VCC

BOUTPUT

AOUTPUT

A-IN

IC1801

NJM4558V-TE2

SC1_TV_OUT_L 003:5B

18

SC1_TV_OUT_R 003:5B

19

C1831

C1869

2.2

2012

X7R

16V

47

10V

20

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

21

22

ABCDEF GH JIKLMN

O

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ AE Board Schematic Diagram [ Tuner, Analogue Switch, Audio, I/O Terminal ] P age 7/9 ~

- 28 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

1

1

AE - EG1H

3.3V LINEAR REGULATOR

2

IC1900

PQ070XNA1ZPH

2

6.1V

Vin

Enable

Vout

Vref

GND_1

C1905

XX

GND

C1906

3216
X7R
10V

10

GND_1

JL1901

CL1901

C1907

XX

R1913

XX

L1901

10uH

C1911

47

6.3V

GND_1

R1918

+3V3

C1915

0.1

16V

GND_1 GND_1 GND_1 GND_1

0

XX

FL1900

EMI

C1918

100

6.3V

JL1903

+3V3_DEMOD

C1919

0.01
25V
X7R

1005

JL1900

3

4

C1900

16V

R1901

1k

1/16W

CHIP

5%

0.1

C1901

GND_1

C1902

47

16V

0.1
16V
1005

GND_1 GND_1

to create
time constant
of 93 uS

12345

R1908

R1906

3.3k

3.3k
1/16W

1/16W

RN-CP

RN-CP

0.5%

0.5%

Vref = 1.25v

R1907

1k

1/16W

RN-CP

0.5%

GND_1 GND_1

5

31V_TUNER BOOST REGULATOR

6

7

+5V

C1903

4.7
16V
X7R
3216

GND_1

C1904

100p

50V

CH

1005

GND_1

C1962

XX

C1961

0.1

25V
X7R
1608

C1908

0.22
25V
X7R
1608

LA5795T-TLM-E

IC1901

54321

4Vcc across
this capacitor

C1913

C1957

0.22

0.1

25V

25V

X7R

X7R

1608

C1914

0.22

25V
X7R
1608

C1912

2.2
50V
X7R

3216

1608

C1959

X7R
1608

109876

C1958

XX

Vcc across
this capacitor

C1960

XX

0.1

25V

C1916

100

50V

2Vcc across
this capacitor

CL1902

+32V_TUNER

+5V

001:13E

R1923

0

XX

FL1901

EMI

TUNER_SW

C1920

100

6.3V

GND_1GND_1

ANALOGUE_TV_SEL

R1924

47
1/16W
CHIP

5%

8

GND_1

+5V_ANALOGUE

C1922

0.01
25V
X7R
1005

GND_1

006:2J;006:3J

C1921

0.1

16V

GND_1

R1925

47

+3V3_DEMOD

R1929

10k

SCL_DEVICE

R1928

XX

GND_1 GND_1

L1902

1uH

C1923

0.1

16V

GND_1

SILENT_SCL

R1931

22

ANALOGUE_TV_SEL

L1903

0uH

C1924

47

6.3V

IC1903

74LV4066PW

QSCL

DIGITAL_TV_SEL

SILENT_SCL

DIGITAL_TV_SEL

SILENT_SCL

SCL_ANA

ANALOGUE_TV_SEL

SILENT_SDA

654321

ANALOGUE_TV_SEL

SILIENT_SDA

7

SDA_ANA

GND

GND_1

VCC

QSDA

C1925

14 13 12 11 10 9

8

0.1

16V

DIGITAL_TV_SEL

SILENT_SDA

R1934

22

I2C SWITCHING FOR ANALOGUE OR DIGIT AL I2C COMMUNICATION TO TUNER

SDA_DEVICE

R1938

10k

GND_1

R1942

XX

QSCL_DEMOD

DIGIT AL_TV_SEL

QSDA_DEMOD

SILENT_SDA

SILENT_SCL

TUNER_LNA_SW

SILENT_SCL

SILENT_SDA

AGC_DEFEA T_TUN

+5V_ANALOGUE_SW

CVBS_TUNER

FB1913

0uH

GND_1

C1928

12p

PLACE CLOSE TO CONNECT OR

L1905

XX

R1948

100

1/16W

CHIP

5%

1005

FB1914

0uH

C1930

FB1918

0uH

L1906

XX

C1929

XX

12p

GND_1

GND_1

R1955

TUNER_LNA_SW Pin3 UFE-4 Reception
HIGH GND COFDM DIGITAL

LOW 5V QAM / ANALOGUE

A T POWER ON LNA NORMALLY LOW

+5V_ANALOGUE

FB1900

0uH

C1931

0.1

16V

+32V_TUNER

L1908

XX

R1954

100

1/16W

CHIP

5%

1005

100

C1933

0.1

16V

GND_1

C1932

XX

6.3V

C1934

470p
50V
X7R

FB1901

0uH

R1959
1/16W

Q1909

UNR52A1G0LS0

L1910

0uH

C1936

470p
50V

X7R

GND_1

JL1910

1k

GND_1 GND_1

C1938

0.01
50V

X7R

C1939

470p
50V

X7R

GND_1 GND_1

C1941

XX

+5V_ANALOGUE

100k

R2003

C1943

0.1

16V

0.5%

1/16W

RN-CP

JL1912

+5V_ANALOGUE

+5V_ANALOGUE

+5V_ANALOGUE

R1969

XX

L1911

0uH

FB1917

R1972

10k

0uH

GND_1

R1976

XX

GND_1

GND_1

C1949

0.1

16V

16V

FB1916

0uH

C1951

16V

0.1
C1965

0.1

0.1

16V

C1964

GND_1

FB1902

0uH

JL1915

JL1917

JL1918

JL1919

JL1920

JL1921

JL1937

JL1938

GND_1

JL1943

JL1944

5V(ANT)
5V(LNA)
LNA SW
33V
5V(TU)
SCL(TU/IF)
SDA(TU/IF)
AS(TU)

AGC(TU)
IF(ADJ)

5V(IF)
VIDEO

3

4

5

6

7

8

9

9

JL1945

JL1946

AFT
AS(IF)
QSS
AUDIO

QSCL

1.2V(OFDM)
QSDA

3.3V
RST
INT
AS
SYNC
CLK
VAL
TS1
TS0
TS3
TS2
TS5
TS4
TS7
TS6
SDA
SCL

GND_1

TU1900

10

11

12

13

14

15

16

17

LOGIC AND V OL TAGE SWITCHING

+3V3_DEMOD

ANALOGUE_TV_SEL

006:3J;006:7C

GND_1

R1904

1k

006:2L;006:10I

Q1900

UNR52A1G0LS0

DIGIT AL_TV_SEL

SPRING GROUND CONNECTIONS UNDER TUNER

ET1900XX

E

ET1901 XX

E

ET1902

E

ET1903 XX

E

ET1904 XX

E

ET1905

E

ET1906

XX

E

ET1907 XX

E

ET1908

E

XX

ET1909

E

XX

ET1910

E

XX

Place on A side under TU1900

E

E

GND_1

+5V_ANALOGUE

R1917

2.2k

ANALOGUE_TV_SEL

006:2J;006:7C

Q1912

UNR52A1G0LS0

GND_1

ET1912

XX

ET1911

+5V_ANALOGUE

R1921

XX

Q1905

2SA2048TL QR

R1922

470

+5V_ANALOGUE_SW

JL1905

001:15F

TUNER_DATA_7

001:13F

TUNER_DATA_6

001:15E

TUNER_DATA_5

001:13E

TUNER_DATA_4

001:15E

TUNER_DATA_3

001:13E

TUNER_DATA_2

001:15E

TUNER_DATA_1

001:13E

TUNER_DATA_0

001:15E

TUNER_FE_VAL

001:13E

TUNER_FE_SYNC

001:13E

TUNER_FE_CKOUT

PLACE CLOSE TO CONNECT OR

AGC_DEFEA T_MICR O

AGC_DEFEAT_MICRO should be

connected to GPIO micro output

rather than "MONITOR" input.

FM_AM_L_AUDIO

QSS_R_AUDIO

CVBS_TUNER

L1904

+3V3_DEMOD

C1926

0.01
25V

X7R

GND_1 GND_1

1uH

GND_1

R1940

Q1913

UNR52A1G0LS0

Was added as countermeasure for

strong Analogue RF signal for BG

in Netherlands, lowers the AGC

006:2L;006:2J

DIGIT AL_TV_SEL

JL1907

JL1908

JL1909

C1927

R1941

4.7k

22k

0.1

16V

DIGIT AL_TV_SEL

R1945

4.7k

QSCL_DEMOD

QSDA_DEMOD

AGC_DEFEA T_TUN

voltage

FM_AM_L_AUDIO

CVBS_TUNER

QSS_R_AUDIO

FM_AM_L_AUDIO

QSCL_DEMOD

QSDA_DEMOD

GND_1

+1V2_SW

+3V3_DEMOD_SW

R1952

XX

R1953

10k

GND_1 GND_1

GND_1

+3V3_DEMOD_SW

R1956

XX

C1956

XX

R1957

XX

THE AS LINE IS SETUP FOR ADDRESS D8h

R1958

0

L1909

XX

R1962

1k

Q1910

2SA2122G0LS0

GND_1

PLACE CLOSE T O UFE TUNER PIN

C1935

100

6.3V

C1937

GND_1

R1961

22

6.3V
X6S

XX

C1940

C1942

100

6.3V

0.1

16V

C1945

4.7
10V
X7R
2012

GND_1

JL1911

C1944

22

6.3V
X6S

C1946

0.1

16V

GND_1

TUNER_FE_SYNC

TUNER_FE_CKOUT

TUNER_FE_VAL

TUNER_DA T A_1

TUNER_DA T A_0

TUNER_DA T A_3

TUNER_DA T A_2

TUNER_DA T A_5

TUNER_DA T A_4

TUNER_DA T A_7

TUNER_DA T A_6

TUNER_SDA_DIGITAL

TUNER_SCL_DIGIT AL

C1947

XX

GND_1

JL1913

+5V_ANALOGUE

TUNER_RST

001:13E

001:13E

R1966

100

R1968

100

R1971

220

1/16W

CHIP

5%

GND_1

R1974

100

R1975

XX

GND_1

GND_1

R1973

XX

001:15E

PLACE CLOSE TO TUNER

JL1914

C1950

100p

50V

CH
1005

R1977

FB1907

FB1908

FB1909

FB1910

FB1911

FB1912

10

GND_1

R1986

10

GND_1

C1953

0.01
25V
X7R

FB1903

0uH

FB1915

0uH

FB1904

0uH

FB1905

0uH

FB1906

0uH

0uH

0uH

0uH

0uH

0uH

0uH

GND_1

C1954

10p
50V

CH

C1955

10p
50V
CH

JL1922

JL1939

JL1923

JL1916

JL1941

JL1924

JL1925

JL1926

JL1927

JL1928

JL1929

JL1930

JL1931

JL1932

JL1933

JL1934

JL1935

JL1936

18

19

20

21

TUNER_SW ANALOGUE_TV_SEL DIGITAL_TV_SEL TUNER CONDITION

LOW LOW HIGH DIGITAL
HIGH HIGH LOW ANALOGUE

+3V3_DEMOD

2SA2048TL QR

+3V3_DEMOD

R1905

1k

DIGIT AL_TV_SEL

006:2J;006:10I

Q1911

UNR52A1G0LS0

GND_1

R1919

XX

Q1904

+3V3

R1920

470

R1909

0

L1900

XX

+3V3_DEMOD_SW

JL1904

Please keep close
to pin1

C1909

1

10V

X7R

D1900

MA2J1110GLS0

1k

5%

CHIP

R1990

1/16W

GND_1

1.2V Regulator

MM3141CNRE

IC1902

VDD

Vout

GND

321

CE NC

+1V2_SW

54

CL1903

CE threshold voltage 1.5V

AE

8/9

C1948

C1952

XX

XX

GND_1 GND_1

JL1942

GND_1

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

18

19

20

21

22

ABCDEF GH JIKLMN

O

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ AE Board Schematic Diagram [ Tuner, Analogue Switch, Audio, I/O Terminal ] P age 8/9 ~

- 29 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

AE - EG1H

1

1

10

11

12

13

14

15

16

17

18

19

20

21

22

R2233

10k

1/16W

CHIP

M_STBY3.3V

5%

1005

R2231

10k
1/16W
CHIP

5%

1005

C2169

0.1

16V

D2106

MA4J1130GLS0

D2107

MA4J1130GLS0

M_STBY3.3V

L2103

0uH

GND_1

X_I2C_BUS_SW

I2C_SDA_TP

SMART_LINK

AVLINK_OUT

D3.3V

SCL_DEVICE

SDA_DEVICE

2

3

4

5

6

7

8

9

10

11

12

001:13C;005:13E

001:15C;005:13E

13

14

15

16

17

18

19

20

21

22

FB2107

0uH

VDD C

GND

OUT

IC2105

PST3629UL

100

ICS2
ICS1
ICS0

100

1kR2189

C2153

1005

C2152

16V
1005

RESET

RESET

43

HDMI_HPLG_CTRL

HDMI_SEL2

HDMI_SEL1
HDMI_OS_CD
HDMI_OS_AB

10k

RB2171

FR_MD2

002:13I

10kR2195

C2155

0.1

0.001

16V

50V
X7R

1005

0.1

C2156

0.001
50V
X7R

1005

C2143

10V
X7R
1608

C2157

10

16V

R2190

R2191

R2193

1

C2158

0.1

16V

1005

XX

XX

R2176

470

XX

R2199
R2200

X2101

16.5MHz

RFC_RST

FE_TXD0B

FE_RXD0B

1
3
5
7

100

RB2147

i_uart_rx1

o_uart_tx1

o_hdmi_ce

o_pc_hdmi_wp

HDMI_CE

HDMI_PC_WP

XX

RB2155

o_uart_tx0

o_hdmi_edid_sw

o_hdmi_rst

VDDE

100 RB2123

HDMI_RST

2
4
6
8

i_uart_rx0

VSS

10k

RB2113

i_be_busy

io_iic_scl0

i_au_prot

i_hp_det

7

AU_PROT_M

DMP_TXD

DMP_RXD

NVM_PROT

R2171

100

100

i_uart_rx4

o_uart_tx4

IC2104

MB91305

o_msp_rst

o_dsp_rst

100

RB2114

2143658

12V_SW

MSP_RESET

DSP_RST_M

1
3
5
7

RB2145

o_be_rst

o_uart_tx3

o_sel_out_mute

o_fe_rst

7

XX

RB2154

i_uart_rx3

o_sub_on2

RB2120

2143658

DTT_PON_DELAY

UART_TX_RF A

UART_RX_RF A

47

RB2108

io_iic_scl3

io_iic_sda2

io_iic_sda3

VDDE

VSS

VDDI

BE_RST

io_iic_scl2

RDX

5%100R2169

5%

CHIP

CHIP

1/16W

1/16W

100R2168

RD#

WR#

47

RB2109

io_iic_scl1

io_iic_sda0

io_iic_sda1

WR0X/DQMUU

o_dsp_mute

o_cs_flash

RB2111

2143658

CS_FLASH

DSP_MUTE

100

SCL_NVM

C2101

10

16V

Q2119

POWER_SW

SDA_NVM

D2102

1SS388(TPL3)

C2112

100

6.3V

JL2100

M_STBY3.3V

R2101
1/16W

GND_1

AU_PROT_M

AU_PROT

C2103

16V

1005

10k

CHIP

5%

C2102

0.01

25V
X7R
1005

XX

R2102

0.1

XX

XX

R2106

R2104

C2114

0.1
16V

1005

4.7k

RB2169

R2131

220

1/16W

5%

CHIP

C2116

0.22F

5.5V

S-1132B18-M5T1

IC2100

VIN
VSS

321

ON/OFF NC

D2101

XX

D2100

MA4J1130GLS0

74LV4066PW

IC2102

7654321

ONLY AEP

VOUT

IC2103

S-35390A-J8T1G

INT2

SCL

SDA

8765

VDD

54

C2105

0.1

16V

UART_RX_RF A

Q2120

UNR52A3G0LS0

GND_1

I_SIRCS

M_STBY3.3V

14 13 12 11 10 9 8

6.3V
47

C2106

M_HSYNC

C2107

GND_1

VSS

XIN

XOUT

INT1

L2101

10uH

INV_MD0

0.1

XX

R2114

XX

R2115

16V

SUB_ON

4321

5%

1005

CHIP

1/16W

1005
16V

0.1

C2108

R2154

C2135

0

10k

R2153

STBY1.8V

JL2101

CL2102

GND_1

TUNER_SW_M

TUNER_SW

I2C_BUS_SW

I2C_BUS_SW_M

3p

CJ

50V

1005

C2134

XX

XX R2157

GND_1

6.3V
47

C2109

SUB_ON

R2117

100

Q2104

TR UNR51A5G0LS0

1

234

COIN_V

GND_1

T_ALART

5%

1005

CHIP

1/16W

X2100

32.768kHz

<< STBY3.3V >>

4.7k

R2118

R2122

R2123

R2124

100

Q2105

TR UNR51A5G0LS0

AVLINK_OUT

SUBCHRO_RST

PIC_MUTE_LED

ON_TIMER_LED

REC_R_LED

POWER_LED

XX

XX

GND_1

HDMI_INT

AC_RL Y

AC_DET_IN

CEC_OUT

CEC_IN

AVLINK_IN

TP_RST

SONY_LOGO

STBY_LED

M_YS

R2129

XX

R2130

XX

I2C_TAS_SCL
I2C_TAS_SD A

TVM_SCL_DEVICE
TVM_SDA_DEVICE

SCL_NVM

SDA_NVM

BE_WDT

WAKE

POWER_SW

R2159

10k

SET_ON2

GND_1

XXR2132

XXR2133

C2120

0.1

16V

1005

C2122

0.001

PC_SYNC_DET

50V
X7R
1005

C2123

0.1

16V

1005

T_ALART

SET_ON

GND_1

XX

AUDIO_DSP_INT

SP_MUTE

LINE_MUTE

HP_MUTE

D16
D17
D18
D19
D20
D21
D22
D23

RB2148

C2126

100

100

RB2101

1k

RB2161

1k

RB2160

1k

RB2159

100

RB2149

100RB2106

002:17J;004:2C

TRIDENT_BUS

133

i_t_alart

134

o_set_on

135

i_hdmi_int

136

o_avlink_out

137

o_ac_rly

138

i_ac_det

139

o_subchro_rst

140

o_cec_out

141

nc

142

i_cec_in

143

i_avlink_in

144

VDDE

145

UDP

146

UDM

147

VSS
VDDI

148

o_touch_key_rst

149
150

o_logo_drv
o_stby_led

151

o_pic_mute_led

152
153

o_timer_led
o_rec_r_led

154

o_power_led

155
156

i_sircs
o_sub_on

157

i_fb_det

158

i_audio_dsp_int

159

PD3/DREQ1

160

i_m_hsync

161

nc

162

o_sp_mute

163

o_line_mute

164

o_hp_mute

165

VDDE

166

VSS

167

VDDI

168

D16/P20

169

D17/P21

170

D18/P22

171

D19/P23

172

D20/P24

173

D21/P25

174

D22/P26

175

D23/P27

176

i_pc_sync_int

VDDE

1234567891011121314151617181920212223242526272829303132333435363738394041424344

C2117

1
25V
X7R

2012

XXR2128

C2119

0.001
50V
X7R
1005

2

3

4

5

M_STBY3.3V

L2100

6

0uH

7

8

WAKE

UNR51A3G0LS0

9

DSP_RST

DSP_RST_M

HDMI_SDA

1k

RB2158

o_set_on2

VSS

HDMI_SCL

i_pwr_sw

VDDI

AD0

FE_SDA_EMMA

i_wake

D24

AD1

BE_BUSY

NMIX

i_be_wdt

D25

D26

AD2

47

AD3

RB2157

VDDI

D27

AD4

VSS

D28

RB2152

1
3
5
7

AD5

XX

VDDE

D29

AD6

2
4
6
8

io_iic_scl4

io_iic_sda4

D30

D31

AD7

FE_SCL_EMMA

TVM_BEM_TX

TVM_BEM_RX

2
4
6
8

R2175100

100

RB2146

i_uart_rx2

spi_clk_fe

o_uart_tx2

o_nvm_wp

o_hdmi_sel_latch

o_cec_onncnc

100

7

CEC_ON

TUNER_SW_M

HDMI_LATCH

I2C_BUS_SW_M

ECS_TXD

ECS_RXD

HDMI_EDID_SW

C2145

0.001
50V

X7R

1005

VSS

VDDI

VDDE

VVDIA0A1A2A3A4A5A6A7

TV_A1

TRSTX

TV_A2

C2146

0.1

16V

1005

ICLK

TV_A3

1
3
5
7

TV_A4

10k

RB2156

C2148

0.001
X7R

50V

1005

IBREAK

TV_A5

ICD3

C2149

0.1

16V
1005

ICD2

TV_A6

2
4
6
8

100

TV_A7

ICLK

TRSTX

RB2129

8990919293949596979899100101102103104105106107108109110111112113114115116117118119120121122123124125126127128129130131132

ICD0

ICD1

ICS2
ICS1
ICS0

o_hdmi_hpg_ctrl

o_hdmi_sel_2
o_hdmi_sel_1
i_hdmi_os_cd
i_hdmi_os_ab

i_model
i_lb_err

o_agc_att

i_aft_main

i_key

AVSS
AVRH
AVCC

MD3
MD2
MD1

MD0
INTX
VDDI

X1

VSS

X0

VDDE

i_dmp_det

o_rf_mode_sel

o_i2s_sw_sel

A20/P54
A19/P53
A18/P52
A17/P51
A16/P50

VDDI

VSS

VDDE

A15
A14
A13

A12
A11
A10

A9

A8

TV_A8

C2142

0.1

16V

1005

IBREAK

88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45

ICD3

ICD2

ICD1

RB2131

R2185

1k

TV_A20
TV_A19
TV_A18
TV_A17
TV_A16

TV_A15
TV_A14
TV_A13
TV_A12
TV_A11
TV_A10

TV_A9

12

ICD0

100

R2186

100

R2188 1 0 0

C2151

0.1

16V
1005

RB2130

RB2132

FE_MASTER_RSTB

D3.3V

C2133

0.1

16V

1005

A9V

GND_1

C2137

0.1

16V

1005

C2139

0.001
50V

X7R

1005

C2140

0.001
50V

X7R

1005

C2141

0.1

16V

1005

HP_DET

10k

R2172

Near Tuner

L2102

STBY3.3V

FL2100

EMI

GND_1

M_STBY3.3V

CL2103

10uH

C2111

GND_1

16V

R2116

C2110

2.2k

0.1

47

16V

1005

1/16W

CHIP

5%

Q2103

2SA2122G0LS0

GND_1

CVBS_TUNER

A9V

006:9I

R2120

100

1/16W

CHIP

5%

2SA2122G0LS0

Q2106

R2125

4.7k

1/16W

CHIP

5%

R2126
1/16W

CHIP

C2113

0.022
25V
X7R
1005

2.2k

5%

C2115

XX

1k

RB2103

C2121

0.022
25V

X7R
1005

R2136

XX

R2137
1/16W

R2139

1M

1/16W

4.7k

CHIP

5%

Q2107

2SC5950G0LS0

GND_1

R2138

220k
1/16W
RN-CP

0.5%

R2141

XX

GND_1

R2145

1M

1/16W

CHIP

5%

Q2108

2SA2122G0LS0

C2125

0.1

16V

1005

GND_1

R2146

3.3k

1/16W

CHIP

5%

004:10I

C2128

16V

V5V

1005

Q2109

2SA2122G0LS0

R2147

2.2k

1/16W

CHIP

5%

0.1

C2129

XX

TU_MAIN

C2127

4700p

50V
X7R

1005

GND_1

C2130

47

6.3V

XX

R2151

1/16W

V5V

1/16W
RN-CP

R2150

2.7k

CHIP

5%

R2155

2.2k

1/16W

CHIP

R2152

3.9k

0.5%

5%

R2112

XX

R2105

XX

R2156

22k

1/16W

CHIP

5%

R2158

22k

1/16W

CHIP

5%

1005

C2131
2200p

50V
X7R

1005

D2103

RB501V-40TE-17

C2132

2200p

50V
X7R
1005

D3.3V

R2162

3.3k

1/16W

CHIP

5%

Q2110

2SC5950G0LS0

Q2111

2SC5950G0LS0

R2160

1M

1/16W

CHIP

5%

R2164

XX

C2136

0.22

6.3V
X6S
1005

D3.3V

R2165

3.3k

1/16W

CHIP

5%

C2138

4.7

10V
X7R
2012

M_HSYNC

COIN_V

ECS_TXD
ECS_RXD

FE_RXD1B

FE_TXD1B

JIG_BEM_RST

MODE_BEM

BEM_CODE_RX
BEM_CODE_TX

2
4
6
8

2
4
6
8

2
4
6
8

RB2172

RB2173

1
3
5
7

RB2175

22

1
3
5
7

22

1
3
5
7

2
4

100

RB2174

6
8

22

1
3
5
7

XX

VD2105

VD2100

4

VD2101

12

3

VD2102

4

3

12

100

R2180

VD2103

M_STBY3.3V

002:12E

FR_MD2

M_STBY3.3V

4

3

12

XX

C2147XXC2150

R2184

22

4

VD2104

12

Q2113

TR UNR51A5G0LS0

INV_MD0

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18

3

GND_1

To JIG

GND
TV_TXD
TV_RXD
TV_FLASH_W
NC
TV_RST
DTT_LOG_RXD
LBM_UDP
LBM_UDM
LBM_VBUS
JIG_BEM_RST
DTT_LOG_TXD
NC
NC
MODE_BEM
BEM_CODE_RX
BEM_CODE_TX
GND

CN2100

18P

10k

R2187

UNR52A1G0LS0

GND_1

Q2114

To JIG

JL2104

XX

RB2135

123456789

GND_1

GND

AVC_LOG(Tx)

2.2k

1/16W

RN-CP

JL2102

XX

R2204

R2203

10k
XX

STBY1.8V

FE_TXD2B

FE_RXD2B

JL2105

AVC_LOG(Rx)

0.5%

C2144

2012

R2179

47k

1/16W

CHIP

5%

GND_1

KEY

BEM_LOG_TX

BEM_LOG(Tx)

<< STBY3.3V >>

1
25V
X7R

Q2112

RT3WLMM-TP-1F

TRSTX
XRSTIN
INITX
IBREAK

ICD1

MODEL ID

12V

ICLK

R2207

33k

R2208

10k

1/16W

0.1

16V

C2301

TRSTX

GND_1

R2210

XRSTIN

INITX

100

RB2162

HDMI_SCL

BEM_SCL1

HDMI_SDA

BEM_LOG_RX

XX

RB2136

BEM_LOG(Rx)

E2TH_SCL_0(400)

BEM_SDA1

XX

BEM_SCL_1(400)

E2TH_SDA_0(400)

RB2138

BEM_SDA_1(400)

R2182

10k

1/16W

5%

CHIP

R2183

10k

1/16W

CHIP

5%

Q2115

UNR52A1G0LS0

C2162

1005

M_STBY3.3V

ICD3ICD3
ICD2ICD2

ICD0ICD0
ICS2ICS2
ICS1ICS1
ICS0ICS0

RB2139

10k

CHIP

BEM_SDA3

XX

RB2163

BEM_SDA_3(400)

E2TH_SCL_2_VSW

7

TVM_SCL_DEVICE

E2TH_SDA_2_VSW

5%

470

CHIP

R2213

2143658

1/16W

1/16W

5%470

470R2214

1/16W

CHIP 5%

0.1

16V

C2161

GND_1

AGC_DEFEA T_MICRO

I2S_SW_SEL

BEM_SCL2

BEM_SCL3

BEM_SDA2

10111213141516

BEM_SCL_2(100)

BEM_SCL_3(400)

BEM_SDA_2(100)

R2215

0.1

16V

1/16W

5%

CHIP

2143658

RB2141

TVM_SDA_DEVICE

GND

CN2101

M24256-BWMN6TP(A)

4321

GND_1

NVM_PROT

4.7k

7

10k

XX

IC2106

EEPROM

E0

NVM_WP

E1

SCL_A

E2

GND SDA_A

PC_H_IN

8765

VCC

JL2103

XX

R2216

GND_1

M_STBY3.3V

0.1

16V

1005

C2100

GND_1

R2196
1/16W

C2154

1005

TV_A6

TV_A1

CL2100

10k

CHIP

0.1

16V

5%

1
2
3
4
5
6
7
8

9
10
11
12
13
14

TV_A5

TV_A4

TV_A3

TV_A2

UVCC
XTRST
XRSTIN
XINIT
BREAK
ICD3
ICD2
ICD1
ICD0
ICS2
ICS1
ICS0
GND
ICLK

TV_A16

TV_A15

TV_A14

TV_A13

TV_A12

TV_A11

TV_A10

TV_A9

TV_A20

TV_A19

TV_A18

TV_A8

TV_A7

100

RB2167

CN2102

XX

S29AL016D70TFI010-08HAE010

JL2108
RY/BY#

R2107

10k

R2108

XX

8765

IC2101

TC7WH123FK(TE85R)

XX

RB2168

004:12E;005:10K

I2C_DEV_5V

IC2107

A15

A14

A13

4321

A12

A11

65

A10

A9

A8

A19

NC

WE#

1210 11987

RESET#

NC

NC

151413

RY/BY#

A18

A17

181716

A7

A6

A5

A4

A3

A2

242322212019

A1 A0

C2104

0.1

SDA_DEV_5V

SCL_DEV_5V

BYTE#

DQ15/A-1

4321

GND_1

A16

VSS

DQ7

DQ14

DQ6

DQ13

DQ5

DQ12

DQ4

VCC

DQ11

DQ3

DQ10

DQ2

DQ9

DQ1

DQ8

DQ0

OE#

VSS

CE#

M_STBY3.3V

JL2107
JL2106

I2C_BUS_SW

48 43

47 45 44

46

42 41 37383940

36

3435

313233

30 29 28 27 26 25

GND_1

5%

CL2101

Q2102

UNR52A1G0LS0

AVLINK_IN

TVM_SCL_DEVICE

TVM_SDA_DEVICE

TV_A17

M_STBY3.3V

10k

CHIP

R2113

1/16W

GND_1

SCL_NVM
SDA_NVM

I2C_SCL_TP

SCL_DEVICE
SDA_DEVICE

I2C_BUS_SW

C2164

0.001

XX

C2166

GND_1

R2220

16V

C2165

50V
X7R
1005

XX

10

R2218
1/16W

Q2116

UNR52A1G0LS0

V5V

GND_1

4.7k

XX

RB2170

D2104

XX

D2105

R2224

10k

1/16W

C2163

0.1

16V

1005

CS_FLASH

PC_SYNC_DET

10k

CHIP

5%

1005

R2219

10k

1/16W

CHIP

5%

1005

GND_1

D3.3V

GND_1

AD7

AD6

AD5

AD4

AD2

AD1

AD0

R2222

10k

1/16W

CHIP

5%

5%

47k

CHIP

1/16W

10k

R2230

1/16W

GND_1

I2C 3-5

AD3

RD#

WR#

TRIDENT_BUS

R2225

10k

1/16W

CHIP

5%

1005

R2223

IC2109

74L V4066PW

654321

7

GND

Q2117

SSM6N16FU

D23

D22

D21

D20

D19

D18

D17

D16

002:8H;004:2C

IC2108

LM393DT (A)

OUT1

-IN1

OUT2

+IN1

4321

VSS +IN2

X_I2C_BUS_SW

14 13 12 11 10 9

VCC

8

ˇ•

R2234

8.2k

1/16W

RN-CP

0.5%

D1 G2 S2

M_STBY3.3V

8765

M_STBY3.3V

VCC

-IN2

2.2k
RB2166

D3.3V

D2G1S1

AE

0.1

GND_1

R2238

8.2k

1/16W

RN-CP

C2167

GND_1

9/9

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

ABCDEF GH JIKLMN

O

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ AE Board Schematic Diagram [ Tuner, Analogue Switch, Audio, I/O Terminal ] P age 9/9 ~

- 30 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

18

19

1

2

3

4

5

6

7

8

9

CB1 - EG1H

FB 146966921 20uH 5000mA,2012

NC

1

NC

2

NC

3

NC

4

NC

5

NC

6

GND

7

GND

8

GND

9

RA1-

10

RA1+

11

RB1-

12

RB1+

13

RC1-

14

RC1+

15

GND

16

RCLK1-

17

RCLK1+

18

GND

19

RD1-

20

RD1+

21

RE1-

22

RE1+

23

GND

24

RA2-

25

RA2+

26

RB2-

27

RB2+

28

RC2-

29

RC2+

30

GND

31

RCLK2-

32

RCLK2+

33

GND

34

RD2-

35

RD2+

36

RE2-

37

RE2+

38

GND

39

SCL

40

SDA

41

SYNC

42

NC

43

PANEL_SEL5

SET_ON2

PANEL_ON

CAYENNE-S_RST

BABYLON_RST

T -CON_RD Y

CN9001

51P
SIL

44
45

NC

46
47
48
49
50

NC

51

JX^ }N zu –˘

BEM_SDA
BEM_SCL

FB9000

0uH

12V

1

12V

2

12V

3

12V

4

GND

5

GND

6

GND

7

GND

CN9000

8P

8

CL9030

*R90531 0 0

CL9029

12V

XXR9049

FB9002

0uH

LVDS Pair

D9000

XX

FB9004

FB9001

1

S9000

XX

FB90050uH

1.2V

R9019

10k

600

600

3
2

CL9006

3.3V

3.3V

7

Q9000

UNR52A3G0LS0

Q9004

2SC5950G0LS0

VSYNC

R90170

SET_ON

BABYLON_RST

CAYENNE-S_RST

RB9008

1k

7
5
3
1

TCON_RDY_CHK

2143658

RB9010

1k

R90140

R9015XX

Substitute:DTC144EUAT106 8-729-029-14

CL9000

8
6
4
2

CL9003

R9016XX

CL9001

R9020

0

L VDS

TCLK0N

TCLK0P

TCLK2N

TCLK2P

TCLK1N

TCLK1P

TCLK3N

TCLK3P

C9010

XX

TA0N

TA0P

TB0N

TB0P

TC0N

TC0P

TD0N

TD0P
TE0N

TE0P

TA2N

TA2P

TB2N

TB2P

TC2N

TC2P

TD2N

TD2P
TE2N

TE2P

TA1N

TA1P

TB1N

TB1P

TC1N

TC1P

TD1N

TD1P
TE1N

TE1P

T

A3N

TA3P

TB3N

TB3P

TC3N

TC3P

TD3N

TD3P
TE3N

TE3P

BL_NVM_EN

AE3
AE2
AD2
AD1
AC2
AC1
AB2
AB1
AA2
AA1

Y2
Y1

W2
W1

V2
V1
U2
U1

T2
T1
R2
R1

P2
P1

N2

N1
M2
M1

L2

L1
K2
K1

J2

J1
H2
H1

G2
G1

F2

F1
E2
E1

D2
D1

C2
C1
B3
B2

5V

B16

RAN0

A16

RAP0

B15

RBN0

A15

RBP0

B14

RCN0

A14

RCP0

B13

RCLKN0

A13

RCLKP0

B12

RDN0

A12

RDP0

B11

REN0

A11

REP0

B9

RAN1

A9

RAP1

B8

RBN1

A8

RBP1

B7

RCN1

A7

RCP1

B6

RCLKN1

A6

RCLKP1

B5

RDN1

A5

RDP1

B4

REN1

A4

REP1

CXD9935GB

54

C9000

0.1

16V

1005

IC9000

PANEL_ON

TCON_RDY

R9018XX

R9002

100

R9003

100

R9004

100

R9005

100

R9006

100

R9007

100

R9008

100

R9009

100

R9010

100

R9011

100

R9012

100

R9013

100

3.3V

PANEL_ON

TCON_RDY_CHK

R3112N291A-TR-FA

IC9004

OUT
VCC

321

GND NC

Development Only

5V

R9027

XX

CD

XX

D9001

PANEL_ON

Q9001

Substitute:DTC144EUAT106 8-729-029-14 Substitute:DTC144EUAT106 8-729-029-14

XX

R9050

XX

SL9003

RB9005
10k

XX

D9002

Q9003

XX

CB1

B_INT_S

PANEL_12V

B_INT_S

2143658

7

1/7 HFR FILM HC

R9066

XX

IC9005

0

VCC

5
6
7
8

L9012

280

5
6
7
8

L9013

280

5
6
7
8

L9014

280

5
6
7
8

L9015

280

5
6
7
8

L9016

280

5
6
7
8

L9017

280

5
6
7
8

L9018

280

5
6
7
8

L9019

280

5
6
7
8

L9020

280

5
6
7
8

L9021

280

5
6
7
8

L9022

280

5
6
7
8

L9023

280

CL9015

CK

0.5%

RN-CP

1/16W

33k

R9065

R9025

R9059

87654321

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

0

XX

GND

PANEL_ON

TCON_RDY_CHK

PANEL12_SENCE

IC R3112N291A-TR-FA

R3112N291A-TR-FA

IC9002

OUT
VCC

321

GND NC

3.3V

16 15 14 13 12 11 10 9

BABYLON_OE

CD

C9028

XX

FRAME_ID

CL9027
CL9028

CL9021
CL9022

CL9023
CL9024

CL9025
CL9026

54

C9003

XX

(PD)

E2
E1
F4
F3
F2
F1
G2
G1
G4
G3
H2
H1

K2
K1
L4
L3
L2
L1
M2
M1
M4
M3
N2
N1

P2
P1
R4
R3
R2
R1
T2
T1
T4
T3
U2
U1

W2
W1
Y4
Y3
Y2
Y1
AA2
AA1
AA4
AA3
AB2
AB1

C1
C2

R1AN
R1AP
R1BN
R1BP
R1CN
R1CP
R1CLKN
R1CLKP
R1DN
R1DP
R1EN
R1EP

R2AN
R2AP
R2BN
R2BP
R2CN
R2CP
R2CLKN
R2CLKP
R2DN
R2DP
R2EN
R2EP

R3AN
R3AP
R3BN
R3BP
R3CN
R3CP
R3CLKN
R3CLKP
R3DN
R3DP
R3EN
R3EP

R4AN
R4AP
R4BN
R4BP
R4CN
R4CP
R4CLKN
R4CLKP
R4DN
R4DP
R4EN
R4EP

HTMODE
HTXRST

L VDS

IC9400

CXD9929GB

T1AN

T1AP

T1BN

T1BP

T1CN

T1CP

T1CLKN

T1CLKP

T1DN

T1DP
T1EN
T1EP

T2AN

T2AP

T2BN

T2BP

T2CN

T2CP

T2CLKN

T2CLKP

T2DN

T2DP
T2EN
T2EP

T3AN

T3AP

T3BN

T3BP

T3CN

T3CP

T3CLKN

T3CLKP

T3DN

T3DP
T3EN
T3EP

T4AN

T4AP

T4BN

T4BP

T4CN

T4CP

T4CLKN

T4CLKP

T4DN

T4DP
T4EN
T4EP

EATIN1
EATIN2

BEM_SCL
BEM_SDA

AE14
AF14
A

AD14

AE13
AF13
AC13

AD13

AE12
AF12
AC12

AD12

AE11
AF11
AC11

AD11

AE10
AF10
AC10

AD10

AB14

C14

AE9
AF9
AC9
AD9

AE8
AF8
AC8
AD8
AE7
AF7
AC7
AD7
AE6
AF6
AC6
AD6

AE5
AF5
AC5
AD5
AE4
AF4
AC4
AD4
AE3
AF3
AE2
AF2

AB8

CL9004
CL9005

74LVC2G66DC-125

IC9001

1Y

VCC
1Z
2E

4321

GND 2Y

8765

1E
2Z

3.3V

EMI

C9001

0.1

16V
1005

FL9002

T_BINT

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

R90440
R90450

L9005

280

L9011

280

LVDS Pair

5
6
7
8

L9000

280

5
6
7
8

L9001

280

5
6
7
8

L9002
280

5
6
7
8

L9003

280

5
6
7
8

L9004

280

5
6
7
8

5
6
7
8

L9006

280

5
6
7
8

L9007

280

5
6
7
8

L9008

280

5
6
7
8

L9009

280

5
6
7
8

L9010

280

5
6
7
8

R90580

DCC

FB 146966921 20uH 5000mA,2012

FB 146966921 20uH 5000mA,2012

FB9009

600

LUT_SEL0
LUT_SEL1
LUT_SEL2

TCON_RDY

FB9010

600

PANEL_12V

CL9020

PANEL_12V

FB9011

0uH

FB9008

0uH

41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

POWER
POWER
POWER
POWER
POWER
N.C.
GND
GND
GND
T1[0]N
T1[0]P
T1[1]N
T1[1]P
T1[2]N
T1[2]P
GND
T1CLK­T1CLK+
GND
T1[3]N
T1[3]P
T1[4]N
T1[4]P
GND
T3[0]N
T3[0]P
T3[1]N
T3[1]P
T3[2]N
T3[2]P
GND
T3CLK­T3CLK+
GND
T3[3]N
T3[3]P
T3[4]N
T3[4]P
GND
N.C.
B_INT S

CN9003

POWER
POWER
POWER
POWER
POWER
N.C.
GND
GND
GND
T2[0]N
T2[0]P
T2[1]N
T2[1]P
T2[2]N
T2[2]P
GND
ROCLK­ROCLK+
GND
T2[3]N
T2[3]P
T2[4]N
T2[4]P
GND
T4[0]N
T4[0]P
T4[1]N
T4[1]P
T4[2]N
T4[2]P
GND
T4CLK­T4CLK+
GND
T4[3]N
T4[3]P
T4[4]N
T4[4]P
GND
SCL
SDA
SYNC
B-INT
ACC_SEL
LVDS_SEL
DCC_SEL
LUTSEL0
LUTSEL1
LUTSEL2
TCON_RDY
N.C.

CN9004

B_INT_S

CAYENNE-S_RST

LANE[0]

R90460

FB 140083421 600uH,200mA,1005

R9055

XX

7

BEM_SCL
BEM_SDA

XX

3.3V

S9001

VSYNC

1

2

3.3V

EMI

FL9000

3

C9006

R9029

100

C9005

0.001

4

OUT

X9000

25MHz

50V
X7R
1005

E/DVDD

GND

0.1

16V

1005

1
23

4

IO/TEST

AF9

100R9028

Reset

CL9007

C9004

0.1

16V
1005

H:0x1A/L:0x18
H:0xAE/L:0xAC

H:0x1E/L:0x1C
LOW

RB9009
7
5
3
1

¯Ł

*R9060

10k

1k

CL9017

8
6
4
2

(DE)
(Hsync)
(Vsync)

(CLK)

2143658

RB9001

10k

R9054

0

VCA: VCOM

CL9009
CL9010
CL9011
CL9012

CL9018

H:Enabel/L:Disable
H:Enabel/L:Disable

*R9061

XX

†fip

CUC_NVM_ERR

T_BINT

PE_BINT

CK_REF

A23

RESETX

C19

ADD_SEL

C18

I2C_CUC_ADSEL

D18

MISCI

F18

LMODE

D21

FSMOD_RX

D20

FSMOD_TX

E17

GPI0(FAN_ERR)

D16

I_COMPSTOP

C21

I_REFRESH_CYCLE

C22

I_TEST

C26

I_BINT

B24

SAMODE

B25

VCA

C25

BINT
H:Bus release

AF4

GPI1(TCON_RDY)

AA10

GPIO0

AB10

GPIO1

AC10

GPIO2

AD10

GPIO3

AE10

GPIO4

AA9

GPIO5

AB9

GPIO6

AC9

GPIO7

AD9

GPIO8

AA8

GPIO9

AB8

GPIO10

AC8

GPIO11

AD8

GPIO12

AE8

GPIO13

Y6

GPIO14

AD7

GPIO15

AE7

GPIO16

AA7

GPIO17

AA6

GPIO18

AB6

GPIO19

AC6

GPIO20

AD6

GPIO21

W5

GPIO22

Y5

GPIO23

AA5

GPIO24

AB5

GPIO25

AC5

GPIO26

AD5

GPIO27

AE5

GPIO28

AB4

GPIO29

AC4

GPIO30

AD4

GPIO31

AB7

GPIO32

AC7

GPIO33

(PU50k)

L:Normal Mode

(PD50k)
(PD50k)

PD(50k)
PD(50k)
PD(50k)
PD(50k)
PD(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)
PU(50k)

ERRCLK

TCERR

O_NVM_ERR

GPO4(FAN_DRV)

GPO3(FAN_HL)

FRAME_ID

GAMSEL
GPO0(LUT_SEL0)
GPO1(LUT_SEL1)
GPO2(LUT_SEL2)
GPO5(DCC_SEL0)

NECTESTOUT0
NECTESTOUT1

FSSET_LVDS
LVDSRX_ATBI0
LVDSRX_ATBI1

LVDSRX_PLL THMODE

LVDSTX_ATBI0
LVDSTX_ATBI1

LVDSTX_PLL THMODE

NECTEST
NECTESTIN0
NECTESTIN1
NECTESTIN2
NECTESTIN3
NECTESTIN4

TEST_SEL0
TEST_SEL1
TEST_SEL2
TEST_SEL3

PONR

TMC1
TMC2

AE4

AA4

AF7

E18
D19
C23
D17
C17
F17

5

eXg j^[q

CL9008

‡M o

CUC_NVM_ERR

CL9016

Y4

W4

PE_NVM_BINT

FRAME_ID

LUT_SEL0
LUT_SEL1
LUT_SEL2

DCC

H:LVDS

‡M o

H:Abnormal/L:Normal

/L:Normal

6

7

3.3V

8

Reset

D5

D7

˚

OPEN

E7

˚

OPEN

E6
H6
G5

F7
D6
E4
D4
N5

P5

P6

P7
N7
N6
G4

F4
E5

F5

F8
E8

CL9013

R9052XX

R9030

10k

R90510

R9031

100k

C9007

C9008

0.1

0.1

16V

16V

1005

1005

CAYENNE-S_RST

E

ET9007EET9009EET9012EET9014

For CayenneS

IC9003

R3112N291A-TR-FA

OUT

CD

VDD

321

GND NC

54

C9009

0.001
50V

X7R
1005

9

10

11

12

13

E

ET9002

E

ET9008

E

ET9013

E

ET9015

14

D25

MODE_SEL0

D24

3.3V

7

FB9012

0uH

2143658

RB9002

1k

D23
D22

F19
E16
G17

A21
B21

B20
A20

MODE_SEL1
MODE_SEL2
MODE_SEL3

test_clk_IN
test_clk_MEM
test_clk_X2

I2C_FRC_SCL_S
I2C_FRC_SD

A_S

I2C_PE_SCL_S
I2C_PE_SDA_S

I2C_CUC_SDA_M

IC9000

CXD9935GB

O_NVM_WP

I2C_CUC_SCL_M

I2C_PE_SCL_M

I2C_PE_SDA_M

AE6

C24

A19
B19

AF6

RB9004

1k

3.3V

2143658

PE_NVM_BINT

PE_BINT

15

3.3V

EMI

7

1k

253

1

Q9002

RT3S03M-T111-1

R90560
R9057XX

4

6

4.7k

BEM_SCL

C9026

0.001
50V

X7R

FL9001

IC9007

M24128-BWMN6T(A)

8765

74LVC2G66DC-125

4321

VCC
/WC
SCL

VSSSDA

IC9008

1Y

VCC
1Z
2E
GND 2Y

E0
E1
E2

1E
2Z

4321

8765

C9027

0.1

16V

1005

16

17

18

19

PE_BINT

20

21

22

ABCDEF GH JIKLMN

O

BEM_SDA

20

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ CB1 Board Schematic Diagram [ HFR Film MC ] Page 1/7 ~

- 31 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

18

19

20

21

1

1

CB1 - EG1H

2

2

UM

DDR2

DDR2_A_DQ0
DDR2_A_DQ1
DDR2_A_DQ2
DDR2_A_DQ3
DDR2_A_DQ4
DDR2_A_DQ5
DDR2_A_DQ6
DDR2_A_DQ7
DDR2_A_DQ8

DDR2_A_DQ9
DDR2_A_DQ10
DDR2_A_DQ11
DDR2_A_DQ12
DDR2_A_DQ13
DDR2_A_DQ14
DDR2_A_DQ15

DDR2_B_DQ0

DDR2_B_DQ1

DDR2_B_DQ2

DDR2_B_DQ3

DDR2_B_DQ4

DDR2_B_DQ5

DDR2_B_DQ6

DDR2_B_DQ7

DDR2_B_DQ8

DDR2_B_DQ9
DDR2_B_DQ10
DDR2_B_DQ11
DDR2_B_DQ12
DDR2_B_DQ13
DDR2_B_DQ14
DDR2_B_DQ15

DDR2_A_LDM

DDR2_A_UDM

DDR2_B_LDM
DDR2_B_UDM

DDR2_A_LDQSP
DDR2_A_LDQSN
DDR2_A_UDQSP

DDR2_A_UDQSN

DDR2_B_LDQSP
DDR2_B_LDQSN

DDR2_B_UDQSP
DDR2_B_UDQSN

C9126

0.1

16V

1005

C9127

0.1

16V

1005

C9128

0.01

25V
X7R
1005

EMMA_A0
EMMA_A1
EMMA_A2
EMMA_A3
EMMA_A4
EMMA_A5
EMMA_A6
EMMA_A7
EMMA_A8

EMMA_A9
EMMA_A10
EMMA_A11
EMMA_A12

EMMA_BA0
EMMA_BA1
EMMA_RAS
EMMA_CAS

EMMA_WE

EMMA_CKE

EMMA_A_CS
EMMA_B_CS

EMMA_A_ODT

EMMA_A_CKP

EMMA_A_CKN

EMMA_B_CKP

EMMA_B_CKN

DDR2_1.8V

R9118

10k

RN-CP

R9119

10k

RN-CP

C9129

0.001
50V
X7R
1005

C9130

0.001
50V
X7R
1005

C9132

0.001
50V
X7R
1005

C9133

0.01
25V
X7R
1005

DDR2_1.8V

C9135

0.001
X7R

1005

C9136

0.001
X7R

1005

C9138

0.001
X7R

50V

1005

50V

50V

C9144

1
10V
X7R
1608

C9139

0.001
50V

X7R
1005

C9140

0.001
50V

X7R
1005

DDR2_1.8V

C9145

0.01
25V
X7R
1005

FL9101

EMI

EMMA_BA1
EMMA_A10
EMMA_A3
EMMA_A9
EMMA_A5
EMMA_A11

EMMA_A0
EMMA_A1
EMMA_BA0
EMMA_CKE
EMMA_WE
EMMA_A8
EMMA_A6
EMMA_A12
EMMA_A7

EMMA_CAS
EMMA_A4
EMMA_RAS

EMMA_A_CKP
EMMA_A_CKN
EMMA_B_CKP
EMMA_B_CKN
EMMA_A_ODT
EMMA_B_CS

REG_1.0V

R9135

0

R9120

XX

RB9100

22

RB9101

22

RB9102

22

RB9103

22

RB9104

22

2
4
6
8
2
4
6
8
2
4
6
8
2
4
6
8
2
4
6
8

R9121

22

R9122

22

R9123

22

R9124

22

R9125

22

R9126

22

R9127

XX

1.0V

1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7

DDR2_1.8V

R9139

XX
DDR2_A_CKP

DDR2_A_CKN

DDR2_B_CKP

DDR2_B_CKN

R9138

XX

DDR2_BA1

DDR2_A10

DDR2_A3
DDR2_A9
DDR2_A5

DDR2_A11

DDR2_A2EMMA_A2
DDR2_A0

DDR2_A1
DDR2_BA0
DDR2_CKE

DDR2_WE

DDR2_A8

DDR2_A6

DDR2_A12

DDR2_A7

DDR2_A_CSEMMA_A_CS
DDR2_CAS

DDR2_A4

DDR2_RAS

DDR2_A_ODT

DDR2_BA2

DDR2_A_CKP

DDR2_A_CKN

DDR2_B_CKN

R9128

150

RN-CP

R9129

150

RN-CP

DDR2_A_UDM
DDR2_A_LDM

DDR2_A_UDQSP
DDR2_A_UDQSN
DDR2_A_LDQSP
DDR2_A_LDQSN

DDR2_A_CKN

DDR2_B_LDM
DDR2_B_UDM

DDR2_B_LDQSP
DDR2_B_LDQSN
DDR2_B_UDQSP
DDR2_B_UDQSN

DDR2_B_CKPDDR2_B_CKP

VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18

AVDD
AVDD
AVDD
AVDD
AVDD
AVDD
AVDD
AVDD

AB23
AA23
AA22

AD26
AD25

AC24

AB26

AB24
AA25

AC

AA26

AC

AB25
AA24

Y21
W23
W20

V23

V22

W26
W24

F25
G26
G24

J25
K26
L25

M26
M25

E24
E22
E21

F22
H24

J23

J22
K23

Y24

25
K24
H22

Y22

W21

Y25

J26
H25
G23

F23

N26
R23
N24
T26
N23
R26

P22

P21
N21
R25
T24

P25

P24

R22
U25
L24

M23

U24
T23

M22

L22
L21
K21

V25
V26

F26
E25

K20

P20

U22

E26
L26
K25

J24
H23
G22

F21
E20
U26
T25
R24

P23
N22

M21
M20

L20

26

Y23

W22

V21
V20

G21
H21
T21
U21
G20
H20
T20
U20

AD11

3

4

5

AB11
AA11
Y11
AD14
AB14
AC15
AB15
AE11
AF12
AE12
AD13
AE14
AF15
AD16
AE17

EXIO_WMDQ0
EXIO_WMDQ1
EXIO_WMDQ2
EXIO_WMDQ3
EXIO_WMDQ4
EXIO_WMDQ5
EXIO_WMDQ6
EXIO_WMDQ7
EXIO_WMDQ8
EXIO_WMDQ9
EXIO_WMDQ10
EXIO_WMDQ11
EXIO_WMDQ12
EXIO_WMDQ13
EXIO_WMDQ14
EXIO_WMDQ15

6

CB1

2/7

7

AB12

EXIO_WMDM0

AF13

AC12
AC13
AE15
AF16

AF21
AA19
AD23
AC21
AE21
AB20
AF22
AC22
AE23
AD22
AD20
AF24
AE24

AC19
AD19
AE18
AE20
AC18
Y18

AF19
AB21
AF18

AB17
AB18

Y16

AC16
AD17
AA20

AF23
AE22
AD21
AC
AB19
AA18
Y17
AF17
AE16
AD15
AC14
AB13
AA12
Y12
AF11

Y14
AA14
Y13
AA13

20

EXIO_WMDM1

EXIO_WMDQS0
EXIO_WMDQSB0
EXIO_WMDQS1
EXIO_WMDQSB1

EXO_WMA0
EXO_WMA1
EXO_WMA2
EXO_WMA3
EXO_WMA4
EXO_WMA5
EXO_WMA6
EXO_WMA7
EXO_WMA8
EXO_WMA9
EXO_WMA10
EXO_WMA11
EXO_WMA12

EXO_WMBA0
EXO_WMBA1
EXO_WMRASB
EXO_WMCASB
EXO_WMWEB
EXO_WMCKE

EXO_WMCSB0
EXO_WMCSB1
EXO_WMODT0

EXO_WMCK0
EXO_WMCKB0

EXI_WMVREF0

EXIO_WMRQ0
EXIO_WMRQ1
EXI_WMCKERSTB

VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18

WMAVDD
WMAVDD
WMAVDD
WMAVDD

8

9

DDR2_1.8V

C9174

C9100

0.047
25V

X7R
1005

C9171

XX

XX

C9172

C9175

XX

XX

Reg 12V

R9100

XX

C9101

680p

R9101

1005

XX

150p Substitute:74AHCT1G08GW-125 671240901

R9102

XX

50V

C9186

CL9100

33k

0.001
50V

680

XX

C9187

XX

C9188

0.001
50V
X7R
1005

C9191

XX

C9190

XX

12V

R9105

R9104

0

C9195

XX

C9194

C9196

XX

F9100

3.15A
24V

1k

12345678

910

R9106

XX

C9198

XX

SN0608006PWPR

IC9100

VLDOIN

VBST

VTT

DRVH
VTTGND
VTTSNS

DRVL

GND

PGND
MODE
VTTREF

V5IN

COMP

PGOOD
VDDQSNS
VDDQSET S3

R9107

0

XX

LL

CS

S5

C9103

4.7
25V
X7R
3216

R9110

20 19 18 17 16 15 14 13

12 11

C9362

XX

0

R9109

4.7k

C9104

4.7
25V
X7R

3216

CL9101
CL9102

CL9103

CL9104

C9105

1

10V
X7R
1608

5V

CL9304

C9361

XX

8765

S1 S2 S3 G

8765

Q9101

RSS100N03TB

S1 S2 S3 G

8.2k

IC9100

¨¢–˘

5V

C9353

16V

1005

R9137

10k

RN-CP

Œ˛

0.1

4321

4321

5V

R9136

R9108

FB9312

0uH
2012

C9360

XX

D1D2D3D4

RSS100N03TB

D1D2D3D4

0

XX

Q9100

C9106

0.1
16V

1005

L9100

2.2uH

C9107

330

4V

C9348

1

10V
X7R
1608

C9347

0.01
25V
X7R
1005

R9111

0

R9112

C9108

XX

TC7SET08FU(T5RSOJF)

IC9103

INB

VCC

INA

321

GND Y

SET_ON

R1154N050B-TR-F

IC9302

VOUT
GND

321

VIN NC

C9346

4.7

25V
X7R
3216

CL9105

0

54

CE

C9111

0.1

16V

1005

2143658

RB9301

54

10k

Q9310

2SC5950G0LS0

FL9102

C9199

10

6.3V
X6S
2012

C9176

10

6.3V
X6S
2012

C9114XXC9115XXC9116XXC9117

XX

EMI

FL9103

EMI

7

R9367

0

DDR2_1.8V

CL9106

Q9311

TR UNR52A3G0LS0

SET_ON

1.0V

DDR2_1.8V

R9113
RN-CP

R9114
RN-CP

DDR2_1.8V

REG_1.0V

R9115

XX

10k

10k

C9109

0.001
50V
X7R
1005

R9134

DDR2_1.8V

C9110

0.001

1005

0

50V
X7R

C9119

C9112

0.01
25V
X7R

1005

FL9100

EMI

0.1

16V
1005

R9116
R9117

150

C9113

0.001
50V

X7R
1005

RN-CP150
RN-CP

C9123

0.001
X7R

50V

1005

C9177

XX

C9184

XX

C9185

0.001
50V
X7R

1005

R9103

15k

RN-CP

CH

C9102

X7R
1005

EXIO_UMDQ0
EXIO_UMDQ1
EXIO_UMDQ2
EXIO_UMDQ3
EXIO_UMDQ4
EXIO_UMDQ5
EXIO_UMDQ6
EXIO_UMDQ7
EXIO_UMDQ8

EXIO_UMDQ9
EXIO_UMDQ10
EXIO_UMDQ11
EXIO_UMDQ12
EXIO_UMDQ13
EXIO_UMDQ14
EXIO_UMDQ15
EXIO_UMDQ16
EXIO_UMDQ17
EXIO_UMDQ18
EXIO_UMDQ19
EXIO_UMDQ20
EXIO_UMDQ21
EXIO_UMDQ22
EXIO_UMDQ23
EXIO_UMDQ24
EXIO_UMDQ25
EXIO_UMDQ26
EXIO_UMDQ27
EXIO_UMDQ28
EXIO_UMDQ29
EXIO_UMDQ30
EXIO_UMDQ31

EXIO_UMDM0
EXIO_UMDM1
EXIO_UMDM2
EXIO_UMDM3

EXIO_UMDQS0

EXIO_UMDQSB0

EXIO_UMDQS1

EXIO_UMDQSB1

EXIO_UMDQS2

EXIO_UMDQSB2

EXIO_UMDQS3

EXIO_UMDQSB3

EXO_UMA0
EXO_UMA1
EXO_UMA2
EXO_UMA3
EXO_UMA4
EXO_UMA5
EXO_UMA6
EXO_UMA7
EXO_UMA8

EXO_UMA9
EXO_UMA10
EXO_UMA11
EXO_UMA12

EXO_UMBA0
EXO_UMBA1

EXO_UMRASB
EXO_UMCASB

EXO_UMWEB

EXO_UMCKE

EXO_UMCSB0
EXO_UMCSB1
EXO_UMODT0
EXO_UMODT1

EXO_UMCK0

EXO_UMCKB0

EXO_UMCK1

EXO_UMCKB1

EXI_UMVREF1
EXI_UMVREF0

EXI_UMCKERSTB

DDR2_A0
DDR2_A1
DDR2_A2
DDR2_A3
DDR2_A4
DDR2_A5
DDR2_A6
DDR2_A7
DDR2_A8
DDR2_A9
DDR2_A10
DDR2_A11
DDR2_A12
DDR2_BA0
DDR2_BA1
DDR2_BA2

DDR2_CKE

DDR2_A_CS
DDR2_RAS
DDR2_CAS
DDR2_WE

DDR2_A_ODT

DDR2_A0
DDR2_A1
DDR2_A2
DDR2_A3
DDR2_A4
DDR2_A5
DDR2_A6
DDR2_A7
DDR2_A8
DDR2_A9
DDR2_A10
DDR2_A11
DDR2_A12
DDR2_BA0
DDR2_BA1
DDR2_BA2

DDR2_CKE

DDR2_A_CS
DDR2_RAS
DDR2_CAS
DDR2_WE

DDR2_A_ODT

$1.74

M8

A0

M3

A1

M7

A2

N2

A3

N8

A4

N3

A5

N7

A6

P2

A7

P8

A8

P3

A9

M2

A10

P7

A11

R2

A12

L2

BA0

L3

BA1

L1

BA2

B3

UDM

F3

LDM

B7

UDQS

A8

UDQS#

F7

LDQS

E8

LDQS#

J8

CK

K8

CK#

K2

CKE

L8

CS#

K7

RAS#

L7

CAS#

K3

WE#

K9

ODT

A3

VSS

E3

VSS

J3

VSS

N1

VSS

P9

VSS

A7

VSSQ

B2

VSSQ

B8

VSSQ

D2

VSSQ

D8

VSSQ

E7

VSSQ

F2

VSSQ

F8

VSSQ

H2

VSSQ

H8

VSSQ

IC9101

HYB18TC256160BF-3S

$1.74

M8

A0

M3

A1

M7

A2

N2

A3

N8

A4

N3

A5

N7

A6

P2

A7

P8

A8

P3

A9

M2

A10

P7

A11

R2

A12

L2

BA0

L3

BA1

L1

BA2

B3

UDM

F3

LDM

B7

UDQS

A8

UDQS#

F7

LDQS

E8

LDQS#

J8

CK

K8

CK#

K2

CKE

L8

CS#

K7

RAS#

L7

CAS#

K3

WE#

K9

ODT

A3

VSS

E3

VSS

J3

VSS

N1

VSS

P9

VSS

A7

VSSQ

B2

VSSQ

B8

VSSQ

D2

VSSQ

D8

VSSQ

E7

VSSQ

F2

VSSQ

F8

VSSQ

H2

VSSQ

H8

VSSQ

IC9102

HYB18TC256160BF-3S

DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

VREF

VDDL

VSSDL

VDD
VDD
VDD
VDD
VDD

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

VREF

VDDL

VSSDL

VDD
VDD
VDD
VDD
VDD

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9

G8
G2
H7
H3
H1
H9

F1
F9
C8

C2
D7
D3
D1
D9

B1

B9

A2

NC

E2

NC

R3

NC

R7

NC

R8

NC

J2

J1
J7

DDR2_1.8V

C9147

0.1
16V

1005

R9130

10k

RN-CP

R9131

10k

RN-CP

DDR2_A_DQ4
DDR2_A_DQ2
DDR2_A_DQ5
DDR2_A_DQ3
DDR2_A_DQ1
DDR2_A_DQ6
DDR2_A_DQ0
DDR2_A_DQ7

DDR2_A_DQ13

DDR2_A_DQ8
DDR2_A_DQ11
DDR2_A_DQ12

DDR2_A_DQ9
DDR2_A_DQ14
DDR2_A_DQ10
DDR2_A_DQ15

DDR2_1.8V

3

4

5

6

7

8

A1

E1

J9

M9

R1

C9149

0.01
25V
X7R

1005

C9153

0.01
25V

X7R
1005

C9157

0.01
25V
X7R
1005

C9161

0.01
25V

X7R
1005

C9165

0.01
25V
X7R

1005

9

A9

C1
C3
C7
C9

E9
G1
G3
G7
G9

C9150

0.01
25V
X7R

1005

C9154

0.01
25V

X7R
1005

C9158

0.01
25V
X7R
1005

C9162

0.01
25V

X7R
1005

C9166

0.01
25V
X7R

1005

C9169

0.01
25V

X7R
1005

10

11

12

G8
G2
H7
H3
H1
H9

F1
F9
C8

C2
D7
D3
D1
D9

B1

B9

DDR2_B_DQ11
DDR2_B_DQ15
DDR2_B_DQ10
DDR2_B_DQ12
DDR2_B_DQ14

DDR2_B_DQ8

DDR2_B_DQ13

DDR2_B_DQ9
DDR2_B_DQ1
DDR2_B_DQ5
DDR2_B_DQ3
DDR2_B_DQ4
DDR2_B_DQ7
DDR2_B_DQ0
DDR2_B_DQ6
DDR2_B_DQ2

13

14

15

A2

NC

E2

NC

R3

NC

R7

NC

R8

NC

J2

J1
J7

A1

E1

J9

M9

R1

A9

C1

C3

C7

C9

E9
G1
G3
G7
G9

DDR2_1.8V

C9148

0.1
16V

1005

R9132

10k

RN-CP

R9133

10k

RN-CP

C9151

0.01
25V
X7R

1005

C9152

0.01
25V
X7R

1005

C9155

0.01
25V

X7R
1005

C9156

0.01
25V

X7R
1005

C9159

0.01
25V
X7R
1005

C9160

0.01
25V
X7R
1005

C9163

0.01
25V

X7R
1005

C9164

0.01
25V

X7R
1005

DDR2_1.8V

C9167

0.01
25V
X7R

1005

C9168

0.01
25V
X7R

1005

C9170

0.01
25V

X7R
1005

16

17

18

19

20

21

22

ABCDEF GH JIKLMN

O

IC9000

CXD9935GB

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

22

~ CB1 Board Schematic Diagram [ HFR Film MC ] Page 2/7 ~

- 32 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

18

19

1

1

2

2

CB1 - EG1H

3

3

1.0V

C9239

0.1

16V

1005

FB9205

R9200
R9201

3/7

2.5V

FB9200

C9206

XX

REG_1.0V

REG_1.0V

3.3V

FL9205

C9218

XX

FB 146966921 20uH 5000mA,2012

0uH

360mA

FL9204

EMI

C9265

C9266

0.01

0.1

25V

16V

X7R

1005

1005

C9216

C9217

XX

XX

C9221

C9214

XX

C9213

XX

EMI

C9220

10

6.3V
X6S
2012

C9207

10

6.3V
X6S
2012

0.01

25V
X7R
1005

C9231

0.1

16V
1005

FL9202

FL9203

EMI

EMI

C9211

0.01
25V
X7R
1005

C9227

X7R
1005

5mA

C9222

16V

1005

0.01
25V

100mA

82mA

0.1

C9215

X7R
1005

0.01
25V

C9223

0.01
25V
X7R

1005

C9224

16V

1005

C9225

16V

1005

0.1

0.1

C9226

0.1

16V

1005

C9219

0.01
25V
X7R

1005

C9267

0.01

25V
X7R
1005

C9228

0.1

16V
1005

C9229

0.1

16V
1005

C9230

0.1

16V

1005

C9235

1005

0.1

16V

C9268

C9232

C9233

0.01

25V
X7R
1005

0.1

16V
1005

0.1

16V
1005

C9234

0.1
16V

1005

C9236

0.1

16V

1005

C9238

1005

C9237

0.1

16V

0.1

16V

1005

A22
B22
E19
F16
G16
G8
G7
H7
M7
R7
U7
U6
AC3
AD3

A17
D14
E14
F14
D12
E12
F12
D9
E9
C4

J6
L6
R6
J5
L5
R5
J4
L4
R4
T4
C3
AB3

E11
F6

M5
U4

F11
G6

M6
U5

L17

T17

T16

T13

K17

U17

U16

U13

Power1

VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33
VDD33

RX_AVDD
RX_AVDD
RX_AVDD
RX_AVDD
RX_AVDD
RX_AVDD
RX_AVDD
RX_AVDD
RX_AVDD
RX_AVDD

TX_AVDD
TX_AVDD
TX_AVDD
TX_AVDD
TX_AVDD
TX_AVDD
TX_AVDD
TX_AVDD
TX_AVDD
TX_AVDD
TX_AVDD
TX_AVDD

AVDD_Rx0
AVDD_Rx1

AVDD_Tx0
AVDD_Tx1

AGND_Rx0
AGND_Rx1

AGND_Tx0
AGND_Tx1

PLL_SIG_AVDD

PLL_MEMO_AVDD

PLL_MEMI_AVDD

PLL_SYS0_AVDD

PLL_SIG_AGND

PLL_MEMO_AGND

PLL_MEMI_AGND

PLL_SYS0_A

GND

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

AE26
AF26

W25
AE25
AF25

M24

AD24

AC23

AB22

AA21

AF20

AE19

AD18

M17

AA17
AC17

M16

AA16
AB16

M15

AA15

M14

AF14

M13

AE13

A26
B26
D26
H26
P26
Y26

A25
G25
N25

A24
F24

V24

B23
E23
L23
U23

K22
T22

R21

C20
F20

N20
R20
Y20

Y19

A18
B18

B17

N17
P17
R17

C16
K16
L16

N16
P16
R16

C15
D15
E15
F15
G15
K15
L15

N15
P15
R15
T15
U15
Y15

C14
G14
K14
L14

N14
P14
R14
T14
U14

C13
D13
E13
F13
G13
K13
L13

N13
P13
R13

C12
G12

J21

J20

CB1

4

C9269XXC9270XXC9271XXC9272

XX

5

6

7

8

9

FB 146966921 20uH 5000mA,2012

XX

0
0

C9240

C9241

4V

0.001

220

50V
X7R
1005

C9242

100p

50V
CH

1005

C9243

10

6.3V
X6S

2012

3A(MAX)

C9244

10

6.3V
X6S
2012

C9245

330p
50V
X7R
1005

C9246

330p
50V
X7R
1005

C9247

330p
50V
X7R
1005

C9248

0.047
25V
X7R
1005

C9249

330p

50V
X7R
1005

C9250

330p

50V
X7R
1005

C9251

330p

50V
X7R
1005

C9252

330p

50V
X7R
1005

C9253

330p
50V
X7R
1005

C9254

330p
50V
X7R
1005

C9255

330p

50V
X7R
1005

C9256

330p

50V
X7R
1005

C9257

470p

50V
X7R

1005

C9258

330p

50V
X7R

1005

C9259

330p

50V
X7R
1005

C9260

330p

50V
X7R
1005

C9261

330p

50V
X7R
1005

C9262

330p

50V
X7R
1005

C9263

330p

50V
X7R
1005

C9264

330p

50V
X7R
1005

G19
H19
J19
K19
L19
M19
N19
P19
R19
T19
U19
V19
W19
G18
H18
J18
K18
L18
M18
N18
P18
R18
T18
U18
V18
W18
H17
J17
V17
W17
H16
J16
V16
W16
H15
J15
V15
W15
H14
J14
V14
W14
H13
J13
V13
W13
H12
J12
V12
W12
H11
J11
V11
W11
H10
J10
V10
W10
H9
J9
K9
L9
M9
N9
P9
R9
T9
U9
V9
W9
H8
J8
K8
L8
M8
N8
P8
R8
T8
U8
V8
W8

VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1
VDD1

Power2

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

M12

AD12

M11

A

M10

AF10

AA3

K12
L12

N12
P12
R12
T12
U12

C11
D11
G11
K11
L11

N11
P11
R11
T11

U11
C11
A10

B10

C10
D10

E10

F10
G10
K10

L10

N10

P10

R10

T10
U10
Y10

AE9

AF8

AF5

AF3

AF2

AE1
AF1

4

5

6

7

8

9

10

C9

F9
G9
Y9

C8
D8
Y8

C7

J7

K7

L7

T7

W7

V7
Y7

C6
K6

T6
V6

C5
H5
K5

T5
V5

H4
K4

M4

N4

P4

W6

V4
A3
D3

E3

F3
G3
H3

J3

K3

L3

M3

N3

P3

R3

T3
U3
V3

W3

Y3

A2

A1

B1

11

12

13

14

15

16

17

18

19

20

21

22

IC9000

CXD9935GB

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

ABCDEF GH JIKLMN

O

IC9000

CXD9935GB

20

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ CB1 Board Schematic Diagram [ HFR Film MC ] Page 3/7 ~

- 33 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

2

2

CB1 - EG1H

3

3

Babylon

1.2V

1.2V

Reg 12V

655138201

“uflØXy[XKv

4

5

12V

F9301

3.15A
24V

C9301

0.001
X7R

50V

1005

C9302

0.001
X7R

50V

1005

C9901

4.7
25V
X7R

3216

R9900

0

S

Q9900

RSR25P03TL

FB9900

XX

655112301

“uflØXy[XKv

Q9901

RSR025N03TL

L9900

4.7uH

C9902

XX

C9903

D9900

M1FM3

S

XX

C9904

10
10V
X7R
3216

FB9902

0uH

2012

KDZTR3.9B

D9901

Changed from 00 5th

C9905

0.01

25V

X7R

1005

CL9301

C9906

1

6.3V
X6S
1005

CB1

4

4/7

5

10

11

R9901

0

FB9901

XX

R9902

R9904

XX

XX

XX

R9903

3.3V

6

BD00KA5WFP-E2

IC9303

C9328

R9333

XX

1

25V
X7R
2012

CFB2A

C9329

0.001
50V

X7R
1005

R9339

XX

L9302

4.7uH

SET_ON

R9343

6.8k

RN-CP

RIN2

C9336

0.015
25V

X7R

RIN2A1

RIN2A2

R9348

10k

RN-CP

R9347

47k

RN-CP

RIN1B

R9349

150k

RN-CP

C9333

10

10V
X7R
3216

RIN2C

R9353

2.2k

RN-CP

C9334

100p

50V

CH

1005

CIN2

FB9310

0uH
2012

KDZTR3.9B

D9301

Changed from 00 5th

C9342

0.01

25V

X7R

1005

1.0V

1.0V

CL9302

C9344

1

6.3V
X6S

1005

3.3V

EMI

FL9300

C9358

0.1

16V

1005

CTL

VCCNCVO

12FIN45

C9356

1

10V
X7R
1608

C9357

1
10V
X7R
1608

ADJ

CL9308

RB930021436587

10k

C9359

0.1

16V

1005

1V

REG_1.0V

CL9307

R9317

XX

7

8

9

Babylon

RIN1C

CIN1

C9305

4.7

25V
X7R
3216

R9905
RN-CP

C9907

100p

1005

RIN1B

R9908

100k

RN-CP

2.2k

50V

CH

RIN1A1

0.5%

RN-CP

1/16W

6.8k

R9906

R9909

RIN1A2

RN-CP

R9907

47k

RN-CP

R9311

0

FB9300

XX

Q9300

RSS040P03FD5TB

4321

RIN1

8.2k

CFB1A

C9908

0.001
50V

X7R
1005

C9909

0.015
25V
X7R

1005

8765

FB9305

XX

C9315

1
25V
X7R

2012

R9320

0

C9317

1
25V
X7R
2012

R9323

8.2k

RN-CP

RSS065N03TB

D1 D2 D3 D4

4321

654321

87

PRT

Q9307

IC9301

BD9853AFV-E2

Vcc

REGB

OUT1H

OUT2H

OUT1L

OUT2L

REGA

STB

RT

GND

FB1

FB2

INV1

INV2

SCP/SO1

SCP/SO2

8765

S1S2S3G

16 15 14 13 12 11

10 9

R9329

D9306

M1FM3

XX

R9335

XX

C9322

XX

C9323

XX

R9340

XX

6

7

8

9

10

11

12

13

14

15

16

17

18

19

Reg 12V

12V

F9300

3.15A
24V

C9304

0.001
X7R

50V

1005

RIN1C

CIN1

C9303

4.7

25V
X7R
3216

R9300

RN-CP

C9306

1005

RIN1B

R9305

RN-CP

10k

47p
50V
CH

47k

C9307

4.7
25V
X7R

3216

RIN1A1

R9303

0

CHIP
RIN1A2

R9304

150k

RN-CP

R9312
RN-CP

R9313

0

FB9301

XX

RSR25P03TL

RIN1

12k

R9315

Q9302

0

C9312

0.015

S

RSR25P03TL

CFB1A

C9310

470p

50V
X7R
1005

25V
X7R
1005

Q9303

FB9303

R9316

XX

S

XX

FB9304

XX

C9314

1

25V
X7R
2012

R9324

C9316

1

25V
X7R
2012

R9318

0

Q9304

RSR025N03TL

RSR025N03TL

0

R9322

8.2k

RN-CP

Q9306

FB9306

XX

IC9300

BD9853AFV-E2

Vcc

OUT1H

OUT1L

REGA

RT

654321

FB1

INV1

87

SCP/SO1SCP/SO2

PRT

S

S

REGB

OUT2H

OUT2L

GND

INV2

STB

FB2

16 15 14 13 12 11

10 9

C9318

XX

C9319

XX

D9311

M1FM3

C9320

XX

C9321

XX

D9307

M1FM3

R9327

XX

R9332

XX

R9337

XX

R9330

10k

C9326

1
25V
X7R
2012

CFB2A

C9327

0.001
50V

X7R

1005

R9338

XX

L9300

4.7uH

SET_ON

RIN2

R9342

6.8k

RN-CP

C9335

0.015
25V

X7R
1005

L9301

4.7uH

C9330

10

10V

X7R

3216

RIN2A1

RIN2A2

RIN2B

Changed from 00 5th

R9354

R9351

2.2k

RN-CP

R9352

100k

R9345

47k

RN-CP

C9332

10
10V
X7R
3216

FB9308

0uH

2012

KDZTR3.9B

D9302

RIN2C

4.7k
RN-CP

CIN2

C9337

47p
50V
CH

1005

C9338

0.01
25V
X7R

1005

FB9311

KDZTR3.9B

D9300

Changed from 00 5th

0uH
2012

3.3V

CL9300

C9340

1

6.3V
X6S
1005

C9343

0.01

25V

X7R

1005

R9355

XX

2.5V

CL9303

C9345

6.3V

X6S

1005

R9356

1

3.3V

2.5V

XX

Reg 12V

12V

F9303

XX

R9359

0

R9366

0

R9362

100k

C9350

XX

C9351

0.22

25V
X7R
1608

TPC8109(TE12L)

Q9308

S1 S2 S3 G

4321

R9365

100k

Q9309

TR UNR52A3G0LS0

8765

D1D2D3D4

C9354

CL9305

C9352

0.1

16V

12

13

14

Panel12V

PANEL_12V

CL9306

C9355

XX

XX

PANEL_ON

15

16

17

18

19

20

21

22

R9326

ABCDEF GH JIKLMN

R9334

R9328

XX

XX

XX

O

20

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ CB1 Board Schematic Diagram [ HFR Film MC ] Page 4/7 ~

- 34 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

CB1 - EG1H

1

J6VSS Themal

J7VSS Themal

J8VSS Themal

K10VSSQ

K5VSSQ

J10VSSQ

J5VSSQ

H10VSSQ

H5VSSQ

G10VSSQ

G5VSSQ

F10VSSQ

F5VSSQ

E9VSSQ

E6VSSQ

D11VSSQ

D10VSSQ

D9VSSQ

D6VSSQ

D5VSSQ

D4VSSQ

2

DDR_MCLK1

DDR_MCLK1B

DDR_MCSB

DDR_MRASB

3

DDR_MCASB

DDR_MWEB

DDR_CKE

R9440

100

4

MMBA0
MMBA1
MMA0

5

CB1

5/7

6

MMA1
MMA2
MMA3
MMA4
MMA5
MMA6
MMA7
MMA8
MMA9
MMA10
MMA11

7

M11
M12
N12

N2
M2

L2
L3
B2

H13
H2

B13
B3

H12
H3

B12
N4

M5
N5
N6
M6
N7
N8
M9
N9

N10
N11
M8
L6
M7
C4

C11
H4

H11
L12
L13
M3

CK
CK
CKE
CS
RAS
CAS
WE
DQS0
DQS1
DQS2
DQS3
DM0
DM1
DM2
DM3
BA0
BA1
A0
A1
A2
A3
A4
A5
A6
A7
A8/AP
A9
A10
A11
NC
NC
NC
NC
NC
NC
NC

EDD1232ABBH-5C-E-TR

IC9402

B11VSSQ

B4VSSQ

J9VSS Themal

H8VSS Themal

H9VSS Themal

H6VSS Themal

H7VSS Themal

G8VSS Themal

G9VSS Themal

G6VSS Themal

G7VSS Themal

F8VSS Themal

F9VSS Themal

F6VSS Themal

F7VSS Themal

VREF
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

FB 140083421 600uH,200mA,1005

L10
L5

K9
K8
K7
K6
E10

E8
E7
E5

N13
K11

K4
J11

J4

G11
G4

F11
F4

E12
E3

C12
C10

C8
C7
C5
C3

L11
L8

L7
L4

E11
E4

D8
D7

NC

M13

DDR2.5V

C9495

0.001
50V

X7R
1005

C9485

0.001

C9488

0.001

C9496

0.001
X7R

C9497

0.001

C9499

0.001

C9501

0.001

50V
X7R

50V
X7R

50V

50V
X7R

50V
X7R

50V
X7R

C9498

C9500

VREF1.25V_2

C9502

0.001
50V
X7R

1005

0.001
50V
X7R

0.001

50V

X7R

C9503

0.1

16V

1005

DDR2.5V

FB9405

0uH

R9434

10k

RN-CP

R9439

10k

RN-CP

2

3

4

5

6

7

10

11

12

13

14

15

16

17

18

19

20

21

8

MMD4

9

MMD5

15
13

16
14

MMD[4]

MMD[5]

L9 RFU1

B7 DQ0

C6 DQ1

B6 DQ2

B5 DQ3

N3 NC

M4 NC

M10 RFU2

C2 DQ4

D3 DQ5

D2 DQ6

E2 DQ7

J13 DQ10

J12 DQ11

G13 DQ12

K13 DQ8

K12 DQ9

G12 DQ13

F13 DQ14

F12 DQ15

F3 DQ16

F2 DQ17

G3 DQ18

G2 DQ19

J3 DQ20

J2 DQ21

K2 DQ22

K3 DQ23

E13 DQ24

D13 DQ25

D12 DQ26

C13 DQ27

B10 DQ28

B9 DQ29

C9 DQ30

B8 DQ31

M13

mF

8

9

MMD6
MMD7
MMD16
MMD17
MMD18
MMD19

MDQM0
MDQM1
MDQM2
MDQM3
MDQM4
MDQM5
MDQM6
MDQM7

MDQS0
MMD28
MMD29
MMD30
MMD31

MMD2
MMD3

MDQS1
MMD8
MMD9
MMD10
MMD11

MDQS2

MMD20
MMD21
MMD22
MMD23

MDQS3
MMD12
MMD13
MMD14
MMD15

MMD24
MMD25
MMD26
MMD27

RB9409

MMA0
MMA1
MMA2
MMA3
MMA4
MMA5
MMA6
MMA7
MMA8
MMA9
MMA10
MMA11

33

RB9405

33

15
13
11
9
7
5
3
1

15
13
11
9
7
5
3
1

RB9408

33

RB9402

22

RB9403

22

RB9404

22

11
9
7
5
3
1

2
4
6
8

16
14
12
10
8
6
4
2

MMD[27]

1
3
5
7

1
3
5
7
1
3
5
7

DDR_CKE

RB9407

16
14
12
10
8
6
4
2

2
4
6
8

MMD[12]

33

33R9401
33R9402
33R9403
33R9404
33R9405
33R9406
33R9407
33R9408

33R9409

MMD[28]
MMD[29]

MMD[30]
MMD[31]

MMD[0]MMD0
MMD[1]MMD1

MMD[2]

MMD[3]

33R9410

33R9411

33R9412

MMD[13]

MMD[14]

MMD[15]

12
10
8
6
4
2

1
3
5
7

2
4
6
8
2
4
6
8
2
4
6
8

RB9400

33

1
3
5
7

R9467

XX

MMD[16]

MMD[17]

MMD[18]

MMD[19]

MMD[6]

MMD[7]

DDR

A16

MDQM[0]

A11

MDQM[1]

A18

MDQM[2]

B13

MDQM[3]

H26

MDQM[4]

D25

MDQM[5]

K26

MDQM[6]

F25

MDQM[7]

B16

MDQS[0]

A15

MMD[0]

B15

MMD[1]

C15

MMD[2]

D15

MMD[3]

C16

MMD[4]

D16

MMD[5]

A17

MMD[6]

B17

MMD[7]

B11

MDQS[1]

B9

MMD[8]

A9

MMD[9]

B10

MMD[10]

A10

MMD[11]

D10

MMD[12]

C10

MMD[13]

D11

MMD[14]

C11

MMD[15]

B18

MDQS[2]

B19

MMD[16]

A19

MMD[17]

D19

MMD[18]

C19

MMD[19]

C17

MMD[20]

D17

MMD[21]

C18

MMD[22]

D18

MMD[23]

A13
D12
A12
B12
C12
D13
C13
D14
C14

A25
B24
A24
C23
B23
A23
E22
D22
C22
B22
A22
D21
D20

MDQS[3]
MMD[24]
MMD[25]
MMD[26]
MMD[27]
MMD[28]
MMD[29]
MMD[30]
MMD[31]

MMA[0]
MMA[1]
MMA[2]
MMA[3]
MMA[4]
MMA[5]
MMA[6]
MMA[7]
MMA[8]
MMA[9]
MMA[10]
MMA[11]
MCKE

IC9400

CXD9929GB

MMD[24]
MMD[25]

MMD[26]

68R9400

MDQS[4]
MMD[32]
MMD[33]
MMD[34]
MMD[35]
MMD[36]
MMD[37]
MMD[38]
MMD[39]

MDQS[5]
MMD[40]
MMD[41]
MMD[42]
MMD[43]
MMD[44]
MMD[45]
MMD[46]
MMD[47]

MDQS[6]
MMD[48]
MMD[49]
MMD[50]
MMD[51]
MMD[52]
MMD[53]
MMD[54]
MMD[55]

MDQS[7]
MMD[56]
MMD[57]
MMD[58]
MMD[59]
MMD[60]
MMD[61]
MMD[62]
MMD[63]

MMBA[0]
MMBA[1]

MRASB
MCASB

MCSB

MWEB

MCLK0

MCLK0B

MCLK1

MCLK1B

VREF0
VREF1
VREF2
VREF3

H25
H22
H23

H24

D26

C24

B25
D23
D24

E23

E26

E25

E24

K25
K22
K23

L22

L23
K24

L26

L25

L24

F26

F22

F23
G22
G23

F24
G26
G25
G24

B20
A20

B21

C20
A21

C21
A14

B14

B26

C26

E12

E17
G21
K21

J22
J23

J26
J25
J24

C9413

0.1

16V

1005

C9410

0.1

16V
1005

C9415

0.1

16V
1005

C9407

0.1

16V

1005

22R9418
22R9419

22R9420
22R9421
22R9422
22R9423
68R9424

68R9425
68R9426
68R9427

VREF1.25V_1

VREF1.25V_2

C9409

0.001
50V
X7R

1005

C9408

0.001
50V
X7R

1005

16
14
12
10
8
6
4
2
16

RB9412

14
12
10
8
6
4
2

RB9411

33R9414

33R9415

33

33

DDR_MRASB
DDR_MCASB
DDR_MCSB
DDR_MWEB
DDR_MCLK0
DDR_MCLK0B
DDR_MCLK1
DDR_MCLK1B

MDQS4
MDQS5

15
13
11
9
7
5
3
1
15
13
11
9
7
5
3
1

8
6

RB9417

33

4
2

33R9416
8
6

RB9414

33

4
2

33R9417

16
14
12
10
8
6
4
2

RB9418

33

MMD60
MMD61
MMD62
MMD63
MMD32
MMD33
MMD34
MMD35
MMD36
MMD37
MMD38
MMD39
MMD48
MMD49
MMD50
MMD51

MMD40

7

MMD41

5

MMD42

3

MMD43

1

MDQS6
MMD52

7

MMD53

5

MMD54

3

MMD55

1

MDQS7

MMD44

15

MMD45

13

MMD46

11

MMD47

9

MMD56

7

MMD57

5

MMD58

3

MMD59

1

MMBA0
MMBA1

15

MDQM6

MDQS6

MMD52

MMD53

MMD54

MMD55

15

33

RB9455

214365871091211141316

MMD42

MMD41

MMD40

MMD43

MDQS5

214365871091211141316

MDQM5

33

RB9452

15

MMD34

MMD35

MDQM4

MDQS4

MMD36

MMD37

MMD38

214365871091211141316

MMD39

33

RB9451

7

MMD44

33

MMD45

2143658

RB9453

MMD46

MMD47

7

MMD48

MMD49

33

RB9454

MMD50

2143658

MMD51

7

MMD56

33

MMD57

2143658

RB9456

MMD58

15

MMD59

MDQM7

MMBA0
MMBA1
MMA0
MMA1
MMA2
MMA3
MMA4
MMA5
MMA6
MMA7
MMA8
MMA9
MMA10
MMA11

MMD60

MDQS7

DDR_MCSB
DDR_MRASB
DDR_MCASB

DDR_MWEB

MMD61

MMD62

8
6
4
2

8
6
4
2
8
6
4
2
8
6
4
2

MMD63

214365871091211141316

MMD32

DDR_CKE

MMD33

RB9461

7
5
3
1

RB9458

7
5
3
1

RB9459

7
5
3
1

RB9460

7
5
3
1

RB9450

33

33

33

33

33

DDR_MCLK0

DDR_MCLK0B

10

11

FB 140083421 600uH,200mA,1005

DDR2.5V

J6VSS Themal

J7VSS Themal

J8VSS Themal

J5VSSQ

M10 RFU2

H10VSSQ

B7 DQ0

H5VSSQ

C6 DQ1

G10VSSQ

B6 DQ2

K5VSSQ

J10VSSQ

K10VSSQ

CK

R9428

100

33R9461
33R9462
33R9463
33R9464

M11
M12
N12

N2
M2

L2
L3
B2

H13
H2

B13
B3

H12
H3

B12
N4

M5
N5
N6
M6
N7
N8
M9
N9

N10
N11
M8
L6
M7
C4

C11
H4

H11
L12
L13
M3

CK
CKE
CS
RAS
CAS
WE
DQS0
DQS1
DQS2
DQS3
DM0
DM1
DM2
DM3
BA0
BA1
A0
A1
A2
A3
A4
A5
A6
A7
A8/AP
A9
A10
A11
NC
NC
NC
NC
NC
NC
NC

L9 RFU1

N3 NC

M4 NC

G5VSSQ

B5 DQ3

F10VSSQ

C2 DQ4

F5VSSQ

D3 DQ5

E9VSSQ

D2 DQ6

E6VSSQ

E2 DQ7

D11VSSQ

K13 DQ8

D10VSSQ

K12 DQ9

D9VSSQ

J13 DQ10

D5VSSQ

D6VSSQ

D4VSSQ

EDD1232ABBH-5C-E-TR

IC9401

J12 DQ11

G13 DQ12

G12 DQ13

B11VSSQ

F13 DQ14

B4VSSQ

F12 DQ15

J9VSS Themal

F3 DQ16

F2 DQ17

G3 DQ18

G2 DQ19

H8VSS Themal

H9VSS Themal

J3 DQ20

J2 DQ21

H6VSS Themal

H7VSS Themal

K2 DQ22

K3 DQ23

G8VSS Themal

G9VSS Themal

E13 DQ24

D13 DQ25

G6VSS Themal

G7VSS Themal

C13 DQ27

D12 DQ26

F8VSS Themal

F9VSS Themal

B9 DQ29

B10 DQ28

F6VSS Themal

F7VSS Themal

VREF
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD

C9 DQ30

B8 DQ31

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

FB9404

C9463

0.1

16V
1005

R9413

10k

RN-CP

R9429

10k

RN-CP

0uH

VREF1.25V_1

L10
L5

K9
K8
K7
K6
E10

E8
E7
E5

N13
K11

K4
J11

J4

G11
G4

F11
F4

E12
E3

C12
C10

C8
C7
C5
C3

L11
L8

L7
L4

E11
E4

D8
D7

NC

M13

DDR2.5V

C9460

0.001
50V

X7R
1005

C9461

0.001
50V

X7R
1005

C9438

0.001
50V
X7R

C9445

0.001
50V
X7R

C9454

0.001

50V
X7R

C9455

0.001

50V
X7R

C9456

0.001

50V
X7R

C9457

0.001

50V
X7R

C9458

0.001

50V
X7R

C9459

0.001

50V
X7R

12

13

14

15

16

17

18

19

20

15

MDQM2

MDQS2

MMD20

MMD21

MMD22

MMD23

15

33

RB9426

214365871091211141316

MMD8

MMD9

MMD10

MMD11

MDQS1

214365871091211141316

MDQM1

33

RB9421

15

MMD2

MMD3

MDQM0

MDQS0

MMD4

MMD5

MMD6

214365871091211141316

MMD7

33

RB9420

33

RB9422

7

MMD12

MMD13

MMD14

2143658

MMD15

7

MMD16

MMD17

MMD18

2143658

MMD19

33

RB9423

7

MMD24

MMD25

33

RB9429
MMD26

2143658

MMD27

15

MDQS3

MDQM3

MMD28

MMD29

MMD30

MMD31

MMD0

214365871091211141316

MMD1

33

RB9419

21

22

ABCDEF GH JIKLMN

O

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

22

~ CB1 Board Schematic Diagram [ HFR Film MC ] Page 5/7 ~

- 35 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

18

19

20

21

1

1

CB1 - EG1H

100

1k

SDA_BABY

R9795

XX

SCL_BABY

R9701

R9703

R9702

0

0

TMS

R9794

1k

1/16W

RN-CP

0.5%

CL9737

CL9736

TDI

TCK

2

CB1

3

4

5

6

7

6/7

R9796

MA2SD320G8S0

74AHC541PW-118

IC9702

33

SPI_RDY0

SPI_EMIT0

SPI_RESET0

SPI_CLK0

SPI_DA TA0

SPI_LAT0

SPI_RDA TA0

3.3V

XX

SPI_RDY3

SPI_EMIT3

SPI_RESET3

SPI_CLK3

SPI_DA TA3

SPI_LAT3

SIGN1680

2143658

RB9702

XX

*RB9703

12345678910

G1
A1
A2
A3
A4
A5
A6
A7
A8
GND Y8

Substitute:TC74LCX541FT(EKJ) 670785301

XX

*IC9703

12345678910

G1
A1
A2
A3
A4
A5
A6
A7
A8
GND Y8

D9703

20 19 18 17 16 15 14 13 12 11

VCC

G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7

MEGAMAC_CLK0

XX

MA2SD320G8S0

*D9704

20 19 18 17 16 15 14 13 12 11

VCC

G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7

8

*RB9725

10k

7

Substitute:TC74LCX541FT(EKJ) 670785301

9

3.3V

C9704

0.001
50V

X7R
1005

SPI_BUFFER_ON

R9723

47

R9725

47

3.3V

*C9705

XX

SPI_BUFFER_ON

*R9730

XX

*R9731

*R9732

XX

*R9733

XX

MEGAMAC_CLK3

EMI

47R9722

EMI

XX

C9706

0.1
16V

1005

R9724

47

R9726

47

R9727

47

*C9707

XX

*R9734

FL9701

C9747

47p

50V

1005

*FL9703

XX

READY_O_4
READY_O_3

READY_O_2

2143658

RB9721

10k

R9798

XX

RDA T A_1

C9742

47p

CH

*C9752

XX

XX

*C9751

XX

C9741

47p

50V

1005

C9750

XX

*C9749

NVM_SDA

NVM_SCL

CH

C9748

XX

XX

C9746

47p

50V

CH

1005

XX

*R9736

47p

47p

50V

50V

CH

50V

CH

CH

1005

XX

*C9755

XX

1005

*C9754

XX

1005

*C9753

XX

C9743

C9744

C9745

7

READY_O_4

*FB9722

R9799

XX

*FB9725

RDA T A_2

R9780

0

R9781

0

XX

*FB9723

XX

*FB9726

*FB9728

C9740

XX

XX

XX

XX

RB9722

10k

FB9714

0uH

0uHFB9715

0uHFB9716

0uHFB9717

0uHFB9718
0uHFB9719

0uHFB9720

FB9721

0uH

*FB9724

XX

*FB9727

XX

*FB9729

XX

2143658

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

7

READY_O_1
EMIT_IN_1
RESET_IN_1
GND
SPI_CLKF_1
GND
SPI_DA TA_F_1
SPI_LATF_1
SPI_R_DA TAF_1
GND
CLK_IN_1
WP
JIG_TESTMODE
VCC_I2C
GND_I2C
READY_O_4
EMIT_IN_4
RESET_IN_4
GND
SPI_CLKF_4
GND
SPI_DA TA_F_4
SPI_LATF_4
SPI_R_DA TAF_4
GND
CLK_IN_4
GND
JIG_TESTMODE
SDA_I2C
SCL_I2C

CN9701

30P

RDA T A_4
RDA T A_3
RDA T A_2
RDA T A_1

BL_NVM_WP

Q9707

UNR52A3G0LS0

NVM_3.3V

0uH

FB9713

3.3V

FL9700

EMI

1.5

C9725

0.01
25V
X7R
1005

C9726

0.01

25V
X7R
1005

C9732

XX

1005
X7R

25V

0.01

C9733

1005
X7R

25V

0.01

C9730

1005
X7R

25V

0.01

C9736

76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

100

BEM_SCL

BEM_SDA

C9727

3.3V

GND

GND

3.3V

IC9707

3.3V

GND

GND

3.3V

BEM

SCL1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

CL9739

CL9740

R9706

0

R9707

0

EPM570T100I5NRR-IC9707-C100

⁄

SDA1

3.3V

GND

GND

CLK

C9729

0.01
25V

X7R
1005

3.3V

C9728

X7R
1005

0.01
25V
X7R

1005

0.01
25V

C9737

0.01
25V
X7R
1005

GND

THRUSASANVM

CL9735
7

3.3V
VSYNC

CL9738

RB9724

2143658

SPI

R9704

XX

R9705

XX

BLN_SCL
BLN_SDA

SPI_BUFFER_ON

CL9727

3.3V

25341

1k

Q9702

4.7k

BABYLON_RST

R9789

XX

R9788

XX

5

Q9706

XX

4

6

1

3

2

R9791

XX

R9787

XX

R9790

XX

M24256-BWMN6TP(A)

IC9705

A0

C9709

0.1

16V
1005

A1
A2

4321

GND SDA

VCC

SCL

R9786

WP

0

3.3V

EMI

FL9710

FB 140083421 600uH,200mA,1005

8765

CL9706
CL9731
CL9732

7

6

2143658

RT3S03M-T111-1

100R9775

X [uAh XF
X^ hA [ [hi

BABYLON_OE

2143658

RB9711

1k

1k

BLN_SCL

RB9710

BLN_SDA

C9716

16V
1005

BL_NVM_EN
BL_NVM_WP

s‘Qt

3.3V

1k

1

Q9701

RT3S03M-T111-1

6

253

4

CL9734

LANE[1:0]=10 4
LANE[1:0]=01 2

CL9733

4.7k

LANE[0]

LANE[1]

PANEL12_SENCE

RB9709

XX

7

R9792

XX

R9739

0

2143658

CL9705
CL9713
CL9714

BLN_HSYNC

XX

RB9706

CL9712

CL9716

LED_MUTE

N25

SPI_RDY4

N24

SPI_EMIT4

P26

SPI_RESET4

N26

SPI_CLK4

N22

SPI_DA TA4

N23

SPI_LAT4

P25

SPI_RDA TA4

M25

SPI_RDY5

M24

SPI_EMIT5

N21

SPI_RESET5

M26

SPI_CLK5

M22

SPI_DA TA5

M23

SPI_LAT5

M21

SPI_RDA TA5

No mount

AO1
AO2
AO3

SPI_RESET0

SPI_RDA TA0

SPI_RESET1

SPI_RDA TA1

SPI_RESET2

SPI_RDA TA2

SPI_RESET3

SPI_RDA TA3

IC9400

CXD9929GB

5V

R9770

XX

XX
D9700

Q9700

XX

Substitute:DTC144EUAT106 8-729-029-14

LVDS1bN iLFPLL

600

FB9746

SPI_RDY0

SPI_EMIT0

SPI_CLK0

SPI_DA TA0

SPI_LAT0

SPI_RDY1

SPI_EMIT1

SPI_CLK1

SPI_DA TA1

SPI_LAT1

SPI_RDY2

SPI_EMIT2

SPI_CLK2

SPI_DA TA2

SPI_LAT2

SPI_RDY3

SPI_EMIT3

SPI_CLK3

SPI_DA TA3

SPI_LAT3

VLEDCS[0]
VLEDCS[1]

VLEDDT

VLEDCK

LED_MUTE

Development Only

W25
W24
W23
W26
W22

V23
V22

V25
V24
U25
V26
U24
U23
U22

T25
T24
T23
T26
U26
T22
R22

R25
R24
P24
R26
P22
R23
P23

Y24
Y25
Y23
Y26
Y22

PLL_LOCK

bN„‚ HF

1
2
3
4
5

CL9715

¯_ ˝‚

High

PLL

GND
LED_MUTE
AO1
AO2
AO3

CN9703

5P

bNj

SPI_DA TA1

SPI_LAT1

SPI_RDA TA1

SPI_RDY1

SPI_EMIT1

SPI_RESET1

SPI_CLK1

E

ET9700EET9701

E

E

ET9703

ET9702

GUARD EARTH(GND)

SPI_EMIT2

SPI_RESET2

SPI_CLK2

SPI_DA TA2

SPI_LAT2

SPI_RDA TA2

2143658

*RB9726

10k

AO3
AO2
AO1

VLEDCS[0]
VLEDCK
VLEDDT

R9797

XX

SPI_RDY2

C9711

0.1

16V

1005

3.3V

33

RB9700

3.3V

7

2
4
6
8

10
12
14
16

EMI

XX

*RB9701

33

RB9720

FL9706

C9710

0.001
50V

X7R

1005

Maker Matching

1
3
5
7
9

11
13
15

DI:
CLK:
LD:

LED_MUTE

TC7WHU04FK(T5RSOYF

8765

VCC
1Y
3A

R9769

2.2k

RN-CP

MA2SD320G8S0

74AHC541PW-118

IC9700

12345678910

G1
A1
A2
A3
A4
A5
A6
A7
A8
GND Y8

Substitute:TC74LCX541FT(EKJ) 670785301

XX

*IC9701

12345678910

G1
A1
A2
A3
A4
A5
A6
A7
A8
GND Y8

Substitute:TC74LCX541FT(EKJ) 670785301

BH2220FVM-TR

IC9704

8765

LD
CLK
DI

V A f[^ ˝

VANbN˝

V A f[^ [h ˝

D9701

20 19 18 17 16 15 14 13 12 11

VCC

G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7

MEGAMAC_CLK1

XX

MA2SD320G8S0

*D9702

20 19 18 17 16 15 14 13 12 11

VCC

G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7

MEGAMAC_CLK2

AO1
AO2
AO3

4321

VCCGND

*C9701

XX

C9718

1005

R9785
XX

IC9709

GND2Y

2.08MHz
X9700

3

1A
3Y
2A

4321

1MR9768

12

R9771

100

C9700

0.001
50V
X7R
1005

SPI_BUFFER_ON

0.1

16V

3.3V

EMI

SPI_BUFFER_ON

R9709
R9710
R9711

47

R9712
R9713

R9714

47

3.3V

EMI

*C9703

XX

*R9715

XX

*R9716

XX

*R9717

XX

*R9718

XX

*R9719

XX

*R9720

XX

3.3V

EMI

C9717

0.001
X7R

1005

LED_MUTE

FL9702

C9702

0.1

16V
1005

47
47

47
47

C9759

C9760

C9761

C9762

C9763

47p

50V

1005

XX

*FL9704

FL9705

50V

74AHC541PW-118

12345678910

Substitute:TC74LCX541FT(EKJ) 670785301

47p

50V

CH

CH

1005

IC9706

G1

VCC
A1
A2
A3
A4
A5
A6
A7
A8
GND Y8

50V

G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7

47p

1005

CH

*C9771

XX

50V

47p

1005

20 19 18 17 16 15 14 13 12 11

CH

*C9770

XX

50V

47p

1005

CH

*C9769

XX

C9712

0.001
50V
X7R

1005

C9758

XX

*C9768

XX

C9757

47p

50V

1005

R9738

3.3V

CH

XX

*C9767

EMI

C9766

XX

XX

FL9707

C9713

0.1

16V
1005

MEGAMAC_CLK0
MEGAMAC_CLK1

MEGAMAC_CLK2

MEGAMAC_CLK3

C9756

XX

R9737

XX

RDA T A_3

READY_O_3

RDA T A_4

*C9765

XX

C9764

XX

*FB9738

*FB9739

XX

*FB9741

XX

*FB9743

XX

*FB9745

FB9730

0uHFB9731

0uHFB9733

0uHFB9735

FB9737

0uH

XX

XX

READY_O_2

0uH

0uHFB9732

0uHFB9734

0uHFB9736

*FB9740

XX

*FB9742

XX

*FB9744

XX

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

READY_O_2
EMIT_IN_2
RESET_IN_2
GND
SPI_CLKF_2
GND
SPI_DA TA_F_2
SPI_LATF_2
SPI_R_DA TAF_2
GND
CLK_IN_2
GND
JIG_TESTMODE
55/46

READY_O_3
EMIT_IN_3
RESET_IN_3
GND
SPI_CLKF_3
GND
SPI_DA TA_F_3
SPI_LATF_3
SPI_R_DA TAF_3
GND
CLK_IN_3
GND
JIG_TESTMODE

CN9700

32P

BEM_SCL
BEM_SDA

BL_NVM_EN

C9722

0.1

16V

1005

PCA9517DP

IC9710

8765

VCCA

VCCB

SCLA

SCLB

SDAA

SDAB

GNDEN

4321

3.3V

EMI

NVM_3.3V

C9724

0.1

16V
1005

FL9708

7

C9723

XX

CL9729

2143658

CL9728

R9782

10k

RN-CP

RB9723

1k

NVM_SCL

NVM_SDA

BABYLON_RST

NVM_3.3V

RTQ035P02TR

Q9708

654

SDD

C9721

1
10V
X7R
1608

Substitute:DTC144EUAT106 8-729-029-14

UNR52A3G0LS0

DDG

321

BL_NVM_EN

Q9703

BEM_SCL
BEM_SDA

C9708

0.001
X7R

1005

CL9743

50V

BLN_VSYNC

BLN_SDA

BLN_SCL

CL9741

CL9742

51525354555657585960616263646566676869707172737475

50
49
48
47

GND

46

3.3V

45

DEV_CLR

44

DEV_OE

43
42
41
40
39
38

GND

37
36
35
34
33

GND

32

3.3V

31
30
29
28
27
26

TDO

TDO
TCK

TDI

TMS

CL9707

0.1

74hiLj/76hiH

LF˚ H

LANE[0]

PLL_LOCK

7

CL9717
CL9718
CL9719
CL9720
CL9721
CL9722
CL9723
CL9724
CL9725
CL9726

FB9712XX

VSYNC

PLL

eXgN bN ˝i˚H¯Łj

JTA G

Œp ˝[qi˚H¯Łj

JTA G

Œp ˝[qiLj

JTA G

Œp ˝[qi˚H¯Łj

JTA G

Œp ˝[qi˚H¯Łj

JTA G

Œp o˝[q

oCpXi˚L¯Łj

PLL

TEST

Œp ˝[qi˚L¯Łj

1005
X7R
25V

0.01

C9731

1005
X7R
25V

0.01

C9735

R9700

100

j

FX^ hA [ j

LANE[1]

R9778
R9779

CL9710
CL9711

CL9709
CL9700
CL9708

Output Enable

0
0

CL9701
CL9703
CL9702
CL9704

BLN_VSYNC

100

R9793

4

AA26
AB26

E5

AE16
AC15
AF15
AE15
D5
C5
D4
AC16
AD15
AD16

A6
A7
A4
A5
B4

E6
D6
C6
B6
E7
D7
C7
E8
D8
C8
A8
C9
B8
D9

AF16
A2
A3
B3
C3
C4
AE17
AF17

OUT

R9777

1M

XTB
XTO

RESET

SLAVEAD
S_ALONE
LANE[0]
LANE[1]
PWM[0]
PWM[1]
ERROR
BLDIS
PLL_LOCK
OE

(PD)

HSC
HSD
RSC
RSD
NVWP

TOUT[0]
TOUT[1]
TOUT[2]
TOUT[3]
TOUT[4]
TOUT[5]
TOUT[6]
TOUT[7]
TOUT[8]
TOUT[9]
TCLK
TVS
THS
TDE

RAMCLK
TCK
TRST
TMS
TDI
TDO
BYPASS
TEST

BLN_HSYNC

R9708

0

C9738

0.001
50V
X7R
1005

X9702

25MHz

Now Maker Matching test

R9776

680

CN9704

14P

E/DVDD

GND

GND

TCK
TMS

TDO

GND

3.3V

3.3V

GND
GND
GND
GND

2

TDI

NC

NC

C9739

16V

1005

54

BABYLON_RST

0.1

1
23

27MHz
X9701

IO/TEST

FLADR[0]
FLADR[1]
FLADR[2]
FLADR[3]
FLADR[4]
FLADR[5]

(PD)

FLADR[6]

(PD)

FLADR[7]

(PD)

FLADR[8]

(PD)

FLADR[9]
FLADR[10]
FLADR[11]
FLADR[12]

(PD)

FLADR[13]
FLADR[14]
FLADR[15]
FLADR[16]
FLADR[17]
FLADR[18]
FLADR[19]
FLADR[20]
FLADR[21]

FLDA TA[0]
FLDA TA[1]
FLDA TA[2]
FLDA TA[3]
FLDA TA[4]
FLDA TA[5]
FLDA TA[6]
FLDA TA[7]
FLDA TA[8]

FLDA TA[9]
FLDA TA[10]
FLDA TA[11]
FLDA TA[12]
FLDA TA[13]
FLDA TA[14]
FLDA TA[15]

FLRDY

(PU)

FLWE

(PU)

FLCE

(PU)

FLOE

(PU)

FLWP

(PU)

FLRESET

(PD)

FLHIZ

(PD)

IC9400

CXD9929GB

2

3

3.3V

1
2

FLASH_D0
FLASH_D1

7

10k

1
2
3
4
5
6
7
8

9
10
11
12
13
14

7.0

C9714

10p
50V

CH

1005

AF19

AE19
AD19
AC19
AB19

AF20

AE20
AD20
AC20

AF21

AE21
AD21
A
AB21

AF22

AE22
AD22
AC22
AB22

AF23

AE23
AD23

AC23

AF24

AE24
AD24

AF25

AE25

AE26
AD25
AD26
AC24
AC25
AC26
AB23
AB24
AA23
AA24

AB18

AE18
AC18
AD18
AD17
AC17

AF18

1

C21

(33kUP)

(33kUP)

CL9730

C9715

10p
50V
CH
1005

2
4
6
8

10
12
14
16

33

RB9719

RB9715

2143658

TCK
TMS

TDI

TDO

IC S29GL064N90TFI030-C1100-ER

33

RB9717

2
4
6
8

10
12
14
16

2
4
6
8

10
12
14

1

16

3
5
7
9

11
13

33

RB9713

15

2
4
6
8

10
12
14
16

2
4
6
8

10
12
14
16

33

RB9712

1
3
5
7
9

11
13
15

FLASH_A0 FLASH_A15

1

FLASH_A1

3

FLASH_A2

5

FLASH_A3

7

FLASH_A4

9

FLASH_A5

11

FLASH_A6

13

FLASH_A7

33

15

FLASH_A8

RB9718

1

FLASH_A9

3

FLASH_A10

5

FLASH_A11

7

FLASH_A12

9

FLASH_A13

11

FLASH_A14

13
15

FLASH_A15
FLASH_A16
FLASH_A17
FLASH_A18
FLASH_A19
FLASH_A20
FLASH_A21

FLASH_D0

1

FLASH_D1

3

FLASH_D2

5

FLASH_D3

7

FLASH_D4

9

FLASH_D5

11

FLASH_D6

13

FLASH_D7

33

15

FLASH_D8

RB9714

1

FLASH_D9

3

FLASH_D10

5

FLASH_D11

7

FLASH_D12

9

FLASH_D13

11

FLASH_D14

13

FLASH_D15

15

FLASH_RD

2

FLASH_WE

4

FLASH_CE

6

FLASH_OE

8

FLASH_WP

10

FLASH_RES

12
14
16

FLASH_A14
FLASH_A13
FLASH_A12
FLASH_A11
FLASH_A10
FLASH_A9
FLASH_A8
FLASH_A19
FLASH_A20
FLASH_WE
FLASH_RES
FLASH_A21
FLASH_WP
FLASH_RD
FLASH_A18
FLASH_A17
FLASH_A7
FLASH_A6
FLASH_A5
FLASH_A4
FLASH_A3
FLASH_A2

T00016403 -- S29GL064N90TFI030-8HCW1100-ER
T00016404 -- S29GL064N90TFI030-8HCW3100-ER

FLASH_D2
FLASH_D3
FLASH_D4
FLASH_D5
FLASH_D6
FLASH_D7
FLASH_D8

FLASH_D9
FLASH_D10
FLASH_D11
FLASH_D12
FLASH_D13
FLASH_D14
FLASH_D15

FLASH_A0

FLASH_A1

FLASH_A2

FLASH_A3

FLASH_A4

FLASH_A5

FLASH_A6

FLASH_A7

FLASH_A8

FLASH_A9
FLASH_A10
FLASH_A11
FLASH_A12
FLASH_A13
FLASH_A14
FLASH_A15
FLASH_A16
FLASH_A17
FLASH_A18
FLASH_A19
FLASH_A20
FLASH_A21

FLASH_RD
FLASH_WE
FLASH_CE
FLASH_OE
FLASH_WP
FLASH_RES

FLHIZ

*IC9708

1234567

A15

A16

A14

BYTE

A13

VSS

A12

D15/A-1

A11

D7

A10

D14

A9

D6

A8

D13

A19

D5

A20

D12

WE

D4

RES

VCC

A21

D11

WP/ACC

D3
RY/BY
A18
A17
A7
A6
A5
A4
A3
A2
A1 A0

372

~

D10

D2

D9

D1

D8

D0

OE

VSS

CE

1615141312111098
17 18 19 20 21 22 23 24

3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

CN9702

50P

4

5

6

7

8

9

10

Ł «•ƒp

11

3.3V

EMI

FL9709

FLASH_A16

HIGH=16bit

FLASH_D15

FLASH_D7

42434445464748 41 40 39 38 37 36 35 34 33

32 31 30 29 28 27 26 25

FLASH_D14

FLASH_D6

FLASH_D13

FLASH_D5

FLASH_D12

FLASH_D4

FLASH_D11

FLASH_D3

FLASH_D10

FLASH_D2
FLASH_D9
FLASH_D1
FLASH_D8
FLASH_D0
FLASH_OE

FLASH_CE
FLASH_A0FLASH_A1

C9719

0.001
50V

X7R
1005

C9720

0.1

16V
1005

12

13

14

15

16

17

18

19

FLHIZ

LFHigh-Z H

XX

S9701

Fo˝

33kPU

20

21

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

22

ABCDEF GH JIKLMN

O

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ CB1 Board Schematic Diagram [ HFR Film MC ] Page 6/7 ~

- 36 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

2

2

3

3

4

4

CB1 - EG1H

FB 146966921 20uH 5000mA,2012

3.3V

5

5

10

11

12

13

14

15

16

17

18

C9898

100p
50V

CH

1005

6

7

C9800

100p
50V

CH

1005

1.2V

C9802

4V

220

C9819

10

6.3V
X6S
2012

C9826

XX

8

9

3.3V

C9815

C9821

C9827

XX

XX

C9801

100p

50V

CH

1005

2.5V

C9824

6.3V
X6S

2012

C9854

XX

100p

50V
CH

1005

C9831

10

XX

2A 123493921 1uF 1608

FL9800

EMI

C9803

0.1

16V

1005

C9871

C9868

XX

10

6.3V
X6S

2012

FL9801

EMI

C9817

XX

CB1

C9805

0.001
50V
X7R

1005

C9804

0.001

50V
X7R
1005

C9809

XX

C9811

7/7

0.001
50V

X7R
1005

C9814

100p
50V

CH

1005

FL9803

EMI

C9858

C9816

0.001
50V

X7R
1005

XX

FL9807

EMI

FL9808

EMI

C9818

0.001
50V

X7R
1005

C9870

0.001
50V

X7R
1005

C9820

0.001
50V
X7R
1005

50mA

C9873

0.001
50V
X7R
1005

DDR2.5V

C9825

0.001
50V

X7R
1005

C9875

0.001
50V

X7R
1005

1500mA

C9838

C9832

0.001

0.001
50V

X7R

X7R

1005

1005

C9879

C9877

0.001

0.001
50V

X7R

X7R

1005

1005

C9823

0.001
50V

X7R
1005

50V

50V

C9830

0.001
50V
X7R

1005

C9842

0.001
50V
X7R

1005

C9881

0.001
50V
X7R

1005

C9836

0.001

1005

50V
X7R

C9844

0.001
50V

X7R

1005

C9883

0.001

50V
X7R

1005

C9841

0.001
50V

X7R
1005

C9846

0.001
50V
X7R
1005

200mA

C9848

0.001
50V
X7R
1005

C9850

0.001
50V

X7R
1005

G9
G10
G13
G14
G17
G18
H10
H13
H14
H17
H18
J19
J20
K19
K20
L9
N9
N19
N20
P19
P20
T9
U19
U20
V9
V12
V19
V20
W17
W18
Y17
Y18

G8
H9
K9
M19
M20
P9
R19
R20
T19
T20
U9
V10
V13
W16
W19
W20
Y16
Y19
Y20

G11
G12
G15
G16
G19
G20
H11
H12
H15
H16
H19
H20
L19
L20

Power1

VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V
VDI 1.2V

VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V
VDE3.3V

VDE2.5V
VDE2.5V
VDE2.5V
VDE2.5V
VDE2.5V
VDE2.5V
VDE2.5V
VDE2.5V
VDE2.5V
VDE2.5V
VDE2.5V
VDE2.5V
VDE2.5V
VDE2.5V

IC9400

CXD9929GB

C9862

10

6.3V
X6S
2012

EMI

C9822

10

6.3V
X6S
2012

FB9805

C9864

100p
50V

CH

1005

1.2V

0uH

FL9802

C9855

XX

FL9806

EMI

C9861

0.001
50V
X7R
1005

1.2V

1.2V

C9810

0.1

16V

1005

C9806

0.001
50V
X7R
1005

FL9804

EMI

FL9805

EMI

C9863

0.001
50V

X7R
1005

C9866

0.001
50V

X7R
1005

C9887

0.001
X7R

1005

50V

C9867

0.001
50V
X7R
1005

C9813

0.1

16V
1005

C9888

0.001
50V

X7R
1005

C9869

0.001
50V
X7R
1005

C9889

C9808

0.001
50V
X7R

1005

300mA

C9872

0.001
50V
X7R

1005

0.001
50V

X7R
1005

C9890

0.001
X7R

1005

C9812

0.1

16V
1005

50V

C9874

0.001
50V
X7R

1005

C9891

0.001

C9807

0.001
50V
X7R
1005

C9885

0.001

50V
X7R

1005

50V
X7R
1005

C9876

0.001
50V

X7R
1005

C9892

0.001
X7R

1005

C9886

0.001
50V

X7R
1005

50V

C9878

0.001
50V

X7R
1005

C9851

0.001
50V

X7R
1005

C9896

0.001
50V

X7R
1005

C9895

0.001
50V

X7R
1005

C9880

0.001
50V

X7R
1005

C9852

0.001
50V

X7R
1005

C9897

0.001
50V

X7R
1005

D2

VDP LVDS3.3V

E3

VDP LVDS3.3V

G5

VDP LVDS3.3V

H4

VDP LVDS3.3V

J2

VDP LVDS3.3V

J3

VDP LVDS3.3V

J5

VDP LVDS3.3V

K4

VDP LVDS3.3V

L7

VDP LVDS3.3V

N4

VDP LVDS3.3V

N5

VDP LVDS3.3V

P4

VDP LVDS3.3V

P5

VDP LVDS3.3V

U4

VDP LVDS3.3V

V2

VDP LVDS3.3V

V3

VDP LVDS3.3V

V5

VDP LVDS3.3V

V6

VDP LVDS3.3V

W4

VDP LVDS3.3V

Y15

VDP LVDS3.3V

AA5

VDP LVDS3.3V

AA8

VDP LVDS3.3V

AB4

VDP LVDS3.3V

AB5

VDP LVDS3.3V

AB12

VDP LVDS3.3V

AB15

VDP LVDS3.3V

AC2

VDP LVDS3.3V

AC3

VDP LVDS3.3V

AD2

VDP LVDS3.3V

AD3

VDP LVDS3.3V

K7

VDN LVDS1.2V

K8

VDN LVDS1.2V

N7

VDN LVDS1.2V

N8

VDN LVDS1.2V

R7

VDN LVDS1.2V

R8

VDN LVDS1.2V

U7

VDN LVDS1.2V

U8

VDN LVDS1.2V

W10

VDN LVDS1.2V

W11

VDN LVDS1.2V

W13

VDN LVDS1.2V

Y8

VDN LVDS1.2V

Y10

VDN LVDS1.2V

Y11

VDN LVDS1.2V

AA16

AVD PLL1.2V

AB16

AVS PLLGND

AA20

AVD PLL1.2V

AB20

AVS PLLGND

AA21

AVD PLL1.2V

AA22

AVS PLLGND

AB17

VPD
TEST Pin For Fujitsu

J6

VDU L

VDSPLL1.2V

J7

VDU LVDSPLL1.2V

M6

VDU LVDSPLL1.2V

M7

VDU LVDSPLL1.2V

P6

VDU LVDSPLL1.2V

P7

VDU LVDSPLL1.2V

T6

VDU LVDSPLL1.2V

T7

VDU LVDSPLL1.2V

W6

VDU LVDSPLL1.2V

W7

VDU LVDSPLL1.2V

Y12

VDU LVDSPLL1.2V

Y14

VDU LVDSPLL1.2V

AA9

VDU LVDSPLL1.2V

AA10

VDU LVDSPLL1.2V

AA12

VDU LVDSPLL1.2V

AA14

VDU LVDSPLL1.2V

Power2

VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND
VSU LVDSPLLGND

VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN L

VDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND
VSN LVDSGND

W15

AA6

AA7
AA11
AA15

AB3

AB6

AB7
AB11
AB13

AC1

AD1

AE1

W12

W14

AA13

AB9
AB10

V11
V14
V15

AF1

Y13

6

GND

D1
D3
E4

F5

F6
G6
G7
H3
H5
H8

J1

J4

J9
K3
K5
K6
L5
L8

M5
M9

N3
N6

P3
R5
R9
T5
U3
U5
V1
V4
V7
V8

W3
W5
W8
W9

Y5
Y9

L6

M8

H6
H7

J8

P8
R6
T8
U6

Y6
Y7

A1
A26
B1
B2
B5
B7
C25
E9
E10
E11
E13
E14
E15
E16
E18
E19
E20
E21
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
F17
F18
F19
F20
F21
H21
J10
J11
J12
J13
J14
J15
J16
J17
J18
J21
K10
K11
K12
K13
K14
K15
K16
K17
K18
L10
L11
L12
L13
L14
L15
L16
L17
L18
L21
M10
M11
M12
M13

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

IC9400

CXD9929GB

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

M14
M15
M16
M17
M18

W21

AA17
AA18
AA19
AA25
AB25

AF26

N10
N11
N12
N13
N14
N15
N16
N17
N18

R10
R11
R12
R13
R14
R15
R16
R17
R18
R21

U10
U11
U12
U13
U14
U15
U16
U17
U18
U21
V16
V17
V18
V21

Y21

P10
P11
P12
P13
P14
P15
P16
P17
P18
P21

T10
T11
T12
T13
T14
T15
T16
T17
T18
T21

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

ABCDEF GH JIKLMN

O

IC9400

CXD9929GB

19

20

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ CB1 Board Schematic Diagram [ HFR Film MC ] Page 7/7 ~

- 37 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

1

1

D4 - EG1H (40 inches only)

2

JW6601

XX

CN6600

3P

WHT

3P

PFC_OUT
PRI_GND

1
3

3

JL6600

EY6622

EY6623

JL6601

4

EY6652

EY6654

JW6602

XX

4

1

23

JW6603

XX

JW6604

XX

EY6653

T6801

EY6655

12.5mH

JW6611

FB6611

FB6612

JW6612

XX

XX

C6603

XX

5

5

EY6600

5

L6600

68uH

EY6601

C6600

1

450V

PT

VCC_12V

INV_DRV_1H

R6700

4.7

1/10W

RN-CP

5%

C6789

47

16V

R6703

4.7
1/10W
RN-CP

5%

C6751

100p

50V

CH

GND_3

JL6719

1

R6707

1/10W

RN-CP

10k

5%

R6917

1k
1/4W
FPRD

R6918

1k
1/4W
FPRD

S

R6701

100

1/10W

RN-CP

5%

Q6706

INK0002AC1-T130A-1

C6800

XX

Q6719

2SC4357-T11-1E

Q6717

2SA1364-T111-1DE

JL6721

C6702

0.1

25V

B

JL6720

1

2

3

47

EY6656

FB6600

0.45uH
EY6657

TO-220
FSF03B60

R6628

R6620

XX

R6602

68

1/4W

FPRD

D6620

UDZSTE-173.6B

C6601

1000p

50V

B

1608

10

9

D6600

MA2J1130GLS0

5%

CHIP

1/10W

1k

R6600

R6632

1k

1/10W

CHIP

5%

R6604

MOS-FET
40" 2SK3569

XX

46" 2SK3569
52" FMA10N60E

4.7
1/10W
1608

*D6602

Q6600

XX

2SA1364-T111-1DE

FSF03B60

*Q6602

2SK3569

R6606

10k

1/10W

FB6601

0.45uH

D6604

FB6608

0uH

C6790

XX

EY6658

FB6602

0.45uH

EY6659

EY6604

EY6605

EY6710

EY6711

EY6606

S

EY6607

FB6603

0.45uH

D6606

S3K60

EY6624

XX

D6608

XX

EY6625

XX

EY6714

C6797

1

450V

PT

EY6715

JL6724

JL6725

6

*T6800

65

C6602

1000p

50V
1608

B

R6629

XX

R6621

XX

D6621

UDZSTE-173.6B

R6603

68
1/4W
FPRD

R6633
1/10W

MA2J1130GLS0

2012

5%

CHIP

1/10W

1k

R6601

1k

CHIP

5%

2012

D6601

R6605

4.7
1/10W
RN-CP

5%

1608

Q6601

MOS-FET
40" 2SK3569
46" 2SK3569
52" FMA10N60E

*D6603

2SA1364-T111-1DE

XX

TO-220
FSF03B60

D6605

FSF03B60

R6607

10k

1/10W

RN-CP

5%

1608

C6791

XX

EY6608

EY6609

EY6610

S

EY6611

*Q6603

2SK3569

D6607

S3K60

XX

EY6626

D6609

XX

XX

EY6627

EY6616

GND_3

EY6617

1

C6606

1

450V

C6612

100p

250V

B

FB6613

0.45uH

Y CAP
MURAT A TYPE KX
TDK TYPE CD

R6919

R6704

4.7
1/10W
RN-CP

C6752

100p

50V
CH

5%

R6708

10k

1/10W

5%

RN-CP

1

GND_3

7

INV_DRV_1L

8

1k
1/4W
FPRD

S

R6920

1k

1/4W

FPRD

R6702

100

1/10W

RN-CP

5%

Q6707

INK0002AC1-T130A-1

Q6720

C6801

XX

2SC4357-T11-1E

Q6718

2SA1364-T111-1DE

Mount Mecha

JL6723

A6607

JL6722

C6703

0.1

25V

B

C6701

0.47
50V
X7R

2012

263406661

40" FDK NEW Drive Trans
46" SANKEN NEW Drive Trans
52" SANKEN NEW Drive Trans

D6604,Q6602

9

C6658

0.1

50V

B

2012

R6619

1M

1

2

3

*EY6612

XX

45

*EY6613

XX

EY6618

EY6619

*EY6620

*EY6621

*T6601

XX

1

2

3

45

*T6600

NEW HIT-1300 TYPE

40" HIT-1300
46" HIT-1301
52" HIT-1302

8

7

6

8

7

6

*EY6704

XX

*EY6705

XX

*EY6706

XX

*EY6707

XX

*EY6700

*EY6701

*EY6702

*EY6703

XX

*D6703

7.5

JW6710

R6710

XX

GND_2

C6787 0.01

R6915

XX

XXC6793

R6820

0

INV_DRV_1H

INV_DRV_1L

CHIP

1608

R6825

0

CHIP

1608

SUFFIX
40INCH

46INCH
52INCH

VN¶ š‚ð JW ¯ ` •

*C6764

XX

1

GND_2

1

GND_3

*JW6740

XX

*JW6746

15

*JW6752

*C6758

XX

1

GND_2

JL6705

FB6614

0uH

EY6716 EY6717

*C6709

47p

6kV

SL

*D6702

XX

R6711

XX

7.5

JW6711

1

*C6706

XX

D6704

MC2837

D6705

MC2837

GND_2

GND_2

JL6727

*C6710

3300p

50V

SL

1608

1

*C6711

47p

6kV

SL

JL6728

*C6712

3300p

50V

SL

1608

1

1

GND_2

*C6713

3300p

1

GND_2

*C6714

3300p

*C6798

XX

*C6799

XX

FB6615

0uH

EY6718 EY6719

JL6717

JL6729

JL6730

JL6718

1

GND_3

*CN6704

XX

3

HV1
2
1

HV1

4

HV1

3

HV2

2

HV1

1

HV2

*CN6700

4P

BLK

4
3

HV2
2
1

HV2

*CN6705

XX

HIROSE MDF61

HIGH VOL T A GE OUTPUT

VCC_12V

C6792 0.01

*R6808

*C6763

XX

R6818

XX

R6819

XX

XX

JL6701
JL6715
JL6740

JL6702

JL6703

JL6716

1

GND_3

R6916

XX

160825V B

1

GND_3

JL6704

160825V B

E

1

E

1

9
8
7
6
5
4
3
2
1

t@Xgƒ“

1

E

ET6700

t@Xgƒ“

CN6708

ET6701

t@Xgƒ“

CN6709

52" ONLY

XX

10P

*CN6703

VCC(12V)

10

GND

V-FB1

NC
GND
INV-DRV-1H
GND
INV-DRV-1L
GND

OCP2

XX

XX

CN6707

XX

ET6702

2

3

4

5

6

7

8

9

To D5

JL6734

10

11

12

13

14

15

16

17

18

19

D4

INVERTER POWER SUPPLY

C6604

0.1

50V

B

2012

Mount Mecha

R6609

1M

1/10W

RN-CP

5%

1608

A6608

263406661

D6605,Q6603

GND_3

XX

C6720

XX

1

43

IC6704

12

0

CHIP

R6909

JL6732

VREF

NC

AK

R6810

0

CHIP

C6715

XX

XX

D6625

R6723

XX

R6724

XX

R6921

22k

1/10W

RN-CP

0.5%
1608

R6725

68k
1/10W
RN-CP

0.5%

R6739

XX

R6722

120k

1/10W

RN-CP

0.5%

R6729

33k

INK0002AC1-T130A-1

1/10W

RN-CP

5%

R6731

68k
1/10W
RN-CP

5%

R6784

XX

2SC3052EF-T1-LEF

C6760

0.01
25V

B

R6735

XX

R6732

XX

C6716

0.01
25V

B

Q6721

R6721
470
1/10W

RN-CP

5%

GND_3

C6722

Q6704

1

2.2
10V

B

2012

R6734
1/10W

RN-CP

C6753

50V

*R6781

1.5k

1/10W

RN-CP

0.5%

C6721

XX

1

GND_3

11

12

JL6738

R6804

1

1/4W

FPRD

D6711

MA2J1110GLS0

LD1117S50

1
B

MC2838-T112-1

10k

R6751

1/10W

D6714

MAZ8047G0LS0

D6715

MAZ8047G0LS0

IO

D6722

0.5%

RN-CP

C6732

25V
2012

10k

5%

Q6705

2SC3052EF-T1-LEF

R6737

S

1k

1/10W

RN-CP

5%

4.7k

5%

1608

LX1692EIDW-TR

VDDA

C_R

C_BST

C_TO

I_R

654321

ENABLE

BRITE_A

VIN_SNS

BRITE_D

10987

VCOMPOC_SNS

C6719

470p

50V

CH

1608

IC6701

VDDP

AOUT

BOUT

GND

COUT

DOUT

ISNS

OV_SNS

ICOMP

C6723

C6718

0.01
25V

B

10V1B

C6731

50V

C6724CH100p

50V

C6725

25V

C6726

C6728

0.01
25V

B

1608

*R6733

3.9k

1/10W

RN-CP

0.5%

C6717

150p

50V

CH

1608

B

B

1000p

0.1

201216V1B

*R6736

39k
1/10W

RN-CP

0.5%

R6730
1/10W

RN-CP

10

R6922

0

CHIP

RV6701

XX

R6727

100k
1/10W
RN-CP

5%

INV_DRV_1L

INV_DRV_1H

20 19 18 17 16 15

C6727

C6729

1

100

16V

10V

B

14 13 12 11

C6730

0.01

C6739

25V

0.01

C6734

25V

B

1608

1

GND_3

B

1608

R6747

XX

XX

IC6702

GVO

1

GND_3

JL6733

R6765

XX

JL6731

C6738

10

6.3V
B

D6709

D6710

MAZ8068G0LS0

MAZ8068G0LS0

*R6754

*R6752

33

1/10W

1/10W

RN-CP

RN-CP

0.5%

33

R6767

R6748

1

GND_3

XX

XX

*R6756

39

1/10W

RN-CP

0.5%

*R6758

47
1/10W
RN-CP

0.5%

*R6762

47
1/10W
RN-CP

0.5%

*R6764

47

1/10W

RN-CP

0.5%

*R6768

47
1/10W
RN-CP

0.5%

C6737

XX

*R6715

12k
1/10W
RN-CP

5%

*R6716

1.8k
1/10W
RN-CP

5%

*R6714

1/10W
RN-CP

1
GND_3

12k

1

GND_3

1

GND_3

C6754

0.1

25V
1608

C6757

0.1

25V

B

B

R6805

4.7

C6736

XX

C6759

100
16V

C6756

0.1

25V

B

C6609

0.1
25V

B

C6748

R6766

0

CHIP

R6773

10k

1/10W

RN-CP

5%

C6744

0.1

25V

B

Q6712

ISA1235AC1TP-1EF

Q6711

2SC3052EF-T1-LEF

C6746

0.1

25V

B

1608

JL6736

C6745

100
16V

R6797

4.7k

1/10W

RN-CP

5%

R6757

ISA1235AC1TP-1EF

R6782

CHIP

R6792

270k
1/10W
RN-CP

0.5%

R6783

33k

1/10W

RN-CP

0.5%

R6811

1/10W

RN-CP

JL6737

1/10W10k

0

100k

0.5%
1608

*D6717

XX

5%

C6708

XX

R6771

0

CHIP

1608

C6741

XX

C6740

100

16V

*R6772

XX

*R6788
XX

R6786

C6747

4.7k

25V

0.1
B

1/10W
RN-CP

5%

JL6747

R6795

47k
1/10W
RN-CP

5%

Q6714

C6733
1000p

50V

B

R6755

100k

0.5%

33k

0.5%

10V

1608

1
B

0

LM339DT(A)

0

C6794

0.1

25V

B

1608

R6802

33k
1/10W
RN-CP

0.5%

R6821

XX

GND

IC6703

VCC

*C6785

XX

C6743

XX

C6750

+

-

1/10W
RN-CP

*R6803

1/10W

1608 RN-CP

C6735

14 13 12 11 10 9 8

0

0

*R6775

XX

R6793

10k

1/10W

XX

*R6776

CHIP

R6823

CHIP

1608

-

+

0

1608

0

100k

R6790

10k

R6794

+

-

1/10W

C6749

1608

25V

7654321

0.1
B

R6763

4.7k
1/10W
RN-CP

0.5%

JL6735

R6824

0

CHIP

1608

R6822

XX

R6750

100k
1/10W
RN-CP

+-

0.5%

47k

R6789

C6755
1000p

50V

1608

10k

B

R6779

C6742

0.1

25V

1608

1/10W

RN-CP

B

R6809
1/10W

RN-CP

0.5%

2.2k

5%

1608

1608

0.1

25V

1608

B

JL6708
JL6706

JL6707
JL6709
JL6710

VCC_12V

FROM G BOARD

JL6739

JL6711

1

JL6712

2
3

JL6713

4
5

JL6714

6
7

TO BALANCER

1
2
3
4
5
6
7
8
9

8P

CN6702

NC

8

BALANCER_ERR

7

REG12V

6

GND

5

INV_ERR

4

BACK_LIGHT

3

DIMMER

2

GND

1

FOR 40"

*CN6701

7P

VCC(12V)
FB
FB

GND

GND
LD
LD

VCC(12V)
FB
FB
GND
GND
LD
LD
NC
NC

*CN6706

XX

FOR 46",52"

13

14

15

16

17

18

19

20

21

22

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

ABCDEF GH JIKLMN

O

20

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ D4 Board Schematic Diagram [ In verter Power Suppl y ] ~

- 38 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

1

1

FBA - EG1H

2

REG_6.1V

2

CL2820

10

C4002

STBY3.3V

3

10

C4007

A9V

4

5

6

7

8

9

0.01

C4010

SET_ON

DTT_PON

0.01
C4000

CL2821

FB4002

0.01

0uH

C4006

600

¶

/0.1¶/2A

REC_6.1V

CL2822

FB4004

0uH

¶

/0.7¶/300mA

600

CL2819
12V_SW
AC_DET

FAN_ERR

BEM_SCL3

BEM_LOG_TX

BEM_CODE_TX

FE_BEM_TX

MODE_BEM

BE_RST

BE_BUSY

C2806

XX

SCL_DEVICE

C2827

BE_3.3V

I2S_SW_SEL

XX

HDMI_SCL

HDMI_LATCH

HDMI_PC_WP

HDMI_OS_AB

HDMI_SEL1

JL4023 JL4022

HDMI_HPLG_CTRL

HDMI_INT

CEC_IN CEC_OUT

R2878

R2875

R4028

R4030

R2809

R4065

R4083

R4075

R2855

R4023

R4040

R4045

R4057

R2861XX

XX

XX

XX

R4026

XX

XX

R4063

XX

XX

XX

R2868

R4024

XX

XX

XX

R4043

XX

R4055

XX

REG12V
REG12V

REG12V
REG12V_GND
REG12V_GND
REG12V_GND

AC_OFF_DET

POWER_ON

BALANCER_ERR

INV_ERR

BL_ON

DIMMER

CN2800

14P

XXR4019

XX

XX

XXR4006

XX

XXR4070

XX

XX

XX

XXR4062

STBY

H/ON

REC_6.1V
STBY3.3V
STBY3.3V

8

A9V

10

NC

12

12V_SW
AC_DET_IN
FAN_DRIVE2
FAN_ERR

20
22

GND

BEM_SCL2
BEM_SCL3
GND
BEM_LOG_TX
BEM_CODE_TX
TV_BEM_TX
GND
MODE_BEM

42

BE_RST

44

BE_BUSY

46

SET_ON

48

GND

50

SCL_DEVICE

52

GND
SUB_ON
I2S_SW_SEL
GND
HDMI_SCL

62

GND

64

HDMI_LATCH
HDMI_PC_WP

68

HDMI_OS_AB

70

HDMI_SEL1

72

PL_3.3V

74

HDMI_HP_CTRL

76

HDMI_INT

78

CEC_IN
GND

For MONI-Z board power supply.
Link this JL to JL5301 (011.sht).

1
2
3

CL2800

4
5
6
7
8

9
10
11
12
13
14

600

FB2808

¶

/0.70¶/300mA

CL2801

0uH

JL4020

FE_3.3V

C2800

XX

WHT

80P

CN4000

CL2825

FAN_DRIVE1

BEM_LOG_RX

BEM_CODE_RX

TV_BEM_RX

JIG_BEM_RST

SDA_DEVICE

SUBCHRO_RST

HDMI_OS_CD

HDMI_SEL2

HDMI_EDID_SW

100525V0.01 X7RC2801

FB4001
0uH

321610V10 X7RC2802

GND
GND
GND
GND
GND
GND
GND

AC_RL Y

BL_IN

GND
BEM_SDA1BEM_SCL1
BEM_SDA2
BEM_SDA3

GND

GND

GND

BE_WDT

SET_ON2

GND

GND

PC_DET

GND
HDMI_SDA

GND

HDMI_CE

HDMI_RST

PL0

CEC_ON

CEC_OUT

GND

¶

/0.01¶/5.0A

20

20

¶

/0.01¶/5.0A

165¶/0.05¶/2.0A

CL2806

R2804

CL2807

R2805

CL2808
CL2809
CL2810
CL2811
CL2812

R4054

12
34
56
7
9

11
13 14
15 16
17 18
19
21
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41
43
45
47
49
51
53 54
55 56
57 58
59 60
61
63
65 66
67
69
71
73
75
77
79 80

L2809

0uH

L2810

0uH

R4056

XX
XX

XXR4039
XXR4052
XXR4053
XX

R4018

R4025

R2857

R4076

R2800

R4044

R4059

CL2802

C2805

XX

CL2803

C2804

XX

CL2826

R2856

XX

R2873

R4027

XX

R4029

R2854

XX

R2858

XX

R4069

R4064

XX

XX

XXR2810

R4061

XX

R4058

R2859

XX

R4046

BE_REG12V

STBY3.3V

AC_RLY

BALANCER_ERR
HEATER_ON
INV_FAIL
BL_ON
DIMMER_DRV_OUT

XX

XX

XX

XX

XX

XX

XXR4042

XXR4050

XX

XX

XX

XX

XX

XX

FE_12V

AC_RL Y
FAN_DRIVE1FAN_DRIVE2
BL_IN

BEM_SDA1BEM_SCL1
BEM_SDA2BEM_SCL2
BEM_SDA3

BEM_LOG_RX
BEM_CODE_RX
FE_BEM_RX

JIG_BEM_RST

BE_WDT

SDA_DEVICE

SUBCHRO_RST
PC_DET

HDMI_SDA

HDMI_CE
HDMI_RST
HDMI_OS_CD
HDMI_SEL2

CEC_ON

C2829

XX

SET_ON2

C2807

XX

To become Panel less Mode,
Link JL4022 and JL4023.

CL2804

AC_DET

PL0

HDMI_EDID_SW

WHT

80P

GND
FE_TXD0B
FE_TXD1B
FE_TXD2B

FE_MASTER_RSTB DTT_PON_DELAY

FE_SCL_EMMA FE_SDA_EMMA

FE_SPDIF

FE_MCLK

FE_DA T0

ASUB_L ASUB_R

PC_H_IN PC_V_IN

PC_H_OUT PC_V_OUT

M_CB/B
M_CR/R M_C

S_CR

FE_Y_RF_DIGITAL FE_C_RF_DIGITAL

FE_CHINAT[0] FE_CHINAT[1]
FE_CHINAT[2] FE_CHINAT[3]

FE_M_CKOUT

R2867

R4034

R4038

R4072

R4078

R2803

R4087

XX

XX

XX

XX

XX

XX

XXR4082

XX

R2821

10k

1/16W

CHIP

5%

R2870

R2866

R2862

R2807

R4032

R4036

R4074

R2806

R4085

XX

XX

XX

XX

XX

XX

XX

XX

68

FE_TXD0B

FE_TXD1B

FE_TXD2B

8

GND

10

FE_MASTER_RSTB

12

GND

FE_SCL_EMMA

GND

FE_SPDIF

20
22

FE_MCLK

FE_DA T A2

GND

ASUB_L

GND

PC_H_OUT

PC_H_IN

GND

M_CB/B

42

M_CR/R

44

M_Y/G

46

GND

48

S_CV/Y

50

NC(S_CR)

52

REC_Y

GND

TUNER_SCL_DIGITAL

GND

NC

62

NC

64

TUNER_LNA_SW

TUNER_FE_CKOUT

68

TUNER_FE_SYNC

70

GND

72

TUNER_DA T A0

74

TUNER_DA T A2

76

TUNER_DA T A4

78

TUNER_DA T A6

GND

CN4001

DTT_PON_DELAY

FE_SDA_EMMA

DSP_MUTE2

TUNER_SDA_DIGIT AL

TUNER_RST

TUNER_FE_VAL

TUNER_DA T A1
TUNER_DA T A3
TUNER_DA T A5
TUNER_DA T A7

GND
FE_RXD0B
FE_RXD1B
FE_RXD2B

GND

GND

GND

FE_BCLK
FE_LRCLKFE_DA T A0
FE_DA T A1

GND

ASUB_R

GND

PC_V_OUT

PC_V_IN

GND

M_CV/Y

M_YS

GND

GND

REC_C

GND

GND

DEM_SEL

TUNER_SW

GND

GND

12
34
56
7
9

11
13 14
15 16
17 18
19
21
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40

M_C

41
43
45

S_C

47
49
51
53 54
55 56
57 58
59 60
61

NC

63
65 66
67
69
71
73
75
77
79 80

R2876

R4033

R4037

R4071

R4080

R4081

R4086

R2871

XX

R2872

R2877

R2833

R4031

XX

R4035

XX

XX

R4073

R4096100

XX

XXR2801

R2802

XX

XX

XX

XX

XX

XX

XX

XX

XX

XX

0

RB4011

FE_RXD0B
FE_RXD1B
FE_RXD2B

DSP_MUTE2

FE_BCLK
FE_LRCLK
FE_DA T1FE_DA T2

M_CV/Y

M_YSM_Y/G

S_CS_CV/Y

FE_SDA_DIGIT ALFE_SCL_DIGITAL

FE_DEMOD_RSTBFE_LNA_SWB
FE_TUNER_SW
FE_M_VALFE_M_SYNC

C2828

XX

FE_M_DA TA[1]

FE_M_DA TA[0]

FE_M_DA TA[3]

FE_M_DA TA[2]

FE_M_DA TA[5]

FE_M_DA TA[4]

FE_M_DA TA[7]

FE_M_DA TA[6]

REG_6.1V

PQ070XNA1ZPH

IC4000

Vin

Vc

Vo

12345

C4001

1
25V
X7R

2012

R4001

390

1/16W

RN-CP

0.5%

R4002

1k

1/16W

RN-CP

0.5%

R4000

2.7k
1/16W
RN-CP

0.5%

CL2805

Vadj

GND

C4004

10
10V
X7R
3216

C4005

XX

COM_REC_5V

CL2827

DL_CS

FE_VDOE_A[0-7],FE_VDOE_B[0-7],FE_VDOE_CLK_OUT,FE_VDOE_G[0-7],FE_VDOE_VHSB_OUT,FE_VDOE_R[0-7],FE_VDOE_VVSB_OUT,FE_VDOE_CLK_IN,FE_VDOE_VHSB_IN,FE_VDOE_VVSB_IN

FE_DS656IN_xx EMMA

FE_VDI_CK,FE_VDI_D[0-7]

FE_VDI

FE_VDOE

⁄ M ˇX\Ł

FE_VDI_CK
FE_VDI_D[0]
FE_VDI_D[1]
FE_VDI_D[2]
FE_VDI_D[3]
FE_VDI_D[4]
FE_VDI_D[5]
FE_VDI_D[6]
FE_VDI_D[7]

RB4009

10k

7

R4020

10k

1/16W

CHIP

5%

FE_VDO_VCK,FE_VDO_Y[0-7],FE_VDO_C[0-7],FE_VDO_VHSB,FE_VDO_VVSB

2143658

FE_VDO

RB4010

10k

7

PORTION3

3

FE_VDOE_VVSB_OUT
FE_VDOE_VHSB_OUT
FE_VDOE_CLK_OUT

FE_VDOE_A[0]
FE_VDOE_A[1]
FE_VDOE_A[2]
FE_VDOE_A[3]
FE_VDOE_A[4]
FE_VDOE_A[5]
FE_VDOE_A[6]
FE_VDOE_A[7]
FE_VDOE_R[0]
FE_VDOE_R[1]
FE_VDOE_R[2]
FE_VDOE_R[3]
FE_VDOE_R[4]
FE_VDOE_R[5]
FE_VDOE_R[6]
FE_VDOE_R[7]
FE_VDOE_B[0]
FE_VDOE_B[1]
FE_VDOE_B[2]
FE_VDOE_B[3]
FE_VDOE_B[4]
FE_VDOE_B[5]
FE_VDOE_B[6]
FE_VDOE_B[7]
FE_VDOE_G[0]
FE_VDOE_G[1]
FE_VDOE_G[2]
FE_VDOE_G[3]
FE_VDOE_G[4]
FE_VDOE_G[5]
FE_VDOE_G[6]
FE_VDOE_G[7]

CL2823
CL2824

FE_VDO_VVSB
FE_VDO_VHSB
FE_VDO_VCK
FE_VDO_Y[0]
FE_VDO_Y[1]
FE_VDO_Y[2]

2143658

FE_VDO_Y[3]
FE_VDO_Y[4]
FE_VDO_Y[5]
FE_VDO_Y[6]
FE_VDO_Y[7]
FE_VDO_C[0]
FE_VDO_C[1]
FE_VDO_C[2]
FE_VDO_C[3]
FE_VDO_C[4]
FE_VDO_C[5]
FE_VDO_C[6]
FE_VDO_C[7]

FE_VDOE_CLK_IN
FE_VDOE_VHSB_IN
FE_VDOE_VVSB_IN

R4003

R4004

10k

1/16W

CHIP

5%

R4005
1/16W

10k

1/16W

CHIP

5%

10k

CHIP

5%

R4066
R4077
R4021

R4067
R4060
R4047

R4048

22

68
68
22

RB4005

RB4006

R4022 47

0
0

22

2
4
6
8

68

10
12
14
16

2
4
6
8

68

10
12
14
16

15
13
11
9
7
5
3
1

1
3
5
7
9

11
13
15

15
13
11
9
7
5
3
1

15
13
11
9
7
5
3
1

1
3
5
7
9

11
13
15

7
5
3
1

RB4002

1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

16
14
12
10

RB4007

8

68

6
4
2

2
4
6
8

68

RB4008

10
12
14
16

16
14
12
10

RB4001

8

22

6
4
2

16
14
12
10

RB4003

8

0

6
4
2

2
4
6
8

0

RB4004

10
12
14
16

8
6
4
2

47

C5
B5
A5
D6
C6
B6
A6
D7
C7
B7
A7
D8
C8
B8
A8
D9
C9
B9
A9
D10
C10
B10
A10
D11
C11
B11
A11
D12
C12
B12
A12
D13
C13
B13
A13
C17
B17
A17
D15
C15
B15
A15
D16
C16
B16
A16
J3
J2
J1
H4
H3
H2
H1
G4
G3
G2
G1
F4
F3
F2
F1
E2
E1
D2
D1
C14
B14
A14

VINEG_VS
VINEG_HS
VINEG_CK
VINEG_A0
VINEG_A1
VINEG_A2
VINEG_A3
VINEG_A4
VINEG_A5
VINEG_A6
VINEG_A7
VINEG_R0
VINEG_R1
VINEG_R2
VINEG_R3
VINEG_R4
VINEG_R5
VINEG_R6
VINEG_R7
VINEG_B0
VINEG_B1
VINEG_B2
VINEG_B3
VINEG_B4
VINEG_B5
VINEG_B6
VINEG_B7
VINEG_G0
VINEG_G1
VINEG_G2
VINEG_G3
VINEG_G4
VINEG_G5
VINEG_G6
VINEG_G7
CCP3_VS
CCP3_HS
CCP3_CK
CCP3_D0
CCP3_D1
CCP3_D2
CCP3_D3
CCP3_D4
CCP3_D5
CCP3_D6
CCP3_D7
VIN2_VS
VIN2_HS
VIN2_CK
VIN2_D0
VIN2_D1
VIN2_D2
VIN2_D3
VIN2_D4
VIN2_D5
VIN2_D6
VIN2_D7
VIN2_D8
VIN2_D9
VIN2_D10
VIN2_D11
VIN2_D12
VIN2_D13
VIN2_D14
VIN2_D15
GX_VS
GX_HS
GX_CK

IC5100

CXD4716BGB

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

From Companion

HDMI_MCK

HDMI_LRCK

HDMI_SCK

HDMI_DA T

*R2818

XX

CHIP

1005

SCL_DEVICE

SDA_DEVICE

*C2803

0.1

*R2811

100

13 VDD
14 GND
15 DAT A_OUT
16 BCLK

47

*RB4012

CL2831

CL2830

12

11

ADD2

*IC2812

TPA5050RSAR

LRCLK2DATA3SCL4SDA

1

CL2828
CL2829

C2813

Slave Address: 1101 000

CL2832

10

9

GND

ADD0

ADD1

10

6.3V

8GND
7GND
6GND
5GND

I2S_SW_SEL

High: HDMI
Low: Others

From EMMA3SL

FE_AO1_MCK

FE_AO1_LRCK

FE_AO1_BCK

FE_AO1_BD0

FE_AO1_BD1

FE_AO1_BD2

C2808

XX

74LVC157A-PW

IC2808

S

VCC

1I0

4I0

1I1

4I1

1Y

2I0

2I1

3I0

2Y

GND 3Y

C2810

XX

IC2809

A1

VCC

Y1

OE1

OE2

GND A2

C2812

XX

3I1

87654321

74LVC2G66DC-125

4321

16 15 14 13 12 11 10 9

E

4Y

C2809

0.1
16V
1005

8765

Y2

C2811

0.1
16V
1005

Q2808

UNR52A1G0LS0

R1=10k/R2=10k

1
3
5
7

2
4
6
8

1/16W47R2814

47

RB4013

47

RB4014

A9V

XX

R2808

14

To TAS

FE_MCLK

FE_LRCLK

2
4
6
8

1
3
5
7

FE_BCLK

FE_DA T0

FE_DA T1

FE_DA T2

Earth terminals for screw holes

E

ET2800

XX

E

ET2801

XX

E

E

ET2804

ET2802

XX

XX

E

E

ET2805

ET2803

XX

XX

Side A Side B

E

ET2806

XX

E

ET2807

XX

E

ET2808

XX

E

ET2809

XX

E

ET2810

E

ET2811

E

ET2812

E

ET2813

E

ET2814

E

ET2815

E

ET2816

E

ET2817

E

ET2818

E

ET2819

COM_REC_5V

FE_DAC_RSTB
FE_AO0_LRCK

FE_AO0_BD0
FE_AO0_BCK

FE_AO0_MCK

L2808

XX

C4003

R2836

XX

C2814

CL2813
CL2814
CL2815
CL2816

XX

RB2808

10k

XX

Z springs

E

*ET2820

XX

CN4000 CN4001 CN2800 CN5300

Put Z springs on Side B near these connectors.

E

*ET2822

XX

E

*ET2824

XX

E

*ET2826

XX

R2835

XX

7

EMMA3

REC Audio

Output

2143658

DIF0 DIF1

87654321

ACKS
SMUTE
RSTN
LRCK
SDTI
BICK
MCLK

AK4388ET-E2

AOUTR

AOUTL

VCOM

IC2810

VDD

DEM

VSS

DZF

R2848

33k

C2823

0.001

1/16W

50V

RN-CP

0.5%

X7R
1005

R2846

8.2k

R2849

1/16W

3.3k

RN-CP

1/16W

0.5%

RN-CP

0.5%

V- B+IN

4321

C2825

680p
50V

CH

1005

R2847

8.2k

1/16W

RN-CP

0.5%

C2824

0.001
50V

X7R
1005

B-IN

A+IN

R2850

3.3k

1/16W

RN-CP

0.5%

B_OUT

A-IN

8765

V+

A_OUT

R2851

33k
1/16W
RN-CP

0.5%

IC2811
NJM4558V-TE2

RN-CP

R2842

47k

1/16W

CHIP

5%

R2843

47k

1/16W

CHIP

5%

R2844

1.5k
1/16W
RN-CP

0.5%

R2845

1.5k

1/16W

0.5%

C2822

680p

50V

CH

1005

C2820

10
10V
X7R
3216

RB2809

330

2
4
6
8

C2815

10

C2816

0.1

16 15 14 13 12 11 10 9

C2817

0.01

1
3
5
7

C2818

0.01

CL2817
CL2818

C2830

100
16V

C2819

10

10V
X7R
3216

C2821

0.1

16V
1005

R2838

10k
1/16W
RN-CP

0.5%

R2839

10k

1/16W

RN-CP

0.5%

R2840

100k

1/16W

CHIP

5%

R2841

100k

1/16W

CHIP

5%

C2826

0.1

16V
1005

R2852

100

1/16W

CHIP

5%

R2853

100

1/16W

CHIP

5%

ASUB_R

ASUB_L

15

16

17

18

19

Additional contact terminals for EPP heatsink

E

E

ET4040

ET4041

XX

XX

Macro for earth lead wire

1

CN4002

XX

FBA

1/22 FRONT/BACKEND

20

21

22

ABCDEF GH JIKLMN

O

1

CN4003

XX

21

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 1/22 ~

- 39 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

2

2

3

3

4

4

5

5

10

11

12

13

6

6

FBA - EG1H

C4706

XX

*C4709
*C4719

*C4710
*C4711

*C4712

C4713

*C4714

*C4720

*C4715
*C4716
*C4717

BE_3.3V

XX

L4702

C4705

XX

XX

XX

XX
XX

XX

XX

XX

XX

XX
XX
XX

*FL4700

EMI

*C4707

XX

XX

*C4708

XX

C4718

XX

*C4721

XX

CL4700
CL4701
CL4702

*C4723

XX

C4722

XX

C4724

XX

*C4725

CL4703

XX

123456 78

VDDE1
TDO
TDI
XTOUT
VXSS
XTAL
XTALI
VXDD

9 1011121314151617181920212223

VSSA2
AI24
VDDA2
AI23
AI2D
AI22
VSSA1
AI21
VDDA1
AI12
AI1D
AI11
AGND
AOUT
VDDA0

24 25

VSSA0
VDDE

CL4704 CL4705

100

98

99

TCK

TMS

VSSE100

CE

VSSE26

LLC

262728

XX

*C4727

97

TRSTN

CL4710

94

95

96

XDQ

XCLK

XRDY

CL4712

93

VDDI93

CL4713

85

86

87

88

89

90

91

92

XRV

XRH

XPD0

XPD1

VSSI

XPD2

XPD3

XPD4

XX

SAA7115AHL/V1

*IC4700

RTCO

AMCLK

VSSI38

ASCLK

ALRCLK

AMXCLK

RTS0

VDDI33

RTS1

SCL

29

LLC2

SDA

RESON

303132333435363738394041424344

84

XPD5

ITRDY

83

VDDI83

VDDCI

82

XPD6

TEST0

C4730

XX

CL4719

78

79

80

81

XTRI

XPD7

ICLK

4546474849

IDQ

TEST5

ITRI

TEST4

IGP0

77

TEST3

IGP1

76

VSSE76

VDDE75

VDDI68

VDDI58

VSSE50

50

TEST2
TEST1

HPD0
HPD1
HPD2
HPD3

HPD4
HPD5
HPD6
HPD7

VSSI63

IPD0
IPD1
IPD2
IPD3

IPD4
IPD5
IPD6

IPD7
IGPH
IGPV

VDD51

7

8

EPP_D3_IN

EPP
SUB VIDEO OUT

C4734

XX

SUB_HPD0
SUB_HPD1
SUB_HPD2
SUB_HPD3

*C4731

6869707172737475

5152535455565758596061626364656667

XX

C4732

XX

*C4733

XX

SUB_HPD4
SUB_HPD5
SUB_HPD6
SUB_HPD7

SUB_IPD0
SUB_IPD1
SUB_IPD2
SUB_IPD3

SUB_IPD4
SUB_IPD5
SUB_IPD6

SUB_IPD7
SUB_IGPH
SUB_IGPV

1

3
5
7

*RB4703

XX

XX

*RB4705

XX

*RB4706

2
4
6
8

*RB4707

2
4
6
8

10
12
14
16

*RB4708

*RB4709

1
3
5
7

XX

XX

XX

*R4729

XX

EPP_DRC_C1IN2

1

EPP_DRC_C1IN3

3

EPP_DRC_C1IN4

5

EPP_DRC_C1IN5

7

EPP_DRC_C1IN6

9

EPP_DRC_C1IN7

11

EPP_DRC_C1IN8

13

EPP_DRC_C1IN9

15

EPP_DRC_Y1IN2
EPP_DRC_Y1IN3
EPP_DRC_Y1IN4
EPP_DRC_Y1IN5
EPP_DRC_Y1IN6
EPP_DRC_Y1IN7
EPP_DRC_Y1IN8
EPP_DRC_Y1IN9

EPP_DRC_VSIN

2

EPP_DRC_HSIN

4
6
8

EPP_DRC_CKIN

9

10

11

12

13

7

8

BE_3.3V

COM_REC_5V

9

S_C

S_CV/Y

*L4700

XX

R4702

XX

R4703

XX

C4700

XX

*C4701

R4704

XX

R4705

XX

*C4702

XX

XX

*L4701

XX

*R4734

XX

24.576MHz
*X4700

1

XX

2

*C4704

XX

R4708

XX

R4709

XX

R4706

XX

R4707

XX

*Q4700
2SC5950G0LS0

XX

R4710

XX

*R4711

XX

*R4714

XX

*Q4701
2SC5950G0LS0

XX

R4712

XX

*R4713

XX

*R4715

XX

R4716

XX

R4717

XX

R4730

XX

R4732

XX

10_11D

C4735

XX

R4731

XX

C4737

XX

R4733

XX

CCPX_S_CLK

DEV_RST13_4E

C4736

XX

C4738

XX

CL4722
CL4723

*R4718

XX

*Q4702
2SA2122G0LS0

XX

*R4719

XX

*Q4703
2SA2122G0LS0

XX

R4720

XX

R4721

XX

*C4703

XX

14

15

16

17

S_CR

CL4724

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

FBA

FBA

2/22

1_3G
1_3G
1_3G

R4722

XX

SUBCHRO_RST

SCL_DEVICE

SDA_DEVICE

C4726

XX

CL4706 CL4707

7

CL4708

CL4709

2143658

*C4728

XX

SDASCL

CL4711

*RB4701

CL4714 CL4715 CL4716

XX

C4729

XX

CL4717 CL4718 CL4720CL4721

*R4727

XX

SUBC_HIZ

1
3
5
7

XX

RB4704

*R4728

XX

14

2
4
6
8

15

16

17

18

19

20

21

18

19

20

21

22

ABCDEF GH JIKLMN

O

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 2/22 ~

- 40 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

2

2

3

3

4

4

FBA - EG1H

5

5

10

11

BE_3.3V

R4167

XX

R4164

0.5%

RN-CP

1/16W

150k

R4165

RSS050P03FTB

S1 S2 S3 G

4321

XX

R4168
1/16W

RN-CP

0.5%

CL4122

Q4111

15k

RSR25P03TL

C4147

C4148

0.015
25V
X7R

1005

Q4112

1500p

50V
X7R
1005

CL4124

8765

D1D2D3D4

R4171

C4149

25V

2012

X7R

S

XX

C4150

1

1

25V

X7R

2012

R4173

XX

R4172

XX

FBA

3/22

BE_REG12V

6

C4142

C4145

XX

R4162

10k

1/16W

RN-CP

0.5%

1005

CH

50V

150p

C4144

C4146

4.7

25V
X7R
3216

4.7

25V
X7R
3216

0.5%

RN-CP

1/16W

47k

R4166

XX

R4135

3.15A

F4102

3.15A
24V

7

R4111

0.5%
RN-CP
1/16W

3.3k

R4104

0.5%
RN-CP
1/16W

47k

R4105

CL4100

RSS040P03FD5TB

Q4101

4321

XX

R4113

100k
1/16W
RN-CP

0.5%

C4112

0.015
25V
X7R

1005

8765

C4110

0.001
50V
X7R

1005

CL4102

R4116

XX

C4114

1

25V

2012

X7R

C4116

1
25V
X7R

2012

BE_REG12V

C4106

C4100

4.7

3.15A

F4100

3.15A

8

24V

XX

25V
X7R
3216

9

XX

R4118

R4101

4.7k

1/16W

RN-CP

0.5%

1005

X7R

50V

0.001

C4104

0.5%

RN-CP

1/16W

100k

R4106

R4122

XX

0.5%
RN-CP
1/16W

8.2k

R4123

RRH070N03TB1

Q4105

S1 S2 S3 G

4321

BD9853AFV-E2

Vcc

OUT1_1

OUT1_2

VB

RT

654321

FB1

-INE1

87

CSCP1 CSCP2

IC4100

OUT2_1

OUT1_2

-INE2

8765

D1D2D3D4

VH

CTL

GND

FB2

16 15 14 13 12 11

10 9

D4100

M1FM3

1005

0.001

C4120

R4128

10

R4126

XX

X7R
50V

2012

X7R
25V

C4118

CL4105

R4134

10

1

R4129

R4140

XX

1005
X7R

50V

0.001

C4121

100k

3.6A/24m
L4102

10uH

XX

¶

R4142

C4130

4.7
10V
X7R
2012

CL4114

CL4107

KDZTR3.9B

D4106

SET_ON

R4154

XX

C4138

XX

EPP_1.2V

C4140

XX

C4143

XX

R4174

XX

0.5%

RN-CP

1/16W

15k

R4175

RRH070N03TB1

Q4113

S1 S2 S3 G

4321

BD9853AFV-E2

IC4102

Vcc

OUT1_1

OUT1_2

VB

RT

654321

FB1

-INE1

87

CSCP1 CSCP2

RSR025N03TL

S

OUT2_1

OUT1_2

Q4114

8765

D1D2D3D4

VH

CTL

GND

FB2

-INE2

16 15 14 13 12 11

10 9

D4109

M1FM3

D4110

M1FM3

R4179

10

R4178

XX

1005
X7R

50V

0.001

C4158

2012
X7R

25V

C4157

CL4129

R4181

10

R4182

1

1005
X7R

50V

0.001

C4159

10

R4180

100k

X7R

50V

0.001

C4160

X7R

50V

0.001

C4161

R4184

5.4A/16m
L4105

10uH

C4164
2200p

50V

X7R

CL4131

3A/26.5m

L4104

4.7uH

10

XX

XX

R4186

C4162

0.015

¶

R4187

¶

C4163

X7R
2012

25V
X7R
1005

C4165

4.7

10V

CL4132

10

10V
X7R
3216

CL4133

R4191

4.7k

1/16W

RN-CP

0.5%

CL4134

CL4130

XX

R4136

KDZTR3.9B

D4112

R4193

47k

1/16W

RN-CP

0.5%

R4194

2.2k

1/16W

RN-CP

0.5%

KDZTR3.9B

D4111

FB4116

XX

75

R4195

39k
1/16W
RN-CP

0.5%

FB4115

0uH

¶

/3A/0.03

75

¶

/3A/0.03

R4196

5.6k

1/16W

RN-CP

0.5%

C4167

CL4137

CL4138

CL4139

100p

CH

¶

C4169

6

¶

C4170

C4168

XX

XX

7

8

SET_ON2

9

BE_1.8V

10

C4171

XX

XX

11

12

13

14

15

16

17

18

BE_REG12V

3.15A

*F4101

3.15A
24V

*C4105

C4103

XX

C4101

XX

*R4102

4.7k

RN-CP

X7R
50V

0.001

*C4107

*C4109

4.7
25V
X7R

4.7

25V

X7R

RN-CP

100k

*R4110

XX

R4120

*R4112

RN-CP

3.3k

*R4108

RN-CP

47k

*R4109

CL4101

RSS040P03FD5TB

*Q4102

4321

XX

*R4114

100k

RN-CP

*C4113

0.015
25V

X7R

RSS040P03FD5TB

*Q4104

8765

*C4111

0.001
50V
X7R

CL4103

8765

R4117

XX

CL4104

*C4117

*C4115

1

25V

X7R

*R4121

*R4119

XX

4321

12

RRH070N03TB1

*Q4106

S1 S2 S3 G

4321

*R4124

XX

BD9853AFV-E2

*IC4101

Vcc

OUT1_1

OUT1_2

VB

RT

654321

FB1

-INE1

87

15k

CSCP1 CSCP2

RRH070N03TB1

*Q4108

S1 S2 S3 G

4321

*R4125

1
25V
X7R

XX

D1D2D3D4

VH

OUT2_1

OUT1_2

CTL

GND

FB2

-INE2

8765

*D4102

M1FM3

16 15 14 13 12 11

10 9

8765

D1D2D3D4

*D4103
M1FM3

*R4131

R4127

X7R

50V

0.001

*C4124

10

*C4119

CL4106

XX

*R4133

*R4137

X7R
25V

1

10

3.6A/24m

X7R

50V

0.001

*C4125

10

R4132

XX

5.4A/16m

*L4103

10uH

*C4126

0.001
50V

X7R

*C4127

0.001
50V

X7R

*R4139

10

*L4101

10uH

XX

R4144

*C4134

0.001
X7R

CL4109

¶

XX

R4146

*C4133

50V

*C4129

0.015
25V

X7R

*C4135

4.7
10V
X7R

CL4112

4.7
10V
X7R

CL4113

*R4149

100k

RN-CP

CL4115

CL4116

XX

KDZTR3.9B

*R4155

1k

RN-CP

*R4156

100k

RN-CP

R4130

KDZTR3.9B

*D4105

*D4107

*R4157

47k

XX

C4182

SET_ON

CL4120

XX

C4184

*R4159

10k

RN-CP

*C4137

0.001
50V
X7R

¶

DRC_1.2V

XX

C4183

DRC_2.5V

XX

C4185

*R4100

10k

*Q4100

RT3N11M-TP-1

DDR_P_ON

BE_3.3V

1005

X6S

6.3V
1

C4172

1005

X6S

6.3V
1

C4173

MM3292FNRE

IC4103

VDD

VOUT

GND

321

CE NC

NJM2878F3-18(TE2)

IC4104

Cont

VIN

GND

321

NC VOUT

COM_REC_5V

3216
X7R
10V

10

3216

X7R
10V

10

C4175

C4176

1005
X7R

25V

0.01

C4174

300mA

5 4

150mA

54

10k

R4197

XX

C4177

EPP_DA2.5V

C4179

1

6.3V
X6S

1005

EPP_ADC1.8V

C4178

XX

RTR020P02TR

Q4117

S

XX

C4180

X7R

10V

4.7

C4181

5%

CHIP

1/16W

1k

R4198

BE_5V

SET_ON

13

14

15

16

17

18

19

20

21

22

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

Q4118

UNR52A1G0LS0

19

20

21

22

ABCDEF GH JIKLMN

O

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 3/22 ~

- 41 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

1

FBA - EG1H

1

D4314

DDC_5V_3
DDC_5V_1

DDC_5V_4

2

3

D4300

XX

R4306

1k

1/16W

RN-CP

R4303

10

1/16W

CHIP

C4300

0.1

16V

DDC_5V_1

XX

IC4300

A1
A0
A2

4321

ESDA

VCC

WP

SCL

BE_5V

MA4J1130GLS0

R4309

XX

8765

D4306

6.8k

RB4304

DDC_5V_S

D4317

MA4J1130GLS0

31

24

31

R4345

D4318

MA4J1130GLS0

XX

XX

24

D4319

MA2SD320G8S0

87654321

ExParts

MA4J1130GLS0

MB85RF402

IC4312

VSS
SCL4

C_3.3V
SDA4
DET4
SCL3
SDA3
DET3
WP DET1

4

19HPD
18DDC +5V
17E
16DDC DA T
15DDC CLK

5

6

7

CN4300

19P
BLK

14NC
13CEC
12CLK­11E
10CLK+

9DO­8E
7D0+
6D1­5E
4D1+
3D2­2E
1D2+

VD4309

XX

8

9

19HPD
18DDC +5V
17E
16DDC DA T

CN4301

19P
BLK

15DDC CLK
14NC
13CEC
12CLK­11E
10CLK+

9DO­8E
7D0+
6D1­5E
4D1+
3D2­2E
1D2+

VD4307

XX

D4301

XX

VD4315

XX

R4307
1/16W

RN-CP

R4304
1/16W

1
2
3
4

1
2
3
4

1k

10

CHIP

1
2
3
4

1
2
3
4

VD4316

XX

FL4300

0uH

8
7
6
5

FL4301

0uH

8
7
6
5

C4301

0.1

16V

VD4317XXVD4318

XX

FL4302

0uH

8
7
6
5

FL4303

0uH

8
7
6
5

R4318

VD4304

XX

12345

678910

XX

VD4305

XX

12345

678910

RXC_1R-

RXC_1R+

RX0_1R-

RX0_1R+

RX1_1R-

RX1_1R+

RX2_1R-

RX2_1R+

VD4304-VD4306, VD4310-VD4314 1pin˘10pin, 2pin˘9pin, 4pin˘7pin, 5pin˘6pin

»Œ…Œ i”¯p^[ –•Ø–˘

WP

SCL

12345

BE_5V

MA4J1130GLS0

R4310

XX

8765

VD4306

XX

D4307

678910

R4327

XX

6.8k

RB4305

RXC_3R-

RXC_3R+

RX0_3R-

RX0_3R+

RX1_3R-

RX1_3R+

VD4312

XX

12345

678910

RX2_3R-

RX2_3R+

DDC_5V_3

XX

IC4301

A1
A0
A2

4321

ESDA

VCC

C4313

XX

C4322

XX

C4323

0.01
25V

X7R

HDMI_STBY3.3V

FL4309

EMI

FL4308

EMI

R4354

1M

1/16W

CHIP

Q4300

5%

XX

HDMI_PC_WP

RXC_3R-

RXC_3R+

C4352

0.01
25V
X7R
1005

RXTM

VCC

RX0_3R­RX0_3R+

RX1_3R­RX1_3R+

˝

RX2_3R­RX2_3R+

RXC_4R­RXC_4R+

RX0_4R­RX0_4R+

RX1_4R­RX1_4R+

HDMI_EDID_SW

UNR52A1G0LS0

Q4307

C4353

XX

C4311

XX

C4312

0.01

25V
X7R
1005

76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

100

BDT0N
BDT0P
GND
BDT1N
BDT1P
VCC
BDT2N
BDT2P
GND
HPD_C
DDC_VCCC
SDA_C
SCL_C
GND
CCLKN
CCLKP
VCC
CDT0N
CDT0P
GND
CDT1N
CDT1P
VCC
OPA CTRLN

SET_HPD

1 2 3 4 5 6 7 8 9 10111213141516171819202122232425

R4383

10k

1/16W

CHIP

5%

BCLKP

CDT2N

RX2_4R+

RX2_4R-

BCLKN

CDT2P

GND

GND

SCL_B

HPD_D

SDA_B

DDC_VCCB

DDC_VCCD

SDA_D

C4318

XX

HPD_B

SCL_D

C4317

0.01
25V

X7R

1005

RX2_1R+

GND

GND

RXC_2R-

RX2_1R-

ADT2P

ADT2N

CXB1446R-T6

DCLKN

DCLKP

RXC_2R+

RX1_1R+

VCC

IC4306

VCC

RX0_2R-

RX1_1R-

ADT1P

DDT0N

RX0_2R+

1005

X7R
25V

0.01

C4351

ADT1N

DDT0P

RX0_1R+

GND

GND

RX1_2R-

RX0_1R-

ADT0P

DDT1N

RX1_2R+

ADT0N

DDT1P

XX

C4350

VCC

VCC

RXC_1R-

RXC_1R+

ACLKP

DDT2N

RX2_2R-

RX2_2R+

ACLKN

DDT2P

C4320

XX

VCC

GND

SCL_A

SEL1

SDA_A

DDC_VCCA

SEL2

OS_AB

HDMI_OS_AB

C4321

XX

51525354555657585960616263646566676869707172737475

HPD_A

CEC_LINE

CVCC

OUTDIS

DDC_MOUT

HPD_SINK
SDA_SINK

SCL_SINK

YCLKN

YCLKP

YDT0N

YDT0P

YDT1N

YDT1P

YDT2N

YDP2P

REXT

LATCH

CEC_TX

CEC_RX

OS_CD

HDMI_OS_CD

GND

VCC

GND

VCC

GND

C4309

XX

50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30

R4356

4.7k

29

CE

1/16W

RN-CP

0.5%

28
27
26

BE_5V

D4313

16 15 14 13 12 11 10 9

VDD

SCL2

SDA2

DET2
SCL1

SDA1

˛i

BE_3.3V

R4404

1k

1/16W

CHIP

5%

24

R4314

XX

R4386

1.2k

1/16W

RN-CP

0.5%

31

R4388
1/16W

RN-CP

0.5%

BE_5V

1.2k

C4355

16V

1005
C4354

C4356

16V

R4312

XX

0.1

10

6.3V
X6S

0.1

R4319

33k

1/16W

RN-CP

0.5%

R4313

XX

R4403

27k
1/16W
RN-CP

0.5%

MA2SD320G8S0

D4312

R0PWR5V_1

HDMI_HPLG_CTRL

R0XC-P

R0XC+P

R0X0-P

R0X0+P

R0X1-P

R0X1+P

R0X2-P

R0X2+P

HDMI_CE

HDMI_LATCH

CEC_OUT

CEC_IN

HDMI_SEL1
HDMI_SEL2

87654321

DSDA0P

DSCL0P

XX

IC4311

1OE
S1

2OE
1B4
1B3
1B2
1B1
1A
GND 2A

Vcc

S0
2B4
2B3
2B2
2B1

HDMI_SCL

HDMI_SDA

16 15 14 13 12 11 10 9

BE_5V

C4328

XX

R4431

XX

HDMI_PC_WP

DDC_5V_S
DDC_5V_4
DDC_5V_3
DDC_5V_1

R0PWR5V_1

R4349

XX

Q4301

RT3N11M-TP-1

1Y

0Y

1Z

Z-COM

0Z

INH

GND

87654321

GND C

TC74VHC4053AFT(EK)

R4348

XX

IC4304

CEC_ON

VCC

Y -COM

X-COM

1X

0X

A

B

HDMI_EDID_SW

2

1005
X7R

25V

0.01

C4310

STBY3.3V

2012

X6S

6.3V
10

C4314

2012
X6S

6.3V
10

C4315

XX

C4316

10k

R4360

RTR020P02TR

Q4302

S

CHIP

1/16W
R4363

5%

HDMI_STBY3.3V

3

1k

4

16 15 14 13 12 11 10 9

1005

X7R
25V

0.01

C4303

5

6

7

8

9

RB4303

10k

10

Q4305

RT3N11M-TP-1

11

12

13

14

15

16

17

18

19

20

21

CN4302

19P
BLK

15

R4362

R4308

1k

1/16W

RN-CP

DDC_5V_4

R4305

10

1/16W

CHIP

A1
A0
A2

4321

E SDA

XX

IC4302

VCC

C4302

0.1

16V

D4302

XX

19HPD
18DDC +5V
17E
16DDC DA T
15DDC CLK
14NC
13CEC
12CLK­11E
10CLK+

9DO­8E
7D0+
6D1­5E
4D1+
3D2­2E
1D2+

VD4308

XX

VD4319XXVD4320

FL4304

0uH

1
2
3
4

FL4305

0uH

1
2
3
4

XX

8
7
6
5

8
7
6
5

WP

SCL

12345

BE_5V

MA4J1130GLS0

R4311

XX

8765

VD4313

XX

D4308

678910

R4336

XX

6.8k

RB4306

D4303

XX

19

HPD

CLK-

CLK+

CEC

D0+

D1+

D2+

D0-

D1-

D2-

18
17

E

16
15
14

NC

13
12
11

E

10

9
8

E

7
6
5

E

4
3
2

E

1

VD4335

XX

DDC +5V

DDC DA T
DDC CLK

RXC_4R-

RXC_4R+

RX0_4R-

RX0_4R+

RX1_4R-

RX1_4R+

VD4314

XX

12345

678910

RX2_4R-

RX2_4R+

CN4303

19P

BLK

1k
1/16W
RN-CP

R4361

10

1/16W

CHIP

VD4321XXVD4322

FL4306

1
2
3
4

FL4307

1
2
3
4

0uH

0uH

C4319

0.1

16V

XX

8
7
6
5

8
7
6
5

DDC_5V_S

XX

IC4307

A1
A0
A2

4321

ESDA

VCC

SCL

BE_5V

D4311

MA4J1130GLS0

R4375

XX

8 7 65

WP

6.8k

RB4307

16

17

18

FBA

R4380

VD4310

XX

12345

678910

XX

VD4311

XX

12345

678910

RXC_2R-

RXC_2R+

RX0_2R-

RX0_2R+

RX1_2R-

RX1_2R+

RX2_2R-

RX2_2R+

4/22

19

20

21

22

ABCDEF GH JIKLMN

O

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

22

~ FBA Board Schematic Diagram [ Front/Backend ] Page 4/22 ~

- 42 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

2

2

3

3

FBA - EG1H

4

4

RB4509

ADC_CK

47K

ADC_G[4]

ADC_G[5]

ADC_G[6]

ADC_G[7]

ADC_G[8]

ADC_G[9]

ADC_HS

ADC_VS

ADC_B[0]

ADC_B[1]

ADC_B[2]

ADC_B[3]

ADC_B[4]

ADC_B[5]

ADC_B[6]

ADC_B[7]

ADC_B[8]

ADC_B[9]

AD_OUT

6_14D

VDCCVDDF

HDMI_INT

5

FBA

5/22

ADC_R[0]

ADC_R[1]

ADC_R[2]

ADC_R[3]

ADC_R[4]

ADC_R[5]

ADC_R[6]

ADC_R[7]

ADC_R[8]

ADC_R[9]

ADC_G[0]

ADC_G[1]

ADC_G[2]

ADC_G[3]

COMPANION_OUT

5

10

11

12

13

14

15

16

6

BE_1.8V

7

C4501

8

XX

FL4502

EMI

BE_3.3V

C4500

XX

FL4507

EMI

C4568

XX

C4510

XX

3

214

C4511

0.01
25V
X7R

3

214

C4512

0.01
25V
X7R

214

C4517

0.01
25V
X7R

VDCC

VDDF

214

214

3

C4507

0.01

25V
X7R
1005

3

C4518

0.01
25V

X7R

C4522

XX

C4523

0.01
25V
X7R

3

C4567

C4506

XX

XX

R0XC-P

R0XC+P

R0X0-P

R0X0+P

DVCC AVCC

9

R0X1-P

R4520

22

R0X1+P

R0X2-P

R0X2+P

R4527

10k

XTALVCC

REGVCC

CL4507

AUD_PLL

C4569

0.1

16V

1005

C4503

XX

C4505

XX

BE_1.8V

BE_1.8V

FL4503

EMI

FL4504

EMI

C4502

XX

C4575

BE_1.8V

FL4506

XX

XX

XX

FL4505

EMI

EMI

C4509

0.01
25V
X7R

1005

BE_3.3V

C4520

XX

C4574

XX

AUD_PLL

XX

FL4509

EMI

{4} {5}

DVCC

C4514

0.01
25V
X7R

1005

C4516

XX

214

C4537

XX

C4539

XX

C4540

XX

BE_3.3V

BE_3.3V

BE_3.3V

214

FL4508

EMI

FB4508

XX

FL4510

EMI

FB4509

XX

FL4511

EMI

C4576

XX

214

C4578

XX

C4579

XX

{1}

C4541

XX

REGVCC

XTALVCC

DVCC

C4545

0.01

25V
X7R
1005

C4546

0.01

25V
X7R
1005

{2}

AVCC

C4543

0.01
25V
X7R

{3}

DVCC

C4547

XX

C4549

0.01
25V

X7R

AVCC

COMP_27M

C4557

XX

R4507

XX

C4558

XX

XX

R4540

1

R4541

XX

HDMI_RST

DSP_MUTE2

R0PWR5V_1

DSDA0P

DSCL0P

XX

X4500

R4510

XX

2

BE_3.3V

R4522

10k

157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208

1/16W

CHIP

5%

INT

P3D1

P3D0

AGND
AVCC18
AVCC33
R0XC­R0XC+
AGND
AVCC33
R0X0­R0X0+
AGND
AVCC33
R0X1­R0X1+
AGND
AVCC33
R0X2­R0X2+
AGND
AVCC18
AGND
AVCC18
RSVDNC
AVCC33
R1XC­R1XC+
AGND
AVCC33
R1X0­R1X0+
AGND
AVCC33
R1X1­R1X1+
AGND
AVCC33
R1X2­R1X2+
AGND
AVCC18
DVCC2
DGND2
XTALOUT
XTALIN
XTALVCC
REGVCC
RESETB
SCDT
RSVDL
MUTE
R0PWR5V
DSDA0
DSCL0

R1PWR5V

DSCL1

DSDA1

1 2 3 4 5 6 7 8 9 10111213141516171819202122232425262728293031323334353637383940414243444546474849505152

R4551

47k

P3D2

CSDA

P3D3

CSCL

P3D4

P3CLKIN

MCLK

WS/DR0/CI2CA

CVCC

CGND

SCK/DCLK

SD0/DL0

P3D5

SPDIF

P3D6

IOGND

P3D7

IOVCC

HSYNC3

CGND

VSYNC3

CVCC

IOVCC

VSYNC4

IOGND

HSYNC4

P2D0

AVGND

P2D2

P2D1

ADCVCC18

VGAVCC33

P2D3

PR4

CVCC

AVGND

CGND

DLINE3_4

ADCVCC18

VGAVCC33

P2CLKIN

SOGIN4

P2D6

P2D5

P2D4

IC4500

SII9151CLU

YG4

AVGND

ADCVCC18

P2D7

VGAVCC33

P2D8

PB4

P2D9

SPGND

HSYNC2

SPVCC

VSYNC2

RSVDNC

IOVCC

RSVDNC

IOGND

DLINE3_5

AVGND

ADCVCC18

CGND

VGAVCC33

CVCC

PR5

HSADC0

AVGND

HSADC2

HSADC1

ADCVCC18

VGAVCC33

HSADC3

SOGIN5

HSADC4

YG5

HSADC5

AVGND

HSADC7

HSADC6

ADCVCC18

VGAVCC33

HSADC8

PB5

HSADC9

SPGND

CGND

SPVCC

CVCC

VSYNC5

CVCC

HSYNC5

IOVCC

COAST

105106107108109110111112113114115116117118119120121122123124125126127128129130131132133134135136137138139140141142143144145146147148149150151152153154155156

IOGND

IOVCC
IOGND

CVCC

CGND

IOVCC

ODCK

IOGND

CVCC

CGND
IOVCC
IOGND

IOVCC
IOGND

HSYNC
VSYNC

EVNODD

Q10
Q11
Q12
Q13
Q14
Q15

Q16
Q17
Q18
Q19
Q20
Q21
Q22
Q23

Q24
Q25
Q26
Q27
Q28
Q29
Q30
Q31

Q32
Q33
Q34
Q35

DVCC

*RB4503

33

104

Q0

103

Q1

102

Q2

101

Q3

100

Q4

99

Q5

98

Q6

97

Q7

96
95
94

Q8

93

Q9

92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55

DE

54
53

16
14
12
10
8
6
4
2

8
6
4
2
8
6
4
2

16
14
12
10
8
6
4
2

16
14
12
10
8
6
4
2

16
14
12
10
8
6
4
2

*RB4505

33

*RB4518

33

*R4515

0

*RB4507

33

*RB4512

33

*RB4514

33

15
13

Q2_B[2]

11

Q3_B[3]

9

Q4_B[4]

7

Q5_B[5]

5

Q6_B[6]

3

Q7_B[7]

1

Q8_B[8]

7

Q9_B[9]

5

Q10_B[10]

3

Q11_B[11]

1

Q12_G[0]

7

Q13_G[1]

5

Q14_G[2]

3

Q15_G[3]

1

Q16_G[4]

15

Q17_G[5]

13

Q18_G[6]

11

Q19_G[7]

9

Q20_G[8]

7

Q21_G[9]

5

Q22_G[10]

3

Q23_G[11]

1

Q24_R[0]

15

Q25_R[1]

13

Q26_R[2]

11

Q27_R[3]

9

Q28_R[4]

7

Q29_R[5]

5

Q30_R[6]

3

Q31_R[7]

1

Q32_R[8]

15

Q33_R[9]

13

Q34_R[10]

11

Q35_R[11]

9
7
5
3
1

DE
HSO
VSO

22

*R454922*R4550

R4501

XX

CLK0_A

BE_3.3V

XX

XX

R4548

R4504

8765

CLKOUT

REF

CLK0_B

CLK4

CLK2

VDD

CLK1

FB4510

XX

GND CLK3

4321

C4504

XX

XX

IC4501

{2}

AVCC

{3}

DVCC

{5}{4}

{1}

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

C4538

XX

C4572

XX

3

C4508

XX

C4513

XX

3

C4519

XX

C4577

XX

3

C4542XXC4544

XX

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

C4548

XX

C4580

XX

C4581

XX

HDMI_SDA

HDMI_SCL

2143658

2.2k
RB4511

HDMI_MCK

HDMI_LRCK

HDMI_SCK
HDMI_DA T

7

4.7k
RB4508

R4525

4.7k

1/16W

0.5%

*R4547

CL4503

33

R450368R4545

R4546

CL4500

CL4504

68

CL4502

68

CL4501

2143658

47K

RB4515

17

18

CL4505

C4559

0.01
25V

X7R

2143658

47

7

RB4504

C4560

0.01
25V

X7R

7

CL4506

C4561

0.01
25V

X7R

2143658

47

RB4506

C4562

0.01
25V
X7R

2143658

47K

7

RB4516

7

19

20

21

22

ABCDEF GH JIKLMN

O

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 5/22 ~

- 43 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

1

1

2

2

3

3

FBA - EG1H

4

4

BE_3.3V

C4607

XX

5

6

XX

C4648

XX

VCC

SCL

RB4614

XX

RB4616

XX

RB4615

WP

2143658

R4692
1/16W

RN-CP

8765

M_Y/G

1_7E

M_CB/B

1_7E

7

RB4618

10k

4.7k

0.5%

47

RB4617

2
4
6
8

Q4607

UNR52A1G0LS0

HDMI_PC_WP

CN4600

15P

BLK

1617

678910

7

8

12345

1112131415

PC_DET

1_7E

XX

VD4600XXVD4601XXVD4602

9

XX

VD4603XXVD4604

R4624

XX

XXR4625

R4626

XX

F4600

0.5A
50V

D4603

UMZ5.6KTR

R4684

R4685

2.2k

2.2k

1/16W

1/16W

RN-CP

RN-CP

0.5%

0.5%

FBA

D4604

XX

PC_H_OUT
PC_V_OUT

6/22

C4647

0.1

16V

1005

R
G
B

BE_3.3V

D4605

MA4J1130GLS0

M24C02-WMN6T(B)

IC4604

A1
A0
A2

4321

E SDA

0.5%

RN-CP

R4603

0.5%

RN-CP

R4604

0.5%

RN-CP

R4605

1
3
5
7

R4601

470

0.5%

RN-CP

R4602

470

RN-CP

0.5%

XX

75

R4612

XX

75

R4616

XX

75

R4617

R4613

XX

C4600

XX

PC_V_IN

R4606

560

R4607

560

Q4600

2SA1226-T1E3E4

R4609

82

Q4601

2SA1226-T1E3E4

R4618

330

R4620

330

Q4606

2SC4178-F13F14-T1

R4642

100

XX

C4661

R4619

10

R4621

10

2SC4178-F13F14-T1

R4628

330

2SC4178-F13F14-T1

R4629

330

R4631

330

XX

C4606

Q4603

XX

C4616

Q4604

R4615

XX

C4602

XX

R4614

XX

C4601

XX

C4603

XX

COM_REC_5V

L4600

10uH

C4604

0.01
25V
X7R

C4605

10

10V

X7R
3216

PC_H_IN

ADC_RST

C4617

XX

185

FB4600

XX

¶

/2A/0.05

C4611

XX

¶

C4608

0.1

C4609

0.1

C4610

0.1

C4612

0.1

C4613

220p CH

C4614

0.1

C4615

0.1

R4641

10k

1/16W

CHIP

5%

C4627

C4618

16V

1005

16V

1005

16V

1005

16V

16V

16V

1005

16V

1

6.3V
X6S
1005

1

6.3V
X6S
1005

R4648

1005

1005

R4652

1005

C4624
C4623

R4646

47

47

47

2012
X6S

6.3V
10

10

6.3V

X6S
2012

NJM2878F3-18(TE2)

IC4603

Cont
GND

321

NC VOUT

MM1661JTRE

IC4601

IO

G

XX

C4650

C4619

0.01

25V
X7R
1005

25V

C4620

R4649
C4621

C4622

0.01

XX

0.01

0.01

C4645

10

6.3V

X6S
2012

X7R

X7R

X7R

25V

25V

1005

0.001C4662

1005

1005

150mA

54

VIN

C4630

1A

C4626

C4625

10

XX

6.3V
X6S
2012

FL4602

EMI

XX

C4628

12345678

VD{1.8V}
B AIN0
GND
B AIN1
VD{1.8V}

9 1011121314151617181920

R4654

10k

1/16W

CHIP

5%

G AIN0
GND
SOGIN0
VD{1.8V}
G AIN1
GND
SOGIN1
VD{1.8V}
R AIN0
GND
R AIN1
RST
REFLO
REFCM
REFHI

R4655

XX

7

47

*RB4610

X7R

XX

R4660

2.2k
1/16W
RN-CP

0.5%

80

GND

O/E FIELD

212223

C4632

10

6.3V
X6S

2012

FB4603

0uH

185

C4629

0.01
25V
X7R
1005

79

PVD{1.8V}

VSOUT/A0

2143658

FL4601

EMI

2143658

¶

/2A/0.05

¶

C4633

C4646

5600p

0.047
50V

25V

X7R

X7R

1005

1005

X7R
25V

0.01

C4631

XX

R4645XXR4647

67

68

69

70

71

72

73

74

75

76

77

78

FILT

PVD{1.8V}

HSOUT

SOGOUT

DATACK

252627282930313233343536373839

24

C4634

0.01
25V
X7R

1005

*R4662

47

1/16W

CHIP

5%

R4696

22

1/16W

CHIP

5%

PVD{1.8V}

VDD{3.3V}

GND

CLAMP

EXTCLK/COAST

THC7984-17-TY

ExParts

RED9

RED8

RED8

RED9

HSYNC0

VSYNC0

IC4602

˛i

RED7

RED6

RED6

RED7

GND

GND

RED5

VSYNC1

RED5

RED4

HSYNC1

RED4

RED3

SCL

RED3

RED2

66

SDA

RED2

65

RED1

C4639

0.01
25V

X7R
1005

GND

RED1

7

64

VDD{3.3V}

RED0

C4640

0.01
25V
X7R

RED0

1005

47

RB4608

BLUE0

63

BLUE0

VDD{3.3V}

CCP1_VSO
CCP1_HSO

BLUE1

BLUE2

62

BLUE1

GND

61

BLUE2

BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9

GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9

DAVDD

GND

40

GND
VDD

5

6

BEM_SCL1

BEM_SDA1

BE_3.3V

FL4600

EMI

ADC_CLAMP

ADC_CLKIN

C4641

XX

47

BLUE0

C4642

XX

BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8

5354555657585960

414243444546474849505152

C4649

10

6.3V
X6S
2012

C4643

0.01

25V
X7R
1005

C4644

0.01
25V
X7R

1005

BLUE9

GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9

BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9
RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
RED8
RED9

*RB4611

1
3
5
7
9

11
13
15

16
14
12
10
8
6
4
2
8
6
4
2

1
3
5
7
1
3
5
7
9

11
13
15

*RB4613

2
4
6
8

10
12
14
16

15

*RB4612

13
11
9
7
5
3
1
7

*RB4604

5
3
1

2

*RB4605

4
6
8
2
4
6
8

10
12
14
16

47

ADC_B[0]
ADC_B[1]
ADC_B[2]
ADC_B[3]
ADC_B[4]
ADC_B[5]
ADC_B[6]
ADC_B[7]
ADC_B[8]
ADC_B[9]

47

ADC_G[0]
ADC_G[1]
ADC_G[2]
ADC_G[3]
ADC_G[4]
ADC_G[5]
ADC_G[6]

47

ADC_G[7]
ADC_G[8]
ADC_G[9]
ADC_R[0]
ADC_R[1]

47

ADC_R[2]
ADC_R[3]
ADC_R[4]
ADC_R[5]
ADC_R[6]
ADC_R[7]
ADC_R[8]
ADC_R[9]

AD_OUT

7

8

9

10

11

12

13

14

15

ADC_CK

ADC_HS
ADC_VS

SSHSO

16

17

18

19

20

21

M_CR/R

1_7E

R4600

470

0.5%

RN-CP

R4608

560

R4610

82

Q4602

2SA1226-T1E3E4

R4611

82

R4622

330

R4623

10

XX

C4635

Q4605

2SC4178-F13F14-T1

R4630

330

18

19

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

20

21

22

ABCDEF GH JIKLMN

O

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 6/22 ~

- 44 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

18

1

1

2

2

3

3

4

5

6

7

8

9

FBA - EG1H

COMPANION_OUT

EPP_DRC_OUT

Q27_R[3]

Q24_R[0]

Q25_R[1]

Q26_R[2]

Q23_G[11]
Q22_G[10]

Q21_G[9]
Q20_G[8]

Q19_G[7]

Q18_G[6]
Q17_G[5]
Q16_G[4]
Q15_G[3]

Q14_G[2]

Q13_G[1]

Q12_G[0]

Q35_R[11]
Q34_R[10]
Q33_R[9]
Q32_R[8]

Q31_R[7]
Q30_R[6]
Q29_R[5]

Q28_R[4]

HSO

VSO

1MY7
1MY6
1MY5
1MY4
1MY3
1MY2
1MY1
1MY0

1MC7
1MC6
1MC5
1MC4
1MC3
1MC2
1MC1
1MC0

1M_HS
1M_VS

1M_CLK

*RB4821

CLK0_B

*RB4820

22

22

*R4807

*R4808

*RB4822

15
13
11
9
7
5
3
1
15
13
11
9
7
5
3
1

15
13
11
9
7
5
3
1

*R4809

*R4810

R4848
R4849

22

22

22

22

22

16
14
12
10
8
6
4
2
16
14
12
10
8
6
4
2

16
14
12
10
8
6
4
2

XX
XX

DRC_148M

*R4831

22

CL4800

CL4801

CL4802
CL4803

CL4804

CL4805

CL4806

CL4807
CL4808

CL4809

Por tion1

AP8

AYI11

AN8

AYI10

AM8

AYI9

AL8

AYI8

AK8

AYI7

AP7

AYI6

AN7

AYI5

AM7

AYI4

AL7

AYI3

AK7

AYI2

AP6

AYI1

AN6

AYI0

AL11

ACI11

AK11

ACI10

AP10

ACI9

AN10

ACI8

AM10

ACI7

AL10

ACI6

AK10

ACI5

AP9

ACI4

AN9

ACI3

AM9

ACI2

AL9

ACI1

AK9

ACI0

AM11

AHDI

AN11

AVDI

AP11

ACKI

AF3

BYI11

AF2

BYI10

AF1

BYI9

AE5

BYI8

AE4

BYI7

AE3

BYI6

AE2

BYI5

AE1

BYI4

AD5

BYI3

AD4

BYI2

AD3

BYI1

AD2

BYI0

AJ5

BCI11

AJ4

BCI10

AJ3

BCI9

AJ2

BCI8

AJ1

BCI7

AH5

BCI6

AH4

BCI5

AH3

BCI4

AH2

BCI3

AH1

BCI2

AG5

BCI1

AG4

BCI0

AF4

BHDI

AF5

BVDI

3

AG

BCKI

AP5

CKASEL

U1

HPDI

P1

CKO

*IC4800

CXD3821GB

Y1O11
Y1O10

Y1O9
Y1O8
Y1O7
Y1O6
Y1O5
Y1O4
Y1O3
Y1O2
Y1O1
Y1O0

Y2O11
Y2O10

Y2O9
Y2O8
Y2O7
Y2O6
Y2O5
Y2O4
Y2O3
Y2O2
Y2O1
Y2O0

C1O11
C1O10

C1O9
C1O8
C1O7
C1O6
C1O5
C1O4
C1O3
C1O2
C1O1
C1O0

C2O11
C2O10

C2O9
C2O8
C2O7
C2O6
C2O5
C2O4
C2O3
C2O2
C2O1
C2O0

HPO

HP2O

VPO

HPDO

CK2OO

FPO
FPD

AA3
AA2

AA5
AA4

4

5

10k

*R4803

DRC_3.3V

7

10k

*RB4812

2143658

10k

10k

*R4804

*R4805

AC5

AC1
AB5
AB4

AC2

AC4

CL4818

XX

CL4819

XX

CL4820

XX

CL4821

XX

Y5
AA1

F1
F2

Por tion5

D33

SDAA

D34

SCLA

C34

SSELA1

C33

SSELA0

E33

SDAB

E34

SCLB

E32

SSELB1

E31

SSELB0

F33

SDAC

F34

SCLC

F32

SSELC1

F31

SSELC0

G34

SEN

Y3

XCRRST

Y4

XMCRST

Y2

XTGRST

U5

XPLLRST

U4

XDDRRST

U3

XCE

*IC4800

CXD3821GB

*R4852

Portion7

FMASK

FCONT2
FCONT1
FCONT0

VPFI

PD32

FDETO
FILMO

SUS2
SUS1

*IC4800

CXD3821GB

TSTIO2
TSTIO1

SCANCK2
SCANCK1

0

TST7
TST6
TST5
TST4
TST3
TST2
TST1
TST0

TCK
TDO
TMS

TRST

AG34
AG33
AG32
AG31

AF34
AF33
AF32
AF31

XX

R4836

AN3

AM5

AK4

AL3

C1

TDI

C2
D1
D2
E1

CL4817

XX

C4813

XX

R4814

XX

R4833

0

*R4837

2143658

DRC_3.3V

7

*RB4811

10k

Portion14

D9

CKD

C9

CKDSEL

*IC4800

CXD3821GB

DRC_PLL_1.2V

Portion8

W1

*IC4800

CXD3821GB

DRC_3.3V

FB4801

XX

*FL4801

EMI

PLLVDD

CK16BO

PLLVSS

AB3

CL4822

V1

0.001

100p

*C4810

*C4811

*C4806

0.01

C4807

XX

ExParts

˛iA

1-814-181-11

DRC_100M

R4825

XX

33

*R4824

˘}E g“fl

AB1

AK2
AK1

CKP

SEL1
SEL0

6

7

8

9

10

11

12

13

14

15

16

E/D VDD
GND

*X4800
99MHz

OUT

*C4808

0.01
XX

C4809

17

FBA

H5
H4
H3
H2
H1
G5
G4
G3
G2
G1

F5
F4

L3
L2

L1
K5
K4
K3
K2
K1

J5
J4
J3
J2

N5
N4
N3
N2
N1
M5
M4
M3
M2
M1

L5

L4

T5

T4

T3

T2

T1

R5

R4

R3

R2

R1

P5

P4

Y1

U2

P3

*R4806

0

*R4800

*R4802

CL4815

1
3
5
7
9

11
13
15

1
3
5
7

1
3
5
7
9

11
13
15

1
3
5
7

1
3
5
7
9

11
13
15

1
3
5
7

1
3
5
7
9

11
13
15

1
3
5
7

33

33

2

*RB4801

33

4
6
8

10
12
14
16

2
4

*RB4800

33

6
8

2
4
6
8

*RB4803

47

10
12
14
16

2
4

*RB4802

47

6
8

2
4
6
8

*RB4805

33

10
12
14
16

2
4

*RB4804

33

6
8

2
4
6
8

*RB4807

47

10
12
14
16

2
4

*RB4806

47

6
8

CL4811

CL4813
CL4814

SN74CBTLV3245APWR

*IC4801

12345678

NC

VCC

A1

OE

A2

B1

A3

B2

A4

B3

A5

B4

A6

B5
A7
A8
GND B8

B6

B7

*R4850

XX

910

BE_3.3V

FB4802

XX

*R4827

10k

20 19 18 17 16 15 14 13

12 11

*R4826

0

*R4851

XX

7/22

*FL4800

EMI

*C4812

0.1

16V

*Q4800

UNR52A1G0LS0

DRC_HIZ

*R4830

22

EPP_DRC_Y1IN9
EPP_DRC_Y1IN8
EPP_DRC_Y1IN7
EPP_DRC_Y1IN6
EPP_DRC_Y1IN5
EPP_DRC_Y1IN4
EPP_DRC_Y1IN3
EPP_DRC_Y1IN2
EPP_DRC_Y1IN1
EPP_DRC_Y1IN0

EPP_DRC_Y2IN9
EPP_DRC_Y2IN8
EPP_DRC_Y2IN7
EPP_DRC_Y2IN6
EPP_DRC_Y2IN5
EPP_DRC_Y2IN4
EPP_DRC_Y2IN3
EPP_DRC_Y2IN2
EPP_DRC_Y2IN1
EPP_DRC_Y2IN0

EPP_DRC_C1IN9
EPP_DRC_C1IN8
EPP_DRC_C1IN7
EPP_DRC_C1IN6
EPP_DRC_C1IN5
EPP_DRC_C1IN4
EPP_DRC_C1IN3
EPP_DRC_C1IN2
EPP_DRC_C1IN1
EPP_DRC_C1IN0

EPP_DRC_C2IN9
EPP_DRC_C2IN8
EPP_DRC_C2IN7
EPP_DRC_C2IN6
EPP_DRC_C2IN5
EPP_DRC_C2IN4
EPP_DRC_C2IN3
EPP_DRC_C2IN2
EPP_DRC_C2IN1
EPP_DRC_C2IN0

EPP_DRC_HSIN

EPP_DRC_VSIN

EPP_DRC_CKIN

EPP_D3_IN

A5
A6
B6
C6
D6
E6
A7
B7
C7
D7
E7
A8
B8
C8
D8
E8
E9
A10
B10
C10
D10
E10
A11
B11
C11
D11
E11
A12
B12
C12
D12
E12

B9

DTI31
DTI30
DTI29
DTI28
DTI27
DTI26
DTI25
DTI24
DTI23
DTI22
DTI21
DTI20
DTI19
DTI18
DTI17
DTI16
DTI15
DTI14
DTI13
DTI12
DTI11
DTI10
DTI9
DTI8
DTI7
DTI6
DTI5
DTI4
DTI3
DTI2
DTI1
DTI0

DLTRG

BEM_SCL2

BEM_SDA2

Portion6

*IC4800

CXD3821GB

*RB4817
1
3
5
7

22

DRC_RST

DRC_3.3V

2
4
6
8

FDETO
FILMO

10k

*R4813

10k

*R4801

XX

C4802

R4844
R4845

R4846
R4847

18

19

20

21

22

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

19

20

21

22

ABCDEF GH JIKLMN

O

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 7/22 ~

- 45 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

FBA - EG1H

VTT1

2

*C4900

0.01

DQ1_[31]

DQ1_[31]

1

*RB4900

3

4

5

6

7

8

47

*RB4901

47

*RB4902

47

*RB4903

47

3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

*R4900

47

*R4901

47

*R4902

47

*R4903

47

2

DQ1_[30]

4

DQ1_[29]

6

DQ1_[28]

8

DQ1_[27]

10

DQ1_[26]

12

DQ1_[25]

14

DQ1_[24]

16

DQ1_[23]

2

DQ1_[22]

4

DQ1_[21]

6

DQ1_[20]

8

DQ1_[19]

10

DQ1_[18]

12

DQ1_[17]

14

DQ1_[16]

16

DQ1_[15]

2

DQ1_[14]

4

DQ1_[13]

6

DQ1_[12]

8

DQ1_[11]

10

DQ1_[10]

12

DQ1_[9]

14

DQ1_[8]

16

DQ1_[7]

2

DQ1_[6]

4

DQ1_[5]

6

DQ1_[4]

8

DQ1_[3]

10

DQ1_[2]

12

DQ1_[1]

14

DQ1_[0]

16

DQS1_[3]
DQS1_[2]
DQS1_[1]
DQS1_[0]

DQ1_[30]
DQ1_[29]
DQ1_[28]
DQ1_[27]
DQ1_[26]
DQ1_[25]
DQ1_[24]
DQ1_[23]
DQ1_[22]
DQ1_[21]
DQ1_[20]
DQ1_[19]
DQ1_[18]
DQ1_[17]
DQ1_[16]
DQ1_[15]
DQ1_[14]
DQ1_[13]
DQ1_[12]
DQ1_[11]
DQ1_[10]
DQ1_[9]
DQ1_[8]
DQ1_[7]
DQ1_[6]
DQ1_[5]
DQ1_[4]
DQ1_[3]
DQ1_[2]
DQ1_[1]
DQ1_[0]

DQS1_[3]
DQS1_[2]
DQS1_[1]
DQS1_[0]

15
13
11
9
7
5
3
1
15
13
11
9
7
5
3
1
15
13
11
9
7
5
3
1
15
13
11
9
7
5
3
1

*R4908

22

*R4909

22

*R4910

22

*R4911

22

*RB4908

9

16

33

14
12
10
8
6
4
2
16

*RB4909

33

14
12
10
8
6
4
2
16

*RB4910

33

14
12
10
8
6
4
2
16

*RB4911

33

14
12
10
8
6
4
2

E13
D13
C13
B13
E15
D15
C15
B15
E24
D24
C24
B24
E26
D26
C26
B26
E16
D16
C16
B16
E18
D18
C18
B18
E27
D27
C27
B27
E29
D29
C29
B29

A14
A25
A17
A28

E19

Portion2

*IC4800

CXD3821GB

*R4994

33

BANK11
BANK10

ADDR111
ADDR110
ADDR109
ADDR108
ADDR107
ADDR106
ADDR105
ADDR104
ADDR103
ADDR102
ADDR101
ADDR100

RAS1
CAS1

WE1

CS1

DM13
DM12
DM11
DM10

CLKP1

CLKN1

CKE1

REF13
REF12
REF11
REF10

OLBCK1

DQ131
DQ130
DQ129
DQ128
DQ127
DQ126
DQ125
DQ124
DQ123
DQ122
DQ121
DQ120
DQ119
DQ118
DQ117
DQ116
DQ115
DQ114
DQ113
DQ112
DQ111
DQ110
DQ109
DQ108
DQ107
DQ106
DQ105
DQ104
DQ103
DQ102
DQ101
DQ100

DQS13
DQS12
DQS11
DQS10

ILBCK1

E21
D21

C21
B21
A21
E22
D22
C22
B22
A22
E23
D23
C23
B23

D20
C20
B20
E20

B14
B25
B17
B28

A19
A20
B19

A13
A24
A16
A27

D19

*R4920
*R4921
*R4922

0.1

*C4880

*RB4920

*RB4921

8
6
4
2

*R4916

22

*R4917

22

*R4918

22

*R4919

22

22
22
22

*C4881

22

22

*RB4918

22

0.1

16
14
12
10
8
6
4
2
16
14
12
10
8
6
4
2

CL4900

7
5
3
1

VREF1

*C4902

0.01

15

ADDR1_[2]

13

ADDR1_[3]

11
9

ADDR1_[7]

7

ADDR1_[8]

5

ADDR1_[12]

3

ADDR1_[13]

1

ADDR1_[11]

15

ADDR1_[10]

13

ADDR1_[9]

11

ADDR1_[6]

9

ADDR1_[5]

7

ADDR1_[4]

5

ADDR1_[1]

3

ADDR1_[0]

1

VTT1

*R4930

47

*R4931

47

*R4932

47

*R4933

47

VTT1

XX

R4938

2143658

7

47

*RB4926

DQS1_[0]
DQS1_[1]
DQS1_[2]
DQS1_[3]

ADDR1_[12]
ADDR1_[13]
ADDR1_[0]
ADDR1_[1]
ADDR1_[2]
ADDR1_[3]
ADDR1_[4]
ADDR1_[5]
ADDR1_[6]
ADDR1_[7]
ADDR1_[8]
ADDR1_[9]
ADDR1_[10]
ADDR1_[11]

*R4948

100

*R4940
*R4941
*R4942

*R4943

*R4950
*R4952
*R4954
*R4956

J5VSSQ

M10 RFU

H5VSSQ

G10VSSQ

H10VSSQ

B7 DQ0

C6 DQ1

B6 DQ2

33

*RB4928

15

K5VSSQ

J10VSSQ

K10VSSQ

CK

M11

CK

M12

CKE

N12

CS

N2

RAS

M2

CAS

L2

WE

L3

DQS0

B2

22
22
22

22

22
22
22
22

H13
H2

B13
B3

H12
H3

B12
N4

M5
N5
N6
M6
N7
N8
M9
N9

N10
N11
M8
L6
M7
C4

C11
H4

H11
L12
L13
M3

DQS1
DQS2
DQS3
DM0
DM1
DM2
DM3
BA0
BA1
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
NC
NC
NC
NC
NC
NC
NC

L9 RFU

N3 NC

M4 NC

G5VSSQ

B5 DQ3

F10VSSQ

C2 DQ4

F5VSSQ

D3 DQ5

E9VSSQ

D2 DQ6

E6VSSQ

D10VSSQ

D11VSSQ

E2 DQ7

K13 DQ 8

K12 DQ9

33

*RB4930

15

214365871091211141316

D4VSSQ

D5VSSQ

D6VSSQ

D9VSSQ

EDD1232ABBH-5C-E-TR

*IC4900

J1 3 DQ10

J1 2 DQ11

G13 DQ12

G12 DQ13

B11VSSQ

F13 DQ14

J9VSS

B4VSSQ

F3 DQ16

F2 DQ17

G3 DQ18

33

*RB4932

G2 DQ19

F12 DQ15

15

214365871091211141316

H9VSS

J3 DQ20

H8VSS

J2 DQ21

H7VSS

K2 DQ22

G8VSS

G9VSS

H6VSS

K3 DQ23

E13 DQ24

D13 DQ25

15

214365871091211141316

G7VSS

D12 DQ26

33

*RB4934

G6VSS

C13 DQ27

F9VSS

B10 DQ28

F8VSS

B9 DQ29

F7VSS

C9 DQ30

F6VSS

VSS

L10

VSS

L5

VSS

K9

VSS

K8

VSS

K7

VSS

K6

VSS

E10

VSS

E8

VSS

E7

VSS

E5

VREF

N13

VDDQ

K11

VDDQ

K4

VDDQ

J11
J4

VDDQ
VDDQ

G11

VDDQ

G4

VDDQ

F11

VDDQ

F4

VDDQ

E12

VDDQ

E3

VDDQ

C12

VDDQ

C10

VDDQ

C8

VDDQ

C7

VDDQ

C5

VDDQ

C3

VDD

L11

VDD

L8

VDD

L7

VDD

L4

VDD

E11

VDD

E4

VDD

D8

VDD

D7

NC

M13

B8 DQ31

214365871091211141316

VREF1

DDR_2.5V

*C4914
*C4915

0.01

*C4916

0.01

*C4917

0.01

*C4904

0.01

*C4910

1

*C4906

J6VSS

J7VSS

J8VSS

0.01

0.01

DDR_2.5V

*C4908

0.01

VTT3

*RB4936

47

*RB4937

47

*RB4938

47

*RB4939

47

*C4912

10

6.3V
X6S

2012

*C4922

0.01

*R4958
*R4959
*R4960
*R4961

VTT3

Portion4

DQ3_[31]

DQ3_[31]

1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

47
47
47
47

2

DQ3_[30]

4

DQ3_[29]

6
8

DQ3_[27]

10

DQ3_[26]

12

DQ3_[25]

14

DQ3_[24]

16

DQ3_[23]

2

DQ3_[22]

4

DQ3_[21]

6

DQ3_[20]

8

DQ3_[19]

10

DQ3_[18]

12

DQ3_[17]

14

DQ3_[16]

16

DQ3_[15]

2

DQ3_[14]

4

DQ3_[13]

6

DQ3_[12]

8

DQ3_[11]

10

DQ3_[10]

12

DQ3_[9]

14

DQ3_[8]

16

DQ3_[7]

2

DQ3_[6]

4

DQ3_[5]

6

DQ3_[4]

8

DQ3_[3]

10

DQ3_[2]

12

DQ3_[1]

14

DQ3_[0]

16

DQS3_[3]
DQS3_[2]
DQS3_[1]
DQS3_[0]

DQ3_[30]
DQ3_[29]
DQ3_[28]
DQ3_[27]
DQ3_[26]
DQ3_[25]
DQ3_[24]
DQ3_[23]
DQ3_[22]
DQ3_[21]
DQ3_[20]

DQ3_[18]
DQ3_[17]
DQ3_[16]
DQ3_[15]
DQ3_[14]
DQ3_[13]
DQ3_[12]
DQ3_[11]
DQ3_[10]
DQ3_[9]
DQ3_[8]
DQ3_[7]
DQ3_[6]
DQ3_[5]
DQ3_[4]
DQ3_[3]
DQ3_[2]
DQ3_[1]
DQ3_[0]

DQS3_[3]
DQS3_[2]
DQS3_[1]
DQS3_[0]

15
13
11
9
7
5
3
1
15
13
11
9
7
5
3
1
15
13
11
9
7
5
3
1
15
13
11
9
7
5
3
1

*R4962

22

*R4963

22

*R4964

22

*R4965

22

16

*RB4940

33

14
12
10
8
6
4
2
16

*RB4941

33

14
12
10
8
6
4
2
16

*RB4942

33

14
12
10
8
6
4
2
16

*RB4943

33

14
12
10
8
6
4
2

AK29
AL29
AM29
AN29
AK27
AL27
AM27
AN27
AK18
AL18
AM18
AN18
AK16
AL16
AM16
AN16
AK26
AL26
AM26
AN26
AK24
AL24
AM24
AN24
AK15
AL15
AM15
AN15
AK13
AL13
AM13
AN13

AP28
AP17
AP25
AP14

AK23

DQ331
DQ330
DQ329
DQ328
DQ327
DQ326
DQ325
DQ324
DQ323
DQ322
DQ321
DQ320
DQ319
DQ318
DQ317
DQ316
DQ315
DQ314
DQ313
DQ312
DQ311
DQ310
DQ309
DQ308
DQ307
DQ306
DQ305
DQ304
DQ303
DQ302
DQ301
DQ300

DQS33
DQS32
DQS31
DQS30

ILBCK3

*IC4800

CXD3821GB

*R4995

ADDR311
ADDR310
ADDR309
ADDR308
ADDR307
ADDR306
ADDR305
ADDR304
ADDR303
ADDR302
ADDR301
ADDR300

33

BANK31
BANK30

RAS3
CAS3

DM33
DM32
DM31
DM30

CLKP3
CLKN3

CKE3

REF33
REF32
REF31
REF30

OLBCK3

WE3

CS3

AK21
AL21

AM21

AN21

AP21
AK20
AL20

AM20

AN20

AP20
AK19
AL19

AM19

AN19

AL22

AM22

AN22
AK22

AN28
AN17
AN25
AN14

AP23

AP22
AN23

AP29

AP18

AP26

AP15

AL23

*R4971
*R4972
*R4973

0.1

*C4884

*RB4946

*RB4947

8
6
4
2

*R4967

22

*R4968

22

*R4969

22

*R4970

22

22
22
22

*C4885

22

22

*RB4945

22

0.1

16
14
12
10
8
6
4
2
16
14
12
10
8
6
4
2

CL4902

7
5
3
1

VREF3

*C4925

0.01

15

ADDR3_[2]

13

ADDR3_[3]

11
9

ADDR3_[7]

7

ADDR3_[8]

5

ADDR3_[12]DQ3_[28]

3

ADDR3_[13]

1

ADDR3_[11]

15

ADDR3_[10]

13

ADDR3_[9]

11

ADDR3_[6]

9

ADDR3_[5]

7

ADDR3_[4]

5

ADDR3_[1]

3

ADDR3_[0]DQ3_[19]

1

VTT3

*R4974

47

*R4975

47

*R4976

47

*R4977

47

XX

R4978

2143658

7

47

*RB4949

DQS3_[0]
DQS3_[1]
DQS3_[2]
DQS3_[3]

ADDR3_[12]
ADDR3_[13]
ADDR3_[0]
ADDR3_[1]
ADDR3_[2]
ADDR3_[3]
ADDR3_[4]
ADDR3_[5]
ADDR3_[6]
ADDR3_[7]
ADDR3_[8]
ADDR3_[9]
ADDR3_[10]
ADDR3_[11]

*R4983

100

*R4979
*R4980
*R4981

*R4982

22
22
22

22

*R4985
*R4986
*R4987
*R4988

J5VSSQ

M10 RFU

H5VSSQ

G10VSSQ

H10VSSQ

B7 DQ0

C6 DQ1

B6 DQ2

33

*RB4950

15

K5VSSQ

J10VSSQ

K10VSSQ

CK

M11

CK

M12

CKE

N12

CS

N2

RAS

M2

CAS

L2

WE

L3

DQS0

B2

DQS1

H13

DQS2

H2

DQS3

B13

DM0

B3

22

DM1

H12

22

DM2

H3

22

DM3

B12

22

BA0

N4

BA1

M5

A0

N5

A1

N6

A2

M6

A3

N7

A4

N8

A5

M9

A6

N9

A7

N10

A8

N11

A9

M8

A10

L6

A11

M7

NC

C4

NC

C11

NC

H4

NC

H11

NC

L12

NC

L13

NC

M3

L9 RFU

N3 NC

M4 NC

G5VSSQ

B5 DQ3

F10VSSQ

C2 DQ4

F5VSSQ

D3 DQ5

E9VSSQ

D2 DQ6

E6VSSQ

D11VSSQ

D10VSSQ

D9VSSQ

D6VSSQ

D5VSSQ

EDD1232ABBH-5C-E-TR

E2 DQ7

214365871091211141316

J1 3 DQ10

J1 2 DQ11

33

*RB4951

G13 DQ12

K13 DQ 8

K12 DQ 9

15

D4VSSQ

B11VSSQ

*IC4903

F13 DQ14

G12 DQ13

J9VSS

B4VSSQ

F3 DQ16

F2 DQ17

G3 DQ18

33

*RB4952

G2 DQ19

F12 DQ15

15

214365871091211141316

H9VSS

J3 DQ20

H8VSS

J2 DQ21

H7VSS

K2 DQ22

G8VSS

G9VSS

H6VSS

K3 DQ23

E13 DQ24

D13 DQ25

15

214365871091211141316

G7VSS

D12 DQ26

33

*RB4953

G6VSS

C13 DQ27

F9VSS

B10 DQ28

F8VSS

B9 DQ29

F7VSS

C9 DQ30

F6VSS

VSS

L10

VSS

L5

VSS

K9

VSS

K8

VSS

K7

VSS

K6

VSS

E10

VSS

E8
E7
E5

N13
K11

K4
J11

J4

G11
G4

F11
F4

E12
E3

C12
C10

C8
C7
C5
C3

L11
L8

L7
L4

E11
E4

D8
D7

M13

*C4946

0.01

VREF3

*C4949

0.01

*C4951

0.01

DDR_2.5V

*C4953

1

*C4954

0.01

*C4955

0.01

*C4956

0.01

*C4950

0.01

DDR_2.5V

*C4952

10

6.3V
X6S
2012

VSS
VSS

VREF
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD

NC

B8 DQ31

214365871091211141316

J6VSS

J7VSS

J8VSS

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

VTT2

*RB4904

47

*RB4905

47

*RB4906

47

*RB4907

47

*C4901

0.01

1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

*R4904

47

*R4905

47

*R4906

47

*R4907

47

DQ2_[31]

2

DQ2_[30]

4

DQ2_[29]

6

DQ2_[28]

8

DQ2_[27]

10

DQ2_[26]

12

DQ2_[25]

14

DQ2_[24]

16

DQ2_[23]

2

DQ2_[22]

4

DQ2_[21]

6

DQ2_[20]

8

DQ2_[19]

10

DQ2_[18]

12

DQ2_[17]

14

DQ2_[16]

16

DQ2_[15]

2

DQ2_[14]

4

DQ2_[13]

6

DQ2_[12]

8

DQ2_[11]

10

DQ2_[10]

12

DQ2_[9]

14

DQ2_[8]

16

DQ2_[7]

2

DQ2_[6]

4

DQ2_[5]

6

DQ2_[4]

8

DQ2_[3]

10

DQ2_[2]

12

DQ2_[1]

14

DQ2_[0]

16

DQS2_[3]
DQS2_[2]
DQS2_[1]
DQS2_[0]

DQ2_[31]
DQ2_[30]
DQ2_[29]
DQ2_[28]
DQ2_[27]
DQ2_[26]
DQ2_[25]
DQ2_[24]
DQ2_[23]
DQ2_[22]
DQ2_[21]
DQ2_[20]
DQ2_[19]
DQ2_[18]
DQ2_[17]
DQ2_[16]
DQ2_[15]
DQ2_[14]
DQ2_[13]
DQ2_[12]
DQ2_[11]
DQ2_[10]
DQ2_[9]
DQ2_[8]
DQ2_[7]
DQ2_[6]
DQ2_[5]
DQ2_[4]
DQ2_[3]
DQ2_[2]
DQ2_[1]
DQ2_[0]

DQS2_[3]
DQS2_[2]
DQS2_[1]
DQS2_[0]

15
13
11
9
7
5
3
1
15
13
11
9
7
5
3
1
15
13
11
9
7
5
3
1
15
13
11
9
7
5
3
1

*R4912

22

*R4913

22

*R4914

22

*R4915

22

16

*RB4912

33

14
12
10
8
6
4
2
16

*RB4913

33

14
12
10
8
6
4
2
16

*RB4914

33

14
12
10
8
6
4
2
16

*RB4915

33

14
12
10
8
6
4
2

H30
H31
H32
H33
K30
K31
K32
K33
W30
W31
W32
W33
AA30
AA31
AA32
AA33
L30
L31
L32
L33
N30
N31
N32
N33
AB30
AB31
AB32
AB33
AD30
AD31
AD32
AD33

J34
Y34
M34
AC34

P30

Portion3

*IC4800

CXD3821GB

*R4996

33

BANK21
BANK20

ADDR211
ADDR210
ADDR209
ADDR208
ADDR207
ADDR206
ADDR205
ADDR204
ADDR203
ADDR202
ADDR201
ADDR200

RAS2
CAS2

WE2

CS2

DM23
DM22
DM21
DM20

CLKP2

CLKN2

CKE2

REF23
REF22
REF21
REF20

OLBCK2

DQ231
DQ230
DQ229
DQ228
DQ227
DQ226
DQ225
DQ224
DQ223
DQ222
DQ221
DQ220
DQ219
DQ218
DQ217
DQ216
DQ215
DQ214
DQ213
DQ212
DQ211
DQ210
DQ209
DQ208
DQ207
DQ206
DQ205
DQ204
DQ203
DQ202
DQ201
DQ200

DQS23
DQS22
DQS21
DQS20

ILBCK2

A

AB34

M33
C33

W34

T30
T31

T32
T33
T34
U30
U31
U32
U33
U34
V30
V31
V32
V33

R31
R32
R33
R30

Y33

P34
R34
P33

H34

L34

P31

J33

214365871091211141316

VTT1

*RB4922

22

*RB4923

22

8
6
4
2

*RB4919

*R4923

22

*R4924

22

*R4925

22

*R4926

22

*R4927

22

*R4928

22

*R4929

22

0.1

0.1

*C4882

*C4883

ADDR1_[13]

ADDR1_[12]

*RB4916

47

16
14
12
10
8
6
4
2
16
14
12
10
8
6
4
2

22

CL4901

*C4903

ADDR1_[2]

ADDR1_[0]

7
5
3
1

VREF2

0.01

ADDR1_[4]

ADDR1_[5]

ADDR1_[1]

ADDR1_[3]

15

ADDR2_[2]

13

ADDR2_[3]

11
9

ADDR2_[7]

7

ADDR2_[8]

5

ADDR2_[12]

3

ADDR2_[13]

1

ADDR2_[11]

15

ADDR2_[10]

13

ADDR2_[9]

11

ADDR2_[6]

9

ADDR2_[5]

7

ADDR2_[4]

5

ADDR2_[1]

3

ADDR2_[0]

1

ADDR1_[6]

214365871091211141316

15

VTT2

ADDR1_[9]

*RB4924

47

*R4934

47

*R4935

47

*R4936

47

*R4937

47

ADDR1_[7]

ADDR1_[10]

VTT2

XX

R4939

ADDR1_[8]

ADDR1_[11]

15

2143658

7

47

*RB4927

DQS2_[0]
DQS2_[1]
DQS2_[2]
DQS2_[3]

ADDR2_[12]
ADDR2_[13]
ADDR2_[0]
ADDR2_[1]
ADDR2_[2]
ADDR2_[3]
ADDR2_[4]
ADDR2_[5]
ADDR2_[6]
ADDR2_[7]
ADDR2_[8]
ADDR2_[9]
ADDR2_[10]
ADDR2_[11]

*R4949

100

*R4944
*R4945
*R4946

*R4947

*R4951
*R4953
*R4955
*R4957

DQ1_[20]

DQ1_[21]

DQ1_[22]

DQ1_[23]

DQ1_[24]

DQ1_[25]

DQ1_[26]

DQ1_[27]

DQ1_[28]

DQ1_[29]

DQ1_[30]

DQ1_[31]

VTT3

DQ3_[0]

DQ3_[2]

DQ3_[1]

DQ3_[3]

DQ3_[4]

DQ3_[5]

DQ3_[6]

DQ3_[7]

DQ3_[9]

DQ3_[8]

DQ3_[10]

DQ3_[11]

DQ3_[12]

DQ3_[13]

DQ3_[15]

DQ3_[14]

DQ3_[16]

DQ3_[17]

DQ3_[18]

DQ3_[19]

DQ3_[21]

DQ3_[20]

DQ3_[23]

DQ3_[22]

DQ3_[25]

DQ3_[24]

DQ3_[26]

DQ3_[27]

DQ3_[29]

DQ3_[28]

DQ3_[30]

DQ3_[31]

VTT1

DQ1_[0]

DQ1_[1]

DQ1_[2]

DQ1_[4]

DQ1_[3]

DQ1_[5]

DQ1_[7]

DQ1_[6]

DQ1_[8]

DQ1_[9]

DQ1_[10]

DQ1_[11]

DQ1_[13]

DQ1_[12]

DQ1_[14]

DQ1_[15]

DQ1_[16]

DQ1_[17]

DQ1_[19]

DQ1_[18]

10

XX

C4966XXC4967XXC4968XXC4969

XX

C4970

XX

C4971

0.1

*C4972

XX

C49731*C4974

0.1

*C4975

0.1

*C4976

1

*C4977

XX

C4978

0.1

*C4979

XX

C4980

0.1

*C4981

0.1

*C4982

XX

C4983

214365871091211141316

VTT3

ADDR3_[12]

ADDR3_[13]

*RB4944

47

ADDR3_[2]

ADDR3_[0]

ADDR3_[4]

ADDR3_[5]

ADDR3_[1]

ADDR3_[3]

ADDR3_[6]

214365871091211141316

15

ADDR3_[9]

ADDR3_[10]

*RB4948

47

ADDR3_[7]

ADDR3_[11]

ADDR3_[8]

15

XX

C5082

XX

C5083

XX

C5084

XX

C5085

XX

C5086

0.1

*C5087

XX

*C50881C5089

0.1

*C5090

0.1

*C5091

XX

C5092

XX

C5093

XX

C5094

XX

C5095

1

*C5096

0.1

*C5097

0.1

*C5098

0.1

*C5099

11

12

J6VSS

J7VSS

J8VSS

J5VSSQ

M10 RFU

15

H10VSSQ

B7 DQ0

DQ2_[0]

H5VSSQ

C6 DQ1

33

*RB4929

DQ2_[1]

DQ2_[2]

G10VSSQ

B6 DQ2

K5VSSQ

J10VSSQ

K10VSSQ

CK

M11

CK

M12

CKE

N12

CS

N2

RAS

M2

CAS

L2

WE

L3

DQS0

B2

22
22
22

22

22
22
22
22

H13
H2

B13
B3

H12
H3

B12
N4

M5
N5
N6
M6
N7
N8
M9
N9

N10
N11
M8
L6
M7
C4

C11
H4

H11
L12
L13
M3

DQS1
DQS2
DQS3
DM0
DM1
DM2
DM3
BA0
BA1
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
NC
NC
NC
NC
NC
NC
NC

VTT2

L9 RF U

N3 NC

M4 NC

G5VSSQ

B5 DQ3

DQ2_[4]

DQ2_[3]

F10VSSQ

C2 DQ4

DQ2_[5]

F5VSSQ

D3 DQ5

E9VSSQ

D2 DQ6

214365871091211141316

DQ2_[6]

DQ2_[7]

E6VSSQ

E2 DQ7

15

D11VSSQ

K13 DQ 8

DQ2_[9]

DQ2_[8]

D10VSSQ

K12 DQ9

D4VSSQ

D5VSSQ

D6VSSQ

D9VSSQ

EDD1232ABBH-5C-E-TR

*IC4901

J13 DQ10

J12 DQ11

G13 DQ12

G12 DQ13

33

*RB4931

DQ2_[11]

DQ2_[10]

DQ2_[13]

DQ2_[12]

B11VSSQ

F13 DQ14

214365871091211141316

DQ2_[14]

DQ2_[15]

B4VSSQ

F12 DQ15

15

DQ2_[16]

J9VSS

F3 DQ16

DQ2_[17]

F2 DQ17

33

*RB4933

DQ2_[18]

G3 DQ18

DQ2_[19]

G2 DQ19

DQ2_[20]

H9VSS

J3 DQ20

DQ2_[21]

H8VSS

J2 DQ21

DQ2_[22]

H7VSS

K2 DQ22

214365871091211141316

DQ2_[23]

H6VSS

K3 DQ23

15

DQ2_[24]

G9VSS

E13 DQ24

DQ2_[25]

G8VSS

D13 DQ 2 5

33

*RB4935

DQ2_[26]

G7VSS

D12 DQ 2 6

DQ2_[27]

G6VSS

C13 DQ27

DQ2_[28]

F9VSS

B10 DQ28

DQ2_[29]

F8VSS

B9 DQ29

DQ2_[30]

F7VSS

C9 DQ30

214365871091211141316

DQ2_[31]

F6VSS

B8 DQ31

VREF
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

DDR_2.5V

L10
L5

K9
K8
K7
K6
E10

E8
E7
E5

N13
K11

K4
J11

J4

G11
G4

F11
F4

E12
E3

C12
C10

C8
C7
C5
C3

L11
L8

L7
L4

E11
E4

D8
D7

NC

M13

VREF2

*C4905

0.01

*C4911

0.01

DDR_2.5V

*C4918
*C4919

0.01

*C4920

0.01

*C4921

0.01

*C4907

1

0.01

DDR_2.5V

*C4909

0.01

*C4913

10

6.3V
X6S
2012

*C4926

10

*C4923

10

*C4929

10

*C4924

10

185

*C4932

10

185

*C4928

VTT3

¶

/2A/0.05

10

*FB4901

*C4934

VTT1

*FB4900

¶

/2A/0.05

DDR_2.5V

0uH

¶

10

0uH

*C4931

10

DDR_2.5V

¶

XX

C4962

C4960

DDR_2.5V

*FB4903

0uH

185

¶

/2A/0.05

¶

*C4936

10

C4937

XX

TPS51100DGQR

*IC4902

VDDQSNS

VIN

VLDOIN

S5

VTT

GND

0

*R4966

XX

R4998

XX

*FB4904

0uH

185

¶

/2A/0.05

*C4938

10

C4940

0

*R4997

R5099

XX

XX

C4965

54321

XX

C4963

¶

XX

TPS51100DGQR

*IC4904

VDDQSNS

VLDOIN

VTT

PGND

54321

VTTSNS VTTREF

PGND

VTTSNS VTTREF

VIN

S5

GND

S3

S3

109876

BE_5V

*FB4906

*FB4907

0uH

VREF3

0uH

VREF1

*C4945

4.7

*C4947

0.1

*C4942

*C4943

109876

BE_5V

4.7

0.1

C4958

XX

C4944

XX

*C4927

10

*C4930

XX

R4989

10

185

*C4933

10

DDR_P_ON

VTT2

*FB4902

¶

/2A/0.05

DDR_2.5V

0uH

*C4935

10

¶

XX

C4961

DDR_2.5V

*C4939

*R4984

R4999

*FB4905

0uH

185

¶

10

0

XX

/2A/0.05

¶

C4941

XX

TPS51100DGQR

*IC4905

VIN

VDDQSNS

VLDOIN

VTT

GND

PGND

54321

VTTSNS VTTREF

XX

C4964

Mount Mecha

E

*ET4900E*ET4901E*ET4902E*ET4903

E

*ET4904

*ET4905

XX

109876

S5

S3

330087701

*A4900

E

XX

BE_5V

*FB4908

0uH

VREF2

*C4948

C4959

4.7

XX

*C4957

0.1

*R49900*R49910*R49920*R4993

0

13

14

15

16

17

18

19

20

21

22

0.1

*C4989

XX

C4990

0.1

*C4991

XX

C4992

1

*C4993

0.1

*C4994

0.1

*C4995

1

*C4996

0.1

*C4997

214365871091211141316

VTT2

ADDR2_[12]

ADDR2_[13]

*RB4917

47

ADDR2_[2]

ADDR2_[0]

ADDR2_[3]

ADDR2_[5]

ADDR2_[6]

ADDR2_[4]

ADDR2_[1]

214365871091211141316

15

ADDR2_[9]

ADDR2_[10]

*RB4925

47

ADDR2_[7]

ADDR2_[11]

ADDR2_[8]

15

XX

C4984

XX

C4985

XX

C4986

XX

C4987

XX

C4988

ABCDEF GH JIKLMN

0.1

*C4998

XX

C4999

XX

C5080

XX

C5081

O

20

FBA

8/22

21

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 8/22 ~

- 46 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

18

19

20

21

1

1

FBA - EG1H

*C5019

*C5024

*C5027

AP16

VDD

VDD

M30

*C5025

0.01

*C5026

0.01

0.01

AN12

VDD

VDDM7VDD

*C5028

0.01

AJ6

VDD

AL12

VDD

AJ8

AK3

VDD

VDD

AJ26

VDD

VDD

AJ23

VDD

AJ14

AJ13

VDD

VDD

AJ12

VDD

AJ11

VDD

AJ10

VDD

AH28

VDD

AH27

VDD

AH22

AH21

VDD

VDD

AH20

VDD

AG8

AH19

VDD

*IC4800

CXD3821GB

AM6

VDD

AM4

VDD

AM30

VDD

AM25

VDD

AM14

VDD

AM1

VDD

AL6

AL17

AL28

VDD

VDD

Por tion10

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDDN6VDD

VDD

VDD

VDD

VDDP7VDD

VDD

VDD

VDD

VDD

VDD

VDD

N11

N13

N14

N15

N16

N17

N18

N19

N20

N21

N22

N24

N29

P11

P13

P22

P24

R11

R13

R15

R16

R17

R18

R19

R20

DRC_2.5V DDR_2.5V

1uF/4A/10V/0.02

330

*FL5002

EMI

G

Por tion11 Por tion12 Por tion13

*C5030

A3
A9
B3
B4
C3
C4
D4
D5
E4
E5
G6
H10
H11
H12
H7
H8
H9
J10
J11
J12
J9
K8
K9
L9
M9
N7
N9
P2
P8
P9
R9
T9
U7
U8
U9
V3

B33
D32
G29

VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1
VDE1

VDE2
VDE2
VDE2

*IC4800

CXD3821GB

VDE3
VDE3
VDE3
VDE3
VDE3
VDE3

VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4
VDE4

AE30
AE33

AF27

AF29
AG29
AH30

AA7
AA6
AA9
AB9
AC9
AD9

AE9
AF10
AF11
AF12

A

G10

AG11
AG12

AG9

AH12

AH7

AH8

AH9

AK5

AL4
AM3
AP12

AF9

V9

W9

Y7
Y9

¶

*C5031

*C5041

0.01

10

6.3V
X6S

2012

*C5042

*C5032

0.01

0.01

*C5033

*C5043

0.01

10

6.3V
X6S

2012

*C5034

*C5044

0.01

0.01

*C5035

C5045

0.01
XX

*C5046

*C5036

0.01

0.01

*C5037

C5047

0.01

XX

*C5048

*C5038

0.01

0.01

*C5039

*C5049

0.01

10

6.3V
X6S

2012

*C5040

*C5050

0.01

0.01

VDD

VDD

AG6

R22

VDD

VDD

AG2

R24

A15
D17
E14
E17
F14
G16
G18
H13
H15
J13
J14
J15
J16
J17
J18
F19
G20
H19
H21
H22
H23
H24
J19
J20
J21
J22
J23
J24
A29
C28
C30
E25
F25
F26
F27
G24
H26
J25
J26
H27
J27
J31
K29
K34
L28
M27
M29
N27
N28
P26
P32
R28
T27
U26
U29
V28

VDD

VDD

AF7

VDD

VDD

R27

SSTL2VDE1
SSTL2VDE1
SSTL2VDE1
SSTL2VDE1
SSTL2VDE1
SSTL2VDE1
SSTL2VDE1
SSTL2VDE1
SSTL2VDE1
SSTL2VDE1
SSTL2VDE1
SSTL2VDE1
SSTL2VDE1
SSTL2VDE1
SSTL2VDE1
SSTL2VDE2
SSTL2VDE2
SSTL2VDE2
SSTL2VDE2
SSTL2VDE2
SSTL2VDE2
SSTL2VDE2
SSTL2VDE2
SSTL2VDE2
SSTL2VDE2
SSTL2VDE2
SSTL2VDE2
SSTL2VDE2
SSTL2VDE3
SSTL2VDE3
SSTL2VDE3
SSTL2VDE3
SSTL2VDE3
SSTL2VDE3
SSTL2VDE3
SSTL2VDE3
SSTL2VDE3
SSTL2VDE3
SSTL2VDE3
SSTL2VDE4
SSTL2VDE4
SSTL2VDE4
SSTL2VDE4
SSTL2VDE4
SSTL2VDE4
SSTL2VDE4
SSTL2VDE4
SSTL2VDE4
SSTL2VDE4
SSTL2VDE4
SSTL2VDE5
SSTL2VDE5
SSTL2VDE5
SSTL2VDE5
SSTL2VDE5
SSTL2VDE5

AF30

VDD

VDD

R29

AE8

AF26

VDD

VDD

VDDR6VDDR8VDD

AE6

AE7

VDD

T11

T13

SSTL2VDE9
SSTL2VDE9
SSTL2VDE9
SSTL2VDE9
SSTL2VDE9
SSTL2VDE9
SSTL2VDE9
SSTL2VDE9
SSTL2VDE9
SSTL2VDE9
SSTL2VDE9
SSTL2VDE9
SSTL2VDE9
SSTL2VDE9
SSTL2VDE8
SSTL2VDE8
SSTL2VDE8
SSTL2VDE8
SSTL2VDE8
SSTL2VDE8
SSTL2VDE8
SSTL2VDE8
SSTL2VDE8
SSTL2VDE8
SSTL2VDE8
SSTL2VDE8
SSTL2VDE8
SSTL2VDE7
SSTL2VDE7
SSTL2VDE7
SSTL2VDE7
SSTL2VDE7
SSTL2VDE7
SSTL2VDE7
SSTL2VDE7
SSTL2VDE7
SSTL2VDE7
SSTL2VDE7
SSTL2VDE6
SSTL2VDE6
SSTL2VDE6
SSTL2VDE6
SSTL2VDE6
SSTL2VDE6
SSTL2VDE6
SSTL2VDE6
SSTL2VDE6
SSTL2VDE6
SSTL2VDE6
SSTL2VDE6
SSTL2VDE6
SSTL2VDE6
SSTL2VDE6

VDD

VDD

AE31

T15

VDD

VDD

AD8

T20

AL14
AK17
AK14

AJ17

AJ16
AH18
AH15
AH13
AG

AF17

AF16

AF15

AF14

AF13
AH23
AG23
AG22
AG21
AG20
AG19
AG18

AF23

AF22

AF21

AF20

AF19

AF18

AP27

AL30

AL25
AK28
AK25

AJ28
AH26
AH24
AG27

AF25

AF24

W29

AE28

AE26
AD34
AD27
AD26
AC
AC27
AB28
AB27
AA27

VDD

VDD

Y31
Y29
Y26

V29

AC6

AC8

VDD

AC31

VDD

VDD

VDD

VDD

V13

V15

V17

AD11

AD12

AD13

AD14

AD15

AD16

AD17

AD18

AD19

AD20

AD21

AD22

AD23

AD24

AD28

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDDT7VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDDU6VDD

T22

T24

T28

U11

U15

U17

U18

U20

U22

U24

U27

U13

V11

*C5051

*C5059

10

0.01

6.3V
X6S

2012

*C5052

*C5060

0.01

0.01

16

*C5053

*C5061

10

0.01

6.3V
X6S

2012

*C5062

*C5054

0.01

0.01

C5055

*C5063

XX

0.01

*C5056

*C5064

0.01

0.01

*C5057

*C5065

10

0.01

6.3V
X6S
2012

*C5058

*C5066

0.01

0.01

30

VDD

VDD

AC11

AC24

AC28

VDD

VDD

VDD

VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD

A1

nc

A2

nc

A31

nc

A32

nc

A33

nc

A34

nc

B1

nc

B2

nc

B31

nc

B32

nc

C31

nc

C32

nc

AH32

nc

AH33

nc

AH34

nc

AJ30

nc

AJ31

nc

AJ32

nc

AJ33

nc

AJ34

nc

AK30

nc

AK31

nc

AK32

nc

*C5067

0.01

AB6
AB29
AB26
AB24
AB22
AB21
AB20
AB19
AB18
AB17
AB16
AB15
AB14
AB13
AB11
AA24
AA22
AA13
AA11

Y16
Y32
Y27
Y24
Y22
Y20
Y19
Y18
Y17
Y15
Y13
Y11

W8
W6

W4
W24
W22
W20

W2
W15
W13
W11

V7

V4

V26
V24
V22
V20

V2

V18

*C5068

0.01

*IC4800

CXD3821GB

*C5069

0.01

*C5070

0.01

nc
nc
nc
nc
nc
nc
nc
nc
nc
nc
nc
nc
nc
nc
nc
nc
nc
nc
nc
nc
nc
nc

AP34
AP33
AP32
AP31

AN34
AN33
AN32
AN31

AM34
AM33
AM32
AM31

AL34
AL33
AL32

AL31
AK34
AK33

AP2
AP1

AN2
AN1

*C5071

0.01

*C5072

0.01

*C5073

0.01

*C5074

0.01

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

0.01

*C5020

0.01

*C5021

0.01

0.01

0.01

AP4

VDD

VDD

M11

*C5022

0.01

*C5023

0.01

0.01

AP3

VDD

VDD

M24

DRC_1.2V

2

4V
330

*C5010

DRC_PLL_1.2V

3

AJ7

AL1

AL2

VSS

VSS

AM2

M22

VSS

VSS

M23

VSS

AL5

M25

VSS

VSS

M26

VSS

VSS

M28

AN4

VSS

VSS

M13

VSS

AN30

M14

VSS

VSS

AN5

M15

VSS

VSS

M16

VSS

VSS

M17

VSS

AM28

M18

VSS

VSS

AM23

M19

VSS

VSS

AM17

M20

AM12

VSS

VSS

M21

AP13

AP19

AP24

AP30

VSS

VSS

VSS

A23

4

5

6

7

8

9

A30

B5

C5
C14
C19
C25

D3
D30
D31

E2
E28

F3
F7
F9
F13
F15
F17
F18
F20
F21
F22
F23
F24
F28
F30

G9
G10
G11
G12
G14
G17
G19
G25
G26
G27
G28
G30
G32
G33

H6
H14
H16
H17
H18
H25
H29

J6
J7
J29
J30

K6
K10
K11
K12
K13
K14
K15
K16
K17
K18
K19
K20
K21
K22
K23
K24
K25
K26
K27
K28

L6
L8
L10
L25
L27

VSS
VSS

VSS

VSS
VSS
VSS
VSS

VSS
VSS
VSS

VSS
VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS
VSS

VSSM6VSSM8VSS

M10

M12

VSS

VSS

M31

VSS

AK12

M32

VSS

VSS

AK6

VSS

AJ29

VSS

VSSN8VSS

N10

AJ27

N12

VSS

VSS

AJ25

N23

VSS

VSS

AJ24

N25

AJ22

VSS

VSS

N26

VSS

VSS

AJ21

N34

VSS

VSS

AJ20

AJ19

VSS

AJ18

VSS

VSS

VSSP6VSS

P10

AJ15

P12

VSS

VSS

AJ9

P14

VSS

VSS

P15

VSS

VSS

P16

VSS

AH31

P17

VSS

VSS

AH29

P18

VSS

VSS

AH25

P19

VSS

VSS

AH17

P20

VSS

VSS

AH16

P21

VSS

VSS

AH14

VSS

VSS

P23

AH6

VSS

VSS

*IC4800

CXD3821GB

AG30

VSS

AH11

AH10

VSS

Por tion9

VSS

VSS

VSS

VSS

P25

P27

P28

P29

FBA

AG28

VSS

VSSR7VSS

AG26

R10

VSS

AG25

R12

VSS

VSS

AG24

VSS

VSS

R14

9/22

AG17

R21

VSS

VSS

AG15

R23

VSS

VSS

AG14

R25

VSS

VSS

AG13

R26

VSS

VSS

AG7

VSS

AG1

VSS

VSST6VSST8VSS

AF28

T10

VSS

AF8

T12

VSS

VSS

AF6

T14

VSS

VSS

T16

VSS

AE34

T17

VSS

VSS

AE32

T18

VSS

VSS

AE29

T19

VSS

VSS

AE27

T21

VSS

VSS

AE25

T23

VSS

VSS

AE24

T25

VSS

VSS

AE23

T26

VSS

VSS

AE22

T29

VSS

VSS

AE21

VSS

AE20

U10

VSS

VSS

AE19

U12

VSS

VSS

AE18

U14

VSS

VSS

AE17

U16

VSS

VSS

AE16

U19

VSS

VSS

AE15

U21

VSS

VSS

AE14

U23

VSS

VSS

AE13

U25

VSS

VSS

AE12

U28

VSS

VSS

AE11

VSS

AE10

VSS

AD29

VSS

AD25

VSS

AD10

VSS

AD7

VSS

AD6

VSS

AD1

VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

AC32
AC29
AC26
AC25
AC23
AC22
AC21
AC20
AC19
AC18
AC17
AC16
AC15
AC14
AC13
AC12
AC10

AB25
AB23
AB12
AB10

AA34
AA29
AA28
AA26
AA25
AA23
AA21
AA20
AA19
AA18
AA17
AA16
AA15
AA14
AA12
AA10

AC7
AC

AB8
AB7
AB2

AA8

W28
W27
W26
W25
W23
W21
W19
W18
W17
W16
W14
W12
W10

3

Y30
Y28
Y25
Y23
Y21
Y14
Y12
Y10

Y8
Y6

W7
W5
W3

V34
V27
V25
V23
V21
V19
V16
V14
V12
V10

V8
V6
V5

BE_3.3V

C5002

XX

1uF/4A/10V/0.02
*FL5001

EMI

FB5000

XX

*FL5003

EMI

1uF/2A/6.3V/0.03

*FL5000

EMI

G

C5000

DRC_3.3V

¶

XX

600

C5001

XX

¶

/0.3A/0.3

*C5003

0.01

¶

*C5004

0.01

*C5006

0.01

*C5007

0.01

¶

*C5008

0.01

*C5011

0.01

*C5012

0.01

*C5015

0.01

A4
A18
A26
B30
B34
C17
D14
D25
D28
E3
E30
F10
F11
F12
F16
F29
F6
F8
G13
G15
G21
G22
G23
G31
G7
G8
H20
H28
J1
J28
J32
J8
K7
L11
L12
L13
L14
L15
L16
L17
L18
L19
L20
L21
L22
L23
L24
L26
L29
L7

*C5016

0.01

*C5013

0.01

*C5014

0.01

VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD

*C5017

*C5018

22

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

ABCDEF GH JIKLMN

O

*IC4800

CXD3821GB

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 9/22 ~

- 47 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

18

19

1

1

2

2

3

3

FBA - EG1H

4

4

BE_5V

0.01
25V
X7R
1005

AD_CVBSIN

C5121

AD_CIN

VDD1.2V

XX

C5123

XX

R5100

XX

AD_AVD3.3V

AD_DVD1.8V

AD_AVDAD_1.8V

AD_DVDAD1.8V

C5150

0.1

16V

EPP_1.2V

FL5100

AA14

AA15

AA18

AA19

E10
E12
E14
E16
E18
E20
E22
E24
E26
E27
E28
E29
E30

F11
F13
F15
F17
F19
F21
F23
F25
F28
F29

F34
T14
U14
Y14

T15
U15
Y15

P16
R16
V16

W16

P17
R17
V17

W17

T18
U18
Y18

T19
U19
Y19

EMI

FL5110

FL5111

FL5112

FL5113

E8

F7
F9

G

EMI

EMI

EMI

EMI

VDD1.2V

C5151

0.01

25V
X7R
1005

C5160

0.01

25V
X7R
1005

C5139

100p

50V

CH

1005

C5169

0.01

25V
X7R
1005

LVDS_DLL1.2V

C5125

XX

C5126

0.001
50V

X7R
1005

C5165

100p

50V

CH

1005

C5175

0.01

25V
X7R
1005

PLL2_AVD1.2V

C5127

XX

C5128

0.01
25V
X7R
1005

C5129

0.001
50V
X7R
1005

C5177

0.01
25V
X7R
1005

PLL3_AVD1.2V

C5130

XX

C5131

0.01
25V
X7R
1005

C5132

0.001
50V
X7R
1005

V29
Y29
AC29
AE29
AG29
AH29
H30
J30
K30
M30
P30
V30
W30
AA30
AC30
AD30
AE30
AH30
J31
M31
N31
R31
V31
AB31
AD31
H32
L32
T32
U32
AB32
AE32
AL32
AM32
AN32
AP32
G33
K33
T33
U33
AC33
AF33
AM33
AN33
AP33
J34
R34
V34
AD34
AG34
AM34
AN34
AL31

C5179

0.01

25V
X7R
1005

VDDDLL1.2V

C5134

XX

C5135

0.01
25V
X7R
1005

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

C5181

0.01

25V
X7R
1005

1005

CH

50V

100p

C5136

IC5100

CXD4716BGB

C5185

0.01

25V
X7R
1005

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

C5188

0.01

25V
X7R
1005

P20

R20

V20
W20

P21

R21

V21
W21

AJ8

AJ7
AJ12
AJ14
AJ16
AJ18
AJ20
AJ22
AJ24
AJ26
AJ28
AJ29
AJ30

AK7

AK9
AK11
AK13
AK15
AK17
AK19
AK21
AK23
AK25
AK27
AK29
AK30
AK31

B28

C28
D28
A29

B29
D29

C30
D30

B31

C31
A32

B32
A33
H29
K29

L29

R29

C5191

0.01

25V
X7R
1005

C5196

0.01
25V
X7R
1005

C5200

XX

C5201

EPP_RST

5

C5124

330

4V

6

FBA

10/22

FL5114

EMI

7

Mount Mecha

A5100

339854001

8

E

ET5104

XX

C5112

XX

E

ET5105

XX

VDD1.2V

C5115

0.1

6.3V
X6S

0510

C5119

XX

C5120

0.1

6.3V
X6S
0510

AB5
L6
F8
F12
F16
F20
F24
P14
R14
V14
W14
P15
R15
V15
W15
T16
U16
Y16
AA16
T17
U17
Y17
AA17
P18
R18
V18
W18
P19
R19
V19
W19
T20
U20
Y20
AA20
T21
U21
Y21
AA21
AJ10
AJ11
AJ15
AJ19
AJ23
AJ27
M29
N29
AA29
AB29
N30
AB30

PORTION13

VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD

IC5100

CXD4716BGB

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

9

VDDIO3.3V

E

*ET5100

E

ET5101

E

ET5102

E

ET5103

PORTION12 PORTION14

H5
M5
P5
T5
V5
Y5
AC5
J6
R6
E7
E9
E11
E13
E15
E17
E19
E21
E23
E25
F10
F14
F18
F22
AJ9
AJ13
AJ17
AJ21
AJ25
AK8
AK10
AK12
AK14
AK16
AK18
AK20
AK22
AK24
AK26
AK28

VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO

CXD4716BGB

IC5100

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

AM4

AM5

AL4

AN4

AD5
AH5

AK5
AL5

AN5

AD6
AE6

AG
AH6

AK6
AL6

AP4

D5

E5
F5

G5

J5

K5

L5
N5
R5
U5

AJ5

E6

F6
G6
H6
K6
M6

T6
U6

AF6

6

AJ6

D14
D17

EPP_ADC1.8V

C5142

XX

BE_3.3V

C5154

0.1

C5155

10

C5156

0.1

C5157

0.1

C5158

10

C5159

0.1

16V

6.3V
X6S

16V
16V

6.3V
X6S

16V

C5102

XX

C5108

XX

1005
2012
1005
1005
2012
1005

FL5105

EMI

FL5106

EMI

FL5107

EMI

FL5102

EMI

FL5108

EMI

FL5109

EMI

AG1
AJ1
AF2
AF3
AG3
AH2
AJ4
AJ3
AE5
AM1
AM2
AM3
AF5
AG4
AG5
AL3
AK4
AK2
AK3
AL1
AL2
AE1
AE3
AE4
AF4
AG2
AH1
AJ2
AK1
AF1
AH3
AH4
AE2

AD_CVBSIN
AD_CIN
AD_VRT1
AD_VRM1
AD_VRB1
AD_VRT2
AD_VRM2
AD_VRB2
AD_XRST
AD_AVD
AD_AVD
AD_AVD
AD_AVD
AD_AVD
AD_AVD
AD_DVD
AD_DVD
AD_VSS
AD_VSS
AD_VSS
AD_VSS
AD_VSS
AD_VSS
AD_VSS
AD_VSS
AD_AVDAD1
AD_AVSAD1
AD_AVDAD2
AD_AVSAD2
AD_DVDAD
AD_DVSAD
AD_DVDAD
AD_DVSAD

1uF/2A/6.3V/0.03

C5170

0.01

25V
X7R
1005

C5137

100p
50V

CH

1005

C5106

XX

PORTION1

IC5100

CXD4716BGB

C5118

¶

C5173

0.01

25V
X7R
1005

C5101

0.001
50V
X7R

XX

C5176

0.01
25V
X7R
1005

C5103

0.01
25V
X7R

C5109

C5138

C5133

XX

XX

XX

C5182

PLL1_AVD3.3V

AD_DVD1.8V

C5140

XX

C5141

XX

C5122

XX

0.01
25V
X7R
1005

C5110

0.01
25V
X7R
1005

CCP_LLC_CK

CCPX_M_CLK

AD_DVDAD1.8V

C5143

XX

C5144

XX

C5100

0.01
25V
X7R

1005

C5107

XX

AD_AVD3.3V

C5111

0.01

25V
X7R
1005

EPP_RST

PNL_CK

AD_AVDAD_1.8V

C5146

XX

VDDIO3.3V

C5114

XX

E/D VDD
GND

24.0000MHz

DA_DVD2.5V

DA_AVD2.5V

R5101

1.5k

1/16W

RN-CP

0.5%

C5104

XX

X5100

R5105

1/16W

R5102

XX

PLL3_AVD1.2V

C5189

0.1

16V

1005

R5107

1.5k
1/16W
RN-CP

0.5%
R5103

1/16W
RN-CP

0.5%

OUT

33

CHIP

R5110

1.5k
1/16W
RN-CP

0.5%

1k

R5104

C5190

*R5178

1/16W

5%

VDD1.2V VDDIO3.3V

33

1/16W

CHIP

PLL2_AVD1.2V

0.1

16V

CHIP47

C5194

0.1

16V

1005

R5112

220

1/16W

RN-CP

0.5%

R5108
1/16W

RN-CP

FB5112

C5193

0.01
25V
X7R

1005

PLL1_AVD3.3V

100

0.5%

FL5116

EMI

XX

XX

C5195

CL5110

R5111

100

1/16W

RN-CP

0.5%

C5164

F26
F27
C29
A30
B30
A31
W6
V6
V1
AC6
AB6
AA1
V2
AB3
AB4
AA6
Y6
AC1
AC2
AC3
AC4
AB1
AB2

0.01
25V
X7R

BE_3.3V

PORTION7

PLL1_AVD
PLL1_AVS
RESET_X
SYS_CK
MSR_CK
PLL1_REGOUT
PLL2_AVD
PLL2_AVS
PNL_CK
PLL3_AVD
PLL3_AVS
CCP_LLC_CK
CCP_CK
DA_DVD
DA_DVS
DA_AVD
DA_AVS
DA_VG
DA_VB
DA_VRF
DA_IRF
DA_XIO
DA_IO

CXD4716BGB

AOUT

C5163

0.01
25V

X7R

IC5100

C5152

0.01
25V
X7R

C5166

0.01
25V

X7R

DRC_CLK_SEL

C5178

0.01
25V
X7R

C5180

CCPX_M_CLK

CCPX_S_CLK

EPP_DA2.5V

DRC_100M

BEM_CLK

COMP_27M

0.01
25V
X7R

R5177

XX

FL5103

EMI

FL5104

EMI

XX

R5176

C5205

C5206

E/D VDD
GND

X5101

79.99188313MHz

C5149

XX

C5148

XX

FL5115

EMI

R5116

R5117

33

R5118

R5171

XX

10p

50V

1

CH

1005

10p

50V

CH

1005

C5183

C5184

BE_3.3V

XX

33

27MHz
X5102

OUT

*R5114

22

1/16W

CHIP

*R5115

22

DA_AVD2.5V

XX

DA_DVD2.5V

XX

L5100

XX

FB5114

XX

XX

R5121

C5209

C5208

1

6.3V

6.3V
X6S

1005

1005

2

XX

C5186

XX

C5187

1

X6S

*R5125

XX

C5210

R5126

R5124

330

1/16W

CHIP

C5202

XX

0

XX

FL5117

FB5113

XX

XX

C5207

EMI

XX

C5203

BE_3.3V

M_CV/Y

ExParts

˛i

IDT6V40046APGGI8

IC5104

MCLK

VDD

GND

VDD

S4

HDCLK

16M

GND

GND

GND

VDD

74M

27M

87654321

1211109

VDD
27M
S3
VDD
GND

VDD
X1 X2

S0
S1
S2

M_C

FB5115

0uH

IN GND OUT

R5141

47
1/16W
RN-CP

0.5%

R5109

10k

CL5108

R5106

C5216

0.01
25V
X7R

1005

*L5102

XX

FL5101

XX

123

FB5116

L5104

0.68uH

BE_3.3V

CL5109

1k

BE_3.3V

46

46

Q5103

2SA2122G0LS0

R5146

XX

C5105

100p

50V

1005

CH

XX

R5113

47k

CL5111

CL5112

CL5113

C5218

100
16V

R5149

1k

1/16W

RN-CP

0.5%

R5147

XX

W1
W2
W3
W4
W5

XX

C5219

XX

R5173

PORTION9

TCK
TMS
TRST
TDI
TDO

IC5100

CXD4716BGB

R5156

1k

R5148

XX

R5152

XX

C5220

R5153

XX

R5154

XX

C5221

XX

Q5104

RT3WLMM-TP-1F

R5158

560

1/16W

RN-CP

XX

54

C5223

10

6.3V
X6S
2012

C5222

0.1

16V

1005

AD5_SEL

+VS

C5224

0.01
25V

X7R
1005

XX

IC5106

OUT

-VS
+IN-IN

EPP_ADC1.8V

L5103

1uH

R5164

6.8k
1/16W
RN-CP

R5169

XX

R5168

XX

321

R5170

XX

C5225

10
10V
X7R
3216

5

6

7

8

9

10

11

AD4_SEL

12

AD_CVBSIN

R5122

1.5k

1/16W

RN-CP

AOUT

CCP_LLC_CK

2SA2122G0LS0

Q5100

RN-CP

R5127

2.7k

1/16W

R5132
1/16W

CHIP
1005

Q5102

2SA2122G0LS0

R5131

XX

R5134

C5211

1
10V
X7R
1608

330

XX

C5212

XX

R5135

470
1/16W
RN-CP

0.5%

COM_REC_5V

C5214

10uH

L5101

10

10V
X7R
3216

R5137

XX

13

*R5144

XX

*C5217

XX

XX

C5213

0.1

16V

1005

*C5215

*R5145

XX

*R5143

0

CHIP
1005

M_YS

R5133

330

1/16W

CHIP
1005

Q5101

2SA2122G0LS0

*R5138

R5129
1/16W

RN-CP

39

2.7k

DRC_148M

R5123

1.5k

1/16W

RN-CP

24

*IC5105

XX

123

CH1

GND

CH0 COM

R5150

XX

CHIP

A

VCC

*R5151

*R5161

XX

AD_CIN

456

*Q5105

XX

*R5165

XX

14

15

*R5162

XX

*R5166

*R5155

XX

XX

XX

*Q5106

XX

16

PORTION8

33

R5174

5%

CHIP

1/16W

100k

R5175

PNL_CK

SS_SEL0
SS_SEL1

CL5100
CL5101
CL5102
CL5103
CL5104
CL5105
CL5106
CL5107

AA5
AA4
AA3
AA2
Y1
Y2
Y3
Y4

TEST0
TEST1
TEST2
TEST3
IRAM_CK
IRAM_MODE
IRAM_SEL
TEST_MODE

IC5100

CXD4716BGB

R5139

17181920212223

13141516

R5136

0

XX

17

18

19

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

20

21

22

ABCDEF GH JIKLMN

O

20

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 10/22 ~

- 48 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

18

19

1

1

2

2

FBA - EG1H

AN14
AM14
AP5
AM13
AL14
AN13
AP13
AM12
AN12
AP12
AM11
AN11
AP11
AM10
AN10
AP10
AM9
AN9
AP9
AM8
AN8
AP8
AM7
AN7
AP7
AL13
AL12
AL11
AL10
AL9
AL8
AL7
AM6
AN6
AP6
AP14
AN15
AP15
AM15
AL16
AL15

0

C5300

0.1

16V
1005

R5321

R5322

PORTION2

VIN1_VS
VIN1_HS
VIN1_CK
VIN1_HSAD
VIN1_DE
VIN1_D0
VIN1_D1
VIN1_D2
VIN1_D3
VIN1_D4
VIN1_D5
VIN1_D6
VIN1_D7
VIN1_D8
VIN1_D9
VIN1_D10
VIN1_D11
VIN1_D12
VIN1_D13
VIN1_D14
VIN1_D15
VIN1_D16
VIN1_D17
VIN1_D18
VIN1_D19
VIN1_D20
VIN1_D21
VIN1_D22
VIN1_D23
VIN1_D24
VIN1_D25
VIN1_D26
VIN1_D27
VIN1_D28
VIN1_D29
CCP1_CK
CCP1_GAIN_P
CCP1_CLP
MUTE
AD4_SEL
AD5_SEL

IC5100

CXD4716BGB

FL5300

EMI

47

47

CCP1_CK0

CCP1_CK1

CCP1_VSO

PORTION6

LVDS1_TAM

LVDS1_TAP

LVDS1_TBM

LVDS1_TBP

LVDS1_TCM

LVDS1_TCP

LVDS1_CKM

LVDS1_CKP

LVDS1_TDM

LVDS1_TDP
LVDS1_TEM

LVDS1_TEP

LVDS_DLL VDD

LVDS_DLL VSS

LVDS2_TAM

LVDS2_TAP

LVDS2_TBM

LVDS2_TBP

LVDS2_TCM

LVDS2_TCP

LVDS2_CKM

LVDS2_CKP

LVDS2_TDM

LVDS2_TDP
LVDS2_TEM

LVDS2_TEP

IC5100

CXD4716BGB

3

4

5

6

FBA

11/22

7

8

9

LVDS_DLL1.2V

10

–•fiC12g˝ ‹

L VDS

‰

PD •z

C5303

C5302

0.001
50V
X7R
1005

T4
T3
T2
T1
R4
R3
R2
R1

P4
P3
P2
P1

N6

P6
N4
N3
N2
N1

M4
M3
M2
M1

L4
L3
L2
L1

0.01
25V
X7R

1005

C5304

0.1

16V
1005

C5305

XX

QD•fiC s[_ X
RD w X bg¨˙ Œ¨¢
SD ˝Z›z

L5300

0uH

L5301

0uH

L5302

0uH

L5303

0uH

L5304

0uH

L5305

0uH

100

¶

SIL
51P

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

5
6
7
8

5
6
7
8

5
6
7
8

5
6
7
8

5
6
7
8

5
6
7
8

RB5315

BEM_SCL3

BEM_SDA3

VS2_IN

PANEL_CTRL5

PANEL_SEL5

SET_ON2

PANEL_CTRL1
PANEL_CTRL2
PANEL_CTRL3

TCON_RDY

PANEL_CTRL4

RB5314

0

0

R5338

R5340

R5330

XX

XX

XX

R5341

12V_SW

PANEL_SEL1

XX

FB5301

XX

FB5311

XX

JL5301

CN5300

51

NC

50

NC

49

NC

48

NC

47

NC

46

12V_SW/PANEL_SEL1

45

GND

44

GND

43

GND

42

RO[0]N

41

RO[0]P

40

RO[1]N

39

RO[1]P

38

RO[2]N

37

RO[2]P

36

GND

35

ROCLK-

34

ROCLK+

33

GND

32

RO[3]N

31

RO[3]P

30

RO[4]N

29

RO[4]P

28

GND

27

RE[0]N

26

RE[0]P

25

RE[1]N

24

RE[1]P

23

RE[2]N

22

RE[2]P

21

GND

20

RECLK-

19

RECLK+

18

GND

17

RE[3]N

16

RE[3]P

15

RE[4]N

14

RE[4]P

13

GND

12

SCL3

11

SDA3

10

VSYNC

9

PANEL_CTRL5

8

PANEL_SEL5

7

SET_ON2

6

FRC_CONT

5

PANEL_CTRL1

4

PANEL_CTRL2

3

PANEL_CTRL3

2

TCON_RDY

1

PANEL_CTRL4

11

12

13

14

15

16

17

18

19

3

BE_3.3V

4

FB5302

XX

*R5345

100

*R5304

XX

*RB5300

68

47

8765

CLKOUT

REF

*R5300

47

*R5301

68

*R5302

68

2
4
6
8

10
12
14
16

2
4
6
8

10
12
14
16

5

FPGA

*R5305

0

*RB5301

15

RB5305

1
3
5
7
9

11
13
15

XX

10k

2143658

EPP_D3_IN

1
3
5
7
1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

2
4
6
8

10
12
14
16

7

RB5312

XX

EPP_DRC_VSIN
EPP_DRC_HSIN

EPP_DRC_C1IN7
EPP_DRC_C1IN6
EPP_DRC_C1IN5
EPP_DRC_C1IN4
EPP_DRC_C1IN3
EPP_DRC_C1IN2
EPP_DRC_C1IN1
EPP_DRC_C1IN0
EPP_DRC_C2IN5
EPP_DRC_C2IN4
EPP_DRC_C2IN3
EPP_DRC_C2IN2
EPP_DRC_C2IN1
EPP_DRC_C2IN0
EPP_DRC_C1IN9
EPP_DRC_C1IN8
EPP_DRC_Y1IN3
EPP_DRC_Y1IN2
EPP_DRC_Y1IN1
EPP_DRC_Y1IN0
EPP_DRC_C2IN9
EPP_DRC_C2IN8
EPP_DRC_C2IN7
EPP_DRC_C2IN6
EPP_DRC_Y2IN1
EPP_DRC_Y2IN0
EPP_DRC_Y1IN9
EPP_DRC_Y1IN8
EPP_DRC_Y1IN7
EPP_DRC_Y1IN6
EPP_DRC_Y1IN5
EPP_DRC_Y1IN4
EPP_DRC_Y2IN2
EPP_DRC_Y2IN3
EPP_DRC_Y2IN4

EPP_DRC_Y2IN6
EPP_DRC_Y2IN7
EPP_DRC_Y2IN8
EPP_DRC_Y2IN9

214365871091211141316

2143658

EPP_DRC_VSIN
EPP_DRC_HSIN
EPP_DRC_CKIN
EPP_DRC_C1IN0
EPP_DRC_C1IN1
EPP_DRC_C1IN2
EPP_DRC_C1IN3
EPP_DRC_C1IN4
EPP_DRC_C1IN5
EPP_DRC_C1IN6
EPP_DRC_C1IN7
EPP_DRC_C1IN8
EPP_DRC_C1IN9
EPP_DRC_C2IN0
EPP_DRC_C2IN1
EPP_DRC_C2IN2
EPP_DRC_C2IN3
EPP_DRC_C2IN4
EPP_DRC_C2IN5
EPP_DRC_C2IN6
EPP_DRC_C2IN7
EPP_DRC_C2IN8
EPP_DRC_C2IN9
EPP_DRC_Y1IN0
EPP_DRC_Y1IN1
EPP_DRC_Y1IN2
EPP_DRC_Y1IN3
EPP_DRC_Y1IN4
EPP_DRC_Y1IN5
EPP_DRC_Y1IN6
EPP_DRC_Y1IN7
EPP_DRC_Y1IN8
EPP_DRC_Y1IN9
EPP_DRC_Y2IN0
EPP_DRC_Y2IN1
EPP_DRC_Y2IN2
EPP_DRC_Y2IN3
EPP_DRC_Y2IN4
EPP_DRC_Y2IN5EPP_DRC_Y2IN5
EPP_DRC_Y2IN6
EPP_DRC_Y2IN7
EPP_DRC_Y2IN8
EPP_DRC_Y2IN9

XX

RB5311

6

2
4
6
8

7

10k

RB5306

8

10k

RB5307

9

10k

RB5308

10k

RB5309

10k

RB5310

1M_VS
1M_HS

1M_CLK
1MC0
1MC1

1MC2
1MC3

1MC4

1MC5
1MC6

1MC7
1MY0

1MY1

1MY2
1MY3

1MY4
1MY5

1MY6
1MY7

EPP_DRC_OUT

XX

XX

XX

R5351

R5352

R5353

2
4
6
8

10
12
14
16

2
4
6
8

10
12
14
16

2
4
6
8

10
12
14
16

2
4
6
8

10
12
14
16

7

RB5313

DRC

CLK4

CLK2

VDD

CLK1

4321

1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

*FL5301

EMI

*C5306

CY2305SC-1HT

GND CLK3

0.1

*IC5302

R5303
1/16W

CHIP

R5347

XX

PORTION4

AM21

VIN3_VS

AN21

VIN3_HS

AP21

VIN3_CK

AM31

VIN3_D0

AN31

VIN3_D1

AP31

VIN3_D2

AL30

VIN3_D3

AM30

VIN3_D4

AN30

VIN3_D5

AP30

VIN3_D6

AL29

VIN3_D7

AM29

VIN3_D8

AN29

VIN3_D9

AP29

VIN3_D10

AL28

VIN3_D11

AM28

VIN3_D12

AN28

VIN3_D13

AP28

VIN3_D14

AL27

VIN3_D15

AM27

VIN3_D16

AN27

VIN3_D17

AP27

VIN3_D18

AL26

VIN3_D19

AM26

VIN3_D20

AN26

VIN3_D21

AP26

VIN3_D22

AL25

VIN3_D23

AM25

VIN3_D24

AN25

VIN3_D25

AP25

VIN3_D26

AL24

VIN3_D27

AM24

VIN3_D28

AN24

VIN3_D29

AP24

VIN3_D30

AL23

VIN3_D31

AM23

VIN3_D32

AN23

VIN3_D33

AP23

VIN3_D34

AL22

VIN3_D35

AM22

VIN3_D36

AN22

VIN3_D37

AP22

VIN3_D38

AL21

VIN3_D39

AM16

CCP2_VS

AN16

CCP2_HS

AP16

CCP2_CK

AL20

CCP2_C0

AM20

CCP2_C1

AN20

CCP2_C2

AP20

CCP2_C3

AL19

CCP2_C4

AM19

CCP2_C5

AN19

CCP2_C6

AP19

CCP2_C7

AL18

CCP2_Y0

AM18

CCP2_Y1

AN18

CCP2_Y2

AP18

CCP2_Y3

AL17

CCP2_Y4

AM17

CCP2_Y5

AN17

CCP2_Y6

AP17

CCP2_Y7

IC5100

CXD4716BGB

47

5%

CCP2_VS

CCP2_HS

AD_OUT

FE_VIDEO_MUTE

ADC_CLKIN

ADC_CLAMP

CCP1_HSO

CCP2_VS

CCP1_CK0

COMPANION_OUT

CCP1_GAIN_P

CCP1_CK1

XX

R5350

CCP2_HS

CCP1_GAIN_P

AD4_SEL
AD5_SEL

R5308

47

R5349

XX

VSO
HSO

CLK0_A

SSHSO

BE_3.3V

XX

*R5306

10k

*R5307

TC74VCX74FT(EL)

IC5300

1CLR
1D
1CK
1PR
1Q
1Q

7123456

GND

TC7WZ34FK(TE85R)

IC5301

1A
3Y
2A

4321

GND 2Y

R5310
R5311

VCC

2CLR

2D

2CK

2PR

2Q
2Q

VCC

1Y
3A

*R5325

DE
Q2_B[2]
Q3_B[3]
Q4_B[4]
Q5_B[5]
Q6_B[6]
Q7_B[7]
Q8_B[8]
Q9_B[9]
Q10_B[10]
Q11_B[11]
Q14_G[2]
Q15_G[3]
Q16_G[4]
Q17_G[5]
Q18_G[6]
Q19_G[7]
Q20_G[8]
Q21_G[9]
Q22_G[10]
Q23_G[11]
Q26_R[2]
Q27_R[3]
Q28_R[4]
Q29_R[5]
Q30_R[6]
Q31_R[7]
Q32_R[8]
Q33_R[9]
Q34_R[10]
Q35_R[11]

22
22

14 13 12 11 10 9 8

8765

R5354

XX

R5318

R5315

XX

R5316

0

BE_3.3V

FB5300

22

R5317

XX

R5319

47

C5301

0.1

16V
1005

XX

R5348

33

20

21

22

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

ABCDEF GH JIKLMN

O

20

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 11/22 ~

- 49 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

18

19

20

1

1

2

FBA - EG1H

2

3

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

AK34
AJ33
AH32
AG31
AF30
AG30
AF29
AA34
Y33
V32
W32
W31
AA31
Y30
W29
P32
R32
M34
N33
P31
R30
P29
G29
F30
G30
F31
E32
D33
C34
T29
T30
T31
U29
U30
U31

PORTION11

VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDIODDR
VDDDLL
VDDDLL
VDDDLL
VDDDLL
VDDDLL
VDDDLL

IC5100

CXD4716BGB

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

B1
C1
K1

U1
AD1
AN1

A2

B2

C2

K2

U2
AD2
AN2

AP2

A3

B3

C3

D3

E3

K3

U3

V3
AD3
AN3

AP3

A4

B4

C4

D4

E4

J4
K4
U4
V4

AD4

DDR2_SA0
DDR2_SA1
DDR2_SA2

FBA

12/22

4

5

6

7

DDR2_SA3
DDR2_SA4
DDR2_SA5
DDR2_SA6
DDR2_SA7
DDR2_SA8
DDR2_SA9
DDR2_SA10
DDR2_SA11
DDR2_SA12

EPP_DDR2_A_UDM
EPP_DDR2_A_LDM

EPP_DDR2_A_UDQSP

EPP_DDR2_A_UDQSN

EPP_DDR2_A_LDQSP

EPP_DDR2_A_LDQSN

8

9

BE_REG12V

C5400

0.047
25V
X7R

1005

V09REF

R5400

XX

R5401

XX

R5402

XX

C5401

220p

16V

CH

1005

R5403

22k

1/16W

CHIP

5%

C5402

680p

50V

CH

1005

CL5400

R5404

1k

1/16W

CHIP

5%

IC5400

VBST

DRVH

DRVL
PGND

PGOOD

V5IN

LL

CS

S5

C5403

4.7
25V
X7R
3216

F5400

3.15A
24V

SN0608006PWPR

12345678

VLDOIN
VTT
VTTGND
VTTSNS
GND
MODE
VTTREF
COMP

910

VDDQSNS
VDDQSET S3

R5406

XX

20 19 18 17 16 15 14 13

12 11

CL5401
CL5402

R5409

3.3k

CL5403

CL5404

C5404

4.7
25V
X7R
3216

1/16W

RN-CP

M8
M3
M7
N2
N8
N3
N7
P2
P8
P3
M2
P7
R2
L2
L3
L1

B3
F3

B7
A8
F7
E8

J8
K8
K2

L8
K7
L7
K3

K9

A3
E3
J3
N1
P9

A7
B2
B8
D2
D8
E7
F2
F8
H2
H8

8765

S1 S2 S3 G

8765

S1 S2 S3 G

0.5%

R5413

XX

R5414

XX

C5406

1
10V
X7R
1608

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
BA0
BA1
BA2

UDM
LDM

UDQS
UDQS#
LDQS
LDQS#

CK
CK#
CKE

CS#
RAS#
CAS#
WE#

ODT

VSS
VSS
VSS
VSS
VSS

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

IC5401

HYB18TC256160BF-3S

ExParts

˛ iA}E g“fl i

D1D2D3D4

Q5400

RSS100N03TB

4321

C5407

4.0A/21m

D1D2D3D4

C5489

4321

XX

R5433XXR5434XXR5435

Q5401

RSS100N03TB

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

VREF

VDDL

VSSDL

VDD
VDD
VDD
VDD
VDD

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

0.1

16V

1005

L5400

2.2uH

XX

XX

C5490

NC
NC
NC
NC
NC

EPP_DDR2_A_DQ0

G8

EPP_DDR2_A_DQ1

G2

EPP_DDR2_A_DQ2

H7

EPP_DDR2_A_DQ3

H3

EPP_DDR2_A_DQ4 EPP_DDR2_B_DQ4

H1

EPP_DDR2_A_DQ5 EPP_DDR2_B_DQ5

H9

EPP_DDR2_A_DQ6

F1

EPP_DDR2_A_DQ7

F9

EPP_DDR2_A_DQ8

C8

EPP_DDR2_A_DQ9 EPP_DDR2_B_DQ9

C2

EPP_DDR2_A_DQ10

D7

EPP_DDR2_A_DQ11

D3

EPP_DDR2_A_DQ12

D1

EPP_DDR2_A_DQ13

D9

EPP_DDR2_A_DQ14

B1

EPP_DDR2_A_DQ15

B9

A2

E2
R3
R7
R8

J2

J1

J7

A1

E1

J9

M9

R1

A9
C1
C3
C7
C9

E9
G1
G3
G7
G9

¶

V18DDR

4V
330

C5408

BE_5V

V09REF

C5410

10

6.3V
X6S

2012

CL5405

TC7SET08FU(T5RSOJF)

IC5402

INB
INA

321

GND OUT Y

C5411

6.3V
X6S

0510

V18DDR

VCC

0.1

54

1005
16V

0.1

C5409

V18DDR

V18DDR

C5412

0.1

6.3V
X6S

0510

C5413

0.1

6.3V
X6S

0510

C5414

0.1

6.3V
X6S
0510

C5415

0.1

6.3V
X6S
0510

C5416

0.1

6.3V
X6S
0510

C5417

0.1

6.3V
X6S
0510

C5418

0.1

6.3V
X6S

0510

C5419

0.1

6.3V
X6S

0510

C5420

0.1

6.3V
X6S
0510

C5421

0.1

6.3V
X6S

0510

C5422

0.1

6.3V
X6S

0510

C5423

0.1

6.3V
X6S

0510

R5424
1/16W

RN-CP

C5424

0.1

6.3V
X6S

0510

C5425

0.1

6.3V
X6S
0510

150

0.5%

C5426

C5427

V18DDR

V18DDR

0.1

6.3V
X6S

0510

0.1

6.3V
X6S

0510

C5444

1

6.3V
X6S

1005

C5445

0.1

6.3V
X6S

0510

C5428

6.3V
0510

C5429

6.3V
0510

DDR2_SA0
DDR2_SA1
DDR2_SA2
DDR2_SA3
DDR2_SA4
DDR2_SA5
DDR2_SA6
DDR2_SA7
DDR2_SA8
DDR2_SA9

DDR2_SA11
DDR2_SA12

EPP_DDR2_B_UDM

EPP_DDR2_B_LDM

EPP_DDR2_B_UDQSP

EPP_DDR2_B_UDQSN

EPP_DDR2_B_LDQSP

EPP_DDR2_B_LDQSN

C5430

0.1

0.1

6.3V

X6S

X6S
0510

C5431

0.1

0.1

6.3V
X6S

X6S

0510

C5446

1

6.3V
X6S

1005

C5447

0.1

6.3V
X6S

0510

C5448

1

6.3V
X6S

1005

C5449

0.1

6.3V

X6S
0510

C5432

0.1

6.3V
X6S

0510

C5433

0.1

6.3V
X6S

0510

C5450

1

6.3V
X6S
1005

C5451

0.1

6.3V
X6S
0510

C5436

0.1

6.3V
X6S
0510

C5437

0.1

6.3V
X6S
0510

M8

A0

M3

A1

M7

A2

N2

A3

N8

A4

N3

A5

N7

A6

P2

A7

P8

A8

P3

A9

M2

A10

P7

A11

R2

A12

L2

BA0

L3

BA1

L1

BA2

B3

UDM

F3

LDM

B7

UDQS

A8

UDQS#

F7

LDQS

E8

LDQS#

J8

CK

K8

CK#

K2

CKE

L8

CS#

K7

RAS#

L7

CAS#

K3

WE#

K9

ODT

A3

VSS

E3

VSS

J3

VSS

N1

VSS

P9

VSS

A7

VSSQ

B2

VSSQ

B8

VSSQ

D2

VSSQ

D8

VSSQ

E7

VSSQ

F2

VSSQ

F8

VSSQ

H2

VSSQ

H8

VSSQ

HYB18TC256160BF-3S

ExParts

C5438

0.1

6.3V
X6S

0510

C5439

0.1

6.3V
X6S

0510

C5452

C5454

1

1

6.3V

6.3V

X6S

X6S

1005

1005

C5453

C5455

0.1

0.1

6.3V

6.3V

X6S

X6S

0510

0510

G8

DQ0

G2

DQ1

H7

DQ2

H3

DQ3

H1

DQ4

H9

DQ5

F1

DQ6

F9

DQ7

C8

DQ8

C2

DQ9

D7

DQ10

D3

DQ11

D1

DQ12

D9

DQ13

B1

DQ14

B9

DQ15

A2

NC

E2

NC

R3

NC

R7

NC

R8

NC

J2

VREF

J1

VDDL

J7

VSSDL

A1

VDD

E1

VDD

J9

VDD

M9

VDD

R1

VDD

A9

VDDQ

C1

VDDQ

C3

VDDQ

C7

VDDQ

C9

VDDQ

E9

VDDQ

G1

VDDQ

G3

VDDQ

G7

VDDQ

G9

VDDQ

IC5403

˛ iA}E g“fl i

C5442

C5440

0.1

0.1

6.3V

6.3V
X6S

X6S

0510

0510

C5441

C5443

0.1

0.1

6.3V

6.3V

X6S

X6S

0510

0510

C5458

C5456

1

6.3V
X6S

1005

C5457

0.1

6.3V
X6S

0510

1

6.3V
X6S
1005

C5459

0.1

6.3V
X6S

0510

C5461

1

6.3V
X6S
1005

C5462

0.1

6.3V
X6S

0510

V18DDR

EPP_DDR2_B_DQ0
EPP_DDR2_B_DQ1
EPP_DDR2_B_DQ2
EPP_DDR2_B_DQ3

EPP_DDR2_B_DQ6
EPP_DDR2_B_DQ7
EPP_DDR2_B_DQ8

EPP_DDR2_B_DQ10DDR2_SA10
EPP_DDR2_B_DQ11
EPP_DDR2_B_DQ12
EPP_DDR2_B_DQ13
EPP_DDR2_B_DQ14
EPP_DDR2_B_DQ15

V09REF

C5467

C5464

1

1

6.3V

6.3V
X6S

X6S

1005

1005

C5465

C5468

0.1

0.1

6.3V

6.3V

X6S

X6S

0510

0510

C5434

10

6.3V
X6S

2012

C5470

1

6.3V
X6S

1005

C5471

0.1

6.3V

X6S

0510

C5435

6.3V
X6S
0510

C5472

1

6.3V
X6S
1005

C5473

0.1

6.3V
X6S

0510

0.1

C5474

1

6.3V
X6S
1005

C5475

0.1

6.3V
X6S

0510

EPP_DDR2_CKE
EPP_DDR2_BA0
EPP_DDR2_BA1

EPP_DDR2_WE
EPP_DDR2_CAS
EPP_DDR2_RAS

EPP_DDR2_B_CS
EPP_DDR2_A_CS

EPP_DDR2_A_ODT

DDR2_CKP
DDR2_CKN

C5478

C5476

1

1

6.3V

6.3V
X6S

X6S

1005

1005

C5477

0.1

6.3V
X6S

0510

EPP_DDR2_CAS
EPP_DDR2_WE
EPP_DDR2_RAS
EPP_DDR2_BA1
DDR2_SA10
DDR2_SA7
DDR2_SA3
EPP_DDR2_CKE
DDR2_SA1
DDR2_SA9
DDR2_SA5
DDR2_SA12
DDR2_SA8
DDR2_SA11
DDR2_SA6
DDR2_SA2
EPP_DDR2_B_CS
EPP_DDR2_A_CS
DDR2_SA0
DDR2_SA4

EPP_DDR2_BA0
EPP_DDR2_A_ODT
DDR2_CKP
DDR2_CKN

C5479

1

6.3V
X6S
1005

C5480

1

6.3V
X6S

1005

C5481

1

6.3V
X6S
1005

1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7

R5426

10

R5427

10

R5428

10

R5429

10

C5482

1

6.3V
X6S

1005

CHIP

1/16W

CHIP

1/16W

CHIP

1/16W

CHIP

1/16W

2

RB5400

10

4
6
8
2

RB5401

10

4
6
8
2

RB5402

10

4
6
8
2

RB5403

10

4
6
8
2

RB5404

10

4
6
8

5%
5%
5%
5%

C5484

1

6.3V
X6S

1005

EPP_CAS

EPP_WE

EPP_RAS

EPP_BA1

EPP_SA10

EPP_SA7
EPP_SA3

EPP_CKE

EPP_SA1
EPP_SA9
EPP_SA5

EPP_SA12

EPP_SA8

EPP_SA11

EPP_SA6
EPP_SA2

EPP_SA0
EPP_SA4

EPP_BA0

EPP_A_ODT

EPP_CKP

EPP_CKN

C5487

10
10V
X7R
3216

XX

C5488

EPP_DDR2_A_DQ0
EPP_DDR2_A_DQ1
EPP_DDR2_A_DQ2
EPP_DDR2_A_DQ3
EPP_DDR2_A_DQ4
EPP_DDR2_A_DQ5
EPP_DDR2_A_DQ6
EPP_DDR2_A_DQ7
EPP_DDR2_A_DQ8
EPP_DDR2_A_DQ9
EPP_DDR2_A_DQ10
EPP_DDR2_A_DQ11
EPP_DDR2_A_DQ12
EPP_DDR2_A_DQ13
EPP_DDR2_A_DQ14
EPP_DDR2_A_DQ15

EPP_DDR2_A_LDM
EPP_DDR2_A_UDM
EPP_DDR2_A_LDQSN
EPP_DDR2_A_LDQSP
EPP_DDR2_A_UDQSN
EPP_DDR2_A_UDQSP

EPP_SA0
EPP_SA1
EPP_SA2
EPP_SA3
EPP_SA4
EPP_SA5
EPP_SA6
EPP_SA7
EPP_SA8
EPP_SA9
EPP_SA10
EPP_SA11
EPP_SA12

EPP_RAS
EPP_CAS
EPP_WE
EPP_BA0
EPP_BA1
EPP_A_ODT
EPP_CKE
EPP_CKN
EPP_CKP

EPP_DDR2_B_DQ0
EPP_DDR2_B_DQ1
EPP_DDR2_B_DQ2
EPP_DDR2_B_DQ3
EPP_DDR2_B_DQ4
EPP_DDR2_B_DQ5
EPP_DDR2_B_DQ6
EPP_DDR2_B_DQ7
EPP_DDR2_B_DQ8
EPP_DDR2_B_DQ9
EPP_DDR2_B_DQ10
EPP_DDR2_B_DQ11
EPP_DDR2_B_DQ12
EPP_DDR2_B_DQ13
EPP_DDR2_B_DQ14
EPP_DDR2_B_DQ15

EPP_DDR2_B_LDM
EPP_DDR2_B_UDM
EPP_DDR2_B_LDQSN
EPP_DDR2_B_LDQSP
EPP_DDR2_B_UDQSN
EPP_DDR2_B_UDQSP

C5460

10

6.3V
X6S
2012

C5463

0.1

6.3V
X6S

0510

V09REF

C5466

0.1

6.3V
X6S

0510

C5469

10

6.3V
X6S

2012

AH33
AJ31
AH31
AJ32
AL34
AK33
AK32
AG32
AD33
AE31
AC31
AE33
AF31
AC32
AF32
AD32
AD29
AL33
AG33
AH34
AJ34
AE34
AF34
AB33
R33
Y32
M32
AB34
P33
Y31
N32
AA32
P34
M33
AA33
N34
AC34
W34
Y34
W33
L33
V33
K34
L34
T34
U34
L30
L31
G32
K31
H31
J33
J32
H33
K32
G31
C32
E33
D31
D32
F32
B34
E31
C33
J29
F33
B33
G34
H34
D34
E34

DDR2_A_DQ0
DDR2_A_DQ1
DDR2_A_DQ2
DDR2_A_DQ3
DDR2_A_DQ4
DDR2_A_DQ5
DDR2_A_DQ6
DDR2_A_DQ7
DDR2_A_DQ8
DDR2_A_DQ9
DDR2_A_DQ10
DDR2_A_DQ11
DDR2_A_DQ12
DDR2_A_DQ13
DDR2_A_DQ14
DDR2_A_DQ15
DDR2_A_VREF
DDR2_A_LDM
DDR2_A_UDM
DDR2_A_LDQSN
DDR2_A_LDQSP
DDR2_A_UDQSN
DDR2_A_UDQSP
DDR_SA0
DDR_SA1
DDR_SA2
DDR_SA3
DDR_SA4
DDR_SA5
DDR_SA6
DDR_SA7
DDR_SA8
DDR_SA9
DDR_SA10
DDR_SA11
DDR_SA12
DDR_CS_X
DDR_RAS_X
DDR_CAS_X
DDR_WE_X
DDR_BA0
DDR_BA1
DDR_ODT
DDR_CKE
DDR_CK_X
DDR_CK
DDR_DQS_MSKI
DDR_DQS_MSKO
DDR2_B_DQ0
DDR2_B_DQ1
DDR2_B_DQ2
DDR2_B_DQ3
DDR2_B_DQ4
DDR2_B_DQ5
DDR2_B_DQ6
DDR2_B_DQ7
DDR2_B_DQ8
DDR2_B_DQ9
DDR2_B_DQ10
DDR2_B_DQ11
DDR2_B_DQ12
DDR2_B_DQ13
DDR2_B_DQ14
DDR2_B_DQ15
DDR2_B_VREF
DDR2_B_LDM
DDR2_B_UDM
DDR2_B_LDQSN
DDR2_B_LDQSP
DDR2_B_UDQSN
DDR2_B_UDQSP

IC5100

CXD4716BGB

C5483

XX

VDDDLL1.2V

C5485

XX

PORTION10

V18DDR

C5486

0.1

6.3V
X6S
0510

20

21

22

R5408

10k

1/16W

CHIP

5%

1005

XX

C5405

R5436

100

DDR_P_ON

ABCDEF GH JIKLMN

SET_ON

O

21

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 12/22 ~

- 50 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

18

19

20

21

1

FBA - EG1H

1

TRSTX

FR_ICLK

FR_IBREAK

ICLK

CMMCUA3

CMMCUA4

FE_BEM_RX
FE_BEM_TX
BEM_CODE_TX

BEM_CODE_RX

BE_WDT

FR_ICD3

FR_ICD2

ICD3

IBREAK

CMMCUA5

CMMCUA6

FR_ICD1

ICD1

ICD2

HCFL_V_MON

CMMCUA7

MCUA21

FR_ICS2

FR_ICD0

8990919293949596979899100101102103104105106107108109110111112113114115116117118119120121122123124125126127128129130131132

ICD0

PANEL_SEL6
PANEL_SEL5
PANEL_SEL4
PANEL_SEL3
PANEL_SEL2
PANEL_SEL1
PANEL_SEL0

INV_FAIL

BL_IN

AVSS
AVRH
AVCC

RESET

VCCI

VCCE

VCCI

VCCE

A8

CMMCUA8

FR_ICS1

FR_ICS0

47

RB5520

ICS2

88

ICS1

87

ICS0

86
85
84
83
82
81
80
79
78
77

R5570

XX

76

R5571

100k

75
74
73

MD3

72

MD2

71

MD1

70

MD0

69
68
67

X1

66

VSS

65

X0

64
63
62
61

A21

60

A20

59

A19

58

A18

57

A17

56

A16

55
54

VSS

53
52

A15

51

A14

50

A13

49

A12

48

A11

47
46

A10

A9

45

MCUA1
MCUA2
MCUA3
MCUA4
MCUA5
MCUA6
MCUA7
MCUA8
MCUA9
MCUA10
MCUA11
MCUA12
MCUA13
MCUA14
MCUA15
MCUA16
MCUA18
MCUA19
MCUA20
MCUA17
MCUD15
MCUD14
MCUD13
MCUD12
MCUD11
MCUD10
MCUD9
MCUD8
MCUD7
MCUD6
MCUD5
MCUD4
MCUD3
MCUD2
MCUD1
MCUD0

MCURD MCURD

MCUCS0 MCUCS0
MCUWR0 MCUWR0

R5516

10k

R5518

XX

*R5517

0

R5519

10k

*R5521

XX

47

RB5511

1
3
1
3

RB5527

RB5512

33

33

RB5528

10k

15
13
11
9
7
5
3
1

JL5500

R5514

R5576

C5529

2

16V
X7R

4

C5530

2
4

1
3
5
7
9

11
13
15

2
4
6
8

10
12
14
16

C5550

0.1
16V

C5551

XX

R5580

10k

C5555

XX

0

0

R5582

47

0.1

XX

FL5500

R5575

EMI

1
3
5
7
9

11
13
15

CL5508

CL5509
CL5510

16
14
12
10
8
6
4
2

XX

CMMCUA20
CMMCUA19
CMMCUA18
CMMCUA17
CMMCUA16

CMMCUA15
CMMCUA14
CMMCUA13
CMMCUA12
CMMCUA11
CMMCUA10

CMMCUA9

BE_1.8V

2
4
6
8

10
12
14
16

*R5509

XX

R5583

XX

C5554

XX

MCUA21

FLASH_D15
FLASH_D14
FLASH_D13
FLASH_D12
FLASH_D11
FLASH_D10

FLASH_D9
FLASH_D8
FLASH_D7
FLASH_D6
FLASH_D5
FLASH_D4
FLASH_D3
FLASH_D2
FLASH_D1
FLASH_D0

MCUA21

C5549

XX

CL5511

C5573

XX

TC7SH04FU(T5RSONYJF)

IC5507

54

VCC

1005
X7R

25V

0.01

C5572

FLASH_RDY

C5558

0.1

16V

FR_XRSTX
ICE_XRSTIN
FR_INITX
FR_IBREAK
FR_ICD3
FR_ICD2
FR_ICD1
FR_ICD0
FR_ICS2
FR_ICS1
FR_ICS0

FR_ICLK

FR_XRSTX

ICE_XRSTIN

FR_INITX

PANEL_SEL5

XX

RB5536

PANEL_SEL1

INV_FAIL_BEM

RT3N11M-TP-1

BEM_CLK

NC

A

321

GNDY

JIG_BEM_RST

MODE_BEM

S29AL032D70TFI030H-8HBU3100

MCUA16 MCU A17
MCUA15
MCUA14
MCUA13
MCUA12
MCUA11
MCUA10
MCUA9
MCUA20
MCUA21
MCUWR0

MCUA19
MCUA18
MCUA8
MCUA7
MCUA6
MCUA5
MCUA4
MCUA3
MCUA2

C5574

*IC5502

1234567

A15
A14
A13
A12
A11
A10
A9

8

A8
A19
NC
WE
RES
NC
NC
RY/BY

161514131211109

A18

17 18 19 20 21 22 23

A17
A7
A6
A5
A4
A3
A2

24

A1 A0

1005

214365871091211141316

10k

RB5529

R5524

100

OPEN DRAIN INPUT
connected UVCC at ICE
OPEN DRAIN INPUT

COM_REC_5V

R5620

10k

1/16W

CHIP

5%

Q5510

D5502

XX

Q5504

TR UNR51A5G0LS0

0.1
16V
1005

BE_3.3V

XX

FB5502

A16

BYTE

VSS

D15/A-1

D7

D14

D6

D13

D5

D12

D4

VCC

D11

D3

D10

D2
D9
D1
D8
D0

OE

VSS

CE

FL5503

42434445464748 41

40 39 38 37 36 35 34 33

32 31 30 29 28 27 26

25

15

BL_IN

BE_RST

XX

S5501

R5527

10k

Q5505

RT3N11M-TP-1

EMI

FLASH_D15

FLASH_D14

FLASH_D13

FLASH_D12

XXC5559

FLASH_D11

FLASH_D10

FLASH_D7

FLASH_D6

FLASH_D5

FLASH_D4

XXC5560

FLASH_D3

FLASH_D2
FLASH_D9
FLASH_D1
FLASH_D8
FLASH_D0

R5531

VS2_IN

MCURD

MCUCS0

MCUA1

XX

R5601

100

C5561

XX

BE_3.3V

C5562

0.047

R5543

XX

XX

C5536

R5539

XX

R5542

XX

œ ¢pF ´ª zu˝A˚˙–¯ ¢

UVCC

1

XTRST

2

XRSTIN

3

XINIT

4

BREAK

5

ICD3

6

ICD2

7

ICD1

8

ICD0

9

ICS2

10

ICS1

11

ICS0

12

GND

13

ICLK

14

CN5500 XX

for JT Board

R3112N291A-TR-FA

IC5503

25V
X7R

1005

BE_3.3V

54

L5500

XX

C5548

OUT

CD

VDD
GNDNC

XX

IC5504

XX

1A
1B
1CLR
1Q
2Q
2CX
2RX/CX

87654321

GND

C5537

XX

R5546

XX

R5547

XX

R5604

10k

VDD

1RX/CX

2CLR

1CX

R5548

BALANCER_ERR

321

16 15 14 13 12 11 10 9

1Q
2Q

2B
2A

XX

MCUCLK

MCUD0

MCUD1
MCUD2

MCUD3
MCUD4

MCUD5

MCUD6
MCUD7

MCUD8
MCUD9
MCUD10
MCUD11
MCUD12
MCUD13
MCUD14
MCUD15
MCURD
MCUCS1

MCUWR0
MCUAS
MCUA1
MCUA2
MCUA3
MCUA4
MCUA5

MCUA6
MCUA7
MCUA8

MCUA11

MCUA12
MCUA14
MCUA15
MCUA10

MCUA13
MCUA9

C5538

XX

C5564

0.01
25V
X7R
1005

15
13
11
9
7
5
3
1

1
3
5
7
9

11
13
15

1
3
5
7

15
13
11
9
7
5
3
1

1
3
5
7
9

11
13
15

R5617

1/16W

C5540

XX

R5605

47

1/16W

CHIP

5%

10k

CHIP

5%

R5529

C5566

XX

Q5507

C5539

XX

XX

XX

R5612

XX

16

RB5531

14
12
10
8
6
4
2

2

68

RB5532

4
6
8

10
12
14
16

2

22

RB5533

4
6
8

16
14

RB5534

12
10
8
6
4
2

2

22

RB5535

4
6
8

10
12
14
16

R5553

XX

68

22

R5550

BE_3.3V

10k

10k

10k

R5614

R5615

R5616

Q5508

RT3N11M-TP-1

FL5501

EMI

TC7SH125FU(T5RSOYF

IC5505

54

XX

VCC

R5555

XX

C5541

XX

INT_MAIN_V

INT_SUB_V

INT_OUT_V

INT_SUB_FILM

OE(N)

IN A

R5558

XX

C5542

XX

GNDOUT Y

BE_5V

XX

R5613

BE_3.3V

321

R5559

XX

54

VDD

C5543

XX

BALANCER_ERR_BEM

INV_FAIL_BEM

INV_FAIL

R5609

XX

16V

0.1

C5571

1005

C5544

XX

IN-OUT
VSS
IN+

IC5508

XX

R5501

R5522

XX

R5523

XX

R5562

XX

D18
C18
B18
A18
D19
C19
B19
A19
D20
C20
B20
A20
D21
C21
B21
A21
D22
C22
B22
A22
D23
A23
B23
C23
C24
D24
B24
A24
D25
C25
B25
A25
D26
C26
B26
A26
D27
C27
B27
A27
A28

R5610

47k

D5501

XX

321

XX

PORTION5

CPU_CK
CPU_INT0
CPU_INT1
CPU_INT2
CPU_INT3
CPU_D0
CPU_D1
CPU_D2
CPU_D3
CPU_D4
CPU_D5
CPU_D6
CPU_D7
CPU_D8
CPU_D9
CPU_D10
CPU_D11
CPU_D12
CPU_D13
CPU_D14
CPU_D15
CPU_RDY
CPU_CS_X
CPU_RD_X
CPU_WR_X
CPU_AS_X
CPU_ADD1
CPU_ADD2
CPU_ADD3
CPU_ADD4
CPU_ADD5
CPU_ADD6
CPU_ADD7
CPU_ADD8
CPU_ADD9
CPU_ADD10
CPU_ADD11
CPU_ADD12
CPU_ADD13
CPU_ADD14
CPU_ADD15

CXD4716BGB

IC5100

R5500

XX

R5563

XX

C5545

XX

BE_RST

R5564

XX

C5546

XX

R5565

XX

DEEP_DIMMER

IC5509

I1
GND

321

I0 Y

2

3

4

5

6

7

8

9

10

11

R5619

XX

BE_REG12V

R5618

47k

1/16W

CHIP

5%

Q5509

DIMMER

DIMMER_DRV_OUT

R5572

560

1/16W

RN-CP

0.5%
1005

XX

654

VCC

S

C5547

XX

R5569

XX

R5568

XX

RT3N11M-TP-1

12

13

14

15

16

17

18

19

20

21

BE_BUSY

FE_SDOUT

DL_CS

FE_SCKINOUT

BEM_SDA3

SDA3(400K EXT)

VCCE

214

3

C5526

XX

X7R

BEM_LOG_RX

BEM_LOG_TX
PANEL_CTRL1
PANEL_CTRL5

BEM_SCL2

BEM_SCL3

BEM_SDA2

SCL3(400K EXT)

SCL2(400K DRC)

SDA2(400K DRC)

VSS

VCCI

RDX

214

3

0.01
25V

CMMCURD

CMMCUWR0

BEM_SCL1

BEM_SDA1

SCL1(400K INT)

SDA1(400K INT)

WR0X

WR1X

CMMCUWR1

CMMCUCS0

BEM_SCL0

BEM_SDA0

22

RB5517

SCL0(100k LBM)

SDA0(100k LBM)

CS0

CS1

CMMCUCS1

2143658

10k

R5552

PANEL_CTRL5

MB91305

HEART BEA T

68

R5554

22

RB5518

7

10k

R5556

SCK(D/L)

SIN3(LOG)

SOUT3(LOG)

PANEL_CTRL1

IC5501

CS6

DEBUG0

DEBUG1

DEBUG2

DEBUG3

CL5503

CL5504

CL5505

CL5506

\tg v peXgs

MCUCS6

47

RB5519

R5557XXR5560

SI(D/L)

CS(D/L)

BEM_BUSY

SOUT1(COMMUNICATION)

MCLKE

MCLK

SRAS

XXR5561

CMMCUCLK

CMMCUAS

68

RB5537

MCUCKE

C5533

10k

SIN1(COMMUNICATION)

SCAS

MCUCAS

0.01
25V

X7R

C5534

10k

R5510

BE_WDT

SIN0(WRITE/CODE)

SOUT0(WRITE/CODE)

SWE

VCCE

VSS

214

3

C5528

C5527

0.1
16V
X7R

MCUA0

MCUWE

XX

R5567

XX

214

214

XX

FR_XRSTX

10k

R5566

3

VSS

VCCI

VCCE

VCCIA0A1A2A3A4A5A6A7

3

CMMCUA1

CMMCUA2

2

BEM_SCL1

2.2kR5538

R5536
R5537

R5551

C5514

XX

R5535

XX
XX

R5573

XX

XXR5540

XX

100k

BEM_SDA0

BEM_SCL0

XXR5541

2
4
2
4

2
4
2
4

1

3

S5500

XX

PANEL LESS MODE 0

7
5
3
1

RB5515

10k

133

INT_OUT_V

134

INT_MAIN_V

135

INT_SUB_V

136

INT_CAYENNE_V

137

INT_SUB_FILM

138

DRC_RST

139

SS_SEL1

140

DRC_CLK_SEL

141

AC_DET

142

FDETO

143

DRC_HIZ

144

VCCE
145
146
147

VSS

VCCI

148

FAN_DRIVE1

149
150

FAN_DRIVE2

DIMMER

151

PANEL_CTRL4

152
153

BL_ON

FAN_ERR

154

EPP_RST

155
156

PANEL_CTRL2

ADC_RST

157

DEV_RST

158

PANEL_CTRL3

159

PD3

160

PD4

161

PD5

162

BALANCER_ERR

163

BINT

164

SUBC_HIZ

165

VCCE

166

VSS

167

VCCI

168

D0

169

D1

170

D2

171

D3

172

D4

173

D5

174

D6

175

D7

176

BEM_SDA3

BEM_SCL3

BEM_SDA1

BEM_SDA2

BEM_SCL2

3

FBA

13/22

2.2kR5530

2.2kR5532

2.2kR5534

R5526 2 .2k

R5528 2 .2k

4

1005

5%

CHIP

1/16W

10k

Q5500

R5512

UNR52A1G0LS0

5

AC_DET

R5511

100k

1/16W

CHIP

5%

1005

2SC5950G0LS0

6

MCUA1

7

8

9

MCUA0

MCUCS6

MCUCAS

MCUWE

MCUCKE

MCUA2
MCUA3
MCUA4
MCUA5
MCUA6
MCUA7
MCUA8
MCUA9
MCUA10
MCUA11
MCUA12
MCUA13
MCUA14
MCUA15
MCUA16
MCUA17
MCUA18
MCUA19
MCUA20
MCUD0
MCUD1
MCUD2
MCUD3
MCUD4
MCUD5
MCUD6
MCUD7
MCUD8
MCUD9
MCUD10
MCUD11
MCUD12
MCUD13
MCUD14
MCUD15
MCURD
MCUWR0
MCUWR1
MCUAS

MCUCS0
MCUCS1
MCUCLK

MCUA1
MCUA2
MCUA3
MCUA4
MCUA5
MCUA6
MCUA7
MCUA8
MCUA9
MCUA11
MCUA10

MCUA14
MCUA15

MCUD0
MCUD1
MCUD2
MCUD3
MCUD4
MCUD5
MCUD6
MCUD7
MCUD8
MCUD9
MCUD10 SDRAM_D10
MCUD11
MCUD12
MCUD13
MCUD14
MCUD15

MCUAS

MCUWR1

MCUWR0 MCUWR0

MCUCLK

RB5538

22

RB5509

100

RB5510

100

RB5503

68

R5502

47

16
14
12
10
8
6
4
2

16
14
12
10
8
6
4
2
16
14
12
10
8
6
4
2
16
14
12
10
8
6
4
2

R5503

R5504
R5505

1
3
5

7
2
4
6
8

10
12
14
16

1

3

5

7

9

11

13

15

2
4
6
8

10
12
14
16

CL5500
CL5501
CL5502

47

68

47

15

RB5504

47

13
11
9
7
5
3
1

RB5500

47

15

RB5505

47

13
11
9
7
5
3
1
15

RB5506

100

13
11
9
7
5
3
1
15

RB5507

100

13
11
9
7
5
3
1

RB5501

47

2
4
6

8
1
3
5
7
9

11
13
15

2

4

6

8

10

12

14

16

1
3
5
7
9

11
13

SDRAM_LDQM

15

SDRAM_CLK

CMMCUA1
CMMCUA2
CMMCUA3
CMMCUA4
CMMCUA5
CMMCUA6
CMMCUA7
CMMCUA8

CMMCUA9
CMMCUA10
CMMCUA11
CMMCUA12
CMMCUA13
CMMCUA14
CMMCUA15
CMMCUA16
CMMCUA17
CMMCUA18
CMMCUA19
CMMCUA20

CMMCUD0

CMMCUD1

CMMCUD2

CMMCUD3

CMMCUD4

CMMCUD5

CMMCUD6

CMMCUD7

CMMCUD8

CMMCUD9
CMMCUD10
CMMCUD11
CMMCUD12
CMMCUD13
CMMCUD14
CMMCUD15

CMMCURD
CMMCUWR0
CMMCUWR1

CMMCUAS

CMMCUCS0
CMMCUCS1

CMMCUCLK

MCUA0

SDRAM_BA0
SDRAM_BA1

SDRAM_D0

SDRAM_D1

SDRAM_D2

SDRAM_D3

SDRAM_D4

SDRAM_D5

SDRAM_D6

SDRAM_D7

SDRAM_D8

SDRAM_D9

SDRAM_D11
SDRAM_D12
SDRAM_D13
SDRAM_D14
SDRAM_D15

SDRAM_CS

SDRAM_RAS
SDRAM_CAS

SDRAM_WE

MCUCKE

BALANCER_ERR_BEM

SDRAM_D0

SDRAM_D1
SDRAM_D2

SDRAM_D3
SDRAM_D4

SDRAM_D5
SDRAM_D6

SDRAM_D7

SDRAM_LDQM
SDRAM_WE
SDRAM_CAS
SDRAM_RAS
SDRAM_CS
SDRAM_BA0
SDRAM_BA1
MCUA10
MCUA0
MCUA1
MCUA2
MCUA3 MCUA4

Q5501

DRC_CLK_SEL

FDETO

DIMMER

PANEL_CTRL4

FAN_DRIVE1
FAN_DRIVE2

BL_ON

FAN_ERR

EPP_RST

PANEL_CTRL2

DEV_RST

PANEL_CTRL3

SUBC_HIZ

ADC_RST

BE_3.3V

1005

5%

CHIP

1/16W

10k

R5513

SS_SEL0

INT_OUT_V

INT_MAIN_V

INT_SUB_V

INT_SUB_FILM

DRC_RST

SS_SEL1

DRC_HIZ

FL5502

EMI

C5500

0.1

16V

1005
C5501

0.1

16V

1005

C5502

0.1
16V

1005

C5503

0.1
16V

1005

C5504

0.1

16V

1005

C5505

XX

CL5507

VS2_IN

0

RB5513

2
4
6
8

10
12
14
16

R5508

XX

R5525

XX

XX

RB5514

R5520

2.2k

RB5530

XX

ExParts

7
5
3
1

8
6
4
2

Q5503

UNR51A3G0LS0

Q5506

2SA2122G0LS0

R5603

47k

C5506

C5507

XX

XX

V54C365164VEI7

IC5500

12345678

VDD
DQ0
VDDQ
DQ1
DQ2
VSSQ
DQ3
DQ4

9

VDDQ

10

DQ5
DQ6
VSSQ

13 17

DQ7
VDD
LDQM
WE

UDQM
CAS
RAS

19181611 12 14 15

CS

20

BA0

21 22 23

BA1
A10
A0

24 25 26 27

A1
A2
A3
VDD VSS

˛ iA}E g“fl i

1
3
5
7
9

11
13
15

C5508XXC5509

VSS

DQ15

VSSQ

DQ14
DQ13

VDDQ

DQ12
DQ11

VSSQ

DQ10

DQ9

VDDQ

DQ8

VSS

NC

CLK
CKE

NC

A11

A9
A8
A7
A6
A5
A4

R5611

100k

R5507

10k

1

C5519

XX

3
1

C5520

0.01
25V

3

X7R

C5553

XX

7

10k

RB5523

2143658

C5521

XX

1
3

C5522

0.01

1

25V

X7R

CMMCUD0
CMMCUD1
CMMCUD2
CMMCUD3
CMMCUD4
CMMCUD5
CMMCUD6
CMMCUD7

C5516

XX

C5518

XX

XX

54

47484950515253
46
45
44 43 41 39 38 37 36

4042

35
34

3233

28293031

C5512

XX

C5515

XX

C5517

XX

C5510

16V

1005

C5511

0.1

16V
1005

C5513

XX

SDRAM_D15

SDRAM_D14
SDRAM_D13

0.1
SDRAM_D12
SDRAM_D11

SDRAM_D10

SDRAM_CLK

3

SDRAM_D9

SDRAM_D8

MCUWR0

MCUCKE

MCUA11

MCUA9
MCUA8
MCUA7
MCUA6
MCUA5

PANEL LESS MODE 1

PL0 1_3C

FLASH_RDY

2

4

XX

R5544

8
6
4
2

PL1

PL0

SS_SEL0

VCCE

VSS

VCCID8D9

1234567891011121314151617181920212223242526272829303132333435363738394041424344

214

214

3

C5524

0.01
25V
X7R

3

CMMCUD8

BE_3.3V

C5523

XX

TCON_RDY

0

R5545

TCON_RDY

CMMCUD9

R5515

XX

FILMO

C5531

0.01
25V
X7R

214

NMX

D10

CMMCUD10

CMMCUD11

D5500

XX

Q5502

XX

3

VSSI

D11

CMMCUD12

VSS

D12

R5549

C5532

XX
214

VCCE

D13

CMMCUD13

HEATER_ON

DEEP_DIMMER

XX

R5506

XX

3

DEEP_DIMMER

D14

CMMCUD14

CMMCUD15

0RB5516

HEATER_ON

D15

C5525

22

ABCDEF GH JIKLMN

O

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

22

~ FBA Board Schematic Diagram [ Front/Backend ] Page 13/22 ~

- 51 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

2

2

3

3

4

4

FBA - EG1H

5

5

10

11

12

13

14

15

Unreg12V Input

FE_12V

6

F7800

1.6A
36V

CL7800

7

8

9

12V_SUB

CL7801

F7801

1.6A
36V

S

12V_MAIN

C7801

4.7

16V

X7R

3216

Q7808

RTR040N03TL

C7803

4.7

16V
X7R
3216

C7804

0.01

25V
X7R
1005

MP2303DN-LF-Z

IC7801

BS

IN

SW

4321

GND FB

L7801

10uH

8765

SS

EN

COMP

R7803
1/16W

RN-CP

R7802

51k
1/16W
RN-CP

0.5%

3.3k

0.5%

UDZSTE-176.2B

D7802

R7876

R7806

10k

1/16W

RN-CP

0.5%

330

C7810

0.1

16V

1005

R7810

82k

1/16W

RN-CP

0.5%

C7813

C7814

330

6.3V

0.022
25V
X7R

1005

DTT_PON_DELAY

CL7802

FE_5V

CI/USB 5V

DDR2 0.9V

JL7800

C7816

R7812

XX

4.7

16V

3216

X7R

C7815

XX

C7818

4.7

16V

3216

R7813
XX

R7814
XX

R7815
XX

C7820
XX

R7816
XX

C7821
XX

C7822

0.01
25V

X7R

D7803

M1FM3

R7817

XX

XX

IC7802

VLDOIN

VBST

VTT

DRVH
VTTGND
VTTSNS

DRVL

GND

PGND
MODE
VTTREF

V5IN

COMP

PGOOD

VDDQSNS

C7825
XX

LL

CS

S5

C7824

XX

12345678

910

VDDQSETS3

R7869

R7818
XX

XX

IC7803

MP1415DSE-LF-Z

BS

SS

IN

EN

OUT

COMP

4321

GND FB

R7820
1/16W

RN-CP

0.5%

20 19 18 17 16 15 14 13

R7823

XX

Q7800

XXR7824

XXR7825

R7826

12 11

XX

R7827

R7875

XX

C7826

0.01
25V
X7R

8765

R7819

2k

1/16W

0.5%

24k

2

XX

2

Q7801

XX

XX

C7828
XX

R7828

10k

1/16W

0.5%

DD_5V

R7831

12k

1/16W

RN-CP

0.5%

1

S

3

C7835
XX

L7804

1

S

3

DTT_PON_DELAY

R7832

10k

1/16W

CHIP

5%

C7831

4700p

50V
X7R

1005

R7834

8.2k

1/16W

RN-CP

0.5%

XX

C7836

XX

C7837
XX

Q7809

XX

R7878

6

FE_1.05V

SENSE_LINE

R7845

1.8k

0.5%

C7845

XX

R7849
12k

0.5%

R7850
10k

0.5%

R7855
10k

0.5%

R7856
560

0.5%

C7850

XX

R7859

3.3k

0.5%

R7860
100

0.5%

7

8

R7836

XX

R7837

XX

EMMA/DDR2 1.8V

FE_1.8V

D7807

1SMA5915BT

C7842

1

4.7
16V
3216

2

Q7802

S

RTR040N03TL

3

C7844

0.1

CL7805 CL7806

L7805

C7840

330

4V

2.2uH
1

2

Q7803

S

RTR040N03TL

3

DTT_PON_DELAY

DD_5V DD_5V

123456

R7847

16V

R7846

10k

XX

7
8
9

VBST2

10

DRVH2

11
12

DRVL2

DD_5V

EN2

LL2

C7846

4.7
10V
2012

R7851

10k

VO2

TPS51124PWPRG4

PGND2

131415161718

VFB2

IC7806

TRIP2

TONSEL

V5FIL T

C7847
1
10V
1608

GND

V5IN

VFB1

TRIP1

R7852

3.3
1/10W
1608

VO1

PGOOD1PGOOD2

EN1
VBST1
DRVH1

LL1
DRVL1

PGND1

R7853

4.7k

0.5%

R7854
XX

24
23

C7849

22
21
20
19

0.1

16V

FE 3.3V

FE_3.3V

Q7806

RTR020P02TR

S

C7856

R7867

1

10k

6.3V
X6S
1005

R7866

XX

CL7807

1k

Q7807

RT1N431C-TP-1

DTT_PON_DELAY

C7852

4.7

16V

3216

R7861

15k

1/16W

RN-CP

0.5%

5%

CHIP

DTT_PON

1/16W

8765

S1 S2 S3 G

8765

S1 S2 S3 G

10k

R7862

D1D2D3D4

4321

D1D2D3D4

4321

Q7804

RSS100N03TB

L7806

4.7uH

Q7805

RSS100N03TB

321

C7854
330
4V

XX

IC7804

CONT

VIN
GND
NP VOUT

1.05V Output
(without PLL)

FE_1.05V

D7808
1SMA5915BT

54

XX

C7802

XX

C7805

9

10

11

12

13

FE_A_5V

CL7804

14

15

16

17

18

19

DTT_PON

R7864

10k

IC7808

NJM2831F05(TE1)

CONT

VIN

GND

321

NP VOUT

54

C7806

4.7
16V
X7R
3216

C7808

1
10V
X7R

1608

CL7803

DD_5V

L7802

15uH

Q7810

S

XX

D7805

XX

C7829

10

6.3V
X6S

2012

C7832

10

6.3V
X6S
2012

D7809
XX

R7877

XX

DTT_PON

C7859

1

10V

X7R

1608

IC7807

MM3141ZNRE(1.07V)

VDD

VOUT

GND

321

CE NC

54

C7857

XX

EMMA PLL 1.05V
Output

FE_PLL_1.05V

CL7808

C7858

10

6.3V
X6S

2012

FBA

16

14/22

17

18

19

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

20

21

22

ABCDEF GH JIKLMN

O

20

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 14/22 ~

- 52 -

ABC D EFG H JIKLMN

FBA - EG1H

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

1

1

FE_PLL_1.05V

2

SPLL VDD
SPLL VDD
SPLL VDD
SPLL VDD
SPLL VDD

Y10
Y11
Y12
Y13
Y14

25V0.01

C7022

25V0.01

C7023

25V0.01

C7024

C7021

3

FE_3.3V

FE_3.3VA

DPLL VDD
DPLL VDD

H19

J20

FL7000

EMI

C7000

C7001

4.7

10V

4

2012

4.7

10V

2012

C7002

25V0.01

C7003

25V0.01

C7004

25V0.01

C7005

25V0.01

C7006

5

25V0.01

C7007

25V0.01

C7008

25V0.01

C7009

6

25V0.01

C7012

XX

7

C7013

25V0.01

C7014

25V0.01

C7015

25V0.01

8

C7016

XX

C7017

25V0.01

C7018

25V0.01

9

FBA

15/22

G21

VDD3

H1

VDD3

J2

VDD3

J6

VDD3

J21

VDD3

K3

VDD3

K20

VDD3

L4

VDD3

L6

VDD3

L19

VDD3

L21

VDD3

M20

VDD3

N6

VDD3

N23

VDD3

R6

VDD3

R23

VDD3

U6

VDD3

U21

VDD3

W6

VDD3

W21

VDD3

AA6

VDD3

AA21

VDD3

AC6

VDD3

AC21

VDD3

AD11

VDD3

AD18

VDD3

AE11

VDD3

AG7

VDD3

AG10

VDD3

AG12

VDD3

AG19

VDD3

AH7

VDD3

AH10

VDD3

AH12

VDD3

IC7000

UPD61300F1-230-LU2-A

CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD

VDD10
VDD10
VDD10
VDD10

D1
D2
D23
D24

E3
E22
F4

F21
G5
G20
H6

L11

L13

L15

M10
M12
M14

N11
N13
N15

P10

P12

P14
R11
R13
R15

T10

T12

T14
U11
U13
U15
V10
V12
V14

W15

K10
K11
K14
K15

C7025

XX

C7026

C7027

C7028

C7029

C7030

C7031

XX

C7032

XX

C7033

XX

C7034

C7035

C7036

C7037

C7038

C7039

C7040

C7041

C7042

XX

C7043

25V0.01

25V0.01

25V0.01

25V0.01

25V0.01

25V0.01

25V0.01

25V0.01

25V0.01

25V0.01

25V0.01

25V0.01

25V0.01

25V0.01

25V0.01

C7019

0.01
25V

C7020

0.01
25V

C7044
10

6.3V
2012

C7045
10

6.3V
2012

FE_1.05V

C7046
XX

C7047
XX

C1

C2
C23
C24

D3
D22

E4
E21

F6
F19
F20

G6

G7
G19
G23
H21
J23

K6
K19
K21
L10
L12
L14
L20
L23

M6
M11
M13
M15
M19
M21

N1
N10
N12
N14
N22
N24

P6
P11
P13
P15

R3
R10
R12
R14
R22
R24

T6
T11
T13
T15

U2
U10
U12
U14

V1

V6
V11
V13
V15
V21
V23

Y5

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

SPLLGND
SPLLGND
SPLLGND
SPLLGND
SPLLGND

DPLLGND
DPLLGND

GND
GND
GND

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

W10
W11
W12
W13
W14

H20

A6

A19
B6

D16

K12
K13

AJ12
AJ10

AH23
AH21
AH19
AG11

AG9
AG8

AG3
AF23
AF17
AF15
AF14
AF11

AF6

AE1
AE14
AE17
AD23
AD19

AD3

AC5
AB23
AB21

AB6

AB1

AA3

Y23
Y21
Y15

J19

B19

C8

C17

D9

E10
E15
F11
F14

AJ7
AJ4

Y6

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

FBA - EG1H

CL7100

FE_3.3V

C7101

R7100

100

XX

C7100

50V

0.001

D7100

IC7100

XX

12

GND

Vcc CD

RT3N11M-TP-1

2143658

10k

RB7100

RT3N11M-TP-1

OUT

Q7100

Q7101

XX

43

7

C7103
XX

C7102
XX

CL7101

R7121

XX

R7103

10k

R7104
XX

FE_DBG_RSTBFE_MASTER_RSTB

R7120

0

CL7103

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

MOUNT R7122 IN
CASE OF NO USB

X7100

18.432MHz

FE_RSTB

C7104

9p

50V

0R7105

1

NDK NX3225GA

2143658

47

RB7104

7

2

C7105
9p

50V

FE_RXD1B
FE_TXD1B

FE_JTCK
FE_JTMS

FE_JTDI

FE_JTDO

FE_JTRST

FE_NMI

2143658

47

RB7105

470R7107

7

CL7104

CL7106

2143658

47

RB7106

AH8

SYS_XT1

AJ8

SYS_XT2

AH9

RSTSWB

AJ9

R4

47R7108

T5

RSTOUT

RXD1B
TXD1B

USB_RSDP1

USB_RSDM1

USB_XT1

USB_XT2

USB_DP1

USB_DM1

AJ11

AH11

AD16

AE16

AE15

AD15

FE_3.3VA

V20

JTCK

V19
U20

47R7109

U19
T20

T19

W20
AA19
AB19
AE19
AE18
AF18
V5
U5

7

USB_VDD331

JTMS
JTDI

USB_AVDD

JTDO
JTRST

USB_PVDDFIL

NMI

USB_AVSS

TEST
TESTP1
TESTP2
TESTP3
TESTP4
TESTP5
TESTP6
TESTP7

UPD61300F1-230-LU2-A

USB_RREF

USB_GND1
USB_GND2

IC7000

USB_PVSS

USB_COM

AF16

AF13

AE13

AD12

AF12

AD13

AE12

AD17
AD14

CL7108

R7122

XX

R7110

R7111

FB7100

FB7101

IC7000

UPD61300F1-230-LU2-A

~ FBA Board Schematic Diagram [ Front/Backend ] Page 15/22 ~

13

14

12

FBA

16/22

470R7112

C7106

50V

18p

X7101

30MHz

0.5%39
R7114

15k

C7110
15p

50V

4

0.5%

L7100

1

R7115
15k

0.5%39

16080uH

0.5%

C7107

0.01
25V

C7108

0.01
25V

C7109

0.001
50V

R7113

1.6k

0.5%

FE_5V

C7112

0.1

16V

IC7101

MIC2005-0.5YM6TR

123

VIN

GND

EN

VOUT

CSLEW

FAULT

C7115

0.001
50V

456

23

C7113

220

16V

C7114

0.1

16V

VD7100

VD7101

XX

CN7100

8P

BLK

1234

16080uH

USB_GND

FE_3.3V

D7101

PGB0010603NR

D7102

PGB0010603NR

FE_USB_PPON

214

658

10k

RB7103

3

7

FE_USB_OCIB

15

16

17

18

19

20

21

22

ABCDEF GH JIKLMN

O

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

22

~ FBA Board Schematic Diagram [ Front/Backend ] Page 16/22 ~

P

Q

R

S

T

U

V

W

X

Y

Z

- 53 -

AA

BB

CC

DD

EE

FF

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

1

1

2

2

FBA - EG1H

FE_DDR_DADD[0-12,14-15]

3

3

FE_DDR_BA[0-2]

FE_DADD[0]
FE_DADD[2]

FE_DODT0

4

FE_DADD[11]

FE_DADD[4]
FE_DADD[14]
FE_DADD[5]
FE_DADD[15]

5

FE_DRASB

FE_BA[0]
FE_DCASB
FE_DCKE

FE_DADD[6]

FE_DADD[7]

6

7

DADD0
DADD1
DADD2
DADD3
DADD4
DADD5
DADD6
DADD7
DADD8

DADD9
DADD10
DADD11
DADD12

A9
B14
C10
A14
B11
A12
C12
D11
D10
A13
A16
A11
C13

FE_DADD[0]
FE_DADD[1]
FE_DADD[2]
FE_DADD[3]
FE_DADD[4]
FE_DADD[5]
FE_DADD[6]
FE_DADD[7]
FE_DADD[8]

FE_DADD[9]
FE_DADD[10]
FE_DADD[11]
FE_DADD[12]

FE_DADD[8]

FE_DCSB

FE_DADD[9] FE_DDR_DADD[9]

RB7203

FE_DADD[12] FE_DDR_DADD[12]
FE_DADD[3] FE_DDR_D ADD[3]
FE_DADD[1] FE_DDR_D ADD[1]
FE_DWEB

FE_BA[2] FE_DDR_BA[2]

8

B12

DADD14

B13

DADD15

D14

DBA0

C16

DBA1

B16

9

FE_1.8V

A4

C7200

10

6.3V
X6S

2012

C7201

10

6.3V
X6S

2012

C7202

0.01
25V

X7R

C7203

0.01
25V

X7R

C7204

0.01
25V

X7R

C7205

0.01
25V

X7R

C7206

0.01
25V

X7R

C7207

0.01
25V

X7R

C7210

0.01
25V

X7R

C7211

0.01
25V

X7R

C7212

0.01
25V

X7R

C7213

0.01
25V

X7R

C7214

0.01
25V

X7R

C7216

0.01
25V

X7R

C7217

0.01
25V

X7R

A15
A21
B4
B9
A10
B15
B21
C5
C9
C11
C14
C20
D6
D7
D12
D13
E14
D19
E7
E18
F13
F17
F18
F5

VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18
VDD18

DCSB1

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31

D18

E17

E19
A18
B18
D17
C19

E16

E20
B24
D21
A23
C22
D20
A24
C21

C6
E9
E6
C7

D8

B7
E8
F8

B1
D4
A1
A2
D5

C3

E5

C4

FE_DADD[14]
FE_DADD[15]

FE_BA[0]
FE_BA[1]
FE_BA[2]

FE_DDR_DQ[0]
FE_DDR_DQ[1]
FE_DDR_DQ[2]
FE_DDR_DQ[3]
FE_DDR_DQ[4]
FE_DDR_DQ[5]
FE_DDR_DQ[6]
FE_DDR_DQ[7]
FE_DDR_DQ[8]

FE_DDR_DQ[9]
FE_DDR_DQ[10]
FE_DDR_DQ[11]
FE_DDR_DQ[12]
FE_DDR_DQ[13]
FE_DDR_DQ[14]
FE_DDR_DQ[15]

FE_DDR_DQ[16]
FE_DDR_DQ[17]
FE_DDR_DQ[18]
FE_DDR_DQ[19]
FE_DDR_DQ[20]
FE_DDR_DQ[21]
FE_DDR_DQ[22]
FE_DDR_DQ[23]
FE_DDR_DQ[24]
FE_DDR_DQ[25]
FE_DDR_DQ[26]
FE_DDR_DQ[27]
FE_DDR_DQ[28]
FE_DDR_DQ[29]
FE_DDR_DQ[30]
FE_DDR_DQ[31]

22RB7200

FE_DDR_DADD[0]

1
3
5
7

1
3
5
7

1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

2

FE_DDR_DADD[2]

4

FE_DDR_DODT0

6

FE_DDR_DADD[11]

8

68RB7201

FE_DDR_DADD[4]

2

FE_DDR_DADD[14]

4

FE_DDR_DADD[5]

6

FE_DDR_DADD[15]

8

22RB7202

FE_DDR_DRASB

2

FE_DDR_BA[0]

4

FE_DDR_DCASB

6

FE_DDR_DCKE

8

FE_DDR_DADD[6]

10

FE_DDR_DADD[7]

12

FE_DDR_DADD[8]

14

FE_DDR_DCSB

16

22

2
4
6
8

10
12

FE_DDR_DADD[10]FE_DADD[10]

14
16

22R7209

FE_DDR_BA[1]FE_BA[1]

FE_DDR_DODT0

FE_DDR_DRASB

FE_DDR_DCASB
FE_DDR_DCKE

FE_DDR_DCSB

FE_DDR_DWEB

FE_DDR_DADD[0]
FE_DDR_DADD[1]
FE_DDR_DADD[2]
FE_DDR_DADD[3]
FE_DDR_DADD[4]
FE_DDR_DADD[5]
FE_DDR_DADD[6]
FE_DDR_DADD[7]
FE_DDR_DADD[8]
FE_DDR_DADD[9]
FE_DDR_DADD[10]
FE_DDR_DADD[11]

FE_DDR_DADD[12]
FE_DDR_BA[0]
FE_DDR_BA[1]
FE_DDR_BA[2]

FE_DDR_DM1
FE_DDR_DM0

FE_DDR_DQS1
FE_DDR_DQS1B FE_DDR_DQS3B
FE_DDR_DQS0
FE_DDR_DQS0B

150R7211 150R7215

FE_DDR_DCK0B

FE_DDR_DCKE

FE_DDR_DCSB
FE_DDR_DRASB
FE_DDR_DCASB

FE_DDR_DWEB

FE_DDR_DODT0 FE_DDR_DODT0

FE_DDR_DQ[0-31]

FE_DDR_DQS0,FE_DDR_DQS0B,FE_DDR_DQS1,FE_DDR_DQS1B,FE_DDR_DQS2,FE_DDR_DQS2B,FE_DDR_DQS3,FE_DDR_DQS3B

IC7200

EDE5116AJBG-6E-E

M8

A0

M3

A1

M7

A2

N2

A3

10R7219

N8

A4

10R7220

N3

A5

N7

A6

P2

A7

P8

A8

P3

A9

M2

A10

P7

A11

R2

A12

L2

BA0

L3

R7212 XX R7216 XX

BA1

L1

BA2

B3

UDM

F3

LDM

B7

UDQS

A8

UDQS#

F7

LDQS

E8

LDQS#

J8

CK

K8

CK#

K2

CKE

L8

CS#

K7

RAS#

L7

CAS#

K3

WE#

VSSDL

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

VREF

VDDL

NC
NC
NC
NC
NC

G8
G2
H7
H3
H1
H9

F1
F9
C8

C2
D7
D3
D1
D9

B1

B9

A2

E2

R3

R7

R8

J2

J1
J7

FE_DDR_DQ[0]
FE_DDR_DQ[1]
FE_DDR_DQ[2]
FE_DDR_DQ[3]
FE_DDR_DQ[4]
FE_DDR_DQ[5]
FE_DDR_DQ[6]
FE_DDR_DQ[7]
FE_DDR_DQ[8]

FE_DDR_DQ[9]
FE_DDR_DQ[10]
FE_DDR_DQ[11]
FE_DDR_DQ[12]
FE_DDR_DQ[13]
FE_DDR_DQ[14]
FE_DDR_DQ[15]

C7221

0.1

16V

C7220

0.1

16V

FE_1.8V

R7213 10k

0.5%

0.5%

FE_DDR_DM3
FE_DDR_DM2

FE_DDR_DCK1FE_DDR_DCK0

FE_DDR_DCK1B

FE_DDR_DCKE

FE_DDR_DCSB
FE_DDR_DRASB
FE_DDR_DCASB

FE_DDR_DWEB

FE_DDR_DADD[0]
FE_DDR_DADD[1]
FE_DDR_DADD[2]
FE_DDR_DADD[3]
FE_DDR_DADD[14]
FE_DDR_DADD[15]
FE_DDR_DADD[6]
FE_DDR_DADD[7]
FE_DDR_DADD[8]
FE_DDR_DADD[9]
FE_DDR_DADD[10]
FE_DDR_DADD[11]

FE_DDR_DADD[12]
FE_DDR_BA[0]
FE_DDR_BA[1]
FE_DDR_BA[2]

FE_DDR_DQS3

FE_DDR_DQS2
FE_DDR_DQS2B

R7214 10k

K9

ODT

A3

VSS

E3

VSS

J3

VSS

N1

VSS

P9

VSS

A7

VSSQ

B2

VSSQ

B8

VSSQ

D2

VSSQ

D8

VSSQ

E7

VSSQ

F2

VSSQ

F8

VSSQ

H2

VSSQ

H8

VSSQ

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VDD
VDD
VDD
VDD
VDD

A1

E1

J9

M9

R1

C7228

0.1

16V

C7229

0.1

16V

C7230

0.1

16V

C7231

0.1

16V

C7226

C7224

C7219

0.1

16V

C7222

0.1

16V

C7223

0.1

16V

0.1

16V

C7225

0.1

16V

0.1

16V

C7227

0.1

16V

A9

C1
C3
C7
C9

E9
G1
G3
G7
G9

FE_1.8V

C7232

6.3V
X6S

2012

10

IC7201

EDE5116AJBG-6E-E

M8

A0

M3

A1

M7

A2

N2

A3

N8

A4

N3

A5

N7

A6

P2

A7

P8

A8

P3

A9

M2

A10

P7

A11

R2

A12

L2

BA0

L3

BA1

L1

BA2

B3

UDM

F3

LDM

B7

UDQS

A8

UDQS#

F7

LDQS

E8

LDQS#

J8

CK

K8

CK#

K2

CKE

L8

CS#

K7

RAS#

L7

CAS#

K3

WE#

K9

ODT

A3

VSS

E3

VSS

J3

VSS

N1

VSS

P9

VSS

A7

VSSQ

B2

VSSQ

B8

VSSQ

D2

VSSQ

D8

VSSQ

E7

VSSQ

F2

VSSQ

F8

VSSQ

H2

VSSQ

H8

VSSQ

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

NC
NC
NC
NC
NC

VREF

VDDL

VSSDL

VDD
VDD
VDD
VDD
VDD

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

4

5

G8
G2
H7
H3
H1
H9

F1

F9
C8
C2
D7
D3
D1
D9
B1
B9

FE_DDR_DQ[16]
FE_DDR_DQ[17]
FE_DDR_DQ[18]
FE_DDR_DQ[19]
FE_DDR_DQ[20]
FE_DDR_DQ[21]
FE_DDR_DQ[22]
FE_DDR_DQ[23]
FE_DDR_DQ[24]
FE_DDR_DQ[25]
FE_DDR_DQ[26]
FE_DDR_DQ[27]
FE_DDR_DQ[28]
FE_DDR_DQ[29]
FE_DDR_DQ[30]
FE_DDR_DQ[31]

6

7

8

A2

E2
R3
R7
R8

C7235

0.1

16V

J2

J1
J7

A1

E1

J9
M9
R1

A9
C1
C3
C7
C9

E9
G1
G3
G7
G9

C7234

0.1

16V

C7233

0.1

16V

C7236

0.1

16V

C7237

0.1

16V

FE_1.8V

C7238

0.1

16V

C7239

0.1

16V

R7217 10k

R7218 10k

C7240

0.1

16V

C7241

0.1

16V

0.5%

0.5%

C7242

0.1

16V

C7243

0.1

16V

C7244

0.1

16V

C7245

0.1

16V

FE_1.8V

C7246

6.3V
X6S

2012

10

9

10

11

12

13

14

15

16

17

18

19

C7208

0.1

16V

FE_1.8V

R7200 10k

R7201 10k

0.5%

0.5%

FE_1.8V

R7202

150

C7215

0.1

16V

FE_1.8V

R7203

150

0.5%

FE_CKERSTE

C7218

0.1

16V

R7204

150

0.5%
FE_RQ0

FE_RQ1

E13
D15

E12

F15
F10

DRQ0
DRQ1

DCKERSTB

DVREF0
DVREF1

DQS0

DQSB0

DQS1

DQSB1

DQS2

DQSB2

DQS3

DQSB3

DCSB0
DRASB
DCASB

DW

DCKE

DCLKB0

DCLK0

DCLKB1

DCLK1

DQM0
DQM1
DQM2
DQM3

DODT0
DODT1

FE_DDR_DQS0

A17

FE_DDR_DQS0B

B17

FE_DDR_DQS1

A22

FE_DDR_DQS1B

B22

FE_DDR_DQS2

A8

FE_DDR_DQS2B

B8

FE_DDR_DQS3

A3

FE_DDR_DQS3B

B3

15

16

FE_DCSB

F7

FE_DRASB

F16

FE_DCASB

F12

FE_DWEB

C15

EB

FBA

17/22

17

FE_DCKE

B20
A20

F9

B5

A5

FE_DCK0B
FE_DCK0
FE_DCK1B
FE_DCK1

22R7205
22R7206
22R7207
22R7208

FE_DDR_DCK0B
FE_DDR_DCK0
FE_DDR_DCK1B
FE_DDR_DCK1

18

FE_DDR_DM0

C18
B23

A7

B2

FE_DDR_DM1
FE_DDR_DM2
FE_DDR_DM3

FE_DDR_DM0
FE_DDR_DM1
FE_DDR_DM2
FE_DDR_DM3

19

FE_DODT0

B10

FE_DODT1

E11

JL7200

20

21

22

IC7000

UPD61300F1-230-LU2-A

ABCDEF GH JIKLMN

O

20

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 17/22 ~

- 54 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

2

2

3

3

4

4

FBA - EG1H

5

5

FE_RADD[0-14]

FE_RADD[0-14]

10

11

12

13

14

15

16

FE_RADD[15-19]

FBA

6

18/22

PWB LA Y OUT NO TE:

6

Place fitted strap resistors in groups

FE_3.3V

STRAP SETTINGS

of 4 or 8 to allow replacement by
resistor arrays during later trial

PWB LA Y OUT NO TE:
Pin-swap allowed on

7

AE5

RADD0

AF4

RADD1

AG4

RADD2

8

9

HSDCLK/RADD15

HSDE/RADD16

PKTSTRT/RADD17

HSD0/RADD18
HSD1/RADD19
HSD2/RADD20
HSD3/RADD21
HSD4/RADD22
HSD5/RADD23
HSD6/RADD24
HSD7/RADD25

STP0DA TA0/RDA T A8

STP0DA TA1/RDA T A9
STP0DA TA2/RDA TA10
STP0DA TA3/RDA TA11
STP0DA TA4/RDA TA12
STP0DA TA5/RDA TA13
STP0DA TA6/RDA TA14
STP0DA TA7/RDA TA15

IC7000

UPD61300F1-230-LU2-A

RADD3
RADD4
RADD5
RADD6
RADD7
RADD8

RADD9
RADD10
RADD11
RADD12
RADD13
RADD14

RDATA0
RDATA1
RDATA2
RDATA3
RDATA4
RDATA5
RDATA6
RDATA7

FOEB
FWEB
FCSB0
FCSB1

GCSB0
GCSB1

GRDY

AH4

AJ3

AH3

AJ2

AH2

AJ1
AH1
AG2
AG1

AF3
AF2
AF1
AE4
AE3

AE2
AD5
AD4
AD2
AD1

AC4

AC3

AC2

AC1

AB4

AB3

AB2
AA5
AA4
AA2
AA1

Y4
Y3
Y2

Y1
W5
W4
W3
W2
W1

AF5

AH6

AJ5
AJ6

AH5
AG5
AG6

FE__RADD[0]
FE__RADD[1]
FE__RADD[2]
FE__RADD[3]
FE__RADD[4]
FE__RADD[5]
FE__RADD[6]
FE__RADD[7]
FE__RADD[8]

FE__RADD[9]
FE__RADD[10]
FE__RADD[11]
FE__RADD[12]
FE__RADD[13]
FE__RADD[14]
FE__RADD[15]
FE__RADD[16]
FE__RADD[17]
FE__RADD[18]
FE__RADD[19]

FE__RDAT[0]
FE__RDAT[1]
FE__RDAT[2]
FE__RDAT[3]
FE__RDAT[4]
FE__RDAT[5]
FE__RDAT[6]
FE__RDAT[7]
FE__RDAT[8]

FE__RDAT[9]
FE__RDAT[10]
FE__RDAT[11]
FE__RDAT[12]
FE__RDAT[13]
FE__RDAT[14]
FE__RDAT[15]

FE__FOEB

FE__FWEB

FE__FCS0B

FE__GCS0B

FE_CI_WAITB

FE__RADD[3]
FE__RADD[4]
FE__RADD[5]
FE__RADD[6]
FE__RADD[2]
FE__RADD[0]
FE__RADD[1]
FE__RADD[15]
FE__RADD[7]
FE__RADD[8]
FE__RADD[12]
FE__RADD[9]
FE__RADD[10]
FE__RADD[11]
FE__RADD[13]
FE__RADD[14]
FE__RADD[16]
FE__RADD[17]
FE__RADD[19]
FE__RADD[18]
FE__RDAT[12]
FE__RDAT[11]
FE__RDAT[7]
FE__RDAT[3]
FE__RDAT[4] FE_RDAT[4]

FE__RDAT[1]
FE__RDAT[2]
FE__RDAT[5]
FE__RDAT[6]
FE__RDAT[8]
FE__RDAT[9]
FE__RDAT[10]
FE__RDAT[13]
FE__RDAT[14] FE_CI_TSD[6]
FE__RDAT[15]
FE__FOEB
FE__FWEB
FE__GCS0B
FE__FCS0B

these resistor arrays
for optimal PWB layout

FE_RADD[3]

2

FE_RADD[4]

4

FE_RADD[5]

6

FE_RADD[6]

8

FE_RADD[2]

10

FE_RADD[0]

12

FE_RADD[1]

14

FE_RADD[15]

16

FE_RADD[7]

2

FE_RADD[8]

4

FE_RADD[12]

6

FE_RADD[9]

8

FE_RADD[10]

10

FE_RADD[11]

12

FE_RADD[13]

14

FE_RADD[14]

16

FE_RADD[16]

2

FE_RADD[17]

4

FE_RADD[19]

6

FE_RADD[18]

8

FE_CI_TSD[4]

2

FE_CI_TSD[3]

4
6
8

10
12
14
16

2
4

FE_CI_TSD[0]

6

FE_CI_TSD[1]

8

FE_CI_TSD[2]

10

FE_CI_TSD[5]

12
14

FE_CI_TSD[7]

16

2
4

6
8

FE_RDAT[7]
FE_RDAT[3]

FE_RDAT[0]FE__RDAT[0]
FE_RDAT[1]
FE_RDAT[2]
FE_RDAT[5]
FE_RDAT[6]

RB7300

47

RB7301

47

RB7305

47

RB7303

47

RB7304

47

RB7306

47

1

3
5
7
9

11
13
15

1

3
5
7
9

11
13
15

1

3

5
7

1

3
5
7
9

11
13
15

1

3
5
7
9

11
13
15

1

3

5
7

FE_RADD[0]
FE_RADD[1]
FE_RADD[2]
FE_RADD[3]
FE_RADD[4]
FE_RADD[5]
FE_RADD[6]
FE_RADD[7]
FE_RADD[8]
FE_RADD[9]
FE_RADD[10]
FE_RADD[11]
FE_RADD[12]
FE_RADD[13]
FE_RADD[14]

FE_RADD[15]

FE_RADD[16]

FE_RADD[17]
FE_RADD[18]
FE_RADD[19]

FE_FOEB
FE_FWEB
FE_CI_CE1B
FE_FCS0B

FE_NRBB

FE_FOEB

FE_FCS0B

FE_NCLE

FE_NALE
FE_FWEB
FE_NWPB

FE_RSTB

10kR7300

XXR7301

10kR7302

R7303

R7304

10kR7305

XX

XX

10kR7306

XXR7307

R7342

0

CHIP

FE_3.3V

R7308

10k

XXR7309

XXR7311

10kR7310

R7312 10 k

R7313

470

R7314

10kR7315

XXR7316

FE_3.3V

C7303

XX

XX

10kR7317

10kR7319

XXR7318

XXR7320

R7321 10 k

R7322 XX

X7R

C7300

XXR7323

10kR7324

25V0.01

XXR7327

XXR7332

R7325 10 k

XXR7326

10kR7328

10kR7329

10kR7330

10kR7331

R7333 10 k

IC7300

K9F1208U0C-PCB0T

1234567

N.C

N.C

N.C

N.C

N.C

N.C

N.C

N.C

N.C

IO8

N.C

IO7

RY_BY

IO6

RE

IO5

CE

N.C

N.C

N.C

N.C

N.C

VCC

VCC

GND

GND

N.C

N.C

N.C

1615141312111098
17 18 19 20 21 22 23

24

N.C

CLE

N.C

ALE

IO4

WE

IO3

WP

IO2

N.C

IO1

N.C

N.C

N.C

N.C

N.C

N.C

N.C N.C

R7334 10 k

XXR7335

42434445464748 41

40 39 38 37 36 35 34 33

32 31 30 29 28 27 26

25

XXR7336

10kR7339

XXR7340

R7337 10 k

C7301

1

10V

1608

X7R

C7302

7

R7341

470

R7338

470

CL7302

2.5mm

CL7303

2.5mm

JL7300

JL7301

To force Boot from MS:
connect (short) together
CL7302 & CL7303

Place CLs together and
in accessible location

STRAP SETTINGS

RADD[ 0] = CPU_ENDIAN = 1 = Big
RADD[ 1] = test = 0
RADD[ 2] = test = 0

8

RADD[ 4: 3] = CPUCLK_SEL[1:0] = 01 = 262.144MHz
RADD[ 5] = MCLK_SEL = 0 = 327.680MHz
RADD[ 6] = ROM_ENDIAN = 1 = Big
RADD[ 7] = ROM_BWSEL = 1 = 8-bit
RADD[10: 8] = BOOT_MODE[2:0] = 011 = NAND, then MS
RADD[12:11] = BOOT_NAND_SEL[1:0] = 01 = >=512Mb
RADD[13] = NAND_CS = 0 = CS0

9

RADD[14] = test = 0
RADD[15] = test = 0
RADD[16] = test = 0
RADD[17] = EJTAG_MODE = 1 = EJTAG
RADD[18] = DINT_EN = 0 = Disable
RADD[19] = DSYSELB = 1 = Only Main CPU

10

11

12

13

FE_RDAT[7]
FE_RDAT[6]
FE_RDAT[5]
FE_RDAT[4]

PWB LA Y OUT NO TE:
Place NAND-FLASH with consideration

25V0.01

FE_RDAT[3]
FE_RDAT[2]
FE_RDAT[1]
FE_RDAT[0]

for changing from TSOP to FBGA package

14

15

16

17

18

19

20

FE_CI_TSD[0-7],FE_RDAT[0-7]

17

FE_CI_TSD[0-7],FE_RDAT[0-7]

18

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

19

20

21

22

ABCDEF GH JIKLMN

O

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 18/22 ~

- 55 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

2

2

3

3

4

4

FBA - EG1H

FE_A_5V

5

6

R7409

200

C7403

CL7400

10p

50V

FB7400

XX

R7413 XX

L7401

XX

C7408
XX

C7410

XX

C7409

XX

R7415

XX

Q7404

XX

XXR7416

CL7402

FE_Y_RF_DIGIT AL

CL7403

5

6

10

11

12

13

14

7

7

R7414 0

8

FBA

9

FE_SDA_DIGITAL

FE_SCL_DIGIT AL

FE_SDA_EMMA

FE_SCL_EMMA

R7404

R7405

XX

XX

XX

D7400

Q7400

XX

FE_3.3V

R7400

TO DIGITAL TUNER

TO/FROM TVM (KAISER)

XX

XX

D7402

Q7402

XX

R7402

XX

19/22

FE_3.3V

2143658

4.7kRB7400

7

FE_AO0_BD0

FE_AO0_LRCK

FE_AO0_MCK

FE_AO0_BCK

FE_SPDIF

100RB7402

1
3
5
7

2
4
6
8

1

3
5
7

R7421

47

FE_EMMA_SCL0

FE_EMMA_SDA0

FE_EMMA_SCL1

FE_EMMA_SDA1

47RB7404

2
4
6
8

PWB LA Y OUT NO TE:
Pin-swap allowed on
this resistor array
for optimal PWB layout

E1

IIC_SCL0

E2

IIC_SDA0

F1

IIC_SCL1

F2

IIC_SDA1

AJ16

AO0_MCK

AH15

AO0_LRCK

AH16

AO0_BCK

AJ15

AO0_BD0

DAC_RSET0

AG15

ATX

IC7000

UPD61300F1-230-LU2-A

VAY

VAC

SVA VDD1
SVA VDD2
SVA VDD3

SVDVDD

DAC_COM0

DAC_REF0

SVA-GND1
SVA-GND2
SVA-GND3

P24

P23

N21
N20
N19
R19

P21

P20

P19

P22
R21
R20

C7400

0.1

16V

R7408

620

C7401

0.1

16V

R7410

200

C7402

10

6.3V
2012

C7404

10p

50V

CL7401

R7412

130

0.5%

FL7400

EMI

R7411

200

0.5%

C7407

10

6.3V
X6S

2012

FE_3.3V

R7417 XX

L7402

XX

C7411
XX

R7418 0

C7413

XX

C7412

XX

R7419

XX

Q7405

XX

8

9

XXR7420

CL7404

FE_C_RF_DIGIT AL

CL7405

10

11

12

13

14

15

16

17

18

XX

D7401

Q7401

XX

FE_3.3V

R7401

XX

XX

D7403

Q7403

XX

R7403

XX

R7406

R7407

15

16

17

XX

XX

18

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

19

20

21

22

ABCDEF GH JIKLMN

O

19

20

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 19/22 ~

- 56 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

1

1

FBA - EG1H

2

2

FE_3.3V

3

3

214365871091211141316

10kRB7518

PIN-SWAP ALLO WED ON

IC7000

UPD61300F1-230-LU2-A

4

FROM

TUNER OUTPUTS

FE_M_CKOUT,FE_M_DA TA[0-7],FE_M_SYNC,FE_M_VAL

FE_EMMA_VDO_C[3]

FE_EMMA_VDO_C[1]
FE_M_CKOUT
FE_M_DATA[0]
FE_M_DATA[1]
FE_M_DATA[2]

5

FE_3.3V

FE_M_DATA[3]
FE_M_DATA[4]
FE_M_DATA[5]
FE_M_DATA[6]
FE_M_DATA[7]

R7532

6

FBA

20/22

10k

R7531

10k

FE_RXD2B
FE_TXD2B

FE_M_VAL
FE_M_SYNC

JL7515

47R7500

7

FE_CI_IREQB

FE_CI_CD1B

FE_CI_VS1B

8

FE_CI_TSCLK

XX*RB7500

FE_CI_RSTB

FE_CI_REGB

FE_CI_IOWRB

9

FE_CI_IORDB

1

3
5
7

FE_EMMA_CI_RESET

2

FE_EMMA_CI_REGB

4

FE_EMMA_CI_IOWRB

6

FE_EMMA_CI_IORDB

8

FE_CI_CD2B

FE_CI_TSVAL

FE_CI_TSSYNC

XX*R7501

1

3
5
7

R7523 XX

47RB7503

2
4
6
8

47R7502

CL7505
CL7506

PPORT SHARED WITH 27M CLK OUT
FOR EVAL OF PULL RANGE - FOR PR ODUCT
THIS CAN BE DISABLED -> GPIO O/P =0

FE_CI_PWR_EN

FE_CI_OVRB

FE_CONF0

FE_DEMOD_RSTB

FE_LNA_SWB

FE_USB_OCIB

FE_USB_PPON

FE_CHINAT[0]

FE_TUNER_SW

PPORT ASSIGNED FOR CHINA TUNER, FOR
AEP IT SHOULD BE -> GPIO O/P =0

PPORT ASSIGNED FOR CHINA TUNER, FOR
AEP IT SHOULD BE -> GPIO O/P =0

FE_NWPB

FE_CHINAT[1]

FE_CI_TS_ENB

FE_CHINAT[2]

*R7525 47

XX*R7503

R7526 XX

47RB7504

FE_CI_ENB

FE_DAC_RSTB
FE_CI_ROM_DIR1
FE_VIDEO_MUTE

1

3
5
7

2
4
6
8

FE_JIG_MODE

FROM BE OSD
SYNC OUTPUTS

FE_VDOE_CLK_IN
FE_VDOE_VVSB_IN
FE_VDOE_VHSB_IN

JL7516

JL7520

JL7517

JL7500
JL7501

CL7515
CL7516
CL7517

K1

PPT0/STP0CLK/STS0CLK

L1

PPT1/STP0DAT0/STS0DAT

L2

PPT2/STP0DAT1

L3

PPT3/STP0DAT2

M1

PPT4/STP0DAT3

M2

PPT5/STP0DAT4

M3

PPT6/STP0DAT5

N2

PPT7/STP0DAT6

N3

PPT8/STP0DAT7

K2

PPT9/STP0EN/STS0EN

J1

PPT10/STP0STRT/STS0STRT

M4

PPT11/STP0ERRB/STS0ERRB

U4

PPT12/RXD2B

T4

PPT13/TXD2B

AF9

PPT14(READY/IREQB)

AD10

PPT15/IOIS16B

AE9

PPT16(CD1B)

AF7

PPT17/PCE0B

AD9

PPT18(VS1B)

V2

PPT19/STP0CLK

AF8

PPT20/IORDB

AE8

PPT21/IOWRB

AF10

PPT22(RESET)

AD8

PPT23

AB5

PPT24/REGB

AE10

PPT25(CD2B)

AD7

PPT26/PCE1B

V4

PPT27/STP0EN

V3

PPT28/STP0STRT

P5

PPT29/SMRST0

N5

PPT30/SMVCC0

M5

PPT31/SMOFF0

L5

PPT32/SMCLKD

K5

PPT33/SMDAT0

AG14

PPT34/USB_OCI1

AG13

PPT35/USB_PPON1

K4

PPT36/CLK27OUT

N4

PPT37/IR_IN1

P4

PPT38/IR_OUT

R5

PPT41/IR_IN0

T24

PPT46

T23

PPT47

AB20

PPT42/ROM_DIR1

AC20

PPT43/ROM_DIR2

Y20

PPT48/ROM_CI

AC19

PPT49/ROM_CI_PC

AA20

PPT50/ROM_PC

T22

PPT54

T21

PPT55

AD24

PPT56/VDOE_CLK_IN

U23

PPT57/VDOE_VVSB_IN

U24

PPT58/VDOE_VHSB_IN

PPT156/VDO_C7
PPT155/VDO_C6
PPT154/VDO_C5
PPT153/VDO_C4
PPT152/VDO_C3

PPT151/VDO_C2/PKTSTRT

PPT150/VDO_C1/HSDE

PPT149/VDO_C0/HSDCLK

PPT148/VDO_D7/VDO_Y7
PPT147/VDO_D6/VDO_Y6
PPT146/VDO_D5/VDO_Y5
PPT145/VDO_D4/VDO_Y4
PPT144/VDO_D3/VDO_Y3
PPT143/VDO_D2/VDO_Y2
PPT142/VDO_D1/VDO_Y1
PPT141/VDO_D0/VDO_Y0

PPT140/VDO_VCK

PPT139/VDO_VHSB/VDO0_FBLK

PPT138/VDO_VVSB

PPT137/VDO_FLD

PPT136/RMII_MDIO

PPT135/RMII_MDC

PPT134/RMII_REF_CLK

PPT133/RMII_RX_ER

PPT132/RTS0B/RMII_CRS_DV

PPT131/CTS0B/RMII_RXD1

PPT130/DSR0B/RMII_RXD0

PPT129/DTR0B/RMII_TX_EN

PPT128/DCD0B/RMII_TXD1

PPT127/RI0B/RMII_TXD0

PPT126/RXD0B

PPT53/TXD0B

PPT124

PPT125/NRBB

PPT123/NALE
PPT122/NCLE

PPT121/MSDATA3
PPT120/MSDATA2
PPT119/MSDATA1
PPT118/MSDATA0

PPT117/MSBS

PPT116/MSCLK

PPT115/MSDIR

PPT45/AO1_BD2
PPT44/AO1_BD1

PPT114/AO1_BD0

PPT113/AO1_BCK

PPT112/AO1_LRCK

PPT111/AO1_MCK

PPT110/VDI_D7/STP1CLK

PPT109/VDI_D6/STP1EN

PPT108/VDI_D5/STP1STRT
PPT107/VDI_D4/STP1ERRB
PPT106/VDI_D3/STP1DAT0
PPT105/VDI_D2/STP1DAT1
PPT104/VDI_D1/STP1DAT2
PPT103/VDI_D0/STP1DAT3

PPT102/VDI_VCK/STP1DAT4

PPT101/VDI_VHSB/STP1DAT5

PPT100/VDI_VVSB/CAPCOMP1

PPT99/VDI_FLD/CAPCOMP0

FE_EMMA_VDO_C[7]

L24

FE_EMMA_VDO_C[6]

K22

FE_EMMA_VDO_C[5]

K23

FE_EMMA_VDO_C[4]

K24

FE_EMMA_VDO_C[3]

J22

FE_EMMA_VDO_C[2]

J24

FE_EMMA_VDO_C[1]

H22

FE_EMMA_VDO_C[0]

H23

FE_EMMA_VDO_Y[7]

H24

FE_EMMA_VDO_Y[6]

G22

FE_EMMA_VDO_Y[5]

G24

FE_EMMA_VDO_Y[4]

F22

FE_EMMA_VDO_Y[3]

F23

FE_EMMA_VDO_Y[2]

F24

FE_EMMA_VDO_Y[1]

E23

FE_EMMA_VDO_Y[0]

E24

M24

M23
L22

M22

U3
T3
U1
R1
R2
T2
T1
P3
P2
P1

W19
Y19

AG18

AE7
AE6
AD6

AD20
AD21
AE20
AE21
AF20
AF21
AF19

AG16
AG17
AH18
AJ17
AH17
AJ18

J4
J3
H5
H4
H3
G4
G3
F3
G1
G2
H2
J5

1

3
5
7

RB7525

RB7510

1

3
5
7

FE_CONF2

22RB7506

2
4
6
8

7
5

47

3

1

1

3

47

5
7

47RB7507

2
4
6
8

R7524 XX

CL7544

CL7532
CL7530
CL7531

CL7529

47R7521

8
6
4
2

2
4
6
8

47R7505

1

3
5
7

1

3
5
7

R7533 47
R7534 22

FE_EMMA_VDO_C[0]
FE_EMMA_VDO_C[2]
FE_EMMA_VDO_C[6]
FE_EMMA_VDO_C[5]
FE_EMMA_VDO_C[4]
FE_EMMA_VDO_C[7]

FE_EMMA_VDO_Y[0]
FE_EMMA_VDO_Y[1]
FE_EMMA_VDO_Y[2]
FE_EMMA_VDO_Y[4]
FE_EMMA_VDO_Y[3]
FE_EMMA_VDO_Y[5]
FE_EMMA_VDO_Y[6]
FE_EMMA_VDO_Y[7]

FE_CONF3

FE_ETH_MDC
FE_ETH_RMII_REF_CLK
FE_ETH_RMII_RXER
FE_ETH_RMII_CRSDV
FE_ETH_RMII_RXD0
FE_ETH_RMII_RXD1
FE_ETH_MDIO
FE_ETH_RMII_TXEN
FE_ETH_RMII_TXD0
FE_ETH_RMII_TXD1
FE_RXD0B
FE_TXD0B

FE_MSINS

FE_NRBB
FE_NALE
FE_NCLE

RB7508

2

47

4
6
8

47RB7519

2
4
6
8

FE_VDI_D[7]
FE_VDI_D[6]
FE_VDI_D[5]
FE_VDI_D[4]
FE_VDI_D[3]
FE_VDI_D[2]
FE_VDI_D[1]
FE_VDI_D[0]

FE_VDI_CK

FE_CHINAT[3]

THESE RESISTORS

22RB7511

1

3
5
7

9

11
13
15

1

3
5
7

9

11
13
15

FE_AO1_BD1
FE_AO1_LRCK
FE_AO1_BCK
FE_AO1_BD2
FE_AO1_BD0
FE_AO1_MCK

FE_VDO_C[3]

2

FE_VDO_C[1]

4

FE_VDO_C[0]

6

FE_VDO_C[2]

8

FE_VDO_C[6]

10

FE_VDO_C[5]

12

FE_VDO_C[4]

14

FE_VDO_C[7]

16

22RB7513

FE_VDO_Y[0]

2

FE_VDO_Y[1]

4

FE_VDO_Y[2]

6

FE_VDO_Y[4]

8

FE_VDO_Y[3]

10

FE_VDO_Y[5]

12

FE_VDO_Y[6]

14

FE_VDO_Y[7]

16

2143658

10k

RB7526

FE_VDI_CK,FE_VDI_D[0-7]

PPORT ASSIGNED FOR CHINA TUNER, FOR
AEP IT SHOULD BE -> GPIO O/P =0

FE_DBG_RSTB

FE_TXD0B

CL7533

FE_RXD0B
FE_TXD1B
FE_RXD1B
FE_TXD2B
FE_RXD2B

FE_JIG_MODE

CL7534

FE_JTCK
FE_JTDO
FE_JTMS

FE_JTRST

FE_JTDI

FE_NMI

FE_VDO_C[0-7],FE_VDO_Y[0-7]

FE_VDO_VVSB
FE_VDO_VCK
FE_VDO_VHSB

TO BE 1120 INPUTS

DEBUG INTERFA CE

FE_MSINS

FE_MSBS

FE_MSDATA0

FE_3.3V

R7506

R7507

CL7539
CL7540

XX

10k

FE_MSCLK

FE_MSCLK
FE_MSBS

MEMORY STICK INTERFACE

FE_MSDATA0

7

FE_CONF3
FE_CONF2

FE_CONF1
FE_CONF0

15

R7516

10k

R7508

R7509

XXR7517

10kR7522

FE_3.3V

XX

10k

XXR7519

10kR7518

R7530

47

R7510

XX

R7511

10k

FIT FOR
JT AG

FIT FOR
EJT AG

R7512

R7513

10k

XX

JL7502

JL7503
JL7504

JL7505

1

+3V3D

2

GND

3

RST

4

NC

5

TXD0B_MAIN

6

RXD0B_MAIN

7

TXD1B_MAIN

8

RXD1B_MAIN

9

TXD3B_MAIN

10

RXD3B_MAIN

11

JIG_MAIN

12

+3V3D

13

GND

14

JTCK

15

JTDO

16

JTMS

17

JTRST

18

JTDI

19

EDINT

20

NMI

181871421 Q9733

JL7513

XX

FE_3.3V

JL7506
JL7507
JL7508

JL7510

JL7512

CN7500

182203311

1
2
3
4
5
6
7
8
9

10

JL7514

GND
BS
DA TA1/VCC
DATA0
DATA2
INS
DATA3
CLK
VCC
GND

CN7501

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

TO BE OSD
DATA INPUTS

TO BE OSD
DATA INPUTS

FE_VDOE_A[0-7]

FE_VDOE_R[0-7]

CL7500

CL7541

FE_VDOE_A[6]
FE_VDOE_A[5]
FE_VDOE_A[4]
FE_VDOE_A[7]
FE_VDOE_A[3]
FE_VDOE_A[2]
FE_VDOE_A[0]

FE_VDOE_R[7]
FE_VDOE_R[6]
FE_VDOE_R[5]
FE_VDOE_R[4]
FE_VDOE_R[3]
FE_VDOE_R[2]
FE_VDOE_R[1]
FE_VDOE_R[0]

1

3
5
7

9

11
13
15

1

3
5
7
9

11
13
15

TO BE OSD
SYNC INPUTS

47RB7501

FE_EMMA_VDOE_A[6]

2

FE_EMMA_VDOE_A[5]

4
6

FE_EMMA_VDOE_A[7]

8

FE_EMMA_VDOE_A[3]

10

FE_EMMA_VDOE_A[2]

12

FE_EMMA_VDOE_A[0]

14

FE_EMMA_VDOE_A[1]

16

47RB7521

FE_EMMA_VDOE_R[7]

2

FE_EMMA_VDOE_R[6]

4

FE_EMMA_VDOE_R[5]

6

FE_EMMA_VDOE_R[4]

8

FE_EMMA_VDOE_R[3]

10

FE_EMMA_VDOE_R[2]

12

FE_EMMA_VDOE_R[1]

14

FE_EMMA_VDOE_R[0]

16

FE_CONF1

FE_VDOE_VVSB_OUT

FE_VDOE_VHSB_OUT

FE_VDOE_CLK_OUT

CL7503

CL7502
CL7504

CL7501

47RB7505

1

3
5
7

2
4
6
8

FE_EMMA_VDOE_A[0]
FE_EMMA_VDOE_A[1]
FE_EMMA_VDOE_A[2]FE_EMMA_VDOE_A[4]
FE_EMMA_VDOE_A[3]
FE_EMMA_VDOE_A[4]
FE_EMMA_VDOE_A[5]
FE_EMMA_VDOE_A[6]
FE_EMMA_VDOE_A[7]FE_VDOE_A[1]

FE_EMMA_VDOE_R[0]
FE_EMMA_VDOE_R[1]
FE_EMMA_VDOE_R[2]
FE_EMMA_VDOE_R[3]
FE_EMMA_VDOE_R[4]
FE_EMMA_VDOE_R[5]
FE_EMMA_VDOE_R[6]
FE_EMMA_VDOE_R[7]

AG20

PPT59/VDOE_FLD

AJ20

PPT60/VDOE_CLK_OUT

AJ19

PPT61/VDOE_VVSB_OUT

AH20

PPT62/VDOE_VHSB_OUT

U22

PPT63/VDOE_A0

V24

PPT64/VDOE_A1

V22

PPT65/VDOE_A2

W24

PPT66/VDOE_A3

W23

PPT67/VDOE_A4

W22

PPT68/VDOE_A5

Y24

PPT69/VDOE_A6

Y22

PPT70/VDOE_A7

AA24

PPT71/VDOE_R0

AA23

PPT72/VDOE_R1

AA22

PPT73/VDOE_R2

AB24

PPT74/VDOE_R3

AB22

PPT75/VDOE_R4

AC24

PPT76/VDOE_R5

AC23

PPT77/VDOE_R6

AC22

PPT78/VDOE_R7

PPT98/AIBD/SCKINOUT

PPT97/AIBCK/SDOUT

PPT96/AILRCK/SDIN

PPT95/AIOMCK

PPT94/VDOE_B7
PPT93/VDOE_B6
PPT92/VDOE_B5
PPT91/VDOE_B4
PPT90/VDOE_B3
PPT89/VDOE_B2
PPT88/VDOE_B1
PPT87/VDOE_B0

PPT86/VDOE_G7
PPT85/VDOE_G6
PPT84/VDOE_G5
PPT83/VDOE_G4
PPT82/VDOE_G3
PPT81/VDOE_G2
PPT80/VDOE_G1
PPT79/VDOE_G0

AH14
AJ13
AH13
AJ14

AG23
AG24
AF22
AF24
AE22
AE23
AE24
AD22

AJ21
AG21
AJ22
AJ23
AJ24
AH22
AH24
AG22

47R7527
47R7528

JL7519

FE_SCKINOUT
FE_SDOUT

CSI I/F FOR SW DOWNLOAD
DIRECTION - E3SL to BE ONLY

JL7518

FE_EMMA_VDOE_B[7]
FE_EMMA_VDOE_B[6]
FE_EMMA_VDOE_B[5] FE_VDOE_B[2]
FE_EMMA_VDOE_B[4]
FE_EMMA_VDOE_B[3]
FE_EMMA_VDOE_B[2]
FE_EMMA_VDOE_B[1]
FE_EMMA_VDOE_B[0]

FE_EMMA_VDOE_G[7]
FE_EMMA_VDOE_G[6]
FE_EMMA_VDOE_G[5]
FE_EMMA_VDOE_G[4]
FE_EMMA_VDOE_G[3]
FE_EMMA_VDOE_G[2]
FE_EMMA_VDOE_G[1]
FE_EMMA_VDOE_G[0]

FE_EMMA_VDOE_B[0]
FE_EMMA_VDOE_B[1]
FE_EMMA_VDOE_B[2]
FE_EMMA_VDOE_B[3]
FE_EMMA_VDOE_B[4]
FE_EMMA_VDOE_B[5]
FE_EMMA_VDOE_B[6]
FE_EMMA_VDOE_B[7]

FE_EMMA_VDOE_G[0]
FE_EMMA_VDOE_G[1]
FE_EMMA_VDOE_G[2]
FE_EMMA_VDOE_G[3]
FE_EMMA_VDOE_G[4]
FE_EMMA_VDOE_G[5]
FE_EMMA_VDOE_G[6]
FE_EMMA_VDOE_G[7]

47RB7522

1
3
5
7
9

11
13
15

1
3
5
7
9

11
13
15

2
4
6
8

10
12
14
16

47RB7523

2
4
6
8

10
12
14
16

FE_VDOE_B[0]
FE_VDOE_B[1]

FE_VDOE_B[3]
FE_VDOE_B[4]
FE_VDOE_B[5]
FE_VDOE_B[6]
FE_VDOE_B[7]

FE_VDOE_G[0]
FE_VDOE_G[1]
FE_VDOE_G[2]
FE_VDOE_G[3]
FE_VDOE_G[4]
FE_VDOE_G[5]
FE_VDOE_G[6]
FE_VDOE_G[7]

CL7542

CL7543

FE_VDOE_B[0-7]

FE_VDOE_G[0-7]

TO BE OSD
DATA INPUTS

TO BE OSD
DATA INPUTS

EG1H

PROTO 1

FE_CONF3

PPORT137

PPORT99
FE_CONF1 PPORT59
FE_CONF0

PPORT31

0
0FE_CONF2
0
0

S/W OPTION SELECT RESIST ORS

17

18

19

20

21

22

PIN-SWAP ALLO WED ON
THESE RESISTORS

ABCDEF GH JIKLMN

O

21

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 20/22 ~

- 57 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

2

2

3

3

4

4

5

5

FBA - EG1H

10

11

12

13

6

6

7

7

FBA

8

9

FE_ETH_3.3V_A

910

8
7
6
5
4
3
2
1

CN7600

TDK RJ-45
TLA-6T724

C7600

10

21/22

FE_ETH_3.3V

FB7603

0uH

D7600XXD7601XXD7602XXD7603

XX

FE_ETH_1.8V_OUT

FB7601 0uHFB7600 0uH

C7616

10

FE_3.3V FE_ETH_3.3V_A

C7601

XX

R7600

100

C7602

10

FB7602 0uH

C7603

0.1

R7634

100

C7617

R7601

100

C7606

0.1

10

R7635

100

FE_ETH_1.8V_AFE_ETH_1.8V

C7604

XX

C7605

10

R7602

100

R7636

100

R7603

100

C7607

0.1

FE_RSTB

FE_ETH_3.3V_A

FE_ETH_1.8V_OUT

C7608

0.1

R7637

100

C7609

0.1

FE_ETH_1.8V_A

C7610

0.1

FE_ETH_3.3V

R7609

XX

D7604

XX

SPEED LINKA CT

44

45

46

47

48

NC

NC

NC

NC

12345678

GND
GND
GND
VDDA_1.8
VDDA_1.8
V1.8_OUT
VDDA_3.3
VDDA_3.3

9101112

RX­RX+
TX­TX+

RST#

GNDXOXI

131415

REXT

GND

17181920212223

16

XX

42

43

LED0

LED1

IC7600

MDIO

MDC

R7611

XX

D7605

39

40

41

TXD3

CRS / CFG1

COL / CFG0

RXDV/CFG2

VDDIO_3.3
VDDIO_3.3

RXD3 / PHY ADD0

RXD2 / PHY ADD1

RXD1 / PHY ADD2

37

38

GND

TXD2

INTRP

VDD_1.8

RXD0

GND

24

TXD1
TXD0

TXEN

TXC

GND

RXER

RXC

2930313233343536

25262728

FE_ETH_1.8V

FE_ETH_3.3V

10

C7618

10

C7613

C7612

0.1

C7614

0.1

1
3
5
7

47

RB7600

2
4
6
8

4.7k

R7612

SPEED
AUTONEGO
CONFIG[1]
CONFIG[0]

ISOLA TE
CONFIG[2]

DUPLEX

PHY ADD[2]
PHY ADD[1]
PHY ADD[0]

4.7k

R7613

XX

4.7k

R7615

XX

XX

R7617

1k

4.7k

R7619

XX

XX

R7621XXR7623

1k

1k

4.7k

R7625

XX

XX

R7627

1k

XX

R7629

1k

FE_ETH_3.3V

4.7k

R7631

XX

CL7609

CL7602
CL7603
CL7604

CL7605
CL7606

CL7607

CL7608

CL7610
CL7611

FE_ETH_RMII_TXD1
FE_ETH_RMII_TXD0
FE_ETH_RMII_TXEN

FE_ETH_RMII_RXER
FE_ETH_RMII_CRSDV

FE_ETH_RMII_RXD0

FE_ETH_RMII_RXD1

FE_ETH_MDC
FE_ETH_MDIO

8

9

10

11

12

13

14

15

16

17

KC2520B

E/D VDD
GND

OUT

X7600

CL7600

FE_ETH_3.3V

C7611

0.1

C7615

100p

CL7601

R7606

100

R7605

6.8k

R7607

47

R7608

120k

47R7610

= 6.49k

R7638

XX

PLACE R7638 CLOSE TO IC7000
MOUNT R7638 IN CASE

OF NO ETHERNET

R7614

R7616

R7618

R7620

R7622

R7624

R7626

R7628

R7630

R7632

FE_ETH_RMII_REF_CLK

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

14

15

16

17

18

19

20

21

18

19

20

21

22

ABCDEF GH JIKLMN

O

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 21/22 ~

- 58 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

18

19

20

21

1

FBA - EG1H

1

FE_3.3V

2

2

*R7700

10k

FE_CI_ENB

FE_CI_CE1B

3

FE_FOEB

FE_CI_IORDB

FE_CI_IOWRB

FE_FWEB

FE_CI_RSTB

FE_CI_REGB

FE_CI_CE1B

FE_FOEB

FE_CI_IORDB

FE_CI_IOWRB

FE_FWEB

FE_CI_RSTB

FE_CI_REGB

3

4

4

TS from CAM

FE_3.3V

FE_3.3V

TS to CAM

*R7712

5

FBA

22/22

6

FE_CI_IREQB

FE_CI_WAITB

FE_RADD[0-14]

2143658

10k

RB7709

7

FE_CI_IREQB

FE_CI_WAITB

FE_CI_RSTB

FE_CAM_TSOD[3]
FE_CAM_TSOD[4]

FE_CAM_IREQB

FE_CAM_TSOD[5]

7

FE_CAM_TSOD[6]
FE_CAM_TSOD[7]

FE_CI_CE1B

8

FE_RADD[8]

FE_FOEB

9

FE_RADD[9]

FE_CI_IORDB

FE_RADD[11]

FE_CI_IOWRB

FE_RADD[10]

FE_FWEB

FE_M_CKOUT,FE_M_DATA[0-7],FE_M_SYNC,FE_M_V AL

TS to CAM

FE_RADD[12]

FE_M_DAT A[3]

FE_RADD[13]
FE_M_DAT A[2]
FE_M_DAT A[1]
FE_M_DAT A[0]
FE_M_SYNC

FE_RADD[14]

FE_3.3V

*R7736

10k

FE_CI_TS_ENB

FE_M_DAT A[7]
FE_M_CKOUT

FE_M_DAT A[6]
FE_M_DAT A[5]
FE_M_DAT A[4]
FE_M_VAL

FE_CI_TSD[0-7]

TS to EMMA

FE_CI_TSD[7]

FE_CI_TSD[3]

FE_CI_TSCLK,FE_CI_TSSYNC,FE_CI_TSV AL

FE_RDAT[0-7]

FE_CI_CE1B

FE_CI_ROM_DIR1

FE_RDAT[7]
FE_RDAT[6]
FE_RDAT[5]
FE_RDAT[4]
FE_RDAT[3]
FE_RDAT[2]
FE_RDAT[1]
FE_RDAT[0]

10k

*C7703

FE_3.3V

0.1

*IC7701

12345678

DIR
A0
A1
A2
A3
A4
A5
A6

910

A7

VCC

74L VC245APW -118

20 19 18 17 16 15 14 13

OE

B0
B1
B2
B3
B4
B5

12 11

B6

GND B7

FE_RDAT[0]

FE_RDAT[1]

FE_RDAT[2]

FE_RDAT[3]

FE_RDAT[4]

FE_RDAT[5]

214365871091211141316

RB7714

FE_CAM_DAT[7]
FE_CAM_DAT[6]
FE_CAM_DAT[5]
FE_CAM_DAT[4]
FE_CAM_DAT[3]
FE_CAM_DAT[2]
FE_CAM_DAT[1]
FE_CAM_DAT[0]

FE_RDAT[6]

FE_RDAT[7]

15

FE_CI_TSD[6]

FE_CI_TSD[5]

FE_CI_TSD[2]

FE_CI_TSD[1]

FE_CI_TSD[0]

214365871091211141316

10k

RB7713

FE_CI_TSD[4]

2143658

10k

RB7712

15

FE_CI_TSCLK

FE_CI_TSVAL

FE_CI_TSSYNC

7

FE_RADD[7]

FE_RADD[6]
FE_RADD[5]
FE_RADD[4]
FE_RADD[3]
FE_RADD[2]
FE_RADD[1]
FE_RADD[0]

FE_CAM_WAITB

FE_CAM_TSOCLK

FE_CI_REGB

FE_CAM_TSOV AL
FE_CAM_TSOSYNC
FE_CAM_TSOD[0]
FE_CAM_TSOD[1]
FE_CAM_TSOD[2]

10k

FE_3.3V

*C7708

0.1

*IC7704

12345678

OE1
A0
A1
A2
A3
A4
A5
A6

910

A7

VCC

OE2

Y0
Y1
Y2
Y3
Y4

74L VC541APW

Y5
Y6

20 19 18 17 16 15 14 13

12 11

GND Y7

*C7709

0.1

*IC7705

12345678

OE1
A0
A1
A2
A3
A4
A5
A6

910

A7

VCC

OE2

Y0
Y1
Y2
Y3
Y4

74L VC541APW

Y5
Y6

20 19 18 17 16 15 14 13

12 11

GND Y7

*C7710

0.1

*IC7706

12345678

OE1
A0
A1
A2
A3
A4
A5
A6

910

A7

VCC

OE2

Y0
Y1
Y2
Y3
Y4

74L VC541APW

Y5
Y6

20 19 18 17 16 15 14 13

12 11

GND Y7

*C7711

0.1

*IC7707

1 2345678

910

OE1
A0
A1
A2
A3
A4
A5
A6
A7

VCC

OE2

Y0
Y1
Y2
Y3
Y4

74L VC541APW

Y5
Y6

20 19 18 17 16 15 14 13

12 11

GND Y7

*C7712

0.1

*IC7708

1 2345678

910

OE1
A0
A1
A2
A3
A4
A5
A6
A7

VCC

OE2

Y0
Y1
Y2
Y3
Y4

74L VC541APW

Y5
Y6

20 19 18 17 16 15 14 13

12 11

GND Y7

*C7713

0.1

*IC7709

12345678

OE1
A0
A1
A2
A3
A4
A5
A6

910

A7

VCC

OE2

Y0
Y1
Y2
Y3
Y4

74L VC541APW

Y5
Y6

20 19 18 17 16 15 14 13

12 11

GND Y7

*RB7716 47

1
3
5
7
9

11
13
15

2
4
6
8

10
12
14
16

PLACE CLOSE TO IC7704

1
3
5
7

*RB7707 47

1
3
5
7

PLACE CLOSE TO IC7705

1
3
5
7

1
3
5
7

PLACE CLOSE TO IC7707

*R7718 47

1
3
5
7

1
3
5
7

1
3
5
7

*RB7717 47

1
3
5
7
9

11
13
15

2
4
6
8

10
12
14
16

PLACE CLOSE TO IC7709

47

*RB7718

47

*RB7719

47

*RB7720

*R7738

47

*R7739

47

47

*RB7722

47

*RB7723

5

FE_3.3V

179376922

10k

10k

10k

FE_CAM_DAT[3]

FE_CAM_DAT[4]

FE_CAM_TSOD[3]

FE_CAM_DAT[5]

FE_CAM_TSOD[4]

FE_CAM_DAT[6]

FE_CAM_TSOD[5]

FE_CAM_DAT[7]

FE_CAM_TSOD[6]

FE_CI_TSD[3]
FE_CI_TSD[4]

FE_CI_TSD[5]
FE_CI_TSD[6]
FE_CI_TSD[7]

FE_CAM_RSTB

FE_CI_IREQB

FE_CAM_CE1B

FE_CI_CD1B
FE_CI_CD2B
FE_CI_VS1B

R7726

R7725

R7727

*R7722 100

FE_CAM_CE1B

FE_CAM_TSOD[7]

FE_CAM_ADD[10]

*R7733 1 k

FE_CAM_OEB

*R7724 100

FE_CAM_ADD[11]

FE_CAM_IORDB

FE_CAM_ADD[9]

FE_CAM_IOWRB

FE_CAM_ADD[8]

2
4
6
8

FE_CAM_ADD[8]
FE_CAM_ADD[9]

FE_CAM_ADD[11]
FE_CAM_ADD[10]

FE_CAM_ADD[13]

FE_CAM_ADD[14]

FE_CAM_TSISYNC

FE_CAM_TSID[0]

FE_CAM_TSID[1]

FE_CAM_WEB

2
4
6
8

2
4
6
8

FE_CAM_ADD[12]
FE_CAM_ADD[13]

FE_CAM_ADD[14]

FE_CAM_WEB

FE_CAM_IOWRB

FE_CAM_IORDB

FE_CAM_OEB

FE_CAM_IREQB

FE_CAM_ADD[12]

FE_CAM_TSID[2]

FE_CAM_TSID[3]

FE_CAM_TSIVAL
FE_CAM_TSID[4]
FE_CAM_TSICLK
FE_CAM_TSID[5]

*R7729 1 0k

FE_CAM_TSID[6]

2
4
6
8

FE_CAM_TSID[3]
FE_CAM_TSID[2]
FE_CAM_TSID[1]
FE_CAM_TSID[0]

FE_CAM_TSISYNC

FE_CAM_RSTB

FE_CAM_ADD[7]

FE_CAM_ADD[6]

FE_CAM_ADD[5]

FE_CAM_TSID[7]

FE_CAM_TSOCLK

*R7734 47

FE_CAM_ADD[4]

FE_CAM_WAITB

FE_CAM_ADD[3]

FE_CAM_ADD[2]

*R7730 1 0k

*R7731

10k

FE_CAM_REGB

FE_CAM_ADD[1]

FE_CAM_TSOV AL

FE_CAM_ADD[0]

FE_CAM_TSOSYNC

FE_CAM_TSID[7]

47*RB7721

2
4
6
8

FE_CAM_TSICLK

FE_CAM_TSID[6]
FE_CAM_TSID[5]

FE_CAM_TSID[4]

FE_CAM_TSIVAL

FE_CAM_DAT[0]

FE_CAM_TSOD[0]

FE_CAM_DAT[1]

FE_CAM_TSOD[1]

FE_CAM_DAT[2]

FE_CAM_TSOD[2]

*R7723 100

JL7700

*R7735
1k

2
4
6
8

2
4
6
8

FE_CAM_ADD[7]
FE_CAM_ADD[6]
FE_CAM_ADD[5]
FE_CAM_ADD[4]

FE_CAM_ADD[3]
FE_CAM_ADD[2]
FE_CAM_ADD[1]
FE_CAM_ADD[0]

FE_CAM_ADD[13]

FE_CAM_ADD[14]

2143658

10k

*RB7715

FE_CAM_ADD[12]

7

FE_CI_PWR_EN

FE_CI_WAITB

FE_CI_TSCLK

FE_CAM_REGB

FE_CI_TSVAL

FE_5V

*C7714

0.1

5V SWITCH

*IC7710

MIC2005-0.5YM6TR

123

VIN

GND

EN

0.5A CUTOFF

FE_3.3V

RB7706

10k

1
3

5
7

VOUT

CSLEW

FAULT

2
4

6
8

1005

456

*C7717

0.001

X7R

50V

*FB7709
0uH

X7R

FE_CI_OVRB

*C7716

0.1

*C7715

4.7
10V
2012

JL7701

A1

GND

B1

GND

A2

D3

B2

CD1#

A3

D4

B3

MDO3

A4

D5

B4

MDO4

A5

D6

B5

MDO5

A6

D7

B6

MDO6

A7

CE1#

B7

MDO7

A8

A10

B8

CE2#

A9

OE#

B9

VS1#

A10

A11

B10

IORD#

A11

A9

B11

IOWR#

A12

A8

B12

MISTRT

A13

A13

B13

MDI0

A14

A14

B14

MDI1

A15

WE#

B15

MDI2

A16

IREQ#

B16

MDI3

A17

VCC

B17

VCC

A18

VPP1

B18

VPP2

A19

MIVAL

B19

MDI4

A20

MCLKI

B20

MDI5

A21

A12

B21

MDI6

A22

A7

B22

MDI7

A23

A6

B23

MCLKO

A24

A5

B24

RESET

A25

A4

B25

WAIT#

A26

A3

B26

INP ACK#

A27

A2

B27

REG#

A28

A1

B28

MOV AL

A29

A0

B29

MOSTRT

A30

D0

B30

MDO0

A31

D1

B31

MDO1

A32

D2

B32

MDO2

A33

IOIS16#

B33

CD2#

A34

GND

B34

GND

*CN7700

BLK

6

7

8

9

10

11

PCMCIA D VB-CI CONNECT OR

12

13

14

15

68P

16

17

18

19

FE_CI_TSSYNC
FE_CI_TSD[0]
FE_CI_TSD[1]
FE_CI_TSD[2]

20

CTRL to/from CAM

21

22

ABCDEF GH JIKLMN

O

ADDR to CAM

D ATA to/from CAM

P

Q

R

S

T

- 59 -

U

All JL’s are 0.6mm unless otherwise stated
All R’s & C’s are size 1005 unless otherwise stated

V

W

X

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

Y

Z

AA

BB

CC

DD

EE

FF

~ FBA Board Schematic Diagram [ Front/Backend ] Page 22/22 ~

22

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

18

19

20

21

1

G6 - EG1H

1

Mount Mecha

411285321

H=26.5mm
L=165mm
Hole: 7

A6001

*A6015

*A6007

411285311

411285321

*C6022

XX

*R6010

1M
1/10W
RN-CP

1608

*JW6077

7.5

*R6013

XX

*JW6020

GND_2

*C6019

0.01
50V

XX

30

*C6023

XX

Mount Mecha

2

3

Mount Mecha

D6000

Q6500,Q6501,TH6300,D6502

XX

Q6500,Q6501,TH6300,D6502

12

1

*EY6541

H=26.5mm
L=120mm
Hole: 9

H=26.5mm

8

240uH

5

*EY6532

7

6

*EY6537

XX

10

11

12

2

*L6506

XX

7618

9

5

*EY6538

XX

10

2

*L6504

*EY6520

12

1

2

L=165mm
Hole: 7

1M

*C6020

0.01
50V
X7R

*CN6005

*CN6000

C6013

0.01
50V
X7R

*R6012
1/10W

RN-CP

1608

AC IN<N>

AC IN<L>

2P

XX

AC IN<N>

AC IN<L>

*JW6044

*C6016

0.01

*C6021

1M

0.01
50V
X7R

5%

1608

R6015

560k

1/4W

RN-CP

0.5%
3216

JW6090

XX

R6004

XX

R6000

XX

JL6001

1
2

*EY6021

EY6001

XX

1

XX „

3

*EY6000

C6000

Mount Mecha

R6001

XX

XX

3.2mm

VKgp ~

XX

*A6014

EY6023

1

EY6022

C6014

4700p
250V

F

R6017
1/10W

RN-CP

R6018

470k
1/10W
RN-CP

2012

EY6037

JW6089

R6022

XX

6.8

1.6W
RB

EY6038

*EY6018

XX

*R6009

*JW6087

XX

10W

RB

*EY6019

XX

C6018

0.22
310V

PP

JW6000XXJW6001

*C6006

470p

FB6000

250V

0uH

B

*EY6008

XX

1

R6005

XX

23

*EY6011

XX

1

*EY6010 *EY6014

23

„

*C6007

220p

250V

B

*EY6004

XX

1

23

*EY6003

XX

„

1

23

C6001

XX

JL6005

JL6004

4.2mm

CA6000

VKgp ~

GND_2

3

‘

4

100k

2012

31

24

R6006

XX

VD6001

D6303

XX

R6318

D6302

C6012

XX

*L6001

XX

*L6003

8mH

C6008

XX

*L6000

XX

*L6002

8mH

C6002
310V

0.22
PP

C6003

XX

VD6000

CA6001

411285311

D15XB60

‘

2

EY6025

EY6024

C6015
4700p

250V

R6019

RN-CP

D6003

MA4J1130GLS0

EY6026

EY6029

XX

XX

JW/FBd¸u«

XX

FB6001

0uH

GND_2

*EY6009

4

*EY6015

4

*EY6032*EY6031

*C6011

220p
250V

GND_2

*EY6005

4

*EY6007

XX

4

C6004

XX

GND_2

D6000

F

560k

1/4W

0.5%

1

234

R6331

XX

*C6010

250V

XX

R6007

XX

XX

B

XX

*EY6006*EY6002

*EY6017*EY6016

*C6500

RY6000

470p

B

250V

2.2

450V

PT

R6332

XX

R6327

XX

R6328

XX

R6330

XX

R6002

8A

4.2mm

JW6082

*JW6002

*JW6003
*JW6075

*JW6076

XX

*F6001

EY6042

C6005

Q6508,Q6509,TH6301

*L6500

*EY6502

XX

XX

*L6503

160uH

*C6503

XX

FB6002XXFB6003

XX

XX

C6009

XX

GND_5

*EY6035

XX

XX

XX
XX

*EY6036

XX

XX

D6306

XX

PH6303

XX

R6413

XX

R6008

XX

R6003

XX

JW6081

7.5

EY6041

New Use Prohibition

New Use Prohibition

VKgp ~

VKgp ~

3.2mm
CA6003

CA6002

XX

H=26.5mm
L=120mm
Hole: 9

*EY6503

XX

*EY6544*EY6543

*C6506

XX

C6017

XX

GND_4

AC OUT(L)

1

AC OUT(N)

2

R6336

4.7

1/10W

RN-CP

5%

R6350

R6337

XX

R6411

XX

R6412

XX

R6401

XX

R6402

XX

GND_5

DIPA[X[q´

GND_1

DIPA[X[q´

GND_4

DIPA[X[q´

*CN6004

XX

XX

GND_1

ET6005

1

ET6000

XX

ET6001

XX

ET6002
DIPA[X[q´

JW6083

E

XX

t@Xgƒ“

E

E

E

*JW6008

22.5

*JW6011

XX

*C6533

2.2

*JW6029XX*JW6030

XX

SLAVE

REG_12V

001:13C;002:16A

Q6405

XX

JL6407

PROT1
001:14I

C6406

XX

GND_1

CN6003

XX

E

ET6006

E

ET6004

XX

DIPA[X[q´

1

t@Xgƒ“

CN6002

XX

1

t@Xgƒ“

CN6001

XX

C6525

001:5H

GND_3

GND_2

XX

XX

Mount Mecha

GND_1

Mount Mecha

Mount Mecha

Mount Mecha

Mount Mecha

Mount Mecha

Mount Mecha

Mount Mecha

Mount Mecha

Mount Mecha

Mount Mecha

C6520

470p

1kV

D

C6521

470p

1kV

D

R6510

22
2W
RS

R6535

R6503

47k

1k

1/10W

1/10W

RN-CP

RN-CP

2012

2012

R6536

R6508

47k

1k

1/10W

1/10W

RN-CP

RN-CP

2012

2012

C6510

0.1

25V

X7R

R6506

20k

1/10W

RN-CP

C6511
1000p

50V

CH

R6507

2.2M

1/10W

RN-CP

D6510

MAZ8110G0LS0

R6519

22k

1/10W

RN-CP

5%

1608

A6016

*A6013

*A6000

A6000‚ÆA6013d¸u«

A6004

A6005

*A6008

*A6010

A6010‚ÆA6008d¸u«

*A6006

*A6009

*A6011

A6011‚ÆA6009d¸u«

*A6012

C6514

470p

1kV

D

C6515

470p

1kV

D

R6509

22
2W
RS

R6555XXR6556

C6532

10p

50V

CH

1608

R6534

10k

1/10W

RN-CP

5%

404240802

345213401

410314301

410314301

410314301

345213401

410314301

410314301

345213401

410314301

410314301

R6016

4

1M
1/10W
RN-CP

5

*R6021

6

*R6011

1M

1/10W

RN-CP

7

8

9

MASTER

*EY6504

S

*EY6505

XX

C6531

10p
50V
CH

1608

C6513

0.22
25V

B

2012

C6522

1

25V

X7R

2012

R6527

330k
1/10W
RN-CP

0.5%

Q6503

ISA1235AC1TP-1EF

R6528

330k

1/10W
RN-CP

0.5%

XX

XX

XX

XX

XX

XX

XX

XX

EY6510

S

EY6511

*Q6508

XX

RB

5W

0.1

R6533

R2A20112DD#U0

IC6500

ZCD-M

ZCD-S

NC

VREF

SGND

654321

RT

RAMP

87

COMP FB

R6529

100

1/10W

RN-CP

5%

C6523

10

50V

MA2J1110GLS0

*JW6078

XX

*JW6072

XX

*JW6073

*JW6074

XX

*JW6091

5

XX

JW6092

XX

Q6501

2SK3934(LBS1SONY.Q

R6540

0

CHIP

31

D6501

*R6550

24

*D6507

47k

2012

1k

2012

D6503

50V

CH

XX

XX

Q6504

*R6504

470

1/10W

RN-CP

0.5%

C6508
1000p

50V

CH

R6568

XX

24

*R6520

XX

*R6548

0

*R6549

10k

VCC

GD-M

PGND

GD-S

NC

OCP-M

OCP-S

MA2J1110GLS0

SLAVE

D6512

JL6523

R6513

10k

1/10W

RN-CP

5%

31

16 15 14 13 12 11

10 9

C6512

XX

D6504

001:3D

R6554
1/10W

RN-CP

R6541
1/10W

RN-CP

MA2J1110GLS0

2SC3052EF-T1-LEF

JL6522

R6542

C6504

100k

1000p
1/10W
RN-CP

5%

Mount ID JW for (SS)
Mount ID JW for (S)
Mount ID JW for (M)

Mount ID JW for (L)

Destination-ID JW for J

Destination-ID JW for C

*R6515

10

1/10W

RN-CP

5%

XX

*R6505

470

1/10W

RN-CP

0.5%

R6501

C6509

220

1/10W

RN-CP

D6518

MA2J1110GLS0

SLAVE OPENo

R6543

100k
1/10W
RN-CP

5%

R6571

100

1/10W

RN-CP

5%

8

5

*EY6542

*D6515

XX

*R6562

XX

*D6516

XX

*R6532

100

1/4W

FPRD

Q6506

R6502

220

1/10W

RN-CP

D6519

MAZ8033G0LS0

GD-M

001:6E

D6508

C6505

XX

7

6

C6535

25V
X7R

1608

C6527

100

50V

*R6326

10

*L6505

240uH

*R6563

0

*R6564

0

2SA1364-T111-1DE

1000p

50V

CH

MAZ8056G0LS0

*EY6535

Q6510

XX

D6506

MA22F20

*R6565

XX

R6518

100

1/10W

RN-CP

5%

C6518

0.1
25V
X7R
1608

GD-M

001:6I

R6569

100

1/10W

RN-CP

5%

1608

0.1

R6545

22k
1/10W
RN-CP

5%

R6546

22k
1/10W
RN-CP

5%

Q6505

2SC3052EF-T1-LEF

JL6524

R6544

100k
1/10W
RN-CP

5%

JL6525

G6Mp

0

1608

CHIP

*R6325

XX

*TH6300

*TH6301

11

12

2

*L6507

XX

S

C6519

47

35V

R6521

1M

1/10W

RN-CP

2012

R6522

1M

1/10W

RN-CP

2012
R6526

1M

1/10W

RN-CP

2012

D6520

MA2J1110GLS0

Q6513

RT1N140C-TP-1

VCC

C6507

50V

R6547

10k
1/10W
RN-CP

5%

PFC| OTP

XX

R6304

7618

9

10

5

XX

*EY6536

XX

*EY6508

S

*EY6509

*EY6506

*Q6509

2SK3934(LBS1SONY.Q

*EY6507

RB
5W

0.1

R6531

R6523

470k
1/10W
RN-CP

2012

R6525

R6524

68k

33k

1/10W

1/10W

RN-CP

RN-CP

0.5%

0.5%

R6570

XX

VCC

001:7D

10

Q6507

ISA1235AC1TP-1EF

XX

R6307

22k

1/10W

RN-CP

5%

SLAVE

*Q6500

*R6551

*R6552

C6303

1
25V
X7R

JL6301

JL6302

XX

*R6539

0

CHIP

*R6512

10k

1/10W

31

RN-CP

5%

0

10k

31

JL6002

ISA1235AC1TP-1EF

EY6519

Q6305

*R6553

10

1/10W

RN-CP

5%

1608

24

*D6509

EY6512

24

*D6500

XX

JL6006

JW6300

R6537

100k
1/10W
RN-CP

5%

*R6514

C6517

C6516

R6516

470p

470p

1kV

1kV

D

D

FMN-2206S-LF2708

D6502

C6526

C6524

470p

470p

1kV

1kV

D

D

XX

*R6558

XX

XX

*R6559

0

*R6538

XX

VCC

001:7H

5

6.8

2W

RS

EY6513

JW6501

R6511

6.8

2W

RS

*D6514

XX

*R6561

XX

*D6513

XX

*R6530

100

1/4W

FPRD

Q6502

2SA1364-T111-1DE

D6107

XX

R6110

0

MA4J1130GLS0

31

C6309

XX

C6200

0.1

25V

X7R

5

D6305

24

JL6500

*R6560

XX

CHIP

IC6200

MIP2H2

C6311

C6201

100p

50V

JL6517

Q6511

XX

D6505

MA22F20

R6517

100
1/10W
RN-CP

5%

JL6518

1

25V

X7R

JL6519

EY6200

EY6201

87 5

SOURCE

SOURCE

VDDFBOLP

C6202

1

50V

CH

PRI_VCC_1

R6302

1M
1/10W
RN-CP

0.5%

R6200

10

1/2W

RF

VCC DRAIN

4321

*C6529

150

450V

002:2F

R6303
1/10W

RN-CP

24

D6200

XX

R6301

270k
1/10W
RN-CP

0.5%

68k

0.5%

EY6202

C6203

0.001
630V

R6201

5.6k

1/10W

RN-CP

0.5%

31

*C6501

*EY6529

R6312
1/10W

RN-CP

D6300

R6313
1/10W

RN-CP

PP

AB01BV1

XX

68k

0.5%

XX

680k

0.5%

D6201

EY6500

EY6522

*EY6525

XX

JW/FBd¸u«

OVP_DET

002:2C
002:2C

PFC_DET_1

R6333

100

1/10W

RN-CP

5%

C6301

0.01
50V
X7R
1608

R6314

68k
1/10W
RN-CP

0.5%

C6317
1000p

50V

CH

1608

R6202

100k

1W
RS

MA2J1110GLS0

C6204

2.2

50V

*R6557

EY6530*EY6528

*C6502

XX

EY6531

*FB6500

*FB6501

JW6500

XX

GND_3

PFC@ OVP

PF C o—Í468V ¯ì

PFC DET

PF C o—Í350V ¯ì

JL6520

JL6521

C6205

100

50V

10ERB20-TB3

R6203

2.2
1/4W
FPRD

D6202

*R6500

0.1
*EY6501

XX

*C6530

150

450V

EY6523

*EY6524

XX

XX

*C6024

470p

250V

FB6504

E

ET6003

DIPA[X[q´

IC6300

MM3313AF

VDD
DET2 OUT(PFC_DET)

DET1(PFC_OVP)

AC DET OUT

DET2(PFC_DET)

DET1 OUT(PFC_OVP)

4321

D6204

10ERB20-TB3

D6203

400
PFC_OUT

002:2B

*EY6516

XX

EY6514

1
3

EY6515

*EY6518

XX

1
3

*EY6527

XX

B

0uH

8765

GND

AC DET

C6307

XX

C6206

1000p

CH

50V

1608

CN6500

3P

WHT

PFC_OUT
PRI_GND

*CN6501

PFC_OUT
PRI_GND

[ q´ @a–Ê‚Ì
WXg “•

EY6203

D6307

XX

R6338

0

CHIP

C6305

0.22
25V

X7R
1608

1

2

3

6

8

4

PC123Y22FZW

STBY FB

D6301

XX

T6200

PH6200

D6308

XX

Pri_PROTECT

*C6318

XX

R6316

62k
1/10W
RN-CP

0.5%

16

15

114

10

D1NS6-TR2

1

23

C6207

0.47

2012
X7R

Pri_Vcc

Pri_GND

*CN6505

XX

*Q6311

R6322

D6250

R6250
1/10W

RN-CP

5%

XX

1k

XX

JL6303

JL6304

*C6319

XX

R6334

XX

R6323

470k
1/10W
RN-CP

1
2
3

3

2

C6310

XX

R6251

3.3k

1/10W

RN-CP

5%

*C6314

JL6526

JL6527

*C6320

XX

2012

B

50V

XX

C6250

470

25V

GND_1

C6251

25V

X7R

1

IC6250

MM1530ATT

*Q6312

XX

*R6353

XX

0.1

*R6354

*C6315

50V

C6304

0.1
25V
X7R

1608

C6312

XX

R6252

47
1/10W
RN-CP

5%

R6253
1/10W

RN-CP

GND_1

XX

2012

B

XX

47k

0.5%

*R6355

XX

*Q6310

XX

*C6302

XX

*C6316

2012

B

50V

XX

R6319
1/10W

RN-CP

Q6300

2SA1364-T111-1DE

R6308

6.8k

1/10W

RN-CP

5%

R6254

10k

1/10W

RN-CP

0.5%

R6255

6.8k
1/10W
RN-CP

0.5%

10k

5%

1608

002:7B

PRI_VCC_2

*R6351

XX

*R6306

*D6304

XX

*R6343
RN-CP

XX
5%

1/10W

1608

D6309

MA2J1130GLS0

R6309

10k

1/10W

RN-CP

5%

Q6302

2SC3052EF-T1-LEF

R6310

4.7k
1/10W
RN-CP

5%

*Q6308

XX

*R6339

XX

XX

*Q6309

XX

*R6341

XX

R6305

R6320

XX

XX

C6306

XX

XX

PFC_GND

Q6301

R6321

XX

002:2F

XX

*R6340

PFC_DET

PFCo—Í 350V¨ ª¯ Tr-On

5%

1

1k

5%

23

PH6301

PC123Y22FZW

XX

C6308

R6315

4.7k

1/10W

RN-CP

R6317
1/10W

RN-CP

AC DET

1

23

R6324
1/10W

RN-CP

10k

5%

PH6302

PC123Y22FZW

POWER ON

4

PH6300

R6311

47k

1/10W

RN-CP

5%

G6

PC123Y22FZW

R6335

4.7k
1/10W
RN-CP

5%

1/2 POWER SUPPLY

4

*C6313

XX

*R6342

XX

4

R6417

100
1/10W
RN-CP

5%

1608

1

23

RT1N14BC-TP-1

*R6352

XX

VSEN_ON_OFF

002:2C

GND_1

AC 60V¨ª¯ H

Q6404

4

PFC_DET_2

002:12F

R6400

10k

1/10W

RN-CP

5%

C6409

1000p

50V

CH

1608

RN-CP

GND_1

Vcc2_SW

*PH6304

XX

PRI_GND_2

002:7B

R6414

1k

1/10W

RN-CP

5%

R6418

1k

1/10W

5%

C6410

0.01
50V
X7R

1

23

*Q6401

XX

AC_DET

002:12G;002:15C

R6420

XX
1/10W
RN-CP

5%

2b‘

R6416

XX

Q6403

RT1N14BC-TP-1

R6415

XX

*R6425

XX

*R6419

XX

*R6424

*R6423

XX

XX

C6405

GND_1

LED_ON

*R6429

XX

XX

002:14D

REG_12V

001:3F;002:16A

R6421

1k

1/10W

RN-CP

5%

R6428

0

CHIP

24

MA4J1130GLS0

D6401

POWER_ON

002:15C

L6400

10uH

2

1

L6401

XX

31

PROTECT_2

002:10F

PROT1
001:3G

C6412

XX

GND_1

GND_1

C6400

0.01
50V
X7R

STBY_3.3V

002:15C

GND_1

R6410

10k

1/10W

RN-CP

5%

*C6401

XX

C6408

0.1
25V
X7R

*R6422

XX

R6427

XX

Q6402

RT1P14BC-TP-1

JL6408

C6407

1
25V
X7R

JL6411

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

ABCDEF GH JIKLMN

O

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ G6 Board Schematic Diagram [ P ower Suppl y ] P age 1/2 ~

- 60 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

18

19

20

1

1

G6 - EG1H

2

2

Mount Mecha

411285311

GND_1

3

G7pVcc

001:12B

PRI_VCC_2

001:12C

PRI_GND_2

*D6403

10ERB20-TB3

*C6404

100

50V

*R6451

1

1/4W

FPRD

1

2

14

D6154

13

SG10SC6M

H=26.5mm
L=120mm
Hole: 9

A6003

12V

@

11A

4

T6100

T6101

C6113

XX

12

11

10

9

8

7

14

13

12

11

10

9

8

7

EY6152

EY6109

MAIN FB

4

PC123Y22FZW

GND_1

GND_1

PH6100

16V

C6159

C6153

2200

16V

[email protected]

3300

25V

MAZ8150G0LS0

001:14I

PROTECT_2

XX

XX

FB6154

FB6155

D6150

2

SG10SC6M

3

1

FB6157

XX

FB6156

XX

D6152

SG10SC6M

XX

FB6150

D6153

0

R6154

18k

1/10W

RN-CP

0.5%

R6152

1k

5%

SG10SC6M

C6151

XX

R6155

XX

MM1431AURE

IC6101

R6156

4.7k

1/10W

RN-CP

0.5%

43

12

XX

FB6151

XX

FB6152

XX

FB6153

R6150

680

1/10W

RN-CP

5%

1

R6151

1k
1/10W
RN-CP

5%

23

3

2

C6150

0.047

GND_1

50V
X7R

1

R6153

CHIP

1/10W
RN-CP

IC6150

XX

C6152

2200

GND_1

001:9A

PFC_OUT

EY6106

EY6107

EY6110

EY6105

C6111

0.018
1kV

PP

R6120

RS

2W

0.22

R6123

RS

2W

0.22

R6105

1M

1/10W

RN-CP

1M

2012

1M

2012

1000p

C6102

C6105 XX

100

50V10

3.3M

50V
100

35V

RN-CP

CH

4.7

M1FM3

2012

R6107

1M

1/10W

2012

R6109

82k

1/10W

RN-CP

2012

R6111

220k

1/10W

RN-CP

0.5%

C6106

0.01
50V
X7R

1608

5%

R6112

XX

50V0.01X7RC6100

SS-reset: 269V

R6300

1M
1/10W
RN-CP

VSEN
FB
CT
RT
GND
PROT
SS
VC1

987654321

OCP VC2

CXD9841P

IC6100

VGH

VGL

PGND

R6113

XX

R6114

47

1/10W

RN-CP

0.5%

R6124

XX

18 16 15 14 12 11 10

VD

VS
VB

Mount Mecha

C6300

0.01
50V

X7R

1608

1SS357-TPH3

D6101

A6002

D6104

M1FM3

D6102

MAZ8150G0LS0

D6103

UF4005PKG23

C6107

47

25V

234989211

R6115

22

1/10W

CHIP

5%

2012

31

D6105

XX

C6108

0.22
25V

X7R

R6116
1/10W

CHIP

31

22

5%

D6106

XX

2SK3561(LBS2SONY,Q)

24

2SK3561(LBS2SONY,Q)

Q6100,Q6101

R6106

R6119

XX

RN-CP
1/10W

120k

R6100

0.5%

C6101

50V

R6103
1/10W 0.5%18k

R6104

R6122

1/10W

RN-CP

R6108
1/10W

RN-CP

XX

C6103

C6104

5

001:9H

OVP_DET

001:9H

6

PFC_DET_1

001:13E

VSEN_ON_OFF

R6101

XX

7

8

9

D6100

R6102

1/10W

0.5%

001:12D

PFC_GND

001:8E

PRI_VCC_1

24

Q6100

R6117

10k
1/10W
RN-CP

5%

Q6101

R6118

10k

1/10W

RN-CP

5%

0uH

FB6100

400400

0uH

FB6101

400

EY6100

S
EY6101

EY6102

S

EY6103

C6109

XX

C6110

470p

1kV

D

G6

EY6111

EY6104

R6121
1/10W

RN-CP

4

6

1

2

4

6

1k

0.5%

2/2

D6150,D6151,D6152,D6153,D6154

JL6156

C6157

R6157

XX

47k

1/10W

RN-CP

5%

C6160

1000

R6158

47k

1/10W

RN-CP

D6400

R6403

1k

1/10W

RN-CP

5%

1608

R6159

4.7
1/10W
RN-CP

1

L6153

XX

L6151

4.7uH

GND_1

3

REG_12V

001:3F;001:13C

JL6150

JL6151

2

R6160

XX

001:13E

PFC_DET_2

AC_DET

001:13F;002:15C

D6402

MA2J1110GLS0

Q6406

R6450

XX

*C6154

XX

16V

001:13C

LED_ON

R6406

470

1/10W

5%

RN-CP

R6161

XX

R6405

33k

1/10W

5%

RN-CP

R6407

33k

1/10W

XX

S

RN-CP

5%

Q6400

RT1N14BC-TP-1

R6408

C6402

XX

0.01
50V

X7R

GND_1

R6426

XX

C6155

X7R

GND_1

0.01
50V

JL6159

STBY_3.3V

001:15H

AC_DET

001:13F;002:12G

POWER_ON

001:15H

C6122

C6119

XX

XX

C6127

XX

C6121

XX

C6117

JL6154

JL6155

XX

C6118

XX

JL6158

C6114

XX

C6120

JL6157

XX

R6409

XX

C6123

XX

C6161

R6404

CHIP

C6403

0.022
50V
X7R

1608

0

XX

C6125

JL6413
JL6414
JL6415
JL6416
JL6417

C6124

XX

*R6430

C6116

XX

JL6400

0

XX

JL6404

JL6152

JL6401

JL6412

C6112

XX

C6126

XX

JL6428
JL6427
JL6426
JL6425
JL6424
JL6423
JL6422

JL6420
JL6419
JL6418

JL6410

GND_1

1
2
3
4
5
6
7
8

9
10
11
12

JL6421

JL6409

C6115

XX

JL6406

CN6503

12P

12V
12V
GND
GND
GND
GND
12V
12V
12V
12V
GND
GND

1
2
3
4
5
6
7
8

10
BALANCER_ERR

9
8
7
6
5
4
3
2
1

9
BALANCER_ERR

8
7
6
5
4
3
2
1

8
7
6
5
4
3
2
1

7
6
5
4
3
2
1

AUDIO_Vcc
AUDIO_Vcc
AUDIO_Vcc
AUDIO_Vcc
AUDIO_GND
AUDIO_GND
AUDIO_GND
AUDIO_GND

CN6502

8P

XX

*CN6153

REG12V

REG12V

GND
INV_ERR

BACK_LIGHT

DIMMER

GND
H/ON
HVR

XX

*CN6151

REG12V

REG12V

GND

INV_ERR

BACK_LIGHT

DIMMER

GND

H/ON

*CN6152

REG12V

BALANCER_ERR

REG12V
GND

INV_ERR
BACK_LIGHT

DIMMER

GND

XX

7P

*CN6154

BALANCER_ERR

REG12V
GND
INV_ERR

BACK_LIGHT

DIMMER

GND

REG12V

1

REG12V

2

REG12V

3

REG12V_GND

4

REG12V_GND

5

REG12V_GND

6

STBY

7

AC_OFF_DET

8

POWER_ON

9

BALANCER_ERR

10

H/ON

11

INV_ERR

12

B/L_ON

13

DIMMER

14

HVR

15

*CN6150

REG12V

1

REG12V

2

REG12V

3

REG12V_GND

4

REG12V_GND

5

REG12V_GND

6

STBY

7

AC_OFF_DET

8

POWER_ON

9

BALANCER_ERR

10

H/ON

11

INV_ERR

12

B/L_ON

13

DIMMER

14

*CN6156

XX

TO GL(46)-board

TO D3(40/46),D4(46/52)-board

TO GL(55)-board

TO D4(40)-board

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

ABCDEF GH JIKLMN

O

GND_1

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ G6 Board Schematic Diagram [ P ower Suppl y ] P age 2/2 ~

- 61 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

1

2

2

3

3

G7 - EG1H

L6605

4

5

G7

POWER SUPPLY

Mount Mecha

A6604

411285311

Q6605,Q6606,TH6600,D6608

XX

12

1

2

EY6645XXEY6646

8

10

7

5

6

XX

EY6614

10

11

12

2

L6607
226uH

7618

9

5

EY6616

EY6615

10

11

12

2

L6608
226uH

7618

9

5

EY6617

H=26.5mm

6

L=120mm
Hole: 9

EY6624

Q6605

2SK3934(LBS1SONY.Q

S

EY6625

Q6606

2SK3934(LBS1SONY.Q

S

R6636
1/10W

RN-CP

R6633

1608

RN-CP

R6603

1M

1/10W

5%

Mount Mecha

C6604

C6603

0.01
50V

X7R

1608

0.01
50V

1608

Mount Mecha

1
2

7

R6601

C6602

1M

XX

1/10W
RN-CP

1608

GND_2

8

R6600

1M

1608

1/10W

RN-CP

5%

17.5

JW601

3
4

H=26.5mm
L=165mm

C6601

5%

C6600

0.01
50V

X7R

1608

17.5

0.01
50V

X7R

1608

JW6608

Hole: 7

A6600

411285321

D6600

R6602

1M
1/10W
RN-CP

5%

A6601

H=26.5mm
L=165mm
Hole: 7

X7R

411285321

9

Q6605,Q6606,TH6600,D6608

XX

EY6605

D6600

D15XB60

EY6604

C6607
4700p

250V

F

‘

2

3

4

EY6606

‘

1

EY6607

C6614

4700p
250V

F

C6656

XX

C6618

1

450V

PT

EY6612

L6602
260uH

EY6613

^CcE@

1.0˚F

C6621

1

500V

PP

C6624

XX

C6626

470p

1kV

D

C6627

470p

1kV

D

R6623

22

2W

RS

C6629

470p

1kV

D

C6630

470p

1kV

D

R6627

22

2W

RS

EY6626

EY6627

R6630

0.1
RB
5W

10k

5%

R6637

10k
1/10W
RN-CP

5%

0.1
RB
5W

L6606

XX

12

10

1

2

EY6643XXEY6644

31

31

5%

RN-CP

1/10W

10

R6640

D6604

24

XX

5%

RN-CP

1/10W

10

R6641

D6605

XX

24

8

5

7

6

XX

R6644

D6606

100

MA22F20

1/4W
FPRD

Q6607

2SA1364-T111-1DE

R6645

D6607

100

MA22F20

1/4W
FPRD

Q6608

2SA1364-T111-1DE

C6641

470p

EY6628

FMN-2206S-LF2708

D6608

EY6629

C6640

470p
1kV

D

R6648

100
1/10W
RN-CP

5%

R6647

100
1/10W
RN-CP

5%

1kV

D

EY6630

C6642

470p

1kV

C6643

D

470p
1kV

D

R6650

R6649

6.8
2W
RS

6.8
2W
RS

JL6602

JL6605

C6646

150

450V

EY6633

C6648

XX

EY6634

JL6606

EY6635

C6649

XX

EY6636

C6647

150

450V

EY6637

EY6638

R6661

0.1

1/2W

RF

FB6605

0uH

EY6639

EY6640

400

EY6641

EY6642

4

5

1

PFC_OUT

3

PFC_GND

CN6604

3P

WHT

3P

6

7

8

9

10

11

12

13

14

15

16

17

E

GND_3

E

GND_4

E

DIP

A[X[q´

ET6601

GND_2

Mount Mecha

Mount Mecha

1

1

A6602

A6603

A[X[q´

DIP

ET6603

XX

A[X[q´

DIP

ET6600

DIP

t@Xg

CN6600

XX

t@Xg

CN6601

XX

[q´@a˚ WXg˝ “•

E

[q´@a˚ WXg˝ “•

A[X[q´

ET6602

410314301

410314301

JW6609

5

JW6611

5

JW6605

5

JW6607

5

R6604

XX

R6606

XX

EY6600

XX

R6605

XX

EY6601

XX

JW/FB

C6605

EY6602

R6607

EY6603

XX

d¸u«

XX

XX

XX

C6606

XX

JW6600

FB6600

XX

VD6601

XX

C6609

XX

C6610

XX

JW6601

XX

XX

JW/FB

FB6601

C6617

XX

GND_2

1

4

23

L6600

XX

C6613

XX

C6615

XX

GND_2

1

4

23

L6601

XX

C6611

XX

C6612

XX

d¸u«

XX

EY6608

XX

R6608

XX

EY6609

XX

R6610

XX

EY6610

XX

EY6611

XX

R6609

XX

JW6606

R6611

JW6612

5

5

D6614

MA2J1110GLS0

JW6604

5

XX

C6619

XX

GND_4

JW6610

5

SLAVE

001:8D

R6669

47k
1/10W
RN-CP

2012

R6612

1k

1/10W
RN-CP

2012

D6601

MA2J1110GLS0

R6613

100k
1/10W
RN-CP

5%

JL6611

Q6600

2SC3052EF-T1-LEF

JL6610

C6620
1000p

50V

CH

CN6603

3P

Pri_PROTECT

Pri_GND
Pri_Vcc

3
2
1

PFC|OTP

TH6600

SLAVE OPEN

R6616

100k

1/10W

RN-CP

5%

R6686

100
1/10W
RN-CP

5%

R6614

XX

GD-M

001:10D

MAZ8056G0LS0

C6623

XX

C6622

1
25V
X7R

ISA1235AC1TP-1EF

o

Q6602

2SC3052EF-T1-LEF

JL6612

D6602

R6617

C6657

100k

100

1/10W

50V

RN-CP

5%

JL6613

R6687

XX

Q6601

R6618

22k

1/10W

RN-CP

5%

R6619

22k
1/10W
RN-CP

5%

C6625

10

50V

ISA1235AC1TP-1EF

R6620

10k
1/10W
RN-CP

5%

JL6615
JL6614

001:10D

Q6603

001:13F

VCC

PFCERROR

SLAVE

001:6E

D6612

MAZ8110G0LS0

R6670

22k
1/10W
RN-CP

5%

R6685

4.7k

1/10W

RN-CP

5%

R6684

4.7k
1/10W
RN-CP

5%

R6621

R6625

47k

1k

1/10W

1/10W

RN-CP

RN-CP

2012

2012

R6622

R6626

1k

47k

1/10W

1/10W

RN-CP

RN-CP

2012

2012

C6631

0.1

25V

X7R

R6628

20k
1/10W
RN-CP

C6632

1000p

50V

CH

R6629

2.2M

1/10W

RN-CP

R6624
1/10W

RN-CP

Q6613

2SC3052EF-T1-LEF

MAZ8150G0LS0

R6677XXR6678

XX

C6635

C6628

10p

10p

50V

50V

CH

CH

1608

1608

C6634

10k

1

25V

X7R

5%

2012

Q6604

ISA1235AC1TP-1EF

D6618

R2A20112DD#U0

ZCD-M

ZCD-S

NC

VREF

SGND

RT

RAMP

87654321

B

R6631

330k

1/10W

RN-CP

0.5%

R6632

330k
1/10W
RN-CP

0.5%

Q6614

COMP FB

C6633

0.22
25V

2012

2SC4357-T11-1E

IC6600

OCP-M

R6638

100

1/10W

RN-CP

5%

C6637

10

50V

VCC

GD-M

PGND

GD-S

NC

OCP-S

MA2J1110GLS0

JL6617
JL6616

16 15 14 13 12 11

10 9

D6603

C6636

XX

R6639

470

1/10W

RN-CP

0.5%

C6638
1000p

50V

CH

R6680

XX

MA2J1110GLS0

R6642

220
1/10W
RN-CP

D6615

R6643

470

1/10W

RN-CP

0.5%

C6639
1000p

MAZ8033G0LS0

50V

CH

D6616

R6646
1/10W

RN-CP

C6658

0.1

25V
X7R
1608

220

001:7E

R6681

100

1/10W

RN-CP

5%

1608

VCC

MA2J1110GLS0

RT1N140C-TP-1

D6617

Q6611

R6682

XX

001:6E

C6644

0.1
25V
X7R

1608

GD-M

C6645

10

50V

R6652

1M

1/10W

RN-CP

2012

R6654

1M

1/10W

RN-CP

2012

R6651

33k

1/10W

RN-CP

0.5%

R6653

1M

1/10W

RN-CP

2012

R6655

470k

1/10W

RN-CP

2012

R6656

68k

1/10W

RN-CP

0.5%

R6673

1M

1/10W

RN-CP

2012

R6675

1M

1/10W

RN-CP

2012

R6674

1M

1/10W

RN-CP

2012

R6676

820k

1/10W

RN-CP

2012

R6657

2.2
1/4W
FPRD

JL6603

R6663

18k

1/10W

RN-CP

0.5%

JL6604

R6664

2.7k

1/10W

RN-CP

0.5%

R6665

0

CHIP

1608

C6654
1000p

50V

CH
1608

JL6607

C6655
1000p

50V

CH

1608

R6683

2.2k

1/10W

RN-CP

5%

1

JW/FB

Q6612

ISA1235AC1TP-1EF

R6667

2.2k

1/10W

RN-CP

5%

3

2

IC6601

XX

d¸u«

JW6602

XX

PFC@OVP

PFCo˝470V

43

12

C6653

XX

FB6604

XX

GND_2

001:7F

¯fi

IC6602

MM1431AURE

PFCERROR

R6658

100k

1/10W

RN-CP

5%

1

31

D6609

MA4J1130GLS0

24

C6650

10

50V

b‘

C6652

0.1

25V

X7R

Q6609

RT1P14BC-TP-1

JL6608

C6651

R6659

1

XX

25V

X7R

R6660

XX

Q6610

RT1N14BC-TP-1

JL6609

10

11

12

13

14

15

16

17

18

19

20

21

Mount Mecha

A6605

410314301

JL6600

18

XX

GND_2

C6616

XX

JL6619
JL6618

EY6631

EY6632

2
1

CN6602

2P

AC IN(N)

AC IN(L)

JL6621
JL6620

C6608

XX

R6615

22k

1/10W

RN-CP

5%

JL6601

19

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

20

21

22

ABCDEF GH JIKLMN

O

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ G7 Board Schematic Diagram [ P ower Supply ] ~

- 62 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

1

1

GL - EG1H

2

CN6730

3P

PFC_OUT

PFC_GND

1
3

EY6730

EY6731

XX

*JW6702

*R67301M*R6731

1M

3

Pri_GND2

4

EY6700 EY6701 EY6702 EY6703

R6700

RF

TMP

5

124439311

L6700

22uH

Vsns

PT

450V

1

C6700

6

7

G_Conv.

8

9

*JW6931

5

XX

*JW6930

5

XX

Pri_Vcc

XX

*JW6708

*JW6933

10

XX

*JW6932

10

XX

*JW6718

*R6732

1M

*D6701

XX

*R6733

1M

*R6701

XX

C6701

0.01
50V
X7R

C6703

1000p

50V

CH

R6702

18k

1/10W

RN-CP

0.5%

R6791

3.3M
1/10W
RN-CP

5%

C6705

10

50V

C6706

4.7

50V

C6704

0.01
50V
X7R

R6704
1/10W

RN-CP

0.5%

C6707

XX

C6708

100

35V

*R6734

270k

*R6735

10k

*R6737

*R6738

10k

1/10W

RN-CP

100k

0.5%

*Q6730

C6702

XX

R6703

XX

47

D6700

M1FM3

*R6736

22k

87654321
9

R6706

22

IC6700

CXD9841P

Vsense
F/B
Ct
Rt
GND
PROT
SS
Vc1
OCP Vc2

1/10W

RN-CP

R6707

XX

*D6708

VGH

VGL

PGND

0.5%

124943391

VD

VS

VB

R6705

10k

1/4W

FPRD

TMP

18 16 15 14 12 11

10

D6702

1SS357-TPH3

C6711

0.22
25V
X7R

D6704

UF4005PKG23

C6709

XX

Mount Mecha

D6703

M1FM3

A6700

R6708

22

2SK3568(LBS2SONY1Q)

1/10W

CHIP

2012

D6705

MAZ8150G0LS0

R6710

22

1/10W

CHIP
2012

C6712

47

25V

234989201

*Q6700

R6709

10k

1/10W

RN-CP

*Q6701

2SK3568(LBS2SONY1Q)

R6711

10k

1/10W

RN-CP

Q1700,Q1701

EY6704

S

EY6705

EY6706

S

EY6707

C6713

470p

1kV

D

R6712

0.22
2W
RS

R6713

0.22
2W
RS

C6714

0.012

1250V

PP

2SD2012(SONY.GR)

*C6715

10

50V

EY6709EY6708

*Q6702

*Q6703

2SC3052EF-T1-LEF

R6716

1k

1/10W

RN-CP

5%

*R6714

100k

*D6706

MAZ8180GMLS0

*R6739

100

*D6707

*C6716

100

R6715

1k

1/10W

RN-CP

*R6718

C6717

XX

*PH6730

1

EY6710

3

EY6711

5

67

T6700

1

EY6712

3

EY6713

10

5

67

T6701

PH6700

PC123Y22FZW

IC6880

SI-8005Q

4.7k

*R6780

LED_MUTE

D6750

1k

SG10LC20USM

*C6750

470

50V

*C6751

50V

D6751

SG10LC20USM

*C6754

470

50V

*C6755

50V

470

470

*C6752

XX

*C6756

XX

*C6753

XX

*C6757

XX

11

10

9

8

11

10

9

8

R6750

1k

1/10W

RN-CP

R6752
1/10W

RN-CP

*Q6780

ISA1235AC1TP-1EF

*R6782

2.2k

*D6780

MAZ8082G0LS0

*R6783

22k

R6753

22k

1/10W

RN-CP

0.5%

R6754

15k

1/10W

RN-CP

0.5%

R6757

2.2k

1/10W

RN-CP

0.5%

C6760

0.01
50V
X7R

C6758
1000p

50V

CH

1608

R6755

22k

1/10W

RN-CP

5%

1608

R6756
1/10W

RN-CP

1k

C6761

10

50V

12V

Mount Mecha

Mount Mecha

C6759

0.1

25V

X7R

*A6750

*A6751

IC6750

NJM2904M(TE2)

A OUTPUT

A-INPUT

B OUTPUT

A+INPUT

B-INPUT

4321

GND

B+INPUT

263406621

263406601

8765

V+

C6762

0.1

25V

X7R

D1250,D1251

XX

D1250,D1251

D6752

MAZ8390G0LS0

R6763

100k

1/10W

RN-CP

0.5%

C6763

0.1
25V
X7R

D6753

MA2J1130GLS0

R6764
1/10W

RN-CP

0.5%

R6762

100k
1/10W
RN-CP

0.5%

82k

ERROR

R6765

100

1/10W

RN-CP

5%

C6764

50V

G_OUT

GND

12V

LED_G_CNT

V_Ref

R6766

10k

1/10W

10

RN-CP

5%

R_OUT

G_OUT

B_OUT

GND

C6785

XX

C6781

XX

C6784

XX

C6787

XX

C6782

XX

C6786

XX

2

Blue

1

Blue

2

Blue

3

GND

4

GND

5

GND

6

Red

7

Red

8

Red

9

GND

10

GND

11

GND

12

Green

13

Green

14

Green

15

CN6780

15P

Blue

1

Blue

2

Blue

3

GND

4

GND

5

GND

6

Red

7

Red

8

Red

9

GND

10

GND

11

GND

12

Green

13

Green

14

Green

15

CN6781

15P

Blue

1

Blue

2

GND

3

GND

4

Red

5

Red

6

GND

7

GND

8

Green

9

Green

10

GND

11

GND

12

NC

13

*CN6782

Blue

1

Blue

2

GND

3

GND

4

Red

5

Red

6

GND

7

GND

8

Green

9

Green

10

GND

11

GND

12

NC

13

*CN6783

V_ADREF

1

GND

2

5V

3

GND

4

V_ADREF

5

GND

6

5V

7

GND

8

GND

9

GND

10

GND

11

*CN6785

11P

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

Pri_GND

PFC_OUT

GL

R6717
1/10W

RN-CP

1/2 INVERTER POWER SUPPLY

V_ADREF

C6797

XX

1
2
3
4
5
6
7

1
2
3
4
5
6
7
8
9
10
11

1
2
3
4
5
6
7

1
2
3
4
5

1
2
3
4
5
6

GND
5V
GND
GND
GND
GND

*CN6784

XX

V_ADREF
GND
5V
GND
V_ADREF
GND
5V
GND
GND
GND
GND

*CN6787

11P

V_ADREF
GND
5V
GND
GND
GND
GND

*CN6786

XX

GND
LED_xMUTE
LED_R_DA1
LED_G_DA1
LED_B_DA1

CN6788

5P

GND
ERROR
GND
REG12V
REG12V
NC

CN6789

6P

13

14

15

16

17

18

19

20

C6790

C6791

XX

1M

5%

C6710

0.01
50V

X7R

2A

F6880

2A

32V

L6880

XX

5V_DD

D6883

MA2J1110GLS0

C6880

0.01
50V

X7R

R6886

100
1/10W
RN-CP

5%

9

C6881

0.01
50V
X7R

SS

BS

7

EN

COMP

2IN3SW4

5FB6

GND

FB6880

0uH

C6882

220p

50V

CH

R6880

100k

1/10W

RN-CP

L6881

15uH

C6885

100p

50V
CH

R6881

6.8k

1/10W

RN-CP

0.5%

IC6881

NJM2878F4-15(TE2)

43

L6882

47uH

C6890

XX

C6788

XX

C6792

XX

C6789

XX

C6793

XX

C6794

XX

C6795

XX

XX

1.5V_Reg

C6883

1000
16V

5%

RN-CP

1/10W

10k

R6884

5%

RN-CP

1/10W

4.7k

R6885

D6880

XX

D6884

XX

R6887

22

1/10W

C6887

470p

50V

D6881

M1FM3

C6884

330

10V

R6883

1k

1/10W

RN-CP

0.5%

R6882

2.2k

1/10W

RN-CP

0.5%
1608

E

ET6780

PTZ-TE25-5.6B

E

ET6781

D6882

E

ET6782

JW/FB

C6886

d¸u«

JW6780

XX

0.1
25V
X7R

ET6783

E

Pri_GND

C6730

100p
250V

FB6780

0uH

B

1

t@Xg

CN6790

JW/FB

12

d¸u«

JW6781

XX

E

ET6784

Pri_GND2

C6731

100p

250V

0uH

FB6781

B

C6888

X7R
2012

2.2
10V

MM1431AURE

IC6780

C6889

XX

R6784

6.8k

1/10W

RN-CP

43

R6785

CHIP

R6786

XX

12V

LED_MUTE

R6788

4.7k

1/10W

R6787

22k

1/10W

RN-CP

R6789

22k
1/10W
RN-CP

RN-CP

2SC3052EF-T1-LEF

R6790

22k
1/10W
RN-CP

Q6783

LED_R_CNT
LED_G_CNT
LED_B_CNT

C6796

XX

Q6781

2SC3052EF-T1-LEF

C6783

0.01
50V

X7R

V_Ref

0

C6780

0.01
50V

X7R

ERROR

Q6782

RT1N141C-TP-1

21

22

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

ABCDEF GH JIKLMN

O

12

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ GL Board Schematic Diagram [ In verter Po wer Supply ] P age 1/2 ~

- 63 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

GL - EG1H

1

R6931

1M

1/10W

RN-CP

2012

R6932

1M

1/10W

RN-CP

2012

EY6803

L6800

22uH

B_Conv.

R6933

1M

1/10W

RN-CP

2012

Vsns

450V

C6800

PT

1

R6934

270k

1/10W

RN-CP

0.5%

Vsns

Pri_Vcc

R6935

10k

1/10W

RN-CP

0.5%

R6937

100k
1/10W
RN-CP

0.5%

Q6930

2SC3052EF-T1-LEF

R6801

10k

1/10W

RN-CP

C6801

0.01
50V
X7R

C6803

1000p

50V

CH

R6802

18k

1/10W

RN-CP

0.5%

R6891

3.3M

1/10W

RN-CP

5%

C6805

10

50V

C6806

4.7

50V

C6804

0.01
50V
X7R

R6804

47
1/10W
RN-CP

0.5%

C6807

XX

C6808

100

35V

R6936

22k
1/10W
RN-CP

0.5%

R6803

XX

D6800

M1FM3

D6801

MA2J1130GLS0

C6802

XX

87654321
9

R6806

22

IC6800

CXD9841P

Vsense
F/B
Ct
Rt
GND
PROT
SS
Vc1
OCP Vc2

1/10W
RN-CP

R6807

XX

VGH

VGL

PGND

0.5%

124943391

VD

VS
VB

R6805

10k

1/4W

FPRD

TMP

18 16 15 14 12 11

10

D6802

1SS357-TPH3

C6810

0.22
25V

X7R

D6804

UF4005PKG23

C6809

XX

D6803

M1FM3

R6809

22

1/10W

CHIP

2012

R6811

22

1/10W

CHIP
2012

C6811

47

25V

MAZ8150G0LS0

*Q6800

2SK3568(LBS2SONY1Q)

R6810

10k

1/10W

RN-CP

D6805

*Q6801

2SK3568(LBS2SONY1Q)

R6812

10k
1/10W
RN-CP

EY6804

S

EY6805

EY6806

S

EY6807

C6813

470p
1kV

D

R6813

0.22
2W

RS

R6814

0.22
2W
RS

C6814

0.012

1250V

PP

EY6808 EY6809

Q6802

2SD2012(SONY.GR)

C6816

10

50V

Q6803

2SC3052EF-T1-LEF

R6816

1k

1/10W

RN-CP

5%

D6806

MAZ8180GMLS0

R6817

100k

1/10W
RN-CP

R6938

100
1/10W
RN-CP

D6807

EP05FA20

C6817

100

63V

PH6930

PC123Y22FZW

EY6810

3

EY6811

5

67

T6800

EY6812

3

EY6813

R6818

10
1/4W
FPRD

5

67

T6801

R6980

4.7k
1/10W
RN-CP

5%

LED_MUTE

Q6980

ISA1235AC1TP-1EF

R6982

2.2k
1/10W
RN-CP

D6980

MAZ8082G0LS0

R6983

22k
1/10W
RN-CP

12V

Mount Mecha

Mount Mecha

*A6850

*A6851

263406621

263406601

D1350,D1351

XX

D1350,D1351

3

4

2

121

10

9

8

121

10

9

8

*C6850

XX

*C6854

XX

SG10SC6M

D6850

*C6851

XX

SG10SC6M

D6851

*C6855

XX

*C6852

XX

*C6856

XX

*C6853

XX

*C6857

XX

R6853

56k

1/10W

RN-CP

0.5%

R6854

33k
1/10W
RN-CP

0.5%

R6857

10k

1/10W

RN-CP

0.5%

C6859

0.01
50V
X7R

C6858
1000p

50V

CH

1608

R6855

2.2k

1/10W

RN-CP

5%

1608

R6856
1/10W

RN-CP

1k

C6861

10

50V

C6860

0.1
25V
X7R

IC6850

NJM2904M(TE2)

A OUTPUT

A-INPUT

B OUTPUT

A+INPUT

B-INPUT

4321

GND

B+INPUT

8765

V+

C6862

0.1

25V

X7R

D6852

MAZ8270G0LS0

D6853

MA2J1130GLS0

R6862

100k

1/10W

RN-CP

0.5%

C6863

0.1
25V
X7R

R6863

82k

1/10W

RN-CP

0.5%

R6865

120k

1/10W

RN-CP

0.5%

ERROR

C6864

50V

10

R6864

100

1/10W

RN-CP

5%

R6866

10k

1/10W

RN-CP

5%

B_OUT

GND

12V

LED_B_CNT

V_Ref

5

6

7

8

9

R6930

1M

*EY6930

XX

PFC_OUT

PFC_GND

2

*CN6930

XX

1
3

*EY6931

XX

1/10W

RN-CP

2012

3

PFC_OUT

4

Pri_GND

EY6800 EY6801 EY6802

R6800

RF

TMP

124439311

5

6

7

8

9

10

11

12

13

14

15

16

17

18

EY6900 EY6901 EY6902 EY6903

R6900

0.47

1/2W

RF

L6900

22uH

R_Conv.

PT

450V

1

C6900

Vsns

R6901

10k

1/10W

RN-CP

C6901

0.01
50V
X7R

R6902

18k

1/10W

RN-CP

0.5%

R6991

3.3M

1/10W

RN-CP

5%

C6904

50V

C6907

50V

C6905

0.01
50V
X7R

R6904
1/10W

RN-CP

0.5%

C6906

XX

C6908

100

35V

10

4.7

R6815

1k
1/10W
RN-CP

C6815

XX

PH6800

PC123Y22FZW

R6850

1k
1/10W
RN-CP

R6852

1k
1/10W
RN-CP

10

11

Mount Mecha

R6808

1M

1/10W

RN-CP

5%

R6905

10k

VD

VGH

VGL

PGND

0.5%

124943391

VS
VB

1/4W

FPRD

TMP

18 16 15 14 12 11

10

C6902

XX

C6903

1000p

50V

CH

R6903

XX

47

D6900

M1FM3

D6901

MA2J1130GLS0

87654321
9

R6906

22

IC6900

CXD9841P

Vsense
F/B
Ct
Rt
GND
PROT
SS
Vc1
OCP Vc2

1/10W
RN-CP

R6907

XX

C6812

0.01
50V

X7R

D6902

1SS357-TPH3

C6909

0.22
25V

X7R

D6905

UF4005PKG23

C6910

XX

A6800

M1FM3

R6909
1/10W

D6903

234989201

22

CHIP

2012

D6904

MAZ8150G0LS0

2SK3568(LBS2SONY1Q)

R6910

22

1/10W

CHIP
2012

C6911

47

25V

2SK3568(LBS2SONY1Q)

R6911

10k

1/10W

RN-CP

R6912

10k
1/10W
RN-CP

*Q6900

*Q6901

Q1300,Q1301

EY6904

S

EY6905

EY6906

S

EY6907

C6913

470p
1kV

D

R6913

0.22
2W

RS

R6914

0.22
2W
RS

*C6914

XX

EY6908 EY6909

*C6915

8200p

C6914, C6915
C6914

}N gp

d¸u«

*EY6910

*EY6911

*EY6912

XX

*EY6913

EY6914

1

3

5

67

1

3

5

67

1

3

*T6900

XX

*T6901

XX

12

11

9

8

*JW6951

XX

12

11

9

8

12

11

10

9

*JW6950

XX

*C6950

XX

*C6954

XX

SG10SC6M

D6950

*C6951

XX

SG10SC6M

D6951

*C6955

XX

*C6952

1800

*C6956

1800

*C6953

1800

*C6957

1800

R6953

33k

1/10W

RN-CP

0.5%

R6954

15k
1/10W
RN-CP

0.5%

R6956

10k

1/10W

RN-CP

0.5%

C6959

0.01
50V
X7R

C6958
1000p

50V

CH

1608

R6955

2.2k

1/10W

RN-CP

5%

1608

R6957
1/10W

RN-CP

1k

C6960

10

50V

Mount Mecha

Mount Mecha

C6961

0.1
25V
X7R

*A6950

*A6951

IC6950

NJM2904M(TE2)

A OUTPUT

A-INPUT

B OUTPUT

A+INPUT

B-INPUT

4321

GND

B+INPUT

263406621

263406601

8765

V+

C6963

0.1

25V

X7R

D1150,D1151

XX

D1150,D1151

D6952

MAZ8180G0LS0

1/10W
RN-CP

D6953

MA2J1130GLS0

R6964

33k

0.5%

C6962

25V
X7R

0.1

R6965
1/10W

RN-CP

0.5%

R6963

100k

1/10W

RN-CP

0.5%

33k

ERROR

C6964

50V

12

13

R_OUT

GND

14

15

R6962

100

1/10W

RN-CP

5%

12V

16

17

LED_R_CNT

V_Ref

R6966

10k

10

1/10W

RN-CP

5%

18

19

20

21

22

Pri_Vcc

R6908

1M

1/10W

RN-CP

5%

Mount Mecha

C6912

0.01
50V

X7R

A6900

234989201

ABCDEF GH JIKLMN

Q1100,Q1101

O

R6917

1k
1/10W
RN-CP

C6917

XX

*T6902

8

R6950

1k
1/10W
RN-CP

5

67

PH6900

PC123Y22FZW

T6901, T6902
T6902

R6952

1k
1/10W
RN-CP

d¸u«

}N gp

GL

2/2

19

20

21

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

22

~ GL Board Schematic Diagram [ In verter Po wer Supply ] P age 2/2 ~

- 64 -

ABC D EFG H JIKLMN

CL101

CL103

XX

C101

S101

1
2
3

*CN101

3P

GND
GND
POWER_INT

D101

XX

POWER

H1VM

KEY SWITCH

H1VM - EG1H

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

1

2

3

4

5

H3VM - EG1H

XX

C301

R301

150

1/16W

RN-CP

0.5%

D323

VYPY1105W

Q301

UNR52A1G0LS0

R302

470

1/16W

RN-CP

0.5%

D324

FR1105W

Q302

UNR52A1G0LS0

Q303

R303

150

1/16W

RN-CP

0.5%

D325

VYPY1105W

CL302CL301 CL304CL303 CL305

UNR52A1G0LS0

*R304

470

*D322

*Q304

Q305

UNR52A1G0LS0

R305

470

1/16W

RN-CP

0.5%

D308

FR1105W

Optical Sensor

R306

0

CHIP

6

45

7

NCGC1GC2

C302

0.1
16V

1005

C303

6.3V
47

CL307
CL306

GND

1

STBY3.3V

2

REC/RESERVE

3

STBY_LED

4

ON_TIMER

5

PWR/RESERVE

6

PICTURE_OFF

7

BL_IN

8

VD3.3V

9

*CN301

9P

1

2

3

4

5

D301

XX

6

TIMER[RED]
Data Telecom.[RED&GREEN blink]

7

U/C
AEP
GA

8

PICTURE OFF[RED&GREEN]
TIMER[RED]

D303

XX

D304

XX

TIMER REC[RED&GREEN]PICTURE OFF[RED&GREEN]

REC[RED]
POWER[GREEN]

POWER[GREEN]

D306

XX

D307

XX

ST ANDBY[RED]J

ST ANDBY[RED]

High: LED on

IC301

BH1690FVC-TR

IOUTGND VCC

23

1

R307

1k

1/16W

CHIP

5%

R309

470k

1/16W

CHIP

5%

XX

R308

R310

1M

1/16W

CHIP

5%

R311

1/16W

10k

CHIP 5%

C304

1

6.3V
X6S

1005

R312

33k

1/16W

CHIP

5%

Q306

ISA1602AM1TP-1EF

R313

XX

R314

1k

1/16W

CHIP

5%

H3VM

C305

6.3V

D302

MM3Z5V6ST1

X6S

1005

6

1

7

8

LED, IR RECEIVER

Low: LED off

LED

9

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

~ H3VM Board Schematic Diagram [ LED, IR Receiver ] ~

9

10

11

12

13

14

H4 - EG1H

Sircs

GND1

GND2

*IC401

RS-770N

OUT

VCC

H4

LED

10

11

12

13

14

15

16

17

18

5%

CHIP

1/16W

470

R401

1005

X7R

50V

220p

C401

C402

10

C403

XX

6.3V
X6S

2012

D401

MAZ8056G0LS0

XX

R402

47

1/16W

CHIP

5%

*R450

XX

CHIP

*R451

XX

1005

CHIP

*R452

XX

1005

CHIP

R453
1005

XX

CL403
CL401
CL402

1
2
3

SIRCS

15

STBY3.3V
GND

*CN401

3P

~ H1VM Board Schematic Diagram [ Key Switch ] ~

16

17

18

19

20

21

22

R454

XX

R455

XX

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

ABCDEF GH JIKLMN

~ H4 Board Schematic Diagram [ LED ] ~

O

19

20

21

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

- 65 -

ABC D EFG H JIKLMN

O

P

QRST UVWXY AA

Z

DDCCBB

EE

FF

10

11

12

13

14

15

16

17

1

1

2

2

3

3

4

5

6

7

8

9

K2 - EG1H

AUDIO_VCC
AUDIO_VCC
AUDIO_GND
AUDIO_GND

SP_MUTE3 (GND)

SP_L-

GND(shield-L)

SP_L+

PFC_DET_AU

SP_R+

GND(shield-R)

SP_R-

X_SP_MUTE2

AWF_R

GND(shield-AWF)

AWF_L

SDO_MUTE (GND)

X_SP_MUTE

MAIN_SW_FAULT

CN8001

20P

p^ [ –˜”‡¢

AUDIO_VCC
AUDIO_VCC
AUDIO_VCC

AUDIO_VCC
AUDIO_GND
AUDIO_GND
AUDIO_GND
AUDIO_GND

1
2
3
4
5

GND

6
7
8

9
10
11
12
13
14
15
16
17
18
19
20

R8045

XX

GND_1 AU_AGND

CN8000

8P

WHT

AUDIO_VCC

JL8002

JL8004

JL8006

JL8007
JL8008
JL8009

JL8010

JL8012
JL8013

1
2
3
4
5
6
7
8

JL8015

p^ [ –˜”‡¢

R8046

R8047

AUDIO_VCC

JL8000

JL8003

XX

XX

GND_K

GND_K

GND_1

C8001

XX

JL8001

SIGN856

XX

D8012

RB8000

1k

D8000

MA2J1110GLS0

SDO_MUTE(H:Mute)

SIGN858

SIGN859

H: Fault to u-com
(through BASI-IC)

R8004

1k

R8001

10k

SP_MUTE(L:Mute)

Q8001

RT3N11M-TP-1

AU_AGND

SP_PROT1

D8002

MA2J1110GLS0

SP_MUTE (L:Mute)

RB8005

XX

AU_AGND

D8001

MC2838-T112-1

MA2J1110GLS0

C8005

4.7

25V

C8004

4.7

25V

C8006

4.7

25V

R8059

p^ [ –˜”‡¢

005:10I

Q8002
UNR52A1G0LS0

005:10I

SP_PROT2

D8003

C8007

4.7

25V

R8058

XX

XX

p^ [ –˜”‡¢

GND_1

AUDIO_VCC

R8050

R8051

p^ [ –˜”‡¢

XX

XX

R8049

XX

R8048

XX

p^ [ –˜”‡¢

GND_1

AUDIO_VCC

Audio_Vcc

C8012

470
25V

C8014

470

25V

C8008

4.7

25V

C8009

4.7

C8010

25V

4.7

25V

C8011

4.7

25V

UDZSTE-175.6B

Audio_Vcc

R8056

XX

R8057

XX

JL8014

D8013

C8013

470

25V

F8000

5A

24V

C8016

470

25V

D8006

MAZ8056G0LS0

MAZ8056G0LS0

C8018

0.01
25V

F8001

5A

24V

C8015

470

25V

C8024

0.001
50V

GND_K

C8026

100
25V

C8022

0.1

C8027

0.001
50V

12345678

9101112

D8004

C8017

470

25V

GND_K

D8007

MAZ8056G0LS0

C8029

0.001
50V

12345678

9101112

25V

48

AVCC

GND
RINN
RINP
AGND
LINP
LINN
GAIN0
GAIN0
GAIN1
MSTR/SLV
SYNC
GND

GND

131415

D8008

MAZ8056G0LS0

C8025

0.001
50V

C8028

100
25V

C8023

0.1

25V

48

AVCC

GND
RINN
RINP
AGND
LINP
LINN
GAIN0
GAIN0
GAIN1
MSTR/SLV
SYNC
GND

GND

131415

46

47

AVCC

FAULT

H: Fault

R/L: Master mode using
20dB Gain setting

ROSC

VREG

R8023

100k

0.5%

46

47

AVCC

FAULT

H: Fault

AWF: Slave mode using
20dB Gain setting

ROSC

VREG

RB8001

10k

C8032

0.22
25V

41

42

43

44

45

MUTE

BSRP

ROUTP

SHUTDOWN

H: Mute

IC8000

TP A3100D2PHPR

BSLP

VBYP

16

C8030

4.7

25V

45

MUTE

LOUTP

AGND

17181920212223

C8033

0.22
25V

D8010

MAZ8056G0LS0

RB8002

10k

C8034

0.22
25V

41

42

43

44

BSRP

ROUTP

SHUTDOWN

H: Mute

IC8001

TP A3100D2PHPR

BSLP

16

VBYP

LOUTP

AGND

17181920212223

ROUTP

LOUTP

ROUTP

LOUTP

40

ROUTN

LOUTN

40

ROUTN

LOUTN

39

ROUTN

LOUTN

39

ROUTN

LOUTN

38

BSRN

BSLN

38

BSRN

BSLN

C8036

0.22
25V

37

VCLAMPR
VCLAMPL

24

C8037

0.22
25V

C8038

0.22
25V

37

VCLAMPR
VCLAMPL

24

GND

PVCCR
PVCCR
PGNDR
PGNDR

PGNDL
PGNDL

PVCCL
PVCCL

GND

GND

PVCCR
PVCCR
PGNDR
PGNDR

PGNDL
PGNDL

PVCCL
PVCCL

GND

GND

GND

GND

GND

p^ [ –˜”‡¢

R8052

XX

E

R8053

XX

GND_1

L8001

22uH

L8002

22uH

C8044

C8040

0.001
50V

C8045

2930313233343536

C8041

0.001

25262728

2930313233343536

25262728

50V

C8042

0.001
50V

C8043

0.001
50V

C8046

L8003

22uH

L8004

22uH

L8005

22uH

L8006

22uH

C8050

0.1

25V

1

25V

1

25V

C8047

0.1

25V

C8048

0.1

25V

C8049

25V

1

25V

C8051

0.1

25V

C8056

470
25V

C8057

470

25V

p^ [ –˜”‡¢

R8054

XX

R8055

XX

GND_1

C8060

0.47

C8058

470
25V

1

C8059

470
25V

ET8000

E

ET8001

E

ET8002

C8062

0.68
50V
MPS

C8063

0.68
50V
MPS

C8066

0.68
50V

MPS

C8067

MPS

E

ET8003

C8064

MPS

C8065

0.22
50V

MPS

0.68
50V

0.22
50V

RB8003

100k

RB8004

100k

R8033

120k

0.5%

1005

R8034

120k

1/16W

RN-CP

0.5%
1005

7

2143658

R8032

120k
1/16W
RN-CP

0.5%

R8031

120k

1/16W

RN-CP

0.5%

7

2143658

C8072

4.7
25V
X7R
3216

C8073

4.7

25V
X7R
3216

TO DETECT

C8070

4.7

25V
X7R
3216

C8071

4.7

25V
X7R
3216

TO DETECT

Q8005

RT3AMMM

Q8006

RT3AMMM

Q8003

RT3AMMM

Q8004

RT3AMMM

R8010

100k

RT1N430C-TP-1

C8079

0.1

25V X7R

1608

C8074

0.001
50V

X7R
1005

Q8008

RT1N430C-TP-1

R8011

100k

C8075

0.001
50V
X7R

1005

Q8009

C8076

0.001
50V

X7R
1005

C8077

25V

1608

C8078

0.1
X7R

0.001
50V
X7R

1005

Q8007

RT1P141M-TP-1

C8080

0.001

C8081

0.001

C8082

0.001

GND_K

50V
X7R
1005

C8083

GND_K

50V
X7R

1005

Q8010

RT1P141M-TP-1

50V
X7R

1005

0.001
50V
X7R

1005

R8042
1/16W

R8044

100k

1/16W

CHIP

5%

R8043

XX

100k
CHIP

R8041XXC8084

XX

H: Protect

H: Protect

SP_PROT1

C8085

XX

SP_PROT2

CN80028PWHT

SP_L+

1

SP_L-

2

SP_R-

3

SP_R+

4

AW_L+

5

AW_L-

6

AW_R-

7

AW_R+

8

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

C8019

0.01
25V

D8005

MAZ8056G0LS0

MAZ8056G0LS0

D8009

R8024

100k

0.5%

C8031

4.7

25V

C8035

0.22
25V

D8011

MAZ8056G0LS0

C8039

0.22
25V

L8007

22uH

L8008

22uH

C8061

0.47

C8068

0.22
50V

MPS

C8069

0.22
50V

MPS

K2

APM 2.2CH

COMPONENTS MARKED AS XX REFER TO PARTS LIST, WILL ONLY BE LISTED IF FITTED

18

19

20

21

22

ABCDEF GH JIKLMN

O

22

P

Q

R

S

T

U

V

W

X

Y

Z

AA

BB

CC

DD

EE

FF

~ K2 Board Schematic Diagram [ APM 2.2 CH ] ~

- 66 -

ABCDE F

Text Search

G

HIJKLMN

O

1

~ AE Printed Wiring Boar d Side A ~

2

J1003

A1000

3

4

CN1303

CN1301

CN1300

C2116

CN1302

J1002

CN1001

TU1900

CN2100

5

IC1100

CN1100

A1001

IC1101

IC2104

CN2101

CN2102

IC1551

A1004

6

10

CN1000

F1001

5A 24V

CN1401

TB1400

7

IC2107

J1000

8

A1005

J1001

121

9

CN1002

A-1509-

933-A

220

121

CN1400

CN1402

220

J1400

1-876-560-11

11

- 67 -

ABCDE F

Text Search

G

HIJKLMN

O

1

~ AE Printed Wiring Board Side B ~

2

3

4

IC1900

W191

5

IC1250

6

IC1109

7

8

9

10

11

1-876-560-11

20

2

21

1

20

2

21

1

IC1700

IC1800

IC1105

IC1108

IC1106

IC1104

IC1107

!d#E#P!]#G#W!c

- 68 -

ABCDE F

Text Search

G

HIJKLMN

O

1

~ CB1 Printed Wiring Board ~

2

IC9710

CN9700

IC9708

CN9702

CN9003

IC9400

CN9004

F9100

3.15A

24V

IC9100

3

CN9701

4

5

CN9703

F9301

24V

3.15A

46 55

IC9102

CN9001

CN9000

IC9402

24V

3.15A

F9300

A

117-A

A-1553-

IC9401

IC9000

IC9707

CN9704

(172996211)

IC9101

1-877-350-11

6

10

F9303

!d#E#P!]#G#W!c

10A 72V

7

IC9005

IC9701

8

1-877-350-11

(172996211)

IC9705

IC9703

IC9704

9

IC9301

IC9300

11

- 69 -

ABCDE F

FB6600

FB6602

FB6608

E Y6700

E Y6701

EY6702

E Y6 7 03

C6729

FB6611

FB6612

FB6613

E Y6710

E Y671 1

EY6714

R6710

EY6715

R6711

C6740

L6600

C6745

R6917

R6918

R6919

C6753

R6920

C6759

JW6601

JW6602

JW6603

JW6604

JW6607

JW6608

JW6609

JW6610

JW6611
JW6612

C6789

C6797

A6607

A6608

CN6600

C6606

GS

Q6602

GS

Q6603

C6612

EY6600

EY6601

D6604

D6605

E Y6 6 0 6

R6602

EY6 607

R6603

D6608

D6609

E Y661 0

E Y6 6 1 1

E Y6612

R6804

EY6616

E Y661 7

E Y661 8

E Y6619

E Y662 0

EY6 621

E Y6 6 2 2

E Y662 3

E Y662 4

E Y6625

E Y662 6

E Y662 7

JW6700

JW6701

JW6702

JW6703

JW6704

JW6705

JW6706

JW6707

JW6708

JW6709

JW6710

JW6711

EY6652

EY6653

EY6654

EY6655

E Y6 6 56

E Y6 657

E Y6 6 5 8

T6800

T6801

E Y665 9

JW6720

JW6721

JW6722

JW6723

JW6724

JW6725

JW6726

JW6727

JW6728

JW6737

JW6738

JW6739

JW6740

JW6746

JW6752

CN6700

1-876-447-12

P FC_OUT

P RI _ GND

(172964612)

1

3

_ERR

NC
BALANCER

REG12V
GND

INV_ERR
BACK_LIGHT

DIMMER

GND

GND

LD
LD

NC

FB

VCC(12V)

382-B

A-1511-

FB

GND

NC

46

O CP2

V -FB1

10

INV-DRV-1L

G ND

V CC(1 2V)

N C

G ND

GND

INV-DRV -1H

GND

1

52

1

40

Primary

PFC 395V

To Balancer

To D5

High Side

Low Side

High voltage

4

C6709 C6711

C6600

C6603

D6607

D6606

HV1 HV2

Lock

E Y6704 E Y6705

E Y6 706

E Y6 707

E Y661 3

T6601

FB6601

FB6603

C6798

FB6614

EY6716

EY6717

EY6719

EY6718

FB6615

C6799

JW6713

JW6712

JW6729

ET6700

ET6701

ET6702

CN6707

CN6708

CN6709

RV6701

E Y6 605

EY6 604

E Y6 608

EY6609

DOWN

Freq

UP

CN6704

13

CN6705

14

CN6702

18

1

10

CN6703

CN6701

17

CN6706

1

9

T6600

C6708

Q6704

Q6705

Q6706

Q6707

JL6740

C6710

C6712

JL6747

C6713

C6714

C6715

Q6711

C6716

Q6712

C6717

C6718

Q6714

C6719

Q6717

Q6718

FB6600

Q6719

FB6602

C6720

C6721

C6723

C6724

Q6720

FB6608

C6725

Q6721

D6702

C6727

D6703

C6728

D6704

R6700

C6729

D6705

R6701

R6702

R6703

R6704

FB6611

D6709

FB6612

FB6613

R6707

C6730

R6708

C6731

IC6701

IC6702

C6733

IC6703

C6734

D6710

D6711

C6735

C6736

C6737

D6714

R6710

C6739

D6715

R6711

D6717

R6714

R6715

R6909

R6716

C6740

C6741

C6742

C6743

C6744

L6600

C6745

C6746

D6722

C6747

C6748

C6749

R6721

R6915

R6722

R6916

R6723

R6917

R6724

R6918

R6725

R6919

R6727

C6750

C6751

R6729

C6752

C6753

C6754

R6920

C6755

C6756

C6757

C6758

R6730

C6759

R6731

R6732

R6733

R6734

R6735

R6736

R6737

C6760

R6739

C6763

C6764

R6747

R6748

R6750

R6751

R6752

PF LP

R6754

R6755

R6756

R6757

R6758

C6785

C6787

C6789

M

D

R6762

R6763

R6764

R6765

R6766

R6767

C6790

R6768

C6791

C6792

C6793

C6794

C6797

R6771

R6772

R6773

R6775

R6776

R6779

JR6700

JR6701

JR6702

JR6703

JR6704

JR6705

R6781

R6782

JR6706

JR6707

R6783

R6784

JR6708

JR6709

R6786

R6788

R6789

A6607

JR6710

A6608

JR6711

JR6712

JR6713

R6790

R6792

R6793

R6794

R6795

R6797

JL6600

JL6601

CN6600

C6601

C6602

Q6600

Q6601

C6606

GS

Q6602

GS

Q6603

C6609

C6612

D6600

D6601

D6604

R6600

D6605

R6601

R6602

R6603

D6608

R6604

D6609

R6605

R6606

R6607

R6609

R6802

R6803

R6804

R6805

R6808

R6809

R6619

D6620

R6810

D6621

R6811

R6620

D6625

R6621

R6818

R6819

R6628

R6629

R6820

R6821

R6822R6823

R6824

R6825

R6632

R6633

T6800

T6801

JL6701

JL6702

JL6703

JL6704

JL6705

JL6706

JL6707

JL6708

JL6709

JL6710

JL6711

JL6712

JL6713

JL6714

JL6715

JL6716

JL6717

JL6718

JL6719

JL6720

JL6721

JL6722

JL6723

JL6724

JL6725

JL6727

CN6700

JL6728

JL6729

JL6730

JL6731

JL6732

JL6733

JL6734

JL6735

JL6736

C6702

JL6737

C6703

JL6738

JL6739

C6706

2

1

11

1

1-876-447-12

PFC_OUT

PRI_GND

20

(172964612)

10

GND

DIMMER

BACK_LIGHT

INV_ERR

GND

REG12V

BALANCER

NC

_ERR

3

1

7

8

1

OCP2

GND

GND

GND

GND

INV-DRV

-1L

INV-DRV

-1H

NC

V-FB1

VCC

(12V)

14

1

2

3

4

1

9

VCC
(12V)

FB
FB
GND
GND
LD
LD
NC
NC

1

3

High voltage

Primary

4

3

C6709

C6711

C6600

C6603

D6607

D6606

HV1

HV2

T6601

FB6601

FB6603

C6798

FB6614

FB6615

C6799

JR6714

R6921

ET6700

ET6701

ET6702

CN6707

CN6708

CN6709

R6922

RV6701

C6800

C6801

C6722

C6732

C6658

C6604

C6726

C6738

D6602

D6603

C6701

IC6704

CN6704

1

3

CN6705

1

4

CN6702

1

8

CN6703

1

10

CN6701

1

7

CN6706

19

T6600

Text Search

G

HIJKLMN

O

1

2

3

4

5

6

7

8

9

10

11

~ D4 Printed Wiring Boar d ~

- 70 -

ABCDE F

Text Search

G

HIJKLMN

O

1

~ FBA Printed Wiring Board Side A ~

2

CN5500

PL0

PL1

3

IC5501

A-1550-

294-A

1-877-329-11

IC5403

F7800 : F 1.6A L 32V

CN7500

CN7700

V1 V3

AEP

GA

4

IC7300

CN5300

F4100

5

F 3.15A
L 24V

IC5100

IC5401

F7800

F 1.6A

F7801

IC7200

L 32V

IC7000

6

IC4800

CN2800

IC7201

7

IC4500
IC4700

IC4602

CN7600

CN7100

IC4306

F 3.15A

8

F4102

L 24V

F4600

9

10

11

F4101 F 3.15A L 24V

CN4000

CN4001

F 0.5A L 50VF4600

- 71 -

CN4600

CN4303

CN4301

CN4300

CN4302

ABCDE F

Text Search

G

HIJKLMN

O

1

~ FBA Printed Wiring Board Side B ~

2

1-877-329-11

3

4

F5400
F 3.15A

L 24V

IC7806

CN7501

5

IC4903

IC2812

6

IC4901

7

IC7600

!d#E#P!]#G#W!c

8

9

10

11

1716

51

610

W191

11 15

IC4900

- 72 -

ABCDE F

Text Search

G

HIJKLMN

O

10

11

1

2

3

4

5

6

7

8

9

~ G6 Printed Wiring Boar d Side A ~

ET6003

A6010
A6008

ET6005

C6009

JW6082

JW6083
FB6003

C6017

ET6001

A6004

JW6500

FB6504

C6024

EY6514

1

CN6500

3

EY6515

EY6523

FB6500

L6507

7

12

L6506

7

A6009

A6011

12

L6503

FB6002

ET6004

A6013

A6000

C6502

PFC_OUT

PRI_GND

EY6522

L6505

EY6544

EY6543

C

JW6091

JW6092

JW6072

JW6078

SS

FB6501

EY6525

JW6018

JW6019

EY6502

J

JW6073

S

EY6524

M

A6012

C6530

EY6535

JW6011

JW6074

L

A-1548-

089-A

3

EY6527

EY6518

EY6530

EY6531

PRI_GND

PFC_OUT

1

CN6501

JW6501

C6524

C6526

EY6542

EY6536

EY6520

16

JW6013

JW6006

R6516

C6516

6

EY6532

EY6538

EY6508

EY6509

R6511

EY6519

EY6513

D6502

Q6500

TH6300

EY6512

C6517

GS

L6504

C6514

EY6541

1

EY6537

Q6501

EY6510

EY6511

G

S

C6525

JW6030

JW6008

EY6503

JW6029

C6533

C6506

L6500

AC OUT(L)

EY6035

1

CN6004

AC OUT(N)

EY6036

2

A6007

JW6079

A6005

C6529
C6501

EY6528

C6107

R6124

EY6529

EY6500

EY6501

JW6044

R6500

R6557

R6510

TH6301

C6521

Q6509

C6520

G

EY6506

EY6507

JW6009

R6509

EY6504

EY6505

S

JW6066

Q6508

GS

R6561

C6515

A6015

R6562

R6532

JW6048

JW6080

JW6042

A6014

JW6086

1-877-271-12

C6103

C6104

9

10

D6103

EY6516

JW6027

JW6023

JW6084

JW6028

JW6059

JW6058

JW6067

JW6054

JW6010

JW6007

C6519

R6530

R6531

JW6012

JW6015

JW6014

JW6005

R6533

C6500

JW6069

IC6100

R6120

JW6060

JW6065

C6523

JW6034
JW6032

JW6017

16

1

JW6033

JW6031

JW6062

C6535

C6503

C6102

1

18

JW6057

JW6022

JW6077

EY6106

R6123

EY6107

C6111

C6309

C6507

C6527

8

IC6500

C6015

C6014

EY6101

JW6071

S

G

Q6100

EY6103

S

G

Q6101

JW6300

9

JW6024

JW6020

PRI_GND

PRI_VCC

PRI_PROTECT

A6002

EY6100

A6001

CN6505

3

1

C6318

T6100

JW6025

C6109

EY6102

EY6110

C6110

EY6111

FB6101

EY6104

JW6061

JW6045

EY6024

EY6025

D6000

EY6022

EY6023

JW6075

JW6076

R6451

FB6100

EY6105

PH6301

PH6302

R6200

R6350

R6337

RY6000

EY6026

R6006

C6302

C6404

D6403

T6101

1

2

1
2

EY6200

C6204

EY6202

C6202

EY6029

VD6001

JW6003

JW6002

C6012

3
4

JW6064

4

3

C6205

R6203

1

IC6200

4

C6203

R6022

EY6037

JW6089
JW6090

C6018

EY6008
EY6010

43

4
3

JW6063

D6203

8

5

EY6201

R6202

EY6014

EY6009

C6022

21

PH6100

2
1

PH6304

EY6109

3
4

D6204

43

EY6203

D6303

D6201

R6318

EY6038

EY6018

FB6000

C6006

JW6000

IC6150

REG12V

BALANCER

1

3

JW6070

FB6154

JW6051
JW6050

FB6155

EY6152

FB6157

FB6156

FB6151

FB6150

FB6153

FB6152

JW6041

JW6043

21

PH6300

21

K

PH6200

T6200

JW6088

R6009

JW6087

EY6015

L6001

L6003

CN6001

BACK

REG12V

GND

INV_ERR

_ERR

IC6250

A

D6250

C6250

PH6303

43

EY6005

EY6006

EY6019

EY6032

EY6011

EY6031

DIMMER

_LIGHT

21

HVR

H/ON

GND

A6003

JW6056

JW6055

C6412

JW6049

L6401
L6400

EY6004
EY6002

D6154

JW6026

JW6052

JW6053

D6150

L6151

D6152

JW6040

JW6039

D6153

R6161

C6405

C6406

JW6037

JW6001
FB6001

C6011

C6010

L6000

L6002

C6008

CN6153

10

9

CN6151

CN6154

7

8

CN6152

C6157

JW6035

JW6036

C6159

C6160

T6.3AH

JW6038

C6004

F6001

EY6007

EY6003

C6007

C6000

1

1

1
1

JW6047

C6152

C6153

L6153

R6160

CN6502

JW6004

JW6016

250V

JW6081

C6005

EY6041

EY6017

VD6000

EY6016

C6003

C6001

JW6021

15

14

1

1

12

C6154

CN6503

1

8

CN6003

CN6002

CN6000

CN6005

EY6042

EY6000

EY6001

C6002

ET6000

HVR
DIMMER
B/L_ON
INV_ERR
H/ON
BALANCER_ERR

POWER_ON

AC_OFF_DET
STBY

REG12V_GND
REG12V_GND

JW6085

REG12V_GND

REG12V

REG12V
REG12V

GND
GND
12V
12V
12V
12V
GND
GND
GND
GND
12V
12V

JW6068

AUDIO_GND

ET6006

AUDIO_VCC

1

EY6021

2
3

AC IN(L)

1

AC IN(N)

A6006

ET6002

CN6150

CN6156

- 73 -

ABCDE F

Text Search

G

HIJKLMN

O

10

1

2

3

4

5

6

7

8

9

~ G6 Printed Wiring Board Side B ~

ET6000

JR6005

JL6428

JR6010

C6118

C6120

C6122

C6400

HVR

15
DIMMER
B/L_ON

INV_ERR

H/ON

BALANCER_ERR

POWER_ON

AC_OFF_DET

STBY

REG12V_GND
REG12V_GND
REG12V_GND
REG12V

JL6421

REG12V

JL6423

1

REG12V

JL6425

JL6424

JL6426

ET6006

CA6002

AC IN(L)

CN6000

AC IN(N)

A6006

ET6002

Q6400

R6406

R6407

D6402

15

JL6414

14

JL6417

C6112

1

12

GND
GND

CN6503

12V
12V
12V
12V
GND
GND
GND
GND
12V
12V

1

8

AUDIO_GND

AUDIO_VCC

JL6409

1

CN6502

CN6003

CN6002

JL6005

JL6004

2

3

CN6005

1

JL6003

CA6001

VD6000

C6003

JL6416

R6404

C6117

C6402

R6408

1

JL6400

1

1

C6127

Q6406

R6426

JL6422

JL6413

R6157

JR6026

C6119

C6121

R6450

R6405

JL6406

JR6027

C6123

C6152

JL6401

CN6150

JL6427

JL6404

C6124

C6409

C6125

JL6150

1

JL6410

C6155

M
D

JL6151

R6160

R6159

C6161

JL6155

C6126

JL6154

JL6157

JL6158

JL6411

CA6003

F6001

C6002

CA6000

C6403

R6409

C6115

CN6153

C6114

CN6151
CN6154
CN6152

C6116

C6153

C6154

JL6159

L6153

C6159

R6158

C6160

C6407

C6005

C6004

JL6001

JR6022

R6430

7

8

JL6412

9

10

JL6156

C6157

L6151

R6161

L6400

L6401

C6405

JL6408

R6415

FB6001

C6011

R6002

R6003

R6001

R6000

JR6021

R6429

D6152

D6153

JR6011

Q6403

L6000

L6002

JL6415

D6154

A6003

D6150

D6400

R6414

R6254

R6255

JL6420

C6412

Q6402

R6416

C6408

R6427

C6406

D6401

R6402

R6412

R6411

C6010

C6008

JL6418

BACK

_LIGHT

H/ON

HVR

1

JR6051

R6428

C6250

R6413

34

R6331

2

C6151

R6424

R6423

R6422

INV_ERR

GND

BALANCER

_ERR

REG12V

REG12V

DIMMER

GND

8

7

9

10

1

1

JL6152

R6421

R6410

R6403

IC6250

R6252

R6253

A

C6207

R6250

Q6405

R6251

JL6407

D6250

R6401

12

PH6303

R6330

D6302

R6156

R6154

R6155

C6401

Q6401

FB6154

FB6155

FB6157

FB6156

FB6151

FB6150

FB6153

FB6152

C6410

Q6404

R6418

C6251

K

T6200

R6332

R6318

L6001

L6003

IC6150

R6153

R6150

R6420

R6400

R6417

PH6300

12

12

PH6200

D6303

R6328

R6009

JR6052

R6152

C6150

R6419

R6425

JL6419

34

3
4

R6327

R6007

R6008

R6005

R6004

IC6101

R6151

PH6100

12

2
1

PH6304

T6100

T6101

JR6023

C6206

D6204

D6203

8

5

D6201

R6202

R6022

34

3

4

R6352

R6342

PH6301

JR6006

R6121

C6113

4

3
4

3

PH6302

C6205

D6200

C6201

C6200

IC6200

C6203

Q6310

C6302

Q6308

R6355

C6313

C6404

JR6014

1

2

1
2

JR6053

R6203

R6201

1

C6202

4

C6018

C6012

JL6526

R6339

R6306

R6351

D6304

R6341

R6354

C6318

R6451

D6403

FB6100

Q6300

R6319

R6335

R6324

JR6024

R6317

C6204

R6200

D6202

R6526

D6508

Q6505

D6306

R6019

RY6000

VD6001

R6006

CN6505

1

C6320

Q6309

C6109

R6305
R6309

JR6020

D6309

C6304

C6308

R6315

R6308

R6546

R6018

D6003

D6000

PRI_VCC

PRI_PR

OTECT

PRI_GND

JL6304

R6353

R6340

JL6303

Q6311

Q6101

C6110

A6002

FB6101

D6307

R6311

Q6302

R6350

JL6524

R6544

R6336

Q6504

R6337

JR6025

R6017

R6015

C6316

3

C6319

Q6312

Q6100

JR6012

C6312

R6320

C6306

R6310

JR6018

R6571

R6543

C6504
R6542

JR6008

JR6019

JL6527

R6343

S

G

S

G

R6116

R6300

A6001

Q6301

C6310

JR6016

C6307

D6308

R6321

C6301

R6334

R6333

R6338

R6521

R6522

R6537

R6545

R6547

Q6507

C6505

R6523

D6503

JL6522

D6512

JL6523

C6522

C6314

R6117

R6118

C6019

JL6519

8

1

D6300

R6525

C6513
R6534

R6013

C6315

R6115

C6305

IC6100

D6105

D6106

C6300

R6010

C6111

IC6300

D6301

5

4

JL6520

C6311

R6303

R6302

D6510

R6519

JR6013

C6507

D6305

JL6525

9

8

R6507

R6524

C6512

R6501

C6508

C6015

C6014

C6023

D6104

C6309

R6505

C6509

R6502

18

R6316

R6314

JR6009

R6111

R6119

R6101

R6109

1

C6101

C6108

D6101

R6123

R6322

C6317

JL6521

R6323
R6313

JL6518

C6523

C6527

R6529

R6504

R6508

R6506

C6511

C6500

C6503

C6104

A6005

C6103

D6100

9

R6122

10

D6103

R6106

R6107

R6108

C6100

R6102

R6124

C6105

JR6015

R6113

R6114

C6107

JL6517

R6105

C6106

R6100

R6112
R6104
R6103

C6102

D6102

R6500

C6016

R6021

R6120

R6301

R6312

JR6003

Q6503

Q6511

C6519

D6505

R6110

D6107

JR6007

Q6305

R6517

C6303

R6551

R6552

D6509

R6530

R6559

Q6502

R6560

D6513

R6531

JR6004

D6504

R6528

R6568

C6535

R6527

1

R6503

16

C6518

JR6002

R6570

IC6500

D6518

D6519

R6533

R6541

JL6006

Q6513

D6520

R6569

C6510

C6532

C6531

Q6506

D6506

R6555

R6556

D6507

JR6001

R6518

Q6510

R6550

R6564

A6014

1-877-271-12

TH6301

JL6301

R6307

G

R6553

R6548

R6549

S

R6565

D6516

C6020

C6501

R6304

R6325

C6521

R6561

S

R6509

G

R6532

R6562

R6011

C6529

R6510

C6520

Q6509

D6514

C6515

Q6508

D6515

R6558

R6538

R6563

C6013

JL6302

D6500

R6515

R6520

A6015

R6016

A6007

1

R6012

C6021

R6326

D6502

R6514

R6540

D6501

R6513

PRI_GND

PFC_OUT

R6539

G

R6512

S

G

S

CN6501

3

1

JL6500

JL6002

R6511

TH6300

C6526

R6516

C6517

C6516

Q6500

C6514

1

Q6501

C6533

AC OUT(N)

CN6004

2

A6012

C6502

C6524

6

1

6

C6525

C6506

AC OUT(L)

1

FB6501

C6530

L6504

L6500

L6505

12

PFC_OUT

PRI_GND

FB6500

7

12

7

L6503

A6013

A6004

FB6504

JW6500

C6024

1

3

L6507

R6536

L6506

R6535

A6009

A6011

FB6002

JW6082

FB6003

JW6083

ET6004

A6000

ET6003

CN6500

PF LP

A6008

A6010

R6554

ET6005

C6009

C6017

ET6001

C6001

C6000

C6007

11

CN6001

FB6000

C6006

C6022

- 74 -

ABCDE F

FB6600

FB6601

FB6604

FB6605

L6600

L6601

L6602

12

7

6

1

L6605

12

7

6

1

L6606

L6607

L6608

JW6600

JW6601

JW6602

ET6600

ET6601

ET6602

ET6603

PF LP

M
D

A6600

A6601

A6602

A6603

A6604

JR601

JR602

JR604

JL6600

JL6601

JL6602

JL6603

JL6604

CN6600

CN6601

CN6602

CN6604

C6600

C6601

C6602

C6603

C6604

Q6600

C6605

Q6601

C6606

Q6602

C6607

Q6603

C6608

Q6604

C6609

G

S

Q6605

G

S

Q6606

Q6607

Q6608

Q6609

C6610

C6611

C6612

C6613

C6614

Q6610

C6615

C6616

C6617

C6618

C6619

C6620

C6621

C6622

C6623

C6624

D6600

C6625

D6601

C6626

D6602

C6627

D6603

C6628

D6604

R6600

C6629

D6605

R6601

D6606

R6602

D6607

R6603

D6608

R6604

D6609

R6605

R6606

R6607

C6630

R6608

8

IC6600

9

16

C6631

R6609

IC6601

C6632

IC6602

C6633

C6634

C6635

D6612

C6636

C6637

D6614

C6638

R6610

C6639

R6611

R6612

R6613

R6614

R6615

R6616

R6617

C6640

R6618

TH6600

C6641

R6619

C6642

C6643

C6644

C6645

C6646

C6647

C6648

R6620

C6649

R6621

R6622

R6623

R6624

R6625

R6626

R6627

C6650

R6628

C6651

R6629

C6652

C6653

C6654

C6655

C6657

R6630

R6631

R6632

R6633

R6636

R6637

R6638

R6639

R6640

R6641

R6642

R6643

R6644

R6645

R6646

R6647

R6648

R6649

R6650

R6651

R6652

R6653

R6654

R6655

R6656

R6657

R6658

R6659

R6660

R6661

R6663

R6664

R6665

R6667

R6669

R6670

R6673

R6674

R6675

R6676

R6677

R6678

1-877-272-11

1

2

AC IN(L)

AC IN(N)

1

3

PFC-OUT

PFC-GND

PRI-VCC

PRI-GND

PRI-PROTECT

(172993611)

1

R6681

JW619

D6617

D6615

Q6611

R6682

D6616

Q6612

Q6614

R6683

Q6613

D6618

R6684

R6685

R6680

1

2

3

VD6601

A6605

1

3

CN6603

C6658

R6686

C6656

JL6613

JL6612

JL6614

R6687

JL6615

JL6610

JL6611

JL6619

JL6618

JL6621

JL6620

JL6607

JL6617

JL6616

JL6609

JL6606

JL6605

JL6608

Text Search

G

HIJKLMN

O

1

2

3

4

5

6

7

8

9

10

11

~ G7 Printed Wiring Boar d ~

A6605

ET6603

JW623

7

L6608

12

JW615

C6625

C6645

16

IC6600

1

JW614

C6647

C6649

EY6638

EY6639

C6646

EY6635

R6661

C6648

EY6633

A6602

ET6602

C6637

R6657

L6606

JW616

C6657

9

JW619

8

JW613

EY6641

1

CN6604

3

EY6642

R6644

JW621

JW611
JW608

PFC-OUT

PFC-GND

PRI-PROTECT

PRI-GND

PRI-VCC

IC6601

R6630

JW622

6

EY6644

EY6617

EY6643

1

EY6616

JW612

C6650

JW607

R6633

R6645

EY6636

EY6634

EY6637

FB6605

EY6640

FB6604

JW6602

3

1

CN6603

JW605

JW604

TH6600

EY6625

G

EY6627

EY6626

EY6628

C6640

A6604

JW6607

A6601

C6653

12

EY6614

EY6645

1

C6627

C6626

S

Q6605

EY6624

JW603

Q6606

GS

D6608

EY6630

EY6629

R6649

C6642

L6600

EY6602

JW6611

EY6603

L6601

EY6610

C6605

EY6600

FB6600

JW6600

A-1506-

L6607

R6623

JW602

R6650

862-A

EY6615

EY6646

C6629

C6630

R6627

1-877-272-11

(172993611)

C6641

C6643

VD6601

C6609

EY6608

EY6609

C6613

JW6605
JW6609

CN6600

7

L6605

6

JW609
JW610

C6610

JW6612

EY6611

JW6610

EY6601

A6603

C6607

JW617

C6614

JW6608

JW6606

C6611

C6612

JW6604

C6606

A6600

2

CN6602

1

EY6632

C6608

C6619

JW606

JW601

C6621

L6602

EY6612

D6600

EY6606

EY6604

EY6607

EY6605

C6602

C6616

EY6631

ET6600

C6624

C6617

C6615

FB6601

AC IN(N)

ET6601

AC IN(L)

CN6601

EY6613

C6618

C6656

JW6601

- 75 -

ABCDE F

4

3

2

1

1

9

10

18

1

9

8101

4

3

21

B

E

4

3

2

1

1

9

10

18

4

3

2

1

4

3

21

B E

A6750

A6751

C6904

PH6800

C6907

C6908

A6950A6951

C6911

C6913

C6914

CN6730

R6700

R6705

CN6930

R6900

D6905

R6905

R6913

R6914

L6800

C6750

C6751

C6752

C6753

C6754

C6755

C6756

C6757

C6950

C6951

C6952

C6953

C6954

C6955

C6761

C6956

C6957

C6764

C6960

T6700

C6964

T6701

D6750

CN6780

D6751

CN6781

T6900

T6901

D6950

D6951

A6800

L6880

L6881

L6882

PH6700

C6805

C6806

C6808

A6850A6851

PH6900

C6811

C6813

C6814

C6816

C6817

R6800

D6804

R6805

PH6730

R6813

R6814

R6818

PH6930

L6700

L6900

C6850

C6851

C6852

C6853

C6854

C6855

C6856

C6857

JW6703

JW6704

JW6705

JW6706

JW6709

C6861

C6864

JW6710

JW6713

T6800

T6801

D6850D6851

JW6725

C6883

C6884

JW6731

C6889

JW6732

JW6733

JW6735

C6890

JW6930

JW6931

JW6741

JW6749

JW6950

JW6951

A6900

ET6780

ET6781

ET6782

EY6800

EY6730

EY6704

EY6808

EY6802

EY6702

EY6700

EY6813

EY6931

EY6811

EY6801

EY6731

EY6912

EY6703

EY6805

EY6900

EY6910

EY6908

EY6712

EY6812

EY6809

EY6901

EY6902

EY6930

EY6803

EY6711

EY6911

EY6909

EY6710

EY6810

EY6713

EY6903

EY6914

EY6705

EY6701

Q6802

IC6900

IC6800

A-1527-

1-877-581-11

C6708

C6712

C6713

C6714

C6715

C6716

D6704

EY6708 EY6709

IC6700

R6712

R6713

R6718

JW6711JW6712

JW6714

A6700

C6705

C6706

Q6702

GND

ERROR

GND

REG12V

NC

REG12V

V_ADREF

V_ADREF

GND

GND

GND

GND

5V

5V

5V

GND

GND

V_ADREF

V_ADREF

5V

GND

GND

Red

Red

Red

Red

Red

GND

Green

Green

Green

Green

Green

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

Blue

Blue

Blue

Blue

Blue

GND

GND

GN
D

GND

GND

Blue

Blue

Blue

GND

GND

GND

GND

GND

NC

Green

Green

Green

Red

Red

Red

Blue

Blue

GND

GND

GND

GND

GND

Green

Green

GND

Red

Red

GND

LED_xMUTE

LED_R_DA1

LED_G_DA1

LED_B_DA1

1

3

PFC_OUT

PFC_GND

PFC_GND

PFC_OUT

1

3

JW6716

JW6719

JW6720

JW6737

1

15

1

15

JW6707

JW6746

JW6734

JW6726

JW6752

JW6723

JW6724

JW6727

JW6728

JW6729

JW6730

JW6736

JW6738

JW6739

JW6740

JW6742

JW6743

JW6744

JW6745

JW6748

JW6750

JW6751

EY6913

C6915

T6902

GND

GND

GND

JW6722

CN6790

ET6783

JW6754

JW6933

JW6932

JW6715

JW6721

NC

C6700

C6900

C6800

EY6806

G

S

Q6801

G

S

Q6800

EY6804

G

S

Q6901

G

S

Q6900

EY6904

EY6906

EY6706

G

S

Q6700

G

S

Q6701

EY6807

EY6907

EY6905

EY6707

JW6747

JW6753

JW6755

JW6756

JW6757

FB6780

JW6780

ET6784

FB6781
JW6781

C6731

C6730

1

6

CN6789

1

7

CN6784

1

7

CN6786

1

13

CN6782

1

13

CN6783

111

CN6785

1

11

CN6787

1

5

CN6788

JW6702

JW6718

JW6708

C6798

EY6751

EY6750

EY6753

EY6754

EY6755

EY6752

EY6950

EY6952

EY6951

EY6953

EY6954

EY6955

EY6850

EY6851

EY6852

EY6853

EY6854

EY6855

1 2

34

1

31 3

18 10

91

18 10

91

1 2

34

B

E

1 2

34

18 10

91

1 2

34

1 2

34

B

E

511

511

G

S

G

S

G

S

G

S

G

S

G

S

61

71

71

1 13

1

13

11

1

11

1

1

5

Text Search

G

HIJKLMN

O

1

~ GL Printed Wiring Boar d Side A ~

2

FB678

JW675

JW671

3

4

5

6

EY680

T680

EY680

R691

EY690

EY690

T670

EY670

T670

EY671

7

8

9

10

11

D695

EY675

JW673

- 76 -

JW674

JW674

C685
C685

C675
C675

C675

C675
C675

ABCDE F

1

2

3 4

1

9

1018

1

9

10

18

1

2

3 4

BE

12

3

4

1

9

10

18

1

2

3

4

1

2

3

4

BE

JR6705

JR6706

JR6707

JR6709

JR6710

JR6711

C6706

T6800

T6901

R6905

C6890

R6913

A6751

R6818

D6804

D6951

A6950

C6857

R6813

A6851

L6881

D6850

C6756

R6712

D6905

ET6781

C6813

C6761

L6800

R6814

R6805

L6882

C6954

CN6930

C6907

C6883

C6853

C6960

C6952

C6911

C6964

CN6730

C6908

C6851

CN6781

C6951

PH6800

T6801

C6861

T6900

C6751

A6900

L6700

PH6700

CN6780

C6855

C6808

C6953

C6913

C6705

C6816

C6957

C6752

R6900

C6852

C6806

PH6900

T6700

C6713

ET6780

C6889

C6955

C6864

C6757

R6713

C6708

C6856

A6850

L6880

C6914

C6712

PH6930

D6750

A6951

D6851

D6950

A6750

A6700

C6764

C6754

D6704

R6800

R6914

C6817

C6753

R6718

R6700

C6884

C6854

A6800

L6900

C6950

C6715

C6904

ET6782

C6814

C6956

C6750

C6755

C6850

PH6730

C6805

D6751

R6705

C6716

C6811

T6701

C6714

C6860

R6955

C6958

D6904

D6882

D6803

C6758

R6902

D6706

R6850

C6803

R6788

R6933

R6732

D6707

C6901

R6785

C6962

R6738

R6708

C6917

C6906

C6863

R6964

R6762

R6910

D6705

C6703

R6881

R6715

D6902

R6856

C6858

C6809

R6786

C6785

C6963

R6803

R6983

R6783

R6950

R6707

C6888

R6857

C6859

R6806

C6810

C6801

R6752

R6709

C6881

R6782

R6936

C6717

C6707

F6880

R6962

C6790

R6756

R6711

R6701

C6704

R6882

R6862

C6815

C6793

R6954

C6762

R6717

R6904

D6903

C6880

R6809

C6781

R6734

C6909

C6903

C6885

R6811

D6807

R6790

R6784

C6784

C6711

C6794

D6703

C6701

R6880

R6764

C6759

R6917

R6714

C6882

R6853

D6806

R6982

C6783

R6937

R6736

R6706

C6910

C6710

R6815

R6787

R6952

C6760

D6700

C6702

C6812

R6765

R6953

R6753

R6909

R6903

D6701

D6880

D6802

R6965

R6957

R6931

R6911

R6702

C6886

R6855

R6812

R6804

R6750

C6961

D6900

R6808

R6801

R6789

R6780

R6733

R6704

C6902

D6881

D6780

R6763

C6959

R6730

R6912

R6907

R6864

D6800

C6780

R6932

R6731

R6908

R6703

C6709

R6883

R6863

C6797

C6789

R6755

C6763

R6710

R6854

R6810

C6807

R6938

R6737

C6912

C6905

D6805

C6804

R6980

R6934

D6708

C6787

R6754

D6702

R6865

C6862

D6801

R6963

R6956

R6757

R6930

R6906

R6901

R6852

R6802

C6782

R6935

R6735

R6817

R6807

C6802

D6980

C6786

R6739

D6901

IC6950

IC6850

IC6750

Q6930

Q6781

Q6783

Q6782

Q6730

Q6780

Q6980

Q6802

Q6702

IC6900

IC6800

IC6700

1

4

5

8

8

5

4

1

1

4

5

8

1

2

3

4

1

3

4

REG12V

NC

REG12V

GND

ERROR

GND

5V

GND

GND

V_ADREF

V_ADREF

5V

GND

GND

NC

GND

GND

Blue

Blue

Blue

GND

GND

GND

GND

GND

GND

Green

Green

Green

GND

Red

Red

Red

Blue

Blue

GND

GND

GND

GND

GND

Green

Green

GND

Red

Red

V_ADREF

V_ADREF

GND

GND

5V

GND

GND

5V

Red

Red

Red

Green

Green

Green

GND

GND

GND

Blue

Blue

Blue

GND

GND

GND

NC

Red

GND

Green

GND

Green

GND

GND

Blue

LED_B_DA1

LED_G_DA1

LED_R_DA1

LED_xMUTE

GND

PFC_GND

PFC_OUT

3

1

3

1

PFC_OUT

PFC_GND

Red

GND

Blue

GND

1-877-581-11

1

15

1

15

IC6780

JR6708

IC6880

Q6803

R6891

R6991

Q6703

R6791

T6902

4

5

8

1

GND

GND

GND

32V

2 A

C6915

CN6790

ET6783

3

2

1

IC6881

C6700

C6900

C6800

G

S

Q6801

G

S

Q6800

G

S

Q6901

G

S

Q6900

G

S

Q6700

G

S

Q6701

C6791

C6788

C6792

C6795

R6884

R6887

FB6880

C6887

C6796

D6883

R6885

R6886

R6866

R6966

R6766

FB6780

ET6784

FB6781 C6731

C6730

D6884

1

6

C N 6789

1

7

CN6784

17

CN6786

1

13

CN6782

1

13

CN6783

1

11

CN6785

1

11

CN6787

1

5

CN6788

M

D

PF LP

R6816

R6716

JR6702

JR6703

JR6704

D6789

R6794

D6788

D6787

D6785

D6786

JR6701

R6793

D6781

R6795

R6796

D6782

D6784

R6792

D6783

Q6785

Q6784

C6798

JL6930

JL6932

JL6933

JL6931

JL6731

JL6733

JL6732

JL6730

JL6887

JL6889

JL6885

JL6886

JL6888

JL6787

JL6786

JL6782

JL6794

JL6790

JL6791

JL6795

JL6783

JL6884

JL6881

JL6789

JL6784

JL6785

JL6793

JL6780

JL6792

JL6788

JL6781

JL6882

JL6893

JL6894

JL6892

JL6890

JL6891

JL6880

JL6895

JL6883

C6932

C6732

JL6799

JL6798

JL6797

JL6796

JL6896

JL6898

JL6897

JL6899

8

1 4

5

8

1 4

5

8

1 4

5

B E

B E

B E

B E

B E

B E

B E

JR

JR

JR

JR

JR

JR

B E

B E

JR

JR

JR

1 4

58

9

JR

B E

B E

JR

Text Search

G

HIJKLMN

O

1

~ GL Printed Wiring Boar d Side B ~

JL688

R679

2

R679

3

4

5

6

PFC_OU

C679

D678

R696

JR670

JR670

C676

C695

C678

C678

C675

JR670

R676

R676

JR

C675

JL688

R678

7

8

9

10

11

R689

C680

C680

R681

R691

C691

R699

C690

R691

C690

Q670

R671

C670

R670

R679

C670

T670

- 77 -

ABCDE F

POWER

1-876-454-11

(172942211)

!d

EP-!JGW!\GN

!K!c

1-876-455-11

PIC OFF/TIMER/DATA

STBY

/TREC

(172942211)

/REC

PWR

1

8

!d#E#P!]#G#W!c

(172996312)

1-877-351-12

A-1543-

151-B

Text Search

G

HIJKLMN

O

1

~ H1VM Printed Wiring Boar d Side A ~ ~ H1VM Printed Wiring Boar d Side B ~

1-876-454-11

(172942211)

2

A-1510-

CN1 01

339-A

3

~ H3VM Printed Wiring Boar d Side A ~ ~ H3VM Printed Wiring Board Side B ~

4

1-876-455-11

(172942211)

A-1510-340-A

CN301

5

~ H4 Printed Wiring Boar d Side A ~ ~ H4 Printed Wiring Boar d Side B ~

H4

CN401

H4

6

7

~ K2 Printed Wiring Boar d Side A ~ ~ K2 Printed Wiring Board Side B ~

CN8000

8

5A24VF8000

CN8001

IC8000

9

10

11

1

CN8002

8

F8001

5A24V

IC8001

1-877-351-12

(172996312)

- 78 -

NOTE :

SECTION 5

EXPLODED VIEWS

Non-serviceable items with no part number and no

description are not stocked because they are not
required for routine service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.

5-1. CHASSIS

2

1

3

Items marked “*” are not stocked

since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

4

5

6

7

16

8

15

14

13

12

11

10

Note : The components identified by mark

contain confidential information.
Strictly follow the instructions when
ever the components are repaired
and/or replaced.

9

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

1 £ 1-802-778-11 LCD PANEL (40 INCH FHD TFT) 40 inches
£ A-1568-135-A LCD PANEL (46 INCH FHD TFT) 46 inches
£ A-1568-136-A LCD PANEL (55 INCH FHD TFT) 55 inches
2 *A-1557-912-A H1VM BOARD, COMPLETE
3 3-293-119-01 FRAME, VESA (TOP) 40 inches
X-2319-353-2 FRAME, VESA (TOP) (46Z) ASSY 46 inches
X-2319-354-1 FRAME, VESA (TOP) (55Z) ASSY 55 inches
4 *A-1557-693-A CB1 BOARD, COMPLETE 46 inches
*A-1557-695-A CB1 BOARD, COMPLETE 55 inches
5 *A-1552-097-A G6 BOARD, COMPLETE 40 inches
*A-1552-101-A G6 BOARD, COMPLETE 46 inches
*A-1552-103-A G6 BOARD, COMPLETE 55 inches
6 *A-1568-320-A FBA BOARD, COMPLETE
7 *A-1558-281-A K2 BOARD, COMPLETE

9 *A-1568-315-A AE BOARD, COMPLETE
10 3-293-121-01 FRAME, VESA (BOTTOM) 40 inches
X-2319-984-1 FRAME, VESA(BTM) (46/55) ASSY 46/55 inches
11 £ 1-822-147-11 AC INLET 40/46 inches
£ 1-822-096-11 AC INLET (WITH NOISE FILTER) 55 inches
12 £ 3-298-060-01 BRACKET, AC INLET 40/46 inches
£ X-2319-297-1 BRACKET, AC ASSY 55 inches
13 *A-1553-205-A D4 BOARD, COMPLETE 40 inches
*A-1552-105-A G7 BOARD, COMPLETE 55 inches
14 *A-1553-199-A GL BOARD, COMPLETE 46 inches
*A-1553-201-A GL BOARD, COMPLETE 55 inches
15 *A-1557-911-A H4 BOARD, COMPLETE
16 *A-1557-910-A H3VM BOARD, COMPLETE
Ver 2.0 1-857-046-12 ETC-INVERTER MT BOARD 40 inches(Not shown)

8 8-597-641-00 TUNER UNIT, DIGITAL BTD-HF411T

- 79 -

5-2. STAND ASSY & SPEAKERS.

29

28

17

30

18

30

19

20

21

22

31

27

26

25

24

23

32

NOTE :

If ordering item 19 (SP Box Assy) please order

item 22 (Label, HDMI) as well.

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

17 X-2318-866-1 BUTTON, POWER ASSY
18 *3-299-091-11 BRACKET, G6
19 1-826-969-11 SP BOX ASSY (L) 40 inches
1-826-967-11 SP BOX ASSY (L) 46 inches
1-826-966-11 SP BOX ASSY (L) 55 inches
20 3-299-089-01 BRACKET, CARD
21 *4-101-356-02 CARD, DUMMY
22 3-300-711-22 LABEL,HDMI
23 1-826-965-11 SP BOX ASSY WOOFER (L) 40 inches
1-826-964-11 SP BOX ASSY WOOFER (L) 46/55 inches
24 X-2319-235-1 STAND ASSY (ML-4) 40 inches
X-2319-236-1 STAND ASSY (L-4) 46 inches
X-2319-237-1 STAND ASSY (LL-3) 55 inches

25 3-293-125-11 COVER, UNDER (40) 40 inches
3-299-095-11 COVER, UNDER (46Z) 46 inches
3-299-096-11 COVER, UNDER (55Z) 55 inches
26 1-826-965-21 SP BOX ASSY WOOFER (R) 40 inches
1-826-964-21 SP BOX ASSY WOOFER (R) 46/55 inches
27 3-299-103-01 GUIDE, LIGHT
28 3-876-205-01 BRACKET, LED
29 1-826-969-21 SP BOX ASSY (R) 40 inches
1-826-967-21 SP BOX ASSY (R) 46 inches
1-826-966-21 SP BOX ASSY (R) 55 inches
30 1-787-333-11 D.C. FAN 46/55 inches
31 X-2319-158-1 COVER CABINET R ASSY
32 X-2319-159-1 COVER CABINET L ASSY

- 80 -

5-3. BEZEL

51

52

53

54

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

51 X-2319-538-1 BEZEL (40) ASSY 40 inches
X-2319-540-1 BEZEL (46) ASSY 46 inches

53 1-798-150-11 TOUCH SENSOR MODULE
54 1-480-680-12 ILLUMINATION MODULE

X-2319-541-2 BEZEL (55) ASSY 55 inches
52 X-2190-480-2 GRILLE (40_S) ASSY 40 inches
X-2190-485-2 GRILLE (46_S) ASSY 46 inches
X-2190-490-2 GRILLE (55_S) ASSY 55 inches

52

- 81 -

5-4. REAR COVER & POWER SUPPLY CORDS

101

103

102

UK MODELS ONLY

104

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

101 3-296-655-21 REAR COVER (40) 40 inches
3-299-083-21 REAR COVER (46Z) 46 inches
3-296-672-21 REAR COVER (55Z) 55 inches
102 3-300-710-11 LABEL, REAR TERMINAL

103 3-299-466-01 ECS COVER
104 £ 1-835-200-11 POWER SUPPLY CORD (AEP)
105 £ 1-835-165-11 POWER SUPPLY CORD (UK)
106 3-298-025-41 BRACKET, SIDE JACK (AEP)

105

106

NOTE :

If ordering item 101 (Rear cover) please order

item 102 (Label,rear terminal) as well.

- 82 -

SECTION 6

ELECTRICAL PARTS LIST

PARTS LISTING TABLE OF CONTENTS

Page

CB1 BOARD COMPLETE Parts List : (55 inches only)......................................................................... 84

H3VM BOARD COMPLETE Parts List : .................................................................................................... 91

H4 BOARD COMPLETE Parts List : .................................................................................................... 92

H1VM BOARD COMPLETE Parts List : .................................................................................................... 92

K2 BOARD COMPLETE Parts List : .................................................................................................... 92

CB1 BOARD COMPLETE Parts List : (46 inches only)......................................................................... 93

AE BOARD COMPLETE Parts List : .................................................................................................... 101

FBA BOARD COMPLETE Parts List : .................................................................................................... 112

ACCESSORIES AND CONNECTORS : .................................................................................................... 131

REMOTE COMMANDER :

................................................................................................... 131

Note: To ensure safety and reliability it is Sony policy that power supply boards should not be repaired
at component le
items for exchange only and are not indicated in the parts list of this service manual

vel in the field as a result... The D4, G6, G7 and GL boards are regarded as non service

Note : Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when ordering these items.

- 83 -

Note : The components identified by mark

contain confidential information.
Strictly follow the instructions when
ever the components are repaired
and/or replaced.

CB1

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

* A-1557-695-A CB1 Board, Complete (55 inches only)

< CAPACITOR >

C9001 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9004 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9005 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9006 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9007 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9008 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9009 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9026 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9027 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9100 1-112-779-11 CERAMIC CHIP 0.047UF 10% 25V

C9101 1-114-410-21 CERAMIC CHIP 680PF 2% 50V
C9102 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9103 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V
C9104 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V
C9105 1-112-781-11 CERAMIC CHIP 1UF 10% 10V

C9106 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9107 1-114-532-21 ELECT CHIP 330UF 20% 4V
C9109 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9110 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9112 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9113 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9119 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9123 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9126 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9127 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9128 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9129 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9130 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9132 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9133 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9135 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9136 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9138 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9139 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9140 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9144 1-112-781-11 CERAMIC CHIP 1UF 10% 10V
C9145 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9147 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9148 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9149 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9150 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9151 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9152 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9153 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9154 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9155 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9156 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9157 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9158 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9159 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9160
C9161 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9162 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9163 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9164 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9165 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9166 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9167 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9168 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9169 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9170 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9176 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9185 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9188 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9199 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V

C9207 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9211 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9215 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9219 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9220 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V

C9221 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9222 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9223 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9224 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9225 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9226 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9227 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9228 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9229 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9230 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9231 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9232 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9233 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9234 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9235 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9236 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9237 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9238 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9239 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9240 1-131-956-21 ELECT CHIP 220UF 20% 4V

C9241 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9242 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9243 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9244 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9245 1-100-904-11 CERAMIC CHIP 330PF 10% 50V

- 84 -

CB1

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

C9246 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9247 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9248 1-112-779-11 CERAMIC CHIP 0.047UF 10% 25V
C9249 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9250 1-100-904-11 CERAMIC CHIP 330PF 10% 50V

C9251 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9252 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9253 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9254 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9255 1-100-904-11 CERAMIC CHIP 330PF 10% 50V

C9256 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9257 1-112-774-11 CERAMIC CHIP 470PF 10% 50V
C9258 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9259 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9260 1-100-904-11 CERAMIC CHIP 330PF 10% 50V

C9261 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9262 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9263 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9264 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9265 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9266
C9267 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9268 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9301 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9302 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9303 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V
C9304 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9305 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V
C9306 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9307 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V

C9310 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9312 1-114-807-11 CERAMIC CHIP 0.015UF 10% 25V
C9314 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
C9315 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
C9316 1-100-912-11 CERAMIC CHIP 1UF 10% 25V

C9317 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
C9326 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
C9327 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9328 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
C9329 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9330

1-112-066-11 CERAMIC CHIP 10UF 10% 10V
C9332 1-112-066-11 CERAMIC CHIP 10UF 10% 10V
C9333 1-112-066-11 CERAMIC CHIP 10UF 10% 10V
C9334 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9335 1-114-807-11 CERAMIC CHIP 0.015UF 10% 25V

C9336 1-114-807-11 CERAMIC CHIP 0.015UF 10% 25V
C9337 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9338 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9340 1-114-130-11 CERAMIC CHIP 1UF 10% 6.3V
C9342 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9343 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9344 1-114-130-11 CERAMIC CHIP 1UF 10% 6.3V
C9345 1-114-130-11 CERAMIC CHIP 1UF 10% 6.3V
C9346 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V
C9347 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9348 1-112-781-11 CERAMIC CHIP 1UF 10% 10V
C9351 1-114-326-11 CERAMIC CHIP 0.22UF 10% 25V
C9352 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9353 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9356 1-112-781-11 CERAMIC CHIP 1UF 10% 10V

C9357 1-112-781-11 CERAMIC CHIP 1UF 10% 10V
C9358 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9359 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9407 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9408 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9409 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9410 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9413 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9415 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9438 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9445
C9454 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9455 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9456 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9457 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9458 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9459 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9460 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9461 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9463 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9485 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9488 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9495 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9496 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9497 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9498 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9499 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9500 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9501 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9502 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9503

1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9700 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9701 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9702 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9703 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9704 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9705 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9706 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9707 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9708 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

- 85 -

CB1

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

C9709 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9710 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9711 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9712 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9713 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9714 1-164-850-11 CERAMIC CHIP 10PF 0.50PF 50V
C9715 1-164-850-11 CERAMIC CHIP 10PF 0.50PF 50V
C9716 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9717 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9718 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9719 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9720 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9721 1-112-781-11 CERAMIC CHIP 1UF 10% 10V
C9722 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9724 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9725 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9726 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9727 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9728 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9729 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9730 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9731 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9733 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9735 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9736 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9737 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9738 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9739 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9741 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9743 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V

C9744 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9745 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9746 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9747 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9749 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V

C9751 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9752 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9753 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9754 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9755 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V

C9757 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9759 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9760 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9761 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9762 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V

C9763 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9765 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9767 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9768 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9769 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V

C9770 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9771 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9800 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9801 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9802 1-131-956-21 ELECT CHIP 220UF 20% 4V

C9803 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9804 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9805 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9806 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9807 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9808 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9810 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9811 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9812 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9813 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9814 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9816 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9818 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9819 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9820 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9822 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9823 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9824 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9825 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9830 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9832 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9836 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9838 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9841 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9842 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9844 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9846 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9848 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9850 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9851 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9852 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9854 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9861 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9862 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9863 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9864 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9866 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9867 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9868 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9869 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9870 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9872 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9873 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9874 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9875 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

- 86 -

F4 A

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

C9876 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9877 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9878 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9879 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9880 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9881 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9883 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9885 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9886 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9887 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9888 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9889 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9890 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9891 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9892 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9895 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9896 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9897 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9898 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9901 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V

1-112-066-11 CERAMIC CHIP 10UF 10% 10V

C9904
C9905 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9906 1-114-130-11 CERAMIC CHIP 1UF 10% 6.3V
C9907 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9908 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9909 1-114-807-11 CERAMIC CHIP 0.015UF 10% 25V

< CONNECTOR >

CN9000 1-821-607-11 HEADER ASSEMBLY FOR PWB 8P
CN9001 *1-821-034-11 HEADER ASSEMBLY FOR PWB 51P
CN9003 1-821-171-11 CONNECTOR, BOARD TO BOARD 41P
CN9004 1-821-170-11 CONNECTOR, BOARD TO BOARD 51P
CN9700 1-822-045-11 HEADER ASSEMBLY FOR PWB 32P

CN9701 1-819-284-11 HEADER ASSEMBLY FOR PWB 30P
CN9702 1-819-784-21 PIN, CONNECTOR 50P
CN9703 1-821-604-11 HEADER ASSEMBLY FOR PWB 5P
CN9704 1-779-331-51 CONNECTOR, FFC/FPC 14P

D9300 6-502-248-01 DI KDZTR3.9B
D9301 6-502-248-01 DI KDZTR3.9B
D9302 6-502-248-01 DI KDZTR3.9B
D9306 8-719-081-67 DIODE M1FM3
D9307 8-719-081-67 DIODE M1FM3

D9311 8-719-081-67 DIODE M1FM3
D9701 6-502-150-01 DI MA2SD320G8S0
D9702 6-502-150-01 DI MA2SD320G8S0
D9703 6-502-150-01 DI MA2SD320G8S0
D9704 6-502-150-01 DI MA2SD320G8S0

< DIODE >

D9900 8-719-081-67 DIODE M1FM3
D9901 6-502-248-01 DI KDZTR3.9B

ET9002 1-780-482-11 EARTH TERMINAL
ET9007 1-780-638-21 CONTACT TERMINAL
ET9009 1-780-638-21 CONTACT TERMINAL
ET9012 1-780-638-21 CONTACT TERMINAL
ET9013 1-780-482-11 EARTH TERMINAL

ET9014 1-780-638-21 CONTACT TERMINAL
ET9015 1-780-482-11 EARTH TERMINAL
ET9700 1-780-482-11 EARTH TERMINAL
ET9701 1-780-482-11 EARTH TERMINAL
ET9702 1-780-482-11 EARTH TERMINAL

ET9703 1-780-482-11 EARTH TERMINAL

< FUSE >

F9100 £ 1-576-603-11 FUSE 3.15A 24V
F9300 £
F9301 £ 1-576-603-11 FUSE 3.15A 24V

< FERRITE BEAD >

FB9000 1-469-669-21 FERRITE 0UH
FB9001 1-500-922-11 FERRITE 0UH
FB9002 1-469-669-21 FERRITE 0UH
FB9004 1-500-922-11 FERRITE 0UH
FB9005 1-400-834-11 FERRITE 0UH

FB9008 1-469-669-21 FERRITE 0UH
FB9009 1-500-922-11 FERRITE 0UH
FB9010 1-500-922-11 FERRITE 0UH
FB9011 1-469-669-21 FERRITE 0UH
FB9012 1-400-834-11 FERRITE 0UH

FB9200 1-469-669-21 FERRITE 0UH
FB9308 1-469-669-21 FERRITE 0UH
FB9310 1-469-669-21 FERRITE 0UH
FB9311 1-469-669-21 FERRITE 0UH
FB9312 1-469-669-21 FERRITE 0UH

FB9404 1-400-834-11 FERRITE 0UH
FB9405 1-400-834-11 FERRITE 0UH
FB9713 1-400-834-11 FERRITE 0UH
FB9714 1-400-833-21 FERRITE 0UH
FB9715 1-400-833-21 FERRITE 0UH

FB9716
FB9717 1-400-833-21 FERRITE 0UH
FB9718 1-400-833-21 FERRITE 0UH
FB9719 1-400-833-21 FERRITE 0UH
FB9720 1-400-833-21 FERRITE 0UH

FB9721 1-400-833-21 FERRITE 0UH
FB9722 1-400-833-21 FERRITE 0UH
FB9723 1-400-833-21 FERRITE 0UH
FB9724 1-400-833-21 FERRITE 0UH

1-576-603-11 FUSE 3.15A 24V

1-400-833-21 FERRITE 0UH

CB1

- 87 -

CB1

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

FB9725 1-400-833-21 FERRITE 0UH
FB9726 1-400-833-21 FERRITE 0UH
FB9727 1-400-833-21 FERRITE 0UH
FB9728 1-400-833-21 FERRITE 0UH
FB9729 1-400-833-21 FERRITE 0UH

FL9801 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9802 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9803 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9804 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9805 1-234-939-21 FILTER, EMI REMOVAL (SMD)

FB9730 1-400-833-21 FERRITE 0UH
FB9731 1-400-833-21 FERRITE 0UH
FB9732 1-400-833-21 FERRITE 0UH
FB9733 1-400-833-21 FERRITE 0UH
FB9734 1-400-833-21 FERRITE 0UH

FB9735 1-400-833-21 FERRITE 0UH
FB9736 1-400-833-21 FERRITE 0UH
FB9737 1-400-833-21 FERRITE 0UH
FB9738 1-400-833-21 FERRITE 0UH
FB9739 1-400-833-21 FERRITE 0UH

FB9740 1-400-833-21 FERRITE 0UH
FB9741 1-400-833-21 FERRITE 0UH
FB9742 1-400-833-21 FERRITE 0UH
FB9743 1-400-833-21 FERRITE 0UH
FB9744 1-400-833-21 FERRITE 0UH

FB9745 1-400-833-21 FERRITE 0UH
FB9746 1-500-922-11 FERRITE 0UH
FB9805 1-469-669-21 FERRITE 0UH
FB9902 1-469-669-21 FERRITE 0UH

FL9000 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9001 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9002 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9100 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9101 1-234-939-21 FILTER, EMI REMOVAL (SMD)

FL9102 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9103 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9202 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9203 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9204 1-234-939-21 FILTER, EMI REMOVAL (SMD)

FL9205 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9300 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9700 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9701 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9702 1-234-939-21 FILTER, EMI REMOVAL (SMD)

FL9703
FL9704 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9705 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9706 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9707 1-234-939-21 FILTER, EMI REMOVAL (SMD)

FL9708 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9709 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9710 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9800 1-234-939-21 FILTER, EMI REMOVAL (SMD)

< FILTER >

1-234-939-21 FILTER, EMI REMOVAL (SMD)

FL9806 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9807 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9808 1-234-939-21 FILTER, EMI REMOVAL (SMD)

< IC >

IC9000 6-713-042-01 IC CXD9935GB
IC9001 6-710-361-01 IC 74LVC2G66DC-125
IC9002 6-704-566-01 IC R3112N291A-TR-FA
IC9003 6-704-566-01 IC R3112N291A-TR-FA
IC9007 6-704-067-01 IC M24128-BWMN6T(A)

IC9008 6-710-361-01 IC 74LVC2G66DC-125
IC9100 6-710-949-01 IC SN0608006PWPR
IC9101 6-711-262-01 IC HYB18TC256160BF-3S
IC9102 6-711-262-01 IC HYB18TC256160BF-3S
IC9300 6-710-922-01 IC BD9853AFV-E2

6-710-922-01 IC BD9853AFV-E2

IC9301
IC9302 6-712-904-01 IC R1154N050B-TR-F
IC9303 6-711-042-01 IC BD00KA5WFP-E2
IC9400 6-713-137-01 IC CXD9929GB
IC9401 6-712-984-01 IC EDD1232ABBH-5C-E-TR

IC9402 6-712-984-01 IC EDD1232ABBH-5C-E-TR
IC9700 6-712-442-01 IC 74AHC541PW-118
IC9701 6-712-442-01 IC 74AHC541PW-118
IC9702 6-712-442-01 IC 74AHC541PW-118
IC9703 6-712-442-01 IC 74AHC541PW-118

IC9704 6-701-985-01 IC BH2220FVM-TR
IC9705 6-710-121-01 IC M24256-BWMN6TP(A)
IC9706 6-712-442-01 IC 74AHC541PW-118
IC9707 6-808-325-01 IC EPM570T100I5NRR-IC9707-C100
IC9708 6-808-324-01 IC S29GL064N90TFI030-C3100-ER

IC9709 6-709-888-01 IC TC7WHU04FK(T5RSOYF
IC9710 6-708-758-01 IC PCA9517DP.118

L9000 1-457-540-11 INDUCTOR 0UH
L9001 1-457-540-11 INDUCTOR 0UH
L9002 1-457-540-11 INDUCTOR 0UH
L9003 1-457-540-11 INDUCTOR 0UH
L9004 1-457-540-11 INDUCTOR 0UH

L9005 1-457-540-11 INDUCTOR 0UH
L9006 1-457-540-11 INDUCTOR 0UH
L9007 1-457-540-11 INDUCTOR 0UH
L9008 1-457-540-11 INDUCTOR 0UH
L9009 1-457-540-11 INDUCTOR 0UH

< COIL >

- 88 -

CB1

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

L9010 1-457-540-11 INDUCTOR 0UH
L9011 1-457-540-11 INDUCTOR 0UH
L9012 1-457-540-11 INDUCTOR 0UH
L9013 1-457-540-11 INDUCTOR 0UH
L9014 1-457-540-11 INDUCTOR 0UH

L9015 1-457-540-11 INDUCTOR 0UH
L9016 1-457-540-11 INDUCTOR 0UH
L9017 1-457-540-11 INDUCTOR 0UH
L9018 1-457-540-11 INDUCTOR 0UH
L9019 1-457-540-11 INDUCTOR 0UH

L9020 1-457-540-11 INDUCTOR 0UH
L9021 1-457-540-11 INDUCTOR 0UH
L9022 1-457-540-11 INDUCTOR 0UH
L9023 1-457-540-11 INDUCTOR 0UH
L9100 1-481-246-11 INDUCTOR 2.2UH

L9300 1-457-428-11 INDUCTOR 4.7UH
L9301 1-457-428-11 INDUCTOR 4.7UH
L9302 1-457-428-11 INDUCTOR 4.7UH
L9900 1-457-428-11 INDUCTOR 4.7UH

Q9002 6-551-904-01 TR RT3S03M-T111-1
Q9100 6-550-663-01 TRANSISTOR RSS100N03FD5TB
Q9101 6-550-663-01 TRANSISTOR RSS100N03FD5TB
Q9300 6-551-382-01 TRANSISTOR RSS040P03FD5TB
Q9302 6-551-460-01 TRANSISTOR RSR025P03TL

Q9303 6-551-460-01 TRANSISTOR RSR025P03TL
Q9304 6-550-718-01 TRANSISTOR RSR025N03TL
Q9306 6-550-718-01 TRANSISTOR RSR025N03TL
Q9307 6-551-123-01 TRANSISTOR RSS065N03FU7TB
Q9308 6-550-369-01 TRANSISTOR TPC8109(TE12L)

Q9309 6-551-817-01 TR UNR52A3G0LS0
Q9310 6-551-776-01 TR 2SC5950G0LS0
Q9311 6-551-817-01 TR UNR52A3G0LS0
Q9701 6-551-904-01 TR RT3S03M-T111-1
Q9702 6-551-904-01 TR RT3S03M-T111-1

Q9703 6-551-817-01 TR UNR52A3G0LS0
Q9707 6-551-817-01 TR UNR52A3G0LS0
Q9708 6-550-354-01 TRANSISTOR RTQ035P02TR
Q9900 6-551-460-01 TRANSISTOR RSR025P03TL
Q9901 6-550-718-01 TRANSISTOR RSR025N03TL

R9002 1-218-941-11 METAL CHIP 100 5% 1/16W
R9003 1-218-941-11 METAL CHIP 100 5% 1/16W
R9004 1-218-941-11 METAL CHIP 100 5% 1/16W
R9005 1-218-941-11 METAL CHIP 100 5% 1/16W
R9006 1-218-941-11 METAL CHIP 100 5% 1/16W

R9007 1-218-941-11 METAL CHIP 100 5% 1/16W
R9008 1-218-941-11 METAL CHIP 100 5% 1/16W

< TRANSISTOR >

< RESISTOR >

R9009 1-218-941-11 METAL CHIP 100 5% 1/16W
R9010 1-218-941-11 METAL CHIP 100 5% 1/16W
R9011 1-218-941-11 METAL CHIP 100 5% 1/16W
R9012 1-218-941-11 METAL CHIP 100 5% 1/16W
R9013 1-218-941-11 METAL CHIP 100 5% 1/16W

R9028 1-218-941-11 METAL CHIP 100 5% 1/16W
R9029 1-218-941-11 METAL CHIP 100 5% 1/16W
R9030 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9031 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
R9053 1-208-927-11 METAL CHIP 47K 0.5% 1/16W

R9061 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9063 1-218-990-81 SHORT CHIP 0
R9065 1-208-923-11 METAL CHIP 33K 0.5% 1/16W
R9103 1-208-711-11 METAL CHIP 15K 0.5% 1/16W
R9104 1-218-990-81 SHORT CHIP 0

R9105 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R9107 1-218-990-81 SHORT CHIP 0
R9109 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R9110 1-218-990-81 SHORT CHIP 0
R9113 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

R9114 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9116 1-208-663-11 METAL CHIP 150 0.5% 1/16W
R9117 1-208-663-11 METAL CHIP 150 0.5% 1/16W
R9118 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9119 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

R9121 1-218-933-11 METAL CHIP 22 5% 1/16W
R9122 1-218-933-11 METAL CHIP 22 5% 1/16W
R9123 1-218-933-11 METAL CHIP 22 5% 1/16W
R9124 1-218-933-11 METAL CHIP 22 5% 1/16W
R9125 1-218-933-11 METAL CHIP 22 5% 1/16W

R9126 1-218-933-11 METAL CHIP 22 5% 1/16W
R9128 1-208-663-11 METAL CHIP 150 0.5% 1/16W
R9129 1-208-663-11 METAL CHIP 150 0.5% 1/16W
R9130 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9131 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

R9132 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9133 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9136 1-218-990-81 SHORT CHIP 0
R9137 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9300 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

R9303 1-218-990-81 SHORT CHIP 0
R9304 1-208-939-11 METAL CHIP 150K 0.5% 1/16W
R9305 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R9312 1-208-709-11 METAL CHIP 12K 0.5% 1/16W
R9322 1-208-909-11 METAL CHIP 8.2K 0.5% 1/16W

R9323 1-208-909-11 METAL CHIP 8.2K 0.5% 1/16W
R9330 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9342 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W
R9343 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W
R9345 1-208-927-11 METAL CHIP 47K 0.5% 1/16W

- 89 -

CB1

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

R9347 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R9348 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9349 1-208-939-11 METAL CHIP 150K 0.5% 1/16W
R9351 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R9352 1-208-935-11 METAL CHIP 100K 0.5% 1/16W

R9702 1-218-990-81 SHORT CHIP 0
R9703 1-218-990-81 SHORT CHIP 0
R9706 1-218-990-81 SHORT CHIP 0
R9707 1-218-990-81 SHORT CHIP 0
R9708 1-218-990-81 SHORT CHIP 0

R9353 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R9354 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R9359 1-218-990-81 SHORT CHIP 0
R9362 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
R9365 1-208-935-11 METAL CHIP 100K 0.5% 1/16W

R9366 1-218-990-81 SHORT CHIP 0
R9400 1-218-939-11 METAL CHIP 68 5% 1/16W
R9401 1-218-935-11 METAL CHIP 33 5% 1/16W
R9402 1-218-935-11 METAL CHIP 33 5% 1/16W
R9403 1-218-935-11 METAL CHIP 33 5% 1/16W

R9404 1-218-935-11 METAL CHIP 33 5% 1/16W
R9405 1-218-935-11 METAL CHIP 33 5% 1/16W
R9406 1-218-935-11 METAL CHIP 33 5% 1/16W
R9407 1-218-935-11 METAL CHIP 33 5% 1/16W
R9408 1-218-935-11 METAL CHIP 33 5% 1/16W

R9409 1-218-935-11 METAL CHIP 33 5% 1/16W
R9410 1-218-935-11 METAL CHIP 33 5% 1/16W
R9411 1-218-935-11 METAL CHIP 33 5% 1/16W
R9412 1-218-935-11 METAL CHIP 33 5% 1/16W
R9413 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

R9414 1-218-935-11 METAL CHIP 33 5% 1/16W
R9415 1-218-935-11 METAL CHIP 33 5% 1/16W
R9416 1-218-935-11 METAL CHIP 33 5% 1/16W
R9417 1-218-935-11 METAL CHIP 33 5% 1/16W
R9418 1-218-933-11 METAL CHIP 22 5% 1/16W

R9709 1-218-937-11 METAL CHIP 47 5% 1/16W
R9710 1-218-937-11 METAL CHIP 47 5% 1/16W
R9711 1-218-937-11 METAL CHIP 47 5% 1/16W
R9712 1-218-937-11 METAL CHIP 47 5% 1/16W
R9713 1-218-937-11 METAL CHIP 47 5% 1/16W

R9714 1-218-937-11 METAL CHIP 47 5% 1/16W
R9715 1-218-937-11 METAL CHIP 47 5% 1/16W
R9716 1-218-937-11 METAL CHIP 47 5% 1/16W
R9717 1-218-937-11 METAL CHIP 47 5% 1/16W
R9718 1-218-937-11 METAL CHIP 47 5% 1/16W

R9719 1-218-937-11 METAL CHIP 47 5% 1/16W
R9720 1-218-937-11 METAL CHIP 47 5% 1/16W
R9722 1-218-937-11 METAL CHIP 47 5% 1/16W
R9723 1-218-937-11 METAL CHIP 47 5% 1/16W
R9724 1-218-937-11 METAL CHIP 47 5% 1/16W

R9725 1-218-937-11 METAL CHIP 47 5% 1/16W
R9726 1-218-937-11 METAL CHIP 47 5% 1/16W
R9727 1-218-937-11 METAL CHIP 47 5% 1/16W
R9730 1-218-937-11 METAL CHIP 47 5% 1/16W
R9731 1-218-937-11 METAL CHIP 47 5% 1/16W

R9732 1-218-937-11 METAL CHIP 47 5% 1/16W
R9733 1-218-937-11 METAL CHIP 47 5% 1/16W
R9734 1-218-937-11 METAL CHIP 47 5% 1/16W
R9736 1-218-937-11 METAL CHIP 47 5% 1/16W
R9768 1-218-989-11 METAL CHIP 1M 5% 1/16W

R9419 1-218-933-11 METAL CHIP 22 5% 1/16W
R9420 1-218-933-11 METAL CHIP 22 5% 1/16W
R9421 1-218-933-11 METAL CHIP 22 5% 1/16W
R9422 1-218-933-11 METAL CHIP 22 5% 1/16W
R9423 1-218-933-11 METAL CHIP 22 5% 1/16W

R9424 1-218-939-11 METAL CHIP 68 5% 1/16W
R9425 1-218-939-11 METAL CHIP 68 5% 1/16W
R9426 1-218-939-11 METAL CHIP 68 5% 1/16W
R9427 1-218-939-11 METAL CHIP 68 5% 1/16W
R9428 1-218-941-11 METAL CHIP 100 5% 1/16W

R9429 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9434 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9439 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9440 1-218-941-11 METAL CHIP 100 5% 1/16W
R9461 1-218-935-11 METAL CHIP 33 5% 1/16W

R9462 1-218-935-11 METAL CHIP 33 5% 1/16W
R9463 1-218-935-11 METAL CHIP 33 5% 1/16W
R9464 1-218-935-11 METAL CHIP 33 5% 1/16W
R9700 1-218-941-11 METAL CHIP 100 5% 1/16W
R9701 1-218-941-11 METAL CHIP 100 5% 1/16W

R9769 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R9771 1-218-941-11 METAL CHIP 100 5% 1/16W
R9775 1-218-941-11 METAL CHIP 100 5% 1/16W
R9776 1-208-883-81 METAL CHIP 680 0.5% 1/16W
R9777 1-218-989-11 METAL CHIP 1M 5% 1/16W

R9782 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9793 1-218-941-11 METAL CHIP 100 5% 1/16W
R9794 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R9905 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R9906 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W

R9907 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R9908 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
R9909 1-208-909-11 METAL CHIP 8.2K 0.5% 1/16W

< RESISTOR CHIP >

RB9001 1-234-378-21 RES, NETWORK 10K (1005X4)
RB9002 1-234-375-21 RES, NETWORK 1K (1005X4)
RB9004 1-234-375-21 RES, NETWORK 1K (1005X4)
RB9005 1-234-378-21 RES, NETWORK 10K (1005X4)
RB9008 1-234-375-21 RES, NETWORK 1K (1005X4)

- 90 -

CB1

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

RB9009 1-234-375-21 RES, NETWORK 1K (1005X4)
RB9100 1-234-370-21 RES, NETWORK 22 (1005X4)
RB9101 1-234-370-21 RES, NETWORK 22 (1005X4)
RB9102 1-234-370-21 RES, NETWORK 22 (1005X4)
RB9103 1-234-370-21 RES, NETWORK 22 (1005X4)

RB9104 1-234-370-21 RES, NETWORK 22 (1005X4)
RB9300 1-234-378-21 RES, NETWORK 10K (1005X4)
RB9301 1-234-378-21 RES, NETWORK 10K (1005X4)
RB9400 1-242-963-21 RES, NETWORK 33 (1005X4)
RB9402 1-234-370-21 RES, NETWORK 22 (1005X4)

RB9403 1-234-370-21 RES, NETWORK 22 (1005X4)
RB9404 1-234-370-21 RES, NETWORK 22 (1005X4)
RB9405 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9407 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9408 1-242-963-21 RES, NETWORK 33 (1005X4)

RB9409 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9411 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9412 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9414 1-242-963-21 RES, NETWORK 33 (1005X4)
RB9417 1-242-963-21 RES, NETWORK 33 (1005X4)

RB9418 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9419 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9420 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9421 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9422 1-242-963-21 RES, NETWORK 33 (1005X4)

RB9423 1-242-963-21 RES, NETWORK 33 (1005X4)
RB9426 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9429 1-242-963-21 RES, NETWORK 33 (1005X4)
RB9450 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9451 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)

RB9452 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9453 1-242-963-21 RES, NETWORK 33 (1005X4)
RB9454 1-242-963-21 RES, NETWORK 33 (1005X4)
RB9455 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9456 1-242-963-21 RES, NETWORK 33 (1005X4)

RB9458 1-242-963-21 RES, NETWORK 33 (1005X4)
RB9459 1-242-963-21 RES, NETWORK 33 (1005X4)
RB9460 1-242-963-21 RES, NETWORK 33 (1005X4)
RB9461 1-242-963-21 RES, NETWORK 33 (1005X4)
RB9700 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)

RB9701 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9702 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9703 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9710 1-234-375-21 RES, NETWORK 1K (1005X4)
RB9711 1-234-375-21 RES, NETWORK 1K (1005X4)

RB9712 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9713 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9714 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9715 1-234-378-21 RES, NETWORK 10K (1005X4)
RB9717 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)

RB9718 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9719 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9720 1-234-892-21 RES, CHIP NETWORK 33X8 (3816)
RB9721 1-234-378-21 RES, NETWORK 10K (1005X4)
RB9722 1-234-378-21 RES, NETWORK 10K (1005X4)

1-234-375-21 RES, NETWORK 1K (1005X4)

RB9723
RB9724 1-234-375-21 RES, NETWORK 1K (1005X4)

< CRYSTAL >

X9000 1-814-165-11 QUARTS CRYSTAL OSCILLATOR
X9700 1-814-164-21 PIEZOELECTRIC OSCILLATOR
X9701 1-814-023-11 QUARTS CRYSTAL UNIT
X9702 1-814-165-11 QUARTS CRYSTAL OSCILLATOR

* A-1557-910-A H3VM Board, Complete

< CAPACITOR >

C302 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C303 1-114-399-21 ELECT CHIP 47UF 20% 6.3V
C304 1-114-130-11 CERAMIC CHIP 1UF 10% 6.3V
C305 1-114-130-11 CERAMIC CHIP 1UF 10% 6.3V

CN301 1-820-288-11 HEADER ASSEMBLY (PRINT PWB) 9P

< DIODE >

D302 6-501-734-01 DIODE MAZ8056GMLS0
D308 6-502-297-01 DI FR1105W-730-TR
D322 6-502-297-01 DI FR1105W-730-TR
D323 6-502-296-01 DI VYPY1105W-5C43A-TR
D324 6-502-297-01 DI FR1105W-730-TR

D325 6-502-296-01 DI VYPY1105W-5C43A-TR

< IC >

IC301 6-600-680-01 PHOTO DIODE BH1690FVC-TR

< TRANSISTOR >

Q301
Q302 6-551-815-01 TR UNR52A1G0LS0
Q303 6-551-815-01 TR UNR52A1G0LS0
Q304 6-551-815-01 TR UNR52A1G0LS0
Q305 6-551-815-01 TR UNR52A1G0LS0

Q306 6-551-699-01 TRANSISTOR ISA1602AM1TP-1EF

< RESISTOR >

R301 1-208-663-11 METAL CHIP 150 0.5% 1/16W
R302 1-208-675-11 METAL CHIP 470 0.5% 1/16W
R303 1-208-663-11 METAL CHIP 150 0.5% 1/16W
R304 1-208-675-11 METAL CHIP 470 0.5% 1/16W

< CONNECTOR >

6-551-815-01 TR UNR52A1G0LS0

H3VM

- 91 -

H3VM H1VMH4 K2

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

R305 1-208-675-11 METAL CHIP 470 0.5% 1/16W
R306 1-218-990-81 SHORT CHIP 0
R307 1-218-953-11 METAL CHIP 1K 5% 1/16W
R309 1-218-985-11 METAL CHIP 470K 5% 1/16W
R310 1-218-989-11 METAL CHIP 1M 5% 1/16W

C8017 1-114-193-11 ELECT CHIP 470UF 20% 25V
C8018 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C8019 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C8022 1-114-325-11 CERAMIC CHIP 0.1UF 10% 25V
C8023 1-114-325-11 CERAMIC CHIP 0.1UF 10% 25V

R311 1-218-965-11 METAL CHIP 10K 5% 1/16W
R312 1-218-973-11 METAL CHIP 47K 5% 1/16W
R314 1-218-953-11 METAL CHIP 1K 5% 1/16W

* A-1557-911-A H4 Board, Complete

< CAPACITOR >

C401 1-112-068-11 CERAMIC CHIP 220PF 10% 50V
C402 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V

< CONNECTOR >

CN401 1-820-180-11 HEADER ASSEMBLY (PRINT PWB) 3P

< IC >

IC401 6-600-681-01 IC RS-770N

< RESISTOR >

R401 1-218-949-11 METAL CHIP 470 5% 1/16W
R402 1-218-937-11 METAL CHIP 47 5% 1/16W

* A-1557-912-A H1VM Board, Complete

< CONNECTOR >

CN101 *1-820-297-11 HEADER ASSEMBLY (PRINT PWB) 3P

< SWITCH >

S101 1-786-700-11 SWITCH, TACTILE

* A-1558-281-A K2 Board, Complete

< CAPACITOR >

C8004 1-100-764-21 ELECT CHIP 4.7UF 20% 25V
C8005 1-100-764-21 ELECT CHIP 4.7UF 20% 25V
C8006 1-100-764-21 ELECT CHIP 4.7UF 20% 25V
C8007 1-100-764-21 ELECT CHIP 4.7UF 20% 25V
C8008 1-100-764-21 ELECT CHIP 4.7UF 20% 25V

C8009 1-100-764-21 ELECT CHIP 4.7UF 20% 25V
C8010 1-100-764-21 ELECT CHIP 4.7UF 20% 25V
C8011 1-100-764-21 ELECT CHIP 4.7UF 20% 25V
C8012 1-114-193-11 ELECT CHIP 470UF 20% 25V
C8013 1-114-193-11 ELECT CHIP 470UF 20% 25V

C8014 1-114-193-11 ELECT CHIP 470UF 20% 25V
C8015 1-114-193-11 ELECT CHIP 470UF 20% 25V
C8016 1-114-193-11 ELECT CHIP 470UF 20% 25V

C8024 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C8025 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C8026 1-128-536-11 ELECT CHIP 100UF 20.00% 25V
C8027 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C8028 1-128-536-11 ELECT CHIP 100UF 20.00% 25V

C8029 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C8030 1-100-764-21 ELECT CHIP 4.7UF 20% 25V
C8031 1-100-764-21 ELECT CHIP 4.7UF 20% 25V
C8032 1-114-326-11 CERAMIC CHIP 0.22UF 10% 25V
C8033 1-114-326-11 CERAMIC CHIP 0.22UF 10% 25V

C8034 1-114-326-11 CERAMIC CHIP 0.22UF 10% 25V
C8035 1-114-326-11 CERAMIC CHIP 0.22UF 10% 25V
C8036 1-114-326-11 CERAMIC CHIP 0.22UF 10% 25V
C8037 1-114-326-11 CERAMIC CHIP 0.22UF 10% 25V
C8038 1-114-326-11 CERAMIC CHIP 0.22UF 10% 25V

C8039 1-114-326-11 CERAMIC CHIP 0.22UF 10% 25V
C8040 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C8041 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C8042 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C8043 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C8044 1-114-325-11 CERAMIC CHIP 0.1UF 10% 25V
C8045 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
C8046 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
C8047 1-114-325-11 CERAMIC CHIP 0.1UF 10% 25V
C8048 1-114-325-11 CERAMIC CHIP 0.1UF 10% 25V

C8049 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
C8050 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
C8051 1-114-325-11 CERAMIC CHIP 0.1UF 10% 25V
C8056 1-114-193-11 ELECT CHIP 470UF 20% 25V
C8057 1-114-193-11 ELECT CHIP 470UF 20% 25V

C8058 1-114-193-11 ELECT CHIP 470UF 20% 25V
C8059 1-114-193-11 ELECT CHIP 470UF 20% 25V
C8060 1-131-700-31 FILM 0.47UF 5% 50V
C8061 1-131-700-31 FILM 0.47UF 5% 50V
C8062 1-131-702-11 FILM 0.68UF 5% 50V

C8063 1-131-702-11 FILM 0.68UF 5% 50V
C8064 1-131-696-11 FILM 0.22UF 5% 50V
C8065 1-131-696-11 FILM 0.22UF 5% 50V
C8066 1-131-702-11 FILM 0.68UF 5% 50V
C8067 1-131-702-11 FILM 0.68UF 5% 50V

C8068 1-131-696-11 FILM 0.22UF 5% 50V
C8069 1-131-696-11 FILM 0.22UF 5% 50V
C8070 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V
C8071 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V
C8072 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V

- 92 -

VM

K2

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

C8073 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V
C8074 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C8075 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C8076 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C8077 1-114-325-11 CERAMIC CHIP 0.1UF 10% 25V

C8078 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C8079 1-114-325-11 CERAMIC CHIP 0.1UF 10% 25V
C8080 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C8081 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C8082 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C8083 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

< CONNECTOR >

CN8000 1-821-618-11 HEADER ASSEMBLY FOR PWB 8P
CN8001 1-822-105-11 HEADER ASSEMBLY FOR PWB 20P(L)
CN8002 1-779-657-21 PIN, CONNECTOR (PC BOARD) 8P

< DIODE >

D8000 6-501-817-01 DIODE MA2J1110GLS0
D8001 6-500-335-01 DIODE MC2838-T112-1
D8002 6-501-817-01 DIODE MA2J1110GLS0
D8003 6-501-817-01 DIODE MA2J1110GLS0
D8004 6-501-732-01 DIODE MAZ8056G0LS0

D8005 6-501-732-01 DIODE MAZ8056G0LS0
D8006 6-501-732-01 DIODE MAZ8056G0LS0
D8007 6-501-732-01 DIODE MAZ8056G0LS0
D8008 6-501-732-01 DIODE MAZ8056G0LS0
D8009 6-501-732-01 DIODE MAZ8056G0LS0

D8010 6-501-732-01 DIODE MAZ8056G0LS0
D8011 6-501-732-01 DIODE MAZ8056G0LS0
D8013 8-719-069-55 DI UDZSNPTE-175.6B

ET8000 1-780-482-11 EARTH TERMINAL
ET8001 1-780-482-11 EARTH TERMINAL
ET8002 1-780-482-11 EARTH TERMINAL
ET8003 1-780-482-11 EARTH TERMINAL

< FUSE >

F8000 £ 1-576-933-21 FUSE 5A 24V
F8001 £ 1-576-933-21 FUSE 5A 24V

< IC >

IC8000 6-710-904-01 IC TPA3100D2PHPR
IC8001 6-710-904-01 IC TPA3100D2PHPR

< COIL >

L8001 1-457-485-21 INDUCTOR 22UH
L8002 1-457-485-21 INDUCTOR 22UH
L8003 1-457-485-21 INDUCTOR 22UH
L8004 1-457-485-21 INDUCTOR 22UH

L8005 1-457-485-21 INDUCTOR 22UH
L8006 1-457-485-21 INDUCTOR 22UH
L8007 1-457-485-21 INDUCTOR 22UH
L8008 1-457-485-21 INDUCTOR 22UH

< TRANSISTOR >

Q8001 6-551-690-01 TRANSISTOR RT3N11M-TP-1
Q8002 6-551-815-01 TR UNR52A1G0LS0
Q8003 6-551-271-01 TRANSISTOR RT3AMMM
Q8004 6-551-271-01 TRANSISTOR RT3AMMM
Q8005 6-551-271-01 TRANSISTOR RT3AMMM

Q8006 6-551-271-01 TRANSISTOR RT3AMMM
Q8007 8-729-028-73 TRANSISTOR DTA114EUA-T106
Q8008 8-729-027-56 TRANSISTOR DTC143TKA-T146
Q8009 8-729-027-56 TRANSISTOR DTC143TKA-T146
Q8010 8-729-028-73 TRANSISTOR DTA114EUA-T106

< RESISTOR >

R8001 1-218-965-11 METAL CHIP 10K 5% 1/16W
R8004 1-218-953-11 METAL CHIP 1K 5% 1/16W
R8010 1-218-977-11 METAL CHIP 100K 5% 1/16W
R8011 1-218-977-11 METAL CHIP 100K 5% 1/16W
R8023 1-208-935-11 METAL CHIP 100K 0.5% 1/16W

R8024 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
R8031 1-218-978-11 METAL CHIP 120K 5% 1/16W
R8032 1-218-978-11 METAL CHIP 120K 5% 1/16W
R8033 1-218-978-11 METAL CHIP 120K 5% 1/16W
R8034 1-218-978-11 METAL CHIP 120K 5% 1/16W

R8042 1-218-977-11 METAL CHIP 100K 5% 1/16W
R8044 1-218-977-11 METAL CHIP 100K 5% 1/16W

< RESISTOR CHIP >

RB8000 1-234-375-21 RES, NETWORK 1K (1005X4)
RB8001 1-234-378-21 RES, NETWORK 10K (1005X4)
RB8002 1-234-378-21 RES, NETWORK 10K (1005X4)
RB8003 1-234-381-11 RES, NETWORK 100K (1005X4)
RB8004 1-234-381-11 RES, NETWORK 100K (1005X4)

* A-1557-693-A CB1 Board, Complete (46 inches only)

< CAPACITOR >

C9001 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9004 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9005 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9006 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9007 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9008 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9009 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9026 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9027 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9100 1-112-779-11 CERAMIC CHIP 0.047UF 10% 25V

CB1

- 93 -

H5 D2

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

C9101 1-114-410-21 CERAMIC CHIP 680PF 2% 50V
C9102 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9103 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V
C9104 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V
C9105 1-112-781-11 CERAMIC CHIP 1UF 10% 10V

C9106 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9107 1-114-532-21 ELECT CHIP 330UF 20% 4V
C9109 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9110 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9112 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9113 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9119 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9123 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9126 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9127 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9128 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9129 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9130 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9132 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9133 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9135 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9136 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9138 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9139 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9140 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9144 1-112-781-11 CERAMIC CHIP 1UF 10% 10V
C9145 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9147 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9148 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9149 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9150 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9151 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9152 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9153 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9154 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9155 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9156 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9157 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9158 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9159 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9160 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9161 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9162 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9163 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9164 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9165 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9166 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9167 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9168 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9169 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9170 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9176 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9185 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9188 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9199 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V

C9207 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9211 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9215 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9219 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9220 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V

C9221 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9222 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9223 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9224 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9225 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9226 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9227 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9228 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9229 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9230 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9231 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9232 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9233 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9234 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9235 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9236 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9237 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9238 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9239 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9240 1-131-956-21 ELECT CHIP 220UF 20% 4V

C9241 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9242 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9243 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9244 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9245 1-100-904-11 CERAMIC CHIP 330PF 10% 50V

C9246 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9247 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9248 1-112-779-11 CERAMIC CHIP 0.047UF 10% 25V
C9249 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9250 1-100-904-11 CERAMIC CHIP 330PF 10% 50V

C9251 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9252 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9253 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9254 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9255 1-100-904-11 CERAMIC CHIP 330PF 10% 50V

C9256 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9257 1-112-774-11 CERAMIC CHIP 470PF 10% 50V
C9258 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9259 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9260 1-100-904-11 CERAMIC CHIP 330PF 10% 50V

CB1

- 94 -

CB1

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

C9261 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9262 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9263 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9264 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C9265 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9266 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9267 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9268 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9301 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9302 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9303 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V
C9304 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9305 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V
C9306 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9307 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V

C9310 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9312 1-114-807-11 CERAMIC CHIP 0.015UF 10% 25V
C9314 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
C9315 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
C9316 1-100-912-11 CERAMIC CHIP 1UF 10% 25V

C9317 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
C9326 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
C9327 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9328 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
C9329 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9330 1-112-066-11 CERAMIC CHIP 10UF 10% 10V
C9332 1-112-066-11 CERAMIC CHIP 10UF 10% 10V
C9333 1-112-066-11 CERAMIC CHIP 10UF 10% 10V
C9334 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9335 1-114-807-11 CERAMIC CHIP 0.015UF 10% 25V

C9336 1-114-807-11 CERAMIC CHIP 0.015UF 10% 25V
C9337 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9338 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9340 1-114-130-11 CERAMIC CHIP 1UF 10% 6.3V
C9342 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9343 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9344 1-114-130-11 CERAMIC CHIP 1UF 10% 6.3V
C9345 1-114-130-11 CERAMIC CHIP 1UF 10% 6.3V
C9346 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V
C9347 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9348 1-112-781-11 CERAMIC CHIP 1UF 10% 10V
C9351 1-114-326-11 CERAMIC CHIP 0.22UF 10% 25V
C9352 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9353 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9356 1-112-781-11 CERAMIC CHIP 1UF 10% 10V

C9357 1-112-781-11 CERAMIC CHIP 1UF 10% 10V
C9358 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9359 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9407 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9408 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9409 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9410 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9413 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9415 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9438 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9445 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9454 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9455 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9456 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9457 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9458 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9459 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9460 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9461 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9463 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9485 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9488 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9495 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9496 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9497 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9498 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9499 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9500 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9501 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9502 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9503 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9700 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9702 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9704 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9706 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9708 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9709 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9710 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9711 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9712 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9713 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9714 1-164-850-11 CERAMIC CHIP 10PF 0.50PF 50V
C9715 1-164-850-11 CERAMIC CHIP 10PF 0.50PF 50V
C9716 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9717 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9718 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9719 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9720 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9721 1-112-781-11 CERAMIC CHIP 1UF 10% 10V
C9722 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9724 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9725 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9726 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9727 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9728 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

- 95 -

CB1

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

C9729 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9730 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9731 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9733 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9735 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V

C9736 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9737 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9738 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9739 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9741 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V

C9743 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9744 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9745 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9746 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9747 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V

C9757 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9759 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9760 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9761 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V
C9762 1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V

1-164-866-11 CERAMIC CHIP 47PF 5.00% 50V

C9763
C9800 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9801 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9802 1-131-956-21 ELECT CHIP 220UF 20% 4V
C9803 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V

C9804 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9805 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9806 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9807 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9808 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9810 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9811 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9812 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9813 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C9814 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V

C9816 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9818 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9819 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9820 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9822 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V

C9823

1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9824 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9825 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9830 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9832 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9836 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9838 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9841 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9842 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9844 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9846 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9848 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9850 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9851 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9852 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9854 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9861 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9862 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9863 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9864 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V

C9866 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9867 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9868 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C9869 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9870 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9872 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9873 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9874 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9875 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9876 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9877
C9878 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9879 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9880 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9881 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9883 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9885 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9886 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9887 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9888 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9889 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9890 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9891 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9892 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9895 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V

C9896 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9897 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9898 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9901 1-100-911-11 CERAMIC CHIP 4.7UF 10% 25V
C9904 1-112-066-11 CERAMIC CHIP 10UF 10% 10V

C9905

1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
C9906 1-114-130-11 CERAMIC CHIP 1UF 10% 6.3V
C9907 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C9908 1-100-905-11 CERAMIC CHIP 0.001UF 10% 50V
C9909 1-114-807-11 CERAMIC CHIP 0.015UF 10% 25V

< CONNECTOR >

CN9000 *1-821-607-11 HEADER ASSEMBLY FOR PWB 8P
CN9001 *1-821-034-11 HEADER ASSEMBLY FOR PWB 51P
CN9003 1-821-171-11 CONNECTOR, BOARD TO BOARD 41P

- 96 -

CB1

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

CN9004 1-821-170-11 CONNECTOR, BOARD TO BOARD 51P
CN9700 *1-822-045-11 HEADER ASSEMBLY FOR PWB 32P
CN9701 *1-819-284-11 HEADER ASSEMBLY FOR PWB 30P
CN9702 1-819-784-21 PIN, CONNECTOR 50P
CN9703 1-821-604-11 HEADER ASSEMBLY FOR PWB 5P

FB9310 1-469-669-21 FERRITE 0UH
FB9311 1-469-669-21 FERRITE 0UH
FB9312 1-469-669-21 FERRITE 0UH
FB9404 1-400-834-11 FERRITE 0UH
FB9405 1-400-834-11 FERRITE 0UH

CN9704 1-779-331-51 CONNECTOR, FFC/FPC 14P

< DIODE >

D9300 6-502-248-01 DI KDZTR3.9B
D9301 6-502-248-01 DI KDZTR3.9B
D9302 6-502-248-01 DI KDZTR3.9B
D9306 8-719-081-67 DIODE M1FM3
D9307 8-719-081-67 DIODE M1FM3

D9311 8-719-081-67 DIODE M1FM3
D9701 6-502-150-01 DI MA2SD320G8S0
D9703 6-502-150-01 DI MA2SD320G8S0
D9900 8-719-081-67 DIODE M1FM3
D9901 6-502-248-01 DI KDZTR3.9B

1-780-482-11 EARTH TERMINAL

ET9002
ET9007 1-780-638-21 CONTACT TERMINAL
ET9009 1-780-638-21 CONTACT TERMINAL
ET9012 1-780-638-21 CONTACT TERMINAL
ET9013 1-780-482-11 EARTH TERMINAL

ET9014 1-780-638-21 CONTACT TERMINAL
ET9015 1-780-482-11 EARTH TERMINAL
ET9700 1-780-482-11 EARTH TERMINAL
ET9701 1-780-482-11 EARTH TERMINAL
ET9702 1-780-482-11 EARTH TERMINAL

ET9703 1-780-482-11 EARTH TERMINAL

< FUSE >

F9100 £ 1-576-603-11 FUSE 3.15A 24V
F9300 £ 1-576-603-11 FUSE 3.15A 24V
F9301 £ 1-576-603-11 FUSE 3.15A 24V

< FERRITE BEAD >

FB9000

1-469-669-21 FERRITE 0UH
FB9001 1-500-922-11 FERRITE 0UH
FB9002 1-469-669-21 FERRITE 0UH
FB9004 1-500-922-11 FERRITE 0UH
FB9005 1-400-834-11 FERRITE 0UH

FB9008 1-469-669-21 FERRITE 0UH
FB9009 1-500-922-11 FERRITE 0UH
FB9010 1-500-922-11 FERRITE 0UH
FB9011 1-469-669-21 FERRITE 0UH
FB9012 1-400-834-11 FERRITE 0UH

FB9200 1-469-669-21 FERRITE 0UH
FB9308 1-469-669-21 FERRITE 0UH

FB9713 1-400-834-11 FERRITE 0UH
FB9714 1-400-833-21 FERRITE 0UH
FB9715 1-400-833-21 FERRITE 0UH
FB9716 1-400-833-21 FERRITE 0UH
FB9717 1-400-833-21 FERRITE 0UH

FB9718 1-400-833-21 FERRITE 0UH
FB9719 1-400-833-21 FERRITE 0UH
FB9720 1-400-833-21 FERRITE 0UH
FB9721 1-400-833-21 FERRITE 0UH
FB9730 1-400-833-21 FERRITE 0UH

FB9731 1-400-833-21 FERRITE 0UH
FB9732 1-400-833-21 FERRITE 0UH
FB9733 1-400-833-21 FERRITE 0UH
FB9734 1-400-833-21 FERRITE 0UH
FB9735 1-400-833-21 FERRITE 0UH

FB9736 1-400-833-21 FERRITE 0UH
FB9737 1-400-833-21 FERRITE 0UH
FB9746 1-500-922-11 FERRITE 0UH
FB9805 1-469-669-21 FERRITE 0UH
FB9902 1-469-669-21 FERRITE 0UH

FL9000 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9001 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9002 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9100 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9101 1-234-939-21 FILTER, EMI REMOVAL (SMD)

FL9102 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9103 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9202 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9203 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9204 1-234-939-21 FILTER, EMI REMOVAL (SMD)

FL9205 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9300 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9700 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9701 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9702 1-234-939-21 FILTER, EMI REMOVAL (SMD)

FL9705 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9706 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9707 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9708 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9709 1-234-939-21 FILTER, EMI REMOVAL (SMD)

FL9710 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9800 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9801 1-234-939-21 FILTER, EMI REMOVAL (SMD)

< FILTER >

- 97 -

CB1

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

FL9802 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9803 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9804 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9805 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9806 1-234-939-21 FILTER, EMI REMOVAL (SMD)

L9014 1-457-540-11 INDUCTOR 0UH
L9015 1-457-540-11 INDUCTOR 0UH
L9016 1-457-540-11 INDUCTOR 0UH
L9017 1-457-540-11 INDUCTOR 0UH
L9018 1-457-540-11 INDUCTOR 0UH

FL9807 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL9808 1-234-939-21 FILTER, EMI REMOVAL (SMD)

< IC >

IC9000 6-713-042-01 IC CXD9935GB
IC9001 6-710-361-01 IC 74LVC2G66DC-125
IC9002 6-704-566-01 IC R3112N291A-TR-FA
IC9003 6-704-566-01 IC R3112N291A-TR-FA
IC9007 6-704-067-01 IC M24128-BWMN6T(A)

IC9008 6-710-361-01 IC 74LVC2G66DC-125
IC9100 6-710-949-01 IC SN0608006PWPR
IC9101 6-711-262-01 IC HYB18TC256160BF-3S
IC9102 6-711-262-01 IC HYB18TC256160BF-3S
IC9300 6-710-922-01 IC BD9853AFV-E2

6-710-922-01 IC BD9853AFV-E2

IC9301
IC9302 6-712-904-01 IC R1154N050B-TR-F
IC9303 6-711-042-01 IC BD00KA5WFP-E2
IC9400 6-713-137-01 IC CXD9929GB
IC9401 6-712-984-01 IC EDD1232ABBH-5C-E-TR

IC9402 6-712-984-01 IC EDD1232ABBH-5C-E-TR
IC9700 6-712-442-01 IC 74AHC541PW-118
IC9702 6-712-442-01 IC 74AHC541PW-118
IC9704 6-701-985-01 IC BH2220FVM-TR
IC9705 6-710-121-01 IC M24256-BWMN6TP(A)

IC9706 6-712-442-01 IC 74AHC541PW-118
IC9707 6-808-325-01 IC EPM570T100I5NRR-IC9707-C100
IC9708 6-808-323-01 IC S29GL064N90TFI030-C1100-ER
IC9709 6-709-888-01 IC TC7WHU04FK(T5RSOYF
IC9710 6-708-758-01 IC PCA9517DP.118

< COIL >

L9000 1-457-540-11 INDUCTOR 0UH
L9001 1-457-540-11 INDUCTOR 0UH
L9002 1-457-540-11 INDUCTOR 0UH
L9003 1-457-540-11 INDUCTOR 0UH
L9004 1-457-540-11 INDUCTOR 0UH

L9005

1-457-540-11 INDUCTOR 0UH
L9006 1-457-540-11 INDUCTOR 0UH
L9007 1-457-540-11 INDUCTOR 0UH
L9008 1-457-540-11 INDUCTOR 0UH
L9009 1-457-540-11 INDUCTOR 0UH

L9010 1-457-540-11 INDUCTOR 0UH
L9011 1-457-540-11 INDUCTOR 0UH
L9012 1-457-540-11 INDUCTOR 0UH
L9013 1-457-540-11 INDUCTOR 0UH

L9019 1-457-540-11 INDUCTOR 0UH
L9020 1-457-540-11 INDUCTOR 0UH
L9021 1-457-540-11 INDUCTOR 0UH
L9022 1-457-540-11 INDUCTOR 0UH
L9023 1-457-540-11 INDUCTOR 0UH

L9100 1-481-246-11 INDUCTOR 2.2UH
L9300 1-457-428-11 INDUCTOR 4.7UH
L9301 1-457-428-11 INDUCTOR 4.7UH
L9302 1-457-428-11 INDUCTOR 4.7UH
L9900 1-457-428-11 INDUCTOR 4.7UH

< TRANSISTOR >

Q9002 6-551-904-01 TR RT3S03M-T111-1
Q9100 6-550-663-01 TRANSISTOR RSS100N03FD5TB
Q9101 6-550-663-01 TRANSISTOR RSS100N03FD5TB
Q9300 6-551-382-01 TRANSISTOR RSS040P03FD5TB
Q9302 6-551-460-01 TRANSISTOR RSR025P03TL

6-551-460-01 TRANSISTOR RSR025P03TL

Q9303
Q9304 6-550-718-01 TRANSISTOR RSR025N03TL
Q9306 6-550-718-01 TRANSISTOR RSR025N03TL
Q9307 6-551-123-01 TRANSISTOR RSS065N03FU7TB
Q9308 6-550-369-01 TRANSISTOR TPC8109(TE12L)

Q9309 6-551-817-01 TR UNR52A3G0LS0
Q9310 6-551-776-01 TR 2SC5950G0LS0
Q9311 6-551-817-01 TR UNR52A3G0LS0
Q9701 6-551-904-01 TR RT3S03M-T111-1
Q9702 6-551-904-01 TR RT3S03M-T111-1

Q9703 6-551-817-01 TR UNR52A3G0LS0
Q9707 6-551-817-01 TR UNR52A3G0LS0
Q9708 6-550-354-01 TRANSISTOR RTQ035P02TR
Q9900 6-551-460-01 TRANSISTOR RSR025P03TL
Q9901 6-550-718-01 TRANSISTOR RSR025N03TL

R9002 1-218-941-11 METAL CHIP 100 5% 1/16W
R9003 1-218-941-11 METAL CHIP 100 5% 1/16W
R9004 1-218-941-11 METAL CHIP 100 5% 1/16W
R9005 1-218-941-11 METAL CHIP 100 5% 1/16W
R9006 1-218-941-11 METAL CHIP 100 5% 1/16W

R9007 1-218-941-11 METAL CHIP 100 5% 1/16W
R9008 1-218-941-11 METAL CHIP 100 5% 1/16W
R9009 1-218-941-11 METAL CHIP 100 5% 1/16W
R9010 1-218-941-11 METAL CHIP 100 5% 1/16W
R9011 1-218-941-11 METAL CHIP 100 5% 1/16W

R9012 1-218-941-11 METAL CHIP 100 5% 1/16W

< RESISTOR >

- 98 -

CB1

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK

R9013 1-218-941-11 METAL CHIP 100 5% 1/16W
R9028 1-218-941-11 METAL CHIP 100 5% 1/16W
R9029 1-218-941-11 METAL CHIP 100 5% 1/16W
R9030 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9031 1-208-935-11 METAL CHIP 100K 0.5% 1/16W

R9352 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
R9353 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R9354 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R9359 1-218-990-81 SHORT CHIP 0
R9362 1-208-935-11 METAL CHIP 100K 0.5% 1/16W

R9053 1-218-941-11 METAL CHIP 100 5% 1/16W
R9060 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9062 1-218-990-81 SHORT CHIP 0
R9065 1-208-923-11 METAL CHIP 33K 0.5% 1/16W
R9103 1-208-711-11 METAL CHIP 15K 0.5% 1/16W

R9104 1-218-990-81 SHORT CHIP 0
R9105 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R9107 1-218-990-81 SHORT CHIP 0
R9109 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R9110 1-218-990-81 SHORT CHIP 0

R9113 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9114 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9116 1-208-663-11 METAL CHIP 150 0.5% 1/16W
R9117 1-208-663-11 METAL CHIP 150 0.5% 1/16W
R9118 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

R9119 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9121 1-218-933-11 METAL CHIP 22 5% 1/16W
R9122 1-218-933-11 METAL CHIP 22 5% 1/16W
R9123 1-218-933-11 METAL CHIP 22 5% 1/16W
R9124 1-218-933-11 METAL CHIP 22 5% 1/16W

R9125 1-218-933-11 METAL CHIP 22 5% 1/16W
R9126 1-218-933-11 METAL CHIP 22 5% 1/16W
R9128 1-208-663-11 METAL CHIP 150 0.5% 1/16W
R9129 1-208-663-11 METAL CHIP 150 0.5% 1/16W
R9130 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

R9365 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
R9366 1-218-990-81 SHORT CHIP 0
R9400 1-218-939-11 METAL CHIP 68 5% 1/16W
R9401 1-218-935-11 METAL CHIP 33 5% 1/16W
R9402 1-218-935-11 METAL CHIP 33 5% 1/16W

R9403 1-218-935-11 METAL CHIP 33 5% 1/16W
R9404 1-218-935-11 METAL CHIP 33 5% 1/16W
R9405 1-218-935-11 METAL CHIP 33 5% 1/16W
R9406 1-218-935-11 METAL CHIP 33 5% 1/16W
R9407 1-218-935-11 METAL CHIP 33 5% 1/16W

R9408 1-218-935-11 METAL CHIP 33 5% 1/16W
R9409 1-218-935-11 METAL CHIP 33 5% 1/16W
R9410 1-218-935-11 METAL CHIP 33 5% 1/16W
R9411 1-218-935-11 METAL CHIP 33 5% 1/16W
R9412 1-218-935-11 METAL CHIP 33 5% 1/16W

R9413 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9414 1-218-935-11 METAL CHIP 33 5% 1/16W
R9415 1-218-935-11 METAL CHIP 33 5% 1/16W
R9416 1-218-935-11 METAL CHIP 33 5% 1/16W
R9417 1-218-935-11 METAL CHIP 33 5% 1/16W

R9418 1-218-933-11 METAL CHIP 22 5% 1/16W
R9419 1-218-933-11 METAL CHIP 22 5% 1/16W
R9420 1-218-933-11 METAL CHIP 22 5% 1/16W
R9421 1-218-933-11 METAL CHIP 22 5% 1/16W
R9422 1-218-933-11 METAL CHIP 22 5% 1/16W

R9131 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9132 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9133 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9136 1-218-990-81 SHORT CHIP 0
R9137 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

R9300 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9303 1-218-990-81 SHORT CHIP 0
R9304 1-208-939-11 METAL CHIP 150K 0.5% 1/16W
R9305 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R9312 1-208-709-11 METAL CHIP 12K 0.5% 1/16W

R9322 1-208-909-11 METAL CHIP 8.2K 0.5% 1/16W
R9323 1-208-909-11 METAL CHIP 8.2K 0.5% 1/16W
R9330 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9342 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W
R9343 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W

R9345 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R9347 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
R9348 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9349 1-208-939-11 METAL CHIP 150K 0.5% 1/16W
R9351 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W

R9423 1-218-933-11 METAL CHIP 22 5% 1/16W
R9424 1-218-939-11 METAL CHIP 68 5% 1/16W
R9425 1-218-939-11 METAL CHIP 68 5% 1/16W
R9426 1-218-939-11 METAL CHIP 68 5% 1/16W
R9427 1-218-939-11 METAL CHIP 68 5% 1/16W

R9428 1-218-941-11 METAL CHIP 100 5% 1/16W
R9429 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9434 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9439 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R9440 1-218-941-11 METAL CHIP 100 5% 1/16W

R9461 1-218-935-11 METAL CHIP 33 5% 1/16W
R9462 1-218-935-11 METAL CHIP 33 5% 1/16W
R9463 1-218-935-11 METAL CHIP 33 5% 1/16W
R9464 1-218-935-11 METAL CHIP 33 5% 1/16W
R9700 1-218-941-11 METAL CHIP 100 5% 1/16W

R9701 1-218-941-11 METAL CHIP 100 5% 1/16W
R9702 1-218-990-81 SHORT CHIP 0
R9703 1-218-990-81 SHORT CHIP 0
R9706 1-218-990-81 SHORT CHIP 0
R9707 1-218-990-81 SHORT CHIP 0

- 99 -
