Sony 4-127-735-11-1 User Manual

LCD Digital Colour TV

Operating Instructions

KDL-32S55xx
KDL-26S55xx
KDL-22S55xx
KDL-19S55xx

© 2009 Sony Corporation 4-127-735-11(1)

NOTICE FOR
CUSTOMERS IN THE
UNITED KINGDOM

A moulded plug complying with BS1363 is fitted to this
equipment for your safety and convenience.
Should the fuse in the plug supplied need to be replaced
with the same rating of fuse approved by ASTA or BSI to
BS 1362 (i.e., marked with or ) must be used.
When an alternative type of plug is used it should be fitted
with the same rating of fuse, otherwise the circuit should be
protected by a 10 AMP FUSE at the distribution board.
If the plug supplied with this equipment has a detachable
fuse cover, be sure to attach the fuse cover after you change
the fuse. Never use the plug without the fuse cover. If you
should lose the fuse cover, please contact your nearest
Sony service station.

FUSE

The manufacturer of this product is Sony
Corporation, 1-7-1 Konan Minato-ku Tokyo, 108­0075 Japan. The Authorized Representative for EMC
and product safety is Sony Deutschland GmbH,
Hedelfinger Strasse 61, 70327 Stuttgart, Germany.
For any service or guarantee matters please refer to
the addresses given in separate service or guarantee
documents.

Trademark information

• is a registered trademark of the DVB Project

• HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of
HDMI Licensing LLC.

About the model name in this manual

The “xx” that appears on the model name, corresponds to
two numeric digits related to design or colour variation.

FUSE

How to replace the fuse

Open the fuse compartment with a blade screwdriver, and
replace the fuse.
Please refer to the illustration that actually equipped with

the product.

Introduction

Thank you for choosing this Sony product.
Before operating the TV, please read this manual
thoroughly and retain it for future reference.

Notice for Digital TV function

• Any functions related to Digital TV ( ) will only
work in countries or areas where DVB-T (MPEG2)
digital terrestrial signal s are broadcasted. Please confirm
with your local dealer if you can receive a DVB-T signal
where you live.

• Although this TV set follows DVB-T specifications,
compatibility with future DVB-T digital terrestrial
broadcasts cannot be guaranteed.

• Some Digital TV functions may not be available in some
countries.

GB

2

Table of Contents

Start-up Guide 4

Safety information.............................................................................................................9

Precautions......................................................................................................................11

Overview of the remote ..................................................................................................12

Overview of the TV buttons and indicators ..................................................................13

Watching TV

Watching TV ....................................................................................................................14

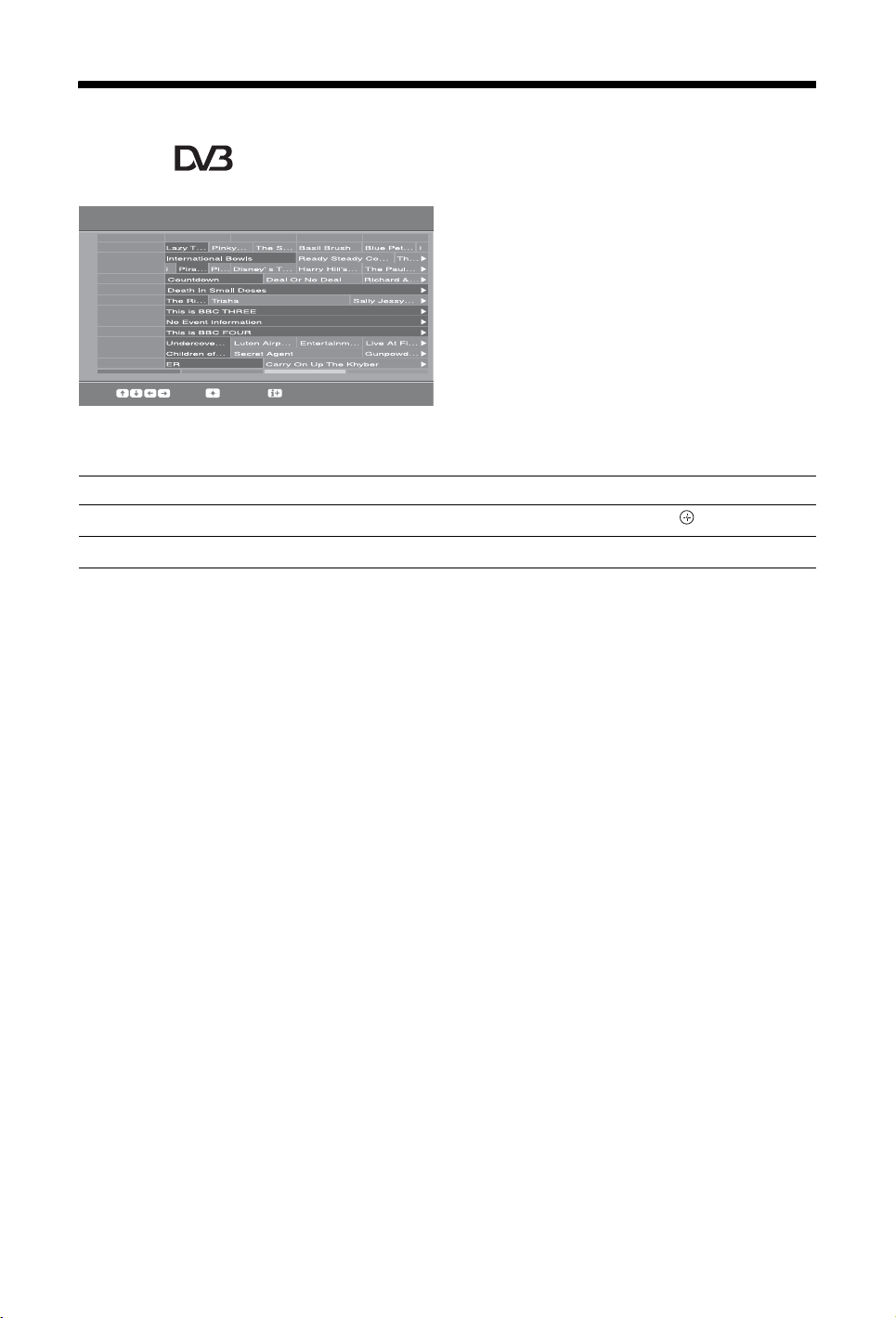

Using the Digital Electronic Programme Guide (EPG) .......................................16

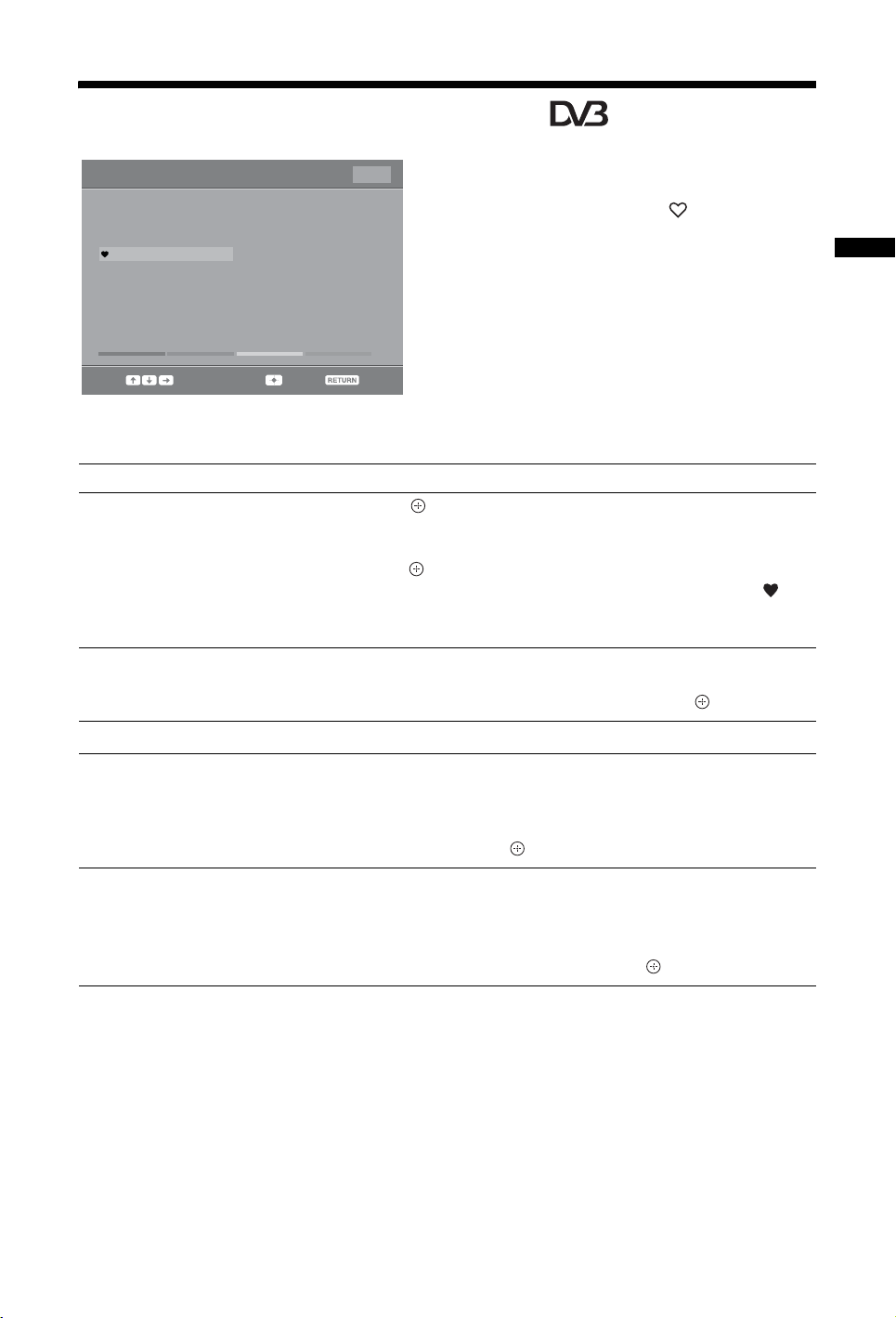

Using the Digital Favourite list .............................................................................17

Using Optional Equipment

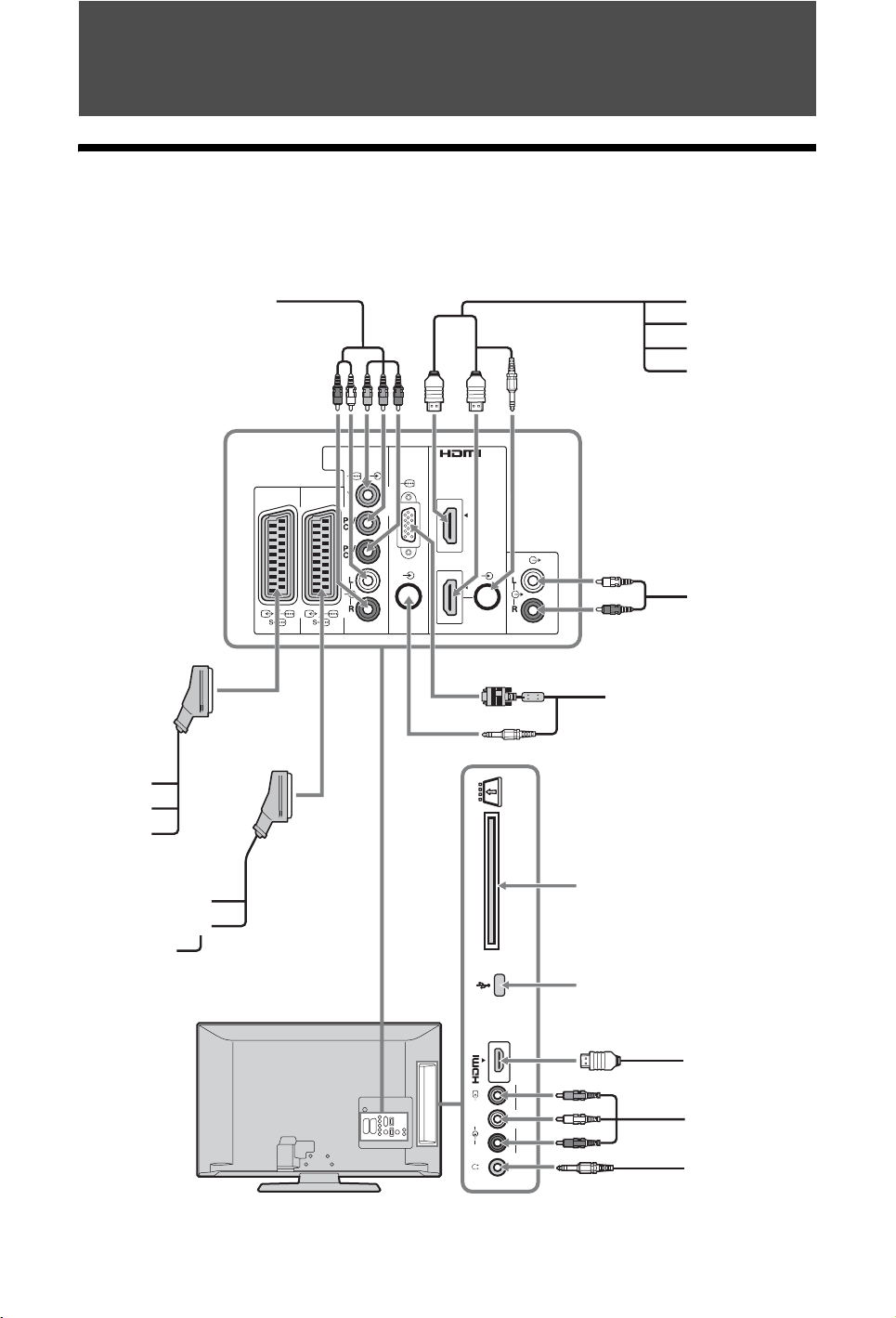

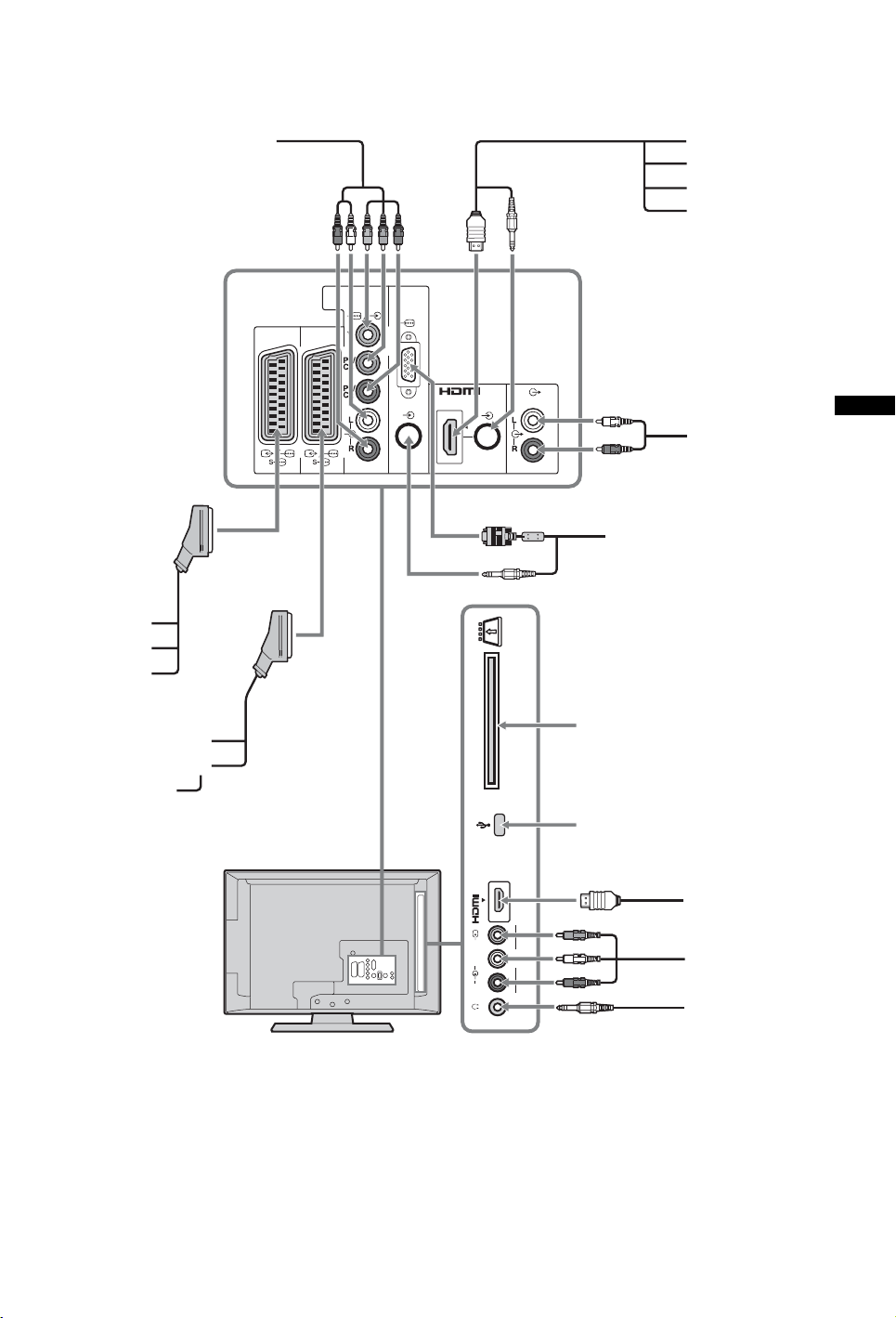

Connecting optional equipment ....................................................................................18

Viewing pictures from connected equipment ..............................................................20

Playing Back Photo/Music via USB...............................................................................21

Using control for HDMI ...................................................................................................22

Using MENU Functions

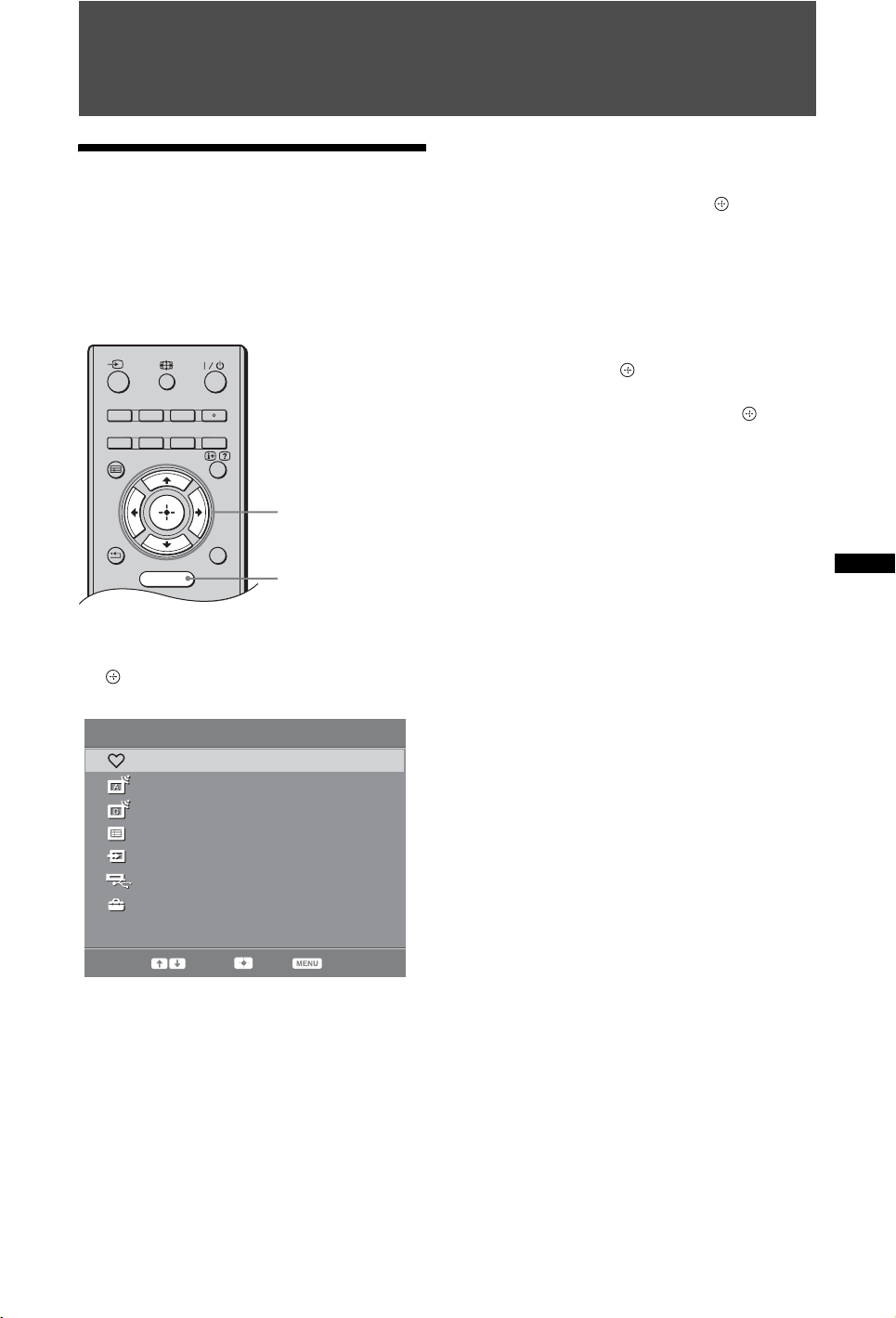

Navigating through menus.............................................................................................23

Settings ............................................................................................................................24

Additional Information

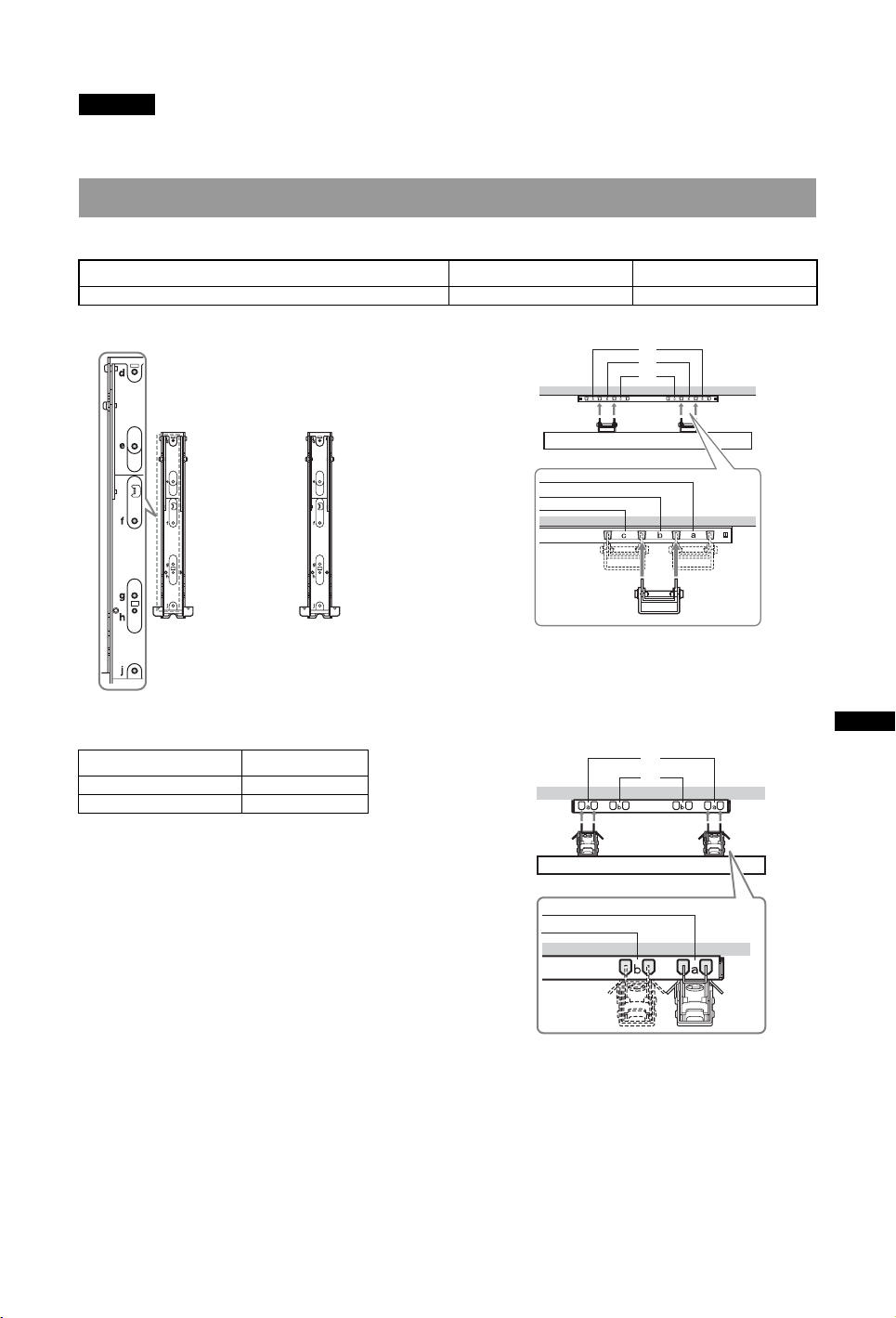

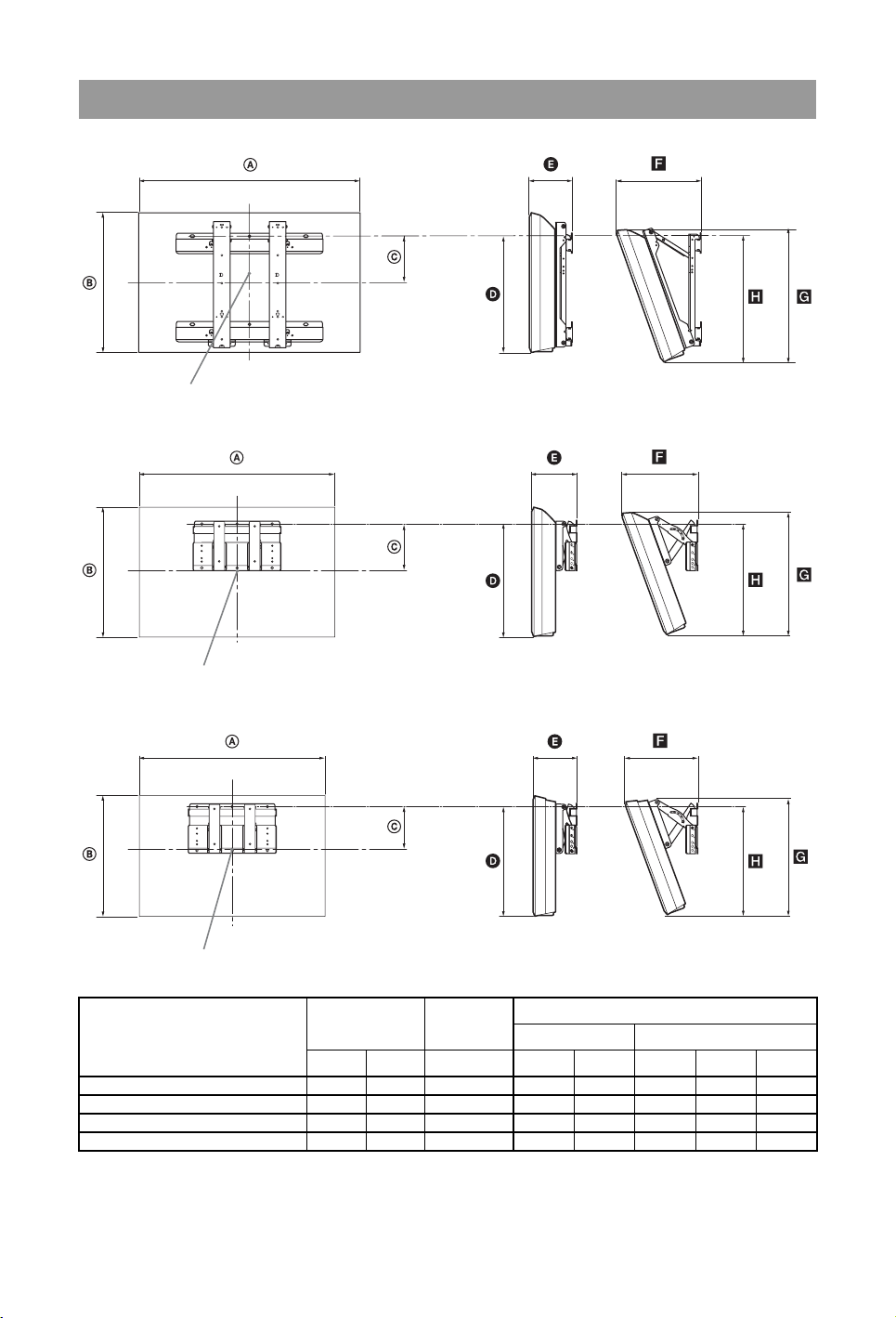

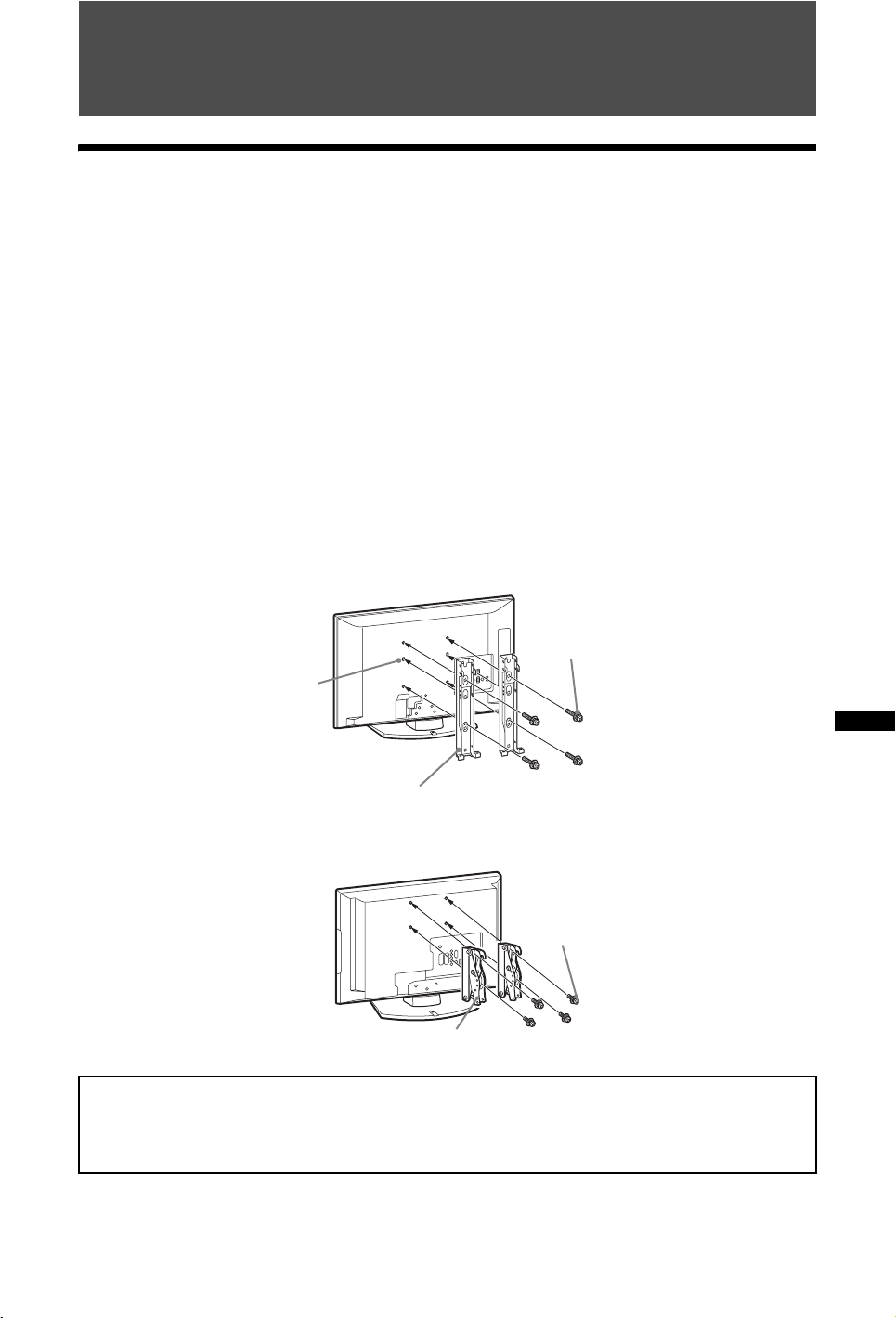

Installing the Accessories (Wall-Mount Bracket) .........................................................31

Specifications ..................................................................................................................34

Troubleshooting..............................................................................................................36

: for digital channels only

GB

3

Start-up Guide

1: Checking the
accessories

Remote RM-ED017 (1)
Size AA batteries (R6 type) (2)
Stand (1)
Screws for stand (KDL-32S55xx/KDL-26S55xx (4),
KDL-22S55xx/KDL-19S55xx (3))

To insert batteries into the remote

Push and slide to open.

~

• Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or mix
old and new batteries.

• Dispose of batteries in an environmentally friendly way.
Certain regions may regulate disposal of batteries.
Please consult your local authority.

• Handle the remote with care. Do not drop or step on it,
or spill liquid of any kind onto it.

• Do not place the remote in a location near a heat source,
a place subject to direct sunlight, or a damp room.

KDL-32S55xx/KDL-26S55xx

Accessory bag Screws

Table-Top
Stand

TV unit

KDL-22S55xx/KDL-19S55xx

Accessory bag

Table-Top
Stand

Screws

2: Attaching the stand

Follow the assembling steps required to place on a
TV stand.

1 Take out the Table-Top Stand and screws

from the carton. The screws are found in
the accessory bag.

GB

4

TV unit

2 Gently slide the TV unit onto the neck of

the Table-Top Stand and align the screws
holes.

KDL-32S55xx/KDL-26S55xx

Rear of TV

KDL-22S55xx/KDL-19S55xx

Rear of TV

~

• When you carry the TV, place your hand as illustrated
and hold it securely, see page 9. Do not put stress on the
LCD panel and the frame around the screen.

• Be careful not to pinch your hands or the mains lead
when you install the TV to the Table-Top Stand.

3 Use the supplied screws to attach the TV

unit to the Table-Top Stand.

KDL-32S55xx/KDL-26S55xx

Screws

3: Connecting an
aerial/VCR/DVD
recorder

~

• This product has been tested and found to compliant
with the limits set out in the EMC Directive for using
connection cables not longer than 3 meters (9.8 feet).

Connecting an aerial only

Coaxial cable

Connecting an aerial/VCR/DVD recorder with SCART

Start-up Guide

KDL-22S55xx/KDL-19S55xx

Screws

~

• If an electric screw driver is used, set the torque to
tighten at approximately 1.5 N·m {15 kgf·cm}.

AV1 AV2

Coaxial cable

Scart lead

Coaxial cable

VCR/DVD recorder

~

• AV1 outputs available only for analogue TV.

• AV2 outputs to the current screen (except PC, HDMI,
Component 1080i).

Continued

GB

5

Connecting an aerial/VCR/DVD recorder with HDMI

KDL-32S55xx/KDL-26S55xx

IN

1

2

Coaxial

cable

4: Preventing the TV
from toppling over

HDMI cable

Coaxial cable

VCR/DVD recorder

KDL-22S55xx/KDL-19S55xx

IN

1

HDMI cable

Coaxial

cable

3

2

1

1 Install a wood screw (4 mm in diameter,

not supplied) in the TV stand.

2 Install a machine screw (M4 × 14 mm, not

supplied) and a nut (M4, not supplied)
from the bottom of the Table-Top Stand
into the screw hole of the TV.
Adjust a strong cord line weight accordingly,
to secure the machine screw and nut.

~

• Be sure to secure a machine screw and a nut.

3 Tie the wood screw and the machine

screw with a strong cord.

z

• An optional Sony support belt kit is used to secure the TV.
Contact your nearest Sony Service Centre to purchase a
kit. Have your TV model name ready for reference.

5: Bundling the cables

You can bundle the connecting cables as illustrated below.

VCR/DVD recorder

GB

6

Coaxial cable

1 2 3

~

• Do not bundle the mains lead with other connecting cables.

6: Adjusting the

3° 8°

RETURN TOOLS

GUIDE

MENU

AUDIOSCENE

ANALOGDIGITAL

viewing angle of the TV

KDL-22S55xx/KDL-19S55xx only

This TV can be adjusted within the angle shown
below.

Adjust the angle back and forth (tilt)

Right view

Front

~

• When you turn on the TV, the power indicator light
up in green.

3 Press F/f to select the language

displayed on the menu screens, then

.

press

Auto Start-up

Language

Country

Location

Select: Confirm:

English

Nederlands

Italiano

Deutsch

4 Press F/f to select the country/region in

which you will operate the TV, then press

.

Start-up Guide

7:

Selecting the
language, country/region
and location

3,4,5

Auto Start-up

Language

Country

Location

Select:Back: Confirm:

-

United Kingdom

Ireland

Nederland

Luxembourg

France

Italia

If the country/region which you want to use on
the TV does not appear in the list, select “-”
instead of a country/region.

5 Press F/f to select the location type in

which you will operate the TV, then
press .

Auto Start-up

Language

Country

Location

Home

Shop

1 Connect the TV to your mains socket

(220-240V AC, 50Hz).

2 Press 1 on the side of the TV.

When you turn on the TV for the first time, the
Language menu appears on the screen.

Select:Back: Confirm:

In Shop mode, some settings will be periodically
reset for Shop usage.

This option selects the initial picture mode
appropriate for the typical lighting condition in
these environments.

7

GB

8: Auto-tuning the TV

1 Before you start auto-tuning the TV, insert

a pre-recorded tape into the VCR
connected to the TV (page 5) and start
play back.

The video channel will be located and stored on
the TV during auto-tuning.
If no VCR is connected to the TV, skip this step.

2 Press .

Auto Tuning

Do you want to start Auto Tuning?

Back: Start:

5 Press MENU to exit.

The TV has now tuned in all the available
channels.

Detaching the Table­Top Stand from the TV

~

• Do not remove the Table-Top Stand for any reason other
than to wall-mount the TV.

KDL-32S55xx/KDL-26S55xx

The TV starts searching for all available digital
channels, followed by all available analogue
channels. This may take some time, so do not
press any buttons on the TV or remote while
proceeding.

If a message appears for you to confirm the
aerial connection

No digital or analogue channels were found.
Check all the aerial connections and press to
start auto-tuning again.

3 When the Programme Sorting menu

appears on the screen, follow the steps of
“Programme Sorting” (page 27).

If you do not change the order in which the
analogue channels are stored on the TV, go to
next step.

4 When the Eco Preset menu appears on

the screen, if you press “Yes,” the “Eco”
settings are changed to recommended
values to reduce power consumption.

Eco Preset

Do you want to use the Eco Preset?

Choosing "YES" will reduce power consumption.

Power Saving

Idle TV Standby

PC Power Management

Yes

Reduce

3 h

On

No

Table-Top
Stand

KDL-22S55xx/KDL-19S55xx

Table-Top
Stand

GB

8

Safety information

Installation/Set-up

Install and use the TV set in accordance with the
instructions below in order to avoid any risk of fire,
electrical shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible
mains socket.

• Place the TV set on a stable, level surface.

• Only qualified service personnel should carry out wall
installations.

• For safety reasons, it is strongly recommended that you
use Sony accessories, including:

KDL-32S55xx:

– Wall-mount bracket SU-WL500

KDL-26S55xx/KDL-22S55xx/KDL-19S55xx:

– Wall-mount bracket SU-WL100

• Be sure to use the screws supplied with the Wall-mount
bracket when attaching the mounting hooks to the TV
set.
The supplied screws are designed so that they are 8 mm
to 12 mm in length when measured from the attaching
surface of the mounting hook.
The diameter and length of the screws differ depending
on the Wall-mount bracket model. Use of screws other
than those supplied may result in internal damage to the
TV set or cause it to fall, etc.

8 mm-12 mm

Transporting

• Before transporting the TV set, disconnect all cables.

• Two or more people are needed to transport a large TV
set.

• When transporting the TV set by hand, hold it as shown
below. Do not put stress on the LCD panel and the frame
around the screen.

• When lifting or moving the TV set, hold it firmly from
the bottom.

• When transporting the TV set, do not subject it to jolts
or excessive vibration.

• When transporting the TV set for repairs or when
moving, pack it using the original carton and packing
material.

KDL-32S55xx KDL-26S55xx/KDL-22S55xx/

KDL-19S55xx

Ventilation

• Never cover the ventilation holes or insert anything in
the cabinet.

• Leave space around the TV set as shown below.

• It is strongly recommended that you use a Sony wall­mount bracket in order to provide adequate air­circulation.

Screw (supplied with the
Wall-mount bracket)

Mounting Hook

Hook attachment on rear of TV set

Installed on the wall

30 cm

10 cm

10 cm

Leave at least this space around the set.

Installed with stand

30 cm

10 cm10 cm

Leave at least this space around the set.

10 cm

Continued

6 cm

GB

9

• To ensure proper ventilation and prevent the collection
of dirt or dust:
– Do not lay the TV set flat, install upside down,

backwards, or sideways.

– Do not place the TV set on a shelf, rug, bed or in a

closet.

– Do not cover the TV set with a cloth, such as curtains,

or items such as newspapers, etc.

– Do not install the TV set as shown below.

Air circulation
is blocked.

Wall

Air circulation
is blocked.

Wall

Prohibited Usage

Do not install/use the TV set in locations,
environments or situations such as those listed
below, or the TV set may malfunction and cause a
fire, electrical shock, damage and/or injuries.

Location:

Outdoors (in direct sunlight), at the seashore, on a ship or
other vessel, inside a vehicle, in medical institutions,
unstable locations, near water, rain, moisture or smoke.

Environment:

Places that are hot, humid, or excessively dusty; where
insects may enter; where it might be exposed to mechanical
vibration, near flammable objects (candles, etc).
The TV set shall not be exposed to dripping or splashing
and no objects filled with liquids, such as vases, shall be
placed on the TV.

Situation:

Do not use when your hands are wet, with the cabinet
removed, or with attachments not recommended by the
manufacturer. Disconnect the TV set from mains socket
and aerial during lightning storms.

Mains lead

Handle the mains lead and socket as follows in order
to avoid any risk of fire, electrical shock or damage
and/or injuries:

– Use only mains leads supplied by Sony, not other

suppliers.
– Insert the plug fully into the mains socket.
– Operate the TV set on a 220-240 V AC supply only.
– When wiring cables, be sure to unplug the mains lead

for your safety and take care not to catch your feet on

the cables.
– Disconnect the mains lead from the mains socket

before working on or moving the TV set.
– Keep the mains lead away from heat sources.
– Unplug the mains plug and clean it regularly. If the

plug is covered with dust and it picks up moisture, its

insulation may deteriorate, which could result in a

fire.

Notes

• Do not use the supplied mains lead on any other
equipment.

• Do not pinch, bend, or twist the mains lead excessively.
The core conductors may be exposed or broken.

• Do not modify the mains lead.

• Do not put anything heavy on the mains lead.

• Do not pull on the mains lead itself when disconnecting
the mains lead.

• Do not connect too many appliances to the same mains
socket.

• Do not use a poor fitting mains socket.

Broken pieces:

• Do not throw anything at the TV set. The screen glass
may break by the impact and cause serious injury.

• If the surface of the TV set cracks, do not touch it until
you have unplugged the mains lead. Otherwise electric
shock may result.

When not in use

• If you will not be using the TV set for several days, the
TV set should be disconnected from the mains for
environmental and safety reasons.

• As the TV set is not disconnected from the mains when
the TV set is just turned off, pull the plug from the mains
to disconnect the TV set completely.

• However, some TV sets may have features that require
the TV set to be left in standby to work correctly. The
instructions in this manual will inform you if this
applies.

For children

• Do not allow children to climb on the TV set.

• Keep small accessories out of the reach of children, so
that they are not mistakenly swallowed.

If the following problems occur...

Turn off the TV set and unplug the mains lead
immediately if any of the following problems occur.
Ask your dealer or Sony service centre to have it
checked by qualified service personnel.

When:

– Mains lead is damaged.
– Poor fitting of mains socket.
– TV set is damaged by being dropped, hit or having

something thrown at it.

– Any liquid or solid object falls through openings in

the cabinet.

10

GB

Precautions

Viewing the TV

• View the TV in moderate light, as viewing the TV in
poor light or during long period of time, strains your
eyes.

• When using headphones, adjust the volume so as to
avoid excessive levels, as hearing damage may result.

LCD Screen

• Although the LCD screen is made with high-precision
technology and 99.99% or more of the pixels are
effective, black dots may appear or bright points of light
(red, blue, or green) may appear constantly on the LCD
screen. This is a structural property of the LCD screen
and is not a malfunction.

• Do not push or scratch the front filter, or place objects on
top of this TV set. The image may be uneven or the LCD
screen may be damaged.

• If this TV set is used in a cold place, a smear may occur
in the picture or the picture may become dark. This does
not indicate a failure. These phenomena disappear as the
temperature rises.

• Ghosting may occur when still pictures are displayed
continuously. It may disappear after a few moments.

• The screen and cabinet get warm when this TV set is in
use. This is not a malfunction.

• The LCD screen contains a small amount of liquid
crystal. Some fluorescent tubes used in this TV set also
contain mercury. Follow your local ordinances and
regulations for disposal.

Handling and cleaning the screen surface/cabinet
of the TV set

Be sure to unplug the mains lead connected to the TV set
from mains socket before cleaning.
To avoid material degradation or screen coating
degradation, observe the following precautions.

• To remove dust from the screen surface/cabinet, wipe
gently with a soft cloth. If dust is persistent, wipe with a
soft cloth slightly moistened with a diluted mild
detergent solution.

• Never use any type of abrasive pad, alkaline/acid
cleaner, scouring powder, or volatile solvent, such as
alcohol, benzene, thinner or insecticide. Using such
materials or maintaining prolonged contact with rubber
or vinyl materials may result in damage to the screen
surface and cabinet material.

• Periodic vacuuming of the ventilation openings is
recommended to ensure to proper ventilation.

• When adjusting the angle of the TV set, move it slowly
so as to prevent the TV set from moving or slipping off
from its table stand.

Disposal of the TV set

Disposal of Old Electrical & Electronic
Equipment (Applicable in the European
Union and other European countries
with separate collection systems)

This symbol on the product or on its

packaging indicates that this product shall
not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the
recycling of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural
resources. For more detailed information about recycling
of this product, please contact your local Civic Office, your
household waste disposal service or the shop where you
purchased the product.

Disposal of waste batteries (applicable

in the European Union and other

European countries with separate

collection systems)

This symbol on the battery or on the

packaging indicates that the batter y provided

with this product shall not be treated as
household waste. By ensuring these batteries are disposed
of correctly, you will help prevent potentially negative
consequences for the environment and human health which
could otherwise be caused by inappropriate waste handling
of the battery. The recycling of the materials will help to
conserve natural resources. In case of products that for
safety, performance or data integrity reasons require a
permanent connection with an incorporated battery, this
battery should be replaced by qualified service staff only.
To ensure that the battery will be treated properly, hand
over the product at end-of-life to the applicable collection
point for the recycling of electrical and electronic
equipment. For all other batteries, please view the section
on how to r emove the battery from the product sa fely. Hand
the battery over to the applicable collection point for the
recycling of waste batteries. For more detailed information
about recycling of this product or battery, please contact
your local Civic Office, your household waste disposal
service or the shop where you purchased the product.

Optional Equipment

Keep optional components or any equipment emitting
electromagnetic radiation away from the TV set. Otherwise
picture distortion and/or noisy sound may occur.

11

GB

Overview of the remote

1 "/1 – TV standby

Turns the TV on and off from standby mode.

MENU

PROG

AUDIOSCENE

TOOLS

2 AUDIO

Press to change the dual sound mode (page 25).

3 SCENE – Scene Select (page 15)
4 Coloured buttons (page 15, 17)
5 / – Info/Text reveal

• In digital mode: Displays brief details of the programme currently being
watched.

• In analogue mode: Displays information such as current channel number
and screen format.

• In Text mode (page 15): Reveals hidden information (e.g. answers to a
quiz).

6 F/f/G/g/
7 TOOLS (page 15, 21)

Enables you to access various viewing options and change/make
adjustments according to the source and screen format.

8 MENU (page 23)
9 Number buttons

• In TV mode: Selects channels. For channel numbers 10 and above, press
the second and third digit in quick succession.

• In Text mode: Enters the three digit page number to select the page.

0 – Digital Favourite list

Press to display the Digital Favourite list that you have specified (page 17).

qa – Previous channel

Returns to the previous channel watched.

qs PROG +/-/ /

• In TV mode: Selects the next (+) or previous (-) channel.

• In Text mode (page 15): Selects the next ( ) or previous ( ) page.

qd 2 +/- – Volume
qf % – Mute the sound
qg / – Text (page 15)
qh RETURN /

Returns to the previous screen of any displayed menu.

qj GUIDE / – EPG (Digital Electronic Programme Guide) (page 16)
qk ANALOG – Analogue mode (page 14)
ql DIGITAL – Digital mode (page 14)
w; – Screen mode (page 15)
wa – Input select

Selects the input source from equipment connected to the TV sockets
(page 20).

z

• The number 5, PROG + and AUDIO buttons have tactile dots. Use the tactile dots
as references when operating the TV.

ANALOGDIGITAL

GUIDE

RETURN

12

GB

Overview of the TV buttons and indicators

1 1 – Power

Turns the TV on or off.

~

PROG

• To disconnect the TV completely, pull the plug
from the mains.

• When you turn on the TV, the power indicator
lights in green.

2 PROG +/-/ /

• In TV mode: Selects the next (+) or previous (-)
channel.

• In TV menu: Moves through the options up ( )
or down ( ).

3 2 +/-/ /

• In TV mode: Increases (+) or decreases (-) the
volume.

• In TV menu: Moves through the options right
( ) or left ( ).

4 / – Input select / OK

• In TV mode: Selects the input source from
equipment connected to the TV sockets
(page 20).

• In TV menu: Selects the menu or option, and
confirms the setting.

5 (page 23)
6 Remote control sensor

• Receives IR signals from the remote.

• Do not put anything over the sensor, as its
function may be affected.

7 – Picture Off / Sleep Timer indicator

• Lights up in green when the picture is switched
off (page 26).

• Lights up in orange when the sleep timer is set
(page 26).

8 1 – Standby indicator

Lights up in red when the TV is in standby mode.

9 " – Power indicator

Lights up in green when the TV is turned on.

~

• Make sure that the TV is completely turned off before
unplugging the mains lead. Unplugging the mains lead
while the TV is turned on may cause the indicator to
remain lit or may cause the TV to malfunction.

13

GB

Watching TV

Watching TV

ANALOGDIGITAL

2

GUIDE

1 Press 1 on the side of the TV to turn on

the TV.

When the TV is in standby mode (the 1
(standby) indicator on the TV front panel is red),
press "/1 on the remote to turn on the TV.

2 Press DIGITAL to switch to digital mode,

or ANALOG to switch to analogue mode.

The channels available vary depending on the
mode.

3 Press the number buttons or PROG +/- to

select a TV channel.

To select channel numbers 10 and above using
the number buttons, press the second and third
digits in quick succession.
To select a digital channel using the Digital
Electronic Programme Guide (EPG), see

AUDIOSCENE

2

page 16.

In digital mode

An information banner appears briefly. The
following icons may be indicated on the banner.

RETURN

MENU

PROG

TOOLS

: Interactive service is available (MHEG

Digital Text)

: Interactive service (MHEG Digital Text) is

currently disabled

: Radio service

: Scrambled/Subscription service

: Multiple audio languages available

: Subtitles available

3

: Subtitles available for the hearing impaired

: Recommended minimum age for current

programme (from 4 to 18 years)

: Parental Lock

Additional operations

3

To Do this

Adjust the volume Press 2 + (increase)/

- (decrease).

Access the
Programme index
table (in analogue
mode only)

Access the Digital
Favourites (in digital
mode only)

Press . To select an analogue
channel, press F/f, then press

.

Press .
For details, see page 17.

14

GB

To access Text

Press /. Each time you press /, the display
changes cyclically as follows:
Text t Text over the TV picture (mix mode) t No
Text (exit the Text service)
To select a page, press the number buttons or /

.

To reveal hidden information, press .

z

• When four coloured items appear at the bottom of the
Text page, Fastext is available. Fastext allows you to
access pages quickly and easily. Press the corresponding
coloured button to access the page.

Scene Select mode

Select “General,” “Cinema,” “Sports,” “Game” or
“Photo.” When you set a mode, optimum audio and
picture quality (based on content type) are
automatically set.

1 Press SCENE on the remote control.
2 Press F/f/G/g to select the mode, then

press .

General: Current user settings.
Cinema: Delivers a theatre-like picture and sound.
Sports: Delivers a realistic picture with surround

sound.
Game: Delivers a picture that lets you enjoy game­playing to the fullest with the best picture and sound
quality.
Photo: Delivers a picture that reproduces the
texture and colour of a printed photo.

z

• If any scene mode is selected, picture mode selection in the
picture menu is not possible - release scene selection first.

• Not available for PC input, HDMI PC input
and in “Photo / Music” menu.

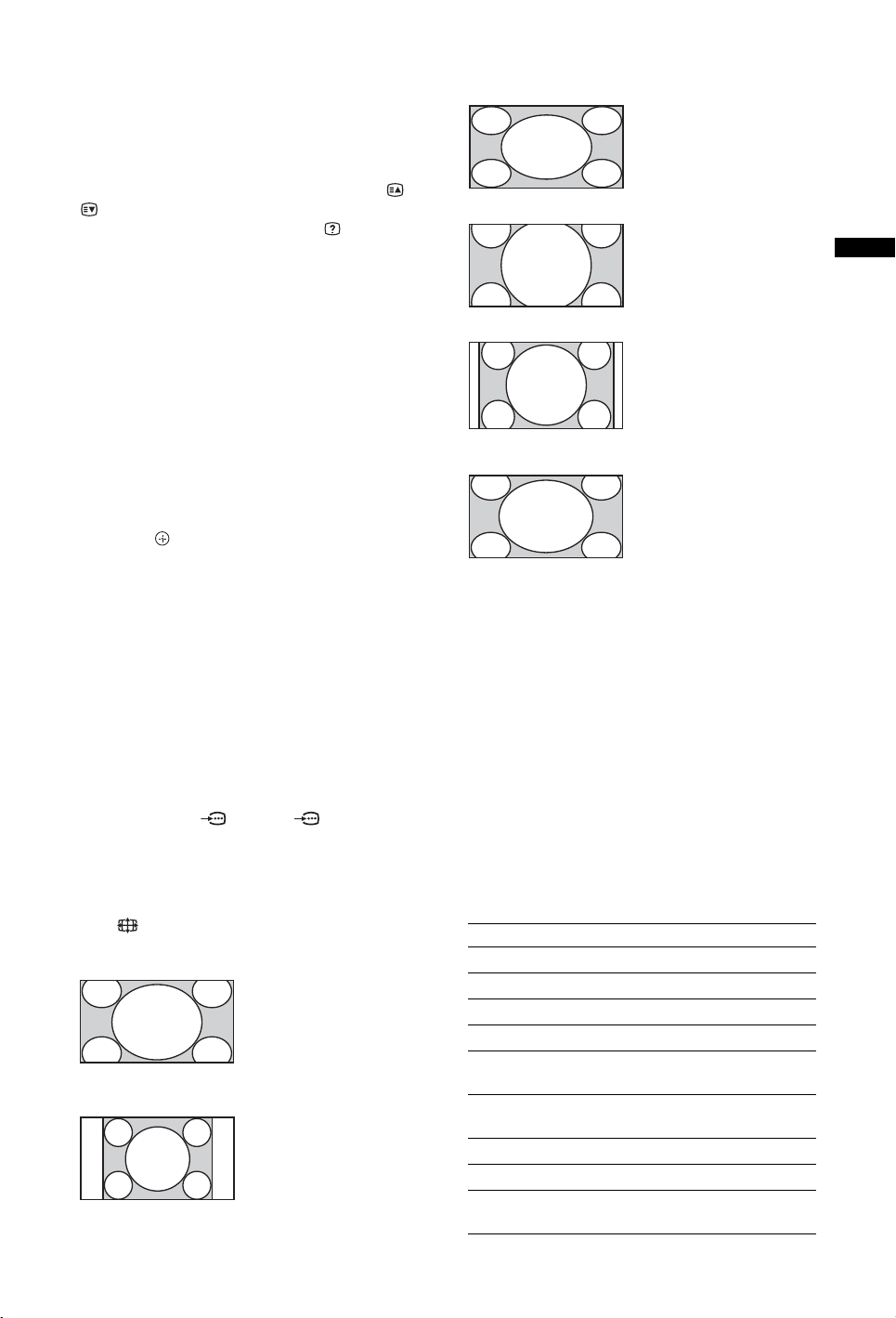

To change the screen format manually to
suit the broadcast

Press repeatedly to select the desired screen format.

Smart*

Displays conventional
4:3 broadcasts with an
imitation wide screen
effect. The 4:3 picture
is stretched to fill the
screen.

4/3

Displays
conventional 4:3
broadcasts (e.g. non­wide screen TV) in
the correct
proportions.

Wide

Stretches a 4:3 picture
horizontally, to fill a
16:9 screen.

Zoom*

Displays
cinemascopic (letter
box format)
broadcasts in the
correct proportions.

14/9*

Displays 14:9
broadcasts in the
correct proportions.
As a result, black
border areas are
visible on the screen.

Subtitle*

Displays
cinemascopic (letter
box format)
broadcasts with
subtitles on the screen.

Auto

• “Screen Format” is set to “Auto”, automatically changes
the screen format to suit the broadcast signal.

• “Auto” is available for PAL and SECAM signals only.

* Parts of the top and bottom of the picture may be cut off.

~

• Depending on the signal, some screen formats may not
be selectable.

• Some characters and/or letters at the top and the bottom
of the picture may not be visible in “Smart”.

z

• You can adjust the vertical position of the picture when
selecting “Smart”, “Zoom”, “14/9” or “Subtitle”. Press

F/f to move up or down (e.g. to read subtitles).

Using the Tools menu

Press TOOLS to display the following options when
viewing a TV programme.

Options Description

Close Closes the Tools menu.

Picture Mode See page 24.

Sound Effect See page 25.

Speaker See page 25.

Audio Language (in
digital mode only)

Subtitle Setting (in
digital mode only)

Sleep Timer See page 26.

Power Saving See page 26.

System Information (in
digital mode only)

See page 29.

See page 29.

Displays the system
information screen.

Watching TV

15

GB

Using the Digital Electronic Programme Guide (EPG) *

Today

BBC ONE

001

BBC TWO

002

ITV 1

003

Channel 4

004

five

005

ITV 2

006

BBC THREE

007

Telete xt

009

BBC FOUR

010

Sky Travel

011

UKTV History

012

More 4

013

Previous Next +1 day

Select: Tune: Options:

Fri 3 Nov 15:39

15:30 16:00 16:30 17:00

1 In digital mode, press GUIDE.
2 Perform the desired operation as shown

in the following table or displayed on the
screen.

Digital Electronic Programme Guide (EPG)

* This function may not be available in some countries/regions.

To Do this

Watch a programme Press F/f/G/g to select the programme, then press .

Turn off the EPG Press GUIDE.

~

• If an age restriction for programmes has been selected, a message asking for a PIN code will appear on the screen. For
details, see “Parental Lock” on page 29.

16

GB

Using the Digital Favourite list *

Favourite Set-up Enter Programme number

Favourites 1

001

TV3

002

33

003

3/24

004

K3/300

005

TVE1

006

TVE2

007

24H TVE

008

CLAN TVE

009

TELEDEPORTE

010

VEO

Previous Next Favourites 2 Clear List

Select: Clear favourite

011

012

013

014

015

016

017

018

019

020

SETenVEO

Tienda en VEO

NET TV

CUATRO

CNN+

40 LATINO

la Sexta

Telecinco

T5 Estrellas

T5 Sport

Back:

---

Digital Favourite list

* This function may not be available in some countries/regions.

To Do this

Create your Favourite list for the first
time

1 Press to select “Yes”.
2 Press the yellow button to select the Favourite list.
3 Press

F/f/G/g to select the channel you want to add, then

press .

Channels that are stored in the Favourite list are indicated by a
symbol.

4 Press RETURN to finish setting up.

Watch a channel

1 Press the yellow button to navigate through your Favourite

lists.

2 Press F/f to select the channel, then press .

The Favourite feature allows you to specify up to
four lists of your favourite programmes.

1 In digital mode, press .
2 Perform the desired operation as shown

in the following table or displayed on the
screen.

Watching TV

Turn off the Favourite list

Add or remove channels in the
currently edited Favourite list

Remove all channels from the current
Favourite list

Press RETURN.

1 Press the blue button.
2 Press the yellow button to select the Favourite list you want to

edit.

3 Press

F/f/G/g to select the channel you want to add or

remove, then press .

1 Press the blue button.
2 Press the yellow button to select the Favourite list you want to

edit.

3 Press the blue button.
4 Press

G/g to select “Yes”, then press to confirm.

17

GB

Using Optional Equipment

Connecting optional equipment

You can connect a wide range of optional equipment to your TV. Connecting cables are not supplied.

KDL-32S55xx/KDL-26S55xx

Video game

equipment

DVD player

Decoder

D

DVD player
with
component
output

ABC

COMPONENT

AV2AV1

PC IN

IN

1

2

DVD player

PC (HDMI output)

Blu-ray disc player
Digital video camera

IN

Hi-Fi audio

F

equipment

G

PC

18

GB

DVD recorder

VCR

Decoder

E

3 INRL

(MONO)

H

CAM card

I

Digital video camera/Digital
camera/USB storage

J

PC/Digital
video camera

Video game

K

AV3

equipment/
DVC
camcorder

L

Headphones

KDL-22S55xx/KDL-19S55xx

Video game

equipment

DVD player

Decoder

D

DVD player
with
component
output

AM

COMPONENT

AV2AV1

PC IN

IN

IN

1

G

PC

DVD player

PC (HDMI output)

Blu-ray disc player
Digital video camera

Hi-Fi audio

F

equipment

Using Optional Equipment

DVD recorder

VCR

Decoder

E

2 INRL

(MONO)

H

CAM card

I

Digital video camera/Digital
camera/USB storage

N

PC/Digital
video camera

Video game

K

AV3

equipment/
DVC
camcorder

L

Headphones

19

GB

Viewing pictures from connected equipment

Turn on the connected equipment, then
perform one of the following operation.

For an auto-tuned VCR (page 8)

In analogue mode, press PROG +/-, or the number
buttons, to select the video channel.

For other connected equipment

Press to display the connected equipment list.
Press F/f to select the desired input source, then
press . (The highlighted item is selected if two
seconds pass without any operation after pressing

f.)

For a USB device

See page 21.

Symbol on the
screen

Component To see the equipment connected to

For KDL-32S55xx/KDL-26S55xx

HDMI1,
HDMI2 or
HDMI3

Description

A.

HDMI IN 1, HDMI IN 2 or HDMI
IN 3
To see the equipment connected to
B, C or J.
Digital video and audio signals are
input from the connected
equipment.
If the equipment has a DVI socket,
connect the DVI socket to the
HDMI IN 2 socket through a DVI­HDMI adaptor interface (not
supplied), and connect the
equipment’s audio out sockets to
the audio in sockets in the HDMI
IN 2 sockets.
Connect to the HDMI IN 3 socket,
to view photographs or screen
images from a PC or digital video
camera.

F/

Symbol on the
screen

Description

For KDL-22S55xx/KDL-19S55xx

HDMI1 or
HDMI2

AV 1/ AV 1 /

AV 1

AV 2/ AV 2 /

AV 2

HDMI IN 1 or HDMI IN 2
To see the equipment connected to
M or N.
Digital video and audio signals are
input from the connected
equipment.
If the equipment has a DVI socket,
connect the DVI socket to the
HDMI IN 1 socket through a DVI­HDMI adaptor interface (not
supplied), and connect the
equipment’s audio out sockets to
the audio in sockets in the HDMI
IN 1 sockets.
Connect to the HDMI IN 2 socket,
to view photographs or screen
images from a PC or digital video
camera.

To see the equipment connected to
D.

To see the equipment connected to
E.

PC To see the equipment connected to

G.

z

• It is recommended to use a PC
cable with ferrites like the
“Connector, D-sub 15” (ref. 1­793-504-11, available in Sony
Service Centre), or equivalent.

USB To see the equipment connected to

I.
To view photographs or listen to
the music on USB storage media
connected to the TV.

AV3 To see the equipment connected to

K.
When connecting mono
equipment, connect to the
AV3 L socket.

~

• Be sure to use only an authorised HDMI cable bearing
the HDMI logo. We recommend that you use a Sony
HDMI cable.

• When HDMI control compatible equipment is
connected, communication with the connected
equipment is supported. Refer to page 22 to set up this
communication.

20

GB

To connect Do this

Conditional
Access Module
(CAM) H

Hi-Fi audio
equipment F

Headphones L Connect to the i socket to listen to

To use Pay Per View services.
For details, refer to the instruction
manual supplied with your CAM. To
use the CAM, remove the “dummy”
card from the CAM slot. Turn off
the TV when inserting your CAM
into the CAM slot. When you do not
use the CAM, we recommend that
the “dummy” card be inserted and
kept in the CAM slot.

~

• CAM is not supported in some
countries/regions. Check with your
authorised dealer.

Connect to the audio output sockets

to listen to the sound from the

TV on Hi-Fi audio equipment.

sound from the TV on headphones.

Additional operation

To Do this

Return to normal
TV mode

Press DIGITAL or ANALOG.

Using the Tools menu

Press TOOLS to display the following options when
viewing pictures from connected equipment.

Options Description

Close Closes the Tools menu.

Picture Mode (except
PC input mode, USB
input mode)

Display Mode (in PC
input mode only)

Sound Effect See page 25.

Speaker See page 25.

Horizontal Shift (in
PC input mode only)

Vertical Shift (in PC
input mode only)

Sleep Timer (except
PC input mode)

Power Saving See page 26.

See page 24.

See page 24.

See page 26.

See page 26.

See page 26.

Playing Back Photo/ Music via USB

You can enjoy photo/music files stored in a Sony
digital still camera or camcorder through a USB
cable or USB storage media on your TV.

1 Connect a supported USB device to the

TV.

2 Press MENU.
3 Press F/f to select “Photo / Music,” then

press .

4 Press F/f/G/g to select a file or folder,

then press .

When you select a folder, select a file, then press

.

Playback starts.

~

• Picture quality may appear coarse when using “Photo”
because images may be enlarged depending on the file.
Also, images may not fill the entire screen depending on
the image size and aspect ratio.

• Some photo files may take some time to be displayed
when using “Photo.”

• The file name and folder name support only English.

• While the TV is accessing the data on the USB device,
observe the following:
– Do not turn off the TV or connected USB device.
– Do not disconnect the USB cable.
– Do not remove the USB device.
The data on the USB device may be damaged.

• Sony will not be held liable for any damage to, or loss of,
data on the recording media due to a malfunction of any
connected devices or the TV.

• USB playback is supported for the following photo file
formats:
– JPEG (JPEG format files with the extension “.jpg”

and conforming to DCF 2.0 or Exif 2.21)

• When you connect a Sony digital still camera, set the
camera’s USB connection mode to Auto or “Mass
Storage.” For more information about USB connection
mode, refer to the instructions supplied with your digital
camera.

• USB playback is supported for the following music file
formats:
– MP3 (files with the extension “.mp3” that have not

been copyrighted)

• USB Photo Viewer supports FAT16 and FAT32 file
systems.

• Depending on the exact file specifications, some files,
including those modified on a PC, cannot be played even
if the file format is supported.

• Check the website below for updated information about
compatible USB devices.
http://support.sony-europe.com/TV/compatibility/

Using Optional Equipment

21

GB

Using control for HDMI

The control for HDMI function enables the TV to
communicate with the connected equipment that is
compatible with the function, using HDMI CEC
(Consumer Electronics Control). For example, by
connecting Sony equipment that is compatible with
control for HDMI (with HDMI cables), you can
control them together.
Be sure to connect the equipment correctly, and
make the necessary settings.

To make the control for HDMI settings

The control for HDMI settings must be set on both
the TV side and connected equipment side. See

“HDMI Set-up” on page 27 for the TV side settings.

For settings on the connected equipment, refer to the
operating instructions for that equipment.

Control for HDMI functions

• Turns the connected equipment off interlocked
with the TV.

• Turns the TV on interlocked with the connected
equipment and automatically switches the input to
the equipment when the equipment starts to play.

22

GB

Using MENU Functions

RETURN TOOLS

GUIDE

MENU

AUDIOSCENE

ANALOGDIGITAL

Navigating through menus

“MENU” allows you to enjoy various convenient
features of this TV. You can easily select channels or
inputs sources and change the settings for your TV.

2

1

5 External Inputs

Selects equipment connected to your TV.

• To watch the desired external input, select
the input source, then press .

6 Photo / Music

Displays the “Photo / Music” menu (page 21).

7 Settings

Displays the “Settings” menu where most of
the advanced settings and adjustments are
performed.

1 Press F/f to select a menu icon,

then press .

2 Press

For details about settings, see page 24 to 30.

~

• The options you can adjust vary depending on

* This function may not be available in some

countries/regions.

F/f/G/g to select an option or

adjust a setting, then press .

the situation. Unavailable options are greyed
out or not displayed.

Using MENU Functions

1 Press MENU.
2 Press F/f to select an option, then press

.

To exit the menu, press MENU.

MENU

Digital Favourites

Analogue

Digital

Digital EPG

External Inputs

Photo / Music

Settings

Select: Enter: Exit:

1 Digital Favourites*

Displays the Favourite list (page 17).

2 Analogue

Returns to the last viewed analogue channel.

3 Digital*

Returns to the last viewed digital channel.

4 Digital EPG*

Displays the Digital Electronic Programme
Guide (EPG) (page 16).

23

GB

Settings

Picture Adjustment

Picture Mode

Display Mode (only
in PC mode)

Backlight

Contrast

Brightness

Colour

Hue

Sharpness

Selects the picture mode except for PC input source.

“Vivid”: For enhanced picture contrast and sharpness.
“Standard”: For standard picture. Recommended for home entertainment.
“Cinema”: For viewing film-based content. Most suitable for viewing in a theatre-

like environment.
“Photo”: For photographs.

Selects the display mode for PC input source.

“Video”: For video images.
“Text”: For text, charts or tables.
“Photo”: For photographs.

Adjusts the brightness of the backlight.

Increases or decreases picture contrast.

Brightens or darkens the picture.

Increases or decreases colour intensity.

Increases or decreases the green tones and red tones.

z

• “Hue” can only be adjusted for an NTSC colour signal (e.g., U.S.A. video tapes).

Sharpens or softens the picture.

Colour Tone

Noise Reduction

MPEG Noise
Reduction

GB

24

Adjusts the whiteness of the picture.

“Cool”: Gives the white colours a blue tint.
“Neutral”: Gives the white colours a neutral tint.
“Warm”: Gives the white colours a red tint.

z

• “Warm” can not be selected when you set “Picture Mode” to “Vivid”.

Reduces the picture noise (snowy picture) in a weak broadcast signal.

“High/Medium/Low”: Modifies the effect of the noise reduction.
“Off”: Turns off the “Noise Reduction” feature.

Reduces the picture noise in MPEG-compressed video.

Reset

~

• “Brightness”, “Colour”, “Hue” and “Sharpness” are not available when “Picture Mode” is set to “Vivid” or when “Display
Mode” is set to “Text”.

Resets all “Picture Adjustment” settings except “Picture Mode” and “Display Mode”
(only in PC mode) to the factory settings.

Sound Adjustment

Sound Effect

Surround

Treb le

Bass

Balance

Reset

Dual Sound

Selects the sound mode.
“Dynamic”: Intensifies clarity and sound presence for better intelligibility and
musical realism.

“Standard”: Enhances clarity, detail, and sound presence.
“Clear Voice”: Makes voice sound clearer.

Selects the surround mode.

“Surround”: For surround sound (for stereo programmes only).
“Simulated Stereo”: Adds a surround-like effect to mono programs.
“Off”: For normal stereo or mono reception.

Adjusts higher-pitched sounds.

Adjusts lower-pitched sounds.

Emphasizes left or right speaker balance.

Resets all the “Sound Adjustment” settings to the factory settings.

Selects the sound from the speaker for a stereo or bilingual broadcast.

“Stereo”, “Mono”: For a stereo broadcast.
“A”/“B”/“Mono”: For a bilingual broadcast, select “A” for sound channel 1, “B”

for sound channel 2, or “Mono” for a mono channel, if available.

z

• If you select other equipment connected to the TV, set “Dual Sound” to “Stereo”, “A” or
“B”.

Using MENU Functions

Auto Volume

Speaker

~

• “Sound Effect”, “Surround”, “Treble”, “Bass”, “Balance”, “Reset” and “Auto Volume” are not available when “Speaker”
is set to “Audio System”.

Keeps a constant volume level even when volume level gaps occur (e.g., adverts tend
to be louder than programmes).

Turns on/off the TV’s internal speakers.
“TV Speaker”: The TV speakers are turned on in order to listen to the TV’s sound
through the TV speakers.
“Audio System”: The TV speakers are turned off in order to listen to the TV’s sound
only through your external audio equipment connected to the audio output sockets.

25

GB

Eco

Power Saving

Idle TV Standby

PC Power
Management

Reset

Features

Screen Format

Screen Format
(only in PC mode)

Selects the power saving mode to reduce the power consumption of the TV.

“Standard”: Default settings.
“Reduce”: Reduces the power consumption of the TV.
“Picture Off”: Switches off the picture. You can listen to the sound with the picture

off.

Selects the time (“1h”, “2h” or “3h”) to set the TV into standby mode automatically,
if you do not operate the TV for the specified period of time.

When this is set to “On,” turns to standby mode if no PC signal is received. Only
available in PC input.

Resets all the “Eco” settings to the factory settings.

Changes the screen format. For details about the screen format, see page 15.

z

• “Auto” is available for PAL and SECAM signals only.

“Normal”: Displays the picture in its original size.
“Full”: Enlarges the picture to fill the display area.

RGB Centre

PC Adjustment

Sleep Timer

Adjusts the horizontal picture position so that the picture is in the middle of the
screen.

z

• This option is only available if an RGB source has been connected to the Scarts connectors
/ / AV1 or / / AV2 on the rear of the TV.

Customizes the TV screen as a PC monitor.

z

• This option is only available if a PC signal is received.

“Phase”: Adjusts the screen when a part of a displayed text or image is not clear.
“Pitch”: Enlarges or shrinkes the screen size horizontally.
“Horizontal Shift”: Moves the screen to the left or to the right.
“Vertical Shift”: Moves the screen up or down.
“Reset”: Resets to the factory settings.

Sets a period of time after which the TV automatically switches itself into standby
mode.
When the “Sleep Timer” is activated, the (Sleep Timer) indicator on the TV front
panel lights up in orange.

z

• When you turn off the TV and turn it on again, “Sleep Timer” is reset to “Off”.

• A notification message appears on the screen one minute before the TV switches to standby

mode.

26

GB

Set-up

Auto Start-up

Language

Auto Tuning
(Only in analogue
mode)

Programme Sorting
(Only in analogue
mode)

AV Preset

Starts the initial set-up to select the language, country/region and location, and tune
in all available digital and analogue channels. Usually, you do not need to do this
operation because the language and country/region will have been selected and
channels already tuned when the TV was first installed (page 8). However, this
option allows you to repeat the process (e.g., to retune the TV after moving house).

Selects the language in which the menus are displayed.

Tunes in all the available analogue channels.
Usually you do not need to do this operation because the channels are already tuned
when the TV was first installed (page 8). However, this option allows you to repeat
the process (e.g., to retune the TV after moving house, or to search for new channels
that have been launched by broadcasters).

Changes the order in which the analogue channels are stored on the TV.

1 Press

2 Press

Assigns a name to any equipment connected to the side and rear sockets. The name
will be displayed briefly on the screen when the equipment is selected. You can skip
an input source that is not connected to any equipment.

1 Press F/f to select the desired input source, then press .
2 Press F/f to select the desired option below, then press .

F/f to select the channel you want to move to a new position,

then press

g.

F/f to select the new position for your channel, then press .

• AV1 (or AV2/AV3/HDMI1/HDMI2/HDMI3 (KDL-32S55xx, KDL-26S55xx only)/

Component/PC), VIDEO, DVD, CABLE, GAME, CAM, SAT

labels to assign a name to connected equipment.

• “Edit”: Creates your own label.

1 Press F/f to select the desired letter or number (“_” for a blank

space), then press

If you input a wrong character

Press G/g to select the wrong character. Then, press F/f to select the correct
character.

2 Repeat the procedure in step 1 until the name is completed, then

press .

g.

: Uses one of the preset

Using MENU Functions

HDMI Set-up

Allows the TV to communicate with equipment that is compatible with the control
for HDMI function, and connected to the HDMI sockets of the TV. Note that
communication settings must also be made on the connected equipment.
“Control for HDMI”: Sets whether or not to link the operations of the TV and the
connected equipment that is compatible with control for HDMI.
“Auto Devices Off”: When this is set to “On”, the connected equipment that is
compatible with control for HDMI turns off when you switch the TV to standby
mode using the remote.
“Auto TV On”: When this is set to “On”, the TV turns on when you turn on the
connected equipment that is compatible with control for HDMI.
“Device List Update”: Creates or updates the “HDMI Device List”. Up to 11
compatible equipment items can be connected, and up to 5 equipment items can be
connected to a single socket. Be sure to update the “HDMI Device List” when you
change the connections or settings.
“HDMI Device List”: Displays a list of connected equipment that is compatible
with control for HDMI.

Continued

27

GB

Sound Offset

Sets an independent volume level to each equipment connected to the TV.

Manual Programme
Preset
(Only in analogue
mode)

Changes the available analogue channel setting.
Press F/f

System

Presets programme channels manually.

1 Press
2 Press

~

• Depending on the country/region selected for “Country” (page 7), this option may not be

Channel
1 Press
2 Press

3 Tune the channels as follows:

4 Press to jump to “Confirm”, then press .

Repeat the procedure above to preset other channels manually.

Label

Assigns a name of your choice, up to five letters or numbers, to the selected channel.

AFT

Allows you to fine-tune the selected programme number manually if you feel that a
slight tuning adjustment will improve the picture quality.

Audio Filter

Improves the sound for individual channels in the case of distortion in mono
broadcasts. Sometimes a non-standard broadcast signal can cause sound distortion or
intermittent sound muting when watching mono programmes.
If you do not experience any sound distortion, we recommend that you leave this
option set to the factory setting “Off”.

~

• “Audio Filter” is not available when “System” is set to “L”.

Skip

Skips unused analogue channels when you press PROG +/- to select channels. (You
can still select a skipped channel using the number buttons.)

Confirm

Saves changes made to the “

to select the programme number you want to modify. Then, press .

F/f to select “System”, then press .
F/f to select one of the following TV broadcast systems, then

G.

press

B/G: For western European countries/regions
I: For the United Kingdom
D/K: For eastern European countries/regions
L: For France

available.

F/f to select “Channel”, then press .
F/f to select “S” (for cable channels) or “C” (for terrestrial

channels), then press

If you do not know the channel number (frequency)

Press F/f to search for the next available channel. When a channel has been found,
the search will stop. To continue searching, press F/f.

If you know the channel number (frequency)

Press the number buttons to enter the channel number of the broadcast you want or
your VCR channel number.

g.

Manual Programme Preset” settings.

28

GB

Digital Set-up

Digital Tuning

Digital Set-up

Digital Auto Tuning

Tunes in the available digital channels.
This option allows you to retune the TV after moving house, or to search for new
channels that have been launched by broadcasters. Press .

Programme List Edit

Removes any unwanted digital channels stored on the TV, and changes the order of
the digital channels stored on the TV.

1 Press

2 Remove or change the order of the digital channels as follows:

3 Press RETURN.

Digital Manual Tuning

Tunes the digital channels manually.

1 Press the number button to select the channel number you want to

2 When the available channels are found, press

Repeat the above procedure to manually tune other channels.

Subtitle Set-up

“Subtitle Setting”: When “For Hard Of Hearing” is selected, some visual aids may
also be displayed with the subtitles (if TV channels broadcast such information).
“Subtitle Language”: Selects which language subtitles are displayed in.

Audio Set-up

“Audio Type”: Switches to broadcast for the hearing impaired when “For Hard Of
Hearing” is selected.
“Audio Language”: Selects the language used for a programme. Some digital
channels may broadcast several audio languages for a programme.
“Audio Description”: Provides audio description (narration) of visual information
if TV channels broadcast such information.
“Mixing Level”: Adjusts the TV main audio and Audio Description output levels.

z

• This option is only available when “Audio Description” is set to “On”.

Banner Mode

“Basic”: Displays programme information with a digital banner.
“Full”: Displays programme information with a digital banner, and displays detailed

programme information below that banner.

Parental Lock

Sets an age restriction for programmes. Any programme that exceeds the age
restriction can only be watched after a PIN Code is entered correctly.

1 Press the number buttons to enter your existing PIN code.

2 Press F/f to select the age restriction or “None” (for unrestricted

F/f to select the channel you want to remove or move to a new

position.

Press the number buttons to enter the known three-digit programme number of the
broadcast you want.

To remove the digital channel

Press . After a confirmation message appears, press G to select “Yes”, then press .

To change the order of the digital channels

Press g, then press F/f to select the new position for the channel and press G.

manually tune, then press

If you have not previously set a PIN, a PIN code entry screen appears. Follow the
instructions of “PIN Code” below.

watching), then press .

F/f to tune the channel.

to store programmes.

Using MENU Functions

Continued

29

GB

3 Press RETURN.

PIN Code
To set your PIN for the first time

1 Press the number buttons to enter the new PIN code.
2 Press RETURN.
To change your PIN
1 Press the number buttons to enter your existing PIN code.
2 Press the number buttons to enter the new PIN code.
3 Press RETURN.

z

• PIN code 9999 is always accepted.

Technical Set-up

“Auto Service Update”: Enables the TV to detect and store new digital services as
they become available.
“System Update”: Enables the TV to automatically receive software updates, free
through your existing aerial (when issued). Sony recommends that this option is set
to “On” at all times. If you do not want your software to be updated, set this option
to “Off”.

“System Information”: Displays the current software version and the signal level.
“Time Zone”: Allows you to manually select the time zone you are in, if it is not the

same as the default time zone setting for your country/region.
“Auto DST”: Sets whether or not to automatically switch between summer time and
winter time.

• “On”: Automatically switches between summer time and winter time according to the

calendar.

• “Off”: The time is displayed according to the time difference set by “Time Zone”.

CA Module Set-up

Allows you to access a pay TV service once you obtain a Conditional Access Module (CAM)
and a view card. See page 18 for the location of the (PCMCIA) socket.

30

GB

Additional Information

Installing the Accessories (Wall-Mount Bracket)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installing of your TV be
performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Your TV can be installed using the Wall-Mount Bracket SU-WL500 or SU-WL100 (sold separately).

• Refer to the Instructions supplied with the Wall-Mount Bracket to properly carry out the installation.

• Refer to “Detaching the Table-Top Stand from the TV” (page 8).

• Refer to “TV installation dimensions table” (page 32).

• Refer to “Screw and Hook locations diagram/table” (page 33).

~

• Place the TV on the Table-Top Stand, when securing the Mounting Hook.

SU-WL500 for KDL-32S55xx

Screw
(+PSW6 × 16)

Square hole

Mounting Hook

SU-WL100 for KDL-26S55xx/KDL-22S55xx/KDL-19S55xx

Screw
(+PSW4 × 12)

0

0

5

0
1

5

0

1

15

15

20

20

Mounting Hook

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for
withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers
or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any
damage or injury caused by mishandling or improper installation.

Additional Information

31

GB

TV installation dimensions table

KDL-32S55xx

Screen centre point

KDL-26S55xx/KDL-22S55xx

Screen centre point

KDL-19S55xx

Screen centre point

Model Name

KDL-32S55xx 80.7 50.8 17.2 43 15.4 30 48.5 46.6

KDL-26S55xx 67.9 43.5 11.4 33.4 15.4 25.2 40.9 33.8

KDL-22S55xx 55.8 37 13.3 33 14 21.9 35 32.9

KDL-19S55xx 48.7 32.8 12.2 29.7 12.7 20.4 31.3 29.4

Display di mensions

AB C DEFGH

Screen centre

dimension

Figures in the above table may differ slightly depending on the installation.

Length for each mounting angle

Angle (0°) Angle (20°)

Unit: cm

32

GB

WARNING

The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of
the TV. Refer to “Specifications” (page 34) for its weight.

Screw and Hook locations diagram/table

KDL-32S55xx

Model Name Screw location Hook location

KDL-32S55xx e, g c

* Hook position “a” and “b” cannot be used for the model in the table above.

Screw location Hook location

a*
b*
c

KDL-26S55xx/KDL-22S55xx/KDL-19S55xx

Model Name Hook location

KDL-26S55xx a

KDL-22S55xx/KDL-19S55xx b

a

b

Additional Information

33

GB

Specifications

Model name KDL-32S55xx KDL-26S55xx KDL-22S55xx KDL-19S55xx

System

Panel System

TV System

Colour/Video System

Channel Coverage

Sound Output

Input/Output jacks

Aerial

/ / AV1*

/ / AV2*

2

COMPONENT IN

COMPONENT IN

HDMI IN 1, 2, 3*

4

AV3

AV3

PC IN

i

Power and others

Power Requirements

Screen Size

Display Resolution

Power Consumption

Standby Power Consumption*

Dimensions

(with stand)

(w × h × d)

(without stand)

Mass (with stand)

(without stand)

Supplied Accessories

Optional Accessories

*1AV1 outputs available only for analogue TV.

2

AV2 outputs watching screen (except PC, HDMI, Component 1080i).

*

3

Specified standby power is reached after the TV finishes necessary internal processes.

*

4

HDMI3 is available only for KDL-32S55xx, KDL-26S55xx.

*

LCD (Liquid Crystal Display) Panel

Depending on your country/region selection
Analogue: B/G/H, D/K, L, I
Digital: DVB-T

Analogue: PAL, SECAM, NTSC 3.58, 4.43 (only Video In)
Digital: MPEG-2 MP@ML

Analogue:48.25 - 855.25 MHz
Digital: VHF Band III (177.5 - 226.5 MHz)/UHF E21 - E69 (474 - 858 MHz)

10 W + 10 W (RMS) 8 W + 8 W (RMS) 5 W + 5 W (RMS)

75 ohm external terminal for VHF/UHF

1

21-pin scart connector including audio/video input, RGB input, S-Video input, and Analogue TV
audio/video output.

21-pin scart connector including audio/video input, RGB input, S-Video input, and audio/video output.

Supported formats: 1080i, 720p, 576p, 576i, 480p, 480i
Y: 1 Vp-p, 75 ohms, 0.3V negative sync/P

R/CR: 0.7 Vp-p, 75 ohms

P

Audio input (phono jacks)

Video: 1080i, 720p, 576p, 576i, 480p, 480i
Audio: Two channel linear PCM
32, 44.1 and 48 kHz, 16, 20 and 24 bits
PC (see page 35)
Analogue audio (minijack) (HDMI2 only) (KDL-32S55xx, KDL-26S55xx)
Analogue audio (minijack) (HDMI1 only) (KDL-22S55xx, KDL-19S55xx)

Video input (phono jack)

Audio input (phono jacks)

Audio output (Left/Right) (phono jacks)

PC Input (15 Dsub) (see page 35)
G: 0.7 Vp-p, 75 ohms, non Sync on Green/B: 0.7 Vp-p, 75 ohms/
R: 0.7 Vp-p, 75 ohms, H/V Sync: TTL level

PC audio input (minijack)

Headphones jack

USB port

CAM (Conditional Access Module) slot

220–240 V AC, 50 Hz

32 inches
(Approx. 80.0 cm
measured diagonally)

1,366 dots (horizontal) × 768 lines (vertical)

135 W 110 W 60 W 55 W

3

0.5 W or less 0.5 W or less 1 W or less 1 W or less

Approx. 80.7 × 55.7 ×

22.2 cm

Approx. 80.7 × 50.8 ×

9.4 cm

Approx. 12.7 kg Approx. 10.0 kg Approx. 6.9 kg Approx. 5.8 kg

Approx. 11.4 kg Approx. 8.7 kg Approx. 6.1 kg Approx. 5.0 kg

Refer to “1: Checking the accessories” on page 4.

See “Installing the Accessories (Wall-Mount Bracket)” on page 31.

26 inches
(Approx. 66.1 cm
measured diagonally)

Approx. 67.9 × 48.5 ×

22.2 cm

Approx. 67.9 × 43.5 ×

9.3 cm

B/CB: 0.7 Vp-p, 75 ohms/

22 inches
(Approx. 54.8 cm
measured diagonally)

Approx. 55.8 × 41.7 ×

21.5 cm

Approx. 55.8 × 37 ×

7.9 cm

19 inches
(Approx. 47.0 cm
measured diagonally)

Approx. 48.7 × 37.5 ×

21.5 cm

Approx. 48.7 × 32.8 ×

7.9 cm

Design and specifications are subject to change without notice.

GB

34

PC Input Signal Reference Chart for PC IN , HDMI IN 1, 2 and 3*

Horizontal

Signals Horizontal (Pixel) Vertical (Line)

frequency
(kHz)

VGA 640 480 31.5 60 VGA

SVGA 800 600 37.9 60 VESA Guidelines

XGA 1024 768 48.4 60 VESA Guidelines

WXGA 1280 768 47.4 60 VESA

WXGA 1280 768 47.8 60 VESA

WXGA 1360 768 47.7 60 VESA

• This TV’s PC input does not support Sync on Green or Composite Sync.

• This TV’s PC input does not support interlaced signals.

• This TV’s PC input supports signals in the above chart with a 60 Hz vertical frequency.

* HDMI3 is available only for KDL-32S55xx, KDL-26S55xx.

Vertical
frequency (Hz)

Standard

35

Additional Information

GB

Troubleshooting

Check whether the 1 (standby) indicator is
flashing in red.

When it is flashing

The self-diagnosis function is activated.
Press 1 on the side of the TV to turn it off,
disconnect the mains lead, and inform your dealer or
Sony service centre.

Some tiny black points and/or bright points
appear on the screen

• The picture of a display unit is composed of pixels. Tiny
black points and/or bright points (pixels) on the screen
do not indicate a malfunction.

No colour on programmes

• Select “Reset” (page 25).

No colour or irregular colour when viewing a
signal from the COMPONENT IN sockets

• Check the connection of the COMPONENT IN
sockets and check if each sockets are firmly seated in
their respective sockets.

When it is not flashing
1 Check the items in the tables below.
2 If the problem still persists, have your TV

serviced by qualified service personnel.


No picture (screen is dark) and no sound

• Check the aerial connection.

• Connect the TV to the mains, and press 1 on the side of

the TV.

• If the 1 (standby) indicator lights up in red, press "/1.

No picture or no menu information from
equipment connected to the scart connector

• Press to display the connected equipment list, then
select the desired input.

• Check the connection between the optional equipment
and the TV.

Double images or ghosting

• Check the aerial connection.

• Check the aerial location and direction.

Only snow and noise appear on the screen

• Check if the aerial is broken or bent.

• Check if the aerial has reached the end of its serviceable
life (three to five years in normal use, one to two years
at the seaside).

Distorted picture (dotted lines or stripes)

• Keep the TV away from electrical noise sources such as
cars, motorcycles, hair-dryers or optical equipment.

• When installing optional equipment, leave some space
between the optional equipment and the TV.

• Check the aerial connection.

• Keep the aerial cable away from other connecting
cables.

Picture or sound noise when viewing a TV
channel

• Adjust “AFT” (Automatic Fine Tuning) to obtain better
picture reception (page 28).

Sound

No sound, but good picture

• Press 2 + or % (Mute).

• Check if the “Speaker” is set to “TV Speaker” (page 25).

Channels

The desired channel cannot be selected

• Switch between digital and analogue mode and select
the desired digital/analogue channel.

Some channels are blank

• Scrambled/Subscription only channel. Subscribe to the
pay TV service.

• Channel is used only for data (no picture or sound).

• Contact the broadcaster for transmission details.

Digital channels are not displayed

• Contact a local installer to find out if digital
transmissions are provided in your area.

• Upgrade to a higher gain aerial.

General

The TV turns off automatically (the TV enters
standby mode)

• Check if the “Sleep Timer” (page 26) or “Idle TV
Standby” (page 26) is activated.

• If no signal is received and no operation is performed in
the TV mode for 15 minutes, the TV automatically
switches to standby mode.

The remote does not function

• Replace the batteries.

HDMI equipment does not appear on “HDMI
Device List”

• Check that your equipment is compatible with control
for HDMI.

If “Store Display Mode: On” is displayed on the
screen

• Your TV is set to “Shop” mode. You need to set “Home”
for “Location” in the “Auto Start-up” procedure again
(page 7).

36

GB

37

Additional Information

GB

38

GB

39

Additional Information

GB

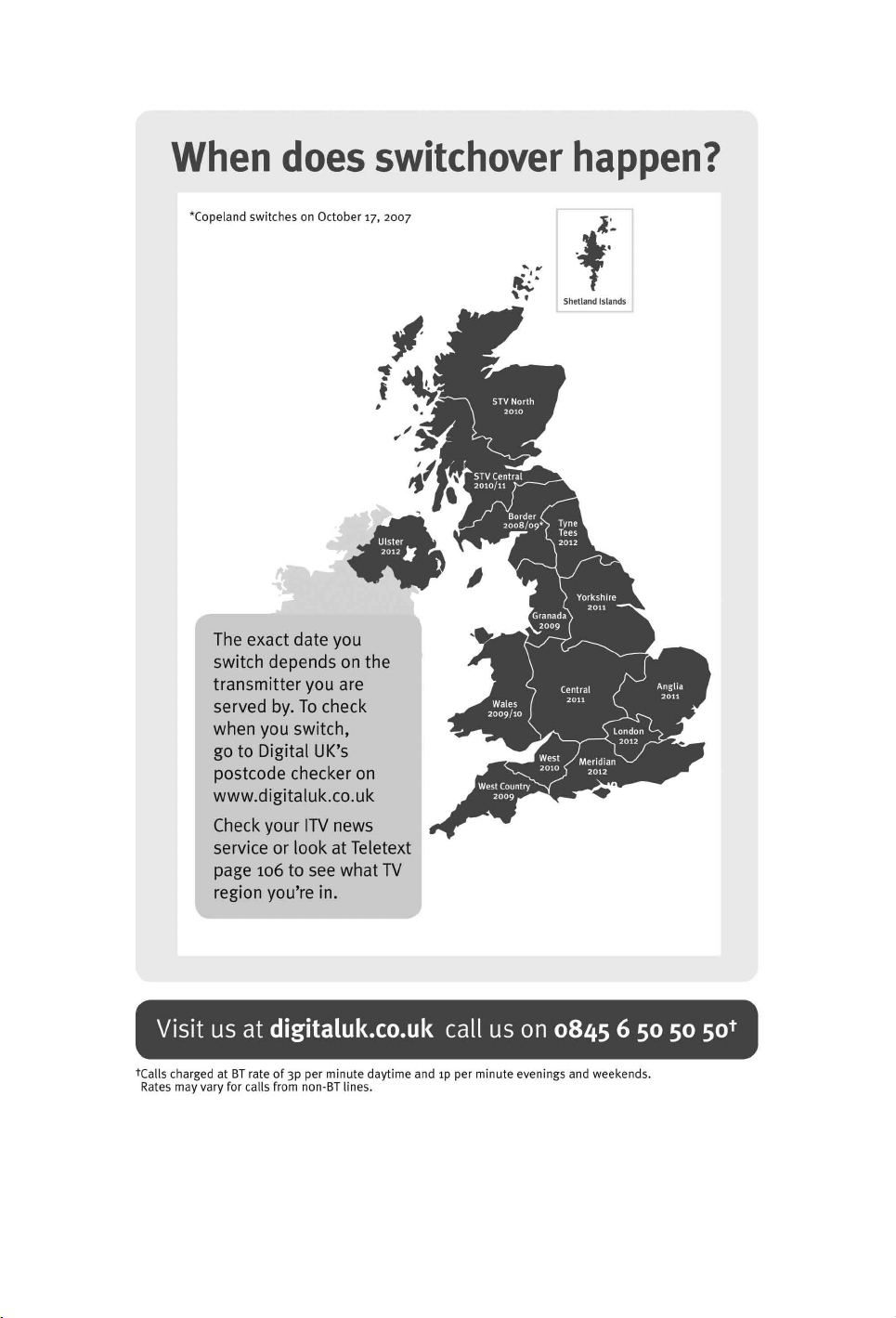

40

GB

41

Additional Information

GB

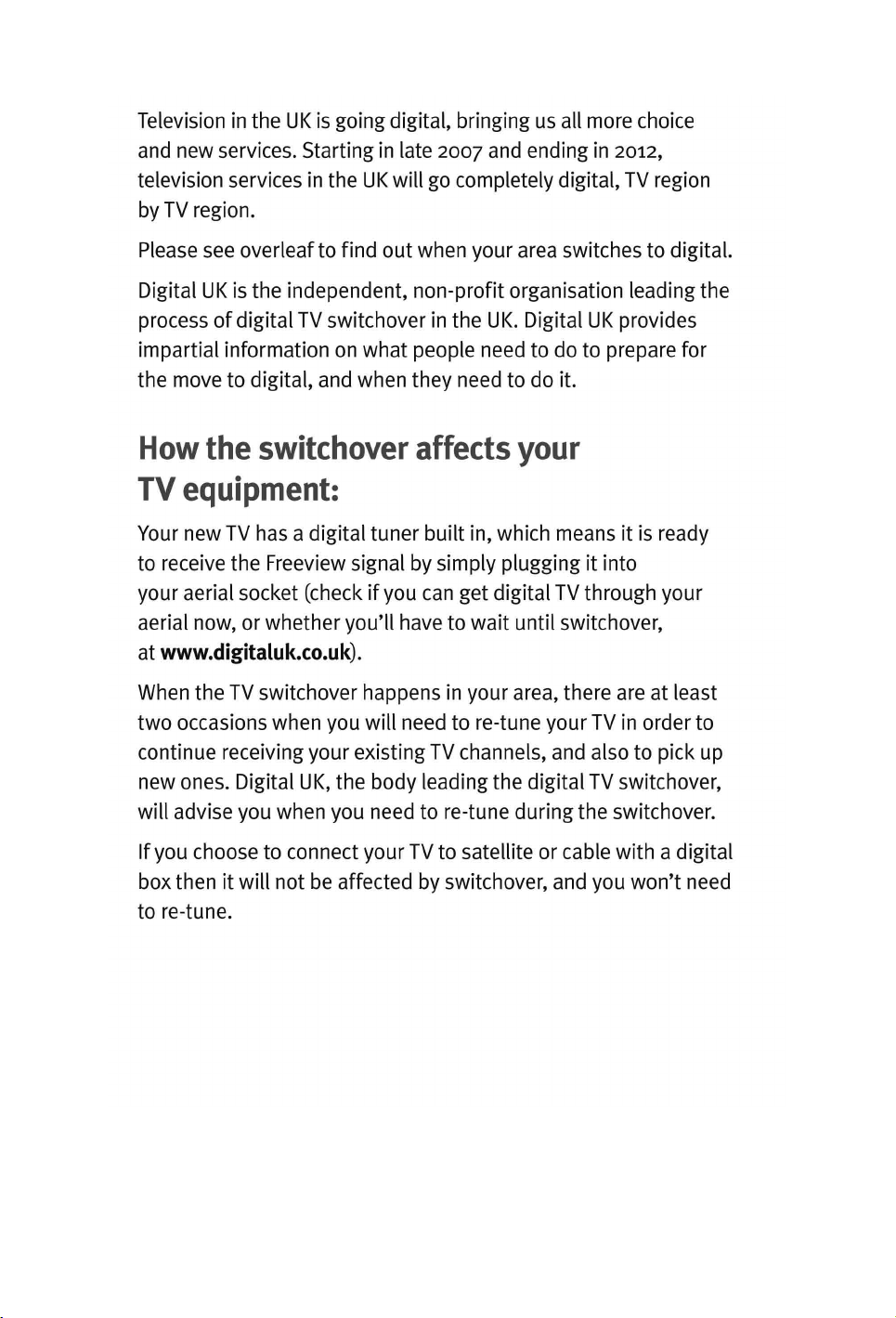

42

GB

1 Press “MENU” on the remote.
2 Press
3 Press
4 Press F/f to select “Digital Set-up”, then press .
5 Press
6 Press
7 Press to start “Digital Auto Tuning”.
8 Follow the on screen instructions.

F/f to select “Settings”, then press .
F/f to select “Set-up”, then press .

F/f to select “Digital Tuning” and then press .
F/f to select “Digital Auto Tuning” and then press .

43

Additional Information

GB

Instructions on “Installing the Wall-Mount Bracket” are not supplied
in the form of a separate leaflet with this TV. These installation
instructions are included within this TV’s instructions manual.

For useful information about Sony products

Printed in Hungary
