SONIQ IV190T User Manual

Download

- 1 -

iV190T

- 2 -

CONTENTS

CONTENTS ............................................ 2

SAFETY PRECAUTIONS ................... 3 - 5

INTRODUCTION ........................................ 6

DISC FORMATS ........................................ 7

MAIN UNIT CONTROL ........................ 8 - 9

REMOTE CONTROL ...................... 10 - 11

GETTING STARTED ........................... 12

CONNECTIONS ................................... 13 - 14

Connecting a TV antenna ................... 13

Connecting devices with a composite (Yellow

RCA-Type) video output ................. 13

Connecting devices with a video input ... 14

Connecting a PC ................................ 14

Connect the power cord .................. 14

USING HEADPHONES .................. 15

UNIT OPERATION ................................ 15

SOUND SYSTEM ................................ 15

BASIC OPERATION ...................... 16 - 17

Turning the unit on for the rst time ... 16

Electronic programme guide (EPG) for

digital TV (DTV) ............................... 17

Audio language for DTV ................. 17

TV / DTV SETUP ....................... 18 - 21

TV setting ..................................... 18

Picture menu ................................ 19

Sound menu .................................. 19

Time menu ................................... 20

Setup menu .................................. 20

Lock menu ................................... 21

TELETEXT ...................................... 22

CD/DVD OPERATION ..................... 23 - 24

Playing a disc ........................................ 23

Playing a picture le disc .................... 23

Pausing playback (still mode) ............. 23

Stopping playback ................................. 23

Skipping to a different track ................ 23

Fast forward / fast reverse ................. 24

Slow-motion play (DVD) ....................... 24

Audio selection (DVD) ......................... 24

Subtitle selection (DVD) ....................... 24

Angle Selection (DVD) .......................... 24

SPECIAL FUNCTIONS ........................... 25

Display function ..................................... 25

Locating a specic title (DVD) ............... 25

Locating a specic chapter/track .......... 25

Locating a specic time ........................ 25

REPEAT PLAYBACK ...................... 25 - 26

Repeating a chapter (DVD) .................. 25

Repeating a single track (CD) .............. 26

Repeating a specic section (DVD) (CD) ...

................................................................ 26

DVD PROGRAMMABLE MEMORY ........ 26

Programmable memory ...................... 26

CUSTO M IZ I N G T H E DVD FUNCTION

SETTINGS ....................................... 27 - 28

Language setup .................................... 27

Video setup ........................................... 27

TV type ............................................. 27

System setup ........................................ 28

Parental Ctrl ....................................... 28

Password ............................................. 28

Default ............................................... 28

MAINTENANCE ...................................... 28

USING TO YOUR iPOD ................. 29 - 32

Connecting your iPod .......................... 29

Playing music ...................................... 29

Playing video ........................................ 29

Using a iPod Classic / iPod Nano 3rd

gereration to watch the video .......... 30

Using a iPod Touch to watch the video

..................................................... 30

Playing Photos ................................. 31

Using a iPod Classic / iPod Nano to view

the photo ..................................... 31

Using a iPod Touch to view the photo .

....................................................... 31

Settings ............................................... 32

TROUBLE SHOOTING GUIDE ........... 33 – 34

- 3 -

SAFETY PRECAUTIONS

The symbol for Class II (Double lnsulation)

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS UNIT.

CAUTION:

DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

This product contains a low power laser device.

The exclamation point within a triangle alerts you to the presence of important operating, maintenance and servicing instructions in this user’s manual.

The lightning ash with an arrowhead within a

triangle alerts you to uninsulated dangerous voltage within the product’s enclosure that could cause an electric

shock.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

1. Read Instructions - All the safely and operating

instructions should be read before the appliance is operated.

2. Retain Instructions - The safety and operating

instructions should be retained for future reference.

3. Heed Warnings - All warning on the appliance

and in the operating instructions should be adhered to.

4. Follow Instructions - All operating instructions

should be followed.

5. Water and Moisture - The unit should not be

used near water.

6. Cart a n d Stan d s - The u n i t

should only be used with a cart or stand that is recommended by the manufacturer.

7. Wall or Ceiling Mounting - The unit should

be mou nte d to a wall or ceiling only as recommended by the manufacturer.

8. Ventilation - The unit should be well situated

so that its location or position does not interfere with its proper ventilation.

9. Heat - This unit should be placed away from

heat sources such as radiators, heat registers and stoves.

10. Power Sources - The unit should only be

connected to a power supply as described in the Instruction Manual or as marked on the unit.

11. Grounding or Polarization - Precautions should

be taken.

12. Power Cord Protection - Power supply cord

should be routed so that it is not likely to be walked on pinched by items placed upon it against the cord and its end.

13. Cleaning - The unit should be cleaned only as

recommended by the manufacturer.

14. Power Lines - An outdoor antenna should be

located away from power lines.

15. Outdoor Antenna Grounding - If an outside

antenna is connected to the receiver, the antenna system must be grounded so as to provide against voltages and built-up static charges.

16. Non-use Periods - The power cord of the unit

should be unplugged from the outlet when left unused for a long period of time.

17. Object and Liquid Entry - Care should be taken

so that objects do not fall, and liquids are not spilled into the enclosure through openings.

18. Conditions Requiring Service - The unit should

be serviced by qualied service personnel

when:

• The power-supply cord or the plug has been

damaged.

• Objects have fallen on or liquid has been

spilled into the unit.

• The unit has been exposed to rain.

• The unit does not appear to operate normally or

exhibits a marked change in performance.

19. This unit should not be exposed to water and

no objects lled with liquids such as a vase

should not be placed on the unit. Where the MAINS plug or the unit coupler is used as the disconnect device, the disconnect device shall remain readily operable.

- 4 -

SAFETY PRECAUTIONS

Warning

High voltages are used in the operation of this unit. Do not remove the back cover of the cabinet.

Refer servicing to qualied service personnel.

Warning

To prevent re or electrical shock hazard, do

not expose the main unit to rain or moisture.

Warning

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television.

Caution

Never stand on, lean on, push suddenly the unit or its stand. You should pay special attention to children.

Caution

If the television is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Heat build up can reduce the service life of your television, and can also be dangerous.

- 5 -

SAFETY PRECAUTIONS

Caution

Do no placed the main unit on an unstable cart stand, shelf or table. Serious injury to an individual, and damage to the television, may result should it fall.

Caution

Avoid exposing the main unit to direct sunlight and other sources of heat. Do not position television receiver directly on other products which give off heat. E.g. video cassette players,

audio ampliers. Do not block the ventilation

holes in the back cover. Ventilation is essential to prevent electrical failure. Do not squash power supply cord under the main unit.

Caution

When the unit is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Caution

The panel used in this product is made of glass. It can break when the unit is dropped or applied with force. Individuals should execute caution when dealing with broken glass should the panel break.

Exemptions

• SONIQ is not liable for any damage caused by res, natural disaster (such as thunder,

earthquake, etc.), acts by the third parties, accidents, owner’s misuse or use in other improper conditions.

• SONIQ is not liable for incidental damages (such as prot loss or interruption in business, modication or erasure of record data, etc.) caused by use or inability to use of unit.

• SONIQ is not liable for any damage caused by neglect of the instructions described in the

instruction manual.

• SONIQ is not liable for any damage caused by misuse or malfunction through simultaneous

use of this unit and the connected equipment.

- 6 -

Package Contents

Main Unit

Quick Start Guide

Warranty Card

Remote Control

AAA Batteries (x2)

INTRODUCTION

Introduction

Thank you for purchasing the unit. Your unit will bring you years of high-quality viewing enjoyment. The television is easy to operate and provides exceptionally high quality image. The manual will explain the operation of the unit, including its functions features and other important features. Before installing or operating your unit, please take the time to thoroughly read this manual, particularly the sections on safety.

Instruction Manual

iV190T

Quick Reference

Thank you for purchasing the unit. Your unit integrated digital and analog tuner in the same unit. You can enjoy both digital and analog broadcasting under following set-up easily.

The latest news, software, utility, driver, product, manual and Q&A will be found at SONIQ website http://www.soniqav.com.

Antenna Connection

Your unit already pre-install a loop through cable. You simply connect outdoor antenna to DTV antenna input to receive broadcasting signals.

You can enjoy both analog and digital TV broadcasting now by switching to TV and DTV mode. For detail operation, you can refer to Instruction manual.

810-711995W090

Turning the unit on for the rst time

The rst time you turn the unit on, it will go straight into Auto scan mode. Simply follow the screen

prompts as below to tune in the channels.

1. Use the

/ button to select the screen menu language you prefer.

2. Use the

button to move to Auto Tuning, press the ENTER•OK button to enter Auto Tuning

menu.

3. Use the

button to move to Start. Press the ENTER•OK button conrm Start. The system will

automatically start to scan and preset all available programmes.

4. After scanning has nished, the TV will display the rst programmes stored.

Language

Time Zone

Auto Tuning

English

Victoria GMT + 10

Language

Time Zone

Auto Tuning

Australia

English

Victoria GMT + 10

Power on the unit

Connecting the power cord to AC wall outlet. Press the / I button at the unit or STANDBY/ ON button on the remote control. Press the FUNCTION button to select the desired mode

(DTV, TV, AV, DVD, iPod or PC).

Note: When the unit is not going to be used for a long time, disconnect the power cord from AC wall outlet.

DVD VIDEO OUT

Wall Antenna Socket

Outdoor Antenna (VHF, UHF)

RF Coaxial

Wire

(75 ohm)

- 7 -

DISC FORMATS

The unit can play:

DVDs [8cm/12cm disc]

Audio CDs [8cm/12cm disc]

CD-R CD-RW

Compatible

REGION MANAGEMENT INFORMATION

Reg ion Manage ment Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVDs. If the region number printed on the DVD does not correspond to the region number of this unit, this unit cannot play that disc.

The region number of this equipment is

DI S C FUNCTIO N OR OPERATI ON THAT IS NOT AVAILABLE

When the symbol appears on the screen, it indicates that the function or operation attempted is not available at that time. This occurs because the DVD manufacturer determines the specific functions. Certain functions may not be available on some discs. Be sure to read the documentation provided with the DVD.

ICONS USED ON DVDs

Sample Icons:

Language selections for audio

Language selections for subtitles

Screen aspect ratio

Multiple camera angles

Region code indicator

NOTE When playing back a CD-G (Graphics) or CD EXTRA disc, the audio portion will be played, but the graphic images will not be shown.

TITLES, CHAPTERS AND TRACKS

• DVDs are divided into “TITLES” and “CHAPTERS”.

If the disc has more than one movie on it, each

movie would be a separate “TITLE”. “CHAPTERS”

are sections of titles.

• Audio CDs are divided into “TRACKS”. A “TRACK”

is usually one song on an Audio CD.

NOTE Numbers identify each title, chapter and track on a disc. Most discs have these numbers recorded on them, but some do not.

NOTES ON UNAUTHORIZED DISCS

You may not be able to playback some DVDs on this equipment if they were purchased from outside your geographic area or made for business purposes.

- 8 -

78 910

2 3

4 5

MAIN UNIT CONTROL

Front & Side Panel

No.

Name

/ I button

PLAY button

MENU button

FUNCTION button

CH buttons

button button

Description

Turns the unit on and off.

Press to start or resume playback of a disc.

Press to display the on-screen TV menu.

Select DTV, TV, AV, DVD, iPod or PC.

Press to change the TV channels and highlight selections (Up & Down) on the menu screen.

Press to select previous chapters or tracks on a disc. Press to select next title, chapter or track on a disc.

– VOLUME + controls

Colour LCD Screen

Speakers

Remote Sensor

Standby Indicator

Dock for iPod

Disc Door

OPEN button

Adjust the volume level.

Push gently to close the disc door.

Press to open the disc door.

Do not block this sensor or the remote control will not work.

Indicates whether the unit is ON or in STANDBY (OFF) mode.

Light On: The unit is in STANDBY.

Light Off: The unit is turned ON.

- 9 -

13 14 15 16 17

18 19

MAIN UNIT CONTROL

Rear Panel

No.

16 17

Name

Power Cord

DVD VIDEO OUT

Description

Connect to the AC wall outlet.

Connect the PC audio output of your personal computer.

Connect composite Audio/Video output of your AV device.

Connect to external antenna.

AUDIO Jack (PC IN)

MONITOR / VGA (PC IN)

AUDIO/VIDEO IN Jacks

PHONES jack

TV Antenna Cable Terminal - Coaxial TV antenna input

Connect the PC VGA signal output of your personal computer

- 10 -

REMOTE CONTROL

1. STANDBY/ON button

Press to turn ON the unit or press again to switch

to STANDBY (OFF) mode.

2. TV / DTV button

Press to switch to TV / DTV mode.

3. DVD/iPod button

Press to switch DVD / iPod mode.

4. Number (0 - 9) buttons

Use to change the TV / DTV channels.

5. REVEAL button

Press to reveal answers on a quiz or game

pages from Teletext.

iPod RETURN button

Press to return to the previous menu in iPod

mode.

6. MUTE button

Press to turn off the sound. Press again to cancel mute.

7. VOLUME + / – buttons

Press to adjust the volume level.

8. CURSOR ( , , , ) buttons

Press to highlight selections on a menu screen

and adjust certain settings.

ENTER • OK button

Press to conrm selections on a menu screen.

9. MIX button Press to select Teletext with a TV programme. EXIT button Press to exit the menu and return directly to

normal viewing.

/ button : Fast reverse playback. : Fast forward playback.

10. HOLD button Press to stop the automatic page change from

Teletext.

PREV button Press to select previous title, chapter or track

on a disc.

11. ANGLE button

Press to switch the camera angle of the video

presentation when scenes with multiple camera angles are recorded on a DVD.

SIZE button

Press to set the letters size of teletext on the

screen.

12. SUBTITLE button

Press to select one of the subtitle languages

programmed on a DVD/DTV.

13. TITLE Button

Press to select the title menu screen.

14. GOTO button

Press to skip directly to a specic location on a

DVD/CD.

15. button

Press to directly select Mono/Stereo (or Dual I/

Dual II) for some signals.

16. TEXT button

Press to directly selects Teletext mode.

17. PC AUTO button

Set picture settings for PC mode automatically.

18. SLEEP button

Press to set the SLEEP timer. The unit will

remain ON for the time that is set, and will automatically shut off afterwards.

19. MEMORY button

In play mode, press to enter the number of a

selected chapter or track.

20. CLEAR button

Press to clear input selections and cancel certain

playback functions.

21. REPEAT A-B button

Press to perform point-to-point repeat playback

on a DVD or CD.

REPEAT DISC button Repeat chapter/ title of a DVD. Repeat single track or whole CD.

2 3

5 6

11 12 13 14 15 16 17 18 19

- 11 -

22. FUNCTION button

Press to switch between DTV / TV / AV / DVD /

iPod / PC.

23. RADIO button

Press to select DTV digital radio programmes.

Press again to exit to normal DTV programmes mode.

24. AV button

Press to switch to source connected to AV.

25. LAST CH button

Press to switch repeatedly between the last two

channels displayed.

26. TV MENU button

Press to display the on-screen TV menu.

27. CH/PAGE / buttons

Press to change the TV / DTV channels. Press to go forward or backward the page of

Teletext screen in TV mode.

Press to go forward or backward the page of

Programme Edit & Favourite in TV/DTV mode.

28. FAV button

Press to display the Favourites program in TV

/ DTV mode. (You should setup your favourite TV / DTV channels in Programme Edit menu.)

button

Press to select next title, chapter or track on a

disc.

29.

STOP button

Press to stop playing a disc. LIST button Press to display the channel list in TV / DTV

mode.

PLAY button

Press to start and resume playback of a disc. GUIDE button Press to display the Electronic Programme

Guide (EPG) in DTV mode.

PAUSE button Press to pause playback and single frame

advance.

INFO button Press to display the channel information in DTV

mode.

30. SLOW button

Press to play a DVD in slow-motion. INDEX button Press to select the page number of the index

from Teletext.

31. AUDIO button Press to select audio soundtracks of a DVD or

change the output mode of a CD.

CANCEL button Press to cancel the Teletext menu.

32. DVD MENU button

Press to enter the main menu of the disc you

are watching.

33. SETUP button Press to enter and exit the SETUP menu of the

DVD player.

34. SOUND button

Press to select from preset sound settings

(Standard, Music, Theatre, Voice, Personal) to match the type of show you are watching.

35. DISPLAY button Pr ess to cha nge disc stat us in for mat ion

displayed on the screen.

36. PICTURE button

Press to select from preset screen display

settings to match the type of show you are watching (Standard, Movie, Dynamic, Soft, Personal).

37. LCD MODE button

Press to set the size of LCD display.

38. RED/GREEN/YELLOW/BLUE button

Press to select the relevant page quickly from

Teletext.

23 24

25 26

30 31 32 33 34 35 36 37

REMOTE CONTROL

- 12 -

GETTING STARTED

USING THE REMOTE CONTROL

When using the remote control, aim it at remote sensor on the unit. If there is an object between the remote control and the signal remote sensor on the unit, the unit may no operate.

• Point the remote control at the remote sensor located on the unit.

• When there is a strong ambient light source, the performance of the infrared remote sensor may be

degraded, causing unreliable operation.

• The effective distance for remote operation is about 16 feet (5 meters).

TO INSTALL THE BATTERIES

1. Open the battery door.

2. Insert 2 “AAA” batteries.

BATTERY REPLACEMENT

You will need to install the supplied batteries into the remote control to make it operate following the instruction below. When the batteries become weak, the operating distance of the remote control will be greatly reduced and you will need to replace the batteries.

Notes on Using Batteries:

The use of the wrong type of batteries may cause chemical leaks and/or explosion. Please note the following:

• Always ensure that the batteries are inserted with the positive and negative terminals in the correct

direction as shown in the battery compartment.

• Different types of batteries have different characteristics. Do not mix different types.

• Do not mix old and new batteries. Mixing old and new batteries will shorten battery life and/or cause

chemical leaks from the old batteries.

• When batteries fail to function, replace them immediately.

• Chemicals which leak from batteries may cause skin irritation. If any chemical matter seeps out of the

batteries, wipe it up immediately using a dry cloth.

• Due to varying storage conditions, the battery lift for the batteries included with your unit may be shorten.

If the remote control is not used for a long period of time, remove the batteries.

• The battery shall not be exposed to excessive heat such as sunshine, re or the like.

CAUTION:

Danger of explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type.

- 13 -

CONNECTING A TV ANTENNA

To view television channels correctly, a signal must be received from an indoor or outdoor aerial antenna.

NOTE For receiving over-the-air TV broadcasts, we recommend that you use

an external xed antenna. Should you require the use of a temporary antenna, please ensure that you purchase an antenna with sufcient

ability to receive in weak signal areas. Only when you are in close proximity to a transmitter will a temporary antenna reproduce a signal

as strongly as a xed antenna.

TV antenna cable to TV ANTENNA terminal (cable not included)

CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE) VIDEO OUTPUT

To connect A/V devices such as a VCR, video game system or camcorder.

Connecting to a VCR / Video Game System / Camcorder

Connect the AUDIO / VIDEO cable (not included) as shown.

Make sure you connect the cable from the other equipment (AUDIO and VIDEO OUT) to this unit (AUDIO and VIDEO IN).

NOTE Please refer to the user manual for the other equipment for more information.

To AUDIO / VIDEO IN jacks (AV IN)

To AUDIO / VIDEO

OUT jacks

CONNECTIONS

- 14 -

To AC wall outlet

CONNECT THE POWER CORD

• Connect the AC power cord into a wall outlet.

• Press the / I button on the unit or remote control

to turn on the unit.

NOTE

• Be sure the AC power cord is disconnected and all

functions are off before making connections.

• Make sure that all the components are connected

correctly.

• When you are not going to use the unit for a long

period of time, disconnect the power cord.

• The apparatus shall not be exposed to dripping or splashing and no objects lled with liquids, such as

vases, shall be placed on apparatus.

• The mains plug is used as the disconnecting device. It should remain readily accessible and should not

be obstructed during use. To be completely disconnected from the supply mains, the mains plug of the apparatus should be physically disconnected from the mains socket outlet.

CONNECTING DEVICES WITH A VIDEO INPUT

Connect the AUDIO cable (included) and VIDEO cable (not included) as shown.

Make sure you connect the cable from the other equipment (AUDIO and VIDEO IN) to this unit (Headphone jack and VIDEO OUT). Pres s the FUNCTION or DVD button to select DVD mode.

Note: Please refer to the user manual for the other equipment for more information.

AUDIO CABLE

VIDEO CABLE

CONNECTIONS

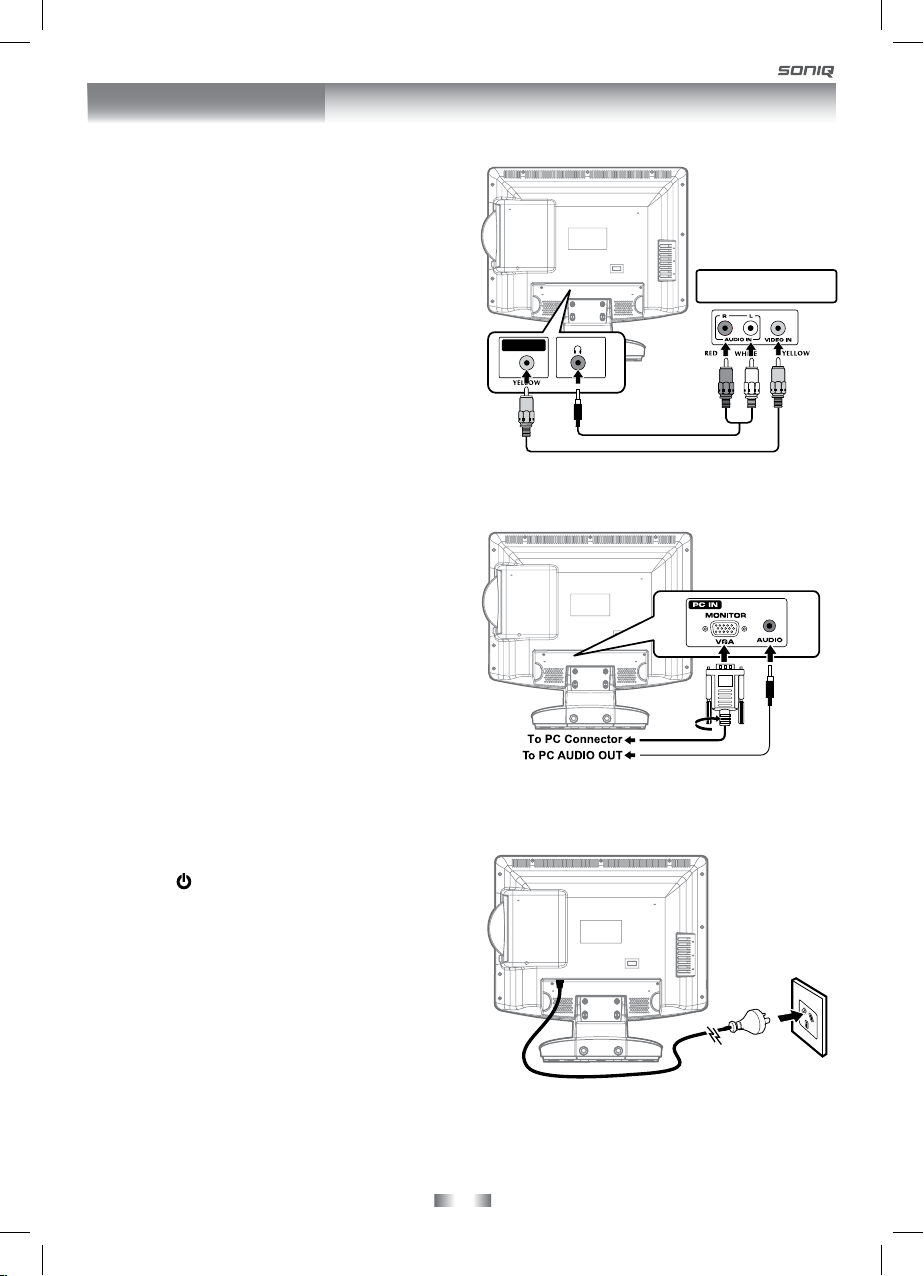

CONNECTING A PC

Connect the 15-pin D-SUB PC/VGA connector from your computer to the 15-pin D-SUB PC/VGA input on this unit using a monitor cable and an audio cable (not included) as shown.

Make sure you connect the cable from the computer (PC Connector and AUDIO - PC OUT) to this unit (MONITOR / VGA and AUDIO - PC IN).

VIDEO OUT

DVD

VCR / DVD RECORDER /

OTHER DISPLAY DEVICE

- 15 -

TURNING THE UNIT ON

When the AC power cord is connected, press the / I button on the unit to turn it on. Press the FUNCTION button to select the desired mode (DTV / TV / AV / DVD / iPOD / PC). If you select DVD, the DVD logo will appear on the screen.

NOTE When the unit is not going to be used for a long time, disconnect the AC power adapter from AC power outlet.

DOLBY DIGITAL (FOR DVD)

Dolby Digital is a sound system developed by Dolby Laboratories Inc. This unit automatically recognizes

DVDs that have been recorded with Dolby Digital.

Not all Dolby Digital sources are recorded with 6 channels.

Some sources marked Dolby Digital may be recorded in Dolby Surround, a 2 channel system. Look for this logo on your unit.

Manufactured under license from Dolby Laboratories. ‘Dolby’ and the double-D symbol are trademarks of Dolby Laboratories.

SOUND SYSTEM

UNIT OPERATION

• Tur n down th e volu me bef o re

conn ect ing headp hones to the unit, then adjust the volume to your desired level.

• When headphones are connected,

no sound will come from the front speakers.

NOTE Avoid listening to sound at high levels for prolonged periods of time. This may be harmful to you and may cause hearing loss.

Headphones

(1/8” [3.5mm diameter plug)

USING HEADPHONES

- 16 -

Language

Time Zone

Auto Tuning

English

Victoria GMT + 10

Auto T

Language

Time Zone

uning

Australia

English

Victoria GMT + 10

When you turn on your television set for the rst

time, be sure to place it on a solid stable surface. To avoid danger, do not expose the TV to water, or a heat source (e.g. lamp, candle, radiator). Do not obstruct the ventilation grid at the rear

and be sure to leave sufcient gaps around the

unit as shown.

TURNING THE UNIT ON FOR THE FIRST TIME

The rst time you turn the unit on, it will go straight into Auto scan mode. Simply follow the screen prompts

as below to tune in the channels.

1. Use the / button to select the screen menu language you prefer.

2. Use the button to move to Auto Tuning, press the ENTER•OK button to enter Auto Tuning menu.

3. Use the , , , button to move to Start. Press the ENTER•OK button conrm Start. The system will

automatically start to scan and preset all available programmes.

4. After scanning has nished, the TV will display the rst programmes stored.

BASIC OPERATION

- 17 -

• Use the , , , button select a programme, the programme time and name displays, press the INFO button to display detailed information if available. Press the INFO button again to return.

• Press the YELLOW button to highlight programme date, use the

/ button to display information for

other dates.

• Press the ENTER•OK button to watch the selected channel.

• Press the EXIT button to exit the PROGRAMME GUIDE menu.

NOTE Guide information display may be different according to the DTV programmes.

ELECTRONIC PROGRAMME GUIDE (EPG) FOR DIGITAL TV (DTV)

While watching a DTV programme, you can press the GUIDE button to display the PROGRAMME GUIDE menu, and check for programme information.

AUDIO LANGUAGE FOR DTV

While watching a DTV programme, you can press the button to display the Audio Language menu, and select audio language, audio format and sound track.

• Use the or button to select an audio language or audio format if available, press the or button to select sound track between L/R (Stereo), L/L (Mono Left) and R/R (Mono Right). Press the ENTER•OK button to confrim.

• Press the or EXIT button to exit the Audio Language menu.

NOTE For analogue TV, press the

button to select Mono / Stereo -

Dual I / Dual II directly.

BASIC OPERATION

- 18 -

TV SETTING (only in ATV or DTV mode)

1. Press the TV MENU button.

2. Use the or button to select TV SETTING.

3. Use the or button to select the options (Auto Tuning,

DTV Manual Tuning, ATV Manual Tuning, Programme Edit), adjust them using the or button

4. Press the TV MENU button to return to previous menu,

repeat step 2 to adjust other settings.

5. To exit the setup menu and return to the normal screen,

press the EXIT button.

• Auto Tuning : Automatically scan, sort and store all available programmes.

• DTV Manual Tuning : Perform manual search for DTV

(Digital TV) programmes.

• ATV Manual Tuning : Perform manual search and ne tune for ATV (Analog TV) programmes.

• Programme Edit : All channels stored are listed in the Programme Edit menu, you can edit the channels

by the following steps:

1. Use the or button to select a channel. (Press the CH/PAGE / button to skip to previous/next

page.)

2. Press the RED / GREEN / YELLOW / BLUE button or the FAV button to edit the channel.

• DELETE

Press the RED button to delete the selected channel, press the

ENTER•OK

button to conrm. Press the TV MENU button to stop delete.

• RENAME (for ATV mode only)

Press the GREEN button to rename the selected channel. Use the

button to select the characters to represent the station name, use the

or button to move to the next character, press the TV MENU button to

conrm.

• MOVE (for ATV mode only)

Press the YELLOW button and use the

or button to move the selected

channel, then press the TV MENU button to conrm.

• SKIP

Press the BLUE button to skip or not skip the selected channel.

• FAV (Favourite) Press the FAV button to set or cancel the selected channel as one of the

favourite programmes.

TV / DTV SETUP

- 19 -

PICTURE MENU

1. Press the TV MENU button.

2. Use the or button to select the options (Picture Mode,

Contrast, Brightness, Colour, Sharpness, Tint, Colour Temp), adjust them using the or button.

3. Press the TV MENU button to return to previous menu.

4. To exit the setup menu and return to the normal screen,

press the EXIT button.

• Picture Mode : Select from four preset screen display se t t ings (S t a ndard , M o v ie, Dyn a m ic and Sof t ) , o r select Personal in which your own settings of Contrast, Brightness, Colour and Sharpness are stored.

• Contrast : Adjust the contrast of the picture. The black portions of the picture become richer in darkness and the white become brighter.

• Brightness : Adjust the brightness of the picture.

• Colour : Adjust the colour of the picture.

• Sharpness : Adjust the sharpness level to improve detail in the picture.

• Tint (only for AV mode with NTSC signal) : Adjust the tint of the picture.

• Colour Temp : Select the colour temperature of the picture. Select Normal (balanced)/ Warm (red white)/Cold (blue white) mode.

NOTE You can also select Picture Mode simply by pressing the PICTURE button on the remote control.

SOUND MENU

1. Press the TV MENU button.

2. Use the or button to select the SOUND.

3. Use the or button to select the options (Sound Mode, Treble, Bass, Balance), adjust them using the or button.

4. Press the TV MENU button to return to previous menu.

5. To exit the setup menu and return to the normal screen,

press the EXIT button.

Experiment with different sound settings until you nd

the settings you prefer.

• Sound Mode : Select from four preset sound settings (Standard, Music, Theatre and Voice), or select Personal in which your own settings of Treble, Bass and Balance are stored.

• Treble : Adjust the treble range.

• Bass : Adjust the bass range.

• Balance : Adjust the balance level toward the left or right speakers.

NOTE You can also select Sound Mode simply by pressing the SOUND button on the remote control.

TV / DTV SETUP

- 20 -

TIME MENU

1. Press the TV MENU button.

2. Use the

or button to select the TIME.

3. Use the

or button to select the options (Clock, Sleep

Timer, Time Zone), adjust them using the or button.

4. Press the TV MENU button to return to previous menu.

5. To exit the setup menu and return to the normal screen,

press the EXIT button.

• Clock : The clock is set automatically when receiving a digital signal.

• Sleep timer : Select the time to turn the unit to Standby mode automatically: Off -> 5min - - - - -> 90min -> 120min.

• Time Zone : Select your time zone.

SETUP MENU

1. Press the TV MENU button.

2. Use the or button to select the SETUP.

3. Use the or button to select the options (Language,

Au d io L a n guag e , Su btit l e Lan g uage , PC Setup , Restore Setting), adjust them using the or button.

4. Press the TV MENU button to return to previous menu.

5. To exit the setup menu and return to the normal screen,

press the EXIT button.

• Language : Select your preferred On Screen Display language.

• Audio Language : Select your preferred audio language. (Available for digital channels if multiple audio languages are broadcasted.)

• Subtitle Language : Select your preferred subtitle language or turn off subtitle. (Available for digital channels if multiple subtitle languages are broadcasted.)

TV / DTV SETUP

• PC Setup

Use the or button to select the options (H-offset, V-offset,

Size, Phase, Auto Adjust) and adjust them by using the or buttons.

It supports the resolution of display :

• H-offset : Centre the image by moving it left or right.

• V-offset : Centre the image by moving it up or down.

• Size : Adjust the screen size.

• Phase : Adjust when characters have low contrast or when the image ickers.

• Auto Adjust : Adjust the image automatically.

• Restore Setting : Press the ENTER•OK button to restore the system settings to the factory default.

800 x 600 x 60Hz 1024 x 768 x 60Hz 1280 x 1024 x 60Hz

1280 x 800 x 60Hz 1440 x 900 x 60Hz 1680 x 1050 x 60Hz

- 21 -

LOCK MENU

1. Press the TV MENU button.

2. Use the

or button to select the LOCK.

3. Press the ENTER•OK or button to enter, enter

password to proceed.

(The default password is 0000.)

4. Use the

or button to select the options (Lock

System, Change Password, Block Programme, Parental Guidance), press the ENTER•OK or or

button to adjust.

5. Press the TV MENU button to return to previous

menu.

6. To exit the setup menu and return to the normal screen,

press the EXIT button.

• Lock System : Select to lock or unlock the programmes.

• Change Password : If you change the password, remember your password.

• Block Programme : Enter the Block Programme menu, press the

or button to select a channel,

press the GREEN button to Lock or Unlock the channel.

• Parental Guidance : Select a censorship level to censor and block the programmes.

NOTE This system will only work if the correct information is transmitted by the TV channel.

If you forget the password, enter " 8888 "

to unlock parental control.

TV / DTV SETUP

- 22 -

Teletext is an information system that displays text on your TV screen. Using the Teletext control buttons you can view pages of information that are listed in the teletext index.

Please Note

On Screen Display is not available in text mode. The contrast, brightness and colour cannot be changed but the volume control is still available. Analog and Digital text look very different and operate differently. For Analogue text press the TEXT button in ATV mode. For digital text, press the TEXT button in DTV mode.

TO ENTER TEXT MODE

Please Note

Ma ke s ure the T V chann el you are wat chi ng

transmits teletext. If not “No Teletext” sign will be

shown on the screen.

In T V m ode, press the TEXT butt on. The tex t page will appear, normally the index page.

TO EXIT TEXT MODE

Press the TEXT button. The TV will return to the channel you were watching.

TO SELECT A PAGE OF TEXT

Find the number of th e page in the index a nd enter it using the Numeric buttons. The number of the page will appear on the top left corner of the screen.

The page counter will search for your page. When

it nds it, the page will be displayed.

To move to the next page of text, press the CH/ PAGE

button.

To m ov e t o the previo us page , p ress the CH/ PAGE

button.

To return to the index page, enter the “100” by

using the Numeric buttons.

MIX

To view a page of the text whilst watching a TV programme press the MIX button. The text will be superimposed over the TV programme.

Press the MIX button again to return to the text page.

PAGE SEARCH WHILST WATCHING TV

In Text mode press the CANCEL button.

Ent e r th e page n u m b e r yo u w a n t using t h e Numeric buttons.

The top line of the text page will appear whilst the text searches for your page. When the page is found the number will remain in the top left hand corner of the screen.

DOUBLE HEIGHT TEXT

If you have difficulty reading the text on the TV you can double the height of the text.

Press the SIZE button. The top half of the page will be displayed in double height text.

Press the SIZE button again. The bottom half of the page will be displayed in double height text.

Press the SIZE button again to return to the full page.

PAGE STOP

If the page of text you have selected contains sub pages, these sub pages will automatically be displayed in order with a delay to allow you to read the page.

To stop the move to the next sub page, press the

HOLD button. “

” will appear on the top left

corner of the screen.

To continue moving through the sub pages, press the HOLD button again.

TO REVEAL INFORMATION

Press the REVEAL button to reveal concealed

information (quiz answers etc.).

Press the REVEAL button again to conceal the information again.

FASTEXT

At the bottom of the teletext screen is a row of subject headings in red, green, yellow and blue.

The remote control has a row of colour buttons corresponding to the row of coloured subjects on the screen.

Pressing one of the colour buttons will take you directly to the page corresponding to the subject heading.

TELETEXT

- 23 -

CD / DVD OPERATION

PLAYING A DISC

1. Press the / I button to turn on the unit.

2. Press the FUNCTION button repeatedly to select DVD mode or directly to press DVD button on the remote.

See CUSTOMIZING THE DVD FUNCTION SETTINGS before proceeding to step 3.

3. Press the button to open the disc door.

4. Hold the disc by its edge and gently push it onto the spindle with label side facing outwards until hear a

“click”.

5. Push the disc door gently to close it. It takes a short while for your unit to load the disc. After loading, the unit will automatically either bring

you to the main menu of DVD, or start playing the DVD. If the unit does not automatically start playing the DVD, press the PLAY button.

PLAYING A PICTURE FILE DISC

This unit can play JPG les recorded on CD-R and CD-RW discs.

1. Press the button to open the disc door.

2. Hold the disc by its edge and gently push it onto the spindle with label side facing outwards until hear a

“click”.

3. Push the door gently to close it. The picture les on the disc will be displayed one by one automatically.

4. Press the STOP button to go to the folder list.

5. Press the or button to highlight a le to play. Press the PLAY button to start playback.

NOTE

• You can press the

PAUSE button to interrupt playback, and press the PLAY button to resume

playback.

• You also can use the numbered buttons to enter the image number to quickly select any image.

• Press the ANGLE button on the remote control to rotate the picture orientation by 90°.

PAUSING PLAYBACK (STILL MODE)

Press the PAUSE button. To resume normal playback, press the PLAY button. Each time you press the PAUSE button, the picture advances one frame.

STOPPING PLAYBACK

Press the STOP button at the location where you want to interrupt playback. To resume playback at the position where the disc was stopped, press the PLAY button. If you press the STOP button twice, the unit’s memory will be cleared and pressing the PLAY button will reset the disc to the beginning.

SKIPPING TO A DIFFERENT TRACK

• Press the PREV button to go back to previous titles/chapters/tracks.

• Press the NEXT button to advance titles/chapters/tracks.

• For an Audio CD, use the number buttons (remote control only) to jump directly to that track number.

This owner’s manual explains the basic instructions of this unit. Some DVDs are produced to limit operation during playback. For example, many DVDs do not allow users to skip government warnings, or in some cases previews or other features. This is not a defect in the unit. Refer to the instruction notes of discs. “

” may appear on the screen during operation. A “ ” means that the desired operation is not

permitted by the unit or disc.

- 24 -

CD / DVD OPERATION

FAST FORWARD / FAST REVERSE

1. Press the SEARCH or SEARCH button when a disc is playing.

• Each time the SEARCH or SEARCH button is pressed, the speed of fast scan changes in the

following sequence:

2. Press the PLAY button when you reach the desired point to resume playback at normal speed.

SLOW-MOTION PLAY (DVD)

1. Press the SLOW button on remote control in the play mode. Each time the SLOW button is pressed, the speed of slow-motion playback changes in the following sequence:

2. Press the

PLAY button to return to the normal playback speed.

AUDIO SELECTION (DVD)

On some discs, the sound is recorded in two or more formats. Follow the directions below to select the preferred language and sound system.

1. While a disc is playing, press the AUDIO button to show the current audio format number.

2. Press the AUDIO button repeatedly to select the desired audio format.

NOTE

• If only one audio format is recorded, the number does not change.

• About two seconds later, playback continues in the new audio format.

SUBTITLE SELECTION (DVD)

1. While a DVD is playing, press the SUBTITLE button to display the current

language setting, as shown in the example.

2. Press the SUBTITLE button repeatedly to select the desired subtitle language.

NOTE

• If only one language is recorded, the language does not change.

• About two seconds later, playback continues with the new subtitle you selected.

• The number of languages recorded differs depending on the disc.

• This function can only be used for discs on which subtitles have been recorded in multiple languages.

• On some DVDs, subtitles are activated from the main menu of the DVD. Press the DVD MENU button to

activate the main menu.

ANGLE SELECTION (DVD)

Some DVDs contain scenes which have been shot from a number of different angles. For these discs, the same scene can be viewed from each of these different angles.

1. While you are playing a DVD with different angles recorded, press the ANGLE button to view the number

of the current angle available.

2. Press the ANGLE button repeatedly to change the scene to the

next angle in those recorded.

• About two seconds later, playback continues from the new angle

you selected.

• If no button is pressed within 10 seconds, playback continues

without changing the current angle.

NOTE

• This function can only be used for discs on which scenes shot from

multiple angles have been recorded.

• If only one angle is recorded, “

” is displayed.

1/3

1/3 2/3 3/3

Sequence of angle shots

(Example)

1/2

1/4

1/8

1/16

1/32

- 25 -

SPECIAL FUNCTIONS

LOCATING A SPECIFIC TITLE (DVD)

If a DVD disc contains title numbers, you can locate a specic title by directly

selecting a title number.

1. In STOP mode, press the GOTO button.

2. Press the or button to highlight a specic eld and press the corresponding number button(s) for the title you want.

3. Press the ENTER•OK button to conrm. Playback starts from the selected title.

LOCATING A SPECIFIC CHAPTER / TRACK

If you know the chapter / track number you want to play, you can locate a

specic chapter / track by directly selecting a chapter / track number.

1. Press the GOTO button to search for your desired chapter / track.

2. Press the or button to highlight a chapter / track and press the corresponding number button(s) for the chapter / track you want.

3. Press the ENTER•OK button to conrm. Playback starts from the selected chapter / track.

LOCATING A SPECIFIC TIME

You can move to a specic location by entering its corresponding time

(hours, minutes, seconds)

1. Press the GOTO button.

2. Enter the corresponding number buttons for the setting point you want.

3. Press the ENTER•OK button to conrm. Playback starts from the selected location.

NOTE

• Some discs may not respond to this process.

• Some scenes may not be located as precisely as specied.

• This method for accessing specic locations is available only within the current title of the DVD.

DISPLAY FUNCTION (DVD)

While the disc is playing, press the DISPLAY button repeatedly to display information on operation status.

You can play a specic title or chapter repeatedly. (Title repeat, chapter repeat, entire DVD repeat, A-B repeat)

Repeating a chapter (DVD)

You can play the same chapter repeatedly.

1. While the disc is playing, press the REPEAT button until the “

” indicator displays on the screen.

The current chapter is played repeatedly.

Repeating a title

You can play the same title repeatedly.

2. While the disc is playing, press the REPEAT button until the “

” indicator displays on the screen.

The current title is played repeatedly.

To resume normal playback

3. While the disc is playing, press the REPEAT button until the “ ” indicator displays on the screen.

REPEAT PLAYBACK

- 26 -

REPEAT PLAYBACK

You can play a single track or an entire disc repeatedly.

Repeating a single track (CD)

You can play the same track repeatedly.

1. While the disc is playing, press the REPEAT button until the “

” indicator displays on the screen.

The current track is played repeatedly.

Repeating an entire disc

2. While the disc is playing, press the REPEAT button until the “ ” indicator displays on the screen. The entire disc is played repeatedly.

To resume normal playback

3. Press the REPEAT button until the “ ” indicator displays on the screen.

Repeating a specic section (DVD) (CD)

You can play a specic section repeatedly.

1. While the disc is playing, press the A-B button at the beginning of the section ( is displayed) you want to play repeatedly.

2. Press the A-B button again at the end of the section ( is displayed) you want to play repeatedly.

3. The unit will immediately begin replaying your selection.

To resume normal playback

4. While the disc is playing, press the A-B button until the “ ” indicator displays on the screen.

NOTE

• A-B repeat can only be used within the same title. If the start and end of the section to be repeated are

in different titles, A-B repeat is cancelled.

• The A-B repeat function does not operate in scenes where different camera angles are recorded.

PROGRAMMABLE MEMORY Title/Chapter programmed playback (DVD)

1. Press the MEMORY button in PLAY mode. A screen will be shown as right.

2. Press the

button to highlight the Title. Press the or button to choose the desired title. Press the button again to highlight the Chapter. Press the or button to choose the desired Chapter. Press the ENTER•OK button to conrm. The highlight bar will move to the next item automatically.

3. Repeat step 2 to add additional titles and chapters.

4. Press the

PLAY button to start the programmed playback.

Select Play Clear

DVD PROGRAMMABLE PLAYBACK

- 27 -

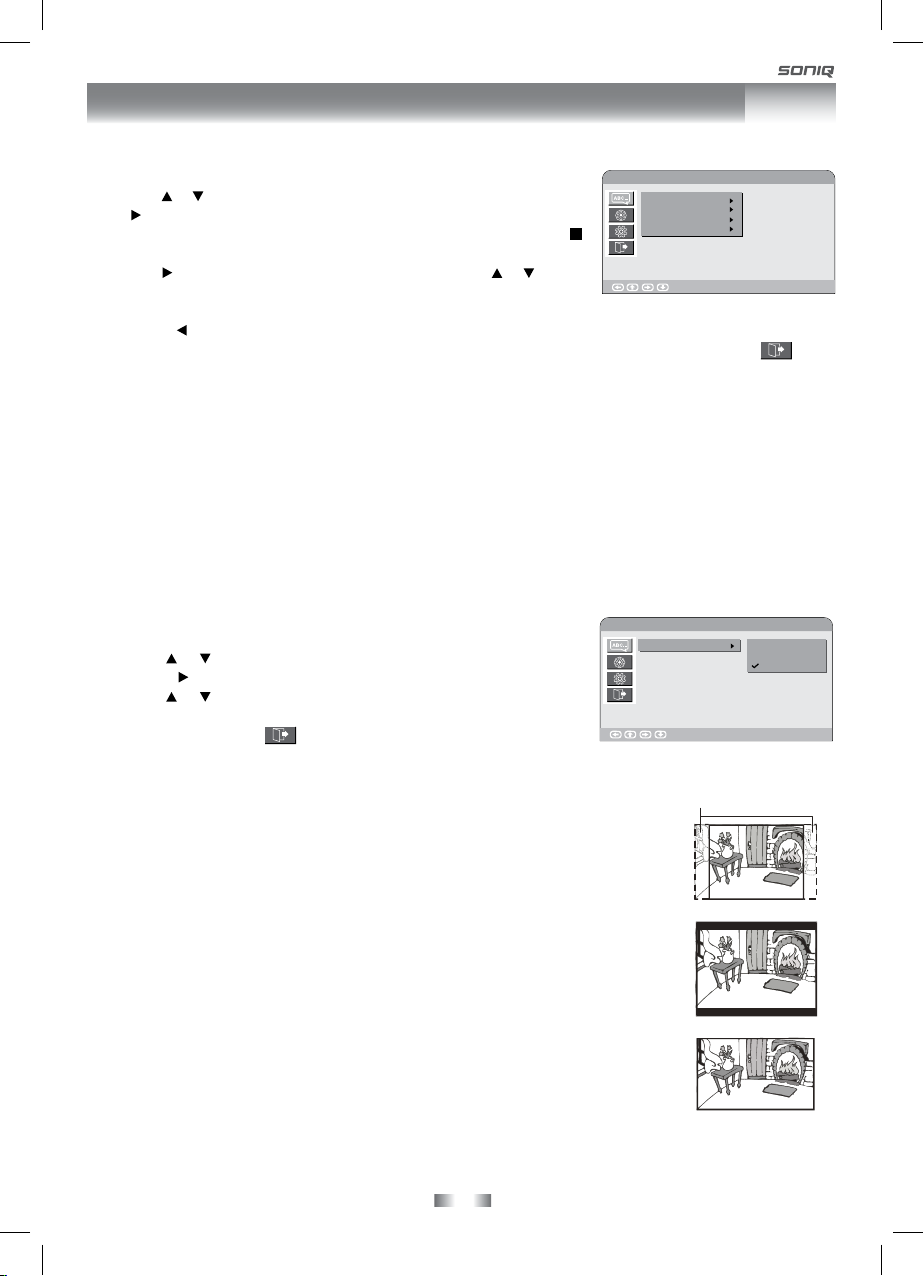

CUSTOMIZING THE DVD FUNCTION SETTINGS

NOTE

• Some DVDs may not play in the audio language you selected. A prior language may be programmed on the

disc.

• Some DVDs may be set to display subtitles in a language other than the one you selected. A prior subtitle

language may be programmed on the disc.

• Some DVDs allow to change subtitle selections only via the disc menu. If this is the case, press the DVD MENU button and choose the appropriate subtitle from the selection on the disc menu.

• Some DVDs may not included your pre-selected language. In this case, the DVD player automatically

displays disc menus consistent with the disc’s initial language setting.

Cut off when a wide-screen video image is played.

Pan Scan

Letter Box

Wide-screen

LANGUAGE SETUP

1. In Stop mode, press the SETUP button.

2. Use the or button to select the option Language Setup, then press

the button to move the highlight bar on OSD Language. (Note that Audio, Subtitle and DVD Menu can be activated by pressing the STOP button twice.)

3. Use the button to move the highlight bar, then use the or button

to select your preferred language, and press the ENTER•OK button

to conrm.

4. Press the button to go back to the previous menu. Repeat steps 2 and 3 to adjust other options.

5. To exit the SETUP MENU and return to the normal screen, highlight the Exit Setup Mode ( ) and

press the ENTER•OK button.

Language Setup

Enter : Select

OSD Language Audio Subtitle DVD Menu

VIDEO SETUP

1. In Stop mode, press the SETUP button.

2. Use the or button to select the Video Setup.

3. Press the button to highlight the TV TYPE.

4. Use the or button to select the desired TV type.

5. To exit the SETUP MENU and return to the normal screen, highlight

the Exit Setup Mode ( ) and press the ENTER•OK button.

TV TYPE

Pan Scan

• When wide-screen video is played, this mode clips the right and left sides of the

image so that it can be viewed on a conventional screen.

• Some wide-screen DVDs that do not permit Pan Scan mode playback are

automatically played in letterbox mode (black bands that appear at the top and bottom of the screen).

Letter Box

• When wide-screen video is played in this mode on a conventional screen, black

bands appear at the top and bottom of the screen.

Wide screen

• This is the correct mode for playing wide-screen videos on the unit or other

external wide-screens.

NOTE

• The displayable picture size is preset on the DVD. Therefore the playback picture

of some DVDs may not conform to the picture size you select.

• When you play DVDs recorded in the 4:3 aspect ratio, the playback picture will

always appears in the 4:3 aspect ratio regardless of the TV TYPE setting.

• If the screen mode is still not correct, press the LCD MODE button repeatedly to

adjust it.

Video Setup

TV Type Pan Scan

Letter Box Wide Screen

Enter : Select

- 28 -

MAINTENANCE

Default

It takes 3-5 seconds to reset the unit to the factory default.

Parental Ctrl

DVDs are rated according to their content and some are equipped with a password function. The contents allowed by parental lock level and the way a DVD is controlled may vary from disc to disc. For example, if the disc allows, you could lockout violent scenes unsuitable for children or you could lock out playback of the disc altogether.

You cannot play password function equipped DVDs rated higher than the level you selected unless you cancel the parental lock function.

The parental lock levels are equivalent to the following ratings.

Level 1 : Kid Safe Level 5 : Pg r (M)

Level 2 : G Level 6 : R (MA 15+)

Level 3 : Pg Level 7 : Nc 17 (R) Level 4 : Pg 13 Level 8 : Adult

CLEANING THE DISC

A defective or dirty disc inserted into the unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges.

• Do NOT touch the surface of the unlabeled side of the disc.

• Do NOT stick paper or tape on the surface of the disc.

• Do NOT expose the disc to direct sunlight or excessive heat.

• Clean the disc before playback. Wipe the disc from the center outward with a cleaning cloth.

• NEVER use solvents such as benzene or alcohol to clean the disc.

• Do NOT use irregular shape discs (example: heart shaped, octagonal, etc.). They may cause malfunctions.

CLEANING THE UNIT

• Be sure to turn the unit off and disconnect the AC power cord before cleaning the unit.

• Wipe the unit with a dry soft cloth. If the surfaces are extremely dirty, wipe clean with a cloth which has

been dipped in a weak soap-and-water solution and wrung out thoroughly. Then wipe it with a dry cloth.

• Never use alcohol, benzine, paint-thinner, cleaning uid or other chemicals. Do NOT use compressed air

to remove dust.

IMPORTANT NOTE

Before shipping the unit, remove any disc from the disc compartment.

Password

Use or button to shift and select PASSWORD, use button to “Change”. Enter your 4-digit security code until the cursor to OK. Press the ENTER/OK button.

If you forget the password, you can erase your current password by pressing number button

8 on the remote four times, then press the ENTER/OK button to conrm the setting

(PASSWORD : 8 8 8 8).

SYSTEM SETUP

1. In Stop mode, press the SETUP button.

2. Use the or button to select the System Setup, then press the button to enter.

3. Use the or button to highlight the option (Parental Ctrl, Password or Default), then press the button to enter.

4. Use the or button to select the desired setup option.

5. To exit the SETUP MENU and return to the normal screen, highlight the Exit Setup Mode ( ) and press the ENTER•OK button.

Parental Ctrl Password ... Default

1 Kid Safe 2 G 3 Pg 4 Pg 13 5 Pg r 6 R 7 Nc 1 8 Adult

CUSTOMIZING THE DVD FUNCTION SETTINGS

- 29 -

1. Open the iPod docking door.

2. Insert your iPod into the connector in the dock.

3. Press the DVD/iPod button to select the iPod mode. Your iPod

will be connected automatically, and iPod Home menu appears.

NOTES

• Your iPod will charge automatically (until fully charged) once it is

connected, no matter whether the unit is in iPod mode or not.

• Make sure the software of iPod is the latest.

WARNING: To prevent damage to the unit and/or your iPod, connect or remove your iPod when the unit is powered off or the unit is not in iPod mode.

When playing iPod, no picture will be shown on TV

Before docking your iPod.

MAKE SURE your iPod has the latest FIRMWARE.

USING TO YOUR iPOD

CONNECTING YOUR iPod

PLAYING MUSIC

1. In iPod Home menu, use the / button to select Music and press

the ENTER•OK button.

2. Use the / button to select from Playlists, Artists, Albums,

Songs, Genres or Composers. Press the ENTER•OK button twice to enter.

3. Use the / button to navigate the iPod menu lists and select a

song, press the ENTER•OK button to begin playback. (If necessary, use the control wheel and keys on your iPod to operate it.)

• Press the PAUSE button to pause, press the PLAY button

to resume.

• Press the / button to skip to the previous / next song.

• Press the / button to begin fast reverse / forward, press the PLAY button to resume normal

playback.

• Press the + VOL – buttons to adjust the volume.

4. Press the iPod RETURN button on remote control to go back to the previous menu.

PLAYING VIDEOS

1. In iPod Home menu, use the / button to select Videos and press

the ENTER•OK button.

2. Use the / button to select from Movies, Music Videos, TV

Shows, Video Podcasts, Rentals. Press the ENTER•OK button

to enter. (“Please navigate directly from your iPod” appears on the

screen if you are using an iPod touch.)

3. Use the / button to navigate the iPod menu lists and select a

video, press the ENTER•OK button to begin playback. (If necessary, use the control wheel and keys on your iPod to operate it.)

• Press the PAUSE button to pause, press the PLAY button to resume.

• Press the / button to skip to the previous / next video.

• Press the / button to begin fast reverse/forward, press the PLAY button to resume normal

playback.

• Press the + VOL – buttons to adjust the volume.

4. Press the iPod RETURN button three time on remote control to go back to the previous menu.

Docking System for iPod Please Insert iPod

Music

Photos

Videos

Settings

Home

Docking System for iPod Please Insert iPod

Music

Photos

Videos

Settings

Home

Docking System for iPod Please Insert iPod

Music

Photos

Videos

Settings

Home

- 30 -

Using a iPod Classic / iPod Nano 3rd generation to watch the video

1. Press the / button on remote control to select “Videos” on iPod panel, and then press the ENTER•OK

button on remote control to conrm.

2. Use the

/ button on remote control to select from Movies, Rentals, TV Shows, Music Videos, Video

Playlists or Settings, and then press the ENTER•OK button on remote control.

3. Press the

/ button on remote control to select your preference, and then press the ENTER•OK button

on remote control.

• Press the PAUSE button on remote control to pause, press the PLAY button on remote control to

resume.

• Press the / button on remote control to skip to the previous / next track.

• Press the / button on remote control to begin fast reverse / forward, press the PLAY button

on remote control to resume normal playback.

• Press the + VOL – buttons on remote control to adjust the volume.

4. Press the iPod SWITCH button twice on remote control to end the video viewing and go back to the

previous menu or press the iPod RETURN button three time on remote control to go back to the previous screen.

NOTE Make sure TV Out in iPod is set to ON when you are playing the video.

Using a iPod Touch to watch the video

1. Touch the “Videos” selection on iPod panel directly with your nger.

2. Select your preference on iPod panel, and then touch the Video.

3. The video will appear on the screen.

• Press th

e PAUSE button on remote control to pause, press the PLAY button on remote control to

resume.

• Press the button on remote control to skip to the next track.

• Press the / button on remote control to begin fast reverse / forward, press the PLAY button on

remote control to resume normal playback.

• Press the + VOL – buttons on remote control to adjust the volume.

4. Press the iPod SWITCH button on remote control to end the video viewing and go back to the previous

menu.

USING TO YOUR iPOD

- 31 -

PLAYING PHOTOS

1. In iPod Home menu, use the / button to select Photos and press the ENTER•OK button. “Plesae navigate directly on your iPod OR Press the [ iPod SWITCH ] key to go back to main menu” appears on the screen.

2.Use the / button to navigate the iPod menu lists and select a photo, press the ENTER•OK button twice to begin playback. (If necessary, use the control wheel and keys on your iPod to operate it.)

• Press the PAUSE button to pause, press the PLAY button to resume.

• Press the / button to skip to the previous / next photo.

3. Press the iPod RETURN button on remote control to go back to the previous menu.

Using a iPod Classic / iPod Nano to view the photo

1. Press the / button on remote control to select “Photos” on iPod panel, and then press the ENTER•OK button to conrm.

2. Use the , button on remote control to select a photo.

3. Press the ENTER•OK button on remote control twice to activate photo showing to TV screen.

• Press the PAUSE button on remote control to pause, press the PLAY button on remote control to

resume.

• Press the / button on remote control to skip to the previous / next photo.

4. Press the iPod SWITCH button on remote control to end the photo viewing and go back to the previous menu or press the iPod RETURN button on remote control to go back to the previous screen.

NOTE Make sure video out is activated in the photo mode of iPod Classic or iPod Nano.

Using a iPod Touch to view the photo

1. Touch the “Photos” selection on iPod panel directly with your nger, and then select the photo your

preference.

2. Touch the “ ” on iPod panel to conrm the photo.

3. The photo will appear on the screen.

• Touch the

PAUSE button on iPod panel to pause, touch the PLAY button to resume.

• Touch the / button on iPod panel to skip to the previous / next photo.

4. Press the iPod SWITCH button on remote control to end the photo viewing and go back to the previous menu.

USING TO YOUR iPOD

Docking System for iPod Please Insert iPod

Music

Photos

Videos

Settings

Home

- 32 -

WARNING Due to the iPod limitation, not all functions of some iPod models can be controlled via the remote control.

If the above screen appears, you need to press the iPod SWITCH button on remote control to control the iPod library directly from your iPod via remote control.

SETTINGS

1. In iPod Home menu, use the / button to select Settings and press the ENTER•OK button.

2. Use the / button to select from Shufe, Repeat or Language. Press the ENTER•OK button to enter the settings.

3. Use the

/ button to a setting, press the ENTER•OK button to

conrm.

4. Press the iPod RETURN button on remote control to go back to the previous menu.

• Shufe : Select from Shufe Off, Shufe Songs and Shufe

Albums.

• Repeat : Select from Repeat Off, Repeat One and Repeat All.

• Language : Select OSD language.

Please navigate directly on your iPod

Press the [ iPod SWITCH ] key

to go back to main menu

USING TO YOUR iPOD

Docking System for iPod Please Insert iPod

Music

Photos

Videos

Settings

Home

- 33 -

TROUBLESHOOTING GUIDE

SYMPTOM CAUSE (AND REMEDY)

The remote does not function.

• Check that the AC power cord is connected.

• The unit is not turned on.

• Remove any obstacles between the remote and the unit.

• Use the remote near the unit.

• Point the remote at the remote sensor on the unit.

• Replace the batteries in the remote with new ones.

No power.

• Make sure that you select DVD mode.

• The system is in pause mode. Press the

PLAY button to return to normal

PLAY mode.

• Fast-forward or fast-reverse is performed. Press the

PLAY button to

return to normal play mode.

• Make sure the VIDEO output and AV IN input connections are correct.

• The unit is too hot, shut off the unit for 30 minutes to cool it down.

DVD

No soun d or onl y a very low- level sound is heard.

• The region number of the disc doesn’t match the region number of this

unit.

No picture.

The p i c t ure i s n ot clear.

• Clean the disc.

• The disc is scratched.

• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened

with alcohol.

• Clean the disc.

The d i s c doe s n o t play.

Severe hum or noise is heard.

• There is no disc inside (“No Disc” appears on the screen).

• Insert the disc correctly with the playback side facing frontwards.

• Clean the disc.

• A non-valid disc has been inserted. The unit and disc region number are

incompatible.

• Condensation may have formed inside the unit due to a sudden change in

temperature. Wait about an hour for it to clear and try again.

iPod

iP o d d o e s n ot d ock pro p e r l y o r does n o t install properly.

iPod does not respond to the speaker system.

• Remove your iPod from the dock and check for obstruction on the connectors in the dock and on your iPod.

• Make sure that your iPod is working properly before docking

into the unit. Please refer to your iPod manual for details.

- 34 -

SYMPTOM CAUSE (AND REMEDY)

TROUBLESHOOTING GUIDE

811-711991W210

Why have I lost some/ all of my channels?

• It happens sometimes, if you have a weak signal. Usually it just means

you’ll need to rescan your digital box or TV or adjust your antenna. And once you’ve done it, you should get all the free-to-air channels available to you. If problems persist you may need to get your aerial checked. Talk to your retailer or contact your local aerial installer.

• In most cases, blocking is caused by a reception problem - either the signal is too weak or there is some kind of interference. Talk to your retailer or contact your local aerial installer

• Some homes may be able to successfully a set top aerial. However, for a

much better reception, we strongly recommend you use a rooftop aerial.

• If you do not have access to a rooftop aerial - for example, if you rent a at and the aerial is the responsibility of your landlord, or if you’re using

a second TV in the bedroom and don’t want the hassle and expense of extension cables - a set-top aerial may be your only option.

Can I watch free-to-air channels using a portable set-top aerial?

• Check the location of the antenna and adjust it if necessary.

• Make sure the antenna cable is rmly connected.

• Make sure all input cables are rmly connected.

Bad Pi c t u r e ( s n o w, m u l t i p e i m a g e s , distortion, blurry)

• Check the PICTURE MENU within the TV/DTV SETUP.

• Check to make sure the program you are watching is broadcast in Color

and not Black & White.

Black and white picture.

• Make sure the unit is plugged in and turned on.

• Make sure TV mode is selected.

• Try a new channel to check for possible station trouble.

• Make sure the antenna is connected properly.

• Increase the volume.

• Make s

ure the antenna or audio video source device is working properly.

• Make sure all cables are rmly connected.

• Check for local interference.

No picture or sound.

• Make sure there are no unshielded electrical devices nearby that are causing

interference.

• Turn the unit off for 30 minutes, then try it again.

Coloured patches of picture.

Function key does not respond correctly.

• Under the influence of electrostatic phenomenon, the product may

malfunction and require user to power reset.

• Unplug and re-plug the AC power cord.

• If you are installing a new aerial, we recommend a wideband rooftop aerial

rather than a loft aerial. Loft aerials generally receive a weaker digital signal and are more likely to get interference from other electrical equipment in the home. We suggest you have an aerial survey done before getting an aerial upgrade.

Talk to your retailer or contact your local aerial installer.

What type of aerial do I need?

Why do I get ‘blocking’ on my digital picture?

- 35 -

SONIQ IV190T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
