Safety Instruction
Important Safety Instructions
WARNING
TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE AN EXTENSION CORD.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE PLUG TO WIDE
SLOT FULLY INSERTED.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This lightning flash with
arrowhead symbol in an
equilateral triangle alerts
users to presence of uninsulated dangerous
voltage within the products
enclosure that may be of
sufficient magnitude to
constitute a risk of
electric shock to persons.
WARNING: To reduce the
risk of electric shock, do
not remove cover (or back).
No user serviceable parts
inside. Refer servicing to
qualified service personnel.
The appliance should not be exposed to water and no object filled with liquid such
as a vase should be placed on the unit.
Important Information
If a television is not positioned in a sufficiently stable location, it can be potentially hazardous if it
falls. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
· Using cabinets or stands recommended by the manufacturer of the television.
· Only using furniture that can safely support the television.
· Ensuring the television is not overhanging the edge of the supporting furniture.
· No placing the television on tall furniture (for example, cupboards or bookcases) without
anchoring both the furniture and the television to a suitable support.
· Not standing the televisions on cloth or other materials places between the television and
supporting furniture.
· Educating children about the dangers of climbing on furniture to reach the television or its
controls.
· Figures and illustrations in this user manual are provided for reference only and may differ from
actual product appearance. Product design & specification may be changed without notice.
1 2
The exclamation mark within
an equilateral triangle alerts
users to the presence of
important operating and
maintenance (servicing)
instructions in the
literature accompanying the
appliance.
Safety Instruction
1. Read Instructions - All the safety and operating instructions should be read before
operating.
2. Retain Instructions - The safety and operating instructions should be retained for
future reference.
3. Warnings - All warnings on the appliance and in the operating
instructions should be adhered to.
4. Follow Instructions - All operating instructions should be
followed.
5. Earthing Connection - The TV shall be connected to a
MAINS socket outlet with a protective earthing connection.
6. Water and Moisture - The appliance should not be used near water.
7. Cart and Stands - The appliance should only be used with a cart or
stand that is recommended by the manufacturer.
8. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only
as recommended by the manufacturer.
9. Ventilation - The appliance should be well situated so that its location or position does
not interfere with its proper ventilation.
10. Heat - This appliance should be placed away from heat sources such as radiators,
heat registers and stoves.
11. Power Sources - The appliance should only be connected to a power supply as
described in the operating instructions as marked on the appliance.
12. Power Cord Protection - Power supply cord should be routed so that it is not likely
to be walked on, pinched by item placed upon it against the cord and its end.
13. Cleaning - The appliance should be cleaned only as recommended by the
manufacturer.
14. Power Lines - An outdoor antenna should be located away from power lines.
15. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver,
the antenna system must be grounded so as to provide against voltages and built-up
static charges.
16. Non-use Periods - The power cord of the appliance should be unplugged from the
outlet when left unused for a long period of time.
17. Conditions Requiring Service - The appliance should be serviced by qualified
service personnel when:
· The power-supply cord or the plug has been damaged.
· Objects have fallen on or liquid has been spilled into the appliance.
· The appliance has been exposed to rain.
· The appliance does not appear to operate normally or exhibits a
marked change in performance.
18. This appliance should not be exposed to water and no objects filled with liquids such
as a vase should be placed on the unit.
Safety Instruction
WARNING
High voltages are used in the operation of
this product. Do not remove the back cover
of the cabinet. Refer servicing to qualified
service personnel.
Safety Instruction
CAUTION
Do not place the main unit on an unstable
cart stand, shelf or table.
10cm
20cm
Minimun Distances
10cm
5cm
WARNING
To prevent fire or electrical shock hazard,
do not expose the main unit to rain or
moisture.
WARNING
Do not drop or push objects into the
television cabinet slots or openings. Never
spill any kind of liquid on the television
receiver.
CAUTION
If the television is to be built into a
compartment or similarly enclosed. The
minimum distances must be maintained.
Heat build up can reduce the service life
of your television, and can also be
dangerous.
CAUTION
When the product is not used for an
extended period of time, it is advisable to
disconnect the AC power cord from the
AC outlet.
CAUTION
Avoid exposing the main unit to direct sunlight
and other sources of heat. Do not position
television receiver directly on other products
which give off heat.E.g. video cassette players,
audio amplifiers. Do not block the ventilation
holes in the back cover.Ventilation is essential
to prevent electrical failure.Do not squash power
supply cord under the main unit.
CAUTION
The panel used in this product is made of
glass.
It can break when the product is dropped
or applied with force.
CAUTION
Never stand or lean on product or its stand
or push suddenly. Always pay special attention
when children are near product to avoid harm.
3 4
Introduction
Remote Control
Thank you for purchasing this unit. Your unit will bring you years of high-quality viewing
enjoyment. The television is easy to operate and provides an exceptionally high quality
image. The manual will explain the operation of the unit, including its functions, features
and other important features. Before installing or operating your unit, please take the
time to thoroughly read this manual, particularly the sections on safety.
Package Contents
1pc Main Unit
1pc Main Unit
1pc Remote
Control
1pc Stand
For Model : E42S14A
1pc Stand
For Model : E47S14A and E55S14A
1pc AV Cable 1pc YUV Cable
4pcs 3D Glasses 1pc Remote Receive
Screws : 4x12mm BM(x7)
Screws : 4x25mm PWA(x7)
Remote Control Key Functions
Power Button
Turns the TV On/Off or to
the standby mode.
AUDIO Button
Press to select sound
output mode.
MENU Button
Press to enter the main
menu.
NAVIGATION/OK Button
Scrolls through menus or
OK
options.
OK : Selects menus or
options and confirms
your input.
EXIT Button
Return back to the previous
menu under Smart function.
Exit all OSD menu.
3D Button
Press to open 3D setting
menu.
+
ON/OFF Switch
The power of the Remote Control
Indicator 2 : Pairing light/
Button
To adjust the volume.
Low Power
Indicator
INDICATOR LIGHT 3
Code sending indicator
light.
MUTE Button
Turn on or off the sound.
SUBTITLE Button
Displays your preferred
subtitle in DTV mode.
SOURCE Button
Press to display all
possible input sources.
INFO Button
1
Displays the information of
the current program.
EPG Button
Open or close EPG menu
in DTV mode.
HOME Button
To access the HOME page.
Button
Scrolls through the saved
program.
REC Button
Use to record a program in
DTV mode.
Press and hold this button
for three seconds to display
PVR Setting list.
COLOUR FUNCTION Button
To obtain the special functions
from certain menus.
MICRO USB PORT
Charging port of remote control.
Indicator 1：
Charging light for Remote
Control.
1pc Warranty
Card
1pc Quick
Installation
1pc USB extension cord
1pc USB Cable
5 6
Remote Control for Smart TV
Remote Control for Smart TV
Remote Control
ESC Button
ESC
Return to the previous menu
under the Smart menu. Press
to exit all OSD menu.
HOME Button
F1
To access the HOME page.
ANDROID MENU Button
F2
Press to display the menu.
CAPS Button
Caps Lock button, switch
between capital and lower
case when inputting English
character.
F3
APPLICATION ICON Button
Press to enter all Apps
interface.
SEARCH Button
F4
Press to search the web
page.
F6
F5
COLOR Button
to obtain the special functions
certain menus.
F7
of
Remote Control Function
Remote Control
1. Connect 2.4G QT166 RF Dongle (Support signal reception of 360 degrees) to the USB port on
F8
the TV.
2. Turn the power switch to ON from the left side of the Remote Control, the indicator light 3 will
flash 3 times, now you can operate the Remote Control.
3. RF Remote Control is supplied with lithium battery.
Please charge in time in case of low battery notifier when you initially use.
4. Plug in USB cable (supplied with the TV) for charging, then connect to the Remote Control/PC/
Adaptor with the current of 5V/1A. Indicator light 1 lights up, when fully
charged the indicator
light 1 will go out.
Note:
Problem occurs and the RF Remote Control does not
work or arrow jumping.etc. it may have been interfered
by the nearby wireless network. In order to solve this
problem, please use the USB extension cord in the
packaging to connect the 2.4G QT166 RF Dongle to the
TV port, and at the same time keep the 2.4G Qt166 RF
Dongle away from the unit without being blocked.
USB extension cord
FN Button
Fn
Compound function key
LEFT MOUSE Button
Return previous step.
SHIFT Button
Shift
Switch between capital, lower
case or shift key.
F1 to F8 Buttons
Function Key
SPACE Button
SPACE
Has the space function.
RF Button
RF
Pairing key used for pairing
the remote control and
QT166 RF Dongle.
OFN
Has the mouse
function.
DEL Button
Delete Key
GO/ENTER Button
GO
ENTER
Selection confirmed key
RIGHT MOUSE Button
Return previous step.
* Remark : Others are Digits, Character, Symbolic Buttons.
7 8
Left Side of
Remote Control
Power
Switch
Front Panel of
Remote Control
Indicator 2
Right Side of
Remote Control
Indicator 3
USB Cable
Remote Control Function
Main Unit Control
RF Remote Control pairing
The Remote Control has been paired completely for your convenience. Users do not
need to process this step again under normal condition, but if it does not work with
battery fully charged or if you have replaced Remote Control or RF Dongle before
operating you should follow the below steps for paring:
1. Turn on the power at the left side of Remote Control
(pairing can be effective in one minute), as RF has low
power consumption during pairing, distance must be
controlled within half an meter.
2. Press and hold RF Button for 2 seconds, indicator
light3 will flash and light up together with indicator light 2.
3. Plug RF Dongle to the USB port on TV/USB port on the
computer.
4. Pairing can be finished within 3 minutes, if indicator
light 3 and 2 flashes 3 times, that means two devices
have been paired successfully. If indicator light lights up
all the time or goes out, that means failed pairing.
So please unplug the RF Dongle, and repeat the above
steps for pairing.
When using the Remote Control, please note:
· Do not strike or drop the Remote.
· Do not expose the Remote Control to liquids and do not
place it in humid environments.
· Do not install or place the Remote Control in direct sunlight,
· the heat may damage the Remote Control.
Side View
Power
Switch
Front Panel
Front View Back View
No.
1
2
3
4
5
6
Name
Remote Control
Sensor Window
Power Indicator
VOL
CH
SOURCE
MENU
Description
Receives the signal from the Remote Control. Do not
put any objects in front of the window in order not to
hinder the reception of signal.
Flashes red when the unit is powered on:
Lights up red when the unit is in standby mode.
Press VOL + to increase volume, or VOL - to decrease.
At the OSD menu, press these buttons to move the
selection focus left and right to change settings.
Press these buttons to sequentially select channels.
When the OSD menu is on, press these buttons to
move the selection focus up or down to change settings.
Press to display all possible input signal sources.
Press to cycle through various sources.
Press this button to display the OSD menu.
When the OSD menu is on, press this button to exit the
menu.
9 10
Press this button to turn the unit on when it is in standby
7
STANDBY
mode.
Press this button once more to put it to standby mode.
Main Unit Control
Connection and Setup
Rear Panel
No.
1
2
3
4
5
6
7
8
ETHERNET
HDMI1/HDMI2
VGA AUDIO IN
COMPONENT IN
R-L-VIDEO VIDEO 1 IN
Y Pb Pr
AUDIO IN
USB
VGA
VIDEO
1 2
2
R - L - VIDEO
ETHERNET
1
AV 2 IN
L
R
VGA
3 4 7 85 6
AV OUT
USB3.0
R - L - VIDEO
AV 1 IN
4
9 1110 12 13 14 15
Name Description
Connect it to the home network.
Connect the HDMI cable.
VGA
ANT IN
USB
Connect the PC VGA cable of your personal computer.
DVI or PC VGA audio input.
Connect the component video signal.
Connect the audio and video output of your AV equipment to the unit
using the AV cable included in the spare part.
Connect to external antenna.
Connect USB device, such as USB disk, HID and so on.
Connecting the Power Cord
ANT IN
3
DIGITAL
USB
Connect the power cord directly to the wall outlet.
Wall Outlet
(OPTICAL)
AUDIO OUT
Power Cord
The product must be operated only from the type of power sources indicated on the
marking lable (100-240V AC, 50Hz/60Hz.)
If the unit will not be used for a long period of time, it should be unplugged from the
wall outlet.
HDMl VGA/PC Connection
Y Pb Pr
ETHERNET
1 2
VGA
VGA
AUDIO IN
R - L - VIDEO
AV 1 IN
ANT IN
USB
9
10
11
12
13
14
15
AV IN
SD/MMC
AV/OUT
USB 3.0
USB
HDMI 3
DIGITAL AUDIO OUT
OPTICAL
Connect the audio and video output of your AV equipment to the unit.
SD/MMC card reader slot.
Connect the audio and video input of your AV equipment to the unit.
Connect for media files playback and program recording.
Not compatible with USB1.1.
Connect for media files playback and program recording.
Connect the HDMI signal.
Connect the OPTICAL to the Audio Amplifier using an optical cable.
11 12
Connection and SetupConnection and Setup
Component Connection
ETHERNET
1 2
Back side of DVD player
AV IN/OUT Connection
AV 2 IN
L
R
VIDEO
AV OUT
R - L - VIDEO
Component (YPbPr)
Connection
Y Pb Pr
VGA
VGA
AUDIO IN
R - L - VIDEO
Component Video Cable
(included) (included)
Red
Blue
Green
DVD player
USB3.0
USB
4
AV 1 IN
ANT IN
Audio (AV) Cable
White
Yellow
3
Red
DIGITAL
Y Pb Pr
USB
ETHERNET
1 2
VGA
VGA
AUDIO IN
R - L - VIDEO
AV 1 IN
ANT IN
USB
Audio (AV) Cable
(included)
Red
White
Yellow
Back side of DVD player
DVD player
Optical Connection
(OPTICAL)
AUDIO OUT
AV 2 IN
L
R
VIDEO
AV OUT
R - L - VIDEO
USB3.0
USB
4
3
(OPTICAL)
DIGITAL
AUDIO OUT
AV Cable
Monitor
RRLLVIDEO
Video/Audio Output
VIDEO
Video/Audio Output
13 14
Cables are not included in package
Optical input
Connection and SetupConnection and Setup
ANT IN Connection
Y Pb Pr
ETHERNET
1 2
VGA
VGA
AUDIO IN
R - L - VIDEO
AV 1 IN
ANT IN
USB
Connecting the USB Device
Insert the USB directly to the unit.
1. Please do not turn off the TV or unplug the USB device when the connected
USB storage device is working. When such device is suddenly separated or
unplugged, the stored files or the USB storage device may be damaged.
AV 2 IN
L
R
VIDEO
AV OUT
R - L - VIDEO
USB3.0
USB
4
USB Device
2.4G QT166 RF DONGLE
3
(OPTICAL)
DIGITAL
AUDIO OUT
Precautions when using the USB device
1. Please do not turn off the TV or unplug the USB device when the USB is connected.
When such device is suddenly separated or unplugged, the stored files or the USB storage device
may be damaged.
2. Please use only USB storage devices that are formatted as a FAT32 file system, otherwise it may
not be recognized.
3. Every USB port only supply 500mA electric current, if the user’s device requirement is over the
specification, users need to choose to connect to the external power supply, otherwise the device
may not be recognized.
4. If the USB HDD does not have an external power supply, the USB device may not be detected.
So be sure to connect the external power supply.
5. The recommended capacity is 2TB or less for a USB external hard disk and 32GB or less for USB
flash memory.
6. The recognition speed of a USB storage device may depend on each device.
7. Please connect a USB storage device with the cable offered by the device maker.
8. Be sure to back up important files since data stored in a USB memory device may be damaged.
We will not be responsible for any data loss.
9. If your USB memory device has multiple partitions, or if you use a USB multi-card reader, you can
use up to 4 partitions or USB memory devices.
10. If the USB memory device does not work properly, disconnect and reconnect it. How fast a USB
memory device is detected differs from device to device.
11. If the USB is connected in Standby Mode, specific hard disk will automatically be loaded when the
TV is turned on.
12. Any device with more than the recommended capacity may not work properly.
Ethernet/SD/MMC Connection
AV 2 IN
L
R
VIDEO
AV OUT
R - L - VIDEO
USB3.0
USB
4
3
(OPTICAL)
DIGITAL
AUDIO OUT
Remark:
The 2.4G USB Device QT166 RF Dongle should be inserted inside
the TV before
operating.
Don’t remove the RF Dongle. Otherwise, the Remote Control cannot be used.
15 16
ETHERNET
1 2
Y Pb Pr
VGA
VGA
AUDIO IN
R - L - VIDEO
AV 1 IN
ANT IN
USB
Smart TV Function Smart TV Function
Accessing HOME menu
Turning on the TV will automatically enter HOME menu, or you can either press
HOME Button to access the HOME menu.
Every time when you enter or return to the HOME page, you will see a “run” key
at the bottom right corner of the current functional area which will disappear
after flashing for 5 seconds.
HOME Button
HOME Button
No.
1
2
3
4
Member registration and log in
Current time and network status
Switchover input sources
The current playing video or programme
3
4
5
Description
1 2
6
8
7
9
Hot Key operation at HOME page
3 5
1 2
4
5
6
7
8
9
Application program section
Online shop information release 1
Online shop information release 2
Favourites
Weather
Favourites section operation
Operation for adding application: Select your favourite application from the ALL APPS interface.
Press and Hold the Left Return Button on the needed short cut icon for a second to add it to the
column.
Operation for deleting this application: Press and Hold the Left Return Button on the icon required
to be deleted for a second, the selected one can be deleted.
17 18
No.
F1
F5
F6
F7
F8
Description
Press HOME Button on the Remote Control to play the current
1
program in full screen/return to the HOME page.
Cursor positioning key, which will position at bottom on the first
2
Cinavision.
Press Green key to quick select the recent visited application.
3
TV default preferences, can not be covered.
Press Yellow Key to view the range of SONIQ Products.
4
Press Blue Key to visit the website of .SONIQ
5
Smart TV Function
Smart TV Function
Network Connection
Remark: Network speed requirement is very important to this TV. Please keep network
open, if there are any problems with your network connection please contact
your internet provider or refer to router manual.
Connecting to wired network
Connect the TV to a local area network (LAN) via the LAN port as shown in the following
illustration and set up the network settings.
If wired and wireless networks are both available, wired is the preferred method.
After making a physical connection, a small number of home networks may require the
TV network settings to be adjusted.
For most home networks, the TV will connect automatically without any adjustments.
For detailed information, contact your internet provider or refer to router manual.
The methods of setting up network settings:
HOME - > Settings - > Network and location settings - > Ethernet settings
1. Automatically connect the Ethernet: Ethernet has been confirmed, mark on Obtain IP
2. IP Manual Settings: Set the IP address manually, input IP address, Subnet mask,
Default Gateway. Primary DNS and Secondary DNS, then
Save to connect
the network.
address automatically, the TV will automatically
acquire an IP address to connect to the network.
press
Connect to wireless network
Setting up the AP (Access Point) or the wireless
router is required before connecting the TV to
the network.
The network configuration and connection method
may vary depending on the equipment in use and
the network environment. Refer to the setup
instructions supplied with your access point or
wireless router for detailed connection steps and
network settings.
CAUTION
Do not connect a modular phone cable to the LAN port.
Since there are various connection methods, please follow the specifications of your
telecommunication carrier or internet service provider.
19 20
The methods of setting up wireless connection:
HOME - > Settings - > Network and location settings - > Wi-Fi direct
1. Select Wi-Fi, then the system will automatically scan all the AP and wireless
routers within the scope and then display the device list.
2. Select an AP and wireless router and input the password for saving, then the
network can be available.
3. This TV includes wireless mode and has wi-fi function.
Smart TV Function Smart TV Function
Tips for Network Settings
Use a standard LAN cable with a connector.
Many network connection problems during set up can often be fixed by re-setting the
router or modem. After connection to the home network, quickly power off
and / or disconnect the power cable of the home network router or cable modem. Then
power on and / or connect the power cable again.
Depending on the internet service provider (ISP), the number of devices that can
receive internet service may be limited by the applicable terms of service. For details,
contact your ISP.
We are not responsible for any malfunction of the TV and / or the internet connection
feature due to communication errors / malfunctions associated with your broadband
internet connection, or other connected equipment.
We are not responsible for problems within your internet connection.
Some content available through the network connection may not be compatible with
the TV.
You may experience undesired results if the network connection speed does not meet
the requirements of the content being accessed.
Some internet connection operations may not be possible due to certain restrictions
set by the internet service provider (ISP) supplying your broadband internet connection.
A 10 Base-T or 100 Base-TX LAN port is required when using a wired connection to
this TV. If your internet service does not allow for such a connection, you will not be
able to connect the TV.
ADSL modem is required to use DSL service and a cable modem is required to use
cable modem service. Depending on the access method of and subscriber agreement
with your ISP, you may not be able to use the internet connection feature contained in
the TV or you may be limited to the number of devices you can connect at the same time.
(If your ISP limits sub-scription to one device, this TV may not be allowed to connect
when a PC is already connected.)
The wireless network operates at 2.4GHz radio frequencies that are also used by other
household devices such as cordless telephone, Bluetooth devices, microwave oven,
and can be affected by interference from them.
It may reduce the service speed using wireless network by surrounding wireless
condition.
Turn off all unused network equipment in your local home network. Some devices may
generate network traffic.
In some instances, placing the wireless router or access point higher up away from the
floor may improve the reception.
The reception quality over wireless depends on many factors such as type of the
access point, distance between the TV and access point, and the location of the TV.
To connect wireless AP, and AP that supports the wireless connection is necessary,
and the wireless connection.
Function of the AP needs to be activated. Please enquire to the AP supplier for the
possibility of AP wireless connections.
Please verify the security settings of AP SSID for wireless AP connection, and
enquire to the AP supplier for the AP SSID security settings.
The TV can become slower or malfunction with wrong settings of network
equipments (wired / wireless router, hub, etc).
Please install correctly by referring to the manual of the equipment, and set the
network.
When AP is set it include 802. 11n, and if Encryption is designated as WEP or
WPA(TKIP / AES) and WPA2 hardware encryption schemes, the connection may not be
possible. There may be different connection methods according to the AP manufactures.
Wi-Fi Direct
HOME - > Settings - > Network and location settings - > Wi-Fi direct
The connected device must acquire the Wi-Fi Direct certificate.
Wi-Fi Direct can at any time realize interconnection without the help of Wi-Fi router and
AP.
1. Make sure the Wi-Fi Direct is enabled both on TV and the connected device.
2. Enable the Wi-Fi Direct at the connected device.
3. The devices which are available for TV connection display in the window list.
4. Select the device you are willing to connect to the TV then choose YES if connecting
request appears.
5. If the connected device accepts the request, then the connecting setup has been done.
21 22
Smart TV Function Smart TV Function
Wi-Fi Hotspot
HOME - > Settings - > Network and location settings - > Wi-Fi hotspot
First, assure TV is connected to wired network. Then to get mobile phone or notebook
connected to TV. Specific operations are as follows:
1. Make sure the Wi-Fi hotspot on TV is enabled.
2. Select settings to input the SSID and password. Choose Save to complete the
settings.
3. Use mobile phone and notebook to search TV Wi-Fi hotspot, and then input the
password.
Connection has been completed.
Note: Should you change the password, the
modified password should contain at
least 8 characters.
ALL Apps
Press the NAVIGATION Buttons to scroll to the ALL Apps and press OK, from the
displayed window you can operate any of the downloaded apps.
Application Management
Please insert the SD card before applying this function.
Apps Installation:
Install the apps that you want from the on-line shop.
1. The procedure for registration on cinavision are as follows:
1.1 Click on the login at the top of the HOME page.
1.2 Select register and obey the clause.
1.3 Input the user name, e-mail and password, then confirm the password.
1.4 Registration completed after being confirmed.
2. Click on the Login at the top of the HOME page, input e-mail and password to log in
to visit the on-line shop.
On-line apps can be downloaded through
HOME - > Market - > Apps
2.1 Choose the application that you need from the list.
2.2 Check the related information about the application, select install.
2.3 The installed application will display at interface of ALL Apps, click one of them
for running.
2.4 If there is not enough space on the
TV you can download the application
into the SD card for running.
Application Uninstall / Move
1. Find the application that you want to uninstall or move through the method of
HOME - > Settings - > Application management - >All applications
System provided application
can not be uninstalled.
2. Open the application, then
select Uninstall / Move.
Environment Selection
Initial setup window will appear when you first start to use , choose the setting mode
you want.
You can either choose to select HOME USE or DEMO.
HOME USE: To use this TV at home without demonstrating any advertisements.
DEMO: To use this TV for in-stone demonstration with digital adverts. (Please do not
select this mode when using at home.)
Users can switch between these two modes by
following the below method. Press HOME
Button to enter the HOME menu, click on Settings
will pop up to System settings, go to
Environment selection from the displayed window,
you can cycle through the two different
mode by pressing Up and Down Button, then press
OK Button to confirm.
To use this TV for instore demonstration,
select (Demo).
23 24
Smart TV Function Smart TV Function
Browser
HOME
Button
Up or Down Buttons
Note: When DEMO Mode is executed, please first press EXIT Button to
exit then follow the above operation by going to Settings then
enter Environment selection for closing.
File Explorer
To enter File Explorer interface by HOME - > All Apps - > File Explorer
1. Click on the Menu Icon at the top right of the screen or
MENU Button on the Remote Control to display the
edit menu; then continue with the related operation.
Menu Icon
MENU
Button
To open Browser click on HOME - > Browser
Website can be entered by(keyboard on the Remote Control / keyboard on the TV
screen / external keyboard), you can view the website on the TV.
Add the Bookmark
Click on the (Star Icon) at the top right of the page to display a page, from which you
can add bookmarks, view visited history.
Bookmark this page
Label
Address
Account
Add to
Google
http://www.google.co.in/
Local
Bookmarks
2. Select a file, then press and hold the LEFT MOUSE Button or “OK” Button for
2
seconds to have related operation on the selected file.
Left Mouse Button
25 26
Cancel OK
Media:
This function can allow you to view the shared media from the memory storage.
Note: Before operating Media function, plug in USB device.
HOME - > Media
Press Navigation Button to view the shared media in the category.
Navigation
Button
Smart TV Function Smart TV Function
Press OK Button to play or Exit to exit
OK Button

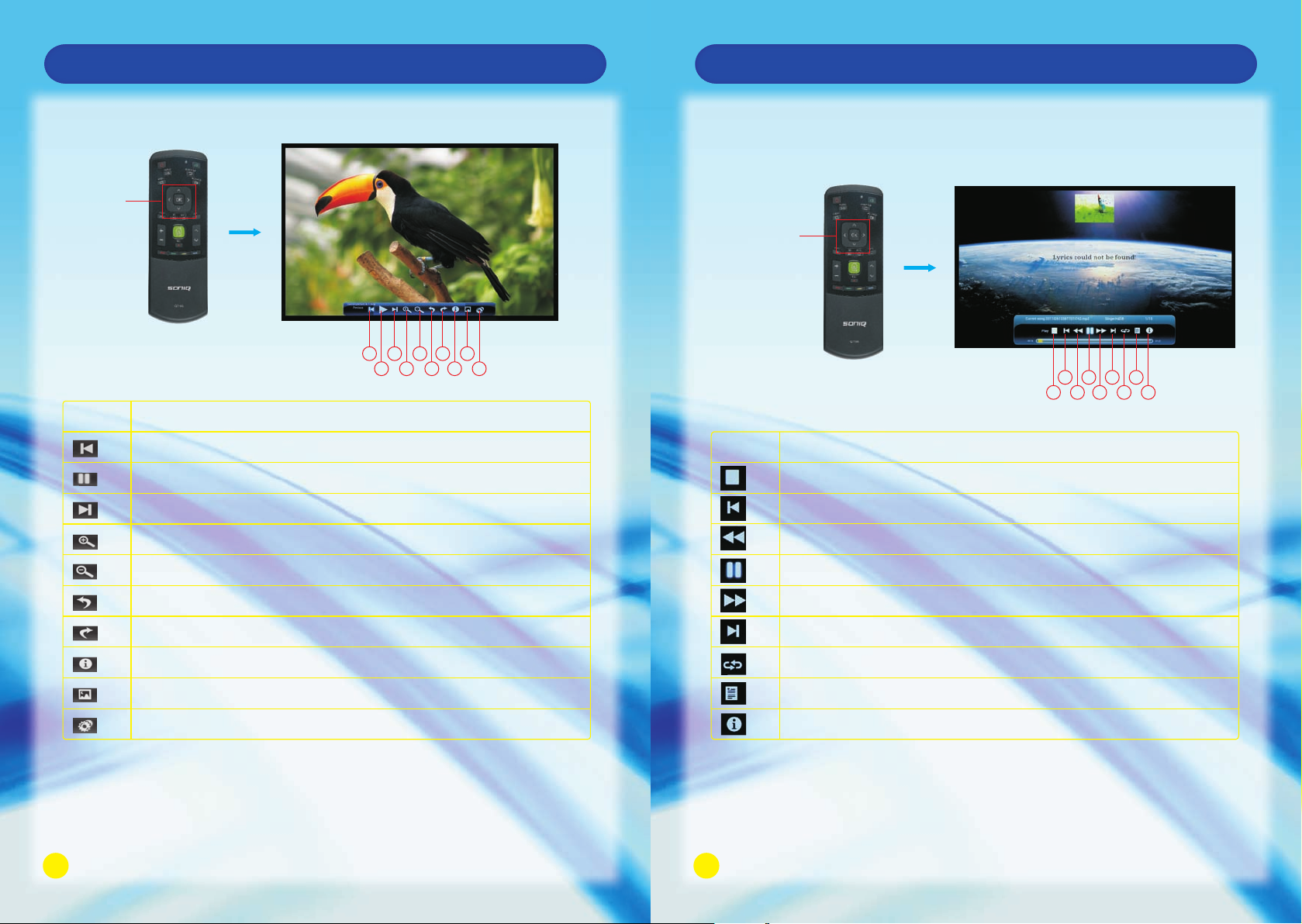

1 3 5 7 9
2 4 6 8 10
No.
1
2
3
4
Skip to the previous picture.
Click it to play or pause playback.
Skip to the next picture.
Zoom in the picture.
Description
Music Playback
Enter this function by HOME - > Media, then select your favourite song for playing.
Press OK to play the music and Exit to exit playback.
OK Button
2 6 8
4
3 7 91
5
No. Description
1
2
3
Stop video playback.
Play the previous video.
Fast rewind playback.
5
6
7
8
9
10
Zoom out the picture.
Right rotation.
Left rotation.
Display the information of the picture.
Set the picture as a wallpaper.
Set the animation effect and interval time of playing the picture.
27 28
4
5
6
7
8
9
Playback or pause.
Fast forward playback.
Play the next one.
Press to switch among single playback/random playback/cycle playback.
Display all the songs added to the play list.
Display the information of the current playing song.
Smart TV Function Smart TV Function
Video Playback
Enter this function by HOME - > Media, then select your favourite video for playing.
Press OK to play the video or Exit to exit.
OK Button
1 3 5 7 9 11
2 4 6 8 10 12
No.
1
2
3
4
5
6
7
8
Stop video playback.
Skip to the previous video.
Fast rewind playback.
Playback or pause.
Fast forward playback.
Skip to the next video.
Time setting : Display the time progress of the current video playback, or set
the video cut-in time.
Display all the videos.
Description
System Update
In order to enhance the network quality of the TV, regularly update the software from
official website.
Auto network updating
Turning on the TV will automatically detect the software package, you can click on
Download to download the new software, or click the RIGHT MOUSE Button or EXIT
Button on the Remote to exit the network update.
EXIT
Button
1. Click on Download to download the software, it
may take some time for file downloading. Please
follow the instructions as the TV indicates.
2. After you have finished software downloading,
click on update now, a reminder will pop up
and if you are to save the downloaded
APK applications or user info, please select NO.
3. It may need some time for program installation,
please follow the instructions indicated on the TV.
4. When the update is completed, the TV will
automatically restart in 5 seconds.
OR
RIGHT MOUSE
Button
9
10
11
12
Display the information of the current video playback.
Playback setting including subtitle, breakpoint and audio track setting.
A-B cycle playback.
Zoom in or zoom out of the video picture.
29 30
Smart TV Function Smart TV Function
Manual Network update
HOME - > Settings - > System update or restore Factory - > System local update - >
Network Update to enter the interface of network update, then follow the steps of
auto network updating as above.
Local Update
1. Users need to download the related new
software from our official website.
2. Copy the software update to the USB device,
and named after update signed. zip
3. HOME - > Settings - > System update or restore Factory - > System Update - >
Local Update to enter the interface of local update, click on Update immediately
to start local update.
OSD Menu Operation (Before operating OSD menu, Please switch to full screen
playback by pressing HOME Button on the remote).
OSD menu can only be operated by using remote control.
Press MENU Button to enter the main menu, use Left and Right Button to select
CHANNEL.
MENU
Button
HOME
Button
OK Button
FN Button and Left, Right, Up or Down Buttons
as the same time.
ATV Manual Tuning
FN Button and Left, Right, Up or Down Buttons
as be at the same time.
Press Up and Down Button to highlight ATV Manual Tuning, then press OK to enter
sub-menu.
1. Analog Scan : Press “OK” and then adjust Analog Scan by pressing Left and Right
Button.
2. Sound System : Press Left and Right Button to change (left/right/up/down) it into DK
or BG mode.
3. Search : Press Left and Right Button to set the Frequency and stop it by pressing OK,
Left and Right Button.
4. Frequency : Display the adjusted frequency channel.
5. Fine Tune : Press Left or Right Button to make minor modulation and stop it by pr
essing OK, Left and Right Button.
Program Edit
Press Up and Down to select Channel Edit, then press OK Button to enter sub-menu.
1. Press Green Button to rename the current channel. (only available in ATV)
2. Press Yellow Button to change the program order.
Selected channel can be moved by using Up and Down, then press OK for confirm.
3. Press Blue Button to skip the selected channel.
4. Press Red Button to delete the selected channel.
Auto Tuning
1. Auto Tuning will be highlighted upon displaying this menu. Press OK Button to enter.
2. Press / to select country, press OK Button to enter the next step.
3. Use / button to select your location, then press OK button to enter the next step.
4. Press Up and Down to select tuning type. Press OK to start auto search.
OK Button
Australia
Return
Confirm
31 32
Return
Confirm
Red Button
Blue Button Green Button
Yellow Button
Program Edit
901
Delete Rename Move Skip
Select Confirm Return Exit
C-00
OK
ATV
Smart TV Function Smart TV Function
Picture Menu
Press MENU Button to bring up the main menu, then press Left and Right to select the
PICTURE MENU.
1. Picture Mode:
Press Left and Right to adjust the mode colour by Standard. Dynamic, User, Mild
and 3D Mode. Contrast, Brightness, Color, Sharpness can be adjusted only
under User mode, press MENU to return to the main menu.
2. 3D Settings:
Once the TV receives 3D signal, the system will automatically turn this function On.
To watch in 3D, you are required to wear 3D glasses. Use Up and Down Button to
select On or Off, press OK to confirm, EXIT to quit.
3. Noise Reduction:
Press OK Button to adjust among Strong, Weak, Middle and Off.
4. Colour Temp:
Press Left and Right Button to select Cool, Standard, Warm and User. You can adjust
R Gain, G Gain, and B Gain in User mode.
5. Energy Saving
Press OK Button to adjust among Middle, High, Low, Standard in this section.
6. Aspect Ratio:
This function will be available under VGA or HDMI, and you can choose Full, 4:3 and
Auto by pressing Left and Right Button.
7. Screen Mode (available under VGA or HDMI)
Press Up and Down to choose Screen Mode, press OK to confirm. Press Left and
Right to select PC/Video.
Sound Menu
Press MENU Button to display the main menu.
Press Left and Right to enter the SOUND page, it will highlight the first option, then
press OK Button to enter the sub-menu.
1. Sound Mode:
Press OK and then press Left and Right to adjust Sound Mode.
You can change the value of Treble and Bass under user mode.
2. Balance:
Press Up and Down to select Balance, then press OK Button to enter sub-menu,
press Left and Right adjust.
3. Auto Volume (A C):V
Press Up and Down to select Auto Volume, then press OK and Left and Right to
select On or Off.
4. SPDIF Mode:
Press Up and Down to select SPDIF Mode, then press OK and Left and Right
Button to select PCM, Off or Bitstream.
5. Power On Music:
Press Left and Right Button to set On or Off.
MENU
Button
OK Button
8. PC Settings (available under VGA or HDMI)
Press Up and Down to select PC Settings, press OK to enter the sub-menu, you can
also choose auto adjust to adjust the picture to full screen, or you can select clock,
phase, horizontal position, vertical position for adjusting.
MENU
Button
OK Button
FN Button and Left, Right, Up or Down Buttons
at the same time.
33 34
FN Button and Left, Right, Up or Down Buttons
at the same time.
Smart TV Function Smart TV Function
Time Menu
Press MENU Button to display the main menu.
Use Up and Down to enter TIME page, it will highlight the first option.
1. Current Time:
Can not be selected, but it can automatically obtain the network time.
2. Off Time:
Press Up and Down to select Off time, the press OK Button to enter the sub-menu,
press OK and adjust it into On or Off.
3. On Time:
Press Up and Down to select On Time, then press OK Button to enter the sub-menu,
press OK to proceed with the On and Off time settings.
4. Sleep Timer:
Press Up and Down Button to select Sleep Timer, then press OK to confirm, press
Left and Right to adjust.
5. Time Zone:
you can choose different location by operating this item.
MENU
Button
OK Button
FN Button and Left, Right, Up or Down Buttons
at the same time.
Option Menu
Press MENU Button to display the main menu.
Press Left and Right to enter OPTION page, it will highlight the first option.
1. OSD Time Out:
Press OK and then press Left and Right Button to set the OSD Time Out.
2. PVR Settings:
Press OK button to display the related functions included in this item.
3. Restore Default:
Operate this item to resume all the initial settings.
Lock Menu
Press MENU Button to bring up the OSD menu.
Use Left and Right to turn to LOCK page (this function is only available under TV mode),
it will highlight the first option, then you are required to input the password (default as
0000).
1. System Lock:
Press OK to select On or Off.
2. Channel Lock:
Press Up and Down to select Channel Lock, then press OK to enter the sub-menu,
press Up and Down to select the program that you want to lock, then press OK to
confirm.
3. Parental Guidance:
Parent can set age limit level by this function.
4. Set Password
Press Up and Down to select Set Password, press OK Button to enter the sub-menu
to set the new password.
MENU
Button
OK Button
FN Button and Left, Right, Up or Down Buttons
at the same time.
PVR Function
PVR Settings
(This feature is only available under DTV mode.)
Please plug in the USB device before executing recording function and as well do the following
settings to save the file recording.
1. MENU->OPTION MENU->PVR SETTINGS->DEVICE LIST
2. Select a USB storage device formatted as FAT, press OK to confirm.
3. If a USB storage device formatted as a different format, press the red button on the remote to format as FAT,
recording can be carried out by this time. EXFAT is not supported by the system, format of NTFS is just
available for reading, and can not be applied for recording.
MENU
Button
OK Button
FN Button and Left, Right, Up or Down Buttons
at the same time.
35 36
Device Available Space
Confirm
OSD Menu Operation OSD Menu Operation
Precautions when using the USB device
1. Please do not turn off the TV or unplug the USB device when the connected USB storage device
is working.
When such device is suddenly separated or unplugged, the stored files or the USB storage
device may be damaged.
2. Please use only USB storage devices that are formatted as a FAT32 file system , otherwise it
may not be recognized.
3. Every USB only supplys 500mA electric current, if the user’s device requirement is over the
specification, users need to choose to connect to the external power supply, otherwise the
device may not be recognized.
4. If the USB HDD does not have an external power supply, the USB device may not be detected.
So be sure to connect the external power supply.
5. The recommended capacity is 2TB or less for a USB external hard disk and 32GB or less for
USB flash memory.
6. The recognition speed of a USB storage device may depend on each device.
7. Please connect a USB storage device with the cable offered by the device maker.
8. Be sure to back up important files since data stored in a USB memory device may be damaged
We will not be responsible for any data loss.
9. If your USB memory device has multiple partitions, of if you use a USB multi-card reader, you
can use up to 4 partitions or USB memory devices.
10. If the USB memory device does not work properly, disconnect and reconnect it. How fast a
USB memory device is detected differs from device to device.
11. If the USB is connected in Standby Mode, specific hard disk will automatically be loaded when
the TV is turned on.
12. Any device with more than the recommended capacity may not work properly.
Stop Record
Are you sure to stop the
recording?
1. Press STOP button to stop the recording.
2. Press Navigation buttons to scroll to Yes,and press OK button.
Pre-record
1. Press EPG on the remote to open the program guide, select the program that you want to
record, then long press REC for three seconds to add the program to Pre-record list.
2. Press the green button on the remote to delete the selected recording group, yellow button to
delete all the recording group.
3. You can also enter PVR settings by the method of :MENU->OPTION MENU->PVR SETTING >SCHEDULED RECORD SETTING LIST. Select a blank recording group, then press OK to
enter the setting list to set the recording task.
In-Time Record
You can record the program you are watching. Press REC on the remote to start the recording.
Recording icon and recording time will be displayed at the right bottom of the Screen.
Recording
00:00:19
37 38
Confirm
2
Confirm
OSD Menu Operation
3D Image
Play the recorded program
1. MENU->OPTION MENU->PVR SETTINGS->FILE MANAGER
r
R
Confirm
2. Select the recorded program that you want to play, press OK button or red button to play the
program at the left window.
Press the blue button to play in full screen, press it again to exit the full screen playback.
Press green button to delete the selected recorded program.
Press yellow button to delete all the recorded programs.
3. The current program and device information will be displayed underneath the played program.
EPG
Press EPG to show the EPG list.
1
2
10
11
12
21
22
23
24
Confirm
Channel list ,program information and progress list can be carried out by operating this function.
The EPG displays the program details for next 7 days, you can choose the program that you want
to have pre-record, press REC to have program pre-record.
3D Image
When watching 3D images, Please wear 3D glasses.
-
- As the TV turns on, it may take seconds until the picture quality is optimized.
- The 3D passive glasses may not work properly if there is any other objects standing between the
TV set and 3D glasses.
- Note that when your eyes are away and then back to the 3D images, a short time will be needed
for your eyes to get adapted.
- When watching 2D images, we recommend removing 3D glasses. If you wear 3D glasses to
watch 2D images, the picture will be distorted.
Safety Information for Watching 3D Images
You may not feel the 3D effect if your viewing angel and distance between the TV and glasses are
out of range.
* 3D effect may not be available if the receiving area is out of range.
* Do not watch 3D pictures for a long period of time for your health.
* Note that watching TV with 3D glasses for an extended period of time may cause drowsiness and
eye strain.
• If you experience any of the symptoms of headache, fatigue, dizziness, sickness, convulsions,
loss of awareness, confusion, immediately stop watching 3D TV and consult a medical
specialist.
* The pregnant, elderly, epileptic and those suffering from serious physical conditions are advised
to avoid watching 3D images.
• 3D pictures may startle viewers.
* Please take care to be aware of the world around you. This product is designed to be immersive.
Do not use this product near open stairwells, cables, balconies, or other objects that can be
tripped over, run into, knocked down or fallen over. Being startled or deluding yourself into
thinking that the 3D images are real may cause you to crush
a nearby object or get injured when trying to move your body.
* Children under the age of five are prohibited to watch 3D images or it will influence the children's
vision.
* If any of your relatives has a history of epileptic or strokes, please consult a medical specialist
before using the 3D function.
* You may not notice the 3D effect at all if you have a prescription for one eye that is very different
from the other eye.
* We recommend sitting with viewer's eyes on a level with the screen.
* If your eyes show signs of fatigue or dryness or if you have any of the above symptoms,
immediately discontinue use of this device and do not resume using it for at least thirty minutes
after the symptoms have subsided.
39 40
Smart TV Function Smart TV Function
3D Image
When watching 3D Images, please wear 3D glasses.
As the TV turns on, it may take seconds until the picture quality is optimized.
The 3D passive glasses may not work properly if there is any other objects standing
between the TV set and 3D glasses.
Note that when your eyes are away and then back to the 3D Images, a short time will
be needed for your eyes to get your eyes to re-adjust.
When watching 2D Images, we recommend removing 3D glasses. If you wear 3D
glasses to watch 2D Images, the picture will be distorted.
Safety information for watching 3D Images
You may not feel the 3D effect if your viewing angle and distance between the TV and
glasses are out of range.
3D effect may not be available if the receiving area is out of range.
Do not watch 3D pictures for a long period of time for your health.
Note that watching TV with 3D glasses for an extended period of time may cause
drowsiness and eye strain.
If you experience any of the symptoms of headache, fatigue, dizziness, sickness,
convulsions, loss of awareness, confusion, immediately stop watching 3D TV and
consult a medical specialist.
The pregnant, elderly, epileptic and those suffering from serious physical conditions
are advised to avoid watching 3D Images.
3D pictures may startle viewers.
Please take care to be aware of the world around you. This product is designed to be
immersive. Do not use this product near open stairwells, cables, balconies, or other
objects that can be tripped over, run into, knocked down or fallen over. Being startled
or deluding yourself into thinking that the 3D Images are real may cause you to crush
a nearby object or get injured when trying to move your body.
Children under the age of five are prohibited to watch 3D Images or it will influence
the children’s vision.
If any of your relatives has a history of epileptic or stroked, please consult a medical
spedcialist before using the 3D function.
You may not notice the 3D effect at all if you have prescription for one eye that is
very different from the other eye.
We recommend sitting with the viewer’s eyes at the same level as the screen.
If your eyes show signs of fatigue or dryness or if you have any of the above
symptoms, immediately discontinue use of this device and do not resume using it for
at least thirty minutes after the symptoms have subsided.
Range for Viewing 3D Images
TV sizes, viewing angle and other elements may make the viewing angel and distance
different.
TV
Viewing Distance
> 2.5m < 5m
Please watch 3D Images within the effective distance and angle.
Recommendable Viewing Location (Up/Down)
Up/Down: Center is recommended for inspection
Viewing Angle
100 (Viewing Distance : > 2.5m < 5m)
Recommendable Viewing Locaion (Left/Right)
Left/Right: +50 degress are recommendable
Not
omme
Recommen
Not
omme
OK
50
50
OK
OK
Watch 3D Pictures
You can go to MENU - > Picture - > 3D Settings. Or you can press 3D Button on the
Remote Control to enter 3D settings. The window list will show such functions as below:
1. 3D Off: Turn the 3D function off.
2. 3D Auto: Automatically identify 3D video under HDMI mode.
3. 2D - > 3D: Change a 2D Image to 3D.
4. 3D - > 2D: Change a 3D Image to 2D.
5. 3D Effect adjustment: Adjust the 3D effect to your preference.
6. Manual: You can choose Top Bottom or side by side to play 3D video.
There are 2 methods for you to watch 3D Images.
Attention for using 3D function
WARNING
Method 1:
Wearing 3D glasses for any other purposes (as general spectacles, sunglasses,
protective goggles, etc.) may physically harm you or weaken your eyesight.
Do not put 3D glasses in extremely cold or overheated places.
Do not use broken 3D glasses.
Do not squeeze and strike the 3D glasses.
Wipe the 3D glasses with clean and soft cloth.
Do not use sharp objects or chemical products to wipe the surface of 3D glasses.
41 42
1. Make sure the TV is under AV/ATV, YPbPr or VGA mode.
2. Wear 3D glasses and select a TV program.
3. Press MENU - > Picture - > 3D Settings. Or you can press 3D Button on the Remote
Control to enter 3D Settings.
4. Press Up and Down Button to choose 2D >>3D. Then press OK to confirm. 3D
images will be shown on TV.
5. Should you exit the 3D Images, press 3D - > 2D under 3D Settings list.
Smart TV Function
Specification
Method 2
5.1 Make sure the TV is under Media mode.
5.2 Wear 3D glasses and select a program form Media.
5.3 Press MENU - > Picture - > 3D Settings , Or you can press 3D Button on the
Remote Control to enter 3D Settings.
5.4 Press Up and Down to choose Manual, press OK to enter sub-menu. If the screen
is confirm. under Side by Side mode, highlight Side by Side and press OK to
Otherwise, press Top Bottom to confirm.
5.5 Should you exit the 3D Image, press “Side by Side to 2D or Top Bottom to 2D
under 3D Manual Setting list.
Note: under HDMI mode, the system will automatically change into 3D Auto, you
Effect Adjustment to make minor modulation of its 3D swap and view point. Exit by pressing
3D - > 2D
can choose 3D
3D Settings
3D Button
3D Off
3D Auto
3D >> 2D
2D >> 3D
3D Effect Adjustment
Manual
Select
OK
Confirm
ReturnExit
2D
2D
Supported 3D Signal Format
3D Interface
HDMI/MEDIA
DTV
Signal
720P
1080i
1080P
720P
1080i
Resolution Video Format
1280x720
1920x1080
1920x1080
1280x720
1920x1080
Horizontal
Frequendy
(KHZ)
89.1/90
75
44.955/45
37.5
44.955/45
37.5
33.72/33.75
28.125
53.946/54
67.432/67.5
26.973/27
33.716/33.75
67.432/67.5
56.25
26.973/27
67.432/67.5
56.25
37.5
56.25
Vertical
Frequendy
(HZ)
59.94/60
50
59.94/60
50
59.94/60
50
59.94/60
50
23.976/24
29.97/30
23.976/24
29.97/30
59.94/60
50
23.976/24
59.94/60
50
50
50
Frame Packing
Frame Packing
Top and Bottom
Top and Bottom
Side and Side (half)
Side and Side (half)
Side and Side (half)
Side and Side (half)
Frame Packing
Frame Packing
Top and Bottom
Top and Bottom
Top and Bottom
Top and Bottom
Side and Side (half)
Side and Side (half)
Side and Side (half)
Side and Side (half)
Side and Side (half)
43 44
Specification Specification
Troubleshooting
Antenna
Before calling a service center, attempt the following steps to diagnose the problem.
TV unit.
Problem Suggested Action
There is no power.
There is no picture or sound.
There are spots on the screen.
Degraded colors or tints.
Improper Screen position or
size.
The image appears distorted.
The image appears too bright,
and there is a loss of definition
in the brightest areas of the
image.
The image apperas too washed
out, or the darkest areas of the
image appear too bright.
Remote Control does not
function properly.
There is no picture or sound,
just noise.
Picture is not clear.
No sound.
Ensure the power plug is securely inserted into the unit and wall outlet.
Try a different input source to check whether the source is at fault.
Check for mis-connection of cables or for wrong input source.
Your unit is being affected by interference from automobiles, trains,
high-voltage transmission lines, neon signs or another sources of interference.
Try redirecting or relocating your antenna to reduce the affects of the
interference.
Check whether all the picture adjustments have been properly performed.
Try selecting a different aspect ratio by pressing the <ASPECT> Button
on the remote control.
Ensure the display aspect ratio is corredctly set to suit the program source.
Reduce the contrast settings.
The AV video signal has not been terminated properly somewhere in the
external AV equipment.
Reduce the brightness level till the black areas of the picture appear as black.
Check for incorrect battery orientation.
Check for dead batteries.
Check your distance and angle from display.
Check whether remote control is pointing at sensor window;
Check for any obstacle between the Remote Control and Remote Control
sensor.
Check that the Remote Control sensor window is not under strong fluorescent
lighting.
Check for any devices (PC or personal digital assistant, PDA) nearby that
transmit infrared signal which may cause interference to signal transmission
between the Remote Control and the unit.
Turn off the infrared function of these devices.
Make sure the antenna cable is properly connected.
Change channels to confirm if the symptom is still present.
Make sure the antenna cable is properly connected.
Change channels to confirm if the symptom is still present.
If PC (VGA) is selected as the input signal source, use the Auto Sync
Function in the Set Up Menu (In VGA Mode) to let the display adjust picture
automatically.
Check whether you have selected the Mute function.
Make sure the volume is not set to minimum.
Check the AV cables for disconnection.
Supported PC Input Signal
Your unit can use as PC monitor, it supports below.
45 46
Problem Suggested Action
The picture is not
sharp.
The picture is doubled
or tripled.
The picture is spotted
There are stripes on the
screen or colors fade.
Resolution
640 X 480
640 X 480
640 X 480
720 X 400
800 X 600
800 X 600
800 X 600
832 X 624
INPUT
FORMAT
1024 X 768
1024 X 768
1125 X 870
1280 X 800
1280 X 960
1360 X 768
1280 X 1024
1440 X 900
1680 X 1050
1920 X 1080 (RGB-PC)
1920 X 1080 (HDMI-PC)
The reception may be weak.
Change channels to confirm if the symptom is still present.
Make sure the outside antenna is not disconnected.
Make sure the antenna is facing the right direction.
Make sure the antenna is facing the right direction.
Picture ghosting is caused by reflections from buildings, large metal structures and
mountains. Carefully realign your antenna to minimize the ghost images. Ultimately a
higher quality antenna professionally installed may be necessary to reduce the ghosting.
There may be interference from automobiles, trains, high voltage lines, neon lights, etc.
There may be interference between the antenna cable and power cable, try positioning
them further apart.
Is the television receiving interference form other devices? Transmission antennas of
radio broadcasting stations and transmission antennas of amateur radios and cellular
phones may also cause interference.
Use the television as far away as possible from devices that may cause possible
interference.
RGB-PC, HDMI/DVI-PC mode INPUT SPEC
PC/HDMI/1/2/3/4 input
Horizontal
Frequency (KHz)
31.5
37.861
37.5
31.5
37.9
48.077
46.9
49.7
48.4
60
68.68
47.8
60.0
47.7
63.595
55.9
65.3
66.587
67.5
Vertical
Frequency (Hz)
60
72.809
75
70
60
72.19
75
75
60
75
75
59.8
60
60
60
59.9
60
59.93
60
Standard
VGA
VESA
VESA
VGA-T
VESA Guidelines
VESA
VESA
Mac
VESA Guidelines
VESA
Mac
VESA
VESA
VESA
VESA
VESA
VESA
Specification
Specification
Power Source ~100-240V AC, 50/60Hz
42" E42S14A
47" E47S14APower Consumption
55" E55S14A
COMPONENT
Video Format
Supporting
Digital TV
Panel Spec
Input/Output
Audio Power
Unit Dimension
(including the size of
the base)
Wireless LAN
Specification
Note: With the continuous improvement and software update of the system, on screen
47
operation may be different from that of the instruction’s.
HDMI
TV SystemAnalog TV
Programme
Coverage
Video Decode
Audio
Panel Native Resolution
Brightness
Contrast Ratio
Color Depth
Expectation of Life
ANT IN
HDMI IN
USB IN
VGA IN
VGA VIDEO IN
VIDEO IN
Digital Audio Out (Optical)
LAN
SD CARD
AV Out
6W + 6W
42" E42S14A
47" E47S14A
55" E55S14A
Standard
Frequency Band
Output Power
85W
100W
110W
480i, 480p, 576i, 576p, 720p (50/60Hz)
1080i (50/60Hz), 1080p (50/60Hz)
480p, 576p, 720p (50/60Hz),
1080i (50/60Hz), 1080 (50/60Hz).
PAL B/G;D/K;I
VHF-H 06 to 12
UHF 27 to 69
1080i ,720p ,576p,576i
MPEG,AC3
42" E42S14A
47" E47S14AEffective Display Area
55" E55S14A
1920 x 1080 pixels
2 2
350cd/m 130cd/m (3D)
42” and 47” 1400 : 1, 55” 1300 : 1
8bit, 16.7 Million colors
around 50,000 hours
ANT IN x 1
HDMI X 4
USB X 3
VGA X 1
VGA AUDIO X 1
VIDEO X 2
Digital Audio Optical Out x 1
RJ45 x 1
SD CARD SOCKET X 1
VIDEO X 1
954(L) 255(W) 621 (H)mm
1067(L) 255(W) 693 (H)mm
1238(L) 255(W) 790 (H)mm
IEEE802.11 802.11b/g/n
2.4~2.4835 GHz ISM Band 3
<13dBm@11n, <18dBm@11b,<14dBm@11g
927. 94mm x 521.96mm
1039.68mm x 584.82mm
1209.6mm x 680.4mm
display and actual
Loading...
