SonicWall Switch
High-speed Network Switching for Business Connectivity
The SonicWall Switch delivers high-speed network
switching while providing unparalleled performance and
manageability through SonicWall rewalls or Wireless
Network Manager. Its unied security posture, high
port density, Power over Ethernet (PoE) options and
gigabit or 10 gigabit performance capabilities makes it
ideal for small and medium-sized business (SMB), and
Software-Dened Branch (SD-Branch) deployments.
This enables businesses – big or small, to undergo digital
transformation and keep pace with the changing network
and securitylandscape.
HIGHLIGHTS
• SD-Branch ready
• Firewall and WNM managed
• Zero-Touch Deployment
• Unied security posture
• Layer 2 switching
• 10 gigabit or 1 gigabit support
• 8/10/24/48-port models
• Various PoE options
• QoS support
• Segmentation and compliance
• Compact form factor
• Energy-ecient design
DATASHEET
DATASHEET
View full specs »
Find the right SonicWall solution
for your small business and
branch deployments:
sonicwall.com/switch
The SonicWall Secure SD-Branch solution transforms user
experience at branch oce locations by delivering a unied
platform that enables branches to be deployed in minutes
and delivers unied visibility and threat detection from a
single pane of glass. SonicWall SD-Branch components
consist of SonicWall next-generation rewalls with Secure
SD-WAN, Capture Security Center with Zero-Touch
Deployment, SonicWall Switches, SonicWave access
points (AP), Capture Client and Cloud App Security. With
the exibility that SonicWall Secure SD-Branch oers,
organizations can now be more agile, open and cloud-centric.
An integral part of the next-generation branch
transformation, the SonicWall Switches are managed via
rewalls or Wireless Network Manager (WNM) for unied,
single-pane-of-glass management. By tightly integrating
with SonicWall rewalls and SonicWave Access Points, the
solution benets from unied security posture and oers
an end-to-end security solution that simplies deployment,
management and troubleshooting. This ensures seamless
security and eliminates gap in security posture that may
arise with third partyswitches.
In conjunction, the SonicWall Switch oers Zero-Touch
Deployment capability with the ability to quickly roll out
devices across branches spread out globally. Admins can
quickly and securely deploy these switches at new locations
without requiring any costly on-site IT personnel.
Packed with features, these switches are available in
a compact form factor with an energy-ecient design.
Available in seven models, ranging from eight to 48, with
gigabit and 10 gigabit Ethernet ports, the switches work
seamlessly with SonicWall next-generation rewalls and
SonicWave APs to create a high performance secure
network. The Ethernet ports provide PoE options to
power on various devices such as APs, VOIP phones
and IPcameras.
Prioritize certain trac on the network such as VOIP for
video conferences while working from home, with features
such as QoS. Easily segment devices in the network and
maintain compliance. Segregating can be accomplished
by creating policies or VLANs. Features such as 802.1X
authentication allows business to maintain PCI compliance.
PARTNER ENABLED SERVICES
Need help to plan, deploy or optimize
your SonicWall solution? SonicWall
Advanced Services Partners are trained to
provide you with world class professional
services. Learn more at:
www.sonicwall.com/PES
2 | SonicWall Switch
SonicWall Switch
SWS12-8 SWS12-8POE
SWS14 -48
Power LED
Fault LED
SW S 12 -10 FPOE
Serial Console
Port (RJ45)
Serial Console
Port (RJ45)
8x RJ45 LAN Ports
-Power On LED
-Fault LED
-PoE Max LED
24x RJ45 LAN
Ports
48x RJ45 LAN Ports SFP+
2xSFP
Ports
SFP+
Ports
Ports
-LA N Mode LED
-PoE Mode LED
-LA N/Po E Mode Selector
10x RJ45 L AN Ports
Serial Console
Port (RJ45)
-LA N Mode LED
-PoE Mode LED
-LA N/Po E Mode Selector
-LAN Mode L ED
-PoE Mo de LED
-LAN/PoE Mode Selector
8x RJ45 LAN Ports
2xSFP
Ports
48x RJ45 LAN Ports SFP+
2xSFP
Ports
SWS14-24FPOESWS14 -24
SFP+ Ports24x RJ45 L AN Por ts
SWS14 -48FPOE
Ports
Model
Number of Gigabit
Ethernet Ports
Number of
SFP/SFP+ Ports PoE Version
SW S12-8 8 2 SFP Non-PoE
SWS12-8POE 8 2 SFP 802.3af
SWS12-10 FPO E 10 2 SFP 802.3at
SW S14 -24 24 4 SFP+ Non-PoE
SWS14-24FPOE 24 4 SFP+
802.3at
SW S14 -48 48 4 SFP+ Non-PoE
SWS14-48FPOE 48 4 SFP+ 802.3at
3 | SonicWall Switch
Specications
SWS12-
Hardware SWS12- 8
1G Cu 8 8 10 24 24 48 48
1G SFP 2 2 2 - - - -
10G SFP+ - - - 4 4 4 4
Total Interfaces 10 10 12 28 28 52 52
Memory (MB) 256 256 256 512 512 512 512
Flash (MB) 32 32 32 12 8 128 128 128
Packet Buf. 512K 512K 512K 1.5M 1.5 M 2M 2M
Mac Table 8K 8K 8K 32K 32K 32K 32K
Switching (Gbps) 20 20 24 128 128 176 176
Fan - - 1 - 2 1 3
PoE Standard - 802.3af 802.3af/at - 802.3af/at - 802.3af/at
PoE Power (Watts) - 55 130 - 410 - 740
Power Supply
Power Source
Power Consumption
(Maximum)
Current 2.0A 1.2A 2.5A 0.7A 7. 0A 1.5A 12. 0A
Heat Dissipation (BTU) 19.4 249.5 5 21.1 12 2.8 1706. 4 184.2 180 7.3
Min Power Cord
Amperage*
Operating
Temperature
Storage Temperature -40 - 70ºC -40 - 70ºC -40 - 70ºC -40 - 70ºC -40 - 70ºC -40 - 70ºC -40 - 70ºC
Humidity 10-95% R.H 10-95% R.H 10-95% R.H 10-95% R .H 10-95% R .H 10-95% R.H 10-95% R.H
Dimensions (W x H x D)
Weight 0.62 Kg 0.64 Kg 2.5 Kg 1.8 Kg 3.9 Kg 3.2 Kg 4.8 Kg
RJ-45 Serial Console
Port
Form Factor Desktop Desktop Desktop 1U 1U 1U 1U
MTBF @25ºC in Hours 1 , 387, 712 548,553 180,837 1,273 ,8 66 157,763 222,974 10 0,645
MTBF @25ºC in Years 158 62 20 145 18 25 11
Switching Capacity
(Duplex) in Gbps
VLANs 4096 4096 4096 4096 4096 4096 4096
Regulatory Model APL51- 0E1 APL52-0E 2 1RK43-0E3 1RK44-0E4 1RK45- 0E5 1R K46- 0E6 1RK47-0E7
Regulatory Approvals
24W
Power Adapter
12V DC
Power Adapter
5.7W 63.2W 152.8 W 24.4W 500.4W 44W 8 85W
10 Am p 10 Am p 10 Am p 10 Am p 10 Am p 10 Am p 12 A mp
0 - 40ºC 0 - 40ºC 0 - 40ºC 0 - 40ºC 0 - 40ºC 0 - 40ºC 0 - 40ºC
240 x 105 x
27mm
- - - 1 1 1 1
20 20 24 128 12 8 176 176
FCC Class A, ICES Class A, CE (EMC Class A , LVD, RoHS), C-Tick , VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notic ation,
8POE
65W
Power Adapter
54VDC
Power Adapter
240 x 105 x
27mm
SWS12-
10FPOE SW S14 -24
180W Fi xed 25W Fixed 480W Fixed 60W Fixed 900W Fixed
100 -240VAC
50-60Hz
330 x 230 x
44mm
WEEE, REACH, BSMI, KCC/MSIP, ANATEL
100 -240VAC
50-60Hz
440 x 20 0 x
44mm
SW S14 -
24FPOE SW S14 - 48
100 -240VAC
50-60Hz
440 x 260 x
44mm
100 -240VAC
50-60Hz
440 x 260 x
44mm
SW S14 -
48FPOE
100 -240VAC
50-60Hz
440 x 310 x
44mm
* Please check wit h your local sales team or resel lers to ensure you use the r ight power cord
4 | SonicWall Switch
Switch Series Features - Across All Models
Management and Conguration
• Manage through Capture Security
Center via Network Security
Manager (NSM) or Wireless
Network manager (WNM)*
• Switch Auto-Discovery
• Daisy chaining via rewalls
• Software Upgrade of Switches
(From Firewall) or Wireless
Network Manager
• Centralized VLAN Conguration
• Static/Dynamic LAG
• STP
• LLDP/MED
• Static Routing
• IPv4 Management
• SSH
• Firewall Management, Standard CLI
and Web GUI Interface
• Software upgrade/downgrade via
TFTP/Firewall/GUI
Security and Visibility
• 802.1x Authentication
• Syslog Collection
• IP/MAC ACL
• ACL
• IEEE 802.1x
authentication Port-based
• IEEE 802.1x Guest
and Fallback VLAN
Firewall Features Enforced
on Management Firewall
• IPS, AV, Application Control, Botnet
Layer 2
• Jumbo Frames
• Auto-negotiation for Port
Speed and Duplex
• MDI/MDIX Auto-crossover
• MAC Bridging/STP
• Rapid Spanning Tree
Protocol (RSTP)
• Multiple Spanning Tree
Protocol (MSTP)
• VLAN Tagging
• Guest VLAN and Voice VLAN
• Unicast/Multicast trac balance
over trunkingport
• Flow Control and Back-pressure
• 10Base-T
• 100Base-TX
• 1000Base-SX/LX
• 1000Base-T
• Gigabit Ethernet support
• 10 Gigabit Ethernet (available on 24
and 48-port models only)
• CSMA/CD Access Method and
Physical Layer Specications
• Storm Control
• MAC, IP, Ethertype-based VLANs
Quality of Service
• IEEE 802.1p Based Priority Queuing
* Avail able with addition al license

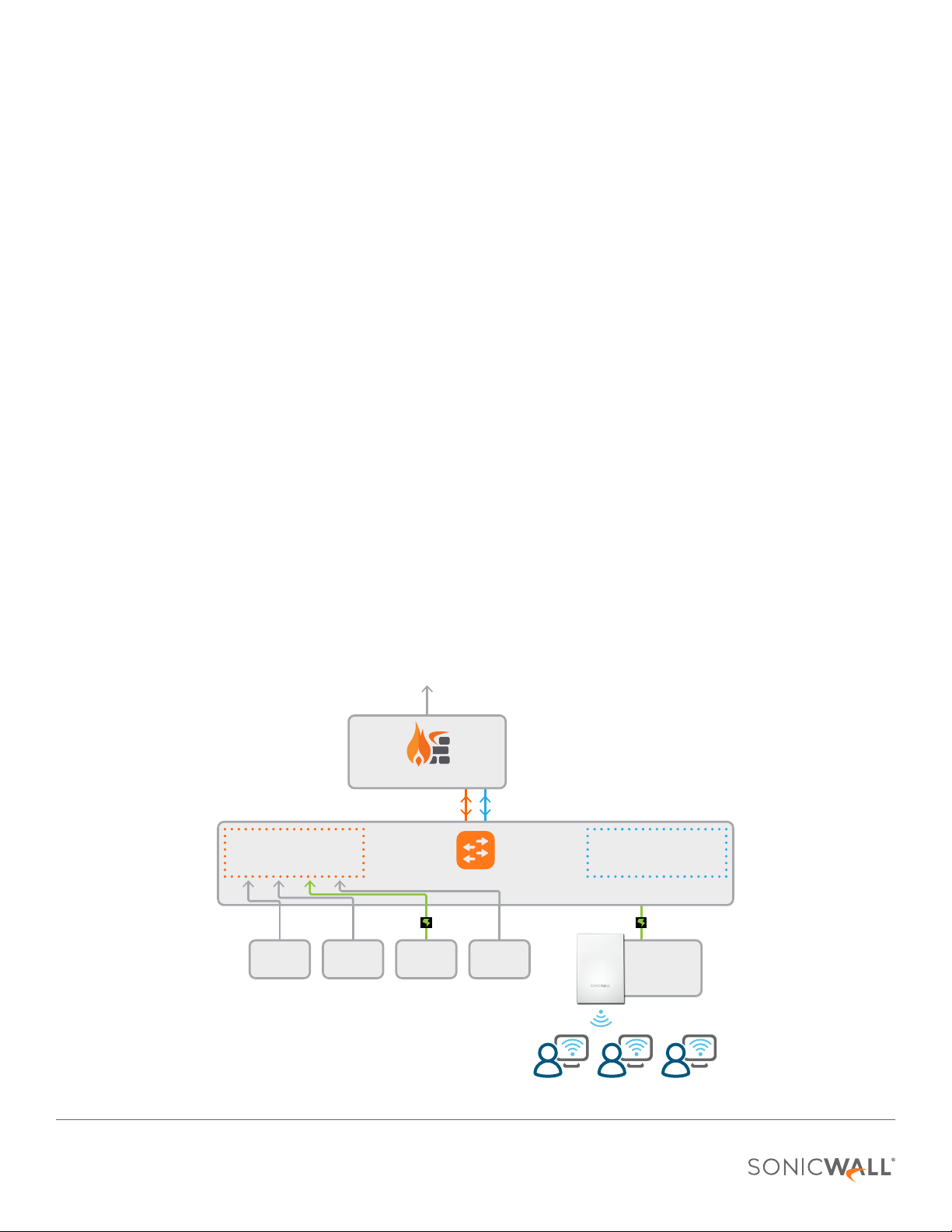

Firewall
VLAN 100 — Corporate
VLAN 200 — Voice VLAN
VLAN 300 — Guest VLAN
PC1
VLAN100
192.168.100.100 192.168.100.101 192.168.200.100
PC2
VLAN100
VOIP
VLAN200
or DHCP
WAN
Switch
PoE-Powered
Guest
VLAN300
192.168.30.100
Corp PC 3
192.168.50.2
• IP TOS/DSCP Based
Priority Queuing
VLAN 500 — Corporate
VLAN 600 — HR
VLAN 700 — Guest WLAN
PoE-Powered
SonicWave
SSID: Corporate
SSID: HR
SSID: Guest
HR PC 4
192.168.60.2
Guest PC 5
192.168.70.2
5 | SonicWall Switch
Wireless Network Manager
VLAN 100 — Corporate
VLAN 200 — Voice VLAN
VLAN 300 — Guest VLAN
VLAN 500 — Corporate
VLAN 600 — HR
VLAN 700 — Guest WLAN
Switch
SonicWave
SSID: Corporate
SSID: HR
SSID: Guest
HR PC 4
PoE-Powered
Guest PC 5
192.168.70.2
PoE-Powered
PC1
VLAN100
192.168.100.100 192.168.100.101 192.168.200.100
PC2
VLAN100
VOIP
VLAN200
or DHCP
Guest
VLAN300
192.168.30.100
Corp PC 3
192.168.50.2
192.168.60.2
