SonicWaLL SFP User Manual

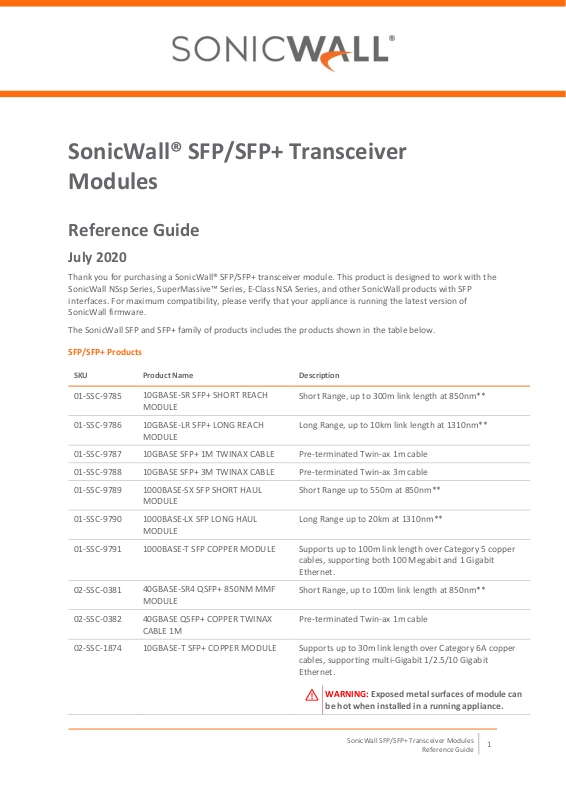

SonicWall SFP/SFP+ Transceiver Modules

Reference Guide

SonicWall® SFP/SFP+ Transceiver

WARNING: Exposed metal surfaces of module can

be hot when installed in a running appliance.

Modules

Reference Guide

July 2020

Thank you for purchasing a SonicWall® SFP/SFP+ transceiver module. This product is designed to work with the SonicWall NSsp Series, SuperMassive™ Series, E-Class NSA Series, and other SonicWall products with SFP interfaces. For maximum compatibility, please verify that your appliance is running the latest version of SonicWall firmware.

The SonicWall SFP and SFP+ family of products includes the products shown in the table below.

SFP/SFP+ Products

SKU Product Name Description

01-SSC-9785

01-SSC-9786

01-SSC-9787 10GBASE SFP+ 1M TWINAX CABLE Pre-terminated Twin-ax 1m cable

01-SSC-9788 10GBASE SFP+ 3M TWINAX CABLE Pre-terminated Twin-ax 3m cable

01-SSC-9789

01-SSC-9790

01-SSC-9791 1000BASE-T SFP COPPER MODULE

02-SSC-0381

02-SSC-0382

02-SSC-1874 10GBASE-T SFP+ COPPER MODULE

10GBASE-SR SFP+ SHORT REACH MODULE

10GBASE-LR SFP+ LONG REACH MODULE

1000BASE-SX SFP SHORT HAUL MODULE

1000BASE-LX SFP LONG HAUL MODULE

40GBASE-SR4 QSFP+ 850NM MMF MODULE

40GBASE QSFP+ COPPER TWINAX CABLE 1M

Short Range, up to 300m link length at 850nm**

Long Range, up to 10km link length at 1310nm**

Short Range up to 550m at 850nm**

Long Range up to 20km at 1310nm**

Supports up to 100m link length over Category 5 copper cables, supporting both 100 Megabit and 1 Gigabit Ethernet.

Short Range, up to 100m link length at 850nm**

Pre-terminated Twin-ax 1m cable

Supports up to 30m link length over Category 6A copper cables, supporting multi-Gigabit 1/2.5/10 Gigabit Ethernet.

SonicWall SFP/SFP+ Transceiver Modules

Reference Guide

MODULE

CABLE 1M

WARNING: A WARNING icon indicates a potential for property damage, personal injury, or death.

CAUTION: A CAUTION icon indicates potential damage to hardware or loss of data if instructions

are not followed.

IMPORTANT, NOTE, TIP, MOBILE, or VIDEO: An information icon indicates supporting information.

02-SSC-5806 100GBASE-SR4 QSFP28 850NM 100M

02-SSC-5814

100GBASE QSFP28 COPPER TWINAX

Short Range, up to 100m link length at 850nm**

Pre-terminated Twin-ax 1m cable

**Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 (Class I)

This product is protected by U.S. and international copyright and intellectual property laws. SonicWall is a trademark or registered trademark of SonicWall Inc. and/or its affiliates in the U.S.A. and/or other countries. All other trademarks and registered trademarks are property of their respective owners.

The information in this document is provided in connection with SonicWall Inc. and/or its affiliates’ products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of SonicWall products. EXCEPT AS SET FORTH IN THE TERMS AND CONDITIONS AS SPECIFIED IN THE LICENSE AGREEMENT FOR THIS PRODUCT, SONICWALL AND/OR ITS AFFILIATES ASSUME NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON- INFRINGEMENT. IN NO EVENT SHALL SONICWALL AND/OR ITS AFFILIATES BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF SONICWALL AND/OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SonicWall and/or its affiliates make no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserve the right to make changes to specifications and product descriptions at any time without notice. SonicWall Inc. and/or its affiliates do not make any commitment to update the information contained in this document.

For more information, visit https://www.sonicwall.com/legal.

To view the SonicWall End User Product Agreement, go to: https://www.sonicwall.com/legal/license-agreements

Legend

Last updated: 7/30/2020

232-003439-53 Rev A
