SonicWALL OS Standard 3.0 User Manual

Download

COMPREHENSIVE INTERNET SECURIT Y

SSSS SSo n i c WALL Security Ap p l i a n c e

SonicOS Standard 3.0

™

Administrator's Guide

Chapter : Table of Content s

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Preface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi

Copyright Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii

About this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiii

Organization of this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiv

Guide Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xvi

Icons Used in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xvi

SonicWALL Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

More Information on SonicWALL Products and Services . . . . . . . . . . . . . . . . . . . . . . . . . xvii

PART 1: Introduction

Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

What’s New in SonicOS Standard 3.0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

SonicWALL Management Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Navigating the Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Status Bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Applying Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Navigating Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Common Icons in the Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Logging Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Chapter 2: Basic SonicWALL Security Appliance Setup. . . . . . . . . . . . . . . . .9

Collecting Required ISP Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Internet Service Provider (ISP) Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Other Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Accessing the SonicWALL Security Appliance Management Interface. . . . . . . . . . . . . . . . 11

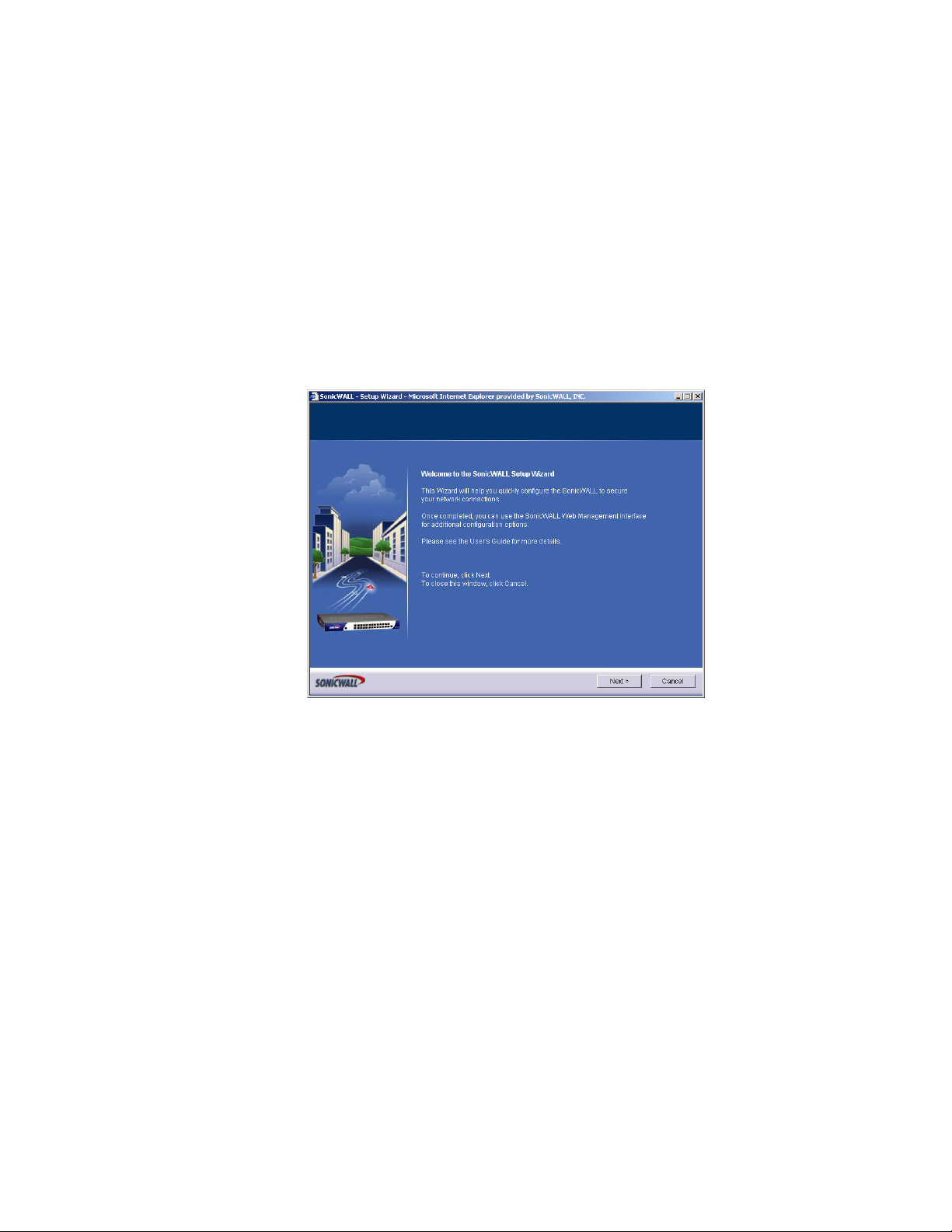

Using the SonicWALL Setup Wizard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

SonicWALL TZ 170 SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless. . . . . . . . . . . . . . . . . . . . 12

Configuring a Static IP Address Internet Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Configuring a DHCP Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Configuring a PPPoE Internet Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Configuring PPTP Internet Connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Configuring the TZ 170 SP using the Setup Wizard. . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Configuring the TZ 50 Wireless/TZ 150 Wireless/170 Wireless using the Setup Wizard.18

Configuring the TZ 50 Wireless/TZ 150 Wireless/170 Wireless as an Office Gateway . . 18

Configuring the TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless

as a Secure Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Configuring the TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless

as a Guest Internet Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Configuring the TZ 170 Wireless as a Secure Wirele ss Bridge . . . . . . . . . . . . . . . . . . . .22

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Table of Contents

Registering Your SonicWALL Security Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Before You Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Creating a mySonicWALL.com Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Registering Your SonicWALL Security Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

PART 2: System

Chapter 3: Viewing System Status Information . . . . . . . . . . . . . . . . . . . . . . 29

System > Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Wizards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

System Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Security Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Latest Alerts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Network Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Chapter 4: System > Licenses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

System > Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Node License Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Node License Exclusion List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Security Services Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Manage Security Services Online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Manual Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Manual Upgrade for Closed Environments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Chapter 5: Using System Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

System > Administration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Firewall Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Name/Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Login Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Web Management Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Advanced Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Chapter 6: Setting System Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

System > Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Set Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

NTP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Chapter 7: Configuring System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

System > Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Firmware Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

SafeMode - Rebooting the SonicWALL Security Appliance . . . . . . . . . . . . . . . . . . . . . . 49

Chapter 8: Performing Diagnostic Tests

and Restarting the SonicWALL Security Appliance51

System > Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Tech Support Report. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Diagnostic Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Active Connections Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

CPU Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

DNS Name Lookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Find Network Path. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Packet Trace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Ping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Process Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Reverse Name Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

System > Restart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

PART 3: Network

Chapter 9: Configuring Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Network > Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

DNS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Configuring the WAN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Configuring Transparent Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Configuring NAT Enabled. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Configuring NAT with DHCP Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Configuring NAT with PPPoE Client. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Configuring NAT with L2TP Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Configuring NAT with PPTP Client. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Configuring Ethernet Settings in WAN Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Configuring the LAN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Basic LAN Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Configuring Multiple LAN Subnets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Configuring Ethernet Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

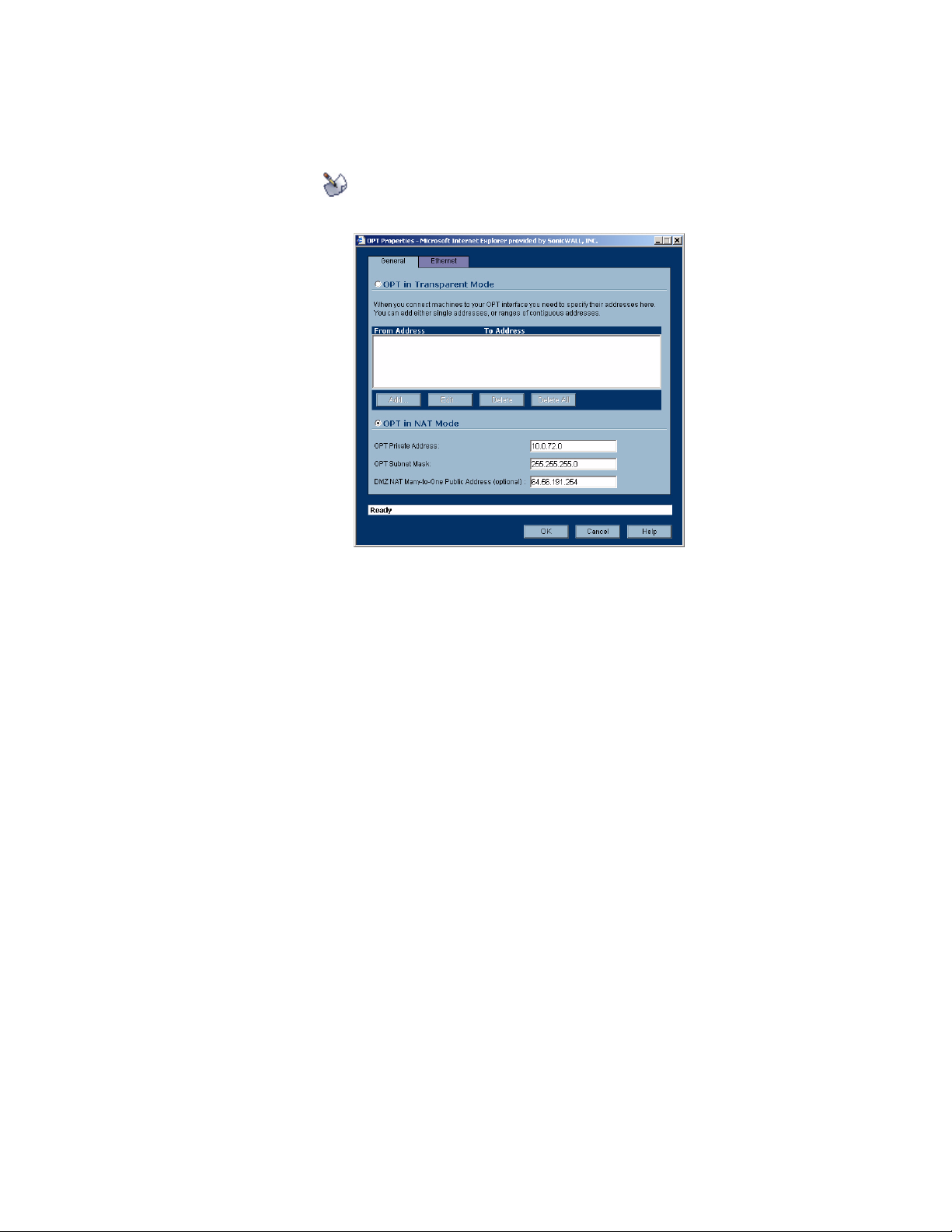

Configuring the OPT Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Configuring Transparent Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Configuring NAT Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Configuring the DMZ Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Configuring Transparent Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Configuring NAT Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Configuring the Modem Interface

(TZ 170 SP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Failover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Activating the Modem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Configuring WLAN Properties

(TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless) . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Chapter 10:Configuring One-to-One NAT . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Network > One-to-One NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

One-to-One NAT Configuration Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Chapter 11:Configuring Web Proxy Settings . . . . . . . . . . . . . . . . . . . . . . . . .85

Network > Web Proxy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Configuring Automatic Web Proxy Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Bypass Proxy Servers Upon Proxy Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Forward OPT/DMZ/WLAN Client Requests to Proxy Server . . . . . . . . . . . . . . . . . . . . . . 86

Chapter 12:Configuring Intranet Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Network > Intranet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Intranet Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

iii

Table of Contents

Chapter 13:Configuring Static Routes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Network > Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Static Routes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Route Advertisement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Routing Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Chapter 14:Configuring Address Resolution Protocol Settings. . . . . . . . . . . 93

Network > ARP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Static ARP Entries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Secondary Subnets with Static ARP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Prohibit Dynamic ARP Entries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Navigating and Sorting the ARP Cache Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Flushing the ARP Cache. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Chapter 15:Configuring the DHCP Server . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Network > DHCP Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

DHCP Server Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

DHCP Server Lease Scopes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Configuring DHCP Server for Dynamic Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Configuring Static DHCP Entries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Current DHCP Leases. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Chapter 16:Configuring Dynamic DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Network > Dynamic DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Supported DDNS Providers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Configuring Dynamic DNS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Dynamic DNS Settings Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

PART 4: Modem

Chapter 17:Viewing Modem Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Modem > Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Modem Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Chapter 18:Configuring Modem Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Modem > Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Configuring Profile and Modem Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Chapter 19:Configuring Modem Failover . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Modem > Failover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Modem Failover Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Configuring Modem Failover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Chapter 20:Configuring Advanced Modem Settings. . . . . . . . . . . . . . . . . . 117

Modem > Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Chapter 21:Configuring Modem Dialup Properties . . . . . . . . . . . . . . . . . . . 119

Modem > Dialup Profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Dial-Up Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Configuring a Dialup Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Modem > Dialup Profiles > Modem Profile Configuration. . . . . . . . . . . . . . . . . . . . . . . . . 120

Configuring a Dialup Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Chat Scripts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

PART 5: Wireless

Chapter 22:Setting Up the WLAN Using the Wireless Wizard

and Monitoring Your WLAN127

Considerations for Using Wireless Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Optimal Wireless Performance Recommendations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Adjusting the TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless Antennas. . . . . . . . . . 129

Wireless Guest Services (WGS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Wireless Node Count Enforcement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

MAC Filter List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

WiFiSec Enforcement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Using the Wireless Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Wireless > Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135

WLAN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

WLAN Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Station Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Chapter 23:Configuring Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . .139

Wireless > Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Wireless Radio Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

Secure Wireless Bridging (TZ 170 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141

Configuring a Secure Wireless Bridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Chapter 24:Configuring WEP and WPA Encryption. . . . . . . . . . . . . . . . . . .147

Wireless > WEP/WPA Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

WEP Encryption Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

WEP Encryption Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

WPA Encryption Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Chapter 25:Configuring Advanced Wireless Settings. . . . . . . . . . . . . . . . . .151

Wireless > Advanced. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Beaconing & SSID Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Wireless Client Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Advanced Radio Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152

Chapter 26:Configuring the MAC Filter List . . . . . . . . . . . . . . . . . . . . . . . . .155

Wireless > MAC Filter List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155

Chapter 27:Configuring Wireless IDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

Wireless > IDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

PART 6: Wireless Guest Services

Chapter 28:Viewing Wireless Guest Services Status. . . . . . . . . . . . . . . . . .163

WGS > Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .163

Chapter 29:Configuring Wireless Guest Services . . . . . . . . . . . . . . . . . . . .165

WGS > Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .165

Bypass Guest Authentication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166

Bypass Filters for Guest Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

Enable Dynamic Address Translation (DAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166

Enable SMTP Redirect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Enable URL Allow List for Authenticated Users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .167

Enable IP Address Deny List for Authenticated Users. . . . . . . . . . . . . . . . . . . . . . . . . . 167

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Table of Contents

Customize Login Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Custom Post Authentication Redirect Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Maximum Concurrent Guests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

WGS Account Profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Chapter 30:Managing Wireless Guest Accounts . . . . . . . . . . . . . . . . . . . . 171

WGS > Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Working with Guest Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Automatically Generating Guest Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Manually Configuring Wireless Guests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Flexible Default Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Secure Access Point with Wireless Guest Services . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

PART 7: Firewall

Chapter 31:Configuring Network Access Rules . . . . . . . . . . . . . . . . . . . . . 179

Network Access Rules Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Using Bandwidth Management with Access Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Firewall > Access Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Restoring Default Network Access Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Adding Rules using the Network Access Rule Wizard . . . . . . . . . . . . . . . . . . . . . . . . . 181

Configuring a Public Server Rule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Configuring a General Network Access Rule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Adding Rules Using the Add Rule Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

Rule Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Chapter 32:Configuring Advanced Rule Options . . . . . . . . . . . . . . . . . . . . 189

Access Rules > Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Windows Networking (NetBIOS) Broadcast Pass Through. . . . . . . . . . . . . . . . . . . . . . 189

Detection Prevention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Source Routed Packets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

TCP Connection Inactivity Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

TCP Checksum Validation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Access Rule Service Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Chapter 33:Configuring Custom Services. . . . . . . . . . . . . . . . . . . . . . . . . . 191

Firewall > Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

User Defined (Custom) Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Predefined Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

Chapter 34:Configuring VoIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

Firewall > VoIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

VoIP Protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

Configuring the VoIP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

Chapter 35:Monitoring Active Firewall Connections . . . . . . . . . . . . . . . . . . 197

Firewall > Connections Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Setting Filter Logic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

Using Group Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

PART 8: VPN

Chapter 36:Configuring VPN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

SonicWALL VPN Options Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

VPN > Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .202

VPN Global Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .202

VPN Policies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .202

Currently Active VPN Tunnels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

Configuring GroupVPN Policy on the SonicWALL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .203

Configuring IKE Preshared Secret. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

Configuring GroupVPN with IKE 3rd Party Certificates . . . . . . . . . . . . . . . . . . . . . . . . . 208

Export a GroupVPN Client Policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Site to Site VPN Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Site-to-Site VPN Deployments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

VPN Planning Sheet for Site-to-Site VPN Policies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

Configuring Site to Site VPN Policies Using the

VPN Policy Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .215

Creating a Typical IKE Preshared Secret VPN Policy . . . . . . . . . . . . . . . . . . . . . . . . . .216

Creating a Custom VPN Policy IKE with Preshared Secret . . . . . . . . . . . . . . . . . . . . . .217

Creating a Manual Key VPN Policy with the VPN Policy Wizard. . . . . . . . . . . . . . . . . . 218

Configuring IKE 3rd Party Certificates with the VPN Policy Wizard. . . . . . . . . . . . . . . . 219

Creating Site-to-Site VPN Policies Using the VPN Policy Window . . . . . . . . . . . . . . . . 220

Chapter 37:Configuring Advanced VPN Settings. . . . . . . . . . . . . . . . . . . . .229

VPN > Advanced. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .229

Advanced VPN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .229

VPN User Authentication Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

VPN Bandwidth Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231

Chapter 38:Configuring DHCP Over VPN . . . . . . . . . . . . . . . . . . . . . . . . . .233

VPN > DHCP over VPN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233

DHCP Relay Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233

Configuring the Central Gateway for DHCP Over VPN . . . . . . . . . . . . . . . . . . . . . . . . . 234

Configuring DHCP over VPN Remote Gateway. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .235

Device Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236

Current DHCP over VPN Leases. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236

Chapter 39:Configuring L2TP Server Settings. . . . . . . . . . . . . . . . . . . . . . .237

VPN > L2TP Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .237

L2TP Server Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .238

IP Address Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238

Adding L2TP Clients to the SonicWALL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .238

Currently Active L2TP Sessions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .239

Chapter 40:Managing Certificates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .241

Digital Certificates Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .241

SonicWALL Third-Party Digital Certificate Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241

VPN > Local Certificates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .242

Importing Certificate with Private Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242

Certificate Details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .242

Generating a Certificate Signing Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

VPN > CA Certificates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .244

Importing CA Certificates into the SonicWALL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244

Certificate Details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .244

Certificate Revocation List (CRL). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .245

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

vii

Table of Contents

PART 9: Users

Chapter 41:Viewing User Status and Configuring User Authentication. . . . 249

User Level Authentication Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249

Users > Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249

Active User Sessions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250

Users > Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250

Authentication Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250

Global User Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251

Internet Authentication Exclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251

Acceptable Use Policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

Configuring RADIUS Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253

Chapter 42:Configuring Local Users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257

Users > Local Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257

Adding a Local User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258

PART 10: Security Services

Chapter 43:Managing SonicWALL Security Services. . . . . . . . . . . . . . . . . 261

SonicWALL Security Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

mySonicWALL.com. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

Activating Free Trials. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

Security Services > Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263

Security Services Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263

Manage Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263

If Your SonicWALL Security Appliance is Not Registered. . . . . . . . . . . . . . . . . . . . . . . 264

Security Services Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264

Security Services Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264

Chapter 44:Configuring SonicWALL Content Filtering Service. . . . . . . . . . 265

SonicWALL Content Filtering Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

Security Services > Content Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266

Content Filter Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266

Activating SonicWALL Content Filtering Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266

Activating a SonicWALL Content Filtering Service

FREE TRIAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267

Content Filter Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

Restrict Web Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

Trusted Domains. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Message to Display when Blocking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Configuring SonicWALL Filter Properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Custom List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271

Consent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272

Mandatory Filtered IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273

Chapter 45:Managing SonicWALL Network Anti-Virus and E-Mail Filter Services275

SonicWALL Network Anti-Virus Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275

Security Services > Anti-Virus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276

Activating SonicWALL Network Anti-Virus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276

Activating a SonicWALL Network Anti-Virus FREE TRIAL . . . . . . . . . . . . . . . . . . . . . . 277

Security Services > E-Mail Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278

viii

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Configuring SonicWALL Network

Anti-Virus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .278

Chapter 46:Managing SonicWALL Gateway Anti-Virus Service. . . . . . . . . .279

SonicWALL Gateway Anti-Virus Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279

Configuring SonicWALL Gateway

Anti-Virus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .283

Chapter 47:Managing SonicWALL Intrusion Prevention Service . . . . . . . . .285

SonicWALL Intrusion Prevention Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .285

SonicWALL IPS Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .285

SonicWALL Deep Packet Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286

How SonicWALL’s Deep Packet Inspection Architecture Works . . . . . . . . . . . . . . . . . .287

Security Services > Intrusion Prevention. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .288

Activating SonicWALL IPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .288

Activating the SonicWALL IPS FREE TRIAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .289

Chapter 48:Managing SonicWALL Global Security Client . . . . . . . . . . . . . .291

SonicWALL Global Security Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291

Global Security Client Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .292

How SonicWALL Global Security Client Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292

SonicWALL Global Security Client Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .292

Activating SonicWALL Global Security Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .293

PART 11: Log

Chapter 49:Viewing Log Events. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .297

SonicOS Log Event Messages Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .297

Log > View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298

Navigating and Sorting Log View Table Entries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298

SonicOS Log Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299

Chapter 50:Specifying Log Categories. . . . . . . . . . . . . . . . . . . . . . . . . . . . .301

Log > Categories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .301

Log Categories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301

Alerts & SNMP Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .302

Chapter 51:Configuring Log Automation . . . . . . . . . . . . . . . . . . . . . . . . . . .303

Log > Automation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303

E-mail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .304

Syslog Servers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .304

Chapter 52:Configuring Name Resolution . . . . . . . . . . . . . . . . . . . . . . . . . .307

Log > Name Resolution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .307

Selecting Name Resolution Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

Specifying the DNS Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

Chapter 53:Generating and Viewing Log Reports . . . . . . . . . . . . . . . . . . . .309

Log > Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .309

Data Collection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309

View Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .310

Log > ViewPoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .311

SonicWALL ViewPoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Table of Contents

Appendix A:Using the SonicSetup Diagnostic and Recovery Tool . . . . . . . 313

SonicSetup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313

Introduction and Discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314

Device Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315

Diagnostic Results. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316

SonicROM Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316

SonicOS Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317

Restoring Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318

Address Synchronization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319

Appendix B:Resetting the SonicWALL Security Appliance Using SafeMode321

SonicWALL SafeMode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321

Upgrading SonicOS Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

part, without the written consent of the manufacturer, except in the normal use of the software to make a backup copy. The same proprietary and copyright notices must be affixed to any permitted copies as were affixed to the original. This exception does not allow copies to be made for others, whether or not sold, but all of the material purchased (with all backup copies) can be sold, given, or loaned to another person. Under the law, copying includes translatin g into another language or format.

Preface

Chapter :

Specifications and descriptions subject to change without notice.

Trademarks

SonicWALL is a registered trademark of SonicWALL, Inc. Microsoft Windows 98, Windows NT, Windows 2000, Windows XP, Windows Server 2003, Internet

Explorer, and Active Directory are trademarks or registered trademarks of Microsoft Corporation. Netscape is a registered trademark of Netscape Communications Corporation in the U.S. and other

countries. Netscape Navigator and Netscape Communicator are also trademarks of Netscape Communications Corporation and may be registered outside the U.S.

Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the U.S. and/or other countries.

Other product and company names mentioned herein may be trademarks and/or registered trademarks of their respective companies and are the sole prope rty of their respective manufacture rs.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Preface

Limited Warranty

SonicWALL, Inc. warrants that commencing from the delivery date to Customer (but in any case commencing not more than ninety (90) days after the original shipment by SonicWALL), and continuing for a period of twelve (12) months, that the product will be free from defects in materials and workmanship under normal use. This Limited War ra nty is not transferable and applie s only to the original end user of the product. SonicWALL and its suppliers' entire liability and Customer's sole and exclusive remedy under this limited warranty will be shipment of a replacement product. At SonicWALL's discretion the replacement product may be of eq ual or g rea ter fu nctiona lity and may be of either new or like-new quality. SonicWALL's obligations under this warranty ar e contingent upon the return of the defective product according to the terms of SonicWALL's then-current Support Services policies.

This warranty does not apply if the product has been subjected to abnormal electrical stress, damaged by accident, abuse, misuse or misapplication, or has been modified without the written permission of SonicWALL.

DISCLAIMER OF WARRANTY. EXCEPT AS SPECIFIED IN THIS WARRANTY, ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS, AND WARRANTIES INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NONINFRINGEMENT, SATISFACTORY QUALITY OR ARISING FROM A COURSE OF DEALING, LAW, USAGE, OR TRADE PRACTICE, ARE HEREBY EXCLUDED TO THE MAXIMUM EXTENT ALLOWED BY APPLICABLE LAW. TO THE EXTENT AN IMPLIED WARRANTY CANNOT BE EXCLUDED, SUCH WARRANTY IS LIMITED IN DURATION TO THE WARRANTY PERIOD. BECAUSE SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM JURISDICTION TO JURISDICTION. This disclaimer and exclusion shall apply even if the express warranty set forth above fails of its essential purpose.

DISCLAIMER OF LIABILITY. SONICWALL'S SOLE LIABILITY IS THE SHIPMENT OF A REPLACEMENT PRODUCT AS DESCRIBED IN THE ABOVE LIMITED WARRANTY. IN NO EVENT SHALL SONICWALL OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER, INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, LOSS OF INFORMATION, OR OTHER PECUNIARY LOSS ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL, OR PUNITIVE DAMAGES HOWEVER CAUSED AND REGARDLESS OF THE THEORY OF LIABILITY ARISING OUT OF THE USE OF OR INABILITY TO USE HARDWARE OR SOFTWARE EVEN IF SONICWALL OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. In no event shall SonicWALL or its suppliers' liability to Customer, whether in contract, tort (including negligence), or otherwise, exceed the price paid by Customer. The foregoing limitations shall apply even if the above-stated warranty fails of its essential purpose. BECAUSE SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATION OR EXCLUSION OF CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

xii

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

About this Guide

Welcome to the SonicWALL SonicOS Standard 3.0 Administrator’s Guide. This manual provides the information you need to successfully activate, configure, and administer SonicOS Standard 3.0 on the following SonicWALL security appliance:

SonicWALL TZ 50 SonicWALL TZ 50 Wireless SonicWALL TZ 150 SonicWALL TZ 150 Wireless SonicWALL TZ 170 SonicWALL TZ 170 SP SonicWALL TZ 170 Wireless SonicWALL PRO 1260 SonicWALL PRO 2040 SonicWALL PRO 3060

Note: For the latest version of this manual as well as other SonicWALL product documentation, refer



to <http//:www.sonicwall.com/services/documentation.html>.

About this Guide

Tip: The Getting Start Guide for your SonicWALL security appliance provides instructions for installing and configuring your SonicWALL security appliance for connecting your network through the SonicWALL security appliance for secure Internet connectivity.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

xiii

Preface

Organization of this Guide

The SonicOS Standard 3.0 Administrator’s Guide organization is structured into the following parts that parallel the top-level menu items of SonicWALL Web-based mana gement in terface. Within thes e parts, individual chapters correspond to the specific configuration pages listed as submenu items in the management interface.

Part 1 Introduction

This part provides an overview of the SonicWALL management interface conventions, explains how to get your network securely connected to the Internet with the SonicWALL security appliance using the Setup Wizard, and registering your SonicW AL L sec ur ity ap plia n ce .

Part 2 System

This part covers the configuration of a variety SonicWALL security appliance controls for managing system status information, registering the SonicWALL security appliance, activating and managing SonicWALL Security Services licenses, configuring SonicWALL security appliance local and remote management options, managing firmware versions and preferences, and using included diagnostics tools for troubleshooting.

Part 3 Network

This part provides instructions for configuring the SonicWALL security appliance for your network environment. It explains configuring network interface settings manually, setting up a DHCP server, configuring the Web proxy requests to a network proxy server, configuring static routes and ARP settings, and configuring dynamic DNS.

Part 4 Modem (TZ 170 SP)

This part explains how to configure the SonicWALL TZ 170 SP’s built-in mo dem for use as the pr imary Internet connection or as a dial-up failover for the primary broadband Internet connection.

Part 5 Wireless (TZ 150 Wireless/TZ 170 Wireless)

This part explains how to set up the SonicWALL TZ 150 Wireless/TZ 170 Wir eless for secure WiFiSec or WEP/WPA Internet access, configure wireless intrusion detection settings, and configure wireless clients for secure wireless and remote access via the SonicWALl Global VPN Client.

Part 6 Wireless Guest Services (TZ 150 Wireless/TZ 170 Wireless)

This part explains how configure wireless guest accounts for th e SonicWALL TZ 150 Wireless/TZ 170 Wireless to securely support wireless network guests.

Part 7 Firewall

This part explains how to configure and manage firewall access po licies to deny o r pe rm it traf fic, how to configure Voice over IP (VoIP) traffic to pass through, and monitor active firewall connections.

Part 8 VPN

This part covers how to create VPN policies on the SonicWALL security appliance to support SonicWALL Global VPN Clients for remote client access, as well as site-to-site VPN policies for connecting Loans between offices running SonicWALL security appliances.

xiv

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Part 9 Users

This part explains how to create and manage a user database on the So nicWALL secu rity ap plian ce. and how to integrate the SonicWALL security appliance with a RADIUS server for user auth entication.

Part 10 Security Services

This part includes an overview of optional SonicWALL security services. When combined with network security features of the SonicWALL security appliance, these services provide comprehensive protection against a wid e rang e of thre a ts, inc l ud in g viru se s, wo rm s, Tr o jan s, spyware, peer-to-peer and instant mess ag in g ap plic atio n exp loits , ma licio us co de , an d ina p pr opria te or unproductive web sites.

These subscription-based services include SonicWALL Content Filtering Service, SonicWALL Network Anti-Virus, Gateway Anti-Virus, SonicWALL Intrusion Prevention Service, and SonicWALL Global Security Client. FREE trials of many of these these securit y service s ubscriptions are available after you register your SonicWALL security appliance.

Part 11 Log

This part covers managing the SonicWALL security appliance’s enhanced logging, alerting, and reporting features. The SonicWALL security appliance’s logging features provide a comprehensive set of log categories for monitoring security and network activities.

About this Guide

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Preface

Guide Conventions

The following Conventions used in this guide are as follows:

Convention Use

Bold Highlights items you can select on the SonicWALL

management interface.

Italic Highlights a value to enter into a field. For example, “type

192.168.168.168 in the IP Address field.”

Menu Item > Menu Item Indicates a multiple step management interface menu

choice. For example, Security Services > Content Filter means select Security Services, then select Content

Filter.

Icons Used in this Manual

These special messages refer to noteworthy information, and include a symbol for quick identification:

Alert: Important information that cautions about features affecting firewall performance, security

features, or causing potential problems with your SonicWALL security appliance.



Tip: Useful information about security features and configurations on your SonicWALL security appliance.

Note: Important information on a feature that requires callout for special attention.

Cross Reference: Pointer to related or more detailed information on the topic.

xvi

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

SonicWALL Technical Support

For timely resolution of technical support questions, visit SonicWALL on the Internet at

<http://www.sonicwall.com/services/support.html>. Web-based resources are available to help you

resolve most technical issues or contact SonicWALL Technical Support. To contact SonicWALL telephone support, see the telephone numbers listed below:

North America Telephone Support

U.S./Canada - 888.777.1476 or +1 408.752.7819

International Telephone Support

Australia - + 1800.35.1642 Austria - + 43(0)820.400.105 EMEA - +31(0)411.617.810 France - + 33(0)1.4933.7414

SonicWALL Technical Support



Germany - + 49(0)1805.0800.22 Hong Kong - + 1.800.93.0997 India - + 8026556828 Italy - +39.02.7541.9803 Japan - + 81(0)3.5460.5356 New Zealand - + 0800.446489 Singapore - + 800.110.1441 Spain - + 34(0)9137.53035 Switzerland - +41.1.308.3.977 UK - +44(0)1344.668.484

Note: Please visit <http://www.sonicwall.com/services/contact.html> for the latest technical support

telephone numbers.

More Information on SonicWALL Products and Services

Contact SonicWALL, Inc. for information about SonicWALL products and services at:

Web: http://www.sonicwall.com E-mail: sales@sonicwall.com Phone: (408) 745-9600 Fax: (408) 745-9300

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

xvii

Preface

Current Documentation

Check the SonicWALL documentation Web site for that latest versions of this manual and all other SonicWALL product documentation.

http://www.sonicwall.com/services/documentation.html

xviii

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

ART

Part 1Introduction

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Chapter 1: Introduction

What’s New in SonicOS Standard 3.0

• Real-time Gateway Anti Virus (GAV) - Provides per packet virus scanning using a Deep Packet Inspection version 2.0 engine. The Real-time GAV feature provides over 4,500 signatures on the SonicWALL TZ series security appliances and over 24,000 signatures on the SonicWALL PRO series governing gateway appliances. The Real-time GAV feature supports zip and gzip data compression. The Real-time GAV feature supports scanning the following message delivery protocols:

 HyperText Transport Protocol (HTTP)  Simple Mail Transfer Protocol (SMTP)  Internet Message Access Protocol (IMAP)  Post Office Protocol 3 (POP3)  File Transfer Protocol (FTP)  Transmission Control Protocol (TCP) packet streams

• IPS 2.0 - Includes an updated Data Packet Inspection (DPI) engine that powers Intrusion Prevention Services (IPS) and GAV. The IPS version 2.0 engine includes the following feature enhancements:

 IP Fragmentation - Provides the ability to either disallow IP fragments or to reassemble IP

fragments for full application layer inspection.

 Checksum Validation - Provides the ability to detect and prevent invalid IP, ICMP, TCP, and

UDP checksums.

 Global IP Exclusion List - Provides the ability to configure a range of IP addresses to exclude

specified network traffic from IPS evaluation.

 Log Redundancy - Provides the ability to configure per-category and per-signature log

redundancy filter settings.

 Dynamic Categorization - Groups and displays signatures automatically in expandable category

views. Category maintenance is performed through automated signature updates.

• Enhanced VoIP Support - Adds comprehensive support for third-party VoIP equipment, including products from Cisco, Mitel, Pingtel, Grandstream, Polycom, D-Link, Pulver, Apple iChat, and softphones from Yahoo, Microsoft, Ubiquity, and OpenPhone. Enhanced VoIP support adds the ability to handle SIP, H.323v1, H.323v2, H.323v3, and H.323v4. The internal DHCP Server capability in SonicOS Standard 2.6 allows any SIP endpoint to receive addressing information into the DHCP scope information, this enables any SIP endpoint to receive SIP Proxy addresses when they issue a DHCP request on the network.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER



Introduction

Note: Registration Admission Status (RAS) and Internet Locator Service (ILS) LDAP for H.323 is not supported on SonicOS Standard 3.0. For H.323 RAS and ILS LDAP support on the SonicWALL TZ 170 Series, upgrade your firmware to SonicOS Enhanced 3.0 (or greater). For H.323 RAS and ILS LDAP support on the SonicWALL PRO 2040 or SonicWALL PRO 3060, upgrade your firmware to SonicOS Enhanced 2.5 (or greater).

• Dynamic DNS - Enables the SonicWAL L security device to dynamically register its WAN IP address with a Dynamic Domain Name Server (DDNS) service prov ide r.

• Lightweight Hotspot Messaging - Pr ovide s Hotspot users authentication between a SonicW ALL wireless access device (such as a SonicWALL TZ 170 Wireless, or a SonicPoint with a SonicWALL PRO series governing gateway appliance) and an Authentication Back-End (ABE) for parametrically bound network access.

• Wireless Radio Operating Schedule - Provides the ability to create a schedule to control the operation of the wireless radio for SonicWALL wireless access devices (such as the SonicWALL TZ 170 Wireless or SonicPoint).

• WiFiSec Exception List - Provides wireless users the flexibility to bypass WiFiSec enforcement. The WiFiSec Exception List enables you to allow NT Domain logons to occur prior to Global VPN Client (GVC) tunnel establishment.

• Real-time Monitoring - Includes the following monitoring tools:  CPU Monitor allows you to generate CPU utilization reports in a customizable histogram

format.

 Process Monitor allows you to generate reports on current running process es .  Active Connections Monitor allows you to generate reports on current active network

connections.

• DHCP Server Enhancements - Includes expanded hash tables for resource management, accelerated duplicate-address detection, and improved Dynamic Host Config uration Protocol (DHCP) Server internal-database maintenance management.

• Expanded Logging - Includes additional logging capabilities to provide expanded flexibility. You can export the log into plain text or CSV values. Logging categories are dramatically expanded, the logs conform to Syslog severity levels so you can set the SonicWALL security appliance to only log alerts and messages of specified levels. And you can independently specify which categories are logged to the internal log. When dire cting logs to external Syslog servers, you can rate -limit the messages based on events-per-second or maximum bytes-per-second, so that external Syslog servers do not become overwhelmed.

• Static ARP Support - Enables you to create static Address Resolution Protocol (ARP) entries, create MAC address to IP address bindings, and to publish static ARP entries for use in a secondary network subnet.

• Virtual Adapter St atic IP Support - Provides support for static IP addr essing of Global VPN Client (GVC) virtual adapters.

SonicWALL Management Interface

The SonicWALL security appliance’s Web-based management interface provides a easy-to-use graphical interface for configuring your SonicWALL security appliance. The following provides an overview of the key management interface objects.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Navigating the Management Interface

Navigating the SonicWALL management interface includes a hierarchy of menu buttons on the navigation bar (left side of your browser window).

SonicWALL Management Interface

When you click a menu button, related manage ment functions are displayed as submenu items in th e navigation bar.

To navigate to a submenu page, click the link. When you click a menu button, the first submenu item page is displayed. The first submenu page is automatically displaye d when you click the menu button. For example, when you click the Network button, the Network > Settings page is displayed.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Introduction

Status Bar

The Status bar at the bottom of the management interface window displays the status of actions executed in the SonicWALL management interface.

Applying Changes

Click the Apply button at the top right corner of the SonicWALL management interface to save any configuration changes you made on the page.

If the settings are contained in a secondary window within the management interface, when you click

OK, the settings are automatically applied to the SonicWALL security appliance.

Navigating Tables

Navigate tables in the management interface with large number of entries by using the navigation buttons located on the upper right top corner of the table.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

SonicWALL Management Interface

The table navigation bar includes buttons for moving through table pages.

Common Icons in the Management Interface

The following describe the functions of common icons used in the SonicWALL mana gement interface: Clicking on the edit icon displays a window for editing the settings. Clicking on the delete icon deletes a table entry Moving the pointer over the comment icon displays text from a Comment field entry.

Getting Help

Each SonicWALL security appliance includes Web-based on-line help av ailable from the management interface.

Clicking the question mark ? button on the top-right corner of every page accesses the context-sensitive help for the page.

Alert: Accessing the SonicWALL security appliance online help requires an active Internet

connection.

Logging Out

The Logout button at the bottom of the menu bar terminates the management interface session and displays the authentication page for logging into the SonicWALL security appliance.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Introduction

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Chapter 2: Basic SonicWALL Security

Appliance Setup

SonicWALL Security Appliance Configuration Steps

HAPTER

The chapter provides instructions for basic installation of the SonicWALL security appliance running SonicOS Standard 3.0. After you complete this chapter, computers on your LAN will have secure Internet Internet access.

• “Collecting Required ISP Information” on page 9

• “Accessing the SonicWALL Security Appliance Management Interface” on page 11

• “Using the SonicWALL Setup Wizard” on page 11

• “Registering Your SonicWALL Security Appliance” on page 24

Collecting Required ISP Information

Before you configure your SonicWALL security appliance for Internet connectivity for your computers, make sure you have any information required for your type of Internet connection available.

Internet Service Provider (ISP) Information

If You Have a Cable Modem

Your ISP is probably using DHCP to dynamically assign an address to your computer. You do not need any Internet connection information.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Basic SonicWALL Security Appliance Setup

If You Have DSL

Your ISP is probably using PPPoE to dynamically authenticate your login and assign an address to your computer. You will need:

User Name:



Note: Your ISP may require your user name to include the “@” symbol and the domain name, for example, “Joe@sonicwall.com”

Password:

If You Have a Static IP Address

Your ISP may have assigned you a static IP address for your computer. If so, the paperwork or e-mail confirmation from your ISP should contain the following configuration information:

IP Address: Subnet Mask: Default Gateway: Primary DNS: Secondary DNS (optional):

If Your ISP Provided You With a Server IP Address, User Name, and Password

Your ISP may be using PPTP to establish a secure connection between your computer and a server. You will need:

Server Address: User Name: Password: If you are unsure what kind of connection you have, the paperwork or e-mail confirmation message

from your ISP should contain the information. If you cannot find the information, you can rely on the SonicWALL security appliance to automatically detect the correct settings during setup.

Other Information

SonicWALL Management Interface

To access the SonicWALL security appliance Web-based management interface. These are the default settings, which you can change:



User Name: Password: password

Note: If you are not using one of the network configurations above, refer to Chapter 3, Configuring Network Settings.

admin

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Accessing the SonicWALL Security Appliance Management Interface

To access the Web-based management interf ace of the SonicWALL security appliance:

On the computer you have connected to a network port, start your Web browser.

Alert: Your Web browser must support Java and HTTP uploads. Internet Explorer 5.0 or higher or

Netscape Navigator 4.7 or higher are recommended.

Enter 192.168.168.168 in the Location or Address field. The first time you access the SonicWALL management interface, the SonicWALL Setup Wizard launches and guides you through the configuration and setup of your SonicWALL security appliance.

If the Setup Wizard does not display, the System > Status page is displayed. Click the Setup Wizard button on the Network > Settings page.

Proceed to one of the following configuration options for your type of Internet connection:

• “Configuring a Static IP Address Internet Connection” on page 12

• “Configuring a DHCP Internet Connection” on page 14

• “Configuring a PPPoE Internet Connection” on page 14

• “Configuring PPTP Internet Connectivity” on page 15

Tip: If you do not know what kind of Internet connection you have, the SonicWALL Setup Wizard will attempt to detect your connection settings.

Using the SonicWALL Setup Wizard

The SonicWALL Setup Wizard provides user-guided instructions for configuring your SonicWALL security appliance. If the Setup Wizard does not launch when yo u access the management interface, you can launch the Setup Wizard using one of the following methods:

• Select the Network > Settings and then click on the Setup Wizard button.

• Select the System > Status page and then click the Wizards button. The SonicWALL Configuration Wizard is displayed. Select Setup Wizard and click Next.

•Select Wizards on the left-navigation bar. The SonicWALL Configuration Wizard is displayed. Select Setup Wizard and click Next.

Note: Make sure you have any required ISP information to complete the configuration before using



SonicWALL TZ 170 SP

the Setup Wizard. Tip: You can also configure all your WAN and network settings on the Network > Settings page of

the SonicWALL management interface.

If you are configuring the SonicWALL TZ 70 SP, the Setup Wizard includes two additional modem configuration pages for configuring the modem as the primary WAN connection or as a failover for the primary Internet connection. See “Configuring the TZ 170 SP using the Setup Wizard” on page 17.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Basic SonicWALL Security Appliance Setup

SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless

If you are configuring the SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 70 Wireless, the Setup Wizard includes additional modem configuration pages for configuring the WLAN interface and

setting up WiFISec security.

Configuring a Static IP Address Internet Connection

If you are assigned a single IP address by your ISP, perform the instructions below.

Tip: Be sure to have your network information including your WAN IP address, subnet mask, and

DNS settings ready. This information is obtained from your ISP.

Click the Setup Wizard button on the Network > Settings page. The Welcome to the SonicWALL Setup Wizard page is displayed. Click Next.



To set the password, enter a new password in the New Password and Confirm New Password fields. Click Next.

Note: Remember your password. You will need it to access the SonicWALL security appliance management interface after the initial configuration.

Select your local time zone from the Time Zone menu. Click Next.

Note: Set the time zone correctly before you register your SonicWALL security appliance.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Using the SonicWALL Setup Wizard

Choose Static IP and click Next.

Enter the information provided by your ISP in the following fields: SonicWALL WAN IP Address, WAN Subnet Mask, WAN Gateway (Router) Address, and DNS Server Addresses. Click Next.

The LAN Settings page allows the configuration of the SonicWALL LAN IP Addresses and the LAN Subnet Mask. The SonicWALL LAN IP Addresses are the private IP address assigned to

the LAN port of the SonicWALL security appliance. The LAN Subn et Mask defines the range o f IP addresses on the LAN. The default values provided by the SonicWALL security appliance work for most networks. If you do not use the default settings, enter your preferred private IP address and subnet mask in the fields.

Click Next. The LAN DHCP Server page configures the SonicWALL security appliance DHCP Server. If enabled, the SonicWALL security appliance automatically configures the IP settings of computers on the LAN. To enable the DHCP server, select Enable DHCP Server, and specify the range of IP addresses that are assigned to computers on the LAN.

If Disable DHCP Server is selected, you must configure each computer on your network with a static IP address on your LAN. Click Next.

The Configuration Summary page displays the configuration defined using the Installation Wizard. To modify any of the settings, click Back to return to any previous page. If the configuration is correct, click Apply. The SonicWALL security appliance stores the network settings and then displays the Setup Wizard Complete page.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Basic SonicWALL Security Appliance Setup

Tip: The SonicWALL security appliance LAN IP address, displayed in the URL field of the Setup

Wizard Complete page, is used to log in and manage the SonicWALL security appliance.

Click Restart to restart the SonicWALL security appliance. The SonicWALL security appliance takes approximately 90 seconds or longer to restart. During this time, the yellow Test LED is lit.

Configuring a DHCP Internet Connection

DHCP Internet connections are a common network configuration for customers with cable Internet service. You are not assigned a specific IP address by your ISP.

Click the Setup Wizard button on the Network>Settings page. The Welcome to the SonicWALL Setup Wizard page is displayed. Click Next.

To set the password, enter a new password in the New Password and Confirm New Password fields. Click Next.

Note: Remember your password. You will need it to access the SonicWALL security appliance



management interface after the initial configuration.

Select your local time zone from the Time Zone menu. Click Next.



Note: Set the time zone correctly before you register your SonicWALL security appliance.

Select DHCP. Click Next. A page is displayed describing an DHCP Internet connection.

Click Next.

The LAN Settings page allows the configuration of SonicWALL security appliance LAN IP Addresses and Subnet Masks. SonicWALL security appliance LAN IP Addresses are the private IP addresses assigned to the LAN of the SonicWALL security appliance. The LAN Subnet Mask defines the range of IP addresses on the networks. The default values provided by the SonicWALL security appliance are useful for most networks. Click Next.

The LAN DHCP Server window configures the SonicWALL security appliance DHCP Server. If enabled, the SonicWALL automatically assigns IP settings to computers on the LAN. To enable the DHCP server, select Enable DHCP Server, and specify the range of IP addresses assigned to computers on the LAN.

If Disable DHCP Server is selected, the DHCP Server is disabled. Click Next to continue.

The Configuration Summary window displays the configuration defined using the Installation Wizard. To modify any of the settings, click Back to return to any previous page. If the

configuration is correct, click Apply. The SonicWALL security appliance stores the network settings and then displays the Setup Wizard Complete page.

Tip: The new SonicWALL security appliance LAN IP address, displayed in the URL field of the Setup Wizard Complete page, is used to log in and manage the SonicWALL security appliance.

Click Restart to restart the SonicWALL security appliance. The SonicWALL security appliance takes 90 seconds to restart. During this time, the yellow Test LED is lit.

Configuring a PPPoE Internet Connection

PPPoE is typically used for DSL In tern et se rvice using a DSL modem. The ISP requires a user name and password to log into the remote server.

Click the Setup Wizard button on the Network > Settings page. The Welcome to the SonicWALL Setup Wizard page is displayed. Click Next.

To set the password, enter a new password in the New Password and Confirm New Password fields. Click Next.

Note: Remember your password. You will need it to access the SonicWALL security appliance



management interface after the initial configuration.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE



Using the SonicWALL Setup Wizard

Select your local time zone from the Time Zone menu. Click Next.

Note: Set the time zone correctly before you register your SonicWALL security appliance.

Select PPPoE. Click Next.

Enter the user name and password provided by your ISP into the User Name and Password fields. Click Next.

The LAN Settings page allows the configuration of SonicWALL security appliance LAN IP Addresses and LAN Subnet Mask.The SonicWALL security appliance LAN IP Address is the private IP address assigned to the LAN port of the SonicWALL security appliance. The LAN Subnet Mask defines the range of IP addresses on the LAN. The default values provided by the SonicWALL security appliance are useful for most networks. If you do not use the default settings, enter your preferred IP addresses in the fields. Click Next.

The LAN DHCP Server window configures the SonicWALL security appliance DHCP Server. If enabled, the SonicWALL security appliance automatica lly assigns IP settings to computers on the LAN. To enable the DHCP server, select Enable DHCP Server, and specify the range of IP addresses that are assigned to computers on the LAN.

If Disable DHCP Server is selected, you must configure each computer on your network with a static IP address on your LAN. Click Next.

The Configuration Summary window displays the configuration defined using the Installation Wizard. To modify any of the settings, click Back to return to any previous page. If the

configuration is correct, click Apply. The SonicWALL security appliance stores the network settings and then displays the Setup Wizard Complete page.

Tip: The new SonicWALL security appliance LAN IP address, displayed in the URL field of the Setup

Wizard Complete page, is used to log in and manage the SonicWALL security appliance.

Click Restart to restart the SonicWALL security appliance. The SonicWALL security appliance takes 90 seconds to restart. During this time, the yellow Test LED is lit.

Configuring PPTP Internet Connectivity

PPTP is used to connect to a remote serv er via an Internet connection. It supports older Microsoft implementations requiring tunneling connectivity.

Click the Setup Wizard button on the Network > Settings page. The Welcome to the SonicWALL Setup Wizard page is displayed. Click Next.

To set the password, enter a new password in the New Password and Confirm New Password fields. Click Next.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Basic SonicWALL Security Appliance Setup

Select your local time from the Time Zone menu. Click Next.

Select PPTP. Click Next.

Enter the PPTP server IP address in the PPTP Server IP Address field.

Enter the user name and password provided by your ISP into the PPTP User Name and PPTP Password fields. Click Next.

The LAN Settings page allows the configuration of SonicWALL security appliance LAN IP Addresses and LAN Subnet Mask.The SonicWALL security appliance LAN IP Address is the private IP address assigned to the LAN port of the SonicWALL security appliance. The LAN Subnet Mask defines the range of IP addresses on the LAN. The default values provid ed by the SonicWALL security appliance are useful for most networks. If you do not use th e default settings, enter your preferred IP addresses in the fields. Click Next.

The LAN DHCP Server window configures the SonicWALL security appliance DHCP Server. If enabled, the SonicWALL security appliance automatically assigns IP settings to computers on the LAN. To enable the DHCP server, select Enable DHCP Server, and specify the range of IP addresses that are assigned to computers on the LAN.

If Disable DHCP Server is selected, you must configure each computer on your network with a static IP address on your LAN. Click Next.

The Configuration Summary window displays the configuration defined using the Installation Wizard. To modify any of the settings, click Back to return to any previous page. If the

configuration is correct, click Apply. The SonicWALL security appliance stores the network settings and then displays the Setup Wizard Complete page.

Tip: The new SonicWALL security appliance LAN IP address, displayed in the URL field of the Setup Wizard Complete page, is used to log in and manage the SonicWALL security appliance.

Click Restart to restart the SonicWALL security appliance. The SonicWALL security appliance takes 90 seconds to restart. During this time, the yellow Test LED is lit.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Using the SonicWALL Setup Wizard

Configuring the TZ 170 SP using the Setup Wizard

Configuring the SonicWALL TZ 170 SP security appliance using the Setup Wizard includes two additional pages for configuring the SonicWALL TZ 170 SP’s modem. Theses pages are displayed after the Change Time Zone page. Perform the following steps to configure the modem, and then return to the Setup Wizard instructions.

Select the way you will be using the built-in modem on the TZ 17 0 SP.  Yes - I will use a dialup account as a backup for the WAN ethernet connection: This

setting uses the modem dial-up connection as an automatic backup to the WAN ethernet connection. Use this if you have a DSL or Cable modem, and have dialup access to your ISP.

 Yes - Dialup up is my only connection to the Internet: This setting uses the modem dial-up

connection as the only internet connection.

 No - I will not use the modem at this time: This setting does not use the modem.

Click Next.

If you selected to use the modem, enter the phone number, username and passwor d for the dialup connection. Click Next.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Basic SonicWALL Security Appliance Setup

Configuring the TZ 50 Wireless/TZ 150 Wireless/170 Wireless using the Setup Wizard

The Setup Wizard provides the following four wireless deployment scenarios for the SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless security appliances:

Office Gateway - Provides secure access for wired and wireless users on yo ur network. Secure Access Point - Add secure wireless access to an existing wireless network. Guest Internet Gateway - Provide guests controlled wireless access to the Internet only. Secure Wireless Bridge - Operate in wireless bridge mode to securely bridge two networks with

WiFiSec.

Configuring the TZ 50 Wireless/TZ 150 Wireless/170 Wireless as an Office Gateway

Log into the SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless using your administrator’s name and password. Click Wizards in the top right corner of the System > Status page.

Welcome to the SonicWALL Setup Wizard

To begin configuration, select Setup Wizard and click Next.

Selecting the Deployment Scenario

Select Office Gateway as the deployment scenario. To view a description of each type of deployment scenario, click the name of the scenario. Click Next.

Changing the Password

Type a new password in the New Password field. The password should be a uniqu e comb inatio n of letters, or number, or symbols, or a combination of all three for the most se cure password. Avoid names, birthdays, or any obvious words. Retyp e th e pa ssw or d in th e Confirm field. Click Next.

Selecting Your Time Zone

Select your Time Zone from the Time Zone menu. The security appliance uses an inte rnal clock to timestamp logs and other functions requ ir in g time . Click Next.

Configuring the WAN Network Mode

Confirm that you have the proper network information necessary to configure the SonicWALL security appliance to access the Internet. Click the hyperlinks for definitions of the networking terms.

 You can choose:

•Static IP, if your ISP assigns you a specific IP address or group of addresses.

•DHCP, if your ISP automatically assigns you a dynamic IP address.

•PPPoE, if your ISP provided you with client software, a user name, and a password.

•PPTP, if your ISP provided you with a server IP address, a user name, and password.

Choose the correct networking mode and click Next.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Configuring WAN Settings

If you selected Static IP address, you must have your IP address information from your ISP to fill in the WAN Network Mode fields: Enter the public IP address provided by your ISP in the

SonicWALL WAN IP Address, then fill in the rest of the fields: WAN Subnet Mask, Gateway (Router) Address, and the primary and secondary DNS Server Addresses. Click Next.

Configuring LAN Settings

Type a private IP address in the SonicWALL LAN IP Address field. The default private IP address is acceptable for most configurations. Type the subnet in the Subnet Mask field. The Enable Windows Networking Support checkbox is checked to allow Window networking support. If you do not want to allow Windows networking support, uncheck this setting. Click Next.

Configuring LAN DHCP Settings

If you want to use the SonicWALL security appliance’s DHCP Server, check the Enable DHCP Server on LAN checkbox and enter a range of IP addr esses to assign network d evices in the LAN Address Range fields. The default entries work for most network configurations. Click Next.

Configuring WLAN 802.11b/g Settings

The Service Set ID (SSID) identifies your wireless network. It can be up to 32 alphanumeric characters long and is case-sensitive. Select the desired channel for your wireless port. Channel 11 is selected by default and is the most commonly used channel. Select a radio mode from the Radio Mode menu. The default 2.4GHz 802.11b/g Mixed option allows the SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless to support b and g. Select United States - US or Canada - CA from the Country Code menu. Use the default AutoChannel setting in the Chan nel menu. Click Next.

Using the SonicWALL Setup Wizard

Configuring WiFiSec - VPN Client User Authentication

WiFiSec and GroupVPN are automatically enabled on the security appliance using the default settings associated with each feature. To add a user with VPN Client privileges, type a user name and password in the User Name and Password fields, and confirm your password in the Confirm Password field. When users access the security appliance using the VPN client, they are prompted for a user name and password. Click Next.

Configuring Wireless Guest Services

When Enable Wireless Guest Services is selected, guests on your WLAN are permitted access only to the WAN and are required to log in when accessing the Internet. Up to 10 users by default can use the same guest account. Type in the account name and password in the Account Name and Password fields. Configure the Account Lifetime and the Session Timeout times.

Configuration Summary

The Configuration Summary page displays all of the settings configured using the Deployment Scenario Wizard. To change any of the settings, click Back until you see the settings you want to change. To use this configuration on the security appliance, click Apply.

Storing Configuration

Wait for the settings to take effect on the security appliance.

Congratulations

!When the settings are applied to the security appliance, the Congratulations pag e is di splayed. Click Restart to complete the configuration.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Basic SonicWALL Security Appliance Setup

Configuring the TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless as a Secure Access Point

Use the SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless as a secure access point to add secure wireless access to an existing wireless network.

Log into the SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless using your administrator’s name and password. Click Wizards in the top right corner of the System > Status page.

Welcome to the SonicWALL Setup Wizard

To begin configuration, select Setup Wizard and click Next.

Selecting the Deployment Scenario

Select Secure Access Point as the deployment scenario. Click Next.

Changing the Password

Selecting Your Time Zone

Select your Time Zone from the Time Zone menu. The security appliance uses an inte rnal clock to timestamp logs and other functions requ ir in g time . Click Next.

Configuring the LAN Settings

The LAN page allows the configuration of the SonicWALL LAN IP Addresses and the LAN Subnet Mask.The SonicWALL LAN IP Addresses are the private IP address assigned to the

LAN port of the SonicWALL security appliance. The LAN Subnet Mask defines the range of IP addresses on the LAN. The default values pro vided by the SonicWALL se curity appliance work for most networks. If you do not use the default settings, enter your preferred private IP address and subnet mask in the fields. Fill in the Gateway (Router) Address and the primary and secondary

DNS Server Addresses. Click Next.

Configuring the LAN DHCP Settings

The LAN DHCP Settings window configures the SonicWALL security appliance DHCP Server. If enabled, the SonicWALL security appliance automatically configures the IP settings of computers on the LAN. To enable the DHCP server, select Enable DHCP Server on LAN, and specify the range of IP addresses that are assigned to computers on the LAN.

 If Enable DHCP Server on LAN is not selected, you must configure each computer on your

LAN with a static IP address. Click Next.

Configuring WLAN 802.11b Settings

The Service Set ID (SSID) identifies your wireless network. It can be up to 32 alphanumeric characters long and is case-sensitive. Select the desired channel for your wireless port. Channe l 11 is selected by default and is the most commonly used channel. Select a radio mode from the Radio Mode menu. The default 2.4GHz 802.11b /g Mix ed option allows the SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless to support b and g. Select United States - US or Canada - CA from the Country Code menu. Use the default AutoChannel setting in the Channel menu. Click Next.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Using the SonicWALL Setup Wizard

Configuring WiFiSec - VPN Client User Authentication

WiFiSec and Group VPN are automatically enabled on the security appliance using the default settings associated with each feature. To add a user with VPN Client privileges, type a user name and password in the User Name and Password fields. When users access the security appliance using the VPN client, they are prompted for a user name and password. Click Next.

Configuration Summary

The Configuration Summary page displays all of the settings configured using the Deployment Scenario Wizard. To change any of the settings, click Back until you see the settings you want to change. To apply the current settings to the security appliance, click Apply.

Storing Configuration

Wait for the settings to take effect on the security appliance.

Congratulations!

When the settings are applied to the security appliance, th e Congratulations page is displayed. Click Restart to complete the configuration.

Configuring the TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless as a Guest Internet Gateway

Configure your wireless security appliance to provide guests controlled wireless access to the Internet only.

Log into the SonicWALL TZ 50 Wireless/TZ 150 Wi reless/TZ 170 Wireless using your administrator’s name and password. Click Wizards in the top right corner of the System > Status page.

Welcome to the SonicWALL Setup Wizard

To begin configuration, select Setup Wizard and click Next.

Selecting the Deployment Scenario

Select Guest Internet Gateway as the deployment scenario. Click Next.

Changing the Password

Type a new password in the New Password field. The password should be a unique combination of letters, or number, or symbols, or a combination of all three for the most secure password. Avoid names, birthdays, or any obvious words. Retype the password in the Confirm field. Click Next.

Selecting Your Time Zone

Select your Time Zone from the Time Zone menu. The security appliance uses an internal clock to timestamp logs and other functions requiring time. Click Next.

Configuring the WAN Network Mode

Confirm that you have the proper network information necessary to configure the SonicWALL security appliance to access the Internet. Click the hyperlinks for definitions of the networking terms.

You can choose:

 Static IP, if your ISP assigns you a specific IP address or group of addresses.  DHCP, if your ISP automatically assigns you a dynamic IP address.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Basic SonicWALL Security Appliance Setup

 PPPoE, if your ISP provided you with client software, a user name, and a password.  PPTP, if your ISP provided you with a server IP address, a user name, and password.

Choose the correct networking mode and click Next.

Configuring WAN Settings

If you selected Static IP address, you must have your IP address information from your ISP to fill in the WAN Network Mode fields: Enter the public IP address provided by your ISP in the

SonicWALL WAN IP Address, then fill in the rest of the fields: WAN Subnet Mask, Gateway (Router) Address, and the primary and secondary DNS Server Addresses. Click Next.

Configuring WLAN 802.11b Settings

The Service Set ID (SSID) identifies your wireless network. It can be up to 32 alphanumeric characters long and is case-sensitive. Select the desired channel for your wireless port. Channe l 11 is selected by default and is the most commonly used channel. Select a radio mode from the Radio Mode menu. The default 2.4GHz 802.11b /g Mix ed option allows the SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless to support b and g. Select United States - US or Canada - CA from the Country Code menu. Use the default AutoChannel setting in the Channel menu. Click Next.

Configuring Wireless Guest Services

When Wireless Guest Services is selected, guests on your WLAN are permitted acce ss only to the WAN and are required to log in when accessing the Internet. Up to 10 users by defa ult can use the same guest account. Type in the account na me an d pa ss wor d in the Account Name and

Password fields. Configure the Account Lifetime and the Session Timeout times.

Configuration Summary

The Configuration Summary page displays all of the settings configured using the Deployment Scenario Wizard. To change any of the settings, click Back until you see the settings you want to change. To apply the current settings to the security appliance, click Apply.

Storing Configuration

Wait for the settings to take effect on the security appliance.

Congratulations!

When the settings are applied to the security appliance, the Congratulations page is displayed. Click Restart to complete the configuration.

Configuring the TZ 170 Wireless as a Secure Wireless Bridge

Set up the TZ 170 Wireless as a Secure Wireless Bridge to securely bridge two networks with WiFiSec. Log into the TZ 170 Wireless using your administrator’s name and passwor d. Click Wizards in the top

right corner of the System > Status page.

Welcome to the SonicWALL Setup Wizard

To begin configuration, select Setup Wizard and click Next.

Selecting the Deployment Scenario

Select Secure Wireless Bridge as the deployment scenario. Click Next.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Changing the Password

Type a new password in the New Password field. The password should be a unique combination of letters, or number, or symbols, or a combination of all three for the most secure password. Avoid names, birthdays, or any obvious words. Retype the password in the Confirm field. Click Next.

Selecting Your Time Zone

Select your Time Zone from the Time Zone menu. The security appliance uses an internal clock to timestamp logs and other functions requiring time. Click Next.

Configuring LAN Settings

Type a private IP address in the SonicWALL LAN IP Address field. The default private IP address is acceptable for most configurations. Type the subnet in the Subnet Mask field.

If you have Windows devices in both the LAN and WAN zones, you might want to enable win dows networking between zones. However, this opens a potential security risk.

Click Next.

Configuring LAN DHCP Settings

If you want to use the security appliance’s built-in DHCP server to assign dynamic IP Addresses within your LAN, check Enable DHCP Server on LAN and enter the range of addresse s available to the DHCP Server. Click Next.

Using the SonicWALL Setup Wizard

Configuring WLAN 802.11b Settings

The Service Set ID (SSID) identifies your wireless network. It can be up to 32 alphanumeric characters long and is case-sensitive. Select the desired channel for your wireless port. Channel 11 is selected by default and is the most commonly used channel. Select a radio mode from the Radio Mode menu. The default 2.4GHz 802.11b/g Mixed option allows the SonicWALL TZ 170 Wireless to support b and g. Select United States - US or Canada - CA from the Country Code menu. Use the default AutoChannel setting in the Channel menu. Click Next.

Configuring WLAN Network Setting

Enter the appropriate network configuration for the security appliance to work in your bridged network environment. Type a private IP address in the SonicWALL WLAN IP Address field. Type the subnet in the Subnet Mask field. Enter that address of the Gateway (Router) Address and the DNS Server Address. If you have a secondary DNS server you can enter its address.

Click Next.

Configuring Secure Wireless Bridge Settings

Complete the VPN Security Policy information to configure the Secure Wireless Bridge. Enter the VPN

Policy Name, the Peer IPSec Gateway Address, and th e IKE Shared Secret. Click Next to continue.

Configuration Summary

The Configuration Summary page displays all of the settings configured using the Deployment Scenario Wizard. To change any of the settings, click Back until you see the settings you want to change. To apply the current settings to the security appliance, click Apply.

Storing Configuration

Wait for the settings to take effect on the security appliance.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Basic SonicWALL Security Appliance Setup

Congratulations!

When the settings are applied to the security appliance, the Congratulations page is displayed. Click Restart to complete the configuration.

Registering Your SonicWALL Security Appliance

Once you have established your Internet connection, it is recommended you register your SonicWALL security appliance. Registering your SonicWALL security appliance provides the following benefits:

• Try a FREE 30-day trial of SonicWALL Intrusion Prevention Service, SonicWALL Gateway Anti-Virus, Content Filtering Service, and Network Anti-Virus.

• Activate SonicWALL security services and upgrades

• Access SonicOS firmware updates

• Get SonicWALL technical support

Before You Register

If your SonicWALL security appliance is not registered, the following message is displayed in the

Security Services folder on the System > Status page in the SonicWALL management interface: Your SonicWALL is not registered. Click here to Register

mySonicWALL.com account to register the SonicWALL security appliance.

your SonicWALL. You need a

If your SonicWALL security appliance is connected to the Internet, you can create a mySonicWALL.com account and register your SonicWALL security appliance directly from the SonicWALL management interface. If you already have a mySonicWALL.com account, you can register the SonicWALL security appliance directly from the management interface.

Your mySonicWALL.com account is accessible from any Internet connection by pointing your Web browser to <https://www.mysonicwall.com>. mySonicWALL. co m us es the HTT PS (Hypertext Transfer Protocol Secure) protocol to protect your sensitive information.

Alert: Make sure the Time Zone and DNS settings on your SonicWALL security appliance are correct

when you register the device. See SonicWALL Setup Wizard instructions for instructions on using the Setup Wizard to set the Time Zone and DNS settings.

Note: mySonicWALL.com registration information is not sold or shared with any other company.



You can also register your security appliance at the <https://www.mysonicwall.com> site by using the

Serial Number and Authentication Code displayed in the Security Services section. Click the SonicWALL

after you have registered your security appliance. Enter the registration code in the field below the

You will be given a registration code, which you should enter below heading, then click Update.

Creating a mySonicWALL.com Account

Creating a mySonicWALL.com account is fast, simple, and FREE. Simply complete an online registration form in the SonicWALL management interface.

link to access your mySonicWALL.com account. You will be given a registration code

To create a mySonicWALL.com account from the SonicWALL management interface:

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Registering Your SonicWALL Security Appliance

In the Security Services section on the System > Status page, click the Register link in Your SonicWALL is not registered. Click here to Register

Click the here link in If you do not have a mySonicWALL account, please click here to cre ate one on the mySonicWALL Login page.

In the MySonicWALL Account page, enter in your information in the Account Information, Personal Information and Preferences fields in the mySonicWALL.com account form. All fields marked with an * are required fields.

your SonicWALL.

Note: Remember your username and password to access your mySonicWALL.com account.



Click Submit after completing the MySonicWALL Account form.

When the mySonicWALL.com server has finished processing your account, a page is displayed confirming your account has been created. Click Continue.

Congratulations! Your mySonicWALL.com account is activated. Now you need to log into mySonicWALL.com from the management appliance to register your SonicWALL security appliance.

Registering Your SonicWALL Security Appliance

If you already have a mySonicWALL.com account, follow these steps to register your security appliance:

In the Security Services section on the System > Status page, click the Register link in Your SonicWALL is not registered. Click here to Register Login page is displayed.

your SonicWALL. The mySonicWALL

In the mySonicWALL.com Login page, enter your mySonicWALL.com username and password in the User Name and Password fields and click Submit.

The next several pages inform you about free trials available to you for SonicWALL’s Security Services:

 Gateway Anti-Virus - protects your entire network from viruses

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Basic SonicWALL Security Appliance Setup

 Network Anti-Virus - protects computers on your network from viruses  Premium Content Filtering Service - protects your network and improves productivity by

limiting access to unproductive and inappr opr i ate Web sites

 Intrusion Prevention Service - protects your network from Trojans, wo rms, and application

layer attacks.

Click Continue on each page.

At the top of the Product Survey page, enter a friendly name for your SonicWALL security appliance in the Friendly name field, and complete the optional product survey.

Click Submit.

When the mySonicWALL.com server has finished processing your registration, a page is displayed confirming your SonicWALL security appliance is registered.

Click Continue. The Manage Services Online table on the System > Licenses page displayed.

Cross Reference: Refer to Part 7, Security Services for information on SonicWALL security services and activating FREE trials.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

ART

Part 2System

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

System > Status

HAPTER

Chapter 3: Vi ewing System Status

Information

The Status page contains five sections: System Messages, System Information, Latest Alerts, Security Services, and Network Interfaces.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Viewing System Status Information

Wizards

The Wizards button on the System > Status page provides access to the SonicWALL Configuration Wizard.

This wizard allows you to easily configure the SonicWALL security appliance using the following wizards:

• Setup Wizard - This wizard helps you quickly configure the SonicWALL security appliance to se-

cure your Internet (WAN) and LAN connections.

• Network Access Rules Wizard - This wizard helps you quickly configure the SonicWALL security

appliance to provide public access to an internal server, such as a Web or E-mail server or create a general firewall rule.

• VPN Wizard - This wizard helps you create a new site-to-site VPN Policy or configure the WAN

GroupVPN to accept VPN connections from SonicWALL Global VPN Clients.

System Messages

Any information considered relating to possible problems with configurations on the SonicWALL security appliance such as password, log messages, etc.

System Information

The following information is displayed in this section:

• Model - type of SonicWALL security appliance

• Serial Number - also the MAC address of the SonicWALL security appliance

• Authentication Code - the alphanumeric code used to authenticate th e SonicWALL security appliance on the registration database at <https://www.mysonicwall.com>.

• Firmware Version - the firmware version loaded on the SonicWALL security appliance.

• ROM Version - indicates the ROM version.

• CPU - displays the percent usage and the type of the SonicWALL security appliance processor.

• Total Memory - indicates the amount of RAM and flash memory.

• Up Time - the length of time, in days, hours, minutes, and seconds the SonicWALL security appliance is active.

• Current Connections - the number of network connections currently existing on the SonicWALL security appliance.

• Last Modified By- the IP address the administrator connected from and the time of the last modi- fication.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

• Registration Code - the registration code is generated when your SonicWALL security appliance is registered at <https://www.mysonicwall.com>.

Security Services

If your SonicWALL security appliance is not registered at mySonicWALL.com, the following message is displayed in the Security Services folder: Your SonicWALL security appliance is not

registered. Click here

mySonicWALL.com account to register your SonicWALL security appliance or activate security services. You can create a mySonicWALL.com account directly from the SonicWALL management interface.

Cross Reference: Refer to Chapter 2, Basic SonicWALL Security Appliance Setup for complete

registration instructions.

System > Status

to Register your SonicWALL security appliance. You need a

If your SonicWALL security appliance is registered a list of availa ble Son icWAL L Se curi ty Services are listed in this section with the status of Licensed or Not Licensed. If Licensed, the Status column displays the number of licenses and the number of licenses in use. Clicking the Arrow icon displays the System > Licenses page in the SonicWALL Web-based management interface. SonicWALL Security Services and SonicWALL security appliance registration is ma naged by mySonicWALL.com.

Cross Reference: Refer to Part 7, Security Services for more information on SonicWALL Security

Services and activating them on the SonicWALL security appliance.

Latest Alerts

Any messages relating to system errors or attacks are displayed in this section. Attack messages include AV Alerts, forbidden e-mail attachments, fraudulent certificates, etc. System errors include WAN IP changed and encryption errors. Clicking the blue arrow displays the Log > Log View page.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Viewing System Status Information

Network Interfaces

The Network Interfaces displays the IP address and link information for interfaces on your SonicWALL security appliance. The available interfaces displayed in this section depends on the SonicWALL security appliance model. Clicking the arrow displays the Network > Settings page.

SonicWALL Security Appliance Model Interfaces

SonicWALL TZ 50 WAN, LAN SonicWALL TZ 50 Wireless WAN, LAN, WLAN SonicWALL TZ 150 WAN, LAN SonicWALL TZ 150 Wireless WAN, LAN, WLAN SonicWALL TZ 170 WAN, LAN, OPT SonicWALL TZ 170 SP WAN, LAN, Modem SonicWALL TZ 170 Wireless WAN, LAN, WLAN SonicWALL PRO 1260 WAN, LAN, OPT

SonicWALL PRO 2040 WAN, LAN, DMZ SonicWALL PRO 3060 WAN, LAN, DMZ

Cross Reference: Refer to Chapter 9, Configuring Network Sett ings for more information on configuring Network Interfaces.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

System > Licenses

The System > Licenses page provides links to activate, upgrade, or renew SonicWALL Security Services and upgrades.

System > Licenses

HAPTER

Chapter 4: System > Licenses

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

System > Licenses

Node License Status

Node licensing can be monitored and controlled from the System > Licenses pa ge. The Node License Status section displays the number of licensed nodes, and the number of node s currently in

use. To prevent nodes from consuming licenses (such as for network printers that do not require Internet access) a facility is provided to construct an exclusion list.

If your SonicWALL security appliance supports an unlimited number of nodes, the Node License Status section does not include Currently Licensed Nodes and Node License Exclusion List settings.

Currently Licensed Nodes

On node restricted devices, node usage is calculated by the number of active hosts on local interfa ces attempting to traverse the WAN interface. After a 5 minute period of inactivity, hosts are no longer considered active, and are removed from the Currently Licensed Nodes list. Subsequent activity will add them back to the list.

When the node license limit has been reached, an over-limit host will be denied access to the WAN, and if the traffic the host is attempting is HTTP, the host is redirected to the License Exceed page on the SonicWALL security appliance.

Node License Exclusion List

IP Addresses can be added to the Node License Exclusion List by clicking the Add button. The Add/Edit License Exclusion Node window is displayed.

Enter the node IP address in the Node IP Address field and an optional comment in the Comment field.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

You can clicking on the icon in the Exclude column of the Currently Licensed Nodes table to automatically add the entry to the Node License Exclusion List. Clicking the icon displays an alert explaining that the host to be excluded and added to the exclusion list, and the node will be prohibited from accessing the WAN. Clicking OK. The Node License Exclusion List is updated to reflect the change.

The delete icon can be used to remove entries from the list, and to restore WAN access to the referenced host. The edit icon allows for a comment to be added or changed on the entry.

The Node License Exclusion List table is also be updated to reflect the change: Clicking the Auto Firewall Access Rule redirects the management session to the Firewall > Access

Rules page, where the auto-created, non-editable rule can be viewed.

Security Services Summary

System > Licenses



The Security Services Summary table lists the available and activated security services on the SonicWALL security appliance. The Security Service column lists all the available SonicWALL security services and upgrades available for the SonicWALL security appliance. The Status column indicates is the security service is activated (Licensed), available for activation (Not Licensed), or no longer active (Expired). The number of nodes/users allowed for the license is displayed in the Count column.

The information listed in the Security Services Summary table is updated from your mySonicWALL.com account the next time the SonicWALL security appliance automatically synchronizes with your mySonicWALL.com account (once a day) or you can click the link in To

synchronize licenses with mySonicWALL.com click here in the Manage Security Services Online section.

Note: Refer to Chapter 8, Setting Up Security Services for more information on SonicWALL Security

Services and activating them on the SonicWALL security appliance.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

System > Licenses

Manage Security Services Online

To activate, upgrade, or renew services, click the link in To Activate, Upgrade, or Renew services, click here. Click the link in To synchronize licenses with mySonicWALL.com click here to

synchronize your mySonicWALL.com account with the Security Services Summary table. You can also get free trial subscriptions to SonicWALL Content Filter Service and Network Anti-Virus

by clicking the For Free Trials click here link. When you click these links, the mySonicWALL.com

Login page is displayed. Enter your mySonicWALL.com account username and password in the User Name and Password fields and click Submit. The Manage Services Online page is displayed

with licensing information from your mySonicWALL.com account.

Manual Upgrade

Manual Upgrade allows you to activate your services by typing the service activation key supplied

with the service subscription not activated on mySonicWALL.com. Type the activation key from the product into the Enter upgrade key field and click Submit.

Tip: You must have a mysonicwall.com account to upgrade and activate services through the

SonicWALL security appliance.

Manual Upgrade for Closed Environments

If your SonicWALL security appliance is deployed in a high security environment that does not allow direct Internet connectivity from the SonicWALL security appliance, you can enter the encrypted license key information from http://www.mysonicwall.com manually on the System > Licenses page in the SonicWALL Management Interface.



Note: Manual upgrade of the encrypted License Keyset is only for Closed Environments. If your SonicWALL security appliance is connected to the Internet, it is recommended you use the automatic registration and Security Services upgrade features of your SonicWALL security appliance.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

System > Licenses

From a Computer Connected to the Internet

Make sure you have an account at http://www.mysonicwall.com and your SonicWALL security appliance is registered to the account before proceeding.

After logging into www.mysonicwall.com, click on your registered SonicWALL security appliance listed in Registered SonicWALL Products.

Click the View License Keyset link. The scrambled text displayed in the text box is the License Keyset for the selected SonicWALL security appliance and activated Security Services. Copy the Keyset text for pasting into the System > Licenses page or print the page if you plan to manually type in the Keyset into the SonicWALL security appliance.

From the Management Interface of the SonicWALL Security Appliance

Make sure your SonicWALL security appliance is running SonicOS Standard or Enhanced 2.1 (or higher).

Paste (or type) the Keyset (from the step 3) into the Keyset field in the Manual Upgrade section of the System > Licenses page (SonicOS).

Click the Submit or the Apply button to update your SonicWALL security appliance. The status field at the bottom of the page displays The configuration has been updated.

You can generate the System > Diagnostics > Tech Support Report to verify the upgrade details.

After the manual upgrade, the System > Licenses page does not contain any registration and upgrade information. The warning message: SonicWALL Registration Update Needed. Please

update your registration

registered your SonicWALL security appliance. Ignore this message.

information remains on the System > Status page after you have

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

System > Licenses

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Chapter 5: Using System Administration

System > Administration

The System > Administration page provides settings for the configuration of SonicWALL security appliance for secure and remote management. You can manage the SonicWALL security appliance using a variety of methods, including HTTPS, SNMP or SonicWALL Global Management System (SonicWALL GMS).

System > Administration

HAPTER

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Using System Administration

Firewall Name

The Firewall Name uniquely identifies the SonicWALL security appliance and defaults to the serial number of the SonicWALL security appliance. The serial number is also the MAC address of the unit. The Firewall Name is mainly used in e-mailed log files. To change the Firewall Name, enter a unique alphanumeric name in the Firewall Name field. It must be at least 8 characters in length.

Name/Password

Administrator Name

The Administrator Name can be changed from the default setting of admin to any word using alphanumeric characters up to 32 characters in length. To create an new administrator name, enter the new name in the Administrator Name field. Click Apply for the changes to take effect on the SonicWALL security appliance.

Changing the Administrator Password

To set the password, enter the old password in the Old Password field, and the new password in the New Password field. Enter the new password again in the Confirm New Password field and click Apply. Once the SonicWALL security appliance has been updated, a message confirming the update

is displayed at the bottom of the browser window.

The Log out the Administrator after inactivity of (minutes) setting allows you to set the length of inactivity time that elapses before you are automatically logged out of the management interface. By default, the SonicWALL security appliance logs out the administrator after 5 minutes of inactivity.

Enable Administrator/User Lockout

Tip: If the Administrator Inactivity Timeout is extended beyond 5 minutes, you should end every management session by clicking Logout to prevent unauthorized access to the SonicWALL Web Management Interface.

Enter the desired number of minutes in the Log out the Administrator after inactivity of (minutes) setting and click Apply. The time range can be from 1 to 99 minutes. Click Apply, and a message confirming the update is displayed at the bottom of the browser window.

You can configure the SonicWALL security appliance to lockout an administrator or a user if the login credentials are incorrect. Select the Ena ble Administrator/User Lockout check box to prevent users from attempting to log into the SonicWALL security appliance without proper authentication credentials. Enter the number of failed attempts before the user is locked out in the Failed login attempts per minute before lockout field. Enter the length of time that must elapse before the user attempts to log into the SonicWALL security appliance again in the Lockout Period (minutes) field.

Alert: If the administrator and a user are logging into the SonicWALL security appliance using the same source IP address, the administrator is also locked out of the SonicWALL security appliance. The lockout is based on the source IP address of the user or ad min istr ator .

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Web Management Settings

The SonicWALL security appliance can be managed using HTTP or HTTPS and a Web browser. Both HTTP and HTTPS are enabled by default. The default port for HTTP is port 80, but you can configure access through another port. Enter the number of the desired port in th e Port field, and click Update. However, if you configure another port for HTTP management, you must include the port number when you use the IP address to log into the SonicWALL security appliance. For example, if you configure the port to be 76, then you must enter <LAN IP Address>:76 into the Web browser, i.e. <http://192.168.168.1:76>

The default port for HTTPS management is 443, the standard port. You can add another layer of security for logging into the SonicWALL security appliance by changing the default port. To configure another port for HTTPS management, enter the preferred port number into the Port field, and click Update. For example, if you configure the HTTPS Manage ment Port to be 700, then you must log into the SonicWALL security appliance using the port number as well as the IP address, for example, <https://192.168.168.1:700> to access the SonicWALL security appliance.

System > Administration

The Certificate Selection menu allows you to use a self-signed certificate (Use Self-signed Certificate), which allows you to continue using a certificate without downloading a new one each

time you log into the SonicWALL security appliance. You can also choose Import Certificate to select an imported certificate from the VPN > Local Certificates page to use for authentication to the Management Interface.

The Enable Ping from LAN to management interface setting allows a LAN user to ping the SonicWALL to verify it is online.

Changing the Default Size for SonicWALL Management Interface Tables

The SonicWALL Management Interface allows you to control the d isplay of large tables of information across all tables in the management Interface; for example the table on the Firewall > Access Rules page.

You can change the default table page size in all tables displayed in the SonicWALL Management Interface from the default 50 items per page to any size ranging from 1 to 5,000 items.

To change the default table size:

Enter the maximum table size number in the Table Size field.

Click Apply.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Using System Administration

Advanced Management

Enable SNMP

SNMP (Simple Network Management Protocol) is a network protocol used over User Datagram Protocol (UDP) that allows network administr at ors to monitor the status of the SonicWALL security appliance and receive notification of critical events as they occur on the network. The SonicWALL security appliance supports SNMP v1/v2c and all relevant Management Information Base II (MIB) groups except egp and at. The SonicWALL security appliance replies to SNMP Get commands for MIBII via any interface and supports a custom SonicWALL MIB for generating trap messages. The custom SonicWALL MIB is available for download from the SonicWALL Web site and can be loaded into third-party SNMP management software such as HP Openview, Tivoli, or SNMPC.

To enable SNMP on the SonicWALL security appliance, select the Enable SNMP check box, and then click Configure in the System > Administrat ion page.

Note: v1 traps are not supported on the SonicWALL security appliance.



Enter the host name of the SonicWALL security ap plia nc e in th e System Name field.

Enter the network administrator’s name in the System Contact field.

Enter an e-mail address, telephone number, or pager number in the System Location field.

Enter a name for a group or community of administrators who can view SNMP data in the Get Community Name field.

Enter a name for a group or community of administrators who can view SNMP traps in the Trap Community Name field.

Enter the IP address or host name of the SNMP manage ment system receiving SNMP traps in the Host 1 through Host 4 fields. You must configure at least one IP address or host name, but up to four addresses or host names can be used.

Click OK.



Trap messages are generated only for the alert message categories normally sent by th e SonicWALL security appliance. For example, attacks, system errors, or blocked Web sites generate trap messages. If none of the categories are selected on the Log > Settings page, then no trap messages are generated.

By default, the SonicWALL security appliance responds only to Get SNMP messages received on its LAN interface. Appropriate rules must be configured to allow SNMP traffic to and from the WAN interface. SNMP trap messages can be sent via the LAN or WAN.

Note: Refer to Chapter 4, Configuring Firewall Settings for in structions on add ing services and ru les to the SonicWALL security appliance.

If your SNMP management system supports discovery, the SonicWALL agent automatically discover the SonicWALL security appliance on the network. Otherwise, you must add the SonicWALL security appliance to the list of SNMP-managed devices on the SNMP management system.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Enable Management Using SonicWALL GMS

To enable the SonicWALL security appliance to be managed by SonicWALL Global Management System (GMS). Select the Enable Management using GMS checkbox, then click Configure. The Configure GMS Settings window is displayed.

To configure the SonicWALL security appliance for GMS management:

Enter the host name or IP address of the GMS Console in the GMS Host Name or IP Address field.

Enter the port in the GMS Syslog Server Port field. The default value is 514.

Select Send Heartbeat Status Messages Only to send only heartbeat status instead of log messages.

Select GMS behind NAT Device if the GMS Console is placed behind a device using NAT on the network. Type the IP address of the NAT device in the NAT Device IP Address field.

Select one of the following GMS modes from the Management Mode menu. IPSEC Management Tunnel - Use the IPSec management tunnel included with the SonicWALL

security appliance. The default IPSec VPN settings are displayed. Existing Tunnel - Use an existing tunnel for GMS management of the SonicWALL security

appliance. HTTPS - Use HTTPS for GMS management of the SonicWALL security appliance. The following

configuration settings for HTTPS management mode are displayed:

Send Syslog Messages in Cleartext Format - Sends Syslog messages as cleartext. Send Syslog Messages to a Distributed GMS Reporting Server - Sends Syslog Messages

to a GMS Reporting Server separated from the GMS management server. GMS Reporting Server IP Address - Enter the IP address of the GMS Repor ting Server, if the

server is separate from the GMS management server. GMS Reporting Server Port - Enter the port for the GMS Repo rting Se rver. The de fa ult value

is 514

Click OK.

System > Administration

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Using System Administration

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

System > Time

The System > Time page defines the time and date settings to time stamp log events, to automatically update SonicWALL Security Services, and for other internal purposes.

System > Time

HAPTER

Chapter 6: Setting System Time

By default, the SonicWALL security appliance uses an internal list of public NTP servers to automatically update the time. Network Time Protocol (NTP) is a protocol used to synchronize computer clock times in a network of computers. NTP uses Coordinated Universal Time (UTC) to synchronize computer clock times to a millisecond, and sometimes to a fraction of a millisecond.

Set Time

The SonicWALL security appliance uses the time and date settings to time stamp log events, to automatically update filtering subscription services, and for other internal purposes. By default, the SonicWALL security appliance uses an internal list of public NTP servers to automatically update the time. Network Time Protocol (NTP) is a protocol used to synchronize computer clock times in a network of computers. NTP uses Coordinated Universal Time (UTC) to synchronize computer clock times to a millisecond, and sometimes to a fraction of a millisecond.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Setting System Time

Setting the SonicWALL Security Appliance Time

To select your time zone and automatically update the time, choose the time zone from the Time Zone menu. The Set time automatically using NTP setting is activated by default to use the NTP

(Network Time Protocol) to set time automatically. If you want to set your time manually, uncheck this setting. Select the time in the 24-hour format using the Time (hh:mm:ss) menus and the date from the Date menus. Automatically adjus t clock for daylight savin g changes is activated by default to enable automatic adjustments for daylight savings time.

Selecting Display UTC in logs (instead of local time) specifies the use universal time (UTC) rather than local time for log events.

Selecting Display time in International format displays the date in International format, with the day preceding the month.

After selecting your system time settings, click Apply.

NTP Settings

Network Time Protocol (NTP) is a protocol used to synchronize computer clock times in a network of computers. NTP uses Coordinated Universal Time (UTC) to synchronize computer clock times to a millisecond, and sometimes, to a fraction of a millisecond. The SonicWALL security appliance use an internal list of NTP servers so manually entering a NTP server is optional.

Select Use NTP to set time automatically if you want to use your local server to se t the SonicWALL security appliance clock. You can also configure Update Interval (minutes) for the NTP server to update the SonicWALL security appliance. The default value is 60 minutes.

To add an NTP server to the SonicWALL security appliance configuration, click Add. The Add NTP Server window is displayed. Type the IP address of an NTP server in the NTP Server field. Click Ok. Then click Apply on the System > Time page to update the SonicWALL security appliance. To delete an NTP server, highlight the IP address and click Delete. Or, click Delete All to delete all servers.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Chapter 7: Configuring System Settings

System > Settings

The System > Settings page includes features for managing the SonicWALL security appliance firmware and your custom preferences.

System > Settings

HAPTER

Settings

Import Settings

To import a previously saved preferences file into the SonicWALL security appliance, follow these instructions:

Click Import Settings to import a previously exported preferences file into the SonicWALL security appliance. The Import Settings window is displayed.

Click Browse to locate the file which has a *.exp file name extension.

Select the preferences file.

Click Import, and restart the firewall.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Configuring System Settings

Export Settings

To export configuration settings from the SonicWALL security appliance, use the instructions below:

Click Export Settings.

Click Export.

Click Save, and then select a loca tion to save the file. The file is named “sonicwall.ex p” but can be renamed.

Click Save. This process can take up to a minute. The exported preferences file can be imported into the SonicWALL security appliance if it is necessary to reset the firmware.

Firmware Management

The Firmware Management section provides settings that allow for easy firmware upgrade and preferences management. The Firmware Management section allows you to:

• Upload and download firmware images and system settings.

• Boot to your choice of firmware and system settings.

• Manage system backups.

• Return your SonicWALL security appliance to the previous system state.

Note: SonicWALL security appliance SafeMode, which uses the same settings used in the Firmware



Management section, provides quick recovery from uncertain states.

New Firmware

To receive automatic notification of new firmware, select the Notify me when new firmware is available check box. If you enable this feature, the SonicWALL security appliance sends a status

message to the SonicWALL security appliance firmware server daily with the following information:

• SonicWALL Serial Number

• Product Type

• Current Firmware Version

• Language

• Currently Available Memory

• ROM Version

• Options and Upgrades

Alert: After the initial 90 days from purchase, firmware updates are available only to registered users

with a valid support contract. You must register your SonicWALL security appliance at

<https://www.mysonicwall.com>.

Updating Firmware Manually

Click Upload New Firmware to load new firmware in the SonicWALL security appliance. A dialogue box is displayed warning you that your current firmware version is overwritten by the uploaded version. You should export your current SonicWALL security appliance settings to a preferences file before uploading new firmware. Click Browse to locate the new firmware version. Once you locate the file, click Upload to load the new firmware onto the SonicWALL security appliance.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Firmware Management Settings

The Firmware Management table has the following columns:

• Firmware Image - In this column, types of firmware images are listed:

 Current Firmware, firmware currently loaded on the SonicWALL security appliance.  Current Firmware with Factory Default Settings, rebooting using this firmware image resets

the SonicWALL security appliance to its default IP addresses, user name, and password

 Current Firmware with Backup Settings, a firmware image created by clicking Create

Backup Settings. This only displays after you create a backup image.

 Uploaded Firmware, the last version uploaded from mysonicwall.com. This only displays after

you upload new firmware.

 Uploaded Firmware with Factory Default Settings, rebooting using this firmware image

resets the SonicWALL security appliance to its default IP addresses, user name, and password. This only displays after you upload new firmware.

 Uploaded Firmware with Backup Settings, a firmware image created by clicking Create

Backup Settings. This only displays if you upload new firmware after you create a backup

image.

• Version - The firmware version is listed in this column.

• Date - The day, date, and time of downloading the firmware.

• Size - The size of the firmware file in Megabytes (MB).

• Download - Clicking the icon saves the firmware file to a new location on your computer or network. Only uploaded firmware can be saved to a different location.

• Boot - Clicking the icon reboots the SonicW ALL security app liance with the firmware version listed in the same row.

System > Settings



Alert: When uploading firmware to the SonicWALL securi ty appliance, you must not interrupt the Web browser by closing the browser, clicking a link, or loading a new page. If the browser is inter rupt ed , the firmware may become corrupted.

Note: Clicking Boot next to any firmware image overwrites the existing current firmware image making it the Current Firmware image. On the PRO 5060, the uploaded firmware images are removed from the table after rebooting the SonicWALL security appliance.

SafeMode - Rebooting the SonicW ALL Security Appliance

SafeMode allows easy firmware and preferences management as well as quick recovery from uncertain configuration states. Pressing the Reset button for one second launches the SonicWALL security appliance into SafeMode. SafeMode allows you to select the firmware version to load and reboot the SonicWALL security appliance. To access the SonicWALL security appliance using SafeMode, press the Reset button for 1 second. After the SonicWALL security appliance reboots, open your Web browser and enter the current IP ad dr ess of th e SonicWALL se curity applian ce or the default IP address: 192.168.168.168. The SafeMode page is displayed:

SafeMode allows you to do any of the following:

• Upload and download firmware images to the SonicWALL security appliance.

• Upload and download system settings to the SonicWALL security appliance.

• Boot to your choice of firmware options.

• Create a system backup file.

• Return your SonicWALL security appliance to a previous system state.

System Information

System Information for the SonicWALL security appliance is retained and displayed in this section.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Configuring System Settings

Firmware Management

The Firmware Management table has the following columns:

• Firmware Image - In this column, five types of firmware images are listed:

 Current Firmware, firmware currently loaded on the SonicWALL security appliance  Current Firmware with Factory Default Settings, rebooting using this firmware image resets

the SonicWALL security appliance to its default IP addresses, user name, and password

 Current Firmware with Backup Settings, a firmware image created by clicking Create

Backup Settings. This only displays after you create a backup image.

 Uploaded Firmware, the last version uploaded from mysonicwall.com  Uploaded Firmware with Factory Default Settings, rebooting using this firmware image

resets the SonicWALL security appliance to its default IP addresses, user name, and passwor d

 Uploaded Firmware with Backup Settings, a firmware image created by clicking Create

Backup Settings. This only displays after you create a backup image.

• Version - The firmware version is listed in this column.

• Size - The size of the firmware file in Megabytes (MB).

• Download - Clicking the icon saves the firmware file to a new location on your computer or network. Only uploaded firmware can be saved to a different location.

• Boot - Clicking the icon reboots the SonicW ALL security applian ce with the firmware version liste d in the same row.



Note: Clicking Boot next to any firmware image overwrites the existing current firmware image making it the Current Firmware image.

Click Boot in the firmware row of your choice to restart the SonicWALL security appliance.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

System > Diagnostics

HAPTER

Chapter 8: Performing Diagnostic Tests

and Restarting the SonicWALL

Security Appliance

System > Diagnostics

The System > Diagnostics page provides several diagnostic tools which help troubleshoot network problems as well as CPU and Process Monitors.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Performing Diagnostic Tests and Restarting the SonicWALL Security Appliance

Tech Support Report

The Tech Support Report generates a detailed report of the SonicWALL security appliance configuration and status, and saves it to the local hard disk using the Download Report button. This file can then be e-mailed to SonicWALL Technical Support to help assist with a pro blem.

Alert: You must register your SonicWALL security appliance on mySonicWALL.com to receive

Generating a Tech Support Report

technical support.

Before e-mailing the Tech Support Report to the SonicWALL Technical Support team, complete a Tech Support Request Form at <https://www.mysonicwall.com>. After the form is submitted, a unique case number is returned. Include this case number in all correspondence, as it allows SonicWALL Technical Support to provide you with better service.

In the Tech Support Report section, select any of the following four report options:

• VPN Keys - saves shared secrets, encryption, and authentication keys to the report.

• ARP Cache - saves a table relating IP addresses to the corresponding MAC or physical addresses.

• DHCP Bindings - saves entries from the SonicWALL security appliance DHCP server.

• IKE Info - saves current information about active IKE configurations.

Click Download Report to save the file to your system. When you click Download Report, a warning message is displayed.

Click OK to save the file. Attach the report to your Tech Support Request e-mail.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Diagnostic Tools

You select the diagnostic tool from the Diagnostic Tools menu in the Diagnostic Tool se ction of th e System > Diagnostics page. The following diagnostic tools are available:

• Active Connections Monitor

•CPU Monitor

• DNS Name Lookup

• Find Network Path

• Packet Trace

•Ping

• Process Monitor

• Reverse Name Resolution

Active Connections Monitor

The Active Connections Monitor displays real-time, exportable (plain text or CSV), filterable views of all connections to and through the SonicWALL security appliance.

System > Diagnostics

Active Connections Monitor Settings

You can filter the results to display only connections matching certai n criteria. You can filter by Source IP, Destination IP, Destination Port, Protocol, Src Interface, and Dst Interface. Enter your filter criteria in the Active Connections Monitor Settings table.

The fields you enter values into are combined into a search string with a lo gical AND. For example , if you enter values for Source IP and Destination IP, the search string will look for connections matching:

Source IP AND Destination IP

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Performing Diagnostic Tests and Restarting the SonicWALL Security Appliance

Check the Group box next to any two or more criteria to combine them with a logical OR. For example, if you enter values for Source IP, Destination IP, and Protocol, and check Group next to Source IP and Destination IP, the search string will look for connections matching:

(Source IP OR Destination IP) AND Protocol

Click Apply Filter to apply the filter immediately to the Active Connections Monitor table. Click Reset Filters to clear the filter and display the unfiltered results again.

You can export the list of active connections to a file. Click Export Results, and select if you want the results exported to a plain text file, or a Comma Separated Value (CSV) file for importing to a spreadsheet, reporting tool, or database. If you are prompted to Open or Save the file, select Save. Then enter a filename and path and click OK.

The connections are listed in the Active Connections Monitor table. The table lists:

• Source IP

• Source Port

• Destination IP

• Destination Port

• Protocol

• Tx Bytes

• Rx Bytes

Click on a column heading to sort by that column.

CPU Monitor

The CPU Monitor diagnostic tool shows real-time CPU utilization in second, minute, hour, and day intervals (historical data does not persist across reboots).

Note: High CPU utilization is normal during Web-management page rendering, and while saving



preferences to flash. Utilization by these tasks is an indication that available resources are being efficiently used rather than sitting idle. Traf fic ha nd lin g an d ot he r crit ica l, per fo rma nce-oriented and system tasks are always prioritized by the scheduler, and never experience starvation.

DNS Name Lookup

The SonicWALL security appliance has a DNS lookup tool that returns the IP address of a domain name. Or, if you enter an IP address, it returns the domain name for that address.

Enter the host name or IP address in the Look up name field. Do not add http to the host name.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

The SonicWALL security appliance queries the DNS Server and displays the result in the Result section. It also displays the IP address of the DNS Server used to perform the query.

The DNS Name Lookup section also displays the IP addresses of the DNS Servers configured on the SonicWALL security appliance. If there is no IP address or IP addres ses in the DNS Server fields, you must configure them on the Network > Settings page.

Find Network Path

Find Network Path indicates if an IP host is located on the LAN or WAN ports. This can diagnose a

network configuration problem on the SonicWALL security appliance. For example, if the SonicWALL security appliance indicates that a computer on the Internet is located on the LAN, then the network or Intranet settings may be misconfigured.

System > Diagnostics

Find Network Path can be used to determine if a target device is located behind a network router and the Ethernet address of the target device. It also displays the gateway the device is using and helps isolate configuration problems.

Packet Trace

The Packet Trace tool tracks the status of a communications stream as it moves from source to destination. This is a useful tool to determine if a communications stream is being stopped at the SonicWALL security appliance, or is lost on the Internet.

To interpret this tool, it is necessary to understand the three-way handshake that occurs for every TCP connection. The following displays a typical three-way handshake initiated by a host on the SonicWALL security appliance LAN to a remote host on the WAN.

TCP received on LAN [SYN] From 192.168.168.158 / 1282 (00:a0:4b:05:96:4a)

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Performing Diagnostic Tests and Restarting the SonicWALL Security Appliance

To 204.71.200.74 / 80 (02:00:cf:58:d3:6a)

The SonicWALL security appliance receives SYN from LAN client.

TCP sent on WAN [SYN]

From 207.88.211.116 / 1937 (00:40:10:0c:01:4e) To 204.71.200.74 / 80 (02:00:cf:58:d3:6a)

The SonicWALL security appliance forwards SYN from LAN client to remote host.

TCP received on WAN [SYN,ACK]

From 204.71.200.74 / 80 (02:00:cf:58:d3:6a) To 207.88.211.116 / 1937 (00:40:10:0c:01:4e)

The SonicWALL security appliance receives SYN,ACK from remote host.

TCP sent on LAN [SYN,ACK]

From 204.71.200.74 / 80 (02:00:cf:58:d3:6a) To 192.168.168.158 / 1282 (00:a0:4b:05:96:4a)

The SonicWALL security appliance forwards SYN,ACK to LAN client.

TCP received on LAN [ACK]

From 192.168.168.158 / 1282 (00:a0:4b:05:96:4a) To 204.71.200.74 / 80 (02:00:cf:58:d3:6a)

Client sends a final ACK, and waits for start of data transfer.

TCP sent on WAN [ACK]

From 207.88.211.116 / 1937 (00:40:10:0c:01:4e To 204.71.200.74 / 80 (02:00:cf:58:d3:6a)

The SonicWALL security appliance forwards the client ACK to the remote host and waits for the data transfer to begin.

When using packet traces to isolate network connectivity problems, look for the location where the three-way handshake is breaking down. This helps to determine if the problem resides with the SonicWALL security appliance configuration, or if there is a problem on the Internet.

Select Packet Trace from the Diagnostic tool menu.

Tip: Packet Trace requires an IP address. The SonicWALL security appliance DNS Name Lookup tool can be used to find the IP address of a host.

Enter the IP address of the remote host in the Trace on IP address field, and click Start. You must enter an IP address in the Trace on IP address field; do not enter a host name, such as “www.yahoo.com”. The Trace is off turns from red to green with Trace Active displayed.

Contact the remote host using an IP application such as Web, FTP, or Telnet.

Click Refresh and the packet trace information is displayed.

Click Stop to terminate the packet trace, and Reset to clear the results.

The Captured Packets table displays the packet number and the content of the packet, for instance, ARP Request send on WAN 42 bytes.

Select a packet in the Captured Packets table to display packet details. Packet details include the packet number, time, content, source of the IP address, and the IP address destination.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Ping

The Ping test bounces a packet off a machine on the Internet and returns it to the sender. This test shows if the SonicWALL security appliance is able to co ntact the remote host. If users on the LAN are having problems accessing services on the Internet, try pinging the DNS server, or another machine at the ISP location. If the test is unsuccessful, try pinging devices outside the ISP. If you can ping devices outside of the ISP, then the problem lies with the ISP connection.

Select Ping from the Diagnostic Tool menu.

Enter the IP address or host name of the target device and click Go.

If the test is successful, the SonicWALL security appliance returns a message saying the IP address is alive and the time to return in milliseconds (ms).

Process Monitor

Process Monitor shows individual system processes, their CPU utilization, and their system time.

System > Diagnostics

Reverse Name Resolution

The Reverse Name Resolution tool is similar to the DNS name lookup tool, except that it looks up a server name, given an IP address.

Enter an IP address in the Reverse Lookup the IP Address field, and it checks all DNS servers configured for your security appliance to resolve the IP address into a server name.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Performing Diagnostic Tests and Restarting the SonicWALL Security Appliance

System > Rest art

Click Restart to display the System > Restart page.

The SonicWALL security appliance can be restarted from the Web Management interface. Click Restart SonicWALL and then click Yes to confirm the restart.

The SonicWALL security appliance takes approximately 60 seconds to restart, and the yellow Test light is lit during the restart. During the restart time, Internet access is momentarily interrupted on the LAN.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

ART

Part 3Network

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Chapter 9: Configuring Network Settings

Network > Settings

The Network > Settings page allows you to configure the your network and Internet connectivity settings in the Interface table.

Network > Settings

HAPTER

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Configuring Network Settings

Setup Wizard

The Setup Wizard button accesses the SonicWALL Setup Wizard. offers a easy-to-use method for configuring your SonicWALL security appliance for the most common Internet connectivity options. If you are unsure about configuring network settings manually, use SonicWALL Setup Wizard.

Interfaces

The Interfaces section displays the available network interfaces for your SonicWALL security appliance model. The Interfaces table lists the following information about the interfaces:

• Name - the name of the interface

• Mode - the network addressing mode (the WAN) interface

• IP Address - IP address assigned to the interface or whether ranges are defined for the Opt interface in Transparent mode.

• Subnet Mask - the network mask assigned to the subnet

• Status - the link status and speed

• Configure - click the edit icon to display the properties window for configuring the interface.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Interface Options by SonicWALL Security Appliance

SonicWALL Security Appliance Model Interfaces

Network > Settings

DNS Settings

DNS (Domain Name System) is a hierarchical system for identifying hosts on the Internet or on a private, corporate TCP/IP internetwork. It is a method for identifying hosts with friendly names instead of IP addresses as well as a method for locating hosts. Hosts are located by resolving their names into their associated IP addresses so network communication can be initiated with the host computer.

The DNS Settings setting information is automatically entered when you configure your WAN interface settings. Although, you can enter up to three IP addresses in the DNS Settings section if your WAN Internet connection using static IP addressing. However, at least one IP address of a DNS Server is required to resolve host names to IP addresses or IP addresses to host names.



Note: It is strongly recommended to have at least two DNS IP addresses configured on the SonicWALL security appliance. This provides redundancy in the event one DNS server is unavaila ble.

Enter the IP address in the DNS Server 1 field.

Enter the second IP address in the DNS Server 2 field.

Click Apply for the changes to take effect on the SonicWALL security appliance.

To pass DNS settings to computers on the LAN, you must enable the SonicWALL security appliance DHCP server on the Network > DHCP Server page.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Configuring Network Settings

Configuring the WAN Interface

The Mode menu in the Interfaces table for the WAN interface determines the network address scheme of your SonicWALL security appliance. It includes six options:

• Transparent Mode enables the SonicWALL securi ty appliance to bridge the WAN subnet onto the LAN interface. It requires valid IP addresses for all computers on your network, but allows remote access to authenticated users. Your public WAN IP address is visible to the Internet.

• NAT Enabled mode translates the private IP addresses on the network to the single, valid IP address of the SonicWALL security appliance. Select NAT Enabled if your ISP assigned you only one or two valid IP addresses.

• NA T with DHCP Client mode co nfigures th e So nicWALL security appliance to request IP settings from a DHCP server on the Internet. NAT with DHCP Client is a typical network addressing mode for cable and DSL customers.

• NAT with PPPoE mode uses PPPoE to connect to the Internet. If desktop software and a user name and password is required by your ISP, select NAT with PPPoE.

• NAT with L2TP Client mode uses IPSec to connect a L2TP server and encrypts all data transmitted from the client to the server. However, it does not encrypt network traffic to other destinations.

• NAT with PPTP Client mode uses Point to Point Tunneling Protocol (PPTP) to connect to a remote server. It su pports older Microsoft implementations requiring tunneling connectivity.

Configuring Transparent Mode

Transparent Mode requires valid IP addresses for all computers on your network, and allows remote

access to authenticated users. Your public WAN IP address is visible to the Internet. To enable Transparent Mode, select Transparent M ode from the Mode menu. The WAN and LAN IP addresses are now identical. To complete the configuration, click Intranet in the Network menu list.

Select Specified address ranges are attached to the LAN link.

Click Add in the From Address table.

Enter the range of network IP addresses on th e LAN.

Click OK and then click Apply.

Click Restart in the Status bar of the management interface. The SonicWALL security appliance restarts and updates the configuration.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Configuration Example

Your ISP has given you a public IP address of 66.217.71.191 and a range of public IP address from

66.217.71.192 to 66.217.71.200. To configure the SonicWALL security appliance in Transparent Mode, select Transparent Mode from the Mode menu. Then follow these steps:

Click the icon in the Configure column to display the WAN Settings window.

Enter your IP address, 66.217.71.191, in the WAN IP Address field. Complete the rest of the fields in the WAN Settings window using information provided by the ISP.

Click OK.

Click Intranet in the Network menu list.

Select Specified address ranges are attached to the LAN link.

Click Add in the LAN/WAN Client Address Ranges table.

Enter your IP address, 66.217.71.192, in the IP Address From fiel d.

Enter the IP address, 66.217.71.200, in the IP Address To field and click OK.

Click Apply, and then Restart in the Status bar. The SonicWALL security appliance restarts and updates the configuration.

Configuring the WAN Interface

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Configuring Network Settings

Configuring NAT Enabled

If your ISP provides a static IP address for your Internet connection, use the NAT Enabled.

Select NAT Enabled from the drop-down menu in the Mode column of the Interfaces table.

Click on the edit icon in the Configure column of the WAN interface. The WAN Properties window is displayed.

In the WAN Settings section, enter a valid public IP address in the SonicWALL WAN IP (NAT Public) Address field.

Enter the subnet mask in the WAN Subnet Mask field.

Enter the IP address of the router in the WAN Gateway (Router) Address field.

Click OK.

Configuring NAT with DHCP Client

If your ISP did not provide you with a public IP address, the SonicWALL security appliance can obtain an IP address from a DHCP server at the ISP. NAT with DHCP Client is typically used with cable and DSL connections. To configure NAT with DHCP Client, log into the SonicWALL security appliance and click Network.

Select NAT with DHCP Client from the drop-down menu in the Mode column of the Interfaces table.

Click the edit icon in the WAN entry of the Interfaces table. The WAN Properties window is displayed.

Enter the host name assigned to you by your ISP in the Host Name field. (Optional)

Click Renew to obtain new IP address settings for the SonicWALL security applia nce.

Click Release to remove the IP address settings from the SonicWALL security appliance. Click Refresh to reload the current settings into the SonicWALL security appliance.

Click OK.



Note: DNS Settings are obtained automatically when the SonicWALL security appliance receives its IP address information from the DHCP Server.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Configuring NAT with PPPoE Client

The SonicWALL security appliance can use Point-to-Point Protocol over Ethernet to connect to the Internet. If your ISP requires the installation of desktop software as well as a user name and password to access the Internet, enable NAT with PPPoE Client.

Select NAT with PPPoE Client from the drop-down menu in the Mode column of the Interfaces table.

Click the edit icon in the WAN entry of the Interfaces table. The WAN Properties window is displayed.

Select Obtain an IP Address Automatically if you do not have a p ublic IP address from your ISP. If you have an IP address from your ISP, select Use the following Address, and enter the IP address in the IP address field.

Click the PPPoE tab.

Enter your user name and password provided by your ISP in the User Name and User Password fields.

Select Inactivity Disconnect (minutes) to end the connection after a specified time of inactivity. 10 minutes is the default value.

Click OK.

Configuring the WAN Interface

Configuring NAT with L2TP Client

If your Internet connection is provided through a L2TP server, you must configure the SonicWALL security appliance to use NAT with L2TP Client. L2TP (Layer 2 Tunneling Protocol) provides interoperability between VPN vendors that protocols such as Point-to-Point Tunneling Protocol (PPTP) and Layer 2 Forwarding (L2F) do not have.

Log into the SonicWALL security appliance, and click Network.

Select NAT with L2TP Client from the Network Addressing Mode menu.

Click the edit icon in the WAN entry of the Interfaces table. The WAN Properties window is displayed.

Obtain an IP Address Automatically is selected by default. Enter your host name in the Host Name field. Click Renew to obtain new IP addressing information. Click Release to discard IP addressing information. Click Refresh to reload the IP addressing information.

If you have IP addressing information, select Use the following IP Address.

Enter your public IP address in the SonicWALL WAN IP (NAT Public) Address field.

Enter the WAN Subnet information in the WAN Subnet Mask field.

Enter the WAN Gateway IP address in the WAN Gateway (Router) Address field.

Click on the L2TP tab.

Enter your user name in the User Name field.

Enter your password in the User Password field.

Enter the IP address of the L2TP Server in the L2TP Server IP Address field.

Enter the host name of the L2TP Server in the L2TP Host Name field.

Select Inactivity Disconnect (minutes) to end the connection after a specified time of inactivity.

Once a connection is established, the SonicWALL security appliance WAN IP address, the Gateway address and the DNS Server IP addresses are displayed in the Settings Acquired via L2TP section.

Click OK.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Configuring Network Settings

Configuring NAT with PPTP Client

If your Internet connection is provided through a PPTP server, you must configure the SonicWALL security appliance to use NAT with PPTP Client.

Log into the SonicWALL security appliance, and click Network.

Select NAT with PPTP Client from the Network Addressing Mode menu.

Click the edit icon in the WAN entry of the Interfaces table. The WAN Properties window is displayed.

If you have IP addressing information, select Use the following IP Address.

Enter the WAN IP address in the SonicWALL WAN IP (NAT Public) Address field.

Enter the WAN Subnet information in the WAN Subnet Mask field.

Enter the WAN Gateway IP address in the WAN Gateway (Router) Address field.

Click on the PPTP tab.

Enter your user name in the User Name field.

Enter your password in the User Password field.

Enter the IP address of the PPTP Server in the PPTP Server IP Address field.

Enter the host name of the PPTP Client in the PPTP (Client) Host Name field.

Select Inactivity Disconnect (minutes) to end the connection after a specified time of inactivity.

Once a connection is established, the SonicWALL security appliance WAN IP address, the Gateway address and the DNS Server IP addresses are displayed in the Settings Acquired via PPTP section.

Click OK.

Configuring Ethernet Settings in WAN Properties

The Ethernet tab in the WAN Properties window allows you to manage the Ethernet settings of the WAN interface. For most networks, you do not need to make any changes on this page.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE



Configuring the WAN Interface

The WAN Interface Settings information at the top of the Ethernet page is the Ethernet address of the WAN interface on the SonicWALL security appliance.

Auto Negotiate is selected by default because the Ethernet links automatically negotiate the speed and duplex mode of the Ethernet connection. If you select Force, you must force the connection speed and duplex from the Ethernet card to the SonicWALL security appliance as well.

If you select Force, an information dialog is displayed with the following message:

Note: Disabling Auto Negotiate on this interface will also disable AutoMDIX on this interface. You may need to switch from a straight-through Ethernet cable to a cross over Ethernet cable, or viceversa. Click OK to proceed.

Select Proxy management workstation Ethernet address on WAN if you are managing the Ethernet connection from the LAN side of your netwo rk. The SonicWALL se curity appliance takes the Ethernet address of the computer managing the SonicWALL security appliance and proxies that address onto the WAN port of the SonicWALL security appliance. For instance, if your ISP is using the MAC address of your network card for identification, you can pr oxy the MAC address of your network card onto the SonicWALL WAN port.

Tip: If you are not managing the Ethernet connection from the LAN, the SonicWALL security appliance looks for a random computer on the network creating a lengthy search process.

Note: If you enable this feature, it may take the SonicWALL a lengthy period of time to locate the management station.

Fragment non-VPN outbound packets larger than WAN MTU is selected by default with a default WAN MTU value of 1500 based on the Ethernet standard MTU. Specifies all non-VPN outbound

packets larger than this Interface’s MTU be fragmented. The minimum value is 68. Decreasing the packet size can improve network performance as large packets require more network transmissions when a router cannot handle the packet size. Specifying the fragmenting of VPN outbound packets is set in the VPN > Advanced page.

Ignore Don’t Fragment (DF) Bit - Overrides DF bits in packets. Select Enable Bandwidth Management to allocate bandwidth resources to critical applications on

the your network. Enter the total bandwidth available in th e Ava ila ble WAN Ba ndwidt h (K bps ) field.

20.00 Kbps is the default available WAN bandwidth.

Alert: Bandwidth management is only available on outbound network tr affic.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Configuring Network Settings

Configuring the LAN Interface

Basic LAN Configuration

Click on the edit icon in the Configure column of the LAN information. The LAN Properties window is displayed.

In the General Settings section, enter a valid private IP address in the SonicWALL LAN IP field.

Enter the subnet mask in the LAN Subnet Mask field.

Click OK.

Configuring Multiple LAN Subnets

This multiple LAN subnet feature supports legacy networks incorporating the SonicWALL security appliance, as well as enable you to add more nodes if the original subnet is full. To configure this feature, you must have an additional IP address assigned to the SonicWALL security appliance. All users on the subnet must use this address as their default router/gateway address.

Click on the edit icon in the Configure column of the LAN information. The LAN Properties window is displayed.

Click Add. The Add LAN Subnet Entry window is displayed.

Enter the additional LAN IP address in the IP Address field.

Enter the subnet in the Subnet Mask field. You can edit or delete any LAN subnet entries. Select an entry and click Edit to change the information. Select an entry and click Delete to remove the entry from the table. Click Delete All to remove all the entries in the table.

Click OK.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Configuring Ethernet Settings

The Ethernet tab in the LAN Properties window allows you to manage the Ethernet settings of LAN interface. For most networks, you do not need to make any changes on this page.

Configuring the OPT Interface

The LAN Interface Settings information at the top of the Ethernet page is the Ethernet address of the LAN interface on the SonicWALL security appliance.

If you select Force, an information dialog is displayed with the following message:



Configuring the OPT Interface

You can configure the OPT interface in either Tran sp ar e nt Mod e or NAT Mo d e:

• Transparent Mode enables the SonicWALL security appliance to bridge the OPT sub net onto the WAN interface. It requires valid IP addresses for all computers connected to the OPT interface on your network, but allows remote access to authenticated users. You can use the OPT interface in Transpar ent mode for public se rvers and devices with st atic IP a ddresses you want visible ou t side your SonicWALL security appliance-protected network.

• NAT Mode translates the pr iva te IP addr es se s of de vice s conn ected to the OPT interface to a sin- gle, static IP address.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Configuring Network Settings

Configuring Transparent Mode

Transparent Mode requires valid IP addresses for all computers on your network, and allows remote

access to authenticated users. To enable Transparent Mode:

Click the Edit Icon in the line for the OPT interface in the Interfaces table. The OPT Properties window displays.



Select OPT in Transparent Mode. The OPT and WAN IP addresses are now identical.

To add an address or range of addresses, click Add below the address range list. The Add Opt Entry dialog box displays.

Enter a single IP address or the beginning of a range of IP addresses in the IP Address From field.

Note: The address or range of addresses must be within the a vailable r ange of IP addre sses for your WAN interface.

For a range of IP addresses, enter the ending address in the IP Address To field.

Click OK and then click Apply.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Configuring NAT Mode

NAT Enabled mode gives the OPT interface a single IP address an d a su bn et of ava ilab le IP

address. The IP addresses of devices connecting to the OPT interface are translated to the single OPT interface IP address.

Click the Edit Icon in the line for the OPT interface in the Interfaces table. The OPT Properties window displays.

Configuring the DMZ Interface

Select OPT in NAT Mode.

Enter an IP address in the OPT Private Address field.

Enter the subnet mask in the OPT Subnet Mask field.

If you want to use the OPT interface as a DMZ, enter a publicly visible IP address in the DMZ NAT Many-to-One Public Address field. This address will be visible to the internet for public servers in your network.

Click OK.

Configuring the DMZ Interface

You can configure the DMZ interface in either Transparent Mode or NAT Mode:

• Transparent Mode enables the SonicWALL security appliance to bridge the DMZ subnet onto the WAN interface. It requires valid IP ad dresses for all computers connected to the DMZ interface on your network, but allows remote access to authenticated users. You can use the DMZ interface in Transpar ent mode for public se rvers and devices with st atic IP a ddresses you want visible ou t side your SonicWALL security appliance-protected network.

• NAT Mode translates the private IP addresses of devices connected to the DMZ interface to a sin- gle, static IP address.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Configuring Network Settings

Configuring Transparent Mode

Transparent Mode requires valid IP addresses for all computers on your network, and allows remote

access to authenticated users. To enable Transparent Mode:

Click the Edit Icon in the line for the DMZ interface in the Interfaces table. The DMZ Properties window displays.



Select DMZ in Transparent Mode. The OPT and WAN IP addresses are now identical.

To add an address or range of addresses, click Add below the address range list. The Add DMZ Entry dialog box displays.

Enter a single IP address or the beginning of a range of IP addresses in the IP Address From field.

Note: The address or range of addresses must be within the a vailable r ange of IP addre sses for your WAN interface.

For a range of IP addresses, enter the ending address in the IP Address To field.

Click OK and then click Apply.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Configuring the Modem Interface (TZ 170 SP)

Configuring NAT Mode

NAT Mode gives the DMZ interface a single IP address and a subnet of available IP address. The IP

addresses of devices connecting to the DMZ interface are translated to the single DMZ interface IP address.

Click the edit icon in the line for the DMZ interface in the Interfaces table. The DMZ Properties window displays.

Select DMZ in NAT Mode.

Enter an IP address in the DMZ Private Address field.

Enter the subnet mask in the DMZ Subnet Mask field.

To use the DMZ interface as a DMZ, enter a publicly visible IP address in the DMZ NAT Many-toOne Public Address field. This address will be visible to the Internet for public servers in your

network.

Click OK.

Configuring the Modem Interface (TZ 170 SP)

The SonicWALL TZ 170 SP includes the Modem interface in the Interfaces table on the Network > Settings page.

Clicking the edit icon for the Modem interface displays the Modem Settings window for configuring the modem properties.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Configuring Network Settings

Settings

Modem Settings

Profiles

Speaker Volume - choose On or Off for your modem speaker volume. The default is On. Modem Initialization - You can specify the country to initialize your modem by choosing Initialize

Modem For Use In and specifying the country from the menu or specify the initialization of your

modem using AT commands by selecting Initialize Modem Using AT Commands and entering your AT Commands in the text field.

Select your primary profile from the Primary Profile menu. You create th e profiles for this menu in the Modem > Dialup Profiles page. If you have more than one dial-up ISP account, you can specify a secondary profile from the Secondary Profile menu.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Failover

The Failover page in the Modem Setting window includes the same settings on the Modem > Failover page. If you configured the failover settings on the Modem > Failover page, they are

displayed in the Failover page. If you have not configured Failover settings, use the following instructions to configure the Failover Settings:

1 2

Configuring the Modem Interface (TZ 170 SP)

Select Enable WAN Failover. Select Enable Preempt Mode if you want the primary WAN Ethernet interface to take over from

the secondary modem WAN interface when it becomes active after a failure. If you do not enable Pre-empt Mode, the secondary WAN modem interface remains active as the WAN interface until you click Disconnect.

Select Enable Probing. Probing for WAN connectivity occurs over the Ethernet connection, the dial-up connection, or both. When probing is disabled on the Ethernet link, the SonicWALL security appliance only performs link detection. If the Ethernet connection is lost for a duration of 5-9 seconds, the SonicWALL security applianc e co nsiders the Ethernet connection to be unavailable. If the Ethernet link is lost for 0-4 seconds, the SonicWALL security appliance do es not consider the connection to be lost. If you are swapping cables quickly, unnecessary WAN failover does not occur on the SonicWALL security appliance. If probing is enabled and the cable is unplugged, the 5-9 seconds link detection does not occur. Instead, the probing rules apply to the connection using the parameters configured for Probe Interval (seconds) and Failover Trigger Level (missed probes) settings. If probing is enabled on dialup, the dialup connection is terminated and re-established when probing fails over the modem.

Select an option from the Probe through menu. Select Ethernet Only to probe the Ethernet WAN connection and failover to the modem when the connection is lost. Select Modem Only to probe a dial-up connection and have the modem redial when the dial-up co nnection is lost. Select Modem and Ethernet to enable both types of probing on the SP.

Enter the IP address for the probe target in the Probe Target (IP Address) field. The Probe IP address is a static IP address on the WAN. If this field is left blank, or 0.0.0.0 is entered as the address, the Probe Target is the WAN Gateway IP address.

Note: The probe is a ping sent to the specified IP address to determine Internet connectivity.



SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Select ICMP Probing or TCP Probing from the Probe Type options. If you select TCP Probing, enter the TCP port number in the TCP port field.

In the Probe Interval (seconds) field, enter the amount of time between probes to the Probe Target. The default value is 5 seconds. To deactivate the Probe Detection feature, enter 0 as the

HAPTER

Configuring Network Settings

value. In this case, the WAN failover only occurs when loss of the physical WAN Ethernet connection occurs on the SonicWALL security appliance.

Enter the number of missed probes required for the WAN failo ver to occur in the Failover Trigger Level (missed probes) field.

Enter a value for the number of successful probes required to reactivate the primary connection in the Successful Probes to Reactivate Primary field. The default value is five (5). By requiring a number of successful probes before the SonicWALL security appliance returns to its primary connection, you can prevent the SonicWALL security appliance from returning to the primary connection before the primary connection becomes stable.

Advanced

The Advanced page allows you remotely trigger the modem to dial-out to establish an WAN connection. Selecting Enable Remotely Triggered Dial-out configures the modem to accept remotely triggered dial-out.

If you check Requires Authentication, enter a password in the Password and Confirm Password fields. You will be prompted for a password before being allowed to trigger a dial-out.

Activating the Modem

If the modem is inactive, an inactive link and Connect button are displayed in the Status column of the Interfaces table on the Network>Settings page. Clicking the Connect button establishes your modem connection. Once the connection is established, the inactive to active

and Disconnect.

link and Connect button change

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Configuring WLAN Properties (TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless)

The SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless includes the WLAN interface in the Interfaces table on the Network>Settings page.

Clicking the Edit icon for the WLAN interface displays the WLAN Settings window for configuring the WLAN properties.

•The Enable WLAN setting is checked by default to activate the WLAN interface on the SonicWALL security appliance.

•Select WiFiSec Enforcement to require that all traffic that enters into the WLAN interface be either IPSec traffic, WPA traffic, or both. With WiFiSec Enforcement enabled, all non-guest wireless clients are required to use the strong security of IPSec. The VPN connection inherent in WiFiSec terminates at the GroupVPN Policy, which you can configure on the VPN > Settings page.

• If you have not selected WiFiSec Enforcement, you can select Require WiFiSec for Site-to-Site VPN T unnel Traversal to require WiFiSec security for all wireless conn ections thr ough the WLAN zone that are part of a site-to-site VPN.

• Click Trust WPA traffic to accept WPA as an allowable alternative to IPSec. The SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless supports both WPA-PSK (Pre-shared key) and WPA-EAP (Extensible Authentication Protocol using an external 802.1x/EAP capable RADIUS server).

• WLAN IP Address: The IP address of the SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless WLAN interface.

• WLAN Subnet Mask: The subnet of the SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless WLAN interface.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

HAPTER

Configuring Network Settings

• SSID: Enter a recognizable string for the SSI D for the SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless security appliance. This is the name that will appear in clients’ lists of available wireless connections.

• Radio Mode: The default 2.4GHZ 802.11b/g mixed enables the SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless to support both 802.11b and 802.11g wireless card clients.

• Country Code: Select the country where you are operating the SonicWALL TZ 50 Wireless/TZ 150 Wireless/TZ 170 Wireless. The country code determines wh ich Regulatory Domain the r adio operation falls under.

• Channel: Select the channel the radio will operate on. The default is AutoChannel, which automatically selects the channel with the least interference. Use AutoChannel unless you have a specific reason to use or avoid specific channels.

SONICWALL SONICOS STANDARD 3.0 ADMINISTRATOR’S GUIDE

Chapter 10: Configuring One-to-One NAT

Network > One-to-One NAT

One-to-One NAT maps valid, external addresses to private addresses hidden by NAT. Computers on your private LAN or OPT interface are accessed on the Internet at the corresponding public IP addresses.

Network > One-to-One NAT

HAPTER

You can create a relationship between internal and external addresses by defining internal and external address ranges. Once the relat ion sh ip is defined, the computer with the first IP address of the private address range is accessible at the first IP address of the external address range, the second computer at the second external IP address, etc.

To configure One-to-One NAT, select the Network > One-to-One NAT page.

To configure One-to-One NAT, complete the following instructions.

Select the Enable One-to-One NAT check box.

Click Add. The Add NAT Entry window is displayed.

Enter the beginning IP address of the private address range being mapped in the Private Range Start field. This is the IP address of the first machine that is accessible from the Internet.
